CAD Audio TX3000N Wireless Microphone User Manual Manual
CAD Audio, LLC Wireless Microphone Manual
Users Manual
Product Name: Wireless Microphone

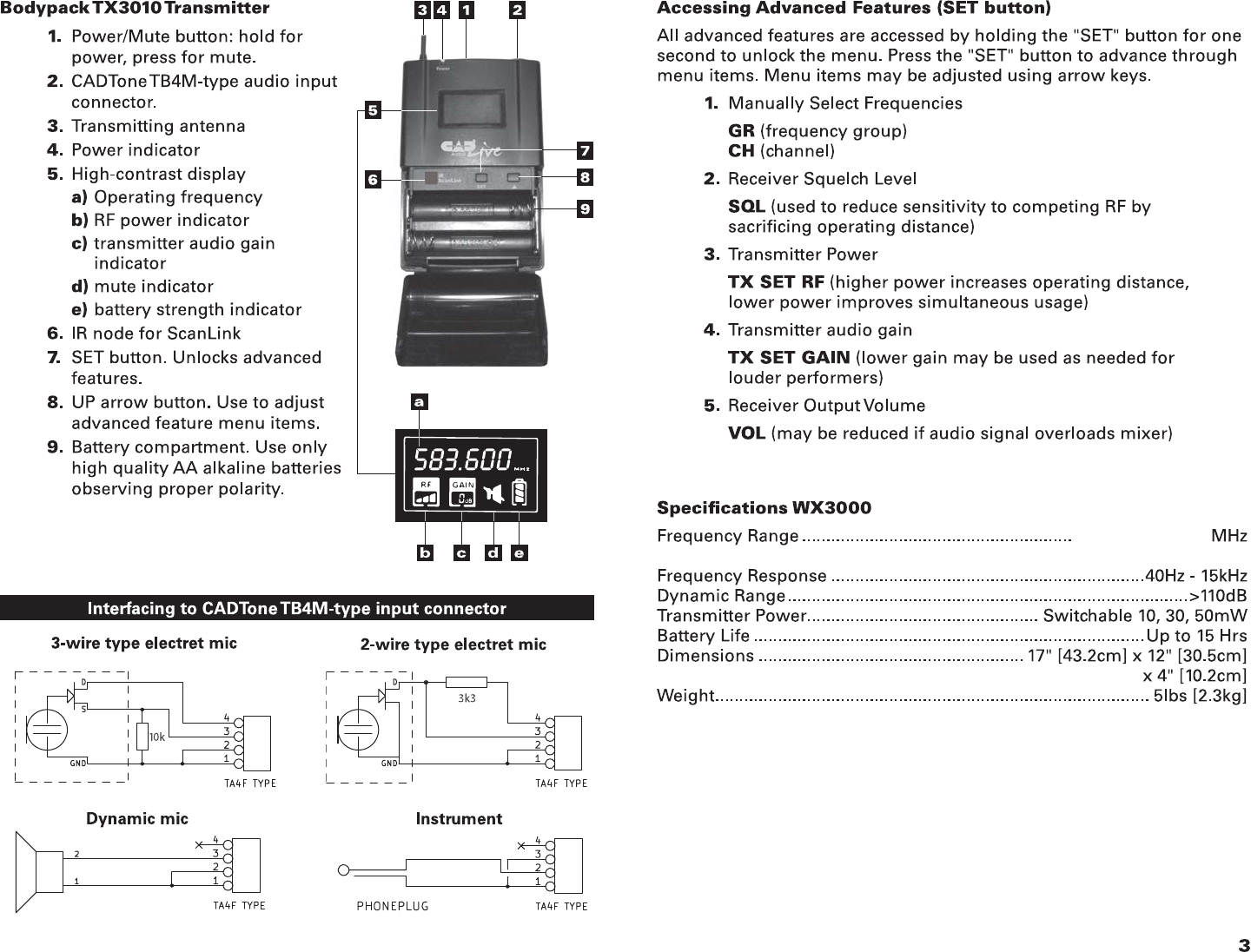

For Bodypack transmitter
Model: TX3010N
Product Name: Wireless Microphone
For Bodypack transmitter
Model: TX3010N
Product Name: Wireless Microphone
For Hanheld transmitter
Model: TX3000N
Two-Year Limited Warranty
CAD Audio hereby warrants that this product will be free of defects in
material and workmanship for a period of two years from the date of
purchase. In the unlikely event that a defect occurs CAD Audio will, at
its option, either repair or replace with a new unit of equal or greater
value. Retain proof of purchase to validate the purchase date and return
it with any warranty claim.
This warranty excludes exterior nish or appearance, damage from
abuse, misuse of the product, use contrary to CAD Audio’s instructions
or unauthorized repair. All implied warranties, merchantability, or tness
for a particular purpose is hereby disclaimed and CAD Audio hereby
disclaims liability for incidental, special or consequential damages
resulting from the use or unavailability of this product.
This warranty gives you specic legal rights and you may have other
rights that vary from state to state. Some states do not allow the exclusion
or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above exclusions and
limitations may not apply to you.
Note: No other warranty, written or oral is authorized by CAD Audio.
Shipping Instructions
Please call our customer service department at 440-349-4900 for a
pre-approved return authorization number.
Carefully repack the unit and return the insured package to:
CAD Audio, 6573 Cochran Road, Building I, Solon, Ohio 44139.
RETURNS WITHOUT A PRE-APPROVED RETURN AUTHORIZATION
NUMBER WILL BE REFUSED.
If outside the United States, contact your local dealer or distributor for
warranty details.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1)this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
FCC warning statement
11
1
CADLiveTM WX3000
Introduction
CADLiveTM is designed to outperform your expectations and deliver
exceptional performance. Engineered to compliment the new
generation of exceptional sound systems - The CADLive Series taps our
Equitek studio heritage along with our live sound know-how in creating
an impactful and easy-to-use line of mics.
The CADLive 3000 series feature True Diversity operation to minimize
multipath interference along with CADLock™ Automatic Tone Encoded
Squelch to eliminate unauthorized transmissions in the signal path.
Frequency agile design when partnered with ScanLink™ technology will
precisely scan, select and link to the optimum channel allowing for an
easy, exible frequency plan.
The CADLive handheld transmitter features metal construction and
the CADLive D90 Supercardioid dynamic capsule provides a powerful,
smooth and highly articulate prole. The handheld and body pack
transmitters also include SoftTouch™ multi-function On-Off/Mute
switches. CADLive bodypack transmitters are equipped with CADTone™
circuitry ensuring accurate reproduction of Hi-Z guitar and Lo-Z mic
inputs.
CADLive wireless features 10, 30, 50mW transmitter power adjustment
and dynamic range up to 110dB. Receivers and transmitters are
equipped with a high denition LCD display and full RF, AF, Battery Life,
Mic Sensitivity and RF power metering.
Receivers are housed in an all-metal chassis and supplied with single/
dual rack ears and a BNC relocation kit. Body pack systems include
Equitek E19 earworn and E29 lavalier mics. Both systems are supplied
with a heavy-duty carry case.
The CADLiveTM WX3000 includes the following features:
• True Diversity to minimize multipath interference
• CADLock™ Automatic Tone Encoded Squelch eliminates
unauthorized interference
• Frequency agile operation for maximum frequency plan exibility
• ScanLink™ technology for instantaneous and automatic
channel conguration
• CADTone™ Body Pack input – Optimized Impedance interface -
Hi-Z for Guitar and Lo-Z for mic
• Metal construction Handheld Transmitter equipped with
CADLive™ D90 capsule
• High Contrast LCD displays on TX and RX
• Transmitters feature 10, 30, 50mW power adjustment to aid
in multiple system applications
Individuals with cardiac pacemakers and other similar medical devices
should consult with their physician before using any RF devices.
Though the output level of this wireless system is below 50 milliwatts,
the proximity of the transmitter to the implant device could pose a threat.
As with any wireless product, environmental conditions can reduce or
in some cases prohibit a successful connection between the transmitter
and the receiver.
This device complies with Part 15 of the FCC Rules. Most users of
CAD Audio wireless products in the United States do not need a license
for operation. However, the rules for unlicensed operation state that
this device must not operate in excess of 50 milliwatts and it must not
cause harmful interference to other wireless devices, and must accept
interference received from other devices. Wireless products meeting
CAD factory standards adhere to these rules. The FCC reserves the right
to change these rules at any time. For more information contact the
FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless
microphone website at:
www.fcc.gov/cgb/wirelessmicrophones
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et d’un
gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l’intention des autres utilisateurs, il faut choisir le type d’antenne
et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une
communication satisfaisante.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autoris é e aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
10
2
Startup Guide
1. Install new high quality alkaline batteries into transmitter,
observing proper polarity.
2. Power up receiver by holding power button for one second.
3. Hold the SET button for one second to unlock the
receiver menu.
4. Hold the SCAN button for one second to activate the ScanLinkTM
environmental frequency analysis, which automatically selects
a clear operating frequency.
5. Turn on the transmitter by holding the power button
for one second.
6. Open the battery compartment to reveal the IR node.
7. Press the LINK button (note the IR node will illuminate). Align
the two IR nodes (transmitter and receiver) at a distance of
4"-12" (ambient room light can affect distance) for a few
seconds while the receiver updates the transmitter.
Your system is now ScanLink'd.
• Simultaneous usage of up to 15 systems per frequency band
• Dynamic Range > 110dB
• AA Batteries with up to 15 Hrs of battery life
• Systems ship with rack ears single/dual BNC relocation kit and
durable carry case
• BodyPack systems include miniature E19 Earworn, E29 Lav,
WXGTR guitar cable
• XLR and ¼" outputs on receiver
DA4090 DISTRIBUTION AMPLIFIER
LINK
SET
SCAN
IR
ScanLink
LINK
SET
SCAN
IR
ScanLink
LINK
SET
SCAN
IR
ScanLink
LINK
SET
SCAN
IR
ScanLink

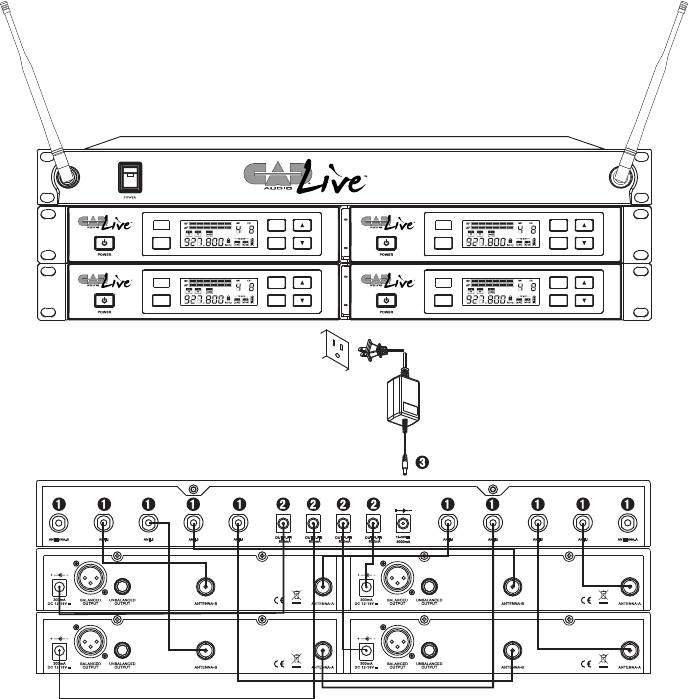

Using the DA4090 Distribution Amplier to Simplify
Multiple-System Installations
1. BNC 50 ohm cable.
2. Power cable.
3. Power adapter.
9
520.600 - 541.625
8
TX3000N power: 3.2 dBm
TX3010N power: 4.2 dBm
7

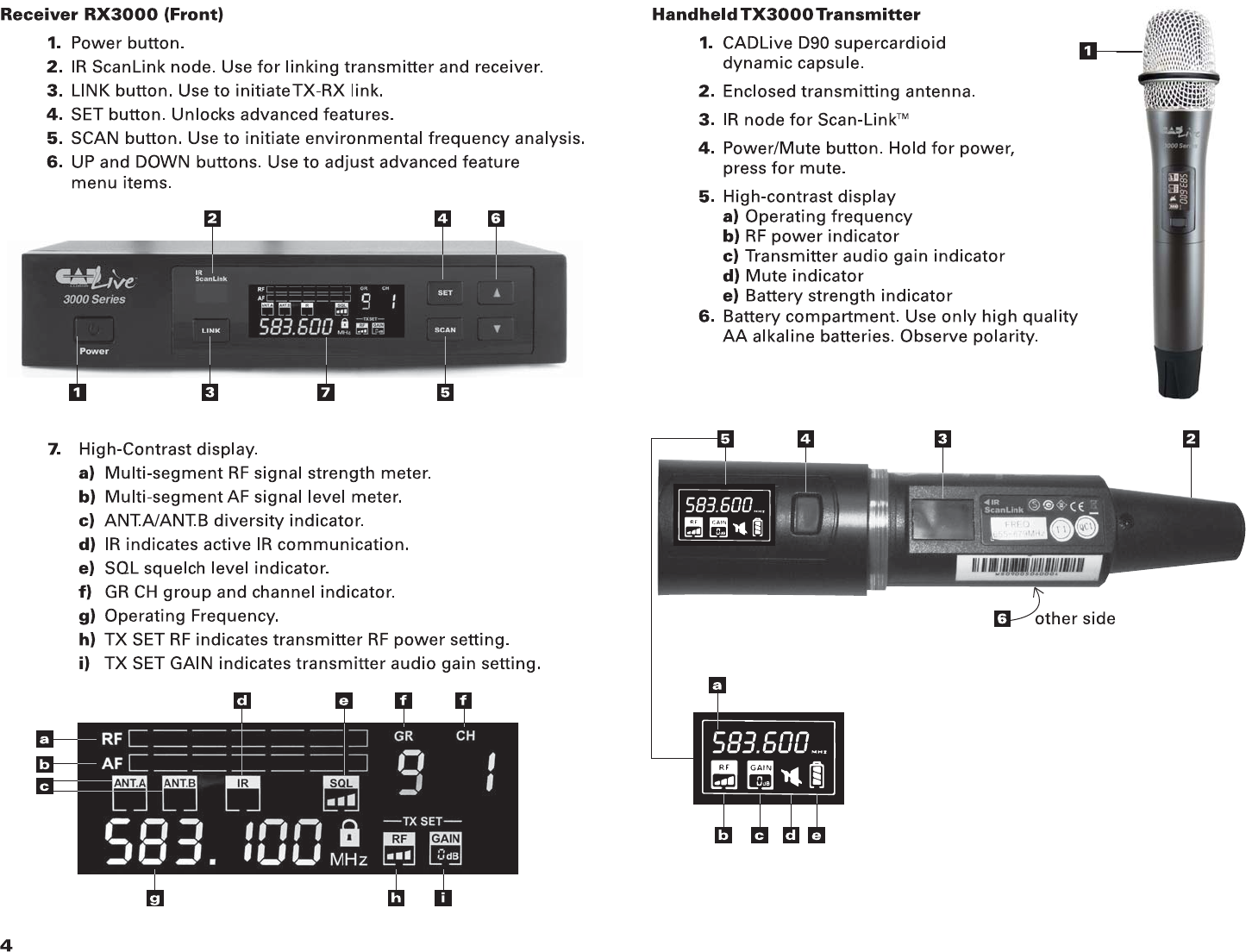

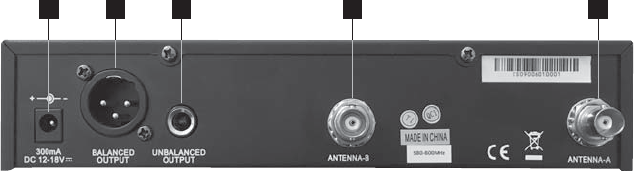

Receiver RX3000 (Rear)
1.
DC power input jack. 12-18VDC, 300mA min, center positive.
2.
XLRM-type low-impedance balanced audio output.
3.
1/4" [6.35mm] high-level unbalanced ouput
4.
BNC 50 ohm antenna inputs.
1 2 3 4 4
5
Channelization
These frequencies have been approved for use within the United States
and Canada as of the date of publication of this manual. It is the user’s
responsibility to comply with local regulations.
6
