CAD CAPTURE GROUP OEH01 OCCUPEYE OEH01 - OCCUPANCY MONITORING SYSTEM HOST User Manual OccupEye

CAD-CAPTURE GROUP LIMITED OCCUPEYE OEH01 - OCCUPANCY MONITORING SYSTEM HOST OccupEye

Users Manual

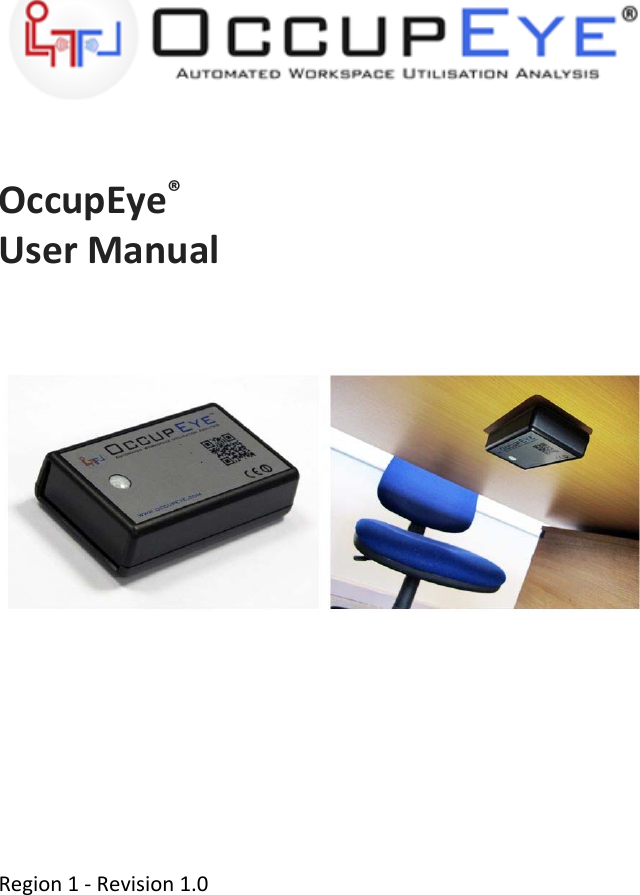

OccupEye®UserManualRegion1‐Revision1.0
OccupEyePage2of8ContentsContents...............................................................................................2Introduction..........................................................................................3Commissioning.....................................................................................4Operation.............................................................................................5Support.................................................................................................6FCCWarningStatement.......................................................................7

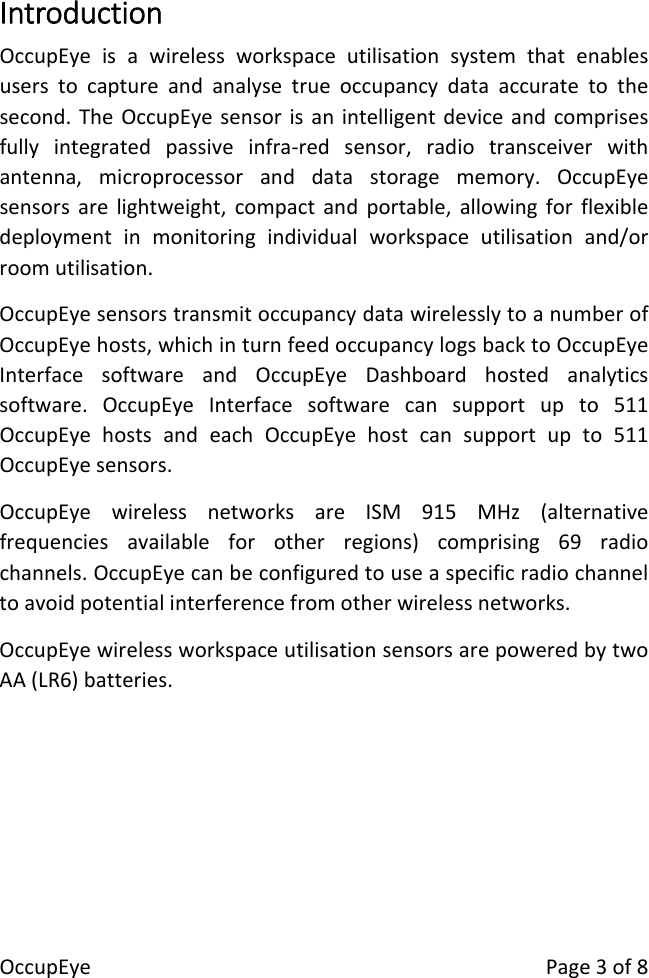

OccupEyePage3of8IntroductionOccupEyeisawirelessworkspaceutilisationsystemthatenablesuserstocaptureandanalysetrueoccupancydataaccuratetothesecond.TheOccupEyesensorisanintelligentdeviceandcomprisesfullyintegratedpassiveinfra‐redsensor,radiotransceiverwithantenna,microprocessoranddatastoragememory.OccupEyesensorsarelightweight,compactandportable,allowingforflexibledeploymentinmonitoringindividualworkspaceutilisationand/orroomutilisation.OccupEyesensorstransmitoccupancydatawirelesslytoanumberofOccupEyehosts,whichinturnfeedoccupancylogsbacktoOccupEyeInterfacesoftwareandOccupEyeDashboardhostedanalyticssoftware.OccupEyeInterfacesoftwarecansupportupto511OccupEyehostsandeachOccupEyehostcansupportupto511OccupEyesensors.OccupEyewirelessnetworksareISM915MHz(alternativefrequenciesavailableforotherregions)comprising69radiochannels.OccupEyecanbeconfiguredtouseaspecificradiochanneltoavoidpotentialinterferencefromotherwirelessnetworks.OccupEyewirelessworkspaceutilisationsensorsarepoweredbytwoAA(LR6)batteries.

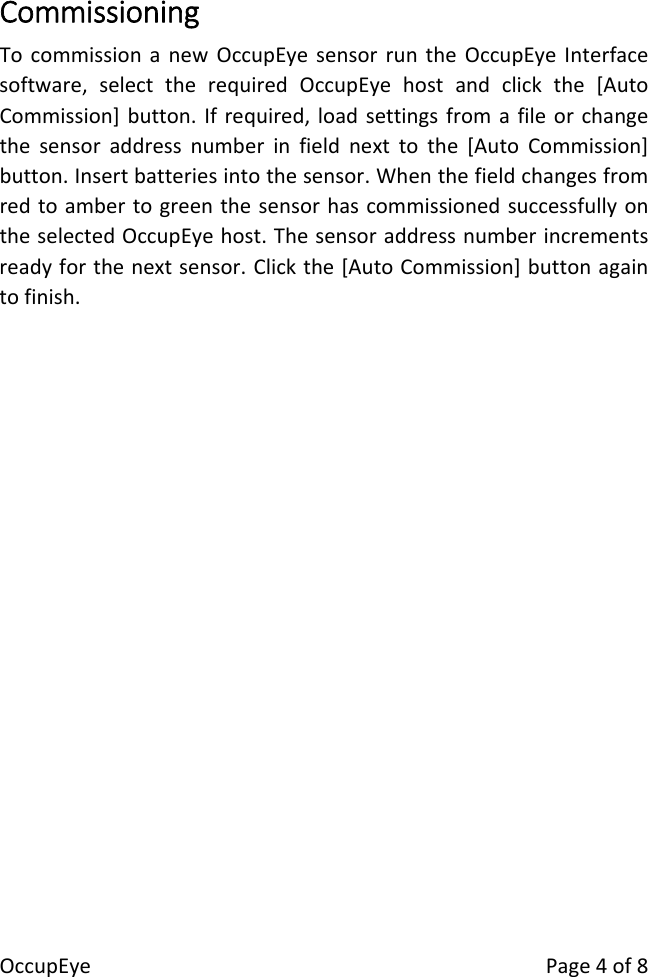

OccupEyePage4of8CommissioningTocommissionanewOccupEyesensorruntheOccupEyeInterfacesoftware,selecttherequiredOccupEyehostandclickthe[AutoCommission]button.Ifrequired,loadsettingsfromafileorchangethesensoraddressnumberinfieldnexttothe[AutoCommission]button.Insertbatteriesintothesensor.WhenthefieldchangesfromredtoambertogreenthesensorhascommissionedsuccessfullyontheselectedOccupEyehost.Thesensoraddressnumberincrementsreadyforthenextsensor.Clickthe[AutoCommission]buttonagaintofinish.

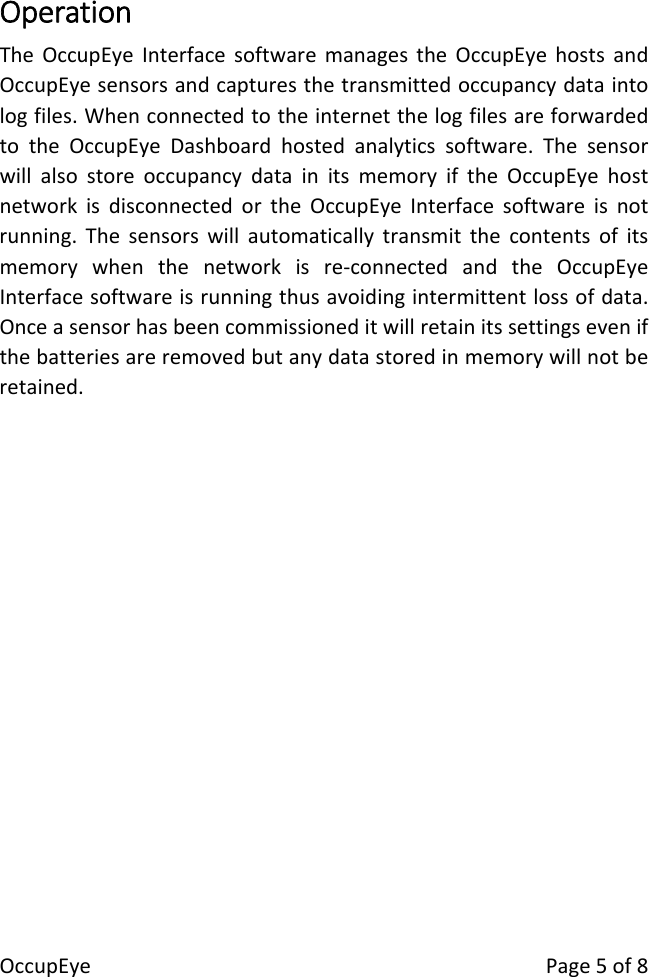

OccupEyePage5of8OperationTheOccupEyeInterfacesoftwaremanagestheOccupEyehostsandOccupEyesensorsandcapturesthetransmittedoccupancydataintologfiles.WhenconnectedtotheinternetthelogfilesareforwardedtotheOccupEyeDashboardhostedanalyticssoftware.ThesensorwillalsostoreoccupancydatainitsmemoryiftheOccupEyehostnetworkisdisconnectedortheOccupEyeInterfacesoftwareisnotrunning.Thesensorswillautomaticallytransmitthecontentsofitsmemorywhenthenetworkisre‐connectedandtheOccupEyeInterfacesoftwareisrunningthusavoidingintermittentlossofdata.Onceasensorhasbeencommissioneditwillretainitssettingsevenifthebatteriesareremovedbutanydatastoredinmemorywillnotberetained.

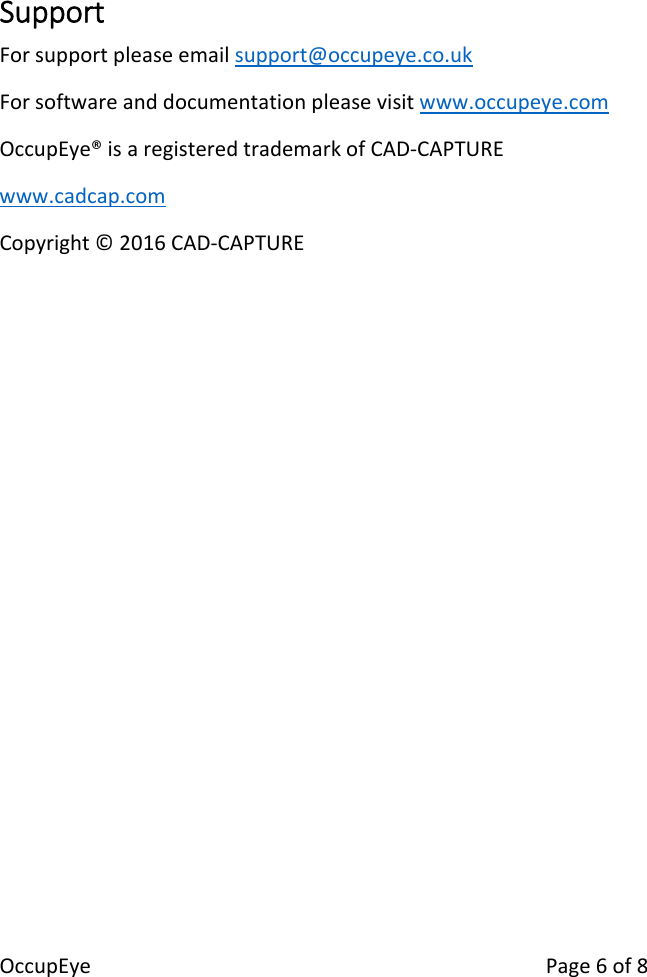

OccupEyePage6of8SupportForsupportpleaseemailsupport@occupeye.co.ukForsoftwareanddocumentationpleasevisitwww.occupeye.comOccupEye®isaregisteredtrademarkofCAD‐CAPTUREwww.cadcap.comCopyright©2016CAD‐CAPTURE

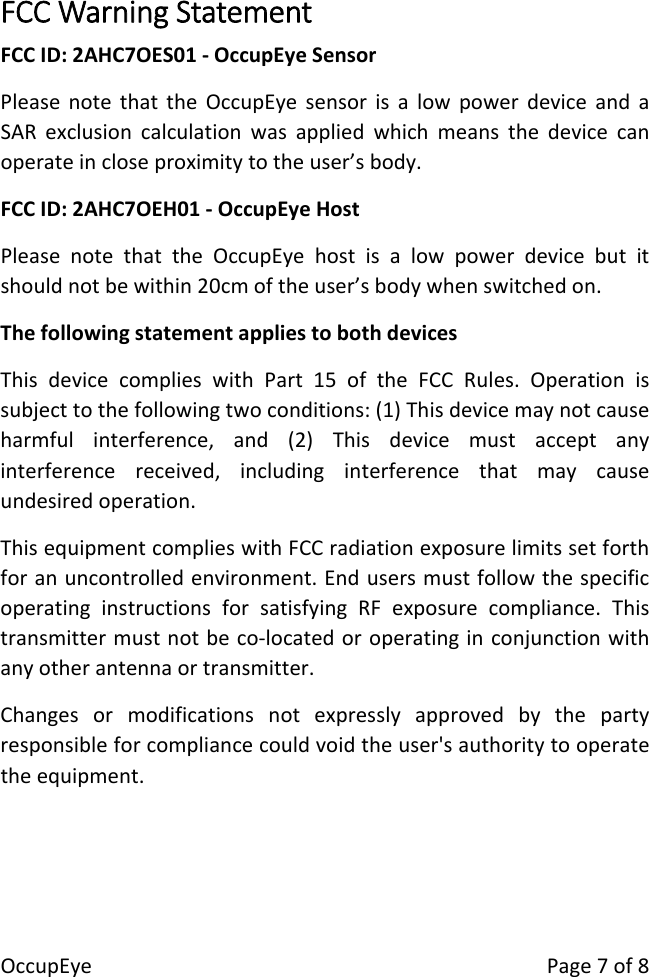

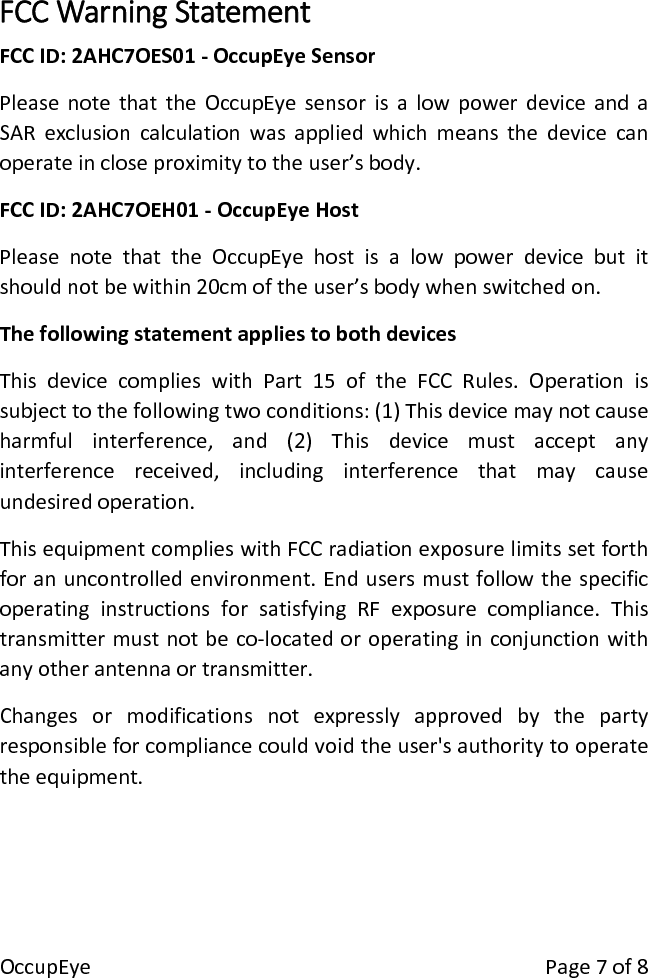

OccupEyePage7of8FCCWarningStatementFCCID:2AHC7OES01‐OccupEyeSensorPleasenotethattheOccupEyesensorisalowpowerdeviceandaSARexclusioncalculationwasappliedwhichmeansthedevicecanoperateincloseproximitytotheuser’sbody.FCCID:2AHC7OEH01‐OccupEyeHostPleasenotethattheOccupEyehostisalowpowerdevicebutitshouldnotbewithin20cmoftheuser’sbodywhenswitchedon.ThefollowingstatementappliestobothdevicesThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.EndusersmustfollowthespecificoperatinginstructionsforsatisfyingRFexposurecompliance.Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.

