CAEN RFID srl CAENRFID013 Low Power Communicaton Device Transmitter User Manual CAENRFIDLibrary

CAEN RFID srl Low Power Communicaton Device Transmitter CAENRFIDLibrary

User Manual

CAEN RFID API Reference Manual Reference Manual Revision n. 03 22/03/2011

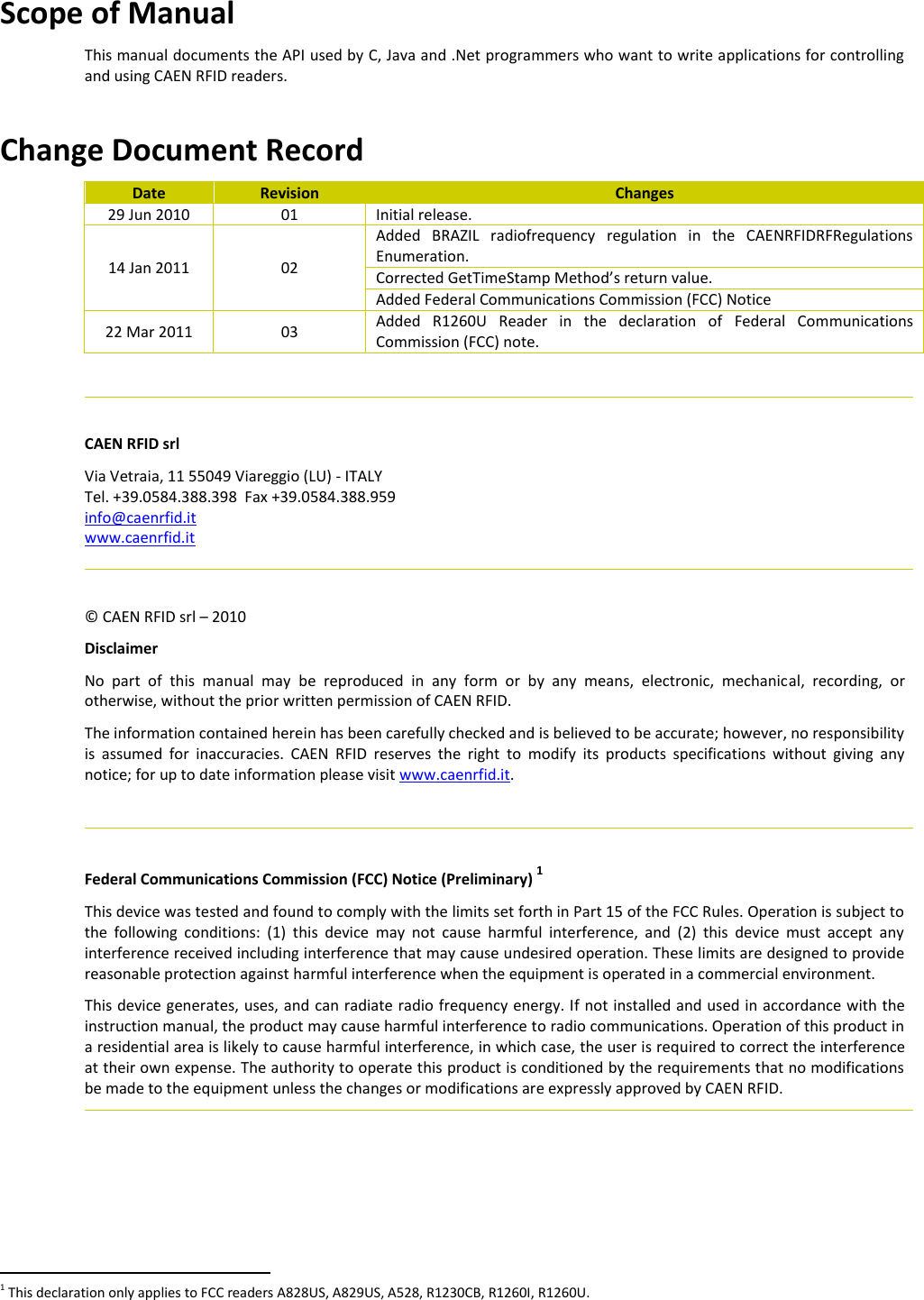

Scope of Manual This manual documents the API used by C, Java and .Net programmers who want to write applications for controlling and using CAEN RFID readers. Change Document Record Date Revision Changes 29 Jun 2010 01 Initial release. 14 Jan 2011 02 Added BRAZIL radiofrequency regulation in the CAENRFIDRFRegulations Enumeration. Corrected GetTimeStamp Method’s return value. Added Federal Communications Commission (FCC) Notice 22 Mar 2011 03 Added R1260U Reader in the declaration of Federal Communications Commission (FCC) note. CAEN RFID srl Via Vetraia, 11 55049 Viareggio (LU) - ITALY Tel. +39.0584.388.398 Fax +39.0584.388.959 info@caenrfid.it www.caenrfid.it © CAEN RFID srl – 2010 Disclaimer No part of this manual may be reproduced in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of CAEN RFID. The information contained herein has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. CAEN RFID reserves the right to modify its products specifications without giving any notice; for up to date information please visit www.caenrfid.it. Federal Communications Commission (FCC) Notice (Preliminary) 1 This device was tested and found to comply with the limits set forth in Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This device generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, the product may cause harmful interference to radio communications. Operation of this product in a residential area is likely to cause harmful interference, in which case, the user is required to correct the interference at their own expense. The authority to operate this product is conditioned by the requirements that no modifications be made to the equipment unless the changes or modifications are expressly approved by CAEN RFID. 1 This declaration only applies to FCC readers A828US, A829US, A528, R1230CB, R1260I, R1260U.

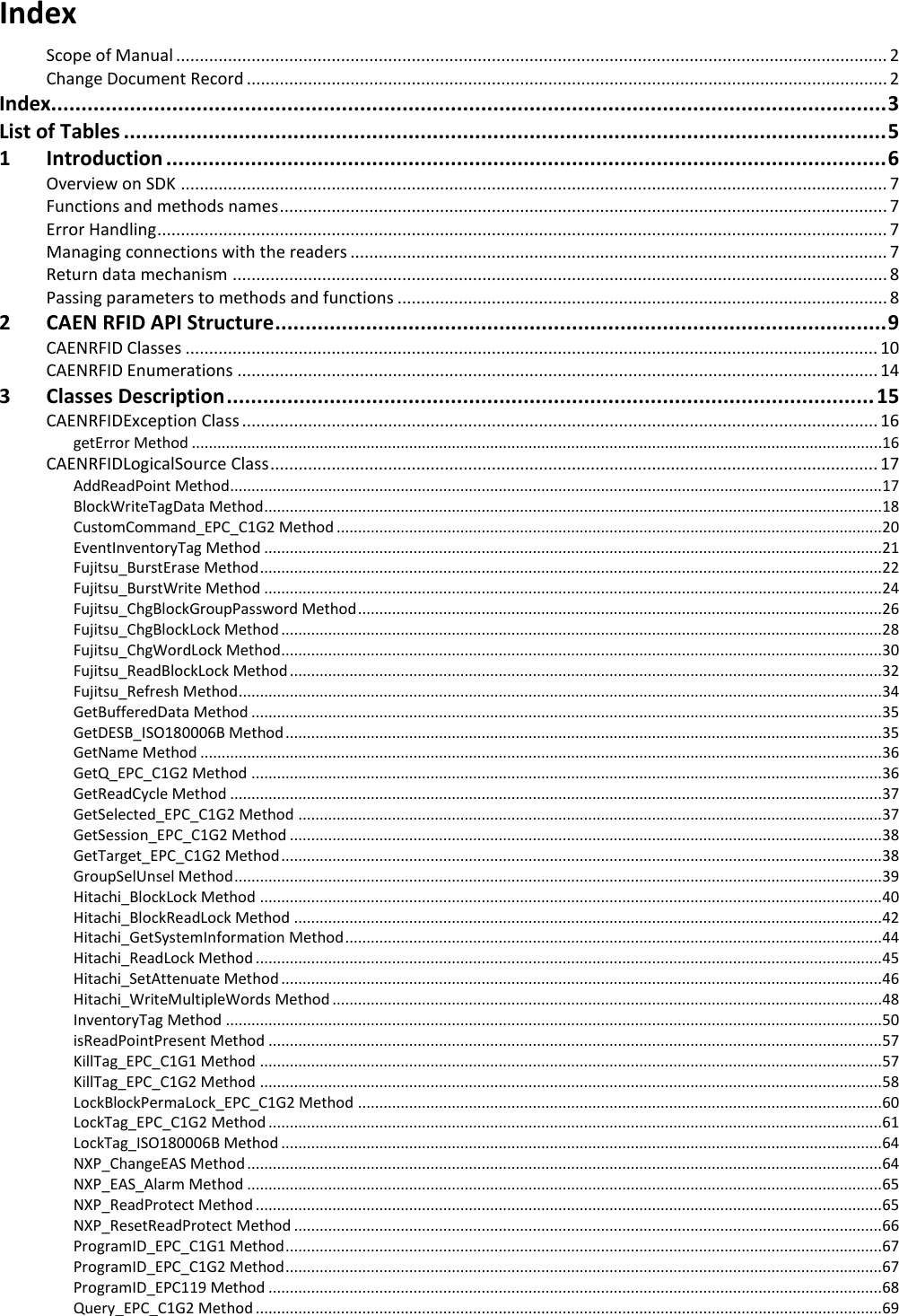

Index Scope of Manual ....................................................................................................................................................... 2 Change Document Record ........................................................................................................................................ 2 Index.......................................................................................................................................... 3 List of Tables .............................................................................................................................. 5 1 Introduction ....................................................................................................................... 6 Overview on SDK ...................................................................................................................................................... 7 Functions and methods names ................................................................................................................................. 7 Error Handling ........................................................................................................................................................... 7 Managing connections with the readers .................................................................................................................. 7 Return data mechanism ........................................................................................................................................... 8 Passing parameters to methods and functions ........................................................................................................ 8 2 CAEN RFID API Structure ..................................................................................................... 9 CAENRFID Classes ................................................................................................................................................... 10 CAENRFID Enumerations ........................................................................................................................................ 14 3 Classes Description ........................................................................................................... 15 CAENRFIDException Class ....................................................................................................................................... 16 getError Method ..................................................................................................................................................................16 CAENRFIDLogicalSource Class ................................................................................................................................. 17 AddReadPoint Method.........................................................................................................................................................17 BlockWriteTagData Method .................................................................................................................................................18 CustomCommand_EPC_C1G2 Method ................................................................................................................................20 EventInventoryTag Method .................................................................................................................................................21 Fujitsu_BurstErase Method ..................................................................................................................................................22 Fujitsu_BurstWrite Method .................................................................................................................................................24 Fujitsu_ChgBlockGroupPassword Method ...........................................................................................................................26 Fujitsu_ChgBlockLock Method .............................................................................................................................................28 Fujitsu_ChgWordLock Method.............................................................................................................................................30 Fujitsu_ReadBlockLock Method ...........................................................................................................................................32 Fujitsu_Refresh Method .......................................................................................................................................................34 GetBufferedData Method ....................................................................................................................................................35 GetDESB_ISO180006B Method ............................................................................................................................................35 GetName Method ................................................................................................................................................................36 GetQ_EPC_C1G2 Method ....................................................................................................................................................36 GetReadCycle Method .........................................................................................................................................................37 GetSelected_EPC_C1G2 Method .........................................................................................................................................37 GetSession_EPC_C1G2 Method ...........................................................................................................................................38 GetTarget_EPC_C1G2 Method .............................................................................................................................................38 GroupSelUnsel Method ........................................................................................................................................................39 Hitachi_BlockLock Method ..................................................................................................................................................40 Hitachi_BlockReadLock Method ..........................................................................................................................................42 Hitachi_GetSystemInformation Method ..............................................................................................................................44 Hitachi_ReadLock Method ...................................................................................................................................................45 Hitachi_SetAttenuate Method .............................................................................................................................................46 Hitachi_WriteMultipleWords Method .................................................................................................................................48 InventoryTag Method ..........................................................................................................................................................50 isReadPointPresent Method ................................................................................................................................................57 KillTag_EPC_C1G1 Method ..................................................................................................................................................57 KillTag_EPC_C1G2 Method ..................................................................................................................................................58 LockBlockPermaLock_EPC_C1G2 Method ...........................................................................................................................60 LockTag_EPC_C1G2 Method ................................................................................................................................................61 LockTag_ISO180006B Method .............................................................................................................................................64 NXP_ChangeEAS Method .....................................................................................................................................................64 NXP_EAS_Alarm Method .....................................................................................................................................................65 NXP_ReadProtect Method ...................................................................................................................................................65 NXP_ResetReadProtect Method ..........................................................................................................................................66 ProgramID_EPC_C1G1 Method ............................................................................................................................................67 ProgramID_EPC_C1G2 Method ............................................................................................................................................67 ProgramID_EPC119 Method ................................................................................................................................................68 Query_EPC_C1G2 Method ...................................................................................................................................................69

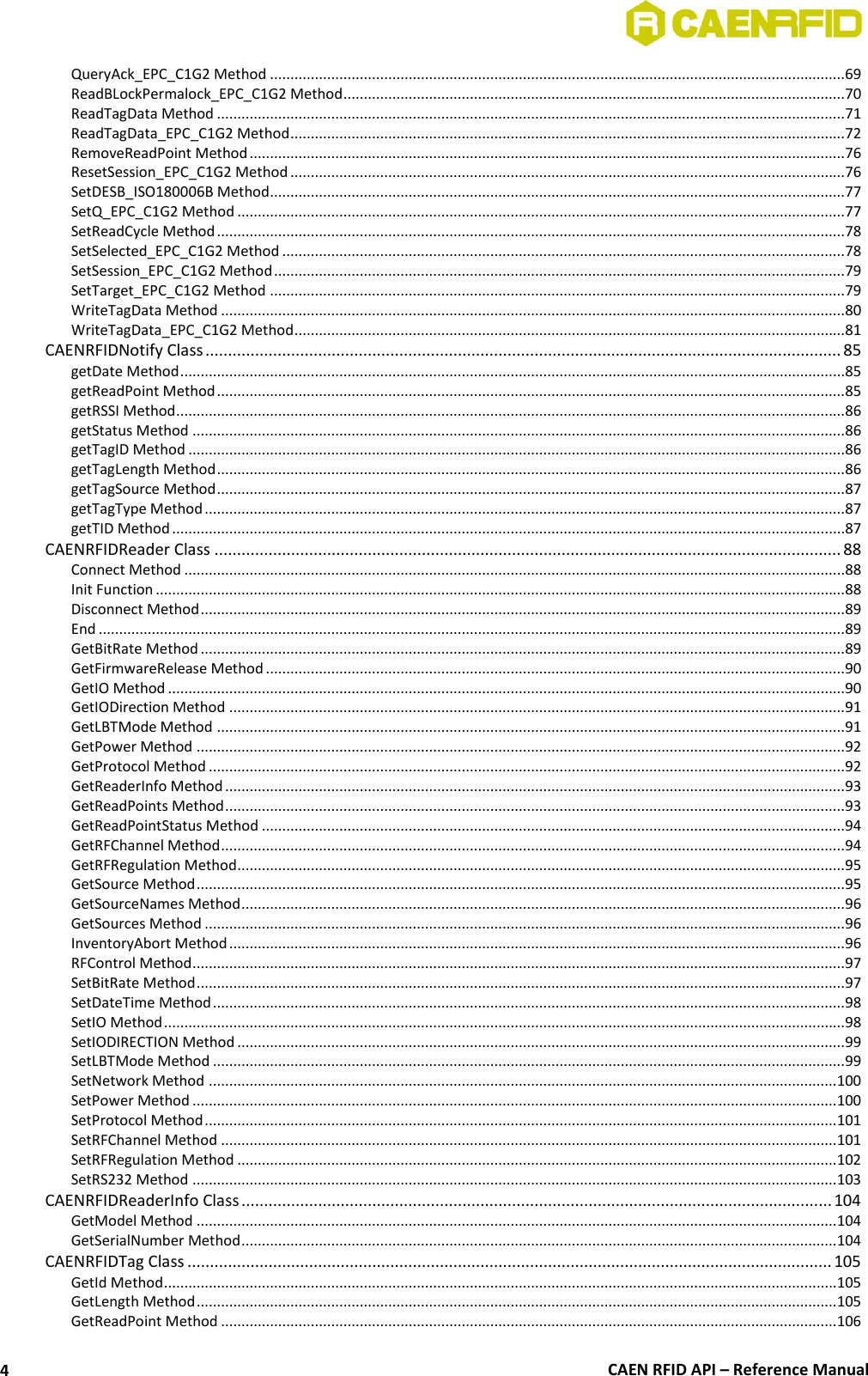

CAEN RFID API – Reference Manual 4 QueryAck_EPC_C1G2 Method .............................................................................................................................................69 ReadBLockPermalock_EPC_C1G2 Method ...........................................................................................................................70 ReadTagData Method ..........................................................................................................................................................71 ReadTagData_EPC_C1G2 Method ........................................................................................................................................72 RemoveReadPoint Method ..................................................................................................................................................76 ResetSession_EPC_C1G2 Method ........................................................................................................................................76 SetDESB_ISO180006B Method.............................................................................................................................................77 SetQ_EPC_C1G2 Method .....................................................................................................................................................77 SetReadCycle Method ..........................................................................................................................................................78 SetSelected_EPC_C1G2 Method ..........................................................................................................................................78 SetSession_EPC_C1G2 Method ............................................................................................................................................79 SetTarget_EPC_C1G2 Method .............................................................................................................................................79 WriteTagData Method .........................................................................................................................................................80 WriteTagData_EPC_C1G2 Method .......................................................................................................................................81 CAENRFIDNotify Class ............................................................................................................................................. 85 getDate Method ...................................................................................................................................................................85 getReadPoint Method ..........................................................................................................................................................85 getRSSI Method ....................................................................................................................................................................86 getStatus Method ................................................................................................................................................................86 getTagID Method .................................................................................................................................................................86 getTagLength Method ..........................................................................................................................................................86 getTagSource Method ..........................................................................................................................................................87 getTagType Method .............................................................................................................................................................87 getTID Method .....................................................................................................................................................................87 CAENRFIDReader Class ........................................................................................................................................... 88 Connect Method ..................................................................................................................................................................88 Init Function .........................................................................................................................................................................88 Disconnect Method ..............................................................................................................................................................89 End .......................................................................................................................................................................................89 GetBitRate Method ..............................................................................................................................................................89 GetFirmwareRelease Method ..............................................................................................................................................90 GetIO Method ......................................................................................................................................................................90 GetIODirection Method .......................................................................................................................................................91 GetLBTMode Method ..........................................................................................................................................................91 GetPower Method ...............................................................................................................................................................92 GetProtocol Method ............................................................................................................................................................92 GetReaderInfo Method ........................................................................................................................................................93 GetReadPoints Method ........................................................................................................................................................93 GetReadPointStatus Method ...............................................................................................................................................94 GetRFChannel Method .........................................................................................................................................................94 GetRFRegulation Method.....................................................................................................................................................95 GetSource Method ...............................................................................................................................................................95 GetSourceNames Method ....................................................................................................................................................96 GetSources Method .............................................................................................................................................................96 InventoryAbort Method .......................................................................................................................................................96 RFControl Method ................................................................................................................................................................97 SetBitRate Method ...............................................................................................................................................................97 SetDateTime Method ...........................................................................................................................................................98 SetIO Method .......................................................................................................................................................................98 SetIODIRECTION Method .....................................................................................................................................................99 SetLBTMode Method ...........................................................................................................................................................99 SetNetwork Method ..........................................................................................................................................................100 SetPower Method ..............................................................................................................................................................100 SetProtocol Method ...........................................................................................................................................................101 SetRFChannel Method .......................................................................................................................................................101 SetRFRegulation Method ...................................................................................................................................................102 SetRS232 Method ..............................................................................................................................................................103 CAENRFIDReaderInfo Class ................................................................................................................................... 104 GetModel Method .............................................................................................................................................................104 GetSerialNumber Method ..................................................................................................................................................104 CAENRFIDTag Class ............................................................................................................................................... 105 GetId Method .....................................................................................................................................................................105 GetLength Method .............................................................................................................................................................105 GetReadPoint Method .......................................................................................................................................................106

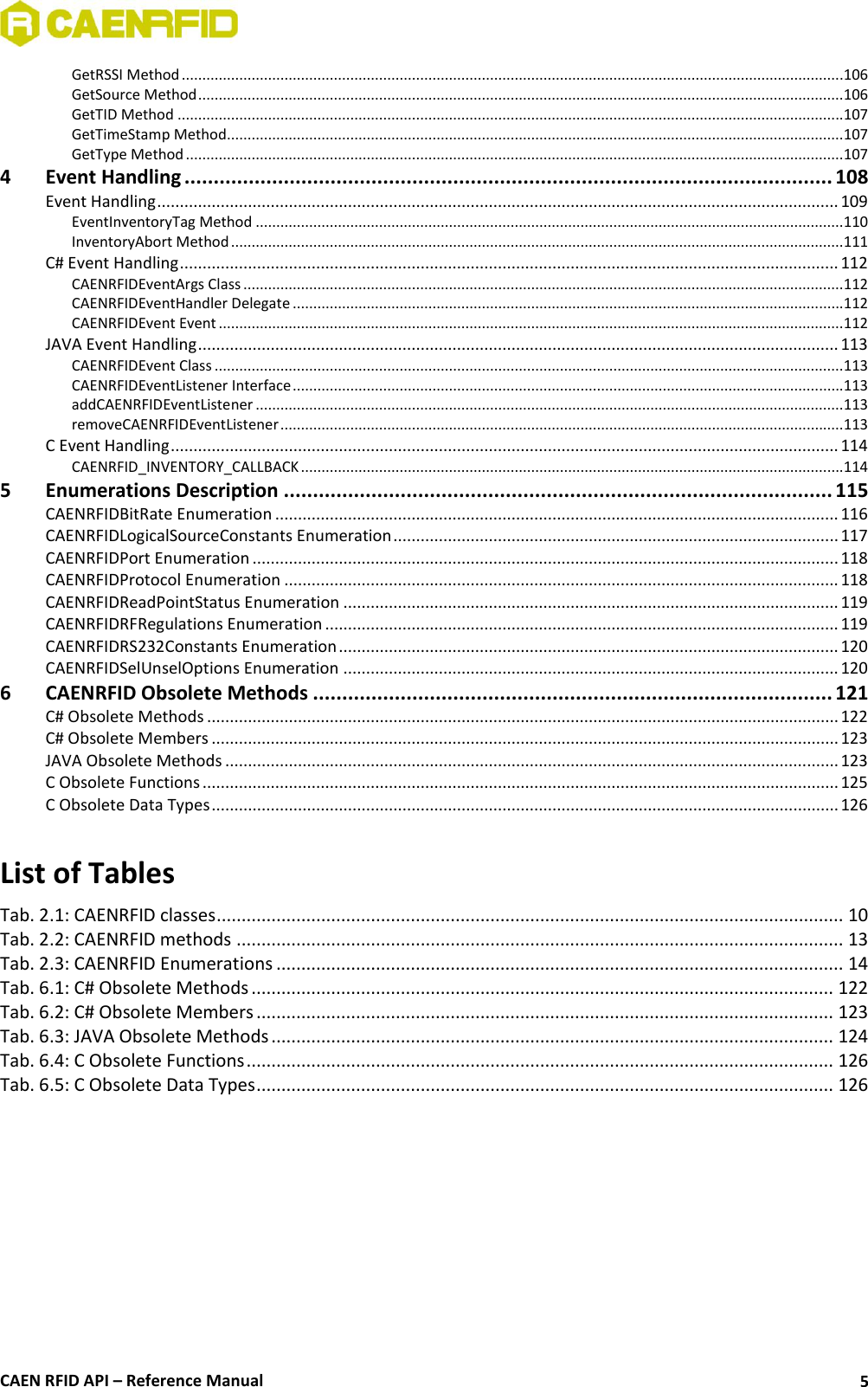

CAEN RFID API – Reference Manual 5 GetRSSI Method .................................................................................................................................................................106 GetSource Method .............................................................................................................................................................106 GetTID Method ..................................................................................................................................................................107 GetTimeStamp Method......................................................................................................................................................107 GetType Method ................................................................................................................................................................107 4 Event Handling ............................................................................................................... 108 Event Handling ...................................................................................................................................................... 109 EventInventoryTag Method ...............................................................................................................................................110 InventoryAbort Method .....................................................................................................................................................111 C# Event Handling ................................................................................................................................................. 112 CAENRFIDEventArgs Class ..................................................................................................................................................112 CAENRFIDEventHandler Delegate ......................................................................................................................................112 CAENRFIDEvent Event ........................................................................................................................................................112 JAVA Event Handling ............................................................................................................................................. 113 CAENRFIDEvent Class .........................................................................................................................................................113 CAENRFIDEventListener Interface ......................................................................................................................................113 addCAENRFIDEventListener ...............................................................................................................................................113 removeCAENRFIDEventListener .........................................................................................................................................113 C Event Handling ................................................................................................................................................... 114 CAENRFID_INVENTORY_CALLBACK ....................................................................................................................................114 5 Enumerations Description .............................................................................................. 115 CAENRFIDBitRate Enumeration ............................................................................................................................ 116 CAENRFIDLogicalSourceConstants Enumeration .................................................................................................. 117 CAENRFIDPort Enumeration ................................................................................................................................. 118 CAENRFIDProtocol Enumeration .......................................................................................................................... 118 CAENRFIDReadPointStatus Enumeration ............................................................................................................. 119 CAENRFIDRFRegulations Enumeration ................................................................................................................. 119 CAENRFIDRS232Constants Enumeration .............................................................................................................. 120 CAENRFIDSelUnselOptions Enumeration ............................................................................................................. 120 6 CAENRFID Obsolete Methods ......................................................................................... 121 C# Obsolete Methods ........................................................................................................................................... 122 C# Obsolete Members .......................................................................................................................................... 123 JAVA Obsolete Methods ....................................................................................................................................... 123 C Obsolete Functions ............................................................................................................................................ 125 C Obsolete Data Types .......................................................................................................................................... 126 List of Tables Tab. 2.1: CAENRFID classes .............................................................................................................................. 10 Tab. 2.2: CAENRFID methods .......................................................................................................................... 13 Tab. 2.3: CAENRFID Enumerations .................................................................................................................. 14 Tab. 6.1: C# Obsolete Methods ..................................................................................................................... 122 Tab. 6.2: C# Obsolete Members .................................................................................................................... 123 Tab. 6.3: JAVA Obsolete Methods ................................................................................................................. 124 Tab. 6.4: C Obsolete Functions ...................................................................................................................... 126 Tab. 6.5: C Obsolete Data Types .................................................................................................................... 126

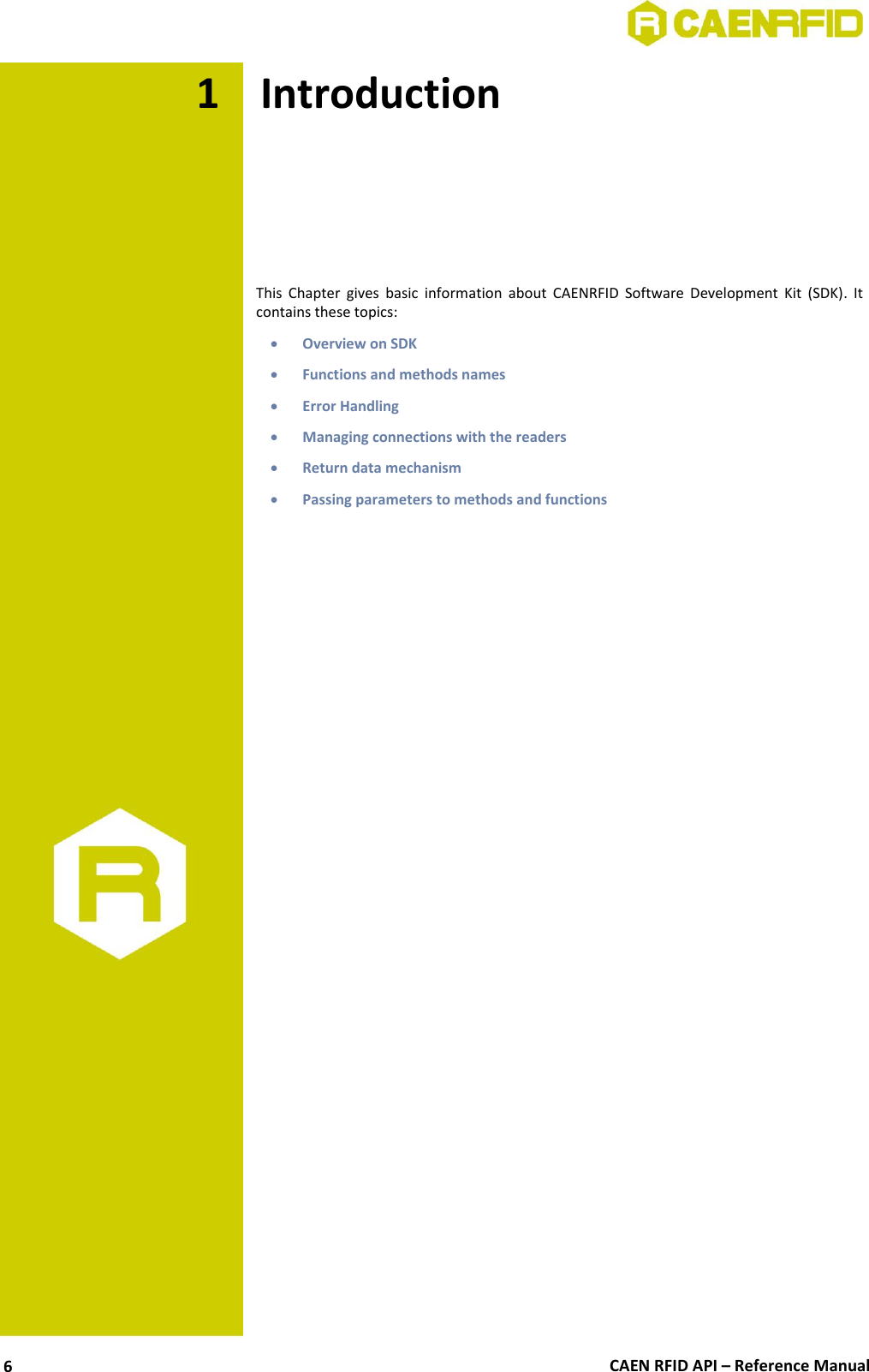

CAEN RFID API – Reference Manual 6 1 Introduction This Chapter gives basic information about CAENRFID Software Development Kit (SDK). It contains these topics:  Overview on SDK  Functions and methods names  Error Handling  Managing connections with the readers  Return data mechanism  Passing parameters to methods and functions

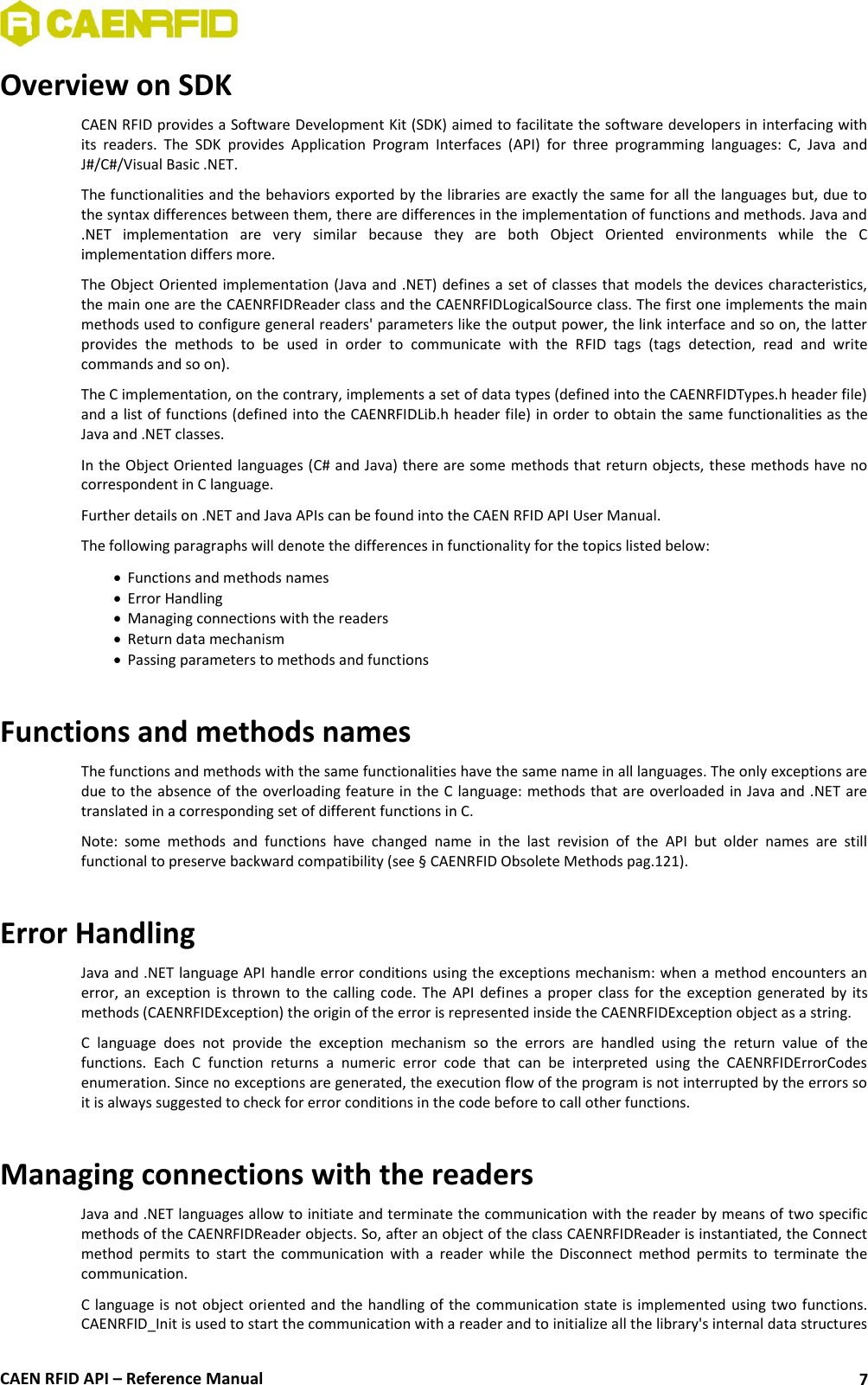

CAEN RFID API – Reference Manual 7 Overview on SDK CAEN RFID provides a Software Development Kit (SDK) aimed to facilitate the software developers in interfacing with its readers. The SDK provides Application Program Interfaces (API) for three programming languages: C, Java and J#/C#/Visual Basic .NET. The functionalities and the behaviors exported by the libraries are exactly the same for all the languages but, due to the syntax differences between them, there are differences in the implementation of functions and methods. Java and .NET implementation are very similar because they are both Object Oriented environments while the C implementation differs more. The Object Oriented implementation (Java and .NET) defines a set of classes that models the devices characteristics, the main one are the CAENRFIDReader class and the CAENRFIDLogicalSource class. The first one implements the main methods used to configure general readers' parameters like the output power, the link interface and so on, the latter provides the methods to be used in order to communicate with the RFID tags (tags detection, read and write commands and so on). The C implementation, on the contrary, implements a set of data types (defined into the CAENRFIDTypes.h header file) and a list of functions (defined into the CAENRFIDLib.h header file) in order to obtain the same functionalities as the Java and .NET classes. In the Object Oriented languages (C# and Java) there are some methods that return objects, these methods have no correspondent in C language. Further details on .NET and Java APIs can be found into the CAEN RFID API User Manual. The following paragraphs will denote the differences in functionality for the topics listed below:  Functions and methods names  Error Handling  Managing connections with the readers  Return data mechanism  Passing parameters to methods and functions Functions and methods names The functions and methods with the same functionalities have the same name in all languages. The only exceptions are due to the absence of the overloading feature in the C language: methods that are overloaded in Java and .NET are translated in a corresponding set of different functions in C. Note: some methods and functions have changed name in the last revision of the API but older names are still functional to preserve backward compatibility (see § CAENRFID Obsolete Methods pag.121). Error Handling Java and .NET language API handle error conditions using the exceptions mechanism: when a method encounters an error, an exception is thrown to the calling code. The API defines a proper class for the exception generated by its methods (CAENRFIDException) the origin of the error is represented inside the CAENRFIDException object as a string. C language does not provide the exception mechanism so the errors are handled using the return value of the functions. Each C function returns a numeric error code that can be interpreted using the CAENRFIDErrorCodes enumeration. Since no exceptions are generated, the execution flow of the program is not interrupted by the errors so it is always suggested to check for error conditions in the code before to call other functions. Managing connections with the readers Java and .NET languages allow to initiate and terminate the communication with the reader by means of two specific methods of the CAENRFIDReader objects. So, after an object of the class CAENRFIDReader is instantiated, the Connect method permits to start the communication with a reader while the Disconnect method permits to terminate the communication. C language is not object oriented and the handling of the communication state is implemented using two functions. CAENRFID_Init is used to start the communication with a reader and to initialize all the library's internal data structures

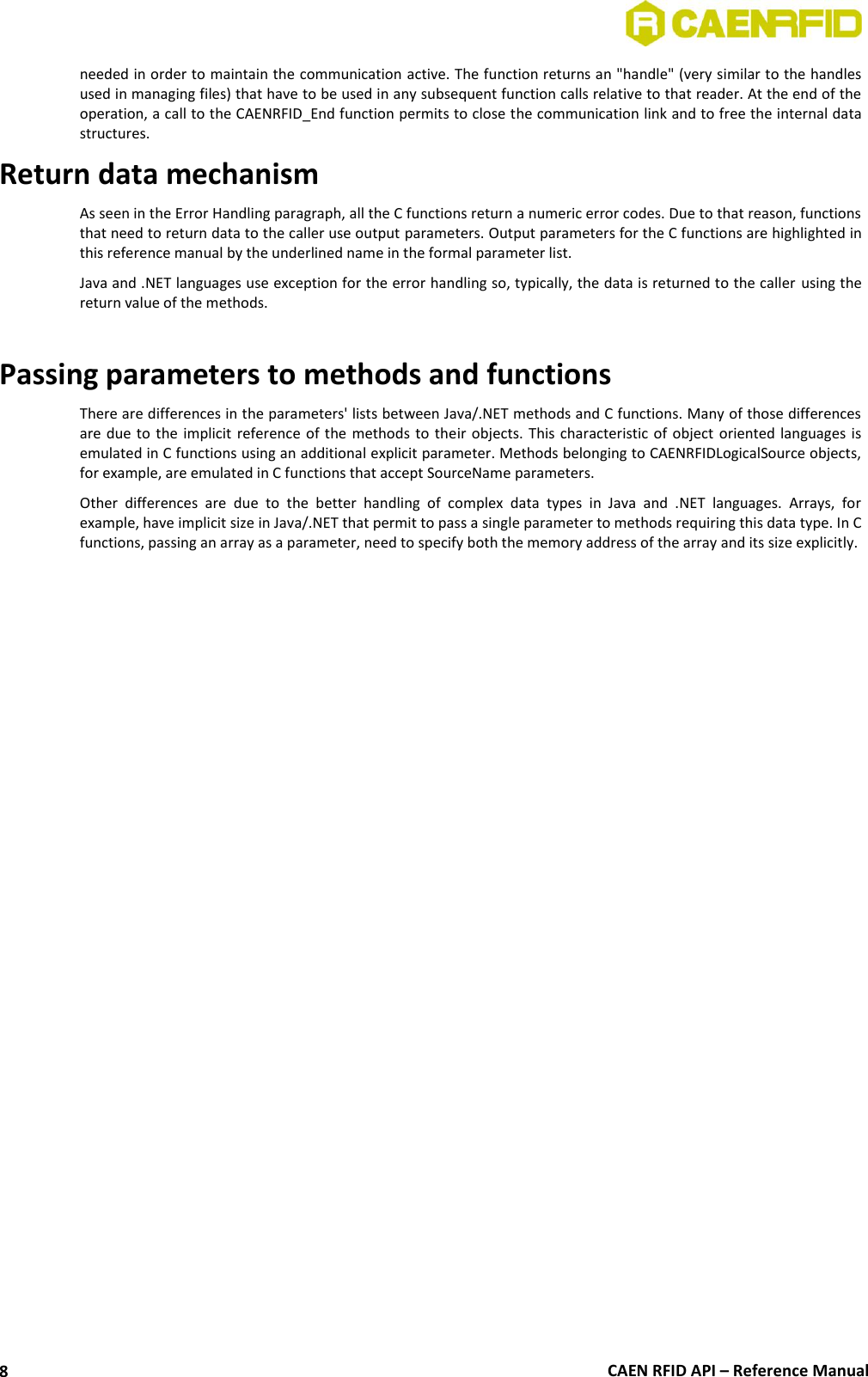

CAEN RFID API – Reference Manual 8 needed in order to maintain the communication active. The function returns an "handle" (very similar to the handles used in managing files) that have to be used in any subsequent function calls relative to that reader. At the end of the operation, a call to the CAENRFID_End function permits to close the communication link and to free the internal data structures. Return data mechanism As seen in the Error Handling paragraph, all the C functions return a numeric error codes. Due to that reason, functions that need to return data to the caller use output parameters. Output parameters for the C functions are highlighted in this reference manual by the underlined name in the formal parameter list. Java and .NET languages use exception for the error handling so, typically, the data is returned to the caller using the return value of the methods. Passing parameters to methods and functions There are differences in the parameters' lists between Java/.NET methods and C functions. Many of those differences are due to the implicit reference of the methods to their objects. This characteristic of object oriented languages is emulated in C functions using an additional explicit parameter. Methods belonging to CAENRFIDLogicalSource objects, for example, are emulated in C functions that accept SourceName parameters. Other differences are due to the better handling of complex data types in Java and .NET languages. Arrays, for example, have implicit size in Java/.NET that permit to pass a single parameter to methods requiring this data type. In C functions, passing an array as a parameter, need to specify both the memory address of the array and its size explicitly.

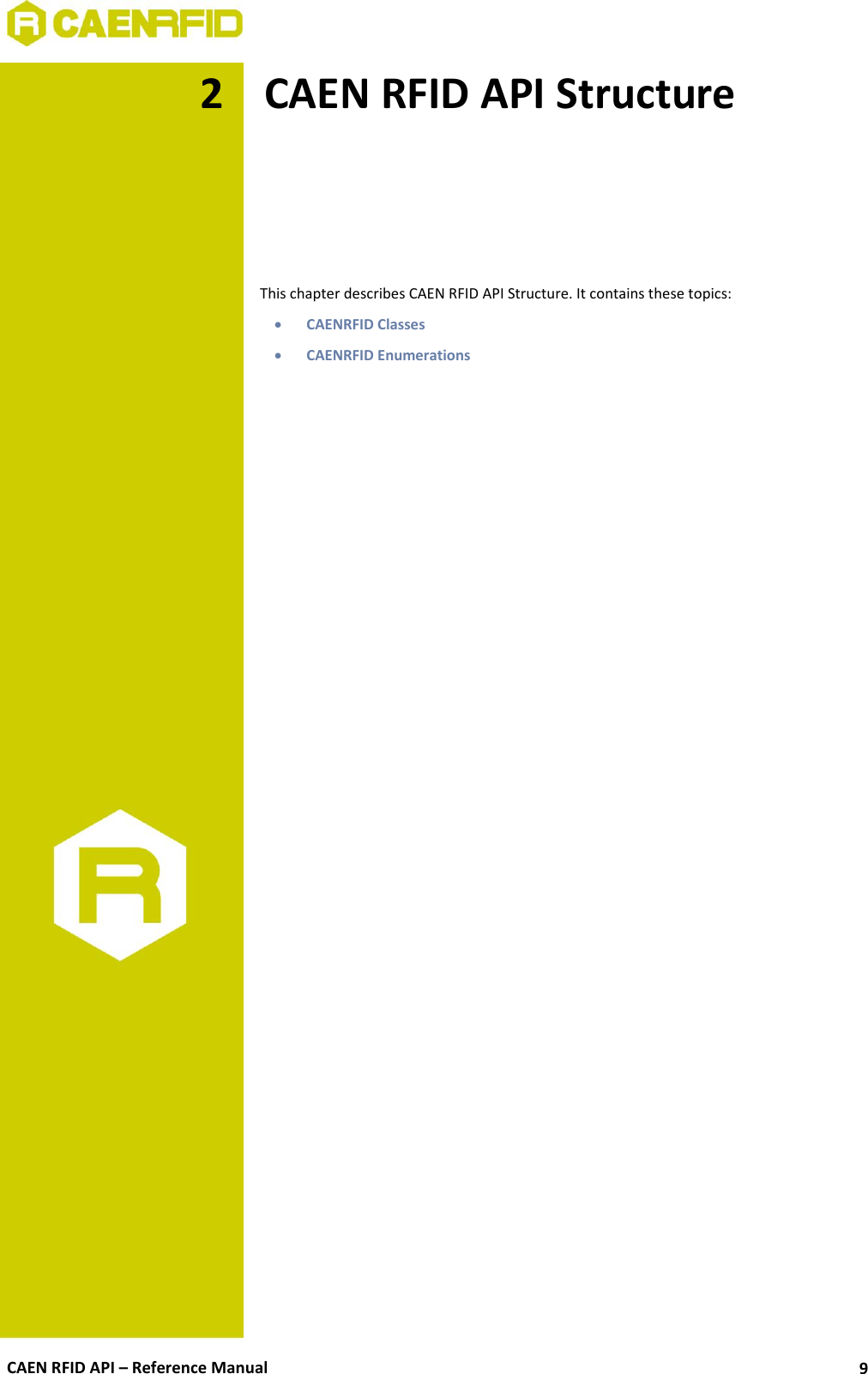

CAEN RFID API – Reference Manual 9 2 CAEN RFID API Structure This chapter describes CAEN RFID API Structure. It contains these topics:  CAENRFID Classes  CAENRFID Enumerations

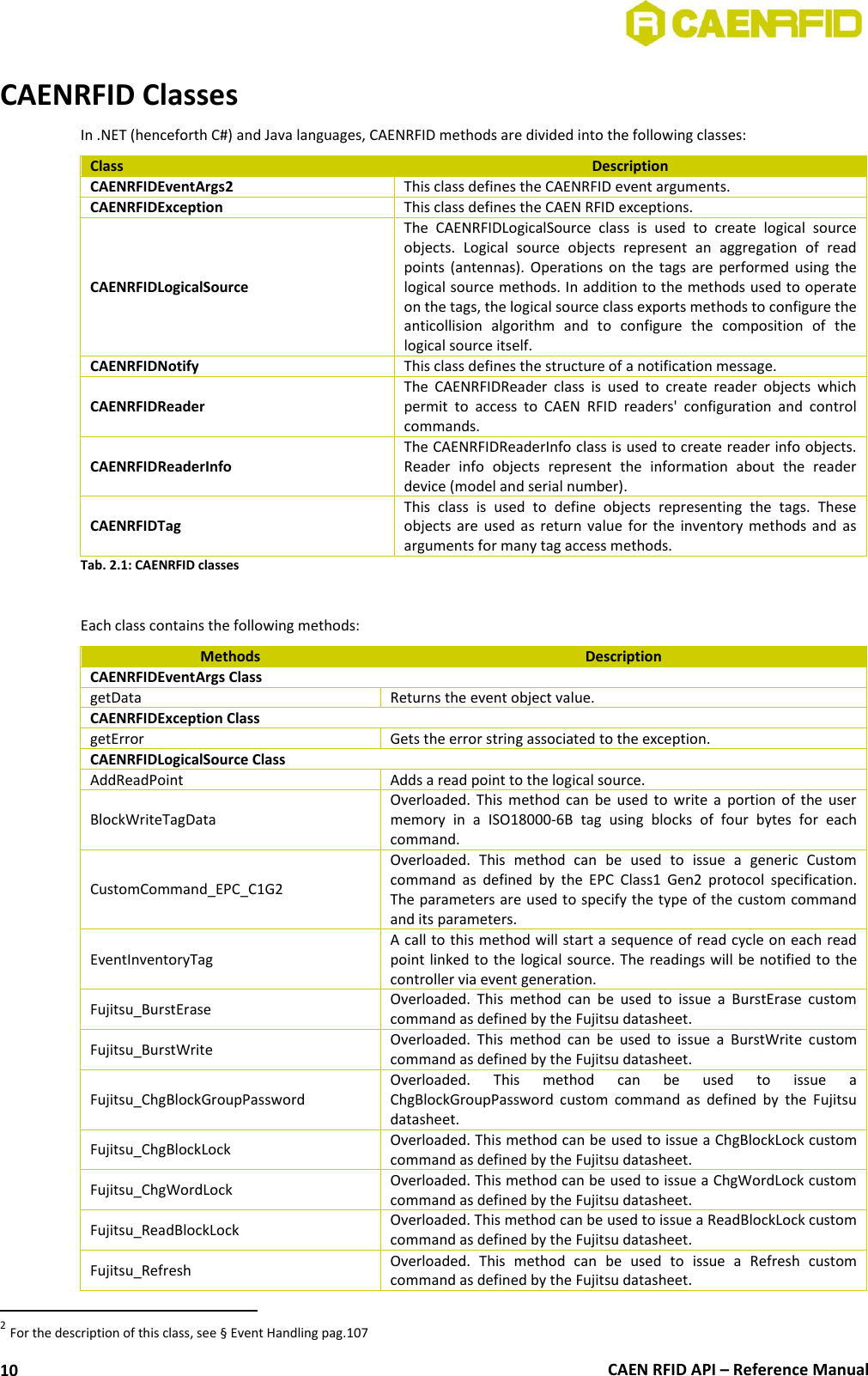

CAEN RFID API – Reference Manual 10 CAENRFID Classes In .NET (henceforth C#) and Java languages, CAENRFID methods are divided into the following classes: Class Description CAENRFIDEventArgs2 This class defines the CAENRFID event arguments. CAENRFIDException This class defines the CAEN RFID exceptions. CAENRFIDLogicalSource The CAENRFIDLogicalSource class is used to create logical source objects. Logical source objects represent an aggregation of read points (antennas). Operations on the tags are performed using the logical source methods. In addition to the methods used to operate on the tags, the logical source class exports methods to configure the anticollision algorithm and to configure the composition of the logical source itself. CAENRFIDNotify This class defines the structure of a notification message. CAENRFIDReader The CAENRFIDReader class is used to create reader objects which permit to access to CAEN RFID readers' configuration and control commands. CAENRFIDReaderInfo The CAENRFIDReaderInfo class is used to create reader info objects. Reader info objects represent the information about the reader device (model and serial number). CAENRFIDTag This class is used to define objects representing the tags. These objects are used as return value for the inventory methods and as arguments for many tag access methods. Tab. 2.1: CAENRFID classes Each class contains the following methods: Methods Description CAENRFIDEventArgs Class getData Returns the event object value. CAENRFIDException Class getError Gets the error string associated to the exception. CAENRFIDLogicalSource Class AddReadPoint Adds a read point to the logical source. BlockWriteTagData Overloaded. This method can be used to write a portion of the user memory in a ISO18000-6B tag using blocks of four bytes for each command. CustomCommand_EPC_C1G2 Overloaded. This method can be used to issue a generic Custom command as defined by the EPC Class1 Gen2 protocol specification. The parameters are used to specify the type of the custom command and its parameters. EventInventoryTag A call to this method will start a sequence of read cycle on each read point linked to the logical source. The readings will be notified to the controller via event generation. Fujitsu_BurstErase Overloaded. This method can be used to issue a BurstErase custom command as defined by the Fujitsu datasheet. Fujitsu_BurstWrite Overloaded. This method can be used to issue a BurstWrite custom command as defined by the Fujitsu datasheet. Fujitsu_ChgBlockGroupPassword Overloaded. This method can be used to issue a ChgBlockGroupPassword custom command as defined by the Fujitsu datasheet. Fujitsu_ChgBlockLock Overloaded. This method can be used to issue a ChgBlockLock custom command as defined by the Fujitsu datasheet. Fujitsu_ChgWordLock Overloaded. This method can be used to issue a ChgWordLock custom command as defined by the Fujitsu datasheet. Fujitsu_ReadBlockLock Overloaded. This method can be used to issue a ReadBlockLock custom command as defined by the Fujitsu datasheet. Fujitsu_Refresh Overloaded. This method can be used to issue a Refresh custom command as defined by the Fujitsu datasheet. 2 For the description of this class, see § Event Handling pag.107
CAEN RFID API – Reference Manual 11 Methods Description GetBufferedData The function returns all the Tags stored in reader's memory using all the ReadPoints belonging to the Source. GetDESB_ISO180006B This method can be used to retrieve the Data Exchange Status Bit setting (see ISO18000-6B protocol specification) used by the anticollision algorithm when called on this logical source. GetName Gets a string representing the name of the logical source. GetQ_EPC_C1G2 This method can be used to retrieve the current setting for the initial Q value (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. GetReadCycle Gets the current setting for the number of read cycles performed by the logical source during the inventory algorithm execution. GetSelected_EPC_C1G2 This method can be used to retrieve the Selected flag (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. GetSession_EPC_C1G2 This method can be used to retrieve the Session setting (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. GetTarget_EPC_C1G2 This method can be used to retrieve the Target setting (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. GroupSelUnsel This method can be used to send a Group Select/Unselect command to the tag (see ISO18000-6B protocol specification). Hitachi_BlockLock Overloaded. This method can be used to issue a BlockLock custom command as defined by the Hitachi Hibiki datasheet. Hitachi_BlockReadLock Overloaded. This method can be used to issue a BlockReadLock custom command as defined by the Hitachi Hibiki datasheet. Hitachi_GetSystemInformation Overloaded. This method can be used to issue a GetSystemInformation custom command as defined by the Hitachi Hibiki datasheet. Hitachi_ReadLock Overloaded. This method can be used to issue a ReadLock custom command as defined by the Hitachi Hibiki datasheet. Hitachi_SetAttenuate Overloaded. This method can be used to issue a SetAttenuate custom command as defined by the Hitachi Hibiki datasheet. Hitachi_WriteMultipleWords Overloaded. This method can be used to issue a WriteMultipleWords custom command as defined by the Hitachi Hibiki datasheet. InventoryTag Overloaded. A call to this method will execute a read cycle on each read point linked to the logical source. Depending on the air protocol setting it will execute the appropriate anticollision algorithm. isReadPointPresent Checks if a read point is present in the logical source. KillTag_EPC_C1G1 This method can be used to kill an EPC Class 1 Gen 1 tag. KillTag_EPC_C1G2 Overloaded. This method can be used to kill an EPC of an EPC Class 1 Gen 2 tag. LockBlockPermaLock_EPC_C1G2 This method implements the BLockPermaLock with ReadLock=1 as specified in EPCC1G2 rev. 1.2.0 protocol. LockTag_EPC_C1G2 Overloaded. This method can be used to lock a memory bank of an EPC Class 1 Gen 2 tag. LockTag_ISO180006B This method can be used to lock a byte in the memory of a ISO18000-6B tag. NXP_ChangeEAS This method can be used to issue a ChangeEAS custom command as defined by the NXP G2XM and G2XL datasheet after having put it in Secured state using the Access command. NXP_EAS_Alarm This method can be used to issue an EAS_Alarm custom command as defined by the NXP G2XM and G2XL datasheet. NXP_ReadProtect Overloaded. This method can be used to issue a ReadProtect custom command as defined by the NXP G2XM and G2XL datasheet. NXP_ResetReadProtect This method can be used to issue a ResetReadProtect custom command as defined by the NXP G2XM and G2XL datasheet. ProgramID_EPC_C1G1 This method can be used to write the EPC of an EPC Class 1 Gen 1 tag. ProgramID_EPC_C1G2 Overloaded. This method can be used to write the EPC of an EPC Class 1 Gen 2 tag. ProgramID_EPC119 This method can be used to write the UID of an EPC 1.19 tag. Query_EPC_C1G2 This method make the reader generate an EPC Class1 Gen2 Query command.

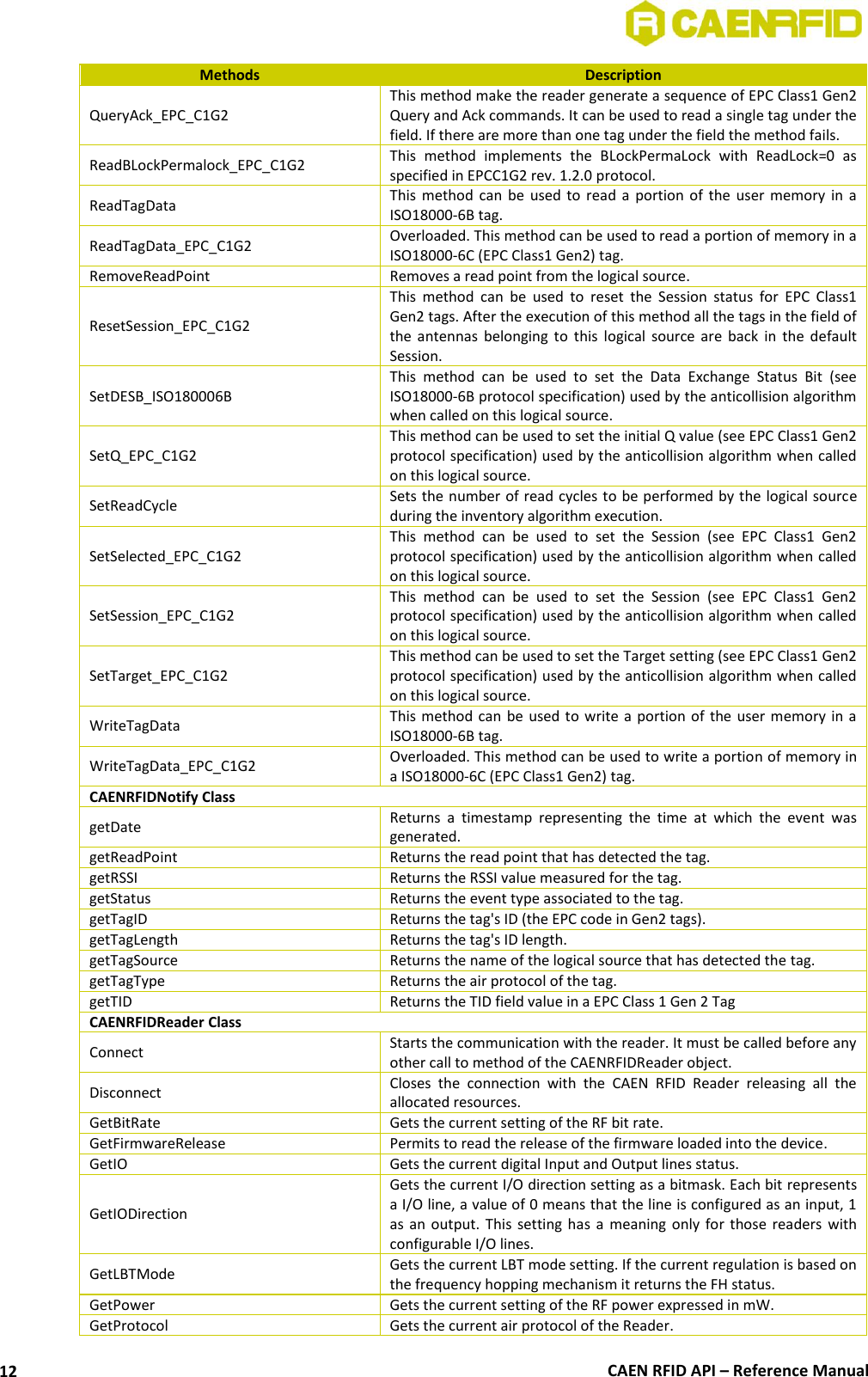

CAEN RFID API – Reference Manual 12 Methods Description QueryAck_EPC_C1G2 This method make the reader generate a sequence of EPC Class1 Gen2 Query and Ack commands. It can be used to read a single tag under the field. If there are more than one tag under the field the method fails. ReadBLockPermalock_EPC_C1G2 This method implements the BLockPermaLock with ReadLock=0 as specified in EPCC1G2 rev. 1.2.0 protocol. ReadTagData This method can be used to read a portion of the user memory in a ISO18000-6B tag. ReadTagData_EPC_C1G2 Overloaded. This method can be used to read a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. RemoveReadPoint Removes a read point from the logical source. ResetSession_EPC_C1G2 This method can be used to reset the Session status for EPC Class1 Gen2 tags. After the execution of this method all the tags in the field of the antennas belonging to this logical source are back in the default Session. SetDESB_ISO180006B This method can be used to set the Data Exchange Status Bit (see ISO18000-6B protocol specification) used by the anticollision algorithm when called on this logical source. SetQ_EPC_C1G2 This method can be used to set the initial Q value (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. SetReadCycle Sets the number of read cycles to be performed by the logical source during the inventory algorithm execution. SetSelected_EPC_C1G2 This method can be used to set the Session (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. SetSession_EPC_C1G2 This method can be used to set the Session (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. SetTarget_EPC_C1G2 This method can be used to set the Target setting (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. WriteTagData This method can be used to write a portion of the user memory in a ISO18000-6B tag. WriteTagData_EPC_C1G2 Overloaded. This method can be used to write a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. CAENRFIDNotify Class getDate Returns a timestamp representing the time at which the event was generated. getReadPoint Returns the read point that has detected the tag. getRSSI Returns the RSSI value measured for the tag. getStatus Returns the event type associated to the tag. getTagID Returns the tag's ID (the EPC code in Gen2 tags). getTagLength Returns the tag's ID length. getTagSource Returns the name of the logical source that has detected the tag. getTagType Returns the air protocol of the tag. getTID Returns the TID field value in a EPC Class 1 Gen 2 Tag CAENRFIDReader Class Connect Starts the communication with the reader. It must be called before any other call to method of the CAENRFIDReader object. Disconnect Closes the connection with the CAEN RFID Reader releasing all the allocated resources. GetBitRate Gets the current setting of the RF bit rate. GetFirmwareRelease Permits to read the release of the firmware loaded into the device. GetIO Gets the current digital Input and Output lines status. GetIODirection Gets the current I/O direction setting as a bitmask. Each bit represents a I/O line, a value of 0 means that the line is configured as an input, 1 as an output. This setting has a meaning only for those readers with configurable I/O lines. GetLBTMode Gets the current LBT mode setting. If the current regulation is based on the frequency hopping mechanism it returns the FH status. GetPower Gets the current setting of the RF power expressed in mW. GetProtocol Gets the current air protocol of the Reader.

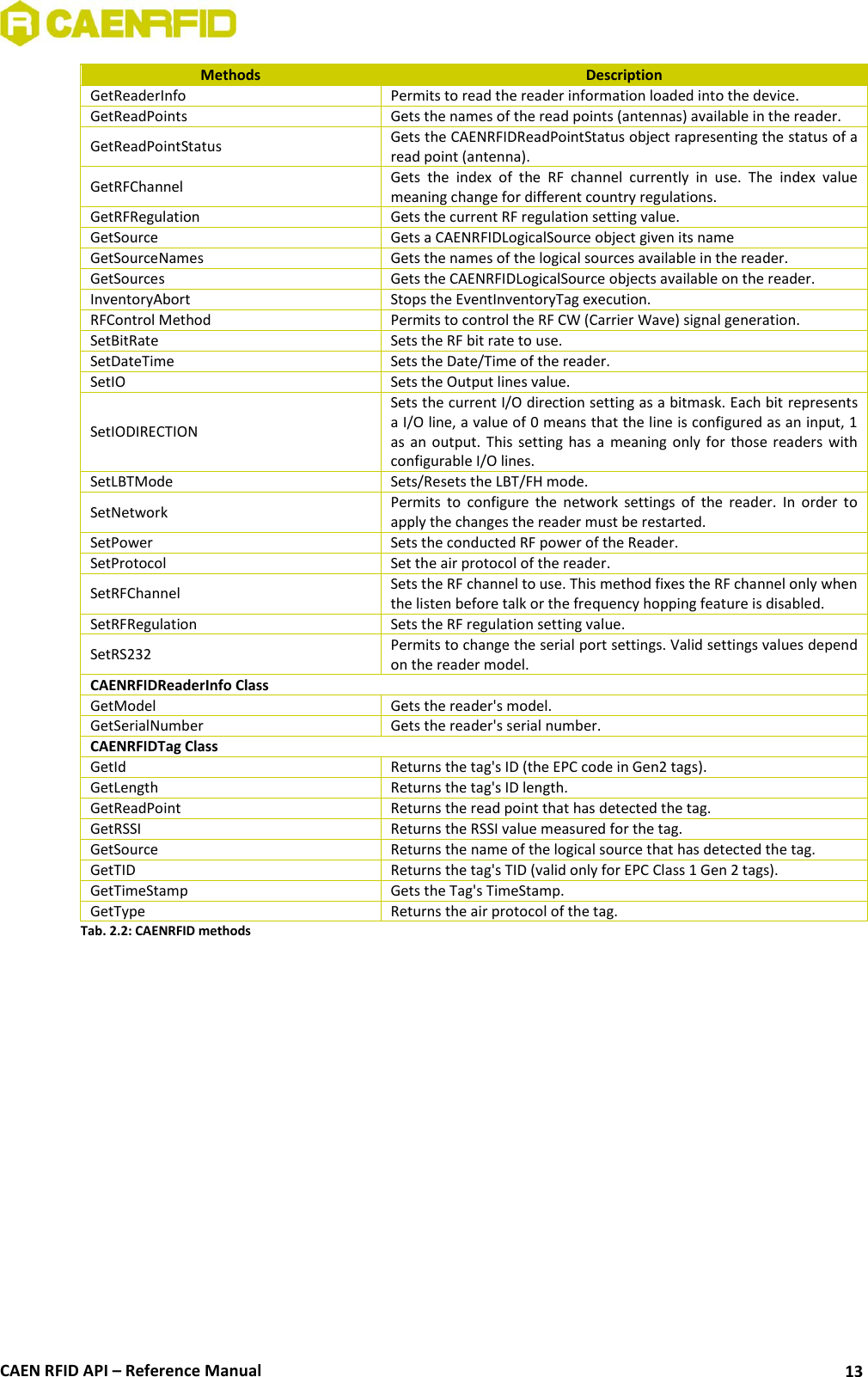

CAEN RFID API – Reference Manual 13 Methods Description GetReaderInfo Permits to read the reader information loaded into the device. GetReadPoints Gets the names of the read points (antennas) available in the reader. GetReadPointStatus Gets the CAENRFIDReadPointStatus object rapresenting the status of a read point (antenna). GetRFChannel Gets the index of the RF channel currently in use. The index value meaning change for different country regulations. GetRFRegulation Gets the current RF regulation setting value. GetSource Gets a CAENRFIDLogicalSource object given its name GetSourceNames Gets the names of the logical sources available in the reader. GetSources Gets the CAENRFIDLogicalSource objects available on the reader. InventoryAbort Stops the EventInventoryTag execution. RFControl Method Permits to control the RF CW (Carrier Wave) signal generation. SetBitRate Sets the RF bit rate to use. SetDateTime Sets the Date/Time of the reader. SetIO Sets the Output lines value. SetIODIRECTION Sets the current I/O direction setting as a bitmask. Each bit represents a I/O line, a value of 0 means that the line is configured as an input, 1 as an output. This setting has a meaning only for those readers with configurable I/O lines. SetLBTMode Sets/Resets the LBT/FH mode. SetNetwork Permits to configure the network settings of the reader. In order to apply the changes the reader must be restarted. SetPower Sets the conducted RF power of the Reader. SetProtocol Set the air protocol of the reader. SetRFChannel Sets the RF channel to use. This method fixes the RF channel only when the listen before talk or the frequency hopping feature is disabled. SetRFRegulation Sets the RF regulation setting value. SetRS232 Permits to change the serial port settings. Valid settings values depend on the reader model. CAENRFIDReaderInfo Class GetModel Gets the reader's model. GetSerialNumber Gets the reader's serial number. CAENRFIDTag Class GetId Returns the tag's ID (the EPC code in Gen2 tags). GetLength Returns the tag's ID length. GetReadPoint Returns the read point that has detected the tag. GetRSSI Returns the RSSI value measured for the tag. GetSource Returns the name of the logical source that has detected the tag. GetTID Returns the tag's TID (valid only for EPC Class 1 Gen 2 tags). GetTimeStamp Gets the Tag's TimeStamp. GetType Returns the air protocol of the tag. Tab. 2.2: CAENRFID methods

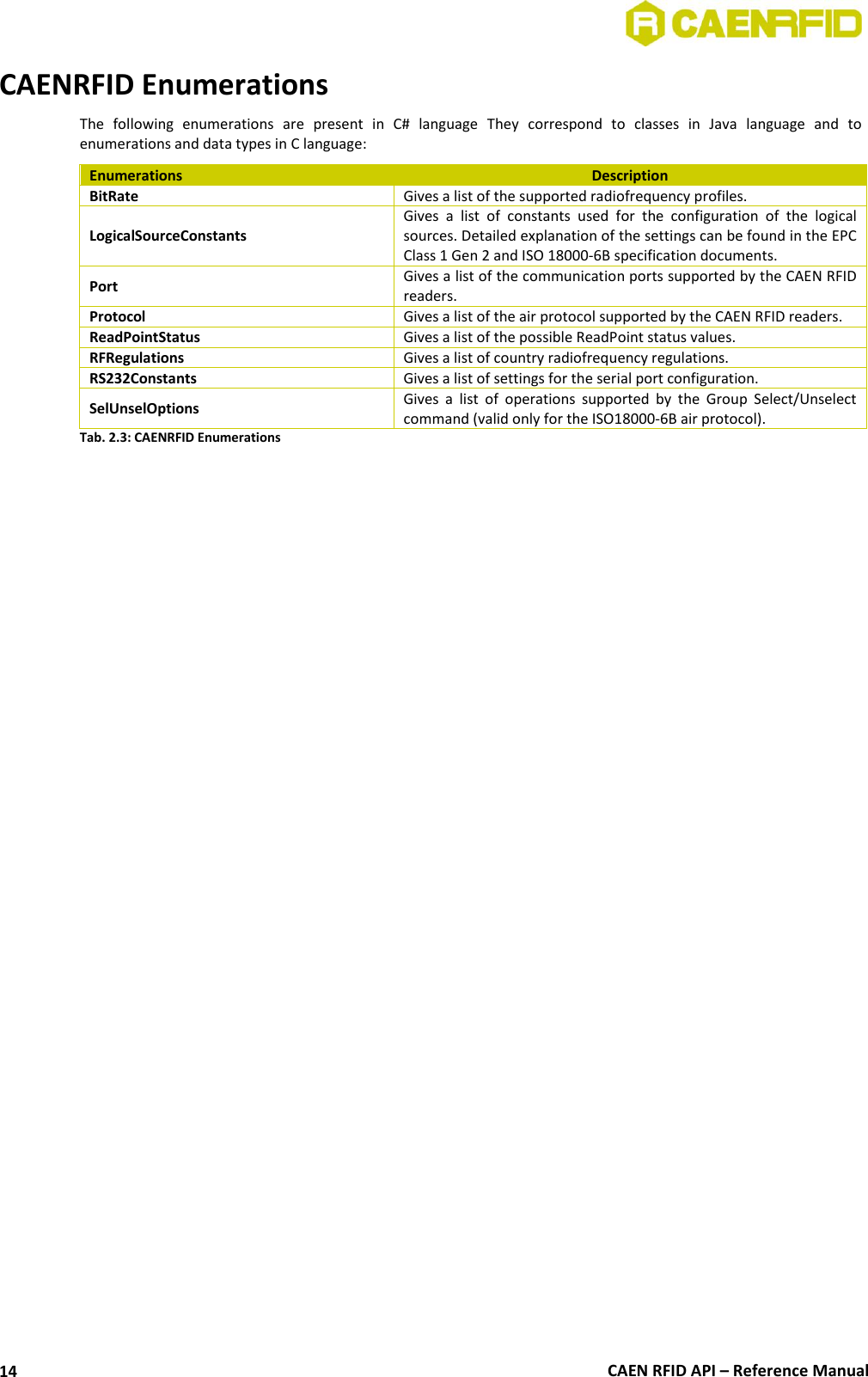

CAEN RFID API – Reference Manual 14 CAENRFID Enumerations The following enumerations are present in C# language They correspond to classes in Java language and to enumerations and data types in C language: Enumerations Description BitRate Gives a list of the supported radiofrequency profiles. LogicalSourceConstants Gives a list of constants used for the configuration of the logical sources. Detailed explanation of the settings can be found in the EPC Class 1 Gen 2 and ISO 18000-6B specification documents. Port Gives a list of the communication ports supported by the CAEN RFID readers. Protocol Gives a list of the air protocol supported by the CAEN RFID readers. ReadPointStatus Gives a list of the possible ReadPoint status values. RFRegulations Gives a list of country radiofrequency regulations. RS232Constants Gives a list of settings for the serial port configuration. SelUnselOptions Gives a list of operations supported by the Group Select/Unselect command (valid only for the ISO18000-6B air protocol). Tab. 2.3: CAENRFID Enumerations

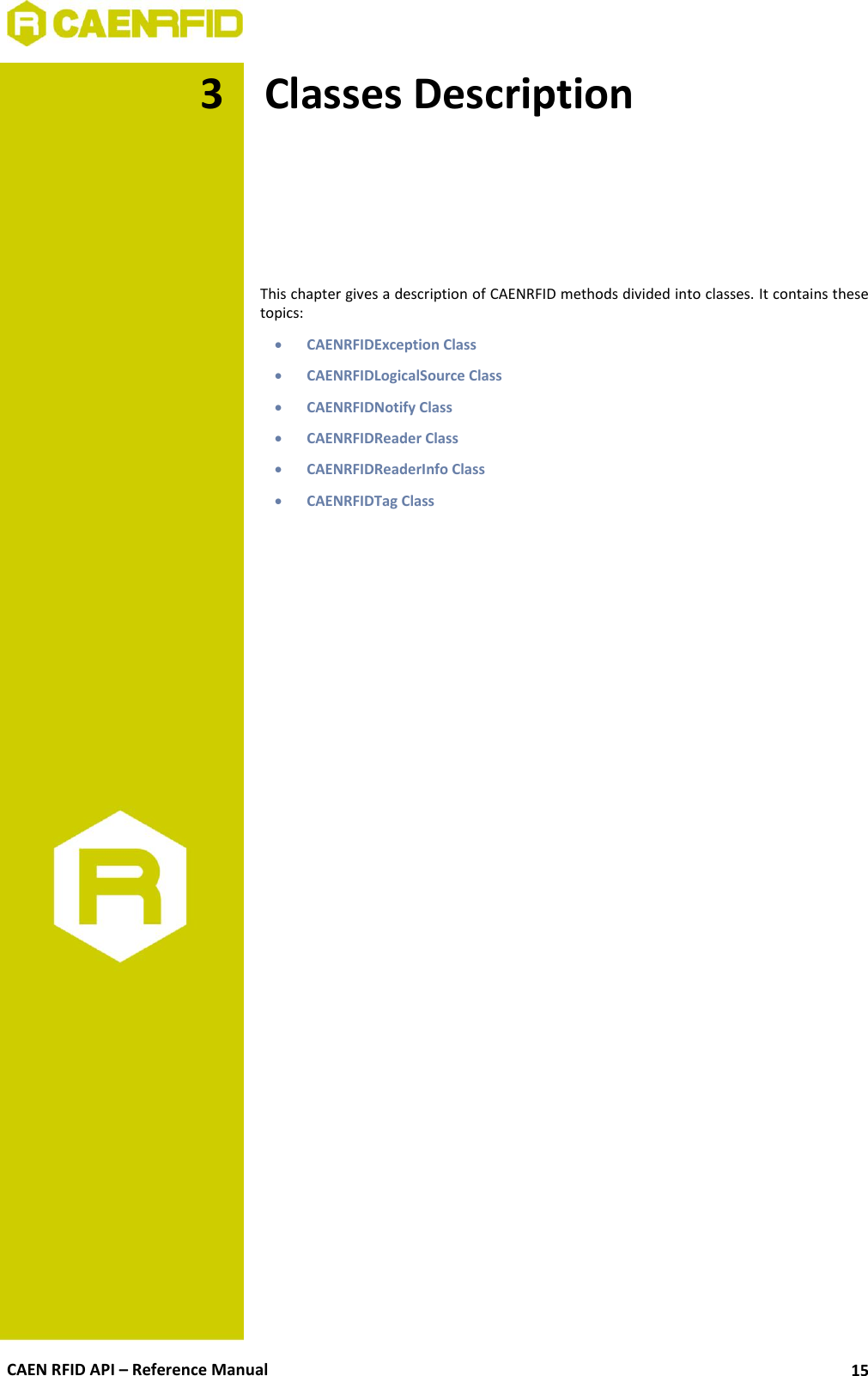

CAEN RFID API – Reference Manual 15 3 Classes Description This chapter gives a description of CAENRFID methods divided into classes. It contains these topics:  CAENRFIDException Class  CAENRFIDLogicalSource Class  CAENRFIDNotify Class  CAENRFIDReader Class  CAENRFIDReaderInfo Class  CAENRFIDTag Class

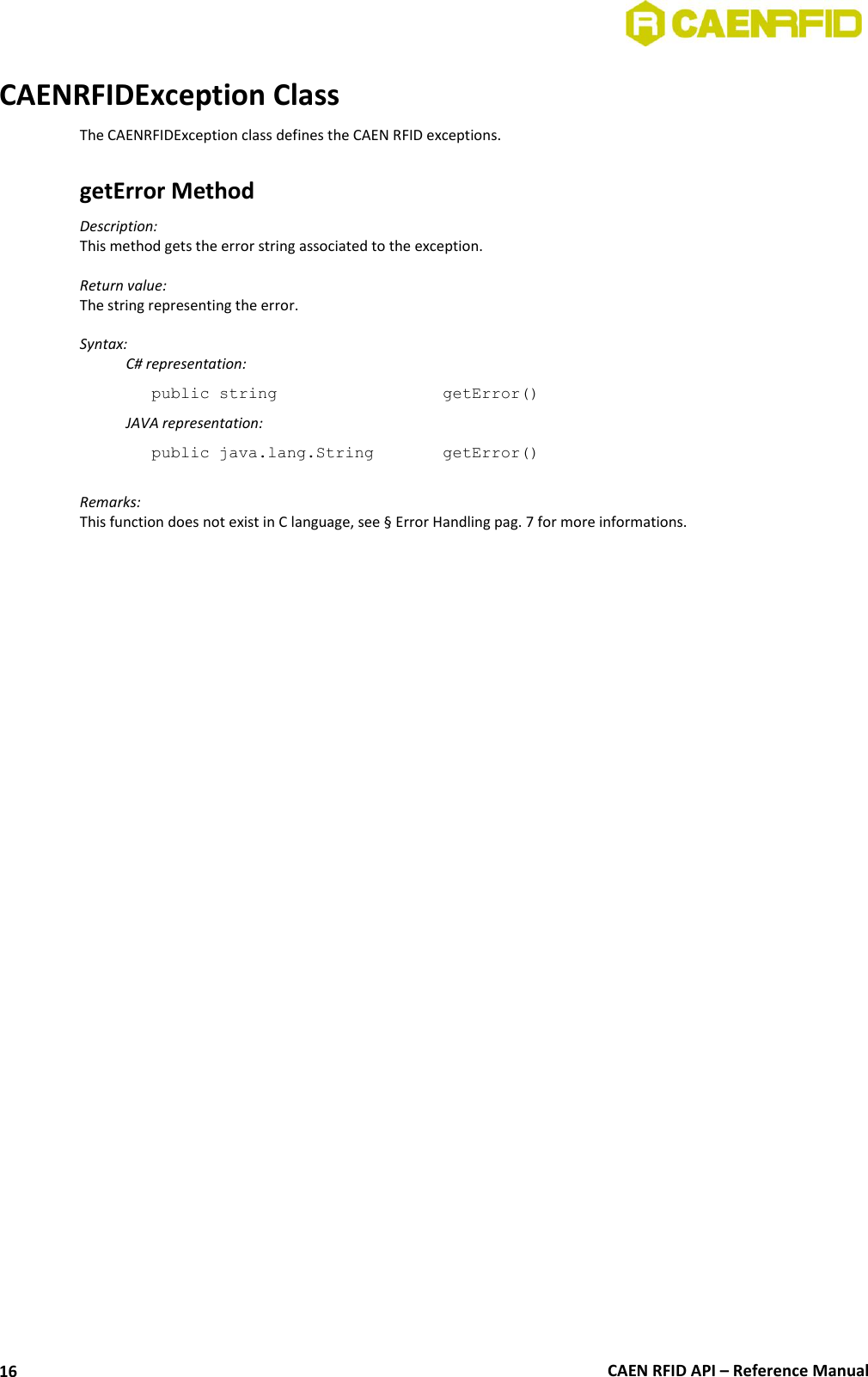

CAEN RFID API – Reference Manual 16 CAENRFIDException Class The CAENRFIDException class defines the CAEN RFID exceptions. getError Method Description: This method gets the error string associated to the exception. Return value: The string representing the error. Syntax: C# representation: public string getError() JAVA representation: public java.lang.String getError() Remarks: This function does not exist in C language, see § Error Handling pag. 7 for more informations.
CAEN RFID API – Reference Manual 17 CAENRFIDLogicalSource Class The CAENRFIDLogicalSource class is used to create logical source objects. Logical source objects represent an aggregation of read points (antennas). Operations on the tags are performed using methods belonging to the logical source. In addition to the methods used to operate on the tags, the logical source class exports methods to configure the anticollision algorithm and to configure the composition of the logical source itself. AddReadPoint Method Description: This method adds a read point to the logical source. Parameters: Name Description ReadPoint A string representing the name of the read point (antenna). Syntax: C# representation: public void AddReadPoint( string ReadPoint) JAVA representation: public void AddReadPoint( java.lang.String ReadPoint) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_AddReadPoint( CAENRFIDHandle handle, char *SourceName, char *ReadPoint);
CAEN RFID API – Reference Manual 18 BlockWriteTagData Method BlockWriteTagData Method (CAENRFIDTag, Int16, Int16, Byte[]) Description: This method can be used to write a portion of the user memory in a ISO18000-6B tag using blocks of four bytes for each command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. Address The address where to start writing the data. Length The number of byte to be written. Data The data to be written into the tag's user memory. Syntax: C# representation: public void BlockWriteTagData( CAENRFIDTag Tag, short Address, short Length, byte[] Data) JAVA representation: public void BlockWriteTagData( CAENRFIDTag Tag, short Address, short Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BlockWriteTagData( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Address, int Length, void *Data);

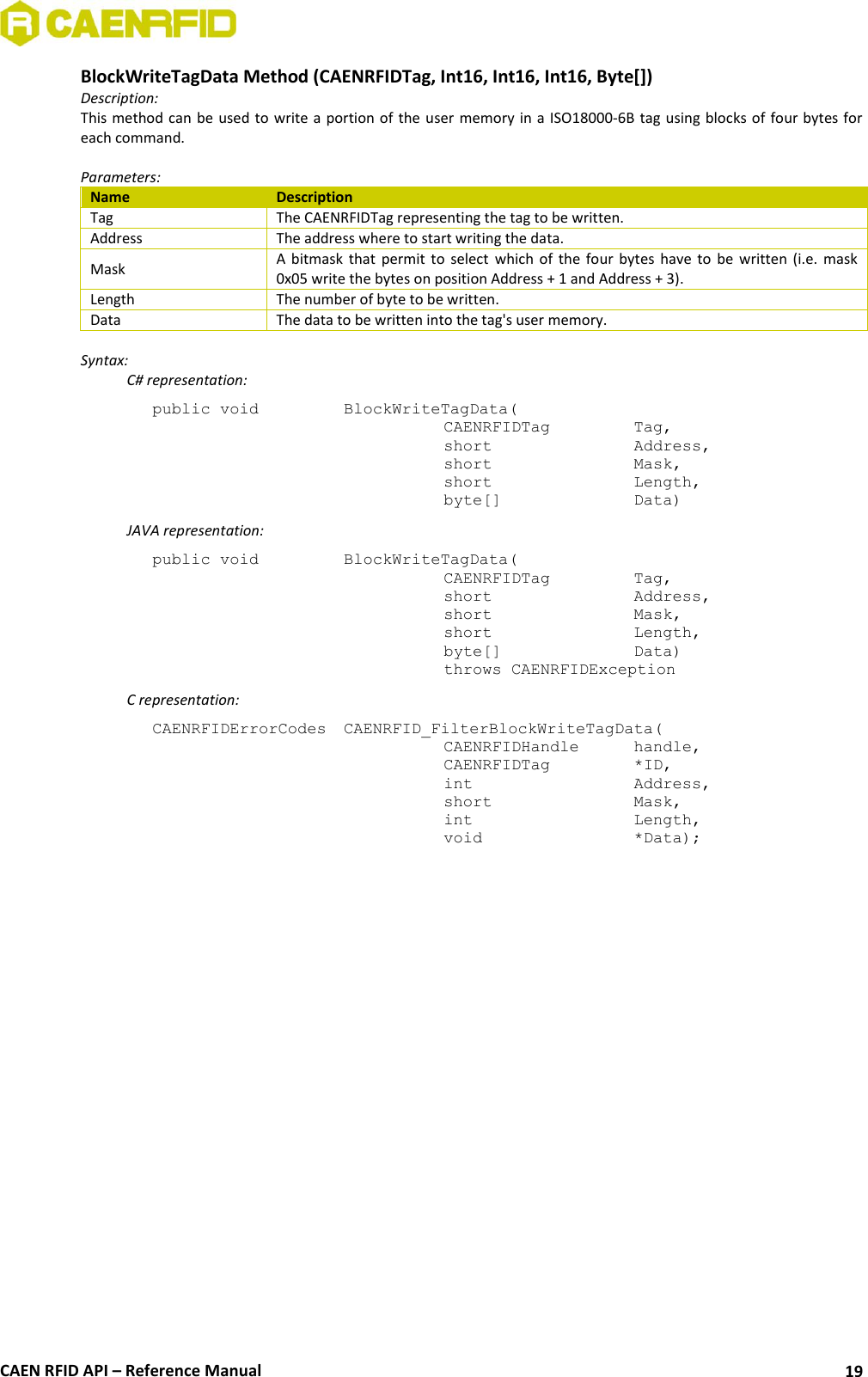

CAEN RFID API – Reference Manual 19 BlockWriteTagData Method (CAENRFIDTag, Int16, Int16, Int16, Byte[]) Description: This method can be used to write a portion of the user memory in a ISO18000-6B tag using blocks of four bytes for each command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. Address The address where to start writing the data. Mask A bitmask that permit to select which of the four bytes have to be written (i.e. mask 0x05 write the bytes on position Address + 1 and Address + 3). Length The number of byte to be written. Data The data to be written into the tag's user memory. Syntax: C# representation: public void BlockWriteTagData( CAENRFIDTag Tag, short Address, short Mask, short Length, byte[] Data) JAVA representation: public void BlockWriteTagData( CAENRFIDTag Tag, short Address, short Mask, short Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_FilterBlockWriteTagData( CAENRFIDHandle handle, CAENRFIDTag *ID, int Address, short Mask, int Length, void *Data);

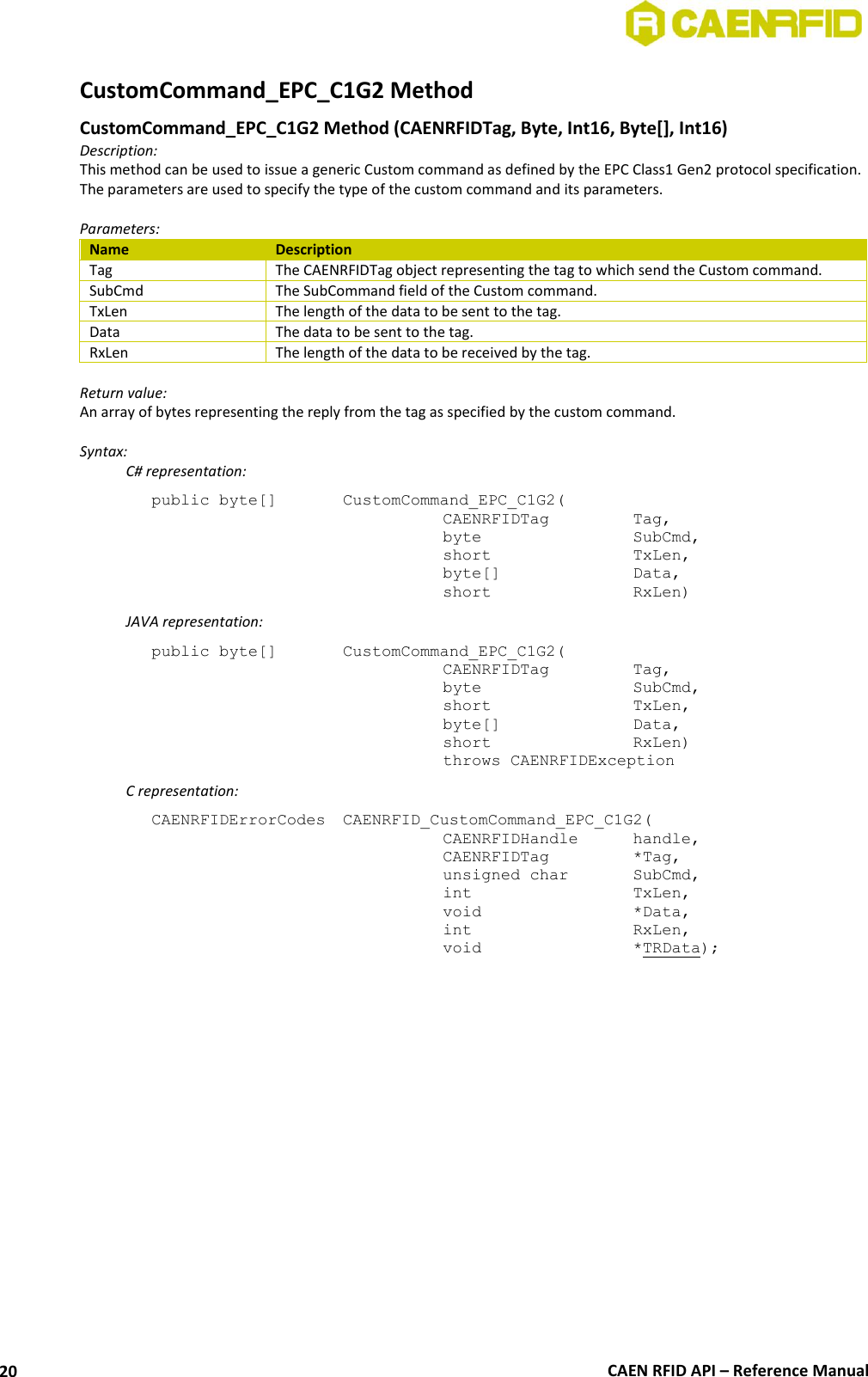

CAEN RFID API – Reference Manual 20 CustomCommand_EPC_C1G2 Method CustomCommand_EPC_C1G2 Method (CAENRFIDTag, Byte, Int16, Byte[], Int16) Description: This method can be used to issue a generic Custom command as defined by the EPC Class1 Gen2 protocol specification. The parameters are used to specify the type of the custom command and its parameters. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to which send the Custom command. SubCmd The SubCommand field of the Custom command. TxLen The length of the data to be sent to the tag. Data The data to be sent to the tag. RxLen The length of the data to be received by the tag. Return value: An array of bytes representing the reply from the tag as specified by the custom command. Syntax: C# representation: public byte[] CustomCommand_EPC_C1G2( CAENRFIDTag Tag, byte SubCmd, short TxLen, byte[] Data, short RxLen) JAVA representation: public byte[] CustomCommand_EPC_C1G2( CAENRFIDTag Tag, byte SubCmd, short TxLen, byte[] Data, short RxLen) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_CustomCommand_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, unsigned char SubCmd, int TxLen, void *Data, int RxLen, void *TRData);
CAEN RFID API – Reference Manual 21 CustomCommand_EPC_C1G2 Method (CAENRFIDTag, Byte, Int16, Byte[], Int16, Int32) Description: This method can be used to issue a generic Custom command as defined by the EPC Class1 Gen2 protocol specification. The parameters are used to specify the type of the custom command and its parameters. The Custom command is executed after an Access command to switch the tag in the Secured state using the provided password. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to select. SubCmd The SubCommand field of the Custom command. TxLen The length of the data to be sent to the tag. Data The data to be sent to the tag. RxLen The length of the data to be received by the tag. AccessPassword The access password. Return value: An array of bytes representing the reply from the tag as specified by the custom command. Syntax: C# representation: public byte[] CustomCommand_EPC_C1G2( CAENRFIDTag Tag, byte SubCmd, short TxLen, byte[] Data, short RxLen, int AccessPassword) JAVArepresentation: public byte[] CustomCommand_EPC_C1G2( CAENRFIDTag Tag, byte SubCmd, short TxLen, byte[] Data, short RxLen, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureCustomCommand_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, unsigned char SubCmd, int TxLen, void *Data, int RxLen, int AccessPassword, void *TRData); EventInventoryTag Method For the description of this method, see § Event Handling pag.108.
CAEN RFID API – Reference Manual 22 Fujitsu_BurstErase Method Fujitsu_BurstErase Method (CAENRFIDTag, Byte, Int16, Byte) Description: This method can be used to issue a BurstErase custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to erase the data. Address The address where to erase the data. Length The number of byte to be erased. Return value: A byte representing the "Write-locked" response of the tag. Syntax: C# representation: public byte Fujitsu_BurstErase( CAENRFIDTag Tag, byte MemBank, short Address, byte Length) JAVA representation: public byte Fujitsu_BurstErase( CAENRFIDTag Tag, byte MemBank, short Address, byte Length) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_BurstErase( CAENRFIDHandle handle, CAENRFIDTag *Tag, char MemBank, short Address, char Length, char *TRData);

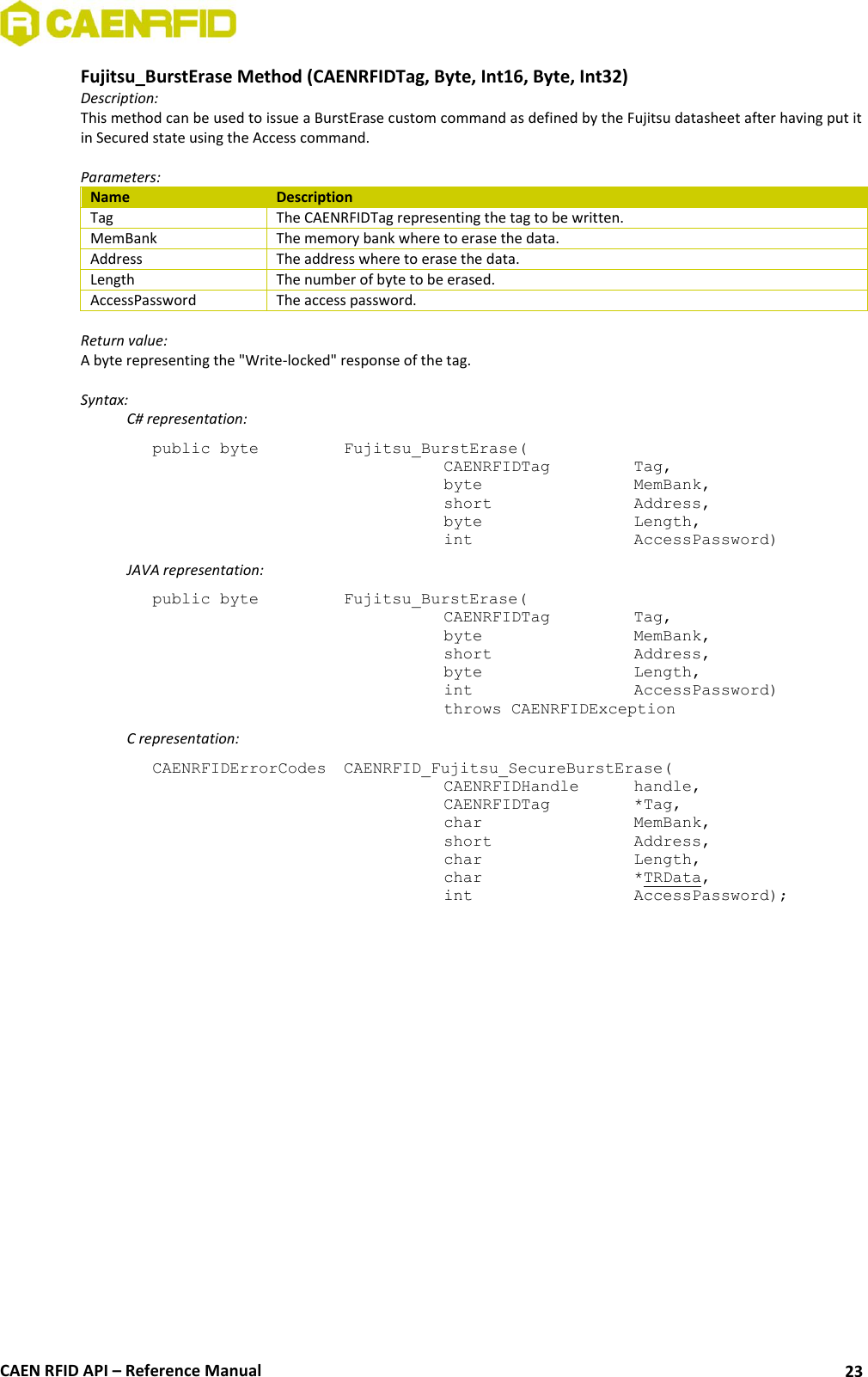

CAEN RFID API – Reference Manual 23 Fujitsu_BurstErase Method (CAENRFIDTag, Byte, Int16, Byte, Int32) Description: This method can be used to issue a BurstErase custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to erase the data. Address The address where to erase the data. Length The number of byte to be erased. AccessPassword The access password. Return value: A byte representing the "Write-locked" response of the tag. Syntax: C# representation: public byte Fujitsu_BurstErase( CAENRFIDTag Tag, byte MemBank, short Address, byte Length, int AccessPassword) JAVA representation: public byte Fujitsu_BurstErase( CAENRFIDTag Tag, byte MemBank, short Address, byte Length, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureBurstErase( CAENRFIDHandle handle, CAENRFIDTag *Tag, char MemBank, short Address, char Length, char *TRData, int AccessPassword);
CAEN RFID API – Reference Manual 24 Fujitsu_BurstWrite Method Fujitsu_BurstWrite Method (CAENRFIDTag, Byte, Int16, Byte, Byte[]) Description: This method can be used to issue a BurstWrite custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. Return value: A byte representing the "Write-locked" response of the tag. Syntax: C# representation: public byte Fujitsu_BurstWrite( CAENRFIDTag Tag, byte MemBank, short Address, byte Length, byte[] Data) JAVA representation: public byte Fujitsu_BurstWrite( CAENRFIDTag Tag, byte MemBank, short Address, byte Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_BurstWrite( CAENRFIDHandle handle, CAENRFIDTag *Tag, char MemBank, short Address, char Length, char *Data, char *TRData);

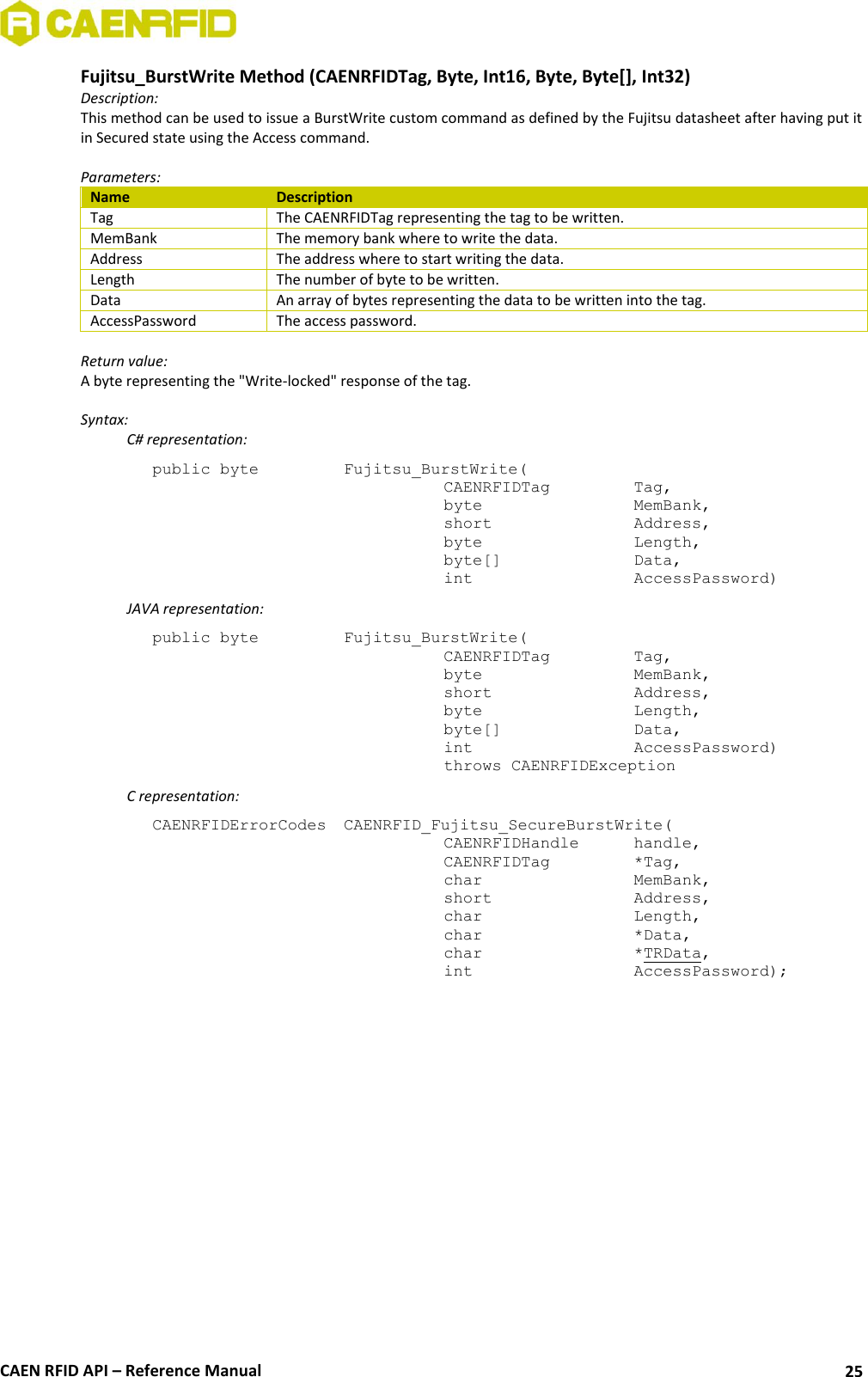

CAEN RFID API – Reference Manual 25 Fujitsu_BurstWrite Method (CAENRFIDTag, Byte, Int16, Byte, Byte[], Int32) Description: This method can be used to issue a BurstWrite custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. AccessPassword The access password. Return value: A byte representing the "Write-locked" response of the tag. Syntax: C# representation: public byte Fujitsu_BurstWrite( CAENRFIDTag Tag, byte MemBank, short Address, byte Length, byte[] Data, int AccessPassword) JAVA representation: public byte Fujitsu_BurstWrite( CAENRFIDTag Tag, byte MemBank, short Address, byte Length, byte[] Data, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureBurstWrite( CAENRFIDHandle handle, CAENRFIDTag *Tag, char MemBank, short Address, char Length, char *Data, char *TRData, int AccessPassword);
CAEN RFID API – Reference Manual 26 Fujitsu_ChgBlockGroupPassword Method Fujitsu_ChgBlockGroupPassword Method (CAENRFIDTag, Byte, Int32, Int32) Description: This method can be used to issue a ChgBlockGroupPassword custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. BlockGroupPtr The BlockGroupPtr parameter as defined by the Fujitsu datasheet. NewPassword The new password to set. OldPassword The current password. Syntax: C# representation: public void Fujitsu_ChgBlockGroupPassword( CAENRFIDTag Tag, byte BlockGroupPtr, int NewPassword, int OldPassword) JAVA representation: public void Fujitsu_ChgBlockGroupPassword( CAENRFIDTag Tag, byte BlockGroupPtr, int NewPassword, int OldPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_ChgBlockGroupPassword( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockGroupPtr, int NewPassword, int OldPassword);

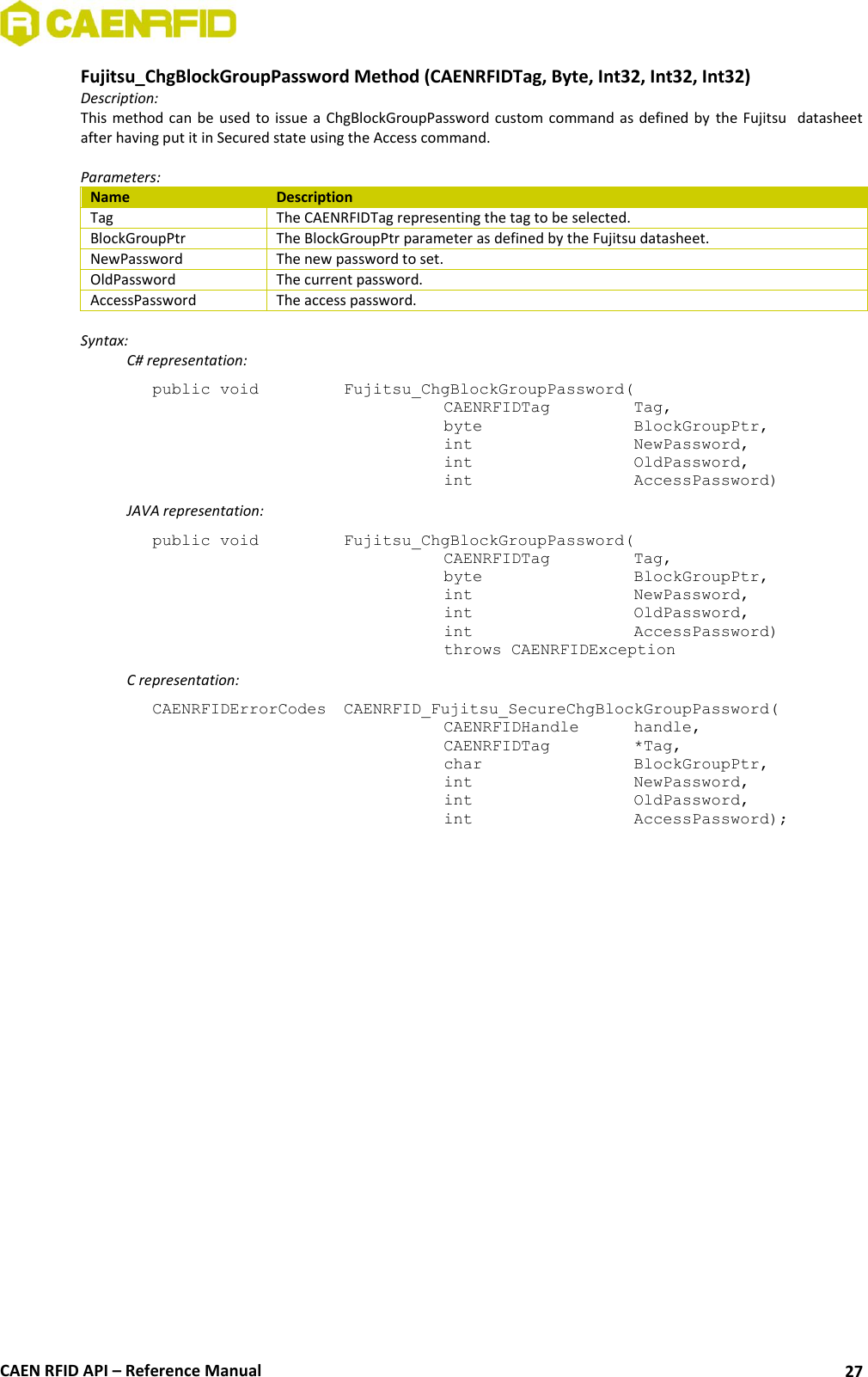

CAEN RFID API – Reference Manual 27 Fujitsu_ChgBlockGroupPassword Method (CAENRFIDTag, Byte, Int32, Int32, Int32) Description: This method can be used to issue a ChgBlockGroupPassword custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. BlockGroupPtr The BlockGroupPtr parameter as defined by the Fujitsu datasheet. NewPassword The new password to set. OldPassword The current password. AccessPassword The access password. Syntax: C# representation: public void Fujitsu_ChgBlockGroupPassword( CAENRFIDTag Tag, byte BlockGroupPtr, int NewPassword, int OldPassword, int AccessPassword) JAVA representation: public void Fujitsu_ChgBlockGroupPassword( CAENRFIDTag Tag, byte BlockGroupPtr, int NewPassword, int OldPassword, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureChgBlockGroupPassword( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockGroupPtr, int NewPassword, int OldPassword, int AccessPassword);

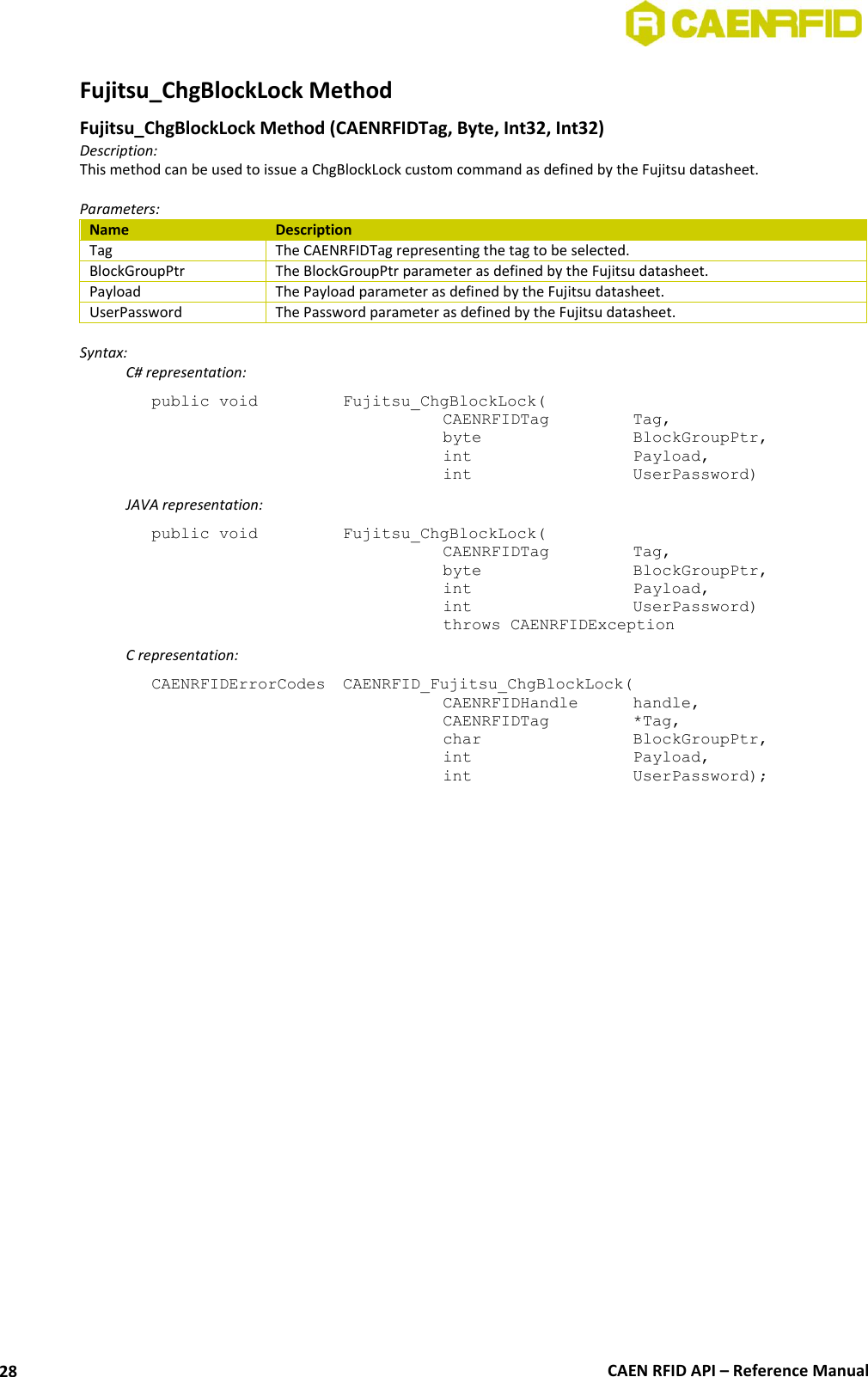

CAEN RFID API – Reference Manual 28 Fujitsu_ChgBlockLock Method Fujitsu_ChgBlockLock Method (CAENRFIDTag, Byte, Int32, Int32) Description: This method can be used to issue a ChgBlockLock custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. BlockGroupPtr The BlockGroupPtr parameter as defined by the Fujitsu datasheet. Payload The Payload parameter as defined by the Fujitsu datasheet. UserPassword The Password parameter as defined by the Fujitsu datasheet. Syntax: C# representation: public void Fujitsu_ChgBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr, int Payload, int UserPassword) JAVA representation: public void Fujitsu_ChgBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr, int Payload, int UserPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_ChgBlockLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockGroupPtr, int Payload, int UserPassword);

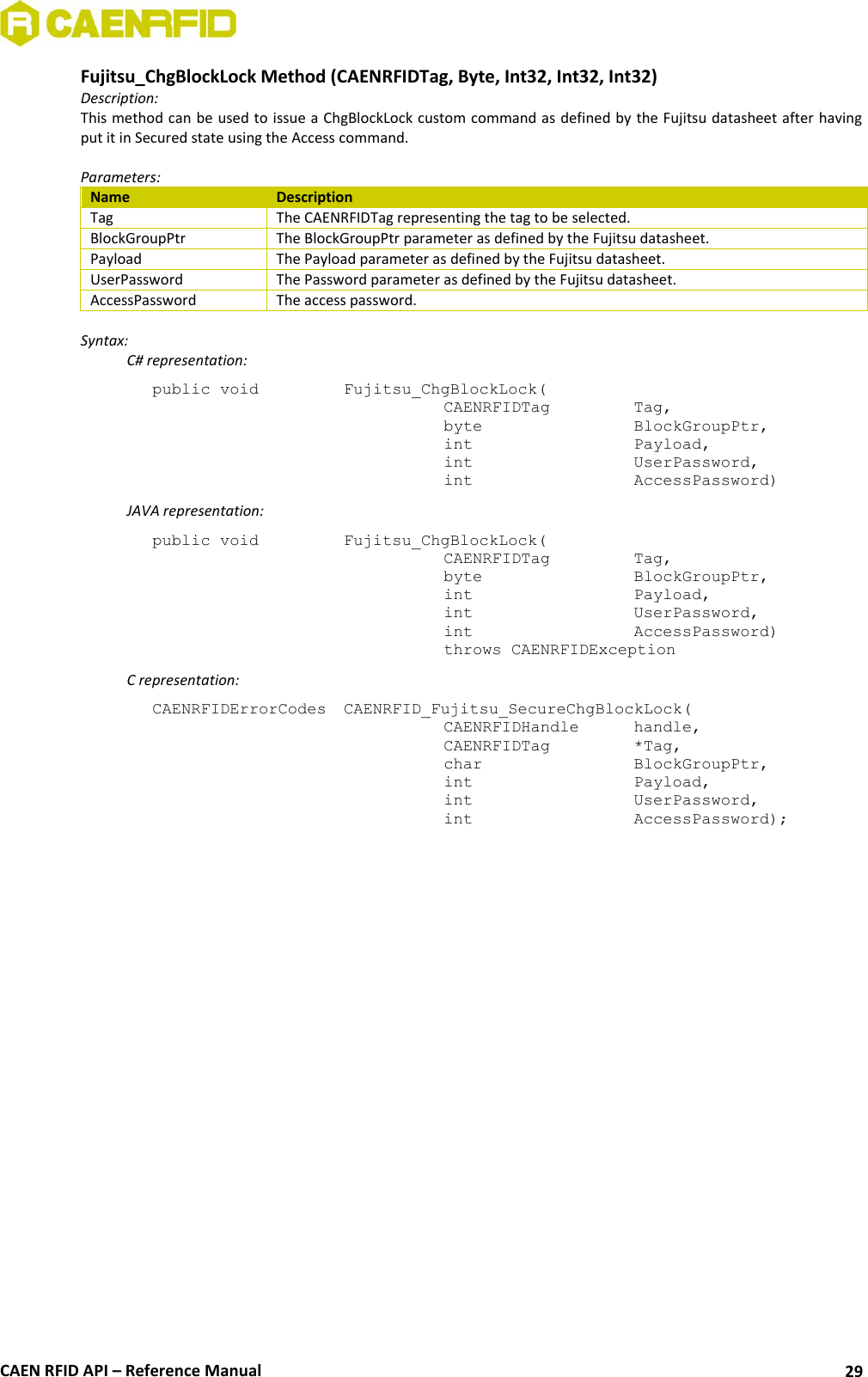

CAEN RFID API – Reference Manual 29 Fujitsu_ChgBlockLock Method (CAENRFIDTag, Byte, Int32, Int32, Int32) Description: This method can be used to issue a ChgBlockLock custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. BlockGroupPtr The BlockGroupPtr parameter as defined by the Fujitsu datasheet. Payload The Payload parameter as defined by the Fujitsu datasheet. UserPassword The Password parameter as defined by the Fujitsu datasheet. AccessPassword The access password. Syntax: C# representation: public void Fujitsu_ChgBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr, int Payload, int UserPassword, int AccessPassword) JAVA representation: public void Fujitsu_ChgBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr, int Payload, int UserPassword, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureChgBlockLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockGroupPtr, int Payload, int UserPassword, int AccessPassword);

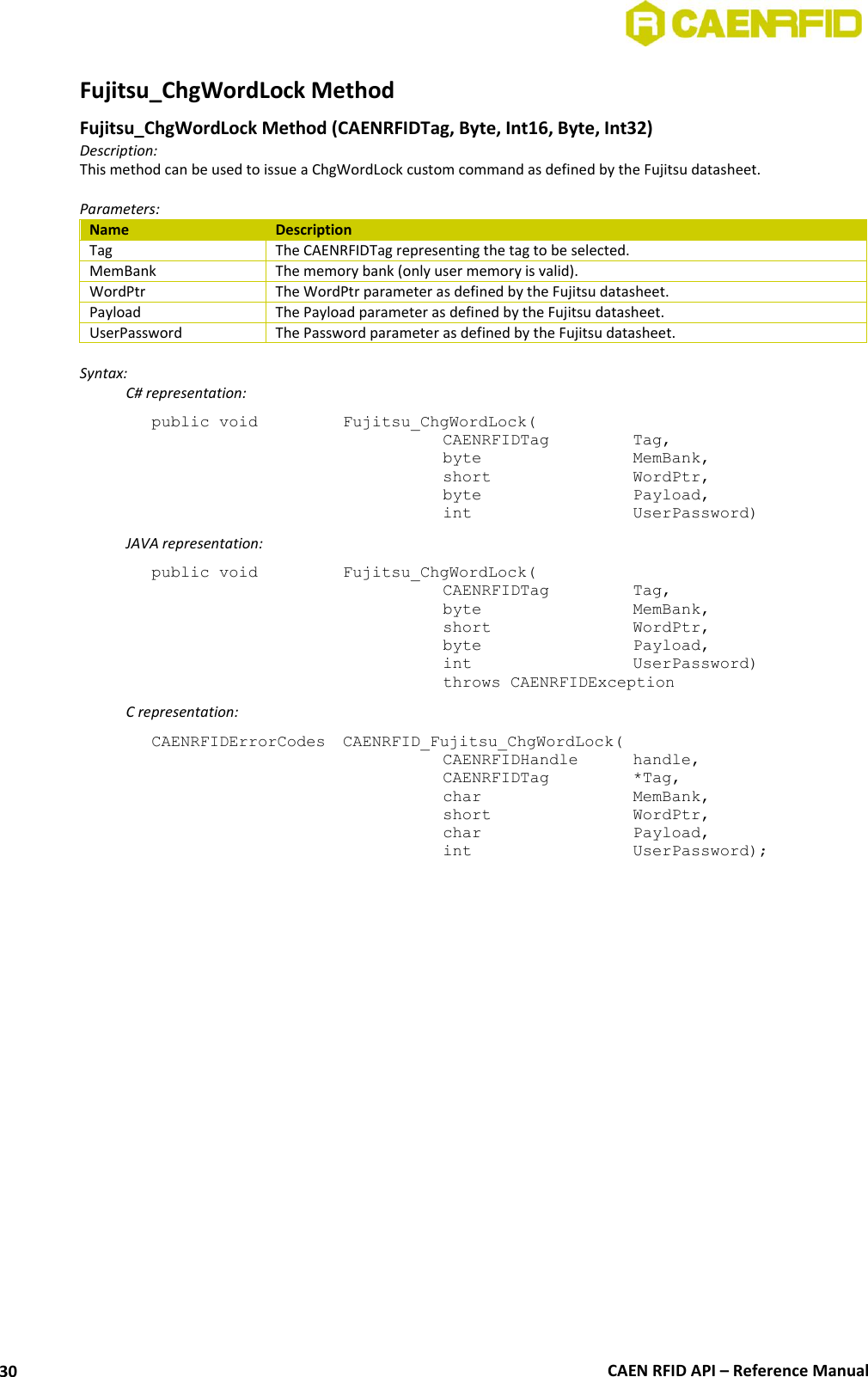

CAEN RFID API – Reference Manual 30 Fujitsu_ChgWordLock Method Fujitsu_ChgWordLock Method (CAENRFIDTag, Byte, Int16, Byte, Int32) Description: This method can be used to issue a ChgWordLock custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. MemBank The memory bank (only user memory is valid). WordPtr The WordPtr parameter as defined by the Fujitsu datasheet. Payload The Payload parameter as defined by the Fujitsu datasheet. UserPassword The Password parameter as defined by the Fujitsu datasheet. Syntax: C# representation: public void Fujitsu_ChgWordLock( CAENRFIDTag Tag, byte MemBank, short WordPtr, byte Payload, int UserPassword) JAVA representation: public void Fujitsu_ChgWordLock( CAENRFIDTag Tag, byte MemBank, short WordPtr, byte Payload, int UserPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_ChgWordLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char MemBank, short WordPtr, char Payload, int UserPassword);
CAEN RFID API – Reference Manual 31 Fujitsu_ChgWordLock Method (CAENRFIDTag, Byte, Int16, Byte, Int32, Int32) Description: This method can be used to issue a ChgWordLock custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. MemBank The memory bank (only user memory is valid). WordPtr The WordPtr parameter as defined by the Fujitsu datasheet. Payload The Payload parameter as defined by the Fujitsu datasheet. UserPassword The Password parameter as defined by the Fujitsu datasheet. AccessPassword The access password. Syntax: C# representation: public void Fujitsu_ChgWordLock( CAENRFIDTag Tag, byte MemBank, short WordPtr, byte Payload, int UserPassword, int AccessPassword) JAVA representation: public void Fujitsu_ChgWordLock( CAENRFIDTag Tag, byte MemBank, short WordPtr, byte Payload, int UserPassword, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureChgWordLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char MemBank, short WordPtr, char Payload, int UserPassword, int AccessPassword);

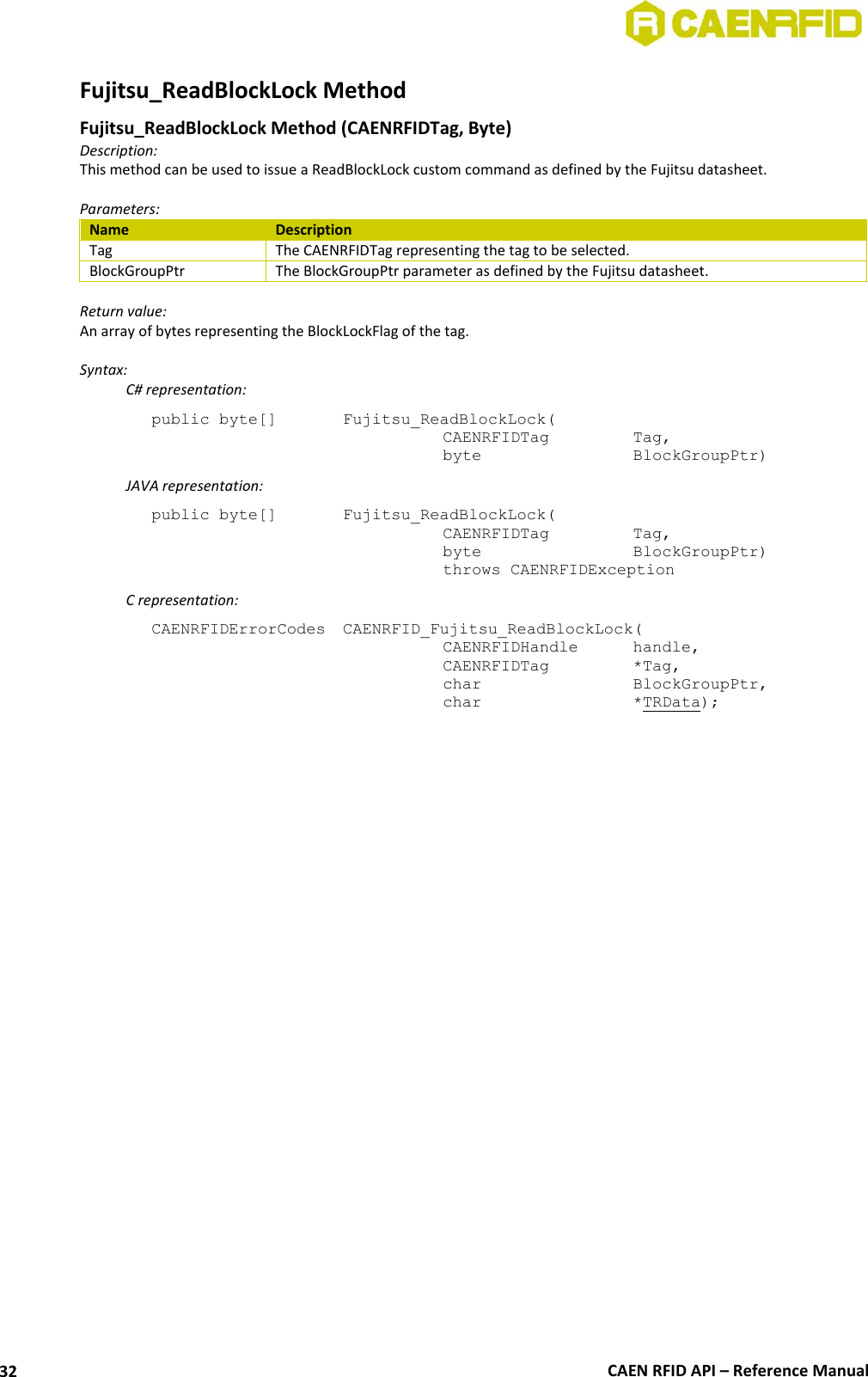

CAEN RFID API – Reference Manual 32 Fujitsu_ReadBlockLock Method Fujitsu_ReadBlockLock Method (CAENRFIDTag, Byte) Description: This method can be used to issue a ReadBlockLock custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. BlockGroupPtr The BlockGroupPtr parameter as defined by the Fujitsu datasheet. Return value: An array of bytes representing the BlockLockFlag of the tag. Syntax: C# representation: public byte[] Fujitsu_ReadBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr) JAVA representation: public byte[] Fujitsu_ReadBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_ReadBlockLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockGroupPtr, char *TRData);
CAEN RFID API – Reference Manual 33 Fujitsu_ReadBlockLock Method (CAENRFIDTag, Byte, Int32) Description: This method can be used to issue a ReadBlockLock custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. BlockGroupPtr The BlockGroupPtr parameter as defined by the Fujitsu datasheet. AccessPassword The access password. Return value: An array of bytes representing the BlockLockFlag of the tag. Syntax: C# representation: public byte[] Fujitsu_ReadBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr, int AccessPassword) JAVA representation: public byte[] Fujitsu_ReadBlockLock( CAENRFIDTag Tag, byte BlockGroupPtr, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureReadBlockLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockGroupPtr, char *TRData, int AccessPassword);
CAEN RFID API – Reference Manual 34 Fujitsu_Refresh Method Fujitsu_Refresh Method (CAENRFIDTag, Byte) Description: This method can be used to issue a Refresh custom command as defined by the Fujitsu datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. Option The option parameter as defined by the Fujitsu datasheet. Syntax: C# representation: public void Fujitsu_Refresh( CAENRFIDTag Tag, byte Option) JAVA representation: public void Fujitsu_Refresh( CAENRFIDTag Tag, byte Option) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_Refresh( CAENRFIDHandle handle, CAENRFIDTag *Tag, char Option); Fujitsu_Refresh Method (CAENRFIDTag, Byte, Int32) Description: This method can be used to issue a Refresh custom command as defined by the Fujitsu datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. Option The option parameter as defined by the Fujitsu datasheet. AccessPassword The access password. Syntax: C# representation: public void Fujitsu_Refresh( CAENRFIDTag Tag, byte Option, int AccessPassword) JAVA representation: public void Fujitsu_Refresh( CAENRFIDTag Tag, byte Option, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Fujitsu_SecureRefresh( CAENRFIDHandle handle, CAENRFIDTag *Tag, char Option, int AccessPassword);
CAEN RFID API – Reference Manual 35 GetBufferedData Method Description: This method returns all the Tags stored in reader's buffer using all the ReadPoints belonging to the Source. Only on A828BT. Return value: An array of CAENRFIDTag objects detected. Syntax: C# representation: public CAENRFIDTag[] GetBufferedData() JAVA representation: public CAENRFIDTag[] GetBufferedData() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetBufferedData( CAENRFIDHandle handle, char *source, CAENRFIDTag **Receive, int *Size); GetDESB_ISO180006B Method Description: This method can be used to retrieve the Data Exchange Status Bit setting (see ISO18000-6B protocol specification) used by the anticollision algorithm when called on this logical source. Return value: The current DESB setting value. Syntax: C# representation: public CAENRFIDLogicalSourceConstants GetDESB_ISO180006B() JAVA representation: public CAENRFIDLogicalSourceConstants GetDESB_ISO180006B() throws CAENRFIDException C representation: CAENRFIDErrorCodes GetDESB_ISO180006B( CAENRFIDHandle handle, unsigned short *Status);
CAEN RFID API – Reference Manual 36 GetName Method Description: This method gets a string representing the name of the logical source. Return value: A string representing the name of the logical source. Syntax: C# representation: public string GetName() JAVA representation: public java.lang.String GetName() Remarks: This function does not exist in C language, see § Overview on SDK pag. 7 for more informations. GetQ_EPC_C1G2 Method Description: This method can be used to retrieve the current setting for the initial Q value (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Return value: The current initial Q value setting. Syntax: C# representation: public int GetQ_EPC_C1G2() JAVA representation: public int GetQ_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetQValue_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, int *Q);
CAEN RFID API – Reference Manual 37 GetReadCycle Method Description: This method gets the current setting for the number of read cycles performed by the logical source during the inventory algorithm execution. ReadCycle affects only inventory performed with continuos mode (see EventInventoryTag method). Return value: The number of read cycles. Syntax: C# representation: public int GetReadCycle() JAVA representation: public int GetReadCycle() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetReadCycle( CAENRFIDHandle handle, char *SourceName, int *value); GetSelected_EPC_C1G2 Method Description: This method can be used to retrieve the Selected flag (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Return value: The current Selected value Syntax: C# representation: public CAENRFIDLogicalSourceConstants GetSelected_EPC_C1G2() JAVA representation: public CAENRFIDLogicalSourceConstants GetSelected_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetSelected_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, CAENRFIDLogicalSourceConstants *value);
CAEN RFID API – Reference Manual 38 GetSession_EPC_C1G2 Method Description: This method can be used to retrieve the Session setting (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Return value: The current Session value setting. Syntax: C# representation: public CAENRFIDLogicalSourceConstants GetSession_EPC_C1G2() JAVA representation: public CAENRFIDLogicalSourceConstants GetSession_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetSession_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, CAENRFIDLogicalSourceConstants *value); GetTarget_EPC_C1G2 Method Description: This method can be used to retrieve the Target setting (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Return value: The current Target value setting. Syntax: C# representation: public CAENRFIDLogicalSourceConstants GetTarget_EPC_C1G2() JAVA representation: public CAENRFIDLogicalSourceConstants GetTarget_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetTarget_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, CAENRFIDLogicalSourceConstants *value);
CAEN RFID API – Reference Manual 39 GroupSelUnsel Method Description: This method can be used to send a Group Select/Unselect command to the tag (see ISO18000-6B protocol specification). Parameters: Name Description Code The operation code as defined by the protocol. Address The Address from which start the comparison. BitMask The bit mask to use. Data The data to be compared. Return value: The selected tag. Syntax: C# representation: public CAENRFIDTag GroupSelUnsel( CAENRFIDSelUnselOptions Code, short Address, short BitMask, byte[] Data) JAVA representation: public CAENRFIDTag GroupSelUnsel( CAENRFIDSelUnselOptions Code, short Address, short BitMask, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GroupSelUnsel( CAENRFIDHandle handle, char *SourceName, CAENRFID_SelUnsel_Op Code, int Address, int BitMask, void *Data, CAENRFIDTag *Tag);

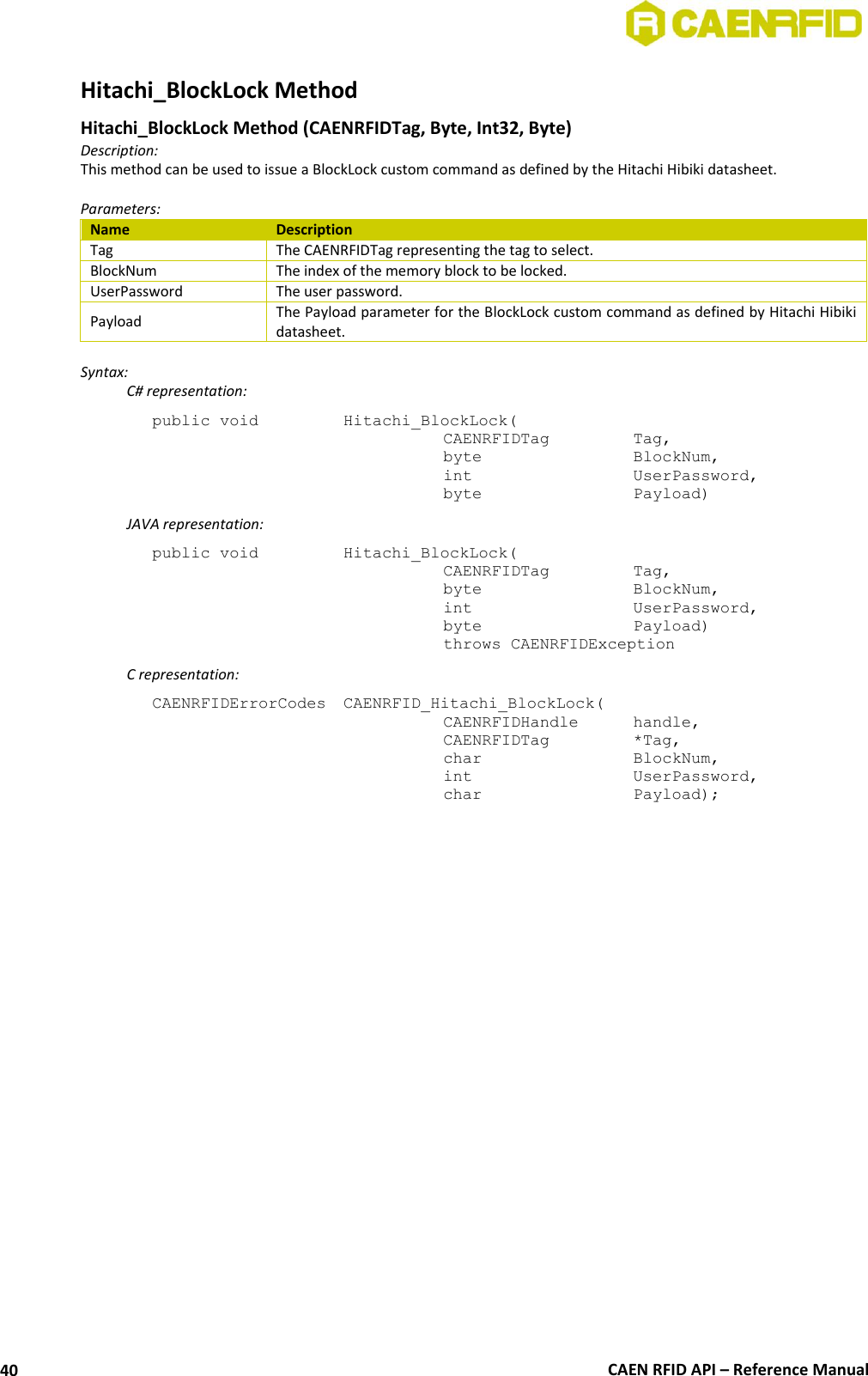

CAEN RFID API – Reference Manual 40 Hitachi_BlockLock Method Hitachi_BlockLock Method (CAENRFIDTag, Byte, Int32, Byte) Description: This method can be used to issue a BlockLock custom command as defined by the Hitachi Hibiki datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to select. BlockNum The index of the memory block to be locked. UserPassword The user password. Payload The Payload parameter for the BlockLock custom command as defined by Hitachi Hibiki datasheet. Syntax: C# representation: public void Hitachi_BlockLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload) JAVA representation: public void Hitachi_BlockLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_BlockLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockNum, int UserPassword, char Payload);

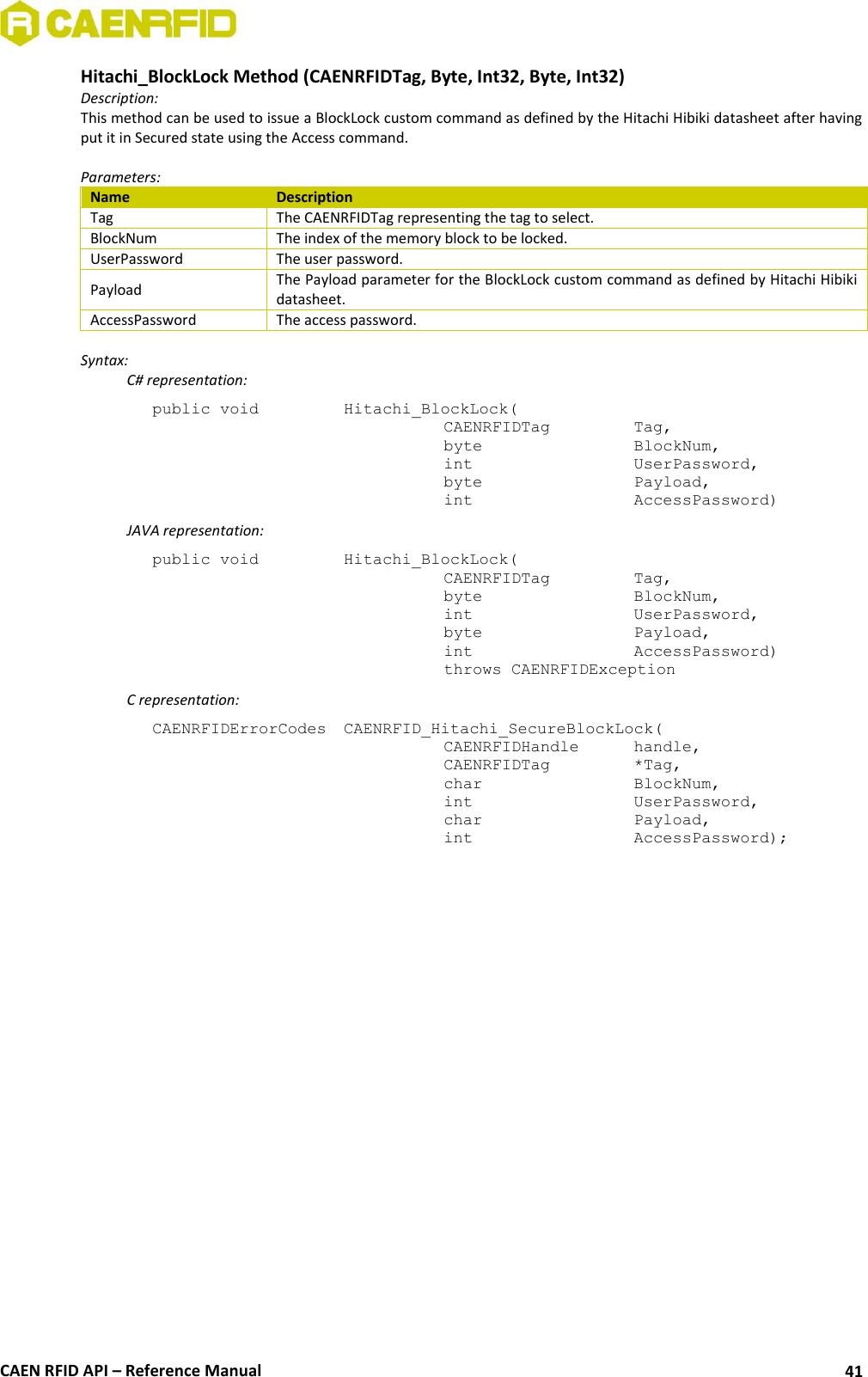

CAEN RFID API – Reference Manual 41 Hitachi_BlockLock Method (CAENRFIDTag, Byte, Int32, Byte, Int32) Description: This method can be used to issue a BlockLock custom command as defined by the Hitachi Hibiki datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to select. BlockNum The index of the memory block to be locked. UserPassword The user password. Payload The Payload parameter for the BlockLock custom command as defined by Hitachi Hibiki datasheet. AccessPassword The access password. Syntax: C# representation: public void Hitachi_BlockLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload, int AccessPassword) JAVA representation: public void Hitachi_BlockLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SecureBlockLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, char BlockNum, int UserPassword, char Payload, int AccessPassword);

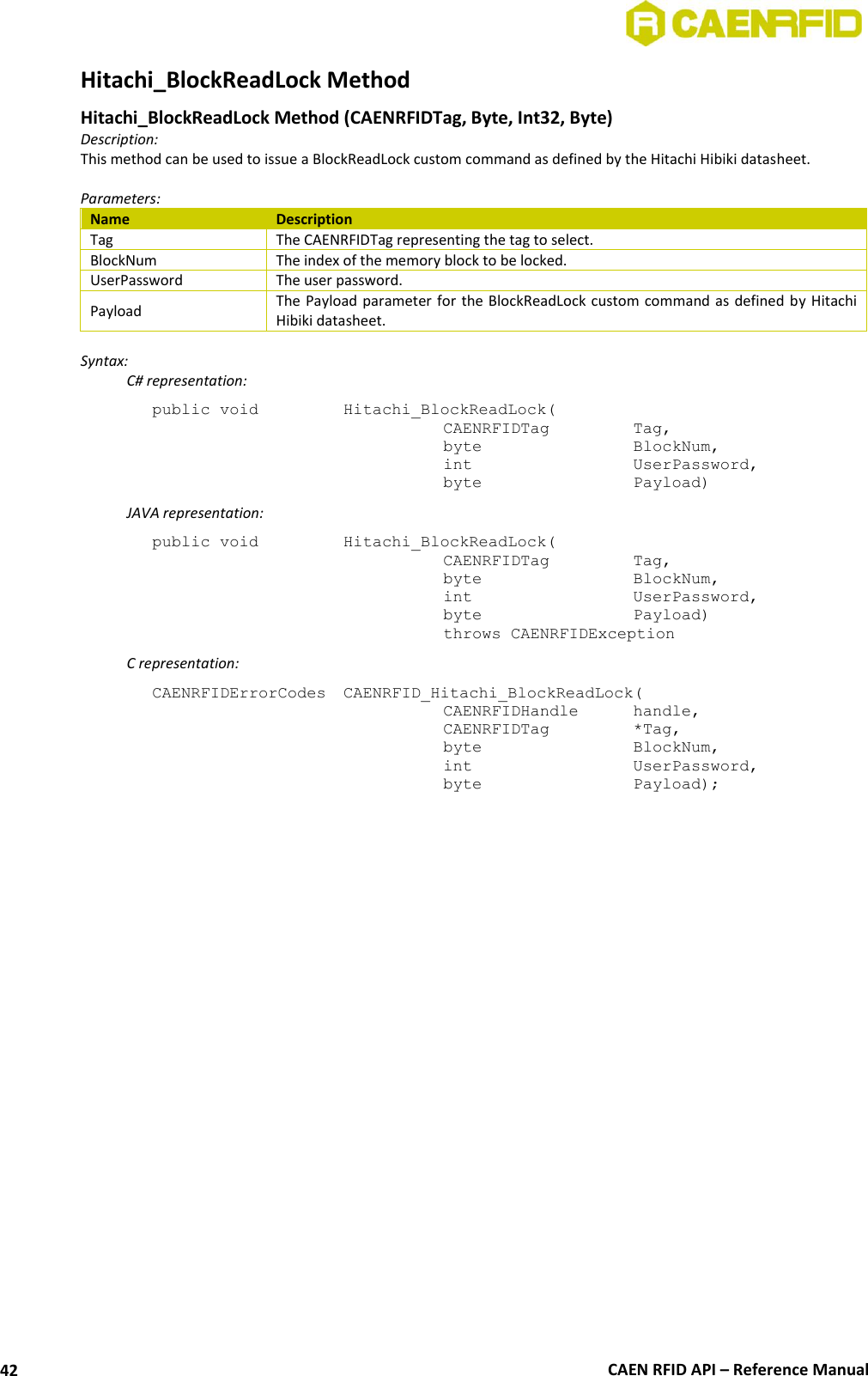

CAEN RFID API – Reference Manual 42 Hitachi_BlockReadLock Method Hitachi_BlockReadLock Method (CAENRFIDTag, Byte, Int32, Byte) Description: This method can be used to issue a BlockReadLock custom command as defined by the Hitachi Hibiki datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to select. BlockNum The index of the memory block to be locked. UserPassword The user password. Payload The Payload parameter for the BlockReadLock custom command as defined by Hitachi Hibiki datasheet. Syntax: C# representation: public void Hitachi_BlockReadLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload) JAVA representation: public void Hitachi_BlockReadLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_BlockReadLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, byte BlockNum, int UserPassword, byte Payload);
CAEN RFID API – Reference Manual 43 Hitachi_BlockReadLock Method (CAENRFIDTag, Byte, Int32, Byte, Int32) Description: This method can be used to issue a BlockReadLock custom command as defined by the Hitachi Hibiki datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to select. BlockNum The index of the memory block to be locked. UserPassword The user password. Payload The Payload parameter for the BlockReadLock custom command as defined by Hitachi Hibiki datasheet. AccessPassword The access password. Syntax: C# representation: public void Hitachi_BlockReadLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload, int AccessPassword) JAVA representation: public void Hitachi_BlockReadLock( CAENRFIDTag Tag, byte BlockNum, int UserPassword, byte Payload, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SecureBlockReadLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, byte BlockNum, int UserPassword, byte Payload, int AccessPassword);

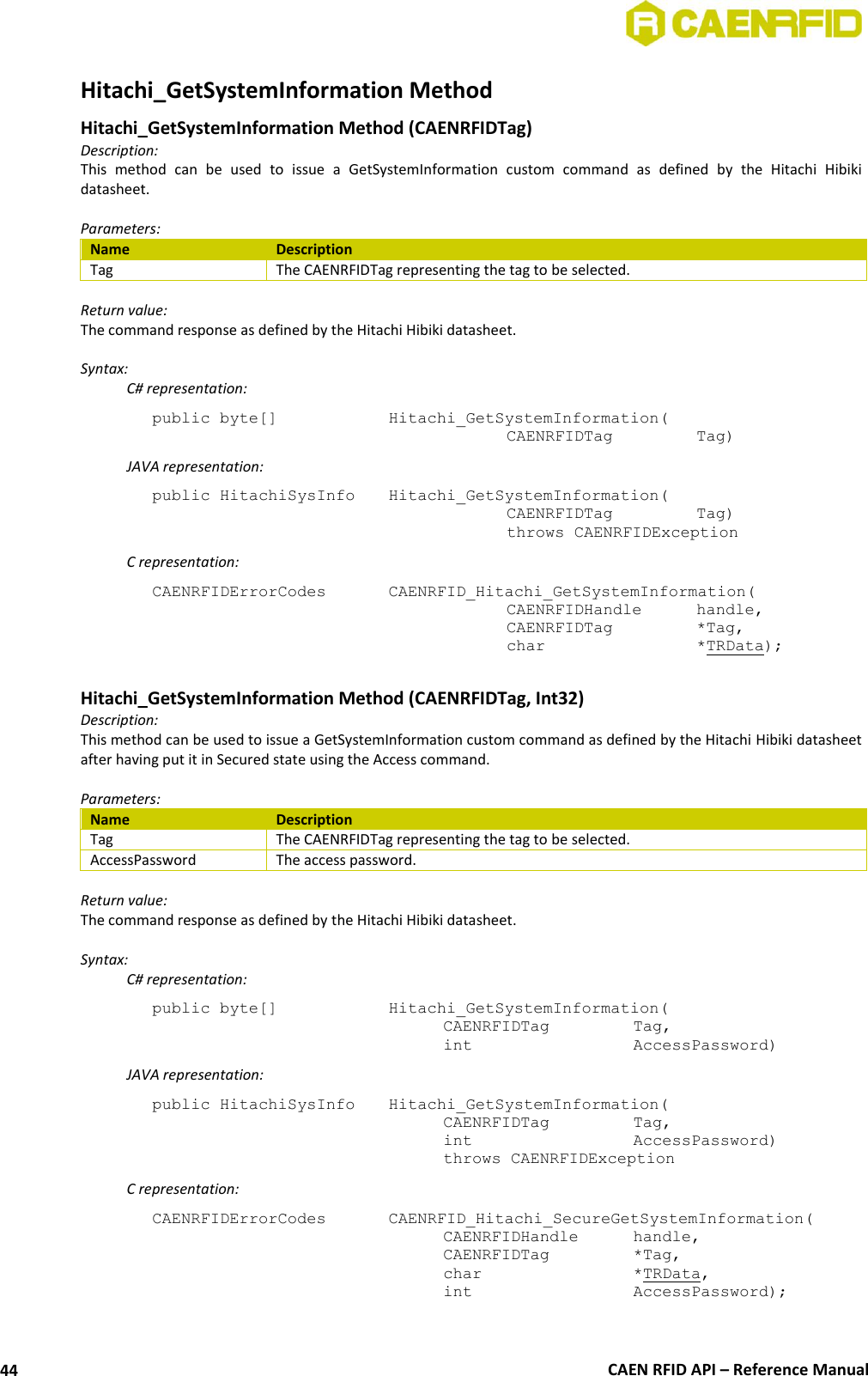

CAEN RFID API – Reference Manual 44 Hitachi_GetSystemInformation Method Hitachi_GetSystemInformation Method (CAENRFIDTag) Description: This method can be used to issue a GetSystemInformation custom command as defined by the Hitachi Hibiki datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. Return value: The command response as defined by the Hitachi Hibiki datasheet. Syntax: C# representation: public byte[] Hitachi_GetSystemInformation( CAENRFIDTag Tag) JAVA representation: public HitachiSysInfo Hitachi_GetSystemInformation( CAENRFIDTag Tag) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_GetSystemInformation( CAENRFIDHandle handle, CAENRFIDTag *Tag, char *TRData); Hitachi_GetSystemInformation Method (CAENRFIDTag, Int32) Description: This method can be used to issue a GetSystemInformation custom command as defined by the Hitachi Hibiki datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. AccessPassword The access password. Return value: The command response as defined by the Hitachi Hibiki datasheet. Syntax: C# representation: public byte[] Hitachi_GetSystemInformation( CAENRFIDTag Tag, int AccessPassword) JAVA representation: public HitachiSysInfo Hitachi_GetSystemInformation( CAENRFIDTag Tag, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SecureGetSystemInformation( CAENRFIDHandle handle, CAENRFIDTag *Tag, char *TRData, int AccessPassword);
CAEN RFID API – Reference Manual 45 Hitachi_ReadLock Method Hitachi_ReadLock Method (CAENRFIDTag, Int16) Description: This method can be used to issue a ReadLock custom command as defined by the Hitachi Hibiki datasheet. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to select. Payload The Payload parameter for the ReadLock custom command as defined by Hitachi Hibiki datasheet. Syntax: C# representation: public void Hitachi_ReadLock( CAENRFIDTag Tag, short Payload) JAVA representation: public void Hitachi_ReadLock( CAENRFIDTag Tag, short Payload) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_ReadLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, short Payload); Hitachi_ReadLock Method (CAENRFIDTag, Int16, Int32) Description: This method can be used to issue a ReadLock custom command as defined by the Hitachi Hibiki datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to select. Payload The Payload parameter for the ReadLock custom command as defined by Hitachi Hibiki datasheet. AccessPassword The access password. Syntax: C# representation: public void Hitachi_ReadLock( CAENRFIDTag Tag, short Payload, int AccessPassword) JAVA representation: public void Hitachi_ReadLock( CAENRFIDTag Tag, short Payload, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SecureReadLock( CAENRFIDHandle handle, CAENRFIDTag *Tag, short Payload, int AccessPassword);
CAEN RFID API – Reference Manual 46 Hitachi_SetAttenuate Method Hitachi_SetAttenuate Method (CAENRFIDTag, Byte, Boolean) Description: This method can be used to issue a SetAttenuate custom command as defined by the Hitachi Hibiki datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. Level The level of attenuation. LevelLock A flag that permit to lock permanently the attenuation level. Syntax: C# representation: public void Hitachi_SetAttenuate( CAENRFIDTag Tag, byte Level, bool LevelLock) JAVA representation: public void Hitachi_SetAttenuate( CAENRFIDTag Tag, byte Level, boolean LevelLock) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SetAttenuate( CAENRFIDHandle handle, CAENRFIDTag *Tag, char Level, char LevelLock);

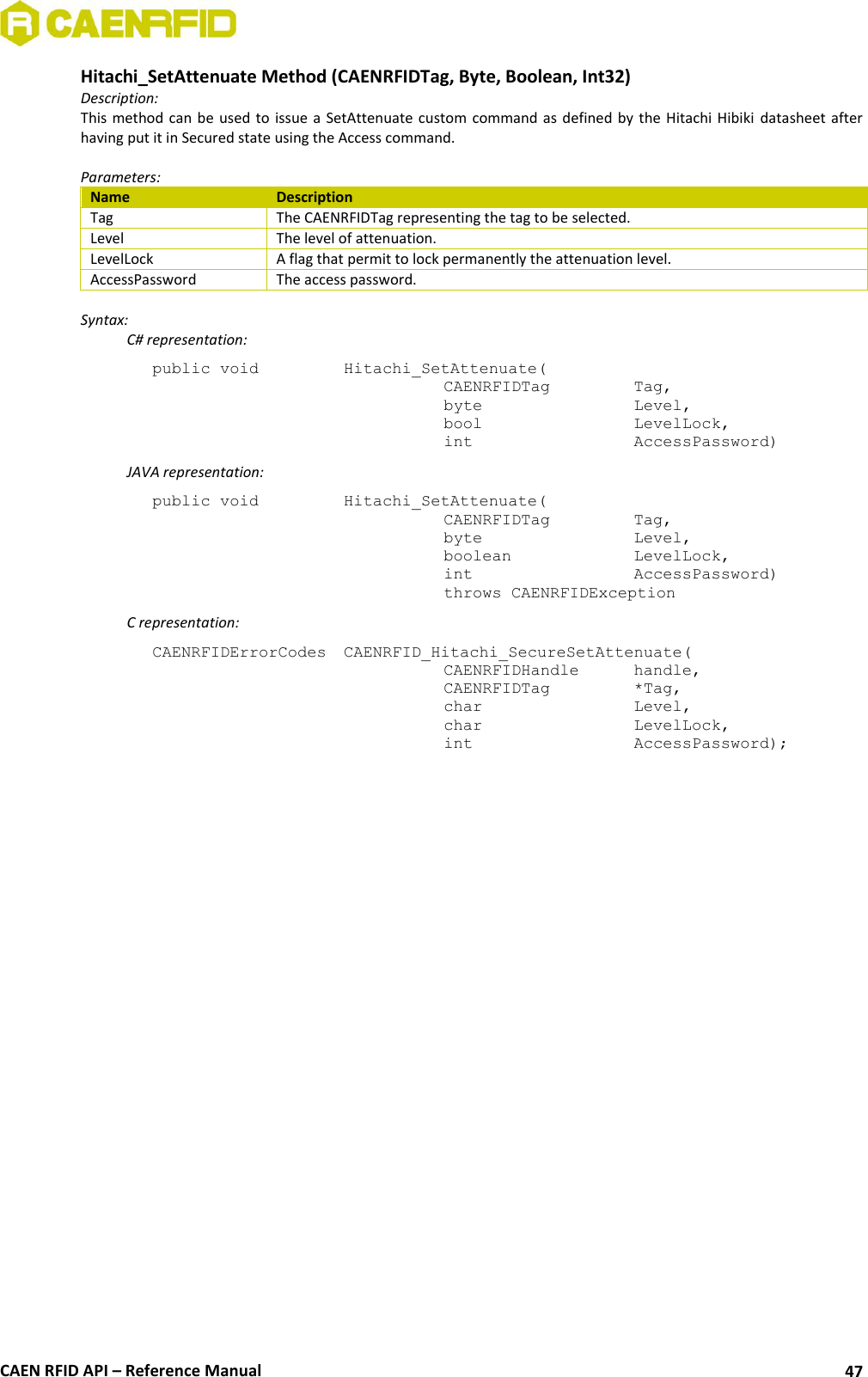

CAEN RFID API – Reference Manual 47 Hitachi_SetAttenuate Method (CAENRFIDTag, Byte, Boolean, Int32) Description: This method can be used to issue a SetAttenuate custom command as defined by the Hitachi Hibiki datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be selected. Level The level of attenuation. LevelLock A flag that permit to lock permanently the attenuation level. AccessPassword The access password. Syntax: C# representation: public void Hitachi_SetAttenuate( CAENRFIDTag Tag, byte Level, bool LevelLock, int AccessPassword) JAVA representation: public void Hitachi_SetAttenuate( CAENRFIDTag Tag, byte Level, boolean LevelLock, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SecureSetAttenuate( CAENRFIDHandle handle, CAENRFIDTag *Tag, char Level, char LevelLock, int AccessPassword);

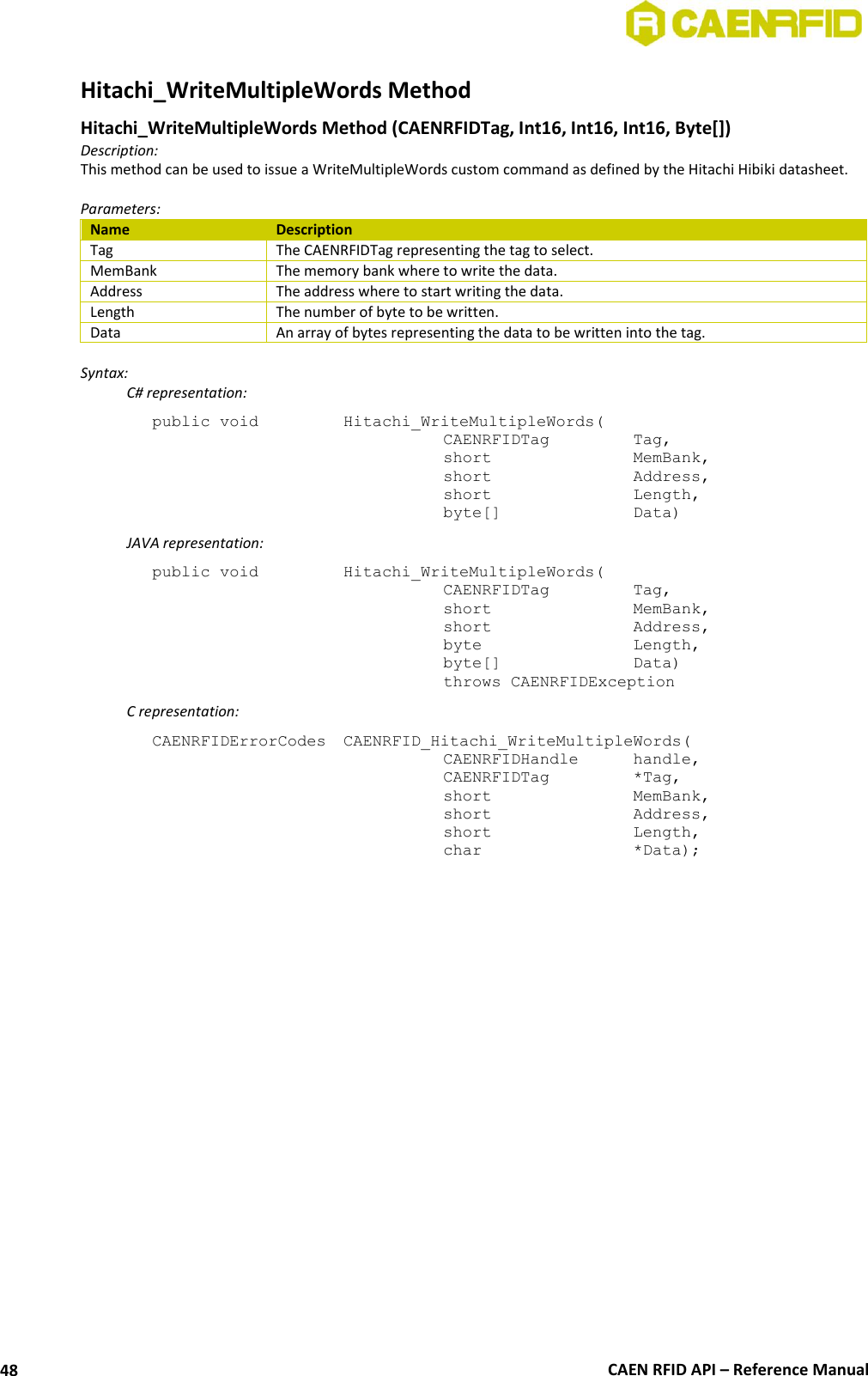

CAEN RFID API – Reference Manual 48 Hitachi_WriteMultipleWords Method Hitachi_WriteMultipleWords Method (CAENRFIDTag, Int16, Int16, Int16, Byte[]) Description: This method can be used to issue a WriteMultipleWords custom command as defined by the Hitachi Hibiki datasheet. Parameters: Name Description Tag The CAENRFIDTag representing the tag to select. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. Syntax: C# representation: public void Hitachi_WriteMultipleWords( CAENRFIDTag Tag, short MemBank, short Address, short Length, byte[] Data) JAVA representation: public void Hitachi_WriteMultipleWords( CAENRFIDTag Tag, short MemBank, short Address, byte Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_WriteMultipleWords( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, short Address, short Length, char *Data);
CAEN RFID API – Reference Manual 49 Hitachi_WriteMultipleWords Method (CAENRFIDTag, Int16, Int16, Int16, Byte[], Int32) Description: This method can be used to issue a WriteMultipleWords custom command as defined by the Hitachi Hibiki datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to select. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. AccessPassword The access password. Syntax: C# representation: public void Hitachi_WriteMultipleWords( CAENRFIDTag Tag, short MemBank, short Address, short Length, byte[] Data, int AccessPassword) JAVA representation: public void Hitachi_WriteMultipleWords( CAENRFIDTag Tag, short MemBank, short Address, byte Length, byte[] Data, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Hitachi_SecureWriteMultipleWords( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, short Address, short Length, char *Data, int AccessPassword);
CAEN RFID API – Reference Manual 50 InventoryTag Method InventoryTag Method () Description: A call to this method will execute a read cycle on each read point linked to the logical source. Depending on the air protocol setting it will execute the appropriate anticollision algorithm. Return value: An array containing the CAENRFIDTag objects representing the tags read from the read points. Syntax: C# representation: public CAENRFIDTag[] InventoryTag() JAVA representation: public CAENRFIDTag[] InventoryTag() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_InventoryTag ( CAENRFIDHandle handle, char *SourceName, CAENRFIDTag **Receive, int *Size);

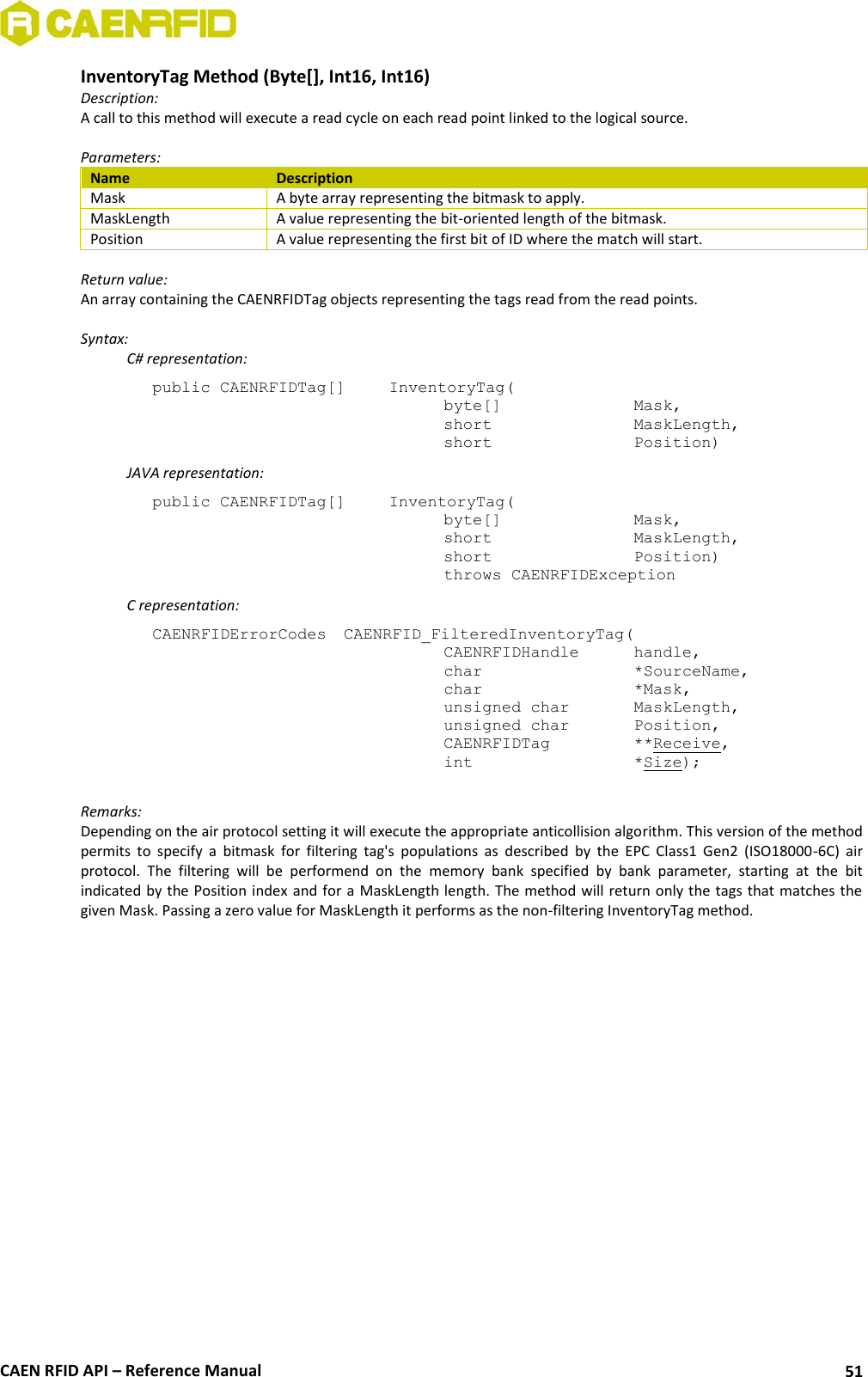

CAEN RFID API – Reference Manual 51 InventoryTag Method (Byte[], Int16, Int16) Description: A call to this method will execute a read cycle on each read point linked to the logical source. Parameters: Name Description Mask A byte array representing the bitmask to apply. MaskLength A value representing the bit-oriented length of the bitmask. Position A value representing the first bit of ID where the match will start. Return value: An array containing the CAENRFIDTag objects representing the tags read from the read points. Syntax: C# representation: public CAENRFIDTag[] InventoryTag( byte[] Mask, short MaskLength, short Position) JAVA representation: public CAENRFIDTag[] InventoryTag( byte[] Mask, short MaskLength, short Position) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_FilteredInventoryTag( CAENRFIDHandle handle, char *SourceName, char *Mask, unsigned char MaskLength, unsigned char Position, CAENRFIDTag **Receive, int *Size); Remarks: Depending on the air protocol setting it will execute the appropriate anticollision algorithm. This version of the method permits to specify a bitmask for filtering tag's populations as described by the EPC Class1 Gen2 (ISO18000-6C) air protocol. The filtering will be performend on the memory bank specified by bank parameter, starting at the bit indicated by the Position index and for a MaskLength length. The method will return only the tags that matches the given Mask. Passing a zero value for MaskLength it performs as the non-filtering InventoryTag method.
CAEN RFID API – Reference Manual 52 InventoryTag Method (Byte[], Int16, Int16, Int16) Description: A call to this method will execute a read cycle on each read point linked to the logical source. Parameters: Name Description Mask A byte array representing the bitmask to apply. MaskLength A value representing the bit-oriented length of the bitmask. Position A value representing the first bit of ID where the match will start. Flag A bitmask representing the InventoryTag options. Return value: An array containing the CAENRFIDTag objects representing the tags read from the read points. Syntax: C# representation: public CAENRFIDTag[] InventoryTag( byte[] Mask, short MaskLength, short Position, short Flag) JAVA representation: public CAENRFIDTag[] InventoryTag( byte[] Mask, short MaskLength, short Position, short Flag) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_FlagInventoryTag ( CAENRFIDHandle handle, char *SourceName, char *Mask, unsigned char MaskLength, unsigned char Position, unsigned char Flag, CAENRFIDTag **Receive, int *Size);

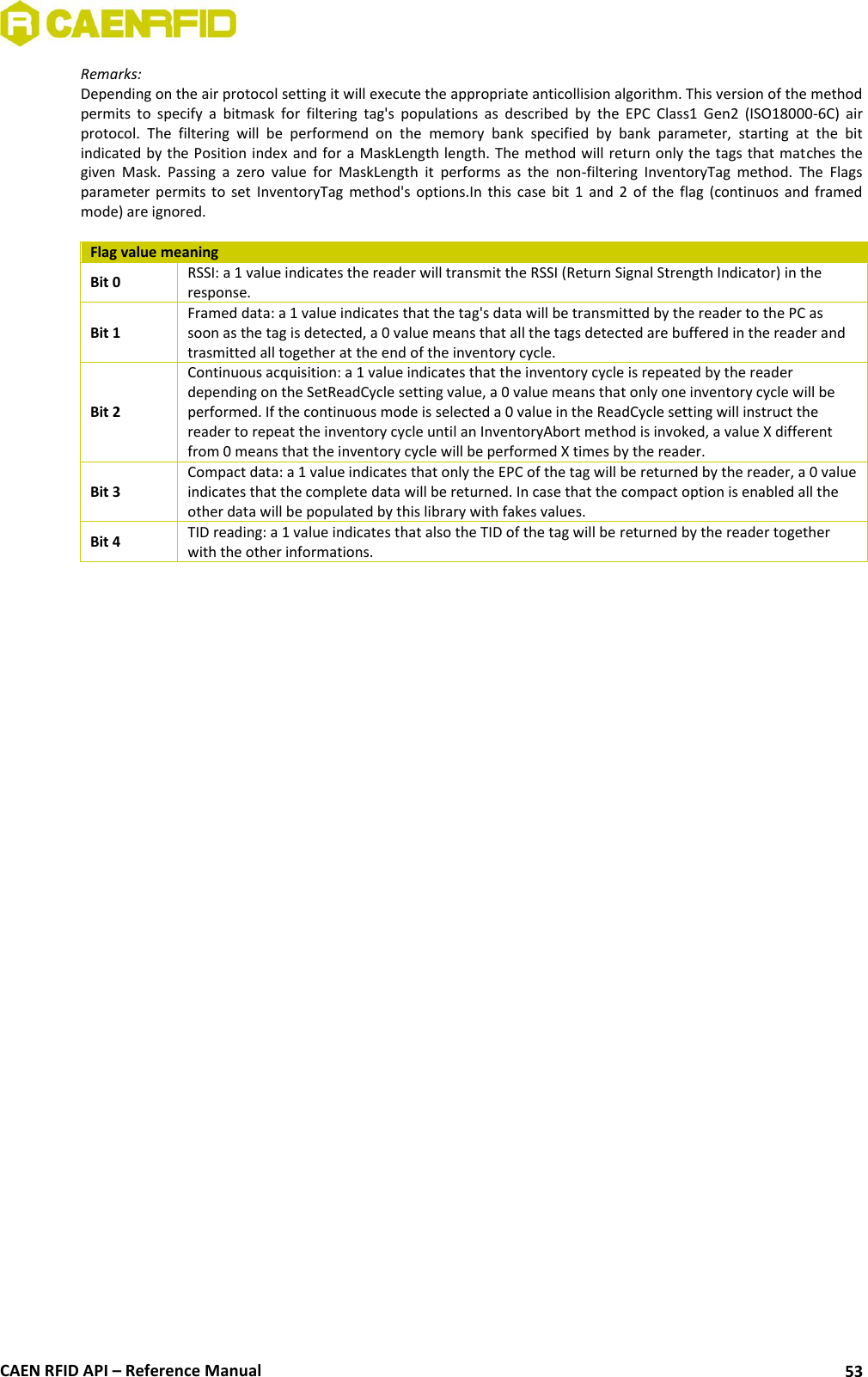

CAEN RFID API – Reference Manual 53 Remarks: Depending on the air protocol setting it will execute the appropriate anticollision algorithm. This version of the method permits to specify a bitmask for filtering tag's populations as described by the EPC Class1 Gen2 (ISO18000-6C) air protocol. The filtering will be performend on the memory bank specified by bank parameter, starting at the bit indicated by the Position index and for a MaskLength length. The method will return only the tags that matches the given Mask. Passing a zero value for MaskLength it performs as the non-filtering InventoryTag method. The Flags parameter permits to set InventoryTag method's options.In this case bit 1 and 2 of the flag (continuos and framed mode) are ignored. Flag value meaning Bit 0 RSSI: a 1 value indicates the reader will transmit the RSSI (Return Signal Strength Indicator) in the response. Bit 1 Framed data: a 1 value indicates that the tag's data will be transmitted by the reader to the PC as soon as the tag is detected, a 0 value means that all the tags detected are buffered in the reader and trasmitted all together at the end of the inventory cycle. Bit 2 Continuous acquisition: a 1 value indicates that the inventory cycle is repeated by the reader depending on the SetReadCycle setting value, a 0 value means that only one inventory cycle will be performed. If the continuous mode is selected a 0 value in the ReadCycle setting will instruct the reader to repeat the inventory cycle until an InventoryAbort method is invoked, a value X different from 0 means that the inventory cycle will be performed X times by the reader. Bit 3 Compact data: a 1 value indicates that only the EPC of the tag will be returned by the reader, a 0 value indicates that the complete data will be returned. In case that the compact option is enabled all the other data will be populated by this library with fakes values. Bit 4 TID reading: a 1 value indicates that also the TID of the tag will be returned by the reader together with the other informations.

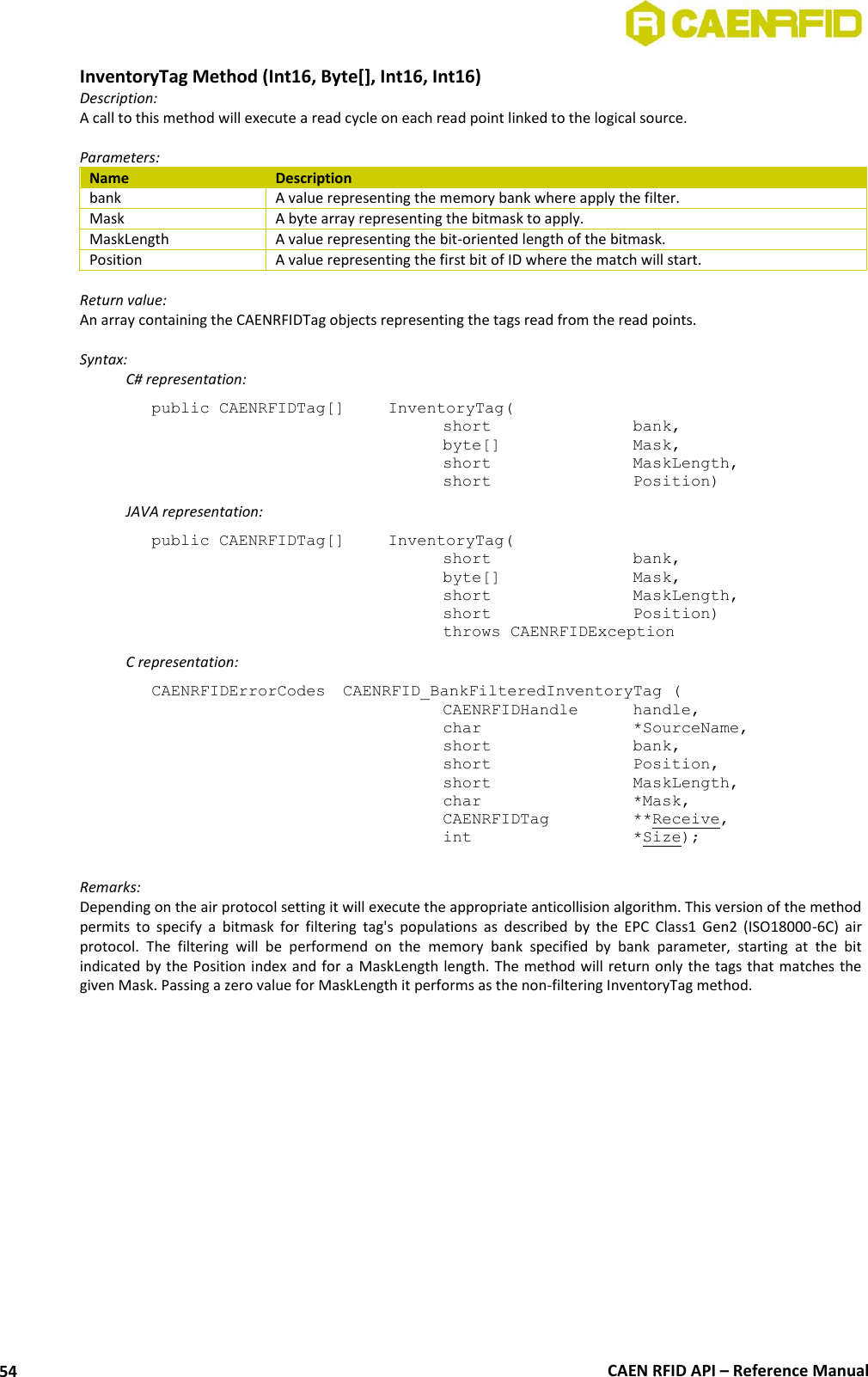

CAEN RFID API – Reference Manual 54 InventoryTag Method (Int16, Byte[], Int16, Int16) Description: A call to this method will execute a read cycle on each read point linked to the logical source. Parameters: Name Description bank A value representing the memory bank where apply the filter. Mask A byte array representing the bitmask to apply. MaskLength A value representing the bit-oriented length of the bitmask. Position A value representing the first bit of ID where the match will start. Return value: An array containing the CAENRFIDTag objects representing the tags read from the read points. Syntax: C# representation: public CAENRFIDTag[] InventoryTag( short bank, byte[] Mask, short MaskLength, short Position) JAVA representation: public CAENRFIDTag[] InventoryTag( short bank, byte[] Mask, short MaskLength, short Position) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BankFilteredInventoryTag ( CAENRFIDHandle handle, char *SourceName, short bank, short Position, short MaskLength, char *Mask, CAENRFIDTag **Receive, int *Size); Remarks: Depending on the air protocol setting it will execute the appropriate anticollision algorithm. This version of the method permits to specify a bitmask for filtering tag's populations as described by the EPC Class1 Gen2 (ISO18000-6C) air protocol. The filtering will be performend on the memory bank specified by bank parameter, starting at the bit indicated by the Position index and for a MaskLength length. The method will return only the tags that matches the given Mask. Passing a zero value for MaskLength it performs as the non-filtering InventoryTag method.
CAEN RFID API – Reference Manual 55 InventoryTag Method (Int16, Byte[], Int16, Int16, Int16) Description: A call to this method will execute a read cycle on each read point linked to the logical source. Parameters: Name Description bank A value representing the memory bank where apply the filter. Mask A byte array representing the bitmask to apply. MaskLength A value representing the bit-oriented length of the bitmask. Position A value representing the first bit of ID where the match will start. Flag A bitmask representing the InventoryTag options. Return value: An array containing the CAENRFIDTag objects representing the tags read from the read points. Syntax: C# representation: public CAENRFIDTag[] InventoryTag( short bank, byte[] Mask, short MaskLength, short Position, short Flag) JAVA representation: public CAENRFIDTag[] InventoryTag( short bank, byte[] Mask, short MaskLength, short Position, short Flag) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BankFilteredFlagInventoryTag ( CAENRFIDHandle handle, char *SourceName, short bank, short Position, short MaskLength, char *Mask, unsigned char Flag, CAENRFIDTag **Receive, int *Size);

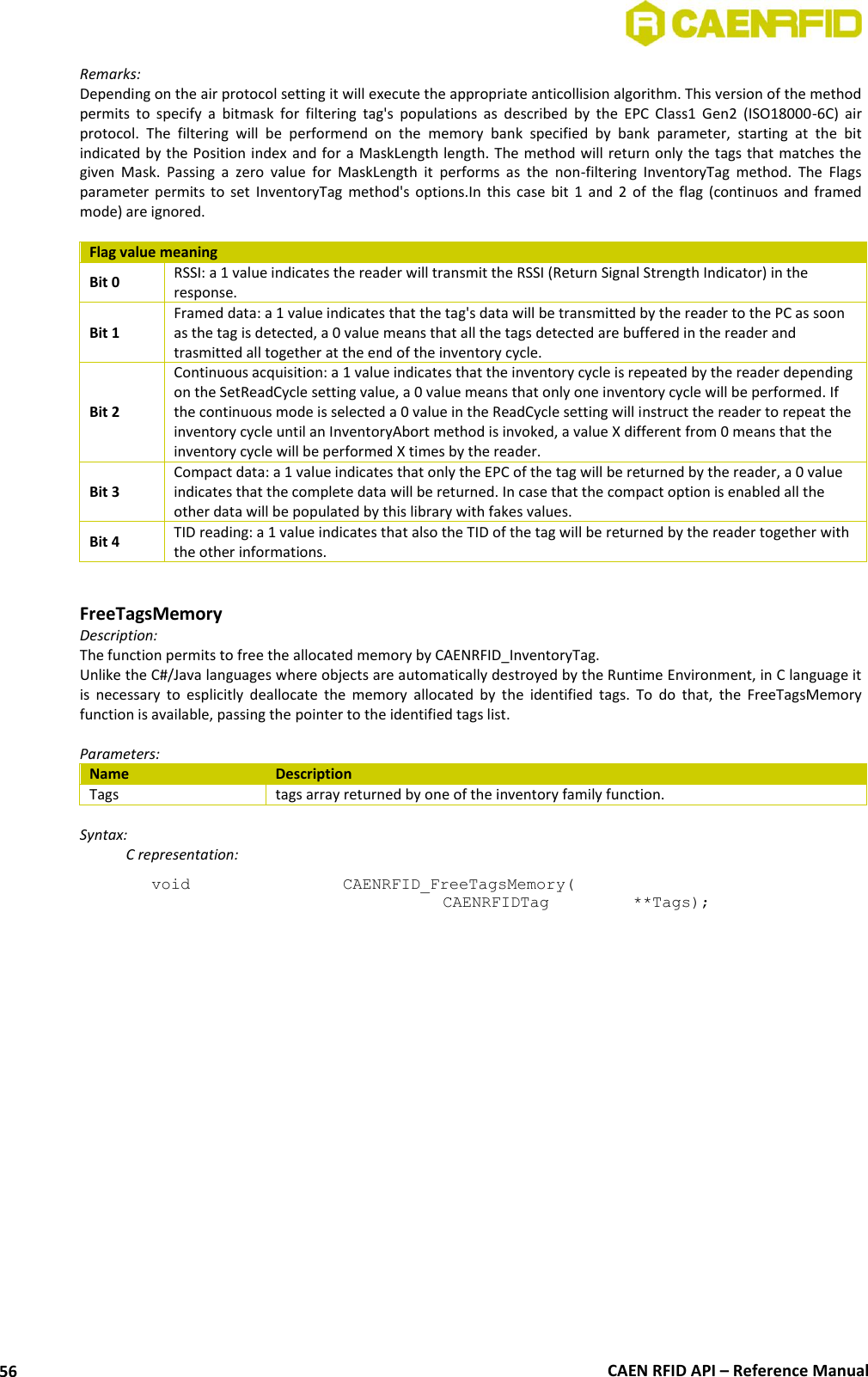

CAEN RFID API – Reference Manual 56 Remarks: Depending on the air protocol setting it will execute the appropriate anticollision algorithm. This version of the method permits to specify a bitmask for filtering tag's populations as described by the EPC Class1 Gen2 (ISO18000-6C) air protocol. The filtering will be performend on the memory bank specified by bank parameter, starting at the bit indicated by the Position index and for a MaskLength length. The method will return only the tags that matches the given Mask. Passing a zero value for MaskLength it performs as the non-filtering InventoryTag method. The Flags parameter permits to set InventoryTag method's options.In this case bit 1 and 2 of the flag (continuos and framed mode) are ignored. Flag value meaning Bit 0 RSSI: a 1 value indicates the reader will transmit the RSSI (Return Signal Strength Indicator) in the response. Bit 1 Framed data: a 1 value indicates that the tag's data will be transmitted by the reader to the PC as soon as the tag is detected, a 0 value means that all the tags detected are buffered in the reader and trasmitted all together at the end of the inventory cycle. Bit 2 Continuous acquisition: a 1 value indicates that the inventory cycle is repeated by the reader depending on the SetReadCycle setting value, a 0 value means that only one inventory cycle will be performed. If the continuous mode is selected a 0 value in the ReadCycle setting will instruct the reader to repeat the inventory cycle until an InventoryAbort method is invoked, a value X different from 0 means that the inventory cycle will be performed X times by the reader. Bit 3 Compact data: a 1 value indicates that only the EPC of the tag will be returned by the reader, a 0 value indicates that the complete data will be returned. In case that the compact option is enabled all the other data will be populated by this library with fakes values. Bit 4 TID reading: a 1 value indicates that also the TID of the tag will be returned by the reader together with the other informations. FreeTagsMemory Description: The function permits to free the allocated memory by CAENRFID_InventoryTag. Unlike the C#/Java languages where objects are automatically destroyed by the Runtime Environment, in C language it is necessary to esplicitly deallocate the memory allocated by the identified tags. To do that, the FreeTagsMemory function is available, passing the pointer to the identified tags list. Parameters: Name Description Tags tags array returned by one of the inventory family function. Syntax: C representation: void CAENRFID_FreeTagsMemory( CAENRFIDTag **Tags);

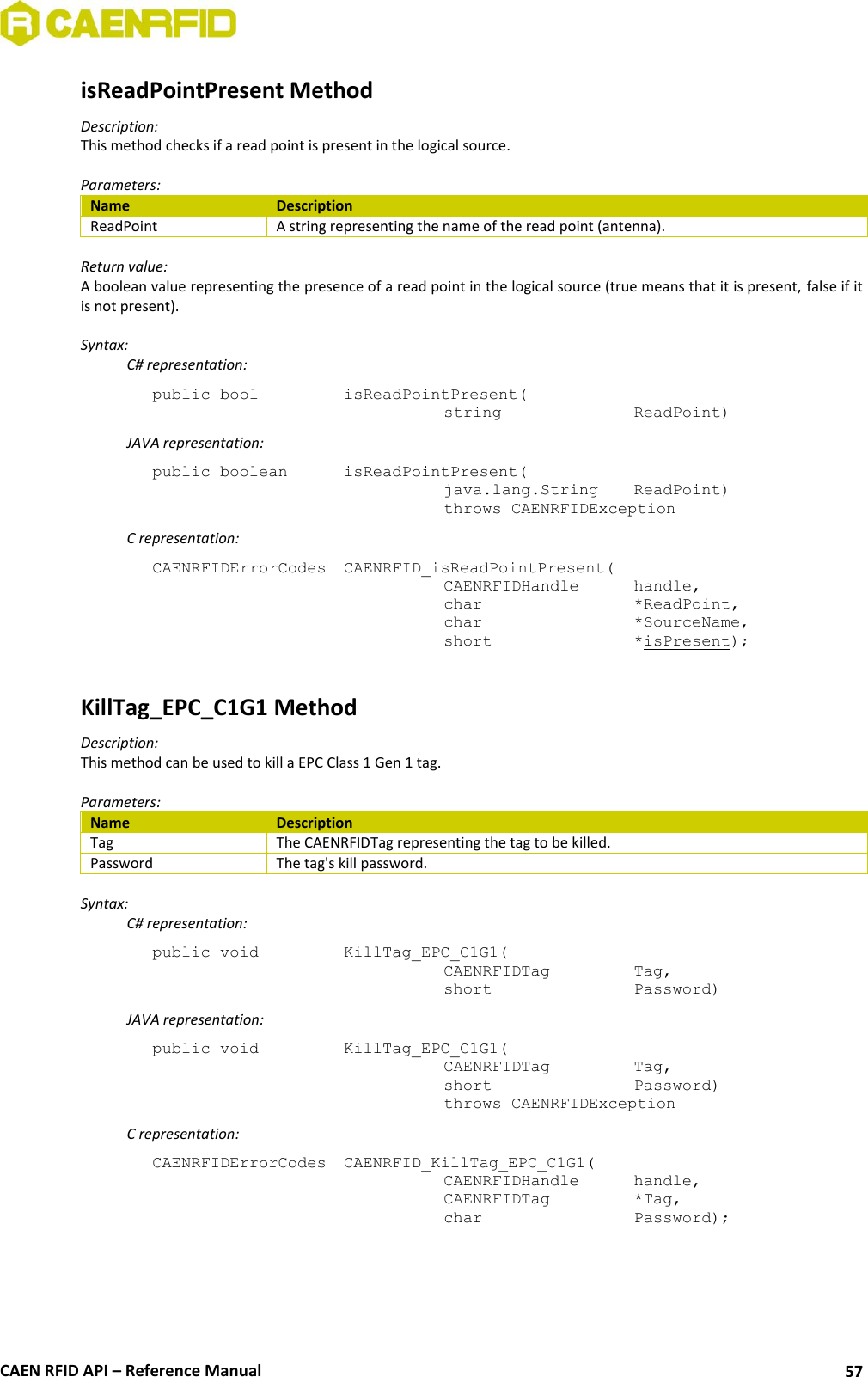

CAEN RFID API – Reference Manual 57 isReadPointPresent Method Description: This method checks if a read point is present in the logical source. Parameters: Name Description ReadPoint A string representing the name of the read point (antenna). Return value: A boolean value representing the presence of a read point in the logical source (true means that it is present, false if it is not present). Syntax: C# representation: public bool isReadPointPresent( string ReadPoint) JAVA representation: public boolean isReadPointPresent( java.lang.String ReadPoint) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_isReadPointPresent( CAENRFIDHandle handle, char *ReadPoint, char *SourceName, short *isPresent); KillTag_EPC_C1G1 Method Description: This method can be used to kill a EPC Class 1 Gen 1 tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be killed. Password The tag's kill password. Syntax: C# representation: public void KillTag_EPC_C1G1( CAENRFIDTag Tag, short Password) JAVA representation: public void KillTag_EPC_C1G1( CAENRFIDTag Tag, short Password) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_KillTag_EPC_C1G1( CAENRFIDHandle handle, CAENRFIDTag *Tag, char Password);
CAEN RFID API – Reference Manual 58 KillTag_EPC_C1G2 Method KillTag_EPC_C1G2 Method (CAENRFIDTag, Int32) Description: This method can be used to kill a EPC Class 1 Gen 2 tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be killed. Password The tag's kill password. Syntax: C# representation: public void KillTag_EPC_C1G2( CAENRFIDTag Tag, int Password) JAVA representation: public void KillTag_EPC_C1G2( CAENRFIDTag Tag, int Password) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_KillTag_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Password);
CAEN RFID API – Reference Manual 59 KillTag_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int32) Description: This method can be used to kill a EPC Class 1 Gen 2 tag. Parameters: Name Description BankMask Memory bank for tag identificantion. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. Password The tag's kill password. Syntax: C# representation: public void KillTag_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, int Password) JAVA representation: public void KillTag_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, int Password) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BankFilteredKillTag_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, char *Mask, int Password);

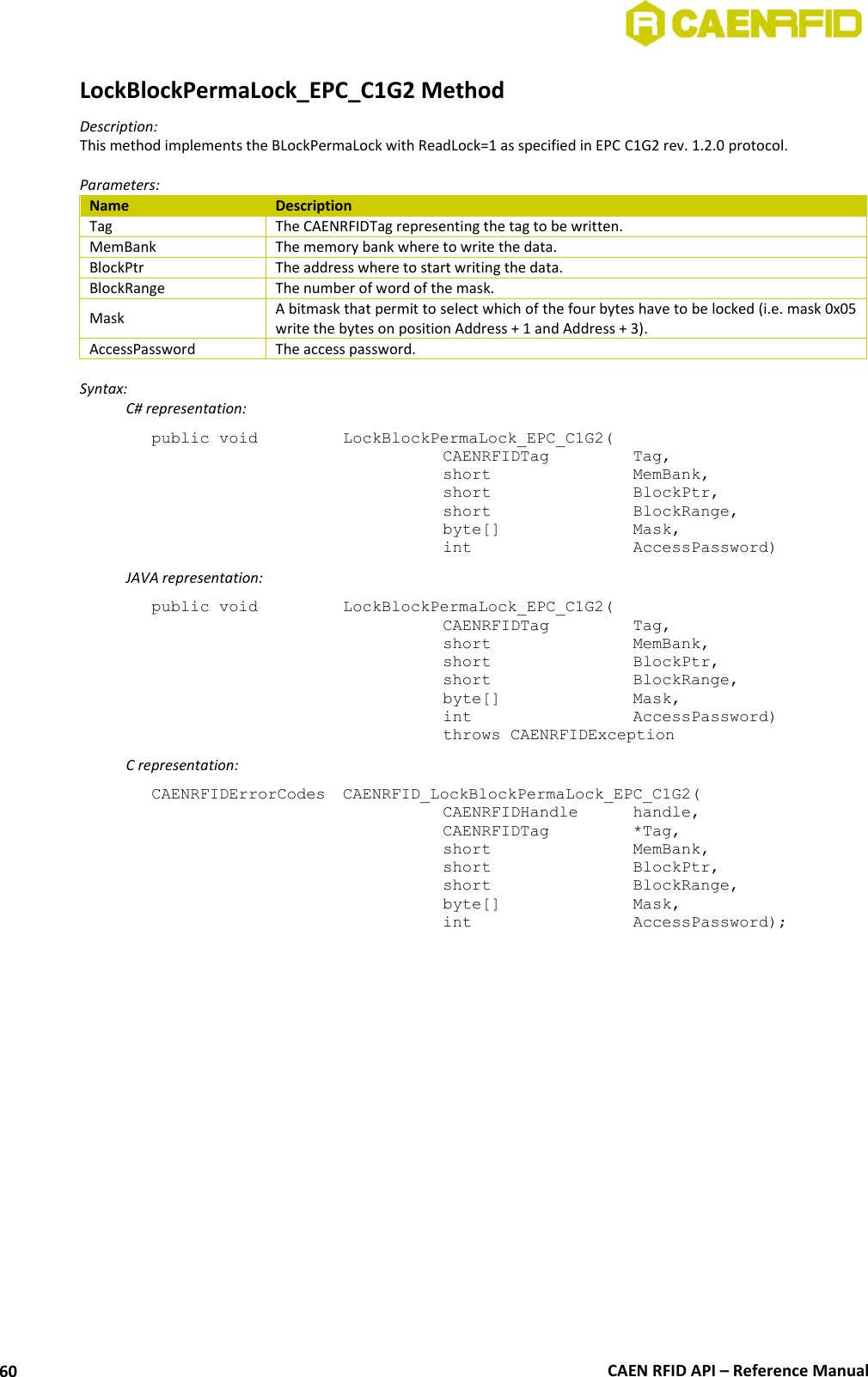

CAEN RFID API – Reference Manual 60 LockBlockPermaLock_EPC_C1G2 Method Description: This method implements the BLockPermaLock with ReadLock=1 as specified in EPC C1G2 rev. 1.2.0 protocol. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to write the data. BlockPtr The address where to start writing the data. BlockRange The number of word of the mask. Mask A bitmask that permit to select which of the four bytes have to be locked (i.e. mask 0x05 write the bytes on position Address + 1 and Address + 3). AccessPassword The access password. Syntax: C# representation: public void LockBlockPermaLock_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short BlockPtr, short BlockRange, byte[] Mask, int AccessPassword) JAVA representation: public void LockBlockPermaLock_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short BlockPtr, short BlockRange, byte[] Mask, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_LockBlockPermaLock_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, short BlockPtr, short BlockRange, byte[] Mask, int AccessPassword);

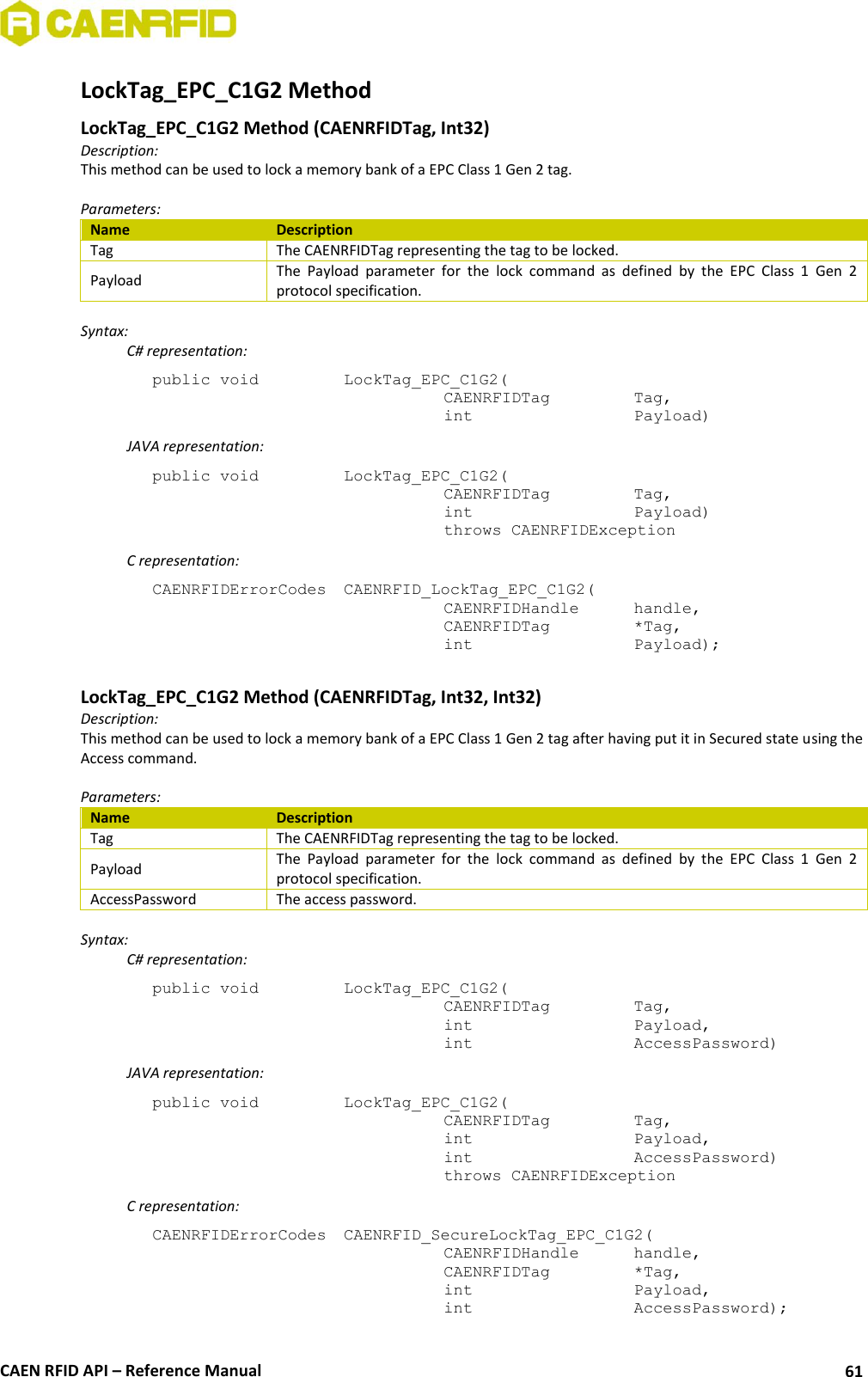

CAEN RFID API – Reference Manual 61 LockTag_EPC_C1G2 Method LockTag_EPC_C1G2 Method (CAENRFIDTag, Int32) Description: This method can be used to lock a memory bank of a EPC Class 1 Gen 2 tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be locked. Payload The Payload parameter for the lock command as defined by the EPC Class 1 Gen 2 protocol specification. Syntax: C# representation: public void LockTag_EPC_C1G2( CAENRFIDTag Tag, int Payload) JAVA representation: public void LockTag_EPC_C1G2( CAENRFIDTag Tag, int Payload) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_LockTag_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Payload); LockTag_EPC_C1G2 Method (CAENRFIDTag, Int32, Int32) Description: This method can be used to lock a memory bank of a EPC Class 1 Gen 2 tag after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be locked. Payload The Payload parameter for the lock command as defined by the EPC Class 1 Gen 2 protocol specification. AccessPassword The access password. Syntax: C# representation: public void LockTag_EPC_C1G2( CAENRFIDTag Tag, int Payload, int AccessPassword) JAVA representation: public void LockTag_EPC_C1G2( CAENRFIDTag Tag, int Payload, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureLockTag_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Payload, int AccessPassword);
CAEN RFID API – Reference Manual 62 LockTag_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int32) Description: This method can be used to lock a memory bank of a EPC Class 1 Gen 2 tag. Parameters: Name Description BankMask Memory bank for tag identificantion. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. Payload The Payload parameter for the lock command as defined by the EPC Class 1 Gen 2 protocol specification. Syntax: C# representation: public void LockTag_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, int Payload) JAVA representation: public void LockTag_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, int Payload) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BankFilteredLockTag_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, char *Mask, int Payload);
CAEN RFID API – Reference Manual 63 LockTag_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int32, Int32) Description: This method can be used to lock a memory bank of a EPC Class 1 Gen 2 tag after having put it in Secured state using the Access command. Parameters: Name Description BankMask Memory bank for tag identification. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. Payload The Payload parameter for the lock command as defined by the EPC Class 1 Gen 2 protocol specification. AccessPassword Access password. Syntax: C# representation: public void LockTag_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, int Payload, int AccessPassword) JAVA representation: public void LockTag_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, int Payload, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureBankFilteredLockTag_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, char *Mask, int Payload, int AccessPassword);
CAEN RFID API – Reference Manual 64 LockTag_ISO180006B Method Description: This method can be used to lock a byte in the memory of a ISO18000-6B tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be locked. Address The byte's address to lock. Syntax: C# representation: public void LockTag_ISO180006B( CAENRFIDTag Tag, short Address) JAVA representation: public void LockTag_ISO180006B( CAENRFIDTag Tag, short Address) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_LockTag_ISO180006B( CAENRFIDHandle handle, CAENRFIDTag *Tag, short Address); NXP_ChangeEAS Method Description: This method can be used to issue a ChangeEAS custom command as defined by the NXP G2XM and G2XL datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to select. EAS A boolean representing the EAS state to set. AccessPassword The access password. Syntax: C# representation: public void NXP_ChangeEAS( CAENRFIDTag Tag, bool EAS, int AccessPassword) JAVA representation: public void NXP_ChangeEAS( CAENRFIDTag Tag, boolean EAS, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_NXP_SecureChangeEAS( CAENRFIDHandle handle, CAENRFIDTag *Tag, char EAS, int AccessPassword);
CAEN RFID API – Reference Manual 65 NXP_EAS_Alarm Method Description: This method can be used to issue a EAS_Alarm custom command as defined by the NXP G2XM and G2XL datasheet. Return value: An array of bytes representing the EAS Code. Syntax: C# representation: public byte[] NXP_EAS_Alarm() JAVA representation: public byte[] NXP_EAS_Alarm() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_NXP_EAS_Alarm( CAENRFIDHandle handle, char *TRData); NXP_ReadProtect Method NXP_ReadProtect Method (CAENRFIDTag) Description: This method can be used to issue a ReadProtect custom command as defined by the NXP G2XM and G2XL datasheet. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to select. Syntax: C# representation: public void NXP_ReadProtect( CAENRFIDTag Tag) JAVA representation: public void NXP_ReadProtect( CAENRFIDTag Tag) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_NXP_ReadProtect( CAENRFIDHandle handle, CAENRFIDTag *Tag);
CAEN RFID API – Reference Manual 66 NXP_ReadProtect Method (CAENRFIDTag, Int32) Description: This method can be used to issue a ReadProtect custom command as defined by the NXP G2XM and G2XL datasheet after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to select. AccessPassword The access password. Syntax: C# representation: public void NXP_ReadProtect( CAENRFIDTag Tag, int AccessPassword) JAVA representation: public void NXP_ReadProtect( CAENRFIDTag Tag, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_NXP_SecureReadProtect( CAENRFIDHandle handle, CAENRFIDTag *Tag, int AccessPassword); NXP_ResetReadProtect Method Description: This method can be used to issue a ResetReadProtect custom command as defined by the NXP G2XM and G2XL datasheet. Parameters: Name Description Tag The CAENRFIDTag object representing the tag to reset the read protection. Password The ReadProtect password. Syntax: C# representation: public void NXP_ResetReadProtect( CAENRFIDTag Tag, int Password) JAVA representation: public void NXP_ResetReadProtect( CAENRFIDTag Tag, int Password) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_NXP_ResetReadProtect( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Password);
CAEN RFID API – Reference Manual 67 ProgramID_EPC_C1G1 Method Description: This method can be used to write the EPC of a EPC Class 1 Gen 1 tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be programmed, the ID contained in this object will be programmed into the tag. Password The password needed in order to write into the tag. Lock A flag used to lock the EPC in the tag (1 if the EPC have to be locked). Syntax: C# representation: public void ProgramID_EPC_C1G1( CAENRFIDTag Tag, short Password, bool Lock) JAVA representation: public void ProgramID_EPC_C1G1( CAENRFIDTag Tag, short Password, boolean Lock) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_ProgramID_EPC_C1G1( CAENRFIDHandle handle, CAENRFIDTag *Tag, char Password, unsigned short Lock); ProgramID_EPC_C1G2 Method ProgramID_EPC_C1G2 Method (CAENRFIDTag, Int16) Description: This method can be used to write the EPC of a EPC Class 1 Gen 2 tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be programmed, the ID contained in this object will be programmed into the tag. NSI The Numbering System Identifier as defined in EPC Class 1 Gen 2 protocol specifications. Syntax: C# representation: public void ProgramID_EPC_C1G2( CAENRFIDTag Tag, short NSI) JAVA representation: public void ProgramID_EPC_C1G2( CAENRFIDTag Tag, short NSI) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_ProgramID_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, unsigned short NSI);

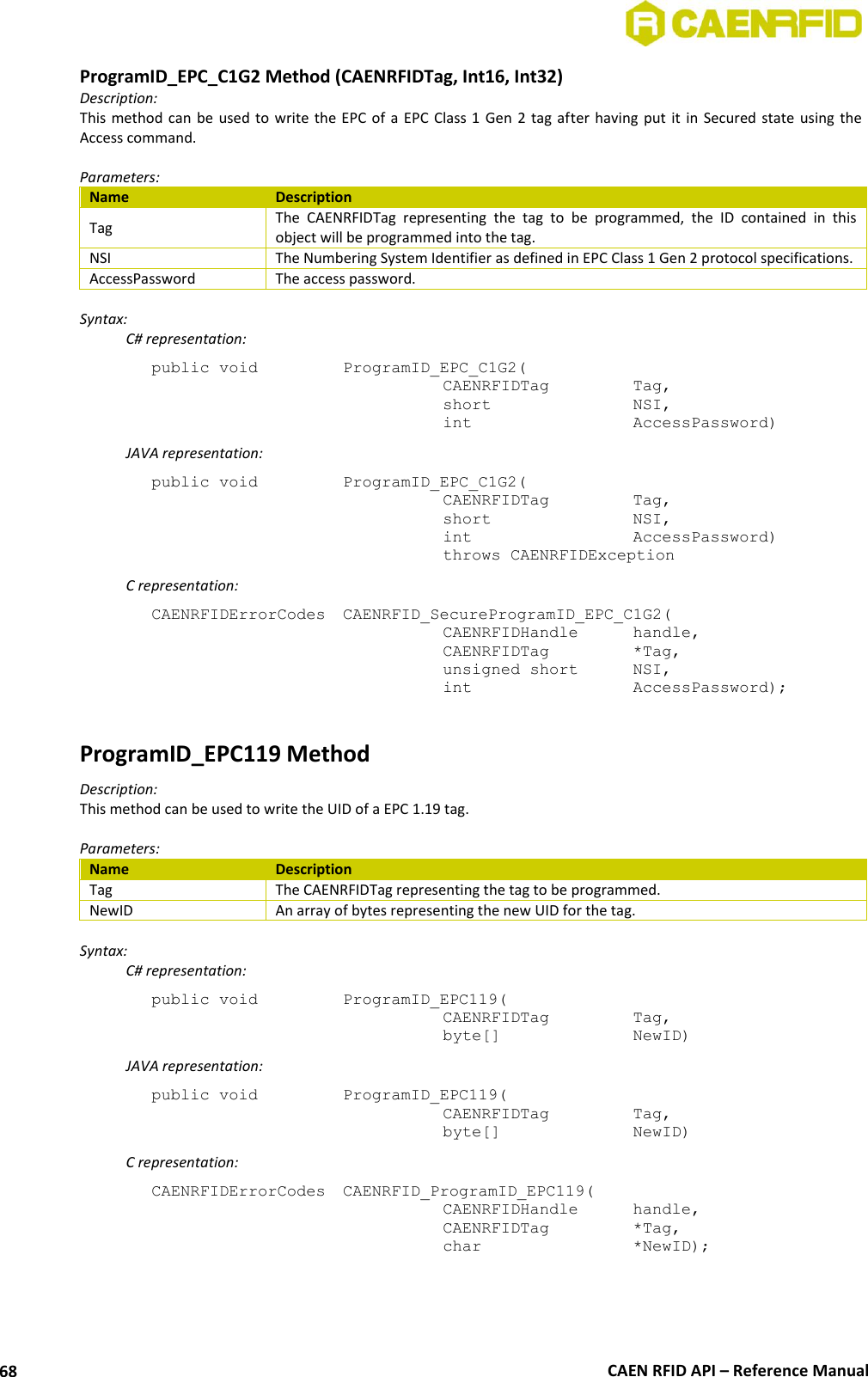

CAEN RFID API – Reference Manual 68 ProgramID_EPC_C1G2 Method (CAENRFIDTag, Int16, Int32) Description: This method can be used to write the EPC of a EPC Class 1 Gen 2 tag after having put it in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be programmed, the ID contained in this object will be programmed into the tag. NSI The Numbering System Identifier as defined in EPC Class 1 Gen 2 protocol specifications. AccessPassword The access password. Syntax: C# representation: public void ProgramID_EPC_C1G2( CAENRFIDTag Tag, short NSI, int AccessPassword) JAVA representation: public void ProgramID_EPC_C1G2( CAENRFIDTag Tag, short NSI, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureProgramID_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, unsigned short NSI, int AccessPassword); ProgramID_EPC119 Method Description: This method can be used to write the UID of a EPC 1.19 tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be programmed. NewID An array of bytes representing the new UID for the tag. Syntax: C# representation: public void ProgramID_EPC119( CAENRFIDTag Tag, byte[] NewID) JAVA representation: public void ProgramID_EPC119( CAENRFIDTag Tag, byte[] NewID) C representation: CAENRFIDErrorCodes CAENRFID_ProgramID_EPC119( CAENRFIDHandle handle, CAENRFIDTag *Tag, char *NewID);
CAEN RFID API – Reference Manual 69 Query_EPC_C1G2 Method Description: This method makes the reader generate a EPC Class1 Gen2 Query command. Return value: True on successfull completion. Syntax: C# representation: public bool Query_EPC_C1G2() JAVA representation: public boolean Query_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_Query_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short *isPresent); QueryAck_EPC_C1G2 Method Description: This method make the reader generate a sequence of EPC Class1 Gen2 Query and Ack commands. It can be used to read a single tag under the field. If there are more than one tag under the field the method fails. Return value: An array of bytes representing the EPC of the tag Syntax: C# representation: public byte[] QueryAck_EPC_C1G2() JAVA representation: public byte[] QueryAck_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes QueryAck_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, byte *Tag);
CAEN RFID API – Reference Manual 70 ReadBLockPermalock_EPC_C1G2 Method Description: This method implements the BLockPermaLock with ReadLock=0 as specified in EPCC1G2 rev. 1.2.0 protocol. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be read. MemBank The memory bank where to read the data. Blockptr The address where to start reading the data. BlockRange The number of word to be read. AccessPassword The access password. Return value: An array of bytes representing the data read from the tag. Syntax: C# representation: public byte[] ReadBLockPermalock_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Blockptr, short BlockRange, int AccessPassword) JAVA representation: public byte[] ReadBLockPermalock_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Blockptr, short BlockRange, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_ReadBLockPermalock_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, short Blockptr, short BlockRange, int AccessPassword)

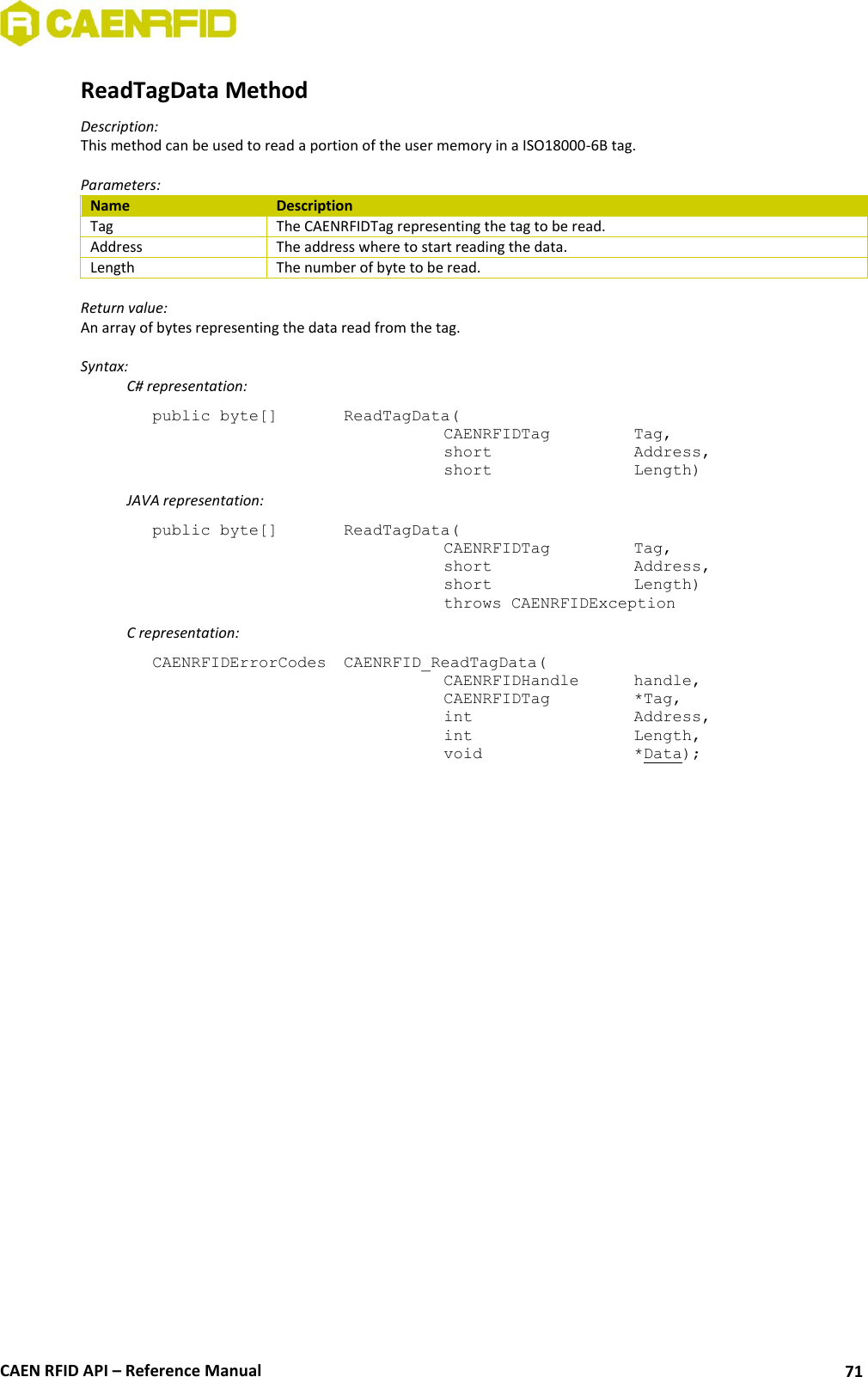

CAEN RFID API – Reference Manual 71 ReadTagData Method Description: This method can be used to read a portion of the user memory in a ISO18000-6B tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be read. Address The address where to start reading the data. Length The number of byte to be read. Return value: An array of bytes representing the data read from the tag. Syntax: C# representation: public byte[] ReadTagData( CAENRFIDTag Tag, short Address, short Length) JAVA representation: public byte[] ReadTagData( CAENRFIDTag Tag, short Address, short Length) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_ReadTagData( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Address, int Length, void *Data);

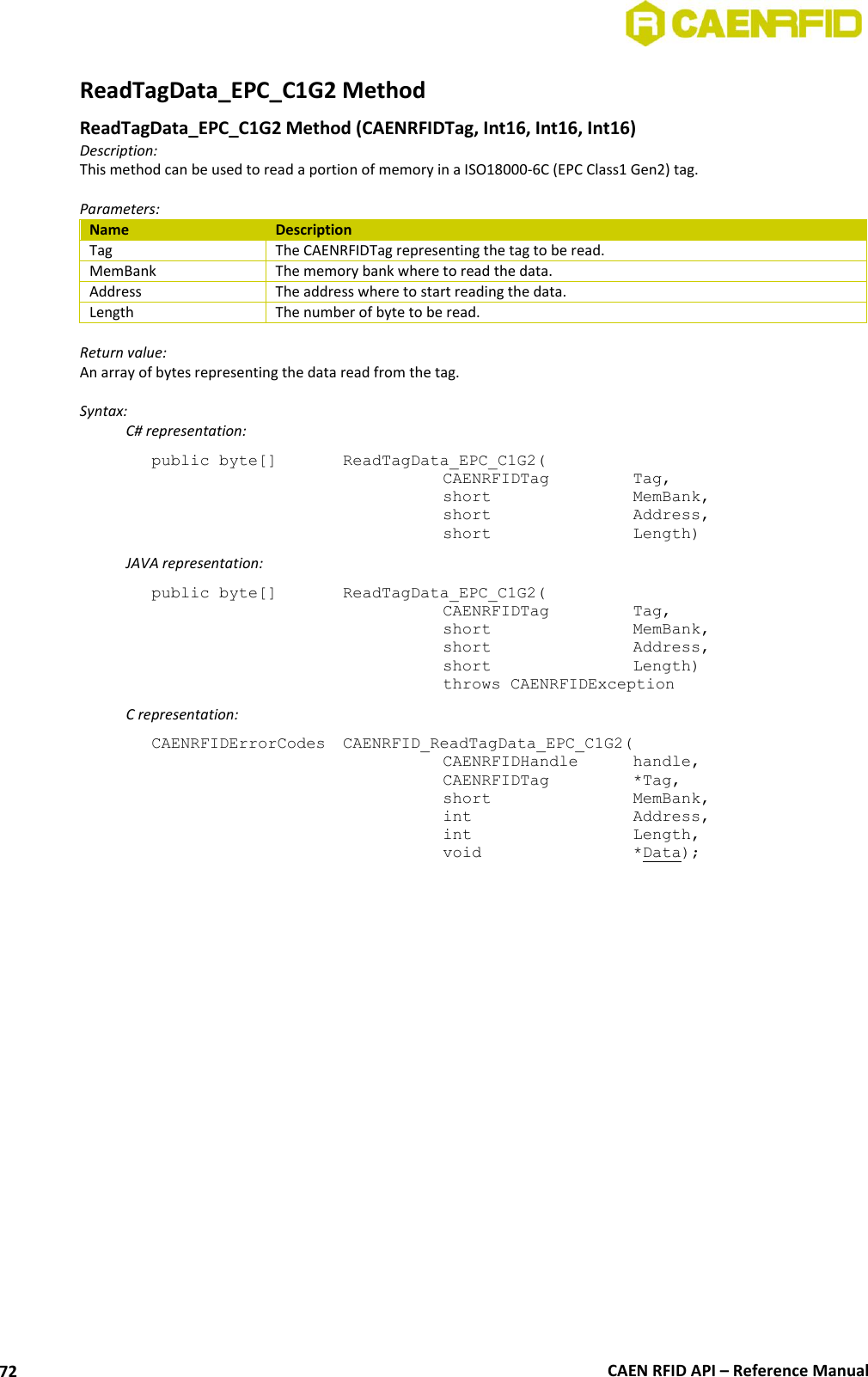

CAEN RFID API – Reference Manual 72 ReadTagData_EPC_C1G2 Method ReadTagData_EPC_C1G2 Method (CAENRFIDTag, Int16, Int16, Int16) Description: This method can be used to read a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be read. MemBank The memory bank where to read the data. Address The address where to start reading the data. Length The number of byte to be read. Return value: An array of bytes representing the data read from the tag. Syntax: C# representation: public byte[] ReadTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length) JAVA representation: public byte[] ReadTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_ReadTagData_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, int Address, int Length, void *Data);
CAEN RFID API – Reference Manual 73 ReadTagData_EPC_C1G2 Method (CAENRFIDTag, Int16, Int16, Int16, Int32) Description: This method can be used to read a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag after having put the tag in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be read. MemBank The memory bank where to read the data. Address The address where to start reading the data. Length The number of byte to be read. AccessPassword The access password. Return value: An array of bytes representing the data read from the tag. Syntax: C# representation: public byte[] ReadTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length, int AccessPassword) JAVA representation: public byte[] ReadTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureReadTagData_EPC_C1G2 ( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, int Address, int Length, int AccessPassword, void *Data);

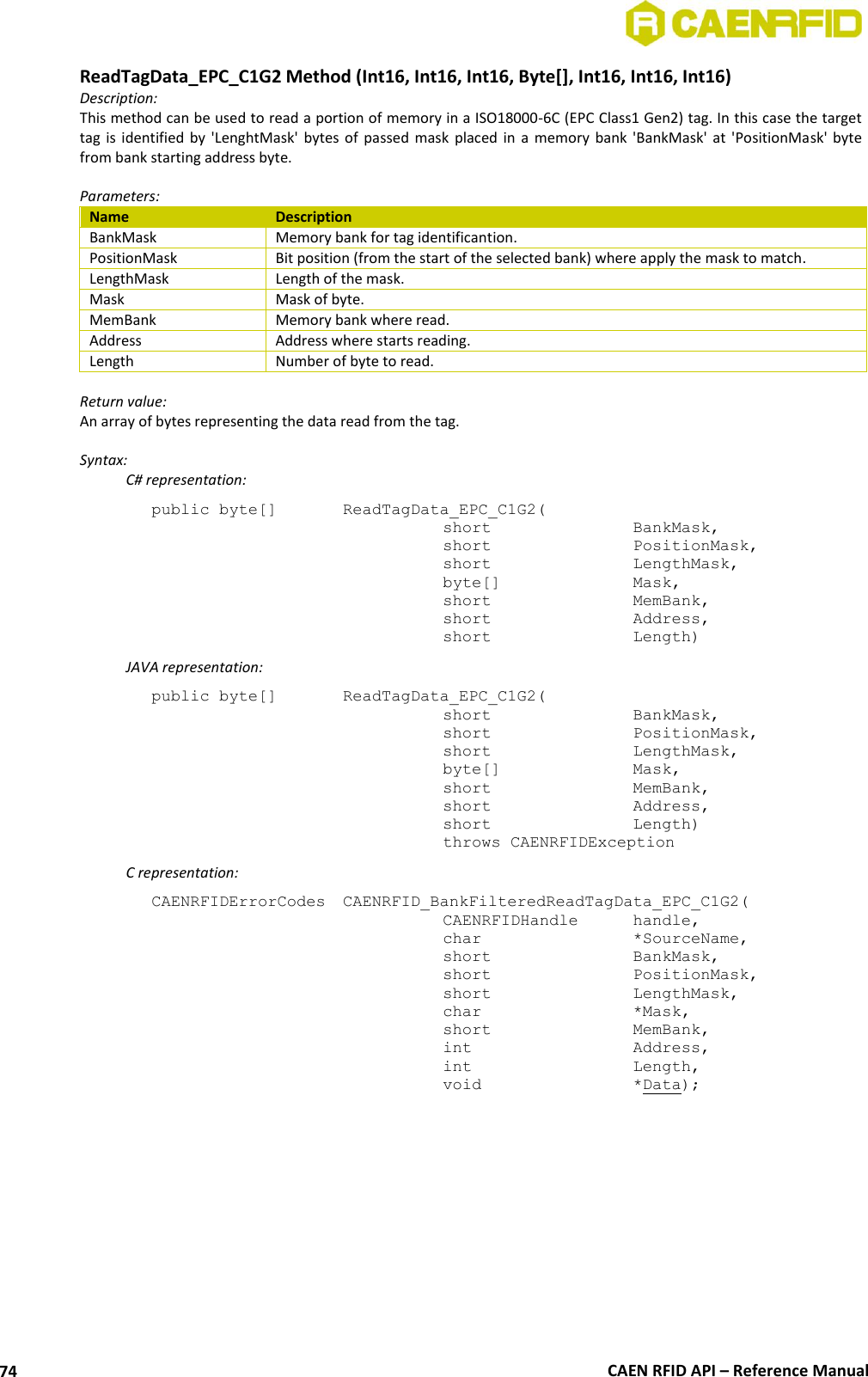

CAEN RFID API – Reference Manual 74 ReadTagData_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int16, Int16, Int16) Description: This method can be used to read a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. In this case the target tag is identified by 'LenghtMask' bytes of passed mask placed in a memory bank 'BankMask' at 'PositionMask' byte from bank starting address byte. Parameters: Name Description BankMask Memory bank for tag identificantion. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. MemBank Memory bank where read. Address Address where starts reading. Length Number of byte to read. Return value: An array of bytes representing the data read from the tag. Syntax: C# representation: public byte[] ReadTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length) JAVA representation: public byte[] ReadTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BankFilteredReadTagData_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, char *Mask, short MemBank, int Address, int Length, void *Data);
CAEN RFID API – Reference Manual 75 ReadTagData_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int16, Int16, Int16, Int32) Description: This method can be used to read a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. In this case the target tag is identified by 'LenghtMask' bytes of passed mask placed in a memory bank 'BankMask' at 'PositionMask' byte from bank starting address byte. This is the secure version using the Access command. Parameters: Name Description BankMask Memory bank for tag identificantion. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. MemBank Memory bank where read. Address Address where starts reading. Length Number of byte to read. AccessPassword Access Password. Return value: An array of bytes representing the data read from the tag. Syntax: C# representation: public byte[] ReadTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length, int AccessPassword) JAVA representation: public byte[] ReadTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureBankFilteredReadTagData_EPC_C1G2 ( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, int Address, int Length, void *Data, int AccessPassword);
CAEN RFID API – Reference Manual 76 RemoveReadPoint Method Description: This method removes a read point from the logical source. Parameters: Name Description ReadPoint A string representing the name of the read point (antenna). Syntax: C# representation: public void RemoveReadPoint( string ReadPoint) JAVA representation: public void RemoveReadPoint( java.lang.String ReadPoint) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_RemoveReadPoint( CAENRFIDHandle handle, char *SourceName, char *ReadPoint); ResetSession_EPC_C1G2 Method Description: This method can be used to reset the Session status for EPC Class1 Gen2 tags. After the execution of this method all the tags in the field of the antennas belonging to this logical source are back in the default Session. Syntax: C# representation: public void ResetSession_EPC_C1G2() JAVA representation: public void ResetSession_EPC_C1G2() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_ResetSession_EPC_C1G2( CAENRFIDHandle handle, char *SourceName);
CAEN RFID API – Reference Manual 77 SetDESB_ISO180006B Method Description: This method can be used to set the Data Exchange Status Bit (see ISO18000-6B protocol specification) used by the anticollision algorithm when called on this logical source. Parameters: Name Description Value The DESB setting value. Syntax: C# representation: public void SetDESB_ISO180006B( CAENRFIDLogicalSourceConstants Value) JAVA representation: public void SetDESB_ISO180006B( CAENRFIDLogicalSourceConstants Value) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetDESB_ISO180006B( CAENRFIDHandle handle, unsigned int Value); SetQ_EPC_C1G2 Method Description: This method can be used to set the initial Q value (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Parameters: Name Description Value The initial Q value setting. Syntax: C# representation: public void SetQ_EPC_C1G2( int Value) JAVA representation: public void SetQ_EPC_C1G2( int Value) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetQValue_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, int Value);
CAEN RFID API – Reference Manual 78 SetReadCycle Method Description: This method sets the number of read cycles to be performed by the logical source during the inventory algorithm execution. Parameters: Name Description value The number of read cycles. Syntax: C# representation: public void SetReadCycle( int value) JAVA representation: public void SetReadCycle( int value) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetReadCycle( CAENRFIDHandle handle, char *SourceName, int value); SetSelected_EPC_C1G2 Method Description: This method can be used to set the Selected flag (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Parameters: Name Description Value The Selected flag value. Syntax: C# representation: public void SetSelected_EPC_C1G2( CAENRFIDLogicalSourceConstants Value) JAVA representation: public void SetSelected_EPC_C1G2( CAENRFIDLogicalSourceConstants Value) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetSelected_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, CAENRFIDLogicalSourceConstants Value);
CAEN RFID API – Reference Manual 79 SetSession_EPC_C1G2 Method Description: This method can be used to set the Session (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Parameters: Name Description Value The Session value. Syntax: C# representation: public void SetSession_EPC_C1G2( CAENRFIDLogicalSourceConstants Value) JAVA representation: public void SetSession_EPC_C1G2( CAENRFIDLogicalSourceConstants Value) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetSession_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, CAENRFIDLogicalSourceConstants Value); SetTarget_EPC_C1G2 Method Description: This method can be used to set the Target setting (see EPC Class1 Gen2 protocol specification) used by the anticollision algorithm when called on this logical source. Parameters: Name Description Value The Target value. Syntax: C# representation: public void SetTarget_EPC_C1G2( CAENRFIDLogicalSourceConstants Value) JAVA representation: public void SetTarget_EPC_C1G2( CAENRFIDLogicalSourceConstants Value) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetTarget_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, CAENRFIDLogicalSourceConstants Value);
CAEN RFID API – Reference Manual 80 WriteTagData Method Description: This method can be used to write a portion of the user memory in a ISO18000-6B tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. Address The address where to start writing the data. Length The number of byte to be written. Data The data to be written into the tag's user memory. Syntax: C# representation: public void WriteTagData( CAENRFIDTag Tag, short Address, short Length, byte[] Data) JAVA representation: public void WriteTagData( CAENRFIDTag Tag, short Address, short Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_WriteTagData( CAENRFIDHandle handle, CAENRFIDTag *Tag, int Address, int Length, void *Data);

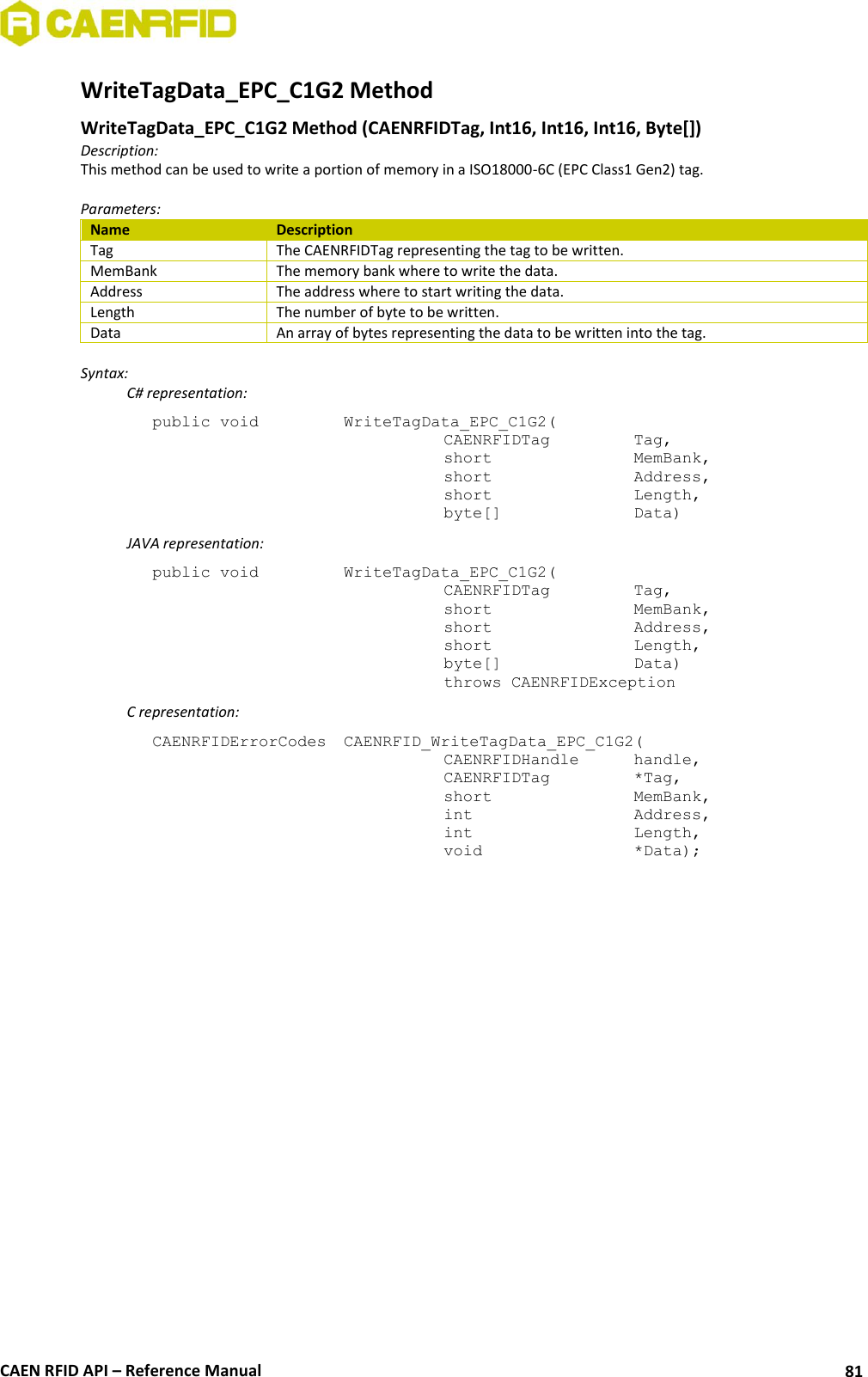

CAEN RFID API – Reference Manual 81 WriteTagData_EPC_C1G2 Method WriteTagData_EPC_C1G2 Method (CAENRFIDTag, Int16, Int16, Int16, Byte[]) Description: This method can be used to write a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. Syntax: C# representation: public void WriteTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length, byte[] Data) JAVA representation: public void WriteTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_WriteTagData_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, int Address, int Length, void *Data);
CAEN RFID API – Reference Manual 82 WriteTagData_EPC_C1G2 Method (CAENRFIDTag, Int16, Int16, Int16, Byte[], Int32) Description: This method can be used to write a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag after having put the tag in Secured state using the Access command. Parameters: Name Description Tag The CAENRFIDTag representing the tag to be written. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. AccessPassword The access password. Syntax: C# representation: public void WriteTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length, byte[] Data, int AccessPassword) JAVA representation: public void WriteTagData_EPC_C1G2( CAENRFIDTag Tag, short MemBank, short Address, short Length, byte[] Data, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureWriteTagData_EPC_C1G2( CAENRFIDHandle handle, CAENRFIDTag *Tag, short MemBank, int Address, int Length, void *Data, int AccessPassword);

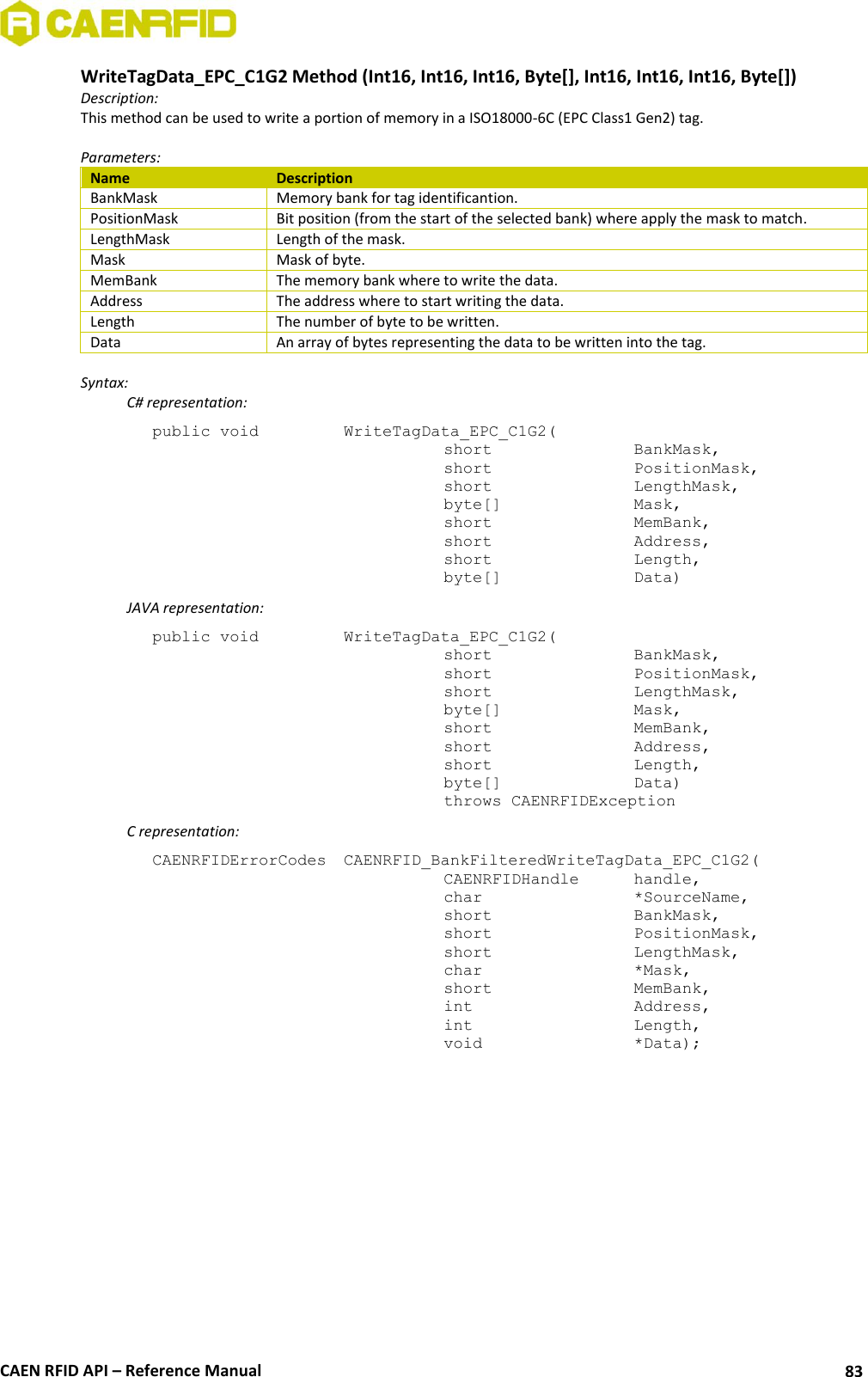

CAEN RFID API – Reference Manual 83 WriteTagData_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int16, Int16, Int16, Byte[]) Description: This method can be used to write a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag. Parameters: Name Description BankMask Memory bank for tag identificantion. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. Syntax: C# representation: public void WriteTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length, byte[] Data) JAVA representation: public void WriteTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length, byte[] Data) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_BankFilteredWriteTagData_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, char *Mask, short MemBank, int Address, int Length, void *Data);
CAEN RFID API – Reference Manual 84 WriteTagData_EPC_C1G2 Method (Int16, Int16, Int16, Byte[], Int16, Int16, Int16, Byte[], Int32) Description: This method can be used to write a portion of memory in a ISO18000-6C (EPC Class1 Gen2) tag after having put the tag in Secured state using the Access command. Parameters: Name Description BankMask Memory bank for tag identificantion. PositionMask Bit position (from the start of the selected bank) where apply the mask to match. LengthMask Length of the mask. Mask Mask of byte. MemBank The memory bank where to write the data. Address The address where to start writing the data. Length The number of byte to be written. Data An array of bytes representing the data to be written into the tag. AccessPassword The access password. Syntax: C# representation: public void WriteTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length, byte[] Data, int AccessPassword) JAVA representation: public void WriteTagData_EPC_C1G2( short BankMask, short PositionMask, short LengthMask, byte[] Mask, short MemBank, short Address, short Length, byte[] Data, int AccessPassword) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SecureBankFilteredWriteTagData_EPC_C1G2( CAENRFIDHandle handle, char *SourceName, short BankMask, short PositionMask, short LengthMask, char *Mask, short MemBank, int Address, int Length, void *Data, int AccessPassword);

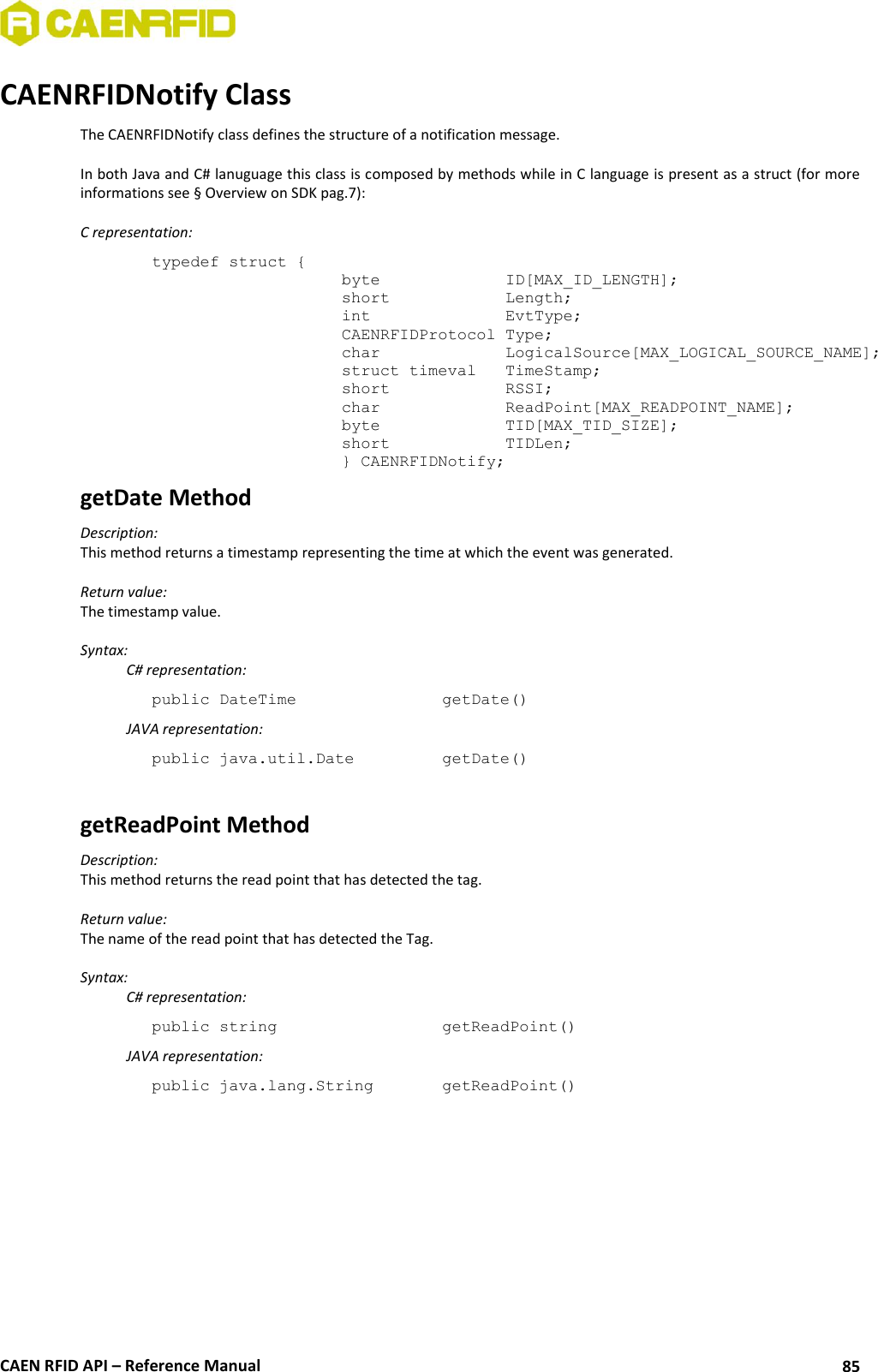

CAEN RFID API – Reference Manual 85 CAENRFIDNotify Class The CAENRFIDNotify class defines the structure of a notification message. In both Java and C# lanuguage this class is composed by methods while in C language is present as a struct (for more informations see § Overview on SDK pag.7): C representation: typedef struct { byte ID[MAX_ID_LENGTH]; short Length; int EvtType; CAENRFIDProtocol Type; char LogicalSource[MAX_LOGICAL_SOURCE_NAME]; struct timeval TimeStamp; short RSSI; char ReadPoint[MAX_READPOINT_NAME]; byte TID[MAX_TID_SIZE]; short TIDLen; } CAENRFIDNotify; getDate Method Description: This method returns a timestamp representing the time at which the event was generated. Return value: The timestamp value. Syntax: C# representation: public DateTime getDate() JAVA representation: public java.util.Date getDate() getReadPoint Method Description: This method returns the read point that has detected the tag. Return value: The name of the read point that has detected the Tag. Syntax: C# representation: public string getReadPoint() JAVA representation: public java.lang.String getReadPoint()
CAEN RFID API – Reference Manual 86 getRSSI Method Description: This method returns the RSSI value measured for the tag. Return value: The tag's RSSI. Syntax: C# representation: public short getRSSI() JAVA representation: public short getRSSI() getStatus Method Description: This method returns the event type associated to the tag. Return value: The event type associated to the Tag. Syntax: C# representation: public CAENRFIDTagEventType getStatus() JAVA representation: public CAENRFIDTagEventType getStatus() getTagID Method Description: This method returns the tag's ID (the EPC code in Gen2 tags). Return value: An array of bytes representing the tag's ID (the EPC code in EPC Class 1 Gen 2 tags). Syntax: C# representation: public byte[] getTagID() JAVA representation: public byte[] getTagID() getTagLength Method Description: This method returns the tag's ID length. Return value: The tag's length. Syntax: C# representation: public short getTagLength() JAVA representation: public short getTagLength()
CAEN RFID API – Reference Manual 87 getTagSource Method Description: This method returns the name of the logical source that has detected the tag. Return value: The name of the logical source that has detected the tag. Syntax: C# representation: public string getTagSource() JAVA representation: public java.lang.String getTagSource() getTagType Method Description: This method returns the air protocol of the tag. Return value: The air protocol of the tag. Syntax: C# representation: public short getTagType() JAVA representation: public CAENRFIDProtocol getTagType() getTID Method Description: This method returns the TID field value in a EPC Class 1 Gen 2 Tag Return value: The bytes of the TID field. Syntax: C# representation: public byte[] getTID() JAVA representation: public java.lang.String getAntenna()

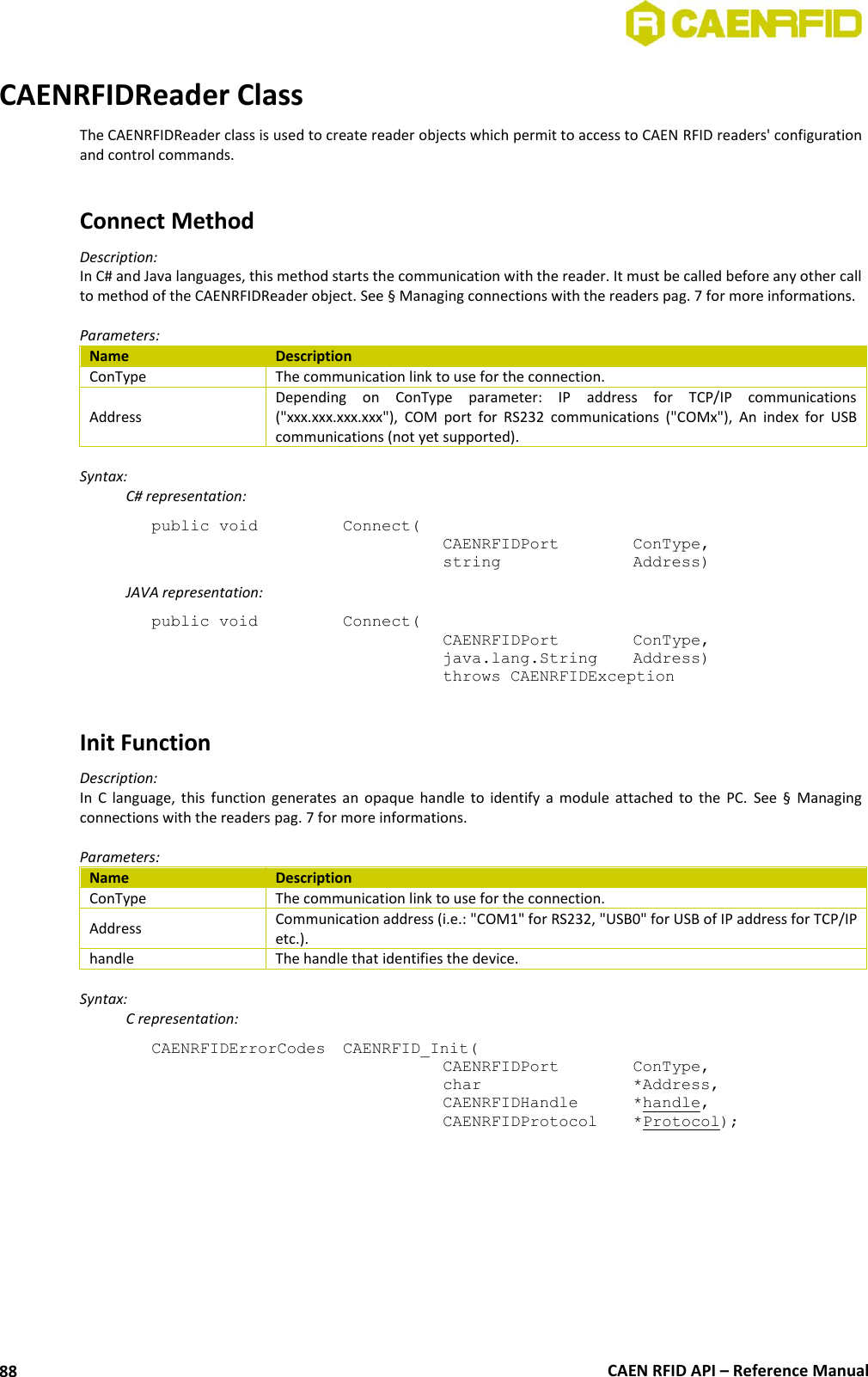

CAEN RFID API – Reference Manual 88 CAENRFIDReader Class The CAENRFIDReader class is used to create reader objects which permit to access to CAEN RFID readers' configuration and control commands. Connect Method Description: In C# and Java languages, this method starts the communication with the reader. It must be called before any other call to method of the CAENRFIDReader object. See § Managing connections with the readers pag. 7 for more informations. Parameters: Name Description ConType The communication link to use for the connection. Address Depending on ConType parameter: IP address for TCP/IP communications ("xxx.xxx.xxx.xxx"), COM port for RS232 communications ("COMx"), An index for USB communications (not yet supported). Syntax: C# representation: public void Connect( CAENRFIDPort ConType, string Address) JAVA representation: public void Connect( CAENRFIDPort ConType, java.lang.String Address) throws CAENRFIDException Init Function Description: In C language, this function generates an opaque handle to identify a module attached to the PC. See § Managing connections with the readers pag. 7 for more informations. Parameters: Name Description ConType The communication link to use for the connection. Address Communication address (i.e.: "COM1" for RS232, "USB0" for USB of IP address for TCP/IP etc.). handle The handle that identifies the device. Syntax: C representation: CAENRFIDErrorCodes CAENRFID_Init( CAENRFIDPort ConType, char *Address, CAENRFIDHandle *handle, CAENRFIDProtocol *Protocol);
CAEN RFID API – Reference Manual 89 Disconnect Method Description: In C# and Java languages, this method closes the connection with the CAEN RFID Reader releasing all the allocated resources. See § Managing connections with the readers pag. 7 for more informations. Syntax: C# representation: public void Disconnect() JAVA representation: public void Disconnect() throws CAENRFIDException End Description: In C language, this function closes the connection with the CAEN RFID Reader releasing all the allocated resources. See § Managing connections with the readers pag. 7 for more informations. Parameters: Name Description handle The handle that identifies the device. Syntax: C representation: CAENRFIDErrorCodes CAENRFID_End( CAENRFIDHandle handle); GetBitRate Method Description: This method gets the current setting of the RF bit rate. Return value: The current RF bit rate value. Syntax: C# representation: public CAENRFIDBitRate GetBitRate() JAVA representation: public CAENRFIDBitRate GetBitRate() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetBitrate( CAENRFIDHandle handle, CAENRFID_Bitrate *Bitrate);

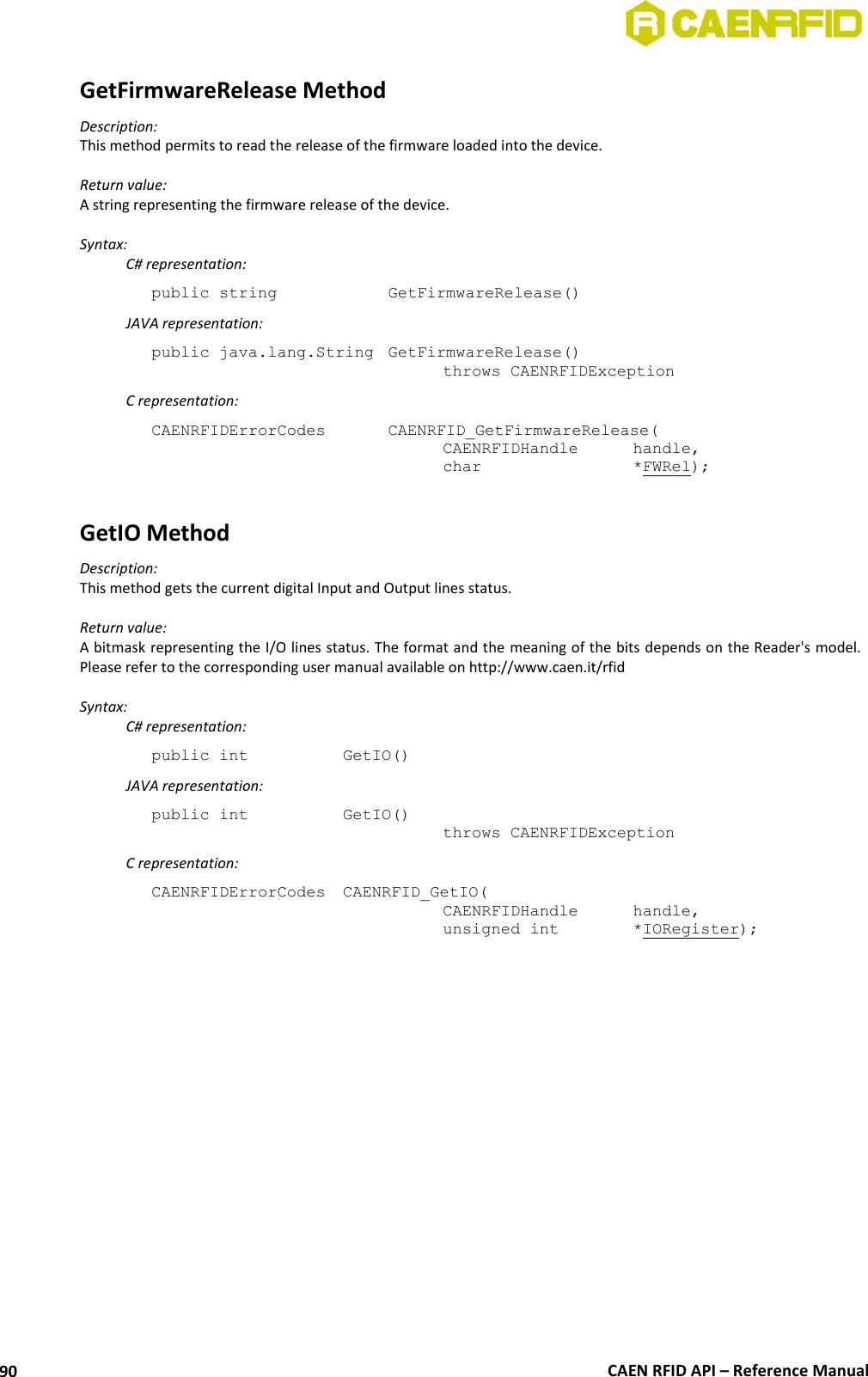

CAEN RFID API – Reference Manual 90 GetFirmwareRelease Method Description: This method permits to read the release of the firmware loaded into the device. Return value: A string representing the firmware release of the device. Syntax: C# representation: public string GetFirmwareRelease() JAVA representation: public java.lang.String GetFirmwareRelease() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetFirmwareRelease( CAENRFIDHandle handle, char *FWRel); GetIO Method Description: This method gets the current digital Input and Output lines status. Return value: A bitmask representing the I/O lines status. The format and the meaning of the bits depends on the Reader's model. Please refer to the corresponding user manual available on http://www.caen.it/rfid Syntax: C# representation: public int GetIO() JAVA representation: public int GetIO() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetIO( CAENRFIDHandle handle, unsigned int *IORegister);

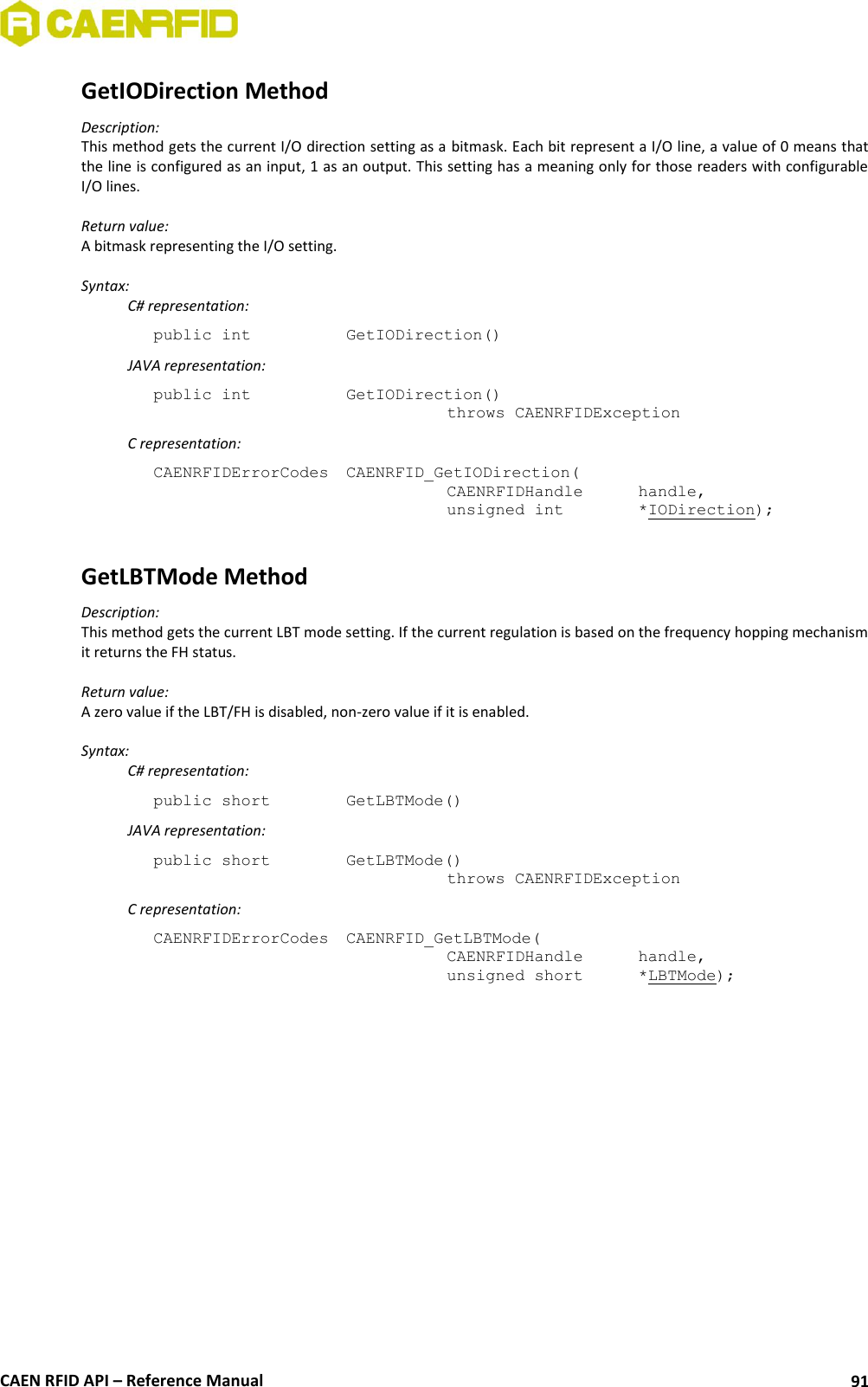

CAEN RFID API – Reference Manual 91 GetIODirection Method Description: This method gets the current I/O direction setting as a bitmask. Each bit represent a I/O line, a value of 0 means that the line is configured as an input, 1 as an output. This setting has a meaning only for those readers with configurable I/O lines. Return value: A bitmask representing the I/O setting. Syntax: C# representation: public int GetIODirection() JAVA representation: public int GetIODirection() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetIODirection( CAENRFIDHandle handle, unsigned int *IODirection); GetLBTMode Method Description: This method gets the current LBT mode setting. If the current regulation is based on the frequency hopping mechanism it returns the FH status. Return value: A zero value if the LBT/FH is disabled, non-zero value if it is enabled. Syntax: C# representation: public short GetLBTMode() JAVA representation: public short GetLBTMode() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetLBTMode( CAENRFIDHandle handle, unsigned short *LBTMode);

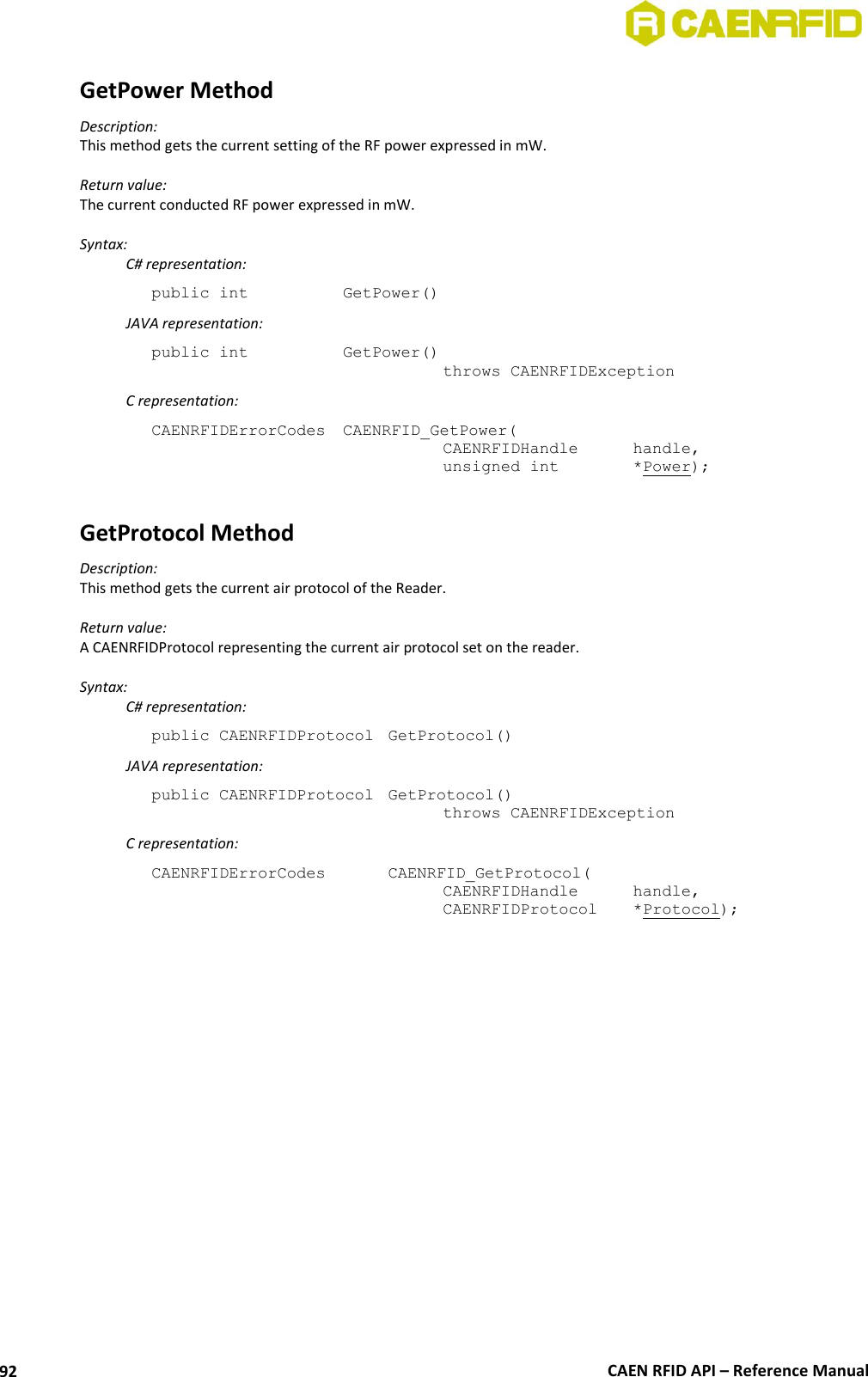

CAEN RFID API – Reference Manual 92 GetPower Method Description: This method gets the current setting of the RF power expressed in mW. Return value: The current conducted RF power expressed in mW. Syntax: C# representation: public int GetPower() JAVA representation: public int GetPower() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetPower( CAENRFIDHandle handle, unsigned int *Power); GetProtocol Method Description: This method gets the current air protocol of the Reader. Return value: A CAENRFIDProtocol representing the current air protocol set on the reader. Syntax: C# representation: public CAENRFIDProtocol GetProtocol() JAVA representation: public CAENRFIDProtocol GetProtocol() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetProtocol( CAENRFIDHandle handle, CAENRFIDProtocol *Protocol);
CAEN RFID API – Reference Manual 93 GetReaderInfo Method Description: This method permits to read the reader information loaded into the device. Return value: The reader information of the device. Syntax: C# representation: public CAENRFIDReaderInfo GetReaderInfo() JAVA representation: public CAENRFIDReaderInfo GetReaderInfo() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetReaderInfo( CAENRFIDHandle handle, char *Model, char *SerialNum); GetReadPoints Method Description: This method gets the names of the read points (antennas) available in the reader. Return value: An array containing the read points (antennas) names available in the reader. Syntax: C# representation: public string[] GetReadPoints() JAVA representation: public java.lang.String[] GetReadPoints() C representation: CAENRFIDErrorCodes CAENRFID_GetReadPoints( CAENRFIDHandle handle, char **AntNames [], int *AntNumber);

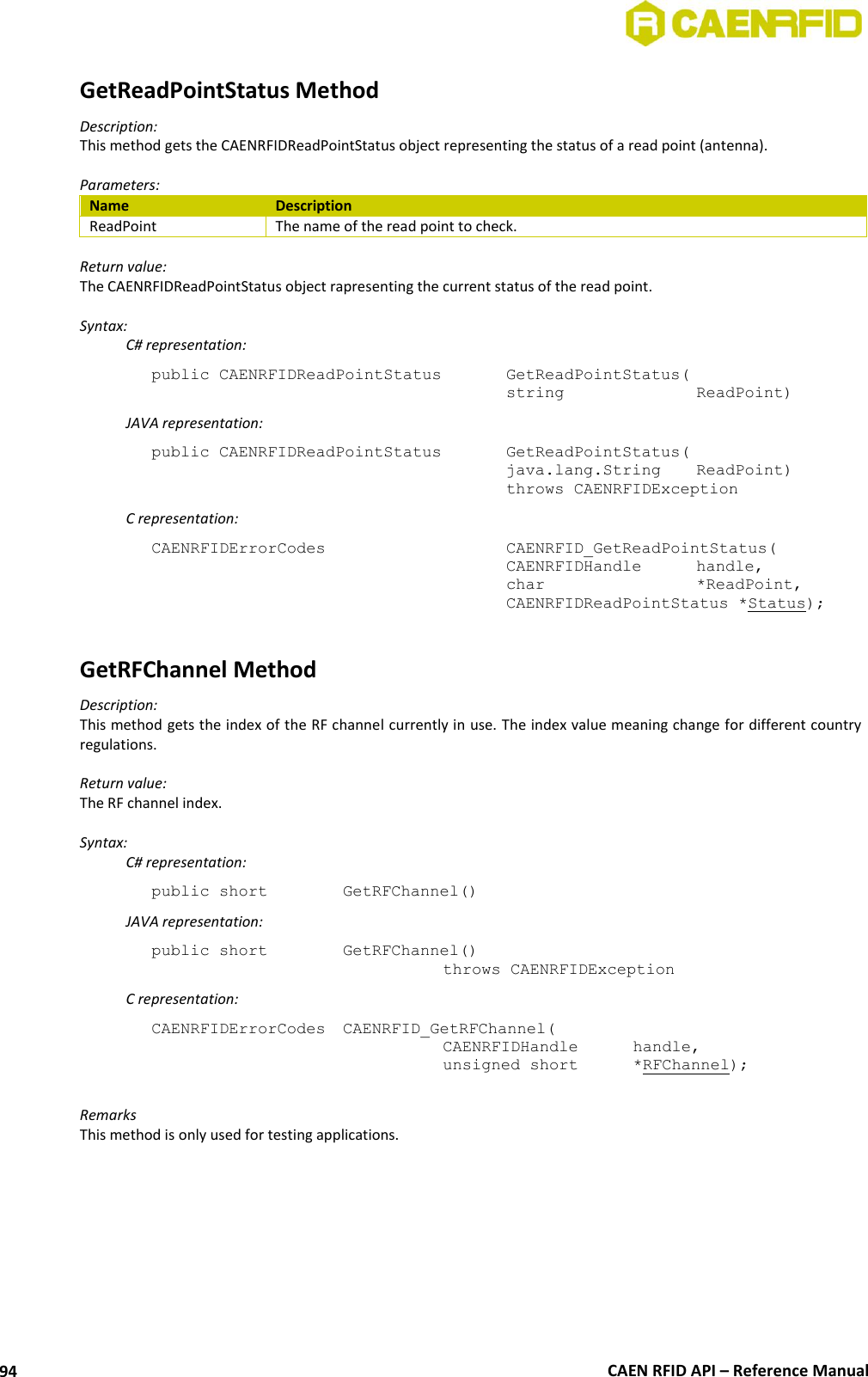

CAEN RFID API – Reference Manual 94 GetReadPointStatus Method Description: This method gets the CAENRFIDReadPointStatus object representing the status of a read point (antenna). Parameters: Name Description ReadPoint The name of the read point to check. Return value: The CAENRFIDReadPointStatus object rapresenting the current status of the read point. Syntax: C# representation: public CAENRFIDReadPointStatus GetReadPointStatus( string ReadPoint) JAVA representation: public CAENRFIDReadPointStatus GetReadPointStatus( java.lang.String ReadPoint) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetReadPointStatus( CAENRFIDHandle handle, char *ReadPoint, CAENRFIDReadPointStatus *Status); GetRFChannel Method Description: This method gets the index of the RF channel currently in use. The index value meaning change for different country regulations. Return value: The RF channel index. Syntax: C# representation: public short GetRFChannel() JAVA representation: public short GetRFChannel() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetRFChannel( CAENRFIDHandle handle, unsigned short *RFChannel); Remarks This method is only used for testing applications.
CAEN RFID API – Reference Manual 95 GetRFRegulation Method Description: This method gets the current RF regulation setting value. Return value: The RF regulation value. Syntax: C# representation: public CAENRFIDRFRegulations GetRFRegulation() JAVA representation: public CAENRFIDRFRegulations GetRFRegulation() throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_GetRFRegulation( CAENRFIDHandle handle, CAENRFIDRFRegulations *RFRegulation); GetSource Method Description: This method gets a CAENRFIDLogicalSource object given its name. Parameters: Name Description Source The name of the logical source. Return value: The CAENRFIDLogicalSource object corresponding to the requested name. Syntax: C# representation: public CAENRFIDLogicalSource GetSource( string Source) JAVA representation: public CAENRFIDLogicalSource GetSource( java.lang.String Source) throws CAENRFIDException Remarks: This function does not exist in C language, see § Overview on SDK pag. 7 for more informations.

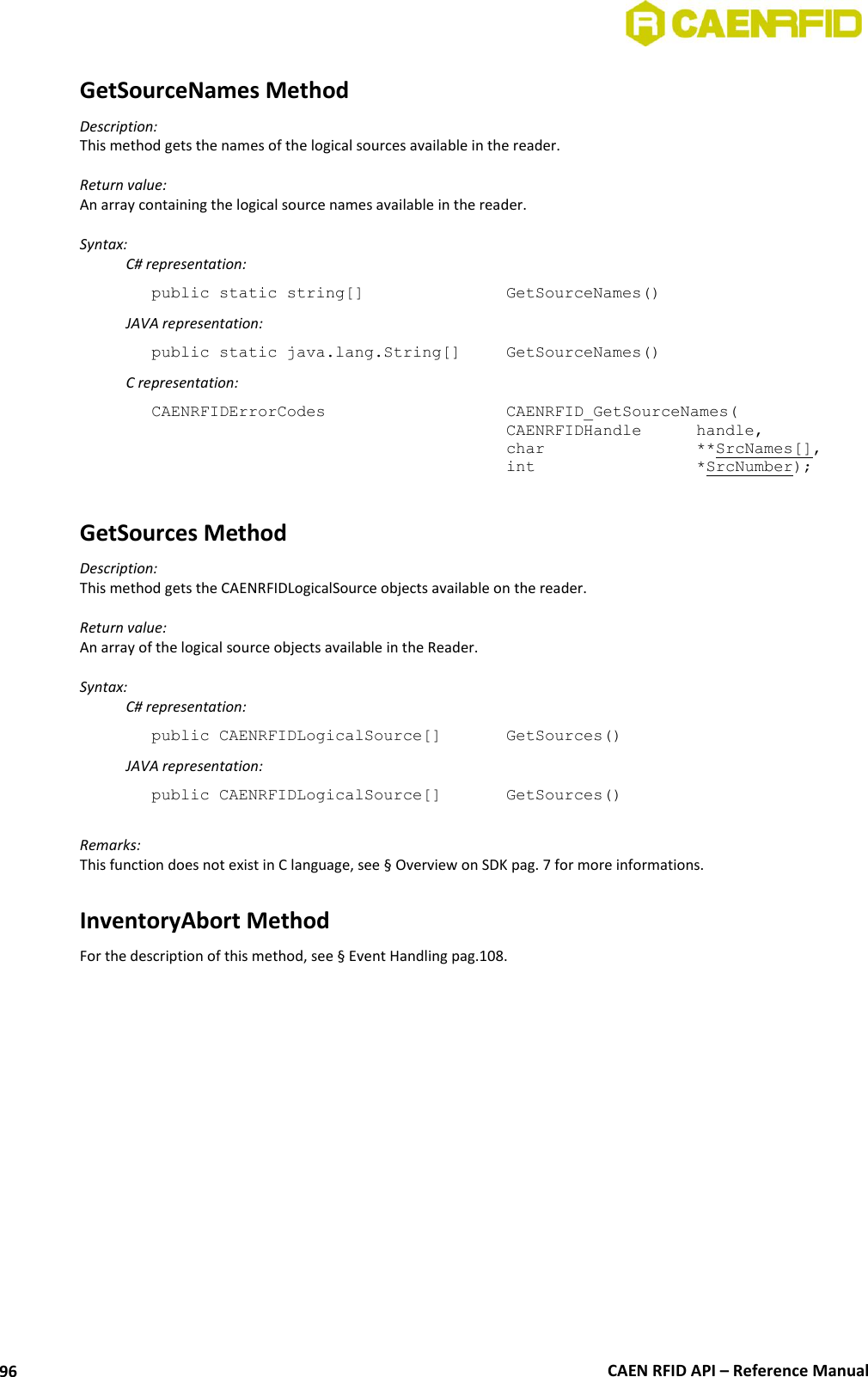

CAEN RFID API – Reference Manual 96 GetSourceNames Method Description: This method gets the names of the logical sources available in the reader. Return value: An array containing the logical source names available in the reader. Syntax: C# representation: public static string[] GetSourceNames() JAVA representation: public static java.lang.String[] GetSourceNames() C representation: CAENRFIDErrorCodes CAENRFID_GetSourceNames( CAENRFIDHandle handle, char **SrcNames[], int *SrcNumber); GetSources Method Description: This method gets the CAENRFIDLogicalSource objects available on the reader. Return value: An array of the logical source objects available in the Reader. Syntax: C# representation: public CAENRFIDLogicalSource[] GetSources() JAVA representation: public CAENRFIDLogicalSource[] GetSources() Remarks: This function does not exist in C language, see § Overview on SDK pag. 7 for more informations. InventoryAbort Method For the description of this method, see § Event Handling pag.108.

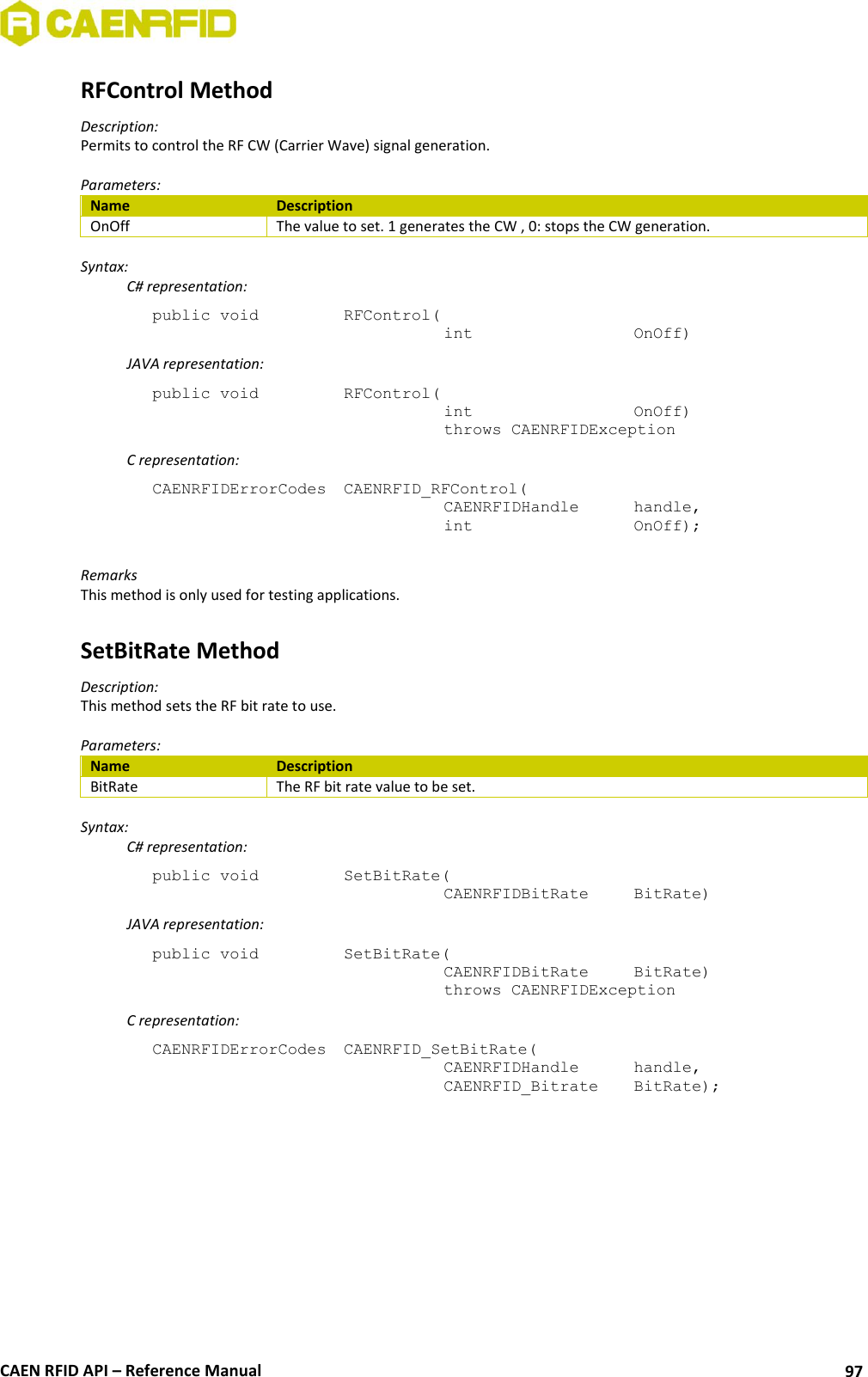

CAEN RFID API – Reference Manual 97 RFControl Method Description: Permits to control the RF CW (Carrier Wave) signal generation. Parameters: Name Description OnOff The value to set. 1 generates the CW , 0: stops the CW generation. Syntax: C# representation: public void RFControl( int OnOff) JAVA representation: public void RFControl( int OnOff) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_RFControl( CAENRFIDHandle handle, int OnOff); Remarks This method is only used for testing applications. SetBitRate Method Description: This method sets the RF bit rate to use. Parameters: Name Description BitRate The RF bit rate value to be set. Syntax: C# representation: public void SetBitRate( CAENRFIDBitRate BitRate) JAVA representation: public void SetBitRate( CAENRFIDBitRate BitRate) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetBitRate( CAENRFIDHandle handle, CAENRFID_Bitrate BitRate);

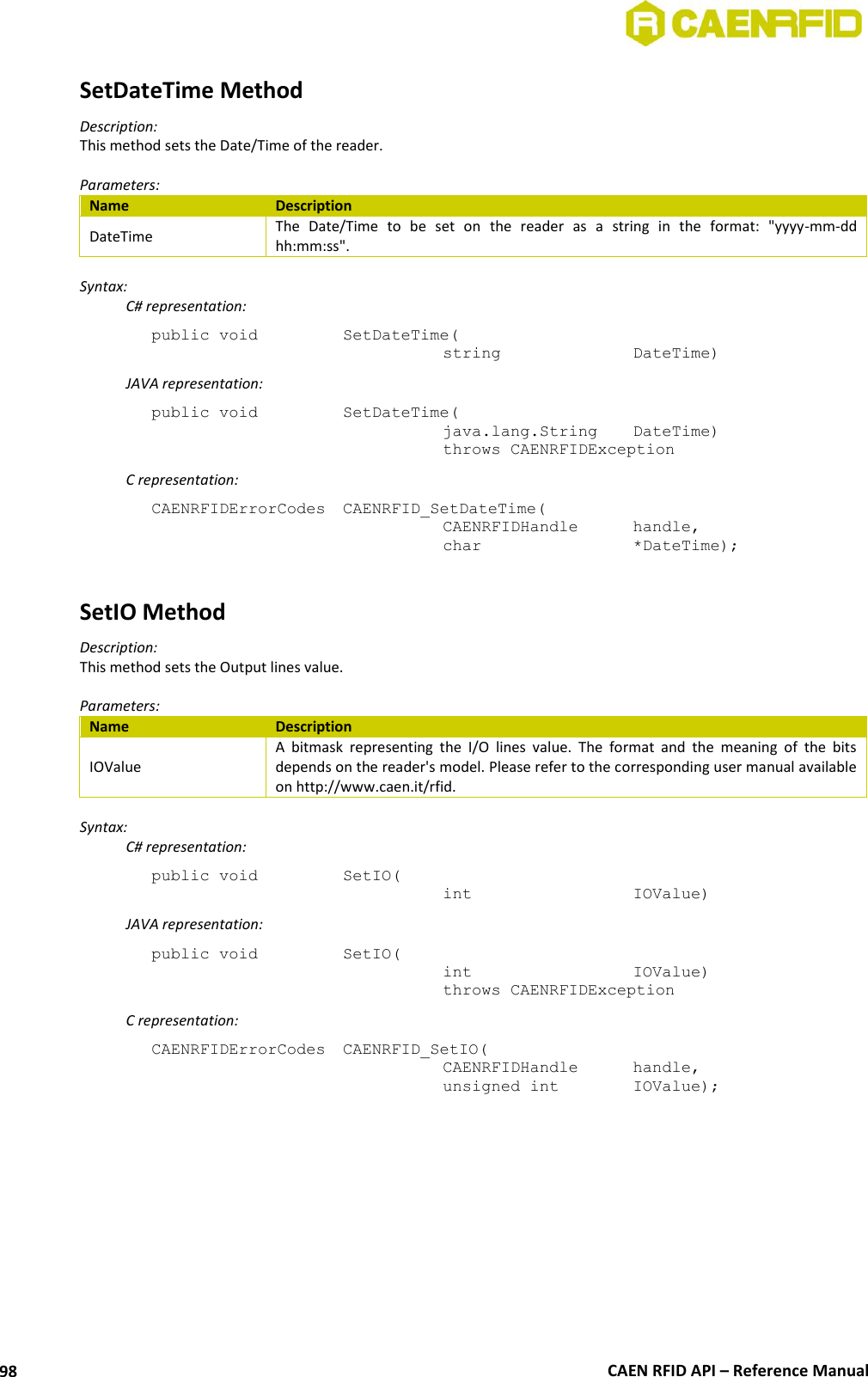

CAEN RFID API – Reference Manual 98 SetDateTime Method Description: This method sets the Date/Time of the reader. Parameters: Name Description DateTime The Date/Time to be set on the reader as a string in the format: "yyyy-mm-dd hh:mm:ss". Syntax: C# representation: public void SetDateTime( string DateTime) JAVA representation: public void SetDateTime( java.lang.String DateTime) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetDateTime( CAENRFIDHandle handle, char *DateTime); SetIO Method Description: This method sets the Output lines value. Parameters: Name Description IOValue A bitmask representing the I/O lines value. The format and the meaning of the bits depends on the reader's model. Please refer to the corresponding user manual available on http://www.caen.it/rfid. Syntax: C# representation: public void SetIO( int IOValue) JAVA representation: public void SetIO( int IOValue) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetIO( CAENRFIDHandle handle, unsigned int IOValue);

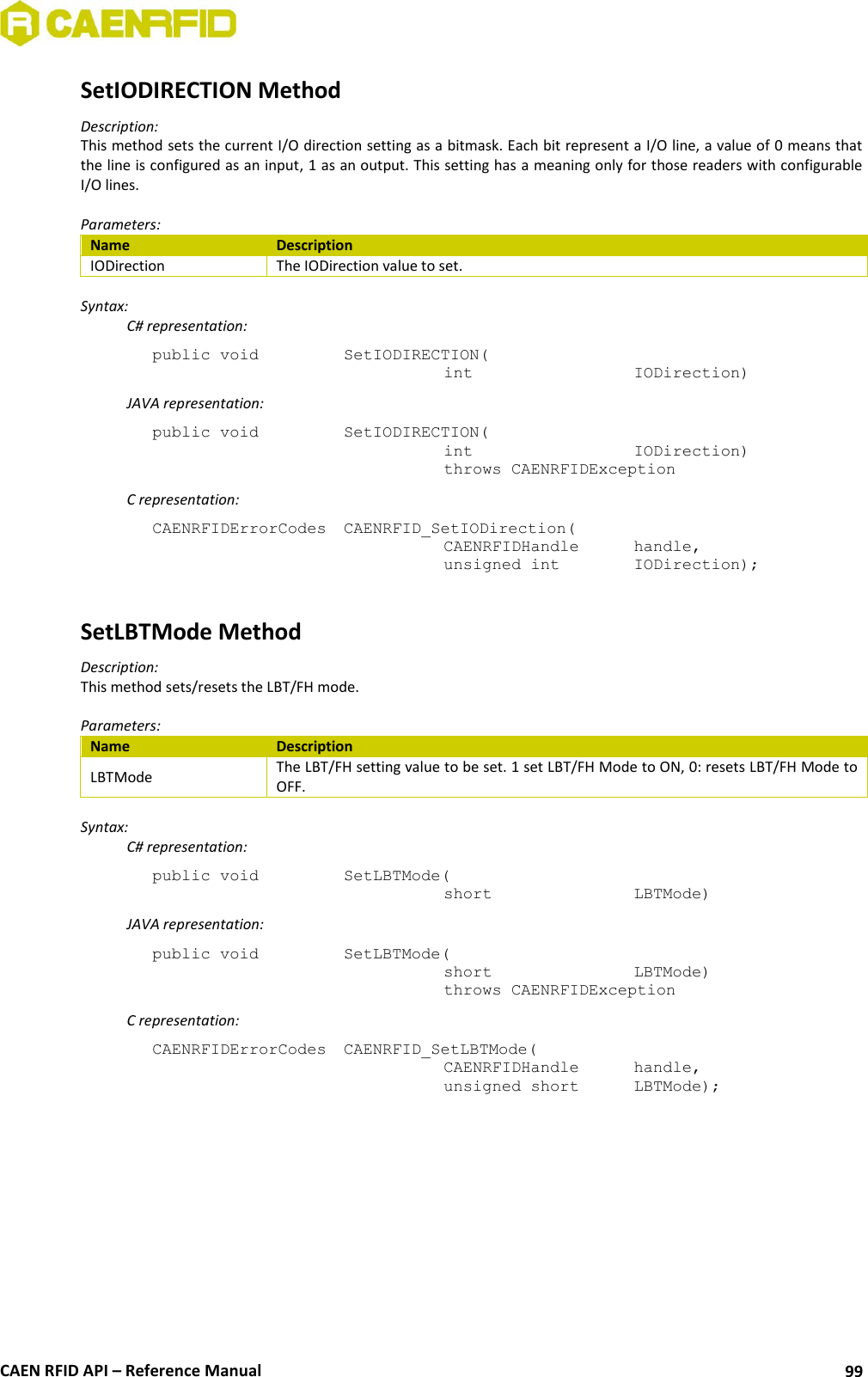

CAEN RFID API – Reference Manual 99 SetIODIRECTION Method Description: This method sets the current I/O direction setting as a bitmask. Each bit represent a I/O line, a value of 0 means that the line is configured as an input, 1 as an output. This setting has a meaning only for those readers with configurable I/O lines. Parameters: Name Description IODirection The IODirection value to set. Syntax: C# representation: public void SetIODIRECTION( int IODirection) JAVA representation: public void SetIODIRECTION( int IODirection) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetIODirection( CAENRFIDHandle handle, unsigned int IODirection); SetLBTMode Method Description: This method sets/resets the LBT/FH mode. Parameters: Name Description LBTMode The LBT/FH setting value to be set. 1 set LBT/FH Mode to ON, 0: resets LBT/FH Mode to OFF. Syntax: C# representation: public void SetLBTMode( short LBTMode) JAVA representation: public void SetLBTMode( short LBTMode) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetLBTMode( CAENRFIDHandle handle, unsigned short LBTMode);

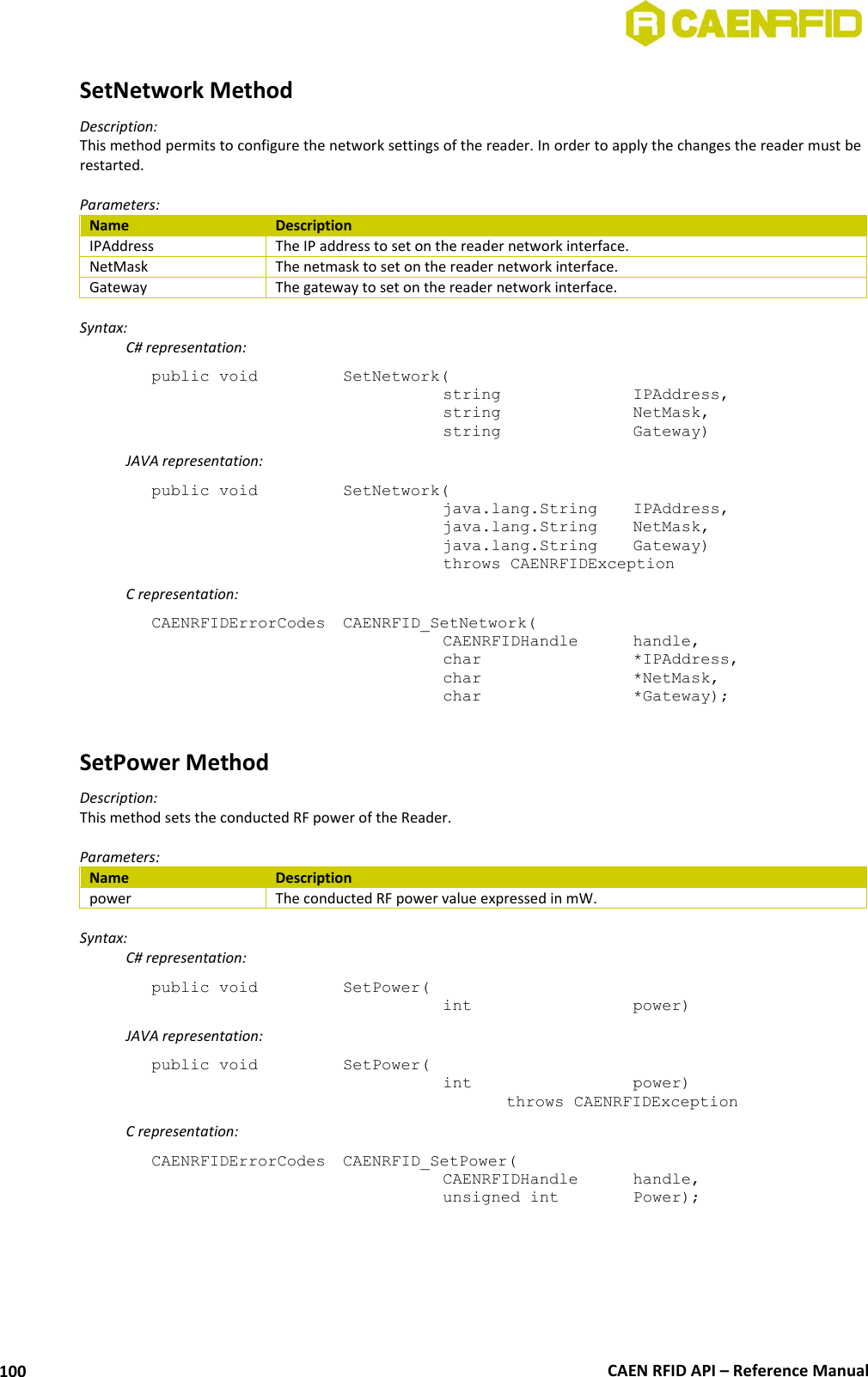

CAEN RFID API – Reference Manual 100 SetNetwork Method Description: This method permits to configure the network settings of the reader. In order to apply the changes the reader must be restarted. Parameters: Name Description IPAddress The IP address to set on the reader network interface. NetMask The netmask to set on the reader network interface. Gateway The gateway to set on the reader network interface. Syntax: C# representation: public void SetNetwork( string IPAddress, string NetMask, string Gateway) JAVA representation: public void SetNetwork( java.lang.String IPAddress, java.lang.String NetMask, java.lang.String Gateway) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetNetwork( CAENRFIDHandle handle, char *IPAddress, char *NetMask, char *Gateway); SetPower Method Description: This method sets the conducted RF power of the Reader. Parameters: Name Description power The conducted RF power value expressed in mW. Syntax: C# representation: public void SetPower( int power) JAVA representation: public void SetPower( int power) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetPower( CAENRFIDHandle handle, unsigned int Power);
CAEN RFID API – Reference Manual 101 SetProtocol Method Description: This method sets the air protocol of the reader. Parameters: Name Description Protocol The CAENRFIDProtocol representing the air protocol to be set. Syntax: C# representation: public void SetProtocol( CAENRFIDProtocol Protocol) JAVA representation: public void SetProtocol( CAENRFIDProtocol Protocol) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetProtocol( CAENRFIDHandle handle, CAENRFIDProtocol Protocol); SetRFChannel Method Description: This method sets the RF channel to use. This method fixes the RF channel only when the listen before talk or the frequency hopping feature is disabled. Parameters: Name Description Channel The RF channel index to be set. Syntax: C# representation: public void SetRFChannel( short Channel) JAVA representation: public void SetRFChannel( short Channel) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetRFChannel( CAENRFIDHandle handle, unsigned short Channel); Remarks This method is only used for testing applications.
CAEN RFID API – Reference Manual 102 SetRFRegulation Method Description: This method sets the RF regulation setting value. Parameters: Name Description RFRegulation The RF regulation value to set. Syntax: C# representation: public void SetRFRegulation( CAENRFIDRFRegulations RFRegulation) JAVA representation: public void SetRFRegulation( CAENRFIDRFRegulations RFRegulation) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetRFRegulation( CAENRFIDHandle handle, CAENRFIDRFRegulations RFRegulation);
CAEN RFID API – Reference Manual 103 SetRS232 Method Description: This method permits to change the serial port settings. Valid settings values depend on the reader model. Parameters: Name Description baud The baud rate value to set. datab The number of data bits to set. stopb The number of stop bits to set. parity The parity value to set. flowc The flow control value to set. Syntax: C# representation: public void SetRS232( int baud, int datab, int stopb, CAENRFIDRS232Constants parity, CAENRFIDRS232Constants flowc) JAVA representation: public void SetRS232( int baud, int datab, int stopb, CAENRFIDRS232Constants parity, CAENRFIDRS232Constants flowc) throws CAENRFIDException C representation: CAENRFIDErrorCodes CAENRFID_SetRS232( CAENRFIDHandle handle, unsigned long baud, unsigned long datab, unsigned long stopb, CAENRFID_RS232_Parity parity, CAENRFID_RS232_FlowControl flowc);

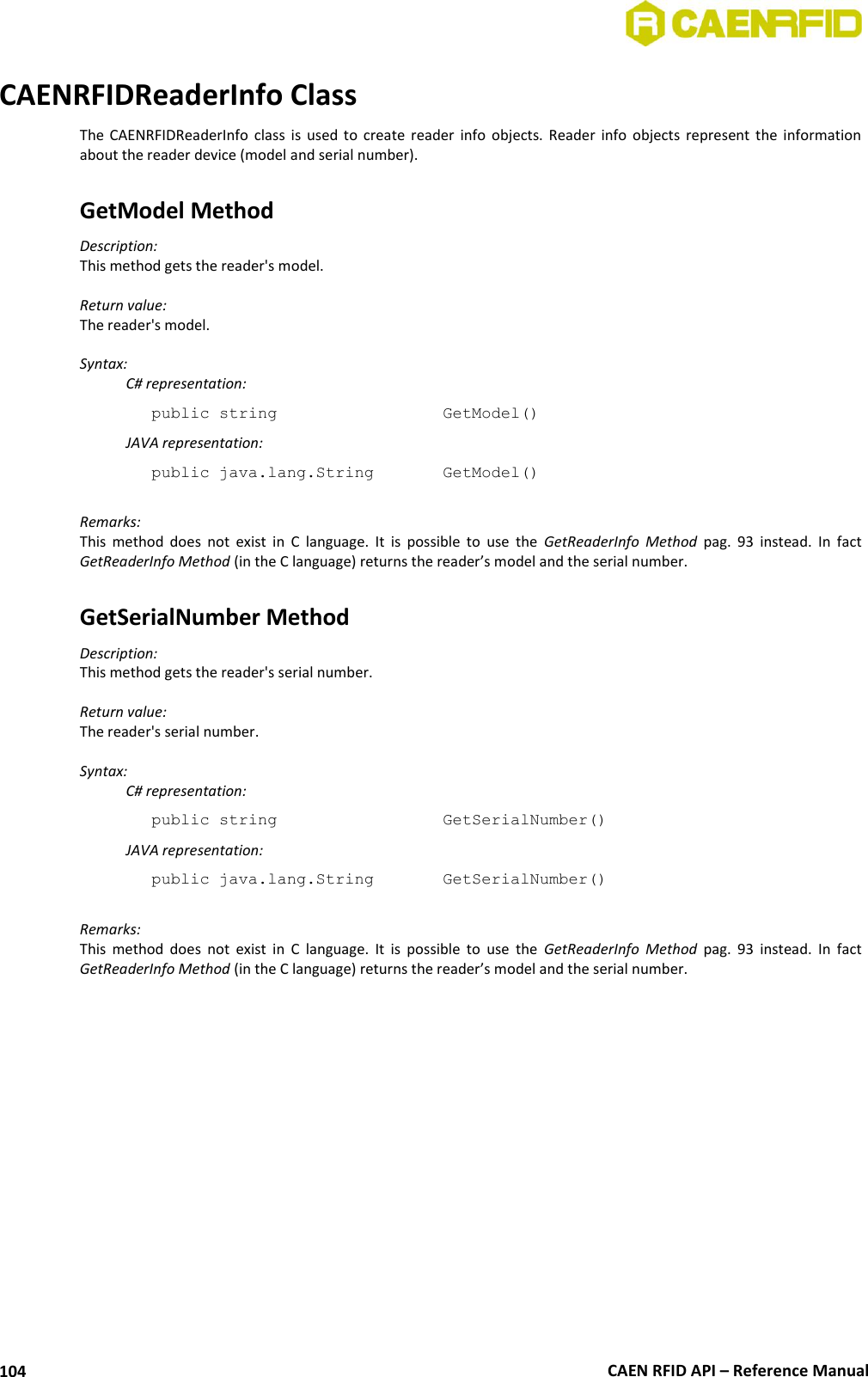

CAEN RFID API – Reference Manual 104 CAENRFIDReaderInfo Class The CAENRFIDReaderInfo class is used to create reader info objects. Reader info objects represent the information about the reader device (model and serial number). GetModel Method Description: This method gets the reader's model. Return value: The reader's model. Syntax: C# representation: public string GetModel() JAVA representation: public java.lang.String GetModel() Remarks: This method does not exist in C language. It is possible to use the GetReaderInfo Method pag. 93 instead. In fact GetReaderInfo Method (in the C language) returns the reader’s model and the serial number. GetSerialNumber Method Description: This method gets the reader's serial number. Return value: The reader's serial number. Syntax: C# representation: public string GetSerialNumber() JAVA representation: public java.lang.String GetSerialNumber() Remarks: This method does not exist in C language. It is possible to use the GetReaderInfo Method pag. 93 instead. In fact GetReaderInfo Method (in the C language) returns the reader’s model and the serial number.
CAEN RFID API – Reference Manual 105 CAENRFIDTag Class The CAENRFIDTag class is used to define objects representing the tags. These objects are used as return values for the inventory methods and as arguments for many tag access methods. In both Java and C# lanuguage this class is composed by methods while in C language the following struct is present (for more informations see § Overview on SDK pag.7): C representation: typedef struct { byte ID[MAX_ID_LENGTH]; short Length; char LogicalSource[MAX_LOGICAL_SOURCE_NAME]; char ReadPoint[MAX_READPOINT_NAME]; CAENRFIDProtocol Type; short RSSI; byte TID[MAX_TID_SIZE]; short TIDLen; } CAENRFIDTag; GetId Method Description: This method returns the tag's ID (the EPC code in Gen2 tags). Return value: An array of bytes representing the tag's ID (the EPC code in EPC Class 1 Gen 2 tags). Syntax: C# representation: public byte[] GetId() JAVA representation: public byte[] GetId() GetLength Method Description: This method returns the tag's ID length. Return value: The tag's length. Syntax: C# representation: public short GetLength() JAVA representation: public short GetLength()
CAEN RFID API – Reference Manual 106 GetReadPoint Method Description: This method returns the read point that has detected the tag. Return value: The name of the read point that has detected the Tag Syntax: C# representation: public string GetReadPoint() JAVA representation: public java.lang.String GetReadPoint() throws CAENRFIDException GetRSSI Method Description: This method returns the RSSI value measured for the tag. Return value: The tag's RSSI. Syntax: C# representation: public short GetRSSI() JAVA representation: public short GetRSSI() GetSource Method Description: This method returns the name of the logical source that has detected the tag. Return value: The name of the logical source that has detected the tag. Syntax: C# representation: public CAENRFIDLogicalSource GetSource() JAVA representation: public CAENRFIDLogicalSource GetSource()

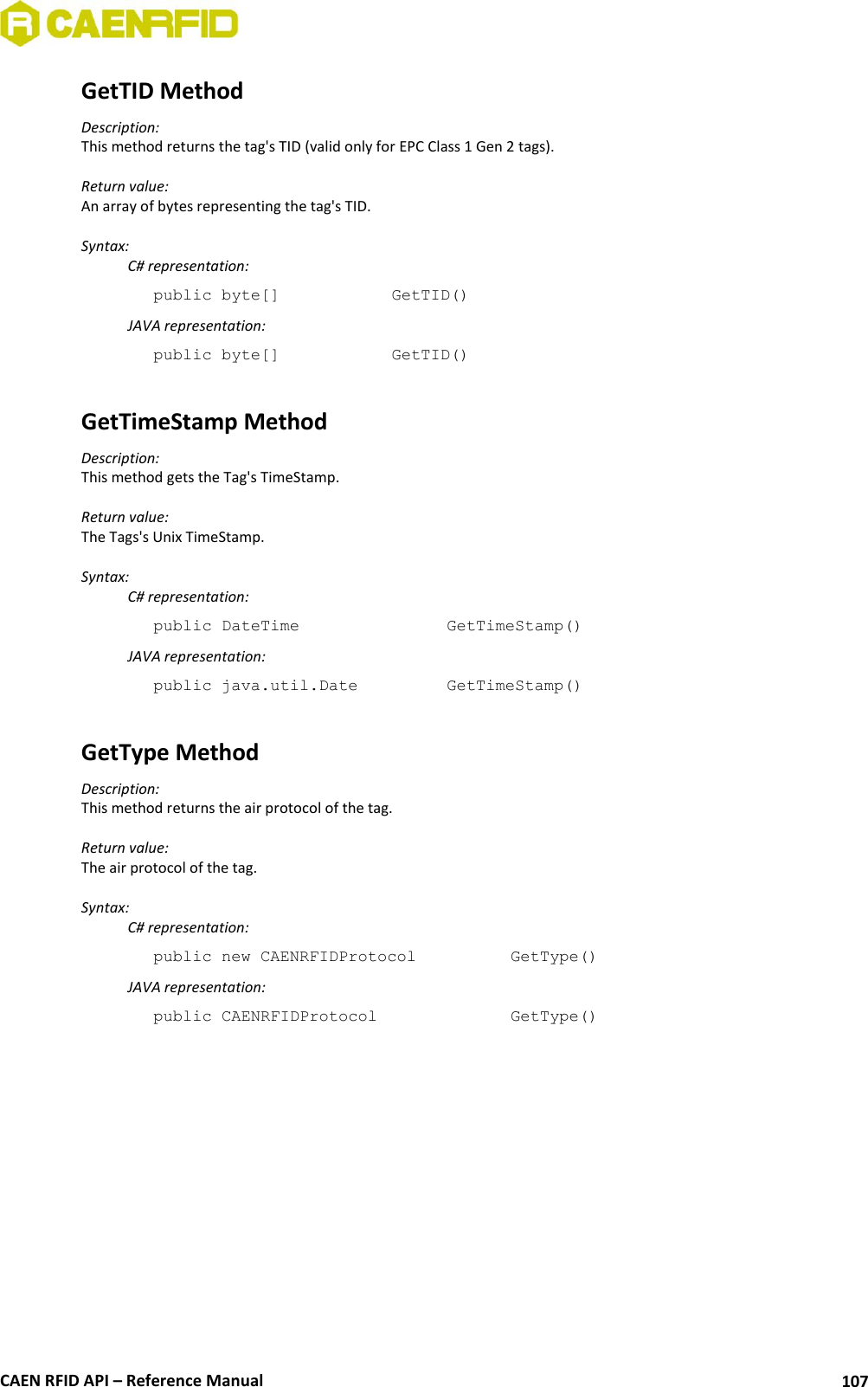

CAEN RFID API – Reference Manual 107 GetTID Method Description: This method returns the tag's TID (valid only for EPC Class 1 Gen 2 tags). Return value: An array of bytes representing the tag's TID. Syntax: C# representation: public byte[] GetTID() JAVA representation: public byte[] GetTID() GetTimeStamp Method Description: This method gets the Tag's TimeStamp. Return value: The Tags's Unix TimeStamp. Syntax: C# representation: public DateTime GetTimeStamp() JAVA representation: public java.util.Date GetTimeStamp() GetType Method Description: This method returns the air protocol of the tag. Return value: The air protocol of the tag. Syntax: C# representation: public new CAENRFIDProtocol GetType() JAVA representation: public CAENRFIDProtocol GetType()

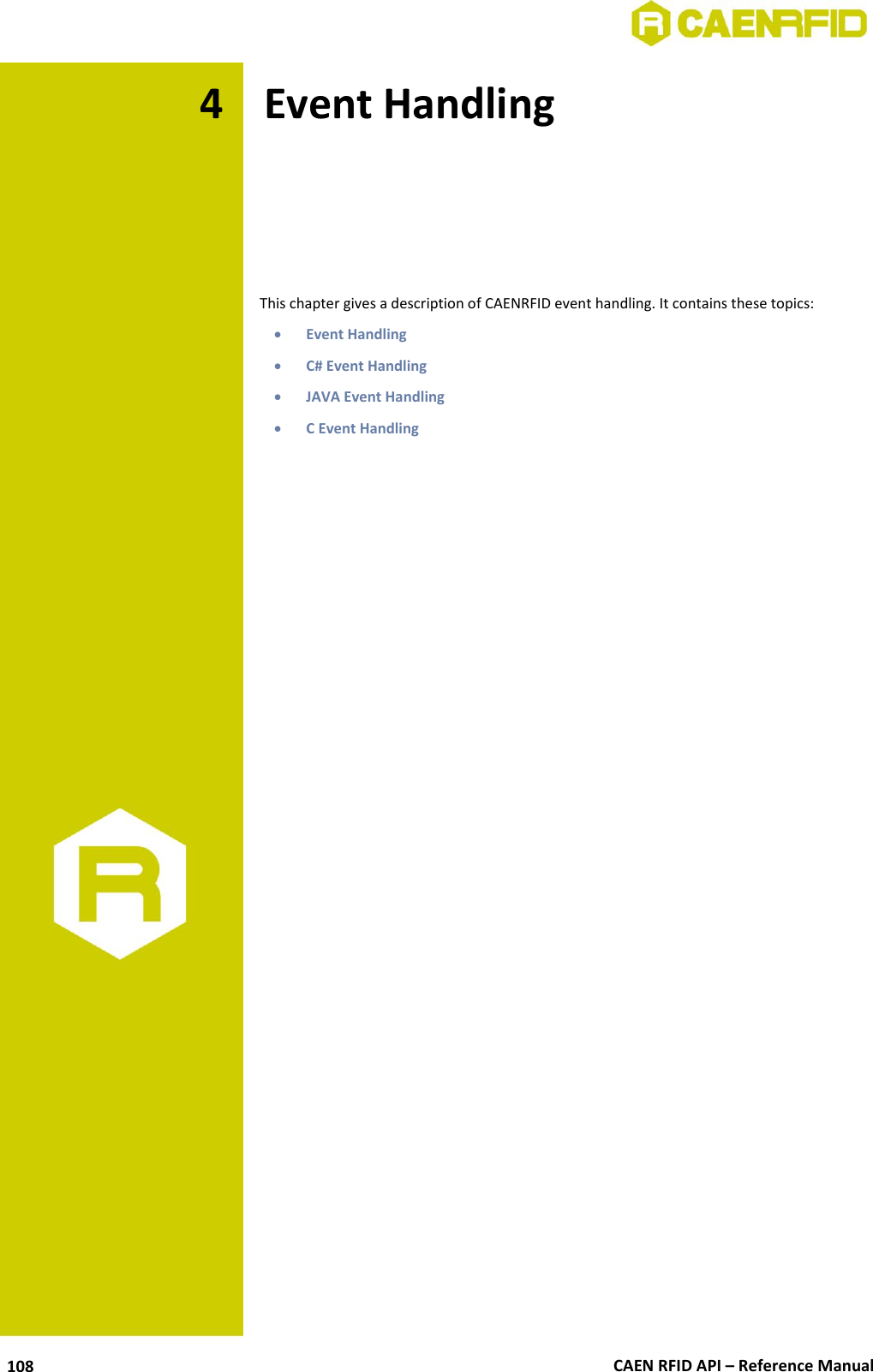

CAEN RFID API – Reference Manual 108 4 Event Handling This chapter gives a description of CAENRFID event handling. It contains these topics:  Event Handling  C# Event Handling  JAVA Event Handling  C Event Handling
CAEN RFID API – Reference Manual 109 Event Handling Standard tag's detection method (InventoryTag) is based on a polling mechanism: a call to the InventoryTag method/function results in a single read cycle and the detected tags in that cycle are returned. An useful variant ("continuous mode") uses an event mechanism to notify detected tags: a call to the EventInventoryTag method/function starts a continuous tags' detection algorithm (multiple read cycles) and an event is generated for each read cycle to notify the detected tags (see the CAEN RFID API User Manual.for further information). The user of the library can define an event handler method/function that is called automatically when the event raises; the data related to the event is passed to the handler as a parameter. The user can define the number of read cycles that the EventInventoryTag have to perform using the ReadCycle parameter of the relevant LogicalSource. If ReadCycle is equal to 0 the EventInventoryTag method loops indefinetely. The "continuous mode" can be interrupted using the InventoryAbort method function. The event handling is implemented using the standard event handling mechanism in .NET and Java while in C it is simulated using the callback mechanism. For further information on the use of the EventInventoryTag, please refer to the CAEN RFID API User Manual.

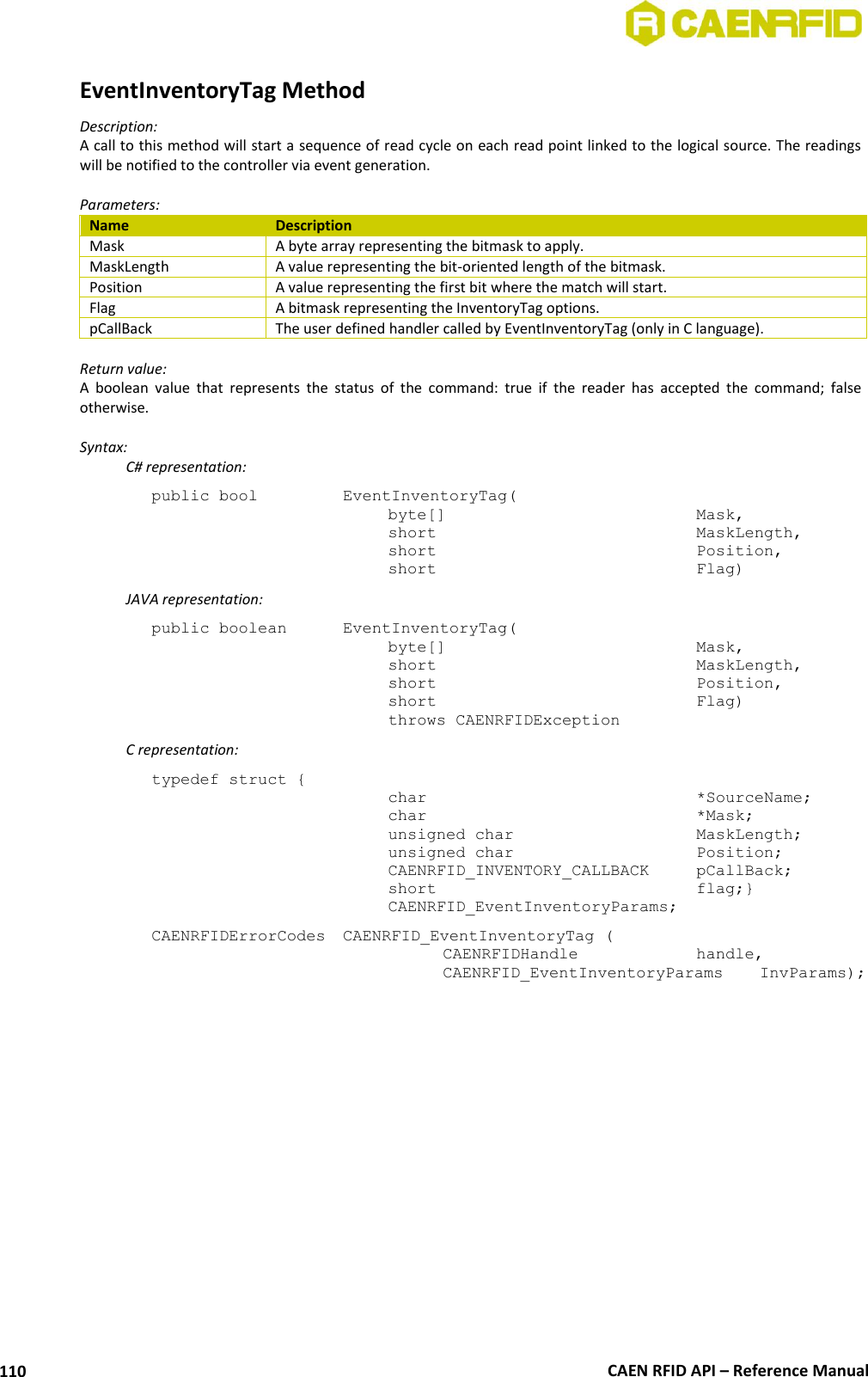

CAEN RFID API – Reference Manual 110 EventInventoryTag Method Description: A call to this method will start a sequence of read cycle on each read point linked to the logical source. The readings will be notified to the controller via event generation. Parameters: Name Description Mask A byte array representing the bitmask to apply. MaskLength A value representing the bit-oriented length of the bitmask. Position A value representing the first bit where the match will start. Flag A bitmask representing the InventoryTag options. pCallBack The user defined handler called by EventInventoryTag (only in C language). Return value: A boolean value that represents the status of the command: true if the reader has accepted the command; false otherwise. Syntax: C# representation: public bool EventInventoryTag( byte[] Mask, short MaskLength, short Position, short Flag) JAVA representation: public boolean EventInventoryTag( byte[] Mask, short MaskLength, short Position, short Flag) throws CAENRFIDException C representation: typedef struct { char *SourceName; char *Mask; unsigned char MaskLength; unsigned char Position; CAENRFID_INVENTORY_CALLBACK pCallBack; short flag;} CAENRFID_EventInventoryParams; CAENRFIDErrorCodes CAENRFID_EventInventoryTag ( CAENRFIDHandle handle, CAENRFID_EventInventoryParams InvParams);

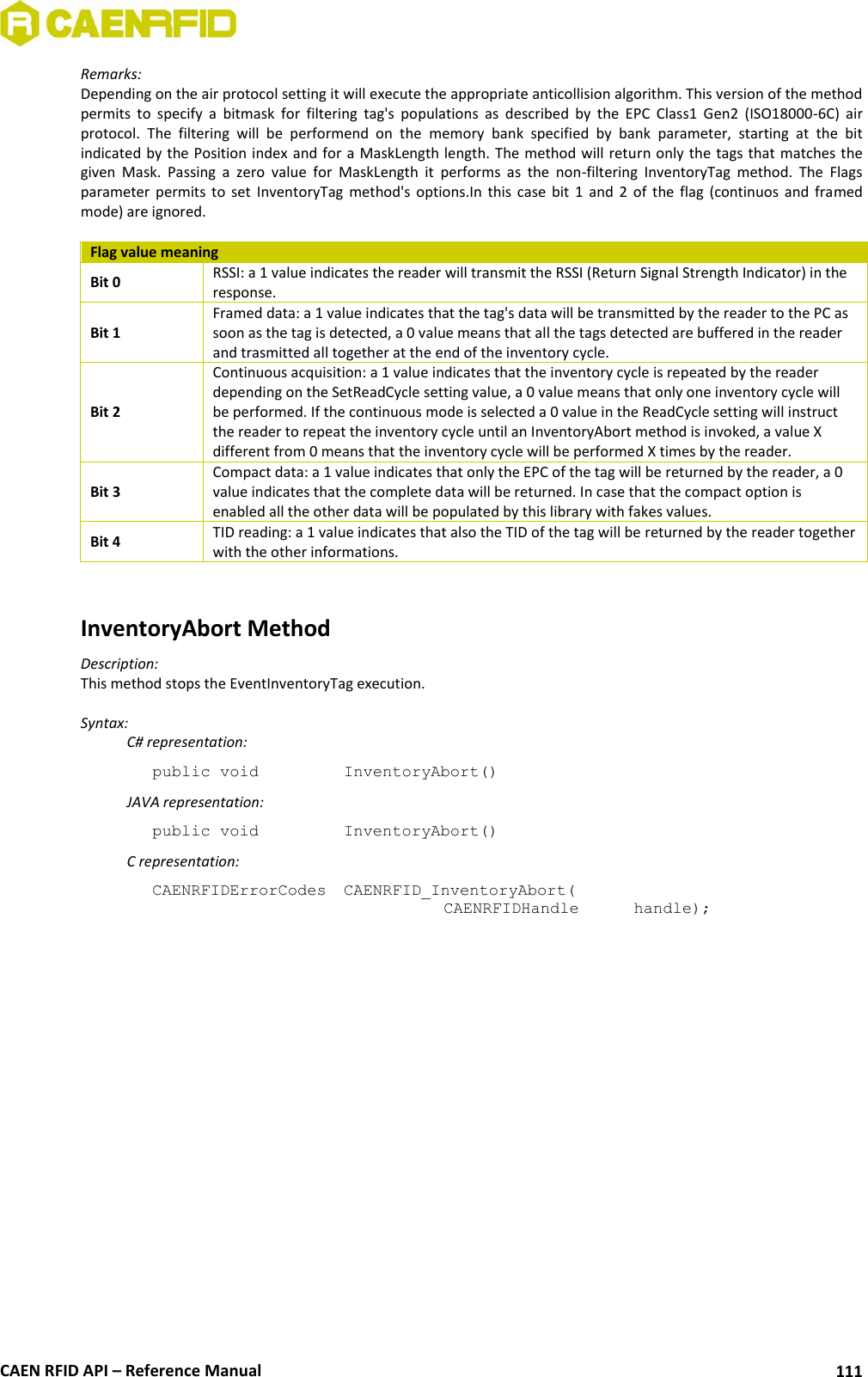

CAEN RFID API – Reference Manual 111 Remarks: Depending on the air protocol setting it will execute the appropriate anticollision algorithm. This version of the method permits to specify a bitmask for filtering tag's populations as described by the EPC Class1 Gen2 (ISO18000-6C) air protocol. The filtering will be performend on the memory bank specified by bank parameter, starting at the bit indicated by the Position index and for a MaskLength length. The method will return only the tags that matches the given Mask. Passing a zero value for MaskLength it performs as the non-filtering InventoryTag method. The Flags parameter permits to set InventoryTag method's options.In this case bit 1 and 2 of the flag (continuos and framed mode) are ignored. Flag value meaning Bit 0 RSSI: a 1 value indicates the reader will transmit the RSSI (Return Signal Strength Indicator) in the response. Bit 1 Framed data: a 1 value indicates that the tag's data will be transmitted by the reader to the PC as soon as the tag is detected, a 0 value means that all the tags detected are buffered in the reader and trasmitted all together at the end of the inventory cycle. Bit 2 Continuous acquisition: a 1 value indicates that the inventory cycle is repeated by the reader depending on the SetReadCycle setting value, a 0 value means that only one inventory cycle will be performed. If the continuous mode is selected a 0 value in the ReadCycle setting will instruct the reader to repeat the inventory cycle until an InventoryAbort method is invoked, a value X different from 0 means that the inventory cycle will be performed X times by the reader. Bit 3 Compact data: a 1 value indicates that only the EPC of the tag will be returned by the reader, a 0 value indicates that the complete data will be returned. In case that the compact option is enabled all the other data will be populated by this library with fakes values. Bit 4 TID reading: a 1 value indicates that also the TID of the tag will be returned by the reader together with the other informations. InventoryAbort Method Description: This method stops the EventInventoryTag execution. Syntax: C# representation: public void InventoryAbort() JAVA representation: public void InventoryAbort() C representation: CAENRFIDErrorCodes CAENRFID_InventoryAbort( CAENRFIDHandle handle);

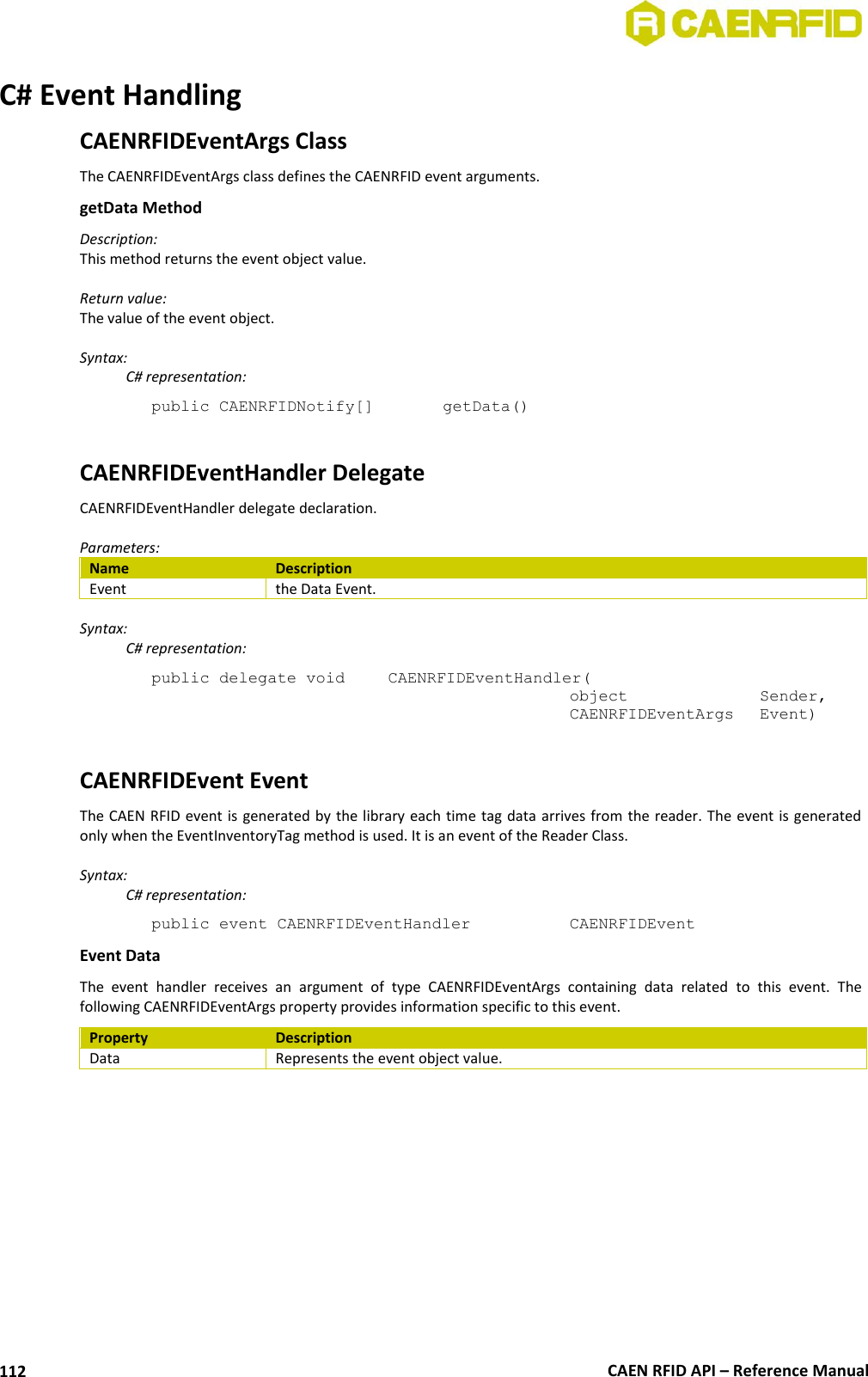

CAEN RFID API – Reference Manual 112 C# Event Handling CAENRFIDEventArgs Class The CAENRFIDEventArgs class defines the CAENRFID event arguments. getData Method Description: This method returns the event object value. Return value: The value of the event object. Syntax: C# representation: public CAENRFIDNotify[] getData() CAENRFIDEventHandler Delegate CAENRFIDEventHandler delegate declaration. Parameters: Name Description Event the Data Event. Syntax: C# representation: public delegate void CAENRFIDEventHandler( object Sender, CAENRFIDEventArgs Event) CAENRFIDEvent Event The CAEN RFID event is generated by the library each time tag data arrives from the reader. The event is generated only when the EventInventoryTag method is used. It is an event of the Reader Class. Syntax: C# representation: public event CAENRFIDEventHandler CAENRFIDEvent Event Data The event handler receives an argument of type CAENRFIDEventArgs containing data related to this event. The following CAENRFIDEventArgs property provides information specific to this event. Property Description Data Represents the event object value.

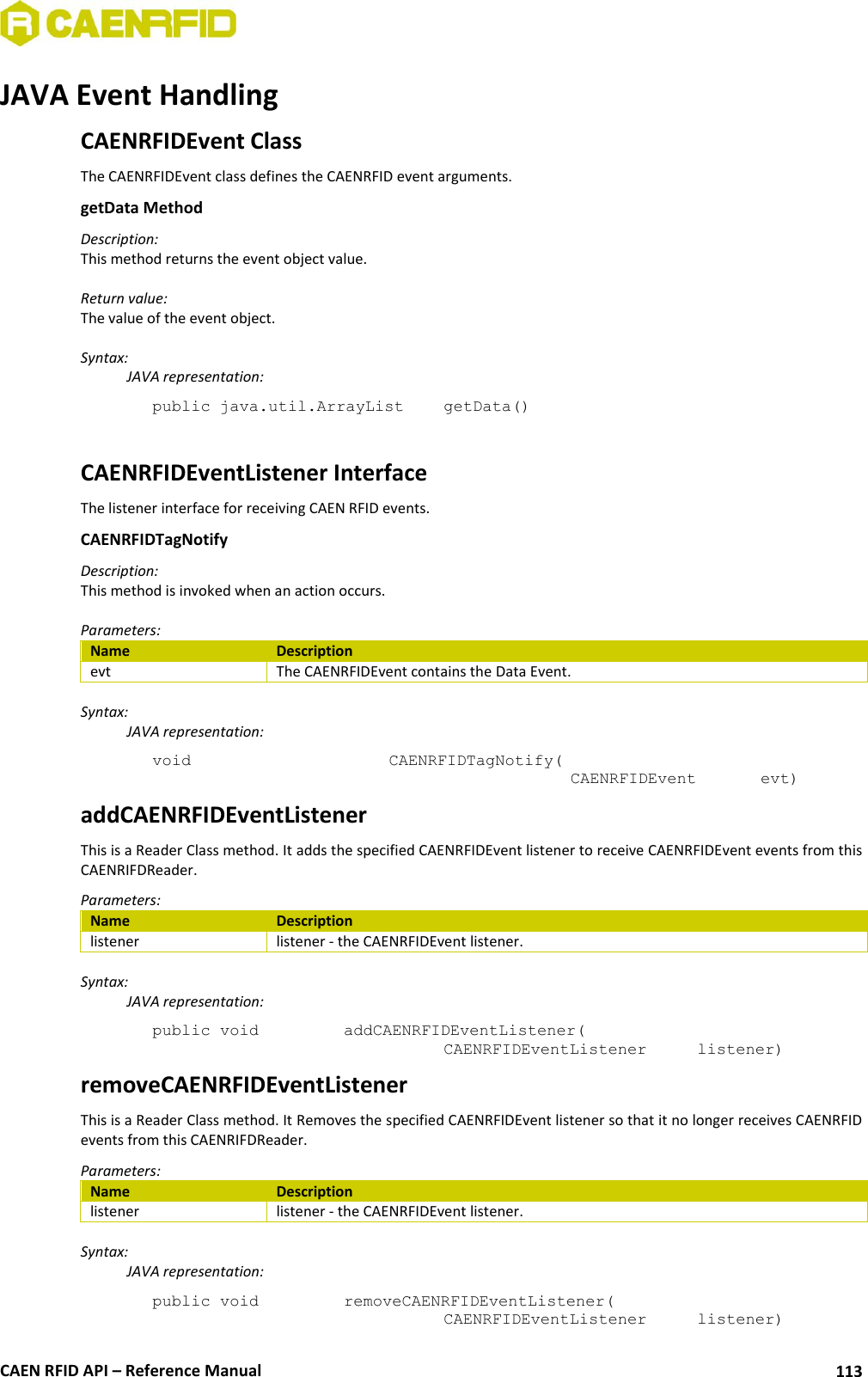

CAEN RFID API – Reference Manual 113 JAVA Event Handling CAENRFIDEvent Class The CAENRFIDEvent class defines the CAENRFID event arguments. getData Method Description: This method returns the event object value. Return value: The value of the event object. Syntax: JAVA representation: public java.util.ArrayList getData() CAENRFIDEventListener Interface The listener interface for receiving CAEN RFID events. CAENRFIDTagNotify Description: This method is invoked when an action occurs. Parameters: Name Description evt The CAENRFIDEvent contains the Data Event. Syntax: JAVA representation: void CAENRFIDTagNotify( CAENRFIDEvent evt) addCAENRFIDEventListener This is a Reader Class method. It adds the specified CAENRFIDEvent listener to receive CAENRFIDEvent events from this CAENRIFDReader. Parameters: Name Description listener listener - the CAENRFIDEvent listener. Syntax: JAVA representation: public void addCAENRFIDEventListener( CAENRFIDEventListener listener) removeCAENRFIDEventListener This is a Reader Class method. It Removes the specified CAENRFIDEvent listener so that it no longer receives CAENRFID events from this CAENRIFDReader. Parameters: Name Description listener listener - the CAENRFIDEvent listener. Syntax: JAVA representation: public void removeCAENRFIDEventListener( CAENRFIDEventListener listener)
CAEN RFID API – Reference Manual 114 C Event Handling CAENRFID_INVENTORY_CALLBACK This function prototype defines the type of the user defined event handler (see the CAEN RFID API User Manual. for further information) Syntax: C representation: typedef CAENRFIDErrorCodes (__stdcall *CAENRFID_INVENTORY_CALLBACK) (const CAENRFIDNotify* Tags, const int Size);

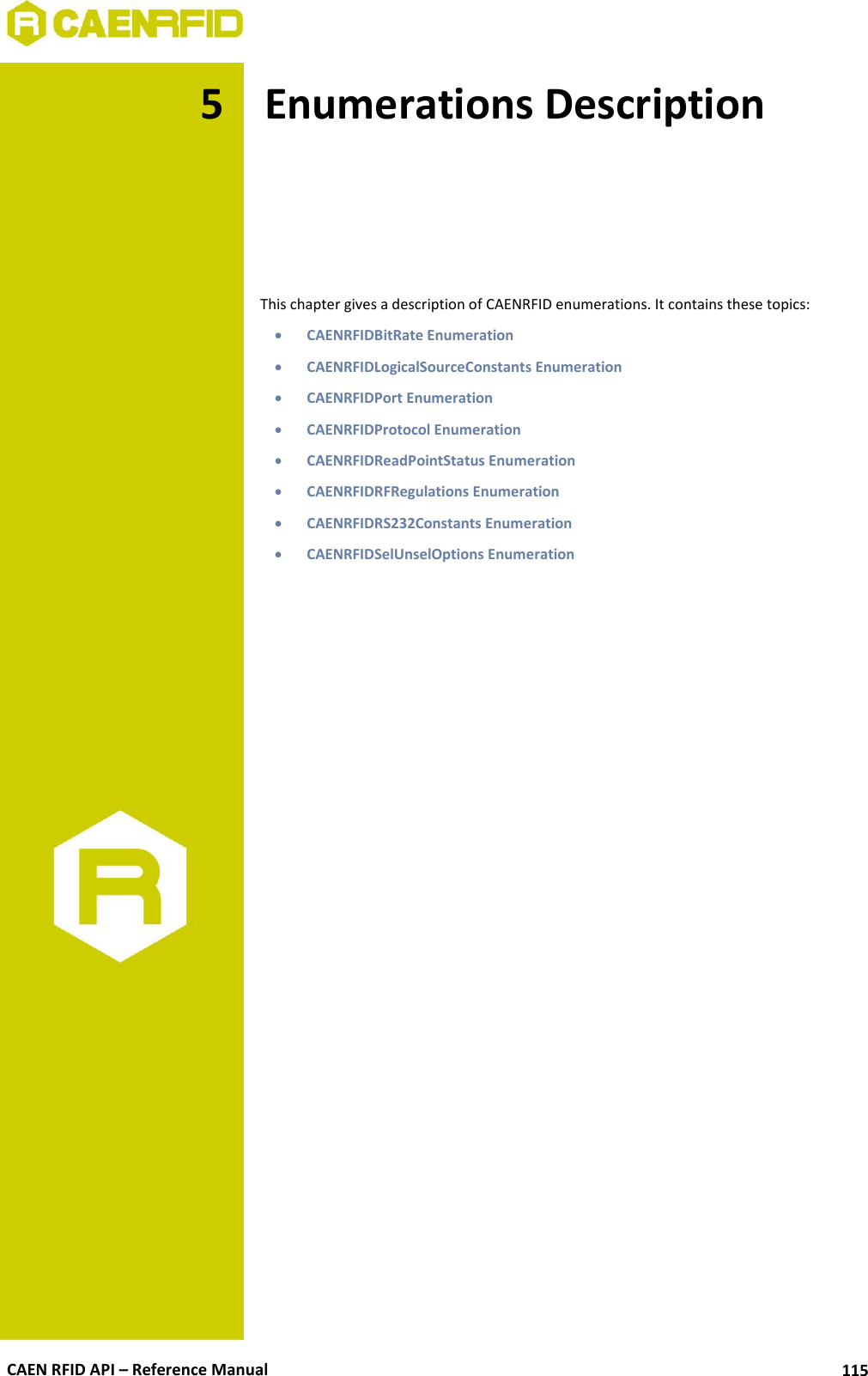

CAEN RFID API – Reference Manual 115 5 Enumerations Description This chapter gives a description of CAENRFID enumerations. It contains these topics:  CAENRFIDBitRate Enumeration  CAENRFIDLogicalSourceConstants Enumeration  CAENRFIDPort Enumeration  CAENRFIDProtocol Enumeration  CAENRFIDReadPointStatus Enumeration  CAENRFIDRFRegulations Enumeration  CAENRFIDRS232Constants Enumeration  CAENRFIDSelUnselOptions Enumeration

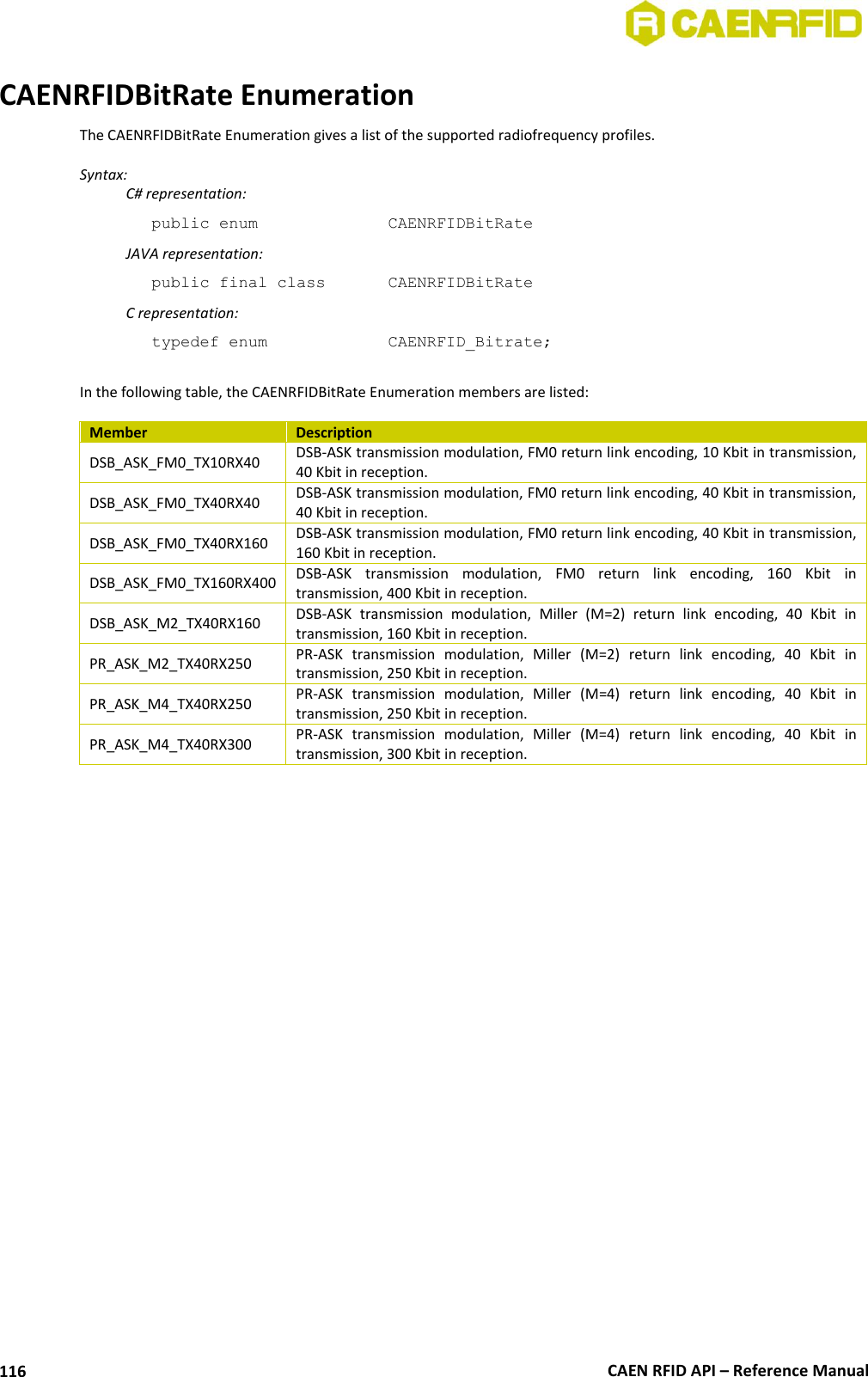

CAEN RFID API – Reference Manual 116 CAENRFIDBitRate Enumeration The CAENRFIDBitRate Enumeration gives a list of the supported radiofrequency profiles. Syntax: C# representation: public enum CAENRFIDBitRate JAVA representation: public final class CAENRFIDBitRate C representation: typedef enum CAENRFID_Bitrate; In the following table, the CAENRFIDBitRate Enumeration members are listed: Member Description DSB_ASK_FM0_TX10RX40 DSB-ASK transmission modulation, FM0 return link encoding, 10 Kbit in transmission, 40 Kbit in reception. DSB_ASK_FM0_TX40RX40 DSB-ASK transmission modulation, FM0 return link encoding, 40 Kbit in transmission, 40 Kbit in reception. DSB_ASK_FM0_TX40RX160 DSB-ASK transmission modulation, FM0 return link encoding, 40 Kbit in transmission, 160 Kbit in reception. DSB_ASK_FM0_TX160RX400 DSB-ASK transmission modulation, FM0 return link encoding, 160 Kbit in transmission, 400 Kbit in reception. DSB_ASK_M2_TX40RX160 DSB-ASK transmission modulation, Miller (M=2) return link encoding, 40 Kbit in transmission, 160 Kbit in reception. PR_ASK_M2_TX40RX250 PR-ASK transmission modulation, Miller (M=2) return link encoding, 40 Kbit in transmission, 250 Kbit in reception. PR_ASK_M4_TX40RX250 PR-ASK transmission modulation, Miller (M=4) return link encoding, 40 Kbit in transmission, 250 Kbit in reception. PR_ASK_M4_TX40RX300 PR-ASK transmission modulation, Miller (M=4) return link encoding, 40 Kbit in transmission, 300 Kbit in reception.

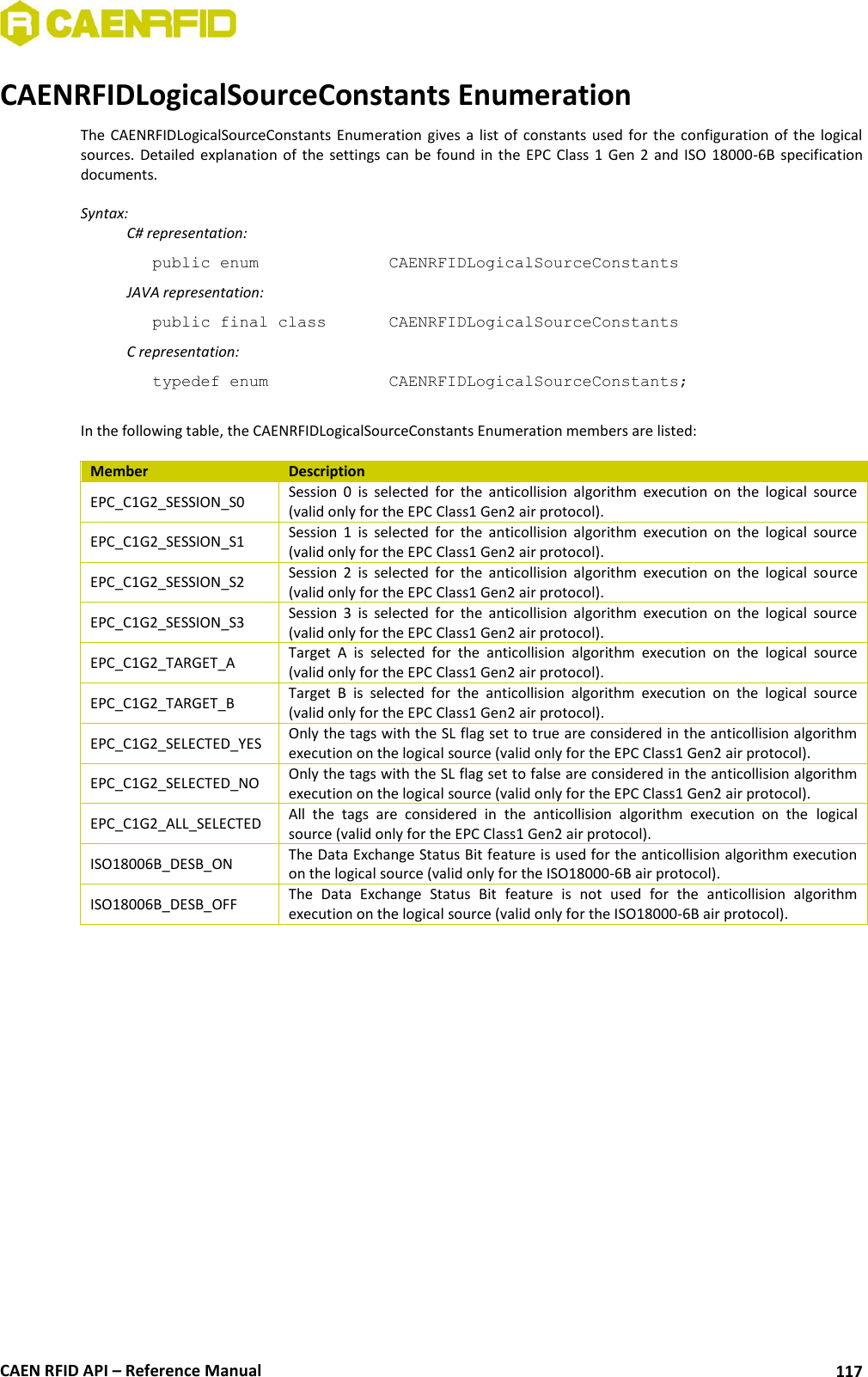

CAEN RFID API – Reference Manual 117 CAENRFIDLogicalSourceConstants Enumeration The CAENRFIDLogicalSourceConstants Enumeration gives a list of constants used for the configuration of the logical sources. Detailed explanation of the settings can be found in the EPC Class 1 Gen 2 and ISO 18000-6B specification documents. Syntax: C# representation: public enum CAENRFIDLogicalSourceConstants JAVA representation: public final class CAENRFIDLogicalSourceConstants C representation: typedef enum CAENRFIDLogicalSourceConstants; In the following table, the CAENRFIDLogicalSourceConstants Enumeration members are listed: Member Description EPC_C1G2_SESSION_S0 Session 0 is selected for the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_SESSION_S1 Session 1 is selected for the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_SESSION_S2 Session 2 is selected for the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_SESSION_S3 Session 3 is selected for the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_TARGET_A Target A is selected for the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_TARGET_B Target B is selected for the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_SELECTED_YES Only the tags with the SL flag set to true are considered in the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_SELECTED_NO Only the tags with the SL flag set to false are considered in the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). EPC_C1G2_ALL_SELECTED All the tags are considered in the anticollision algorithm execution on the logical source (valid only for the EPC Class1 Gen2 air protocol). ISO18006B_DESB_ON The Data Exchange Status Bit feature is used for the anticollision algorithm execution on the logical source (valid only for the ISO18000-6B air protocol). ISO18006B_DESB_OFF The Data Exchange Status Bit feature is not used for the anticollision algorithm execution on the logical source (valid only for the ISO18000-6B air protocol).
CAEN RFID API – Reference Manual 118 CAENRFIDPort Enumeration The CAENRFIDPort Enumeration gives a list of the communication ports supported by the CAEN RFID readers. Syntax: C# representation: public enum CAENRFIDPort JAVA representation: public final class CAENRFIDPort C representation: typedef enum CAENRFIDPort; Remarks: In order to align the three libraries, the members name in C language have changed, now reporting the CAENRFID_ suffix, but the value of the members is the same of the previous library version. In the following table, the CAENRFIDPort Enumeration members are listed: Member Description CAENRFID_RS232 Serial port communication link. CAENRFID_TCP TCP/IP network communication link. CAENRFID_USB USB communication link. CAENRFIDProtocol Enumeration The CAENRFIDProtocol Enumeration gives a list of the air protocol supported by the CAEN RFID readers. Syntax: C# representation: public enum CAENRFIDProtocol JAVA representation: public final class CAENRFIDProtocol C representation: typedef enum CAENRFIDProtocol; Remarks: In order to align the three libraries, the members name in C language have changed, now reporting the CAENRFID_ suffix, but the value of the members is the same of the previous library version. In the following table, the CAENRFIDProtocol Enumeration members are listed: Member Description CAENRFID_ISO18000_6b ISO18000-6B air protocol. CAENRFID_EPC119 EPC 1.19 air protocol. CAENRFID_EPC_C1G1 EPCGlobal Class1 Gen1 air protocol. CAENRFID_ISO18000_6a ISO18000-6A air protocol. CAENRFID_EPC_C1G2 EPCGlobal Class1 Gen2 (aka ISO18000-6C) air protocol. CAENRFID_MULTIPROTOCOL This value permits to use all the supported air protocol at the same time. Suggested setting only for demo purposes.
CAEN RFID API – Reference Manual 119 CAENRFIDReadPointStatus Enumeration The CAENRFIDReadPointStatus gives a list of the possible ReadPoint status values. Syntax: C# representation: public enum CAENRFIDReadPointStatus JAVA representation: public final class CAENRFIDReadPointStatus C representation: typedef enum CAENRFIDReadPointStatus; Remarks: In order to align the three libraries, the members name in C language have changed, now reporting the STATUS_ suffix, but the value of the members is the same of the previous library version. In the following table, the CAENRFIDReadPointStatus Enumeration members are listed: Member Description STATUS_BAD Bad antenna connection. STATUS_GOOD Good antenna connection. STATUS_POOR Poor antenna connection. CAENRFIDRFRegulations Enumeration The CAENRFIDRFRegulations gives a list of country radiofrequency regulations. Syntax: C# representation: public enum CAENRFIDRFRegulations JAVA representation: public final class CAENRFIDRFRegulations C representation: typedef enum CAENRFIDRFRegulations; Remarks: In order to align the three libraries, the regulations, previously declared as #define, are now members of an enumeration, but the value of the members is the same of the previous library version. In the following table, the CAENRFIDRFRegulations Enumeration members are listed: Member Description ETSI_302208 ETSI_302208 radiofrequency regulation. ETSI_300220 ETSI_300220 radiofrequency regulation. FCC_US FCC_US radiofrequency regulation. MALAYSIA MALAYSIA radiofrequency regulation. JAPAN JAPAN radiofrequency regulation. KOREA KOREA radiofrequency regulation. AUSTRALIA AUSTRALIA radiofrequency regulation. CHINA CHINA radiofrequency regulation. TAIWAN TAIWAN radiofrequency regulation. SINGAPORE SINGAPORE radiofrequency regulation. BRAZIL BRAZIL radiofrequency regulation.
CAEN RFID API – Reference Manual 120 CAENRFIDRS232Constants Enumeration The CAENRFIDRS232Constants gives a list of settings for the serial port configuration. Syntax: C# representation: public enum CAENRFIDRS232Constants JAVA representation: public final class CAENRFIDRS232Constants C representation: typedef enum CAENRFID_RS232_Parity; typedef enum CAENRFID_RS232_FlowControl; In the following table, the CAENRFIDRS232Constants Enumeration members are listed: Member Description CAENRS232_Parity_None No parity bit is sent at all. CAENRS232_Parity_Odd Odd parity. CAENRS232_Parity_Even Even parity. CAENRFID_RS232_FlowControl_XonXoff Software flow control. CAENRFID_RS232_FlowControl_Hardware Hardware flow control. CAENRFID_RS232_FlowControl_None No flow control. CAENRFIDSelUnselOptions Enumeration The CAENRFIDSelUnselOptions gives a list of operations supported by the Group Select/Unselect command (valid only for the ISO18000-6B air protocol). Syntax: C# representation: public enum CAENRFIDSelUnselOptions JAVA representation: public final class CAENRFIDSelUnselOptions C representation: typedef enum CAENRFID_SelUnsel_Op; In the following table, the CAENRFIDSelUnselOptions Enumeration members are listed: Member Description SEL_EQUAL select equal to. SEL_NOT_EQUAL select not equal to. SEL_GREATER_THAN select greater than. SEL_LOWER_THAN select lower than. UNS_EQUAL unselect equal to. UNS_NOT_EQUAL unselect not equal to. UNS_GREATER_THAN unselect greater than. UNS_LOWER_THAN unselect lower than.

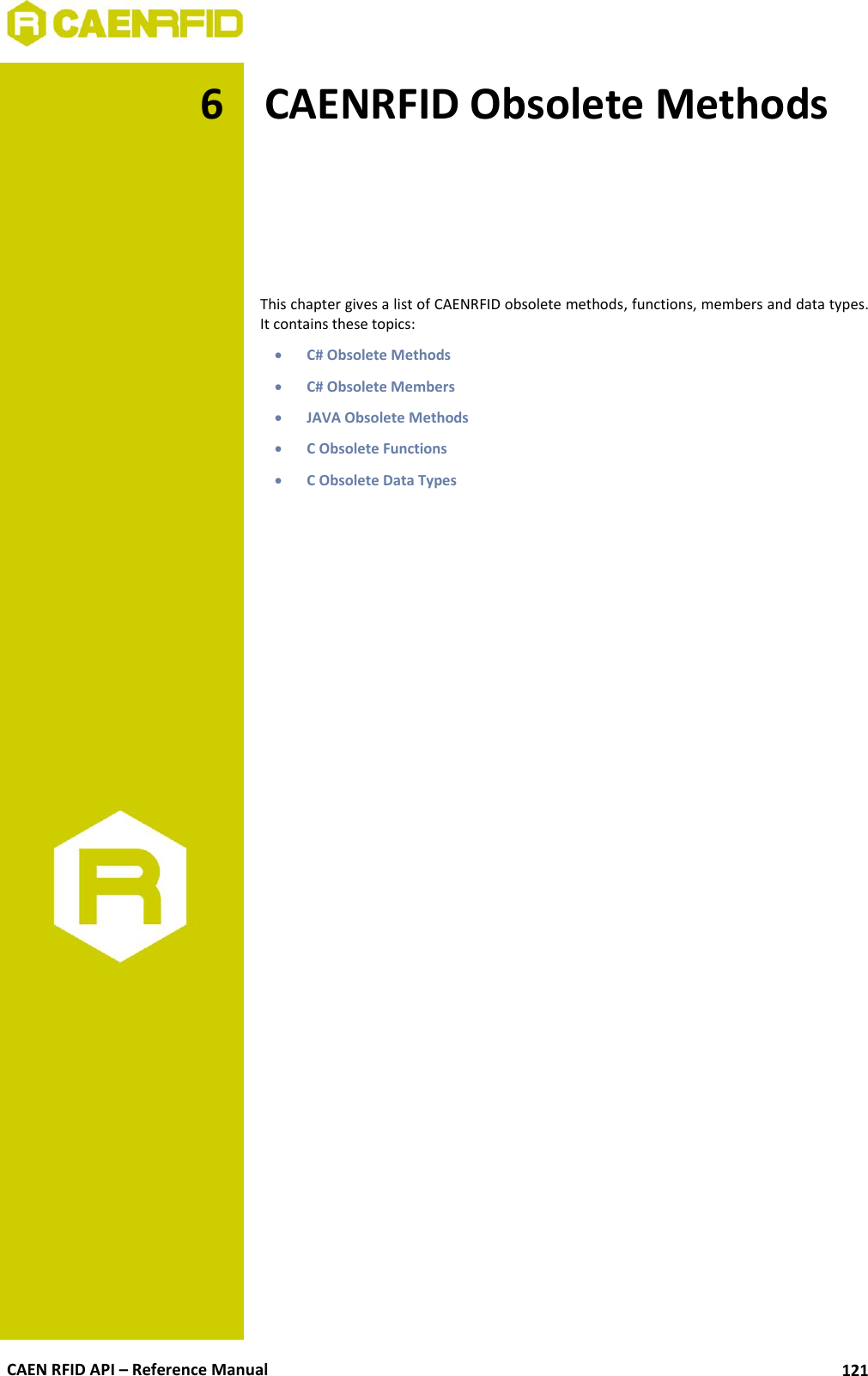

CAEN RFID API – Reference Manual 121 6 CAENRFID Obsolete Methods This chapter gives a list of CAENRFID obsolete methods, functions, members and data types. It contains these topics:  C# Obsolete Methods  C# Obsolete Members  JAVA Obsolete Methods  C Obsolete Functions  C Obsolete Data Types
CAEN RFID API – Reference Manual 122 Below it is available a list of obsolete methods, functions, members and data types for the three different program languages. It is recommended not to use these methods since they will not be available in new reader's firmware release. Some of these obsolete methods have been replaced by new ones as specified in the table below. C# Obsolete Methods Method Description Channel Class AddSource This method is now obsolete. AddTrigger This method is now obsolete. GetChannelStatus This method is now obsolete. GetChannelType This method is now obsolete. GetName This method is now obsolete. IsSourcePresent This method is now obsolete. IsTriggerPresent This method is now obsolete. RemoveSource This method is now obsolete. RemoveTrigger This method is now obsolete. LogicalSource Class AddTrigger This method is now obsolete. GetLostThreshold This method is now obsolete. GetObservedThreshold This method is now obsolete. Inventory This method is now obsolete. KillTag This method is now obsolete. LockTag This method is now obsolete. NXP_Calibrate This method is now obsolete. ProgramID This method is now obsolete. RemoveTrigger This method is now obsolete. SetLostThreshold This method is now obsolete. SetObservedThreshold This method is now obsolete. Reader Class ConnectRS232 This method is now obsolete. CreateChannel This method is now obsolete. CreateTrigger This method is now obsolete. FWUpgradeTFTP This method is now obsolete. GetAllocatedChannels This method is now obsolete. GetAllocatedTriggers This method is now obsolete. GetChannelData This method is now obsolete. GetDESB This method is now obsolete. GetEventMode This method is now obsolete. RemoveChannel This method is now obsolete. RemoveTrigger This method is now obsolete. SetDESB This method is now obsolete. SetEventMode This method is now obsolete. SetReaderOPtions This method is now obsolete. Receiver Class KillServer This method is now obsolete. Trigger Class GetIOLineValue This method is now obsolete. GetName This method is now obsolete. GetTimerValue This method is now obsolete. IsLinkedToChannel This method is now obsolete. IsLinkedToSource This method is now obsolete. Tab. 6.1: C# Obsolete Methods

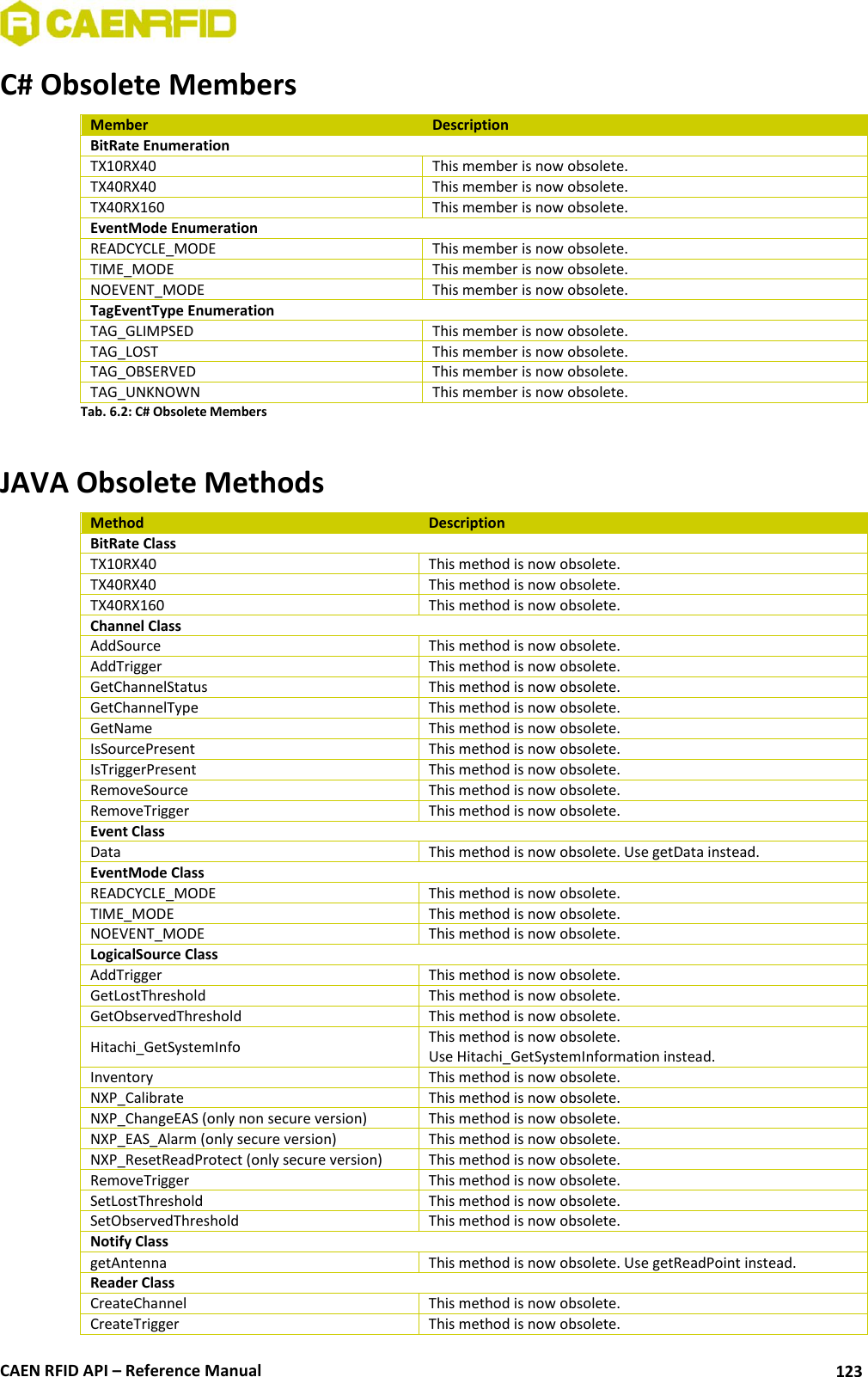

CAEN RFID API – Reference Manual 123 C# Obsolete Members Member Description BitRate Enumeration TX10RX40 This member is now obsolete. TX40RX40 This member is now obsolete. TX40RX160 This member is now obsolete. EventMode Enumeration READCYCLE_MODE This member is now obsolete. TIME_MODE This member is now obsolete. NOEVENT_MODE This member is now obsolete. TagEventType Enumeration TAG_GLIMPSED This member is now obsolete. TAG_LOST This member is now obsolete. TAG_OBSERVED This member is now obsolete. TAG_UNKNOWN This member is now obsolete. Tab. 6.2: C# Obsolete Members JAVA Obsolete Methods Method Description BitRate Class TX10RX40 This method is now obsolete. TX40RX40 This method is now obsolete. TX40RX160 This method is now obsolete. Channel Class AddSource This method is now obsolete. AddTrigger This method is now obsolete. GetChannelStatus This method is now obsolete. GetChannelType This method is now obsolete. GetName This method is now obsolete. IsSourcePresent This method is now obsolete. IsTriggerPresent This method is now obsolete. RemoveSource This method is now obsolete. RemoveTrigger This method is now obsolete. Event Class Data This method is now obsolete. Use getData instead. EventMode Class READCYCLE_MODE This method is now obsolete. TIME_MODE This method is now obsolete. NOEVENT_MODE This method is now obsolete. LogicalSource Class AddTrigger This method is now obsolete. GetLostThreshold This method is now obsolete. GetObservedThreshold This method is now obsolete. Hitachi_GetSystemInfo This method is now obsolete. Use Hitachi_GetSystemInformation instead. Inventory This method is now obsolete. NXP_Calibrate This method is now obsolete. NXP_ChangeEAS (only non secure version) This method is now obsolete. NXP_EAS_Alarm (only secure version) This method is now obsolete. NXP_ResetReadProtect (only secure version) This method is now obsolete. RemoveTrigger This method is now obsolete. SetLostThreshold This method is now obsolete. SetObservedThreshold This method is now obsolete. Notify Class getAntenna This method is now obsolete. Use getReadPoint instead. Reader Class CreateChannel This method is now obsolete. CreateTrigger This method is now obsolete.

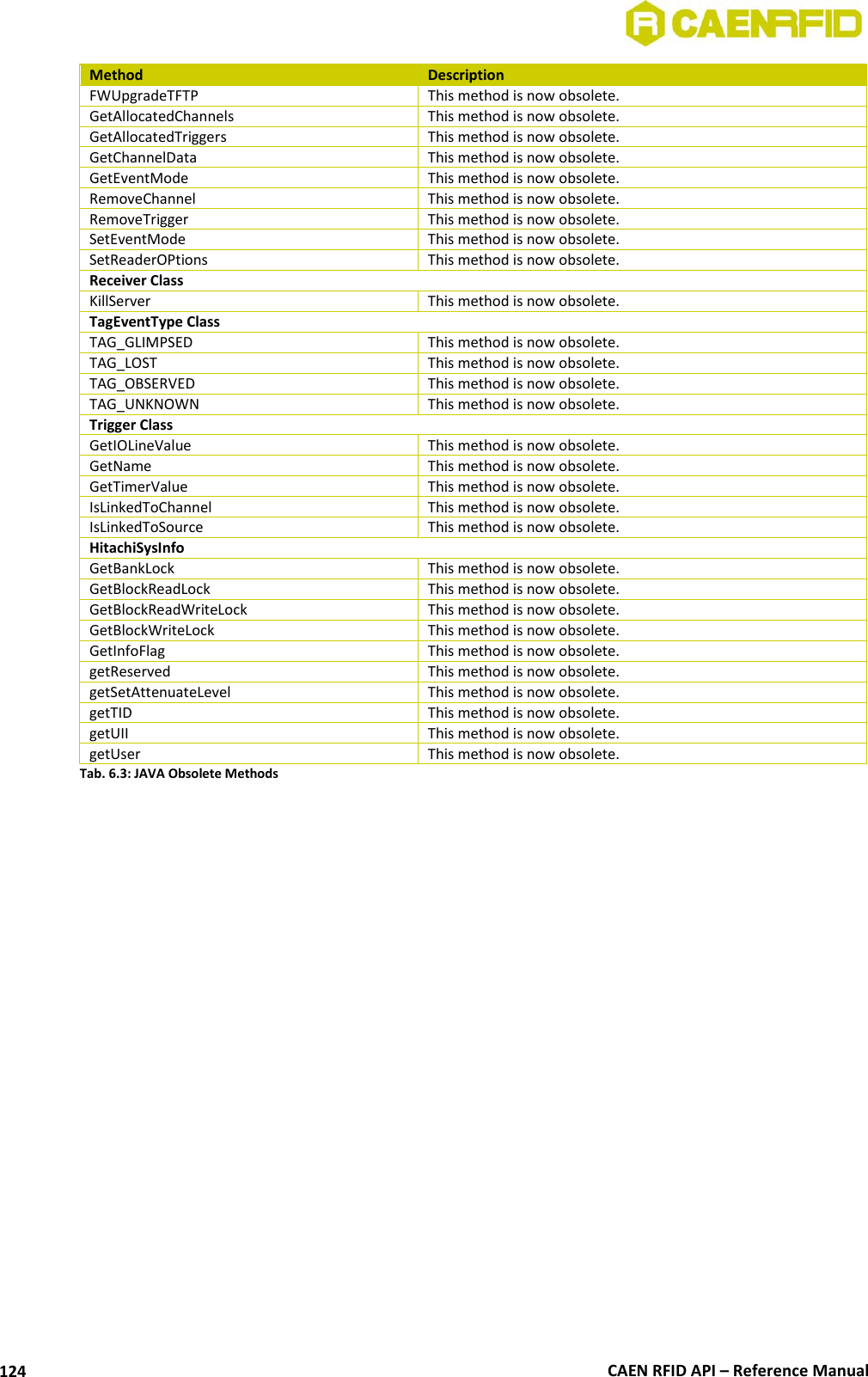

CAEN RFID API – Reference Manual 124 Method Description FWUpgradeTFTP This method is now obsolete. GetAllocatedChannels This method is now obsolete. GetAllocatedTriggers This method is now obsolete. GetChannelData This method is now obsolete. GetEventMode This method is now obsolete. RemoveChannel This method is now obsolete. RemoveTrigger This method is now obsolete. SetEventMode This method is now obsolete. SetReaderOPtions This method is now obsolete. Receiver Class KillServer This method is now obsolete. TagEventType Class TAG_GLIMPSED This method is now obsolete. TAG_LOST This method is now obsolete. TAG_OBSERVED This method is now obsolete. TAG_UNKNOWN This method is now obsolete. Trigger Class GetIOLineValue This method is now obsolete. GetName This method is now obsolete. GetTimerValue This method is now obsolete. IsLinkedToChannel This method is now obsolete. IsLinkedToSource This method is now obsolete. HitachiSysInfo GetBankLock This method is now obsolete. GetBlockReadLock This method is now obsolete. GetBlockReadWriteLock This method is now obsolete. GetBlockWriteLock This method is now obsolete. GetInfoFlag This method is now obsolete. getReserved This method is now obsolete. getSetAttenuateLevel This method is now obsolete. getTID This method is now obsolete. getUII This method is now obsolete. getUser This method is now obsolete. Tab. 6.3: JAVA Obsolete Methods

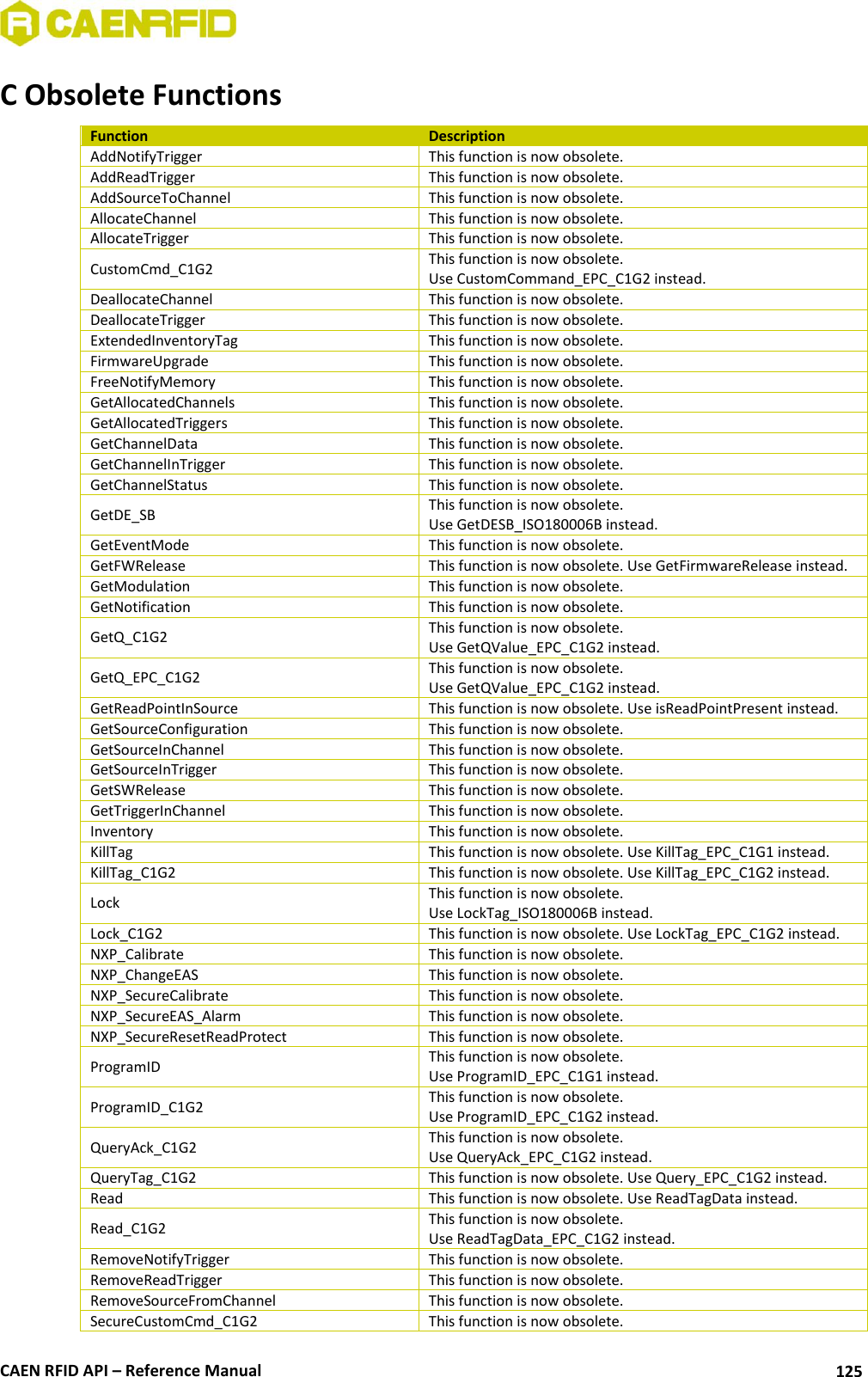

CAEN RFID API – Reference Manual 125 C Obsolete Functions Function Description AddNotifyTrigger This function is now obsolete. AddReadTrigger This function is now obsolete. AddSourceToChannel This function is now obsolete. AllocateChannel This function is now obsolete. AllocateTrigger This function is now obsolete. CustomCmd_C1G2 This function is now obsolete. Use CustomCommand_EPC_C1G2 instead. DeallocateChannel This function is now obsolete. DeallocateTrigger This function is now obsolete. ExtendedInventoryTag This function is now obsolete. FirmwareUpgrade This function is now obsolete. FreeNotifyMemory This function is now obsolete. GetAllocatedChannels This function is now obsolete. GetAllocatedTriggers This function is now obsolete. GetChannelData This function is now obsolete. GetChannelInTrigger This function is now obsolete. GetChannelStatus This function is now obsolete. GetDE_SB This function is now obsolete. Use GetDESB_ISO180006B instead. GetEventMode This function is now obsolete. GetFWRelease This function is now obsolete. Use GetFirmwareRelease instead. GetModulation This function is now obsolete. GetNotification This function is now obsolete. GetQ_C1G2 This function is now obsolete. Use GetQValue_EPC_C1G2 instead. GetQ_EPC_C1G2 This function is now obsolete. Use GetQValue_EPC_C1G2 instead. GetReadPointInSource This function is now obsolete. Use isReadPointPresent instead. GetSourceConfiguration This function is now obsolete. GetSourceInChannel This function is now obsolete. GetSourceInTrigger This function is now obsolete. GetSWRelease This function is now obsolete. GetTriggerInChannel This function is now obsolete. Inventory This function is now obsolete. KillTag This function is now obsolete. Use KillTag_EPC_C1G1 instead. KillTag_C1G2 This function is now obsolete. Use KillTag_EPC_C1G2 instead. Lock This function is now obsolete. Use LockTag_ISO180006B instead. Lock_C1G2 This function is now obsolete. Use LockTag_EPC_C1G2 instead. NXP_Calibrate This function is now obsolete. NXP_ChangeEAS This function is now obsolete. NXP_SecureCalibrate This function is now obsolete. NXP_SecureEAS_Alarm This function is now obsolete. NXP_SecureResetReadProtect This function is now obsolete. ProgramID This function is now obsolete. Use ProgramID_EPC_C1G1 instead. ProgramID_C1G2 This function is now obsolete. Use ProgramID_EPC_C1G2 instead. QueryAck_C1G2 This function is now obsolete. Use QueryAck_EPC_C1G2 instead. QueryTag_C1G2 This function is now obsolete. Use Query_EPC_C1G2 instead. Read This function is now obsolete. Use ReadTagData instead. Read_C1G2 This function is now obsolete. Use ReadTagData_EPC_C1G2 instead. RemoveNotifyTrigger This function is now obsolete. RemoveReadTrigger This function is now obsolete. RemoveSourceFromChannel This function is now obsolete. SecureCustomCmd_C1G2 This function is now obsolete.
CAEN RFID API – Reference Manual 126 Function Description Use SecureCustomCommand_EPC_C1G2 instead. SecureLock_C1G2 This function is now obsolete. Use SecureLockTag_EPC_C1G2 instead. SecureProgramID_C1G2 This function is now obsolete. Use SecureProgramID_EPC_C1G2 instead. SecureRead_C1G2 This function is now obsolete. Use SecureReadTagData_EPC_C1G2 instead. SecureWrite_C1G2 This function is now obsolete. Use SecureWriteTagData_EPC_C1G2 instead. SetBitrate This function is now obsolete. Use CAENRFID_SetBitRate instead. SetDE_SB This function is now obsolete. Use SetDESB_ISO180006B instead. SetEventMode This function is now obsolete. SetModulation This function is now obsolete. SetQ_C1G2 This function is now obsolete. Use SetQValue_EPC_C1G2 instead. SetQ_EPC_C1G2 This function is now obsolete. Use SetQValue_EPC_C1G2 instead. SetSourceConfiguration This function is now obsolete. Write This function is now obsolete. Use WriteTagData instead. Write_C1G2 This function is now obsolete. Use WriteTagData_EPC_C1G2 instead. Tab. 6.4: C Obsolete Functions C Obsolete Data Types Data Type Description ETSI302208 ETSI300220 FCCUS MALAYSIA JAPAN KOREA AUSTRALIA CHINA TAIWAN SINGAPORE This data type is now obsolete. Use enum CAENRFIDRFRegulations instead. CAENRFID_SOURCE_Parameter CONFIG_READCYCLE This data type is now obsolete. Use Get/SetReadCycle Method instead. CONFIG_OBSERVEDTHRESHOLD This data type is now obsolete. CONFIG_LOSTTHRESHOLD This data type is now obsolete. CONFIG_G2_Q_VALUE This data type is now obsolete. Use Get/SetQ_EPC_C1G2 Method instead. CONFIG_G2_SESSION This data type is now obsolete. Use Get/SetSession_EPC_C1G2 Method instead. CONFIG_G2_TARGET This data type is now obsolete. Use Get/SetTarget_EPC_C1G2 Method instead. CONFIG_G2_SELECTED This data type is now obsolete. Use Get/SetSelected_EPC_C1G2 Method instead. CONFIG_ISO18006B_DESB This data type is now obsolete. Use Get/SetDESB_ISO180006B Method instead. CAENRFID_EventMode READCYCLE_MODE This data type is now obsolete. TIME_MODE This data type is now obsolete. NOEVENT_MODE This data type is now obsolete. CAENRFID_FWUpgradeType RFID_TFTP This data type is now obsolete. CAENRFID_ExtendedInventoryParams This data type is now obsolete. Tab. 6.5: C Obsolete Data Types
