CAEN RFID srl CAENRFID018 RA0005 - qDock - qIDmini docking station User Manual SLATE Technical Information Manual Rev 01

CAEN RFID srl RA0005 - qDock - qIDmini docking station SLATE Technical Information Manual Rev 01

User Manual

TECHNICAL INFORMATION MANUALRevision 00 – 01 March 2016 RA0005qIDmini docking station
Scope of ManualThe goal of this manual is to provide the basic information to work with the RA0005 - qDock - qIDmini docking station.Change Document RecordDate Revision Changes Pages01 Mar 2016 00 Preliminary release -Reference Document[RD1] EPCglobal: EPC Radio-Frequency Identity Protocols Class-1 Generation-2 UHF RFID Protocol for Communicationsat 860 MHz – 960 MHz, Version 2.0.1 (April, 2015).CAEN RFID srlVia Vetraia, 11 55049 Viareggio (LU) - ITALYTel. +39.0584.388.398 Fax +39.0584.388.959info@caenrfid.comwww.caenrfid.com© CAEN RFID srl – 2016DisclaimerNo part of this manual may be reproduced in any form or by any means, electronic, mechanical, recording, orotherwise, without the prior written permission of CAEN RFID.The information contained herein has been carefully checked and is believed to be accurate; however, no responsibilityis assumed for inaccuracies. CAEN RFID reserves the right to modify its products specifications without giving anynotice; for up to date information please visit www.caenrfid.com.Preliminary Product InformationThis document contains information for a new product. CAEN RFID reserves the right to modify this product withoutnotice.“Preliminary” product information describes products that are ready for production, but for which full characterizationdata is not yet available. CAEN RFID believes that the information contained in this document is accurate and reliable.However, the information is subject to change without notice and is provided “AS IS” without warranty of any kind(Express or implied). You are advised to obtain the latest version of relevant information to verify, before placingorders, that information being relied on is current and complete. All products are sold subject to the terms andconditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty, patentinfringement, and limitation of liability. No responsibility is assumed by CAEN RFID for the use of this information,including use of this information as the basis for manufacture or sale of any items, or for infringement of patents orother rights of third parties.Visit qDock RA0005 web page, you will find the latest revision of data sheets, manuals, certifications and technical drawings.All you need to start using your product in a few clicks!
Federal Communications Commission (FCC) Notice (Preliminary)This device was tested and found to comply with the limits set forth in Part 15 of the FCC Rules. Operation is subject tothe following conditions: (1) this device may not cause harmful interference, and (2) this device must accept anyinterference received including interference that may cause undesired operation. These limits are designed to providereasonable protection against harmful interference when the equipment is operated in a commercial environment. This device generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with theinstruction manual, the product may cause harmful interference to radio communications. Operation of this product ina residential area is likely to cause harmful interference, in which case, the user is required to correct the interferenceat their own expense. The authority to operate this product is conditioned by the requirements that no modificationsbe made to the equipment unless the changes or modifications are expressly approved by CAEN RFID.Disposal of the product Do not dispose the product in municipal or household waste. Please check your local regulations fordisposal/recycle of electronic products.
Index…Scope of Manual......................................................................................................................................................................... 2Change Document Record..........................................................................................................................................................2Reference Document..................................................................................................................................................................2Index…...........................................................................................................................................................................................4List of Figures.................................................................................................................................................................................4List of Tables..................................................................................................................................................................................41 INTRODUCTION...................................................................................................................................................................5Product Description.................................................................................................................................................................... 5Accessories................................................................................................................................................................................. 6Ordering Options........................................................................................................................................................................ 62 qDock TECHNICAL SPECIFICATIONS......................................................................................................................................7Technical Specifications Table.....................................................................................................................................................73 qDock REGULATORY COMPLIANCE......................................................................................................................................8FCC Compliance.......................................................................................................................................................................... 8RoHS EU Directive....................................................................................................................................................................... 8List of FiguresFig. 1.1: qDock RA0005 qIDmini docking station....................................................................................................................................5Fig. 1.2: qDock RA0005 Accessories.......................................................................................................................................................6List of TablesTab. 2.1: qDock RA0005 Technical Specifications Table.........................................................................................................................74
1 INTRODUCTIONProduct DescriptionThe qDock RA0005 is a low cost, Multiple Charging Docking Station & USB 2.0 Hub that allows to charge and connectfor Data & Firmware upgrade up to three qIDmini R1170I readers directly thought their micro USB connector andwithout cables.The docking station is provided together with its External Power Supply to be connected to a power socket forcharging. When connected to the power supply, the docking station can charge up to three qIDmini Readers in parallelwith a full current rate (500 mA).The USB device port allows to connect the docking station to a PC to upgrade the firmware of the readers whenneeded. The USB port alone (without the Power supply) allows to charge a single Reader (due to the input USB currentlimitation). To this purpose, insert the Reader into the slot in the center.The docking station can be also wall mounted using the provided hooks.Two LEDs positioned near the side power jack and the USB connector indicate respectively the charging status (greenwhen charging), and the communication status (orange when connected).Fig. 1.1: qDock RA0005 qIDmini docking stationIntroduction - qDock Technical Information Manual 5
AccessoriesCheck for the supplied accessories below:No. 1 USB cable No. 1 Power supply No. 4 rubber feetWall mounting kit:No.2 wall hooks No.2 rawlplugs (ø 4 mm) +screws No. 2 small screws (ø 3 mm)Fig. 1.2: qDock RA0005 AccessoriesOrdering OptionsCode DescriptionAccessories WRA0005XAAAA RA0005 - qDock - qIDmini docking station – WhiteWRA0005XGAAA RA0005 - qDock - qIDmini docking station – GrayIntroduction - qDock Technical Information Manual 6
2 qDock TECHNICAL SPECIFICATIONSTechnical Specifications TableFunction Docking StationUSB Interface USB 2.0 Full Speed (12 Mbit/s)USB Connector to Reader Micro type BUSB Connector to PC - Cable Type BUser Interface Green LED ON: external Supply activeOrange LED ON: USB Communication ONPower Supply Input 5 V dc ± 5% @ 2A maxPower Supply Connector Power Jack - Negative Central PinBattery Charging Time 2h (typical)Operating Temperature -10°C to +55°CIP Rating IP 40Dimensions (W)288 x (L)140 x (H)34 mm3 max. (11.3 x 5.5 x 1.3 in3)Enclosure ABSTab. 2.1: qDock RA0005 Technical Specifications TableqDock Technical Specifications - qDock Technical Information Manual 7

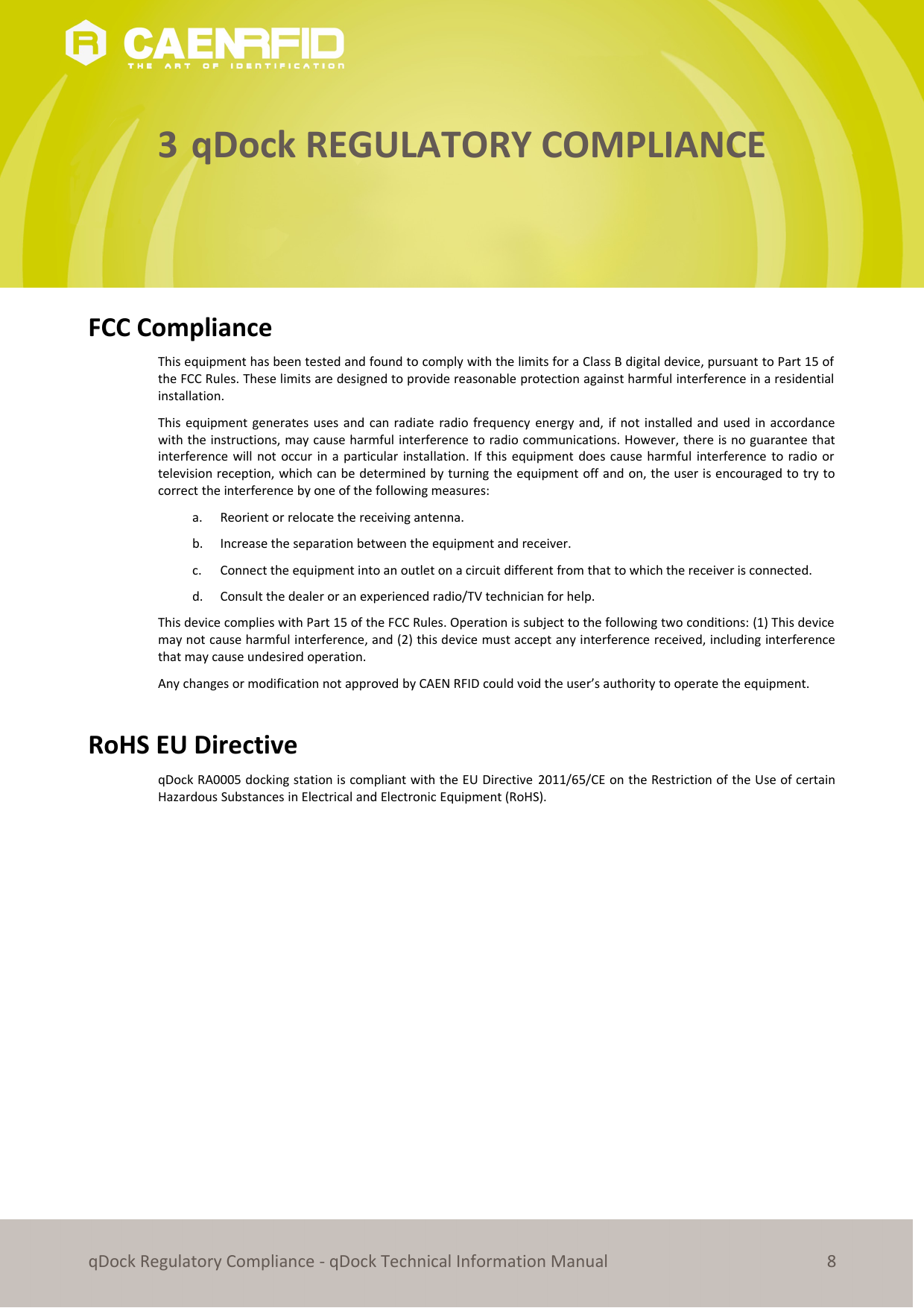

3 qDock REGULATORY COMPLIANCEFCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordancewith the instructions, may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one of the following measures:a. Reorient or relocate the receiving antenna.b. Increase the separation between the equipment and receiver.c. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.d. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This devicemay not cause harmful interference, and (2) this device must accept any interference received, including interferencethat may cause undesired operation.Any changes or modification not approved by CAEN RFID could void the user’s authority to operate the equipment.RoHS EU DirectiveqDock RA0005 docking station is compliant with the EU Directive 2011/65/CE on the Restriction of the Use of certainHazardous Substances in Electrical and Electronic Equipment (RoHS).qDock Regulatory Compliance - qDock Technical Information Manual 8
