CAPSTONE SBC-001 Control integrated into Luminaires User Manual
CAPSTONE INDUSTRIES INC Control integrated into Luminaires
CAPSTONE >
User manual
Page 1 of 6
Version: 2017-03-16
Capstone Industries, Inc.
350 Jim Moran Blvd., Suite 120, Deerfield Beach, Florida 33442, USA
Model: SBC-001
Introduction
This product can easily control household appliances by using a smartphone APP. Products set up
a WIFI connection module, it can make the control function of the product control come true
through WIFI connection to the network, it can support the remote control. Users can perform
with electric ON/OFF operation through the use of smart phone APP, It can view the electrical
load and the history of electricity usage.
APP WIFI
WIFI
APP ON/OFF
Technical Specification
Input: 120V AC
Instruction
Please read the following instructions step-by-step before using the product.
1.) APP. APP Store or Google play”Capstone HA”
Download the APP named Capstone HA, it can search through APP Store or Google play.
2.)
Connect the product to the main port.
2.1
Connect the electricity equipment to the product.
2.2 APP
Open the APP in the mobile phone and connect to the smart power plug.
2.3 APP
It need to add the smart power plug into the APP before use.
1 WIFI

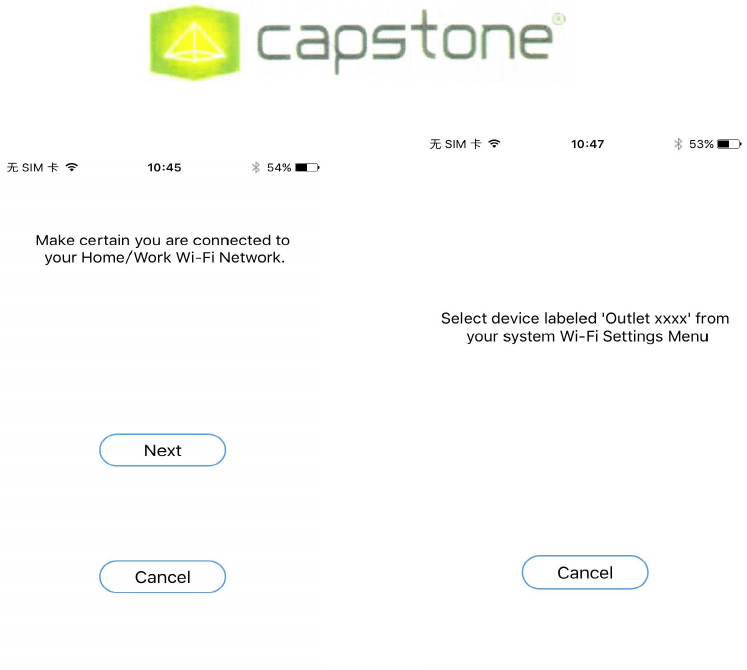

Open your smart mobile phone and connect to the family WIFI.
2 APP Next
Open the APP and click the ‘Next’.
3
Add a new smart power plug.
Page 2 of 6
Version: 2017-03-16
Capstone Industries, Inc.
350 Jim Moran Blvd., Suite 120, Deerfield Beach, Florida 33442, USA

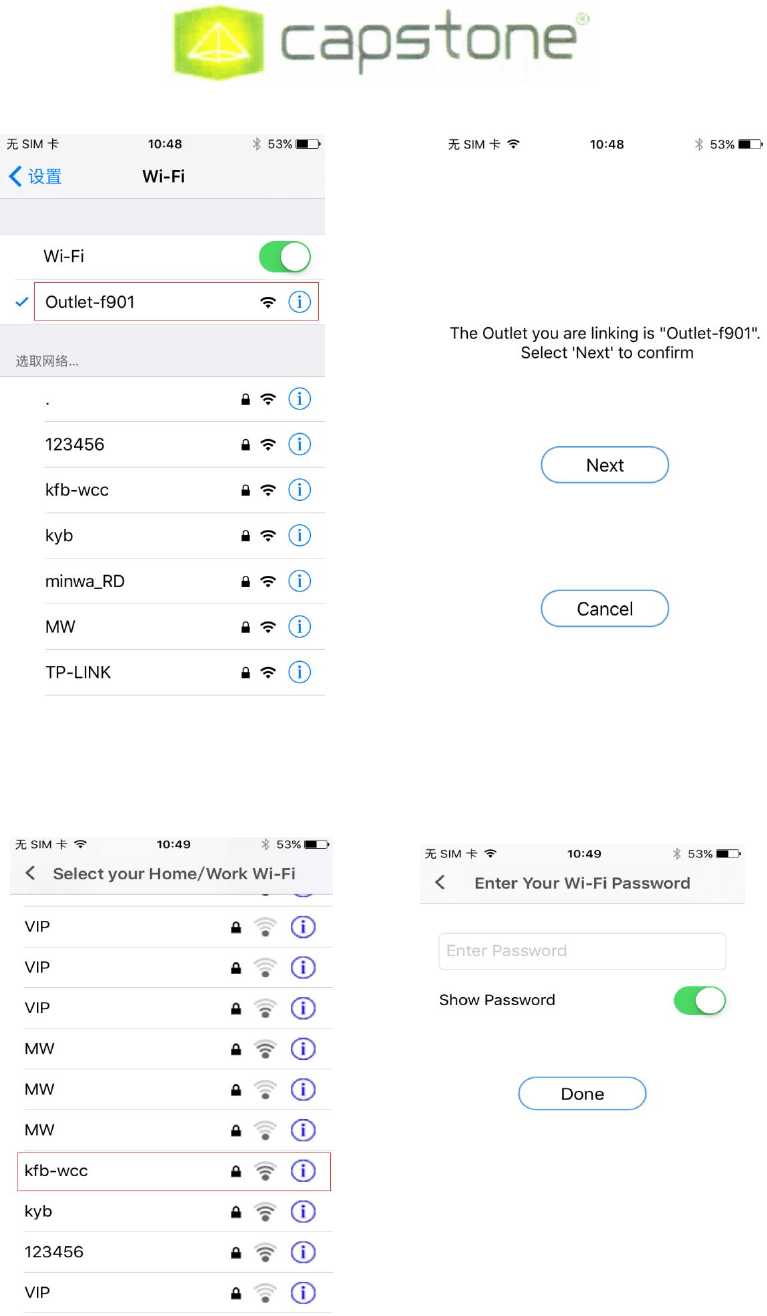

4-Wi-Fi WIFI
Return the WIFI setup of mobile phone, and select the WIFI address of smart power plug.
5 Next
Click ‘Next’.
Page 3 of 6
Version: 2017-03-16
Capstone Industries, Inc.
350 Jim Moran Blvd., Suite 120, Deerfield Beach, Florida 33442, USA
6 WIFI.
Choose the family WIFI.
7 WIFI
Enter the password of WIFI.
8 Save
Page 4 of 6
Version: 2017-03-16
Capstone Industries, Inc.
350 Jim Moran Blvd., Suite 120, Deerfield Beach, Florida 33442, USA

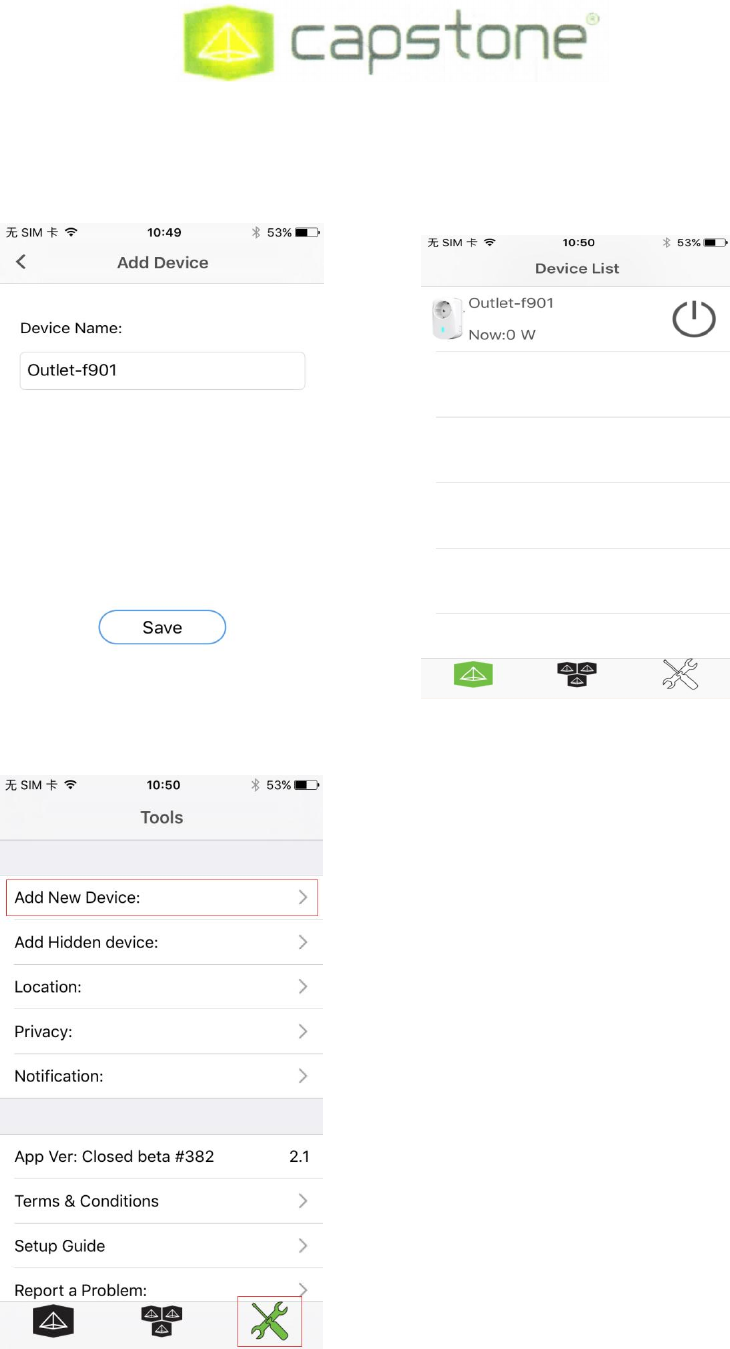

Rename the smart power plug and click ‘Save’
9
Add the smart power plug succeed.
10 2 9
Add the second or more smart power plug according to the procedure from step 2 to step 9.
Page 5 of 6
Version: 2017-03-16
Capstone Industries, Inc.
350 Jim Moran Blvd., Suite 120, Deerfield Beach, Florida 33442, USA
3.) 5S
Restore the factory pattern, long press the switch on the intelligent electrical outlet more than 5 s. if
want connect smartphones after Restore factory pattern, it need to repeat the process above.
4.) APP
function Introduction of APP
4.1
It can Support remote control.
4.2
It can Support calculating the electrical fee.
4.3 ON/OFF.
It can Support groups, multiple intelligent socket together, achieve ON/OFF at the
same time.
4.4,
It canSupport the view the historical data of electric power.
Warning
1. Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances
as unsorted municipal waste, use separate collection facilities.
2. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health
and well-being.
3. When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposal at least free of charge.
4. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must.accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Page 6 of 6
Version: 2017-03-16
Capstone Industries, Inc.
350 Jim Moran Blvd., Suite 120, Deerfield Beach, Florida 33442, USA
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that my
cause undesired operation.
MODIFICATION: Any changes or modifications not expressly approved by the
grantee of this device could void the user’s authority
to operate the device.
