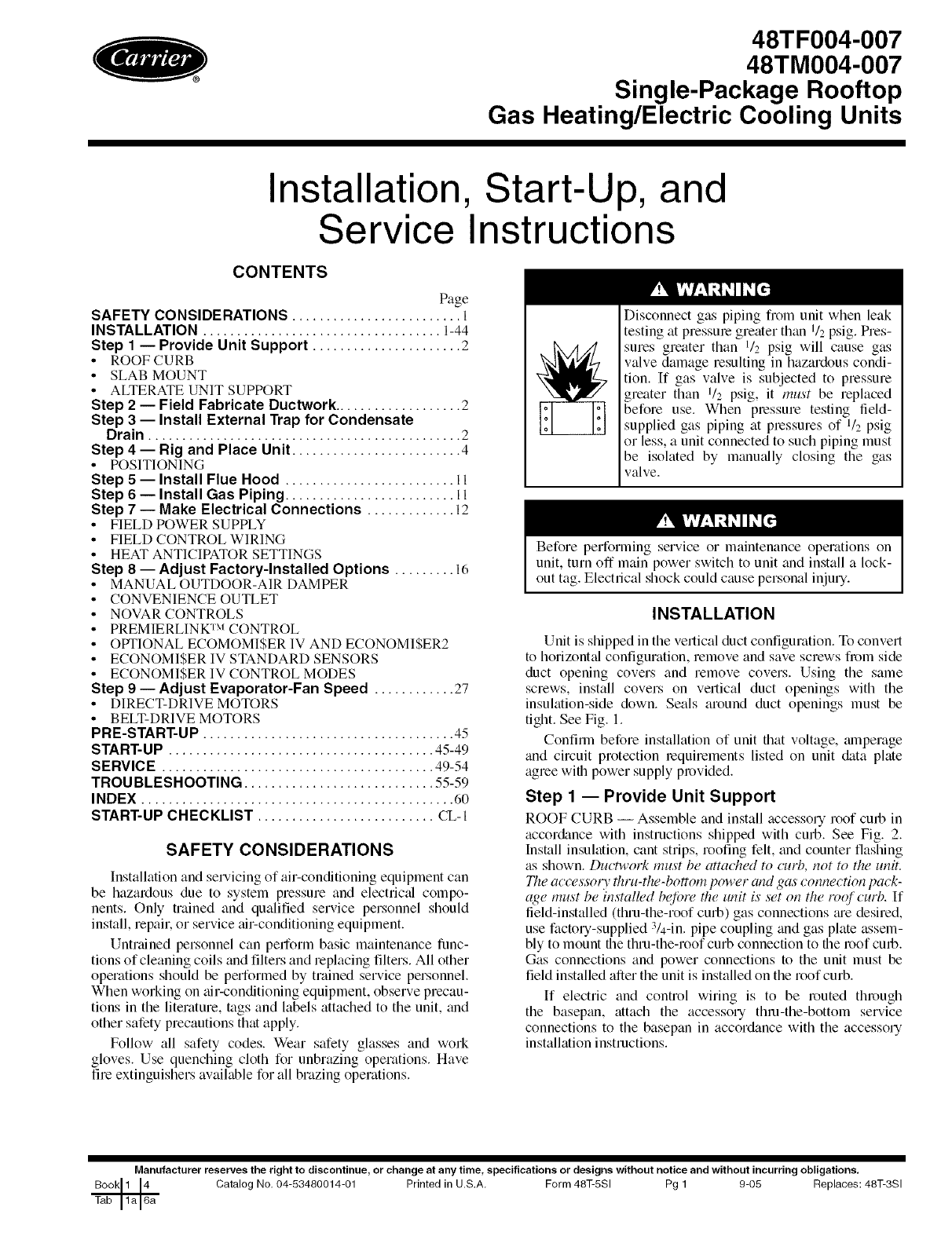

48TF004-007

48TM004-007

Single-Package Rooftop

Gas Heating/Electric Cooling Units

Installation, Start-Up, and

Service Instructions

CONTENTS

Page

SAFETY CONSIDERATIONS ......................... 1

INSTALLATION ................................... 1-44

Step 1-- Provide Unit Support ...................... 2

• ROOF CURB

• SLAB MOUNT

• ALTERATE UNIT SUPPORT

Step 2 -- Field Fabricate Ductwork ................... 2

Step 3 -- Install External Trap for Condensate

Drain .............................................. 2

Step 4 -- Rig and Place Unit ......................... 4

• POSITIONING

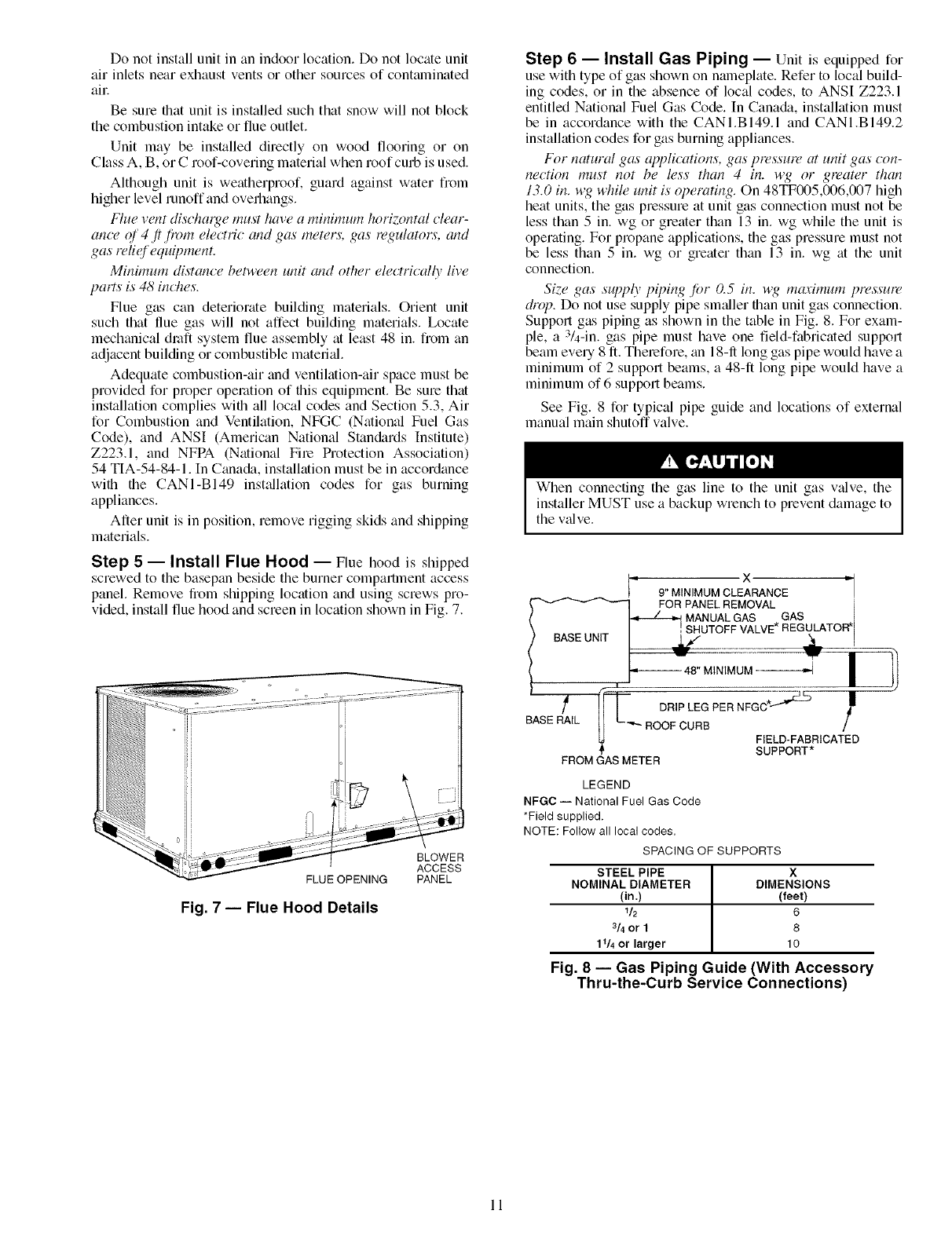

Step 5-- Install Flue Hood ......................... 11

Step 6 -- Install Gas Piping ......................... 11

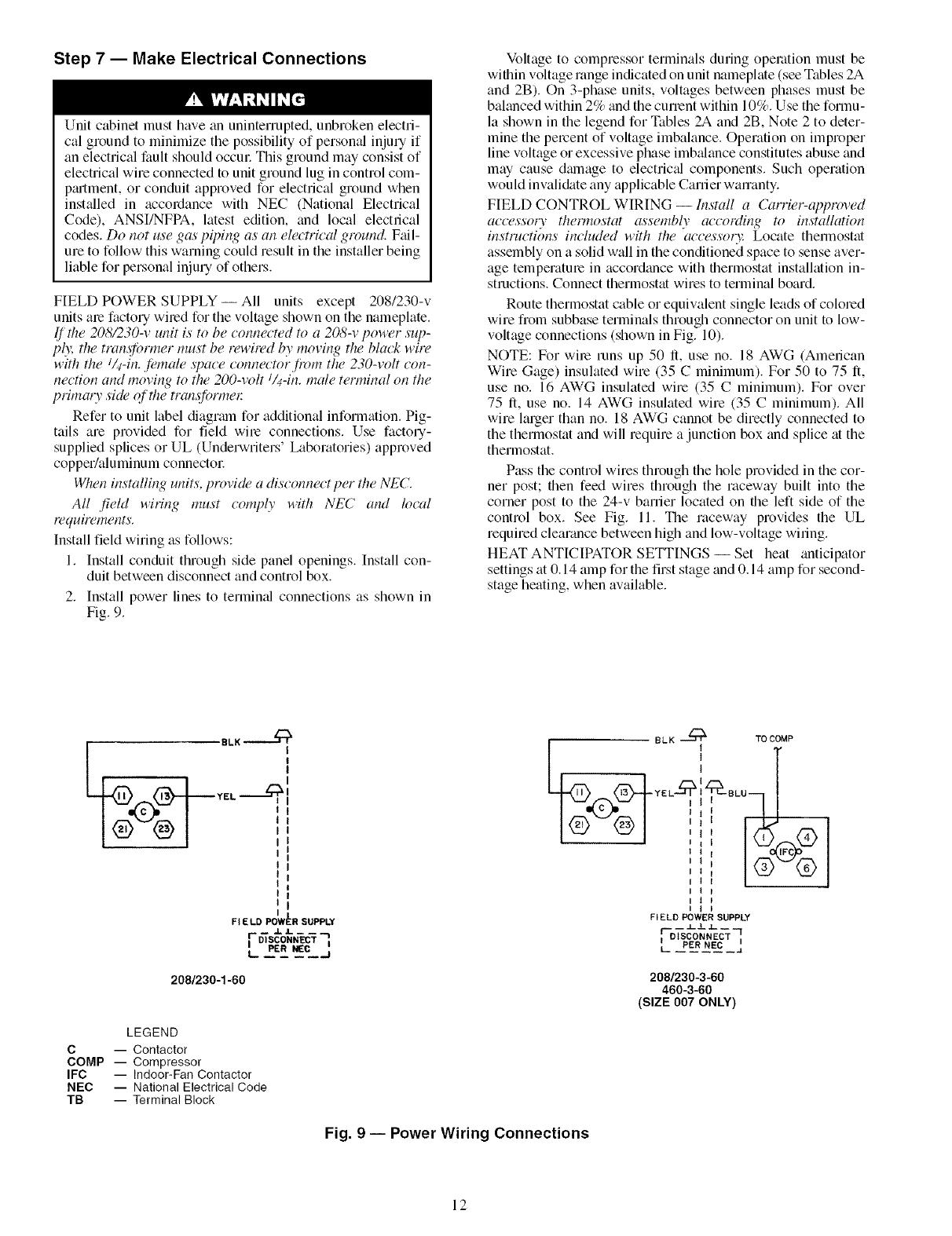

Step 7 -- Make Electrical Connections ............. 12

• FIELD POWER SUPPLY

•FIELD CONTROL WIRING

• HEAT ANTICIPATOR SETTINGS

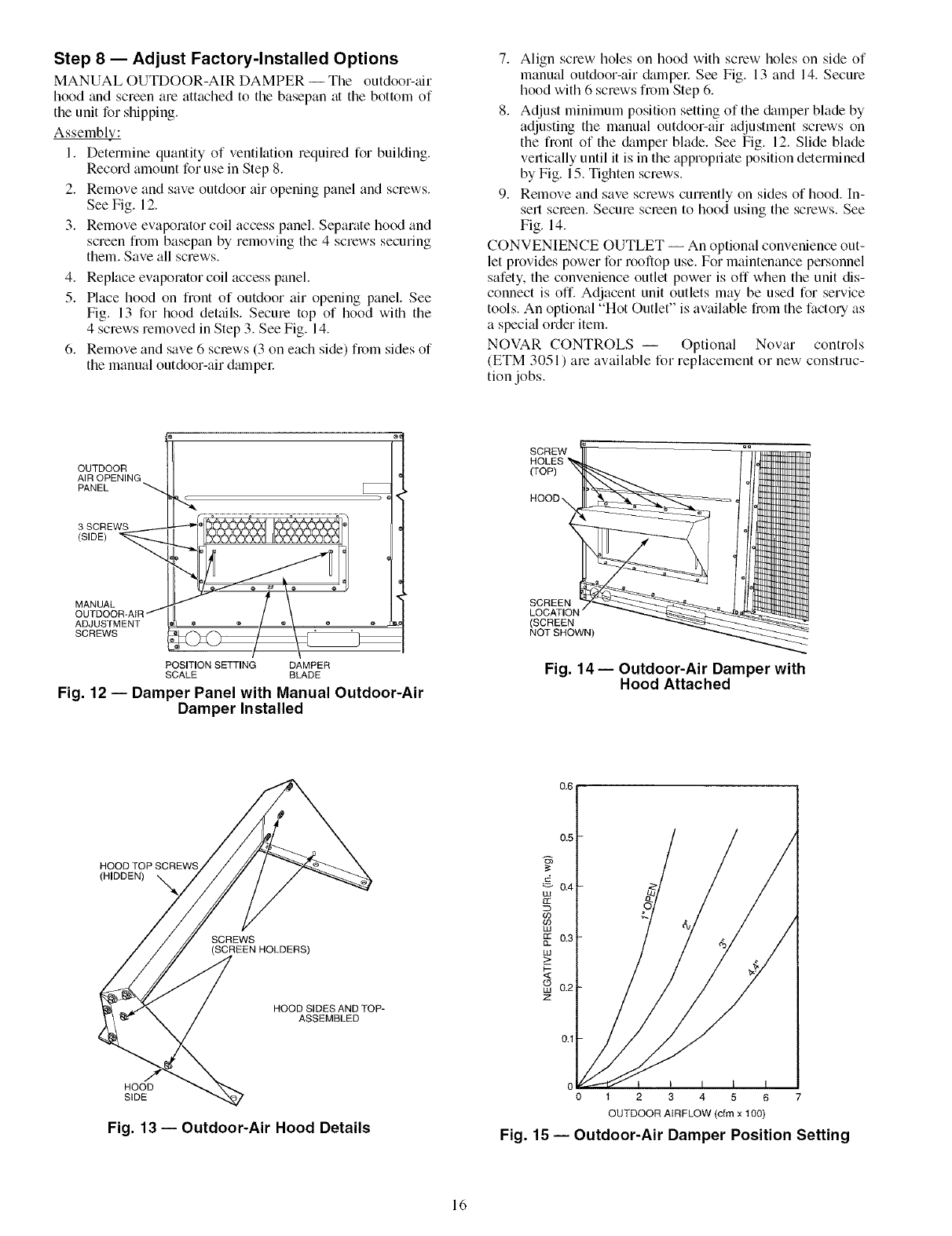

Step 8- Adjust Factory-Installed Options ......... 16

• MANUAL OUTDOOR-AIR DAMPER

• CONVENIENCE OUTLET

• NOVAR CONTROLS

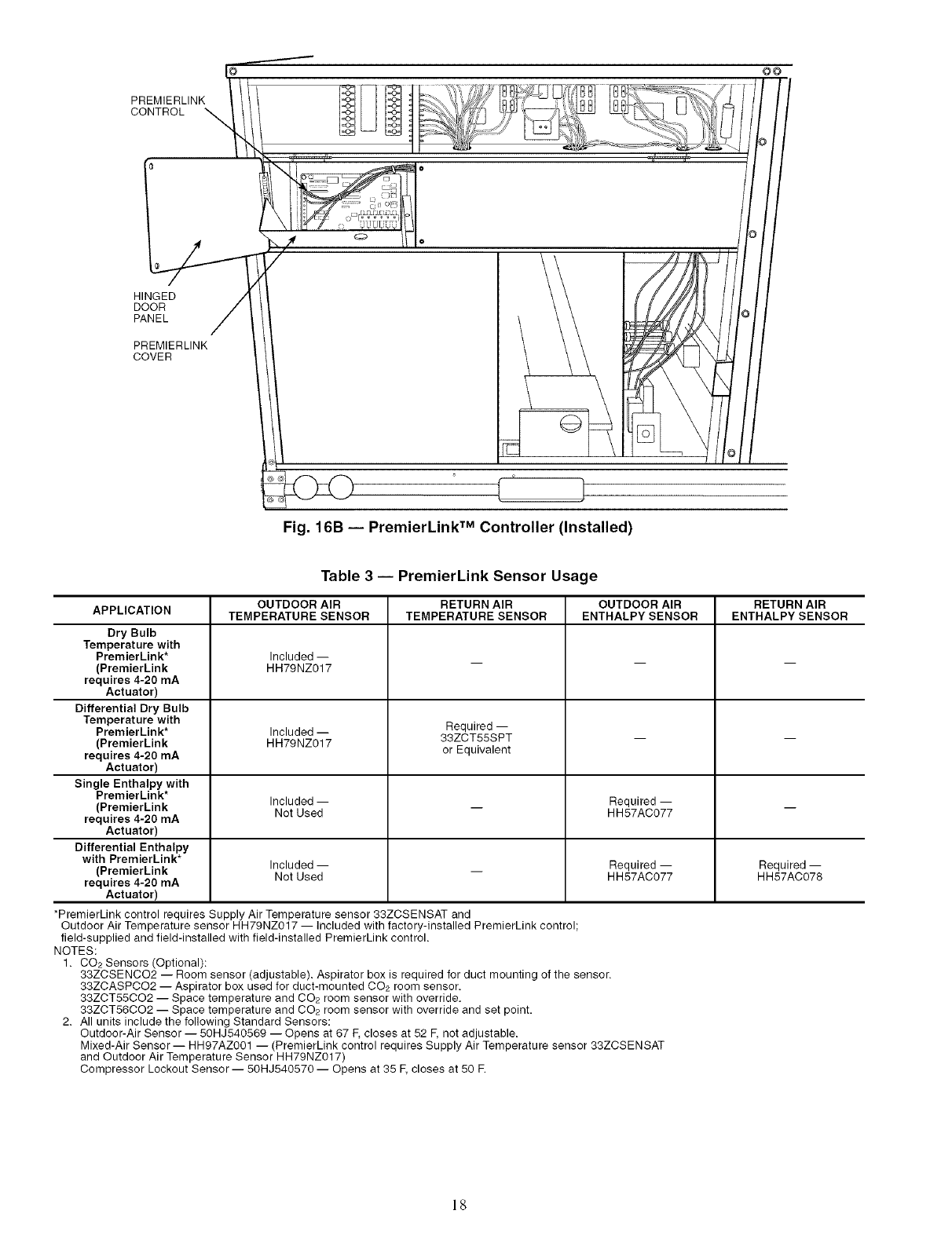

• PREMIERLINK TM CONTROL

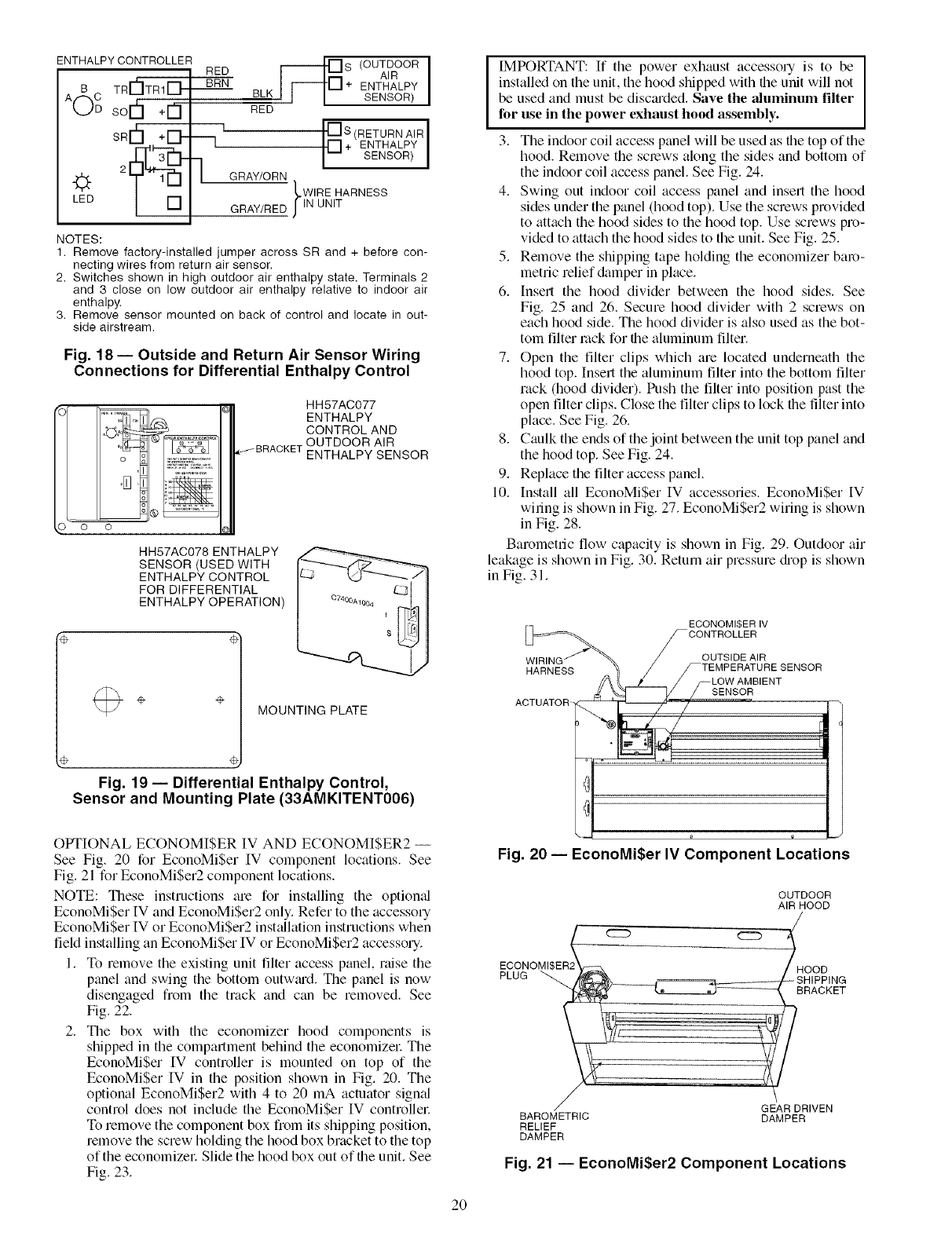

• OPTIONAL ECOMOMISER IV AND ECONOMI$ER2

• ECONOMI$ER IVSTANDARD SENSORS

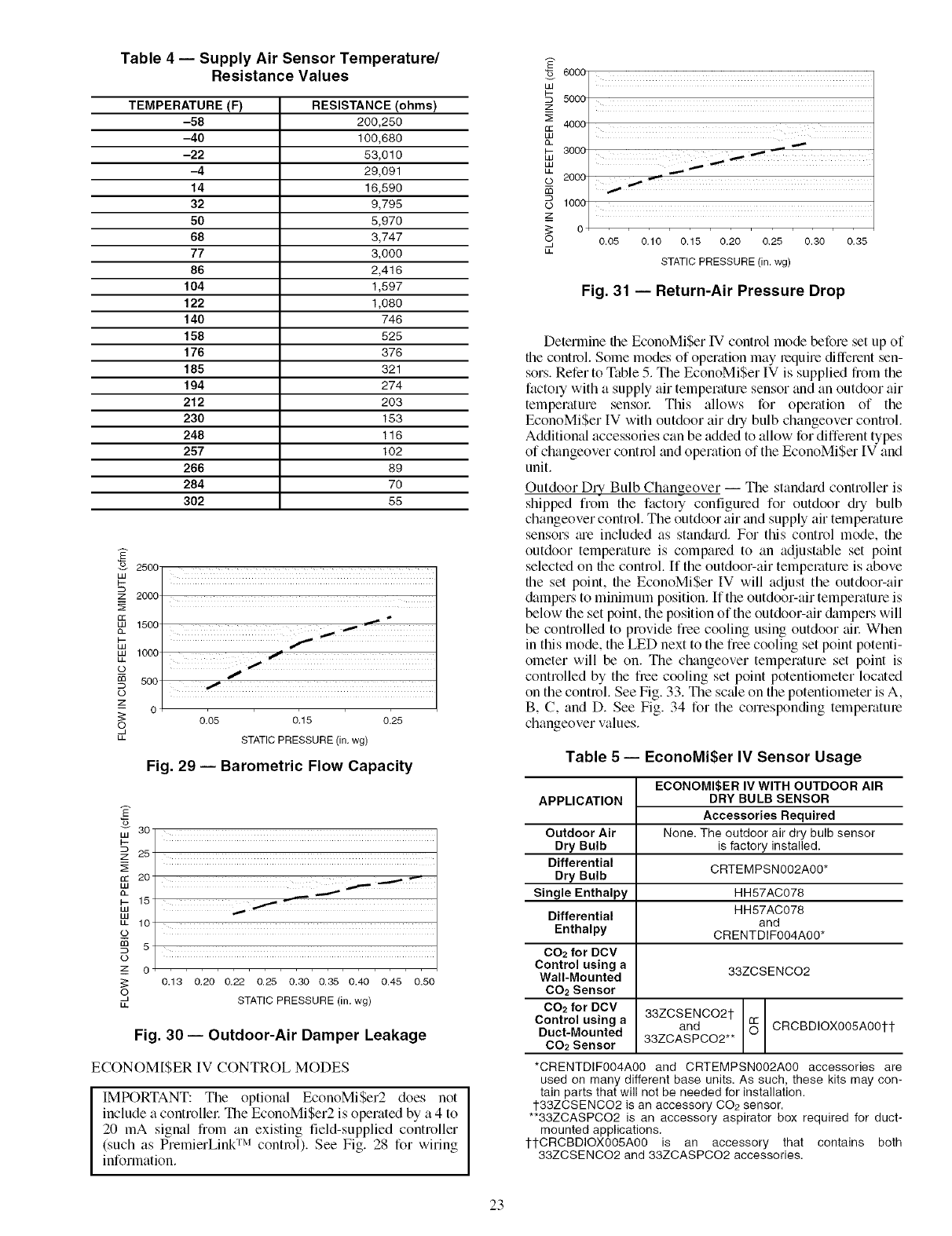

• ECONOMISER IV CONTROL MODES

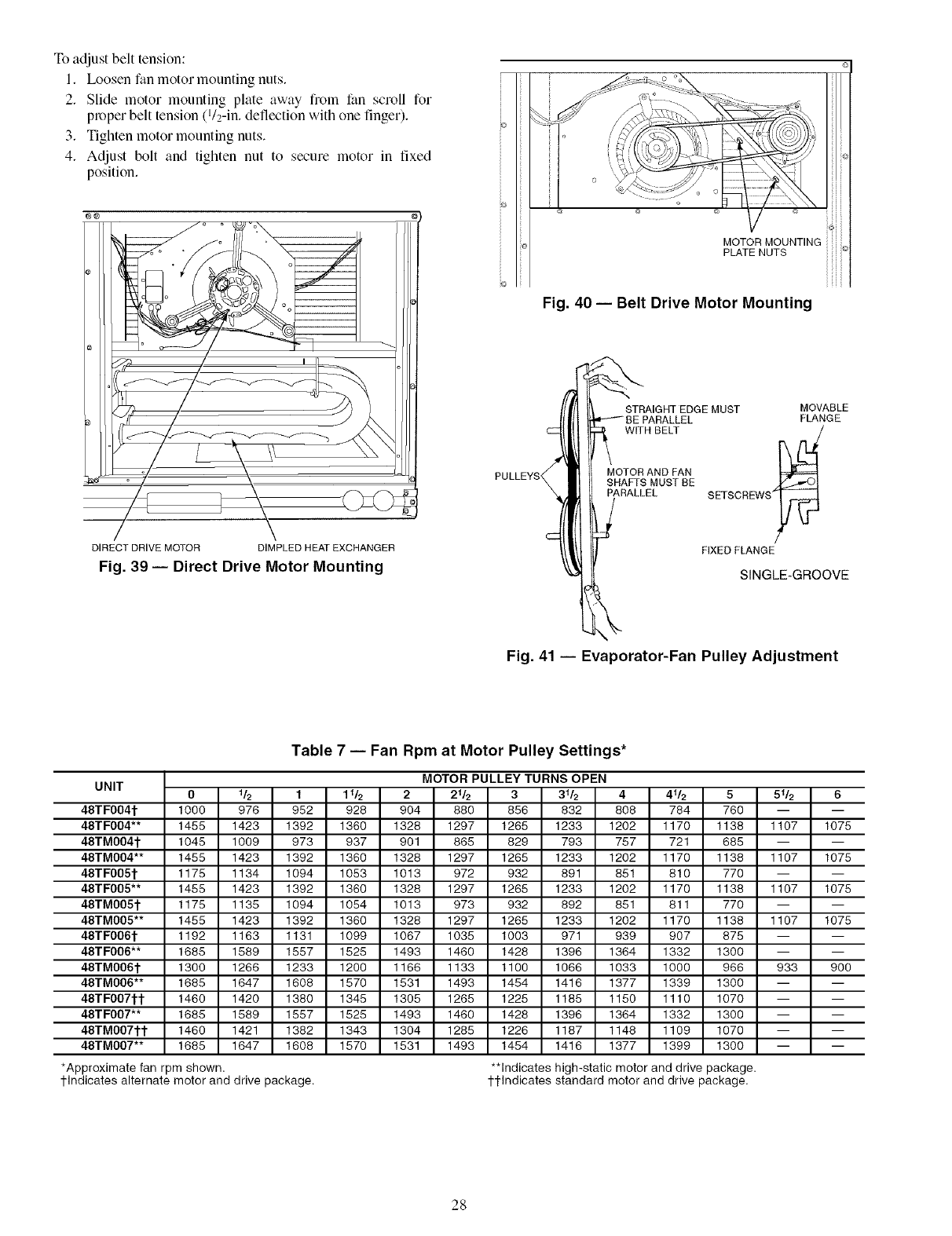

Step 9-- Adjust Evaporator-Fan Speed ............ 27

• DIRECT-DRIVE MOTORS

• BELT-DRIVE MOTORS

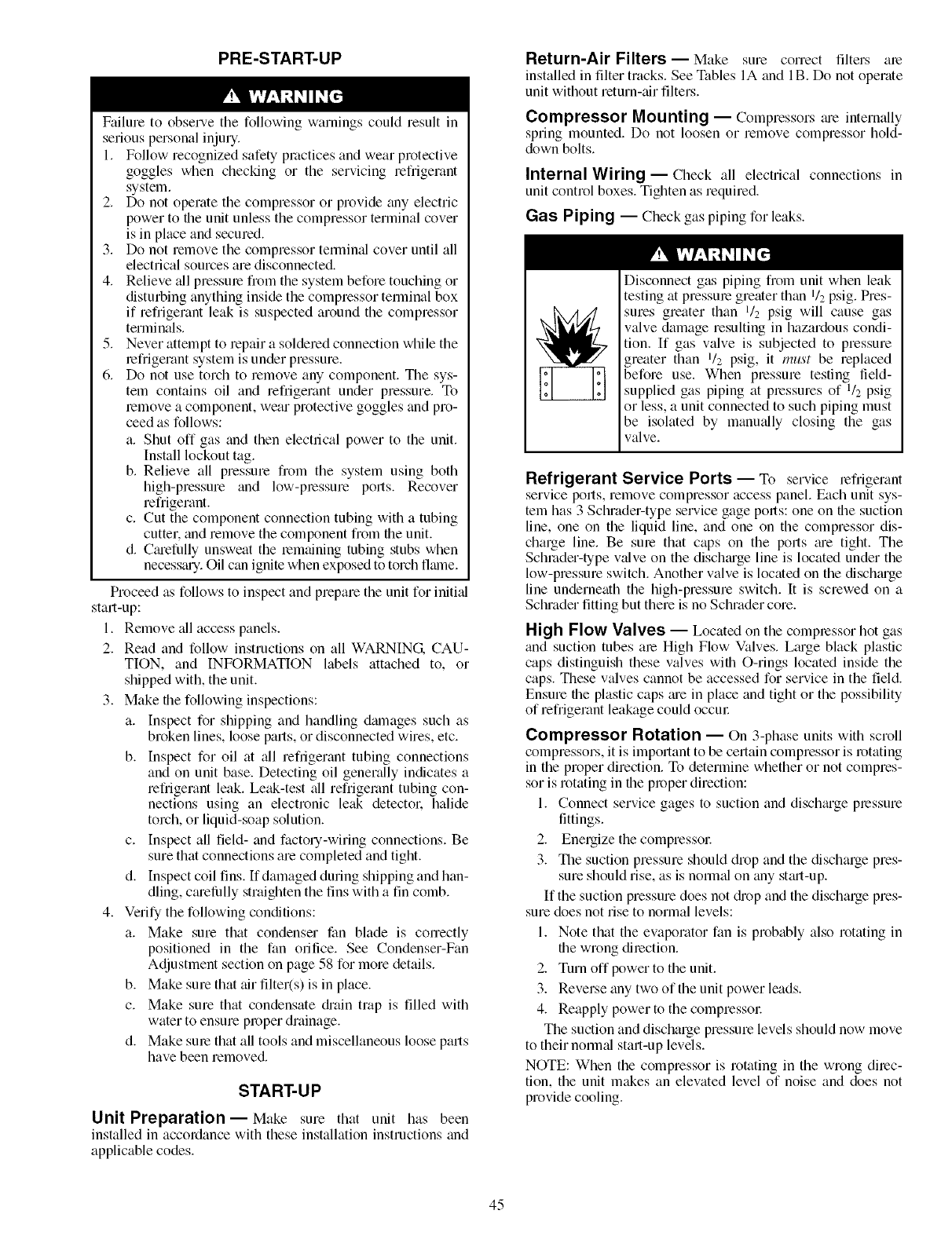

PRE-START-UP ..................................... 45

START-UP ....................................... 45-49

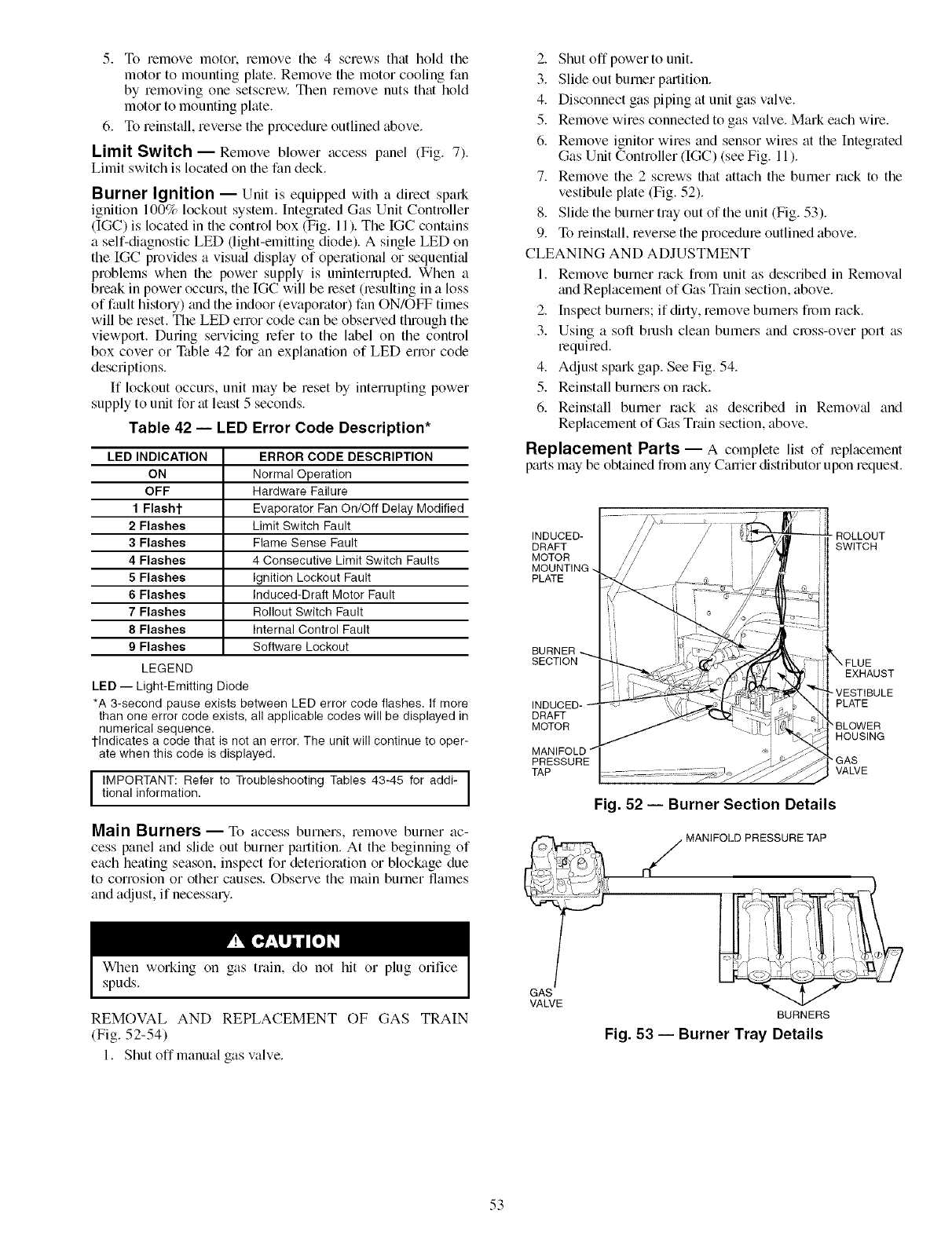

SERVICE ........................................ 49-54

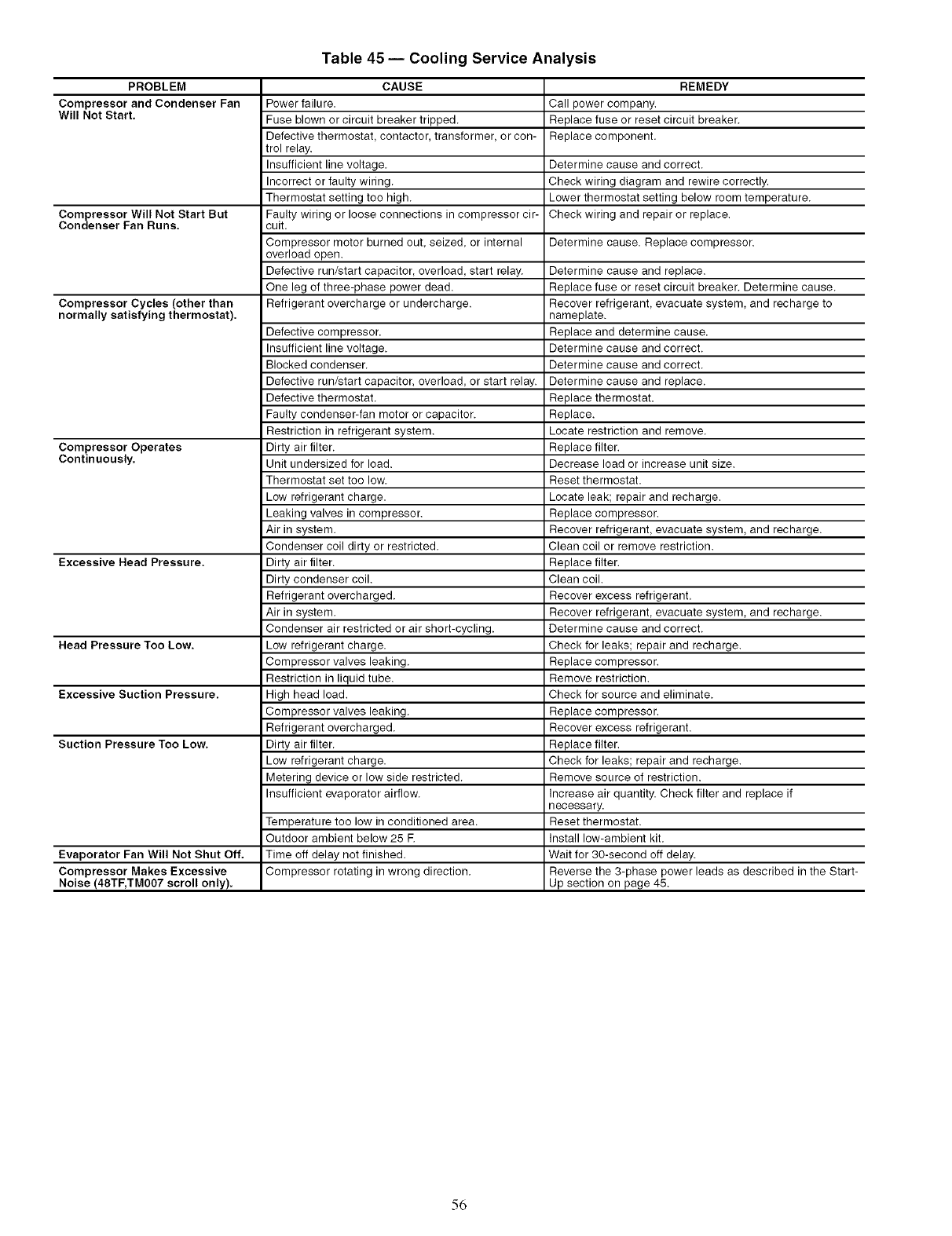

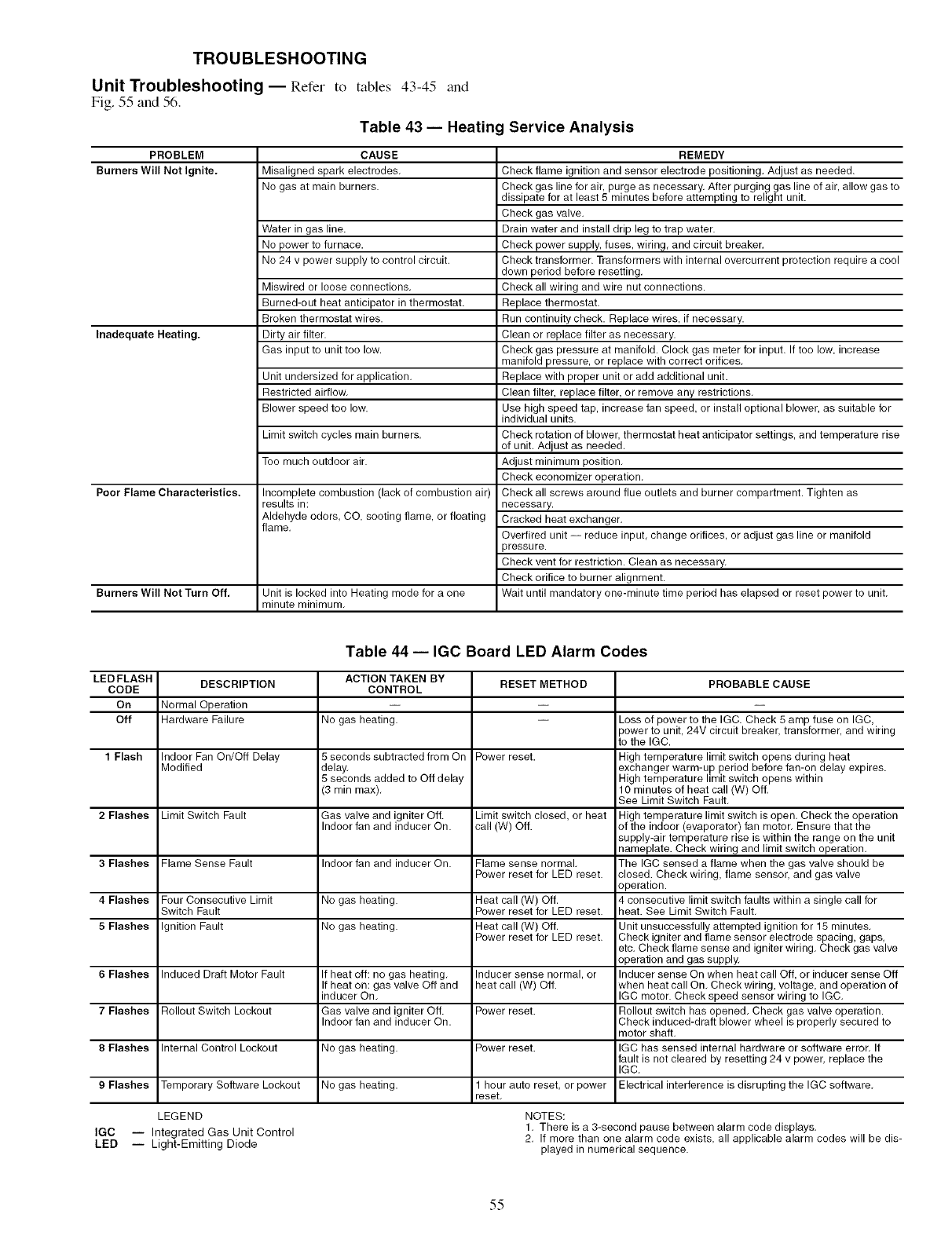

TROUBLESHOOTING ............................ 55-59

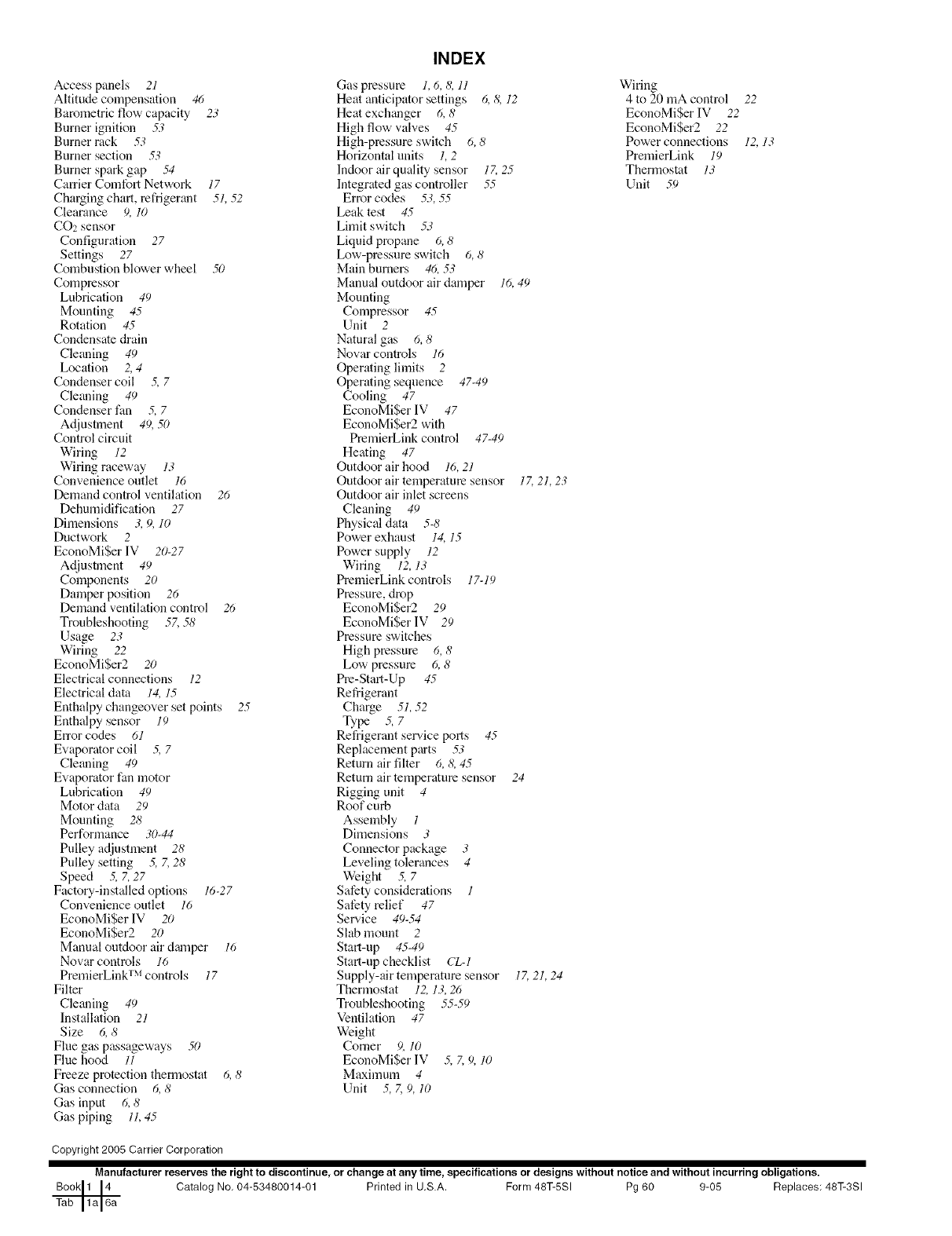

INDEX .............................................. 60

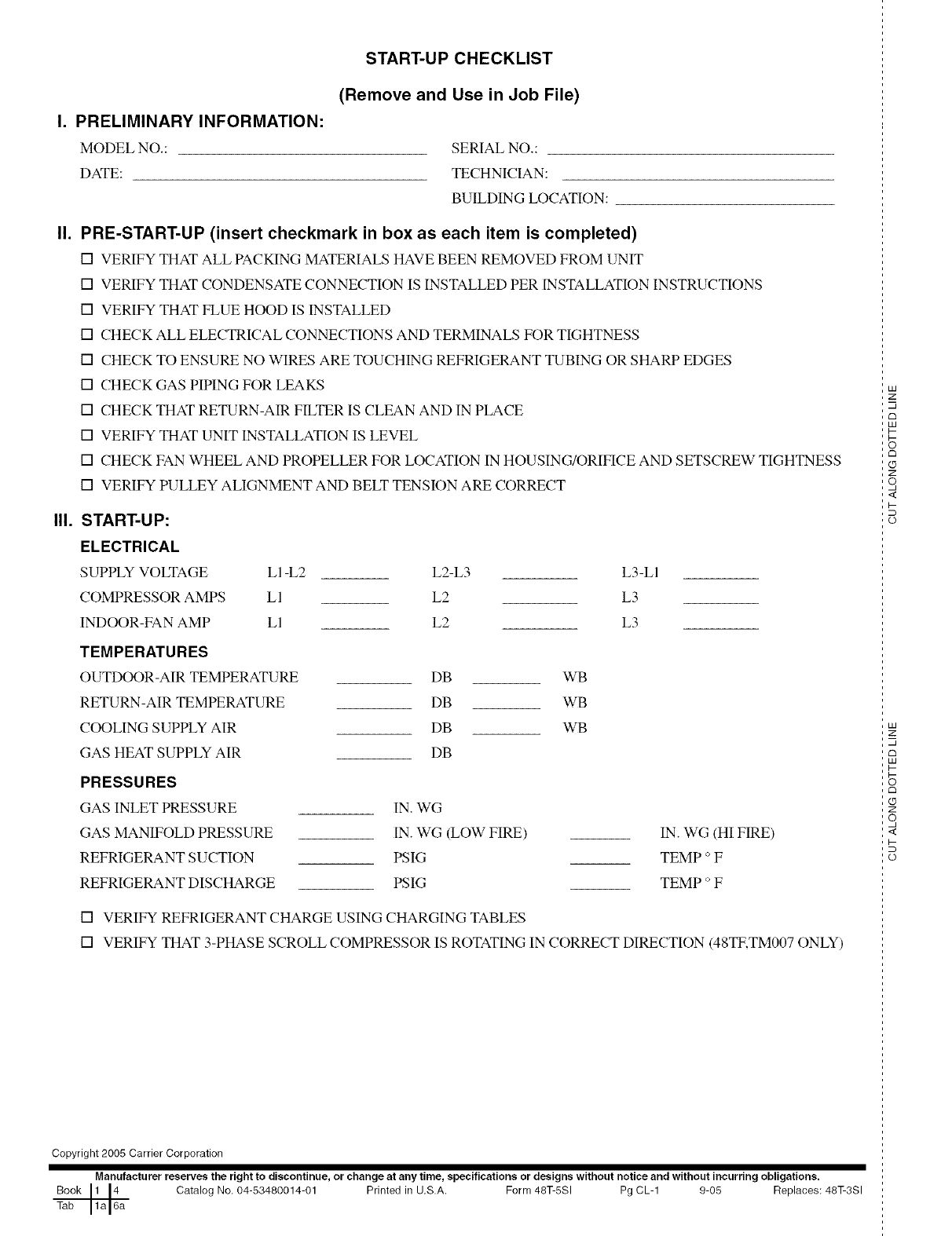

START-UP CHECKLIST .......................... CL-I

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can

be hazardous due to system pressure and electric_d compo-

nents. Only trained and qualified service personnel should

install, repair, or service at>conditioning equipment.

Untrained personnel can perform basic maintenance func-

tions of cleaning coils and filters and replacing filters. All other

operations should be performed by trained service personnel.

When working on at>conditioning equipment, observe precau-

tions in the literature, tags and labels attached to the unit, and

other safety precautions that apply.

Follow all safety codes. Wear safety glasses and work

gloves. Use quenching cloth for unbrazing operations. Have

fire extinguishers available for all brazing operations.

Disconnect gas piping from unit when leak

testing at pressure greater than 1/2 psig. Pres-

sures greater than 1/2 psig will cause gas

valve damage resulting in hazardous condi-

tion. If gas valve is subjected to pressure

greater than 1/2 psig, it must be replaced

before use. When pressure testing field-

supplied gas piping at pressures of 1/2 psig

or less, a unit connected to such piping must

be isolated by manually closing the gas

valve.

Before performing service or maintenance operations on

unit, turn off main power switch to unit and install a lock-

out tag. Electrical shock could c_mse personal injury.

INSTALLATION

Unit is shipped in the vertical duct configuration. To convert

to horizont_d configuration, remove and save screws fi_m side

duct opening covers and remove covers. Using the same

screws, install covers on veriical duct openings with the

insulation-side down. Seals around duct openings must be

tight. See Fig. 1.

Confimt before installation of unit that voltage, mnperage

and circuit protection requirements listed on unit &tta plate

agree with power supply provided.

Step 1-- Provide Unit Support

ROOF CURB -- Assemble and install accesso Uroof curb in

accor&mce with instructions shipped with curb. See Fig. 2.

Install insulation, cant strips, roofing felt, and counter flashing

as shown. Ductwork must be attached to curb, not to the unit.

The accesso O"thru-the-boltom power and gas connection pack-

age must be installed b@re the unit is ,wt on the roo/ curb. If

field-installed (thin-the-roof curb) gas connections tue desired,

use factory-supplied 3/4-in. pipe coupling and gas plate assem-

bly to mount the thin-the-roof curb connection to the roof crag.

Gas connections and power connections to the unit must be

field installed after the unit is installed on the roof curb.

If electric and control wiring is to be routed through

the basepan, attach the accessory thru-the-bottom service

connections to the basepan in accordance with the accessory

installation instructions.

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. 04-53480014-01 Printed in U.S.A, Form 48T-5SI Pg 1 9-05 Replaces: 48T-3SI

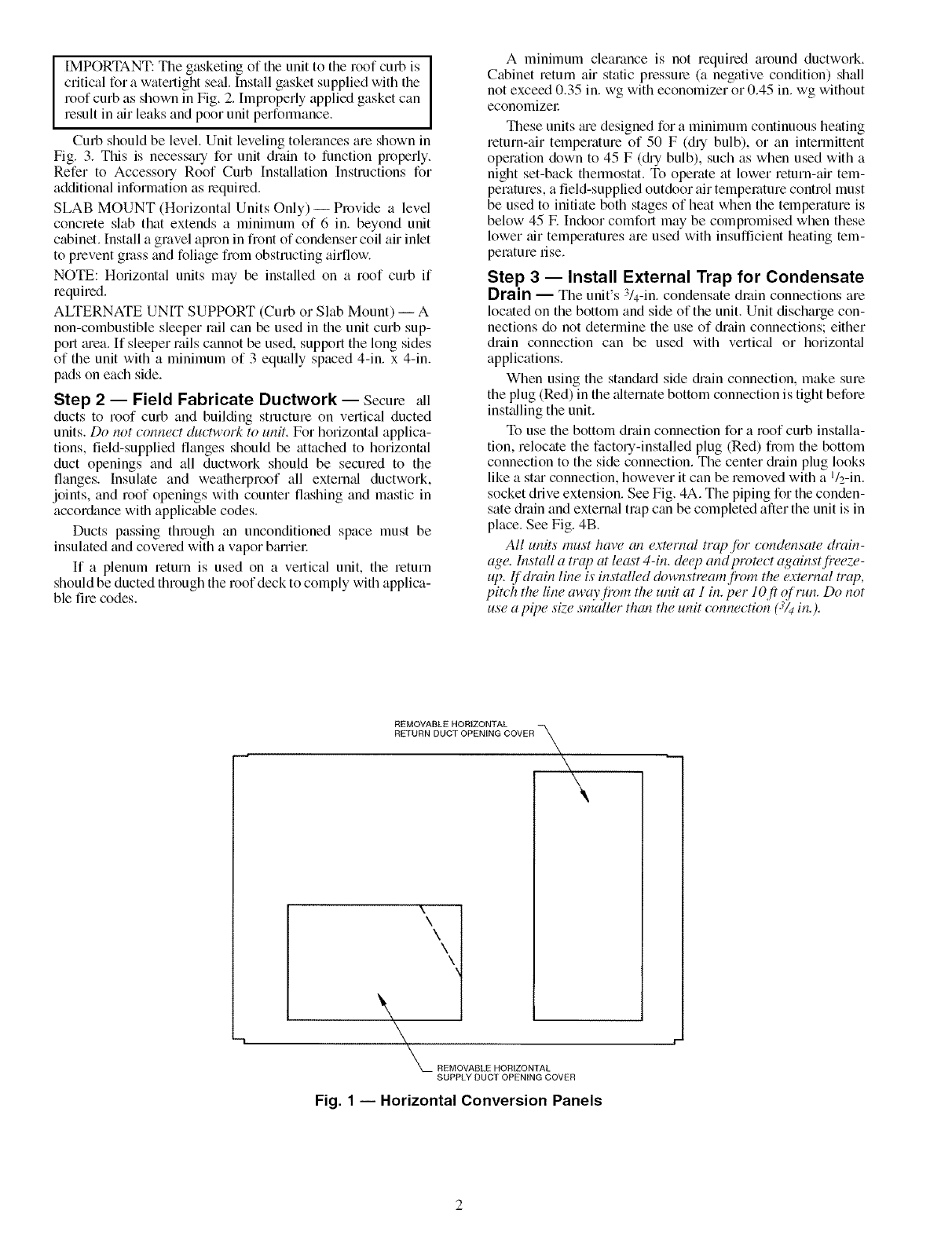

IMPORTANT: Tile gasketing of tile unit to tile roof curb is ]

critical for a watertight seal. Install gasket supplied with the I

roof curb as shown in Fig. 2. hnproperly applied gasket can

result in tdr leaks and pool unit performance.

Curb should be level. Unit leveling tolerances are shown in

Fig. 3. This is necessary for unit drain to function properly.

Refer to Accessory Roof Curb Installation Instructions for

additional information as lequiled.

SLAB MOUNT (Horizontal Units Only) -- Provide a level

conclete slab that extends a minimum of 6 in. beyond unit

cabinet. Install a gravel apron in front of condenser coil air inlet

to prevent gross and foliage from obstructing airflow.

NOTE: Horizontal units may be installed on a roof curb if

required.

ALTERNATE UNIT SUPPORT (Curb or Slab Mount) -- A

non-combustible sleeper rail can be used in the unit curb sup-

port tuea. If sleeper rails cannot be used, support the long sides

of the unit with a minimum of 3 equally spaced 4-in. x 4-in.

pads on each side.

Step 2 -- Field Fabricate Ductwork -- Secure all

ducts to roof curb and building structure on vertical ducted

units. Do not connect du(_'ork to unit. For horizontal applica-

tions, field-supplied flanges should be attached to horizontal

duct openings and all ductwork should be secured to the

flanges. Insulate and weatherproof all external ductwork,

joints, and roof openings with counter flashing and mastic in

accor&mce with applicable codes.

Ducts passing through an unconditioned space must be

insulated and covered with a vapor b_uriel:

If a plenum return is used on a vertical unit, the return

should be ducted through the roof deck to comply with applica-

ble fire codes.

A minimum clearance is not required around ductwork.

Cabinet return air static pressme (a negative condition) shall

not exceed 0.35 in. wg with economizer or 0.45 in. wg without

economizeE

These units tue designed for a minimum continuous heating

return-air temperature of 50 F (dry bulb), or an intermittent

operation down to 45 F (@ bulb), such as when used with a

night set-back thermostat. To operate at lower return-air tem-

peratures, a field-supplied outdoor air temperature control must

be used to initiate both stages of heat when the temperature is

below 45 E Indoor comfort may be compromised when these

lower air temperatures are used with insufficient heating tem-

perature rise.

Step 3 -- Install External Trap for Condensate

Drain -- The unit's 3/4-in. condensate drain connections are

located on the bottom and side of the unit. Unit discharge con-

nections do not deterraine the use of drain connections; either

dnun connection can be used with vertic;d or horizont;d

applications.

When using the standard side &'ain connection, make sure

the plug (Red) in the ;alternate bottom connection is tight before

inst;dling the unit.

To use the bottom drain connection for a roof curb installa-

tion, relocate the factory-installed plug (Red) from the bottom

connection to the side connection. The center &'ain plug looks

like a stm"connection, however it can be removed with a l/2-in.

socket drive extension. See Fig. 4A. The piping for the conden-

sate &'ain and external trap can be completed after the unit is in

place. See Fig. 4B.

All units must have an exWrnal trap./(_r condensaW druin-

age. Instull a tru l) at least 4-in. deep and prowct against fi'eeze-

Ul). I/ drain line is installed downstmam /?om the exWrlml trap,

pitch the fine awayfl'om the unit at 1 in. per lOft q/run. Do not

use a pipe s£e smaller than the unit connection (J/4 in.).

\\\\\

\L__REMOVAOLENOOIZONTAL

SUPPLY DUCT OPENING COVER

Fig. 1 -- Horizontal Conversion Panels

POWER CONTROL

3/4"[1B]NPT 1/2"[12IT]NPT

[406] 1 1/4"[3117]

3/4"[18]NPT

CRBTMPWROO2A01 [5513

CRBTMPWROO3AOI 1

CRBTMPWROO4A01

1/2"[12.7]NPT

3/4"[19]NPT

1 1/4"[31.7]

O" 3"

[763

O" 3"

[75]

1' 1 7115" i

[341] I

_l ,

T _"

O" 0 7/16"

[II]

(BOLT HEADS)

O" 0 7/16"

At_ ....

HEADS)

O" 0 1/4"[7]

O0 145.95116_

SUPPLY AIR

OPENING

_' 7 13/15B_._

[5043

[75]

3" O"

[914]

SUPPLY AIR ET AI

VIEW "A-A"

GASKET

(SUPPLIED WITH CURB)

DUCT

(FIELD

O" 7/16"

HEAD OF BOLT TO BE ON

INSIDE OF FLANGE

ROOFCURB A UNIT SIZE

ACCESSORY

CRRFCURBOO1AO1 1" 2"

[358] 48 TF, TM 004 DO7

2" 0 °

CRRFCURBOO2AO1 [S1 O]

NOTES:

II ROOFCURB ACCESSORY

IS 5HIPPED DISASSEMBLED.

2. INSULATED PANELS.

31 DIMENSIONS iN [ ] ARE IN MILLiMETERSI

I ROOFCURB: GALVANIZED £TEELI

IATTACH DUCTWORK TO CURBI

(FLANGES OF DUCT REST ON CURB)

SER ICE CLEARANCE 4 FEET ON EACH

_] _OlRECTION OF AIR FLOW. S[DEI

81 CONNECTOR PACKAGES CRBTMPWROO1AO1 AND 2AO1 ARE FOR

TBRU THE CURB TYPE GAS, PACKAGES CRBTMPWROO3AOI AND 4AOI

ARE FOR THE THRU THE BOTTOM TYPE GAB CONNECTIONS.

TYPICAL (4) SIDES

CANT STRIP

/((FIELD SUPPLIED)

o,oLsy

_oNZc c"

SCALE 1:4

SERVICE (SEE NOTE #8)

O" 2 1/2"

O" 3 1/4"

NOTE: CAMBRIDGEPORT "SURE LOCK" CORNER

FASTENING DEVICE IS ACCEPTABLE

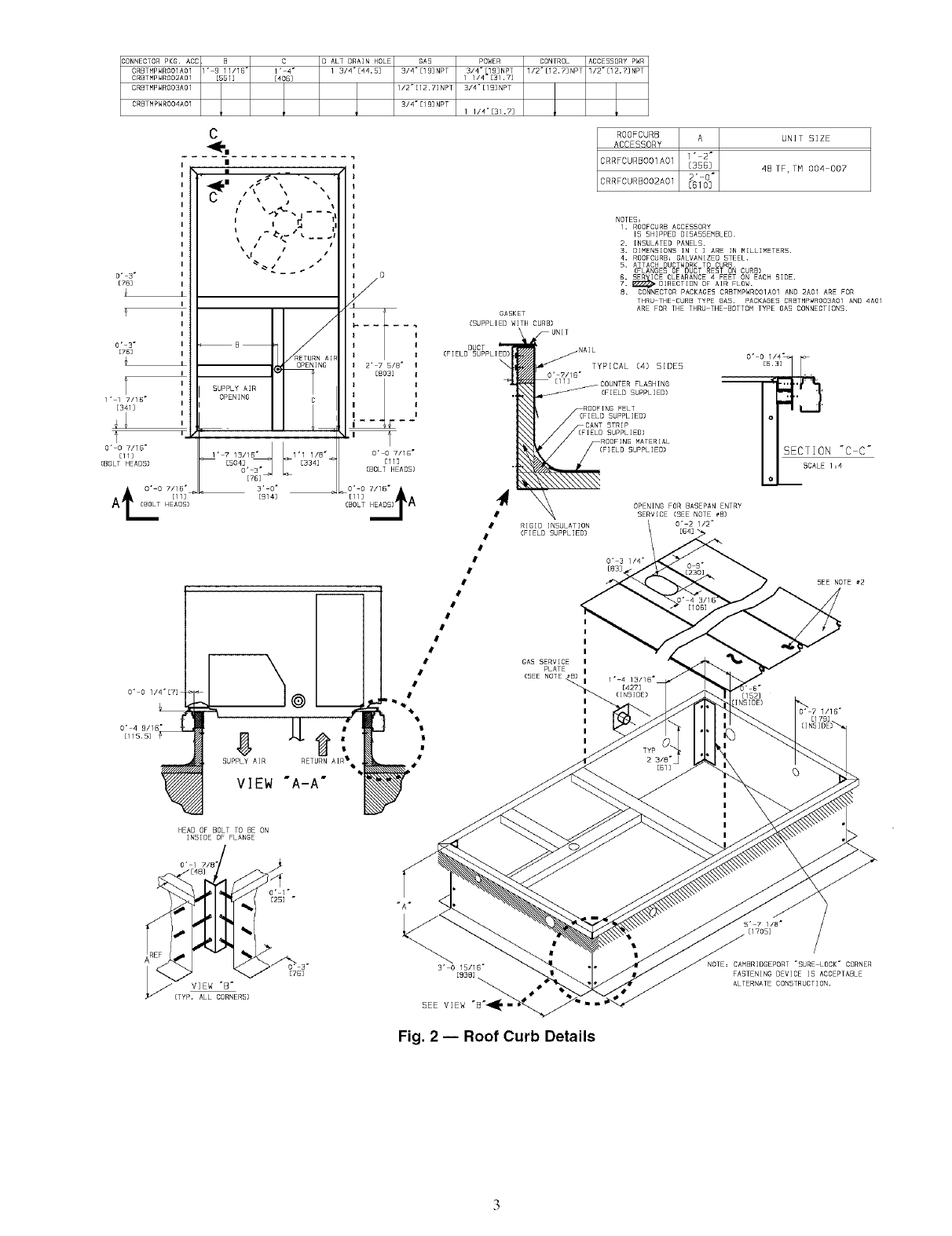

Fig. 2 -- Roof Curb Details

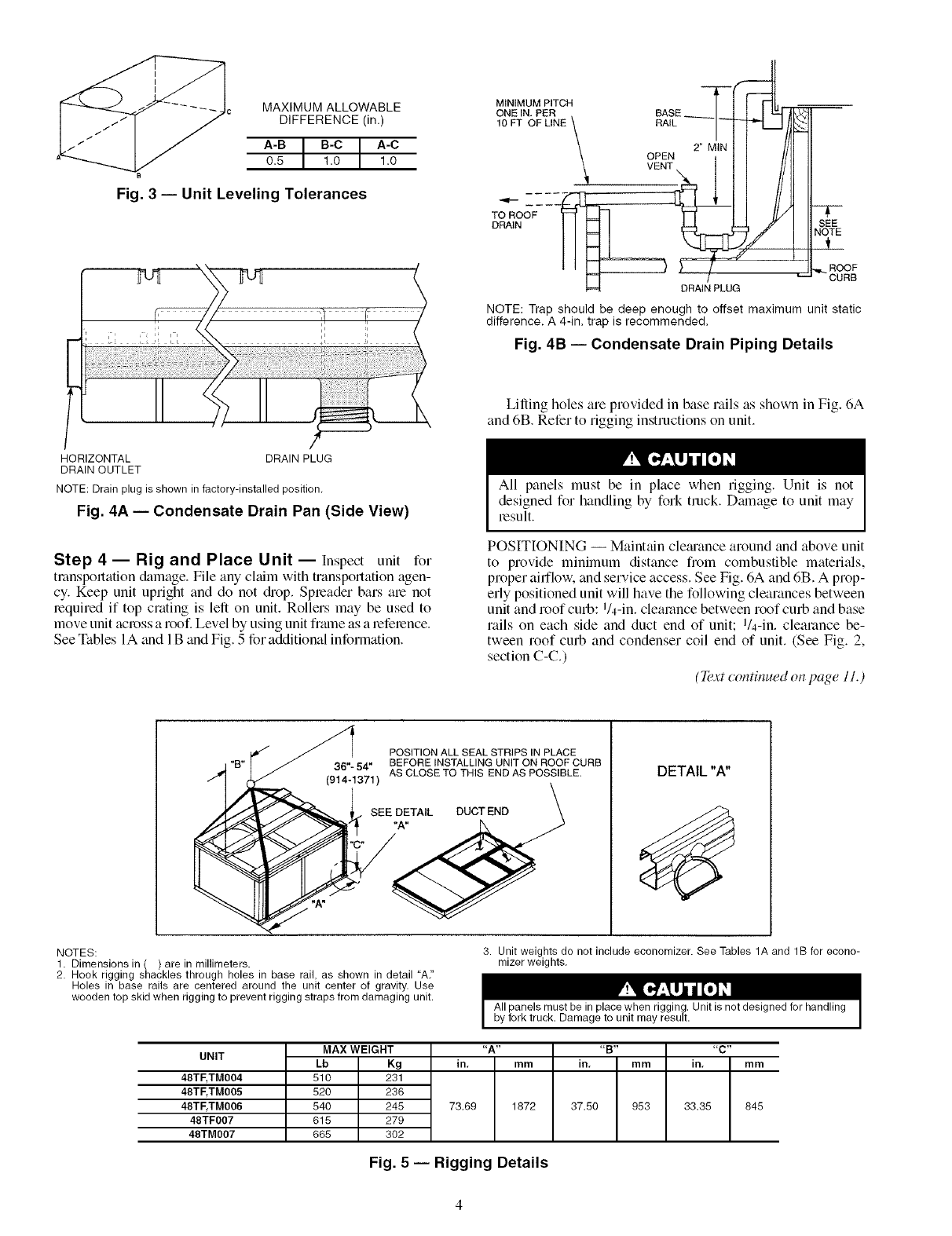

MAXIMUM ALLOWABLE

DIFFERENCE (in.)

A-B B-C

0.5 1.0

Fig. 3 -- Unit Leveling Tolerances

A-C

1.0

HORIZONTAL DRAIN PLUG

DRAIN OUTLET

NOTE: Drain plug is shown in factory-installed position.

Fig. 4A -- Condensate Drain Pan (Side View)

Step 4 -- Rig and Place Unit -- inspect unit for

tmnspottation &mmge. File any cltdtn with transportation agen-

cy. Keep unit uptight and do not &'op. Spteader bars ate not

required if top crating is left on unit, Rollers may be used to

move unit across a roof. Level by using unit flame as a tefetence.

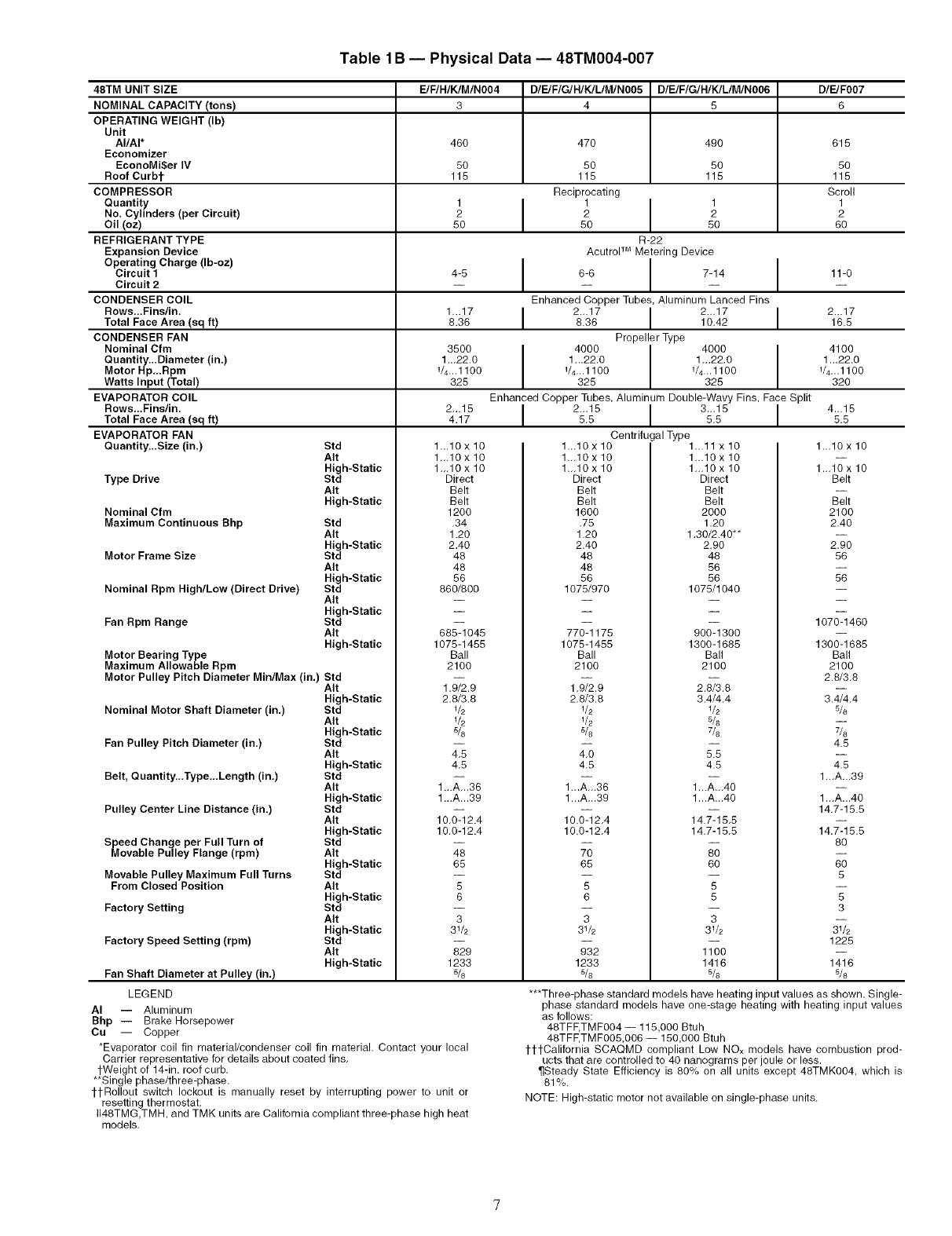

See Tables IA and 1B and Fig, 5 for additional information,

MINIMUM PITCH

°°%NgL%\

TO ROOF

DRAIN

DRAIN PLUG

--T--

SEE

NOTE

ROOF

CURB

NOTE: Trap should be deep enough to offset maximum unit static

difference. A 4-in. trap is recommended.

Fig. 4B -- Condensate Drain Piping Details

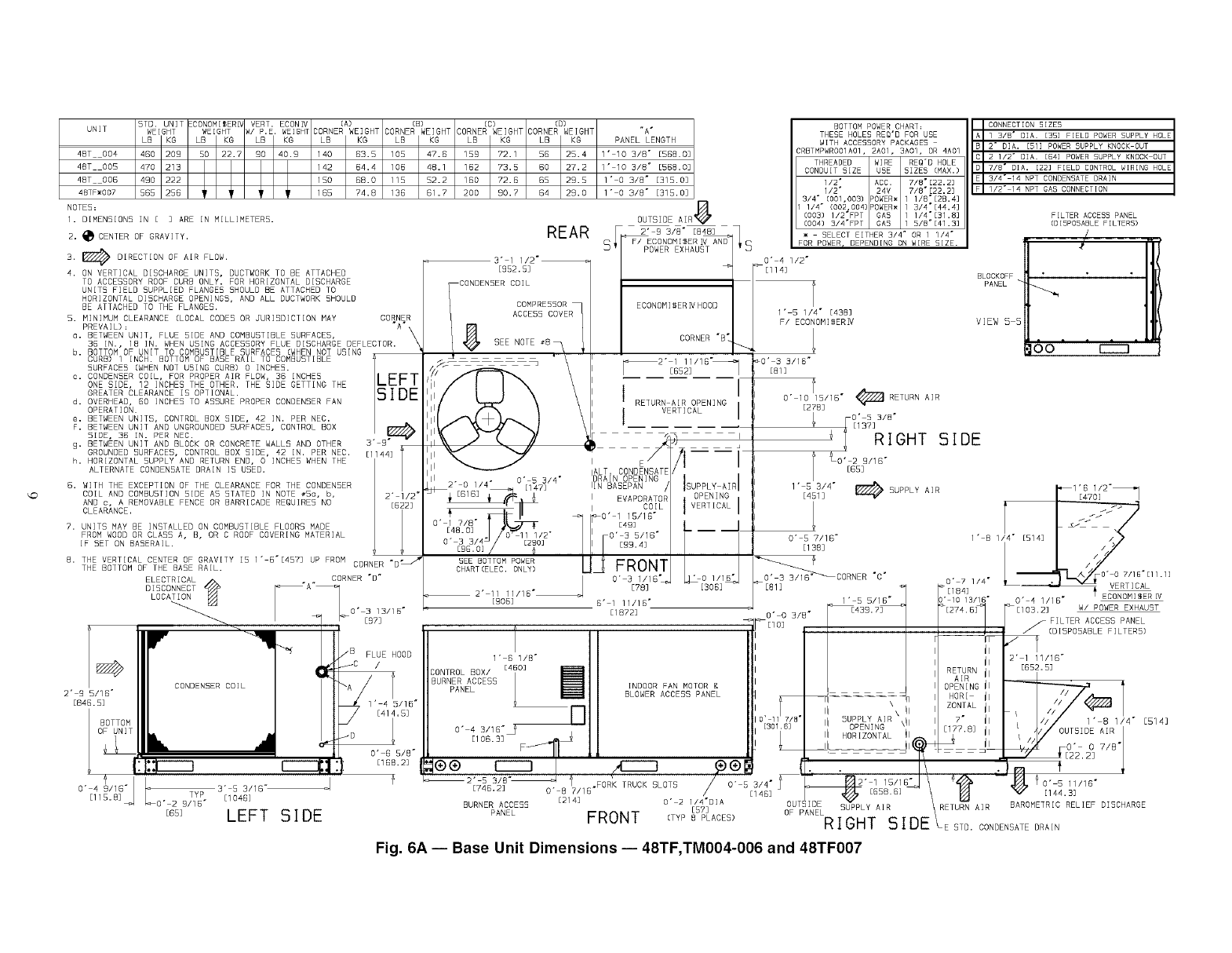

Lifting holes are provided in base rails as shown in Fig. 6A

and 6B. Refer to rigging instructions on unit.

All panels must be in place when rigging. Unit is not

designed for handling by fork truck. Dmnage to unit may

result.

POSITIONING -- Maintain clemance around and above unit

to provide minimum distance fiom combustible materials,

proper airflow, and service access. See Fig. 6A and 6B. A prop-

erly positioned unit will have the following cleatances between

unit and roof curb: I/4-in. clearance between roof curb and base

rails on each side and duct end of unit; I/4-in. clearance be-

tween roof curb and condenser coil end of unit. (See Fig. 2,

section C-C.)

(Text continued on page 11.)

36"- 54"

(914-1371)

POSITION ALL SEAL STRIPS IN PLACE

BEFORE INSTALLING UNIT ON ROOF CURB

AS CLOSE TO THIS END AS POSSIBLE.

DUCTEND

DETAIL "A"

NOTES:

1. Dimensions in ( ) are in millimeters.

2. Hook rigging shackles through holes in base rail, as shown in detail "A."

Holes in base rails are centered around the unit center of gravity. Use

wooden top skid when rigging to prevent rigging straps from damaging unit.

3. Unit weights do not include economizer. See Tables 1A and 1B for econo-

mizer weights.

All panels must be in place when rigging. Unit is not designed for handling

by fork truck. Damage to unit may result.

UNIT

48TF, TM004

48TF, TM005

48TF, TM006

48TF007

48TM007

MAX WEIGHT

Lb Kg

510 231

520 236

540 245

615 279

665 302

"A .... B .... C"

in, mm in. mm in, mm

73.69 1872 37.50 953 33.35 845

Fig. 5 -- Rigging Details

Table1A- Physical Data- 48TF004-007

48TF UNIT SIZE E/F/H/M/N004 D/E/FIG/HIK/L/M/NO05 D/E/F/G/H/K]LIM/NO06 D/E/F007

NOMINAL CAPACITY (tone) 3 4 5 6

OPERATING WEIGHT (Ib)

Unit

AI/AI* 460 470 490 565

AI/Cu* 465 476 497 576

Cu/Cu* 466 482 505 587

Economizer

EconoMi$er IV 50 50 50 50

Roof Curbt 115 115 115 115

COMPRESSOR Reciprocating Scroll

Quantity 1 1 I 1 1

No. Cylinders (per Circuit) 2 2 I 2 2

Oil (oz) 50 50 50 54

REFRIGERANT TYPE R-22

Expansion Device AcutroF M Metering Device

Operating Charge (Ib-oz) I I

Circuit I 4-4 6-6 6-14 9-0

Circuit 2 ....

CONDENSER COIL Enhanced Copper Tubes, Aluminum Lanced Fins

Rows...Finslin, 1,..17 I2_.17 I2._17 I 2_,17

Total Face Area (sq ft) 8.36 8.36 10,42 10,42

CONDENSER FAN Propeller Type

Nominal Cfm 3500 4000 I 4000 I 4000

Quantity...Diameter (in.) 1,..22,0 1.,.22.0 I 1,..22,0 I 1,,.22.0

Motor Hp..,Rpm 1/4.,,1100 1/4,..1100 V4-. 1100 V4.-1100

Watts Input (Total) 325 325 325 325

EVAPORATOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins

Rows..,Fins/in, 2_.15 I2._15 I3_,15 I 4_,15

Total Face Area (sq ft) 4.17 5.5 5,5 5,5

EVAPORATOR FAN Centrifugal Type

Quantity..,Size (in.)

Type Drive

Nominal Cfm

Maximum Continuous Bhp

Motor Frame Size

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Nominal Rpm High/Low (Direct Drive)

Fan Rpm Range

Motor Bearing Type

Maximum Allowable Rpm

Motor Pulley Pitch Diameter MiniMax (in.) Std

Air

High-Static

Nominal Motor Shaft Diameter (in.) Std

Air

High-Static

Fan Pulley Pitch Diameter (in.) Std

Air

High-Static

Belt, Quantity..,Type..,Length (in.) Std

Air

High-Static

Pulley Center Line Distance (in.) Std

Air

High-Static

Speed Change per Full Turn of Std

Movable Pulley Flange (rpm) AIt

High-Static

Movable Pulley Maximum Full Turns Std

From Closed Position Air

High-Static

Factory Setting Std

Air

High-Static

Factory Speed Setting (rpm) Std

Air

High-Static

Fan Shaft Diameter at Pulley (in.)

1_.10 x 10

1_.10x 10

Direct

Belt

1200

.34

1.20

2.40

860/800

760-1000

1075-1455

Ball

2100

1,9/2,9

2,8/3,8

1/2

4.5

1...A.,.34

1...A_.39

10,0-12.4

31/2

856

1233

1.,.10 x 10

Direct

Belt

1600

.75

1,20

2,40

1075/970

770-1175

1075-1455

Ball

2100

1,9/2.9

2,8/3,6

s/8

4.0

4.5

1,..A..,34

1,..A..,39

10,0-12.4

31/2

975

1233

1,..11x 10

1,..10 x 10

1-.11x 10

Direct

Belt

2000

1,20

1.30/2.40"*

2,90

1075/970

875-1192

1300-1685

Ball

2100

2,4/3.4

3.4/4.4

5/8

4,5

1,.,A,.,39

1,.,A,.,40

14,7-15,5

14.7-15,5

3V2

1060

1396

5/8

LEGEND

AI -- Aluminum

Bhp -- Brake Horsepower

Cu -- Copper

*Evaporator coil fin material/condenser coil fin material, Contact your local

Carrier representative for details about coated fins,

l-Weight of 14-in. roof curb,

**Single phase/three-phase.

ttRollout switch lockout is manually reset by interrupting power to unit or

resetting thermostat.

1148TFG, TFH, and TFK units are California compliant three-phase high heat

models.

1._10x 10

1._10 x 10

Belt

2100

2.40

2.90

1070-1460

1300-1685

Ball

2100

2.8/3.8

3.4/4.4

5/s

5/8

4.5

1...A_.40

14.7-15.5

31/2

1225

1396

5/8

***Three-phase standard high heat models have heating input values as

shown. Single-phase standard high heat models have one-stage heating

with heating input values as follows:

48TFF, TMF004- 115,000 Btuh

48TFF, TMF005,006- 150,000 Btuh

tl-l-California SCAQMD compliant Low NOx models have combustion prod-

ucts that are controlled to 40 nanograms per joule or less.

¶Steady State Efficiency is 80% on all units except 48TFK004, which is

81%.

NOTE: High-static motor not available on single-phase units,

Table 1A -- Physical Data- 48TF004-007 (cent)

48TF UNIT SIZE

FURNACE SECTION

Rollout Switch Cutout

Temp (F)tt

Burner Orifice Diameter

(in...,drill size)

Natural Gas

Liquid Propane

Thermostat Heat Anticipator

Setting (amps)

208/230 v and 575 Stage 1

Stage 2

460 v Stage 1

Stage 2

Gas Input (Btuh)

E/F/H/K/M/N004

Standard Units

(Stage l/Stage 2)

195

D/EIF/GIHIK]LIMINO05 D/E/F/GIH/K]L/M/NO06 D/E/F007

No NOx Units

Low NOx Units

Efficiency (Steady

State) (%)

Temperature Rise Range

Manifold Pressure (in. wg)

Natural Gas Std

Liquid Propane AIt

Gas Valve Quantity

Gas Valve Pressure Range

Std TFD/GII

TFE/HII .113...33

TFF/KII ,113_.33

TFL

TFM ,102.38

TFN ,102.,.38

AIt TFD/GII

TFE/HII .089-.43

TFF/KII ,089,,.43

TFL

TFM ,082-.45

TFN ,082.,.45

.14

TFD

TFE --/74,000

TFF*** 82,000/115,000

195

,113-.33

,113,..33

.129,..30

.102-.38

,102...38

,116,..32

,089.,.43

,089,..43

,104-.37

,082-.45

,082,..45

,094,..42

195

.113...33

.129...30

.102...38

,116,.,32

.089,..43

.089.-43

.104...37

.082...45

.082...48

.094...42

195

TFGII

TFHII 72,000

TFKII 115,000

TFLttt

TFMttt 80,000

TFNttt 90,000

80¶

TFD/GII

TFE/HII 25-55

TFF/KII 55-85

TFL

TFM 20-50

TFN 30-65

3.5

.14

--/74,000

--/115,000

120,000/150,000

.14

--/74,000

.113,.,33

.113..,33

.129.-30

.089.-43

.089..,43

.104..,37

,14

--/74,000

7-+3

22-+7

3O-+5

45-+5

Cleanable. Screen size and quantity varies by option selected.

Throwaway

2...16 x 28 x 2

1148TFG, TFH, and TFK units are California compliant three-phase high heat

models.

***Three-phase standard high heat models have heating input values as

shown. Single-phase standard high heat models have one-stage heating

with heating input values as follows:

48TFF, TMF004 -- 115,000 Btuh

48TFF, TMF005,006 -- 150,000 Btuh

tttCalifornia SCAQMD compliant Low NO× models have combustion prod-

ucts that are controlled to 40 nanograms per joule or less.

¶Steady State Efficiency is 80% on all units except 48TFK004, which is

81%.

NOTE: High-static motor not available on single-phase units.

Psig

in. wg

Field Gas Connection

Size (in.)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor

Internal Relief (Differential)

Cutout

Reset (Auto.)

LOSS-OF-CHARGE (LOW-

PRESSURE SWITCH) (psig)

Cutout

Reset (Auto.)

FREEZE PROTECTION

THERMOSTAT (F)

Opens

Closes

OUTDOOR-AIR INLET SCREENS

RETURN-AIR FILTERS

Quantity..,Size (in,)

LEGEND

AI -- Aluminum

Bhp -- Brake Horsepower

Cu -- Copper

*Evaporator coil fin material/condenser coil fin material. Contact your local

Carrier representative for details about coated fins.

tWeight of 14-in. roof curb.

**Single phase/three-phase.

l-tRollout switch lockout is manually reset by interrupting power to unit or

resetting thermostat.

0.180-0.487

5.0-13.5

1/2

450 -+50

428

320

0.180-0.487

5.0-13.5

1/2

3,5

72,000

115,000

150,000

60,000

90,000

120,000

25-85

35-65

50-80

20-80

30-60

40-70

0.180-0.487

5.0-13.5

1/2

3.5

72,000

115,000

150,000

60,000

90,000

120,000

28-55

35-65

50-80

20-50

30-60

40-70

--/115,000

120,000/150,000

500 -+50

428

320

0.180-0.487

5.0-13.5

25-55

35-68

50-80

3.5

--/115,000

120,000/150,000

Table 1B -- Physical Data -- 48TM004-007

48TM UNIT SIZE E/F/H/K]M/N004 D/E/F/G/H/K]L/M/N005 D/E/F/G/H/K]L/M/NO06 D/F-/F007

NOMINAL CAPACITY (tons) 3 4 5 6

OPERATING WEIGHT (Ib)

Unit

AI/AI* 460 470 490 615

Economizer

EconoMi$er IV 50 50 50 50

Roof Curbt 115 115 115 115

COMPRESSOR Reciprocating Scroll

Quantity 1 I 1 1 1

No. Cylinders (per Circuit) 2 I 2 2 2

Oil (oz) 50 50 80 60

REFRIGERANT TYPE R-22

Expansion Device Acutrol TM Metering Device

Operating Charge (Ib-oz) I

Circuit 1 4-8 I 6-6 7-14 11-0Circuit 2 ....

CONDENSER COIL Enhanced Copper Tubes, Aluminum Lanced Fins

Rows,.,Fins/in. 1,..17 I 2_.17 I 2.,,17 I 2...17

Total Face Area (sq ft) 8.36 8.36 10,42 16.5

CONDENSER FAN Propeller Type

Nominal Cfm 3500 4000 4000 4100

Quantity...Diameter (in.) 1._22.0 1,_22.0 1_,22.0 1_.22.0

Motor Hp,,.Rpm V4-. 1100 1/4._1100 1/4._1100 V4-. 1100

Watts Input (Total) 325 325 325 320

EVAPORATOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins, Face Split

Rows.,.Finslin. 2_.15 I 2._15 I 3._15 I 4_.15

Total Face Area (eq ft) 4.17 5,5 5.5 5.5

EVAPORATOR FAN Centrifugal Type

Quantity...Size (in.)

Type Drive

Nominal Cfm

Maximum Continuous Bhp

Motor Frame Size

Nominal Rpm High/Low (Direct Drive)

Fan Rpm Range

Motor Bearing Type

Maximum Allowable Rpm

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High=Static

Std

AIt

High-Static

Std

AIt

High-Static

1.,.10 x 10

1,,.10 x 10

1_.10x 10

Direct

Belt

1200

.34

1.20

2.40

860/800

685-1045

1075-1455

Ball

2100

1._10x 10

Direct

Belt

1600

,75

1.20

2.40

1075/970

770-1175

1075-1455

Ball

2100

1_.11x 10

1,..10 x 10

1_.10x 10

Direct

Belt

2000

1,20

1.30/2.40"*

2,90

1075/1040

900-1300

1300-1685

Ball

2100

Motor Pulley Pitch Diameter Min/Max (in.) Std

Nominal Motor Shaft Diameter (in,)

Fan Pulley Pitch Diameter (in.)

Belt, Quantity..,Type..,Length (in,)

Pulley Center Line Distance (in.)

Speed Change per Full Turn of

Movable Pulley Flange (rpm)

Movable Pulley Maximum Full Turns

From Closed Position

Factory Setting

Factory Speed Setting (rpm)

Fan Shaft Diameter at Pulley (in.)

LEGEND

AI -- Aluminum

Bhp -- Brake Horsepower

Cu -- Copper

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

1,9/2.9

2,8/3.8

5/8

4,5

1...A,..36

1...A,..39

10,0-12.4

31/2

829

1233

s/8

*Evaporator coil fin material/condenser coil fin material, Contact your local

Carrier representative for details about coated fins,

tWeight of 14-in. roof curb.

**Single phase/three-phase.

ttRollout switch lockout is manually reset by interrupting power to unit or

resetting thermostat,

IN8TMG,TMH, and TMK units are California compliant three-phase high heat

models,

1,9/2.9

2,8/3.8

1/2

5/s

4,0

4,5

1...A-.36

1...A-.39

10.0-12,4

31/2

932

1233

s/8

2.8/3.8

3.4/4,4

1/2

s/8

7/s

5.5

4.5

1...A.-40

14.7-15,5

31/2

1100

1416

s/s

1._10x 10

Belt

2100

2,40

2,90

1070-1460

1300-1685

Ball

2100

2.8/3,8

3.4/4,4

s/8

7/8

4.5

1,.,A._39

1,.,A..,40

14,7-15.5

3d2

1225

1416

***Three-phase standard models have heating input values as shown. Single-

phase standard models have one-stage heating with heating input values

as follows:

48TFF, TMF004- 115,000 Btuh

48TFF, TMF005,006- 150,000 Btuh

ttl-California SCAQMD compliant Low NOx models have combustion prod-

ucts that are controlled to 40 nanograms per joule or less.

']]Steady State Efficiency is 80% on all units except 48TMK004, which is

81%.

NOTE: High-static motor not available on single-phase units,

Table 1B -- Physical Data -- 48TM004-007 (cent)

48TM UNIT SIZE

FURNACE SECTION

Rollout Switch Cutout

Temp (F)tt

Burner Orifice Diameter

(in, ...drill size)

Natural Gas

Liquid Propane

Thermostat Heat Anticipator

Setting (amps)

208/230 v and 575 Stage 1

Stage 2

460 v Stage 1

Stage 2

Gas Input (Btuh) Standard Units

(Stage l/Stage 2)

EIWHIK/M/NO04

195

D/E/FIGIHIK/L/M/NO05 D/EIFIG/H/K]LIM/NO06

No NOx Units

Low NOx Units

Efficiency (Steady

State) (%)

Temperature Rise Range

Manifold Pressure (in. wg)

Natural Gas Std

Liquid Propane AIt

Gas Valve Quantity

Gas Valve Pressure Range

Std TMD/GII

TME/HII .113...33

TM F/KII .113...33

TML

TMM .102.-38

TMN .102...38

AIt TMD/GII

TME/HII .089...43

TMF/KII .089.-43

.14

TMD

TME --/74,000

TMF*** 82,000/115,000

195

.113...33

.113.-33

.129...30

.102...38

.102.-38

.116...32

.089...43

.104.-37

195

.113...33

.129.-30

.102.-38

.102-.38

.116...32

.089...43

.104-.37

TMGII

TMHII 72,000

TMKII 115,000

TMLttt

TMMttt 60,000

TMNttt 90.000

80¶

TMD/GII

TME/HII 25-55

TMF/KII 55-85

TML

TMM 20-50

TMN 30-60

3.5

.14

--_4,000

.14

--/74,000

--/115,000

120,000/150,000

7_+3

22_+7

72,000

115,000

150,000

60,000

90,000

120,000

25-55

35-65

50-80

20-50

30-60

40-70

3.5

0.180-0.487

5.0-13.5

Psig

in. wg

Field Gas Connection

Size (in,)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor

Internal Relief (Differential)

Cutout

Reset (Auto.)

LOW-PRESSURE SWITCH (psig)

Cutout

Reset (Auto.)

FREEZE PROTECTION

THERMOSTAT (F)

Opens

Closes

OUTDOOR-AIR INLET SCREENS

RETURN-AIR FILTERS

Quantity.,.Size (in.)

LEGEND

AI -- Aluminum

Bhp -- Brake Horsepower

Cu -- Copper

*Evaporator coil fin material/condenser coil fin material. Contact your local

Carrier representative for details about coated fins.

tWeight of 14-in. roof curb.

**Single phase/three-phase.

ttRollout switch lockout is manually reset by interrupting power to unit or

resetting thermostat.

0.180-0.487

5.0-13.5

450 _+50

428

320

--/115,000

120,000/150,000

72,000

115,000

150,000

60,000

90,000

120,000

25-55

35-85

50-80

20-50

30-60

40-70

3.5

0.180-0.487

5.0-13.5

30_+5

45_+5

Cleanable. Screen size and quantity varies by option selected.

Throwaway

2...16 x 25 x 2

D/E/F007

195

.113-.33

.113...33

.129-.30

.089...43

.104...37

.14

--/74,000

--/115,000

120,000/150,000

28-55

35-65

50-80

3.5

0.180-0.487

5.0-13.5

500 _+50

428

320

1148TMG,TMH, and TMK units are California compliant three-phase high heat

models.

***Three-phase standard models have heating input values as shown. Single-

phase standard high heat models have one-stage heating with heating

input values as follows:

48TFF, TMFO04 -- 115,000 Btuh

48TFF, TMFO05,006 -- 150,000 Btuh

tttCalifornia SCAQMD compliant Low NO× models have combustion prod-

ucts that are controlled to 40 nanograms per joule or less.

¶Steady State Efficiency is 80% on all units except 48TMKO04, which is

81%.

NOTE: High-static motor not available on single-phase units.

<.o

5TD. UNit ECONOMHGERI_ VERT. ECONN (A) (B) (C) (D)

UNIT WEIGHT WEIGHT W/ P.E. WEIGH1 CORNER WEIGHT CORNER WEIGHT CORNER WEIGHT CORNER WEIGHT

LB KG LB KG LB KG LB KG LB KG LB KG LB KG

48T 004 460 209 BO 22.7 BO 40.9 140 63.5 105 47. B 15B 72.1 56 25.4

48T 005 470 213 142 84.4 106 48.1 162 73.5 60 27.2

48T BOB 490 222 lSO 58.0 ll5 52.2 1CO 72.5 55 29.5

4BTF_O07 565 258 185 74.8 138 81 . 7 200 90.7 84 29.0

NOTES=

1. DIMENSIONS iN [ ] ARE IN MILLIMETERS.

2. _CENTER OF GRAVITY.

3. _ D[RECT[QN OF AIR FLOW.

4. ON VERTICAL DISCHARGE UNITS, DUCTWORK TO BE ATTACHED

TO ACCESSORY ROOF CURB ONLY. FOR HORIZONTAL DISCHARGE

UNITS FIELD SUPPLIED FLANGES 5WQULD BE ATTACHED TO

HORIZONTAL DISCHARGE OPENINGS, AND ALL DUCTWORK SHOULD

BE ATTACHED TO THE FLANGES.

5. MINIMUM CLEARANCE (LOCAL CODES OR JURISDICTION MAY CORNER

PREVAIL)= "A" k

o. BETWEEN UNIT, FLUE SIDE AND COMBUSTIBLE SURFACES, \

38 IN., 18 iN. WHEN USING ACCESSORY FLUE DISCHARGE DEFLECTOR. N

TLEFT

GREATER CLEARANCE [5 OPTIONAL. ISIDE

BOTTOM POWER CHART: SIZES

"A" THESE HOLES RED'D FOR USE

PANEL LENGTH DIA, [51] POWER SUPPLY KNOCK OUT

•]O 3/8" EBBS.Q3

• 10 3/8" [568.03

I' O 3/8" [315.03

1' 0 3/8" [315.03

OUTSIDE A[R_ FILTER ACCESS PANEL

REAR

POWER EXHAUST

3" 1 1/2"_ O" 4 1/2"

[952.5] _ECONOMISER_HOOD _ /FEl 14] l BLOCKOFF

CONDENSER COIL PANEL

COMPRESSOR

ACCE55 COVER l" S 1/4" [438]

F/ ECOiOMI_ERN VIEW 5

_8 SEE NOTE _8, CORNER "B'. _(_)0 " " p._i} -

f- " _O' 3 3/15"

/_ _ [B1 ]

\ , 0.,o,

II I RETURN AIR OPEN;N G 1 B/IS" <_1 RETURN A;R

I VEBTICALI (27B O'BBZB"

IIK _ ?J /) I _ {E137_RIGHT SIDE

E I o'2Bw'B'(GS

ALT CONDENSATE

II O" 5 3X4" DRAIN OPENING

2" O 1/4" [147] IIN BASEPAN /ISUPPLYAIRI 1" 5 3/4" _ SUPPLY 1'6 1/2"

_ _18] _ L_ I EVAPORATOR , OPENING I [451] rd!'Zd!/_Y AIR rl [470]

_I I COIL VERTICAL IP 7_F_ J1_

o _<Z_o_ _ I _ (_B_ L__

O" B 3/4" [2901 I [BBI4] 38

EBSIO]

BEE BOTTOM POWER I If _D_MT I I I_"-"--_ _ /_/'

CHART (ELEC. ONLY) I1_ IRWIn/ /16,[llIl]

I0"3 I/IG'_ LI" 0 IWlG_ LO" 3 3/18°--/_'6-"-_CORNER "C" 0" 7 IX4"

_[184] _ ECONOMISER IV

2" 11 11w15" _ [78] [306] IE3_] _ ,' VERTICAL

[BOB] 6" 1 11116" ] 1' 5 5118" D' 10 13/16" O" 4 1/1G"

[1872] _ 0" 0 3/8" r [43B'7_ _[103.2] W/ POWER EXHAUBT

_ ElI I I

, II:I I

1" 5 liB" 2' 111/1@"

CONTROL BOX/ E4BO] It U --T _ EgS2.S]

BURNER ACCESS _l_l INDOOR FAN MOTOR _" I __I

PANEL BLOWER ACCESS PANEL i_ HORI

nil II _l Kh ZBNTAL

I II I II o' _ 7/a'l 5UPPLYAIR L7" 4"

O' 4 B/1B" 30' 6 III OPENING KII

(lO8s_J _ II II ol I HORIZONTAL_ (_,4_

• 11 lJ

_2 ._5 3_8" t FOR) TRUCK SLOTS /0" S3/4" _" 1 15/1

....... o-B_x,_- /,,4B_ 4_ ,BBB.B, "-G11144.BX,G"

BURNER ACCESS [214] O" 2 IW4"DIA OUT_]DE 5_PPLY AIR RETURN AIR BAROMETRIC RELIEF DISCHARGE

[57] OF PANEL

PANEL FRONT (TYP8 PLACES) R IGHT S IDE ESTD.CONDENSATEDRAIN

b. BOTTOM OF UNIT TO COMBUSTIBLE SURFACES (WHEN NOT USING

CURB) ] INCH. BOTTOM OF BASE RAIL TO COMBUSTIBLE

SURFACES (WHEN NOT USING CURB) 0 INCHES.

c. CONDENSER COIL, FOR PROPER AiR FLOW, 35 INCHES

ONE SIDE, 12 INCHES THE OTHER, THE SIDE GETTING THE

d. OVERHEAD, BO INCHES TO ASSURE PROPER CONDENSER FAN

OPERATION.

e. BETWEEN UNITS, CONTROL BOX SIDE, 42 iN. PER NEC.

F. BETWEEN UNiT AND UNGROUNDED SURFACES, CONTROL BOX

BIDE, BB IN. PER NEC.

3" BETWEEN UNIT AND BLOCK OR CONCRETE WALLS AND OTHER

GROUNDED SURFACES, CONTROL BOX SIDE, 42 IN. PER NEC.

h. HORIZONTAL SUPPLY AND RETURN END, 0 INCHES WHEN THE

ALTERNATE CONDENSATE DRAIN IS USED.

5. WITH THE EXCEPTION OF THE CLEARANCE FOR THE CONDENSER

COIL AND COMBU5TION 5IDE A5 5TATEO IN NOTE _5a, b,

AND c, A REMOVABLE FENCE OR BARRICADE REQUIRES NO

CLEARANCE.

7. UNITS MAY BE INSTALLED ON COMBUSTIBLE FLOORS MADE

FROM WOOD OR CLASS A, B, OR C ROOF COVERING MATERIAL

IF SET ON BASERAIL.

3" B"

THE VERTICAL CENTER OF GRAVITY [5 1" B'[457] UP FROM CORNER "O "/_-

THE BOTTOM QF THE BASE RAIL.

ELECTRICAL CORNER "D"

DISCONNECT _LOCATION

2' B 5/18"

EB4B. 5]

FLUE HOOD

1' 4 5116"

[414.5]

O" 4 8/16 1 0_2"2 3' S 3/18"[115.8] TYP [1046]

9/15"

[G5] LEFT SIDE

O" 6 5/8"

[18812]

Fig. 6A -- Base Unit Dimensions -- 48TF,TM004-006 and 48TF007

UNIT

48TM_007

NOTES=

DIMENSIONS IN [ ] ARE IN MILLIMETERS.

_CENTER OF GRAVITY.

DIRECTION OF AIR FLOW.

ON VERTICAL DISCHARGE UNITS, DUCTWORK TO BE ATTACHED

TO ACCESSORY ROOF CURB ONLY. FOR HORIZONTAL DISCHARGE

UNITS FIELD SUPPLIED FLANGES SHOULD BE ATTACHED TO

HORIZONTAL DISCHARGE OPENINGS, AND ALL OUCTWORK SHOULD

BE ATTACHED TO THE FLANGES.

REAR

FILTER/ECBNOMIZERIcoNDENSER8CoILACCESS PANEL_

BOTTOM POWER CHART:

THE5E HOLE5 REQ'D FOR U5E

WITH ACCESSORY PACKAGES

CRBTMPWROO1A01, 2AOl, 3A01, OR 4AOl

THREADED WIRE REQ'D HOLE

CONDUIT SIZE USE SIZES (MAX.)

1/2" ACC. 7/8"[22.2]

1/2" 24V 7/8"[22.2]

3/4" (001,003) _OWER_ 1/8"E28.43

1/4" (O02,004)_OWER_ 3/4"[44,43

(003) 1/2"FPT GAS 1/4"[31183

(DISPOSABLE FILTERS)

I BLOCKOFF

l" S l/4" [438] PANEL

FOR ECSNOMISER IV

CONNECTION SIZES

1 3/8" DIA. [35] FIELD POWER SUPPLY HOLE

CORNER

5. MINIMUM CLEARANCE (LOCAL CODE5 OR JURI5DICTION MAY

PREVAIL) :

o. BETWEEN UNIT, FLUE SIDE AND COMBUSTIBLE SURFACES, l

38 [N.,18 IN. WHEN USING ACCESSORY FLUE DISCHARGE DEFLTR.

b. BOTTOM OF UNIT TO COMBUSTIBLE SURFACES [WHEN NOT USING

CURB) I INCH.

BOTTOM OF BASE RAIL TO COMBUSTIBLE SURFACES (WHEN NOT

USING CURB) 0 INCHES.

e. CONDENSER C8]L, F8R PROPER AIR FLOW, 38 INCHES

ONE 5[DE, 12 INCHES THE OTHER. THE SIDE GETTING THE

CREATER CLEARANCE I5 OPTIONAL.

d. OVERHEAD, SO INCHES TO ASSURE PROPER CONDENSER FAN

OPERATION. 3" B"

e. BETWEEN UNITS, CONTROL BOX SIDE, 42 IN. PER NEC. [1144]

£. BETWEEN UNIT AND UNGROUNDED SURFACES, CONTROL BOX

SIDE, 36 IN. PER NEC.

g' BETWEEN UNIT AND BLOCK OR CONCRETE WALLS AND OTHER

GROUNDED SURFACES, CONTROL 80X SIDE, 42 IN. PER NEC.

h. HORIZONTAL SUPPLY AND RETURN END, O INCHES WHEN THE

ALTERNATE CONDENSATE DRAIN IS USED.

G. WITH THE EXCEPTION OF THE CLEARANCE FOR THE CONDENSER

COIL AND COMBUSTION SIDE AS STATED IN NOTE #5o, b,

AND c, A REMOVABLE FENCE OR BARRICADE REQUIRES NO

CLEARANCE.

7. UNITS MAY BE INSTALLED ON COMBUSTIBLE FLOORS MADE

FROM WOOD OR CLASS A, B, OR C ROOF COVERING MATERIAL

[F SET ON BASE RAIL. CORNER

8. THE VERTICAL CENTER OF GRAVITY IS 1" 5"[457] UP FROM

FROM THE BOTTOM OF THE BASE RAIL. r o 43z,8

FACTORY 5UPPLIED

FLUE HOOD

cf_

EVAPORATOR I

COIL RETURN AIR OPENING

VERTICAL

' E) I----i

_0,33z_- RIGHT SIDE

[81]

O" I0 IS/IB" _._____ RETURN AIR

[278]

O' 5 3/8"

_ F[137]

_O' 2 8Z15"

2"11[BOB]

3" O"

[814]

ALT. CONDENSATE

_DRAIN OPENING

IN BASEPAN

15/18"

[48]

O" 3 5/18"

E98.4]

FRONT

O" 31/15"

[78]

G" 1 ll/1G"

[1872]

SUPPLY AIRI

OPENING

I VERTICAL I

j" 0 1/

[305]

[85]

l" 5 3/4"

[4Sl]

O' S 7/15"

[138]

"C"

_EB1]

1" 55/15"

[438.7]

O' 0 3/8"

VIEW S S

SUPPLY AIR _, [470] _1'81/2"

1' 8 l_ A

1/4" [514] /

_ Z O" 0 7/16"[11.1]

O' 7 1/4" L

[IB4] _ ECONOMISER IV

13/IE" O' 4 1/18"

W/ POWER EXHAUST

CONTROL BOX/COMPRESSOR/

BURNER ACCESS

PANEL 2' 1 11/15"

0'49/161 0_0- 2" 2

[115.83 TYP 3" 53/15"_

8/18" [1045] _ ELECTRICAL

EE5)LEFT SIDE OIBCONNECTLocATION

1" 4 5/16"

[414.5]

O" 5 5/8"

[158.2]

2' 53/8

[74G.2]

INDOOR FAN MOTOR

BLOWER ACCESS PANEL

8s/ s-

[81.0] I" 2 7/8"

,[378. G]

l eC

7/18.FORK TRUCK SLOTS O" 5 3/4"

O" 8 El 46]

[214] O" 2 1/4"D]A

[57]

FRONT (TYPB PLACES)

\1 HOR]

IIi \h ZONTAL

III SUPPLY AIR Nil 7"

OPENING

III HORIZONTAL lh

II! lh(

OUT SUPPLY AIR

OF PANEL RIGHT SIDE

[552.5]

RETURN AIR

1' 8 1/4" [514]

OUTSIDE AIR v

O" 0 7/8"

O" S11/18"

044.33

BAROMETRIC RELIEF DISCHARGE

E STD. CONDENSATE DRAIN

Fig. 6B -- Base Unit Dimensions -- 48TM007

Do not install unit in an indoor location. Do not locate unit

air inlets near exhaust vents or other sources of contalninated

all:

Be sure that unit is installed such that snow will not block

the combustion intake or flue outlet.

Unit may be installed directly on wood flooring or on

Class A, B, or C roof-covering material when roof curb is used.

Although unit is weatherproof, guard against water fiom

higher level runoff and overhangs.

Flue vent dischaqq, e must have a minimum hoH;ontul clear-

ance qf4 fi,fmm elecTHc and gas mewrs, gas mgulawt:_, and

gas milerequipment.

Minimum distance between unit and other electrically live

parts is 48 inches.

Flue gas can deteriorate building materials. Orient unit

such that flue gas will not affect building materials. Locate

mechanical draft system flue assembly at least 48 in. fiom an

adjacent building or combustible materi_d.

Adequate combustion-air and ventilation-air space must be

provided for proper operation of this equipment. Be sure that

installation complies with all local codes and Section 5.3, Air

for Combustion and Ventilation, NFGC (National Fuel Gas

Code), and ANSI (American National Stan&rds Institute)

Z223.1, and NFPA (National File Protection Association)

54 TIA-54-84-1. In Cana&t, installation must be in accordance

with the CANI-BI49 inst_dlation codes for gas burning

appliances.

After unit is in position, remove rigging skids and shipping

materials.

Step 5 -- Install Flue Hood -- Flue hood is shipped

screwed to the basepan beside the burner compmlment access

panel. Remove from shipping location and using screws pro-

vide& install flue hood and screen in location shown in Fig. 7.

FLUE OPENING

Fig. 7 -- Flue Hood Details

BLOWER

ACCESS

PANEL

Step 6 -- Install Gas Piping -- Unit is equipped for

use with type of gas shown on nameplate. Refer to local build-

ing codes, or in the absence of local codes, to ANSI Z223.1

entitled National Fuel Gas Code. In Cana&t, installation must

be in accordance with the CANI.BI49A and CANI.BI49.2

installation codes for gas burning appliances.

For natural gas applications, gas pressuw at unit gas con-

nection must not be less titan 4 in. wg or greaWr than

13.0 in. wg while unit is operating. On 48TF005,006,007 high

heat units, the gas pressure at unit gas connection must not be

less than 5 in. wg or greater than 13 in. wg while the unit is

operating. For propane applications, the gas pressure must not

be less than 5 in. wg or greater than 13 in. wg at the unit

connection.

Size gas supply piping .fbr 0.5 in. wg maximum pressure

drop. Do not use supply pipe smNler titan unit gas connection.

Support gas piping as shown in the table in Fig. 8. For exam-

ple, a 3h-in. gas pipe must have one field-fabricated support

beam every 8 ft. Therefore, an 18-1l long gas pipe would have a

minimum of 2 support beams, a 48-ft long pipe would have a

minimum of 6 support beams.

See Fig. 8 for typical pipe guide and locations of external

manual main shutoff valve.

When connecting the gas line to the unit gas valve, the

installer MUST use a backup wrench to prevent damage to

the v_flve.

,-, X

9" MINIMUM CLEARANCE

l_ FOR PANEL REMOVAL

MANUALGAS.GAS I

,i SHUTOFF VALVE REGULATOR*]

BASE UNIT =o=================o==o==

-._--_ 48" MINIM UM Illll li

/DRIP LEG PER NFGC !

BASE RAIL -'*'" ROOF CURB

FIELD-FABRICATED

SUPPORT*

FROM GAS METER

LEGEND

NFGC -- National Fuel Gas Code

*Field supplied.

NOTE: Follow all local codes.

SPACING OF SUPPORTS

STEEL PIPE X

NOMINAL DIAMETER DIMENSIONS

(in.) (feet)

V2 6

314or 1 8

1V4 or larger 10

Fig. 8 -- Gas Piping Guide (With Accessory

Thru-the-Curb Service Connections)

Step 7 -- Make Electrical Connections

Unit cabinet must have tin uninterrupted, unbroken electri-

cal ground to minimize the possibility of persomd injury if

an electrical fault should occm: This ground may consist of

electrical wire connected to unit ground lug in control com-

ptu-tment, or conduit approved for electrical ground when

insttdled in accordance with NEC (National Electrical

Code), ANSI/NFPA, latest edition, and local electrical

codes. Do not use gas piping as an electrical ground. Fail-

ure to follow this warning could result in the installer being

liable for personal injury of others.

FIELD POWER SUPPLY -- All units except 208/230-v

units are factory wired for the voltage shown on the nameplate.

If the 208/230-v unit is to be connected to a 208-v power sup-

p13; the tran_fin'mer must be rewired by moving the black wire

with the//4-in, fi, male .s)ga_e connecwr fi'om the 230-volt _on-

nection and moving to the 200-volt l/4-in, mule terminal on the

prima 0" sMe of the tran@n'mel:

Refer to unit label diagrmn for additional information. Pig-

tails are provided for field wire connections. Use factory-

supplied splices or UL (Underwriters' Laboratories) approved

copper/aluminum connector

When installing units, proffde a dis_ onnect per the NEC.

All .field wiring must comply with NEC and lotzd

requirements.

Install field wiring as follows:

1. Install conduit through side panel openings. Install con-

duit between disconnect and control box.

2. Install power lines to terminal connections as shown in

Fig. 9.

Voltage to compressor terminals during operation must be

within voltage range indicated on unit nameplate (see Tables 2A

and 2B). On 3-phase units, voltages between phases must be

bahmced within 2% and the currant within 10%. Use the formu-

la shown in the legend for Tables 2A and 2B, Note 2 to deter-

mine the percent of voltage imbalance. Operation on improper

line voltage or excessive phase imbalance constitutes abuse and

may cause dmnage to electrictd components. Such operation

would invali&tte any applicable Carrier wammty.

FIELD CONTROL WIRING -- Install a Carrier-apl)roved

acc'essoiw thermostat assembly according to installation

instructions included w#h the accessolw Locate thermostat

assembly on a solid wall in the conditione_l space to sense aver-

age temperature in accor&mce with thermostat installation in-

structions. Connect thermostat wires to terminal board.

Route thermostat cable or equivalent single leads of colored

wire from subbase terminals through connector on unit to low-

voltage connections (shown in Fig. 10).

NOTE: For wire runs up 50 ft, use no. 18 AWG (American

Wire Gage) insulated wire (35 C minimum). For 50 to 75 ft,

use no. 16 AWG insulated wire (35 C minimum). For over

75 It, use no. 14 AWG insulated wire (35 C minimum). All

wire larger than no. 18 AWG cannot be directly connected to

the thermostat and will require a junction box and splice tit the

thermostat.

Pass the control wires through the hole provided in the cor-

ner post; then feed wires through the raceway built into the

corner post to the 24-v barrier located on the left side of the

control box. See Fig. 11. The raceway provides the UL

required clearance between high and low-voltage wiring.

HEAT ANTICIPATOR SETTINGS -- Set heat anticipator

settings tit 0.14 amp for the first stage and 0.14 amp for second-

stage heating, when available.

FIELD_W_'.suPP,_

r'DISCONNECT I

I PER NEC j

208/230-1-60

LEGEND

C-- Contactor

COMP -- Compressor

IFC -- Indoor-Fan Contactor

NEC -- National Electrical Code

TB -- Terminal Block

BLK TO COMP

FI ELD POWER SUPPLY

__ .LJ.,L.__

Ir-'DISCONN ECT-I

tPER N ECC__J

208/230-3-60

460-3-60

(SIZE 007 ONLY)

Fig. 9 -- Power Wiring Connections

z_--_BLU'--------_ TO

TB2

FIELD POWER SUPPLY

-L- ____L

F DISCONNECT ]

[ PER NEC j

575-3-60

(SIZE 007 ONLY)

-BLK--

BLU-------4 cTOMp

FIELD POWER SUPPLY

..L.. __L_

r I

I DISCONNECT I

PER NEC I

208/230-3-60

575-3-60, 460-3-60

(SIZES 004-006)

LEGEND

C -- Contactor

COMP -- Compressor

IFC -- Indoor-Fan Contactor

NEC -- National Electrical Code

TB -- Terminal Block

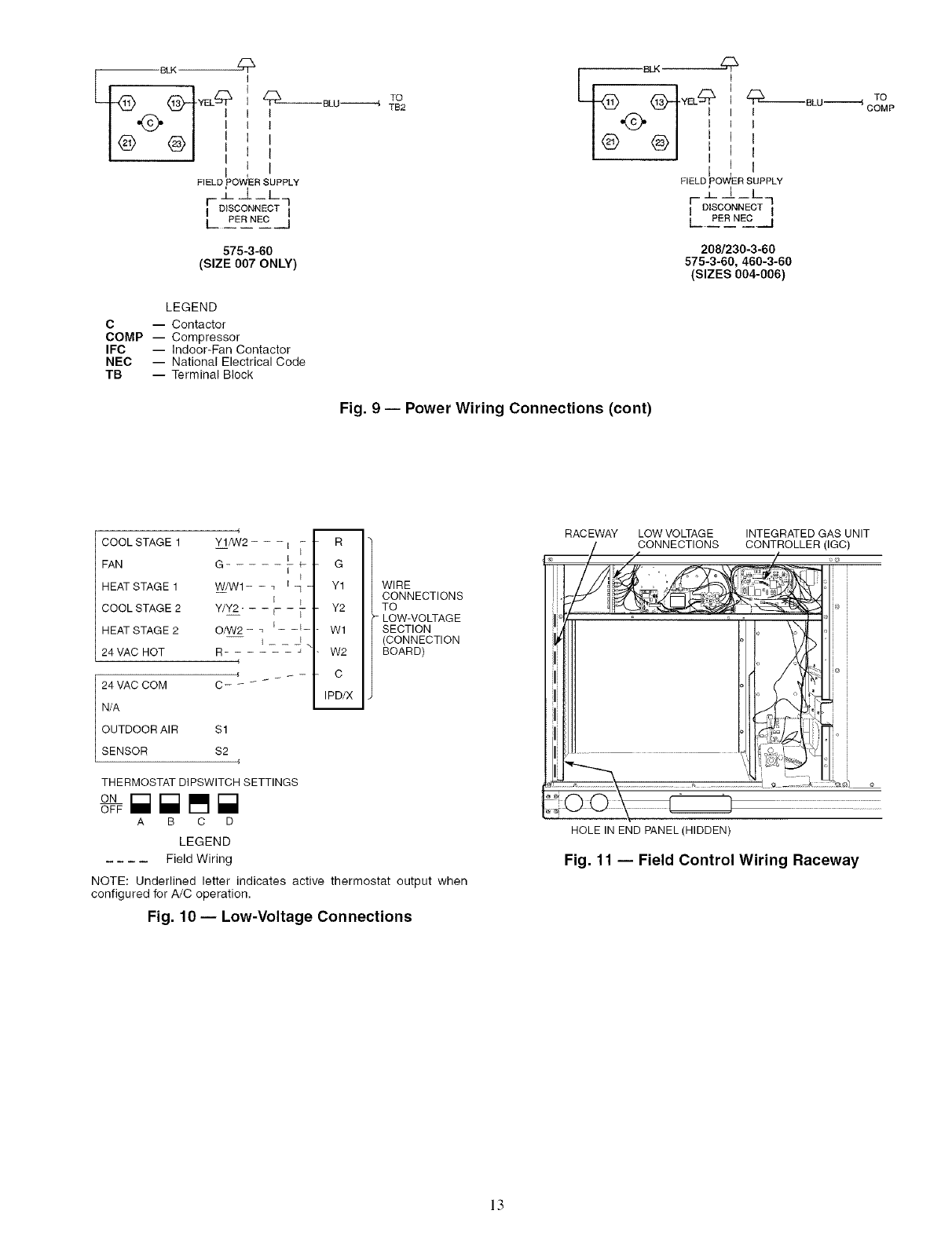

Fig. 9-- Power Wiring Connections (cont)

COOL STAGE 1

FAN

HEAT STAGE 1

COOL STAGE 2

HEAT STAGE 2

24 VAC HOT

24 VAC COM

N/A

Y1/W2- - -I [- - R /

W/W1- - _ I q _ Y1 WIRE

i _ CONNECTIONS

Y/Y2- - - F - _- - Y2 TO

LOW-VOLTAGE

O/W2- _ I_ _1_ _Wl SECTION

-- i _ I (CONNECTION

R= -_3 _ , W2 BOARD)

IPD/X

OUTDOOR AIR Sl

SENSOR S2

THERMOSTAT DIPSWITCH SETTINGS

A B C D

LEGEND

Field Wiring

NOTE: Underlined letter indicates active thermostat output when

configured for A/C operation.

Fig. 10- Low-Voltage Connections

RACEWAY LOW VOLTAGE

CONNECTIONS INTEGRATED GAS UNIT

CONTROLLER (IGC)

_"--m

HOLE IN END PANEL (HIDDEN)

Fig. 11 -- Field Control Wiring Raceway

Table 2A -- Electrical Data (Without Convenience Outlet)

UNIT

48TF,TM004

(3 Tons)

48TF,TM005

(4 Tons)

48TF,TM006

(5 Tons)

48TF007

(0 Tons)

48TM007

(6 Tons)

NOMINAL

VOLTAGE

208/230-1-60

208/230-3-60

460-3-60

575-3-60

208/230-1-60

208/230=3-60

460-3-60

575-3-60

208/230-1-60

208/230-3-60

460-3-60

575-3-60

208/230=3-60

460-3-60

575-3-60

208/230-3-60

460-8-60

575-8-60

VOLTAGE COMPR OFM COMBUSTION

IFM RANGE (ea) (ea) IFM

TYPE FAN MOTOR

MIn Max RLA LRA Hp FLA FLA FLA

Std 3.5

187 254 16.2 96.0 V4 1.4 .6

AIt 4.9

Std 3.6

AIt 187 264 10.2 75.0 V4 1.4 4.9 .6

High 5.2

Std 1.3

AIt 414 508 4.4 40.0 V4 0.8 2.1 .3

High 2.6

Std 1.3

AIt 518 632 8.7 31.0 V4 0.8 2.1 .3

High 2.6

Std 3.6

187 264 23.3 118,0 V4 1.4 .6

AIt 4.9

Std 3.6

AIt 187 264 15.4 90.0 V4 1.4 4.9 .6

High 5.2

Std 1.8

AIt 414 508 8.3 45.0 V4 0.8 2.1 .3

High 2.6

Std 1.8

AIt 518 632 6.4 86.0 V4 0.8 2.1 .3

High 2.6

Std 5.9

187 264 28.8 147,0 V4 1.4 .6

AIt 6.6

Std 5.9

AIt 187 264 16.0 114,0 V4 1.4 5.2 .6

High 7.6

Std 3.1

AIt 414 508 7.4 64.0 V4 0.8 2.6 .3

High 3.4

Std 3.1

AIt 518 632 6.2 52.0 V4 0.8 2.6 .3

High 3.4

Std 5.2

187 254 20.6 146.0 V4 1.4 .6

High 7.5

S'td 2.6

414 508 9.5 73.0 V4 0.9 .3

High 3.4

Std 2.6

518 632 7.6 58.4 V4 0.6 .3

High 3.4

Std 5.2

187 254 20.6 146.0 V4 1.4 .6

High 7.5

Std 2.6

414 508 9.5 73.0 V4 0.9 .3

High 3.4

Std 2.6

518 632 7.6 58.4 V4 0.6 .3

High 3.4

POWER SUPPLY DISCONNECT

SIZE*

MCA MOCPt FLA LRA

25.2/25.2 30/80 24/24 106/106

26.6/26.6 35/85 26/26 111/111

17.7/17.7 25/25 17/17 85/ 85

19.1/19.1 25/25 19/19 90/ 90

19.4/19.4 25/25 19/19 109/109

7.6 15 7 44

8.4 15 8 48

8.9 15 9 57

5.5 15 6 35

6.0 15 7 37

6.3 15 7 56

34.0/34.0 40/40 32/32 129/129

35.4/35.4 45/45 34/34 133/133

24.2/24.2 30/30 23/23 101/101

25.6/25.6 30/30 25/25 105/105

25.9/25.9 30/30 25/25 124/124

13.0 20 13 51

13.3 20 13 53

13.8 20 13 62

9.2 15 10 41

9.3 15 10 42

9.7 15 10 49

43.3/43.3 60/60 42/42 161/161

44.0/44.0 60/60 42/42 184/184

27.3/27.3 35/35 27/27 128/128

26.6/26.6 35/35 26/26 148/148

28.9/28.9 35/35 29/29 174/174

13.2 20 13 71

13.5 20 13 81

13.5 20 13 93

9.7 15 11 58

9.9 15 11 65

9.9 15 11 76

32.4/32.4 40/40 31/31 180/180

34.7/34.7 40/40 34/34 205/205

15.4 20 15 90

16.2 20 16 103

11.4 15 12 75

11.9 15 13 86

32.4/32.4 40/40 31/31 180/180

34.7/34.7 40/40 34/34 205/205

15.4 20 15 90

16.2 20 16 103

11.4 15 12 79

11.9 15 13 86

LEGEND

FLA -- Full Load Amps

HACR -- Heating, Air Conditioning and Refrigeration

IFM -- Indoor (Evaporator) Fan Motor

LRA -- Locked Rotor Amps C@

MCA -- Minir'aum Circuit Amps

MOCP -- Maxir'aum Overcurrent Protection

NEC -- National Electrical Code

OFM -- Outdoor (Cond ...... ) Far, Motor ..__

RLA -- Rated Load Amps

*Used to determine minimur'a disconnect per NEC.

tFuse or HAOR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equipment

(refer to NEC Articles 430 and 440), the overcurrent protective device k)r the unit shall

be fuse or HAOR breaker. Canadian units may be fuse or circuit breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor w6ere a phase imbalance in supply voltage is greater than 2%.

Use the following formula to determine the percent of voltage imbalance.

% Voltage Imbalance

= 100 x max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60.

AB = 452 v

AB C BC =464v

AC = 455 v

Average Voltage = 462 + 464 + 455

1371

= 457

Determine r'aaximum deviation from average voltage.

(AB) 457 - 452 = 5 v

(BC) 464 - 457 = 7 v

(AC) 457 - 455 = 2 v

Maxir'aum deviation is 7 v.

Detemline percent of voltage imbalance.

% Voltage Imbalance = 100 x -- 457

= 1.53%

This amount of phase imbalance is satisfactory as it is below the maximum alk)wable

2%.

IIMPORTANT: If the supply voltage phase imbalance is more than 2%, contact I

your local electric utility company immediately. I

3. For units with power exhaust: If a single power source is to be used, size wire to include

power exhaust MCA and MOOR Check MCA and MOCP when power exhaust is pow-

ered through the unit (must be in accordance with NED and/or local codes). Determine

the new MCA including the power exhaust using the following formula:

MCA New = MCA unit only + MCA of Power Exhaust

For example, using a 48TF006---5 unit with MCA = 28.9 and MOCP = 35, with

CRPWREXH080A00 power exhaust.

MCA New = 28.9 amps + 1.6 amps = 30.5 amps

If the new MCA does not exceed the published MOCP, then MOCP would not change.

The MOOP in this example is 35 amps, the MCA New is below 35, therefore the MOCP

is acceptable. If "MCA New" is larger than the published MOOP, raise the MOCP to the

next larger size. For separate power, the MOCP for the power exhaust will be 15 amps

per NEC.

MOCP

POWER EXHAUST MCA MCA MCA (for separate

PART NO. (230 v) (460 v) (575 v) power source)

CRPWREXH030AO0 1.6 N/A 0.64 15

CRPWBEXH021AO0 N/A 0.9 N/A 15

CRPWREXH022A00 3.3 N/A 1.32 15

CRPWREXH023A00 N/A 1.8 N/A 15

CRPWREXH028A00 1.7 N/A 0.08 15

CRPWREXH029A00 N/A 1.0 N/A 15

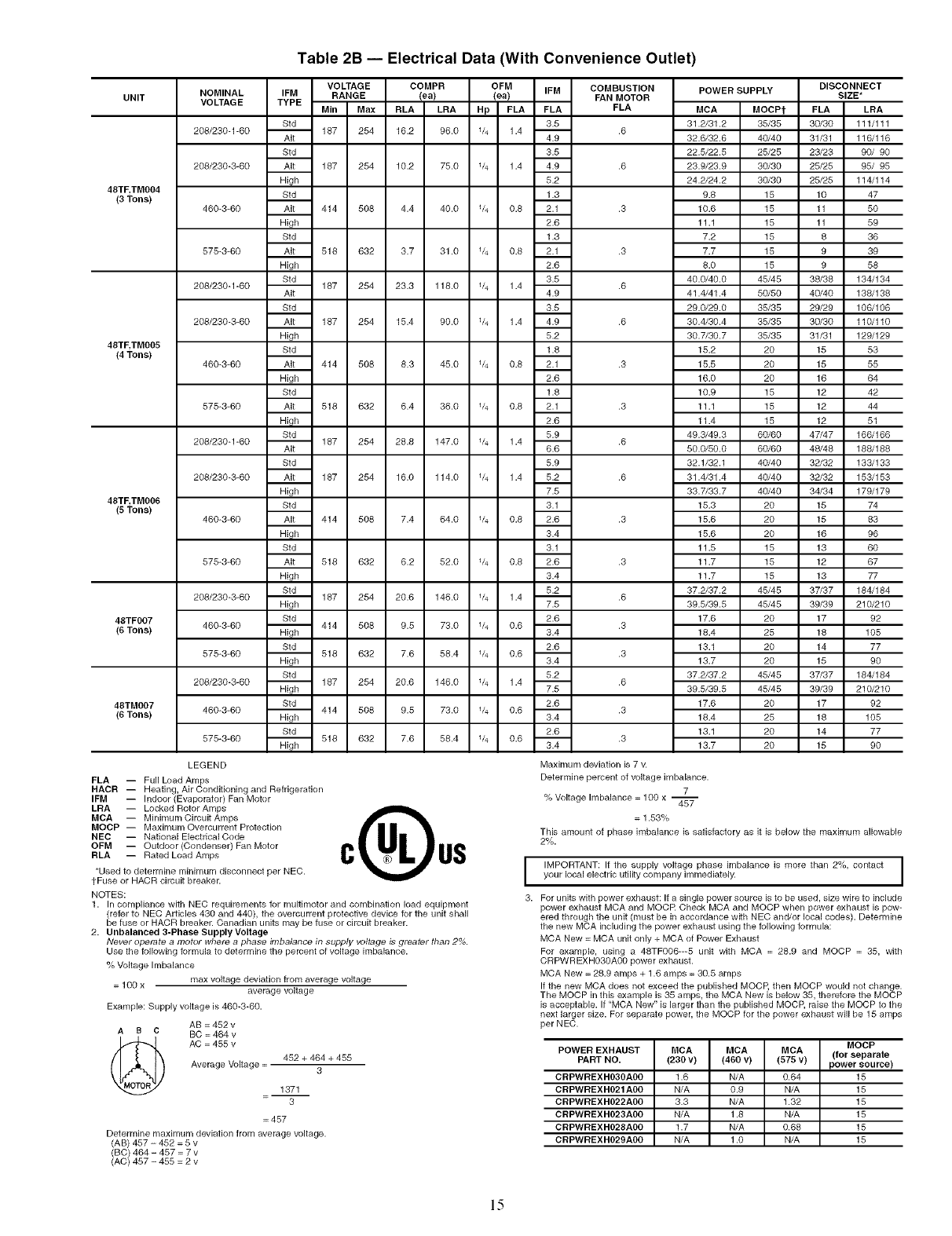

Table 2B -- Electrical Data (With Convenience Outlet)

UNIT

48TF, TM004

(3 Tons)

48TF, TM005

(4 Tons)

48TF, TM006

(5 Tons)

48TF007

(6 Tons)

46TM007

(6 Tons)

NOMINAL

VOLTAGE

208/230-1-60

208/230-3-60

460-3-60

575-3-60

208/230-1-60

208/230-3=60

460-3-60

575-3-60

208/230-1-60

208/230-3=60

460-3-80

575-3-60

High

Std

208/230-3-60 187 254 20.6 146.0 l& 1.4

High

Std

460-3-60 414 508 9.5 73.0 l& 0.6

High

Std

575-3-60 518 632 7.6 58.4 l& 0.6

High

Std

208/230-3-60 187 254 20.6 146.0 l& 1.4

High

Std

460-3-60 414 508 9.5 73.0 l& 0.6

High

Std

575-3-60 518 632 7.6 58.4 l& 0.6

High

VOLTAGE COMPR OFM COMBUSTION

IFM RANGE (ea) (ea) IFM

TYPE FAN MOTOR

MIn Max RLA LRA Hp FLA FLA FLA

Std 3.5

187 254 16.2 96.0 1/4 1.4 .6

AIt 4.9

Std 3.5

AIt 187 254 10.2 75.0 1/4 1.4 4.9 .6

High 5.2

Std 1.3

AIt 414 508 4.4 40.0 1/4 0.8 2.1 .3

High 2.6

Std 1.3

AIt 518 632 3.7 31.0 1/4 0.8 2.1 .3

High 2.6

Std 3.5

187 254 23.3 118.0 1/4 1.4 .6

A9 4.9

Std 3.5

AIt 187 254 15.4 90.0 1/4 1.4 4.9 .6

High 5.2

Std 1.8

AIt 414 508 8.3 45.0 1/4 0.8 2.1 .3

High 2.6

Std 1.8

AIt 518 632 6.4 36.0 1/4 0.8 2.1 .3

Hitch 2.6

Std 5.9

187 254 28.8 147.0 1/4 1.4 .6

A9 6.6

Std 5.9

AIt 187 254 16.0 114.0 1/4 1.4 5.2 .6

High 7.5

Std 3.1

AIt 414 508 7.4 64.0 1/4 0.8 2.6 .3

Hitch 3.4

Std 3.1

AIt 518 632 6.2 52.0 1/4 0.8 2.6 .3

3.4

5.2 .6

7.5

2.6 .3

3.4

2.6 .3

3.4

5.2 .6

7.5

2.6 .3

3.4

2.6 .3

3.4

POWER SUPPLY DISCONNECT

SIZE*

MCA MOCPt FLA LRA

31.2/31.2 35/35 30/30 111/111

32.6/32.8 40/40 31/31 116/116

22.5/22.5 25/25 23/23 90/ 90

23.9/23.9 30/30 25/25 95/ 95

24.2/24.2 30/30 25/25 114/114

9.8 15 10 47

10.6 15 11 50

11.1 15 11 59

7.2 15 8 36

7.7 15 9 39

8.0 15 9 58

40.0/40.0 45/45 38/38 134/134

41.4/41.4 50/50 40/40 138/138

29.0/29.0 35/35 29/29 106/106

30.4/30.4 35/35 30/30 110/110

30.7/30.7 35/35 31/31 129/129

15.2 20 15 53

15.5 20 15 55

16.0 20 16 64

10.9 15 12 42

11.1 15 12 44

11.4 15 12 51

49.3/49.3 60/60 47/47 166/166

50.0/50.0 60/60 48/48 188/188

32.1/32.1 40/40 32/32 133/133

31.4/31.4 40/40 32/32 153/153

33.7/33.7 40/40 34/34 179/179

15.3 20 15 74

15.6 20 15 83

15.6 20 16 96

11.5 15 13 60

11.7 15 12 67

11.7 15 13 77

37.2/37.2 45/45 37/37 184/184

39.5/39.5 45/45 39/39 210/210

17.6 20 17 92

18.4 25 18 105

13.1 20 14 77

13.7 20 15 90

37.2/37.2 45/45 37/37 184/184

39.5/39.5 45/45 39/39 210/210

17.6 20 17 92

18.4 25 18 105

13.1 20 14 77

13.7 20 15 90

LEGEND

FLA -- Full Load Amps

HACR -- Heating, AirConditionb_gandRefrigeratk)n

IFM -- Indoor (Evaporator) Fan Mok)r

LRA -- Locked Rotor Amps C@

MCA -- Minimum Circuit Amps

MOCP -- Maximum Overcurrent Protection

NEC -- National ElectricaICode

OFM -- Outdoor (Cond ...... ) Fan Motor II II1[=1,

RLA -- Rated Load Amps UO

*Used to detemline minimum disconnect per NEC.

tFuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for mugimotor and combination load equipment

(refer to NEC Articles 430 and 440), the overcurrent protective device for the unit shall

be fuse or HACR breaker. Canadian units may be fuse or circuit breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than 2%.

Use the following formula to determine the percent of vogage imbalance.

% Voltage Imbalance

= 100 x max vogage deviation from average vogage

average voltage

Example: Supply vogage is 480-3-60.

AB = 452 v

A8 C BC =464 v

AC = 456 v

Average Voltage = 452 + 464 + 456

1371

= 457

Determine maximum deviation from average w)gage.

(AB) 457 - 452 = 5 v

(BC) 464 - 457 = 7 v

(AC) 457 - 455 = 2 v

Maximum deviation is 7 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x 45"_"

= 1.53%

This amount o1 phase imbalance is satisfactory as it is below the maximum allowable

2%.

I IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact I

your local electric utility company immediately. I

3. For units with power exhaust: If a single power source is to be used, size wire to include

power exhaust MCA and MOOR Check MCA and MOCP when power exhaust is pow-

ered through the unit (must be in accordance with NEC and/or local codes). Determine

the new MCA including the power exhaust using the foflowing formula:

MCA New = MCA unit only + MCA of Power Exhaust

For example, using a 48TF006-=-5 unit with MCA = 28.9 and MOCP = 35, with

CRPWREXH030A00 power exhaust.

MCA New = 28.9 amps + 1.6 amps = 30.5 amps

If the new MCA does not exceed the published MOOP, then MOCP would not change.

The MOCP in this example is 35 amps, the MCA New is below 35, therefore the MOCP

is acceptable. If "MCA New" is larger than the published MOCP, raise the MOCP to the

next larger size. For separate power, the MOCP for the power exhaust will be 15 amps

per NEC.

MOCP

POWER EXHAUST MCA MCA MCA (for separate

PART NO. (230 v) (480 v) (575 v) power source)

CRPWREXH030A00 1.6 N/A 0.64 15

CRPWREXH021A00 N/A 0.9 N/A 15

CRPWREXH022A00 8.3 N/A 1.32 15

CRPWREXH023A00 N/A 1.8 N/A 15

CRPWREXH028A00 1.7 N/A 0.68 15

CRPWREXH029A00 N/A 1.0 N/A 15

1.5

Step 8 -- Adjust Factory-Installed Options

MANUAL OUTDOOR-AIR DAMPER -- The outdoor-air

hood and screen are attached to the basepan at the bottom of

the unit for shipping.

Assembly5.:

1. Determine quantity of ventilation required for building.

Record amount for use in Step 8.

2. Remove and save outdoor air opening panel and screws.

See Fig. 12.

3. Remove evaporator coil access panel. Separate hood and

screen from basepan by removing the 4 screws securing

them. Save all screws.

4. Replace evaporator coil access panel.

5. Place hood on fiont of outdoor air opening panel. See

Fig. 13 for hood details. Secure top of hood with the

4 screws removed in Step 3. See Fig. 14.

6. Remove and save 6 screws (3 on each side) from sides of

the manual outdoor-air dmnpel:

7. Align screw holes on hood with screw holes on side of

manual outdoor-air dampel: See Fig. 13 and 14. Secure

hood with 6 screws from Step 6.

8. Adjust minimum position setting of the &_mper blade by

adjusting the manual outdoor-air adjustment screws on

the front of the &tmper blade. See Fig. 12. Slide blade

vertically until it is in the appropriate position determined

by Fig. 15. Tighten screws.

9. Remove and save screws cunently on sides of hood. In-

sert scleen. Secure scleen to hood using the screws. See

Fig. 14.

CONVENIENCE OUTLET -- An optional convenience out-

let provides power for rooftop use. For maintenance personnel

safety, the convenience outlet power is off when the unit dis-

connect is off. Adjacent unit outlets may be used for service

tools. An optional "Hot Outlet" is available from the factory as

a special order item.

NOVAR CONTROLS -- Optional Novar controls

(ETM 3051) are available for replacement or new construc-

tion jobs.

OUTDOOR

AIR OPENING

PANEL

MANUAL

OUTDOOR-AIR J

ADJUSTMENT =

SCREWS

POSITION SETTING DAMPER

SCALE BLADE

Fig. 12 -- Damper Panel with Manual Outdoor-Air

Damper Installed

SCREW

_op)

HOOD_

SCREEN

LOCATION

(SCREEN

NOT SHOWN)

Fig. 14 -- Outdoor-Air Damper with

Hood Attached

0.6

HOOD TOP SCREWS

(HIDDEN) -_

SCREWS

SCREEN HOLDERS)

HOOD SIDESAND TOP-

ASSEMBLED

0.5

_-_ 0.4

0.3

t.tl

0.2

0.1

HOOD

SIDE

Fig. 13 -- Outdoor-Air Hood Details

0123 4 5 6 7

OUTDOOR AIRFLOW (cfm x 100)

Fig. 15 -- Outdoor-Air Damper Position Setting

PREMIERLINK TM CONTROL -- The PremierLink control-

let is compatible with Carrier Comfo]l Network® (CCN) de-

vices. This control is designed to allow users file access and

ability to change factory-defined settings, thus expanding the

function of file standm'd unit control board. Career's diagnostic

standard tier display tools such as Navigator TM or Scrolling

Marquee can be used wifll the PremierLink controlle]:

The PremielLink controller (see Fig. 16A and 16B) requires

the use of a Carrier electronic thermostat or a CCN connection

for time broadcast to initiate its internal timeclock. This is

necessmy for broadcast of time of &ty functions (occupied/

unoccupied). No sensors me supplied with the field-mounted

PremierLink control. The factory-installed PremierLink con-

trol includes only the supply-air sensor (SAT) and the outdoor

air temperature sensor ((-)AT) as stan&trd. An indoor air quality

(CO2) sensor can be added as tin option. Refer to Table 3 for

sensor usage. Refer to Fig. 17 for PremierLink controller

wiring. The PmmierLink control may be mounted in file

control panel or an area below the control panel.

NOTE: PmmierLink controller versions 1.3 and later am

shipped in Sensor mode. If used with a fllermostat, the Pre-

mierLink controller must be configured to Themiostat mode.

Install the Supply Air Temperature Sensor (SAT) -- When

the unit is supplied with a factory-mounted PremierLink con-

trol, the supply-air temperature (SAT) sensor (33ZCSENSAT)

is factory-supplied and wimdi The wiring is routed from the

PmmierLink control over the control box, through a grommet,

into the fan section, down _flong the back side of the fan, and

along the fan deck over to the supply-air opening.

The SAT probe is wire-tied to the supply-air opening (on the

horizontal opening end) in its shipping position. Remove the

sensor for installation. Re-position the sensor in the flange of

the supply-air opening or in the supply air duct (as required by

local codes). Drill or punch a l/2-in, hole in the flange or duct.

Use two field-supplied, self-drilling screws to secure the sensor

probe in a horizontal orientation.

NOTE: The sensor must be mounted in the dischmge airstream

downstream of the cooling coil and any heating devices. Be

sure the probe tip does not come in contact with tiny of the unit

or heat surfaces.

Outdoor Air Temperature Sensor (OAT) -- When the unit is

supplied with a factoq-mounted PremierLink control, the

outdoor-air temperature sensor (OAT) is factory-supplied and

wired.

Install the Indoor Air Quality (COp) Sensor -- Mount the

optional indoor air quality (CO2) sensor according to manufac-

turer specifications.

A separate field-supplied transformer must be used to pow-

er the CO2 sensor

Wire the CO2 sensor to the COM and IAQI terminals of J5

on the PremierLink controflel: Refer to the PremierLink Instal-

lation, Start-up, and Configuration Instructions for detailed

wiring and configuration information.

HVAC SENSOR INPUTS O

SPACE TEMP _ h'_

SET POINT _ El"]

SUPPLY AIR TEMP _ _i]

OUTDOOR TEMP _ ]lil

INDOOR AIR QUALITY _ LT_

OUTDOOR AIR QUALITY _ _!1

DUAL MODE SENSOR/STAT ]+_,11

REMOTEOCCUPANCY (G) "_v H " I

COMP SAFETY (Y1) ""'_ H ; I

FIRE SHUTDOWN (Y2) _ r_

suPPLY FAN STATUS(Wl) ""_ H i ]

NOT USED (W2) ""_ Iq • I

ENTHALPY STATUS(ENTH) "_]_ _" _

CCN/LEN

PORT

OUTPUTS

Fig. 16A -- PremierLink Controller

PREMIERLINK

CONTROL

©©

HINGED

DOOR

PANEL

PREMIERLINK

COVER

Fig. 16B -- PremierLink TM Controller (Installed)

Table 3 -- PremierLink Sensor Usage

OUTDOOR AIR RETURN AIR OUTDOOR AIR RETURN AIR

APPLICATION TEMPERATURE SENSOR TEMPERATURE SENSOR ENTHALPY SENSOR ENTHALPY SENSOR

Dry Bulb

Temperature with

PremierLink* Included --

(PremierLink HH79NZ017

requires 4-20 mA

Actuator)

Differential Dry Bulb

Temperature with

PremierLink* Included -- Required --

(PremierLink HH79NZ017 33ZCT55SPT -- --

requires 4-20 mA or Equivalent

Actuator)

Single Enthalpy with

PremierLink*

(PremierLink Included -- __ Required -- _

Not Used HH57AC077

requires 4-20 mA

Actuator)

Differential Enthalpy

with PremierLink*

(PremierLink Included -- __ Required -- Required --

Not Used HH57AC077 HH57AC078

requires 4-20 mA

Actuator)

*PremierLink control requires Supply Air Temperature sensor 33ZCSENSAT and

Outdoor Air Temperature sensor HH79NZ017 -- included with factory-installed PremierLink control;

field-supplied and field-installed with field-installed PremierLink control.

NOTES:

1. CO2 Sensors (Optional):

33ZCSENCO2 -- Room sensor (adjustable). Aspirator box is required for duct mounting of the sensor.

33ZCASPCO2 -- Aspirator box used for duct-mounted CO2 room sensor.

33ZCT55CO2 -- Space temperature and CO2 room sensor with override.

33ZCT56CO2 -- Space temperature and CO2 room sensor with override and set point.

2. All units include the following Standard Sensors:

Outdoor-Air Sensor -- 50HJ540569 -- Opens at 67 F, closes at 52 F, not adjustable.

Mixed-Air Sensor -- HH97AZ001 -- (PremierLink control requires Supply Air Temperature sensor 33ZCSENSAT

and Outdoor Air Temperature Sensor HH79NZ017)

Compressor Lockout Sensor -- 50HJ540570 -- Opens at 35 E closes at 50 R

PNK

VIO

.....................................................................BRN................................... SAT -- Supply Air Temperature Sensor

TB -- Terminal Block

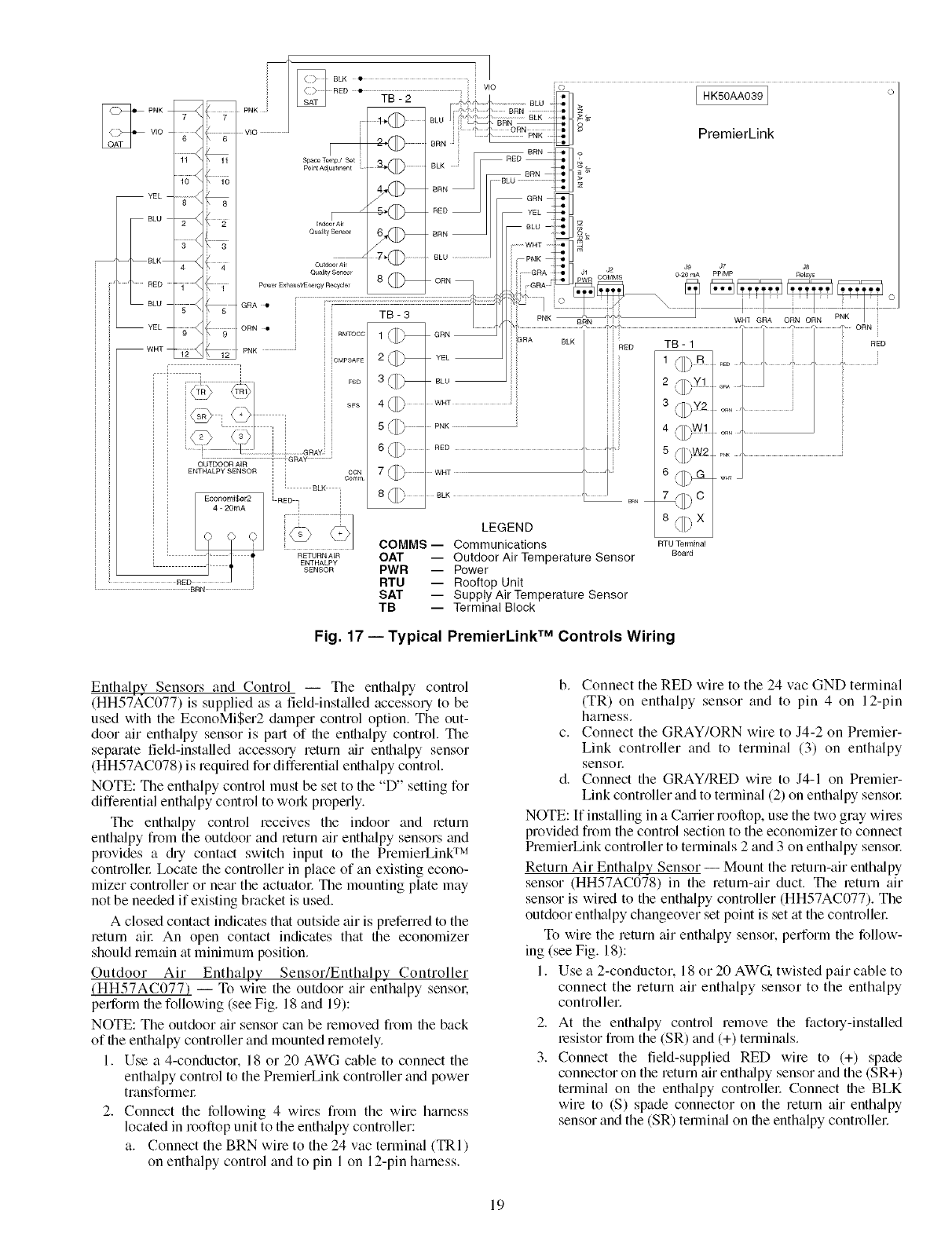

Fig. 17 -- Typical PremierLink TM Controls Wiring

Enthalpy Sensors and Control i The enthalpy control

(HH57AC077) is supplied as a t]eld-inst_dled accessory to be

used with the EconoMi$er2 damper control option. The out-

door air enthalpy sensor is pall of die enthalpy control. The

separate field-installed accessory return tdr enthalpy sensor

(HH57AC078) is required for differential enthalpy control.

NOTE: The enthalpy control must be set to the "D" setting for

diffelential enthalpy control to won properly.

The enthalpy control receives the indoor and return

enthalpy from the outdoor and return air enthalpy sensors and

provides a &y contact switch input to the PremierLinld '_'_

controllel: Ix_cate the controller in place of an existing econo-

mizer controller or near the actuator The mounting plate may

not be needed if existing bracket is used.

A closed contact indicates that outside air is preferred to the

return all: An open contact indicates that die economizer

should remain at minimum position.

Outdoor Air Enthalpy Sensor/Enthalpy Controller

(HH57AC077) i To wile the outdoor air enthalpy sensoit

perform the following (see Fig. 18 and 19):

NOTE: The outdoor air sensor can be removed from die back

of die enthalpy controller and mounted remotely.

1. Use a 4-conductor. 18 or 20 AWG cable to connect the

enthalpy control to the PlemierLink controller and power

transforme_:

2. Connect the following 4 wires from the wire harness

located in rooftop unit to the enth_dpy controller:

a. Connect the BRN wire to the 24 vac terminal (TRI)

on enthalpy control and to pin 1 on 12-pin harness.

b. Connect the RED wire to the 24 vac GND terminal

(TR) on enthalpy sensor and to pin 4 on 12-pin

harness.

c. Connect the GRAY/ORN wire to J4-2 on Premier-

Link controller and to terminal (3) on enthalpy

sensoE

d. Connect the GRAY/RED wire to J4-1 on Premier-

Link controller and to terminal (2) on enthalpy sensol:

NOTE: If installing in a Carrier roollop, use the two gray wires

provided from the control section to the economizer to connect

PremierLink controller to termimds 2 and 3 on enthalpy sensol:

Return Air Enthalpy Sensor i Mount the return-air enth_dpy

sensor (HH57AC078) in the return-air duct. The return air

sensor is wired to the enthalpy controller (HH57AC077). The

outdoor enthalpy changeover set point is set at the controllel:

To wire the return air enthalpy sensor, perform the follow-

ing (see Fig. 18):

1. Use a 2-conductor, 18 or 20 AWC_ twisted pair cable to

connect the return air enthalpy sensor to the enthalpy

controller.

2. At the enthalpy control remove the factory-installed

resistor from the (SR) and (+) terminals.

3. Connect the field-supplied RED wire to (+) spade

connector on the return air enth_dpy sensor and the (SR+)

terminal on die enthalpy controller Connect the BLK

wire to (S) spade connector on the return air enth_dpy

sensor and the (SR) termimd on die enthalpy controlle_:

ENTHALPY CONTROLLER RED

TRF_TRI[_- BRN

LED

sod +[:3-

sRrh __,_71

[_S (OUTDOOR

AIR

+ ENTHALPY

BLK SENSOR)

RED

[_S (RETURN AIR I

[] + ENTHALPY

SENSOR

GRAY/ORN

LWIRE HARNESS

GRAY/RED JIN UNIT

NOTES:

1. Remove factory-installed jumper across SR and + before con-

necting wires from return air sensor,

2, Switches shown in high outdoor air enthalpy state. Terminals 2

and 3 close on low outdoor air enthalpy relative to indoor air

enthalpy,

3. Remove sensor mounted on back of control and locate in out-

side airstream.

Fig. 18 -- Outside and Return Air Sensor Wiring

Connections for Differential Enthalpy Control

HH57AC077

ENTHALPY

CONTROL AND

.OUTDOOR AIR

ENTHALPY SENSOR

HH57AC078 ENTHALPY

SENSOR (USED WITH

ENTHALPY CONTROL

FOR DIFFERENTIAL

ENTHALPY OPERATION)

÷ ÷ MOUNTING PLATE

Fig. 19 -- Differential Enthalpy Control,

Sensor and Mounting Plate (33AMKITENT006)

IMPORTANT: ff the power exhaust accessory is to be

installed on the unit, the hood shipped with the unit will not

be used and must be disctuded. Save the aluminum filter

for use in the power exhaust hood assembly.

3. The indoor coil access panel will be used as the top of the

hood. Remove the sclews along the sides and bottom of

the indoor coil access panel. See Fig. 24.

4. Swing out indoor coil access panel and insert the hood

sides under the panel (hood top). Use the screws provided

to attach the hood sides to the hood top. Use screws pro-

vided to attach the hood sides to the unit. See Fig. 25.

5. Remove the shipping tape holding the economizer baro-

metric relief &_mper in place.

6. Insert the hood divider between the hood sides. See

Fig. 25 and 26. Secure hood divider with 2 screws on

each hood side. The hood divider is also used as the bot-

tom filter rock for file aluminum filter.

7. Open the filter clips which are located underneath the

hood top. Insert the aluminum filter into the bottom filter

rack (hood divider). Push the filter into position past the

open filter clips. Close the filter clips to lock the tilter into

place. See Fig. 26.

8. Caulk the ends of the joint between the unit top panel and

the hood top. See Fig. 24.

9. Replace the filter access panel.

10. Install all EconoMi$er IV accessories. EconoMi$er IV

wiring is shown in Fig. 27. EconoMi$er2 wiring is shown

in Fig. 28.

Barometric flow capacity is shown in Fig. 29. Outdoor air

leakage is shown in Fig. 30. Return air pressure &op is shown

in Fig. 31.

ECONOMI$ER IV

L_-_ -__,_ _CONTROLLER

WIRING_ /OUTSIDE AIR

HARNESS t ELMoPwER ATEt_2E? ENSOR

_i_ S _SENSOR

ACT !

OPTIONAL ECONOMISER IV AND ECONOMISER2 --

See Fig. 20 for EconoMiSer IV component locations. See

Fig. 21 for EconoMiSer2 component locations.

NOTE: These instructions are for installing the optional

EconoMiSer IV and EconoMiSer2 only. Refer to the accessory

EconoMiSer IV or EconoMiSer2 installation instructions when

field installing an EconoMiSer [V or EconoMi$er2 accessory.

1. To remove the existing unit filter access panel, nfise the

panel and swing the bottom outw_ud. Tile panel is now

disengaged from the track and can be removed. See

Fig. 22.

2. The box with the economizer hood components is

shipped in the compartment behind the economizel: The

EconoMiSer [V controller is mounted on top of the

EconoMiSer IV in the position shown in Fig. 20. The

optional EconoMiSer2 with 4 to 20 mA actuator signal

control does not include the EconoMiSer [V controllel:

To remove the component box from its shipping position,

remove the screw holding the hood box bracket to the top

of the economizer Slide the hood box out of the unit. See

Fig. 23.

0....

Fig. 20 -- EconoMi$er IV Component Locations

OUTDOOR

AIR HOOD

ECONOMI_

PLUG

BAROMETRIC

RELIEF

DAMPER

GEAR DRIVEN

DAMPER

Fig. 21 -- EconoMi$er2 Component Locations

FILTER ACCESS PANEL

LEFT

SIDE

TOP

/. PANEL

INDOOR COIL

ACCESS PANEL

COMPRESSOR

ACCESS PANEL

OUTDOOR-AIR OPENING AND

INDOOR COILACCESS PANEL

Fig. 22 -- Typical Access Panel Locations

i I

/©

Fig. 23 -- Hood Box Removal

HOOD DIVIDER

Fig. 25- Outdoor-Air Hood Construction

BAROMETRIC

RELIEF

ALUMINUM

FILTER

Fig. 26 -- Filter Installation

FILTER

CLIP

SIDE

PANEL

TOP

SIDE

PANEL

INDOOR INDOOR

COIL "" COIL

ACCESS N

PANEL PANEL

Fig. 24 -- Indoor Coil Access Panel Relocation

ECONOMISER IV STANDARD SENSORS

Outdoor Air Temperature (OAT) Sensor -- The outdoor air

temperature sensor (HH57AC074) is a 10 to 20 mA device

used to measure the outdoor-air temperature. The outdoor-air

temperature is used to determine when the EconoMiSer IV can

be used for free cooling. The sensor is factory-installed on the

EconoMiSer IV in the outdoor airstream. See Fig. 20. The op-

erating range of temperature measurement is 40 to 100 E

Supply Air Temperature (SAT) Sensor -- The supply air

temperature sensor is a 3 K thermistor located at the inlet of the

indoor fan. See Fig. 32. This sensor is factory installed. The op-

erating range of temperature measurement is 0 ° to 158 E See

Table 4 for sensor temperature/resistance values.

The temperature sensor looks like an eyelet terminal with

wires running to it. The sensor is located in the "crimp end"

and is sealed from moisture.

Outdoor Air Lockout Sensor -- Tile EconomiSer IV is

equipped with an mnbient temperature lockout switch located

in the outdoor air stream which is used to lockout the compres-

sors below a 42 F ambient temperature. See Fig. 20.

IFIZLD

ACCESSORY1

REMOTE MIN

POSITION POT

ER[MOTE POT TI_O_)--

7"IE[__B_LLED

IAO SENSOR I(_'_

oar TEMPI [

Z_THALPY SERSOR

BL_RED-

(FIELD ACCESSORY)

RAT;ENTHALPY SENSOR

BLK 2V IOV

PO_

OPEN

_ -- I MAIE 2v IOV

_DDv DSIV

2V 10v

FOR OCCUPANCY CONTROL

REPLACE JUMPER WITH

FIELD-SUPPLIED TIME CLOCK

/PNK --

,j vlo- --

ECONOMISZR I£

BOARD

TAN

ECONOMIZER MOTOR

FIELD SPLICE

TO PWR EXHAUST

ACCESSORY

BLK

WHT _2_

RED

--GRY_

YEL_

BLU

FIELD SPLICE

ORY

ORG

(HOT USED)

{NOr USED)

(ROT USED)

(_OT USED)

LEGEND

DCV-- Demand Controlled Ventilation

IAQ -- Indoor Air Quality

LA -- Low Ambient Lockout Device

OAT-- Outdoor-Air Temperature

POT-- Potentiometer

RAT-- Return-Air Temperature

Potentiometer Defaults Settings: NOTES:

PL6-R

F%_TD

Power Exhaust Middle

Minimum Pos. Fully Closed 1. 620 ohm, 1 watt 5% resistor should be removed only when using

enthalpy or dry bulb.

DCV Max. Middle

DCV Set Middle

Enthalpy C Setting

differential

2. If a separate field-supplied 24 v transformer is used for the IAQ sensor power

supply, it cannot have the secondary of the transformer grounded.

3. For field-installed remote minimum position POT, remove black wire jumper

between P and P1 and set control minimum position POT to the minimum

position.

Fig. 27 -- EconoMi$er IV Wiring

NOTE 1

NOTE3

50HJ540573

ACTUATOR

ASSEMBLY

RUN

,.It

DIRECT DRIVE

ACTUATOR

500 OHM _ 't

RESISTOR- "? •

-e_l_ _

+o-- I....

OPTIONAL 002

SENSOR 4 - 20 mA

OUTPUT

BLACK

VIOLET

PINK

RED

WHITE

ECONOMIZER2 PLUG

NOTES:

1. Switch on actuator must be in run position for economizer to operate.

2. PremierLink TM control requires that the standard 50HJ540569 outside-air sensor be replaced by either the CROASENR001A00 dry bulb sensor or HH57A077

enthalpy sensor.

3. 50HJ540573 actuator consists of the 50HJ540567 actuator and a harness with 500-ohm resistor.

Fig. 28 -- EconoMi$er2 with 4 to 20 mA Control Wiring

Table 4 -- Supply Air Sensor Temperature/

Resistance Values

TEMPERATURE (F) RESISTANCE (ohms)

-58 200,250

-40 100,680

-22 53,010

-4 29,091

14 16,590

32 9,795

50 5,970

68 3,747

77 3,000

86 2,416

104 1,597

122 1,080

140 746

158 525

176 376

185 321

194 274

212 203

230 153

248 116

257 102

266 89

284 70

302 55

-g 2500

z 2000

w 1500

m 1000

500

-- 0

0.'05 0[ 15 0.'25

STATIC PRESSURE (in. wg)

Fig. 29 -- Barometric Flow Capacity

v 30

z_ 25

m 2O

I- 15

EL 10

z 0

0.13 0.20 0.22 0.25 0.30 0.35 0.40 0.45 0.50

STATIC PRESSURE (in. wg)

Fig. 30- Outdoor-Air Damper Leakage

ECONOMI$ER IV CONTROL MODES

IMPORTANT: The optional EconoMi$er2 does not

include a controllel: The EconoMi$er2 is operated by a 4 to

20 mA signal from an existing field-supplied controller

(such as PremierLink TM control). See Fig. 28 for wMng

information.

6ooo

IJJ

I--- 5000

4OOO

/3.

I- 3000

IJJ

o 2000

1000

jO 0.05 0.10 0.15 0.20 0.25 0.30 0.35

STATIC PRESSURE (in. wg)

Fig. 31 -- Return-Air Pressure Drop

Determine the EconoMiSer IV control mode before set up of

file control. Some modes of operation may require different sen-

sors. Refer to Table 5. The EconoMiSer IV is supplied from the

facto qwith a supply air temperature sensor and an outdoor air

temperature sensol: This allows for operation of the

EconoMiSer IV with outdoor air dry bulb changeover control.

Additional accessories can be added to allow for different types

of changeover control and operation of the EconoMiSer IV and

unit.

Outdoor DLy Bulb Changeover -- The standard controller is

shipped from the facto qconfigured for outdoor @ bulb

changeover control. The outdoor air and supply air temperature

sensors me included as standmd. For this control mode, the

outdoor temperature is compared to an adjustable set point

selected on file control. If the outdoor-air temperature is above

file set point, file EconoMiSer IV will adjust the outdoor-air

dampers to minimum position. If the outdoor-air temperature is

below the set point, the position of the outdoor-air &tmpers will

be controlled to provide flee cooling using outdoor till: When

in this mode, the LED next to the free cooling set point potenti-

ometer will be on. The changeover temperature set point is

controlled by the free cooling set point potentiometer located

on the control. See Fig. 33. The sc_de on the potentiometer is A,

B, C, and D. See Fig. 34 for the corresponding temperature

changeover values.

Table 5 -- EconoMi$er IV Sensor Usage

APPLICATION

Outdoor Air

Dry Bulb

Differential

Dry Bulb

Single Enthalpy

Differential

Enthalpy

CO2 for DCV

Control using a

Wall-Mounted

CO2 Sensor

CO2 for DCV

Control using a

Duct-Mounted

CO2 Sensor

ECONOMISER IV WITH OUTDOOR AIR

DRY BULB SENSOR

Accessories Required

None. The outdoor air dry bulb sensor

is factory installed.

CRTEMPSN002A00*

HH57AC078

and

CRENTDIF004A00*

33ZCSENCO2

33ZCSENCO21-

and CRCBDIOX005A001-1-

33ZCASPCO2**

*CRENTDIF004A00 and CRTEMPSN002A00 accessories are

used on many different base units. As such, these kits may con-

tain parts that will not be needed for installation.

1-33ZCSENCO2 is an accessory CO2 sensor.

**33ZCASPCO2 is an accessory aspirator box required for duct-

mounted applications.

1-1-CRCBDIOX005A00 is an accessory that contains both

33ZCSENCO2 and 33ZCASPCO2 accessories.

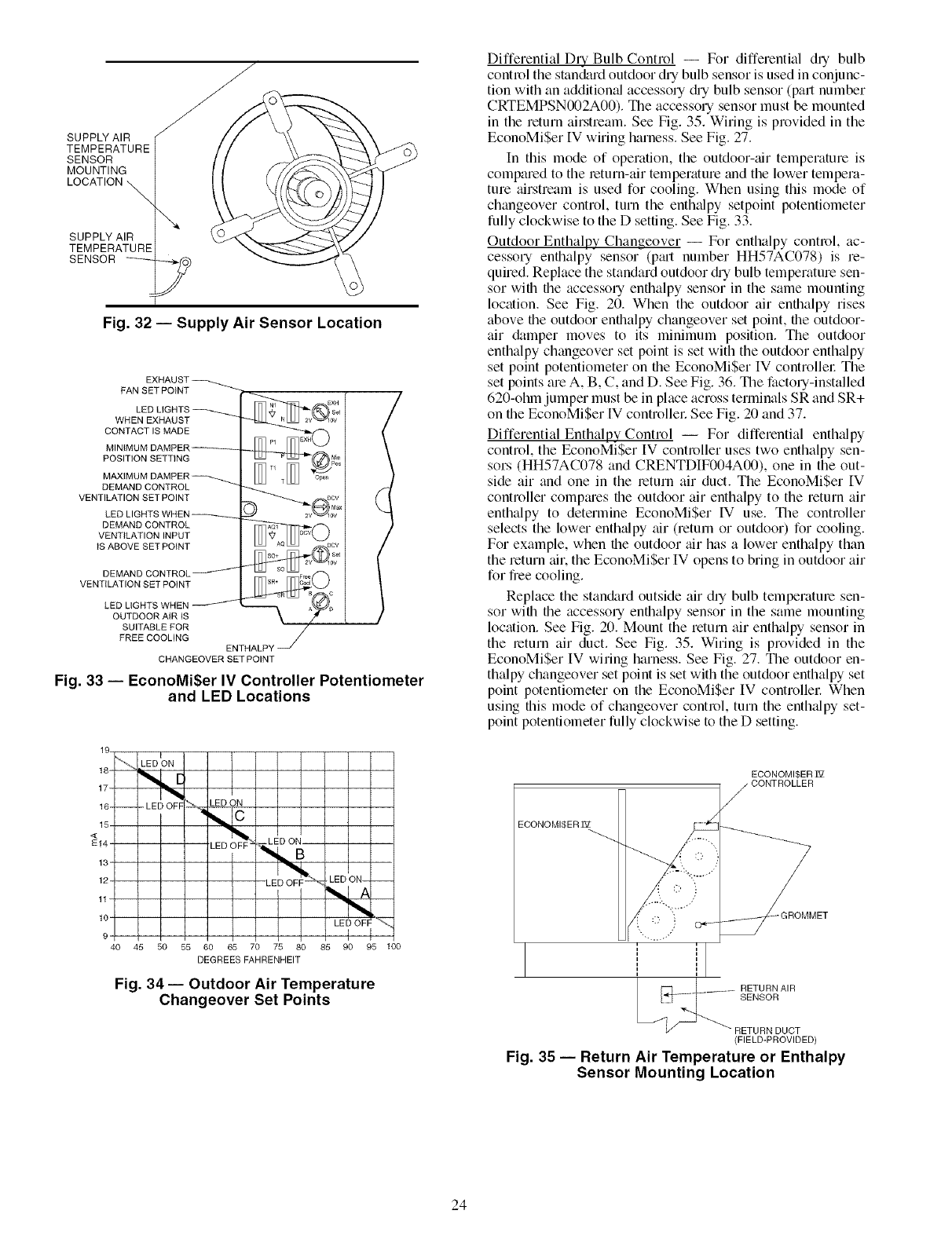

SUPPLY AIR

TEMPERATURE

SENSOR

MOUNTING

LOCATION_ \

SUPPLY AIR

TEMPERATURE

SENSOR #

Fig. 32 -- Supply Air Sensor Location

EXHAUST

FAN SET POINT

N_ ,,w,EXHS_ILED LIGHTS

WHEN EXHAUST _ _-4AIJ_ k ULWzv_l_ kULW zv_lov

CONTACT IS MADE _

MINIMUM DAMPER

POSITION SETTING _(_ _fiTI

MAXIMUM DAMPER __ [_TI T[_ _°s

DEMAND CONTROL

VENTILATION SET POINT

DEMAND CONTROL

VENTILATION INPUT

tS ABOVE SET POINT

DEMAND (

VENTILATION SET POINT

LED LIGHTS WHEN

OUTDOOR AIR IS

SUITABLE FOR

FREE COOLING

ENTHALP'_

CHANGEOVER SET POINT

Fig. 33 -- EconoMi$er IV Controller Potentiometer

and LED Locations

18 "_ LEDION

17 _

16---= LED OFF LED ON

9 I

40 45 50 55

LED O_

'_,_LED ON----

60 65 70 75 80 85 90 95 100

DEGREES FAHRENHEIT

Fig. 34-- Outdoor Air Temperature

Changeover Set Points

Differential DLy Bulb Control -- For differential dly bulb

control the stan&ud outdoor dry bulb sensor is used in conjunc-

tion with an additional accesso Uch7 bulb sensor (part number

CRTEMPSN002A00). Tile accessory sensor must be mounted

in the return airstream. See Fig. 35. Wiring is provided in the

EconoMiSer [V wiring harness. See Fig. 27.

In this mode of operation, the outdoor-tfir temperature is

compared to the leturn-air temperature and the lower tempera-

ture tfirstream is used for cooling. When using this mode of

changeover control, turn the enth_dpy setpoint potentiometer

fully clockwise to the D setting. See Fig. 33.

Outdoor Enthalpy Changeover -- For enthalpy control, ac-

cessory enthalpy sensor (p_ut number HH57AC078) is re-

quired. Replace the standard outdoor chy bulb temperature sen-

sor with the accessory enthalpy sensor in the same mounting

location. See Fig. 20. When the outdoor air enthalpy rises

above the outdoor enthalpy changeover set point, the outdoor-

air damper moves to its minimum position. The outdoor

enthalpy changeover set point is set with the outdoor enthalpy

set point potentiometer on the EconoMiSer IV controller The

set points are A, B, C, and D. See Fig. 36. The factory-installed

620-ohm jumper must be in place across terminals SR and SR+

on the EconoMiSer IV controllec See Fig. 20 and 37.

Differential Enthalpy Control -- For differential enthalpy

control, the EconoMiSer IV controller uses two enthalpy sen-

sors (HH57AC078 and CRENTDIF004A00), one in the out-

side air and one in the leturn air duct. The EconoMiSer [V

controller comptues the outdoor air enthalpy to the return air

enthalpy to determine EconoMiSer IV use. The controller

selects the lower enth_dpy air (return or outdoor) for cooling.

For example, when the outdoor tfir has a lower enthalpy than

the return tfir. the EconoMi$er IV opens to bring in outdoor air

for free cooling.

Replace the standard outside air dUbulb temperatme sen-

sor with the accessory enthalpy sensor in the same mounting

location. See Fig. 20. Mount the return air enthalpy sensor in

the leturn air duct. See Fig. 35. Wiring is provided in the

EconoMiSer IV wiring harness. See Fig. 27. The outdoor en-

thalpy changeover set point is set with the outdoor enthalpy set

point potentiometer on the EconoMiSer IV controllen When

using this mode of changeover control, turn the enthalpy set-

point potentiometer fully clockwise to the D setting.

ECONOMI$ER ]_Z

_ CONTROLLER

ECONOMI$ER _Z

Fig. 35 -- Return

Sensor

" ":"':,""":::.! 04_ _ROMMET

.,...J

i i

_]___ RETURN AIR

SENSOR

RETURN DUCT

(FIELD-PROVIDED)

Air Temperature or Enthalpy

Mounting Location

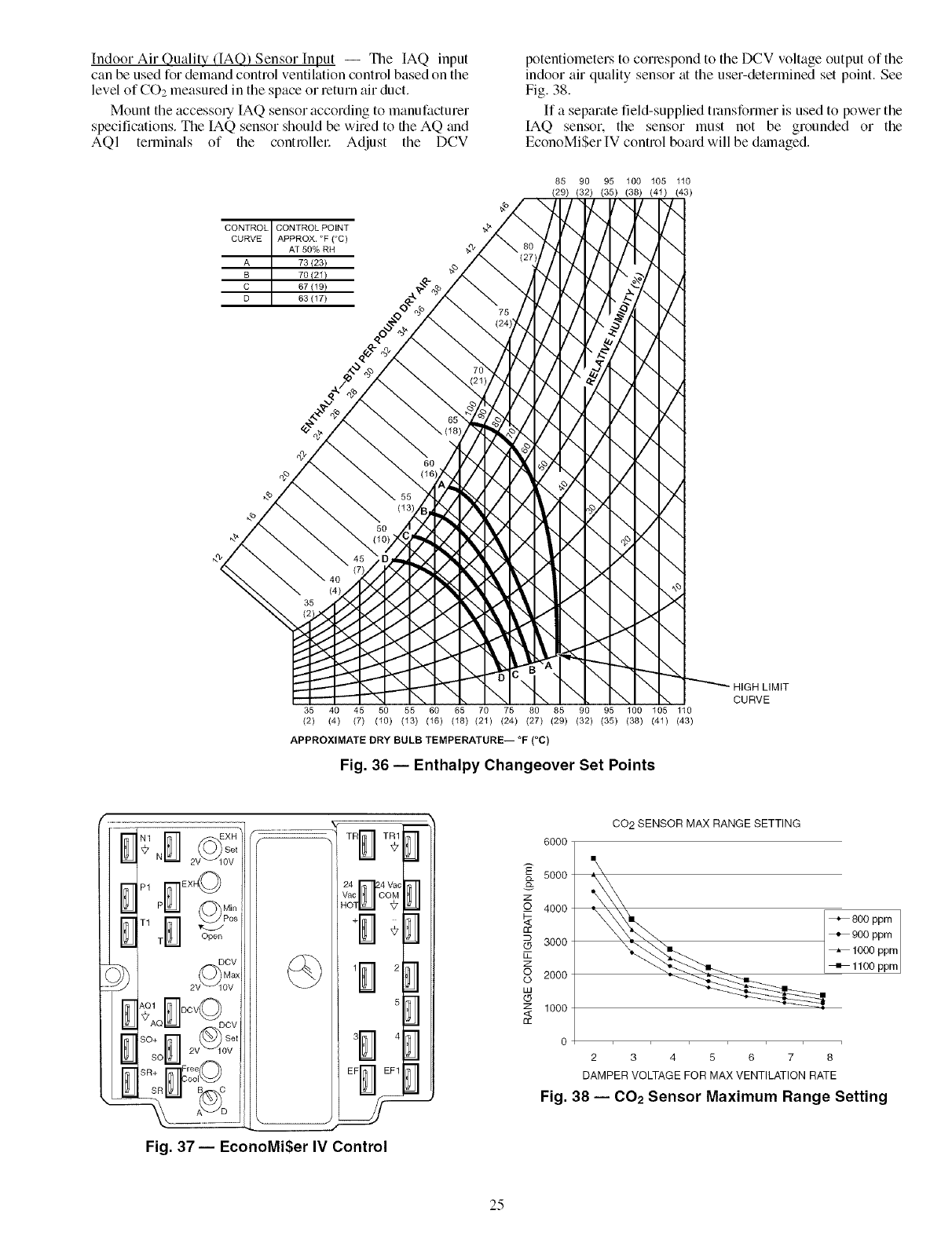

Indoor Air Quality dAQ) Sensor Input -- Tile IAQ input

can be used for demand control ventilation control based on the

level of CO2 measm'ed in the space or return air duct.

Mount the accessory IAQ sensor according to manufactm'er

specifications. The IAQ sensor should be wired to the AQ and

AQI terminals of file controllel: Adjust the DCV

potentiometers to conespond to the DCV voltage output of the

indoor air quality sensor at the user-determined set point. See

Fig. 38.

If a separate field-supplied tmnsforlner is used to power the

IAQ sensor, the sensor must not be grounded or the

EconoMi$er IV control board will be damaged.

CONTROL CONTROLPOINT

CURVE APPROXI°F(°C)

AT 50% RH

A 73123)

B 70121)

C 67{19)

D 63(17)

85 90 95 100 105 110

(29) (32) (35) (38) (41) (43)

,/,,

-,,/

-.,/

"-Z

HIGH LIMIT

\ CURVE

35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110

(2) (4) (7) (10) (13) (16) (18) (21) (24) (27) (29) (32) (35) (38) (41) (43)

APPROXIMATE DRY BULB TEMPERATURE-- °F (°C)

Fig. 36 -- Enthalpy Changeover Set Points

2V vl0V

P1V1Ex©

T _1_]1 Open

DCV

v@Max

2OV

\O1 OCV

*AOn©

9R+ Free

I oo,©

sR__.1_c

A_ D ¢'

Fig. 37 -- EconoMiSer IV Control

I Him II T_

24_4 Vac

Vac COM

HO '_

......_ 4

EF_ EF1

6OO0

5000

z4000

3000

2000

z 1000

CO2 SENSOR MAX RANGE SETTING

_+800 ppm

+900 ppm

_1000 ppm

+1100 ppm

2345678

DAMPER VOLTAGE FOR MAX VENTILATION RATE

Fig. 38 -- CO2 Sensor Maximum Range Setting

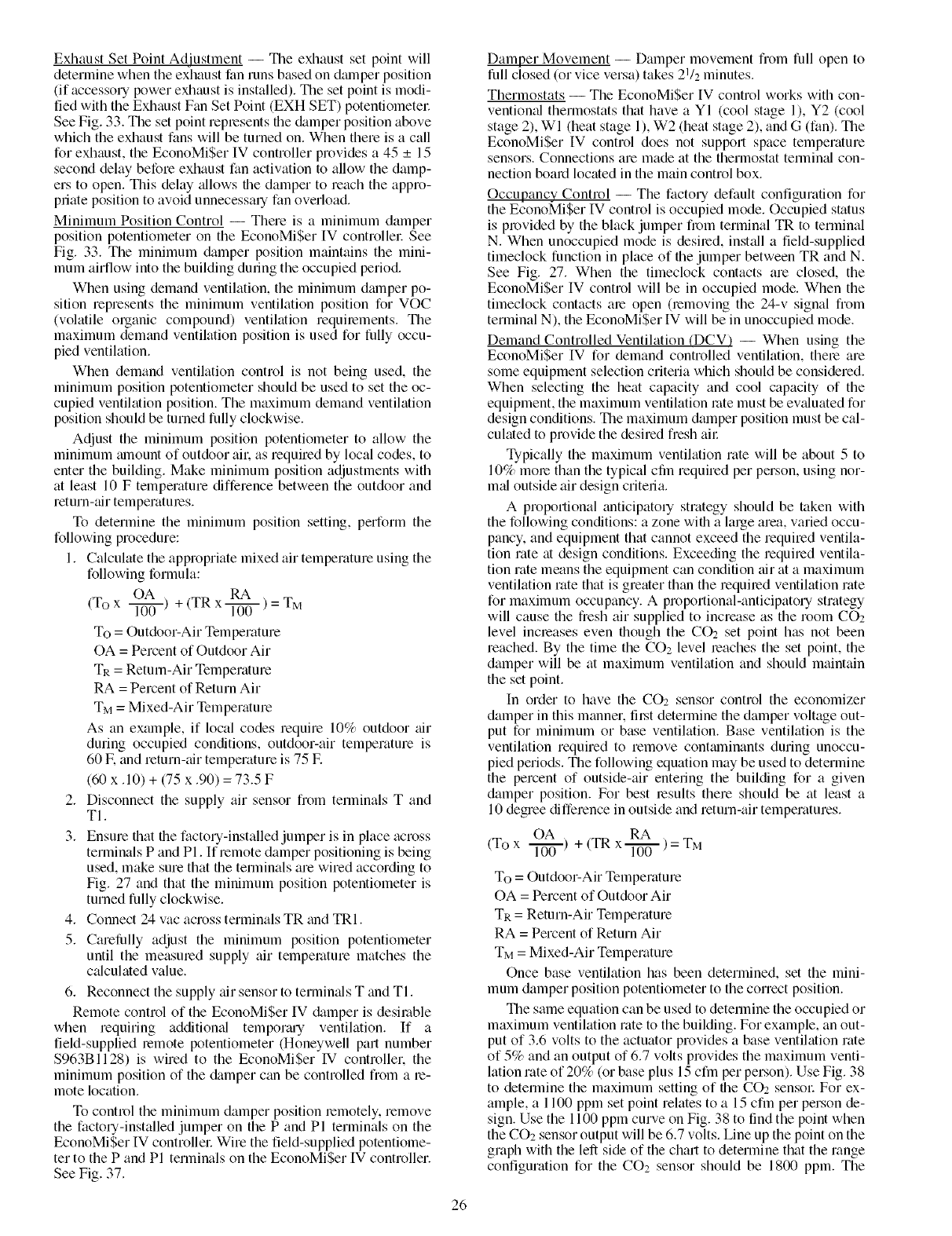

Exhaust Set Point Adjustment -- The exhaust set point will

determine when the exhaust fan runs based on dmnper position

(if accessory power exhaust is installed). The set point is modi-

fied with the Exhaust Fan Set Point (EXH SET) potentiometer

See Fig. 33. The set point represents the damper position above

which the exhaust fans will be turned on. When there is a call

for exhaust, the EconoMiSer IV controller provides a 45 _+15

second delay before exhaust fan activation to allow the damp-

ers to open. This delay _fllows file damper to reach the appro-

priate position to avoid unnecessaly fan overload.

Minimum Position Control -- There is a minimum damper

position potentiometer on the EconoMiSer [V controllel: See

Fig. 33. The minimum damper position maintains the mini-

mum airflow into the building during the occupied period.

When using demand ventihttion, the minimum dmnper po-

sition represents the minimum ventilation position for VOC

(volatile organic compound) ventilation requirements. The

maximum demand ventilation position is used for fully occu-

pied ventilation.

When demand ventilation control is not being used, the

minimum position potentiometer should be used to set the oc-

cupied ventilation position. The maximum demand ventilation

position should be turned fully clockwise.

Adjust the minimum position potentiometer to allow the

minimum mnount of outdoor aik as required by local codes, to

enter the building. Make minimum position adjustments with

at least 10 F temperature difference between the outdoor and

return-air temperatures.

To determine the minimum position setting, perform the

following procedure:

1. Calculate the appropriate mixed air temperature using the

following formula:

OA RA

(Tox I--F6_) +(TRx 1-Tff6-)=TM

To = Outdoor-Air Temperature

OA = Percent of Outdoor Air

TR = Return-Air Temperature

RA = Percent of Return Air

TM = Mixed-Air Temperature

As an example, if local codes require 10% outdoor tdr

during occupied conditions, outdoor-air temperature is

60 E and return-air temperature is 75 E

(60 x .10) + (75 x .90) =73.5 F

2. Disconnect the supply air sensor from terminals T and

TI.

3. Ensure that the factou-installedjumper is in place across

terminals P and PI. If remote damper positioning is being

used, make sure that the terminals am wired according to

Fig. 27 and that the minimum position potentiometer is

turned fully clockwise.

4. Connect 24 vac across terminals TR and TRI.

5. CarefiJlly adjust the minimum position potentiometer

until the measured supply air temperature matches the

calculated value.

6. Reconnect the supply _firsensor to termimds T and TI.

Remote control of the EconoMi$er IV damper is desirable

when requiring additiomd temporm-y ventilation. If a

field-supplied remote potentiometer (Honeywell part number

$963B1128) is wired to the EconoMi$er IV controllek the

minimum position of the damper can be controlled from a m-

mote location.

To control the minimum damper position remotely, remove

the factory-installed jumper on the P and PI terminals on the

EconoMi$er IV controllel: Wire the field-supplied potentiome-

ter to the P and PI terminals on the EconoMi$er IV controller.

See Fig. 37.

Damper Movement -- Damper movement trom full open to

full closed (or vice versa) takes 2112minutes.

Thermostats -- The EconoMiSer IV control works with con-

ventiomd thermostats that have a YI (cool stage 1), Y2 (cool

stage 2), Wl (heat stage 1), W2 (heat stage 2), and G (fan). The

EconoMiSer IV control does not support space temperature

sensors. Connections are made at the thermostat termimd con-

nection board located in the main control box.

Occupancy Control -- The factoUdefault configuration for

the EconoMi$er IV control is occupied mode. Occupied status

is provided by the black jumper flom terminal TR to terminal

N. When unoccupied mode is desired, inst_dl a field-supplied

timeclock function in place of the jumper between TR and N.

See Fig. 27. When the timeclock contacts are closed, the

EconoMi$er IV control will be in occupied mode. When the

timeclock contacts are open (removing the 24-v signal from

terminal N), the EconoMi$er IV will be in unoccupied mode.

Demand Controlled Ventilation (DCV) -- When using the

EconoMiSer IV for demand controlled ventilation, them are

some equipment selection criteria which should be considered.

When selecting the heat capacity and cool capacity of the

equipment, the maximum ventilation rote must be evaluated for

design conditions. The maximum damper position must be cal-

culated to provide the desired fresh ail:

Typically the maximum ventilation rate will be about 5 to

10% morn than the typical chn required per person, using nor-

mid outside air design criteria.

A proportional anticipatory strategy should be taken with

the following conditions: a zone with a large area, varied occu-

pancy, and equipment that cannot exceed the required ventila-

tion rate at design conditions. Exceeding the required ventila-

tion rate means the equipment can condition air at a maximum

ventilation rate that is greater than the required ventilation rate

for maximum occupancy. A proportional-anticipato Ustrategy

will cause the fresh air supplied to increase as the room CO2

level increases even though the CO2 set point has not been

reached. By the time the CO2 level roaches the set point, the

damper will be at maximum ventilation and should maintain

the set point.

In order to have the CO2 sensor control the economizer

damper in this manner, fil.'stdetermine the damper voltage out-

put for minimum or base ventilation. Base ventilation is the

ventilation required to remove contmninants during unoccu-

pied periods. The following equation may be used to determine

the percent of outside-air entering the building for a given

damper position. For best results there should be at least a

10 degree difference in outside and return-air temperatures.

OA RA

(To x l-T-ff_) + (TR x _ ) = TM

To = Outdoor-Air Temperature

OA = Percent of Outdoor Air

TR = Return-Air Temperature

RA = Percent of Return Air

TM = Mixed-Air Temperature

Once base ventilation has been determined, set the mini-

mum damper position potentiometer to the correct position.

The same equation can be used to deterlnine the occupied or

maximum ventilation rate to the building. For example, an out-

put of 3.6 volts to the actuator provides a base ventilation rate

of 5% and an output of 6.7 volts provides the maximum venti-

lation rate of 20% (or base plus 15 cfm per person). Use Fig. 38

to determine the maximum setting of the CO2 sensol: For ex-

ample, a 1100 ppm set point relates to a 15 cfm per person de-

sign. Use the 1100 ppm curve on Fig. 38 to find the point when

the CO2 sensor output will be 6.7 volts. Line up the point on the

graph with the left side of the chart to determine that the range

configuration for the CO2 sensor should be 1800 ppm. The

EconoMiSerIVcontrollerwilloutputthe6.7voltsfiomthe

CO2sensortotheactuatorwhentheCO2concentrationinthe

spaceisfit1100ppm.TheDCVsetpointmaybeleftfit2volts

sincethe CO2sensorvoltagewill be ignoredby the

EconoMiSerIVcontrolleruntilitrisesabovethe3.6voltset-

tingoftheminimumpositionpotentiometer

Oncethefullyoccupieddmnperpositionhasbeendeter-

mined,setfilemaximumdamperdemandcontrolventilation

potentiometertothisposition.Donotsettothemaximumposi-

tionasthiscanresultinover-ventilationtothespacefindpoten-

tialhigh-humiditylevels.

C02 Sensor Configuration -- The CO2 sensor has preset

standard voltage settings that can be selected anytime after the

sensor is powered up. See Table 6.

Use setting 1 or 2 for Carrier equipment. See Table 6.

1. Press Clear and Mode buttons. Hold fit least 5 seconds

until the sensor enters the Edit mode.

2. Press Mode twice. The STDSET Menu will appem:

3. Use the Up/Down button to select the preset numbel: See

Table 6.

4. Press Enter to lock in the selection.

5. Press Mode to exit and resume normfd operation.

The custom settings of the CO2 sensor can be changed any-

time after the sensor is energized. Follow the steps below to

change the non-stan&trd settings:

1. Press Clear and Mode buttons. Hold fit least 5 seconds

until the sensor enters the Edit mode.

2. Press Mode twice. The STDSET Menu will appem:

3. Use the Up/Down button to toggle to the NONSTD menu

and press Entec

4. Use the Up/Down button to toggle through each of the

nine variables, stinting with Altitude, until the desired set-

ting is reached.

5. Press Mode to move through the variables.

6. Press Enter to lock in the selection, then press Mode to

continue to the next vmiable.

Dehumidification of Fresh Air with DCV Control -- Infor-

mation from ASHRAE indicates that the largest humidity load

on any zone is the fresh air introduced. For some applications,

a device such as a 62AQ energy recovery unit is added to re-

duce the moisture content of the fresh air being brought into the

building when file enthalpy is high. In most cases, the normfd

heating and cooling processes are morn than adequae to m-

move the humidity loads for most commemial applications.

If normal rooftop heating and cooling operation is not ade-

quate for the outdoor humidity level, fin energy recovery unit

and/or a dehumidification option should be considered.

Step 9 -- Adjust Evaporator-Fan Speed -- Ad-

just evaporator-fan rpm to meet jobsite conditions. Table 7

shows ffm rpm at motor pulley settings. Table 8 shows motor

performance. See Table 9 for accessory and option static pres-

sure drops. See Table 10 for evaporator-fan motor efficiency.

Refer to Tables 11-40 to determine fan speed settings.

DIRECT-DRIVE MOTORS-- The evaporator-fan motor

factory speed setting is shown on label diagram affixed to base

unit. If other than factory setting is desired, refer to label

diagram for motor reconnection. See Fig. 39 for direct-drive

motor location.

BELT-DRIVE MOTORS- Fan motor pulleys are factory

set for speed shown in Tables IA and lB. See Fig. 40 for belt

di'ive motor location.

NOTE: Before adjusting fan speed, make sure the new ffm

speed will provide an air temperature rise range as shown in

Tables IA find lB.

To change fan speed:

1. Shut offunit power supply.

2. Ix_osen belt by loosening fan motor mounting nuts. See

Fig. 40.

3. Ix_osen movable pulley flange setscrew (see Fig. 41 ).

4. Screw movable flange toward fixed flange to increase

speed and away from fixed flange to decrease speed.

Increasing fan speed increases load on motol: Do not

exceed maximum speed specified in Tables IA find lB.

5. Set movable flange fit nearest keyway of pulley hub and

tighten setscrew. (See Tables 1A find 1B for speed change

for each fifll turn of pulley flange.)

To align fan and motor pulleys:

1. Ix_osen fan pulley setscrews.

2. Slide fan pulley along fan shaft.

Make angulm alignment by loosening motor from

mounting.

Table 6 -- 002 Sensor Standard Settings

EQUIPMENT OUTPUT ANALOG

OUTPUT

SETTING

Interface w/Standard

Building Control System

Economizer

Health & Safety

Parking/Air Intakes/

Loading Docks

Proportional

Exponential

Proportional

Exponential

Proportional

VENTILATION

RATE

(cfm/Person)

Any

0-10V

4-20 mA

2-10V

7-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

002

CONTROLRANGE

(ppm)

0-2000

0-1100

0- 900

0-1100

0- 900

0-9999

0-2000

OPTIONAL

RELAY SETPOINT

(ppm)

1000

1100

900

1100

900

5000

7OO

LEGEND

ppm -- Parts Per Million

RELAY

HYSTERESIS

(ppm)

500

To adjust belt tension:

1. Ix_osen fan motor mounting nuts.

2. Slide motor mounting plate away flom fan scroll for

proper belt tension (l/2-in. deflection with one finger).

3. Tighten motor mounting nuts.

4. Adjust bolt and tighten nut to secure motor in fixed

position.

DIRECT DRIVE MOTOR DIMPLED HEAT EXCHANGER

Fig. 39 -- Direct Drive Motor Mounting

MOTOR MOUNTING

PLATE NUTS

Fig. 40 -- Belt Drive Motor Mounting

STRAIGHT EDGE MUST MOVABLE

FLANGE

WITH BELl"

MOTOR AND FAN

SHAFTS MUST BE

PARALLEL SETSCREWS

FIXED FLANGE

SINGLE-GROOVE

Fig. 41 -- Evaporator-Fan Pulley Adjustment

Table 7 -- Fan Rpm at Motor Pulley Settings*

UNIT MOTOR PULLEY TURNS OPEN

0 112 1 1112 2 2112 3 3112 441/2 5 51/2 6

48TF004t 1000 976 952 928 904 880 856 832 808 784 760 -- --

48T F004** 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

48TM004t 1045 1009 973 937 901 865 829 793 757 721 685 -- --

48TM004"* 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

48TF005t 1175 1134 1094 1053 1013 972 932 891 851 810 770 -- --

48TF005"* 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

48TM005t 1175 1135 1094 1054 1013 973 932 892 851 811 770 -- --

48TM005"* 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

48TF006t 1192 1163 1131 1099 1067 1035 1003 971 939 907 875 -- --

48TF006"* 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 -- --

48TM006t 1300 1266 1233 1200 1166 1133 1100 1066 1033 1000 966 933 900

48TM006"* 1685 1647 1608 1570 1531 1493 1454 1416 1377 1339 1300 -- --

48TF007tt 1460 1420 1380 1345 1305 1265 1225 1185 1150 1110 1070 -- --

48TF007"* 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 -- --

48TM007tt 1460 1421 1382 1343 1304 1285 1226 1187 1148 1109 1070 -- --

48TM007"* 1685 1647 1608 1570 1531 1493 1454 1416 1377 1399 1300 -- --

*Approximate fan rpm shown. **Indicates high-static motor and drive package.

I-I-Indicates standard motor and drive package.I-Indicates alternate motor and drive package.

UNIT

48TF, TM

O04

O05

006

O07

EVAPORATOR-FAN

MOTOR

Standard

Alternate

High Static

Standard

Alternate

High Static

Standard

Alternate

High Static

Standard

High Static

Table 8 -- Evaporator-Fan Motor Performance

UNIT

VOLTAGE

208/230

48O

575

208/230

48O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

208/230

46O

575

LEGEND

BHP -- Brake Horsepower

*Extensive motor and electrical testing on these units ensures that

the full horsepower range of the motors can be utilized with confi-

dence, Using the fan motors up to the horsepower ratings shown in

this table will not result in nuisance tripping or premature motor fail-

ure. Unit warranty will not be affected.

tSingle phase/three-phase.

MAXIMUM ACCEPTABLE

CONTINUOUS BHP*

0.34

1.20

2.40

0.75

1.20

2.40

1.20

1.30_.40t

2.90

2.40

2.90

NOTES:

MAXIMUM ACCEPTABLE

OPERATING WATTS

44O

1000

2120

850

1000

2120

1340

2120

2562

2120

2562

MAXIMUM

AMP DRAW

2.8

1.3

4.9

2.1

6.0

3.0

3.5

1.8

4.9

2.1

6.0

3.0

5.9

3.2

6.6/5.21-

2.6

3.0

8.6

3.9

5.2

3.0

8.6

3.9

1. All indoor-fan motors 5 hp and larger meet the minimum effi-

ciency requirements as established by the Energy Policy Act of

1992 (EPACT) effective October 24, 1997.

2. High-static motor not available on single-phase units.

Table 9 -- Accessory/FlOP EconoMi$er IV and EconoMi$er2 Static Pressure* (in. wg)

COMPONENT

Vertical EconoMi$er IV and EconoMi$er2

Her zonta EconoM $er V and EconoM $er2

LEGEND

FlOP -- Factory-Installed Option

1250 I1500

0.045 I0.065

CFM

1750 2000 I 2250 I 2500 2750 3000

0.08 0.12 I0.145 I0.175 0.22 0.255

0.1 0.125 0.15 0.18 0.225 0.275

*The static pressure must be added to external static pressure, The

sum and the evaporator entering-air cfm should be used in con-

junction with the Fan Performance tables to determine indoor

blower rpm and watts.

Table 10- Evaporator-Fan Motor Efficiency

MOTOR 48TF, TM IEFFICIENCY

004,005 I 75

006 74/84"

007 84

*Single-phase/3-phase.

NOTE: Convert watts to bhp using the following formula:

watts input x motor efficiency

bhp = 746

Table 11 -- Fan Performance 48TF,TM004 -- Vertical Discharge Units -- Standard Motor

AIRFLOW

(Cfm)

900

1000

1100

1200

1300

1400

1500

LOW SPEED

2O8 V

ESP Bhp Watts

0.49 0.21

0.42 0.23

0.37 0.24

0.33 0.26

0.27 0.27

0.20 0.29

0.16 0.30

LEGEND

253

270

287

304

321

338

355

230,460,575 V

ESP Bhp Watts

0.50 0.23 277

0.43 0.25 292

0.38 0.26 307

0.33 0.27 323

0.28 0.29 338

0.23 0.30 354

0.18 0.31 369

HIGH SPEED

208 V 230,460,575 V

ESP Bhp Watts ESP Bhp Watts

0.51 0.26 307 0.55 0.31 363

0.43 0.27 321 0.61 0.32 374

0.39 0.28 335 0.46 0.33 385

0.34 0.29 349 0.40 0.34 397

0.28 0.31 364 0.34 0.34 408

0.25 0.32 378 -- -- --

0.20 0.33 392 -- -- --

Refer to page 41 for general Fan Performance Data notes.

Bhp -- Brake Horsepower Input to Fan

ESP -- External Static Pressure (in. wg)

Table 12 -- Fan Performance 48TF004 -- Vertical Discharge Units -- Alternate Motor (Belt Drive)*

AIRFLOW

(Cfm)

900

1000

1100

1200

1300

1400

1500

EXTERNAL STATIC PRESSURE (in. wg)

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

643 0.15 152 768 0.22 222 870 0.30 296 958 0.37 373 1037 0.46 454

683 0.19 191 804 0.27 268 904 0.35 348 991 0.43 430 1069 0.52 517

725 0.24 237 842 0.32 321 939 0.41 407 1025 0.50 496 1102 0.59 588

767 0.29 291 880 0.38 382 976 0.48 474 1060 0.57 570 1136 0.67 668

811 0.35 352 920 0.45 451 1013 0.55 550 1095 0.66 652 1170 0.76 756

855 0.43 423 960 0.53 529 1051 0.64 636 1132 0.75 744 1205 0.86 855

900 0.51 504 1002 0.62 617 1090 0.74 731 1169 0.85 846 1242 0.97 963

AIRFLOW

(Cfm)

90O

1000

1100

1200

1300

1400

1500

Bhp -- Brake Horsepower Input to Fan

Watts -- Input Watts to Motor

*Motor drive range: 760 to 1000 rpm. All other rpms require a field-

supplied drive.

EXTERNAL STATIC PRESSURE (in. wg)

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

1110 0.54 538 1177 0.63 627 1239 0.72 718 1298 0.82 813 1355 0.92 911

1141 0.61 607 1207 0.70 700 1269 0.80 796 1328 0.90 895 1384 1.00 998

1173 0.69 683 1238 0.79 781 1300 0.89 883 1358 0.99 987 1414 1.10 1094

1205 0.77 768 1270 0.88 872 1332 0.98 979 1389 1.09 1088 -- -- --

1239 0.87 863 1303 0.98 972 1364 1.09 1084 ......

1273 0.97 967 1337 1.09 1082 .........

1309 1.09 1082 ............

LEGEND Refer to page 41 for general Fan Performance Data notes.

NOTES:

1. Boldface indicates field-supplied drive is required.

2. Maximum continuous bhp is 1.20.

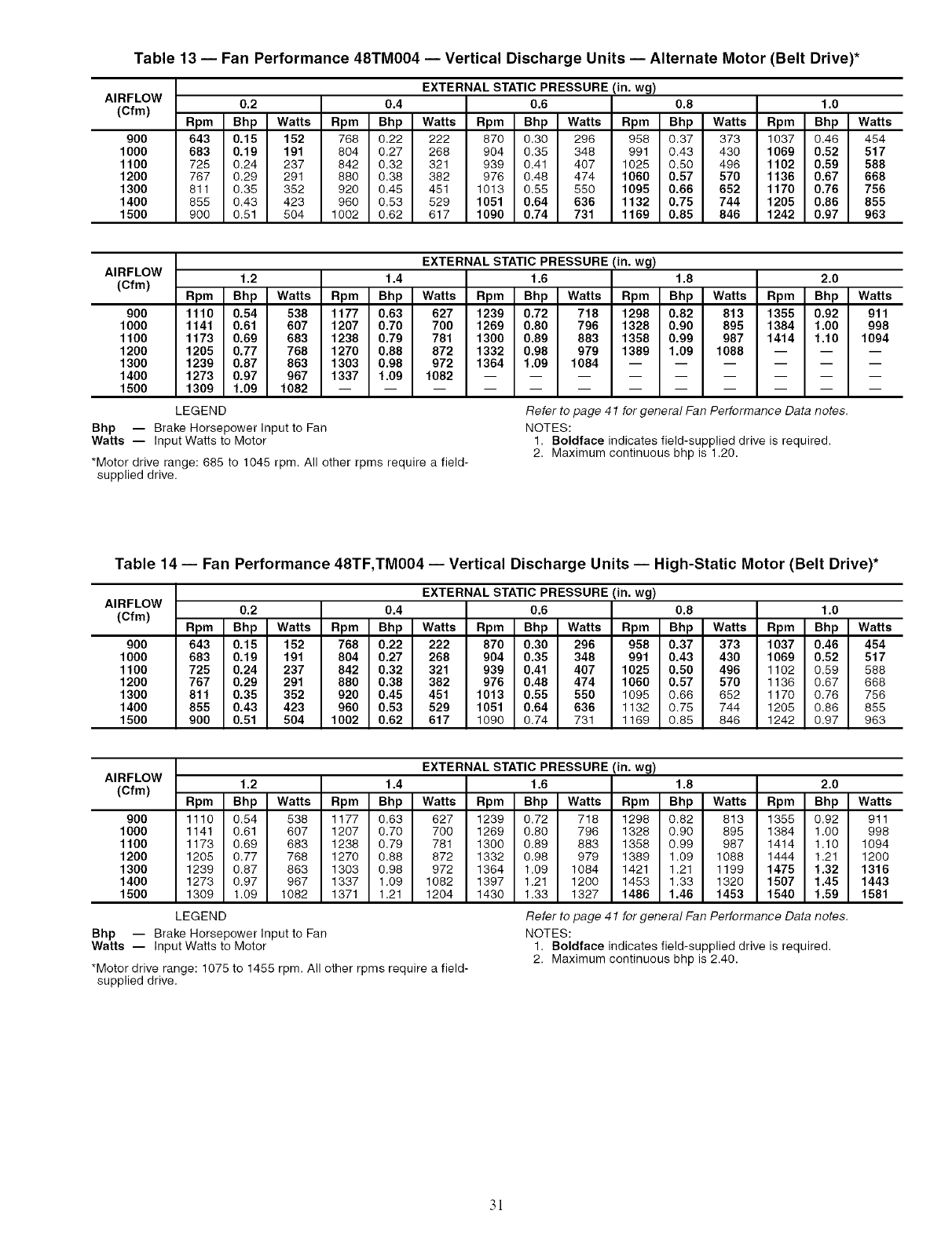

Table 13 -- Fan Performance 48TM004 -- Vertical Discharge Units -- Alternate Motor (Belt Drive)*
