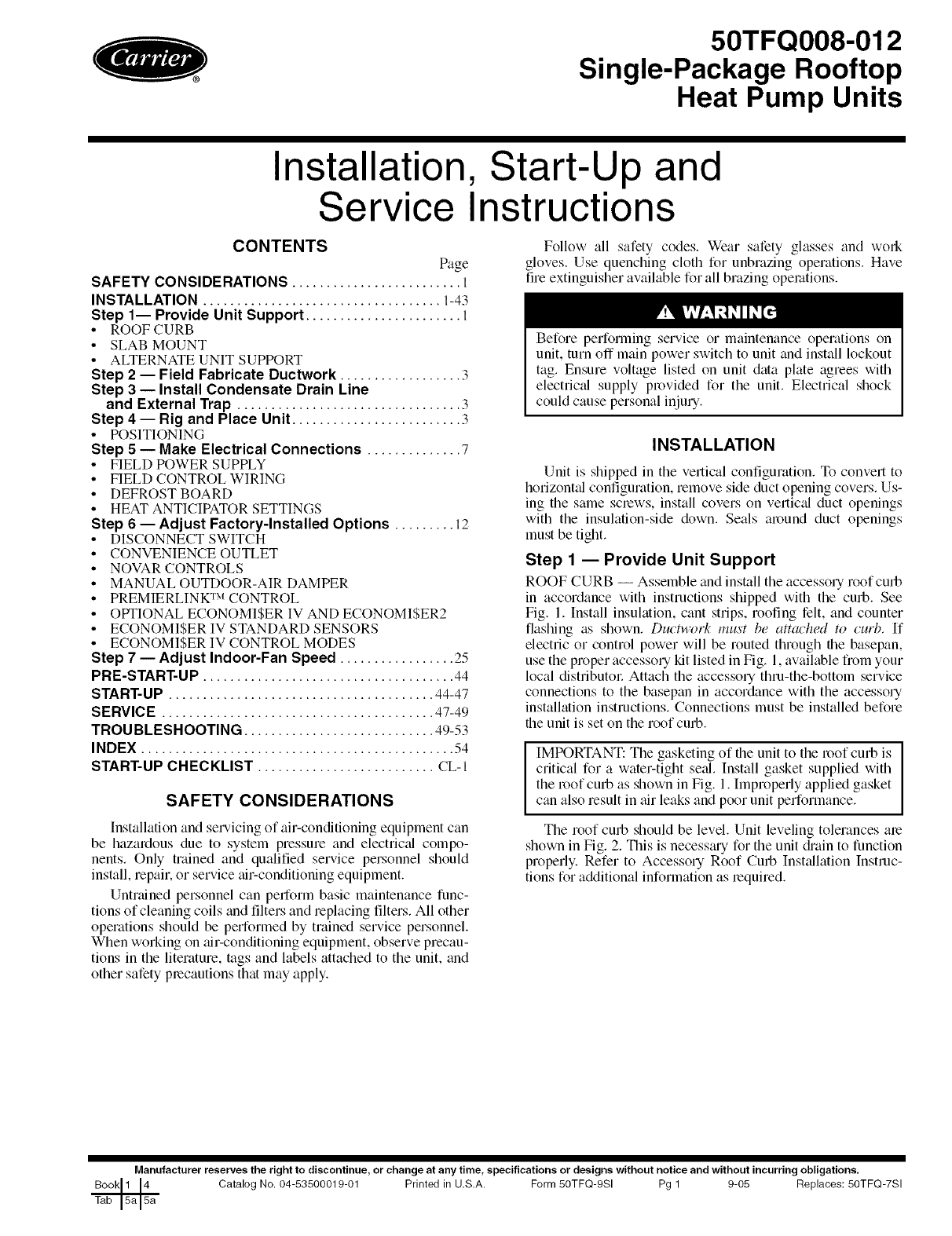

50TFQ008-012

Single-Package Rooftop

Heat Pump Units

Installation, Start-Up and

Service Instructions

CONTENTS

Page

SAFETY CONSIDERATIONS ......................... 1

INSTALLATION ................................... 1-43

Step 1-- Provide Unit Support ....................... 1

• ROOF CURB

• SLAB MOUNT

• ALTERNATE UNIT SUPPORT

Step 2 -- Field Fabricate Ductwork .................. 3

Step 3 -- Install Condensate Drain Line

and External Trap ................................. 3

Step 4 -- Rig and Place Unit ......................... 3

• POSITIONING

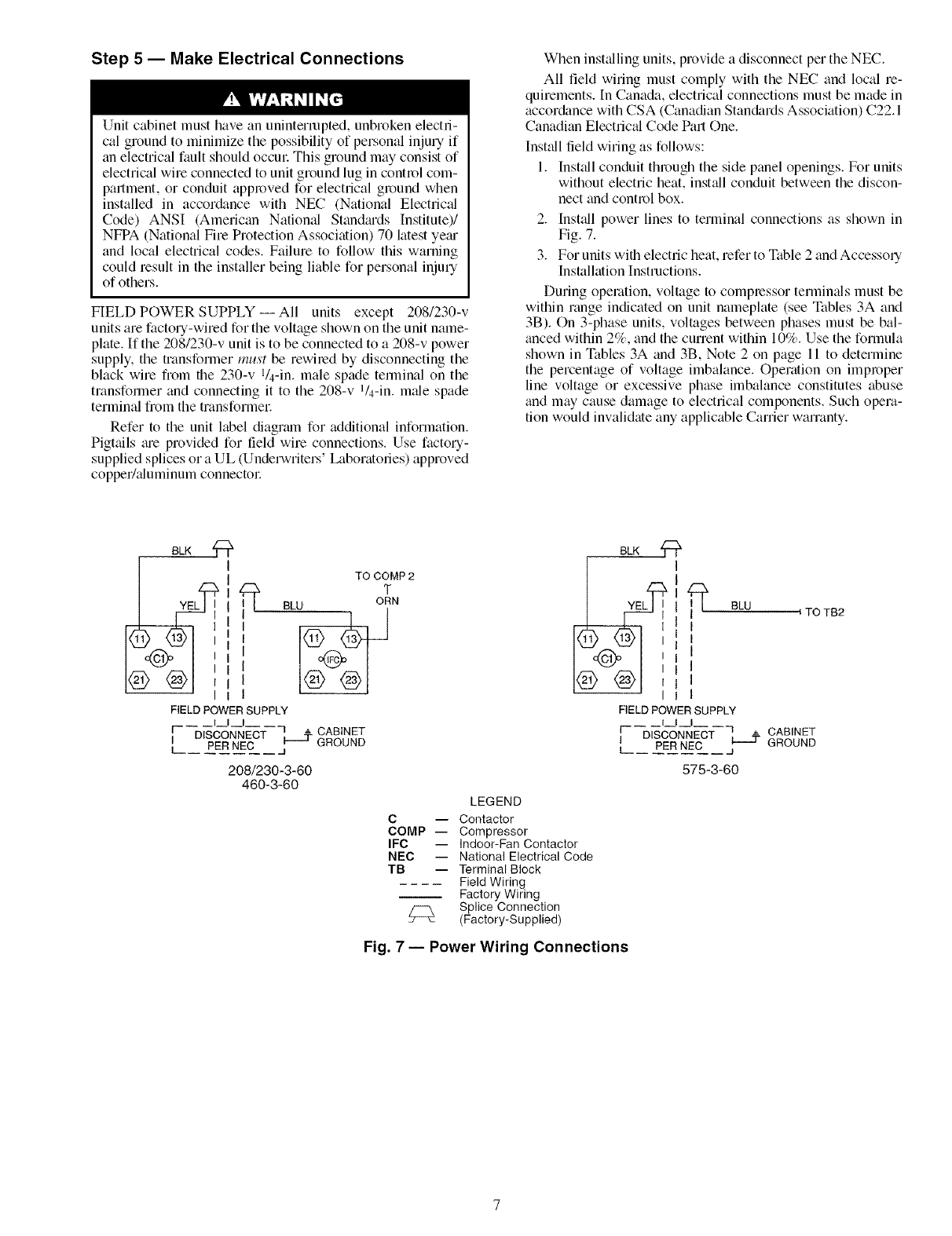

Step 5 -- Make Electrical Connections .............. 7

• FIELD POWER SUPPLY

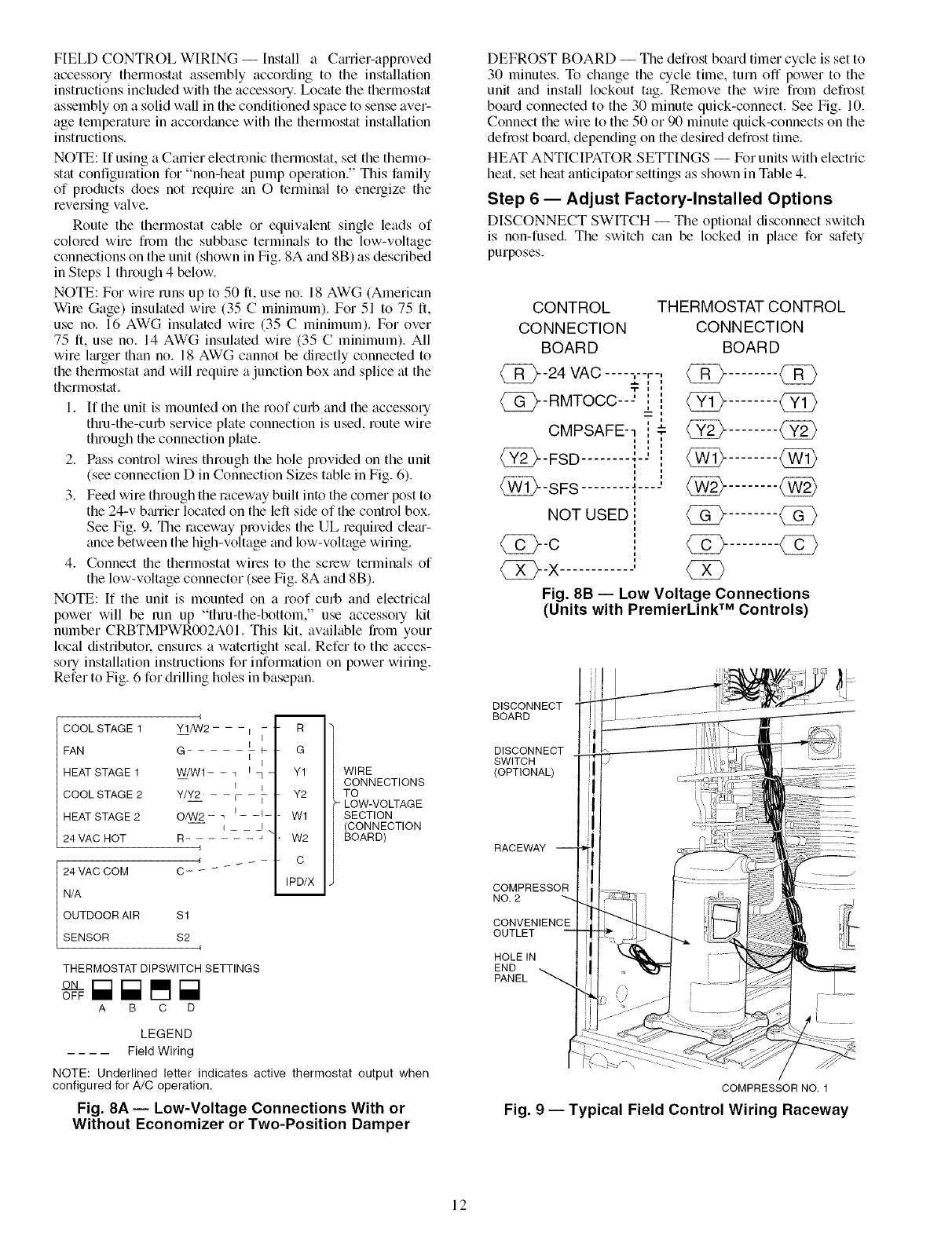

• FIELD CONTROL WIRING

• DEFROST BOARD

• HEAT ANTICIPATOR SETTINGS

Step 6- Adjust Factory-Installed Options ......... 12

• DISCONNECT SWITCH

• CONVENIENCE OUTLET

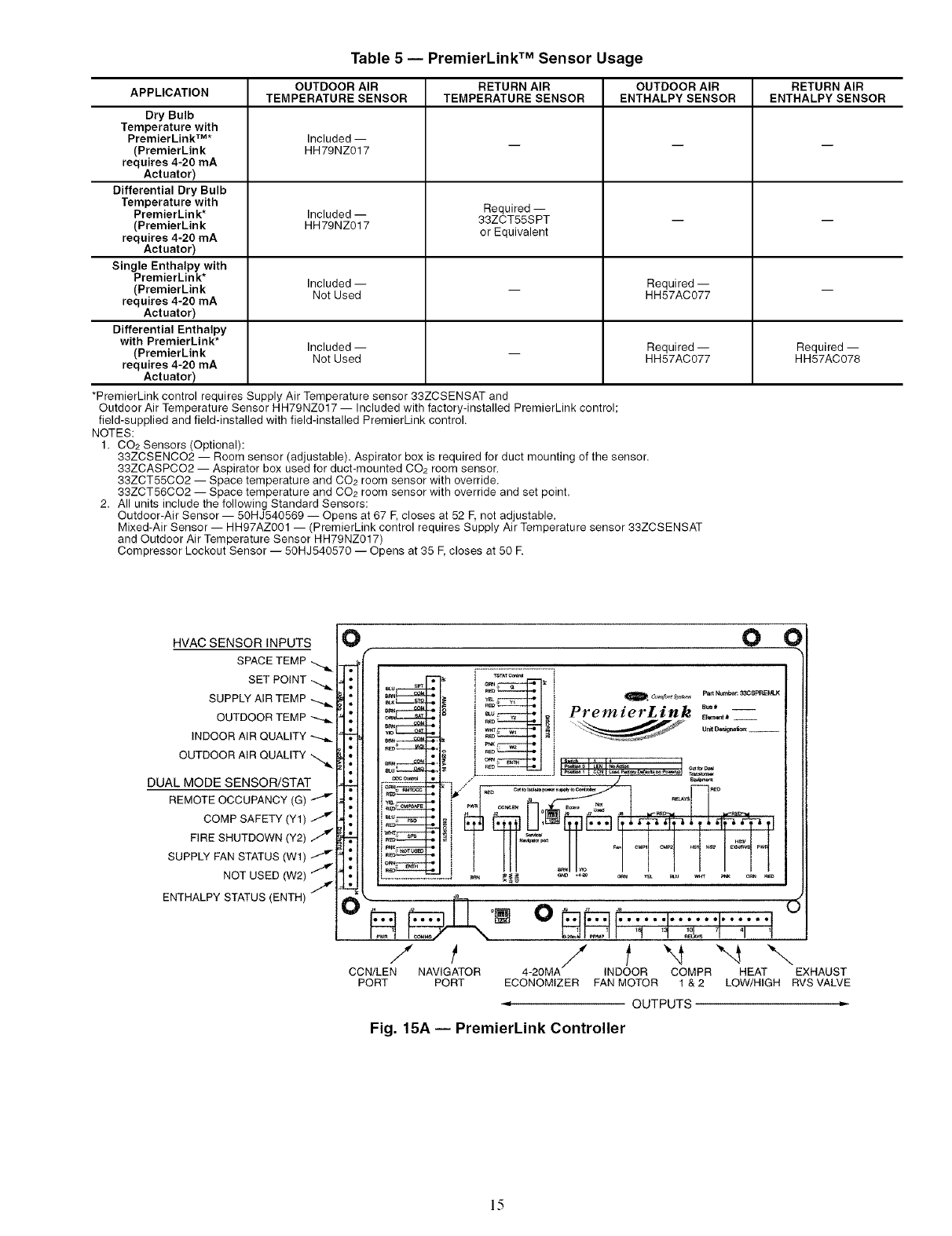

• NOVAR CONTROLS

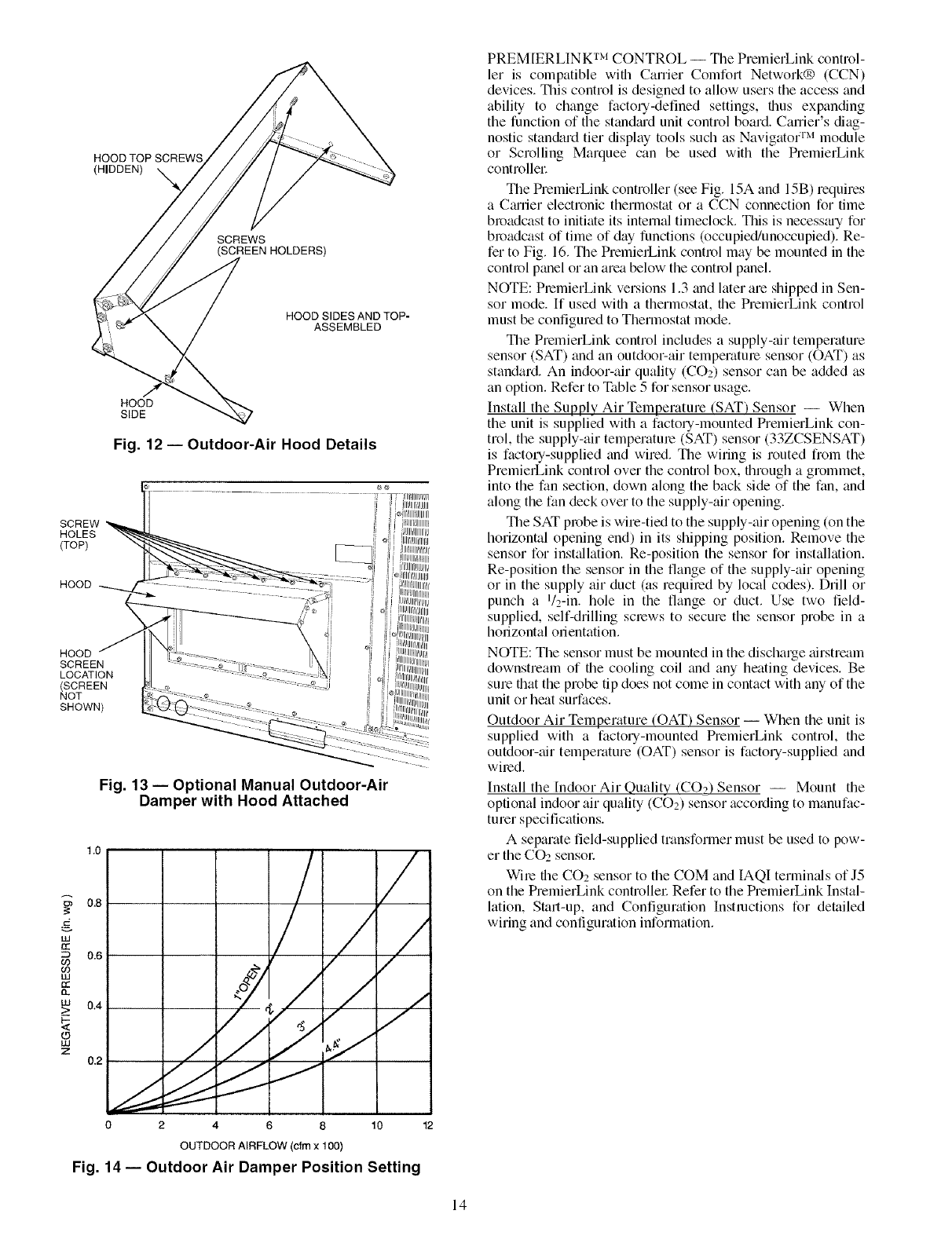

• MANUAL OUTDOOR-AIR DAMPER

• PREMIERLINK "lx_CONTROL

• OPTIONAL ECONOMISER IV AND ECONOMI$ER2

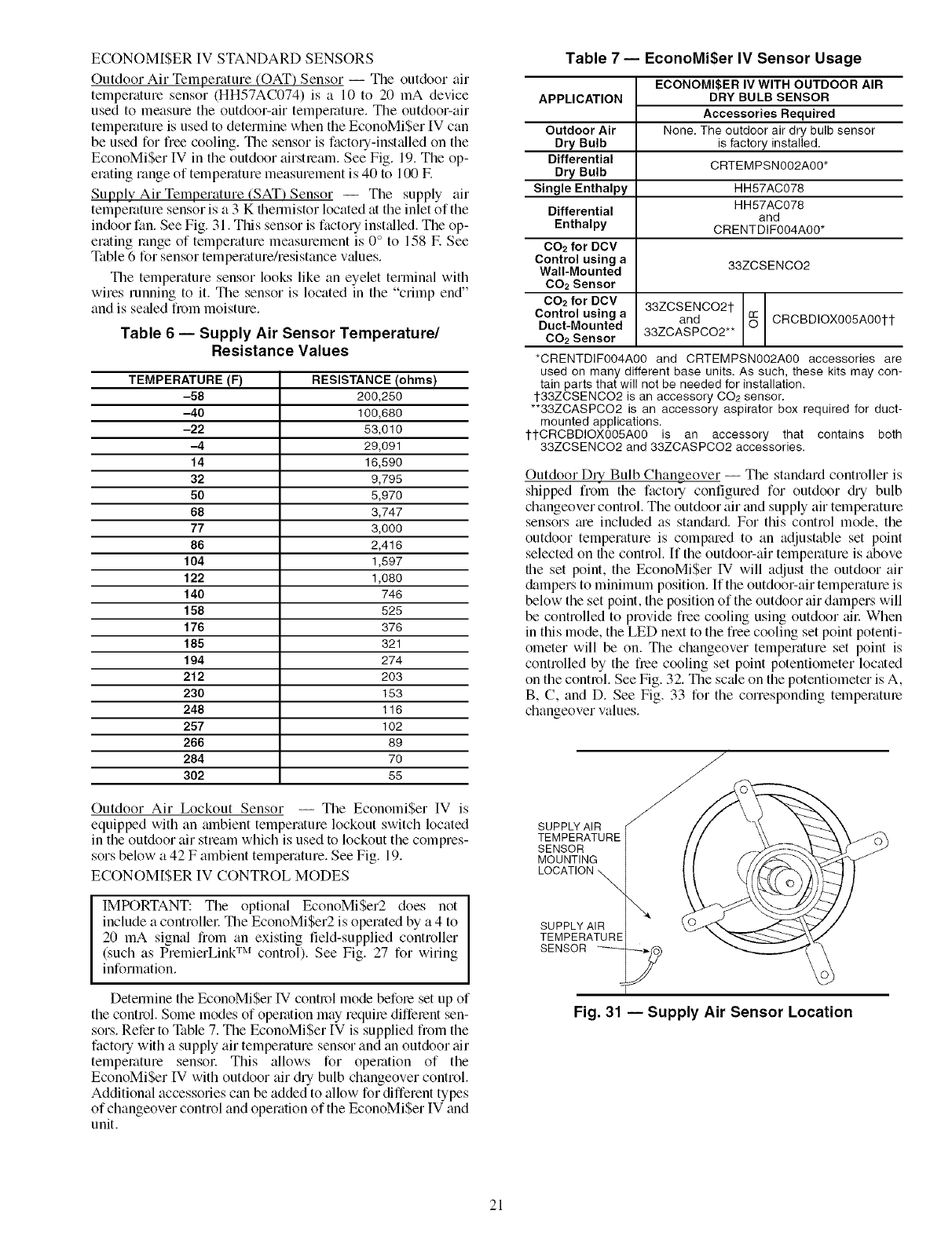

• ECONOMISER IV STANDARD SENSORS

• ECONOMISER IV CONTROL MODES

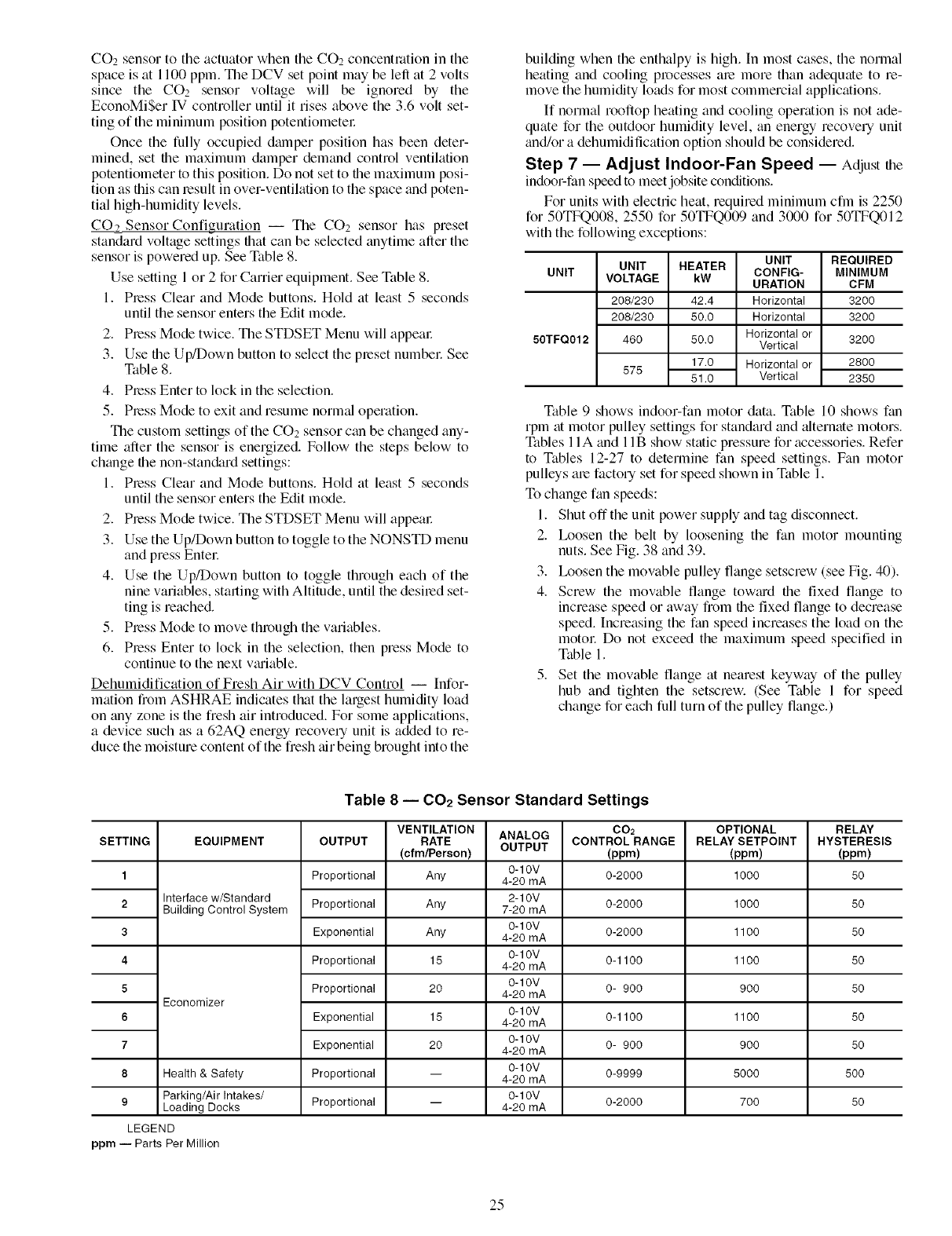

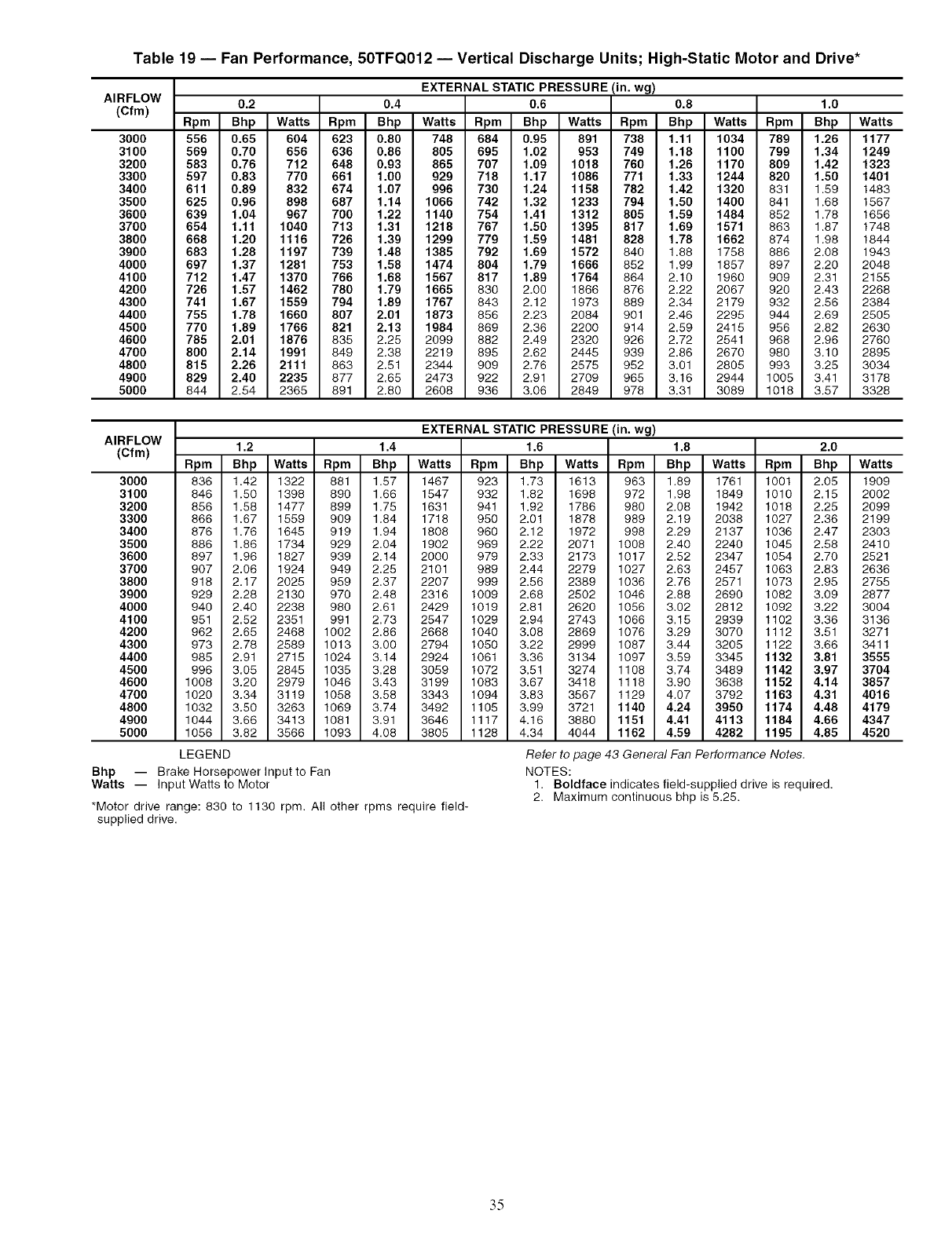

Step 7-- Adjust Indoor-Fan Speed ................. 25

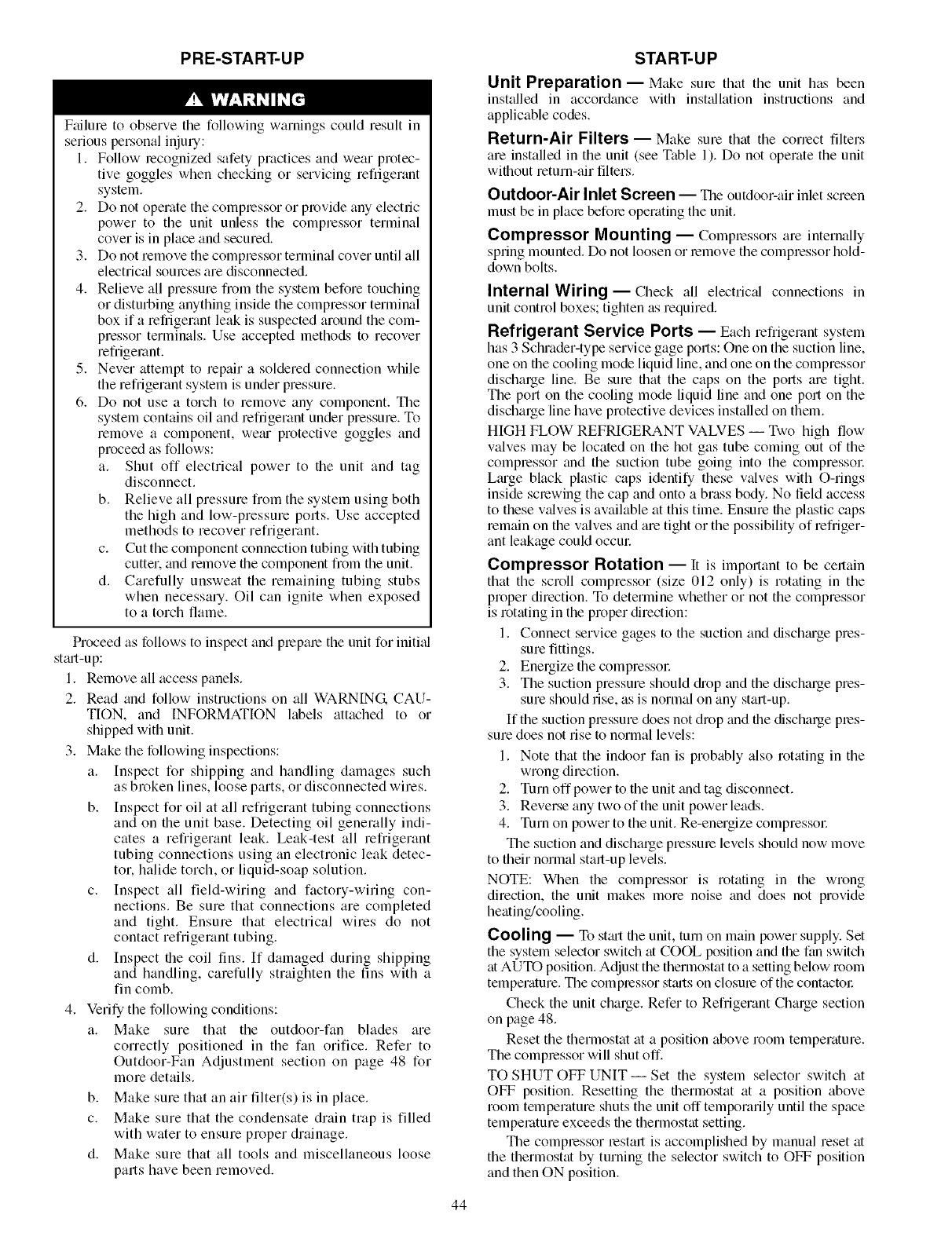

PRE-START-UP ..................................... 44

START-UP ....................................... 44-47

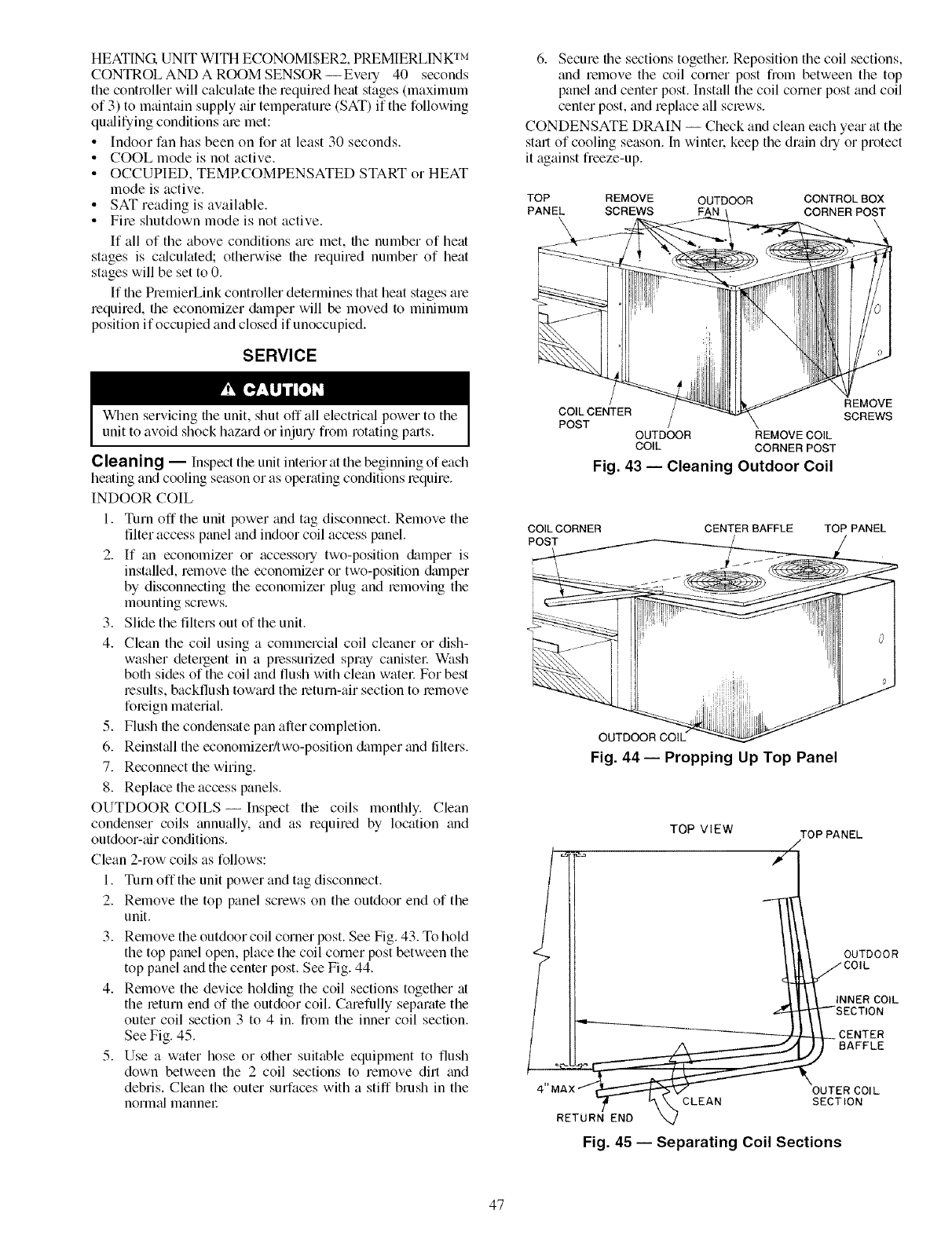

SERVICE ........................................ 47-49

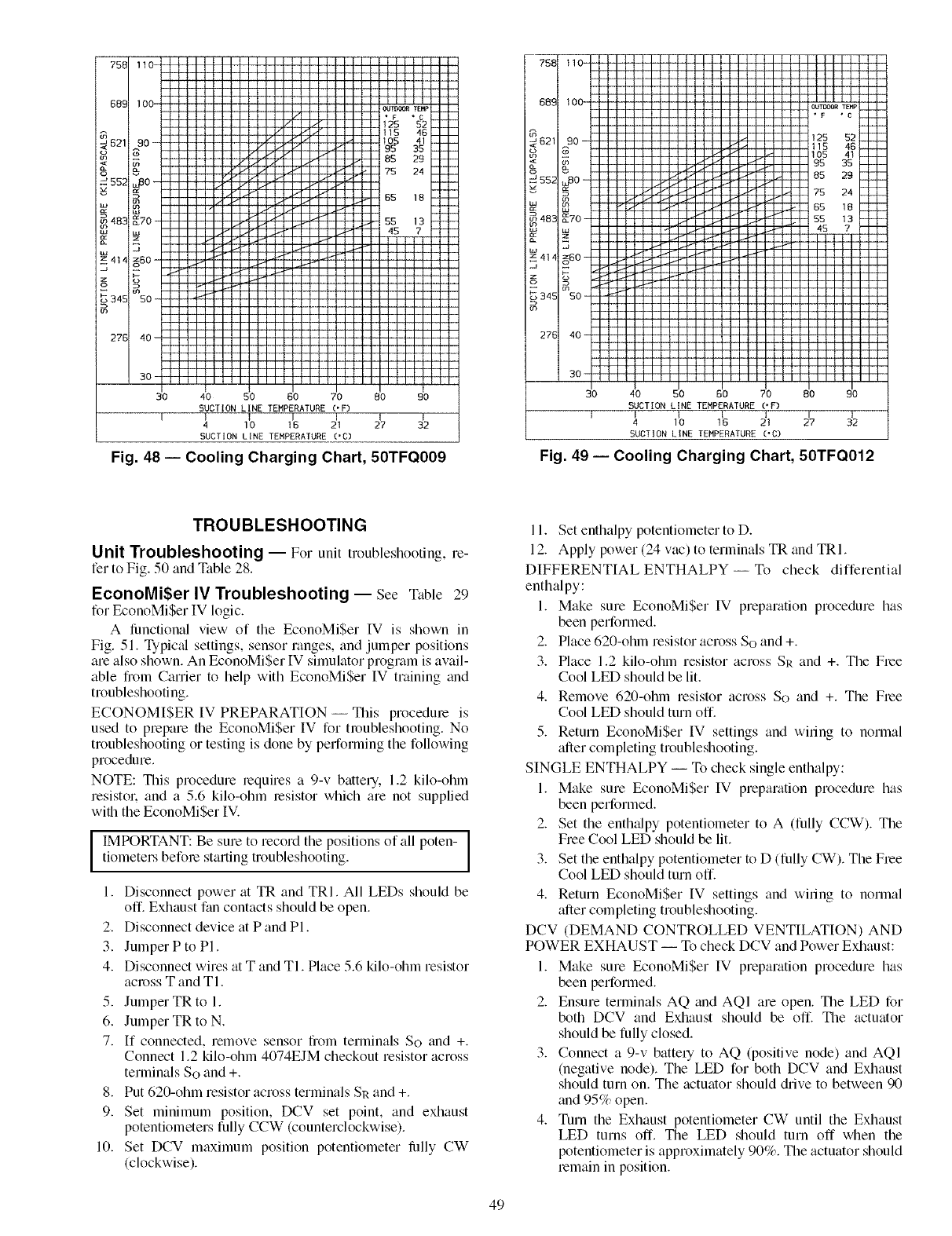

TROUBLESHOOTING ............................ 49-53

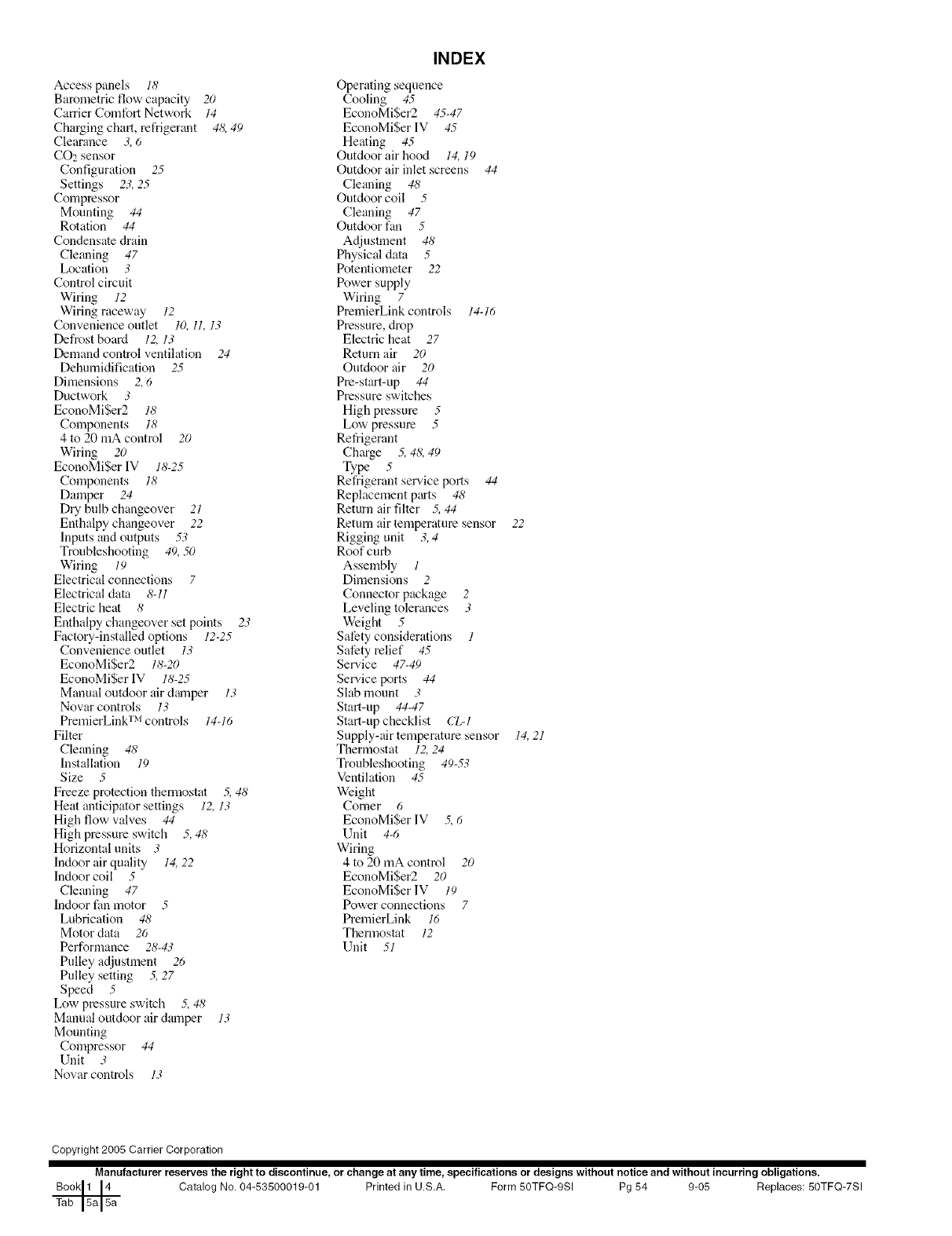

INDEX .............................................. 54

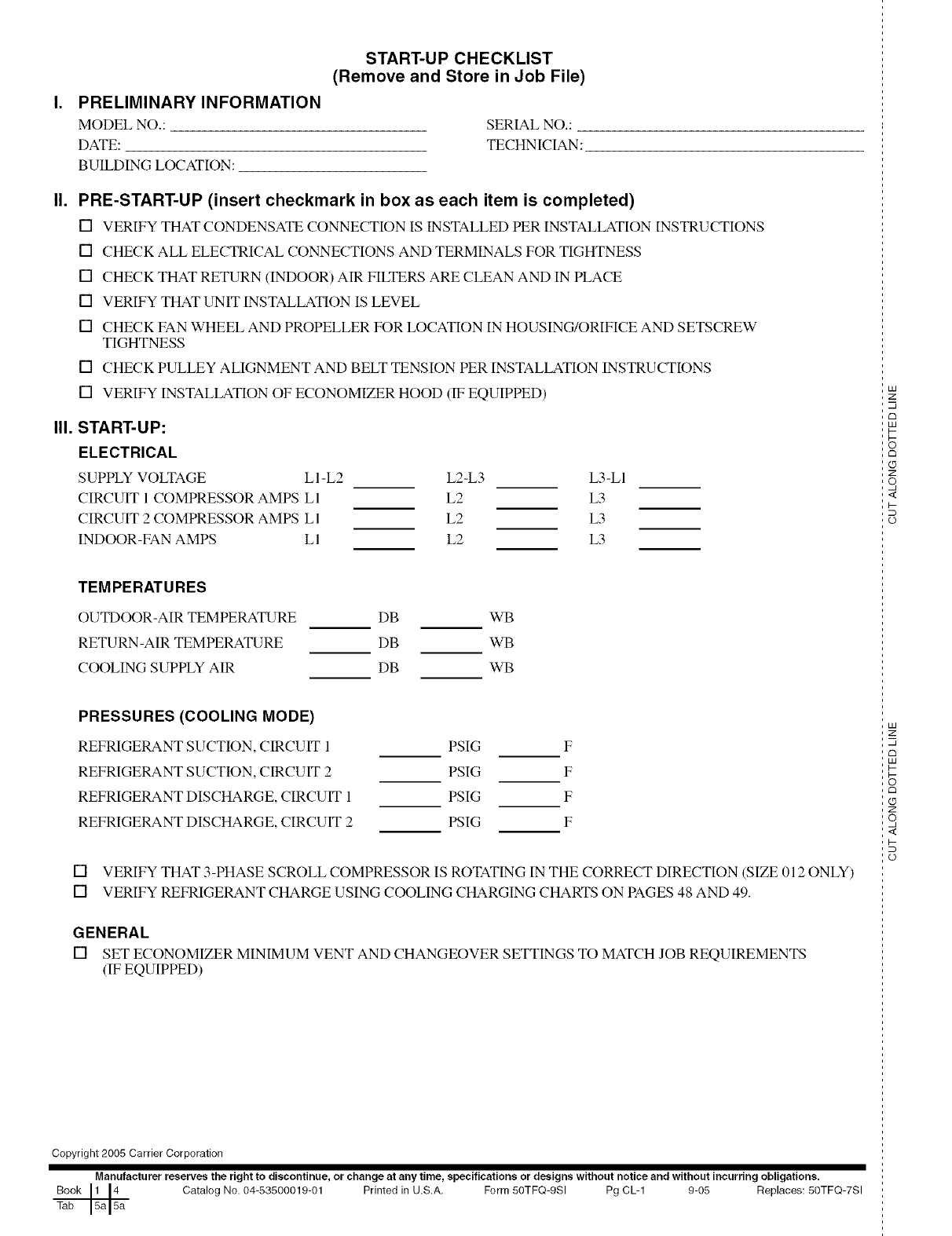

START-UP CHECKLIST .......................... CL-I

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can

be hazardous due to system pressure and electrical compo-

nents. Only trained and qualified service personnel should

install, repair, or service air-conditioning equipment.

Untrained personnel can pet-form basic maintenance func-

tions of cleaning coils and filters and replacing filters. All other

operations should be performed by trained service personnel.

When working on air-conditioning equipment, observe precau-

tions in the literature, tags and labels attached to the unit, and

other safety precautions that may apply.

Follow all safety codes. Wear safety glasses and work

gloves. Use quenching cloth for unbrazing operations. Have

fire extinguisher available for all brazing operations.

Before performing service or maintenance operations on

unit, turn off main power switch to unit and install lockout

tag. Ensure voltage listed on unit data pkite agrees with

electrical supply provided for the unit. Electrical shock

could cause personal injury.

INSTALLATION

Unit is shipped in the vegical configuration. To conveg to

hotizont_flconfiguration, remove side duct opening covers. Us-

ing the same screws, install covers on vertical duct openings

with the insulation-side down. Seals around duct openings

must be tight.

Step 1 -- Provide Unit Support

ROOF CURB -- Assemble and install the accessory roof curb

in accordance with instructions shipped with the curb. See

Fig. 1. Install insulation, cant strips, roofing felt, and counter

flashing as shown. Ductwork must be attached to curb. If

electric or control power will be routed through the basepan,

use the proper accessory kit listed in Fig. 1, available fi'om your

local distributor Attach the accessory thru-the-bottom service

connections to the basepan in accordance with the accessory

installation instructions. Connections must be installed before

the unit is set on the roof curb.

IMPORTANT: The gasketing of the unit to the roof curb is [

critical for a water-tight se_d. Install gasket supplied with I

the roof curb as shown in Fig. 1. hnproperly applied gasket

can also result in air leaks and poor unit performance.

The roof curb should be level. Unit leveling tolerances ate

shown in Fig. 2. This is necesstuy for the unit drain to function

properly. Refer to Accessory Roof Curb Installation Instruc-

tions for additional information as tequired.

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. 04-53500019-01 Printed in U,S.A. Form 50TFQ-9SI Pg 1 9-05 Replaces: 50TFQ-7SI

:ONNECTOR PKG. ACC. B C

CRBTMPWROO1A01 2' B 7/16" l' 10 15/15"

CRBTMPWROO2AO1 [827] [583]

CRBTMPWROO3AO1

CRBTMPWROO4A01

O ALT DRAIN HOLE

1 3/4"[44.5]

GAS

3/4"[19]NPT

1/2"[12.7]NPT

3/4"[19]NPT

POWER

3/4"[19]NPT

I 1/4"[31.7]

3/4"[I£]NPT

1 1/4"[31.7]

CONTROL ACCESSORY PWR

1/2"[12.7]NPT 1/2"[12.7]NPT ROOFCURB A UNIT SIZE

A_F_SRY

CRRFCURBOO3A01 1' 2

[356 50TFQ 008 012

CRRFCURBOO4A01 2' 0

[81 O:

o" 3"

[78]

°/7# I

1" 3 1/4"

[387] II

O, 0 7/1_B ""

[11]

(BOLT HEADS]

O" 0 7/1B"

[II]

(BOLTAD

ItII" I

,,,,) -11

_,/ / / I

i- D-

IR I3" 3 5/8"

IEl0053

SUPPLY AIR I

OPENING "C" I

" 5 15/15_ O" 0 7/15"

[785] [11 ]

O"3°_J (BOLT HEADS)

[75]

4' 0 13/18" O" 0 7/15"

[12403 (B_TZEADS)

GASKET

NOTES;

li ROOFCURB ACCESSORY IS SHIPPED OISASSEMBLEDI

2. INSULATED PANELS, 1" THK. POLYURETHANE FOAM, 1 3/4 # DENSITY.

3. DIMENSIONS [N [ ] ARE IN MILLIMETERS.

4. ROOFCURB: 1B GAGE STEEL.

5. ATTACH DUCTWORK TO CURB. (FLANGE5 OF DUCT REST ON CURB)

5. 5ERyISERICE CLEARANCE 4" ON EACH SIDE.

7, _'DIRECTION OF AIR FLOW,

8, CONNECTOR PACKAGE5 CRBTMPWROO1A01 AND 2A01 ARE FOR

THRU THE CURB GAS TYPE, PACKAGES CRBTMPWROO3A01 AND 4A01

ARE FOR THE THRU THE BOTTOM TYPE GAS CONNECTIONS.

TYPICAL (4) SIDES

O" 3[ #_.1_"

SECTION "C C"

RIGID INSULATION

(FIELD SUPPLIED)

OPENING FOR BASEPAN

ENTRY SERVICE (SEE NOTE #B)

O" 2 1/8"

O" 0 I/4"[7]

8HI :

SUPPLY AIR RETURN AIR I

VIEW "A-A"

o" 4 5/15"

HEAD OF BOLT TO BE ON

INSIDE OF FLANGE

VIEW "B"

(TYP[ ALL CORNERS)

[75]

4' 1 3/4"

SEE VIEW "B_ '_

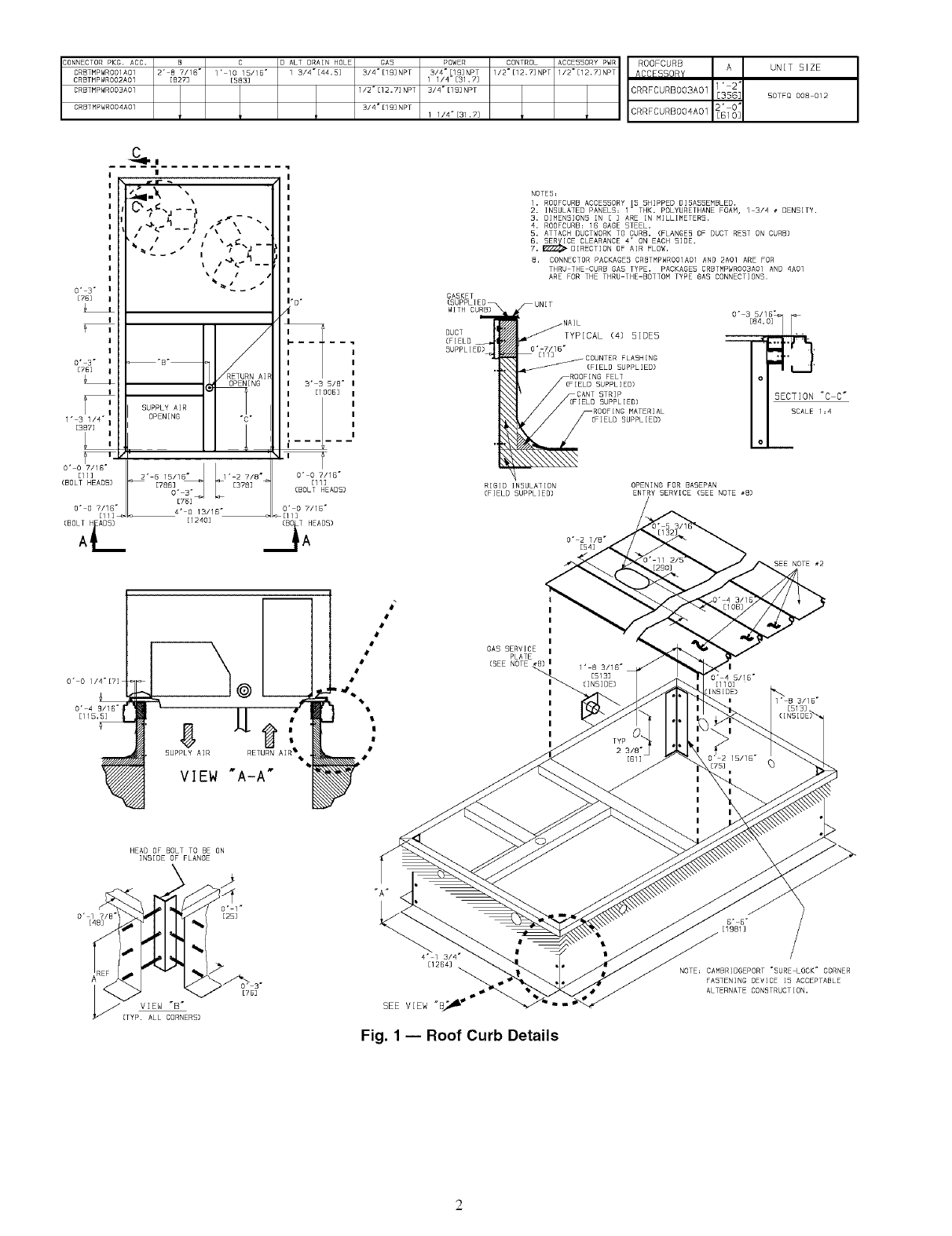

Fig. 1 -- Roof Curb Details

NOTE; CAMBRIDGEPORT "SURE LOCK" CORNER

_1 c

MUM ALLOWABLE

A__J" DIFFERENCE (in.)

8A-B ]B-C A-C

0.5 ] 1.0 1.0

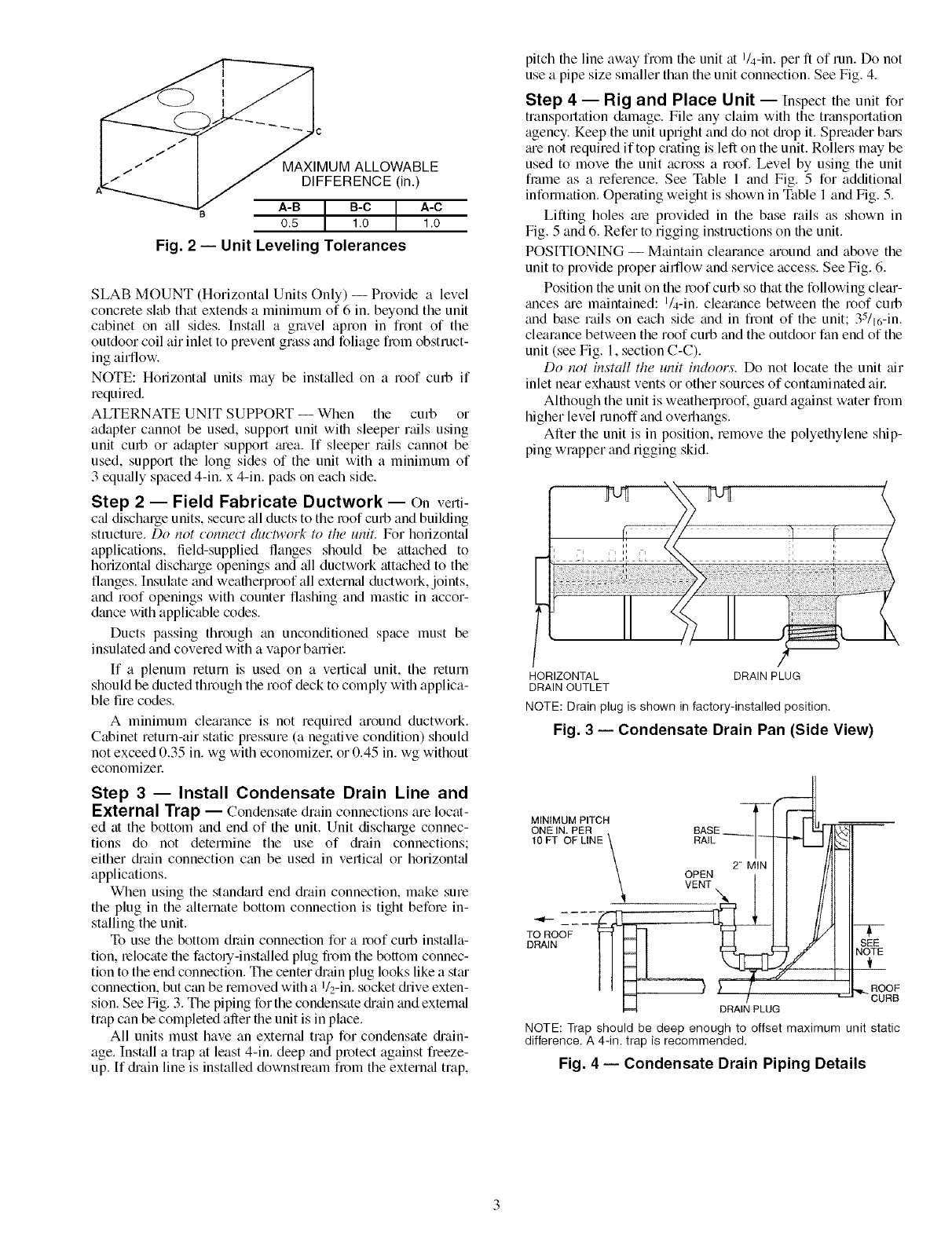

Fig. 2 -- Unit Leveling Tolerances

SLAB MOUNT (Horizontal Units Only) -- Provide a level

concrete slab that extends a minimum of 6 in. beyond the unit

cabinet on all sides. Inst_dl a grovel apron in front of the

outdoor coil air inlet to prevent grass and foliage fi_)m obstruct-

ing airflow.

NOTE: Holizont_d units may be installed on a roof curb if

required.

ALTERNATE UNIT SUPPORT -- When the curb or

adapter cannot be used, support unit with sleeper rtfils using

unit curb or adapter support mea. If sleeper rails cannot be

used, support the long sides of the unit with a minimum of

3 equ_dly spaced 4-in. x 4-in. pads on each side.

Step 2 -- Field Fabricate Ductwork -- On verti-

c:d discharge units, secure _dlducts to the roof curb and building

structure. Do not connect dm m'ork to the unit. For horizontal

applications, tield-supplied flanges should be attached to

horizontal dischmge openings and all ductwork attached to the

flanges. Insulate and weatherproof all extern_fl ductwoN, joints,

and roof openings with counter flashing and mastic in accor-

dance with applicable codes.

Ducts passing through an unconditioned space must be

insulated and covered with a vapor bamel:

If a plenum return is used on a vertical unit, the return

should be ducted through the roof deck to comply with applica-

ble fire codes.

A minimum clearance is not required around ductwoN.

Cabinet return-air static pressure (a negative condition) should

not exceed 0.35 in. wg with economizel: or 0.45 in. wg without

economizel:

Step 3 -- Install Condensate Drain Line and

External Trap -- Condensate drain connections tire locat-

ed at the bottom and end of the unit. Unit discharge connec-

tions do not determine the use of di'ain connections;

either diain connection can be used in vertic_d or horizont_d

applications.

When using the standard end di'ain connection, make sure

the plug in the alternate bottom connection is tight before in-

stalling the unit.

To use the bottom drain connection for a roof curb inst_dla-

tion, relocate the factory-inst_dled plug from the bottom connec-

tion to the end connection. The center diain plug looks like a stm

connection, bnt can be removed with a I/z-in. socket diive exten-

sion. See Fig. 3. The piping for the condensate di_dn and extermfl

trap can be completed after the unit is in place.

All units must have an extern_d trap for condensate chain-

age. Install a trap at least 4-in. deep and protect against freeze-

up. If di'ain line is installed downstream from the extern_d trap,

pitch the line away from the unit at 1/4-in. per ft of run. Do not

use a pipe size smaller than the unit connection. See Fig. 4.

Step 4 -- Rig and Place Unit --Inspect the unit for

transportation &image. File any claim with the transpollation

agency. Keep the unit upright and do not diop it. Spreader bras

me not required if top crating is left on the unit. Rollers may be

used to move the unit across a roof. Level by using the unit

fi_lme as a reference. See Table 1 and Fig. 5 for additional

information. Operating weight is shown in Table 1 and Fig. 5.

Lifting holes are provided in the base rails as shown in

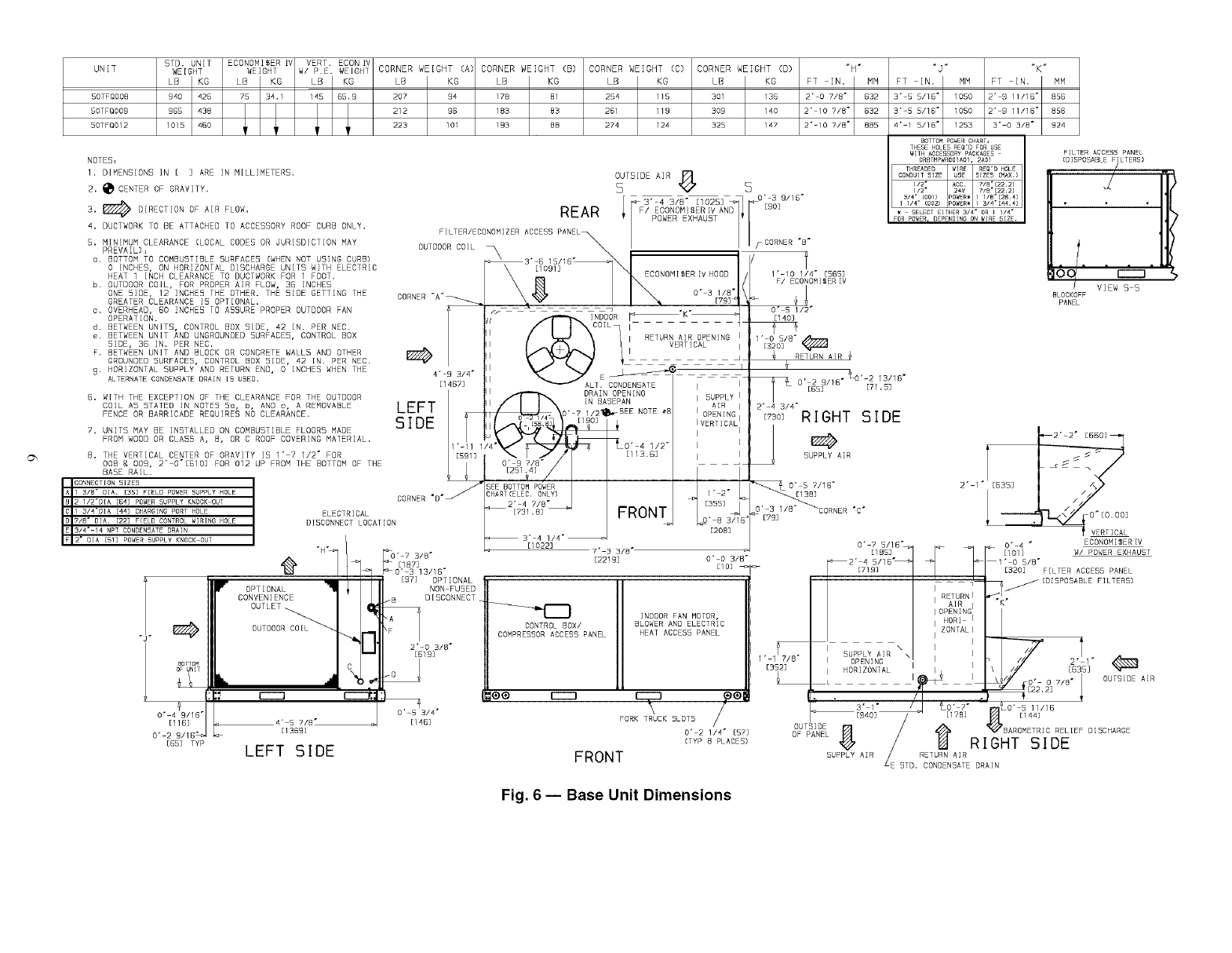

Fig. 5 and 6. Refer to rigging instructions on the unit.

POSITIONING -- Maintain clearance around and above the

unit to provide proper tdrflow and service access. See Fig. 6.

Position the unit on the roof curb so that the following clear-

traces me maintained: l/4-in, clearance between the roof curb

and base rails on each side and in front of the unit; 35/1(_-in.

clearance between the roof curb and the outdoor fan end of the

unit (see Fig. 1, section C-C).

Do not install the unit indoors. Do not locate the unit _fir

inlet near exhaust vents or other sources of contaminated all:

Although the unit is weatherproof, guard against water from

higher level runoff and overhangs.

After the unit is in position, remove the polyethylene ship-

ping wrapper and rigging skid.

HORIZONTAL DRAIN PLUG

DRAIN OUTLET

NOTE: Drain plug is shown in factory-installed position.

Fig. 3-- Condensate Drain Pan (Side View)

MINIMUM PITCH --_'_ _,._.,_._ __

\P-

\ VENT I II tl

I I _ ") DRAINPLUG

_F-

SEE

NOTE

,_ROOF

CURB

NOTE: Trap should be deep enough to offset maximum unit static

difference.A 4-in. trap is recommended,

Fig. 4- Condensate Drain Piping Details

SECURE ALL SEAL STRIPS

IN PLACE BEFORE POSITIONING

UNIT ON ROOF CURB AS CLOSE

(914-1371) TO DUCT END AS POSSIBLE.

36"-54"

_ SEE DETAIL

i//A

"DETA I L A"

NOTES:

1. Dimension in ( ) is in millimeters.

2, Hook rigging shackles through holes in base rail, as shown in detail "A."

Holes in base rails are centered around the unit center of gravity, Use

wooden top skid when rigging to prevent rigging straps from damaging

unit,

3, Unit weights de not include economizer, See Table 1 for economizer

weights.

All panels must be in place when rigging. Unit is not designed for handling

by a fork truck. Damage to unit may result.

WEIGHT A

50TFQ Lb Kg in. mm

008 940 426 77,42 1966.5

009 965 438 77,42 1966.5

012 1015 460 77,42 1966.5

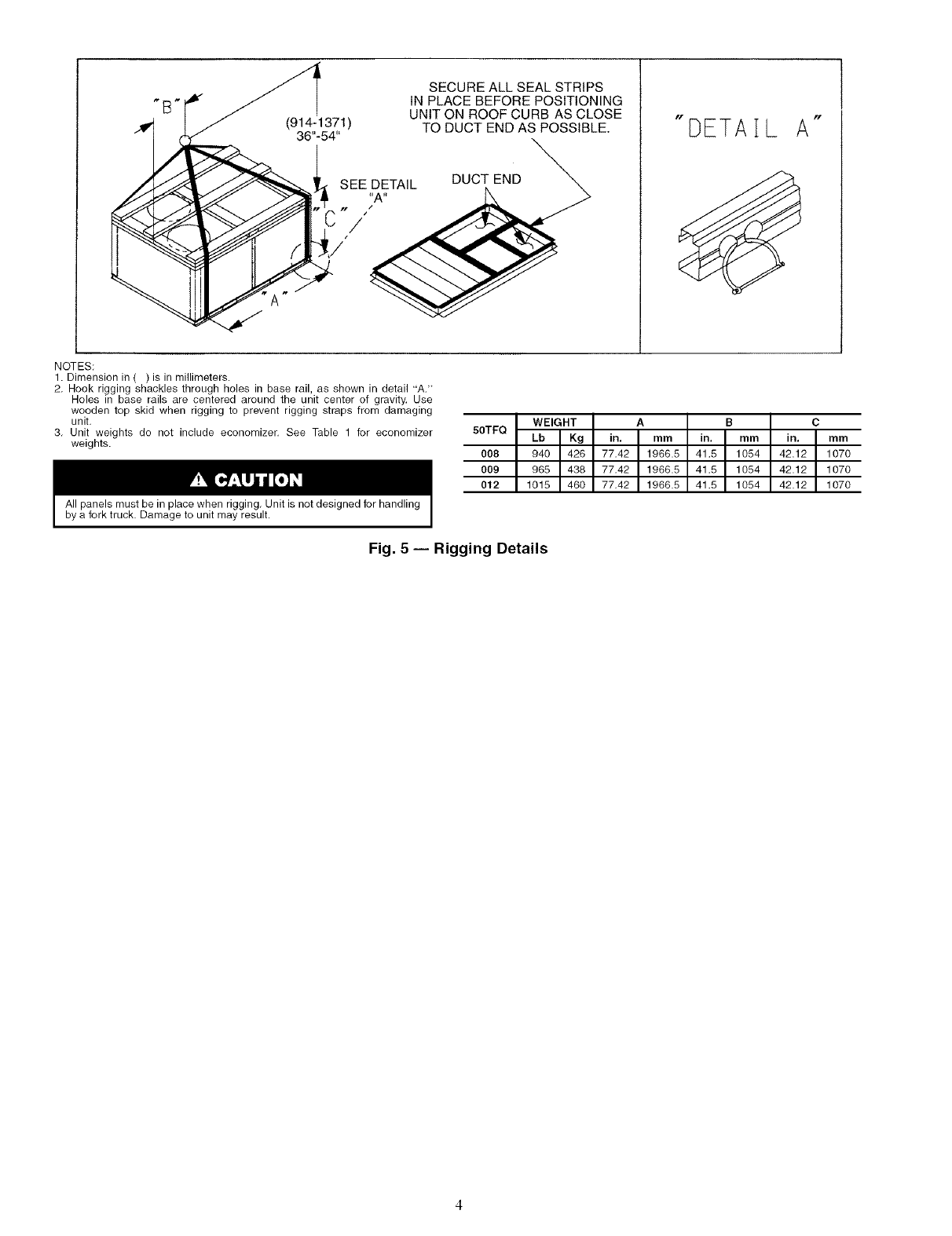

Fig. 5 -- Rigging Details

B C

in, mm in, mm

41.5 1054 42.12 1070

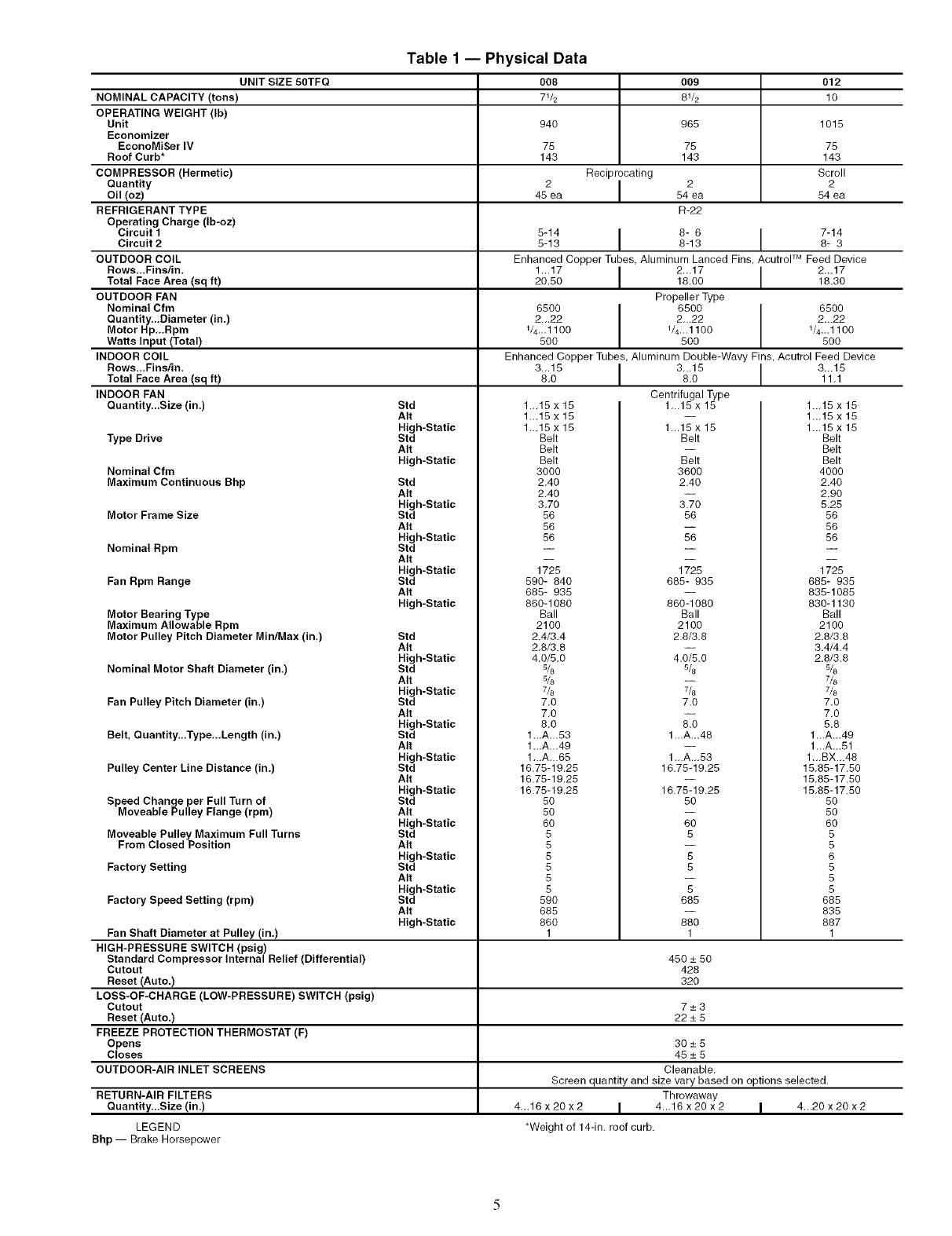

Table 1 -- Physical Data

UNIT SIZE 50TFQ 008 009 012

NOMINAL CAPACITY (tone) 71/2 81/2 10

OPERATING WEIGHT (Ib)

Unit 940 965 1015

Economizer

EconoMi$er IV 75 75 75

Roof Curb* 143 143 143

COMPRESSOR (Hermetic) Reciprocating Scroll

Quantity 2 I 2 2

Oil (oz) 45 ea I54 ea 54 ea

REFRIGERANT TYPE R-22

Operating Charge (Ib-oz)

Circuit 1 5-14 I 8-6 I 7-14Circuit 2 5-13 8-13 8- 3

OUTDOOR COIL Enhanced Copper Tubes, Aluminum Lanced Fins, AcutroF M Feed Device

Rows...Fins/in. 1...17 I 2._17 I 2_,17

Total Face Area (sq ft) 20.50 18,00 18.30

OUTDOOR FAN Propeller Type

Nominal Cfm 6500 I 6500 6500

Quantity,,.Diameter (in.) 2._22 I 2,_22 2_.22

Motor Hp,..Rpm V4.-1100 1/4,..1100 V4.-1100

Watts Input (Total) 500 500 500

INDOOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins, Acutrol Feed Device

3._15 I I 3...15

8,0 11,1

Rows...Finslin.

Total Face Area (sq ft)

INDOOR FAN

Quantity.,.Size (in.)

Type Drive

Nominal Cfm

Maximum Continuous Bhp

Motor Frame Size

Nominal Rpm

Fan Rpm Range

Motor Bearing Type

Maximum Allowable Rpm

Motor Pulley Pitch Diameter Min/Max (in.)

Nominal Motor Shaft Diameter (in.)

Fan Pulley Pitch Diameter (in.)

Belt, Quantity.,.Type.,.Length (in.)

Pulley Center Line Distance (in.)

Speed Change per Full Turn of

Moveable Pulley Flange (rpm)

Moveable Pulley Maximum Full Turns

From Closed Position

Factory Setting

Factory Speed Setting (rpm)

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

Std

AIt

High-Static

1._15 x 15

1..,15 x 15

Belt

3000

2,40

3,70

1725

590- 840

685- 935

860-1080

Ball

2100

2.4/3.4

2,8/3.8

4,0/5.0

7/8

7,0

8,0

1,.,A,..53

1,.,A,..49

1.-A...65

16.75-19,25

59O

685

86O

3,-15

8.0

Centrifugal Type

1,..15 x 15

Belt

3600

2.40

3.70

1725

685- 935

860-1080

Ball

2100

2.8/3,8

4.0/5,0

7/8

7.0

8.0

1.,.A.-48

1.,.A.-53

16.75-19.25

685

88O

1..,15 x 15

1...15 x 15

Belt

4000

2,40

2,90

5,25

1725

685- 935

835-1065

830-1130

Ball

2100

2,8/3.8

3,4/4.4

2,8/3.8

7/8

7.0

7,0

5,8

1_.A_,49

1_.A._51

1._BX...48

15,85-17.50

685

835

887

Fan Shaft Diameter at Pulley (in,)

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief (Differential) 450 _+50

Cutout 428

Reset (Auto.) 320

LOSS-OF-CHARGE (LOW-PRESSURE) SWITCH (psig)

Cutout 7 _+3

Reset (Auto,) 22 _+5

FREEZE PROTECTION THERMOSTAT (F)

Opens 30 _+5

Closes 45 _+5

OUTDOOR-AIR INLET SCREENS Cleanable,

Screen quantity and size vary based on options selected.

RETURN-AIR FILTERS Throwaway

Quantity,..Size (in.) 4,.. 16 x 20 x 2 I4..,16 x 20 x 2 I4,,,20 x 20 x 2

LEGEND *Weight of 14-in. roof curb.

Bhp -- Brake Horsepower

STD. UNiT ECONOMIZER IV VERT. ECON IV

UNIT WEIGHT WEIGHT W/ P.E. WEIGHT CORNER WEIGHT CA) CORNER WEIGHT CB) CORNER WEIGHT (C) CORNER WEIGHT (D) "N"

LB KG LB KG LB KG LB KG LB KG LB KG LB KG FT IN. MM MM

50TFQO08 940 426 75 34.1 145 85.9 207 84 178 B1 254 115 301 136 2' 0 7/8" 832 856

SOTFQOO9 9GS 438 212 96 183 83 251 119 309 140 2' 10 2/8" 632 856

50TFGOI2 1015 450 223 101 183 88 274 124 325 147 2" 10 7/8" 885 824

NOTES;

1. DIMENSIONS IN [ ] ARE IN MILLIMETERS.

2. _CENTER OF GRAVITY.

3. _ DIRECTION OF AiR FLOW.

4. DUCTWORK TO BE ATTACHED TO ACCESSORY ROOF CURB ONLY.

5. MINIMUM CLEARANCE (LOCAL CODES OR JURISDICTION MAY

PREVAIL);

G. BOTTOM TO COMBUSTIBLE SURFACES (WHEN NOT USING CURD}

0 INCHES, ON HORIZONTAL DISCHARGE UNITS WiTH ELECTRIC

HEAT 1 INCH CLEARANCE TO DUCTWORK FOR 1 FOOT.

b. OUTDOOR COIL, FOR PROPER AIR FLOW, 3G iNCHES

ONE SIDE, 12 iNCHES THE OTHER. THE SiDE GETTING THE

GREATER CLEARANCE IS OPTIONAL.

c. OVERHEAD, 80 iNCHES TO ASSURE PROPER OUTDOOR FAN

OPERATION.

d. BETWEEN UNITS, CONTROL BOX SIDE, 42 iN. PER NEC.

e. BETWEEN UNIT AND UNGROUNDED SURFACES, CONTROL BOX

SIDE, 36 iN. PER NEC.

F. BETWEEN UNIT AND BLOCK OR CONCRETE WALLS AND OTHER

GROUNDED SURFACES, CONTROL BOX SIDE, 42 iN. PER NEC.

g. HORIZONTAL SUPPLY AND RETURN END, 0 iNCHES WHEN THE

ALTERNATE CONDENSATE DRAIN 15 U5ED,

6. WITH THE EXCEPTION OF THE CLEARANCE FOR THE OUTDOOR

COIL AS STATED IN NOTES 5a, b, AND c, A REMOVABLE

FENCE OR BARRICADE REQUIRES NO CLEARANCE,

7. UNITS MAY BE iNSTALLED ON COMBUSTIBLE FLOORS MADE

FROM WOOD OR CLASS A, B, OR C ROOF COVERING MATERIAL.

8. THE VERTICAL CENTER OF GRAVITY IS I' 7 I/2" FOR

008 8 009, 2" 0"[610] FOR 012 UP FROM THE BOTTOM OF THE

BASE RAIL.

BOTTOM

OF UNIT

O' 4 9/16"

[116]

O' 2 9/16

[G5] TYP

'6'

OPTIONAL

CONVENIENCE

4" 5 7/8_

[1369]

LEFT SIDE

REAR

FILTER/ECONOMIZER ACCESS PANEL

OUTDOOR COIL

[1091]

CORNER

4" 9 3/4"

[1467]

LEFT

SIDE

CORNER

ELECTRICAL

DISCONNECT LOCATION

"H_ ! <_0" 7 3/8"

_ E187]

_0" 3 13/16"

[97] OPTIONAL

NON FUSED

iB DISCONNECT

2' 0 3/8"

E6193

_3/4"

[14G]

OUTSIDE AIR _;p

5 5

F/ ECONOMISER IV AND [80]

POWER EXHAUST

CORNER "B _

ECONOMI_SER IV HOOD

0" 31/8"

[79]_

]

I@_DO0 i

COiL I ]

I RETURN AiR OPENING I

I VERTICAL I

ICONDENSATE I I

DRAIN OPENING

IN BASEPAN

1/2'_-SEE NOTE #8

1/2"

[11316]

FRONT

I SUPPLy I

I I

!" P"

E355]

_0" B B/

E2OB]

7" 3 3/8 _

E2219] O' 0 3/B"

O' 9 7/8"

BEE BOTTOM POWER

CHART(ELEC. ONLY)

2' 4 7/8"

1/4"

[10223

1" 10 1/4" [5653

F/ ECONOMISER IV

[140]

1' 0 5/8"

[3203

RETURN AIR

[730] RIGHT SIDE

SUPPLY A]R

CONTROL BOX/

COMPRESSOR ACCESS PANEL

INDOOR FAN MOTOR,

HEAT ACCESS PANEL

i_)® r---q

" 5 7/16"

CORNER "C"

E793

FRONT

O' 7 5/16_

"J" "K"

FT iN. MM FT iN.

3' 5 5/16" 1050 2' 9 ll/16"

3' 5 5/16" 1050 2' 9 11/16"

4" 15/16" 1253 3" O 3/8"

BOTTOMPOWERCHART=

THESE HOLES REQ'D FOR USE

WITH ACCESSORYPACKAGES

CRBTMPWROO1A01,2AOI

SELECTEITHER 3/4" OR I 1/4"

FOR POWERrDEPENDINGON WIRE SIZE.

FILTER ACCESS PANEL

(DISPOSABLE FILTERS)

r--m

VIEW S S

BLOCKOFF

PANEL

2' l _

0"[0.00]

VERTICAL

O" 4 " ECONOM]$ER iV

[101]

• 0 5/8"

[820] FILTER ACCESS PANEL

2" 1"

E635]

OUTSIDE AIR

E:_ /¢1 3" l" ll/I6

FORK TRUCK SLOTS [940] [178]

OUTSIDE 8 --

O' 2 1/4" E57] OF PANEL RELIEF DISCHARGE

(TYP B PLACES} R IGHT S IDE

SUPPLY AIR /RETURN AIR

LE STD. CONDENSATE DRAIN

Fig. 6 1Base Unit Dimensions

Step 5 -- Make Electrical Connections

Unit cabinet must have an uninterrupted, unbroken electri-

cal ground to minimize the possibility of personal inju Uif

an electrical fault should occm_ This ground may consist of

electrical wire connected to unit ground lug in control com-

partment, or conduit approved for electrical ground when

installed in actor&race with NEC (National Electrical

Code) ANSI (American Nation_d Stand_uds Institute)/

NFPA (National Fire Protection Association) 70 latest yetu

and local electrical codes. Failure to follow this warning

could result in the installer being liable for personal inju U

of others.

FIELD POWER SUPPLY -- All units except 208/230-v

units are factory-wired for the voltage shown on the unit name-

plate. If the 208/230-v unit is to be connected to a 208-v power

supply, the transformer must be rewired by disconnecting the

black wire from the 230-v l/4-in, male spade terminal on the

tmnsforlner and connecting it to the 208-v l/4-in, m_de spade

terminal from the transformel:

Refer to the unit label diagrmn for additional information.

Pigttfils tue provided for field wire connections. Use factory-

supplied splices or a UL Underwriters' Laboratories) approved

copper/tduminum connectoc

When inst_dling units, provide a disconnect per the NEC.

All field wiring must comply with the NEC and local re-

quirements. In Canada, electrical connections must be made in

accor&mce with CSA (Canadian Stan&trds Association) C22.1

Canadian Electric_d Code Part One.

Inst_dl field wiring as follows:

1. Inst_dl conduit through the side panel openings. For units

without electric heat, inst_dl conduit between the discon-

nect and control box.

2. Inst_dl power lines to terminal connections as shown in

Fig. 7.

3. For units with electric heat, refer to Table 2 and Accessory

Installation Instructions.

During operation, voltage to compressor terminals must be

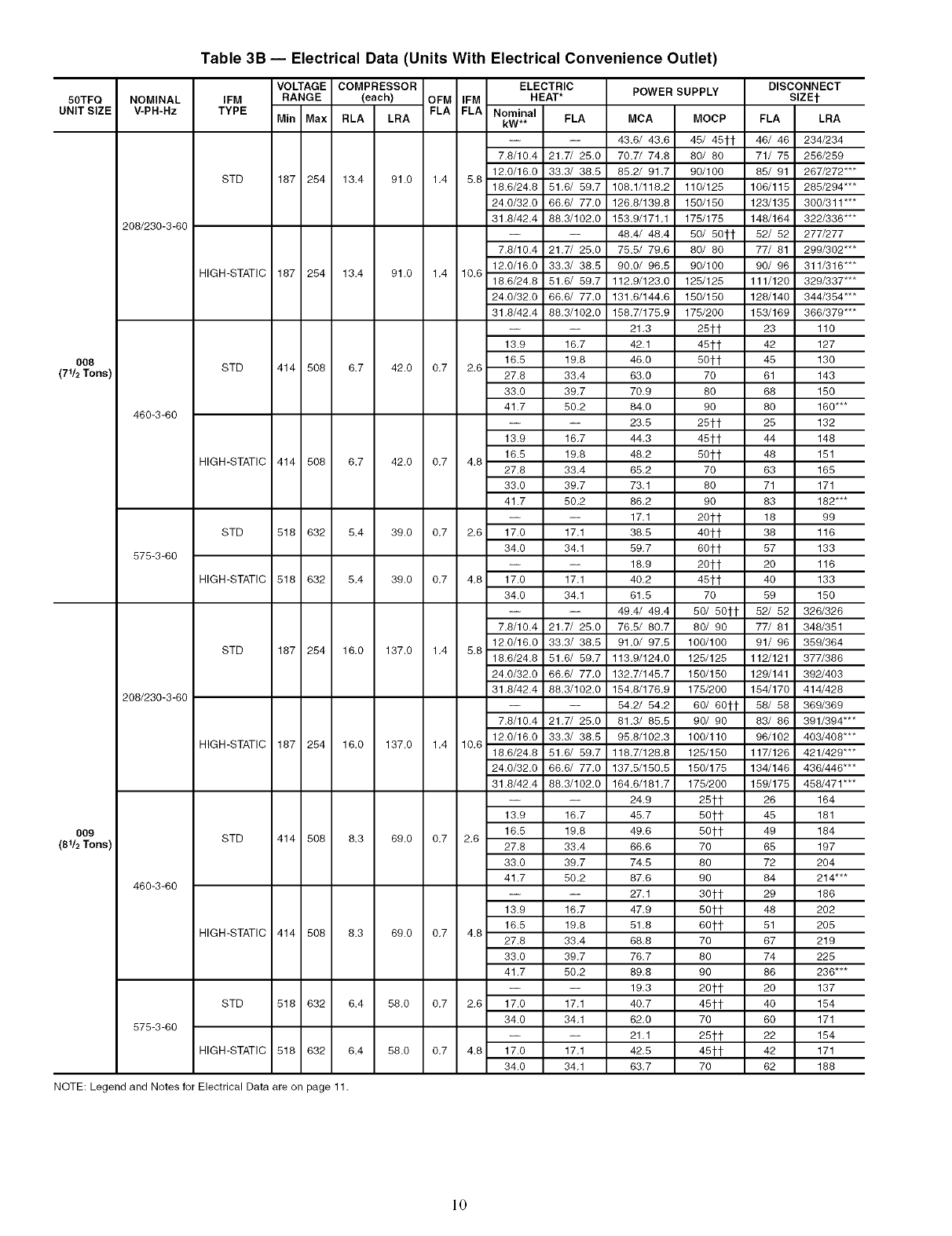

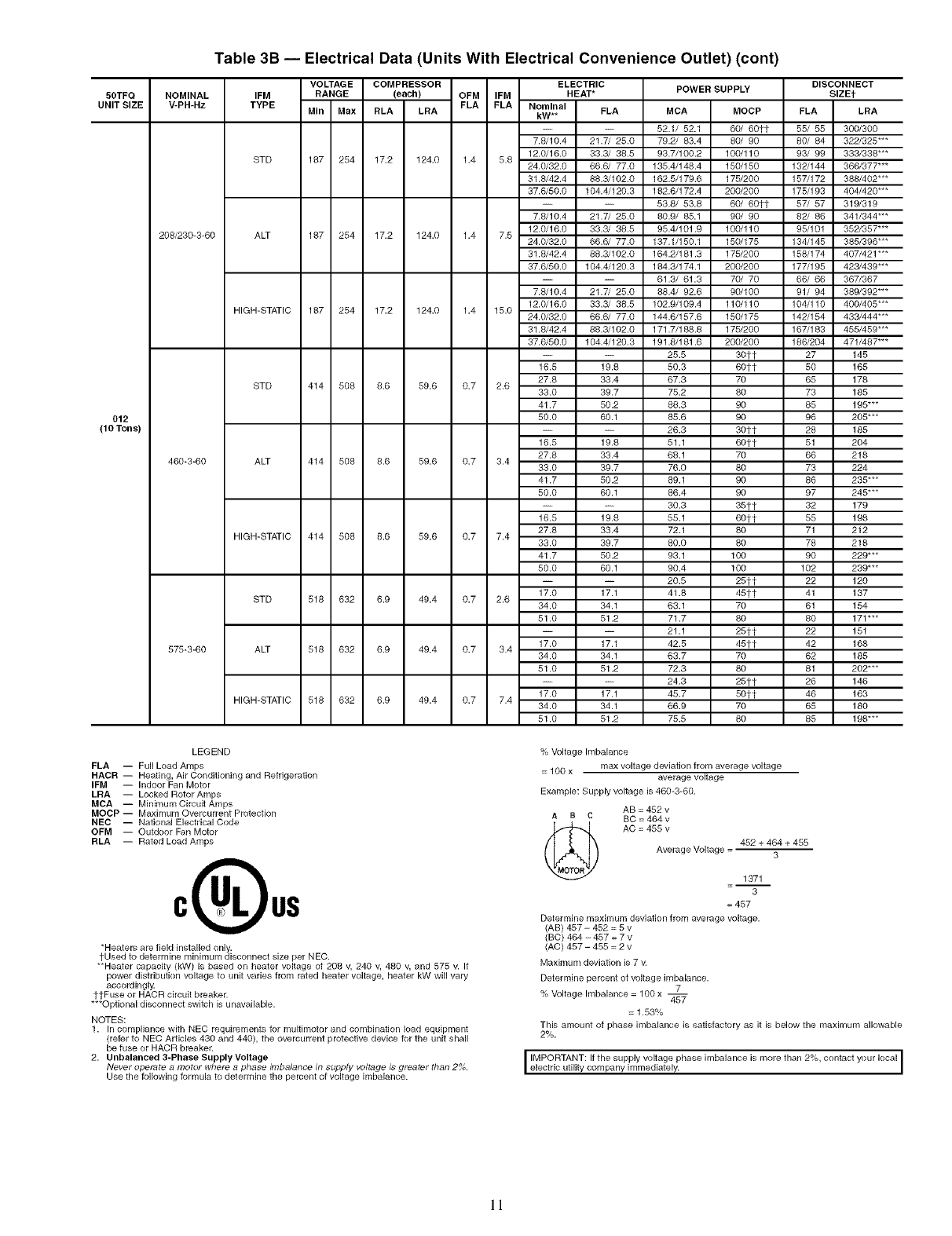

within range indicated on unit nameplate (see Tables 3A and

3B). On 3-phase units, voltages between phases must be bal-

anced within 2%, and the current within 10%. Use the formula

shown in Tables 3A and 3B, Note 2 on page 11 to determine

the percentage of voltage imbalance. Operation on improper

line voltage or excessive phase imbalance constitutes abuse

and may cause damage to electrical components. Such opera-

tion would invalidate any applicable Carrier wammty.

BLK Z_

TO COMP 2

BLU ORN

FIELD POWER SUPPLY

L J. I.

I DISCONNECT l ._ CABINET

I---J GROUND

t PER NEC j

208/230-3-60

460-3-60

BLK @

LEGEND

C-- Contactor

COMP- Compressor

IFC -- Indoor-Fan Contactor

NEC -- National Electrical Code

TB -- TerminalBlock

Field Wiring

Factory Wiring

Splice Connection

(Factory-Supplied)

Fig. 7 -- Power Wiring Connections

BLU

FIELD POWER SUPPLY

:TO TB2

•L J I.

r Li_ CABINETI DISCONNECT

tPER NEC _ GROUND

575-3-60

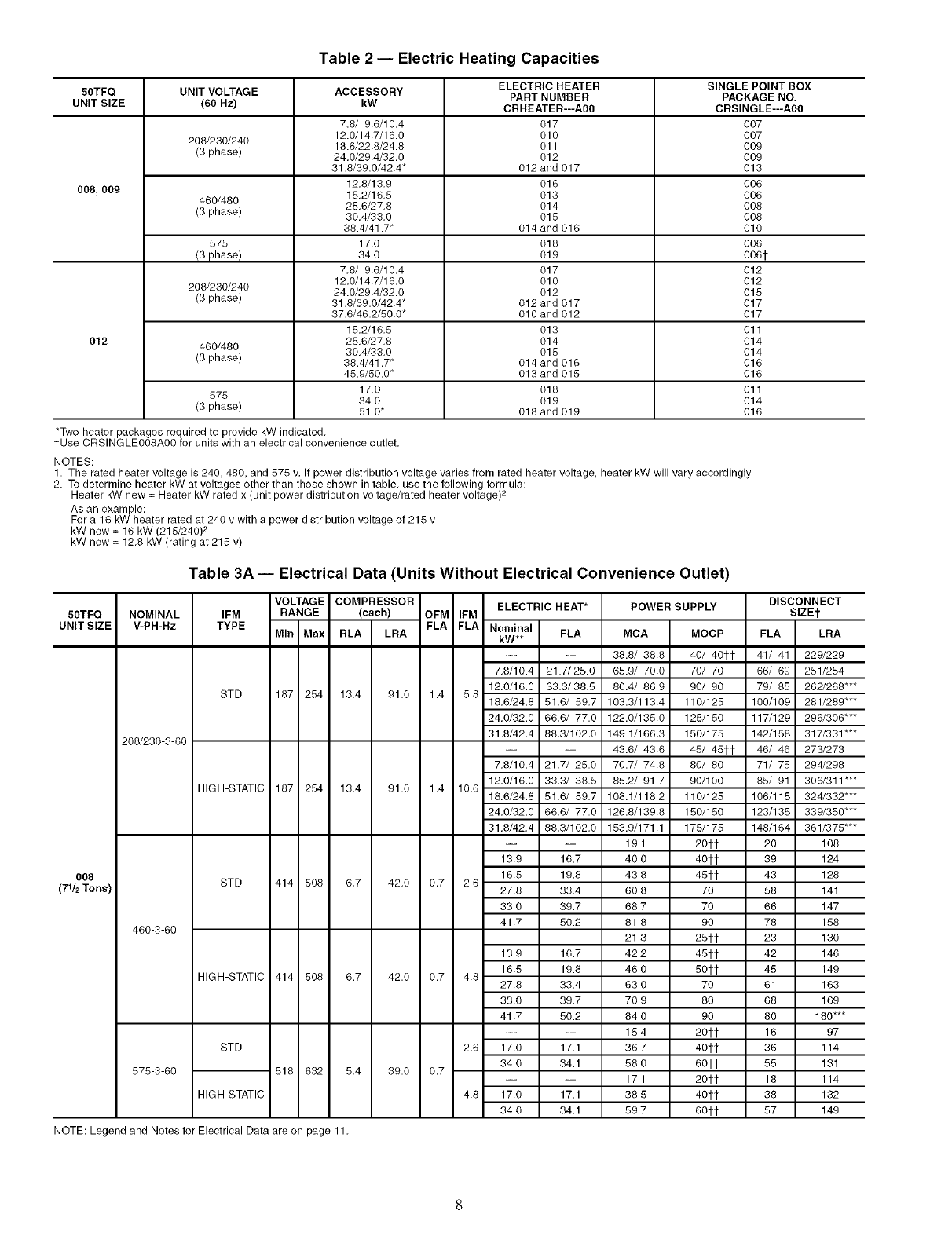

Table 2 -- Electric Heating Capacities

50TFQ UNIT VOLTAGE ACCESSORY ELECTRIC HEATER SINGLE POINT BOX

PART NUMBER PACKAGE NO,

UNIT SIZE (60 Hz) kW CRHEATER---A00 CRSINGLE---A00

7.8/ 9.6/10.4 017 007

208/230/240 12.0/14.7/16.0 010 007

18.6/22.8/24.8 011 009

(3 phase) 24.0/29.4/32.0 012 009

31.8/39.0/42.4" 012 and 017 013

12.8/13.9 016 006

008, 009 15.2/16.5 013 006

480/480 25.6/27.8 014 008

(3 phase) 30.4/33,0 015 008

38.4/41.7* 014 and 018 010

575 17.0 018 008

(3 phase) 34.0 019 006t

7.8/ 9.6/10.4 017 012

12.0/14.7/16.0 01 O 012

208/230/240 24.0/29.4/32.0 012 015

(3 phase) 31.8/39.0/42.4" 012 and 017 017

37.6/46.2/50.0" 010 and 012 017

15.2/16.5 013 011

012 460/480 25.6/27.8 014 014

30.4/33.0 015 014

(3 phase) 38.4/41.7* 014 and 016 016

45.9/50.0" 013 and 015 016

17.0 018 011

575 34.0 019 014

(3 phase) 51 .O* 018 and 019 016

*Two heater packages required to provide kW indicated.

rUse CRSINGLEOO8AOO for units with an electrical convenience outlet.

NOTES:

1. The rated heater voltage is 240,480, and 575 v. If power distribution voltage varies from rated heater voltage, heater kW will vary accordingly.

2. To determine heater kW at voltages other than those shown in table, use the following formula:

Heater kW new = Heater kW rated x (unit power distribution voltage/rated heater voltage) 2

As an example:

For a 16 kW heater rated at 240 v with a power distribution voltage of 215 v

kW new = 16 kW (218/240) 2

kW new = 12.8 kW (rating at 215 v)

Table 3A -- Electrical Data (Units Without Electrical Convenience Outlet)

50TFQ

UNIT SIZE

008

(71/2 Tons)

NOMINAL

V-PH-Hz

208/230-3-60

460-3-60

575-3-60

VOLTAGE COMPRESSOR ELECTRIC HEAT*

IFM RANGE (each) OFM IFM

TYPE Min Max RLA LRA FLA FLA Nominal

STD 187 254 13.4 91.0 1.4 5.8

HIGH-STATIC 187 254 13.4 91.0 1.4 10.6

STD 414 508 6.7 42.0 0.7 2.6

HIGH-STATIC 414 508 6.7 42.0 0.7 4.8

STD 2.6

518 632 5.4 39.0 0.7

HIGH-STATIC 4.8

POWER SUPPLY

FLA MCA

kW**

-- -- 38.8/ 38.8

7.8/10.4 21.7/25.0 65.9/ 70.0

12,0/18,0 33.3/38.5 80.4/ 86.9

18.6/24.8 51,8/ 59.7 103.3/113.4

24.0/32.0 88.8/ 77.0 122.0/135.0

31.8/42.4 88,3/102,0 149.1/188.3

-- -- 43.6/ 43.6

7.8/10.4 21.7/ 25.0 70.7/ 74.8

12.0/16.0 33.3/ 38.5 85.2/ 91.7

18.6/24.8 51.6/ 59.7 108.1/118.2

24.0/32.0 66.6/ 77.0 126.8/139.8

31.8/42.4 88.3/102.0 153.9/171.1

-- -- 19.1

13.9 16.7 40.0

16.5 19.8 43.8

27.8 33.4 60.8

33,0 39.7 68.7

41.7 50.2 81.8

-- -- 21.3

13.9 16.7 42.2

16.5 19.8 46.0

27.8 33.4 63.0

33.0 39.7 70.9

41.7 50.2 84.0

-- -- 15.4

17.0 17.1 36.7

34.0 34.1 58.0

-- -- 17.1

17.0 17.1 38.5

34.0 34.1 59.7

DISCONNECT

SIZEt

MOCP FLA LRA

40/ 40tt 41/ 41 229/229

70/ 70 68/ 89 251/254

90/ 90 79/ 85 262/288"**

110/125 100/109 281/289"**

125/150 117/129 296/308"**

150/175 142/158 317/331"**

45/ 45tt 48/ 48 273/273

80/ 80 71/ 75 294/298

90/100 85/ 91 308/311"**

110/125 108/115 324/332"**

150/150 123/135 339/350"**

175/175 148/184 381/375"**

2Ott 20 108

401-t 39 124

48tt 43 128

70 58 141

70 66 147

90 78 158

25it 23 130

48ft 42 146

S0tt 45 149

70 61 163

80 68 169

90 80 180"**

20¢t 16 97

4ott 36 114

6ott 55 131

2oft 18 114

4oft 38 132

6Ott 57 149

NOTE: Legend and Notes for Electrical Data are on page 11.

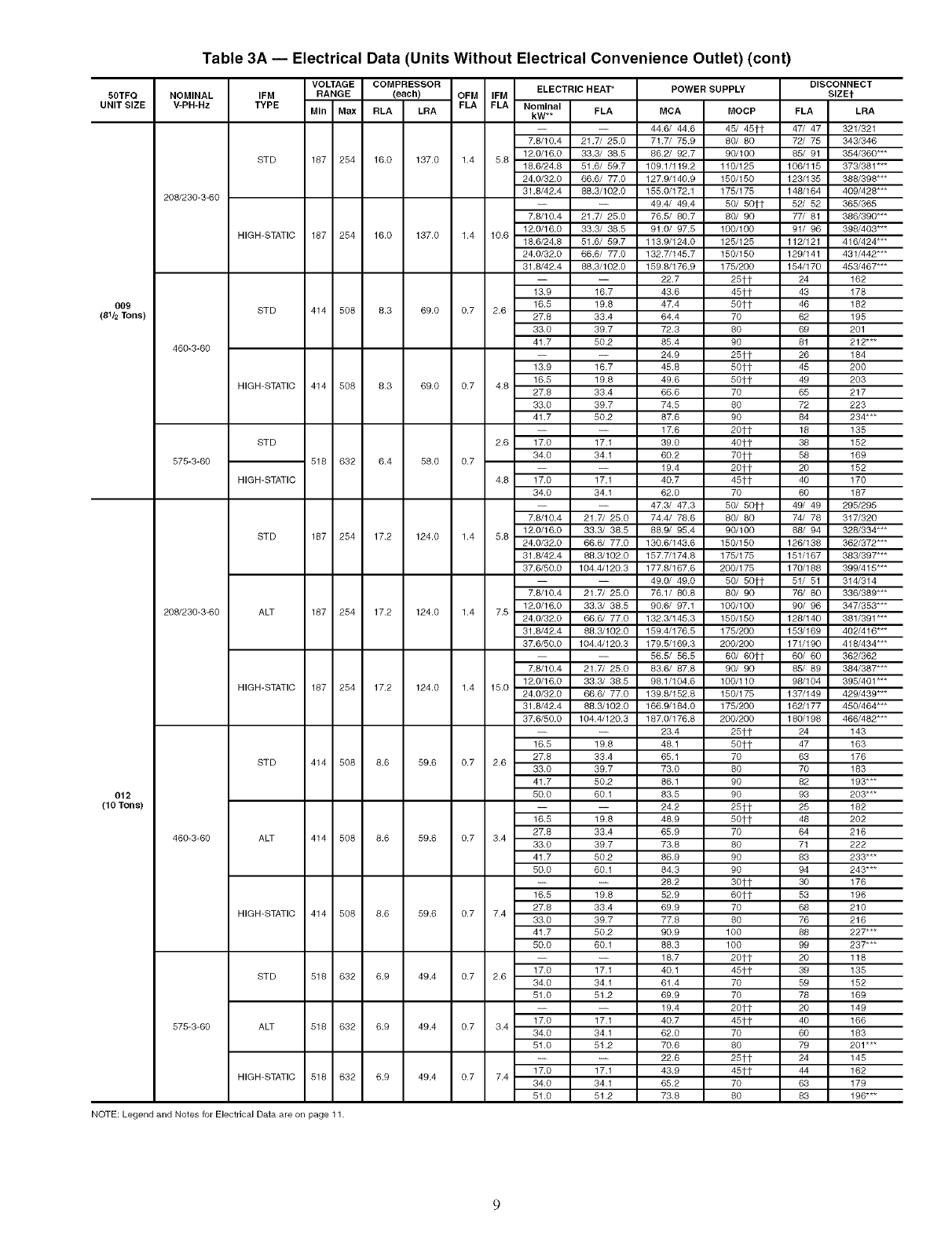

Table 3A -- Electrical Data (Units Without Electrical Convenience Outlet) (cont)

50TFQ

UNIT SIZE

009

(81_Tons)

012

(10 Tons)

NOMINAL

V-PH-Hz

208/230-3-60

460-3-60

575-3-60

208/230-3-60

460-3-60

575-3-60

VOLTAGE COMPRESSOR

IFM RANGE (each)

TYPE MIn Max RLA LRA

STD 187 254 16.0 137.0 1.4 5.8

HIGH-STATIC 187 254 16.0 137.0 1.4 10.6

STD 414 508 8.3 69.0 0.7 2.6

HIGH-STATIC 414 508 8.3 69.0 0.7 4.8

STD

518 632 6.4 58.0 0.7

HIGH-STATIC

STD 187 254 17.2 124.0 1.4 5.8

ALT 187 254 17.2 124.0 1.4 7.5

HIGH-STATIC 187 254 17.2 124.0 1.4 15.0

ELECTRIC HEAT*

OFM IFM

FLA FLA Nominal FLA

kW**

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

18.6/24.8 51.6/ 59.7

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

18.6/24.8 51.6/ 59.7

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

13.9 16.7

16.5 19.8

27.8 33.4

33.0 39.7

41.7 50.2

13.9 16.7

16.5 19.8

27.8 33.4

33.0 39.7

41.7 50.2

2.6 17.0 17.1

34.0 34.1

4.8 17.0 17.1

34.0 34.1

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

37.6/50.0 104.4/120.3

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

37.6/50.0 104.4/120.3

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

37.6/50.0 104.4/120.3

POWER SUPPLY

MCA MOCP

44.6/ 44.6 45/ 45tt

71.7/ 75.9 80/ 80

86.2/ 92.7 90/100

109.1/119.2 110/125

127.9/140.9 150/150

155.0/172.1 175/175

49.4/ 49.4 50/ 50tt

76.5/ 80.7 80/ 90

91.0/ 97.5 100/100

113.9/124.0 125/125

132.7/145.7 150/150

159.8/176.9 175/200

22.7 25tt

43.6 45tt

47.4 50tt

64.4 70

72.3 80

85.4 90

24.9 25tt

45.8 5ott

49.6 50tt

66.6 70

74.5 80

87.6 90

17.6 20tt

39.0 40tt

60.2 70tt

19.4 20it

40.7 45tt

62.0 70

47.3/ 47.3 50/ 50tt

74.4/ 78.6 80/ 80

88.9/ 95.4 90/100

130.6/143.6 150/150

157.7/174.8 175/175

177.8/167.6 200/175

49.0/ 49.0 50/ 50tt

76.1/ 80.8 80/ 90

90.6/ 97.1 100/100

132.3/145.3 150/150

159.4/176.5 175/200

179.5/169.3 200/200

56.5/ 56.5 60/ 60tt

83.6/ 87.8 90/ 90

98.1/104.6 100/110

139.8/152.8 150/175

166.9/184.0 175/200

187.0/176.8 200/200

DISCONNECT

SIZEt

FLA LRA

47/ 47 321/321

72/ 75 343/346

85/ 91 354/360"**

106/115 373/381"**

123/135 388/398"**

148/164 409/428"**

52/ 52 365/365

77/ 81 386/390"**

91/ 96 398/403"**

112/121 416/424"**

129/141 431/442"**

154/170 453/467"**

24 162

43 178

46 182

62 195

69 201

81 212"**

26 184

45 200

49 203

65 217

72 223

84 234***

18 135

38 152

58 169

20 152

40 170

60 187

49/ 49 295/295

74/ 78 317/320

88/ 94 328/334"**

126/138 362/372"**

151/167 383/397"**

170/188 399/415"**

51/ 51 314/314

76/ 80 336/389"**

90/ 96 347/353"**

128/140 381/391"**

153/169 402/416"**

171/190 418/434"**

60/ 60 362/362

85/ 89 384/387"**

98/104 395/401"**

137/149 429/439"**

162/177 450/464"**

180/198 466/482"**

STD 414 508 8.6

ALT 414 508 8.6

HIGH-STATIC 414 508 8.6

STD 518 632 6.9

ALT 518 632 6.9

HIGH-STATIC 518 632 6.9

16.5 19.8

27.8 33.4

59.6 0.7 2.6 33.0 39.7

41.7 50.2

50.0 60.1

16.5 19.8

27.8 33.4

59.6 0.7 3.4 33.0 39.7

41.7 50.2

50.0 60.1

16.5 19.8

27.8 33.4

59.6 0.7 7.4 33.0 39.7

41.7 50.2

50.0 60.1

17.0 17.1

49.4 0.7 2.6 34.0 34.1

51.0 51.2

17.0 17.1

49.4 0.7 3.4 34.0 34.1

51.0 51.2

17.0 17.1

49.4 0.7 7.4 34.0 34.1

51.0 51.2

23.4

48.1

65.1

73.0

86.1

83.5

24.2

48.9

65.9

73.8

86.9

84.3

28.2

52.9

69.9

77.8

90.9

88.3

18.7

40.1

61.4

69.9

19.4

40.7

62.0

70.6

22.6

43.9

65.2

73.8

28tt 24 143

5ott 47 163

70 63 176

80 70 183

90 82 193"**

90 93 203***

25tt 25 182

50tt 48 202

70 64 216

80 71 222

90 83 233***

90 94 243***

30tt 30 176

60tt 53 196

70 68 210

80 76 216

100 88 227***

100 99 237***

2Oft 20 118

45it 39 135

70 59 152

70 78 169

2Oft 20 149

45tt 40 166

70 60 183

80 79 201"**

25tt 24 145

45tt 44 162

70 63 179

80 83 196"**

NOTE: Legend and Notes for Electrical Data are on page 11.

Table 3B -- Electrical Data (Units With Electrical Convenience Outlet)

50TFQ

UNIT SIZE

O08

(71_Tons)

009

(81_Tons)

NOMINAL

V-PH-Hz

208/230-3-60

460-3-60

575-3-60

208/230-3-60

460-3-60

575-3-60

VOLTAGE COMPRESSOR ELECTRIC

IFM RANGE (each) OFM IFM HEAT*

TYPE Min Max RLA LRA FLA FLA Nominal

STD 187 254 13.4 91.0 1.4 5.8

HIGH-STATIC 187 254 13.4 91.0 1.4 10.6

STD 414 508 6.7 42.0 0.7 2.6

HIGH-STATIC 414 508 6.7 42.0 0.7 4.8

STD 518 632 5.4 39.0 0.7 2.6

HIGH-STATIC 518 632 5.4 39.0 0.7 4.8

STD 187 254 16.0 137.0 1.4 5.8

HIGH-STATIC 187 254 16.0 137.0 1.4 10.6

STD 414 508 8.3 69.0 0.7 2.6

HIGH-STATIC 414 508 8.3 69.0 0.7 4.8

STD 518 632 6.4 58.0 0.7 2.6

HIGH-STATIC 518 632 6.4 58.0 0.7 4.8

POWER SUPPLY

kW** FLA MCA

-- -- 43.6/ 43.6

7.8/10.4 21.7/ 25.0 70.7/ 74.8

12.0/18.0 33.3/ 38.5 85.2/ 91.7

18.8/24.8 51,8/ 59.7 108.1/118,2

24.0/32.0 68.6/ 77.0 126.8/139.8

31.8/42.4 88,3/102,0 153.9/171,1

-- -- 48.4/ 48.4

7.8/10.4 21.7/ 25.0 75.5/ 79.6

12.0/16.0 33.3/ 38.5 90.0/ 96.5

18.6/24.8 51.6/ 59.7 112.9/123.0

24.0/32.0 66.6/ 77.0 131.6/144.6

31.8/42.4 88.3/102.0 158.7/175.9

-- -- 21.3

13.9 16.7 42.1

16.5 19.8 46.0

27.8 33.4 63.0

33.0 39,7 70,9

41.7 50.2 84.0

-- -- 23,5

13.9 16.7 44.3

16.5 19.8 48.2

27.8 33,4 65.2

33.0 39,7 73,1

41.7 50.2 86.2

-- -- 17.1

17.0 17.1 38.5

34.0 34.1 59.7

-- -- 18,9

17.0 17.1 40.2

34.0 34.1 61.5

-- -- 49.4/ 49.4

7.8/10.4 21.7/ 25.0 76.5/ 80.7

12.0/16.0 33.3/ 38.5 91.0/ 97.5

18.6/24.8 51.6/ 89.7 113.9/124.0

24.0/32.0 66.6/ 77.0 132.7/148.7

31.8/42.4 88.3/102.0 154.8/176.9

-- -- 54.2/ 54.2

7.8/10.4 21.7/ 25.0 81.3/ 85.5

12.0/16.0 33.3/ 38.5 98.8/102.3

18.6/24.8 51.6/ 59.7 118.7/128.8

24.0/32.0 66.6/ 77.0 137.5/150.5

31.8/42.4 88.3/102.0 164.6/181.7

-- -- 24.9

13.9 16.7 45.7

16.5 19.8 49.6

27.8 33.4 66.6

33.0 39,7 74,5

41.7 50.2 87.6

-- -- 27.1

13.9 16.7 47.9

16.5 19.8 51.8

27.8 33.4 68.8

33.0 39.7 76.7

41.7 50.2 89.8

-- -- 19.3

17.0 17.1 40.7

34.0 34,1 62.0

-- -- 21.1

17.0 17.1 42.5

34.0 34.1 63.7

DISCONNECT

SIZEt

MOCP FLA LRA

45/ 451-1- 46/ 46 234/234

80/ 80 71/ 75 258/259

90/100 85/ 91 287/272"**

110/125 108/115 285/294"**

150/150 123/135 300/311"**

175/175 148/164 322/336"**

50/ 501-1- 52/ 52 277/277

80/ 80 77/ 81 299/302"**

90/100 90/ 96 311/318"**

125/125 111/120 329/337"**

150/150 128/140 344/354"**

175/200 153/169 388/379"**

28it 23 110

48tt 42 127

80it 45 130

70 61 143

80 68 150

90 80 160"**

25it 25 132

45tt 44 148

80tt 48 151

70 63 165

80 71 171

90 83 182"**

20it 18 99

40tt 38 116

60tt 87 133

20tt 20 116

48tt 4O 133

70 59 150

50/ 50_t 52/ 82 326/326

80/ 90 77/ 81 348/381

100/100 91/ 96 359/364

125/128 112/121 377/386

150/150 129/141 392/403

175/200 154/170 414/428

60/ 60_t 58/ 58 369/369

90/ 90 83/ 86 391/394"**

100/110 96/102 403/408"**

125/150 117/126 421/429"**

150/175 134/146 436/446"**

175/200 159/175 488/471"**

28it 26 164

80it 48 181

50it 49 184

70 65 197

80 72 204

90 84 214"**

30it 29 186

80if 48 202

60tt 81 2o8

70 67 219

80 74 228

90 86 236***

20tt 2o 137

48tt 4o 154

70 60 171

28it 22 154

45it 42 171

70 62 188

NOTE: Legend and Notes for Electrical Data are on page 11.

58TFQ

UNIT SIZE

012

(10 Tons)

NOMINAL

V-PH-Hz

208/230-3-60

460-3=60

575-3=80

Table 3B -- Electrical Data (Units With Electrical Convenience Outlet) (cont)

VOLTAGE COMPRESSOR

IFM RANGE (each)

TYPE MIn Max RLA LRA

STD 187 254 17.2 124.0 1.4 5.8

ALT 187 254 17.2 124.0 1.4 7.5

HIGH-STATIC 187 254 17.2 124.0 1.4 15.0

ELECTRIC

OFM IFM HEAT*

FLA FLA Nominal FLA

kW**

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

37.8/50.0 104.4/120.3

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

37.6/50.0 104.4/120.3

7.8/10.4 21.7/ 25.0

12.0/16.0 33.3/ 38.5

24.0/32.0 66.6/ 77.0

31.8/42.4 88.3/102.0

37.8/50.0 104.4/120.3

POWER SUPPLY

MCA MOCP

52.1/ 52.1 60/ 60it

79.2/ 83.4 80/ 90

93.7/100.2 100/110

135.4/148.4 150/150

162.5/179.6 175/200

182.6/172.4 200/200

53.8/ 53.8 60/ 60tt

80.9/ 85.1 90/ 90

95.4/101.9 100/110

137.1/150.1 150/175

164.2/181.3 175/200

184.3/174.1 200/200

61.3/ 61.3 70/ 70

88.4/ 92.6 90/100

102.9/109.4 110/110

144.6/157.6 150/175

171.7/188.8 175/200

191.8/181.6 200/200

DISCONNECT

SIZEt

FLA LRA

55/ 55 300/300

80/ 84 322/325"**

93/ 99 333/338"**

132/144 366/377"**

157/172 388/402"**

175/193 404/420"**

57/ 57 319/319

82/ 86 341/344"**

95/101 352/357"**

134/145 385/396"**

158/174 407/421 ***

177/195 423/439"**

66/ 66 367/367

91/ 94 389/392"**

104/110 400/405"**

142/154 433/444"**

167/183 455/459"**

186/204 471/487"**

STD 414 508 8.6

ALT 414 508 8.6

HIGH-STATIC 414 508 8.6

STD 518 632 6.9

ALT 518 632 6.9

HIGH-STATIC 518 632 6.9

16.5 19.8

27.8 33.4

59.6 0.7 2.6 33.0 39.7

41.7 50.2

50.0 60.1

16.5 19.8

27.8 33.4

59.6 0.7 3.4 33.0 39.7

41.7 50.2

50.0 60.1

16.5 19.8

27.8 33.4

59.6 0.7 7.4 33.0 39.7

41.7 50.2

50.0 60.1

17.0 17.1

49.4 0.7 2.6 34.0 34.1

51.0 51.2

17.0 17.1

49.4 0.7 3.4 34.0 34.1

51.0 51.2

17.0 17.1

49.4 0.7 7.4 34.0 34.1

51.0 51.2

25.5

50.3

67.3

75.2

88.3

85.6

26.3

51.1

68.1

76.0

89.1

86.4

30.3

55.1

72.1

80.0

93.1

90.4

20.5

41.8

63.1

71.7

21.1

42.5

63.7

72.3

24.3

45.7

66.9

75.5

30it 27 145

60it 50 165

70 65 178

80 73 185

90 85 195"**

90 96 205***

30tt 28 185

60tt 51 204

70 66 218

80 73 224

90 86 235***

90 97 245***

35it 32 179

60tt 55 198

80 71 212

80 78 218

100 90 229***

100 102 239***

28it 22 120

45tt 41 137

70 61 154

80 80 171"**

25tt 22 151

45tt 42 168

70 62 185

80 81 202***

25tt 26 146

50tt 46 163

70 65 180

80 85 198"**

LEGEND

FLA -- Full Load Amps

HAOR -- Heating, Air Conditioning and Refrigeration

IFM -- Indoor Fan Motor

LRA -- Locked Rotor Amps

MCA -- Minimum Circuit Amps

MOCP -- Maximum Overcurrent Protection

NEC -- National Electrical Code

OFM -- Outdoor Fan Motor

RLA -- Rated Load Amps

*Heaters are field installed only.

tUsed to determine minimum disconnect size per NEC.

**Heater capacity (kW) is based on heater voltage of 208 v, 240 v, 480 v, and 575 v. If

power distribution voltage to unit varies from rated heater voltage, heater kW will vary

accordingl_z

ttFuse or HACR circuit breaker.

***Optional disconnect switch is unavailable.

NOTES:

1. In compliance with NED requirements for multimotor and combination load equipment

(refer to NED Articles 430 and 440), the overcurrent protective device for the unit shall

be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than 2%.

Use the following formula to determine the percent of voltage imbalance.

% Voltage Imbalance

max voltage deviation from average voltage

=100x average voltage

Example: Supply voltage is 460-3-60.

AB = 452 v

AB C BC =464 v

(_ AC =455 v 452 + 464 + 455

Average Voltage = 3

1371

=457

Determine maximum deviation from average voltage.

(AB) 457 - 452 = 5 v

(BC) 464 - 457 = 7 v

(AC) 457 - 455 = 2 v

Maximum deviation is 7 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x 45_

= 1.53%

This amount of phase imbalance is satisfactory as it is below the maximum allowable

2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2°,/o,contact your local

I electric utility company immediately. I

FIELD CONTROL WIRING -- Install a CmTier-approved

accessory thennostat assembly according to the installation

instructions included with the accessory. Locate file thermostat

assembly on a solid wall in the conditioned space to sense aver-

age temperature in accordance with the thermostat installation

instructions.

NOTE: If using a Carrier electronic thermostat, set the thenno-

star configuration for "non-heat pump operation." This family

of products does not require an O tenninal to energize the

reversing valve.

Route the thermostat cable or equivalent single leads of

colored wire fi_m the subbase terminals to the low-voltage

connections on the unit (shown in Fig. 8A and 8B) as described

in Steps 1 through 4 below.

NOTE: For wire runs up to 50 It, use no. 18 AWG (American

Wire Gage) insulated wire (35 Cminimum). For 51 to 75 It,

use no. 16 AWG insulated wire (35 Cminimum). For over

75 It, use no. 14 AWG insulated wire (35 Cminimum). All

wire kuger than no. 18 AWG cannot be directly connected to

the thermostat and will require a junction box and splice at the

thermostat.

1. If the unit is mounted on the roof curb and the accessory

thin-the-curb service plate connection is used, route wire

through the connection plate.

2. Pass control wires through the hole provided on the unit

(see connection D in Connection Sizes table in Fig. 6).

3. Feed wire through the raceway built into the comer post to

the 24-v bmrier located on the left side of the control box.

See Fig. 9. The raceway provides the UL required cletu-

ance between the high-voltage and low-voltage wiring.

4. Connect the thermostat wires to the screw terminals of

the low-voltage connector (see Fig. 8A and 8B).

NOTE: If the unit is mounted on a roof curb and electrical

power will be mn up "thin-the-bottom," use accessory kit

number CRBTMPWR002A01. This kit, available from your

local distributol: ensmes a watertight seal. Refer to the acces-

sory installation instructions for information on power wiring.

Refer to Fig. 6 for drilling holes in basepan.

COOL STAGE 1 Y1/W2 - - - I I

FAN G -IE

HEATSTAGE1 W/Wl--] l i _-

COOL STAGE 2 Y/Y2 - - r-

HEATSTAGE2 O/W2- _ m

-- i___ E

24 VAC HOT R- 5

24 VAC COM C-

N/A

OUTDOOR AIR $1

SENSOR $2

' W2

IPD/X

WIRE

CONNECTIONS

LOW-VOLTAGE

SECTION

(CONNECTION

BOARD)

THERMOSTAT DIPSWITCH SETTINGS

A B C D

LEGEND

Field Wiring

NOTE: Underlined letter indicates active thermostat output when

configured for A/C operation.

Fig. 8A -- Low-Voltage Connections With or

Without Economizer or Two-Position Damper

DEFROST BOARD -- The deflost board timer cycle is set to

30 minutes. To change the cycle time, turn off power to the

unit and install lockout tag. Remove the wire from defrost

bo_ud connected to the 30 minute quick-connect. See Fig. 10.

Connect the wire to the 50 or 90 minute quick-connects on the

defi_mt board, depending on the desired defrost time.

HEAT ANTICIPATOR SETTINGS -- For units with electric

heat, set heat anticipator settings as shown in Table 4.

Step 6 -- Adjust Factory-Installed Options

DISCONNECT SWITCH -- The optional disconnect switch

is non-fused. The switch can be locked in place for safety

purposes.

CONTROL

CONNECTION

BOARD

([_)--24 VAC .... -.,--,,--,

<[_]) --RMTOCC---T i

CMPSAFE--"

(_--FSD .......... -:

@_--SFS

NOT USED

_)--X.

THERMOSTAT CONTROL

CONN ECTION

BOARD

........CK)

Fig. 8B -- Low Voltage Connections

(Units with PremierLink TM Controls)

DISCONNECT

BOARD /

DISCONNECT

SWITCH

(OPTIONAL)

RACEWAY

COMPRESSOR

NO. 2

CONVENIENCE

OUTLET

HOLE IN

END

PANEL

COMPRESSOR NO. 1

Fig. 9 -- Typical Field Control Wiring Raceway

Table 4 -- Heat Anticipator Settings

UNIT

50TFQ

208/230

Configuration

Heater 2-Stage

kW* 1-Stage Stage 1 Stage 2

10.4, 16.0 0.3 NA NA

24.8, 32.0 0.6 0.3 0.3

42.4, 50.0 0.9 0.6 0.3

Heater

kW*

13.9, 16.5

27.8, 33.0

41.7, 50.0

UNIT VOLTAGE

460

Configuration

2-Stage

1-Stage Stage 1 Stage2

0.3 NA NA

0.6 0.3 0.3

575

Configuration

Heater 2-Stage

kW* 1-Stage Stage 1 Stage 2

17.0, 34.0 0.3 NA NA

51.0 0.6 0.3 0.3

*kW is based on 240,480, or 575 v.

CONVENIENCE OUTLET -- An optiomd convenience out-

let provides power for rooftop use. For maintenance personnel

safety, the convenience outlet power is off when the unit dis-

connect is off. Adjacent unit outlets may be used for service

tools. An optional "Hot Outlet" is available from the factory as

a special order item.

NOVAR CONTROLS -- Optional Novtu controls (ETM 3051 )

ale available for replacement or new construction jobs.

MANUAL OUTDOOR-AIR DAMPER -- The outdoor-air

hood and screen tue attached to the basepan at the bottom of

the unit (for shipping).

Assembls2:

1. Determine the mnount of ventilation required for build-

ing. Record the amount for use in Step 8.

2. Remove the tilter access panel by raising the panel and

swinging it outward. The panel is now disengaged from

the track and can be removed. No tools are required to re-

move the tilter access panel. Remove the outdoor-air

opening panel. Save the panels and screws. See Fig. 11.

3. Separate the hood and screen from the basepan by remov-

ing the screws and brackets securing them. Save all

screws and disc_ud the brackets.

4. Replace the outdoor air opening panel.

5. Place the hood on the front of the outdoor air opening

panel. See Fig. 12 for hood details. Secure the top of the

hood with the 6 screws removed in Step 3. See Fig. 13.

6. Remove and save the 8 screws (4 on each side) from the

sides of the manual outdoor-air &_mpel:

7. Align the screw holes on the hood with the screw holes

on the side of the manual outdoor-air dampel: See Fig. 12

and 13. Secure the hood with the 8 screws from Step 6.

8. Adjust the minimum position setting of the damper blade

by adjusting the manual outdoor-air adjustment screws on

the front of the damper blade. See Fig. 11. Slide the blade

vertically until it is in the appropriate position determined

by Fig. 14. Tighten the screws.

9. Remove and save the screws currently on the sides of

hood. Insert the screen. Secure the screen to the hood

using the screws. See Fig. 13.

10. Replace the tilter access panel. Ensure that the filter

access panel slides along the tracks and is securely

engaged.

QUICK CONNECTS

FOR DEFROST TIMER

30 50 90

Fig. 10- Defrost Board

FILTER

ACCESS

PANEL

OUTDOOR AIF

OPENING

PANEL

SCREWS

(SIDE)

MANUAL

OUTDOOR-AIR

ADJUSTMENT

SCREWS DAMPER

BLADE

Fig. 11 -- Damper Panel with Manual

Outdoor-Air Damper Installed

HOOD TOP SCREWS

(HIDDEN) x,_

SCREWS

(SCREEN HOLDERS)

HOOD SIDES AND TOP-

ASSEMBLED

HOOD

SIDE

Fig. 12 -- Outdoor-Air Hood Details

SCREW

HOLES

(TOP)

HOOD

SCREEN

LOCATION

(SCREEN

NOT

SHOWN)

Fig. 13- Optional Manual Outdoor-Air

Damper with Hood Attached

1.0

0.8

0.6

0,4

0.2 /

///

2 4 6 8 10 12

OUTDOOR AIRFLOW (cfm x 100)

Fig. 14 -- Outdoor Air Damper Position Setting

PREMIERLINK TM CONTROL -- The PmmierLink control-

let is compatible with Career Comfort Network® (CCN)

devices. This control is designed to allow users the access and

ability to change factory-defined settings, fires expanding

the function of the standiud unit control board. Career's diag-

nostic stan&trd tier display tools such as Navigator TM module

or Scrolling Marquee can be used with the PremierLink

controller.

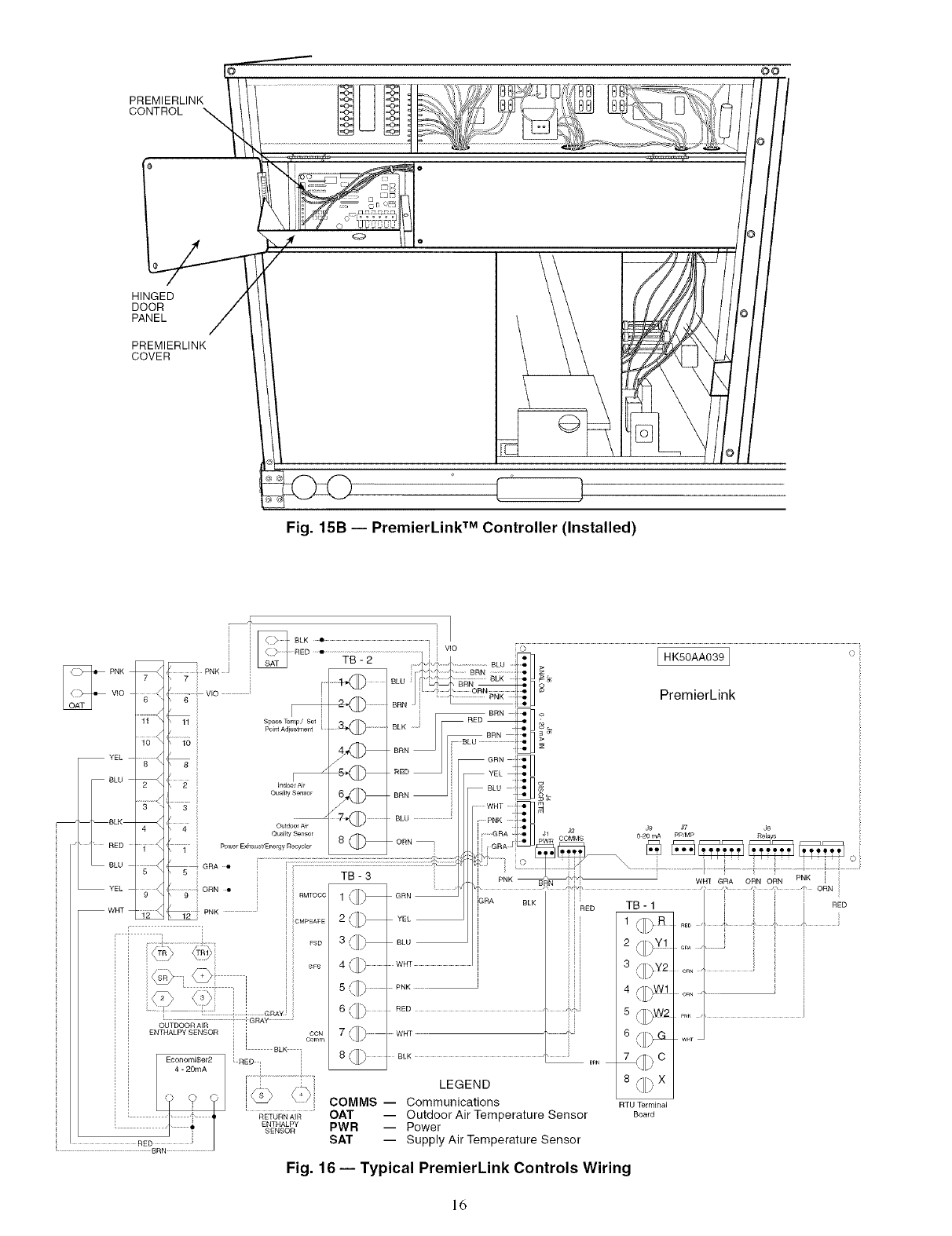

Tile PremierLink controller (see Fig. 15A and 15B) requires

a CmTier electronic thermostat or a CCN connection for time

broadcast to initiate its internal timeclock. This is necessm-y for

broadcast of time of day functions (occupied/unoccupied). Re-

fer to Fig. 16. Tile PremierLink control may be mounted in the

control panel or an area below the control panel.

NOTE: PmmierLink versions 1.3 and later am shipped in Sen-

sor mode. If used wifll a thermostat, the PremierLink control

must be configured to Thermostat mode.

The PmmierLink control includes a supply-air temperature

sensor (SAT) and an outdoor-air temperature sensor (()AT) as

standard. An indoor-air quality (CO2) sensor can be added as

an option. Refer to Table 5 for sensor usage.

Install the Supply Air Temperature (SAT) Sensor -- When

the unit is supplied with a factory-mounted PremierLink con-

trol, the supply-air temperature (SAT) sensor (33ZCSENSAT)

is factory-supplied and wired. The wiring is routed from the

PmmierLink control over the control box, through a grommet,

into the fan section, down along the back side of the fan, and

along the fan deck over to the supply-air opening.

The SAT probe is wire-tied to the supply-air opening (on the

horizontal opening end) in its shipping position. Remove the

sensor for inst¢fllation. Re-position the sensor for installation.

Re-position the sensor in the flange of the supply-air opening

or in the supply air duct (as mquiled by local codes). Drill or

punch a l/2-in, hole in the flange or duct. Use two field-

supplied, self-drilling screws to secure the sensor probe in a

horizontal orientation.

NOTE: The sensor must be mounted in the dischmge airstmam

downstream of the cooling coil and any heating devices. Be

sure that the probe tip does not come in contact with any of the

unit or heat surfaces.

Outdoor Air Temperature (OAT) Sensor -- When the unit is

supplied with a factory-mounted PremierLink control, the

outdoor-_dr temperature (OAT) sensor is factory-supplied and

wired.

Install the Indoor Air Quality (COa2 Sensor -- Mount the

optional indoor air quality (CO2) sensor according to manufac-

turer specifications.

A separate field-supplied transformer must be used to pow-

er the CO2 sensol:

Wire the CO2 sensor to the COM and IAQI terminals of J5

on the PremierLink controllel: Refer to the PremierLink Instal-

lation, Start-up, and Configuration Instructions for detailed

wiring and configuration information.

Table 5 -- PremierLink TM Sensor Usage

OUTDOOR AIR RETURN AIR OUTDOOR AIR RETURN AIR

APPLICATION TEMPERATURE SENSOR TEMPERATURE SENSOR ENTHALPY SENSOR ENTHALPY SENSOR

Dry Bulb

Temperature with

PremierLink TM* Included --

(PremierLink HH79NZ017

requires 4-20 mA

Actuator)

Differential Dry Bulb

Temperature with Required --

PremierLink* Included -- 33ZCT55SPT -- --

(PremierLink HH79NZ017

requires 4-20 mA or Equivalent

Actuator)

Single Enthalpy with

PremierLin k*

(PremierLink Included -- _ Required -- _

Not Used HH57AC077

requires 4-20 mA

Actuator)

Differential Enthalpy

with PremierLink*

(PremierLink Included -- _ Required -- Required --

Not Used HH57AC077 HH57AC078

requires 4-20 mA

Actuator)

*PremierLink control requires Supply Air Temperature sensor 33ZCSENSAT and

Outdoor Air Temperature Sensor HH79NZ017 -- Included with factory-installed PremierLink control;

field-supplied and field-installed with field-installed PremierLink control.

NOTES:

1. CO2 Sensors (Optional):

33ZCSENCO2 -- Room sensor (adjustable). Aspirator box is required for duct mounting of the sensor.

33ZCASPCO2 -- Aspirator box used for duct-mounted CO2 room sensor.

33ZCT55CO2 -- Space temperature and CO2 room sensor with override.

33ZCT56CO2 -- Space temperature and CO2 room sensor with override and set point.

2. All units include the following Standard Sensors:

Outdoor-Air Sensor -- 50HJ540569 -- Opens at 67 F, closes at 52 F, not adjustable.

Mixed-Air Sensor -- HH97AZ001 -- (PremierLink control requires Supply Air Temperature sensor 33ZCSENSAT

and Outdoor Air Temperature Sensor HH79NZ017)

Compressor Lockout Sensor -- 50HJ540570 -- Opens at 35 F, closes at 50 R

OUTPUTS

Fig. 15A -- PremierLink Controller

PREMIERLINK

CONTROL

O©

HINGED

DOOR

PANEL

PREMIERLINK

COVER

[ }

Fig. 15B -- PremierLink TM Controller (Installed)

PNK

VlO

YEL

,_BLU

-- BLK

• RED

BLU

YEL

WHT

Economi$er2

4 - 20mA

BLU ..........................

BLK

PNK

iil

RED _J

WHT

8/']]_

\_L) BLK _ B£N

LEGEND

COMMS- Communications

OAT -- Outdoor Air Temperature Sensor

PWR -- Power

SAT -- Supply Air Temperature Sensor

Fig. 16 -- Typical PremierLink Controls Wiring

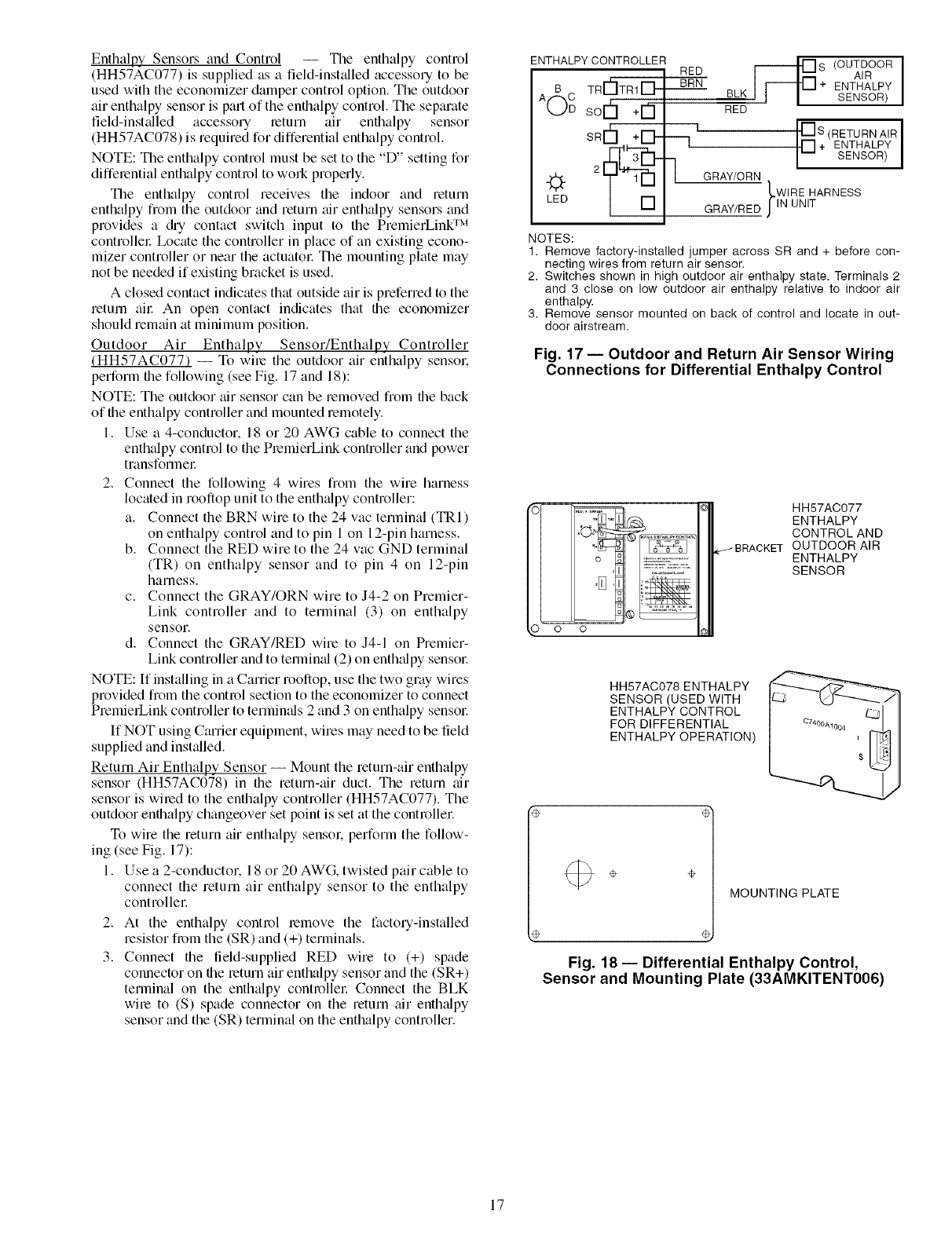

Enthalpy Sensors and Control -- The enthalpy control

(HH57AC077) is supplied as a field-inst_flled accessory to be

used with the economizer damper control option. The outdoor

air enthalpy sensor is part of the enthalpy control. The separate

field-inst_dled accessory return aw enthalpy sensor

(HH57AC078) is required for differential enthalpy control.

NOTE: The enthalpy control must be set to the "D" setting for

differential enthalpy control to won properly.

The enthalpy control receives the indoor and return

enthalpy from the outdoor and return tfir enthalpy sensors and

provides a @ contact switch input to the PremierLinld TM

controllel: Ix)cate the controller in place of an existing econo-

mizer controller or near the actuatol: The mounting plate may

not be needed if existing bracket is used.

A closed contact indicates that outside air is preferred to the

return all: An open contact indicates that the economizer

should remain at minimum position.

Outdoor Air Enthalpy Sensor/Enthalpy Controller

(HH57AC077) -- To wire the outdoor air enthalpy sensol:

perform the following (see Fig. 17 and 18):

NOTE: The outdoor air sensor can be removed from the back

of the enthalpy controller and mounted remotely.

1. Use a 4-conductor. 18 or 20 AWG cable to connect the

enthalpy control to the PremierLink controller and power

transformeE

2. Connect the following 4 wires from the wire harness

located in rooftop unit to the enthMpy controller:

a. Connect the BRN wire to the 24 vac terminal (TRI)

on enthalpy control and to pin 1 on 12-pin harness.

b. Connect the RED wire to the 24 vac GND terminal

(TR) on enthalpy sensor and to pin 4 on 12-pin

harness.

c. Connect the GRAY/ORN wire to J4-2 on Premier-

Link controller and to terminal (3) on enthalpy

sensoE

d. Connect the GRAY/RED wire to J4-1 on Premier-

Link controller and to termimd (2) on enth_dpy sensol:

NOTE: If installing in a Carrier rooftop, use the two gray wires

provided from the control section to the economizer to connect

PremierLink controller to termimds 2 and 3 on enthalpy sensor

If NOT using Carrier equipment, wires may need to be field

supplied and inst_dled.

Return Air Enthalpy Sensor -- Mount the return-air enthalpy

sensor (HH57AC078) in the return-air duct. The return tfir

sensor is wired to the enthalpy controller (HH57AC077). The

outdoor enthalpy changeover set point is set at the controllel:

To wire the return air enthalpy sensol: perform the follow-

ing (see Fig. 17):

1. Use a 2-conductor. 18 or 20 AWG, twisted pair cable to

connect the return air enthalpy sensor to the enthalpy

controllel:

2. At the enthalpy control remove the factory-installed

resistor from the (SR) and (+) terminals.

3. Connect the field-supplied RED wire to (+) spade

connector on the return air enthalpy sensor and the (SR+)

terminal on the enthalpy controllel: Connect the BLK

wire to (S) spade connector on the return air enth_dpy

sensor and the (SR) terminal on the enthalpy controller.

ENTHALPY CONTROLLER RED

TRr']TRI[_- BRN _S (OUTDOOR

AIR

+ ENTHALPY

BLK SENSOR)

RED

@o sorh+U----

SRI-h+13-

LED

i--IS (RETURN AIR I

[] + ENTHALPY

SENSOR

GRAY/ORN

LWIRE HARNESS

GRAY/RED JIN UNIT

NOTES:

1. Remove factory-installed jumper across SR and + before con-

necting wires from return air sensor,

2. Switches shown in high outdoor air enthalpy state. Terminals 2

and 3 close on low outdoor air enthalpy relative to indoor air

enthalpy.

3. Remove sensor mounted on back of control and locate in out-

door airstream.

Fig. 17 -- Outdoor and Return Air Sensor Wiring

Connections for Differential Enthalpy Control

HH57AC077

ENTHALPY

CONTROLAND

OUTDOOR AIR

ENTHALPY

SENSOR

HH57AC078 ENTHALPY

SENSOR (USED WITH

ENTHALPY CONTROL

FOR DIFFERENTIAL

ENTHALPY OPERATION)

÷÷

MOUNTING PLATE

Fig. 18 -- Differential Enthalpy Control,

Sensor and Mounting Plate (33AMKITENT006)

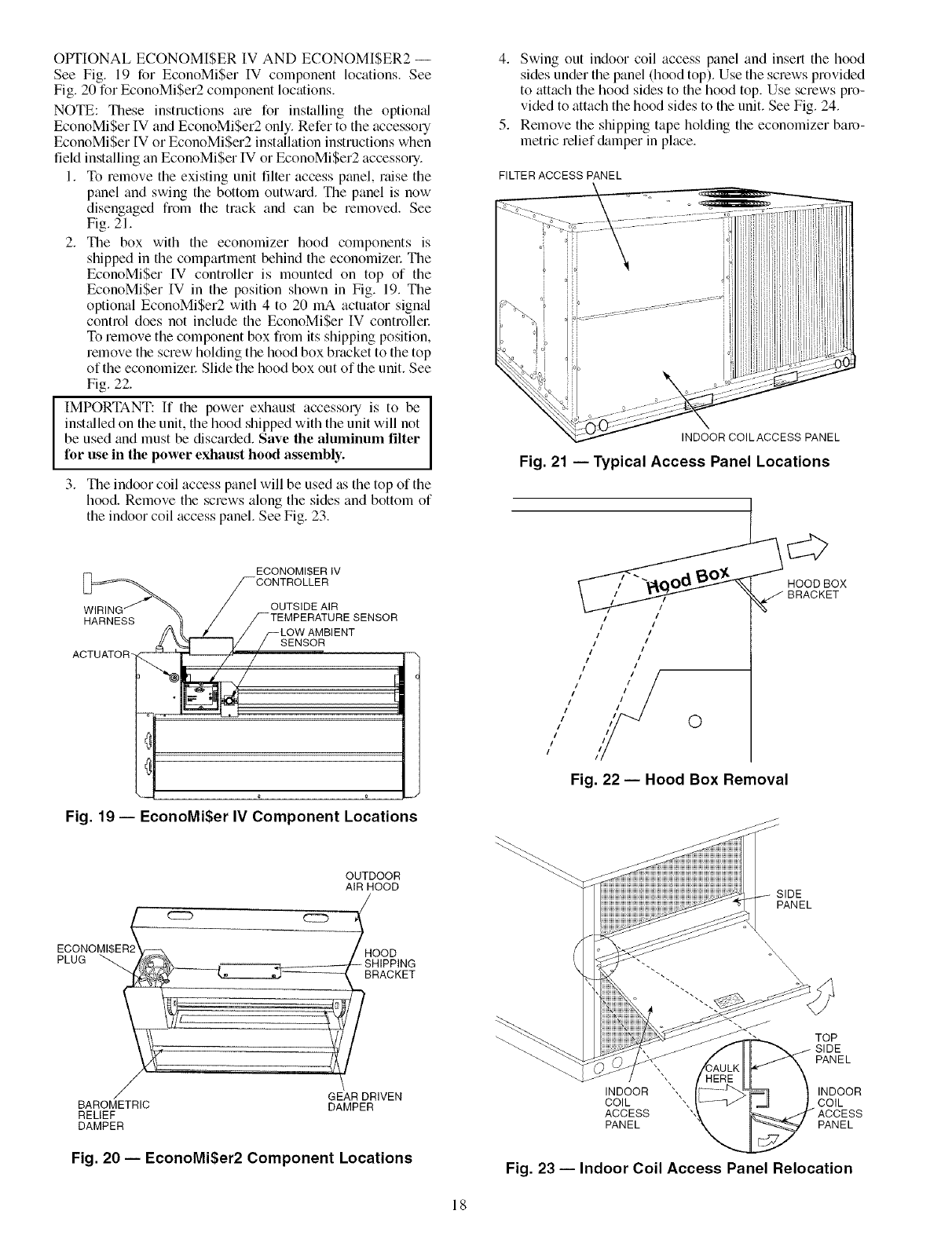

OPTIONAL ECONOMI$ER IV AND ECONOMI$ER2 --

See Fig. 19 for EconoMiSer IV component locations. See

Fig. 20 for EconoMiSer2 component locations.

NOTE: These instructions are for installing the optiomd

EconoMiSer IV and EconoMiSer2 only. Refer to the accessory

EconoMiSer IV or EconoMi$er2 inst¢fllation instructions when

field installing an EconoMiSer IV or EconoMiSer2 accessory.

1. To remove the existing unit filter access panel, raise the

panel and swing the bottom outwCud. Tile panel is now

disengaged from the track and can be removed. See

Fig. 21.

2. The box with the economizer hood components is

shipped in the compartment behind the economizel: The

EconoMiSer IV controller is mounted on top of the

EconoMi$er IV in the position shown in Fig. 19. The

optional EconoMiSer2 with 4 to 20 mA actuator sigmd

control does not include the EconoMiSer [V controllel:

To remove the component box from its shipping position,

remove the screw holding the hood box bracket to the top

of the economizer Slide the hood box out of the unit. See

Fig. 22.

IMPORTANT: If the power exhaust accessory is to be ]

inst_flled on the unit, the hood shipped with the unit will not I

be used and must be discarded. Save the aluminum filter

for use in the power exhaust hood assembly.

3. The indoor coil access panel will be used as the top of the

hood. Remove the screws along the sides and bottom of

the indoor coil access panel. See Fig. 23.

4. Swing out indoor coil access panel and insert the hood

sides under the panel (hood top). Use the screws provided

to attach the hood sides to the hood top. Use screws pro-

vided to attach the hood sides to the unit. See Fig. 24.

5. Remove the shipping tape holding the economizer baro-

metric relief &_mper in place.

FILTER ACCESS PANEL

INDOOR COILACCESS PANEL

Fig. 21 -- Typical Access Panel Locations

HARNESS

ACTUATOR- _

ECONOMI$ER IV

CONTROLLER

OUTSIDE AIR

TEMPERATURE SENSOR

LOW AMBIENT

SENSOR

/{{'

311

Fig. 19 -- EconoMi$er IV Component Locations

/1 /

i I

I I

Fig. 22- Hood Box Removal

HOODBOX

OUTDOOR

AIR HOOD

ccC)

ECONOMI$ER:

PLDG

BAROMETRIC

RELIEF

DAMPER

BRACKET

GEAR DRIVEN

DAMPER

Fig. 20 -- EconoMi$er2 Component Locations

SIDE

PANEL

TOP

SIDE

PANEL

INDOOR INDOOR

COIL """ COIL

ACCESS

PANEL PANEL

Fig. 23 -- Indoor Coil Access Panel Relocation

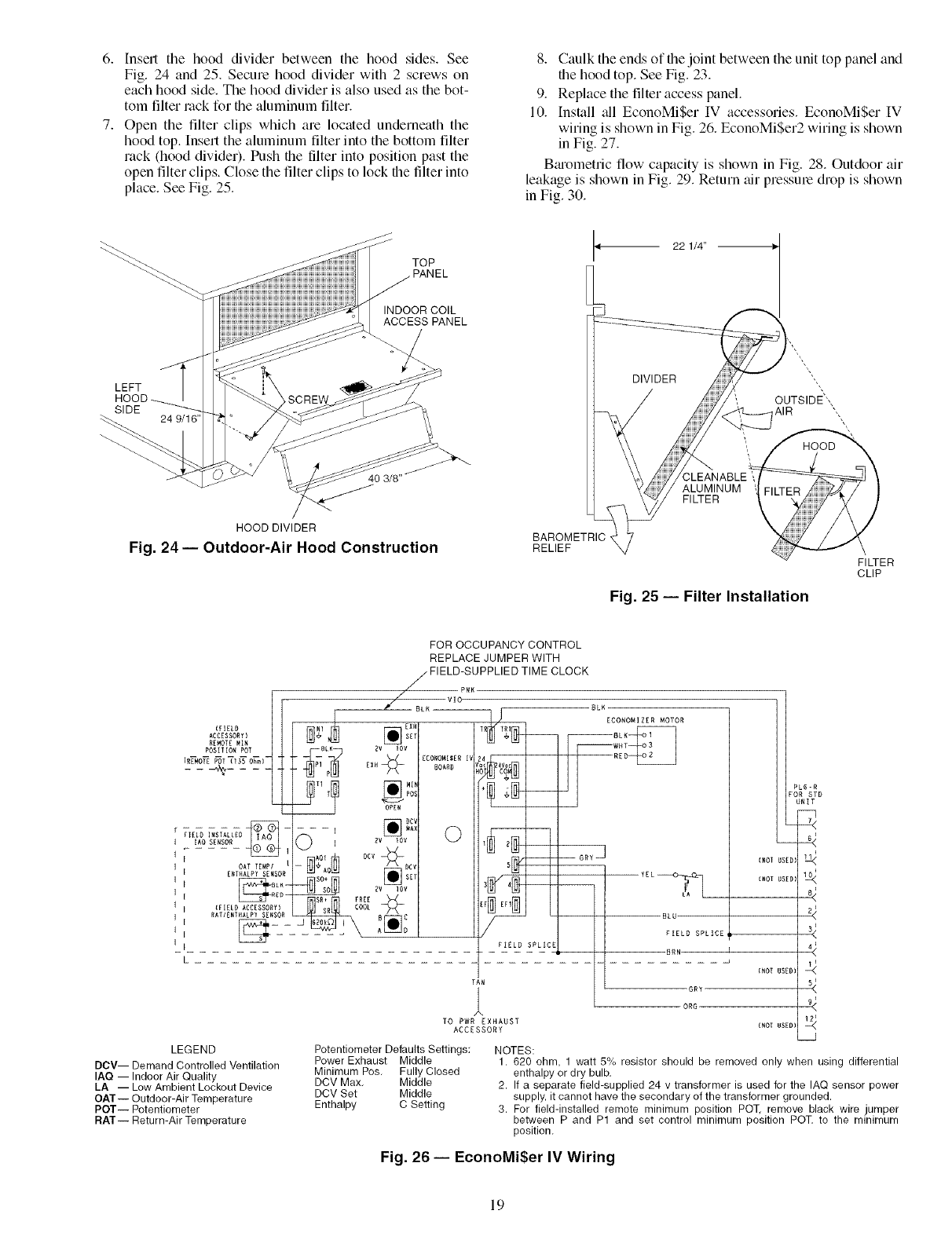

6. Insert the hood divider between the hood sides. See

Fig. 24 and 25. Secure hood divider with 2 screws on

each hood side. The hood divider is also used as the bot-

tom filter rock for the aluminum filter.

7. Open the filter clips which are located underneath the

hood top. Insell the aluminum filter into the bottom filter

rack (hood divider). Push the filter into position past the

open filter clips. Close the filter clips to lock the filter into

place. See Fig. 25.

TOP

PANEL

8. Caulk the ends of the joint between the unit top panel and

the hood top. See Fig. 23.

9. Replace the filter access panel.

10. Install all EconoMi$er IV accessories. EconoMi$er IV

wiring is shown in Fig. 26. EconoMiSer2 wiring is shown

in Fig. 27.

Barometric flow capacity is shown in Fig. 28. Outdoor air

leakage is shown in Fig. 29. Return air pressure drop is shown

in Fig. 30.

22 1/4"

INDOOR COIL

ACCESS PANEL

LEFT

SIDE

HOOD DIVIDER

Fig. 24 -- Outdoor-Air Hood Construction BAROMETRIC ,

RELIEF

DIVIDER

3LEANABLE "

ALUMINUM

FILTER

CLIP

Fig. 25 -- Filter Installation

FOR OCCUPANCY CONTROL

REPLACE JUMPER WITH

FIELD-SUPPLIED TIME CLOCK

{FIELD N1 EXH I TRI

POSl T[0_ POT BLK 2V log WHT

2,{ {,,,

OPEN DCV ' J

......... I_a_

IA0SE_S0R [2_[ Q..) I zv 1or _ Irll 2lrU I

OAT TEMPI i _ ,b /\ DCV 5

_,,',.,._,',_E,,_0,,@,,0WI rAq.... s@j

RATIZNIHALPY SENSOR SR

FIELD SPLICE

-- BRN

TA_

GRY

ORG

TO PWR EXHAUST

ACCESSORY

{NOT USED)

{NOT USED}

(NOT USED)

LEGEND

DCV-- Demand Controlled Ventilation Power Exhaust Middle

IAQ -- Indoor Air Quality Minimum Pos. Fully Closed

LA -- Low Ambient Lockout Device DCV Max. Middle

OAT-- Outdoor-Air Temperature DCV Set Middle

POT-- Potentiometer Enthalpy C Setting

RAT-- Return-Air Temperature

Potentiometer Defaults Settings: NOTES:

PL6-R

FOR STD

UNIT

1. 620 ohm, 1 watt 5% resistor should be removed only when using differential

enthalpy or dry bulb,

2. If a separate field-supplied 24 v transformer is used for the IAQ sensor power

supply, it cannot have the secondary of the transformer grounded.

3. For field-installed remote minimum position POT, remove black wire jumper

between P and P1 and set control minimum position POT. to the minimum

position,

Fig. 26 -- EconoMi$er IV Wiring

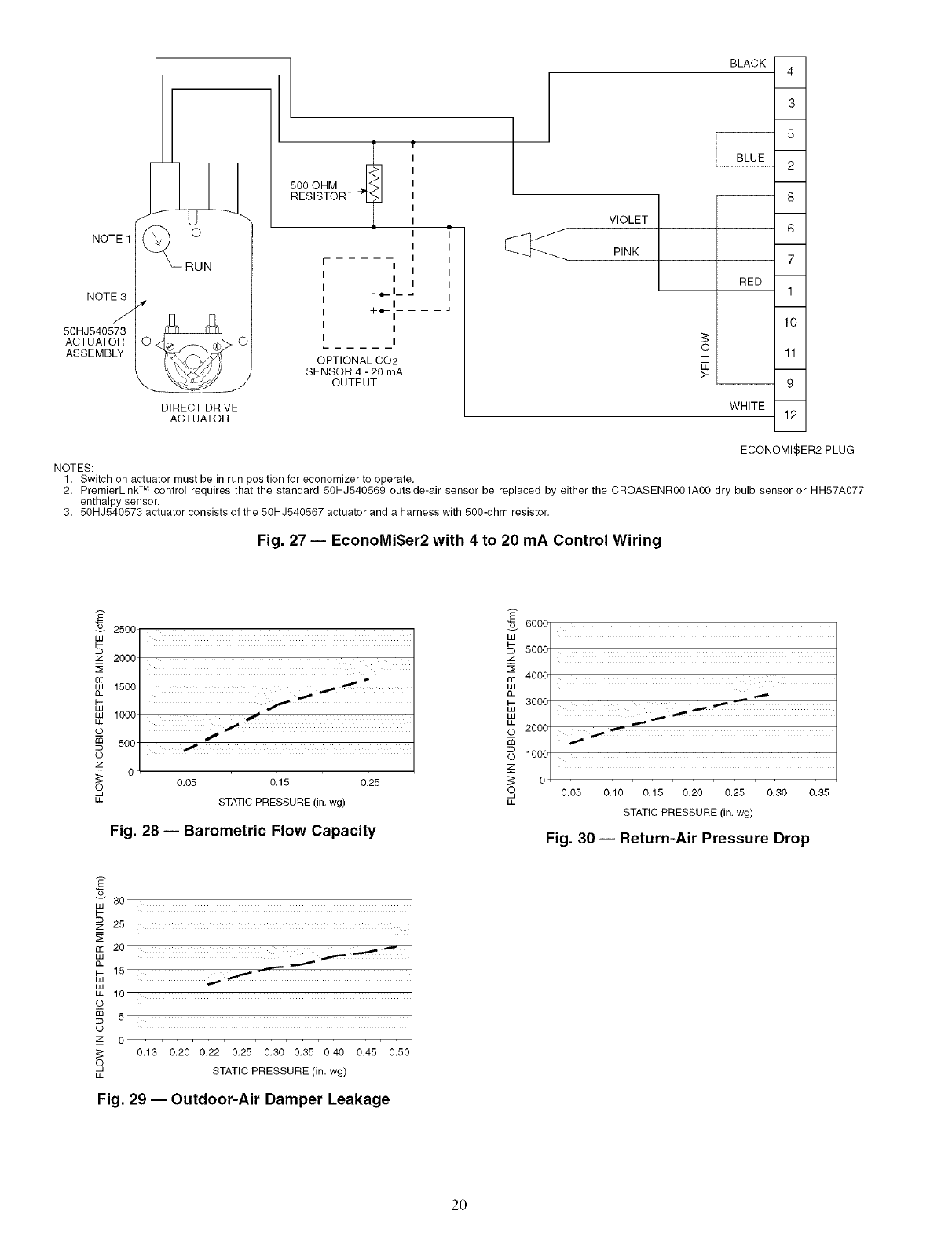

NOTE1

NOTE3

50HJ540573

ACTUATOR

ASSEMBLY

RUN

DIRECT DRIVE

ACTUATOR

500 OHM _J<>l

RESISTOR?

.o_l_

+o-- I ....

OPTIONAL CO2

SENSOR 4 - 20 mA

OUTPUT

BLACK

VIOLET

PINK

RED

u i

W _

>-i

WHITE

ECONOMIZER2 PLUG

NOTES:

1. Switch on actuator must be in run position for economizer to operate.

2. PremierLink TM control requires that the standard 50HJ540569 outside-air sensor be replaced by either the CROASENR001A00 dry bulb sensor or HH57A077

enthalpy sensor.

3. 50HJ540573 actuator consists of the 50HJ540567 actuator and a harness with 500-ohm resistor.

Fig. 27 -- EconoMi$er2 with 4 to 20 mA Control Wiring

LIJ

I'-

LI.

t,i.

25OO

2000

1500

1000

5OO

00.05 0.15 0.25

STATIC PRESSURE (in. wg)

Fig. 28 -- Barometric Flow Capacity

F-

200C

100C

600C

500C

4ooc

300¢

0.05 0.10 0.15 0.20 0.25 0.30 0.35

STATIC PRESSURE (in. wg)

Fig. 30 -- Return-Air Pressure Drop

20 _ _

0.13 0.20 0.22 0.25 0.30 0.35 0.40 0.45 0.50

STATIC PRESSURE (in. wg)

Fig. 29 -- Outdoor-Air Damper Leakage

ECONOMI$ER IV STANDARD SENSORS

Outdoor Air Temperature (OAT) Sensor -- The outdoor air

temperature sensor (HH57AC074) is a 10 to 20 mA device

used to measure the outdoor-air temperature. The outdoor-air

temperature is used to determine when the EconoMiSer IV can

be used for free cooling. The sensor is factory-inst_dled on the

EconoMiSer IV in the outdoor airstrealn. See Fig. 19. The op-

erating range of temperature measurement is 40 to 100 E

Supply Air Temperature (SAT) Sensor -- The supply air

temperature sensor is a 3 K thermistor located at the inlet of the

indoor fan. See Fig. 31. This sensor is factory inst_flled. The op-

erating range of temperature measurement is 0° to 158 E See

Table 6 for sensor temperature/resistance v_dues.

The temperature sensor looks like an eyelet terminal with

wires running to it. The sensor is located in the "crimp end"

and is seeded from moisture.

Table 6 -- Supply Air Sensor Temperature/

Resistance Values

TEMPERATURE (F) RESISTANCE (ohms)

-58 200,250

-40 100,680

-22 53,010

-4 29,091

14 16,590

32 9,795

50 5,970

68 3,747

77 3,000

86 2,416

104 1,597

122 1,080

140 746

158 525

176 376

185 321

194 274

212 203

230 153

248 116

257 102

266 89

284 70

302 55

Outdoor Air Lockout Sensor -- The EconomiSer IV is

equipped with an alnbient temperature lockout switch located

in the outdoor air stream which is used to lockout the compres-

sors below a 42 F ambient temperature. See Fig. 19.

ECONOM[$ER IV CONTROL MODES

IMPORTANT: The optional EconoMiSer2 does not

include a controllel: The EconoMiSer2 is operated by a 4 to

20 mA signal from an existing field-supplied controller

(such as PremierLink TM control). See Fig. 27 for wiring

information.

Determine the EconoMiSer IV control mode before set up of

the control. Some modes of operation may require different sen-

sors. Refer to Ntble 7. The EconoMiSer IV is supplied from the

factory with a supply air temperature sensor and an outdoor tdr

temperature sensol: This allows for operation of the

EconoMiSer IV with outdoor air dry bulb changeover control.

Additional accessories c_m be added to allow for different types

of changeover control and operation of the EconoMiSer IV and

unit.

Table 7 -- EconoMi$er IV Sensor Usage

APPLICATION

Outdoor Air

Dry Bulb

Differential

Dry Bulb

Single Enthalpy

Differential

Enthalpy

CO2 for DCV

Control using a

Wall-Mounted

CO2 Sensor

CO2 for DCV

Control using a

Duct-Mounted

CO2 Sensor

ECONOMISER IV WITH OUTDOOR AIR

DRY BULB SENSOR

Accessories Required

None. The outdoor air dry bulb sensor

is factory installed.

CRTEMPSN002A00*

HHS7AC078

and

CRENTDIF004A00*

33ZCSENCO2

33ZCSENCO21-

and CRCBDIOX005A001-1-

33ZCASPCO2**

*CRENTDIF004A00 and CRTEMPSN002A00 accessories are

used on many different base units. As such, these kits may con-

tain parts that will not be needed for installation.

1-33ZCSENCO2 is an accessory CO2 sensor.

**33ZCASPCO2 is an accessory aspirator box required for duct-

mounted applications.

1-1-CRCBDIOX005A00 is an accessory that contains both

33ZCSENCO2 and 33ZCASPCO2 accessories.

Outdoor DLy Bulb Changeover -- The standard controller is

shipped from the facto qconfigured for outdoor @ bulb

changeover control. The outdoor air and supply air temperature

sensors me included as standmd. For this control mode, the

outdoor temperature is compared to an adjustable set point

selected on the control. [f the outdoor-air temperature is above

the set point, the EconoMiSer IV will adjust the outdoor air

dampers to minimum position. If the outdoor-air temperature is

below the set point, the position of the outdoor air dampers will

be controlled to provide free cooling using outdoor all: When

in this mode, the LED next to the free cooling set point potenti-

ometer will be on. The changeover temperature set point is

controlled by the free cooling set point potentiometer located

on the control. See Fig. 32. The sc_fle on the potentiometer is A,

B, C, and D. See Fig. 33 for the corresponding temperature

changeover values.

SUPPLY AIR

TEMPERATURE

SENSOR

MOUNTING

LOCATION _, \

SUPPLY AIR

TEMPERATURE

SENSOR _

Fig. 31 -- Supply Air Sensor Location

EXHAUST

FAN SET POINT

LED LIGHTS

WHEN EXHAUST

CONTACT IS MADE

MINIMUM DAMPER

POSITION SETTING

MAXIMUM DAMPER--_

DEMAND CONTROL

VENTILATION SET POINT

LED LIGHTS WHEN_

DEMAND CONTROL

VENTILATION INPUT

iS ABOVE SET POINT

DEMAND CONTROL

VENTILATION SET POINT

LED LIGHTS WHEN

OUTDOOR AiR iS

SUITABLE FOR

FREE COOLING ENTHALPY

CHANGEOVER SET POINT

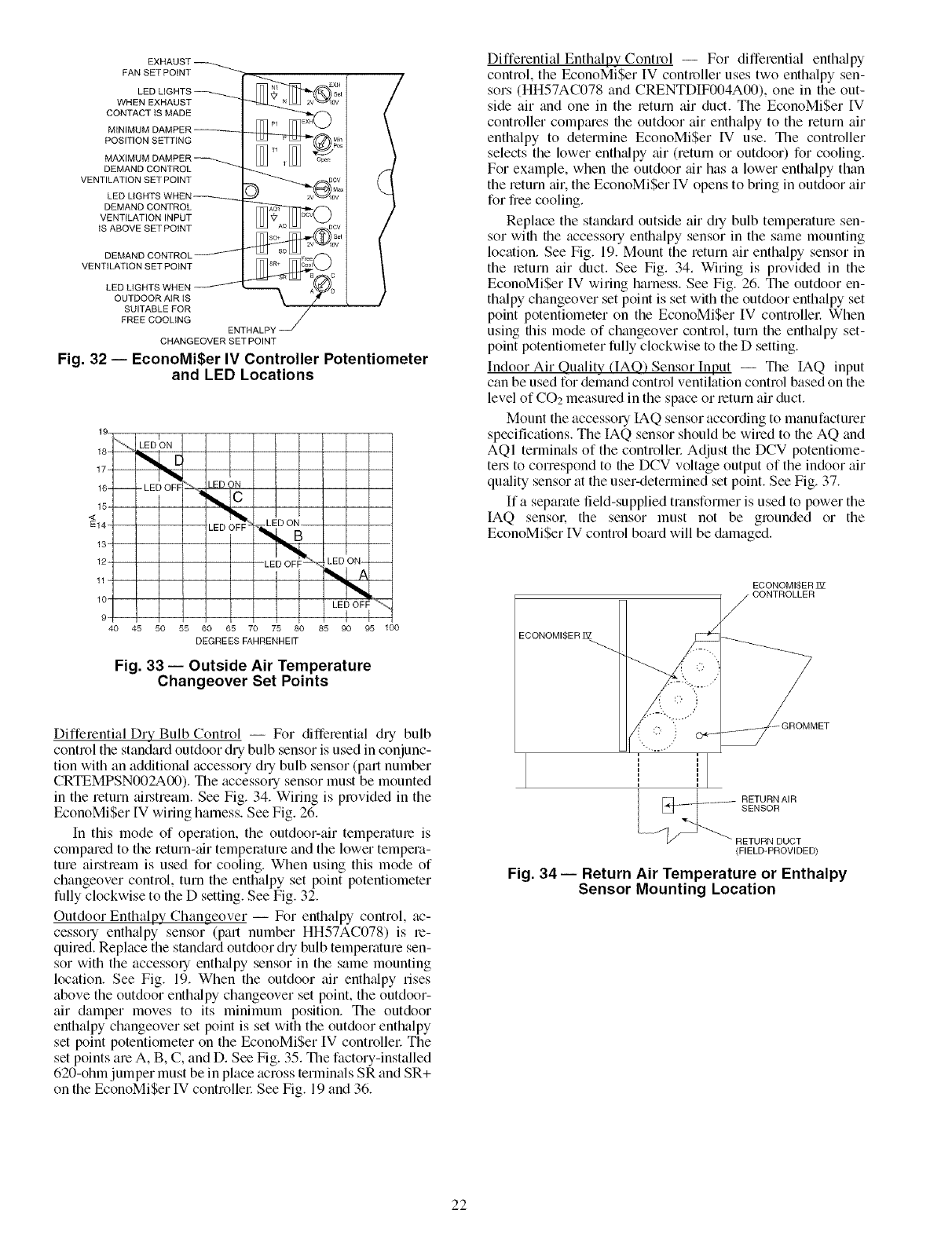

Fig. 32 -- EconoMi$er IV Controller Potentiometer

and LED Locations

18-

17-

16-

E14-

13"

40 45

-- -LED OFF LED ON

LED OFF- LED 0B

50 55 60 65 70 75 80

DEGREES FAHRENHEIT

LED ON- --

85 90 95 100

Fig. 33 -- Outside Air Temperature

Changeover Set Points

Differential Dry Bulb Control -- For differential dry bulb

control the standard outdoor dry bulb sensor is used in conjunc-

tion with an additional accessory dry bulb sensor (part number

CRTEMPSN002A00). Tile accessory sensor must be mounted

in the return _fil_tream. See Fig. 34. Wiring is provided in the

EconoMi$er [V wMng harness. See Fig. 26.

In this mode of operation, the outdoor-air temperatme is

compared to the return-tilt temperature and the lower tempera-

ture airsUeam is used for cooling. When using this mode of

changeover control, turn the enthalpy set point potenfiometer

fully clockwise to the D setting. See Fig. 32.

Outdoor Enthalpy Changeover -- For enthalpy control, ac-

cessory enthalpy sensor (part number HH57AC078) is le-

quiredi Replace the standiu'd outdoor dry bulb temperature sen-

sor with the accesso Uenthalpy sensor in the same mounting

location. See Fig. 19. When the outdoor air enthalpy rises

above the outdoor enth_dpy changeover set point, the outdoor-

air damper moves to its minimum position. Tile outdoor

enthalpy changeover set point is set with the outdoor enthalpy

set point potentiometer on the EconoMiSer IV controllel: The

set points are A, B, C, and D. See Fig. 35. The factory-installed

620-ohm jumper must be in place across terminals SR and SR+

on the EconoMi$er IV controllel: See Fig. 19 and 36.

Differential Enthalpy Control -- For differential enthalpy

control, the EconoMiSer IV controller uses two enthalpy sen-

sors (HH57AC078 and CRENTDIF004A00), one in the out-

side air and one in the leturn air duct. The EconoMiSer [V

controller comptues file outdoor air enthalpy to the return air

enthalpy to determine EconoMi$er IV use. The controller

selects the lower enthalpy air (return or outdoor) for cooling.

For example, when file outdoor air has a lower enthalpy than

the return tfir. the EconoMiSer IV opens to bring in outdoor air

for free cooling.

Replace the standard outside air dUbulb temperature sen-

sor with file accessory enthalpy sensor in the same mounting

location. See Fig. 19. Mount the return air enthalpy sensor in

the return air duct. See Fig. 34. Wiring is provided in the

EconoMiSer IV wiring harness. See Fig. 26. The outdoor en-

thalpy changeover set point is set with the outdoor enthalpy set

point potentiometer on the EconoMi$er IV controllel: When

using this mode of changeover control, turn the enthalpy set-

point potentiometer fully clockwise to the D setting.

Indoor Air Ouality (IAO) Sensor Input -- The IAQ input

can be used for demand control ventilation control based on the

level of CO2 measured in the space or leturn air duct.

Mount the accesso UIAQ sensor according to manufacturer

specifications. The IAQ sensor should be wired to file AQ and

AQI terminals of the controllel: Adjust the DCV potentiome-

ters to correspond to file DCV voltage output of the indoor air

quality sensor at the user-determined set point. See Fig. 37.

If a separate field-supplied transformer is used to power the

IAQ sensor, the sensor must not be grounded or the

EconoMi$er IV control bo_ud will be &tmaged.

ECONOMI$ER _

ECONOMISER ]_

_ CONTROLLER

-7

T--Ii/--GROMMET

.......RETURN AIR

/" RETURN DUCT

(FIELD-PROVIDED)

Fig. 34-- Return Air Temperature or Enthalpy

Sensor Mounting Location

CONTROL CONTROL POINT

CURVE APPROX °F (°C)

AT 50% RH

A 73123)

B 70 (21)

C 67 (19)

D 63 (17)

(2)

85 90 95 100 105 110

(29) (32) (35) (38) (41) (43)

_HIGH LIMIT

\ i CURVE

40 45 50 55 60 65 70 75 80 85 90 95 100 105 110

(4) (7) (10) (13) (16) (18) (21) (24) (27) (29) (32) (35) (38) (41) (43)

APPROXIMATE DRY BULB TEMPERATURE--°F (°C)

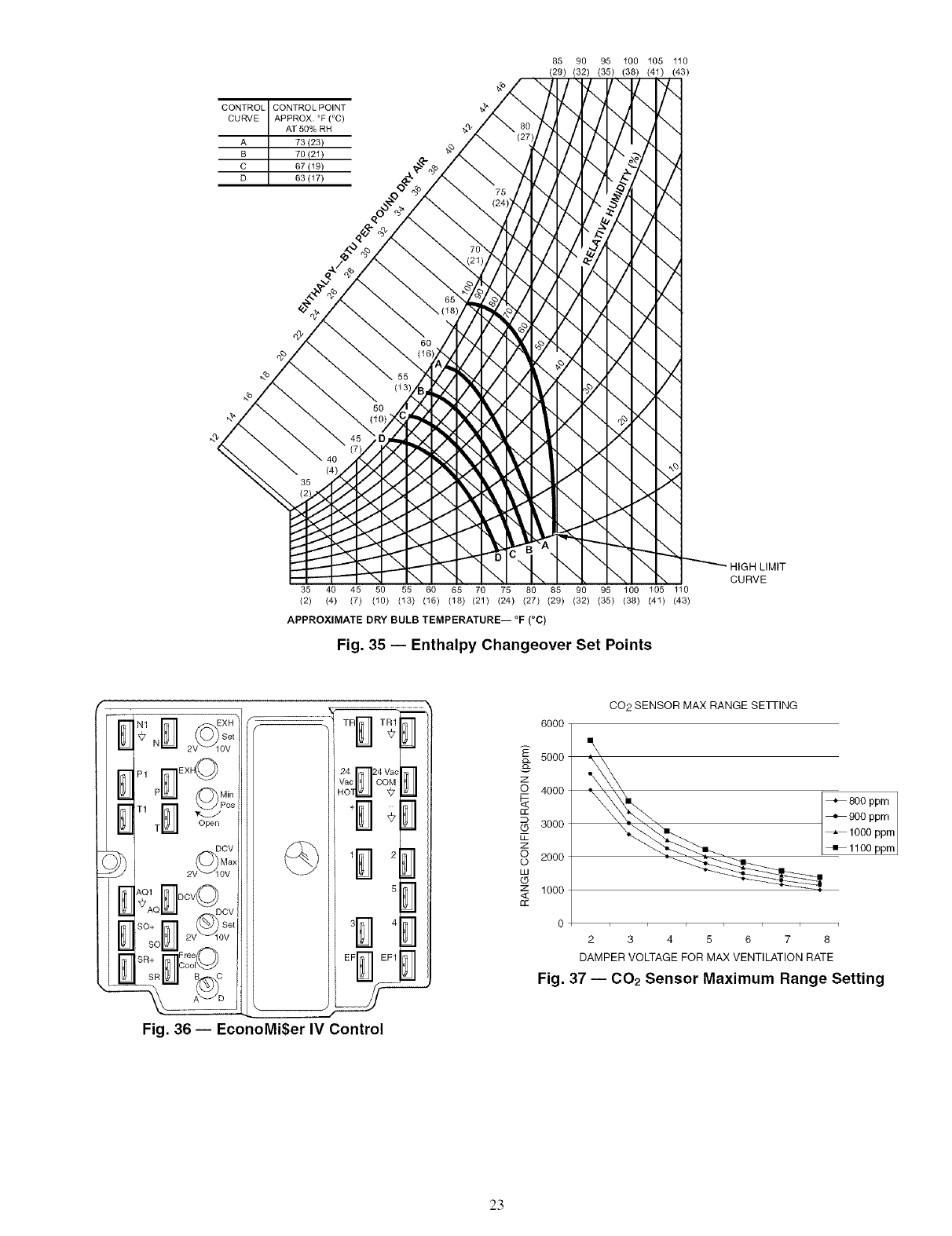

Fig. 35 -- Enthalpy Changeover Set Points

--_ _ v_1 EXH

...... _ Set

N 2 0V

FFr_I EF1

.....•-I

...... _7

....._ 4

Fig. 36 -- EconoMi$er IV Control

6000

5000

2 4000

3000

2000

z 1000

CO2 SENSOR MAX RANGE SEqq ING

2345678

DAMPER VOLTAGE FOR MAX VENTILATION RATE

Fig. 37 -- CO2 Sensor Maximum Range Setting

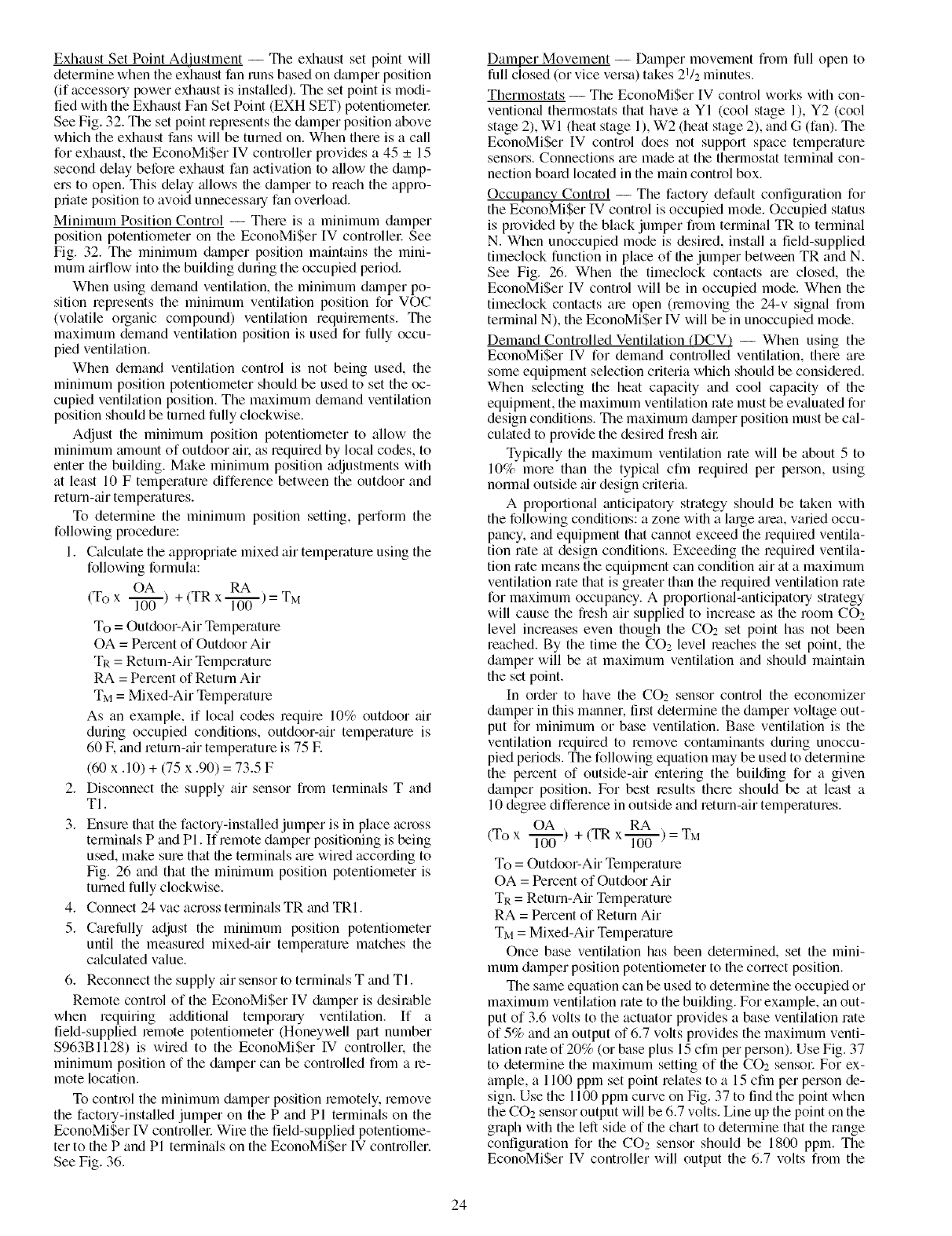

Exhaust Set Point Adjustment -- The exhaust set point will

determine when the exhaust fan runs based on dalnper position

(if accessory power exhaust is installed). The set point is modi-

fied with the Exhaust Fan Set Point (EXH SET) potentiometer

See Fig. 32. The set point represents the damper position above

which the exhaust fans will be turned on. When there is a call

for exhaust, the EconoMiSer IV controller provides a 45 _+15

second delay before exhaust fan activation to allow the damp-

ers to open. This delay allows file damper to reach the appro-

priate position to avoid unnecessary fan overload.

Minimum Position Control -- There is a minimum damper

position potentiometer on the EconoMiSer [V controllel: See

Fig. 32. The minimum damper position maintains the mini-

mum airflow into the building during the occupied period.

When using demand ventilation, the minimum dalnper po-

sition represents the minimum ventilation position for VOC

(volatile organic compound) ventilation requirements. The

maximum demand ventilation position is used for fully occu-

pied ventilation.

When demand ventilation control is not being used, the

minimum position potentiometer should be used to set the oc-

cupied ventilation position. The maximum demand ventilation

position should be turned fully clockwise.

Adjust the minimum position potentiometer to allow the

minimum amount of outdoor aik as required by local codes, to

enter the building. Make minimum position adjustments with

at least 10 F temperature difference between the outdoor and

return-air temperatures.

To determine the minimum position setting, perform the

following procedure:

1. Calculate the appropriate mixed air temperature using the

following formula:

OA RA

(Tox 1---_7) +(TRx 1-]Ti-(]-)=TM

To = Outdoor-Air Temperature

OA = Percent of Outdoor Air

TR = Return-Air Temperature

RA = Percent of Return Air

TM = Mixed-Air Temperature

As an example, if local codes require 10% outdoor air

during occupied conditions, outdoor-air temperature is

60 Eand return-air temperature is 75 E

(60 x .10) + (75 x .90) = 73.5 F

2. Disconnect the supply air sensor from temfinals T and

TI.

3. Ensure that the factory-installed jumper is in place across

terminals P and PI. If remote damper positioning is being

used, make sure that the terminals are wired according to

Fig. 26 and that the minimum position potentiometer is

turned fully clockwise.

4. Connect 24 vac across terminals TR and TRI.

5. Carelully adjust the minimum position potentiometer

until the measured mixed-air temperature matches the

calculated value.

6. Reconnect the supply air sensor to termimds T and TI.

Remote control of the EconoMiSer IV damper is desirable

when requiring additional tempormy ventilation. If a

field-supplied remote potentiometer (Honeywell part number

$963B1128) is wired to the EconoMiSer IV controllek the

minimum position of the damper can be controlled from a re-

mote location.

To control the minimum damper position remotely, remove

the factory-installed jumper on the P and PI terminals on the

EconoMiSer IV controllel: Wire the field-supplied potentiome-

ter to the P and PI terminals on the EconoMiSer IV controller.

See Fig. 36.

Damper Movement -- Damper movement trom full open to

full closed (or vice versa) takes 2112minutes.

Thermostats -- The EconoMi$er IV control works with con-

ventional thermostats that have a YI (cool stage 1), Y2 (cool

stage 2), Wl (heat stage 1), W2 (heat stage 2), and G (fan). The

EconoMi$er IV control does not support space temperature

sensors. Connections are made at the thermostat terminal con-

nection board located in the main control box.

Occupancy Control -- The factoUdefault configuration for

the EconoMi$er IV control is occupied mode. Occupied status

is provided by the black jumper fiom terminal TR to terminal

N. When unoccupied mode is desired, inst_dl a field-supplied

timeclock function in place of the jumper between TR and N.

See Fig. 26. When the timeclock contacts are closed, the

EconoMi$er IV control will be in occupied mode. When the

timeclock contacts are open (removing the 24-v signal from

terminal N), the EconoMi$er IV will be in unoccupied mode.

Demand Controlled Ventilation (DCV) -- When using the

EconoMi$er IV for demand controlled ventilation, them are

some equipment selection criteria which should be considered.

When selecting the heat capacity and cool capacity of the

equipment, the maximum ventilation rote must be ev_duated for

design conditions. The maximum damper position must be cal-

culated to provide the desired fresh air

Typically the maximum ventilation rate will be about 5 to

10% more than the typical cfin required per person, using

norm_doutside air design criteria.

A proportional anticipato Ustrategy should be taken with

the following conditions: a zone with a large area, varied occu-

pancy, and equipment that cannot exceed the required ventila-

tion rate at design conditions. Exceeding the required ventila-

tion rate means the equipment can condition air at a maximum

ventilation rate that is greater than the required ventilation rate

for maximum occupancy. A proportional-anticipato Ustrategy

will cause the fresh air supplied to increase as the room CO2

level increases even though the CO2 set point has not been

machedi By the time the CO2 level roaches the set point, the

damper will be at maximum ventilation and should maintain

the set point.

In order to have the CO2 sensor control the economizer

damper in this manner, fil.stdetermine the damper voltage out-

put for minimum or base ventilation. Base ventilation is the

ventilation required to remove contmninants during unoccu-

pied periods. The following equation may be used to determine

the percent of outside-air entering the building for a given

damper position. For best results there should be at least a

10 degree difference in outside and return-air temperatures.

OA RA

(To x 1--_) + (TR x 1--_) = TM

To = Outdoor-Air Temperature

OA = Percent of Outdoor Air

TR = Return-Air Temperature

RA = Percent of Return Air

TM = Mixed-Air Temperature

Once base ventilation has been determined, set the mini-

mum damper position potentiometer to the correct position.

The same equation can be used to determine the occupied or

maximum venfihttion rote to the building. For example, an out-

put of 3.6 volts to the actuator provides a base ventihttion rate

of 5% and an output of 6.7 volts provides the maximum venti-

lation rate of 20% (or base plus 15 cfm per person). Use Fig. 37

to determine the maximum setting of the CO2 sensoc For ex-

ample, a 1100 ppm set point relates to a 15 cfm per person de-

sign. Use the 1100 ppm curve on Fig. 37 to find the point when

the CO2 sensor output will be 6.7 volts. Line up the point on the

graph with the left side of the chart to determine that the range

configuration for the CO2 sensor should be 1800 ppm. The

EconoMiSer IV controller will output the 6.7 volts from the

CO2sensortotheactuatorwhentheCO2concentrationinthe

spaceisat1100ppm.TheDCVsetpointmaybeleftat2volts

sincethe CO2 sensor voltage will be ignored by the

EconoMiSer IV controller until it rises above the 3.6 volt set-

ting of the minimum position potentiometel:

Once the fully occupied dmnper position has been deter-

mined, set file maximum damper demand control ventilation

potentiometer to this position. Do not set to file maximum posi-

tion as fills can result in over-ventilation to the space and poten-

tial high-humidity levels.

(;02 Sensor Configuration --The CO2 sensor has preset

standard voltage settings flint can be selected anytime after the

sensor is powered up. See Table 8.

Use setting 1 or 2 for Carrier equipment. See Table 8.

1. Press Clear and Mode buttons. Hold at least 5 seconds

until the sensor enters the Edit mode.

2. Press Mode twice. The STDSET Menu will appem:

3. Use file Up/Down button to select the preset numbel: See

Table 8.

4. Press Enter to lock in the selection.

5. Pless Mode to exit and resume norm_fl operation.

The custom settings of the CO2 sensor can be changed any-

time after the sensor is energized. Follow the steps below to

change the non-stan&trd settings:

1. Pless Clear and Mode buttons. Hold at least 5 seconds

until the sensor enters the Edit mode.

2. Pleas Mode twice. The STDSET Menu will appeal:

3. Use the Up/Down button to toggle to the NONSTD menu

and press Entel:

4. Use the Up/Down button to toggle through each of the

nine variables, stinting with Altitude, until the desiled set-

ting is reached.

5. Pless Mode to move through the variables.

6. Pleas Enter to lock in the selection, then press Mode to

continue to the next vtuiable.

Dehumidification of Fresh Air with DCV Control -- Infor-

mation from ASHRAE indicates that the largest humidity load

on any zone is the fresh air introduced. For some applications,

a device such as a 62AQ energy recovery unit is added to re-

duce the moisture content of the fiesh tdr being brought into the

building when the enthalpy is high. In most cases, the normal

heating and cooling processes are more than adequate to re-

move the humidity loads for most commercial applications.

If normal rooftop heating and cooling operation is not ade-

quate for the outdoor humidity level, an energy recovery unit

and/or a dehumidification option should be considered.

Step 7 -- Adjust Indoor-Fan Speed -- Adjust the

indoor-fan speed to meet jobsite conditions.

For units with electric heat, required minimum cfin is 2250

for 50TFQ008, 2550 for 50TFQ009 and 3000 for 50TFQ012

with the following exceptions:

UNIT

UNIT VOLTAGE

208/230

50TFQ012 450

575

HEATER

42.4

50.0

17.0

51.0

UNIT

CONFIG-

URATION

Horizontal

Horizontal or

Vertical

Horizontal or

Vertical

REQUIRED

MINIMUM

CFM

3200

2800

2350

Table 9 shows indoor-fan motor data. Table 10 shows fan

rpm at motor pulley settings for standard and alternate motors.

Tables 1lA and 11B show static pressure for accessories. Refer

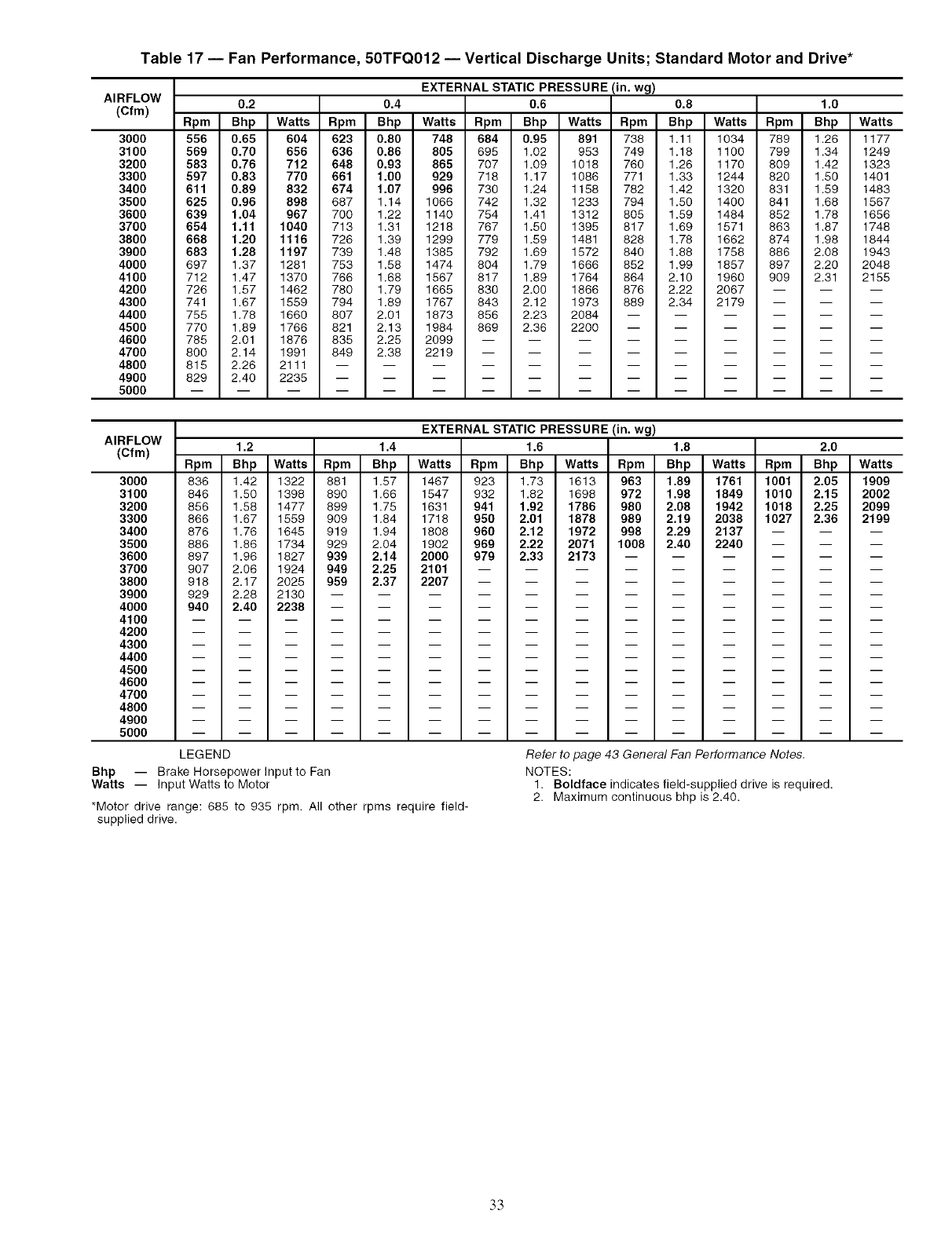

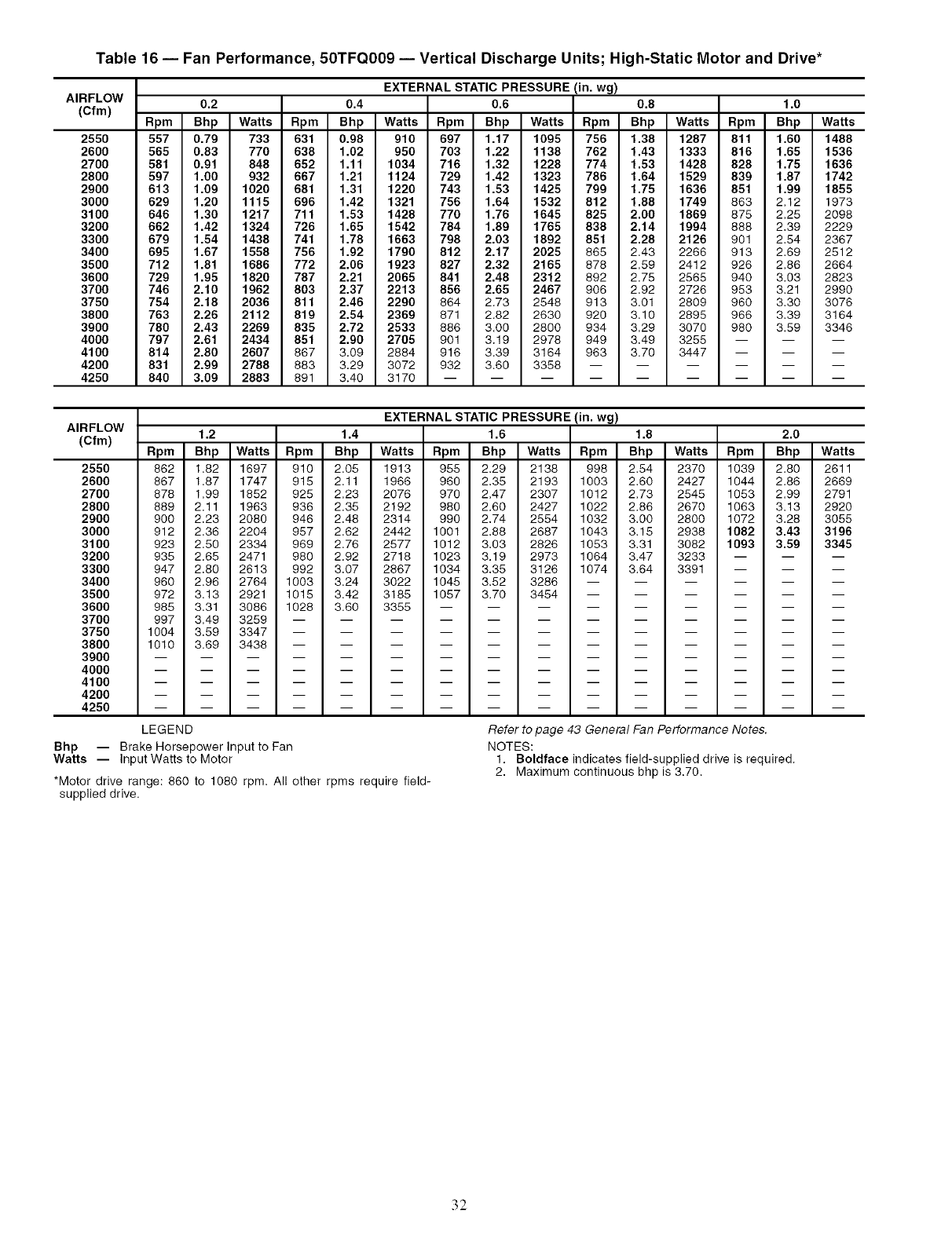

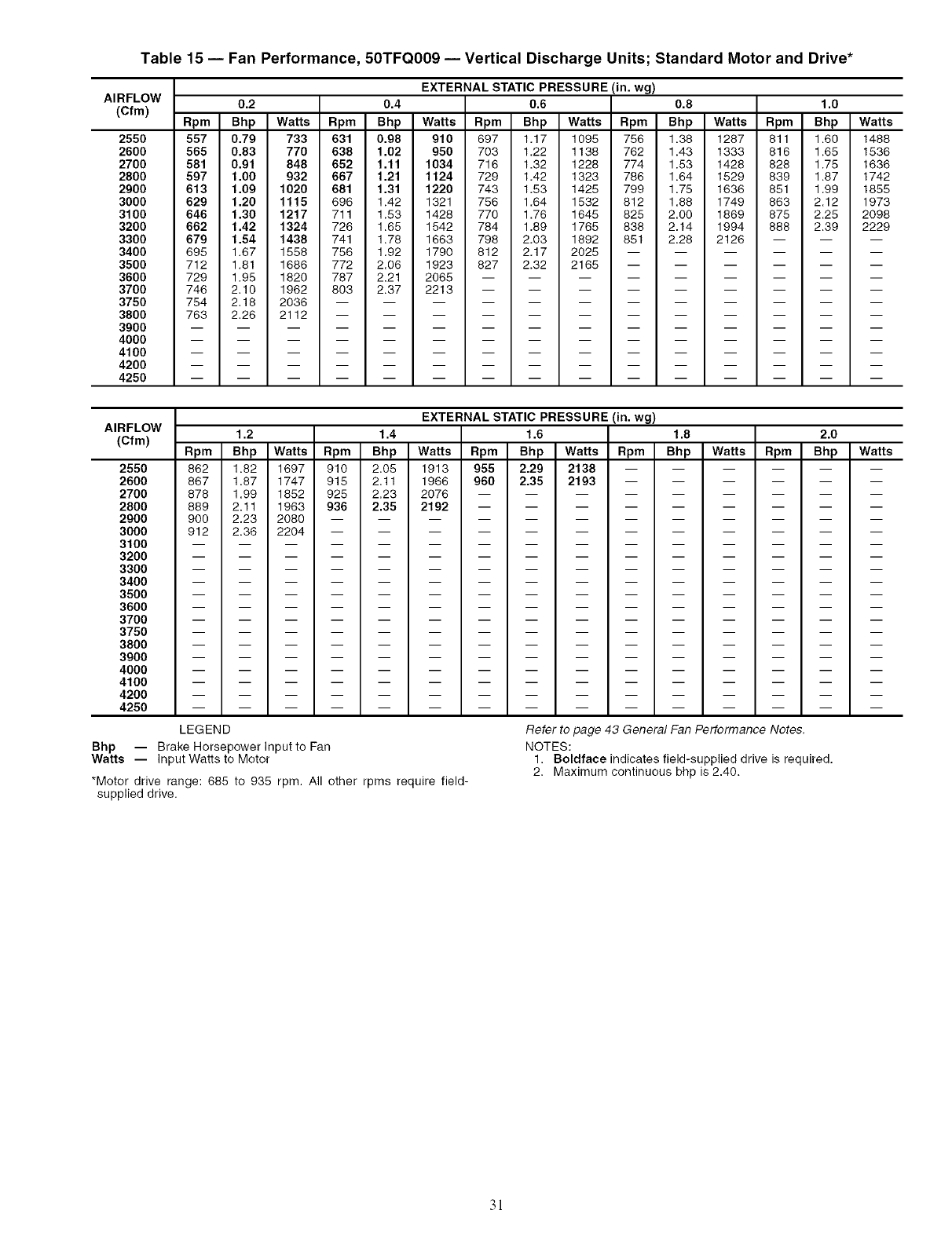

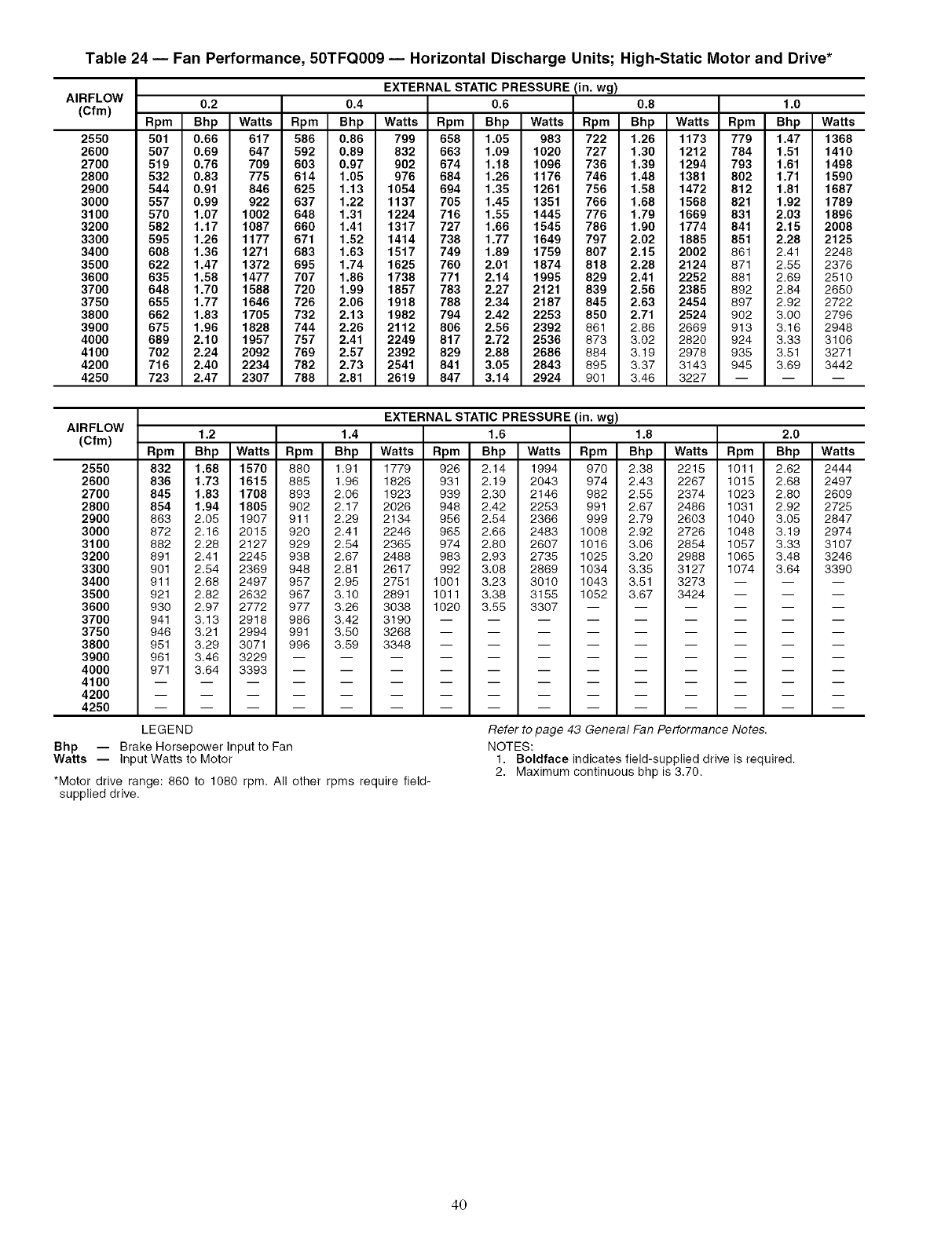

to Tables 12-27 to determine fan speed settings. Fan motor

pulleys are factory set for speed shown in Table 1.

To change fan speeds:

1. Shut offthe unit power supply and tag disconnect.

2. Ix_osen the belt by loosening the fan motor mounting

nuts. See Fig. 38 and 39.

3. Ix_osen the movable pulley flange setscrew (see Fig. 40).

4. Screw the movable flange tow_ud file fixed flange to

increase speed or away from file fixed flange to decrease

speed. Increasing the fan speed increases the load on the

motol: Do not exceed the maximum speed specified in

Table 1.

5. Set the movable flange at nearest keyway of the pulley

hub and tighten the setscrew. (See Table 1 for speed

change for each full turn of the pulley flange.)

Table 8 -- CO2 Sensor Standard Settings

EQUIPMENTSETTING

Interface w/Standard

Building Control System

Economizer

Health & Safety

Parking/Air Intakes/

Loading Docks

OUTPUT

Proportional

Exponential

Proportional

Exponential

Proportional

VENTILATION

RATE

(cfm/Person)

Any

ANALOG

OUTPUT

0-10V

4-20 mA

2-10V

7-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

0-10V

4-20 mA

CO2

CONTROLRANGE

(ppm)

0-2000

0-1100

0- 900

0-1100

0- 900

0-9999

0-2000

OPTIONAL

RELAY SETPOINT

(ppm)

1000

1100

900

1100

900

5000

700

LEGEND

ppm -- Parts Per Million

RELAY

HYSTERESIS

(ppm)

5OO

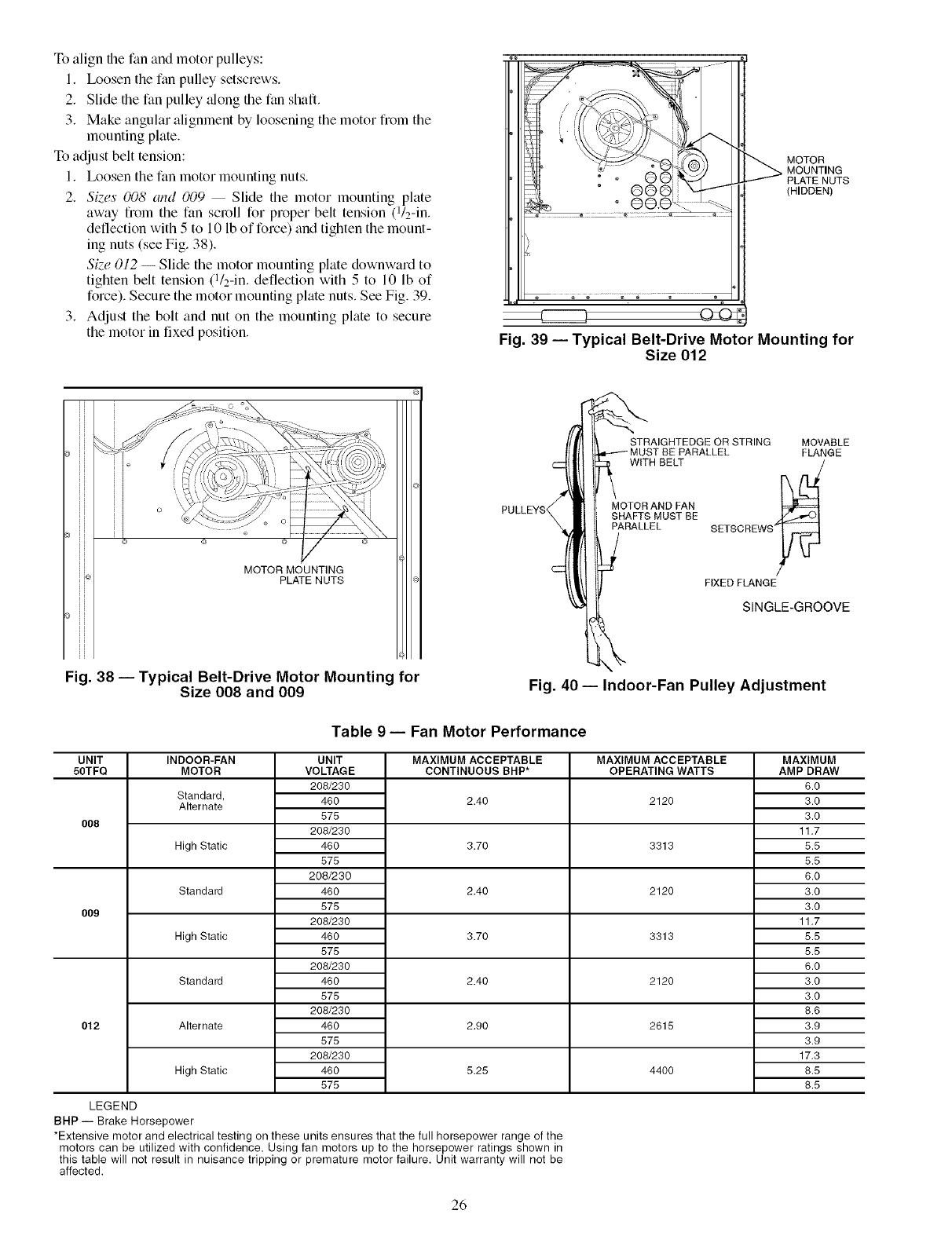

To align the fan and motor pulleys:

1. I_)osen tile fan pulley setscrews,

2. Slide file fan pulley along file fan shaft.

3. Make angular alignment by loosening the motor fiOl_l the

mounting plate.

To adjust belt tension:

1. Ix)osen tile fan motor mounting nuts.

2. Si'..es 008 and 009 Slide the motor mounting plate

away froth the fan scroll for proper belt tension (1/2-in.

deflection with 5 to 10 lb of force) and tighten the mount-

ing nuts (see Fig. 38).

Sise 012 -- Slide the motor mounting plate downward to

tighten belt tension (l/2-in. deflection with 5 to 10 lb of

force). Secure the motor mounting plate nuts. See Fig. 39.

3. Adjust the bolt and nut on the mounting plate to secure

the motor in fixed position.

MOTOR

MOUNTING

PLATE NUTS

(HIDDEN)

Fig. 39 -- Typical Belt-Drive Motor Mounting for

Size 012

MOTOR MOUNTING

PLATE NUTS

STRAIGHTEDGE OR STRING

TBE PARALLEL

WITH BELT

MOTOR AND FAN

SHAFTS MUST BE

PARALLEL

MOVABLE

FLANGE

SETSCREWS_

FIXED FLANGE

SINGLE-GROOVE

Fig. 38 -- Typical Belt-Drive Motor Mounting for

Size 008 and 009 Fig. 40 -- Indoor-Fan Pulley Adjustment

Table 9- Fan Motor Performance

UNIT

50TFQ

008

009

012

INDOOR-FAN

MOTOR

Standard,

Alternate

High Static

Standard

High Static

Standard

Alternate

High Static

UNIT

VOLTAGE

208/230

460

575

208/230

460

575

208/230

480

575

208/230

480

575

208/230

480

575

208/230

480

575

208/230

480

575

MAXIMUM ACCEPTABLE

CONTINUOUS BHP*

2.40

3.70

2.40

3.70

2.40

2.90

5.25

LEGEND

BHP i Brake Horsepower

*Extensive motor and electrical testing on these units ensures that the full horsepower range of the

motors can be utilized with confidence. Using fan motors up to the horsepower ratings shown in

this table will not result in nuisance tripping or premature motor failure. Unit warranty will not be

affected.

MAXIMUM ACCEPTABLE

OPERATING WATTS

2120

3313

2120

3313

2120

2615

4400

MAXIMUM

AMP DRAW

6.0

3.0

11,7

5.5

6.0

3.0

11,7

5.5

6.0

3.0

8.6

3.9

17,3

8.5

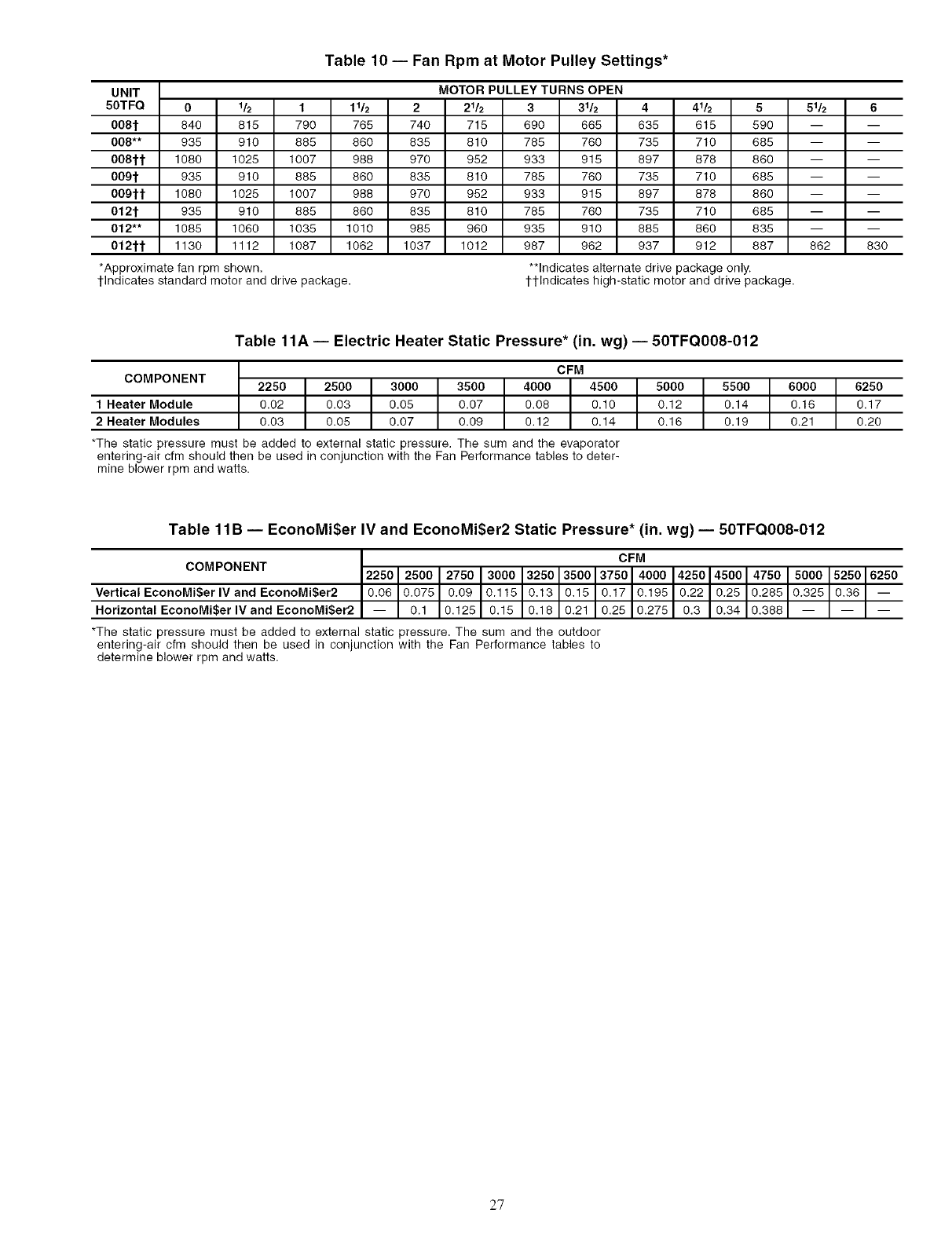

Table 10 -- Fan Rpm at Motor Pulley Settings*

UNIT

50TFQ 0 16

008t 840 815

008** 935 910

008it 1080 1025

009t 935 910

009it 1080 1025

012t 935 910

012"* 1085 1060

012it 1130 1112

MOTOR PULLEY TURNS OPEN

1 116 2 216 3 316

790 765 740 715 690 665

885 880 835 810 785 760

1007 988 970 952 933 915

885 880 835 810 785 760

1007 988 970 952 933 915

885 880 835 810 785 760

1035 1010 985 960 935 910

1087 1062 1037 1012 987 982

*Approximate fan rpm shown.

I-Indicates standard motor and drive package.

4 416 5 516 6

635 615 590 -- --

735 710 685 -- --

897 878 860 -- --

735 710 685 -- --

897 878 860 -- --

735 710 685 -- --

885 860 835 -- --

937 912 887 862 830

**Indicates alternate drive package only.

I-I-Indicates high-static motor and drive package.

Table 11A -- Electric Heater Static Pressure* (in. wg) -- 50TFQ008-012

I I CFM

COMPONENT 2250 2500 3000 3500 4000 4500

1 Heater Module 0.02 0.03 0.05 0.07 0.08 0.10

2 Heater Modules 0.03 0.05 0.07 0.09 0.12 0.14

*The static pressure must be added to external static pressure. The sum and the evaporator

entering-air cfm should then be used in conjunction with the Fan Performance tables to deter-

mine blower rpm and watts.

I 000 5500 6000 6250

0.12 0.14 0.18 0.17

0.16 0.19 0.21 0.20

Table 11B -- EconoMi$er IV and EconoMi$er2 Static Pressure* (in. wg) -- 50TFQ008-012

COMPONENT 6250

Vertical EconoMi$er IV and EconoMi$er2

Horizontal EconoMi$er IV and EconoMi$er2

*The static pressure must be added to external static pressure. The sum and the outdoor

entering-air cfm should then be used in conjunction with the Fan Performance tables to

determine blower rpm and watts.

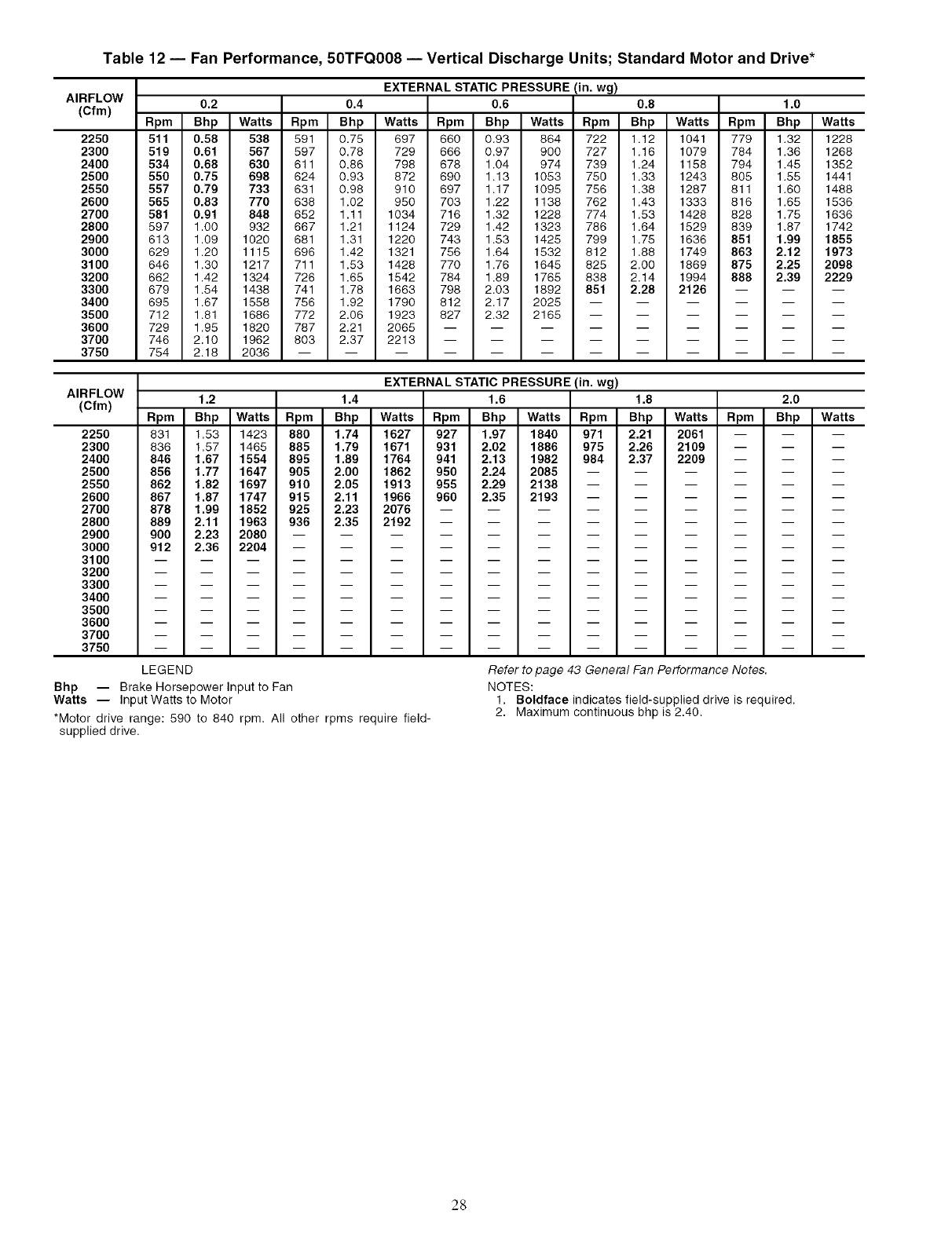

Table 12- Fan Performance, 50TFQ008- Vertical Discharge Units; Standard Motor and Drive*

AIRFLOW

(Cfm)

2250

2300

2400

2500

2550

2600

2700

2800

2900

3000

3100

3200

3300

3400

3500

3600

3700

3750

EXTERNAL STATIC PRESSURE (in. wg)

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

511 0.58 538 591 0.75 697 680 0.93 864 722 1.12 1041 779 1.32 1228

519 0.61 567 597 0.78 729 666 0.97 900 727 1.16 1079 784 1.36 1268

534 0.68 630 611 0.86 798 678 1.04 974 739 1.24 1158 794 1.45 1352

550 0.75 698 624 0.93 872 690 1.13 1053 750 1.33 1243 805 1.55 1441

557 0.79 733 631 0.98 910 697 1.17 1095 756 1.38 1287 811 1.60 1488

565 0.83 770 638 1.02 950 703 1.22 1138 762 1.43 1333 818 1.65 1536

581 0.91 848 652 1.11 1034 718 1.32 1228 774 1.53 1428 828 1.75 1636

597 1.00 932 667 1.21 1124 729 1.42 1323 786 1.84 1529 839 1.87 1742

613 1.09 1020 681 1.31 1220 743 1.53 1425 799 1.75 1636 851 1.99 1855

629 1.20 1115 696 1.42 1321 756 1.64 1532 812 1.88 1749 863 2.12 1973

646 1.30 1217 711 1.53 1428 770 1.76 1645 825 2.00 1869 875 2.25 2098

662 1.42 1324 726 1.65 1542 784 1.89 1765 838 2.14 1994 888 2.39 2229

679 1.54 1438 741 1.78 1663 798 2.03 1892 851 2.28 2126 -- -- --

695 1.67 1558 756 1.92 1790 812 2.17 2025 ......

712 1.81 1686 772 2.06 1923 827 2.32 2165 ......

729 1.95 1820 787 2.21 2065 .........

746 2.10 1962 803 2.37 2213 .........

754 2.18 2036 ............

AIRFLOW

(Cfm)

2250

2300

2400

2500

2550

2600

2700

2800

2900

3000

3100

3200

3300

3400

3500

3600

3700

3750

EXTERNAL STATIC PRESSURE (in. wg)

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

831 1.53 1423 880 1.74 1627 927 1.97 1840 971 2.21 2061 -- --

836 1.57 1465 885 1.79 1671 931 2.02 1886 975 2.26 2109 -- --

846 1.67 1554 895 1.89 1764 941 2.13 1982 984 2.37 2209 -- --

856 1.77 1647 905 2.00 1862 950 2.24 2085 --

862 1.82 1697 910 2.05 1913 955 2.29 2138 --

867 1.87 1747 915 2.11 1966 960 2.35 2193 --

878 1.99 1852 925 2.23 2076 --

889 2.11 1963 936 2.35 2192 --

900 2.23 2080 ....

912 2.36 2204 ....

LEGEND

Bhp -- Brake Horsepower Input to Fan

Watts -- Input Watts to Motor

*Motor drive range: 590 to 840 rpm. All other rpms require field-

supplied drive.

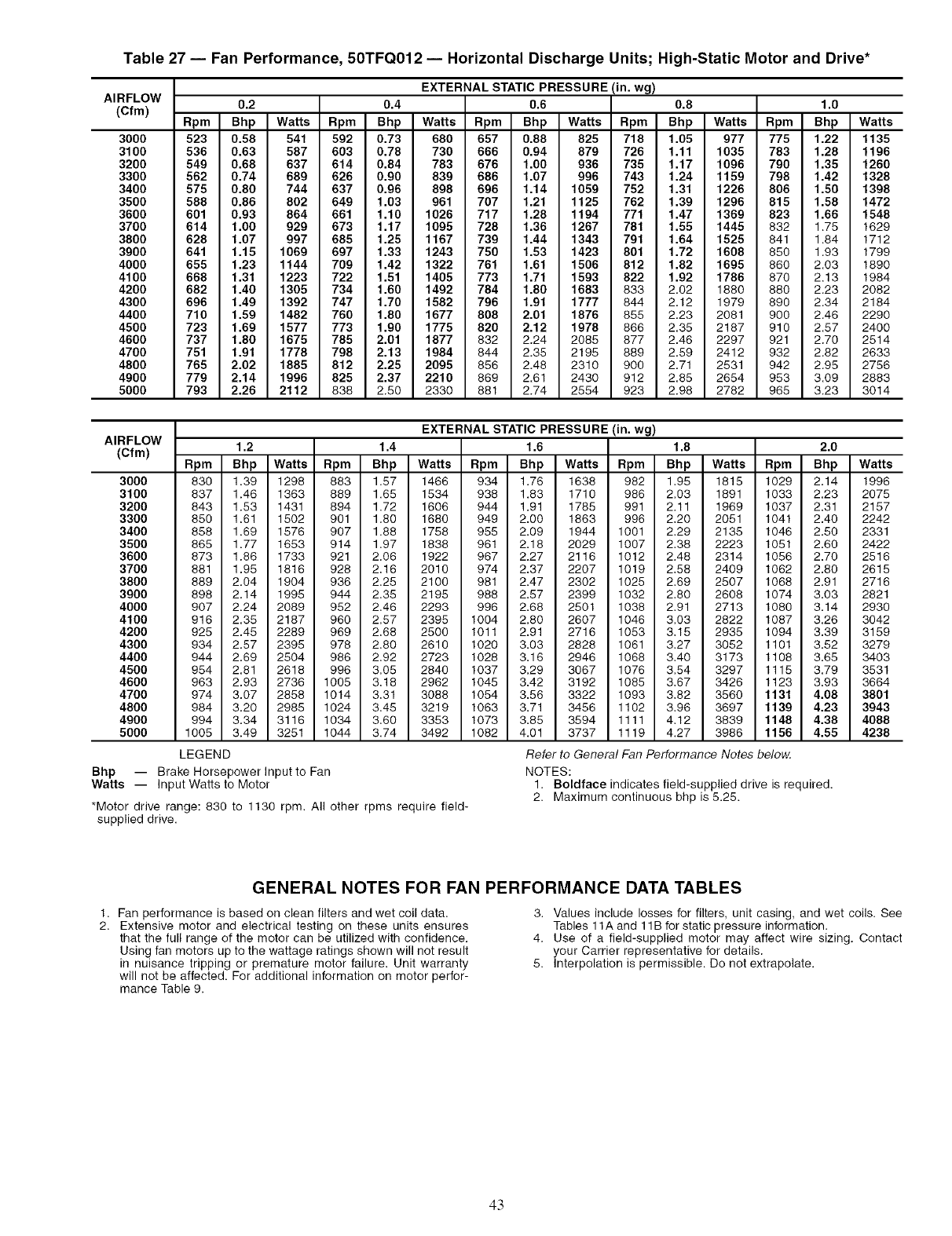

Refer to page 43 General Fan Performance Notes.

NOTES:

1. Boldface indicates field-supplied drive is required.

2. Maximum continuous bhp is 2.40.

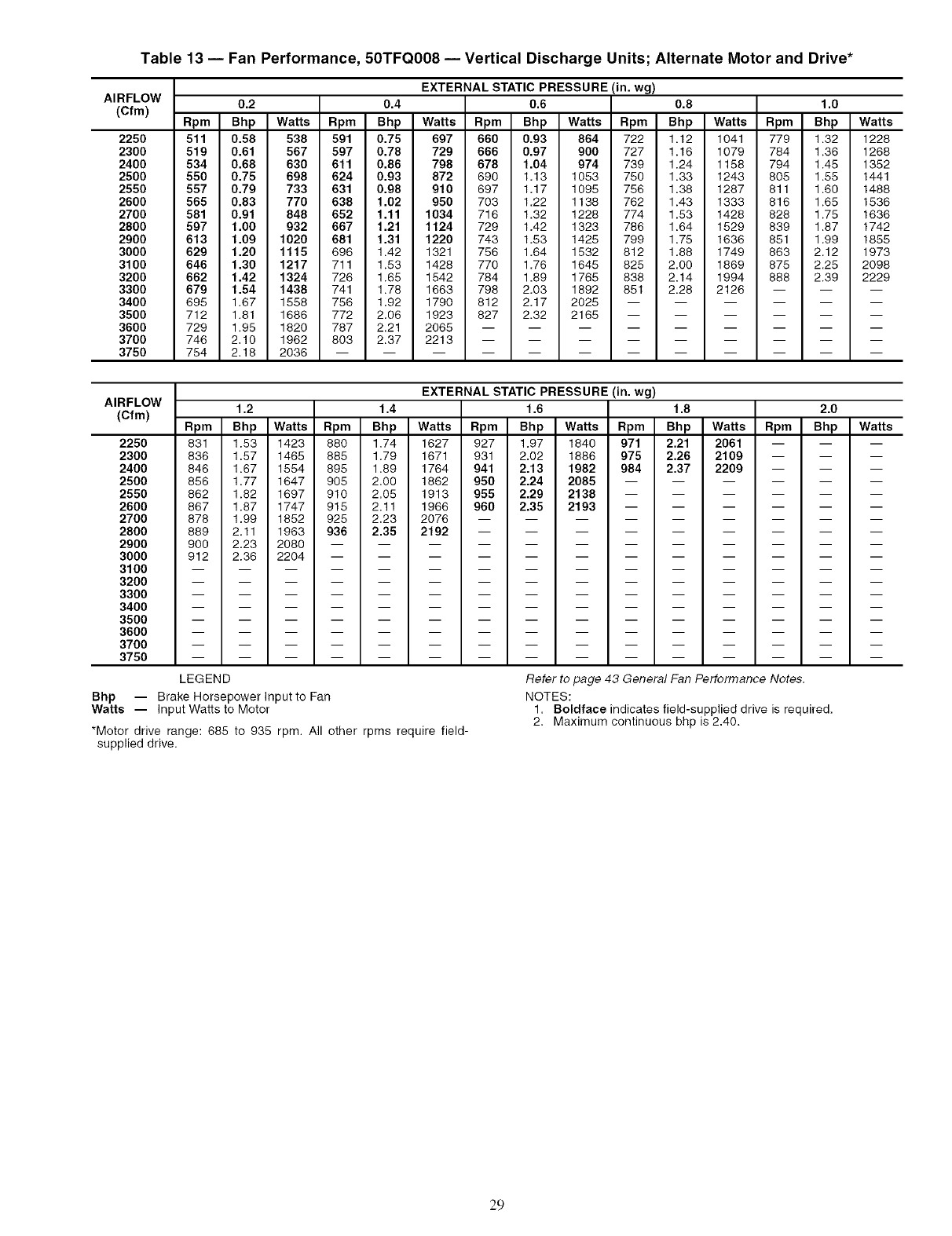

Table 13- Fan Performance, 50TFQ008- Vertical Discharge Units; Alternate Motor and Drive*

AIRFLOW

(Cfm)

2250

2300

2400

2500

2550

2600

2700

2800

2900

3000

3100

3200

3300

3400

3500

3600

3700

3750

EXTERNAL STATIC PRESSURE (in. wg)

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

511 0.58 538 591 0.75 697 660 0.93 864 722 1.12 1041 779 1.32 1228

519 0.61 567 597 0.78 729 666 0.97 900 727 1.16 1079 784 1.36 1268

534 0.68 630 611 0.86 798 678 1.04 974 739 1.24 1158 794 1.45 1352

550 0.75 698 624 0.93 872 690 1.13 1053 750 1.33 1243 805 1.55 1441

557 0.79 733 631 0.98 910 697 1.17 1095 756 1.38 1287 811 1.60 1488

565 0.83 770 638 1.02 950 703 1.22 1138 762 1.43 1333 816 1.65 1536

581 0.91 848 652 1.11 1034 716 1.32 1228 774 1.53 1428 828 1.75 1636

597 1.00 932 667 1.21 1124 729 1.42 1323 786 1.64 1529 839 1.87 1742

613 1.09 1020 681 1.31 1220 743 1.53 1425 799 1.75 1636 851 1.99 1855

629 1.20 1115 696 1.42 1321 756 1.64 1532 812 1.88 1749 863 2.12 1973

646 1.30 1217 711 1.53 1428 770 1.76 1645 825 2.00 1869 875 2.25 2098

662 1.42 1324 726 1.65 1542 784 1.89 1765 838 2.14 1994 888 2.39 2229

679 1.54 1438 741 1.78 1663 798 2.03 1892 851 2.28 2126 -- -- --

695 1.67 1558 756 1.92 1790 812 2.17 2025 ......

712 1.81 1686 772 2.06 1923 827 2.32 2165 ......

729 1.95 1820 787 2.21 2065 .........

746 2,10 1962 803 2.37 2213 .........

784 2.18 2036 ............

AIRFLOW

(Cfm)

2250

2300

2400

2500

2550

2600

2700

2800

2900

3000

3100

3200

3300

3400

3500

3600

3700

3750

EXTERNAL STATIC PRESSURE (in. wg)

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

831 1.53 1423 880 1.74 1627 927 1.97 1840 971 2.21 2061 --

836 1.57 1465 885 1.79 1671 931 2.02 1886 975 2.26 2109 --

846 1.67 1554 895 1.89 1764 941 2.13 1982 984 2.37 2209 --

856 1.77 1647 905 2.00 1862 950 2.24 2085 --

862 1.82 1697 910 2.05 1913 955 2.29 2138 --

867 1.87 1747 915 2.11 1966 960 2.35 2193 --

878 1.99 1852 925 2.23 2076 --

889 2.11 1963 936 2.35 2192 --

900 2.23 2080 ....

912 2.36 2204 ....

LEGEND

Bhp -- Brake Horsepower Input to Fan

Watts -- Input Watts to Motor

*Motor drive range: 685 to 935 rpm. All other rpms require field-

supplied drive.

m m

Refer to page 43 General Fan Performance Notes.

NOTES:

1. Boldface indicates field-supplied drive is required.

2. Maximum continuous bhp is 2.40.

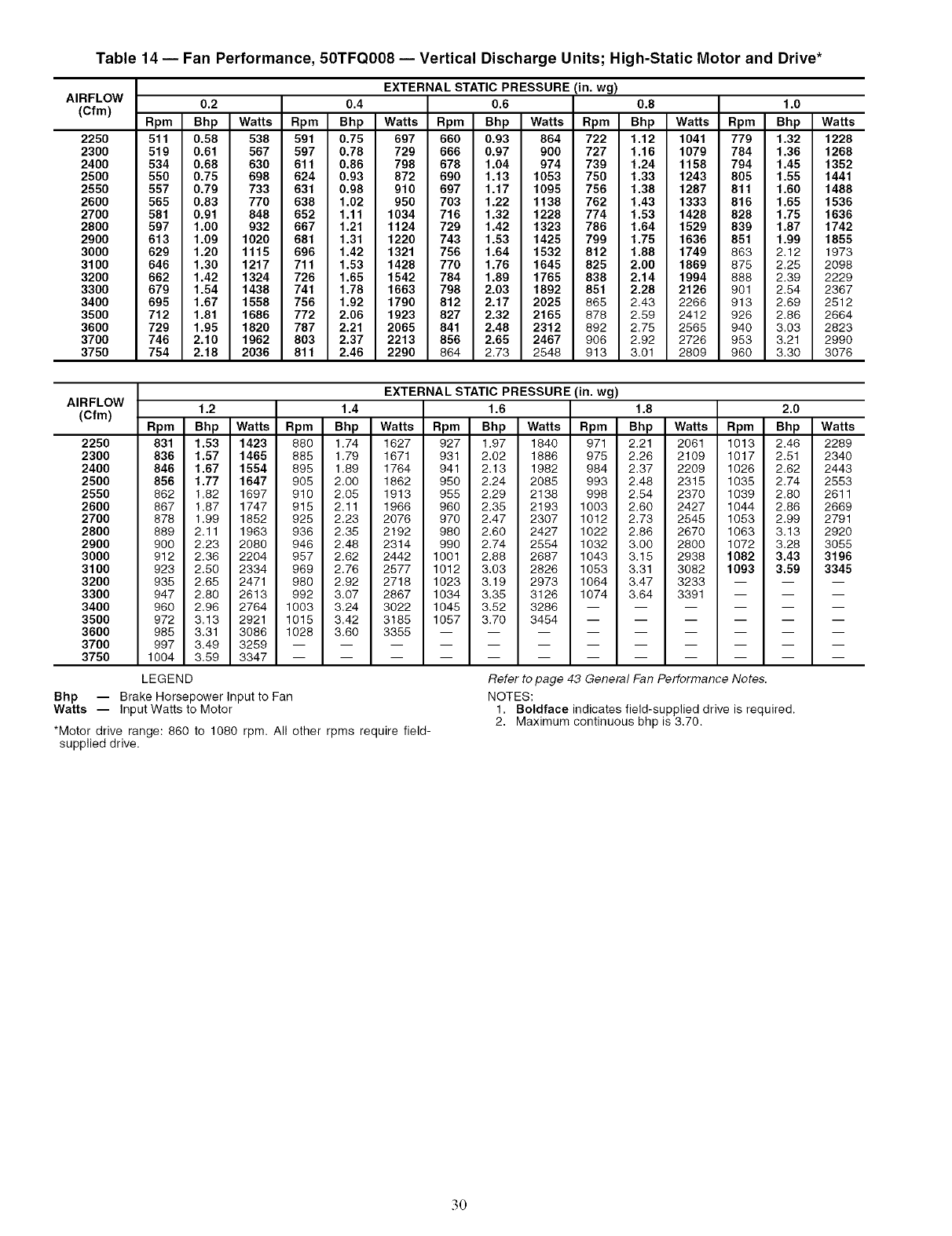

Table 14 -- Fan Performance, 50TFQ008 -- Vertical Discharge Units; High-Static Motor and Drive*
