Digital Camera

EX-S770

User's Guide

K837PCM1DMX

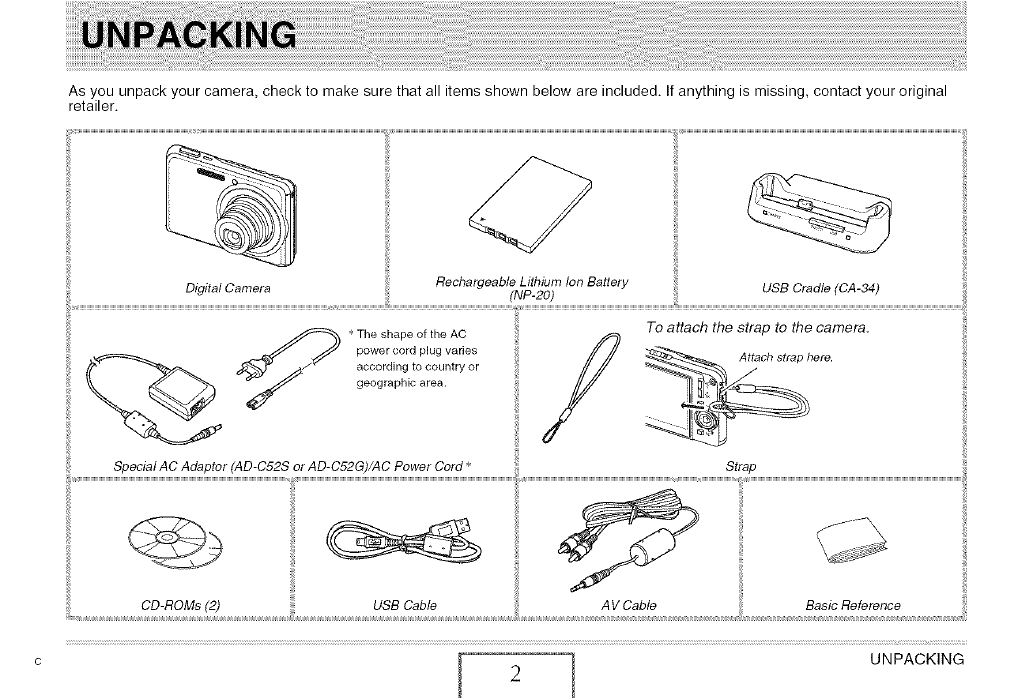

As you unpack your camera, check to make sure that all items shown below are included. If anything is missing, contact your original

retailer.

Digital Camera Rechargeable Lithium Ion Battery USB Cradle (CA-34)

The shape of the AC

power cord plug varies

according to country or

geographic area.

Special AC Adaptor (AD-C52S or AD-C52G)/AC Power Cord _

CD-ROMs (2) USB Cable

[

To attach the strap to the camera.

Attach strap here.

Strap

A V Cable Basic Reference

c UNPACKING

UNPACKING

QUICK START BASICS 10

First, charge the battery ..................... 10

Configuring Display Language, Date, and

Time Settings .............................. 12

Using a Memory Card ....................... 14

Shooting a Snapshot ........................ 16

Viewing Snapshots ......................... 18

Shooting a Movie ........................... 19

Viewing a Movie ............................ 20

Deleting a File ............................. 21

INTRODUCTION 22

Features .................................. 22

Read this first! ............................. 24

Precautions during Use ..................... 27

GETTING READY 37

Charging the Battery ........................ 37

J To load the battery 37

J To charge the battery 38

i Replacing the Battery 42

m Battery Precautions 42

Turning Power On and Off ................... 43

Using a Memory Card ....................... 46

J Loading a Memory Card into the Camera 48

I Replacing the Memory Card 49

m Formatting a Memory Card 50

Using On-screen Menus ..................... 52

J Configuring Monitor Screen Settings 53

J Selecting a Screen Layout (Layout) 54

J Turning Display Information On and Off (Info,) 57

W Adjusting Monitor Screen Brightness (Brightness) 59

Adjusting Monitor Screen Image Quality (Type) 60

If you lose your way .......................... 61

Using the Camera on a Trip .................. 62

m Extra Batteries 62

m Using the Camera in another Country 62

CONTENTS

SHOOTING A SNAPSHOT 63

Holding the Camera Correctly ................ 63

Shooting a Snapshot ........................ 64

J Specifying Irnage Size 67

J Specifying Image Quality 69

J Turning Off the AF Assist Lamp 70

J Snapshot Shooting Precautions 71

J Auto Focus Restrictions 72

Shooting with Zoom ........................ 72

Using Flash ............................... 76

Using the Self-Timer ........................ 81

Using Continuous Shutter ................... 83

J Selecting the Continuous Shutter Mode 83

J Recording with Normal-speed Continuous

Shutter, High-speed Continuous Shutter,

and Flash Continuous Shutter 84

W Recording with Zoom Continuous Shutter 84

m Continuous Shutter Precautions 85

Adding Audio to a Snapshot ................. 86

SHOOTING A MOVIE 89

Movie Image Quality ........................ 89

Shooting a Movie ........................... 90

W Movie Recording Precautions 91

Using Short Movie .......................... 92

Using Past Movie ........................... 95

Shooting a Snapshot while Shooting a Movie

(Snapshot-In-Movie) ........................ 97

USING BEST SHOT 98

Reducing the Effects of Hand and Subject

Movement ................................ 104

Taking Bright Images without Flash .......... 105

Shooting Images of Business Cards and

Documents (Business Shot) ................. 106

Restoring an Old Photograph ................ 109

c CONTENTS

ADVANCED SETTINGS 112

Changing the Focus Mode .................. 112

J Using Auto Focus 113

J Using Macro Focus 114

J Using Fixed Focus (Pan Focus) 118

J Using Infinity Focus 119

W Using Manual Focus 119

Correcting Image Brightness (EV Shift} ....... 121

Controlling White Balance .................. 123

Specifying ISO Sensitivity .................. 126

Specifying the Metering Mode ............... 127

Using the Camera's Filter Effects ............ 129

Controlling Image Sharpness ................ 129

Controlling Color Saturation ................ 130

Adjusting Image Contrast ................... 130

Date Stamping Snapshots .................. 131

Using the On-screen Histogram to

Check Exposure ........................... 132

Other Useful Recording Functions ........... 135

J Using Key Custornize to Assign Functions

[_1] and [1_-] 135

J Displaying an On-screen Grid 136

J Displaying the Image You Just Recorded

(image Review) 137

J Using Icon Help 137

J Using Mode Memory to Configure

Power On Default Settings 138

J Resetting the Camera to Its Initial Factory

Defaults 140

VIEWING SNAPSHOTS

AND MOVIES 142

Viewing a Snapshot ........................ 142

W Listening to the Audio of an Audio Snapshot 143

Viewing a Movie ........................... 144

J Playing Back a Movie with Anti Shake 146

Playing a Slideshow on the Camera .......... 147

Viewing Camera Images on a TV ............. 151

Zooming the Displayed Image ............... 154

Using the 12-image Screen .................. 155

Using the Calendar Screen .................. 155

Using Image Roulette ...................... 156

CONTENTS

EDITING IMAGES 158

Resizing a Snapshot ....................... 158

Cropping a Snapshot ...................... 159

Keystone Correction ....................... 160

Using Color Restoration to Correct

the Color of an Old Photograph .............. 162

Editing the Date and Time of an Image ........ 164

Rotating an Image ......................... 165

Editing a Movie on the Camera .............. 166

Creating a Snapshot of a Movie Frame

(MOTION PRINT) .......................... 171

USING AUDIO 173

Adding Audio to a Snapshot ................ 173

Recording Audio Only (Voice Recording) ...... 176

MANAGING YOUR FILES 179

Files and Folders .......................... 179

Protecting a File Against Deletion ............ 180

Using the FAVORITE Folder ................. 181

Copying Files ............................. 184

DELETING FILES 186

Deleting a Specific File ..................... 186

Deleting All Files .......................... 187

Deleting FAVORITE Folder Snapshots ........ 187

OTHER SETTINGS 189

Configuring Camera Sound Settings .......... 189

Turning the Startup Screen On or Off ......... 191

Specifying the File Name Serial Number

Generation Rule ........................... 192

Changing the Camera Date and Time Setting... 192

Using World Time ......................... 194

m Configuring World Time Settings 194

Changing the Display Language ............. 196

Changing the USB Port Protocol ............. 196

[r'_ll] (REC) and [_] (PLAY) Button Settings.. 197

Formatting Built-in Memory ................. 199

CONTENTS

PRINTING 200

Types of Printing .......................... 200

Using Professional Print Service ............. 201

Using Your Printer to Print Images ........... 202

Using DPOF to Specify Images to be

Printed and the Number of Copies ............ 205

m Date Stamping 208

Supported Protocols ....................... 209

USING THE CAMERA WITH A

COMPUTER 211

What you can do .......................... 211

Using the Camera with a Windows Computer .. 212

J Viewing and Storing Images on a Computer 215

J Transfer of Images from the Camera and

Management of Images on the Computer 224

J Retouching, Reorienting, or Printing Snapshots 227

J Playing Movies 228

J Editing a Movie 231

J Transferring Images to the Camera 232

J Viewing User Documentation (PDF) Files 236

J User Registration 237

I Exiting the CD-ROM Menu 237

Using the Camera with a Macintosh .......... 237

J Viewing and Storing Irnages on a Macintosh 239

J Transfer of Images from the Camera and

Management of Images on Your Macintosh 245

J Playing Movies 246

J Viewing User Documentation (PDF Files) 248

Registering as a User 249

Reading Files Directly from a Memory Card .... 249

Memory Card Data ......................... 250

TRANSFERRING DOCUMENTS TO

YOUR CAMERA (DATA STORAGE) 254

Transferring Documents to the Camera ....... 254

J Transferring docurnents from a computer

running Windows 254

J Transferring documents from a Macintosh 256

Viewing a Transferred Document on

the Camera ............................... 258

Deleting Documents from Camera Memory .... 260

m Deleting a Document Page 260

m Deleting Documents 261

CONTENTS

APPENDIX 263

General Guide ............................ 263

Monitor Screen Contents ................... 265

Menu Reference ........................... 267

Display Menu Reference .................... 271

Indicator Lamps ........................... 272

Troubleshooting Guide ..................... 276

J Find the Problem and Fixing It 276

J If you have problems installing the USB driver... 280

m Display Messages 281

Specifications ............................ 283

CONTENTS

Shooting with Optimum Setups

USING BEST SHOT ........................... 98

Portrait, Scenery, Night Scene, Night Scene Portrait, Children, etc

USING BEST SHOT ........................... 98

Monochrome, retro, etc. ..........................i

Compensating for Hand or Subject Movement

Reducing the Effects of Hand and Subject Movement. 104

i ........................................................................................................................i

Increasing Sensitivity when Lighting is Dim

°sTaking Bright Images without Flash .............. 105

Meeting Information (White Board) Easier to Read

Shooting Images of Business Cards and Documents i;

(Business Shot) .............................. 106

Selecting the Best Focus Mode for Shooting Conditions

Changing the Focus Mode ..................... 112

i; Eliminating Light Source Color Cast

Controlling White Balance ............. 123

Sharpening or Softening Subject Outlines

Controlling Image Sharpness ................... 129

Increasing or Decreasing Contrast

Adjusting Image Contrast ...................... 130

Normal Movie Recording

Shooting a Movie ............................. 90

CONTENTS

(page 37)

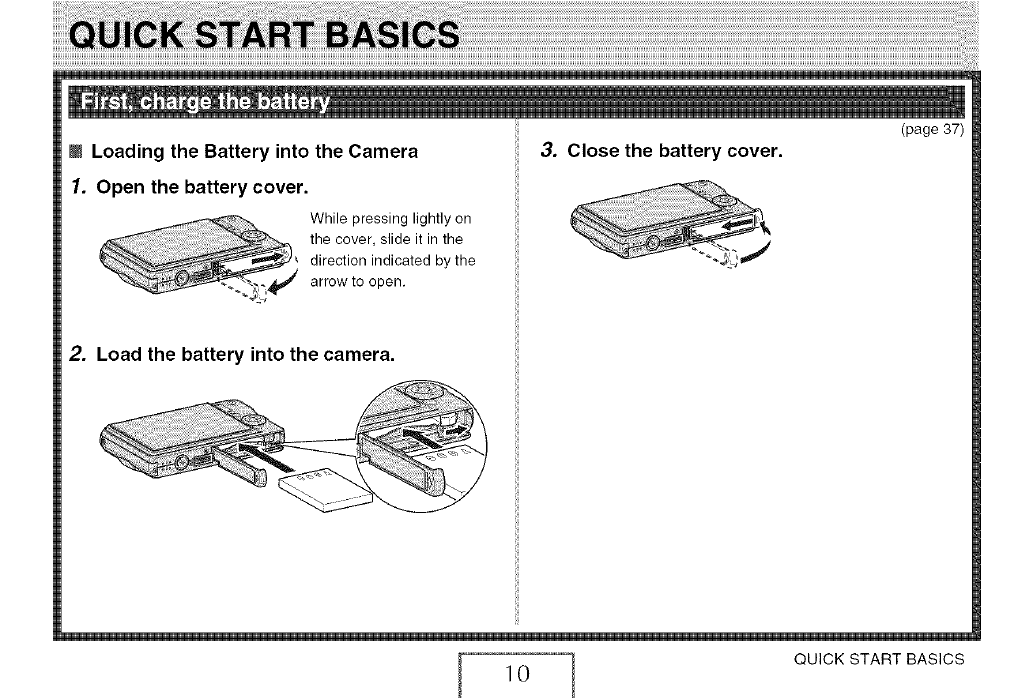

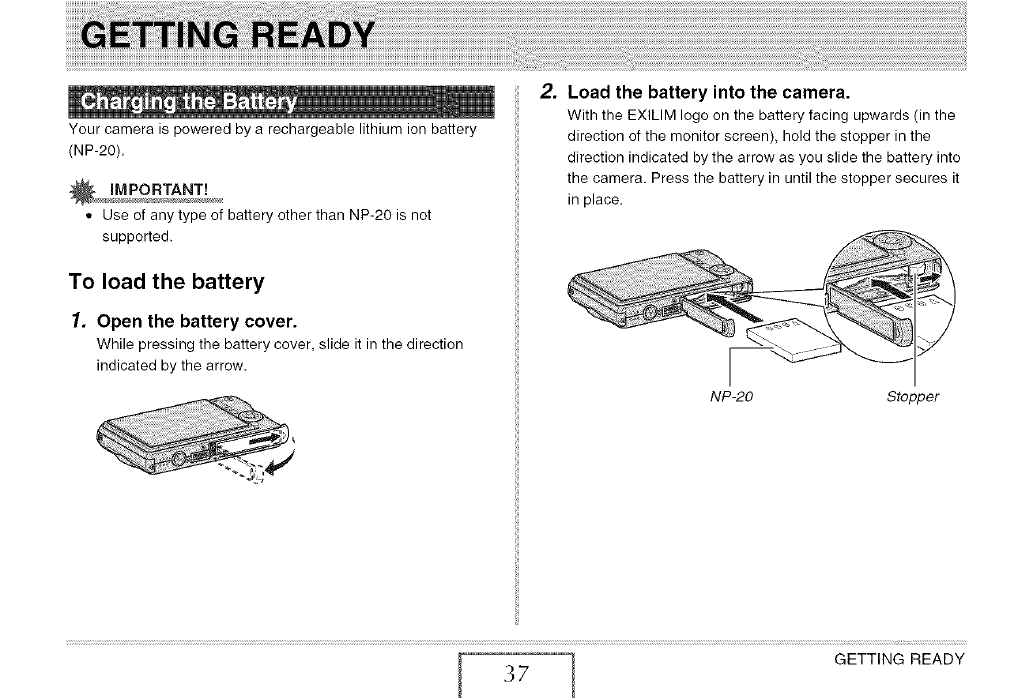

I Loading the Battery into the Camera 3. Close the battery cover.

1. Open the battery cover.

While pressing lightly on

the cover, slideit in the

directionindicatedby the

arrowto open.

2. Load the battery into the camera.

QUICK START BASICS

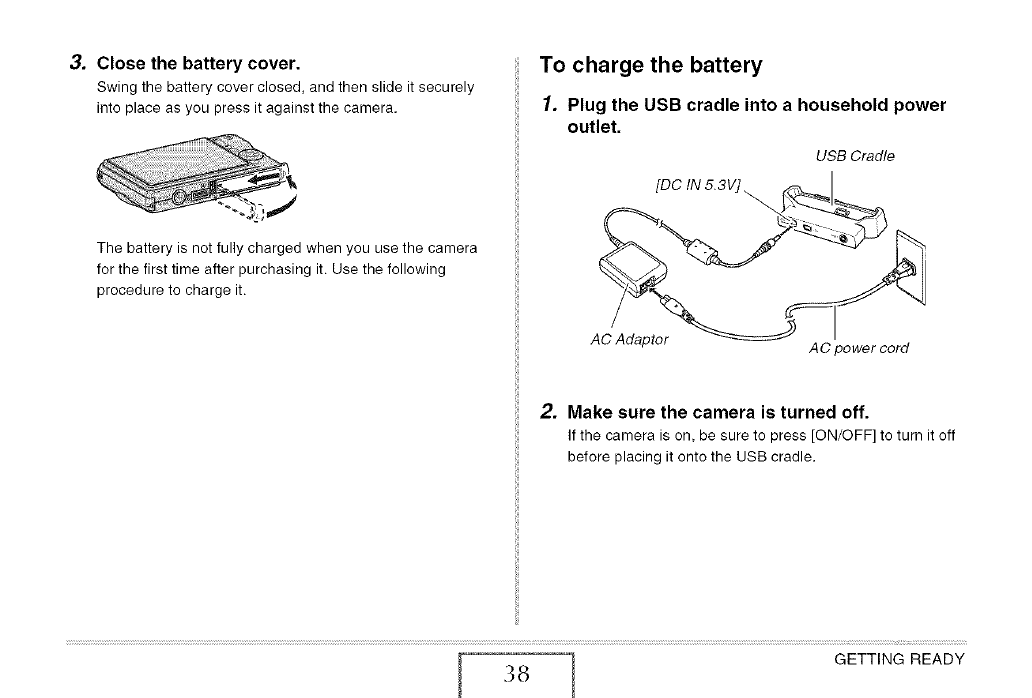

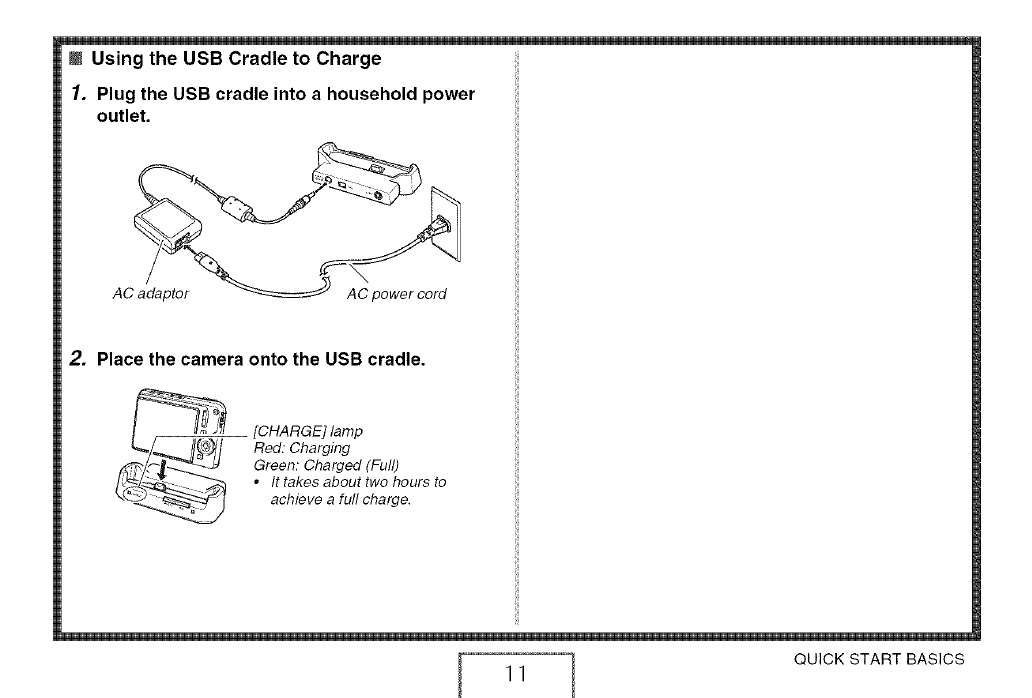

IUsing the USB Cradle to Charge

1. Plug the USB cradle into a household power

outlet.

AC adaptor AC power cord

2. Place the camera onto the USB cradle.

[CHARGE] lamp

Red: Charging

Green: Charged (Full)

•It takes about two hours to

achieve a furl charge.

QUICK START BASICS

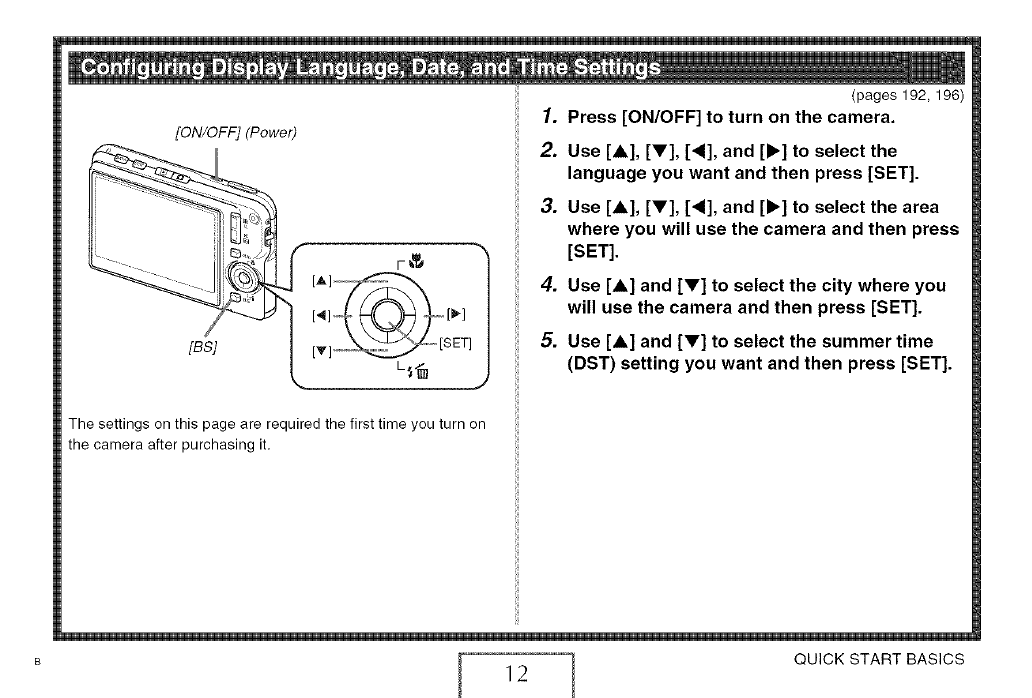

[ON/OFF] (Power)

[BS]

1_1]_ _l_]

,. jS T,j

The settings on this page are required the first time you turn on

the camera after purchasing it.

(pages 192, 196)

1. Press [ON/OFF] to turn on the camera.

2. Use [&], [V], [_], and [1_] to select the

language you want and then press [SET].

3. Use [A], [V], [_], and [1_] to select the area

where you will use the camera and then press

[SET].

4. Use [A] and [V] to select the city where you

will use the camera and then press [SET].

5. Use [A] and [V] to select the summer time

(DST) setting you want and then press [SET].

B QUICK START BASICS

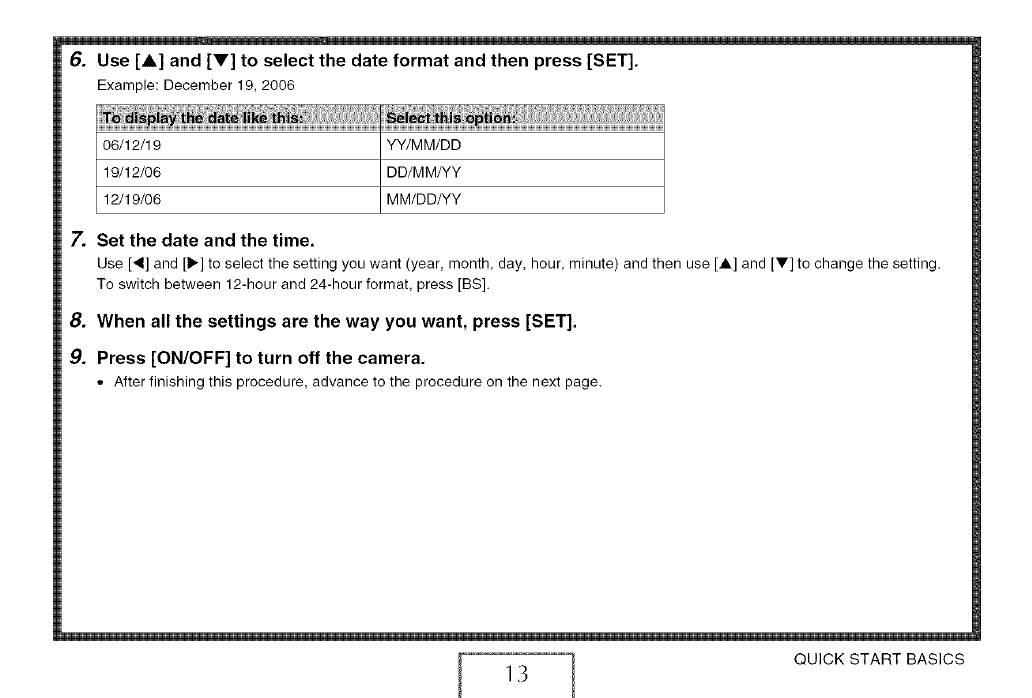

6. Use [A] and [Y] to select the date format and then press [SET].

Example: December 19, 2006

! ! _C_t _ I_t

06/12/19 YY/MM/DD

19/12/06 DD/MM/YY

12/19/06 MM/DD/YY

7. Set the date and the time.

Use [_] and [liD']to select the setting you want (year, month, day, hour, minute) and then use [A] and [V] to change the setting.

To switch between 12-hour and 24-hour format, press [BS].

B. When all the settings are the way you want, press [SET].

9. Press [ON/OFF] to turn off the camera.

• After finishing this procedure, advance to the procedure on the next page.

QUICK START BASICS

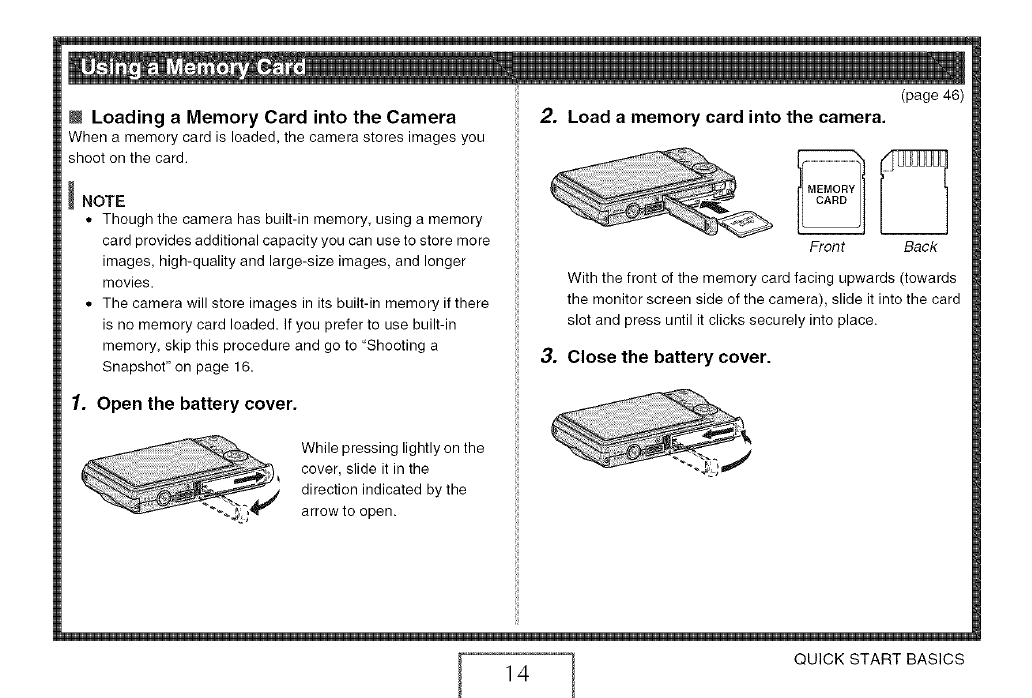

iLoading a Memory Card into the Camera

When a memory card is loaded, the camera stores images you

shoot on the card.

NOTE

• Though the camera has built-in memory, using a memory

card provides additional capacity you can use to store more

images, high-quality and large-size images, and longer

movies.

• The camera will store images in its built-in memory if there

is no memory card loaded, if you prefer to use built-in

memory, skip this procedure and go to "Shooting a

Snapshot" on page 16.

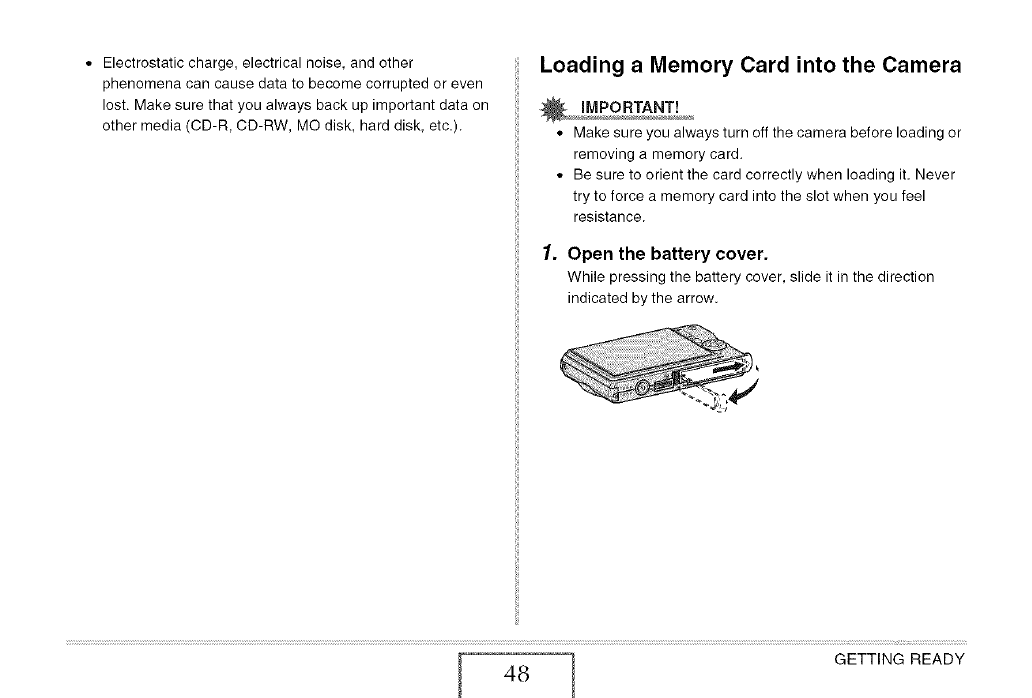

I. Open the battery cover.

While pressing lightly on the

cover, slide it in the

direction indicated by the

arrow to open.

(page 46)

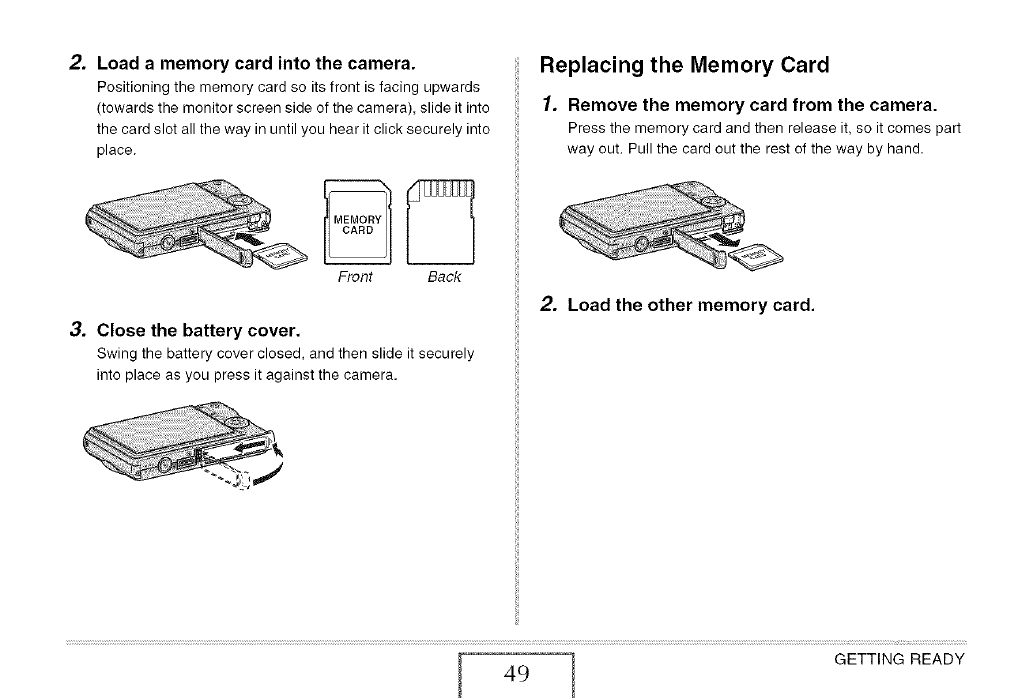

2. Load a memory card into the camera.

Front Back

With the front of the memory card facing upwards (towards

the monitor screen side of the camera), slide it into the card

slot and press until it clicks securely into place.

3. Close the battery cover.

QUICK START BASICS

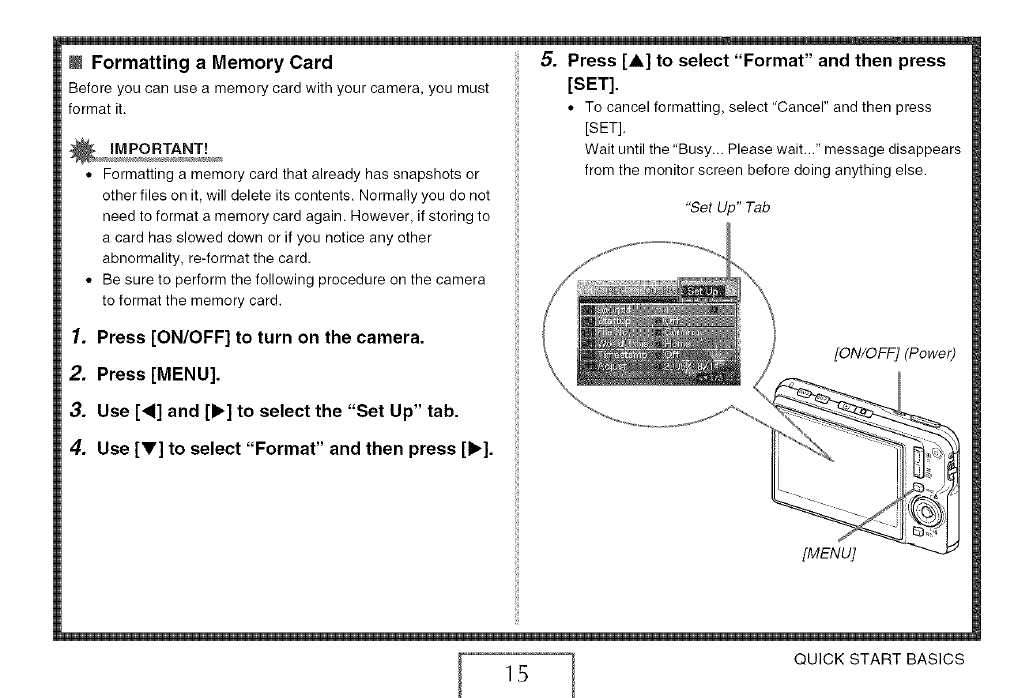

IFormatting a Memory Card

Before you can use a memory card with your camera, you must

format it.

• Formatting a memory card that already has snapshots or

other files on it, will delete its contents. Normally you do not

need to format a memory card again. However, if storing to

a card has slowed down or if you notice any other

abnormality, re-format the card.

• Be sure to perform the following procedure on the camera

to format the memory card.

1. Press [ON/OFF] to turn on the camera.

2. Press [MENU].

3. Use [41] and [1_] to select the "Set Up" tab.

4. Use [V] to select "Format" and then press [1_].

5. Press [A] to select "Format" and then press

[SET].

• To cancel formatting, select "Cancel" and then press

[SET].

Wait until the "Busy... Please wait..." message disappears

from the monitor screen before doing anything else.

"Set Up" Tab

[ON/OFF] (Power)

[MENU]

QUICK START BASICS

(page 63)

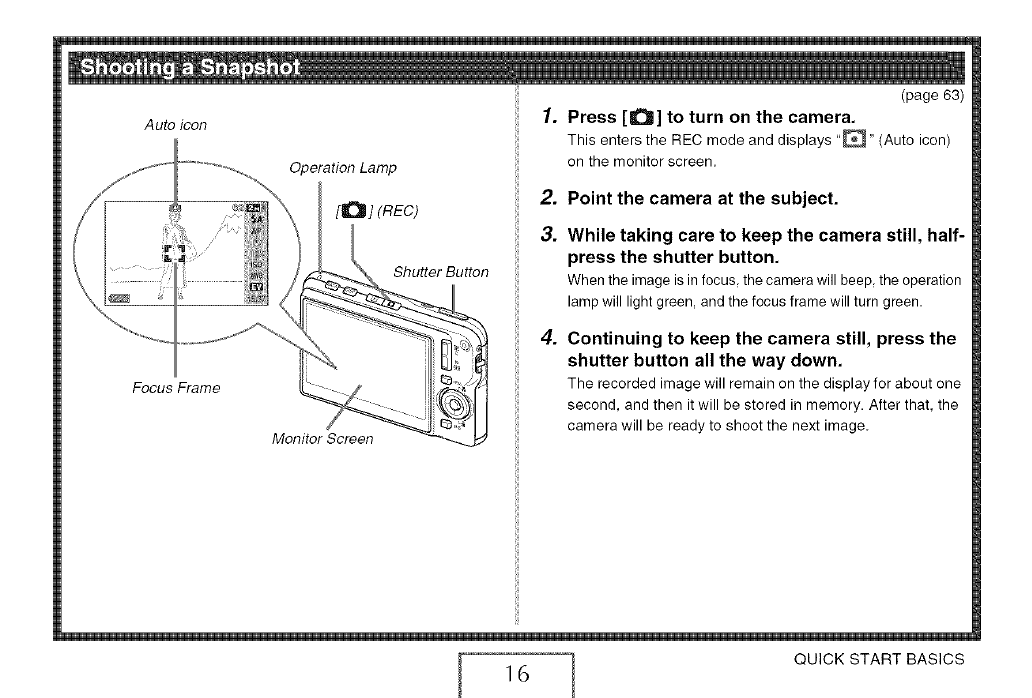

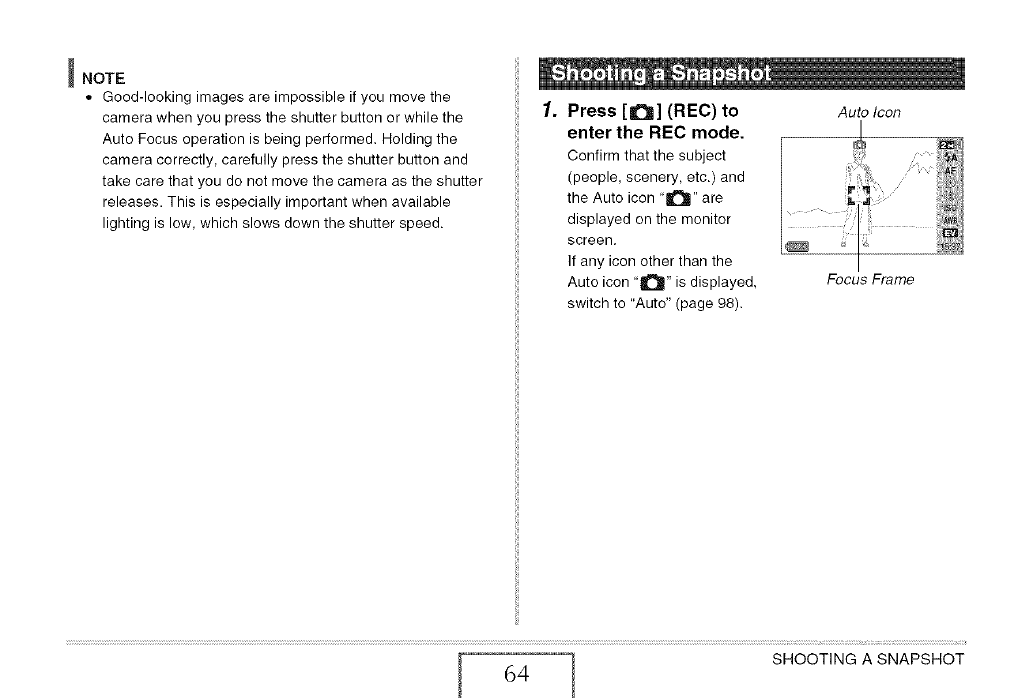

Autoicon 1. Press [O] to turn on the camera.

This enters the REC mode and displays "_" (Auto icon)

on the monitor screen,

Operation Lamp

[0 ] (REC)

Shutter Button

Focus Frame

Monitor Screen

Point the camera at the subject.

While taking care to keep the camera still, half-

press the shutter button.

When the image is in focus the camera will beep the operation

lamp will light green, and the focus frame will turn green.

Continuing to keep the camera still, press the

shutter button all the way down.

The recorded image will remain on the display for about one

second, and then it will be stored in memory. After that, the

camera will be ready to shoot the next image.

QUICK START BASICS

Snapshot Image Size and Image Quality

Your camera lets you select frorn among various image size

and quality settings. Note that image size and quality

settings affect how many images can be stored in memory.

• You can change the image size and quality settings as

required to shoot a smaller or lower-resolution image for

attachment to an e-mail message, for publishing on a

website, etc. You can also select an image size that suits

the size of paper you plan to use for printing your images.

For details, see pages 67, 69, and 283.

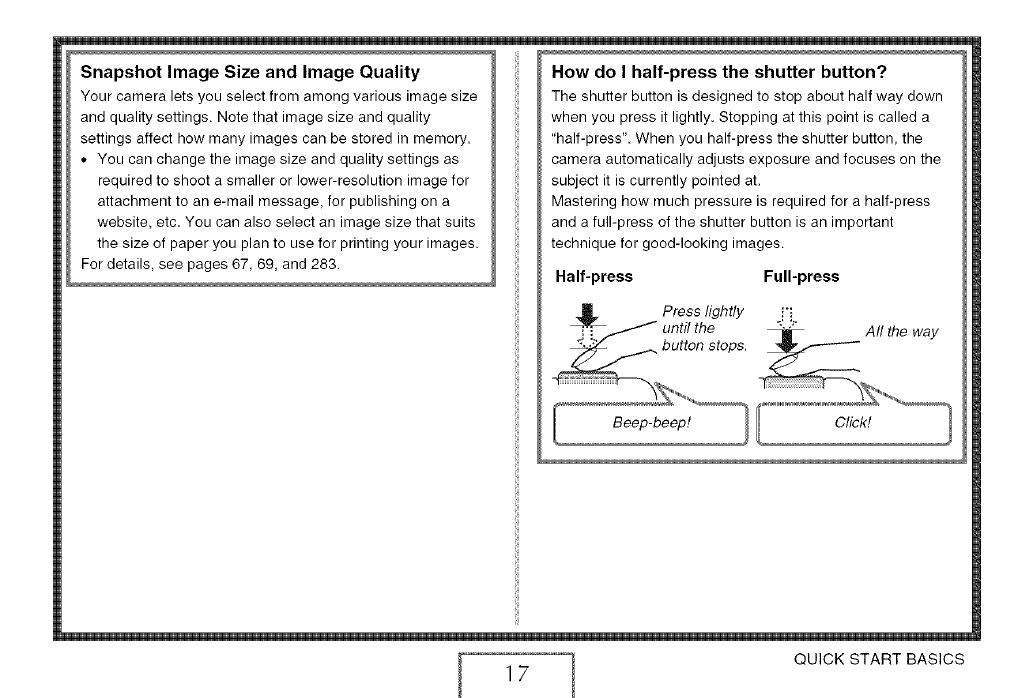

How do I half-press the shutter button?

The shutter button is designed to stop about half way down

when you press it lightly. Stopping at this point is called a

"half-press". When you half-press the shutter button, the

camera automatically adjusts exposure and focuses on the

subject it is currently pointed at.

Mastering how much pressure is required for a half-press

and a full-press of the shutter button is an important

technique for good-looking images.

Half-press Full-press

_/ Press lightly

until the All the way

button stops.

QUICK START BASICS

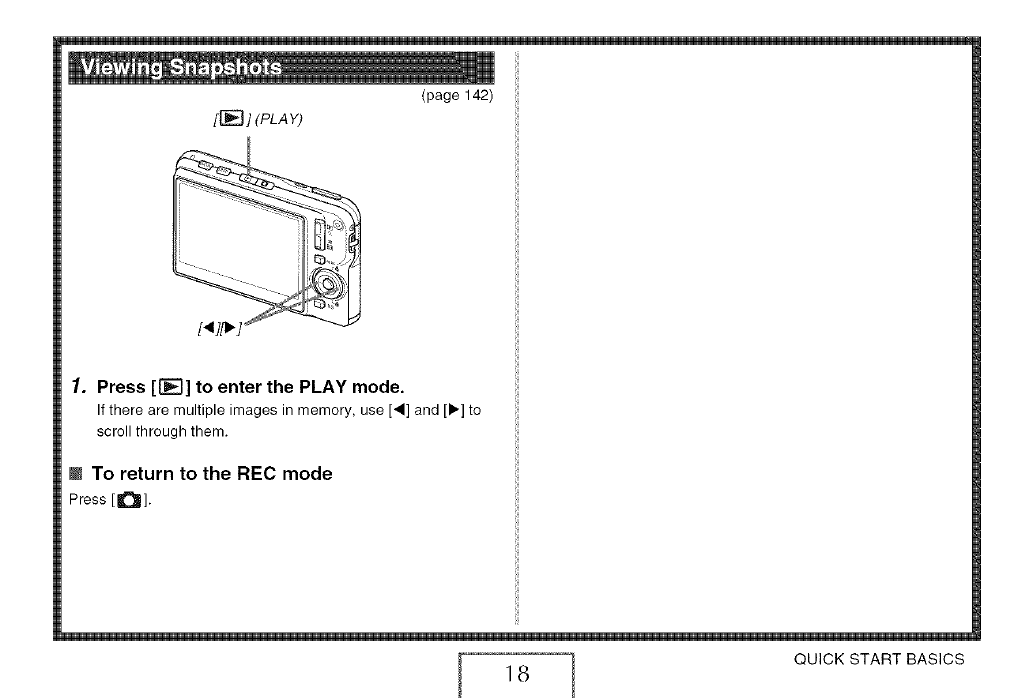

[_ ] (PLA Y)

(page 142)

1. Press [_] to enter the PLAY mode.

If there are rnultiple irnages in mernory, use [_1] and [1_] to

scroll through them.

ITo return to the REC mode

Press[0].

QUICK START BASICS

Movie Icon

Remaining Recording Time

Recording Time

Movie Recording Screen

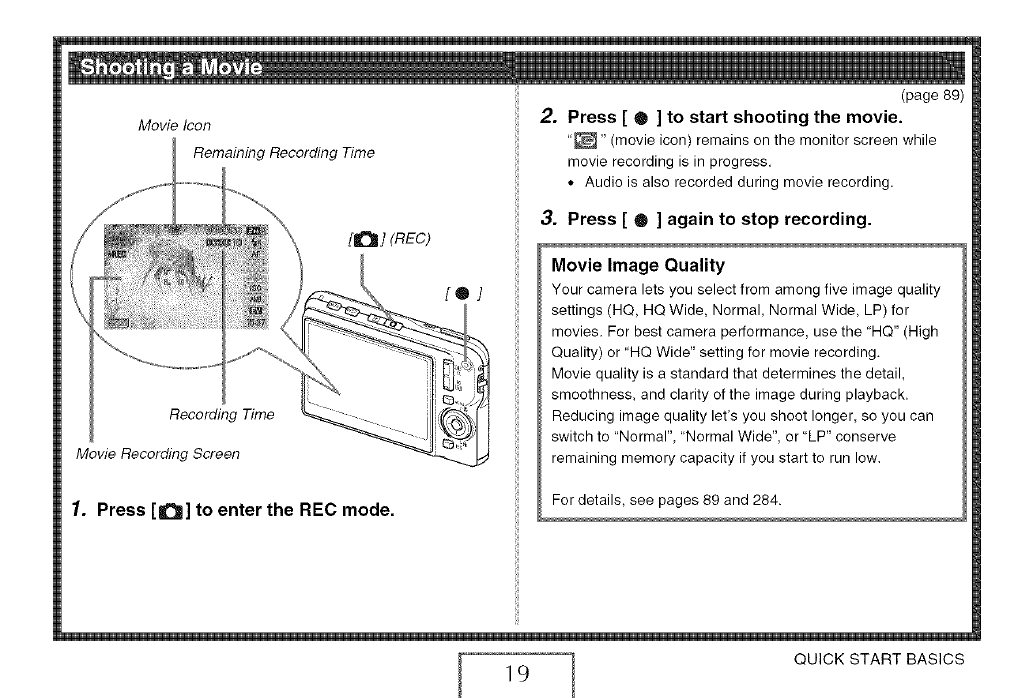

1. Press [O] to enter the REC mode.

[®]

(page 89)

2. Press [ •] to start shooting the movie.

"_" (movie icon) remains on the monitor screen while

movie recording is in progress.

• Audio is also recorded during movie recording.

3. Press [ Q] again to stop recording.

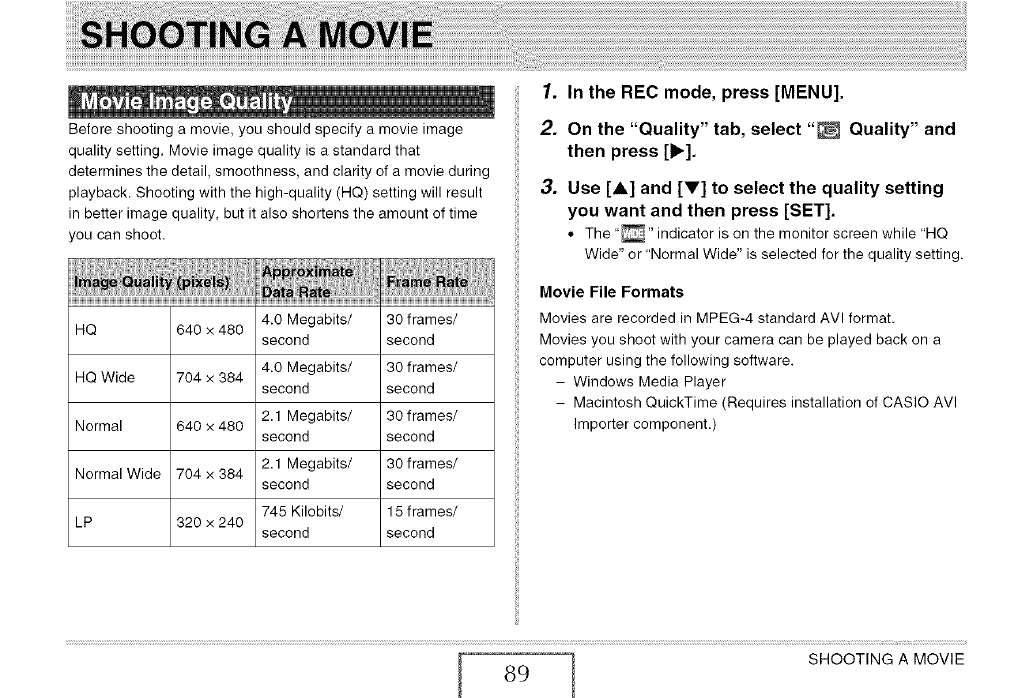

Movie Image Quality

Your camera lets you select from among five image quality

settings (HQ, HQ Wide, Normal, Normal Wide, LP) for

movies. For best camera performance, use the "HQ" (High

Quality) or "HQ Wide" setting for movie recording.

Movie quality is a standard that determines the detail,

smoothness, and clarity of the image during playback.

Reducing image quality let's you shoot longer, so you can

switch to "Normal", "Normal Wide", or "LP" conserve

remaining memory capacity if you start to run low.

For details, see pages 89 and 284.

QUICK START BASICS

(page 144)

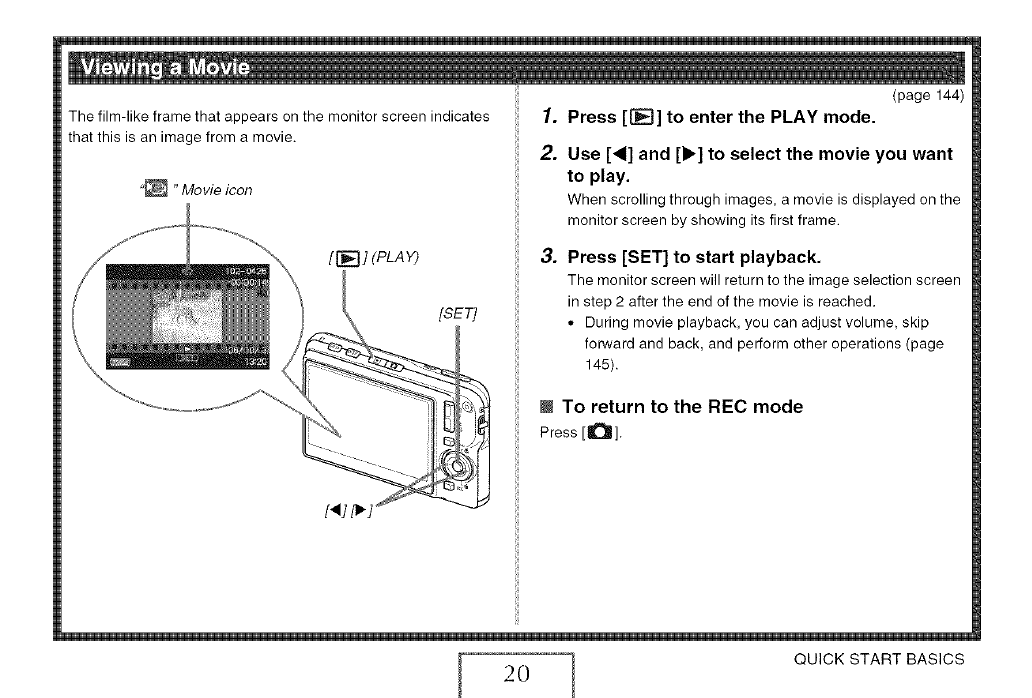

1. Press [_] to enter the PLAY mode.The film-like frame that appears on the monitor screen indicates

that this is an image from a movie.

[SET]

_ "Movie icon

[[_](PLA_

2. Use [41] and [,] to select the movie you want

to play.

When scrolling through images, a movie is displayed on the

monitor screen by showing its first frame.

3. Press [SET] to start playback.

The monitor screen will return to the image selection screen

in step 2 after the end of the movie is reached.

• During movie playback, you can adjust volume, skip

forward and back, and perform other operations (page

145).

MTo return to the REC mode

Press[O].

QUICK START BASICS

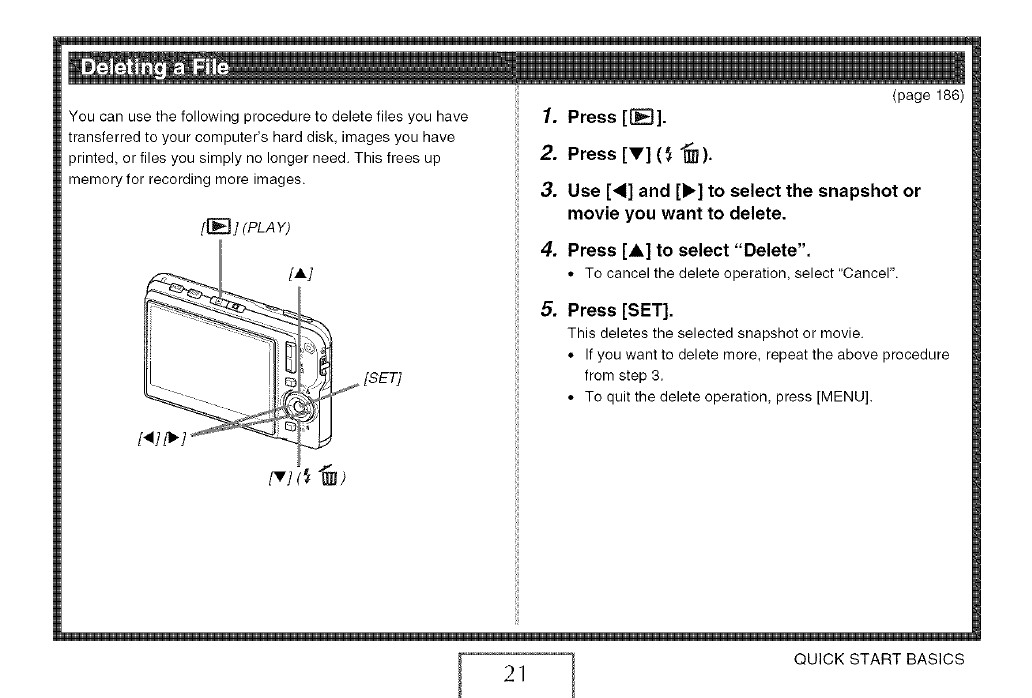

You can use the following procedure to delete files you have

transferred to your computer's hard disk, images you have

printed, or files you simply no longer need. This frees up

memory for recording more images.

[[_](PLA_

(page 186)

1. Press [_].

2. Press [v] (_ _] ).

3. Use [,] and [,] to select the snapshot or

movie you want to delete.

4. Press [A] to select "Delete".

• To cancel the delete operation, select "Cancel".

5. Press [SET].

This deletes the selected snapshot or movie.

• If you want to delete more, repeat the above procedure

from step 3.

• To quit the delete operation, press [MENU].

QUICK START BASICS

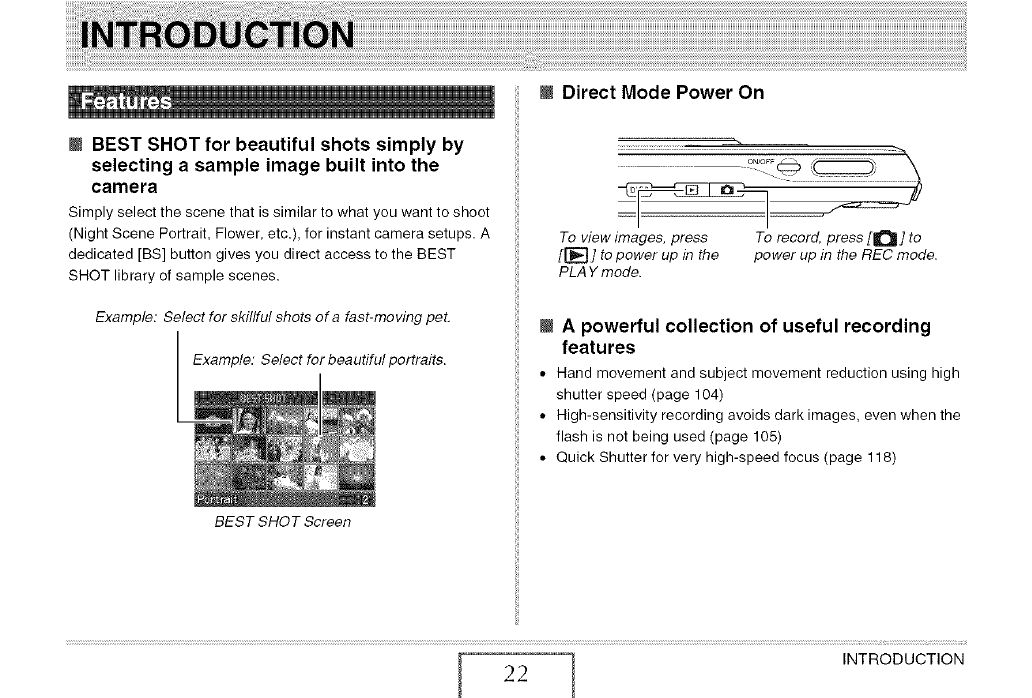

IBEST SHOT for beautiful shots simply by

selecting a sample image built into the

camera

Simply select the scene that is similar to what you want to shoot

(Night Scene Portrait, Flower, etc.), for instant camera setups. A

dedicated [BS] button gives you direct access to the BEST

SHOT library of sample scenes.

Example: Select for skillful shots of a fast-moving peL

Example: Select for beautiful portraits.

BEST SHOT Screen

mDirect Mode Power On

To view images, press To record, press [_ ] to

[[_] to pewer up in the pewer up in the REC mede.

PLAY mode.

MA powerful collection of useful recording

features

•Hand movement and subject movement reduction using high

shutter speed (page 104)

• High-sensitivity recording avoids dark images, even when the

flash is not being used (page 105)

• Quick Shutter for very high-speed focus (page 118)

INTRODUCTION

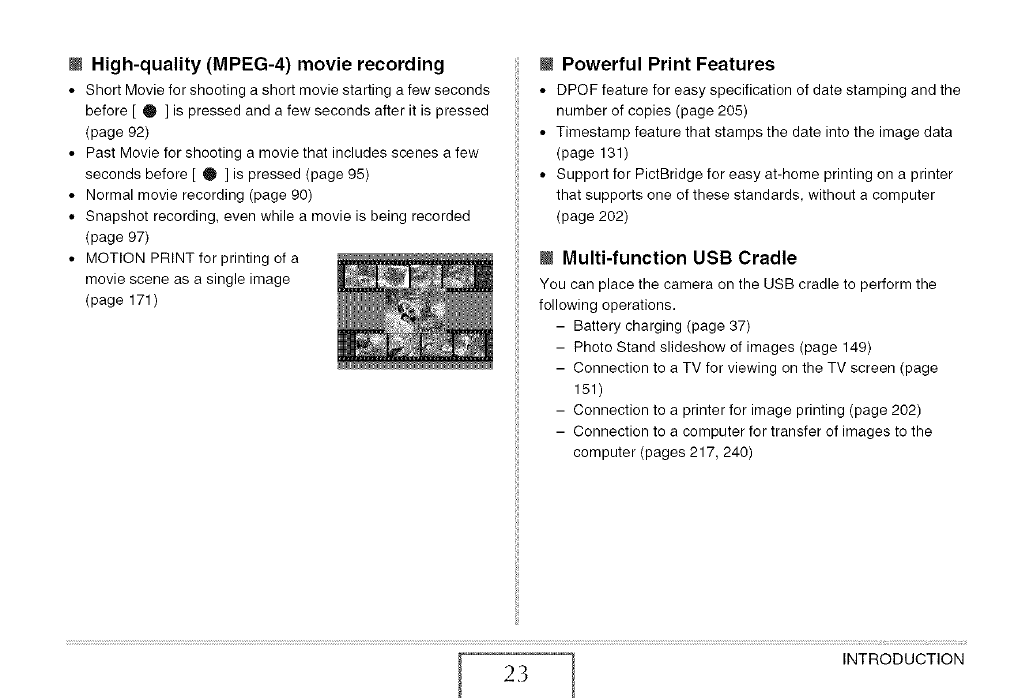

IHigh-quality (MPEG-4) movie recording

• Short Movie for shooting a short movie starting a few seconds

before [ • ] is pressed and a few seconds after it is pressed

(page 92)

• Past Movie for shooting a movie that includes scenes a few

seconds before [ • ] is pressed (page 95)

• Normal movie recording (page 90)

• Snapshot recording, even while a movie is being recorded

(page 97)

• MOTION PRINT for printing of a

movie scene as a single image

(page 171)

mPowerful Print Features

• DPOF feature for easy specification of date stamping and the

number of copies (page 205)

• Timestamp feature that stamps the date into the image data

(page 131)

• Support for PictBridge for easy at-home printing on a printer

that supports one of these standards, without a computer

(page 202)

WMulti-function USB Cradle

You can place the camera on the USB cradle to perform the

following operations.

- Battery charging (page 37)

- Photo Stand slideshow of images (page 149)

- Connection to a TV for viewing on the TV screen (page

151)

- Connection to a printer for image printing (page 202)

- Connection to a computer for transfer of images to the

computer (pages 217, 240)

INTRODUCTION

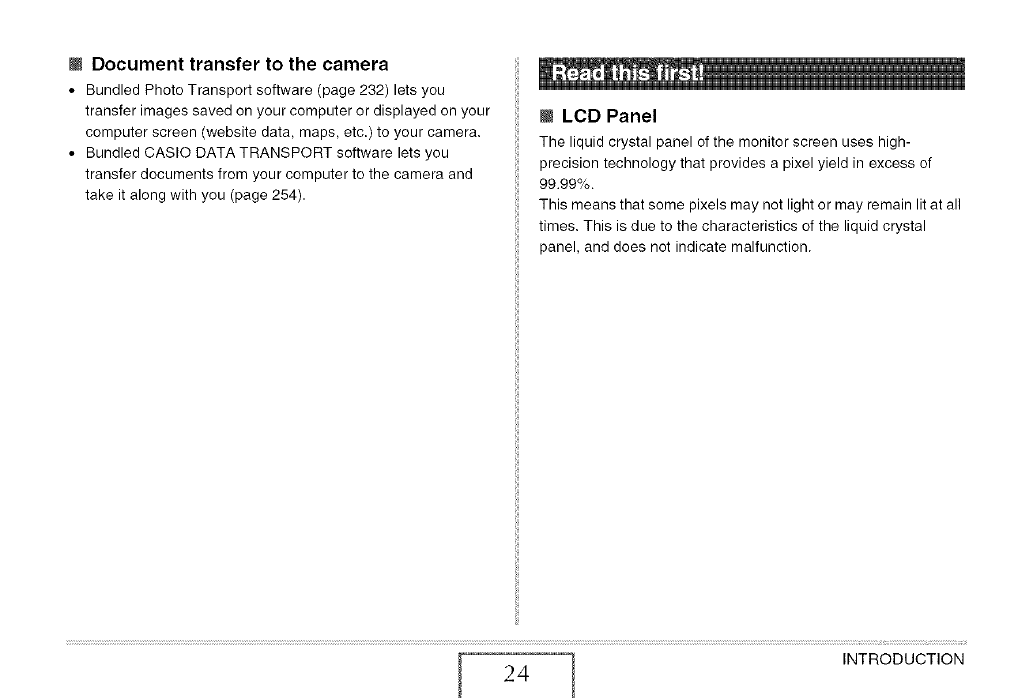

IDocument transfer to the camera

• Bundled Photo Transport software (page 232) lets you

transfer images saved on your computer or displayed on your

computer screen (website data, maps, etc.) to your camera.

• Bundled CASIO DATA TRANSPORT software lets you

transfer documents from your computer to the camera and

take it along with you (page 254).

ILCD Panel

The liquid crystal panel of the monitor screen uses high-

precision technology that provides a pixel yield in excess of

99.99%.

This means that some pixels may not light or may remain lit at all

times. This is due to the characteristics of the liquid crystal

panel, and does not indicate malfunction.

INTRODUCTION

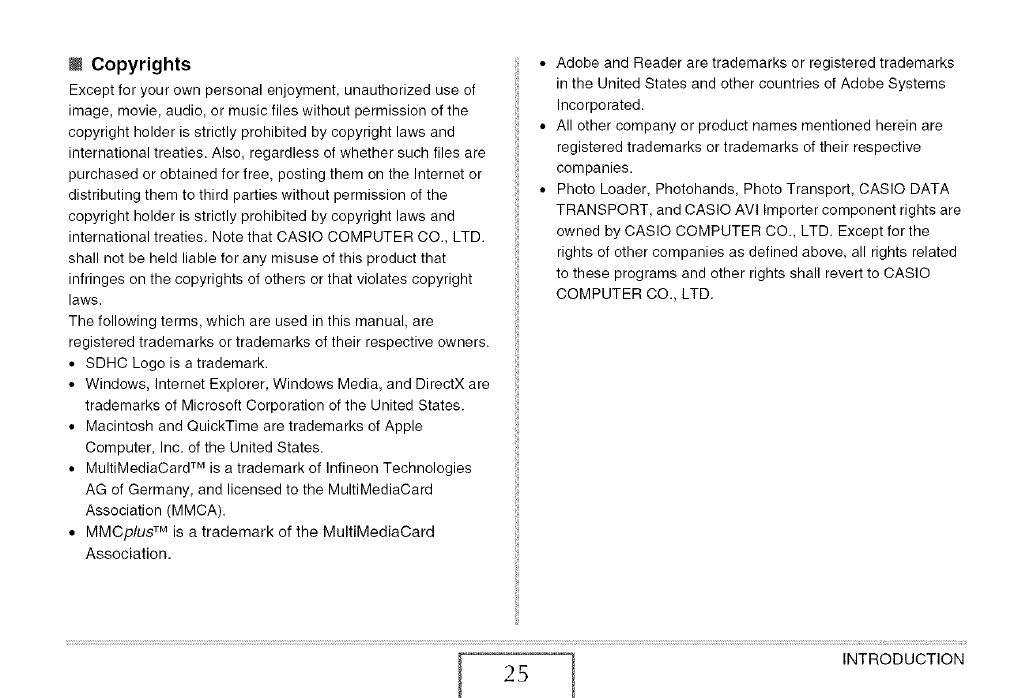

ICopyrights

Except for your own personal enjoyment, unauthorized use of

image, movie, audio, or music files without permission of the

international treaties. Also, regardless of whether such files are

purchased or obtained for free, posting them on the Internet or

distributing them to third parties without permission of the

international treaties. Note that CASlO COMPUTER CO., LTD.

shall not be held liable for any misuse of this product that

infringes on the copyrights of others or that violates copyright

laws.

The following terms, which are used in this manual, are

registered trademarks or trademarks of their respective owners.

•SDHC Logo is a trademark.

• Windows, Internet Explorer, Windows Media, and DirectX are

trademarks of Microsoft Corporation of the United States.

• Macintosh and QuickTime are trademarks of Apple

Computer, Inc. of the United States.

• MultiMediaCard TM is a trademark of Infineon Technologies

AG of Germany, and licensed to the MultiMediaCard

Association (MMCA).

• MMCplud M is a trademark of the MultiMediaCard

Association.

• Adobe and Reader are trademarks or registered trademarks

in the United States and other countries of Adobe Systems

Incorporated.

• All other company or product names mentioned herein are

registered trademarks or trademarks of their respective

companies.

• Photo Loader, Photohands, Photo Transport, CASlO DATA

TRANSPORT, and CASIO AVl Importer component rights are

owned by CASlO COMPUTER CO., LTD. Except for the

rights of other companies as defined above, all rights related

to these programs and other rights shall revert to CASIO

COMPUTER CO., LTD.

INTRODUCTION

• The contents of this manual are subject to change without

notice.

• The content of this manual has been checked at each step

of the production process. Please contact us if you notice

anything that is questionable, erroneous, etc.

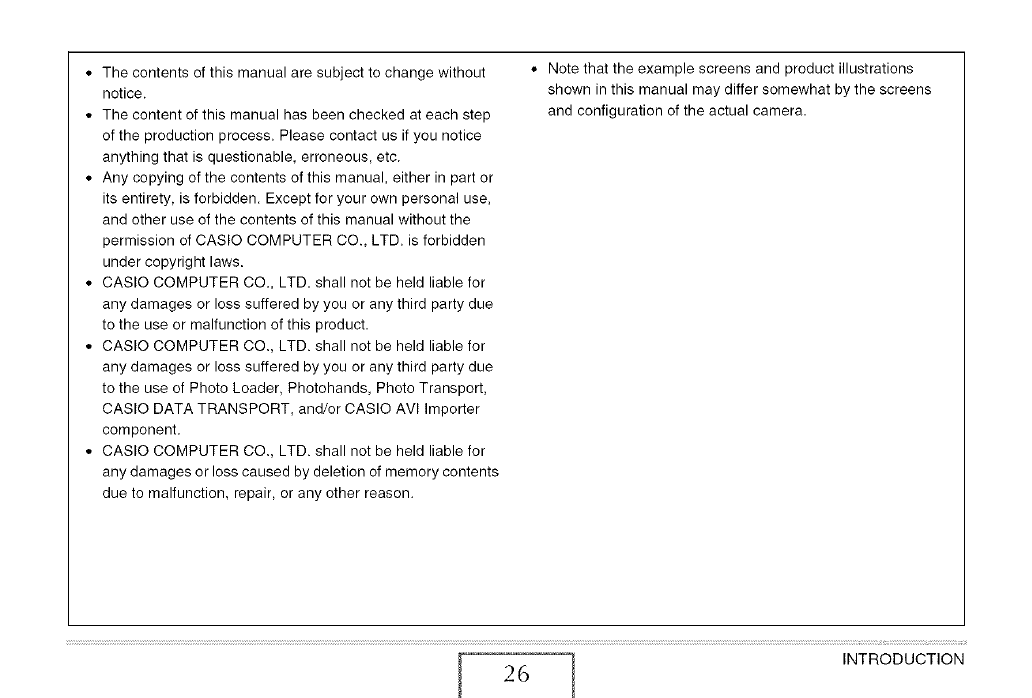

• Any copying of the contents of this manual, either in part or

its entirety, is forbidden. Except for your own personal use,

and other use of the contents of this manual without the

permission of CASIO COMPUTER CO., LTD. is forbidden

under copyright laws.

• CASIO COMPUTER CO., LTD. shall not be held liable for

any damages or loss suffered by you or any third party due

to the use or malfunction of this product.

• CASIO COMPUTER CO., LTD. shall not be held liable for

any damages or loss suffered by you or any third party due

to the use of Photo Loader, Photohands, Photo Transport,

CASIO DATA TRANSPORT, and/or CASIO AVI Importer

component.

• CASIO COMPUTER CO., LTD. shall not be held liable for

any damages or loss caused by deletion of memory contents

due to malfunction, repair, or any other reason.

• Note that the example screens and product illustrations

shown in this manual may differ somewhat by the screens

and configuration of the actual camera.

INTRODUCTION

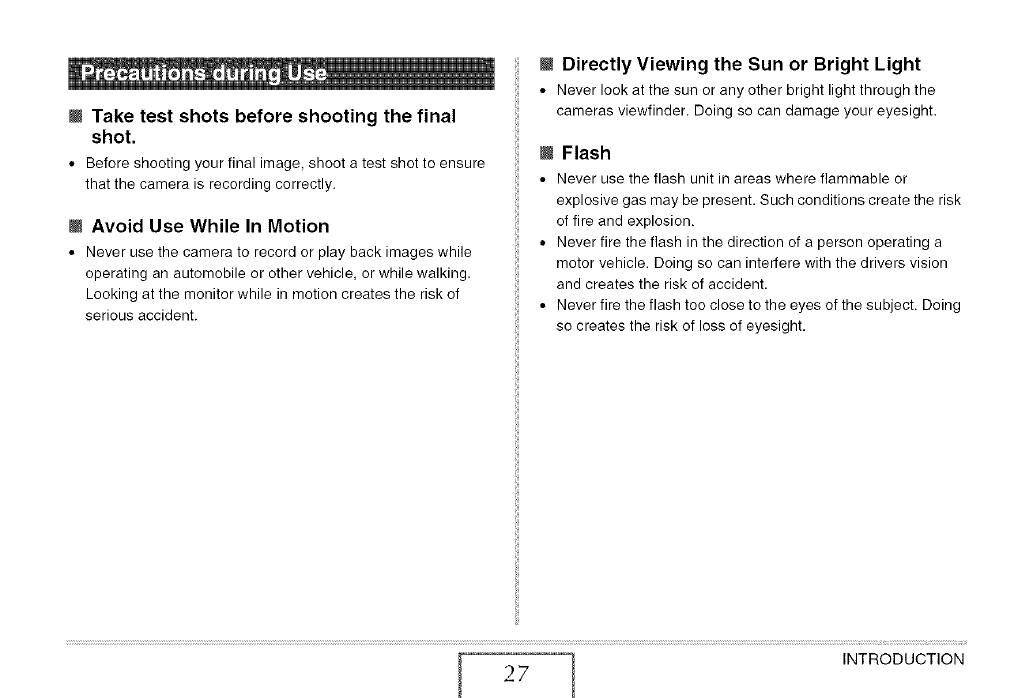

ITake test shots before shooting the final

shot.

•Before shooting your final image, shoot a test shot to ensure

that the camera is recording correctly.

IAvoid Use While In Motion

• Never use the camera to record or play back images while

operating an automobile or other vehicle, or while walking.

Looking at the monitor while in motion creates the risk of

serious accident.

mDirectly Viewing the Sun or Bright Light

• Never look at the sun or any other bright light through the

cameras viewfinder. Doing so can damage your eyesight.

MFlash

• Never use the flash unit in areas where flammable or

explosive gas may be present. Such conditions create the risk

of fire and explosion.

• Never fire the flash in the direction of a person operating a

motor vehicle. Doing so can interfere with the drivers vision

and creates the risk of accident.

• Never fire the flash too close to the eyes of the subject. Doing

so creates the risk of loss of eyesight.

INTRODUCTION

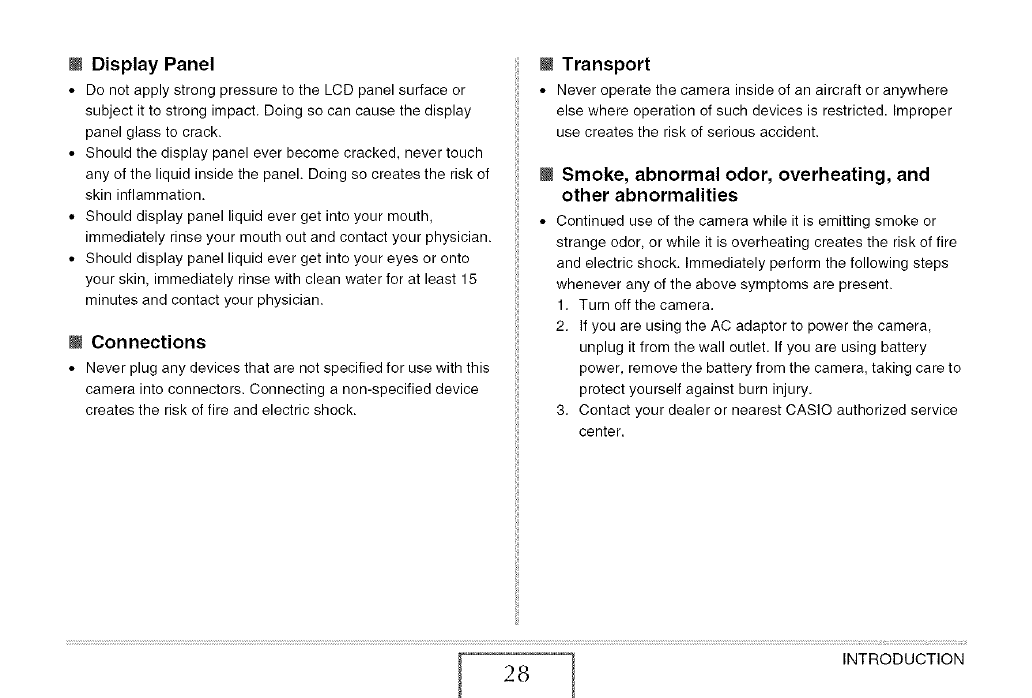

IDisplay Panel

• Do not apply strong pressure to the LCD panel surface or

subject it to strong impact. Doing so can cause the display

panel glass to crack.

• Should the display panel ever become cracked, never touch

any of the liquid inside the panel. Doing so creates the risk of

skin inflammation.

• Should display panel liquid ever get into your mouth,

immediately rinse your mouth out and contact your physician.

• Should display panel liquid ever get into your eyes or onto

your skin, immediately rinse with clean water for at least 15

minutes and contact your physician.

IConnections

• Never plug any devices that are not specified for use with this

camera into connectors. Connecting a non-specified device

creates the risk of fire and electric shock.

mTransport

• Never operate the camera inside of an aircraft or anywhere

else where operation of such devices is restricted. Improper

use creates the risk of serious accident.

MSmoke, abnormal odor, overheating, and

other abnormalities

• Continued use of the camera while it is emitting smoke or

strange odor, or while it is overheating creates the risk of fire

and electric shock. Immediately perform the following steps

whenever any of the above symptoms are present.

1. Turn off the camera.

2. If you are using the AC adaptor to power the camera,

unplug it from the wall outlet. If you are using battery

power, remove the battery from the camera, taking care to

protect yourself against burn injury.

3. Contact your dealer or nearest CASIO authorized service

center

INTRODUCTION

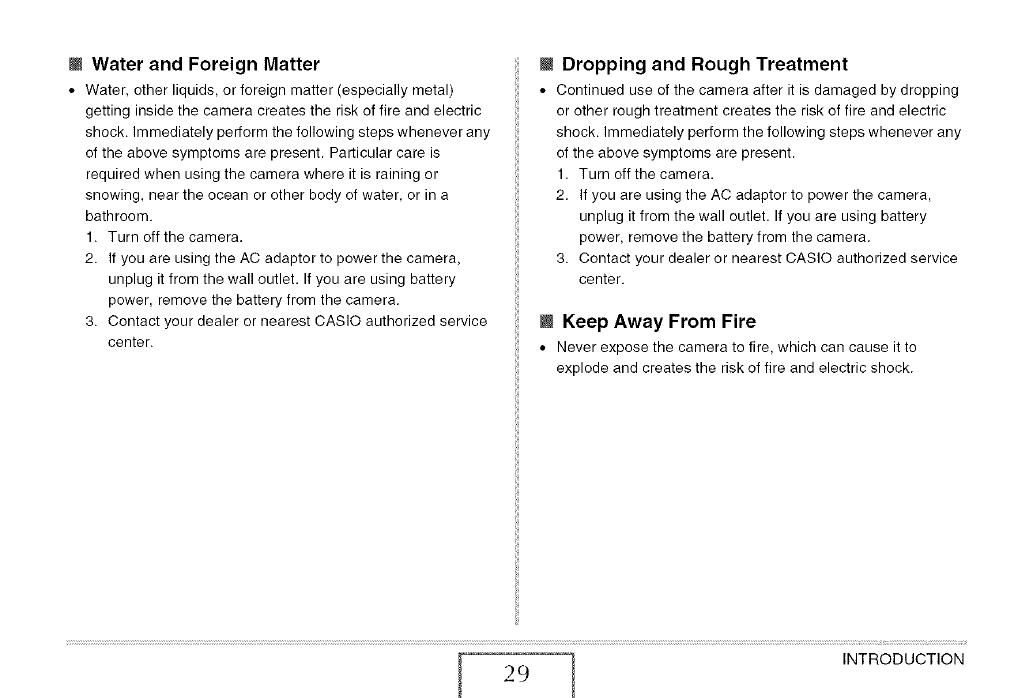

IWater and Foreign Matter

• Water, other liquids, or foreign matter (especially metal)

getting inside the camera creates the risk of fire and electric

shock. Immediately perform the following steps whenever any

of the above symptoms are present. Particular care is

required when using the camera where it is raining or

snowing, near the ocean or other body of water, or in a

bathroom.

1. Turn off the camera.

2. If you are using the AC adaptor to power the camera,

unplug it from the wall outlet. If you are using battery

power, remove the battery from the camera.

3. Contact your dealer or nearest CASIO authorized service

center.

mDropping and Rough Treatment

• Continued use of the camera after it is damaged by dropping

or other rough treatment creates the risk of fire and electric

shock. Immediately perform the following steps whenever any

of the above symptoms are present.

1. Turn off the camera.

2. If you are using the AC adaptor to power the camera,

unplug it from the wall outlet. If you are using battery

power, remove the battery from the camera.

3. Contact your dealer or nearest CASlO authorized service

center.

Keep Away From Fire

• Never expose the camera to fire, which can cause it to

explode and creates the risk of fire and electric shock.

INTRODUCTION

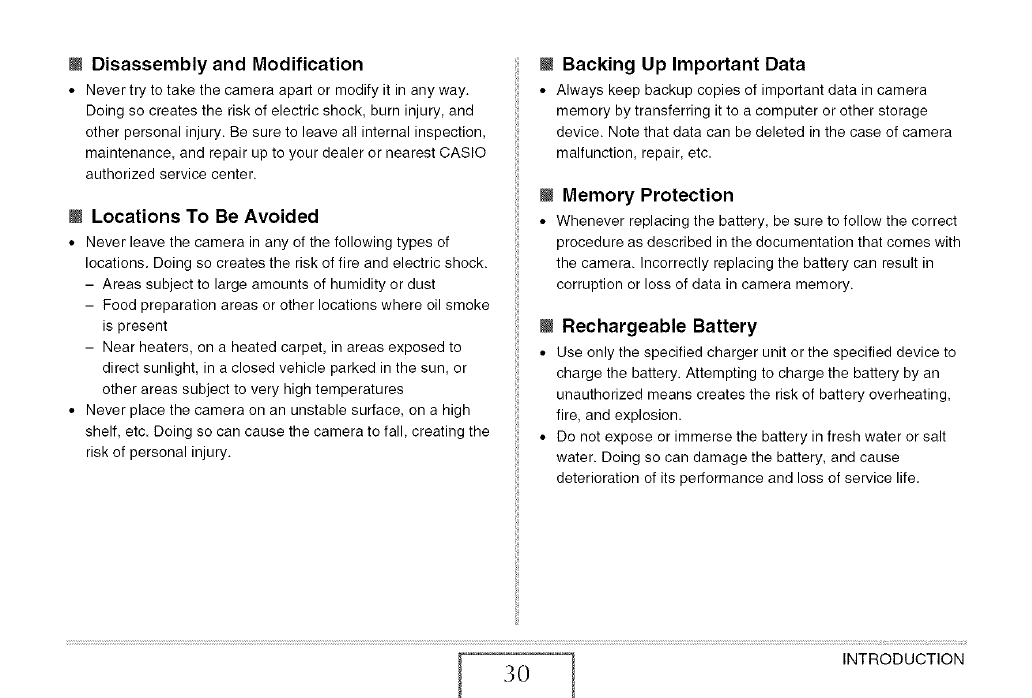

IDisassembly and Modification

• Never try to take the camera apart or modify it in any way.

Doing so creates the risk of electric shock, burn injury, and

other personal injury. Be sure to leave all internal inspection,

maintenance, and repair up to your dealer or nearest CASIO

authorized service center.

ILocations To Be Avoided

• Never leave the camera in any of the following types of

locations. Doing so creates the risk of fire and electric shock.

- Areas subject to large amounts of humidity or dust

- Food preparation areas or other locations where oil smoke

is present

- Near heaters, on a heated carpet, in areas exposed to

direct sunlight, in a closed vehicle parked in the sun, or

other areas subject to very high temperatures

• Never place the camera on an unstable surface, on a high

shelf, etc. Doing so can cause the camera to fall, creating the

risk of personal injury.

mBacking Up Important Data

• Always keep backup copies of important data in camera

memory by transferring it to a computer or other storage

device. Note that data can be deleted in the case of camera

malfunction, repair, etc.

MMemory Protection

• Whenever replacing the battery, be sure to follow the correct

procedure as described in the documentation that comes with

the camera. Incorrectly replacing the battery can result in

corruption or loss of data in camera memory.

MRechargeable Battery

• Use only the specified charger unit or the specified device to

charge the battery. Attempting to charge the battery by an

unauthorized means creates the risk of battery overheating,

fire, and explosion.

• Do not expose or immerse the battery in fresh water or salt

water. Doing so can damage the battery, and cause

deterioration of its performance and loss of service life.

INTRODUCTION

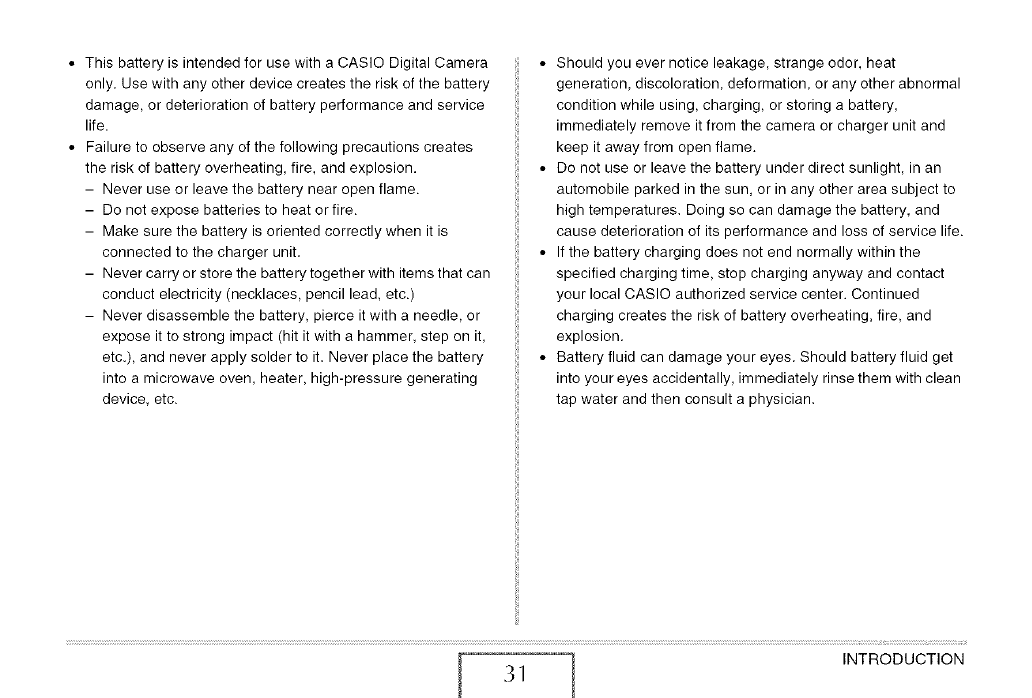

• This battery is intended for use with a CASIO Digital Camera

only. Use with any other device creates the risk of the battery

damage, or deterioration of battery performance and service

life.

• Failure to observe any of the following precautions creates

the risk of battery overheating, fire, and explosion.

- Never use or leave the battery near open flame.

- Do not expose batteries to heat or fire.

- Make sure the battery is oriented correctly when it is

connected to the charger unit.

- Never carry or store the battery together with items that can

conduct electricity (necklaces, pencil lead, etc.)

- Never disassemble the battery, pierce it with a needle, or

expose it to strong impact (hit it with a hammer, step on it,

etc.), and never apply solder to it. Never place the battery

into a microwave oven, heater, high-pressure generating

device, etc.

• Should you ever notice leakage, strange odor, heat

generation, discoloration, deformation, or any other abnormal

condition while using, charging, or storing a battery,

immediately remove it from the camera or charger unit and

keep it away from open flame.

• Do not use or leave the battery under direct sunlight, in an

automobile parked in the sun, or in any other area subject to

high temperatures. Doing so can damage the battery, and

cause deterioration of its performance and loss of service life.

• If the battery charging does not end normally within the

specified charging time, stop charging anyway and contact

your local CASIO authorized service center. Continued

charging creates the risk of battery overheating, fire, and

explosion.

• Battery fluid can damage your eyes. Should battery fluid get

into your eyes accidentally, immediately rinse them with clean

tap water and then consult a physician.

INTRODUCTION

• Be sure to read the user documentation that comes with the

camera and special charger unit before using or charging the

battery.

• If a battery is to be used by young children, make sure that a

responsible adult makes them aware of the precautions and

proper handling instructions, and make sure that they handle

battery correctly.

• Should fluid from a battery accidentally get onto clothing or

your skin, immediately rinse it off with clean tap water.

Prolonged contact with battery fluid can cause skin irritation.

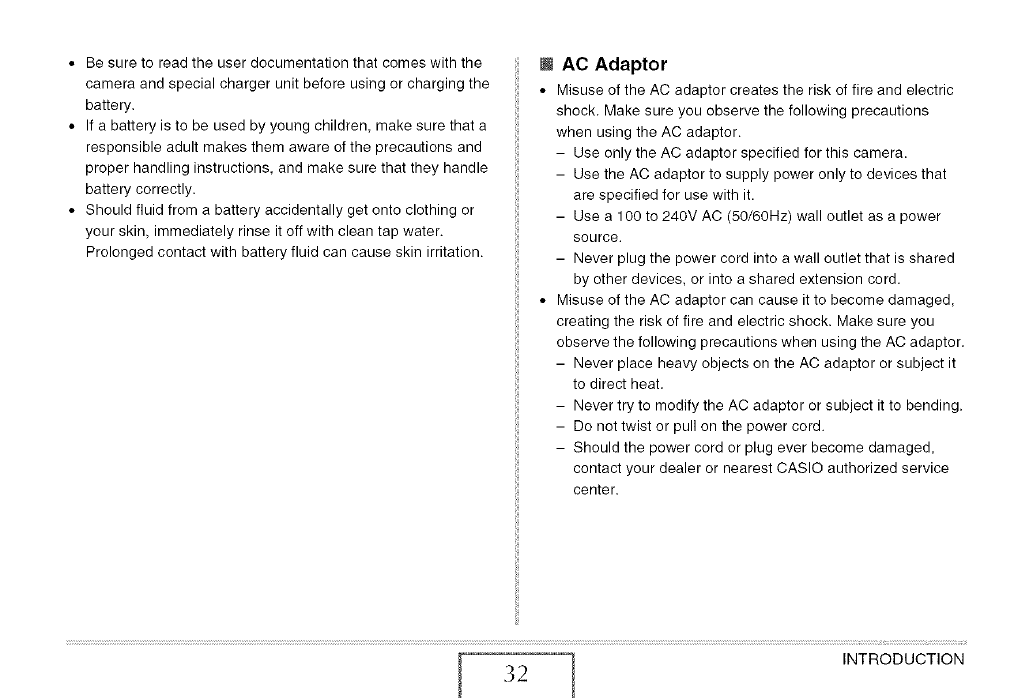

MAC Adaptor

• Misuse of the AC adaptor creates the risk of fire and electric

shock. Make sure you observe the following precautions

when using the AC adaptor.

- Use only the AC adaptor specified for this camera.

- Use the AC adaptor to supply power only to devices that

are specified for use with it.

- Use a 100 to 240V AC (50/60Hz) wall outlet as a power

source.

- Never plug the power cord into a wall outlet that is shared

by other devices, or into a shared extension cord.

• Misuse of the AC adaptor can cause it to become damaged,

creating the risk of fire and electric shock. Make sure you

observe the following precautions when using the AC adaptor.

- Never place heavy objects on the AC adaptor or subject it

to direct heat.

- Never try to modify the AC adaptor or subject it to bending.

- Do not twist or pull on the power cord.

- Should the power cord or plug ever become damaged,

contact your dealer or nearest CASIO authorized service

center

INTRODUCTION

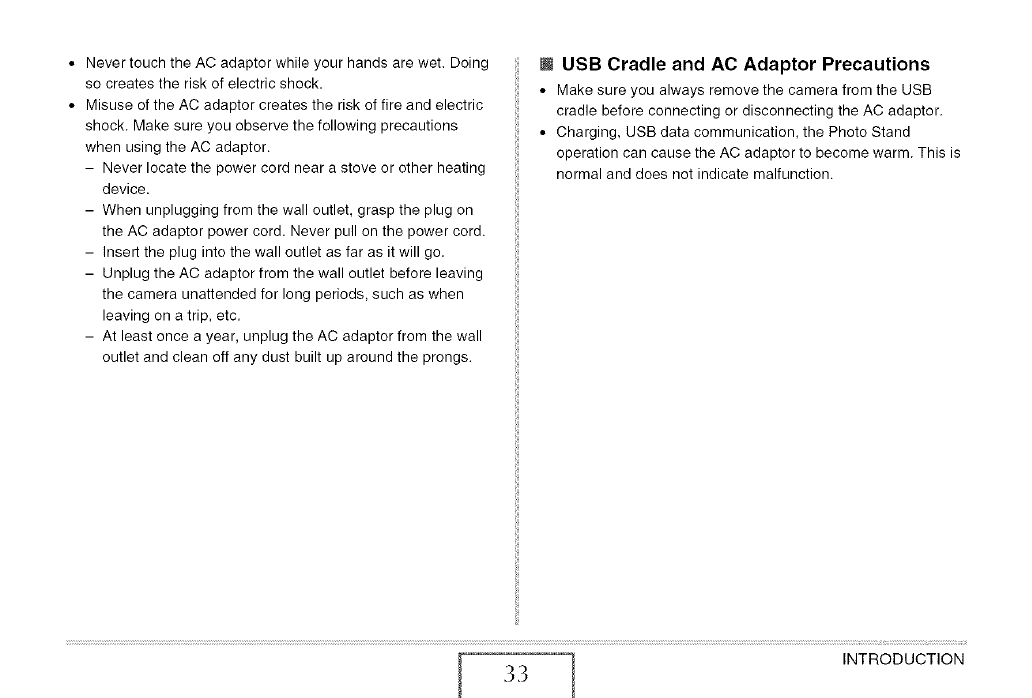

• Never touch the AC adaptor while your hands are wet. Doing

so creates the risk of electric shock.

• Misuse of the AC adaptor creates the risk of fire and electric

shock. Make sure you observe the following precautions

when using the AC adaptor.

- Never locate the power cord near a stove or other heating

device.

- When unplugging from the wall outlet, grasp the plug on

the AC adaptor power cord. Never pull on the power cord.

- Insert the plug into the wall outlet as far as it will go.

- Unplug the AC adaptor from the wall outlet before leaving

the camera unattended for long periods, such as when

leaving on a trip, etc.

- At least once a year, unplug the AC adaptor from the wall

outlet and clean off any dust built up around the prongs.

MUSB Cradle and AC Adaptor Precautions

• Make sure you always remove the camera from the USB

cradle before connecting or disconnecting the AC adaptor.

• Charging, USB data communication, the Photo Stand

operation can cause the AC adaptor to become warm. This is

normal and does not indicate malfunction.

INTRODUCTION

IBattery Life

• Battery continuous operation times provided in this manual

represent the approximate amount of time before the camera

turns off due to low battery power when being powered by the

special battery under normal temperature (23°C (73°F)). They

do not guarantee that you will be able to achieve the indicated

level of operation. Actual battery life is greatly affected by

ambient temperature, battery storage conditions, the amount

of time spent in storage, etc.

• Leaving the camera on can run down battery and cause the

low battery warning to appear. Turn off the camera whenever

you are not using it.

• The low battery warning indicates that the camera is about to

turn off due to low battery power. Charge the battery as soon

as possible. Leaving low or dead batteries in the camera can

lead to battery leakage and data corruption.

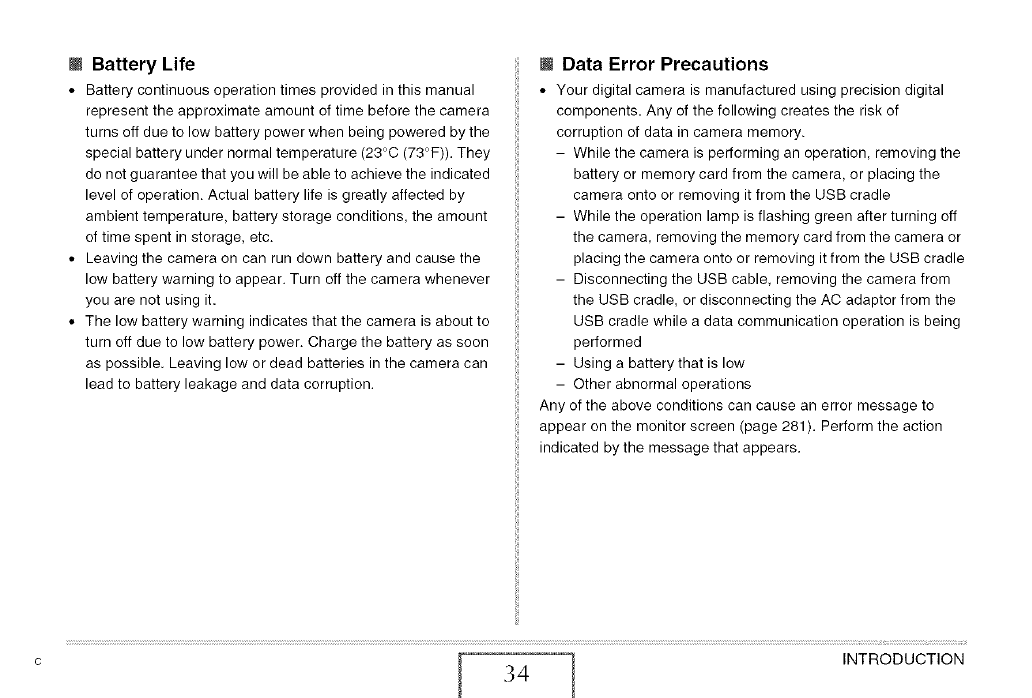

MData Error Precautions

• Your digital camera is manufactured using precision digital

components. Any of the following creates the risk of

corruption of data in camera memory.

- While the camera is performing an operation, removing the

battery or memory card from the camera, or placing the

camera onto or removing it from the USB cradle

- While the operation lamp is flashing green after turning off

the camera, removing the memory card from the camera or

placing the camera onto or removing it from the USB cradle

- Disconnecting the USB cable, removing the camera from

the USB cradle, or disconnecting the AC adaptor from the

USB cradle while a data communication operation is being

performed

- Using a battery that is low

- Other abnormal operations

Any of the above conditions can cause an error message to

appear on the monitor screen (page 281). Perform the action

indicated by the message that appears.

c INTRODUCTION

IOperating Environment

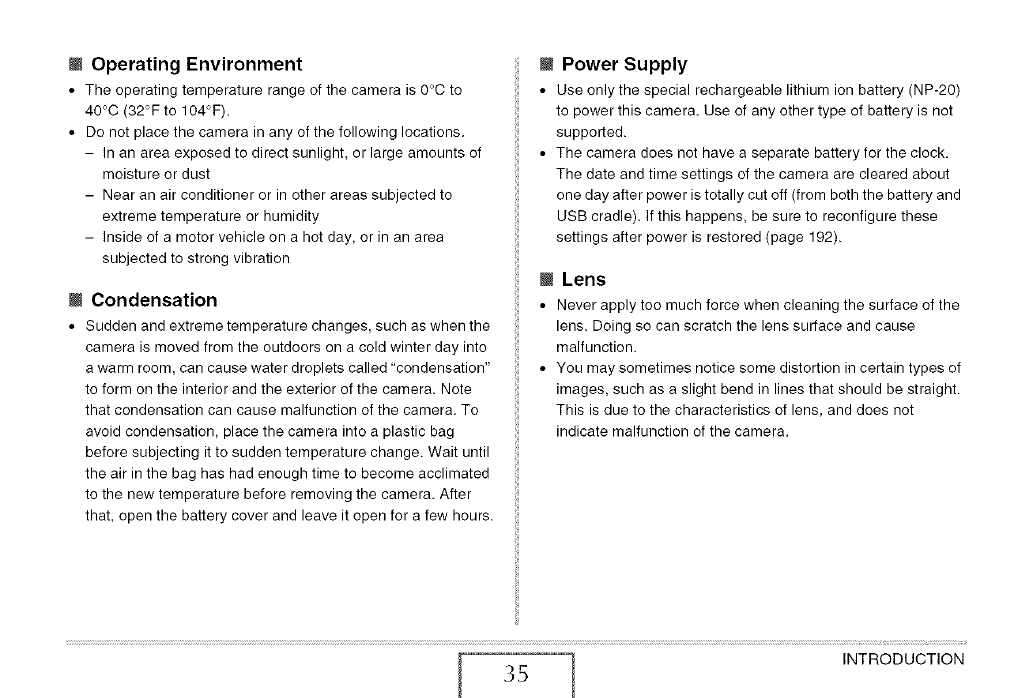

• The operating temperature range of the camera is 0°C to

40°C (32°F to 104°F).

• Do not place the camera in any of the following locations.

- In an area exposed to direct sunlight, or large amounts of

moisture or dust

- Near an air conditioner or in other areas subjected to

extreme temperature or humidity

- Inside of a motor vehicle on a hot day, or in an area

subjected to strong vibration

ICondensation

• Sudden and extreme temperature changes, such as when the

camera is moved from the outdoors on a cold winter day into

a warm room, can cause water droplets called "condensation"

to form on the interior and the exterior of the camera. Note

that condensation can cause malfunction of the camera. To

avoid condensation, place the camera into a plastic bag

before subjecting it to sudden temperature change. Wait until

the air in the bag has had enough time to become acclimated

to the new temperature before removing the camera. After

that, open the battery cover and leave it open for a few hours.

mPower Supply

• Use onlythe special rechargeable lithium ion battery (NP-20)

to power this camera. Use of any other type of battery is not

supported.

• The camera does not have a separate battery for the clock.

The date and time settings of the camera are cleared about

one day after power is totally cut off (from both the battery and

USB cradle). If this happens, be sure to reconfigure these

settings after power is restored (page 192).

MLens

• Never apply too much force when cleaning the surface of the

lens. Doing so can scratch the lens surface and cause

malfunction.

• You may sometimes notice some distortion in certain types of

images, such as a slight bend in lines that should be straight.

This is due to the characteristics of lens, and does not

indicate malfunction of the camera.

INTRODUCTION

ICaring for your camera

•Fingerprints, dirt, and other foreign matter on the lens surface

can interfere with proper operation of the camera. Avoid

touching the lens surface. To clean the lens surface, use a

blower to blow off dust or foreign matter and then wipe with a

soft, dry cloth.

• Fingerprints, dirt, and other foreign matter on the flash can

interfere with proper operation of the camera. Avoid touching

the flash. If the flash becomes dirty, wipe it clean with a soft,

dry cloth.

• To clean the camera, wipe it with a soft, dry cloth.

IMonitor Screen Images

• The images that normally appear on the monitor screen

during image playback are smaller than normal, and so you

cannot see all of the detail of the actual image. Your camera

has an image zoom feature (page 154) which you can use to

enlarge the monitor screen image. You can use this feature

for on-the-spot checks of important images.

IOther Precautions

• The camera becomes slightlywarm during use. This is normal

and does not indicate malfunction.

INTRODUCTION

Your camera is powered by a rechargeable lithium ion battery

(NP-20).

• Use of any type of battery other than NP-20 is not

supported.

To load the battery

1. Open the battery cover.

While pressing the battery cover, slide it in the direction

indicated by the arrow.

2. Load the battery into the camera.

With the EXILIM logo on the battery facing upwards (in the

direction of the monitor screen), hold the stopper in the

direction indicated by the arrow as you slide the battery into

the camera. Press the battery in until the stopper secures it

in place.

NP-20 Stopper

GETTING READY

3. Close the battery cover.

Swing the battery cover closed, and then slide it securely

into place as you press it against the camera.

The battery is not fully charged when you use the camera

for the first time after purchasing it. Use the following

procedure to charge it.

To charge the battery

1. Plug the USB cradle into a household power

outlet.

USB Cradle

[DC IN 5.3V] __

AC Adaptor AC power cord

2. Make sure the camera is turned off.

If the camera is on, be sure to press [ON/OFF] to turn it off

before placing it onto the USB cradle.

GETTING READY

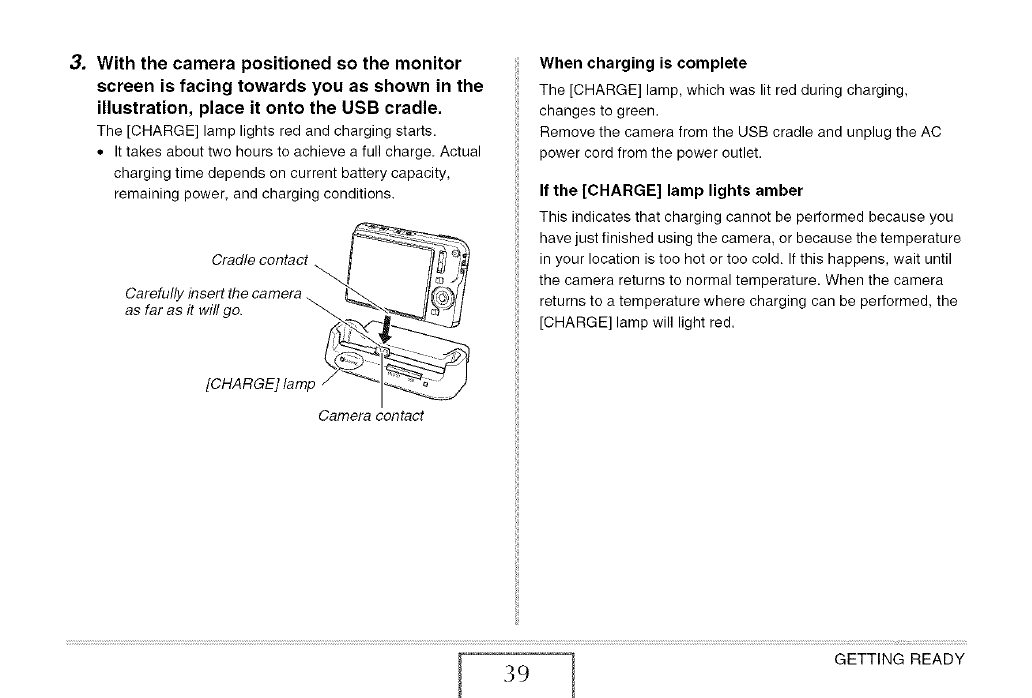

3. With the camera positioned so the monitor

screen is facing towards you as shown in the

illustration, place it onto the USB cradle.

The [CHARGE] lamp lights red and charging starts.

• It takes about two hours to achieve a full charge. Actual

charging time depends on current battery capacity,

remaining power, and charging conditions.

Cradle contact

Camera contact

When charging is complete

The [CHARGE] lamp, which was lit red during charging,

changes to green.

Remove the camera from the USB cradle and unplug the AC

power cord from the power outlet.

If the [CHARGE] lamp lights amber

This indicates that charging cannot be performed because you

have just finished using the camera, or because the temperature

in your location is too hot or too cold. If this happens, wait until

the camera returns to normal temperature. When the camera

returns to a temperature where charging can be performed, the

[CHARGE] lamp will light red.

GETTING READY

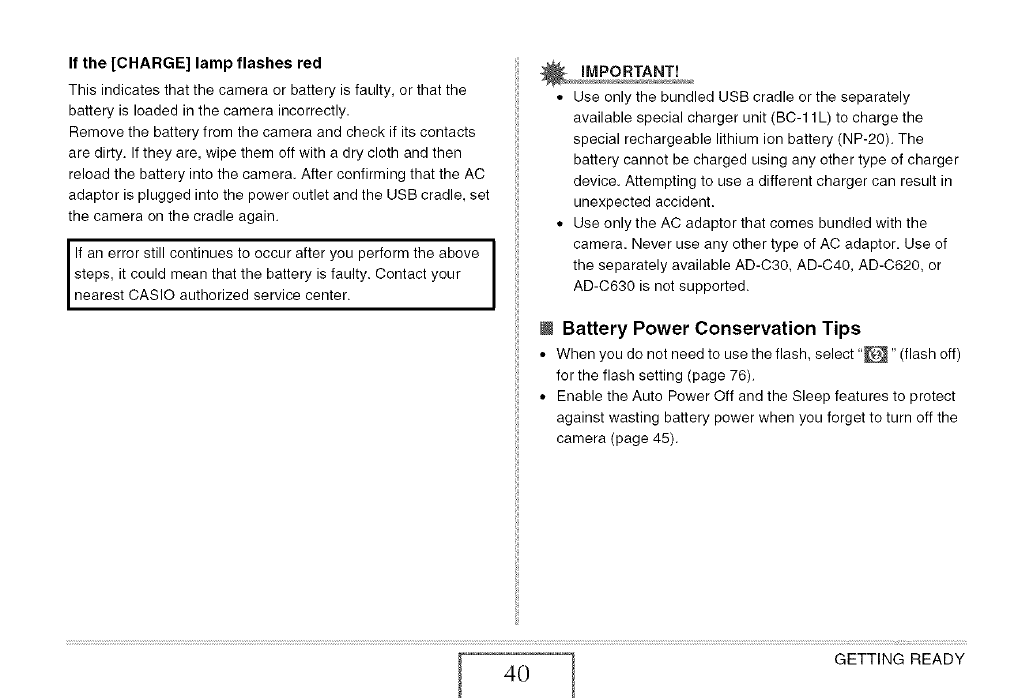

If the [CHARGE] lamp flashes red

This indicates that the camera or battery is faulty, or that the

battery is loaded in the camera incorrectly.

Remove the battery from the camera and check if its contacts

are dirty. If they are, wipe them off with a dry cloth and then

reload the battery into the camera. After confirming that the AC

adaptor is plugged into the power outlet and the USB cradle, set

the camera on the cradle again.

If an error still continues to occur after you perform the above I

steps, it could mean that the battery is faulty. Contact your I

nearest CASlO authorized service center.

• Use only the bundled USB cradle or the separately

available special charger unit (BC-11 L) to charge the

special rechargeable lithium ion battery (NP-20). The

battery cannot be charged using any other type of charger

device. Attempting to use a different charger can result in

unexpected accident.

• Use only the AC adaptor that comes bundled with the

camera. Never use any other type of AC adaptor. Use of

the separately available AD-C30, AD-C4O, AD-C620, or

AD-C630 is not supported.

MBattery Power Conservation Tips

• When you do not need to use the flash, select "_" (flash off)

for the flash setting (page 76).

• Enable the Auto Power Off and the Sleep features to protect

against wasting battery power when you forget to turn off the

camera (page 45).

GETTING READY

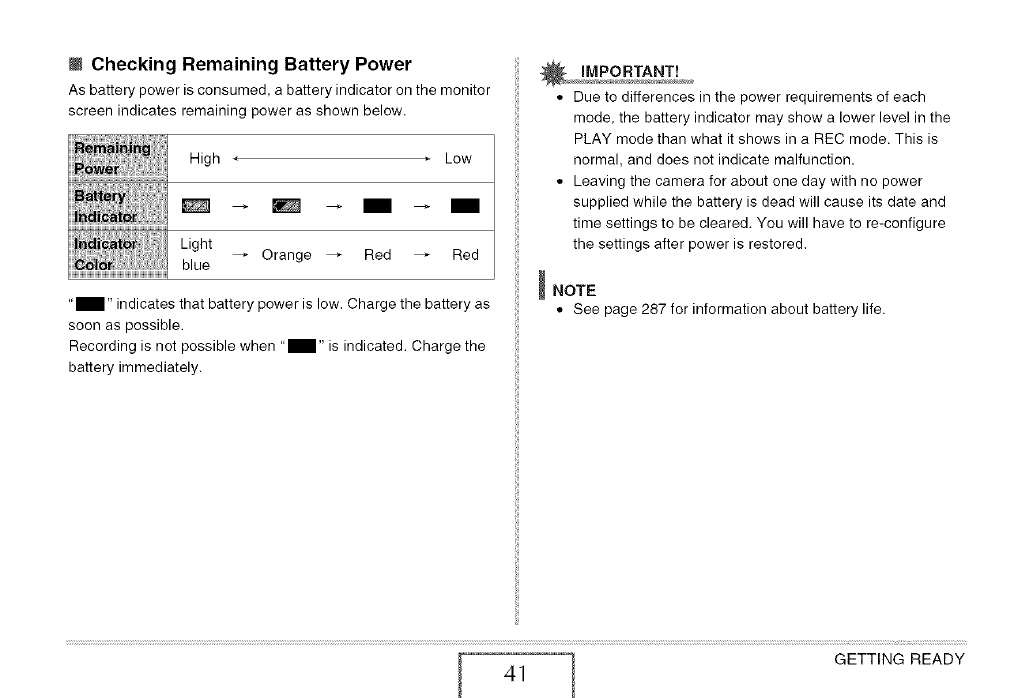

IChecking Remaining Battery Power

As battery power is consumed, a battery indicator on the monitor

screen indicates remaining power as shown below.

High Low

( m m

)))))i(IditC_))Light

blue _ Orange _ Red _ Red

"m" indicates that battery power is low. Charge the battery as

soon as possible.

Recording is not possible when "m" is indicated. Charge the

battery immediately.

• Due to differences in the power requirements of each

mode, the battery indicator may show a lower level in the

PLAY mode than what it shows in a REC mode. This is

normal, and does not indicate malfunction.

• Leaving the camera for about one day with no power

supplied while the battery is dead will cause its date and

time settings to be cleared. You will have to re-configure

the settings after power is restored.

_NOTE

• See page 287 for information about battery life.

GETTING READY

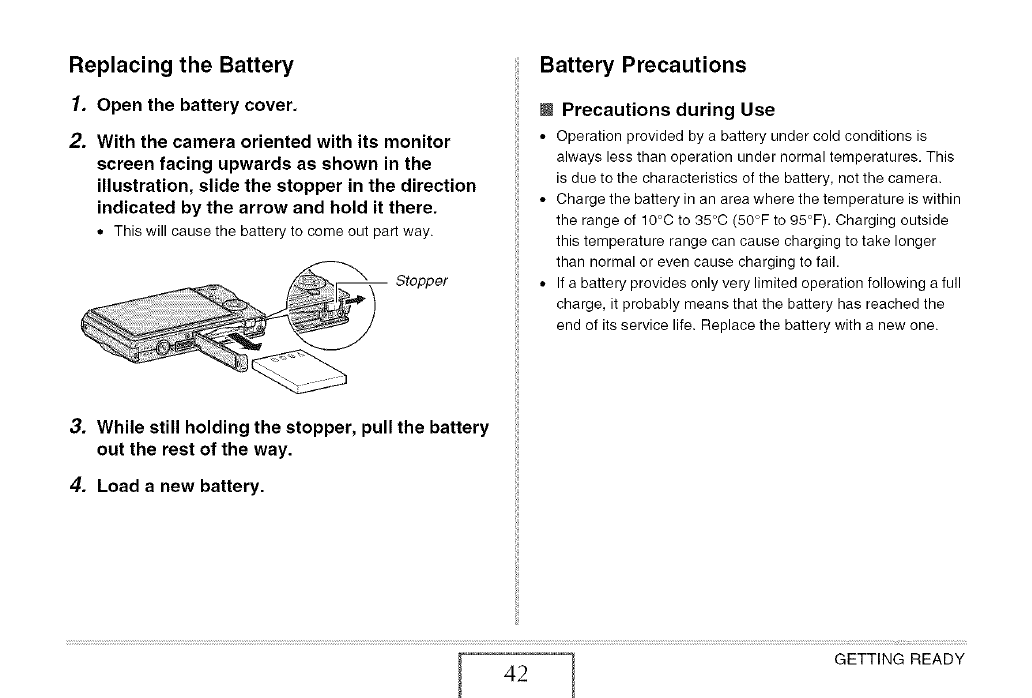

Replacing the Battery

1. Open the battery cover.

2. With the camera oriented with its monitor

screen facing upwards as shown in the

illustration, slide the stopper in the direction

indicated by the arrow and hold it there.

• Thiswill causethebatteryto comeout part way.

Stopper

3. While still holding the stopper, pull the battery

out the rest of the way.

4. Load a new battery.

Battery Precautions

MPrecautions during Use

• Operation provided by a battery under cold conditions is

always less than operation under normal temperatures. This

is due to the characteristics of the battery, not the camera.

• Charge the battery in an area where the temperature is within

the range of 10°C to 35°C (50°F to 95°F). Charging outside

this temperature range can cause charging to take longer

than normal or even cause charging to fail.

• If a battery provides only very limited operation following a full

charge, it probably means that the battery has reached the

end of its service life. Replace the battery with a new one.

GETTING READY

I Storage Precautions

• Though a rechargeable lithium ion battery provides high

capacity in a compact configuration, long-term storage while

charged can cause it to deteriorate.

- If you do not plan to use a battery for some time, fully use

up its charge before storing it.

- Always remove the battery from the camera when you are

not using it. Leaving a battery in the camera can cause it to

discharge and go dead, which will require longer charging

when you need to use the camera.

-Store batteries in a cool, dry place (20°C (68°F) or lower).

ITurning Power On

To turn power on and enter the REC mode

Press [ON/OFF] (Power) or [_11] (REC).

To turn power on and enter the PLAY mode

Press [_] (PLAY).

Pressing a button causes the operation lamp to light green

momentarily and turns on power.

Operation Lamp ION/OFF] (Power)

Im m 1

[El (PLAY) [&f"_ ] (REC)

GETTING READY

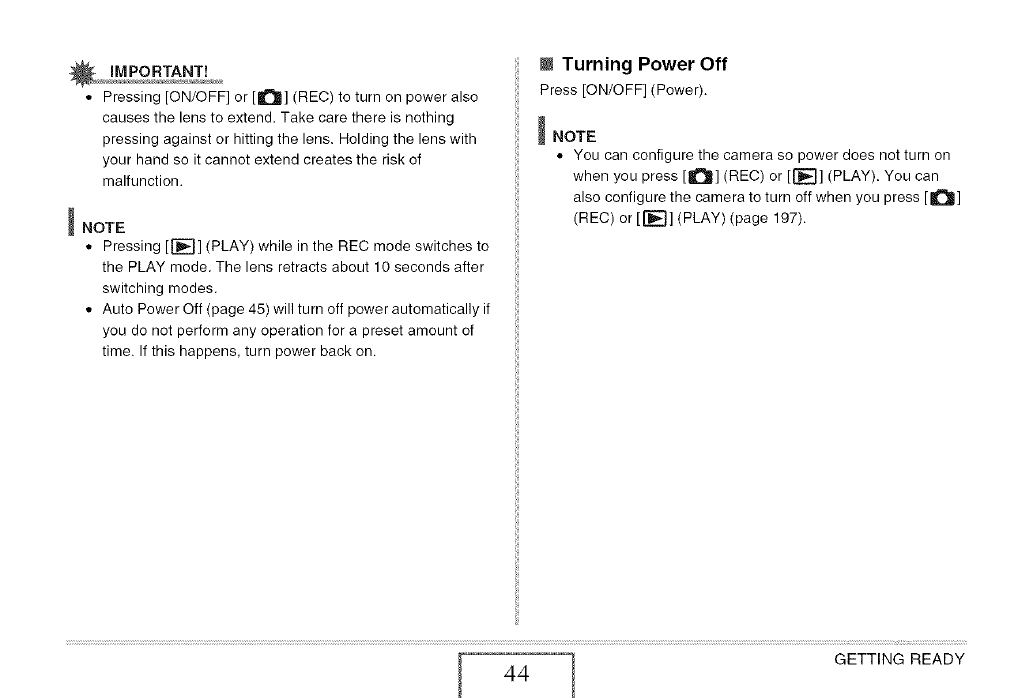

• Pressing [ON/OFF] or [O] (REC) to turn on power also

causes the lens to extend. Take care there is nothing

pressing against or hitting the lens. Holding the lens with

your hand so it cannot extend creates the risk of

malfunction.

_NOTE

• Pressing [_] (PLAY) while in the REC mode switches to

the PLAY mode. The lens retracts about 10 seconds after

switching modes.

• Auto Power Off (page 45) will turn off power automatically if

you do not perform any operation for a preset amount of

time. If this happens, turn power back on.

ITurning Power Off

Press [ON/OFF] (Power).

_NOTE

• You can configure the camera so power does not turn on

when you press [l["_] (REC) or [['_-]] (PLAY). You can

also configure the camera to turn off when you press [_]

(REC) or [[_] (PLAY)(page 197).

GETTING READY

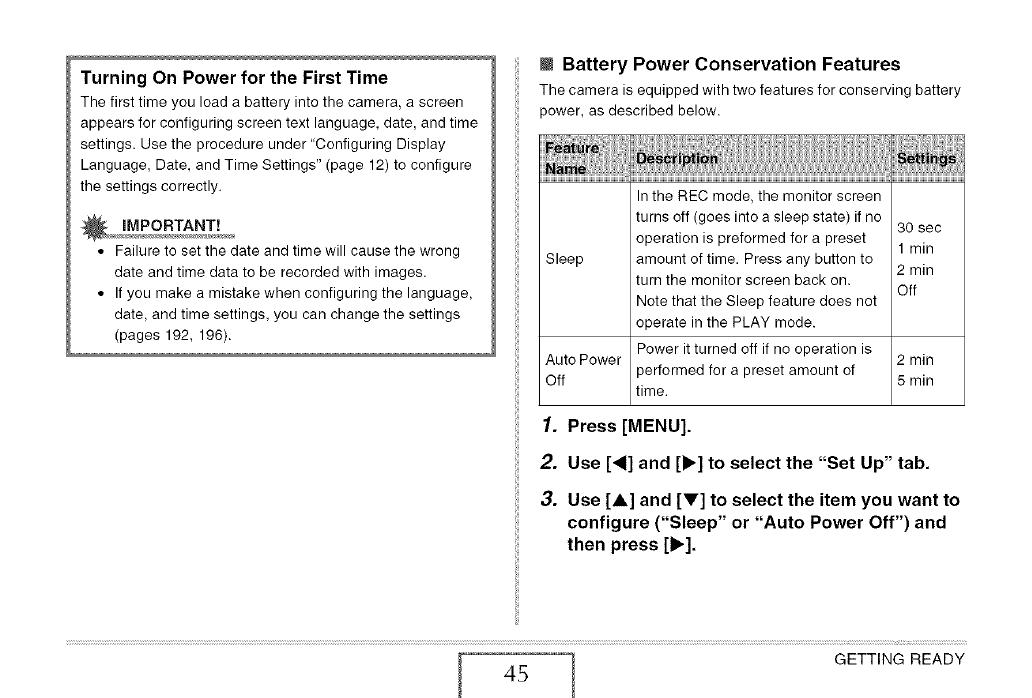

Turning On Power for the First Time

The first time you load a battery into the camera, a screen

appears for configuring screen text language, date, and time

settings. Use the procedure under "Configuring Display

Language, Date, and Time Settings" (page 12) to configure

the settings correctly.

• Failure to set the date and time will cause the wrong

date and time data to be recorded with images.

• If you make a mistake when configuring the language,

date, and time settings, you can change the settings

(pages 192, 196).

IBattery Power Conservation Features

The camera is equipped with two features for conserving battery

power, as described below.

In the REC mode, the monitor screen

turns off (goes into a sleep state) if no 30 sec

operation is preformed for a preset 1 min

Sleep amount of time. Press any button to 2 min

turn the monitor screen back on. Off

Note that the Sleep feature does not

operate in the PLAY mode.

Power it turned off if no operation is

Auto Power 2 min

Off performed for a preset amount of 5 min

time.

1. Press [MENU].

2. Use [_1] and [,] to select the "Set Up" tab.

3. Use [A] and [V] to select the item you want to

configure ("Sleep" or "Auto Power Off") and

then press [11_].

GETTING READY

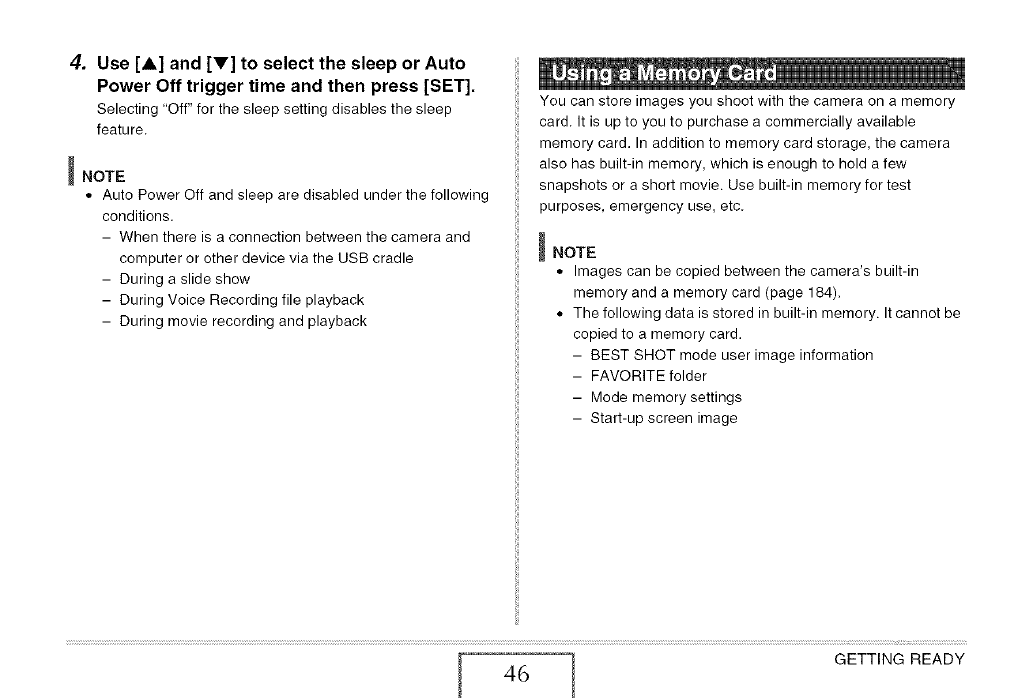

4. Use [A] and [V] to select the sleep or Auto

Power Off trigger time and then press [SET].

Selecting "Off" for the sleep setting disables the sleep

feature.

_NOTE

• Auto Power Off and sleep are disabled under the following

conditions.

- When there is a connection between the camera and

computer or other device via the USB cradle

- During a slide show

- During Voice Recording file playback

- During movie recording and playback

You can store images you shoot with the camera on a memory

card. It is up to you to purchase a commercially available

memory card. In addition to memory card storage, the camera

also has built-in memory, which is enough to hold a few

snapshots or a short movie. Use built-in memory for test

purposes, emergency use, etc.

_NOTE

•Images can be copied between the camera's built-in

memory and a memory card (page 184).

• The following data is stored in built-in memory. It cannot be

copied to a memory card.

- BEST SHOT mode user image information

- FAVORITE folder

- Mode memory settings

- Start-up screen image

GETTING READY

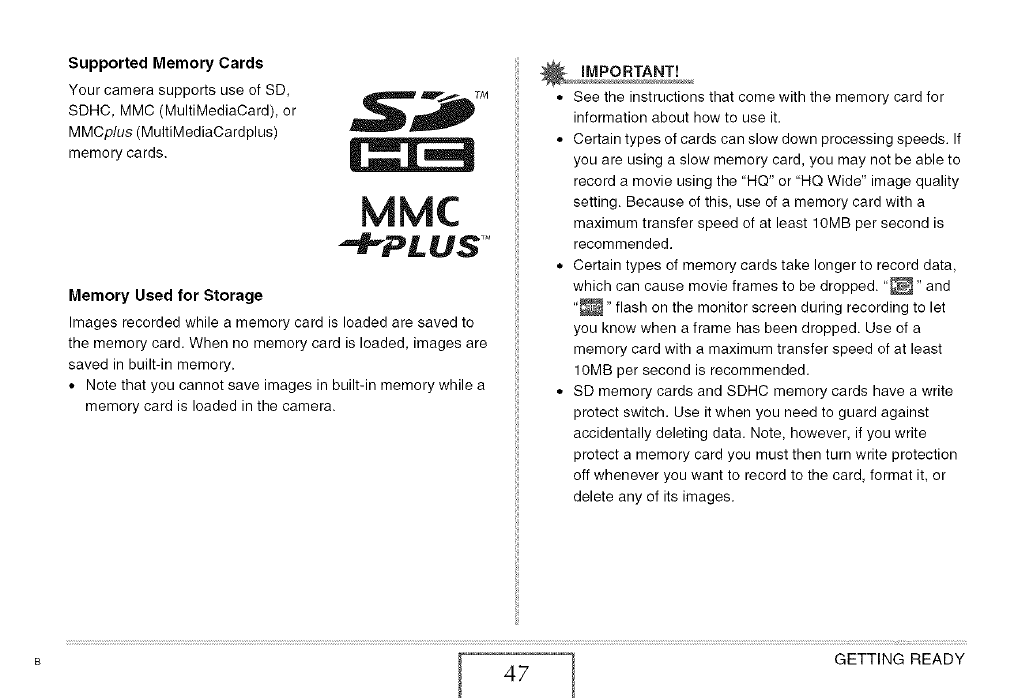

Supported Memory Cards

Your camera supports use of SD,

SDHC, MMC (MultiMediaCard), or

MMCplus (MultiMediaCardplus)

memory cards.

MMC

'PLUS °

Memory Used for Storage

Images recorded while a memory card is loaded are saved to

the memory card. When no memory card is loaded, images are

saved in built-in memory.

• Note that you cannot save images in built-in memory while a

memory card is loaded in the camera.

,, See the instructions that come with the memory card for

information about how to use it.

• Certain types of cards can slow down processing speeds. If

you are using a slow memory card, you may not be able to

record a movie using the "HQ" or "HQ Wide" image quality

setting. Because of this, use of a memory card with a

maximum transfer speed of at least 10MB per second is

recommended.

,, Certain types of memory cards take longer to record data,

which can cause movie frames to be dropped. "_" and

"_" flash on the monitor screen during recording to let

you know when a frame has been dropped. Use of a

memory card with a maximum transfer speed of at least

10MB per second is recommended.

,, SD memory cards and SDHC memory cards have a write

protect switch. Use it when you need to guard against

accidentally deleting data. Note, however, if you write

protect a memory card you must then turn write protection

off whenever you want to record to the card, format it, or

delete any of its images.

B GETTING READY

• Electrostatic charge, electrical noise, and other

phenomena can cause data to become corrupted or even

lost. Make sure that you always back up important data on

other media (CD-R, CD-RW, MO disk, hard disk, etc.).

Loading a Memory Card into the Camera

• Make sure you always turn off the camera before loading or

removing a memory card.

• Be sure to orient the card correctly when loading it. Never

try to force a memory card into the slot when you feel

resistance.

1. Open the battery cover.

While pressing the battery cover, slide it in the direction

indicated by the arrow.

GETTING READY

2. Load a memory card into the camera.

Positioning the memory card so its front is facing upwards

(towards the monitor screen side of the camera), slide it into

the card slot all the way in until you hear it click securely into

place.

Front Back

3. Close the battery cover.

Swing the battery cover closed, and then slide it securely

into place as you press it against the camera.

Replacing the Memory Card

1. Remove the memory card from the camera.

Press the memory card and then release it, so it comes part

way out. Pull the card out the rest of the way by hand.

2. Load the other memory card.

GETTING READY

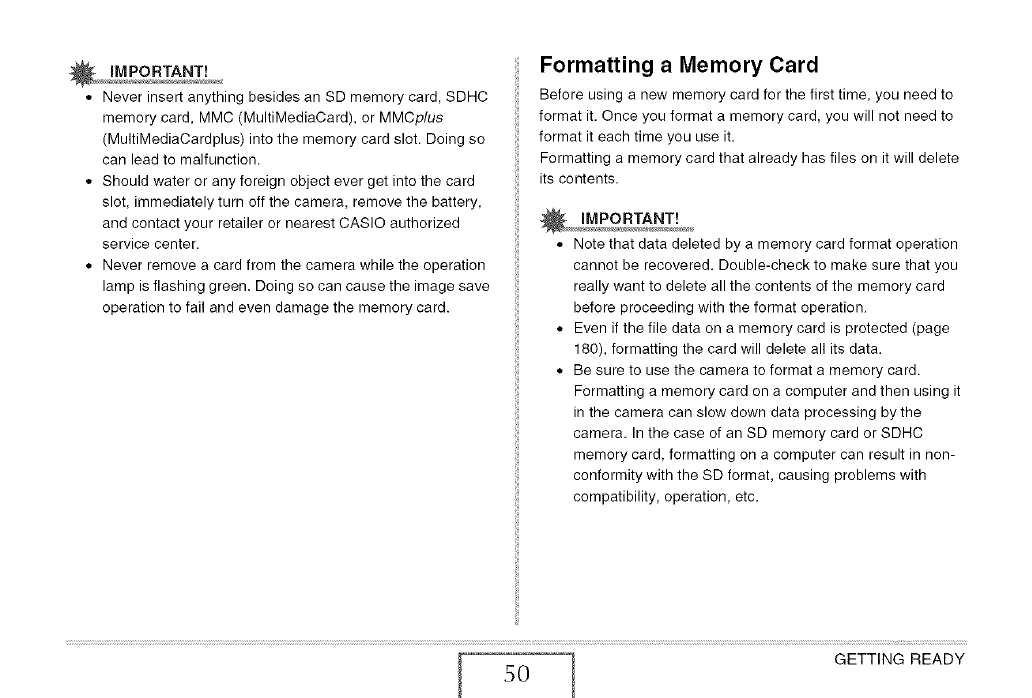

• Never insert anything besides an SD memory card, SDHC

memory card, MMC (MultiMediaCard), or MMCplus

(MultiMediaCardplus) into the memory card slot. Doing so

can lead to malfunction.

• Should water or any foreign object ever get into the card

slot, immediately turn off the camera, remove the battery,

and contact your retailer or nearest CASlO authorized

service center.

• Never remove a card from the camera while the operation

lamp is flashing green. Doing so can cause the image save

operation to fail and even damage the memory card.

Formatting a Memory Card

Before using a new memory card for the first time, you need to

format it. Once you format a memory card, you will not need to

format it each time you use it.

Formatting a memory card that already has files on it will delete

its contents.

Note that data deleted by a memory card format operation

cannot be recovered. Double-check to make sure that you

really want to delete all the contents of the memory card

before proceeding with the format operation.

Even if the file data on a memory card is protected (page

180), formatting the card will delete all its data.

Be sure to use the camera to format a memory card.

Formatting a memory card on a computer and then using it

in the camera can slow down data processing bythe

camera. In the case of an SD memory card or SDHC

memory card, formatting on a computer can result in non-

conformity with the SD format, causing problems with

compatibility, operation, etc.

GETTING READY

1. Load the memory card you want to format into

the camera.

2. Turn on the camera and press [MENU].

3. On the "Set Up" tab, select "Format" and then

press [1_].

4. Use [A] and [V] to select "Format" and then

press [SET] to start formatting.

After formatting is complete, enter the PLAY mode and

check to make sure the "There are no files." message

appears on the monitor screen.

• To exit the format operation without formatting, select

"Cancel".

MMemory Card Precautions

• If a memory card starts to behave abnormally, you can restore

normal operation by reformatting it. However, it is

recommended that you always take along more than one

memory card whenever using the camera far away from the

home or office.

• If you experience problems while trying to playback recorded

images, try re-formatting the memory card.

• As you record data to and delete data from a memory card a

number of times, it loses its ability to retain data. Because of

this, periodic re-formatting of a memory card is

recommended.

• Make sure that the battery is charged fully before starting a

formatting operation. Formatting may not be performed

correctly and the memory card may be damaged if the

camera powers down while formatting is in progress.

• Never open the battery cover while formatting is in progress.

Doing so can damage the memory card.

GETTING READY

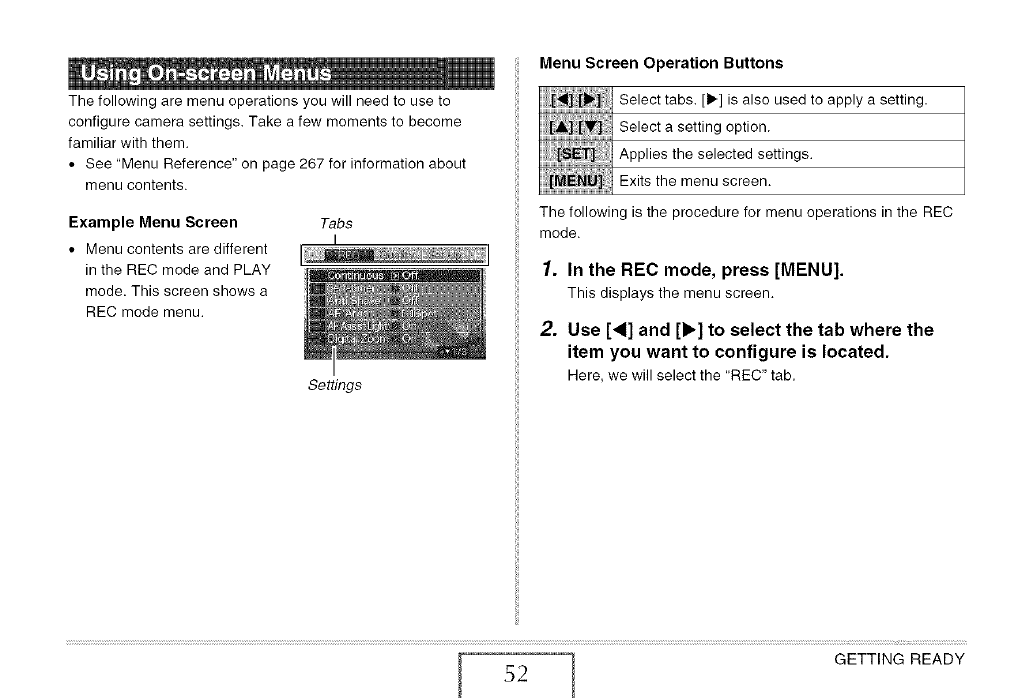

The following are menu operations you will need to use to

configure camera settings. Take a few moments to become

familiar with them.

• See "Menu Reference" on page 267 for information about

menu contents.

Example Menu Screen

• Menu contents are different

in the REC mode and PLAY

mode. This screen shows a

REC mode menu.

Tabs

Settings

Menu Screen Operation Buttons

Se,ecttabs.[,]isa,sousedto

apply a setting,

Select a setting option.

App,iesthese,estedsettings.

Exits the menu screen.

The following is the procedure for menu operations in the REC

mode.

1. In the REC mode, press [MENU].

This displaysthe rnenuscreen.

2. Use [_1] and [,] to select the tab where the

item you want to configure is located.

Here, we will select the "REC" tab.

GETTING READY

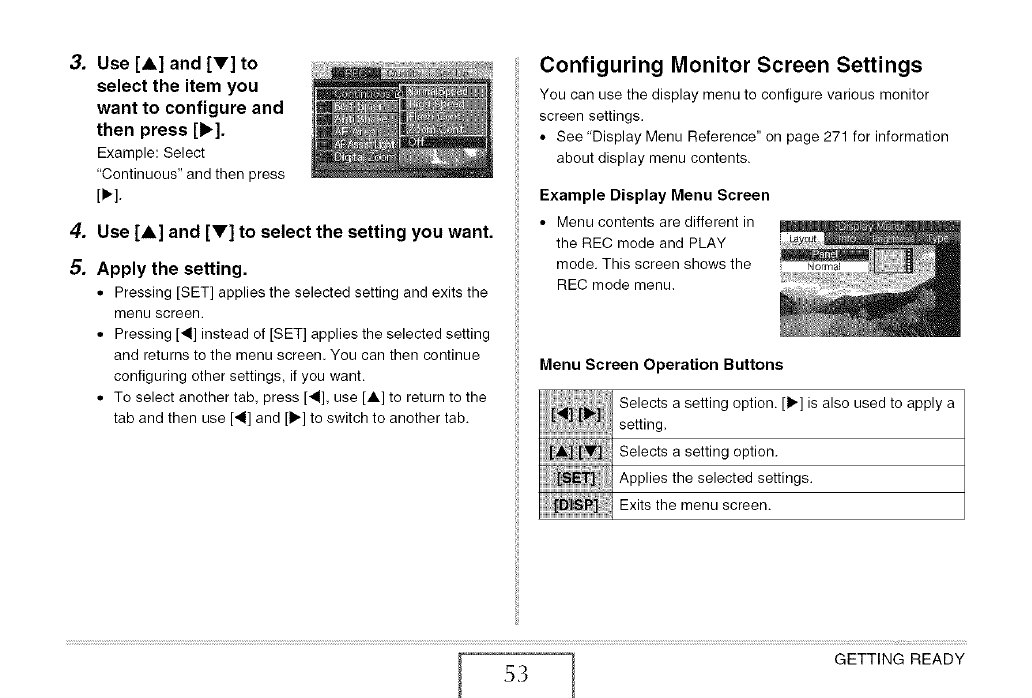

3. Use [A] and [Y] to

select the item you

want to configure and

then press [1_].

Exarnple: Select

"Continuous" and then press

[),].

4. Use [A] and [Y] to select the setting you want.

5. Apply the setting.

•Pressing [SET] applies the selected setting and exits the

menu screen.

• Pressing [41] instead of [SET] applies the selected setting

and returns to the menu screen. You can then continue

configuring other settings, if you want.

• To select another tab, press [_1], use [A] to return to the

tab and then use [_1] and [1_] to switch to another tab.

Configuring Monitor Screen Settings

You can use the display menu to configure various rnonitor

screen settings.

• See "Display Menu Reference" on page 271 for information

about display menu contents.

Example Display Menu Screen

• Menu contents are different in

the REC mode and PLAY

mode. This screen shows the

REC mode menu.

Menu Screen Operation Buttons

_i![_ Selects asetting option. [,]is also used to apply a

............................................................setting.

[A_ Selects a setting option.

Applies the selected settings.

i_!SP_ Exits the menu screen.

GETTING READY

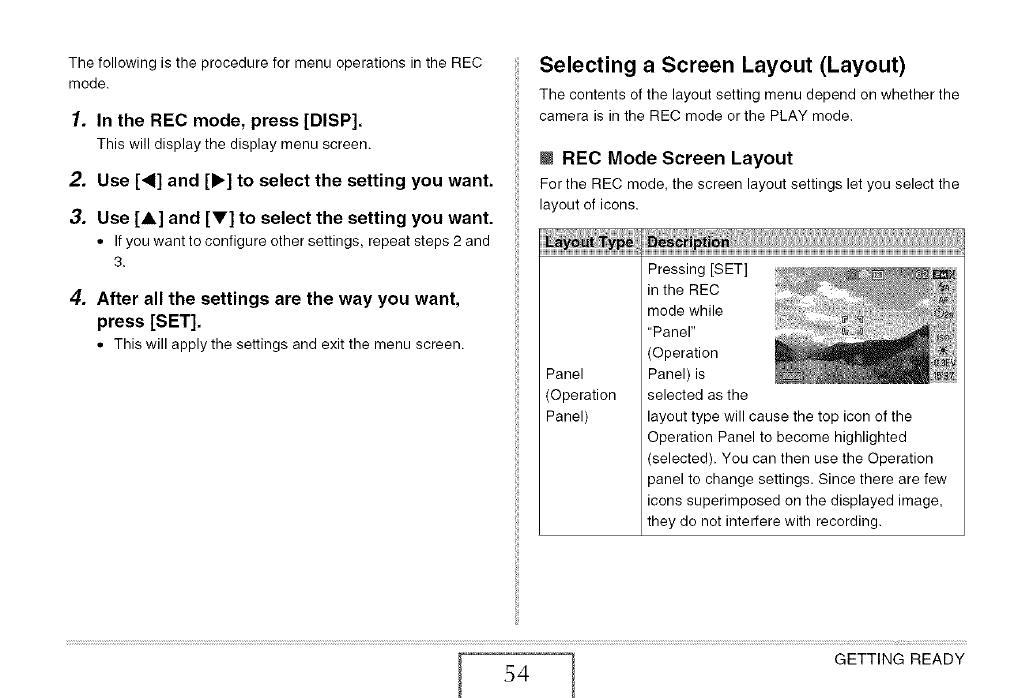

The following is the procedure for menu operations in the REC

mode.

1. In the REC mode, press [DISP].

This will display the display menu screen.

2. Use [41] and [1_] to select the setting you want.

3. Use [A] and [Y] to select the setting you want.

• If you want to configure other settings, repeat steps 2 and

4. After all the settings are the way you want,

press [SET].

• This will apply the settings and exit the menu screen.

Selecting a Screen Layout (Layout)

The contents of the layout setting menu depend on whether the

camera is in the REC mode orthe PLAY mode.

MREC Mode Screen Layout

For the REC mode, the screen layout settings let you select the

layout of icons.

Pressing [SET]

in the REC

mode while

"Panel"

(Operation

Panel Panel) is

(Operation selected as the

Panel) layout type will cause the top icon of the

Operation Panel to become highlighted

(selected). You can then use the Operation

panel to change settings. Since there are few

icons superimposed on the displayed image,

they do not interfere with recording.

GETTING READY

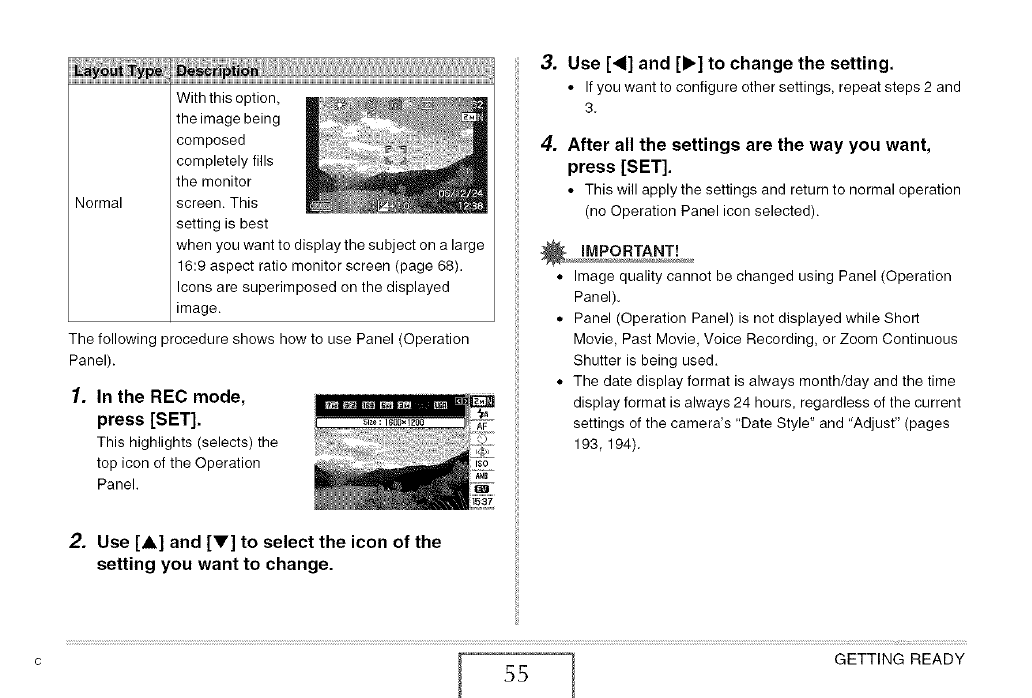

With this option,

the image being

composed

completely fills

the monitor

Normal screen. This

setting is best

when you want to display the subject on a large

16:9 aspect ratio monitor screen (page 68),

Icons are superimposed on the displayed

image.

The following procedure shows how to use Panel (Operation

Panel).

1. In the REC mode,

press [SET].

This highlights (selects) the

top icon of the Operation

Panel.

2. Use [A] and [Y] to select the icon of the

setting you want to change.

3. Use [_1] and [1_] to change the setting.

• If you want to configure other settings, repeat steps 2 and

4. After all the settings are the way you want,

press [SET].

• Thiswillapplytile settingsand returnto normaloperation

(no OperationPaneliconselected).

• Image quality cannot be changed using Panel (Operation

Panel).

,, Panel (Operation Panel) is not displayed while Short

Movie, Past Movie, Voice Recording, or Zoom Continuous

Shutter is being used.

• The date display format is always month/day and the time

display format is always 24 hours, regardless of the current

settings of the camera's "Date Style" and "Adjust" (pages

193, 194).

c GETTING READY

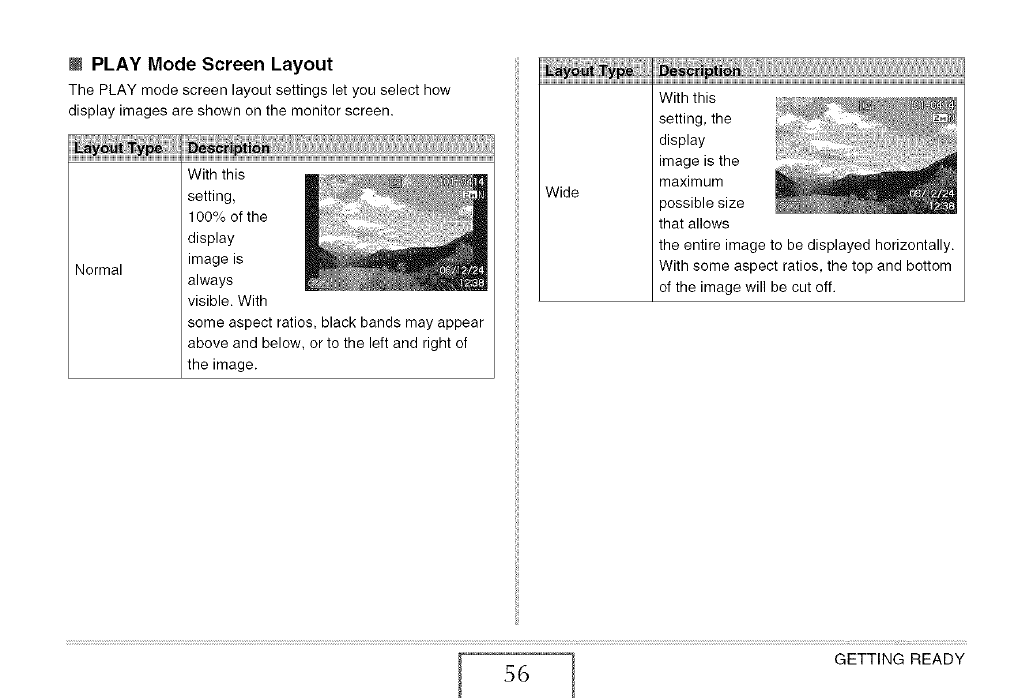

IPLAY Mode Screen Layout

The PLAY mode screen layout settings let you select how

display images are shown on the monitor screen.

Normal

With this

setting,

100% of the

display

image is

always

visible. With

some aspect ratios, black bands may appear

above and below, orto the left and right of

the image.

Wide

With this

setting, the

display

image is the

maximum

_ossible size

that allows

the entire image to be displayed horizontally.

With some aspect ratios, the top and bottom

of the image will be cut off.

GETTING READY

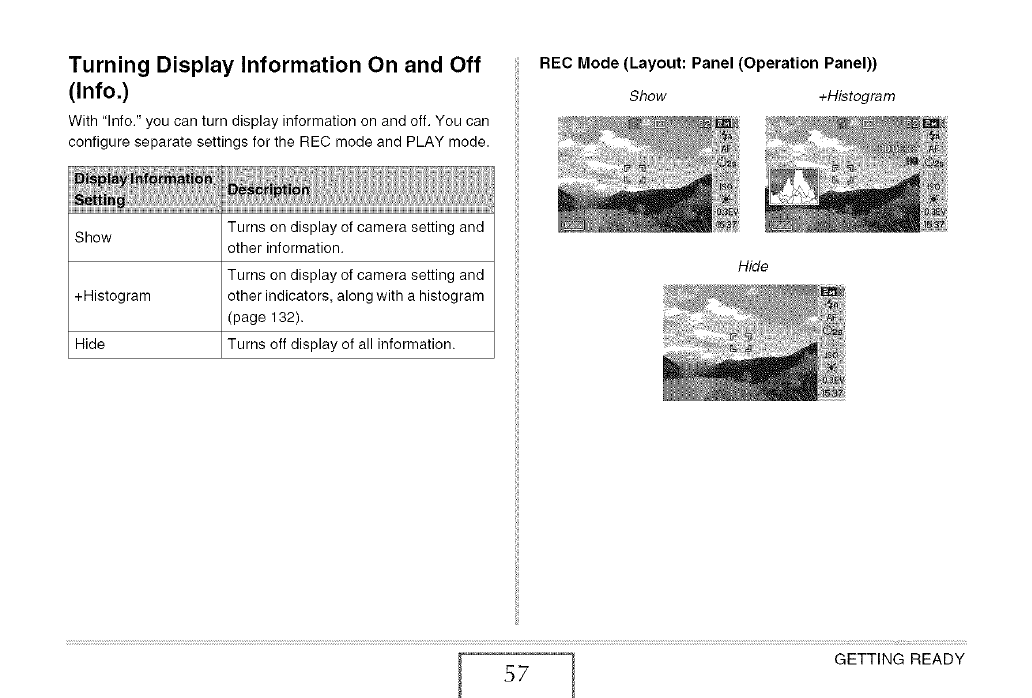

Turning Display Information On and Off

(Info.)

With "lnfo." you can turn display information on and off. You can

configure separate settings for the REC mode and PLAY mode.

Turns on display of camera setting and

Show other information.

Turns on display of camera setting and

+Histogram other indicators, along with a histogram

(page 132).

Hide Turns off display of all information.

REC Mode (Layout: Panel (Operation Panel))

Show +Histogram

Hide

GETTING READY

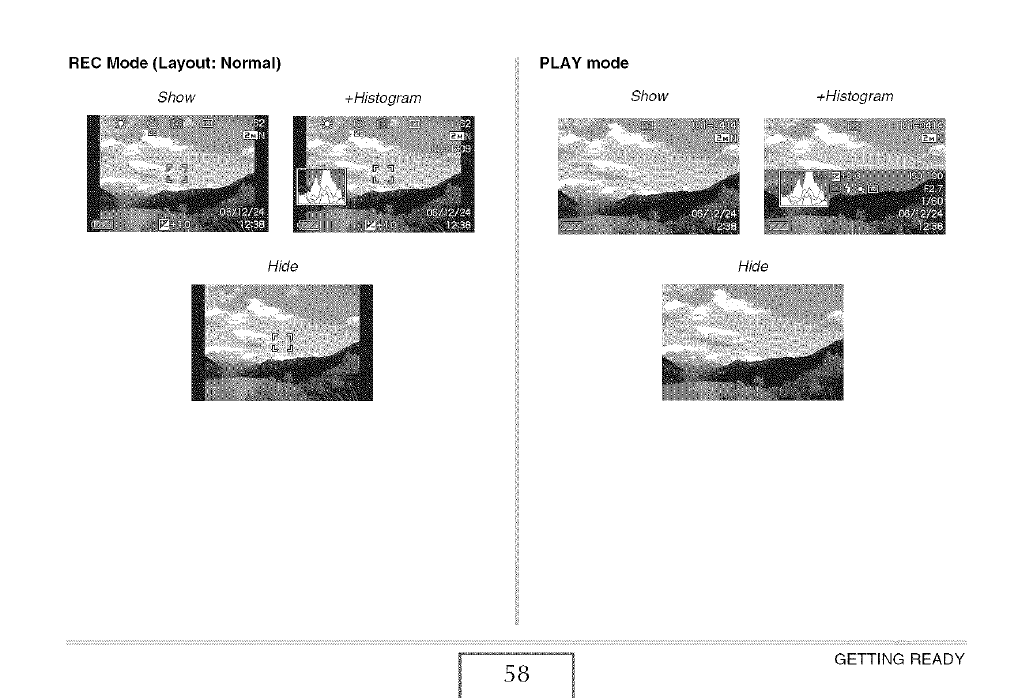

REC Mode (Layout: Normal) PLAY mode

Show Show

Hide

+Histogram

Hide

+Histogram

GETTING READY

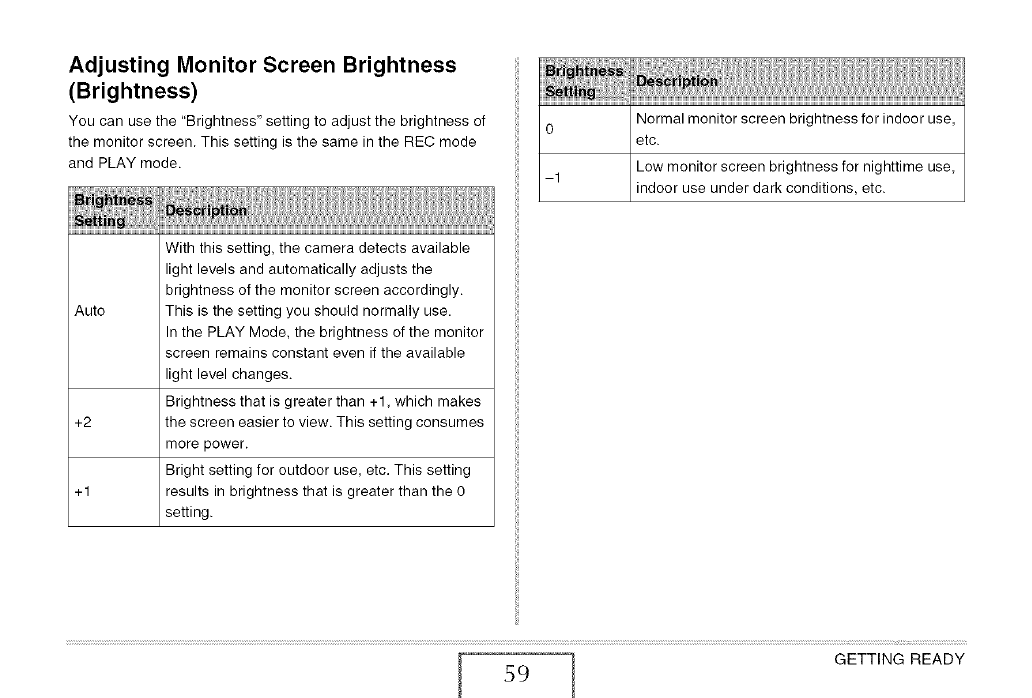

Adjusting Monitor Screen Brightness

(Brightness)

You can use tile "Brightness" setting to adjust the brightness of

the monitor screen. This setting is the same in the REC mode

and PLAY mode.

Auto

With this setting, the camera detects available

light levels and automatically adjusts the

brightness of the monitor screen accordingly.

This is the setting you should normally use.

In the PLAY Mode, the brightness of the monitor

screen remains constant even if the available

light level changes.

Brightness that is greater than +1, which makes

the screen easier to view. This setting consumes

more power.

Bright setting for outdoor use, etc. This setting

results in brightness that is greater than the 0

setting.

Normal monitor screen brightness for indoor use,

0etc.

Low monitor screen brightness for nighttime use,

-1 indoor use under dark conditions, etc.

GETTING READY

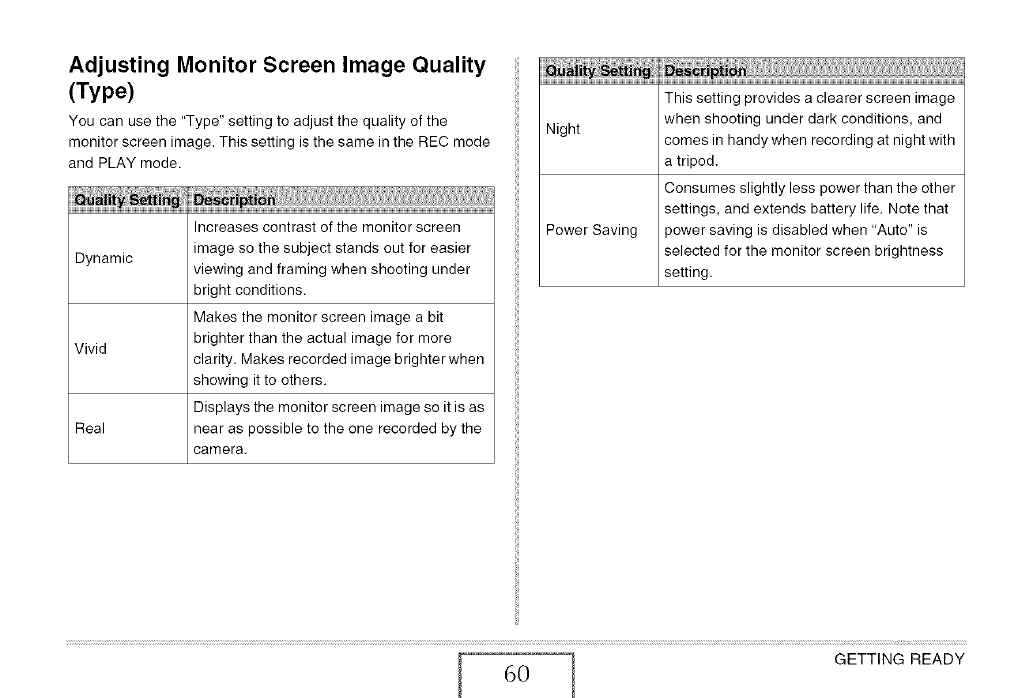

Adjusting Monitor Screen Image Quality

(Type)

You can use tile "Type" setting to adjust the quality of the

monitor screen image. This setting is the same in the REC mode

and PLAY mode.

Increases contrast of the monitor screen

image so the subject stands out for easier

Dynamic viewing and framing when shooting under

bright conditions.

Makes the monitor screen image a bit

brighter than the actual image for more

Vivid clarity. Makes recorded image brighter when

showing it to others.

Displays the monitor screen image so it is as

Real near as possible to the one recorded by the

camera.

Night

Power Saving

This setting provides a clearer screen image

when shooting under dark conditions, and

comes in handy when recording at night with

a tripod.

Consumes slightly less power than the other

settings, and extends battery life. Note that

power saving is disabled when "Auto" is

selected for the monitor screen brightness

setting.

GETTING READY

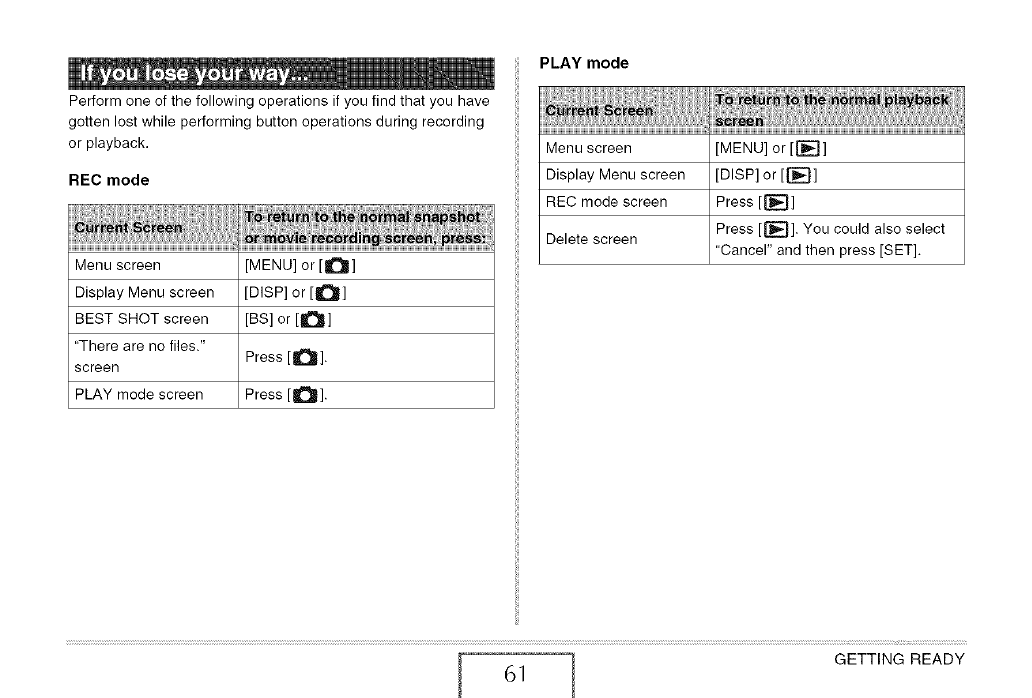

Perform one of the following operations if you find that you have

gotten lost while performing button operations during recording

or playback.

REC mode

Menu screen [MENU] or [O]

Display Menu screen [DISP] or [i_Jl]

BEST SHOT screen [BS] or [_]

"There are no files." Press [_].

screen

PLAY mode screen Press [_].

PLAY mode

Menu screen [MENU] or [_]

Display Menu screen [DISP] or [_]

REC mode screen Press [[]_]

Delete screen Press [[]_]. You could also select

"Cancel" and then press [SET].

GETTING READY

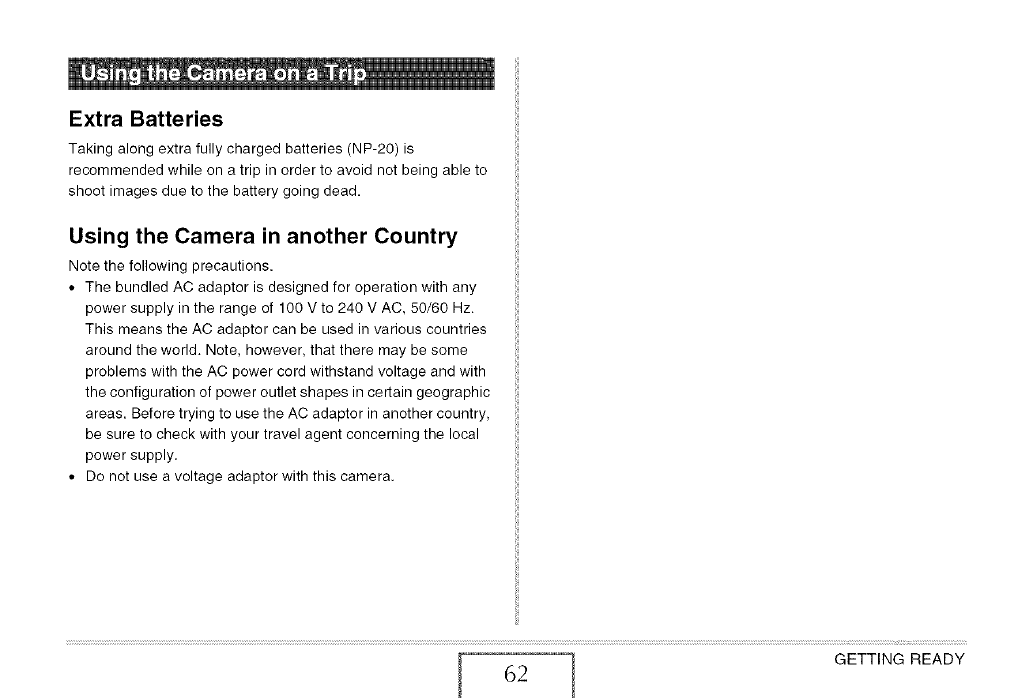

Extra Batteries

Taking along extra fully charged batteries (NP-20) is

recommended while on a trip in order to avoid not being able to

shoot images due to the battery going dead.

Using the Camera in another Country

Note the following precautions

• The bundled AC adaptor is designed for operation with any

power supply in the range of 100 V to 240 V AC, 50/60 Hz.

This means the AC adaptor can be used in various countries

around the world. Note, however, that there may be some

problems with the AC power cord withstand voltage and with

the configuration of power outlet shapes in certain geographic

areas. Before trying to use the AC adaptor in another country,

be sure to check with your travel agent concerning the local

power supply.

• Do not use a voltage adaptor with this camera.

GETTING READY

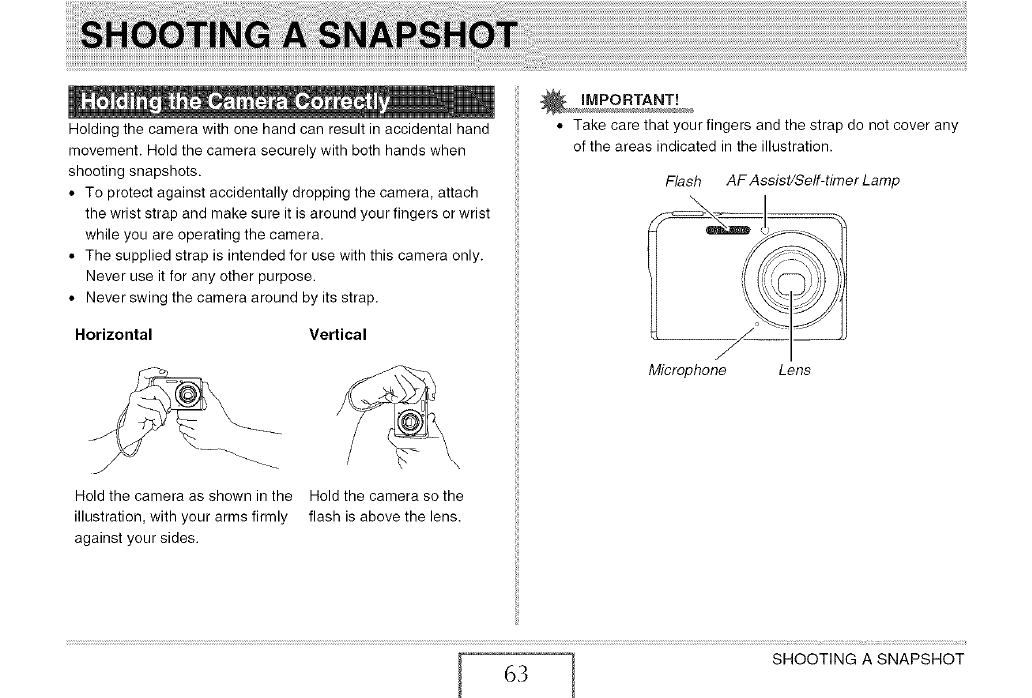

Holding the camera with one hand can result in accidental hand

movement. Hold the camera securely with both hands when

shooting snapshots.

• To protect against accidentally dropping the camera, attach

the wrist strap and make sure it is around your fingers or wrist

while you are operating the camera.

• The supplied strap is intended for use with this camera only.

Never use it for any other purpose.

• Never swing the camera around by its strap.

Horizontal Vertical

Hold the camera as shown in the Hold the camera so the

illustration, with your arms firmly flash is above the lens.

against your sides.

• Take care that your fingers and the strap do not cover any

of the areas indicated in the illustration.

Flash AF Assist/Self-timer Lamp

Microphone Lens

SHOOTING A SNAPSHOT

_NOTE

• Good-looking images are impossible if you move the

camera when you press the shutter button or while the

Auto Focus operation is being performed. Holding the

camera correctly, carefully press the shutter button and

take care that you do not move the camera as the shutter

releases. This is especially important when available

lighting is low, which slows down the shutter speed.

1. Press [O] (REC)to Auto Icon

enter the REC mode.

Confirm that the subject

(people, scenery, etc.) and

the Auto icon "K"_" are

displayed on the monitor

screen.

If any icon other than the

Auto icon "0" is displayed, Focus Frame

switch to "Auto" (page 98).

SHOOTING A SNAPSHOT

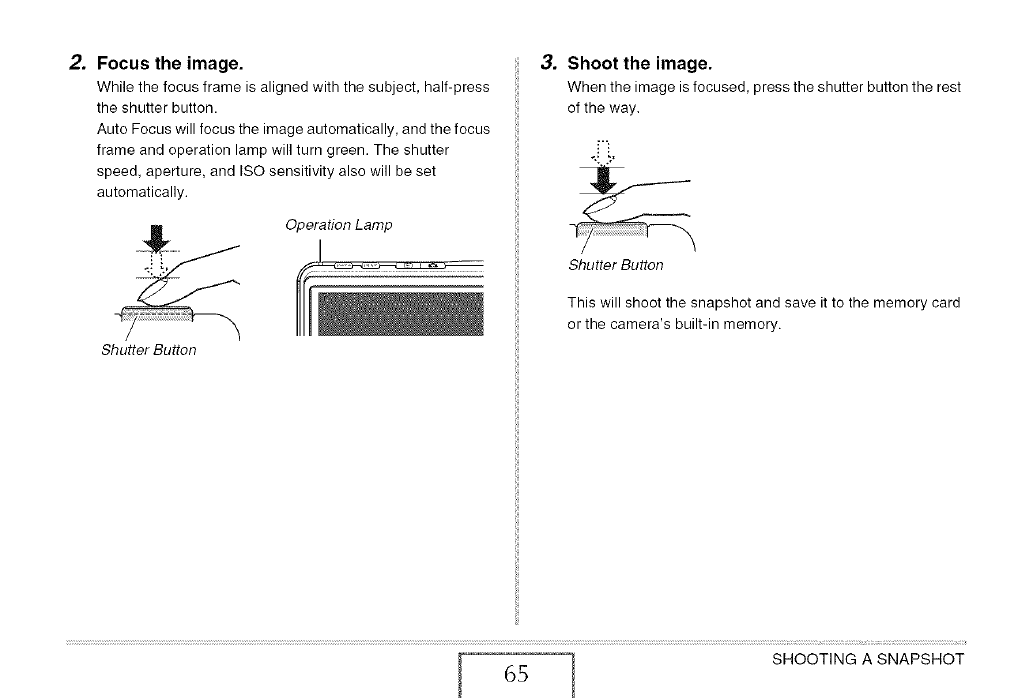

2. Focus the image.

While the focus frame is aligned with the subject, half-press

the shutter button.

Auto Focus will focus the image automatically, and the focus

frame and operation lamp will turn green. The shutter

speed, aperture, and ISO sensitivity also will be set

automatically.

Operation Lamp

Shutter Button

3. Shoot the image.

When the image is focused, press the shutter button the rest

of the way.

Shutter Button

This will shoot the snapshot and save it to the memory card

or the camera's built-in memory.

SHOOTING A SNAPSHOT

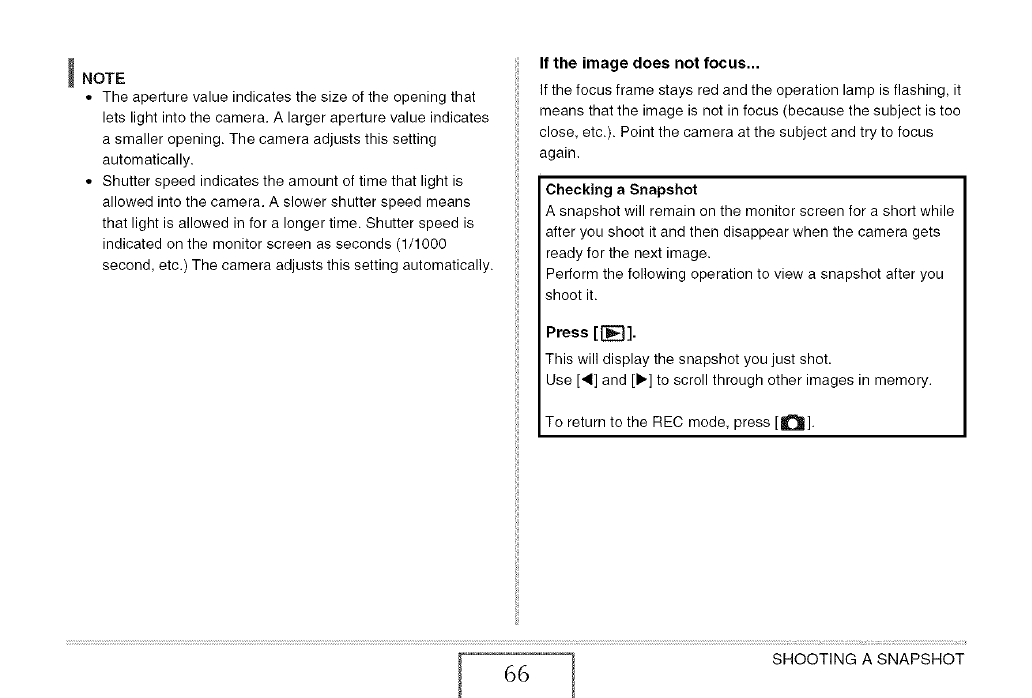

_NOTE

• The aperture value indicates the size of the opening that

lets light into the camera. A larger aperture value indicates

a smaller opening. The camera adjusts this setting

automatically.

• Shutter speed indicates the amount of time that light is

allowed into the camera. A slower shutter speed means

that light is allowed in for a longer time. Shutter speed is

indicated on the monitor screen as seconds (1/1000

second, etc.) The camera adjusts this setting automatically.

If the image does not focus...

If the focus frame stays red and the operation lamp is flashing, it

means that the image is not in focus (because the subject is too

close, etc.). Point the camera at the subject and try to focus

again.

Checking a Snapshot

A snapshot will remain on the monitor screen for a short while

after you shoot it and then disappear when the camera gets

ready for the next image.

Perform the following operation to view a snapshot after you

shoot it.

Press [_].

This will display the snapshot you just shot

Use [_] and [1_] to scroll through other images in memory.

To return to the REC mode, press [IliUm].

SHOOTING A SNAPSHOT

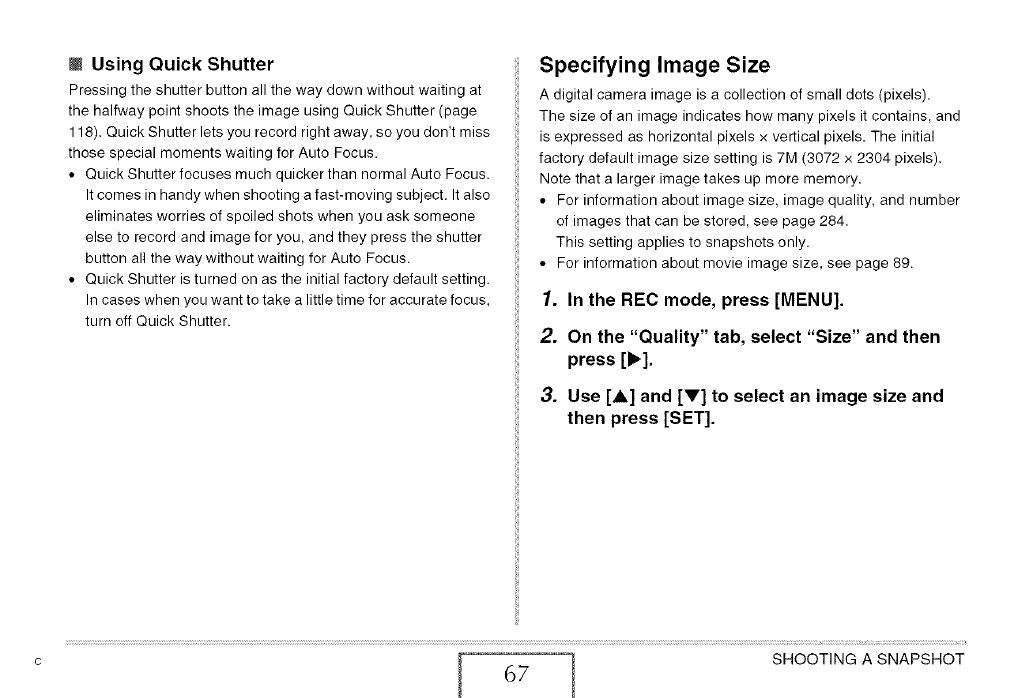

IUsing Quick Shutter

Pressing the shutter button all the way down without waiting at

the halfway point shoots the image using Quick Shutter (page

118). Quick Shutter lets you record right away, so you don't miss

those special moments waiting for Auto Focus.

• Quick Shutter focuses much quicker than normal Auto Focus.

It comes in handy when shooting a fast-moving subject. It also

eliminates worries of spoiled shots when you ask someone

else to record and image for you, and they press the shutter

button all the way without waiting for Auto Focus.

• Quick Shutter is turned on as the initial factory default setting.

In cases when you want to take a little time for accurate focus,

turn off Quick Shutter.

Specifying Image Size

A digital camera image is a collection of small dots (pixels).

The size of an image indicates how many pixels it contains, and

is expressed as horizontal pixels x vertical pixels. The initial

factory default image size setting is 7M (3072 x 2304 pixels).

Note that a larger image takes up more memory.

• For information about image size, image quality, and number

of images that can be stored, see page 284.

This setting applies to snapshots only.

• For information about movie image size, see page 89.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Size" and then

press [,].

3. Use [A] and [V] to select an image size and

then press [SET].

c SHOOTING A SNAPSHOT

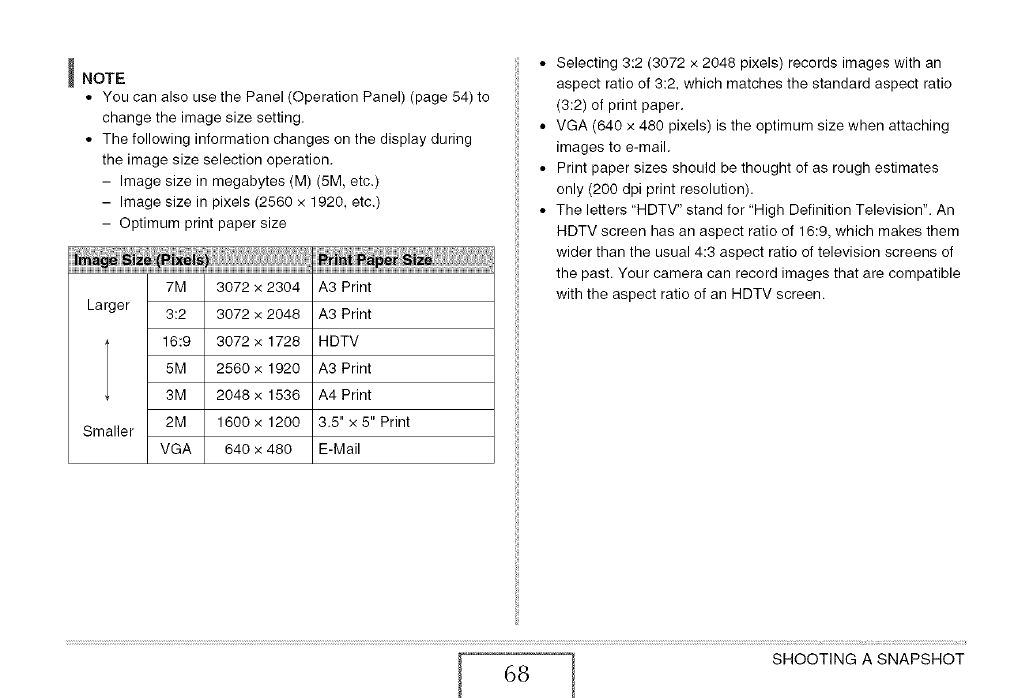

_NOTE

• You can also use the Panel (Operation Panel) (page 54) to

change the image size setting.

• The following information changes on the display during

the image size selection operation.

- Image size in megabytes (M) (5M, etc.)

- Image size in pixels (2560 x 1920, etc.)

- Optimum print paper size

i_gesie_ xeit :

7M 3072 x 2304 A3 Print

Larger 3:2 3072 x 2048 A3 Print

16:9 3072 x 1728 HDTV

5M 2560 x 1920 A3 Print

3M 2048 x 1536 A4 Print

2M 1600 x 1200 3.5" x 5" Print

Smaller

VGA 640 x 480 E-Mail

• Selecting 3:2 (3072 x 2048 pixels) records images with an

aspect ratio of 3:2, which matches the standard aspect ratio

(3:2) of print paper.

• VGA (640 x 480 pixels) is the optimum size when attaching

images to e-mail.

• Print paper sizes should be thought of as rough estimates

only (200 dpi print resolution).

• The letters "HDTV" stand for "High Definition Television". An

HDTV screen has an aspect ratio of 16:9, which makes them

wider than the usual 4:3 aspect ratio of television screens of

the past. Your camera can record images that are compatible

with the aspect ratio of an HDTV screen.

SHOOTING A SNAPSHOT

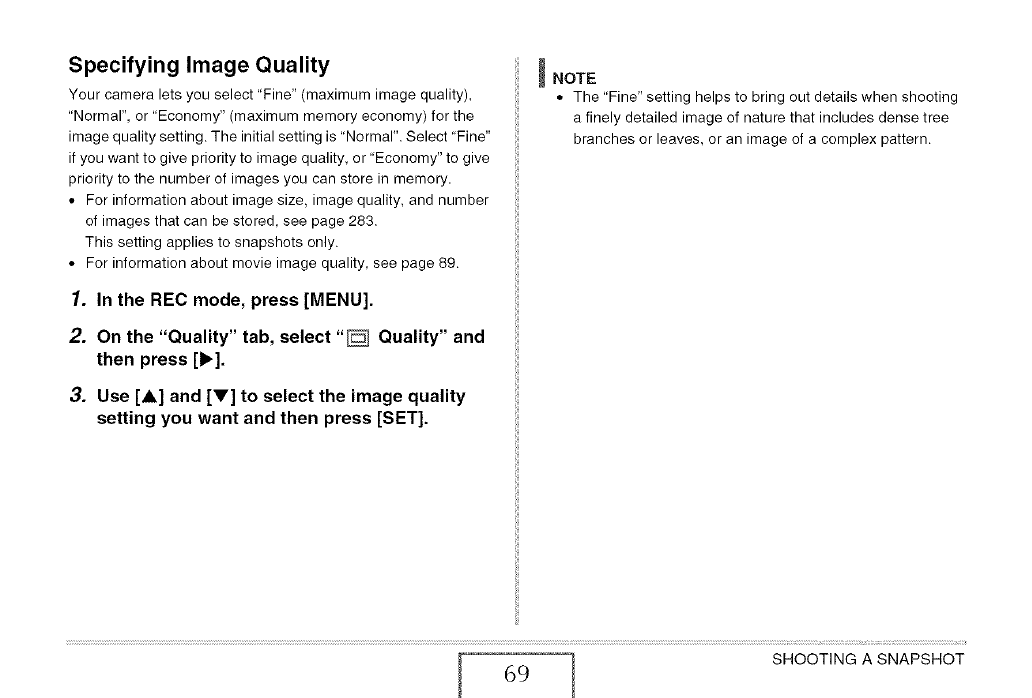

Specifying Image Quality

Your camera lets you select "Fine" (maximum image quality),

"Normal", or "Economy" (maximum memory economy) for the

image quality setting. The initial setting is "Normal". Select "Fine"

if you want to give priority to image quality, or "Economy" to give

priority to the number of images you can store in memory.

• For information about image size, image quality, and number

of images that can be stored, see page 283.

This setting applies to snapshots only.

• For information about movie image quality, see page 89.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "_ Quality" and

then press [1_].

3. Use [A] and [V] to select the image quality

setting you want and then press [SET].

_NOTE

• The "Fine" setting helps to bring out details when shooting

a finely detailed image of nature that includes dense tree

branches or leaves, or an image of a complex pattern.

SHOOTING A SNAPSHOT

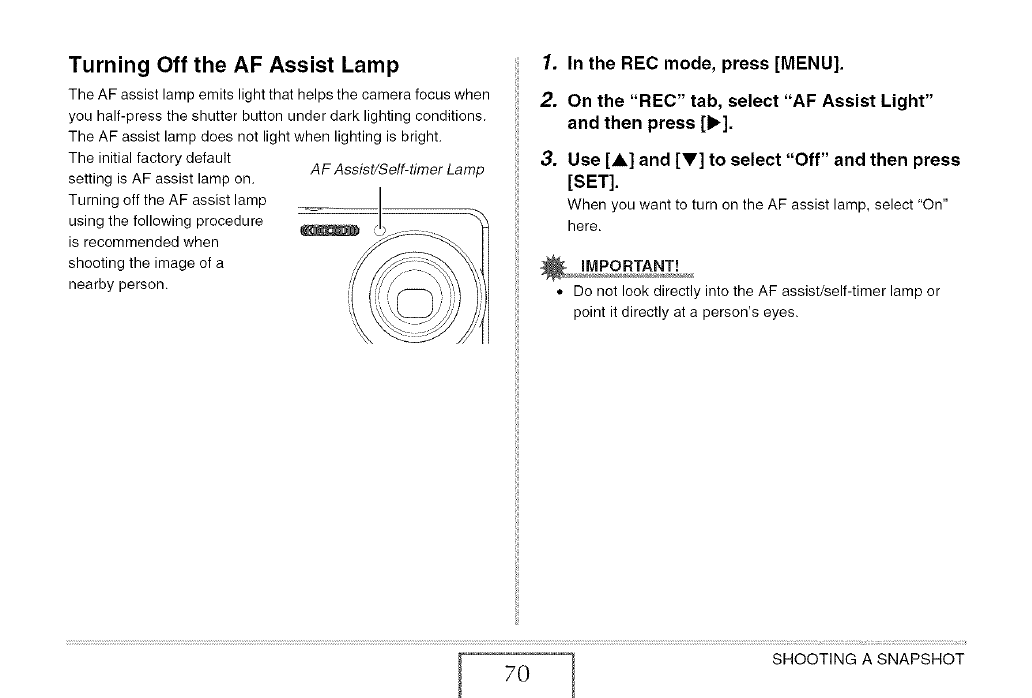

Turning Off the AF Assist Lamp

The AF assist lamp emits light that helps the camera focus when

you half-press the shutter button under dark lighting conditions.

The AF assist lamp does not light when lighting is bright.

The initial factory default

setting is AF assist lamp on. AFAssist/Self-timer Lamp

Turning off the AF assist lamp

using the following procedure

is recommended when

shooting the image of a

nearby person.

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "AF Assist Light"

and then press [1_].

3. Use [A] and [V] to select "Off" and then press

[SET].

When you want to turn on the AF assist lamp, select "On"

here.

• Do not look directly into the AF assist/self-timer lamp or

)oint it directly at a person's eyes.

SHOOTING A SNAPSHOT

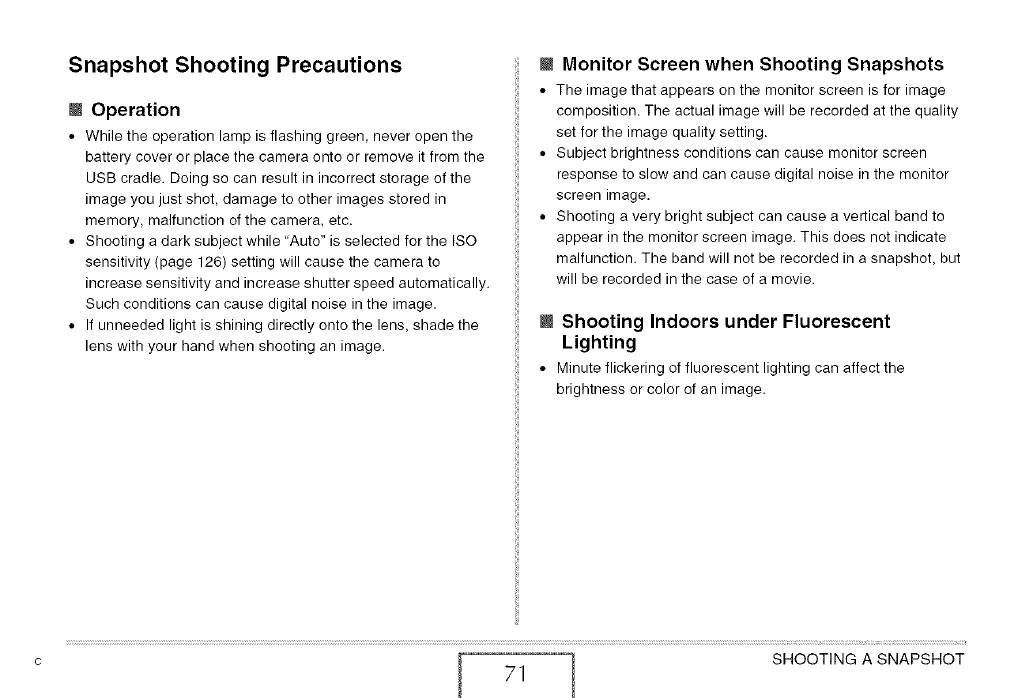

Snapshot Shooting Precautions

IOperation

• While the operation lamp is flashing green, never open the

battery cover or place the camera onto or remove it from the

USB cradle. Doing so can result in incorrect storage of the

image you just shot, damage to other images stored in

memory, malfunction of the camera, etc.

• Shooting a dark subject while "Auto" is selected for the ISO

sensitivity (page 126) setting will cause the camera to

increase sensitivity and increase shutter speed automatically.

Such conditions can cause digital noise in the image.

• If unneeded light is shining directly onto the lens, shade the

lens with your hand when shooting an image.

mMonitor Screen when Shooting Snapshots

• The image that appears on the monitor screen is for image

composition. The actual image will be recorded at the quality

set for the image quality setting.

• Subject brightness conditions can cause monitor screen

response to slow and can cause digital noise in the monitor

screen image.

• Shooting a very bright subject can cause a vertical band to

appear in the monitor screen image. This does not indicate

malfunction. The band will not be recorded in a snapshot, but

will be recorded in the case of a movie.

Shooting Indoors under Fluorescent

Lighting

• Minuteflickeringof fluorescentlightingcan affectthe

brightnessor colorof animage.

c SHOOTING A SNAPSHOT

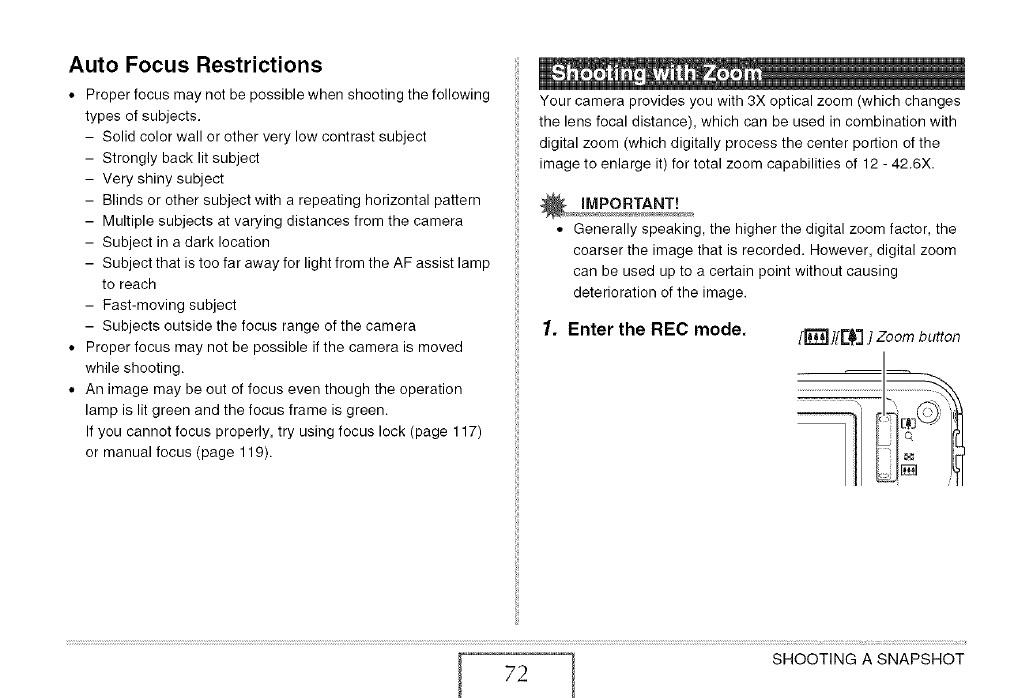

Auto Focus Restrictions

• Proper focus may not be possible when shooting the following

types of subjects.

- Solid color wall or other very low contrast subject

- Strongly back lit subject

- Very shiny subject

- Blinds or other subject with a repeating horizontal pattern

- Multiple subjects at varying distances from the camera

- Subject in a dark location

- Subject that is too far away for light from the AF assist lamp

to reach

- Fast-moving subject

- Subjects outside the focus range of the camera

• Proper focus may not be possible if the camera is moved

while shooting.

• An image may be out of focus even though the operation

lamp is lit green and the focus frame is green.

If you cannot focus properly, try using focus lock (page 117)

or manual focus (page 119).

Your camera provides you with 3X optical zoom (which changes

the lens focal distance), which can be used in combination with

digital zoom (which digitally process the center portion of the

image to enlarge it) for total zoom capabilities of 12 - 42.6X.

• Generally speaking, the higher the digital zoom factor, the

coarser the image that is recorded. However, digital zoom

can be used up to a certain point without causing

deterioration of the image.

1. Enter the REC mode. [r_][r_7]zoom button

SHOOTING A SNAPSHOT

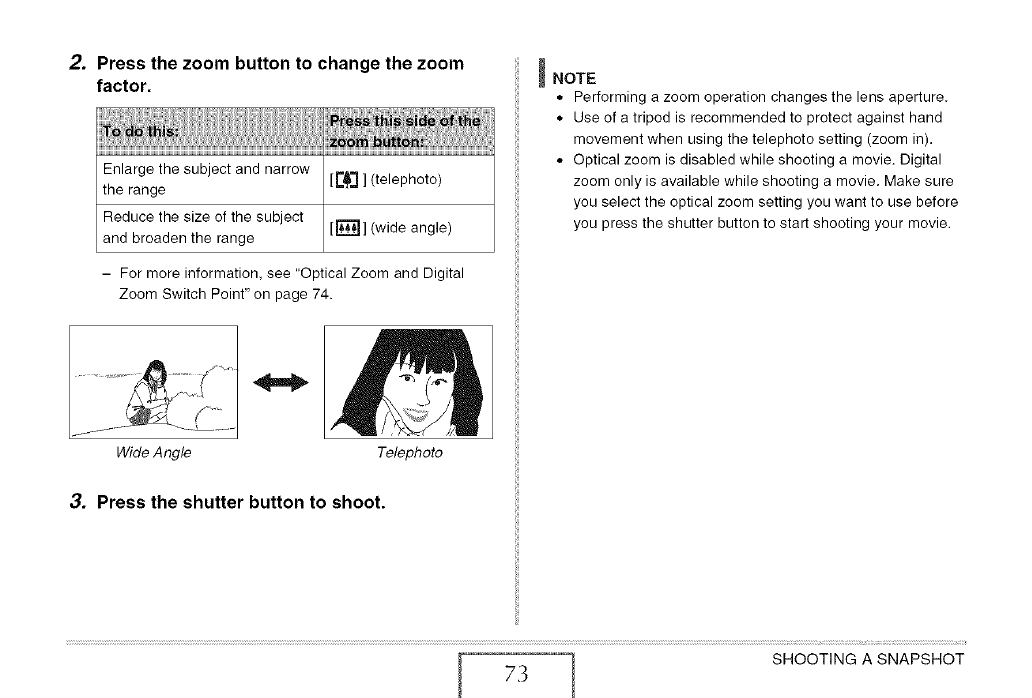

2. Press the zoom button to change the zoom

factor.

_ this _J_of th

Enlarge the subject and narrow [r_l] (telephoto)

the range

Reduce the size of the subject [1_'_1] (wide angle)

and broaden the range

- For more information, see "Optical Zoom and Digital

Zoom Switch Point" on page 74.

TelephotoWide Angle

3. Press the shutter button to shoot.

_NOTE

• Performing a zoom operation changes the lens aperture.

• Use of a tripod is recommended to protect against hand

movement when using the telephoto setting (zoom in).

• Optical zoom is disabled while shooting a movie. Digital

zoom only is available while shooting a movie. Make sure

you select the optical zoom setting you want to use before

you press the shutter button to start shooting your movie.

SHOOTING A SNAPSHOT

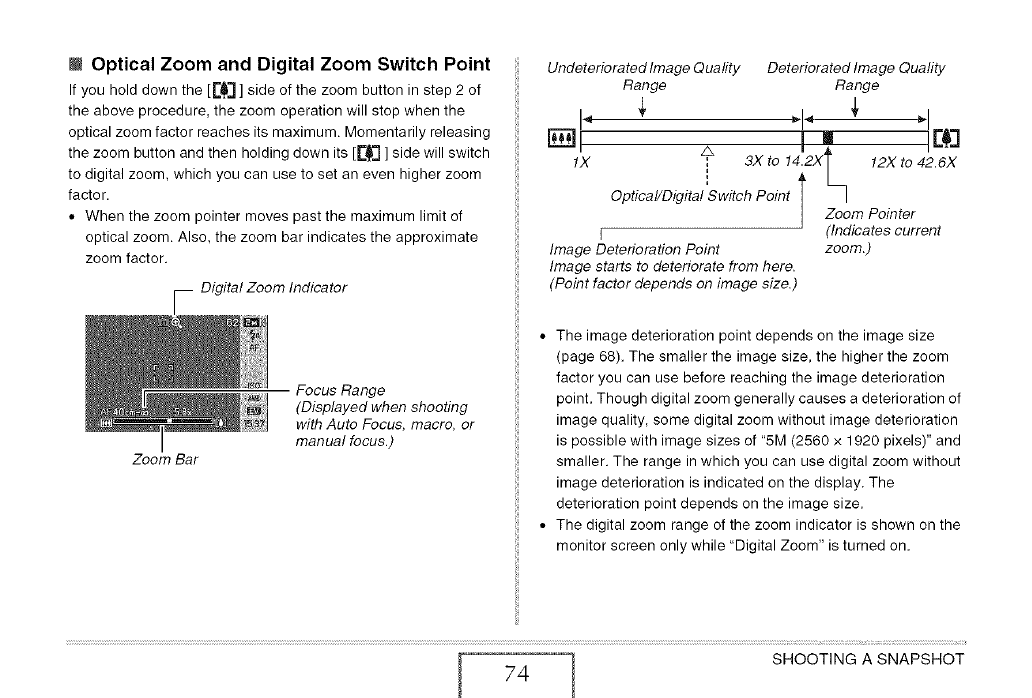

IOptical Zoom and Digital Zoom Switch Point

If you hold down the [['_'] ] side of the zoom button in step 2 of

the above procedure, the zoom operation will stop when the

optical zoom factor reaches its maximum. Momentarily releasing

the zoom button and then holding down its [r_3 ] side will switch

to digital zoom, which you can use to set an even higher zoom

factor.

• When the zoom pointer moves past the maximum limit of

optical zoom. Also, the zoom bar indicates the approximate

zoom factor.

Zoom Bar

Focus Range

(Displayed when shooting

with Auto Focus, macro, or

manual focus.)

Undeteriorated Image Quality

Range

Image Deterioration Point

Image starts to deteriorate from here.

(Point factor depends on image size.)

Deteriorated Image Quality

Range

:3X to 142X| 12X to 42.6X

Optical/DigitallSwitch Point T _|

|Zoom Pointer

I(Indicates current

zoom.)

• The image deterioration point depends on the image size

(page 68). The smaller the image size, the higher the zoom

factor you can use before reaching the image deterioration

point. Though digital zoom generally causes a deterioration of

image quality, some digital zoom without image deterioration

is possible with image sizes of "5M (2560 x 1920 pixels)" and

smaller. The range in which you can use digital zoom without

image deterioration is indicated on the display. The

deterioration point depends on the image size.

• The digital zoom range of the zoom indicator is shown on the

monitor screen only while "Digital Zoom" is turned on.

SHOOTING A SNAPSHOT

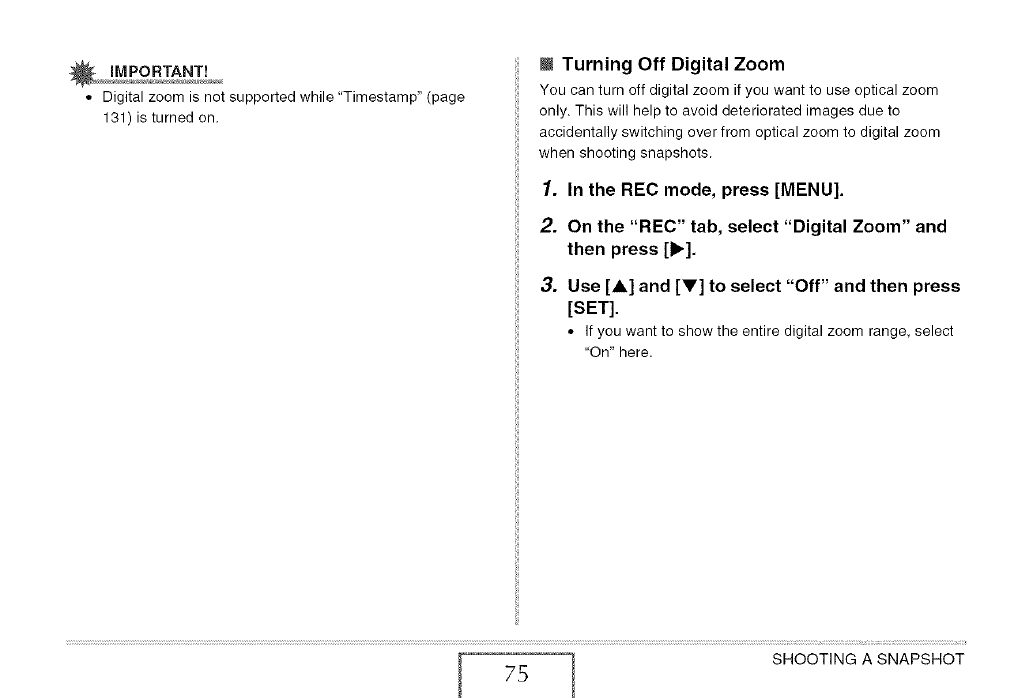

• Digital zoom is not supported while "Timestamp" (page

131) is turned on.

W Turning Off Digital Zoom

You can turn off digital zoom if you want to use optical zoom

only. This will help to avoid deteriorated images due to

accidentally switching over from optical zoom to digital zoom

when shooting snapshots.

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Digital Zoom" and

then press [1_].

3. Use [A] and [V] to select "Off" and then press

[SET].

•If you want to show the entire digital zoom range, select

"On" here.

SHOOTING A SNAPSHOT

Perform the following steps to select the flash mode you want to

use.

Auto Flash Flash fires automatically in accordance with

exposure (amount of light and brightness)

conditions.

• Initial factory default setting.

Flash Off Flash does not fire.

Flash On Flash always fires.

• This setting can be used to brighten a

subject that normally comes out dark due

to daylight or backlight (daylight synchro

flash).

Soft Flash Always use soft flash, regardless of

exposure conditions.

• Use this setting when you want to

suppress the flash to avoid reflection, etc.

Red Eye Flash fires automatically in accordance

same conditions as Auto Flash. This setting

can be used to reduce the red eye effect that

occurs in images of people shot with flash.

Approximate Flash Range (ISO Sensitivity: Auto)

Wide Angle :0.15 m to 39 m (0.5' to 12,8')

Telephoto : 0.4 m to 2.0 m (1.3' to 6.6')

• The flash range changes in accordance with optical zoom.

SHOOTING A SNAPSHOT

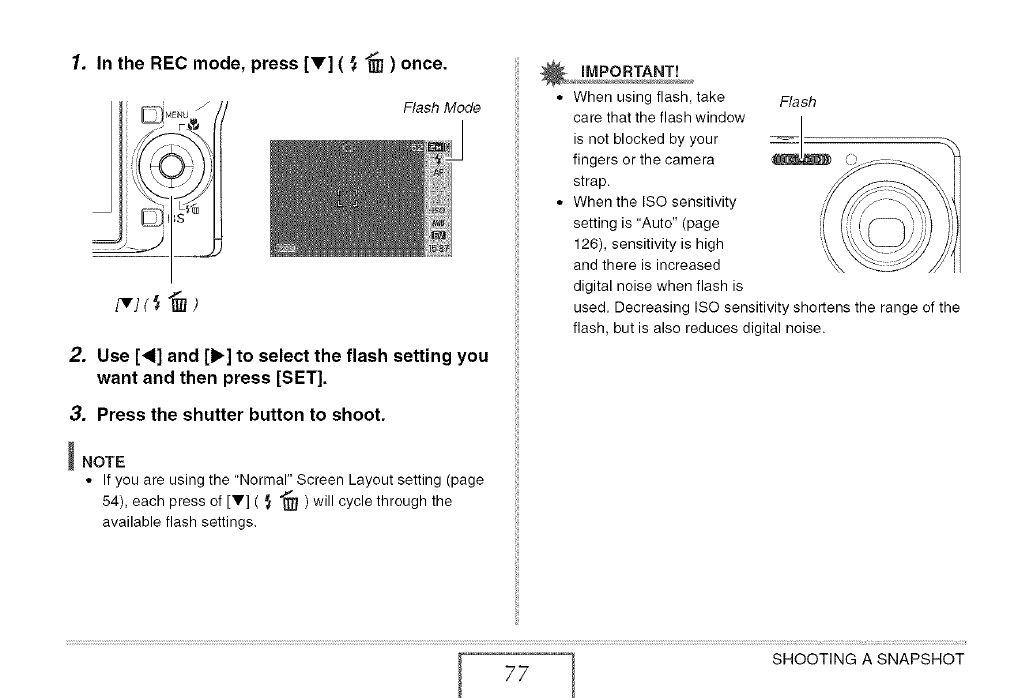

1. In the REC mode, press [Y] ( _ _ ) once.

Flash Mode

2. Use [41] and [11_]to select the flash setting you

want and then press [SET].

3. Press the shutter button to shoot.

_NOTE

• If you are using the "Normal" Screen Layout setting (page

54), each press of [V] ( } _] ) will cycle through the

available flash settings.

When using flash, take Flash

care that the flash window

is not blocked by your

fingers or the camera

strap.

When the ISO sensitivity

setting is "Auto" (page

126), sensitivity is high

and there is increased

digital noise when flash is

used. Decreasing ISO sensitivity shortens the range of the

flash, but is also reduces digital noise.

SHOOTING A SNAPSHOT

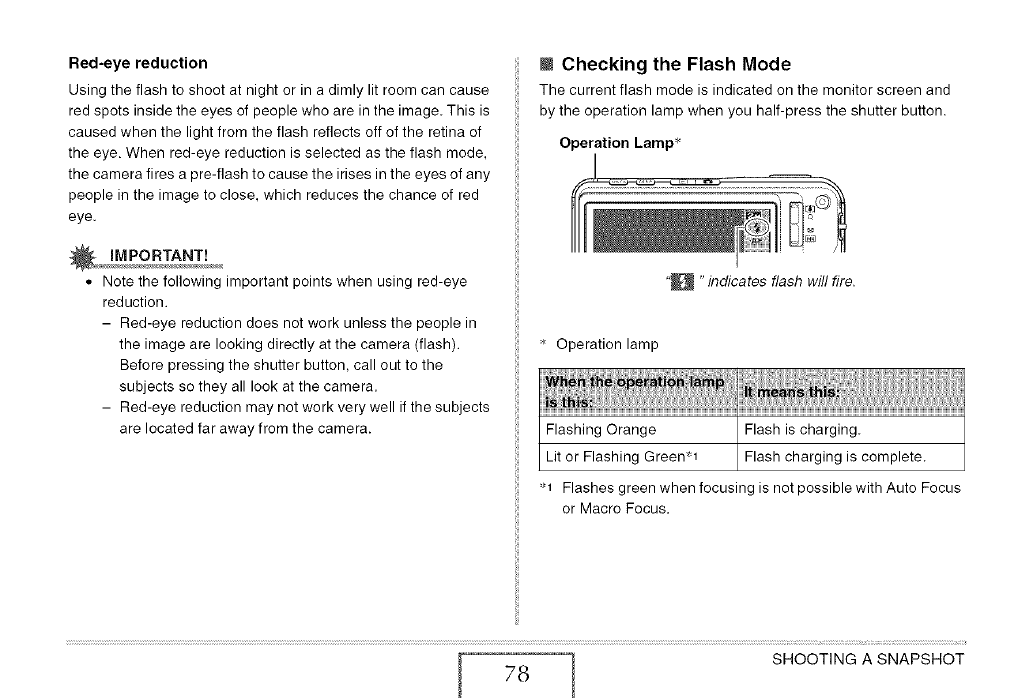

Red-eye reduction

Using the flash to shoot at night or in a dimly lit room can cause

red spots inside the eyes of people who are in the image. This is

caused when the light from the flash reflects off of the retina of

the eye. When red-eye reduction is selected as the flash mode,

the camera fires a pre-flash to cause the irises in the eyes of any

people in the image to close, which reduces the chance of red

eye.

• Note the following important points when using red-eye

reduction.

- Red-eye reduction does not work unless the people in

the image are looking directly at the camera (flash).

Before pressing the shutter button, call out to the

subjects so they all look at the camera.

- Red-eye reduction may not work verywell if the subjects

are located far away from the camera.

IChecking the Flash Mode

The current flash mode is indicated on the monitor screen and

by the operation lamp when you half-press the shutter button.

Operation Lamp s

"indicates flash will fire.

Operation lamp

Flashing Orange Flash is charging.

Lit or Flashing Green_q Flash charging is complete.

,J,1Flashes green when focusing is not possible with Auto Focus

or Macro Focus.

SHOOTING A SNAPSHOT

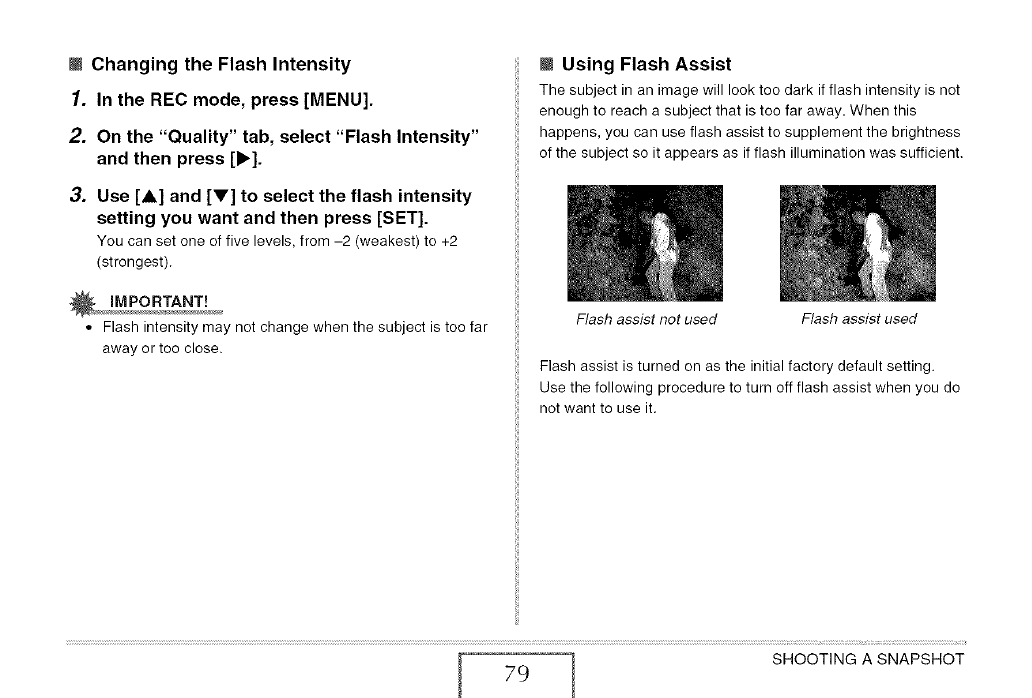

IChanging the Flash Intensity

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Flash Intensity"

and then press [b'].

3. Use [A] and [Y] to select the flash intensity

setting you want and then press [SET].

You can set one of five levels, from -2 (weakest) to +2

(strongest).

• Flash intensity may not change when the subject is too far

away or too close.

IUsing Flash Assist

The subject in an image will look too dark if flash intensity is not

enough to reach a subject that is too far away. When this

happens, you can use flash assist to supplement the brightness

of the subject so it appears as if flash illumination was sufficient.

Flash assist not used Flash assist used

Flash assist is turned on as the initial factory default setting.

Use the following procedure to turn off flash assist when you do

not want to use it.

SHOOTING A SNAPSHOT

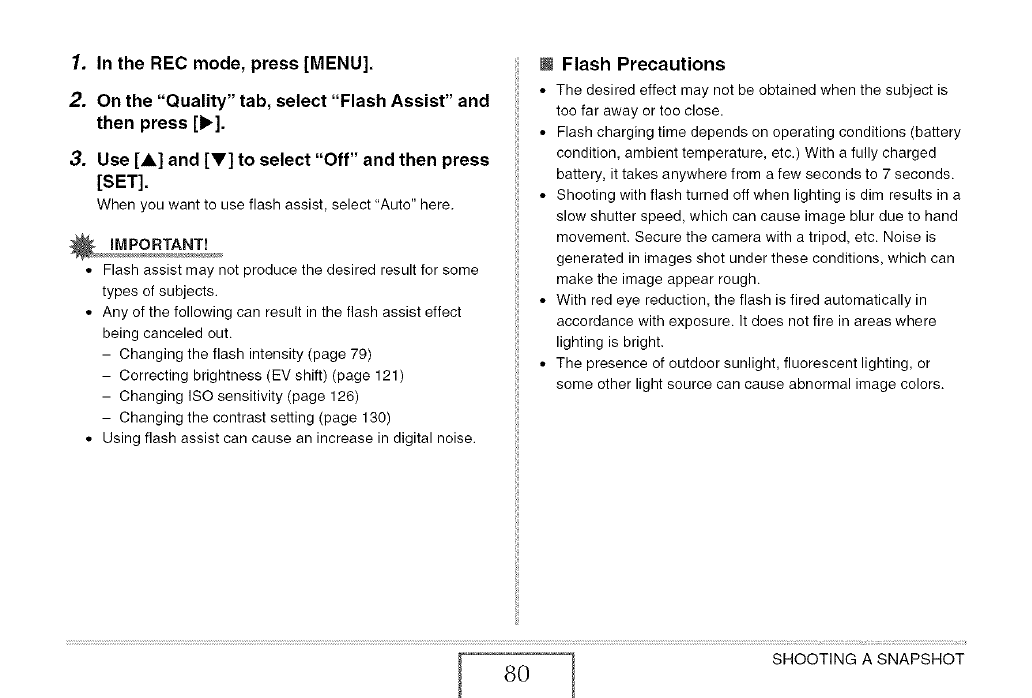

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Flash Assist" and

then press [I_].

3. Use [A] and [V] to select "Off" and then press

[SET].

When you want to use flash assist, select "Auto" here.

• Flash assist may not produce the desired result for some

types of subjects.

• Any of the following can result in the flash assist effect

being canceled out.

- Changing the flash intensity (page 79)

- Correcting brightness (EV shift) (page 121)

- Changing ISO sensitivity (page 126)

- Changing the contrast setting (page 130)

• Using flash assist can cause an increase in digital noise.

MFlash Precautions

• The desired effect may not be obtained when the subject is

too far away or too close.

• Flash charging time depends on operating conditions (battery

condition, ambient temperature, etc.) With a fully charged

battery, it takes anywhere from a few seconds to 7 seconds.

• Shooting with flash turned off when lighting is dim results in a

slow shutter speed, which can cause image blur due to hand

movement. Secure the camera with a tripod, etc. Noise is

generated in images shot under these conditions, which can

make the image appear rough.

• With red eye reduction, the flash is fired automatically in

accordance with exposure. It does not fire in areas where

lighting is bright.

• The presence of outdoor sunlight, fluorescent lighting, or

some other light source can cause abnormal image colors.

SHOOTING A SNAPSHOT

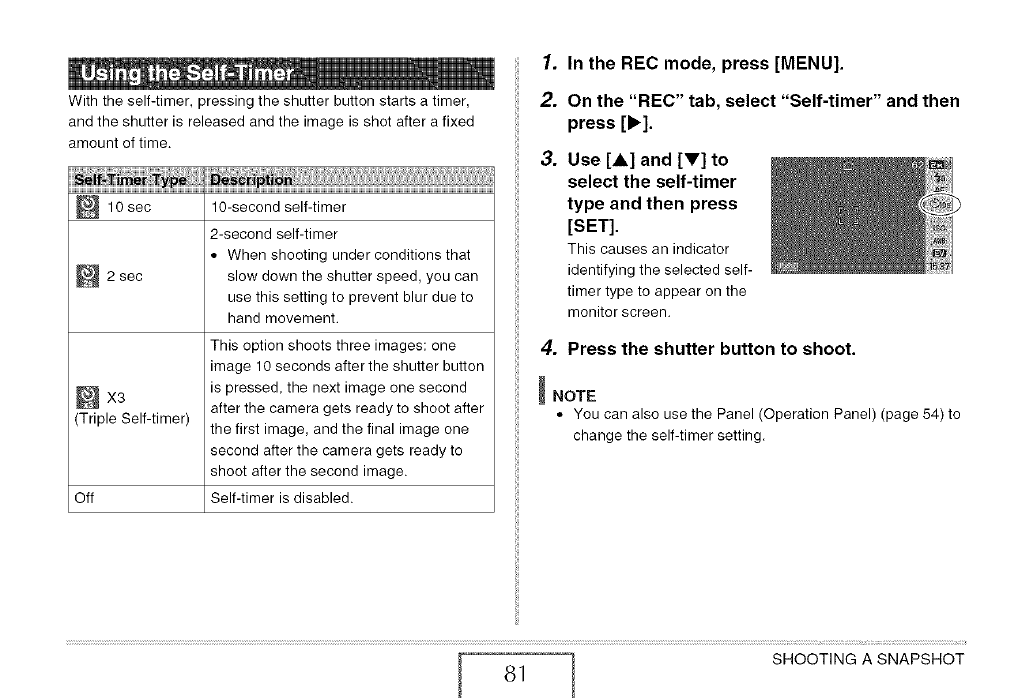

With the self-timer, pressing the shutter button starts a timer,

and the shutter is released and the image is shot after a fixed

amount of time.

_ lOsec

_2 sec

_X3

(Triple Self-timer)

Off

10-second self-timer

2-second self-timer

• When shooting under conditions that

slow down the shutter speed, you can

use this setting to prevent blur due to

hand movement.

This option shoots three images: one

tmage 10 seconds after the shutter button

ts pressed, the next image one second

after the camera gets ready to shoot after

the first image, and the final image one

second after the camera gets ready to

shoot after the second image.

Self-timer is disabled.

In the REC mode, press [MENU].

On the "REC" tab, select "Self-timer" and then

press [1_].

Use [A] and [V] to

select the self-timer

type and then press

[SET].

This causes an indicator

identifying the selected self-

timer type to appear on the

monitor screen.

4. Press the shutter button to shoot.

_NOTE

• You can also use the Panel (Operation Panel) (page 54) to

change the self-timer setting.

SHOOTING A SNAPSHOT

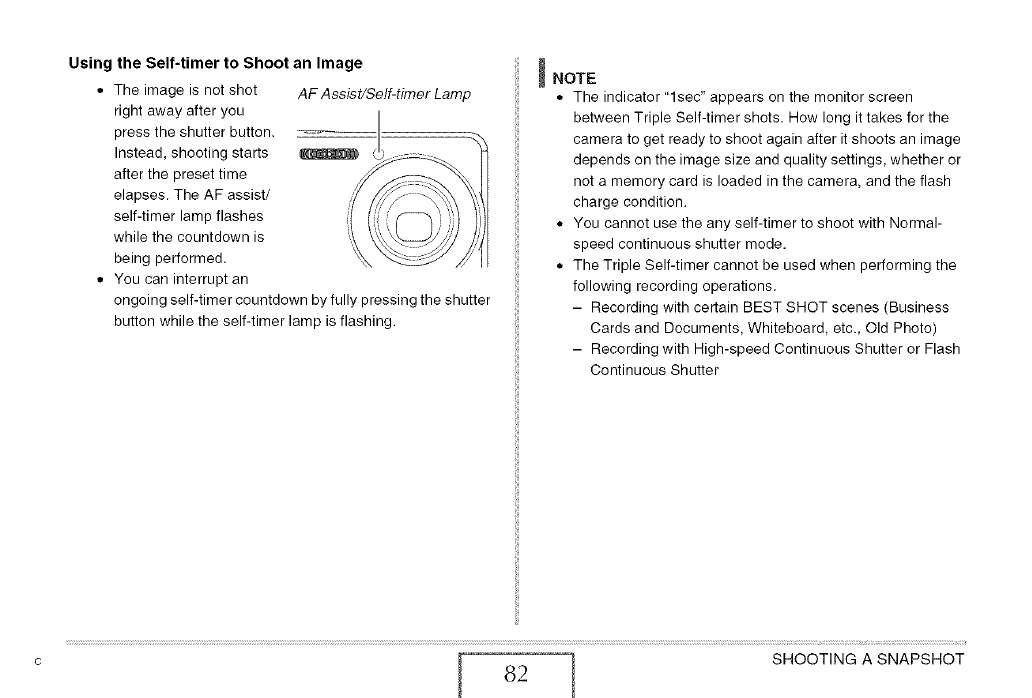

Using the Self-timer to Shoot an Image

• The image is not shot AFAesist/Self-timerLamp

right away after you

press the shutter button.

Instead, shooting starts

after the preset time

elapses. The AF assist/

self-timer lamp flashes

while the countdown is

being performed.

• You can interrupt an

ongoing self-timer countdown by fully pressing the shutter

button while the self-timer lamp is flashing.

_NOTE

• The indicator "lsec" appears on the monitor screen

between Triple Self-timer shots. How long it takes for the

camera to get ready to shoot again after it shoots an image

depends on the image size and quality settings, whether or

not a memory card is loaded in the camera, and the flash

charge condition.

• You cannot use the any self-timer to shoot with Normal-

speed continuous shutter mode.

• The Triple Self-timer cannot be used when performing the

following recording operations.

- Recording with certain BEST SHOT scenes (Business

Cards and Documents, Whiteboard, etc., Old Photo)

- Recording with High-speed Continuous Shutter or Flash

Continuous Shutter

c SHOOTING A SNAPSHOT

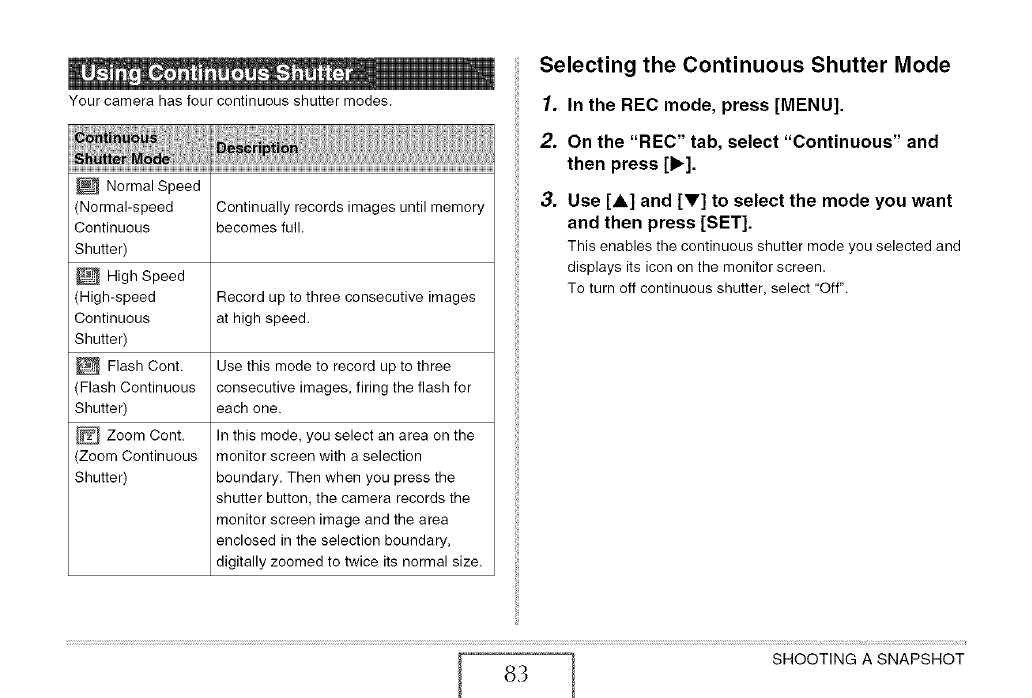

Your camera has four continuous shutter modes.

Normal Speed

Continually records images until memory

becomes full.

Record up to three consecutive images

at high speed.

(Normal-speed

Continuous

Shutter)

High Speed

(High-speed

Continuous

Shutter)

Flash Cont.

(Flash Continuous

Shutter)

Zoom Cont.

(Zoom Continuous

Shutter)

Use this mode to record up to three

consecutive images, firing the flash for

each one.

In this mode, you select an area on the

monitor screen with a selection

boundary. Then when you press the

shutter button, the camera records the

monitor screen image and the area

enclosed in the selection boundary,

digitally zoomed to twice its normal size.

Selecting the Continuous Shutter Mode

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Continuous" and

then press [1_].

3. Use [A] and [V] to select the mode you want

and then press [SET].

This enables the continuous shutter mode you selected and

displays its icon on the monitor screen.

To turn off continuous shutter, select "Off".

SHOOTING A SNAPSHOT

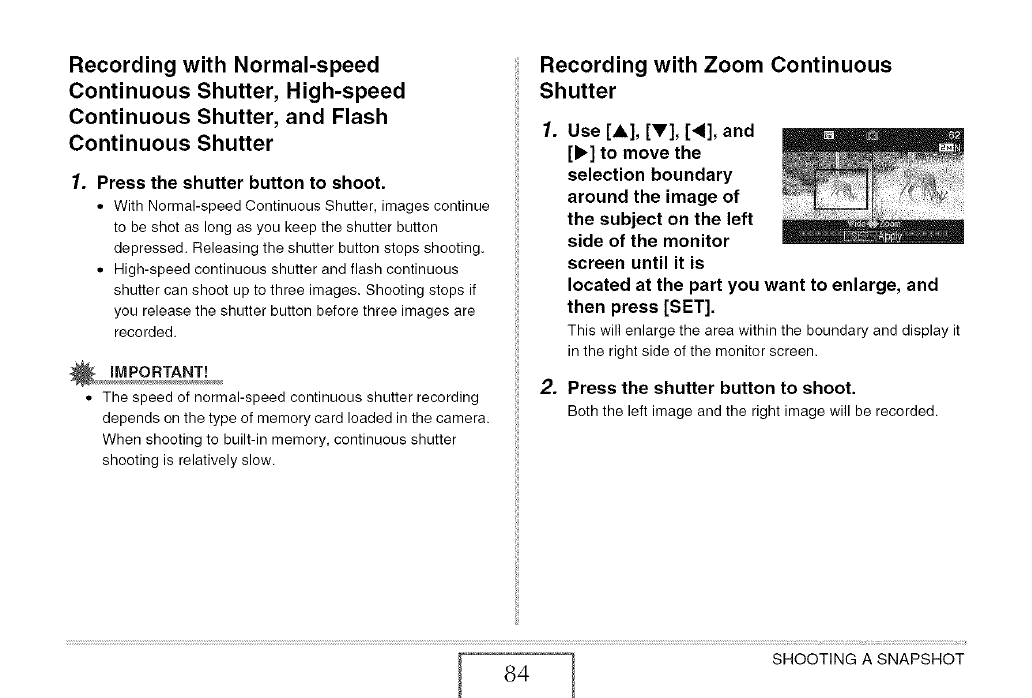

Recording with Normal-speed

Continuous Shutter, High-speed

Continuous Shutter, and Flash

Continuous Shutter

1. Press the shutter button to shoot.

• With Normal-speed Continuous Shutter, images continue

to be shot as long as you keep the shutter button

depressed. Releasing the shutter button stops shooting.

• High-speed continuous shutter and flash continuous

shutter can shoot up to three images. Shooting stops if

you release the shutter button before three images are

recorded.

• The speed of normal-speed continuous shutter recording

depends on the type of memory card loaded in the camera.

When shooting to built-in memory, continuous shutter

shooting is relatively slow.

Recording with Zoom Continuous

Shutter

Use [A], [V], [<], and

[1_] to move the

selection boundary

around the image of

the subject on the left

side of the monitor

screen until it is

located at the part you want to enlarge, and

then press [SET].

Thiswill enlargetheareawithin the boundaryanddisplay it

in the rightside of the monitorscreen.

Press the shutter button to shoot.

Both the left image and the right image will be recorded.

SHOOTING A SNAPSHOT

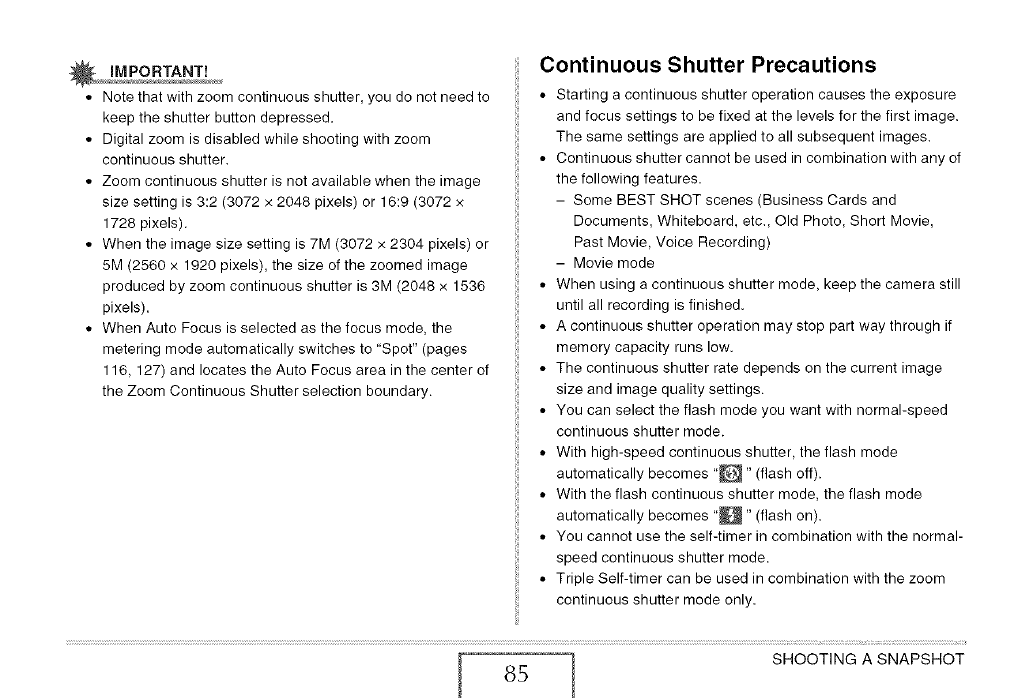

• Note that with zoom continuous shutter, you do not need to

keep the shutter button depressed.

• Digital zoom is disabled while shooting with zoom

continuous shutter.

• Zoom continuous shutter is not available when the image

size setting is 3:2 (3072 x 2048 pixels) or 16:9 (3072 x

1728 pixels).

• When the image size setting is 7M (3072 x 2304 pixels) or

5M (2560 x 1920 pixels), the size of the zoomed image

produced by zoom continuous shutter is 3M (2048 x 1536

pixels).

• When Auto Focus is selected as the focus mode, the

metering mode automatically switches to "Spot" (pages

116, 127) and locates the Auto Focus area in the center of

the Zoom Continuous Shutter selection boundary.

Continuous Shutter Precautions

• Starting a continuous shutter operation causes the exposure

and focus settings to be fixed at the levels for the first image.

The same settings are applied to all subsequent images.

• Continuous shutter cannot be used in combination with any of

the following features.

- Some BEST SHOT scenes (Business Cards and

Documents, Whiteboard, etc., Old Photo, Short Movie,

Past Movie, Voice Recording)

- Movie mode

• When using a continuous shutter mode, keep the camera still

until all recording is finished.

• A continuous shutter operation may stop part way through if

memory capacity runs low.

• The continuous shutter rate depends on the current image

size and image quality settings.

• You can select the flash mode you want with normal-speed

continuous shutter mode.

• With high-speed continuous shutter, the flash mode

automatically becomes "_" (flash off).

• With the flash continuous shutter mode, the flash mode

automatically becomes "_" (flash on).

• You cannot use the self-timer in combination with the normal-

speed continuous shutter mode.

• Triple Self-timer can be used in combination with the zoom

continuous shutter mode only.

SHOOTING A SNAPSHOT

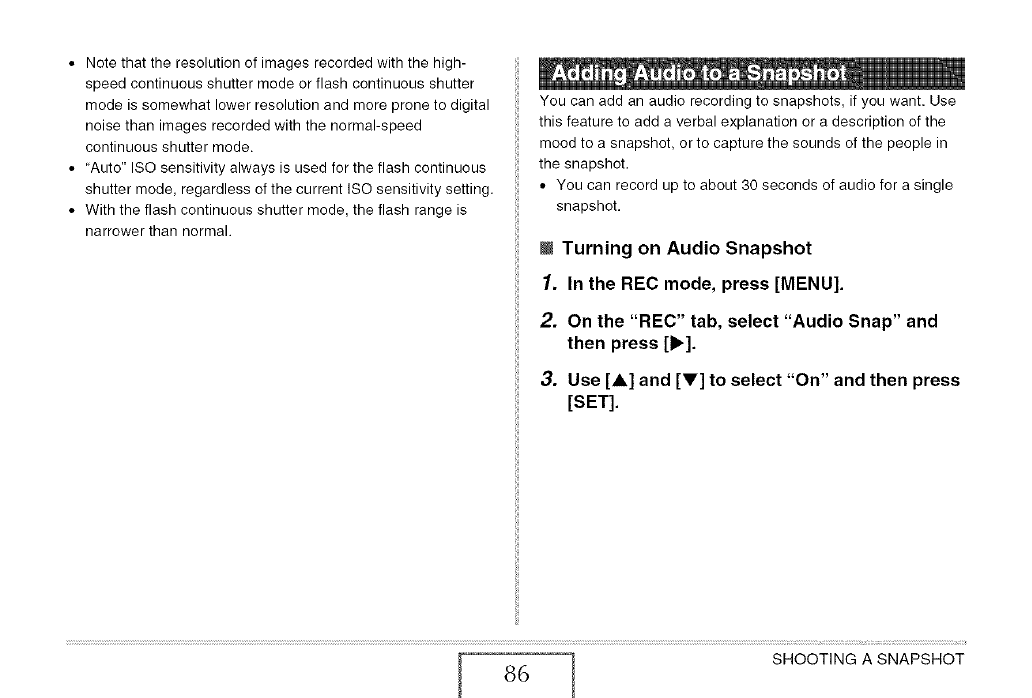

• Note that the resolution of images recorded with the high-

speed continuous shutter mode or flash continuous shutter

mode is somewhat lower resolution and more prone to digital

noise than images recorded with the normal-speed

continuous shutter mode.

• "Auto" ISO sensitivity always is used for the flash continuous

shutter mode, regardless of the current ISO sensitivity setting.

• With the flash continuous shutter mode, the flash range is

narrower than normal.

You can add an audio recording to snapshots, if you want. Use

this feature to add a verbal explanation or a description of the

mood to a snapshot, or to capture the sounds of the people in

the snapshot.

• You can record up to about 30 seconds of audio for a single

snapshot.

WTurning on Audio Snapshot

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Audio Snap" and

then press [1_].

3. Use [A] and [V] to select "On" and then press

[SET].

SHOOTING A SNAPSHOT

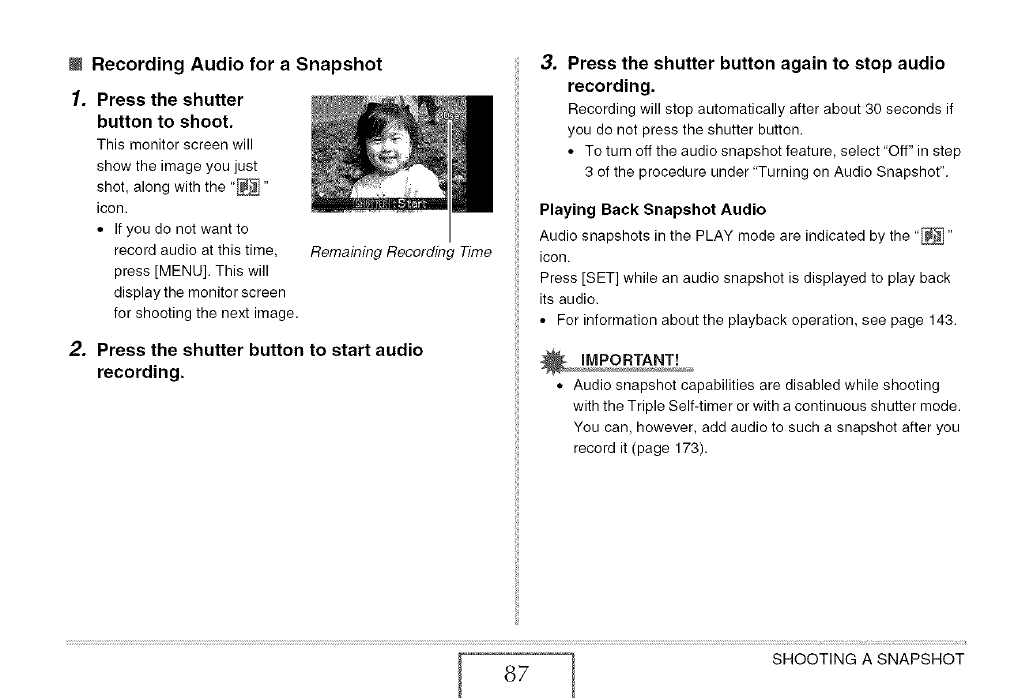

IRecording Audio for aSnapshot

1. Press the shutter

button to shoot.

This monitor screen will

show the image you just

shot, along with the "_"

icon.

• If you do not want to

record audio at this time,

press [MENU]. This will

display the monitor screen

for shooting the next image.

Remaining Recording Time

2. Press the shutter button to start audio

recording.

3. Press the shutter button again to stop audio

recording.

Recording will stop automatically after about 30 seconds if

you do not press the shutter button.

• To turn off the audio snapshot feature, select "Off" in step

3 of the procedure under "Turning on Audio Snapshot".

Playing Back Snapshot Audio

Audio snapshots in the PLAY mode are indicated by the "_"

icon.

Press [SET] while an audio snapshot is displayed to play back

its audio.

• For information about the playback operation, see page 143.

• Audio snapshot capabilities are disabled while shooting

with the Triple Self-timer or with a continuous shutter mode.

You can, however, add audio to such a snapshot after you

record it (page 173).

SHOOTING A SNAPSHOT

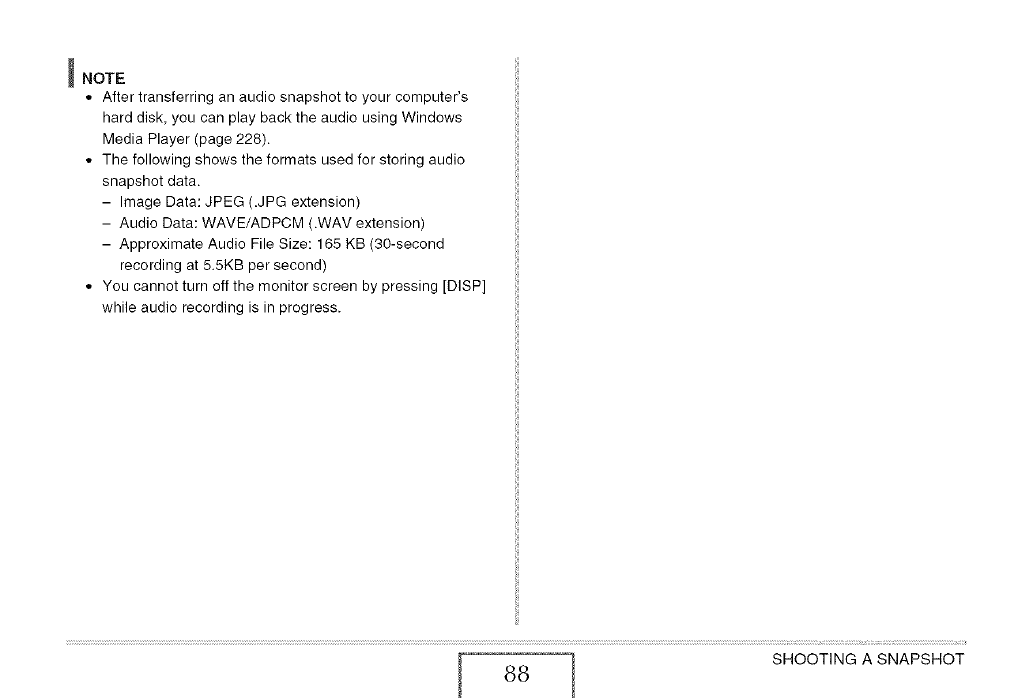

_NOTE

• After transferring an audio snapshot to your computer's

hard disk, you can play back the audio using Windows

Media Player (page 228).

• The following shows the formats used for storing audio

snapshot data.

- Image Data: JPEG (.JPG extension)

- Audio Data: WAVE/ADPCM (.WAV extension)

- Approximate Audio File Size: 165 KB (30-second

recording at 5.5KB per second)

• You cannot turn off the monitor screen by pressing [DISP]

while audio recording is in progress.

SHOOTING A SNAPSHOT

Before shooting a movie, you should specify a movie image

quality setting. Movie image quality is a standard that

determines the detail, smoothness, and clarity of a movie during

playback. Shooting with the high-quality (HQ) setting will result

in better image quality, but it also shortens the amount of time

you can shoot.

4.0 Megabits/ 30 frames/

HQ 640 x 480 second second

4.0 Megabits/ 30 frames/

HQ Wide 704 x 384 second second

2.1 Megabits/ 30 frames/

Normal 640 x 480 second second

2.1 Megabits/ 30 frames/

Normal Wide 704 x 384 second second

745 Kilobits/ 15 frames/

LP 320 x 240 second second

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "_ Quality" and

then press [11_].

3. Use [A] and [V] to select the quality setting

you want and then press [SET].

• The "_" indicator is on the monitor screen while "HQ

Wide" or "Normal Wide" is selected for the quality setting.

Movie File Formats

Movies are recorded in MPEG-4 standard AVl format.

Movies you shoot with your camera can be played back on a

computer using the following software.

- Windows Media Player

- Macintosh QuickTime (Requires installation of CASIO AVl

Importer component.)

SHOOTING A MOVIE

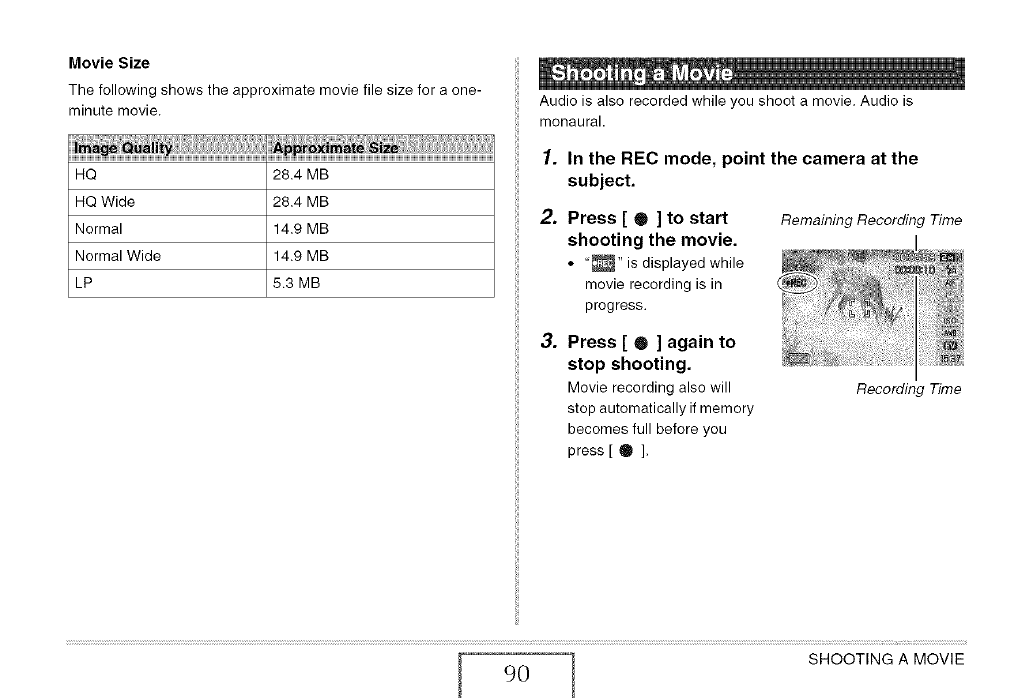

Movie Size

The following shows the approximate movie file size for a one

minute movie

HQ 284 MB

HQ Wide 284 MB

Normal 149 MB

Normal Wide 149 MB

LP 53 MB

Audio is also recorded while you shoot a movie Audio is

monaural

1. In the REC mode, point the camera at the

subject.

2. Press [ •] to start

shooting the movie.

•_ is displayed while

movie recording is in

progress

3. Press [ •] again to

stop shooting.

Movie recording also will

stop automatically if memory

becomes full before you

press [ • ]

Remaining Recording Time

Recording Time

SHOOTING A MOVIE

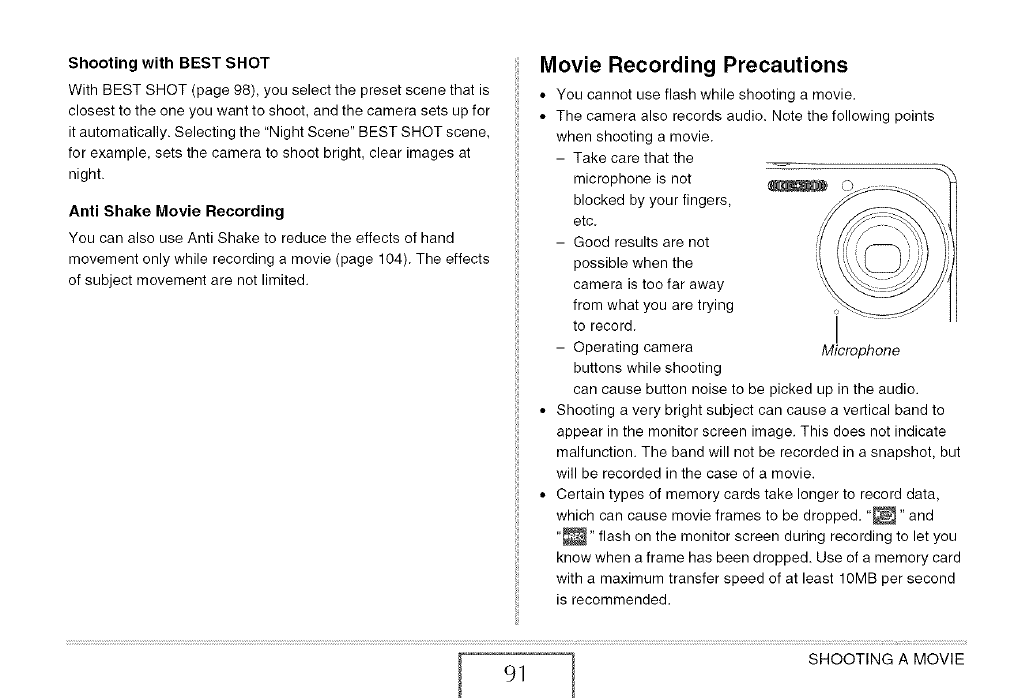

Shooting with BEST SHOT

With BEST SHOT (page 98), you select the preset scene that is

closest to the one you want to shoot, and the camera sets up for

it automatically. Selecting the "Night Scene" BEST SHOT scene,

for example, sets the camera to shoot bright, clear images at

night.

Anti Shake Movie Recording

You can also use Anti Shake to reduce the effects of hand

movement only while recording a movie (page 104). The effects

of subject movement are not limited.

Movie Recording Precautions

• You cannot use flash while shooting a movie.

• The camera also records audio. Note the following points

when shooting a movie.

- Take care that the

microphone is not _,

blocked by your fingers,

etc.

- Good results are not

possible when the

camera is too far away

from what you are trying

to record. ]

- Operating camera Microphone

buttons while shooting

can cause button noise to be picked up in the audio.

• Shooting a very bright subject can cause a vertical band to

appear in the monitor screen image. This does not indicate

malfunction. The band will not be recorded in a snapshot, but

will be recorded in the case of a movie.

• Certain types of memory cards take longer to record data,

which can cause movie frames to be dropped. "_" and

"_" flash on the monitor screen during recording to let you

know when a frame has been dropped. Use of a memory card

with a maximum transfer speed of at least 10MB per second

is recommended.

SHOOTING A MOVIE

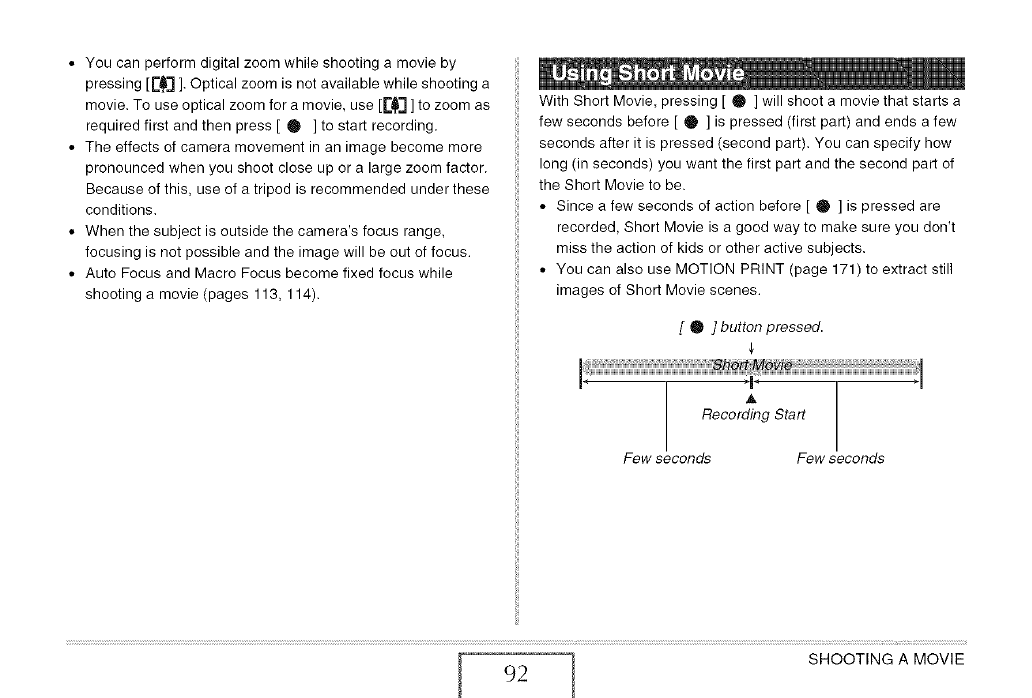

• You can perform digital zoom while shooting a movie by

pressing [r_] ] Optical zoom is not available while shooting a

movie To use optical zoom for a movie use [r_l] to zoom as

required first and then press [ 0 ] to start recording

• The effects of camera movement in an image become more

pronounced when you shoot close up or a large zoom factor

Because of this use of a tripod is recommended under these

conditions

• When the subject is outside the camera's focus range

focusing is not possible and the image will be out of focus

• Auto Focus and Macro Focus become fixed focus while

shooting a movie (pages 113 114)

With Short Movie pressing [ • ] will shoot a movie that starts a

few seconds before [ • ] is pressed (first part) and ends a few

seconds after it is pressed (second part) You can specify how

long (in seconds) you want the first part and the second part of

the Short Movie to be

• Since a few seconds of action before [ Q ] is pressed are

recorded Short Movie is a good wayto make sure you don't

miss the action of kids or other active subjects

• You can also use MOTION PRINT (page 171) to extract still

images of Short Movie scenes

[•] button pressed.

Recording Start

Few seconds Few seconds

SHOOTING A MOVIE

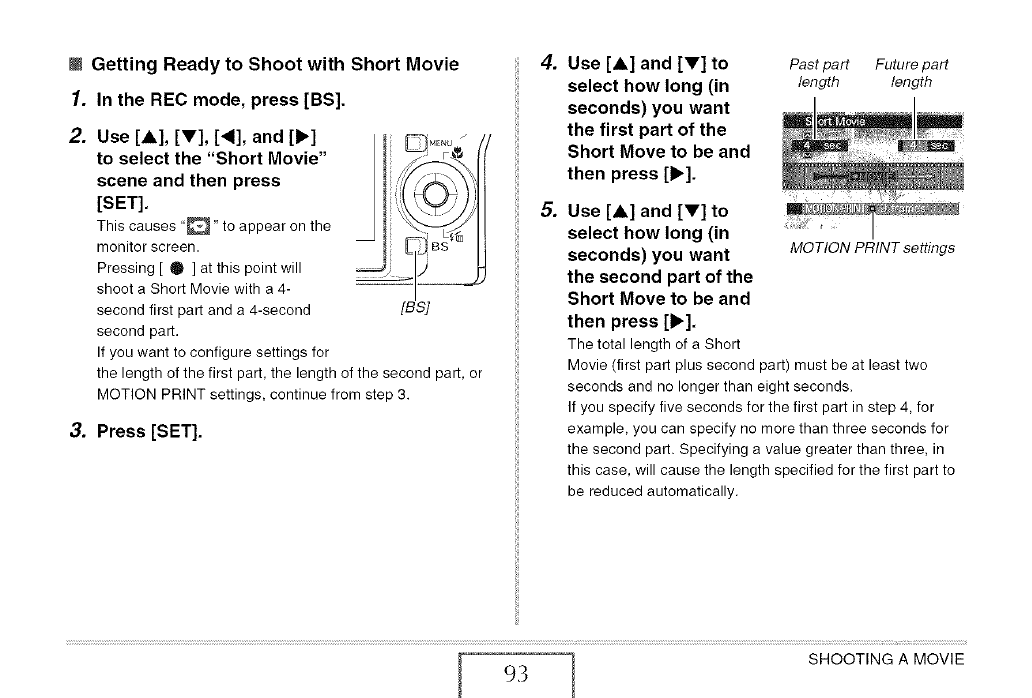

IGetting Ready to Shoot with Short Movie

1. In the REC mode, press [BS].

2. Use [A], [V], [4], and [11_]

to select the "Short Movie"

scene and then press

[SET].

This causes "D" to appear on the

monitor screen.

Pressing [ • ] at this point will

shoot a Short Movie with a 4-

second first part and a 4-second

second part,

If you want to configure settings for

= Q .... _ //

!BS]

the length of the first part, the length of the second part, or

MOTION PRINT settings, continue from step 3.

3. Press [SET].

Use [A] and [V] to

select how long (in

seconds) you want

the first part of the

Short Move to be and

then press [11_].

Past part Future part

length length

Use [A] and [V] to

select how long (in

seconds) you want

the second part of the

Short Move to be and

then press [11_].

The total length of a Short

Movie (first part plus second part) must be at least two

seconds and no longer than eight seconds.

If you specify five seconds for the first part in step 4, for

example, you can specify no more than three seconds for

the second part. Specifying a value greater than three, in

this case, will cause the length specified for the first part to

be reduced automatically.

MOTION PRINT settings

SHOOTING A MOVIE

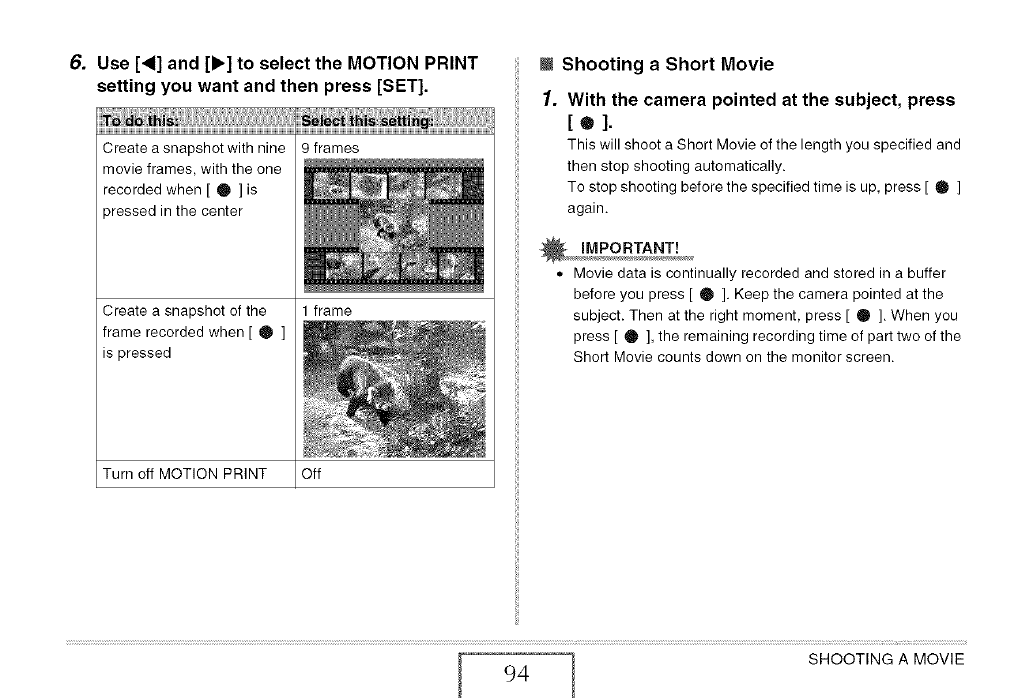

6. Use [_1] and [1_] to select the MOTION PRINT

setting you want and then press [SET].

Create a snapshot with nine 9 frames

movie frames, with the one

recorded when [ • ] is

)ressed in the center

Create a snapshot of the 1 frame

frame recorded when [ • ]

is pressed

Turn off MOTION PRINT Off

WShooting a Short Movie

1. With the camera pointed at the subject, press

[o].

This will shoot a Short Movie of the length you specified and

then stop shooting automatically.

To stop shooting before the specified time is up, press [ • ]

again.

Movie data is continually recorded and stored in a buffer

before you press [ • ]. Keep the camera pointed at the

subject. Then at the right moment, press [ • ]. When you

press [ • ], the remaining recording time of part two of the

Short Movie counts down on the monitor screen.

SHOOTING A MOVIE

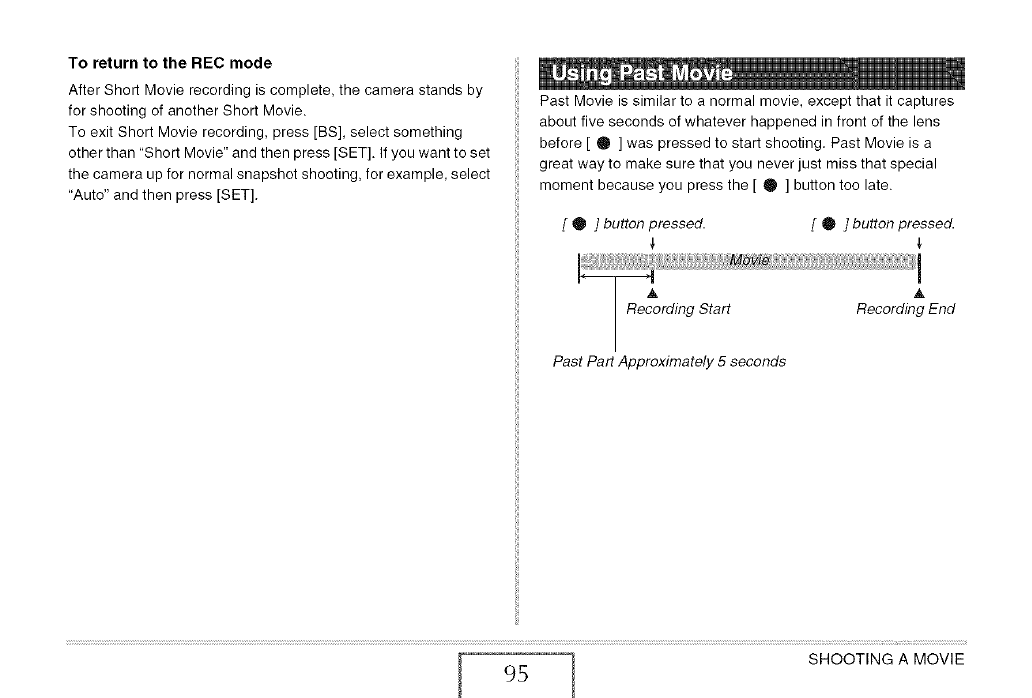

To return to the REC mode

After Short Movie recording is complete, the camera stands by

for shooting of another Short Movie.

To exit Short Movie recording, press [BS], select something

other than "Short Movie" and then press [SET]. If you want to set

the camera up for normal snapshot shooting, for example, select

"Auto" and then press [SET].

Past Movie is similar to a normal movie, except that it captures

about five seconds of whatever happened in front of the lens

before [ • ] was pressed to start shooting. Past Movie is a

great way to make sure that you never just miss that special

moment because you press the [ • ] button too late.

[0] button pressed. [ •] button pressed.

Past Part Approximately 5 seconds

SHOOTING A MOVIE

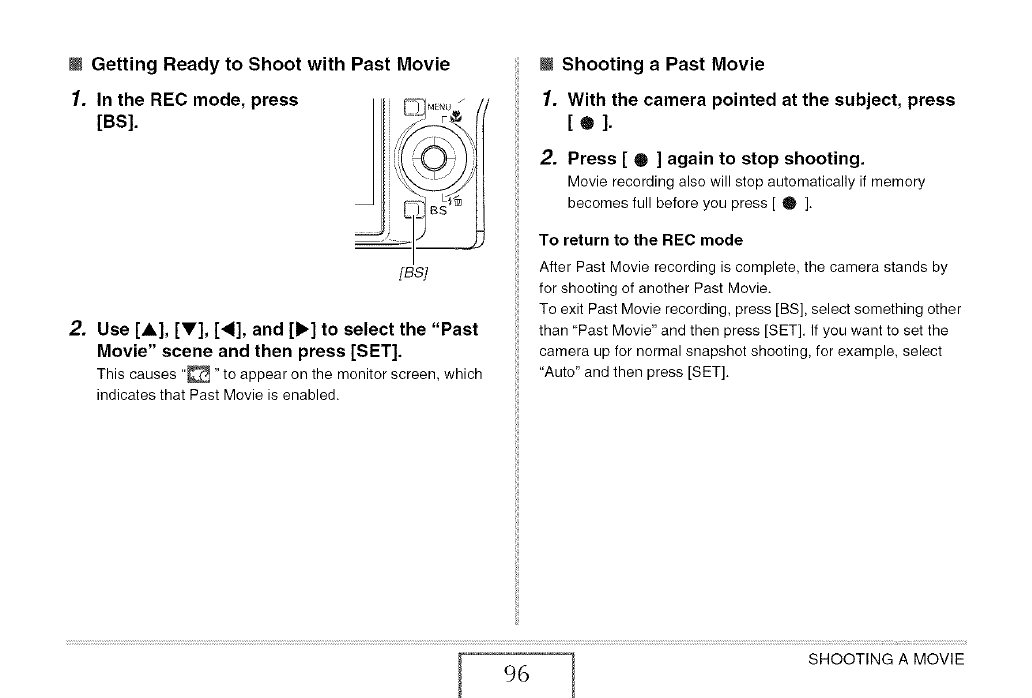

IGetting Ready to Shoot with Past Movie

1. In the REC mode, press

[BS]. II _ ..... _ //

Jji CBs'_

!BS]

2. Use [A], [V], [<], and [P] to select the "Past

Movie" scene and then press [SET].

This causes "_" to appear on the rnonitor screen, which

indicates that Past Movie is enabled.

WShooting a Past Movie

1. With the camera pointed at the subject, press

[o].

2. Press [ ®] again to stop shooting.

Movie recording also will stop autornatically if memory

becomes full before you press [ • ].

To return to the REC mode

After Past Movie recording is complete, the camera stands by

for shooting of another Past Movie.

To exit Past Movie recording, press [BS], select something other

than "Past Movie" and then press [SET]. If you want to set the

camera up for normal snapshot shooting, for example, select

"Auto" and then press [SET].

SHOOTING A MOVIE

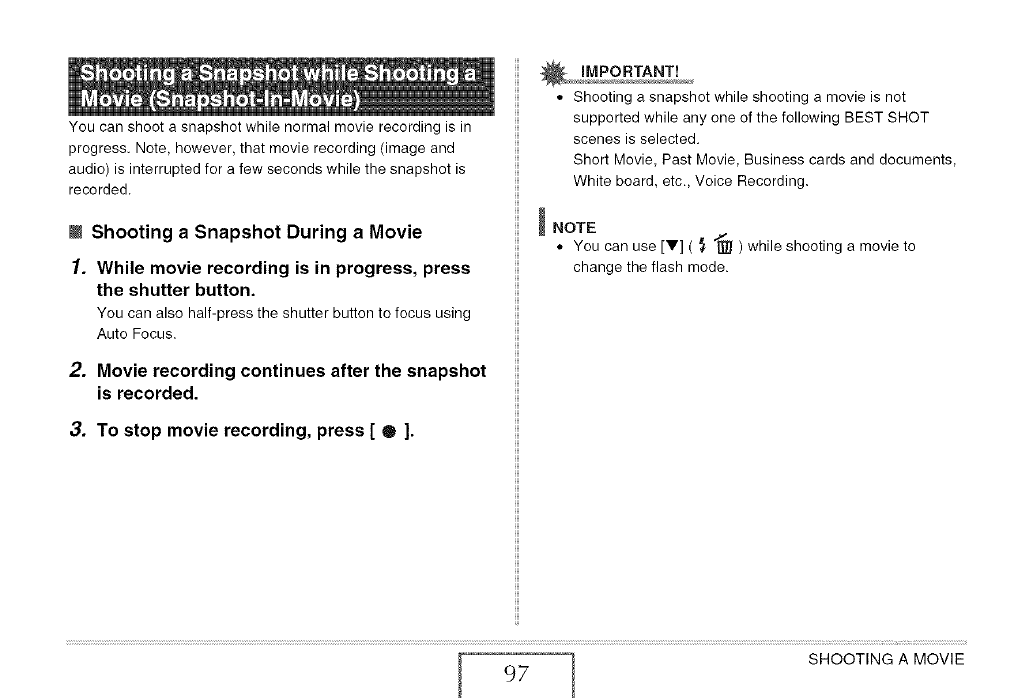

You can shoot a snapshot while normal movie recording is in

progress. Note, however, that movie recording (image and

audio) is interrupted for a few seconds while the snapshot is

recorded.

IShooting a Snapshot During a Movie

1. While movie recording is in progress, press

the shutter button.

You can also half-press the shutter button to focus using

Auto Focus.

2. Movie recording continues after the snapshot

is recorded.

3. To stop movie recording, press [ ® ].

• Shooting a snapshot while shooting a movie is not

supported while any one of the following BEST SHOT

scenes is selected.

Short Movie, Past Movie, Business cards and documents,

White board, etc., Voice Recording.

_NOTE

• You can use [V] ( { _ ) while shooting a movie to

change the flash mode.

SHOOTING A MOVIE

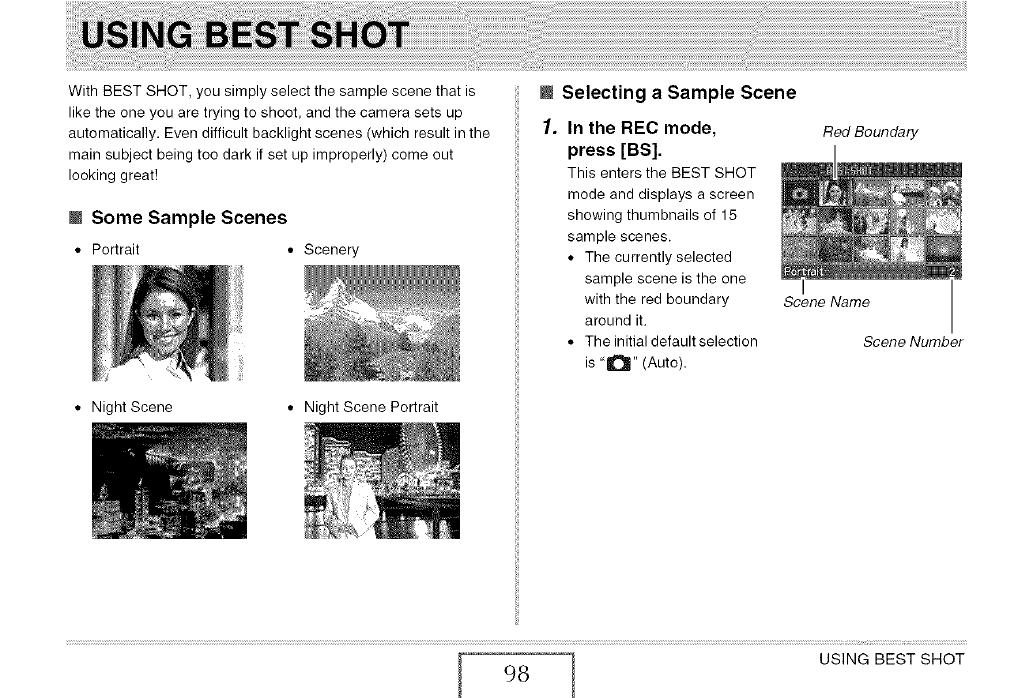

With BEST SHOT, you simply select the sample scene that is

like the one you are trying to shoot, and the camera sets up

automatically. Even difficult backlight scenes (which result in the

main subject being too dark if set up improperly) come out

looking great!

I Some Sample Scenes

• Portrait • Scenery

• Night Scene • Night Scene Portrait

WSelecting a Sample Scene

1. In the REC mode,

press [BS].

This enters the BEST SHOT

mode and displays a screen

showing thumbnails of 15

sample scenes.

• The currently selected

sample scene is the one

with the red boundary

around it.

• The initial default selection

is "1_" (Auto).

Red Boundary

Scene Name

Scene Number

USING BEST SHOT

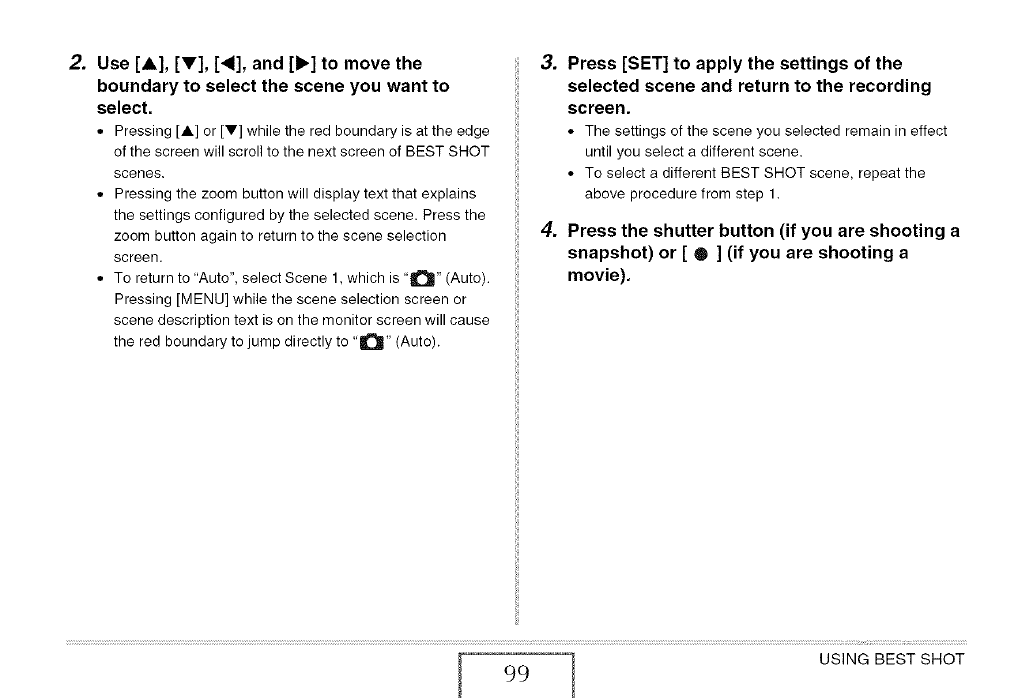

2. Use [A], [Y], [_], and [1_] to move the

boundary to select the scene you want to

select.

• Pressing [A] or [V] while the red boundary is at the edge

of the screen will scroll to the next screen of BEST SHOT

scenes.

• Pressing the zoom button will display text that explains

the settings configured by the selected scene. Press the

zoom button again to return to the scene selection

screen.

• To return to "Auto", select Scene 1,which is "Q" (Auto).

Pressing [MENU] while the scene selection screen or

scene description text is on the monitor screen will cause

the red boundary to jump directly to "Q" (Auto).

3. Press [SET] to apply the settings of the

selected scene and return to the recording

screen.

• The settings of the scene you selected remain in effect

until you select a different scene.

• To select a different BEST SHOT scene, repeat the

above procedure from step 1.

4. Press the shutter button (if you are shooting a

snapshot) or [ •] (if you are shooting a

movie).

USING BEST SHOT

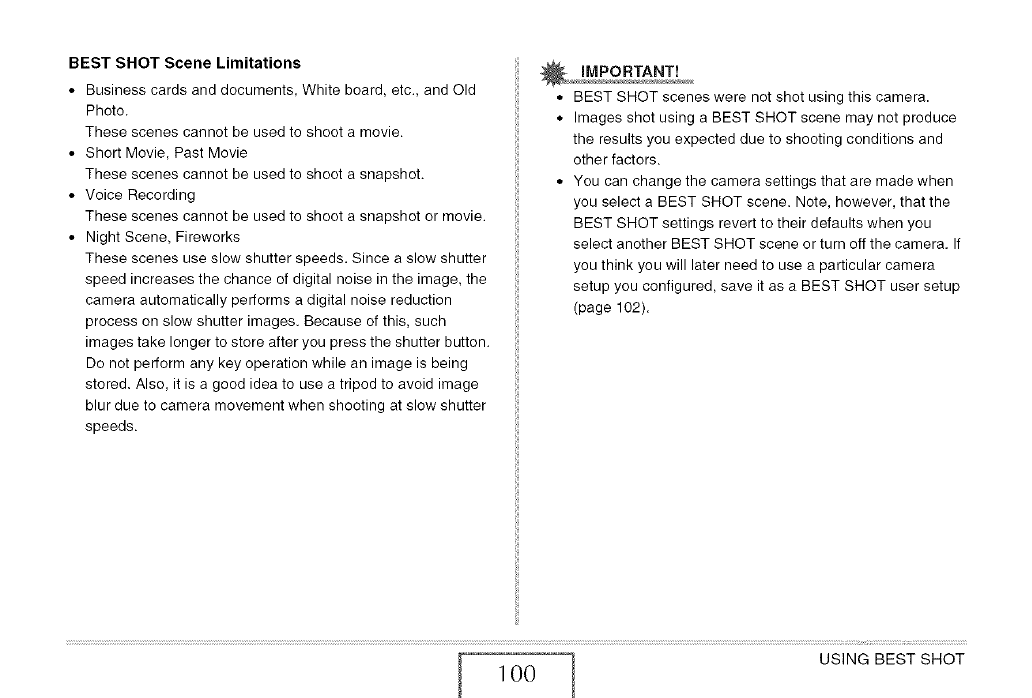

BEST SHOT Scene Limitations

• Business cards and documents, White board, etc., and Old

Photo.

These scenes cannot be used to shoot a movie.

• Short Movie, Past Movie

These scenes cannot be used to shoot a snapshot.

• Voice Recording

These scenes cannot be used to shoot a snapshot or movie.

• Night Scene, Fireworks

These scenes use slow shutter speeds. Since a slow shutter

speed increases the chance of digital noise in the image, the

camera automatically performs a digital noise reduction

process on slow shutter images. Because of this, such

images take longer to store after you press the shutter button.

Do not perform any key operation while an image is being

stored. Also, it is a good idea to use a tripod to avoid image

blur due to camera movement when shooting at slow shutter

speeds.

BEST SHOT scenes were not shot using this camera.

Images shot using a BEST SHOT scene may not produce

the results you expected due to shooting conditions and

other factors.

You can change the camera settings that are made when

you select a BEST SHOT scene. Note, however, that the

BEST SHOT settings revert to their defaults when you

select another BEST SHOT scene or turn off the camera. If

you think you will later need to use a particular camera

setup you configured, save it as a BEST SHOT user setup

(page 102).

USING BEST SHOT

1O0

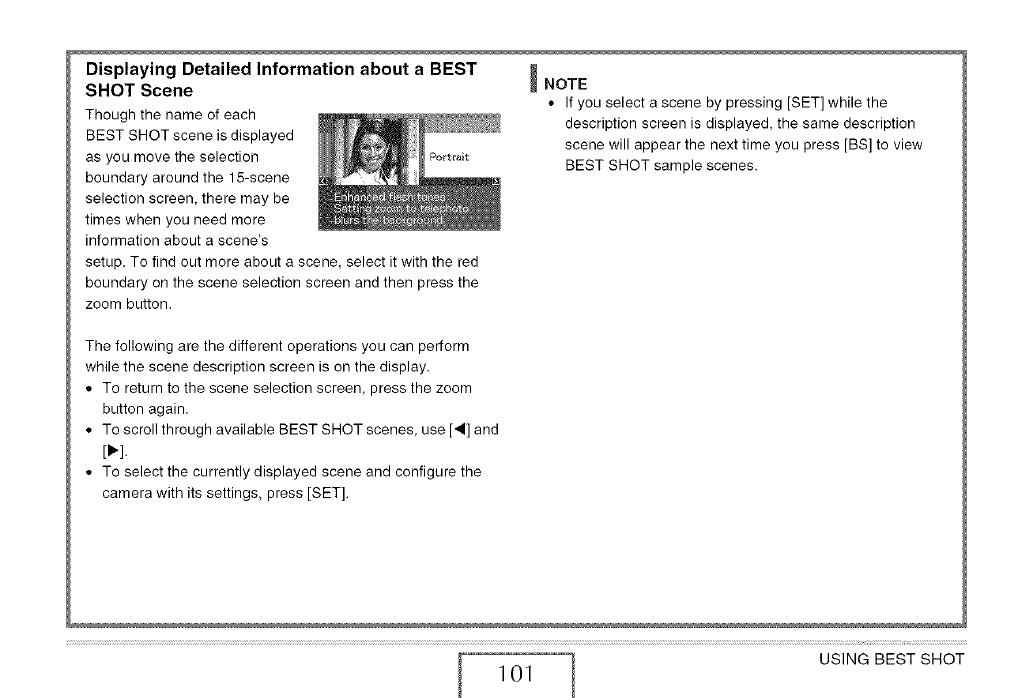

Displaying Detailed Information about a BEST

SHOT Scene

Though the name of each

BEST SHOT scene is displayed

as you move the selection Portrait

boundary around the 15-scene

selection screen, there may be

times when you need more

information about a scene's

setup. To find out more about a scene, select it with the red

boundary on the scene selection screen and then press the

zoom button.

_NOTE

• If you select a scene by pressing [SET] while the

description screen is displayed, the same description

scene will appear the next time you press [BS] to view

BEST SHOT sample scenes.

The following are the different operations you can perform

while the scene description screen is on the display.

• To return to the scene selection screen, press the zoom

button again.

• To scroll through available BEST SHOT scenes, use [_1] and

[_,].

• To select the currently displayed scene and configure the

camera with its settings, press [SET].

USING BEST SHOT

101

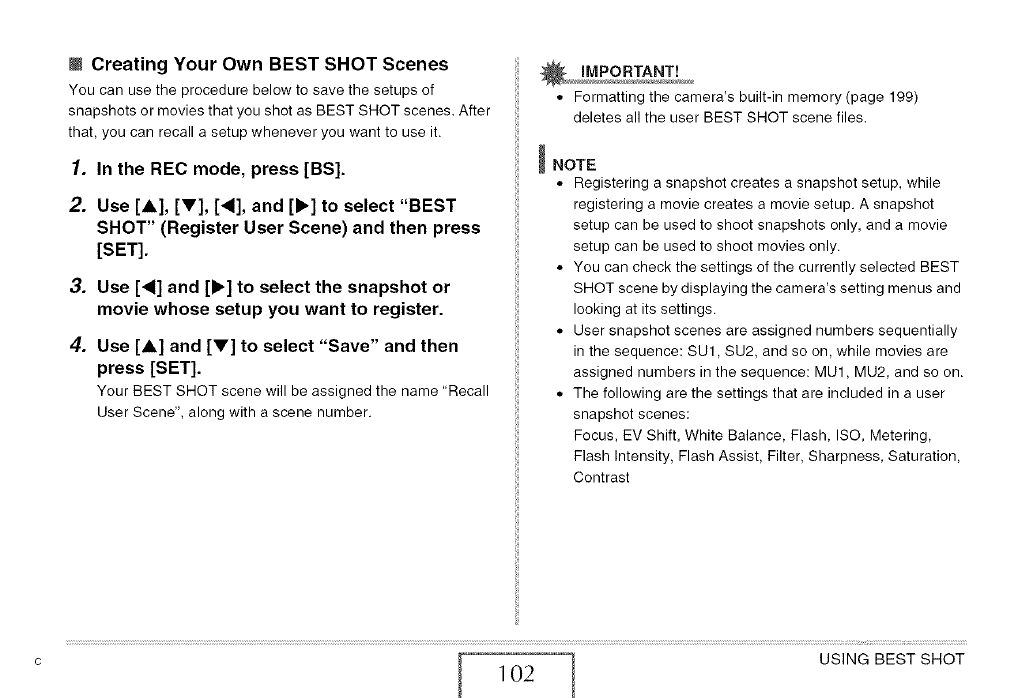

ICreating Your Own BEST SHOT Scenes

You can use the procedure below to save the setups of

snapshots or movies that you shot as BEST SHOT scenes. After

that, you can recall a setup whenever you want to use it.

1. In the REC mode, press [BS].

2. Use [&], [V], [,], and [1_] to select "BEST

SHOT" (Register User Scene) and then press

[SET].

3. Use [_1] and [1_] to select the snapshot or

movie whose setup you want to register.

.Use [A] and [Y] to select "Save" and then

press [SET].

Your BEST SHOT scene will be assigned the name "Recall

User Scene", along with a scene number.

• Formatting the camera's built-in memory (page 199)

deletes all the user BEST SHOT scene files.

_NOTE

• Registering a snapshot creates a snapshot setup, while

registering a movie creates a movie setup. A snapshot

setup can be used to shoot snapshots only, and a movie

setup can be used to shoot movies only.

• You can check the settings of the currently selected BEST

SHOT scene by displaying the camera's setting menus and

looking at its settings.

• User snapshot scenes are assigned numbers sequentially

in the sequence: SU1, SU2, and so on, while movies are

assigned numbers in the sequence: MU1, MU2, and so on.

• The following are the settings that are included in a user

snapshot scenes:

Focus, EV Shift, White Balance, Flash, ISO, Metering,

Flash Intensity, Flash Assist, Filter, Sharpness, Saturation,

Contrast

c USING BEST SHOT

102

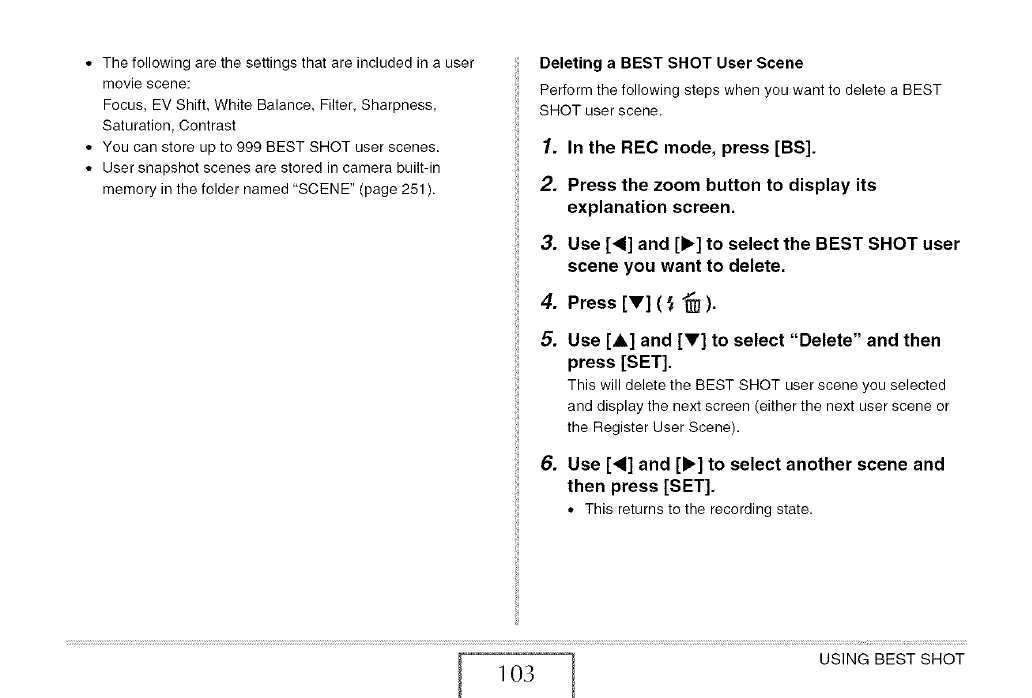

• The following are the settings that are included in a user

movie scene:

Focus, EV Shift, White Balance, Filter, Sharpness,

Saturation, Contrast

• You can store up to 999 BEST SHOT user scenes.

• User snapshot scenes are stored in camera built-in

memory in the folder named "SCENE" (page 251 ).

Deleting a BEST SHOT User Scene

Perform the following steps when you want to delete a BEST

SHOT user scene.

In the REC mode, press [BS].

Press the zoom button to display its

explanation screen.

Use [<] and [1_] to select the BEST SHOT user

scene you want to delete.

Press [V] ( { _] ).

Use [A] and [V] to select "Delete" and then

press [SET].

This will delete the BEST SHOT user scene you selected

and displaythe nextscreen(eitherthenext usersceneor

the Register User Scene).

Use [41] and [1_] to select another scene and

then press [SET].

• This returnsto the recordingstate.

USING BEST SHOT

103

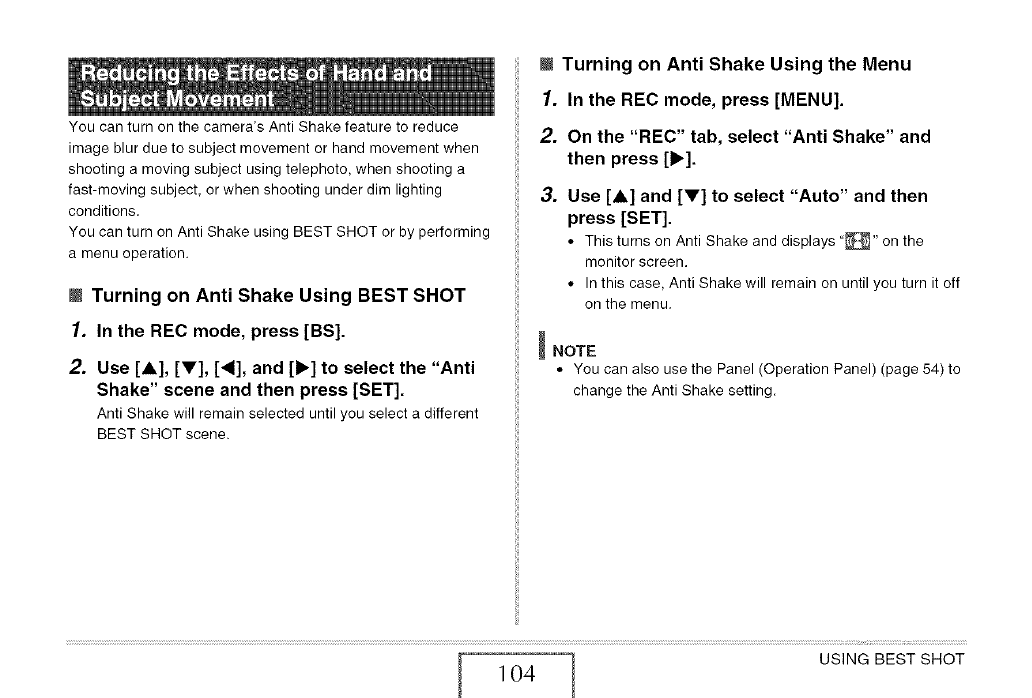

You can turn on the camera's Anti Shake feature to reduce

image blur due to subject movement or hand movement when

shooting a moving subject using telephoto, when shooting a

fast-moving subject, or when shooting under dim lighting

conditions.

You can turn on Anti Shake using BEST SHOT or by performing

a menu operation.

ITurning on Anti Shake Using BEST SHOT

1. In the REC mode, press [BS].

2. Use [A], [Y], [4], and [11_]to select the "Anti

Shake" scene and then press [SET].

Anti Shake will remain selected until you select a different

BEST SHOT scene.

W Turning on Anti Shake Using the Menu

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Anti Shake" and

then press [11_].

3. Use [A] and [V] to select "Auto" and then

press [SET].

• This turns on Anti Shake and displays "_" on the

monitor screen.

• In this case, Anti Shake will remain on until you turn it off

on the menu.

_NOTE

• You can also use the Panel (Operation Panel) (page 54) to

change the Anti Shake setting.

USING BEST SHOT

104

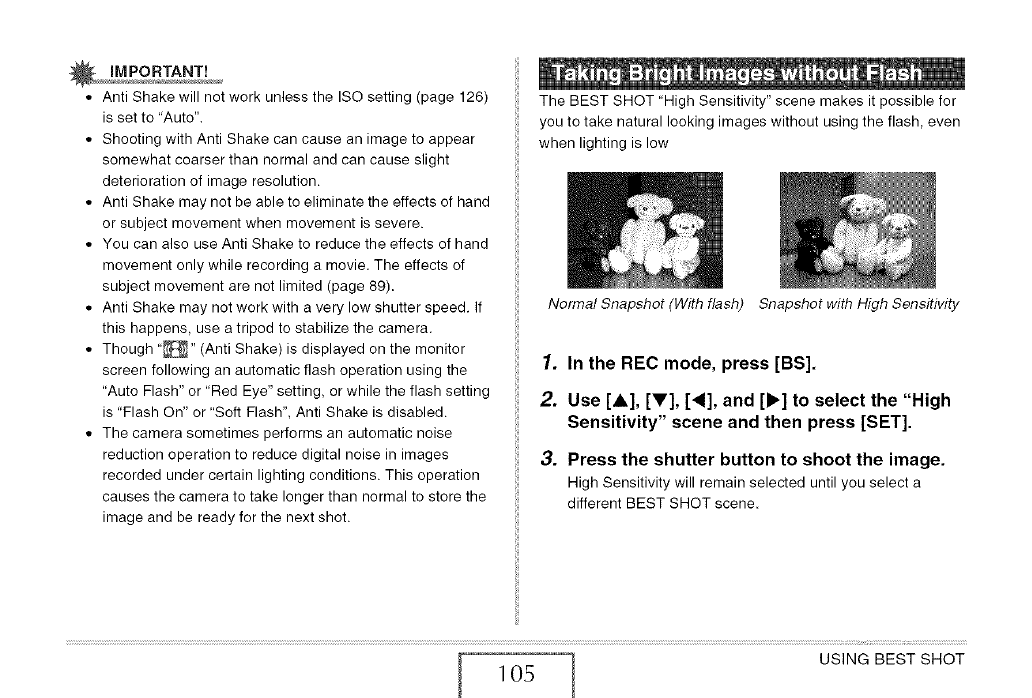

• Anti Shake will not work unless the ISO setting (page 126)

is set to "Auto".

• Shooting with Anti Shake can cause an image to appear

somewhat coarser than normal and can cause slight

deterioration of image resolution.

• Anti Shake may not be able to eliminate the effects of hand

or subject movement when movement is severe.

• You can also use Anti Shake to reduce the effects of hand

movement only while recording a movie. The effects of

subject movement are not limited (page 89).

• Anti Shake may not work with a very low shutter speed. If

this happens, use a tripod to stabilize the camera.

• Though "_" (Anti Shake) is displayed on the monitor

screen following an automatic flash operation using the

"Auto Flash" or "Red Eye" setting, or while the flash setting

is "Flash On" or "Soft Flash", Anti Shake is disabled.

• The camera sometimes performs an automatic noise

reduction operation to reduce digital noise in images

recorded under certain lighting conditions. This operation

causes the camera to take longer than normal to store the

image and be ready for the next shot.

The BEST SHOT "High Sensitivity" scene makes it possible for

you to take natural looking images without using the flash, even

when lighting is low

Normal Snapshot (With flash) Snapshot with High Sensitivity

1. In the REC mode, press [BS].

2. Use [A], [V], [_], and [,] to select the "High

Sensitivity" scene and then press [SET].

3. Press the shutter button to shoot the image.

High Sensitivity will remain selected until you select a

different BEST SHOT scene.

USING BEST SHOT

105

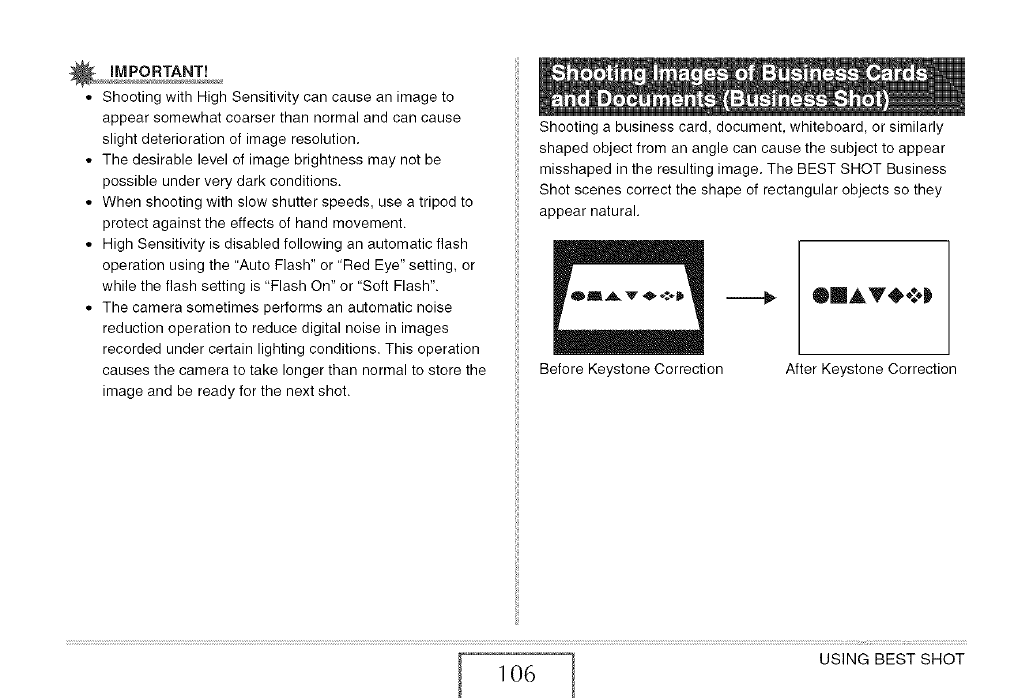

• Shooting with High Sensitivity can cause an image to

appear somewhat coarser than normal and can cause

slight deterioration of image resolution.

• The desirable level of image brightness may not be

possible under very dark conditions.

• When shooting with slow shutter speeds, use a tripod to

protect against the effects of hand movement.

• High Sensitivity is disabled following an automatic flash

operation using the "Auto Flash" or "Red Eye" setting, or

while the flash setting is "Flash On" or "Soft Flash".

• The camera sometimes performs an automatic noise

reduction operation to reduce digital noise in images

recorded under certain lighting conditions. This operation

causes the camera to take longer than normal to store the

image and be ready for the next shot.

Shooting a business card, document, whiteboard, or similarly

shaped object from an angle can cause the subject to appear

misshaped in the resulting image. The BEST SHOT Business

Shot scenes correct the shape of rectangular objects so they

appear natural.

Before Keystone Correction

Om,&V_D

After Keystone Correction

USING BEST SHOT

106

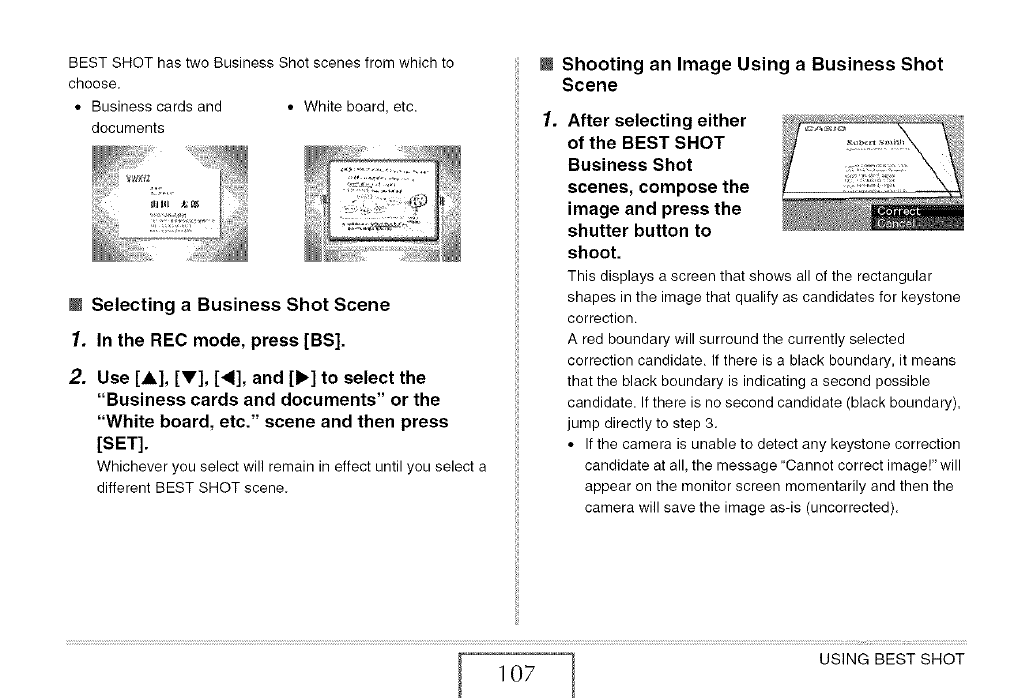

BEST SHOT has two Business Shot scenes from which to

choose.

• Business cards and • White board, etc.

documents

I Selecting a Business Shot Scene

1. In the REC mode, press [BS].

2. Use [A], [Y], [4], and [11_]to select the

"Business cards and documents" or the

"White board, etc." scene and then press

[SET].

Whichever you select will remain in effect until you select a

different BEST SHOT scene.

Shooting an Image Using a Business Shot

Scene

°After selecting either

of the BEST SHOT

Business Shot

scenes, compose the

image and press the

shutter button to

shoot.

This displays a screen that shows all of the rectangular

shapes in the image that qualify as candidates for keystone

correction.

A red boundary will surround the currently selected

correction candidate. If there is a black boundary, it means

that the black boundary is indicating a second possible

candidate. If there is no second candidate (black boundary),

jump directly to step 3.

• If the camera is unable to detect any keystone correction

candidate at all, the message "Cannot correct image!" will

appear on the monitor screen momentarily and then the

camera will save the image as-is (uncorrected).

USING BEST SHOT

107

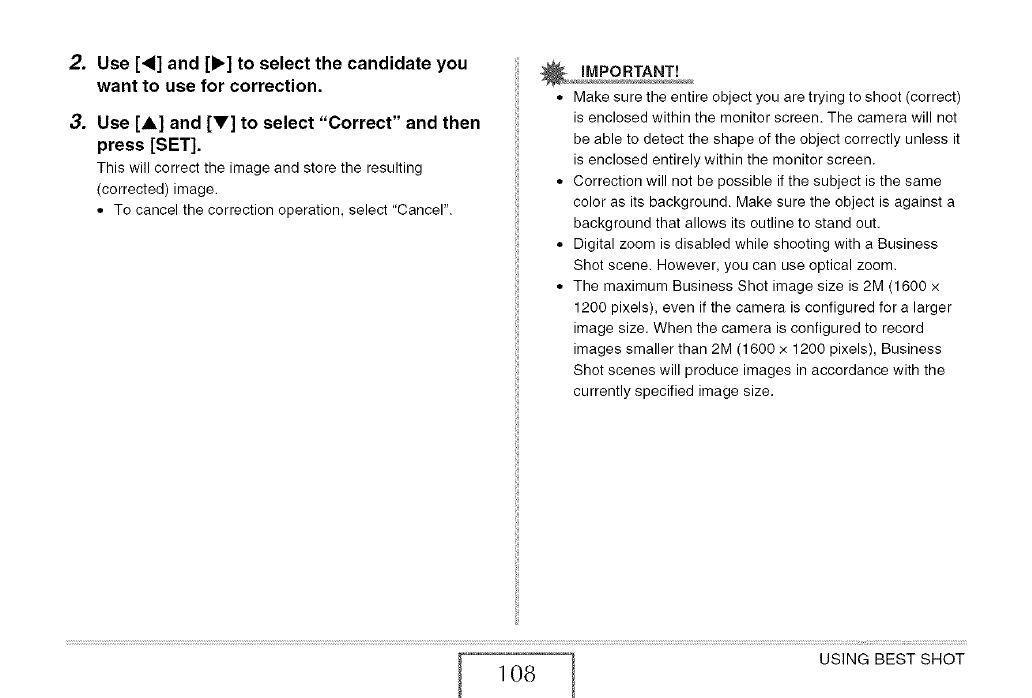

2. Use [41] and [1_] to select the candidate you

want to use for correction.

3. Use [A] and [V] to select "Correct" and then

press [SET].

This will correct the image and store the resulting

(corrected) image.

• To cancel the correction operation, select "Cancel".

• Make sure the entire object you are trying to shoot (correct)

is enclosed within the monitor screen. The camera will not

be able to detect the shape of the object correctly unless it

is enclosed entirely within the monitor screen.

• Correction will not be possible if the subject is the same

color as its background. Make sure the object is against a

background that allows its outline to stand out.

• Digital zoom is disabled while shooting with a Business

Shot scene. However, you can use optical zoom.

• The maximum Business Shot image size is 2M (1600 x

1200 pixels), even if the camera is configured for a larger

image size. When the camera is configured to record

images smaller than 2M (1600 x 1200 pixels), Business

Shot scenes will produce images in accordance with the

currently specified image size.

USING BEST SHOT

108

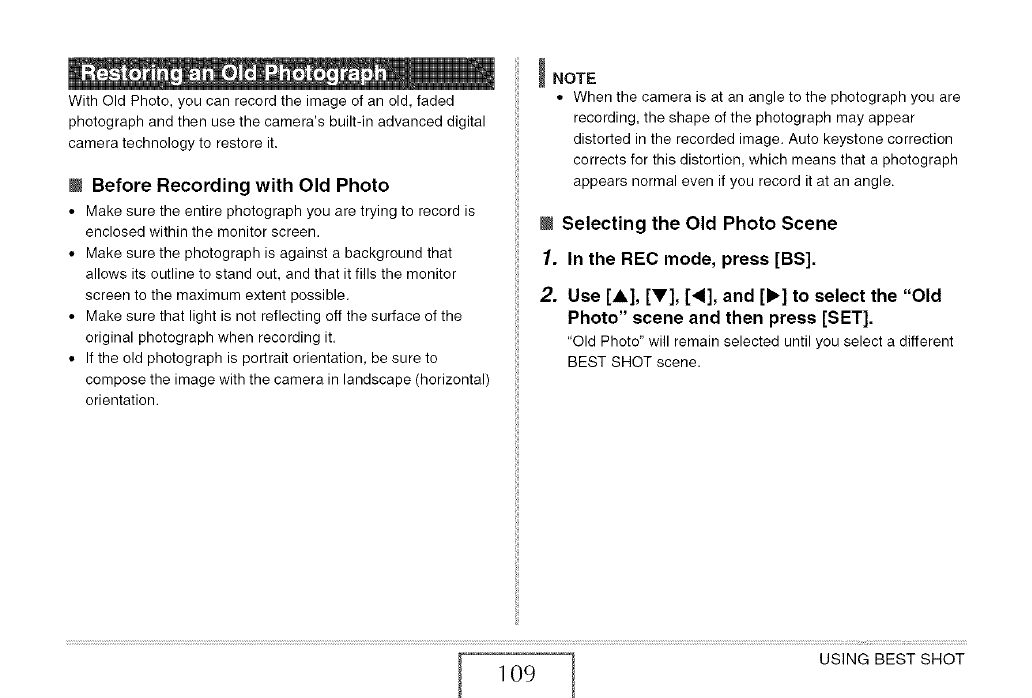

With Old Photo, you can record the image of an old, faded

photograph and then use the camera's built-in advanced digital

camera technology to restore it.

IBefore Recording with Old Photo

• Make sure the entire photograph you are trying to record is

enclosed within the monitor screen.

• Make sure the photograph is against a background that

allows its outline to stand out, and that it fills the monitor

screen to the maximum extent possible.

• Make sure that light is not reflecting off the surface of the

original photograph when recording it.

• If the old photograph is portrait orientation, be sure to

compose the image with the camera in landscape (horizontal)

orientation.

_NOTE

• When the camera is at an angle to the photograph you are

recording, the shape of the photograph may appear

distorted in the recorded image. Auto keystone correction

corrects for this distortion, which means that a photograph

appears normal even if you record it at an angle.

WSelecting the Old Photo Scene

1. In the REC mode, press [BS].

2. Use [A], [V], [_], and [1_] to select the "Old

Photo" scene and then press [SET].

"Old Photo" will remain selected until you select a different

BEST SHOT scene.

USING BEST SHOT

109

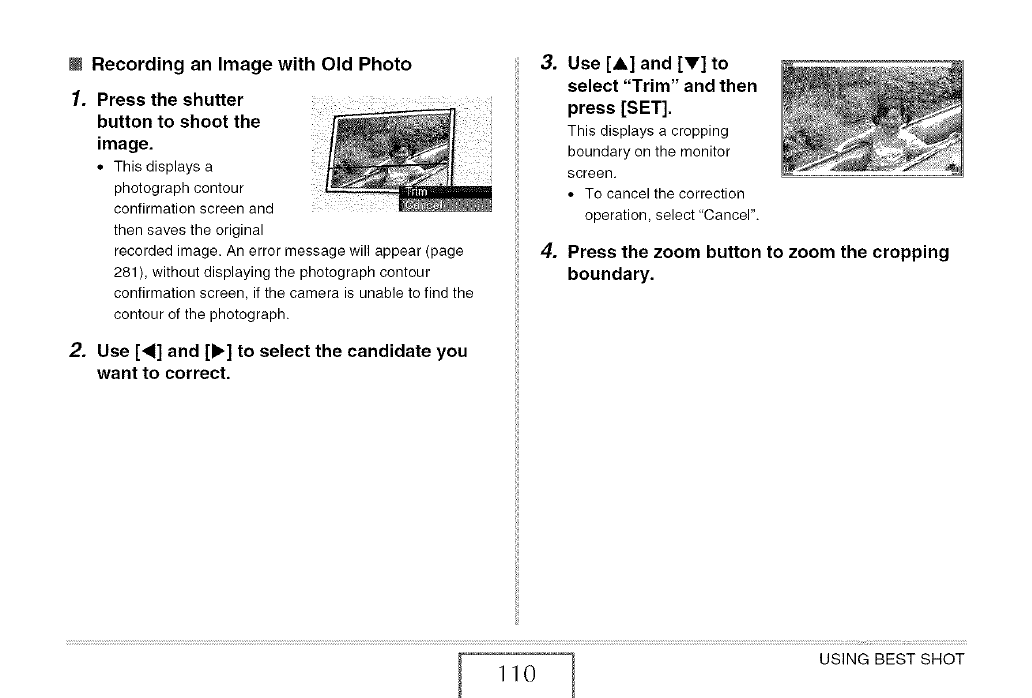

IRecording an Image with Old Photo

1. Press the shutter

button to shoot the

image.

• This displays a

photograph contour

confirmation screen and

then saves the original

recorded image. An error message will appear (page

281 ), without displaying the photograph contour

confirmation screen, if the camera is unable to find the

contour of the photograph.

2. Use [_1] and [1_] to select the candidate you

want to correct.

3. Use [&] and [V] to

select "Trim" and then

press [SET].

This displays a cropping

boundary on the monitor

screen.

• To cancel the correction

operation, select "Cancel".

4. Press the zoom button to zoom the cropping

boundary.

USING BEST SHOT

110

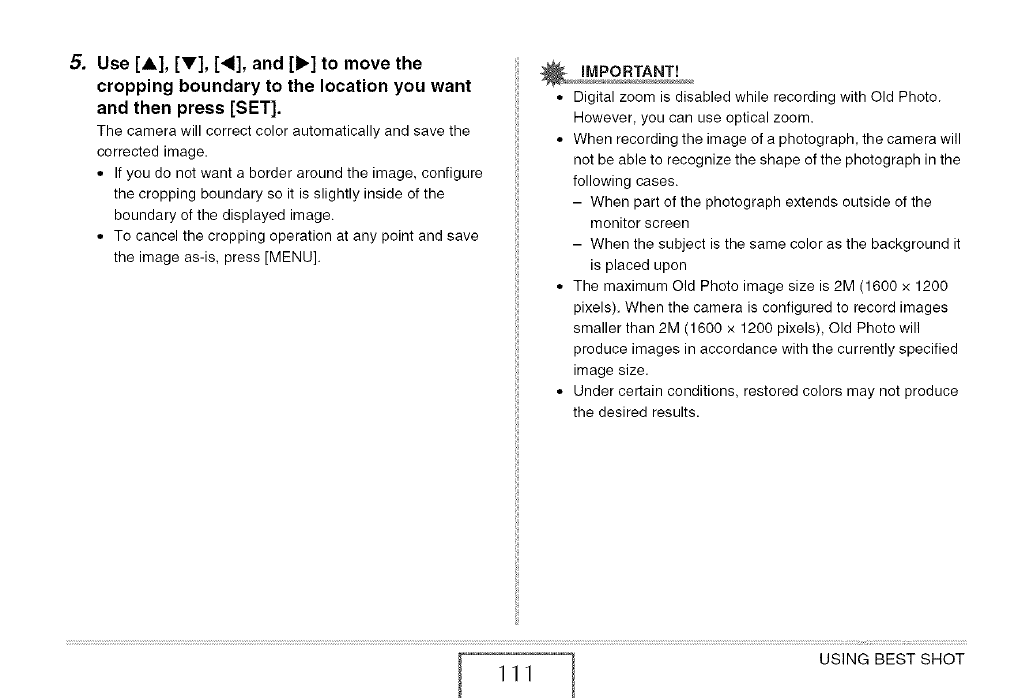

5. Use [&], [V], [_], and [11_]to move the

cropping boundary to the location you want

and then press [SET].

The camera will correct color automatically and save the

corrected image.

• If you do not want a border around the image, configure

the cropping boundary so it is slightly inside of the

boundary of the displayed image.

• To cancel the cropping operation at any point and save

the image as-is, press [MENU].

• Digital zoom is disabled while recording with Old Photo.

However, you can use optical zoom.

• When recording the image of a photograph, the camera will

not be able to recognize the shape of the photograph in the

following cases.

- When part of the photograph extends outside of the

monitor screen

- When the subject is the same color as the background it

is placed upon

• The maximum Old Photo image size is 2M (1600 x 1200

pixels). When the camera is configured to record images

smaller than 2M (1600 x 1200 pixels), Old Photo will

produce images in accordance with the currently specified

image size.

• Under certain conditions, restored colors may not produce

the desired results.

USING BEST SHOT

111

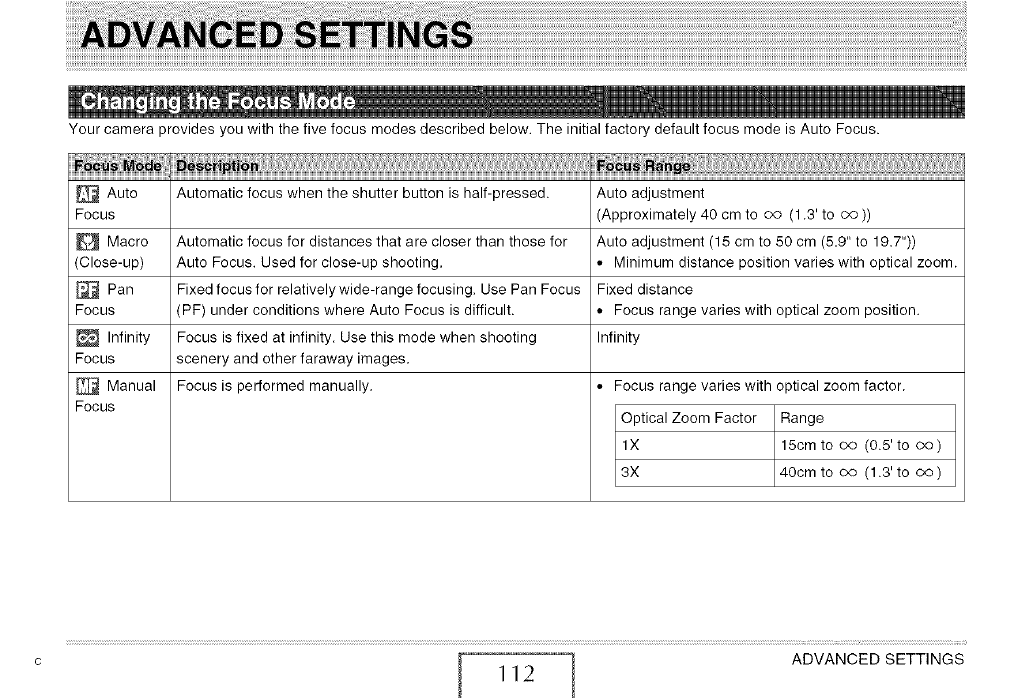

Your camera provides you with the five focus modes described below. The initial factory default focus mode is Auto Focus.

Auto

Focus

Macro

(Close-up)

Pan

Focus

Infinity

Focus

Manual

Focus

Automatic focus when the shutter button is half-pressed. Auto adjustment

(Approximately 40 cm to co (1.3' to co ))

Automatic focus for distances that are closer than those for Auto adjustment (15 cm to 50 cm (5.9" to 19.7"))

Auto Focus. Used for close-up shooting. • Minimum distance position varies with optical zoom.

Fixed focus for relatively wide-range focusing. Use Pan Focus Fixed distance

(PF) under conditions where Auto Focus is difficult. • Focus range varies with optical zoom position.

Focus is fixed at infinity. Use this mode when shooting Infinity

scenery and other faraway images.

Focus is performed manually. • Focus range varies with optical zoom factor.

Optical Zoom Factor Range

lX 15cm to co (0.5'to oo)

3X 40cm to co (1.3'to oo)

c ADVANCEDSETTINGS

112

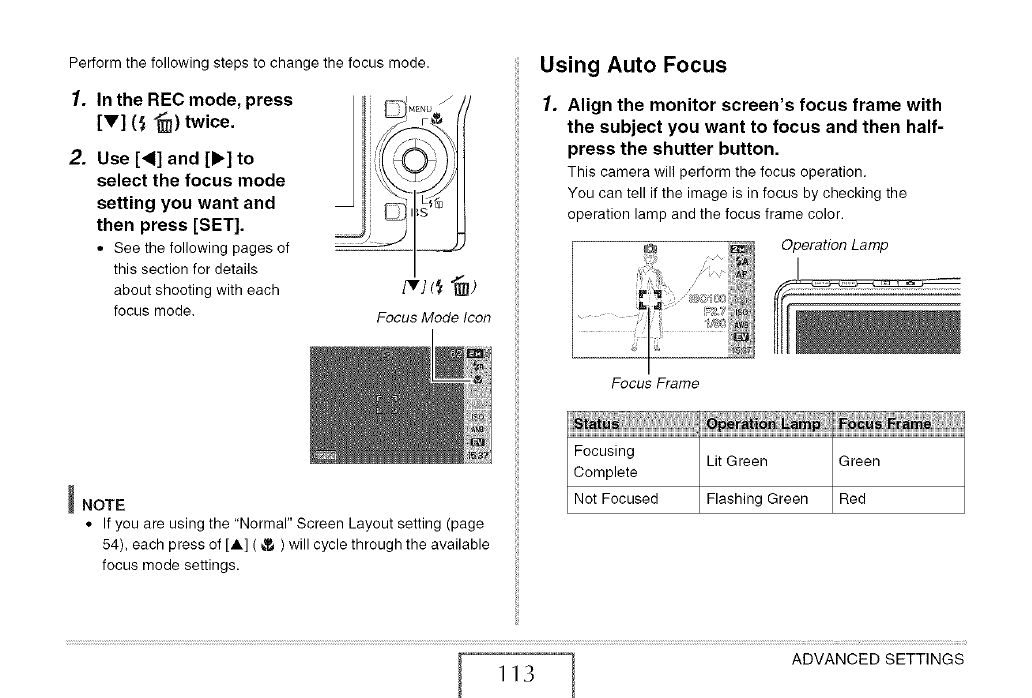

Perform the following steps to change the focus mode.

1. In the REC mode, press

[V] (} "_]) twice.

2. Use ['all and [1_] to

select the focus mode

setting you want and

then press [SET].

• See the following pages of

this section for details

about shooting with each

focus mode. Focus Mode Icon

_NOTE

• If you are using the "Normal" Screen Layout setting (page

54), each press of [A] ( _ ) will cycle through the available

focus mode settings.

Using Auto Focus

1. Align the monitor screen's focus frame with

the subject you want to focus and then half-

press the shutter button.

This camera will perform the focus operation.

You can tell if the image is in focus by checking the

operation lamp and the focus frame color.

Operation Lamp

Focus Frame

Focusing Lit Green Green

Complete

Not Focused Flashing Green Red

ADVANCEDSETTINGS

113

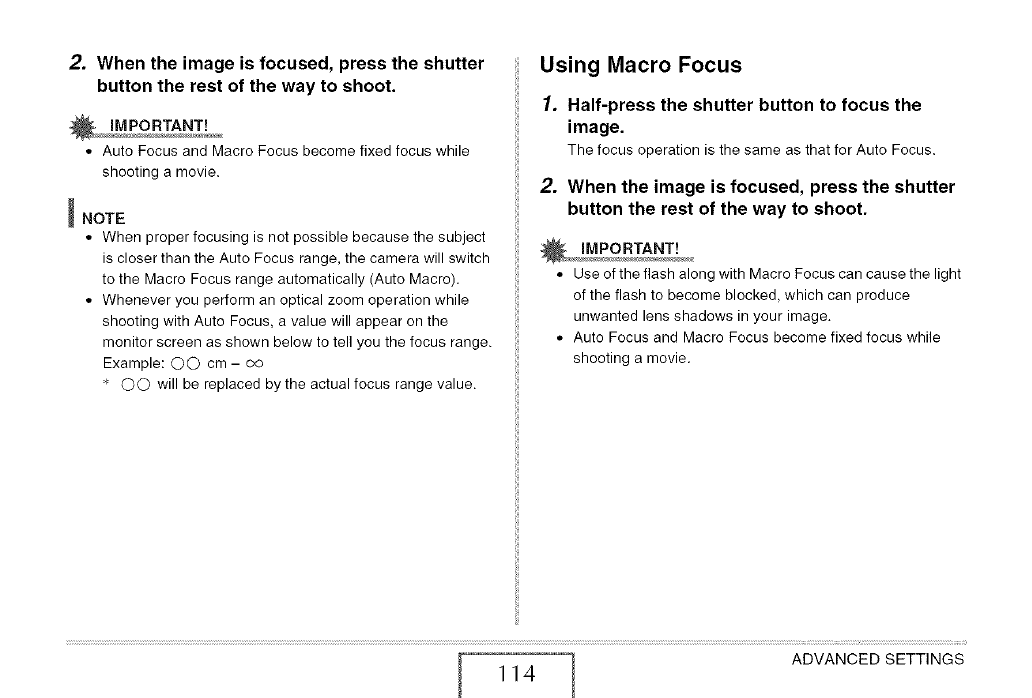

2. When the image is focused, press the shutter

button the rest of the way to shoot.

• Auto Focus and Macro Focus become fixed focus while

shooting a movie.

_NOTE

• When proper focusing is not possible because the subject

is closer than the Auto Focus range, the camera will switch

to the Macro Focus range automatically (Auto Macro).

• Whenever you perform an optical zoom operation while

shooting with Auto Focus, a value will appear on the

monitor screen as shown below to tell you the focus range.

Example: OO cm- oo

©O will be replaced bythe actual focus range value.

Using Macro Focus

1. Half-press the shutter button to focus the

image.

The focus operation is the same as that for Auto Focus.

2. When the image is focused, press the shutter

button the rest of the way to shoot.

• Use of the flash along with Macro Focus can cause the light

of the flash to become blocked, which can produce

unwanted lens shadows in your image.

• Auto Focus and Macro Focus become fixed focus while

shooting a movie.

ADVANCEDSETTINGS

114

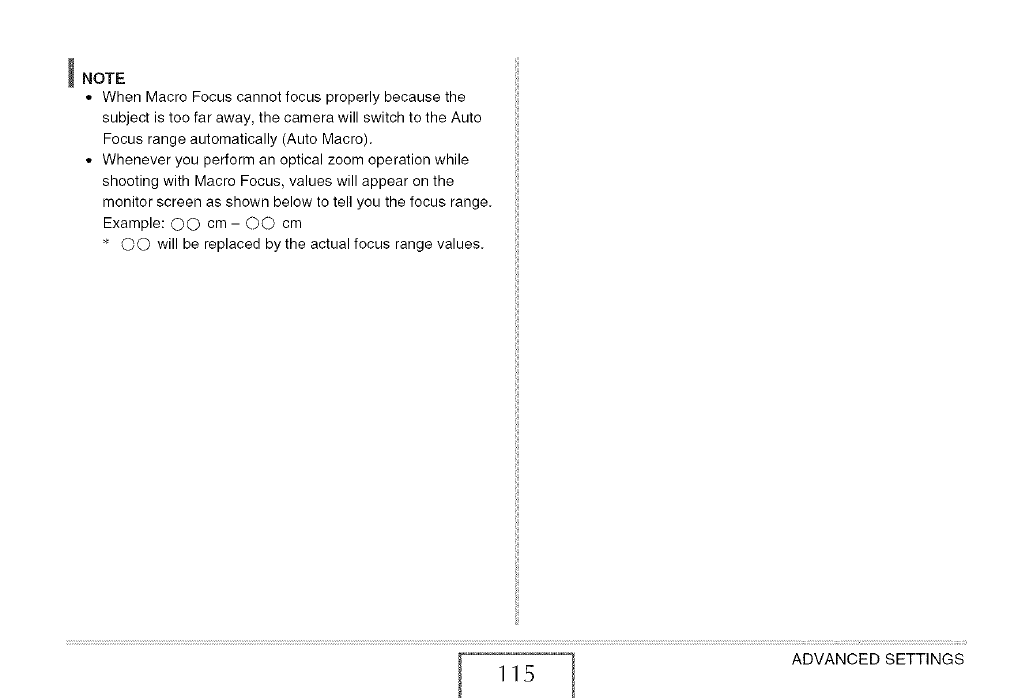

_NOTE

• When Macro Focus cannot focus properly because the

subject is too far away, the camera will switch to the Auto

Focus range automatically (Auto Macro).

• Whenever you perform an optical zoom operation while

shooting with Macro Focus, values will appear on the

monitor screen as shown below to tell you the focus range.

Example: O0 cm - {}0 cm

O0 will be replaced bythe actual focus range values.

ADVANCEDSETTINGS

115

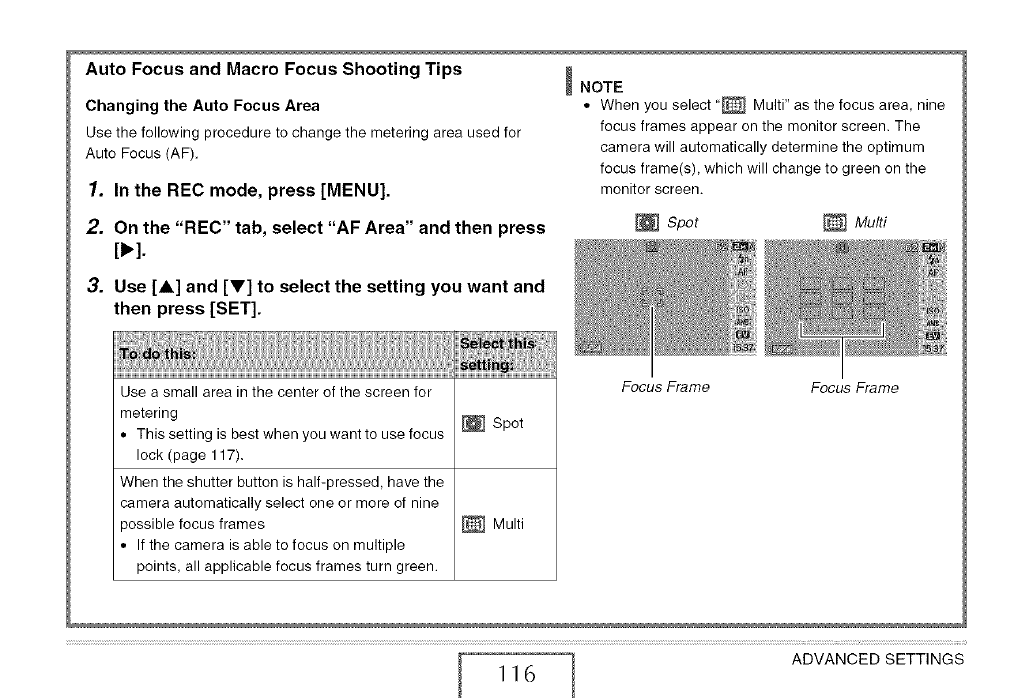

Auto Focus and Macro Focus Shooting Tips

Changing the Auto Focus Area

Use the following procedure to change the metering area used for

Auto Focus (AF).

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "AF Area" and then press

[_].

_NOTE

•When you select "_ Multi" as the focus area, nine

focus frames appear on the monitor screen. The

camera will automatically determine the optimum

focus frame(s), which will change to green on the

monitor screen.

Spot _Multi

3. Use [A] and [Y] to select the setting you want and

then press [SET].

Use a small area in the center of the screen for

metering

• This setting is best when you want to use focus

lock (page 117).

When the shutter button is half-pressed, have the

camera automatically select one or more of nine

possible focus frames

• If the camera is able to focus on multiple

points, all applicable focus frames turn green.

Spot

Multi

Focus Frame Focus Frame

ADVANCEDSETTINGS

116

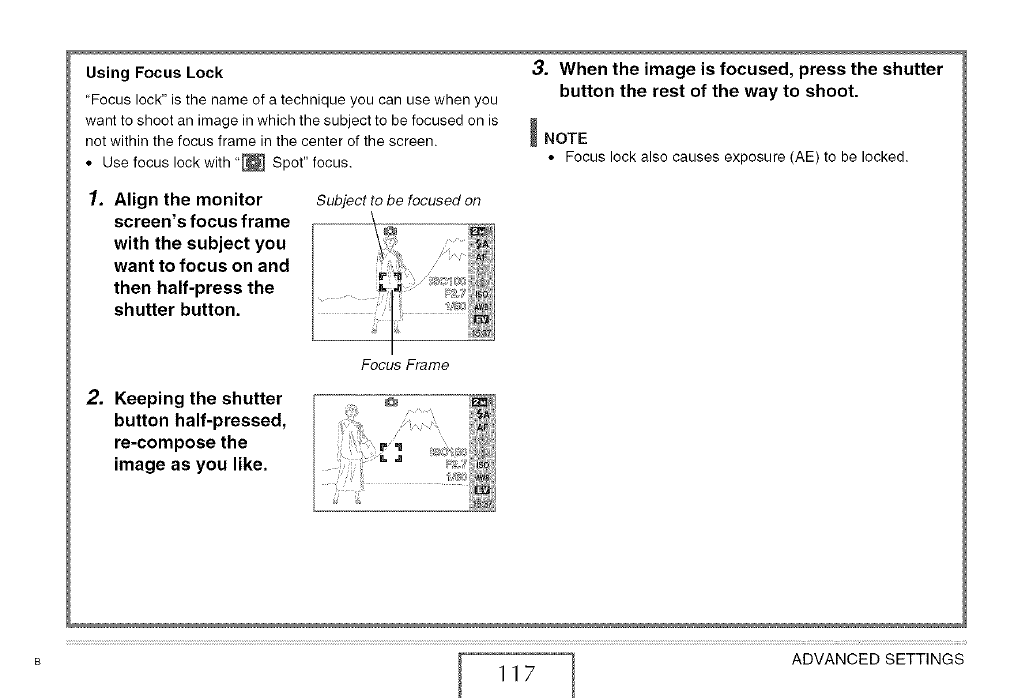

Using Focus Lock 3. When the image is focused, press the shutter

"Focus lock" is the name of a technique you can use when you button the rest of the way to shoot.

want to shoot an image inwhich the subject to be focused on is

not within the focus frame in the center of the screen. NOTE

• Use focus lock with "_ Spot" focus. • Focus lock also causes exposure (AE) to be locked.

1. Align the monitor

screen's focus frame

with the subject you

want to focus on and

then half-press the

shutter button.

Subject to be focused on

2. Keeping the shutter

button half-pressed,

re-compose the

image as you like.

Focus Frame

ADVANCEDSETTINGS

117

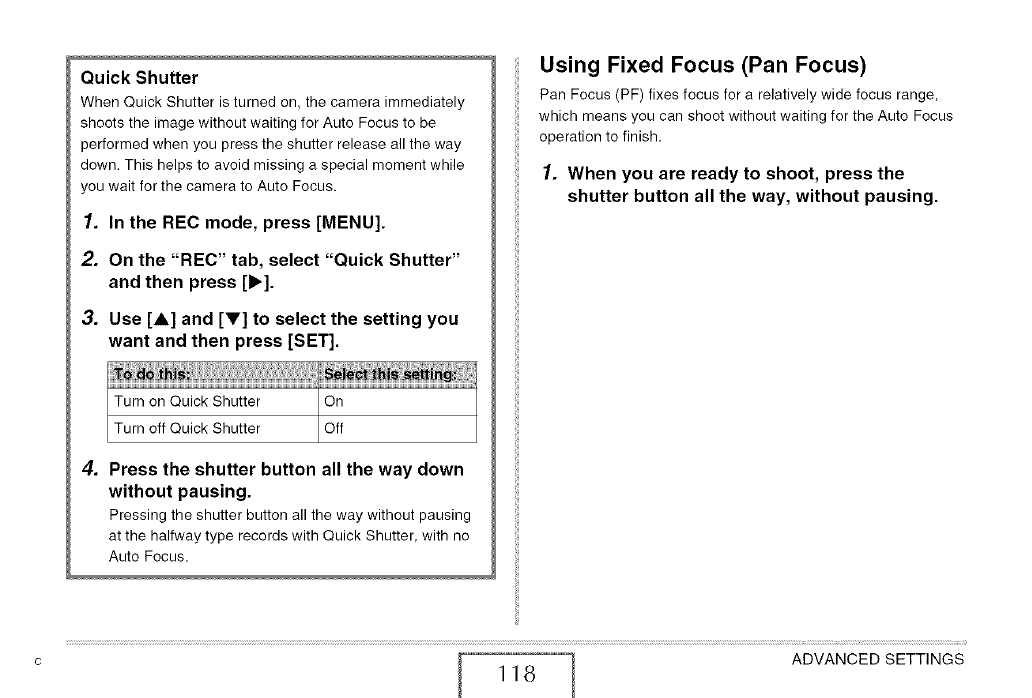

Quick Shutter

When Quick Shutter is turned on, the camera immediately

shoots the image without waiting for Auto Focus to be

performed when you press the shutter release all the way

down. This helps to avoid missing a special moment while

you wait for the camera to Auto Focus.

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Quick Shutter"

and then press [11_].

3. Use [A] and [V] to select the setting you

want and then press [SET].

Turn on Quick Shutter _ On

Turn off Quick Shutter 1 Off

4. Press the shutter button all the way down

without pausing.

Pressing the shutter button all the way without pausing

at the halfway type records with Quick Shutter, with no

Auto Focus.

Using Fixed Focus (Pan Focus)

Pan Focus (PF) fixes focus for a relatively wide focus range,

which means you can shoot without waiting for the Auto Focus

operation to finish.

1. When you are ready to shoot, press the

shutter button all the way, without pausing.

c ADVANCEDSETTINGS

118

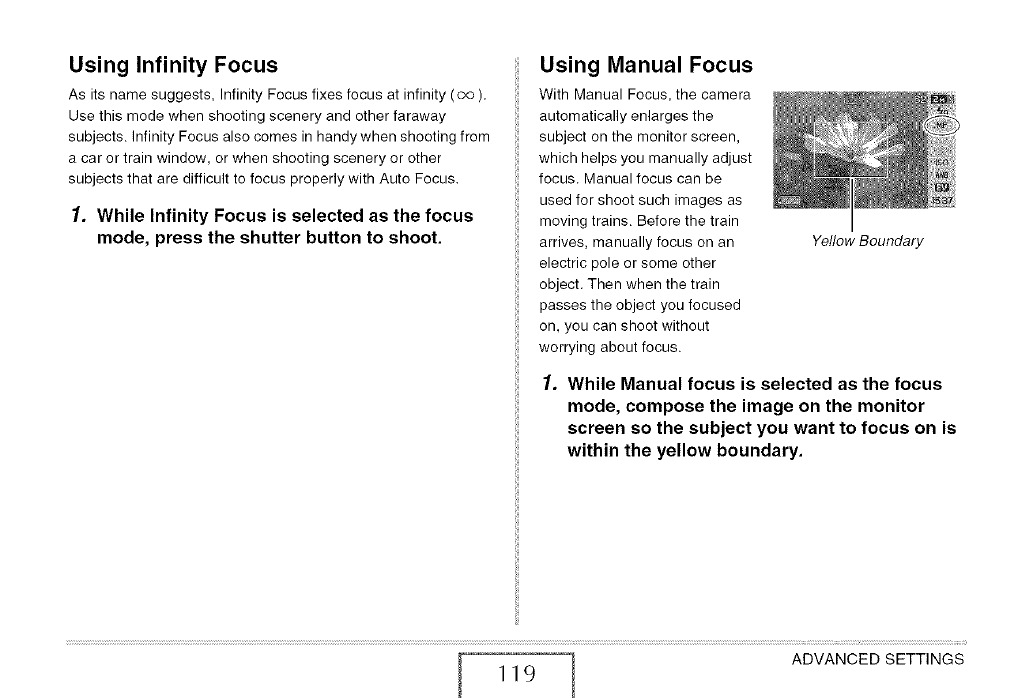

Using Infinity Focus

As its name suggests, Infinity Focus fixes focus at infinity (oo).

Use this mode when shooting scenery and other faraway

subjects. Infinity Focus also comes in handy when shooting from

a car or train window, or when shooting scenery or other

subjects that are difficult to focus properly with Auto Focus.

1. While Infinity Focus is selected as the focus

mode, press the shutter button to shoot.

Using Manual Focus

With Manual Focus, the camera

automatically enlarges the

subject on the monitor screen,

which helps you manually adjust

focus. Manual focus can be

used for shoot such images as

moving trains. Before the train

arrives, manually focus on an

electric pole or some other

object. Then when the train

passes the object you focused

on, you can shoot without

worrying about focus.

Yellow Boundary

1. While Manual focus is selected as the focus

mode, compose the image on the monitor

screen so the subject you want to focus on is

within the yellow boundary.

ADVANCEDSETTINGS

119

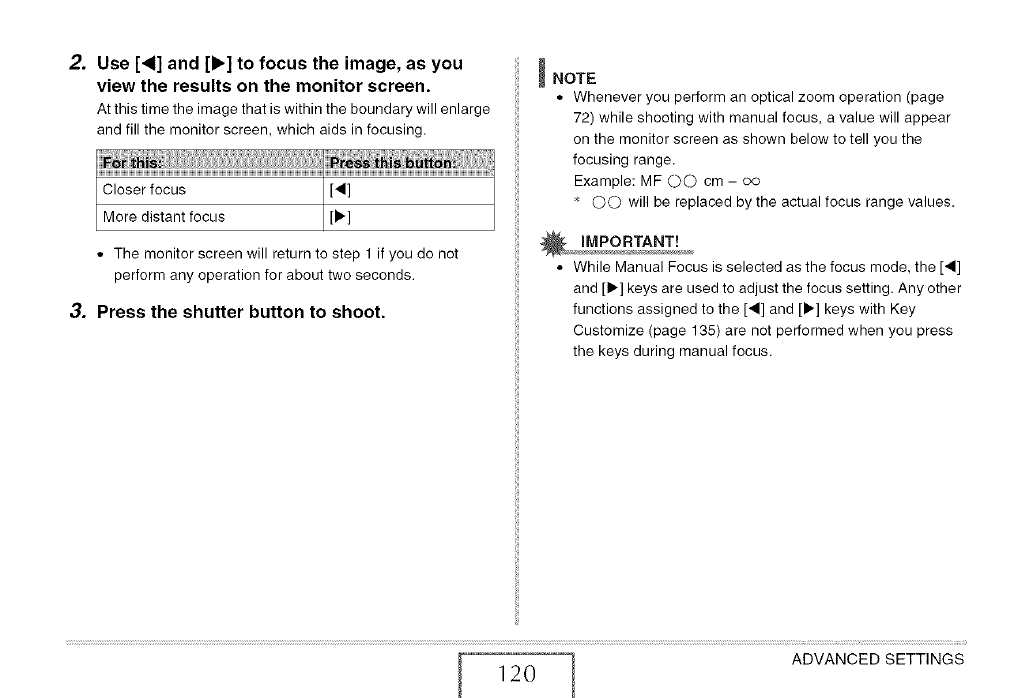

2. Use [,q] and [1_] to focus the image, as you

view the results on the monitor screen.

At this time the image that iswithin the boundary will enlarge

and fill the monitor screen, which aids in focusing.

Closer focus _]

More distant focus [1_-]

• The monitor screen will return to step 1 if you do not

perform any operation for about two seconds.

3. Press the shutter button to shoot.

_NOTE

• Whenever you perform an optical zoom operation (page

72) while shooting with manual focus, a value will appear

on the monitor screen as shown below to tell you the

focusing range.

Example: MF ©O cm - oo

* ©O will be replaced bythe actual focus range values.

• While Manual Focus is selected as the focus mode, the [4]

and [1_] keys are used to adjust the focus setting. Any other

functions assigned to the [_1] and [1_-]keys with Key

Customize (page 135) are not performed when you press

the keys during manual focus.

ADVANCEDSETTINGS

120

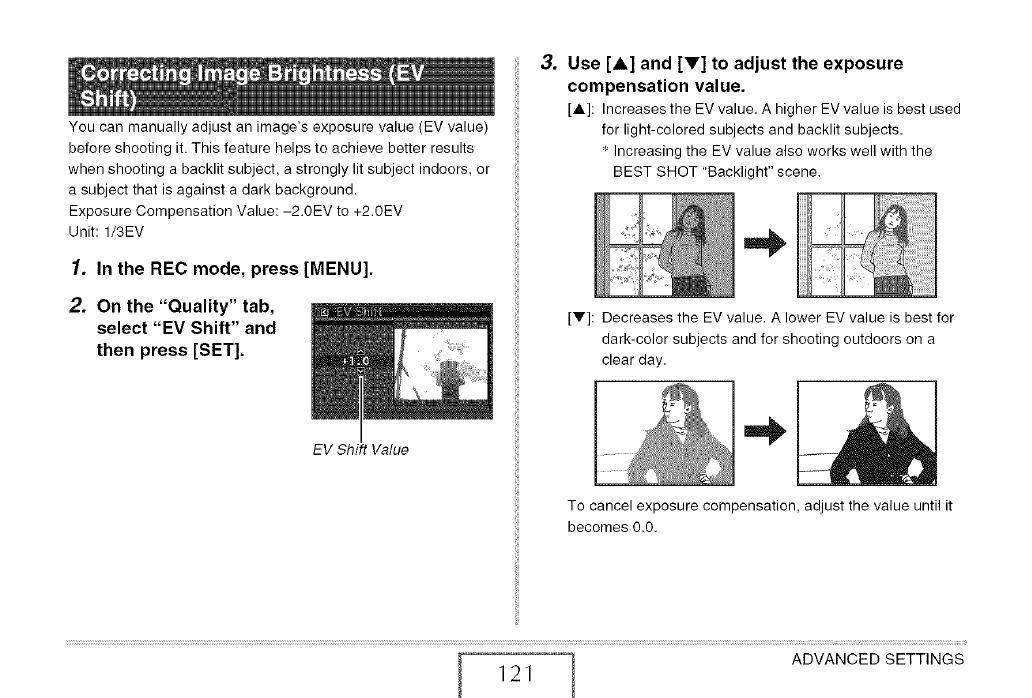

You can manually adjust an image's exposure value (EV value)

before shooting it. This feature helps to achieve better results

when shooting a backlit subject, a strongly lit subject indoors, or

a subject that is against a dark background.

Exposure Compensation Value: -2.0EV to +2.0EV

Unit: 1/3EV

1. In the REC mode, press [MENU].

2. On the "Quality" tab,

select "EV Shift" and

then press [SET].

EV Shift Value

3. Use [A] and [V] to adjust the exposure

compensation value.

[A]: Increases the EV value. A higher EV value is best used

for light-colored subjects and backlit subjects.

_' Increasing the EV value also works well with the

BEST SHOT "Backlight" scene.

[V]: Decreases the EV value. A lower EV value is best for

dark-color subjects and for shooting outdoors on a

clear day.

To cancel exposure compensation, adjust the value until it

becomes 0.0.

ADVANCEDSETTINGS

121

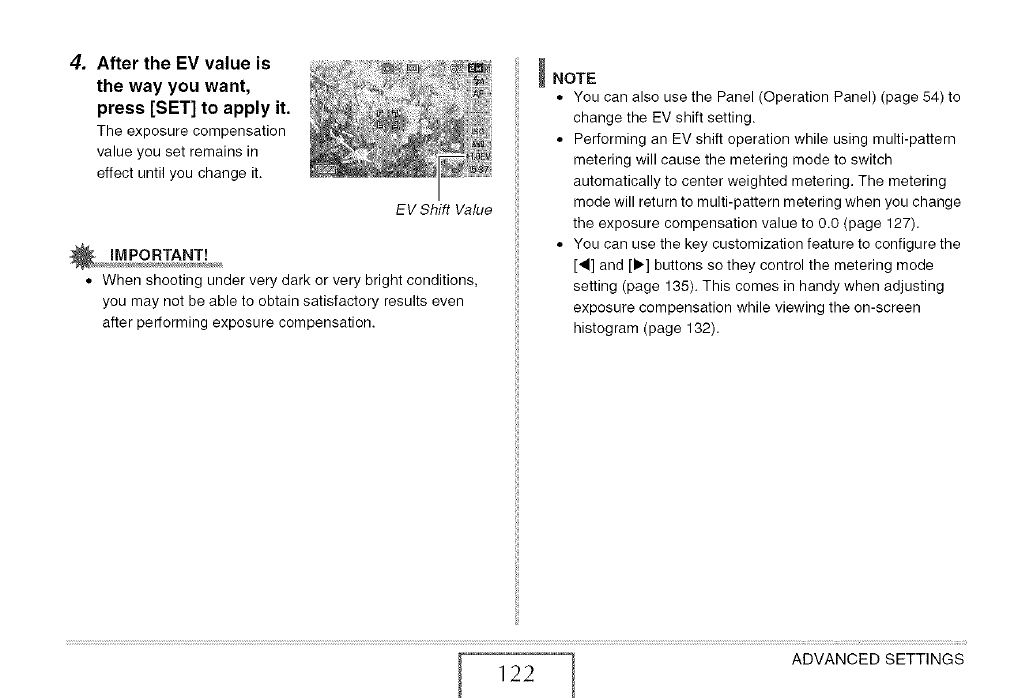

4. After the EV value is

the way you want,

press [SET] to apply it.

The exposure compensation

value you set remains in

effect until you change it.

EV Shift Value

• When shooting under very dark or very bright conditions,

you may not be able to obtain satisfactory results even

after performing exposure compensation.

_NOTE

• You can also use the Panel (Operation Panel) (page 54) to

change the EV shift setting.

• Performing an EV shift operation while using multi-pattern

metering will cause the metering mode to switch

automatically to center weighted metering. The metering

mode will return to multi-pattern metering when you change

the exposure compensation value to 0.0 (page 127).

• You can use the key customization feature to configure the

[_1] and [1_-] buttons so they control the metering mode

setting (page 135). This comes in handy when adjusting

exposure compensation while viewing the on-screen

histogram (page 132).

ADVANCEDSETTINGS

122

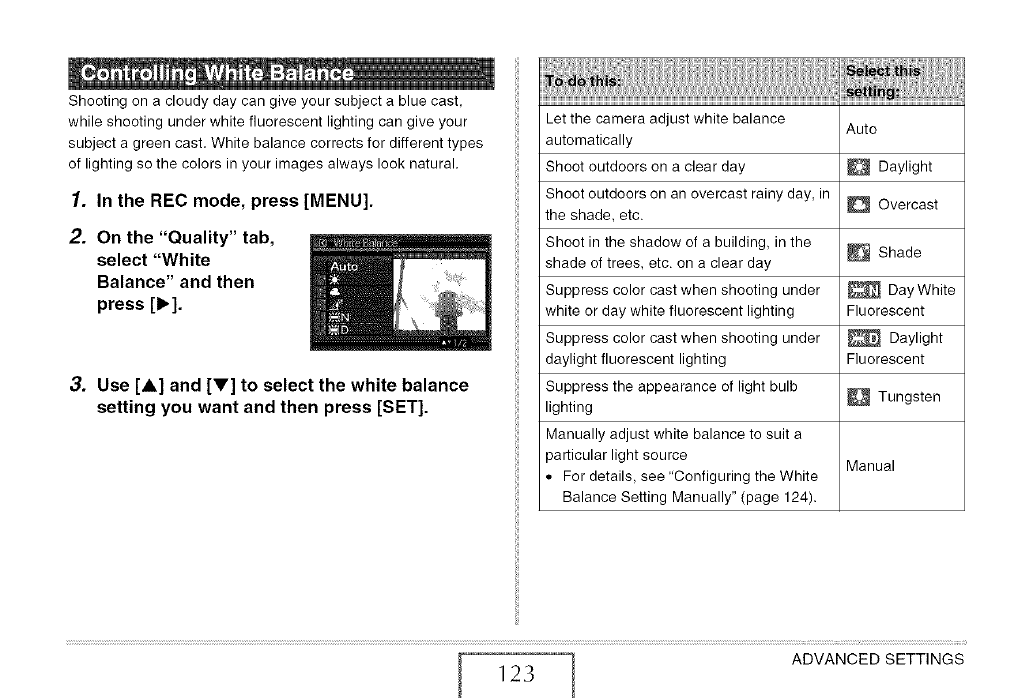

Shooting on a cloudy day can give your subject a blue cast,

while shooting under white fluorescent lighting can give your

subject a green cast. White balance corrects for different types

of lighting so the colors in your images always look natural.

1. In the REC mode, press [MENU].

2. On the "Quality" tab,

select "White

Balance" and then

press [1_].

3. Use [A] and [V] to select the white balance

setting you want and then press [SET].

Let the camera adjust white balance Auto

automatically

Shoot outdoors on a clear day _ Daylight

Shoot outdoors on an overcast rainy day, in _ Overcast

the shade, etc.

Shoot in the shadow of a building, in the

shade of trees, etc. on a clear day _ Shade

Suppress color cast when shooting under _ Day White

white or day white fluorescent lighting Fluorescent

Suppress color cast when shooting under _ Daylight

daylight fluorescent lighting Fluorescent

Suppress the appearance of light bulb

lighting _ Tungsten

Manually adjust white balance to suit a

particular light source Manual

• For details, see "Configuring the White

Balance Setting Manually" (page 124).

ADVANCEDSETTINGS

123

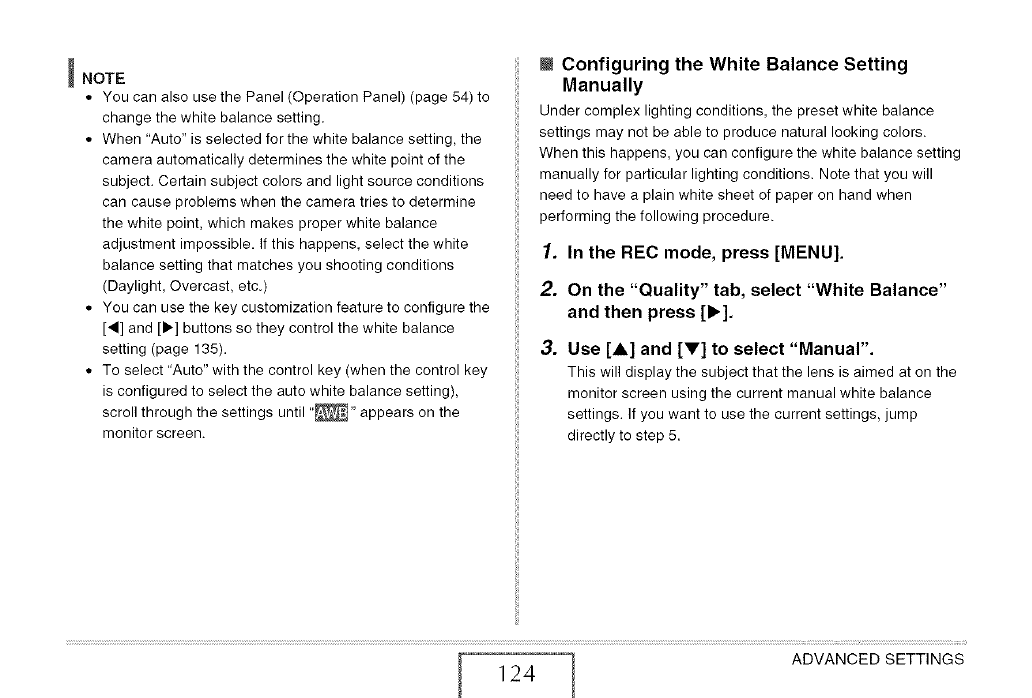

_NOTE

• You can also use the Panel (Operation Panel) (page 54) to

change the white balance setting.

• When "Auto" is selected for the white balance setting, the

camera automatically determines the white point of the

subject. Certain subject colors and light source conditions

can cause problems when the camera tries to determine

the white point, which makes proper white balance

adjustment impossible. If this happens, select the white

balance setting that matches you shooting conditions

(Daylight, Overcast, etc.)

• You can use the key customization feature to configure the

[_1] and [1_] buttons so they control the white balance

setting (page 135).

• To select "Auto" with the control key (when the control key

is configured to select the auto white balance setting),

scroll through the settings until "_" appears on the

monitor screen.

MConfiguring the White Balance Setting

Manually

Under complex lighting conditions, the preset white balance

settings may not be able to produce natural looking colors.

When this happens, you can configure the white balance setting

manually for particular lighting conditions. Note that you will

need to have a plain white sheet of paper on hand when

performing the following procedure.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "White Balance"

and then press [1_].

3. Use [A] and [V] to select "Manual".

This will display the subject that the lens is aimed at on the

monitor screen using the current manual white balance

settings. If you want to use the current settings, jump

directly to step 5.

ADVANCEDSETTINGS

124

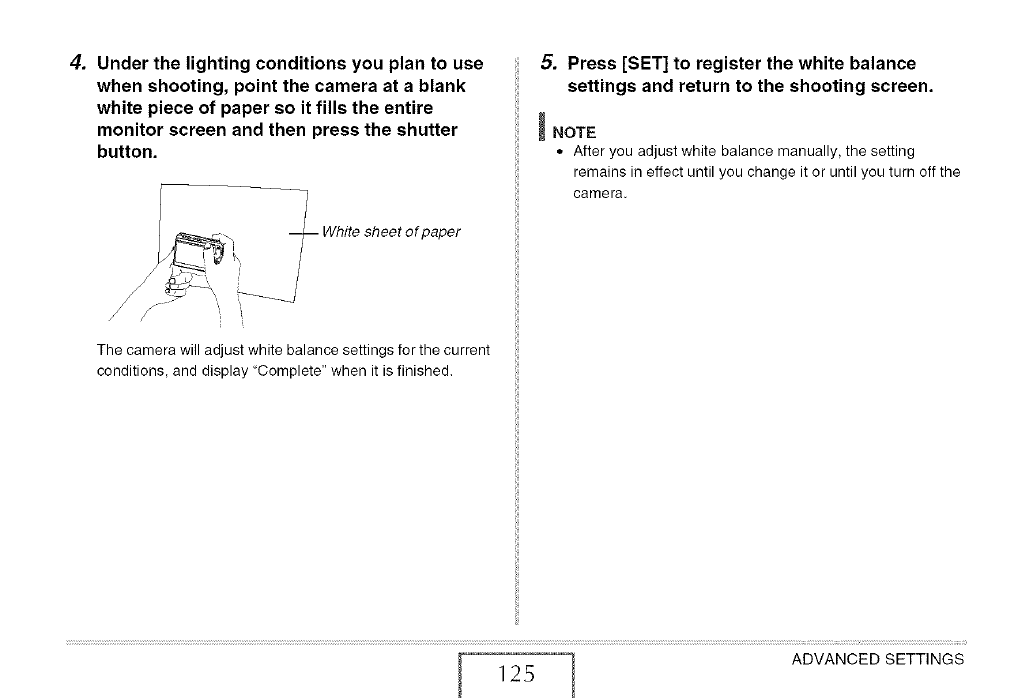

4. Under the lighting conditions you plan to use

when shooting, point the camera at a blank

white piece of paper so it fills the entire

monitor screen and then press the shutter

button.

__'_-I _ \'k White sheet of paper

The camerawill adjustwhite balancesettingsfor thecurrent

conditions,and display"Complete"whenit isfinished.

5. Press [SET] to register the white balance

settings and return to the shooting screen.

_NOTE

,, Afteryou adjust white balancemanually, the setting

remainsin effectuntil you changeit or until you turnoff the

camera.

ADVANCEDSETTINGS

125

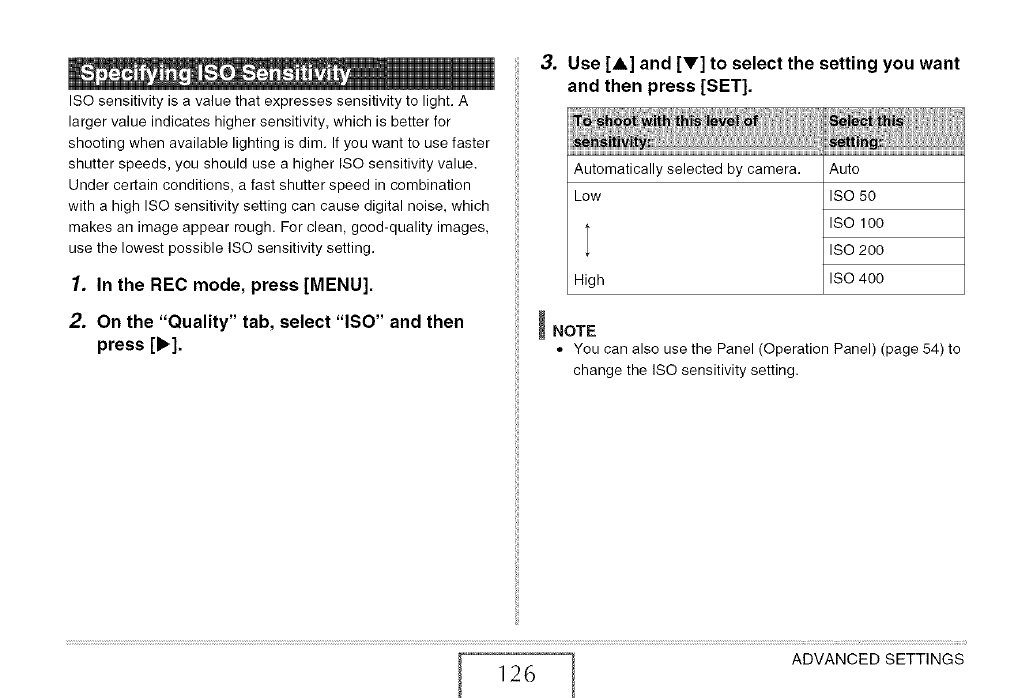

ISO sensitivity is a value that expresses sensitivity to light. A

larger value indicates higher sensitivity, which is better for

shooting when available lighting is dim. If you want to use faster

shutter speeds, you should use a higher ISO sensitivity value.

Under certain conditions, a fast shutter speed in combination

with a high ISO sensitivity setting can cause digital noise, which

makes an image appear rough. For clean, good-quality images,

use the lowest possible ISO sensitivity setting.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "ISO" and then

press [1_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

A_utomatically selected by camera, iAut°

Liw ISO 50

ISO 100

ISO 200

High ISO 400

_NOTE

• You can also use the Panel (Operation Panel) (page 54) to

change the ISO sensitivity setting.

ADVANCEDSETTINGS

126

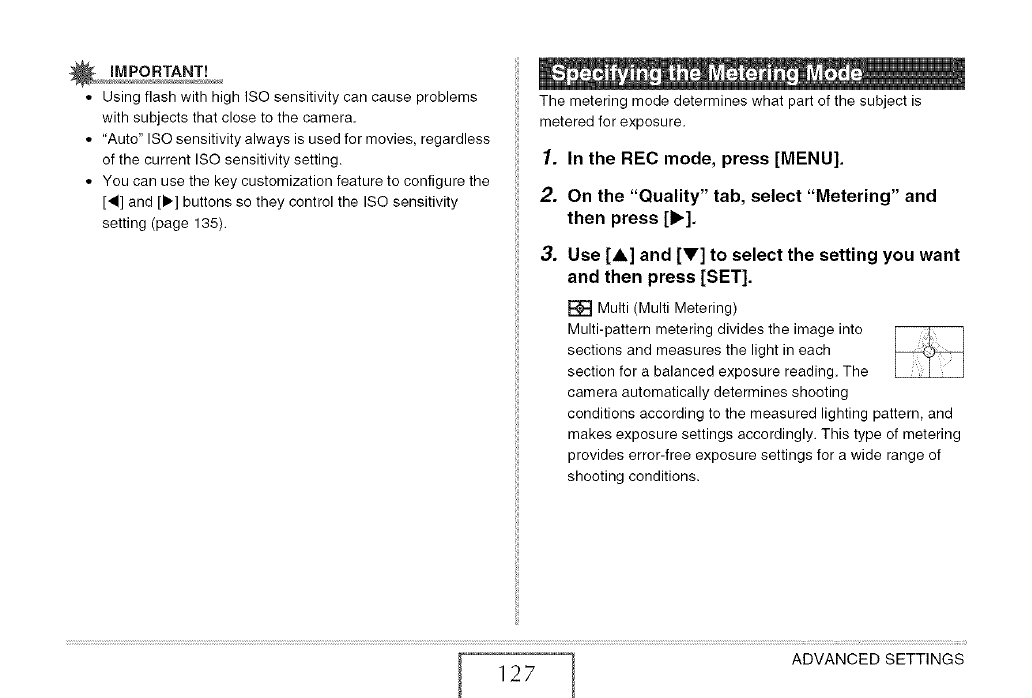

• Using flash with high ISO sensitivity can cause problems

with subjects that close to the camera.

• "Auto" ISO sensitivity always is used for movies, regardless

of the current ISO sensitivity setting.

• You can use the key customization feature to configure the

[_1] and [1_] buttons so they control the ISO sensitivity

setting (page 135).

The metering mode determines what part of the subject is

metered for exposure.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Metering" and

then press [1_].

.Use [A] and [Y] to select the setting you want

and then press [SET].

Multi (Multi Metering)

Multi-pattern metering divides the image into

sections and measures the light in each

section for a balanced exposure reading. The

camera automatically determines shooting

conditions according to the measured lighting pattern, and

makes exposure settings accordingly. This type of metering

provides error-free exposure settings for a wide range of

shooting conditions.

ADVANCEDSETTINGS

127

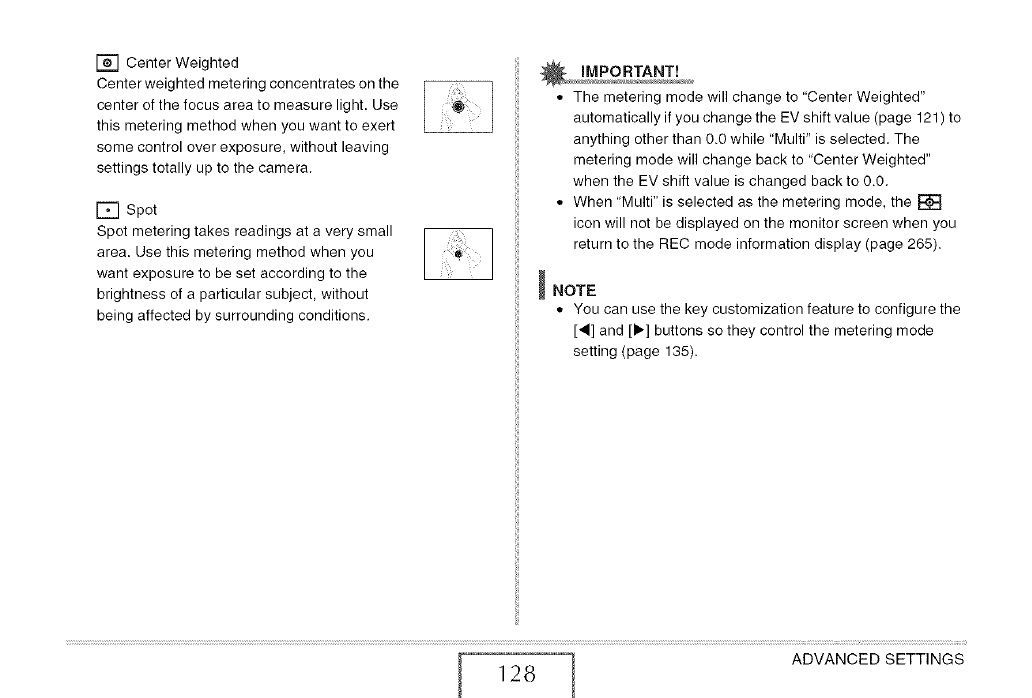

[] Center Weighted

Center weighted metering concentrates on the

center of the focus area to measure light. Use

this metering method when you want to exert

some control over exposure, without leaving

settings totally up to the camera.

[] Spot

Spot metering takes readings at a very small

area. Use this metering method when you

want exposure to be set according to the

brightness of a particular subject, without

being affected by surrounding conditions.

• The metering mode will change to "Center Weighted"

automatically if you change the EV shift value (page 121 ) to

anything other than 0.0 while "Multi" is selected. The

metering mode will change back to "Center Weighted"

when the EV shift value is changed back to 0.0.

• When "Multi" is selected as the metering mode, the

icon will not be displayed on the monitor screen when you

return to the REC mode information display (page 265).

_NOTE

• You can use the key customization feature to configure the

[_1] and [1_-] buttons so they control the metering mode

setting (page 135).

ADVANCEDSETTINGS

128

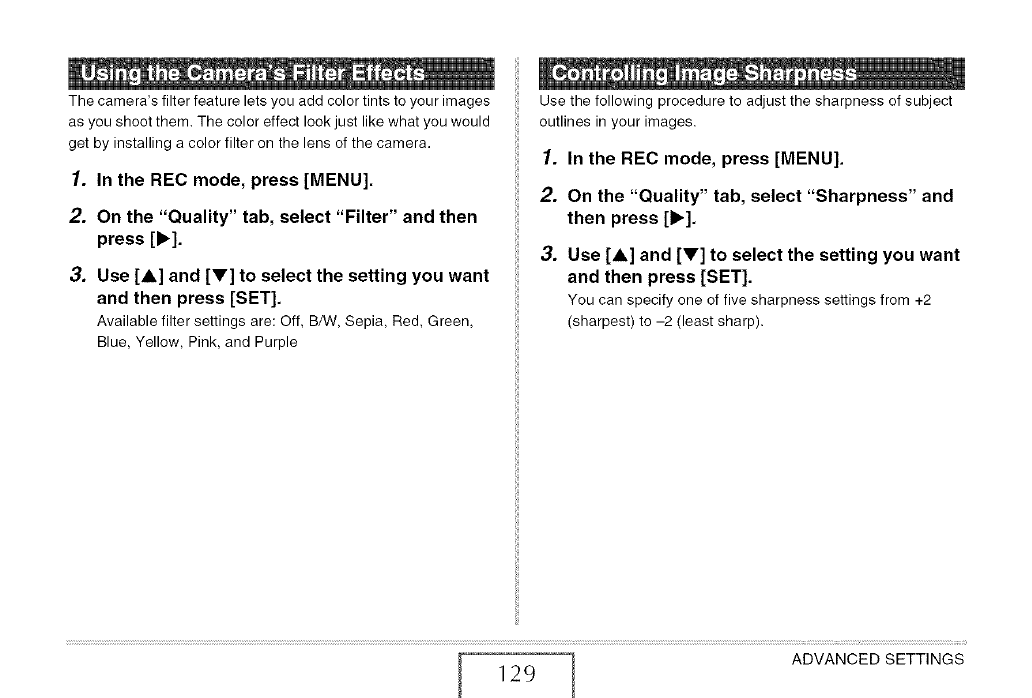

The camera's filter feature lets you add color tints to your images

as you shoot them. The color effect look just like what you would

get by installing a color filter on the lens of the camera.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Filter" and then

press [1_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

Available filter settings are: Off, B/W, Sepia, Red, Green,

Blue, Yellow, Pink, and Purple

Use the following procedure to adjust the sharpness of subject

outlines in your images.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Sharpness" and

then press [11_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

You can specify one of five sharpness settings from +2

(sharpest) to -2 (least sharp).

ADVANCEDSETTINGS

129

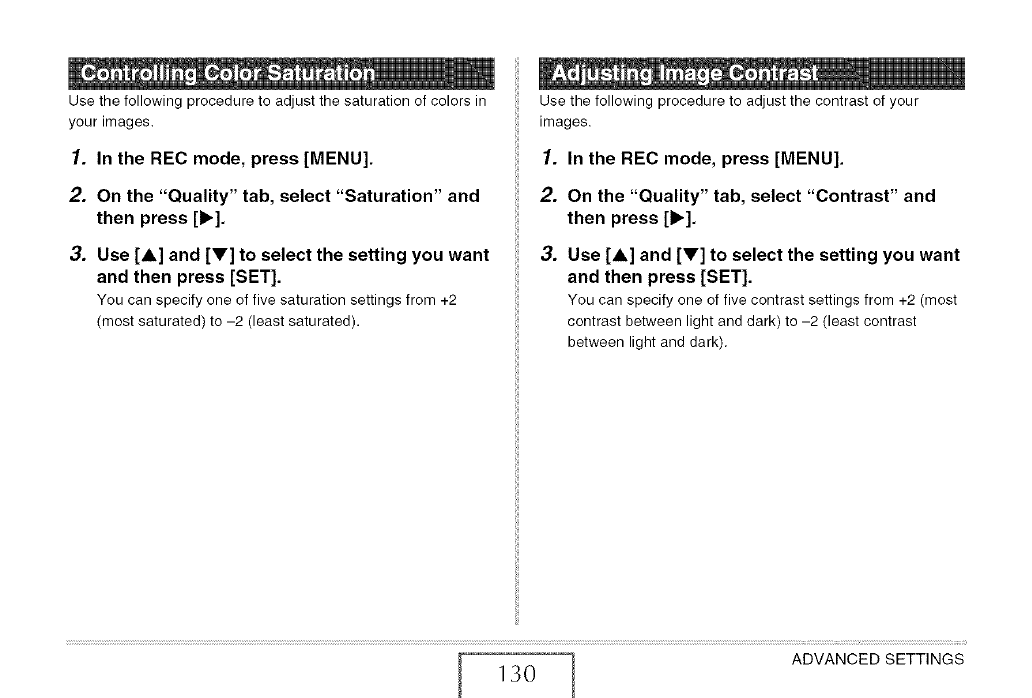

Use the following procedure to adjust the saturation of colors in

your images.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Saturation" and

then press [1_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

You can specify one of five saturation settings from +2

(most saturated) to -2 (least saturated).

Use the following procedure to adjust the contrast of your

images.

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "Contrast" and

then press [1_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

You can specify one of five contrast settings from +2 (most

contrast between light and dark) to -2 (least contrast

between light and dark).

ADVANCEDSETTINGS

130

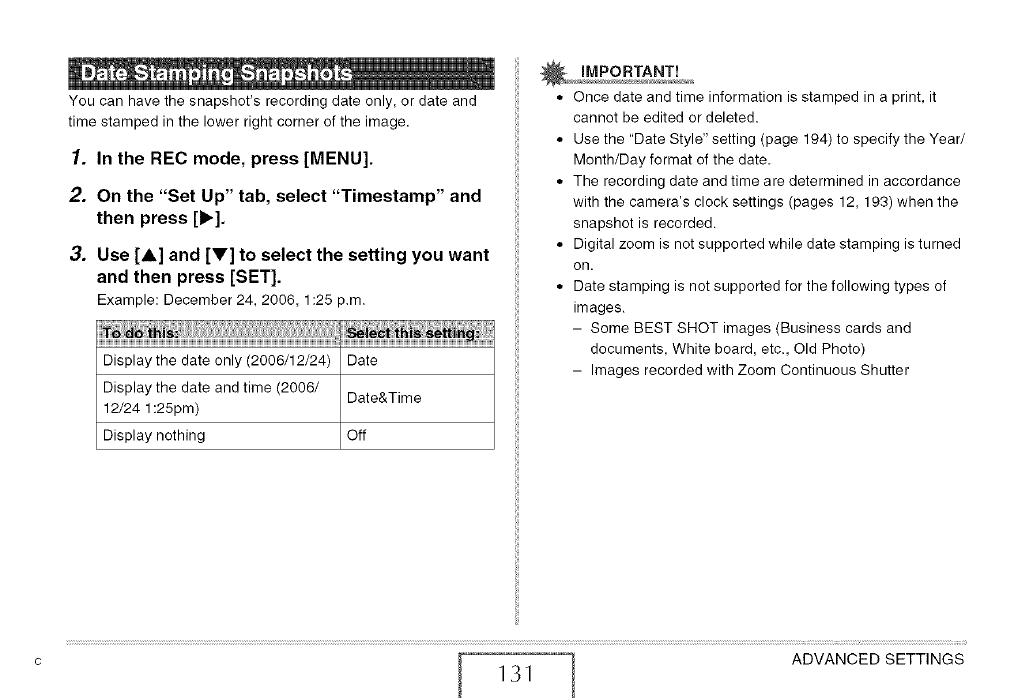

You can have the snapshot's recording date only, or date and

time stamped in the lower right corner of the image.

1. In the REC mode, press [MENU].

2. On the "Set Up" tab, select "Timestamp" and

then press [1_].

oUse [A] and [Y] to select the setting you want

and then press [SET].

Example: December 24, 2006, 1:25 p.m.

Display the date only (2006/12/24) Date

Display the date and time (2006/ Date&Time

12/24 1:25pro)

Display nothing Off

,, Once date and time information is stamped in a print, it

cannot be edited or deleted.

• Use the "Date Style" setting (page 194) to specify the Year/

Month/Day format of the date.

• The recording date and time are determined in accordance

with the camera's clock settings (pages 12, 193) when the

snapshot is recorded.

• Digital zoom is not supported while date stamping is turned

on.

• Date stamping is not supported for the following types of

images.

- Some BEST SHOT images (Business cards and

documents, White board, etc., Old Photo)

- Images recorded with Zoom Continuous Shutter

c ADVANCEDSETTINGS

131

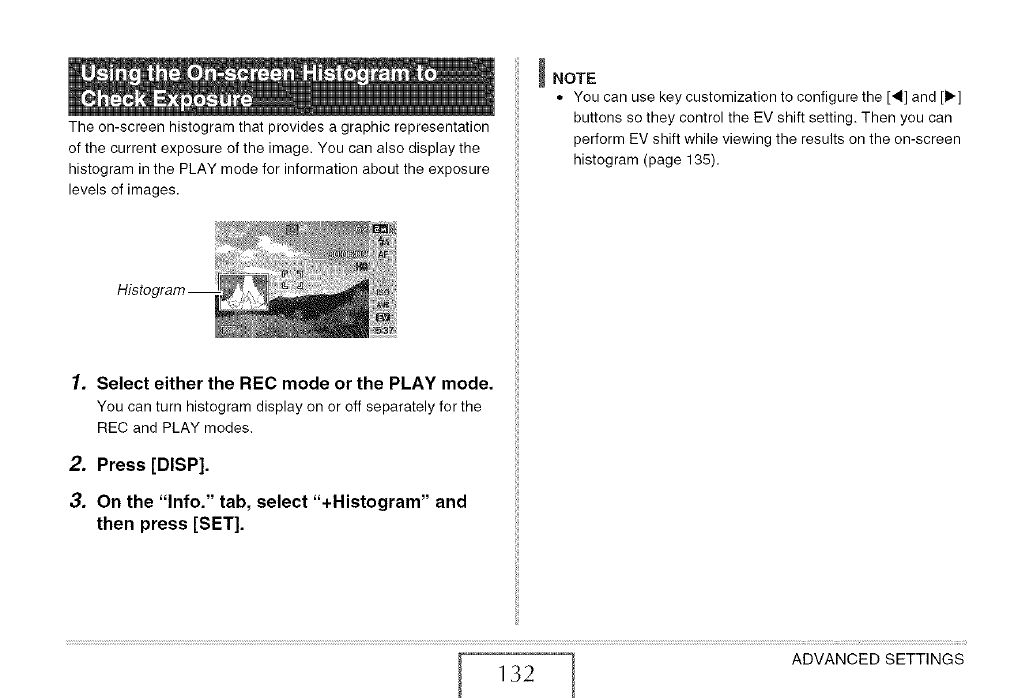

The on-screen histogram that provides a graphic representation

of the current exposure of the image. You can also display the

histogram in the PLAY mode for information about the exposure

levels of images.

1. Select either the REC mode or the PLAY mode.

You can turn histogram display on or off separately for the

REC and PLAY modes.

2. Press [DISP].

3. On the "lnfo." tab, select "+Histogram" and

then press [SET].

_NOTE

• You can use key customization to configure the [_] and [IP']

buttons so they control the EV shift setting. Then you can

perform EV shift while viewing the results on the on-screen

histogram (page 135),

ADVANCEDSETTINGS

132

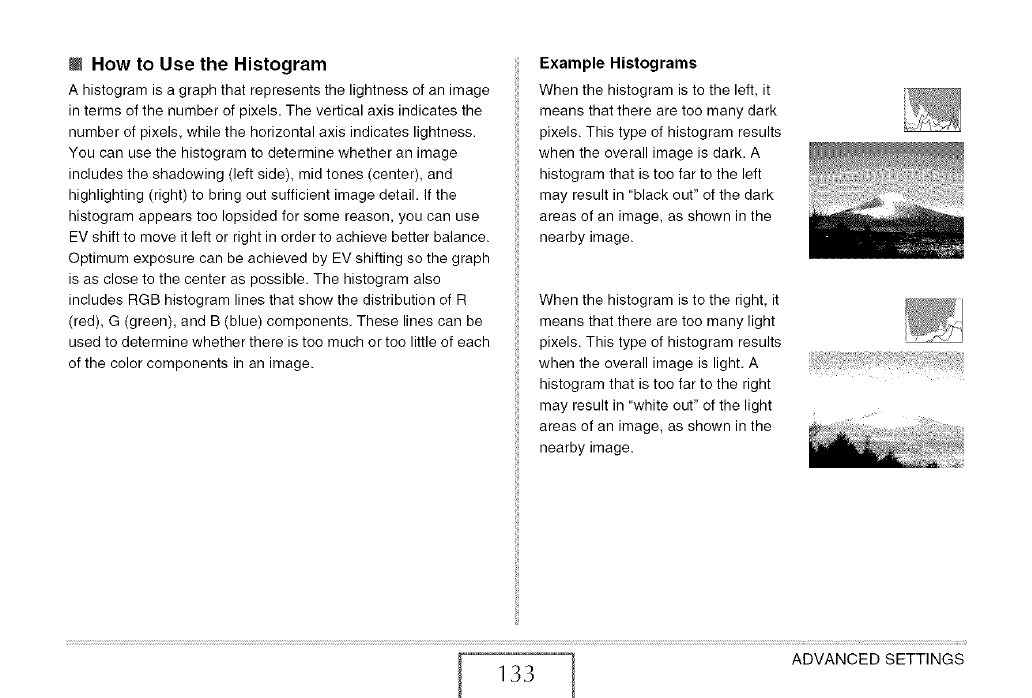

IHow to Use the Histogram

A histogram is a graph that represents the lightness of an image

in terms of the number of pixels. The vertical axis indicates the

number of pixels, while the horizontal axis indicates lightness.

You can use the histogram to determine whether an image

includes the shadowing (left side), mid tones (center), and

highlighting (right) to bring out sufficient image detail. If the

histogram appears too lopsided for some reason, you can use

EV shift to move it left or right in order to achieve better balance.

Optimum exposure can be achieved by EV shifting so the graph

is as close to the center as possible. The histogram also

includes RGB histogram lines that show the distribution of R

(red), G (green), and B (blue) components. These lines can be

used to determine whether there is too much or too little of each

of the color components in an image.

Example Histograms

When the histogram is to the left, it

means that there are too many dark

pixels. This type of histogram results

when the overall image is dark. A

histogram that is too far to the left

may result in "black out" of the dark

areas of an image, as shown in the

nearby image.

When the histogram is to the right, it

means that there are too many light

pixels. This type of histogram results

when the overall image is light. A

histogram that is too far to the right

may result in "white out" of the light

areas of an image, as shown in the

nearby image.

ADVANCEDSETTINGS

133

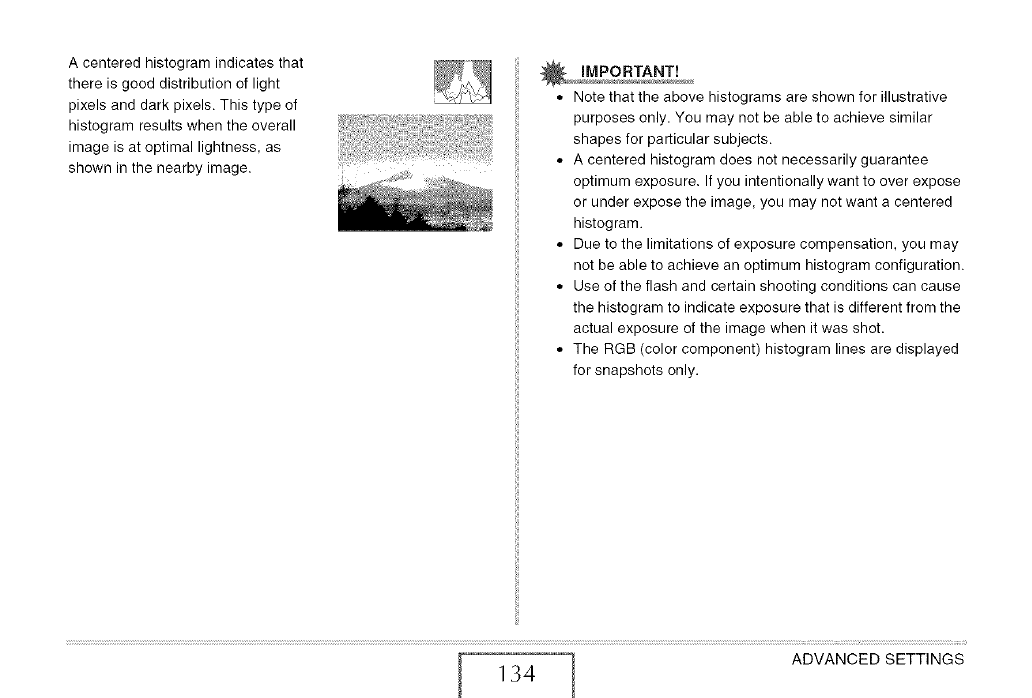

A centered histogram indicates that

there is good distribution of light

pixels and dark pixels. This type of

histogram results when the overall

image is at optimal lightness, as

shown in the nearby image.

• Note that the above histograms are shown for illustrative

purposes only. You may not be able to achieve similar

shapes for particular subjects.

• A centered histogram does not necessarily guarantee

optimum exposure. If you intentionally want to over expose

or under expose the image, you may not want a centered

histogram.

• Due to the limitations of exposure compensation, you may

not be able to achieve an optimum histogram configuration.

• Use of the flash and certain shooting conditions can cause

the histogram to indicate exposure that is different from the

actual exposure of the image when it was shot.

• The RGB (color component) histogram lines are displayed

for snapshots only.

ADVANCEDSETTINGS

134

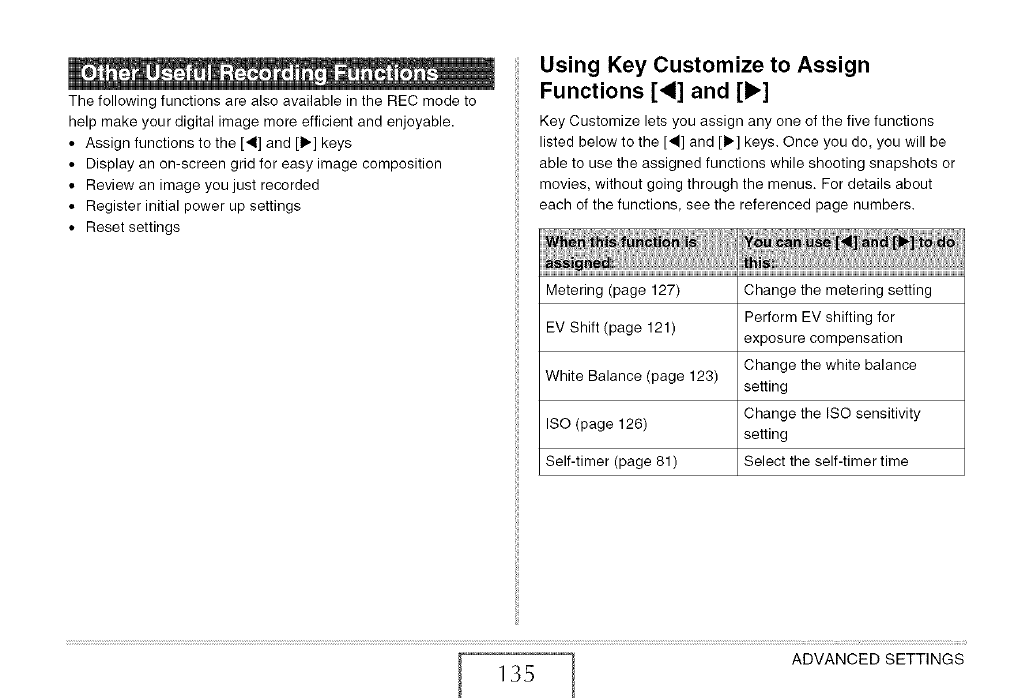

The following functions are also available in the REC mode to

help make your digital image more efficient and enjoyable.

• Assign functions to the [_] and [1_] keys

• Display an on-screen grid for easy image composition

• Review an image you just recorded

• Register initial power up settings

• Reset settings

Using Key Customize to Assign

Functions [<] and [1_]

Key Customize lets you assign any one of the five functions

listed below to the [_1] and [IP.] keys. Once you do, you will be

able to use the assigned functions while shooting snapshots or

movies, without going through the menus. For details about

each of the functions, see the referenced page numbers.

Metering (page 127) Change the metering setting

Perform EV shifting for

EV Shift (page 121) exposure compensation

Change the white balance

White Balance (page 123) setting

Change the ISO sensitivity

ISO (page 126) setting

Self-timer (page 81) Select the self-timer time

ADVANCEDSETTINGS

135

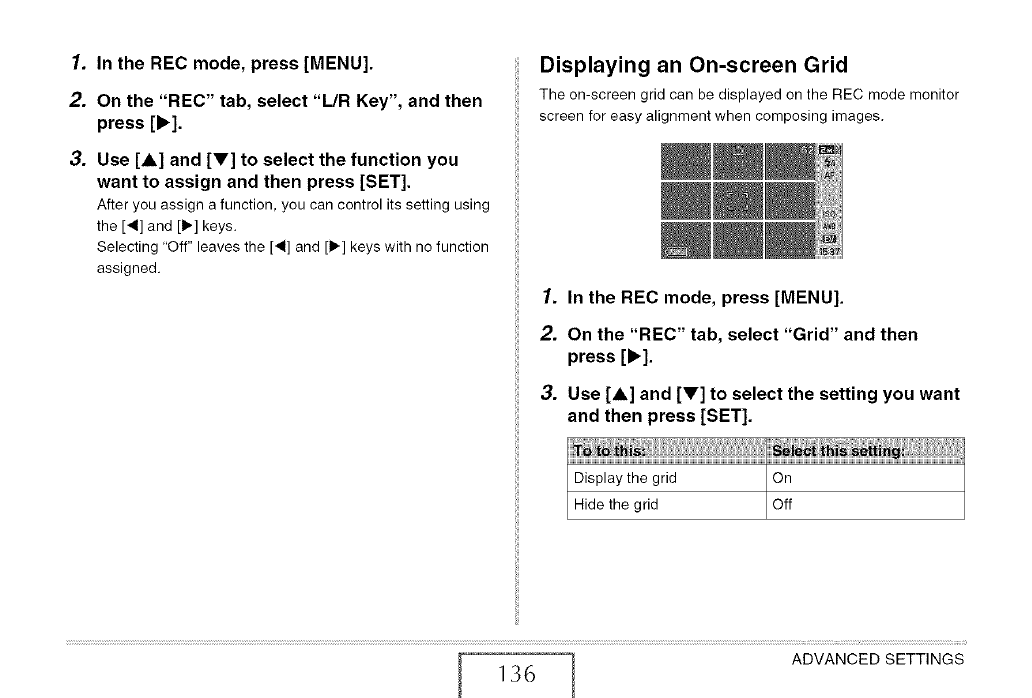

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "L/R Key", and then

press [1_].

3. Use [A] and [V] to select the function you

want to assign and then press [SET].

After you assign a function, you can control its setting using

the [_] and [1_] keys.

Selecting "Off" leaves the [_] and [IP'] keys with no function

assigned.

Displaying an On-screen Grid

The on-screen grid can be displayed on the REC mode monitor

screen for easy alignment when composing images.

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Grid" and then

press [1_].

3. Use [A] and [V] to select the setting you want

and then press [SET].

lay the grid O0_ff

the grid

ADVANCEDSETTINGS

136

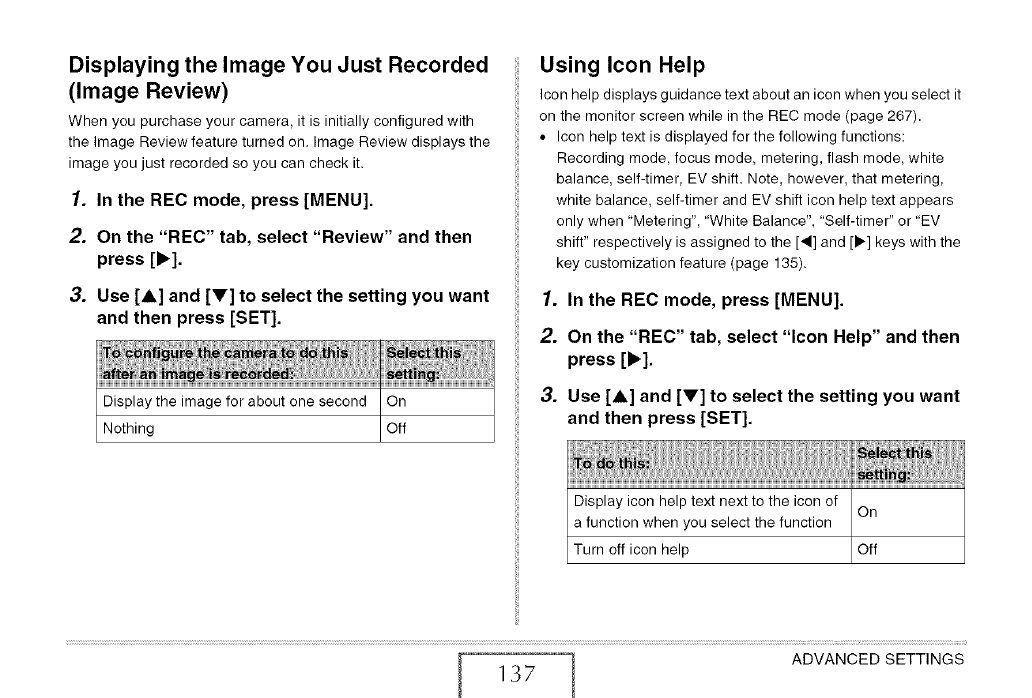

Displaying the Image You Just Recorded

(Image Review)

When you purchase your camera, it is initially configured with

the Image Review feature turned on. Image Review displays the

image you just recorded so you can check it.

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Review" and then

press [1_].

3. Use [A] and [V] to select the setting you want

and then press [SET].

Display the image for about one second On

Nothing Off

Using Icon Help

Icon help displays guidance text about an icon when you select it

on the monitor screen while in the REC mode (page 267).

• Icon help text is displayed for the following functions:

Recording mode, focus mode, metering, flash mode, white

balance, self-timer, EV shift. Note, however, that metering,

white balance, self-timer and EV shift icon help text appears

only when "Metering", "White Balance", "Self-timer" or "EV

shift" respectively is assigned to the [_1] and [1_-] keys with the

key customization feature (page 135).

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Icon Help" and then

press [,].

.Use [A] and [V] to select the setting you want

and then press [SET].

ADVANCEDSETTINGS

137

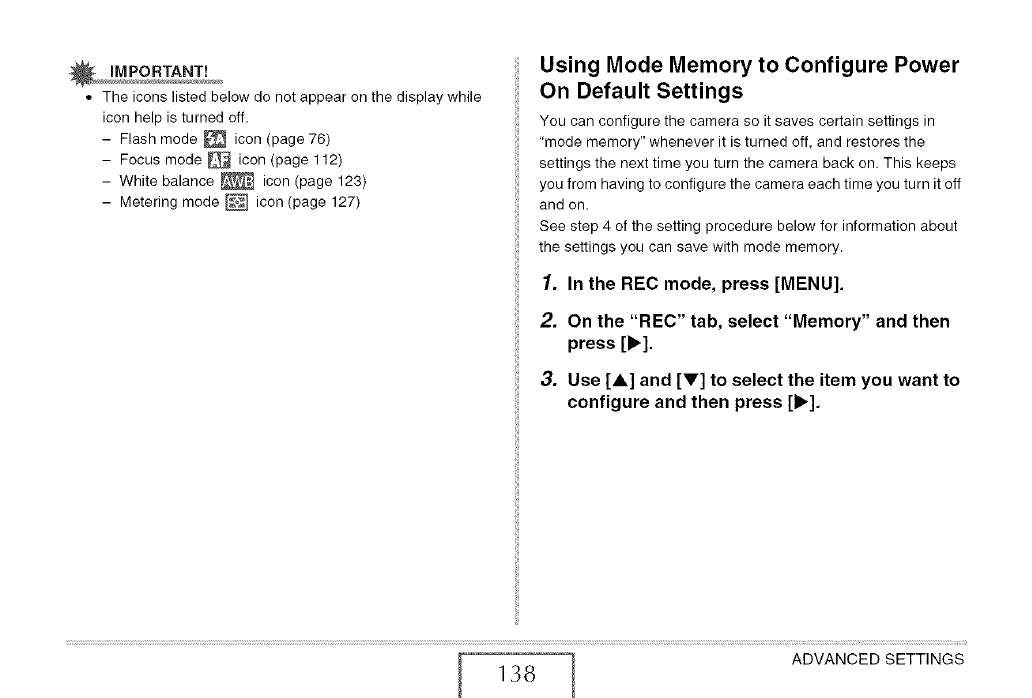

• The icons listed below do not appear on the display while

icon help is turned off.

- Flash mode _ icon (page 76)

- Focus mode _ icon (page 112)

- White balance _ icon (page 123)

- Metering mode _ icon (page 127)

Using Mode Memory to Configure Power

On Default Settings

You can configure the camera so it saves certain settings in

"mode memory" whenever it is turned off, and restores the

settings the next time you turn the camera back on. This keeps

you from having to configure the camera each time you turn it off

and on.

See step 4 of the setting procedure below for information about

the settings you can save with mode memory.

1. In the REC mode, press [MENU].

2. On the "REC" tab, select "Memory" and then

press [,].

3. Use [A] and [V] to select the item you want to

configure and then press [1_].

ADVANCEDSETTINGS

138

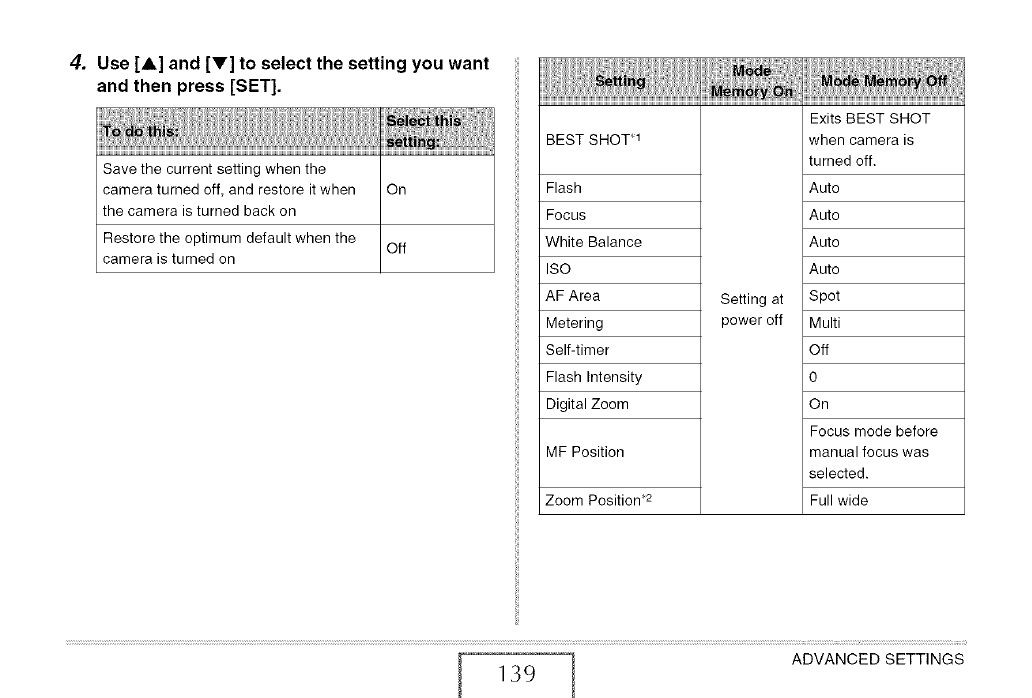

4. Use [A] and [Y] to select the setting you want

and then press [SET].

Save the current setting when the

camera turned off, and restore it when On

the camera is turned back on

Restore the optimum default when the Off

camera is turned on

BEST SHOT .1

Flash

Focus

White Balance

ISO

AF Area

Metering

Self-timer

Flash Intensity

Digital Zoom

MF Position

Zoom Position _2

Setting at

power off

Exits BEST SHOT

when camera is

turned off.

Auto

Spot

Multi

Off

Focus mode before

manual focus was

selected.

Full wide

ADVANCED SETTINGS

139

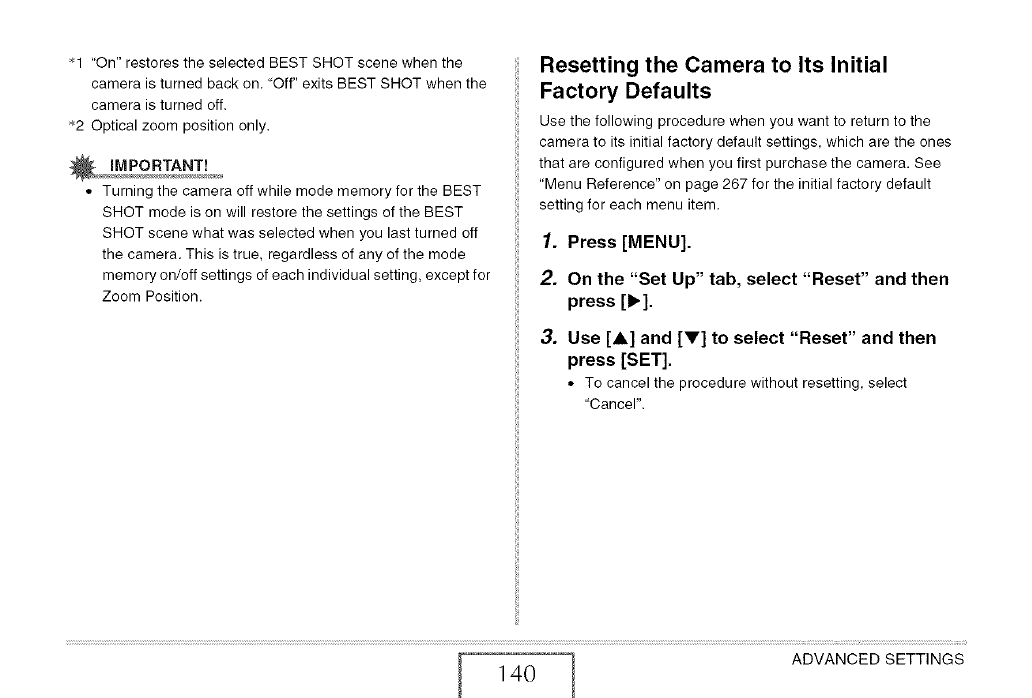

• 1 "On" restores the selected BEST SHOT scene when the

camera is turned back on. "Off" exits BEST SHOT when the

camera is turned off.

• 2 Optical zoom position only.

• Turning the camera off while mode memory for the BEST

SHOT mode is on will restore the settings of the BEST

SHOT scene what was selected when you last turned off

the camera. This is true, regardless of any of the mode

memory on/off settings of each individual setting, except for

Zoom Position.

Resetting the Camera to Its Initial

Factory Defaults

Use the following procedure when you want to return to the

camera to its initial factory default settings, which are the ones

that are configured when you first purchase the camera. See

"Menu Reference" on page 267 for the initial factory default

setting for each menu item.

1. Press [MENU].

2. On the "Set Up" tab, select "Reset" and then

press [b'].

3. Use [A] and [V] to select "Reset" and then

press [SET].

• To cancel the procedure without resetting, select

"Cancel".

ADVANCEDSETTINGS

140

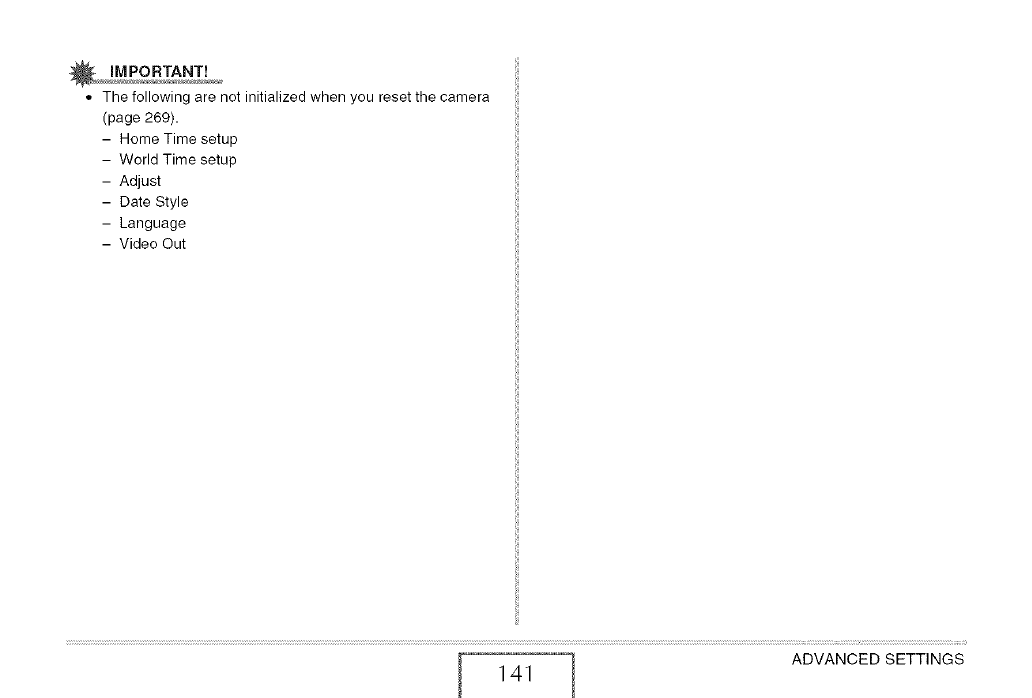

• The following are not initialized when you reset the camera

(page 269).

- Home Time setup

- World Time setup

- Adjust

- Date Style

- Language

- Video Out

ADVANCEDSETTINGS

141

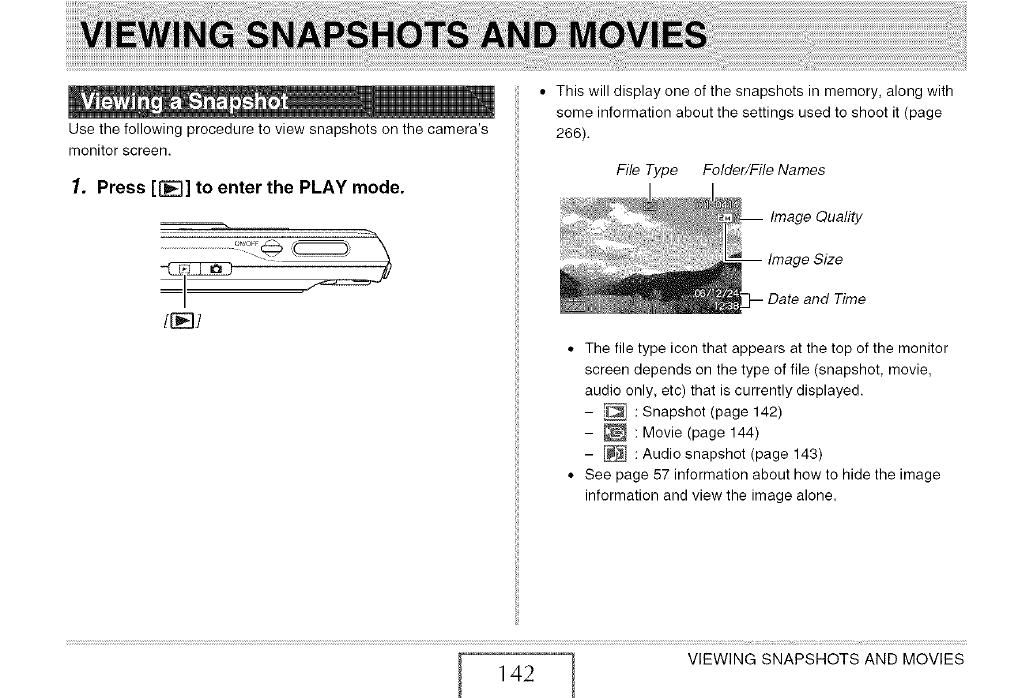

Use the following procedure to view snapshots on the camera's

monitor screen.

1. Press [_] to enter the PLAY mode.

......................................._:o_.__. ,,

• This will display one of the snapshots in memory, along with

some information about the settings used to shoot it (page

266).

File Type Folder/File Names

Image Quality

e Size

• The file type icon that appears at the top of the monitor

screen depends on the type of file (snapshot, movie,

audio only, etc) that is currently displayed.

- _ : Snapshot (page 142)

- _ : Movie (page 144)

- _ : Audio snapshot (page 143)

• See page 57 information about how to hide the image

information and view the image alone.

VIEWING SNAPSHOTS AND MOVIES

142

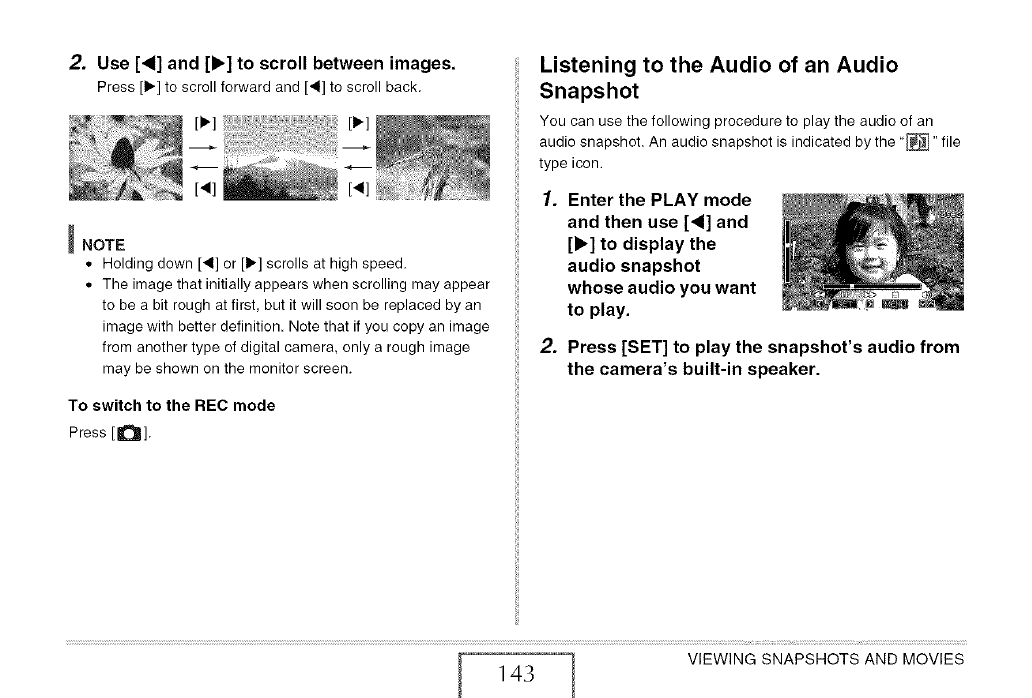

2. Use [41] and [1_] to scroll between images.

Press[1_]to scroll forwardand [_] to scrollback

_NOTE

• Holding down [_] or [1_] scrolls at high speed.

• The image that initially appears when scrolling may appear

to be a bit rough at first, but it will soon be replaced by an

image with better definition. Note that if you copy an image

from another type of digital camera, only a rough image

may be shown on the monitor screen.

To switch to the REC mode

Press [O].

Listening to the Audio of an Audio

Snapshot

You can use the following procedure to play the audio of an

audio snapshot. An audio snapshot is indicated by the "_" file

type icon.

1. Enter the PLAY mode

and then use [._] and

[,] to display the

audio snapshot

whose audio you want

to play.

2. Press [SET] to play the snapshot's audio from

the camera's built-in speaker.

VIEWING SNAPSHOTS AND MOVIES

143

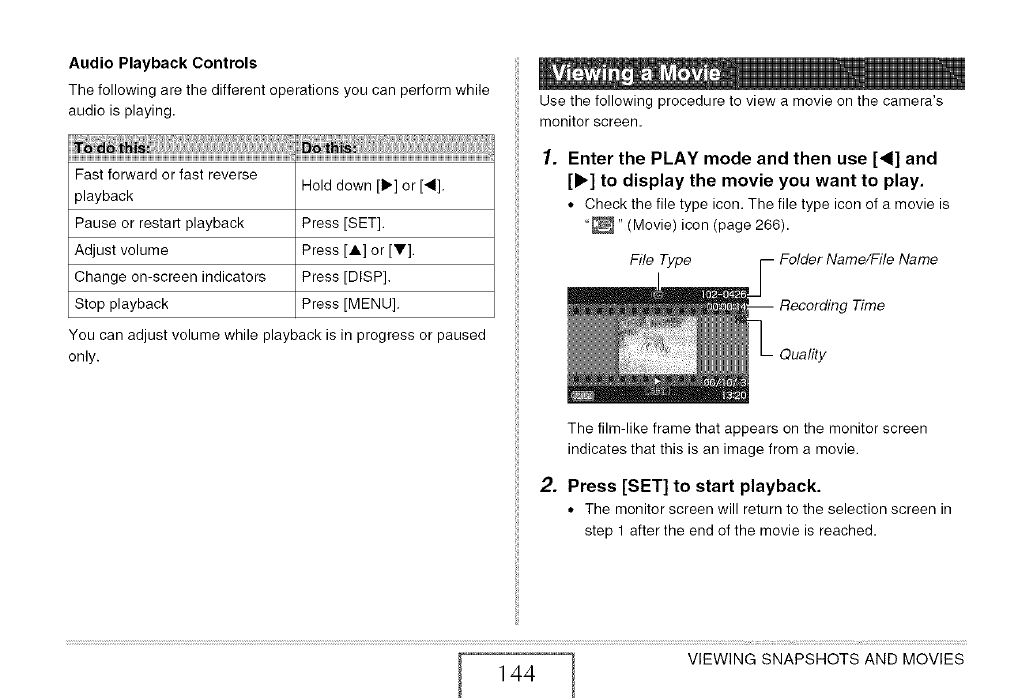

Audio Playback Controls

The following are the different operations you can perform while

audio is playing.

Fast forward or fast reverse Hold down [11_]or [_1].

playback

Pause or restart playback Press [SET].

Adjust volume Press [A] or [V].

Change on-screen indicators Press [DISP].

Stop playback Press [MENU].

You can adjust volume while playback is in progress or paused

only.

Use the following procedure to view a movie on the camera's

monitor screen.

1. Enter the PLAY mode and then use [_1] and

[1_] to display the movie you want to play.

• Check the file type icon. The file type icon of a movie is

"_" (Movie) icon (page 266).

File Type Folder Name/File Name

Recording Time

Quality

The film-like frame that appears on the monitor screen

indicates that this is an image from a movie.

2. Press [SET] to start playback.

• The rnonitor screen will return to the selection screen in

step 1 after the end of the movie is reached.

VIEWING SNAPSHOTS AND MOVIES

144

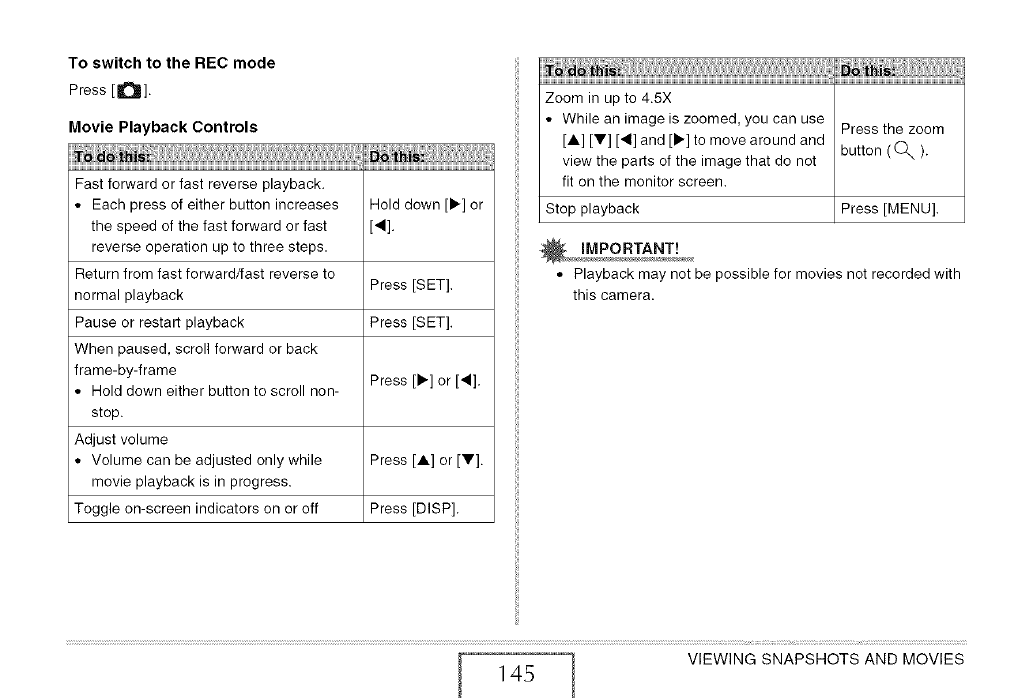

To switch to the REC mode

Press [i_m ].

Movie Playback Controls

Fast forward or fast reverse playback.

• Each press of either button increases Hold down [1_-] or

the speed of the fast forward or fast [_1].

reverse operation up to three steps.

Return from fast forward/fast reverse to Press [SET].

normal playback

Pause or restart playback Press [SET].

When paused, scroll forward or back

frame-by-frame Press [1_-]or [_1].

• Hold down either button to scroll non-

stop.

Adjust volume

• Volume can be adjusted only while Press [A] or [V].

movie playback is in progress.

Toggle on-screen indicators on or off Press [DISP].

iiiii li ! !i!i!ii!iiii!iliiiiii!iii!ii!ii!ii!ii

Zoom in up to 4.5X

• While an image is zoomed, you can use Press the zoom

[A] [V] [_] and [1_-]to move around and button (O_).

view the parts of the image that do not

fit on the monitor screen.

Stop playback Press [MENU].

• Playback may not be possible for movies not recorded with

this camera.

VIEWING SNAPSHOTS AND MOVIES

145

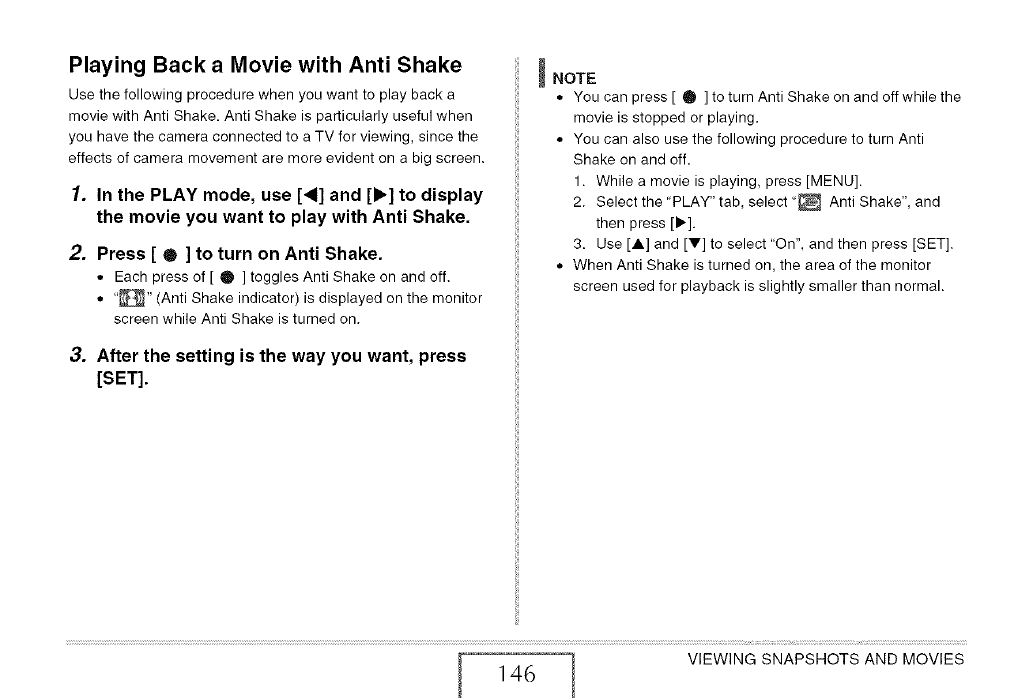

Playing Back a Movie with Anti Shake

Use the following procedure when you want to play back a

movie with Anti Shake. Anti Shake is particularly useful when

you have the camera connected to a TV for viewing, since the

effects of camera movement are more evident on a big screen.

1. In the PLAY mode, use [<] and [1_] to display

the movie you want to play with Anti Shake.

2. Press [ ®] to turn on Anti Shake.

•Each press of [ • ] toggles Anti Shake on and off.

• "_" (Anti Shake indicator) is displayed on the monitor

screen while Anti Shake is turned on.

3. After the setting is the way you want, press

[SET].

_NOTE

•You can press [ • ] to turn Anti Shake on and off while the

movie is stopped or playing.

• You can also use the following procedure to turn Anti

Shake on and off.

1. While a movie is playing, press [MENU].

2. Select the "PLAY" tab, select "_ Anti Shake", and

then press [1_].

3. Use [A] and [V] to select "On", and then press [SET].

• When Anti Shake is turned on, the area of the monitor

screen used for playback is slightly smaller than normal.

VIEWING SNAPSHOTS AND MOVIES

146

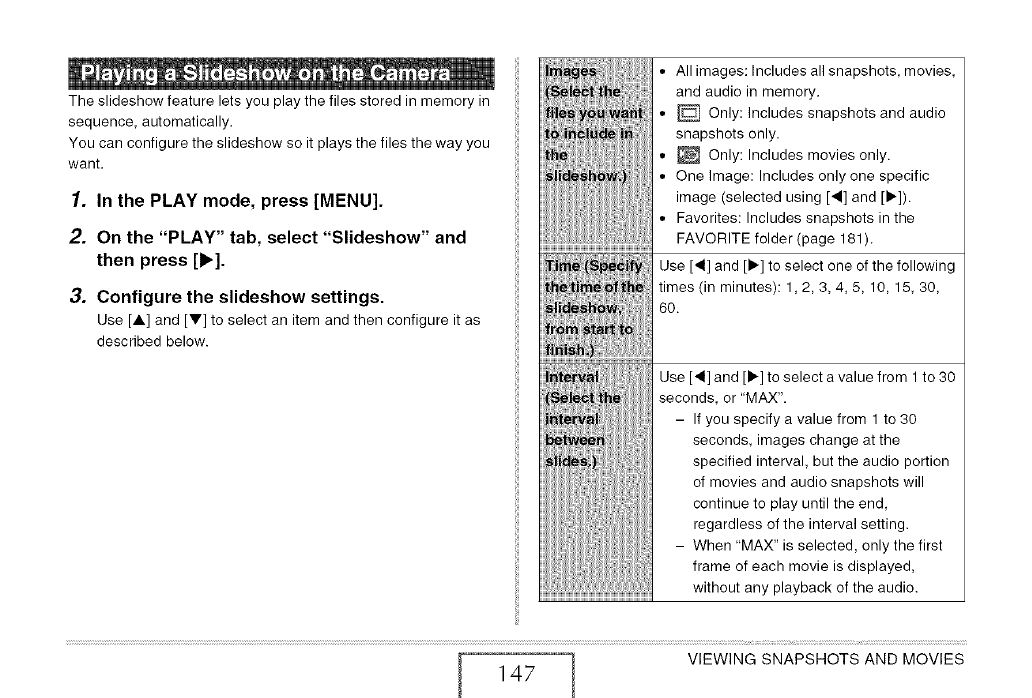

The slideshow feature lets you play the files stored in memory in

sequence, automatically.

You can configure the slideshow so it plays the files the way you

want.

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Slideshow" and

then press [1_].

3. Configure the slideshow settings.

Use [A] and [V] to select an item and then configure it as

described below.

• All images: Includes all snapshots, movies,

and audio in memory.

• _ Only: Includes snapshots and audio

snapshots only.

• _ Only: Includes movies only.

• One Image: Includes only one specific

image (selected using [_1] and [1_]).

• Favorites: Includes snapshots in the

FAVORITE folder (page 181).

Use [_] and [1_]to select one of the following

times (in minutes): 1,2, 3, 4, 5, 10, 15, 30,

60.

Use [_] and [1_]to select a value from 1 to 30

seconds, or "MAX".

- If you specify a value from 1 to 30

seconds, images change at the

specified interval, but the audio portion

of movies and audio snapshots will

continue to play until the end,

regardless of the interval setting.

- When "MAX" is selected, only the first

frame of each movie is displayed,

without any playback of the audio.

VIEWING SNAPSHOTS AND MOVIES

147

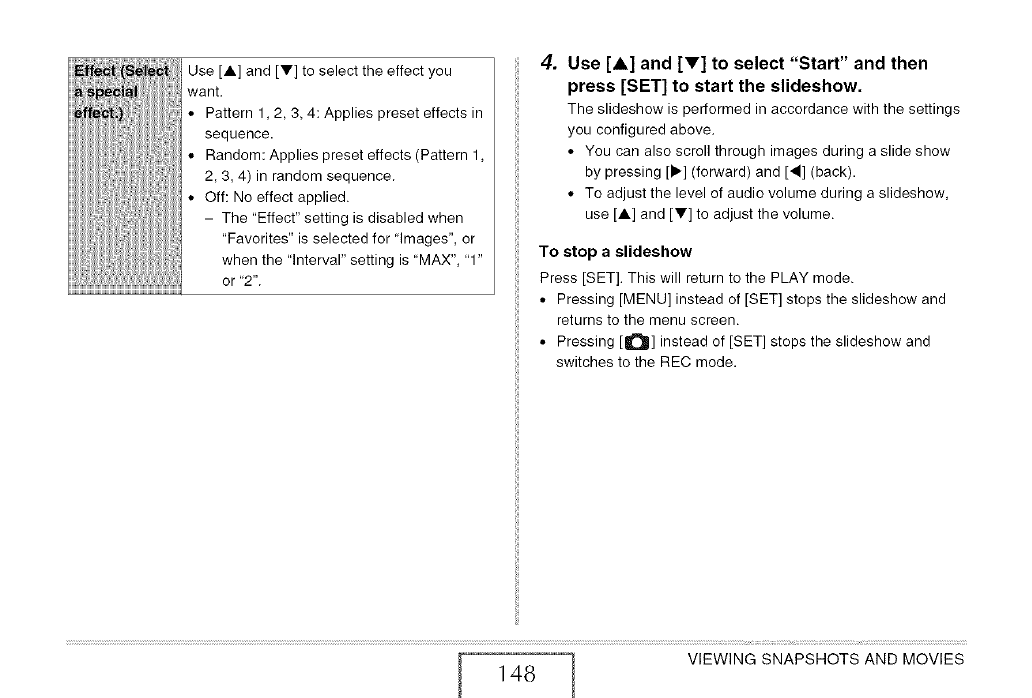

Use [A] and [V] to select the effect you

want.

Pattern 1,2, 3, 4: Applies preset effects in

sequence.

Random: Applies preset effects (Pattern 1,

2, 3, 4) in random sequence.

Off: No effect applied.

- The "Effect" setting is disabled when

"Favorites" is selected for "Images", or

when the "interval" setting is "MAX", "1"

or "2".

4. Use [A] and [V] to select "Start" and then

press [SET] to start the slideshow.

The slideshow is performed in accordance with the settings

you configured above.

• You can also scroll through images during a slide show

by pressing [1_-](forward) and [_1] (back).

• To adjust the level of audio volume during a slideshow,

use [A] and [V] to adjust the volume.

To stop a slideshow

Press [SET]. This will return to the PLAY mode.

• Pressing [MENU] instead of [SET] stops the slideshow and

returns to the menu screen.

• Pressing [ITS] instead of [SET] stops the slideshow and

switches to the REC mode.

VIEWING SNAPSHOTS AND MOVIES

148

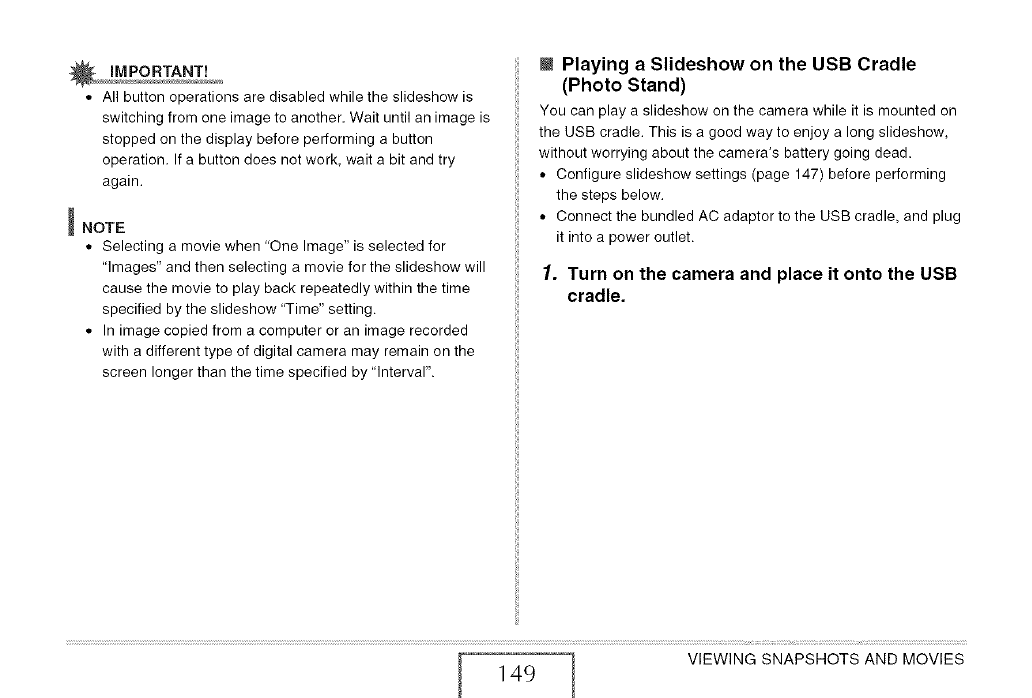

• All button operations are disabled while the slideshow is

switching from one image to another. Wait until an image is

stopped on the display before performing a button

operation. If a button does not work, wait a bit and try

again.

_NOTE

• Selecting a movie when "One Image" is selected for

"Images" and then selecting a movie for the slideshow will

cause the movie to play back repeatedly within the time

specified by the slideshow "Time" setting.

• In image copied from a computer or an image recorded

with a different type of digital camera may remain on the

screen longer than the time specified by "Interval".

mPlaying a Slideshow on the USB Cradle

(Photo Stand)

You can play a slideshow on the camera while it is mounted on

the USB cradle. This is a good wayto enjoy a long slideshow,

without worrying about the camera's battery going dead.

• Configure slideshow settings (page 147) before performing

the steps below.

• Connect the bundled AC adaptor to the USB cradle, and plug

it into a power outlet.

1. Turn on the camera and place it onto the USB

cradle.

VIEWING SNAPSHOTS AND MOVIES

149

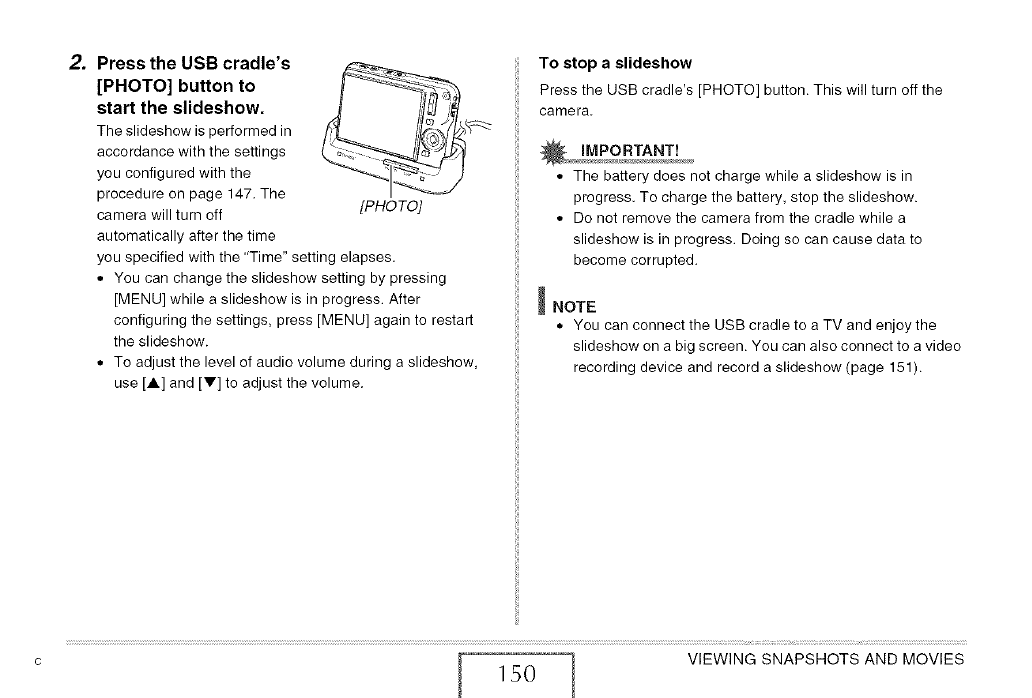

,Press the USB cradle's

[PHOTO] button to

start the slideshow.

The slideshow is performed in

accordance with the settings

you configured with the

procedure on page 147. The

camera will turn off

automatically after the time

[PHOTO]

you specified with the "Time" setting elapses.

• You can change the slideshow setting by pressing

[MENU] while a slideshow is in progress. After

configuring the settings, press [MENU] again to restart

the slideshow.

• To adjust the level of audio volume during a slideshow,

use [A] and [V] to adjust the volume.

To stop a slideshow

Press the USB cradle's [PHOTO] button. This will turn off the

camera.

• The battery does not charge while a slideshow is in

progress. To charge the battery, stop the slideshow.

• Do not remove the camera from the cradle while a

slideshow is in progress. Doing so can cause data to

become corrupted.

_NOTE

• You can connect the USB cradle to a TV and enjoy the

slideshow on a big screen. You can also connect to a video

recording device and record a slideshow (page 151).

c VIEWING SNAPSHOTS AND MOVIES

150

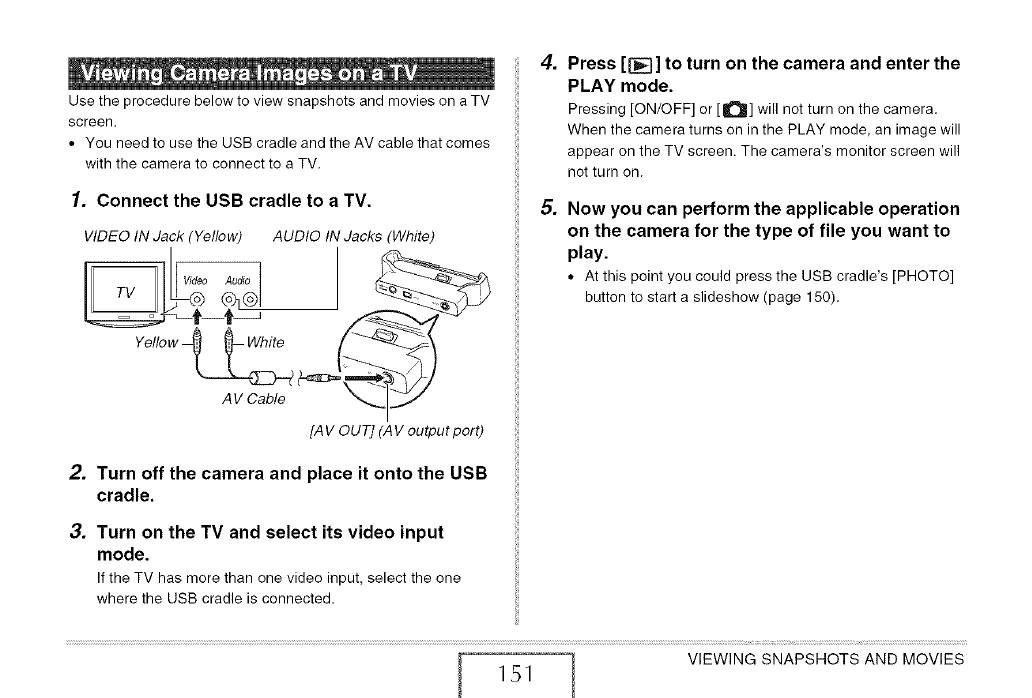

Use the procedure below to view snapshots and movies on a TV

screen.

• You need to use the USB cradle and the AV cable that comes

with the camera to connect to a TV.

1. Connect the USB cradle to a TV.

VIDEO IN Jack (Yellow) AUDIO IN Jacks (White)

Video Audio

[A V OUT] (A V output port)

2. Turn off the camera and place it onto the USB

cradle.

3. Turn on the TV and select its video input

mode.

If the TV has more than one video input, select the one

where the USB cradle is connected.

Press [F_-I] to turn on the camera and enter the

PLAY mode.

Pressing [ON/OFF] or [r'_l] will not turn on the camera.

When the camera turns on in the PLAY mode, an image will

appear on the TV screen. The camera's monitor screen will

not turn on.

Now you can perform the applicable operation

on the camera for the type of file you want to

play.

• At this point you could press the USB cradle's [PHOTO]

button to start a slideshow (page 150).

VIEWING SNAPSHOTS AND MOVIES

151

To turn off the camera

You can turn off the camera by doing either of the following.

• Press the camera's [ON/OFF] button.

• Press the USB cradle's [USB] button.

• When connecting to a TV to display images, be sure to

configure the camera's [l_Jl] (REC) and [['_q] (PLAY)

buttons for "Power On" or "Power On/Off" (page 197).

• All icons and indicators that appear on the monitor screen

also appear on the TV screen.

You can use [DISP] to change the display contents.

• Audio is monaural.

• Certain TVs may cut off part of the images.

• Audio is initially output by the camera at maximum volume.

When you first start displaying images, set the TV volume

control at a relatively low level and then adjust it as

required.

_NOTE

• After using an optionally available AV cable (EMC-3A) to

connect the camera's cradle connector directly to the

VIDEO IN terminal of a TV (without using the USB cable),

you can view recorded images on the TV.

You can use the camera's USB cradle to connect to a DVD

recorder or video deck and record images from the camera.

There are various different methods you can use in order to

connect to another device when recording images. The

following describes one method for connection using the

AV cable that comes with the camera.

- DVD recorder or video deck: Connect to the VIDEO IN

and AUDIO IN terminals.

- USB cradle: Connect to the [AV OUT] (AV output port)

- Camera: Place onto the cradle

You can play a slideshow of snapshots and movies on the

camera and record it on a DVD or video tape. You can

record movies by selecting "_ Only" for the slideshow

"Images" setting (page 147). When recording to DVD

recorder or video deck, you can turn off display information

(page 57) so indicators and other information is not

recorded along with the image.

To view the image that is being recorded, connect a TV or

other monitor to the DVD recorder or video deck that is

connected to the camera. For information about connecting

a monitor to the DVD recorder or video deck and about how

to record, see the user documentation that comes with the

DVD recorder or video deck you are using.

B VIEWING SNAPSHOTS AND MOVIES

1.52

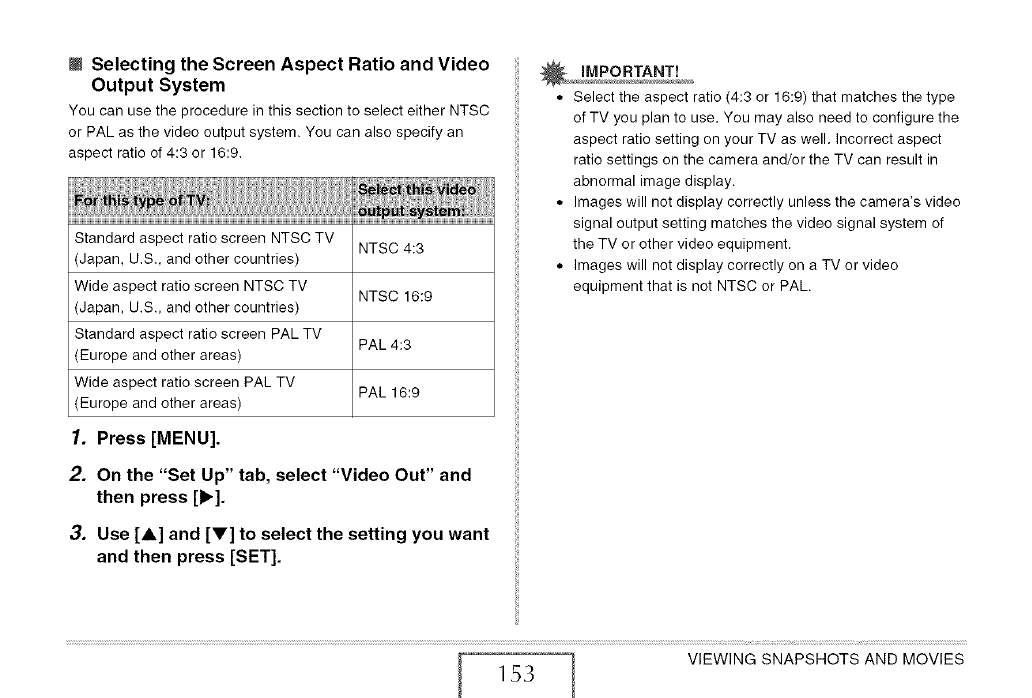

I Selecting the Screen Aspect Ratio and Video

Output System

You can use the procedure in this section to select either NTSC

or PAL as the video output system. You can also specify an

aspect ratio of 4:3 or 16:9.

Standard aspect ratio screen NTSC TV NTSC 4:3

(Japan, U.S., and other countries)

Wide aspect ratio screen NTSC TV NTSC 16:9

(Japan, U.S., and other countries)

Standard aspect ratio screen PAL TV PAL 4:3

(Europe and other areas)

Wide aspect ratio screen PAL TV PAL 16:9

(Europe and other areas)

1. Press [MENU].

2. On the "Set Up" tab, select "Video Out" and

then press [1_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

• Select the aspect ratio (4:3 or 16:9) that matches the type

of TV you plan to use, You may also need to configure the

aspect ratio setting on your TV as well. Incorrect aspect

ratio settings on the camera and/or the TV can result in

abnormal image display.

• Images will not display correctly unless the camera's video

signal output setting matches the video signal system of

the TV or other video equipment.

• Images will not display correctly on a TV or video

equipment that is not NTSC or PAL.

VIEWING SNAPSHOTS AND MOVIES

153

Perform the following procedure to zoom the image currently on

the monitor screen up to eight times its normal size.

1. In the PLAY mode, and use [<] and [b'] to

display the snapshot you want to zoom.

2. Press the zoom

button ( C_ ).

Each press of this button

zooms the image more.

You can use [A], [V], [_],

and [IP']to move to a

different part of the image

after zooming.

Zoom Factor

Image Area

Part of the image that is

currently displayed.

To zoom back out, press the zoom button ( _=Z).

• If display indicators are turned on, an indicator in the lower

right corner of the monitor screen shows what part of the

zoomed image is currently displayed.

To return to image to normal size

Press [MENU] or [BS].

• Depending on the image size, some images may not be

able to be zoomed to the full 8 times normal size.

VIEWING SNAPSHOTS AND MOVIES

154

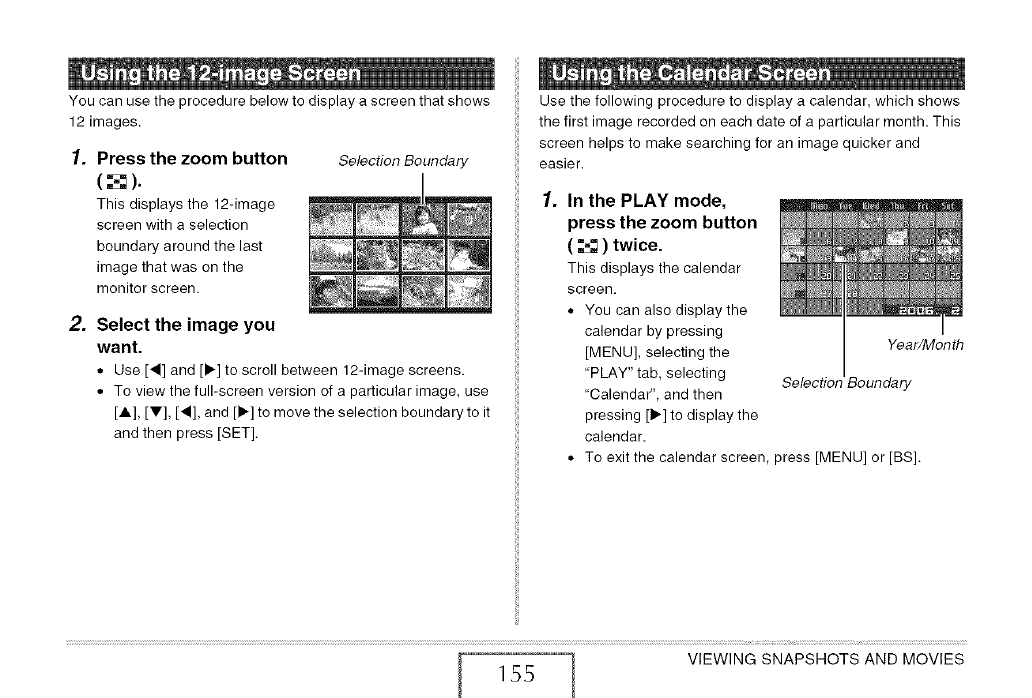

You can use the procedure below to display a screen that shows

12 images.

1. Press the zoom button

(_).

This displays the 12-image

screen with a selection

boundary around the last

image that was on the

monitor screen.

Selection Boundary

2. Select the image you

want.

• Use [_1] and [1_] to scroll between 12-image screens.

• To view the full-screen version of a particular image, use

[A], [V], [4], and [1_]to move the selection boundary to it

and then press [SET].

Use the following procedure to display a calendar, which shows

the first image recorded on each date of a particular month. This

screen helps to make searching for an image quicker and

easier.

1. In the PLAY mode,

press the zoom button

( _ ) twice.

This displays the calendar

screen.

• You can also display the

calendar by pressing

[MENU], selecting the Year/Month

"PLAY" tab, selecting Selectior Boundary

"Calendar", and then

pressing [liD.]to display the

calendar.

• To exit the calendar screen, press [MENU] or [BS].

VIEWING SNAPSHOTS AND MOVIES

155

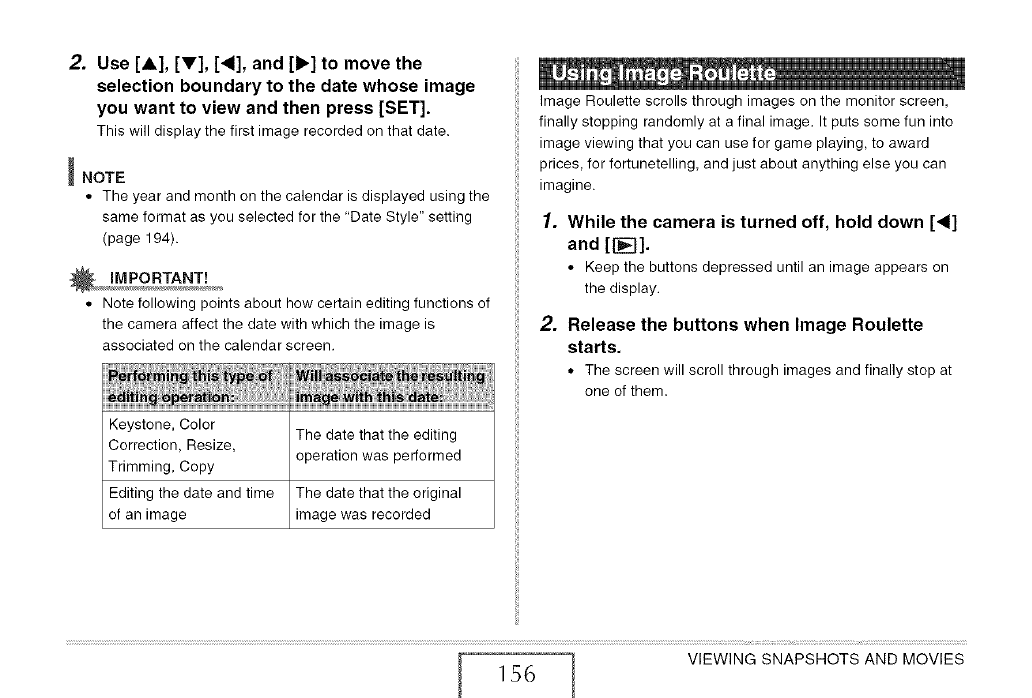

2. Use [A], [Y], [_], and [1_] to move the

selection boundary to the date whose image

you want to view and then press [SET].

Thiswill displaythefirst image recordedonthatdate.

_NOTE

• The year and month on the calendar is displayed using the

same format as you selected for the "Date Style" setting

(page 194).

• Note following points about how certain editing functions of

the camera affect the date with which the image is

associated on the calendar screen.

Keystone, Color The date that the editing

Correction, Resize, operation was performed

Trimming, Copy

Editing the date and time The date that the original

of an image image was recorded

Image Roulette scrolls through images on the monitor screen,

finally stopping randomly at a final image. It puts some fun into

image viewing that you can use for game playing, to award

prices, for fortunetelling, and just about anything else you can

imagine.

1. While the camera is turned off, hold down [_1]

and [F_-I].

• Keep the buttons depressed until an image appears on

the display.

2. Release the buttons when Image Roulette

starts.

• The screenwill scrollthroughimagesandfinally stopat

one of them.

VIEWING SNAPSHOTS AND MOVIES

156

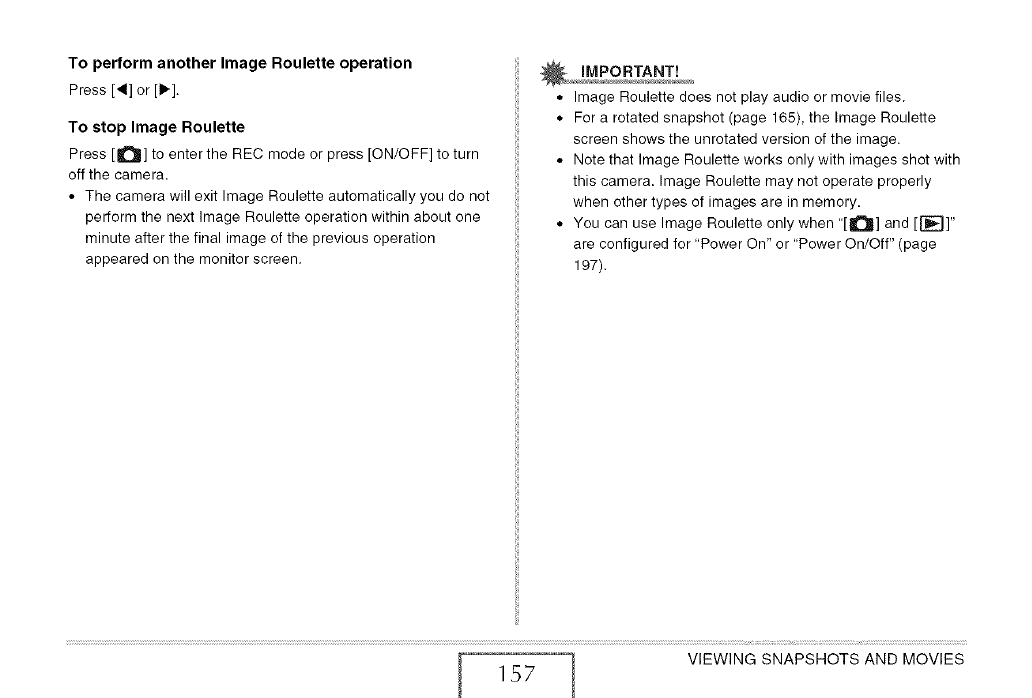

To perform another Image Roulette operation

Press [_] or [1_].

To stop Image Roulette

Press [_] to enter the REC rnode or press [ON/OFF] to turn

off the camera.

• The camera will exit Image Roulette automatically you do not

perform the next Image Roulette operation within about one

minute after the final image of the previous operation

appeared on the monitor screen.

,, Image Roulette does not play audio or movie files.

• For a rotated snapshot (page 165), the Image Roulette

screen shows the unrotated version of the image.

• Note that Image Roulette works only with images shot with

this camera. Image Roulette may not operate properly

when other types of images are in memory.

• You can use Image Roulette only when "[_] and [_]"

are configured for "Power On" or "Power On/Off" (page

197).

VIEWING SNAPSHOTS AND MOVIES

157

You can change the size of a snapshot and save the result as a

separate snapshot. The original snapshot is also retained. You

can resize a snapshot to any one of the following sizes.

Larger 5M* 2560 x 1920 A3 Print

3M 2048x1586 A4Print

E-Mail

VGA 640 x 480 • Optimum size for an image

Smaller to be attached to e-mail.

* M stands for "Mega", which means "million".

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Resize" and then

press [1_].

3. Use [,q] and [1_] to scroll through images and

display the one you want to resize.

4. Use [A] and [V] to select an image size, and

then press [SET].

• When you select an image size, it will start to cycle

through the following information:

Image Size _ Number of Pixels _ Print Size _ .

The print size indicates the optimum paper size for

printing a snapshot of the selected image size.

5. After you press [SET] in step 4 to resize the

image, the monitor screen returns to step 3.

From there you can repeat steps 3 and 4 to

resize another image if you want.

To exit the resize operation, select "Cancel".

c EDITING IMAGES

158

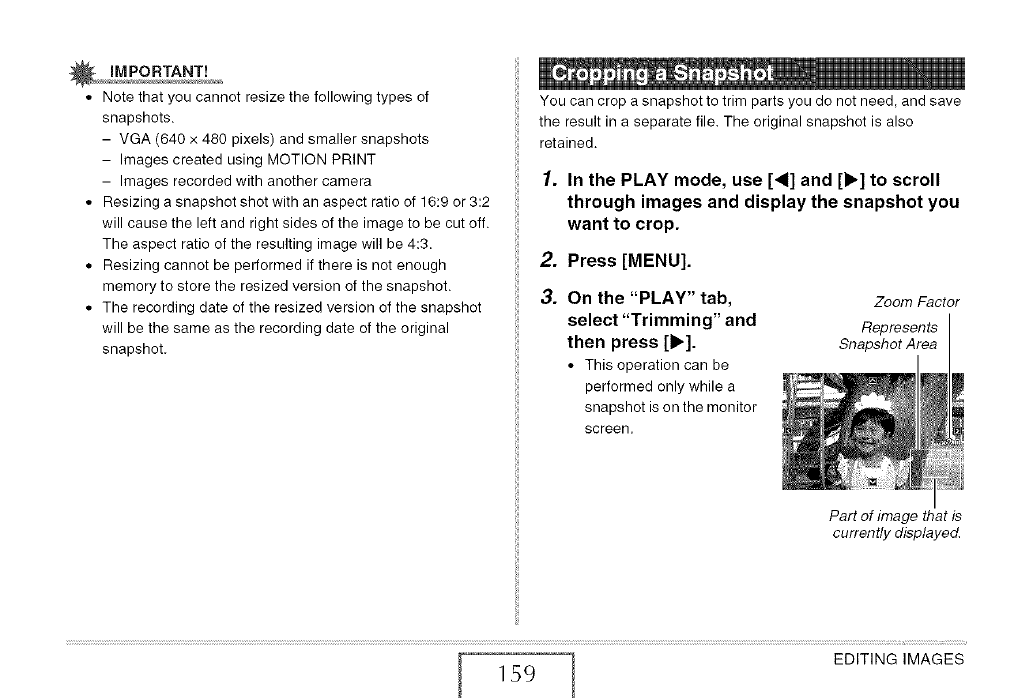

• Note that you cannot resize the following types of

snapshots.

- VGA (640 x 480 pixels) and smaller snapshots

- Images created using MOTION PRINT

- Images recorded with another camera

• Resizing a snapshot shot with an aspect ratio of 16:9 or 3:2

will cause the left and right sides of the image to be cut off.

The aspect ratio of the resulting image will be 4:3.

• Resizing cannot be performed if there is not enough

memory to store the resized version of the snapshot.

• The recording date of the resized version of the snapshot

will be the same as the recording date of the original

snapshot.

You can crop a snapshot to trim parts you do not need, and save

the result in a separate file. The original snapshot is also

retained.

1. In the PLAY mode, use [<] and [,] to scroll

through images and display the snapshot you

want to crop.

2. Press [MENU].

3. On the "PLAY" tab,

select "Trimming" and

then press [1_].

• This operation can be

performed only while a

snapshot is on the monitor

screen.

Zoom Factor

Represents

Snapshot Area

Part of image that is

currently displayed.

EDITING IMAGES

1.59

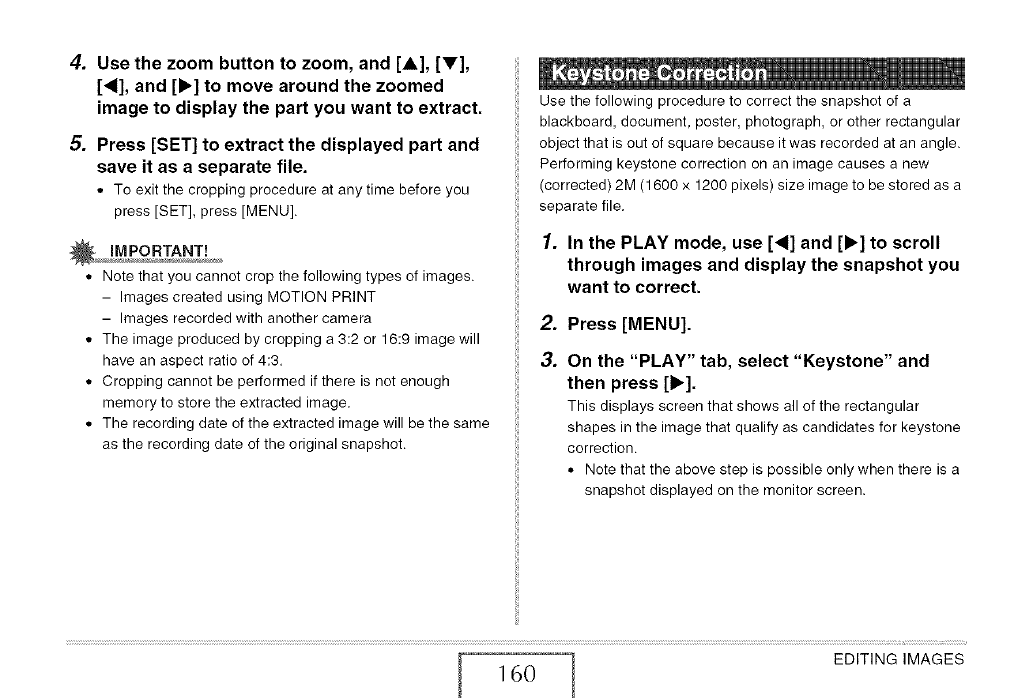

4. Use the zoom button to zoom, and [A], [V],

[<], and [1_]to move around the zoomed

image to display the part you want to extract.

5. Press [SET] to extract the displayed part and

save it as a separate file.

•To exit the cropping procedure at any time before you

press [SET], press [MENU].

• Note that you cannot crop the following types of images.

- Images created using MOTION PRINT

- Images recorded with another camera

• The image produced by cropping a 3:2 or 16:9 image will

have an aspect ratio of 4:3.

• Cropping cannot be performed if there is not enough

memory to store the extracted image.

• The recording date of the extracted image will be the same

as the recording date of the original snapshot.

Use the following procedure to correct the snapshot of a

blackboard, document, poster, photograph, or other rectangular

object that is out of square because it was recorded at an angle.

Performing keystone correction on an image causes a new

(corrected) 2M (1600 x 1200 pixels) size image to be stored as a

separate file.

1. In the PLAY mode, use [<] and [1_] to scroll

through images and display the snapshot you

want to correct.

2. Press [MENU].

3. On the "PLAY" tab, select "Keystone" and

then press [1_].

This displays screen that shows all of the rectangular

shapes in the image that qualify as candidates for keystone

correction.

• Note that the above step is possible only when there is a

snapshot displayed on the monitor screen.

EDITING IMAGES

160

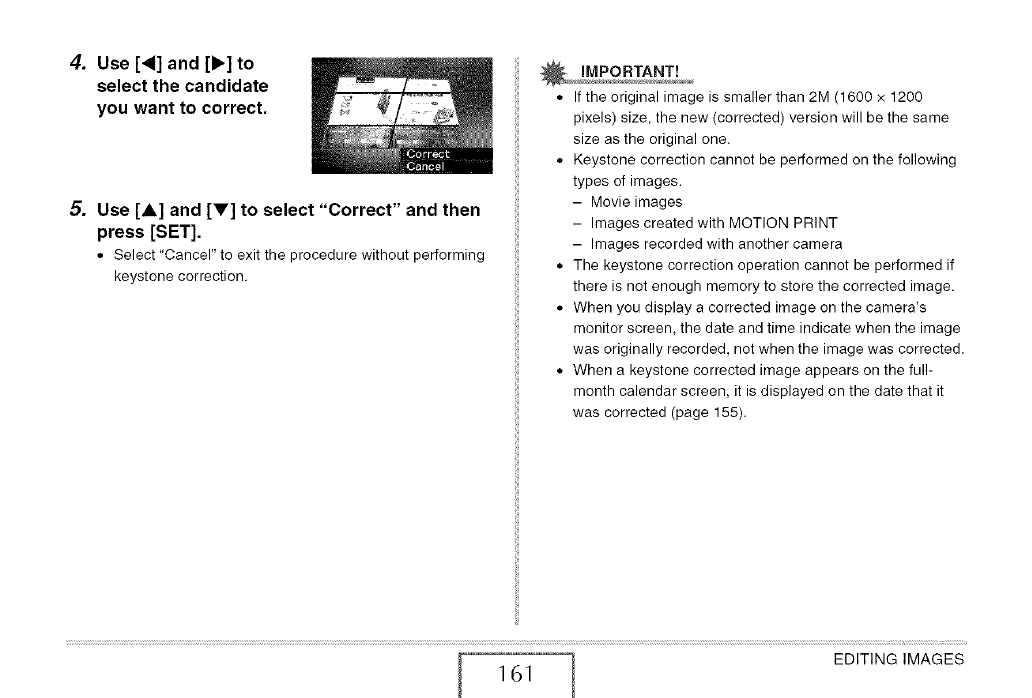

4. Use [<] and [1_] to

select the candidate

you want to correct.

5. Use [A] and [Y] to select "Correct" and then

press [SET].

•Select "Cancel" to exit the procedure without performing

keystone correction.

•If the original image is smaller than 2M (1600 x 1200

pixels) size, the new (corrected) version will be the same

size as the original one.

• Keystone correction cannot be performed on the following

types of images.

- Movie images

- Images created with MOTION PRINT

- Images recorded with another camera

• The keystone correction operation cannot be performed if

there is not enough memory to store the corrected image.

• When you display a corrected image on the camera's

monitor screen, the date and time indicate when the image

was originally recorded, not when the image was corrected.

• When a keystone corrected image appears on the full-

month calendar screen, it is displayed on the date that it

was corrected (page 155).

EDITING IMAGES

161

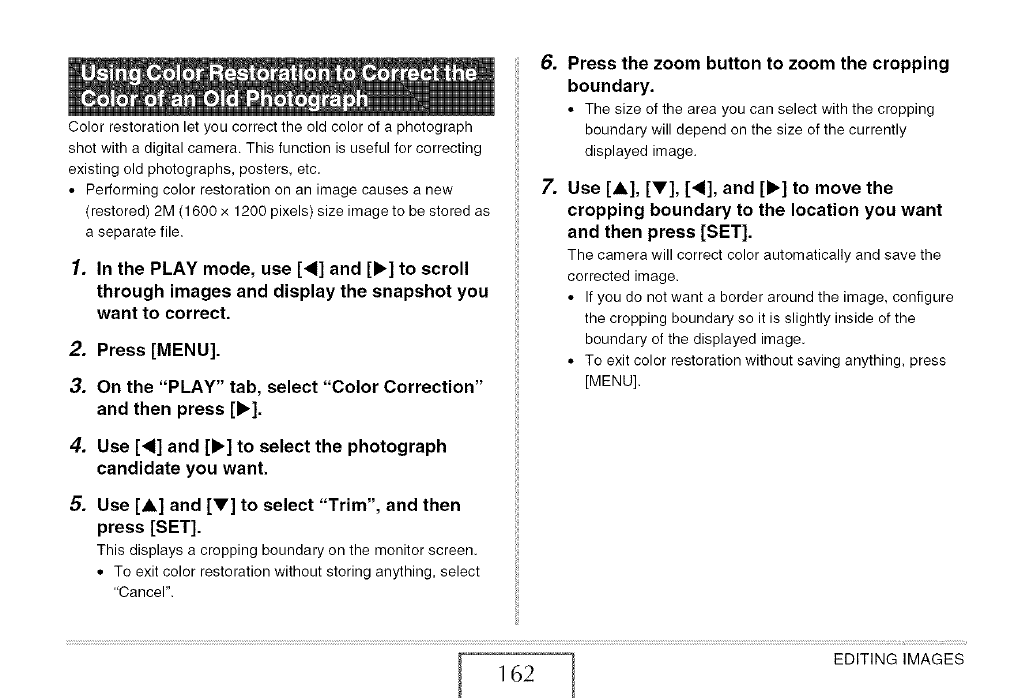

Color restoration let you correct the old color of a photograph

shot with a digital camera. This function is useful for correcting

existing old photographs, posters, etc.

• Performing color restoration on an image causes a new

(restored) 2M (1600 x 1200 pixels) size image to be stored as

a separate file.

1. In the PLAY mode, use [41] and [1_] to scroll

through images and display the snapshot you

want to correct.

2. Press [MENU].

3. On the "PLAY" tab, select "Color Correction"

and then press [1_].

4. Use [<] and [1_] to select the photograph

candidate you want.

5. Use [A] and [Y] to select "Trim", and then

press [SET].

This displays a cropping boundary on the monitor screen.

• To exit color restoration without storing anything, select

"Cancel".

6. Press the zoom button to zoom the cropping

boundary.

• The size of the area you can select with the cropping

boundary will depend on the size of the currently

displayed image.

7. Use [A], [V], [<], and [1_] to move the

cropping boundary to the location you want

and then press [SET].

The camera will correct color automatically and save the

corrected image.

• If you do not want a border around the image, configure

the cropping boundary so it is slightly inside of the

boundary of the displayed image.

• To exit color restoration without saving anything, press

[MENU].

EDITING IMAGES

162

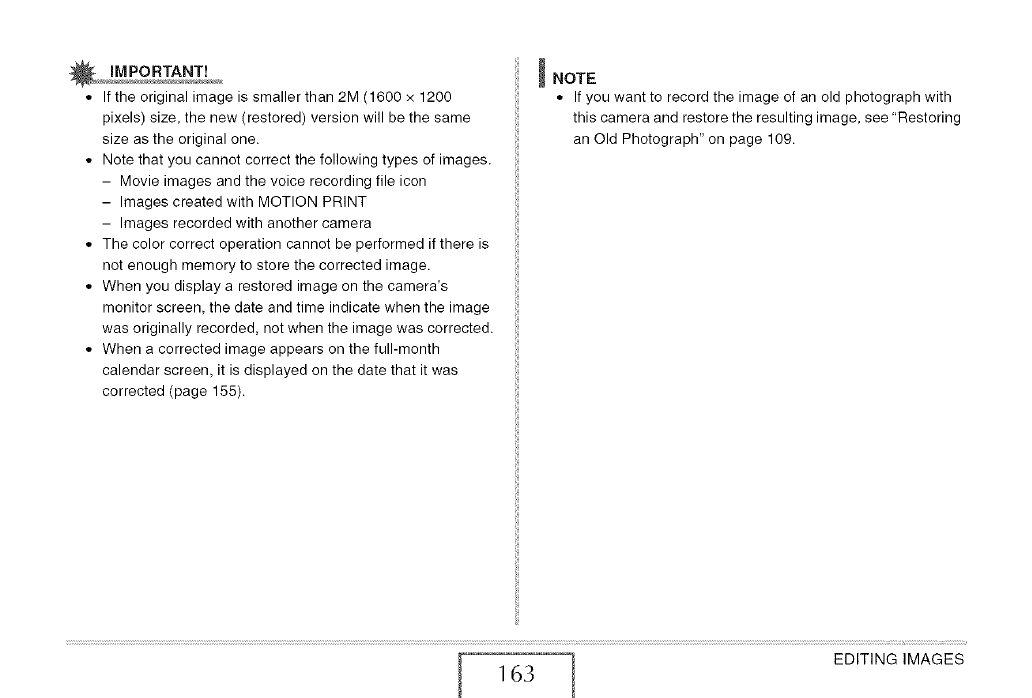

• If the original image is smaller than 2M (1600 x 1200

pixels) size, the new (restored) version will be the same

size as the original one.

• Note that you cannot correct the following types of images.

- Movie images and the voice recording file icon

- Images created with MOTION PRINT

- Images recorded with another camera

• The color correct operation cannot be performed if there is

not enough memory to store the corrected image.

• When you display a restored image on the camera's

monitor screen, the date and time indicate when the image

was originally recorded, not when the image was corrected.

• When a corrected image appears on the full-month

calendar screen, it is displayed on the date that it was

corrected (page 155).

_NOTE

• If you want to record the image of an old photograph with

this camera and restore the resulting image, see "Restoring

an Old Photograph" on page 109.

EDITING IMAGES

163

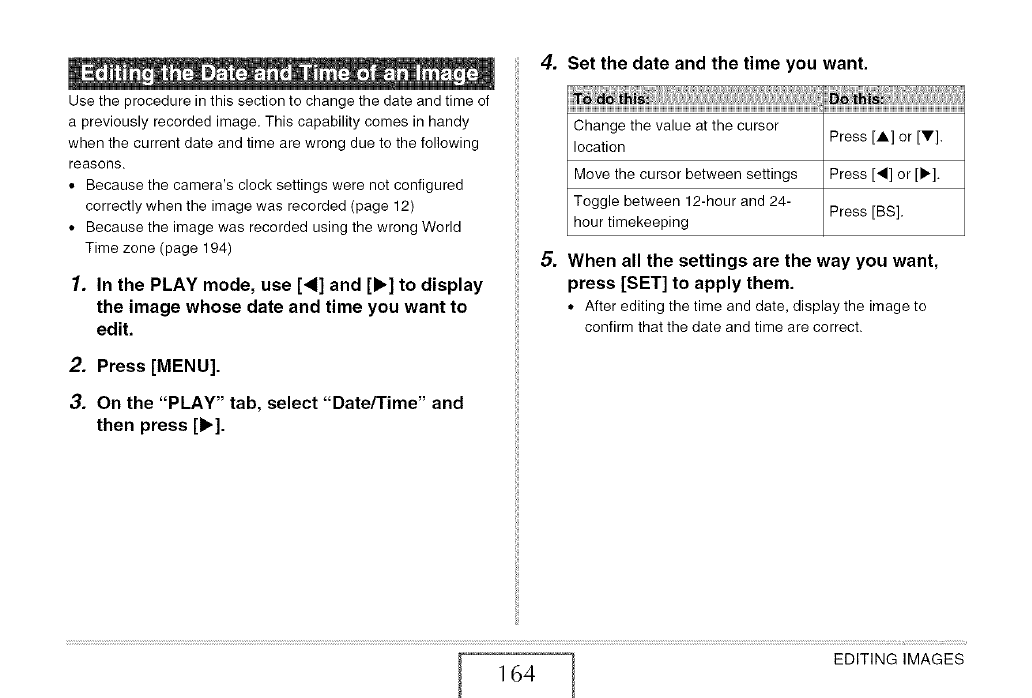

Use the procedure in this section to change the date and time of

a previously recorded image. This capability comes in handy

when the current date and time are wrong due to the following

reasons.

• Because the camera's clock settings were not configured

correctly when the image was recorded (page 12)

• Because the image was recorded using the wrong World

Time zone (page 194)

1. In the PLAY mode, use [_1] and [1_] to display

the image whose date and time you want to

edit.

2. Press [MENU].

3. On the "PLAY" tab, select "Date/Time" and

then press [1_].

4. Set the date and the time you want.

Change the value at the cursor Press [A] or [V].

location

Move the cursor between settings Press [<] or [1_].

Toggle between 12-hour and 24- Press [BS].

hour timekeeping

When all the settings are the way you want,

press [SET] to apply them.

• After editing the time and date, display the image to

confirm that the date and time are correct.

EDITING IMAGES

164

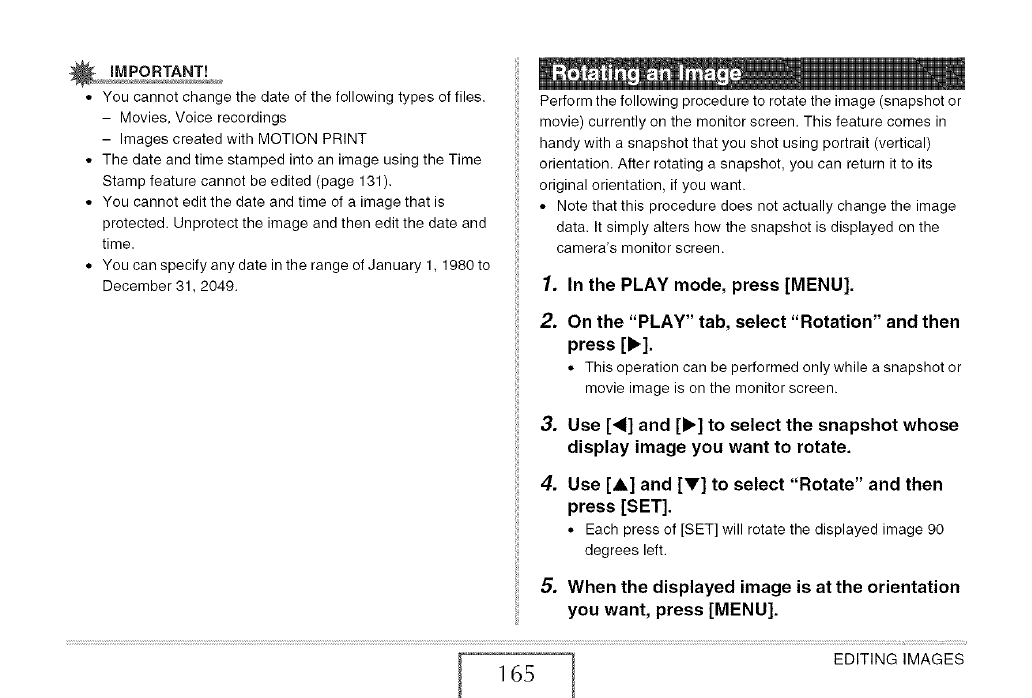

• You cannot change the date of the following types of files.

- Movies, Voice recordings

- Images created with MOTION PRINT

• The date and time stamped into an image using the Time

Stamp feature cannot be edited (page 131).

• You cannot edit the date and time of a image that is

protected. Unprotect the image and then edit the date and

time.

• You can specify any date in the range of January 1, 1980 to

December 31,2049.

Perform the following procedure to rotate the image (snapshot or

movie) currently on the monitor screen. This feature comes in

handy with a snapshot that you shot using portrait (vertical)

orientation. After rotating a snapshot, you can return it to its

original orientation, if you want.

• Note that this procedure does not actually change the image

data. It simply alters how the snapshot is displayed on the

camera's monitor screen.

In the PLAY mode, press [MENU].

On the "PLAY" tab, select "Rotation" and then

press [1_].

• This operation can be performed only while a snapshot or

movie image is on the monitor screen.

Use [_1] and [1_] to select the snapshot whose

display image you want to rotate.

Use [A] and [V] to select "Rotate" and then

press [SET].

• Each press of [SET] will rotate the displayed image 90

degrees left.

When the displayed image isat the orientation

you want, press [MENU].

EDITING IMAGES

165

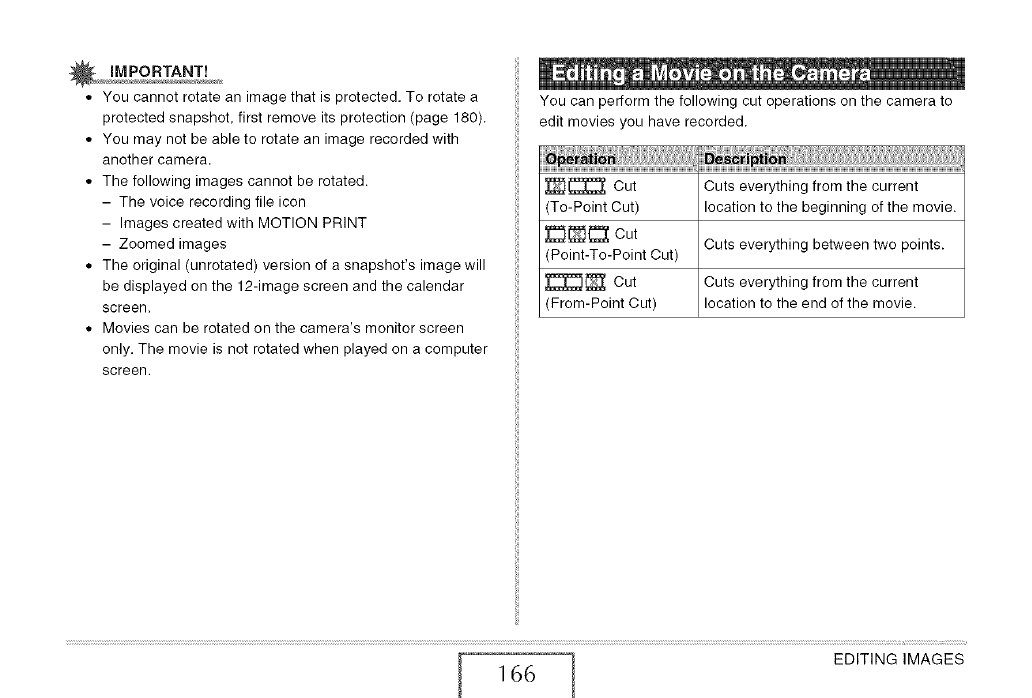

• You cannot rotate an image that is protected. To rotate a

protected snapshot, first remove its protection (page 180).

• You may not be able to rotate an image recorded with

another camera.

• The following images cannot be rotated.

- The voice recording file icon

- Images created with MOTION PRINT

- Zoomed images

• The original (unrotated) version of a snapshot's image will

be displayed on the 12-image screen and the calendar

screen.

• Movies can be rotated on the camera's monitor screen

only. The movie is not rotated when played on a computer

screen.

You can perform the following cut operations on the camera to

edit movies you have recorded.

_ i'_"_' Cut

(To-Point Cut)

_ cut

(Point-To-Point Cut)

_ Cut

(From-Point Cut)

Cuts everything from the current

location to the beginning of the movie.

Cuts everything between two points.

Cuts everything from the current

location to the end of the movie.

EDITING IMAGES

166

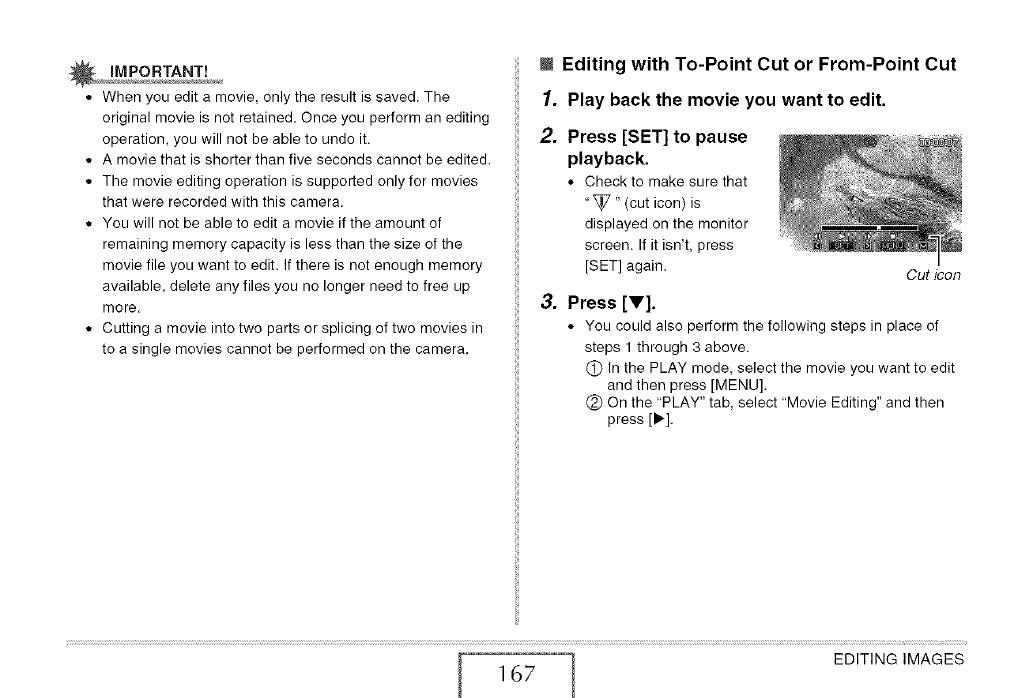

• When you edit a movie, only the result is saved. The

original movie is not retained. Once you perform an editing

operation, you will not be able to undo it.

• A movie that is shorter than five seconds cannot be edited.

• The movie editing operation is supported only for movies

that were recorded with this camera.

• You will not be able to edit a movie if the amount of

remaining memory capacity is less than the size of the

movie file you want to edit. If there is not enough memory

available, delete any files you no longer need to free up

more.

• Cutting a movie into two parts or splicing of two movies in

to a single movies cannot be performed on the camera.

WEditing with To-Point Cut or From-Point Cut

1. Play back the movie you want to edit.

2. Press [SET] to pause

playback.

• Check to make sure that

,,'_7" (cut icon) is

displayed on the monitor

screen. If it isn't, press

[SET] again. Cut icon

3. Press [V].

• You could also perform the following steps in place of

steps 1 through 3 above.

(_) In the PLAY mode, select the movie you want to edit

and then press [MENU].

(_) On the "PLAY" tab, select "Movie Editing" and then

press [1_].

EDITING IMAGES

167

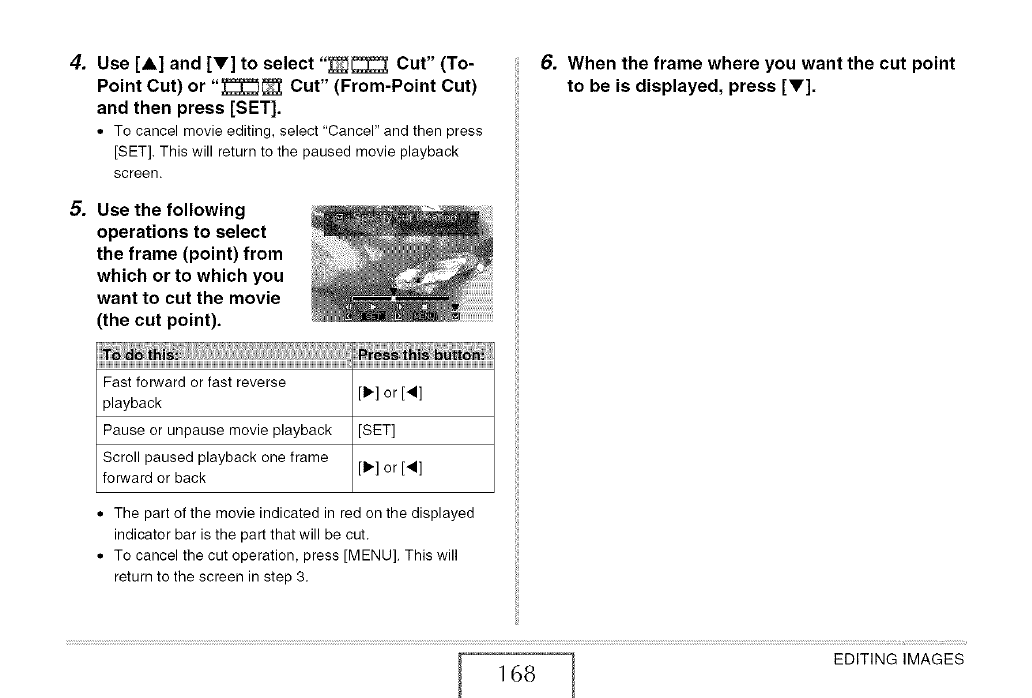

4. Use [A] and [V] to select "_=_ Cut" (To-

Point Cut) or "_ Cut" (From-Point Cut)

and then press [SET].

• To cancel movie editing, select "Cancel" and then press

[SET].Thiswill returnto the pausedmovie playback

screen.

5. Use the following

operations to select

the frame (point) from

which or to which you

want to cut the movie

(the cut point).

Fastforward orfast reverse [IP']or [_1]

playback

Pauseor unpausemovieplayback [SET]

Scrollpausedplaybackoneframe [IP']or [_1]

forward or back

• The part of the movie indicated in red on the displayed

indicator bar is the part that will be cut.

• To cancel the cut operation, press [MENU]. This will

return to the screen in step 3.

6. When the frame where you want the cut point

to be is displayed, press [V].

EDITING IMAGES

168

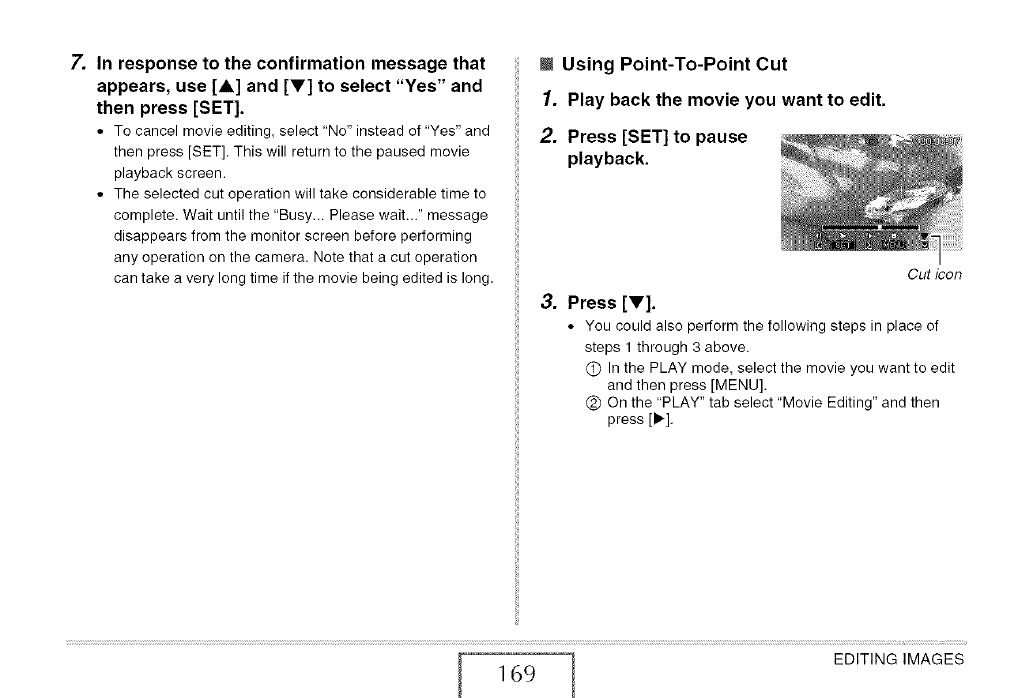

7. In response to the confirmation message that

appears, use [A] and [V] to select "Yes" and

then press [SET].

• To cancel movie editing, select "No" instead of "Yes" and

then press [SET]. This will return to the paused movie

playback screen.

• The selected cut operation will take considerable time to

complete. Wait until the "Busy... Please wait..." message

disappears from the monitor screen before performing

any operation on the camera. Note that a cut operation

can take a very long time if the movie being edited is long.

WUsing Point-To-Point Cut

1. Play back the movie you want to edit.

2. Press [SET] to pause

playback.

Cut icon

3. Press [V].

• You could also perform the following steps in place of

steps 1 through 3 above.

(_) In the PLAY mode, select the movie you want to edit

and then press [MENU].

@ On the "PLAY" tab select "Movie Editing" and then

press [1_'].

EDITING IMAGES

169

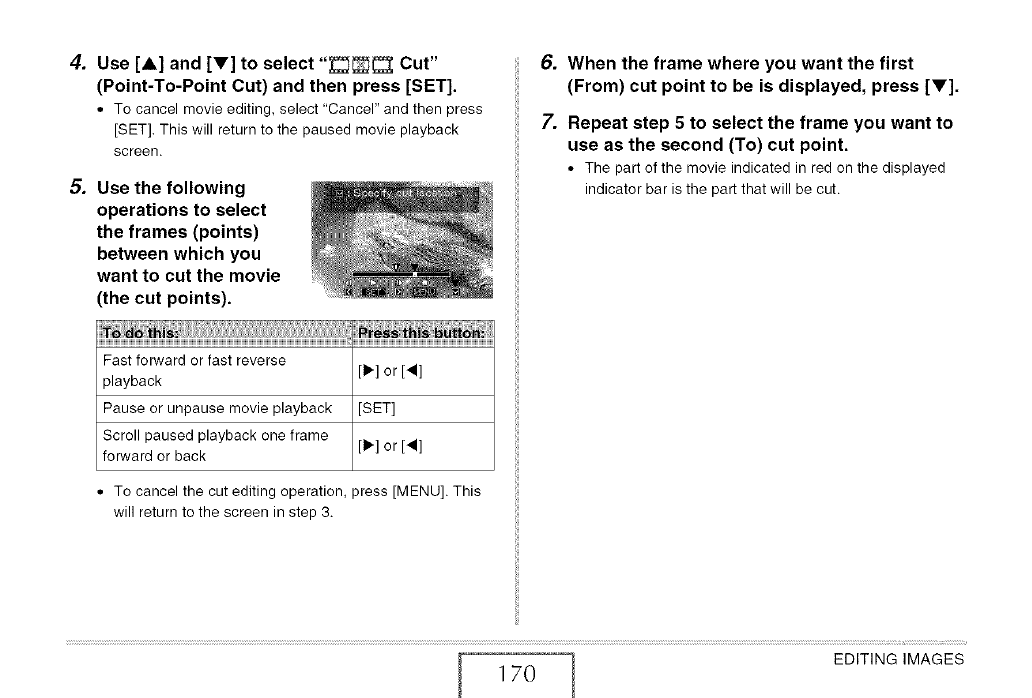

4. Use [A] and [V] to select "_i_' Cut"

(Point-To-Point Cut) and then press [SET].

• To cancel movie editing, select "Cancel" and then press

[SET]. This will return to the paused movie playback

screen.

5. Use the following

operations to select

the frames (points)

between which you

want to cut the movie

(the cut points).

Fastforward orfast reverse [IP']or [_1]

playback

Pauseor unpausemovieplayback [SET]

Scrollpausedplaybackoneframe [IP']or [_1]

forward or back

• To cancel the cut editing operation, press [MENU]. This

will return to the screen in step 3.

6. When the frame where you want the first

(From) cut point to be is displayed, press [V].

7. Repeat step 5 to select the frame you want to

use as the second (To) cut point.

• The part of the movie indicated in red on the displayed

indicator bar is the part that will be cut.

EDITING IMAGES

170

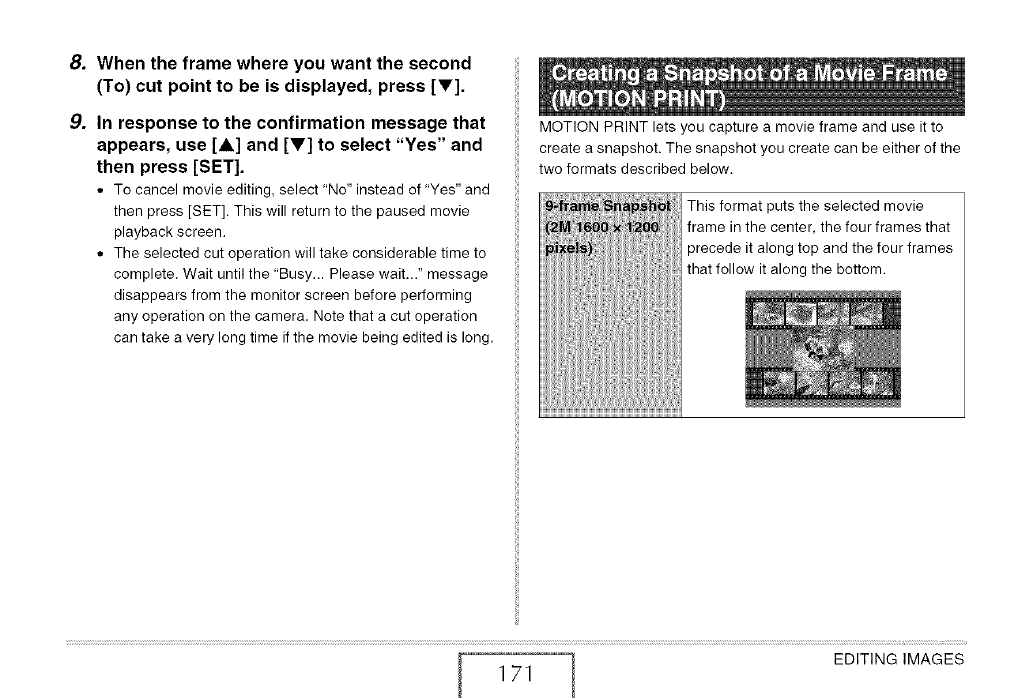

8. When the frame where you want the second

(To) cut point to be is displayed, press [V].

9. In response to the confirmation message that

appears, use [A] and [V] to select "Yes" and

then press [SET].

• To cancel movie editing, select "No" instead of "Yes" and

then press [SET]. This will return to the paused movie

playback screen.

• The selected cut operation will take considerable time to

complete. Wait until the "Busy... Please wait..." message

disappears from the monitor screen before performing

any operation on the camera. Note that a cut operation

can take a very long time if the movie being edited is long.

MOTION PRINT lets you capture a movie frame and use it to

create a snapshot. The snapshot you create can be either of the

two formats described below.

This format puts the selected movie

frame in the center, the four frames that

precede it along top and the four frames

that follow it along the bottom.

EDITING IMAGES

171

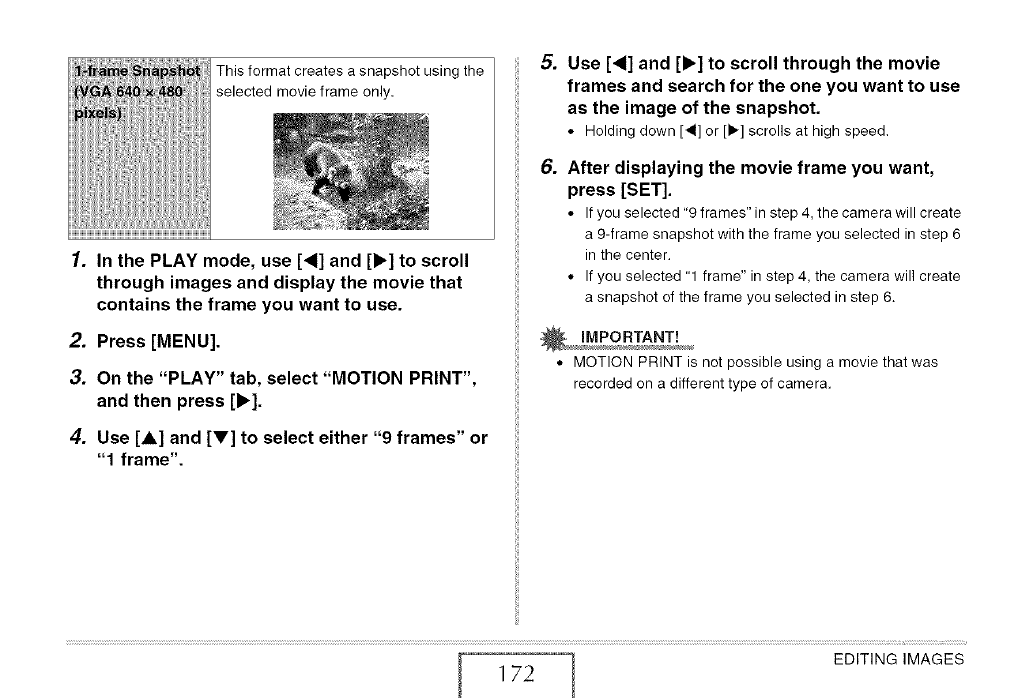

This format creates a snapshot using the

selected movie frame only.

1. In the PLAY mode, use [41] and [,] to scroll

through images and display the movie that

contains the frame you want to use.

2. Press [MENU].

3. On the "PLAY" tab, select "MOTION PRINT",

and then press [b'].

4. Use [A] and [V] to select either "9 frames" or

"1 frame".

5. Use [41] and [1_] to scroll through the movie

frames and search for the one you want to use

as the image of the snapshot.

• Holding down [_] or [1_-] scrolls at high speed.

6. After displaying the movie frame you want,

press [SET].

• If you selected "9 frames" in step 4, the camera will create

a 9-frame snapshot with the frame you selected in step 6

in the center.

• If you selected "1 frame" in step 4, the camera will create

a snapshot of the frame you selected in step 6.

• MOTION PRINT is not possible using a movie that was

recorded on a different type of camera.

EDITING IMAGES

172

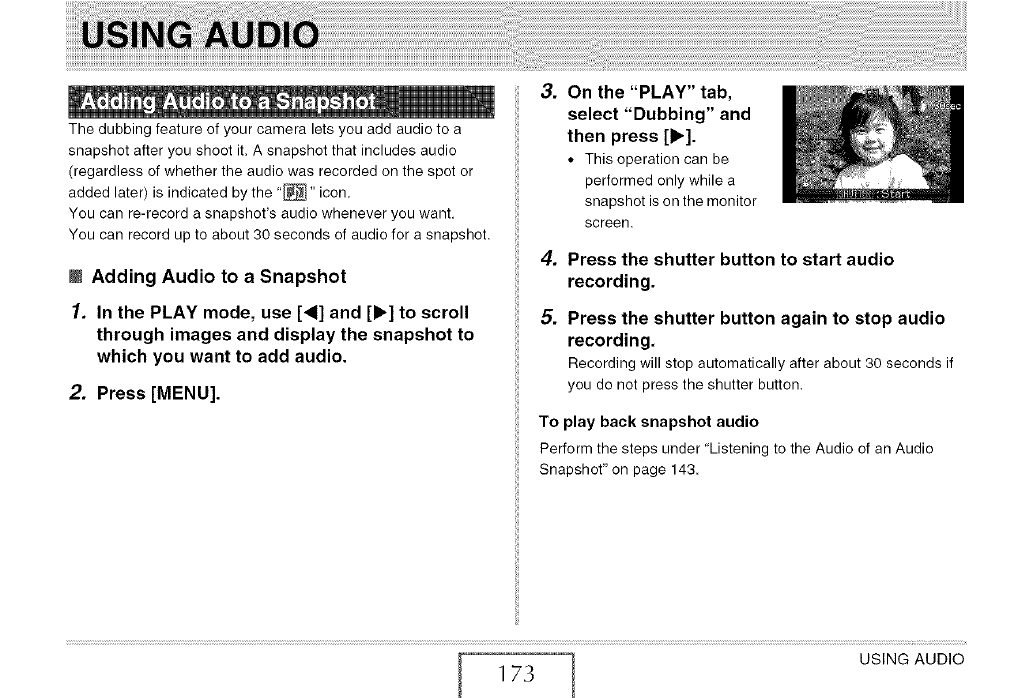

The dubbing feature of your camera lets you add audio to a

snapshot after you shoot it, A snapshot that includes audio

(regardless of whether the audio was recorded on the spot or

added later) is indicated bythe "_" icon.

You can re-record a snapshot's audio whenever you want.

You can record up to about 30 seconds of audio for a snapshot.

IAdding Audio to aSnapshot

1. In the PLAY mode, use [41] and [1_] to scroll

through images and display the snapshot to

which you want to add audio.

2. Press [MENU].

3. On the "PLAY" tab,

select "Dubbing" and

then press [1_].

• This operation can be

performed only while a

snapshot is on the monitor

screen.

4. Press the shutter button to start audio

recording.

5. Press the shutter button again to stop audio

recording.

Recording will stop automatically after about 30 seconds if

you do not press the shutter button.

To play back snapshot audio

Perform the steps under "Listening to the Audio of an Audio

Snapshot" on page 143,

USING AUDIO

173

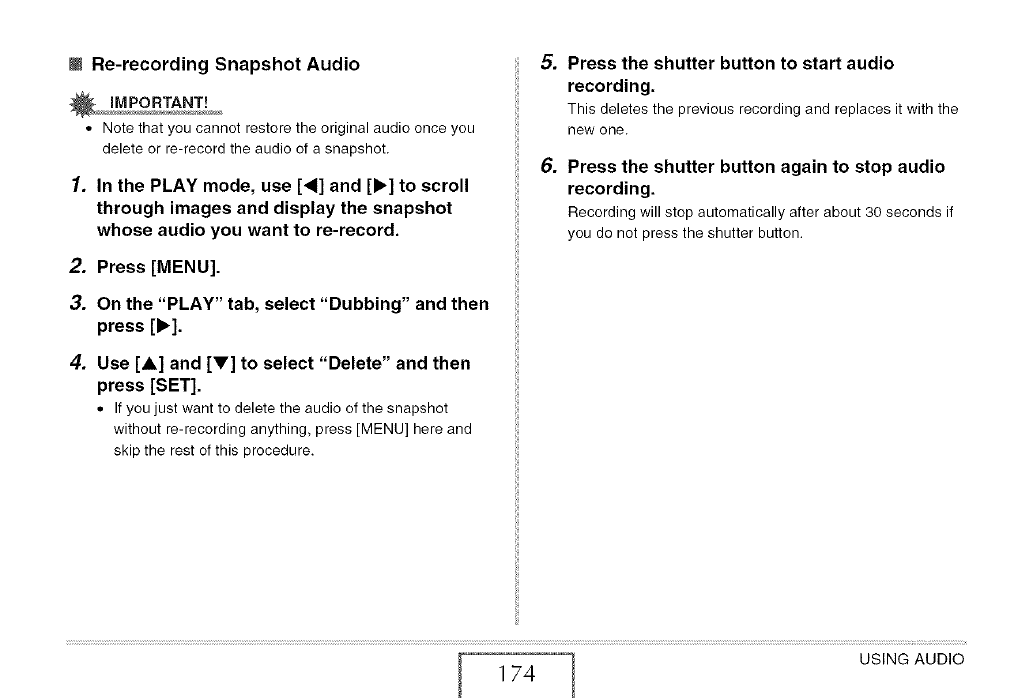

IRe-recording Snapshot Audio

• Note that you cannot restore the original audio once you

delete or re-record the audio of a snapshot.

1. In the PLAY mode, use [41] and [1_] to scroll

through images and display the snapshot

whose audio you want to re-record.

2. Press [MENU].

3. On the "PLAY" tab, select "Dubbing" and then

press [1_].

4. Use [A] and [Y] to select "Delete" and then

press [SET].

• If youjust wantto deletethe audioof the snapshot

without re-recordinganything,press [MENU]hereand

skip the restof this procedure.

5. Press the shutter button to start audio

recording.

This deletesthepreviousrecordingand replacesit withthe

new one.

6. Press the shutter button again to stop audio

recording.

Recordingwill stopautomaticallyafterabout30 secondsif

you do not pressthe shutter button.

USING AUDIO

174

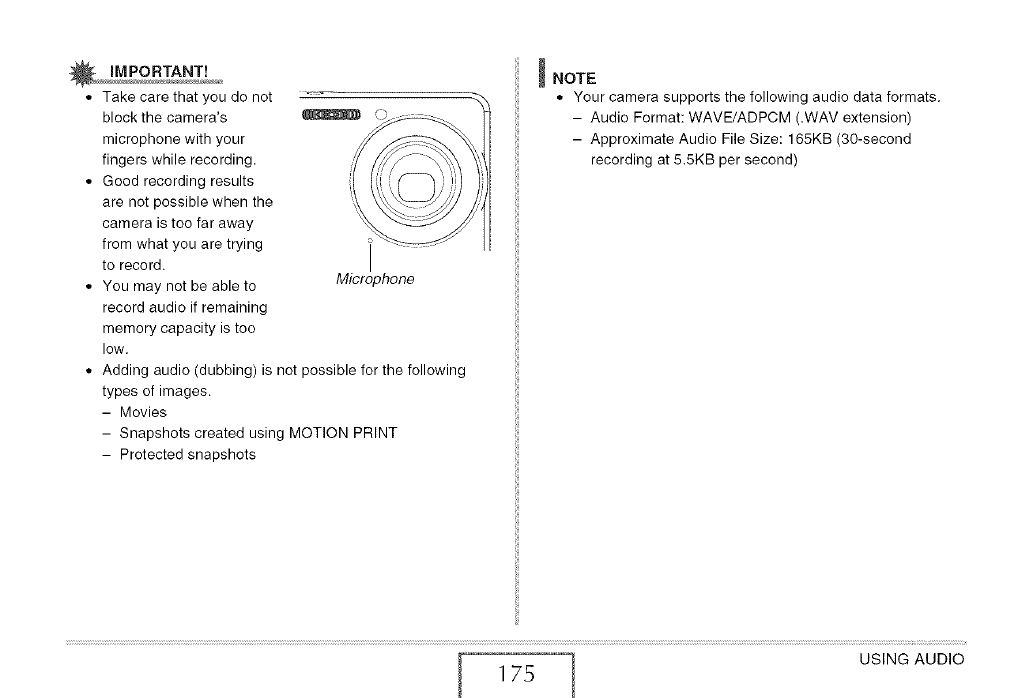

• Take care that you do not

block the camera's

microphone with your

fingers while recording.

• Good recording results

are not possible when the

camera is too far away

from what you are trying

to record.

• You may not be able to

record audio if remaining

memory capacity is too

low.

Micr_ _hone

• Adding audio (dubbing) is not possible for the following

types of images.

- Movies

- Snapshots created using MOTION PRINT

- Protected snapshots

_NOTE

•Your camera supports the following audio data formats.

- Audio Format: WAVE/ADPCM (.WAV extension)

- Approximate Audio File Size: 165KB (30-second

recording at 5.5KB per second)

USING AUDIO

175

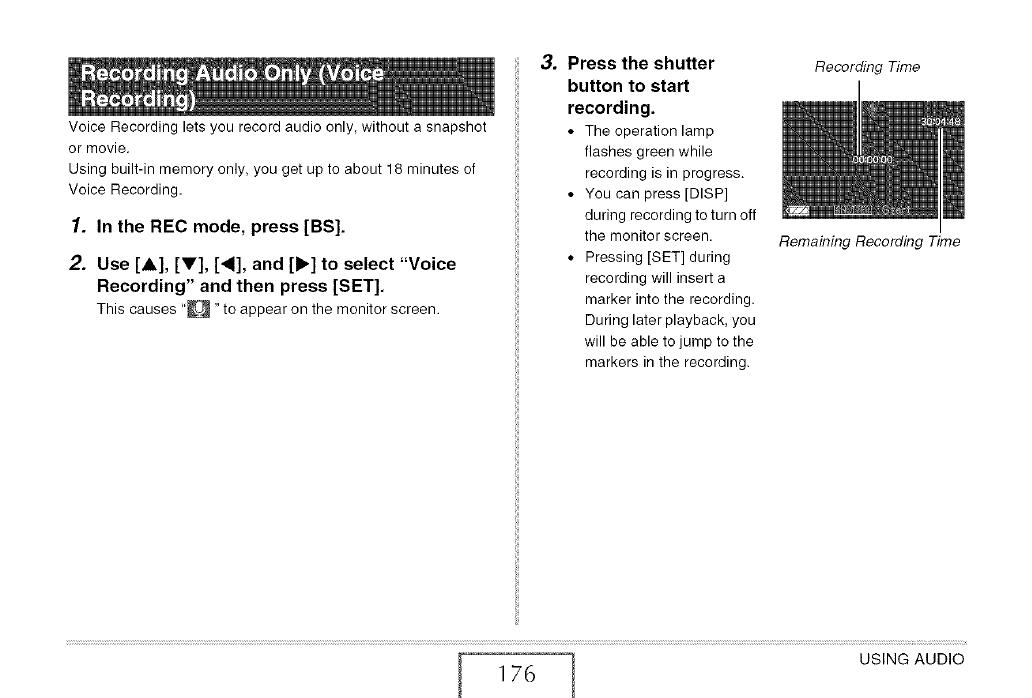

Voice Recording lets you record audio only, without a snapshot

or movie.

Using built-in memory only, you get up to about 18 minutes of

Voice Recording.

1. In the REC mode, press [BS].

2. Use [A], [Y], [4], and [11_]to select "Voice

Recording" and then press [SET].

Thiscauses"_" to appearonthe monitorscreen.

3. Press the shutter

button to start

recording.

• The operation lamp

flashes green while

recording is in progress.

• You can press [DISP]

during recording to turn off

the monitor screen.

• Pressing [SET] during

recording will insert a

marker into the recording.

During later playback, you

will be able to jump to the

markers in the recording.

Recording Time

Remaining Recording Time

USING AUDIO

176

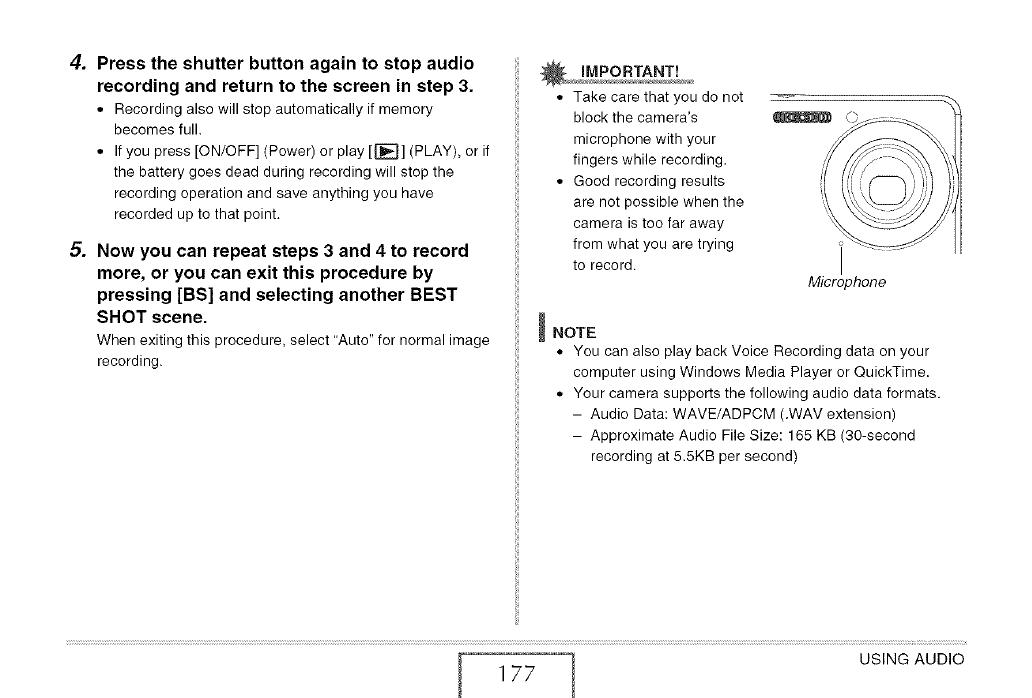

4. Press the shutter button again to stop audio

recording and return to the screen in step 3.

• Recording also will stop automatically if memory

becomes full.

• If you press [ON/OFF] (Power) or play [[_] (PLAY), or if

the battery goes dead during recording will stop the

recording operation and save anything you have

recorded up to that point.

5. Now you can repeat steps 3 and 4 to record

more, or you can exit this procedure by

pressing [BS] and selecting another BEST

SHOT scene.

Whenexitingthis procedure,select"Auto"for normalimage

recording.

• Take care that you do not

block the camera's

microphone with your

fingers while recording.

• Good recording results

are not possible when the

camera is too far away

from what you are trying

to record.

Microphone

_NOTE

• You can also play back Voice Recording data on your

computer using Windows Media Player or QuickTime.

• Your camera supports the following audio data formats.

- Audio Data: WAVE/ADPCM (.WAV extension)

- Approximate Audio File Size: 165 KB (30-second

recording at 5,5KB per second)

USING AUDIO

177

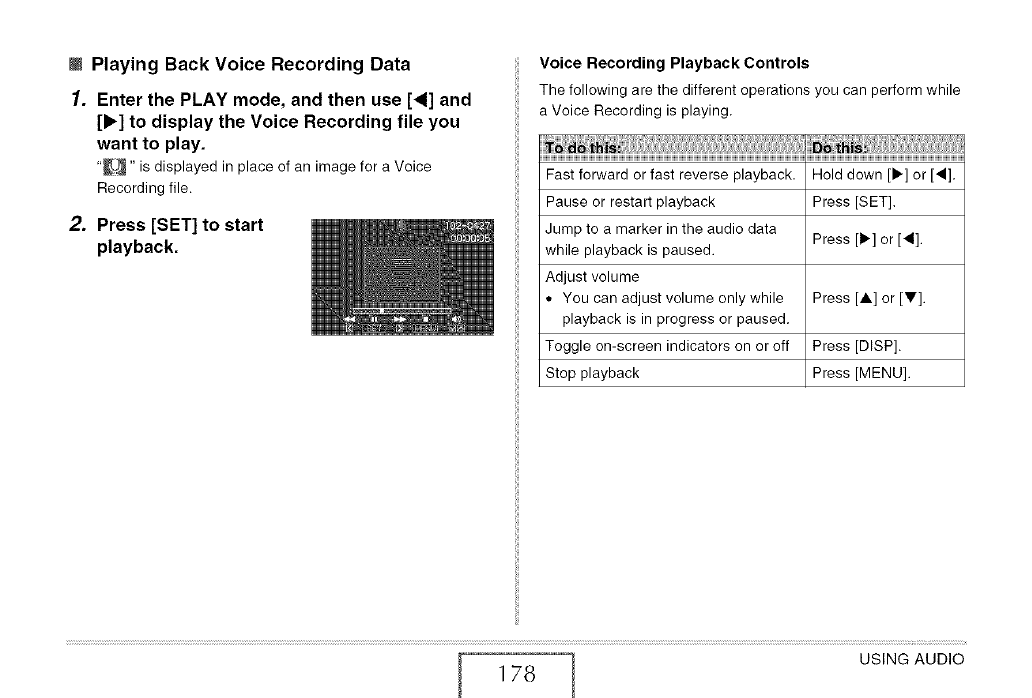

IPlaying Back Voice Recording Data

1. Enter the PLAY mode, and then use [,] and

[1_] to display the Voice Recording file you

want to play.

"_" is displayed in place of an image for a Voice

Recording file.

2. Press [SET] to start

playback.

Voice Recording Playback Controls

The following are the different operations you can perform while

a Voice Recording is playing.

Fast forward or fast reverse playback. Hold down [1_-]or [_1].

Pause or restart playback Press [SET].

Jump to a marker in the audio data Press [1_] or [_].

while playback is paused.

Adjust volume

• You can adjust volume only while Press [A] or [V].

playback is in progress or paused.

Toggle on-screen indicators on or off Press [DISP].

Stop playback Press [MENU].

USING AUDIO

178

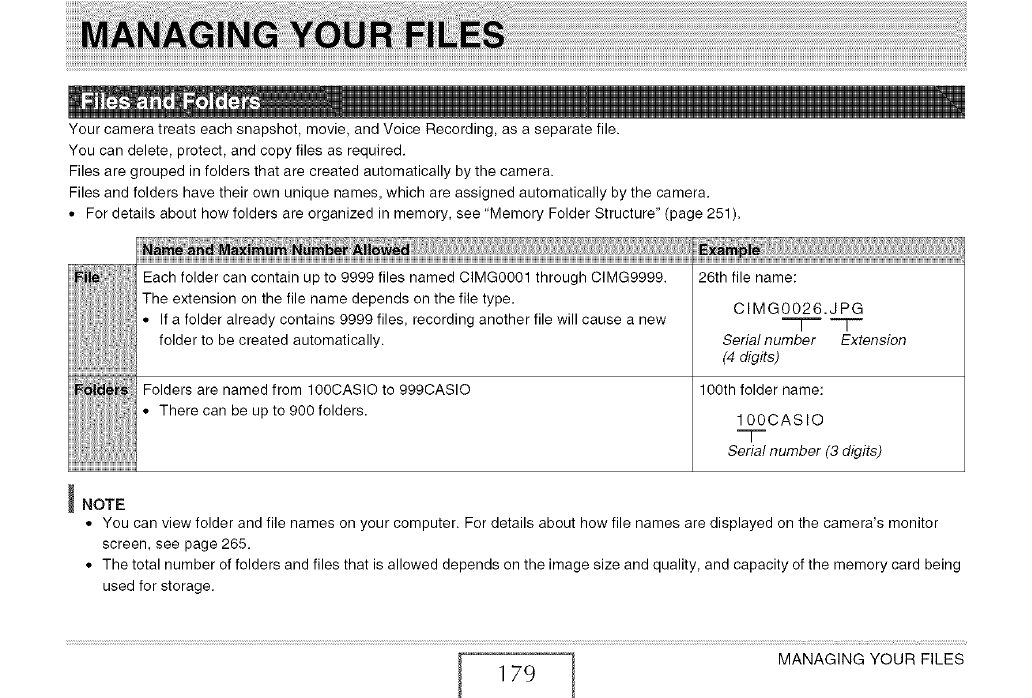

Your camera treats each snapshot, movie, and Voice Recording, as a separate file.

You can delete, protect, and copy files as required.

Files are grouped in folders that are created automatically by the camera.

Files and folders have their own unique names, which are assigned automatically by the camera.

• For details about how folders are organized in memory, see "Memory Folder Structure" (page 251).

26th file name:


"-T"- "-I--

Serial number Extension

(4 digits)

100th folder name:

100CASIO

"T-

Serial number (3 digits)

_NOTE

• You can view folder and file names on your computer. For details about how file names are displayed on the camera's monitor

screen, see page 265.

• The total number of folders and files that is allowed depends on the image size and quality, and capacity of the memory card being

used for storage.

MANAGING YOUR FILES

179

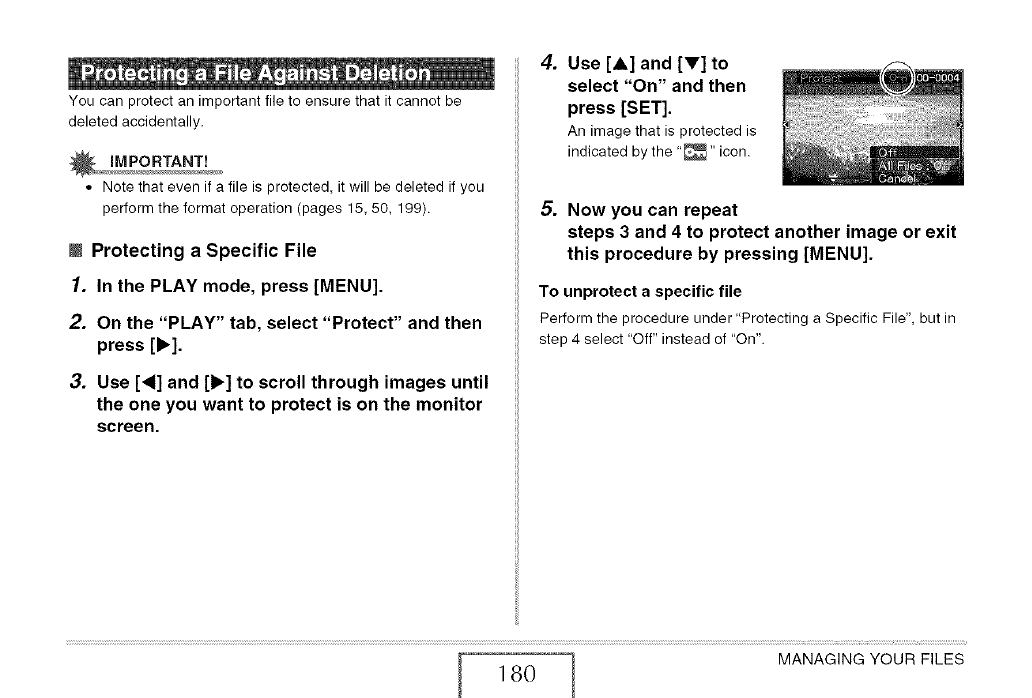

You can protect an important file to ensure that it cannot be

deleted accidentally.

• Note that even if a file is protected, it will be deleted if you

perform the format operation (pages 15, 50, 199).

IProtecting a Specific File

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Protect" and then

press [1_].

3. Use [_1] and [1_] to scroll through images until

the one you want to protect is on the monitor

screen.

4. Use [A] and [V] to

select "On" and then

press [SET].

An image that is protected is

indicated by the "_" icon.

5. Now you can repeat

steps 3 and 4 to protect another image or exit

this procedure by pressing [MENU].

To unprotect a specific file

Perform the procedure under "Protecting a Specific File", but in

step 4 select "Off" instead of "On",

MANAGING YOUR FILES

180

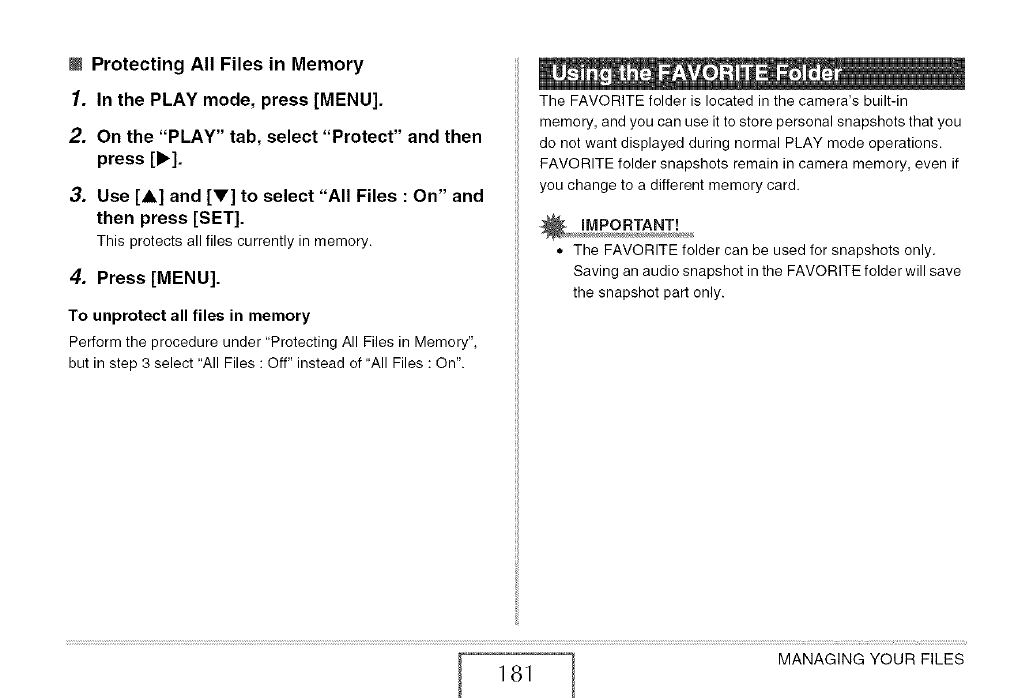

IProtecting All Files in Memory

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Protect" and then

press [,].

3. Use [A] and [Y] to select "All Files : On" and

then press [SET].

This protects all files currently in mernory.

4. Press [MENU].

To unprotect all files in memory

Perform the procedure under "Protecting All Files in Mernory",

but in step 3 select "All Files : Off" instead of "All Files : On".

The FAVORITE folder is located in the camera's built-in

memory, and you can use it to store personal snapshots that you

do not want displayed during normal PLAY mode operations.

FAVORITE folder snapshots remain in camera memory, even if

you change to a different memory card.

• The FAVORITE folder can be used for snapshots only.

Saving an audio snapshot in the FAVORITE folder will save

the snapshot part only.

MANAGING YOUR FILES

181

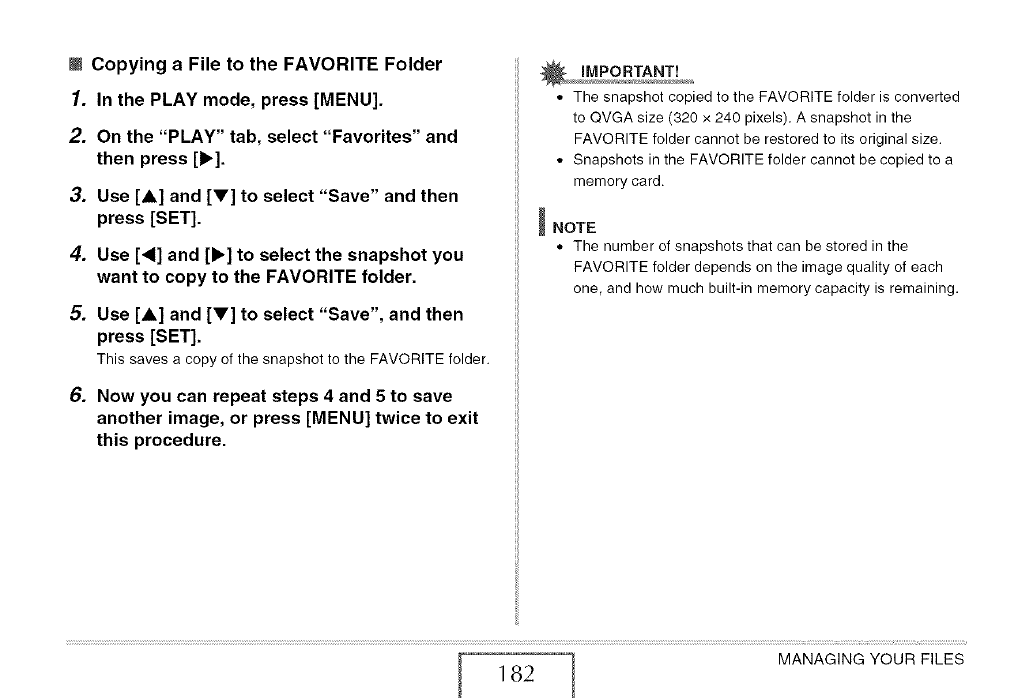

ICopying a File to the FAVORITE Folder

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Favorites" and

then press [11_].

3. Use [A] and [Y] to select "Save" and then

press [SET].

4. Use [41] and [1_] to select the snapshot you

want to copy to the FAVORITE folder.

5. Use [A] and [V] to select "Save", and then

press [SET].

This saves a copy of the snapshot to the FAVORITE folder.

6. Now you can repeat steps 4 and 5 to save

another image, or press [MENU] twice to exit

this procedure.

• The snapshot copied to the FAVORITE folder is converted

to QVGA size (320 x 240 pixels). A snapshot in the

FAVORITE folder cannot be restored to its original size.

• Snapshots in the FAVORITE folder cannot be copied to a

memory card.

_NOTE

• The number of snapshots that can be stored in the

FAVORITE folder depends on the image quality of each

one, and how much built-in memory capacity is remaining.

MANAGING YOUR FILES

182

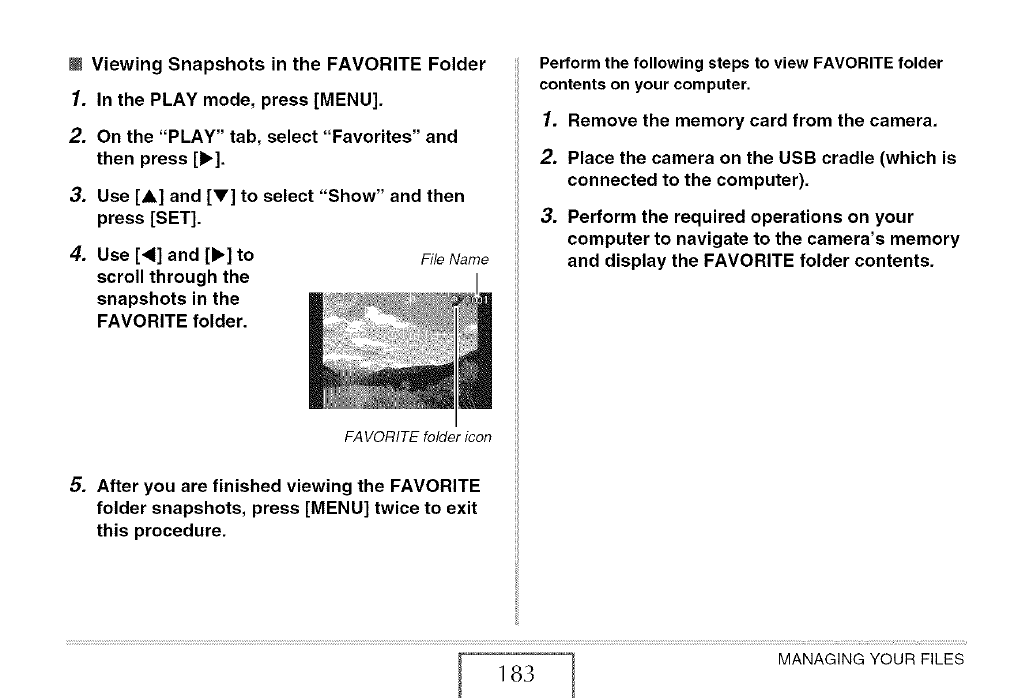

IViewing Snapshots in the FAVORITE Folder

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Favorites" and

then press [1_].

3. Use [A] and [Y] to select "Show" and then

press [SET].

4. Use [,_] and [1_] to

scroll through the

snapshots in the

FAVORITE folder.

File Name

FAVORITE folder icon

5. After you are finished viewing the FAVORITE

folder snapshots, press [MENU] twice to exit

this procedure.

Perform the following steps to view FAVORITE folder

contents on your computer.

1. Remove the memory card from the camera.

2. Place the camera on the USB cradle (which is

connected to the computer).

3. Perform the required operations on your

computer to navigate to the camera's memory

and display the FAVORITE folder contents.

MANAGING YOUR FILES

183

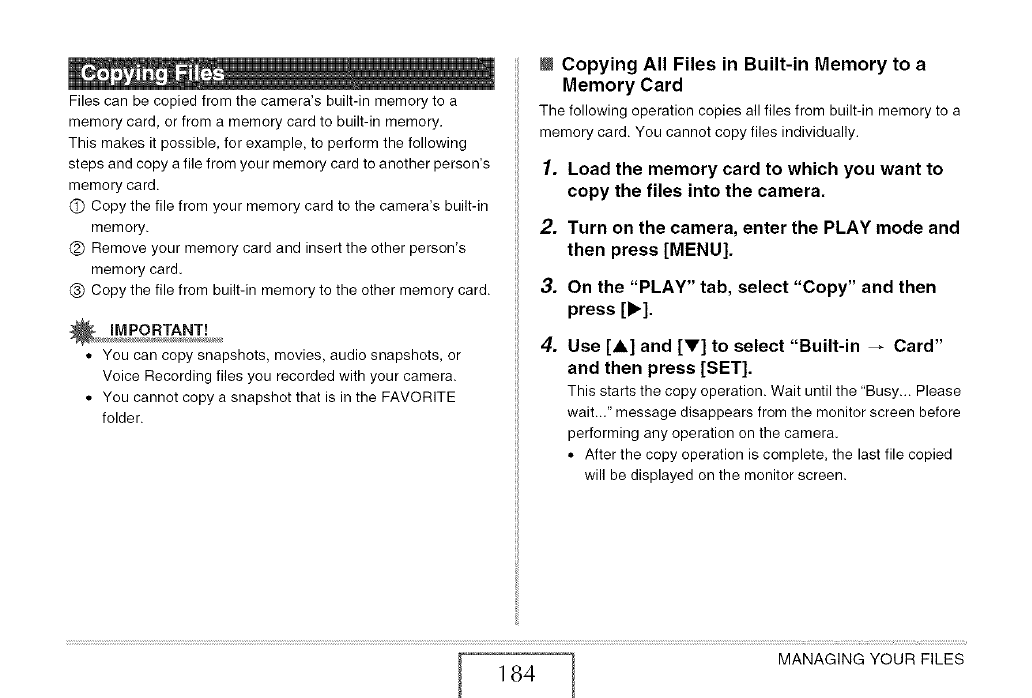

Files can be copied from the camera's built-in memory to a

memory card, or from a memory card to built-in memory.

This makes it possible, for example, to perform the following

steps and copy a file from your memory card to another person's

memory card.

(_) Copy the file from your memory card to the camera's built-in

memory.

_) Remove your memory card and insert the other person's

memory card.

(_) Copy the file from built-in memory to the other memory card.

• You can copy snapshots, movies, audio snapshots, or

Voice Recording files you recorded with your camera.

• You cannot copy a snapshot that is in the FAVORITE

folder.

ICopying All Files in Built-in Memory to a

Memory Card

The following operation copies all files from built-in memory to a

memory card. You cannot copy files individually.

1. Load the memory card to which you want to

copy the files into the camera.

2. Turn on the camera, enter the PLAY mode and

then press [MENU].

3. On the "PLAY" tab, select "Copy" and then

press [I_].

,Use [A] and [V] to select "Built-in _ Card"

and then press [SET].

This starts the copy operation. Wait until the "Busy... Please

wait..." message disappears from the monitor screen before

performing any operation on the camera.

• After the copy operation is complete, the last file copied

will be displayed on the monitor screen.

MANAGING YOUR FILES

184

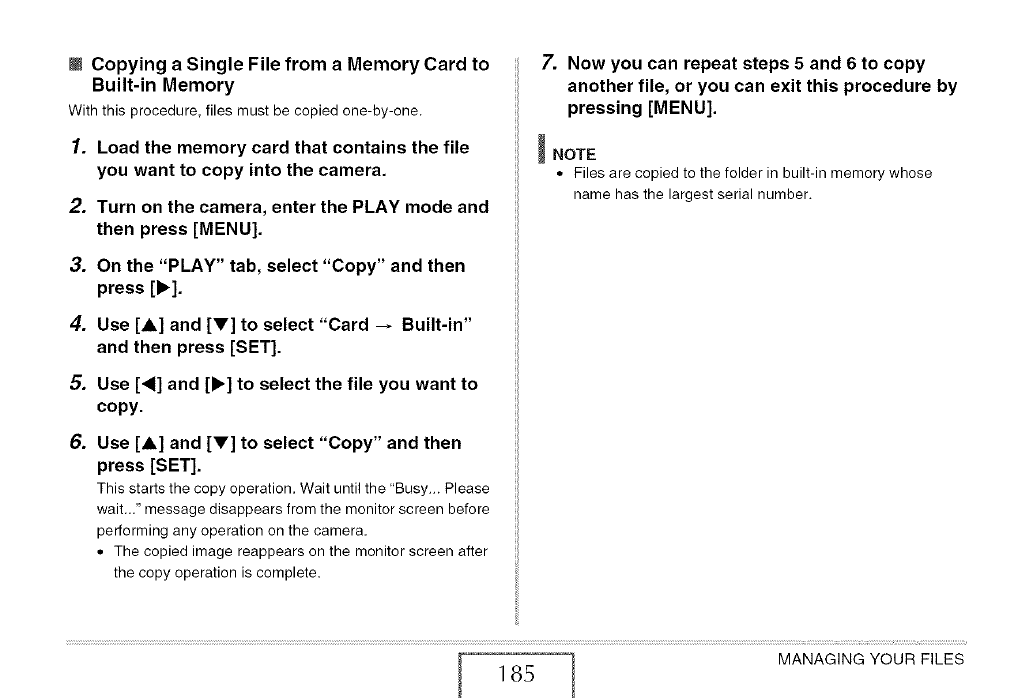

ICopying a Single File from a Memory Card to

Built-in Memory

With this procedure, files must be copied one-by-one.

1. Load the memory card that contains the file

you want to copy into the camera.

2. Turn on the camera, enter the PLAY mode and

then press [MENU].

3. On the "PLAY" tab, select "Copy" and then

press [,].

4. Use [,i] and [V] to select "Card _ Built-in"

and then press [SET].

5. Use [41] and [1_] to select the file you want to

copy.

6. Use [A] and [Y] to select "Copy" and then

press [SET].

This starts the copy operation. Wait until the "Busy... Please

wait..." message disappears from the monitor screen before

performing any operation on the camera.

• The copied image reappears on the monitor screen after

the copy operation is complete.

7. Now you can repeat steps 5 and 6 to copy

another file, or you can exit this procedure by

pressing [MENU].

_NOTE

• Files are copied to the folder in built-in memory whose

name has the largest serial number.

MANAGING YOUR FILES

185

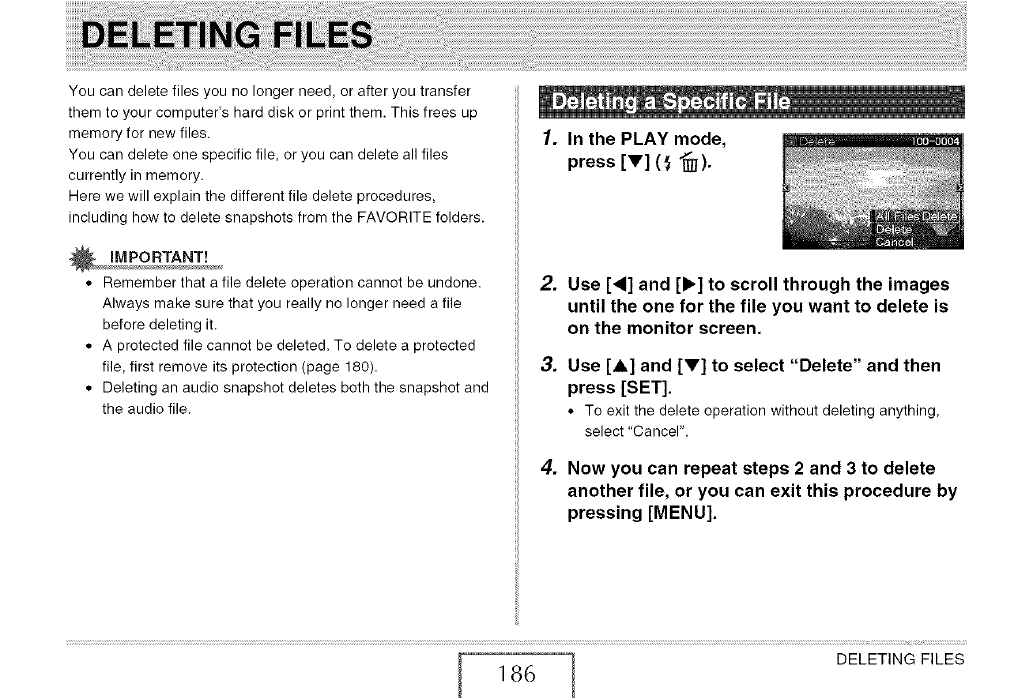

You can delete files you no longer need, or after you transfer

them to your computer's hard disk or print them. This frees up

memory for new files.

You can delete one specific file, or you can delete all files

currently in memory.

Here we will explain the different file delete procedures,

including how to delete snapshots from the FAVORITE folders.

• Remember that a file delete operation cannot be undone.

Always make sure that you really no longer need a file

before deleting it.

• A protected file cannot be deleted. To delete a protected

file, first remove its protection (page 180).

• Deleting an audio snapshot deletes both the snapshot and

the audio file.

1. In the PLAY mode,

press [Y] (_ _]).

Use [41] and [1_] to scroll through the images

until the one for the file you want to delete is

on the monitor screen.

Use [A] and [V] to select "Delete" and then

press [SET].

• To exit the delete operation without deleting anything,

select "Cancel".

Now you can repeat steps 2 and 3 to delete

another file, or you can exit this procedure by

pressing [MENU].

DELETING FILES

186

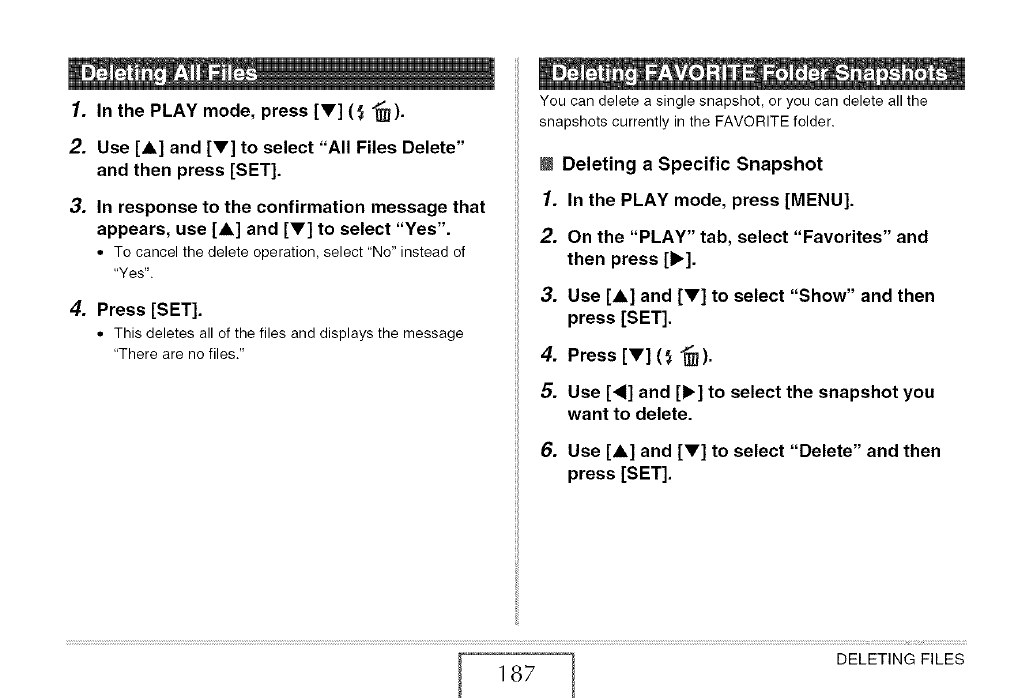

1. In the PLAY mode, press IV] (_ "_).

2. Use [A] and [Y] to select "All Files Delete"

and then press [SET].

3. In response to the confirmation message that

appears, use [A] and [V] to select "Yes".

• To cancel the delete operation, select "No" instead of

"Yes".

4. Press [SET].

• This deletes all of the files and displays the message

"There are no files."

You can delete a single snapshot, or you can delete all the

snapshots currently in the FAVORITE folder.

IDeleting a Specific Snapshot

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Favorites" and

then press [11_].

3. Use [A] and [V] to select "Show" and then

press [SET].

4. Press [Y] (_ _).

5. Use [41] and [1_] to select the snapshot you

want to delete.

6. Use [A] and [V] to select "Delete" and then

press [SET].

DELETING FILES

187

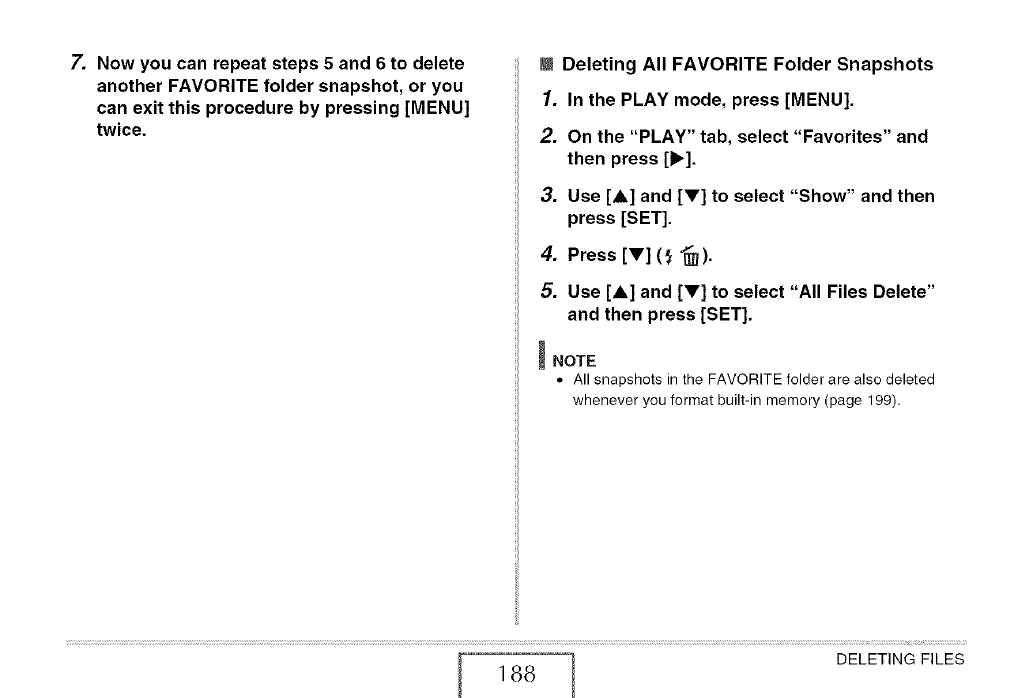

7. Now you can repeat steps 5 and 6 to delete

another FAVORITE folder snapshot, or you

can exit this procedure by pressing [MENU]

twice.

IDeleting All FAVORITE Folder Snapshots

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "Favorites" and

then press [b'].

Use [A] and [V] to select "Show" and then

press [SET].

Press [Y] (_ _l)-

Use [A] and [V] to select "All Files Delete"

and then press [SET].

_NOTE

• All snapshots in the FAVORITE folder are also deleted

whenever you format built-in memory (page 199).

DELETING FILES

188

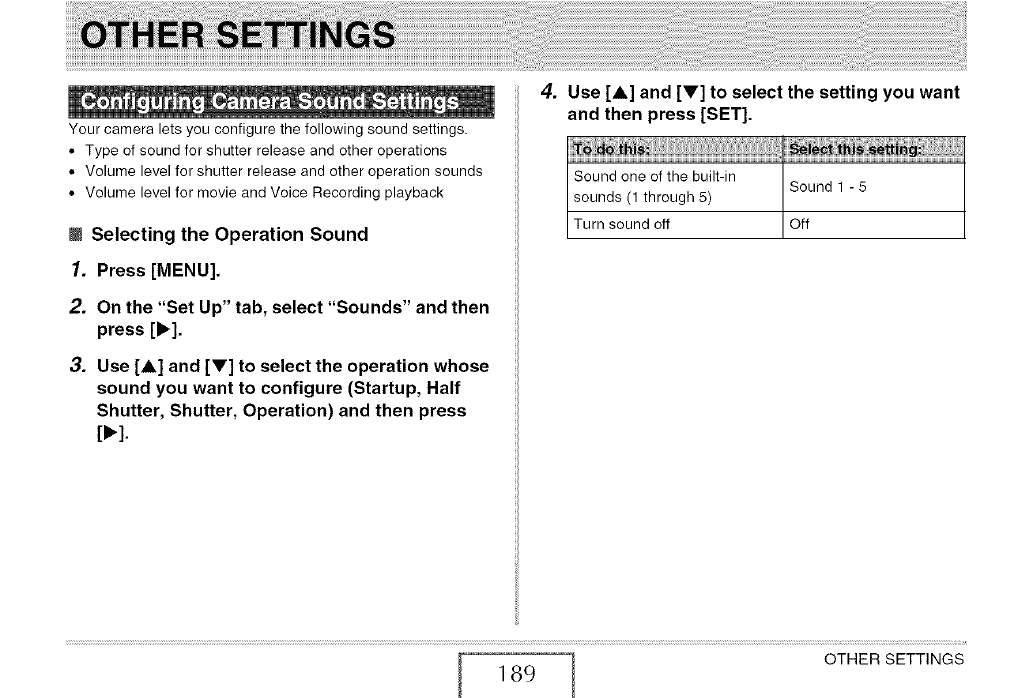

Your camera lets you configure the following sound settings.

• Type of sound for shutter release and other operations

• Volume level for shutter release and other operation sounds

• Volume level for movie and Voice Recording playback

ISelecting the Operation Sound

1. Press [MENU].

2. On the "Set Up" tab, select "Sounds" and then

press [,].

3. Use [A] and [V] to select the operation whose

sound you want to configure (Startup, Half

Shutter, Shutter, Operation) and then press

[,].

4. Use [A] and [Y] to select the setting you want

and then press [SET].

Sound one of the built-in Sound 1 - 5

sounds(1through5)

Turn soundoff Off

OTHER SETTINGS

189

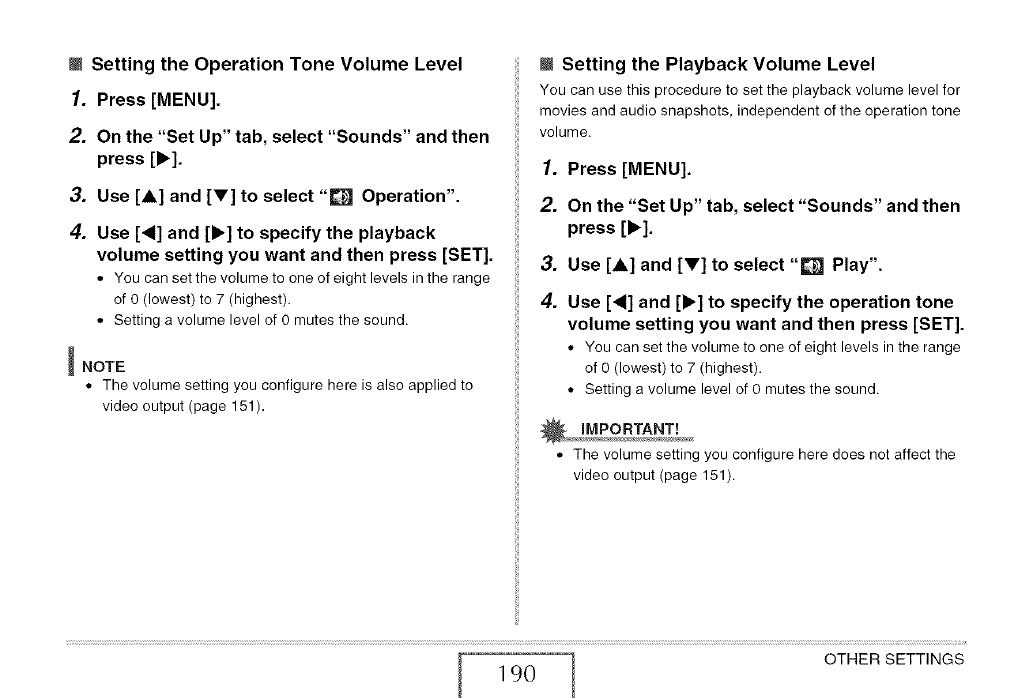

I Setting the Operation Tone Volume Level

1. Press [MENU].

2. On the "Set Up" tab, select "Sounds" and then

press [,].

3. Use [A] and [V] to select "[] Operation".

4. Use [,q] and [1_] to specify the playback

volume setting you want and then press [SET].

• Youcan setthevolumeto oneof eight levelsinthe range

of 0 (lowest)to 7 (highest).

•Settinga volumelevel of 0 mutesthesound.

_NOTE

• The volume setting you configure here is also applied to

video output (page 151).

WSetting the Playback Volume Level

You can use this procedure to set the playback volume level for

moviesandaudio snapshots,independentof the operationtone

volume.

1. Press [MENU].

2. On the "Set Up" tab, select "Sounds" and then

press [_].

3. Use [A] and [V] to select "[] Play".

4. Use [41] and [b] to specify the operation tone

volume setting you want and then press [SET].

• Youcansetthe volumeto oneof eightlevelsinthe range

of 0 (lowest)to 7 (highest).

•Settinga volume levelof 0 mutesthe sound.

• The volume setting you configure here does not affect the

video output (page 151).

OTHER SETTINGS

190

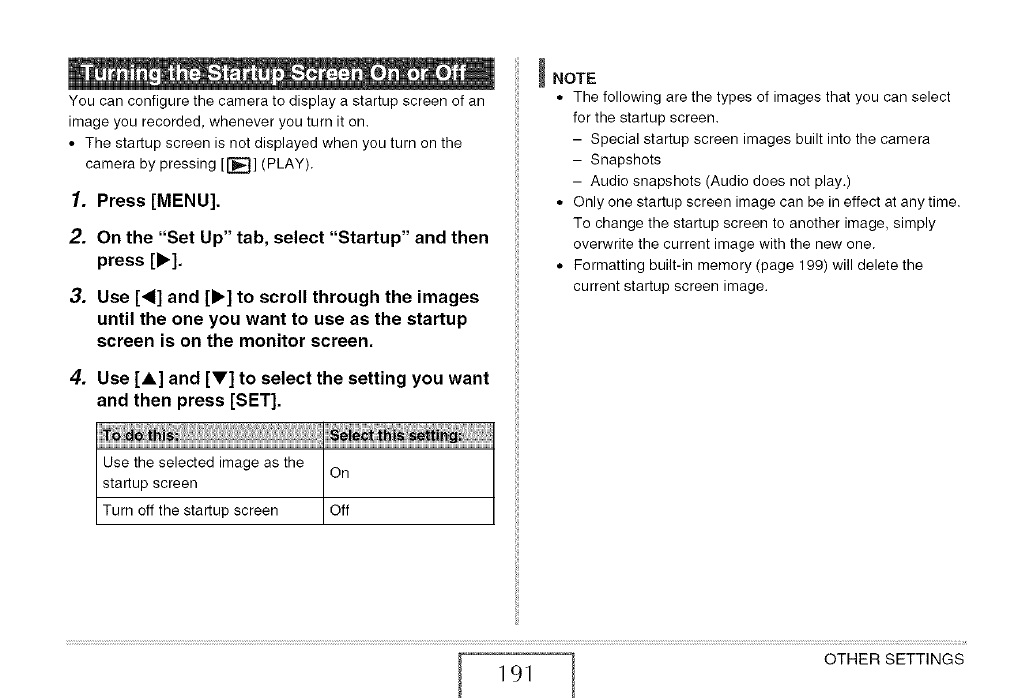

You can configure the camera to display a startup screen of an

image you recorded, whenever you turn it on.

•The startup screen is not displayed when you turn on the

camera by pressing [[_] (PLAY).

1. Press [MENU].

2. On the "Set Up" tab, select "Startup" and then

press [,].

3. Use [_1] and [1_] to scroll through the images

until the one you want to use as the startup

screen is on the monitor screen.

4. Use [A] and [Y] to select the setting you want

and then press [SET].

Use the selected image as the On

startup screen

Turn off the startup screen Off

_NOTE

,, The following are the types of images that you can select

for the startup screen.

- Special startup screen images built into the camera

- Snapshots

- Audio snapshots (Audio does not play.)

• Only one startup screen image can be in effect at any time.

To change the startup screen to another image, simply

overwrite the current image with the new one.

• Formatting built-in memory (page 199) will delete the

current startup screen image.

OTHER SETTINGS

191

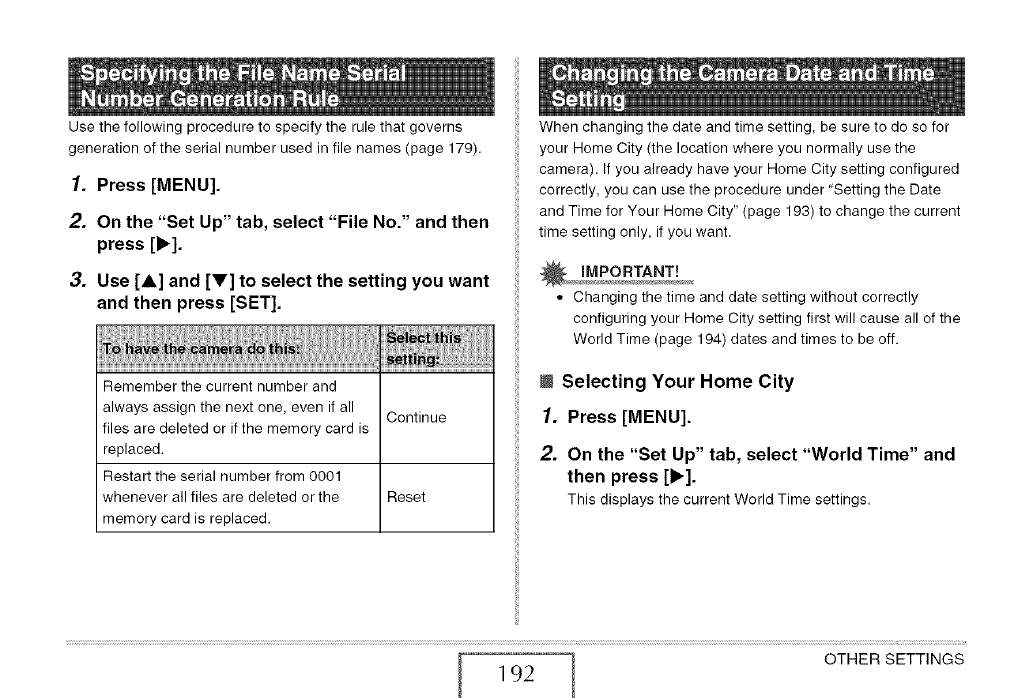

Use the following procedure to specify the rule that governs

generation of the serial number used in file names (page 179).

1. Press [MENU].

2. On the "Set Up" tab, select "File No." and then

press [,].

3. Use [A] and [V] to select the setting you want

and then press [SET].

Remember the current number and

always assign the next one, even if all Continue

files are deleted or if the memory card is

replaced.

Restart the serial number from 0001

whenever all files are deleted or the Reset

memory card is replaced.

When changing the date and time setting, be sure to do so for

your Home City (the location where you normally use the

camera). If you already have your Home City setting configured

correctly, you can use the procedure under "Setting the Date

and Time for Your Home City" (page 193) to change the current

time setting only, if you want.

• Changing the time and date setting without correctly

configuring your Home City setting first will cause all of the

World Time (page 194) dates and times to be off.

MSelecting Your Home City

1. Press [MENU].

2. On the "Set Up" tab, select "World Time" and

then press [1_].

This displays the current World Time settings

OTHER SETTINGS

192

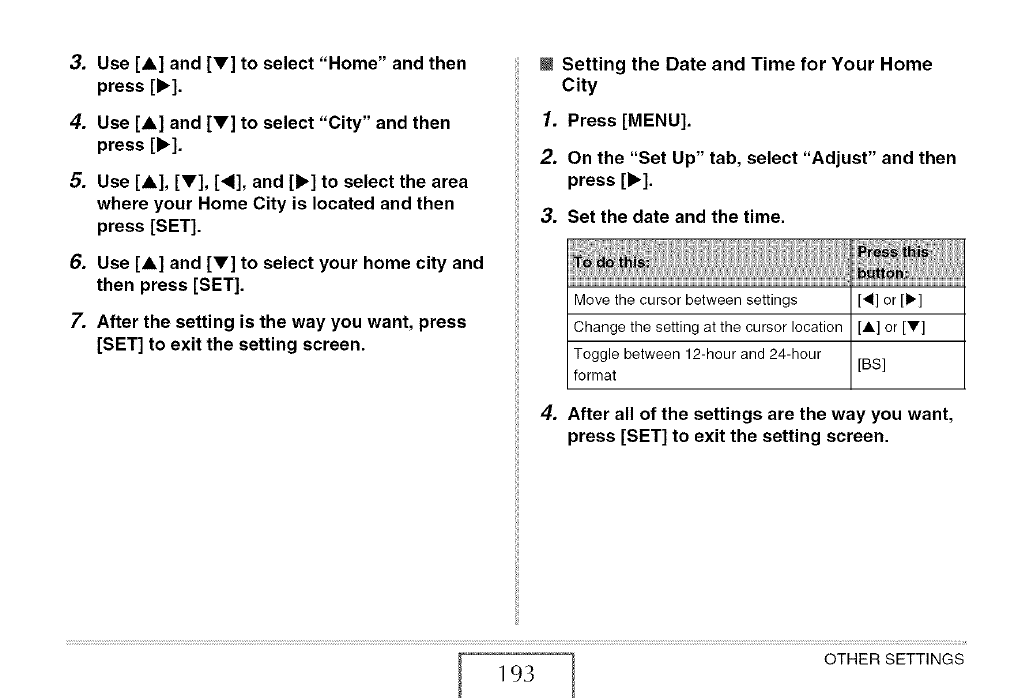

3. Use [A] and [Y] to select "Home" and then

press [1_].

4. Use [A] and [V] to select "City" and then

press [,].

5. Use [A], [V], [_], and [11_]to select the area

where your Home City is located and then

press [SET].

6. Use [&] and [Y] to select your home city and

then press [SET].

7. After the setting is the way you want, press

[SET] to exit the setting screen.

mSetting the Date and Time for Your Home

City

1. Press [MENU].

2. On the "Set Up" tab, select "Adjust" and then

press [_].

3. Set the date and the time.

Movethecursorbetweensettings [_] or [1_]

Change the setting at the cursorlocation [A] or [V]

Toggle between12-hourand24-hour [BS]

format

4. After all of the settings are the way you want,

press [SET] to exit the setting screen.

OTHER SETTINGS

193

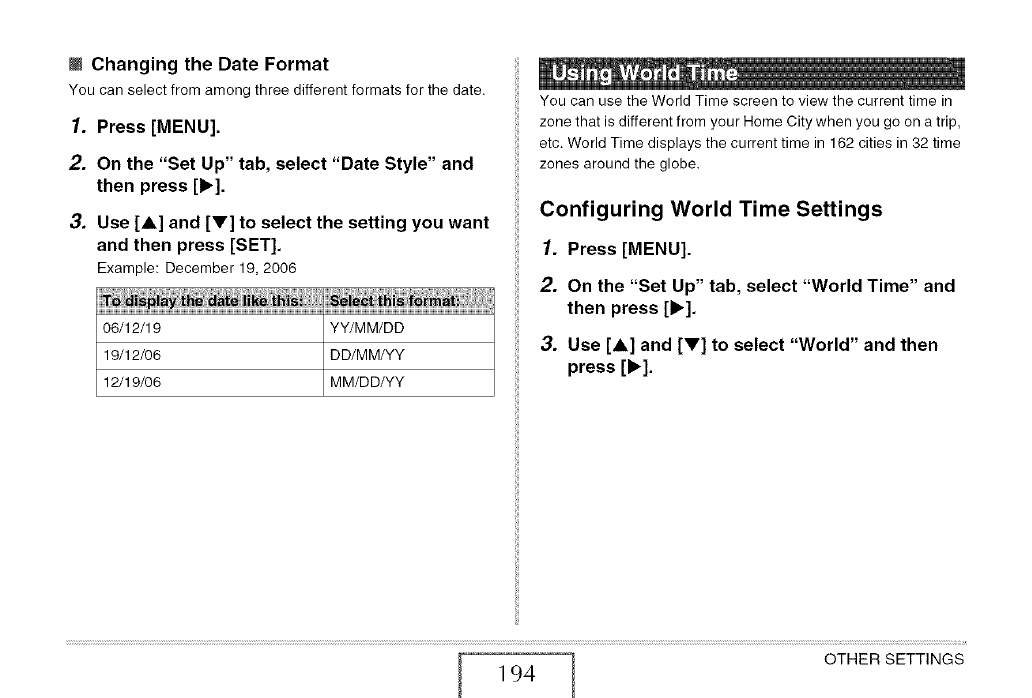

IChanging the Date Format

You can select from among three different formats for the date.

1. Press [MENU].

2. On the "Set Up" tab, select "Date Style" and

then press [11_].

3. Use [A] and [Y] to select the setting you want

and then press [SET].

Example: December 19, 2006

06/12/19 YY/MM/DD

] 9/12/06 DD/MM/YY

]2/19/06 MM/DD/YY

You can use the World Time screen to view the current time in

zone that is different from your Home City when you go on a trip,

etc. World Time displays the current time in 162 cities in 32 time

zones around the globe.

Configuring World Time Settings

1. Press [MENU].

2. On the "Set Up" tab, select "World Time" and

then press [11_].

3. Use [A] and [V] to select "World" and then

press [,].

OTHER SETTINGS

194

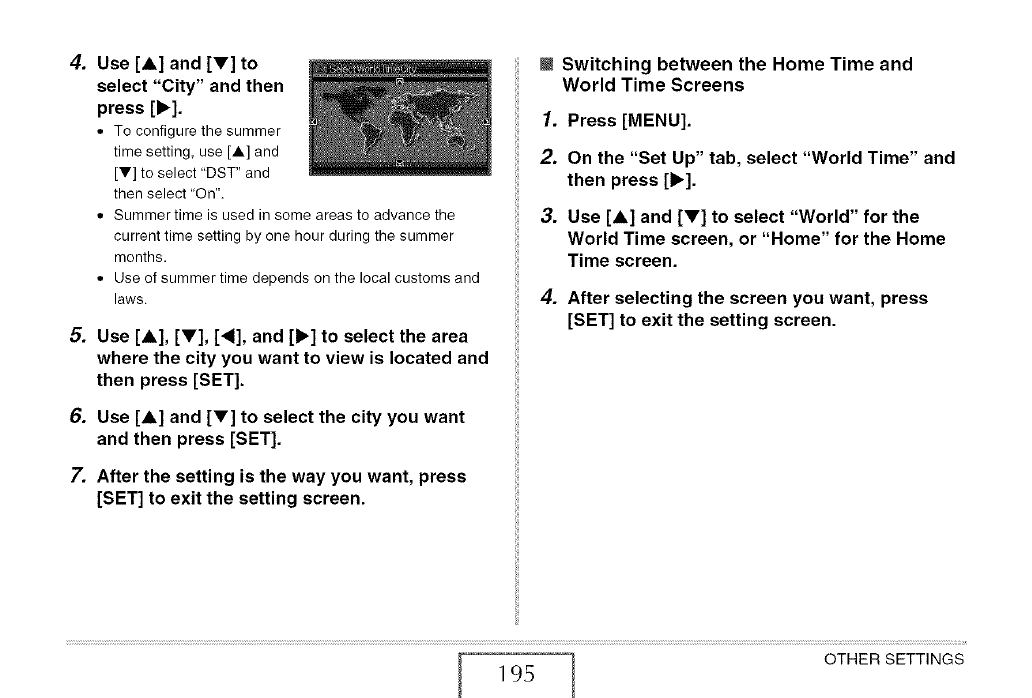

4. Use [A] and [Y] to

select "City" and then

press [b'].

• To configure the summer

time setting, use [A] and

[V] to select "DST" and

then select "On".

• Summertime is used in some areas to advance the

current time setting by one hour during the summer

months.

• Use of summer time depends on the local customs and

laws.

5. Use [A], [V], [4], and [1_] to select the area

where the city you want to view is located and

then press [SET].

6. Use [A] and [V] to select the city you want

and then press [SET].

7. After the setting is the way you want, press

[SET] to exit the setting screen.

mSwitching between the Home Time and

World Time Screens

1. Press [MENU].

2. On the "Set Up" tab, select "World Time" and

then press [1_].

3. Use [A] and [V] to select "World" for the

World Time screen, or "Home" for the Home

Time screen.

4. After selecting the screen you want, press

[SET] to exit the setting screen.

OTHER SETTINGS

19.5

You can use the procedure below to select a display text

language.

•The number and types of languages depend on the

geographic area where the camera was marketed.

1. Press [MENU].

2. On the "Set Up" tab, select "Language" and

then press [11_].

3. Use [A], [V], [_], and [1_] to select the setting

you want and then press [SET].

You can use the procedure below to change the USB

communication protocol that is used when exchanging data with

a computer, printer, or other external device. Select the protocol

that suits the device to which you are connecting.

1. Press [MENU].

2. On the "Set Up" tab, select "USB" and then

press [,].

OTHER SETTINGS

196

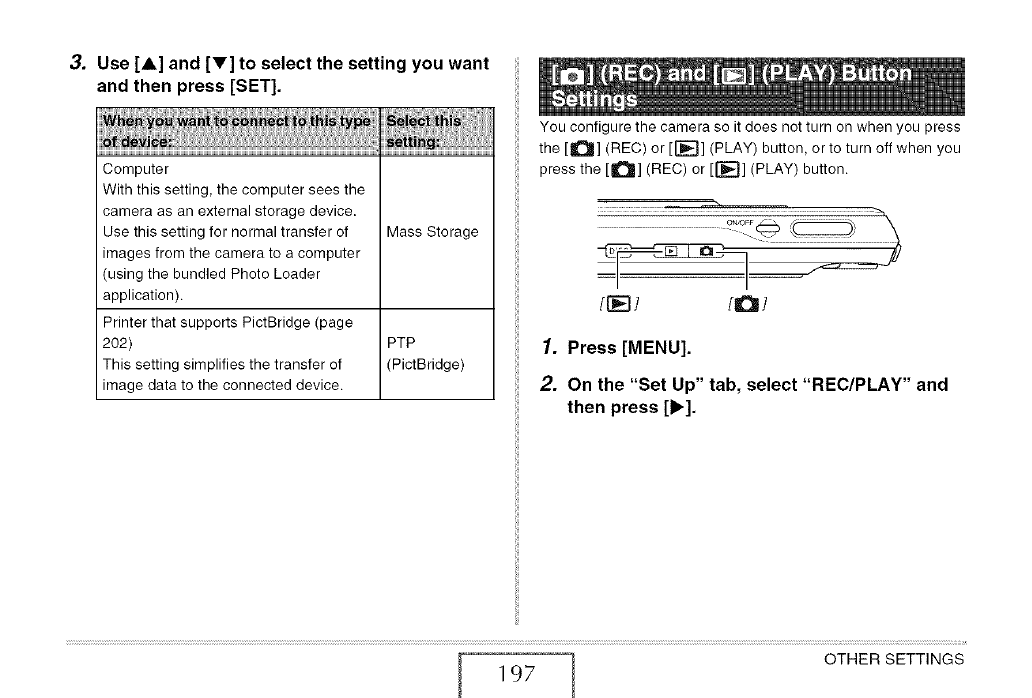

3. Use [&] and [V] to select the setting you want

and then press [SET].

Computer

With this setting, the computer sees the

camera as an external storage device.

Use this setting for normal transfer of

images from the camera to a computer

(using the bundled Photo Loader

application).

Printer that supports PictBridge (page

202)

This setting simplifies the transfer of

image data to the connected device.

Mass Storage

PTP

(PictBridge)

You configure the camera so it does not turn on when you press

the [O] (REC) or [_] (PLAY) button, or to turn off when you

press the [_ll] (REC) or [[_] (PLAY) button.

[_J [OJ

1. Press [MENU].

2. On the "Set Up" tab, select "REC/PLAY" and

then press [11_].

OTHER SETTINGS

197

3. Use [A] and [Y] to select the setting you want

and then press [SET].

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII_

Turn on the camera Power On

Turn on or turn off the camera Power On/Off

Do not turn on the camera Disable

_NOTE

• With "Power On/Off", the camera turns off when you press

[O] (REC) in the REC mode or [_] (PLAY) in the PLAY

mode.

• Pressing [[_] (PLAY) while in the REC mode or [O]

(REC) while in the PLAY mode will switch to the applicable

mode (REC or PLAY).

• Pressing [r'_] (REC) or [_] (PLAY) while the camera is

on switches immediately to the applicable mode (REC or

PLAY), even if you are performing a menu operation.

• The initial factory default for this setting is "Power On".

• Change this setting to anything besides "Disable" before

connecting to a TV for image viewing.

OTHER SETTINGS

198

Formatting built-in memory deletes any data stored in it.

• Note that data deleted by a format operation cannot be

recovered. Check to make sure you do not need any of the

data in built-in memory before you format it.

• Formatting built-in memory also deletes the following.

- Protected images

- FAVORITE folder images

- BEST SHOT mode user setups

- Startup screen

• Make sure that the battery is charged fully before starting a

formatting operation. Formatting may not be performed

correctly and the camera may stop operating normally if the

camera powers down while formatting is in progress.

• Never open the battery cover while formatting is in

progress. Doing so can cause the camera to stop operating

normally.

Check to make sure there is no memory card

loaded in the camera.

• If thereis a memorycard loadedin thecamera,removeit.

Press [MENU].

On the "Set Up" tab, select "Format" and then

press [,].

Use [A] and [V] to select "Format" and then

press [SET].

This formats built-in memory

• To exit the format operation without formatting, select

"Cancel".

• Entering the PLAY mode after formatting the built-in

memory will cause the message "There are no files." to

appear.

OTHER SETTINGS

199

There are three different methods you can use for printing images.

Printing on a Printer (page 202)

Printing with a Computer

Take the memory card that contains the images you want to print to a

)rofessional print service.

• You can use DPOF settings to specify which images you want to print,

the number of copies, and date stamp settings before taking the card in

for printing.

Print on a printer that supports PictBridge, or on a printer equipped with a

memory card slot.

• You can use DPOF settings to specify which images you want to print,

the number of copies, and date stamp settings before printing.

• Windows Computer

Install the software (Photohands) that comes bundled with the camera.

See "Using the Camera with a Windows Computer" on page 212.

• Macintosh

After transferring the images to your Macintosh, use commercially

available software to print.

See "Using the Camera with a Macintosh" on page 237.

PRINTING

2OO

IPrinting Precautions

•See the documentation that comes with your printer for

information about print quality and paper settings.

• Contact the manufacturer of your printer to find out if it

supports PictBridge, for new printer versions, etc.

• Never disconnect cables or perform any camera or USB

cradle operation while printing is in progress. Doing so can

cause a printer error.

Precaution when printing with "All Images"

Note that selecting "All Images" for printing will also print all the

pages of all the documents that have been transferred to the

camera using the Data Storage feature (page 254).

Regardless of whether you are printing at home or if you are

using an outside printing service, make sure you know what is

stored in a memory card (especially documents) before

selecting "All Images" (page 207).

Take a memory card that contains the images you want to print

to the professional print service. Before taking in a memory card,

you can use the camera's DPOF settings (page 205) to specify

which images you want printed, the number of copies, and

whether or not the images should include a date stamp.

PRINTING

201

If your printer is either of the types described below, you can use

it to print without going through a computer.

- Printer equipped with an SD memory card/SDHC memory

card slot

- Printer that support PictBridge

IPrinting on a Printer with an SD Memory

Card/SDHC Memory Card Slot

Remove the SD memory card or SDHC memory card from the

camera and insert it directly into the printer's memory card slot.

Depending on what type of printer you are using, it also may be

able to read the settings (images to be printed, number of

copies, date stamping) you configure with the camera's DPOF

settings (page 205). For details, see the user documentation that

comes with your printer.

mPrinting on a Printer that Supports

PictBridge

You can connect the camera directly to a PictBridge compliant

printer and print images without going through a computer.

•The camera's USB cradle also allows easy connection to a

printer. Before connecting to a printer via the USB cradle, be

sure to perform the following procedure first.

1. Press [MENU].

2. On the "Set Up" tab, select "USB" and then

press [1_].

3. Use [A] and [V] to select "PTP (PictBridge)"

and then press [SET].

PRINTING

202

4. Connect the USB cable that comes bundled

with the camera to the USB cradle and your

printer's USB port.

UBB Cable (Bundled)

UBB Port IConnector B

ConnectorA

["_- ] (UBB) Connector

• Also, connect the AC adaptor to the cradle and plug the

adaptor into an electrical outlet.

• If you do not plan to use the AC adaptor, make sure that

the camera's battery is fully charged.

• Nothing appears on the camera's monitor screen if the

camera is on the USB cradle while the bundled AV cable

is connected to the cradle. Be sure to disconnect the AV

cable from the cradle if you want to use the camera's

monitor screen to view images.

5. Turn off the camera and place it onto the USB

cradle.

6. Turn on the printer.

7. Load paper into the printer.

8. Press the USB

cradle's [USB] button.

This displays a print menu

on the camera's monitor

screen.

PRINTING

2O3

9. Use [A] and [Y] to select "Paper Size" and

then press [1_].

10. Use [&] and [V] to select a paper size and

then press [SET].

• The following are the available paper sizes.

3.5" x 5", 5" x 7", 4" x 6", A4, 8.5" x 11", By Printer

• Selecting "By Printer" prints using a paper size selected

on the printer.

• Available paper settings depend on the connected

printer. For full details, see the user documentation that

comes with your printer.

11. Use [A] and [V] to specify the print option

you want.

If you want to print a specific image:

Select "1 Image" and then press [SET]. After that, use [_]

and [1_] to display the image you want to print.

If you want to print multiple images:

Select "DPOF Printing" and then press [SET]. Next, use

the DPOF settings (page 205) to specify the images you

want to select.

• To toggle date stamping

on and off, press [BS].

The date stamp will be

printed when "On" is

indicated on the monitor

screen.

PRINTING

204

12. Use [A] and [Y] to select "Print" and then

press [SET].

Printing will start and the message "Busy... Please wait..."

will appear on the monitor screen. The message will

disappear after a short while, even though printing is still

being performed. Pressing any camera button will cause the

printing status message to re-appear.

The print menu screen will re-appear when printing is

complete.

• If you selected "1 Image" in step 11, you can repeat the

procedure from step 11 to print other images, if you want.

13.After you are finished printing, press the USB

cradle's [USB] button.

This will turn off the camera.

DPOF (Digital Print Order Format) lets you specify

which images you want to print, the number of |J

copies, and whether date stamping is turned on or

off. The settings you configure are recorded on the DPO F

memory card. After configuring settings you can

use the memory card to print on a home printer that supports

DPOF or take the memory card to a professional print service.

With DPOF, you can configure settings while viewing the actual

images on the camera's monitor screen, so there is no need to

recall hard-to-remember files names, etc.

IMPORTANT!

• Certain print service providers may not support DPOF or

may support different printing protocols. In this case, you

will need to perform printing in accordance with the

instructions provided by the print service you are using.

PRINTING

205

IConfiguring DPOF Settings Individually for

Each Image

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab,

select "DPOF

Printing" and then

press [,].

3. Use [A] and [V] to select "Select Images" and

then press [b'].

4. Use [41] and [1_] to scroll through the images

until the one you want to print is on the

monitor screen.

5. Use [A] and [V] to specify the number of

copies.

• You can specify up to 99 for the number of copies.

Specify 0 if you do not want to print the image.

6. If you want to include the date in the image,

press [BS] to toggle date stamping on and off.

• To turn off date stamping, press [BS] so "Off" is

displayed.

• Repeat steps 4 through 6 to configure settings for other

images, if you want.

7. After everything is the way you want, press

[SET] to save the settings.

PRINTING

206

IConfiguring the Same DPOF Settings for All

the Images

1. In the PLAY mode, press [MENU].

2. On the "PLAY" tab, select "DPOF Printing"

and then press [,].

3. Use [&] and [Y] to select "All images" and

then press [1_].

4. Use [&] and [Y] to specify the number of

copies.

• Youcan specifyup to 99for the numberof copies.

Specify0 ifyou donotwant to print.

5. If you want to include the date in the images,

press [BS] to toggle date stamping on and off.

• To turn off date stamping, press [BS] so "Off" is

displayed.

6. After everything is the way you want, press

[SET] to save the settings.

Clear DPOF settings when you no longer need them!

DPOF settings are not cleared autornatically after printing is

complete. This means that if you perform another printing

operation without clearing DPOF settings, printing will be

performed in accordance with the last settings you configured. If

you no longer need the currently configured DPOF settings, use

the procedure under "Configuring the Same DPOF Settings for

All the Images" to change the number of copies setting for all the

images to 00.

PRINTING

207

Tell your print service about your DPOF settings!

If you take a memory card to a professional print service, be

sure to tell them that it includes DPOF settings for the images to

be printed and the number of copies. If you don't, the print

service may print all the images without regard to your DPOF

settings, or they may ignore your date stamp setting.

• Some printers may ignore time stamp settings or may not

support DPOF at all. Check the user documentation that

comes with your printer for details.

Date Stamping

You can use any one of the following three methods to include

the recording date in the printout of an image.

• Configure DPOF settings on the camera to specify date

stamping (page 205)

- If an image already has the date or time stamped into it

using the camera's Date Stamping feature, turning on

DPOF date stamping will cause the two dates to be

stamped in the same location. Be sure to turn off DPOF

date stamping when printing an image that is stamped with

the camera's Date Stamping function.

- Some printers may ignore time stamp settings or may not

support DPOF at all. Check the user documentation that

comes with your printer for details.

- Note that some professional print services do not support

DPOF printing. Check with your service before ordering

prints.

•The camera's Date Stamping feature stamps the date and

time directly into the image data (page 131).

PRINTING

208

• Specify date stamping with Photohands (Windows only)

- See the Photohands User's Guide for details. The

Photohands User's Guide is provided as a PDF file on the

CD-ROM that comes bundled with your camera.

•Request date stamping when ordering prints from a

professional print service

- Some print services do not support date printing. Check

with your service for more information.

Your camera supports the protocols described below.

mPictBridge

Camera and Imaging Products Association

(CIPA)

mPRINT Image Matching III

Using image editing software and printing on a

printer that also supports PRINT Image Matching

III makes it possible to use information about

shooting conditions that is recorded with the

image, and produce exactly the type of image you

want.

PRINT Image Matching and PRINT Image Matching IIt are

trademarks of Seiko Epson Corporation.

PRINTING

209

IExif Print

Printing on a printer that also supports Exif o _,,,eo

Print (Exif 2.2)uses information about EXit' PfiBt

shooting conditions recorded with the image

to enhance printed image quality.

Contact your printer manufacturer for information about models

that support Exif Print, printer upgrades, etc.

PRINTING

210

Connecting the camera to a computer with the bundled USB

cable provides you with the capabilities described below.

You can use your computer to view camera

images and for long-term storage of images.

With some versions of Windows you need

to install the USB driver that comes

bundled with the camera.

Installation of a USB driver is not required

for the Apple Macintosh.

You can use the software that comes

bundled with the camera to perform various

operations with the images stored on your

computer's hard disk.

Refer to the explanations later in this

section and install the required software on

your computers.

You can transfer images stored on your

computer to camera memory.

• You can even transfer images that were

not originally recorded with the camera.

You can capture (cut) a portion of the

image (web page, map, etc.) currently on

your computer screen and transfer it to

camera memory.

You can transfer documents from your

computer to camera memory.

You can also transfer images to a computer for viewing and

storage without connecting the camera, by removing the

memory card from the camera and reading the contents of the

card with your computer (page 249).

USING THE CAMERA WITH A COMPUTER

211

The procedures you need to perform when using the camera

with your computer and when using the bundled software are

different for Windows and the Macintosh.

• Windows users should refer to "Using the Camera with a

Windows Computer" on page 212.

• Macintosh users should refer to "Using the Camera with a

Macintosh" on page 237.

• This camera supports USB 2.0 Hi-Speed protocol. Though

it can be used with a computer that supports only USB 1.1

protocol, higher speed data transfer becomes possible

when USB 2.0 Hi-Speed is supported. Note that certain

computer models, connecting through a USB hub, and

other system conditions can slow down data transfer and

even cause operational problems.

Install the required software in accordance with what version of

Windows you are running and what you want to do.

• Viewing

images on

a computer

• Storing

images on

a computer

Transfer of

images from

the camera

and

management

of images on

the computer

Retouch,

rotate, print

snapshots

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

XP/2000/ -

Me (USB driver not required.)

USB driver Type B

98SE/98 (USB driver. Be sure to 216

install this driver.)

Photo Loader 3.0

DirectX 9.0c (When DirectX

XP/2000/ 9.0 or higher is not installed

Me/98SE/ on the computer already.)

XP/2000/

Me/98SE/

Photohands 1.0

224

227

USING THE CAMERA WITH A COMPUTER

212

Play movies

Windows Media Player 9

• Connecting to the

XP/Me Internet downloads and 228

installs the applicable

codec automatically,

Windows Media Player 9

• Connecting to the

Internet downloads and

installs the applicable

codec automatically,

DirectX 9.0c (When DirectX

9.0 or higher is not installed

on the computer already,)

Windows 98 WMP6.4

codec

• Connecting to the

Internet downloads and

installs the applicable

codec automatically,

Ulead Movie Wizard SE

VCD

2000/

98SE 228

98 228

XP/2000 231

Edit movies Me/98SE/ • Use commercial software

98 as required.

Transfer XP/2000/ Photo Transport 1.0

images to the Me/98SE/ 232

camera 98

Transfer

documents to

the camera

XP/2000

XP/2000/

Me/98SE

}i[

CASIO DATA

TRANSPORT 1,0

Adobe Reader 6.0

(Not required if already

installed.)

View the

User's Guide

• If your computer does not

have Adobe Reader or

Adobe Acrobat Reader

installed already, go to

the Adobe Systems

Incorporated website to

download and install

Acrobat Reader 5,0.5.

254

236

USING THE CAMERA WITH A COMPUTER

213

IComputer System Requirements

Cornputer systern requirernents are different for each of the

applications. Be sure to check the requirements for the particular

application you are trying to use. Note that the values provided

here are minimum requirements for running each application.

Actual requirements are greater, depending on the number of

images and the sizes of the images being handled.

USB driver Type B

• Installation is not required in the case of Windows XP, 2000,

and Me.

• Correct operation is not guaranteed on a computer that has

been upgraded from Windows 95 or 3.1.

Photo Loader 3.0

HD : At least 40MB

Other: IE 5.5 or higher, DirectX 9.0 or higher

Photohands 1.0

HD: At least 10MB

DirectX 9.0c

HD: 65MB for installation (18MB on hard disk)

Photo Transport 1.0

Memory:At least 64MB

HD :At least 2MB

CASIO DATA TRANSPORT 1.0

• Sufficient memoryto run the operating system

Adobe Reader 6.0

CPU : Pentium

Memory: 32MB

HD : 60MB

Other : Internet Explorer 5.01 or higher

Windows Media Player 9

CPU :233MHz Pentium 1I, AMD, etc.

Memory: 64MB

HD :100MB

Other :Sound card; 800 x 600 or greater display resolution;

Internet Explorer 5.01 or higher

• If you are running Windows 98, install the Windows 98

WMP6.4 codec from the CD-ROM.

USING THE CAMERA WITH A COMPUTER

214

Ulead Movie Wizard SE VCD

CPU : Pentium Ill 800MHz

Memory: 256MB

HD : 250MB

Other : 1024 x 768 or higher display resolution

• For details about the minimum system requirements for

each software application, see the "Read me" files on the

CD-ROM that comes bundled with the camera.

Viewing and Storing Images on a

Computer

You can view and store images (snapshot and rnovie files) on

your computer by connecting to the camera via its USB cradle.

• Depending on what version of Windows your computer is

running, you may need to install the USB driver from the

bundled CD-ROM first.

General Procedure

1) If your computer is running Windows 98SE or 98, install the USB I

driver (page 216). If your computer is running Windows XP, I

2000, or Me, proceed directly to step 2.

2) Use the USB cradle to connect the camera and computer (page I

217). I

......:i

13/Viewand copy the images you want (page 221). I

I I

USING THE CAMERA WITH A COMPUTER

215

IInstalling the USB Driver (Windows 98SE

and 98 Only)

Do not try to establish a connection between the camera

and computer before installing the USB driver on the

computer.

If you do, the computer will not be able to recognize the

camera.

If your computer is running Windows 98SE or 98, be sure to

install the USB driver.

Do not connect the camera to your computer without installing

the USB driver first.

The following operation shows how to install the USB driver on a

computer running Windows 98. The procedure for Windows

98SE is slightly different, but the general flow is the same.

1. Set the bundled CD-ROM into the CD-ROM

drive of your computer.

• Use the CD-ROM that has "USB driver" on its label.

• This will display the menu screen.

2. On the menu screen, click the "English" tab.

• You could also click another language tab, if you prefer.

3. Click "Install" for "USB driver B" to start

installation.

4. Follow the instructions that appear on the

dialog box and click "Next".

USING THE CAMERA WITH A COMPUTER

216

5. When the final screen is reached, click

"Finish".

• Depending on the version of Windows that your computer

is running, a message may appear telling you to restart

your computer. If your computer displays such a

message, restart.

6. To exit the installer, click [Exit] to close the

CD-ROM menu and then remove the CD-ROM

from your computer.

• Depending on what version of Windows your computer is

running, your computer may restart automatically. If this

happens, the CD-ROM menu may re-appear after the

restart. Click "Exit" to exit the CD-ROM menu and then

remove the CD-ROM from your computer.

IConnecting the Camera to Your Computer

the First Time

• If you are not using the AC adaptor to power the camera,

the battery may go low and cause the camera to turn off

while it is in the middle of exchanging files with your

computer. Use of the special AC adaptor is recommended

to power the camera.

USING THE CAMERA WITH A COMPUTER

217

1. Connect the bundled AC adaptor to the [DC IN

5.3V] connector of the USB cradle and then

plug it in to a household power outlet.

• If you do not plan to use the AC adaptor, make sure that

the camera's battery is fully charged.

2. Connect the USB cable that comes bundled

with the camera to the USB cradle and the

USB port of your computer.

USB Cable (Bundled)

_UBB Port IConnector B

Conneotor A _ _

[.4_ ] (UBB) Connector

• Orient the USB plug so itcorrectly matches the shape of

the USB port when you connect them.

• Plug the USB cable into the ports securely, as far as it will

go. Proper operation is not possible if connections are not

correct

USING THE CAMERA WITH A COMPUTER

218

3. Press the camera's [ON/OFF] button to turn it

on and then press [MENU].

• Donot placethe cameraonthe USB cradleyet.

4. On the "Set Up" tab, select "USB" and then

press [,].

5. Use [A] and [Y] to select "Mass Storage" and

then press [SET].

6. Press the camera's [ON/OFF] button to turn it

off and then place the camera on the USB

cradle.

• Donot placethecameraontothe USB cradlewhile it is

turned on.

•If youplan to transfer images fromthe camera'sbuilt-in

memoryto your computer,makesurethere isno memory

cardloadedinthe camera.

7. Press the USB

cradle's [USB]

button.

USB Lamp

USING THE CAMERA WITH A COMPUTER

219

Camera-Computer Connection

Pressing the cradle's [USB] button puts it into the USB mode,

which is indicated bythe USB lamp lighting green. In this mode,

your computer recognizes the memory card loaded in the

camera (or the camera's built-in memory if it does not have a

memory card loaded) as a removable disk.

From now on, you will not have to perform steps 3 through 5 in

the above procedure when you connect the camera to your

computer (unless you change the camera's USB settings for

some reason).

•With some Windows setups, you may see a guidance

message appear on your display to let you know about the

new removable disk. If this happens, simply close the

guidance message dialog box.

,, Never disconnect the USB cable or remove the camera

from the USB cradle without exiting the USB mode first.

Doing so can corrupt image data. See "Removing the

Camera from the USB Cradle" on page 224 for the correct

steps you need to perform to remove the camera from the

cradle safely.

USING THE CAMERA WITH A COMPUTER

220

IConnecting the Camera to Your Computer

after the First Time

Since you need to install the USB driver and configure menu

settings only the first time you connect the camera to your

computer, later connections are much simpler.

1. Press the camera's [ON/OFF] button to turn it

off and then place the camera on the USB

cradle.

• Do not place the camera onto the USB cradle while it is

turned on.

• If you plan to transfer images from the camera's built-in

memory to your computer, make sure there is no memory

card loaded in the camera.

2. Press the USB cradle's

[USB] button.

• Pressing the cradle's

[USB] button puts it into the

USB mode, which is

indicated by the USB lamp

lighting green. [USB]

WViewing Camera Images on Your Computer

After connecting the camera to your computer, you can view

camera images on your computer screen.

• For information about connecting to a computer, see

"Connecting the Camera to Your Computer after the First

Time" on page 221.

1. Windows XP users: Click "Start" and then "My

Computer".

Windows 2000/Me/98SE/98 users: Double-

click "My Computer".

2. Double-click "Removable Disk".

• Your computer recognizes the memory card loaded in the

camera (or built-in memory if there is no card) as a

removable disk.

3. Double-click the "DCIM" folder.

4. Double-click the folder that contains the image

you want to view.

USING THE CAMERA WITH A COMPUTER

221

5. Double-click the file that contains the image

you want to view.

This displays the image.

• For information about file names, see "Memory Folder

Structure" on page 251.

_NOTE

• An image that was rotated on the camera will be displayed

on your computer screen in its original (unrotated)

orientation.

I Saving an Image on Your Computer

In order to work on an image or put it into an album, you must

first save it to your computer. To save a camera image to your

computer, you must first establish a connection between them

via the camera's USB cradle.

• For information about connecting to a computer, see

"Connecting the Camera to Your Computer after the First

Time" on page 221.

1. Windows XP users: Click "Start" and then "My

Computer".

Windows 2000/Me/98SE/98 users: Double-

click "My Computer".

2. Double-click "Removable Disk".

• Your computer recognizes the memory card loaded in the

camera (or built-in memory if there is no card) as a

removable disk.

3. Right-click the "DCIM" folder.

USING THE CAMERA WITH A COMPUTER

222

4. On the shortcut menu that appears, click

"Copy".

5. Windows XP users: Click "Start" and then "My

Documents".

Windows 20001Me198SEI98 users: Double-

click "My Documents" to open it.

• If you already have a "DCIM" folder in "My Documents",

the next step will overwrite it. If you want to keep the

existing "DCIM" folder, you need to change its name or

move it to a different location before performing the next

step.

6. On the "My Document" "Edit" menu, select

"Paste".

This will paste the "DCIM" folder (and all the image files it

contains) into your "My Documents" folder. You now have a

copy of the files that are in camera memory on your

computer.

• Never use your computer to modify, delete, move, or

rename any image files that are in the camera's built-in

memory or memory card. Doing so can cause problems

with the camera's image management data, which will

make it impossible to play back images on the camera and

can drastically alter remaining memory capacity. Whenever

you want to modify, delete, move, or rename an image, do

so only on images that are stored on your computer.

• Never unplug the USB cable, or operate the camera or

cradle while viewing or storing images. Doing so can cause

data to become corrupted.

USING THE CAMERA WITH A COMPUTER

223

IRemoving the Camera from the USB Cradle

Windows XP/98SE/98 Users

Press the USB cradle [USB] button. After rnaking sure that the

cradle's USB lamp is not lit, remove the camera from the cradle.

Windows 2000/Me Users

Click card services in the task tray on your computer screen, and

disable the drive number assigned to the camera. Next, press

the USB cradle [USB] button. After making sure that the cradle's

USB lamp is not lit, remove the camera from the cradle.

Transfer of Images from the Camera and

Management of Images on the Computer

To manage images on your computer, you need to install the

Photo Loader application from the CD-ROM that comes with the

camera.

Photo Loader lets you import images from the camera to your

computer automatically, to arrange images by recording date,

and to display images in a calendar format.

_NOTE

• If you already have Photo Loader installed on your

computer, check its version. If the bundled version is newer

than the one you have, uninstall the old version of Photo

Loader and then install the newer version.

USING THE CAMERA WITH A COMPUTER

224

IInstalling Photo Loader

1. Start up your computer, and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "Photo Loader" on its label.

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

2. On the menu screen, click the tab for the

language you want.

3. Click the Photo Loader "Read me" file and

read its contents.

• "Read me" files contain important information about

installation, including installation conditions and computer

system requirements.

4. Click "Install" for Photo Loader.

5. Follow the instructions that appear on your

computer screen to install Photo Loader.

• Windows 98SE/98

If the Jet40SP8 9xNT.exe and MDAC (Microsoft Data

Access Components) 2.8 installation dialog box appears

after installation of Photo Loader is complete, follow the

instructions on the screen to perform the installation. The

installation dialog box will not appear if

Jet40SP8 9xNT.exeand MDAC2.8orhigherarealready

installed on your computer.

• Windows XP (including SP1), 2000, or Me (Excluding

Windows XP SP2)

If the MDAC (Microsoft Data Access Components) 2.8

installation dialog box appears after installation of Photo

Loader is complete, follow the instructions on the screen

to perform the installation. The installation dialog box will

not appear if MDAC 2.8 or higher is already installed on

your computer.

USING THE CAMERA WITH A COMPUTER

225

• See the "Read me" file that comes with Photo Loader for

information about what you need to do to be able to use

existing libraries after updating, re-installing Photo Loader,

or moving Photo Loader to another computer. If you do not

follow the correct procedure for installation, you may not be

able to display existing library information or calendar

format HTML files with Photo Loader, or imported image

files may be deleted.

Checking Your Computer's DirectX Version

In order to manage images using Photo Loader, your computer

also needs to have Microsoft DirectX 9.0 or higher installed. You

can check the installed version of Microsoft DirectX using your

PC's DirectX Diagnostic Tool.

On your computer, click "Start", "All

Programs", "Accessories", "System Tools"

and then "System Information".

On the "Tools" menu, select "DirectX

Diagnostic Tool".

On the "System" tab, check to make sure that

the "DirectX Version" is 9.0 or higher.

Click "Exit" to exit the DirectX Diagnostic

Tool.

• If your PC already has Microsoft DirectX 9.0 or higher

installed, you do not need to install Microsoft DirectX 9.0c

from the bundled CD-ROM.

• If your computer does not have Microsoft DirectX 9.0 or

higher installed, install Microsoft DirectX 9.0c from the

bundled CD-ROM.

USING THE CAMERA WITH A COMPUTER

226

Retouching, Reorienting, or Printing

Snapshots

In order to retouch, reorient, or print snapshots on your PC, you

need to install Photohands from the CD-ROM that comes

bundled with the camera.

• If you already have Photohands installed on your

computer, check its version. If the bundled version is newer

than the one you have, uninstall the old version of

Photohands and then install the newer version.

IInstalling Photohands

1. Start up your computer and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "Photohands" on its label

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

2. On the menu screen, click the tab for the

language you want.

3. Click the Photohands "Read me" file and read

its contents.

• "Read me" files contain important information about

installation, including installation conditions and computer

system requirements.

4. Click "Install" for Photohands.

5. Follow the instructions that appear on your

computer screen to install Photohands.

USING THE CAMERA WITH A COMPUTER

227

Playing Movies

Windows Media Player, which is already installed on most

computers, can be used for movie playback. To play back a

movie, first copy the movie to your computer and then double-

click the movie file.

In order to play a movie recorded with this camera on your

computer using Windows Media Player, you need to install the

MPEG-4 codec. The method you should use to install the codec

depends on whether or not you have access to an Internet

connection. Perform either of the procedures below, in

accordance with your Internet availability.

IInstalling the Codec on a Computer that Can

Connect to the Internet

1. Connect your computer to the Internet.

2. Double-click the movie file that was recorded

with the camera.

If your PC does not have the MPEG-4 codec installed, it will

connect to the Microsoft website automatically and

download it.

3. Install the downloaded MPEG-4 codec.

After installation is complete, playback of the movie file will

start automatically.

_NOTE

• If your computer already has the MPEG-4 codec installed,

it will start playing the movie as soon as you double-click it.

USING THE CAMERA WITH A COMPUTER

228

IInstalling the Codec on a PC that Cannot

Connect to the Internet

In this case, you should install Windows Media Player 9 from the

CD-ROM that comes bundled with the camera.

1. Start up your computer, and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "Windows Media Player" on its

label.

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

2. On the menu screen, click the tab for the

language you want.

3. Click the Windows Media Player 9 "Read me"

file and read its contents.

• "Read me" files contain important information about

installation, including installation conditions and computer

system requirements.

4. Click "Install" for Windows Media Player 9.

5. Follow the instructions that appear on your

computer screen to install Windows Media

Player 9.

USING THE CAMERA WITH A COMPUTER

229

• If your computer is running Windows 98, install the

Windows 98 WMP6.4 codec instead of Windows Media

Player 9.

• In the case of Windows 2000 or 98SE, you need to install

Microsoft DirectX 9.0c. For information about determining

the version of Microsoft DirectX on your PC, see page 225.

• Note the following important precautions when playing

back a movie from a memory card using Windows Media

Player 9.

- When using a high-speed type memory card

Try using Windows Media Player as-is, without changing

its basic settings.

- When using a memory card that is not a high-speed type

Change Windows Media Player settings as described

below. These settings will enable more stable movie

display.

(_) On the Windows Media Player "Tools" menu, select

"Options". On the dialog box that appears, open the

"Performance" tab.

_) In the "Video acceleration" area, click "Advanced".

(_) In the "Video acceleration" area, clear the "Use video

mixing renderer" check box.

@ In the "Legacy video renderer" area, clear the "Use

YUV Flipping" check box.

mMinimum Computer System Requirements

for Movie Playback

The minimum system requirements described below are

necessary to play back movies recorded with this camera on a

Windows computer.

Operating System :Windows XP

Memory :Pentium M, 1GHz or higher

Pentium 4, 2GHz or higher

Required Software:Windows Media Player 9

DirectX 9.0c

• The above is the recommended environment. Configuring

this environment does not guarantee proper operation.

• Even if your computer meets the minimum requirements

described above, certain settings and other installed

software may interfere with proper playback of movies.

USING THE CAMERA WITH A COMPUTER

23O

Editing a Movie

In order to edit movies on your PC, you need to install Ulead

Movie Wizard SE VCD from the bundled CD-ROM.

_NOTE

• The Ulead Movie Wizard SE VCD application that comes

on the bundled CD-ROM can create Video-CDs, but it

cannot created DVDs. If you want to be able to create

DVDs, you need to upgrade to the commercial version of

the software. See the Ulead Movie Wizard SE VCD "Read

me" file on the CD-ROM for information about and what

you need to do to upgrade to the commercial version.

IInstalling Ulead Movie Wizard SE VCD

1. Start up your computer, and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "Ulead Movie Wizard SE VCD"

on its label.

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

2. On the menu screen, click the tab for the

language you want.

3. Click the Ulead Movie Wizard SE VCD "Read

me" file and read its contents.

• "Read me" files contain important information about

installation, including installation conditions and computer

system requirements.

4. Click "Install" for Ulead Movie Wizard SE VCD.

5. Follow the instructions that appear on your

computer screen to install Ulead Movie Wizard

SE VCD.

USING THE CAMERA WITH A COMPUTER

231

Transferring Images to the Camera

In order to return images from your computer memory back to

the camera, install Photo Transport on your computer from the

CD-ROM that comes with the camera.

IInstalling Photo Transport

1. Start up your computer, and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "Photo Transport" on its label.

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

2. On the menu screen, click the tab for the

language you want.

• Regardless of the language you select, the English

version of Photo Transport is installed.

3. Click the Photo Transport "Read me" file and

read its contents.

• "Read me" files contain important information about

installation, including installation conditions and computer

system requirements.

4. Click "Install" for Photo Transport.

5. Follow the instructions that appear on your

computer screen to install Photo Transport.

USING THE CAMERA WITH A COMPUTER

232

ITransferring image files to the camera

1. First, connect the camera to your computer.

• See page 217 for information about connecting the

camera to your computer.

2. On your computer, click "Start", "All

Programs", "Casio" and then "Photo

Transport".

Thisstarts upPhotoTransport.

3. Drop the image data you want to transfer to

the camera onto the Photo Transport Transfer

button.

Move your mouse pointer to the image file you want to

transfer, and then hold down your mouse button. Keeping

your mouse button depressed, drag the mouse pointer and

the image file along with it to the Photo Transport Transfer

button, and then release the mouse button.

Help button

Settings button Exit button

Transfer button

USING THE CAMERA WITH A COMPUTER

233

4. Follow the instructions that appear on the

display to transfer the image file to the

camera.

• The image transfer method and detailed image settings

used depend on the Photo Transport settings. For details,

see Photo Transport help (page 235).

• You cannot transfer movies to the camera.

• Only image files of the following formats can be transferred

to the camera: JPG, JPEG, JPE, and BMP. The transfer

operation converts BMP files to JPEG format.

WTransferring screen captures to the camera

1. First, connect the camera to your computer.

• See page 217 for information about connecting the

camera to your computer.

2. On your computer, click "Start", "All

Programs", "Casio" and then "Photo

Transport".

Thisstarts up PhotoTransport.

3. Display the screen whose screen capture you

want to transfer.

4. Click the Photo Transport Capture button.

Capture button

USING THE CAMERA WITH A COMPUTER

234

5. Use your mouse to select the area of the

screen you want to capture.

Move your mouse pointer to the upper left corner of the area

you want to capture and then hold down your mouse button.

Keeping your mouse button depressed, drag the pointer

down to the right corner of the area and then release the

mouse button.

Capture area

6. Follow the instructions that appear on the

display to transfer a capture of the selected

area to the camera.

• The image transfer method and detailed image settings

used depend on the Photo Transport settings. For details,

see Photo Transport help (page 235).

• The transfer operation converts screen captures to JPEG

format.

WPhoto Transport Setup and Help

Clicking the Settings button will display a dialog box that you can

use to configure image transfer settings, to specify the transfer

method, etc, For detailed information about the setup,

operational procedures, and troubleshooting, click the Help

button.

USING THE CAMERA WITH A COMPUTER

235

Viewing User Documentation (PDF) Files

1. Start up your computer, and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "User's Guide Included" on its

label.

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

2. On the menu screen, click the tab for the

language you want.

3. In the "Manual" area, click the name of the

manual you want to read.

• You must have Adobe Reader or Adobe Acrobat Reader

installed on your computer in order to view the contents of

a PDF file. If you do not already have Adobe Reader or

Adobe Acrobat Reader installed, install Adobe Reader from

the bundled CD-ROM that has "Adobe Reader" on its label.

USING THE CAMERA WITH A COMPUTER

236

User Registration

You can perform user registration over the Internet. To do so, of

course, you need to be able to connect to the Internet with your

computer.

1. Click the "Register" button.

• This starts up your Web browser and accesses the user

registration website. Follow the instructions that appear

on your computer screen to register.

Exiting the CD-ROM Menu

On the CD-ROM menu, click "Exit".

Install the required software in accordance with what version of

the Macintosh OS you are running and what you want to do.

• Viewing

images on

your

Macintosh

• Storing

images on

your

Macintosh

Transfer of

images from

the camera

and

management

of images on

your

Macintosh

Play movies

OS 9/OS X 239

(USB driver not required.)

OS 9 Photo Loader 1.1 245

OS X • Use iPhoto, which comes _

bundled with your

operating system.

OS X

CASIO AVI Importer

component 1.1

• Installing CASIO AVI

Importer component 1.1

makes it possible to play

back movies using the

QuickTime application

that comes bundled with

your operating system.

246

USING THE CAMERA WITH A COMPUTER

237

Transfer CASIO DATA

documents to OS X 256

TRANSPORT 1,0

the camera

• Use Adobe Reader or

View the OS 9/OS X Adobe Acrobat reader, 248

User's Guide which comes bundled with

your operating system.

NOTE

• Printing is not supported with Photo Loader 1,1. Use

commercial software for printing on a Macintosh.

M System Requirements

System requirements are different for each of the applications.

Be sure to check the requirements for the particular application

you are trying to use. Note that the values provided here are

minimum requirements for running each application. Actual

requirements are greater, depending on the number of images

and the sizes of the images being handled.

Photo Loader 1.1

Memory: 32MB

HD : At least 3MB

USB connection is supported on a Macintosh running Mac OS 9

or OS X. Operation is supported using the standard USB driver

that comes with the operating system, so all you need to do is

connect the camera to your Macintosh using the USB cable.

CASIO AVI Importer component 1.1

OS :OS X 10.2.8 or greater

QuickTime:QuickTime 6.5.2 or greater

CASIO DATA TRANSPORT 1.0

OS : OS X 10,2.8 or greater

Other : Sufficient memory to run the operating system

USING THE CAMERA WITH A COMPUTER

238

• For details about the minimum system requirements for

each software application, see the "readme" files on the

CD-ROM that comes bundled with the camera.

Viewing and Storing Images on a

Macintosh

You can view and store images (snapshot and movie files) on

your Macintosh by connecting to the camera via its USB cradle.

• Connection is not supported to a Macintosh running Mac

OS 8.6 or lower, or Mac OS X 10.0. Connection is

supported to a Macintosh running Mac OS 9 or OS X (10.1,

10.2, 10.3, 10.4) only. Use the standard USB driver that

comes with the operating system for connection.

USING THE CAMERA WITH A COMPUTER

239

IConnecting the Camera to Your Computer

the First Time

1. Connect the bundled AC adaptor to the [DC IN

5.3V] connector of the USB cradle and then

plug it in to a household power outlet.

• If you do not plan to use the AC adaptor, make sure that

the camera's battery is fully charged.

2. Connect the USB cable that comes bundled

with the camera to the USB cradle and the

USB port of your Macintosh.

USB Cable (Bundled)

_UBB Port IConnector B

Conneotor A _ _

[.4_ ] (UBB) Connector

• Orient the USB plug so itcorrectly matches the shape of

the USB port when you connect them.

• Plug the USB cable into the ports securely, as far as it will

go. Proper operation is not possible if connections are not

correct

USING THE CAMERA WITH A COMPUTER

240

3. Press the camera's [ON/OFF] button to turn it

on and then press [MENU].

• Donot placethe cameraonthe USB cradleyet.

4. On the "Set Up" tab, select "USB" and then

press [,].

5. Use [A] and [Y] to select "Mass Storage" and

then press [SET].

6. Press the camera's [ON/OFF] button to turn it

off and then place the camera on the USB

cradle.

• Donot placethecameraontothe USB cradlewhile it is

turned on.

•If youplan to transfer images fromthe camera'sbuilt-in

memoryto your Macintosh,makesure thereis no

memorycardloadedin thecamera.

7. Press the USB

cradle's [USB] button.

[USB]

USB Lamp

USING THE CAMERA WITH A COMPUTER

241

Camera-Macintosh Connection

Pressing the cradle's [USB] button puts it into the USB mode,

which is indicated bythe USB lamp lighting green. In this mode,

your Macintosh recognizes the memory card loaded in the

camera (or the camera's built-in memory if it does not have a

memory card loaded) as a drive.

The appearance of the drive icon depends on the Mac OS

version you are using.

From now on, you will not have to perform steps 3 through 5 in

the above procedure when you connect the camera to your

Macintosh (unless you change the camera's USB settings for

some reason).

• Never disconnect the USB cable or remove the camera

from the USB cradle without exiting the USB mode first.

Doing so can corrupt image data. See "Removing the

Camera from the USB Cradle" on page 245 for the correct

steps you need to perform to remove the camera from the

cradle safely.

mConnecting the Camera to Your Macintosh

after the First Time

Since you need to configure rnenu settings only the first time you

connect the camera to your Macintosh, later connections are

much simpler.

1. Press the camera's [ON/OFF] button to turn it

off and then place the camera on the USB

cradle.

• Do not place the carnera onto the USB cradle while it is

turned on.

• If you plan to transfer images from the camera's built-in

memory to your Macintosh, make sure there is no

memory card loaded in the camera.

2. Press the USB cradle's

[USB] button.

• Pressing the cradle's

[USB] button puts it into

the USB mode, which is

indicated by the USB lamp

lighting green. [USB]

USING THE CAMERA WITH A COMPUTER

242

IViewing Camera Images on Your Macintosh

After connecting the camera to your Macintosh, you can view

camera images on your Macintosh screen.

• For information about connecting to a Macintosh, see

"Connecting the Camera to Your Macintosh after the First

Time" on page 242.

1. Double-click the camera's drive icon.

2. Double-click the "DCIM" folder.

3. Double-click the folder that contains the image

you want to view.

4. Double-click the file that contains the image

you want to view.

This displays the image.

• Do not leave the same image displayed on your Macintosh

screen for a long time. Doing so can cause image "burn in".

_NOTE

• An image that was rotated on the camera will be displayed

on your Macintosh screen in its original (unrotated)

orientation.

USING THE CAMERA WITH A COMPUTER

243

ISaving an Image on Your Macintosh

In order to work on an image to put it into an album, you must

first save it to your Macintosh. To save a camera image to your

Macintosh, you must first establish a connection between them

via the camera's USB cradle.

• For information about connecting to a Macintosh, see

"Connecting the Camera to Your Macintosh after the First

Time" on page 242.

1. Double-click the camera's drive icon.

2. Drop the "DCIM" folder into the folder where

you want to store it.

This copies the "DCIM" folder to the folder on your

Macintosh.

• Never use your computer to modify, delete, move, or

rename any image files that are in the camera's built-in

memory or memory card. Doing so can cause problems

with the camera's image management data, which will

make it impossible to play back images on the camera and

can drastically alter remaining memory capacity. Whenever

you want to modify, delete, move, or rename an image, do

so only on images that have been copied to your

Macintosh.

• Never unplug the USB cable, or operate the camera or

cradle while viewing or storing images. Doing so can cause

data to become corrupted.

USING THE CAMERA WITH A COMPUTER

244

IRemoving the Camera from the USB Cradle

1. On your Macintosh screen, drag the camera

drive to Trash.

2. Press the USB cradle [USB] button. After

making sure that the cradle's USB lamp is not

lit, remove the camera from the cradle.

Transfer of Images from the Camera and

Management of Images on Your

Macintosh

If you are running Mac OS X, you can manage snapshots using

iPhoto, which comes bundled with your operating system.

If you are running Mac OS 9, install the Photo Loader application

from the CD-ROM that comes with the camera.

Photo Loader lets you import images from the camera to your

Macintosh automatically, to arrange images by recording date,

and to display images in a calendar format.

IInstalling Photo Loader

Before starting installation, be sure to read any "readrne" file that

accompanies Photo Loader. "readme" files contain important

information about installation, including installation conditions

and computer system requirements.

1. Place the CD-ROM that comes bundled with

the camera into your Macintosh CD-ROM

drive.

•Usethe CD-ROMthat has "Photo Loader"on itslabel.

2. Open the folder named "Photo Loader".

3. Open the folder named "English" and then

open the folder named "Important".

USING THE CAMERA WITH A COMPUTER

245

4. Open the folder named "Installer" and then

open the file named "readme".

5. Follow the instructions in the "readme" file to

install Photo Loader.

• See the "readme" file that comes with Photo Loader for

information about what you need to do to be able to use

existing libraries after updating, re-installing Photo Loader,

or moving Photo Loader to another computer. If you do not

follow the correct procedure for installation, you may not be

able to display existing library information or calendar

format HTML files with Photo Loader, or imported image

files may be deleted.

Playing Movies

You can use QuickTime, which comes bundled with your

operating system, to play back movies. To play back a movie,

first copy the movie to your Macintosh and then double-click the

movie file.

To playback movies on your Macintosh using QuickTime, install

CASIO AVl Importer component from the CD-ROM that comes

bundled with the camera.

Installing CASlO AVl Importer component makes it possible to

play back AVl format (MPEG-4 standard) movie data recorded

on a High Quality Movie digital camera on a Macintosh, using

the QuickTime application that comes bundled with the

Macintosh operating system.

MInstalling CASIO AVI Importer component

1. Place the CD-ROM that comes bundled with

the camera into your Macintosh CD-ROM

drive.

• Use the CD-ROM that has "AVl Importer component" on

its label.

2. Open the folder named "Movie Component".

There you will find a file named "CASlO AVI Importer.

component".

USING THE CAMERA WITH A COMPUTER

246

3. Double-click the "Library" folder on the

startup disk.

4. In the "Library" folder, double-click

"QuickTime".

5. Drag "CASIO AVI Importer. component" to the

"QuickTime" folder.

This installs "CASIO AVI Importer. component" in the

"QuickTime" folder.

• If there are any other AVI components in the [QuickTime]

folder, it can make proper movie playback impossible.

Move the other AVI components to another location

outside the [QuickTime] folder.

6. Restart your Macintosh and confirm that

QuickTime can play the movies properly.

• Be sure to move the movie data to the hard disk of your

Macintosh before trying to play it. Proper movie playback

may not be possible for data accessed over a network,

from a memory card, etc.

USING THE CAMERA WITH A COMPUTER

247

IMovie Playback Precaution

The minimum system requirements described below are

necessary to use your Macintosh to play back movies recorded

with this camera.

OS :OS X 10.2.8 or greater

Required Software:QuickTime 6.5.2 or greater

• The above is the recommended environment. Configuring

this environment does not guarantee proper operation.

• Even if your computer meets the minimum requirements

described above, certain settings and other installed

software may interfere with proper playback of movies.

Viewing User Documentation (PDF Files)

You must have Adobe Reader or Adobe Acrobat Reader

installed on your computer in order to view the contents of a

PDF file. If you don't, go to the Adobe Systems Incorporated

website and install Acrobat Reader.

WTo view the camera user's guide

1. On the CD-ROM, open the "Manual" folder.

• Use the CD-ROM that has "User's Guide included" on its

label.

2. Open the "Digital Camera" folder and then

open the folder for the language whose user's

guide you want to view.

3. Open the file named "camera xx.pdf".

• "xx" is the language code (Example: camera e.pdf is for

English.)

USING THE CAMERA WITH A COMPUTER

248

IViewing the Photo Loader User's Guide

1. On the CD-ROM, open the "Manual" folder.

• UsetheCD-ROMthat has"PhotoLoader"on itslabel.

2. Open the "Photo Loader" folder and then open

the "English" folder.

3. Open "PhotoLoader english".

Registering as a User

Internet registration only is supported. Visit the following CASIO

website to register:

http://wo rld.casio.com/qv/regist er/

The method you should use to read files from a memory card

depends on the type of computer you have. Some typical

examples are shown below. After you connect, use the same

procedures as those that you use when the camera is connected

to your computer via the USB cradle.

IIf your computer has a memory card slot

Insert the camera's memory card directly into the slot.

MIf your computer has a PC card slot

Use a commercially available PC card adapter (for SD memory

card, SDHC memory card, MMC, and MMCplus) to insert the

memory card into the slot. For full details, see the user

documentation that comes with the PC card adapter and your

computer.

USING THE CAMERA WITH A COMPUTER

249

Other types of computers

Use either of the method described below.

- Use a commercially

available SD

memory card/SDHC

memory card reader/

writer. See the user

documentation that

comes with the SD

memory card/SDHC memory card reader/writer for details

about how to use it.

- Use a commercially available PC card reader/writer in

combination with a commercially available PC card adapter

(for SD memory card, SDHC memory card, MMC, and

MMCplus). See the user documentation that comes with

the PC card reader/writer and PC card adapter for details

about how to use them.

The camera stores images you shoot and other data in

accordance with the Design Rule for Camera File System

(DCF).

IAbout DCF

DCF is a system that defines both image file formats and the

structure of the folders that store data. This makes it possible for

a digital camera, printer, or other DCF-compliant device to

display or print image data from another DCF device.

USING THE CAMERA WITH A COMPUTER

25O

IMemory Folder Structure

DCIM

INDEX.PVM

_:_1100CASIO

CIMG0O01 .,JPG

CIMG0002.AVI

CIMG0003.WAV


CIMGOB04.WAV

_i_1101 VIEW

VIEW001 .JPE

VIEW0B2.JPE

THUMB.FNX

THUMB.JPE

VIEW.PVM

102CASIO

103 VIEW

(DCIM Folder)

(Total Index File)

(Recording Folder)

(Image File)

(Movie File)

(Audio File)

(Audio Snapshot Image File)

(Audio Snapshot Audio File)

(Document Folder)

(Document File)

(Document Management File)

(MPV Management File)

(Recording Folder)

(Document Folder)

MISC

AUTPRINTMRK

,,,Q SCENE _

U1000001 .JPE

U1OO0002.JPE

-=[_MSCENE*

UIOOOOOI.JPE

UIOOOOO2.JPE

_--IFAVORITE _



STARTING.JPG _

(DPOF File Folder)

(DPOF File)

(Snapshot BEST SHOT Folder)

(Snapshot User Setup File)

(Movie BEST SHOT Folder)

(Movie User Setup File)

(FAVORITE Folder)

(Recording File)

(Startup Screen File)

'_ Indicates files that can be created in built-in memory only.

USING THE CAMERA WITH A COMPUTER

2.51

Folder and File Contents

• DCIM Folder

Folder that contains all of the camera files

• Total Index File

Management file of the document folder

• Recording Folder

Folder that contains files recorded with the camera

• Image File

File of an image shot with the camera. Extension is "JPG".

• Movie File

File of a movie shot with the camera. Extension is "AVI".

• Audio File

Audio recording file. Extension is "WAV'.

• Audio Snapshot Image File

Image file of an audio snapshot. Extension is "JPG".

• Audio Snapshot Audio File

Audio recording file of an audio snapshot. Extension is

"WAV".

• Document Folder

Folder that contains document files transferred to the camera

• Document File

Document files transferred to the camera

• Document Management File

Management file for documents transferred to the camera

• MPV Management File

Management file for documents transferred to the camera

• DPOF File Folder

Folder that contains DPOF files, etc.

• Snapshot BEST SHOT Folder

Folder that contains snapshot BEST SHOT user setup files

• Snapshot User Setup File

File of a snapshot BEST SHOT user setup

• Movie BEST SHOT Folder

Folder that contains Movie BEST SHOT user setup files

• Movie User Setup File

Files that contain Movie BEST SHOT user setups

• FAVORITE Folder

Folder that contains Favorites image files. Size of images is

320 x 240 pixels.

• Startup Screen File

File for storing the startup screen image. This file is created

when you specify an image for use as the startup screen

image.

USING THE CAMERA WITH A COMPUTER

2.52

ISupported Image Files

• Image files shot with this camera

• DCF-compliant image files

Even if an image is DCF-compliant, this camera still may not be

able to display it. When displaying an image recorded on

another camera, it may take a long time for the image to appear

on this camera's monitor screen.

IBuilt-in Memory and Memory Card Data

Handling Precautions

• When saving camera data to a computer hard disk, MO disk,

or other medium, be sure to transfer the entire DCIM folder

and its contents. Changing the name of the DCIM to a date or

something similar after you copy it to your computer is a good

way to keep track of multiple DCIM folders. When moving the

folder back to the camera, however, be sure to change its

name back to DCIM This camera does not recognize any

folder name besides DCIM

All of the other folders inside the DCIM folder must also have

their original names if you transfer them back to the camera.

• Folders and files must be stored in accordance with the

"Memory Folder Structure" shown on page 251 in order for the

camera to be able to recognize them correctly.

USING THE CAMERA WITH A COMPUTER

253

You can use CASIO DATA TRANSPORT to transfer documents,

web page images, and other documents you can view on you

computer screen to the camera. Then you can view the

documents on the camera's monitor screen.

_NOTE

• In this section, anything you transfer to the camera is called

a "document". Some documents can contain multiple

"pages".

• Just about any document you can print from your computer

can be transferred to the camera. Note, however, the ability

to properly transfer and display any particular type of

document is not guaranteed.

• Certain types of documents may look different on the

camera's monitor screen than it looks on your computer

screen.

Transferring documents from a

computer running Windows

To transfer documents on your computer to the camera so you

can view it on the monitor screen, you need to install CASIO

DATA TRANSPORT from the CD-ROM that comes with the

camera.

@Installing CASIO DATA TRANSPORT

1. Start up your computer, and place the bundled

CD-ROM into its CD-ROM drive.

• Use the CD-ROM that has "DATA TRANSPORT" on its

label.

• Normally, this should cause the menu screen to appear

automatically. If your computer does not display the menu

screen automatically, navigate to the CD-ROM on your

computer and then double-click the "MENU.exe" file.

254 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

2. On the menu screen, click the tab for the

language you want.

• Regardless of the language you select, the English

version of CASIO DATA TRANSPORT is installed.

3. Click the DATA TRANSPORT "Read me" file

and read its contents.

• "Read me" files contain important information about

installation, including installation conditions and computer

system requirements.

4. Click "Install" for DATA TRANSPORT.

5. Follow the instructions that appear on your

computer screen to install CASIO DATA

TRANSPORT.

@Transferring documents

1. First, connect the camera to your computer.

• Before connecting the camera to your computer, make

surethat a memorycard is loadedin thecamera.

•Seepage 217for informationaboutconnecting the

camerato your computer.

2. On your computer, open the document data

file that you want to transfer to the camera.

3. On the application menu of the currently open

document, select "Print". On the print dialog

box that appears, select "CASIO DATA

TRANSPORT" for the "Printer Name" setting.

255 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

4. Click the [OK] button.

This will display a dialog box for customizing document file

properties (date, file name, icon).

5. Check the current data settings (date, file

name, icon) and then click the [OK] button.

This will convert the document data to a JPEG image and

transfer the image to the camera.

• You can change the date, filename, and icon settings if

you want.

• To cancel the transfer, click the [Cancel] button.

• If you want a document image be displayed on the

camera's monitor screen using an orientation that is

different from that used on the computer screen, click the

[Properties] button on the print dialog box, change the

"Orientation" setting, and then click the [OK] button.

Transferring documents from a

Macintosh

To transfer documents on your computer to the camera so you

can view it on the monitor screen, you need to install CASIO

DATA TRANSPORT from the CD-ROM that comes with the

camera.

@Installing CASIO DATA TRANSPORT

Before starting installation, be sure to read any "readrne" file that

accompanies CASIO DATA TRANSPORT. "readme" files

contain important information about installation, including

installation conditions and computer system requirements.

1. Place the CD-ROM that comes bundled with

the camera into your Macintosh CD-ROM

drive.

• Use the CD-ROM that has "DATA TRANSPORT" on its

label.

2. Open the folder named "DATA TRANSPORT".

256 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

3. Double-click"TRANSPORT Installer".

4. Follow the instructions in the "readme" file to

install CASIO DATA TRANSPORT.

@Transferring documents

1. First, connect the camera to your Macintosh.

• Beforeconnectingthe camerato your Macintosh,make

surethat a memorycard is loadedin thecamera.

•Seepage 240for informationaboutconnecting the

camerato your Macintosh.

2. On your Macintosh, open the document that

you want to transfer to the camera.

3. On the menu bar, click "File" and then "Print".

°Click the PDF button at the bottom of the

dialog box and then select "CASIO DATA

TRANSPORT" from the menu that appears.

This will display a dialog box for customizing document file

properties (date, file name, icon).

257 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

5. Check the current data settings (date, file

name, icon) and then click the [OK] button.

This will convert the document to a JPEG image and

transfer the image to the camera.

• You can change the date, filename, and icon settings if

you want.

• To cancel the transfer, click the [Cancel] button.

1. On the camera, select either the REC mode or

the PLAY mode.

2. Press [DATA].

This enters the data mode

and displays a menu of

documents currently in

camera memory.

• The currently selected

document is the one with

the red boundary around it.

• Pressing [DATA] will return to the screen that was

displayed before you entered the data mode.

• Pressing [11_] enters the REC mode, while pressing

[[_] enters the PLAY mode.

258 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

3. Use [A], [Y], [_], and [1_] to move the

boundary to the document you want to select.

• The document menu screen can show up to 12

documents. If there are more than 12 documents in

camera memory, use [A] or [V] to switch between the

menu screens of 12 images each.

4. Press [SET] to open

the currently selected

document and

display its pages

(contents).

5. Use [1_] (forward) and [41] (back) to scroll

through the pages of the document.

• Pressing [li] jumps to page 1 of the document.

_NOTE

•Pressing [SET] orthe zoom button toggles between the

document menu and the document page screens.

• Pressing [DISP] while the document page screen is on the

display will display a menu screen for configuring screen

settings. You can use the menu to turn display information

on or off.

Note that selecting "All Images" for printing will also print all

the pages of all the documents that have been transferred

to the camera. Regardless of whether you are printing at

home or if you are using an outside printing service, make

sure you know what is stored in a memory card (especially

documents) before selecting "All Images" (page 207).

259 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

Specifying the Initial Data Mode Screen

You can use the following procedure to configure the camera

so either the document data list or the last document page you

were viewing appears first whenever you press [DATA] to

enter the data mode.

1. Press [MENU].

2. On the "Set Up" tab, select "DATA View",

and then press [1_].

3. Use [A] and [V] to select the setting you

want, and then press [SET].

_i£_i_l_i_£iil_tii iI ml_%_i_iYi_ii_H_¸,¸,_'_'_¸_¸_¸_¸_¸'_''_'

Document menu List View

Document page you were

viewing when you last exited the Page View

data mode

Deleting a Document Page

After displaying a document page, you can delete a single

document page or all the pages in a document at the same time.

WTo delete a single document page

1. Display a page in the document that contains

the page you want to delete and then press

[v] (_ _]).

2. Use [_1] and [,] to select the document page

you want to delete.

3. Use [A] and [V] to select "1 page" and then

press [SET].

4. To delete other document pages, repeat steps

2 and 3.

• To exit the delete operation, press [MENU],

260 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

ITo delete all the pages in a document page

1. Display a page in the document whose pages

you want to delete and then press [V] (_ _).

2. Use [A] and [V] to select "All pages" and then

press [SET].

3. Use [&] and [Y] to select "Yes".

• To cancel tile delete operation, select "No" instead of

"Yes".

4. Press [SET].

Deleting Documents

You can use the document menu to select a specific document

and delete it, or you can delete all documents currently in

camera memory.

WTo delete a single document

1. On the document menu, use [A], [V], [,i], and

[,] to move the selection boundary to the

document you want to delete.

2. Press [MENU].

3. Use [A] and [V] to select "1 doc" and then

press [SET].

4. Use [A] and [V] to select "Yes".

• To cancel the delete operation, select "No" instead of

"Yes".

5. Press [SET].

261 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

ITo delete all documents

1. While the document menu is displayed, press

[MENU].

2. Use [A] and [V] to select "All docs" and then

press [SET].

3. Use [&] and [Y] to select "Yes".

• To cancel the delete operation, select "No" instead of

"Yes".

4. Press [SET].

This will delete all documents in camera memory and

display the message "No documents in memory. Exiting

data mode.".

_NOTE

• Formatting camera memory (pages 50, 199) will also

delete all documents currently in camera memory.

262 TRANSFERRING DOCUMENTS TO(DATAYOURSTORAGE)CAMERA

Thenumbersinparenthesesindicatethepageswhereeachpart

isexplained.

ICamera

Front

@ Shutter (page 65)

O [ON/OFF] (Power)

(page 43)

Flash (page 76)

AF Assist/Self-timer Lamp

(pages 63, 70, 81,272)

Lens

Microphone

(pages 91,175)

Back

@ Operation Lamp

(pages 43, 65,272)

[DATA] Button (page 258)

[DISP] Button (page 53)

[[_] (PLAY) Button

(pages 43, 197)

[ft_] (REC) Button

(pages 43, 197)

Zoom Button

(pages 72, 154, 155)

[ O ](Movie) Button

(page 89)

Strap Hole (page 2)

Control Button

([A], IT], [<], [1_])

[SET] Button

[BS] Button (page 98)

[MENU] Button (page 52)

Monitor Screen (page 53)

APPENDIX

263

Bottom

Battery/Memory Card Slots (pages 37, 48)

Cradle Contact (page 39)

Tripod Hole

Use this hole when attaching to a tripod.

Speaker (page 143)

MUSB Cradle

Front

Back

@ Camera Contact (page 39)

USB Lamp

(pages 219, 241,275)

[USB] Button

(pages 205, 219, 241)

[PHOTO] Button

(pages 150, 151)

[CHARGE] Lamp

(pages 39, 275)

[DC IN 5.3V] (External Power)

Terminal (page 38)

@ [.-_z-] (USB) Connector

(pages 203, 218, 240)

[AV OUT] (AV output port)

(page 151)

APPENDIX

264

The monitor screen uses various indicators, icons, and values to keep you informed of the camera's status.

•The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the

monitor screen in various modes. They do not represent screens that actually appear on the camera.

IRecording Mode

Normal

Panel

(Operation @

Panel)

@ Flash Mode (page 76)

O Focus Mode (page 112)

White Balance Setting (page 123)

Continuous Shutter Mode

(page 83)

Self-timer Mode (page 81)

Recording Mode

@ Digital zoom indicator (page 74)

Metering Mode (page 127)

Snapshot Image Size (page 67)

Remaining Snapshot Memory

Capacity (page 283)

Snapshot Image Quality (page 69)

Remaining Movie Memory

Capacity (page 90)

Movie Image Quality (page 89)

ISO Sensitivity (page 126)

Aperture Value (page 66)

Shutter Speed (page 68)

Date/Time (page 192)

Exposure Compensation

(page 121)

Battery Level Indicator (page 41)

Focus Frame (pages 64, 116)

Histogram (page 132)

Anti Shake Indicator (page 104)

• The aperture value, shutter speed, and ISO sensitivity will all turn orange

if any one of them is not correct when the shutter button is half-pressed.

APPENDIX

265

I Snapshot Playback Mode

@ File Type (page 142) _ Recording Mode

Protect Indicator (page 180) _ Battery Level Indicator

Folder Name/File Name (page 41)

(page 179) _ Histogram (page 132)

Snapshot Image Quality _ Exposure Compensation

(page 69) (page 121)

Snapshot Image Size

(page 67)

ISO Sensitivity (page 126)

@ Aperture Value (page 66) @

Shutter Speed (page 66)

Date/Time (page 192)

Metering Mode (page 127)

White Balance Setting

(page 123)

Flash Mode (page 76)

MMovie Playback Mode

@ File Type (page 144)

Protect Indicator (page 180)

Folder Name/File Name

(page 179)

Movie Recording Time

(page 144)

Movie Image Quality

(page 89)

Date/Time (page 192)

Battery Level Indicator

(page 41 )

APPENDIX

266

Icon Help

Icon Help provides you instant access to information about the

icons that appear on the monitor screen in the REC mode. You

can turn off icon help if you want (page 137),

Icon Help text is displayed for the following functions.

Recording mode, Focus mode, Flash Mode, Metering,

White Balance, Self-timer, EV Shift

Metering, White balance, self-timer, and EV shift icon help

text appears only when "Metering", "White Balance", "Self-

timer", or "EV Shift" is assigned to the [4] and [1_-] keys with

the key customization feature (page 135).

The tables in this section show the items that appears on the

menus that appear on the monitor screen when you press

[MENU]. The items included on the menus depend on whether

the camera is in the REC mode or PLAY mode.

• An asterisk (') indicates reset default settings.

! REC Mode

REC Tab Menu

Normal Speed /High Speed /

Flash Cont. /Zoom Cont. /Off _

10 sec /2 sec /X3 / Offf _

.... Auto<of,,

................................................................................................_ Spot _'/_ Multi

On _ /Off

on,<off

Metering /EV Shift /White Balance /ISO /

Self-timer /Off _

On • / Off

on<off,

on<off"

On _ /Off

APPENDIX

267

On* /Off

BEST SHOT: On /Off *

Flash: On* /Off

Focus On /Off _

White Balance: On /Off*

ISO: On /Off*

AF Area: On _/Off

Metering: On /Off*

Self-timer: On /Off*

Flash Intensity: On /Off*

Digital Zoom: On* /Off

MF Position: On /Off*

Zoom Position: On /Off*

Quality Tab Menu

7M (3072 x 2304) _ / 3:2 (3072 x 2048)/

16:9 (3072 x 1728) /5M (2560 x 1920) /

3M (2048 x 1536) /2M (1600 x 1200) /

........................................................................................VGA (640 x 480)

Fine /NormaP /Economy

HQ* /HQ Wide /Normal /Normal Wide /LP

-2.0 /-1.7 /-1.3 /-1.0 /-0.7 /-0.3 /0.0 _ /

+0,3/+0,7/+1,0/+1.3/+1.7/+2.0

Auto* /_ (Daylight) /_ (Overcast) /

(Shade) / _ (Day White Fluorescent) /

(Daylight Fluorescent) / _ (Tungsten) /

Manual

Auto* /ISO 50 /ISO 100 /ISO 200 /ISO 400

Multi* /_ Center weighted /_ Spot

Off • /B/W /Sepia /Red /Green /Blue /Yellow /

Piok/Purple

+2 /+1 /0*/-1 /-2

APPENDIX

268

!!!!_!i!!i!_!!_!!!!!!!i!!!i!!!!!!_!+2/+1/0_/-1/-2

+2/+1 /0_'/-1 /-2

iiii t_il _ti!iii ii! Auto' /Off

Set Up Tab Menu

Startup _ /Half Shutter/Shutter/Operation /

Operation/_ Play

On (Seleotable image) / Off •

i_ No,: Continue_ /Reset

/O i_ii Home'/World

:::ii: i i: iii !ii:i Home Time setup (city, DST, etc.)

.............................................................................World Time setup (city DST, etc.)

Date /Date&Time /Off •

Timesetting

_/MM/OD/DD/MM/_/MM/OD/_

Changes the screen text language,

Iii_)i ii _ i " The number and types °f languages depend

on the geographic area where the camera

......................................................... was marketed,

Page View /List View

30 sec /1 min • /2 min / Off

_ _ff: 2 min"_ /5 min

PowerOn'/PowerOn/Off/Oiso_le

Mass Storage'/PTP (PiotBridge)

id NTSC /PAL 4:3 /PAL 16:9

..... 4:3' /NTSC 16:9

Format /Cancel'

ii_t {(((( Reset /Cancel •

s APPENDIX

269

IPLAY Mode

PLAY Tab Menu

Start* /Images /Time /Interval /Effect /

Cancel

9 frames _/1 frame /Cancel

On /Off _

cut/Before//

_i!_i_ [:i_}i: =_Cut(Between)/

_ Cut (After) /Cancel*

Show* /Save /Cancel

Select images_/All images/Cancel

On* /All Files : On /Cancel

ua -

.... Rotate_ /Cancel

5M (2560 x 1920) /3M (2048 x 1536) _ /

VGA (640 x 480) / Cancel

Built-in _ Card*/Card _ Built-in/Cancel

"Set Up" Tab

• The contents of the "Set Up" tab are the same in the REC

mode and PLAY mode.

APPENDIX

270

The tables in this section show the items that appears on the

menus that appear on the monitor screen when you press

[DISP], Most of these items are for configuring monitor screen

settings. The items included on the menus depend on whether

the camera is in the REC mode or PLAY mode.

• An asterisk (") indicates reset default settings.

IREC Mode

0, Pane,_OperationPone,_/.ormo,

Show _ /+Histogram /Hide

Auto/÷2_+l_0_-t

O_namic*_Vivid/_eal__igt,t_

[[[[[[[[[[[[[[[[[[ Power Saving

!PLAY Mode

Norma_/Wide'

Same as REC Mode settings,

Type I Same as REC Mode settings,

APPENDIX

271

j® .s _|l®"

The camera has lamps: an Operation Lamp and an AF assist/

self-timer Lamp. These lamps light and flash to indicate the

current operational status of the camera.

Operation Lamp AF assist/self-timer Lamp

There are three lamp flash patterns. Pattern 1 flashes once

per second, Pattern 2 flashes twice per second, and Pattern 3

flashes four times per second. The table below explains what

each flash pattern indicates.

MREC Mode

Lit Operational (Power

on, recording enabled)

Pattern Flash is charging.

Lit Flash charging is

complete,

Lit Auto Focus operation

was successful,

Pattern Cannot Auto Focus.

Lit LCD is off or in sleep

state.

Pattern Image is being stored.

Pattern Storing movie or

1 processing image.

Self-timer countdown

Pattern 1 (10-3)

Self-timer countdown

Pattern 2 (3- 0)

APPENDIX

272

Pattern Cannot charge flash.

Memory card

Pattern problem /Memory

card is unformatted. /

2BEST SHOT setup

cannot be registered.

Memory card is

locked /Cannot create

Lit folder. /Memory is

full. /Write error

Pattern Low battery alert

Pattern Card is being

3 formatted.

Pattern Powering down

,, Never remove the memory card from the camera while the

operation lamp is flashing green. Doing so will cause the

image you shot to be lost.

APPENDIX

273

IPLAY mode

Lit

Pattern

Operational (Power

on, recording enabled)

One of the following

operations is in

progress: Delete,

DPOF, protect, copy,

format, resize,

trimming, adding audio

to snapshot, keystone

correction, color

correction, MOTION

PRINT, movie editing,

power down

Pattern Memory card

2 problem /Memory

card is unforrnatted.

Memory card is

locked /Cannot create

folder. /Memory is full.

Low battery alert

APPENDIX

274

IUSB Cradle Indicator Lamps

The USB cradle has two indicator lamps: a [CHARGE] lamp and

a USB lamp. These lamps light and flash to indicate the current

operational status of the cradle and camera.

[CHARGE] lamp

USB Lamp

Red Lit Charging

Green Lit Charging complete

Amber Lit Charge standby

Red Flashing Charge error

Green Lit USB connection

Green Flashing Memory being accessed.

APPENDIX

275

Find the Problem and Fixing It

half-pressing, Auto Focus to focus,

APPENDIX

276

The image is not focused properly. When composing the image, make sure the subject is

located inside the focus frame.

The subject is out of

focus in the recorded

image.

The flash does not

fire.

Camera powers

down during self-

timer countdown.

1) _ (Flash Off) is selected as the flash mode.

2) The battery is dead.

3) A BEST SHOT scene that selects _ (Flash Off) as

the flash mode is selected.

The battery is dead.

1) Select a different flash mode (page 76).

2) Charge the battery (page 37).

3) Turn on the flash (page 76) or select a different BEST

SHOT scene (page 98).

Charge the battery (page 37).

The monitor screen

image is out of focus,

An image I shot was

not saved.

Though available

lighting is bright, the

faces of people in the

image are dark.

Subjects are too

bright when shooting underexposure of images.

orimagesski area.ina seashore

1) You are using the Manual Focus and have not focused 1)

the image.

2) You are trying to use the Macro Focus (D) when 2)

shooting a scenery or portrait shot.

3) You are trying to use Auto Focus or Infinity Focus 3)

(_) when shooting a close-up shot,

1) Power was cut off to the camera before the save 1)

operation was complete,

2) The camera's memory card was removed before the 2)

save operation was complete,

Not enough light is reaching the subjects. •

Focus the image (page 119).

Use Auto Focus for scenery and portrait shots.

Use the Macro Focus (D) for close-ups.

When the battery indicator shows "m", charge the

battery as soon as possible (page 37).

Do not remove the memory card before the save

operation is complete.

Change the flash mode setting to "_" (Flash On) for

daylight synchro flash (page 76).

Increase the EV shift value (page 121).

Sunlight reflected by water, sand, or snow, can cause • Change the flash mode setting to "_" (Flash On) for

daylight synchro flash (page 76).

• Increase the EV shift value (page 121).

APPENDIX

277

....

Digital zoom does not 1) The digital zoom setting is turned off. 1) Turn on the digital zoom setting (page 75).

work. The zoom bar 2) Date stamping is turned on. 2) Turn off date stamping (page 131). Digital zoom is

indicates zoom only disabled while date stamping is turned on.

up to a zoom factor of

3.0.

There is a vertical Shooting a very brightly lit subject can cause a vertical This is a CCD phenomenon known as "vertical smear",

line on the monitor band to appear in the monitor screen image, and does not indicate malfunction of the camera. Note

screen that vertical smear is not recorded with the image in the

case of a snapshot, but it is recorded in the case of a

movie.

Images are out of The subject is outside the range of the camera. Shoot within the allowable range,

focus.

There is digital noise Sensitivity is increased automatically for dark subjects, Use a light or some other means to illuminate the subject,

in images, which increases the chance of digital noise.

The color of the Sunlight or light from another source is shining directly Position the camera so sunlight does not shine directly

playback image is into the lens when shooting, into the lens,

different from what

appears on the

monitor screen when

shooting,

Images are not A memory card with non-DCF images recorded with This camera cannot display non-DCF images,

displayed, another camera is loaded in the camera.

All buttons and Circuit problem caused by electrostatic charge, impact, Remove the battery from the camera, reinsert it, and then

switches are etc. while the camera was connected to another device, try again.

disabled.

APPENDIX

278

....

The camera's USB communication is in progress. After confirming that the computer is not accessing the

monitor screen is memory card, disconnect the USB cable.

blank.

I can't transfer

images over a USB

connection.

Display language

setting screen

appears when the

camera is turned on.

1) The camera is not set securely on the USB cradle.

2) The USB cable is not connected securely.

3) The USB driver is not installed.

4) The camera is turned off.

1) Camera's display language, Home city, date style,

date and time, and other settings have not been

configured.

2) A problem with the camera's built-in memory

management area.

1) Check the connection between the camera and USB

cradle.

2) Check all connections.

3) Install the USB driver (page 216).

4) Press the USB cradle's [USB] button.

1) Check the settings (pages 12, 193).

2) Perform the reset operation to initialize the camera's

setup (page 139). After that, configure each setting. If

the language selection screen does not re-appear

when you turn the camera on, it means that the

camera's built-in memory management area has been

restored. If the same message appears after you turn

power back on, contact your retailer or a CASIO

service center.

APPENDIX

279

If you have problems installing the USB driver...

You may not be able to install the USB driver properly if you use the USB cable to connect tile camera to a computer running Windows

98SE/98 before installing the USB driver from the bundled CD-ROM, or if you have another type of driver installed.

This will make it impossible for the computer to recognize the camera when it is connected. If this happens, you will need to re-install the

camera's USB driver.

For information about how to re-install the USB driver, see the USB driver's "Read me" file on the CD-ROM that comes bundled with the

camera.

APPENDIX

28O

Display Messages

Battery power is low.

Keystone correction of the image cannot be

)erformed for some reason. The image will be

stored as-is, without correction (page 106).

The image you specified with the slideshow

"Images" setting cannot be found. Change the

"Images" setting (page 147) and try again.

• You are attempting to save a BEST SHOT

scene when there are already 999 scenes

in the "SCEN E" folder (page 102).

• You are attempting to copy a FAVORITE

file when the "FAVORITE" folder already

contains 9999 files (page 181).

There is something wrong with the memory

card. Turn off the camera, remove the memory

card, and then reload it into the camera. If this

message re-appears when you turn the

camera back on, format the memory card

(page 50).

• Formatting the memory card deletes all

its files. Before formatting, try transferring

recoverable files to a computer or some

other storage device.

• You are attempting to connect the camera

to a printer while the camera's USB settings

are not compatible with the USB system of

the printer (page 202).

• You are attempting to connect to a

computer that does not have a USB driver

installed (page 216).

Battery power is low, so an image file could not

be saved.

You are trying to record a file while there are

already 9,999 files stored in the 999th folder. If

you want to record more, delete files you no

longer need (page 186).

This message appears and the camera turns

off whenever lens performs some unexpected

operation. If the same message appears after

you turn power back on, contact your retailer

or a CASIO service center.

The printer ran out of paper while printing.

Memory is full. If you want to record more

delete files you no longer need (page 186).

The FAVORITE folder does not contain any

files.

An error occurred while printing.

• The printer is turned off.

• The printer generated an error, etc.

APPENDIX

281

Image compression could not be performed for

some reason during image data storage,

Shoot the image again.

During printing, the printer is running low on

ink or is out of ink,

If the lens comes into contact with some

obstacle, this message appears and the

camera turns off. Take action to remove the

obstacle, and try turning on power again.

Your camera system is corrupted, Contact

your retailer or an authorized CASIO service

center.

The LOCK switch of the SD memory card or

SDHC memory card loaded in the camera is in

the locked position, You cannot store images

to or delete images from a memory card that is

locked,

There are no files in built-in memory or on the

memory card.

There are currently no files specified for

(page 205).

The setup you are trying to save is for an

image that cannot be saved as a user BEST

SHOT scene,

The memory card loaded in the camera is not

formatted. Format the memory card (page 50).

fiie _annOt The file you are trying to access is corrupted or

:_iaye_[ [ is a type that cannot be displayed by this

camera

Qt: _e_

N io N]

for _iS _tle [] ]

You attempted to copy images from built-in

memory to a memory card while there is no

memory card loaded in the camera (page

184).

The function you are trying to use cannot be

performed for some reason.

APPENDIX

282

IMain Specifications

Product Type ....... Digital Camera

Model ............ EX-S770

ICamera Functions

Irnage Files

Format ................ Snapshots:

JPEG (Exif Version 2.2); DCF (Design

Rule for Camera File System) 1.0

standard; DPOF compliant

Movies: MPEG-4 AVl format

Audio: WAV

Recording Media ........ Built-in Memory 6.0 MB

SDHC Memory Card

SD Memory Card

MMC (MultiMediaCard)

MMCplus (MultiMediaCardplus)

Storage Capacity

•Snapshots

7M Fine

(3072 x

2304) Norma

conorr

3:2 Fine

(3072 x

2048) Norma

conorr

16:9 Fine

(3072 x

1728) Norma

conorr

8M Fine

(2860 x

1920) Norma

conorr

3M Fine

(2048 x

1536) Norma

conorr

i ............................

4.32 MB

2.1 MB

1,44 MB

3,84 MB

2.0 MB

1,28 MB

3,24 MB

1.9 MB

1,08 MB

3.0 MB

1.8 MB

1.0 MB

1.92 MB

1,28 MB

640 KB

1 image 55 images

2 images 110 images

3 images 158 images

1 image 61 images

2 images 116 images

4 images 176 images

1 image 73 images

2 images 121 images

5 images 206 images

1 image 78 images

3 images 128 images

5 images 221 images

2 images 121 images

4 images 180 images

8 images 348 images

APPENDIX

283

lallli!lzt

i,l:PiXels) ii

(1600 x

1200)

VGA

(640 x 480)

(VGA)

ilmaqe

luftlltis" iiii

Fine

Normal

conomy

Fine

Normal

conomy

_lliimi

i ililai BI

ii1iiiii7 _1_Iftf{i1i7

1.17k

780

390

360

240

120

4 images 196 images

7 images 286 images

12 images 530 images

15 images 625 images

22 images 937 images

40 images 1739 images

•Movies

/Irlla_qe

Quitlilt_i

IPItlISlIi

40 x 480

IQ Wide

04 x 384

Iormal

40 x 480

Iormal

/ide

04 x 384

20 x 240

iillllXfmu_ i

Until

memory

full

Until

memory

full

Until

memory

full

Until

memory

full

Until

memory

full

fltaJiiHat _i

4.0 Megabits/ 8 seconds 8 minutes,

second (30 17 seconds

frames/

second)

4.0 Megabits/ 8 seconds 8 minutes,

second (30 17 seconds

frames/

second)

2.1 Megabits/ 15 seconds 15 minutes,

second (30 44 seconds

frames/

second)

2.1 Megabits/ 15 seconds 15 minutes,

second (30 44 seconds

frames/

second)

745 Kilobits/ 42 seconds 43 minutes>

second (15 54 seconds

frames/

second)

APPENDIX

284

Number of image values are approximate and are provided

for reference only.

Based on Matsushita Electric Industrial Co., Ltd. products.

The number of images you can save depends on the type of

memory card you are using.

When using a memory card with a different capacity, calculate

the number of images as a percentage of 256 MB.

Delete ................ 1 file; all files

(with memory protection feature)

Effective Pixels ......... 7.2 million

Imaging Element ........ 1/2.5 square pixel primary color CCD

(Total pixels: 7.41 million)

LendFocal Distance ..... F2.7 to 5.2/f=6.2 to 18.6 mm

(Equivalent to 38 to 114 mm on a 35 mm

film camera.)

Six lenses in five groups, including

aspherical lens.

Zoom ................. 3X optical zoom /4X digital zoom

(Image Size: 7M (3072 x 2304pixels))

(12X total zoom)

Focusing .............. Contrast Detection Auto Focus

Focus Modes:

Auto Focus, Macro Focus, Pan Focus,

Infinity Mode, Manual Focus

AF Area:

Spot or Multi; with AF assist lamp

Approximate Focus Range (from lens surface)

Auto Focus:

40 cm to oo (1.3' to co)

Macro Focus:

15 cm to 50 crn (5.9" to 19.7")

Infinity: co

Manual Focus:

15 cm to co (5.9" to oo)

Range is affected by optical zoom.

c APPENDIX

285

Exposure Control ........ Metering:

Multi-pattern, center weighted, and spot

by imaging element

Exposure: Program AE

Exposure Compensation:

-2EV to +2EV (in 1/3EV steps)

Shutter ................ CCD shutter, mechanical shutter

Snapshot (Auto):

1/2 to 1/2000 second

Snapshot (Night Scene):

4 to 1/2000 second

Snapshot (Fireworks): 2 seconds (fixed)

Aperture Value .......... F2.7/4.3 auto switching

Using optical zoom causes the aperture

value to change.

White Balance .......... Auto, fixed (6 modes), manual

Sensitivity .............. Snapshots (Standard):

Auto, ISO 50, ISO 100, ISO 200, ISO 400

• Maximum sensitivity is ISO 800 when

the BEST SHOT Anti Shake or High

Sensitivity scene is being used.

Movies: Auto

Self-timer .............. Trigger Times:

10 seconds, 2 seconds, Triple Self-timer

Built-in Flash ........... Flash Modes:

Auto, Off, On, Soft Flash, Red-eye

reduction

Approximate Flash Range:

Flash Range:

Wide Angle Optical Zoom:

0.15 to 3.9 meters (0.5' to 12.8')

Telephoto Optical Zoom:

0.4 to 2.0 meters (1.3' to 6.6')

• Flash Continuous Shutter

Wide Angle Optical Zoom:

0.26 to 1.68 meters (0.9' to 5.5')

Telephoto Optical Zoom:

0.4 to 0.87 meters (1.3' to 2.9')

ISO Sensitivity: "Auto"

Depends on zoom factor.

Recording ............. Snapshots (with audio); Macro; Self-

timer; Continuous Shutter; BEST SHOT

(scenes other than Short Movie, Past

Movie, and Voice Recording); movie with

audio (Movie, Short Movie, Past Movie);

audio (Voice Recording)

Audio is monaural.

Approximate Audio Recording Times

Audio Snapshot:

30 seconds per image

After Recording:

30 seconds per image

Voice Recording:

18 minutes (when using built-in memory)

APPENDIX

286

Monitor Screen .......... 2.8-inch Wide TFT color LCD

230,400 (960 x 240) pixels

Viewfinder ............. Monitor Screen

Timekeeping Functions...Built-in quartz digital clock

Date and Time:

Recorded with image data, Time stamp

Auto Calendar: To 2049

World Time ............. 162 cities in 32 time zones

City name, date, time, summer time

Input/Output Terminals ...Cradle contact

USB .................. USB 2.0 Hi-Speed compatible

Microphone ............ Monaural

Speaker ............... Monaural

MPower Supply

Power Requirements ...... Lithium ion rechargeable battery

(NP-20) x 1

Approximate Battery Life

All of the values provided below represent the approximate

amount of time under normal temperature (23°C (73°F)) before

the camera turns off. These values are not guaranteed. Low

temperatures shorten battery life.

• Battery: NP-20 (Rated Capacity: 700 mAh)

• Recording Medium: SD memory card

• Measurement Conditions

• 1 Number of Shots (CIPA)

In accordance with CIPA standards

Normal temperature (23°C (73°F)), monitor on, zoom

operation between full wide and full telephoto every 30

seconds, during which two images are shot with flash; power

turned off and back on every time 10 images are shot.

APPENDIX

287

• 2 Continuous Playback Time

Standard temperature (23°C (73°F)), one-image scroll

approximately every 10 seconds

• 3 Approximate continuous recording time

• The above values are based a new battery, starting from a full

charge. Repeated charging shortens battery life.

• Frequency of flash, zoom, and Auto Focus usage, and the

time the camera is on greatly affects recording time and

number of shots values.

Power Consumption ..... 3.7 V DC; Approximately 4.3 W

Dimensions ............ 94.5 (W) x 60.4 (H) x 17.3 (D) turn

(3.7"(W) x 2.4"(H) x O.7"(D))

(Excluding projections; 13.7 mrn (0.5") at

thinnest point)

Weight ................ Approximately 127 g (4.5 oz)

(excluding battery and bundled

accessories)

Bundled Accessories .... Rechargeable Lithium Ion Battery (NP-

20); USB Cradle (CA-34); Special AC

Adaptor (AD-C52S or AD-C62G)/AC

Power Cord; USB Cable; AV Cable;

Strap; CD-ROMs (2); Basic Reference

c APPENDIX

288

IRechargeable Lithium Ion Battery (NP-20)

Rated Voltage .......... 3.7 V

Rated Capacitance ...... 700 mAh

Operating Temperature... 0 to 40°C (32 to 104°F)

Dimensions ............ 33.0(W) x 50.0(H) x 4.7(D) mm

(1.3"(W) x 2.0"(m) x 0.19"(D))

Weight ................ Approximately 16 g (0.56 oz)

IUSB Cradle (CA-34)

Input/Output Terminals ., ,Camera contact; USB port; external

power supply terminal (DC IN 5.3 V); AV

terminal (AV OUT: NTSC/PAL standards)

Power Consumption ..... 5.3 V DC, Approximately 3.2 W

Dimensions ............ 109 (W) x 24 (H) x 58 (D) mm

(4.3"(W) x 0.9"(H) x 2.3"(D))

(Excluding projections)

Weight ................ Approximately 47 g (1.7 oz)

ISpecial AC Adaptor (Inlet Type) (AD-C52S)

Input Power ............ 100 to 240 V AC 50/60Hz 90 mA

Output Power ........... 5.3 V DC 650 mA

Dimensions ............ 63 (W) x 20 (H) x 50 (D) mm

(2.5"(W) x 0.8"(H) x 2.0"(U))

(Excluding projections and cable)

Weight ................ Approximately 76 g (2.7 oz)

JSpecial AC Adaptor (Inlet Type) (AD-C52G)

Input Power ............ 100 to 240 V AC 50/60Hz 83 mA

Output Power .......... 5.3 V DC 650 mA

Dimensions ............ 50 (W) x 20 (H) x 70 (D) mm

(2,0"(W) x 0,8"(H) x 2.8"(D))

(Excluding projections and cable)

Weight ................ Approximately 90 g (3.2 oz)

•Power cord precautions for use in Singapore

The power cord set is not supplied. The power cord used

must comply with relevant national and/or international

standards.

c APPENDIX

289

CASIO COMPUTER CO.,LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

MA0610-C

CASIO Cameras, All Manual L0706266

Navigation menu

Versions of this User Manual:

Views

Navigation
