CASTLES TECHNOLOGY QP3000S QPROX User Manual QP3000S
CASTLES TECHNOLOGY CO., LTD. QPROX QP3000S
User Manual
1 Deiscription of QP3000S Reader:
Power
There are several ways to supply power to a QProx reader
By external DC adapter supplying12V/1A through DB9 RS232 connector.
By USB port supplying 5V/500mA.
Packing List
QPROX *1
ADAPTER*1(Optional)
USB/RS232 CABLE (Choose one of the cables prior to ordering)
2 Installation

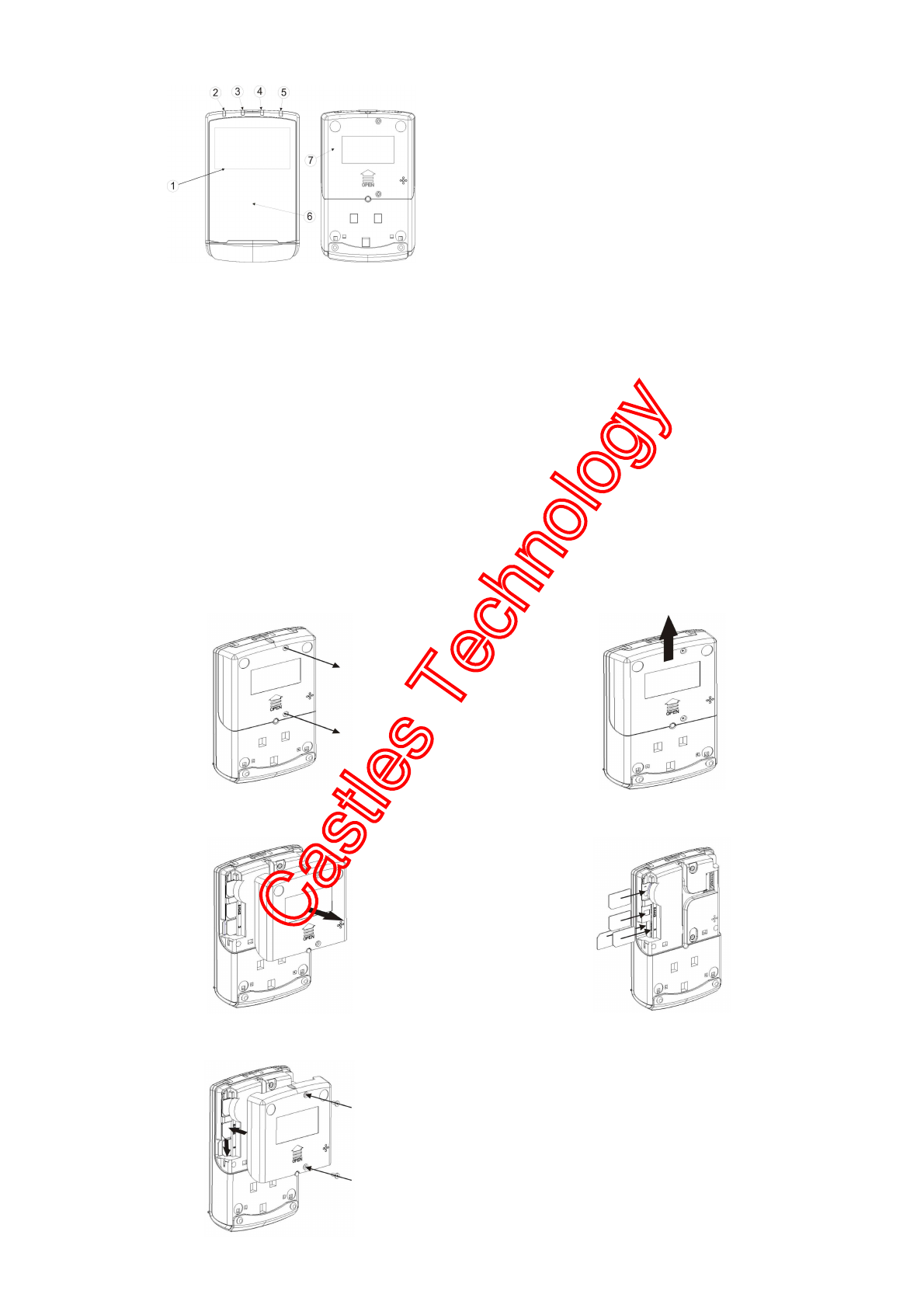

2.1 QP3000S SAM Card Installation Procedures
Step1. Unscrew SAM card cover screws Step2. Push SAM card cover upward
Step3. Remove SAM card cover Step4. Insert SAM cards into SAM slots
Step5. Reinstall SAM card cover and screws back
1 LCD Display
2 LED (Blue)
3 LED (Orange)
4 LED (Green)
5 LED (Red)
6 Landing Zone
7 SAM Card Cover

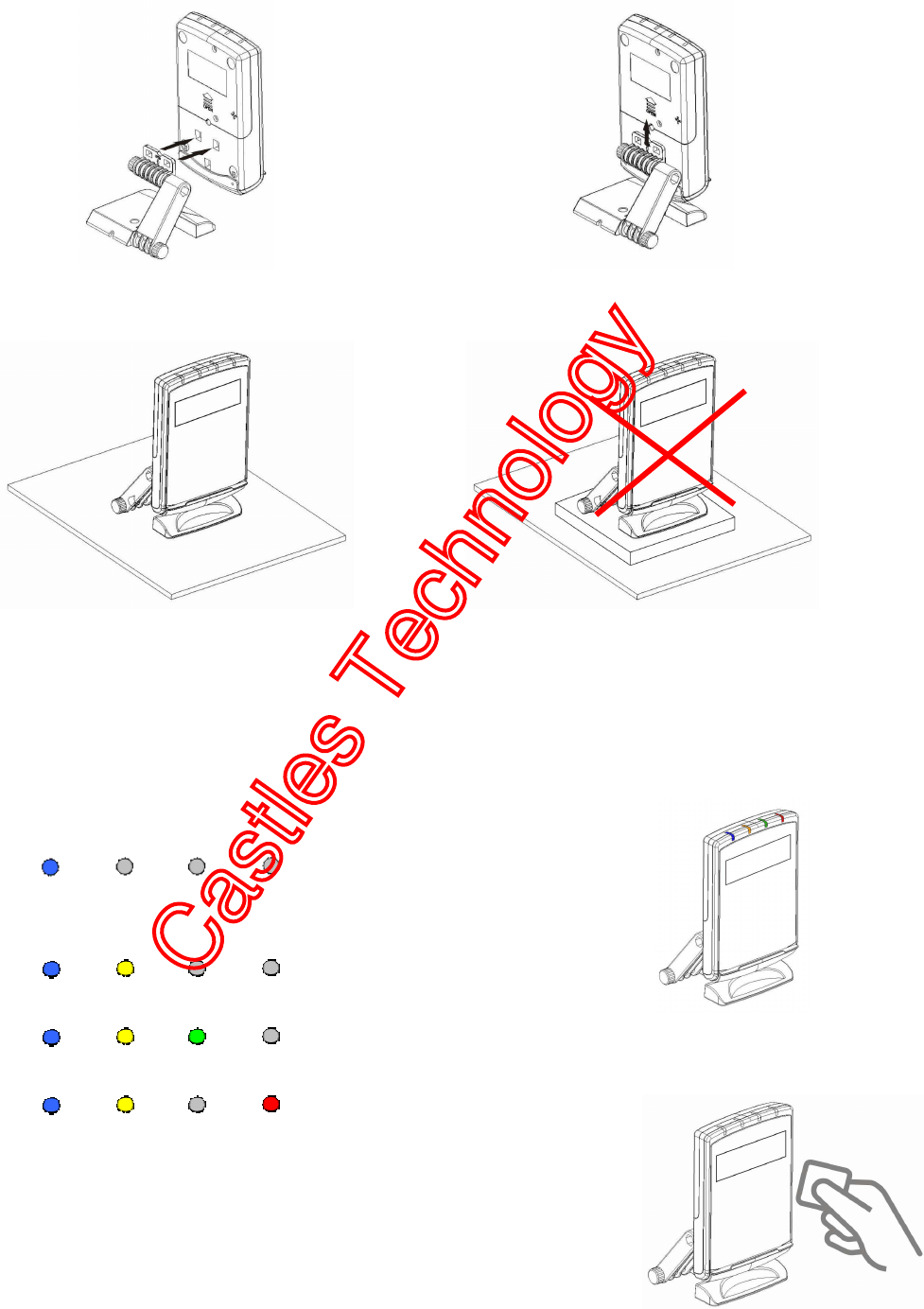

2.2 Reader Stand Installation
Step1. Align and insert a reader stand to the fixture
holes at the back of a reader
Step2. Push the reader stand upward until hearing
a click sound
2.3 Installation Notice
Do not place the reader on a metallic surface to avoid interferences
3 LED Indicator
There are 4 LED indicators on a QProx. From left to right are blue, orange, green and red color LEDs
Status Description of LED Indicators
The states of the LED indicators are described below:
After QProx is initialized and ready for transaction, the blue LED will light up.
The blue LED indicates the reader is ready for contactless card transactions
The blue and yellow LED indicate that a card has been detected and the
transaction process is started.
The blue, yellow and green LED indicate a SUCCESSFUL transaction.
The red LED indicates transaction FAILURE or malfunction.
4 Contactless Card Landing Zone
The Land Zone icon is printed on the center of working area, which indicates the
correct location to detect user's card.
警語
依據低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻
電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原
設計之特性及功能。第十四條 低功率射頻電機之使用不得影響飛航安全及干擾
合法通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
Notice
This device complies with Part 15 of FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Warning:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
