CASTLES TECHNOLOGY CO., LTD. RFID Devices
Users Manual
VEGA9300
User’s Manual
V0.3
Version: 0.3
Date: July 20,2005
Castles Technology Co., LTD.
Tel: 886 (2) 8913-1771
Fax: 886 (2) 8913-1772
E-Mail: casauto@casauto.com.tw
Web: www.casauto.com.tw
© Castles Technology Co., LTD. 2004
All rights reserved
VEGA9300 User's Manual V0.3
Castles Automation Co., Ltd. All rights reserved. 2/11
WARNING
Information in this document is subject to change without prior notice.
No part of this publication may be reproduced, transmitted, stored in a retrieval
system, nor translated into any human or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise, without the prior written permission of Castles Technology Co., LTD.
All trademarks mentioned are proprietary of their respective owners.
Note:
1. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
2. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures
a. Reorient or relocate the receiving antenna.
b. Increase the separation between the equipment and receiver.
c. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
d. Consult the dealer or an experienced radio/TV technician for help.
e. Reorient or relocate the receiving antenna.
f. Increase the separation between the equipment and receiver.
g. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
h. Consult the dealer or an experienced radio/TV technician for help.
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 3/11
Table Of Contents
WARNING........................................................................................................2
1. Introduction .................................................................................................4
1.1 Front View ..................................................................................4
1.2 Side View ...................................................................................5
1.3 Head View ..................................................................................5
1.4 Back View...................................................................................6
1.5 Magnetic Stripe Card Reader & Smart Card Introduction...........7
1.6 Handset and the Base Connection.............................................8
1.6.1 Pull Out ...............................................................................8
1.6.2 Pull Back .............................................................................8
1.7 Rechargeable Battery Installation...............................................8
1.8 SAM Card Installation.................................................................9
1.9 Paper Roll Installation...............................................................10
1.10 Power .......................................................................................11
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 4/11
1. Introduction

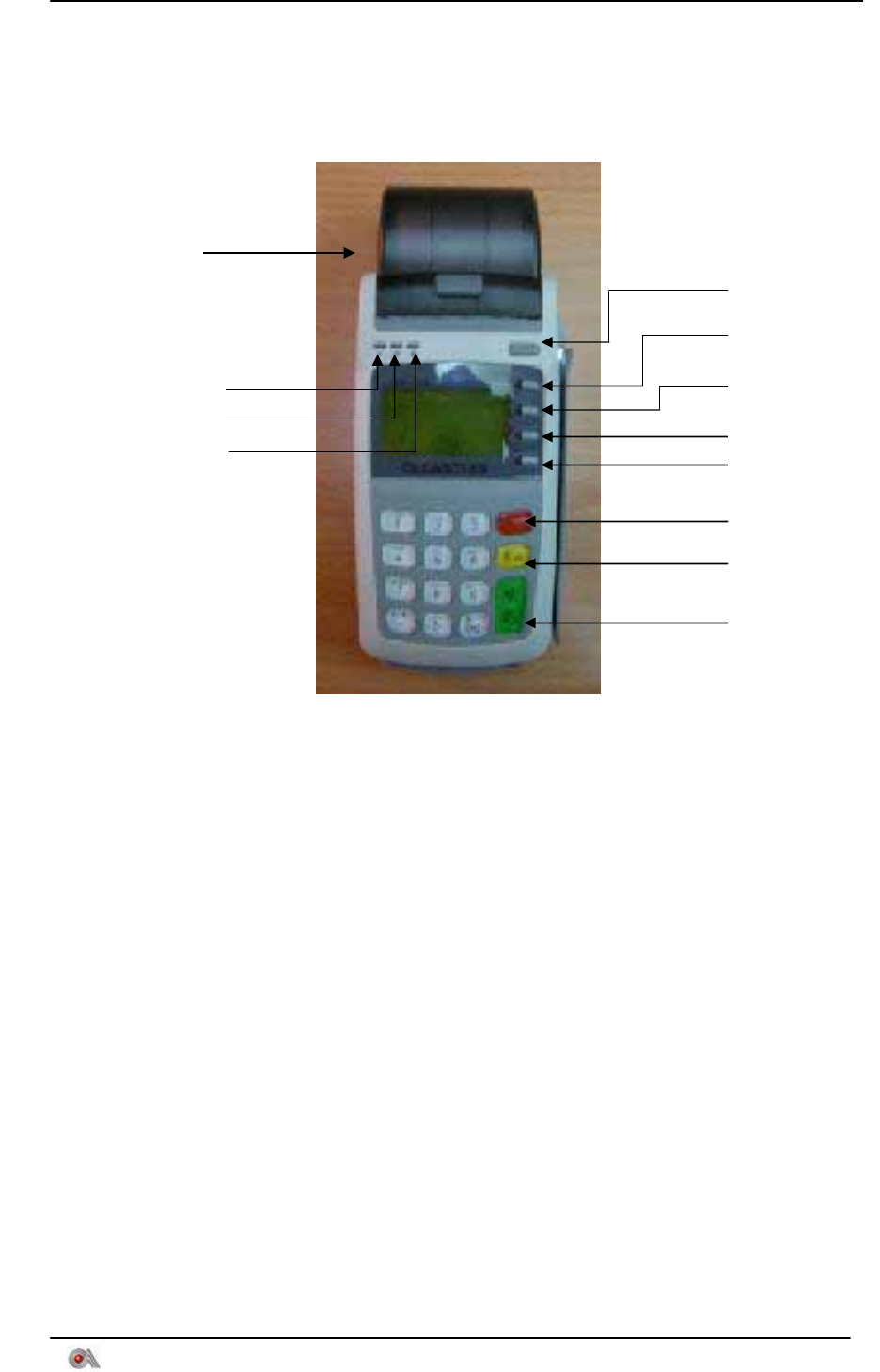

1.1 Front View
1. Power Key：Power On- Press Power Key 3 Second To Start.
Press Off- Press Power Key To Turn Off
2. F1 Key：Press F1 To The Download Main Menu To Enter The Download
Mode Under The Program Manager Screen. Press Cancel Key Will Go
Back To The Program Manger Screen.
3. F2 Key、F3 Key：Press F2 or F3 Key To Select The Program When There
Are Many Applications In The Program Manager Screen.
4. F4 Key：Press F4 To Execute The Selected Program.
F1 Key
F2 Key
F3 Key
F4 Key
Power Key
Cancel Key
Clear Key
Enter Key
Paper Roll Box
LED (Green)
LED (Orange)
LED (Red)
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 5/11

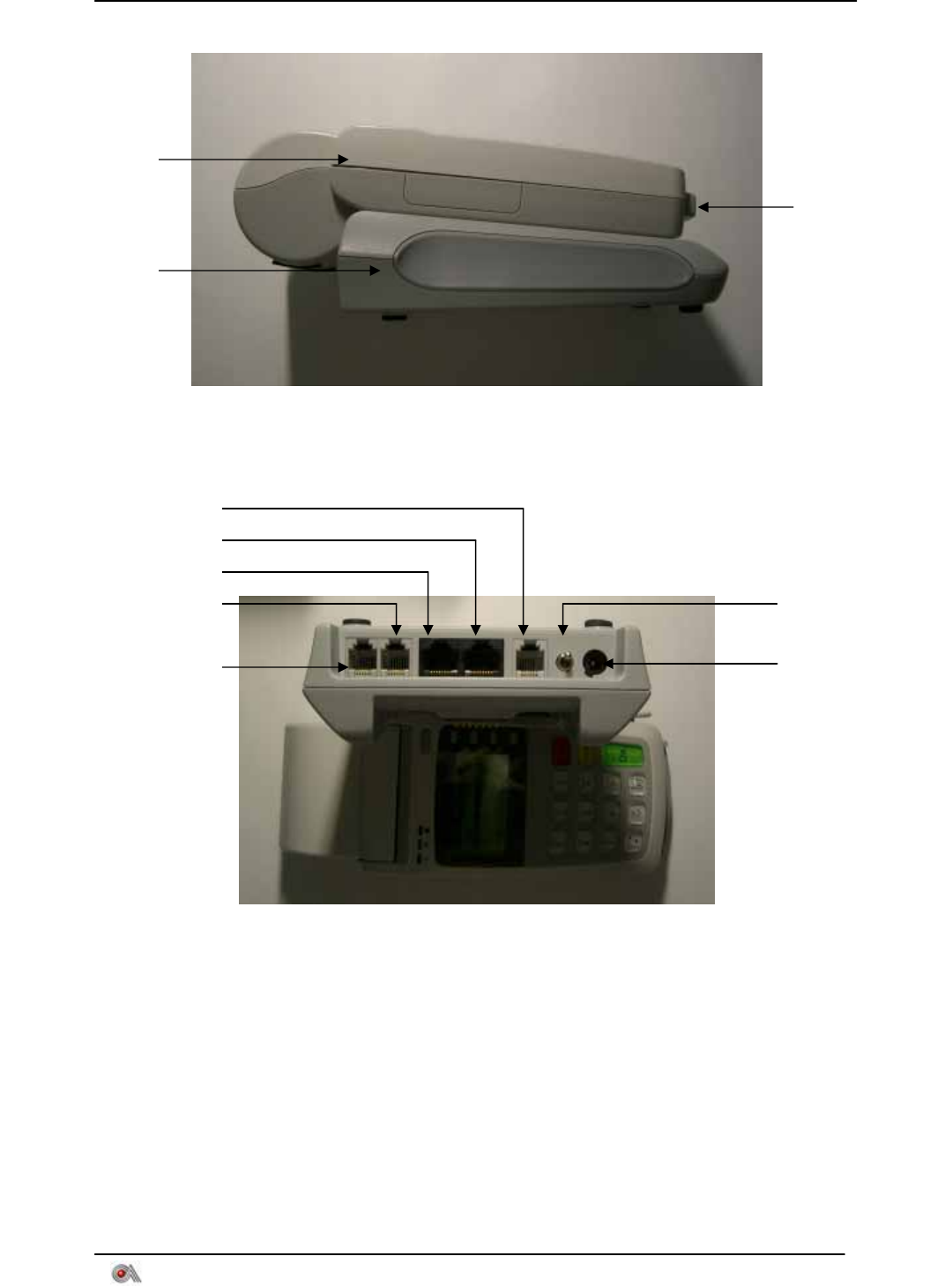

1.2 Side View
1.3 Head View
1. Power Cord：For Connecting To The Power. (Please Notice The Correct
Position)
2. Power Switch：For Controlling The Power Of The Base.
(Make Sure That The Handset Must Attach With The Base And Both
Power Switch On To Fully Recharge The Terminal.
3. RS485：RJ11, Only Provide In VEGA 9310 Model.
4. LAN：RJ45, Only Provide In VEGA 9320 Model
1. Phone Line Switch：With RJ11 Cord，All Data Can Be Received By Build-In
Fast Modem In VEGA9300 Series. There Are 2 Port One Is Line Another Is
Tel For Connect To Telephone.
Smart
Card
Insert
Location
Handset
Base
Power Cord
Phone Line Switch
Power Switch Phone Line Switch
LAN
RS232
RS485
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 6/11
1.4 Back View
Open The Rechargeable Battery Cover, Release The Rechargeable Battery
Box For Inserting The SAM Card
Rechargeable
Batter Cover
Rechargeable
Battery Cover
Rechargeable
Battery Box
4 SAM Slots
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 7/11

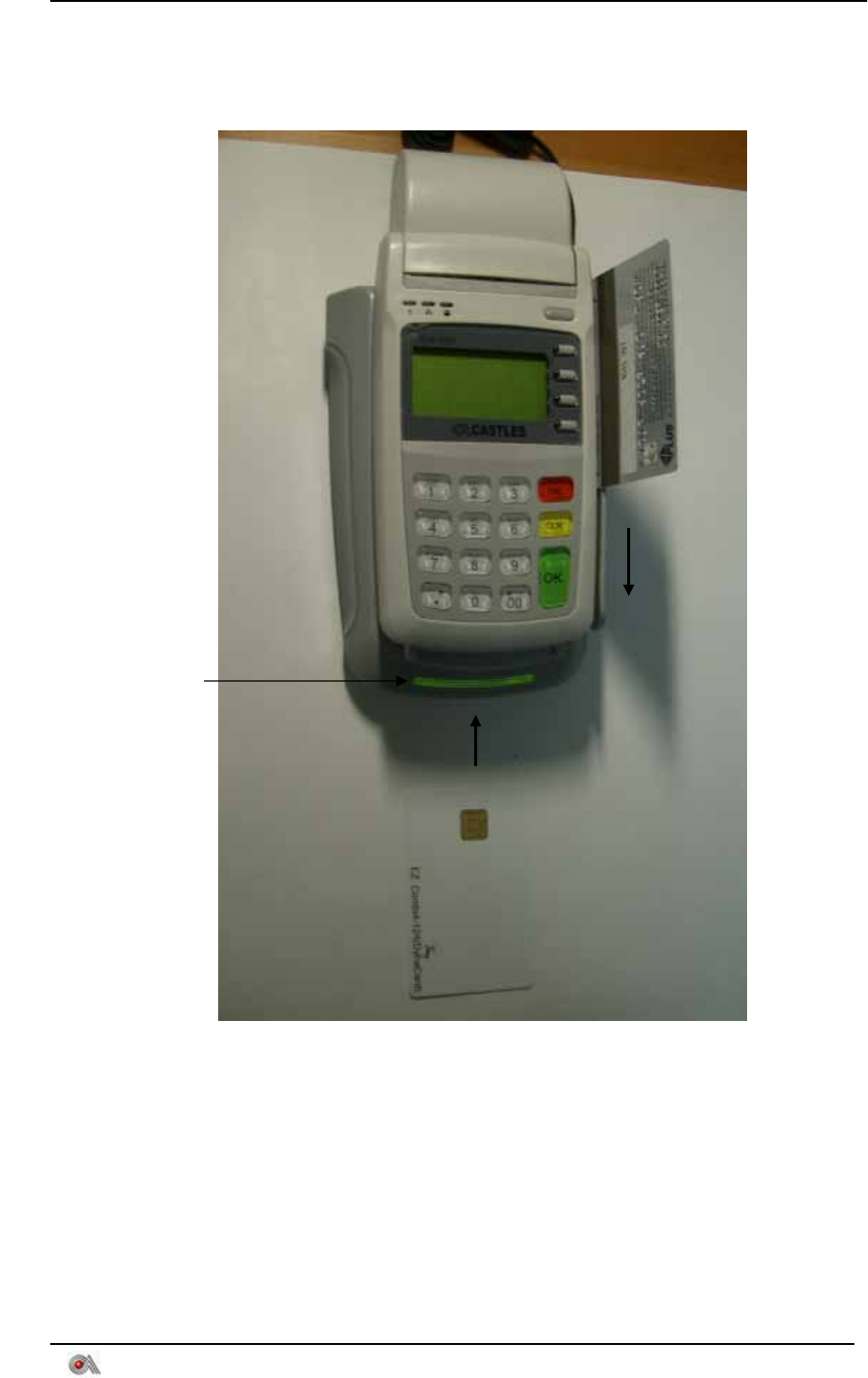

1.5 Magnetic Stripe Card Reader & Smart Card Introduction
1. Magnetic Stripe Card Should Be Placed On Card Reading Slot With
Magnetic Stripe Facing Left, Swipe The Card From Top To The
Bottom.
2. Insert User IC Card With Chip Facing Up.
Base Power LED
1.
2.
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 8/11
1.6 Handset and the Base Connection
1.6.1 Pull Out
Release The Handset By The Following Instruction.
1.6.2 Pull Back
Put Back The Handset Back To The Base As The Below Instruction
1.7 Rechargeable Battery Installation
Release The Rechargeable Battery, Loose The Screws To Install The Battery
According to “+” or “-“
Caution：Please Use 2000mAh Rechargeable Battery. And Make Sure To Fully
Charge The Battery Up To At Least 4 Hours. Recommand use
GP2100AAHC or GP2300AAHC equal type (low internal Resistance
< 25mΩ)
Caution：Please Turn On Both The Power Of The Handset And The Base To
Charge The Battery Automatically.
Dangerous：Do Not Use The Normal Battery (Non-Rechargeable Battery)
Which May Damage The Device.
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 9/11

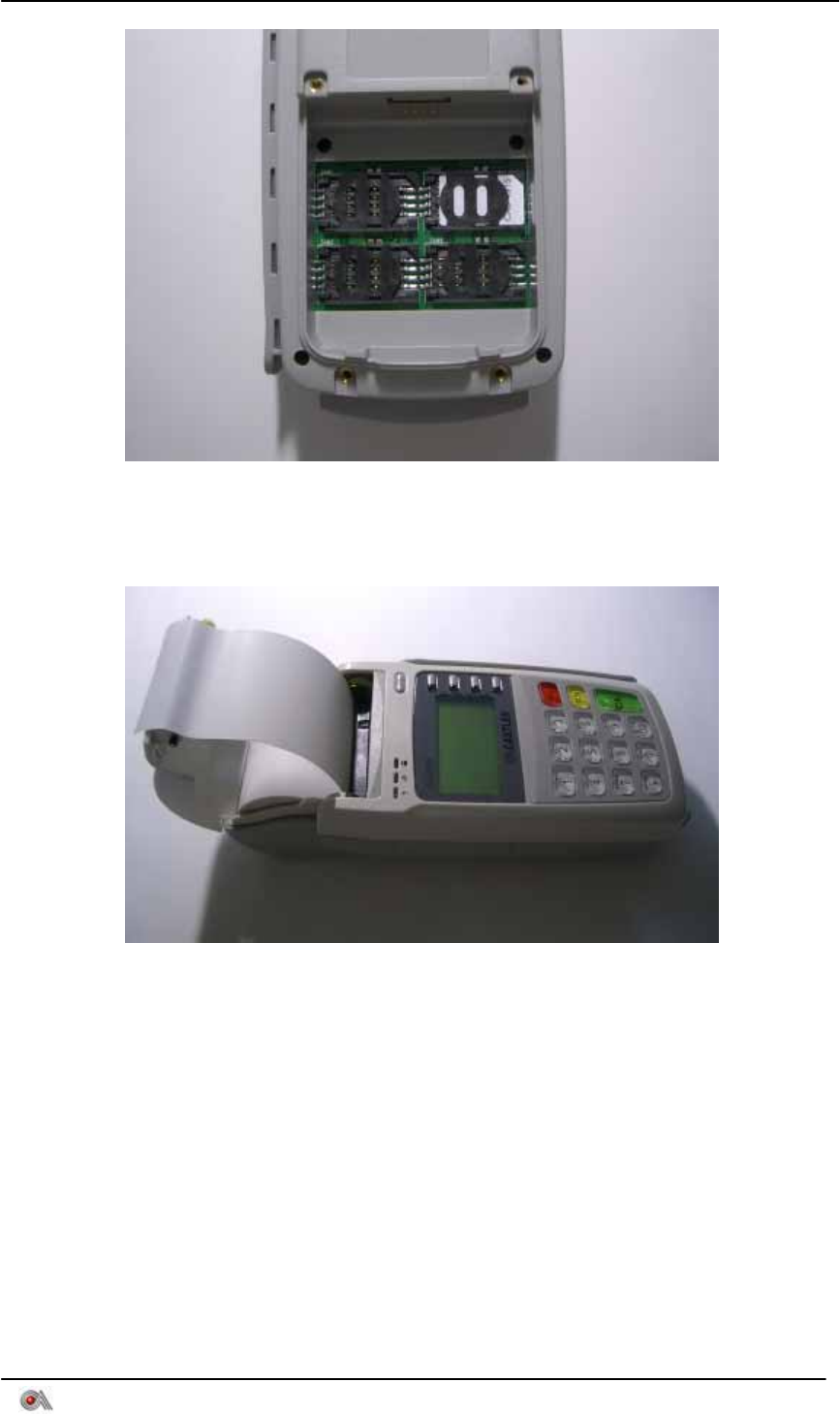

1.8 SAM Card Installation
1. Open The Rechargeable Battery Box To Find 4 SAM Card Slots And
Turn To The Left To Open
2. Place The SAM Card To The Upper Position With Chip Facing Down As The
Below Picture
3. Close Down The Case And Push Forward To Lock
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 10/11

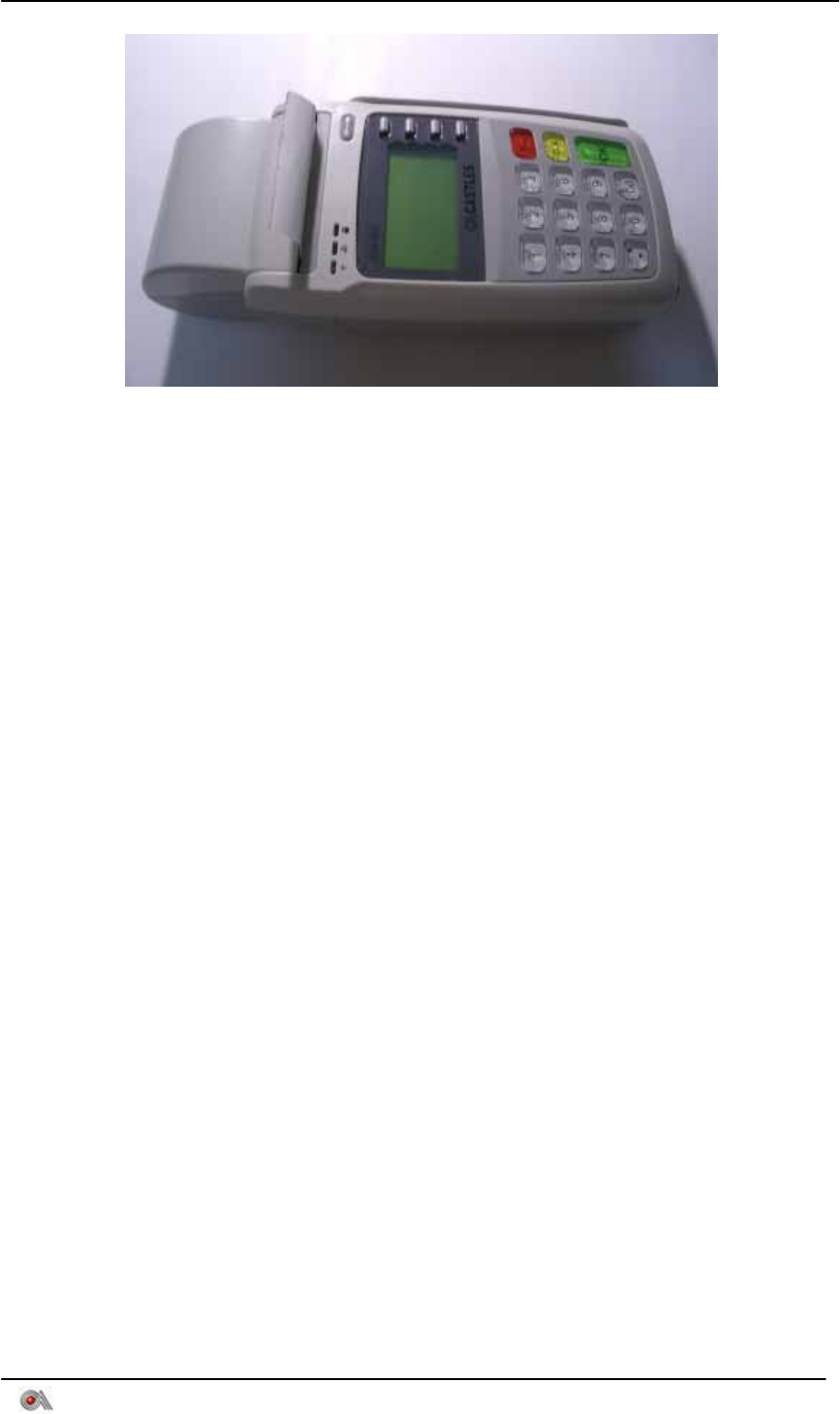

1.9 Paper Roll Installation
Insert The Paper Roll To The Box And Pull The Paper Down As The Picture.
Close The Paper Roll Box To Start Paper Loading.
VEGA9300 User's Manual V0.3
Castles Technology Co., Ltd. All rights reserved. 11/11
1.10 Power
Please Connect With The Attached DC 12V Adapter.
Input : 100 ~ 240 Vac, 50 ~ 60Hz , 1.8A Max.
Output : 12Vdc, 3.3A
