User’s Manual
WLAN Travel AP/Router
Version: 1.0
Trademarks
Copyright @2012
Contents are subject to change without notice.
All trademarks belong to their respective proprietors.
Copyright Statement
THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF
THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL
SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY
PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS
COMPANY.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
i
Table of Contents
REVISION HISTORY ........................................................................................................................I
TERMINOLOGY .............................................................................................................................. II
1 INTRODUCTION....................................................................................................................... 1
1.1 PACKAGE CONTENTS ................................................................................................................1
1.2 PRODUCT FEATURES ................................................................................................................1

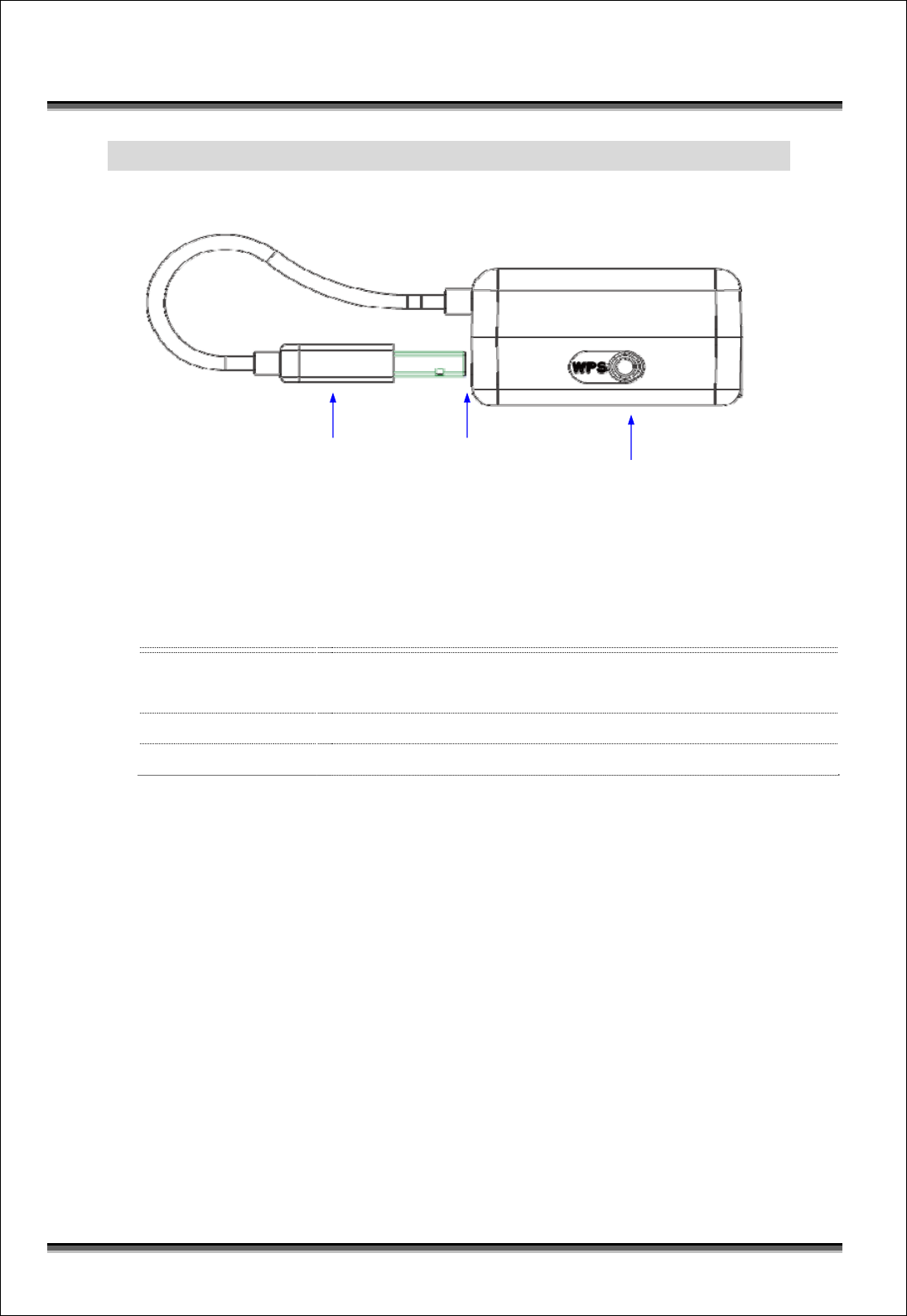

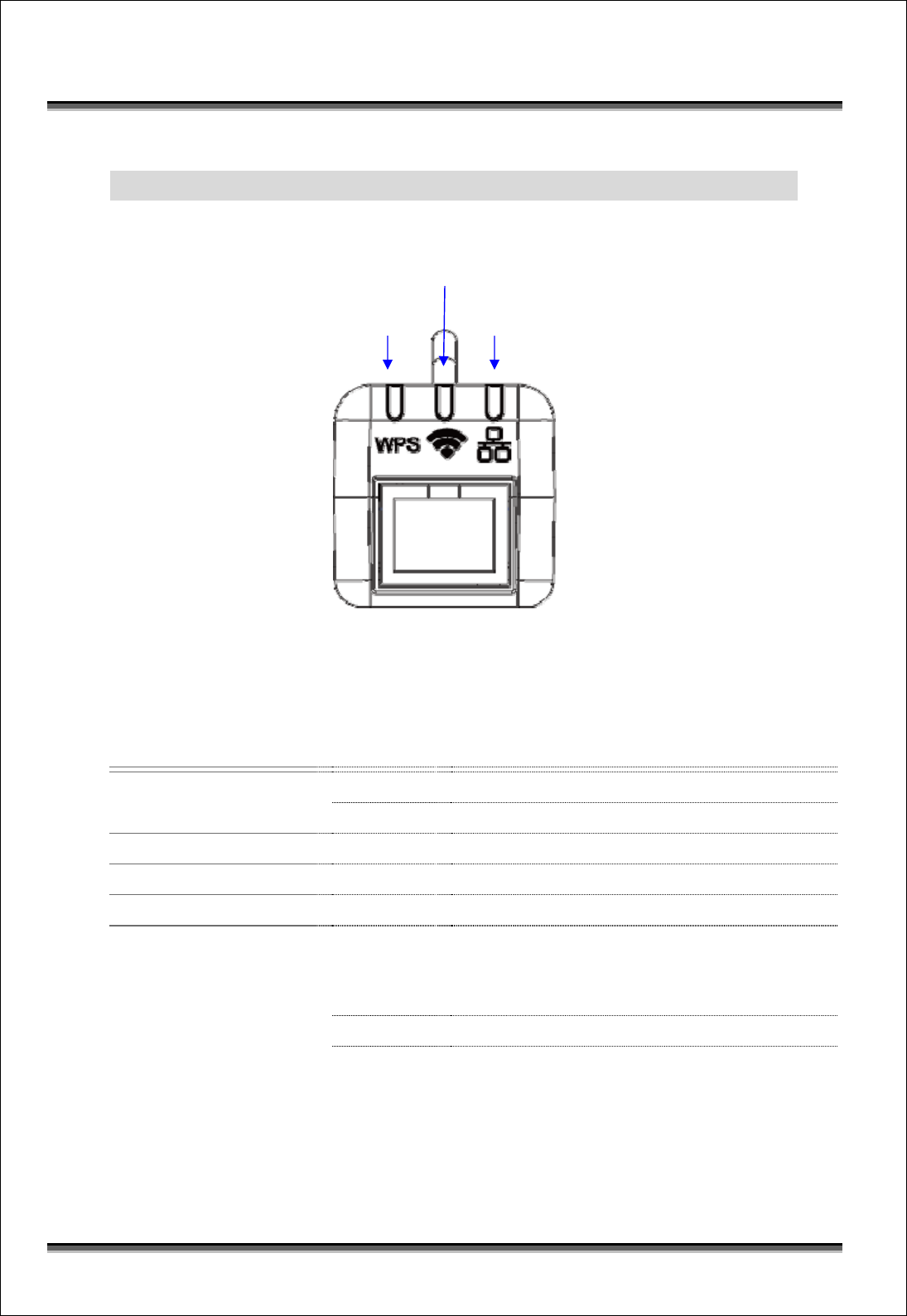

1.3 PANEL DESCRIPTION ................................................................................................................3
2 INSTALLATION ........................................................................................................................ 4
2.1 HARDWARE INSTALLATION ......................................................................................................4
2.2 SOFTWARE INSTALLATION........................................................................................................5

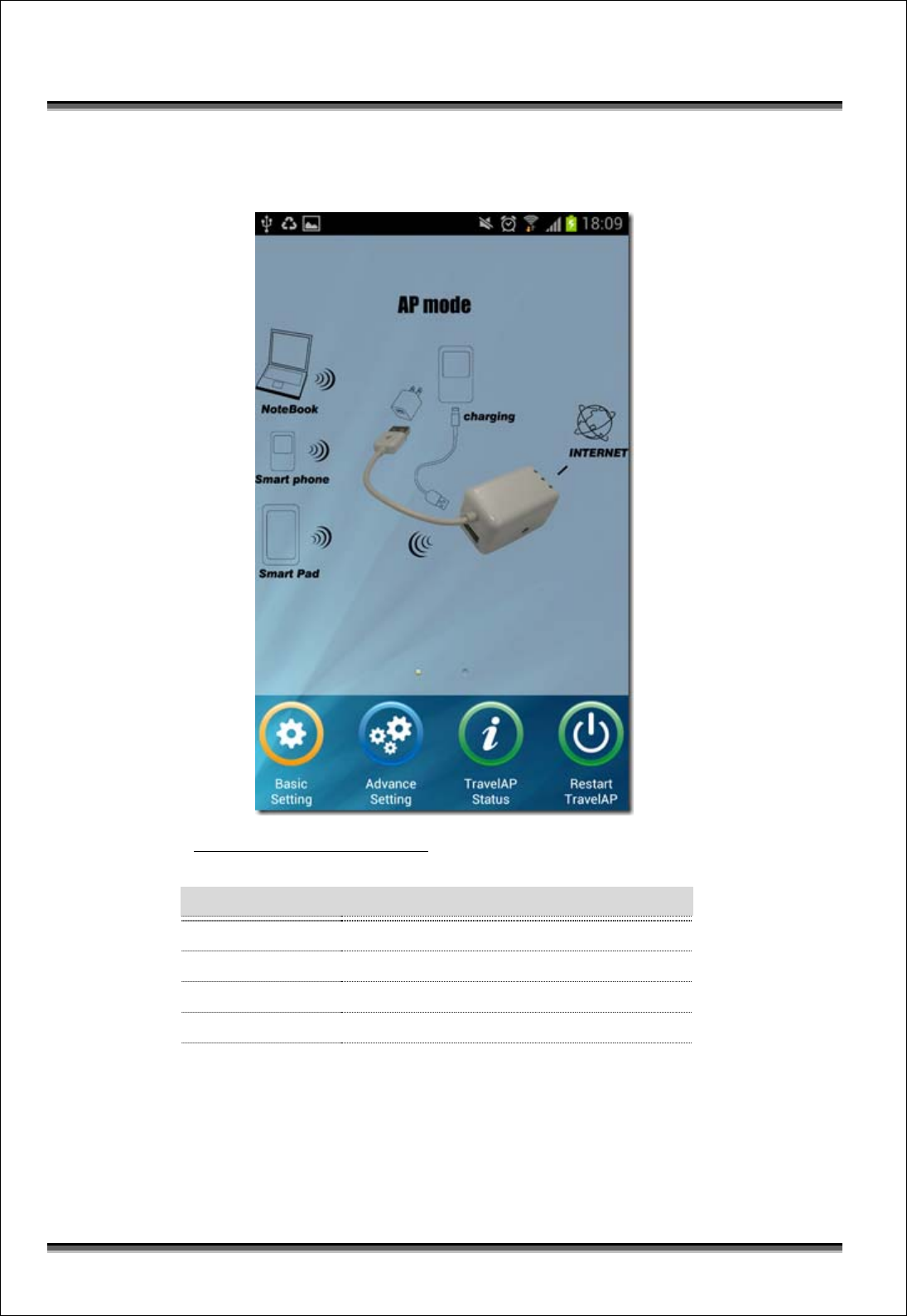

3 APP SOFTWARE CONFIGURATION.................................................................................... 6
4 SOFTWARE CONFIGURATION ............................................................................................ 7
4.1 PREPARE YOUR PC TO CONFIGURE THE WLAN TRAVEL AP/ROUTER ......................................7
4.2 CONNECT TO THE WLAN TRAVEL AP/ROUTER .......................................................................9
4.3 MANAGEMENT AND CONFIGURATION ON THE WLAN TRAVEL AP/ROUTER - AP MODE ..........9
4.3.1 Operation Mode ............................................................................................................9

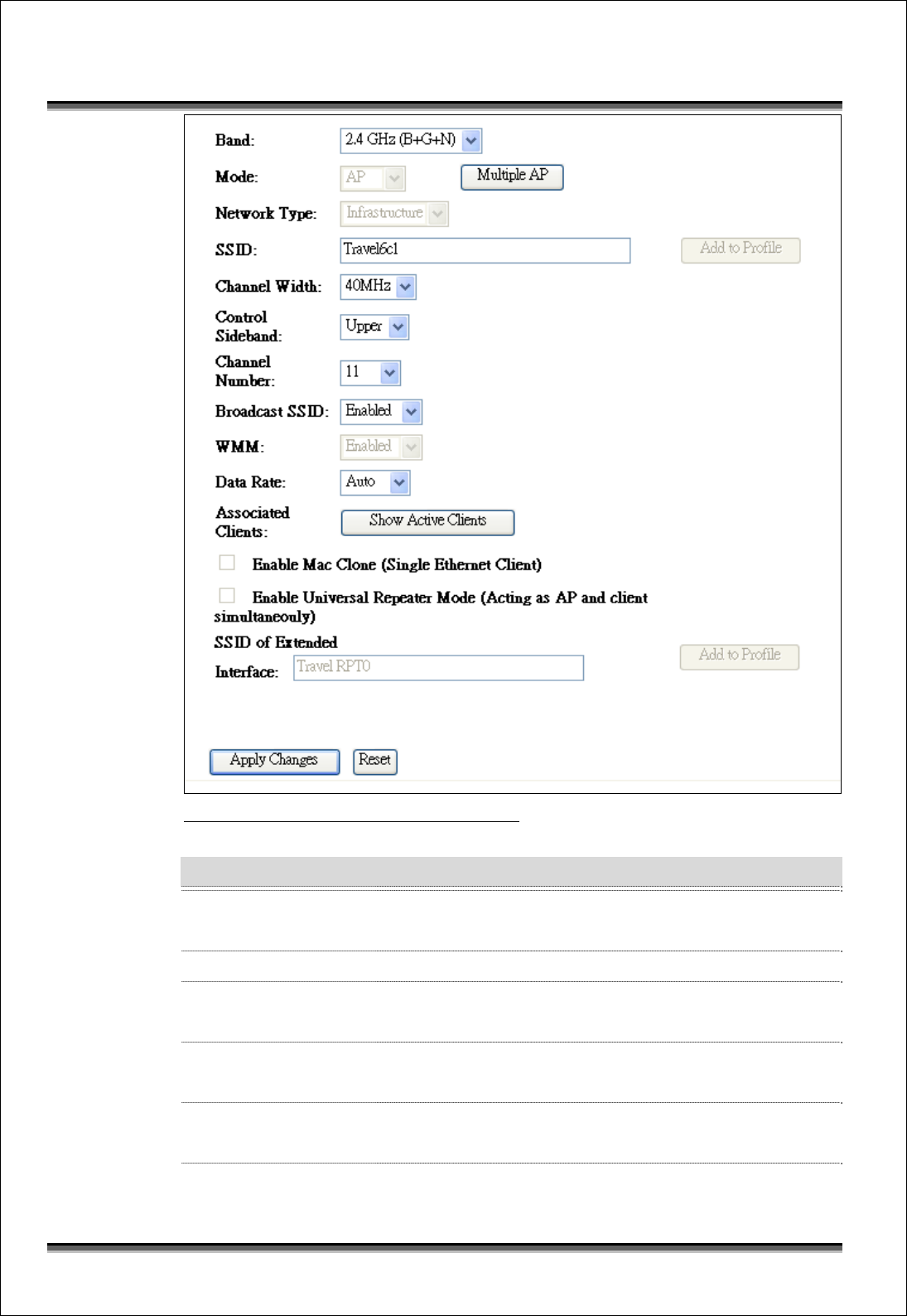

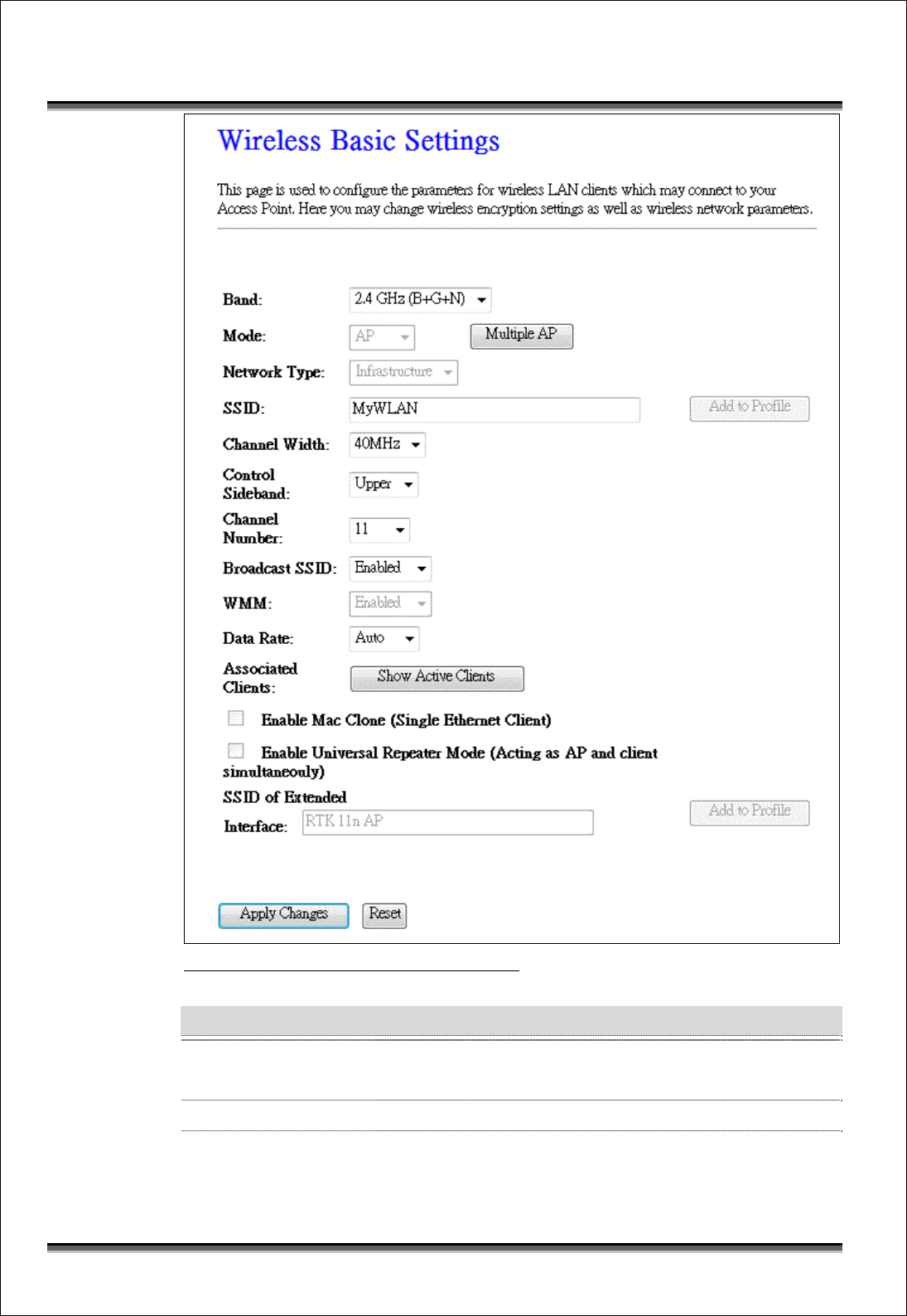

4.3.2 Wireless - Basic Settings............................................................................................. 10

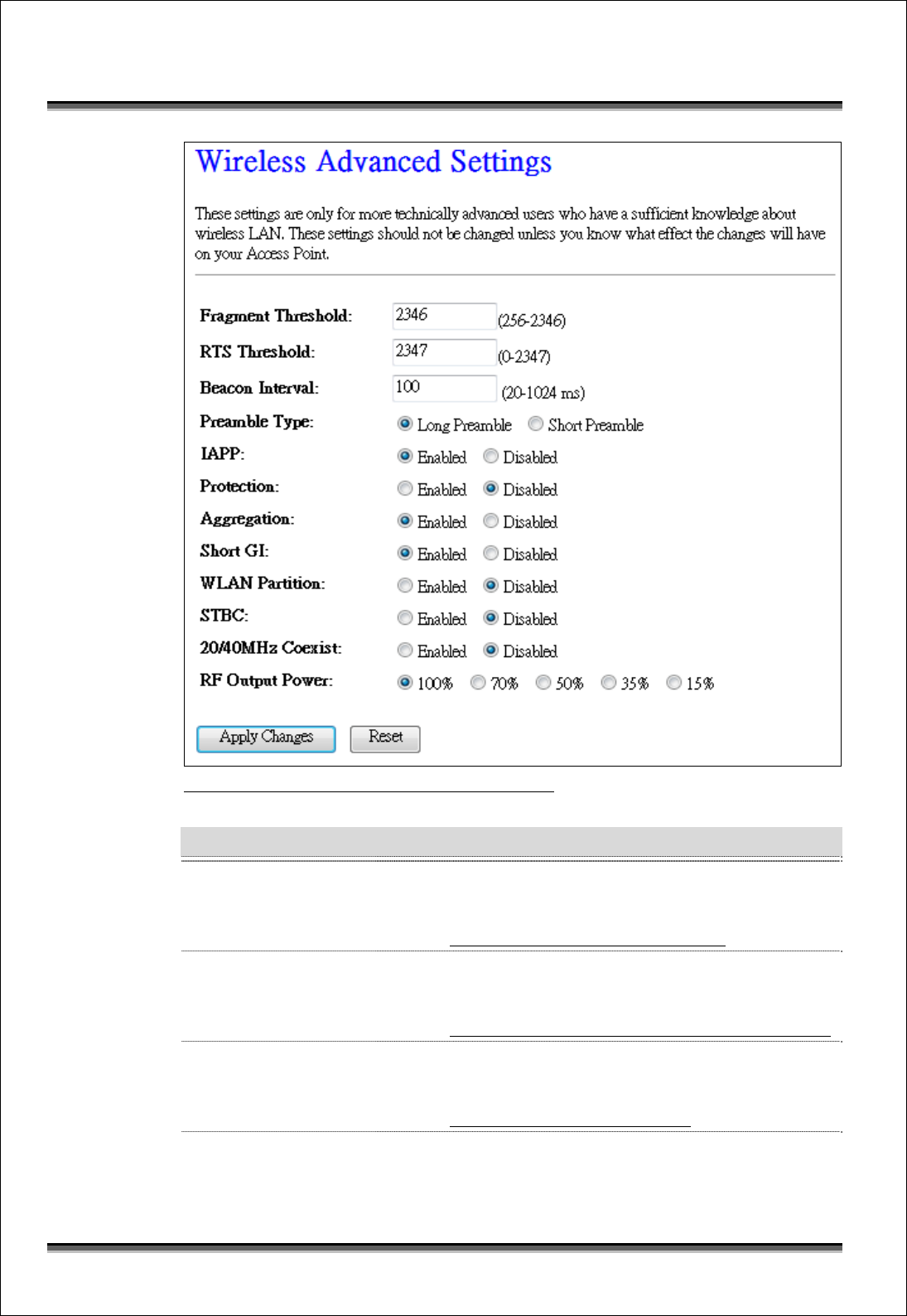

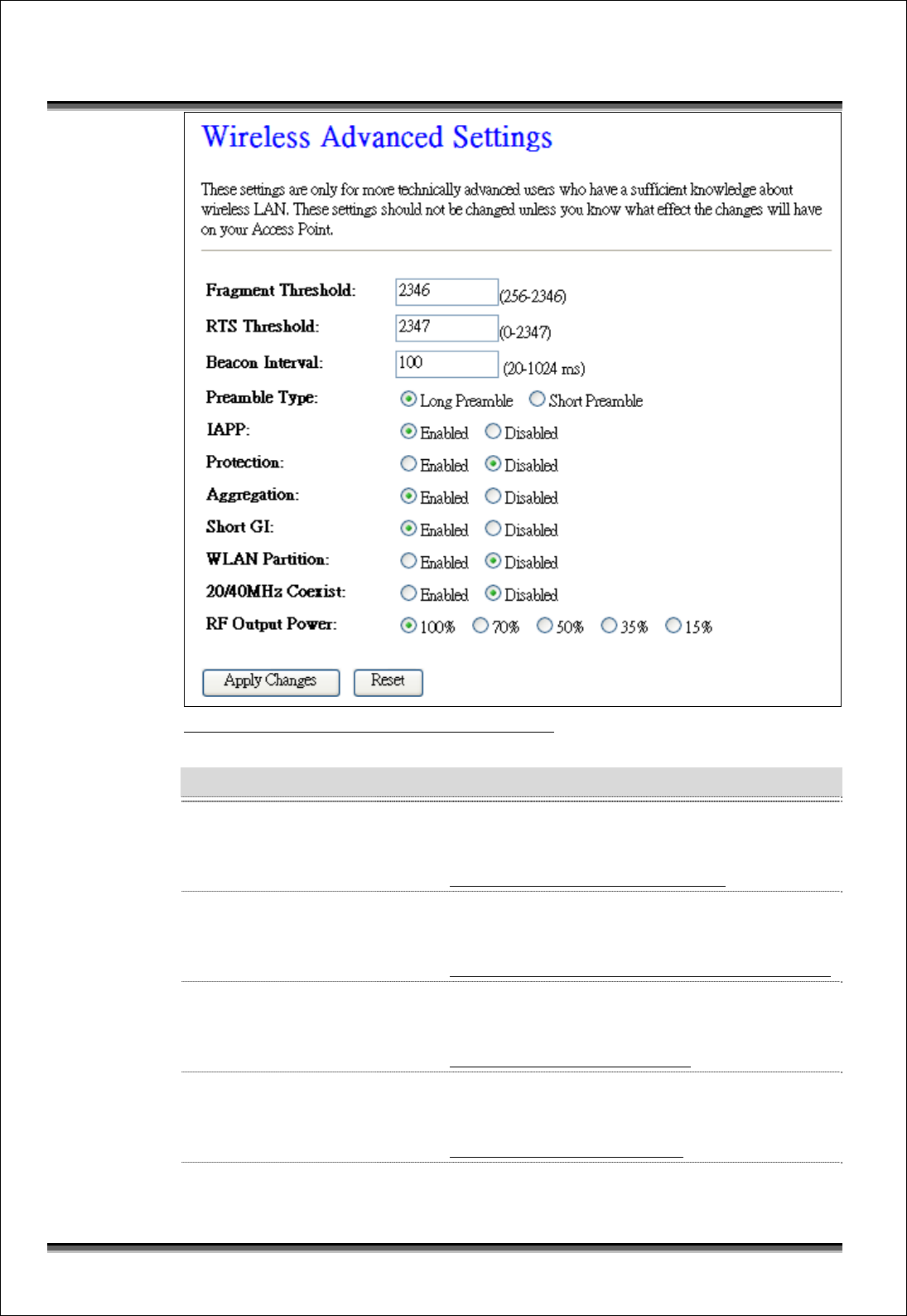

4.3.3 Wireless - Advanced Settings ..................................................................................... 12

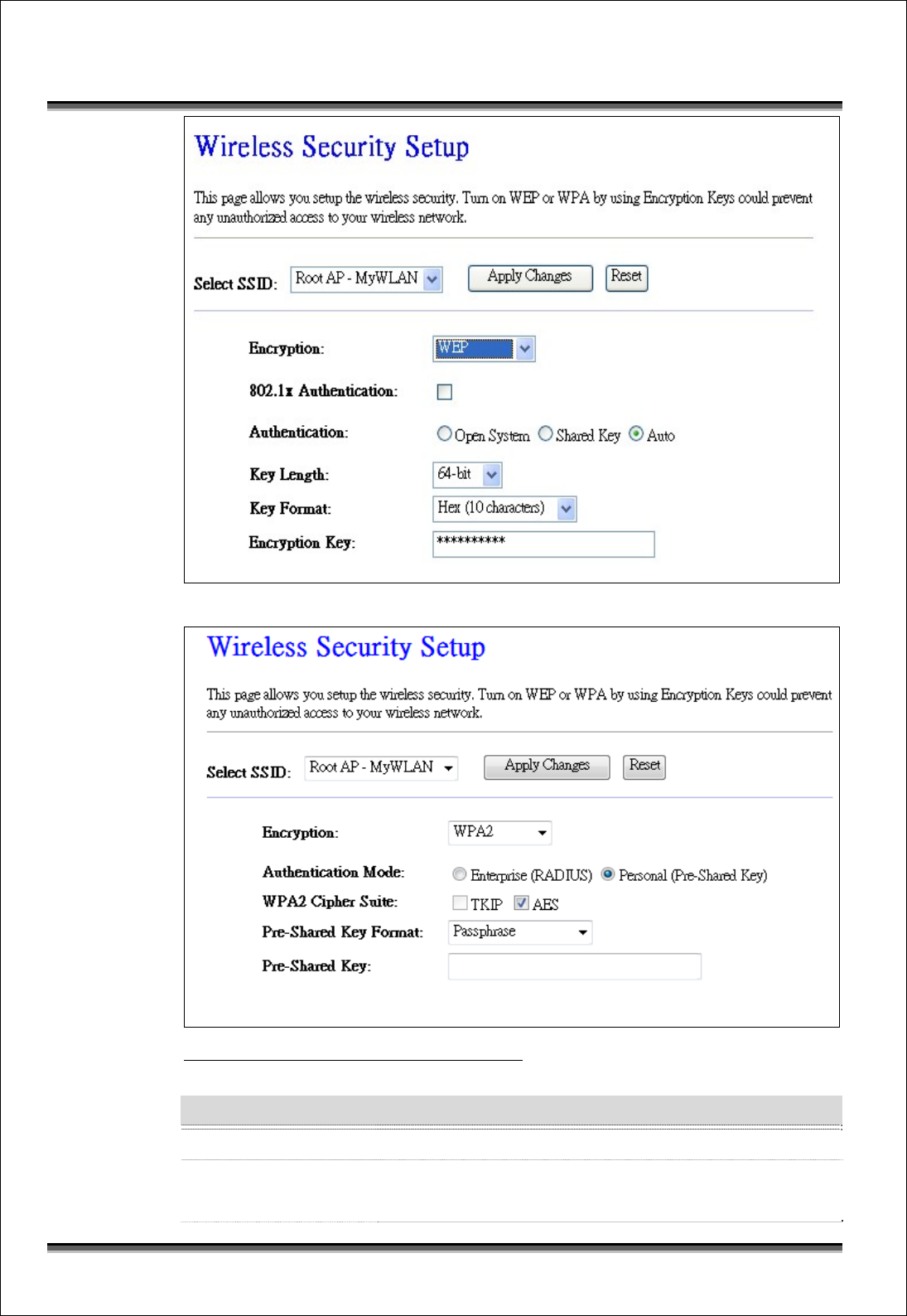

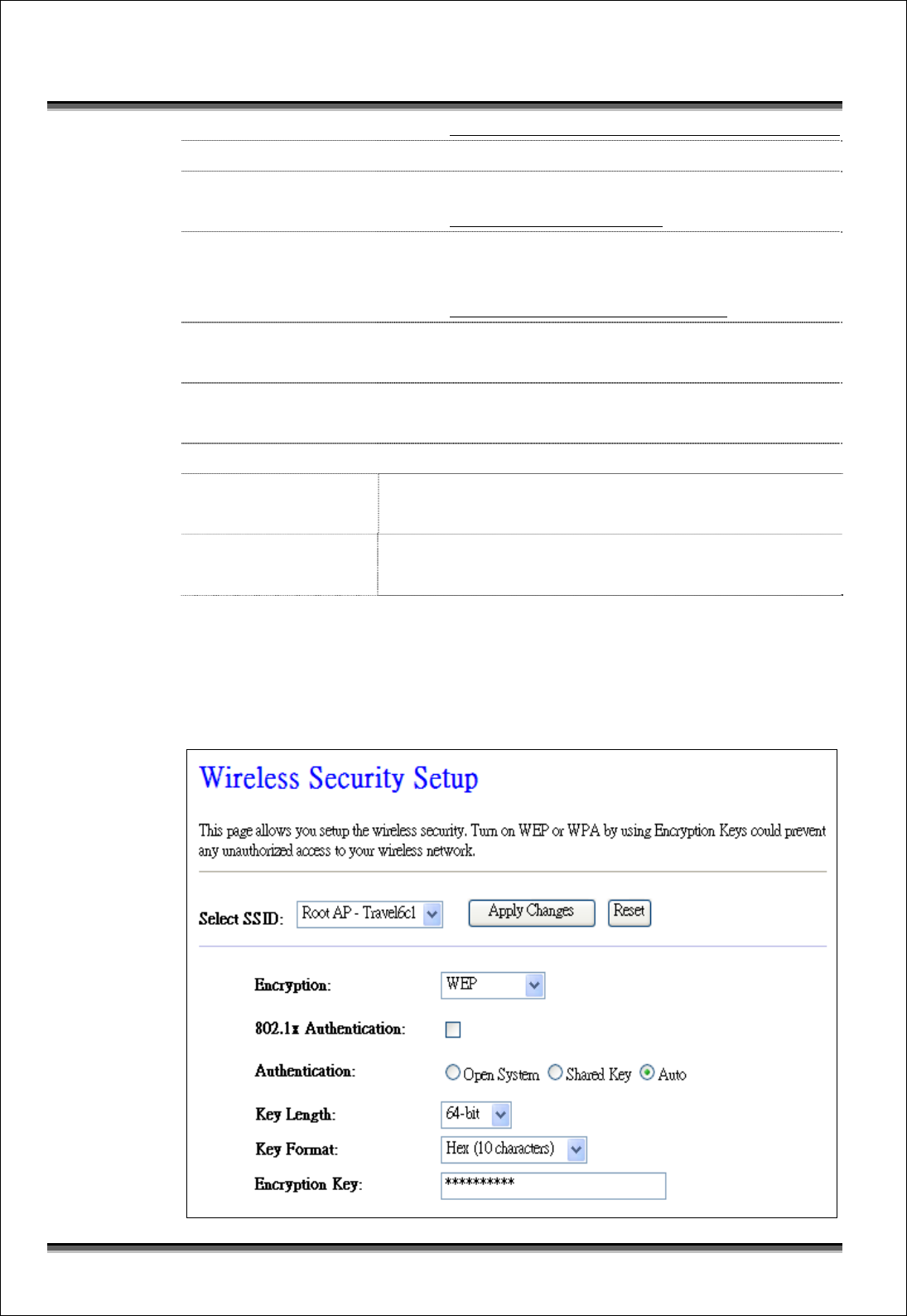

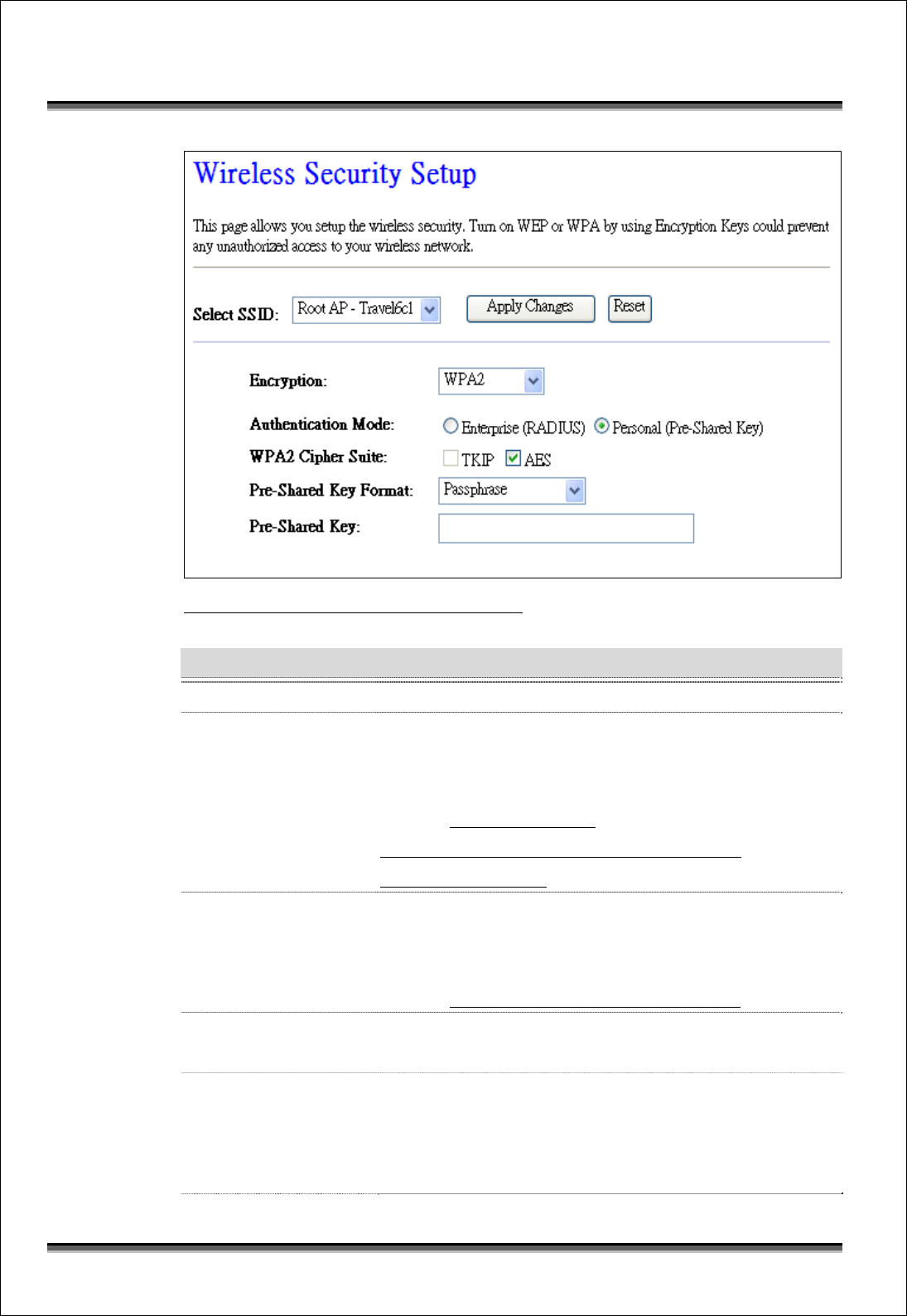

4.3.4 Wireless - Security Setup............................................................................................ 14

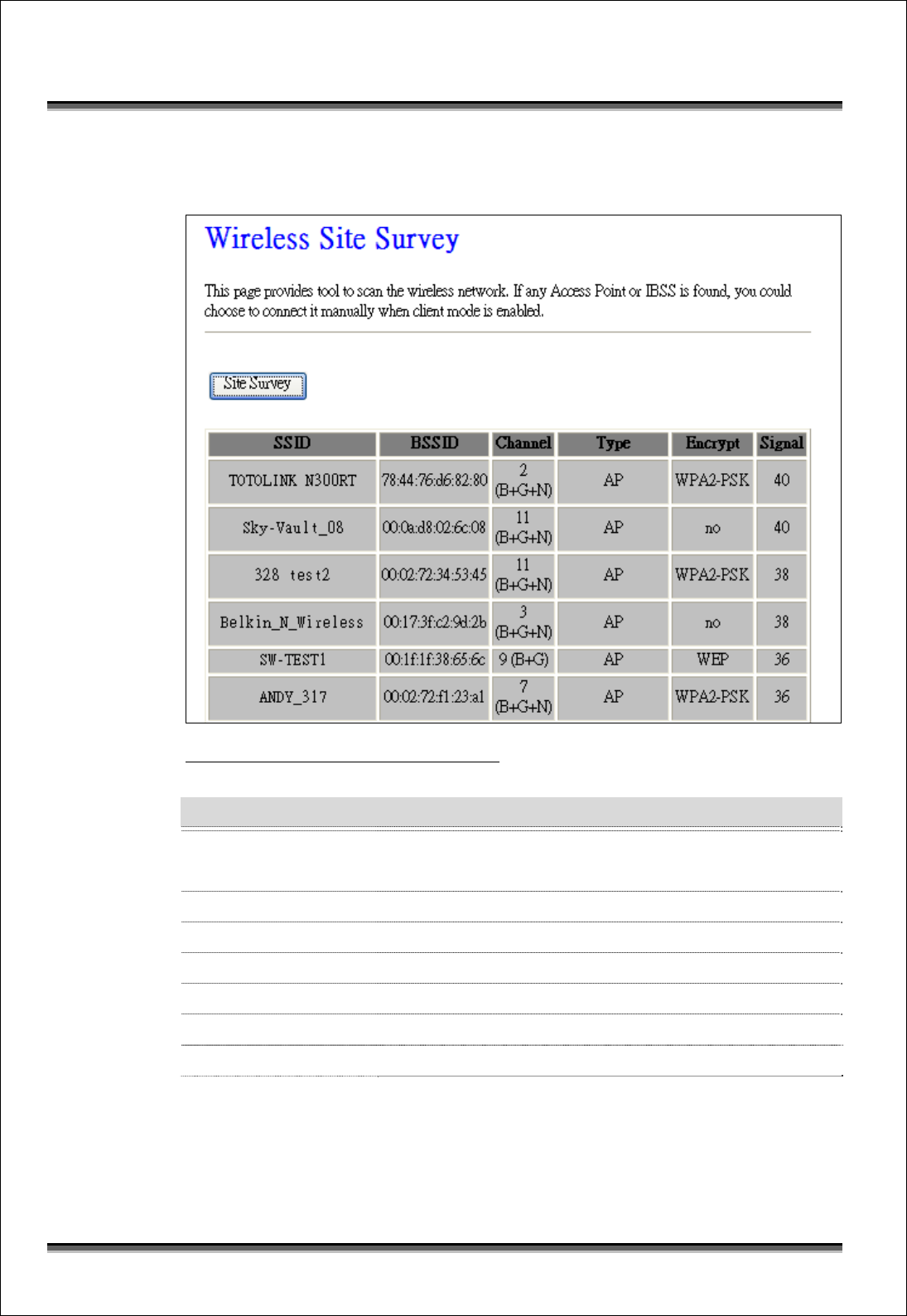

4.3.5 Site Survey.................................................................................................................. 17

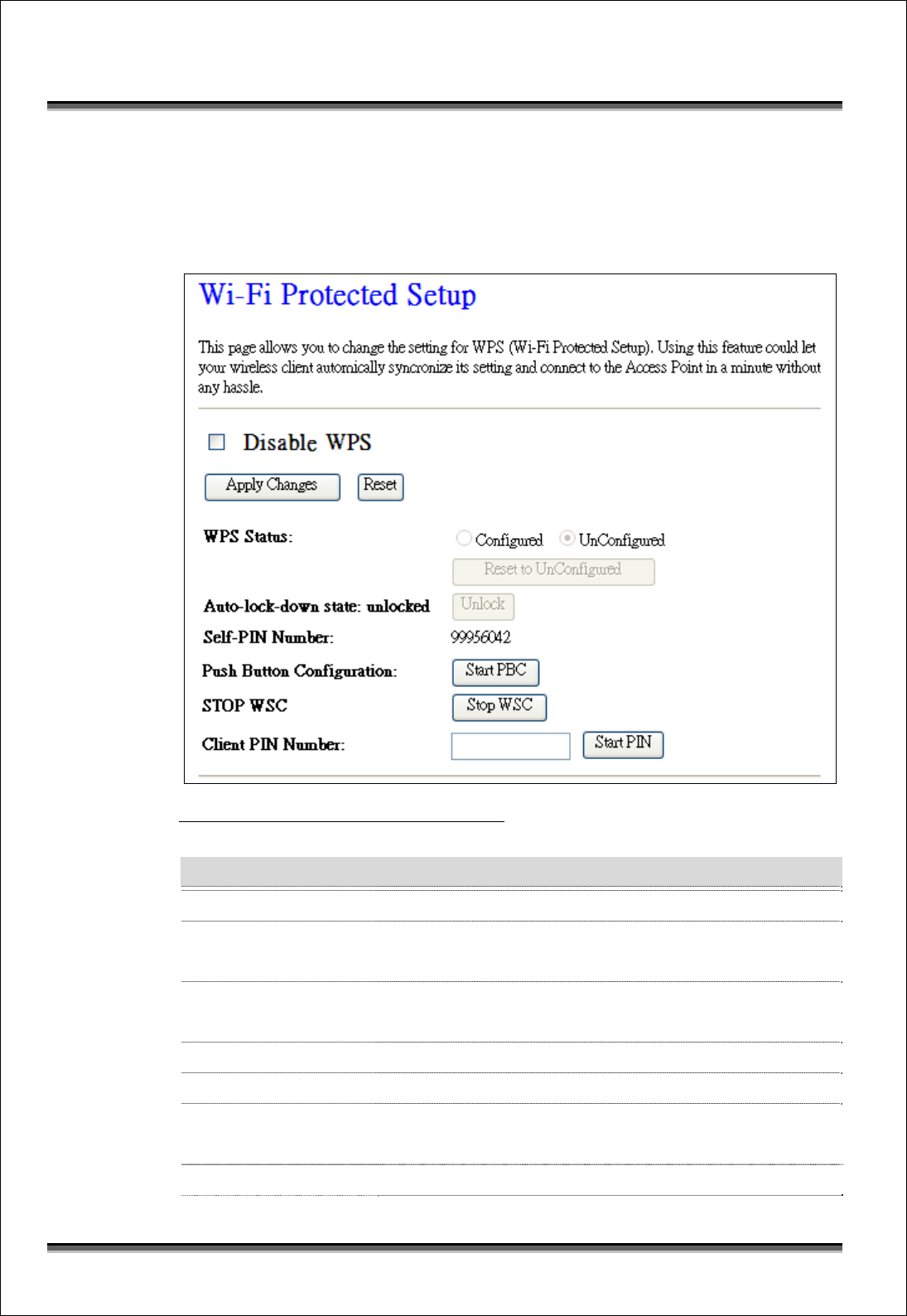

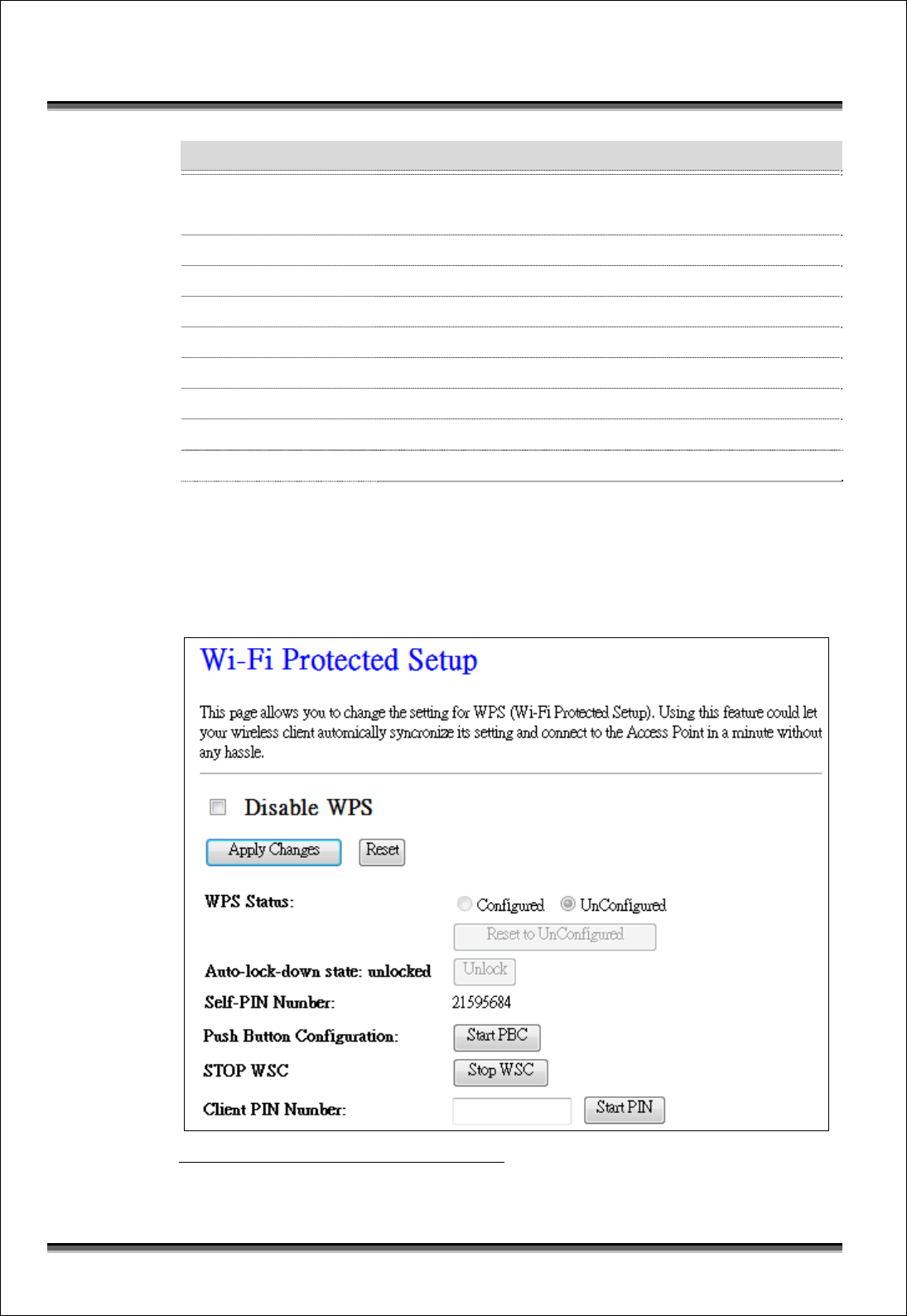

4.3.6 WPS ............................................................................................................................ 18

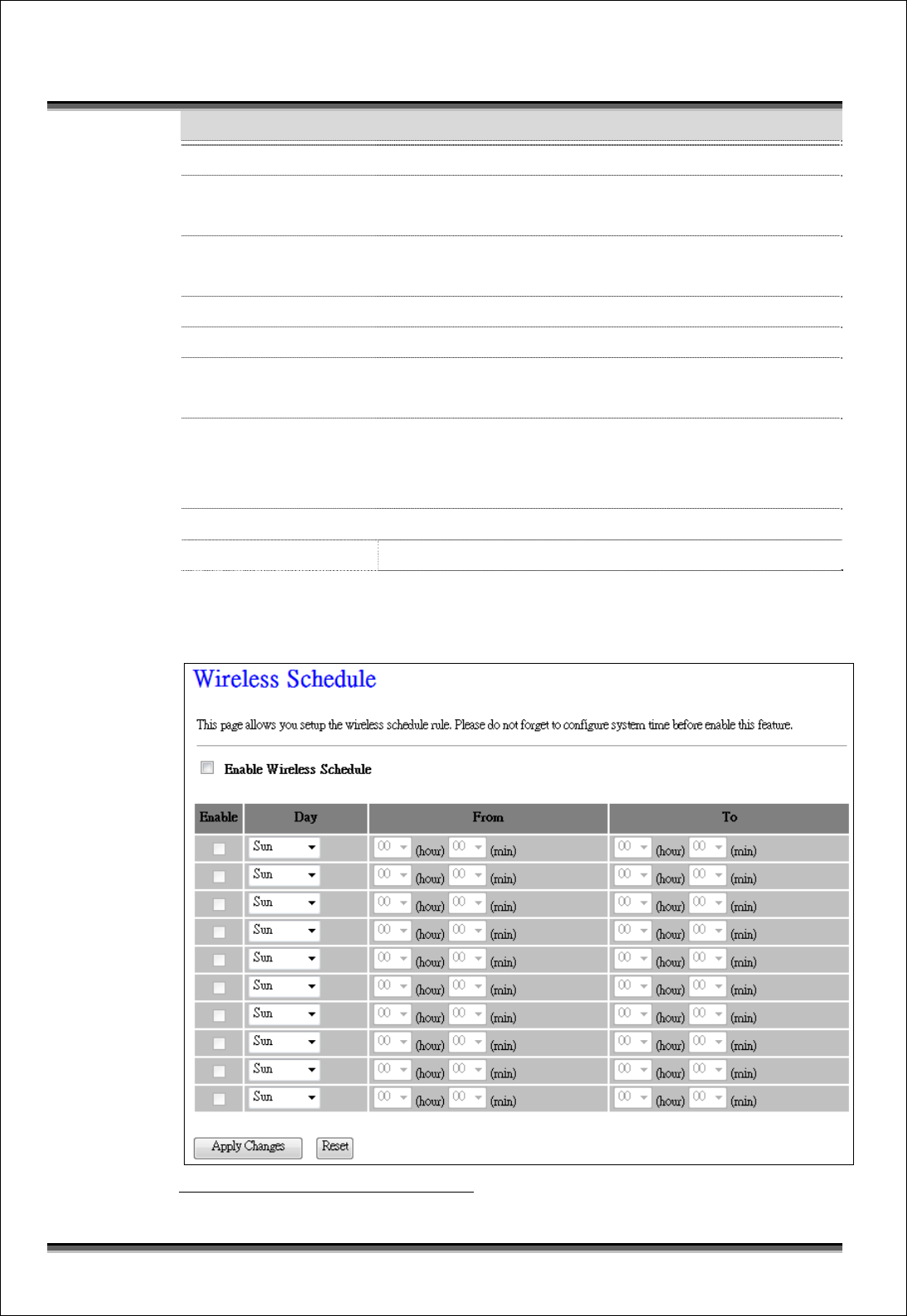

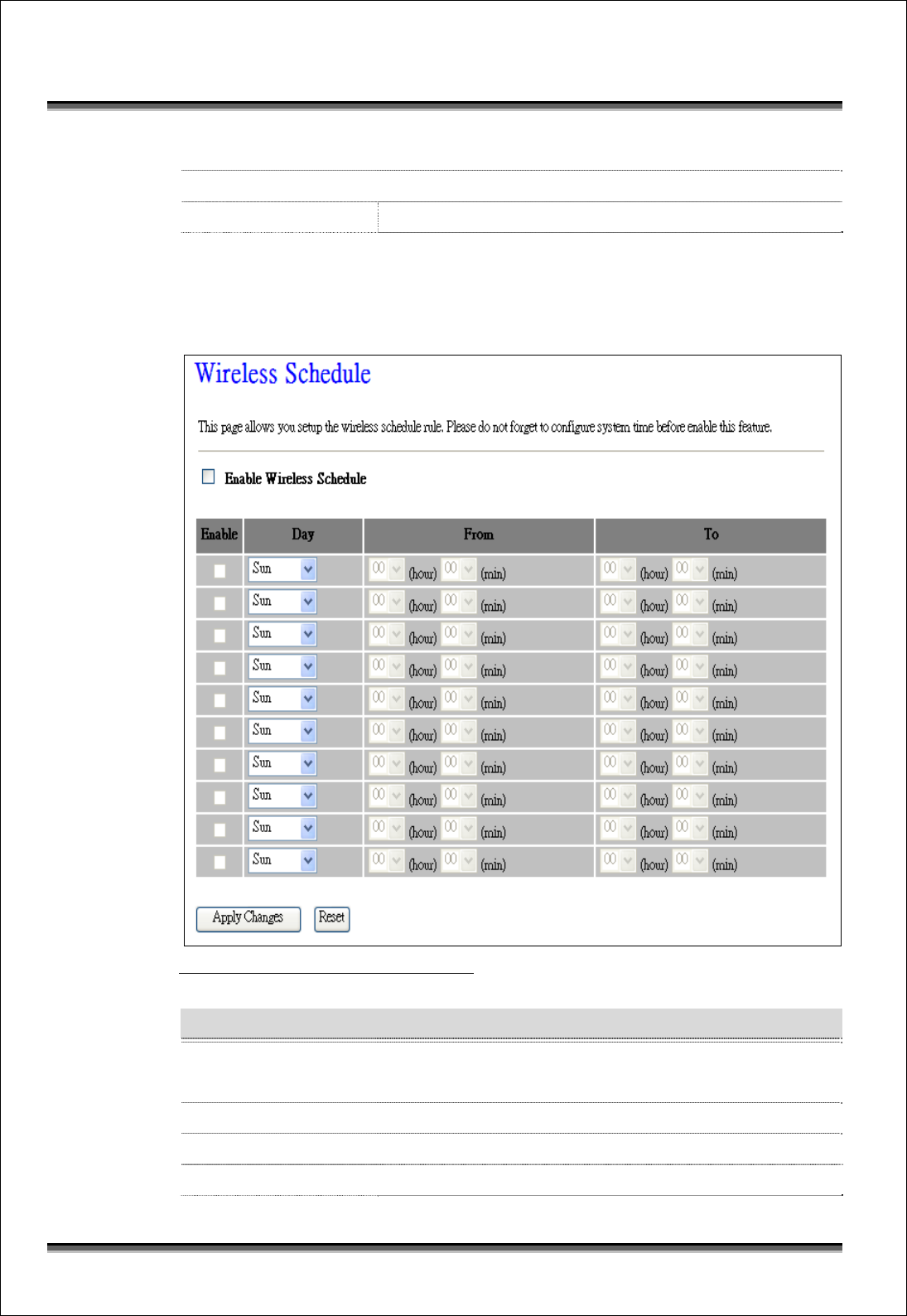

4.3.7 Schedule...................................................................................................................... 19

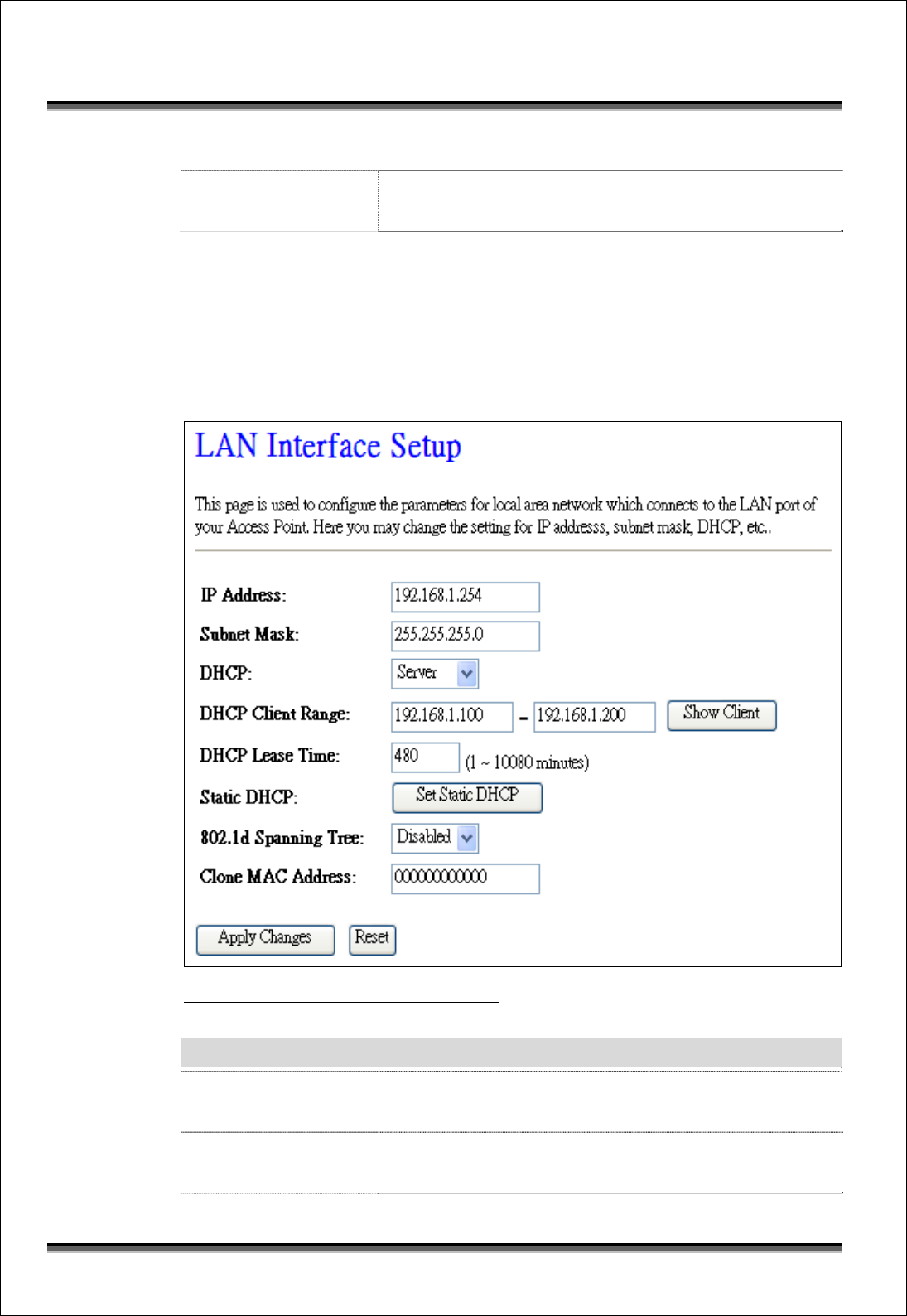

4.3.8 LAN Interface Setup................................................................................................... 20

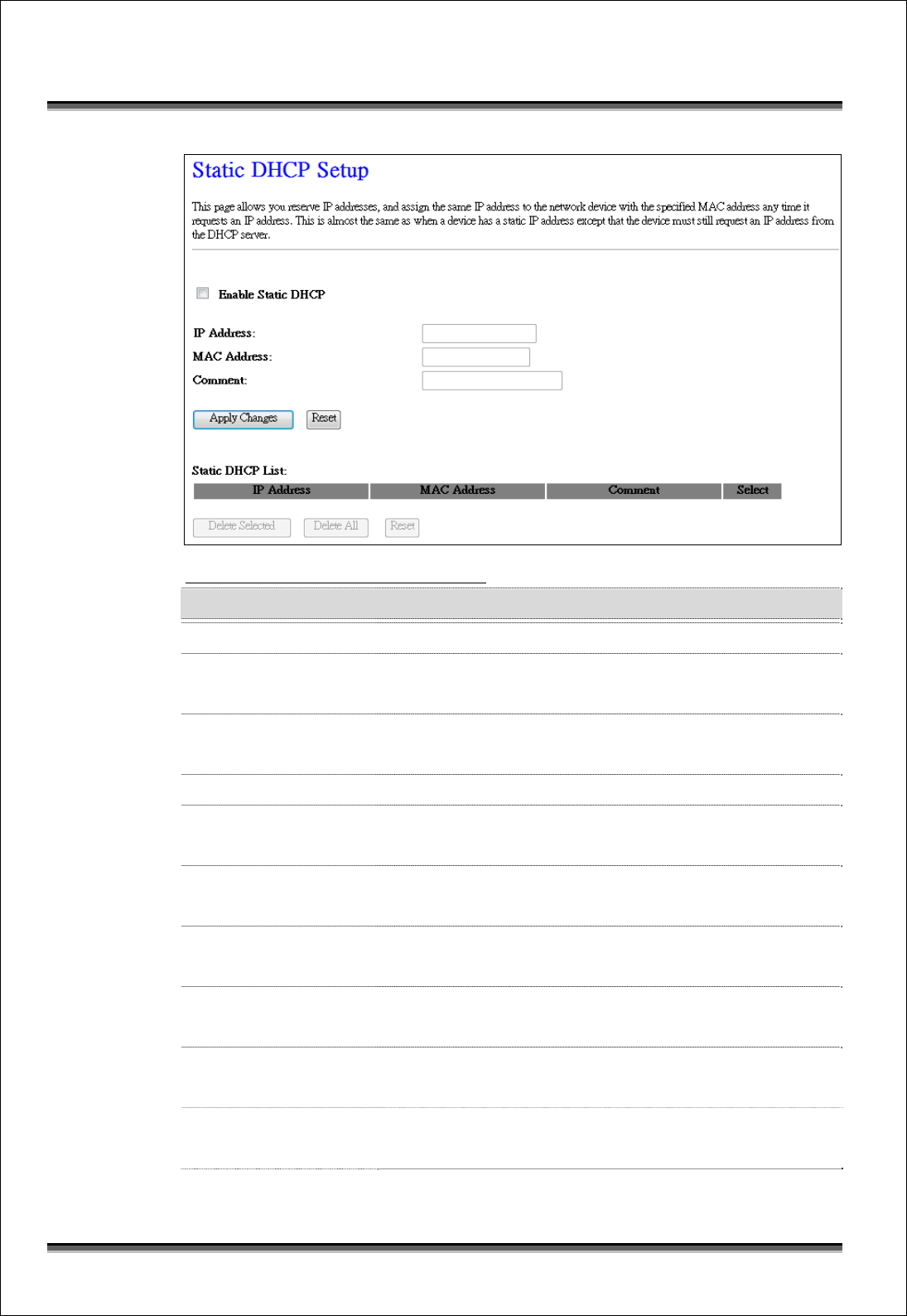

I Static DHCP Setup.......................................................................................................22
4.3.9 Status........................................................................................................................... 23

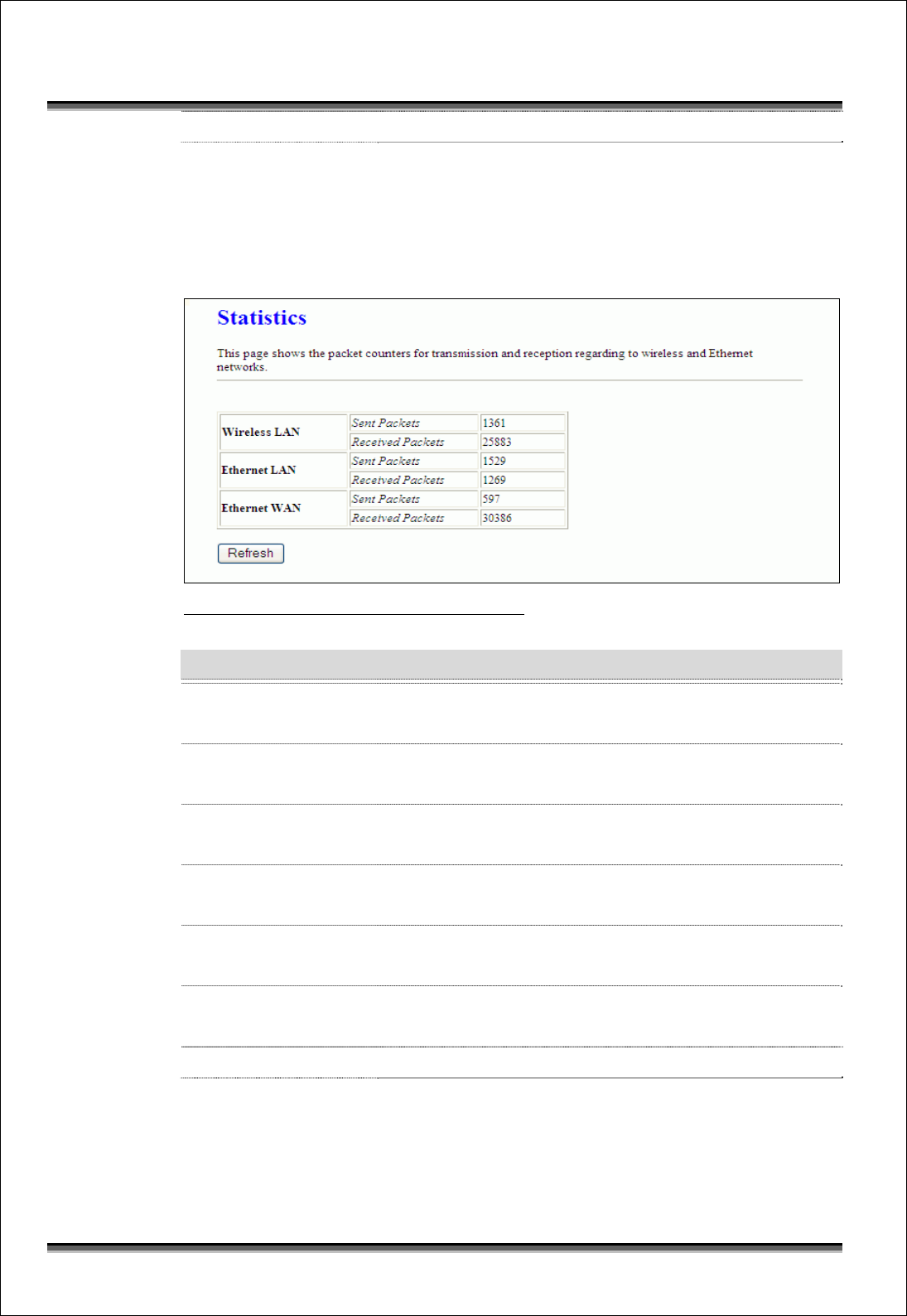

4.3.10 Management - Statistics.............................................................................................. 25

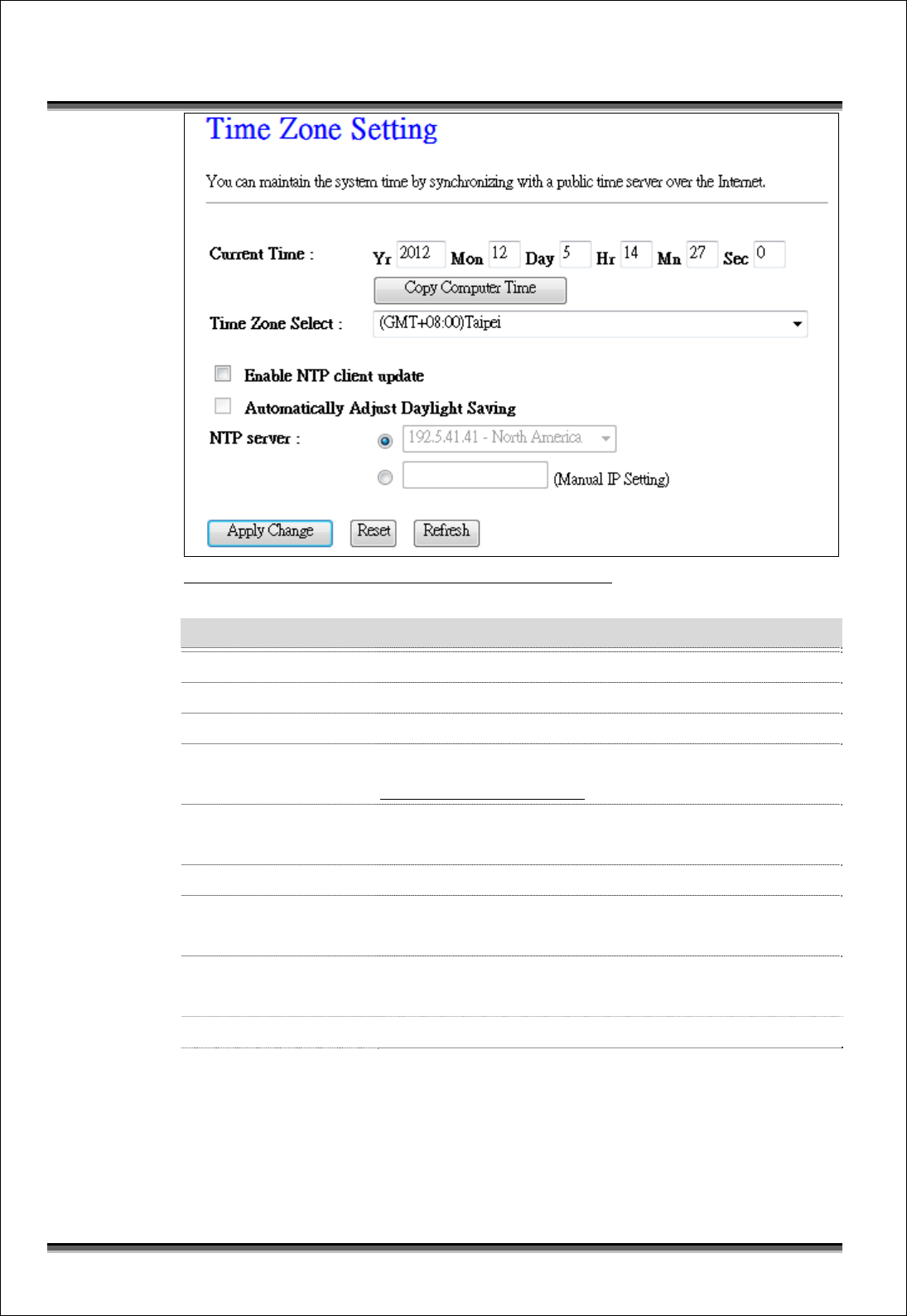

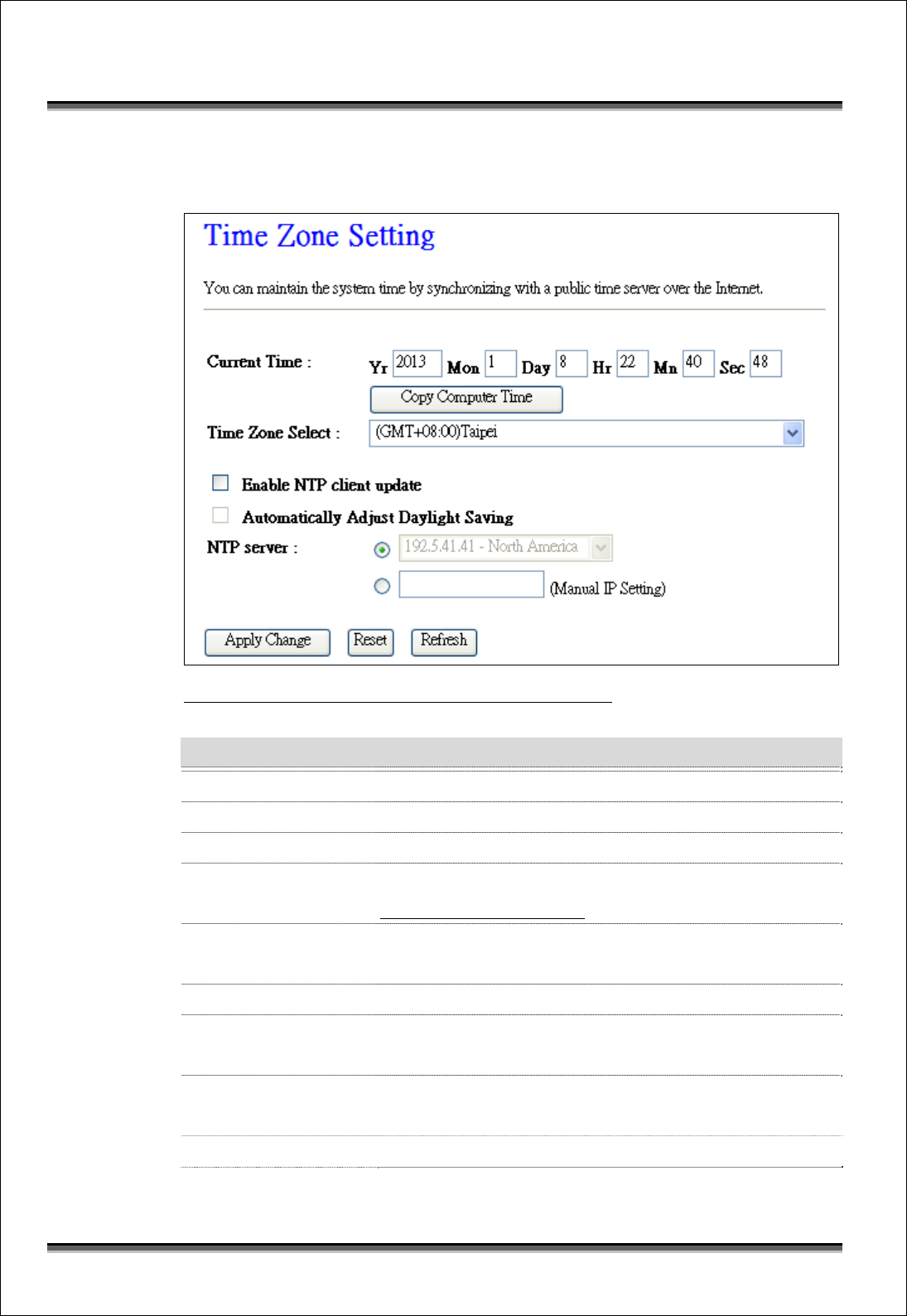

4.3.11 Management - Time Zone Setting............................................................................... 25

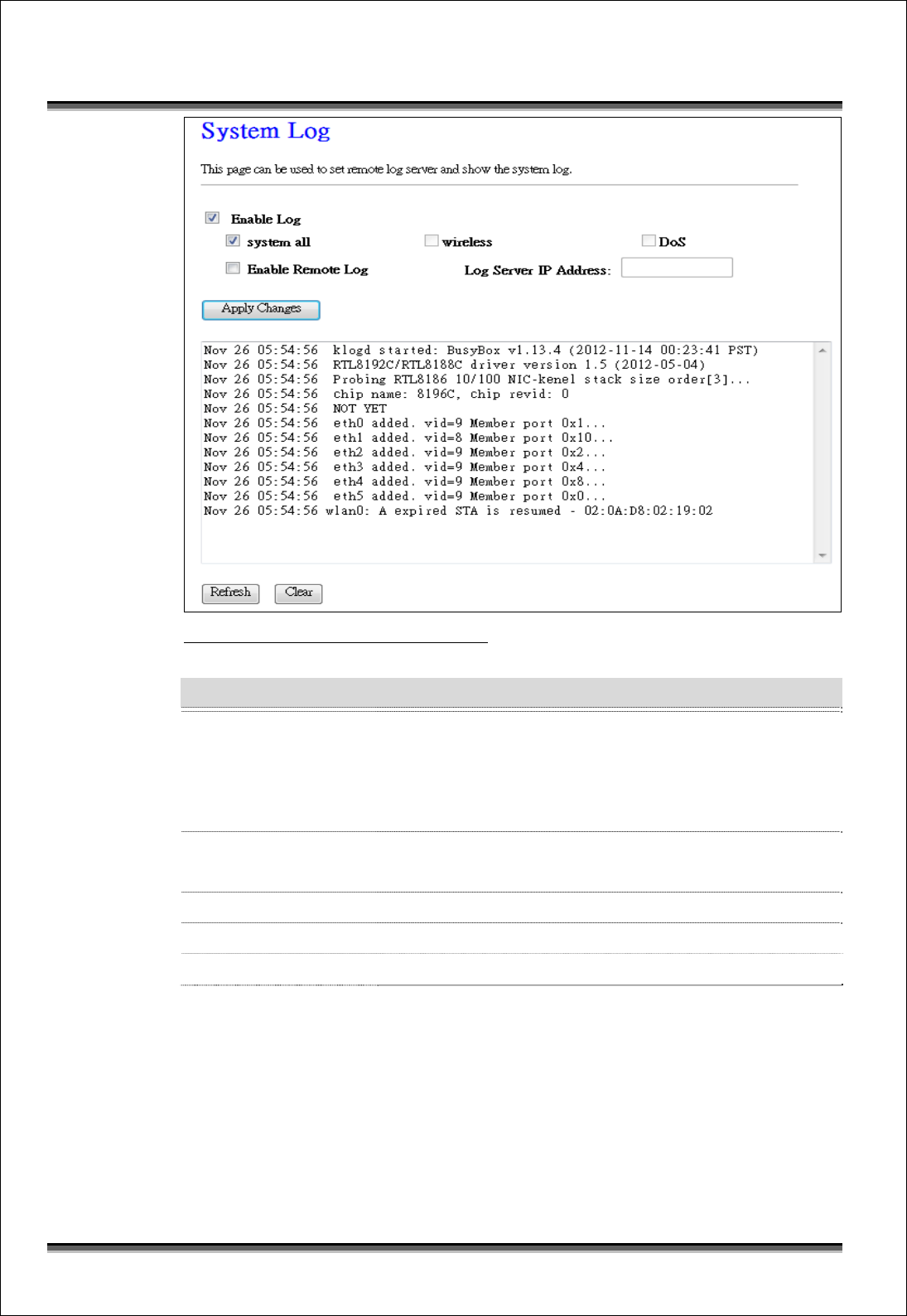

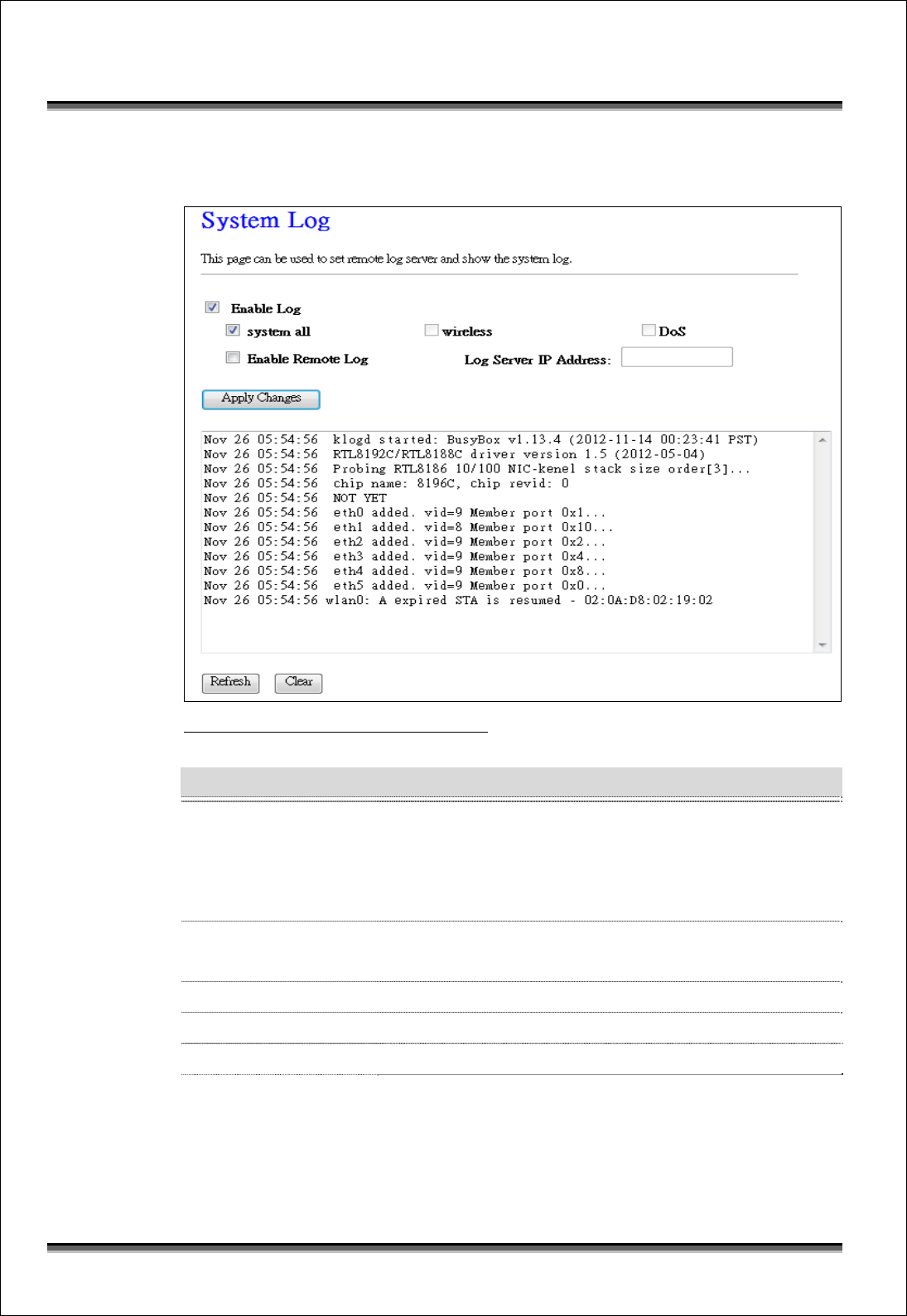

4.3.12 Management - Log...................................................................................................... 26

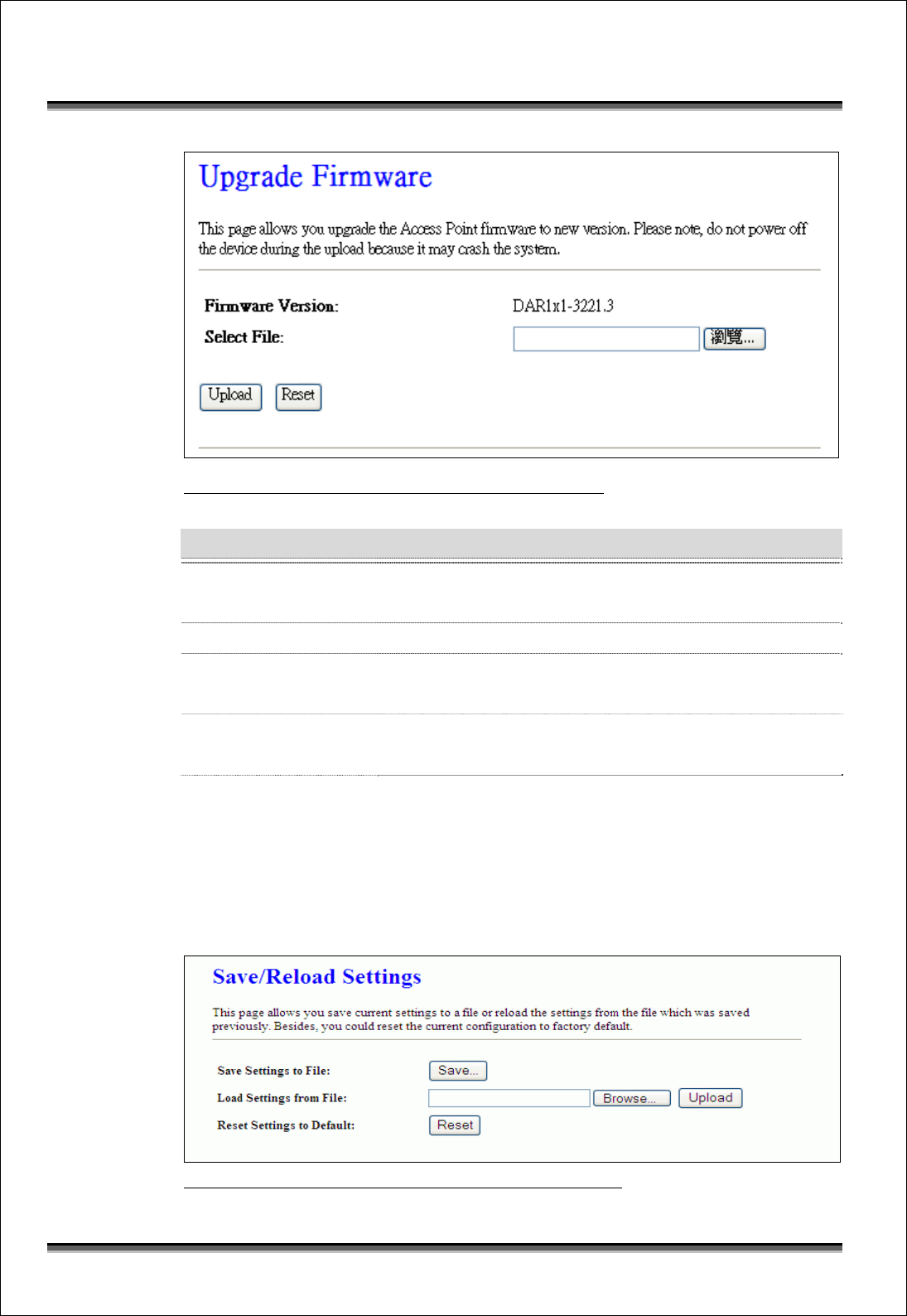

4.3.13 Management - Upgrade Firmware.............................................................................. 27
4.3.14 Management Save/ Reload Settings............................................................................ 28

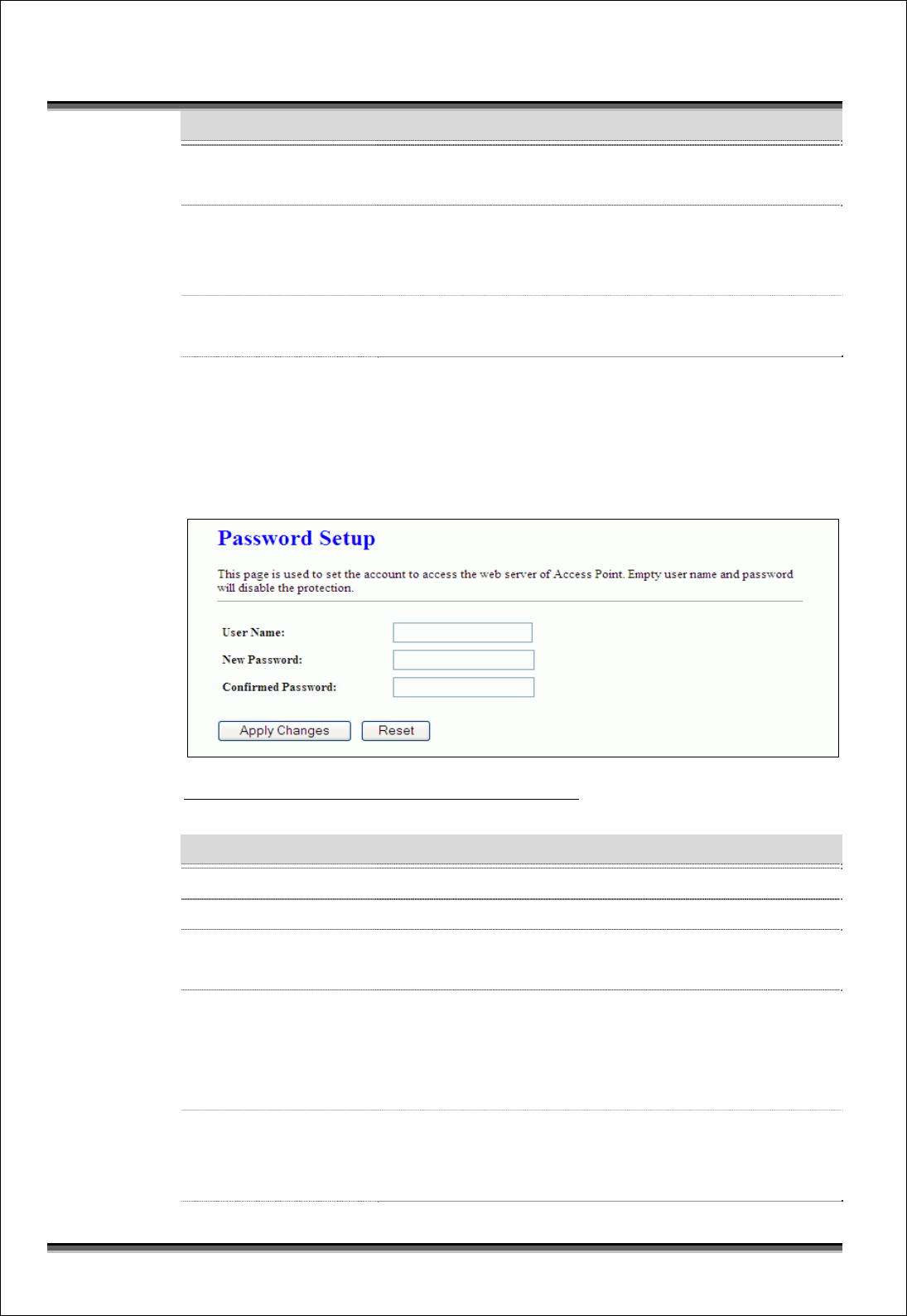

4.3.15 Management - Password Setup................................................................................... 29
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
ii
4.4 MANAGEMENT AND CONFIGURATION ON THE WLAN TRAVEL AP/ROUTER - ROUTER MODE30

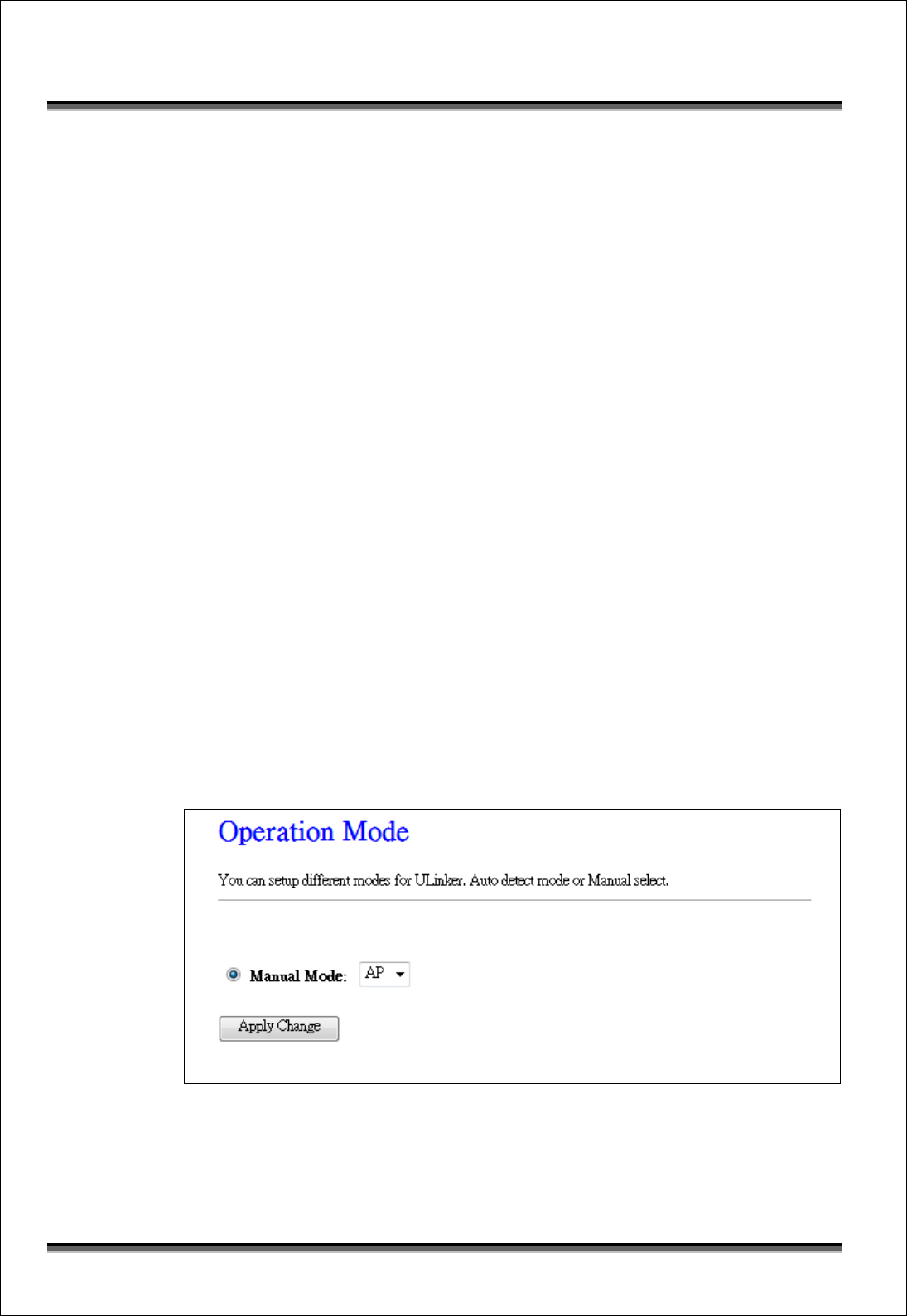

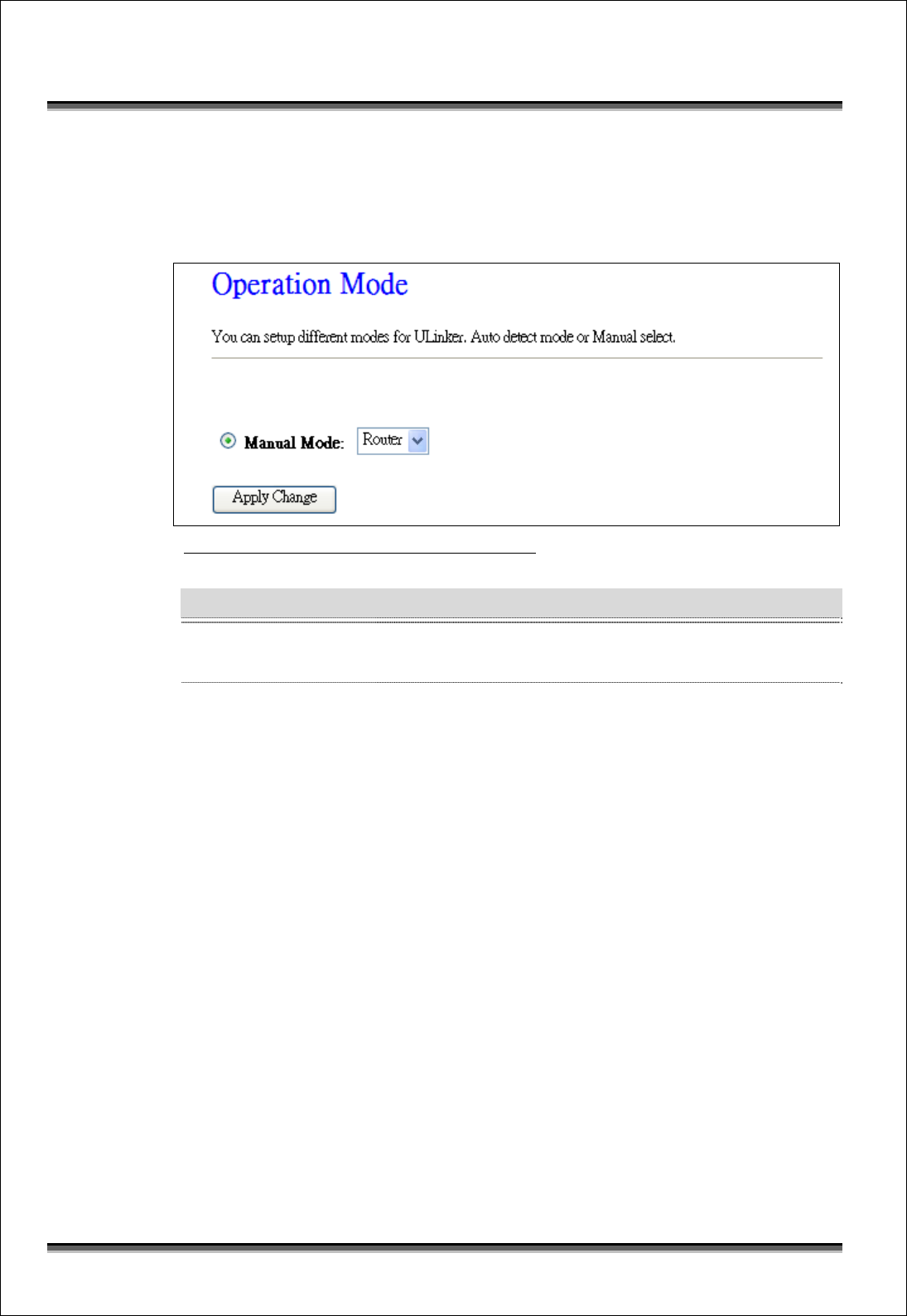

4.4.1 ULinker Operation Mode............................................................................................ 30
4.4.2 Wireless - Basic Settings............................................................................................. 30
4.4.3 Wireless - Advanced Settings ..................................................................................... 32
4.4.4 Wireless - Security Setup............................................................................................ 34
4.4.5 Site Survey.................................................................................................................. 37
4.4.6 WPS ............................................................................................................................ 38
4.4.7 Schedule...................................................................................................................... 39
4.4.8 LAN Interface Setup................................................................................................... 40
I Static DHCP Setup.......................................................................................................42

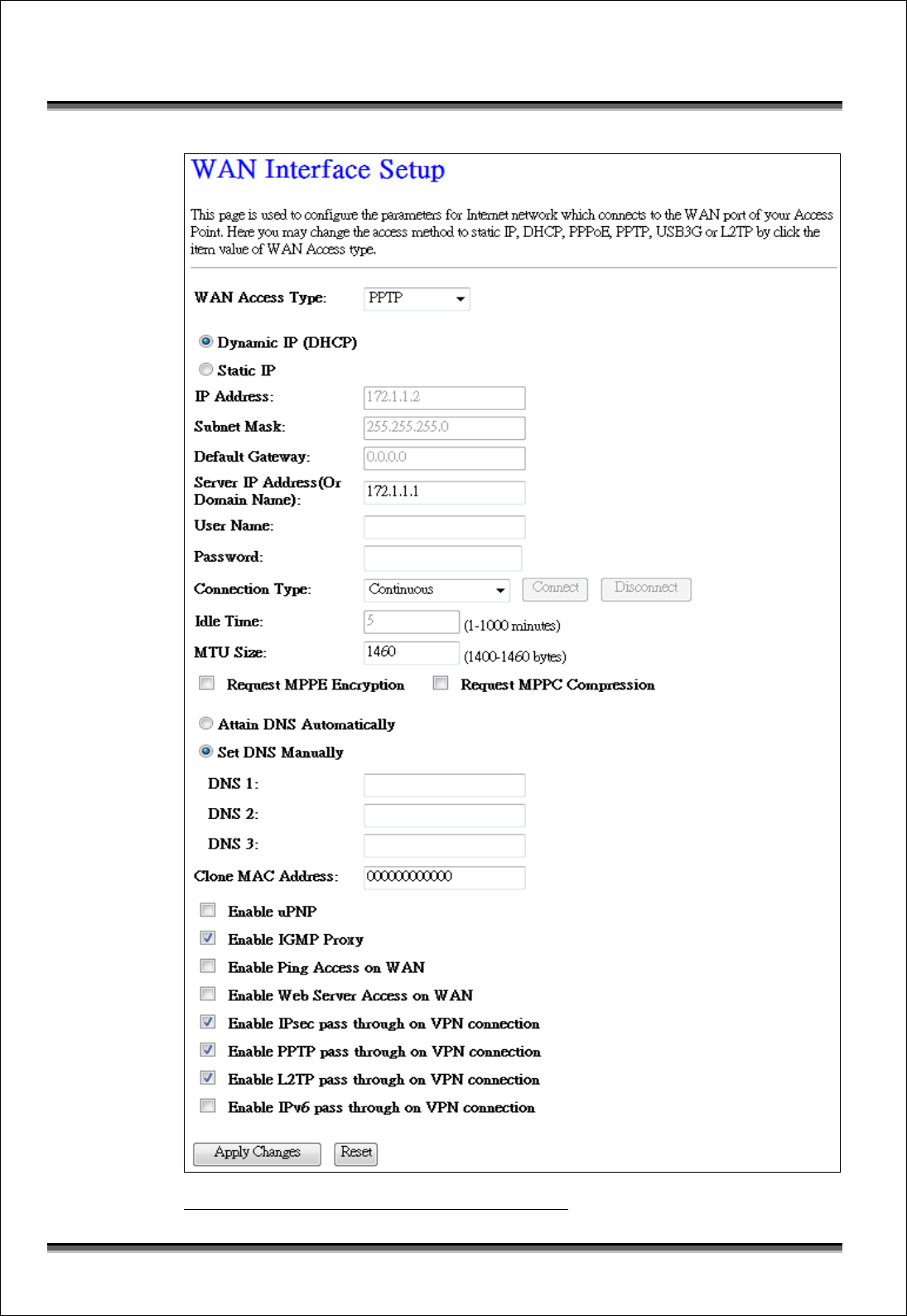

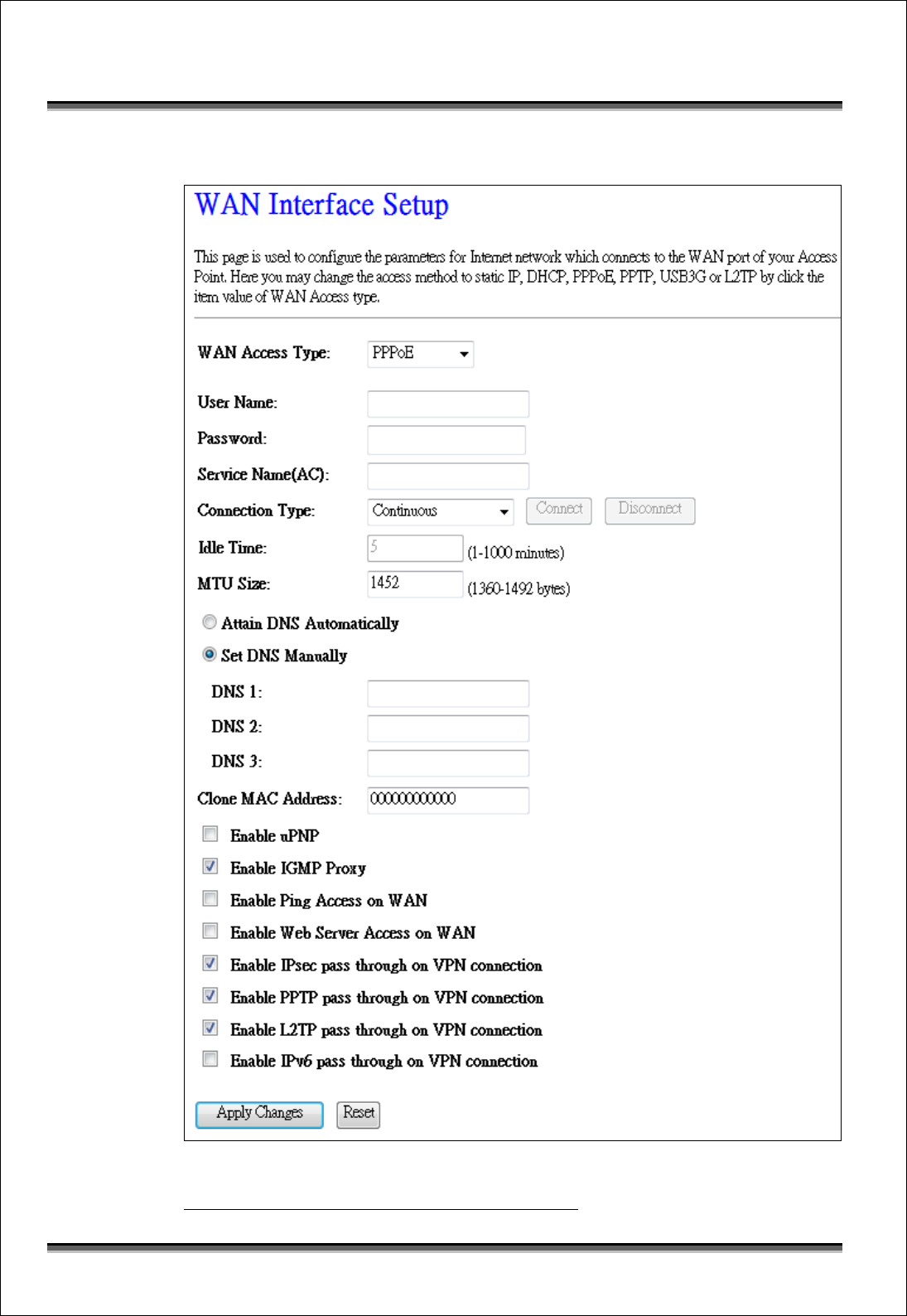

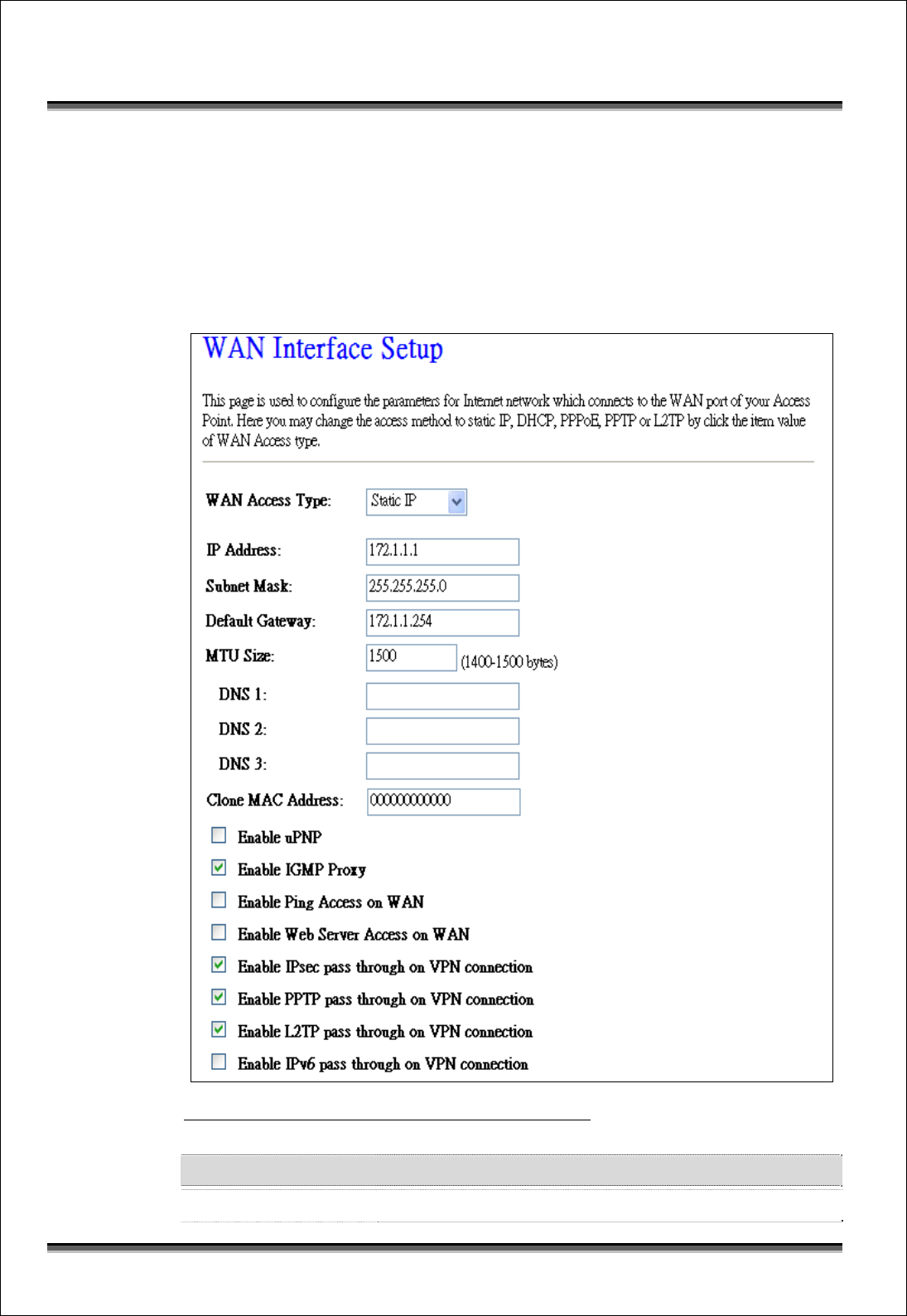

4.4.9 WAN Interface Setup.................................................................................................. 43
I Static IP........................................................................................................................43
II DHCP Client ................................................................................................................45
III PPPoE ..........................................................................................................................47
IV PPTP ............................................................................................................................50

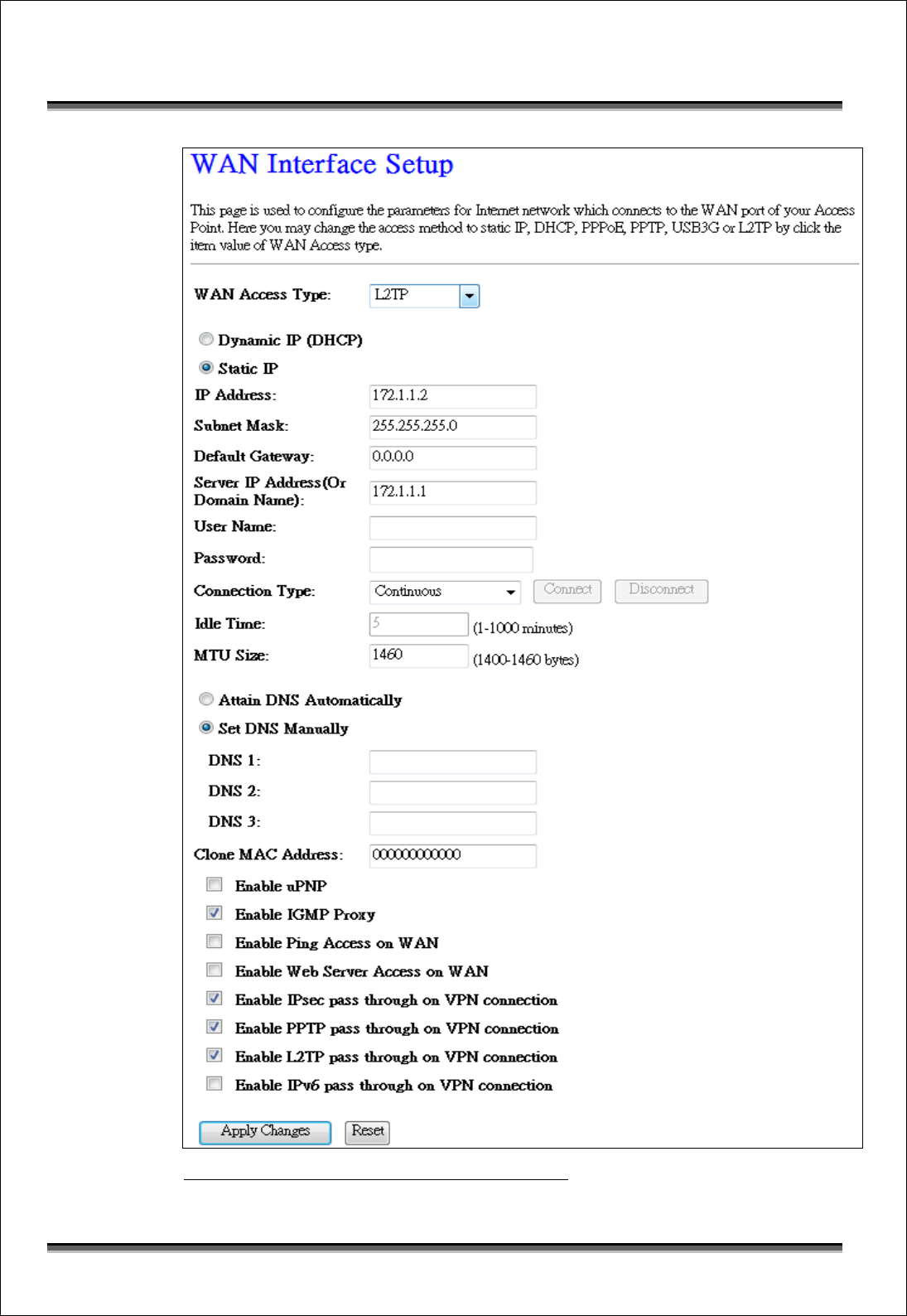

V L2TP ............................................................................................................................54
4.4.10 Firewall - Port Filtering .............................................................................................. 57

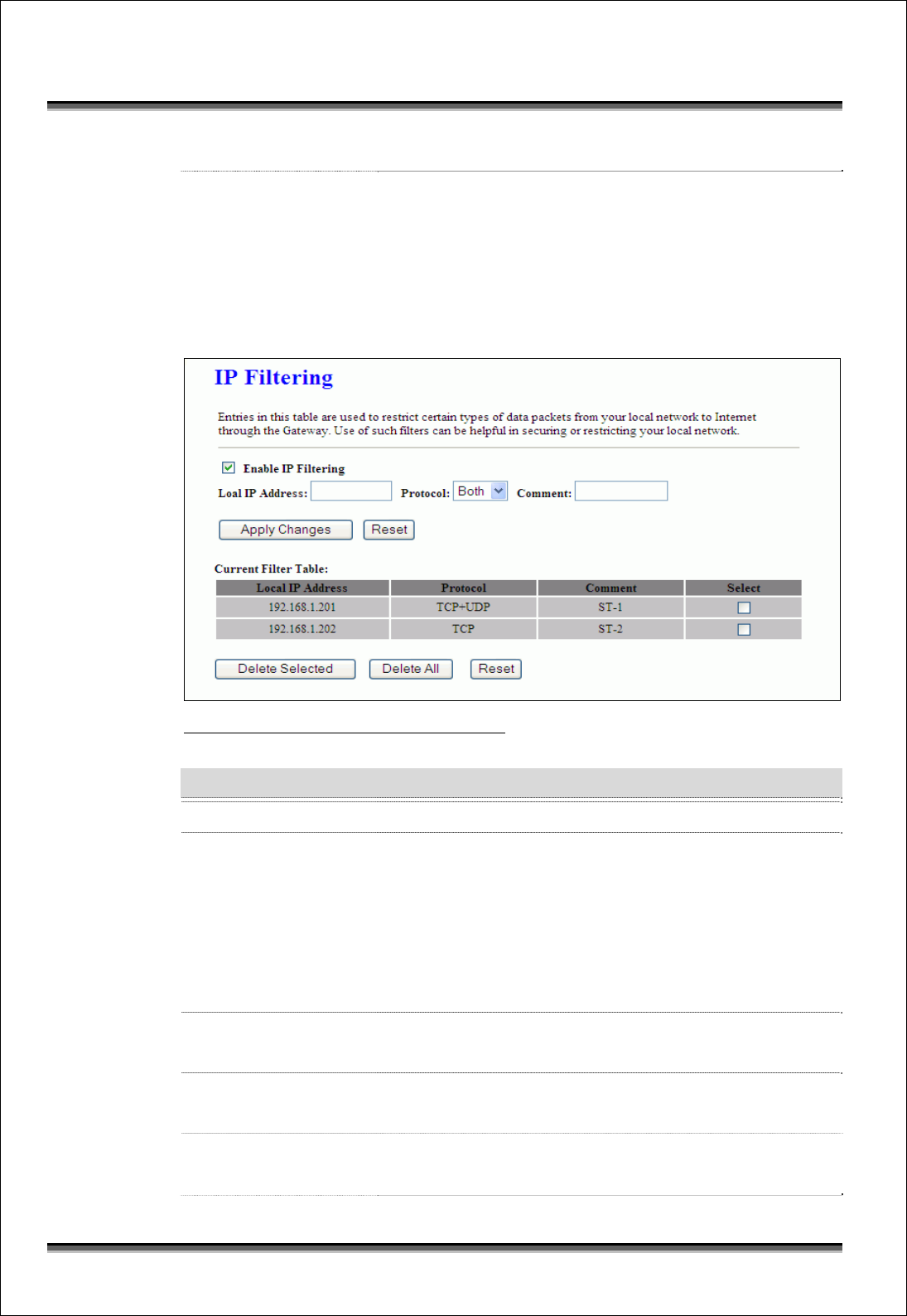

4.4.11 Firewall - IP Filtering.................................................................................................. 58

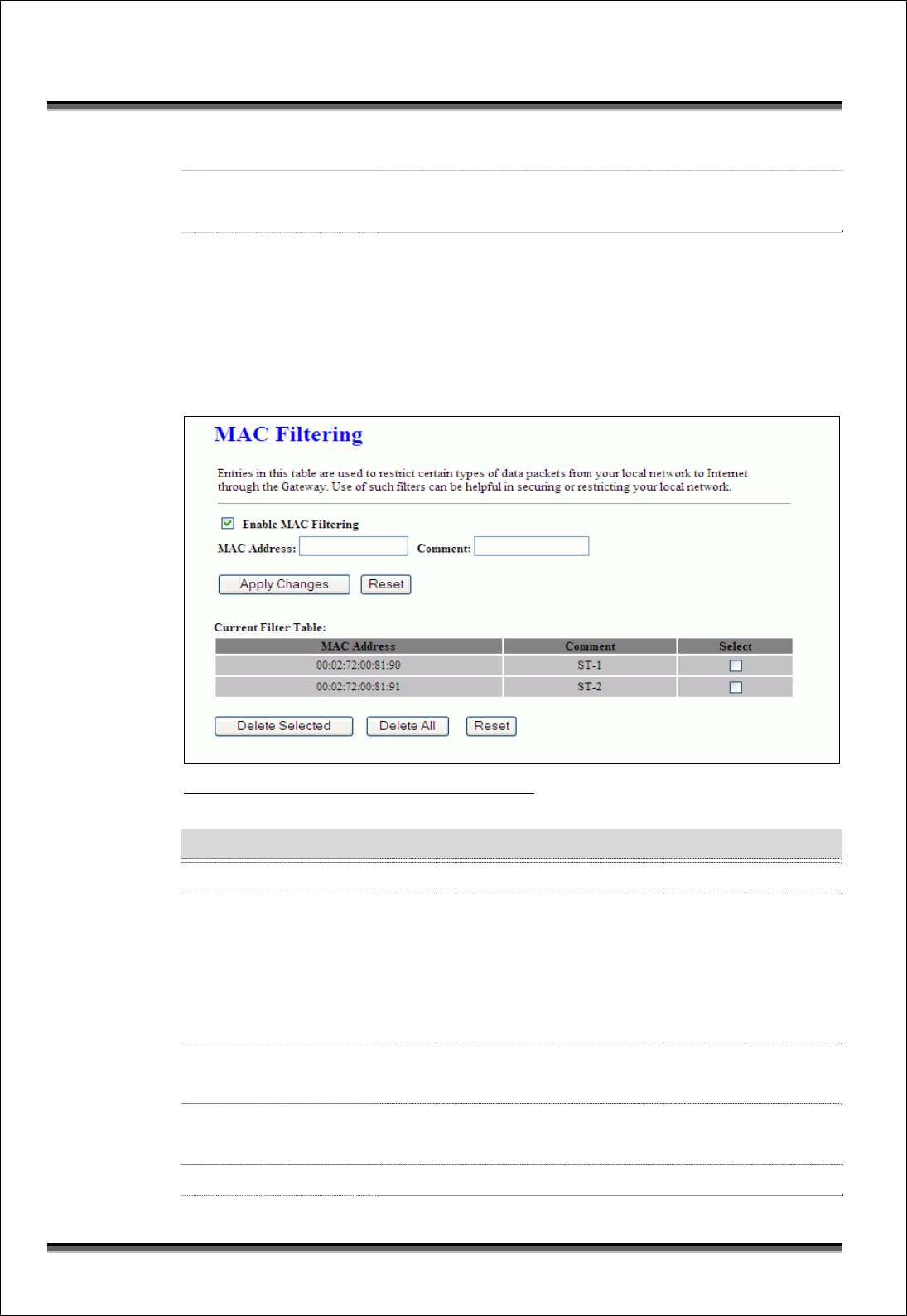

4.4.12 Firewall - MAC Filtering............................................................................................ 59

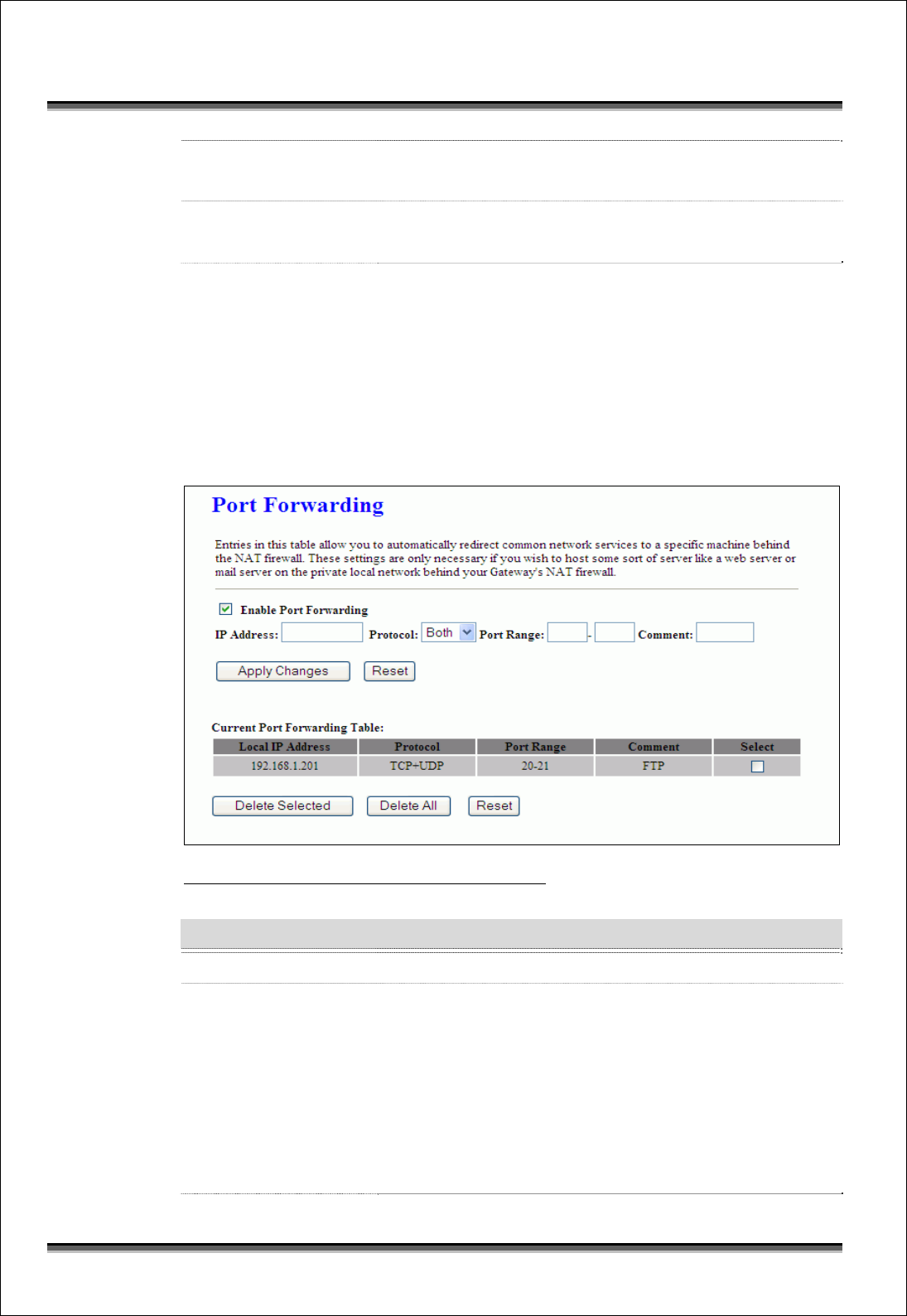

4.4.13 Firewall - Port Forwarding.......................................................................................... 60
4.4.14 Firewall – URL Filtering............................................................................................. 61

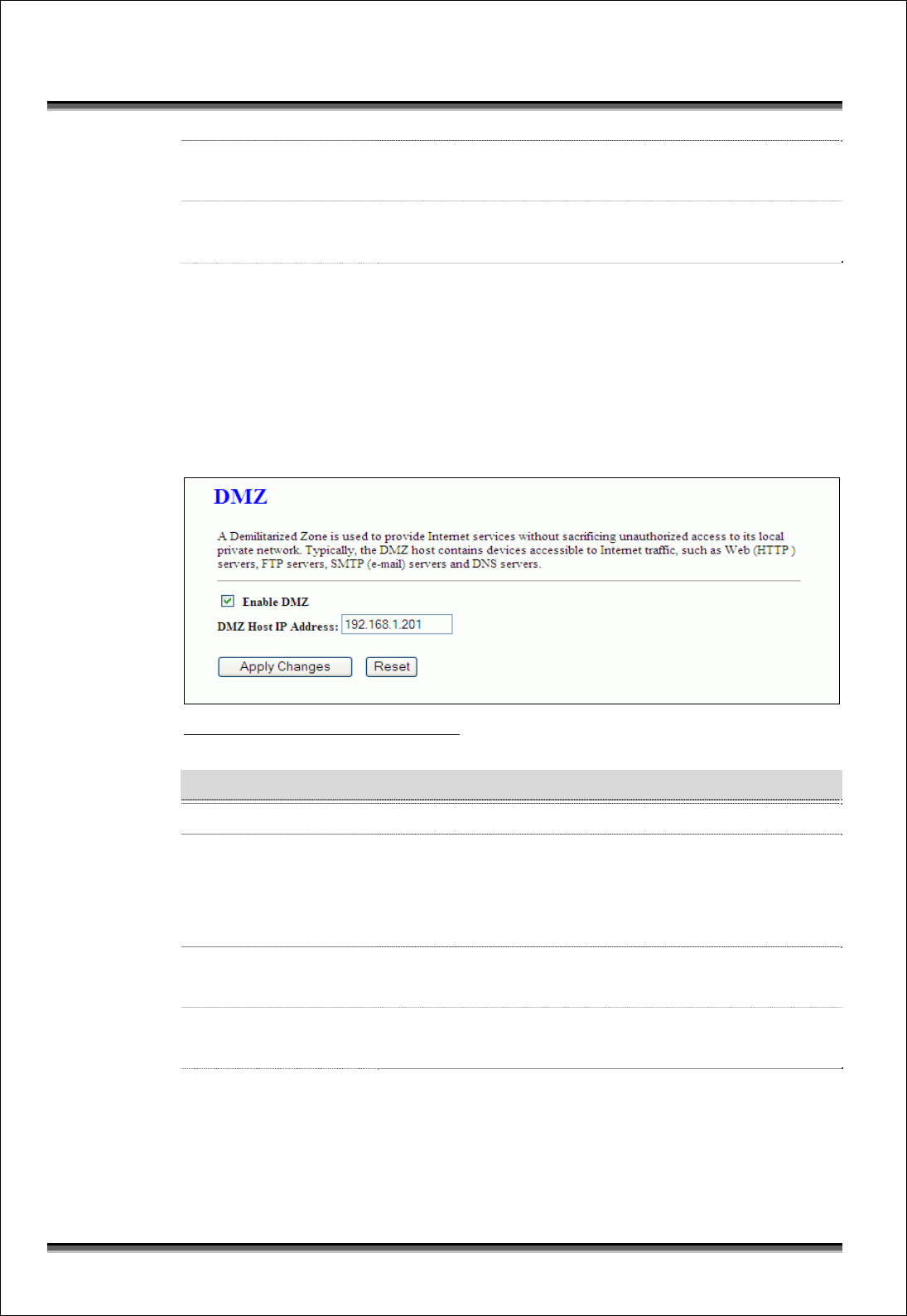

4.4.15 Firewall - DMZ........................................................................................................... 62
4.4.16 Firewall – VLAN........................................................................................................ 63

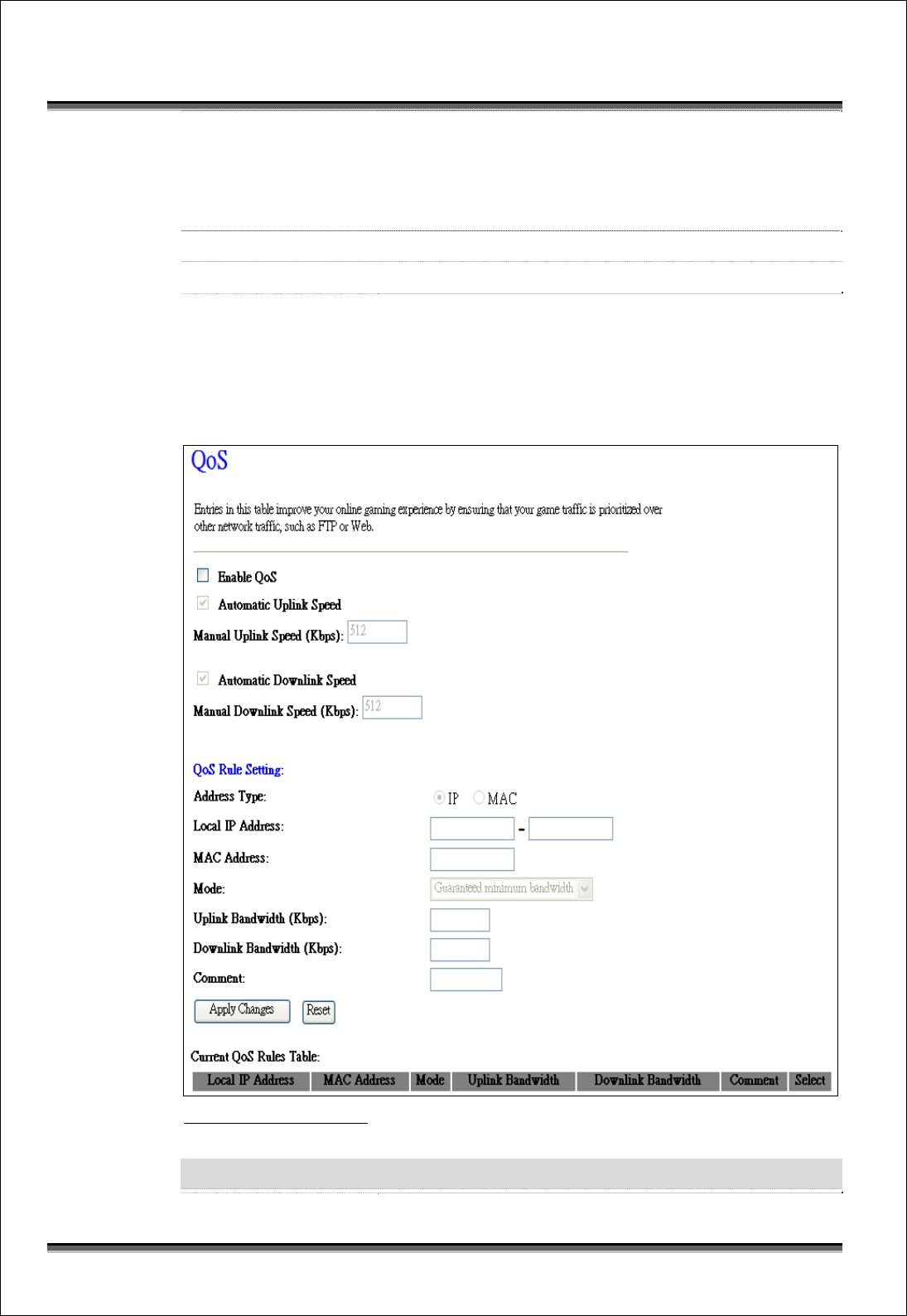

4.4.17 QoS ............................................................................................................................. 64

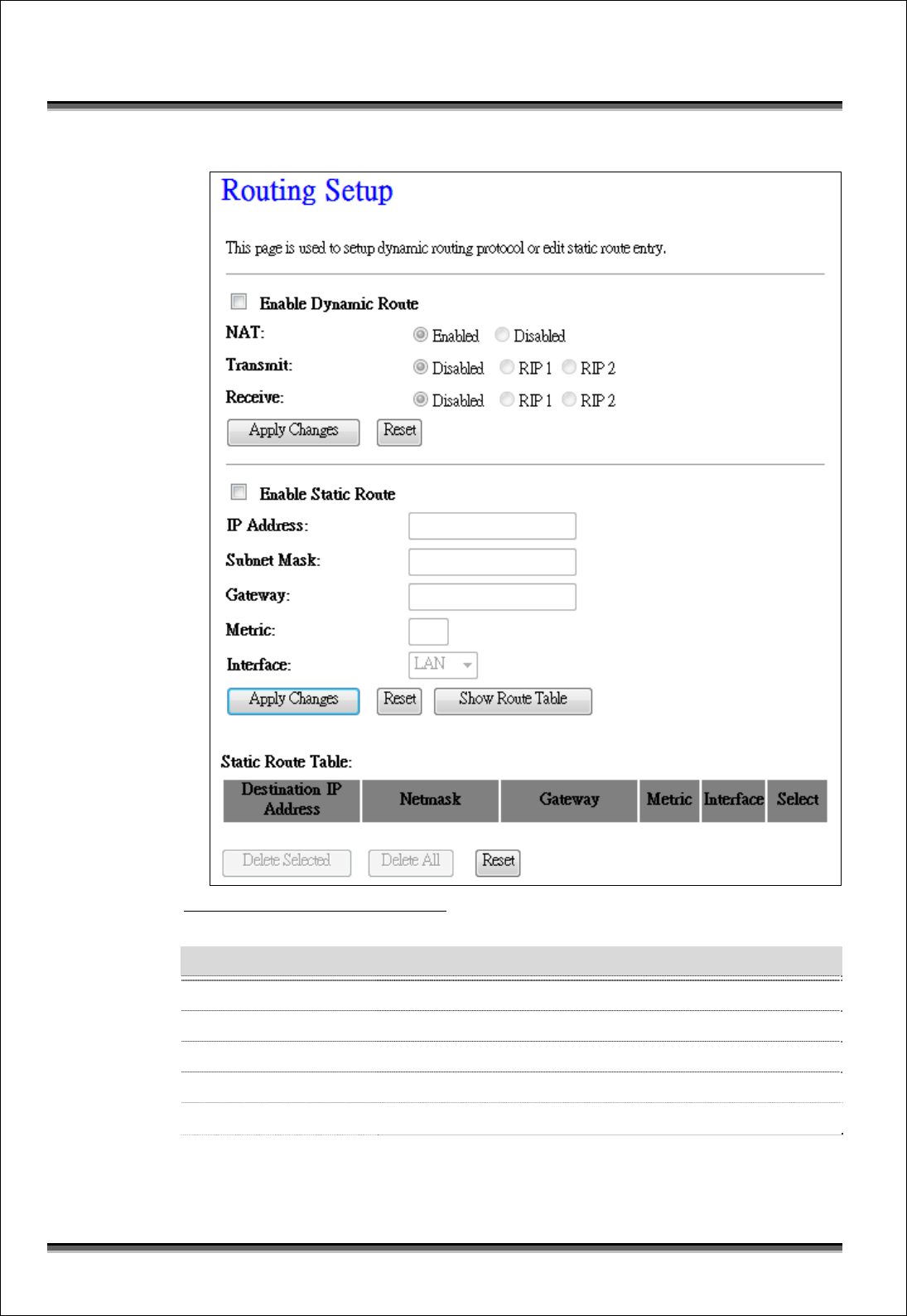

4.4.18 Route Setup................................................................................................................. 66

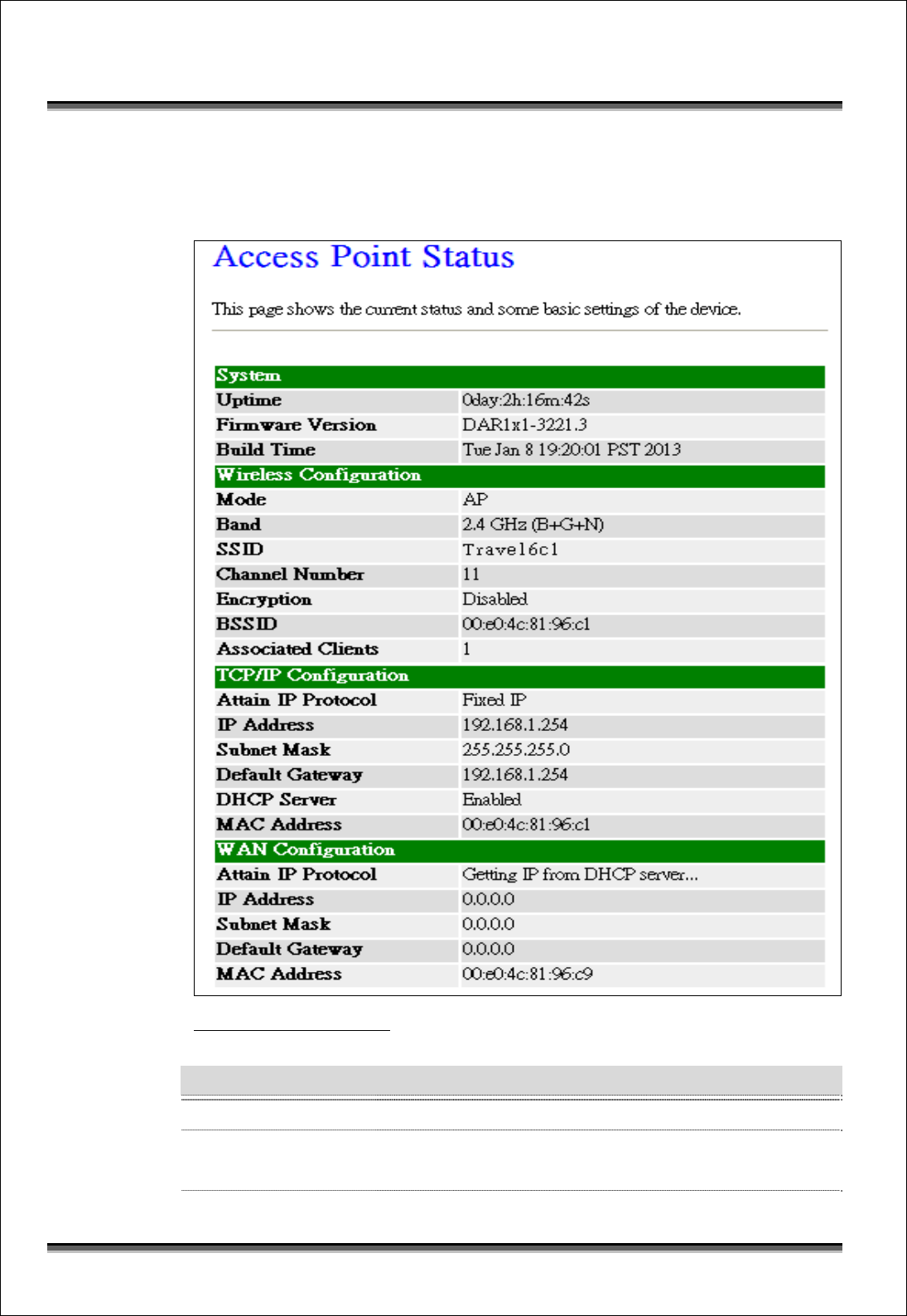

4.4.19 Status........................................................................................................................... 68

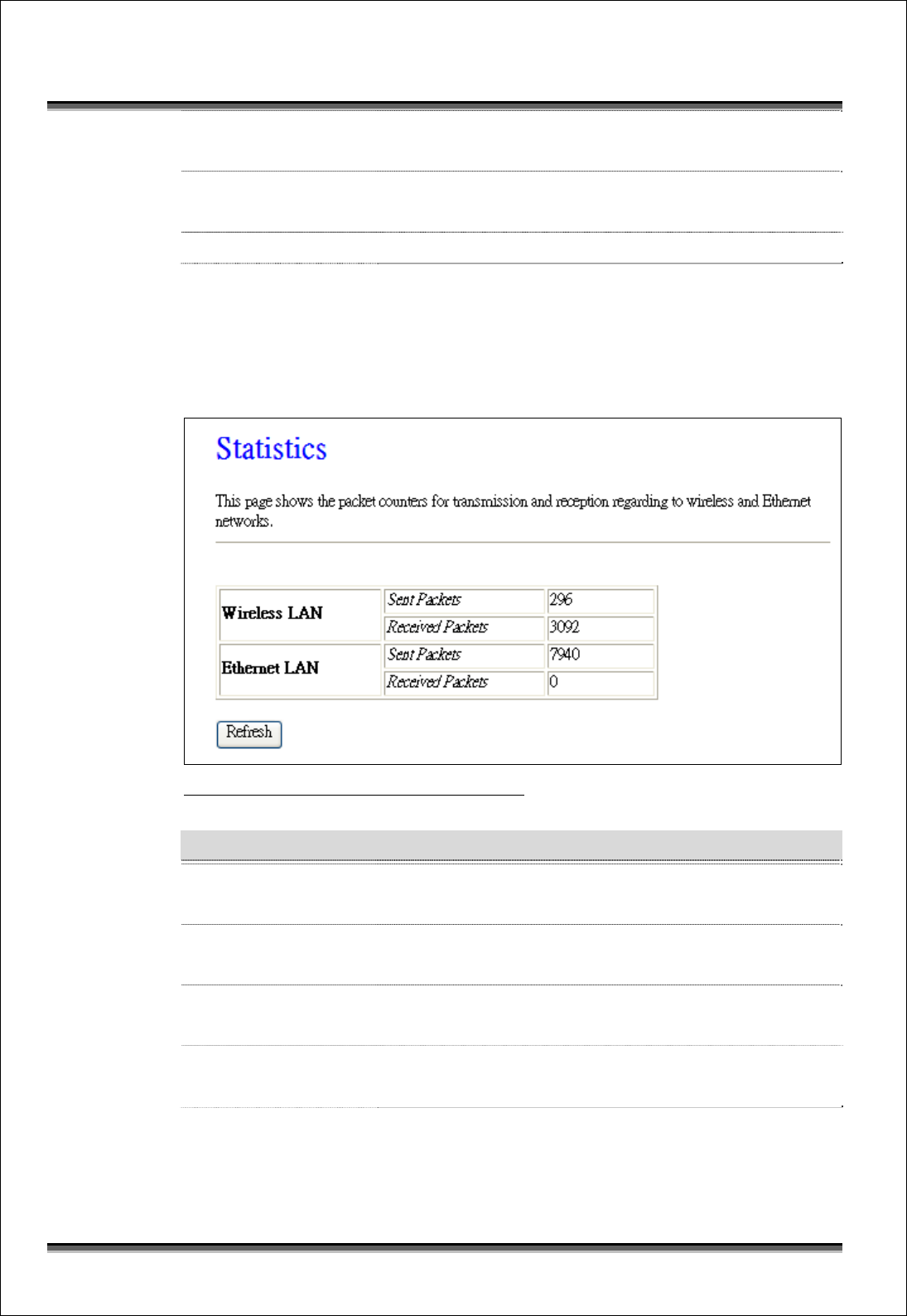

4.4.20 Management - Statistics.............................................................................................. 70
4.4.21 Management - Time Zone Setting............................................................................... 71
4.4.22 Management - Log...................................................................................................... 72

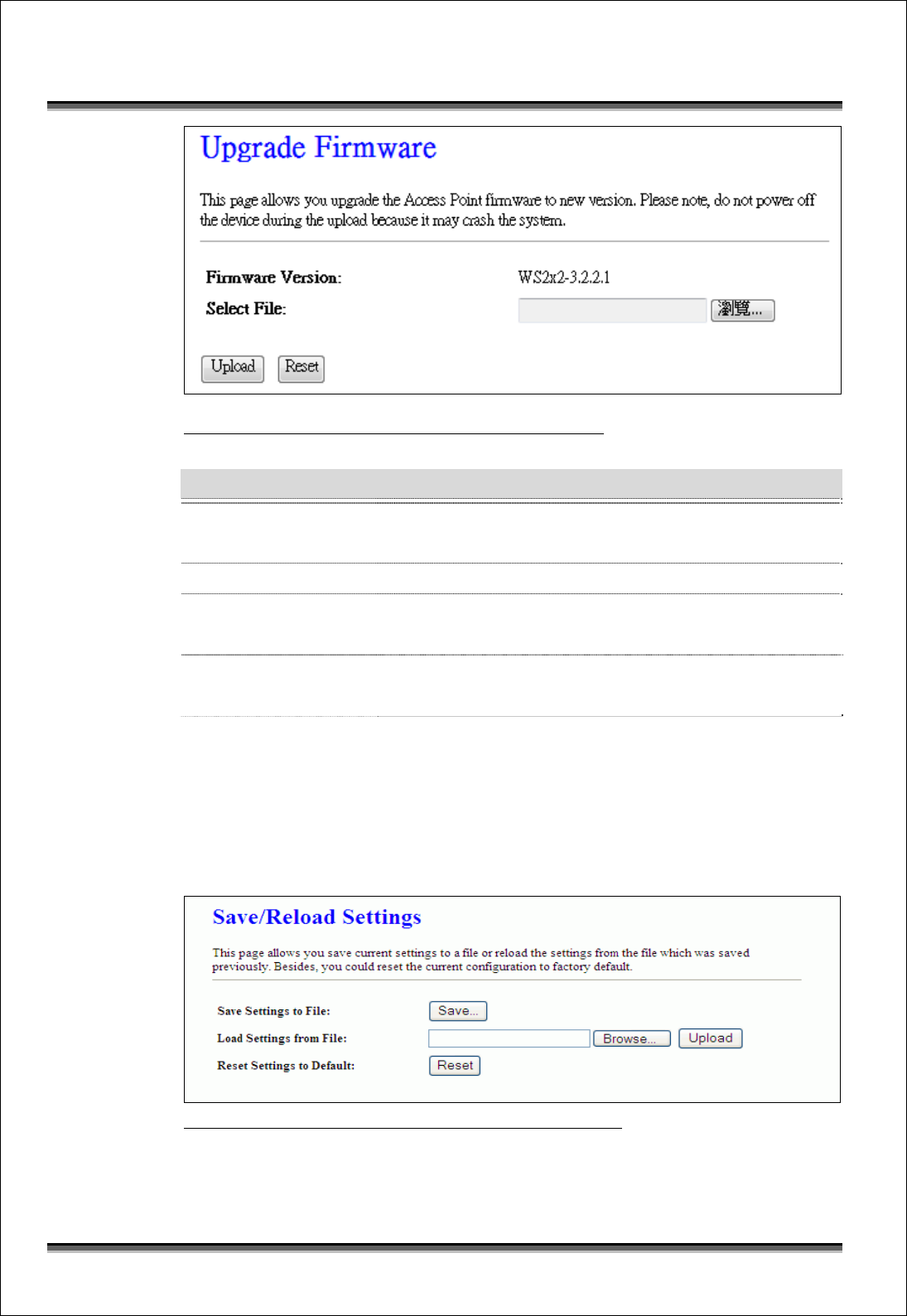

4.4.23 Management - Upgrade Firmware.............................................................................. 72
4.4.24 Management Save/ Reload Settings............................................................................ 73
4.4.25 Management - Password Setup................................................................................... 74
5 FREQUENTLY ASKED QUESTIONS (FAQ)....................................................................... 75
5.1 WHAT AND HOW TO FIND MY PC’S IP AND MAC ADDRESS?...................................................75
5.2 WHAT IS WIRELESS LAN? .....................................................................................................75
5.3 WHAT ARE ISM BANDS? ........................................................................................................75
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
iii
5.4 HOW DOES WIRELESS NETWORKING WORK?...........................................................................75
5.5 WHAT IS BSSID?...................................................................................................................76
5.6 WHAT IS ESSID? ...................................................................................................................76
5.7 WHAT ARE POTENTIAL FACTORS THAT MAY CAUSES INTERFERENCE? .....................................77
5.8 WHAT ARE THE OPEN SYSTEM AND SHARED KEY AUTHENTICATIONS? ..................................77
5.9 WHAT IS WEP?......................................................................................................................77
5.10 WHAT IS FRAGMENT THRESHOLD?.........................................................................................77
5.11 WHAT IS RTS (REQUEST TO SEND) THRESHOLD? ..................................................................78
5.12 WHAT IS BEACON INTERVAL?.................................................................................................78
5.13 WHAT IS PREAMBLE TYPE?....................................................................................................79
5.14 WHAT IS SSID BROADCAST? .................................................................................................79
5.15 WHAT IS WI-FI PROTECTED ACCESS (WPA)? ........................................................................79
5.16 WHAT IS WPA2?....................................................................................................................80
5.17 WHAT IS 802.1X AUTHENTICATION? ......................................................................................80
5.18 WHAT IS TEMPORAL KEY INTEGRITY PROTOCOL (TKIP)? .....................................................80
5.19 WHAT IS ADVANCED ENCRYPTION STANDARD (AES)? ..........................................................80
5.20 WHAT IS INTER-ACCESS POINT PROTOCOL (IAPP)?...............................................................80
5.21 WHAT IS WIRELESS DISTRIBUTION SYSTEM (WDS)?.............................................................81
5.22 WHAT IS UNIVERSAL PLUG AND PLAY (UPNP)?.....................................................................81
5.23 WHAT IS MAXIMUM TRANSMISSION UNIT (MTU) SIZE?........................................................81
5.24 WHAT IS CLONE MAC ADDRESS?..........................................................................................81
5.25 WHAT IS DDNS?....................................................................................................................81
5.26 WHAT IS NTP CLIENT? ..........................................................................................................81
5.27 WHAT IS VPN?.......................................................................................................................81
5.28 WHAT IS IPSEC?....................................................................................................................82
5.29 WHAT IS WLAN BLOCK RELAY BETWEEN CLIENTS?............................................................82
5.30 WHAT IS WMM?....................................................................................................................82
5.31 WHAT IS WLAN ACK TIMOUT?.........................................................................................82
5.32 WHAT IS MODULATION CODING SCHEME (MCS)?.................................................................82
5.33 WHAT IS FRAME AGGREGATION?...........................................................................................82
5.34 WHAT IS GUARD INTERVALS (GI)?.........................................................................................83
6 CONFIGURATION EXAMPLES........................................................................................... 83
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
i
Revision History
DATE REVISION OF USER’S MANUAL FIRMWARE
2012/12/25 Version 1.0 DAR1x1-3221.3
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
ii
Terminology
3DES Triple Data Encryption Standard
AES Advanced Encryption Standard
ANSI American National Standards Institute
AP Access Point
CCK Complementary Code Keying
CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance
CSMA/CD Carrier Sense Multiple Access/ Collision Detection
DDNS Dynamic Domain Name Server
DH Diffie-Hellman Algorithm
DHCP Dynamic Host Configuration Protocol
DSSS Direct Sequence Spread Spectrum
EAP Extensible Authentication Protocol
ESP Encapsulating Security Payload
FCC Federal Communications Commission
FTP File Transfer Protocol
GI Guard Intervals
IAPP Inter Access Point Protocol
IEEE Institute of Electrical and Electronic Engineers
IKE Internet Key Exchange
IP Internet Protocol
ISM Industrial, Scientific and Medical
LAN Local Area Network
MAC Media Access Control
MCS Modulation Coding Scheme
MD5 Message Digest 5
NAT Network Address Translation
NT Network Termination
NTP Network Time Protocol
PPTP Point to Point Tunneling Protocol
PSD Power Spectral Density
RF Radio Frequency
SHA1 Secure Hash Algorithm
SNR Signal to Noise Ratio
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
iii
SSID Service Set Identification
TCP Transmission Control Protocol
TFTP Trivial File Transfer Protocol
TKIP Temporal Key Integrity Protocol
UPNP Universal Plug and Play
VPN Virtual Private Network
WDS Wireless Distribution System
WEP Wired Equivalent Privacy
WISP Wireless Internet Service Provider
WLAN Wireless Local Area Network
WPA Wi-Fi Protected Access
WPS Wi-Fi Protected Setup
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
1
1 Introduction
The Wireless LAN Travel AP/Router is an affordable IEEE 802.11b/g/n of wireless LAN
Travel AP/Router solution; setting SOHO for high performance, secure, manageable and
reliable WLAN.
This document describes the steps required for the initial IP address assign and other WLAN
configuration. The description includes the implementation of the above steps.
1.1 Package contents
The package of the WLAN Travel AP/Router includes the following items,
9 The WLAN Travel AP/Router
9 The Documentation CD
9 RJ-45 Cable Line (Optional)
1.2 Product Features
Generic AP
¾ Compatible with IEEE 802.11n Specifications provides wireless speed up to
150Mbps data rate.
¾ Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet
speeds of 54Mbps data rate.
¾ Maximizes the performance and ideal for media-centric applications like streaming
video, gaming and Voice over IP technology.
¾ Supports WPS, 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption and
WPA with Radius function to protect the wireless data transmission.
¾ Supports IEEE 802.1x Authentication.
¾ Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.
¾ Supports DHCP server to provide clients auto IP addresses assignment.
¾ Supports WEB based management and configuration.
¾ Supports NTP client service.
¾ Supports Log table and remote Log service.
Generic Router
¾ Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet
speeds of 54Mbps data rate.
¾ Maximizes the performance and ideal for media-centric applications like streaming
video, gaming and Voice over IP technology.
¾ Supports WPS, 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption and
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
2
WPA with Radius function to protect the wireless data transmission.
¾ Supports IEEE 802.1x Authentication.
¾ Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.
¾ Supports DHCP server to provide clients auto IP addresses assignment.
¾ Supports DHCP client, static IP, PPPoE, PPTP L2TP of WAN Interface.
¾ Supports firewall security with Port filtering, IP filtering, MAC filtering, Port
forwarding, DMZ hosting, URL filtering and Virtual Server functions.
¾ Supports WEB based management and configuration.
¾ Supports UPnP for automatic Internet access.
¾ Supports Dynamic DNS service.
¾ Supports NTP client service.
¾ Supports Log table and remote Log service.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
3
1.3 Panel Description
Front Description
LED Indicator State Description
1. WPS LED Flashing The WPS feature is Enabled.
Off The WPS feature is Disabled.
2. WLAN LED Flashing WLAN is transmitting data
On WLAN is on
Off WLAN is off
3. Network LED
ACT Flashing Data is transmitting or receiving on the network
interface.
On Port linked.
Off No link.
WLAN LED
Network LED
WPS LED
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
4
Side Description
Interfaces Description
WPS Push continually the reset button 5 ~ 10 seconds to enable the
WPS feature.
USB 1 The USB port is for power adapter
USB 2 Charge mobile device
2 Installation
2.1 Hardware Installation
Step 1: Place the Wireless LAN Travel AP/Router to the best optimum transmission
location. The best transmission location for your WLAN Travel AP/Router is
usually at the geographic center of your wireless network, with line of sign to all
of your mobile stations.
Step 2: Connect the WLAN Travel AP/Router to your wired network. Connect the
Ethernet WAN interface of WLAN Travel AP/Router by category 5 Ethernet
cable to your switch/ hub/ xDSL modem or cable modem. A straight-through
Ethernet cable with appropriate cable length is needed.
Step 3: Supply DC power to the WLAN Travel AP/Router. Use only the USB+AC/DC
power adapter supplied with the WLAN Travel AP/Router; it maybe occur
WPS
USB 1 USB 2
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
5
damage by using a different type of power adapter.
The hardware installation finished.
2.2 Software Installation
¾ There is no software drivers, patches or utilities installation needed, but only the
configuration setting. Please refer to chapter 3 for software configuration.
Notice: It will take about 50 seconds to complete the boot up sequence after
powered on the WLAN Travel AP/Router; After WPS LED flashing
stop, the WLAN Travel AP/Router is ready now.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
6
3 App Software Configuration
Screen snapshot – Homepage
Item Description
Basic Setting Set up hotspot name, hotspot security
Advance Setting Set up operation mode, wan settings... etc
Travel AP Status Show LAN & WAN status
Restart Travel AP Restart Travel AP
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
7
4 Software Configuration
There are web based management and configuration functions allowing you to have the jobs
done easily.
The WLAN Travel AP/Router is delivered with the following factory default parameters on the
Ethernet LAN interfaces.
Default IP Address: 192.168.1.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: <empty>
WEB login Password: <empty>
4.1 Prepare your PC to configure the WLAN Travel AP/Router
For OS of Microsoft Windows 95/ 98/ Me/XP:
1. Click the Start button and select Settings, then click Control Panel. The Control
Panel window will appear.
Note: Windows Me users may not see the Network control panel. If so, select View
all Control Panel options on the left side of the window
2. Move mouse and double-click the right button on Network icon. The Network
window will appear.
3. Check the installed list of Network Components. If TCP/IP is not installed, click the
Add button to install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and click Add button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK
button to install the TCP/IP protocol, it may need the Microsoft Windows CD to
complete the installation. Close and go back to Network dialog box after the TCP/IP
installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is
good to connect the Wireless LAN Access Point.
9 IP Subnet Mask: 255.255.255.0
8. Click OK and reboot your PC after completes the IP parameters setting.
For OS of Microsoft Windows 2000, XP:
1. Click the Start button and select Settings, then click Control Panel. The Control
Panel window will appear.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
8
2. Move mouse and double-click the right button on Network and Dial-up Connections
icon. Move mouse and double-click the Local Area Connection icon. The Local Area
Connection window will appear. Click Properties button in the Local Area
Connection window.
3. Check the installed list of Network Components. If TCP/IP is not installed, click the
Add button to install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and click Add button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK
button to install the TCP/IP protocol, it may need the Microsoft Windows CD to
complete the installation. Close and go back to Network dialog box after the TCP/IP
installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is
good to connect the Wireless LAN Access Point.
9 IP Subnet Mask: 255.255.255.0
8. Click OK to complete the IP parameters setting.
For OS of Microsoft Windows NT:
1. Click the Start button and select Settings, then click Control Panel. The Control
Panel window will appear.
2. Move mouse and double-click the right button on Network icon. The Network
window will appear. Click Protocol tab from the Network window.
3. Check the installed list of Network Protocol window. If TCP/IP is not installed, click
the Add button to install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and click Add button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK
button to install the TCP/IP protocol, it may need the Microsoft Windows CD to
complete the installation. Close and go back to Network dialog box after the TCP/IP
installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is
good to connect the Wireless LAN Access Point.
9 IP Subnet Mask: 255.255.255.0
8. Click OK to complete the IP parameters setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
9
For OS of Microsoft Windows Vista, Win7, Win8:
1. Click the Start button and select Settings, then click Control Panel. The Control
Panel window will appear.
2. Move mouse and double-click the right button on Network Connections item. The
Network Connections window will appear. Double click Local Area Connection icon,
then User Account Control window shown. Right click Continue button to set
properties.
3. In Local Area Connection Properties window, Choose Networking tab, move mouse
and click Internet Protocol Version 4 (TCP/IPv4), then click Properties button.
4. Move mouse and click General tab, Select Specify an IP address and type in values
as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is
good to connect the Wireless LAN Access Point.
9 IP Subnet Mask: 255.255.255.0
5. Click OK to complete the IP parameters setting.
4.2 Connect to the WLAN Travel AP/Router
Open a WEB browser, i.e. Microsoft Internet Explore 6.1 SP1 or above, then enter
192.168.1.254 on the URL to connect the WLAN Travel AP/Router.
4.3 Management and configuration on the WLAN Travel AP/Router - AP Mode
4.3.1 Operation Mode
This page is used to configure which mode WLAN Travel AP/Router acts
Screen snapshot – Operation Mode
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
10
Item Description
AP Each interface (LAN and Wireless) regards as bridge.
NAT, Firewall and all router’s functions are not
supported
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
4.3.2 Wireless - Basic Settings
This page is used to configure the parameters for wireless LAN clients that may
connect to your Travel AP/Router. Here you may change wireless encryption
settings as well as wireless network parameters.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
11
Screen snapshot – Wireless Basic Settings
Item Description
Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(N)
2.4GHz(B+G)/ 2.4GHz(G+N) / 2.4GHz(B+G+N)
Mode Click to select the WLAN AP wireless mode.
Network Type While Mode is selected to be Client. Click to select the
network type infrastructure or Ad hoc.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
12
SSID It is the wireless network name. The SSID can be 32
bytes long.
Channel Width Select the operating channel width 20 MHz or 40 MHz.
[N band only]
Control Sideband Select the Sideband with Upper or Lower for channel
width 40MHz. [N band only]
Channel Number Select the wireless communication channel from
pull-down menu.
Broadcast SSID Click to enable or disable the SSID broadcast function.
Refer to 4.14 What is SSID Broadcast?
WMM Click Enabled/Disabled to init WMM feature.
[ B/G/B+G Mode only]
Data Rate Select the transmission data rate from pull-down menu.
Data rate can be auto-select, 1M to 54Mbps or MCS.
Refer to 4.32 What is Modulation Coding Schemes
(MCS)?
Associated Clients Click the Show Active Clients button to open Active
Wireless Client Table that shows the MAC address,
transmit-packet, receive-packet and transmission-rate for
each associated wireless client.
Enable Mac Clone
(Single Ethernet Client)
Take Laptop NIC MAC address as wireless client MAC
address. [Client Mode only]
Enable Universal
Repeater Mode
Click to enable Universal Repeater Mode
SSID of Extended
Interface
Assign SSID when enables Universal Repeater Mode.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.3.3 Wireless - Advanced Settings
These settings are only for more technically advanced users who have a
sufficient knowledge about wireless LAN. These settings should not be changed
unless you know what effect the changes will have on your WLAN Travel
AP/Router.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
13
Screen snapshot – Wireless Advanced Settings
Item Description
Fragment Threshold Set the data packet fragmentation threshold, value can be
written between 256 and 2346 bytes.
Refer to 4.10 What is Fragment Threshold?
RTS Threshold Set the RTS Threshold, value can be written between 0
and 2347 bytes.
Refer to 4.11 What is RTS(Request To Send) Threshold?
Beacon Interval Set the Beacon Interval, value can be written between 20
and 1024 ms.
Refer to 4.12 What is Beacon Interval?
Preamble Type Click to select the Long Preamble or Short Preamble
support on the wireless data packet transmission.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
14
Refer to 4.13 What is Preamble Type?
IAPP Click to enable or disable the IAPP function.
Refer to 4.20 What is Inter-Access Point Protocol(IAPP)?
Protection Protect 802.11n user priority.
Aggregation Click to enable or disable the Aggregation function.
Refer to 4.33 What is Aggregation?
Short GI Click to enable or disable the short Guard Intervals
function.
Refer to 4.34 What is Guard Intervals (GI)?
WLAN Partition Click to enable or disable that prevents associated
wireless clients from communication with each other.
STBC Click to enable or disable the STBC function.
20/40MHz Coexist Click to enable or disable the 20/40MHz Coexist
function.
RF Output Power To adjust transmission power level.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
4.3.4 Wireless - Security Setup
This page allows you setup the wireless security. Turn on WEP, WPA, WPA2 by
using encryption keys could prevent any unauthorized access to your wireless
network.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
15
Screen snapshot – Wireless Security Setup
Item Description
Select SSID Select the SSID from multiple APs.
Encryption Select the encryption supported over wireless access. The
encryption method can be None, WEP, WPA, WPA2 or
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
16
WPA-Mixed
Refer to 4.9 What is WEP?
4.15 What is Wi-Fi Protected Access (WPA)?
4.16 What is WPA2?
Use 802.1x
Authentication
While Encryption is selected to be WEP.
Click the check box to enable IEEE 802.1x
authentication function.
Refer to 4.17 What is 802.1x Authentication?
Authentication Type Click to select the authentication type in Open System,
Shared Key or Auto selection.
Key Length Select the WEP shared secret key length from pull-down
menu. The length can be chose between 64-
b
it and
128-bit (known as “WEP2”) keys.
The WEP key is composed of initialization vector (24
bits) and secret key (40-bit or 104-bit).
Key Format Select the WEP shared secret key format from pull-down
menu. The format can be chose between plant text
(ASCII) and hexadecimal (HEX) code.
Encryption Key Secret key of WEP security encryption function.
WPA Authentication
Mode
While Encryption is selected to be WPA.
Click to select the WPA Authentication Mode with
Enterprise (RADIUS) or Personal (Pre-Shared Key).
Refer to 4.15 What is Wi-Fi Protected Access (WPA)?
WPA Cipher Suite Select the Cipher Suite for WPA encryption.
4.18 What is Temporal Key Integrity Protocol (TKIP)?
4.19 What is Advanced Encryption Standard (AES)?
WPA2 Cipher Suite Select the Cipher Suite for WPA2 encryption.
Pre-Shared Key Format While Encryption is selected to be WPA.
Select the Pre-shared key format from the pull-down
menu. The format can be Passphrase or Hex (64
characters). [WPA, Personal(Pre-Shared Key) only]
Pre-Shared Key Fill in the key value. [WPA, Personal(Pre-Shared Key)
only]
Enable
Pre-Authentication
Click to enable Pre-Authentication. [WPA2/WPA2
Mixed only, Enterprise only]
Authentication Set the IP address, port and login password information
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
17
RADIUS Server of authentication RADIUS sever.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
WEP encryption key (secret key) length:
Length
Format 64-bit 128-bit
ASCII 5 characters 13 characters
HEX 10 hexadecimal codes 26 hexadecimal codes
4.3.5 Site Survey
This page is used to view or configure other APs near yours.
Screen snapshot – Wireless Site Survey
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
18
Item Description
Site Survey Click the SiteSurvey button to re-scan site survey on the
screen.
SSID It shows the SSID of AP.
BSSID It shows BSSID of AP.
Channel It show the current channel of AP occupied.
Type It show which type AP acts.
Encrypt It shows the encryption status.
Signal It shows the power level of current AP.
Select Click to select AP or client you’d like to connect.
Connect Click the Connect button to establish connection.
4.3.6 WPS
This page allows you to change the setting for WPS (Wi-Fi Protected Setup).
Using this feature could let your wireless client atomically synchronize its
setting and connect to the Access Point in a minute without any hassle.
Screen snapshot – Wi-Fi Protected Setup
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
19
Item Description
Disable WPS Click on to disable the Wi-Fi Protected Setup function.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
WPS Status Show WPS status is Configured or UnConfigured.
Auto-lock-down state Show Auto-lock-down state is locked or Unlocked.
Self-PIN Number Fill in the PIN Number of AP to register the wireless
distribution system access capability.
Push Button
Configuration
The Start PBC button provides tool to scan the wireless
network. If any Access Point or IBSS is found, you could
connect it automatically when client join PBC mode.
STOP WSC Click on to stop the WSC function.
Client PIN Number Fill in the Client PIN Number from your Client sites.
4.3.7 Schedule
This page is to configure the wireless activation timestamp by users.
Screen snapshot – Wireless Schedule
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
20
Item Description
Enable Wireless
Schedule
Click on to enable the wireless schedule function.
Day Click the one or more of days to set the rules.
From Click 24 hrs or set the starting time.
To Click 24 hrs or set the ending time.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.3.8 LAN Interface Setup
This page is used to configure the parameters for local area network that
connects to the LAN ports of your WLAN Travel AP/Router. Here you may
change the setting for IP address, subnet mask, DHCP, etc.
Screen snapshot – LAN Interface Setup
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
21
Item Description
IP Address Fill in the IP address of LAN interfaces of this WLAN
Access Point.
Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN
Access Point.
DHCP Click to select Disabled, Client or Server in different
operation mode of wireless Access Point.
DHCP Client Range Fill in the start IP address and end IP address to allocate a
range of IP addresses; client with DHCP function set will
be assigned an IP address from the range.
Show Client Click to open the Active DHCP Client Table window that
shows the active clients with their assigned IP address,
MAC address and time expired information. [Server
mode only]
DHCP Lease Time Fill in the DHCP Lease Time from the range.
Static DHCP Select enable or disable the Static DHCP function from
pull-down menu. [Server mode only]
Set Static DHCP Manual setup Static DHCP IP address for specific MAC
address. [Server mode only]
Domain Name Assign Domain Name and dispatch to DHCP clients. It is
optional field.
802.1d Spanning Tree Select enable or disable the IEEE 802.1d Spanning Tree
function from pull-down menu.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
22
I Static DHCP Setup
Screen snapshot – Static DHCP Setup
Item Description
Enable Static DHCP Click on to enable the Static DHCP function.
IP Address If you select the Set Static DHCP on LAN interface, fill
in the IP address for it.
MAC Address If you select the Set Static DHCP on LAN interface, fill
in the MAC address for it.
Comment Fill in the comment tag for the registered Static DHCP.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Static DHCP List It shows IP Address、MAC Address from the Static
DHCP.
Delete Selected Click to delete the selected clients that will be removed
from the Static DHCP list.
Delete All Click to delete all the registered clients from the Static
DHCP list.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
23
4.3.9 Status
This page shows the current status and some basic settings of the device, includes
system, wireless, Ethernet LAN and WAN configuration information.

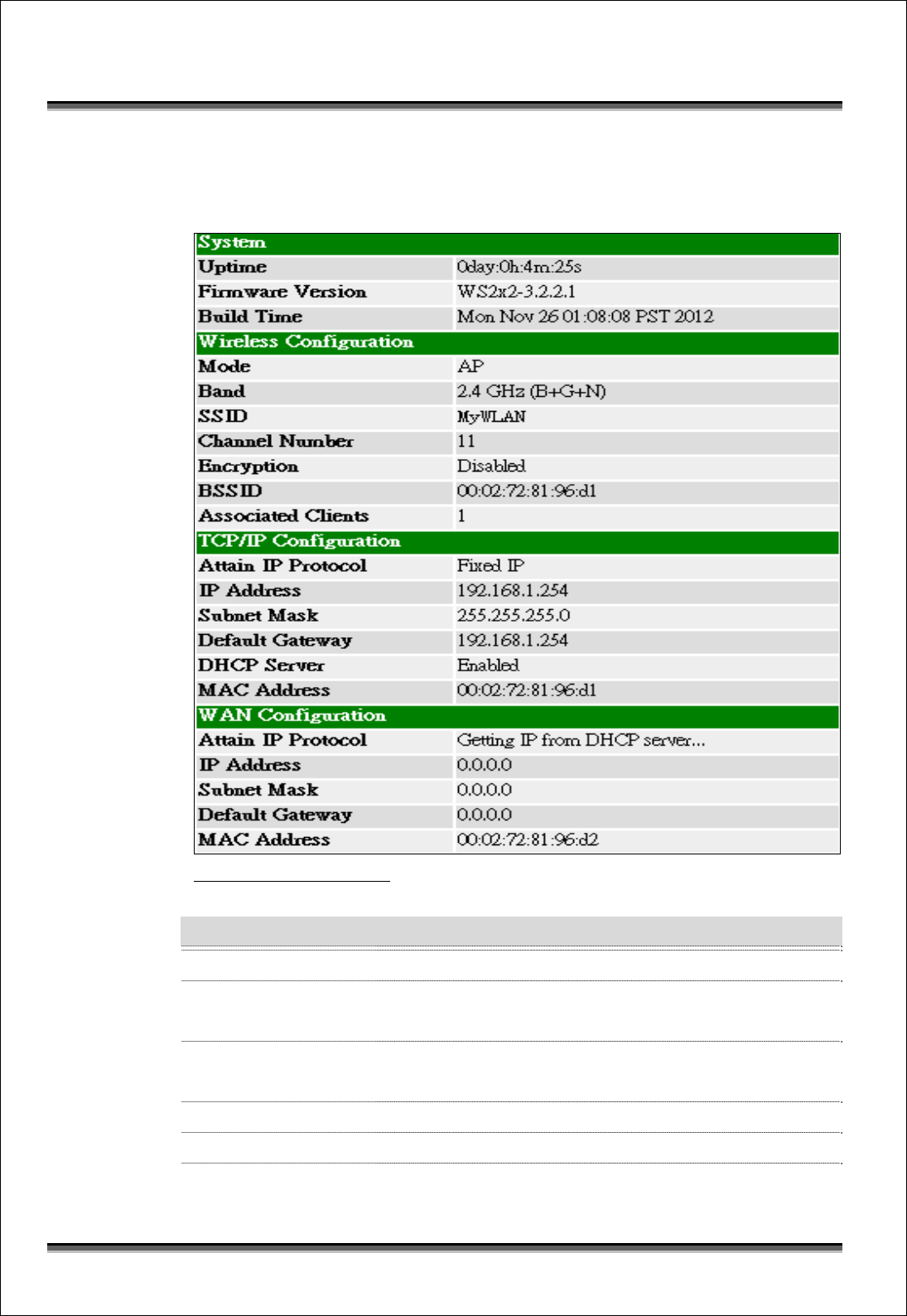

Screen snapshot – Status
Item Description
System
Uptime It shows the duration since WLAN Travel AP/Router is
powered on.
Firmware version It shows the firmware version of WLAN Travel
AP/Router.
Build time It shows the Build-up time of firmware
Wireless configuration
Mode It shows wireless operation mode
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
24
Band It shows the current wireless operating frequency.
SSID It shows the SSID of this WLAN Travel AP/Router.
The SSID is the unique name of WLAN Travel
AP/Router and shared among its service area, so all
devices attempts to join the same wireless network can
identify it.
Channel Number It shows the wireless channel connected currently.
Encryption It shows the status of encryption function.
BSSID It shows the BSSID address of the WLAN Travel
AP/Router. BSSID is a six-byte address.
Associated Clients It shows the number of connected clients (or stations,
PCs).
TCP/IP configuration
Attain IP Protocol It shows type of connection.
IP Address It shows the IP address of LAN interfaces of WLAN
Travel AP/Router.
Subnet Mask It shows the IP subnet mask of LAN interfaces of WLAN
Travel AP/Router.
Default Gateway It shows the default gateway setting for LAN interfaces
outgoing data packets.
DHCP Server It shows the DHCP server is enabled or not.
MAC Address It shows the MAC address of LAN interfaces of WLAN
Travel AP/Router.
WAN configuration
Attain IP Protocol It shows how the WLAN Travel AP/Router gets the IP
address. The IP address can be set manually to a fixed
one or set dynamically by DHCP server or attain IP by
PPPoE / PPTP /GSM 3.5G connection.
IP Address It shows the IP address of WAN interface of WLAN
Travel AP/Router.
Subnet Mask It shows the IP subnet mask of WAN interface of WLAN
Travel AP/Router.
Default Gateway It shows the default gateway setting for WAN interface
outgoing data packets.
MAC Address It shows the MAC address of WAN interface of WLAN
Travel AP/Router.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
25
WAN Link Status It shows WAN connection status.
4.3.10 Management - Statistics
This page shows the packet counters for transmission and reception regarding
to wireless, Ethernet LAN and Ethernet WAN networks.
Screen snapshot – Management - Statistics
Item Description
Wireless LAN
Sent Packets
It shows the statistic count of sent packets on the wireless
LAN interface.
Wireless LAN
Received Packets
It shows the statistic count of received packets on the
wireless LAN interface.
Ethernet LAN
Sent Packets
It shows the statistic count of sent packets on the
Ethernet LAN interface.
Ethernet LAN
Received Packets
It shows the statistic count of received packets on the
Ethernet LAN interface.
Ethernet WAN
Sent Packets
It shows the statistic count of sent packets on the
Ethernet WAN interface.
Ethernet WAN
Received Packets
It shows the statistic count of received packets on the
Ethernet WAN interface.
Refresh Click the refresh the statistic counters on the screen.
4.3.11 Management - Time Zone Setting
This page is used to configure NTP client to get current time.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
26
Screen snapshot – Management – Time Zone Settings
Item Description
Current Time It shows the current time.
Copy Computer Time Click the Copy Computer Time button.
Time Zone Select Click the time zone in your country.
Enable NTP client
update
Click the checkbox to enable NTP client update. Refer to
4.26 What is NTP Client?
Automatically Adjust
Daylight Saving
Click to enable Daylight Saving adjustment
automatically.
NTP Server Click select default or input NTP server IP address.
Apply Change Click the Apply Changes button to save and enable NTP
client service.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Refresh Click the refresh the current time shown on the screen.
4.3.12 Management - Log
This page is used to configure the remote log server and shown the current log.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
27
Screen snapshot – Management – Log
Item Description
Enable Log
System all
Wirelessy
DoS
Click the checkbox to enable log.
Show all log of WLAN Travel AP/Router
Only show wireless log
Only show Denial-of-Service log
Enable Remote Log
Log Server IP Address
Click the checkbox to enable remote log service.
Input the remote log IP address
Apply Changes Click the Apply Changes button to save above settings.
Refresh Click the refresh the log shown on the screen.
Clear Clear log display screen
4.3.13 Management - Upgrade Firmware
This page allows you upgrade the Access Point firmware to new version.
Please note, do not power off the device during the upload because it may
crash the system.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
28
Screen snapshot – Management - Upgrade Firmware
Item Description
Select File Click the Browse button to select the new version of web
firmware image file.
Firmware Version It shows the current firmware version.
Upload Click the Upload
b
utton to update the selected web
firmware image to the WLAN Travel AP/Router.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.3.14 Management Save/ Reload Settings
This page allows you save current settings to a file or reload the settings from
the file that was saved previously. Besides, you could reset the current
configuration to factory default.
Screen snapshot – Management - Save/Reload Settings
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
29
Item Description
Save Settings to File Click the Save button to download the configuration
parameters to your personal computer.
Load Settings from File Click the Browse
b
utton to select the configuration files
then click the Upload button to update the selected
configuration to the WLAN Travel AP/Router.
Reset Settings to
Default
Click the Reset button to reset the configuration
parameter to factory defaults.
4.3.15 Management - Password Setup
This page is used to set the account to access the web server of Access Point.
Empty user name and password will disable the protection.
+
Screen snapshot – Management - Password Setup
Item Description
User Name Fill in the user name for web management login control.
New Password Fill in the password for web management login control.
Confirmed Password Because the password input is invisible, so please fill in
the password again for confirmation purpose.
Apply Changes Clear the User Name and Password fields to empty,
means to apply no web management login control.
Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
30
4.4 Management and configuration on the WLAN Travel AP/Router - Router
Mode
4.4.1 ULinker Operation Mode
This page is used to configure which mode WLAN Travel AP/Router acts
Screen snapshot – ULinker Operation Mode
Item Description
Router Each interface (LAN and Wireless) regards as bridge.
NAT, Firewall and all router’s functions.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
4.4.2 Wireless - Basic Settings
This page is used to configure the parameters for wireless LAN clients that may
connect to your Travel AP/Router. Here you may change wireless encryption
settings as well as wireless network parameters.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
31
Screen snapshot – Wireless Basic Settings
Item Description
Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(N)
2.4GHz(B+G)/ 2.4GHz(G+N) / 2.4GHz(B+G+N)
Mode Click to select the WLAN AP wireless mode.
Network Type While Mode is selected to be Client. Click to select the
network type infrastructure or Ad hoc.
SSID It is the wireless network name. The SSID can be 32
bytes long.
Channel Width Select the operating channel width 20 MHz or 40 MHz.
[N band only]
Control Sideband Select the Sideband with Upper or Lower for channel
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
32
width 40MHz. [N band only]
Channel Number Select the wireless communication channel from
pull-down menu.
Broadcast SSID Click to enable or disable the SSID broadcast function.
Refer to 4.14 What is SSID Broadcast?
WMM Click Enabled/Disabled to init WMM feature.
[ B/G/B+G Mode only]
Data Rate Select the transmission data rate from pull-down menu.
Data rate can be auto-select, 1M to 54Mbps or MCS.
Refer to 4.32 What is Modulation Coding Schemes
(MCS)?
Associated Clients Click the Show Active Clients button to open Active
Wireless Client Table that shows the MAC address,
transmit-packet, receive-packet and transmission-rate for
each associated wireless client.
Enable Mac Clone
(Single Ethernet Client)
Take Laptop NIC MAC address as wireless client MAC
address. [Client Mode only]
Enable Universal
Repeater Mode
Click to enable Universal Repeater Mode
SSID of Extended
Interface
Assign SSID when enables Universal Repeater Mode.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.3 Wireless - Advanced Settings
These settings are only for more technically advanced users who have a
sufficient knowledge about wireless LAN. These settings should not be changed
unless you know what effect the changes will have on your WLAN Travel
AP/Router.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
33
Screen snapshot – Wireless Advanced Settings
Item Description
Fragment Threshold Set the data packet fragmentation threshold, value can be
written between 256 and 2346 bytes.
Refer to 4.10 What is Fragment Threshold?
RTS Threshold Set the RTS Threshold, value can be written between 0
and 2347 bytes.
Refer to 4.11 What is RTS(Request To Send) Threshold?
Beacon Interval Set the Beacon Interval, value can be written between 20
and 1024 ms.
Refer to 4.12 What is Beacon Interval?
Preamble Type Click to select the Long Preamble or Short Preamble
support on the wireless data packet transmission.
Refer to 4.13 What is Preamble Type?
IAPP Click to enable or disable the IAPP function.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
34
Refer to 4.20 What is Inter-Access Point Protocol(IAPP)?
Protection Protect 802.11n user priority.
Aggregation Click to enable or disable the Aggregation function.
Refer to 4.33 What is Aggregation?
Short GI Click to enable or disable the short Guard Intervals
function.
Refer to 4.34 What is Guard Intervals (GI)?
WLAN Partition Click to enable or disable that prevents associated
wireless clients from communication with each other.
20/40MHz Coexist Click to enable or disable the 20/40MHz Coexist
function.
RF Output Power To adjust transmission power level.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
4.4.4 Wireless - Security Setup
This page allows you setup the wireless security. Turn on WEP, WPA, WPA2 by
using encryption keys could prevent any unauthorized access to your wireless
network.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
35
Screen snapshot – Wireless Security Setup
Item Description
Select SSID Select the SSID from multiple APs.
Encryption Select the encryption supported over wireless access. The
encryption method can be None, WEP, WPA, WPA2 or
WPA-Mixed
Refer to 4.9 What is WEP?
4.15 What is Wi-Fi Protected Access (WPA)?
4.16 What is WPA2?
Use 802.1x
Authentication
While Encryption is selected to be WEP.
Click the check box to enable IEEE 802.1x
authentication function.
Refer to 4.17 What is 802.1x Authentication?
Authentication Type Click to select the authentication type in Open System,
Shared Key or Auto selection.
Key Length Select the WEP shared secret key length from pull-down
menu. The length can be chose between 64-
b
it and
128-bit (known as “WEP2”) keys.
The WEP key is composed of initialization vector (24
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
36
bits) and secret key (40-bit or 104-bit).
Key Format Select the WEP shared secret key format from pull-down
menu. The format can be chose between plant text
(ASCII) and hexadecimal (HEX) code.
Encryption Key Secret key of WEP security encryption function.
WPA Authentication
Mode
While Encryption is selected to be WPA.
Click to select the WPA Authentication Mode with
Enterprise (RADIUS) or Personal (Pre-Shared Key).
Refer to 4.15 What is Wi-Fi Protected Access (WPA)?
WPA Cipher Suite Select the Cipher Suite for WPA encryption.
4.18 What is Temporal Key Integrity Protocol (TKIP)?
4.19 What is Advanced Encryption Standard (AES)?
WPA2 Cipher Suite Select the Cipher Suite for WPA2 encryption.
Pre-Shared Key Format While Encryption is selected to be WPA.
Select the Pre-shared key format from the pull-down
menu. The format can be Passphrase or Hex (64
characters). [WPA, Personal(Pre-Shared Key) only]
Pre-Shared Key Fill in the key value. [WPA, Personal(Pre-Shared Key)
only]
Authentication
RADIUS Server
Set the IP address, port and login password information
of authentication RADIUS sever.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
WEP encryption key (secret key) length:
Length
Format 64-bit 128-bit
ASCII 5 characters 13 characters
HEX 10 hexadecimal codes 26 hexadecimal codes
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
37
4.4.5 Site Survey
This page is used to view or configure other APs near yours.
Screen snapshot – Wireless Site Survey
Item Description
Site Survey Click the SiteSurvey button to re-scan site survey on the
screen.
SSID It shows the SSID of AP.
BSSID It shows BSSID of AP.
Channel It show the current channel of AP occupied.
Type It show which type AP acts.
Encrypt It shows the encryption status.
Signal It shows the power level of current AP.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
38
4.4.6 WPS
This page allows you to change the setting for WPS (Wi-Fi Protected Setup).
Using this feature could let your wireless client atomically synchronize its
setting and connect to the Access Point in a minute without any hassle.
Screen snapshot – Wi-Fi Protected Setup
Item Description
Disable WPS Click on to disable the Wi-Fi Protected Setup function.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
WPS Status Show WPS status is Configured or UnConfigured.
Auto-lock-down state Show Auto-lock-down state is locked or Unlocked.
Self-PIN Number Fill in the PIN Number of AP to register the wireless
distribution system access capability.
Push Button The Start PBC button provides tool to scan the wireless
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
39
Configuration network. If any Access Point or IBSS is found, you could
connect it automatically when client join PBC mode.
STOP WSC Click on to stop the WSC function.
Client PIN Number Fill in the Client PIN Number from your Client sites.
4.4.7 Schedule
This page is to configure the wireless activation timestamp by users.
Screen snapshot – Wireless Schedule
Item Description
Enable Wireless
Schedule
Click on to enable the wireless schedule function.
Day Click the one or more of days to set the rules.
From Click 24 hrs or set the starting time.
To Click 24 hrs or set the ending time.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
40
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.8 LAN Interface Setup
This page is used to configure the parameters for local area network that
connects to the LAN ports of your WLAN Travel AP/Router. Here you may
change the setting for IP address, subnet mask, DHCP, etc.
Screen snapshot – LAN Interface Setup
Item Description
IP Address Fill in the IP address of LAN interfaces of this WLAN
Access Point.
Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN
Access Point.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
41
DHCP Click to select Disabled, Client or Server in different
operation mode of wireless Access Point.
DHCP Client Range Fill in the start IP address and end IP address to allocate a
range of IP addresses; client with DHCP function set will
be assigned an IP address from the range.
Show Client Click to open the Active DHCP Client Table window that
shows the active clients with their assigned IP address,
MAC address and time expired information. [Server
mode only]
DHCP Lease Time Fill in the DHCP Lease Time from the range.
Static DHCP Select enable or disable the Static DHCP function from
pull-down menu. [Server mode only]
Set Static DHCP Manual setup Static DHCP IP address for specific MAC
address. [Server mode only]
802.1d Spanning Tree Select enable or disable the IEEE 802.1d Spanning Tree
function from pull-down menu.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
42
I Static DHCP Setup
Screen snapshot – Static DHCP Setup
Item Description
Enable Static DHCP Click on to enable the Static DHCP function.
IP Address If you select the Set Static DHCP on LAN interface, fill
in the IP address for it.
MAC Address If you select the Set Static DHCP on LAN interface, fill
in the MAC address for it.
Comment Fill in the comment tag for the registered Static DHCP.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Static DHCP List It shows IP Address、MAC Address from the Static
DHCP.
Delete Selected Click to delete the selected clients that will be removed
from the Static DHCP list.
Delete All Click to delete all the registered clients from the Static
DHCP list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
43
4.4.9 WAN Interface Setup
This page is used to configure the parameters for wide area network that connects
to the WAN port of your WLAN Broadband Router. Here you may change the
access method to Static IP, DHCP, PPPoE , PPTP L2TP or GSM 3.5G by click the
item value of WAN Access Type.
I Static IP
Screen snapshot – WAN Interface Setup – Static IP
Item Description
Static IP Click to select Static IP support on WAN interface. There
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
44
are IP address, subnet mask and default gateway settings
need to be done.
IP Address If you select the Static IP support on WAN interface, fill
in the IP address for it.
Subnet Mask If you select the Static IP support on WAN interface, fill
in the subnet mask for it.
Default Gateway If you select the Static IP support on WAN interface, fill
in the default gateway for it.
MTU Size Fill in the mtu size of MTU Size. The default value is
1500.
DNS 1 Fill in the IP address of Domain Name Server 1.
DNS 2 Fill in the IP address of Domain Name Server 2.
DNS 3 Fill in the IP address of Domain Name Server 3.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Enable uPNP Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?
Enable IGMP Proxy Click the checkbox to enable IGMP Proxy on WAN.
Enable Ping Access on
WAN
Click the checkbox to enable Ping Access on WAN.
Enable Web Server
Access on WAN
Click the checkbox to enable web configuration from
WAN side.
Enable IPsec pass
through on VPN
connection
Click the checkbox to enable IPSec packet pass through
Enable PPTP pass
through on VPN
connection
Click the checkbox to enable PPTP packet pass through
Enable L2TP pass
through on VPN
connection
Click the checkbox to enable L2TP packet pass through
Enable IPv6 pass
through VPN
connection
Click the checkbox to enable IPv6 packet pass through.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
45
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
II DHCP Client
Screen snapshot – WAN Interface Setup – DHCP Client
Item Description
DHCP Client Click to select DHCP support on WAN interface for IP
address assigned automatically from a DHCP server.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
46
Host Name Fill in the host name of Host Name. The default value is
empty
MTU Size Fill in the mtu size of MTU Size. The default value is
1492
Attain DNS
Automatically
Click to select getting DNS address for DHCP support.
Please select Set DNS Manually if the DHCP support is
selected.
Set DNS Manually Click to select getting DNS address for DHCP support.
DNS 1 Fill in the IP address of Domain Name Server 1.
DNS 2 Fill in the IP address of Domain Name Server 2.
DNS 3 Fill in the IP address of Domain Name Server 3.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Enable uPNP Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?
Enable IGMP Proxy Click the checkbox to enable IGMP Proxy.
Enable Ping Access on
WAN
Click the checkbox to enable WAN ICMP response.
Enable Web Server
Access on WAN
Click the checkbox to enable web configuration from
WAN side.
Enable IPsec pass
through on VPN
connection
Click the checkbox to enable IPSec packet pass through
Enable PPTP pass
through on VPN
connection
Click the checkbox to enable PPTP packet pass through
Enable L2TP pass
through on VPN
connection
Click the checkbox to enable L2TP packet pass through
Enable IPv6 pass
through on VPN
connection
Click the checkbox to enable IPv6 packet pass through
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
47
III PPPoE
Screen snapshot – WAN Interface Setup – PPPoE
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
48
Item Description
PPPoE Click to select PPPoE support on WAN interface. There
are user name, password, connection type and idle time
settings need to be done.
User Name If you select the PPPoE support on WAN interface, fill in
the user name and password to login the PPPoE server.
Password If you select the PPPoE support on WAN interface, fill in
the user name and password to login the PPPoE server.
Service Name(AC) Fill in the service name of Service Name. The default
value is empty.
Connection Type Select the connection type from pull-down menu. There
are Continuous, Connect on Demand and Manual three
types to select.
Continuous connection type means to setup the
connection through PPPoE protocol whenever this
WLAN Broadband Router is powered on.
Connect on Demand connection type means to setup the
connection through PPPoE protocol whenever you send
the data packets out through the WAN interface; there are
a watchdog implemented to close the PPPoE connection
while there are no data sent out longer than the idle time
set.
Manual connection type means to setup the connection
through the PPPoE protocol by clicking the Connect
button manually, and clicking the Disconnect button
manually.
Idle Time If you select the PPPoE and Connect on Demand
connection type, fill in the idle time for auto-disconnect
function. Value can be between 1 and 1000 minutes.
MTU Size Fill in the mtu size of MTU Size. The default value is
1452. Refer to 4.23 What is Maximum Transmission Unit
(MTU) Size?
Attain DNS
Automatically
Click to select getting DNS address for PPPoE support.
Please select Set DNS Manually if the PPPoE support is
selected.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
49
Set DNS Manually Click to select getting DNS address for Static IP support.
DNS 1 Fill in the IP address of Domain Name Server 1.
DNS 2 Fill in the IP address of Domain Name Server 2.
DNS 3 Fill in the IP address of Domain Name Server 3.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Enable uPNP Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?
Enable IGMP Proxy Click the checkbox to enable IGMP Proxy.
Enable Ping Access on
WAN
Click the checkbox to enable WAN ICMP response.
Enable Web Server
Access on WAN
Click the checkbox to enable web configuration from
WAN side.
Enable IPsec pass
through on VPN
connection
Click the checkbox to enable IPSec packet pass through
Enable PPTP pass
through on VPN
connection
Click the checkbox to enable PPTP packet pass through
Enable L2TP pass
through on VPN
connection
Click the checkbox to enable L2TP packet pass through
Enable IPv6 pass
through on VPN
connection
Click the checkbox to enable IPv6 packet pass through
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
50
IV PPTP
Screen snapshot – WAN Interface Setup – PPTP
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
51
Item Description
PPTP Allow user to make a tunnel with remote site directly to
secure the data transmission among the connection. User
can use embedded PPTP client supported by this router to
make a VPN connection.
Dynamic IP (DHCP) Click the checkbox to enable Dynamic IP (DHCP).
Static IP Click the checkbox to enable Static IP.
IP Address If you select the PPTP support on WAN interface, fill in
the IP address for it.
Subnet Mask If you select the PPTP support on WAN interface, fill in
the subnet mask for it.
Default Gateway If you select the PPTP support on WAN interface, fill in
the default gateway for it.
Server IP Address Enter the IP address of the PPTP Server.
User Name If you select the PPTP support on WAN interface, fill in
the user name and password to login the PPTP server.
Password If you select the PPTP support on WAN interface, fill in
the user name and password to login the PPTP server.
Connection Type Select the connection type from pull-down menu. There
are Continuous, Connect on Demand and Manual three
types to select.
Continuous connection type means to setup the
connection through PPTP protocol whenever this WLAN
Broadband Router is powered on.
Connect on Demand connection type means to setup the
connection through PPTP protocol whenever you send
the data packets out through the WAN interface; there are
a watchdog implemented to close the PPTP connection
while there are no data sent out longer than the idle time
set.
Manual connection type means to setup the connection
through the PPTP protocol by clicking the Connect
button manually, and clicking the Disconnect button
manually.
Idle Time If you select the PPTP and Connect on Demand
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
52
connection type, fill in the idle time for auto-disconnect
function. Value can be between 1 and 1000 minutes.
MTU Size Fill in the mtu size of MTU Size. The default value is
1460. Refer to 4.23 What is Maximum Transmission Unit
(MTU) Size?
Request MPPE
Encryption
Click the checkbox to enable request MPPE encryption.
Request MPPC
Compression
Click the checkbox to enable request MPPC
compression.
Attain DNS
Automatically
Click to select getting DNS address for PPTP support.
Please select Set DNS Manually if the PPTP support is
selected.
Set DNS Manually Click to select getting DNS address for PPTP support.
DNS 1 Fill in the IP address of Domain Name Server 1.
DNS 2 Fill in the IP address of Domain Name Server 2.
DNS 3 Fill in the IP address of Domain Name Server 3.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Enable uPNP Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?
Enable IGMP Proxy Click the checkbox to enable IGMP Proxy.
Enable Ping Access on
WAN
Click the checkbox to enable WAN ICMP response.
Enable Web Server
Access on WAN
Click the checkbox to enable web configuration from
WAN side.
Enable IPsec pass
through on VPN
connection
Click the checkbox to enable IPSec packet pass through
Enable PPTP pass
through on VPN
connection
Click the checkbox to enable PPTP packet pass through
Enable L2TP pass
through on VPN
connection
Click the checkbox to enable L2TP packet pass through
Enable IPv6 pass
through on VPN
Click the checkbox to enable IPv6 packet pass through
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
53
connection
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
54
V L2TP
Screen snapshot – WAN Interface Setup – PPTP
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
55
Item Description
L2TP Allow user to make a tunnel with remote site directly to
secure the data transmission among the connection. User
can use embedded L2TP client supported by this router to
make a VPN connection.
Dynamic IP (DHCP) Click the checkbox to enable Dynamic IP (DHCP).
Static IP Click the checkbox to enable Static IP.
IP Address If you select the L2TP support on WAN interface, fill in
the IP address for it.
Subnet Mask If you select the L2TP support on WAN interface, fill in
the subnet mask for it.
Default Gateway If you select the PPTP support on WAN interface, fill in
the default gateway for it.
Server IP Address Enter the IP address of the L2TP Server.
User Name If you select the L2TP support on WAN interface, fill in
the user name and password to login the L2TP server.
Password f you select the L2TP support on WAN interface, fill in
the user name and password to login the L2TP server.
Connection Type Select the connection type from pull-down menu. There
are Continuous, Connect on Demand and Manual three
types to select.
Continuous connection type means to setup the
connection through L2TP protocol whenever this WLAN
Broadband Router is powered on.
Connect on Demand connection type means to setup the
connection through L2TP protocol whenever you send
the data packets out through the WAN interface; there are
a watchdog implemented to close the L2TP connection
while there are no data sent out longer than the idle time
set.
Manual connection type means to setup the connection
through the L2TP protocol by clicking the Connect
button manually, and clicking the Disconnect button
manually.
Idle Time If you select the L2TP and Connect on Demand
connection type, fill in the idle time for auto-disconnect
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
56
function. Value can be between 1 and 1000 minutes.
MTU Size Fill in the mtu size of MTU Size. The default value is
1460. Refer to 4.23 What is Maximum Transmission Unit
(MTU) Size?
Attain DNS
Automatically
Click to select getting DNS address for L2TP support.
Please select Set DNS Manually if the L2TP support is
selected.
Set DNS Manually Click to select getting DNS address for L2TP support.
DNS 1 Fill in the IP address of Domain Name Server 1.
DNS 2 Fill in the IP address of Domain Name Server 2.
DNS 3 Fill in the IP address of Domain Name Server 3.
Clone MAC Address Fill in the MAC address that is the MAC address to be
cloned. Refer to 4.24 What is Clone MAC Address?
Enable uPNP Click the checkbox to enable uPNP function.
Refer to 4.22 What is Universal Plug and Play (uPNP)?
Enable IGMP Proxy Click the checkbox to enable IGMP Proxy.
Enable Ping Access on
WAN
Click the checkbox to enable WAN ICMP response.
Enable Web Server
Access on WAN
Click the checkbox to enable web configuration from
WAN side.
Enable IPsec pass
through on VPN
connection
Click the checkbox to enable IPSec packet pass through
Enable PPTP pass
through on VPN
connection
Click the checkbox to enable PPTP packet pass through
Enable L2TP pass
through on VPN
connection
Click the checkbox to enable L2TP packet pass through
Enable IPv6 pass
through on VPN
connection
Click the checkbox to enable IPv6 packet pass through
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
57
4.4.10 Firewall - Port Filtering
Entries in this table are used to restrict certain types of data packets from your
local network to Internet through the Gateway. Use of such filters can be
helpful in securing or restricting your local network.
Screen snapshot – Firewall - Port Filtering
Item Description
Enable Port Filtering Click to enable the port filtering security function.
Port Range
Protocol
Comments
To restrict data transmission from the local network on
certain ports, fill in the range of start-port and end-port,
and the protocol, also put your comments on it.
The Protocol can be TCP, UDP or Both.
Comments let you know about whys to restrict data from
the ports.
Apply Changes Click the Apply Changes button to register the ports to
port filtering list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Delete Selected Click to delete the selected port range that will be
removed from the port-filtering list.
Delete All Click to delete all the registered entries from the
port-filtering list.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
58
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.11 Firewall - IP Filtering
Entries in this table are used to restrict certain types of data packets from your
local network to Internet through the Gateway. Use of such filters can be
helpful in securing or restricting your local network.
Screen snapshot – Firewall - IP Filtering
Item Description
Enable IP Filtering Click to enable the IP filtering security function.
Local IP Address
Protocol
Comments
To restrict data transmission from local network on
certain IP addresses, fill in the IP address and the
protocol, also put your comments on it.
The Protocol can be TCP, UDP or Both.
Comments let you know about whys to restrict data from
the IP address.
Apply Changes Click the Apply Changes button to register the IP address
to IP filtering list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Delete Selected Click to delete the selected IP address that will be
removed from the IP-filtering list.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
59
Delete All Click to delete all the registered entries from the
IP-filtering list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.12 Firewall - MAC Filtering
Entries in this table are used to restrict certain types of data packets from your
local network to Internet through the Gateway. Use of such filters can be
helpful in securing or restricting your local network.
Screen snapshot – Firewall - MAC Filtering
Item Description
Enable MAC Filtering Click to enable the MAC filtering security function.
MAC Address
Comments
To restrict data transmission from local network on
certain MAC addresses, fill in the MAC address and your
comments on it.
Comments let you know about whys to restrict data from
the MAC address.
Apply Changes Click the Apply Changes button to register the MAC
address to MAC filtering list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Delete Selected Click to delete the selected MAC address that will be
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
60
removed from the MAC-filtering list.
Delete All Click to delete all the registered entries from the
MAC-filtering list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.13 Firewall - Port Forwarding
Entries in this table allow you to automatically redirect common network
services to a specific machine behind the NAT firewall. These settings are only
necessary if you wish to host some sort of server like a web server or mail
server on the private local network behind your Gateway's NAT firewall.
Screen snapshot – Firewall - Port Forwarding
Item Description
Enable Port Forwarding Click to enable the Port Forwarding security function.
IP Address
Protocol
Port Range
Comment
To forward data packets coming from WAN to a specific
IP address that hosted in local network behind the NAT
firewall, fill in the IP address, protocol, port range and
your comments.
The Protocol can be TCP, UDP or Both.
The Port Range for data transmission.
Comments let you know about whys to allow data
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
61
packets forward to the IP address and port number.
Apply Changes Click the Apply Changes button to register the IP address
and port number to Port forwarding list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Delete Selected Click to delete the selected IP address and port number
that will be removed from the port-forwarding list.
Delete All Click to delete all the registered entries from the
port-forwarding list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.14 Firewall – URL Filtering
URL Filtering is used to restrict users to access specific websites in internet.
Screen snapshot – Firewall – URL Filtering
Item Description
Enable URL Filtering Click to enable the URL Filtering function.
URL Address Add one URL address.
Apply Changes Click the Apply Changes button to save settings.
Reset Click the Reset button to abort change and recover the
previous configuration setting.
Delete Selected Click to delete the selected URL address that will be
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
62
removed from the URL Filtering list.
Delete All Click to delete all the registered entries from the URL
Filtering list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.15 Firewall - DMZ
A Demilitarized Zone is used to provide Internet services without sacrificing
unauthorized access to its local private network. Typically, the DMZ host
contains devices accessible to Internet traffic, such as Web (HTTP) servers,
FTP servers, SMTP (e-mail) servers and DNS servers.
Screen snapshot – Firewall - DMZ
Item Description
Enable DMZ Click to enable the DMZ function.
DMZ Host IP Address To support DMZ in your firewall design, fill in the IP
address of DMZ host that can be access from the WAN
interface.
Apply Changes Click the Apply Changes button to register the IP address
of DMZ host.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
63
4.4.16 Firewall – VLAN
Entries in this table could configure wired or wireless VLAN settings for
scalability, security and network management.
Screen snapshot – Firewall – VLAN
Item Description
Enable VLAN Click to enable the LAN function.
Enable Click Enable Ethernet LAN port, Wireless, AP or WAN
port.
Tag When ‘Tag’ is enabled,
Router will add a 802.1Q tagging (4 bytes long w/ VID,
Priority, and CFI) in the
header of each outgoing packet.
VID The VID on WAN and LAN port need not be the same.
When the packet is forwarded from LAN to WAN, the
VID of LAN
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
64
port will be carried to WAN port. Also, when packet is
come from WAN to LAN,
router will forward this packet to the LAN port, with
matched VID.
Priority Select port priority.
CFI Click to Enable CFI.
4.4.17 QoS
Entries in this table improve your online gaming experience by ensuring that
your game traffic is prioritized over other network traffic, such as FTP or Web.
Screen snapshot – QoS
Item Description
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
65
Enable QoS Click to enable the QoS function.
Automatic Uplink
Speed
Click checkbox to enable Uplink speed by system.
Manual Uplink
Speed(Kbps)
Input number to set Uplink speed.
Manual Downlink
Speed(Kbps)
Click checkbox to enable Downlink speed by system.
Manual Downlink
Speed(Kbps)
Input number to set Downlink speed.
QoS Rule Setting
Address Type Click the set type either IP or MAC address.
Local IP Address Input the range IP address of LAN.
MAC Address Input MAC address.
Mode There are 2 options to control the bandwidth. One is
Guaranteed minimum bandwidth. The other is
Restricted maximum bandwidth.
Uplink bandwidth
(Kbps)
Set Uplink bandwidth for range of IP addresses or
specific MAC address
Downlink bandwidth
(Kbps)
Set Downlink bandwidth for range of IP addresses or
specific MAC address
Comment Comment let you know about whys the restrict data from
the QoS
Apply Change Click Apply Change button to register the QoS list
Reset Click Reset button to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
66
4.4.18 Route Setup
This page is used to setup dynamic routing protocol or edit static route entry.
Screen snapshot – Routing Setup
Item Description
Enable Dynamic Route Click to enable the Dynamic Router function.
NAT Click to enable or disable the NAT function
Transmit Click to disable or RIP1, RIP2 the Transmit function.
Receive Click to disable or RIP1, RIP2 the Transmit function.
Enable Static Route Click to Enable the Static Router function
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
67
IP Address
Subnet Mask
Default Gateway
Manually Specify the packets arrive at the destination.
The internal network can be avoided through the Internet
of the packet exchange.
Metric Fill in the Metric value. The default value is empty.
Interface Click to select LAN or WAN interface.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Show Route Table Click button to show route table
Reset Click the Reset button to abort change and recover the
previous configuration setting.
Enable Virtual Server
IP Address
Protocol
Public Port Range
Comment
Comments let you know about whys to allow data
packets forward to the IP address and port number.
Apply Changes Click the Apply Changes button to register the IP address
and port number to Port forwarding list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Delete Selected
Delete All Click to delete all the registered entries from the
port-forwarding list.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
68
4.4.19 Status
This page shows the current status and some basic settings of the device,
includes system, wireless, Ethernet LAN and WAN configuration information.
Screen snapshot – Status
Item Description
System
Uptime It shows the duration since WLAN Travel AP/Router is
powered on.
Firmware version It shows the firmware version of WLAN Travel
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
69
AP/Router.
Build time It shows the Build-up time of firmware
Wireless configuration
Mode It shows wireless operation mode
Band It shows the current wireless operating frequency.
SSID It shows the SSID of this WLAN Travel AP/Router.
The SSID is the unique name of WLAN Travel
AP/Router and shared among its service area, so all
devices attempts to join the same wireless network can
identify it.
Channel Number It shows the wireless channel connected currently.
Encryption It shows the status of encryption function.
BSSID It shows the BSSID address of the WLAN Travel
AP/Router. BSSID is a six-byte address.
Associated Clients It shows the number of connected clients (or stations,
PCs).
TCP/IP configuration
Attain IP Protocol It shows type of connection.
IP Address It shows the IP address of LAN interfaces of WLAN
Travel AP/Router.
Subnet Mask It shows the IP subnet mask of LAN interfaces of WLAN
Travel AP/Router.
Default Gateway It shows the default gateway setting for LAN interfaces
outgoing data packets.
DHCP Server It shows the DHCP server is enabled or not.
MAC Address It shows the MAC address of LAN interfaces of WLAN
Travel AP/Router.
WAN configuration
Attain IP Protocol It shows how the WLAN Travel AP gets the IP address.
The IP address can be set manually to a fixed one or set
dynamically by DHCP server or attain IP by PPPoE /
PPTP /GSM 3.5G connection.
IP Address It shows the IP address of WAN interface of WLAN
Travel AP/Router.
Subnet Mask It shows the IP subnet mask of WAN interface of WLAN
Travel AP/Router.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
70
Default Gateway It shows the default gateway setting for WAN interface
outgoing data packets.
MAC Address It shows the MAC address of WAN interface of WLAN
Travel AP/Router.
WAN Link Status It shows WAN connection status.
4.4.20 Management - Statistics
This page shows the packet counters for transmission and reception regarding
to wireless, Ethernet LAN and Ethernet WAN networks.
Screen snapshot – Management - Statistics
Item Description
Wireless LAN
Sent Packets
It shows the statistic count of sent packets on the wireless
LAN interface.
Wireless LAN
Received Packets
It shows the statistic count of received packets on the
wireless LAN interface.
Ethernet LAN
Sent Packets
It shows the statistic count of sent packets on the
Ethernet LAN interface.
Ethernet LAN
Received Packets
It shows the statistic count of received packets on the
Ethernet LAN interface.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
71
4.4.21 Management - Time Zone Setting
This page is used to configure NTP client to get current time.
Screen snapshot – Management – Time Zone Settings
Item Description
Current Time It shows the current time.
Copy Computer Time Click the Copy Computer Time button.
Time Zone Select Click the time zone in your country.
Enable NTP client
update
Click the checkbox to enable NTP client update. Refer to
4.26 What is NTP Client?
Automatically Adjust
Daylight Saving
Click to enable Daylight Saving adjustment
automatically.
NTP Server Click select default or input NTP server IP address.
Apply Change Click the Apply Changes button to save and enable NTP
client service.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
Refresh Click the refresh the current time shown on the screen.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
72
4.4.22 Management - Log
This page is used to configure the remote log server and shown the current log.
Screen snapshot – Management – Log
Item Description
Enable Log
System all
Wirelessy
DoS
Click the checkbox to enable log.
Show all log of WLAN Travel AP/Router
Only show wireless log
Only show Denial-of-Service log
Enable Remote Log
Log Server IP Address
Click the checkbox to enable remote log service.
Input the remote log IP address
Apply Changes Click the Apply Changes button to save above settings.
Refresh Click the refresh the log shown on the screen.
Clear Clear log display screen
4.4.23 Management - Upgrade Firmware
This page allows you upgrade the Access Point firmware to new version.
Please note, do not power off the device during the upload because it may
crash the system.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
73
Screen snapshot – Management - Upgrade Firmware
Item Description
Select File Click the Browse button to select the new version of web
firmware image file.
Firmware Version It shows the current firmware version.
Upload Click the Upload
b
utton to update the selected web
firmware image to the WLAN Travel AP/Router.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
4.4.24 Management Save/ Reload Settings
This page allows you save current settings to a file or reload the settings from
the file that was saved previously. Besides, you could reset the current
configuration to factory default.
Screen snapshot – Management - Save/Reload Settings
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
74
Item Description
Save Settings to File Click the Save button to download the configuration
parameters to your personal computer.
Load Settings from File Click the Browse
b
utton to select the configuration files
then click the Upload button to update the selected
configuration to the WLAN Travel AP/Router.
Reset Settings to
Default
Click the Reset
b
utton to reset the configuration
parameter to factory defaults.
4.4.25 Management - Password Setup
This page is used to set the account to access the web server of Access Point.
Empty user name and password will disable the protection.
+
Screen snapshot – Management - Password Setup
Item Description
User Name Fill in the user name for web management login control.
New Password Fill in the password for web management login control.
Confirmed Password Because the password input is invisible, so please fill in
the password again for confirmation purpose.
Apply Changes Clear the User Name and Password fields to empty,
means to apply no web management login control.
Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset
b
utton to abort change and recover the
previous configuration setting.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
75
5 Frequently Asked Questions (FAQ)
5.1 What and how to find my PC’s IP and MAC address?
IP address is the identifier for a computer or device on a TCP/IP network. Networks
using the TCP/IP protocol route messages based on the IP address of the destination.
The format of an IP address is a 32-bit numeric address written as four numbers
separated by periods. Each number can be zero to 255. For example, 191.168.1.254
could be an IP address.
The MAC (Media Access Control) address is your computer's unique hardware number.
(On an Ethernet LAN, it's the same as your Ethernet address.) When you're connected to
the Internet from your computer (or host as the Internet protocol thinks of it), a
correspondence table relates your IP address to your computer's physical (MAC) address
on the LAN.
To find your PC’s IP and MAC address,
9 Open the Command program in the Microsoft Windows.
9 Type in ipconfig /all then press the Enter button.
¾ Your PC’s IP address is the one entitled IP Address and your PC’s MAC address is
the one entitled Physical Address.
5.2 What is Wireless LAN?
A wireless LAN (WLAN) is a network that allows access to Internet without the need
for any wired connections to the user’s machine.
5.3 What are ISM bands?
ISM stands for Industrial, Scientific and Medical; radio frequency bands that the Federal
Communications Commission (FCC) authorized for wireless LANs. The ISM bands are
located at 915 +/- 13 MHz, 2450 +/- 50 MHz and 5800 +/- 75 MHz.
5.4 How does wireless networking work?
The 802.11 standard define two modes: infrastructure mode and ad hoc mode. In
infrastructure mode, the wireless network consists of at least one access point connected
to the wired network infrastructure and a set of wireless end stations. This configuration
is called a Basic Service Set (BSS). An Extended Service Set (ESS) is a set of two or
more BSSs forming a single subnetwork. Since most corporate WLANs require access
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
76
to the wired LAN for services (file servers, printers, Internet links) they will operate in
infrastructure mode.

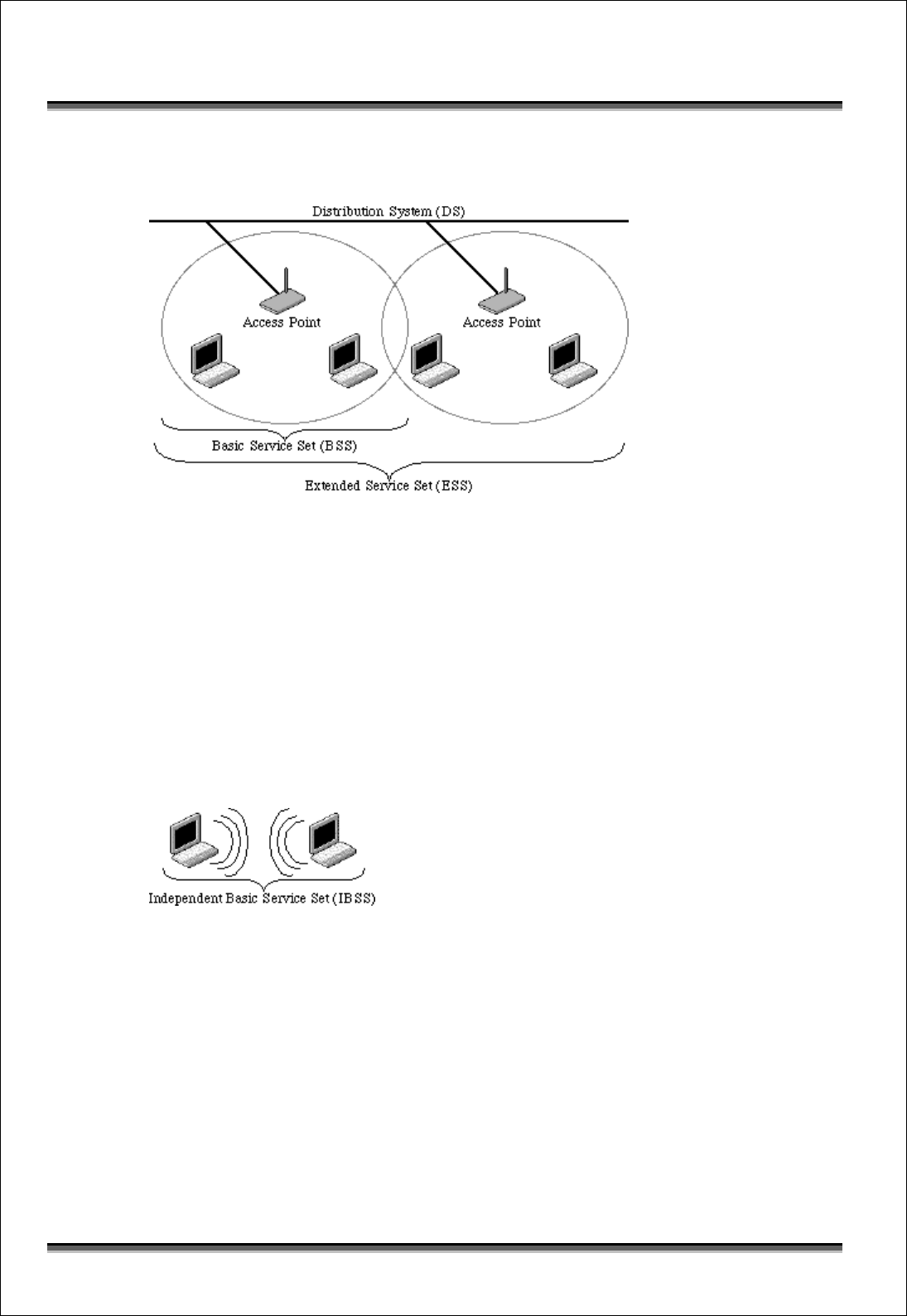

Example 1: wireless Infrastructure Mode
Ad hoc mode (also called peer-to-peer mode or an Independent Basic Service Set, or
IBSS) is simply a set of 802.11 wireless stations that communicate directly with one
another without using an access point or any connection to a wired network. This mode
is useful for quickly and easily setting up a wireless network anywhere that a wireless
infrastructure does not exist or is not required for services, such as a hotel room,
convention center, or airport, or where access to the wired network is barred (such as for
consultants at a client site).
Example 2: wireless Ad Hoc Mode
5.5 What is BSSID?
A six-byte address that distinguishes a particular a particular access point from others.
Also know as just SSID. Serves as a network ID or name.
5.6 What is ESSID?
The Extended Service Set ID (ESSID) is the name of the network you want to access. It
is used to identify different wireless networks.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
77
5.7 What are potential factors that may causes interference?
Factors of interference:
¾ Obstacles: walls, ceilings, furniture… etc.
¾ Building Materials: metal door, aluminum studs.
¾ Electrical devices: microwaves, monitors and electrical motors.
Solutions to overcome the interferences:
9 Minimizing the number of walls and ceilings.
9 Position the WLAN antenna for best reception.
9 Keep WLAN devices away from other electrical devices, eg: microwaves,
monitors, electric motors, … etc.
9 Add additional WLAN Access Points if necessary.
5.8 What are the Open System and Shared Key authentications?
IEEE 802.11 supports two subtypes of network authentication services: open system and
shared key. Under open system authentication, any wireless station can request
authentication. The station that needs to authenticate with another wireless station sends
an authentication management frame that contains the identity of the sending station.
The receiving station then returns a frame that indicates whether it recognizes the
sending station. Under shared key authentication, each wireless station is assumed to
have received a secret shared key over a secure channel that is independent from the
802.11 wireless network communications channel.
5.9 What is WEP?
An optional IEEE 802.11 function that offers frame transmission privacy similar to a
wired network. The Wired Equivalent Privacy generates secret shared encryption keys
that both source and destination stations can use to alert frame bits to avoid disclosure to
eavesdroppers.
WEP relies on a secret key that is shared between a mobile station (e.g. a laptop with a
wireless Ethernet card) and an access point (i.e. a base station). The secret key is used to
encrypt packets before they are transmitted, and an integrity check is used to ensure that
packets are not modified in transit.
5.10 What is Fragment Threshold?
The proposed protocol uses the frame fragmentation mechanism defined in IEEE 802.11
to achieve parallel transmissions. A large data frame is fragmented into several
fragments each of size equal to fragment threshold. By tuning the fragment threshold
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
78
value, we can get varying fragment sizes. The determination of an efficient fragment
threshold is an important issue in this scheme. If the fragment threshold is small, the
overlap part of the master and parallel transmissions is large. This means the spatial
reuse ratio of parallel transmissions is high. In contrast, with a large fragment threshold,
the overlap is small and the spatial reuse ratio is low. However high fragment threshold
leads to low fragment overhead. Hence there is a trade-off between spatial re-use and
fragment overhead.
Fragment threshold is the maximum packet size used for fragmentation. Packets larger
than the size programmed in this field will be fragmented.
If you find that your corrupted packets or asymmetric packet reception (all send packets,
for example). You may want to try lowering your fragmentation threshold. This will
cause packets to be broken into smaller fragments. These small fragments, if corrupted,
can be resent faster than a larger fragment. Fragmentation increases overhead, so you'll
want to keep this value as close to the maximum value as possible.
5.11 What is RTS (Request To Send) Threshold?
The RTS threshold is the packet size at which packet transmission is governed by the
RTS/CTS transaction. The IEEE 802.11-1997 standard allows for short packets to be
transmitted without RTS/CTS transactions. Each station can have a different RTS
threshold. RTS/CTS is used when the data packet size exceeds the defined RTS
threshold. With the CSMA/CA transmission mechanism, the transmitting station sends
out an RTS packet to the receiving station, and waits for the receiving station to send
back a CTS (Clear to Send) packet before sending the actual packet data.
This setting is useful for networks with many clients. With many clients, and a high
network load, there will be many more collisions. By lowering the RTS threshold, there
may be fewer collisions, and performance should improve. Basically, with a faster RTS
threshold, the system can recover from problems faster. RTS packets consume valuable
bandwidth, however, so setting this value too low will limit performance.
5.12 What is Beacon Interval?
In addition to data frames that carry information from higher layers, 802.11 includes
management and control frames that support data transfer. The beacon frame, which is a
type of management frame, provides the "heartbeat" of a wireless LAN, enabling
stations to establish and maintain communications in an orderly fashion.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
79
Beacon Interval represents the amount of time between beacon transmissions. Before a
station enters power save mode, the station needs the beacon interval to know when to
wake up to receive the beacon (and learn whether there are buffered frames at the access
point).
5.13 What is Preamble Type?
There are two preamble types defined in IEEE 802.11 specification. A long preamble
basically gives the decoder more time to process the preamble. All 802.11 devices
support a long preamble. The short preamble is designed to improve efficiency (for
example, for VoIP systems). The difference between the two is in the Synchronization
field. The long preamble is 128 bits, and the short is 56 bits.
5.14 What is SSID Broadcast?
Broadcast of SSID is done in access points by the beacon. This announces your access
point (including various bits of information about it) to the wireless world around it. By
disabling that feature, the SSID configured in the client must match the SSID of the
access point.
Some wireless devices don't work properly if SSID isn't broadcast (for example the
D-link DWL-120 USB 802.11b adapter). Generally if your client hardware supports
operation with SSID disabled, it's not a bad idea to run that way to enhance network
security. However it's no replacement for WEP, MAC filtering or other protections.
5.15 What is Wi-Fi Protected Access (WPA)?
Wi-Fi’s original security mechanism, Wired Equivalent Privacy (WEP), has been
viewed as insufficient for securing confidential business communications. A longer-term
solution, the IEEE 802.11i standard, is under development. However, since the IEEE
802.11i standard is not expected to be published until the end of 2003, several members
of the WI-Fi Alliance teamed up with members of the IEEE 802.11i task group to
develop a significant near-term enhancement to Wi-Fi security. Together, this team
developed Wi-Fi Protected Access.
To upgrade a WLAN network to support WPA, Access Points will require a WPA
software upgrade. Clients will require a software upgrade for the network interface card,
and possibly a software update for the operating system. For enterprise networks, an
authentication server, typically one that supports RADIUS and the selected EAP
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
80
authentication protocol, will be added to the network.
5.16 What is WPA2?
It is the second generation of WPA. WPA2 is based on the final IEEE 802.11i
amendment to the 802.11 standard.
5.17 What is 802.1x Authentication?
802.1x is a framework for authenticated MAC-level access control, defines Extensible
Authentication Protocol (EAP) over LANs (WAPOL). The standard encapsulates and
leverages much of EAP, which was defined for dial-up authentication with
Point-to-Point Protocol in RFC 2284.
Beyond encapsulating EAP packets, the 802.1x standard also defines EAPOL messages
that convey the shared key information critical for wireless security.
5.18 What is Temporal Key Integrity Protocol (TKIP)?
The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the IEEE 802.11i
encryption standard for wireless LANs. TKIP is the next generation of WEP, the Wired
Equivalency Protocol, which is used to secure 802.11 wireless LANs. TKIP provides
per-packet key mixing, a message integrity check and a re-keying mechanism, thus
fixing the flaws of WEP.
5.19 What is Advanced Encryption Standard (AES)?
Security issues are a major concern for wireless LANs, AES is the U.S. government’s
next-generation cryptography algorithm, which will replace DES and 3DES.
5.20 What is Inter-Access Point Protocol (IAPP)?
The IEEE 802.11f Inter-Access Point Protocol (IAPP) supports Access Point Vendor
interoperability, enabling roaming of 802.11 Stations within IP subnet.
IAPP defines messages and data to be exchanged between Access Points and between
the IAPP and high layer management entities to support roaming. The IAPP protocol
uses TCP for inter-Access Point communication and UDP for RADIUS request/response
exchanges. It also uses Layer 2 frames to update the forwarding tables of Layer 2
devices.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
81
5.21 What is Wireless Distribution System (WDS)?
The Wireless Distribution System feature allows WLAN AP to talk directly to other APs
via wireless channel, like the wireless bridge or repeater service.
5.22 What is Universal Plug and Play (uPNP)?
UPnP is an open networking architecture that consists of services, devices, and control
points. The ultimate goal is to allow data communication among all UPnP devices
regardless of media, operating system, programming language, and wired/wireless
connection.
5.23 What is Maximum Transmission Unit (MTU) Size?
Maximum Transmission Unit (MTU) indicates the network stack of any packet is larger
than this value will be fragmented before the transmission. During the PPP negotiation,
the peer of the PPP connection will indicate its MRU and will be accepted. The actual
MTU of the PPP connection will be set to the smaller one of MTU and the peer’s MRU.
The default is value 1400.
5.24 What is Clone MAC Address?
Clone MAC address is designed for your special application that request the clients to
register to a server machine with one identified MAC address.
Since that all the clients will communicate outside world through the WLAN Travel
AP/Router, so have the cloned MAC address set on the WLAN Travel AP/Router will
solve the issue.
5.25 What is DDNS?
DDNS is the abbreviation of Dynamic Domain Name Server. It is designed for user own
the DNS server with dynamic WAN IP address.
5.26 What is NTP Client?
NTP client is designed for fetching the current timestamp from internet via Network
Time protocol. User can specify time zone, NTP server IP address.
5.27 What is VPN?
VPN is the abbreviation of Virtual Private Network. It is designed for creating point-to
point private link via shared or public network.
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
82
5.28 What is IPSEC?
IPSEC is the abbreviation of IP Security. It is used to transferring data securely under
VPN.
5.29 What is WLAN Block Relay Between Clients?
An Infrastructure Basic Service Set is a BSS with a component called an Access Point
(AP). The access point provides a local relay function for the BSS. All stations in the
BSS communicate with the access point and no longer communicate directly. All frames
are relayed between stations by the access point. This local relay function effectively
doubles the range of the IBSS
5.30 What is WMM?
WMM is based on a subset of the IEEE 802.11e WLAN QoS draft standard. WMM adds
prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple
concurring applications, each with different latency and throughput requirements,
compete for network resources. By using WMM, end-user satisfaction is maintained in a
wider variety of environments and traffic conditions. WMM makes it possible for home
network users and enterprise network managers to decide which data streams are most
important and assign them a higher traffic priority.
5.31 What is WLAN ACK TIMOUT?
ACK frame has to receive ACK timeout frame. If remote does not receive in specified
period, it will be retransmitted.
5.32 What is Modulation Coding Scheme (MCS)?
MCS is Wireless link data rate for 802.11n. The throughput/range performance of a AP
will depend on its implementation of coding schemes. MCS includes variables such as
the number of spatial streams, modulation, and the data rate on each stream. Radios
establishing and maintaining a link must automatically negotiate the optimum MCS
based on channel conditions and then continuously adjust the selection of MCS as
conditions change due to interference, motion, fading, and other events.
5.33 What is Frame Aggregation?
Every 802.11 packet, no matter how small, has a fixed amount of overhead associated
with it. Frame Aggregation combines multiple smaller packets together to form one
larger packet. The larger packet can be sent without the overhead of the individual
packets. This technique helps improve the efficiency of the 802.11n radio allowing more
USER’S MANUAL OF WLAN TRAVEL AP/ROUTER Version: 1.0
83
end user data to be sent in a given time.
5.34 What is Guard Intervals (GI)?
A GI is a period of time between symbol transmission that allows reflections (from
multipath) from the previous data transmission to settle before transmitting a new
symbol.
The 802.11n draft specifies two guard intervals: 400ns (short) and 800ns (long).
Support of the 400ns GI is optional for transmit and receive. The purpose of a guard
interval is to introduce immunity to propagation delays, echoes, and reflections to which
digital data is normally very sensitive.
