CC and C Technologies WL6200A WLAN 11n USB Adapter User Manual

CC&C; Technologies, Inc. WLAN 11n USB Adapter

Manual

WLAN 11n USB Adapter
WL-6200A
USER’S MANUAL
VERSION 1.0
2007/10/24
This manual provides the necessary information for first-time users to successfully
install the Atheros network driver interface specification (NDIS) driver, for the purpose of
evaluating and / or operating the Atheros WLAN 11n USB Adapter STA Reference Design in a
Microsoft Windows environment and the Atheros Client Utility (ACU) .
This guide describes the steps required to install NDIS drivers for the WLAN 11n USB
Adapter in Windows 2000, Windows XP, Windows XP 64, Windows Vista, Windows Vista 64.
This guide also includes the detailed instructions for configuring the network adapter to interact
with an access point (AP) in infrastructure mode. Read this before installing the Atheros WLAN
11n USB Adapter and NDIS driver in the targeted operating system (OS) environment.
© All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
This manual may not be copied in any media or form without the written consent of original maker.
i
INFORMATION TO USER
Federal Communication Commission Interference Statement
You are cautioned that changes or modifications not expressly approved
by the part responsible for compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
REGULATION INFORMATION
The WLAN 11n USB Adapter must be installed and used in strict accordance
with the manufacturer’s instructions. This device complies with the following
radio frequency and safety standards.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
ii
Your device contains a low power transmitter. When device is transmitted it
sends out Radio Frequency (RF) signal. Use only with supplied antenna.
Unauthorized antenna, modification, or attachments could damage the
transmitter and may violate FCC regulations.
The users manual or instruction manual for an intentional or unintentional
radiator shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Europe- R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and
telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE)
CE Declaration of Conformity
For the following equipment:
WLAN 11n USB Adapter
(Product Name)
WL-6200A
(Model Designation)
is herewith confirmed to comply with the requirements set out in the Council (European
parliament) Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the
evaluation regarding this Directive, the following standards were applied:
EN 300 328 V1.7.1
EN 301 489-1 V1.6.1 ; EN 301 489-17 V1.2.1
EN 60950-1:2001
EN 50371:2002
1. Introduction .....………………………….................................................….. 1
2. Wireless LAN Basics ........……………………......................................……..3
3. IP ADDRESS ...............……………………...........................................……..4
4. Install Driver/Utility ........………………………......................................……..5
5. Wireless Network Configuration in Station Mode ..........………………......... 9
5.1 TRAY ICON ................................…………..……….……………………9
5.2 GENERAL CONNECTION SETTING .....……………....................... 11

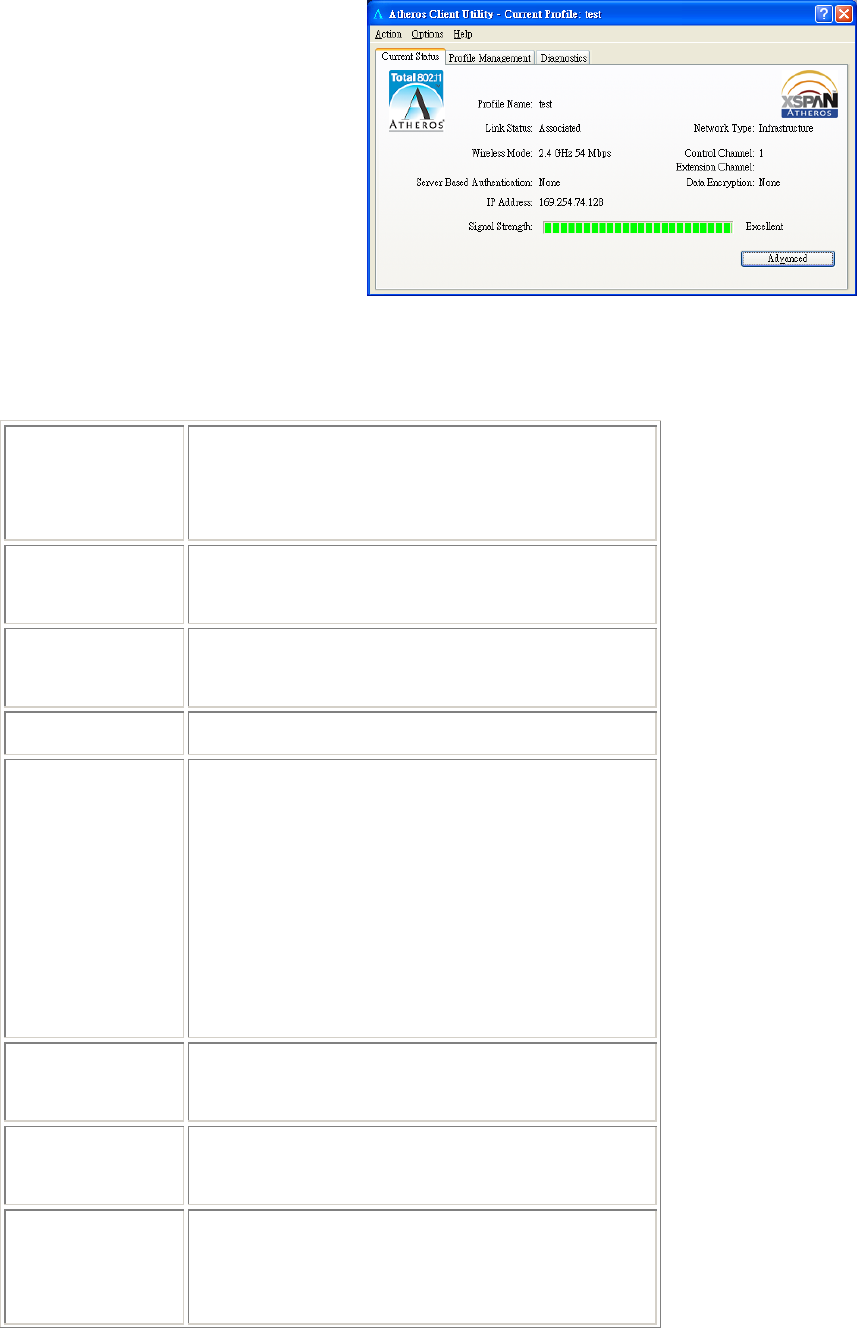

5.2.1 Current Status . . . ……….……………………………………… 11

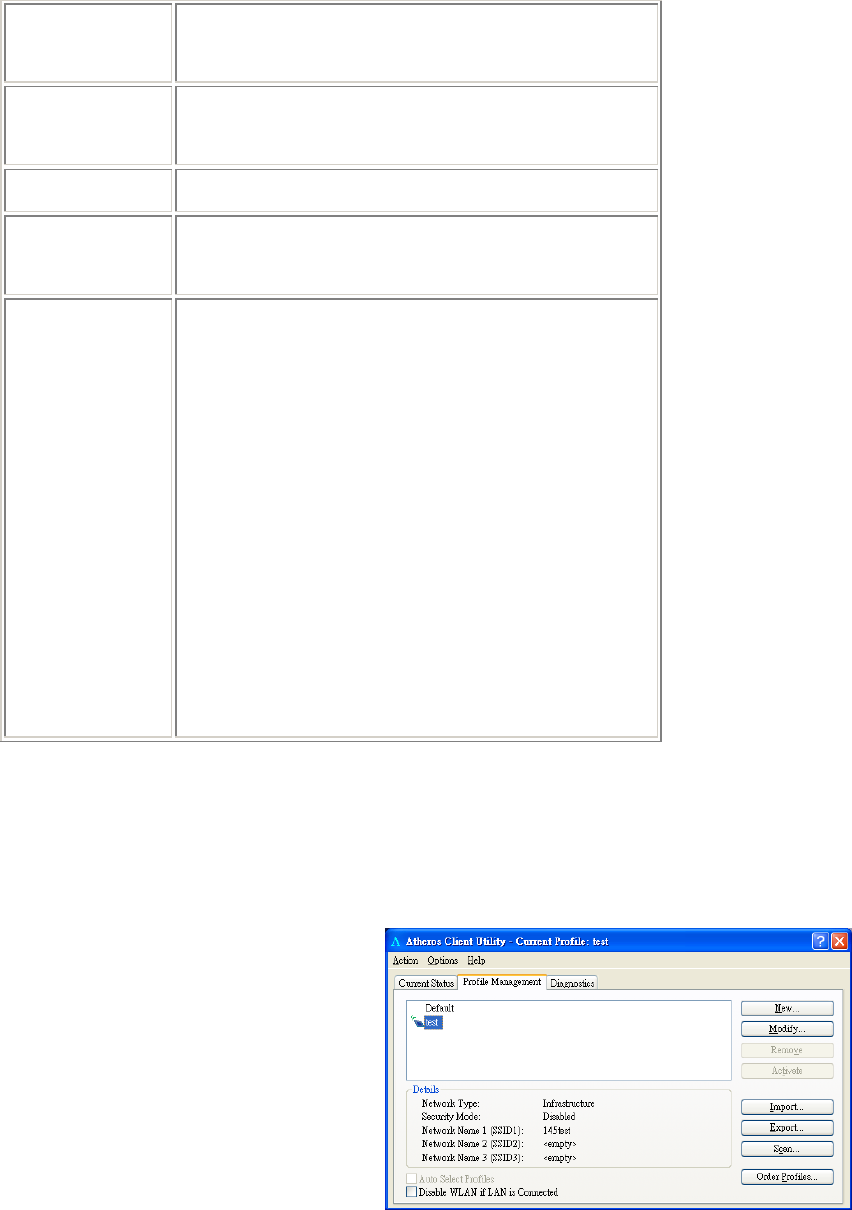

5.2.2 Profile Management …………………………………………. 15
5.2.3 Diagnostics ……………………….………………………… ….17
5.3 SECURITY .....................................………………..........…………… 18
5.3.1 WPA/WPA2 ………………………………………..……………..19
5.3.2 802.1x ………………………………………………………….27
5.3.3 WPA Passphrase ……………………………………………..….28
5.3.4 Pre-Shared Key (Static WEP) ……………………………..……28
5.3.5 None ……………………………………………..………………28

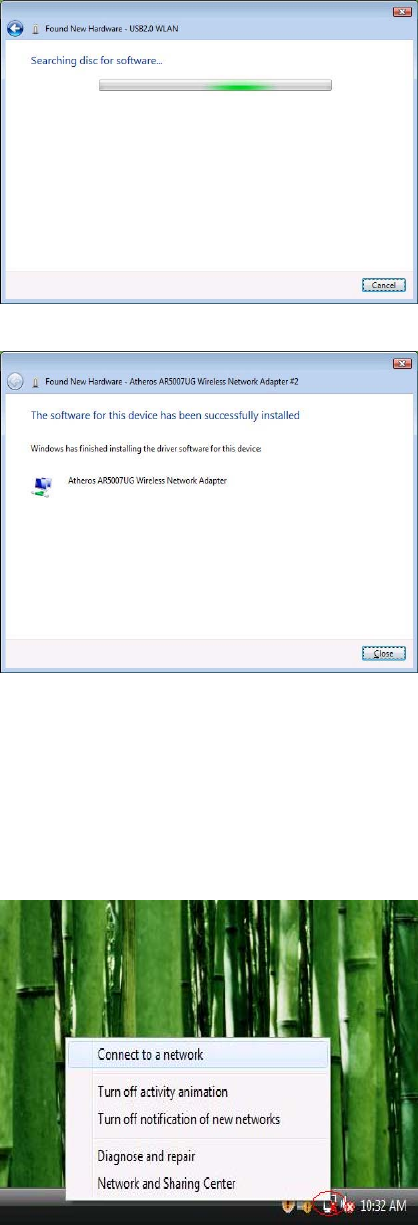

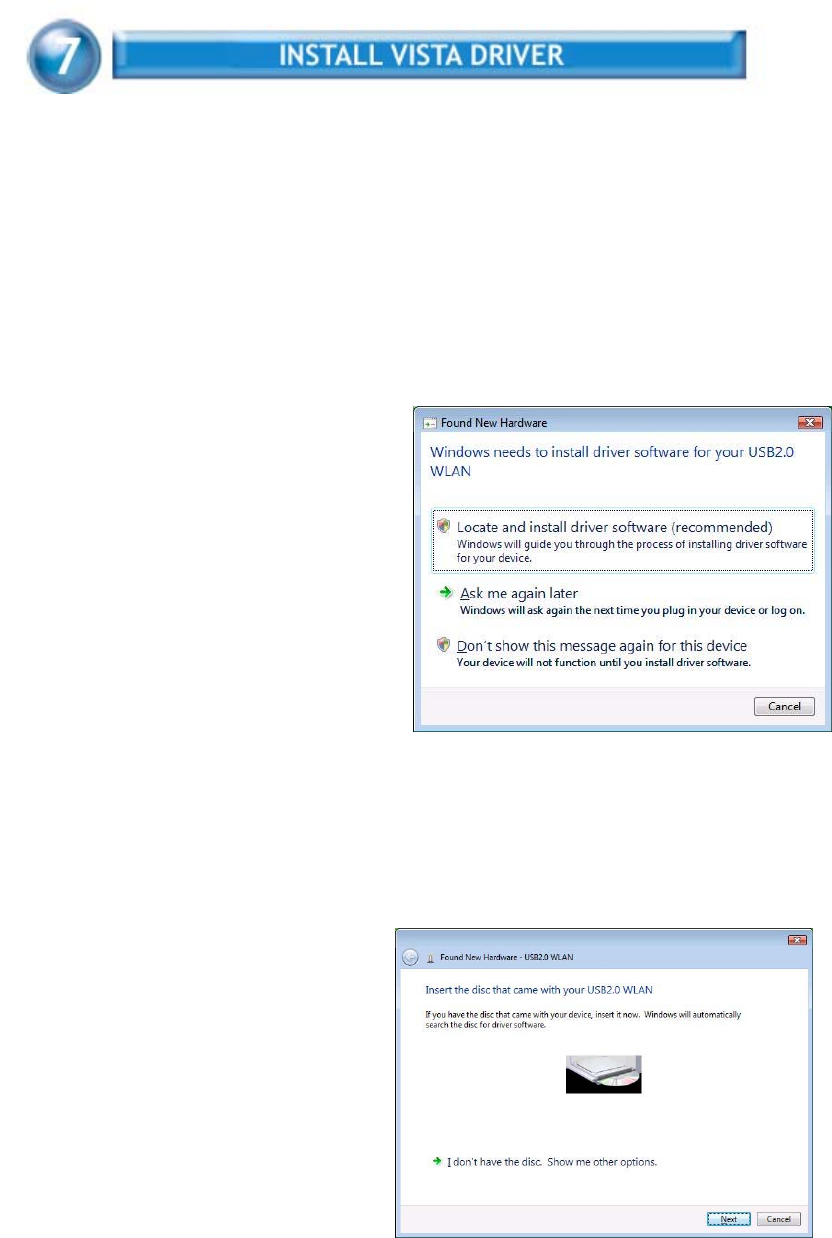

6. Install VISTA Driver...................................……………………................…. 29
7. Technical Specifications .....................................……………………....… .. 33
8. Troubleshooting ....................................……………………...............……. 35
9. Glossary ............................................………………………................ …. 36
1
Thank you for your purchase of the WLAN 11n USB Adapter.
Featuring wireless technology, this wireless networking solution has been
designed for both large and small businesses, and it is scalable so that you
can easily add more users and new network features depending on your
business scale.
FEATURES
Support Microsoft Windows 2000, XP , Vista.
Indoor up to 100 meters; Outdoor up to 280 meters.
270/240/180/120/90/60/54/48/36/30/24/22/18/12/11/6/5.5/2/1 Mbps selectable
Data Rate and maximum of 300Mbps.
Support USB 2.0 interface.
64-bit, 128-bit or WEP, TKIP, AES.
2.4GHz ISM Frequency Band.
Modulation Method : BPSK/QPSK/16-QAM/64-QAM
Spread Spectrum :
IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum).
IEEE 802.11g / n: OFDM (Orthogonal Frequency Division Multiplexing).
Easy operation and setting up.
SYSTEM REQUIREMENTS
Windows System : Windows 2000, XP , Vista
PCs must have a device driver installed. It allows you to communicate with
WLAN 11n USB Adapter.
2
BEFORE YOU START

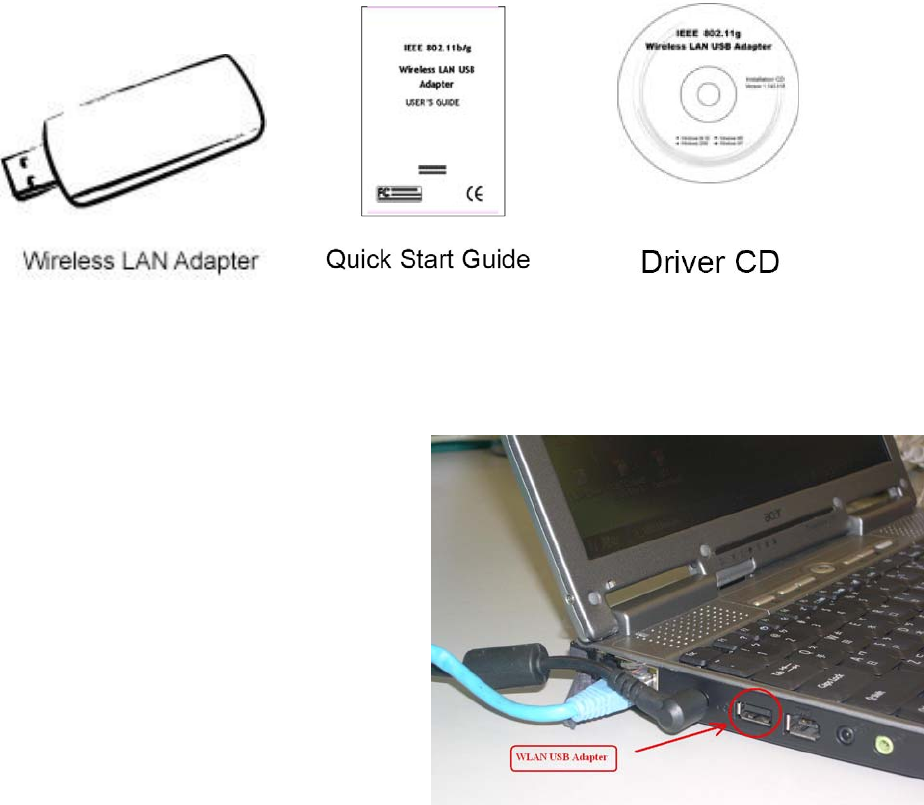

1. Confirm Box Contents
CONNECTING YOUR WLAN USB ADAPTER TO PC
Quick Start Guide
Connect your WLAN 11n USB Adapter
to your PC.
Install driver.
GETTING TO KNOW WLAN 11n USB ADAPTER
LED
LED turns on when POWER is applied to the WLAN 11n USB Adapter.
LED is blinking when PC is sending data through WLAN 11n USB Adapter.
3
Wireless LAN network defined by IEEE 802.11n/b/g standard committee
could be configured as :
Ad Hoc wireless LAN, or
Infrastructure wireless LAN.
Ad Hoc network is a group of PCs installed with wireless LAN cards, this
group of PCs is called a BSS (Basic Service Set). PCs in this group can use
their wireless LAN cards to communicate with each other, but can not
connect to the Internet.

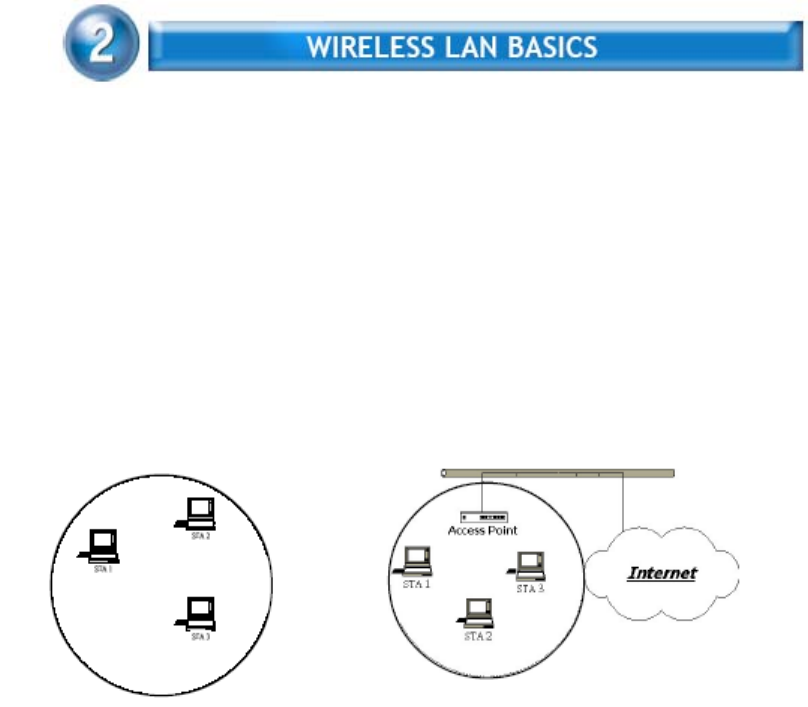

Ad Hoc Wireless Network Infrastructure Wireless Network
The most obvious difference between Infrastructure wireless network
and Ad Hoc wireless network is that the PCs in Infrastructure wireless
network can access the resource in the Internet through Access Point.
Depending on your requirement, you can easily set up your PC’s
network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally
speaking, if in your network, there is an Access Point in it, we recommend
you to set your network as an “Infrastructure”, so it can connect to
the Internet.
4
To use the WLAN 11n USB Adapter with a computing device, the WLAN 11n USB
Adapter must be equipped with an USB 1.1 or 2.0 Interface. All drivers and supporting
software for the WLAN 11n USB Adapter must be installed and configured first.
Ask your system administrator for the following information, which you may need to
provide during driver installation :
Your Wireless Client Name.
Your Wireless SSID.
Your computer’s unique client name and workgroup name.
For your network account, your user name and password.
Your IP address, gateway address, and subnet mask if you’re not using a DHCP
server.
Any computer on a network is identified by a unique network address. There are two
methods to assign a network address to a computer on a TCP/IP network :
Static IP addressing.
Dynamic IP addressing (DHCP).
In network with static IP addressing, the network administrator manually assigns an IP
address to each computer. Once a static IP address is assigned, a computer uses the
same IP address every time it reboots and logs on to the network. You may manually
change the IP address in the Network Properties dialog box. Network using static
IP address is easy to set up and do not require additional network management
software.
In network with dynamic IP addressing, a DHCP server in the network dynamically
assigns IP addresses to all clients every time they log on to the network. Network
using dynamic IP address requires setting up and running a DHCP Server.
5

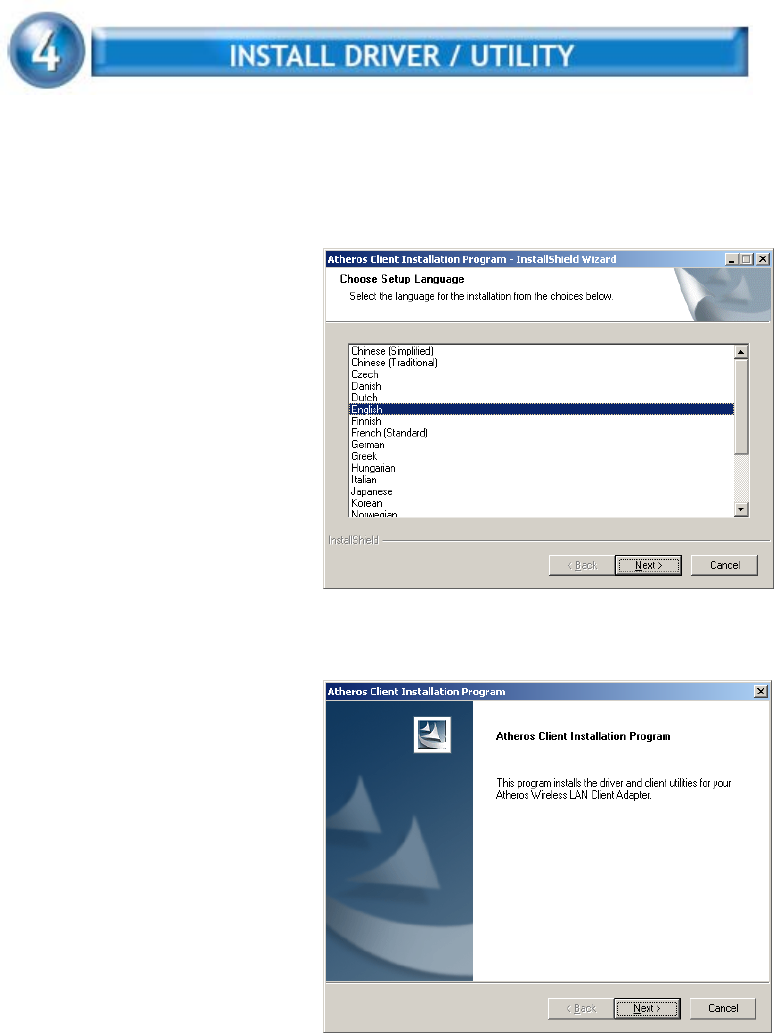

The installation & driver CD will automatically activate the autorun installation
program after you insert the disk into your CD drive.
Step 1 :
Insert the installation & driver
CD into your CD-ROM, chose
your language and click Next to
continue.
Step 2 :
Click Next to continue.
6

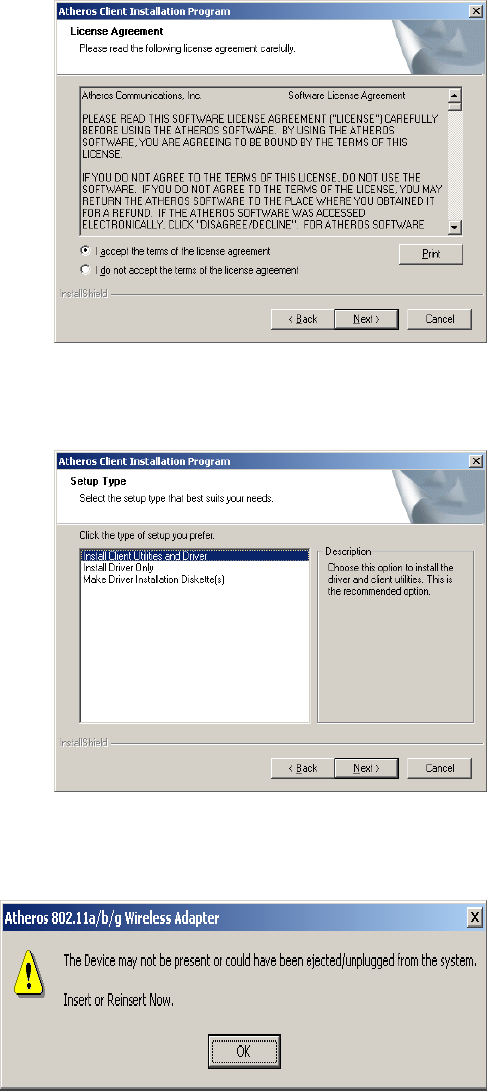

Step 3 :
Choose accept and click Next to
continue.
Step 4 :
Choose the installation type. To
install the client utilities and driver,
select the appropriate button and
click Next.
Step 5 :
Insert WLAN USB adapter
into USB port and click OK
to continue.
7
Step 6 :
Click Next to install at the
designated folder. Or, click
“Browse” to select different folder.
Step 7 :
Click Next to continue.
Step 8 :
If you have multiple computers to
access, choose SSO(Single sign
on) feature set. Or you can choose
“Do not install SSO feature set” and
Click Next to continue.
8

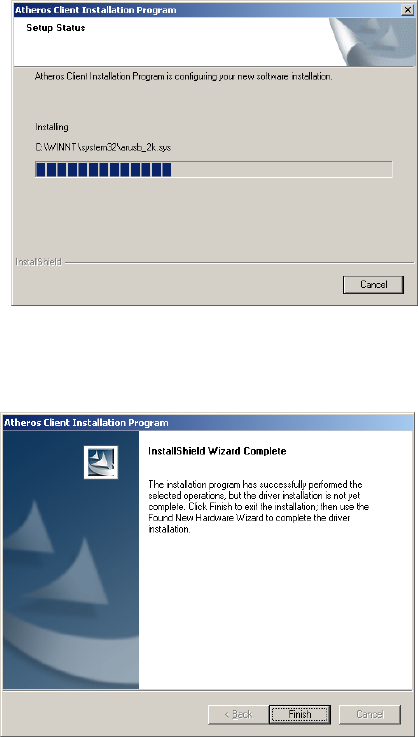

Step 9 :
Start copying files until it finishes the
installation.
Step 10 :
Click Finish to complete installation.
9
WLAN 11n USB Adapter uses its own management software. All functions
controlled by users are provided by this application. When you insert the
WLAN 11n USB Adapter into the USB port of your PC, a new icon should
appear in the Windows System Tray automatically.

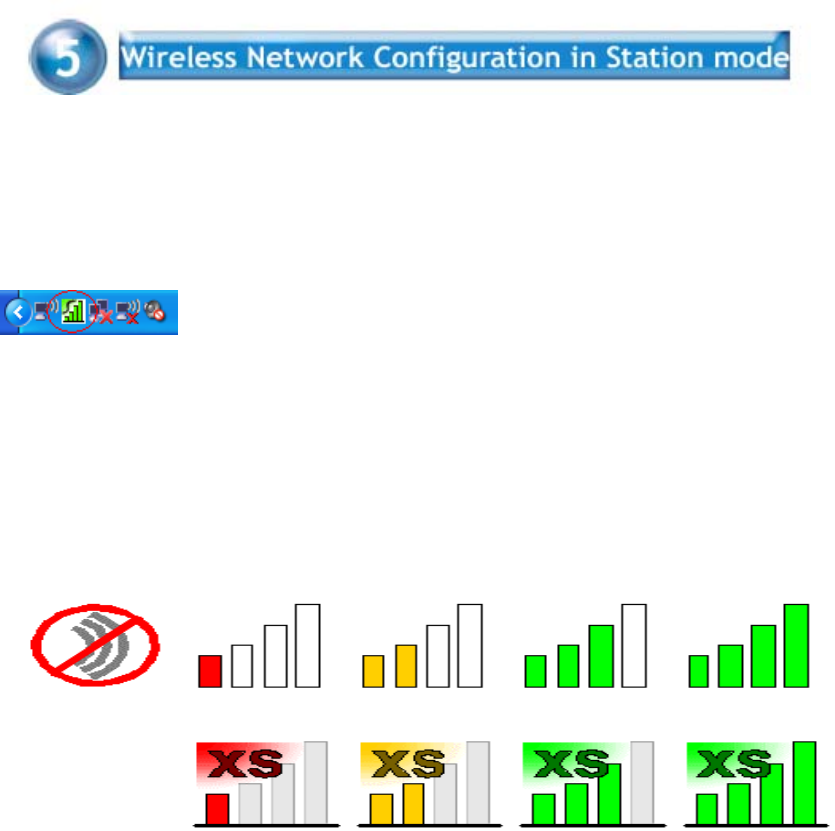

5.1 TRAY ICON
The tray icon appears at the bottom of the screen, and shows the signal
strength using colors and the received signal strength indication (RSSI).
Hold the mouse cursor over the tray icon to display the current configuration
profile name and association, as well as transmit and receive speed and the
wireless adapter name and IP address.
Right-click on the tray icon to:
Help Open the online help.
Open Atheros
Client Utility
Launch the Atheros Client Utility
(ACU). Use the ACU to configure the
profile or view status and statistics
information.
Client Managed
Test
Run the Client Managed Test Utility.
10
Preferences Set the startup options and menu
options for the ACU. Check whether the
program should start automatically
when Windows starts, and check the
menu items that should appear on the
popup menu.
Enable/Disable
Radio
Enable or disable the RF Signal.
Manual LEAP
Login
Log in to LEAP manually, if LEAP is set
to manually prompt for user name and
password on each login.
Reauthenticate Reauthenticate to the access point.
Select Profile Click a configuration profile name to
switch to it. If no configuration profile
exists for a connection, add a profile
first.
Show Connection
Status
Display the Connection Status
window. This window displays
information about the connection:
Active
Profile
Displays the name of the
active configuration
profile.
Auto Profile
Selection
Shows whether auto
profile selection is
enabled.
Connection
Status
Displays whether the
adapter is connected to
a wireless network.
Link Quality Lists the quality of the
link connection.
SSID Displays the SSID of the
associated network.
Access
Shows the name of the
access point the
11
wireless adapter is
connected to.
Access
Point IP
Address
Shows the IP address of
the access point the
wireless adapter is
connected to.
Current
Receive
Rate
Shows the current
receive rate in Mbps.
Current
Transmit
Rate
Shows the current
transmit rate in Mbps.
Client
Adapter IP
Address
Displays the IP address
of the wireless adapter.
Exit Exit the Atheros Client Utility
application.
The colors are defined as follows:
Color Quality RSSI*
Green Excellent 20 dB +
Green Good 10-20 dB +
Yellow Poor 5-10 dB
Red Poor < 5 dB
Gray No
Connection
No
Connection
*Received signal strength indication RSSI. Displayed in dB or percentage.
Enable or disable the tray icon in the Action menu.
12
5.2 GENERAL CONNECTION SETTING
5.2.1 Current Status
The Current Status tab contains
general information about the
program and its operations. The
Current Status tab does not
require any configuration.
The following table describes the items found on the Current Status screen.
Profile Name The name of the current selected
configuration profile. Set up the
configuration name on the General tab.
Link Status Shows whether the station is associated to
the wireless network.
Wireless Mode Displays the wireless mode. Configure the
wireless mode on the Advanced tab.
IP Address Displays the computer's IP address.
Network Type The type of network the station is
connected to. The options include:
• Infrastructure (access point)
• Ad Hoc
Configure the network type on the
Advanced tab.
Current
Channel
Shows the currently connected channel.
Control
Channel
Shows the control channel. Available for
802.11n devices only.
Extension
Channel
Shows the extension channel. Displayed
only if the STA is connected in a 40 MHz
channel. Available for 802.11n devices
13
only.
Server Based
Authentication
Shows whether server based
authentication is used.
Data Encryption Displays the encryption type the driver is
using. Configure the encryption type on
the Security tab.
Signal
Strength
Shows the strength of the signal.
Click the Advanced button to see the advanced status diagnostics.
The following table describes the items found on the Advanced Status screen.
Network Name
(SSID)
Displays the wireless network name.
Configure the network name on the General
tab.
Server Based
Authentication
Shows whether server based authentication
is used.
Data
Encryption
Displays the encryption type the driver is
using. Configure the encryption type on the
Security tab.
A
uthentication
Type
Displays the authentication mode.
Configure the authentication mode on the
General tab.
Message
Integrity Check
Shows whether MIC is enabled. MIC
prevents bit-flip attacks on encrypted
packets.
A
ssociated AP
Name
Displays the name of the access point the
wireless adapter is associated to.
A
ssociated AP
IP Address
Shows the IP address of the access point the
wireless adapter is associated to.
A
ssociated AP
MAC Address
Displays the MAC address of the access
point the wireless adapter is associated to.
14
11n MIMO
Power Save
Shows the MIMO power save mode status.
Available for 802.11n devices only.
Power Save
Mode
Shows the power save mode. Power
management is disabled in ad hoc mode.
Configure the power save mode on the
Advanced tab.
Current Power
Level
Displays the transmit power level rate in
mW. Configure the transmit power level on
the Advanced tab.
A
vailable
Power Levels
Shows the 2.4 GHz available power levels.
Current Signal
Strength
Shows the current signal strength in dBm.
Current Noise
Level
Displays the current noise level in dBm.
Up Time Shows how long the client adapter has been
receiving power (in hours:minutes:seconds).
If the adapter runs for more than 24 hours,
the display shows in
days:hours:minutes:seconds.
802.11b
Preamble
Displays the 802.11b preamble format.
Configure the preamble format on the
Advanced tab.
Current
Receive Rate
Shows the current receive rate in Mbps.
Current
Transmit Rate
Displays the current transmit rate in Mbps.
Channel Shows the currently connected channel.
Control
Channel
Shows the current control channel. Available
for 802.11n devices only.
Extension
Channel
Shows the extension channel. Displayed
only if the STA is connected in a 40 MHz
channel. Available for 802.11n devices only.
Frequency Displays frequency the station is using.
15
Control
Frequency
Displays control frequency the station is
using. Available for 802.11n devices only.
Extension
Frequency
Displays extension frequency the station is
using. Available for 802.11n devices only.
Channel Set Shows the current channel set.
Channel Width Shows the channel width. Available for
802.11n devices only.
QoS The type of quality of service that is currently
being used by your client adapter. QoS on
wireless LANS (WLAN) provides
prioritization of traffic from the access point
over the WLAN based on traffic
classification.
A value of None represents that the WMM
standard QoS is not enabled. A value of
WMM represents that a component of the
IEEE 802.11e WLAN standard for QoS is
enabled.
5.2.2 Profile Management
Configure the wireless network
adapter (wireless card) from the
Profile Management tab of the
Atheros Client Utility.
a. Create or Modify a Configuration Profile
16
To add a new configuration profile, click New on the Profile Management tab.
To modify a configuration profile, select the configuration from the Profile list
and click the Modify button.
To configure a profile for ad hoc or access point (infrastructure) mode, edit the
Network Type field on the Advanced tab.
Note that the ACU only allows the creation of 16 configuration profiles. After
the creation of 16 profiles, clicking the New button displays an error
message. Remove an old profile or modify an existing profile for a new use.
b. Remove a Configuration Profile
1. Go to the Profile Management tab.
2. Select the profile to remove from the list of configuration profiles.
3. Click the Remove button.
c. Activate a Configuration Profile
1. To switch to a different profile, go to the Profile Management tab.
2. Click on the profile name in the Profile List.
3. Click the Activate button.
The Profile List provides icons that specify the operational state for that profile.
The list also provides icons that specify the signal strength for that profile.
d. Import and Export Profiles
Importing a Profile :
1. From the Profile Management tab, click the Import button. The Import
Profile window appears.
2. Browse to the directory where the profile is located.
3. Highlight the profile name.
4. Click Open. The imported profile appears in the profiles list.
Exporting a Profile :
17
From the Profile Management tab, highlight the profile to export.
Click the Export button. The Export Profile window appears.
Browse to the directory to export the profile to.
Click Save. The profile is exported to the specified location.
e. Ordering Profiles
Including a profile in the auto selection feature allows the wireless adapter to
automatically select that profile from the list of profiles and use it to connect to
the network.
Including a profile in auto profile selection:
On the Profile Management tab, click the Order Profiles button.
The Auto Profile Selection Management window appears, with a list of all
created profiles in the Available Profiles box.
Highlight the profiles to add to auto profile selection, then click Add. The
profiles appear in the Auto Selected Profiles box.
Ordering the auto selected profiles:
Highlight a profile in the Auto Selected Profiles box.
Click Move Up, Move Down, or Remove as appropriate.
The first profile in the Auto Selected Profiles box has highest priority, and the
last profile has lowest priority.
Click OK.
Check the Auto Select Profiles box.
Save the modified configuration file.
When auto profile selection is enabled by checking Auto Select Profiles on the
Profile Management tab, the client adapter scans for an available network. The
profile with the highest priority and the same SSID as one of the found
networks is the one that is used to connect to the network. If the connection
fails, the client adapter tries the next highest priority profile that matches the
SSID, and so on.
With auto profile selection enabled, the wireless adapter scans for available
networks. The highest priority profile with the same SSID as a found network is
used to connect to the network. On a failed connection, the client adapter tries
with the next highest priority profile.
5.2.3 Diagnostics
The Diagnostics tab of the Atheros Client Utility provides buttons used to
18
retrieve receive and transmit statistics. The Diagnostics tab does not require
any configuration.
The Diagnostics tab lists the following receive and transmit diagnostics for
frames received by or transmitted by the wireless network adapter:
Multicast packets transmitted and received
Broadcast packets transmitted and received
Unicast packets transmitted and received
Total bytes transmitted and received
Click the Adapter Information button for more general information about the the
wireless network adapter and the network driver interface specification (NDIS)
driver.
Click the Advanced Statistics button on the Diagnostics tab to also show
receive and transmit statistical information for the following receive and
transmit diagnostics for frames received by or transmitted to the wireless
network adapter:
Transmitted Frames
Frames transmitted OK
Frames retried
Frames dropped
No ACK frames
ACK frames
RTS frames
Clear-to-send (CTS)
frames
No CTS frames
Retried RTS frames
Retried data frames
Received Frames
Frames received OK
Beacons Received
Frames Received with errors
CRC errors
Encryption errors
Duplicate frames
AP mismatches
Data rate mismatches
Authentication time-out
Authentication rejects: the number
of AP authentication failures
received by the wireless network
adapter
Association time-out
Association rejects: the number of
access point authentication rejects
received by the wireless network
adapter
Standard MIC OK
Standard MIC errors
CKIP MIC OK
CKIP MIC errors
19
5.3 Security
In the Atheros Client Utility, access the Security tab by clicking New or Modify
on the Profile Management tab. Click the Security tab in the Profile
Management window.
Edit the fields in the Security tab of Profile Management to configure the
profile. To define the security mode, select the radio button of the desired
security mode. Make sure to also edit the General and Advanced tabs.
Note: If the Profile Locked checkbox is checked, Profile cannot be removed or
modified. However the password fields can be edited. Contact your system
administrator.
The type of security mode the station is using. The options include the
following:
5.3.1 WPA/WPA2
Enables the use of Wi-Fi Protected Access (WPA).
Choosing WPA/WPA2 opens the WPA/WPA2 EAP drop-down menu. The
options include:
EAP-FAST
To use EAP-FAST security, the machine must already support EAP-FAST.
Check with the IT manager.
Click the Security tab from the Profile Editor window.
Click Configure. The Define EAP-FAST window appears.
Choose an EAP-FAST authentication method from the EAP-FAST
Authentication Method drop-down list.
Click Configure.
If you chose GTC Token/Password from the EAP-FAST Authentication Method
drop-down list and clicked Configure, the Define PEAP (EAP-GTC)
Configuration window appears. To know more about this option refer Using
PEAP (EAP-GTC) security.
20
If you chose MSCHAPv2 Username and Password from the EAP-FAST
Authentication Method drop-down list and clicked Configure, the Configure
Username and Password window appears. To know more about this option
refer Using PEAP-MSCHAP V2 security.
If you chose TLS Client Certificate from the EAP-FAST Authentication Method
drop-down list and clicked Configure, the Define Certificate window appears.
When configuring EAP-TLS for EAP-FAST, you can check the Authenticate
Server Identity check box to force the system to authenticate the identity of the
server as an added level of security. This option is available only when
configuring EAP-FAST. To know more about this option refer Using EAP-TLS
security.
If you want to force the client adapter to disassociate after you log off so that
another user cannot gain access to the wireless network using your credentials,
check the No Network Connection Unless User is Logged In check box. The
default setting is checked.
Perform one of the following:
If you want to enable automatic PAC provisioning, make sure the Allow
Automatic PAC Provisioning for this Profile check box is checked. A protected
access credentials (PAC) file is obtained automatically as needed (for instance,
when a PAC expires, when the client adapter accesses a different server,
when the EAP-FAST username cannot be matched to a previously provisioned
PAC, etc.). This is the default setting.
If you want to enable manual PAC provisioning, uncheck the Allow Automatic
PAC Provisioning for this Profile check box. This option requires you to choose
a PAC authority or manually import a PAC file.
From the Select one or more PAC Authority to use with this Profile list,
highlight the PAC authorities associated with the network defined by the
profile's SSID. The list contains the names of all the authentication servers
from which you have previously provisioned a PAC.
Click Manage. The Select EAP-FAST PAC window appears.
This window lets you group PAC authorities to facilitate authentication while
roaming. For example, if there are three PAC authorities at a certain site
covering different areas of the site, you can create a group containing these
authorities and select one of them in the PAC list. In this way, if you're roaming
21
around the site, the other authorities in the group will allow you access to the
network.
A group consists of one or more authorities. Each authority may have one or
more PAC files. A PAC authority can belong to only one group.
To create a new group, click New Group. A group consists of one or more
authority servers that the user trusts. To rename the group, right-click the
group and choose Rename. You can also rename the group by clicking it and
typing the new name.
When you create a new group, you can either import a PAC file into it using the
Import button or you can move a PAC from another group to the new group.
To import a PAC, click Import. The PAC Import window appears. Do the
following:
Click Browse and select a PAC file to import. The default location is
C:/Program Files/Atheros.
Click the PAC file (*.pac) so that it appears in the File name box at the bottom
of the window.
Click Open.
If the Enter Password window appears, enter the PAC file password, which
can be obtained from your system administrator, and click OK.
Note: PAC file passwords are optional. The PAC authority determines whether
to issue PAC files that require user-supplied passwords. Nevertheless, all PAC
files (even those without passwords) are encrypted and protected. PAC file
passwords are different from EAP-FAST passwords and need to be entered
only once, at the time a PAC is imported.
If you try to import a PAC file with the same PAC ID as a previously imported
PAC file, you are asked to update the existing PAC. If you click Yes, the
existing PAC is replaced by the new one from the imported file.
If the PAC file was imported successfully, the following message appears:
"EAP-FAST PAC file was imported and is ready for use." Click OK to return to
the PAC Import window.
Click one of these PAC store options to determine where the imported PAC file
will be stored and by whom it will be accessible:
Global - PACs that are stored in the global PAC store can be accessed and
used by any user at any logon stage. Global PACs are available before or
22
during logon or after the user is logged off if the profile is not configured with
the No Network Connection Unless User is Logged In option.
Private - PACS that are stored in the private store can be accessed and used
only by the user who provisioned them or the system administrator. They are
not accessible until the user is logged onto the local system. This is the default
option.
Click Import. The PAC file appears under the selected group.
To delete a group, select the group and click Delete. You can also delete the
group by right-clicking the group and choosing Delete.
To close the Select EAP-FAST PAC window, click Close.
To automatically use PACs belonging to the same PAC authority group, check
the Use Any PAC Belonging to the Same Group check box.
Check the Use Machine PAC for Domain Logon check box if you want the
client to attempt to log into a domain using machine authentication with user
credentials rather than user authentication. Doing so enables your computer to
connect to the network prior to user logon. The default setting is unchecked.
Click OK when done configuring EAP-FAST.
EAP-TLS
To use EAP-TLS security In the Atheros Client Utility, access the Security
tab in the Profile Management window.
On the Security tab, choose the WPA radio button.
OR: On the Security tab, choose the 802.1x radio button.
Choose EAP-TLS from the drop-down menu.
Enabling EAP-TLS security:
To use EAP-TLS security, the machine must already have the EAP-TLS
certificates downloaded onto it. Check with the IT manager.
If EAP-TLS is supported, choose EAP-TLS from the drop-down menu on the
right, then click the Configure button.
Click Configure. The Define Certificate window appears.
Check the Use Machine Information for Domain Login check box if you want
the client to attempt to log into a domain using machine authentication with a
machine certificate and machine credentials rather than user authentication.
Doing so enables your computer to connect to the network prior to user logon.
The default setting is unchecked.
Note: If you do not check the Use Machine Information for Domain Logon
23
check box, machine authentication is not performed. Authentication does not
occur until you log on.
Check the Validate Server Identity check box to force the system to
authenticate the identity of the server as an added level of security.
If you checked the Use Machine Information For Domain Logon check box in
the previous step, the Always Do User Authentication check box at the bottom
of the window becomes active. Perform one of the following:
Check the Always Do User Authentication check box if you want the client to
switch from using machine authentication to using user authentication after
you log on using your username and password. This is the default setting.
Uncheck the Always Do User Authentication check box if you want the client to
continue to use machine authentication after the user's computer logs into the
domain.
Choose your server certificate in the Select a Certificate drop-down list.
Choose the certificate authority from which the server certificate was
downloaded in the Trusted Root Certification Authorities drop-down list.
Perform one of the following:
Leave the Server/Domain Name field blank to allow the client to accept a
certificate from any server that supplies a certificate signed by the certificate
authority listed in the Trusted Root Certification Authorities drop-down list
(recommended).
In the Server/Domain Name field, enter the domain name of the server from
which the client will accept a certificate.
If the Login Name is filled in automatically, enter your username in this format:
username@domain.
Click OK to save your changes and return to the Profile Management (Security)
window.
Click OK.
Activate the profile.
EAP-TTLS
To use EAP security In the Atheros Client Utility, access the Security tab in
the Profile Management window.
On the Security tab, choose the WPA/WPA2 radio button.
24
OR: On the Security tab, choose the 802.1x radio button.
Choose EAP-TTLS from the drop-down menu.
Enabling EAP-TTLS security:
To use EAP-TTLS security, the machine must already have the EAP-TTLS
certificates downloaded onto it. Check with the IT manager.
If EAP-TTLS is supported, choose EAP-TTLS from the drop-down menu on
the right, then click the Configure button.
Select the appropriate certificate from the drop-down list and click OK.
Specify a user name for EAP authentication:
Check Use Windows User Name to use the Windows user name as the EAP
user name.
OR: Enter a EAP user name in the User Name field to use a separate user
name and password and start the EAP authentication process.
Click Settings and:
Leave the server name field blank for the client to accept a certificate from any
server with a certificate signed by the authority listed in the Network Certificate
Authority drop-down list. (recommended)
Enter the domain name of the server from which the client will accept a
certificate.
Change the login name if needed.
Click OK.
Enable the profile.
PEAP (EAP-GTC)
To use PEAP (EAP-GTC) security In the Atheros Client Utility, access the
Security tab in the Profile Management window.
On the Security tab, choose the WPA radio button.
OR: On the Security tab, choose the 802.1x radio button.
Choose PEAP (EAP-GTC) from the drop-down menu.
To use PEAP (EAP-GTC) security, the server must have WPA-PEAP
certificates, and the server properties must already be set. Check with the IT
manager.
Click the Configure button.
To resume connection without providing credentials again after a temporary
loss of connection, check Always Resume the Secure Session.
Select the appropriate network certificate authority from the drop-down list.
Specify a user name for inner PEAP tunnel authentication:
Check Use Windows User Name to use the Windows user name as the PEAP
25
user name.
OR: Enter a PEAP user name in the User Name field to use a separate user
name and start the PEAP authentication process.
Check the Validate Server Identity check box to force the system to
authenticate the identity of the server as an added level of security.
Choose the certificate authority from which the server certificate was
downloaded in the Trusted Root Certification Authorities drop-down box.
Choose Token or Static Password, depending on the user database.
Note that Token uses a hardware token device or the Secure Computing
SofToken program (version 1.3 or later) to obtain and enter a one-time
password during authentication.
Click Settings and:
Leave the Specific Server or Domain field blank to allow the client to accept a
certificate from any server that supplies a certificate signed by the certificate
authority listed in the Trusted Root Certification Authorities drop-down box on
the Define PEAP (EAP-GTC) Configuration window (recommended) or enter
the domain name of the server from which the client will accept a certificate.
If the Login Name field is not filled in automatically, enter your username.
Click OK to save your settings and return to the Profile Management (Security)
window.
Click OK.
Enable the profile.
PEAP (EAP-MSCHAP V2)
To use PEAP-MSCHAP V2 security In the Atheros Client Utility, access the
Security tab in the Profile Management window.
On the Security tab, choose the WPA radio button.
OR: On the Security tab, choose the 802.1x radio button.
Choose PEAP (EAP-MSCHAP V2) from the drop-down menu.
To use PEAP (EAP-MSCHAP V2) security, the server must have WPA-PEAP
certificates, and the server properties must already be set. Check with the IT
manager.
Click the Configure button.
Check the Validate Server Identity check box to force the system to
authenticate the identity of the server as an added level of security.
Choose the certificate authority from which the server certificate was
downloaded in the Trusted Root Certification Authorities drop-down box.
26
Perform one of the following to specify how you want to establish a network
connection.
If you want to connect using a username and password, choose User Name
and Password.
If you want to connect using a user certificate installed on your computer,
choose Certificate, select a certificate from the drop-down box and go to Step
6.
Specify the username and password for inner PEAP tunnel authentication:
Check Use Windows User Name to use the Windows user name as the PEAP
user name.
OR: Enter a PEAP user name in the User Name field to use a separate user
name for the PEAP authentication process.
Click Settings. The Configuration Setting window appears.
Leave the Specific Server or Domain field blank to allow the client to accept a
certificate from any server that supplies a certificate signed by the certificate
authority listed in the Trusted Root Certification Authorities drop-down box on
the Define PEAP (EAP-MSCHAP V2) Configuration window (this is the
recommended option) or enter the domain name of the server from which the
client will accept a certificate.
If the Login Name field is not filled in automatically, enter your username with
nothing after it.
Click OK.
Enable the profile.
LEAP
To use security In the Atheros Client Utility, access the Security tab in the
Profile Management window.
LEAP security requires that all infrastructure devices (e.g. access points and
servers) are configured for LEAP authentication. Check with the IT manager.
Configuring LEAP
Enabling LEAP
27
Configuring LEAP:
On the Security tab, choose the WPA radio button. Choose WPA-LEAP from
the drop-down menu.
OR: On the Security tab, choose the 802.1x radio button. Choose LEAP from
the drop-down menu.
Click the Configure button.
To resume connection without providing credentials again after a temporary
loss of connection, check Always Resume the Secure Session.
Specify a user name and password:
Select to Use Temporary User Name and Password by choosing the radio
button:
Check Use Windows User Name to use the Windows user name as the LEAP
user name.
OR: Check Manually Prompt for LEAP User Name and Password to manually
login and start the LEAP authentication process.
Select to Use Saved User Name and Password by choosing the radio button:
Specify the LEAP user name, password, and domain to save and use.
Enter the user name and password.
Confirm the password.
Specify a domain name:
Check the Include Windows Logon Domain with User Name setting to pass the
Windows login domain and user name to the RADIUS server. (default)
OR: Enter a specific domain name.
If desired, check No Network Connection Unless User Is Logged In to force the
wireless adapter to disassociate after logging off.
Enter the LEAP authentication timeout time (between 30 and 500 seconds) to
specify how long LEAP should wait before declaring authentication failed, and
sending an error message. The default is 90 seconds.
Click OK.
Enable the profile.
5.3.2 802.1x
Enables 802.1x security. This option requires IT administration.
Choosing 802.1x opens the 802.1x EAP type drop-down menu. The options
include:
28
EAP-FAST
EAP-TLS
EAP-TTLS
PEAP (EAP-GTC)
PEAP (EAP-MSCHAP V2)
LEAP
Please refer to 5.3.1 WPA/WPA2
If the access point that the wireless adapter is associating to has WEP set to
Optional and the client has WEP enabled, make sure that Allow Association to
Mixed Cells is checked on the Security Tab to allow association.
5.3.3 WPA Passphrase
To use WPA Passphrase security In the Atheros Client Utility, access the
Security tab in the Profile Management window.
On the Security tab, choose the WPA Passphrase radio button.
Click on the Configure button.
Fill in the WPA Passphrase.
Click OK.
5.3.4 Pre-Shared Key (Static WEP)
Enables the use of pre-shared keys that are defined on both the access point
and the station.
To define pre-shared encryption keys, choose the Pre-Shared Key radio
button and click the Configure button to fill in the Define Pre-Shared Keys
window.
If the access point that the wireless adapter is associating to has WEP set to
Optional and the client has WEP enabled, make sure that Allow Association to
Mixed Cells is checked on the Security Tab to allow association.
5.3.5 None
No security (not recommended).
29
1. The installation & driver CD will automatically activate the autorun
installation program after you insert the disk into your CD drive. Please refer to
page 5 ”INSTALL DRIVER & UTILITY”
2. To install manually:
Plug your WLAN 11n USB Adapter into USB interface, windows Vista will
search for compatible driver to install.
Step 1 :
Select “Locate and install the driver
software”, Windows will guide you
through the process of installing
driver software for your device.
Step 2 :
Insert the installation disc into the
CD-ROM and click “next” to
continue installation.
30
Step 3 :
Windows Vista search for the
software and it will be installed
successfully.
Step 4 :
After installation, right click the
network icon on the Windows Vista
System Tray, and click “Connect to a
network”.
31
Step 5 :
Select a network to connect to and
click “Connect”.
Step 6 :
Click “Connect Anyway” if the
network is an unsecured network.
32

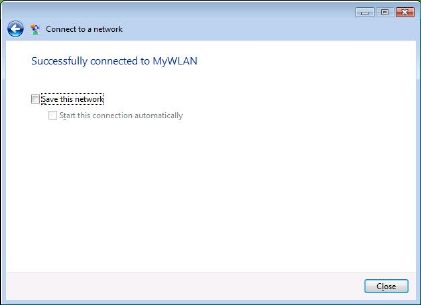

Step 7:
USB Adapter successfully connected
to network, Click “Close”
33
Product
Name WLAN 11n USB Adapter
Standard IEEE802.11n/b/g
Frequency
Band 2.4GHz ISM band
Modulation
method BPSK/QPSK/16-QAM/64-QAM
802.11b : DSSS (Direct Sequence Spread Spectrum)
802.11g/n : OFDM (Orthogonal Frequency Division Multiplexing)
Spread
Spectrum
Data Rate 270/240/180/120/90/60/54/48/36/30/24/22/18/12/11/6/5.5/
2/1Mbps and Maximum of 300Mbps.
Ad hoc Operation
mode Infrastructure (Access Points is needed)
Transmitter
Output
Power
< 13.5 dBm@11n, < 13.5 dBm@11b, < 13.5 dBm@11g
Operating at 11Mbps: @ –80dBm
Operating at 54Mbps: @ –70dBm
Receiver
Sensitivity Operating at 300Mbps: @ –64dBm
Operating
Range Indoor Up to 100 m, Outdoor Up to 280 m
Security 64-bit, 128-bit or WEP (Wired Equivalent Privacy); TKIP, AES
I/O Interface USB 2.0
LED Link/Active
Operating
system
supported
Windows 2000, XP and Vista
Management Windows-based configuration utility and status monitoring
Regulation FCC for North America
CE/ETSI for European
Dimension 90 x 26 x 10.95 mm
34
Operating
Temperature -20 ~ 55 ℃
Storage
Temperature -10 ~ 70 ℃
Humidity 5 ~ 90% maximum (non-condensing)
35
Symptom :
The LED is off.
Remedy :
Make sure the PC Card is inserted properly. Otherwise contact your vendor.
Symptom :
The LED is always on not blinking.
Remedy :
Make sure that you have installed the driver from attached CD. Otherwise
contact your vendor.
Symptom :
The LED is blinking but the PC Card icon does not appear in your icon tray.
Remedy :
Make sure that you have installed the Utility from the attached CD.
Symptom :
The PC Card is linking, but can’t share files with others.
Remedy :
Make sure the file and printer sharing function is enabled. You can
enable the function by checking the icon of My Computer -> Control
Panel -> Network -> file and printer sharing -> I want to be able to give
others to access to my files.
Symptom :
Slow or poor performance.
Remedy :
Try to select another channel for the communicating group or move your
device closer to the Access Point.
36
IEEE 802.11 Standard
The IEEE 802.11 Wireless LAN standards subcommittee, which is formulating
a standard for the industry.
Access Point
An internetworking device that seamlessly connects wired and wireless
networks together.
Ad Hoc
An Ad Hoc wireless LAN is a group of computers, each with a WLAN
adapter, connected as an independent wireless LAN. Ad Hoc wireless LAN
is applicable at a departmental scale for a branch or SOHO operation.
BSSID
A specific Ad Hoc LAN is called a Basic Service Set (BSS). Computers in a
BSS must be configured with the same BSSID.
DHCP
Dynamic Host Configuration Protocol - a method in which IP addresses are
assigned by server dynamically to clients on the network. DHCP is used for
Dynamic IP Addressing and requires a dedicated DHCP server on the
network.
Direct Sequence Spread Spectrum
This is the method the wireless cards use to transmit data over the frequency
spectrum. The other method is frequency hopping. Direct sequence
spreads the data over one frequency range (channel) while frequency
hopping jumps from one narrow frequency band to another many
times per second.
ESSID
An Infrastructure configuration could also support roaming capability for
mobile workers. More than one BSS can be configured as an Extended
Service Set (ESS). Users within an ESS could roam freely between BSSs
while served as a continuous connection to the network wireless stations
and Access Points within an ESS must be configured with the same ESSID
and the same radio channel.
37
Ethernet
Ethernet is a 10/100Mbps network that runs over dedicated home/office
wiring. Users must be wired to the network at all times to gain access.
Gateway
A gateway is a hardware and software device that connects two dissimilar
systems, such as a LAN and a mainframe. In Internet terminology, a gateway
is another name for a router. Generally a gateway is used as a funnel
for all traffic to the Internet.
IEEE
Institute of Electrical and Electronics Engineers
Infrastructure
An integrated wireless and wired LAN is called an Infrastructure
configuration. Infrastructure is applicable to enterprise scale for wireless
access to central database, or wireless application for mobile workers.
ISM Band
The FCC and their counterparts outside of the U.S. have set aside bandwidth
for unlicensed use in the so-called ISM (Industrial, Scientific and
Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being
made available worldwide. This presents a truly revolutionary opportunity
to place convenient high-speed wireless capabilities in the hands of users
around the globe.
Local Area Network (LAN)
A LAN is a group of computers, each equipped with the appropriate network
adapter card connected by cable/air, that share applications, data,
and peripherals. All connections are made via cable or wireless media,
but a LAN does not use telephone services. It typically spans a single
building or campus.
Network
A network is a system of computers that is connected. Data, files, and
messages can be transmitted over this network. Networks may be local or
wide area networks.
Protocol
A protocol is a standardized set of rules that specify how a conversation
is to take place, including the format, timing, sequencing and/ or error
checking.
38
Roaming
In an infrastructure network, this is when a wireless PC moves out of
range of the previously connected access point and connects to a newly
connected access point. Throughout the network environment where
access point is deployed, PCs can always be connected regardless of
where they are located or roam.
SSID
A Network ID unique to a network. Only clients and Access Points that
share the same SSID are able to communicate with each other. This string
is case-sensitive.
Simple Network Management Protocol (SNMP)
Simple Network Management Protocol is the network management protocol
of TCP/IP. In SNMP, agents-which can be hardware as well as software-
monitor the activity in the various devices on the network and
report to the network console workstation. Control information about
each device is maintained in a structure known as a management information
block.
Static IP Addressing
A method of assigning IP addresses to clients on the network. In networks
with Static IP address, the network administrator manually assigns an IP
address to each computer. Once a Static IP address is assigned, a computer
uses the same IP address every time it reboots and logs on to the
network, unless it is manually changed.
Temporal Key Integrity Protocol (TKIP)
The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the
IEEE 802.11i encryption standard for wireless LANs. TKIP is the next
generation of WEP, the Wired Equivalency Protocol, which is used to
secure 802.11 wireless LANs. TKIP provides per-packet key mixing, a
message integrity check and a re-keying mechanism, thus fixing the
flaws of WEP.
Transmission Control Protocol / Internet Protocol (TCP/IP)
TCP/IP is the protocol suite developed by the Advanced Research
Projects Agency (ARPA). It is widely used in corporate Internet works,
because of its superior design for WANs. TCP governs how packet is
sequenced for transmission the network. The term “TCP/IP” is often
used generically to refer to the entire suite of related protocols.
39
Transmit / Receive
The wireless throughput in Bytes per second averaged over two seconds.
Wi-Fi Alliance
The Wi-Fi Alliance is a nonprofit international association formed in 1999
to certify interoperability of wireless Local Area Network products based
on IEEE 802.11 specification. The goal of the Wi-Fi Alliance’s members is
to enhance the user experience through product interoperability. The
organization is formerly known as WECA.
Wi-Fi Protected Access (WPA)
The Wi-Fi Alliance put together WPA as a data encryption method for
802.11 wireless LANs. WPA is an industry-supported, pre-standard version
of 802.11i utilizing the Temporal Key Integrity Protocol (TKIP),
which fixes the problems of WEP, including using dynamic keys.
Wide Area Network (WAN)
A WAN consists of multiple LANs that are tied together via telephone
services and / or fiber optic cabling. WANs may span a city, a state, a
country, or even the world.
Wired Equivalent Privacy (WEP)
Now widely recognized as flawed, WEP was a data encryption method
used to protect the transmission between 802.11 wireless clients and
APs. However, it used the same key among all communicating devices.
WEP’s problems are well-known, including an insufficient key length and
no automated method for distributing the keys. WEP can be easily
cracked in a couple of hours with off-the-shelf tools.
40
One Year Limited Warranty
This device is guaranteed against manufacturing defects for one full year from
the original date of purchase.
This warranty is valid at the time of purchase and is non-transferable.
This warranty must be presented to the service facility before any repair can be
made.
Sales slip or other authentic evidence is required to validate warranty.
Damage caused by accident, misuse, abuse, improper storage, and/or
uncertified repairs is not covered by this warranty.
All mail or transportation costs including insurance are at the expense
of the owner.
Do not send any product to service center for warranty without a RMA
(Return Merchandise Authorization) and proof of purchase. Ensure a
trackable method of delivery is used (keep tracking number).
Warranty is valid only in the country of purchase.
We assumes no liability that may result directly or indirectly from the use or
misuse of these products.
IMPORTANT
" This warranty will be voided if the device is tampered with, improperly
serviced, or the security seals are broken or removed"

Navigation menu
