CC and C Technologies WM8192EU 11bgn USB Module User Manual WM 8192EU N28 module V1 1
CC&C; Technologies, Inc. 11bgn USB Module WM 8192EU N28 module V1 1
Contents
- 1. user manual
- 2. User Manual
user manual
![](/img.php?id=2439947&img=bg1.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
1
Product Specifications
WM-8192EU(Realtek RTL8192EU-CG)
11n 2T2R USB Module
Version: 1.1
Manufacturer CC&C Technologies, Inc.
![](/img.php?id=2439947&img=bg2.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
2
Revision History
Version Date Change Description
1.0 05/28, 2014 Initial release
1.1 07/24, 2014
Update power-down control function
![](/img.php?id=2439947&img=bg3.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
3
C
ONTENT
Overview......................................................................................................................
4
Features…....................................................................................................................
4
Factory Options............................................................................................................
4
General Specification ....................................................................................................
5
Dimension .....................................................................................................................
7
Placement Notice............................................................................................................
9
![](/img.php?id=2439947&img=bg4.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
4

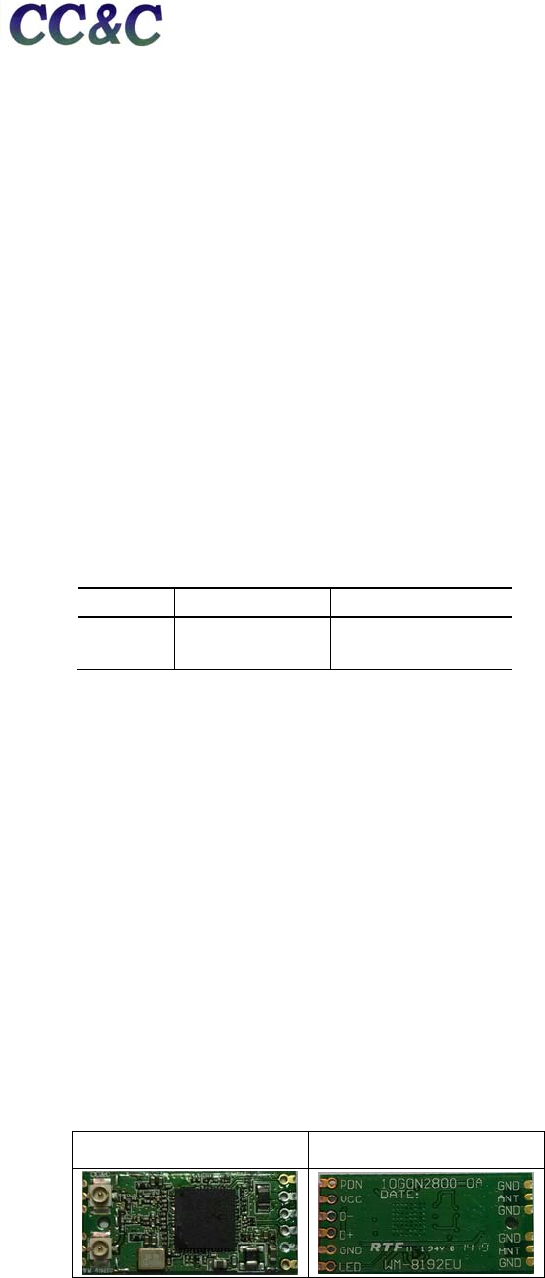

Overview
WM-8192EU is a WLAN 11n USB Module, which fully supports the features
and functional compliance of IEEE 802.11e and i standards. It supports up to
300Mbps high -speed wireless network connections.
It is designed to provide excellent performance with minimum power
consumption and enhance the advantages of robust system and cost-effective.
It is targeted at competitive superior performance, better power management
applications.
Features
2x2 MIMO technology improves effective throughput and range over
existing 802.11 b/g/n products
Operates in 2.4 frequency bands
Freq. Bands Frequency
2.4 GHz 2.412-2.472 GHz,
2.484 GHz
Data rates of up to 150 Mbps for 20 MHz channels and 300 Mbps for 40
MHz channels
802.11e-compatible bursting
Support for the IEEE 802.11e, and i standards
BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation
schemes
WEP, TKIP, and AES hardware encryption Schemes
Support soft AP for Windows XP, Vista, 7 and Windows 8.
Factory options
Support LED function
With or without shielding cover
TOP BOTTOM
![](/img.php?id=2439947&img=bg5.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
5
General Specification
Model Name WM-8192EU
Product Name 11n 2T2R USB Module
Standard 802.11b/g/n
Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120,180,240,270 and
maximum of 300Mbps
Modulation Method BPSK/ QPSK/ 16-QAM/ 64-QAM/ DBPSK/ DQPSK/ CCK
Frequency Band 2.4GHz ISM Band
Spread Spectrum IEEE 802.11b: CCK (Complementary Code Keying)
IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)
RF Output Power
(tolerance ± 2dBm)
17dBm – 802.11b@CCK 11Mbps
15dBm – 802.11g@OFDM 54Mbps
13dBm – 802.11n@MCS7_HT20
13dBm – 802.11n@MCS7_HT40
Operation Mode Ad hoc, Infrastructure, Soft AP
Receiver Sensitivity
-76dBm – 802.11b@11Mbps
-63dBm – 802.11g@54MBps
-64dBm – 802.11n@MCS7_BW20
-61dBm – 802.11n@MCS7_BW40
OS Support Windows XP /Vista /7 /8, Linux
Security 64 bit/128 bit WEP, TKIP, AES, WPA, WPA2
Interface USB 2.0
RF output IPEX connectors
Operating Temperature 0 – 50° C ambient temperature
Storage Temperature -10 ~ 70°C ambient temperature
Humidity 5 to 90 % maximum (non-condensing)
Size 25 x 12 x 2mm (L x W x H)
DC power input:
Module Minimum Typical Maximum Unit
DC 3.3V module 3.135 3.3 3.465 V
![](/img.php?id=2439947&img=bg6.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
6

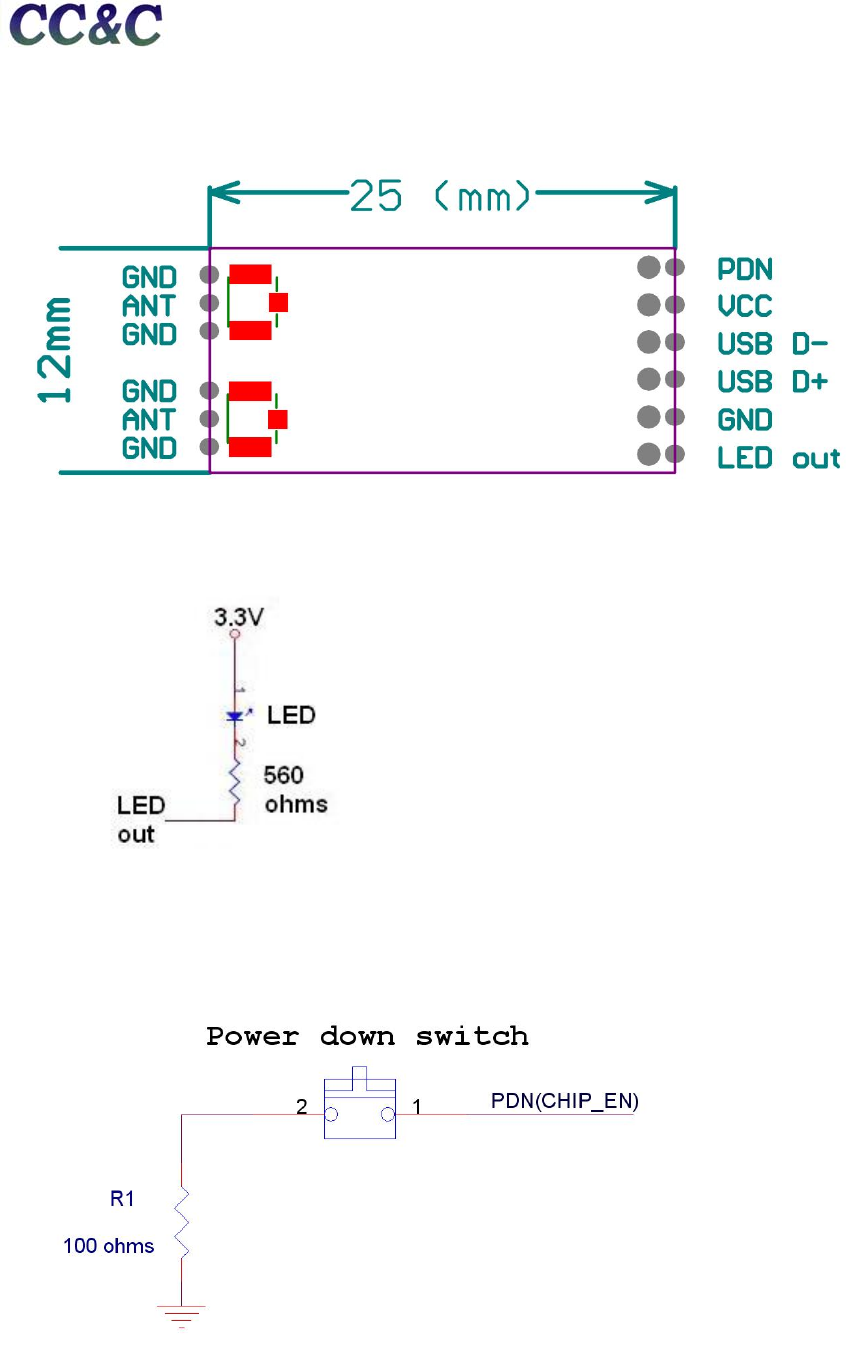

Pin outs:
The function of pin LED out is optional to LED (LED1_pin 20), a factory option.
The external circuit for WiFi activity LED display (LED function is a factory option)
The function of pin PDN is optional to power-down (CHIP_EN_pin 41), a factory option.
The external circuit for power-down function input (factory option), uses a push or toggle
switch.
![](/img.php?id=2439947&img=bg7.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
7
Dimension

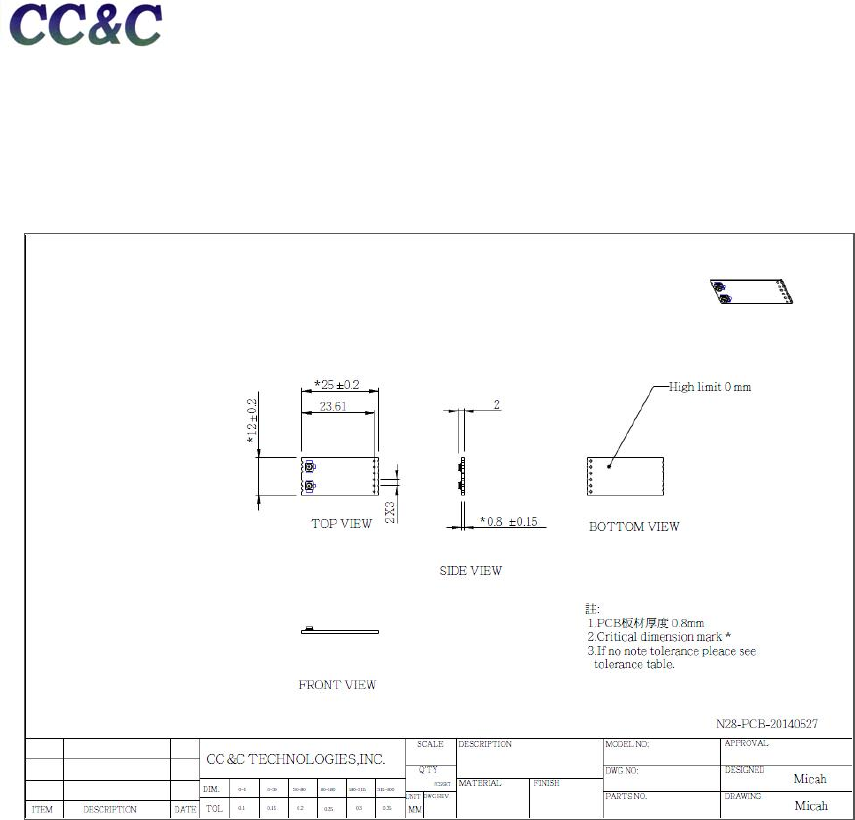

Without Shielding Cover
![](/img.php?id=2439947&img=bg8.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
8

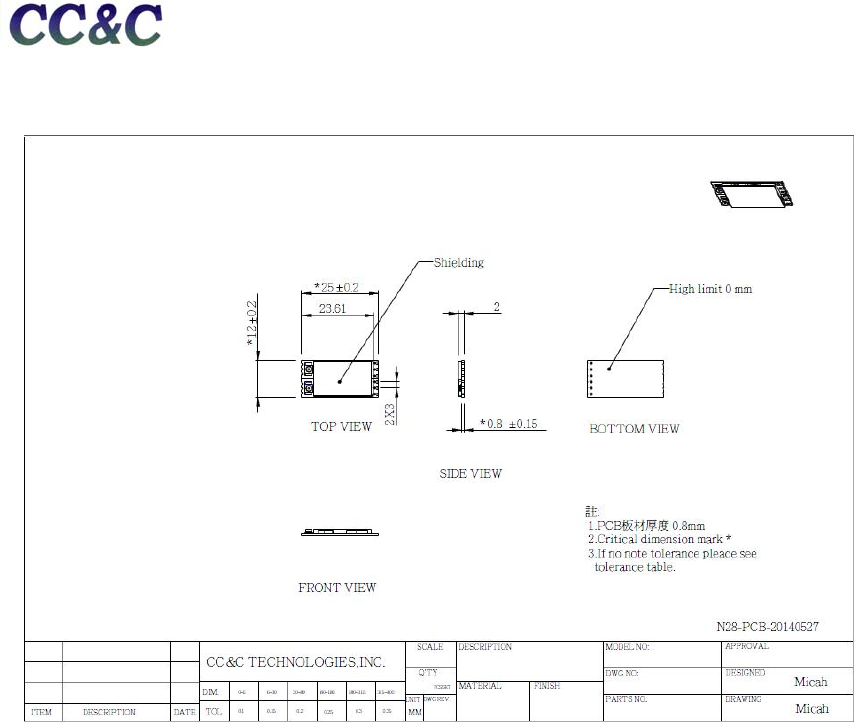

With Shielding Cover
![](/img.php?id=2439947&img=bg9.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
9
Placement Notice
RF connector
RF connector dimensions (unit: mm)
![](/img.php?id=2439947&img=bga.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
10

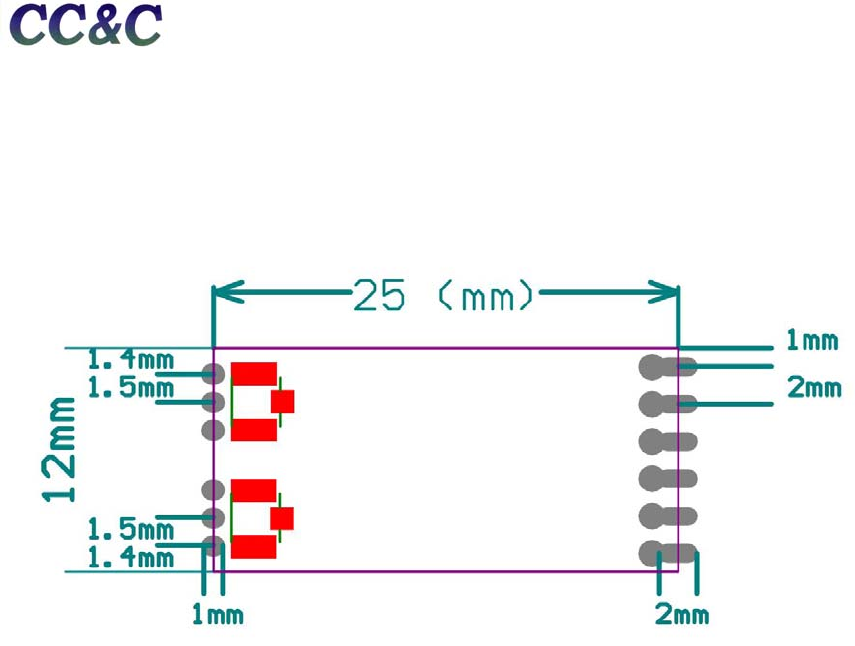

PCB Layout footprint
1. The recommended layout pads for WM-8192EU module are shown below. (module top
view)
All dimensions are in millimeters.
Tolerance: +- 0.05mm
![](/img.php?id=2439947&img=bgb.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
11
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
PANWM8192EU".
IMPORTANT NOTE:
This module is intended for OEM integrator.
The OEM integrator is still responsible for the FCC compliance requirement of the end product,
which integrates this module.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment
authorizations (e.g. Verification , Doc) of the host device to be addressed by the
integrator/manufacturer.
![](/img.php?id=2439947&img=bgc.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
12
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
7.1.2 Transmitter Antenna
This radio transmitter (IC: 10384A-WM8192EU) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. The required antenna impedance is 50
ohms. Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son
numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
Antenna General Information
Ant. Port. Ant. Cat. Ant. Type Model Name Gain
(
dBi
)
A 1 Integral PIFA ALO140-052030
3
2 3
B
1 Integral Print ALC140-051021-
A
3
2 3
C
1 Integral PIFA
ALC140-052030-
A
3
2 3
Note: This EUT supports 1TX and Port 2 for transmitting in Modulation Mode 11b and 11g. In Modulation
Mode 11n, this EUT supports 2TX.
![](/img.php?id=2439947&img=bgd.png)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
13
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Déclaration.d’exposition.aux.radiations:Cet équipement est conforme aux limites d’exposition
aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
OEM integrator is still responsible for testing their end product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC
peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain
laptop configurations or co-location with another transmitter), then the IC authorization is no
longer considered valid and the IC No. cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate IC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains transmitter module IC:
10384A-WM8192EU”.
Contient le module d'émission IC: 10384A-WM8192EU
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
CAN ICES-3 (B)/NMB-3(B)
The Country Code Selection feature is disabled for products marketed in the US/Canada
