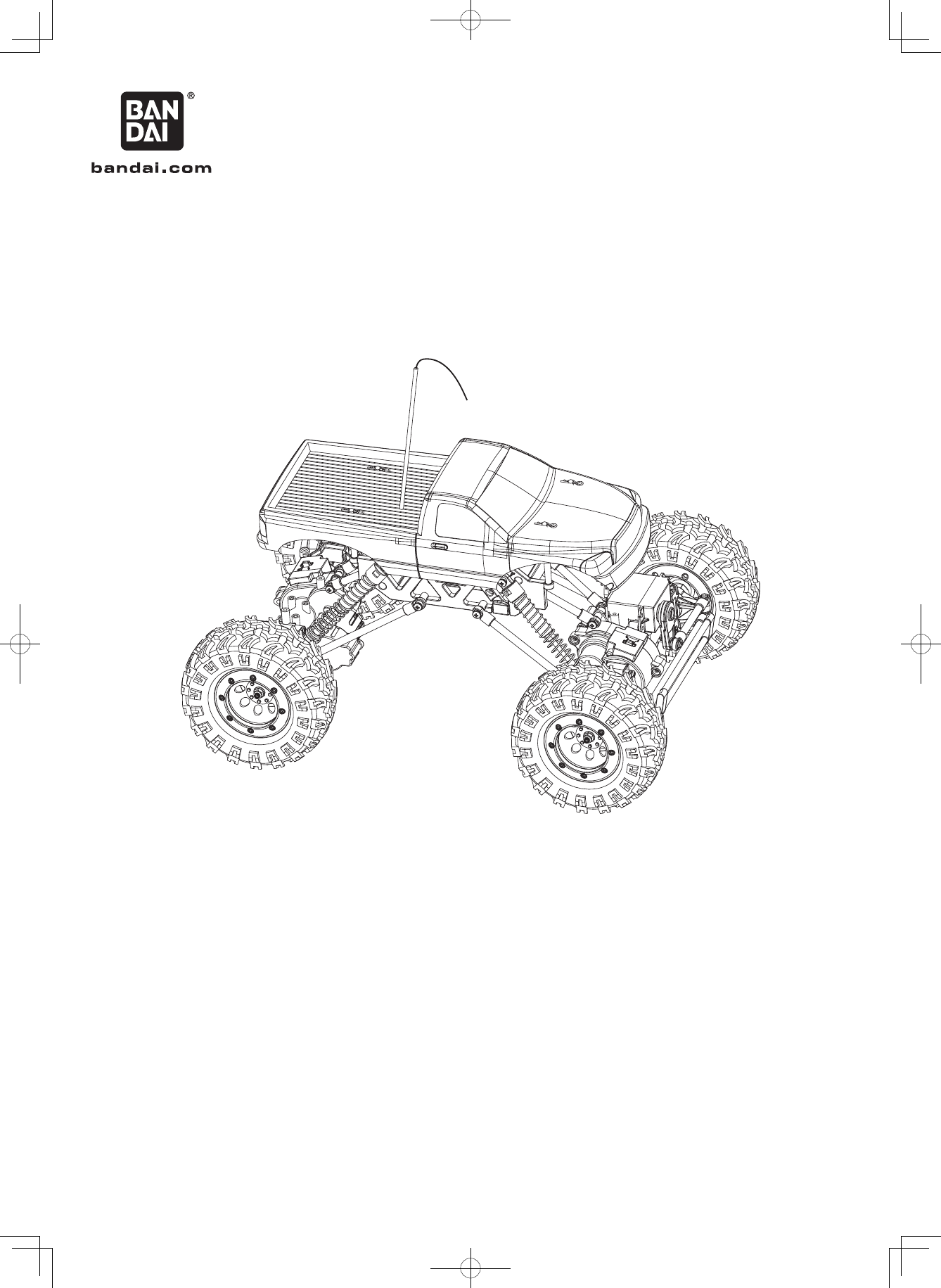

Users Manual
![](/img.php?id=1320444&img=bg1.png)
X-CRAWLEE
Asst # 88155 / Item # 88156
CAUTION - ELECTRIC TOY:
NOT RECOMMENDED FOR CHILDREN UNDER
8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,
PRECAUTIONS SHOULD BE OBSERVED DURING
HANDLING AND USE TO PREVENT ELECTRIC SHOCK.
INPUT: 120VAC, 60HZ, 0.15A
Instruction Manual
Age Grade 15+ 6100-INS-US
![](/img.php?id=1320444&img=bg2.png)
2
SAFETY GUIDELINES
It is important that you read and understand the instructions completely
before use.
Misuse of this product could cause fi re or injury.
Please keep this manual and package since it contains important information.
This product is not recommended for use by children less than 15 years of age
without adult supervision.
In the event of
* Smoke
* Burning smell
* Strange sound
* Water or any liquid coming into contact with the product
* Or if it is dropped or damaged.
----> Remove the battery and contact your supplier.
Please read before use
*
The manufacturer and distributor will accept no responsibility, expressed or implied
for injuries caused as a result of dismantling or modifi cation.
The place where you can play.
CAN PLAY CANNOT PLAY
Low Gear Dry asphalt road or ground On wet sand or mud
uphill up to around 30 degree In puddles
On rocks or gap around 10cm On deep sand
On long grass
High Gear Dry asphalt road or ground On wet sand or mud
Flat place In puddles
On deep sand
On long grass
On rough ground
*
When using in an unstable place, such as rocks, always pay attention that the car does
not overturn.
Attention during use
*
Any water ingress or moisture may cause damage or malfunction. Do not use in the rain or
expose equipment to water.
* Always drive an RC car with care and do not use in:
1. Crowded places, near other people, especially small children.
2. a place where there is another RC or similar transmitter nearby which could cause interference.
3. Confi ned spaces. In the wet, in fog or at night time.
4. Never operate when tired, sick, taking medication, under infl uence of alcohol or any other
condition which may affect your ability to control the model.
* Always turn on the TX fi rst and then the power to the car.
* Reverse this procedure when turning off i.e. turn off the car and then the TX.
* Never lose sight of your model which could result in damage or injury.
To avoid unexpected accident, pay attention as below.
* Do not play in the street or crowded place.
* If there is thunder, please stop playing immediately. RC system attracts lightning bolt.
* Do not hit or damage the car.
* Be careful not to break furniture if you play indoors.
* Do not bend the antenna. If antenna is broken it may cause injury.
* Be careful not to trap fi nger, hair or clothes in the wheel or moving points.
* This radio system should only be used in a radio control car
G
![](/img.php?id=1320444&img=bg3.png)
3
Attention after use
* Do not keep your car
1. In an extremely hot or cold place (more than 40°C/104°F, less than -10°C/14°F)
2. In direct sunlight
3. Humid atmosphere
4. Avoid excessive vibration
5. Dusty environment
* Exposing this car to such conditions, may cause damage, degradation or malfunction.
* Keep the car away from children.
Essential information regarding batteries
* When not in use always disconnect batteries. Leaving batteries connected can be very
dangerous resulting in explosion or fi re.
* Never short-circuit the connector terminal. This can cause explosion or fi re.
* Only charge batteries with their own charger.
* Do not dismantle batteries. Batteries contain dangerous chemicals.
* Do not immerse batteries in water.
* Always ensure correct polarity.
*
Note that alkaline batteries cannot be recharged. Make sure that batteries are rechargeable items before you charge them.
* Do not mix different types of batteries.
* Be careful of the sharp edges inside the battery box.
* Exhausted batteries are to be removed from the toy.
* Only batteries of the same type as recommended are used.
In case of battery leakage
Avoid eye contact, which may cause blindness. Rinse eyes immediately
with water and consult your doctor.
Battery disposal
Do not dispose the battery with other general garbage.
Disposal should be in accordance with your Country’s regulation.
*
Isolate battery terminals with insulating tape before disposal.
Rechargeable batteries must be recycled.
* Please note that short-circuiting batteries can cause fi re or electric shock.
CONTENTS OF THE KIT
X-CRAWLEE
Asst # 88155 / Item # 88156
CAUTION - ELECTRIC TOY:
NOT RECOMMENDED FOR CHILDREN UNDER
8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,
PRECAUTIONS SHOULD BE OBSERVED DURING
HANDLING AND USE TO PREVENT ELECTRIC SHOCK.
INPUT: 120VAC, 60HZ, 0.15A
Instruction Manual
Age Grade 15+ 6100-INS-US
Transmitter
Car
Instruction manual
Antenna Antenna Pipe Ni-MH Battery pack for car
9.6V / 750mAH
Charger
AA battery × 8
![](/img.php?id=1320444&img=bg4.png)
4
TRANSMITTER
Transmitter other than the one included cannot be used with this product.
FEATURES OF TRANSMITTER
Steering Wheel
Steering wheel rotates 7steps each to right and left.
Throttle Trigger
Throttle Trigger moves up 7 steps each to forward and
backwards.
HOW TO CHANGE TRANSMITTER BATTERIES
*
To remove the battery cover, push both of the tabs
towards the centre,
and then pull the cover. Please be careful that batteries
may pop out when the cover is opened.
*
If the transmitter voltage indicator fails to register, check
the contacts, especially the negative (-)
terminals and recheck that batteries are fi tted correctly.
*
Different types of batteries or new and used batteries are
not to be mixed.
LED
Blinking LED indicates that the
batteries are getting weak.
Change batteries when the
LED turns off,
the batteries are dead.
Antenna
Steering Wheel
Battery Cover
7steps <-- -->7steps
7steps each
Steering Trim R
②Pull
①Push
①Push
Steering Trim L
Battery box
Steering Trim R
Steering Trim L
Throttle trigger
ON/OFF
Power Switch
![](/img.php?id=1320444&img=bg5.png)
5
CAR
Front side of the car
Under side of the car
Bumper
Steering servo unit
Rear Tire
(No Weight)
High-Low
gear selector switch
Front Gear Unit
Front tire
(With Weight)
ON/OFF
Power Switch
Main Chassis Unit
Rear suspension
9.6V Ni-MH battery pack compartment
Battery Lock cover
High-Low
gear selector switch
Front suspension
Antenna pipe
Rear gear unit
![](/img.php?id=1320444&img=bg6.png)
6

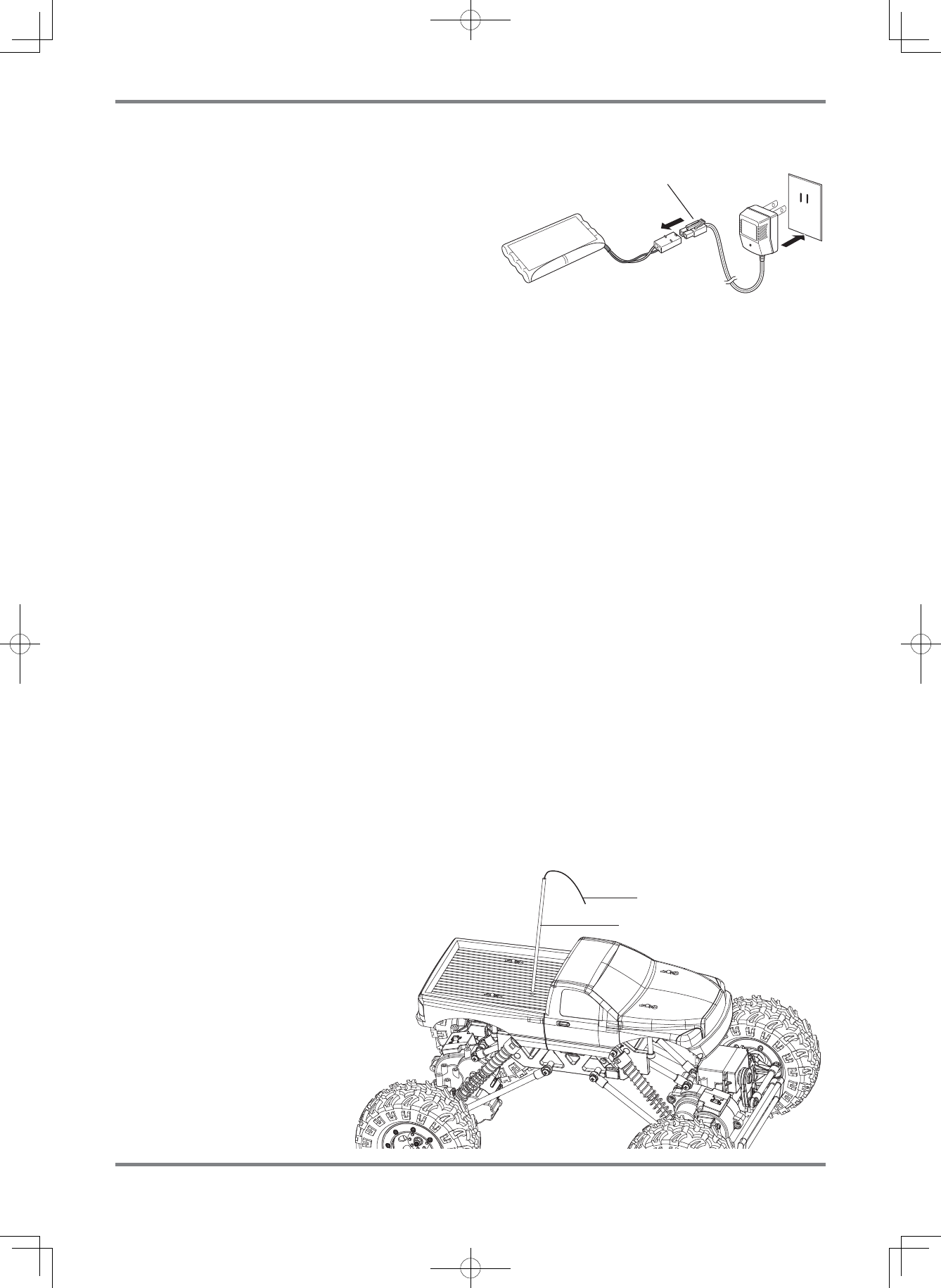

START-UP
HOW TO CHARGE THE BATTERY
1. Rechargeable batteries are to be removed from the car before being charged.
2. Tightly connect 9.6V battery pack and the charger.
3. Plug into standard outlet.
4. It will take about 4 hours to fully charge the battery pack.
* Please do not charge the battery for more than 4 hours.
5. After charging the battery for 4hrs, remove the charger from the
outlet and disconnect the charger and the battery pack
CHARACTERISTIC OF RECHARGEABLE BATTERY
The battery may wear out its power easily under circumstance as below.
The product comes with the battery in an uncharged state.
Not using the product for a long time will cause the battery to go fl at.
In this case, please charge the battery pack, and drive the car until it stops
then recharge the battery. In this way capacity will become stable and
can play without problem.
** Non-rechargeable batteries are not to be recharged.
** Rechargeable batteries are only to be charged under adult supervision.
**
Charger used with the toy are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and that,
in the event of such damage, the charger must not be used
until the damage has been repaired.
CAUTION:
*
The charger included in this product is solely to charge the battery pack included in the product.
Do not use for other purpose.
*
9.6V battery pack included in the product is not fully charged.
Charge the battery pack before playing with the car.
* Battery and charger will be warm during charging.
* Make sure the battery has been discharged before charging it
* Charge the battery under constant supervision. Never leave it unattended in case of fi re
* Charge the battery pack according to the instruction.
* Please set + & - correctly.
* After playing, always remember to switch off and remove the battery pack from the car.
* Please do not use, charge and keep the battery near fi re, at high temperature or high humidity place.
Miss use of the charger, can cause serious accident such as fi re or electric shock.
Pay attention as below.
* Be careful for electric shock. Do not touch the charger with wet hands.
* Always unplug from mains after use.
* Carefully detach the battery from charger holding both sides of the connector
* Please do not mix with other wiring.
Installation of antenna
Thread the antenna cord through the antenna pipe and put the
antenna pipe into the antenna foot on the chassis.
Antenna cord
Antenna pipe
PUSH THE CLIP ON TOP OF
THE CONNECTOR
TO CONNECT, DISCONNECT
THE BATTERY PACK AND
CHARGER.
