CCT Tech Advanced KX-TC1486 900MHz 40 Channel Analog Cordless Phone w/ CID User Manual PQQX14062ZA 1

CCT Tech Advanced Products Limited 900MHz 40 Channel Analog Cordless Phone w/ CID PQQX14062ZA 1

Contents

User Manual

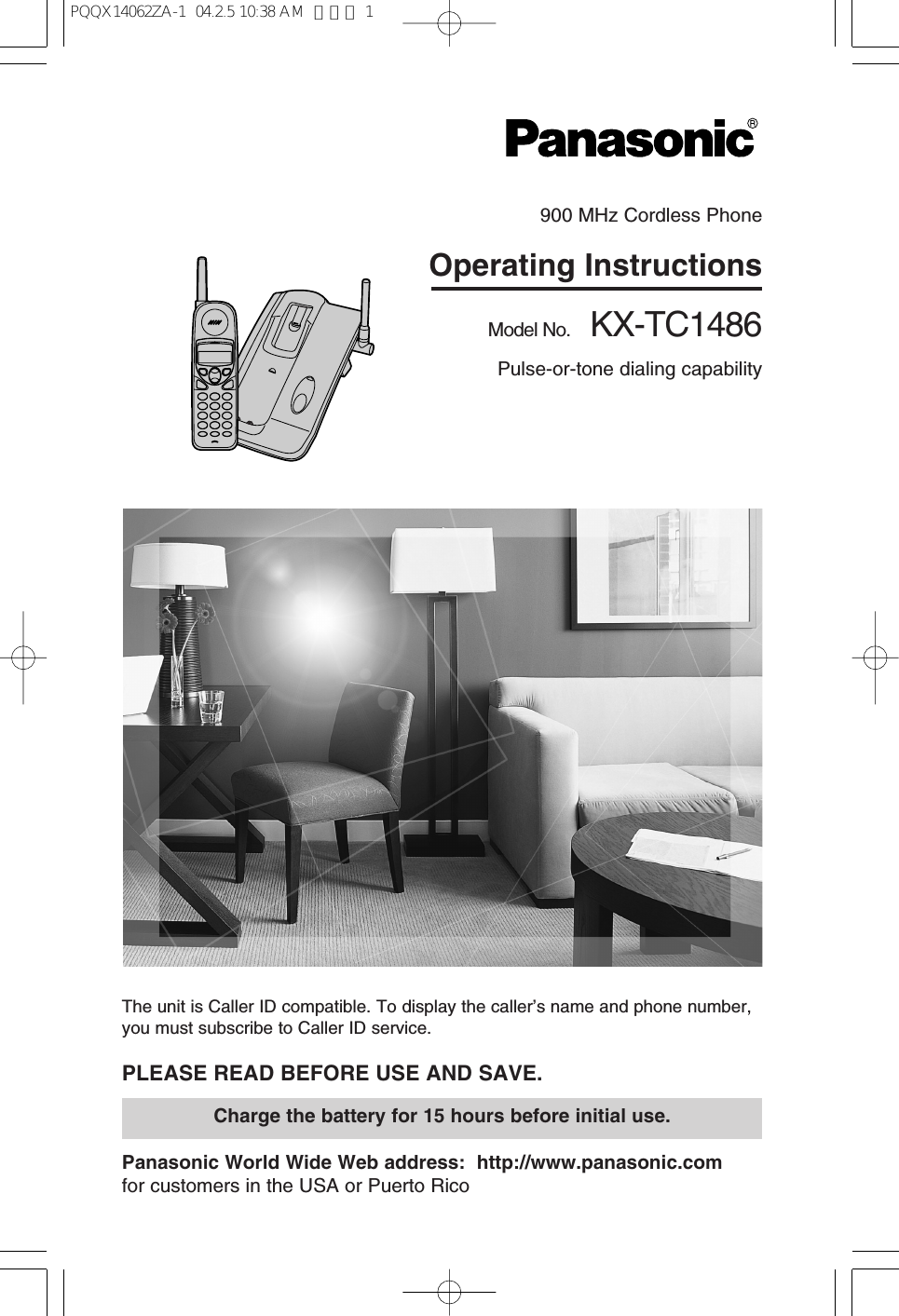

The unit is Caller ID compatible. To display the caller’s name and phone number,you must subscribe to Caller ID service.PLEASE READ BEFORE USE AND SAVE.Panasonic World Wide Web address: http://www.panasonic.comfor customers in the USA or Puerto RicoCharge the battery for 15 hours before initial use.900 MHz Cordless PhoneOperating InstructionsModel No. KX-TC1486Pulse-or-tone dialing capabilityPQQX14062ZA-1 04.2.5 10:38 AM ページ 1

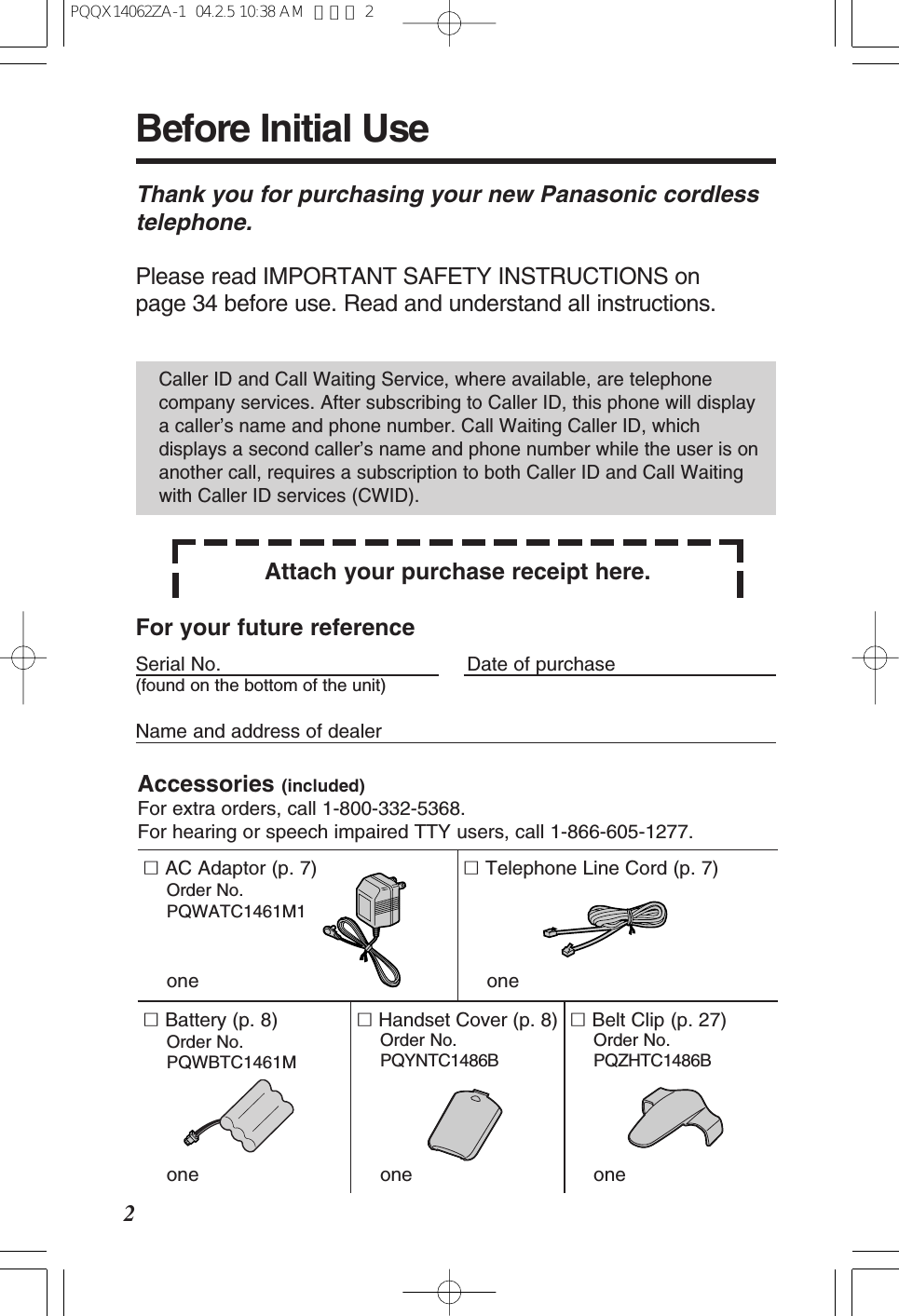

∑Handset Cover (p. 8)Order No. PQYNTC1486BoneAccessories (included)For extra orders, call 1-800-332-5368.For hearing or speech impaired TTY users, call 1-866-605-1277. ∑AC Adaptor (p. 7)Order No. PQWATC1461M1one∑Telephone Line Cord (p. 7)one∑Belt Clip (p. 27)Order No. PQZHTC1486Bone∑Battery (p. 8)Order No. PQWBTC1461Mone2Thank you for purchasing your new Panasonic cordlesstelephone.Please read IMPORTANT SAFETY INSTRUCTIONS on page 34 before use. Read and understand all instructions.Attach your purchase receipt here.Caller ID and Call Waiting Service, where available, are telephonecompany services. After subscribing to Caller ID, this phone will displaya caller’s name and phone number. Call Waiting Caller ID, whichdisplays a second caller’s name and phone number while the user is onanother call, requires a subscription to both Caller ID and Call Waitingwith Caller ID services (CWID).For your future referenceSerial No. Date of purchase(found on the bottom of the unit)Name and address of dealerBefore Initial UsePQQX14062ZA-1 04.2.5 10:38 AM ページ 2

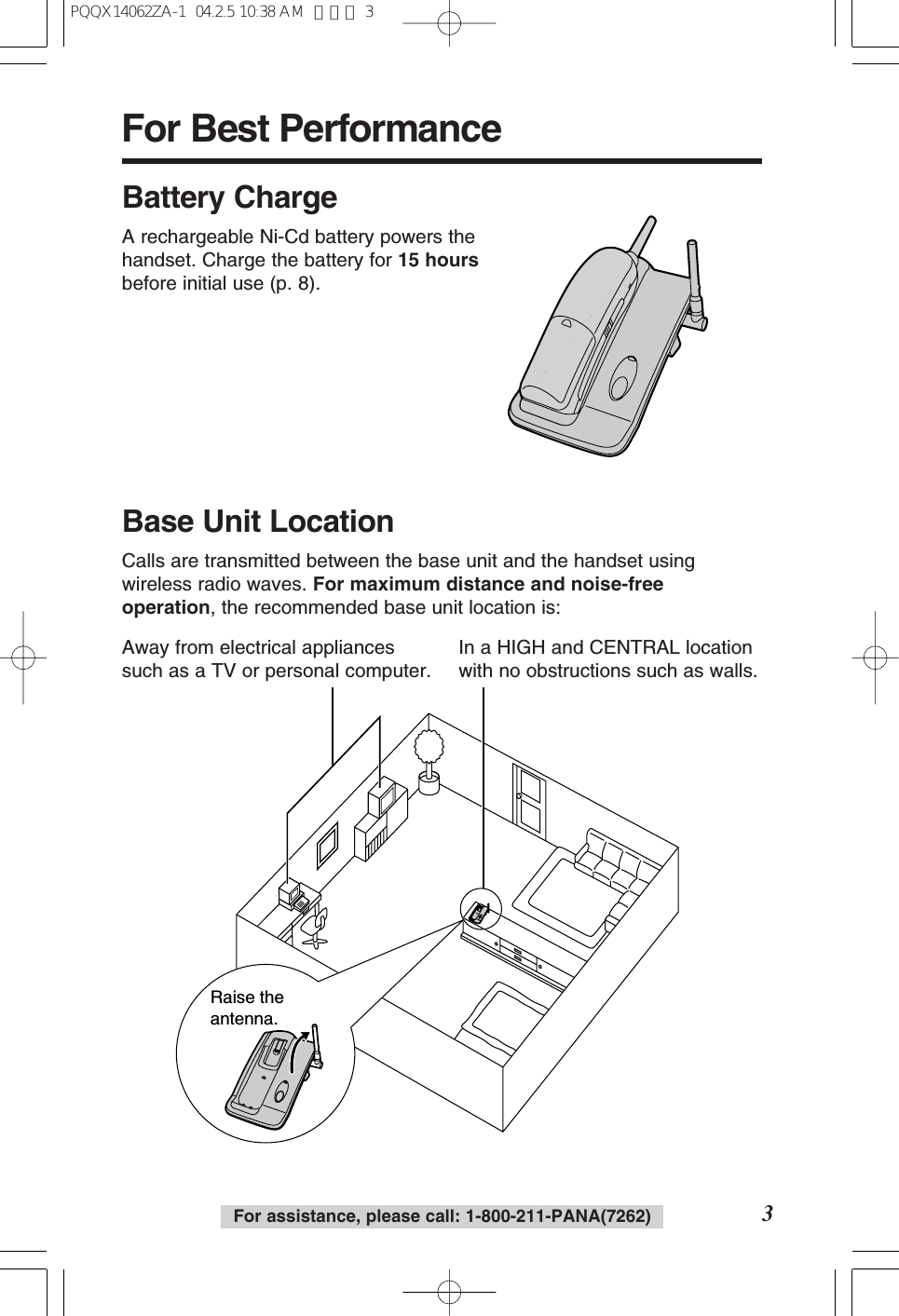

For assistance, please call: 1-800-211-PANA(7262)For Best Performance3Battery ChargeA rechargeable Ni-Cd battery powers thehandset. Charge the battery for 15 hoursbefore initial use (p. 8).Raise the antenna.Away from electrical appliancessuch as a TV or personal computer.In a HIGH and CENTRAL locationwith no obstructions such as walls.Base Unit LocationCalls are transmitted between the base unit and the handset usingwireless radio waves. For maximum distance and noise-freeoperation, the recommended base unit location is:PQQX14062ZA-1 04.2.5 10:38 AM ページ 3

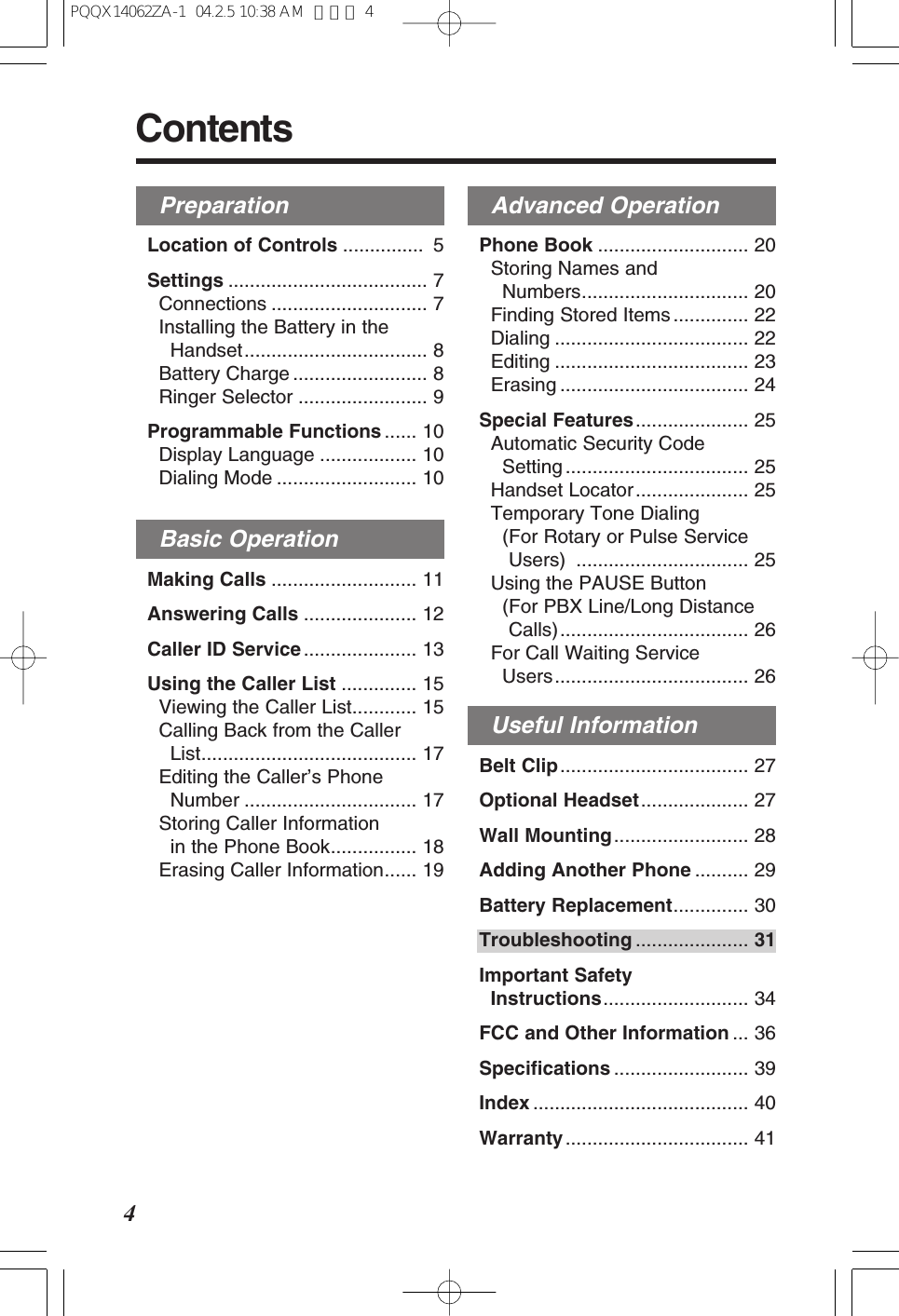

Advanced OperationPhone Book ............................ 20Storing Names and Numbers............................... 20Finding Stored Items .............. 22Dialing .................................... 22Editing .................................... 23Erasing ................................... 24Special Features..................... 25Automatic Security Code Setting .................................. 25Handset Locator..................... 25Temporary Tone Dialing (For Rotary or Pulse ServiceUsers) ................................ 25Using the PAUSE Button (For PBX Line/Long DistanceCalls)................................... 26For Call Waiting Service Users.................................... 26Useful InformationBelt Clip................................... 27Optional Headset.................... 27Wall Mounting......................... 28Adding Another Phone .......... 29Battery Replacement.............. 30Troubleshooting ..................... 31Important Safety Instructions........................... 34FCC and Other Information ... 36Specifications ......................... 39Index ........................................ 40Warranty.................................. 41PreparationLocation of Controls ............... 5Settings ..................................... 7Connections ............................. 7Installing the Battery in theHandset.................................. 8Battery Charge ......................... 8Ringer Selector ........................ 9Programmable Functions ...... 10Display Language .................. 10Dialing Mode .......................... 10Basic OperationMaking Calls ........................... 11Answering Calls ..................... 12Caller ID Service ..................... 13Using the Caller List .............. 15Viewing the Caller List............ 15Calling Back from the Caller List........................................ 17Editing the Caller’s Phone Number ................................ 17Storing Caller Information in the Phone Book................ 18Erasing Caller Information...... 19Contents4PQQX14062ZA-1 04.2.5 10:38 AM ページ 4

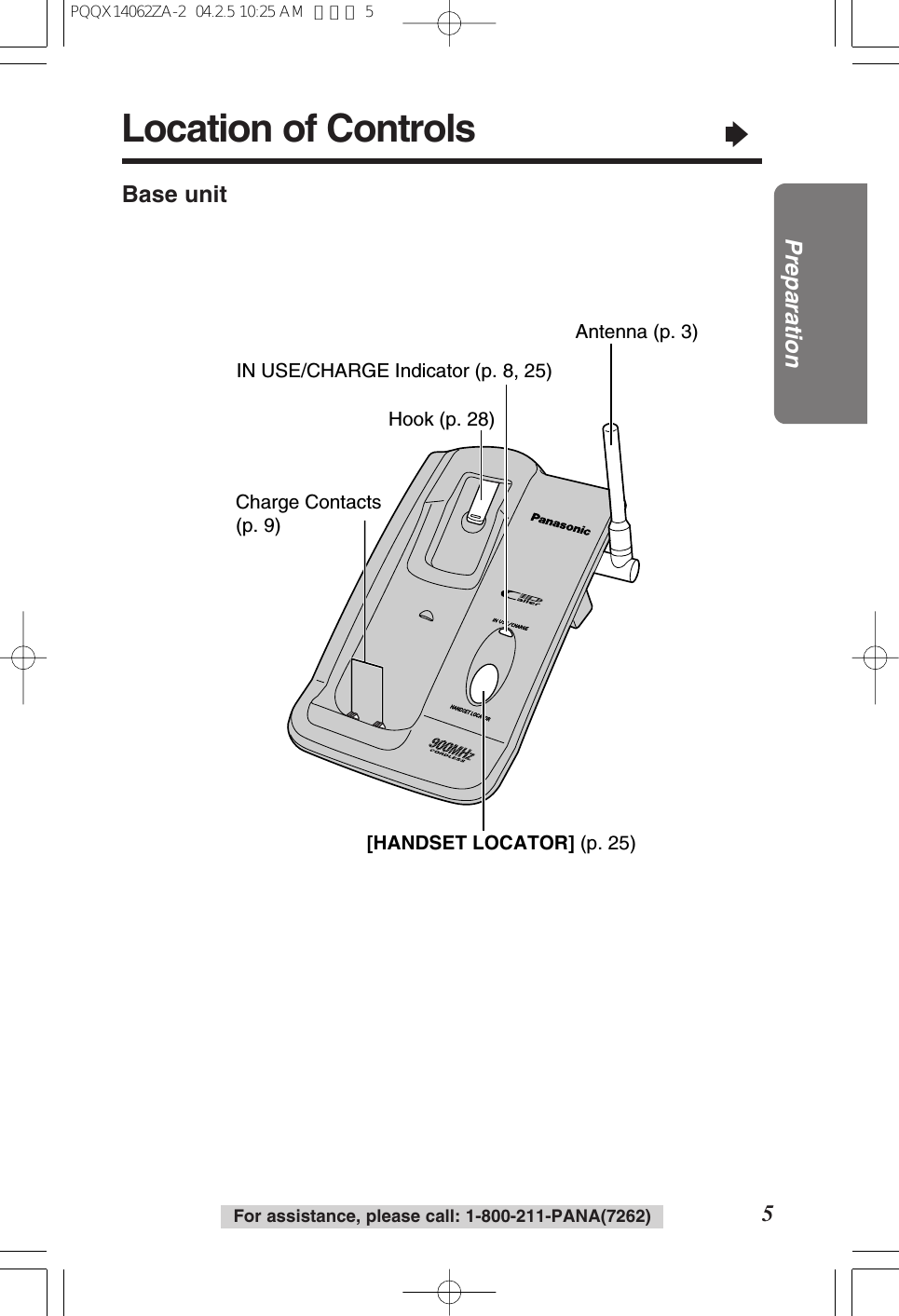

Location of Controls“5PreparationFor assistance, please call: 1-800-211-PANA(7262)Base unitCharge Contacts (p. 9)IN USE/CHARGE Indicator (p. 8, 25)[HANDSET LOCATOR] (p. 25)Antenna (p. 3)Hook (p. 28) PQQX14062ZA-2 04.2.5 10:25 AM ページ 5

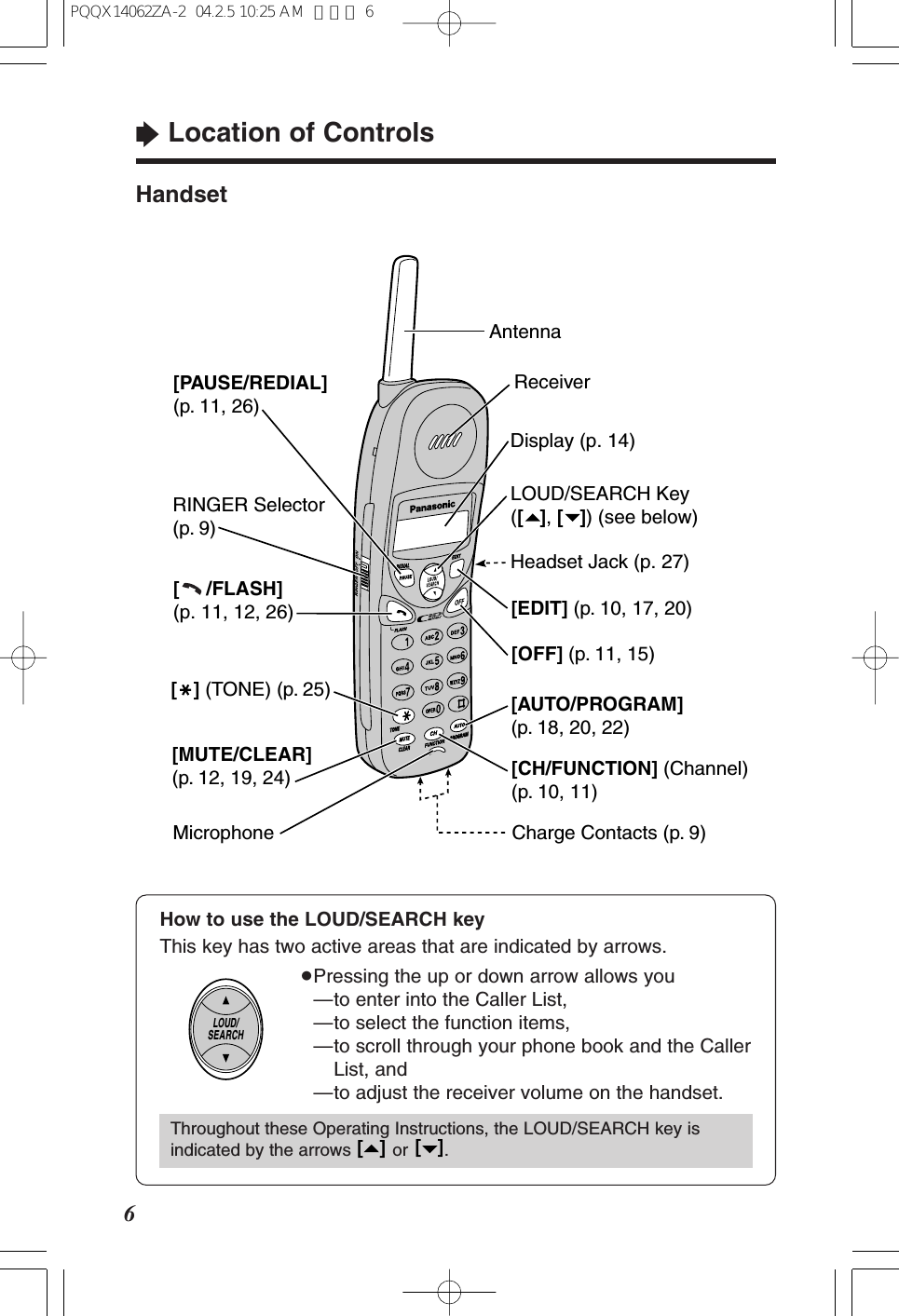

“Location of Controls6HandsetAntenna[PAUSE/REDIAL] (p. 11, 26)Charge Contacts (p. 9)[ /FLASH] (p. 11, 12, 26)[AUTO/PROGRAM] (p. 18, 20, 22)[MUTE/CLEAR] (p. 12, 19, 24)[OFF] (p. 11, 15)RINGER Selector (p. 9)[ ] (TONE) (p. 25)[CH/FUNCTION] (Channel) (p. 10, 11)LOUD/SEARCH Key ([ ], [ ]) (see below)Display (p. 14)[EDIT] (p. 10, 17, 20)Headset Jack (p. 27) ReceiverMicrophoneHow to use the LOUD/SEARCH keyThis key has two active areas that are indicated by arrows.≥Pressing the up or down arrow allows you≥—to enter into the Caller List,≥—to select the function items,≥—to scroll through your phone book and the CallerList, and≥—to adjust the receiver volume on the handset.LOUD/SEARCHThroughout these Operating Instructions, the LOUD/SEARCH key isindicated by the arrows or .[ ][ ]PQQX14062ZA-2 04.2.5 10:25 AM ページ 6

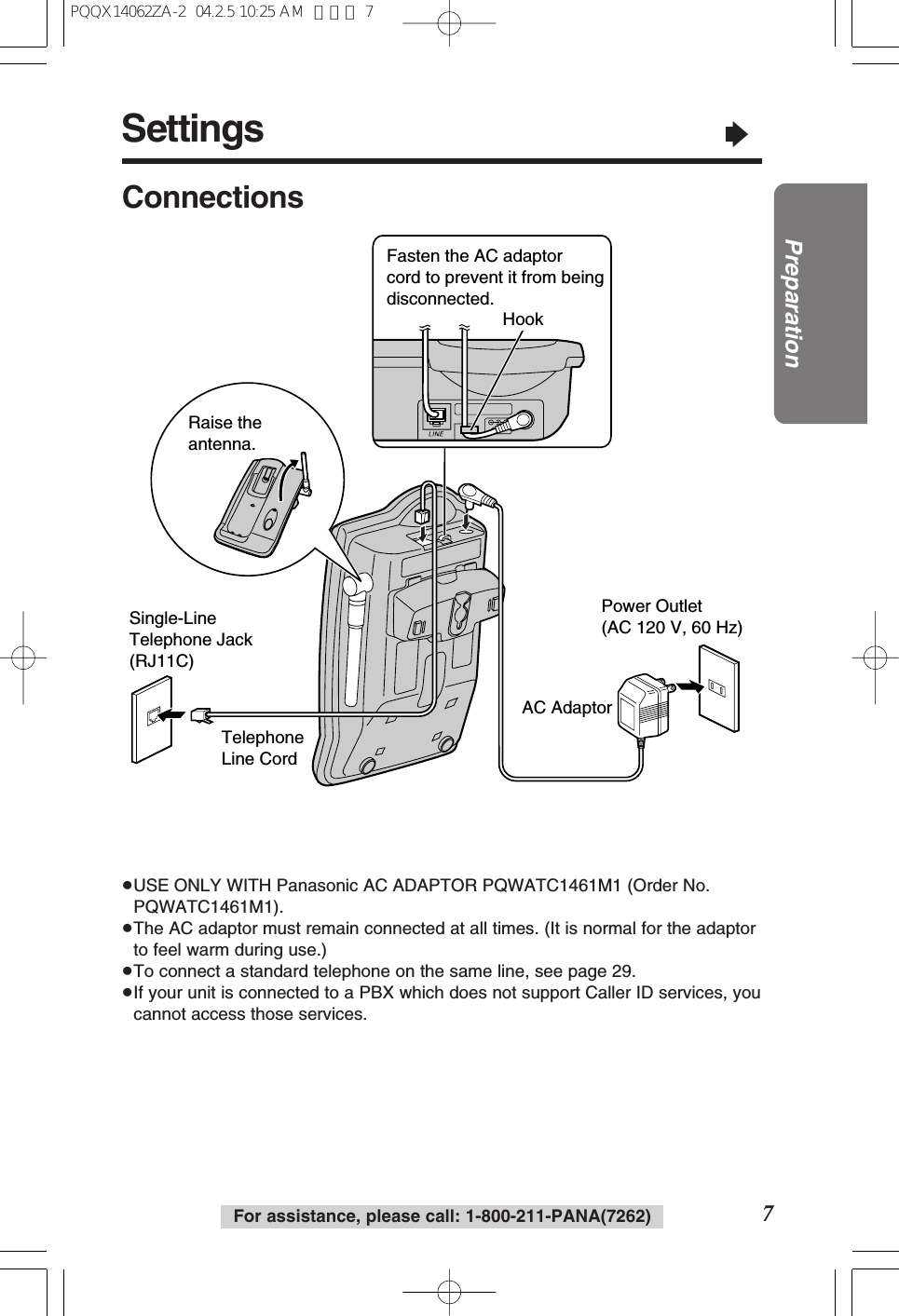

Settings“7PreparationFor assistance, please call: 1-800-211-PANA(7262)ConnectionsPower Outlet(AC 120 V, 60 Hz)Telephone Line CordSingle-Line Telephone Jack (RJ11C)Raise the antenna.AC AdaptorFasten the AC adaptor cord to prevent it from being disconnected.Hook≥USE ONLY WITH Panasonic AC ADAPTOR PQWATC1461M1 (Order No.PQWATC1461M1).≥The AC adaptor must remain connected at all times. (It is normal for the adaptorto feel warm during use.)≥To connect a standard telephone on the same line, see page 29.≥If your unit is connected to a PBX which does not support Caller ID services, youcannot access those services.PQQX14062ZA-2 04.2.5 10:25 AM ページ 7

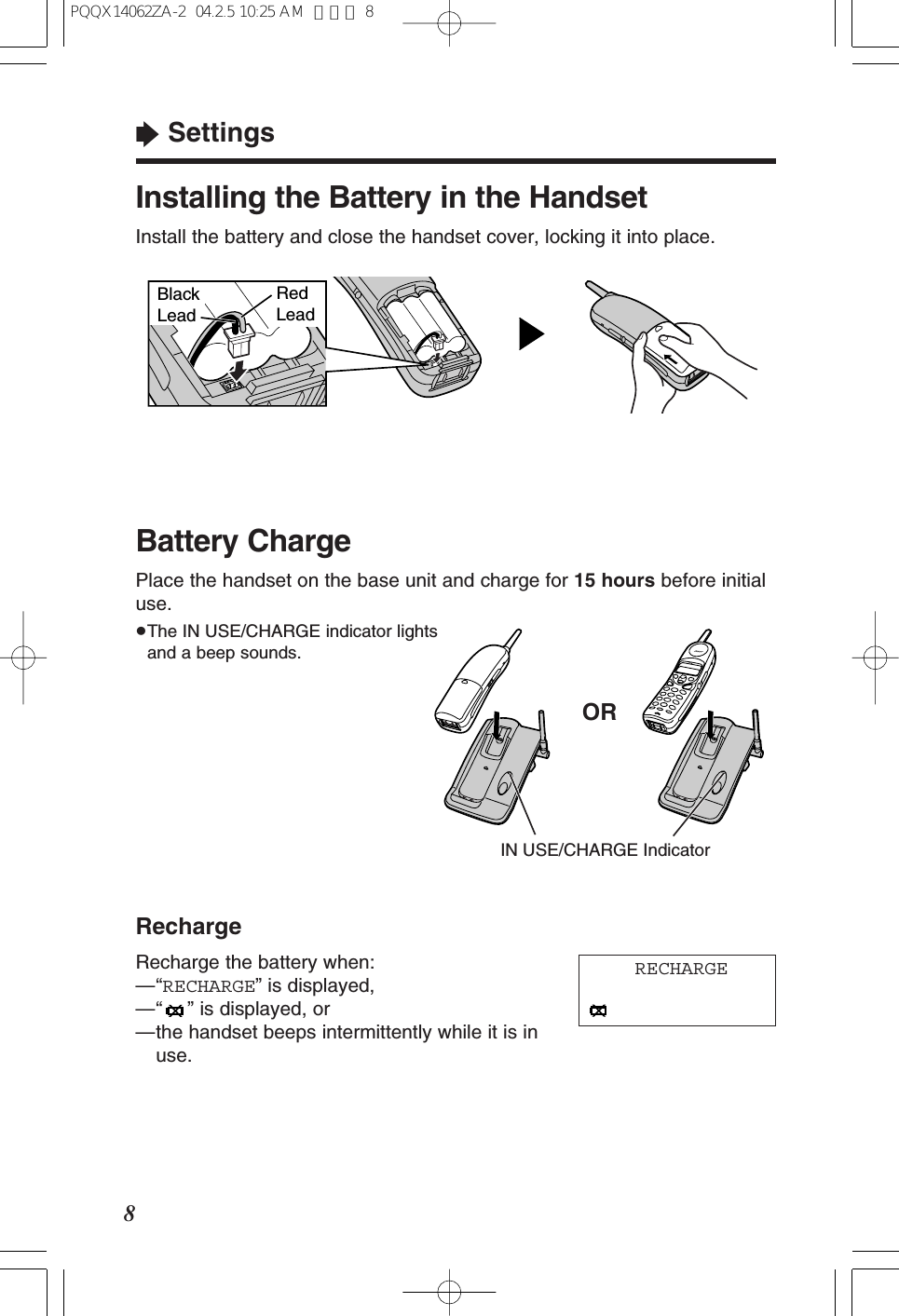

“Settings8Battery ChargePlace the handset on the base unit and charge for 15 hours before initialuse.≥The IN USE/CHARGE indicator lightsand a beep sounds.ORIN USE/CHARGE IndicatorInstalling the Battery in the HandsetInstall the battery and close the handset cover, locking it into place.Black LeadRed LeadRechargeRecharge the battery when:—“RECHARGE” is displayed,—“ ” is displayed, or—the handset beeps intermittently while it is inuse.RECHARGEPQQX14062ZA-2 04.2.5 10:25 AM ページ 8

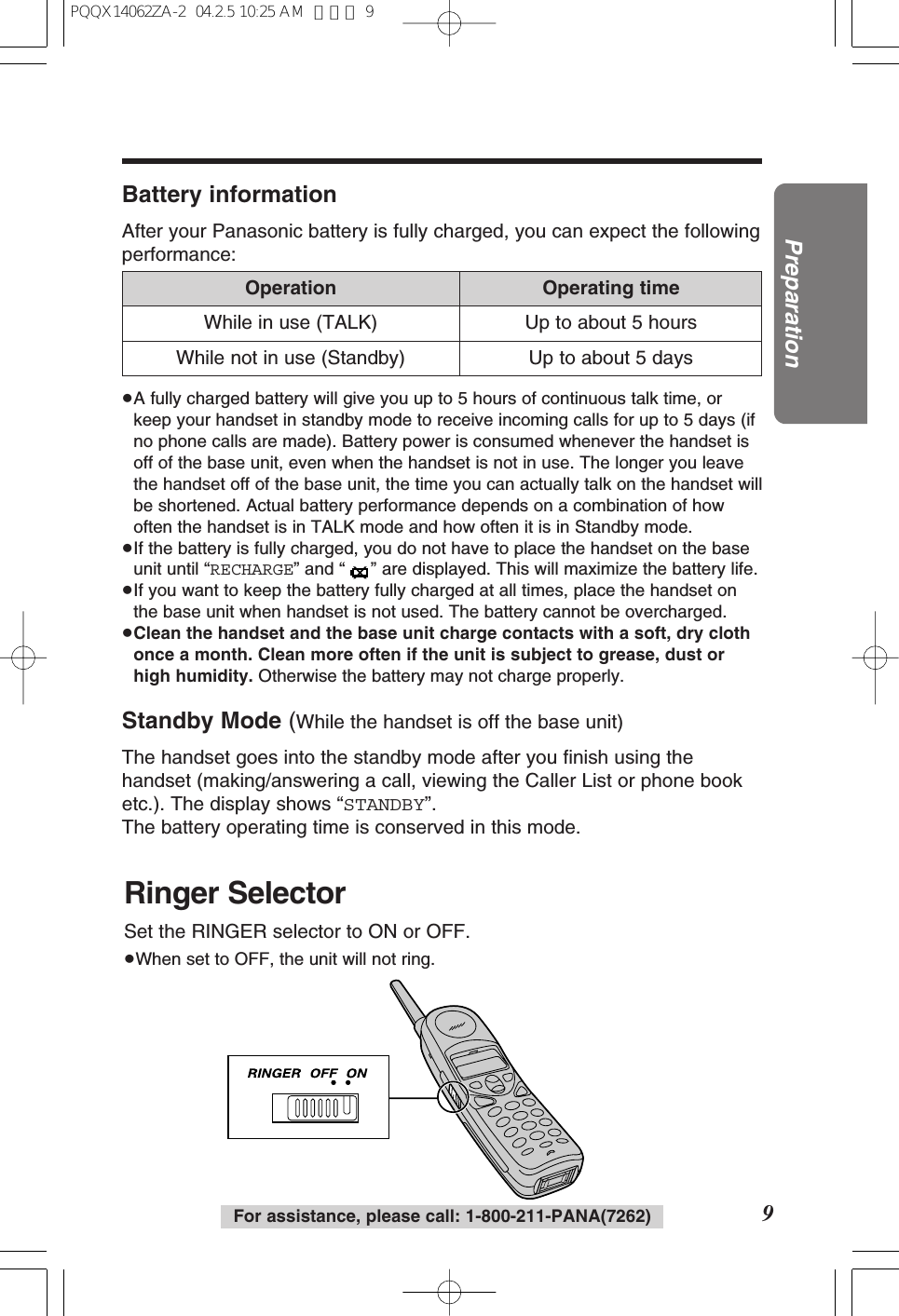

9PreparationFor assistance, please call: 1-800-211-PANA(7262)Battery informationAfter your Panasonic battery is fully charged, you can expect the followingperformance:≥A fully charged battery will give you up to 5 hours of continuous talk time, orkeep your handset in standby mode to receive incoming calls for up to 5 days (ifno phone calls are made). Battery power is consumed whenever the handset isoff of the base unit, even when the handset is not in use. The longer you leavethe handset off of the base unit, the time you can actually talk on the handset willbe shortened. Actual battery performance depends on a combination of howoften the handset is in TALK mode and how often it is in Standby mode.≥If the battery is fully charged, you do not have to place the handset on the baseunit until “RECHARGE” and “ ” are displayed. This will maximize the battery life.≥If you want to keep the battery fully charged at all times, place the handset onthe base unit when handset is not used. The battery cannot be overcharged.≥Clean the handset and the base unit charge contacts with a soft, dry clothonce a month. Clean more often if the unit is subject to grease, dust orhigh humidity. Otherwise the battery may not charge properly.Standby Mode (While the handset is off the base unit)The handset goes into the standby mode after you finish using thehandset (making/answering a call, viewing the Caller List or phone booketc.). The display shows “STANDBY”.The battery operating time is conserved in this mode.Operation Operating timeWhile in use (TALK) Up to about 5 hoursUp to about 5 daysWhile not in use (Standby)Ringer SelectorSet the RINGER selector to ON or OFF.≥When set to OFF, the unit will not ring.PQQX14062ZA-2 04.2.5 10:25 AM ページ 9

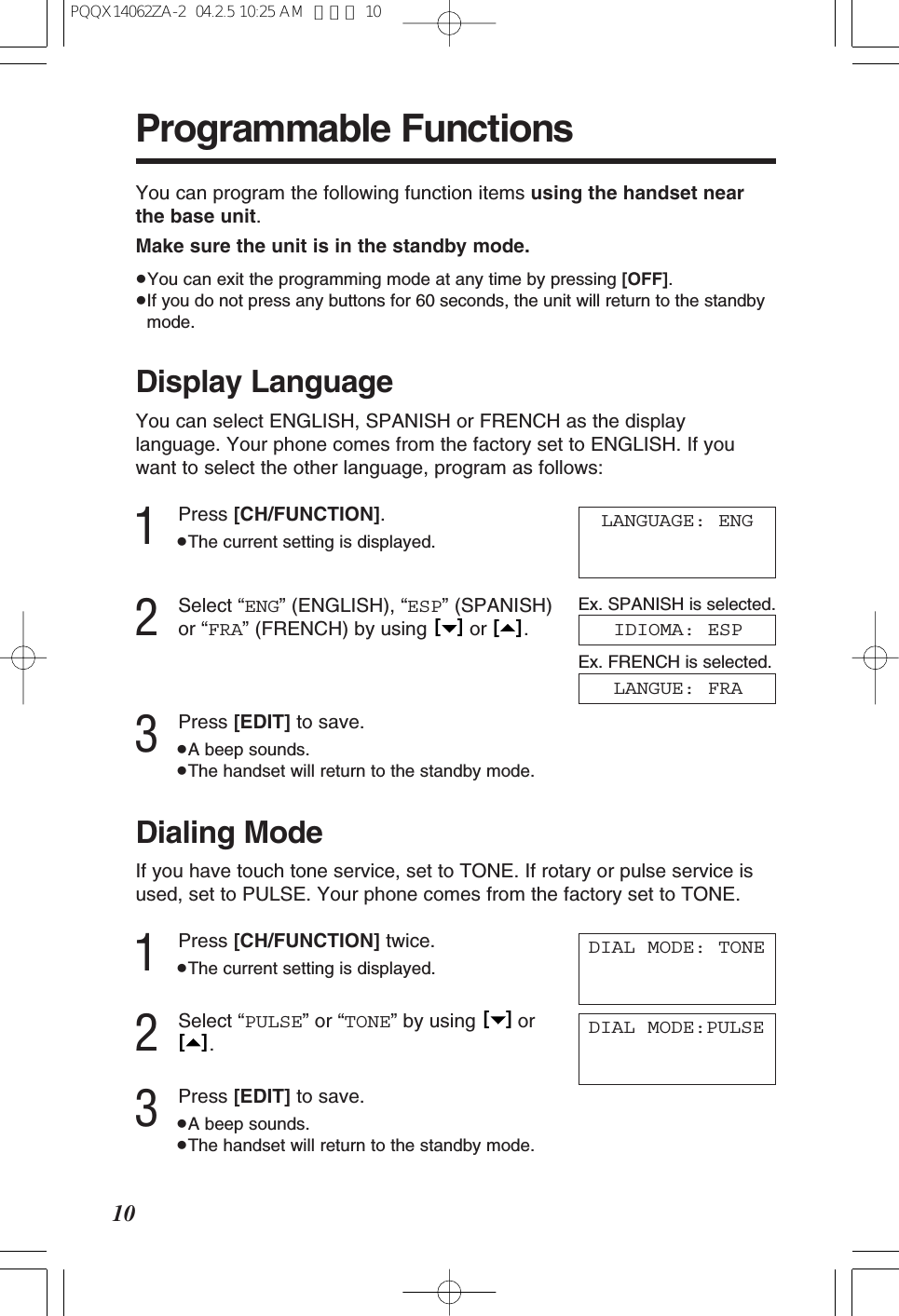

Programmable Functions10Display LanguageYou can select ENGLISH, SPANISH or FRENCH as the displaylanguage. Your phone comes from the factory set to ENGLISH. If youwant to select the other language, program as follows:1Press [CH/FUNCTION].≥The current setting is displayed.2Select “ENG” (ENGLISH), “ESP” (SPANISH)or “FRA” (FRENCH) by using or .3Press [EDIT] to save.≥A beep sounds.≥The handset will return to the standby mode.[ ][ ]LANGUAGE: ENGIDIOMA: ESPYou can program the following function items using the handset nearthe base unit.Make sure the unit is in the standby mode.≥You can exit the programming mode at any time by pressing [OFF].≥If you do not press any buttons for 60 seconds, the unit will return to the standbymode.Dialing ModeIf you have touch tone service, set to TONE. If rotary or pulse service isused, set to PULSE. Your phone comes from the factory set to TONE.1Press [CH/FUNCTION] twice.≥The current setting is displayed.2Select “PULSE” or “TONE” by using or.3Press [EDIT] to save.≥A beep sounds.≥The handset will return to the standby mode.[ ][ ]DIAL MODE: TONEDIAL MODE:PULSEEx. SPANISH is selected.LANGUE: FRAEx. FRENCH is selected.PQQX14062ZA-2 04.2.5 10:25 AM ページ 10

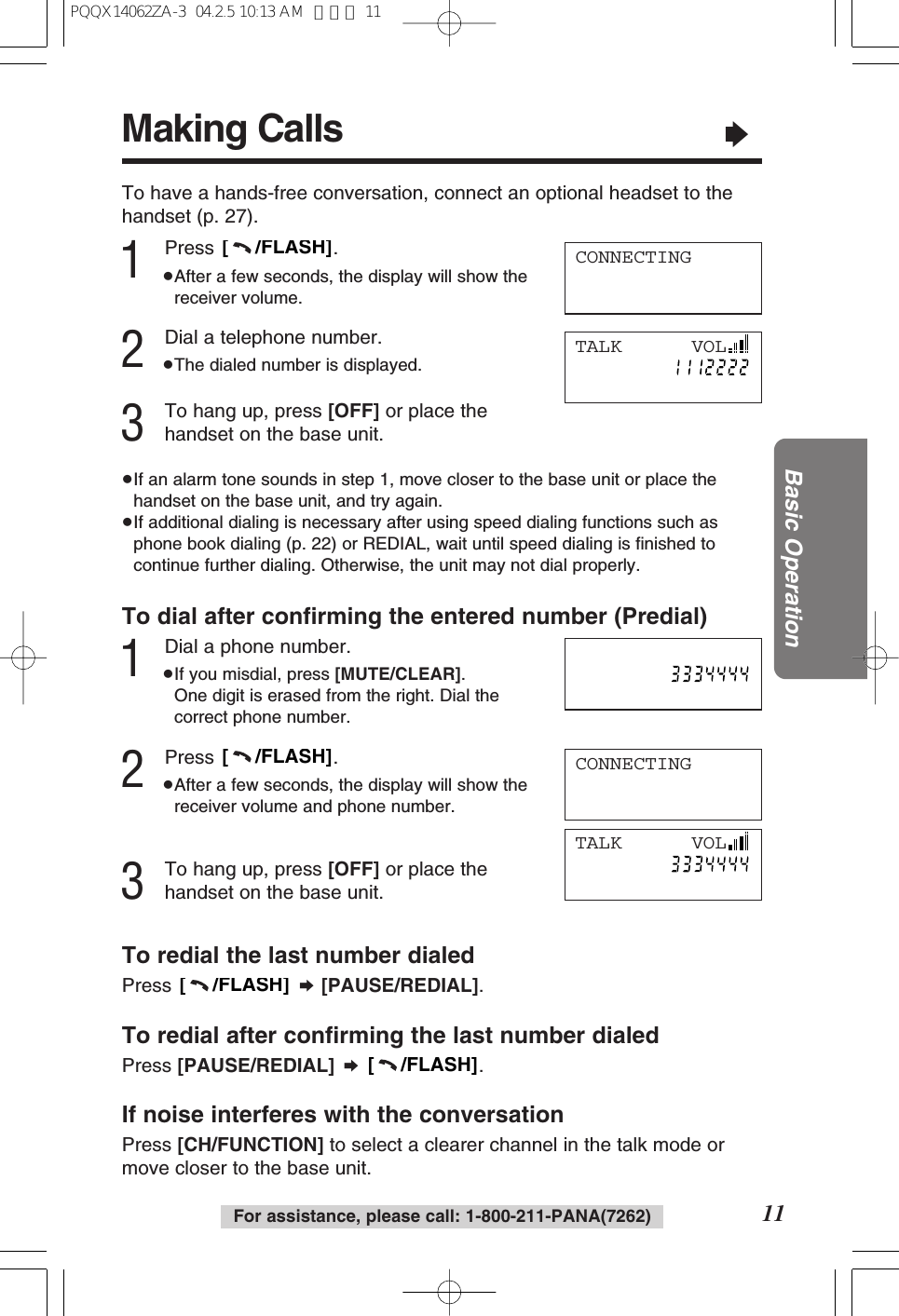

Making Calls“11Basic OperationFor assistance, please call: 1-800-211-PANA(7262)1Press .≥After a few seconds, the display will show thereceiver volume.2Dial a telephone number.≥The dialed number is displayed.3To hang up, press [OFF] or place thehandset on the base unit.≥If an alarm tone sounds in step 1, move closer to the base unit or place thehandset on the base unit, and try again.≥If additional dialing is necessary after using speed dialing functions such asphone book dialing (p. 22) or REDIAL, wait until speed dialing is finished tocontinue further dialing. Otherwise, the unit may not dial properly.[ /FLASH]CONNECTINGTo have a hands-free conversation, connect an optional headset to thehandset (p. 27).TALK VOLTo dial after confirming the entered number (Predial)1Dial a phone number.≥If you misdial, press [MUTE/CLEAR]. One digit is erased from the right. Dial thecorrect phone number.2Press .≥After a few seconds, the display will show thereceiver volume and phone number.3To hang up, press [OFF] or place thehandset on the base unit.[ /FLASH]CONNECTINGTALK VOLTo redial the last number dialedPress ¤[PAUSE/REDIAL].To redial after confirming the last number dialedPress [PAUSE/REDIAL] ¤.If noise interferes with the conversationPress [CH/FUNCTION] to select a clearer channel in the talk mode ormove closer to the base unit.[ /FLASH][ /FLASH]PQQX14062ZA-3 04.2.5 10:13 AM ページ 11

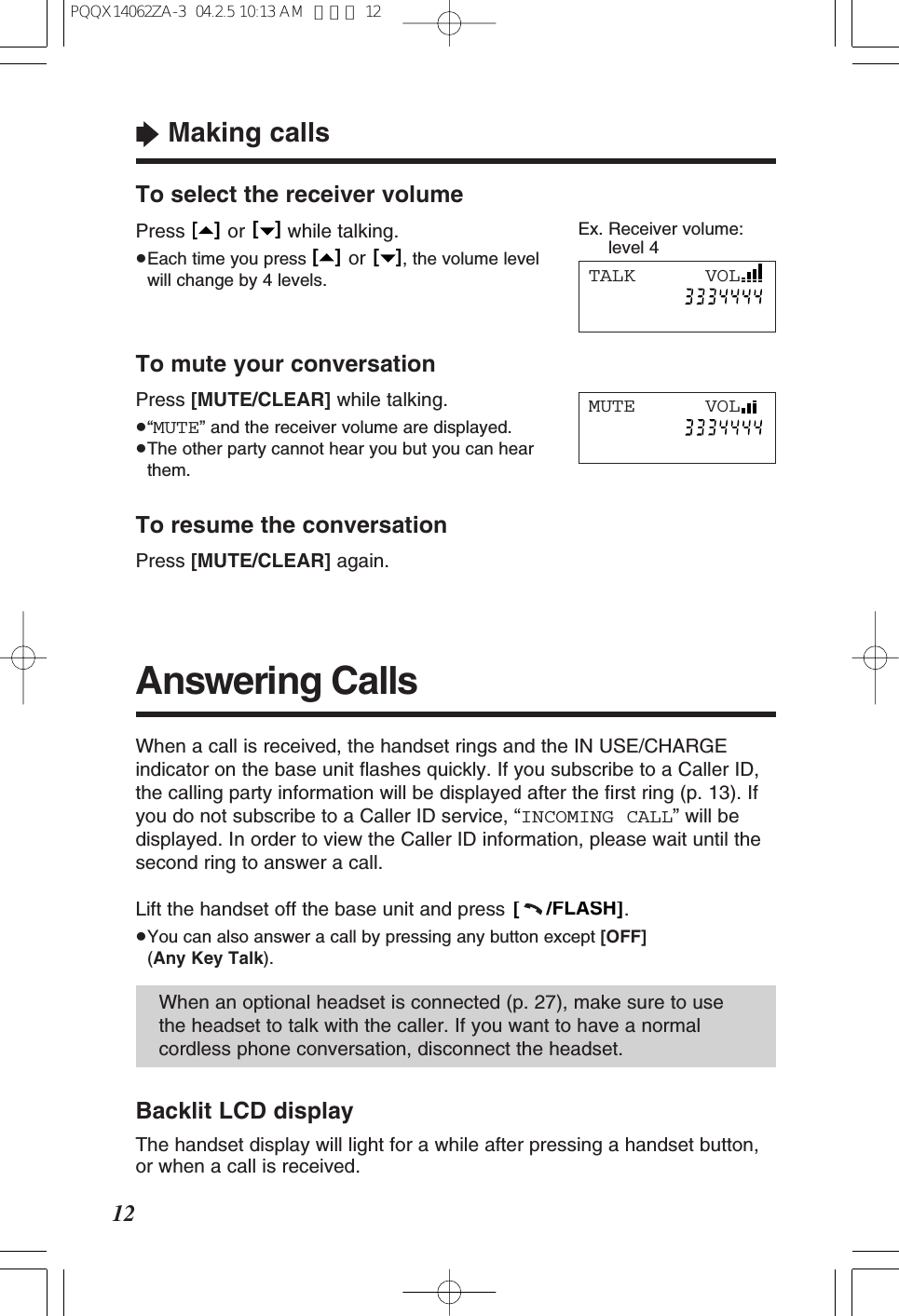

To select the receiver volumePress or while talking.≥Each time you press or , the volume levelwill change by 4 levels.[ ][ ][ ][ ]Answering Calls“Making calls12When a call is received, the handset rings and the IN USE/CHARGEindicator on the base unit flashes quickly. If you subscribe to a Caller ID,the calling party information will be displayed after the first ring (p. 13). Ifyou do not subscribe to a Caller ID service, “INCOMING CALL” will bedisplayed. In order to view the Caller ID information, please wait until thesecond ring to answer a call.Lift the handset off the base unit and press .≥You can also answer a call by pressing any button except [OFF](Any Key Talk).[ /FLASH]When an optional headset is connected (p. 27), make sure to usethe headset to talk with the caller. If you want to have a normalcordless phone conversation, disconnect the headset.To mute your conversationPress [MUTE/CLEAR] while talking.≥“MUTE” and the receiver volume are displayed.≥The other party cannot hear you but you can hearthem.To resume the conversationPress [MUTE/CLEAR] again.MUTE VOLBacklit LCD displayThe handset display will light for a while after pressing a handset button,or when a call is received.Ex. Receiver volume:level 4TALK VOLPQQX14062ZA-3 04.2.5 10:13 AM ページ 12

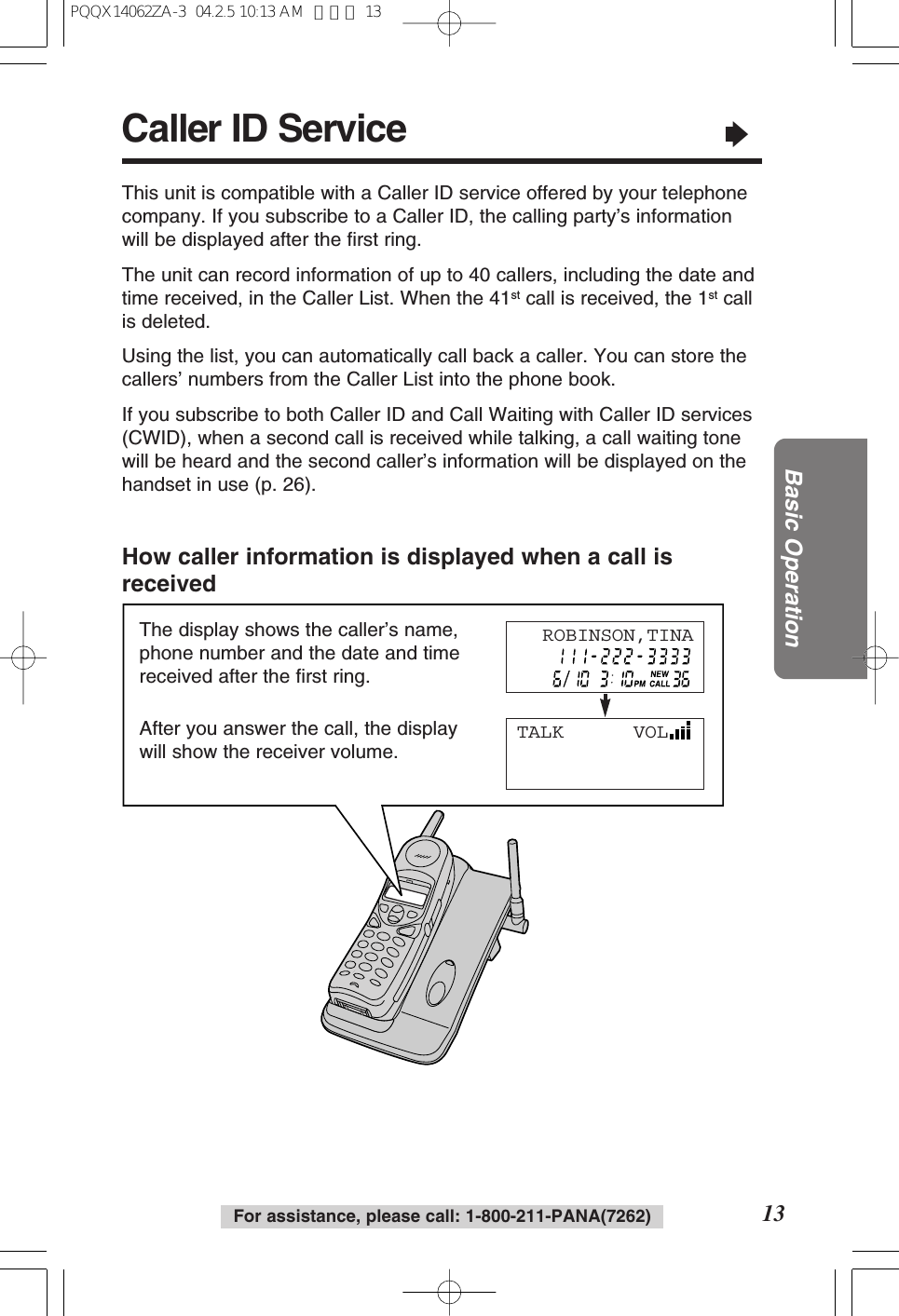

For assistance, please call: 1-800-211-PANA(7262) 13Basic OperationThe display shows the caller’s name,phone number and the date and timereceived after the first ring.After you answer the call, the displaywill show the receiver volume.Caller ID Service“This unit is compatible with a Caller ID service offered by your telephonecompany. If you subscribe to a Caller ID, the calling party’s informationwill be displayed after the first ring.The unit can record information of up to 40 callers, including the date andtime received, in the Caller List. When the 41st call is received, the 1st callis deleted.Using the list, you can automatically call back a caller. You can store thecallers’ numbers from the Caller List into the phone book.If you subscribe to both Caller ID and Call Waiting with Caller ID services(CWID), when a second call is received while talking, a call waiting tonewill be heard and the second caller’s information will be displayed on thehandset in use (p. 26).How caller information is displayed when a call isreceivedTALK VOLROBINSON,TINAPQQX14062ZA-3 04.2.5 10:13 AM ページ 13

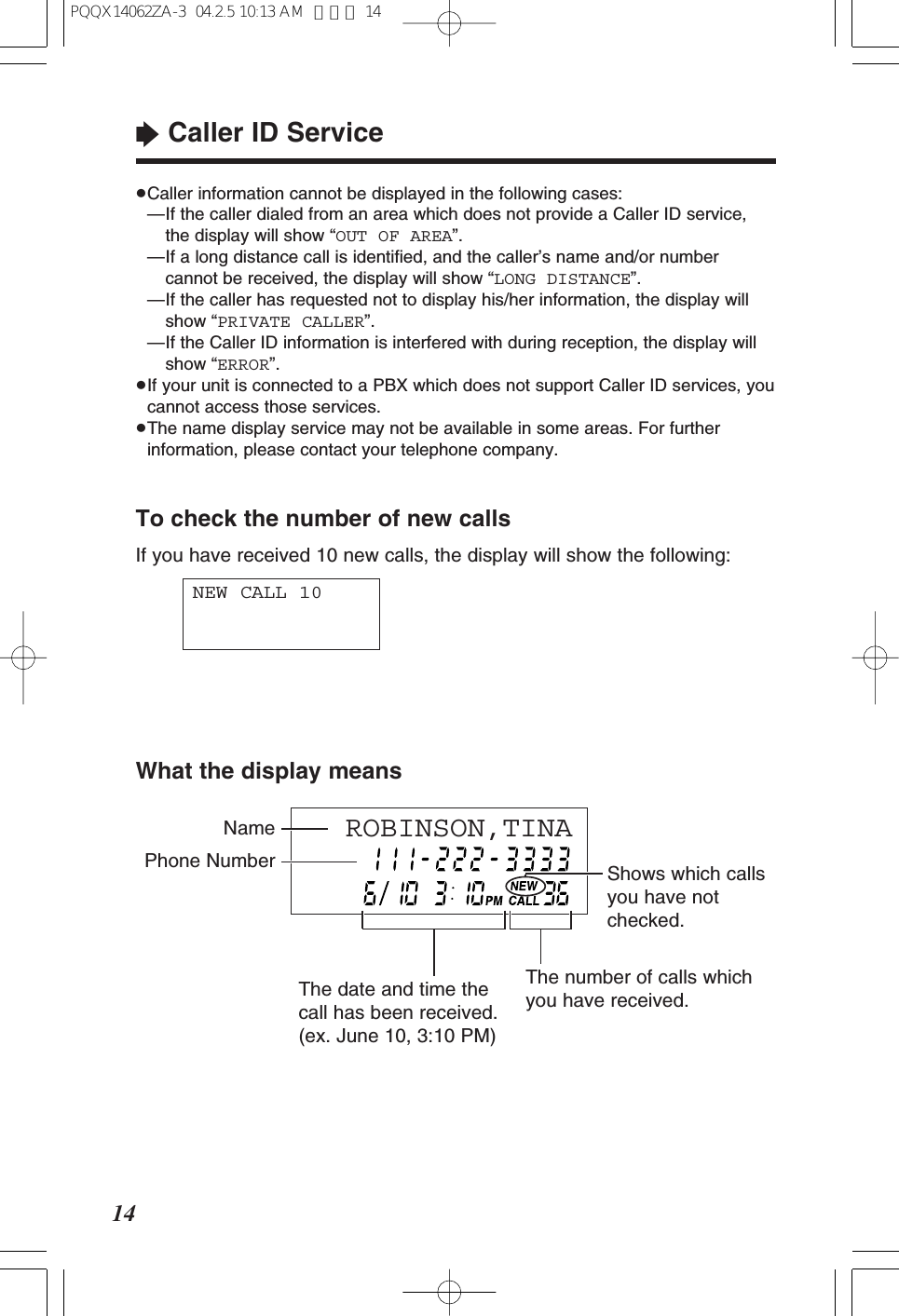

“Caller ID Service14To check the number of new callsIf you have received 10 new calls, the display will show the following:NEW CALL 10≥Caller information cannot be displayed in the following cases:≥—If the caller dialed from an area which does not provide a Caller ID service,the display will show “OUT OF AREA”.≥—If a long distance call is identified, and the caller’s name and/or numbercannot be received, the display will show “LONG DISTANCE”.≥—If the caller has requested not to display his/her information, the display willshow “PRIVATE CALLER”.≥—If the Caller ID information is interfered with during reception, the display willshow “ERROR”.≥If your unit is connected to a PBX which does not support Caller ID services, youcannot access those services.≥The name display service may not be available in some areas. For furtherinformation, please contact your telephone company.What the display meansROBINSON,TINA Phone Number Shows which callsyou have notchecked.NameThe date and time thecall has been received.(ex. June 10, 3:10 PM)The number of calls whichyou have received.PQQX14062ZA-3 04.2.5 10:13 AM ページ 14

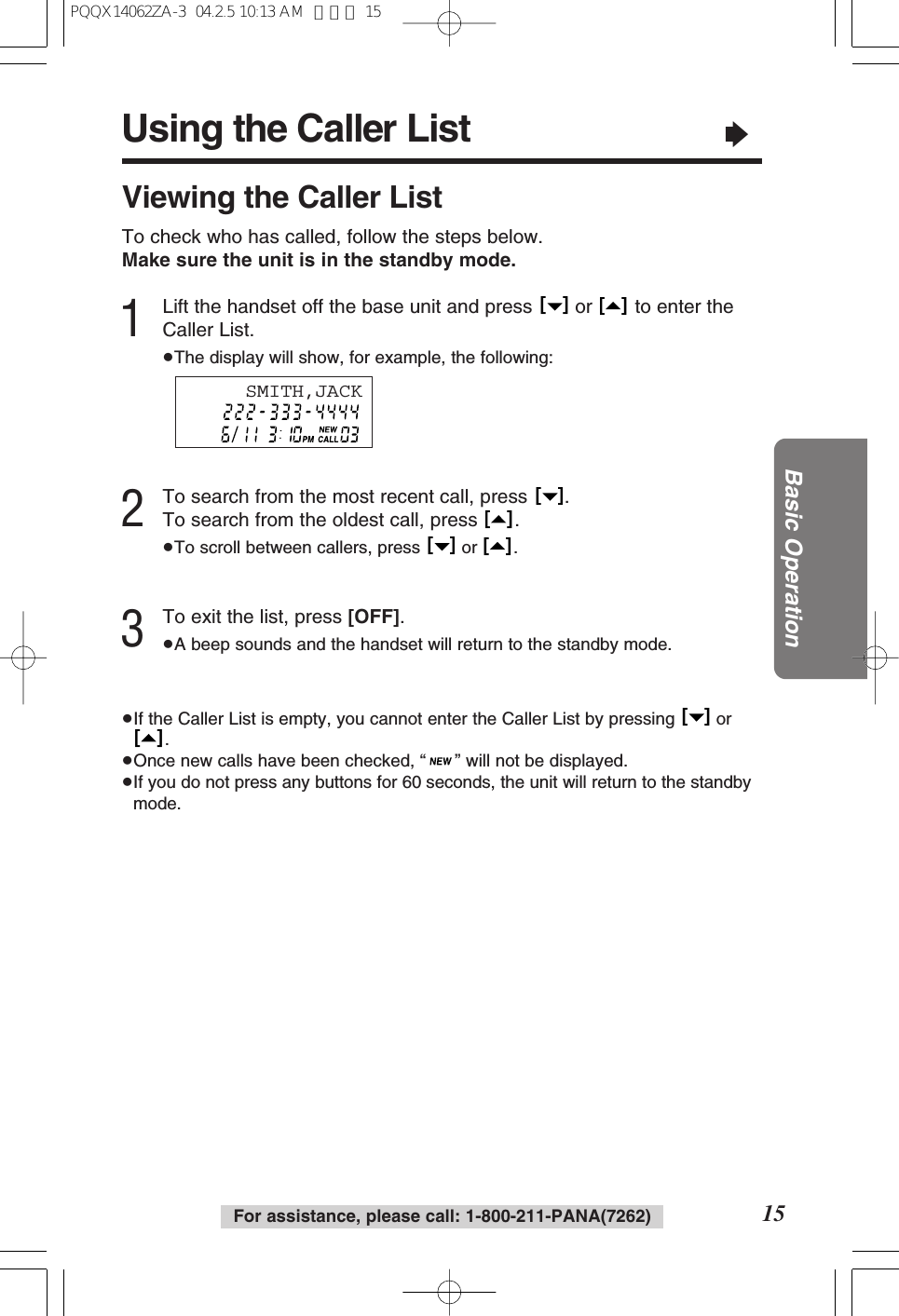

Using the Caller List“15Basic OperationFor assistance, please call: 1-800-211-PANA(7262)Viewing the Caller ListTo check who has called, follow the steps below.Make sure the unit is in the standby mode.1Lift the handset off the base unit and press or to enter theCaller List.≥The display will show, for example, the following:2To search from the most recent call, press .To search from the oldest call, press .≥To scroll between callers, press or .3To exit the list, press [OFF].≥A beep sounds and the handset will return to the standby mode.≥If the Caller List is empty, you cannot enter the Caller List by pressing or.≥Once new calls have been checked, “” will not be displayed.≥If you do not press any buttons for 60 seconds, the unit will return to the standbymode.[ ][ ][ ][ ][ ][ ][ ][ ]SMITH,JACKPQQX14062ZA-3 04.2.5 10:13 AM ページ 15

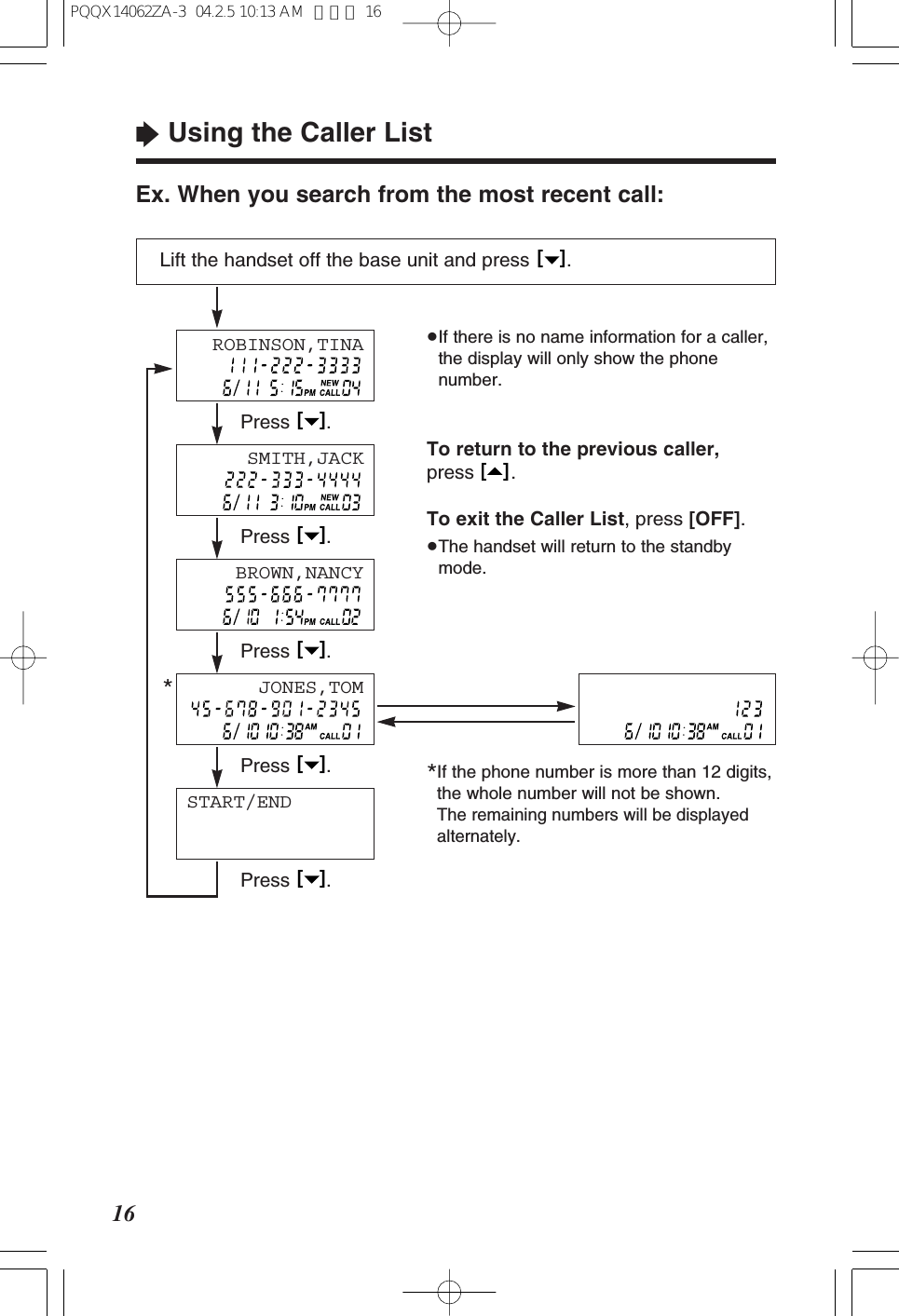

“Using the Caller List16Ex. When you search from the most recent call:Lift the handset off the base unit and press .[ ]≥If there is no name information for a caller,the display will only show the phonenumber.To return to the previous caller,press .To exit the Caller List, press [OFF].≥The handset will return to the standbymode.[ ]START/ENDPress .[ ]Press .[ ]Press .[ ]Press .[ ]Press .[ ]SMITH,JACKBROWN,NANCYROBINSON,TINAJONES,TOM*If the phone number is more than 12 digits,the whole number will not be shown. The remaining numbers will be displayedalternately.*PQQX14062ZA-3 04.2.5 10:13 AM ページ 16

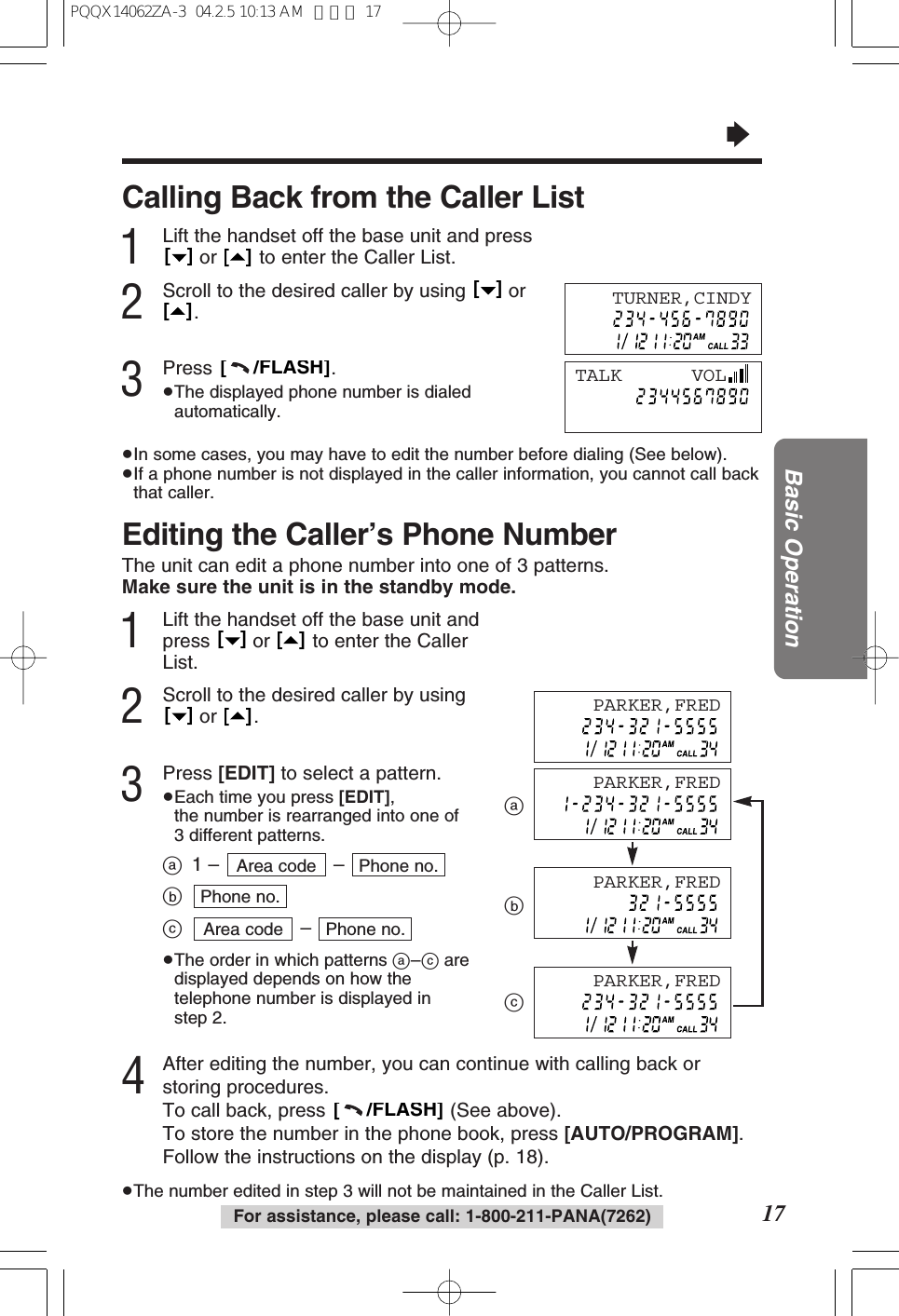

17Basic OperationFor assistance, please call: 1-800-211-PANA(7262)“Editing the Caller’s Phone NumberThe unit can edit a phone number into one of 3 patterns.Make sure the unit is in the standby mode.1Lift the handset off the base unit andpress or to enter the CallerList.2Scroll to the desired caller by usingor .3Press [EDIT] to select a pattern.≥Each time you press [EDIT], the number is rearranged into one of3 different patterns.a1 – – bc– ≥The order in which patterns a–caredisplayed depends on how thetelephone number is displayed instep 2.4After editing the number, you can continue with calling back orstoring procedures.To call back, press (See above). To store the number in the phone book, press [AUTO/PROGRAM].Follow the instructions on the display (p. 18).≥The number edited in step 3 will not be maintained in the Caller List.[ /FLASH]Phone no.Area codePhone no.Phone no.Area code[ ][ ][ ][ ]abcCalling Back from the Caller List1Lift the handset off the base unit and pressor to enter the Caller List.2Scroll to the desired caller by using or.3Press .≥The displayed phone number is dialedautomatically.≥In some cases, you may have to edit the number before dialing (See below).≥If a phone number is not displayed in the caller information, you cannot call backthat caller.[ /FLASH][ ][ ][ ][ ]TURNER,CINDYTALK VOLPARKER,FREDPARKER,FREDPARKER,FREDPARKER,FREDPQQX14062ZA-3 04.2.5 10:13 AM ページ 17

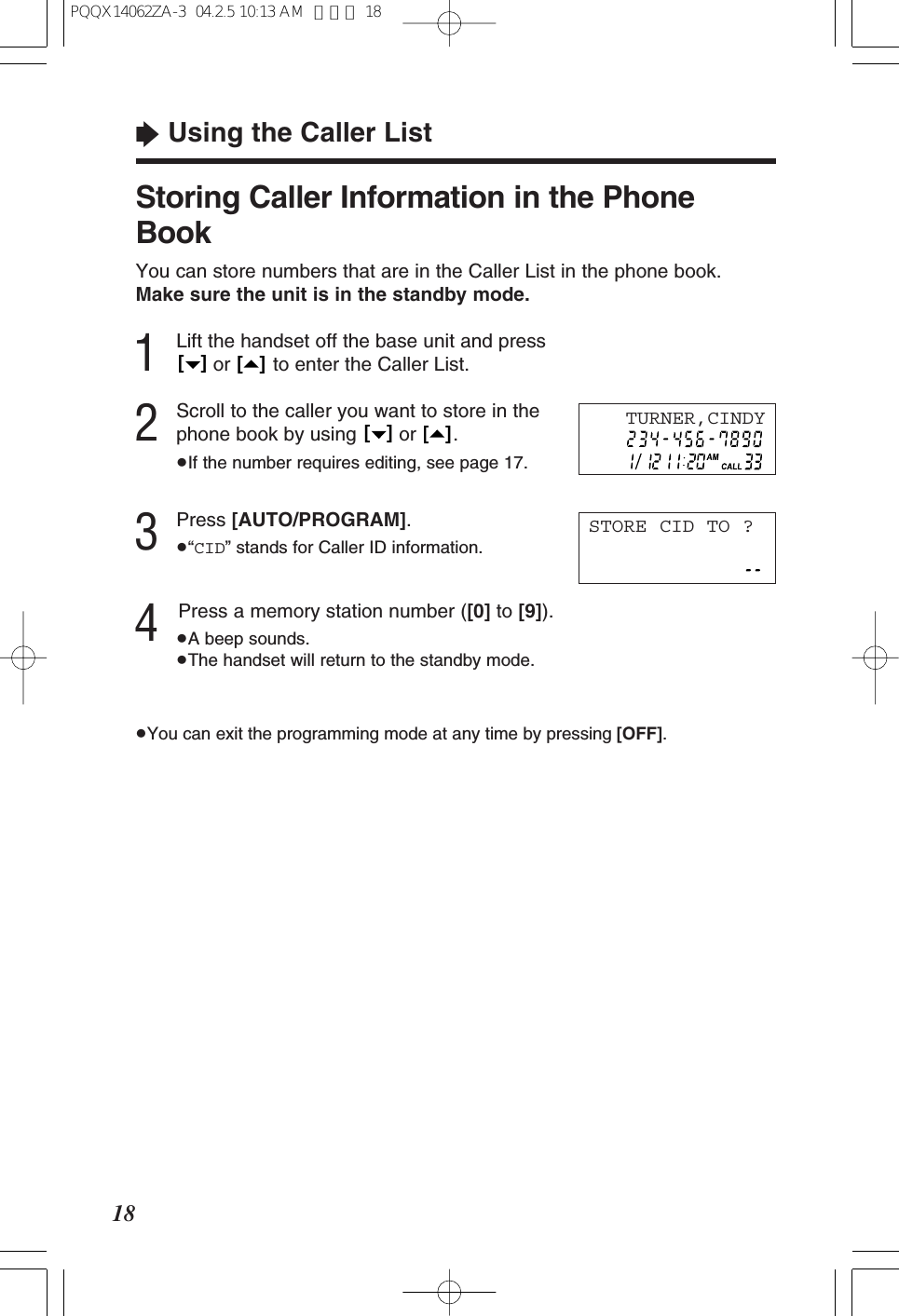

“Using the Caller List18Storing Caller Information in the PhoneBookYou can store numbers that are in the Caller List in the phone book.Make sure the unit is in the standby mode.1Lift the handset off the base unit and pressor to enter the Caller List.2Scroll to the caller you want to store in thephone book by using or .≥If the number requires editing, see page 17.3Press [AUTO/PROGRAM].≥“CID” stands for Caller ID information.4Press a memory station number ([0] to [9]).≥A beep sounds.≥The handset will return to the standby mode.≥You can exit the programming mode at any time by pressing [OFF].[ ][ ][ ][ ]TURNER,CINDYSTORE CID TO ?PQQX14062ZA-3 04.2.5 10:13 AM ページ 18

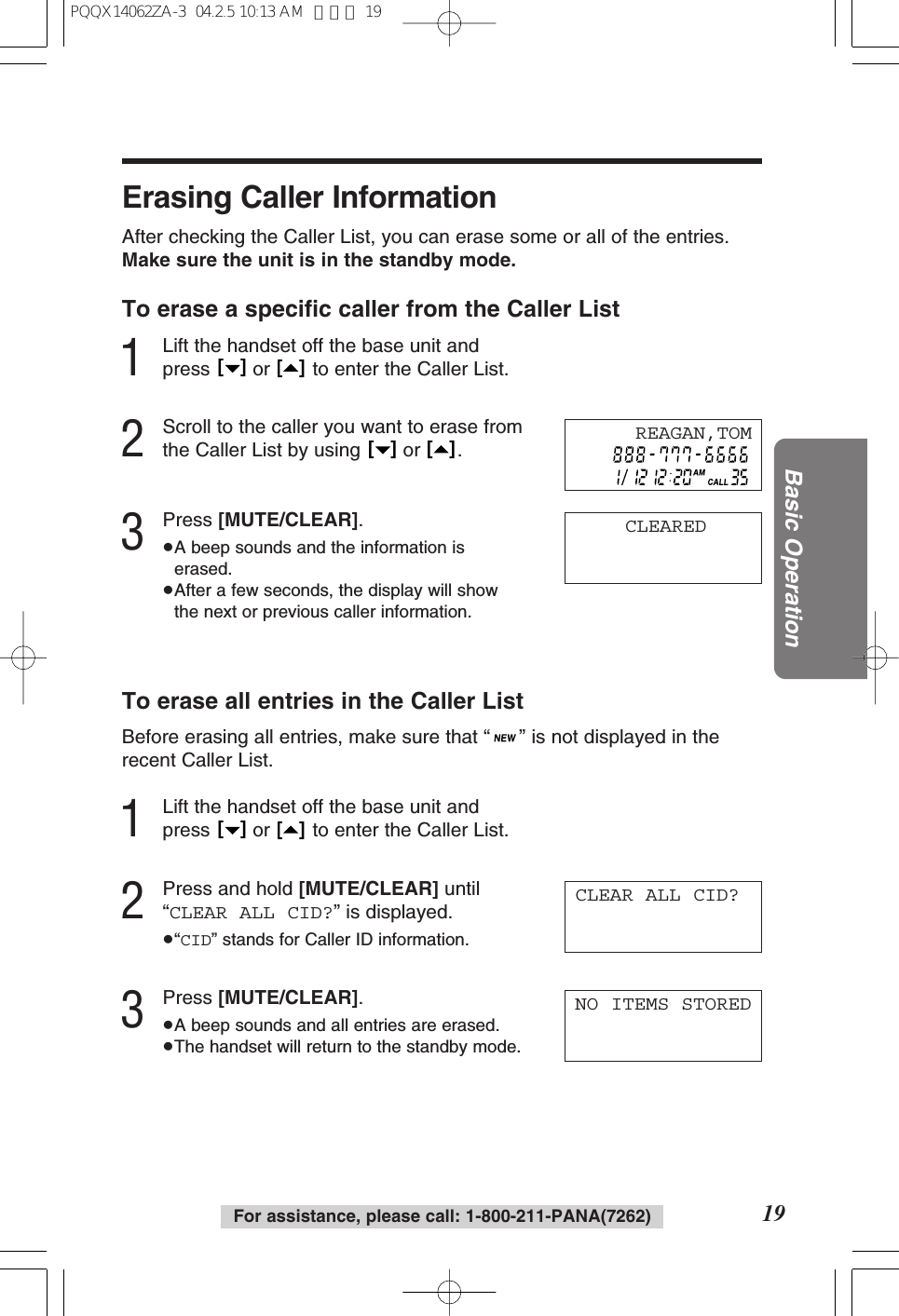

19Basic OperationFor assistance, please call: 1-800-211-PANA(7262)Erasing Caller InformationAfter checking the Caller List, you can erase some or all of the entries.Make sure the unit is in the standby mode.To erase a specific caller from the Caller List1Lift the handset off the base unit andpress or to enter the Caller List.2Scroll to the caller you want to erase fromthe Caller List by using or .3Press [MUTE/CLEAR].≥A beep sounds and the information iserased.≥After a few seconds, the display will showthe next or previous caller information.To erase all entries in the Caller ListBefore erasing all entries, make sure that “” is not displayed in therecent Caller List.1Lift the handset off the base unit andpress or to enter the Caller List.2Press and hold [MUTE/CLEAR] until“CLEAR ALL CID?” is displayed.≥“CID” stands for Caller ID information.3Press [MUTE/CLEAR].≥A beep sounds and all entries are erased.≥The handset will return to the standby mode.[ ][ ][ ][ ][ ][ ]CLEAREDCLEAR ALL CID?REAGAN,TOMNO ITEMS STOREDPQQX14062ZA-3 04.2.5 10:13 AM ページ 19

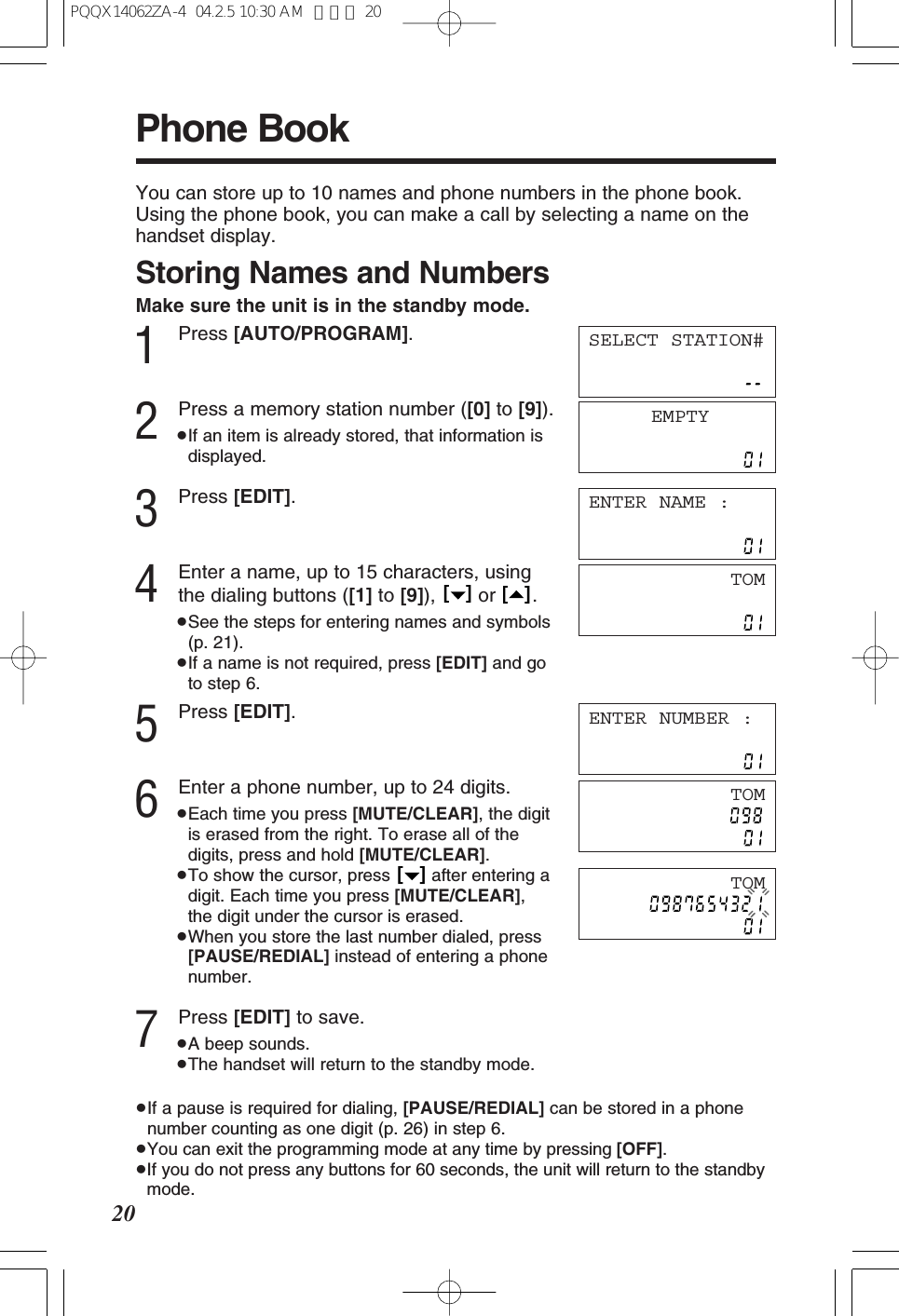

Phone Book20You can store up to 10 names and phone numbers in the phone book. Using the phone book, you can make a call by selecting a name on thehandset display.Storing Names and NumbersMake sure the unit is in the standby mode.1Press [AUTO/PROGRAM].2Press a memory station number ([0] to [9]).≥If an item is already stored, that information isdisplayed.3Press [EDIT].4Enter a name, up to 15 characters, usingthe dialing buttons ([1] to [9]), or .≥See the steps for entering names and symbols(p. 21).≥If a name is not required, press [EDIT] and goto step 6.5Press [EDIT].6Enter a phone number, up to 24 digits.≥Each time you press [MUTE/CLEAR], the digitis erased from the right. To erase all of thedigits, press and hold [MUTE/CLEAR].≥To show the cursor, press after entering adigit. Each time you press [MUTE/CLEAR],the digit under the cursor is erased.≥When you store the last number dialed, press[PAUSE/REDIAL] instead of entering a phonenumber.7Press [EDIT] to save.≥A beep sounds.≥The handset will return to the standby mode.≥If a pause is required for dialing, [PAUSE/REDIAL] can be stored in a phonenumber counting as one digit (p. 26) in step 6.≥You can exit the programming mode at any time by pressing [OFF].≥If you do not press any buttons for 60 seconds, the unit will return to the standbymode.[ ][ ][ ]EMPTYENTER NAME :TOMENTER NUMBER :SELECT STATION#TOMTOMPQQX14062ZA-4 04.2.5 10:30 AM ページ 20

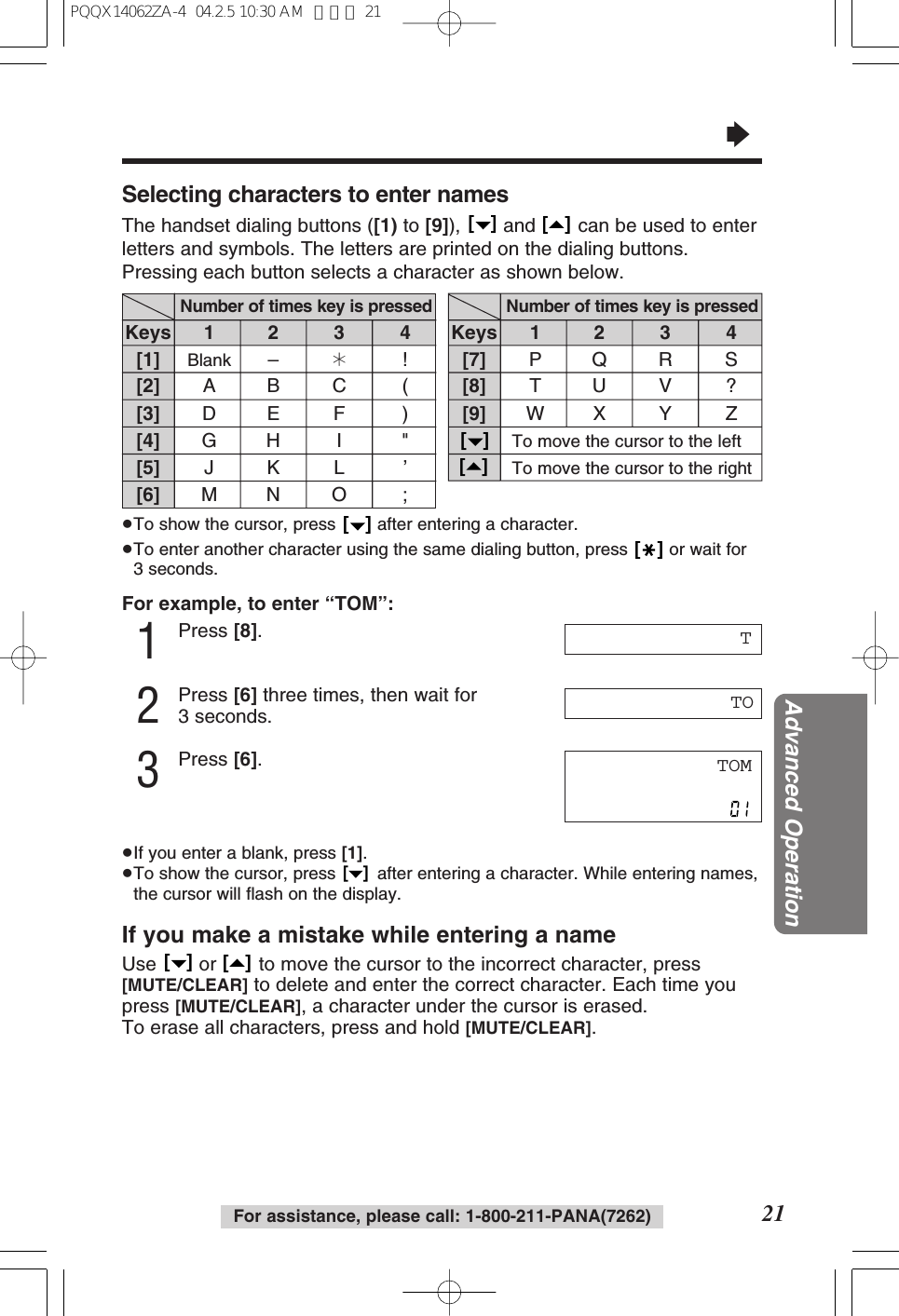

For assistance, please call: 1-800-211-PANA(7262)“21Advanced OperationFor example, to enter “TOM”:1Press [8].2Press [6] three times, then wait for3 seconds.3Press [6].≥If you enter a blank, press [1].≥To show the cursor, press after entering a character. While entering names,the cursor will flash on the display.If you make a mistake while entering a nameUse or to move the cursor to the incorrect character, press[MUTE/CLEAR] to delete and enter the correct character. Each time youpress [MUTE/CLEAR], a character under the cursor is erased.To erase all characters, press and hold [MUTE/CLEAR].[ ][ ][ ]TOM[1][2][3][4][5][6]1234Number of times key is pressedSelecting characters to enter namesThe handset dialing buttons ([1) to [9]), and can be used to enterletters and symbols. The letters are printed on the dialing buttons.Pressing each button selects a character as shown below.[ ][ ]≥To show the cursor, press after entering a character.≥To enter another character using the same dialing button, press or wait for3 seconds.[ ][ ]TKeysBlank –¢!ABC (DE F )GH I "JKL ’MN O ;TO[7][8][9][ ][ ]1234Number of times key is pressedKeysPQR STUV ?WX Y ZTo move the cursor to the leftTo move the cursor to the rightPQQX14062ZA-4 04.2.5 10:30 AM ページ 21

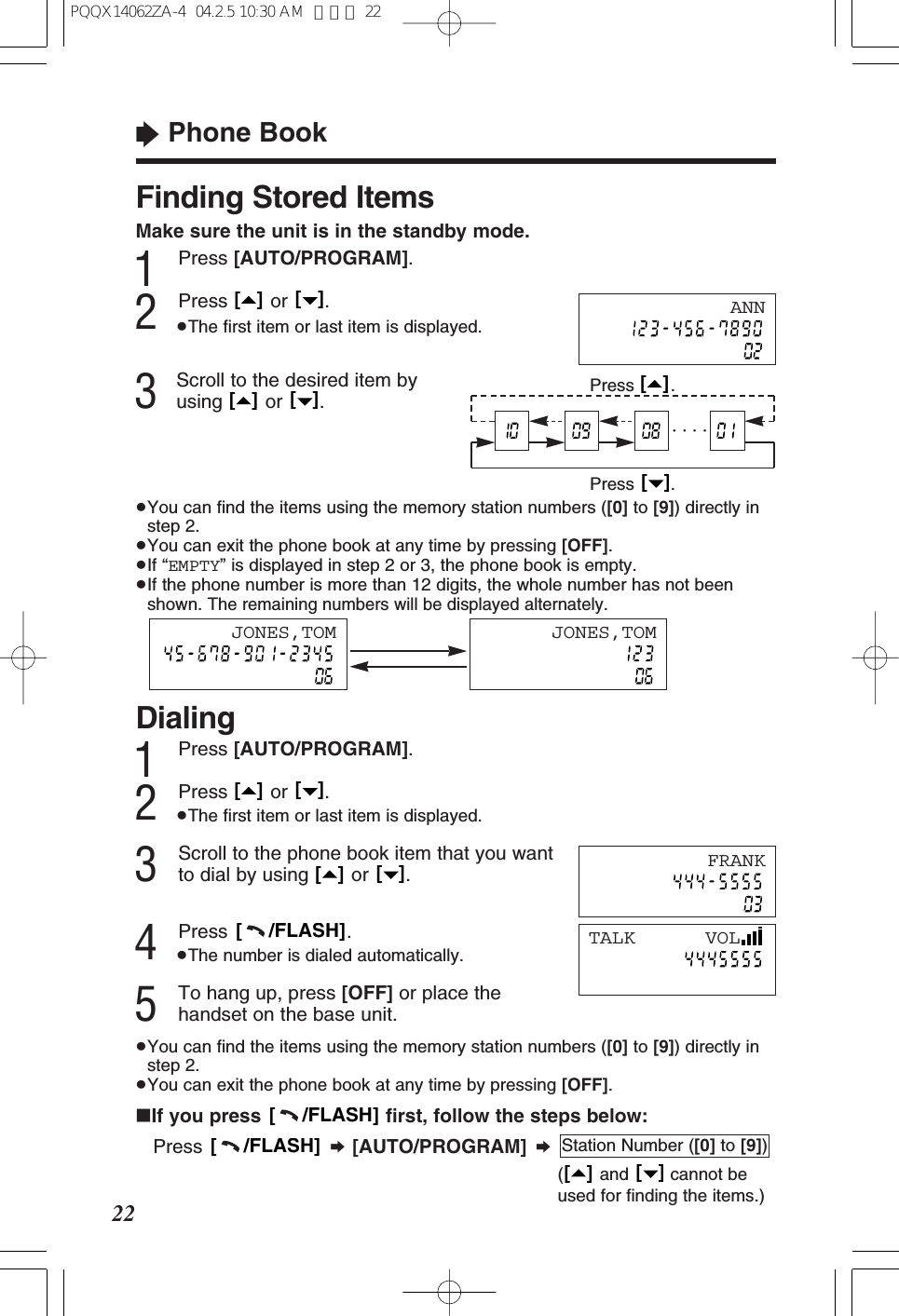

Finding Stored ItemsMake sure the unit is in the standby mode.1Press [AUTO/PROGRAM].2Press or .≥The first item or last item is displayed.3Scroll to the desired item byusing or .≥You can find the items using the memory station numbers ([0] to [9]) directly instep 2.≥You can exit the phone book at any time by pressing [OFF].≥If “EMPTY” is displayed in step 2 or 3, the phone book is empty.≥If the phone number is more than 12 digits, the whole number has not beenshown. The remaining numbers will be displayed alternately.[ ][ ][ ][ ]“Phone Book22ANNPress .[ ]Press .[ ]· · · ·Dialing1Press [AUTO/PROGRAM].2Press or .≥The first item or last item is displayed.3Scroll to the phone book item that you wantto dial by using or .4Press .≥The number is dialed automatically.5To hang up, press [OFF] or place thehandset on the base unit.≥You can find the items using the memory station numbers ([0] to [9]) directly instep 2.≥You can exit the phone book at any time by pressing [OFF].[ /FLASH][ ][ ][ ][ ]FRANKTALK VOLJONES,TOM JONES,TOM∫If you press first, follow the steps below:Press ¤[AUTO/PROGRAM] ¤( and cannot beused for finding the items.)[ ][ ]Station Number ([0] to [9])[ /FLASH][ /FLASH]PQQX14062ZA-4 04.2.5 10:30 AM ページ 22

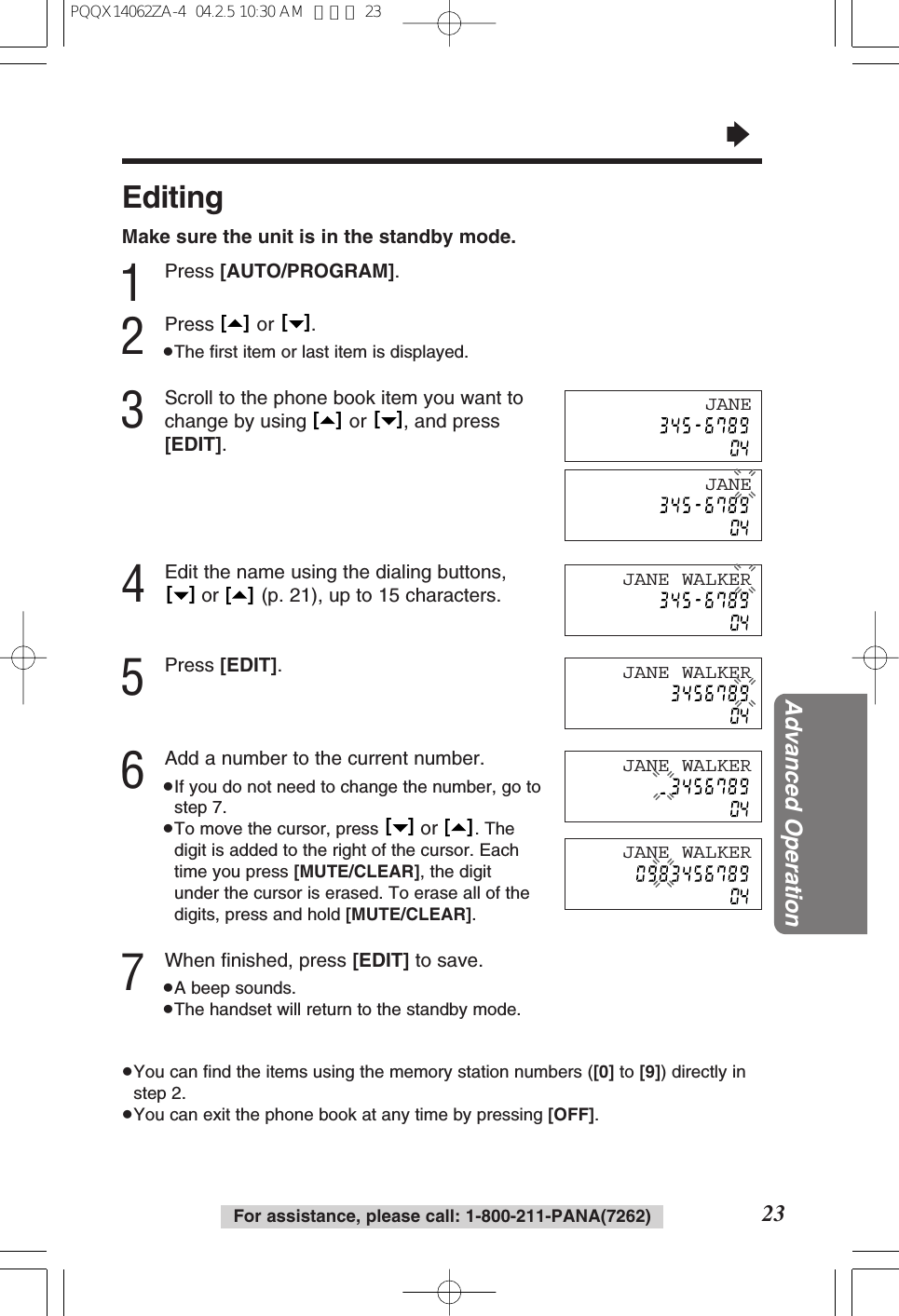

“23Advanced OperationFor assistance, please call: 1-800-211-PANA(7262)EditingMake sure the unit is in the standby mode.1Press [AUTO/PROGRAM].2Press or .≥The first item or last item is displayed.3Scroll to the phone book item you want tochange by using or , and press[EDIT].4Edit the name using the dialing buttons,or (p. 21), up to 15 characters.5Press [EDIT].6Add a number to the current number.≥If you do not need to change the number, go tostep 7.≥To move the cursor, press or . Thedigit is added to the right of the cursor. Eachtime you press [MUTE/CLEAR], the digitunder the cursor is erased. To erase all of thedigits, press and hold [MUTE/CLEAR].7When finished, press [EDIT] to save.≥A beep sounds.≥The handset will return to the standby mode.≥You can find the items using the memory station numbers ([0] to [9]) directly instep 2.≥You can exit the phone book at any time by pressing [OFF].[ ][ ][ ][ ][ ][ ][ ][ ]JANEJANE WALKERJANE WALKERJANE WALKERJANEJANE WALKERPQQX14062ZA-4 04.2.5 10:30 AM ページ 23

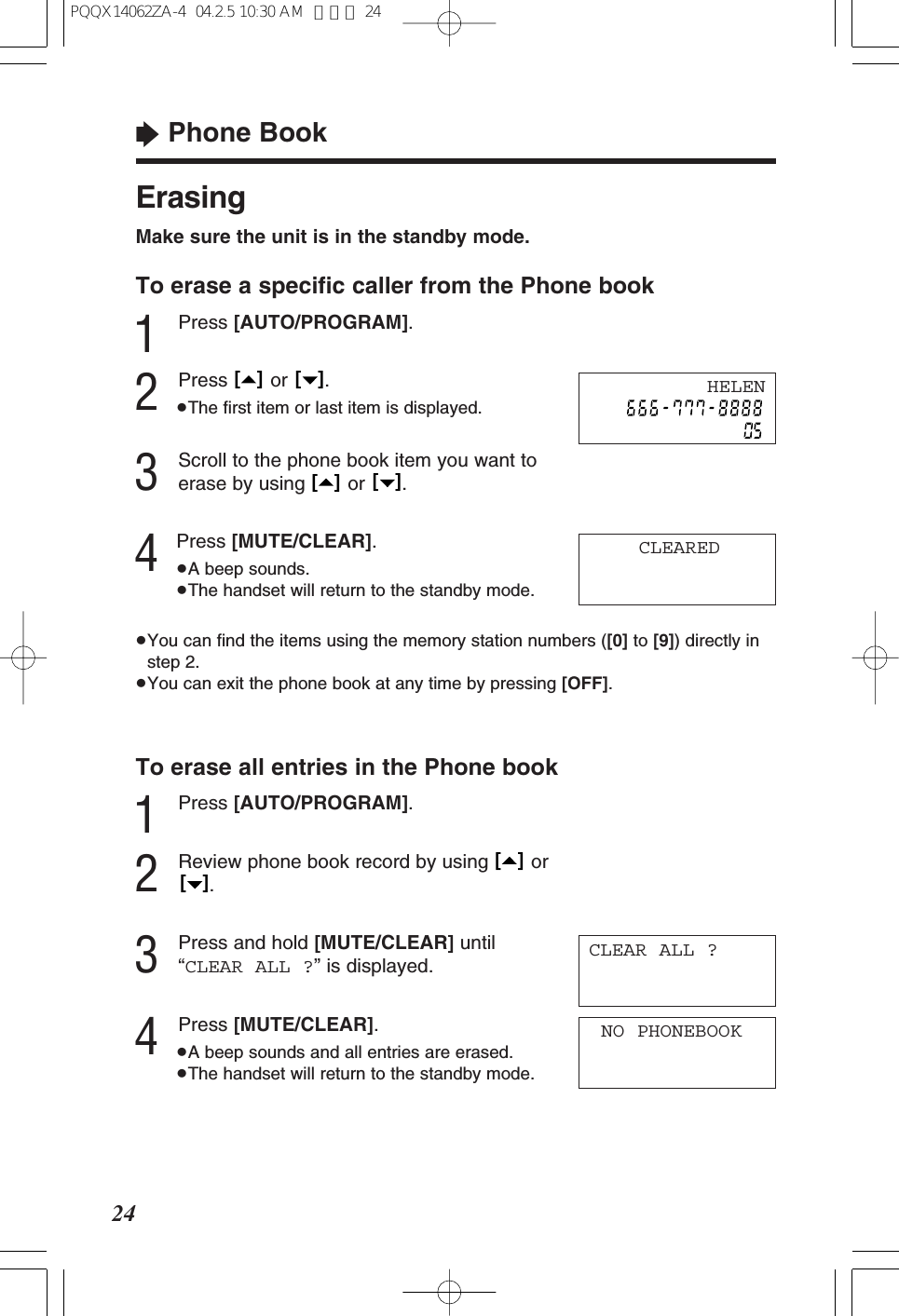

“Phone Book24ErasingMake sure the unit is in the standby mode.To erase a specific caller from the Phone book1Press [AUTO/PROGRAM].2Press or .≥The first item or last item is displayed.3Scroll to the phone book item you want toerase by using or .4Press [MUTE/CLEAR].≥A beep sounds.≥The handset will return to the standby mode.≥You can find the items using the memory station numbers ([0] to [9]) directly instep 2.≥You can exit the phone book at any time by pressing [OFF].To erase all entries in the Phone book1Press [AUTO/PROGRAM].2Review phone book record by using or.3Press and hold [MUTE/CLEAR] until“CLEAR ALL ?” is displayed.4Press [MUTE/CLEAR].≥A beep sounds and all entries are erased.≥The handset will return to the standby mode.[ ][ ][ ][ ][ ][ ]NO PHONEBOOKCLEAREDHELENCLEAR ALL ?PQQX14062ZA-4 04.2.5 10:30 AM ページ 24

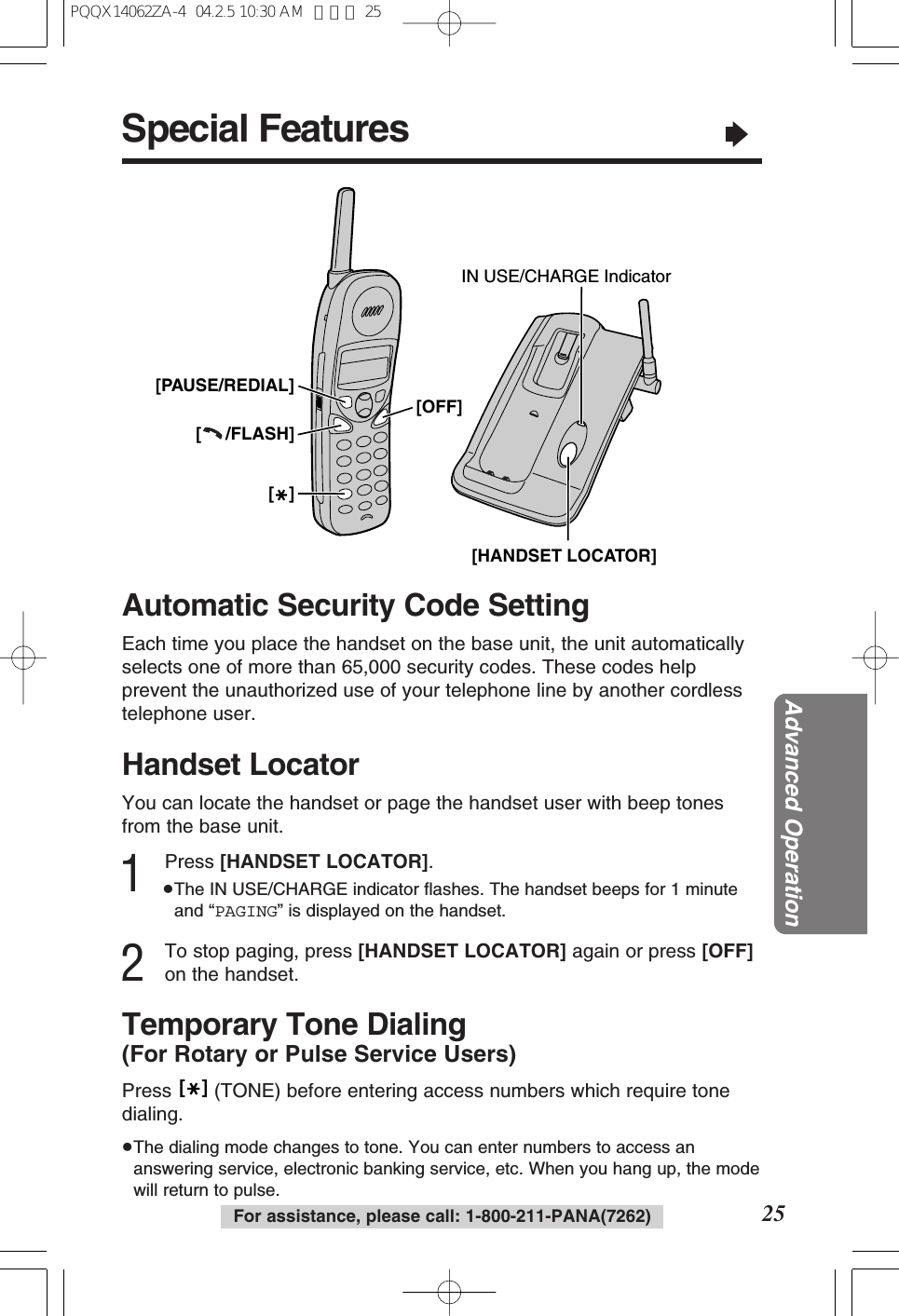

Special Features“25Advanced OperationFor assistance, please call: 1-800-211-PANA(7262)Handset LocatorYou can locate the handset or page the handset user with beep tonesfrom the base unit.1Press [HANDSET LOCATOR].≥The IN USE/CHARGE indicator flashes. The handset beeps for 1 minuteand “PAGING” is displayed on the handset.2To stop paging, press [HANDSET LOCATOR] again or press [OFF]on the handset.Automatic Security Code SettingEach time you place the handset on the base unit, the unit automaticallyselects one of more than 65,000 security codes. These codes helpprevent the unauthorized use of your telephone line by another cordlesstelephone user.Temporary Tone Dialing(For Rotary or Pulse Service Users)Press (TONE) before entering access numbers which require tonedialing.≥The dialing mode changes to tone. You can enter numbers to access ananswering service, electronic banking service, etc. When you hang up, the modewill return to pulse.[ ][ /FLASH][PAUSE/REDIAL][OFF][ ]IN USE/CHARGE Indicator[HANDSET LOCATOR]PQQX14062ZA-4 04.2.5 10:30 AM ページ 25

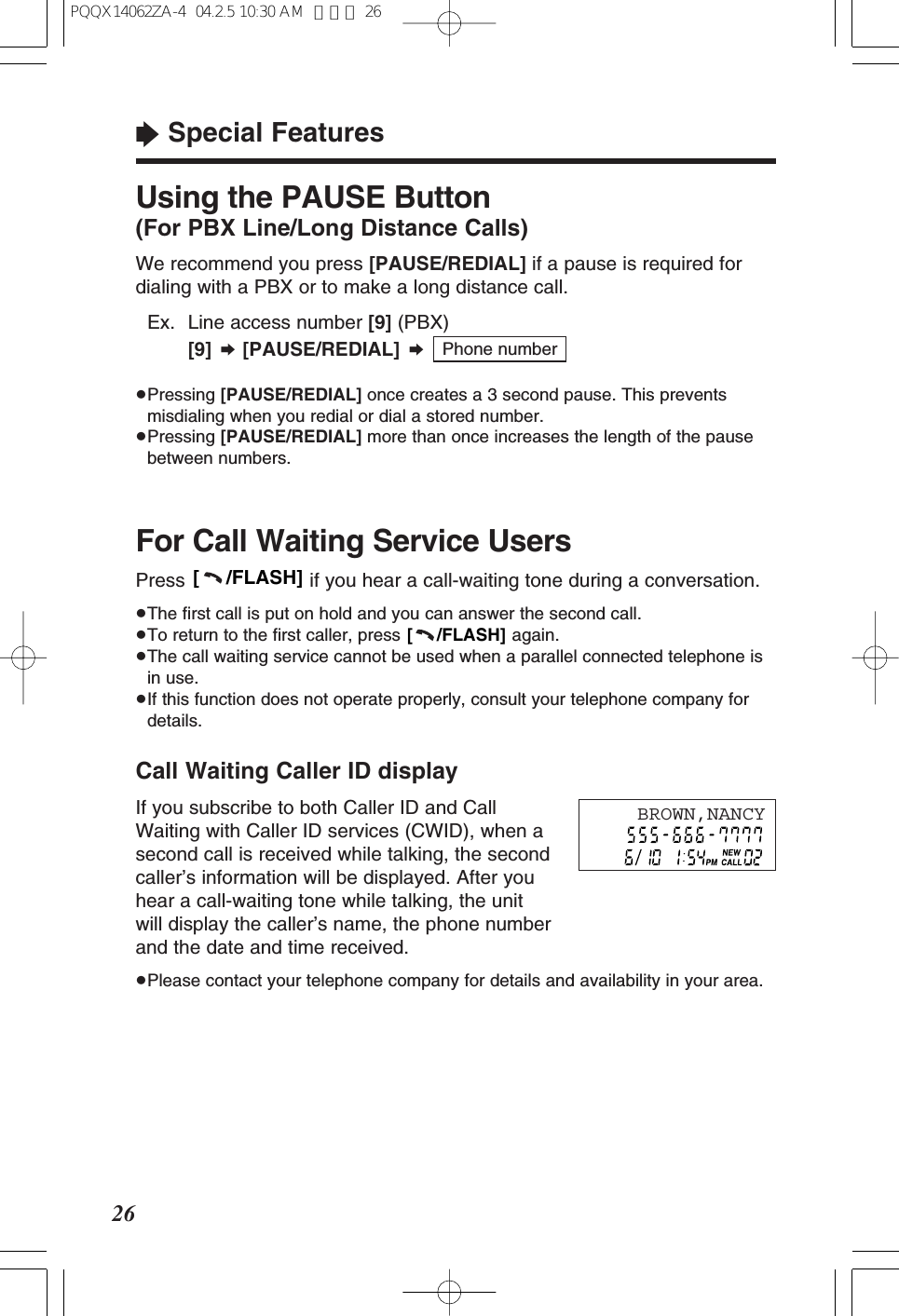

Call Waiting Caller ID displayIf you subscribe to both Caller ID and CallWaiting with Caller ID services (CWID), when asecond call is received while talking, the secondcaller’s information will be displayed. After youhear a call-waiting tone while talking, the unitwill display the caller’s name, the phone numberand the date and time received.≥Please contact your telephone company for details and availability in your area.26“Special FeaturesFor Call Waiting Service UsersPress if you hear a call-waiting tone during a conversation.≥The first call is put on hold and you can answer the second call.≥To return to the first caller, press again.≥The call waiting service cannot be used when a parallel connected telephone isin use.≥If this function does not operate properly, consult your telephone company fordetails.[ /FLASH][ /FLASH]Using the PAUSE Button(For PBX Line/Long Distance Calls)We recommend you press [PAUSE/REDIAL] if a pause is required fordialing with a PBX or to make a long distance call.≥Ex. Line access number [9] (PBX)[9] ¤[PAUSE/REDIAL] ¤≥Pressing [PAUSE/REDIAL] once creates a 3 second pause. This preventsmisdialing when you redial or dial a stored number.≥Pressing [PAUSE/REDIAL] more than once increases the length of the pausebetween numbers.Phone numberBROWN,NANCYPQQX14062ZA-4 04.2.5 10:30 AM ページ 26

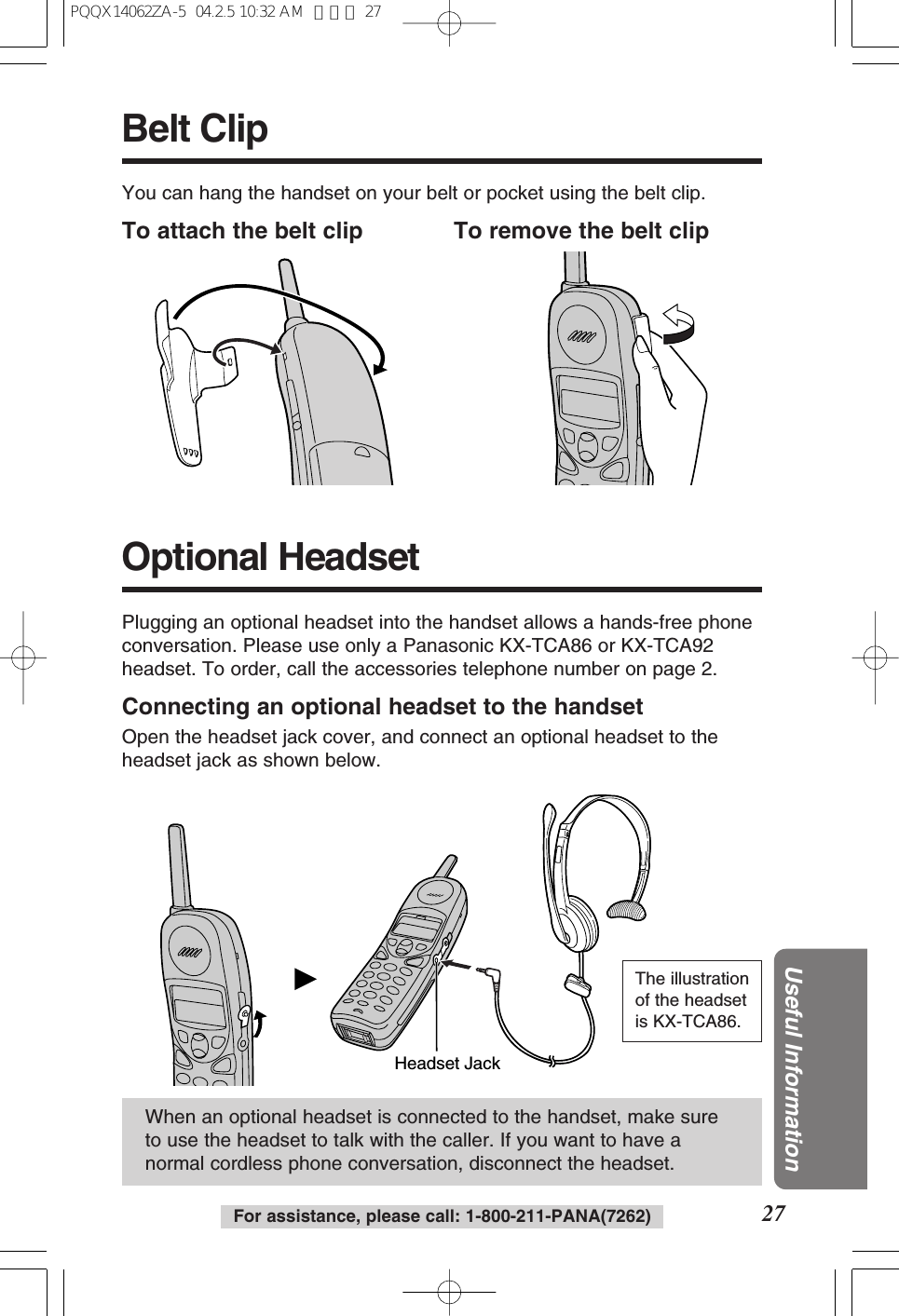

For assistance, please call: 1-800-211-PANA(7262) 27Useful InformationBelt ClipYou can hang the handset on your belt or pocket using the belt clip.To attach the belt clip To remove the belt clipHeadset JackWhen an optional headset is connected to the handset, make sureto use the headset to talk with the caller. If you want to have anormal cordless phone conversation, disconnect the headset.Plugging an optional headset into the handset allows a hands-free phoneconversation. Please use only a Panasonic KX-TCA86 or KX-TCA92headset. To order, call the accessories telephone number on page 2.Connecting an optional headset to the handsetOpen the headset jack cover, and connect an optional headset to theheadset jack as shown below.Optional HeadsetThe illustrationof the headsetis KX-TCA86.PQQX14062ZA-5 04.2.5 10:32 AM ページ 27

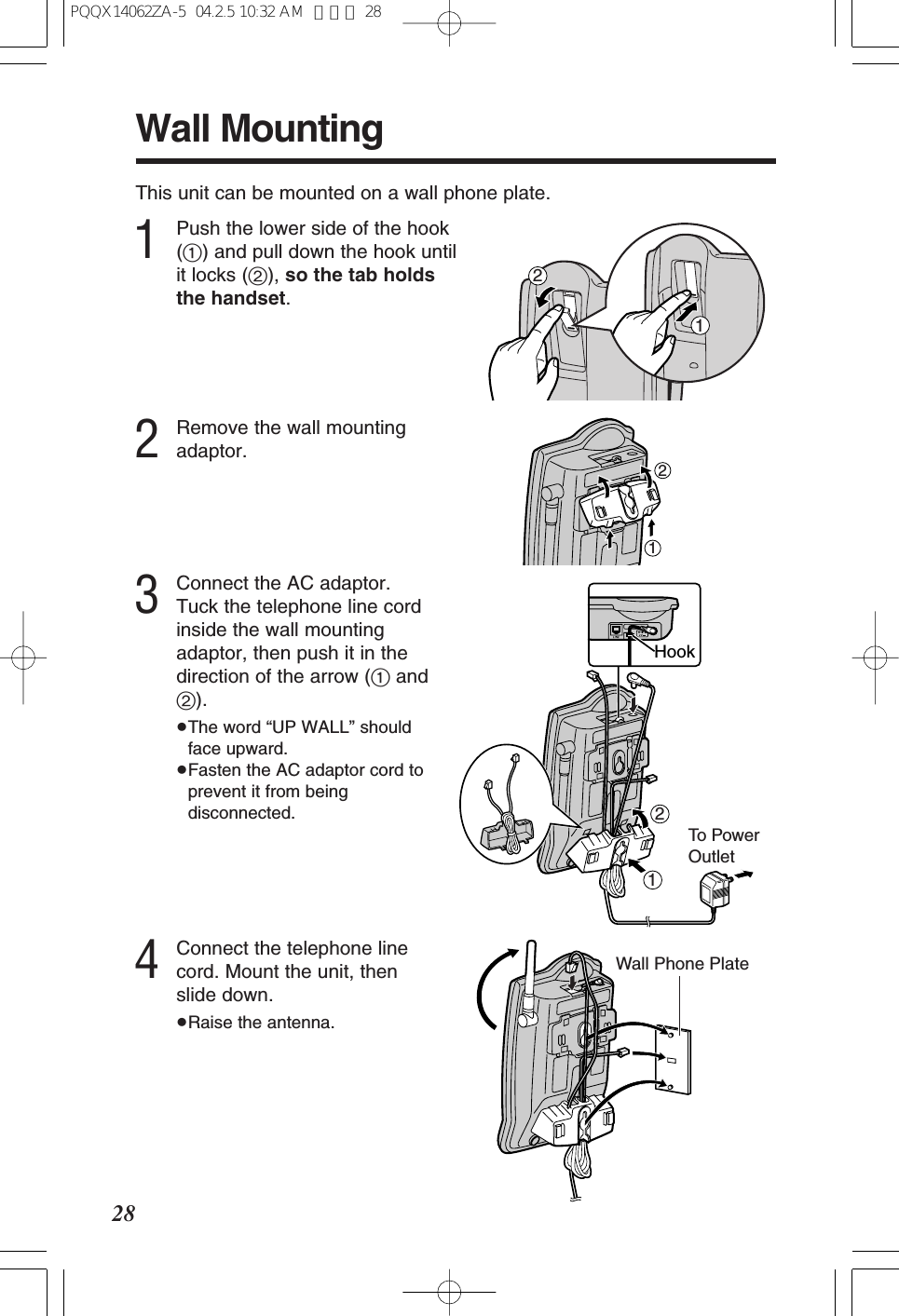

28Wall MountingThis unit can be mounted on a wall phone plate.1Push the lower side of the hook(1) and pull down the hook untilit locks (2), so the tab holdsthe handset.3Connect the AC adaptor.Tuck the telephone line cordinside the wall mountingadaptor, then push it in thedirection of the arrow (1and2).≥The word “UP WALL” shouldface upward.≥Fasten the AC adaptor cord toprevent it from beingdisconnected.12To Powe rOutlet12Hook2Remove the wall mountingadaptor.124Connect the telephone linecord. Mount the unit, thenslide down.≥Raise the antenna.Wall Phone PlatePQQX14062ZA-5 04.2.5 10:32 AM ページ 28

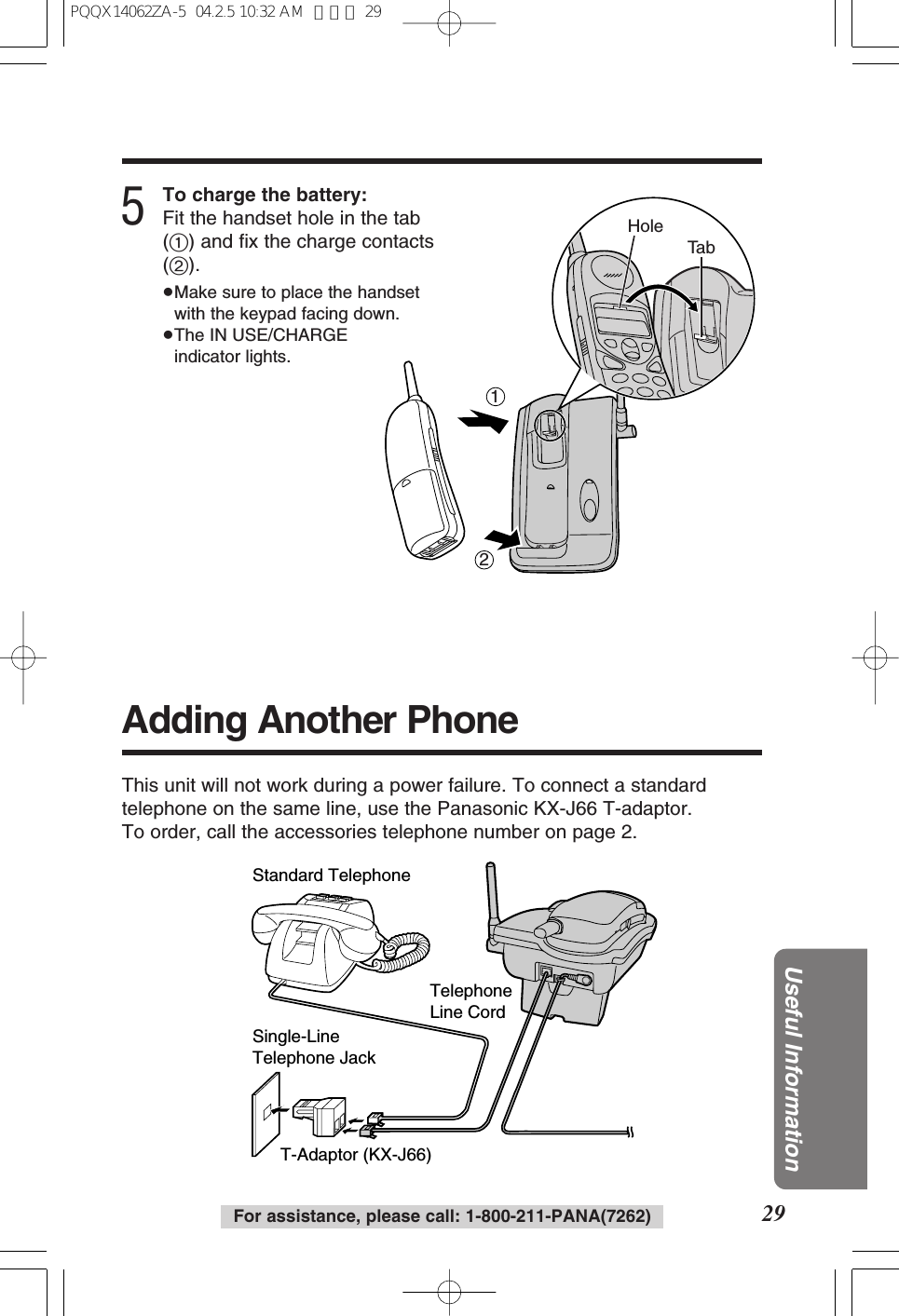

29Useful InformationFor assistance, please call: 1-800-211-PANA(7262)5To charge the battery:Fit the handset hole in the tab(1) and fix the charge contacts(2).≥Make sure to place the handsetwith the keypad facing down.≥The IN USE/CHARGEindicator lights.12Ta bHoleAdding Another PhoneThis unit will not work during a power failure. To connect a standardtelephone on the same line, use the Panasonic KX-J66 T-adaptor.To order, call the accessories telephone number on page 2.T-Adaptor (KX-J66)Single-Line Telephone JackStandard TelephoneTelephone Line CordPQQX14062ZA-5 04.2.5 10:32 AM ページ 29

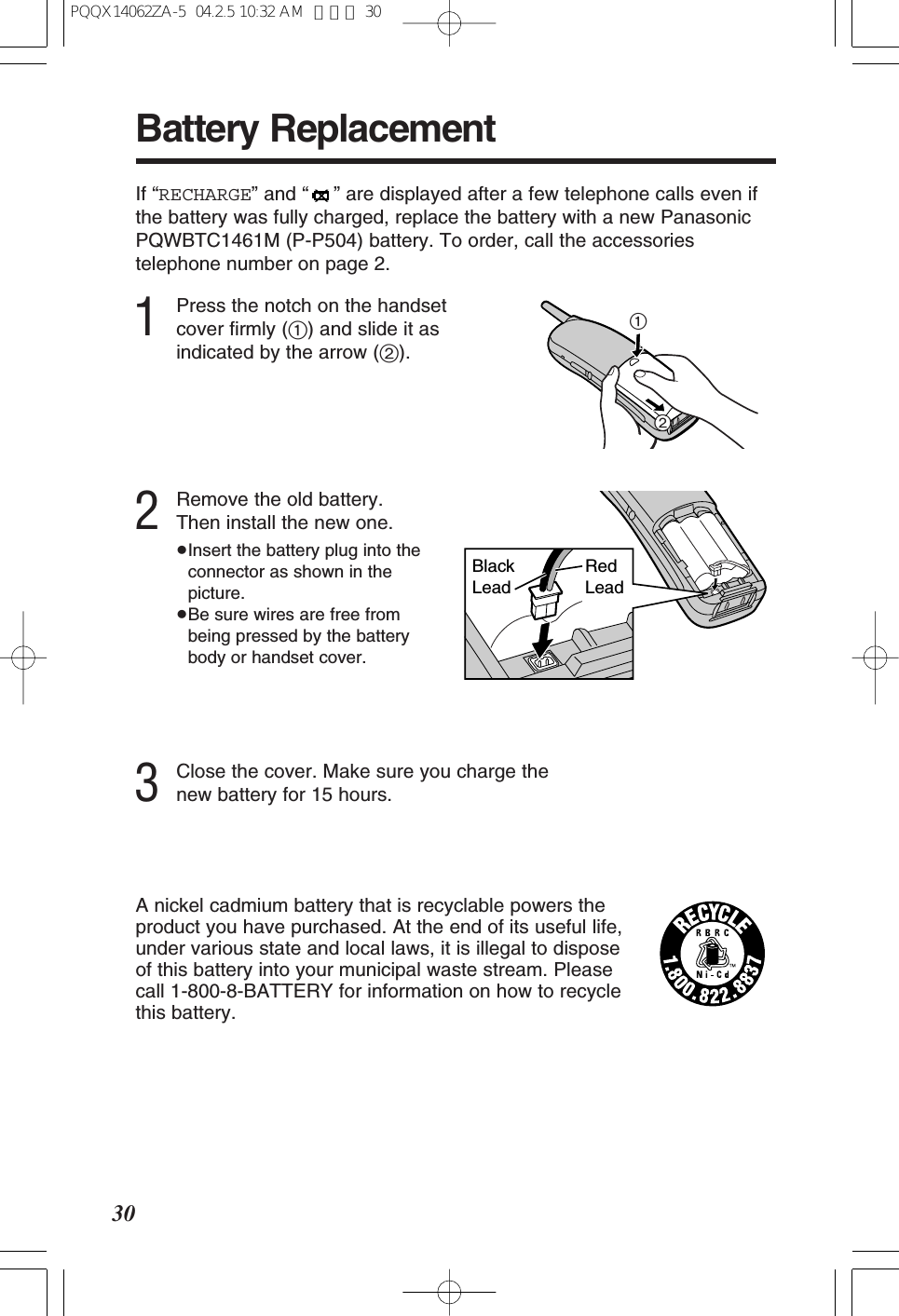

30If “RECHARGE” and “” are displayed after a few telephone calls even ifthe battery was fully charged, replace the battery with a new PanasonicPQWBTC1461M (P-P504) battery. To order, call the accessoriestelephone number on page 2.21Battery ReplacementBlack LeadRed Lead3Close the cover. Make sure you charge thenew battery for 15 hours.2Remove the old battery. Then install the new one.≥Insert the battery plug into theconnector as shown in thepicture.≥Be sure wires are free frombeing pressed by the batterybody or handset cover.A nickel cadmium battery that is recyclable powers theproduct you have purchased. At the end of its useful life,under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Pleasecall 1-800-8-BATTERY for information on how to recyclethis battery.1Press the notch on the handsetcover firmly (1) and slide it asindicated by the arrow (2).PQQX14062ZA-5 04.2.5 10:32 AM ページ 30

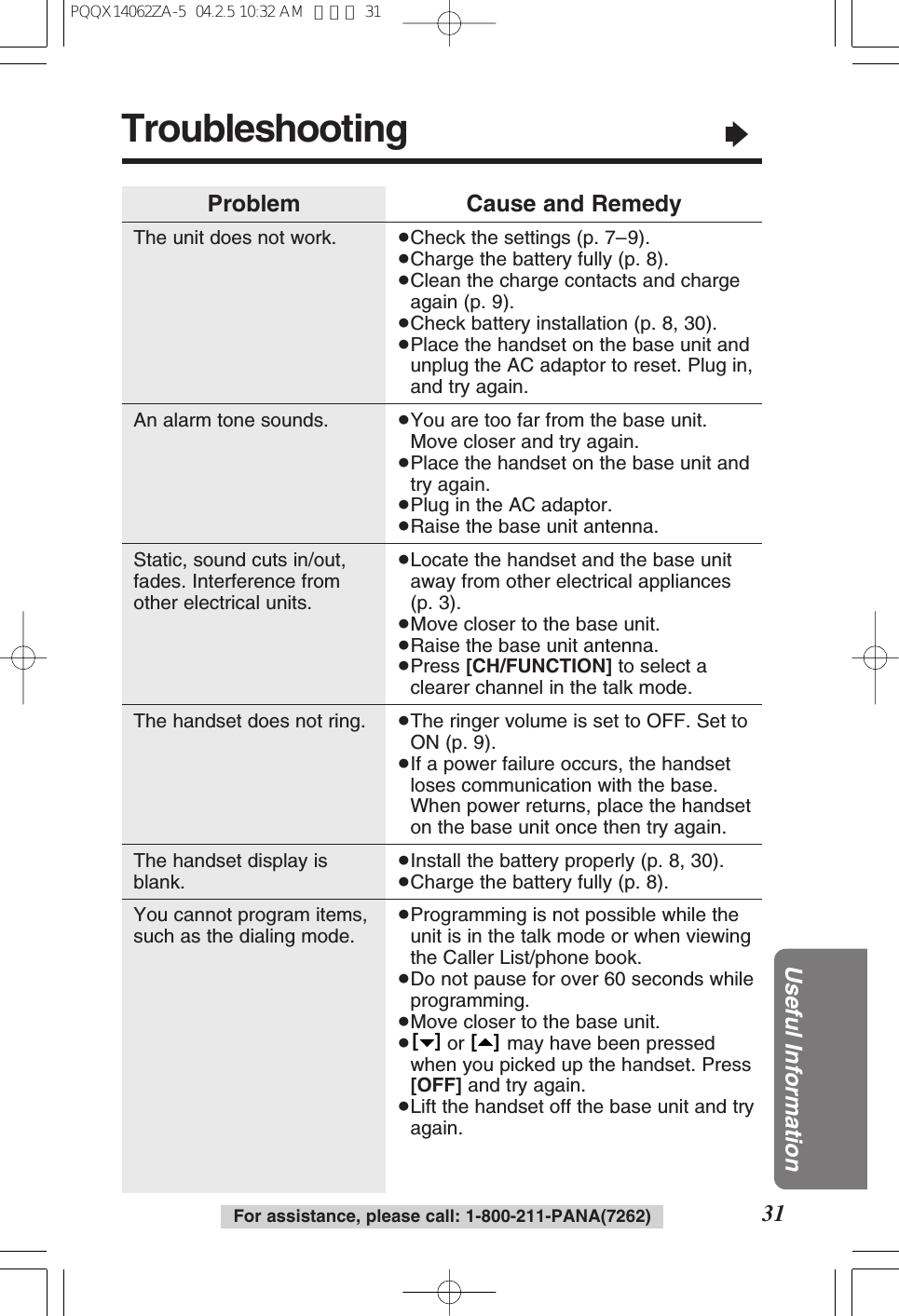

Troubleshooting“31Useful InformationFor assistance, please call: 1-800-211-PANA(7262)ProblemThe unit does not work.An alarm tone sounds.Static, sound cuts in/out,fades. Interference fromother electrical units.The handset does not ring.The handset display isblank.You cannot program items,such as the dialing mode.Cause and Remedy≥Check the settings (p. 7–9).≥Charge the battery fully (p. 8).≥Clean the charge contacts and chargeagain (p. 9).≥Check battery installation (p. 8, 30).≥Place the handset on the base unit andunplug the AC adaptor to reset. Plug in,and try again.≥You are too far from the base unit. Move closer and try again.≥Place the handset on the base unit andtry again.≥Plug in the AC adaptor.≥Raise the base unit antenna.≥Locate the handset and the base unitaway from other electrical appliances(p. 3).≥Move closer to the base unit.≥Raise the base unit antenna.≥Press [CH/FUNCTION] to select aclearer channel in the talk mode.≥The ringer volume is set to OFF. Set toON (p. 9).≥If a power failure occurs, the handsetloses communication with the base.When power returns, place the handseton the base unit once then try again.≥Install the battery properly (p. 8, 30).≥Charge the battery fully (p. 8).≥Programming is not possible while theunit is in the talk mode or when viewingthe Caller List/phone book.≥Do not pause for over 60 seconds whileprogramming.≥Move closer to the base unit.≥or may have been pressedwhen you picked up the handset. Press[OFF] and try again.≥Lift the handset off the base unit and tryagain.[ ][ ]PQQX14062ZA-5 04.2.5 10:32 AM ページ 31

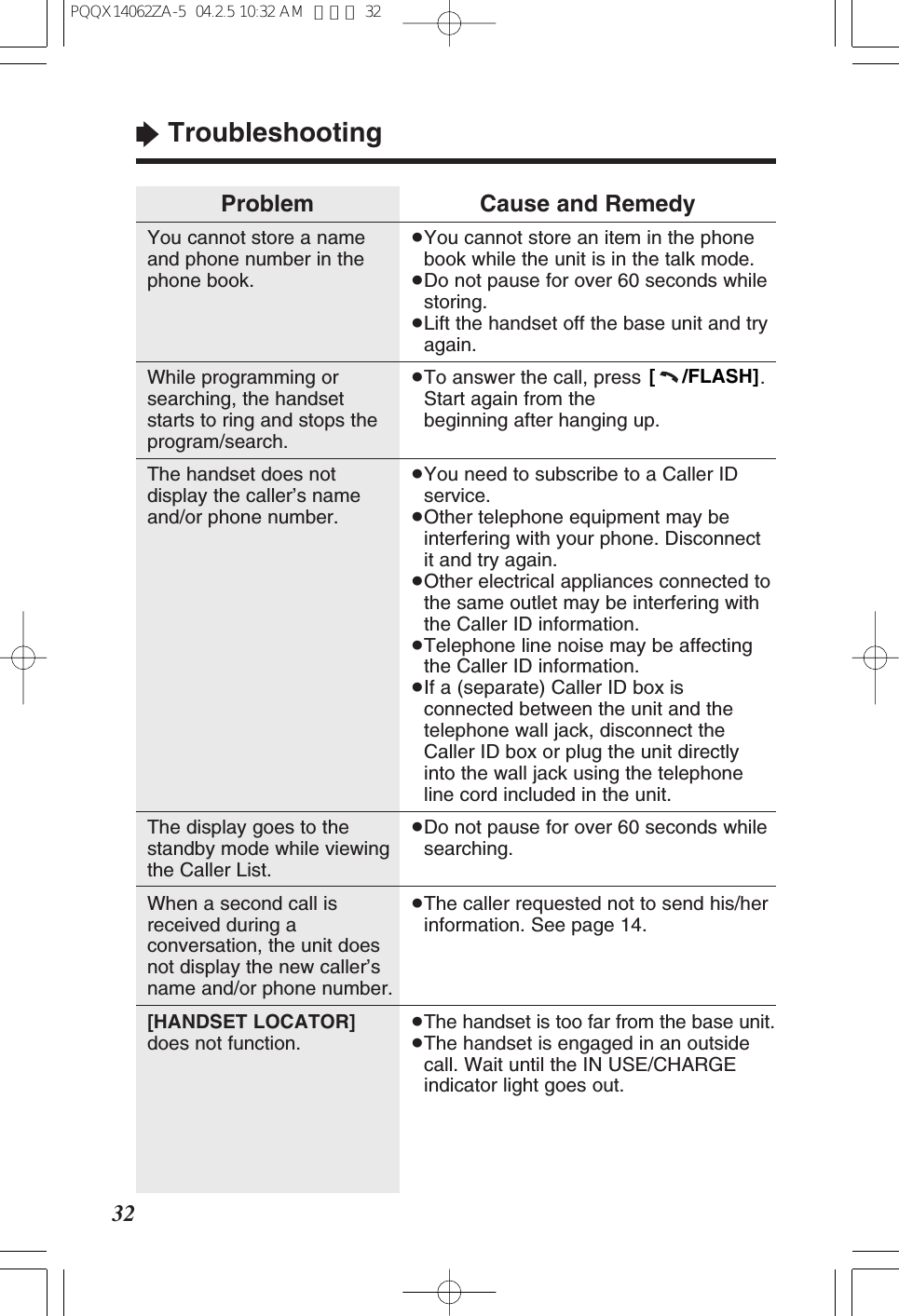

32“TroubleshootingProblemYou cannot store a nameand phone number in thephone book.While programming orsearching, the handsetstarts to ring and stops theprogram/search.The handset does notdisplay the caller’s nameand/or phone number.The display goes to thestandby mode while viewingthe Caller List.When a second call isreceived during aconversation, the unit doesnot display the new caller’sname and/or phone number.[HANDSET LOCATOR]does not function.Cause and Remedy≥You cannot store an item in the phonebook while the unit is in the talk mode.≥Do not pause for over 60 seconds whilestoring.≥Lift the handset off the base unit and tryagain.≥To answer the call, press .Start again from thebeginning after hanging up.≥You need to subscribe to a Caller IDservice.≥Other telephone equipment may beinterfering with your phone. Disconnectit and try again.≥Other electrical appliances connected tothe same outlet may be interfering withthe Caller ID information.≥Telephone line noise may be affectingthe Caller ID information.≥If a (separate) Caller ID box isconnected between the unit and thetelephone wall jack, disconnect theCaller ID box or plug the unit directlyinto the wall jack using the telephoneline cord included in the unit.≥Do not pause for over 60 seconds whilesearching.≥The caller requested not to send his/herinformation. See page 14.≥The handset is too far from the base unit.≥The handset is engaged in an outsidecall. Wait until the IN USE/CHARGEindicator light goes out.[ /FLASH]PQQX14062ZA-5 04.2.5 10:32 AM ページ 32

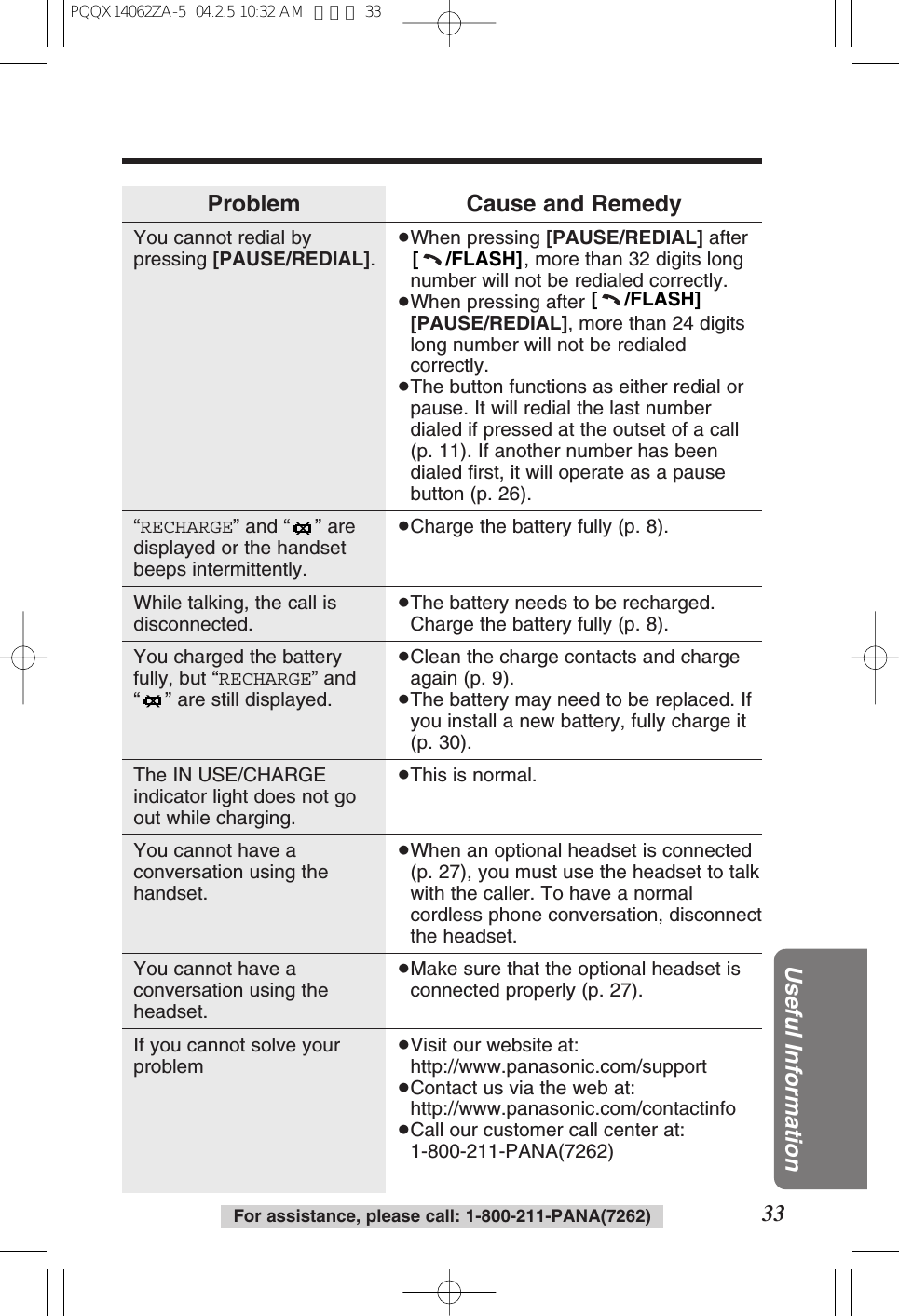

33Useful InformationFor assistance, please call: 1-800-211-PANA(7262)ProblemYou cannot redial bypressing [PAUSE/REDIAL].“RECHARGE” and “” aredisplayed or the handsetbeeps intermittently.While talking, the call isdisconnected.You charged the batteryfully, but “RECHARGE” and“” are still displayed.The IN USE/CHARGEindicator light does not goout while charging.You cannot have aconversation using thehandset.You cannot have aconversation using theheadset.If you cannot solve yourproblemCause and Remedy≥When pressing [PAUSE/REDIAL] after , more than 32 digits longnumber will not be redialed correctly.≥When pressing after[PAUSE/REDIAL], more than 24 digitslong number will not be redialedcorrectly.≥The button functions as either redial orpause. It will redial the last numberdialed if pressed at the outset of a call(p. 11). If another number has beendialed first, it will operate as a pausebutton (p. 26).≥Charge the battery fully (p. 8).≥The battery needs to be recharged.Charge the battery fully (p. 8).≥Clean the charge contacts and chargeagain (p. 9).≥The battery may need to be replaced. Ifyou install a new battery, fully charge it(p. 30).≥This is normal.≥When an optional headset is connected(p. 27), you must use the headset to talkwith the caller. To have a normalcordless phone conversation, disconnectthe headset.≥Make sure that the optional headset isconnected properly (p. 27).≥Visit our website at:http://www.panasonic.com/support≥Contact us via the web at:http://www.panasonic.com/contactinfo≥Call our customer call center at:1-800-211-PANA(7262)[ /FLASH][ /FLASH]PQQX14062ZA-5 04.2.5 10:32 AM ページ 33

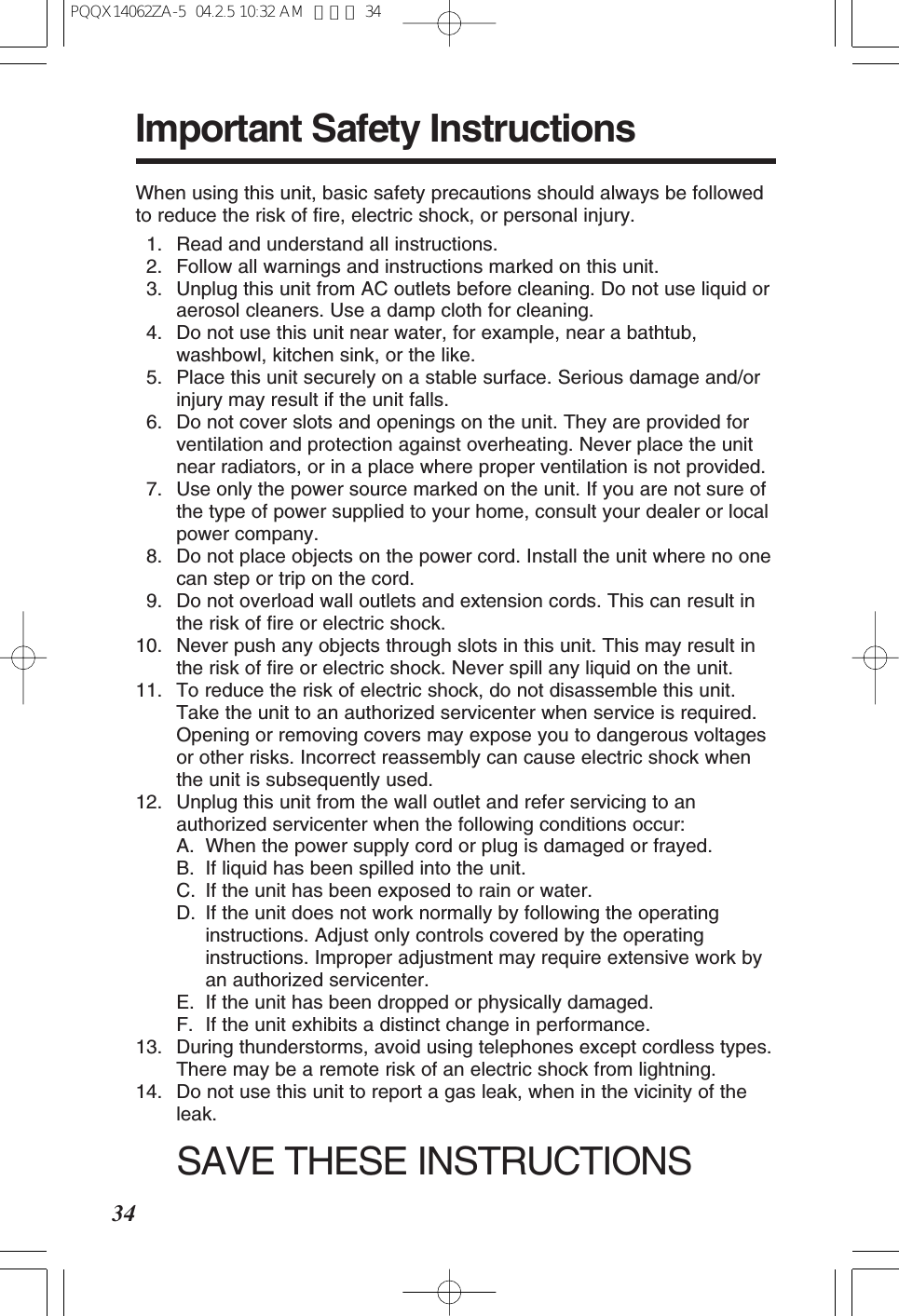

34Important Safety InstructionsWhen using this unit, basic safety precautions should always be followedto reduce the risk of fire, electric shock, or personal injury.11. Read and understand all instructions.12. Follow all warnings and instructions marked on this unit.13. Unplug this unit from AC outlets before cleaning. Do not use liquid oraerosol cleaners. Use a damp cloth for cleaning.14. Do not use this unit near water, for example, near a bathtub,washbowl, kitchen sink, or the like.15. Place this unit securely on a stable surface. Serious damage and/orinjury may result if the unit falls.16. Do not cover slots and openings on the unit. They are provided forventilation and protection against overheating. Never place the unitnear radiators, or in a place where proper ventilation is not provided.17. Use only the power source marked on the unit. If you are not sure ofthe type of power supplied to your home, consult your dealer or localpower company.18. Do not place objects on the power cord. Install the unit where no onecan step or trip on the cord.19. Do not overload wall outlets and extension cords. This can result inthe risk of fire or electric shock.10. Never push any objects through slots in this unit. This may result inthe risk of fire or electric shock. Never spill any liquid on the unit.11. To reduce the risk of electric shock, do not disassemble this unit.Take the unit to an authorized servicenter when service is required.Opening or removing covers may expose you to dangerous voltagesor other risks. Incorrect reassembly can cause electric shock whenthe unit is subsequently used.12. Unplug this unit from the wall outlet and refer servicing to anauthorized servicenter when the following conditions occur:A. When the power supply cord or plug is damaged or frayed.B. If liquid has been spilled into the unit.C. If the unit has been exposed to rain or water.D. If the unit does not work normally by following the operatinginstructions. Adjust only controls covered by the operatinginstructions. Improper adjustment may require extensive work byan authorized servicenter.E. If the unit has been dropped or physically damaged.F. If the unit exhibits a distinct change in performance.13. During thunderstorms, avoid using telephones except cordless types.There may be a remote risk of an electric shock from lightning.14. Do not use this unit to report a gas leak, when in the vicinity of theleak.SAVE THESE INSTRUCTIONSPQQX14062ZA-5 04.2.5 10:32 AM ページ 34

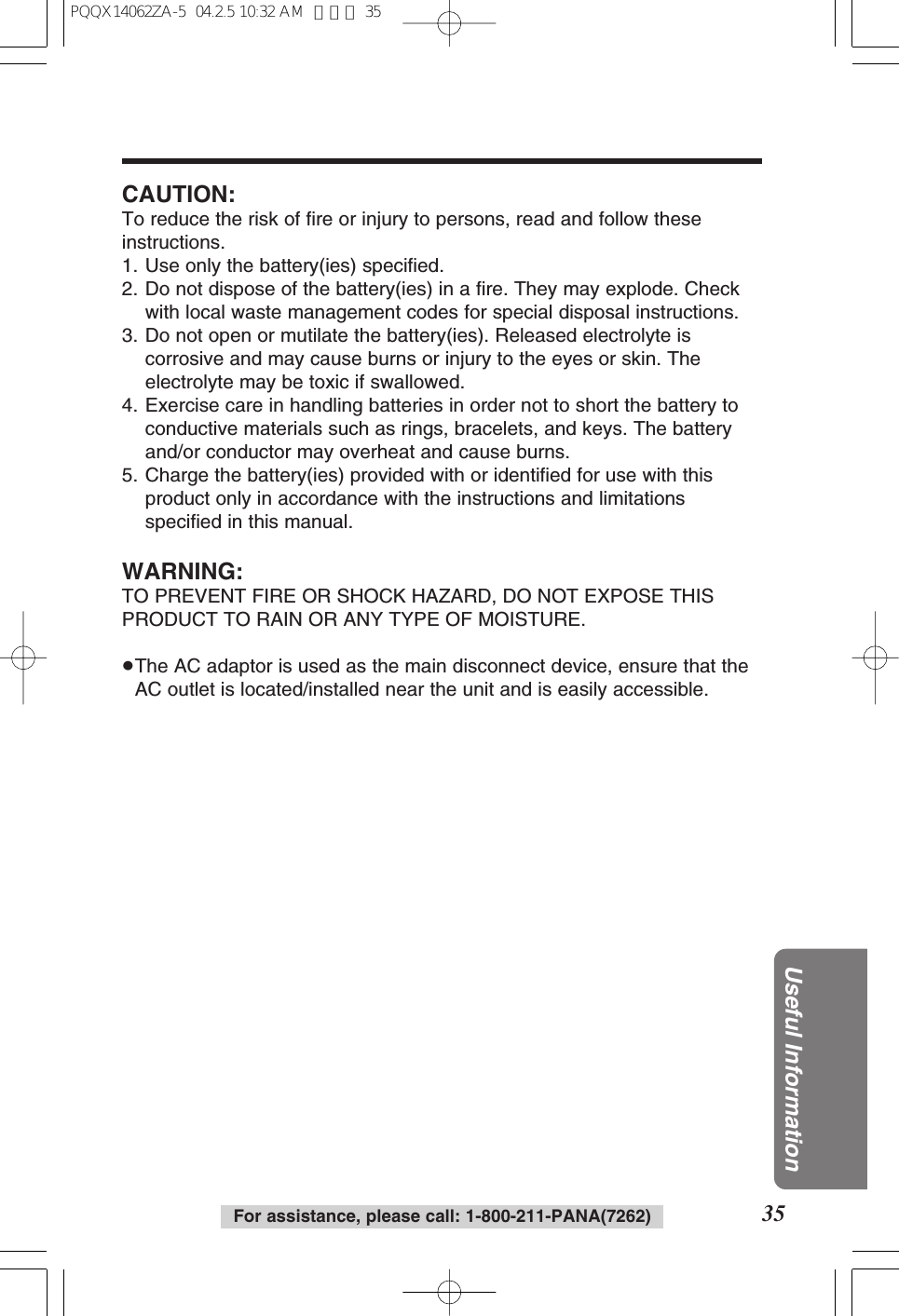

For assistance, please call: 1-800-211-PANA(7262) 35Useful InformationCAUTION:To reduce the risk of fire or injury to persons, read and follow theseinstructions.1. Use only the battery(ies) specified.2. Do not dispose of the battery(ies) in a fire. They may explode. Checkwith local waste management codes for special disposal instructions.3. Do not open or mutilate the battery(ies). Released electrolyte iscorrosive and may cause burns or injury to the eyes or skin. Theelectrolyte may be toxic if swallowed.4. Exercise care in handling batteries in order not to short the battery toconductive materials such as rings, bracelets, and keys. The batteryand/or conductor may overheat and cause burns.5. Charge the battery(ies) provided with or identified for use with thisproduct only in accordance with the instructions and limitationsspecified in this manual.WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THISPRODUCT TO RAIN OR ANY TYPE OF MOISTURE.≥The AC adaptor is used as the main disconnect device, ensure that theAC outlet is located/installed near the unit and is easily accessible.PQQX14062ZA-5 04.2.5 10:32 AM ページ 35

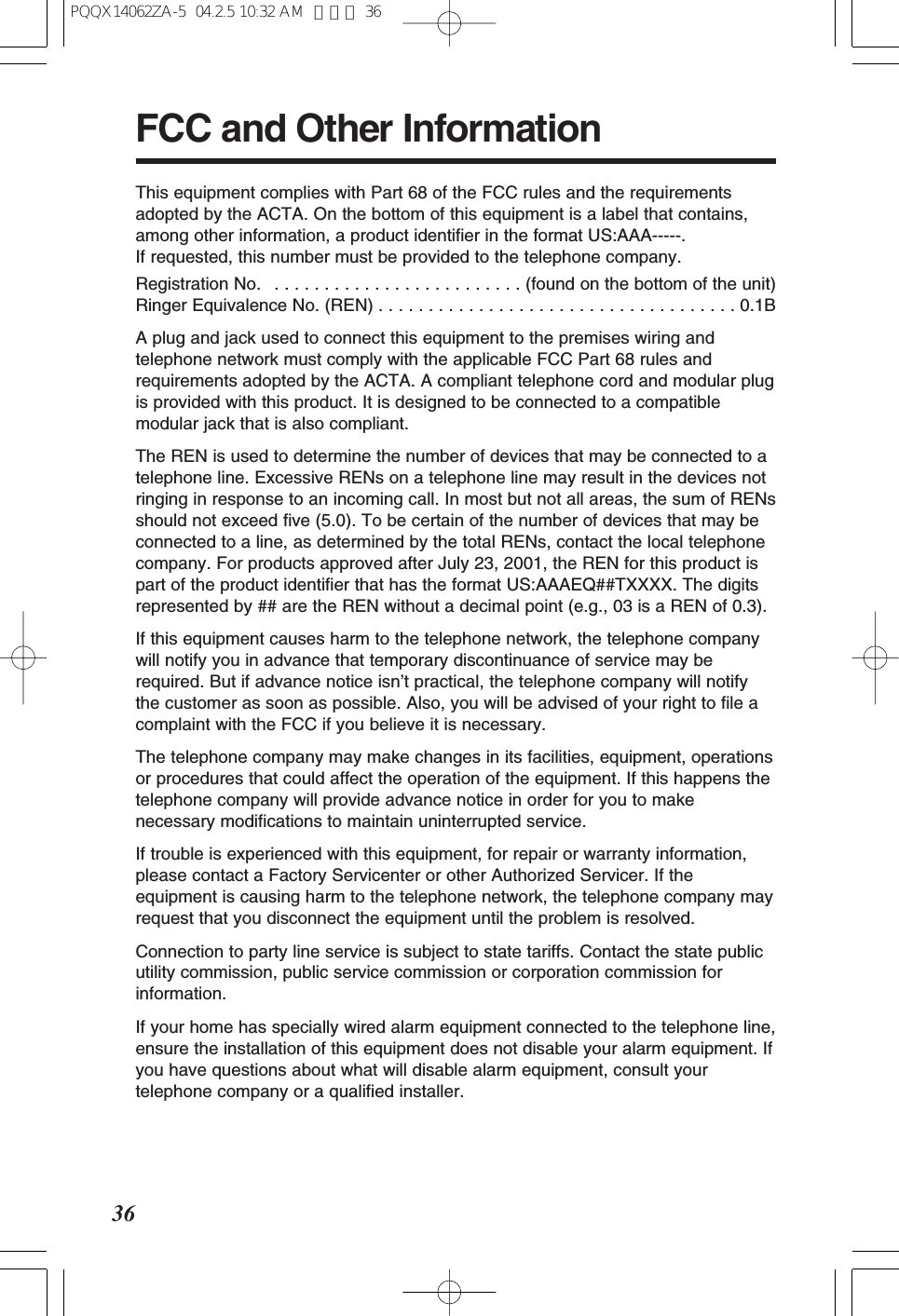

36FCC and Other InformationThis equipment complies with Part 68 of the FCC rules and the requirementsadopted by the ACTA. On the bottom of this equipment is a label that contains,among other information, a product identifier in the format US:AAA-----. If requested, this number must be provided to the telephone company.Registration No. . . . . . . . . . . . . . . . . . . . . . . . . . (found on the bottom of the unit)Ringer Equivalence No. (REN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1BA plug and jack used to connect this equipment to the premises wiring andtelephone network must comply with the applicable FCC Part 68 rules andrequirements adopted by the ACTA. A compliant telephone cord and modular plugis provided with this product. It is designed to be connected to a compatiblemodular jack that is also compliant.The REN is used to determine the number of devices that may be connected to atelephone line. Excessive RENs on a telephone line may result in the devices notringing in response to an incoming call. In most but not all areas, the sum of RENsshould not exceed five (5.0). To be certain of the number of devices that may beconnected to a line, as determined by the total RENs, contact the local telephonecompany. For products approved after July 23, 2001, the REN for this product ispart of the product identifier that has the format US:AAAEQ##TXXXX. The digitsrepresented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).If this equipment causes harm to the telephone network, the telephone companywill notify you in advance that temporary discontinuance of service may berequired. But if advance notice isn’t practical, the telephone company will notifythe customer as soon as possible. Also, you will be advised of your right to file acomplaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operationsor procedures that could affect the operation of the equipment. If this happens thetelephone company will provide advance notice in order for you to makenecessary modifications to maintain uninterrupted service.If trouble is experienced with this equipment, for repair or warranty information,please contact a Factory Servicenter or other Authorized Servicer. If theequipment is causing harm to the telephone network, the telephone company mayrequest that you disconnect the equipment until the problem is resolved.Connection to party line service is subject to state tariffs. Contact the state publicutility commission, public service commission or corporation commission forinformation.If your home has specially wired alarm equipment connected to the telephone line,ensure the installation of this equipment does not disable your alarm equipment. Ifyou have questions about what will disable alarm equipment, consult yourtelephone company or a qualified installer.PQQX14062ZA-5 04.2.5 10:32 AM ページ 36

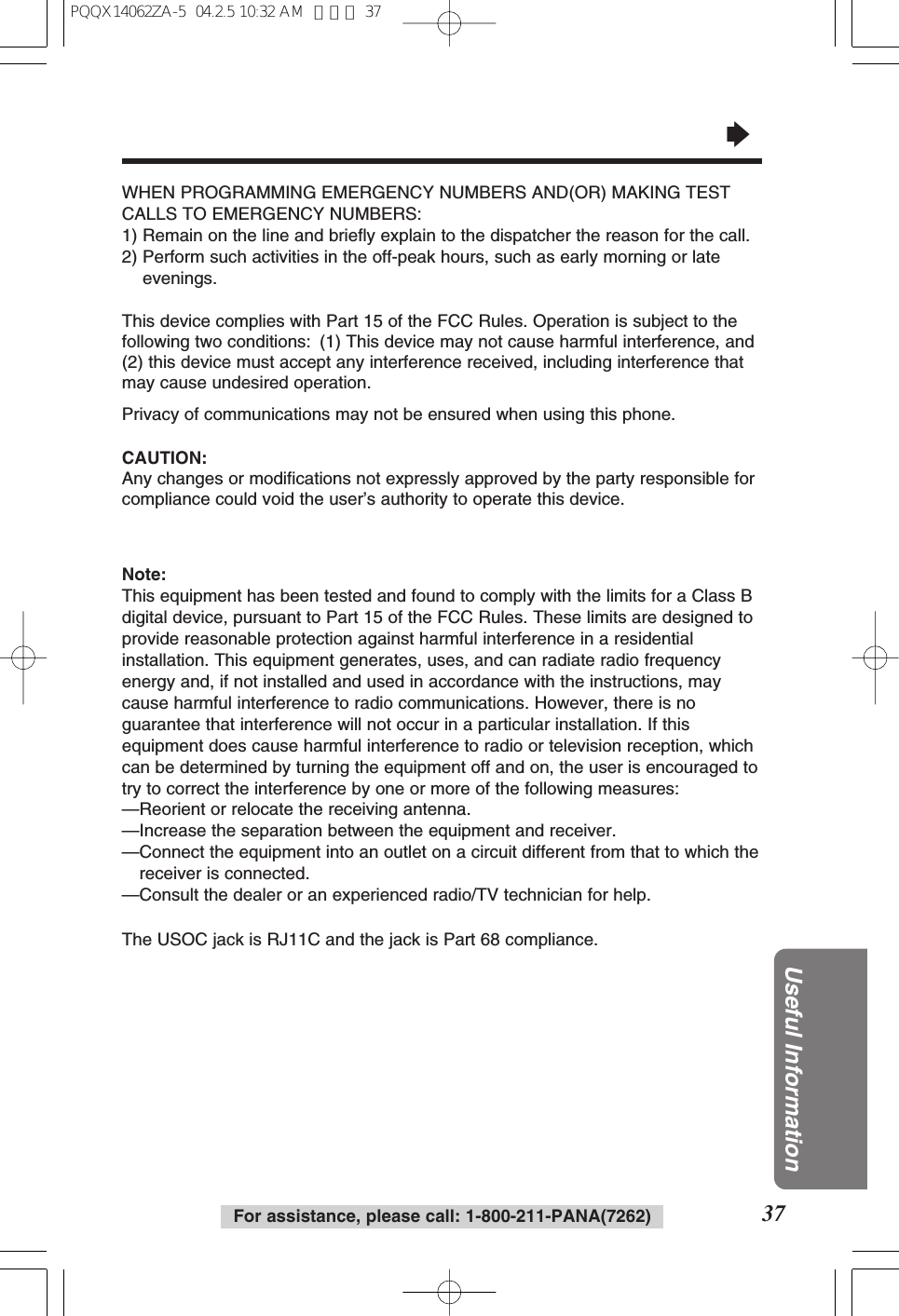

37Useful InformationFor assistance, please call: 1-800-211-PANA(7262)“WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TESTCALLS TO EMERGENCY NUMBERS:1) Remain on the line and briefly explain to the dispatcher the reason for the call.2) Perform such activities in the off-peak hours, such as early morning or lateevenings.This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.Privacy of communications may not be ensured when using this phone.CAUTION:Any changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate this device.Note:This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.—Consult the dealer or an experienced radio/TV technician for help.The USOC jack is RJ11C and the jack is Part 68 compliance.PQQX14062ZA-5 04.2.5 10:32 AM ページ 37

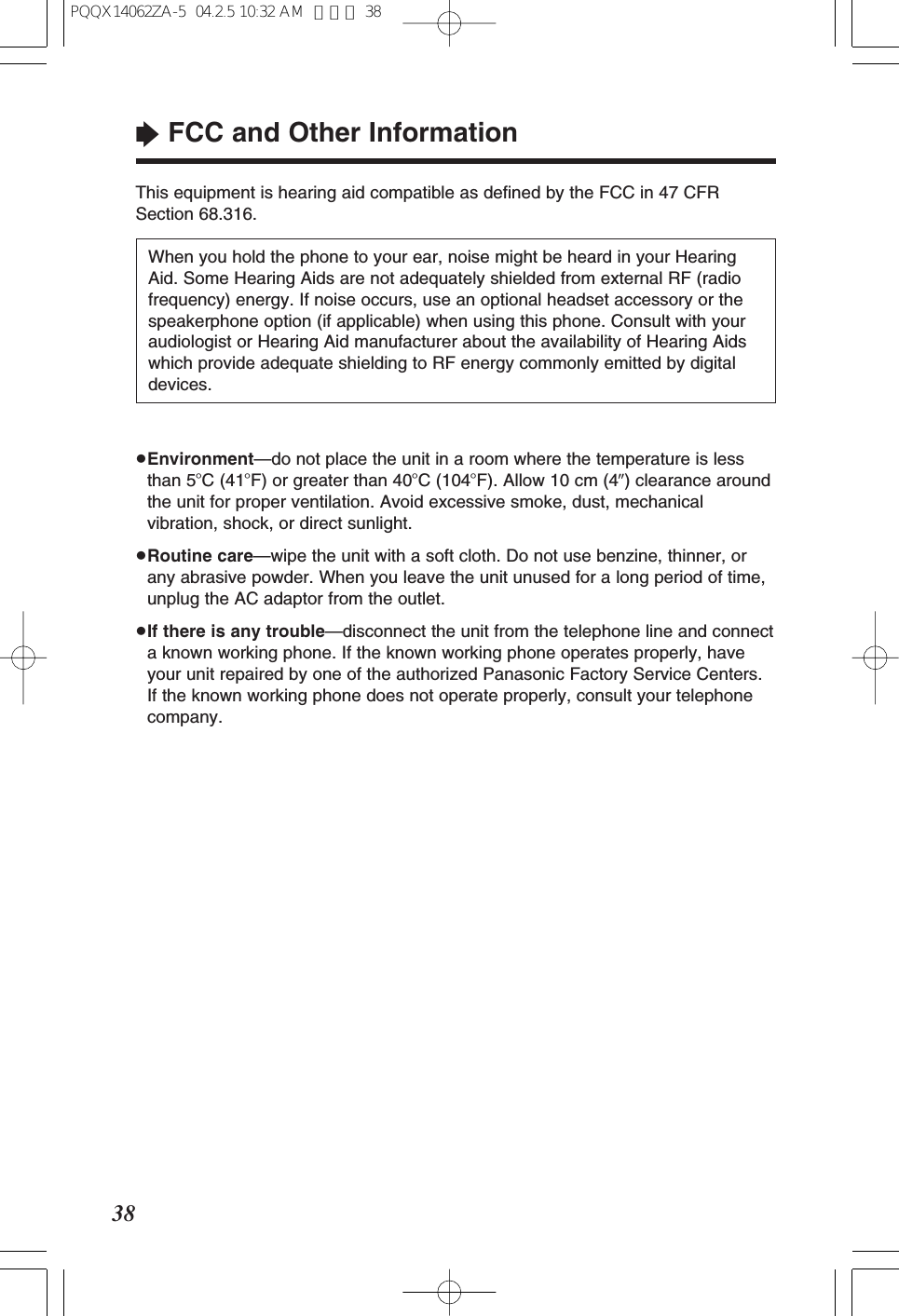

“FCC and Other Information38≥Environment—do not place the unit in a room where the temperature is lessthan 5oC (41oF) or greater than 40oC (104oF). Allow 10 cm (4q) clearance aroundthe unit for proper ventilation. Avoid excessive smoke, dust, mechanicalvibration, shock, or direct sunlight.≥Routine care—wipe the unit with a soft cloth. Do not use benzine, thinner, orany abrasive powder. When you leave the unit unused for a long period of time,unplug the AC adaptor from the outlet.≥If there is any trouble—disconnect the unit from the telephone line and connecta known working phone. If the known working phone operates properly, haveyour unit repaired by one of the authorized Panasonic Factory Service Centers.If the known working phone does not operate properly, consult your telephonecompany.When you hold the phone to your ear, noise might be heard in your HearingAid. Some Hearing Aids are not adequately shielded from external RF (radiofrequency) energy. If noise occurs, use an optional headset accessory or thespeakerphone option (if applicable) when using this phone. Consult with youraudiologist or Hearing Aid manufacturer about the availability of Hearing Aidswhich provide adequate shielding to RF energy commonly emitted by digitaldevices.This equipment is hearing aid compatible as defined by the FCC in 47 CFRSection 68.316.PQQX14062ZA-5 04.2.5 10:32 AM ページ 38

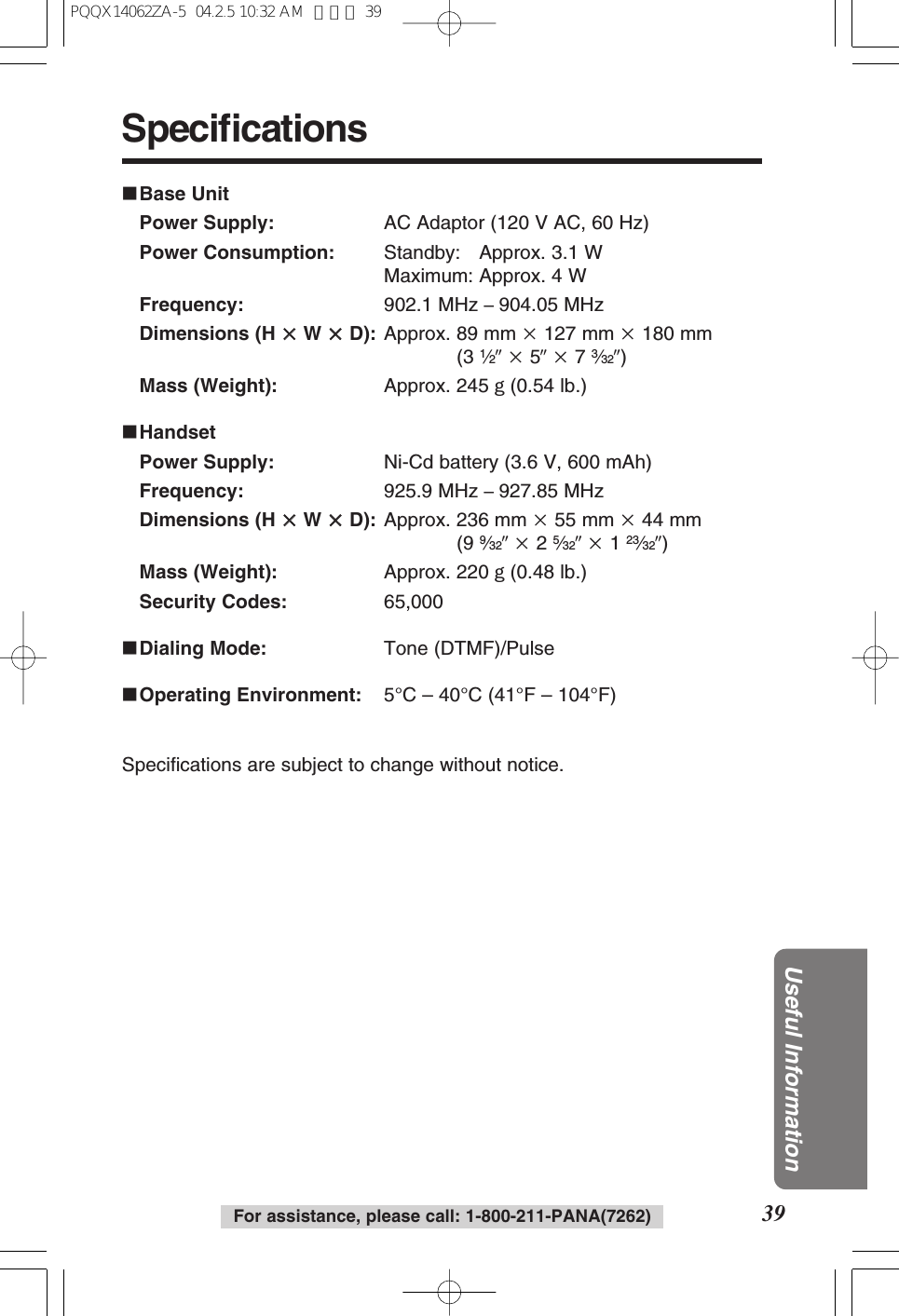

39Useful InformationFor assistance, please call: 1-800-211-PANA(7262)Specifications∫Base UnitPower Supply: AC Adaptor (120 V AC, 60 Hz)Power Consumption: Standby: Approx. 3.1 WMaximum: Approx. 4 WFrequency: 902.1 MHz –904.05 MHzDimensions (H kkW kkD): Approx. 89 mm k127 mm k180 mm(3 1⁄2qk5qk7 3⁄32q)Mass (Weight): Approx. 245 g(0.54 lb.)∫HandsetPower Supply: Ni-Cd battery (3.6 V, 600 mAh)Frequency: 925.9 MHz –927.85 MHzDimensions (H kkW kkD): Approx. 236 mm k55 mm k44 mm(9 9⁄32qk2 5⁄32qk1 23⁄32q)Mass (Weight): Approx. 220 g(0.48 lb.)Security Codes: 65,000∫Dialing Mode: Tone (DTMF)/Pulse∫Operating Environment: 5°C – 40°C (41°F – 104°F)Specifications are subject to change without notice.PQQX14062ZA-5 04.2.5 10:32 AM ページ 39

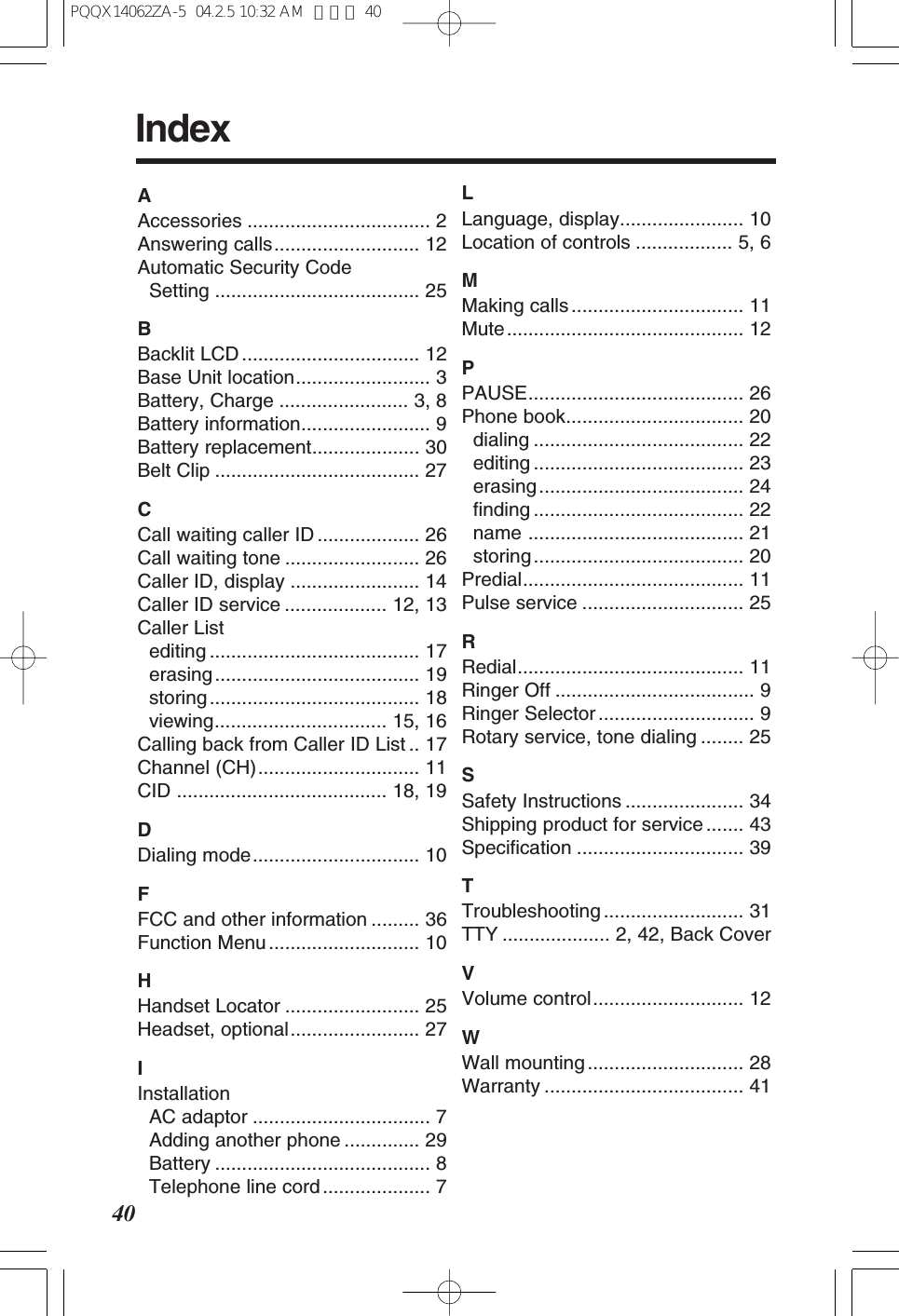

40IndexAAccessories .................................. 2Answering calls........................... 12Automatic Security Code Setting ...................................... 25BBacklit LCD ................................. 12Base Unit location......................... 3Battery, Charge ........................ 3, 8Battery information........................ 9Battery replacement.................... 30Belt Clip ...................................... 27CCall waiting caller ID ................... 26Call waiting tone ......................... 26Caller ID, display ........................ 14Caller ID service ................... 12, 13Caller Listediting ....................................... 17erasing...................................... 19storing....................................... 18viewing................................ 15, 16Calling back from Caller ID List .. 17Channel (CH).............................. 11CID ....................................... 18, 19DDialing mode............................... 10FFCC and other information ......... 36Function Menu ............................ 10HHandset Locator ......................... 25Headset, optional........................ 27IInstallationAC adaptor ................................. 7Adding another phone .............. 29Battery ........................................ 8Telephone line cord .................... 7LLanguage, display....................... 10Location of controls .................. 5, 6MMaking calls ................................ 11Mute............................................ 12PPAUSE........................................ 26Phone book................................. 20dialing ....................................... 22editing ....................................... 23erasing...................................... 24finding ....................................... 22name ........................................ 21storing....................................... 20Predial......................................... 11Pulse service .............................. 25RRedial.......................................... 11Ringer Off ..................................... 9Ringer Selector ............................. 9Rotary service, tone dialing ........ 25SSafety Instructions ...................... 34Shipping product for service ....... 43Specification ............................... 39TTroubleshooting .......................... 31TTY .................... 2, 42, Back CoverVVolume control............................ 12WWall mounting ............................. 28Warranty ..................................... 41PQQX14062ZA-5 04.2.5 10:32 AM ページ 40

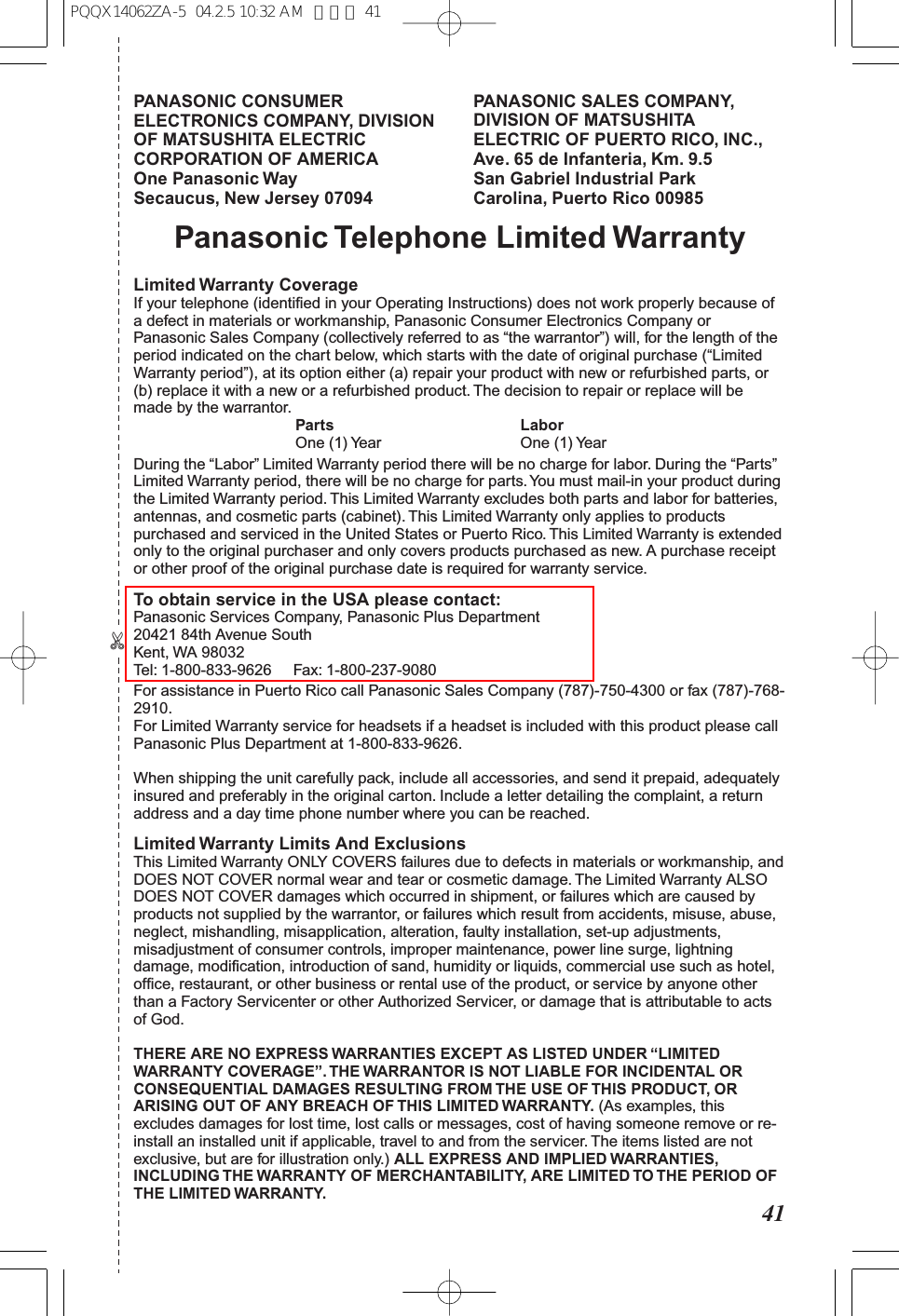

41✄PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA One Panasonic Way Secaucus, New Jersey 07094PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC., Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985Panasonic Telephone Limited WarrantyLimited Warranty CoverageIf your telephone (identified in your Operating Instructions) does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor. Parts Labor One (1) Year One (1) YearDuring the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will be no charge for parts. You must mail-in your product during the Limited Warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers products purchased as new. A purchase receipt or other proof of the original purchase date is required for warranty service.To obtain service in the USA please contact:Panasonic Services Company, Panasonic Plus Department20421 84th Avenue SouthKent, WA 98032Tel: 1-800-833-9626 Fax: 1-800-237-9080For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910. For Limited Warranty service for headsets if a headset is included with this product please call Panasonic Plus Department at 1-800-833-9626.When shipping the unit carefully pack, include all accessories, and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint, a return address and a day time phone number where you can be reached.Limited Warranty Limits And ExclusionsThis Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for lost time, lost calls or messages, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.PQQX14062ZA-5 04.2.5 10:32 AM ページ 41

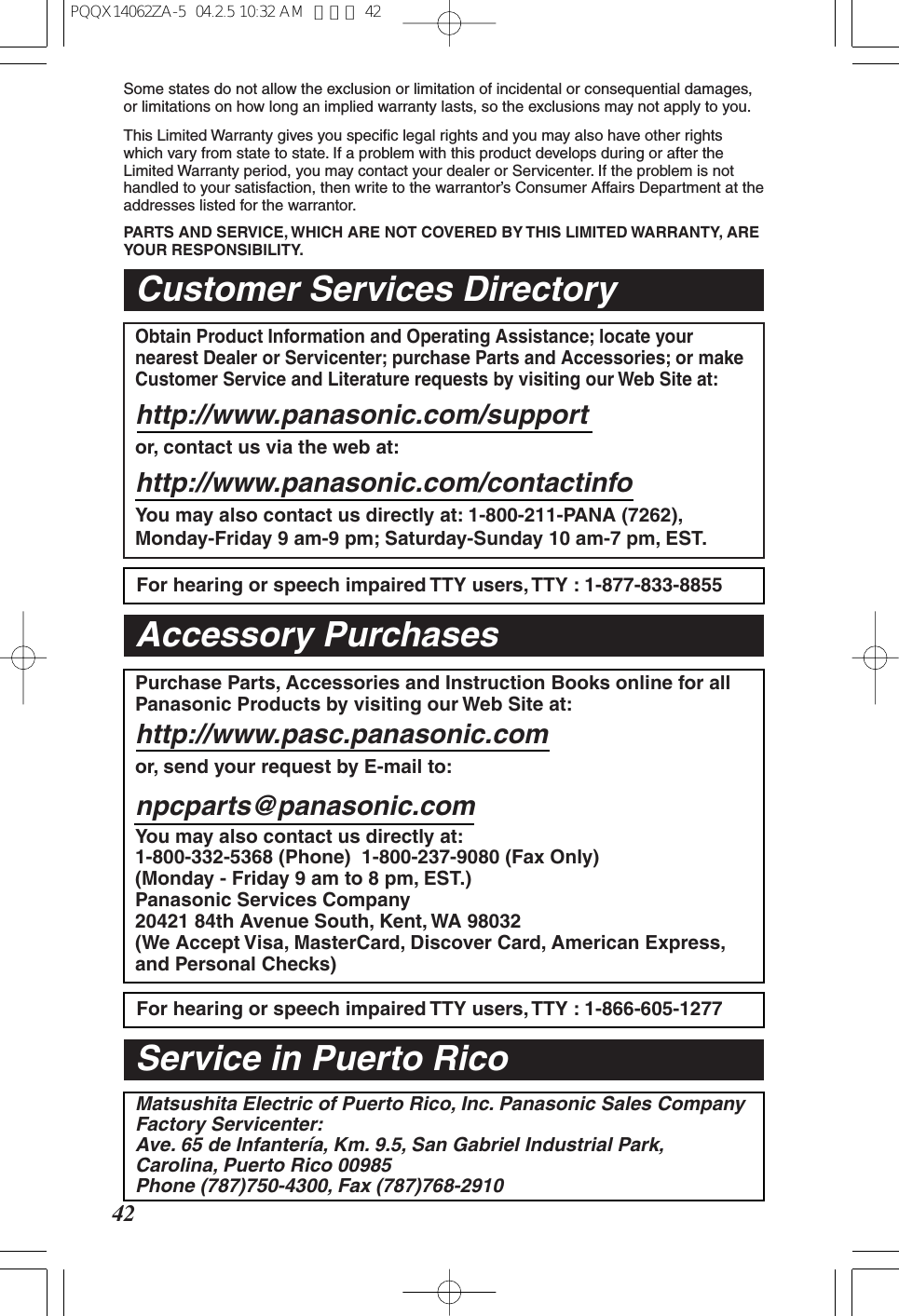

42Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.Customer Services DirectoryObtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:http://www.panasonic.com/supportor, contact us via the web at:http://www.panasonic.com/contactinfoYou may also contact us directly at: 1-800-211-PANA (7262),Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.For hearing or speech impaired TTY users, TTY : 1-877-833-8855For hearing or speech impaired TTY users, TTY : 1-866-605-1277Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:http://www.pasc.panasonic.comor, send your request by E-mail to:npcparts@panasonic.comYou may also contact us directly at:1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)(Monday - Friday 9 am to 8 pm, EST.) Panasonic Services Company20421 84th Avenue South, Kent, WA 98032(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)Accessory PurchasesService in Puerto RicoMatsushita Electric of Puerto Rico, Inc. Panasonic Sales CompanyFactory Servicenter:Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,Carolina, Puerto Rico 00985Phone (787)750-4300, Fax (787)768-2910PQQX14062ZA-5 04.2.5 10:32 AM ページ 42

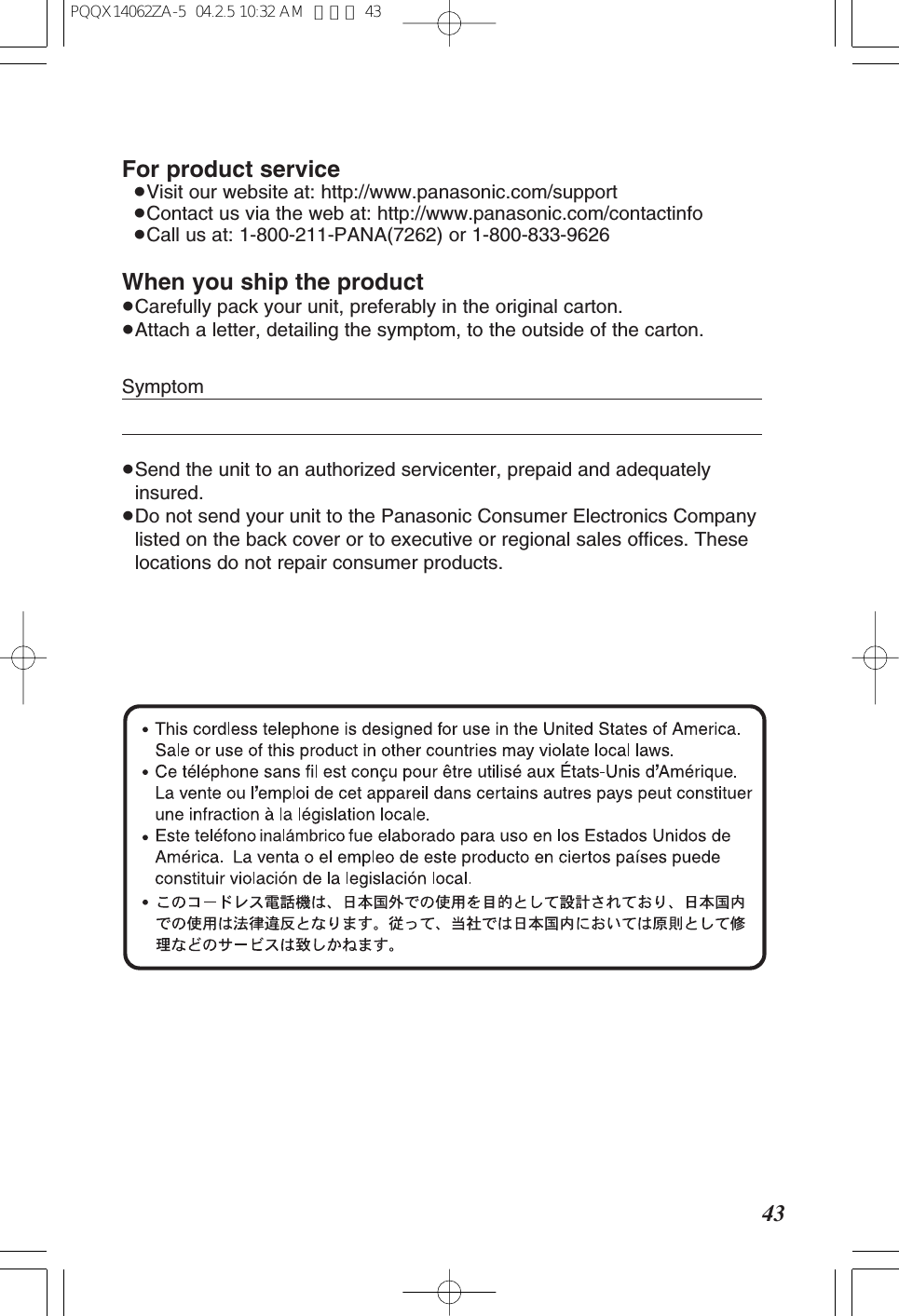

43For product service≥Visit our website at: http://www.panasonic.com/support≥Contact us via the web at: http://www.panasonic.com/contactinfo≥Call us at: 1-800-211-PANA(7262) or 1-800-833-9626When you ship the product≥Carefully pack your unit, preferably in the original carton.≥Attach a letter, detailing the symptom, to the outside of the carton.Symptom≥Send the unit to an authorized servicenter, prepaid and adequatelyinsured.≥Do not send your unit to the Panasonic Consumer Electronics Companylisted on the back cover or to executive or regional sales offices. Theselocations do not repair consumer products.PQQX14062ZA-5 04.2.5 10:32 AM ページ 43

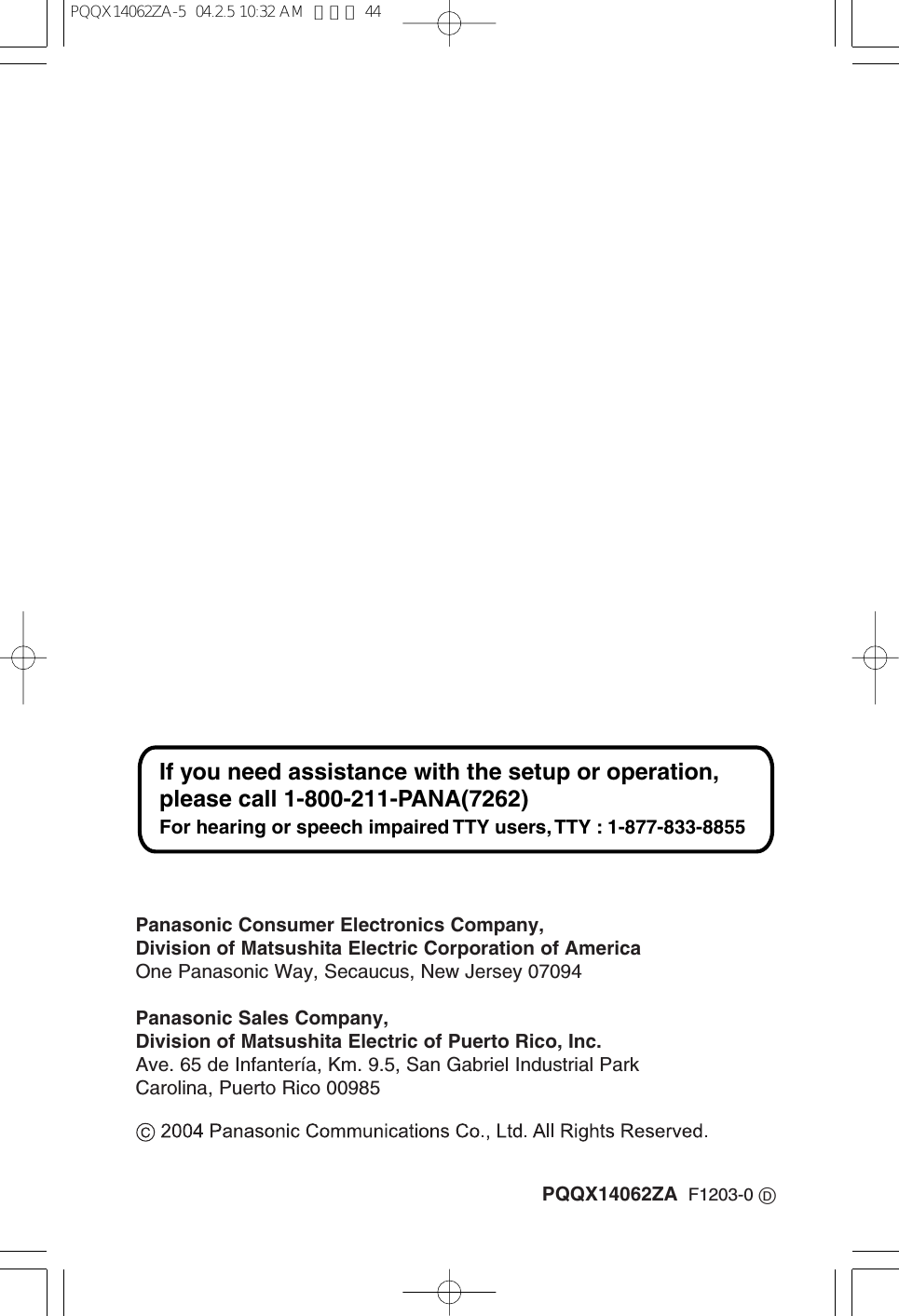

PQQX14062ZA F1203-0 DPanasonic Consumer Electronics Company,Division of Matsushita Electric Corporation of AmericaOne Panasonic Way, Secaucus, New Jersey 07094Panasonic Sales Company,Division of Matsushita Electric of Puerto Rico, Inc.Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial ParkCarolina, Puerto Rico 00985If you need assistance with the setup or operation, please call 1-800-211-PANA(7262)For hearing or speech impaired TTY users, TTY : 1-877-833-8855PQQX14062ZA-5 04.2.5 10:32 AM ページ 44
