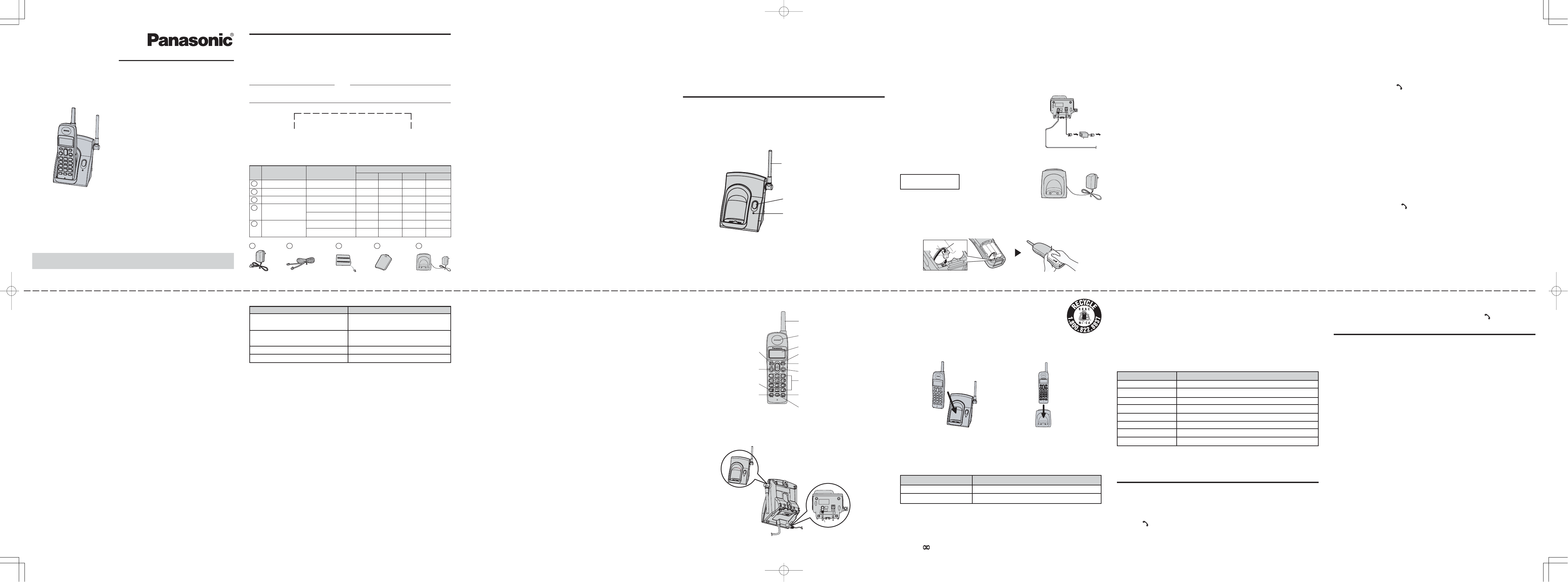

CCT Tech Advanced KX-TG2120 2.4GHz/900MHz Analog Cordless phone w/ CID (Base) User Manual TG2122IB EngRev09a
CCT Tech Advanced Products Limited 2.4GHz/900MHz Analog Cordless phone w/ CID (Base) TG2122IB EngRev09a
User Manual
1 Introduction
Thank you for purchasing a Panasonic cordless telephone.
We recommend keeping a record of the following information for future
reference.
Serial No. Date of purchase
(found on the bottom of the base unit)
Name and address of dealer
Attach your purchase receipt here.
2 Accessories information
Included accessories
Additional/replacement accessories
Accessory item Order number
Rechargeable nickel metal hydride (Ni-MH) P-P504
battery
Headset KX-TCA60, KX-TCA86, KX-TCA88HA,
KX -TCA91, KX -TCA92, or KX -TCA98.
T-adaptor KX-J66
Battery back-up power supply KX-TCA200
Sales and support information
•To order additional/replacement accessories, call 1-800-332-5368.
•TTY users (hearing or speech impaired users) can call-1-866-605-1277.
3 Important Safety Instructions
When using the product, basic safety precautions should always be followed to reduce the risk of
fire, electric shock, or personal injury.
1. Read all instructions carefully.
2. Follow all warnings and instructions marked on the product.
3. Unplug the product from power outlets before cleaning. Do not use liquid or aerosol
cleaners. Use a moist cloth for cleaning.
4. Do not use the product near water, for example near a bathtub, wash bowl, kitchen sink, etc.
5. Place the product securely on a stable surface. Serious damage and/or injury may result if
the product falls.
6. Do not cover slots and openings on the product. They are provided for ventilation and
protection against overheating. Never place the product near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked on the product. If you are not sure of the type of power
supplied to your home, consult your dealer or local power company.
8. Do not place objects on the power cord. Install the product where no one can step or trip on
the cord.
9. Do not overload power outlets and extension cords. This can result in the risk of fire or
electric shock.
10 Never push any objects through slots in the product. This may result in the risk of fire or
electric shock. Never spill any liquid on the product.
11.To reduce the risk of electric shock, do not disassemble the product. Take the product to an
authorized service center when service is required. Opening or removing covers may
expose you to dangerous voltages or other risks.
Incorrect reassembly can cause electric shock when the product is subsequently used.
12. Unplug the product from power outlets and take to an authorized service center when the
following conditions occur:
1 5432
No. Accessory item Order number
1 AC adaptor PQWATG2120M 1 1 1 1
2 Telephone line cord PQJA10075Z 1 1 1 1
3 Battery P-P504 or HHR-P501 1 1 2 2
4 Handset cover PQYNTG2120W - 1 - 2
PQYNTG2120B 1 - 2 -
5 Charger PQWETGA211W - - - 2
PQWETGA211B - - 2 -
Quantity
KX-TG2120B KX-TG2120W KX-TG2122B KX-TG2122W
A. When the power cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not work normally by following the operating instructions. Adjust only
controls covered by the operating instructions. Improper adjustment may require extensive
work by an authorized service center.
E. If the product has been dropped or physically damaged.
F. If the product exhibits a distinct change in performance.
13. During thunderstorms, avoid using telephones except cordless types. There may be a
remote risk of an electric shock from lightning.
14. Do not use the product to report a gas leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
CAUTION
Installation
•Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
•Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
•Use caution when installing or modifying telephone lines.
•Do not touch the plug with wet hands.
•The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed
near the product and is easily accessible.
Battery
To reduce the risk of fire or injury to persons, read and follow these instructions.
•Use only the battery(ies) specified.
•Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste
management codes for special disposal instructions.
•Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
• Exercise care when handling the battery(ies). Do not allow conductive materials such as
rings, bracelets or keys to touch the battery(ies), otherwise a short circuit may cause the
battery(ies) and/or the conductive material to overheat and cause burns.
•Charge the battery(ies) provided, or identified for use with the product only, in accordance
with the instructions and limitations specified in this manual.
WARNING
•To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of
moisture.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an
unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has
stopped emitting and contact the Panasonic Call Center at 1-800-211-PANA (1-800-211-
7262).
Medical
• Consult the manufacturer of any personal medical devices, such as pacemakers or hearing
aids, to determine if they are adequately shielded from external RF (radio frequency)
energy. (The product operates in the frequency range of 2.4 GHz to 2.48 GHz, and the
power output is 100 mW (max.).) Do not use the product in health care facilities if any
regulations posted in the area instruct you not to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to external RF energy.
4 For best performance
Base unit location/avoiding noise
The base unit and other compatible Panasonic units use radio waves to communicate with each
other.
For maximum distance and noise-free operation, we recommend the following:
•Placing the product away from electrical appliances.
•Placing the base unit in a HIGH and CENTRAL location with no obstructions such as walls.
•Raising the antenna vertically.
• If you use the handset near a microwave oven which is being used, noise may be heard.
Move away from the microwave oven and closer to the base unit.
• If you use the handset near another cordless phone’s base unit, noise may be heard.
Move away from the other cordless phone’s base unit and closer to your base unit.
Environment
•Keep the product away from electrical noise generating devices, such as fluorescent lamps
and motors.
•The product should be kept free from excessive smoke, dust, high temperature, and
vibration.
• The product should not be exposed to direct sunlight.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long period of time, unplug the product from the
power outlet.
• The product should be kept away from heat sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms where the temperature is less than 5 °C (41°F) or
greater than 40°C (104°F). Damp basements should also be avoided.
• The maximum calling distance may be shortened when the product is used in the following
places: Near obstacles such as hills, tunnels, underground, near metal objects such as wire
fences, etc.
• Operating the product near 2.4 GHz electrical appliances may cause interference.
Move away from the electrical appliances.
Routine care
• Wipe the outer surface of the product with a soft moist cloth. Do not use benzene, thinner, or
any abrasive powder.
Preparation
5 Location of controls
– Base unit
– Handset unit
6 Setting up the base unit
Connecting the AC adaptor and telephone line cord.
Antenna
Receiver
LCD display
CID/VOL up/down button
EDIT/TRANSFER button
OFF button
Keys function
AUTO/FUNCTION button
CH button
MUTE/CLEAR button
TONE/* button
TALK/FLASH button
PAUSE/REDIAL button
(120V AC, 60Hz)
To single-line
telephone jack
(RJ11C)
Hook
Note:
•The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
•The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor
may cause it to become disconnected.
•The unit will not work during a power failure. We recommend connecting a standard
telephone to the same telephone line or to the same telephone jack using a Panasonic
T-adaptor. Emergency power can be supplied to the unit by connecting a
Panasonic battery back-up power supply.
If you subscribe to a DSL service
Please attach a noise filter (contact your DSL provider) to the
telephone line between the base unit and the telephone line jack in
the event of the following:
–Noise is heard during conversations.
–Caller ID features do not function properly.
7 Setting up the handset
Connecting the charger
Available model:
KX-TG2122
Battery installation/replacement
• Insert the battery plug into the connector as shown in the picture.
• Be sure wires are free from being pressed by the battery body or handset cover.
•If necessary, remove the old battery.
A nickel cadmium battery that is recyclable powers the product you have
purchased. At the end of its useful life, under various state and local laws, it is
illegal to dispose of this battery into your municipal waste stream. Please call
1-800-822-8BATTERY (1-800-822-8837) for information on how to recycle this
battery.
Battery charge
Place the handset on the base unit or charger for about 12 hours before initial use. The
CHARGE indicator lights.
–Base unit – Charge (KX-TG2122 only)
•To ensure that the battery charges properly, clean the charge contacts of the handset, base
unit, and charger with a soft, dry cloth once a month. Clean more often if the unit is subject
to the exposure of grease, dust, or high humidity.
Note:
• When the battery needs to be charged the handset beeps intermittently while it is in use.
Panasonic battery performance
Operation Operating time
While in use (talking) Up to 5 hours
While not in use (standby) Up to 5 days
Note:
•Battery operating time may be shortened over time depending on usage conditions and
surrounding temperature.
•Battery power is consumed whenever the handset is off the base unit, even when the handset
is not in use. Hence the longer you leave the handset off the base unit, the less time you may
actually talk using the handset.
•If the battery is fully charged, you do not have to place the handset on the base or charger
until “ ”. This will maximize the battery life.
Noise filter
To single-line
telephone
jack (RJ11C)
8 Programmable settings
You can customize the unit by programming the following features using the handset.
Display language
You can select English, Spanish or French as the display language.
The default setting is “ENGLISH”.
1Press [FUNCTION] 2 times, until “LANGUAGE” is displayed.
2Select “ENG”, “ESP” or “FRA” by using [] or [].
3Press [EDIT], then press [OFF].
Area code
We recommend storing your area code before using Caller ID. Calls from the same area will be
recorded in the caller list without the area code. You do not have to remove it before calling back the
caller or storing in the phonebook.
1Press [FUNCTION] 3 times, until “AREA CODE” is displayed.
2Enter your area code (max. 3 digits).
3Press [EDIT], then press [OFF].
Ringer tone
You can change the ringer tone heard when an outside call is received. There are 3 ringer tones.
The default setting is “RINGER TONE 1”.
1Press [FUNCTION] 4 times, until “RINGER TONE” is displayed.
2Select the desired ringer tone by using [] or [].
3Press [EDIT], then press [OFF].
Ringer on/off
You can turn the ringer on/off. The default setting is “ON”.
1Press [FUNCTION] 5 times, until “RINGER” is displayed.
2Select “ON” or “OFF” by using [] or [].
3Press [EDIT], then press [OFF].
• When the ringer volume is set to off, the handset does not ring for outside calls.
Dialing mode
If you cannot make calls, change this setting according to your telephone line service. The
default setting is “TONE”.
“TONE”: For tone dial service.
“PULSE”: For rotary pulse dial service.
1Press [FUNCTION] 6 times, until “DIAL MODE” is displayed.
2Select “PULSE” or “TONE” by using [] or [].
3Press [EDIT], then press [OFF].
Resetting the handset to its default setting
Feature Default setting
Station # --
Language ENGLISH
Area code ---
Ringer tone RINGER TONE 1
Ringer ON
Dial mode TONE
Default setting NO
Receiver volume level Vol. 1
1Press [FUNCTION] 7 times, until “DEFAULT” is displayed.
2Select “YES” or “NO” by using [] or [] button.
3Press [EDIT] button.
Making/Answering calls
9 Making calls
1Lift the handset and dial the phone number.
•To correct a digit, press [CLEAR].
2Press [ ].
3When you finish talking, press [OFF] or place the handset on the base unit or charger.
• If an alarm tone sounds in step 2, move closer to the base unit or place the handset on the
base unit, and try again.
•If additional dialing is necessary after using speeding dialing functions such as phonebook
dialing or REDIAL, wait until speed dialing is finished to continue further dialing. Otherwise,
the unit may not dial properly.
If noise interferes with the conversation
Press [CH] to select a clearer channel in the talk mode or move closer to the base unit.
To redial after confirming the last number dialed
Press [REDIAL], then press [ ].
To select the receiver volume
Press VOL. [] or [] repeatedly while talking.
To mute your conversation
Press [MUTE], while talking.
•The other party cannot hear you but you can hear them.
•To return to the conversation, Press [MUTE].
Redial
Press [REDIAL] to quickly dial the last number you called (max. 32 digits).
If you get a busy signal, and want to keep dialing the number, press [REDIAL] to dial the number
again.
10 Answering calls
When a call is received, the unit rings.
1Lift the handset and press [[
[[
[]]
]]
].
•You can also answer a call by pressing any button except [OFF] (Any key talk feature).
2When you finish talking, press [OFF] or place the handset one the base unit or charger.
11 Call transfer
During an external call, you may transfer the external call to another handset.
1Ex. Handset 1:
Press [TRANSFER] on the originating handset.
•“TRANSFERRING” shows in the display. Both handsets are paged.
2Ex. Handset 2:
Press [TRANSFER] on the receiving handset to answer the call.
•To cancel the call transfer, you may press [OFF], [TRANSFER] or [ ] on the originating
handset.
Caller ID service
12 Caller ID service
This unit is Caller ID compatible. To use Caller ID features, you must subscribe to Caller ID service
of your telephone service provider.
Caller ID features
When an outside call is being received, the calling party's name and telephone number are displayed.
Caller information for the last 40 different callers is logged in the caller list by the most recent call to
the oldest.
•Generally caller information is displayed from the 2nd ring.
•If the unit cannot receive caller information, the following is displayed:
- "OUT OF AREA": The caller dialed from an area which does not provide Caller ID service.
-"PRIVATE CALLER": The caller requested not to send caller information.
-"ERROR": The Caller ID information is interfered with during reception.
• If the unit is connected to a PBX system, caller information may not be received propeqflŸ.
Consult your PBX supplier.
• The name display service may not be available in some areas. For further information,
please contact your telephone company.
Missed calls
If a call is not answered, the unit treats the call as a missed call.
For example, 10 number of missed calls: "NEW CALL 10" is displayed on the handset display. This
lets you know if you should view the caller list to see who called while you were out.
Calling Waiting Caller ID display
If you subscribe to both Caller ID and Call Waiting with Caller ID services, the 2nd caller's informa-
tion is displayed after you hear a Call Waiting tone. Please contact your telephone service provider
for details and availability of this service in your area.
Operating Instructions
2.4 GHz Cordless Phone
Model No. KX-TG2120
2.4 GHz Cordless Phone with Two Handsets
Model No. KX-TG2122
Model shown is KX-TG2120
This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriate
service offered by your service provider.
Please read these Operating Instructions before using the unit and save for
future reference.
Charge the handset battery for 12 hours before initial use.
Place each handset on the base unit once before initial use to activate all handsets.
For assistance, visit our website: http://www.panasonic.com/phonehelp for
customers in the U.S.A. or Puerto Rico.
When you ship the product
•Carefully pack your unit, preferably in the original carton.
• Attach a letter, detailing the symptom, to the outside of the carton.
• Send the unit to Panasonic Services Company Customer Servicenter, prepaid and
adequately insured.
• Do not send your unit to Panasonic Consumer Electronics Company listed on the back
cover or to executive or regional sales offices. These locations do not repair consumer
products.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infanteía, Km. 9.5,
Carolina, Puerto Rico 00985
Copyright
This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for
internal use only. All other reproduction, in whole or in part, is prohibited without the written
consent of Panasonic Communications Co., Ltd.
© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
PQQX1577ZA
Antenna
LOCATOR button
IN USE/CHARGE indicato
r
Black
Lead
Red
Lead
TG2122IB_EngRev09a 05/09/2006, 03:34 PMPage 1 Adobe PageMaker 6.5C/PPC
6Enter the phone number (max. 24 digits), using the dialing buttons [ 1 ] to [ 9 ], [] or [].
-If a pause is required for dialing, [PAUSE] can be stored in a phone number counting as one
digit.
-When you store the last number dialed, press [REDIAL] instead of entering a phone number.
7Press [EDIT].
Character table
•To enter another character that is located on the same dial key, first press [] to move the
cursor to the next space.
Editing/correcting a mistake
Press [] or [] to move the cursor to the character or number you want to erase, then press
[CLEAR]. Enter the appropriate character or number. Each time you press [CLEAR], a character
under the cursor is erased.
•Press and hold [CLEAR] to erase all character or numbers.
Finding and calling a handset phonebook item
1Press [FUNCTION].
2Press [] or [] .
- The first item or last item is displayed.
3Press [] to scroll from the memory station "01", or [] to scroll from memory station "10".
-You can also find the items using the memory station numbers [ 0 ] to [ 9 ] directly.
-The memory station number [ 1 ] shows "01", [ 0 ] shows "10" on the display.
4Press [ ].
Note:
-If "EMPTY" is displayed in step 2, the phonebook is empty.
- If the phone number is more than 12 digits, the whole number has not been shown. The
remaining numbers are displayed alternately.
Editing items in the handset phonebook
1Press [FUNCTION].
2Select the desired item by using [] or [].
•You can also find the items using the memory station numbers [ 0 ] to [ 9 ] directly.
3Press [EDIT].
4Edit the name using the dial key, [] or [] (max. 15 characters).
5Press [EDIT].
6Edit the phone number using the dial key, [] or [] (max. 32 digits).
7Press [EDIT].
Erasing an item in the handset phonebook
1Press [FUNCTION]
2Select the desired item by using [] or [].
•You can also find the items using the memory station number [ 0 ] to [ 9 ] directly.
3Press [CLEAR].
Erasing all item in the handset phonebook
1Press [FUNCTION].
2Review phonebook items by using [] or [].
3Press and hold [CLEAR] until "CLEAR ALL ?" is displayed.
4Press [CLEAR].
Key Character
[1] Space - " !
[2] A B C (
[3] D E F )
[4] G H I "
[5] J K L '
[6] M N O ;
[7] P Q R S
[8] T U V ?
[9] W X Y Z
[]To move the cursor to the left
[]To move the cursor to the right
Special features
15 Special features
Automatic security code setting
Each time you place the handset on the base unit, the unit automatically selects one of more than
65,000 security codes. These codes help prevent the unauthorized use of your telephone line by
another cordless telephone user.
Handset locator
You can locate the handset or page the handset user with beep tones from the base unit.
1 Base unit:
Press [LOCAOTR].
•The IN USE indicator flashes. The handset beeps for 1 minute and "PAGING" is displayed on
the handset.
2 Base unit:
To stop paging, press [LOCAOTR] again.
Handset:
To stop paging, press [OFF].
Temporary tone dialing (for rotary/pulse service users)
You can temporarily switch the dialing mode to tone when you need to access touch tone services
(for example, answering services, telephone banking services, etc.).
Press [ * ] (TONE) before entering access numbers which require tone dialing.
Pause button (for PBX/long distance service users)
A pause is sometimes required when making calls using a PBX or long distance service.
For example, if you need to dial the line access number "9" when making outside calls with a PBX:
1Press [ 9 ], then press [PAUSE], then dial the phone number.
2Press [ ].
Note:
•A 3.5 second pause is inserted each time [PAUSE] is pressed. Press repeatedly to insert
longer pauses.
For Call Waiting service users
To use Call Waiting, you must subscribe to Call Waiting service of your telephone service provider.
This feature allows you to receive calls while you are already talking on the phone. If you receive a
call while on the phone, you will hear a Call Waiting tone. Please contact your telephone service
provider for details and availability of this service in your area.
Press [FLASH] to answer the 2nd call after the tone.
•To switch between calls, press [FLASH].
Useful information
16 Optional Headset
Plugging an optional headset into the handset allows a hands-free phone conversation.
Connecting an optional headset to the handset
Open the headset jack cover, and connect an optional headset to the headset jack.
Please use only a Panasonic headset.
• When an optional headset is connected to the handset, make sure to use the headset to talk
with the caller. If you want to have a normal cordless phone conversation, disconnect the
headset.
17 Wall mounting
Base unit
Connect the telephone line cord. Mount the unit by inserting the mounting pins into the round
openings on the adaptor (for pin B, use round cut out at the bottom of the adaptor if you are
using the 4 inches phone plate), then sliding the unit down to secure it.
Connect the AC adaptor to power outlet.
•There are two common types of wall phone plates. The distance between A and B may vary
depending on the size of the wall phone plate installed.
19 FCC and other information
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the
ACTA. On the bottom of this equipment is a label that contains, among other information, a
product identifier in the format US:ACJ———.
If requested, this number must be provided to the telephone company,
• Registration No.------------------- (found on the bottom of the unit )
• Ringer Equivalence No. (REN) ------------------- 0.0B
A plug and jack used to connect this equipment to the premises wiring and telephone network must
comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided with the product. It is designed to be connected to a
compatible modular jack that is also compliant.
The REN is used to determine the number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices not ringing in response to an
incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain
of the number of devices that may be connected to a line, as determined by the total RENs, contact
the local telephone company. For products approved after July 23, 2001, the REN for the product is
part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ##
are the REN without a decimal point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn’t
practical, the telephone company will notify the customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures
that could affect the operation of the equipment. If this happens the telephone company will provide
advance notice in order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please contact a
Factory Servicenter or other Authorized Service. If the equipment is causing harm to the telephone
network, the telephone company may request that you disconnect the equipment until the problem
is resolved.
Connection to party line service is subject to state tariffs. Contact the state public utility commission,
public service commission or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the
installation of this equipment does not disable your alarm equipment. If you have questions about
what will disable alarm equipment, consult your telephone company or a qualified installer.
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If
noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when
using this phone. Consult with your audiologist or Hearing Aid manufacturer about the availability
of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital
devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO
EMERGENCY NUMBERS:
1Remain on the line and briefly explain to the dispatcher the reason for the call.
2Perform such activities in the off-peak hours, such as early morning or late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Privacy of communications may not be ensured when using this phone.
Caution
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
_ Reorient or relocate the receiving antenna.
_Increase the separation between the equipment and receiver.
_Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
_ Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference to nearby TVs and
VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be
placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone
further away from the TV or VCR. This will often reduce, or eliminate, interference.
FCC RF Exposure Warning
The product complies with FCC radiation exposure limits set forth for an uncontrolled environment.
To comply with FCC RF exposure requirements, the base unit must be
installed and operated with its antenna located 20 cm (8 inches) or more between antenna and all
person’s body (excluding extremities of hands, wrist and feet). The handset may be carried and
operated with only the optional specific belt-clip. Other nontested belt-clips or similar body-worn
accessories may not comply and must be avoided. The product must not be collocated or operated
in conjunction with any other antenna or transmitter.
20 Specifications
General
Operating Environment 5˚C - 40˚C (41˚F - 104˚F)
Frequency 2.4 GHz - 2.4835 GHz
Base unit
Dimensions Approx. height 121.8mm x width 109mm x depth 106mm
(4 13/16 inches x 4 9/32 inches x 4 3/16 inches)
Mass (Weight) Approx. 203g (0.4466lb.)
Power consumption Standby: Approx. 4.0 W
Maximum: Approx. 5.0 W
Base RF Power output 94dBuV/m (max.)
Power supply AC adaptor (120 V 60 Hz)
Handset
Dimensions Approx. height 220 mm x width 50.6mm x depth 40.2mm
(8 21/32 inches x 2 inches x 1 19/32 inches)
Mass (Weight) Approx. 214g (0.4708lb.) with battery
Handset RF Power output 94dBuV/m (max.)
Power supply Ni-Cd battery (3.6 V AC, 600 mAh)
Charger*
Dimensions Approx. height 70.4mm x width 83.3mm x depth 91.4mm
(2 25/32 inches x 3 9/32 inches x 3 19/32 inches)
Mass (Weight) Approx. 203g (0.4466lb.) with AC adaptor
Power consumption Standby: Approx. 2.2 W
Maximum: Approx. 3.3 W
Power supply AC adaptor (120 V 60 Hz)
* For KX-TG2122 only
Note:
Design and specifications are subject to change without notice.
The illustrations in these instructions may vary slightly from the actual product.
21 If you need assistance with setup or
operation
1Visit our website: http://www.panasonic.com/phonehelp
2Contact us via the web at: http://www.panasonic.com/contactinfo
3Call us at: 1-800-211-PANA (1-800-211-7262) or 1-800-833-9626
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
Storing caller information into the handset phonebook
1Press [] or [] to enter the caller list.
2Select the desired item by using [] or [].
•To edit the number, press [EDIT] repeatedly until the phone number is shown in the desired
format.
3Press [FUNCTION].
4Press a memory station number [ 0 ] to [ 9 ].
•The memory station number [ 1 ] shows "01", [ 0 ] shows "10" on the display.
Erasing selected caller information
1Press [] or [] to enter the caller list.
2Select the desired item by using [] or [].
3Press [CLEAR], then press [OFF].
Erasing all caller information
1Press [] or [] to enter the caller list.
2Press and hold [CLEAR] until "CLEAR ALL CID ?" is displayed.
3Press [CLEAR].
Phonebook
14 Handset phonebook
Storing names and numbers
You can add up to 10 items to the handset phonebook and search for phonebook items by name.
1Press [FUNCTION].
2Press a memory station number [ 0] to [ 9 ].
- If an item is already stored, that information is displayed.
3Press [EDIT].
4Enter the name (max. 15 characters), using the dialing buttons [ 1 ] to [ 9 ], [] or [].
- If a name is not required, press [EDIT] and go to step 6.
5Press [EDIT].
13 Caller list
What the display means
ROBINSON, TINA
111-222-3333
6/10 3:10
PM CALL
36
NEW
Name
Phone Number Shows which calls
you have not
checked.
The date and time the
call has been received.
(ex. June 10, 3:10PM)
The number of calls which
you have received.
Viewing the caller list and calling back
1 Press [] or [] to enter the caller list.
2 Press [] to search from the most recent call, or [] to search from the oldest call.
3 Press [ ].
•If the caller list is empty, you cannot enter the caller list by pressing [] or [].
•Once new calls have been checked, "NEW" is not displayed.
Editing a caller's phone number before calling back
You can edit a phone number in the caller list by removing its area code and/or the long distance
code "1".
1Press [] or [] to enter the caller list.
2Select the desired item by using [] or [].
3Press [EDIT] repeatedly until the phone number is shown in the desired format.
1Local phone number
Example: 321-5555
2Area code - Local phone number
Example: 55-321-5555
31 - Area code - Local phone number
Example: 1-555-321-5555
4Press [ ].
Note:
• The number edited in the step 3 is not maintained in the caller list.
A
B
A
B
The handset does not
ring.
The unit does not work.
Static, sound cuts in/out,
fades. Interference from
other electrical units.
The handset display
is blank.
You cannot program
items, such as the
dialing mode.
18 Troubleshooting
Problem Cause and Remedy
•Check the settings.
•Charge the battery fully.
•Clean the charge contacts and charge again.
•Install the battery properly.
•When power failure occurs or you reconnect the AC adaptor,
you must place each handset on the base unit once to
reactivate them.
• Place the handset on the base unit and unplug the AC
adaptor to reset. Plug in, and try again.
An alarm tone sounds. • You are too far from the base unit.
Move closer and try again.
•Place the handset on the base unit and try again.
•Plug in the AC adaptor.
•Raise the base unit antenna.
•Locate the handset and the base unit away from other
electrical appliances.
•Move closer to the base unit.
•Raise the base unit antenna.
• Press [CH] to select a clearer channel in the talk mode.
•The ringer volume is set to [OFF]. Set to [ON].
•If a power failure occurs, the handset loses
communication with the base. When power returns, place
the handset on the base unit once then try again.
•Install the battery properly.
•Charge the battery fully.
•Programming is not possible while the unit is in the talk mode
or when viewing the Caller List/ phonebook.
•Do not pause for over 60 seconds while programming.
•Move closer to the base unit.
•[]or [] may have been pressed when you picked up the
handset. Press [OFF] and try again.
Problem Cause and Remedy
•You cannot store an item in the phonebook while the unit is in
the talk mode.
•Do not pause for over 60 seconds while storing.
•To answer the call, press [/FLASH] .
Start again from the beginning after hanging up.
•You need to subscribe to a Caller ID service from a
telephone company.
•Other telephone equipment may be interfering with your
phone. Disconnect it and try again.
• Other electrical appliances connected to the same outlet may
be interfering with the Caller ID information.
•Telephone line noise may be affecting the Caller ID
information.
• Do not pause for over 60 seconds while searching.
•The caller requested not to send his/her information.
•The handset is too far from the base unit.
• The handset is engaged in an outside call. Wait until the
IN USE/CHARGE indicator light goes out.
You cannot store a
name and phone
number in the
phonebook.
While programming or
searching, the handset
starts to ring and stops
the program/search.
The handset does not
display the caller’s
name and/or phone
number.
The display goes to the
standby mode while
viewing the Caller List.
When a second call is
received during a
conversation, the unit
does not display the
new caller’s name and/
or phone number.
[LOCATOR] does not
function.
Problem Cause and Remedy
•When pressing [REDIAL] after [ ], more than 32 digits long
number will not be redialed correctly.
•When pressing [ ] after [REDIAL], more than 24 digits long
number will not be redialed correctly.
•Charge the battery fully.
• The battery needs to be recharged.
Charge the battery fully.
•Clean the charge contacts and charge again.
• Install a new battery.
•This is normal.
•When an optional headset is connected, you must use the
headset to talk with the caller. To have a normal cordless
phone conversation, disconnect the headset.
•Make sure that an optional headset is connected properly.
The IN USE/CHARGE
indicator light does not
go out while charging.
You cannot have a
conversation using the
handset.
You cannot have a
conversation using the
headset.
You cannot redial by
pressing [REDIAL].
“RECHARGE” and “
” are displayed or
the handset beeps
intermittently.
While talking, the call
is disconnected.
You charged the
battery fully, but
“RECHARGE” and
“” are still
displayed.
TG2122IB_EngRev09a 05/09/2006, 03:34 PMPage 2 Adobe PageMaker 6.5C/PPC
