CCT Tech Advanced T5600 Transmitter Portion of FRS+GMRS User Manual 1042b60a

CCT Tech Advanced Products Limited Transmitter Portion of FRS+GMRS 1042b60a

User Manual

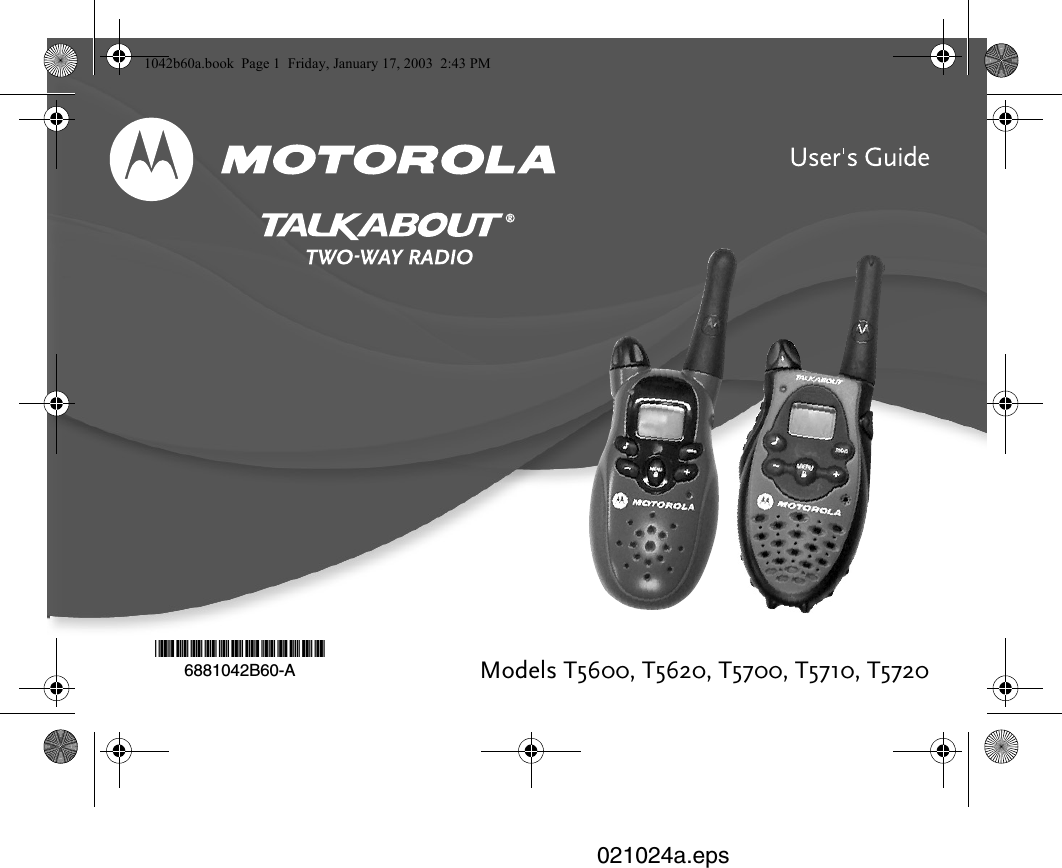

Models T5600, T5620, T5700, T5710, T5720@6881042B60@6881042B60-A021024a.eps1042b60a.book Page 1 Friday, January 17, 2003 2:43 PM
1042b60a.book Page 2 Friday, January 17, 2003 2:43 PM

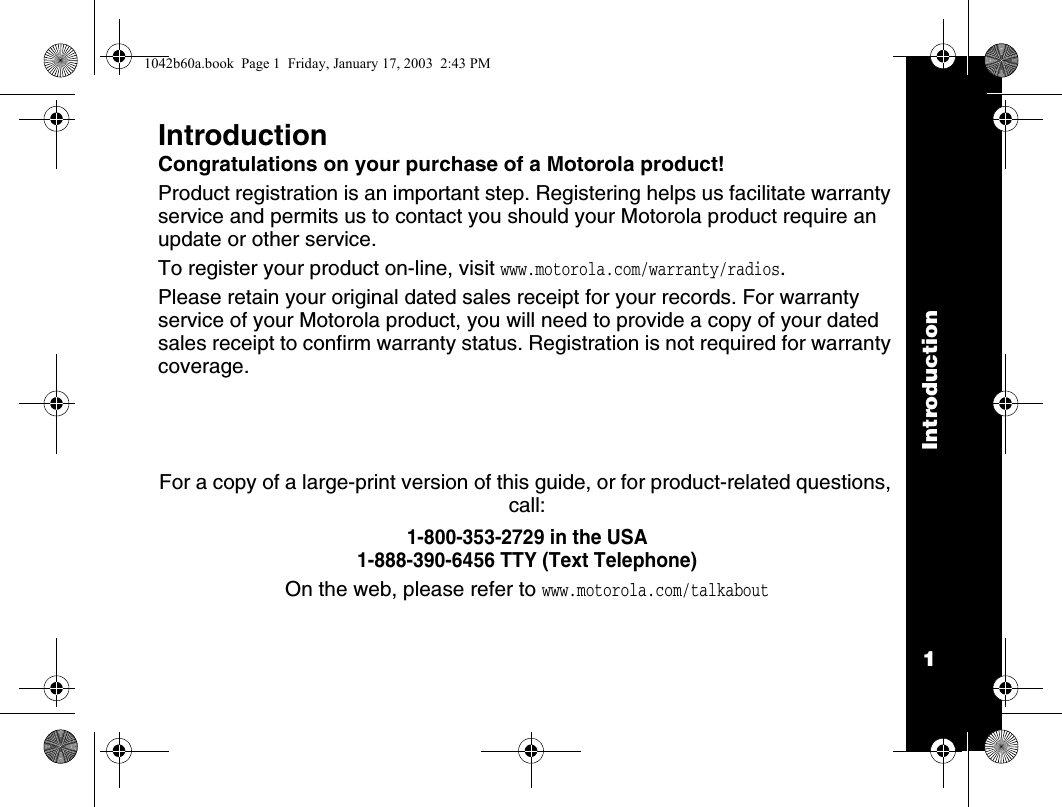

Introduction1IntroductionCongratulations on your purchase of a Motorola product!Product registration is an important step. Registering helps us facilitate warranty service and permits us to contact you should your Motorola product require an update or other service. To register your product on-line, visit www.motorola.com/warranty/radios.Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.For a copy of a large-print version of this guide, or for product-related questions, call:1-800-353-2729 in the USA1-888-390-6456 TTY (Text Telephone)On the web, please refer to www.motorola.com/talkabout1042b60a.book Page 1 Friday, January 17, 2003 2:43 PM

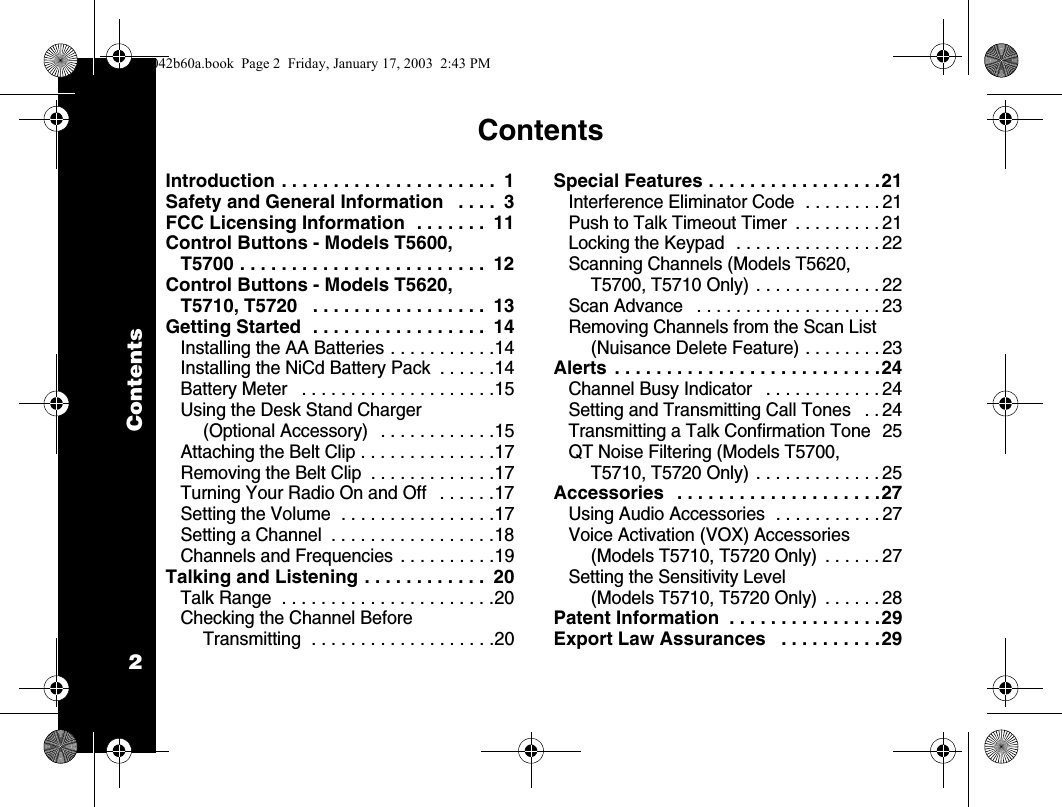

Contents2ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . 1Safety and General Information . . . . 3FCC Licensing Information . . . . . . . 11Control Buttons - Models T5600, T5700 . . . . . . . . . . . . . . . . . . . . . . . . 12Control Buttons - Models T5620, T5710, T5720 . . . . . . . . . . . . . . . . . 13Getting Started . . . . . . . . . . . . . . . . . 14Installing the AA Batteries . . . . . . . . . . .14Installing the NiCd Battery Pack . . . . . .14Battery Meter . . . . . . . . . . . . . . . . . . . .15Using the Desk Stand Charger (Optional Accessory) . . . . . . . . . . . .15Attaching the Belt Clip . . . . . . . . . . . . . .17Removing the Belt Clip . . . . . . . . . . . . .17Turning Your Radio On and Off . . . . . .17Setting the Volume . . . . . . . . . . . . . . . .17Setting a Channel . . . . . . . . . . . . . . . . .18Channels and Frequencies . . . . . . . . . .19Talking and Listening . . . . . . . . . . . . 20Talk Range . . . . . . . . . . . . . . . . . . . . . .20Checking the Channel Before Transmitting . . . . . . . . . . . . . . . . . . .20Special Features . . . . . . . . . . . . . . . . .21Interference Eliminator Code . . . . . . . . 21Push to Talk Timeout Timer . . . . . . . . . 21Locking the Keypad . . . . . . . . . . . . . . . 22Scanning Channels (Models T5620, T5700, T5710 Only) . . . . . . . . . . . . . 22Scan Advance . . . . . . . . . . . . . . . . . . . 23Removing Channels from the Scan List (Nuisance Delete Feature) . . . . . . . . 23Alerts . . . . . . . . . . . . . . . . . . . . . . . . . .24Channel Busy Indicator . . . . . . . . . . . . 24Setting and Transmitting Call Tones . . 24Transmitting a Talk Confirmation Tone 25QT Noise Filtering (Models T5700, T5710, T5720 Only) . . . . . . . . . . . . . 25Accessories . . . . . . . . . . . . . . . . . . . .27Using Audio Accessories . . . . . . . . . . . 27Voice Activation (VOX) Accessories (Models T5710, T5720 Only) . . . . . . 27Setting the Sensitivity Level (Models T5710, T5720 Only) . . . . . . 28Patent Information . . . . . . . . . . . . . . .29Export Law Assurances . . . . . . . . . .291042b60a.book Page 2 Friday, January 17, 2003 2:43 PM

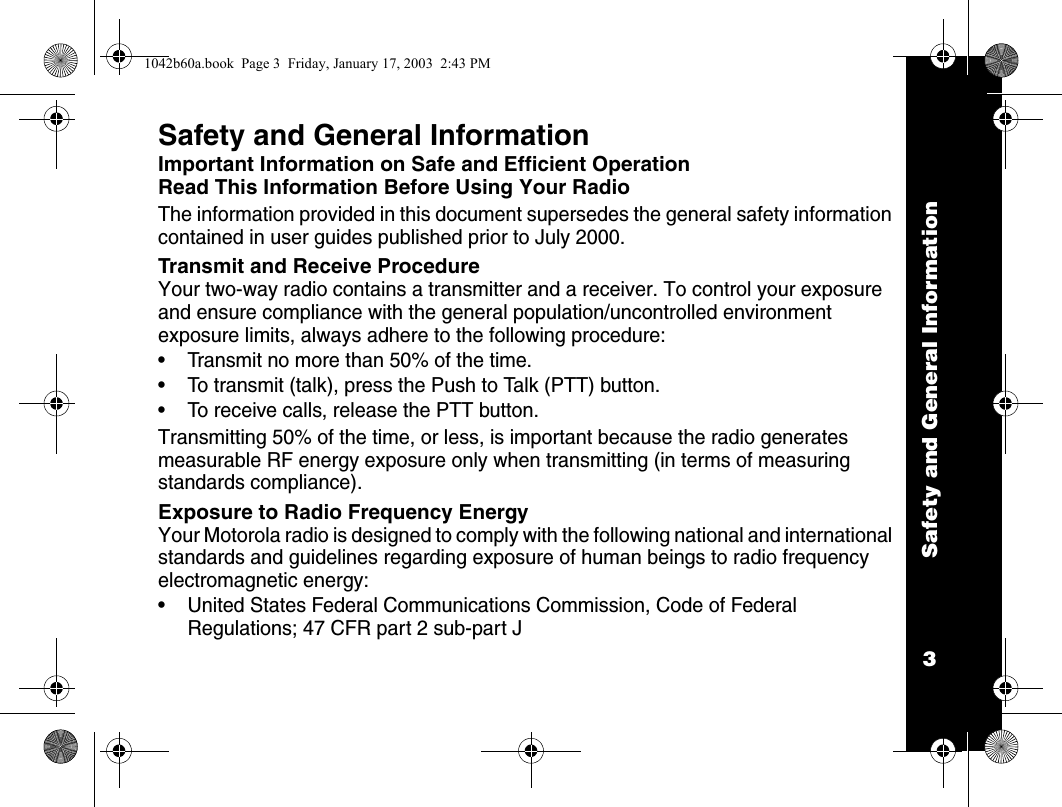

Safety and General Information3Safety and General InformationImportant Information on Safe and Efficient OperationRead This Information Before Using Your RadioThe information provided in this document supersedes the general safety information contained in user guides published prior to July 2000.Transmit and Receive ProcedureYour two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: • Transmit no more than 50% of the time.• To transmit (talk), press the Push to Talk (PTT) button.• To receive calls, release the PTT button.Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).Exposure to Radio Frequency EnergyYour Motorola radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy:• United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J1042b60a.book Page 3 Friday, January 17, 2003 2:43 PM

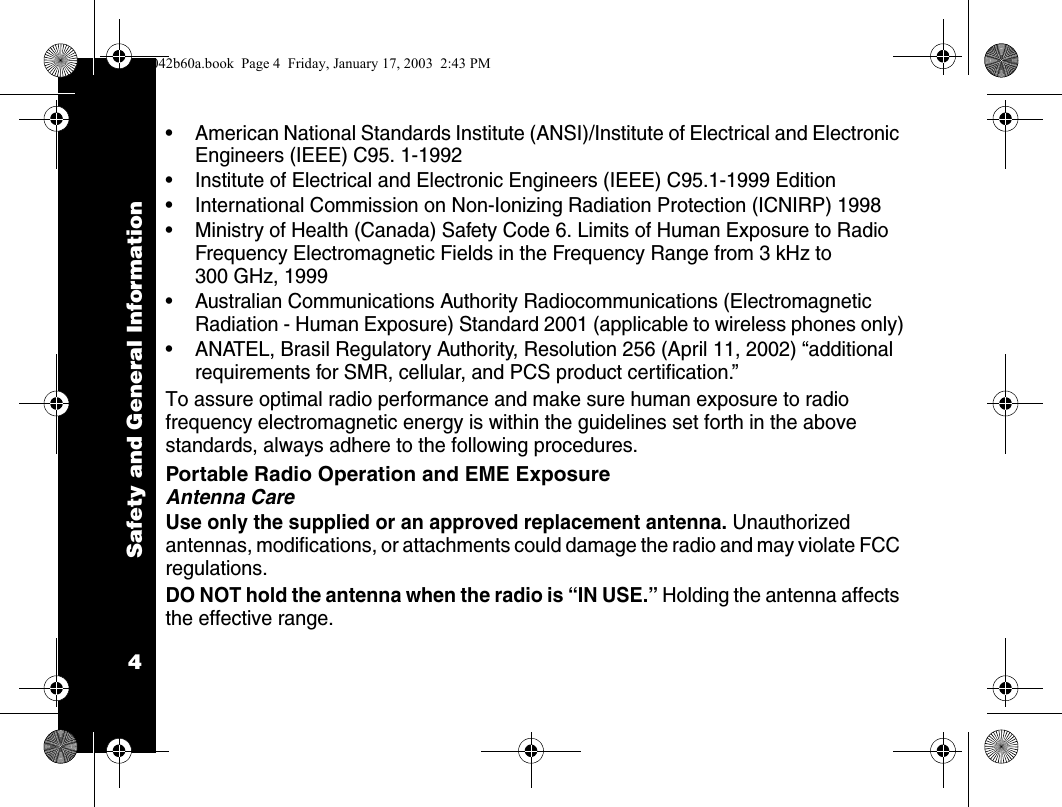

Safety and General Information4• American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio Frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999• Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2001 (applicable to wireless phones only)• ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2002) “additional requirements for SMR, cellular, and PCS product certification.”To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures.Portable Radio Operation and EME ExposureAntenna CareUse only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations.DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects the effective range.1042b60a.book Page 4 Friday, January 17, 2003 2:43 PM

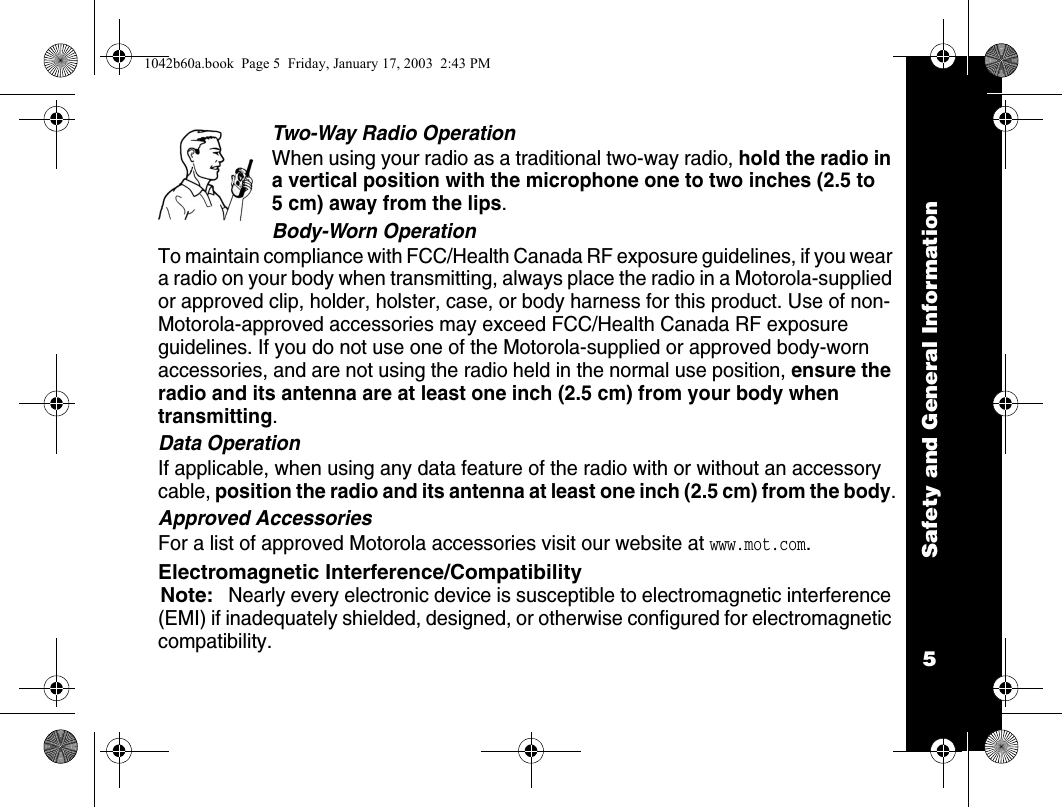

Safety and General Information5Two-Way Radio OperationWhen using your radio as a traditional two-way radio, hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips.Body-Worn OperationTo maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting, always place the radio in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. If you do not use one of the Motorola-supplied or approved body-worn accessories, and are not using the radio held in the normal use position, ensure the radio and its antenna are at least one inch (2.5 cm) from your body when transmitting.Data OperationIf applicable, when using any data feature of the radio with or without an accessory cable, position the radio and its antenna at least one inch (2.5 cm) from the body.Approved AccessoriesFor a list of approved Motorola accessories visit our website at www.mot.com.Electromagnetic Interference/CompatibilityNote:Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.1042b60a.book Page 5 Friday, January 17, 2003 2:43 PM

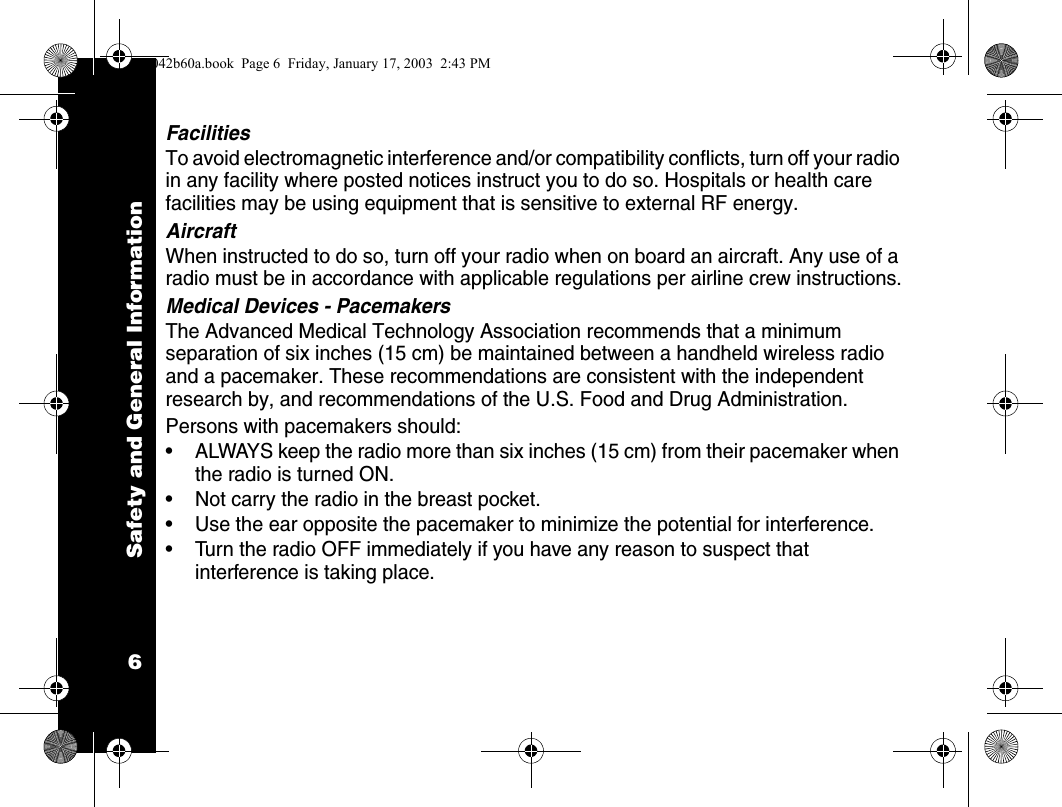

Safety and General Information6FacilitiesTo avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.AircraftWhen instructed to do so, turn off your radio when on board an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions.Medical Devices - PacemakersThe Advanced Medical Technology Association recommends that a minimum separation of six inches (15 cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by, and recommendations of the U.S. Food and Drug Administration.Persons with pacemakers should:• ALWAYS keep the radio more than six inches (15 cm) from their pacemaker when the radio is turned ON.• Not carry the radio in the breast pocket.• Use the ear opposite the pacemaker to minimize the potential for interference.• Turn the radio OFF immediately if you have any reason to suspect that interference is taking place.1042b60a.book Page 6 Friday, January 17, 2003 2:43 PM

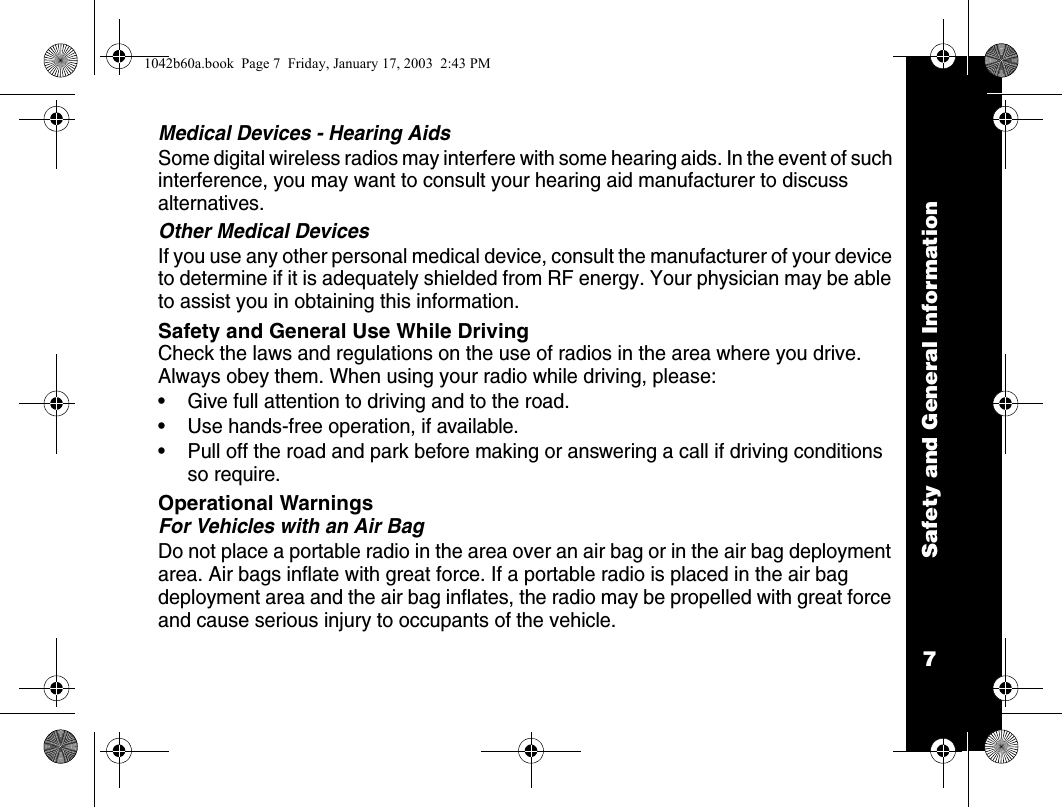

Safety and General Information7Medical Devices - Hearing AidsSome digital wireless radios may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.Safety and General Use While DrivingCheck the laws and regulations on the use of radios in the area where you drive. Always obey them. When using your radio while driving, please:• Give full attention to driving and to the road.• Use hands-free operation, if available.• Pull off the road and park before making or answering a call if driving conditions so require.Operational WarningsFor Vehicles with an Air BagDo not place a portable radio in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a portable radio is placed in the air bag deployment area and the air bag inflates, the radio may be propelled with great force and cause serious injury to occupants of the vehicle.1042b60a.book Page 7 Friday, January 17, 2003 2:43 PM

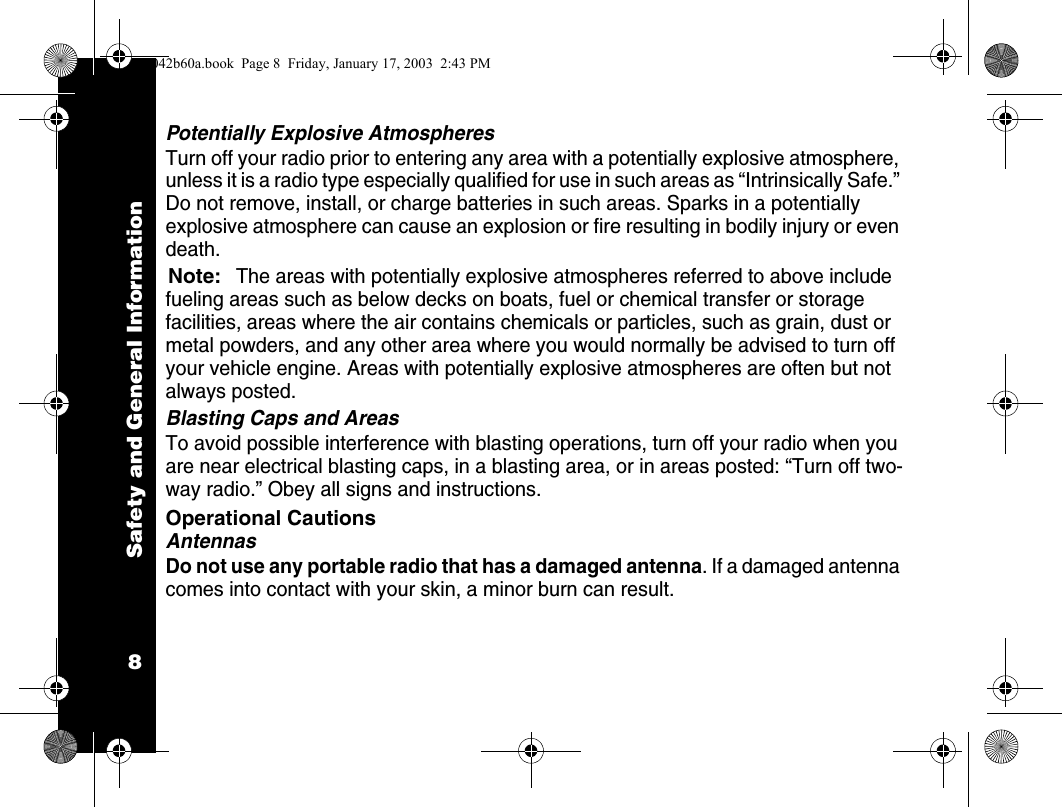

Safety and General Information8Potentially Explosive AtmospheresTurn off your radio prior to entering any area with a potentially explosive atmosphere, unless it is a radio type especially qualified for use in such areas as “Intrinsically Safe.” Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.Note:The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. Areas with potentially explosive atmospheres are often but not always posted.Blasting Caps and AreasTo avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-way radio.” Obey all signs and instructions.Operational CautionsAntennasDo not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result.1042b60a.book Page 8 Friday, January 17, 2003 2:43 PM

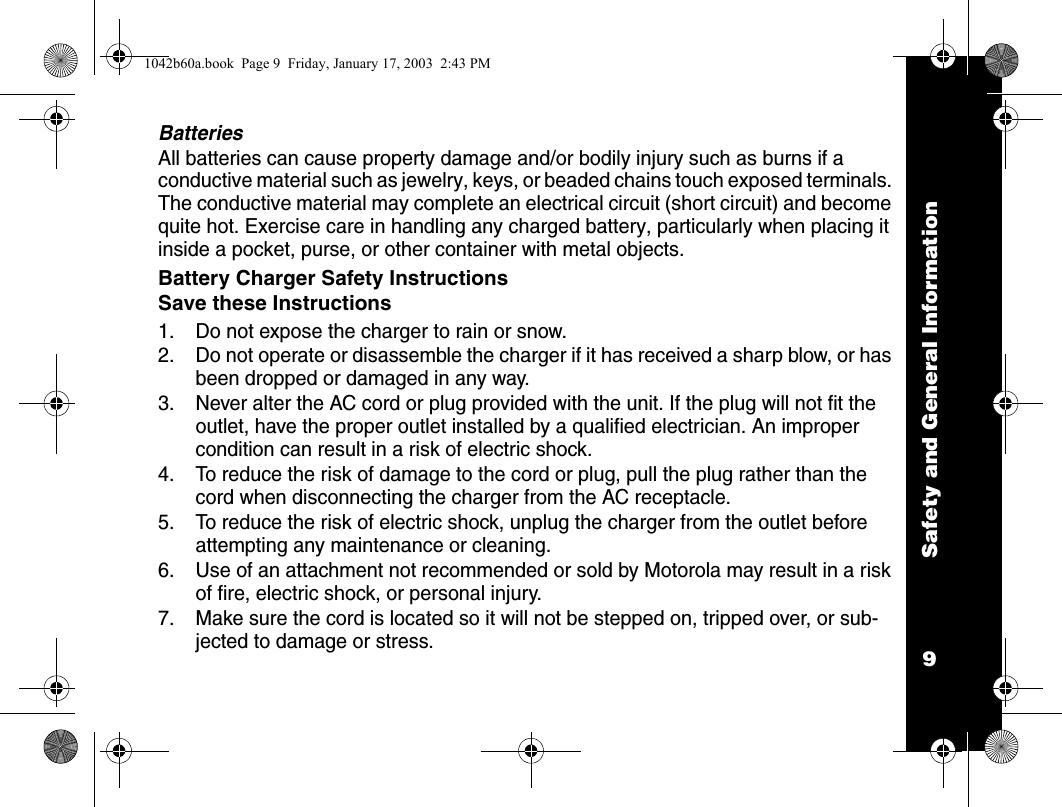

Safety and General Information9BatteriesAll batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects.Battery Charger Safety InstructionsSave these Instructions1. Do not expose the charger to rain or snow.2. Do not operate or disassemble the charger if it has received a sharp blow, or has been dropped or damaged in any way.3. Never alter the AC cord or plug provided with the unit. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician. An improper condition can result in a risk of electric shock.4. To reduce the risk of damage to the cord or plug, pull the plug rather than the cord when disconnecting the charger from the AC receptacle.5. To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance or cleaning.6. Use of an attachment not recommended or sold by Motorola may result in a risk of fire, electric shock, or personal injury.7. Make sure the cord is located so it will not be stepped on, tripped over, or sub-jected to damage or stress.1042b60a.book Page 9 Friday, January 17, 2003 2:43 PM

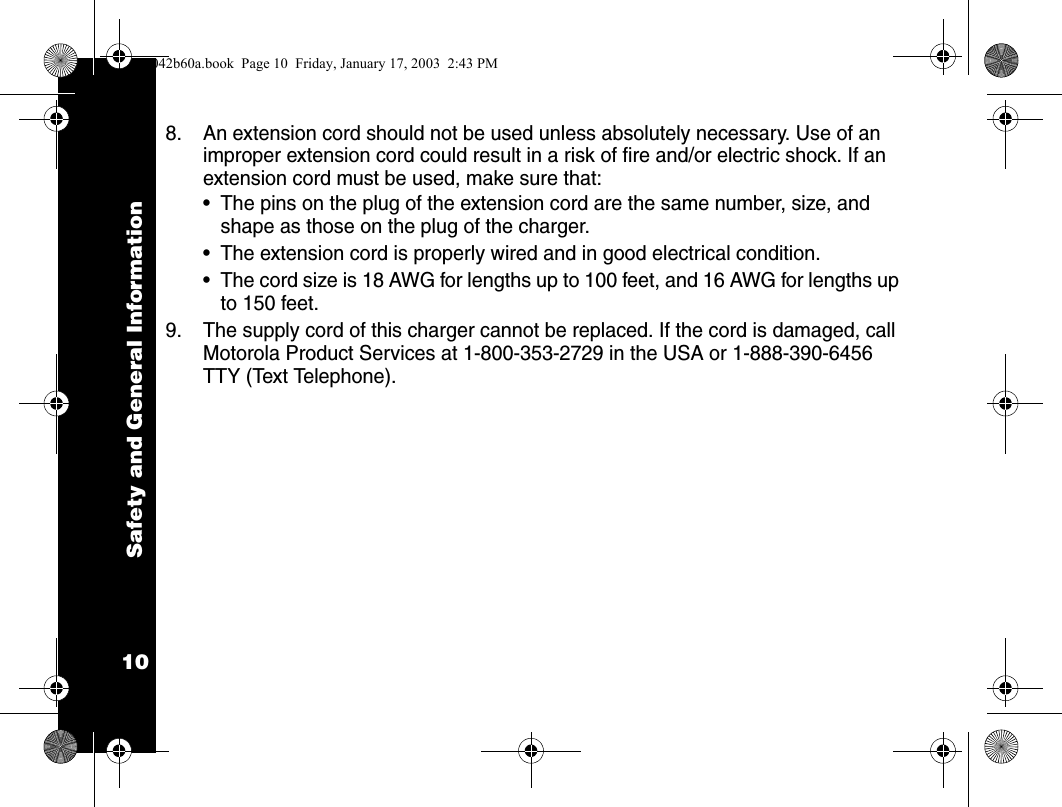

Safety and General Information108. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in a risk of fire and/or electric shock. If an extension cord must be used, make sure that:• The pins on the plug of the extension cord are the same number, size, and shape as those on the plug of the charger.• The extension cord is properly wired and in good electrical condition.• The cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for lengths up to 150 feet.9. The supply cord of this charger cannot be replaced. If the cord is damaged, call Motorola Product Services at 1-800-353-2729 in the USA or 1-888-390-6456 TTY (Text Telephone).1042b60a.book Page 10 Friday, January 17, 2003 2:43 PM

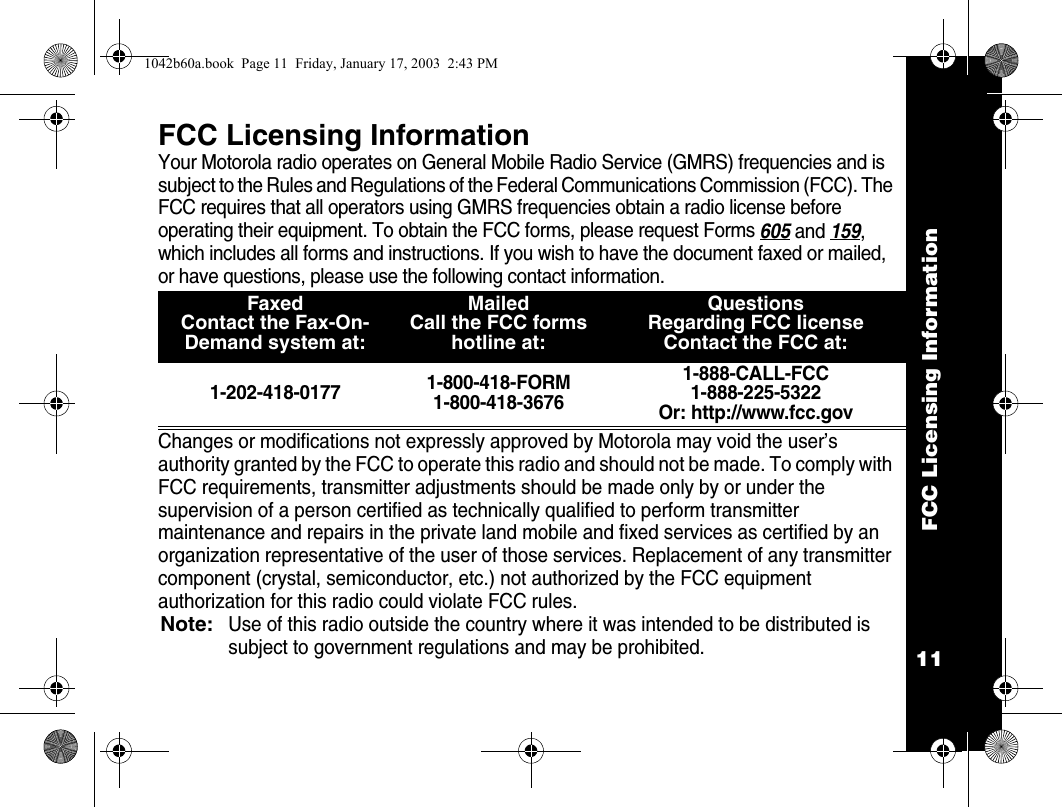

FCC Licensing Information11FCC Licensing InformationYour Motorola radio operates on General Mobile Radio Service (GMRS) frequencies and is subject to the Rules and Regulations of the Federal Communications Commission (FCC). The FCC requires that all operators using GMRS frequencies obtain a radio license before operating their equipment. To obtain the FCC forms, please request Forms 605 and 159, which includes all forms and instructions. If you wish to have the document faxed or mailed, or have questions, please use the following contact information. Changes or modifications not expressly approved by Motorola may void the user’s authority granted by the FCC to operate this radio and should not be made. To comply with FCC requirements, transmitter adjustments should be made only by or under the supervision of a person certified as technically qualified to perform transmitter maintenance and repairs in the private land mobile and fixed services as certified by an organization representative of the user of those services. Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the FCC equipment authorization for this radio could violate FCC rules.Note:Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited.FaxedContact the Fax-On-Demand system at: Mailed Call the FCC forms hotline at:QuestionsRegarding FCC licenseContact the FCC at:1-202-418-0177 1-800-418-FORM1-800-418-36761-888-CALL-FCC 1-888-225-5322Or: http://www.fcc.gov1042b60a.book Page 11 Friday, January 17, 2003 2:43 PM

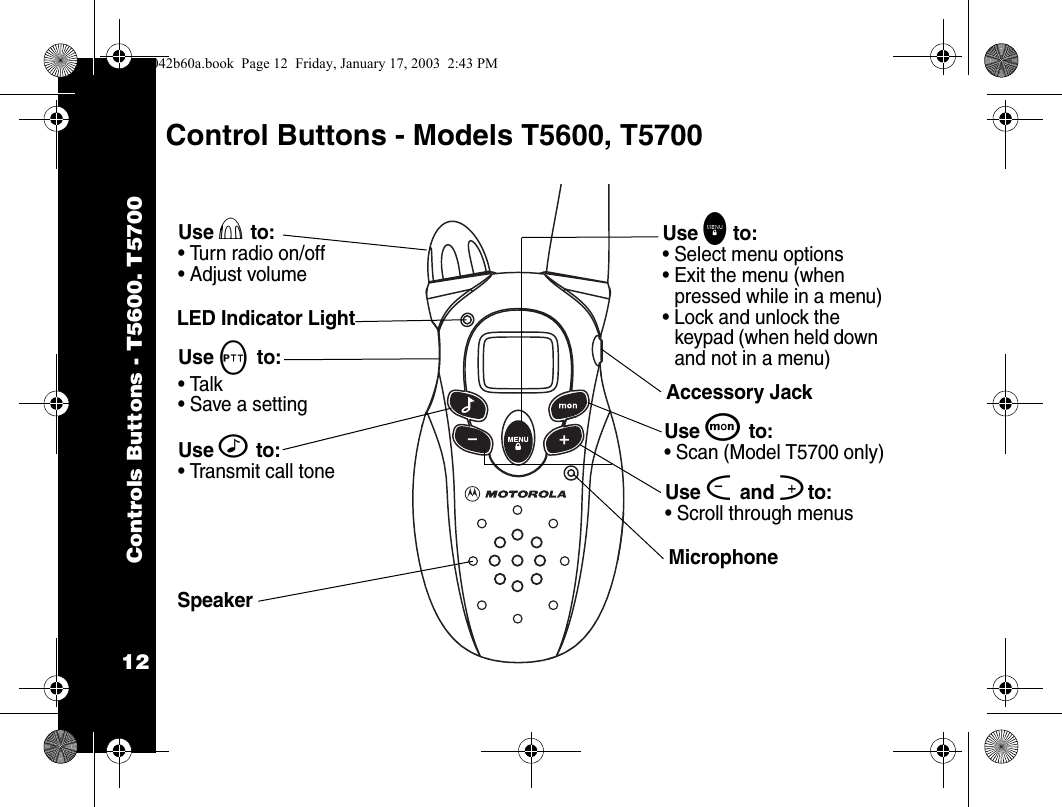

Controls Buttons - T5600. T570012Control Buttons - Models T5600, T5700Use P to:• Turn radio on/off• Adjust volumeUse ^ to: • Transmit call toneUse \ to:• Select menu options• Exit the menu (when pressed while in a menu)• Lock and unlock the keypad (when held down and not in a menu)LED Indicator LightUse M to: • Talk• Save a settingAccessory JackUse Q to: • Scan (Model T5700 only)Use [and]to:• Scroll through menusMicrophoneSpeaker1042b60a.book Page 12 Friday, January 17, 2003 2:43 PM

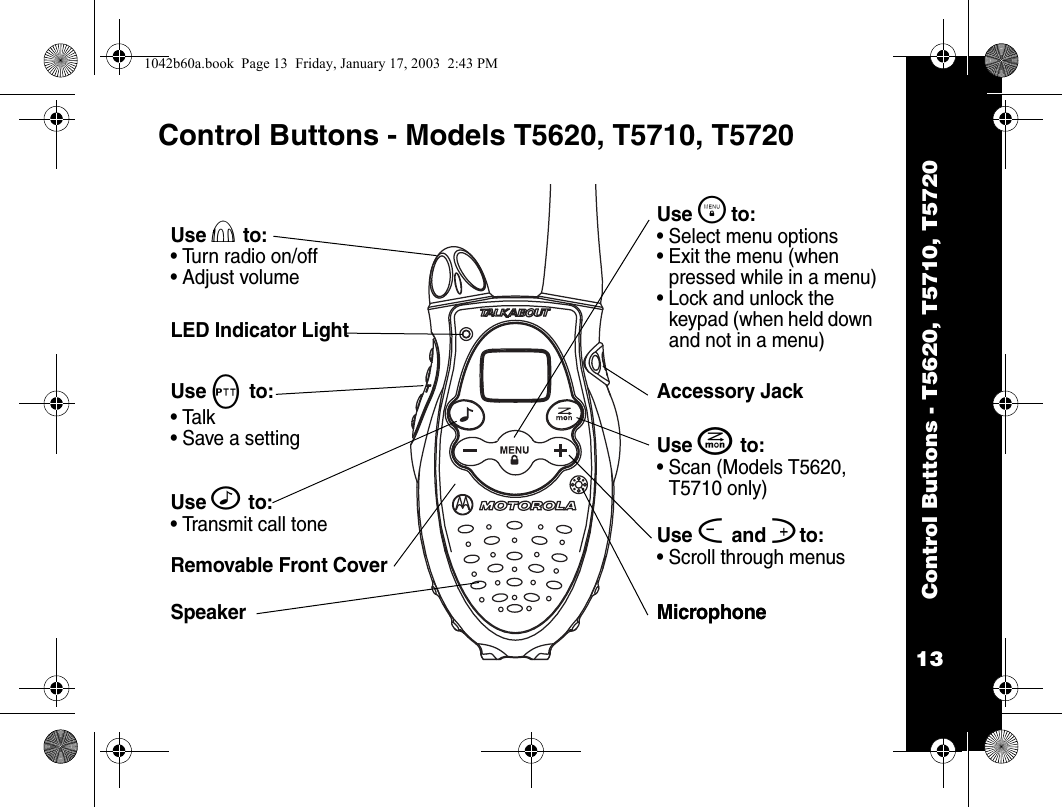

Control Buttons - T5620, T5710, T572013Control Buttons - Models T5620, T5710, T5720Use P to:• Turn radio on/off• Adjust volumeUse ^ to: • Transmit call toneUse \ to:• Select menu options• Exit the menu (when pressed while in a menu)• Lock and unlock the keypad (when held down and not in a menu)LED Indicator LightUse M to: • Talk• Save a settingAccessory JackUse J to: • Scan (Models T5620, T5710 only)Use [and]to:• Scroll through menusMicrophoneSpeaker MicrophoneRemovable Front Cover1042b60a.book Page 13 Friday, January 17, 2003 2:43 PM

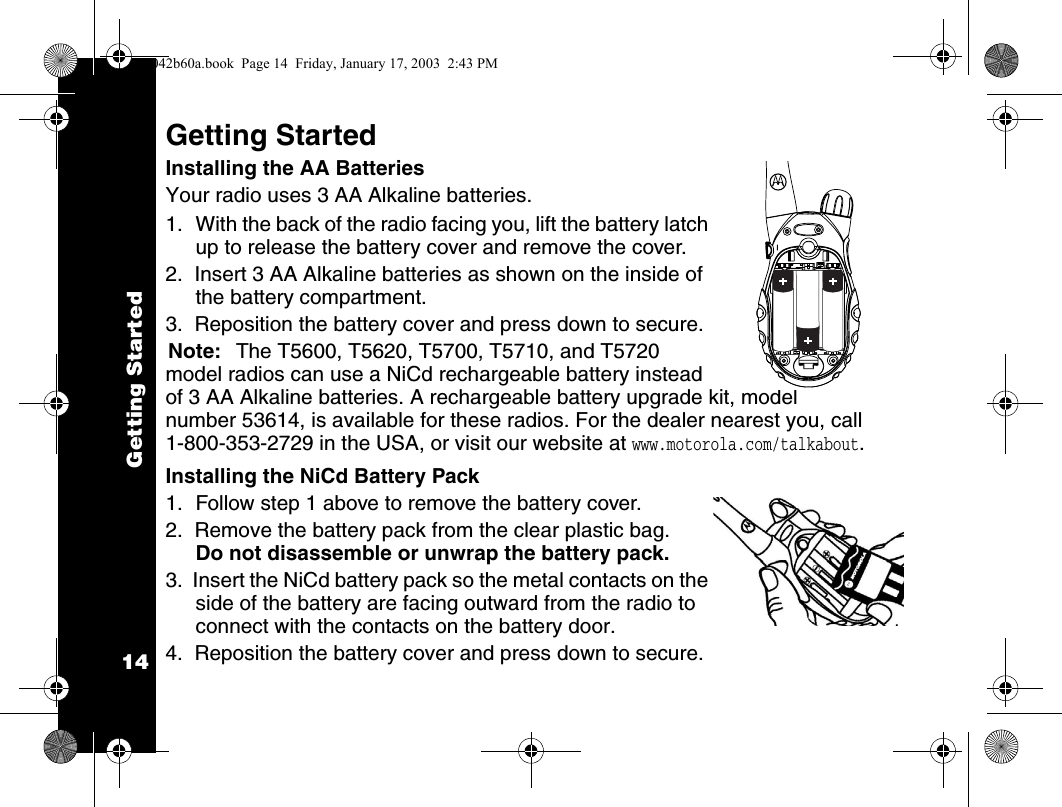

Getting Started14Getting StartedInstalling the AA BatteriesYour radio uses 3 AA Alkaline batteries.1. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover.2. Insert 3 AA Alkaline batteries as shown on the inside of the battery compartment.3. Reposition the battery cover and press down to secure.Note: The T5600, T5620, T5700, T5710, and T5720 model radios can use a NiCd rechargeable battery instead of 3 AA Alkaline batteries. A rechargeable battery upgrade kit, model number 53614, is available for these radios. For the dealer nearest you, call 1-800-353-2729 in the USA, or visit our website at www.motorola.com/talkabout.Installing the NiCd Battery Pack1. Follow step 1 above to remove the battery cover.2. Remove the battery pack from the clear plastic bag. Do not disassemble or unwrap the battery pack.3. Insert the NiCd battery pack so the metal contacts on the side of the battery are facing outward from the radio to connect with the contacts on the battery door. 4. Reposition the battery cover and press down to secure.1042b60a.book Page 14 Friday, January 17, 2003 2:43 PM

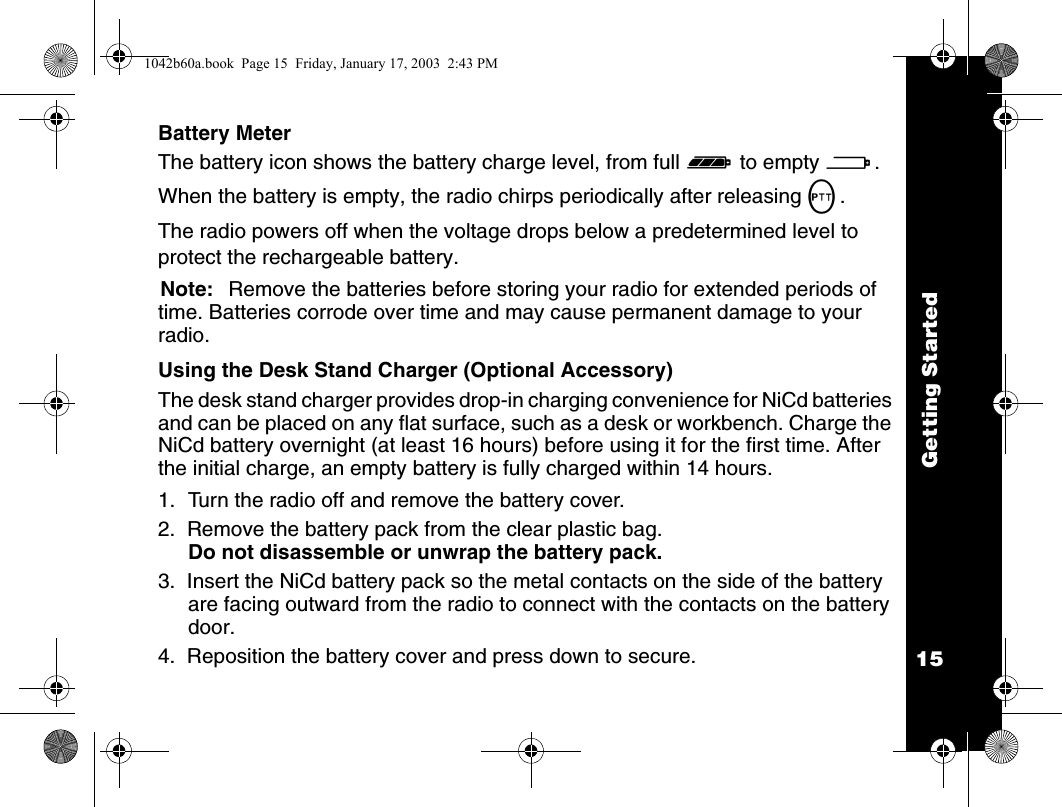

Getting Started15Battery MeterThe battery icon shows the battery charge level, from full d to empty a. When the battery is empty, the radio chirps periodically after releasing M.The radio powers off when the voltage drops below a predetermined level to protect the rechargeable battery.Note: Remove the batteries before storing your radio for extended periods of time. Batteries corrode over time and may cause permanent damage to your radio.Using the Desk Stand Charger (Optional Accessory)The desk stand charger provides drop-in charging convenience for NiCd batteries and can be placed on any flat surface, such as a desk or workbench. Charge the NiCd battery overnight (at least 16 hours) before using it for the first time. After the initial charge, an empty battery is fully charged within 14 hours.1. Turn the radio off and remove the battery cover.2. Remove the battery pack from the clear plastic bag. Do not disassemble or unwrap the battery pack.3. Insert the NiCd battery pack so the metal contacts on the side of the battery are facing outward from the radio to connect with the contacts on the battery door.4. Reposition the battery cover and press down to secure.1042b60a.book Page 15 Friday, January 17, 2003 2:43 PM

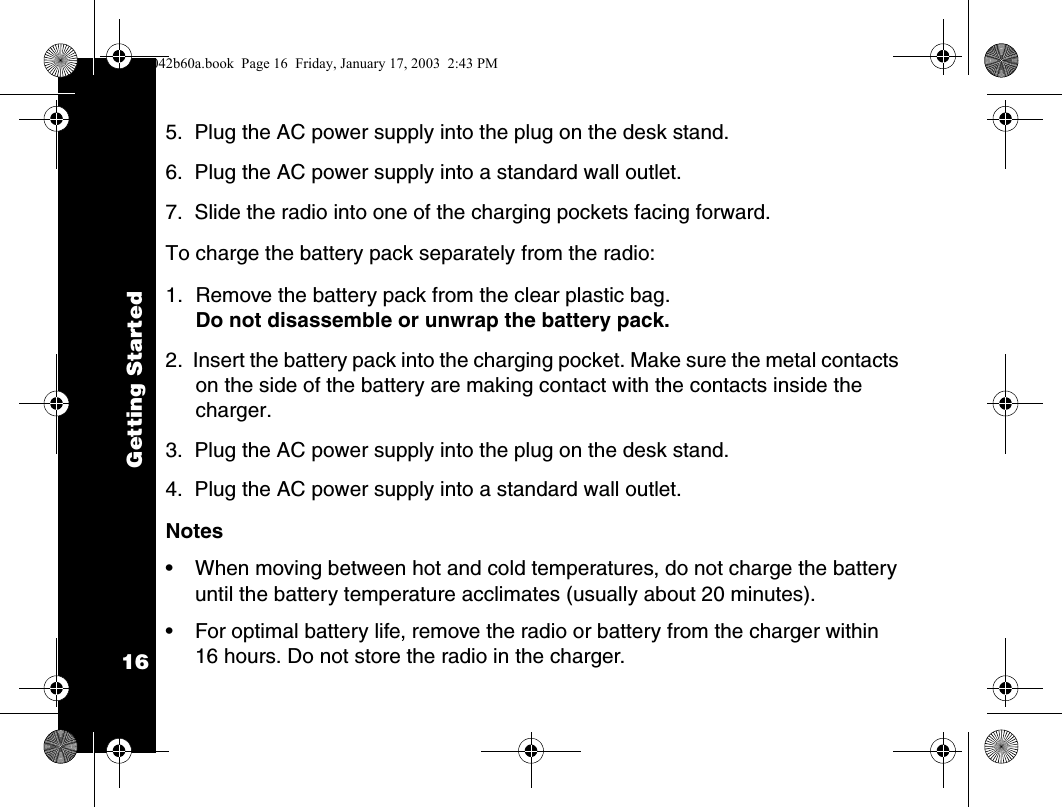

Getting Started165. Plug the AC power supply into the plug on the desk stand.6. Plug the AC power supply into a standard wall outlet.7. Slide the radio into one of the charging pockets facing forward.To charge the battery pack separately from the radio:1. Remove the battery pack from the clear plastic bag. Do not disassemble or unwrap the battery pack.2. Insert the battery pack into the charging pocket. Make sure the metal contacts on the side of the battery are making contact with the contacts inside the charger.3. Plug the AC power supply into the plug on the desk stand.4. Plug the AC power supply into a standard wall outlet.Notes• When moving between hot and cold temperatures, do not charge the battery until the battery temperature acclimates (usually about 20 minutes).• For optimal battery life, remove the radio or battery from the charger within 16 hours. Do not store the radio in the charger.1042b60a.book Page 16 Friday, January 17, 2003 2:43 PM

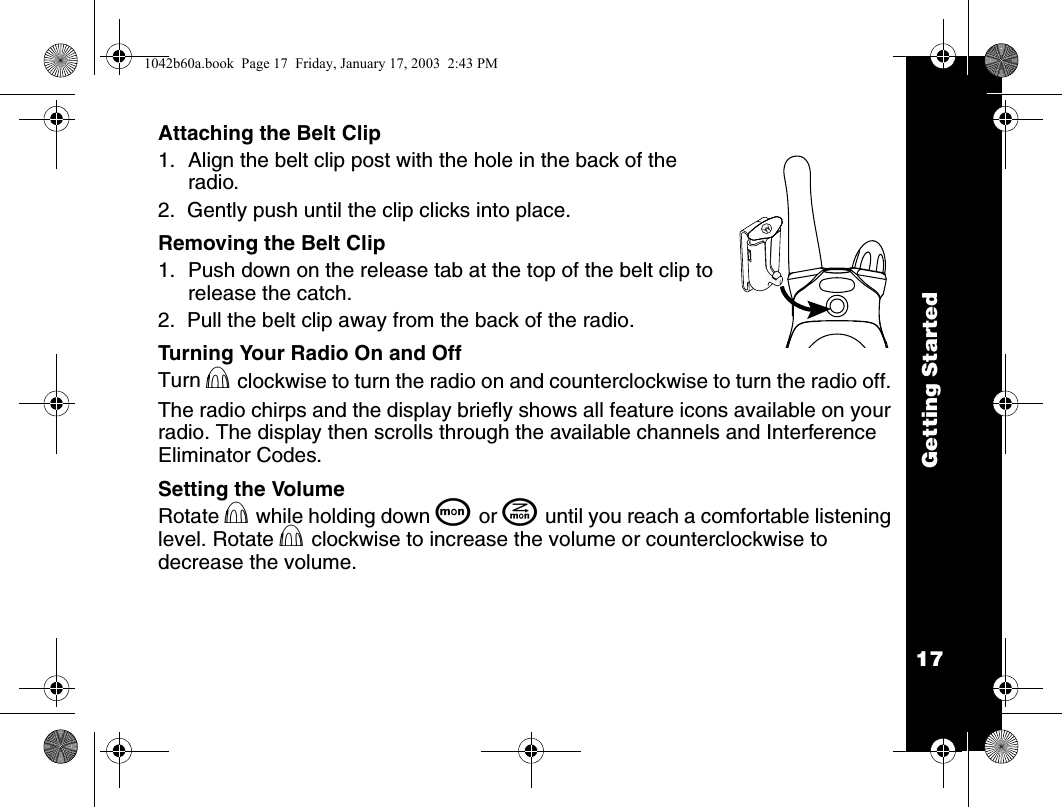

Getting Started17Attaching the Belt Clip1. Align the belt clip post with the hole in the back of the radio.2. Gently push until the clip clicks into place.Removing the Belt Clip1. Push down on the release tab at the top of the belt clip to release the catch.2. Pull the belt clip away from the back of the radio.Turning Your Radio On and OffTurn P clockwise to turn the radio on and counterclockwise to turn the radio off. The radio chirps and the display briefly shows all feature icons available on your radio. The display then scrolls through the available channels and Interference Eliminator Codes.Setting the VolumeRotate P while holding down Q or J until you reach a comfortable listening level. Rotate P clockwise to increase the volume or counterclockwise to decrease the volume.1042b60a.book Page 17 Friday, January 17, 2003 2:43 PM

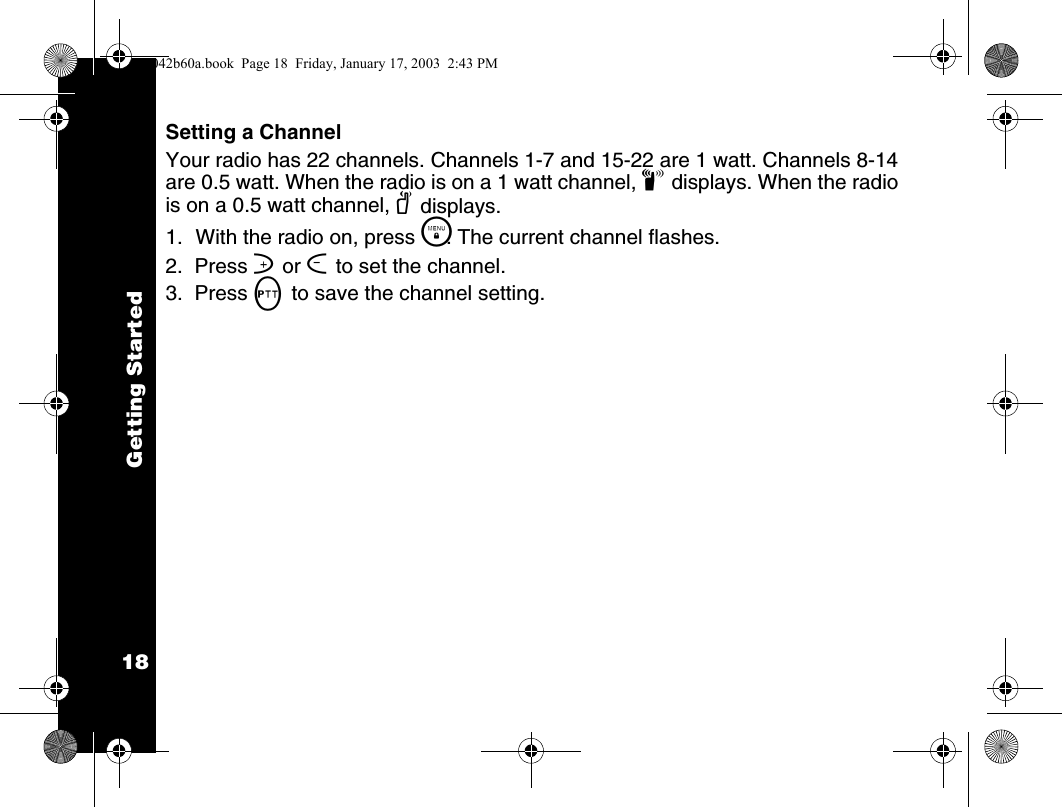

Getting Started18Setting a ChannelYour radio has 22 channels. Channels 1-7 and 15-22 are 1 watt. Channels 8-14 are 0.5 watt. When the radio is on a 1 watt channel, z displays. When the radio is on a 0.5 watt channel, y displays.1. With the radio on, press \. The current channel flashes.2. Press ] or [ to set the channel.3. Press M to save the channel setting.1042b60a.book Page 18 Friday, January 17, 2003 2:43 PM

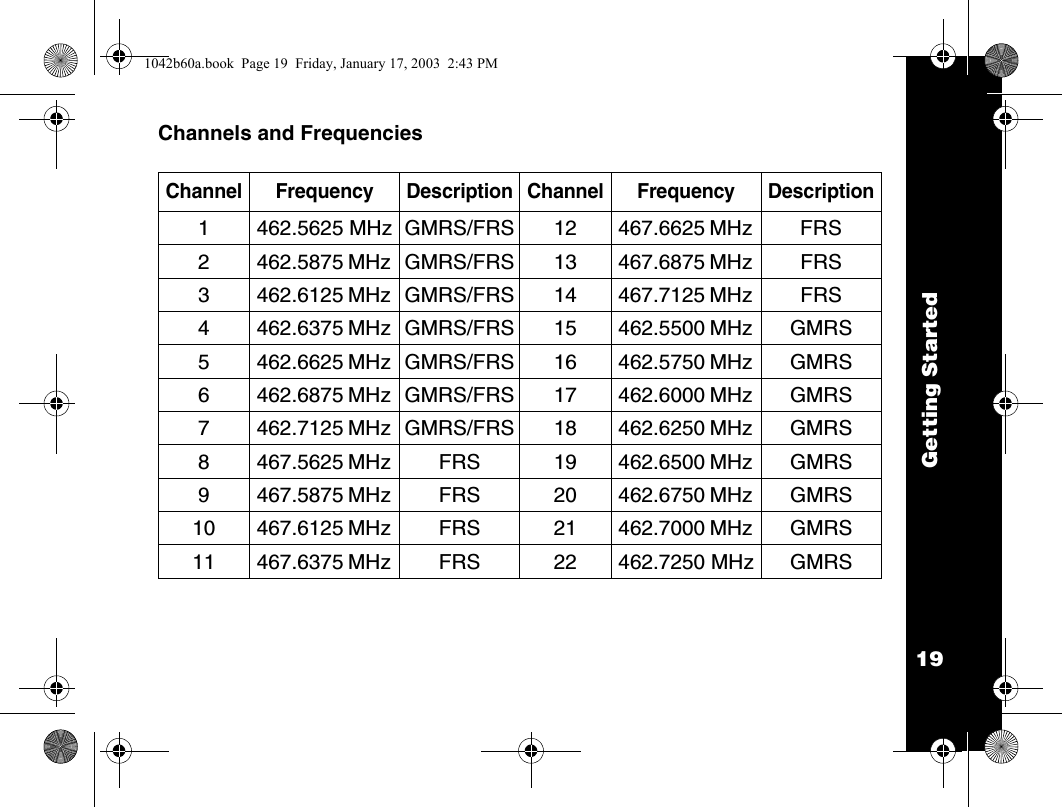

Getting Started19Channels and FrequenciesChannel Frequency Description Channel Frequency Description1 462.5625 MHz GMRS/FRS 12 467.6625 MHz FRS2 462.5875 MHz GMRS/FRS 13 467.6875 MHz FRS3 462.6125 MHz GMRS/FRS 14 467.7125 MHz FRS4 462.6375 MHz GMRS/FRS 15 462.5500 MHz GMRS5 462.6625 MHz GMRS/FRS 16 462.5750 MHz GMRS6 462.6875 MHz GMRS/FRS 17 462.6000 MHz GMRS7 462.7125 MHz GMRS/FRS 18 462.6250 MHz GMRS8 467.5625 MHz FRS 19 462.6500 MHz GMRS9 467.5875 MHz FRS 20 462.6750 MHz GMRS10 467.6125 MHz FRS 21 462.7000 MHz GMRS11 467.6375 MHz FRS 22 462.7250 MHz GMRS1042b60a.book Page 19 Friday, January 17, 2003 2:43 PM

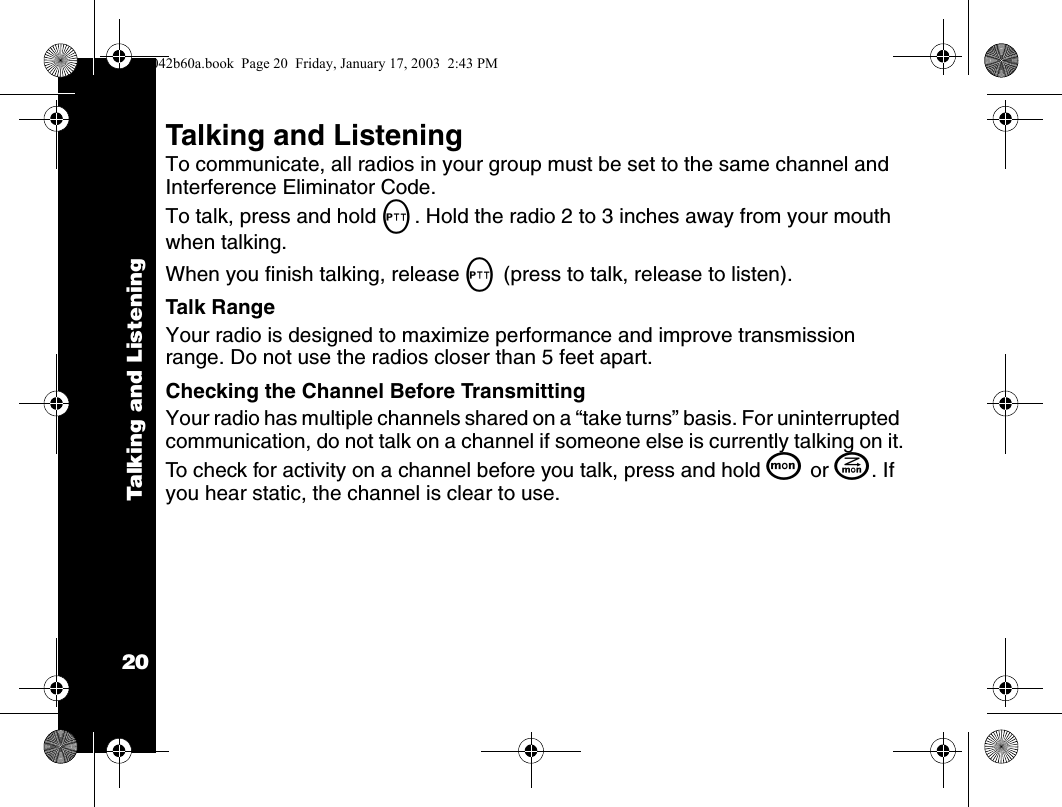

Talking and Listening20Talking and ListeningTo communicate, all radios in your group must be set to the same channel and Interference Eliminator Code.To talk, press and hold M. Hold the radio 2 to 3 inches away from your mouth when talking.When you finish talking, release M (press to talk, release to listen).Talk RangeYour radio is designed to maximize performance and improve transmission range. Do not use the radios closer than 5 feet apart.Checking the Channel Before TransmittingYour radio has multiple channels shared on a “take turns” basis. For uninterrupted communication, do not talk on a channel if someone else is currently talking on it.To check for activity on a channel before you talk, press and hold Q or J. If you hear static, the channel is clear to use.1042b60a.book Page 20 Friday, January 17, 2003 2:43 PM

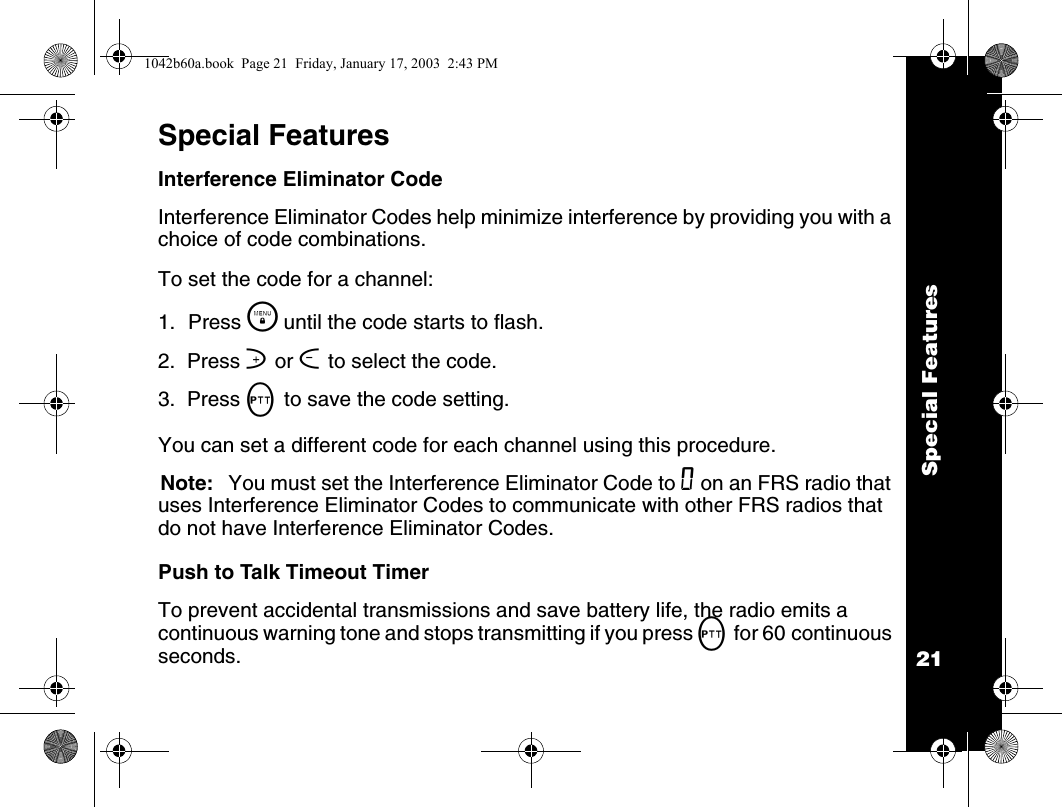

Special Features21Special FeaturesInterference Eliminator CodeInterference Eliminator Codes help minimize interference by providing you with a choice of code combinations.To set the code for a channel:1. Press \ until the code starts to flash.2. Press ] or [ to select the code.3. Press M to save the code setting.You can set a different code for each channel using this procedure.Note: You must set the Interference Eliminator Code to 0 on an FRS radio that uses Interference Eliminator Codes to communicate with other FRS radios that do not have Interference Eliminator Codes.Push to Talk Timeout TimerTo prevent accidental transmissions and save battery life, the radio emits a continuous warning tone and stops transmitting if you press M for 60 continuous seconds.1042b60a.book Page 21 Friday, January 17, 2003 2:43 PM

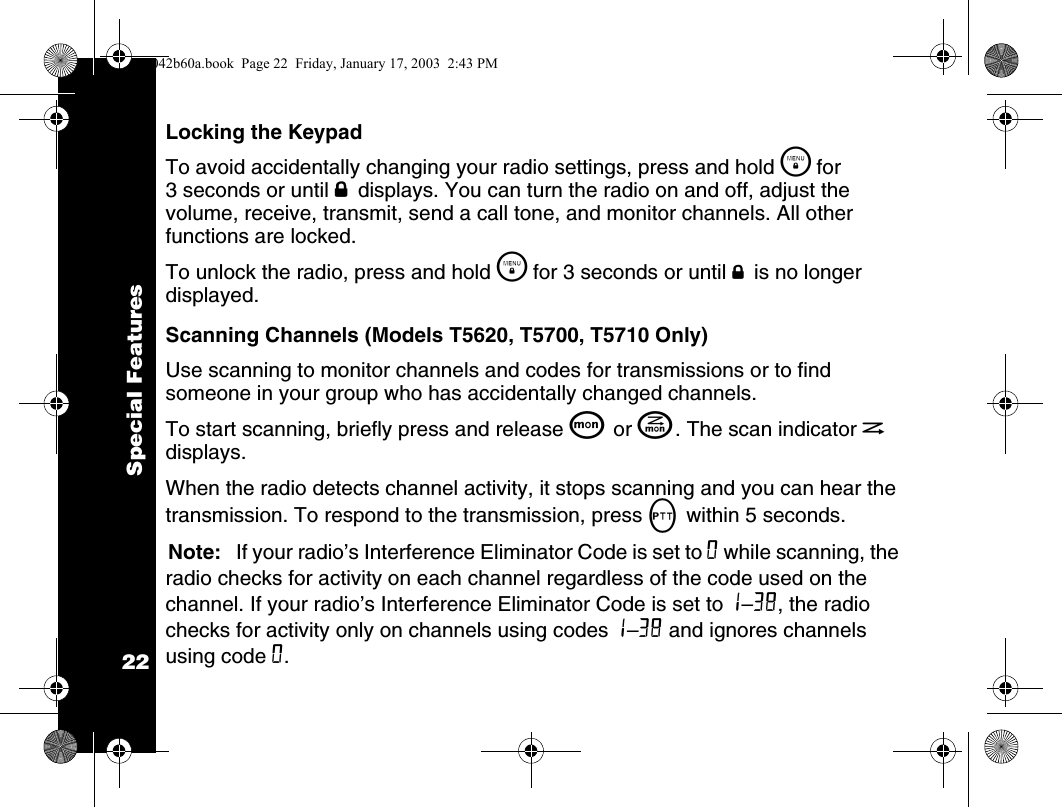

Special Features22Locking the KeypadTo avoid accidentally changing your radio settings, press and hold \ for 3 seconds or until f displays. You can turn the radio on and off, adjust the volume, receive, transmit, send a call tone, and monitor channels. All other functions are locked.To unlock the radio, press and hold \ for 3 seconds or until f is no longer displayed.Scanning Channels (Models T5620, T5700, T5710 Only)Use scanning to monitor channels and codes for transmissions or to find someone in your group who has accidentally changed channels.To start scanning, briefly press and release Q or J. The scan indicator h displays.When the radio detects channel activity, it stops scanning and you can hear the transmission. To respond to the transmission, press M within 5 seconds.Note: If your radio’s Interference Eliminator Code is set to 0 while scanning, the radio checks for activity on each channel regardless of the code used on the channel. If your radio’s Interference Eliminator Code is set to 1–38, the radio checks for activity only on channels using codes 1–38 and ignores channels using code 0.1042b60a.book Page 22 Friday, January 17, 2003 2:43 PM

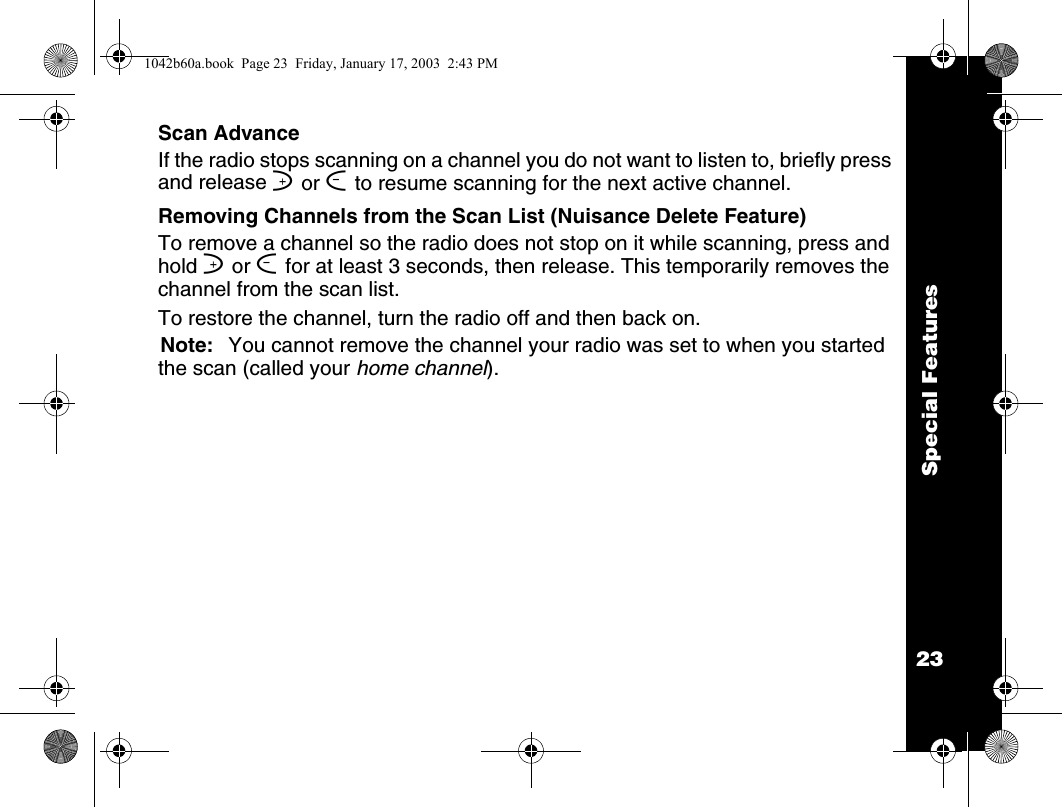

Special Features23Scan AdvanceIf the radio stops scanning on a channel you do not want to listen to, briefly press and release ] or [ to resume scanning for the next active channel.Removing Channels from the Scan List (Nuisance Delete Feature)To remove a channel so the radio does not stop on it while scanning, press and hold ] or [ for at least 3 seconds, then release. This temporarily removes the channel from the scan list. To restore the channel, turn the radio off and then back on.Note: You cannot remove the channel your radio was set to when you started the scan (called your home channel).1042b60a.book Page 23 Friday, January 17, 2003 2:43 PM

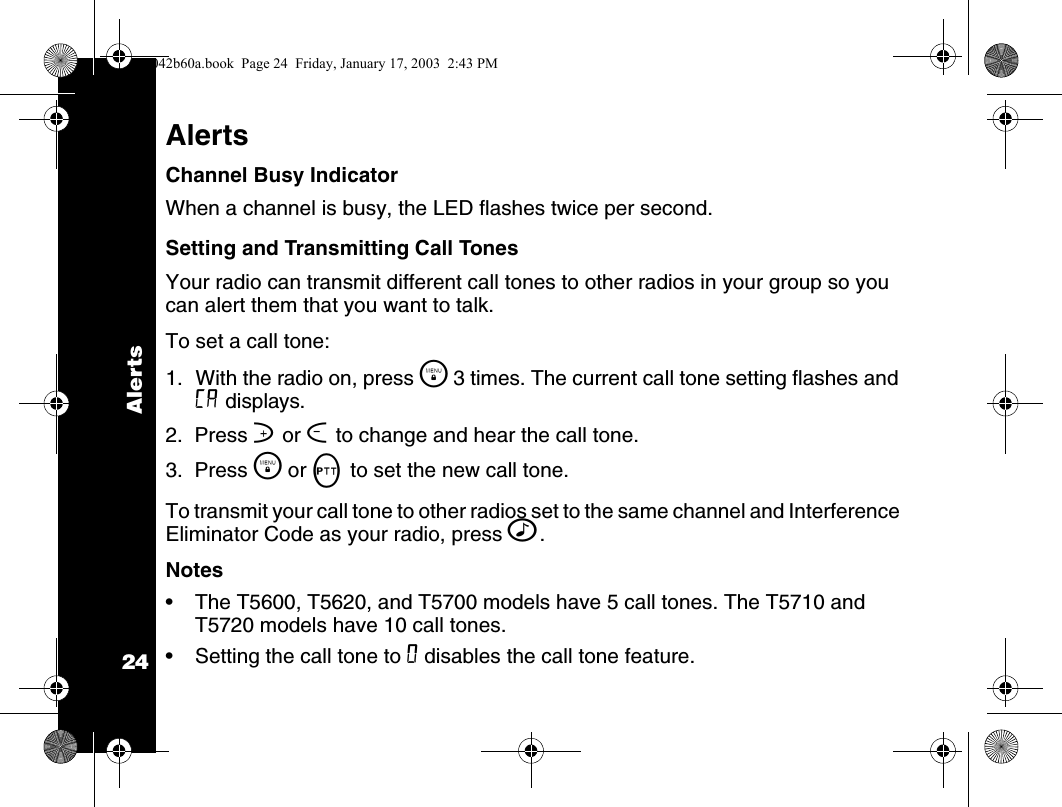

Alerts24AlertsChannel Busy IndicatorWhen a channel is busy, the LED flashes twice per second.Setting and Transmitting Call Tones Your radio can transmit different call tones to other radios in your group so you can alert them that you want to talk.To set a call tone:1. With the radio on, press \ 3 times. The current call tone setting flashes and E displays.2. Press ] or [ to change and hear the call tone.3. Press \ or M to set the new call tone. To transmit your call tone to other radios set to the same channel and Interference Eliminator Code as your radio, press ^.Notes• The T5600, T5620, and T5700 models have 5 call tones. The T5710 and T5720 models have 10 call tones.• Setting the call tone to 0 disables the call tone feature.1042b60a.book Page 24 Friday, January 17, 2003 2:43 PM

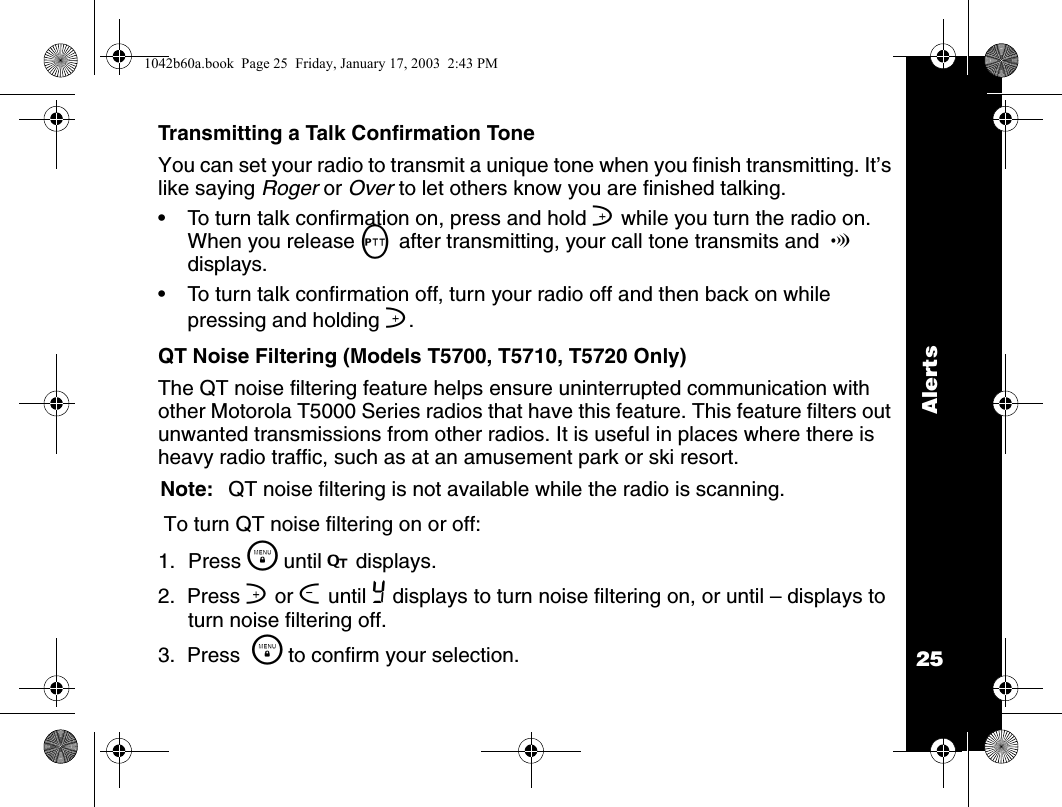

Alerts25Transmitting a Talk Confirmation ToneYou can set your radio to transmit a unique tone when you finish transmitting. It’s like saying Roger or Over to let others know you are finished talking. • To turn talk confirmation on, press and hold ] while you turn the radio on. When you release M after transmitting, your call tone transmits and ! displays.• To turn talk confirmation off, turn your radio off and then back on while pressing and holding ].QT Noise Filtering (Models T5700, T5710, T5720 Only)The QT noise filtering feature helps ensure uninterrupted communication with other Motorola T5000 Series radios that have this feature. This feature filters out unwanted transmissions from other radios. It is useful in places where there is heavy radio traffic, such as at an amusement park or ski resort.Note: QT noise filtering is not available while the radio is scanning. To turn QT noise filtering on or off:1. Press \ until F displays.2. Press ] or [ until Y displays to turn noise filtering on, or until – displays to turn noise filtering off.3. Press \ to confirm your selection.1042b60a.book Page 25 Friday, January 17, 2003 2:43 PM

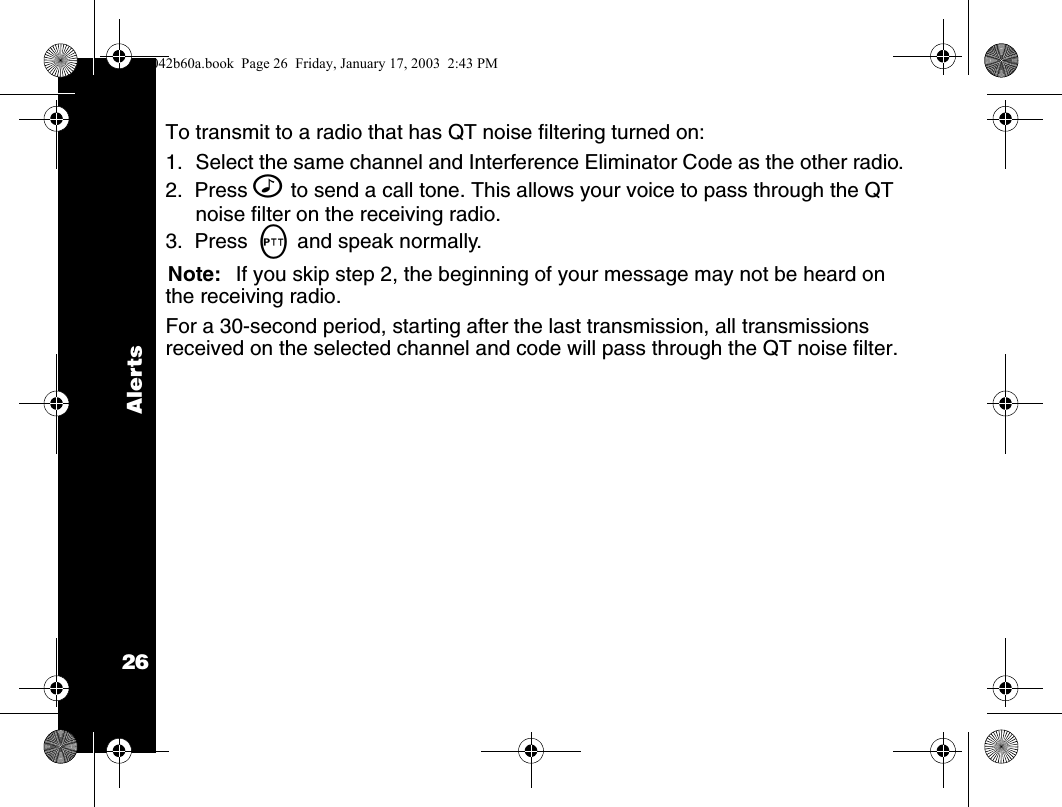

Alerts26To transmit to a radio that has QT noise filtering turned on:1. Select the same channel and Interference Eliminator Code as the other radio.2. Press ^ to send a call tone. This allows your voice to pass through the QT noise filter on the receiving radio. 3. Press M and speak normally.Note: If you skip step 2, the beginning of your message may not be heard on the receiving radio.For a 30-second period, starting after the last transmission, all transmissions received on the selected channel and code will pass through the QT noise filter.1042b60a.book Page 26 Friday, January 17, 2003 2:43 PM

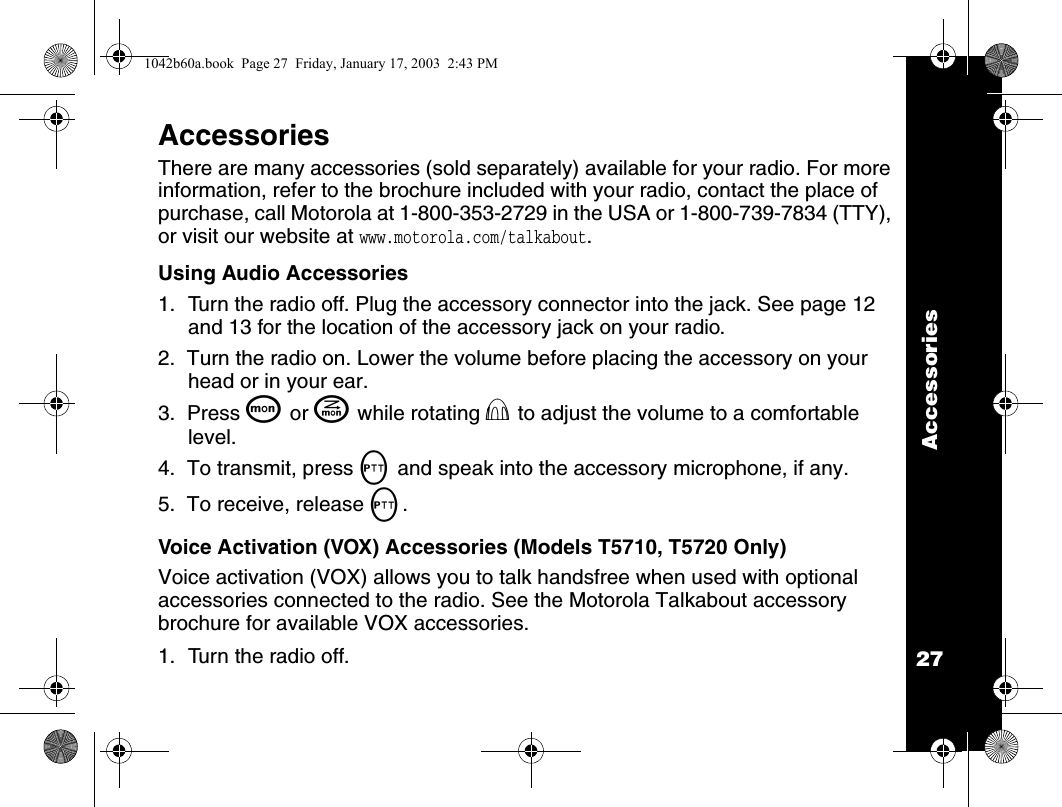

Accessories27AccessoriesThere are many accessories (sold separately) available for your radio. For more information, refer to the brochure included with your radio, contact the place of purchase, call Motorola at 1-800-353-2729 in the USA or 1-800-739-7834 (TTY), or visit our website at www.motorola.com/talkabout.Using Audio Accessories 1. Turn the radio off. Plug the accessory connector into the jack. See page 12 and 13 for the location of the accessory jack on your radio.2. Turn the radio on. Lower the volume before placing the accessory on your head or in your ear.3. Press Q or J while rotating P to adjust the volume to a comfortable level.4. To transmit, press M and speak into the accessory microphone, if any.5. To receive, release M.Voice Activation (VOX) Accessories (Models T5710, T5720 Only)Voice activation (VOX) allows you to talk handsfree when used with optional accessories connected to the radio. See the Motorola Talkabout accessory brochure for available VOX accessories.1. Turn the radio off.1042b60a.book Page 27 Friday, January 17, 2003 2:43 PM

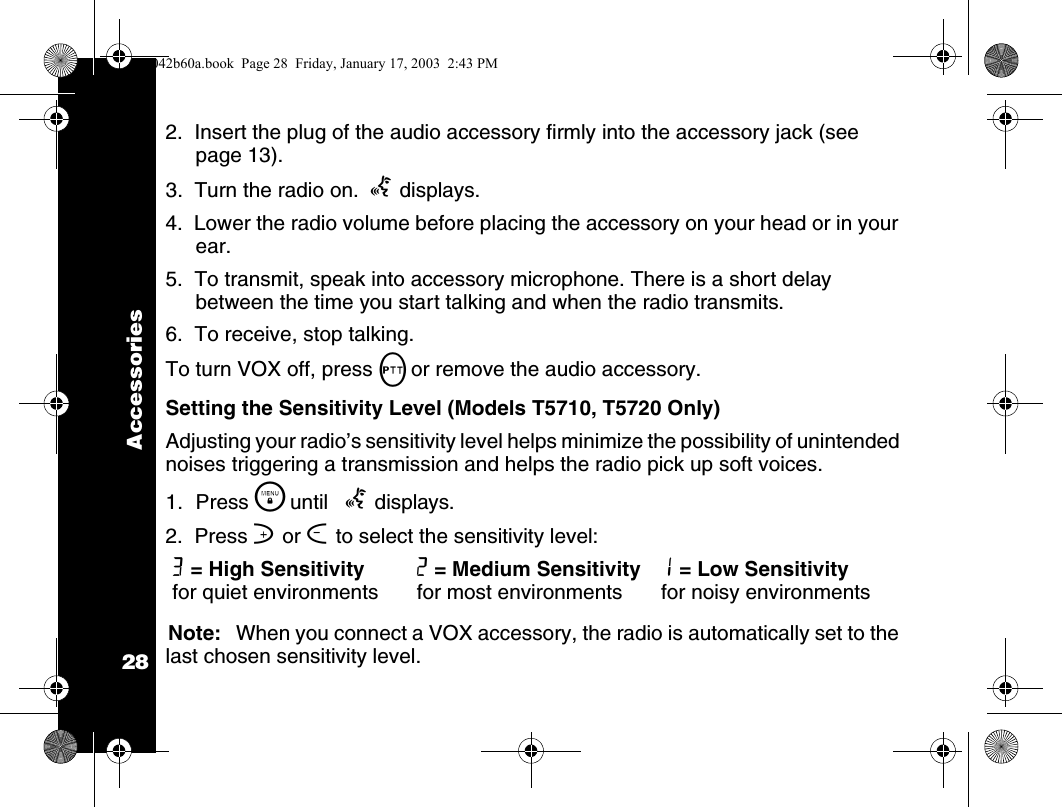

Accessories282. Insert the plug of the audio accessory firmly into the accessory jack (see page 13).3. Turn the radio on. g displays.4. Lower the radio volume before placing the accessory on your head or in your ear.5. To transmit, speak into accessory microphone. There is a short delay between the time you start talking and when the radio transmits.6. To receive, stop talking.To turn VOX off, press Mor remove the audio accessory.Setting the Sensitivity Level (Models T5710, T5720 Only)Adjusting your radio’s sensitivity level helps minimize the possibility of unintended noises triggering a transmission and helps the radio pick up soft voices.1. Press \ until g displays. 2. Press ] or [ to select the sensitivity level:Note: When you connect a VOX accessory, the radio is automatically set to the last chosen sensitivity level.3 = High Sensitivity for quiet environments 2 = Medium Sensitivity for most environments 1 = Low Sensitivity for noisy environments1042b60a.book Page 28 Friday, January 17, 2003 2:43 PM

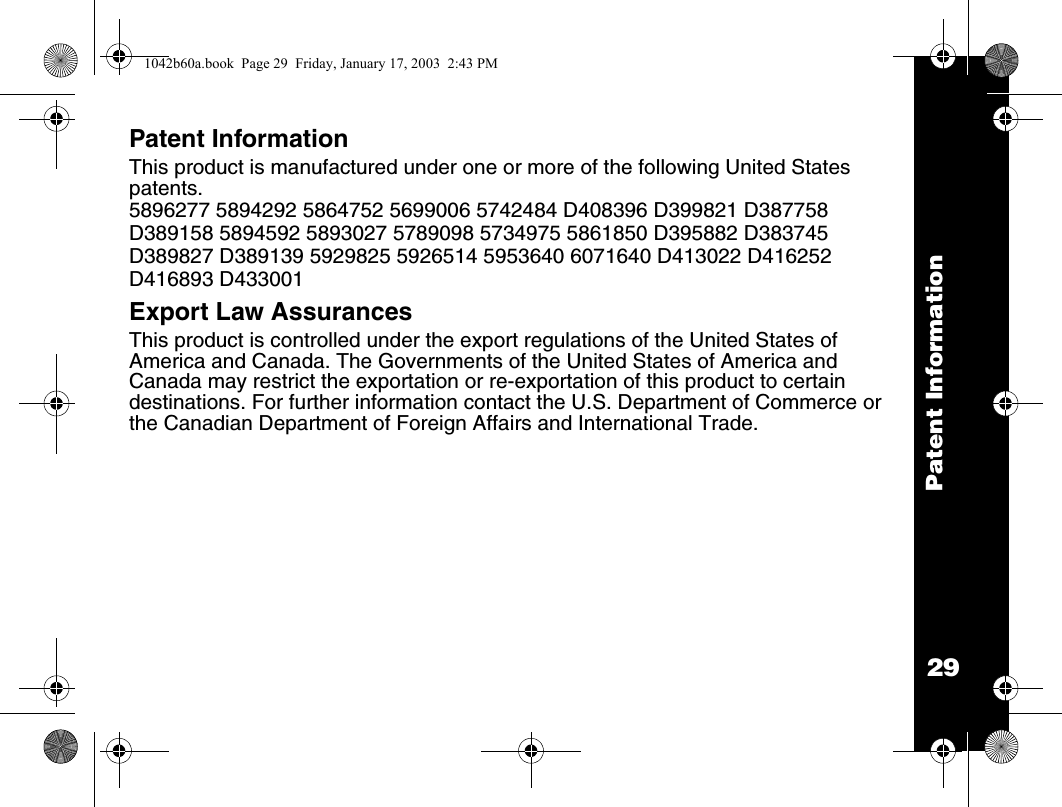

29Patent InformationPatent InformationThis product is manufactured under one or more of the following United States patents. 5896277 5894292 5864752 5699006 5742484 D408396 D399821 D387758D389158 5894592 5893027 5789098 5734975 5861850 D395882 D383745D389827 D389139 5929825 5926514 5953640 6071640 D413022 D416252D416893 D433001 Export Law Assurances This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade. 1042b60a.book Page 29 Friday, January 17, 2003 2:43 PM
1042b60a.book Page 30 Friday, January 17, 2003 2:43 PM

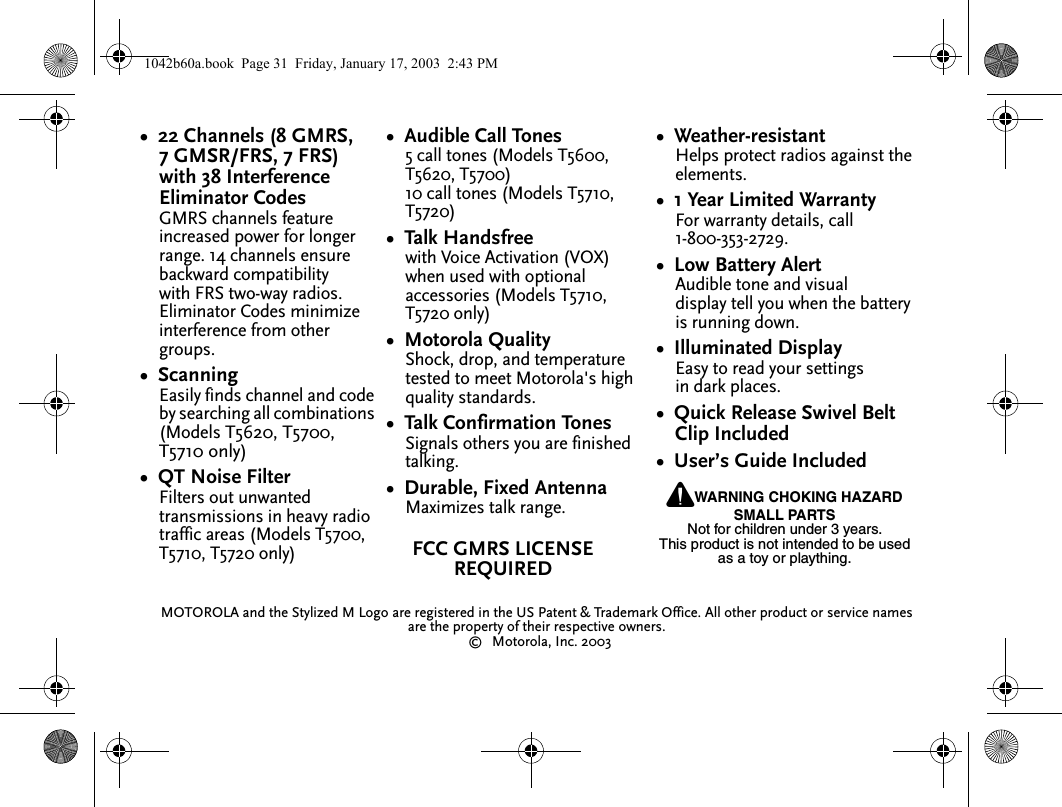

• 22 Channels (8 GMRS, 7 GMSR/FRS, 7 FRS) with 38 Interference Eliminator CodesGMRS channels feature increased power for longer range. 14 channels ensure backward compatibility with FRS two-way radios. Eliminator Codes minimize interference from other groups.• ScanningEasily finds channel and code by searching all combinations (Models T5620, T5700, T5710 only)• QT Noise FilterFilters out unwanted transmissions in heavy radio traffic areas (Models T5700, T5710, T5720 only)• Audible Call Tones5 call tones (Models T5600, T5620, T5700)10 call tones (Models T5710, T5720)• Talk Handsfreewith Voice Activation (VOX) when used with optional accessories (Models T5710, T5720 only)• Motorola QualityShock, drop, and temperature tested to meet Motorola's high quality standards.• Talk Confirmation TonesSignals others you are finished talking.• Durable, Fixed AntennaMaximizes talk range.• Weather-resistantHelps protect radios against the elements.• 1 Year Limited WarrantyFor warranty details, call 1-800-353-2729.• Low Battery AlertAudible tone and visual display tell you when the battery is running down.• Illuminated DisplayEasy to read your settings in dark places.• Quick Release Swivel Belt Clip Included• User’s Guide IncludedMOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners.©Motorola, Inc. 2003PWARNING CHOKING HAZARD SMALL PARTSNot for children under 3 years.This product is not intended to be used as a toy or plaything.FCC GMRS LICENSE REQUIRED1042b60a.book Page 31 Friday, January 17, 2003 2:43 PM
