Users Manual

2111 USA user manual

Equipment Approval Information

Your telephone equipment is approved for connection to the Public Switched

Telephone Network and is in compliance with parts 15 and 68, FCC Rules and

Regulations and the Technical Requirements for Telephone Terminal Equipment

published by ACTA.

1 Notification to the Local Telephone Company

On the bottom of this equipment is a label indicating, among other information, the

US number and Ringer Equivalence Number (REN) for the equipment. You must,

upon request, provide this information to your telephone company.

The REN is useful in determining the number of devices you may connect to your

telephone line and still have all of these devices ring when your telephone number

is called. In most (but not all) areas, the sum of the RENs of all devices connected

to one line should not exceed 5. To be certain of the number of devices you may

connect to your line as determined by the REN, you should contact your local

telephone company.

A plug and jack used to connect this equipment to the premises wiring and

telephone network must comply with the applicable FCC Part 68 rules and

requirements adopted by the ACTA. A compliant telephone cord and modular

plug is provided with this product. It is designed to be connected to a compatible

modular jack that is also compliant. See installation instructions for details.

Notes

• This equipment may not be used on coin service provided by the telephone

company.

• Party lines are subject to state tariffs, and therefore, you may not be able to use

your own telephone equipment if you are on a party line. Check with your local

telephone company.

• Notice must be given to the telephone company upon permanent disconnection

of your telephone from your line.

• If your home has specially wired alarm equipment connected to the telephone

line, ensure the installation of this product does not disable your alarm equipment.

If you have questions about what will disable alarm equipment, consult your

telephone company or a qualified installer.

US Number is located on the cabinet bottom.

REN Number is located on the cabinet bottom.

2 Rights of the Telephone Company

Should your equipment cause trouble on your line which may harm the telephone

network, the telephone company shall, where practicable, notify you that

temporary discontinuance of service may be required. Where prior notice is not

practicable and the circumstances warrant such action, the telephone company

may temporarily discontinue service immediately. In case of such temporary

discontinuance, the telephone company must: (1) promptly notify you of such

temporary discontinuance;

(2) afford you the opportunity to correct the situation; and (3) inform you of your

right to bring a complaint to the Commission pursuant to procedures set forth in

Subpart E of Part 68, FCC Rules and Regulations.

The telephone company may make changes in its communications facilities,

equipment, operations or procedures where such action is required in the

operation of its business and not inconsistent with FCC Rules and Regulations. If

these changes are expected to affect the use or performance of your telephone

equipment, the telephone company must give you adequate notice, in writing, to

allow you to maintain uninterrupted service.

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference; and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

Privacy of Communications may not be ensured when using this product. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna (that is, the antenna for radio or

television that is “receiving” the interference).

• Reorient or relocate and increase the separation between the

telecommunications equipment and receiving antenna.

• Connect the telecommunications equipment into an outlet on a circuit different

from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or

an experienced radio/television technician for additional suggestions. Also, the

Federal Communications Commission has prepared a helpful booklet, “How To

Identify and Resolve Radio/TV Interference Problems.” This booklet is available

from the U.S. Government Printing Office, Washington, D.C. 20402. Please

specify stock number 004-000-0034 5-4 when ordering copies.

Notice: The changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

Hearing Aid Compatibility (HAC)

This telephone system meets FCC standards for Hearing Aid Compatibility.

Licensing

Licensed under US Patent xxxxxxx

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body. This

transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

For body worn operation, this phone has been tested and meets the FCC RF

exposure guidelines when used with the belt clip supplied with this product. Use of

other accessories may not ensure compliance with FCC RF exposure guidelines.

Information for DECT Product

This telephone is compliant with the DECT 6.0 standard which operates in the

1.92GHz to 1.93GHz frequency range. Installation of this equipment is subject to

notification and coordination with UTAM.

Any relocation of this equipment must be coordinated through and approved by

UTAM. UTAM may be contacted at 1-800-42 9-8826.

Introduction

CAUTION: When using telephone equipment, there are basic safety

instructions that should always be followed. Refer to the IMPORTANT

SAFETY INSTRUCTIONS provided with this product and save them for

future reference.

IMPORTANT: Because cordless phones operate on electricity, you should

have at least one phone in your home that isn’t cordless, in case the power

in your home goes out.

Parts Checklist (for 2111 single handset model)

Before You Begin

Make sure your package includes the items listed here.

Handset

Telephone line cord

AC power adaptor

Handset

battery pack

Battery compartment cover

Base

For Model 2111 twin there will be ONE additional handset, charge cradle, belt

clip, battery pack and cover.

For Model 2111 trio there will be TWO additional handsets, charge cradles, belt

clips, battery packs and covers.

For Model 2111 quad there will be THREE additional handsets, charge cradles,

belt clips, battery packs and covers.

Telephone Jack Requirements

To use this phone, you need an RJ11C type modular telephone jack installed in

your home.

If you don’t have a modular jack, call your local phone company to find out how to

get one installed.

Installation

Digital Security System

Your cordless phone uses a digital security system to protect against false ringing,

unauthorized access, and charges to your phone line.

INSTALLATION NOTE: Some cordless telephones operate at frequencies

that may cause or receive interference with nearby TVs, microwave ovens,

and VCRs. To minimize or prevent such interference, the base of the

cordless telephone should not be placed near or on top of a TV, microwave

ovens, or VCR. If such interference continues, move the cordless telephone

farther away from these appliances.

Certain other communications devices may also use the 1.9GHz DECT

frequency for communication, and, if not properly set, these devices may

interfere with each other and/or your new telephone. If you are concerned

with interference, please refer to the owner’s manual for these devices on

how to properly set channels to avoid interference. Typical devices that may

use the 1.9GHz DECT frequency for communication include wireless

audio/video senders, wireless computer networks, multi-handset cordless

telephone systems, and some long-range cordless telephone systems.

Important Installation Guidelines

• Avoid sources of noise and heat, such as motors, fluorescent lighting,

microwave ovens, heating appliances and direct sunlight.

• Avoid areas of excessive dust, moisture and low temperature.

• Avoid other cordless telephones or personal computers.

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is specifically

designed for wet locations.

• Never touch non-insulated telephone wires or terminals, unless the telephone

line has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

Base Layout

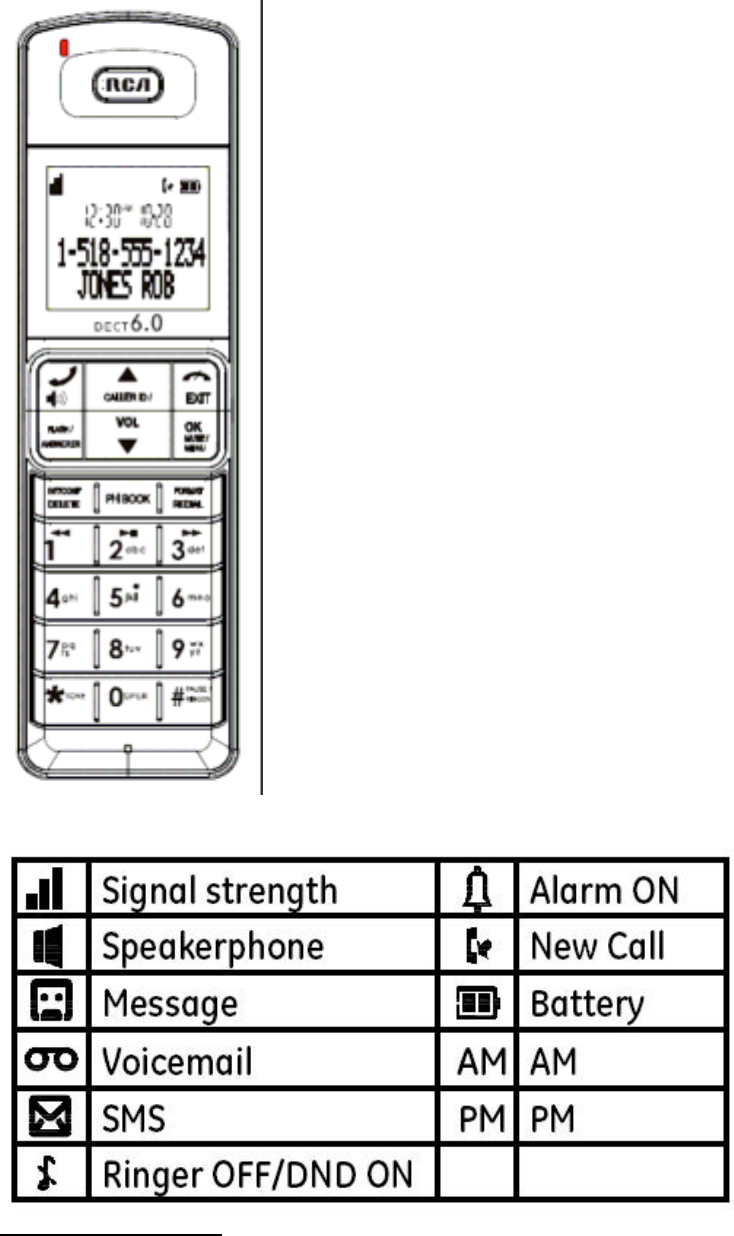

Handset Layout

Display icons

Installing the Phone

Installing the Handset Battery

NOTE: You must connect the handset battery before use.

CAUTION: To reduce the risk of fire or personal injury, use only the.

approved Nickel metal Hydride battery (Ni-MH) (Brand name: SANIK, Model

this unit.

1. Locate battery and battery door which are packaged together inside a plastic

bag and are separate from the handset.

2. Locate the battery compartment on the back of the handset.

3. Plug the battery pack cord into the jack inside the compartment.

NOTE: To ensure proper battery installation, the connector is keyed and can

be inserted only one way.

4. Insert the battery pack.

5. Close the battery compartment by pushing the door up until it snaps into place.

Base Station

1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C),

and place your cordless telephone on a level surface, such as a desktop or

tabletop, or you may mount it on the wall.

2. Plug one end of the telephone line cord into the TEL LINE jack on the back of

the base and the other end into a modular jack.

3. Plug the AC power converter into the electrical outlet and the DC connector into

the jack on the back of the base.

4. Place the handset in the base cradle. The charge/in use indicator turns on,

verifying the battery is charging.

5. Allow the phone to charge for 16 hours prior to first use. If you don’t properly

charge the phone, battery performance is compromised.

CAUTION: To reduce risk of personal injury, fire, or damage use only the

power adaptor (Manufacturer: ESL, Type: IA5060, 120Vac/6Vdc/500mA;

Manufacturer: NanTong DaMing, Type: DM-SC060058, 120Vac/6Vdc/0-0.58A)

listed in the user’s guide. This power adaptor is intended to be correctly

orientated in a vertical or floor mount position.

Programming the Telephone

Standby Screen

The handset displays the handset number and user name.

Programming Functions

The system uses a menu structure to give you access to all of the built-in features.

You may program the following items in main menu:

Phone book, Room monitor, Alarm clock, Answerer, Initial Setup, Sound Setup,

Reset Settings.

Room Monitor (applicable only with additional handsets)

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( or ) button to scroll to ROOM MONITOR.

4. Press the mute/menu OK button to enter ROOM MONITOR menu.

The screen displays ROOM MONITOR EXTENSION?

5. Use the touch tone pad to enter the handset name/number to be monitored.

NOTE: When this phone system is expanded (up to 6 handsets by purchase

of optional Model xxxx handset with recharge cradle), handsets are named

HANDSET 1, HANDSET 2, HANDSET 3 and so on respectively.

6. The receiving handset will turn on the microphone and the originating handset

will turn on the speakerphone to monitor sound from the receiving handset.

NOTE: For room monitoring mode to work, the originating handset must

NOT be on the cradle.

NOTE: While in room monitoring mode, the handsets will emit an alert tone

approximately every 5 seconds if there is an incoming call. You may press

the TALK/SPEAKER button to quit room monitor and answer the call.

NOTE: While in room monitoring mode, the originating handset can be

switched to monitor by handset earpiece by pressing the TALK/SPEAKER

button once. Switch back to speakerphone by pressing the TALK/SPEAKER

button once.

NOTE: Press the END button on the handset to exit room monitor mode.

Alarm Clock

1. Make sure your phone is OFF (not in TALK mode)

2. Press the mute/menu OK button to go to the main menu.

3. Use the caller ID-volume ( or ) button to scroll to ALARM CLOCK.

4. Press mute/menu OK button to enter the menu. The screen displays ON >

OFF.

5. Use the caller ID-volume ( or ) button to select ON or OFF. Press

mute/menu OK button to confirm.

6. If ON is selected, then the screen displays SET ALARM TIME. Use the number

keys to enter the alarm time (for example, 02:10PM) key in 0210. Use the caller

ID-volume ( or ) button to select AM or PM.

7. Press mute/menu OK button to display >ONCE OR DAILY and select ONCE

or DAILY.

8. Press the mute/menu ok button to save selection. You will hear a confirmation

tone and return to main menu.

Initial Setup

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( or ) button to scroll to INITIAL SETUP.

4. Press the mute/menu OK button to confirm and you may program the following

items: Handset Name, Date and Time, Area Code, Tone/Pulse, Language, Auto

Talk, Registration, Deregistration.

NOTE: During programming, you may press the END button at any time to

exit the sub-menu and return to the menu.

Handset Name

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the HANDSET NAME

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays

HANDSET NAME.

3. Use the touch-tone pad to enter a name (up to 15 characters). More than one

letter is stored in each of the number keys. For example, to enter Bill Smith, press

the key twice for the letter B. Press the key times for the letter I. Press the 5 key

times for the letter L. Press the 5 key times for the second letter L, and press the 1

key to insert a space between the first and last name. Press the 7 key times for

the letter S; press the 6 key once for the letter M; press the key times for the letter

I; press the 8 key for the letter T; press the key twice for the letter H.

NOTE: If you make a mistake, use the delete/int/conf button to backspace

and delete one character at a time.

4. Press the mute/menu OK button to save your name. You will hear a

confirmation tone and the handset name shows in the display.

Date and Time

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the DATE and TIME

sub-menu.

2. Press mute/menu OK button to enter the menu. Use the number keys to enter

the current date, (for example, 31 December, 2007) key in 071231.

3. Press mute/menu OK button to confirm your selection and advance SET TIME

sub-menu.

4. Use the number keys to enter the current hour and minute, then use the caller

ID-volume ( or ) to select AM or PM.

5. Press the mute/menu OK button to save your selection. You will hear a

confirmation tone and the current time shows in the display.

Area Code

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the AREA CODE

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays SET

AREA CODE - - -.

3. Use the touch-tone pad to enter your 3-digit area code.

4. Press the mute/menu OK button to confirm. You will hear a confirmation tone

and the screen displays the new area code.

NOTE: To restore the default setting to - - -, press and release delete/int/conf

when the screen displays SET AREA CODE.

Tone/Pulse

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the TONE/PULSE

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays TONE

PULSE. The default setting is TONE.

3. Use the caller ID-volume ( or ) to select TONE or PULSE.

4. Press the mute/menu OK button to confirm. You will hear a confirmation tone

and the screen displays your selection.

Language

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the LANGUAGE

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays

ENGLISH ESPANOL.

3. Use the caller ID-volume ( or ) button to scroll to the desired language.

ENGLISH is the default setting.

4. Press the mute/menu OK button to save your selection. You will hear a

confirmation tone and the screen displays the selected language.

Auto Talk

When this function is ON, during an external call, you may lift the handset to

answer a call immediately without pressing any buttons.

To end a call, put the handset back on the base cradle directly.

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the AUTO TALK

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays > NO

YES.

3. Use the caller ID-volume ( or ) button to scroll to your selection. NO is the

default setting.

4. Press the mute/menu OK button to confirm.

Registration

Your packaged handset(s) are pre-registered and ready to use. It is not

recommended that a handset be registered again unless absolutely necessary.

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the REGISTRATION

sub-menu.

2. Press the mute/menu OK button to enter the menu. The screen displays

YES　NO. The default setting is NO.

3. Use the caller ID-volume ( or ) button to scroll to YES or NO.

4. If you select YES, press the mute/menu OK button. The screen displays

HOLD BASE FIND FOR 5 SECONDS, THEN PRESS MENU

OK KEY. (Your handset should be held near the base during registration

process.)

5. Press and hold the find button on the base unit, the charge/in use indicator

flashes. Press the handset mute/menu OK button.

The screen displays REGISTERING, then the screen displays REGISTERED.

You may now rename your handset. (Refer to Step of Handset Name Section)

NOTE: If you are re-registering the handset through the handset menu; to

rename your handset you must go to the Handset Name Section and start

from the beginning step.

De-Registration

De-registration cancels registration. During the de-registration process, keep the

handset near the base.

From the Initial Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the DEREGISTRATION

sub-menu.

2. Press the mute/menu OK button to enter the menu. The screen displays

YES　NO. The default setting is NO.

3. Use the caller ID-volume ( or ) button to scroll to YES or NO.

WARNING: It is not recommended that a handset be de-registered unless

absolutely necessary because once a handset is de-registered, that

handset’s telephone features cannot be used until the handset is

re-registered.

4. Select NO, if you do not want to de-register.

5. If you select YES, press the mute/menu OK button and MOVE NEAR BASE

displays for seconds, then the screen displays YES NO.

6. Use the caller ID-volume ( or ) button to scroll to YES or NO.

7. If you select YES, press the mute/menu OK button to confirm. The screen

displays DE-REGISTER... . You will hear a confirmation tone. Then the screen

displays DEREGISTERED to confirm the handset is deregistered.

NOTE: When you complete the de-registration process, HANDSET NEEDS

REGISTRATION shows in the display. To use the handset, you MUST

re-register the handset using the Registration process.

Global De-registration

If one or more handsets become lost, you should de-register all handsets to

ensure proper system operation.

WARNING: It is not recommended that a handset be de-registered unless

absolutely necessary because once a handset is de-registered, that

handset’s telephone features cannot be used until the handset is

re-registered.

1. Disconnect power from the base by pulling the plug out of the back of the unit.

2. Press and hold the find button and while holding the find button reconnect the

power.

3. Continue to hold the find button until the charge/in use light flashes rapidly.

4. Release the find button.

5. Press and release the find button on the base once. All handsets are

de-registered and the screen displays HANDSET NEEDS REGISTRATION.

Sound Setup

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( or ) button to scroll to SOUND SETUP.

4. Press mute/menu OK button to confirm and you may program the following

items: Ringer Tone, Ringer Volume, Key Tone.

Ringer Tone

You may choose from five ringer tones and five melodies.

From the Sound Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the RINGER TONE

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays 1 OF 10.

01 is default setting.

3. Use the caller ID-volume ( or ) button to scroll to the desired setting (1

through 10). You will hear a sample of the ringer tone/melody you select.

4. Press the mute/menu OK button to save your selection. You will hear a

confirmation tone and rhe screen displays the selected ringer tone.

NOTE: You must have the Ringer Volume set to ON for ring tone to signal an

incoming call.

Ringer Volume

From the Sound Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the RINGER VOLUME

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays 

　RING

VOLUME 5.

3. Use the caller ID-volume ( or ) button to scroll to your selection. LEVEL 5

is the default setting.

4. Press the mute/menu OK button to save your selection. You will hear a

confirmation tone and the new volume setting shows in the display.

NOTE: If you turn the ringer OFF, the screen displays the ringer off icon.

Key Tone

From the Sound Setup Menu:

1. Press the caller ID-volume ( or ) button to scroll to the KEY TONE

sub-menu.

2. Press mute/menu OK button to enter the menu. The screen displays > ON

OFF.

3. Use caller ID-volume ( or ) button to scroll to your selection.

ON is the default setting.

4. Press the mute/menu OK button to confirm and the screen displays the key

tone setting.

Reset Setting

1. Make sure your phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to the main menu.

3. Press caller ID-volume ( or ) button to scroll to RESET SETTINGS.

4. Press mute/menu OK button to confirm and you may program the following

items: Voicemail, All Settings.

Voicemail

From the Reset Settings Menu:

1. Press the caller ID-volume ( or ) button to scroll to the VOICEMAIL

sub-menu.

2. Press the mute/menu OK button to enter the menu. The screen displays

　YES NO. The default setting is NO.

3. Use the caller ID-volume ( or ) button to move the cursor to YES or NO.

NOTE: If YES is selected, new voicemail icon is cleared from the LCD and

the VMWI LED is turned OFF (on ALL handsets, and the charge/in use LED

on the base).

4. Press the mute/menu OK button to save your selection. You will

hear a confirmation tone.

All Settings

As you become familiar with this system, you may prefer to use the system’s

original settings. Follow the steps below to return to the factory default settings.

From the Reset Settings Menu:

1. Press the caller ID-volume ( or ) button to scroll to the ALL SETTINGS

sub-menu.

2. Press the mute/menu OK button to enter the menu. The screen displays

YES　NO. The default setting is NO.

3. Use the caller ID-volume ( or ) button to move the cursor to YES or NO.

NOTE: If you choose YES all the settings in the programmable menu are

returned to factory default setting.

4. Press the mute/menu OK button to save your selection. You will

hear a confirmation tone.

Telephone Operation

Visual Indicators

Base

The charge/in use indicator on the base will flash to alert you to an incoming call,

during paging, or if you have a message waiting from your service provider. The

indicator will remain lit when a handset is in the base charging or when the line is

in use.

Handset

The TALK/SPEAKER indicator buttons flash when you receive a call and remain

lit during a call.

The keypad and CID will also illuminate when a call is received.

VMWI / Visual Ringer Indicator on Handset

IMPORTANT: In order to use this unit’s Voice Mail Waiting Indicator (VMWI)

feature, you must subscribe to this service from your phone company.

The VMWI indicator on the top of the handset flashes when you receive a new

message from your service provider. Also, it serves as a Visual Ringer function. It

will flash when there is an incoming call.

Speakerphone Operation

NOTE: If you are using the speakerphone, remain close to handset so the

party you are speaking to can hear you.

If you are using the earpiece and want to switch to the speakerphone, press the

TALK/SPEAKER button, press END button to end conversation.

If you are using the speakerphone and want to switch to the earpiece, press the

TALK/SPEAKER button again, press END button again to end conversation.

Making a Call

1. Press the TALK/SPEAKER button. Dial the desired number.

- OR -

Dial the number first, then press the TALK/SPEAKER button.

- OR -

Press the caller ID-volume ( or ) button to select the desired record, then

press the TALK/SPEAKER button.

2. When finished, press the END button to hang up.

NOTE: You may enter up to 28 pre-dial digits.

NOTE: If you want to delete the pre-dial number you entered, press the

delete/int/conf button until all of the digits are erased.

Answering Calls

1. When the phone rings, pick up the handset and press the TALK/SPEAKER

button.

2. When finished, press END button to hang up.

- OR -

If the auto talk mode is selected, pick up the handset from the charge cradle to

answer the call immediately.

NOTE: Adjust the handset volume by pressing the caller ID-volume ( or )

button during a call.

Call Timer

After you press the TALK/SPEAKER button on the handset, the built-in call timer

shows on the display and counts the length of time of the call in minutes and

seconds.

Auto Standby

If you place the handset in the cradle while the handset is off the hook (during a

call), the call is automatically disconnected.

Ringer Volume (Shortcut)

There are two ways to set the ringer volume. One is the traditional way as

described in the Programming Functions; Sound Setup; Ringer Volume menus.

The other one is this short cut to ringer menu.

1. Make sure the phone is OFF (not in TALK mode).

2. Press the #pause/ringer button to display SET RINGER LEVEL 5.

3. Use the caller ID-volume ( or ) button to scroll to your selection. LEVEL 5

is the default setting.

4. Press #pause/ringer button again to save and display the new selection for a

few seconds.

Flash/Call Waiting

If you subscribe to the combined Call Waiting Caller ID service from your local

telephone company, you will receive Caller ID information (if available) on Call

Waiting calls. During a phone call, you will hear a beep to indicate another call is

waiting on the line and Caller ID information for the waiting call shows on the

handset display.

• To connect to the waiting call, press the flash button on the handset, and your

original call is put on hold.

• To switch between the two calls, press the flash button.

Last Number Redial

You may redial a number up to 20 digits long. To quickly redial the last n9`umber

you dialed:

1. Press the TALK/SPEAKER button.

2. Press the redial/format button.

-OR-

3. Press the redial/format button first, then use the caller IDvolume ( or )

button to select the desired redial number.

- Press the caller ID-volume ( ) to review the oldest call and　 scroll toward the

most recent calls (higher numbers).

- Press the caller ID-volume ( ) to review the newest call and

　 scroll to older calls

(lower numbers).

NOTE: You may choose from the last three numbers that were dialed.

4. Press the TALK/SPEAKER button. The number dials automatically.

If you get a busy signal and want to keep dialing the number, press the

redial/format button to quickly redial the number.

Exit

Press the END button to exit a menu function and return to the standby screen.

Page

The page feature helps you locate a misplaced handset. To send and receive

pages, all handsets must be registered. If your handset is not registered, follow

the instructions in the Registration section of this manual.

Paging from the Base/Group Page

Use the base-only to page all registered handsets at the same time.

1. Press the find button on the base. All handsets beep for two minutes, and each

handset's screen displays FIND HANDSET.

2. To cancel the page, press the find button on the base, or press the

TALK/SPEAKER button or the END button on each handset.

Mute

To have a private, off-line conversation, use the MUTE feature. The party on the

telephone line cannot hear you, but you can hear them.

1. Press the mute/menu OK button. The handset screen displays MUTE ON.

2. Press the mute/menu OK button to cancel and return to your phone

conversation.

Receiver Volume Control

When the handset is ON (in TALK mode) you may adjust the receiver volume by

pressing the caller ID-volume ( or ) button. There are five volume levels to

choose from. When the maximum or minimum volume level is reached, the phone

beeps twice. VOL 1 is minimum and VOL 5 is maximum.

Do Not Disturb (D-N-D)

This feature allows you to turn off all the handset ringer(s) at once, by pressing

one button at the base unit, even though the ringer volume of handset(s) has

been preset.

1. In the standby mode, press the do not disturb button on the base.

2. The DND indicator illuminates and the handset screen displays .

3. To cancel, press the do not disturb button again.

NOTE: You can press the do not disturb button and activate the function

immediately, even when there is incoming call ringing in, or during call

screening after the call is taken by the answerer.

Intercom Operation

(applicable only with additional handsets)

The intercom feature allows you to have a conversation with another registered

handset without tying up the telephone line, allowing you to still receive incoming

calls.

Making an Auto Intercom Call

1. Make sure the handset is OFF (not in TALK mode).

2. Press the delete/int/conf button on the handset.

3. Use the touch-tone pad to select the handset you want to page.

NOTES:

a) If the user has not entered the paged handset number within a few

seconds, the handset displays a paged handset number list (i.e. Handset 2,

Handset 3, Handset 4, Handset 5 and Handset 6) if Handset 1 is paging the

handset.

b) Even if the handset has not been registered with all 6 handsets, the

paging list displays all handset numbers.

c) If the user has selected a paged handset number that has not been

registered, the handset emits an error tone and ask the user to retry again.

4. A long beep is heard and then the two handsets are immediately connected.

Receiving handset shall immediately come into the auto intercom mode that both

“microphone” and “speaker” of this receiving handset shall be enabled such that

the user of receiving handset can freely talk and listen to the conversation.

5. When finished, press the END button or delete/int/conf button on either

handset to deactivate the intercom.

NOTE: The system is expandable up to 6 handsets (by purchase of optional

Model 28203 handset with recharge cradle). When 4 handsets are registered,

the system can handle 2 separate intercom operations at once, for example,

1st handset intercoms with 2nd handset while 3rd handset intercoms with

4th handset.

Advanced Intercom Features

Receiving an Incoming Call During an Intercom Call

If you receive a telephone call during an intercom call, an incoming call alert tone

will be heard (through the earpiece or speaker). If the user wants to answer an

incoming call, they must press END to terminate the intercom and receive an

incoming ring.

Using Intercom with External Telephone Calls

During a telephone call, you may use the intercom/paging function to page

another handset and have an off line, private (two-way) intercom conversation.

You may also have a three-way conversation between the external caller and the

handsets, or you may transfer the external telephone call to another handset.

NOTE: Before you intercom/page another handset, you must decide

whether you want to create a two-way or a three-way conversation.

Two-Way Calling

1. During an external call, press the delete/int/conf button, and use the

touch-tone pad to enter the handset number to put an external line on hold. The

user may then auto intercom with the paged handset.

NOTE: Both intercom users may speak privately. The

external caller will not hear the intercom conversation.

2. When finished, press the END button to end the intercom call, return to the talk

mode, and resume your original telephone conversation.

Three-Way Calling

1. During an external call, press the delete/int/conf button. The screen displays

LINE ON HOLD EXTENSION?

2. Use the touch-tone pad to select Handset # to enter into auto intercom call with

paged handset.

3. When the receiving handset connects, press the delete/int/conf button on the

originating handset to conference with the receiving handset and the external

caller. The screen displays CONFERENCE on the originating and receiving

handsets.

NOTE: A handset can enter conference mode directly by pressing

TALK/SPEAKER on the second handset during a call.

Transferring External Calls to Other Handsets

During an external call, you may transfer the external call to another handset.

1. Press the delete/int/conf button on the originating handset to put an external

call on hold, and enter the paged handset number.

2. A long beep is heard and then the two handsets are immediately connected.

Receiving handset shall immediately come into the auto intercom mode that both

“microphone” and “speaker” of this receiving handset shall be enabled such that

the user of receiving handset can freely talk and listen to the conversation.

3. When the receiving handset connects, press the END button on the originating

handset to transfer the call.

Caller ID (CID)

IMPORTANT: In order to use this unit’s Caller ID features, you must

subscribe to either the standard Name/Number Caller ID Service or Call

Waiting Caller ID Service. To know who is calling while you are on the

phone, you must subscribe to Call Waiting Caller ID Service.

This unit receives and displays information transmitted by your local phone

company. This information can include the phone number, date, and time; or the

name, phone number, date, and time.

Call Waiting Caller ID

Provided you subscribe to Call Waiting Caller ID service from your phone

company; if you receive an incoming call and you are using the GE multi handset

system, a beep indicates the presence of a Call Waiting call on the line. The Call

Waiting Caller ID information will be displayed and stored in the history of all

handsets in the system.

• When you hear the call waiting beep in the handset receiver, press the flash

button to put the current call on hold and answer the incoming call. Press the

flash button to return to the original call.

Receiving CID Records

When you receive a call, the Caller ID information is transmitted between the first

and second ring. The Caller ID information appears on the display while the

phone rings, giving you a chance to monitor the information and decide whether

or not to answer the call.

Storing CID Records (In CID Memory)

If you are not at home or cannot answer, your telephone’s Caller ID memory

stores the data for the 40 most recent calls you received so you can see who

called while you were unavailable. When the 41st call is received, the oldest Caller

ID record (1st call) is automatically deleted.

You may review the stored information at any time. Calls received since your last

review show as in the display.

Reviewing CID Records

As calls are received and stored, the display is updated to let you know how many

calls have been received. To scroll CID records:

1. Make sure the phone is OFF (not in TALK mode).

2. Press the caller ID-volume () button to review the newest CID record.

3. Press the caller ID-volume () button to review the oldest CID record first.

Dialing a CID Number

1. Make sure the phone is OFF (not in TALK mode).

2. Use the caller ID-volume ( or ) button to display the desired record.

3. Press the TALK/SPEAKER button. The number dials automatically.

NOTE: Depending on (a) how the incoming caller’s phone number is

formatted when it is received, and (b) whether or not you previously

pre-programmed your local area code into the set up menu, you may need

to adjust the format of the incoming caller’s stored phone number before

making the call, press the redial/format button to adjust the number, and try

again.

Available formats include:

Number of digits Explanation Example

Eleven digits Long distance code “1 ” 1-317-888-8888

+3-digit area code

+7-digit telephone

number.

Ten digits 3 -digit area code + 3 17-888-8888

7-digit telephone

number.

Seven digits 7-digit telephone number 888-8888

Storing CID Records in Internal Memory

You may also store CID information in the phone’s internal memory.

NOTE: It is important that you format CID records correctly BEFORE storing

in internal memory as you cannot reformat CID records stored in memory.

1. Make sure the phone is OFF (not in TALK mode).

2. Use the caller ID-volume ( or ) button to scroll to the desired CID record.

3. Press the mute/menu OK button to display ENTER NAME and then follow

“ADD RECORDS in Phoneboook section” procedures from Step 3 to Step 7 to

store the number.

NOTE: Press the END button once to keep the previous setting (making no

changes) and return to the menu.

NOTE: If the selected CID record contains any information that is

non-numeric, the unit will not allow this record to transfer to the internal

user memory. The handset will display UNABLE TO STORE.

Deleting a CID Record

1. Make sure the phone is OFF (not in TALK mode).

2. Use the caller ID-volume ( or ) button to display the CID record you want

to delete.

3. Press the delete/int/conf button. The screen displays DELETE CALL ID?

NOTE: Press the END button to return to the previous screen without

deleting any CID records.

4. Press the delete/int/conf button to erase the record showing in the display.

The screen displays DELETED.

Deleting All CID Records

1. Make sure the phone is OFF (not in TALK mode).

2. Use the caller ID-volume ( or ) button to display any Caller ID record.

3. Press and hold the delete/int/conf button until the screen displays DELETE

ALL? .

NOTE: Press the END button to return to the previous screen without

deleting any CID records.

4. Press delete/int/conf button to erase all of the current CID records. The screen

displays DELETED followed by NO CALLS.

Phonebook

Each handset can store up to fifty records in phone book for quick dialing; each

record can contain a maximum of 20-digit numbers and 14-character names

(including spaces).

Review Records

1. Make sure the phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to go to main menu.

3. Use the caller ID-volume ( or ) button to scroll to PHONE BOOK.

4. Press the mute/menu OK button to access the phonebook submenu.

5. Use the caller ID-volume ( or ) button to scroll to VIEW RECORDS.

6. Press the mute/menu OK button to confirm, all records are shown in

alphabetical order.

7. Press the caller ID-volume ( or ) button or key in alphabet to view the

records and scroll to a record to be dialed out.

8. Press the TALK/SPEAKER button to confirm.

Add Records

From Phonebook Sub-Menu:

1. Use the caller ID-volume ( or ) button to scroll to ADD RECORDS.

2. Press the mute/menu OK button to confirm. The screen displays ENTER

NAME.

3. Use the touch-tone pad to enter a name (up to 14 characters). More than one

letter is stored in each of the number keys. For example, to enter Bill Smith, press

the key twice for the letter B. Press the key times for the letter I. Press the 5 key

times for the letter L. Press the 5 key times for the second letter L, and press the

1 key to insert a space between the first and last name. Press the 7 key times for

the letter S; press the 6 key once for the letter M; press the key times for the letter

I; press the 8 key for the letter T; press the key twice for the letter H.

NOTE: If you make a mistake press the delete/int/conf button to backspace

and erase the wrong character(s) or number(s).

4. Press the mute/menu OK button again to save your selection. The screen

displays ENTER NUMBER.

5. Use the touch-tone pad to enter the telephone number (up to 20 digits,

including pauses), and press the mute/menu button to confirm and advance SET

MELODY sub-menu.

6. Use the caller ID-volume ( or ) button to select from melody 01 to melody

10 (a testing tone is generated while making melody selection).

7. Press mute/menu OK button to confirm, the records are stored alphabetically

in the phone book.

Inserting a Pause in the Dialing Sequence (of a Stored Number)

Press the #pause/ringer button on the handset’s touch-tone pad to insert a delay

in dialing sequence when a pause is needed to wait for a dial tone (for example,

after you dial 9 for an outside line, or to wait for a computer access tone.) Each

pause counts as one digit in the dialing sequence.

Edit Records

From Phonebook Sub-Menu:

1. Use the caller ID-volume ( or ) button to scroll to EDIT RECORDS.

2. Press the mute/menu OK button to confirm, the screen displays the records.

3. Use the caller ID-volume ( or ) button or key in alphabet to move to

desired record, press mute/menu OK button to confirm. The screen displays

ENTER NAME.

4. Repeat Steps 3 through 7 in “Add Records” section.

Delete Records

From Phonebook Sub-Menu:

1. Use the caller ID-volume ( or ) button to scroll to DELETE RECORDS.

2. Press the mute/menu OK button to confirm, the screen displays the records.

3. Use the caller ID-volume ( or ) button or key in alphabet to move to

desired record, press the delete/int/conf button. The screen displays DELETE?.

4. Press the delete/int/conf button again to confirm.

NOTE: If you don’t want to change or delete a record, simply press the END

button, or wait for one minute to exit automatically.

Dialing a Number from Internal Memory

1. Make sure the phone is OFF (not in TALK mode).

2. Press the mute/menu OK button to access the phonebook sub-menu.

3. Use the caller ID-volume ( or ) button to scroll to VIEW RECORDS.

4. Press the mute/menu OK button to confirm

5. Use the caller ID-volume ( or ) button or key in alphabet to move to the

desired number.

6. Press the TALK/SPEAKER buttons, the number dials automatically.

Changing the Battery

CAUTION: To reduce the risk of fire or personal injury, use only the

approved Nickel-metal Hydride battery (Ni-MH), which is compatible with

this unit.

1. Make sure the telephone is OFF (not in TALK mode) before you replace

battery.

2. Remove the battery compartment door.

3. Disconnect the cord attached to the battery pack and remove the battery pack

from the handset.

4. Insert the new battery pack and connect the cord to the jack inside the battery

compartment.

5. Put the battery compartment door back on.

6. Place handset in the base to charge. Allow the handset battery to properly

charge (for 16 hours) prior to first use or when you install a new battery

pack. If you do not properly charge the phone, battery performance will be

compromised.

Battery Safety Precautions

• Do not burn, disassemble, mutilate, or puncture. Like other batteries of this type,

toxic materials could be released which can cause injury.

• To reduce the risk of fire or personal injury, use only the Nickel-metal Hydride

battery listed in the User’s Guide.

• Keep batteries out of the reach of children.

• Remove batteries if storing over 30 days.

Display Messages

The following messages show the status of the phone, provides Caller

ID information, or helps you set up and use your phone.

BLOCKED NUMBER Indicates the person is calling from a

number which is blocked from

transmission.

CALL SCREENING Indicates you may use the handset to

screen calls before answering the call.

CHARGING... Indicates the handset needs to charge

for a period of time before it can

resume normal function.

DELETE ALL? Prompt asking if you want to erase all

CID records

DELETE CALL ID? Prompt asking if you want to erase the

CID record showing on the display.

DELETE? Prompt asking if you want to erase one

of the 50 records stored in the phone’s

memory.

END OF LIST Indicates that there is no additional

information in CID memory.

ENTER NAME Prompt telling you to enter the name

for one of the 50 memory locations.

ENTER TEL NUMBR Prompt telling you to enter the

telephone number for one of the 50

memory locations.

HANDSET NAME Prompt telling you to enter the user

name for the registered handset.

HANDSET NEEDS Indicates you must register a

non-registered handset

REGISTRATION prior to use.

INCOMPLETE DATA Caller information is interrupted during

transmission or the phone line is

excessively noisy. Indicates no CID

information was received, you are not

subscribed to CID service, or CID

service is not working.

LINE IN USE Displays on handset while the line is in

use.

LONG DISTANCE Indicates CID record is from a long

distance call.

LOW BATTERY Indicates the battery needs to be

charged.

MSG WAITING OFF Indicates voice mail has been retrieved

from service provider.

NEW CALL XX XX represents the number of new CID

records not reviewed.

NEW VOICE MAIL Indicates voice mail has not been

retrieved from service provider.

NO CALLS Indicates there are no CID records in

memory.

OUT OF RANGE Ma

indicate handset is too far awa

from the base or that the power has

been interrupted. Move closer and

check connections.

PAGING or PAGING FROM Someone pressed the page button on

the base or delete/int/conf button on

the handset

REPT Indicates a repeat call message.

Indicates a new call from the same

number was received more than once.

ROOM MONITORING.... The audio link between handsets is

established.

SEARCHING Indicates handset is searching for the

base.

SPKR Indicates the handset is in

speakerphone mode.

UNKNOWN NAME/

CALLER/NUMBER The incoming call is from an area not

serviced by CID or the CID information

was not sent.

2112 USA user manual
