CDVI WIRELESS S P A DK433 RADIO KEYBOARD ERONE MOD. DIGIKEY SEDK2641A4 User Manual Istruzioni digikey
CDVI WIRELESS S.P.A. RADIO KEYBOARD ERONE MOD. DIGIKEY SEDK2641A4 Istruzioni digikey
User Manual
1
4
7
*
3
6
9
#
2
5
8
0
GUARANTEE
Warranty period : 24 months from the production date placed inside. In this
period if the appliance has any malfuction due to defective component, it
will be repaired or replaced by the manufacturer. The warranty doesn't cover
the plastic box The assistance will be perfomed at the manufacturer site.
KEYPAD RCS-433KP
We appreciate your choice of this product.
This product is addressed to manage the access in
automatic gates and door control systems.
This keypad has been carefully manufactured and checked.
The manufacturer has designed this system to assure the best rielability and
satisfaction.
We recommend that you read carefully this manual before proceeding with
the installation
Technical Specifications
Operating Frequency 433,92 MHz
Power supply 3 Vdc
Modulation AM/ASK
Number of keys 12
Coding type Rolling Code
64
Number of combinations 2
E.r.p. 6 mW
Absorbtion 20 mA
Range in open space 150 - 700 meters
Transmission duration 2 sec.
Housing protection IP 44
Operating temperature from 14 °F to 131 °F
Dimensions 5.7x3.07x1.25 in
Weight 3.24 oz
Battery type Lithium 123A
Introduction
This keypad is a radiotransmitter operating at 433,92 MHz in
AM/ASK modulation.
It can be used as master transmitter to program the block
receiver RCS-433BMR.
The security code is a rolling type: that means that it changes at
each transmission avoiding any risk of copy and scanning.
Each product is set-in-factory with a different serial number.
This keypad can be used only as master transmitter but doesn’t
activate any relay on the block receiver.
Use the keys 0-9 to dial the number and the keys “*” and “#”
for the commands YES and NO of the block receiver --> See the
Installation Manual of the block receiver.
NOTE: The appliance uses a lithium battery type CR123A-S-3V.
The removal and the disposal of the battery must have effected
before the elimination of the appliance and according to the
current Regulations.
ATTENTION: - Danger of explosion if the battery is not replaced
in the correct way! Replace only with an equal or equivalent type.
Battery replacement
Remove the cover and extract the old battery from the bottom site
of the electronic card with an upward traction. Insert the new
battery on the battery location, respecting the right polarity.
+
-
+
-
LITHIUM CR123A

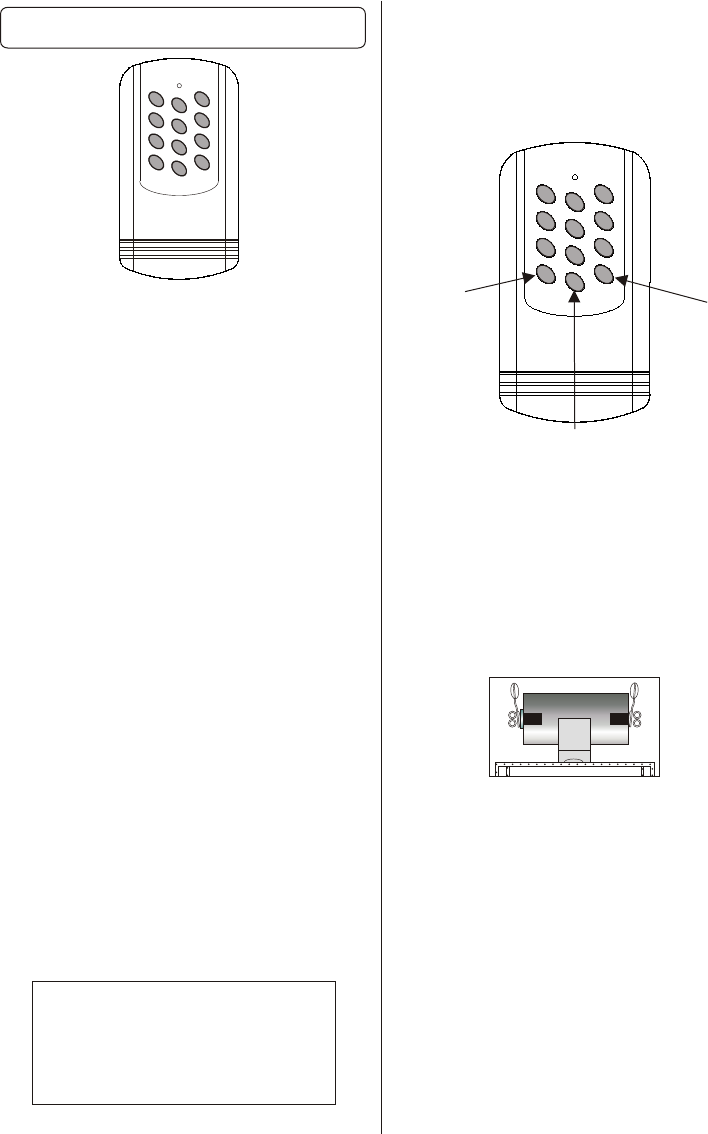

Use of the keypad keys
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 = Normal digits
(*) = Corresponding to LEFT Key of a Master transmitter
(#) = Corresponding to RIGHT key of a Master transmitter
(0) = Corresponding to RIGHT+LEFT simultaneously key of a
Master transmitter
1
4
7
*
3
6
9
#
2
5
8
0
Right key
Left key
During a dial phase, the key “*” has the functionality of a
backspace. It can be used to correct a wrong dialing.
Once finished the number dialing, the key “*” goes back to the
standard functionality corresponding to the LEFT key of a Master
transmitter.
The keys “*” and “#” can even be pressed down simultaneously
for the corresponding function LEFT+RIGHT of a master
IS-TDKDCUK Rev.2 on 5/9/2003
RCS-433KP - SEDK2641A4
FCC ID : PWJDK433
This device complies with FCC Rules Part 15
Operation is subject to the following two conditions:
1) This device may not cause harmful interferences;
2) this device must accept interference that may
cause undesired operation.
Left key
+ Right key
Made in Italy
WARNING
“Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment”
