CE LINK SPBANDSL1-01 Intelligent Health Tracker User Manual L1
CE LINK LIMITED Intelligent Health Tracker L1
CE LINK >
Users Manual
INTELLIGENT HEALTH TRACKER FOR IOS AND
ANDROID PHONES
User Manual
Introduction……………………………………………………….…1
Operation Notes………………………….…………………………2
Features……………………………………………………..……….3
Specifications……………………………………………………….4
Product Show & QR Code…………………………...……………5
Connection Diagram……………………………………………….5
How to connect……...…………..……….….……………………..6
Function operation………………………………………..……….8
INTRODUCTION Intelligent Health Tracker
1
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or using this product. Please keep this manual
for future reference.
INTELLIGENT HEALTH TRACKER FOR IOS AND ANDROID PHONES
Combining this Intelligent Health Tracker and the featured App can build an integrated system
focus on healthy and fashion lifestyle. It can intelligently track your daily activity and sleep status,
and allow you to set your own activity target, and urge you to achieve goals by incentive
mechanism and notification to live a healthier life.
The Intelligent Health Tracker screen can display the time, step, calories and the track you have
passed via touching the screen button, if you want more detail about your activity and sleep, check
the APP on mobile phones or tablet devices. The App records all the movement and sleep details
from the Intelligent Health Tracker to make a concrete analysis and provide unique suggestion.
The tracing system and powerful background data analysis of the product can help you learn more
about how your daily activity and sleep status, it can customize unique target for you and constantly
inspire you to improve your health. It is a good helper in your daily life.
HOW IT WORKS
Using one equipped die-cast charging cable to connect the die-cast port to the Intelligent Health
Tracker, and plug the USB port into computer or USB charger for power, and then touch the screen
button on the Intelligent Health Tracker to switch function. Download official APP of Intelligent
Health Tracker and sign up, then connect to Intelligent Health Tracker according to the guide and
start your new fashion life.
OPERATION NOTES Intelligent Health Tracker
2
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE
INTELLIGENT HEALTH TRACKER FOR IOS AND ANDROID PHONES
1. For optimum performance, please use the Intelligent Health Tracker according to the user
manual.
2. Please do not put your finger on the touch area when charging the Intelligent Health Tracker.
3. The compatible operating system is iOS5.1or above/ android4.3 or above. Please make sure
your device can meet this requirement. （Apple users are strongly recommended to use iOS7
system or above, because iOS7 system increases the message alert mechanism - ANCS
service）
4. Bluetooth technology must be Bluetooth 4.0
5. This Intelligent Health Tracker and official App can be used individually, but combining them
together can create a better experience for you.
6. This Intelligent Health Tracker is connected to your device via Bluetooth. Please make sure the
Bluetooth is turned on before you are going to learn more details from the App.
7. Do not operate or expose the Intelligent Health Tracker in too high or too low temperature
environment
8. Do not put the Intelligent Health Tracker close to the fire, such as stove, candles, etc.
9. Do not let the Intelligent Health Tracker soaked into liquid, such as swimming pool, bathtub, etc
10. Do not wash the Intelligent Health Tracker with corrosive cleaner.
Troubleshooting
1. In the process of using Intelligent Health Tracker, touch the screen once, if the screen doesn’t
light up, please long touch for 7.5s, then Intelligent Health Tracker will restart when not being
out of power.
2. When charging for a period of time, the screen still doesn’t display charging status, please long
touch for 7.5s, then Intelligent Health Tracker will restart in normal operation condition.
3. If the screen is on all the time, keep a certain interface all the same, and no reaction while
touching Intelligent Health Tracker, please long touch for 7.5s, then Intelligent Health Tracker
will restart.
FEATURES Intelligent Health Tracker
3
Bluetooth 4.0 Low Energy profiles subsystem is a comprehensive system focus on healthy way
of life, including sleep monitoring, motion tracking, data analysis, motion excitation and smart
reminder. Connected the mobile phone via Bluetooth, users can set their own exercise plan
and target, view the history of the movement.
The user can update the Bluetooth intelligent equipment through the application of mobile
phone. Mobile phone must support Bluetooth 4.0 Low Energy. Download the firmware to the
Bluetooth intelligent device by means of OTA.
FEATURES
Track daily activity including steps, distance, calories burned
Track sleep quality including sleep hours, time to fall asleep, wake up times
Smart alarm and nap alarm to wake you up at the certain time
Idle reminder to push you move when you have been sedentary for too long
Data depth analysis and customize unique target
Free downloadable official app to work together
Humanized design, comfortable to wear
Simple Sync via Bluetooth
Up to five days of battery life
Waveform factor on day and night
Splash proof design
PACKAGE CONTENTS
Main unit×1
Die-cast charging cable×1
User Manual×1
SPECIFICATIONS Intelligent Health Tracker
4
SPECIFICATIONS
Software.................................................................................. iOS5.1or above/ android4.3 or above
Screen size............................................................................................................................0.69inch
Peripheral................................................................................................................................. Motor
Operating temperature......................................................................................................... 0~40°C
Storage temperature..........................................................................................................-20 ~ 85°C
Operation humidity...............................................................................................................45 ~ 65%
Net weight....................................................................................................................................14g
User Manual.............................................................................................................. English Version

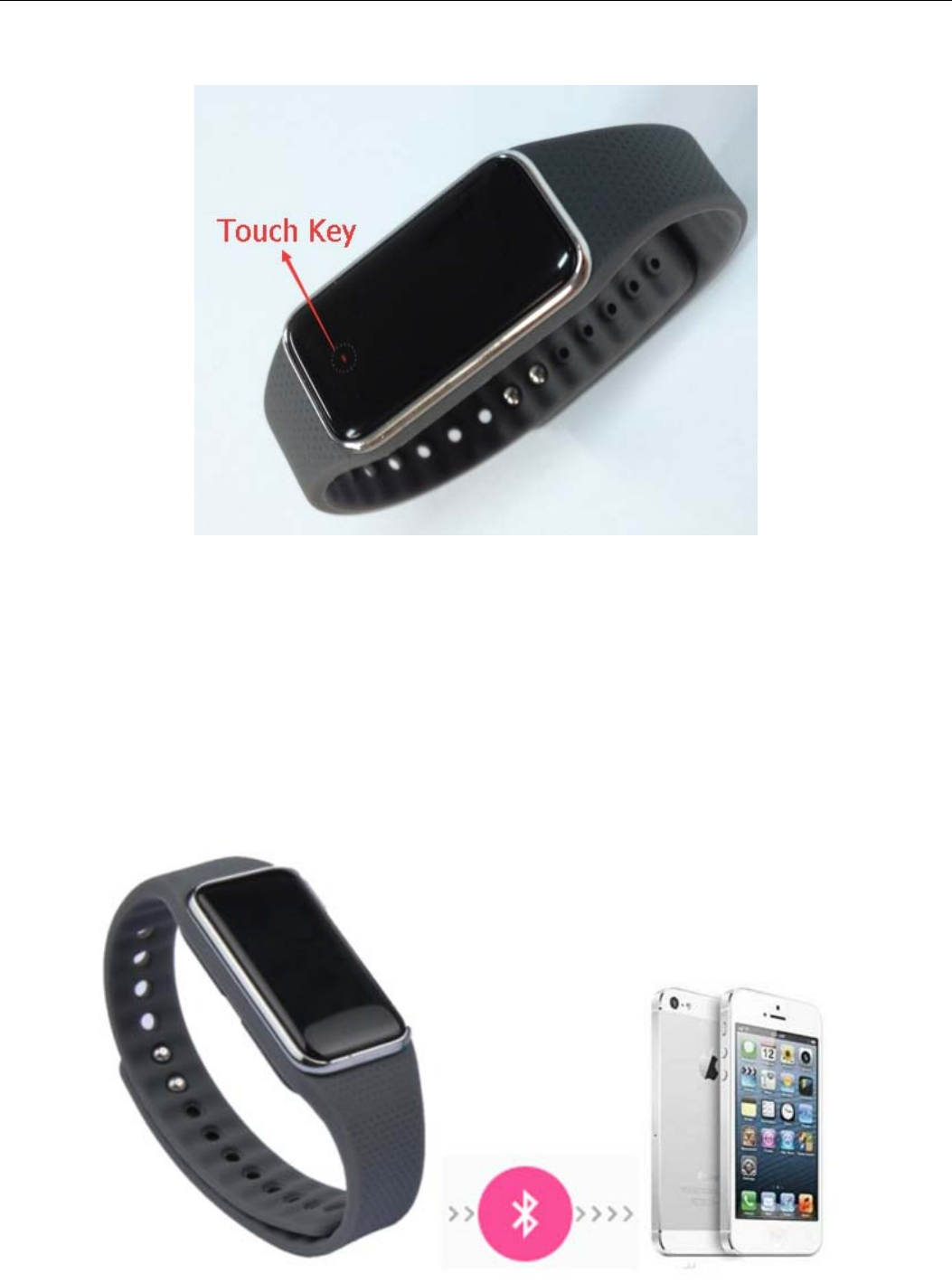

CONNECTION DIAGRAM Intelligent Health Tracker
5
PRODUCT SHOW
QR CODE
You can scan the QR code on the box to download the APP.
CONNETION DIAGRAM
HOW TO CONNECT Intelligent Health Tracker
6

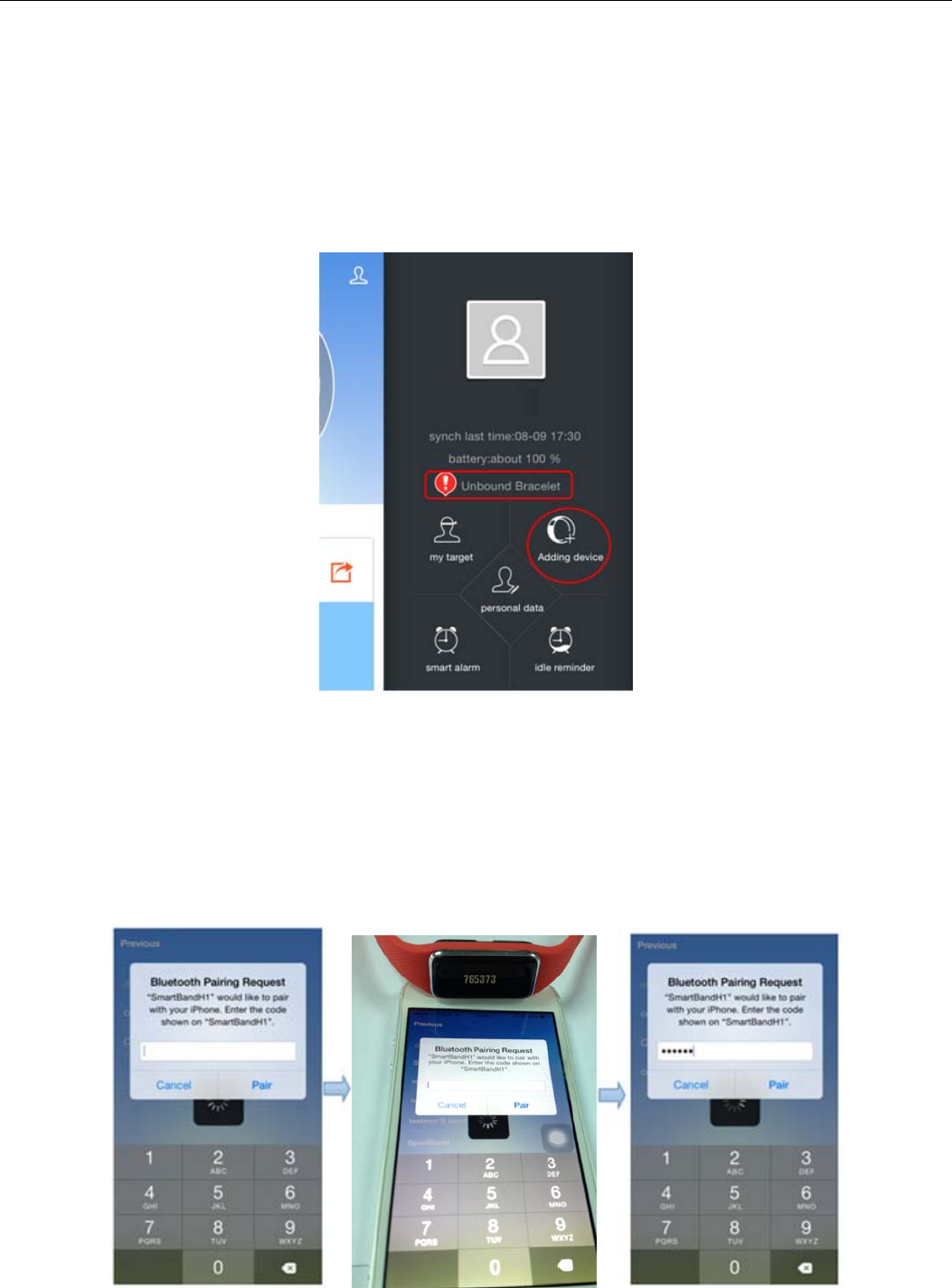

Intelligent Health Tracker Bluetooth connection steps are as follows:
1. Turn on the mobile phone Bluetooth;
2. Click on the APP icon, enter the Home page;
3. Click the user image on the top right corner; get to the next screen;
4. There are five items, select “Adding device”;
5. Available device name appear on the screen, choose the corresponding Intelligent Health
Tracker to be connected;
6. A dialog box shows” Bluetooth pairing request”, there will be six random numbers appear on the
screen of the Intelligent Health Tracker synchronously. Input the six random numbers, click on
“Pair”,
HOW TO CONNECT Intelligent Health Tracker
7

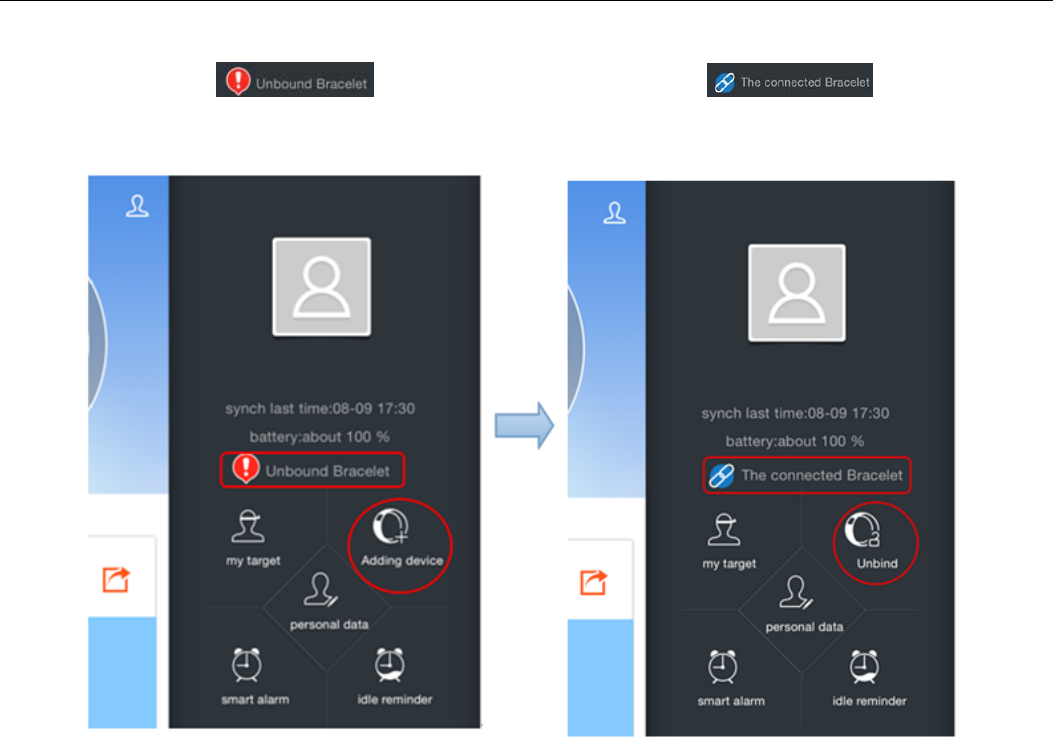

7. Intelligent Health Tracker successfully connected with your phone; at that time, “Adding device”
become “Unbind”, (Unbound Bracelet) become (The connected
Bracelet)
Data synchronization:
1. After the Intelligent Health Tracker and phone Bluetooth successfully connected, real time
synchronization occurs.
2. The APP data and the Intelligent Health Tracker data will keep in sync every few seconds.
3. The data which displays on the Intelligent Health Tracker will return to zero on the next day,
and the previous data will auto-sync to the record.
FUNCTION OPERATION Intelligent Health Tracker
8

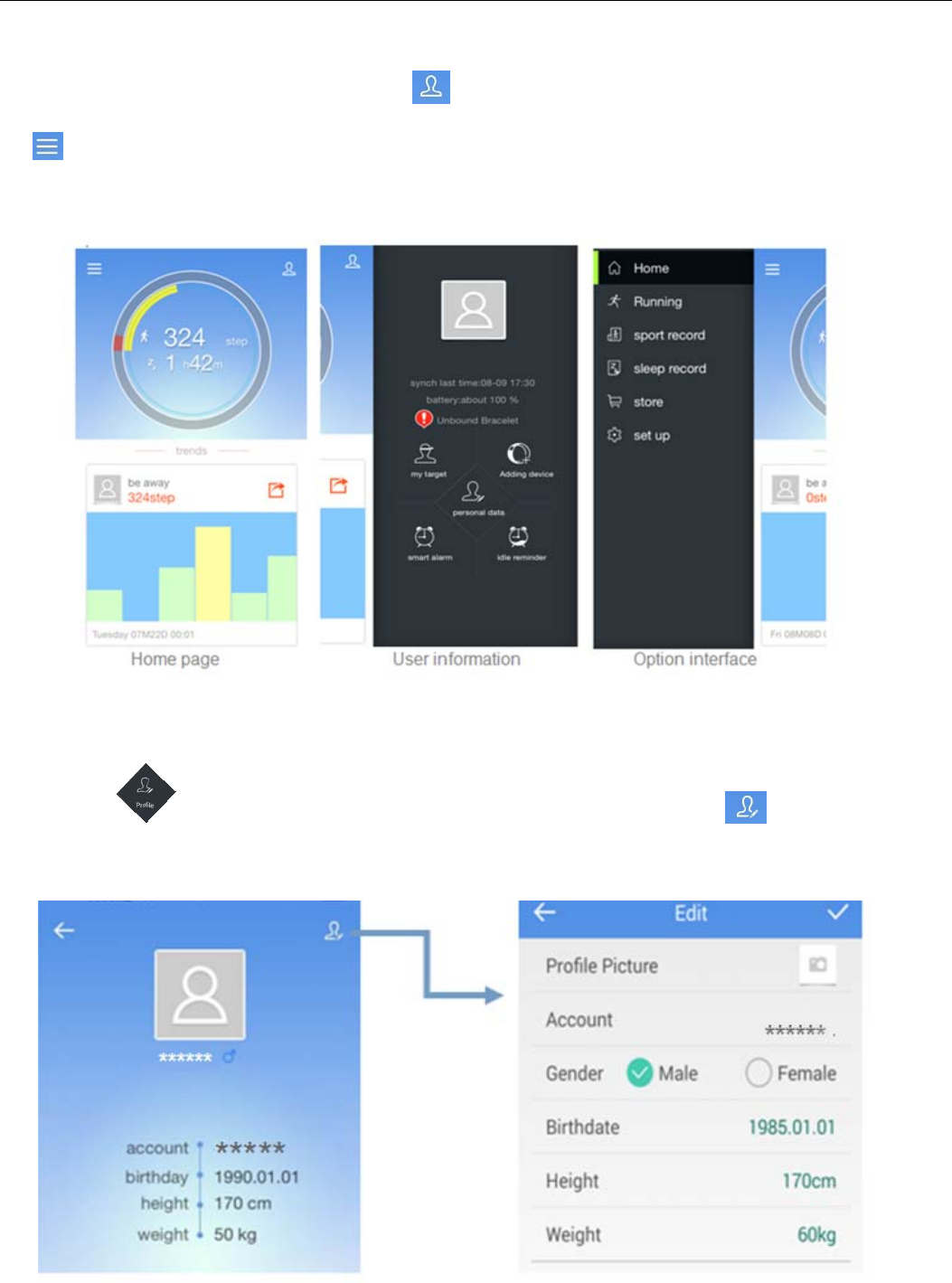

There are three main operation interfaces: homepage, user information interface and option
interface. On the homepage, click on the , enter the user information interface; click on
the , enter the option interface; you can also slide the left and right sides of your mobile
phone screen to achieve the result. As follows:
On the user information interface, there are five items.
①Click on (Profile), enter the interface as shown below; Click on , you can edit
personal information, set user image which comes from local pictures or taking photos.
FUNCTION OPERATION Intelligent Health Tracker
9

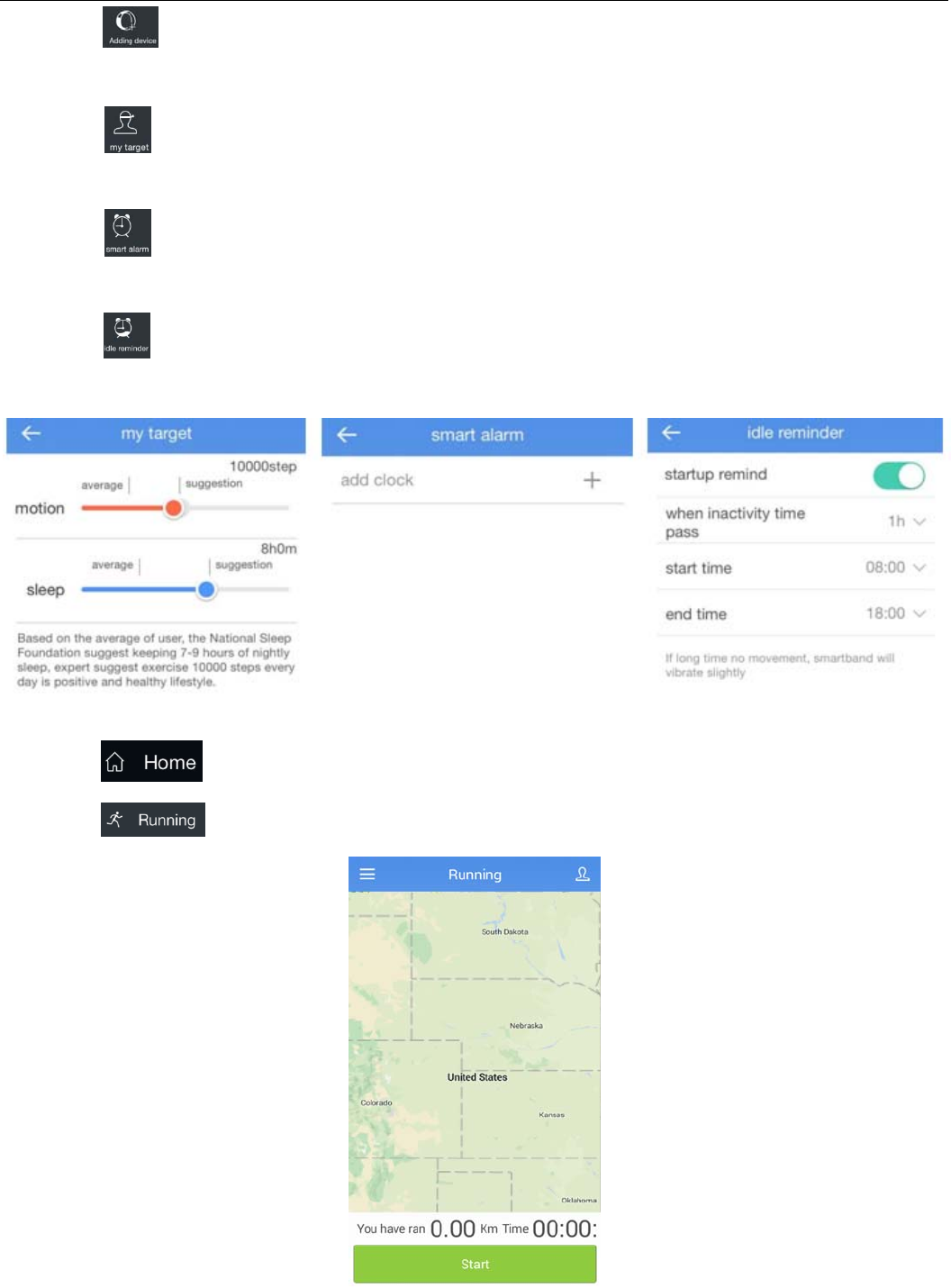

②Click on (adding device), the APP starts to search for the available equipments, you can
refer to “HOW TO CONNECT” to learn the specific operation.
③Click on (my target), enter the interface as shown on the left below, it provides unique
suggestion for you and shows your daily activities and sleep status.
④Click on (smart alarm), enter the interface as shown on the middle below, you can add
clock.
⑤Click on (idle reminder), enter the interface as shown on the right below. If long time no
movement, the Intelligent Health Tracker will vibrate slightly, push you to move.
On the option interface, there are six items.
①Click on , and then return to the homepage.
②Click on , enter the interface which displays your sport line and run duration;
FUNCTION OPERATION Intelligent Health Tracker
10

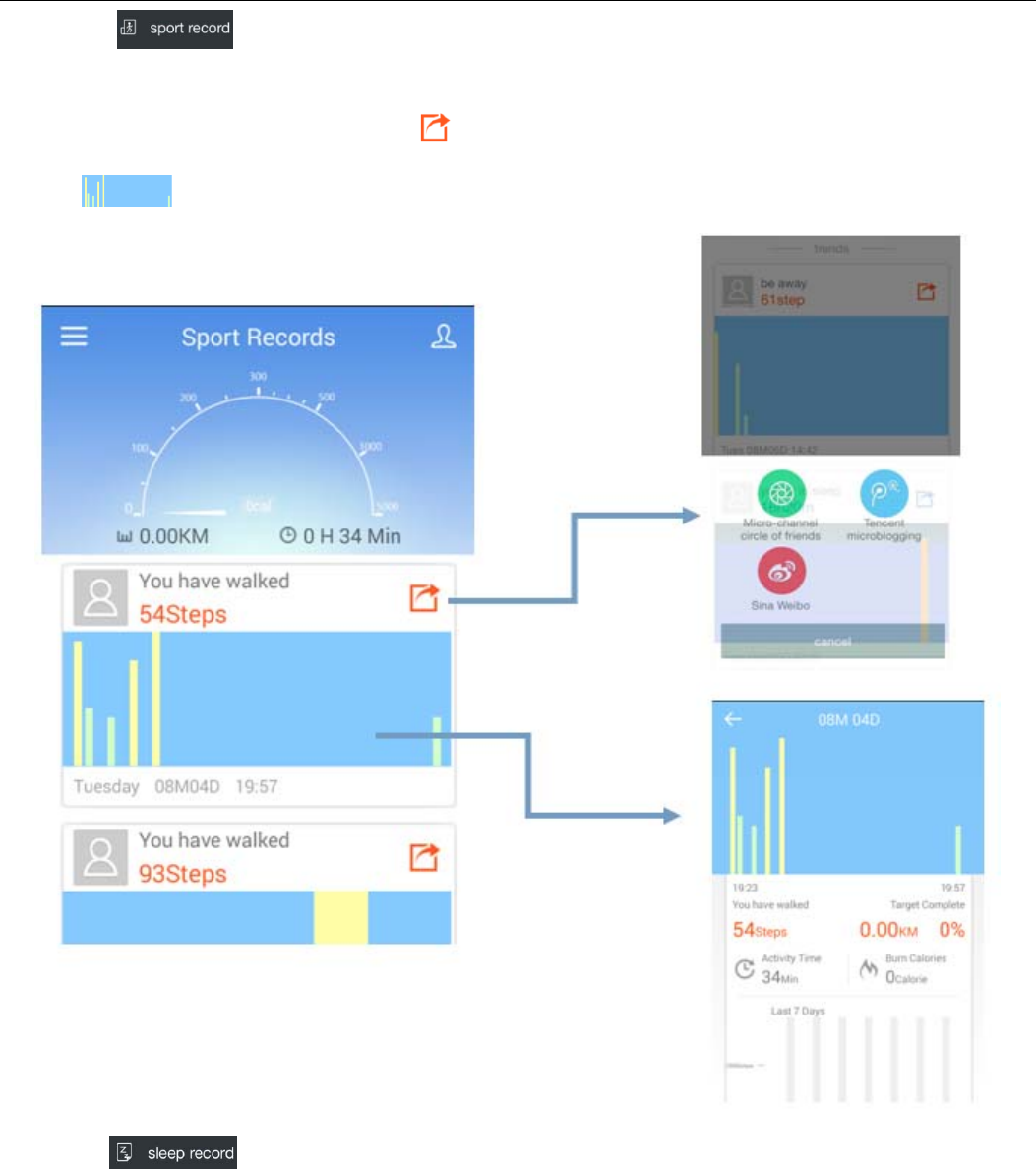

③Click on , enter the interface, from which you can view the activity records. The
records shall be kept for 30 days.
On the sport records interface, click on , you can share your sport situations with your friends;
click on , you can view the detailed information of your activities.

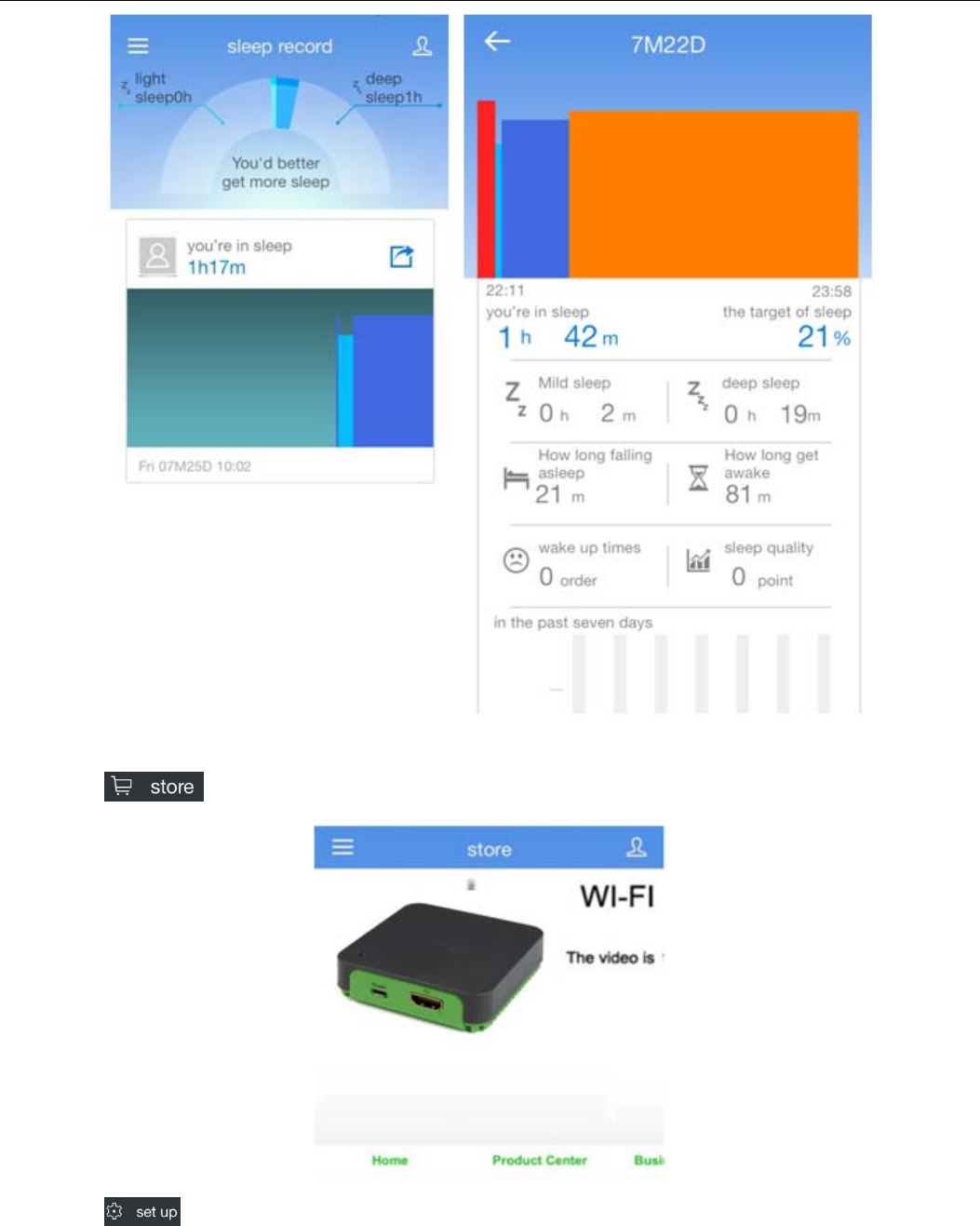

④Click on , you can view your sleep records, the operation is the same as sport records.
You can share with your friends, view the details.
FUNCTION OPERATION Intelligent Health Tracker
11
⑤Click on , you can enter online store to find what you need.
⑥Click on , you can set up personal privacy and learn more details of the Intelligent Health
Tracker. Moreover, you can set up reminding when some information (include phone calls, text
FUNCTION OPERATION Intelligent Health Tracker
12
message) received by your phone, the reminding method of the Intelligent Health Tracker can be
“Light”, “Vibrate” or “Light ＋ Vibrate”. The operations as follows:

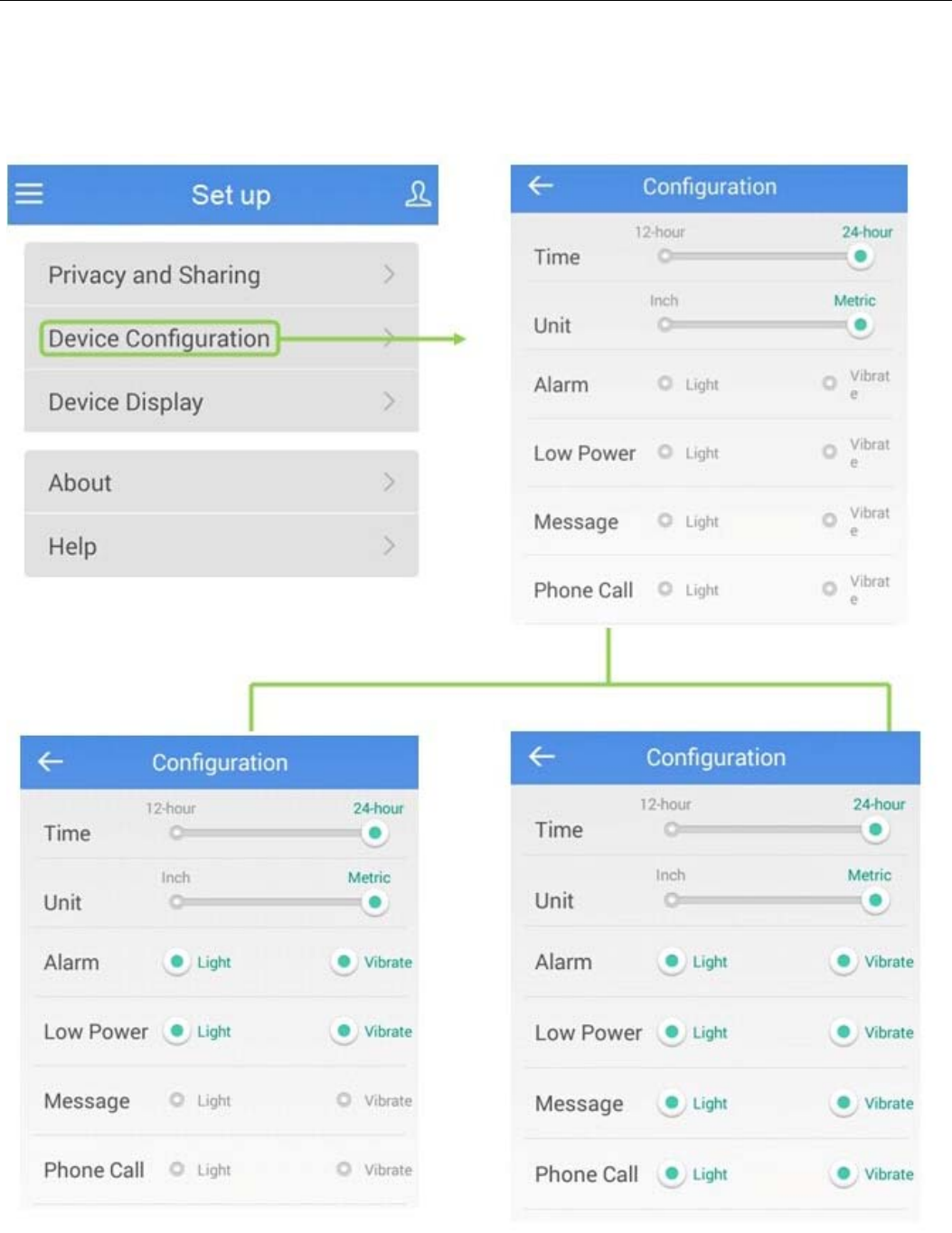

On the set up interface, click on “Device Configuration”, select the application which needs to be
alert, and then select “Light” or “Vibrate” or the both, the setting is successful.
FUNCTION OPERATION Intelligent Health Tracker
13
However, for phone, after finished the above operation, you also need to set up your phone, the
operation steps as follows:

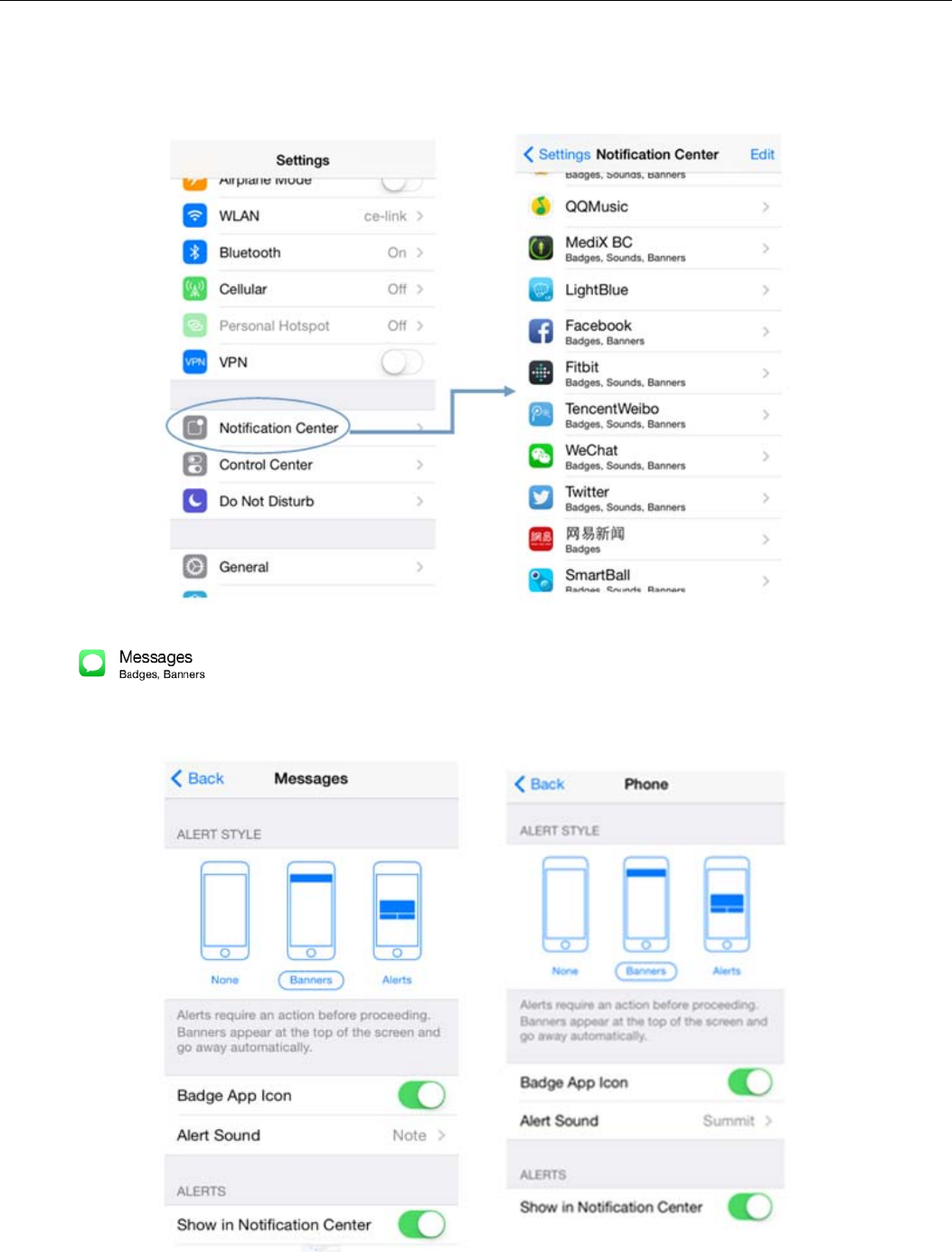

Open your iPhone settings interface, select “Notification Center “, and enter the Apps interface,
Select the App which needs to be alert. For example, you want the Message to be alert, and then
click on , enter the below interface, select “Banners” or “Alerts”, then the setting of
your iPhone is successful. When you need other Apps to be alert, the operation steps are the same.
PN9004
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
