CE LINK WPC101MJ02 Wireless Fast Charger User Manual

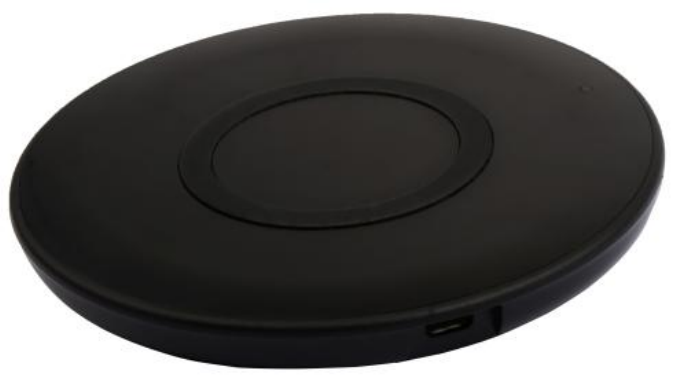

CE LINK LIMITED Wireless Fast Charger
CE LINK >
Manual
Wireless Charger
User Manual
CONETNES
1.0 INTRODUCTION ----------------------------------------------------- 1
2.0 FEATURES ----------------------------------------------------------- 1
3.0 SPECIFICATIONS -------------------------------------------------- 1
4.0 PACKAGE CONTENTS ----------------------------------------------- 2
5.0 OPERATION --------------------------------------------------------- 2
6.0 CONNECTION DIAGRAM -------------------------------------------- 3
Wireless Charger
1
Wireless Charger
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION
This product is a high-performance wireless charger. This product is
suitable for mobile phones, MP3, MP4, digital productions, and other
productions based on wirless charging 5W. Connect the wireless to a
power charger, and then you can charge your device supported
wireless charging (MP3, mobile phones, etc) by put it on the charger
directly.It is helpful in long time journey and convenient for business!
2.0 FEATURES
Transmitting terminal input: 5V/2A, or 9V/1.8A
Transmitting terminal output: 5W
Intelligent two-color indicator to show working condition
Compliant with CE, FCC standards
It is light, smart and convenient to use
3.0 SPECIFICATIONS
Input
Micro-USB: 5V/2A, or 9V/1.8A
Output
5V/1A, or 9V/1.1A
Switch Frequency
111.5K-205K
Operating Temperature Range
0~35°C
Storage Temperature Range
-20 ~ 70°C
Operation Humidity
10% ~ 80% RH
Storage Humidity
5% ~ 95% RH
Size
63.4(L)*54(W)*30(H)mm
Weight
145g
Wireless Charger
2
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
Main unit×1
User Manual×1
5.0 OPERATION
Operation Procedures
1. Connect the wireless charger with a powered adapter, and then
the light will blink blue and red twice.
2. Put your device (supported wireless charging) on the charger, the
light will turn blue.
3. When finished charging, the light will trun red.
4. Please remove your device after fully charged.
Note: When accident occurs, the light flashs red.
Operation Notes
1. For optimum performance, please use the wireless charger
according to this user manual.
2. Please connect the wireless charger to a power adapter which
output should be 5V/2A, or 9V/1.8A.
3. Please unplug the wireless charger after using.
4. Do not use the wireless charger with an electronic product which is
not in conformity with the specifications, so as to avoid any
problem caused by specification mismatching.
5. It’s normal that wireless charger will be a little overheated in the
use process.
6. When the wireless charger stops working under some accidents
occurs, you need to check whether the device is compatible with
this charger.
7. Do not let the wireless charger close to fire, such as stove, candles
and etc.
8. Do not let the wireless charger soak into liquid, such as swimming
pool, bathtub, etc.
9. Do not wash the wireless charger with corrosive cleaner.
10. If the wireless charger cannot work properly, please contact the
store or distributor in your area.
Wireless Charger
3

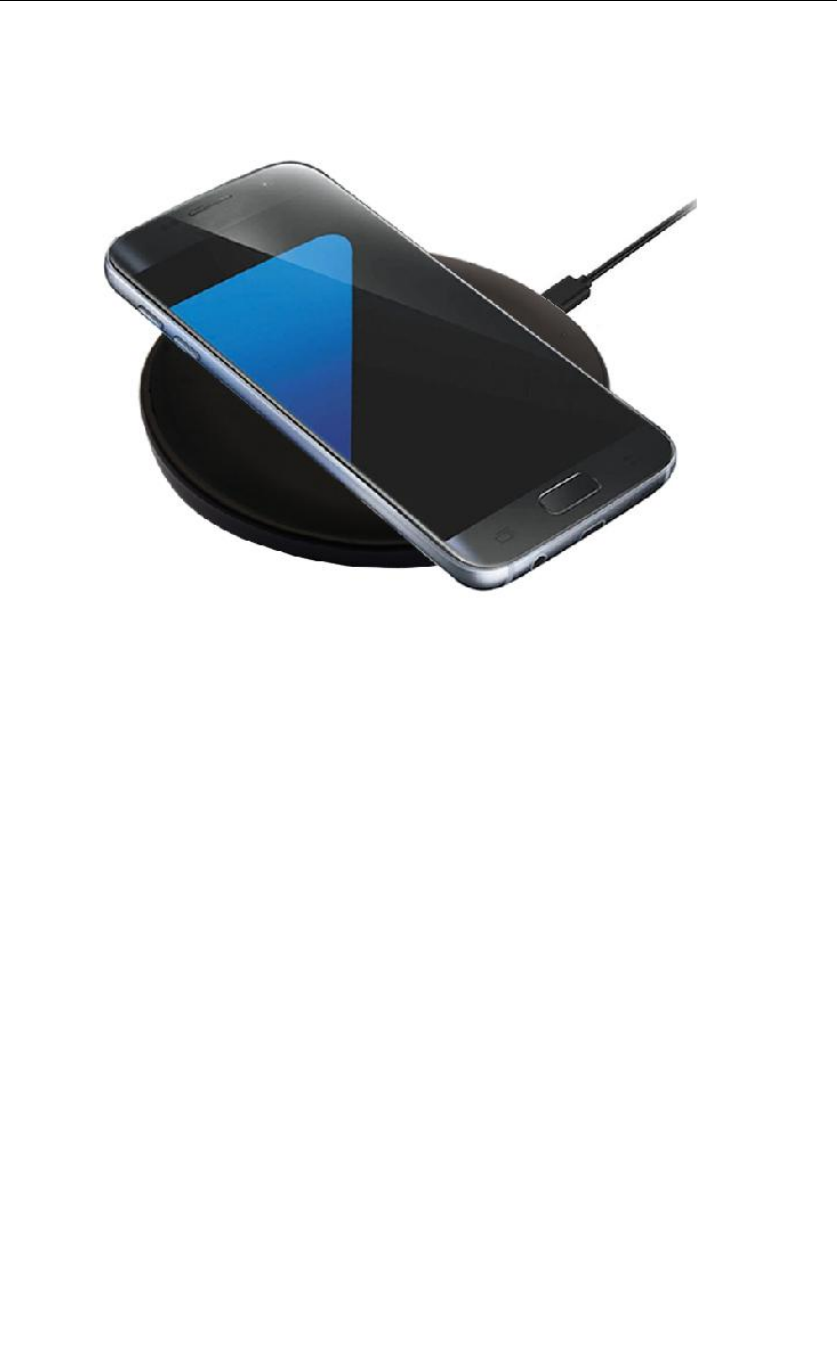

6.0 CONNECTION DIAGRAM
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
