CE LINK WPC102TJ01 Wireless Fast Charger User Manual

CE LINK LIMITED Wireless Fast Charger

User manual

Wireless Fast Charger
User Manual
CONETNES
1.0 INTRODUCTION ----------------------------------------------------- 1
2.0 FEATURES ----------------------------------------------------------- 1
3.0 SPECIFICATIONS -------------------------------------------------- 1
4.0 PACKAGE CONTENTS ----------------------------------------------- 2
5.0 OPERATION --------------------------------------------------------- 2
6.0 CONNECTION DIAGRAM -------------------------------------------- 3
Wireless Fast Charger
1
Wireless Fast Charger
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference. HINEN ELECTRONICS (SHENZHEN) CO.,LTD. 2/F, Building
G, Licheng Tech.Ind.Zone, Gonghe Village, Shajing Town, Shenzhen
City, China
1.0 INTRODUCTION
This product is a high-performance wireless charger. This product is
suitable for mobile phones, MP3, MP4, digital productions, and other
productions based on wireless charging 5W or 10W. Connect the
wireless to a power charger, and then you can charge your device
supported wireless charging (MP3, mobile phones, etc) by put it on
the charger directly. It is helpful in long time journey and convenient
for business!
2.0 FEATURES
Transmitting terminal input: 5V/2A, or 9V/1.67A
Transmitting terminal output: 5W or 10W
Intelligent two-color indicator to show working condition
Compliant with CE, FCC standards
It is light, smart and convenient to use
3.0 SPECIFICATIONS
Input
Micro-USB: 5V/2A, or 9V/1.67A
Output
5V/1A, or 9V/1.1A
Switch Frequency
111.5K-205K
Operating Temperature Range
0~35°C
Storage Temperature Range
-20 ~ 70°C
Operation Humidity
10% ~ 80% RH
Storage Humidity
5% ~ 95% RH
Size
139.96(L)*69.96(W)*14(H)mm
Weight
150g
Wireless Fast Charger
2
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:

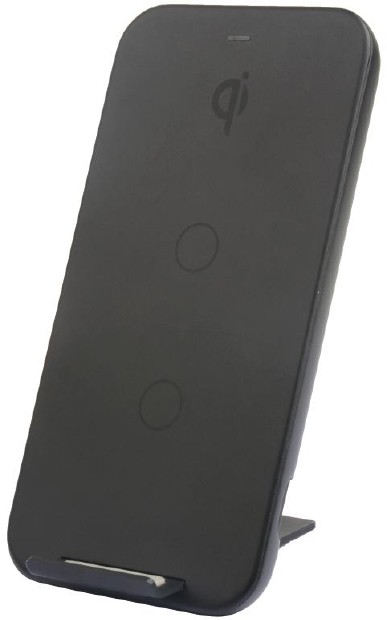

Main unit×1
User Manual×1
5.0 OPERATION
Operation Procedures
1. Connect the wireless charger with a powered adapter, and then
the light will blink blue and red twice.
2. Put your device (supported wireless charging) on the charger, blue
LED alternating flash.
3. When finished charging, the light will turn blue.
4. Please remove your device after fully charged.
Note: When accident occurs, the light flashes red.
Operation Notes
1. For optimum performance, please use the wireless charger
according to this user manual.
2. Please connect the wireless charger to a power adapter which
output should be 5V/2A, or 9V/1.67A.
3. Please unplug the wireless charger after using.
4. Do not use the wireless charger with an electronic product which is
not in conformity with the specifications, so as to avoid any
problem caused by specification mismatching.
5. It’s normal that wireless charger will be a little overheated in the
use process.
6. When the wireless charger stops working under some accidents
occurs, you need to check whether the device is compatible with
this charger.
7. Do not let the wireless charger close to fire, such as stove, candles
and etc.
8. Do not let the wireless charger soak into liquid, such as swimming
pool, bathtub, etc.
9. Do not wash the wireless charger with corrosive cleaner.
10. If the wireless charger cannot work properly, please contact the
store or distributor in your area.
Wireless Fast Charger
3

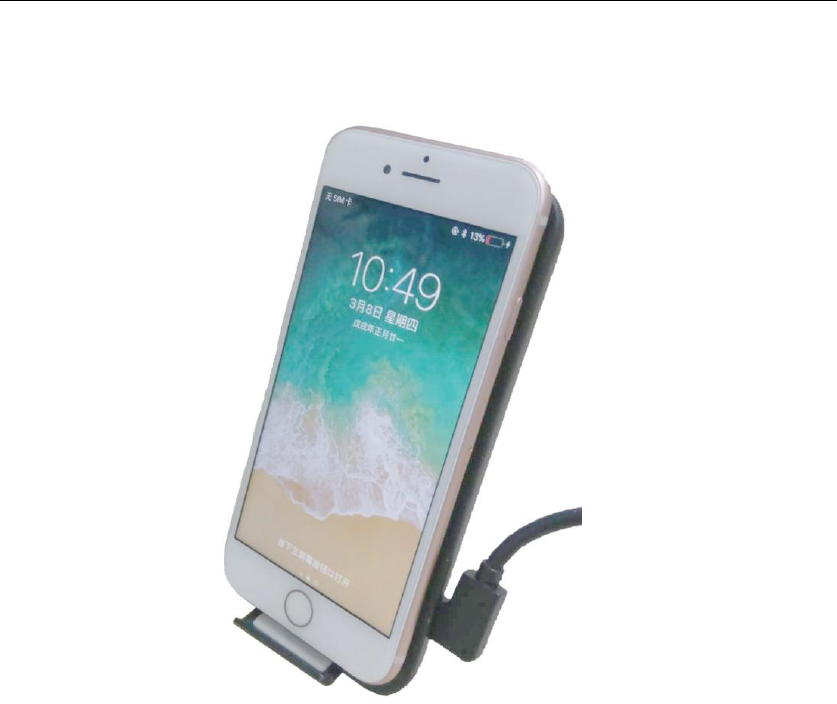

6.0 CONNECTION DIAGRAM
Wireless Fast Charger
4
FCC Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
