USER MANUAL
EPIC
User G
uide
•
C
op
yr
igh
t:
All rights reserved by Celluon.
All page contents
are properties of
C
elluon.
•
Celluon, evoMouse®,Magic Cube®
are trademarks or registered trademark of
C
elluon.
All other products are trademarks or registered trademarks of the ir
r
espec
tiv
e
c
ompanies
.
•
Please
refer to host device instruction manual for Bluetooth pairing information.
Safety
P
r
ec
autions
1.
Avoid exposing this product to direct sunlight for
extended periods of time, and keep it away from heat
sources.
2. There is a risk of malfunction if product is used in places
where sudden or extreme temperature changes occur.
3. Applying excessive force or impact to this product may
result in product damage, and will void warranty.
4. To ensure safety and prevent damage, use only the
dedicated Micro-USB to USB cable supplied with this
product.
5. Never attempt to disassemble or service this product
yourself. Doing so can result in electrical shock and void
warranty.
6. This is a Class I laser product. For your safety, please do
not stare directly into the laser source. Doing so could
damage your eyes.
7. Avoid placing any object within the space between the
main unit and the laser projection keyboard layout.
8. Please do not use this product on uneven or irregular
surfaces. Place the product on a flat surface. Avoid table or
surface that is reflective, such as glass or mirror.
Caution
Use of control or adjustments or performances of procedures
other than those specified herein may result in hazardous
radiation exposure.

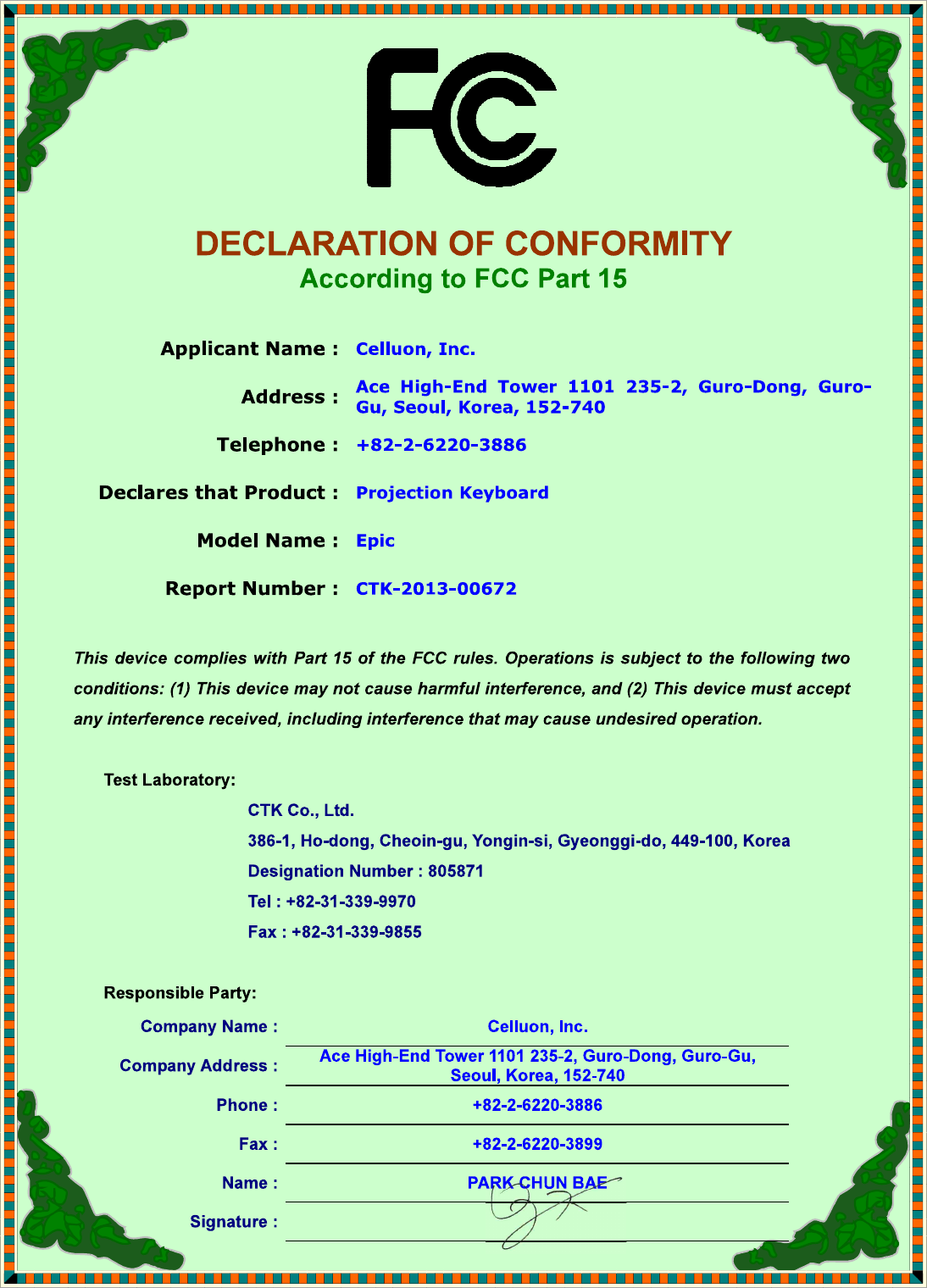

FCC
Compliance
Information
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference to another
device.
2. This device must accept any interference received,
including interference that may cause undesired operation.
2 3
FCC Class
N
otic
e
This equipment has been tested and found to comply within the
limits for a Class B digital device, pursuant to Part15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential environment.
This equipment generates, uses ,and radiates radio frequency
energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
with special installation. If this equipment does cause interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician.
FCC Warning
This equipment generates and uses radio frequency energy. If this
equipment is changed or modified in any way except for
modifications approved in this manual, it may cause harmful
interference. Any unauthorized changes or modifications to this
equipment could void the user’s authority to operate this device.
Industry Canada
S
ta
t
emen
t
This device complies with Industry Canada license- exempt RSS
standard(s).
Operation is subject to the following two conditions: (1) This device
may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired
operation of the device.
4 5
RF Exposure
Information
The antenna used for this transmitter must be installed to
provide a separation distance of at least 20cm from all
persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
❏
C
er
tifica
tion
❏
Caution:
1
. Battery may explode if replaced with an incompatible
battery. Dispose the used batteries according to the
instructions.“This transmitter must not be co-located
or operated in conjunction with any other antenna or
transmitter.”
2. Antenna shall be mounted in such a manner to minimize the
potential for human contact during normal operation.
The antenna should not be touched during operation to avoid
the possibility of exceeding the FCC radio frequency
exposure limit.
6 7
❏
Environmentally Friendly Disposal and
Rec
ycling
To protect the environment, dispose of this product
separately from household waste once it has reached its end
of life, or take it to your local electronic waste disposal center.
Built-in Battery
Rechargeable Lithium-ion Polymer Battery:
Battery Operating Time: Approx. 120 minutes (with
continuous use)
Capacity: 660 mAh (Max) @ 3.7V
Charging the Battery: Use supplied USB cable to begin
charging the battery. When charging is complete, battery
status LED turns green.
Charging Time: Approx. 180 minutes
Note
Charging time increases if product is used while charging.
8 9
C
autions
1. For Safety reasons, be sure to use only the Micro USB
to USB cable specified for this product.
2. Make sure to fully charge the battery before using the
product for the first time.
3. Battery charging times may vary slightly depending on the
ambient temperature.
4. The battery may not be charged to 100 percent of its
rated cell capacity even when the battery status LED
indicates green light.
5. Using or storing the battery in high temperature,
humidity and pressure environments may cause the
battery to explode.
6. Since the battery is a consumable item, its storage
C
on
t
en
ts
1. Product Features
...........................................................
12
2. Package Contents
..
..
....................................................
12
3. How EPIC Works
..........................................................
13
4. Identifying Parts….……....……………….
..............
15
5. Connecting EPIC
………....………
...........................
18
6. Making Adjustments
....................................................
22
7. Specification
....................................................................
28
capacity decreases gradually through charge cycles.
10 11
1.
Product
F
ea
tur
es
• English QWERTY keyboard layout.
• Truly portable design – perfect for on-the-go.
• Full size key pitch and shortcut keys for ease of operation
• Superior durability (no moving parts inside)
• Built-in lithium-ion rechargeable battery for
mobility and convenience
• Compatible with latest operating systems: Windows
XP/Vista/7/8(not compatible with Windows Phone 7 and 8),
iOS4 and later (most iPhone and iPad) and Android 4.0
and later, Mac OS X
2.
Package
C
on
t
en
ts
•
EPIC
• Micro USB Cable
• User Manual
• Quick Start Guide
3. How It Works: Technology
This product emits infrared light from the lower end of the
device to detect objects such as fingers. When an object
passes through they are illuminated by the infrared light
source, any infrared light reflecting off of an object is
detected by the sensor. Information on the position and
movement of the object is then analyzed to perform the
product’s role as a keyboard.
Sensitivity: difference in thickness, shape, and color of the
user’s fingers or operating environment will result in
differences in the amount of reflected infrared light.
Please adjust sensitivity that best suits your environment.
Refer to "Section 6: Making Adjustments" on how to adjust
sensitivity.
12 13
Conditions to Avoid:
1. Avoid direct sunlight.
2. Avoid low color temperature light source, such as tungsten,
halogen, or incandescent lamp.
3. Avoid uneven or irregular surfaces.
Place the product on flat surfaces.
4. Avoid a table or surface that is as transparent or reflective as
glass or mirror.
5. Avoid placing any objects within the space between the main
unit and the laser projected keyboard layout.
4.
Identifying Parts
(1) Pattern Projector: laser projects an image of
QWERTY keyboard pattern onto a flat surface in front
of the typist.
(2) Sensor: detects reflection of infrared and
triangulates the location to determine a keystroke.
(3) IR: emits an invisible plane of light to blanket
operational area.
Note *Refer to illustration on page 16
Because this product uses infrared rays, strong infrared
radiation from direct or reflected sunlight or from tungsten
(halogen or incandescent) lighting may cause operating error.
Caution
Although this equipment is classified as Class II laser product,
for your safety, do not directly expose your eyes to pattern
projection beams or infrared rays.
14 15
Battery Lower LED
Charging Red
Full Green
Low Red (blinking)
Bluetooth HID Upper LED
Searching last device Blue (blinking)
Searching new device Blue (blinking)
Successful pairing Blue
Disconnected Blue (blinking)
Front
View Rear View
LEDIndicator
16 17
5. Connecting EPIC
EPIC pairs via Bluetooth.
- Compatible with any Bluetooth HID profile devices:
iOS 4 and later (most iPhone and iPad)
Android 4.0 or later
Windows XP/Vista/7/8,
Mac OS X
**Pass code is not required for Bluetooth HID
connection.
Bluetooth connection instructions for
iOS/Android/Windows
1. Power on EPIC
2. On primary device, go to Bluetooth setting; search
for Bluetooth devices.
3. When the device discovers "Celluon PK Series", tap
to connect.
4. Solid blue LED indicates successful pairing.
Enabling Pairing Mode
1. Turn on EPIC.
2. Locate pairing switch (refer to above illustration).
3. Press and hold pairing switch for about 2 seconds.
4. Pair with device.
.
18 19
Screen shot of successful pa
iring on Android
20
Screen shot of succes
s
21
s
ful pairing on iOS
21
6. Making Adjustments
■ Sound Feedback Adjustment
• There are total of 5 levels; sound level remains as
adjusted when device is turned off and on.
• To increase sound level:
Tap and hold “FN” key and tap UP arrow key.
• To decrease sound level:
Tap and hold “FN” key and tap DOWN arrow key.
■ Projection Brightness Adjustment
There are total of 5 brightness levels
• To increase brightness:
Tap and hold "FN" key and tap RIGHT arrow key.
• To lower brightness:
Tap and hold "FN" key and tap LEFT arrow key.
■ Sensitivity Adjustment
• To increase sensitivity:
Tap and hold "FN" key and tap ">." key.
• To lower sensitivity:
Tap and hold "FN" key and tap "<," key.
Note:
All adjustments must be repeated for each level.
■ Power Saving Mode
• Tap and hold "FN" and tap "BACK" key to disable laser
projection.
• To turn on laser projection, tap the operational area
with 3 fingers (fingers must be separated).
22 23
■ Multi-Touch Mouse Mode
• Multi-touch mouse function is only available on devices
that support such feature (Windows 7 and later, Mac OS).
• Mouse/cursor function is available on devices that
support such feature (Most Windows, Android and Mac
OS)
Note: iOS operating system does not support mouse
function.
1. From keyboard mode, press and hold "FN" and tap on
cursor button, located adjacent to space bar to switch to
mouse function. Blinking LED indicates mouse mode.
Control the Cursor Click & Right Click
Drag & Scroll Forward & Back
Zoom In & Out
24 25
2.
Tap on cursor key
to switch
back
to
keyboard
mode
.
S
olid
LED
indica
t
es
keyboar
d
mode
.
Special keys
–
Projection layout corresponds to keys found on English QWERTY
layout. When different language is selected on primary device,
some keys may not correspond to input keys on primary device.
Same applies to "FN" and" ALT" keys.
26 27
Item Specification
Item Specification
Item Specification
7. Specification
■ Pattern Projector
■ Electrical Characteristics
28 29
■
Environmental
C
onditions
8. Label Specification
■
Label
■ Dimensions and Specifications
■
Label location
30 31
Item Specification
Operating
Temperature
0~35°C/90%RH
Storage
Temperature
-5~35°C/~90%RH
Item Specification
Size (mm) 70mm x 20mm x 35mm
Weight (g) Approx. 60g
MEMO MEMO
32 33
Celluon,
Inc.
Ace High-End Tower 1101, 235-2 Gur
o
-
dong
,
Gur
o
-
gu
Seoul, Korea
(152-740)
sales@celluon.com
suppor
t@c
elluon.c
om
12A
