CELLUON MAGICCUBE PROJECTION KEYBOARD User Manual
CELLUON, INC. PROJECTION KEYBOARD Users Manual
CELLUON >
Users Manual
Magic Cube
User`s Guide
■ Copyright
Copyright
ⓒ 2011
All rights reserved by CELLUON, INC.
All page contents are properties of CELLUON, INC.
■
CELLUON, INC. & evoMouse®, Magic Cube are registered trademark of CELLUON, INC.
All other products are trademarks or registered of their respective companies.
■
Please refer to host device instruction manual for Bluetooth pairing information.
Safety Precautions
1.
Avoid exposing this product to direct sunlight for extended periods of time, and keep it away
from heat sources.
2.
There is a risk of malfunction if product is used in places where sudden or extreme
temperature changes occur.
3.
Applying excessive force or impact to this product may result in product damage, and will
void warranty.
4.
To ensure safety and prevent damage, use only the dedicated mini-USB to USB cable
supplied with this product.
5.
Never attempt to disassemble or service this product yourself. Doing so can result in electrical
shock and will void the warranty.
6.
This Class 1 laser product is certified by FDA safety regulation. For your safety, please do not
stare directly into the laser source. Doing so could damage your eyes.
7.
Avoid placing any object within the space between the main unit and the laser projection
keyboard layout.
8.
Please do not use this product on uneven or irregular surfaces. Place the product on a flat
surface. Avoid table or surface that is as transparent or reflective as glass or mirror.
.
This symbol indicates a risk of personal injury or harm by electrical shock. Always consult
the user manual before touching the area of the CELLUON, INC that displays this symbol.
Rechargeable Li-ion Battery:
■
Battery Operating Time: Approx. 150 minutes (with continuous use)
Capacity: 700mAh (Max)@3.7V
■
Charging the Battery: Use supplied USB cable to begin charging the battery.
When the charging is complete, battery status LED turns green.
■
Charging Time: Approx.180 minutes
Note: Charging time increases if product is used while charging.
.
Cautions
1.
For safety reasons, be sure to use only the mini USB to USB cable specified for this product.
2.
Make sure to fully charge the battery before using the product for the first time.
3.
Battery charging times may vary slightly depending on the ambient temperature.
4.
The battery may not be charge to 100 percent of its rated cell capacity even when the battery
status LED indicates green light.
5.
Using or storing the battery in high temperature, humidity and pressure environments may cause
the battery to explode.
6.
Since the battery is a consumable item, its storage capacity decreases gradually as time passes.
1.
Product Features
-
English QWERTY keyboard layout.
-
Compact size for portability – perfect for on-the-go
-
Function icons and shortcut keys for ease of operation
-
Non-mechanical optical mechanism for superior durability
-
Built-in Lithium-ion rechargeable battery for mobility and convenience
-
Compatible with latest devices: Window XP/Vista/7, Windows Phone 7, iOS4
(iPhone3GS/4, iPad), and Android 2.2 or higher
2. Package Contents
- Projection Keyboard
-
USB Cable
-
User’s guide
3.
How this Product Works
This product emits infrared light from the lower end of the product to detect objects such as fingers.
When an object passes through the area illuminated by the infrared light source, any infrared light
reflecting off the object is detected by the sensor. Information on the position and movement of the
object is then analyzed to perform the product’s role as a keyboard.
Sensitivity: difference in thickness, shape, and color of the user’s fingers or operating environment
result in differences in the amount of reflected infrared light. If the amount of reflected infrared light is
appropriate, the sensor will have no problem detecting objects such as fingers. However, if the amount
of reflected infrared light becomes low because of the causes mentioned above or some other cause,
the keystroke recognition rate may decrease or your keystrokes may not be recognized at all. On the
other hand, if the amount of reflected infrared light is too high, the keystroke recognition may become
too sensitive or a “hovering” effect may occur.
(Hovering: keystroke is recognized before your finger touches the projection surface.)
Therefore, it is necessary to compensate for differences in finger characteristics or operating
environment, and this can be accomplished by adjusting the sensitivity of your projection keyboard.
Given the same amount of reflected infrared light, increasing the sensitivity will produce the effect
of a higher amount of reflection, whereas decreasing the sensitivity will produce the effect of a lower
amount of reflection.
With the sensitivity set to its minimum value, repeatedly press a key that is relatively far from the
sensor (Spacebar, CTRL, etc.) to increase the sensitivity. As soon as your keystroke is recognized,
stop adjusting the sensitivity and set the final setting value to one or two notches above original
setting.
■ Conditions to Avoid:
1.
Avoid direct sunlight
2.
Avoid low color temperature light source, such as tungsten, halogen, or incandescent lamp is
used.
3.
Avoid uneven or irregular surfaces. Place the product on flat surfaces.
4.
Avoid a table or surface that is as transparent or reflective as glass or mirror.
5.
Avoid placing any objects within the space between
t
he main unit and the laser projected
keyboard layout.
Note: Because this product uses infrared rays, strong infrared radiation from direct or reflected
sunlight or from tungsten (halogen or incandescent) lighting may cause operating error.
Caution: Although this equipment is classified as Class 1 laser product, for your safety, do not directly
expose your eyes to pattern projection beams or infrared rays.
4. Identifying Parts and their Functions.
(1)
Projector: Uses a red laser to project the image of a keyboard onto a flat surface in front of the
typist.
(2)
Sensor: Picks up the infrared light reflected off the typist’s fingers and triangulates the location
of the reflected light to determine which key was pressed. This sensor provides a keyboard
function.
(3)
IR Light Window: Uses an infrared laser to emit an invisible plane of light a few millimeters
above the projection surface so that the infrared light can be reflected off of the typist’s fingers
to the sensor.
Caution: If one or more of the above modules are blocked by some cause, the projected keyboard
image may not be displayed correctly or, the location and movement of the typist’s fingers may not be
recognize correctly.
Front View
Rear View
USB Connection Terminal
1. Purpose: USB device connection or power supply.
2. USB Connector: Standard USB Mini-B type
3. Interface Specification: Compliant with USB HID class specification version 1.11
4. Input Power: 1A 5V dedicated DC adapter or USB Bus power from a host device.
Bluetooth Connection Switches
1. Bluetooth HID Switch (Top)
2. Bluetooth SPP Switch (Bottom)
Battery /
BlueTooth/
KeyBoard/
Mouse/ Charging/
Operating Status
LED
Power Status LED
Link/Activity Status LED
Pattern
Projector
Toggle : Bluetooth Pairing
5. Using the Projection Keyboard
This product is used as a keyboard and mouse via Bluetooth HID and USB HID
connection.
5.1 Connecting via USB HID
This device is compatible with all USB HID capable operating system.
USB HID connection allows plug-n-play, without installing a separate driver.
1) Connect Magic Cube and host device using supplied USB cable. Host device must
support USB HID. Note: Most Windows devices support USB HID.
2) Turn on Magic Cube.
3) Green LED indicates proper connection. If LED indicates blue, please check the
connection.
5.2 Connecting via Bluetooth HID
Magic Cube supports two types of Bluetooth:
Connection via Bluetooth HID does not require installation of separate driver.
Connection via Bluetooth SPP requires installation of diver, in the installation CD.
User must identify and use correct Bluetooth profile prior to connection.
Bluetooth profiles can be selected through slide switch behind the device:
- HID mode: Slide the switch up
- SPP mode: Slide the switch down
- (HID mode is set as default)
Note: Choosing the right Bluetooth mode
Bluetooth HID compatible devices
iOS4 (iPhone 3GS/4/iPad and later)
Android 2.2 and later
*Some restrictions apply to Android devices. Please visit our website
www.celluon.com for more information on connecting Magic Cube to Android
devices.
Windows XP/Vista/7
Windows Phone 7
Mac OS (using Keyboard only)
Bluetooth connection instruction
1. Power on Magic Cube
2. Blue LED will blink in steady interval,
an indication that the device is ready to pair.
When Blue LED indicates one long, followed by two quick blinks, the device is searching
for previously paired device within its proximity.
This will last 30 seconds. This feature is added for convenience, assuming there is a single
host device.
Upon successful pairing, Blue LED will stop blinking and become solid blue.
If Magic Cube cannot locate previously paired host device within 30 seconds, it will delete
previously stored connection information and revert to pair mode.
SPP Mode: Blue LED will blink in intervals, indicating that the device is ready to
pair
3. Upon successful pairing, Blue LED will stop blinking and become solid blue.
Please refer to the manual of host device for pairing instruction.
4. After successful pairing of host device and Magic Cube, keyboard function
is default mode.
Changing keyboard mode to mouse mode
On the keyboard, press and hold “FN” key and tap (do not press and hold the button) the
mouse cursor key, located adjacent to space bar. A green LED will indicate successful
change of mode.
Changing mouse mode to keyboard mode.
Tap only mouse cursor button once (do not press and hold the button).
Adjusting key stroke sound level
Increasing key stroke sound level
Press and hold “FN” key and press up arrow key.
Lowering keystroke sound level
Press and hold “FN” key and press the down arrow key. There are total 6 l evels of sound,
including mute.
Sound level remains as adjusted when device is turned off and on. P lease consider
the environment when adjusting sound level.
Adjusting keyboard brightness
Press and hold “FN” key and press right arrow key to increase brightness.
Press and hold “FN” key and press left arrow key to lower brightness.
There are three levels of brightness. Default brightness is set at second level during
power on.
Note: FN key is not a repeat key. FN key must be clicked once for each adjustment.
Connecting to iPhone and iPad
iPhone and iPad connects to Magic Cube via Bluetooth HID and a driver is not required.
1) Make sure the Magic Cube is on a HID mode. (Sliding button should be pushed
to ‘up’ position).
2) Turn on Magic Cube by sliding the power button to the right. A blinking blue
LED indicates that the device is ready to pair.

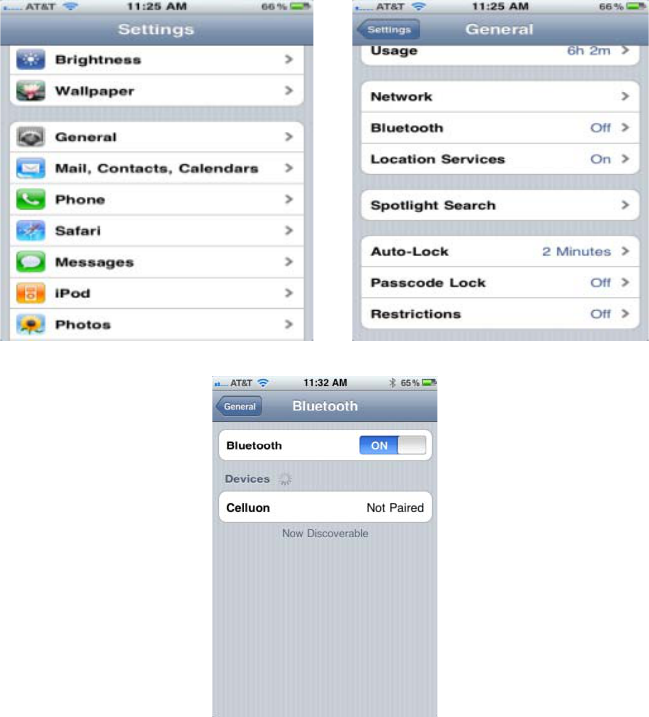

3) On iPhone/iPad, tap on Settings-General-Bluetooth.
4) Turn Bluetooth on by tapping the ON button.
5) iPhone/iPad will now search for pairing device.
6) Locate “Celluon” under Device.
7) Select “Celluon” by tapping “Celluon”.
8) A message will pop up “ Celluon would like to pair with your phone. Enter the
passkey “xxxx” on Celluon”.
9) Type passkey on Magic Cube keyboard and press ENTER.
10) Successful pairing is indicated by “Connected” message, and blue LED on Magic
Cube becomes solid.
11) To turn off Magic Cube, slide power button to the left.
12) With iPhone/iPad Bluetooth on, M agic Cube will connect automatically upon
power on.
13) With Magic Cube ON from initial connection, iPad/iPhone will connect
automatically when Bluetooth is turned back on from host device.
14) Please turn off Magic Cube when keyboard is not in use.
Note: iPhone/iPad OS (iOS4) does not support mouse function. When keyboard does not
function with successful pairing, please make sure the device is in keyboard mode. If device is
in mouse mode, tap the cursor button located adjacent to spacebar to change back to
keyboard mode.
Connecting to Android devices
Some Android 2.2 and higher devices support Bluetooth HID and it does not require
installation of separate driver. Please visit our website www.celluon.com for more
information on Android drivers.
Pairing your Android device
1) Make sure the Magic Cube is on S PP mode by sliding the slide button to lower
position.
2) Turn on Magic Cube by sliding the power button to the right. A blinking blue LED
indicates that the device is ready to pair.
3) Navigate through Android as follows:
Home Main Menu Settings Wireless and Network Bluetooth setting.
4) Turn on Bluetooth on Android by checking the box.
5) From the same screen, with Bluetooth ON, tap on Scan devices.
6) Android device will detect “Celluon” and display message “Pair with this device”.
7) Tap on “Pair with this device”.
8) A new message will display on your Android device: “Bluetooth pairing request.
Enter PIN xxxxxx to pair with ‘Celluon’.”
9) Type passkey on Magic Cube and press ENTER. When correct passkey is entered, the
Android device is paired.
Note: Android OS supports mouse function. To switch from keyboard to mouse mode, press
and hold “FN” button and tap the cursor button, located adjacent to space bar. To change
back to keyboard mode, tap cursor button once.
Connecting to PC
Windows 7 supports Bluetooth HID and installation of separate driver is not required.
Connecting via Bluetooth HID
1) Please make sure Magic Cube is on HID mode by sliding the slide button to upper
position.
2) Turn on Magic Cube by sliding the power button to the right. A blinking blue LED
indicates that the device is ready to pair.
3) Please check your PC and make sure
Bluetooth is on.
4) With Bluetooth on, click on Bluetooth icon on the task bar. Windows will search and l
ocate “Keyboard.” Highlight keyboard by clicking on found device and press next.
5) Enter passkey on Magic Cube and press
ENTER.
6) If you choose “create passkey” option, it will
display an 8-digit passkey.
7) Press the passkey on the Magic Cube and press ENTER.
8) Successful paring will be indicated by solid blue LED on the Magic Cube device.
9) To turn off Magic Cube, slide the power button to the left (OFF).
10) Magic Cube will connect to host PC automatically when turned back on.
Connecting via USB HID for Windows and Mac (Plug-n-play)
1) Connect the host device and Magic Cube using mini-USB to USB cable.
2) Turn on Magic Cube by slide the power button to the right (ON).
3) Successful connection is indicated by solid green LED.
Note: Windows 7 supports multi-touch mouse function. To switch from keyboard to mouse
mode, press and hold “FN” button and tap the cursor button, located adjacent to space bar.
To change back to keyboard mode, tap the cursor button once.
Additional features:
Volume adjustment (key click feedback sound) –
1. Press and hold FN and tap ‘up’ arrow to raise volume
2. Press and hold FN and tap ‘down’ arrow to lower volume
*Note: There are 6 stages of adjustments. Each adjustment requires repeated steps.
Projection keyboard brightness adjustment –
1. Press and hold FN and tap ‘right’ arrow to increase brightness
2. Press and hold FN and tap ‘left’ arrow to lower brightness
*Note: There are 3 stages of adjustments. Each adjustments requires repeated steps.
Power save mode –
1. Press and hold FN and tap BACK key to disable laser projection
2. To reactivate laser projection, tap in the operation area with 3 fingers (3 fingers must be
separated).
Switching between keyboard and mouse mode –
(Note: default mode is keyboard function)
1. From keyboard mode, press and hold FN and tap on c ursor button, located adjacent to
space bar to switch to mouse function. Blinking LED indicates mouse mode.
2. From mouse mode, tap on c ursor button to switch back to keyboard mode. Solid LED
indicates keyboard mode.
*Please note: mouse function is only available on devices that support cursor/mouse function.
Special keys –
1. Please note that not all keys displayed on projection keyboard layout correspond to input
keys on host device. For example, MENU key will not function on a host device that does not
support the MENU function. Same applies to FN and ALT function keys.
⃟ Standard.
FCCID : TCLMAGICCUBE
The user’s manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment. In
cases where the manual is provided only in a form other than paper, such as on a computer
disk or over the Internet, the information required by this section may be included in the
manual in that alternative form, provided the user can reasonably be expected to have the
capability to access information in that form.
For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. T his
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. H owever, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
⃟ Caution : Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
⃟ Caution : Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions. “This transmitter must not be co-located or Operating
in conjunction with any other antenna or transmitter.”
⃟ Caution : Antenna shall be mounted in such a manner to minimize the potential for human
contact during normal operation. The antenna should not be contacted during operation to
avoid the possibility of exceeding the FCC radio frequency exposure limit.
⃟ NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, any cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment doescause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CE warning !
Charges or modification not expressly approved by the party responsible for compliance
could void the user`s authority to operate the equipment.
EN Test Regulation Version
ETSI EN 300 328 V1.7.1 (2006-10)
ETSI EN 301 489-1 V1.8.1 (2008-04)
ETSI EN 301 489-17 V2.1.1 (2009-05)
⃟ Specification.
■ Pattern Projector
item
Specification
Light source
Red Laser Diode
Keyboard layout
19mm Pitch, QWERT Layout
Keyboard Size
Width : 240mm, Vertical : 100mm
keyboard Location
100mm from the Bottom
Project surface
Non-reflective, opaque flat surface
■ Keyboard Sensor
item
Specification
Recognition rate
Up to 350 characters per minute
Operating surface
any firm flat surface
■ Electrical Characteristics
Item
Specification
External power Supply
USB Power / 5V 500mA Less than
Battery & Capacity
Lithium-polymer battery, 700mAH(MAX)@3.7V
Battery Operating Time
Approx. 150min
Battery Charging Time
Approx. 240min
USB interface
USB 1.1 & 2.0, USB HID Ver 1.0, SPP Ver 1.2
Bluetooth
v1.1 class 2, HID/SPP Profile
Frequncy Range
2 402 ~ 2 480 MHz
Channel
79
Modulation
GSFK
■ Environmental conditions
item
Specification
Operating temperature 0 ~ 35℃
Storage temperature 20 ~ 50℃ (Batteries included)
■ Dimensions and Weight Specifications
item
Specification
Size(mm)
38mm x 75mm x 29mm
weight(g)
Max. 78 g
Caution
This production may not work with your particular device,
depending on its model and manufacturer. Check out our website at
http://www.celluon.com for device and river compatibility information.
Company : CELLUON, INC.
Address : Age High-End Tower 918 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740
Tel :+ 82-2-6220-3899 Fax : +82-2-6220-3899
Factory #1 : Sound feel
Address : B-304, SungWoo Venture Vill, #332-33, Gocheon-Dong, Uiwang-si, Gyeonggi-Do, Korea.
Factory #2 : Heilongjiang Celluon Electronic Product Developing Co., Ltd.
address : No.99, Bamiantong Street, Jiangnan Develop District, Dongan District, Mudanjiang City,
Heilongjiang Province, China.
