1. Safety Precautions
This product is not waterproof – avoid using it near water or wet places.
There is a risk of malfunction if product is used in places where sudden or extreme temperature changes occur.
Applying excessive force or impact to this product may result in product damage, and will void warranty.
Never attempt to disassemble or service this product yourself. Doing so can result in electrical shock and void warranty.
This is a Class 3R Laser product. For your safety, do not stare directly into the laser source. Doing so could damage your eyes.
FCC Compliance Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference to another device.
2. This device must accept any interference received, including interference that may cause undesired operation.
FCC Class Notice
This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment.
This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur with special installation.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from which the receiver is connected.
Consult the dealer or an experienced radio/TV technician.
FCC Caution
Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between
the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with Industry Canada license- exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
CE Caution
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
IEC-60825-1 Caution
Use of control or adjustments or performances of procedures other than those specified here in may result in hazardous radiation exposure.
KC : MSIP-CMM-CLK-PICOAIR FCC ID : TCLPICOAIR CE1177
compliant
RoHS
IC No : 10211A-PICOAIR
CLASS 3R LASER PRODUCT
IEC-60825-1 : Class 3R Laser
2. Certifications
4. Package Contents
3. Environmentally Friendly Disposal and Recycling
To protect the environment, dispose this product separately from household waste once it has
reached its end of life, or take it to your local electronic waste disposal center.
Built-in Battery
Use supplied USB power adapter to begin charging the battery.
Battery status is indicated by four blue LED indicators while charging.
(4 LED : 100% / 3 LED : 75% / 2 LED : 50% / 1 LED : 25%)
3140 mAh @ 3.7VBattery Capacity
Approx. 150 minutes (with continuous use)Battery Operating Time
Rechargeable Lithium-ion Polymer BatteryBattery Type
Approx. 270 minutesBattery Charging Time
Charging the Battery
PicoAir User Manual

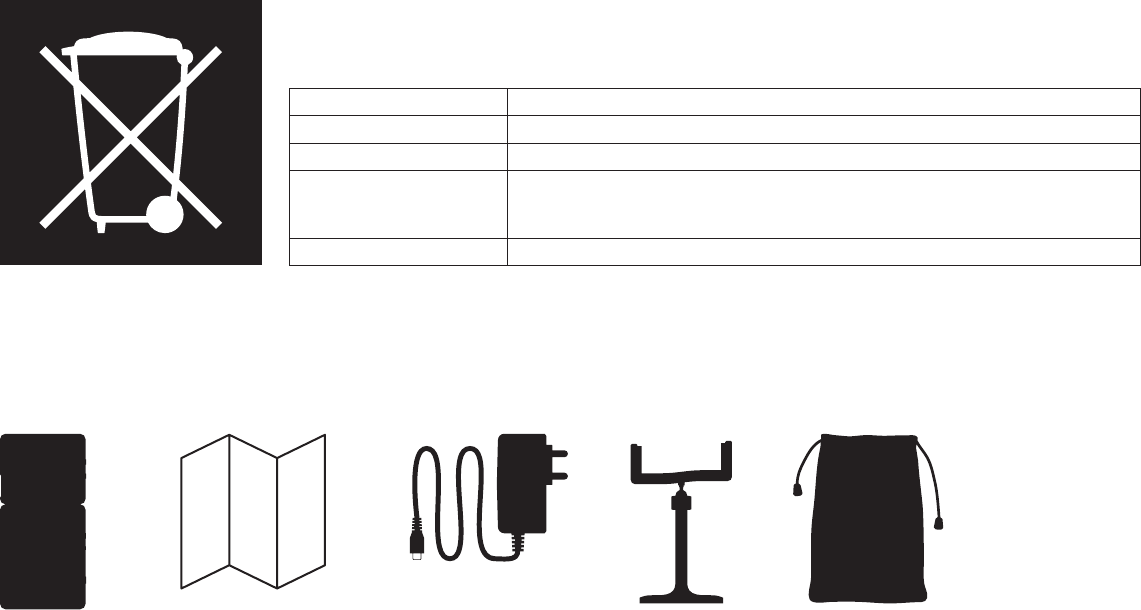

Power
Adapter Tripod Pouch
5. Product Features
PicoAir is a laser-based pico projector that easily fits in your pocket for superior portability. It allows you to project contents in your mobile devices onto any surface via
Miracast or DLNA capability.

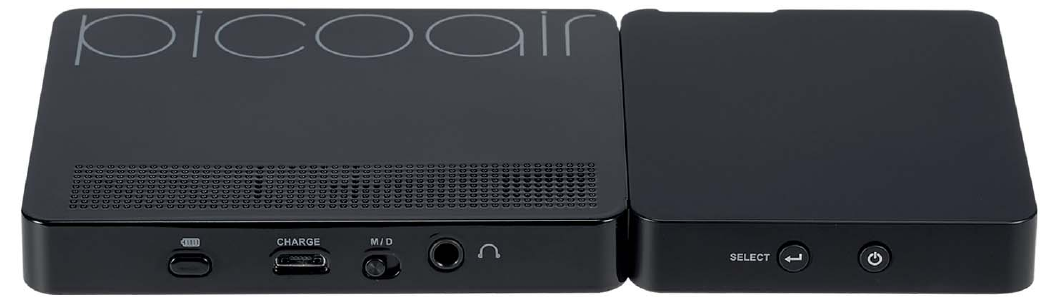

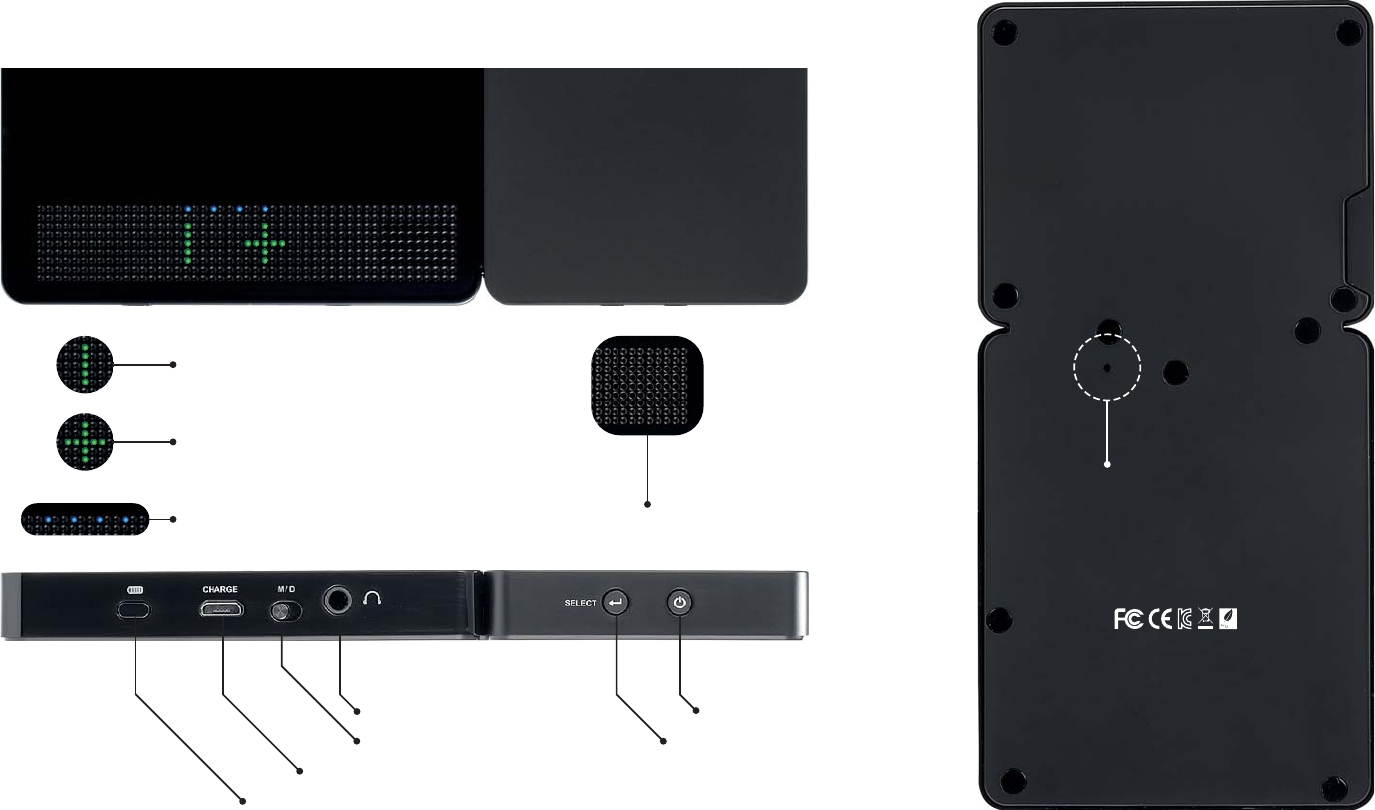

6. Identifying Parts
Reset Button
FCC ID : TCLPICOAIR CE1177 KC : MSIP-CMM-CLK-PICOAIR
IC : 10211A-PICOAIR
Model : PicoAir DC : 5V 2A Celluon, Inc. Made in Korea
Touch-sensitive Volume Up
Touch-sensitive Volume Down
Backlit Battery Indicator Light Speaker
3.5mm Audio Out
Miracast or DLNA Switch
CHARGE – Micro USB port for charging
Battery Status Indicator
Power Button
Select Button
7. Connecting PicoAir
a. Compatible Operating Systems
Miracast DLNA
For Wireless Connection
Android OS 4.2 or later
Windows OS 8.1 or higher
Any OS that supports Screen Mirroring functionality
Any digital devices that support DLNA protocol
* Using DLNA connection requires downloading DLNA
streaming app from the App Store or Play Store.
b. How to Connect
Using Miracast :
The Miracast capability is called different names on difference devices. (Samsung/Sony – Screen Mirroring , HTC – Media Output)
Please find this capability in the settings app on the device.
1. Turn on PicoAir by pressing power button for
2-3 seconds.
2. Celluon logo will display upon power on. 3. After 20-30 seconds, “Ready to Connect” screen will display after Celluon
logo.
M/D

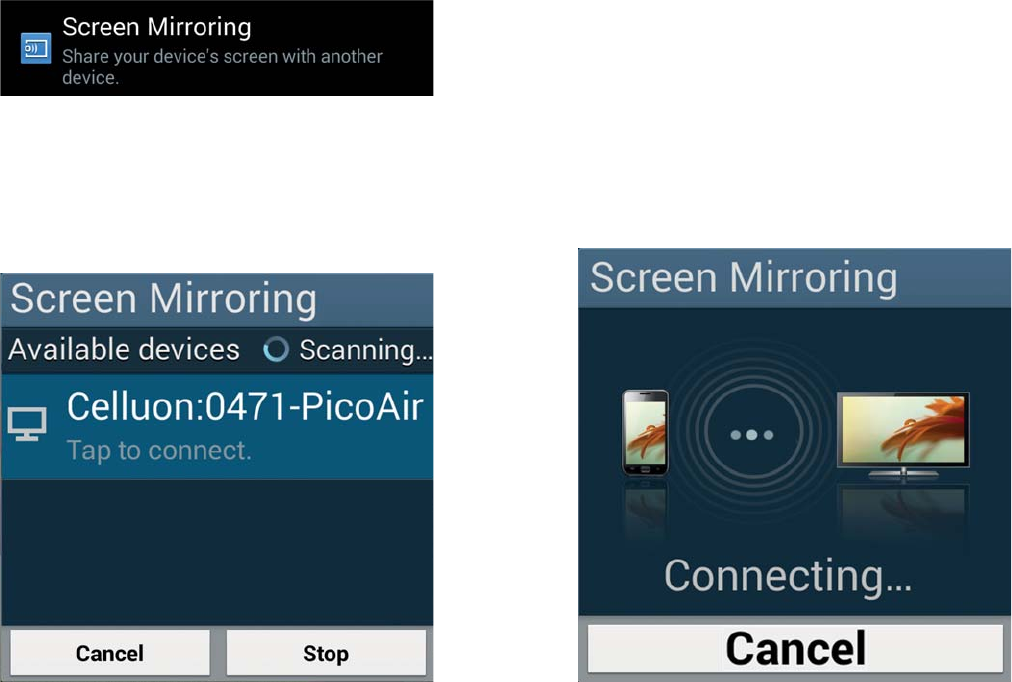

4. On a desired mobile device, find and select Screen Mirroring / Media Output.
5. Mobile device will search for nearby devices to connect.
6. When device discovers “Celluon PicoAir”, tab to connect. 7. Mobile device will say “Connected” and PicoAir will start mirroring display.
* It is recommended to disconnect any previously connected WiFi network before attempting to connect via Miracast (screen mirroring).
Using DLNA :
* To connect to devices using DLNA capability, you must install a DLNA streaming app (i.e. iMediaShare) on your mobile device. Apps can be downloaded from AppStore/GooglePlay.
M/D

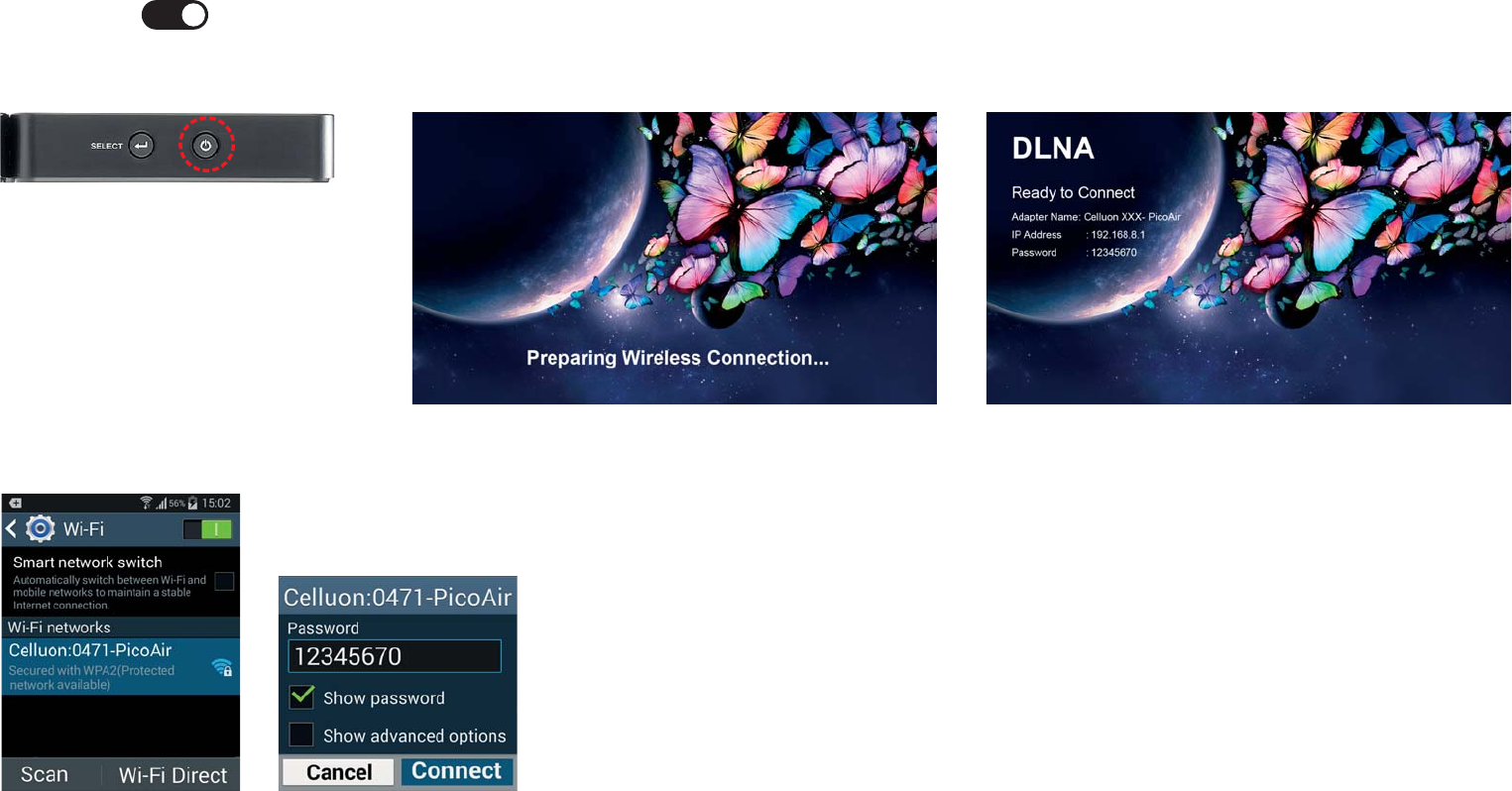

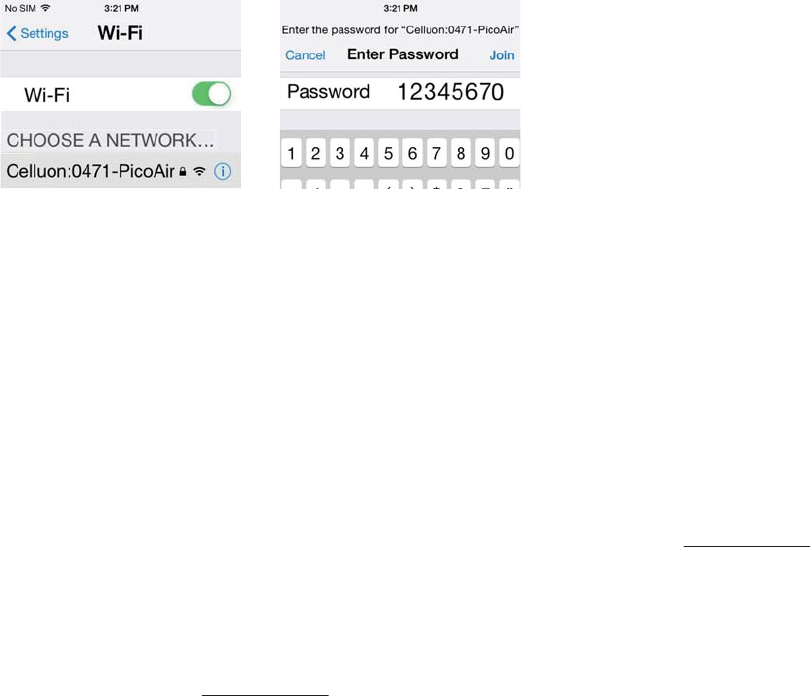

5. On a desired mobile device, go to WiFi seting, and connect to “Celluon PicoAir”. Use password “12345670” to connect.
6. When Wifi is successfully connected, open the installed DLNA streaming application on the mobile device.
7. Select desired content to display.
8. Select display location: Celluon PicoAir
9. Mobile device will say “Connected” and PicoAir will start projecting selecting contents.

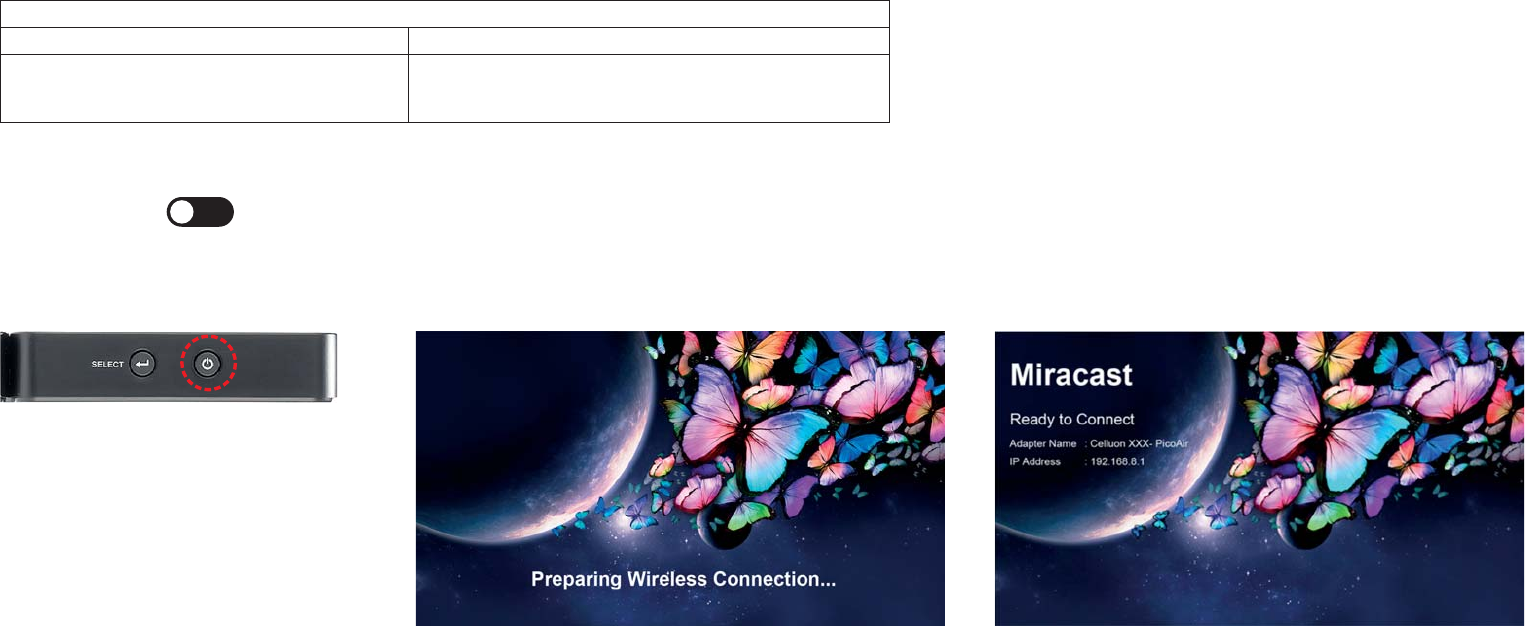

2. Celluon logo will display upon powering on, followed by a "Preparing
wireless connection" screen.
4. DLNA “Ready to Connect” screen will display upon completion of mode
switch.
1. Turn on PicoAir by pressing power button and
holding for 2-3 seconds.
3. Locate the mode switch next to the micro USB charge port on the
side of device. Slide the switch to "D" to change to DLNA mode.
*** For DLNA connection with iOS devices:
1. Follow above steps 1-9.
C. Switching Connection Mode
- Use the sliding mode switch located next to the micro USB charge port to change connection mode.
8. Making Adjustments
Volume Adjustment
*Volume is controlled directly from PicoAir.
Locate touch volume control area on top of device. Adjust the volume by lightly touching the + or – pattern.
Speaker / Earphone Usage
Please connect a speaker or an earphone to the 3.5mm audio out jack.
Laser Alignment
When the images seem blurry and/or the colors appear skewed, please visit Celluon website at www.celluon.com for Laser Alignment instructions.
Engine Firmware Update
Press and hold battery status indicator for about 3 seconds. MENU screen will be displayed for menu selection. Use volume control patterns ( + & - ) to select “Firmware Update”.
Follow instructions on screen to update the engine firmware.
Product Firmware Update
Please visit Celluon website www.celluon.com for the latest system firmware update.
9. Charging the PicoAir
4-5 hours 2.5 to 3 hours with continuous use
Charging Time Operating Time
1. Locate micro USB port next to the battery status button.
2. Use the supplied AC adapter to charge the PicoAir thought the micro USB port.
Please fully charge PicoAir’s internal battery before first use (approximately 2 to 4 hours).
A low battery warning icon will show on the screen when the battery is low.
Use the included power adapter to charge your PicoAir. If the battery is too low, PicoAir will automatically shut off.
Please use the included power adapter or any adapter supports 5V 2A to charge PicoAir.
** any adapter with lower spec than 5V 2A can damage the adapter when charging.
Battery Status
First three LED indicators remain solid. When charging at this stage, the next LED
indicator will blink to indicate it is being charged.
All four LED indicators will remain solid.100% charged
Volume control + & - sensors will blink to indicate low battery status0% charged
DescriptionStatusLED Indicator
75% charged
First two LED indicators remain solid. When charging at this stage, the next LED
indicator will blink to indicate it is being charged.
50% charged
First LED indicator remains solid. When charging at this stage, the next LED
indicator will blink to indicate it is being charged.
25% charged
10. Troubleshooting
Mobile device cannot find Celluon PicoAir during
Miracast connection search
Please make sure PicoAir is on Miracast mode. This may also be due to a particularly heavy wireless traffic. If this is the case, please reset the device by
pressing the reset button on the back of device.
Cannot stream contents through DLNA application Please make sure device’s WiFi is properly connected to PicoAir’s WiFi. For DLNA connection, please make sure to connect using the password “12345670”
There is no sound Please make sure the volume level of the PicoAir and/or connected device is not in the mute status.
Product makes abnormal noises Please contact Celluon Customer Service for further assistance
The projected image is unclear This is due to the shifts in laser diode. Please refer to Laser Alignment instruction page to adjust shifted lasers.
It takes a long time to display contents through DLNA
mode
It depends on each DLNA streaming app to project contents through PicoAir. For large media files, it may take some time to load and convert the video
to correct format.
PicoAir is connected, but only the black screen is
projected from the device
Please check if the connected mobile device is on sleep mode. If the screen of the connected device goes black, the projected screen will go black as well.
Note that if the volume control LED patterns are on, the PicoAir is powered on.
The video stops playing periodically Please make sure connected device has enough battery to play the video. If both devices have enough battery, this may be due to unstable WiFi
connection. Please disconnect and reconnect the device.
Can users update PicoAir’s firmware Please visit Celluon website www.celluon.com for instructions to update PicoAir’s firmware.
Connection through Miracast intermittently
disconnects during use
This is due to the noise occurred by double wireless connection. Try to connect again after disconnecting all the previously connected wireless networks.
Device automatically shuts down during use This may be due to the depletion of battery or high temperature of the product. If the product is left in a place where the enviornmental temperature is
high (such as in a blanket or near heater), the power will turn off automatically in protection of fire hazard. Please cool the product and use it within
specified operating temperature before turning it on again. If the product has been shut down due to the depletion of battery, please charge the device
before turning it back on.
PicoAir’s screen is frozen; it stopped playing the video /
no response from buttons when pressed /
cannot convert modes
Please reset the device by pressing the reset button on the back of device. Refer to “Identifying Parts” section for the location of reset button.
11. Specifications
The perceived brightness of laser projectors with a given ANSI brightness is 50%+
higher than that of the LED based projectors
Brightness
150 x 73 x 13.4 mm
(6 x 3 x 0.45 inches)
170 g
(0.38 lbs)
3200 mAh
Size
Measurement
Weight
The operating time may vary depending on the environment of use
Battery Capacity
Item Spec. Remark
Product Lifetime
Display Method
Aspect ratio
Throw Ratio
Sequential Contrast Ratio
Display Performance
Resolution
Color Depth
Operating Time
Electrical Characteristics Speaker
Audio Interface
ClassificationLaser Safety
Operating TemperatureEnvironmental Condition
Miracast
Focus
Max. Image (Screen) Size
30 ANSI lumens
Laser
10,000 hours
16:9
1.1
80,000 : 1
1920 x 720p HD resolution
1.67M colors (RGB 24bit)
Apprx. 2.5 hrs
1.0W
3.5mm ear phone jack
Wireless Dual (2.4, 5G)
IEC Class 3R Consumer safe device
0°C - 35°C
Yes For devices with Android OS / Mode switch
DLNA
Compatibility Yes For devices with iOS / Mode switch / Application Required
Focus Free (always in focus) No focus wheel required
250 inches In optimal lighting conditions
"Please use the included power adapter or
any adapter supports 5V 2A to charge PicoAir.
** any adapter with lower spec than 5V 2A can damage the adapter when charging.
5V / Max 2AMicroUSB TypeAdaptor
12. Warranty
Celluon warrants this product to be free from defects in materials and workmanship under normal use for a period of one (1) year from the date of purchase, as evidenced by the receipt of purchase.
During the warranty period, Celluon shall repair or replace the product if defective. If replaced, the replacement shall be with a product of equal or greater value.
This warranty is limited to the purchaser and is not transferable.
Please contact support@celluon.com for warranty supports.
