CHAFON TECHNOLOGY RU6401 UHF Card Reader User Manual BCTC 170401623E 2ALYRHG F02B NII report

SHENZHEN CHAFON TECHNOLOGY CO., LTD UHF Card Reader BCTC 170401623E 2ALYRHG F02B NII report

Manual

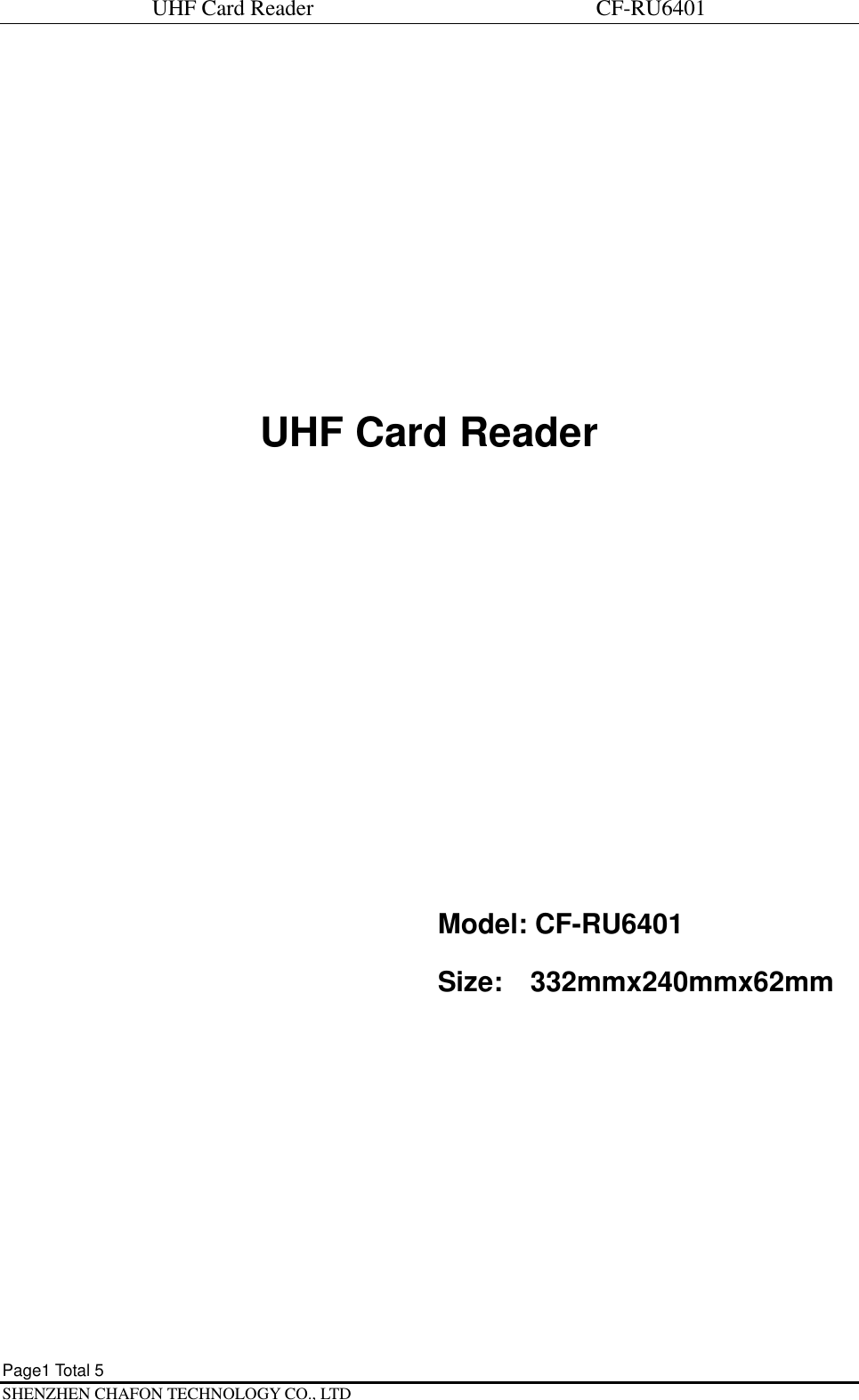

UHF Card Reader                             CF-RU6401 Page1 Total 5   SHENZHEN CHAFON TECHNOLOGY CO., LTD       UHF Card Reader          Model: CF-RU6401 Size:  332mmx240mmx62mm

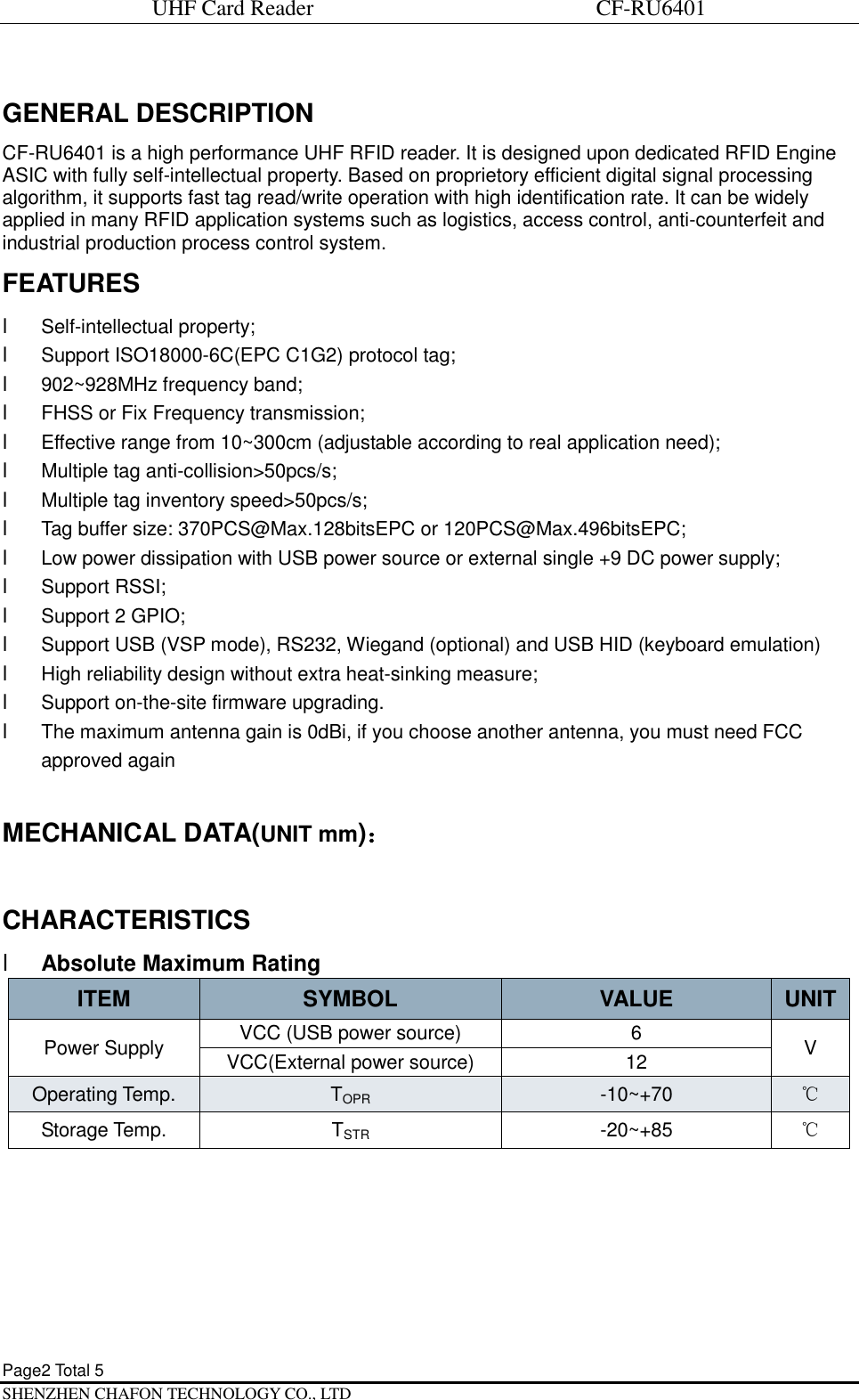

UHF Card Reader                             CF-RU6401 Page2 Total 5   SHENZHEN CHAFON TECHNOLOGY CO., LTD GENERAL DESCRIPTION CF-RU6401 is a high performance UHF RFID reader. It is designed upon dedicated RFID Engine ASIC with fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system. FEATURES l Self-intellectual property; l Support ISO18000-6C(EPC C1G2) protocol tag; l 902~928MHz frequency band; l FHSS or Fix Frequency transmission; l Effective range from 10~300cm (adjustable according to real application need); l Multiple tag anti-collision>50pcs/s; l Multiple tag inventory speed>50pcs/s; l Tag buffer size: 370PCS@Max.128bitsEPC or 120PCS@Max.496bitsEPC; l Low power dissipation with USB power source or external single +9 DC power supply; l Support RSSI; l Support 2 GPIO; l Support USB (VSP mode), RS232, Wiegand (optional) and USB HID (keyboard emulation) l High reliability design without extra heat-sinking measure; l Support on-the-site firmware upgrading. l The maximum antenna gain is 0dBi, if you choose another antenna, you must need FCC approved again  MECHANICAL DATA(UNIT mm):  CHARACTERISTICS l Absolute Maximum Rating ITEM  SYMBOL  VALUE  UNIT Power Supply  VCC (USB power source)  6  V VCC(External power source)  12 Operating Temp.  TOPR -10~+70  ℃ Storage Temp.  TSTR -20~+85  ℃

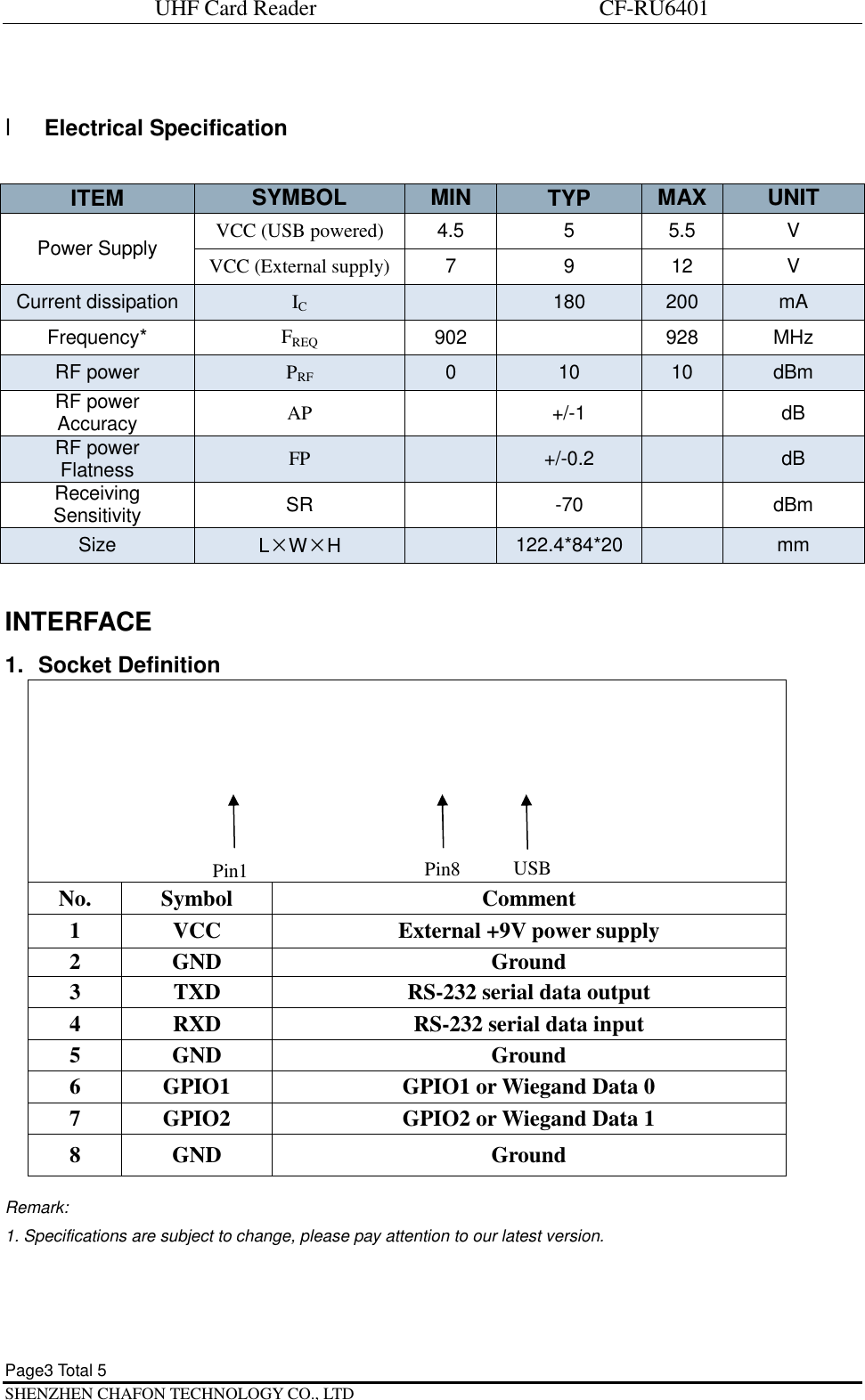

UHF Card Reader                             CF-RU6401 Page3 Total 5   SHENZHEN CHAFON TECHNOLOGY CO., LTD  l Electrical Specification   INTERFACE 1. Socket Definition   No.  Symbol  Comment 1  VCC  External +9V power supply 2  GND  Ground 3  TXD  RS-232 serial data output 4  RXD  RS-232 serial data input 5  GND  Ground 6  GPIO1  GPIO1 or Wiegand Data 0 7  GPIO2  GPIO2 or Wiegand Data 1 8  GND  Ground  Remark:  1. Specifications are subject to change, please pay attention to our latest version.   ITEM  SYMBOL  MIN  TYP  MAX UNIT Power Supply  VCC (USB powered)  4.5  5  5.5  V VCC (External supply) 7  9  12  V Current dissipation IC  180  200  mA Frequency*  FREQ 902    928  MHz RF power  PRF 0  10  10  dBm RF power Accuracy  AP   +/-1    dB RF power Flatness  FP  +/-0.2    dB Receiving Sensitivity  SR    -70    dBm Size  L×W×H   122.4*84*20    mm  Pin1  USB Pin8

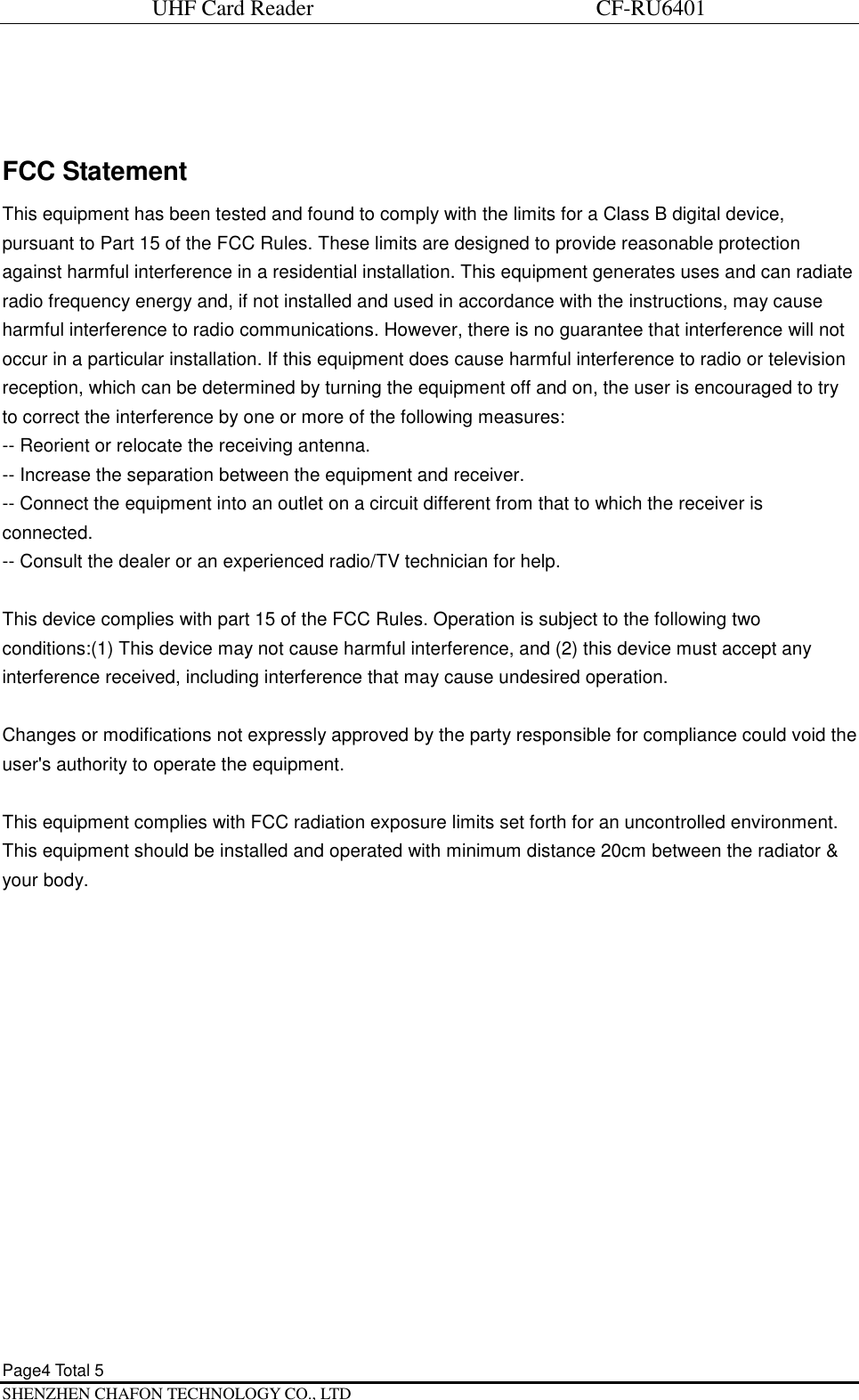

UHF Card Reader                             CF-RU6401 Page4 Total 5   SHENZHEN CHAFON TECHNOLOGY CO., LTD  FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.   -- Increase the separation between the equipment and receiver.    -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   -- Consult the dealer or an experienced radio/TV technician for help.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
