Users Manual

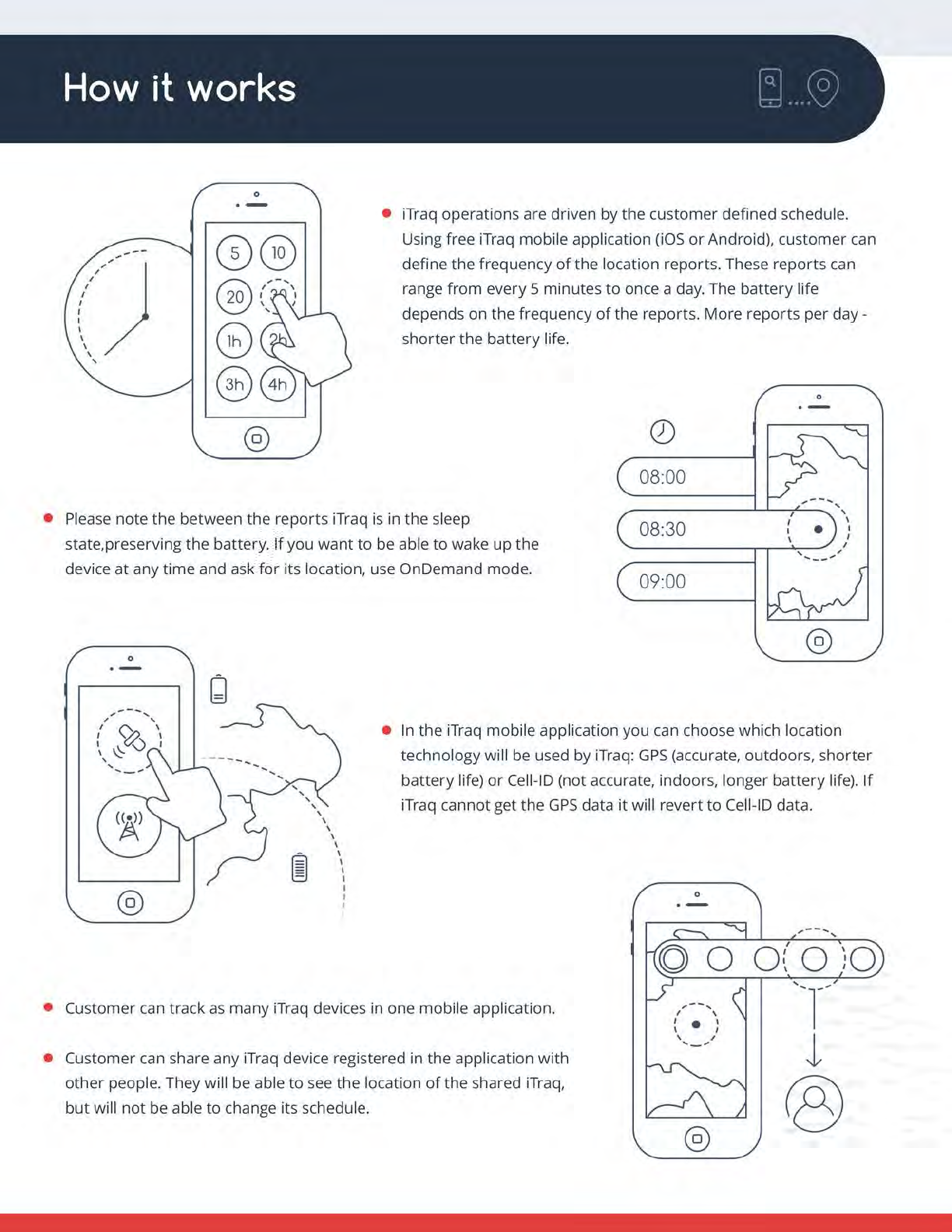

How is it used
Use iTraq location tracking Platform
and API to:
Track your valuable assets
Track your shipments
Key benefits
Gives you peace of mind by helping you keep
track of your loved ones and valuables.
Has extra-long battery life (up to 4 month)
on a single charge.
Includes factory installed SIM card that works
globally (with few exceptions). All you need is
the cell phone reception in the area.
P
Provides accurate reporting outdoors with
included GPS module.

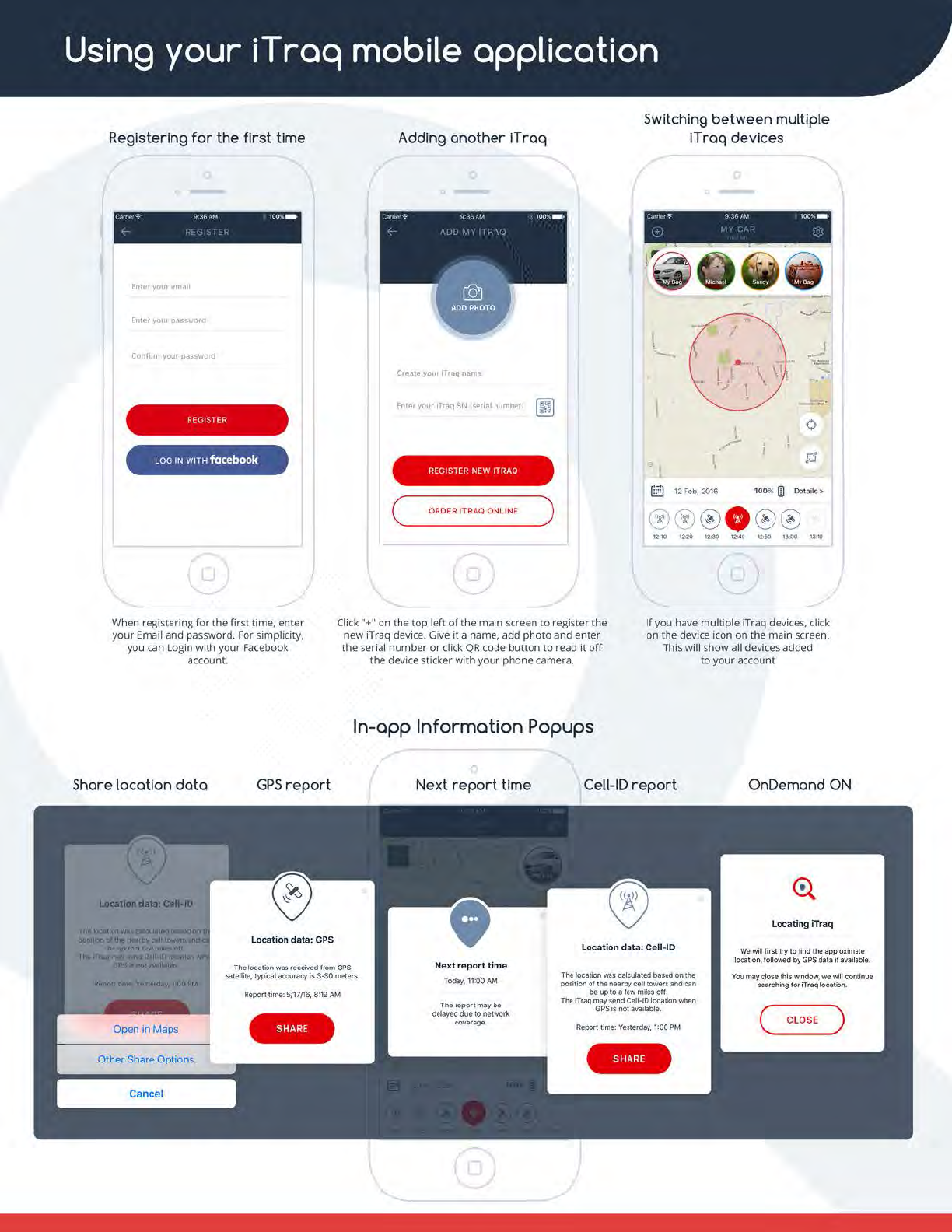

Powerful mobile applications for iTraq
configuration and management.
First 2000 location reports are included in
price.
Global location tracking device
with the longest battery life
Longest Battery Life
Over 4 month of battery life for daily reports. Over 50 days for once an hour reports 7-10 days
reporting every 10 minute.
Replacing batteries
Unscrew 2 screws and open the cap. Place 14 AA batteries inside. Positive side of the batteries
should be placed toward the visible springs (see picture above).
GPS
– with accuracy of 10-30 meters when
the device has visibility of the GPS satellites
(usually outdoors).
Cell ID
– cell tower triangulation technology calculates the location
of the device based on the location of the nearby cell towers. Not very
accurate. Based on the location of the towers can be off by few miles.
Location tracking technologies
This means that If there is no 2G/3G cell coverage, the device may
know its location through GPS, but will not be able to communicate
it to iTraq platform.Please note that since your phone can use many
other technologies to connect (4G, CDMA, LTE) it is possible that
your phone will connect from the area, while Palette device will not.
Palette comes with global SIM card pre-installed. This SIM card works
in most countries (except Japan and Korea). Your subscription to iTraq
service includes global roaming and no extra fees required. Palette is
using 2G/3G cellular technology to communicate.
Connectivity
iTraq comes with 2000 location reports that have
expiration time of one month.
This means that once you will use 2000 location reports or one month after the
device activation, you will need to have a subscription to iTraq services to continue
to use iTraq.
T
The count of location reports and expiration time count starts from the moment
when you added iTraq to your mobile application (activated your iTraq) Annual
subscription: $59/year.
Monthly subscription: $5.9/month Subscriptions are non-refundable, so you will not
get the pro-rated refund if you will decide to stop using your iTraq and cancel your
subscription.
iTraq service subscription

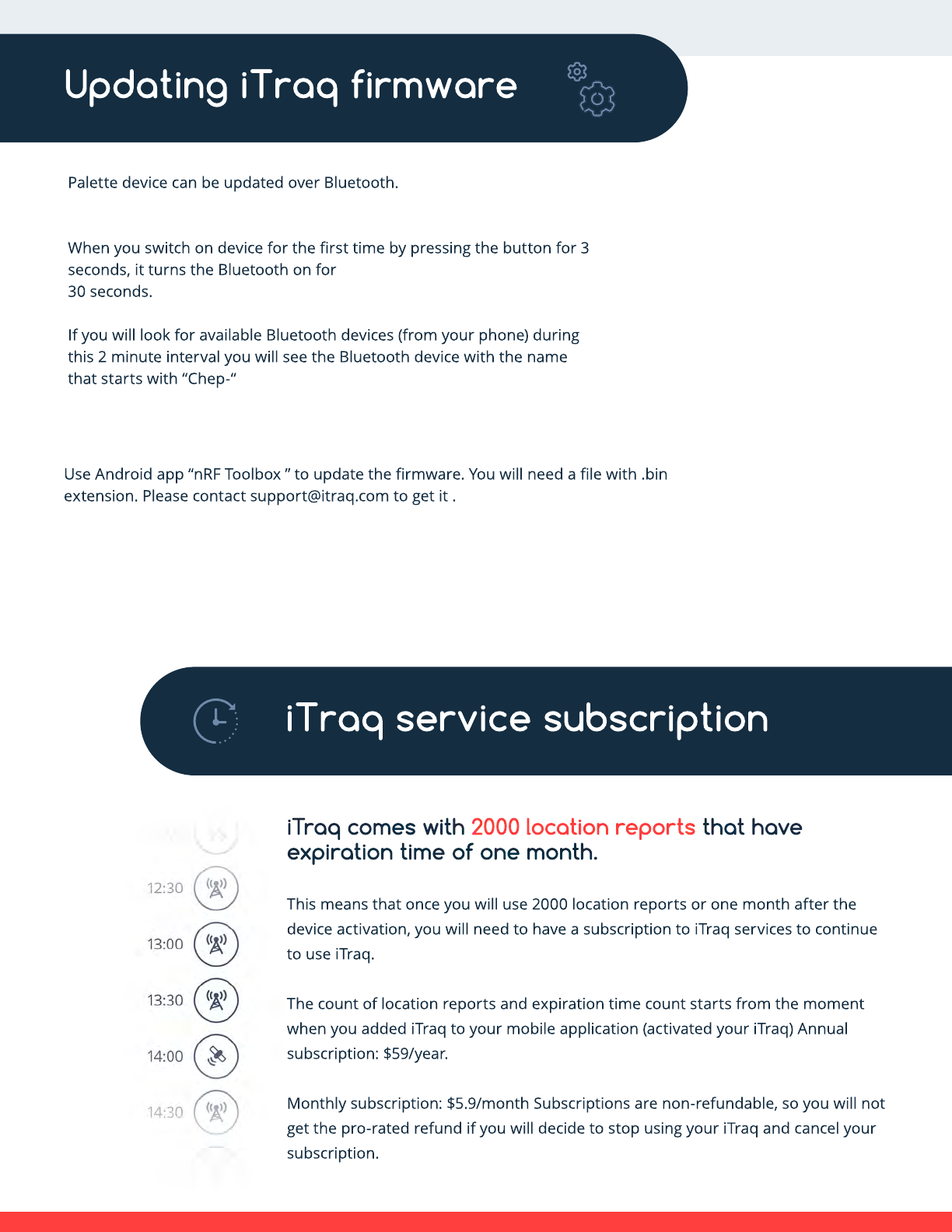

Use Android app “nRF Toolbox ” to update the firmware. You will need a file with .bin
extension. Please contact support@itraq.com to get it .
Palette device can be updated over Bluetooth.
When you switch on device for the first time by pressing the button for 3
seconds, it turns the Bluetooth on for
30 seconds.
If you will look for available Bluetooth devices (from your phone) during
this 2 minute interval you will see the Bluetooth device with the name
t
that starts with “Chep-“
Updating iTraq firmware

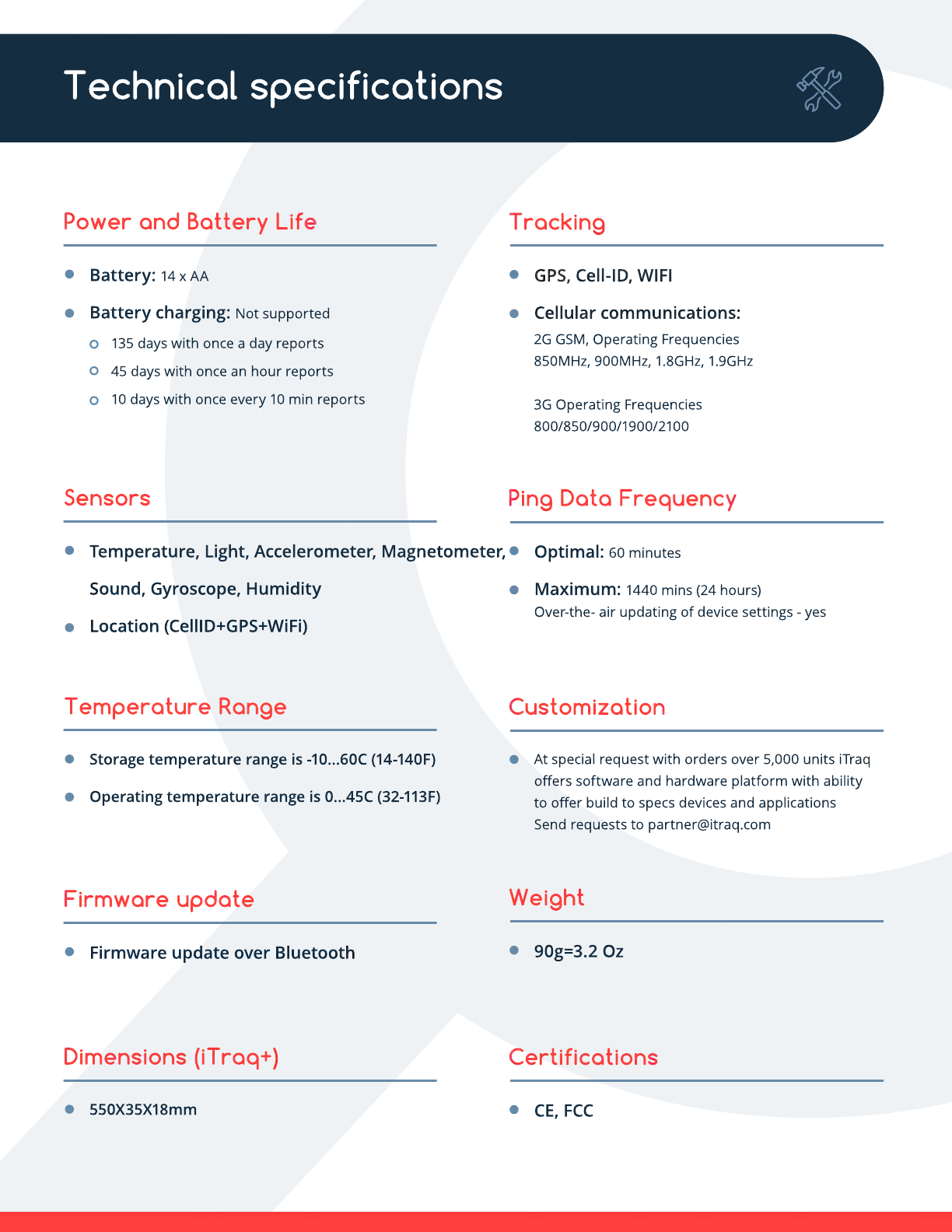

Power and Battery Life
Battery:
14 x AA
Battery charging:
Not supported
135 days with once a day reports
45 days with once an hour reports
10 days with once every 10 min reports
Tracking
GPS, Cell-ID, WIFI
Cellular communications:
2G GSM, Operating Frequencies
850MHz, 900MHz, 1.8GHz, 1.9GHz
3G Operating Frequencies
800/850/900/1900/2100
Sensors
Temperature, Light, Accelerometer, Magnetometer,
Sound, Gyroscope, Humidity
Location (CellID+GPS+WiFi)
Ping Data Frequency
Optimal:
60 minutes
Maximum:
1440 mins (24 hours)
Over-the- air updating of device settings - yes
Temperature Range
Storage temperature range is -10...60C (14-140F)
Operating temperature range is 0...45C (32-113F)
Customization
At special request with orders over 5,000 units iTraq
offers software and hardware platform with ability
to offer build to specs devices and applications
Send requests to partner@itraq.com
Firmware update
Firmware update over Bluetooth
Weight
90g=3.2 Oz
Dimensions (iTraq+)
550X35X18mm
Certifications
CE, FCC
Technical specifications
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
