CHINA DRAGON TECHNOLOGY CDW-507601U-10 WiFi Module User Manual
CHINA DRAGON TECHNOLOGY LIMITED WiFi Module Users Manual
Users Manual
2 / 17
WiFi Module
CDW-507601U-10
1. Overview
The CDW-507601U-10 is a highly integrated WI-FI single chip which supports 150Mbps PHY
rate. It fully complies with IEEE 802.11n and IEEE 802.11b/g standards, offering feature-rich
wireless connectivity at high standards, and delivering reliable, cost-effective thoughput from an
exended distance. Optimzed RF architecture and baseband algorithms provide superb
performance and low power consumption.Intelligent MAC design deploys a high efficient DMA
engine and hardware data processing accelerators which offloads the host processor.
The CDW-507601U-10 is designed to support standard based features in the areas of security,
quality of service and international regulations, giving end users the greatest performance any
time and in any circumstance.
2. Features
■IEEE 802.11b/g/n
■Embedded high-performance 32-bit RISC microprocessor
■Highly integrated RF with 55nm CMOS technology
■1T1R mode with support of 150Mbps PHY rate
■Integrate high efficiency switching regulator
■Best –in-class power consumption performance
■MT7601U chip compact 5mm x 5mm QFN40L package
■1/2/3/4-wire PTA Wi-Fi/Bluetooth coexistence support
■802.11d/h/k compliant
■Security support for WGA WPA/WPA2 personal,WPS2.0,WAPI
■Supports 802.11w proteced managed frames
■QoS support of WFA WMM,WMM PS
■Supports Wi-Fi Direct
■Fully compliance with USB v2.0 High-speed mode
3 / 17
WiFi Module
CDW-507601U-10
3.Functional Block Diagram
USB
interface MTK7601U Antenna
XTAL
40MHZ
VCC 3.3V
USB2.0 WIFI 2.4G TX/RX
3. EEPROM Information
Reg Domain
Worldwide Configured by driver
Offset 0x38 for 5G:0xFF
Offset 0x39 for 2.4G:0xFF
Vendor ID 0x148F
Product ID 0x7601
4 / 17
WiFi Module
CDW-507601U-10
4.General Specification
Model Name CDW-507601U-10
wlan standard IEEE 802.11 b/g/n
Host interface USB2.0
Main Chipset MT7601U
PCBA Dimension 38×26×2.9(L×W×H)+-0.15mm
Operating conditions
Voltage 3.3V±10%
Operating
Temperature -20~ +80°C ambient temperature
Storage
Temperature -40 ~ 120°C ambient temperature
Operating Humidity 5 to 90% maximum（non-condensing）
Electrical Specification
Frequency Range 2.4～2.4835 GHz ISM Band
Date rates 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of
150Mbps
OS support Windows2000,XP32-64,Vista32/64,Win732/64,
Linux, Mac, Android，WIN CE
Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE
802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)
Modulation BPSK/ QPSK/ 16-QAM/ 64-QAM
Security WEP, TKIP, AES, WPA, WPA2
Output power
Mode Data Rate Min Typ Max Unit
802.11b 1,2,5.5,11Mbps 15.5 17 18.5 dBm
802.11g 6,9,12,24,36,48Mbps 14.5 16 17.5 dBm
54Mbps 13.5 15 16.5 dBm
802.11n
HT20&HT40
MCS0 15.5 17 18.5 dBm
MCS6 13.5 15 16.5 dBm
MCS7 12.5 14 15.5 dBm
EVM
802.11b 11Mbps - -27 -10 dB
802.11g 54Mbps - -32 -25 dB
802.11n HT20 mcs7 - -34 -28 dB
802.11n HT40 mcs7 - -33 -28 dB
RX sensitivity 802.11b 11Mbps - -88 -76 dBm
5 / 17
WiFi Module
CDW-507601U-10
（802.11b FER ≦8%
802.11g/n FER ≦
10%）
802.11g 54Mbps - -75 -65 dBm
802.11n HT20 mcs7 - -73 -64 dBm
802.11n HT40 mcs7 - -71 -61 dBm
5.DC Characteristics
Description TYPE Unit
Sleep mode 1.1 mA
RX Active,HT40,MCS7 151 mA
RX Power saving, DTIM=1 15 mA
RX Listen 6 mA
TX HT40,mcs7 @15dBm 210 mA
TX CCK,11Mbps @19dBm 242 mA
Note: All result is measured at the antenna port and VDD33 is 3.3V
6.Pin Description
NO Name Description
1 VCC Power supply 3.3V is required
2 VCC Power supply 3.3V is required
3 UDM USB negative differential data lines
4 UDP USB positive differential data lines
5 GND Ground connections
6 RST_N GPIO Wi-Fi RST(active low)
7 WoWLAN Wake on WLAN Host Interrupt(active high)
8 GND Ground connections
9 GND Ground connections
10 GND Ground connections
11 GND Ground connections
12 GND Ground connections
6 / 17
WiFi Module
CDW-507601U-10

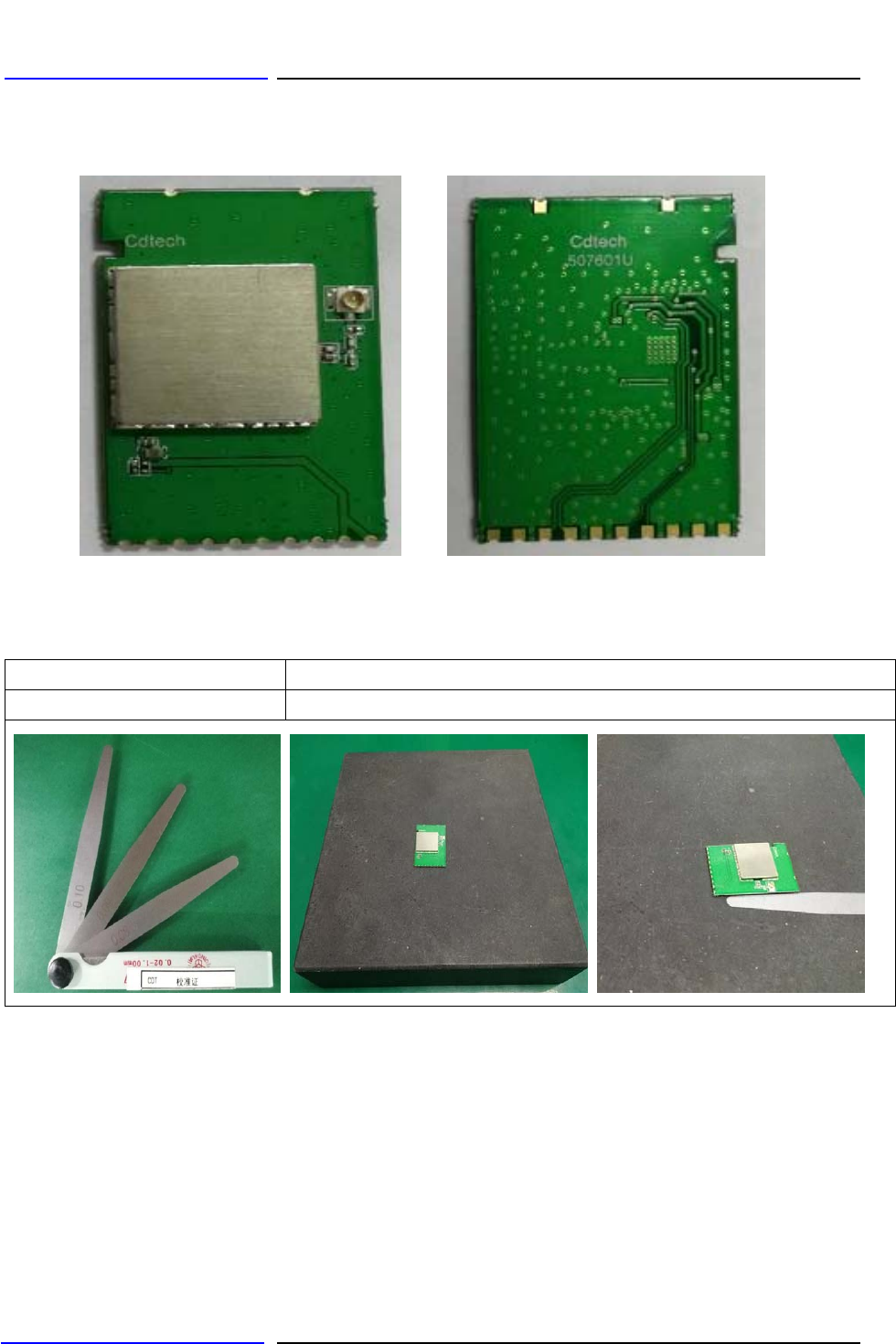

7.Module photo
PCBA EVENNESS
PCBA 平整度标准 ≤0.1mm
工具 大理石平台、标准塞尺
7 / 17
WiFi Module
CDW-507601U-10
8.Modular PCB Decal size(unit:mm)
1.50
38.00
0.80±0.076
2.54
30.95
6.65 6.65
26.00
38.00
26.00
6.65 6.65
1.20
2.40
2.54
1.50
0.90
1.20±0.24
1.50
TOP VIEW BOTTOM VIEW
PCB LAYOUT
2.00
1
10
1112
1.57
1.57
2.98
1.50
24.42
1.59
8 / 17
WiFi Module
CDW-507601U-10

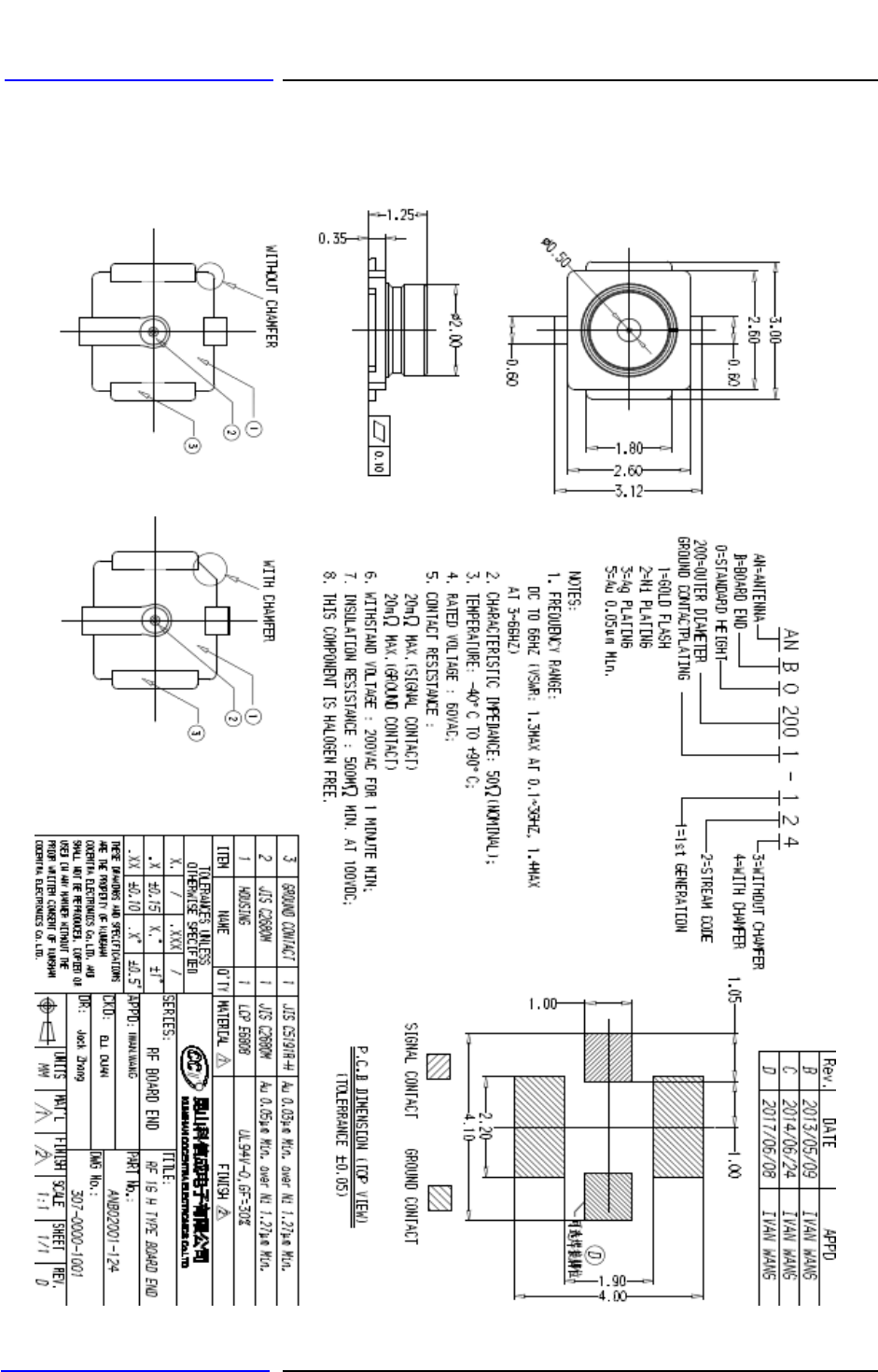

9.IPEX Connector spec
9 / 17
WiFi Module
CDW-507601U-10

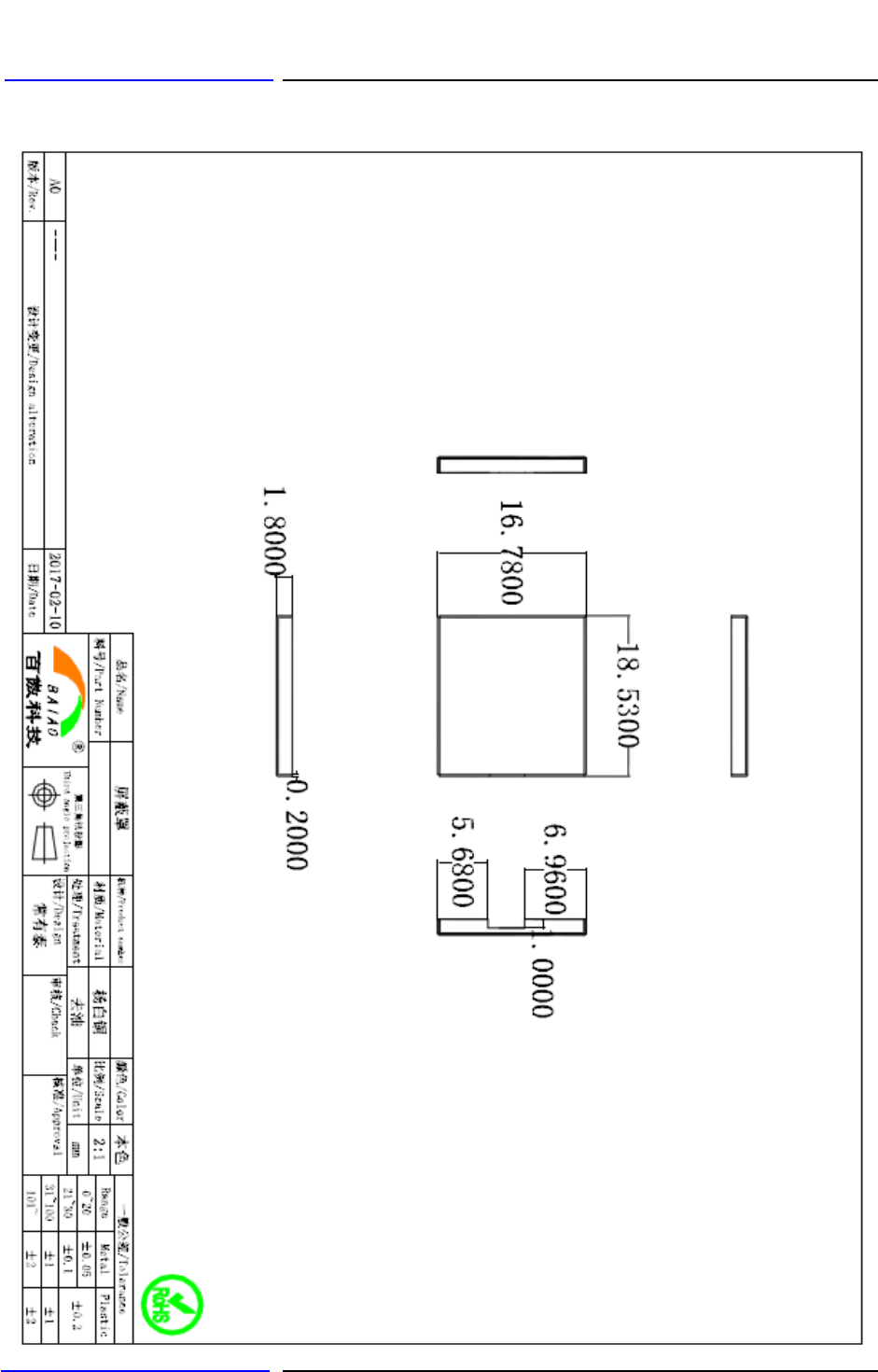

10.Shielding cover spec
10 /
17
WiFi Module
CDW-507601U-10

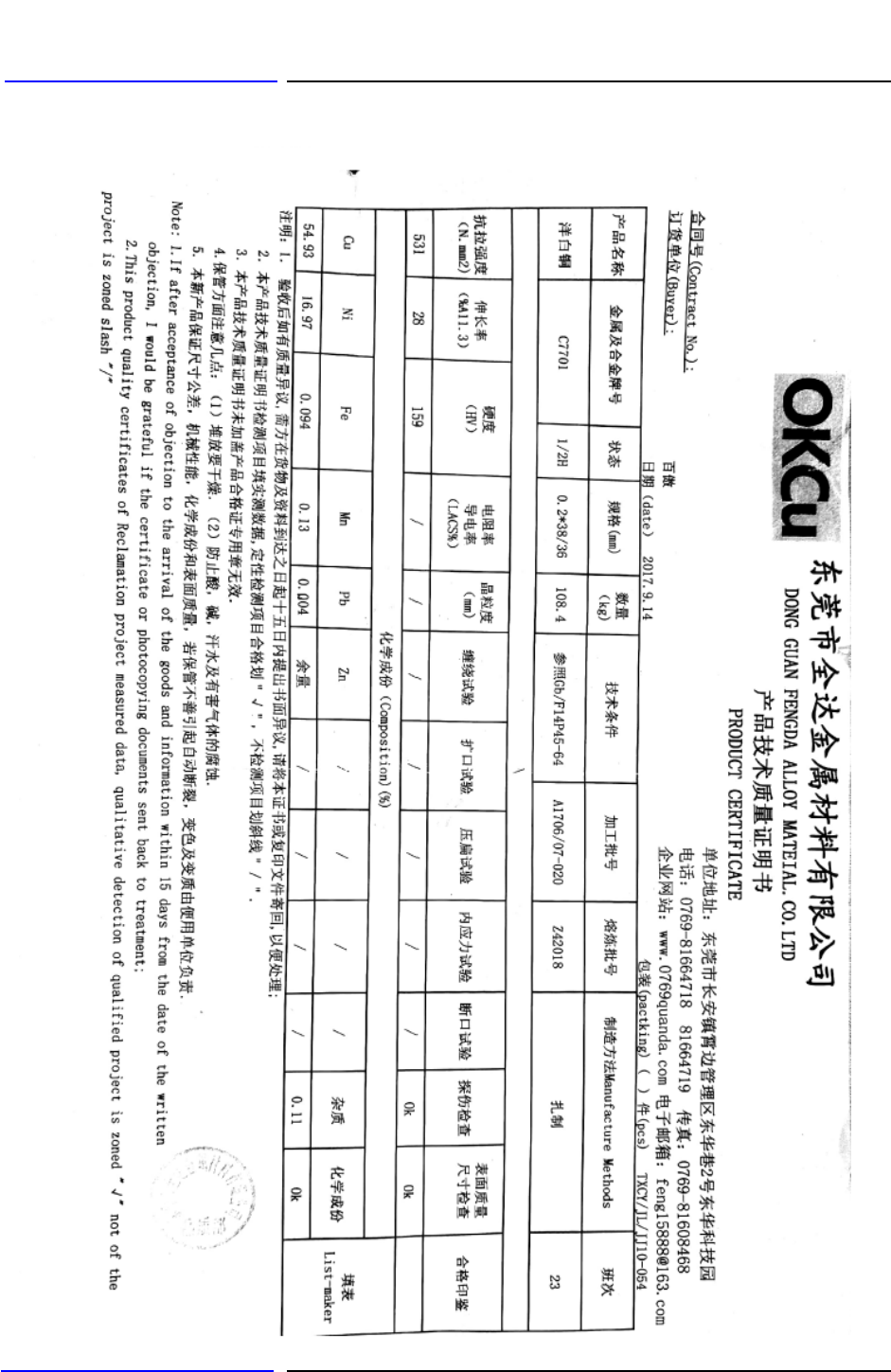

Material
11 /
17
WiFi Module
CDW-507601U-10

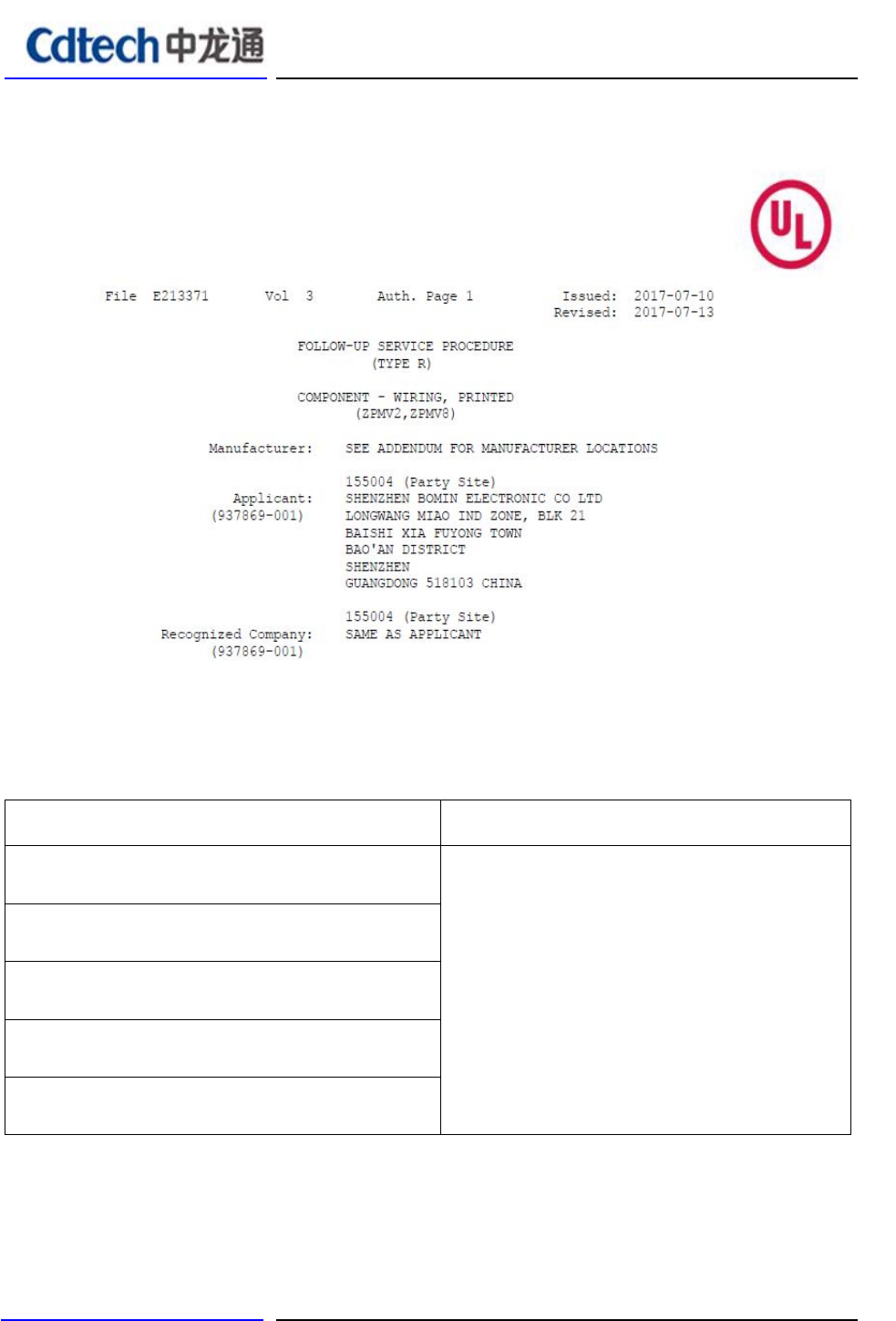

11.UL File
13.Reliability test spec
Test project Test content and reception standard
高温运行试验
High temperature operation
Please see enclosed the list of Reliability test
低温运行试验
Low temperature operation
整箱跌落试验
Drop test of package
模拟汽车运输振动试验
Simulated transport vibration experiment
ESD 试验
Electro-Static discharge
12 /
17
WiFi Module
CDW-507601U-10

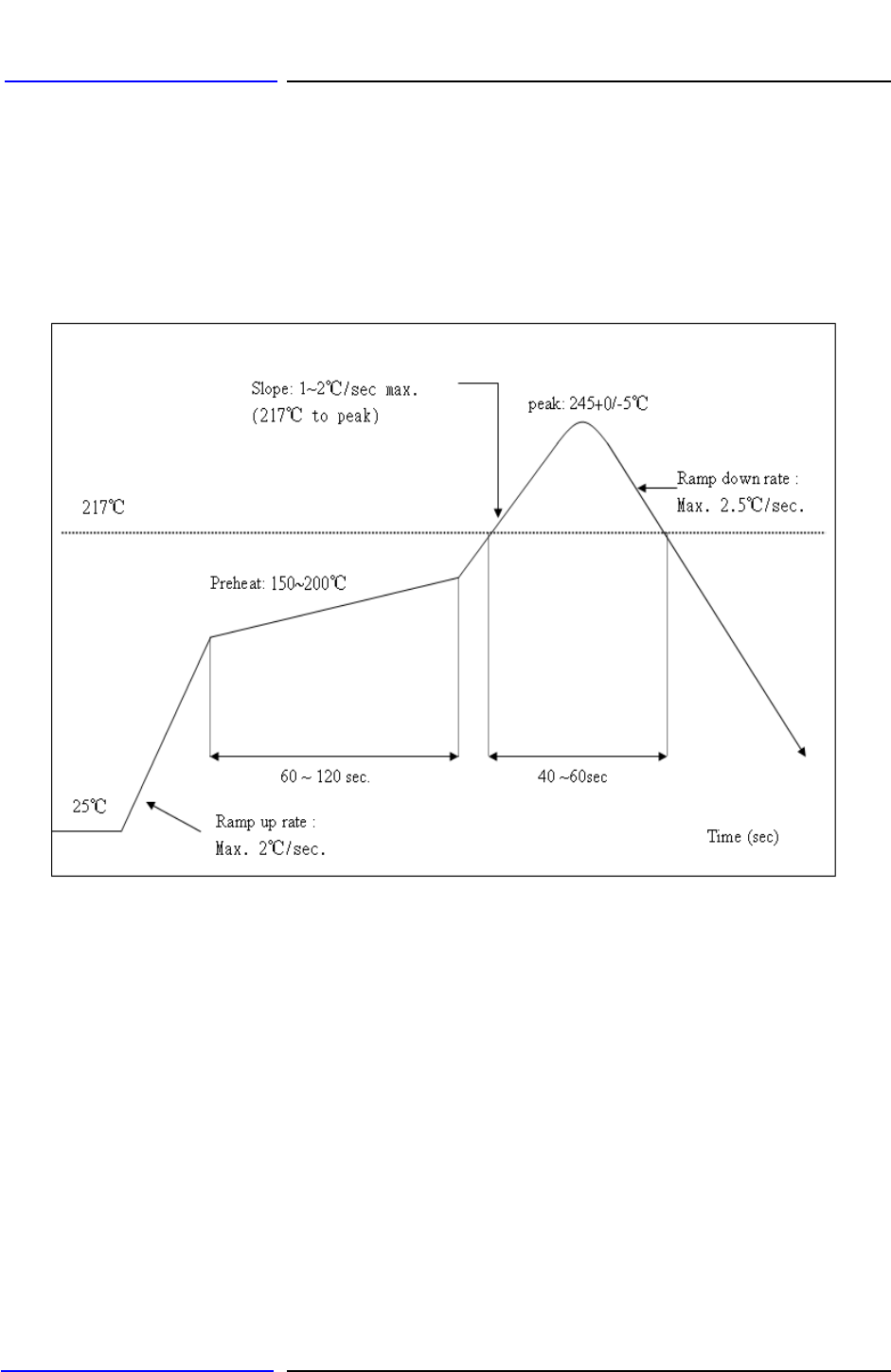

14.Recommended Reflow Profile
Referred IPC/JEDEC standard.
Peak Temperature : <250°C
Number of Times : 2 tim es
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
15.105 Information to the user.
(b) For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This eq
uipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The module should not be installed and operated simultaneously with other radios except additional RF
exposure was evaluated for simultaneously transmission.
The availability of some specific channels and/or operational frequency bands are country dependent and are
firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
The final end product must be labelled in a visible area with the following:
“Contains Transmitter Module ROWCDW-507601U-10”
