WELCOME
Fast Start Instruction
Welcome to use SPB60 super Bluetooth speaker, to use the device correctly, please read this instruction very
carefully before use.
Product Specification
Bluetooth version: Bluetooth V2.1+EDR
Working distance: support wireless music within 10m, working distance may be different
with different environment and Bluetooth device.
Built-in battery: 1200mAh
RMS: 1.6W*2
Rated Voltage: DC5V
Audio input: 3.5mm
Speaker weight: 480g
Speaker size: 186*58*58mm
Package list:
Speaker: 1 User manual: 1 USB cable: 1 Warranty card: 1 Aux-in cable: 1
Product Indicators:
1、Microphone 7、Hands free
2、Bluetooth/AUX mode indicator 8、Power
3、Volume down 9、Charging indicator
4、Volume up 10、AUX input jack
5、Pause 11、Micro USB charging socket
6、Bluetooth pair
Fast Learning

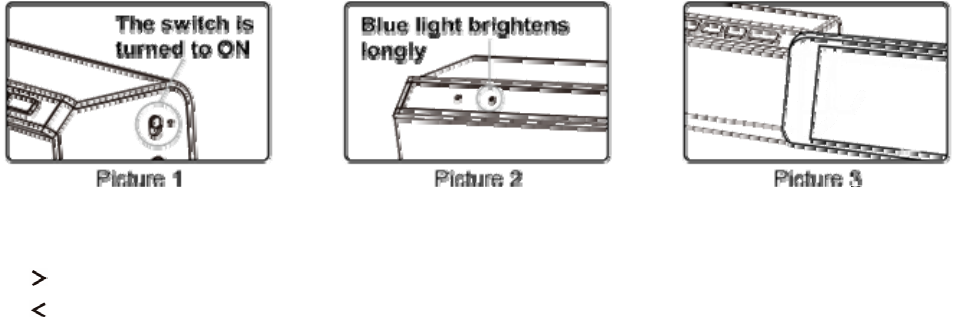

Picture 1: Turn the power button to 'ON', when the blue indicator flashes slowly, the device is pairing with the
latest paired device.
Picture 2: Searching Bluetooth device when speaker is on, device is pairing when the blue indicator flash quickly;
device is connected when the blue indicator is bright constantly.
Picture 3: Play audio with phones.
Buttons:
1. long press, device sounds when volume is up; short press, next track.
2. short press, device sounds when volume is down; short press, prev track.
3. short press, music stop; short press again, music plays.
4. long press, start pairing; long press, cancel the connection with phones.
5. short press, pick up phone calls; short press again, hang up phone calls; long press, refuse to pick up
phone calls. When entering the hands-free call time, Please press always the call will transfer.
Product Introduction
Bluetooth Music: play Bluetooth music with several digital devices, 10 meters working distance with wireless
music stream.
Hands free function: built-in microphone, pick up phone calls wirelessly.
Mobile HIFI: dual tracks with 1.5 inches drivers and passive radiator enhanced bass performance.
Long endurance: 1200mA built-in Lithium battery supports freely and long endurance play.
Aluminum Alloy: Casing made from aluminum alloy, Apple style surface finishing, and elegant design.
Piano finish: surface finished with piano paint, anti scratching.
Warnings
Please read this safety and operation manual before use
z Be aware of all warnings on the device and user manual
z Please DO NOT use accessories which are not recommended by the manufacturer
z To prevent dropping, please DO NOT put the speaker on any unstable devices.
z Please DO NOT put any liquid container around the speaker or put the speaker into any liquid.
z Please DO NOT put the speaker in high temperature or wet environment for long time period.
z Please DO NOT wipe the speaker with Chemical solvents, such as alcohol and diethyl ether.
z To prevent disturbing by electromagnetism, please DO NOT use communication apparatus near the speaker.
z To enjoy music in better quality, please set volume in appropriate level.
z To prevent damage to speaker please do not use during electrical storms.
z No user-serviceable parts, contact dealer for any repairs.
z Please remove the adapter from wall chargers when it is not being used.
z Bluetooth working distance is 10 meters, but it can be affected by various environments and barriers.
z Battery working capacity can be affected by usage patterns and age.
Trouble shooting
Problems Solutions
Cannot connect successfully please check if the speaker is in standby mode or is it disturbed by other
Bluetooth devices, please turn them off if yes.
Volume is too low or distorts please check volume setting of the speaker and set it in appropriate level.
Music cannot plays consistently please if it is used over working distance, or there are barriers between speaker
and music players.
Intermittent ticking sound the alarm battery is low, please charge.
Pause button do not works please try to control by music players.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Name and content of toxic
and harmful substances of the device
Speaker
The toxic and harmful substances
Part Names X O O O O O
Cable X O O O O O
PW/As X O O O O O
Plastic parts O O O O O O
Wood parts O O O O O O
Metaillic
elements X O O O O O
O: weight of toxic and harmful substances is less than the requirement of SJ/T…..
X: weight of toxic and harmful substances is more than the requirement of SJ/T….. in the parts.
All parts with “X” are applied with ROHS of EU.
