Y series strain gages
Universal strain gage
Excellent measuring characteristics
Different connection configurations
Flexible, therefore easy to handle
Wide range of geometries available ex stock
Wide range of geometries available with different
nominal resistance values (120, 350, 700, 1000 Ω)
Y series strain gages
Y series strain gages
22 Strain Gages and Accessories

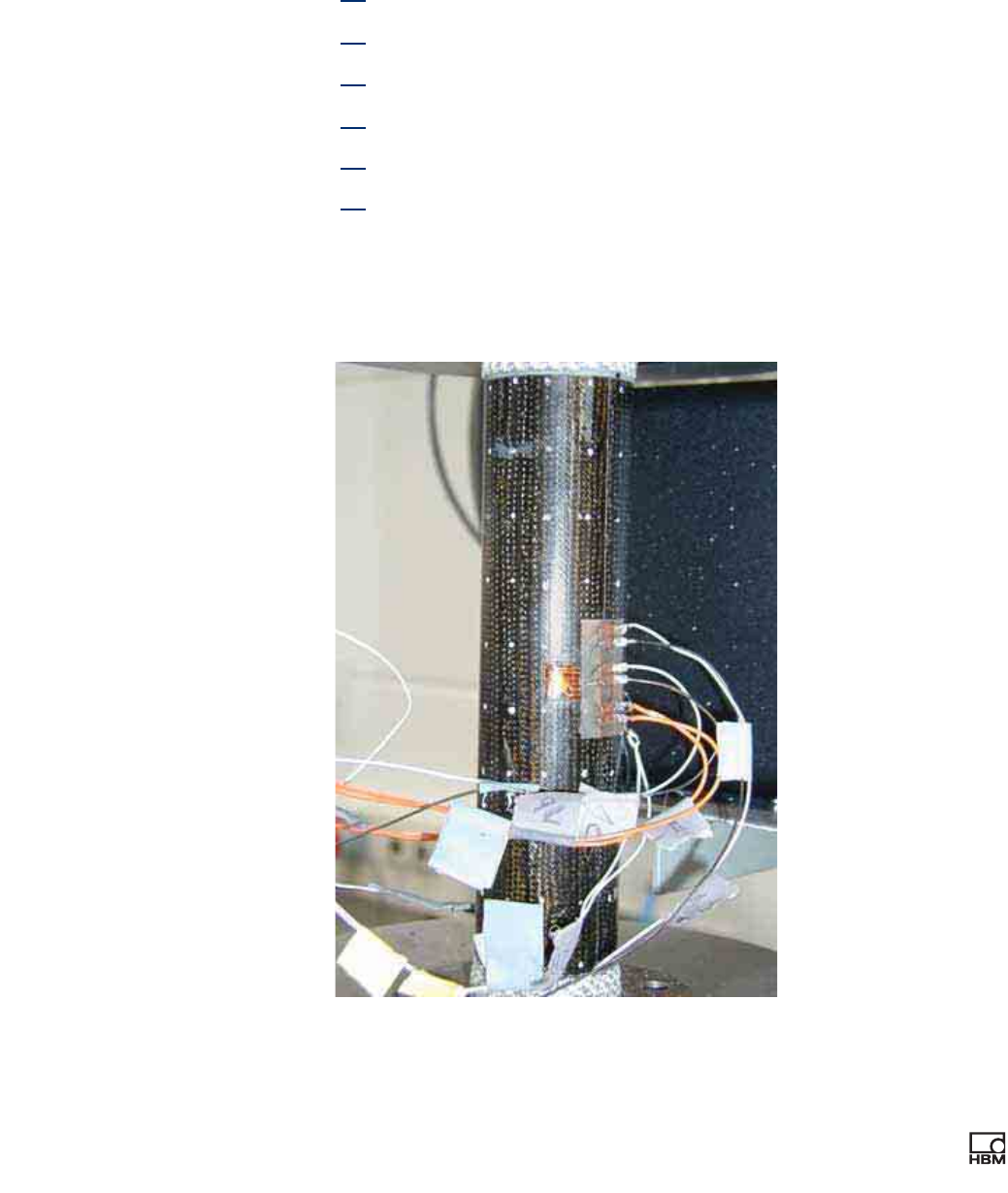

Pipe specimen made of
carbon-fiber reinforced
plastic in a torsion
fracture test
>
>
Strain Gages and Accessories 23
Specifications
strain gage construction foil SG complete with embedded measuring grid
measuring grid
material Constantan foil
thickness µm 3.8 or 5, depending on strain gage type
carrier
material µm polyimide
thickness 45 ± 10
cover
material polyimide
thickness µm 25 ± 5
connections nickel plated Cu leads, approx. 30mm in length.
for strain gages without leads integrated solder tabs, approx. 1.5mm in length,
approx. 1.6 ... 2.2mm wide
nominal resistance Ω120, 350, 700, or 1000, depending on SG type
resistance tolerance % ± 0.3 without; ± 0.35 with leads)
gage factor approx. 2
nominal value of the gage factor specified on each package
gage factor tolerance for 0.6mm and 1.5mm measuring grid length % ± 1.5
for 3 mm measuring grid length % ± 1
temperature coefficient of the gage factor 1/K approx. (115 ± 10) · 10-6
nominal value of the temperature coefficient of the gage factor specified on each package
reference temperature ºC 23
operating temperature range
for absolute, i.e. zero point related measurements ºC -70 … + 200
for relative, i.e. not zero point related measurements ºC -200 … + 200
transverse sensitivity specified on each package
within reference temperature range using adhesive Z 70 % - 0.1
on strain gage type LY 11-6/120
temperature response specified on each package
temperature response at customer’s choice matched to the thermal expansion coefficient
αfor ferritic steel 1/K 10.8 · 10-6
αfor aluminum 1/K 23 · 10-6
αfor plastic material 1/K 65 · 10-6
αfor austenitic steel 1/K 16 · 10-6
αfor titanium/ gray steel 1/K 9 · 10-6
αfor molybdenum 1/K 5.4 · 10-6
αfor quartz 1/K 0.5 · 10-6
tolerance of the temperature response 1/K ± 0.3 · 10-6
temperature response with matching in the range of3) ºC -10... + 120
mechanical hysteresis1)
at reference temperature and strain ε= ± 1,000 µm/m
on strain gage type LY 11-6/120
at 1st load cycle and adhesive Z 70 µm/m 1
at 3rd load cycle and adhesive Z 70 µm/m 0.5
at 1st load cycle and adhesive X 60 µm/m 2.5
at 3rd load cycle and adhesive X 60 µm/m 1
at 1st load cycle and adhesive EP 250 µm/m 1
at 3rd load cycle and adhesive EP 250 µm/m 1
maximum elongation1)
at reference temperature using adhesive Z 70
on strain gage type LY 11-6/120
absolute strain value εfor positive direction µm/m 50,000 ( 5 %)
absolute strain value εfor negative direction µm/m 50,000 ( 5 %)
fatigue life1)
at reference temperature using adhesive X 60
on strain gage type LY 11-6/120
number of load cycles Lwat
alternating strain εw= ± 1,000 µm/m and zero point drift εm∆300 µm/m >> 107(test was interrupted at 107)
εm∆30 µm/m > 107(test was interrupted at 107)
minimum radius of curvature, longitudinal and transverse, at reference temperature
for strain gages with leads mm 0.3
for strain gages with integrated solder tabs
within the measuring grid area mm 0.3
within the area of the solder tabs mm 2
bonding material that can be used
cold curing adhesives Z 70; X 60; X 280
hot curing adhesives EP 250; EPS 310S
1) The data depend on the various parameters of the specific application and are therefore stated for representative examples only.
2) With measuring grid lengths of 0.6 mm, the nominal resistance may deviate by ± 1%. For the types LY 51/ LY5x the deviation is ± 0.75%. For XY9x, RY9x and the KY types (per chain) it is ± 0.5%.
3) Matching to plastic (code numer 8) is only possible in the temperature range of -10…+50°C.

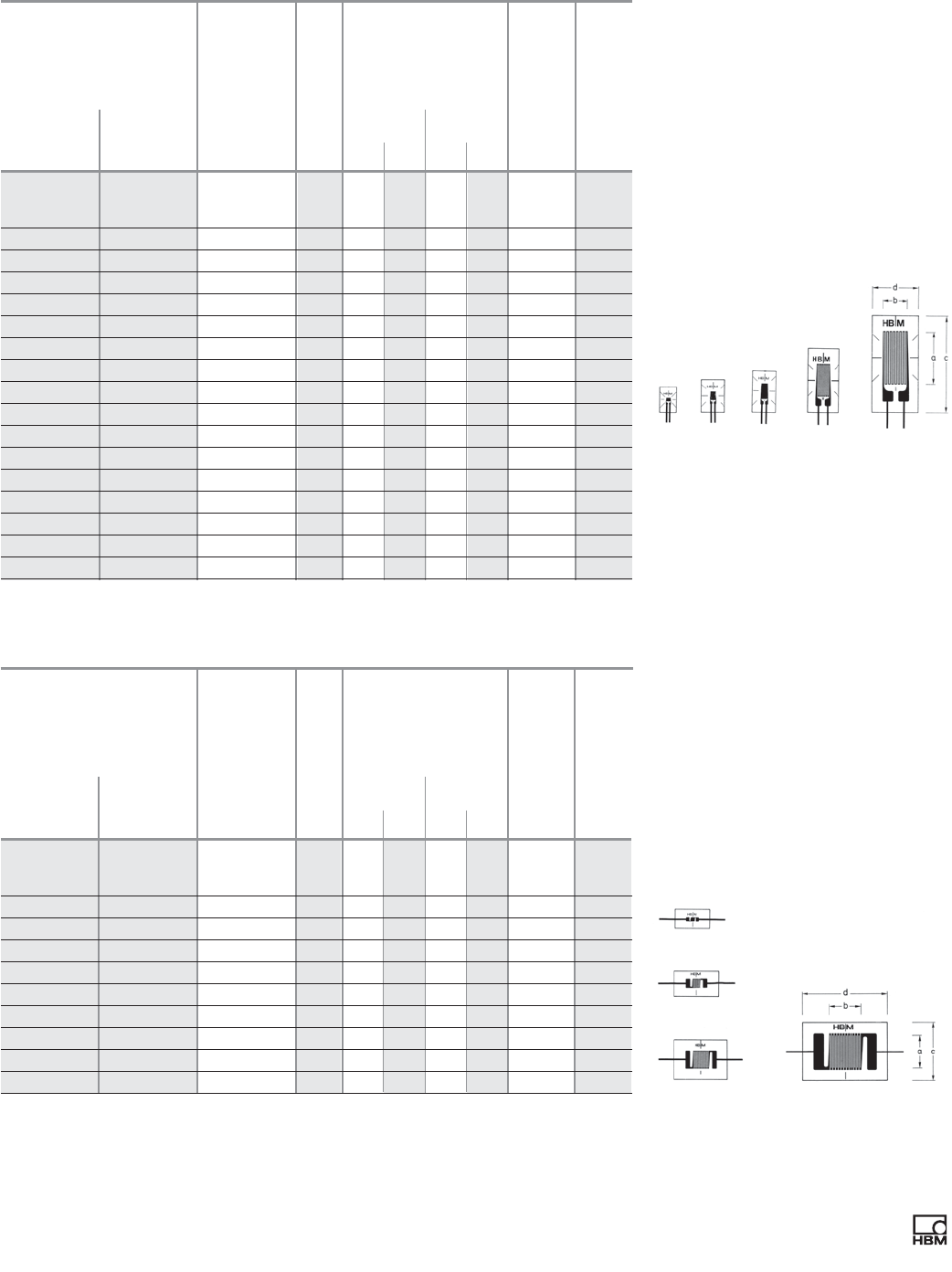

LY21
Linear strain gage
Temperature response matched to steel
with α= 10.8
·
10-6/K
LY2x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm )
Contents per package: 10 pcs.
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
0.6
1.5
36
0.6 1.5 3 6 10

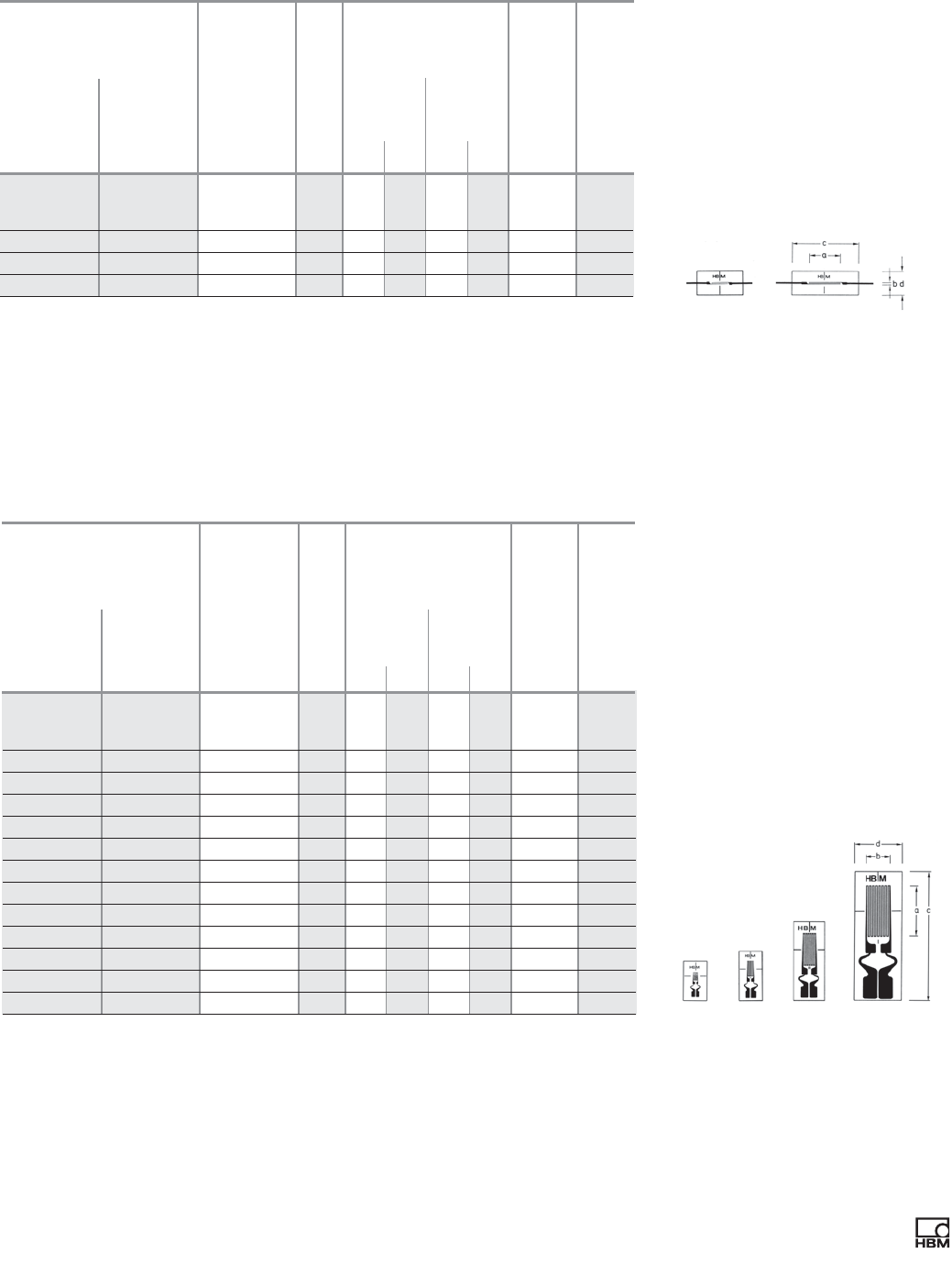

SG / Y series with 1 measuring grid / linear strain gages
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-LY11-0.6/120 1-LY13-0.6/120 1-LY1x-0.6/120# 120 0.6 1 5 3.2 1.5 LS 7
1-LY11-1.5/120 1-LY13-1.5/120 1-LY1x-1.5/120 120 1.5 1.2 6.5 4.7 2.5 LS 7
1-LY11-3/120 1-LY13-3/120 1-LY1x-3/120 120 3 1.4 8.5 4.5 4 LS 7
1-LY11-3/120A 1-LY1x-3/120A 120 3 1.4 8.5 4.5 4 LS 7
1-LY11-6/120 1-LY13-6/120 1-LY1x-6/120 120 6 2.8 13 6 8 LS 5
1-LY11-6/120A 1-LY1x-6/120A 120 6 2.8 13 6 8 LS 5
1-LY11-10/120 1-LY13-10/120 1-LY1x-10/120 120 10 4.9 18.5 9.5 13 LS 5
1-LY11-10/120A 1-LY1x-10/120A
120 10 4.9 18.5 9.5 13 LS 5
1-LY11-1,5/350 1-LY13-1,5/350
1-LY1x-1,5/350#
350 1.5 1.2 5.7 4.7 4.5 LS 7
1-LY11-3/350 1-LY13-3/350 1-LY1x-3/350 350 3 1.5 8.5 4.5 7 LS 7
1-LY1x-3/350A 350 3 1.5 8.5 4.5 7 LS 7
1-LY11-6/350 1-LY13-6/350 1-LY1x-6/350 350 6 2.9 13 6 14 LS 5
1-LY11-6/350A 1-LY1x-6/350A 350 6 2.9 13 6 14 LS 5
1-LY11-10/350 1-LY1x-10/350 350 10 5 18.5 9.5 23 LS 5
1-LY11-10/350A 1-LY1x-10/350A 350 10 5 18.5 9.5 23 LS 5
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-LY21-0.6/120 1-LY2x-0.6/120# 120 0.6 0.6 3.5 6.4 1 LS 7
1-LY21-1.5/120 1-LY2x-1.5/120 120 1.5 1.4 4.7 8.3 2 LS 5
1-LY21-3/120 1-LY2x-3/120 120 3 2.8 7.5 10 6 LS 5
1-LY2x-6/120 120 6 5.7 11 16 12 LS 4
24 Strain Gages and Accessories
LY11
Linear strain gage
Temperature response matched to steel
with α= 10.8
·
10-6/K
LY13
Temperature response matched to aluminum
with α= 23
·
10-6/K
LY1x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm )
Contents per package: 10 pcs.

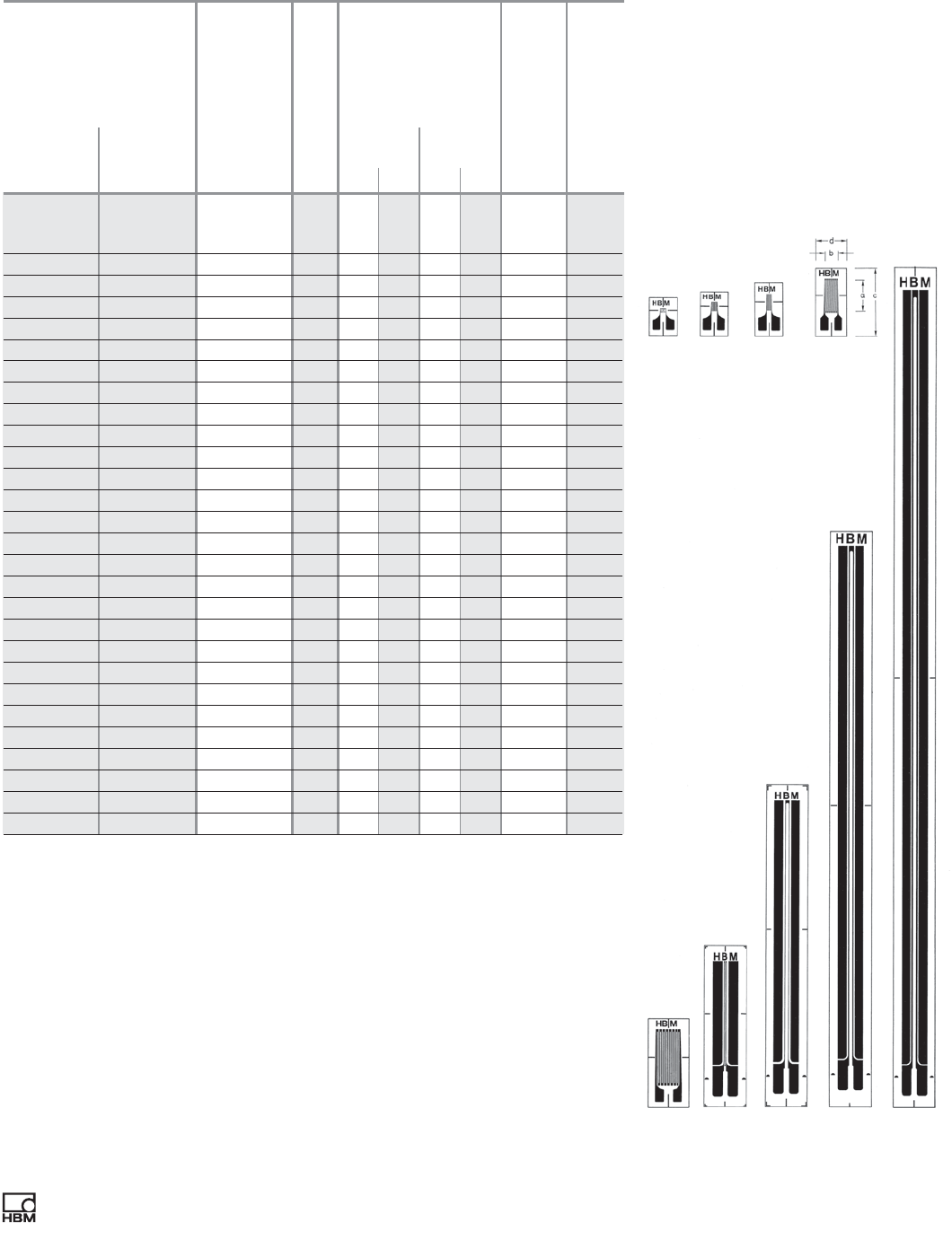

SG / Y series with 1 measuring grid / linear strain gages
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel

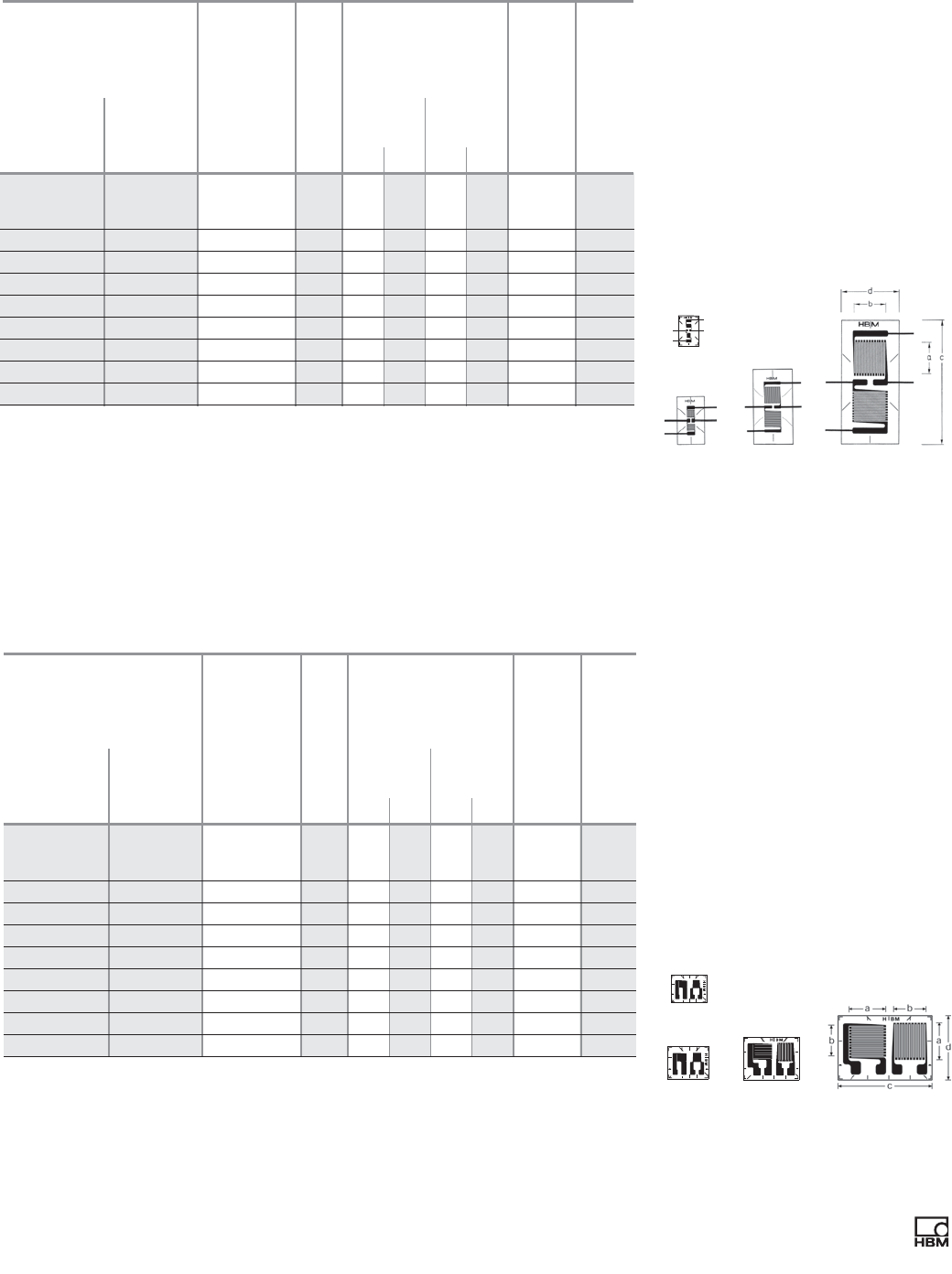

LY41
Linear strain gage
Temperature response matched to steel with α= 10.8
·
10-6/K
LY43
Temperature response matched to aluminum
with α= 23
·
10-6/K
LY4x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm )
Contents per package: 10 pcs.
Strain Gages and Accessories 25
0.6 1.5 3 6
10 20 50 100 150
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-LY41-0.6/120
1-LY4x-0.6/120#
120 0.6 1.2 6 4 1.5 LS 5
1-LY41-1.5/120 1-LY4x-1.5/120 120 1.5 1.2 7 5 2.5 LS 5
1-LY41-3/120 1-LY43-3/120 1-LY4x-3/120 120 3 1.1 8 5 3.5 LS 5
1-LY4x-3/120A 120 3 1.1 8 5 3.5 LS 5
1-LY41-6/120 1-LY43-6/120 1-LY4x-6/120 120 6 2.3 13.9 5.9 8 LS 5
1-LY41-6/120A
1-LY4x-6/120A
120 6 2.3 13.9 5.9 8 LS 5
1-LY41-10/120 1-LY4x-10/120 120 10 5 18 8 14 LS 5
1-LY4x-10/120A
120 10 5 18 8 14 LS 5
1-LY41-20/120 1-LY4x-20/120 120 20 0.7 31.8 8.2 6.5 LS 5
1-LY41-50/120 1-LY4x-50/120 120 50 0.9 63.6 8.2 12 LS 5
1-LY41-100/120
1-LY4x-100/120
120 100 1 114.8 8.2 19 LS 5
1-LY41-150/120
1-LY4x-150/120
120 150 1.3 165.6 8.2 25 LS 5
1-LY41-1.5/350
1-LY4x-1.5/350#
350 1.5 2.3 9.2 5.9 6.5 LS 5
1-LY41-3/350 1-LY43-3/350 1-LY4x-3/350 350 3 2.5 10.9 5.9 9 LS 5
1-LY41-3/350A 1-LY4x-3/350A 350 3 2.5 10.9 5.9 9 LS 5
1-LY41-6/350 1-LY43-6/350 1-LY4x-6/350 350 6 2.7 13.9 5.9 15 LS 5
1-LY41-6/350A 1-LY4x-6/350A 350 6 2.7 13.9 5.9 15 LS 5
1-LY41-10/350 1-LY4x-10/350 350 10 5 18 8 24 LS 5
1-LY4x-10/350A
350 10 5 18 8 24 LS 5
1-LY41-3/700 1-LY43-3/700 1-LY4x-3/700 700 3 2.7 10.9 5.9 13 LS 5
1-LY41-6/700 1-LY4x-6/700 700 6 4.1 13.9 5.9 23 LS 5
1-LY41-10/700 1-LY4x-10/700 700 10 5 18 8 33 LS 5
1-LY4x-3/1000# 1000 3 2.7 10.9 5.9 16 LS 5
1-LY41-6/1000 1-LY4x-6/1000# 1000 6 4.3 13.9 5.9 27 LS 5
1-LY4x-10/1000#
1000 10 5 18 8 40 LS 5
LY61
Linear strain gage
Temperature response matched to steel
with α= 10.8
·
10-6/K
LY63
Temperature response matched to aluminum
with α= 23
·
10-6/K
LY6x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm )
Contents per package: 10 pcs.
SG / Y series with 1 measuring grid / linear strain gages
LY51
Linear strain gage
Temperature response matched to steel
with α= 10.8
·
10-6/K
LY5x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 10 pcs.
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-LY51-3/120 1-LY5x-3/120 120 3 0.3 9 4.7 2 LS 7
1-LY5x-6/120 120 6 0.4 13 4.7 3 LS 7
26 Strain Gages and Accessories
36
1.5 3 6 10
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-LY61-1.5/120 1-LY6x-1.5/120 120 1.5 1.0 7.8 4.7 2.5 -
1-LY61-3/120 1-LY6x-3/120 120 3 1.4 9.8 4.7 4 -
1-LY6x-3/120A 120 3 1.4 9.8 4.7 4 -
1-LY61-6/120 1-LY63-6/120 1-LY6x-6/120 120 6 2.5 16 6.3 8 -
1-LY6x-6/120A 120 6 2.5 16 6.3 8 -
1-LY61-10/120 1-LY6x-10/120 120 10 4.3 23.5 9.3 13 -
1-LY61-3/350 1-LY6x-3/350 350 3 1.7 9.8 4.7 7 -
1-LY6x-3/350A 350 3 1.7 9.8 4.7 7 -
1-LY61-6/350 1-LY63-6/350 1-LY6x-6/350 350 6 2.6 16 6.3 13 -
1-LY61-6/350A 1-LY6x-6/350A 350 6 2.6 16 6.3 13 -
1-LY61-10/350 1-LY6x-10/350 350 10 4.3 23.5 9.3 22 -

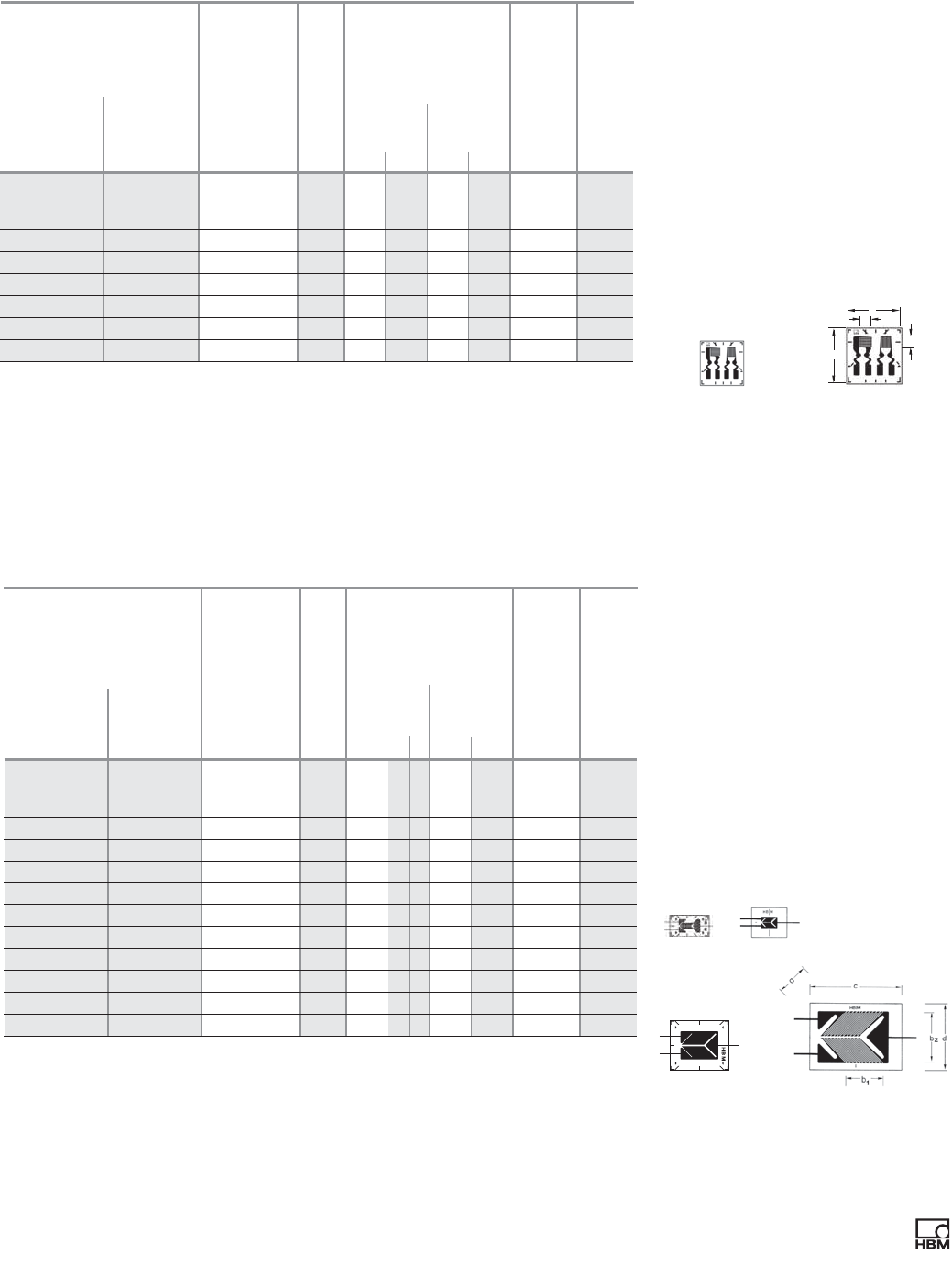

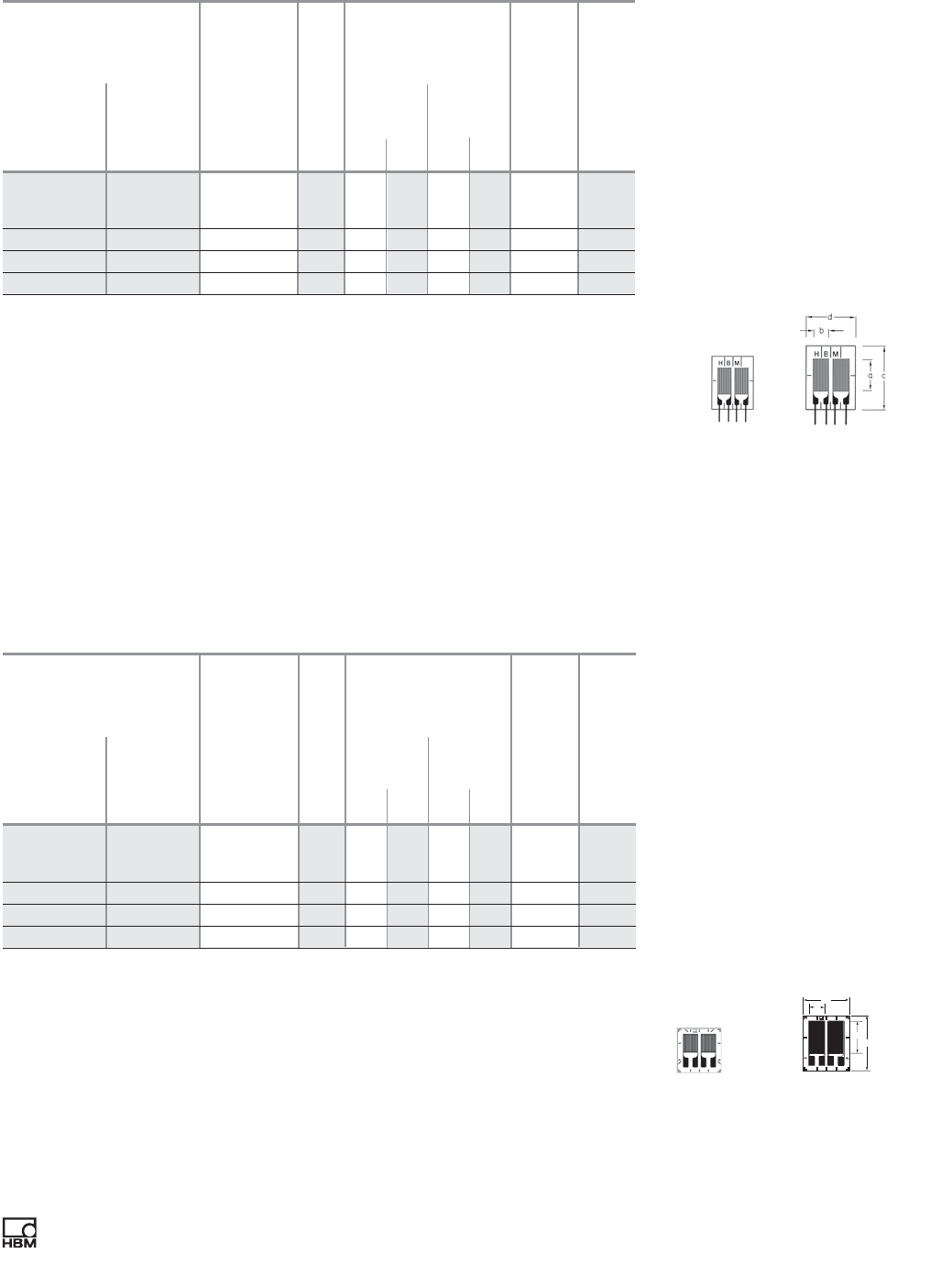

DY41
Double strain gage
Temperature response matched to steel
with α= 10.8
·
10-6/K
DY43
Temperature response matched to aluminum
with α= 23
·
10-6/K
DY4x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs

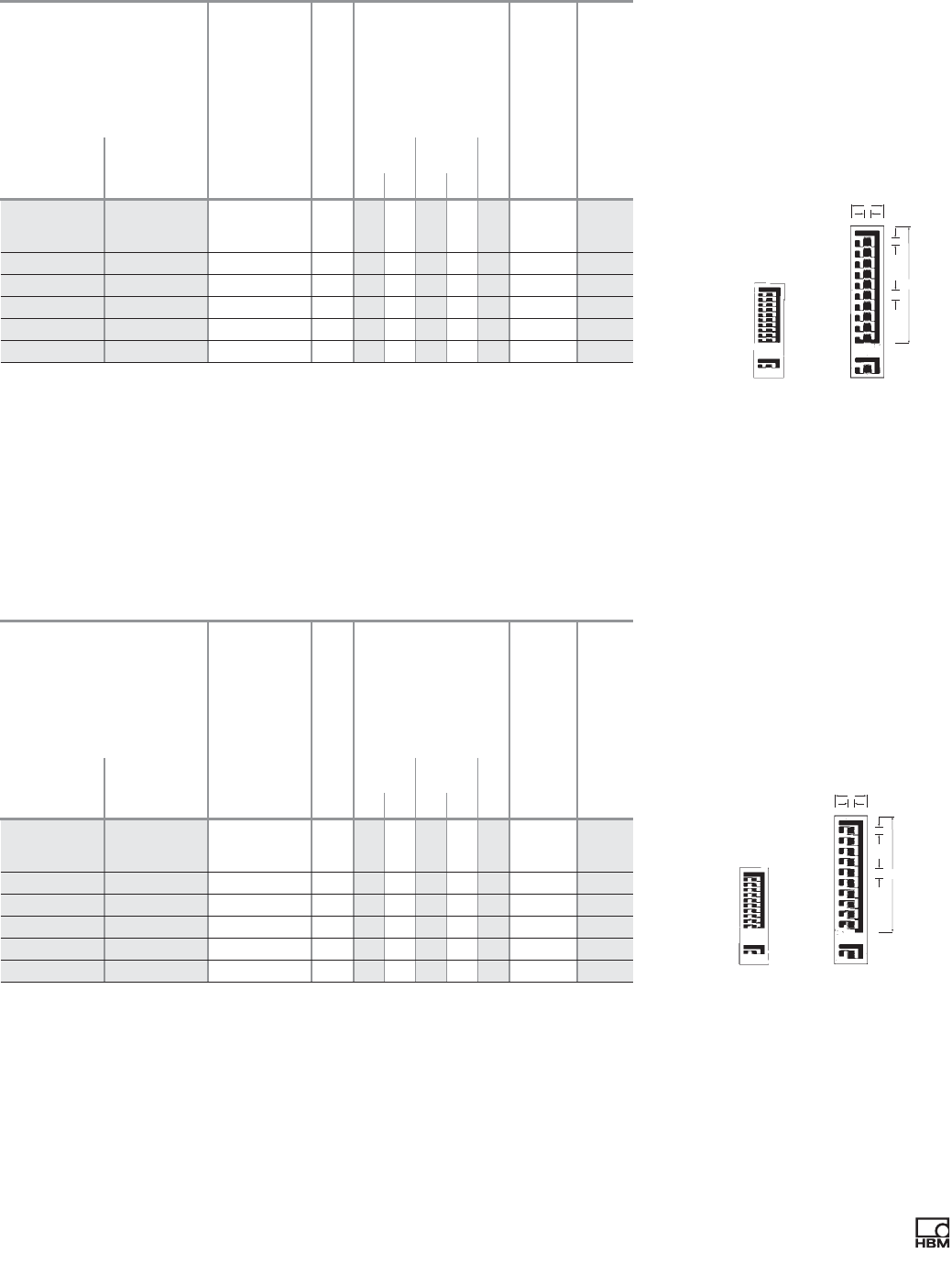

SG / Y series with 2 measuring grids / double strain gages
DY11
Double strain gage
Temperature response matched to steel
with α= 10.8
·
10-6/K
DY13
Temperature response matched to aluminum
with α= 23
·
10-6/K
DY1x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs
Strain Gages and Accessories 27
36
3 6
(1) Solder terminals are not compulsory
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-DY11-3/350 1-DY13-3/350 1-DY1x-3/350 350 3 2.7 9 8 9 LS 7
1-DY11-6/350 1-DY13-6/350 1-DY1x-6/350 350 6 3.2 12.5 9.4 14 LS 7
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-DY41-3/350 1-DY43-3/350 1-DY4x-3/350 350 3 2.5 8.2 8 8.5 LS 7
1-DY41-6/350 1-DY4x-6/350 350 6 2.8 10.7 9 13 LS 7
a
b
c
d

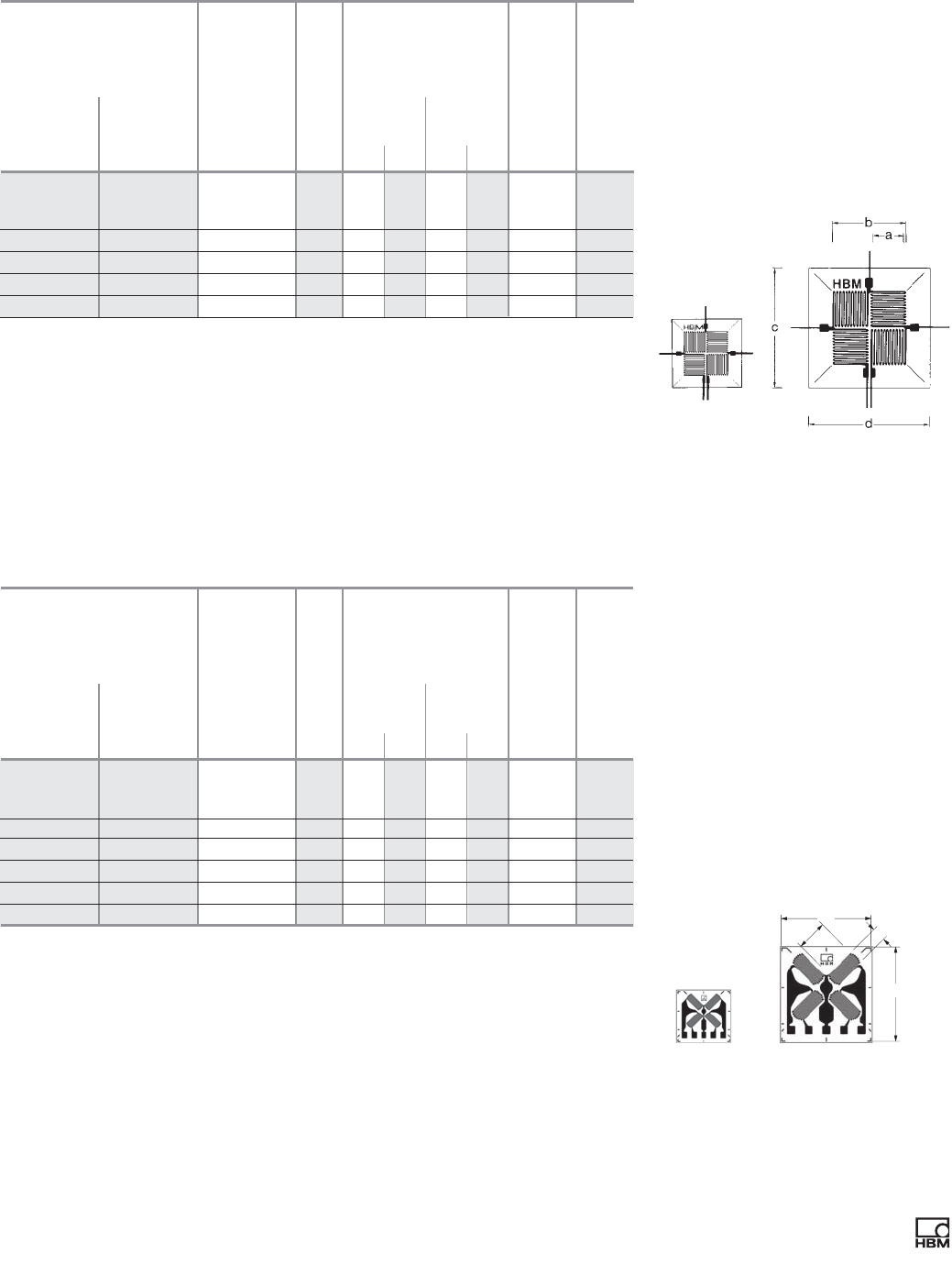

SG / Y series with 2 measuring grids / T rosette
XY11
0°/90° T rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
XY13
Temperature response matched to aluminum
with α= 23 · 10-6/K
XY1x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
0.6
XY31
0°/90° T rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
XY33
Temperature response matched to aluminum
with α= 23 · 10-6/K
XY3x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
1.5 3 6
0.6
28 Strain Gages and Accessories
1.5 3 6
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-XY11-0.6/120 1-XY1x-0.6/120# 120 0.6 1 6 4 1.5 LS 7
1-XY11-1.5/120 1-XY13-1.5/120 1-XY1x-1.5/120 120 1.5 1.5 9 5 3 LS 5
1-XY11-3/120 1-XY13-3/120 1-XY1x-3/120 120 3 3 14.5 7.5 6 LS 4
1-XY11-6/120 1-XY1x-6/120 120 6 6 23.5 11 12 LS 5
1-XY11-1.5/350 1-XY13-1.5/350 1-XY1x-1.5/350# 350 1.5 1.5 9 5 5 LS 5
1-XY11-3/350 1-XY13-3/350 1-XY1x-3/350 350 3 3 14.4 7.3 10 LS 4
1-XY11-6/350 1-XY13-6/350 1-XY1x-6/350 350 6 6 23.3 10.5 20 LS 4
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-XY31-0.6/120 1-XY3x-0.6/120# 120 0.6 1 7 6 1.5 LS7
1-XY31-1.5/120 1-XY33-1.5/120 1-XY3x-1.5/120 120 1.5 1.5 8 6.3 3 LS7
1-XY31-3/120 1-XY3x-3/120 120 3 2.8 10.5 8 5.5 LS7
1-XY31-6/120 1-XY3x-6/120 120 6 5.8 17.5 12 11 LS4
1-XY31-1.5/350 1-XY33-1.5/350 1-XY3x-1.5/350# 350 1.5 1.2 7.7 6.3 5 LS7
1-XY31-3/350 1-XY33-3/350 1-XY3x-3/350 350 3 2.9 10.9 7.6 10 LS5
1-XY31-6/350 1-XY33-6/350 1-XY3x-6/350 350 6 5.7 18 12 20 LS4
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel

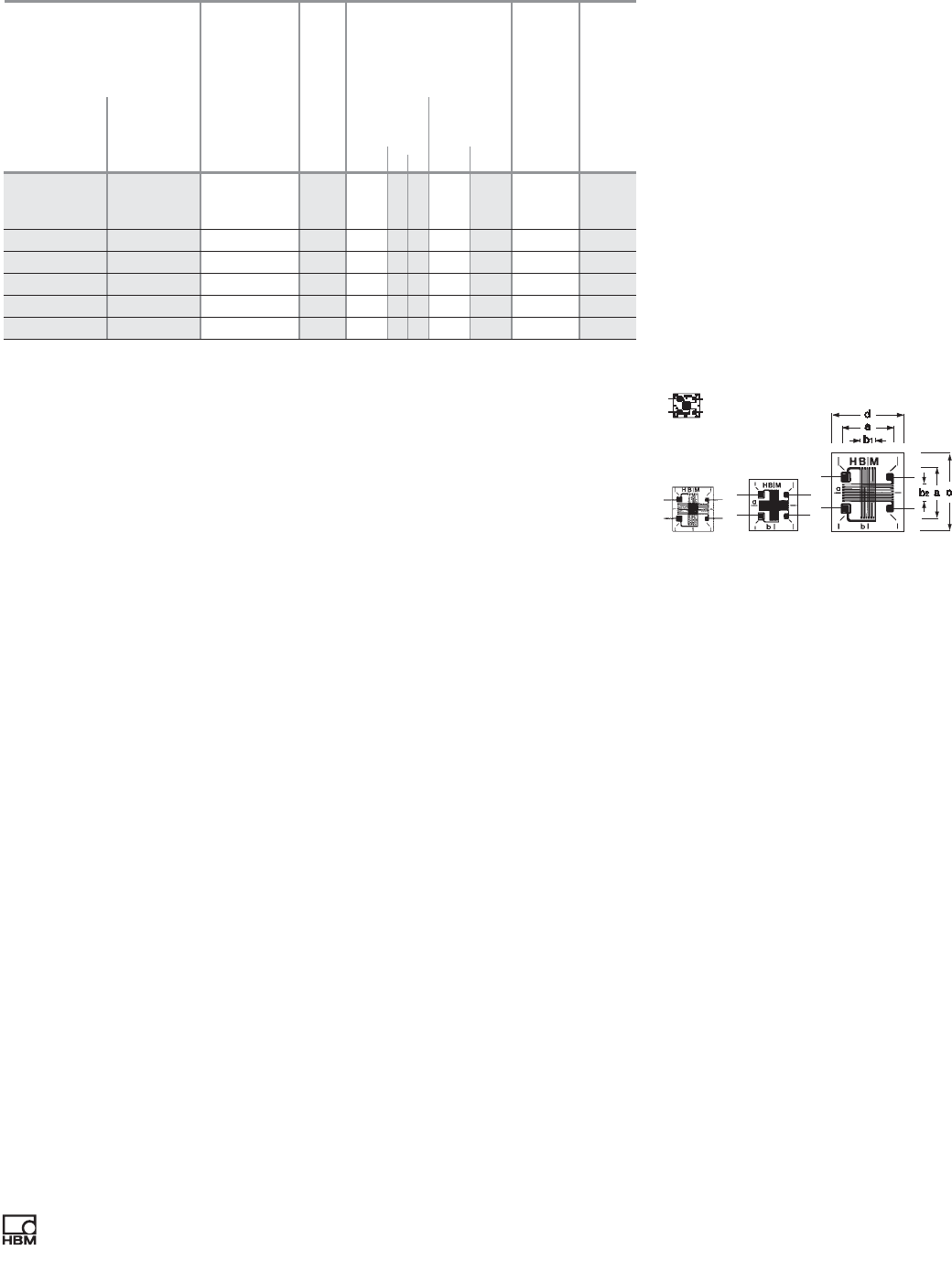

SG / Y series with 2 measuring grids / T rosette
XY91
0°/90° stacked T rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
XY93
Temperature response matched to aluminum
with α= 23 · 10-6/K
XY9x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
36 10
1,5
1.2 1.2
1.4 1.3
1.9 2.2
3.2 3.8
Strain Gages and Accessories 29
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa b1 b2 c d V
1-XY91-1.5/120 1-XY93-1.5/120 1-XY9x-1.5/120 120 1.5 4.7 5.2 2 LS 5
1-XY91-3/120 1-XY93-3/120 1-XY9x-3/120 120 3 6.2 7.9 3.5 LS 5
1-XY91-6/120 1-XY93-6/120 1-XY9x-6/120 120 6 10 9.6 5.5 LS 4
1-XY91-10/120 1-XY9x-10/120 120 10 15.2 14.0 9 LS 212

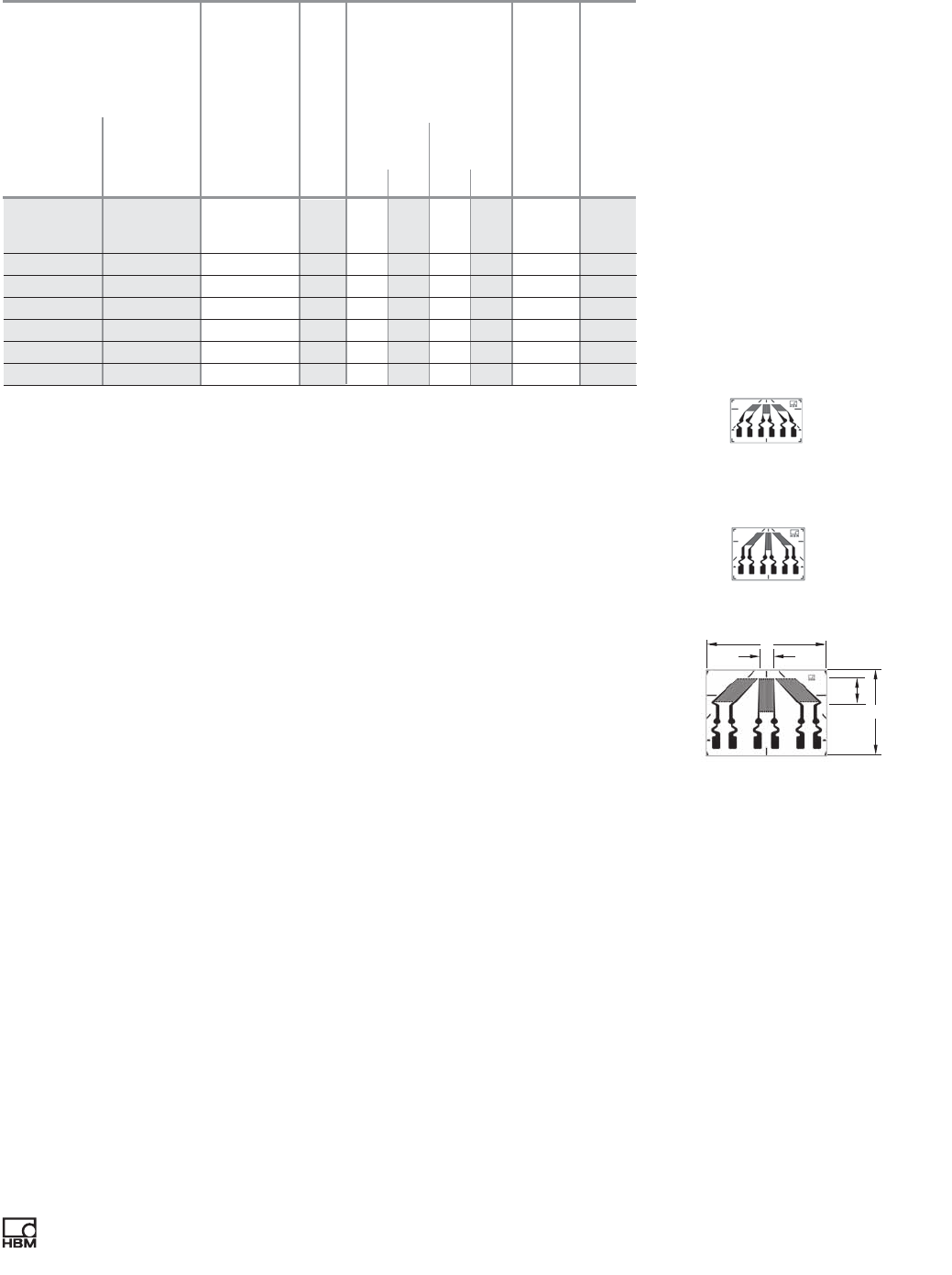

XY21
Shear/torsion half bridge
Temperature response matched to steel
with α= 10.8 · 10-6/K
XY23
Temperature response matched to aluminum
with α= 23 · 10-6/K
XY2x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
2 1.1
1.7 2.5
4.3 5.3
8.0 10
2.1 2.5
4.0 5.3
7.8 10
3 6
0.6
SG / Y series with 2 measuring grids / torsion / shear strain gages
XY101
0°/90° T rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
XY103
Temperature response matched to aluminum
with α= 23 · 10-6/K
XY10x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
30 Strain Gages and Accessories
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-XY101-1.5/120 1-XY10x-1.5/120 120 1.5 1.4 8 8.3 1.5 LS7
1-XY101-3/120 1-XY103-3/120 1-XY10x-3/120 120 3 2.8 10.6 9.8 3 LS5
1-XY10x-6/120 120 6 5.5 18 16.5 5.5 LS4
1-XY101-3/350 1-XY103-3/350 1-XY10x-3/350 350 3 2.9 10.6 8 11 LS5
1-XY10x-6/350 350 6 5.9 18 16.5 10 LS4
1.5
a
b
d
c
1.5 3
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa b1 b2 c d V
1-XY21-0.6/120 1-XY2x-0.6/120# 120 0.6 7.5 4 2.5 LS 7
1-XY21-1.5/120 1-XY2x-1.5/120 120 1.5 6.8 4.5 4.5 LS 7
1-XY21-3/120 1-XY2x-3/120 120 3 11.2 9.5 6 LS 5
1-XY21-6/120 1-XY2x-6/120 120 6 17.5 12.7 11 LS 4
1-XY21-1.5/350 1-XY2x-1.5/350# 350 1.5 7.4 4.5 5 LS 7
1-XY21-3/350 1-XY23-3/350 1-XY2x-3/350 350 3 11.2 9.5 10 LS 4
1-XY21-6/350 1-XY23-6/350 1-XY2x-6/350 350 6 17.5 12.7 19 LS 4
1-XY2x-3/700# 700 3 4.0 5.3 11.2 9.5 14 LS 5
1-XY2x-6/700 700 6 7.8 10 17.5 12.7 27 LS 4

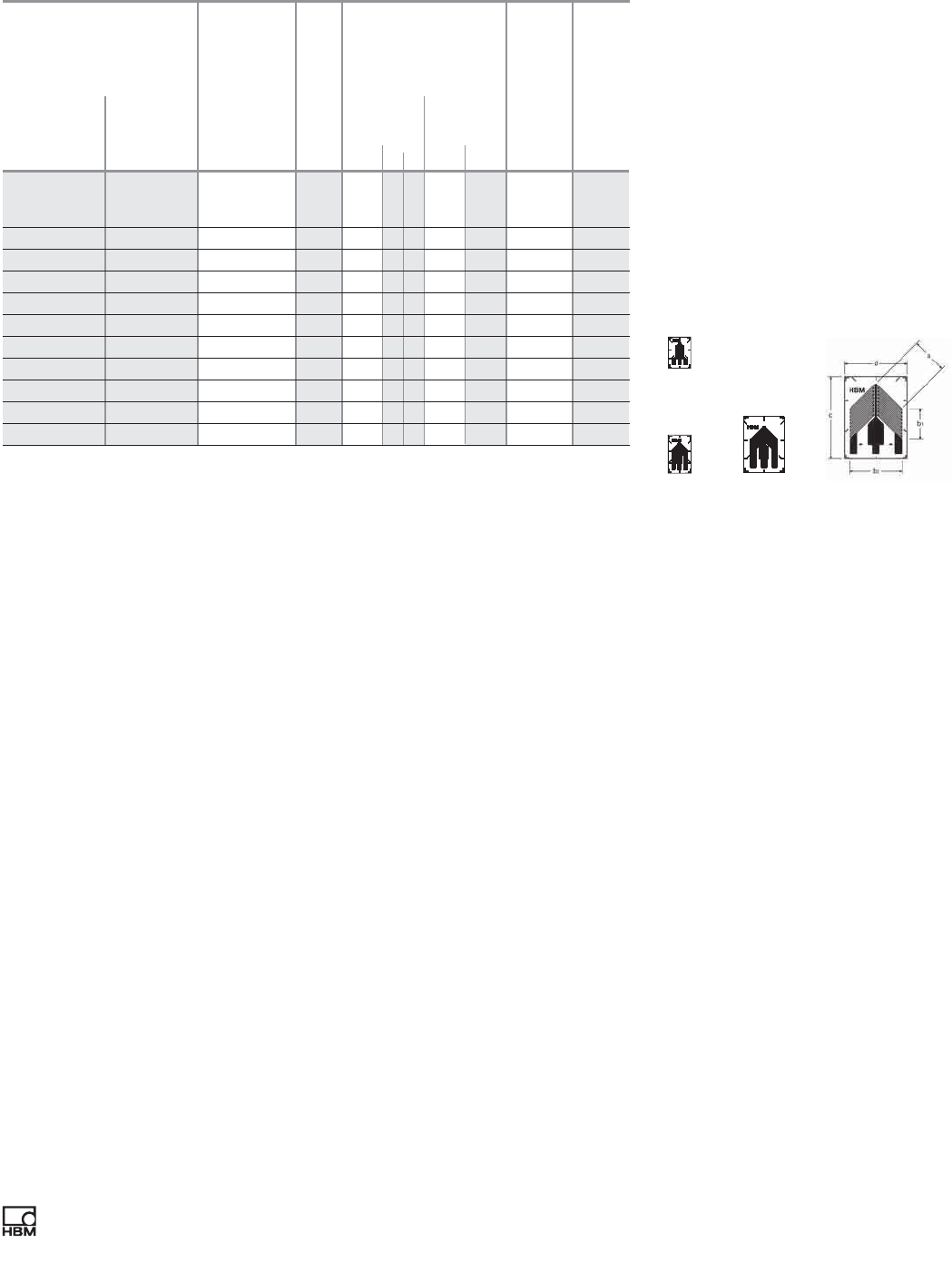

XY41
Shear/torsion half bridge
Temperature response matched to steel
with α= 10.8 · 10-6/K
XY43
Temperature response matched to aluminum
with α= 23 · 10-6/K
XY4x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
SG / Y series with 2 measuring grids / torsion / shear strain gages
2.1 1.6
1.7 3.1
3 5.4
6 10.2
1.5 1.95
4.1 5.6
610
0.6
Strain Gages and Accessories 31
1.5 3 6
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa b1 b2 c d V
1-XY41-0.6/120 1-XY4x-0.6/120# 120 0.6 6.5 4.6 1.5 LS 7
1-XY41-1.5/120 1-XY43-1.5/120 1-XY4x-1.5/120 120 1.5 7.5 4.6 2.5 LS 7
1-XY41-3/120 1-XY4x-3/120 120 3 11 8 5 LS 7
1-XY41-6/120 1-XY4x-6/120 120 6 16 12.2 9.5 LS 4
1-XY4x-1.5/350 350 1.5 3 7.5 4 LS7
1-XY41-3/350 1-XY43-3/350 1-XY4x-3/350 350 3 11 8 9.5 LS 7
1-XY41-6/350 1-XY4x-6/350 350 6 16 12.2 16 LS 4
1-XY41-3/700 1-XY4x-3/700# 700 3 4.1 5.6 11 8 13.5 LS 7
1-XY4x-6/700 700 6 6 10 16 12.2 23 LS 4

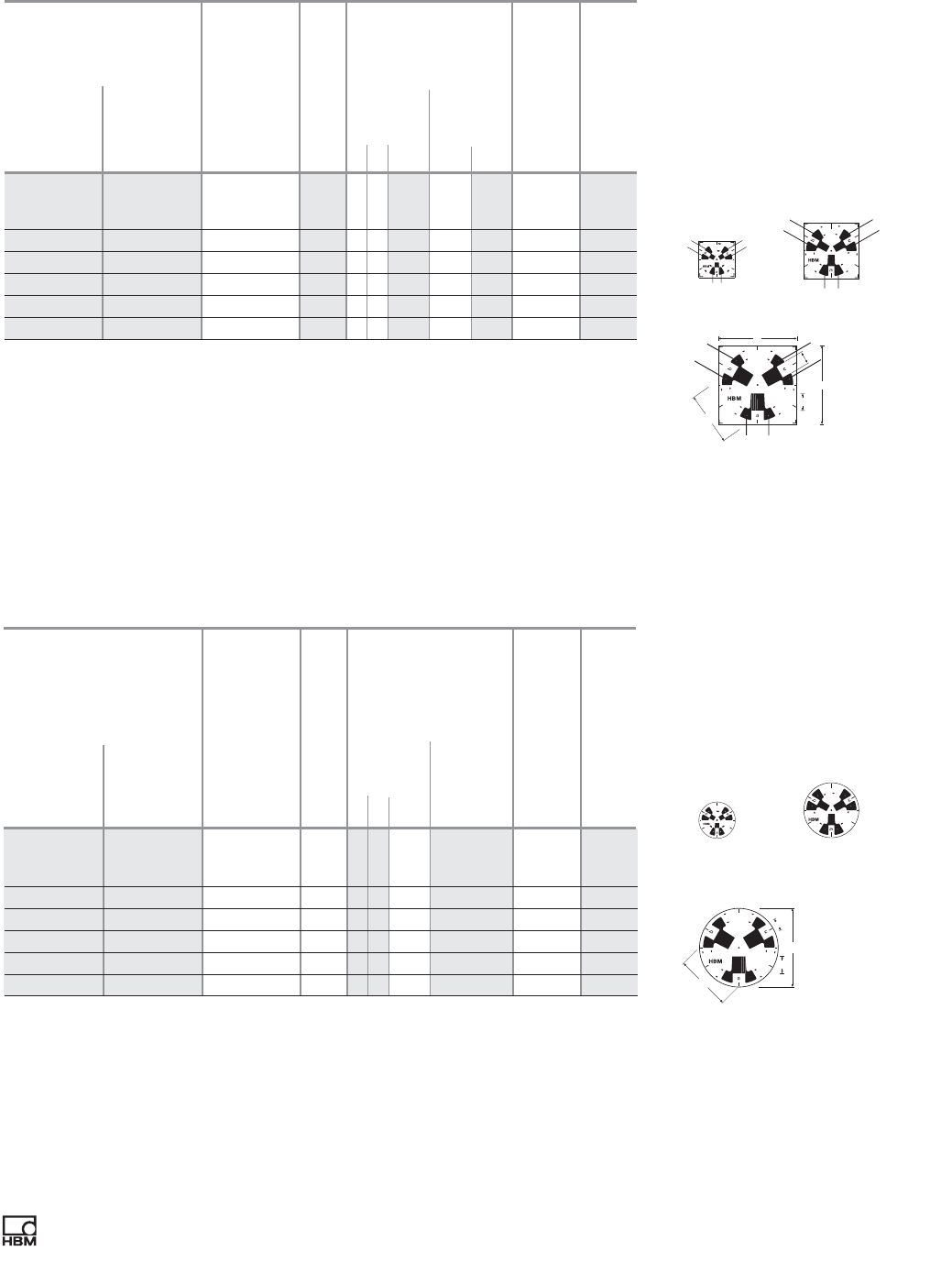

SG / Y series with 3 measuring grids / rosettes
RY11
0°/45°/90° rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
RY13
Temperature response matched to aluminum
with α= 23 · 10-6/K
RY1x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Dimension a2in mm)
Contents per package: 5 pcs.
RY31
0°/45°/90° rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
RY33
Temperature response matched to aluminum
with α= 23 · 10-6/K
RY3x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Dimension a2in mm)
Contents per package: 5 pcs.
0,8 3
26
2.9 10
7
11
15.4
36
10
a1
d
b
a2
36
10
32 Strain Gages and Accessories
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
0.8 3
26
2.9 10
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa1 a2 b c d V
1-RY11-3/120 1-RY13-3/120 1-RY1x-3/120# 120 0.8 7 7 1.5 LS 7
1-RY11-6/120 1-RY13-6/120 1-RY1x-6/120 120 1.3 11 11 3 LS 5
1-RY11-10/120 1-RY1x-10/120 120 2.6 15.4 15.4 5 LS 4
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa1 a2 b d V
1-RY31-3/120 1-RY3x-3/120# 120 0.8 1.5 LS 7
1-RY31-6/120 1-RY33-6/120 1-RY3x-6/120 120 1.3 3 LS 5
1-RY31-10/120 1-RY3x-10/120 120 2.6 5 LS 4
SG / Y series with 3 measuring grids / rosettes
RY41
0°/60°/120° rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
RY4x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Dimension a2in mm)
Contents per package: 5 pcs
36
10
0.8 3
26
2.9 10
a
2
c
d
b
a1
RY7x
0°/60°/120° rosette
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Dimension a2in mm)
Contents per package: 5 pcs.
36
10
0.8 3
26
2.9 10
7
11
15.4
a2
b
a
1
d
Strain Gages and Accessories 33
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa1 a2 b c d V
1-RY4x-3/120# 120 0.8 7 7 1.5 LS 7
1-RY41-6/120 1-RY4x-6/120 120 1.3 11 11 3 LS 5
1-RY41-10/120 1-RY4x-10/120 120 2.6 15.4 15.4 5 LS 4
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa1 a2 b d V
1-RY7x-3/120# 120 0.8 1.5 LS 7
1-RY7x-6/120 120 1.3 3 LS 5
1-RY7x-10/120 120 2.6 5 LS 4

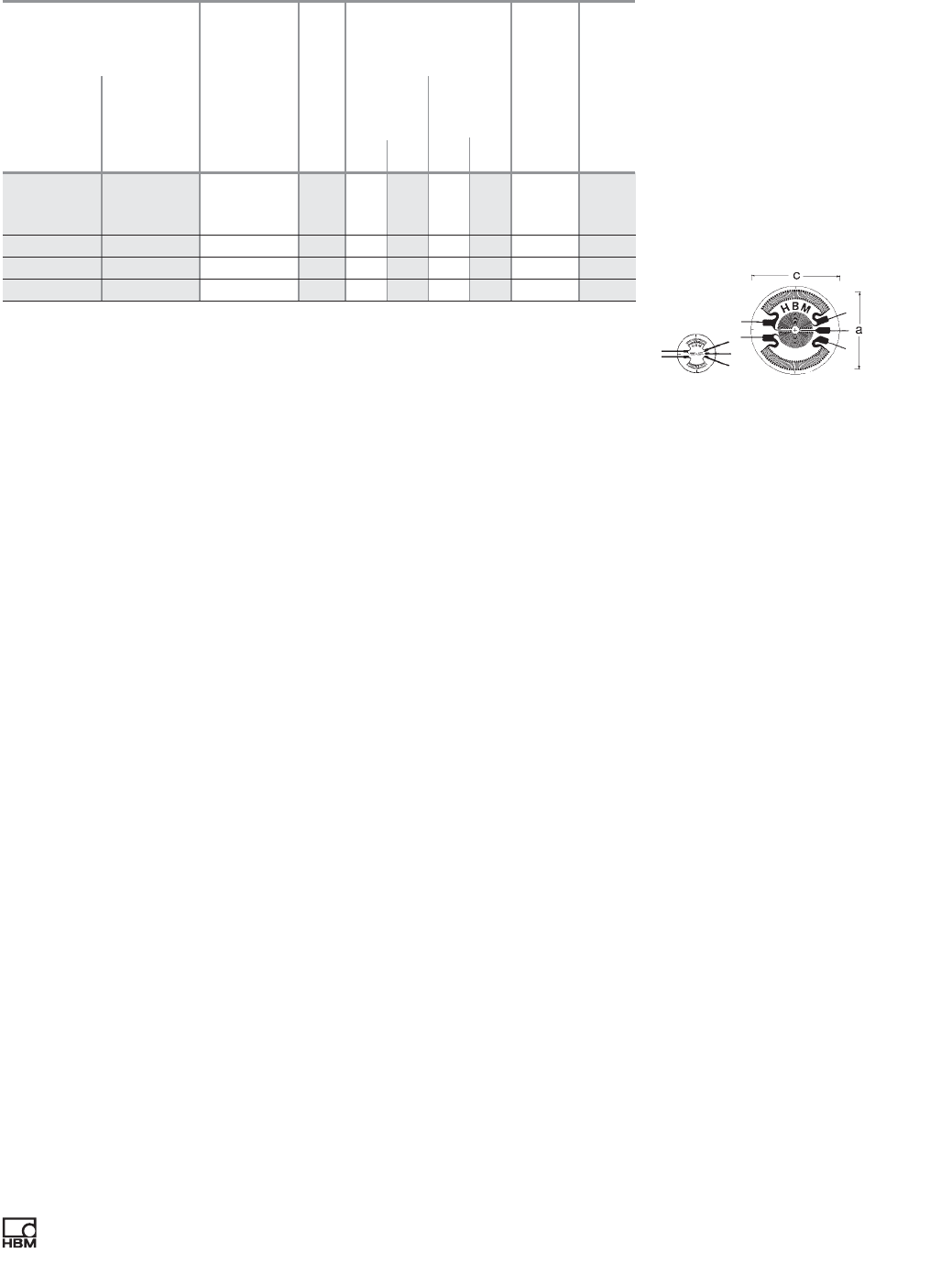

RY91
0°/45°/90° rosette, stacked measuring grids
Temperature response matched to steel
with α= 10.8 · 10-6/K
RY93
Temperature response matched to aluminum
witht α= 23 · 10-6/K
RY9x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
SG / Y series with 3 measuring grids / rosettes
6 10
3
1.5
RY81
0°/45°/90° rectangular rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
RY83
Temperature response matched to aluminum
with α= 23 · 10-6/K
RY8x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
0.6
1.5
36
34 Strain Gages and Accessories
(1) Solder terminals are not compulsory
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-RY8x-0.6/120# 120 0.6 1.2 4.8 8.7 1.6 LS 7
1-RY81-1.5/120 1-RY8x-1.5/120 120 1.5 1.2 8.2 14.6 2.5 LS 7
1-RY81-3/120 1-RY83-3/120 1-RY8x-3/120 120 3 0.9 9.7 14.6 3 LS 7
1-RY81-6/120 1-RY8x-6/120 120 6 2.6 13.2 22.9 7.5 LS 7
1-RY8x-1.5/350# 350 1.5 1.6 8.2 14.6 5 LS 7
1-RY8x-3/350 350 3 0.9 9.7 14.6 5.5 LS 7
1-RY81-6/350 1-RY8x-6/350 350 6 2.6 13.1 22.9 13 LS 5
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-RY91-1,5/120 1-RY9x-1.5/120 120 1.5 1.25 9 8 1.5 LS 7
1-RY91-3/120 1-RY93-3/120 1-RY9x-3/120 120 3 1.25 9 9 2 LS 7
1-RY91-6/120 1-RY93-6/120 1-RY9x-6/120 120 6 2.5 12.5 11 4.5 LS 7
1-RY91-10/120 1-RY9x-10/120 120 10 4 18.5 16 7 LS 7

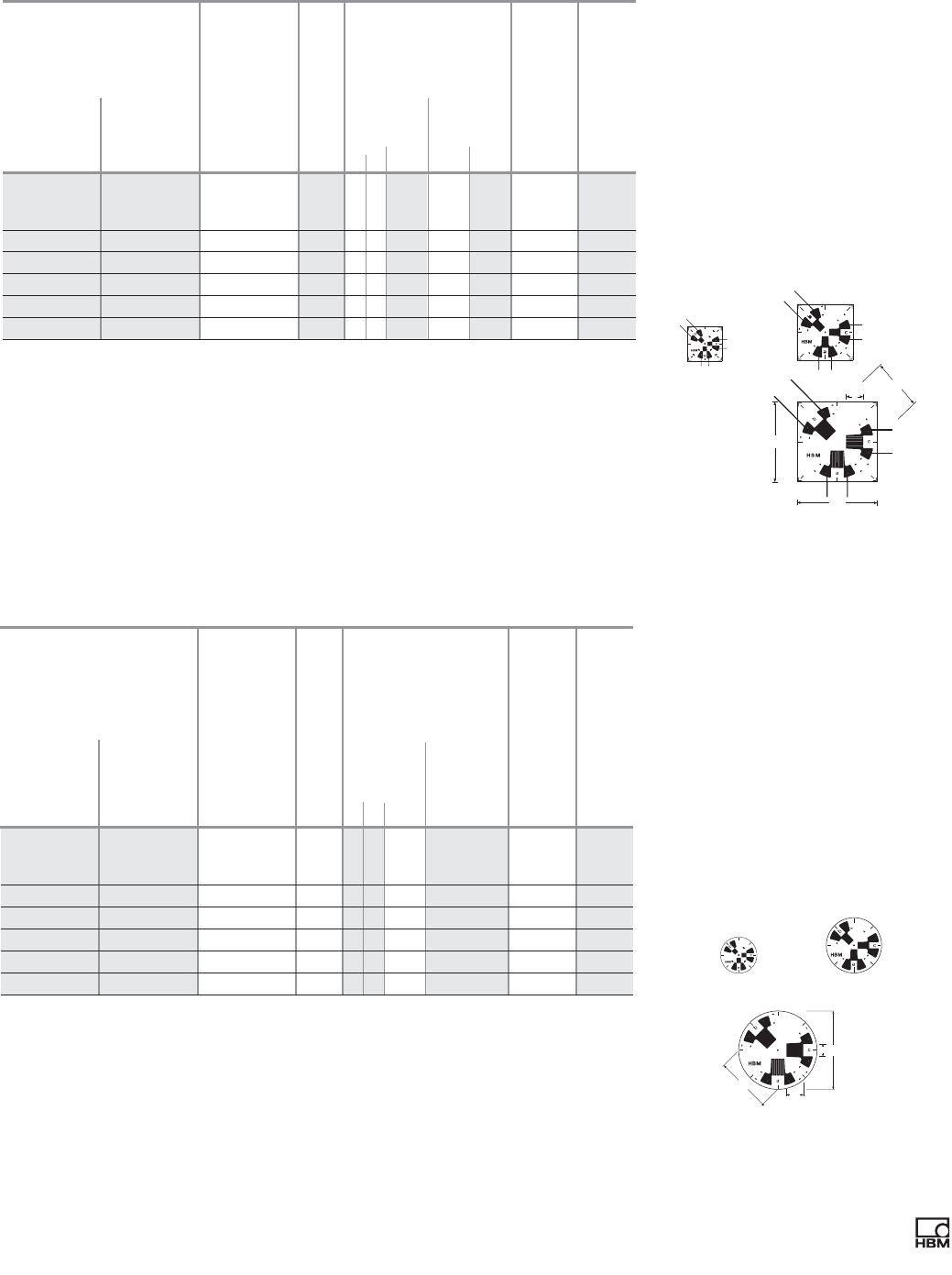

SG / Y series with 3 measuring grids / rosettes
RY101
0°/45°/90° rectangular rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
RY103
Temperature response matched to aluminum
with α= 23 · 10-6/K
RY10x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
1.5
3
6
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-RY101-1.5/120 1-RY10x-1.5/120 120 1.5 1.2 8.2 13.5 2.5 LS 7
1-RY101-3/120 1-RY103-3/120 1-RY10x-3/120 120 3 0.9 9.7 13.5 3 LS 7
1-RY10x-6/120 120 6 2.8 16.4 22.9 7.5 LS 4
1-RY101-3/350 1-RY103-3/350 1-RY10x-3/350 350 3 1 9.7 13.5 5.5 LS 7
1-RY10x-6/350 350 6 2.4 16.4 22.9 12 LS4
Strain Gages and Accessories 35
b
a
d
c
(1) Solder terminals are not compulsory

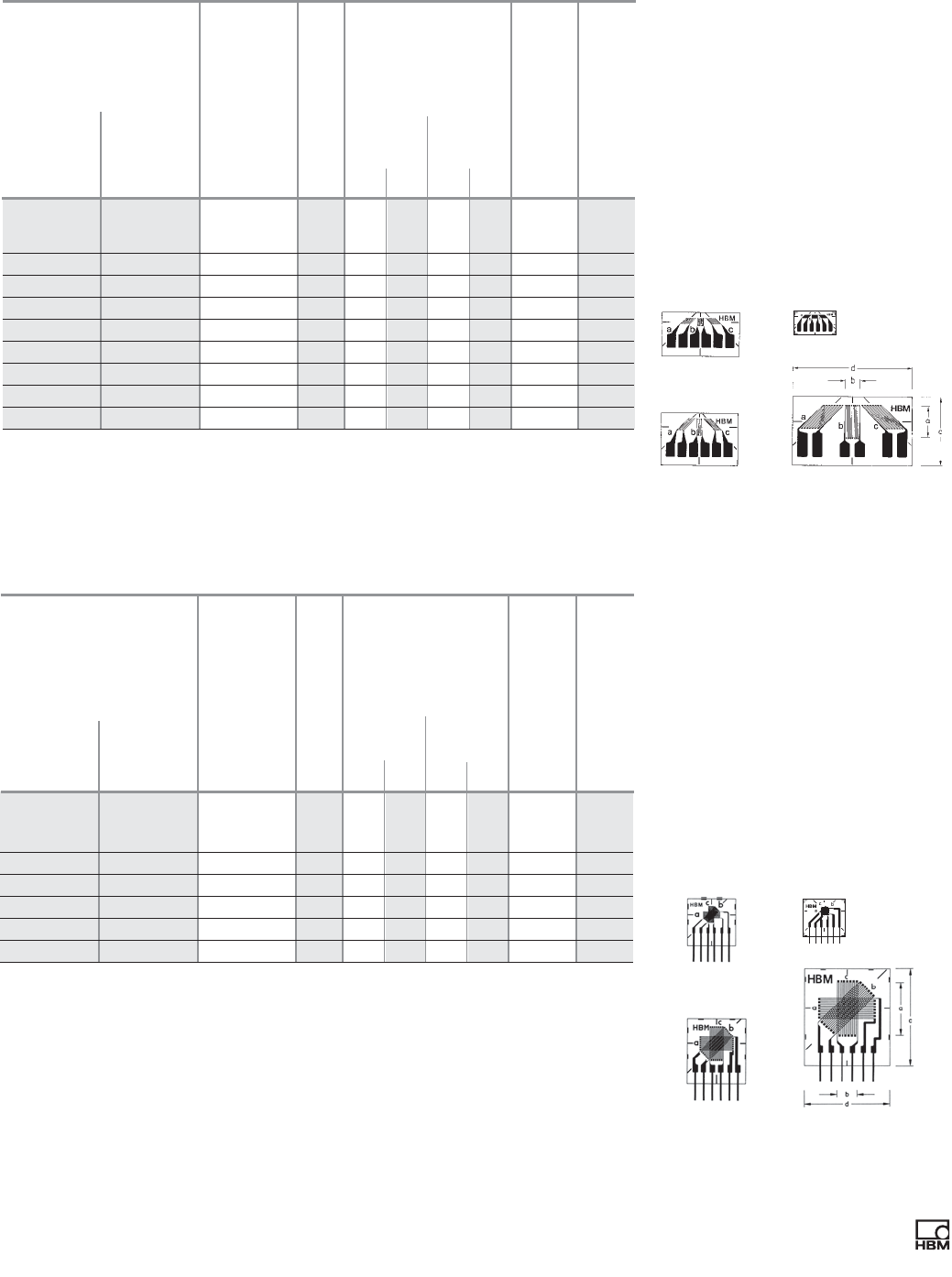

VY11
0°/90° T full bridge
Temperature response matched to steel
with α= 10.8 · 10-6/K
VY1x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs
3
6
SG / Y series with 4 measuring grids / full bridges
VY41
Shear/torsion full bridge
Temperature response matched to steel
with α= 10.8 · 10-6/K
VY43
Temperature response matched to aluminum
with α= 23 · 10-6/K
VY4x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Grid length in mm)
Contents per package: 5 pcs.
3 6
36 Strain Gages and Accessories
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-VY11-3/120 1-VY1x-3/120 120 3 7 13.5 13.5 6 LS 5/7
1-VY11-6/120 1-VY1x-6/120 120 6 14 23 23 12 LS 5/7
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge (1)
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωa b c d V
1-VY41-3/120 1-VY41x-3/120 120 3 1.3 9.8 10 3.5 LS7
1-VY41x-6/120 120 6 2.7 18 17 7.5 LS4
1-VY41-3/350 1-VY43-3/350 1-VY41x-3/350 350 3 1.2 9.8 10 6 LS7
1-VY41x-6/350 350 6 2.7 18 17 13 LS4
ab
c
d
(1) Solder terminals are not compulsory
MY21
Diaphragm rosette
Temperature response matched to steel
with α= 10.8 · 10-6/K
MY2x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Dimension a in mm)
Contents per package: 5 pcs.
615
SG / Y series full bridge / diaphragm rosettes
Strain Gages and Accessories 37
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring grid
grid carrier
Steel Aluminum Others Ωabcd V
1-MY2x-6/120 120 6 – 7.3 – 3.5 LS 7
1-MY21-15/350 1-MY2x-15/350 350 15 – 17 – 13 LS 5
SG / Y series strain gage chains

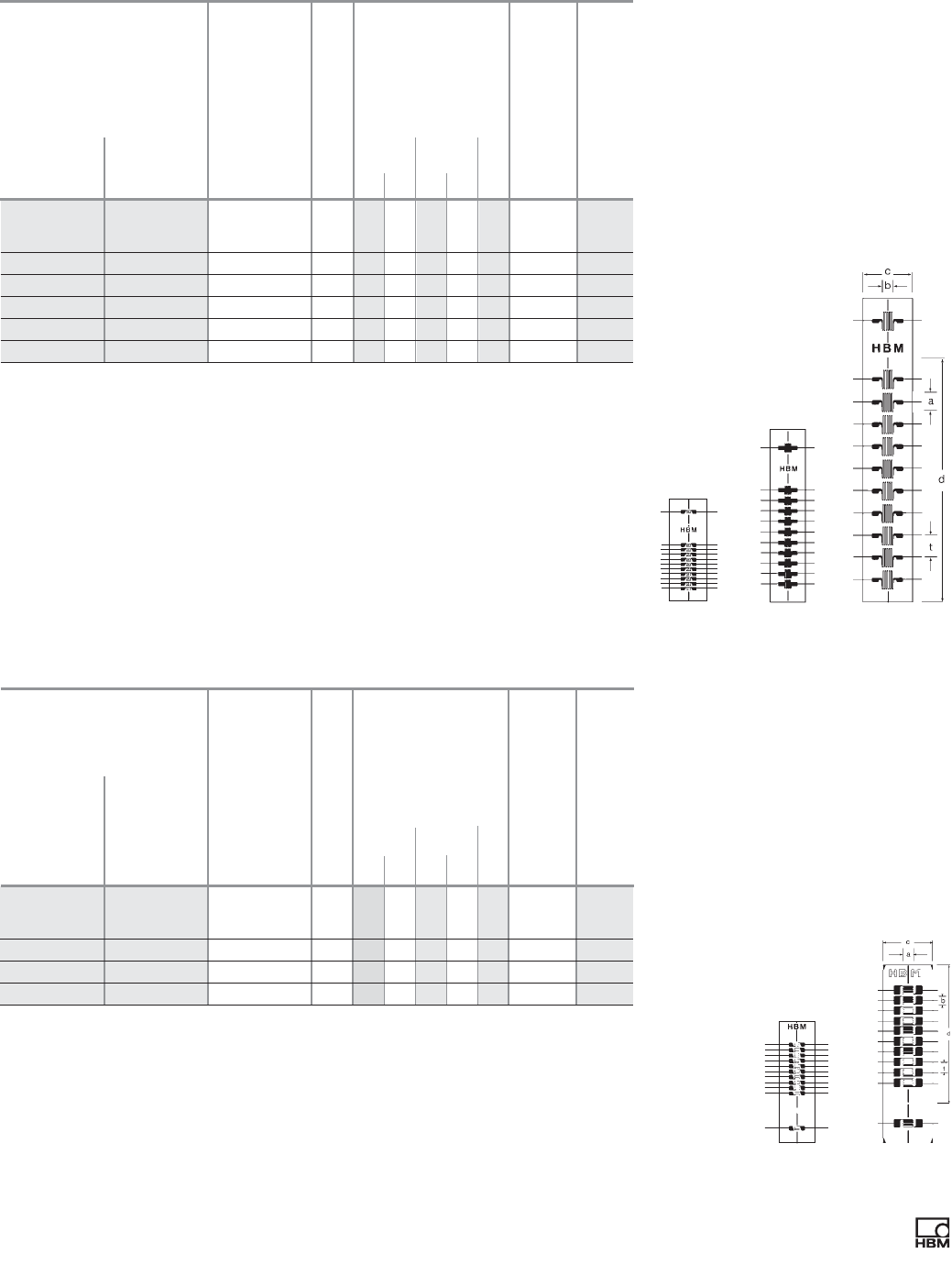

KY11
Strain gage chain
Comprising 10 measuring grids in parallel to the chain axis
and 1 compensating strain gage.
Temperature response matched to steel
with α= 10.8 · 10-6/K
KY13
Temperature response matched to aluminum
with α= 23 · 10-6/K
KY1x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per
package: 1 piece
KY21
Strain gage chain
Comprising 10 measuring grids vertical to the chain axis
and 1 compensating strain gage.
Temperature response matched to steel
with α= 10.8 · 10-6/K
KY23
Temperature response matched to aluminum
with α= 23 · 10-6/K
KY2x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per
package: 1 piece
421
21
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabc dt V
1-KY11-1/120 1-KY13-1/120 1-KY1x-1/120# 120 0.6 1 7.2 14.5 1 2 LS 7
1-KY11-2/120 1-KY13-2/120 1-KY1x-2/120 120 1.5 1.3 6.7 24.5 2 2.5 LS 7
1-KY11-4/120 1-KY1x-4/120 120 3 2.1 9.7 44.5 4 5 LS 7
38 Strain Gages and Accessories
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabcdt V
1-KY21-1/120 1-KY23-1/120 1-KY2x-1/120# 120 0.8 0.8 6.9 15 1 1.5 LS 7
1-KY21-2/120 1-KY2x-2/120 120 1.7 1.7 9.5 27 2 3.5 LS 7
SG / Y series strain gage chains
KY3x
Strain gage rosette chain
comprising 5 rosettes each with 3 0°/60°/120°measuring grids
and 1 compensating strain gage
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per package: 1 piece
d
a
t
b
c
KY41
Strain gage chain
Comprising 10 measuring grids (5 in parallel, 5 vertical to the
chain axis, alternatingly) and 1 compensating strain gage.
Temperature response matched to steel
with α= 10.8 · 10-6/K.
KY4x
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per
package: 1 piece
24
4
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabcdt V
1-KY4x-2/120 120 1.2 1.3 9.2 24.5 2 2.5 LS 7
1-KY41-4/120 1-KY4x-4/120 120 3 3 11.5 44.5 4 6 LS 5
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabcdt V
1-KY3x-4/120 120 1.3 4.1 8.3 25 4 2.5 LS 7
Strain Gages and Accessories 39
40 Strain Gages and Accessories
SG / Y series strain gage chains

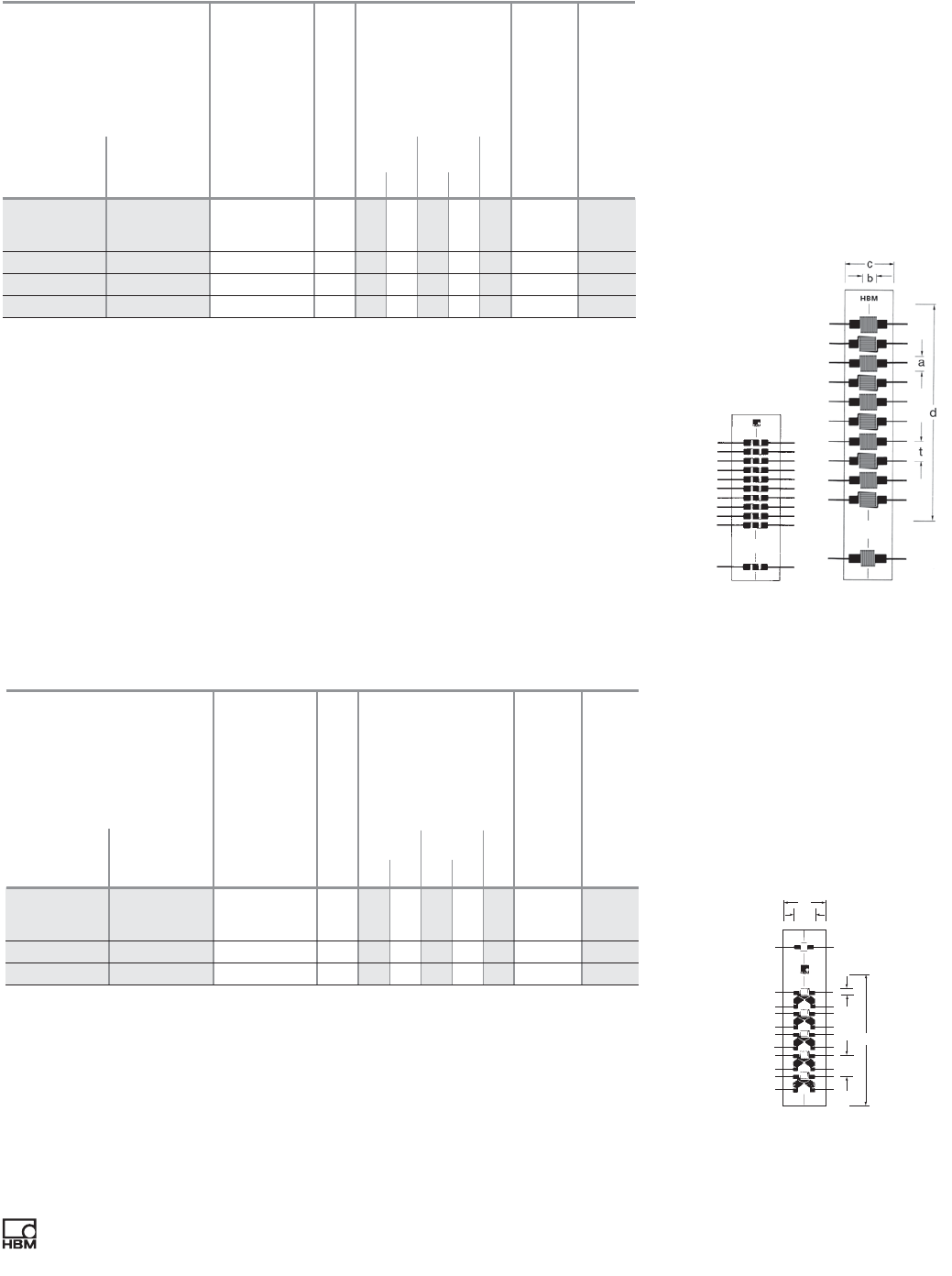

KY5x
Strain gage chain
comprising 10 measuring grids with common connection in
parallel to the measuring chain axis and 1 compensating
strain gage
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per package: 5 pcs
KY6x
Strain gage chain
comprising 10 measuring grids with common connection vertical
to the measuring chain axis and 1 compensating strain gage
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per package: 5 pcs
21
2
1
d
b
t
a
c
d
a
t
b
c
Types marked # are only available with matching to aluminum, ferritic or austenitic steel
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabcdt V
1-KY5x-1/120# 120 0.6 1.1 5.6 12.8 1 1.5 -
1-KY5x-2/120 120 1.5 1.3 6 22.8 2 2.5 -
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- excitation
tance bridge
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabcdt V
1-KY6x-1/120# 120 0.8 0.6 5.6 12.8 1 1.2 -
1-KY6x-2/120 120 1.3 1.5 6 22.8 2 2.5 -
d
b
t
a
c

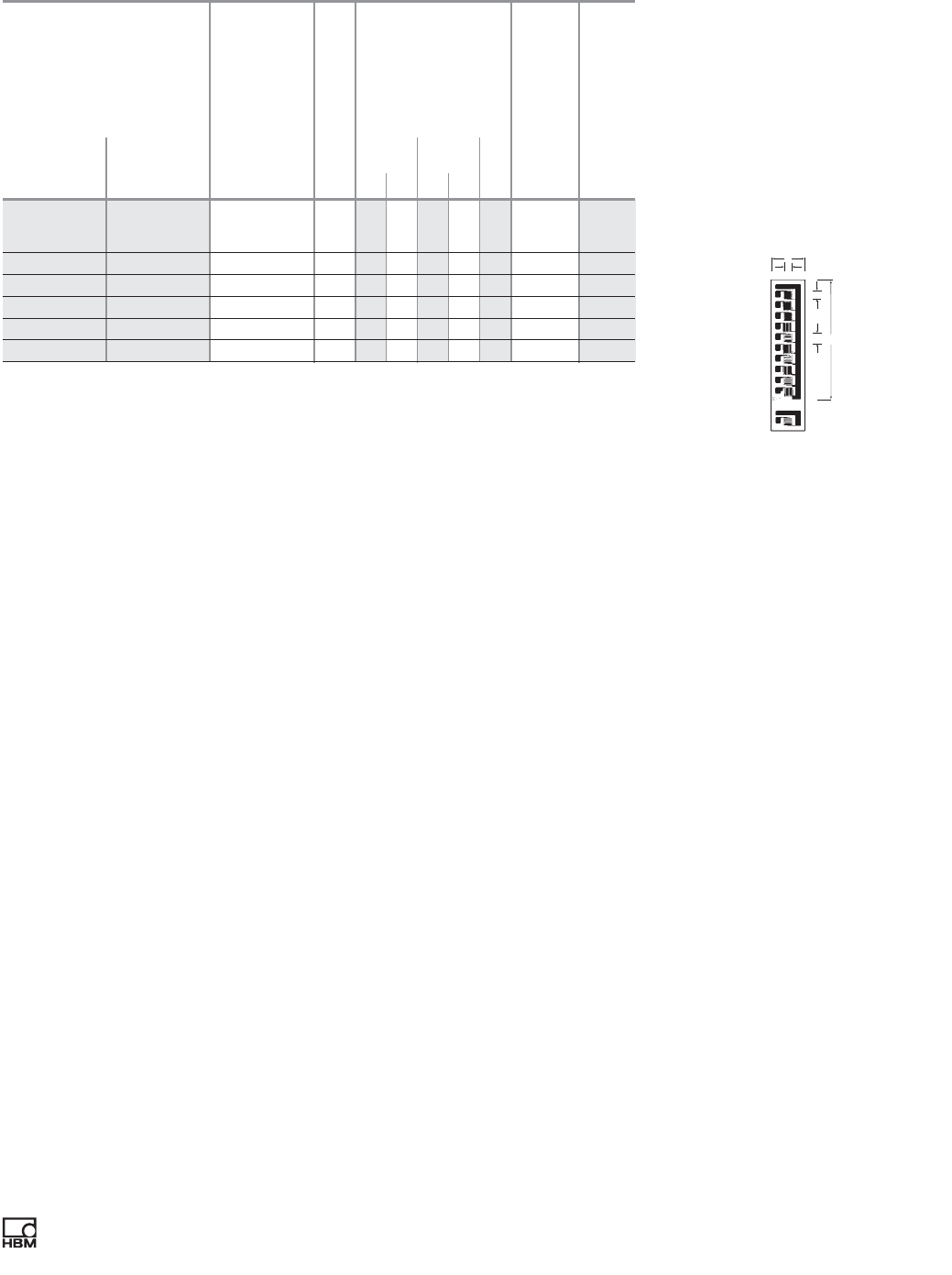

KY7x
Strain gage chain
comprising 10 measuring grids with common connection (5 in
parallel, 5 vertical to the measuring chain axis, alternatingly)
and 1 compensating strain gage
Temperature response matching at customer’s choice,
see page 20
Illustrations show actual size
(Pitch t in mm)
Contents per package: 5 pcs
Strain Gages and Accessories 41
SG / Y series strain gage chains
Stock types Variants No- Dimensions (mm) Max. perm. Solder
minal [1 inch = 25.4 mm] effective terminals
resis- bridge
tance excitation
voltage
Measuring Measuring Pitch
grid grid carrier
Steel Aluminum Others Ωabcdt V
1-KY7x-2/120 120 1.3 1.5 6 22.8 2 2.5 -

Navigation menu
