CIDMATE Technology GH94078 2.4 GHz Analog Cordless Phone User Manual quickset
CIDMATE International Technology Inc. 2.4 GHz Analog Cordless Phone quickset
users manual
1
Contents
Safety Instructions -------------------------------------------------------------------------------------------- 2
Getting Started ------------------------------------------------------------------------------------------------ 4
Desk Mounting ------------------------------------------------------------------------------------------------- 7
Wall Mounting ------------------------------------------------------------------------------------------------- 8
Basic Operation --------------------------------------------------------------------------------------------- 10
Receiving Calls ---------------------------------------------------------------------------------------------- 11
Placing Calls ------------------------------------------------------------------------------------------------- 12

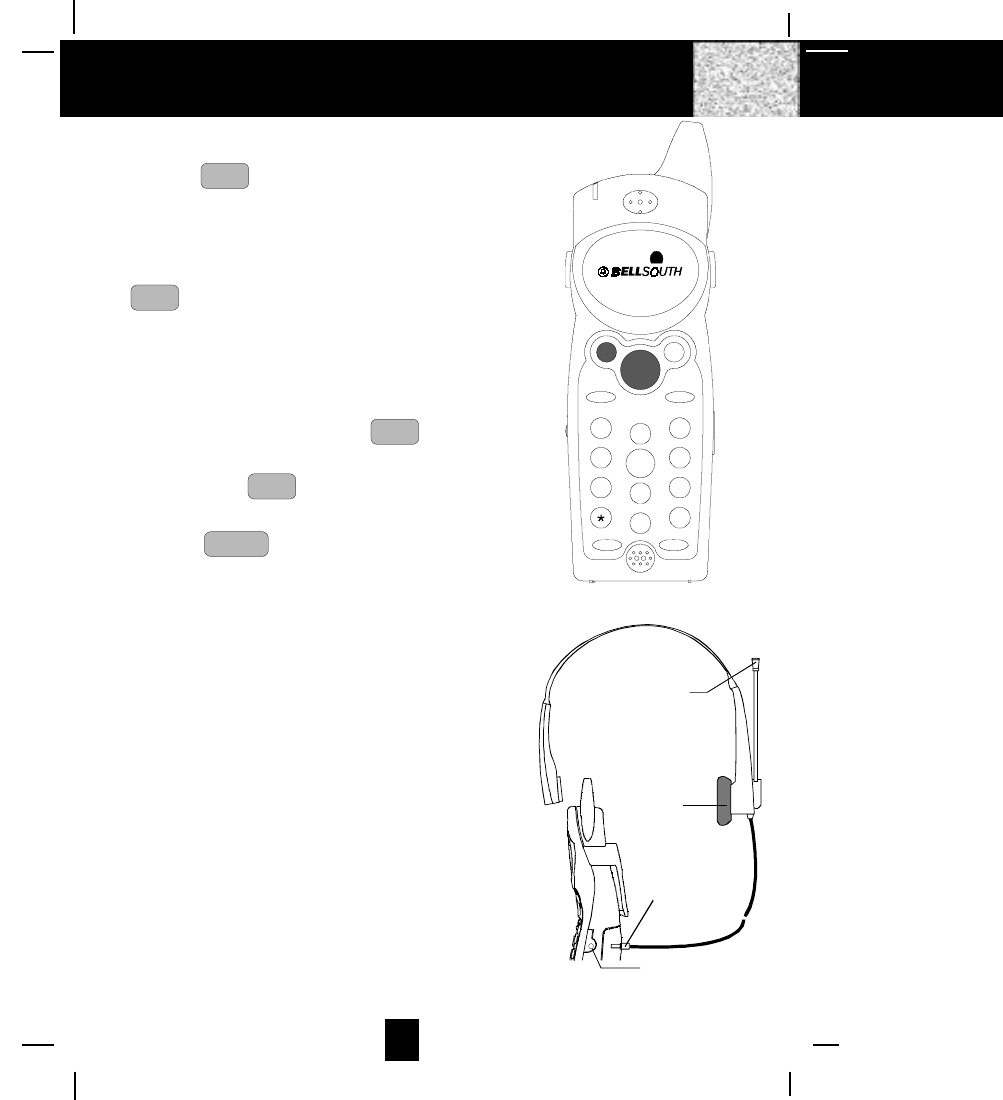

Headset Feature --------------------------------------------------------------------------------------------- 12
Storing Numbers --------------------------------------------------------------------------------------------- 13
Recalling Stored Numbers ------------------------------------------------------------------------------- 14
Security System --------------------------------------------------------------------------------------------- 15
Recharging the Battery Pack ---------------------------------------------------------------------------- 16
Changing the Battery Pack ------------------------------------------------------------------------------ 17
Problem Solving -------------------------------------------------------------------------------------------- 18
Technical Information ------------------------------------------------------------------------------------- 19
FCC Requirements ------------------------------------------------------------------------------------------ 20
Warranty -------------------------------------------------------------------------------------------------------- 22
Wall Mounting Template --------------------------------------------------------------------------------- 26
2
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock and/or injury, always follow these basic
safety precautions when using your cordless telephone equipment.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY
PACK. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this telephone near water, for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool.
5. Place this telephone on a stable surface. Serious damage and/or injury may result if the
telephone falls.
6. Do not cover the slots and openings on this telephone. This telephone should not be
placed near or over a radiator or heat register. This telephone should not be placed in a
built-in installation unless proper ventilation is provided.
7. Operate this telephone using the electrical voltage as stated on the BASE UNIT of the
telephone or the Owner s Manual. If you are not sure of the voltage in your home, consult
your dealer or local power company.
8. Do not place anything on the power cord. Install the telephone where no one will step or
trip on the cord.
9. Do not overload wall outlets or extension cords as this can increase the risk of fire or
electric shock.
10. Never push objects of any kind through slots in the telephone. They could touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never
spill liquid of any kind on the telephone.
11. To reduce the risk of electric shock do not disassemble this telephone. Take it to a qualified
serviceman when service or repair work is required. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric
shock when the telephone is subsequently used.
12. Unplug this telephone from the wall outlet and consult a qualified service representative
in any of the following situations:
A. When the power supply cord is frayed or damaged.
B. If liquid has been spilled into the telephone.
C. If the telephone has been exposed to rain or water.
D. If the telephone does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions. Improper
adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the telephone to normal
operation.
3
E. If the telephone has been dropped or the case has been damaged.
F. If the telephone exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of the leak.
14. Never install telephone wiring during a lightning storm.
15. Never install telephone jacks in wet locations unless the jack is specifically designed for
wet locations.
16. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
17. Use caution when installing or modifying telephone lines.
SAVE THESE INSTRUCTIONS
Battery Safety
CAUTION:
Danger of explosion if the BATTERY PACK is incorrectly replaced. Replace only
with the same or equivalent type. To reduce the risk of fire or personal injury,
read and follow these instructions:
1. Use only the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
U.S. Electronics Inc.
Ni-MH BATTERY PACK: Model B655
(See page 16 for ordering information.)
2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes for
possible special disposal instructions.
3. Do not open or mutilate the BATTERY PACK. Released electrolyte is corrosive and may
cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.
4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK
with conductive materials such as rings, bracelets, and keys. The BATTERY PACK or
conductor may overheat and cause burns.
5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only
in accordance with the instructions and limitations specified in this manual.
6. Observe proper polarity orientation between the BATTERY PACK and BATTERY CHARGER.
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERY
PACK is recyclable. At the end of its useful life, under various state and local laws, it may be
illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with your local
solid waste officials for details in your area for proper disposal.
Safety Instructions
4
Connecting Your Phone
This section is a reference guide to the basic functions and operations of your cordless
telephone. For more detailed descriptions of the operations and features of this telephone,
refer to the Contents on page 1.
1. Carefully remove your cordless telephone from its shipping carton. If there is any visible
damage, do not attempt to operate this equipment. Return it to the place of purchase.

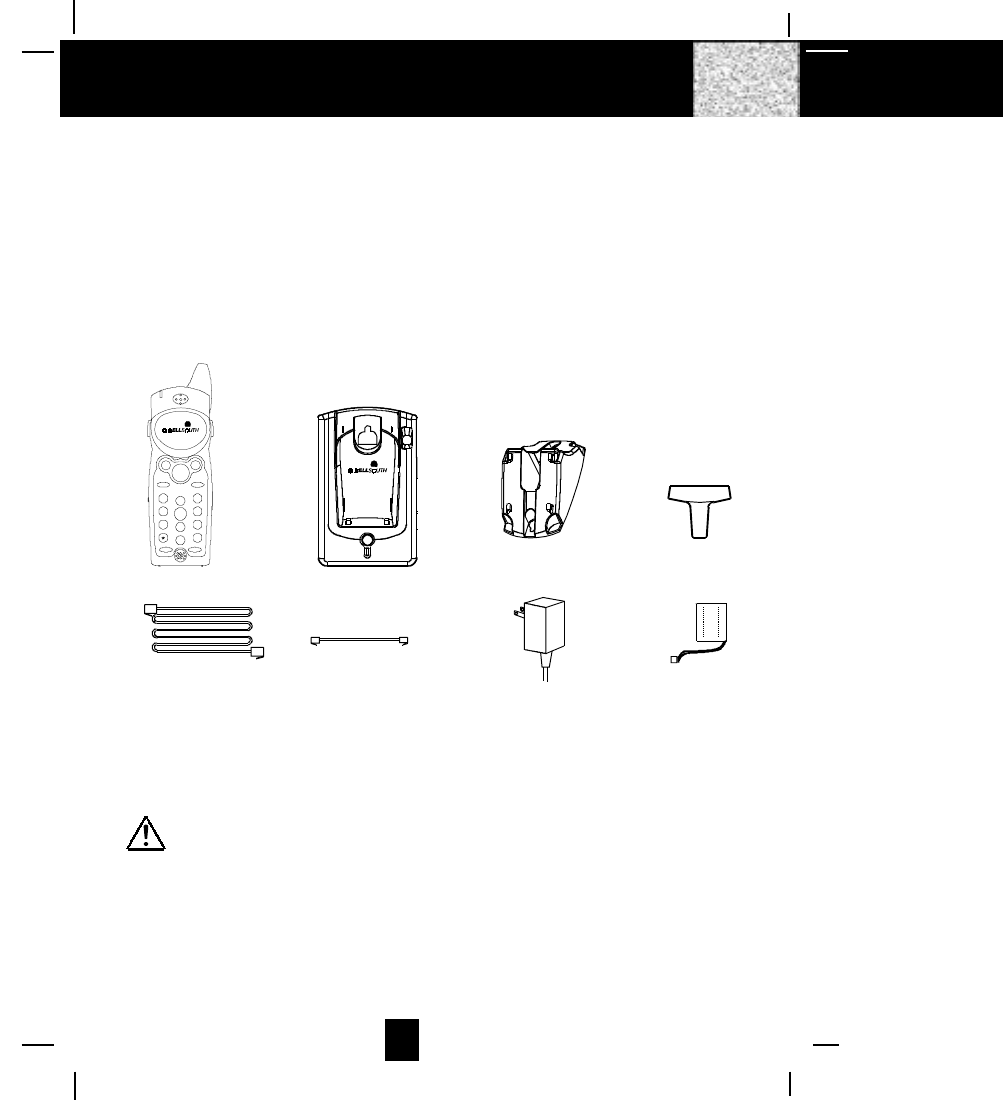

2. Check to be sure you have all items that come with this cordless telephone system. You
should have a HANDSET, BASE UNIT, AC ADAPTER, MOUNTING BRACKET, TELEPHONE
LINE CORD, SHORT TELEPHONE LINE CORD, BELT CLIP, and an OWNER,S MANUAL.
3. Insert the small plug on the end of the AC ADAPTER into the POWER-IN CONNECTION
JACK at the back of the BASE UNIT.
4. Plug the AC ADAPTER into a 120V AC wall outlet.
USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 300mA.
5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the
other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE UNIT. (If
you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE JACK
ADAPTER. This adapter is available at the same place you purchased your telephone.)
6. We recommend not placing this unit next to appliances. Doing so may cause interference.
Getting Started
BELT CLIP
BASE UNIT
MOUNTING
BRACKET
H
ANDSET
2.4GHz
CHARGE
PAGE
IN USE
AC ADAPTER
SHORT TELEPHONE
LINE CORD
TELEPHONE
LINE CORD BATTERY
PACK
2.4GHz
IN USE
BATT LOW
FLASHREDI AL
TALK
MEMO
PAUSE
DEF
ABC
GHI JK L MNO
TUV
PRS WX Y
OPER
TONE
123
6
5
4
789
0#
SCAN
5

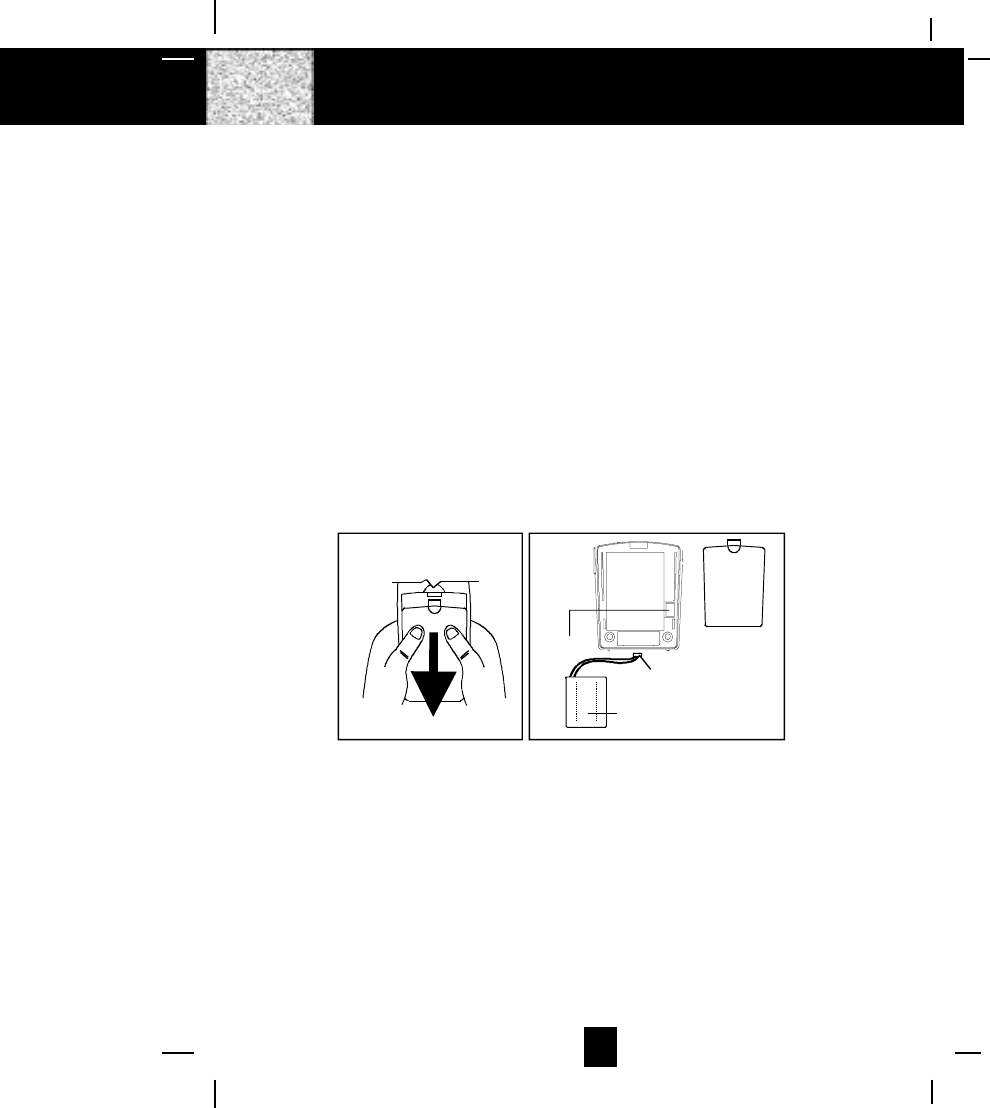

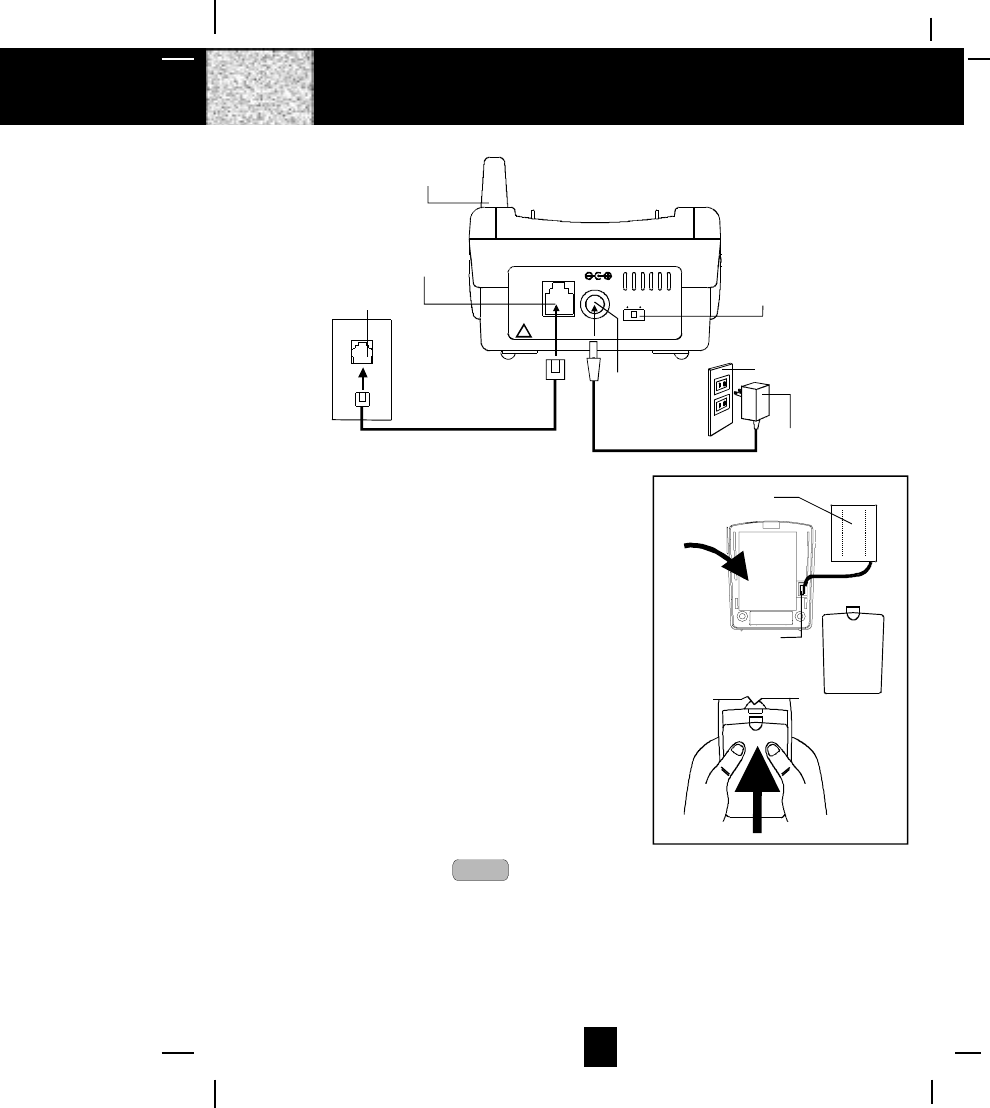

7. Install the BATTERY PACK by plugging it into the
BATTERY CONNECTOR inside the BATTERY
COMPARTMENT.
8. Place the BATTERY PACK inside the BATTERY
COMPARTMENT.
9. Slide the HANDSET BATTERY COMPARTMENT
COVER firmly into place in its closed position.
10. TONE/PULSE Select Switch:
A. If your home is equipped with a tone dialing
system, set the TONE/PULSE Select Switch to
the TONE position.
B. If you have a rotary dialing system, set the
TONE/PULSE Select Switch to the PULSE position.
C. If you are unsure which system you have, set
the TONE/PULSE Select Switch to the TONE
position. Press the TALK button on the
HANDSET and make a call. If the call connects,
leave the switch as is; otherwise set to the
PULSE position.
Getting Started
BATTERY
COMPARTMENT
COVER
BATTERY PACK
BATTERY
CONNECTOR
CAUTION
TO REDUCE RISK OF FIRE OR
INJURY, US E ONLY SAME TYP E
AND MAKE OF BATTERY PACK,
Ni-Mh 3.6V, 600mAh.
U. S. ELEC TR ONI CS
MO DEL B655
FOR 2.4 GHz
ANALOG H ANDSET
TONE PULSE
TEL LINE
!
USE ONLY WITH CLASS 2 POWER SOURCE
9VDC 300mA
BASE UNIT
BASE UNIT ANTENNA
TONE/PULSE
SELECT SWITCH
POWER-IN
CONNECTION
JACK
TELEPHONE LINE
CONNECTION JACK
TELEPHONE JACK
TELEPHONE
LINE CORD AC ADAPTER
120V WALL OUTLET
6
Getting Started
TALK
MEMO
PAUSE
def
FLASHREDIAL
Press the TALK button to confirm that
you have a dial tone. If you do not get a
dial tone, review steps 3 through 11. If
you still do not have a dial tone, refer to
the Problem Solving section on page 18.

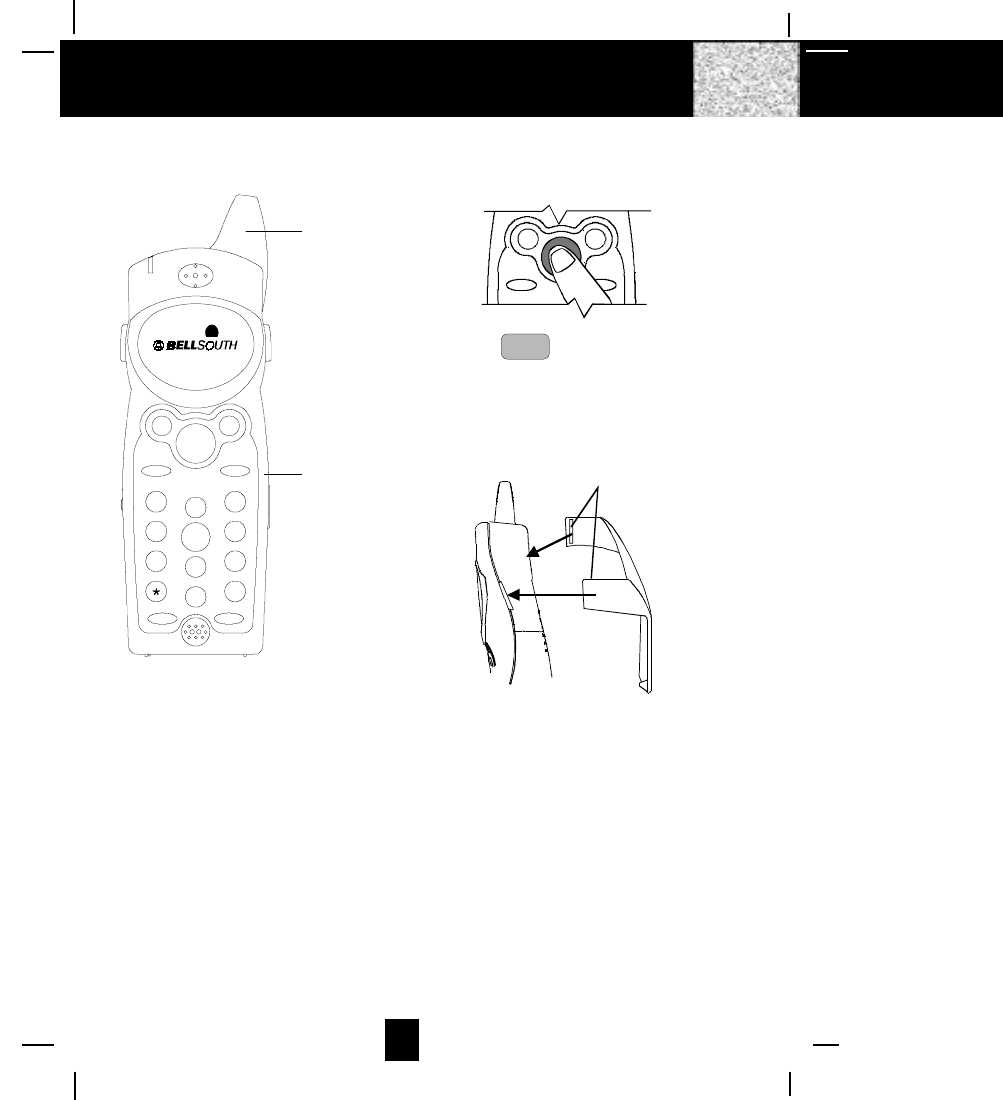

BELT CLIP HOOK
With the back of the HANDSET facing
up, insert one side of the BELT CLIP
HOOK into the matching slot at the top
side of the HANDSET. Press down on
the opposite side of the BELT CLIP until
the other HOOK locks into the slot on
the side of the HANDSET.
11. Before initial use, charge the HANDSET for 12 hours.
You are now ready to use your new
BellSouth Cordless Telephone.

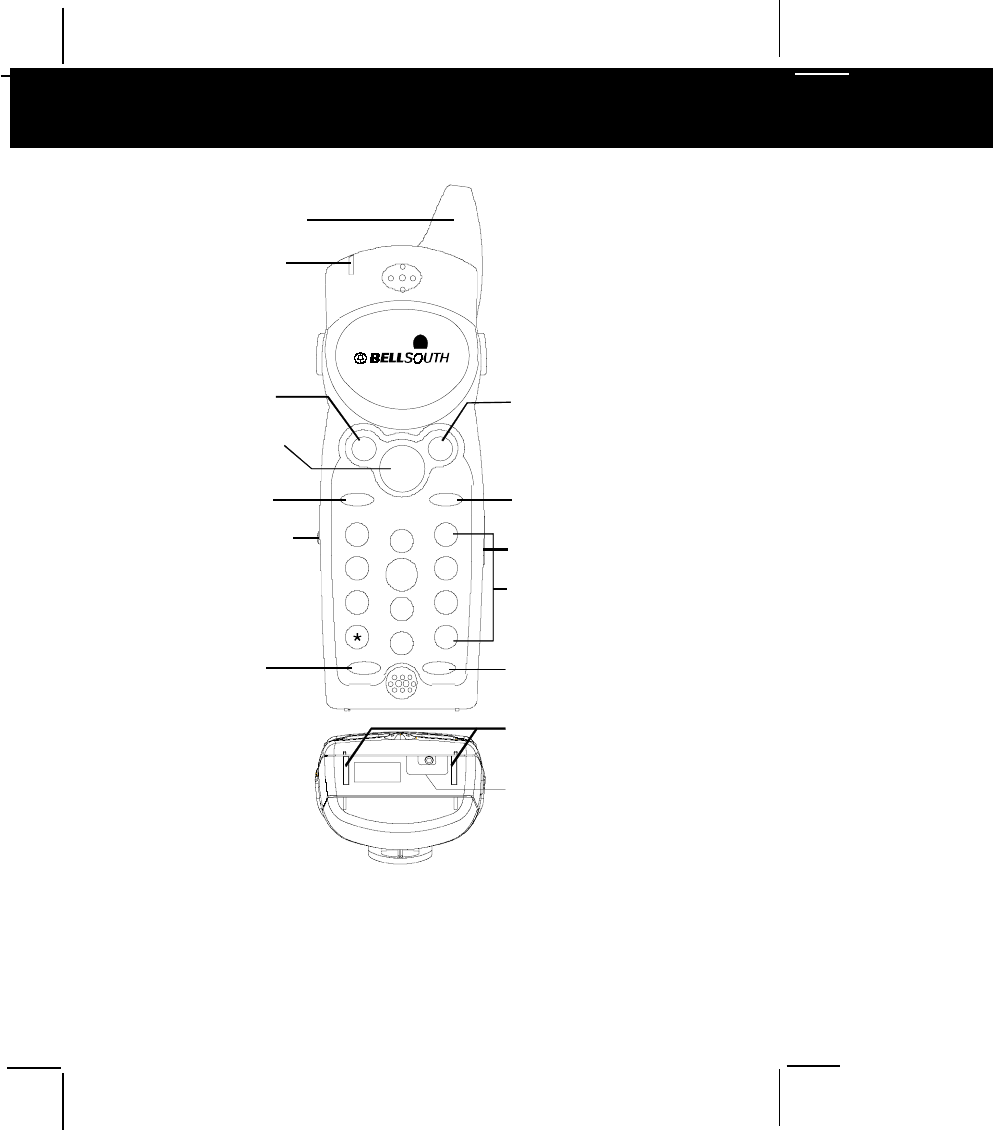

ANTENNA
HANDSET
TALK
MEMOPAUSE
DEF
ABC
GHI JKL MNO
TUV
PRS WXY
OPER
TONE
123
6
5
4
789
0#
IN USE
BATT LOW
FLASHREDIAL
SCAN
2.4GHz
HANDSET
7

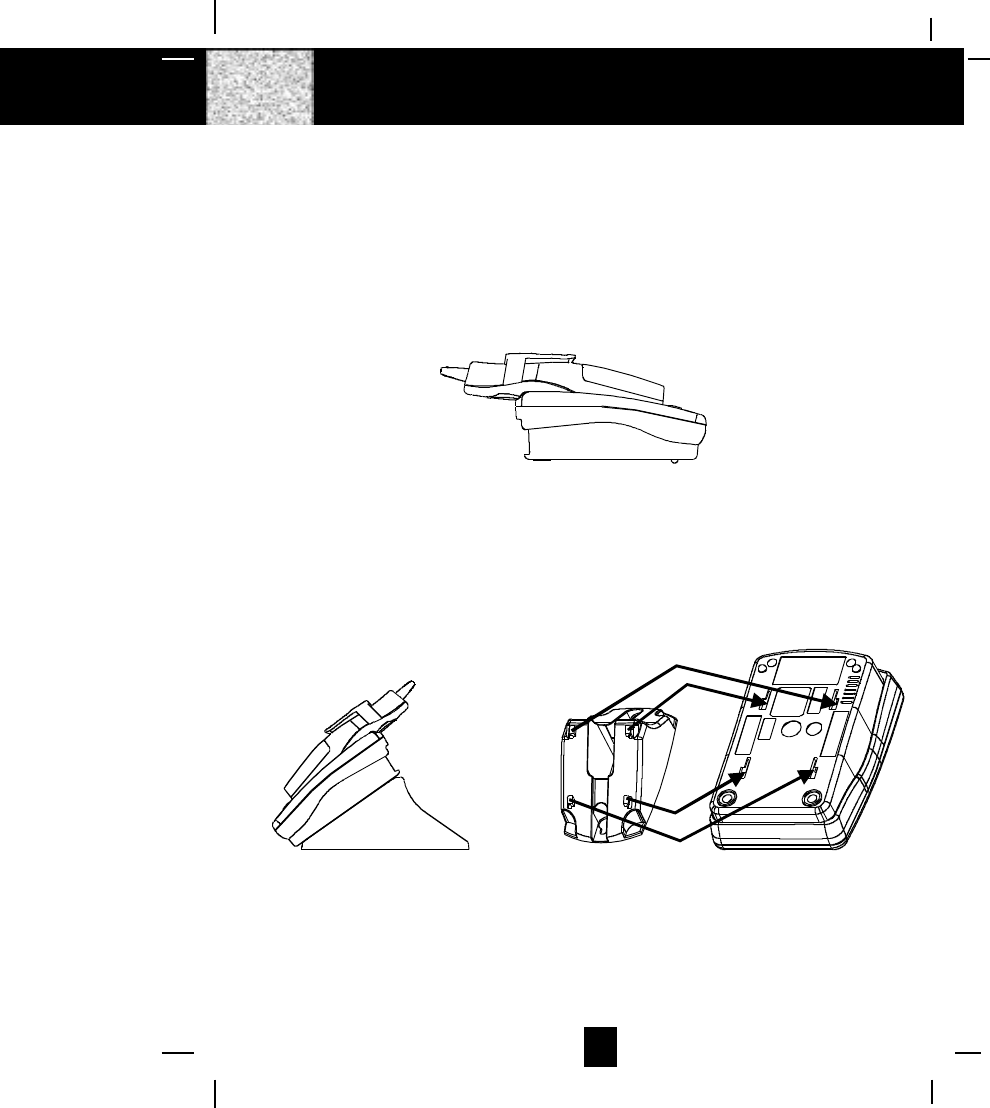

Desk Mounting
One of the special features of your telephone is the unique design of the MOUNTING BRACKET
which can hold your phone at an angle of 30o when desk mounting. There are two positions
to choose from:
1. NORMAL POSITION (MOUNTING BRACKET not required):
For the normal position, as shown in Figure 1, place the BASE UNIT on any desired but
suitable location.
FIGURE 1
2. 30o POSITION (See Figure 2):
With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET
(following the arrow direction for the DESK MOUNT) into the matching slots of the BASE
UNIT (as shown in Figure 3). Then slide the MOUNTING BRACKET into place as indicated
by the arrows.
FIGURE 2 FIGURE 3
Desk Mounting
8

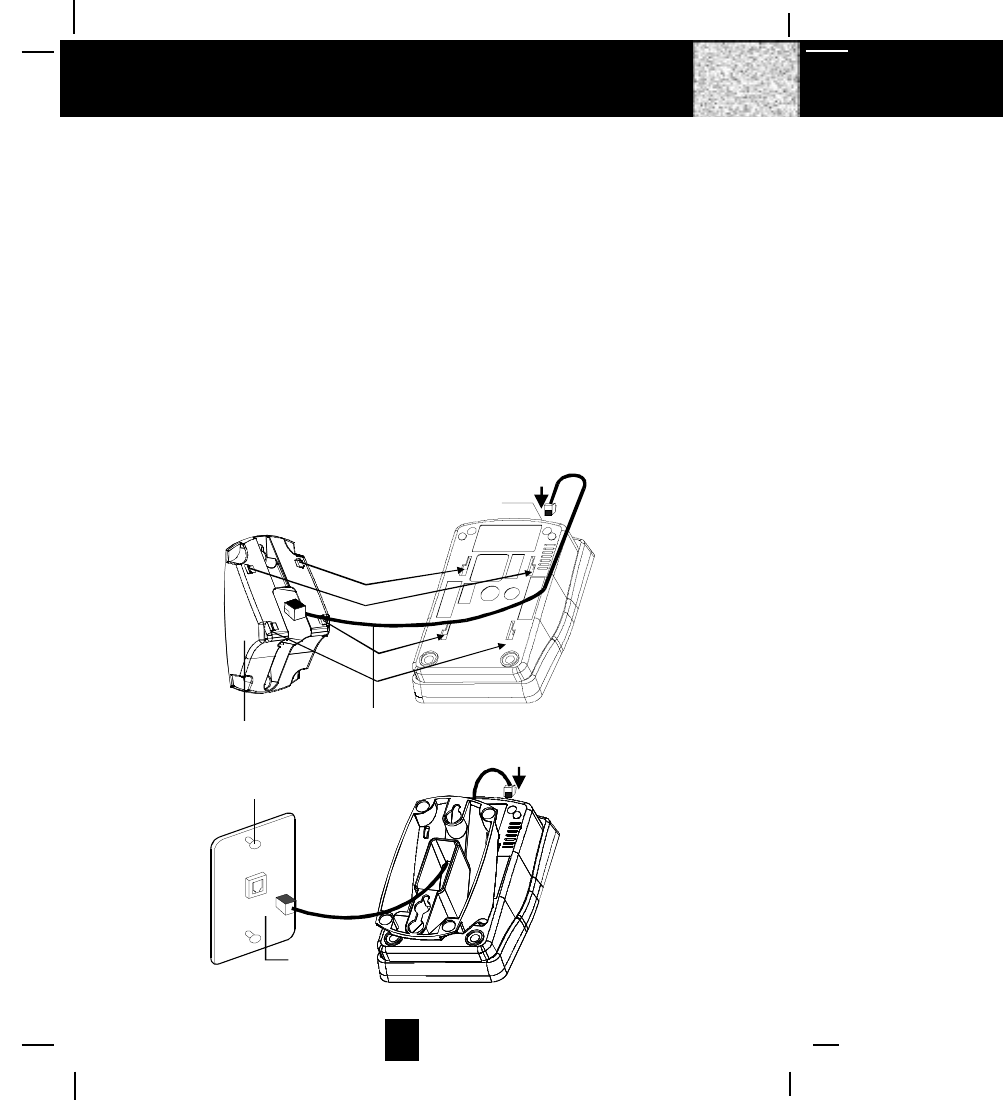

Wall Mounting
Wall Mounting
You may choose to put the BASE UNIT of your cordless telephone on a wall.
1. With the back of the BASE UNIT facing up, connect the SHORT TELEPHONE LINE CORD to
the TELEPHONE LINE CONNECTION JACK.
2. Insert the free end of the SHORT TELEPHONE LINE CORD through the hole of the MOUNTING
BRACKET.
3. Insert the hooks of the MOUNTING BRACKET (following the arrow direction for the WALL
MOUNT) into the matching slots of the BASE UNIT (as shown below). Then slide the
MOUNTING BRACKET into place as indicated by the arrows. Plug the free end of the
SHORT TELEPHONE LINE CORD into the MODULAR WALL JACK.
4. Align the upper keyhole on the MOUNTING BRACKET with the upper stud of the wall plate,
so that the opening end of the MOUNTING BRACKET matches the lower stud, then pull the
BASE UNIT down until it is securely seated.
TELEPHONE LINE
CONNECTION JACK
SHORT TELEPHONE
LINE CORD
MOUNTING
BRACKET
BASE UNIT
WALL PLATE
STUD
WALL PLATE
BASE UNIT
9
Wall Mounting

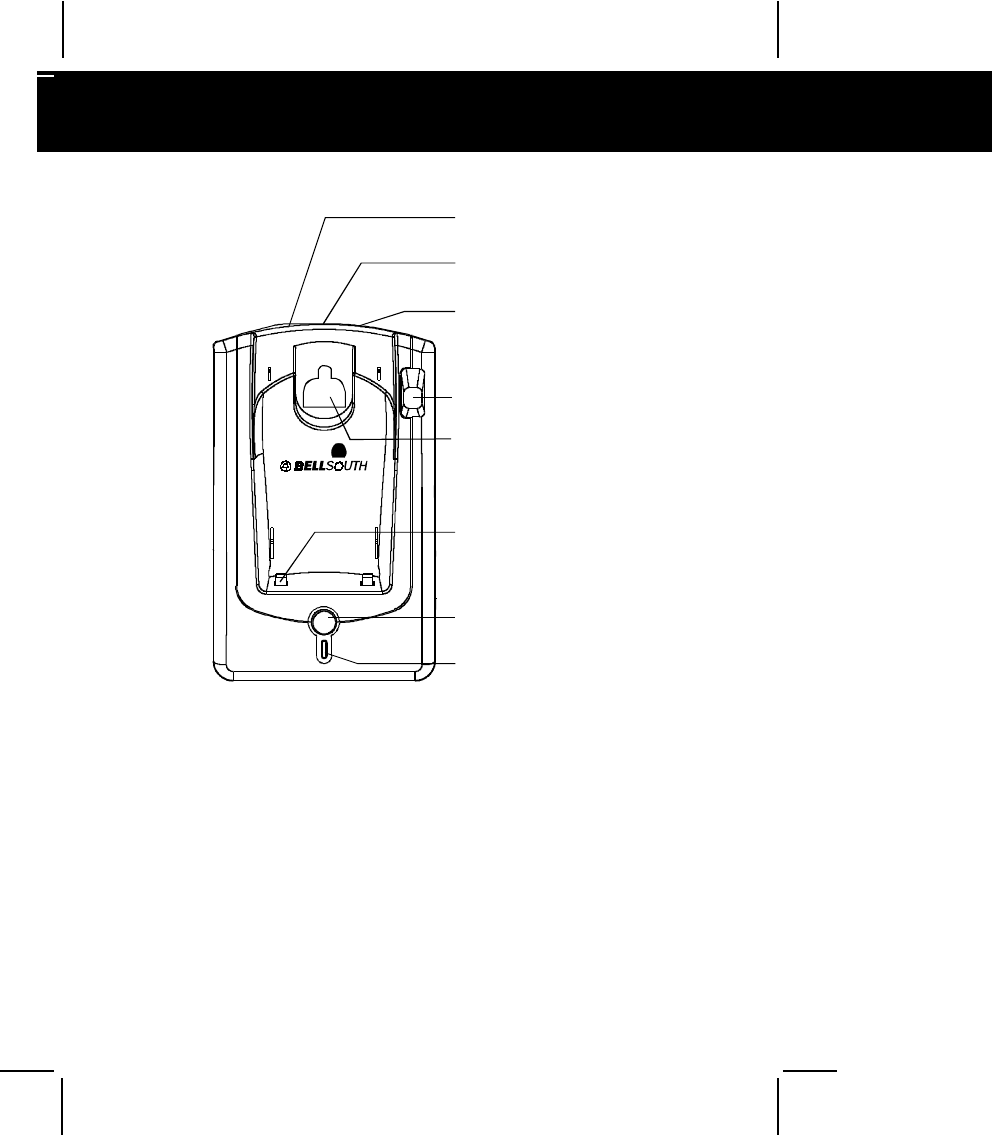

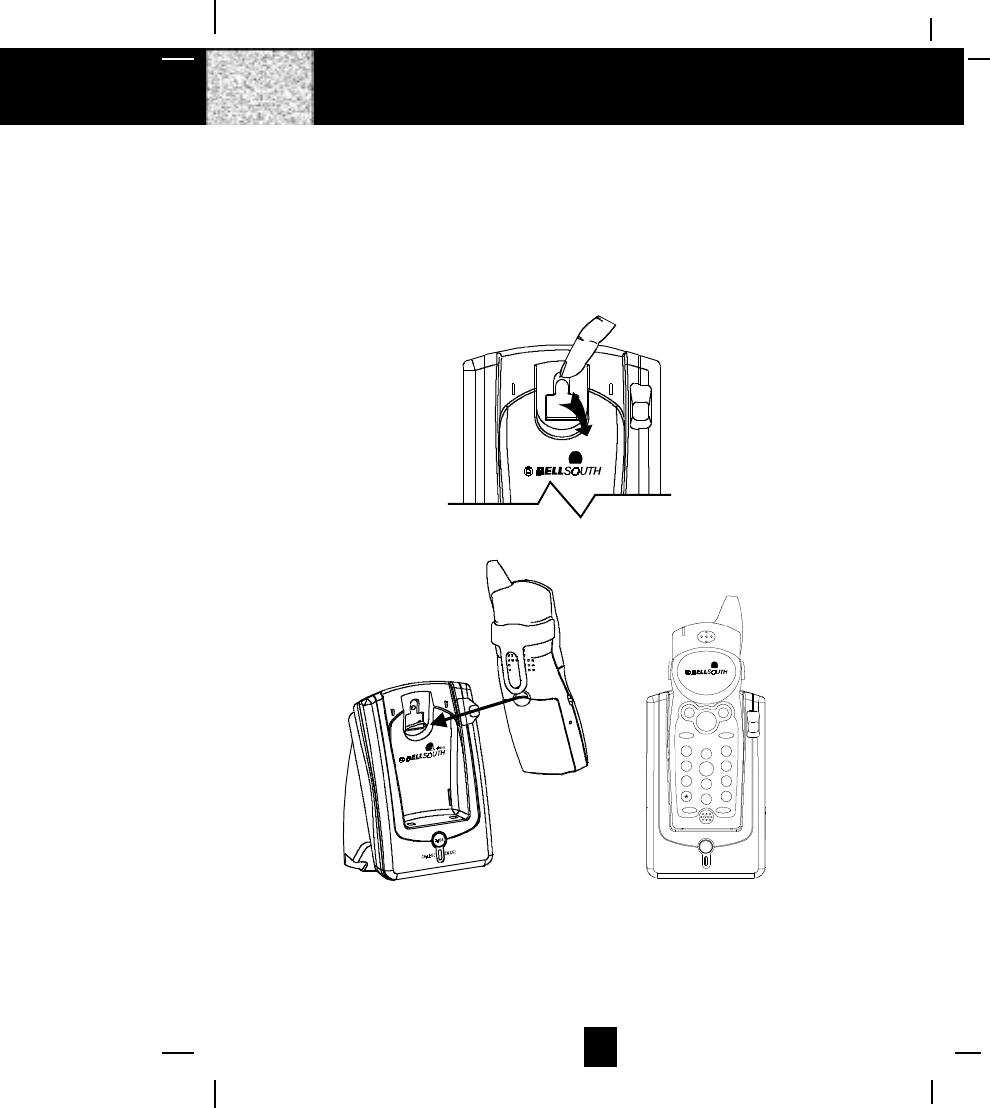

5. This cordless telephone has a HANDSET RETAINER TAB located on the BASE UNIT and a
RETAINER TAB NOTCH located on the back of the HANDSET to secure the HANDSET in the
CHARGE CRADLE when wall mounting.
1. Pull out the HANDSET RETAINER TAB using a finger tip or a small flat tool.
(See Figure 1)
2. Place the HANDSET in the CHARGE CRADLE with its TELEPHONE KEYPAD facing you.
(See Figure 2)
IMPORTANT: A “beep” will be heard when the HANDSET is properly positioned in the BASE
UNIT CHARGE CRADLE and charging. Securely positioning the HANDSET in
the BASE UNIT will also prevent the HANDSET from falling.
2.4GHz
FIGURE 1
FIGURE 2
CHARGE
PAGE
IN USE
TALK
MEMOPAUSE
DEF
ABC
GHI JKL MNO
TUV
PRS WXY
OPER
TONE
123
6
5
4
789
0#
IN USE
BATT LOW
FLASHREDIAL
SCAN
2.4GHz
10
Preparing for Use
Before you can use your cordless telephone, you must charge the HANDSET for 12 hours.
Failure to do so will require recharging of the BATTERY PACK more often.
1. Place the HANDSET on the BASE UNIT for 12 hours.
2. After 12 hours, remove the HANDSET from the BASE UNIT.
Before you can use your cordless telephone, you must charge the HANDSET for 12
hours. Failure to do so will require more frequent charging of the BATTERY
PACK. See page 16 for more information on the BATTERY PACK.
NOTE:
Depending on the frequency of use, once the HANDSET is fully charged, it remains functional
for approximately 4 hours of continuous use and approximately 5 days when the HANDSET is
off the BASE UNIT in STANDBY mode.
Basic Operation
IMPORTANT
The AC ADAPTER must always be plugged into an
electrical outlet.
11

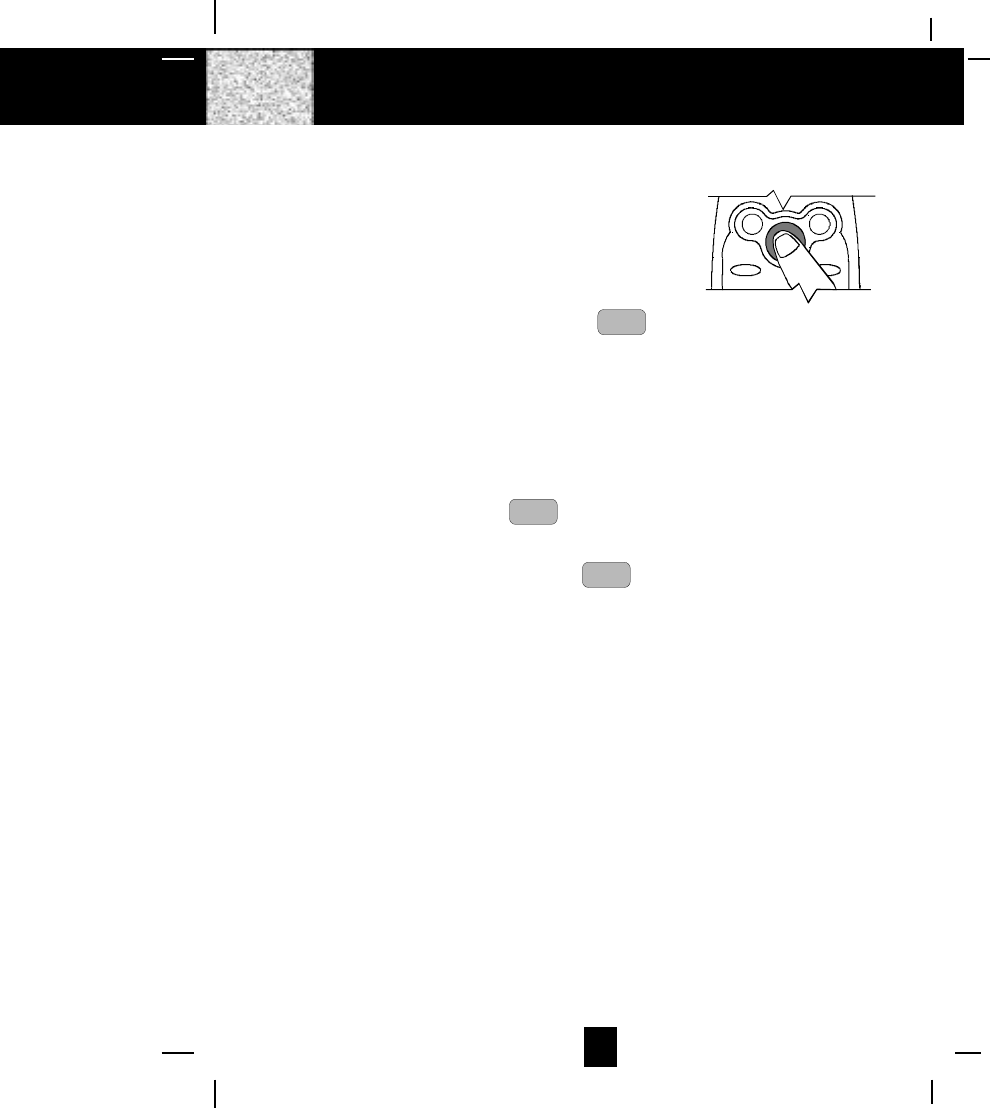

Receiving Calls
Receiving Calls with the HANDSET on the BASE UNIT
1. When the phone rings, lift the HANDSET. The IN USE
LED indicator will light up. (NOTE: The HANDSET
RINGER Switch must be in the “ON” position for ringer
to operate.)
2. Start your conversation.
3. To end your conversation, either press the TALK
button or place the HANDSET on the BASE UNIT. If
you place the HANDSET on the BASE UNIT CHARGE
CRADLE, you activate the automatic STANDBY
feature.
Receiving Calls with the HANDSET off the BASE UNIT
1. When the phone rings, press the TALK button. The IN USE LED indicator will light up.
2. Start your conversation.
3. To end your conversation, either press the TALK button or place the HANDSET on the
BASE UNIT. If you place the HANDSET on the BASE UNIT CHARGE CRADLE, you activate
the automatic STANDBY feature.
(NOTE: The BASE UNIT does not have a ringer and does not ring when receiving an
incoming call.)
NOTE: If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds to
warn you that the background noise level is too high for proper communication between
the HANDSET and the BASE UNIT. When you hear this sound, you should move closer
to the BASE UNIT to reduce the noise level. Otherwise, the call will automatically cut
off.
TALK
MEMO
PAUSE
def
FLASHREDIAL
12
Placing Calls
1. Press the TALK button. The IN USE LED indicator
will light up.
2. Listen for a dial tone.
3. Dial the phone number.
4. When you have finished with your call, press the
TALK button again. The IN USE indicator will turn
OFF.
HANDSET Redial Feature
1. If you get a busy tone, press the TALK button to
hang up.
2. Later, press the TALK button again.
3. Listen for a dial tone.
4. Press the REDIAL button. This will automatically
redial the last telephone number you called.
Headset Feature
Your telephone can utilize a headset (not included) to be
connected to your HANDSET for you to enjoy hands-free
communication. Insert the small plug at the end of the headset
into the HEADSET JACK at the right side of the HANDSET.
Follow the procedures discussed in “Receiving Calls” and
“Placing Calls” to receive and place a call.
NOTE: When you plug the headset plug into the HEADSET
JACK it automatically mutes the MICROPHONE and
SPEAKER of the HANDSET. Unplug the headset to
return the HANDSET to normal use.
Headsets are available at most retail outlets that sell telephone
equipment. The HEADSET JACK is compatible with 2.5 mm
headset plugs only.
Placing Calls
HEADSET JACK
HEADSET PLUG
(2.5mm)
SPEAKER
MICROPHONE
HEADSET
MEMOPAUSE
DEF
ABC
GHI JKL MNO
TUV
PRS WXY
OPER
TONE
123
6
5
4
789
0#
IN USE
BATT LOW
FLASHREDIAL
SCAN
2.4GHz
TALK
13
Storing Numbers
1. Be sure the BASE UNIT IN USE LED indicator is OFF and the HANDSET is in STANDBY
mode.
2. Press the MEMO button.
3. Dial the number you want to store.
4. Press the MEMO button again.
5. Dial the TELEPHONE KEYPAD 0
OPER ~ 9
WXY button where you want to store that number.
You will hear one confirmation “beep”.
6. Write the name of the person you will be calling with that number next to the corresponding
index number on the TELEPHONE NUMBER CARD.
7. Repeat steps 1 through 6 to store other telephone numbers.
EXAMPLE: To store the number 115-1968 under the TELEPHONE KEYPAD 1 button:
1 - Press the MEMO button. 4 - Press the TELEPHONE KEYPAD 1 button.
2 - Dial 115-1968. 5 - You have stored 115-1968 under the TELEPHONE
3 - Press the MEMO button again. KEYPAD 1 button.
A total of 10 telephone numbers can be programmed in memory.
IMPORTANT:
The maximum number of digits that can be stored for any phone number is 16 in PULSE or
TONE mode. The maximum number of digits for mixed (TONE and PULSE in combination) dialing
is 15. If you are using a switchboard system to access an outside line (such as an 8 or 9),
press the PAUSE button to store a PAUSE.
Storing Number
14

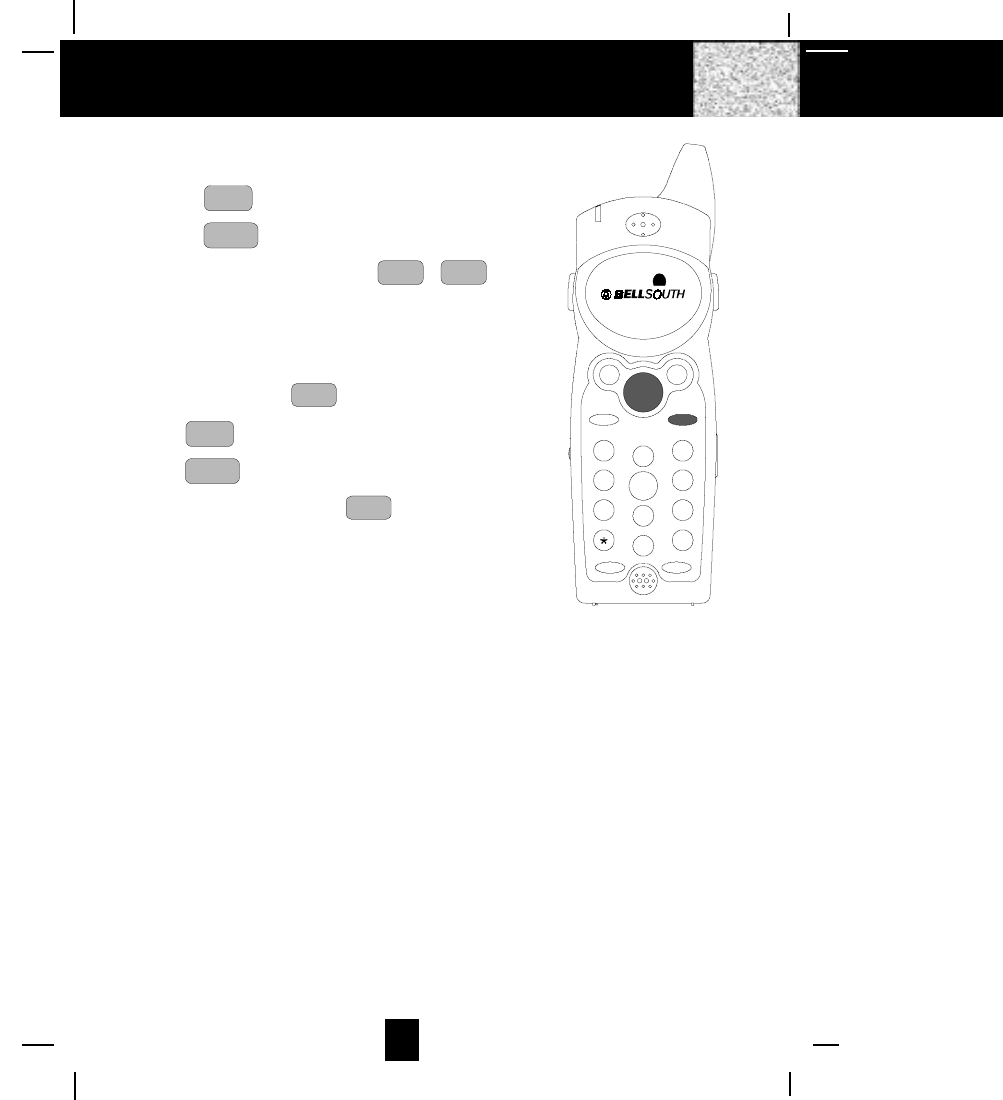

Recalling Stored Numbers from Memory
1. Press the TALK button.
2. Press the MEMO button.
3. Press the TELEPHONE KEYPAD 0
OPER ~ 9
WXY
button for the number you have stored. The stored
number will be dialed automatically.
EXAMPLE: To recall number 115-1968 stored under
the TELEPHONE KEYPAD 1 button:
- Press the TALK button.
- Press the MEMO button.
- Press the TELEPHONE KEYPAD 1 .
Recalling Stored Numbers
PAUSE
DEF
ABC
GHI JKL MNO
TUV
PRS WXY
OPER
TONE
123
6
5
4
789
0#
IN USE
BATT LOW
FLASHREDIAL
SCAN
2.4GHz
TALK
MEMO
15
Security System
Your cordless telephone uses a digital coding security system to prevent unauthorized use of
your telephone line by another near by cordless telephone. The system has its own identifying
signal created by microcomputers in both the BASE UNIT and HANDSET.
Security Code
This telephone has an internal security code with 65,536 possible combinations.
Resetting Security Code and Channel Information
Communication between HANDSET and BASE UNIT may not be possible in any of the following
situations:
1. After a power failure.
2. After relocating the BASE UNIT by disconnecting the AC ADAPTER.
3. After replacing the HANDSET BATTERY PACK.
To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.
Multi-Channel Access
Your cordless telephone lets you select a channel from the 40 frequencies available to
transmit signals between the BASE UNIT and HANDSET. When you notice interference from
other cordless telephones, change to another channel by pressing the SCAN button on the
HANDSET.
Security System
IMPORTANT
When you hear interference, press the
SCAN button to change the operating
channel.
16
Battery Type
Use the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
U.S. Electronics Inc.
Ni-MH Battery Pack: model B655
This BATTERY PACK is available through:
U.S. Electronics Service Center
105 Madison Avenue
New York, NY 10016
1-800-825-5208
NOTE: During a power interruption, the BASE UNIT does not operate, and a phone
conversation cannot be made on the HANDSET.
Recharging the BATTERY PACK
The nickel metal hydride (Ni-MH) BATTERY PACK in the HANDSET can be recharged many
times using the built-in charger in the BASE UNIT.
When the BATT LOW LED indicator starts to blink, a “beep” sound will be heard every 12
seconds. This indicates that the BATTERY PACK needs to be recharged.
Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.
When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will
be necessary.
The BATTERY PACK used in your telephone may develop a condition known as “MEMORY”.
Once subjected to a regular short discharging routine, the BATTERY PACK assumes the
discharging pattern it was subjected to. This is known as a “MEMORY” condition which
causes rapid discharging thereby shortening the BATTERY PACK charge span. If you believe
your BATTERY PACK has developed a “MEMORY” condition, do not charge the HANDSET
until the BATT LOW LED indicator comes on. When it does come on, charge the HANDSET fully
for 12 hours.
Recharging the Battery Pack
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET
for 12 hours before initial use.
17
Changing the BATTERY PACK
The BATTERY PACK provides power for the HANDSET of your cordless telephone.
To Replace BATTERY PACK:
1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.
2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.
3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.
4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.
5. Before use, charge the new BATTERY PACK for 12 hours.
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERY
PACK is recyclable. At the end of its useful life, under various state and local laws, it may be
illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with your local
solid waste officials for details in your area for proper disposal.
Changing the BATTERY PACK
Remove the HANDSET BATTERY
COMPARTMENT COVER by
sliding it down.
BATTERY
COMPARTMENT
COVER
BATTERY PACK
BATTERY
CONNECTOR
BATTERY PACK
PLUG
CAUTION
TO REDUCE RISK OF FIRE OR
INJURY, US E ONLY SAME TYP E
AND MAKE OF BATTERY PACK,
Ni-Mh 3.6V, 600mAh.
U. S. ELEC TR ONI CS
MO DEL B655
FOR 2.4 GHz
ANALOG H ANDSET
18
Problem Solving Section
For your assistance, we have listed below a few common problems.
Phone does not work, check the following:
1. BASE UNIT is plugged into power source.
2. HANDSET is charged.
3. TONE/PULSE SELECT switch is in the right position.
4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.
Range of phone limited, check the following:
1. BASE UNIT is centrally located in your residence.
2. BASE UNIT is not located near appliances.
No dial tone, check the following:
1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE
LINE CONNECTION JACK.
2. BASE UNIT is plugged into power source.
3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the
BASE UNIT for 2 to 5 seconds to reset the system.
Received signal flutters or fades, check the following:
1. BATTERY PACK in the HANDSET is fully charged.
2. HANDSET is not too far from the BASE UNIT.
Interference on reception, check the following:
1. Noise may be picked up from electrical products in the home or electrical storms. Generally,
this noise is a minor annoyance and should not be interpreted as a defect in your system.
(See Technical Information on page 19.)
2. Choose an alternate channel using the SCAN button on the HANDSET.
3. Do not use this telephone within 20 ft. of a microwave oven while it is working, as you
may experience interference. This is a normal occurrence with 2.4GHz phones and
should not be interpreted as a defect in the product.
Excess static, check the following:
1. Check to see that the ANTENNA is not touching another metal object.
If after pressing the TALK button, you receive three “beeps” and no dial
tone, check the following:
1. BASE UNIT is plugged into power source.
2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the
BASE UNIT for 2 to 5 seconds to reset the system.
NOTE:
If none of the telephones in the house are working, disconnect one set at a time to verify that
none of the phones are causing the problem. If you still have a problem after doing this, and
your telephone still does not work, please contact your local phone company.
Problem Solving
19
Technical Information
This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties
in using radio frequencies with a cordless telephone. While these are normal, the following
could affect the operation of your system.
Noise
Electrical pulse noise is present in most homes at one time or another. This noise is most
intense during electrical storms. Certain kinds of electrical equipment such as light dimmers,
fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies
are susceptible to these noise pulses, you may occasionally hear them in your HANDSET.
Generally they are a minor annoyance and should not be interpreted as a defect in your
system.
Range
Because radio frequency is used, the location of the BASE UNIT can affect the operating
range. Try several locations in your home or office and pick the one that gives you the clearest
signal to the HANDSET.
Interference
Electronic circuits activate a relay to connect the cordless telephone to your telephone line.
These electronic circuits operate in the radio frequency spectrum. While several protection
circuits are used to prevent unwanted signals, there may be periods when these unwanted
signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are not
using the HANDSET. If the interference occurs frequently, it can be minimized or eliminated by
relocating the BASE UNIT. You can check for interference before selecting the final BASE
UNIT location by plugging in the telephone.
NOTICE:
This cordless telephone uses radio communication between the HANDSET and the BASE
UNIT and may not ensure privacy of communication. Other devices, including another cordless
telephones, may interfere with the operation of this cordless telephone or cause noise during
operation. Units not containing coded access may be accessed by other radio communication
systems. Cordless telephones must not cause interference to any licensed radio service.
Technical Information
20
Federal Communications Commission Requirements
This equipment complies with Part 68 of the FCC rules. A label on the BASE UNIT of this
equipment contains, among other information, the FCC Registration Number and the Ringer
Equivalence Number (REN) for this equipment. You must, upon request, provide this information
to your telephone company.
The REN is also useful in determining the number of devices that you may connect to your
telephone line and still allow all of these devices to ring when your telephone number is called.
In most, but not all areas, the sum of the RENs of all devices connected to one line should not
exceed five (5.0). To be certain of the number of devices that you may connect to your line,
contact your local telephone company.
If your equipment should cause harm to the telephone network, the telephone company may
temporarily disconnect your service. If possible, they will notify you in advance that temporary
discontinuance of service may be required. However, when advance written notice is not
possible, the telephone company may temporarily discontinue service without notice if such
action is necessary under the circumstances. The telephone company may make changes in
its communication facilities, equipment, operations, or procedures where such action is
reasonably required in the operation of its business and is not inconsistent with the rules and
regulations of the Federal Communications Commission.
Do not attempt to repair or modify this equipment.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user´s authority to operate the equipment.
Some cordless telephones operate at frequencies that may cause interference to nearby TV,s
and VCR,s. To minimize or prevent such interference, the BASE UNIT of the cordless telephone
should not be placed on or near a TV or VCR. If interference is experienced, moving the
cordless telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
This equipment should not be used on coin telephone lines. Connection to party line service is
subject to state tariffs. If trouble is experienced, disconnect this equipment from the telephone
line to determine if it is causing the malfunction. If the equipment is determined to be malfunctioning,
its use should be disconnected until the problem has been corrected.
FCC Requirements
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET for 12
hours before initial use.
21
Federal Communications Commission Requirements (continued)
NOTE: This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures.
1. Reorient or relocate the receiving ANTENNA.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received including interference that may cause
undesired operation.
FCC Requirements
22
Warranty Information
BellSouth Products
One-Year Limited Warranty
This limited warranty sets forth all BellSouth Products responsibilities regarding your
telephone. There are no other expressed or implied warranties from BellSouth Products.
Warranty Service Provided
If you purchased the telephone new from a retail vendor, BellSouth Products warrants the
telephone against defects in material and workmanship for a period of one (1) year from the
original date of purchase. This warranty is in lieu of all other expressed warranties. This
warranty begins when you purchase the telephone and continues for one (1) year unless you
sell or rent the telephone, in which case the warranty stops.
BellSouth Products disclaims any implied warranty, including the warranty of merchantability
and the warranty of fitness for a particular purpose, as of the date of 90 days from your
original purchase of the telephone. BellSouth Products assumes no responsibility for any
special, incidental, or consequential damages.
This warranty gives you specific legal rights and you may have other rights which vary from
state to state. Some states do not allow the exclusion or limitations of special, incidental or
consequential damages, or limitations on how long a warranty lasts, so the above exclusion
and limitation may not apply to you.
Warranty Service Not Provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper
installation or operation, lack of reasonable care, unauthorized modification, the affixing of any
attachment not provided by BellSouth Products with the telephone, and/or loss of parts.
This warranty is voided in the event any unauthorized person opens, alters or repairs the
telephone. All BellSouth equipment being returned for repair must be suitably packaged.
Telephone companies use different types of equipment and offer various types of services to
customers. BellSouth Products does not warrant that this telephone is compatible with the
type of equipment of any particular telephone company or the services provided by it.
Warranty
23
Warranty
What To Do for Warranty Service
During the first thirty (30) days, a defective product is eligible for over-the-counter exchange
at the retailer from whom it was purchased. After thirty (30) days, the defective product
should be returned to the authorized service center. Please allow 2-3 weeks for the return of
your telephone product. The shipping address of the authorized service center is:
U.S. Electronics Consumer Center
C/O Southern Bonded Warehouse
7137 Southlake Parkway
Morrow, GA 30260
NOTE: A telephone received which was not made for BellSouth Products or which is not
defective as determined by our test procedures will not be repaired and will be returned to
you C.O.D., freight collect.
To Obtain Warranty Service
•Provide proof of the date of purchase within the package.
•Prepay all shipping costs to the authorized service center.
•Include a return shipping address within the package.
Please retain your sales receipt, the carton, the packing materials, and the printed material. The
original carton is the best shipping container for the telephone should you have to return it.
For your reference:
Serial number
Date of Purchase
Name of Dealer
Customer Service Telephone Number:
1-800-210-8950
OUTSIDE THE U.S.A. CALL 1-212-242-6978
Visit Us on the Web
www.uselectronics.info
24
Notes
25
Notes
26
Wall Mounting Template
This page serves as a template for attachment of screws to the wall
when mounting this telephone on the wall.
1. Cut out this page.
2. Use this template to determine the distance between screws
when mounting this phone on the wall. The two cross hairs
identify where to attach the screws.
27
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET for 12
hours before initial use.
IMPORTANT
When you hear interference, press the
SCAN button to change the operating
channel.
IMPORTANT
If you live in an area which gets frequent
thunderstorms, we strongly recommend plugging your
AC ADAPTER into a surge protector.
IMPORTANT
Placing your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
IMPORTANT
The AC ADAPTER must always be plugged into an
electrical outlet.
CORDLESS TELEPHONE
2.4 GHz FILTERED SOUNDTM WITH 40 CHANNEL AUTOSCAN
Model GH9407
c 2002 BellSouth Corporation
PLEASE READ THIS
MANUAL CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
OWNER
’
S MANUAL
INSTALLATION AND
OPERATING
INSTRUCTIONS
For installation information, please
see “Getting Started“ instructions on
page 4 or your separate Quick Start
Guide.
TALK
MEMO
PAUSE
DEF
ABC
GHI JKL MNO
TUV
PRS WXY
OPER
TONE
123
6
5
4
789
0#
IN USE
BATT LOW
FLASH
REDI AL
SCAN
2.4
GHz
2.4
GHz
CHARGE
PAGE
IN USE
Visit Us on the Web
www.uselectronics.info
Make certain you receive the best
performance from your telephone.
Read this manual first.
STOP
Made in China
CM
Visit Us on the Web
www.uselectronics.info
For installation information, please see
“Getting Started” instructions on page 4 or
your separate Quick Start Guide.
HANDSET controls
1. HANDSET ANTENNA
2. IN USE/BATT LOW
INDICATOR Pg. 11,
12, 16
4. TALK BUTTON Pg. 5,
6, 11, 12, 14, 18
3. REDIAL BUTTON
Pg. 12
5. PAUSE BUTTON
Pg. 13
(HI,
6. VOLUME CONTROL
MID, LOW) SWITCH
7. TONE BUTTON 12. SCAN BUTTON Pg. 15, 18, 27
11. TELEPHONE KEYPAD Pg. 13, 14
9. MEMO BUTTON Pg. 13, 14
8. FLASH BUTTON
13. CHARGE CONTACTS
10. HEADSET JACK Pg. 12
14. RINGER ON/OFF SWITCH Pg. 11
RINGER
ONOFF
2.4GHz
IN USE
BATT LOW
FLASHREDIAL
TALK
MEMOPAUSE
DEF
ABC
GHI JKL MNO
TUV
PRS WXY
OPER
TONE
123
6
5
4
789
0#
SCAN
HANDSET ANTENNA
1. HANDSET ANTENNA
2. IN USE / BATT LOW LED Indicator: Lights up when the HANDSET is in TALK mode.
Blinks when battery power is low. (See page 12 for detail.)
3. REDIAL REDIAL Button: Press to redial the last number you dialed.
4. TALK TALK Button: Press to answer an incoming call or to place a call. Press to end
a call.
5. PAUSE PAUSE Button: Press to insert a PAUSE while dialing. (You will need the PAUSE
button to dial numbers which use an alternative Long Distance Access Code.)
6. HANDSET VOLUME CONTROL (HI, MID, LOW) Switch: Select the receiver volume level
(HI, MID, LOW).
7. TONE TONE Button: Press to temporarily change the dialing mode from PULSE to TONE
for Rotary Service users. (Press once before entering numbers to access an answering
system or electronic backing services, etc.)
8. FLASH FLASH Button: Press to answer an incoming call if you have Call Waiting.
9. MEMO MEMO Button: Press to store phone numbers in memory or to call a number you
have previously stored.
10. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication
(See page 12 for detail).
11. TELEPHONE KEYPAD: Allows you to make a call depending on pressed button.
12. SCAN SCAN Button: Press to change the operating channel when you hear interference.
13. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We
recommend cleaning the CHARGE CONTACT periodically with a damp cloth.
14. RINGER ON/OFF Switch: Set switch to OFF position to disengage the ringer on the
HANDSET.
HANDSET controls
BASE UNIT controls
1. TONE/PULSE SELECT
SWITCH Pg. 5
2. POWER-IN
CONNECTION JACK
Pg. 4
3. TELEPHONE LINE
CONNECTION JACK
Pg. 4, 8, 18
4. BASE UNIT ANTENNA
6. CHARGE TERMINALS
7. PAGE BUTTON
8. IN USE/CHARGE
LED INDICATOR
2.4GHz
CHARGE
PAGE
IN USE
5. HANDSET RETAINER TAB Pg. 9
IMPORTANT
Locating your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
BASE UNIT controls
1. TONE/PULSE Select Switch
2. POWER-IN CONNECTION JACK
3. TELEPHONE LINE CONNECTION JACK
4. ANTENNA
5. HANDSET RETAINER TAB: Secures the HANDSET in the CHARGE CRADLE when wall
mounting.
6. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For best performance,
clean the CHARGE TERMINALS periodically with a damp cloth.
7. PAGE PAGE Button: Press to page the HANDSET.
8. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is in
TALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNIT for
charging.
Special Features
When examining your new BellSouth cordless telephone, you will find an array of special
features including:
Filtered SoundTM System - Gets considerably less noise than conventional cordless
telephones because of a special circuit which delivers the clearest possible reception.
40 Channel Auto Scan - Press the SCAN button on the HANDSET to find and lock on to the
clearest channel for any call.
Telephone Number Storage - Store up to 10 frequently called numbers.
Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.
TONE or PULSE Dialing - Use this phone for either TONE or push-button PULSE (rotary)
dialing.
Automated Functions - Redial the last number called, speed dial 10 numbers and automatic
STANDBY mode.
Security - Ensures greater privacy because a built-in security code with 65,536 combinations
prevents use of your telephone line by another nearby cordless phone.
Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger.
The battery low warning tone tells you when the BATTERY PACK needs recharging. (See
page 16.)
Special Services - Use the FLASH button to access special services such as Call Waiting
supplied by your telephone company or company switchboard.
STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving a
call. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode (ON-
HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBY mode
until you activate the TALK button.
Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET can receive/
send calls for a maximum of five days without the need for recharging. Length of charge
depends on frequency of use.
HANDSET VOLUME CONTROL Switch - Select the volume level (HI, MID, LOW).
HEADSET JACK - Your telephone can utilize a headset for hands-free communication.
BELT CLIP - Use the BELT CLIP to hang your HANDSET to your belt.
Congratulations on your selection of a quality BellSouth product. With proper care, and by
following the set-up and user instructions in this manual, this unit will provide you with years
of trouble-free service.
BellSouth is committed to providing quality products that fit your needs. We would like to have
any comments or suggestions you might have on this product. You may mail your comments to:
U.S. Electronics
105 Madison Avenue
New York, NY 10016
