Security System
Your cordless telephone uses a digital coding security system to prevent unauthorized use of
your telephone line by another nearby cordless telephone. The system has its own identifying
signal created by microcomputers in both the BASE UNIT and the HANDSET.
Security Code
This telephone has an internal security code with 65,536 possible combinations.
Resetting Security Code and Channel Information
Communication between the HANDSET and the BASE UNIT may not be possible in any of the
following situations:
1. After a power failure.
2. After relocating the BASE UNIT by disconnecting the AC ADAPTER.
3. After replacing the HANDSET BATTERY PACK.
To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.
Multi-Channel Access
Your cordless telephone lets you select a channel from the 40 frequencies available to transmit
signals between the BASE UNIT and HANDSET. When you notice interference from other
cordless telephones, change to another channel by pressing the button on the
HANDSET.
DELETE
SCAN
28
Security
Battery Type
Use the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
U.S. Electronics Inc.
Ni-MH Battery Pack: Model B655
This BATTERY PACK is available through:
U.S. Electronics Service Center
105 Madison Avenue
New York, NY 10016
1-800-825-5208
NOTES: 1. During a power interruption, the BASE UNIT does not operate, and a phone
conversation cannot be made on the HANDSET.
2. A “beep” will be heard when the HANDSET is properly positioned in the
BASE UNIT CHARGE CRADLE and charging. Securely positioning the
HANDSET, KEYPAD face up, in the BASE UNIT will also prevent the
HANDSET from failing.
Recharging the Battery Pack
The nickel metal hydride (Ni-MH) BATTERY PACK in the HANDSET can be recharged many
times using the built-in charger in the BASE UNIT.
When the BATTLOW symbol appears on the LCD Screen, a “beep” sound will be heard every
10 seconds. This indicates that the BATTERYPACK needs to be recharged.
Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.
When the BATTERYPACK can no longer be charged, replacement of the BATTERYPACK will
be necessary.
The BATTERY PACK used in your telephone may develop a condition known as “MEMORY”.
Once subjected to a regular short discharging routine, the BATTERY PACK assumes the
discharging pattern it was subjected to. This is known as a “MEMORY” condition which causes
rapid discharging thereby shortening the BATTERY PACK charge span. If you believe your
BATTERYPACK has developed a “MEMORY” condition, do not charge the HANDSET until the
BATTLOW symbol appears on the LCD Screen. When the BATTLOW symbol appears on the
LCD Screen, charge the HANDSET fully for 12 hours.
29
Recharging the BATTERY PACK
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET for 12
hours before initial use.
Changing the Battery Pack
The BATTERY PACK provides power for the HANDSET of your cordless telephone.
To Replace BATTERY PACK
:

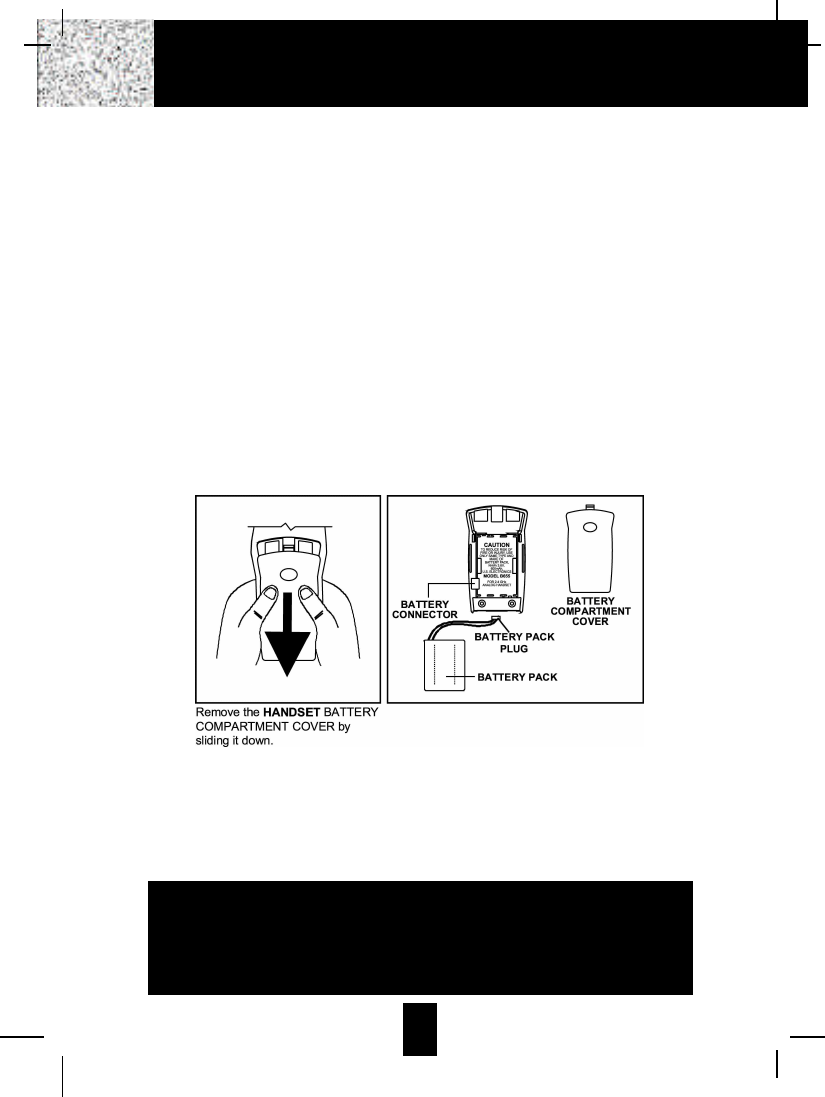

1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.
2. Pull out the BATTERYPACK PLUG and remove the BATTERYPACK.
3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.
4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed
position.
5. Before use, charge the new BATTERY PACK for 12 hours.
ATTENTION
:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The
BATTERYPACK is recyclable. At the end of its useful life, under various state and local laws, it
may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with
your local solid waste officials for details in your area for recycling options or proper disposal.
30
Changing the BATTERY PACK
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET for 12
hours before initial use.
Problem Solving Section
For your assistance, we have listed below a few common problems.
Phone does not work, check the following:
1. BASE UNIT is plugged into a power source.
2. HANDSET is charged.
3. TONE/PULSE Select switch is in the right position.
4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.
Range of phone limited, check the following:
1. BASE UNIT is centrally located in your residence.
2. BASE UNIT is not located near appliances.
No dial tone, check the following
:
1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and
TELEPHONE LINE CONNECTION JACK.
2. BASE UNIT is plugged into a power source.
3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the
BASE UNIT for 2 to 5 seconds to reset the system.
Received signal flutters or fades, check the following:
1. BATTERY PACK in the HANDSET is fully charged.
2. HANDSET is not too far from the BASE UNIT.
Interference on reception, check the following:
1. Noise may be picked up from electrical products in the home or electrical storms. Generally,
this noise is a minor annoyance and should not be interpreted as a defect in your system.
(See Technical Information on page 32.)
2. Choose an alternate channel using the button on the HANDSET.
3. Do not use this telephone within 20 ft. of a microwave oven while it is working, as you may
experience interference. This is a normal occurrence with 2.4 GHz phones and should not
be interpreted as a defect in the product.
Long Distance “L-D-C” indicator is not ON when receiving a long distance call, check the
following:
1. Your local telephone company can provide the Area Code on an incoming long distance call.
Excess static, check the following:
1. Check to see that the ANTENNAis not touching another metal object.
If after pressing the button, you receive three “beeps” and no dial tone, check the
following:
1. BASE UNIT is plugged into a power source.
2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET on the
BASE UNIT for 2 to 5 seconds to reset the system.
NOTE:If none of telephones in the house are working, disconnect one set at a time to verify
that none of the phones are causing the problem. If you still have a problem after doing
this, and your telephone still does not work, please contact your local phone company.
TALK
DELETE
SCAN
31
Problem Solving
Technical Information
This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in
using radio frequencies with a cordless telephone. While these are normal, the following could
affect the operation of your system.
Noise
Electrical pulse noise is present in most homes at one time or another. This noise is most
intense during electrical storms. Certain kinds of electrical equipment such as light dimmers,
fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are
susceptible to these noise pulses, you may occasionally hear them in your HANDSET.
Generally they are a minor annoyance and should not be interpreted as a defect in your system.
Range
Because radio frequency is used, the location of the BASE UNIT can affect the operating range.
Try several locations in your home or office and pick the one that gives you the clearest signal
to the HANDSET.
Interference
Electronic circuits activate a relay to connect the cordless telephone to your telephone line.
These electronic circuits operate in the radio frequency spectrum. While several protection
circuits are used to prevent unwanted signals, there may be periods when these unwanted
signals enter the BASE UNIT.You may hear clicks or hear the relay activate while you are not
using the HANDSET. If the interference occurs frequently, it can be minimized or eliminated by
relocating the BASE UNIT.You can check for interference before selecting the final BASE UNIT
location by plugging in the telephone.
NOTICE:
This cordless telephone uses radio communication between the HANDSET and the BASE
UNIT and may not ensure privacy of communication. Other devices, including another cordless
telephone, may interfere with the operation of this cordless telephone or cause noise during
operation. Units not containing coded access may be accessed by other radio communication
systems. Cordless telephones must not cause interference to any licensed radio service.
32
Technical Information
IMPORTANT
When you hear interference, press the
button to change the operating
channel.
DELETE
SCAN
Federal Communications Commission Requirements
This equipment complies with Part 68 of the FCC rules. A label on the BASE UNIT of the
equipment contains, among other information, the ACTA Product Number and the Ringer
Equivalence Number (REN) for this equipment. You must, upon request, provide this
information to your telephone company.
The REN is also useful in determining the number of devices that you may connect to your
telephone line and still allow all of these devices to ring when your telephone number is called.
In most, but not all areas, the sum of the RENs of all devices connected to one line should not
exceed five (5.0). To be certain of the number of devices that you may connect to your line,
contact your local telephone company.
If your equipment should cause harm to the telephone network, the telephone company may
temporarily disconnect your service. If possible, they will notify you in advance that temporary
discontinuance of service may be required.
However, when advance written notice is not possible, the telephone company may temporarily
discontinue service without notice if such action is necessary under the circumstances. The
telephone company may make changes in its communication facilities, equipment, operations,
or procedures where such action is reasonably required in the operation of its business and is
not inconsistent with the rules and regulations of the Federal Communications Commission.
Do not attempt to repair or modify this equipment.
Warning: Changes or modifications not expressly approved by the party responsible for its
compliance could void the user ’s authority to operate the equipment.
Some cordless telephones operate at frequencies that may cause interference to nearby TV’s
and VCR’s. To minimize or prevent such interference, the BASE UNIT of the cordless telephone
should not be placed on or near a TV or VCR. If interference is experienced, moving the
cordless telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
This equipment should not be used on coin telephone lines. Connection to party line service is
subject to state tariffs. If trouble is experienced, disconnect this equipment from the telephone
line to determine if it is causing the malfunction. If the equipment is determined to be
malfunctioning, its use should be discontinued until the problem has been corrected.
33
FCC Requirements
IMPORTANT
Placing your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
Federal Communications Commission Requirements (continued)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving ANTENNA.
-Increase the distance between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received including interference that may cause
undesired operation.
34
FCC Requirements
Warranty Information
One-Year Limited Warranty
This limited warranty sets forth all our responsibilities regarding your telephone. There are no
other expressed or implied warranties from us.
Warranty Service Provided
If you purchased the telephone new from a retail vendor, we warrant the telephone against
defects in material and workmanship for a period of one (1) year from the original date of
purchase. This warranty is in lieu of all other express warranties. This warranty begins when you
purchase the telephone and continues for one (1) year unless you sell or rent the telephone, in
which case the warranty stops.
We disclaim any implied warranty, including the warranty of merchantability and the warranty of
fitness for a particular purpose, as of the date of 90 days from your original
purchase of the telephone. We assume no responsibility for any special, incidental, or
consequential damages.
This warranty gives you specific legal rights and you may have other rights which vary from
state to state. Some states do not allow the exclusion or limitations of special, incidental or
consequential damages, or limitations on how long a warranty lasts, so the above exclusion and
limitation may not apply to you.
Warranty Service Not Provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper
installation or operation, lack of reasonable care, unauthorized modification, or the affixing of
any attachment not provided by us with the telephone, and/or loss of parts. This warranty is
voided in the event any unauthorized person opens, alters or repairs the telephone.
All our equipment being returned for repair must be suitably packaged.
Telephone companies use different types of equipment and offer various types of services to
customers. We do not warrant that this telephone is compatible with the type of equipment of
any particular telephone company or the services provided by it.
35
Warranty
What To Do for Warranty Service
During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at
the retailer from whom it was purchased. After thirty (30) days, the defective product should be
returned to the authorized service center. Please allow 2-3 weeks for the return of your
telephone product. The shipping address of the authorized service center is:
U.S. Electronics Consumer Center
C/O Southern Bonded Warehouse
7137 Southlake Parkway
Morrow, GA30260
NOTE: A telephone product received which was not made by us or which is not defective as
determined by our test procedures will not be repaired and will be returned to you C.O.D., freight
collect.
To Obtain Warranty Service
• Provide proof of the date of purchase within the package.
• Prepay all shipping costs to the authorized service center.
• Include a return shipping address within the package.
Please retain your sales receipt, the carton, the packing materials, and the printed material. The
original carton is the best shipping container for the telephone should you have to return it.
For your reference:
Serial Number
Date of Purchase
Name of Dealer
Customer Service Telephone Number:
1-800-210-8950
OUTSIDE THE U.S.A. CALL 1-212-242-6978
Visit Us on the Web:
www.uselectronics.info
36
Warranty
37

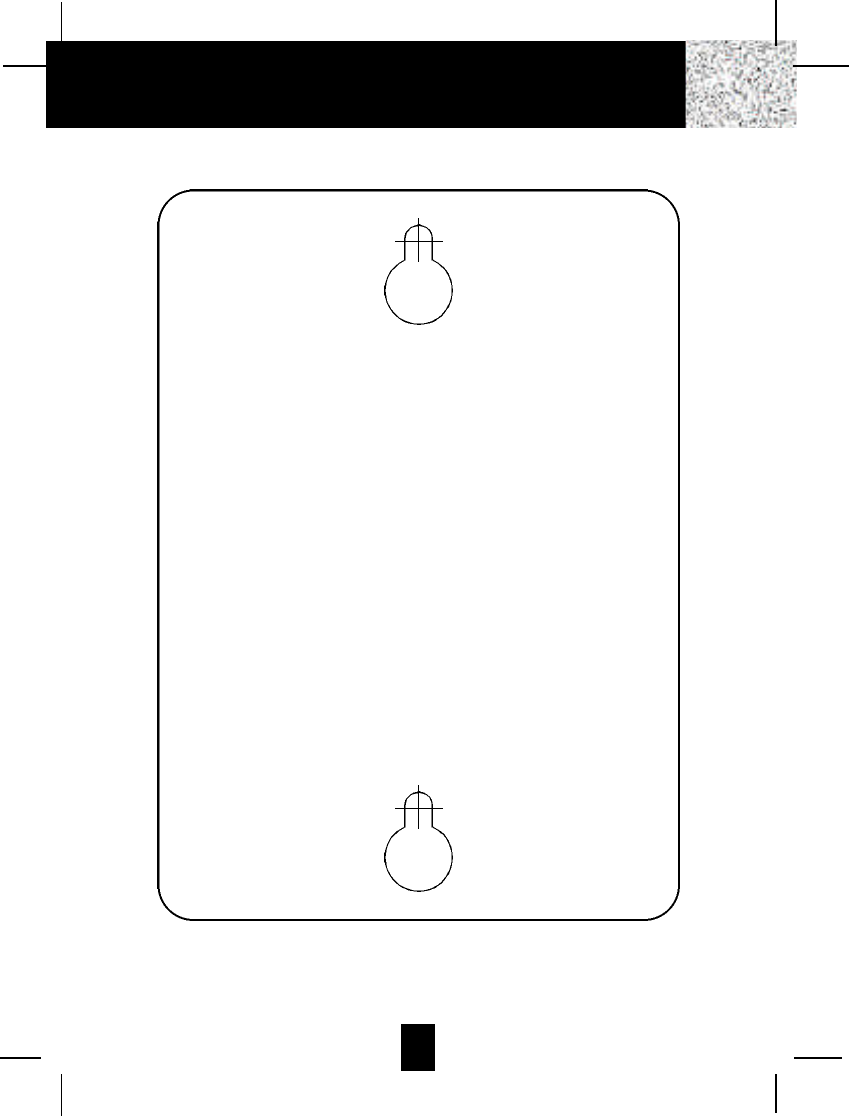

Wall Mounting Template
This page serves as a template for attachment of screws to the wall
when mounting this telephone on the wall.
1. Cut out this page.
2. Use this template to determine the distance between screws
when mounting this phone on the wall. The two cross hairs
identify where to attach the screws.
38
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET for 12
hours before initial use.
IMPORTANT
Placing your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
IMPORTANT
When you hear interference, press the
button to change the operating
channel.
DELETE
SCAN
IMPORTANT
If you live in an area which gets frequent
thunderstorms, we strongly recommend plugging your
AC ADAPTER into a surge protector.
IMPORTANT
The AC ADAPTER must always be plugged into an
electrical outlet.
IMPORTANT
In order to utilize the Caller ID feature, you must
subscribe to Caller ID service from your local
telephone company.

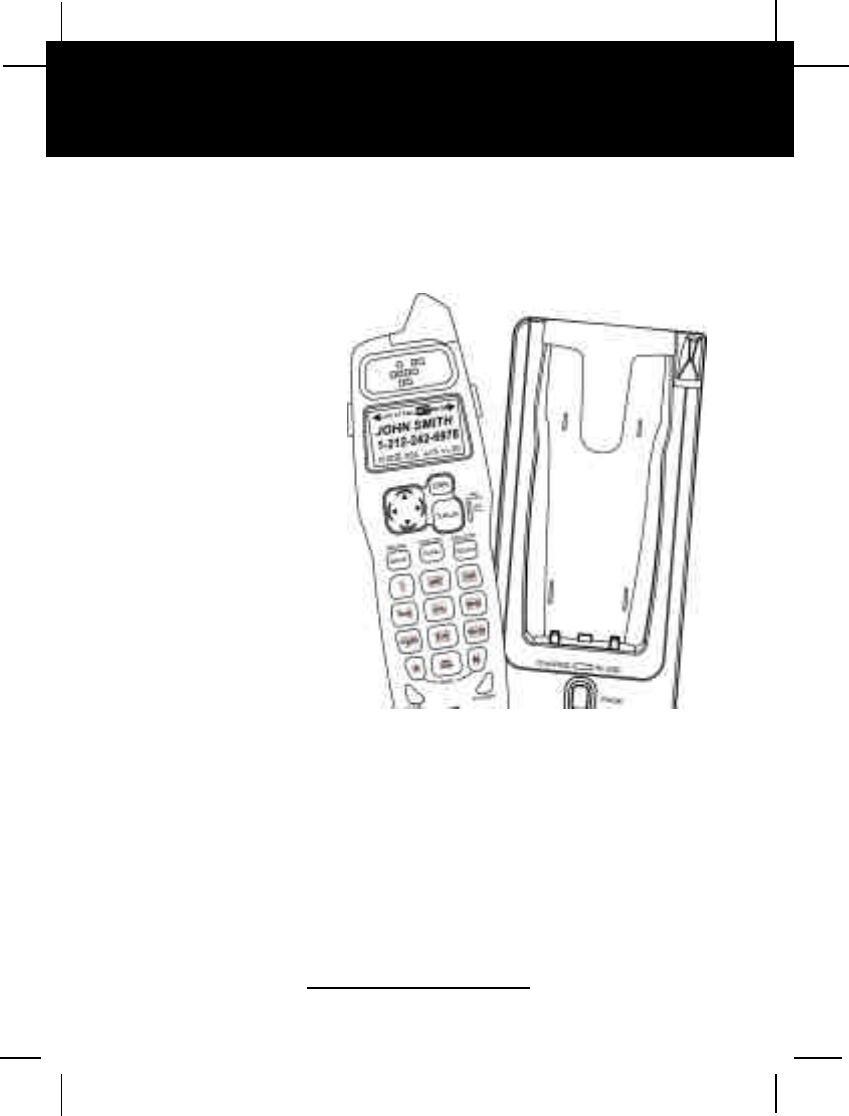

2.4 GHz CORDLESS CALLER ID TELEPHONE
WITH CALL WAITING
40 CHANNEL AUTOSCAN
Model XG2200
OWNER’S MANUAL
INSTALLATION AND
OPERATING
INSTRUCTIONS
PLEASE READ THIS
MANUAL CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
Visit Us on the Web:
www.uselectronics.info
For installation information, please
see “Getting Started” instructions
on page 5 or your separate Quick
Start Guide.
Make certain you receive the best
performance from your telephone.
Read this manual first.
Visit Us on the Web:
www.uselectronics.info
Made in China
CM
03-05
STOP
Congratulations on your selection of a quality product. With proper care, and by following the
set-up and user instructions in this Owner’s Manual, this unit will provide you with years of
trouble-free service.
We are committed to providing quality products that fit your needs. We would like to have
any comments or suggestions you might have on this product. You may mail your comments to:
U.S. Electronics
105 Madison Avenue
New York, NY 10016
When examining your new cordless telephone, you will find an array of special features
including:
Filtered SoundT M S y s t e m - Gets considerably less noise than conventional cordless
telephones because of a special circuit which delivers the clearest possible reception.
40 Channel Auto Scan - Press the button on the HANDSET to find and lock on to the
clearest channel for any call.
Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.
TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary)
dialing.
Automated Functions - Redial the last number called and automatic STANDBY mode.
Security - Ensures greater privacy because a built-in security code with 65,536 combinations
prevents use of your telephone line by another nearby cordless phone.
Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger.
The battery low warning tone tells you when the BATTERY PACK needs recharging. (See
page 29.)
Special Services - Use the button to access special services such as Call Waiting
supplied by your telephone company or company switchboard.
STANDBY Mode - When in STANDBYmode (ON-HOOK), the phone is capable of receiving a
call. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode
(ON-HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBY
mode until you activate the button.
Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET can
receive/send calls for a maximum of five days without the need for recharging. Length of
charge depends on frequency of use.
Luminous LCD Screen -The LCD Screen emits light for 5 seconds every time you press any
of the buttons on the HANDSET.
HANDSET Ringer Level - Select the ringer volume level (HI, LOW, OFF).
HANDSET VOLUME CONTROL Switch - Select the receiver volume level (HI, MID, LOW).
HEADSET JACK -Your telephone can utilize a headset for hands-free communication.
BELT CLIP - Use the BELT CLIPto hang your HANDSET on your belt.
TALK
FLASH
DELETE
SCAN
Special Features
CALLER ID SYSTEM
Multi-Function Large LCD Screen - Shows the number you are dialing, and with Caller ID
service (available through subscription from your local telephone company), displays
information about the caller before you answer the call.
Name and Number DIRECTORY - Stores up to 40 names and numbers so that you can call
them with a single key stroke.
Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyone
who called. The name, phone number, time, and date of the call are recorded. Allows you to
return their calls with a single key stroke.
Preferred Calls -You can mark the name and number of a welcome caller in the DIRECTORY.
When that number calls in, the caller’s name will appear on the LCD Screen and a special
ring sound will be heard.
Blocked Calls - You can mark the name and number of an unwelcome caller in the
DIRECTORY. When that number calls in, the caller’s name will appear on the LCD Screen
and the ringer will be disabled.
Repeat Call Indicator - Shows if a new incoming call has called more than once.
Out of Area Call Indicator -Advises you that the incoming call is not in a Caller ID service area,
or does not support the Caller ID system.
Private Call Indicator - Advises you that the caller’s name and/or telephone number of the
incoming call is blocked by the system.
Call Waiting Service - Displays the name and number of the second caller, if you have
subscribed to call waiting service from your local telephone company (See page 15).
Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message service
and requested Visual Message Indication from your local telephone company (see page 15).
This telephone also detects a Stutter Dial Tone signal every time there is a Voice Mail
message for your Voice Mail message provider if you have subscribed to Voice Mail
message service.
Special Features

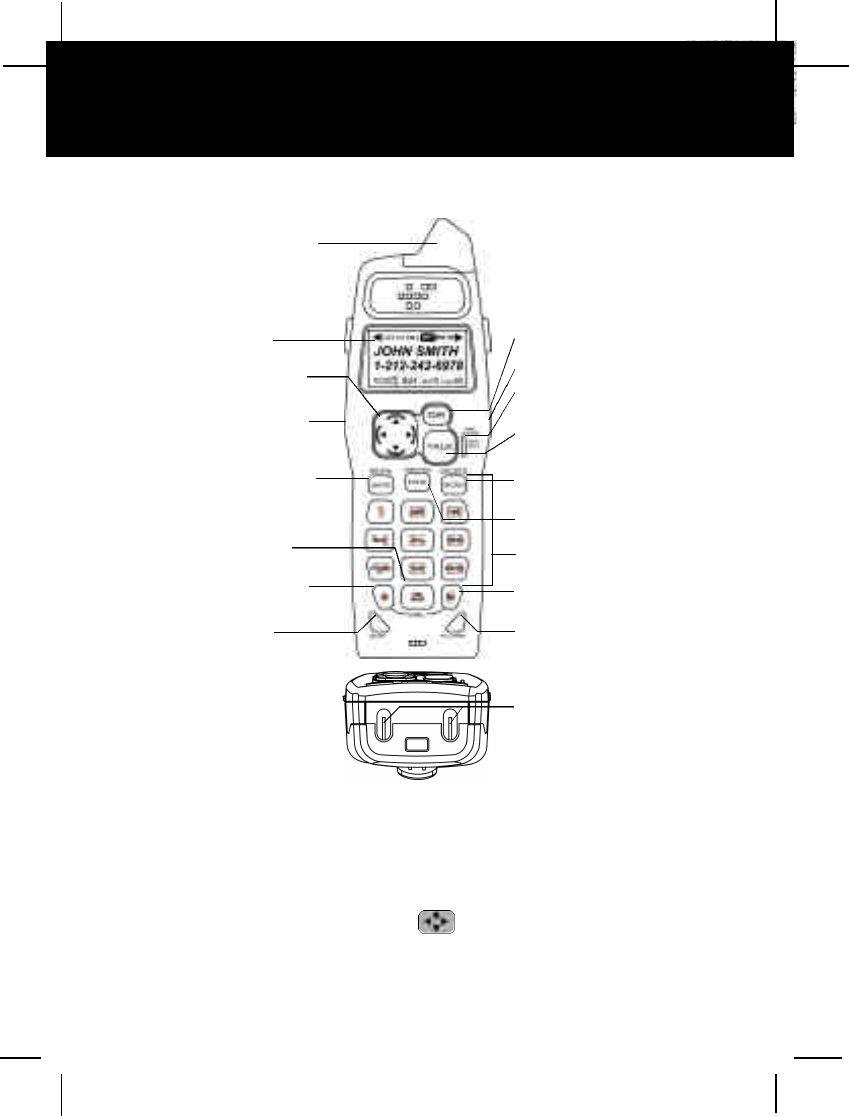

HANDSET Controls
1. HANDSET ANTENNA
2. LCD Screen: Shows call information, phone status, prompts and directory items.
3. SCROLL UP-DOWN, SHIFT LEFT-RIGHT Button: Press to move around the large
LCD Screen.
4. HANDSET VOLUME CONTROL (HI, MID, LOW) Switch: Select the receiver volume level
(HI, MID, LOW).
HANDSET Controls
11. NEW CALL/MESSAGE
WAITING INDICATOR
Pg. 14
2. LCD SCREEN
1. HANDSET ANTENNA
12. TALK BUTTON
Pg. 6, 7, 11~13, 15~16,
20, 21, 31
3. SCROLLUP-DOWN/
SHIFTLEFT-RIGHT
BUTTON Pg. 14, 16~27
4. VOLUME CONTROL
(HI, MID, LOW) SWITCH
6. DIAL10 BUTTON
Pg. 12, 16, 20~21, 25
7. DIAL7/TEMPORARY
TONE(*) BUTTON
Pg. 12, 16, 18, 20~21, 25
5. REDIAL/PAUSE/SAVE
BUTTON
Pg. 13, 16~20, 23~26
8. EDITBUTTON
Pg. 16, 18~20, 23~27
9. DIR BUTTON
Pg. 16~21, 27
14. FUNCTION/VOICE MAIL
BUTTON Pg. 15, 22~26
10. HEADSETJACK Pg. 13
17. FLASH BUTTON Pg. 15
18. CHARGE CONTACTS
15. TELEPHONE KEYPAD
Pg. 16, 18~20, 22~27
16. DIAL1+/# BUTTON
Pg. 12, 16, 18, 20~21, 25
13. DELETE/SCAN BUTTON
Pg. 16, 17, 19~21, 27~28,
31, 38
5. SAVE/RE(REDIAL)/PA(PAUSE) Button: (SAVE) Press and hold down to save
the changes on the listed items. (REDIAL) Press to redial the last number you dialed.
(PAUSE) Press to insert a pause while dialing. (You will need the button to dial
numbers which use an alternative Long Distance Access Code.)
6. DIAL 10/0 Button: (DIAL 10) Press and hold down to place a local call with Area
Code.
7. DIAL7/TEMPORARYTONE Button: (DIAL7) Press and hold down to place a local
call. (*) Press to temporarily change the Dialing mode from Pulse to Tone for Rotary
Service Users. (Press once before entering numbers to access the answering system or
electronic banking service, etc.)
8. EDIT Button: Press to edit listed items.
9. DIR (DIRECTORY) Button: Press to access names and numbers stored in the
DIRECTORY. (See pages 16 to 21 for details.)
10. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication.
(See page 13 for detail.)
11. NEW CALL/MSG (MESSAGE) WAITING LED Indicator: Blinks when recording a new
incoming call or when receiving a Message Waiting signal, if you have subscribed to a
Voice Mail message service from your local telephone company. (See page 14 for details.)
12. TALK Button: Press to answer an incoming call or to place a call. Press to end a
call.
13. DELETE/SCAN Button: (DELETE) Press and hold down to delete items or
individual characters. (SCAN) Press to change the operating channel when you hear
interference.
14. FUNC (FUNCTION)/VOICE MAIL Button: (FUNCTION) Press and hold to
access special functions operation in STANDBY mode. (For special functions see page
22.)
(VOICE MAIL) - Press to automatically dial the Voice Mail Post Code in your area to
access your Voice Mail message.
15. TELEPHONE KEYPAD ~Buttons:Allows you to make a call depending
on pressed button. (For TELEPHONE KEYPAD characters, see page 27 .)
16. DIAL 1+/# Button: (DIAL 1+) Press and hold down to place a long distance call.
(Automatically adds the number 1 at the beginning of the displayed telephone number.)
17. FLASH Button: Press to answer a call if you have Call Waiting.
18. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We
recommend cleaning the CHARGE CONTACTS periodically with a damp cloth.
FLASH
#
1+
9WXY
0
10
OPER
FUNC
VOICE MAIL
DELETE
SCAN
TALK
DIR
EDIT
*
7
0
10
OPER
RE/PA
SAVE
RE/PA
SAVE
HANDSET Controls

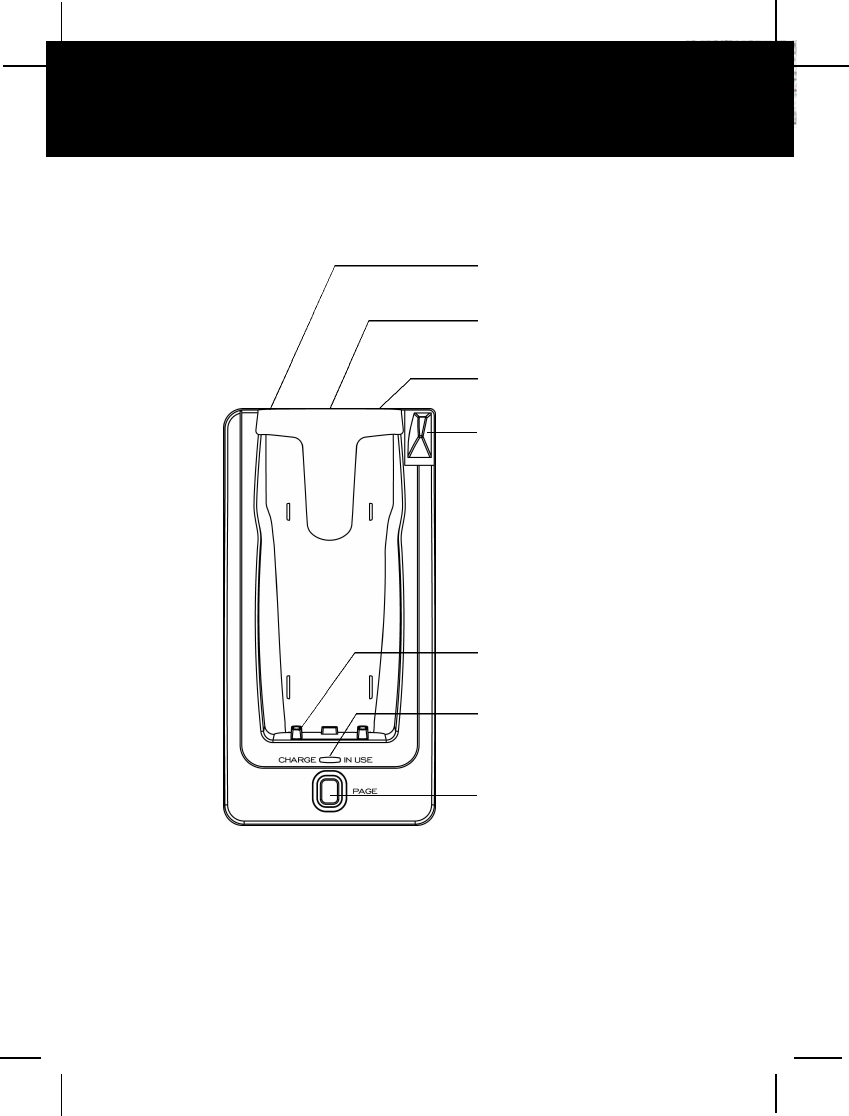

BASE UNIT Controls
1. TONE/PULSE SELECT
SWITCH
Pg. 6, 31
2. POWER-IN
CONNECTION JACK
Pg. 5
3. TELEPHONE LINE
CONNECTION JACK
Pg. 5, 9, 11, 31
4. BASE UNIT ANTENNA
5. CHARGE TERMINALS
7. PAGE BUTTON
6. CHARGE/IN USE LED
INDICATOR
Pg. 11~13
1. TONE/PULSE Select Switch
2. POWER-IN CONNECTION JACK
3. TELEPHONE LINE CONNECTION JACK
4. ANTENNA
5. CHARGE TERMINALS: For charging the H A N D S E T B AT T E RY PACK. For best
performance, clean the CHARGE TERMINALS periodically with a damp cloth.
6. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is in
TALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNIT for
charging.
7. PAGE Button: Press to page the HANDSET.
PAGE
BASE UNIT Controls
IMPORTANT
Placing your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
