WF96A User Manual

SFK-WF96A_User Manual_2015.08.17

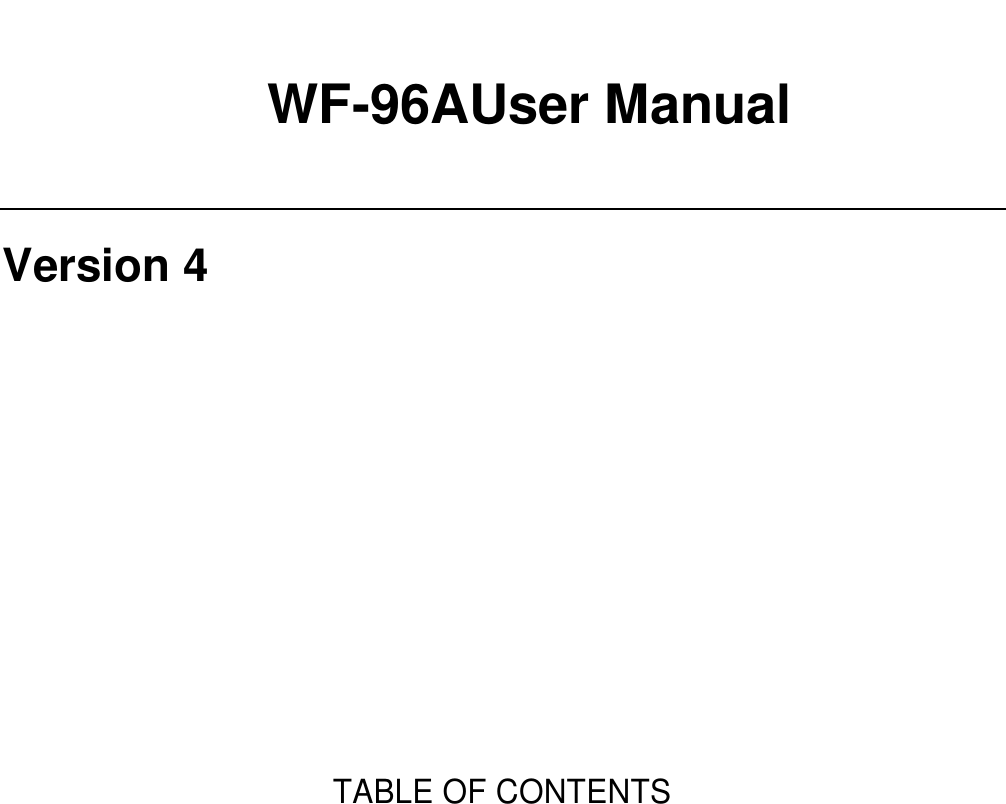

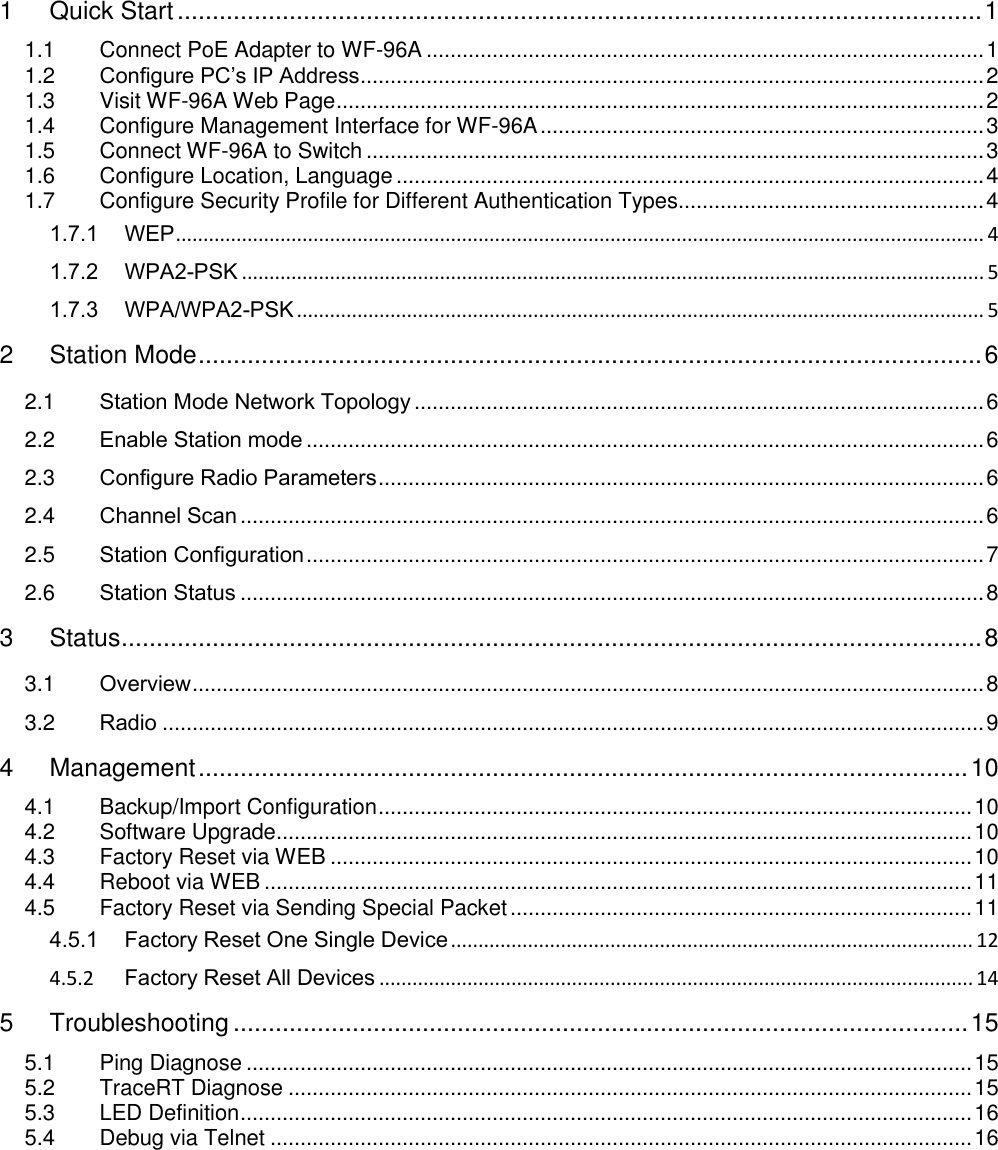

WF-96AUser Manual Version 4 TABLE OF CONTENTS

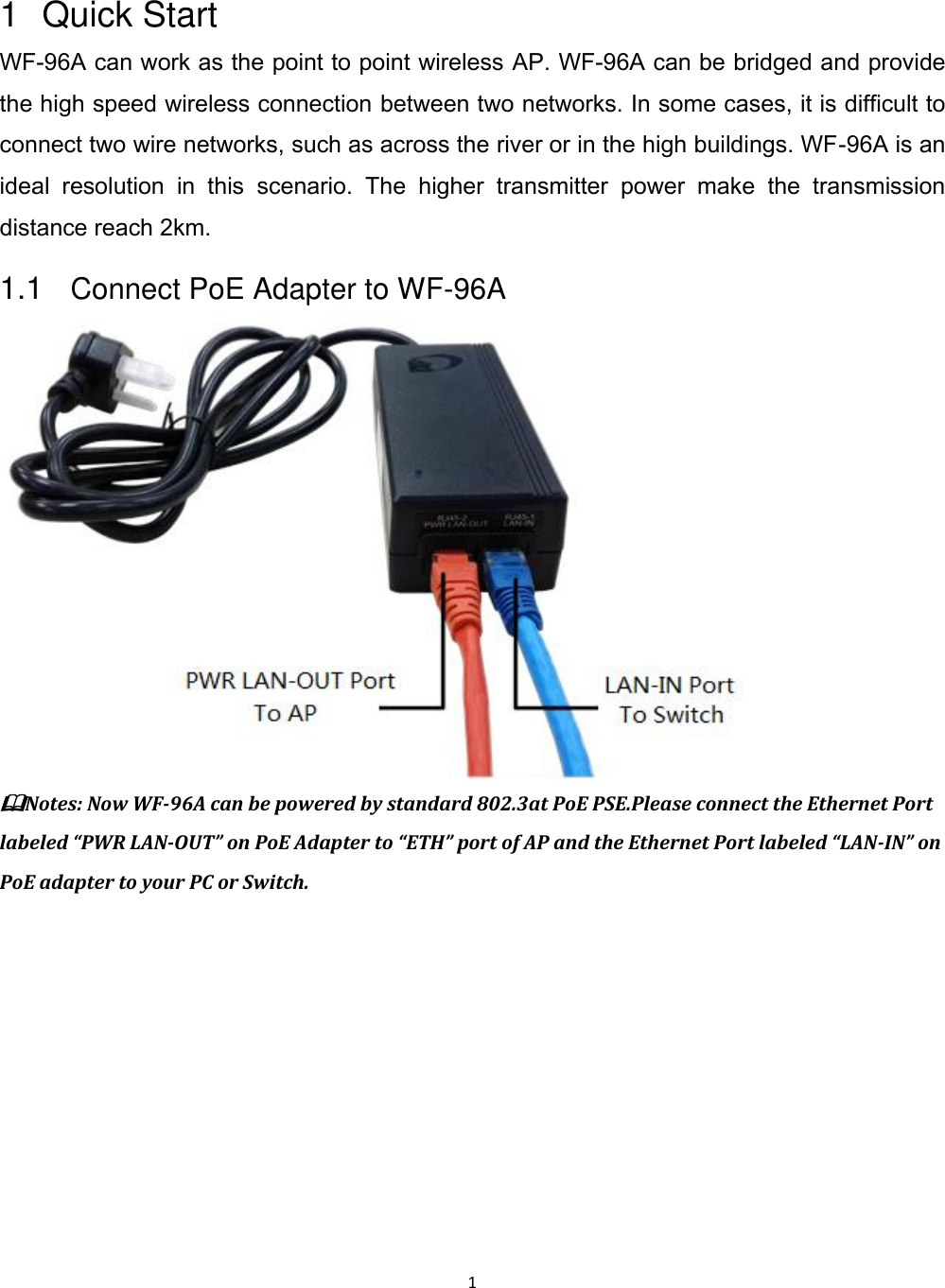

1 1 Quick Start WF-96A can work as the point to point wireless AP. WF-96A can be bridged and provide the high speed wireless connection between two networks. In some cases, it is difficult to connect two wire networks, such as across the river or in the high buildings. WF-96A is an ideal resolution in this scenario. The higher transmitter power make the transmission distance reach 2km. 1.1 Connect PoE Adapter to WF-96A Notes: Now WF-96A can be powered by standard 802.3at PoE PSE.Please connect the Ethernet Port labeled “PWR LAN-OUT” on PoE Adapter to “ETH” port of AP and the Ethernet Port labeled “LAN-IN” on PoE adapter to your PC or Switch.

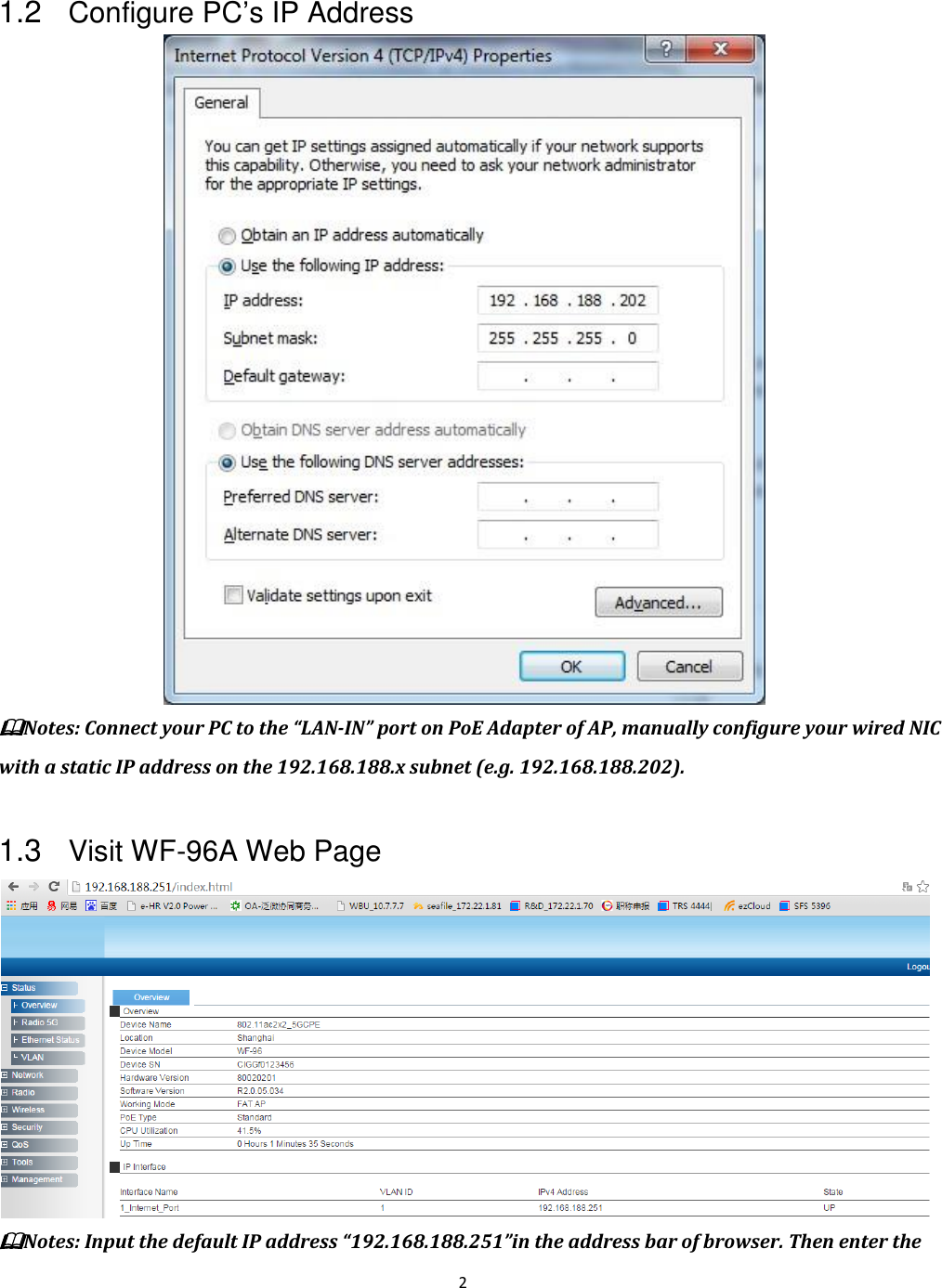

2 1.2 Configure PC’s IP Address Notes: Connect your PC to the “LAN-IN” port on PoE Adapter of AP, manually configure your wired NIC with a static IP address on the 192.168.188.x subnet (e.g. 192.168.188.202). 1.3 Visit WF-96A Web Page Notes: Input the default IP address “192.168.188.251”in the address bar of browser. Then enter the

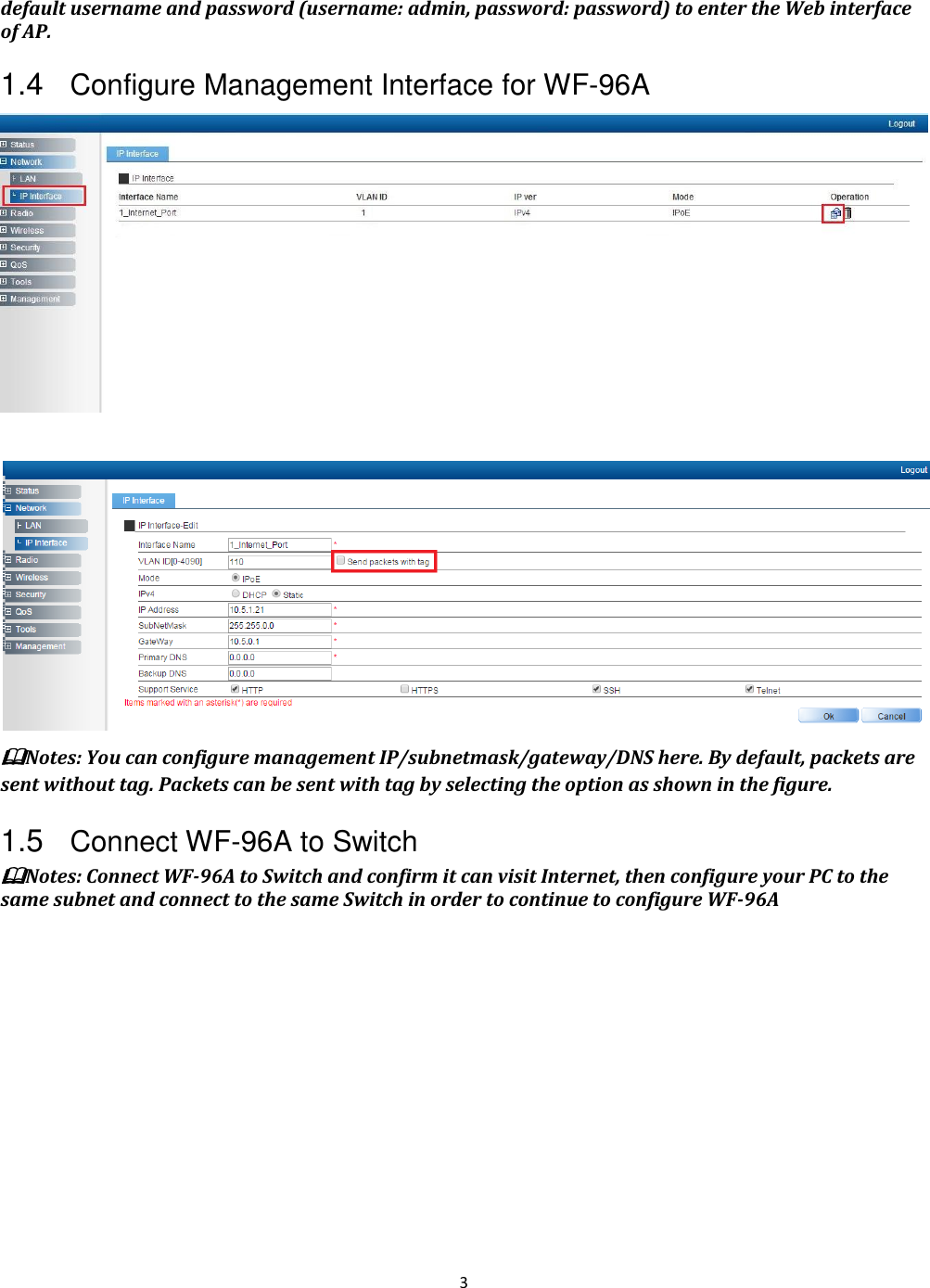

3 default username and password (username: admin, password: password) to enter the Web interface of AP. 1.4 Configure Management Interface for WF-96A Notes: You can configure management IP/subnetmask/gateway/DNS here. By default, packets are sent without tag. Packets can be sent with tag by selecting the option as shown in the figure. 1.5 Connect WF-96A to Switch Notes: Connect WF-96A to Switch and confirm it can visit Internet, then configure your PC to the same subnet and connect to the same Switch in order to continue to configure WF-96A

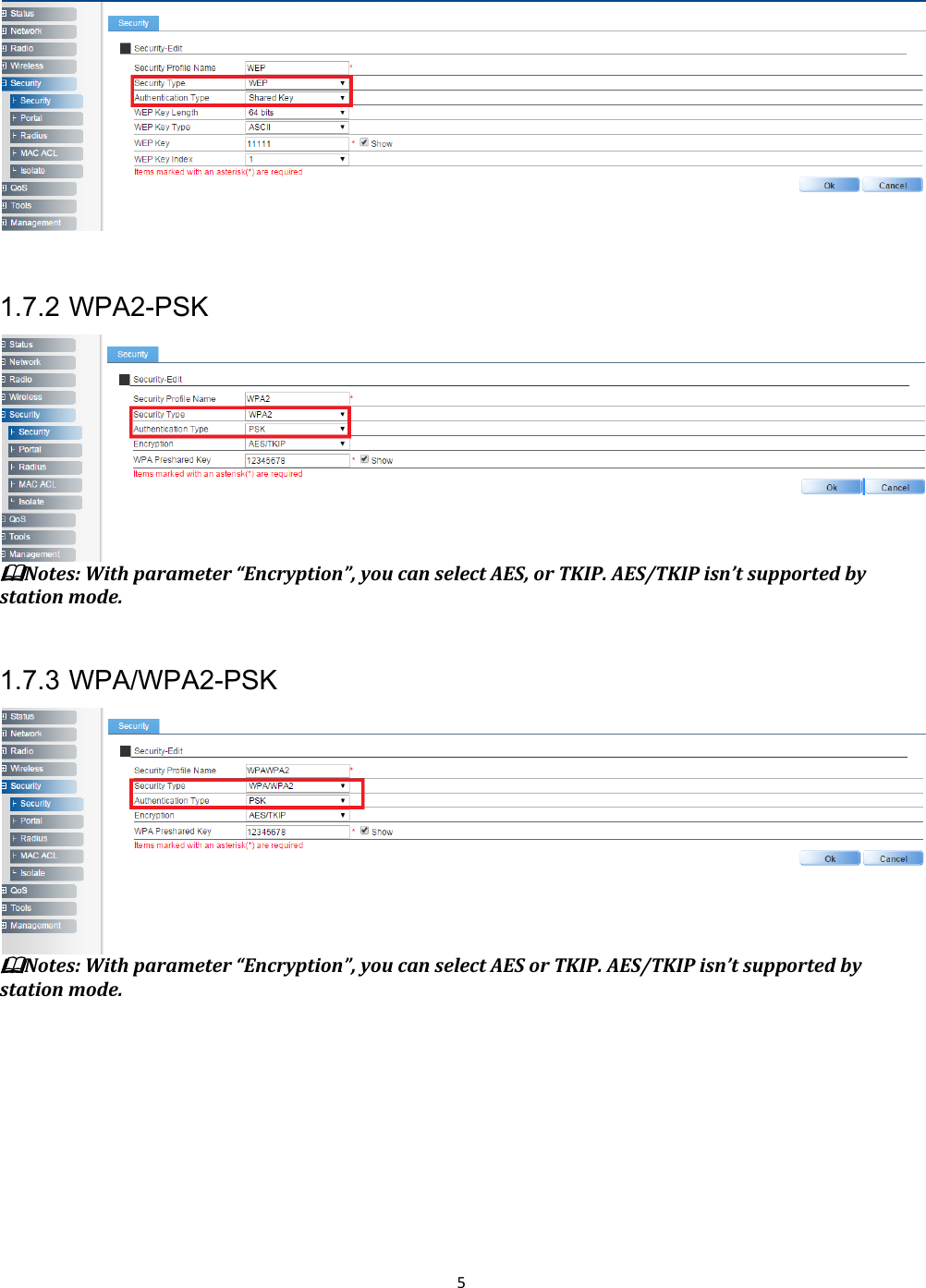

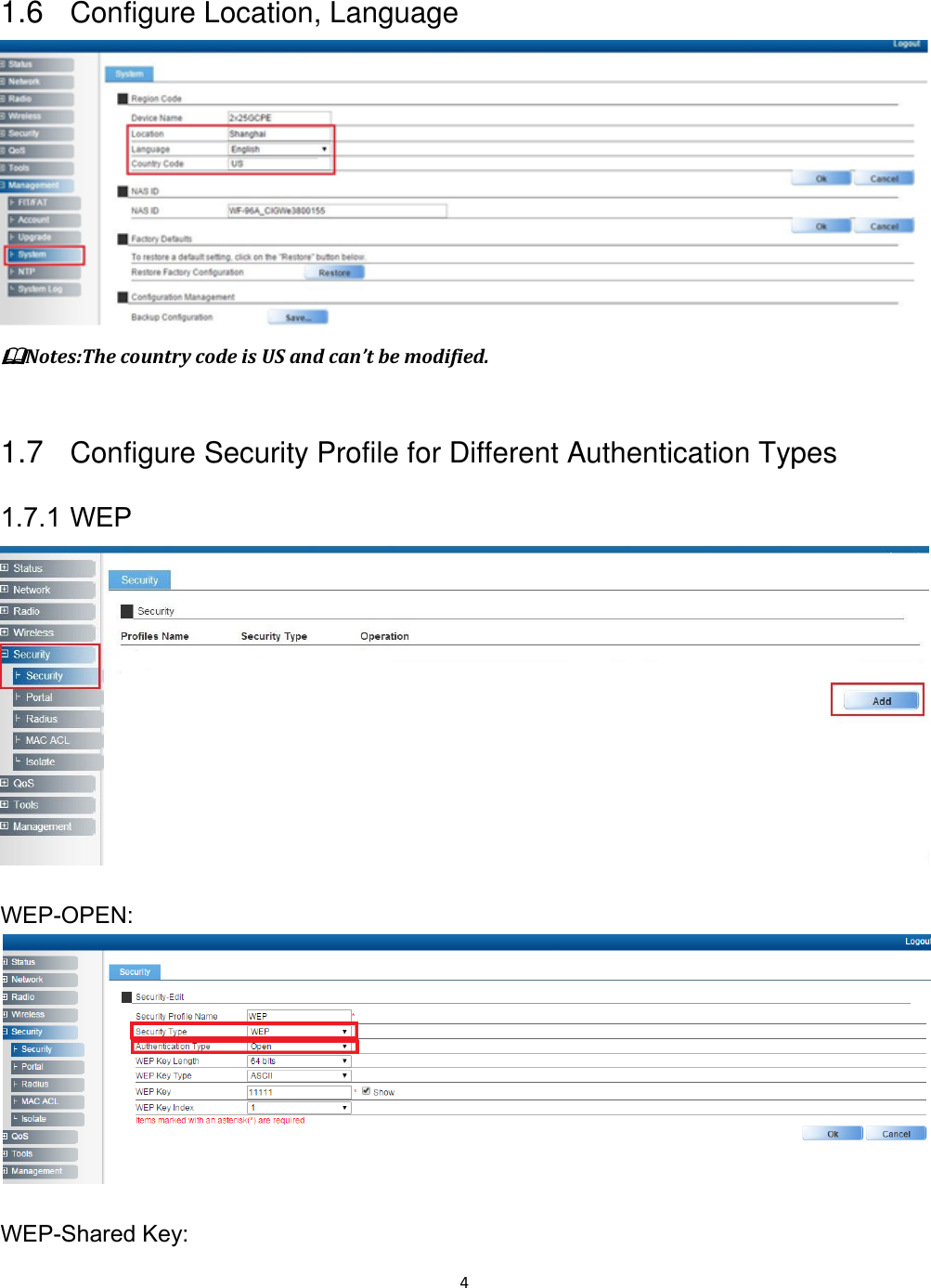

5 1.7.2 WPA2-PSK Notes: With parameter “Encryption”, you can select AES, or TKIP. AES/TKIP isn’t supported by station mode. 1.7.3 WPA/WPA2-PSK Notes: With parameter “Encryption”, you can select AES or TKIP. AES/TKIP isn’t supported by station mode.

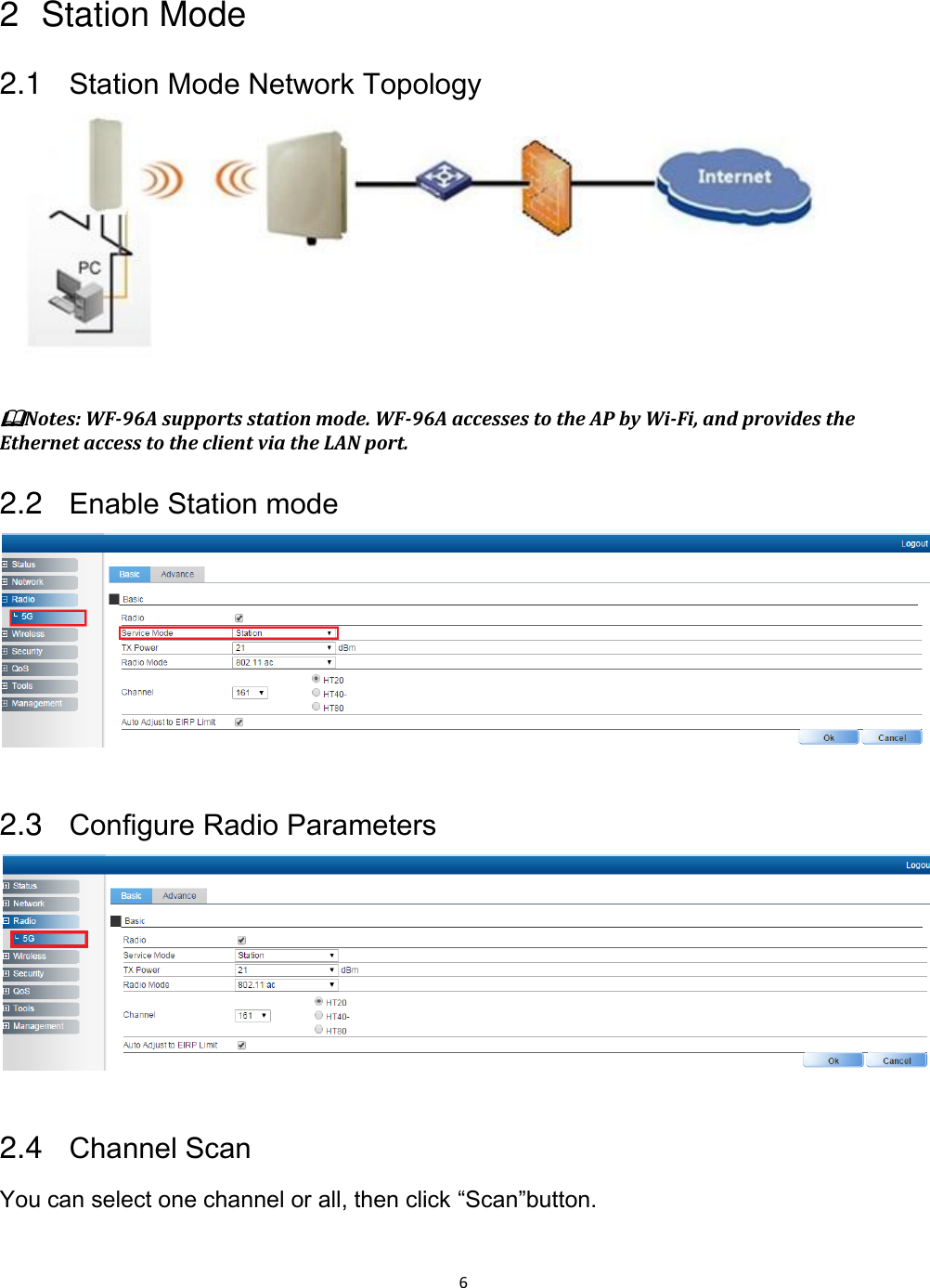

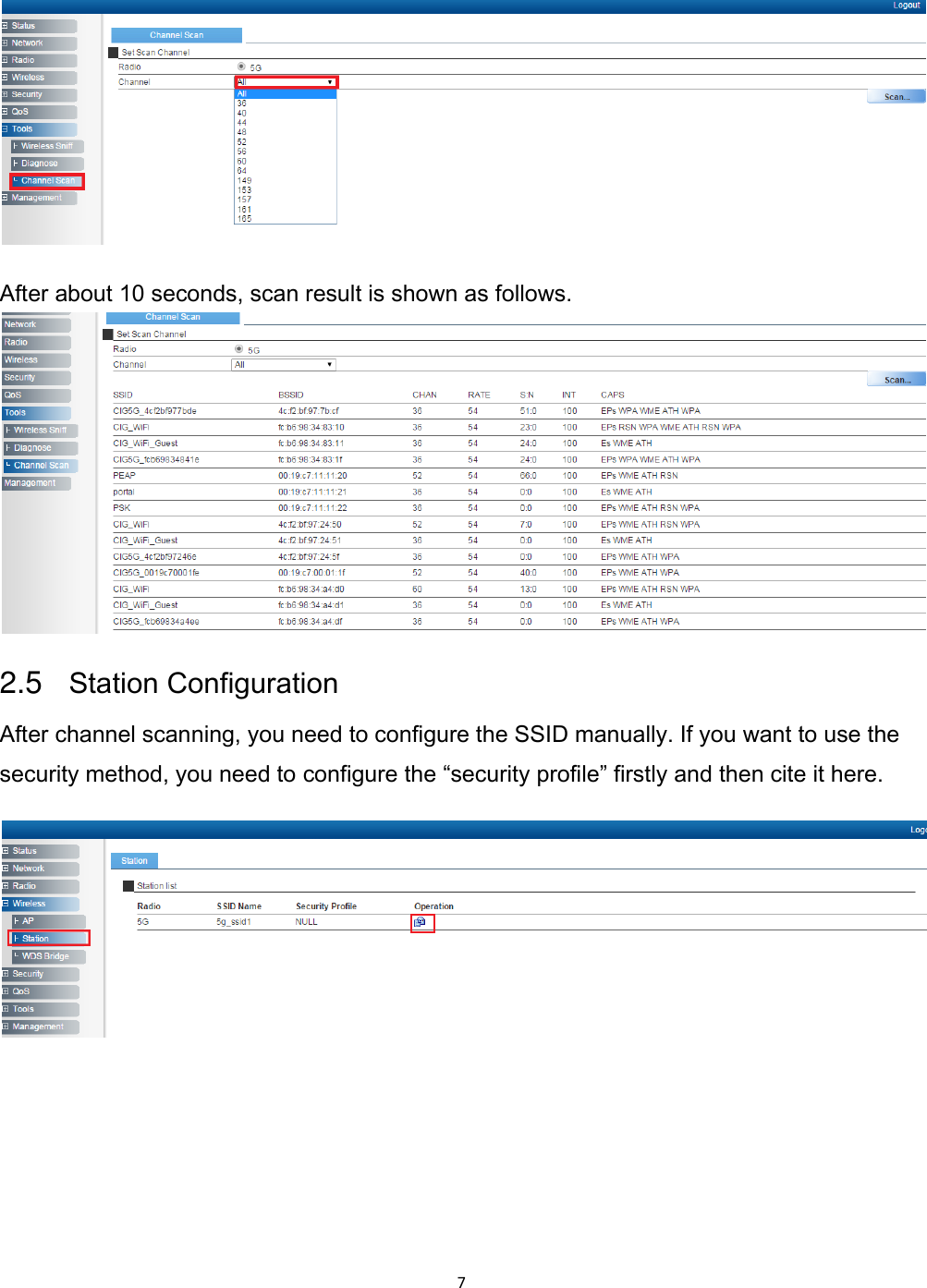

6 2 Station Mode 2.1 Station Mode Network Topology Notes: WF-96A supports station mode. WF-96A accesses to the AP by Wi-Fi, and provides the Ethernet access to the client via the LAN port. 2.2 Enable Station mode 2.3 Configure Radio Parameters 2.4 Channel Scan You can select one channel or all, then click “Scan”button.

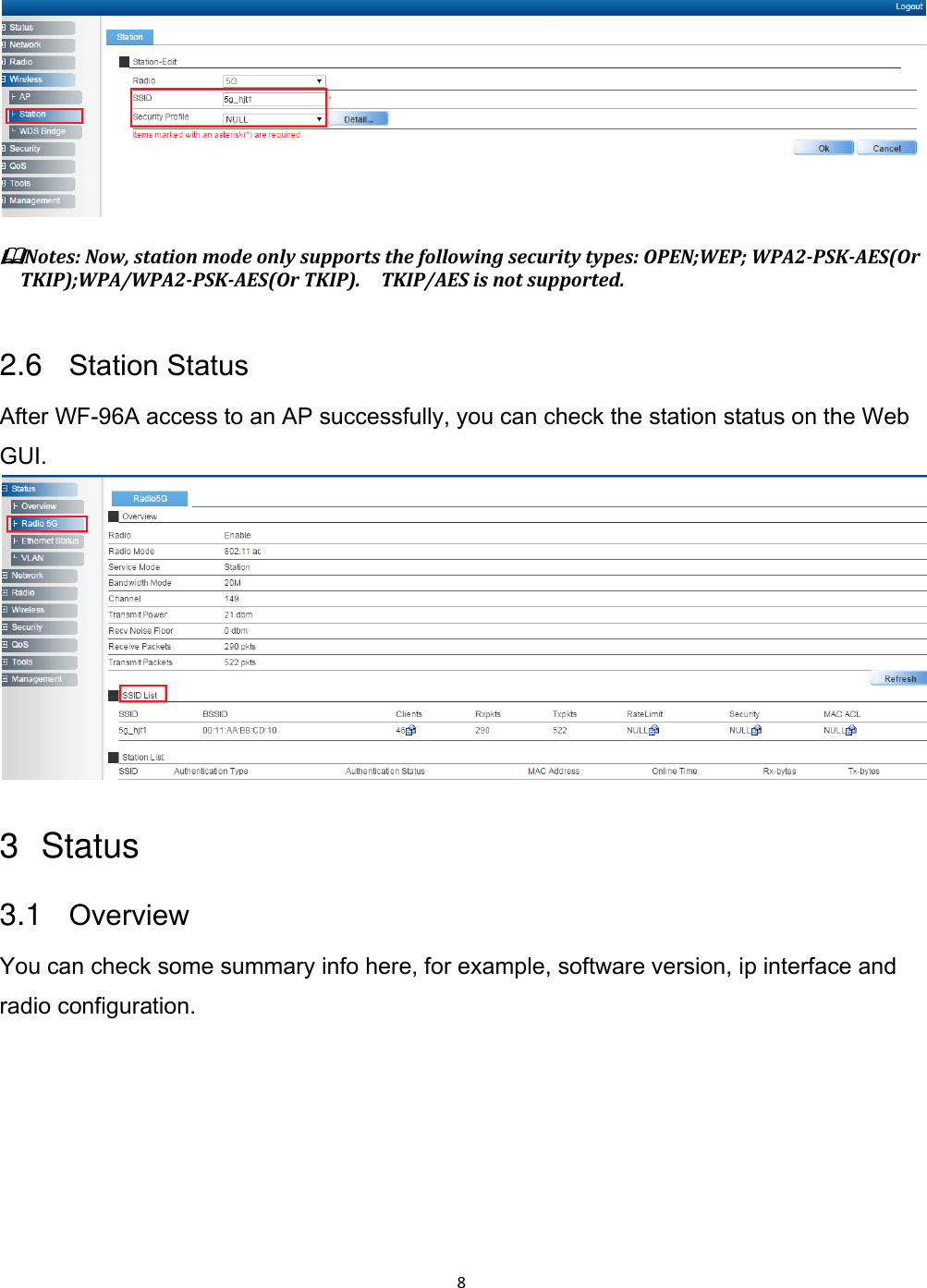

8 Notes: Now, station mode only supports the following security types: OPEN;WEP; WPA2-PSK-AES(Or TKIP);WPA/WPA2-PSK-AES(Or TKIP). TKIP/AES is not supported. 2.6 Station Status After WF-96A access to an AP successfully, you can check the station status on the Web GUI. 3 Status 3.1 Overview You can check some summary info here, for example, software version, ip interface and radio configuration.

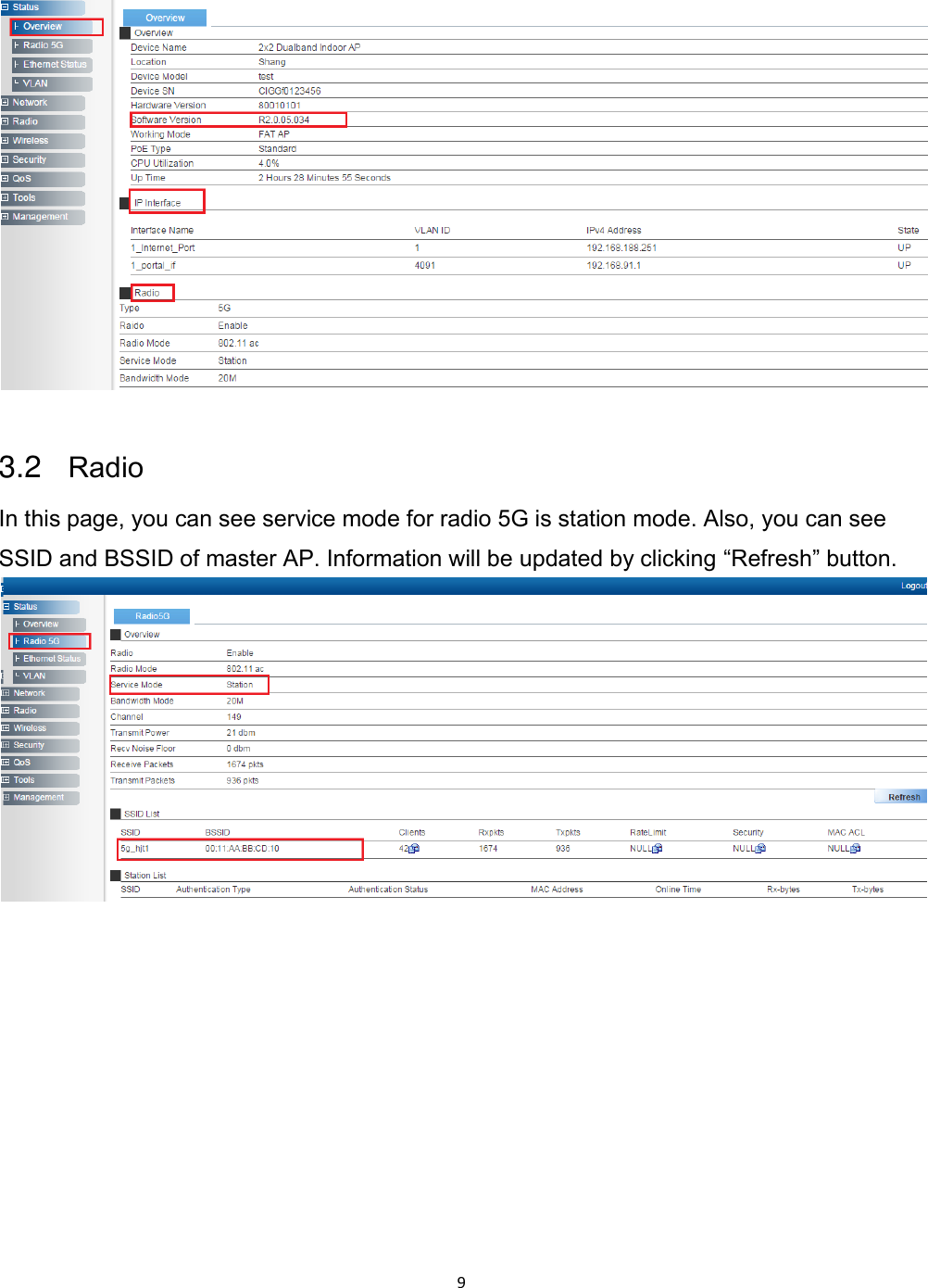

9 3.2 Radio In this page, you can see service mode for radio 5G is station mode. Also, you can see SSID and BSSID of master AP. Information will be updated by clicking “Refresh” button.

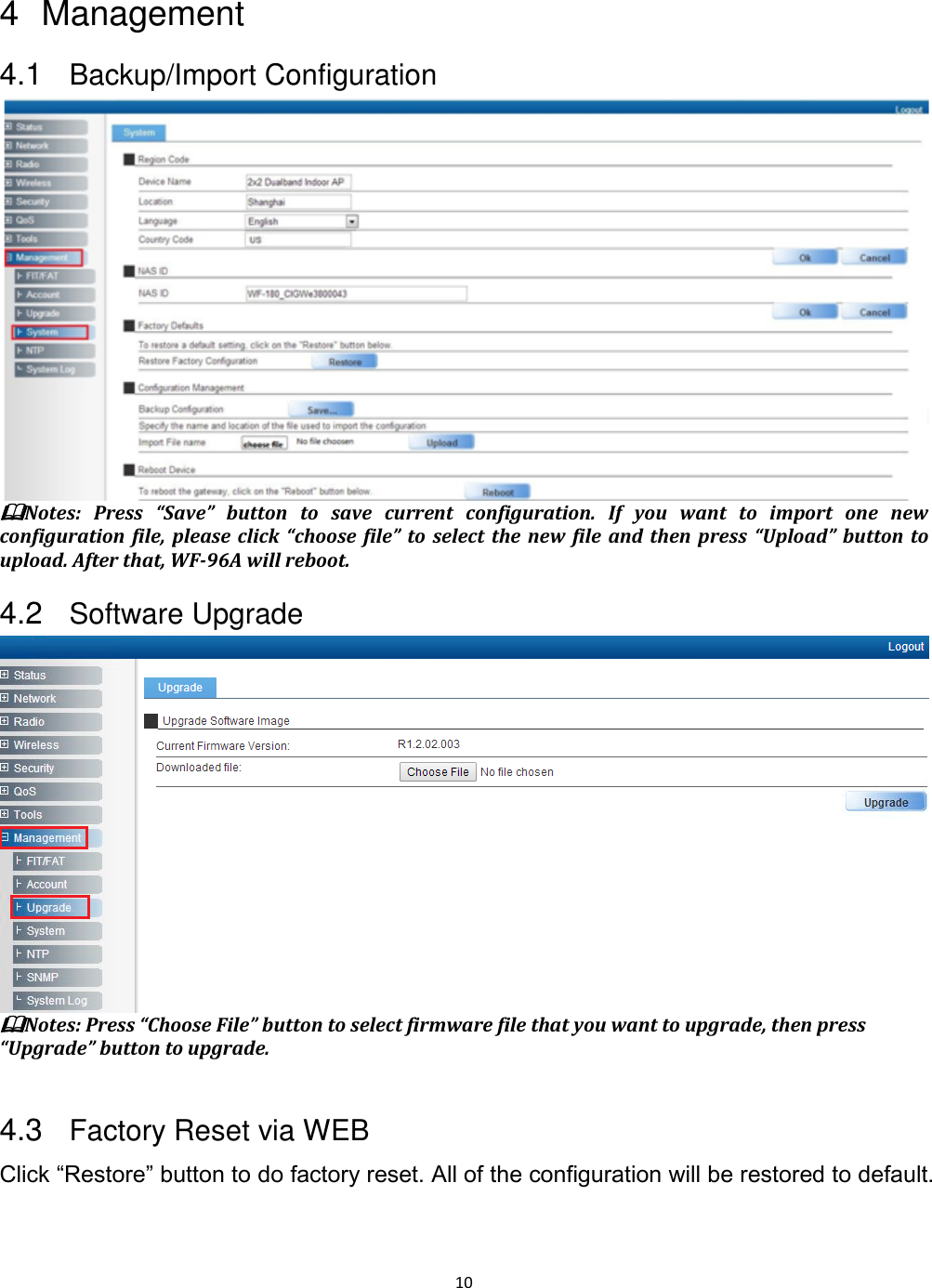

10 4 Management 4.1 Backup/Import Configuration Notes: Press “Save” button to save current configuration. If you want to import one new configuration file, please click “choose file” to select the new file and then press “Upload” button to upload. After that, WF-96A will reboot. 4.2 Software Upgrade Notes: Press “Choose File” button to select firmware file that you want to upgrade, then press “Upgrade” button to upgrade. 4.3 Factory Reset via WEB Click “Restore” button to do factory reset. All of the configuration will be restored to default.

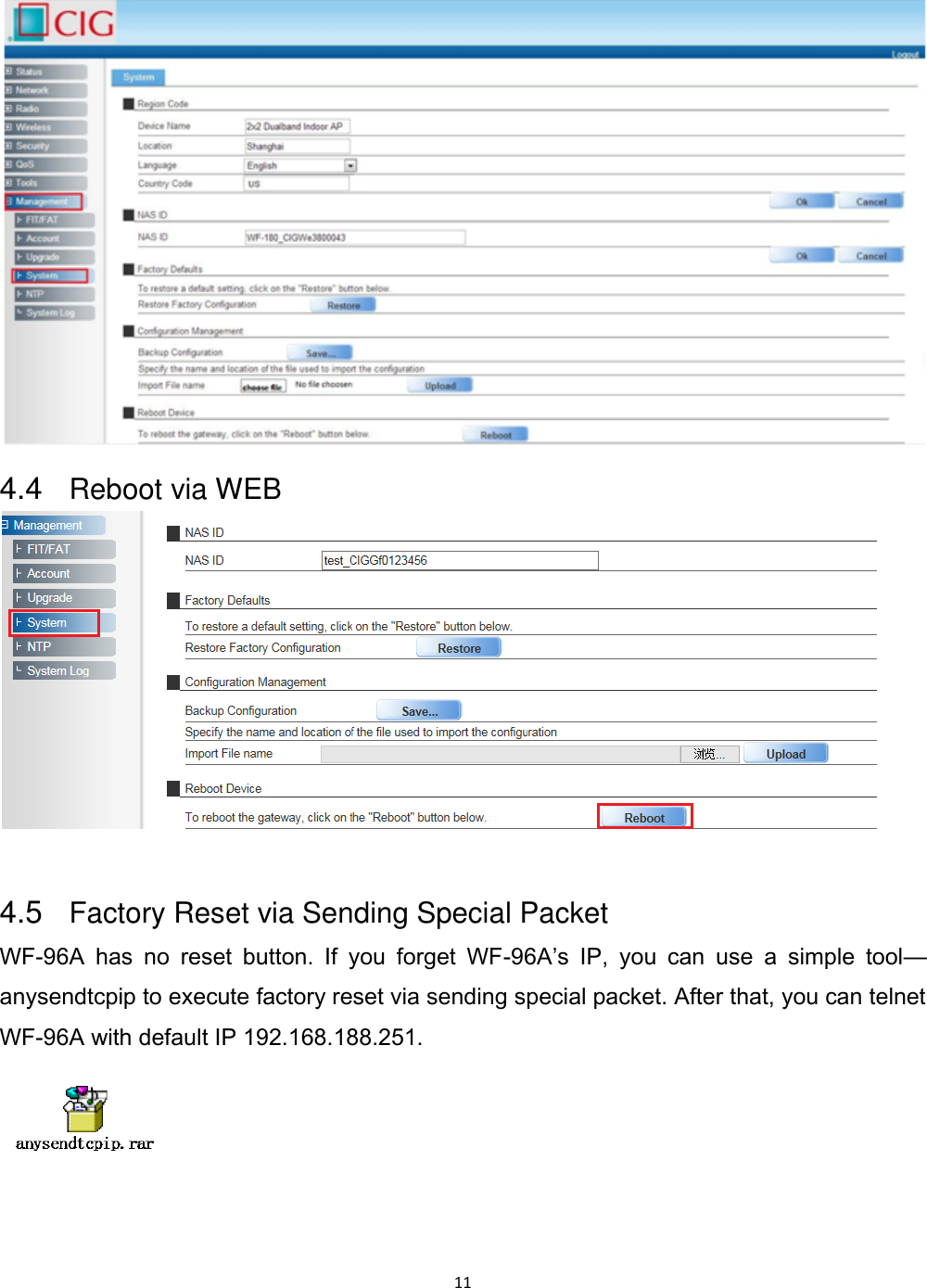

11 4.4 Reboot via WEB 4.5 Factory Reset via Sending Special Packet WF-96A has no reset button. If you forget WF-96A’s IP, you can use a simple tool—anysendtcpip to execute factory reset via sending special packet. After that, you can telnet WF-96A with default IP 192.168.188.251.

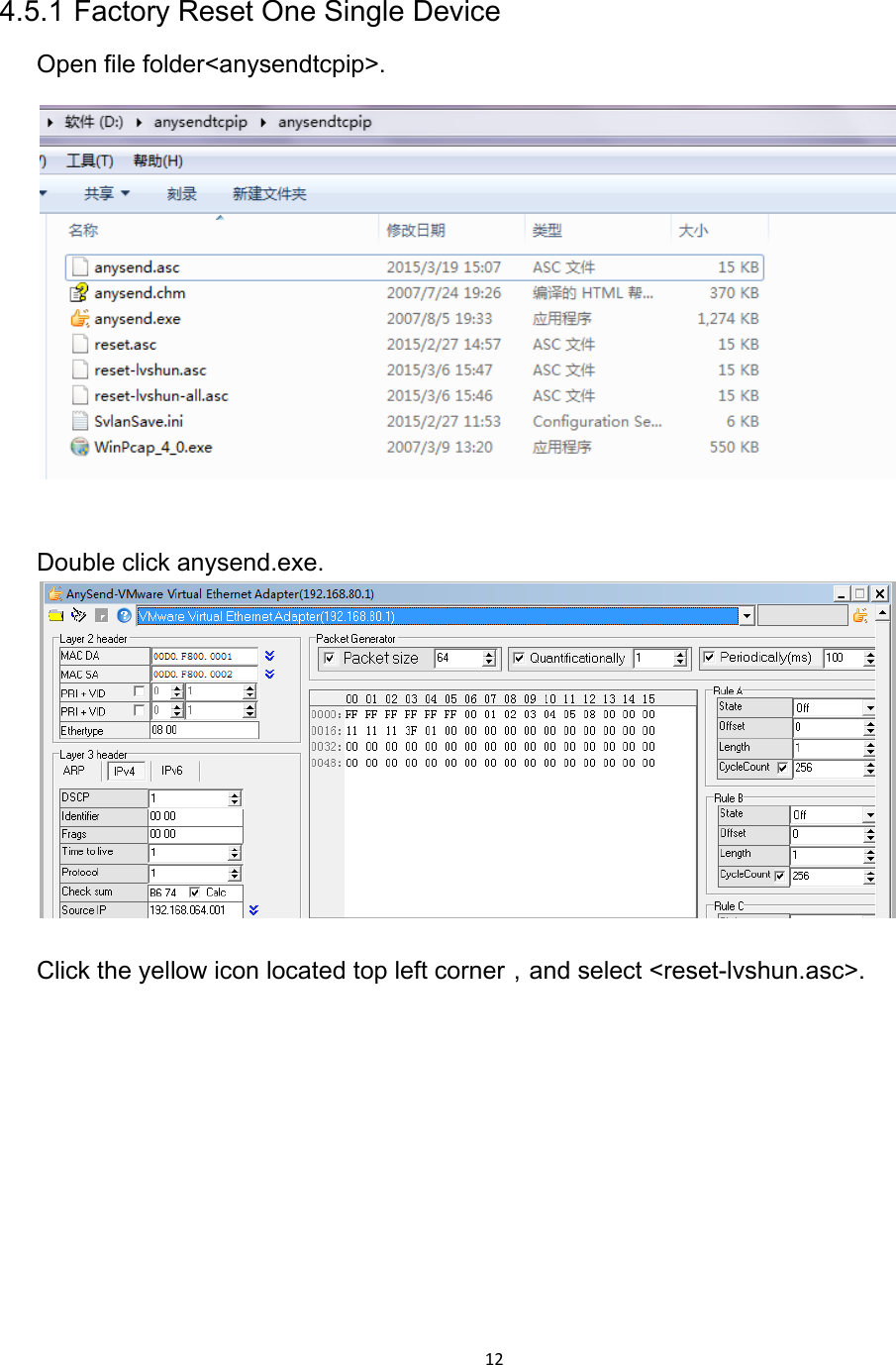

12 4.5.1 Factory Reset One Single Device Open file folder<anysendtcpip>. Double click anysend.exe. Click the yellow icon located top left corner，and select <reset-lvshun.asc>.

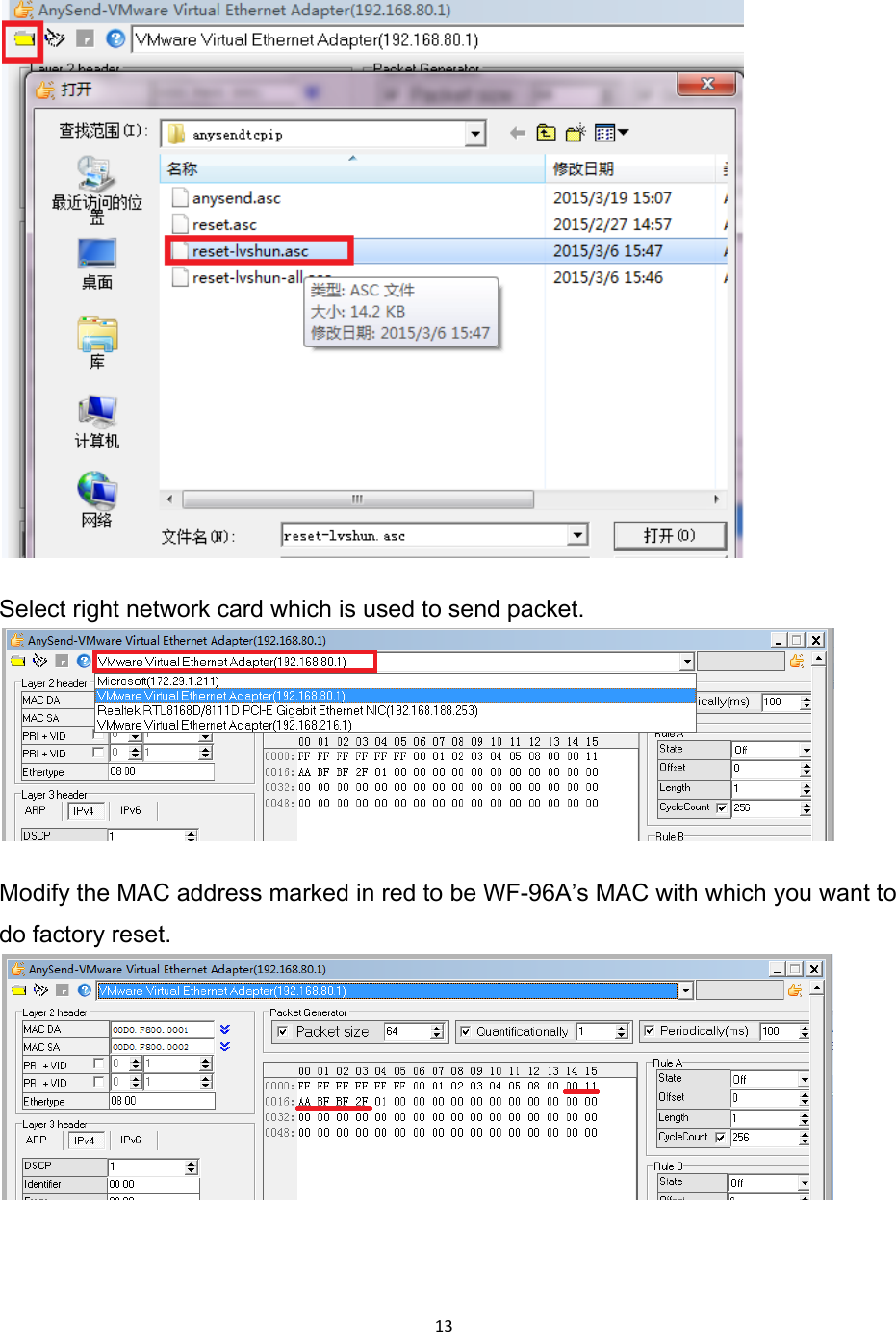

13 Select right network card which is used to send packet. Modify the MAC address marked in red to be WF-96A’s MAC with which you want to do factory reset.

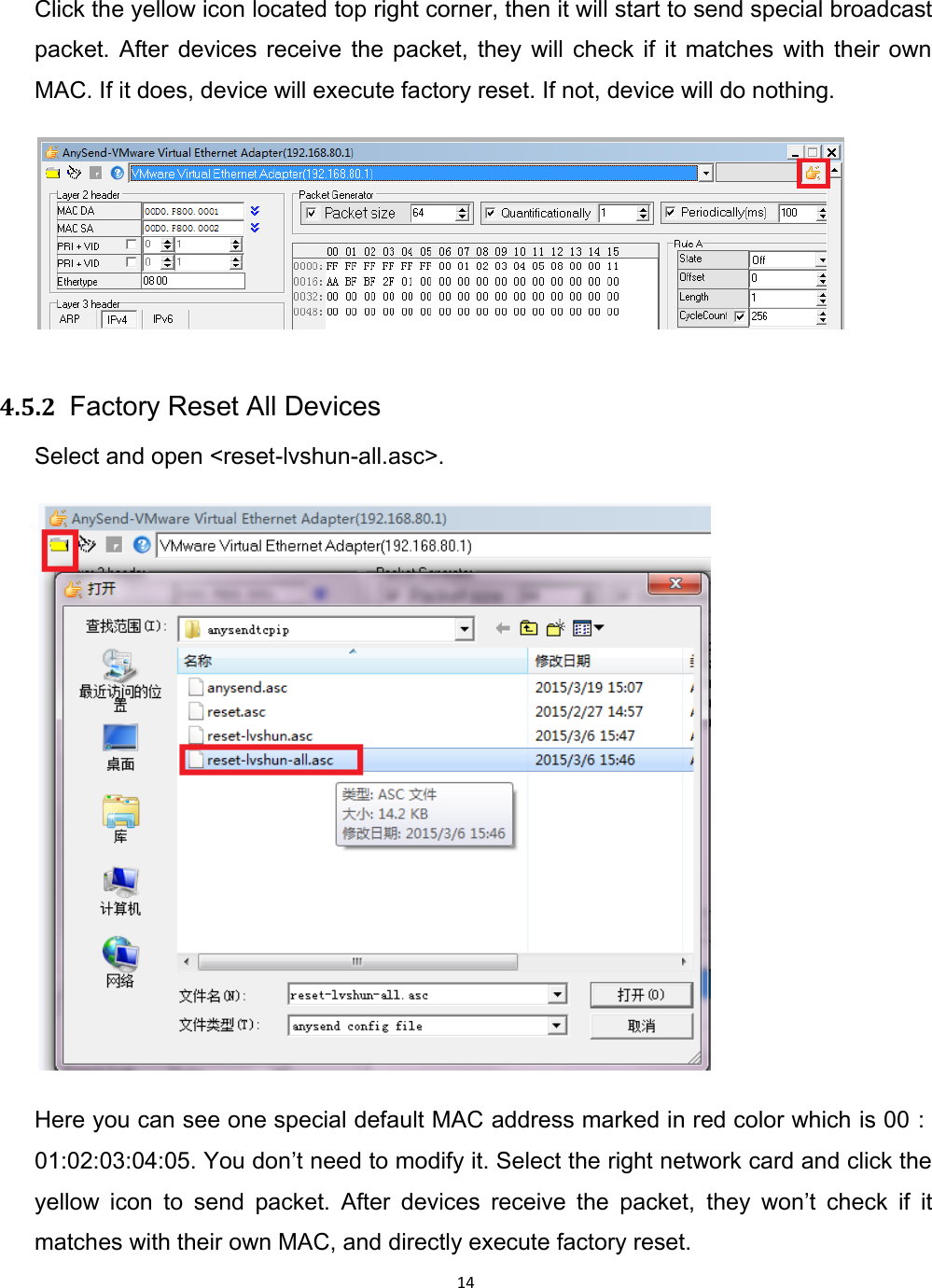

14 Click the yellow icon located top right corner, then it will start to send special broadcast packet. After devices receive the packet, they will check if it matches with their own MAC. If it does, device will execute factory reset. If not, device will do nothing. 4.5.2 Factory Reset All Devices Select and open <reset-lvshun-all.asc>. Here you can see one special default MAC address marked in red color which is 00：01:02:03:04:05. You don’t need to modify it. Select the right network card and click the yellow icon to send packet. After devices receive the packet, they won’t check if it matches with their own MAC, and directly execute factory reset.

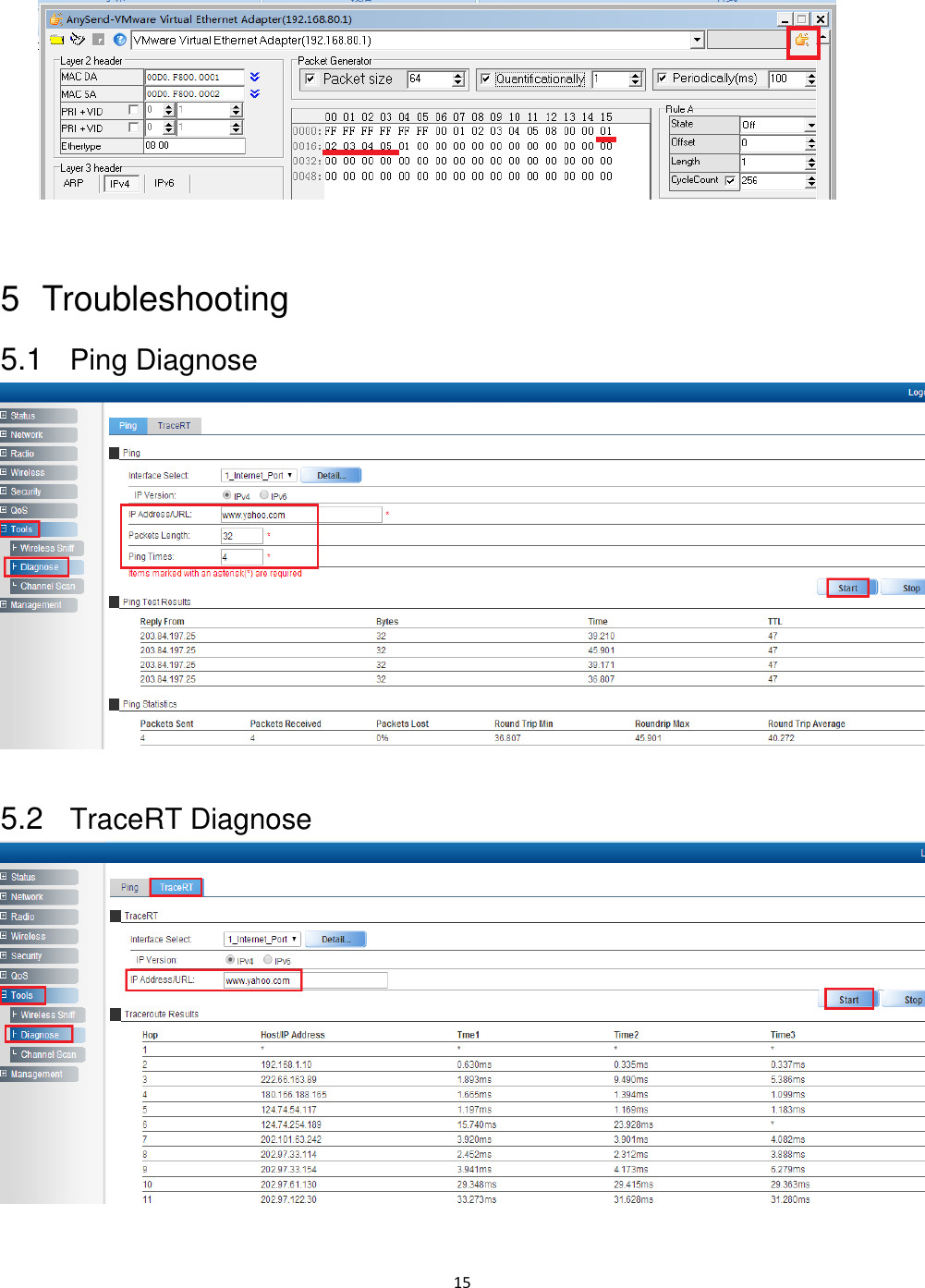

15 5 Troubleshooting 5.1 Ping Diagnose 5.2 TraceRT Diagnose

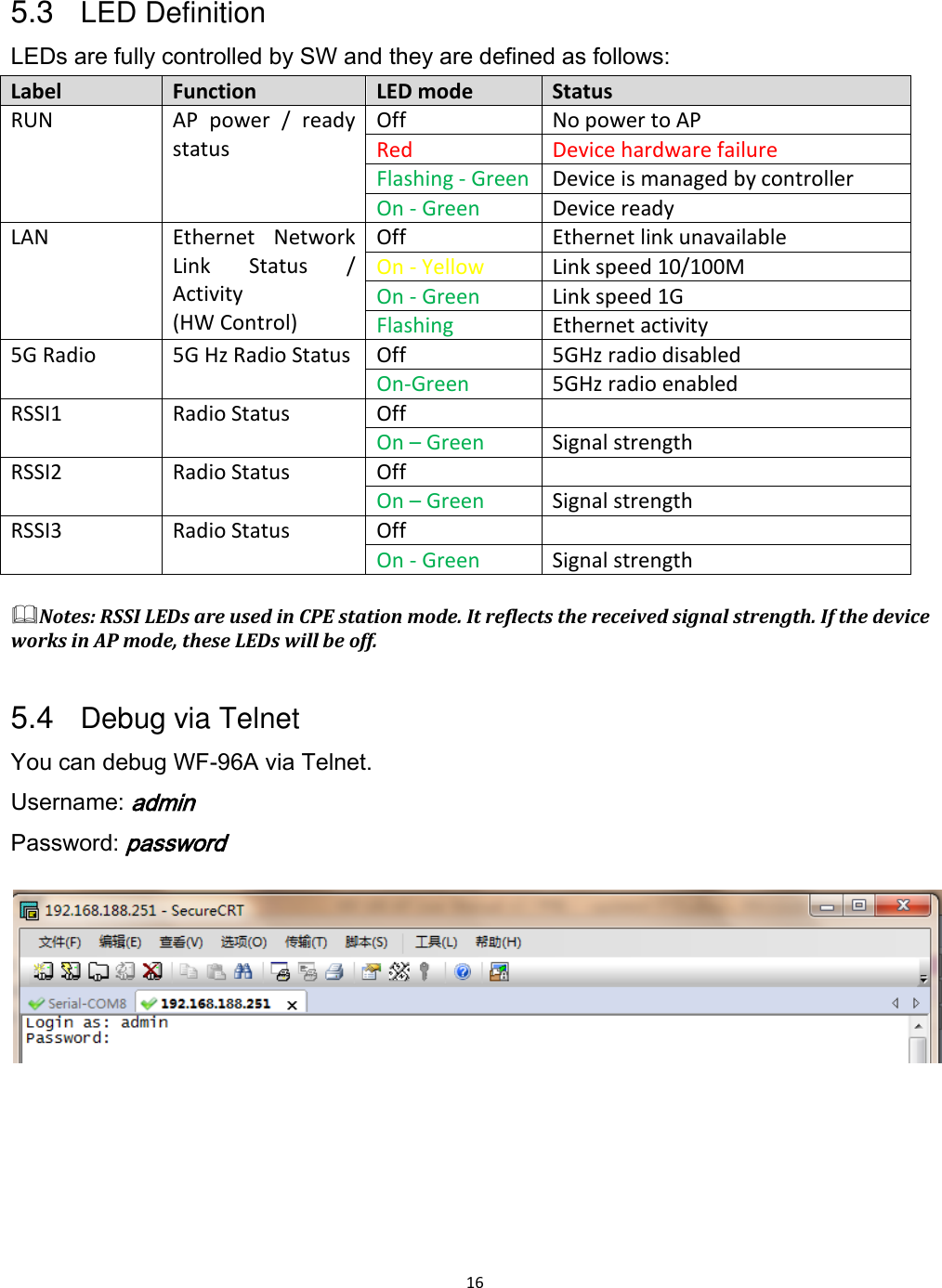

16 5.3 LED Definition LEDs are fully controlled by SW and they are defined as follows: Label Function LED mode Status RUN AP power / ready status Off No power to AP Red Device hardware failure Flashing - Green Device is managed by controller On - Green Device ready LAN Ethernet Network Link Status / Activity (HW Control) Off Ethernet link unavailable On - Yellow Link speed 10/100M On - Green Link speed 1G Flashing Ethernet activity 5G Radio 5G Hz Radio Status Off 5GHz radio disabled On-Green 5GHz radio enabled RSSI1 Radio Status Off On – Green Signal strength RSSI2 Radio Status Off On – Green Signal strength RSSI3 Radio Status Off On - Green Signal strength Notes: RSSI LEDs are used in CPE station mode. It reflects the received signal strength. If the device works in AP mode, these LEDs will be off. 5.4 Debug via Telnet You can debug WF-96A via Telnet. Username: admin Password: password

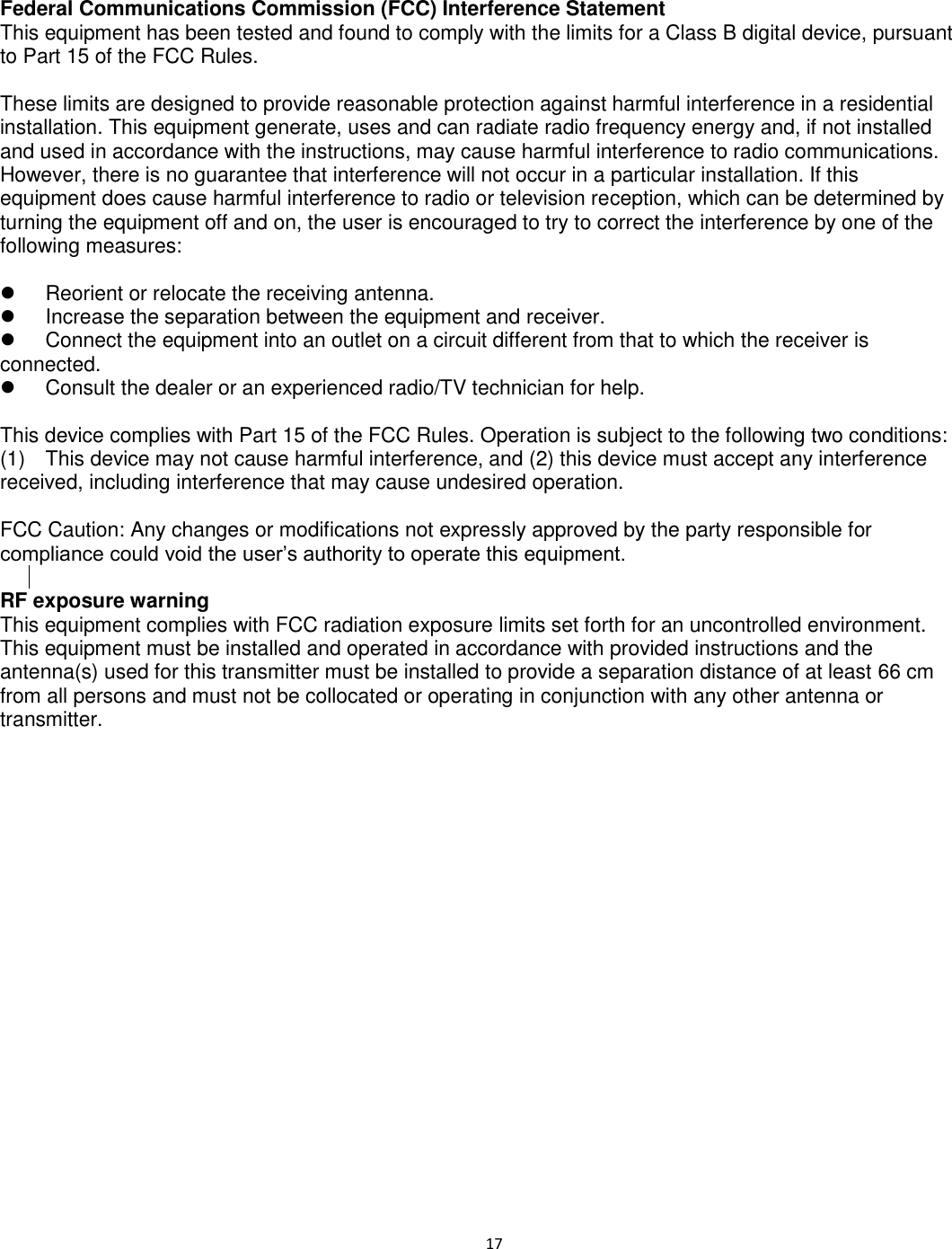

17 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 66 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
