CM Global KTX433-USB 433MHz TRANSCEIVER User Manual KTX433 Wireless Module User Guide

CM GLOBAL 433MHz TRANSCEIVER KTX433 Wireless Module User Guide

User manual

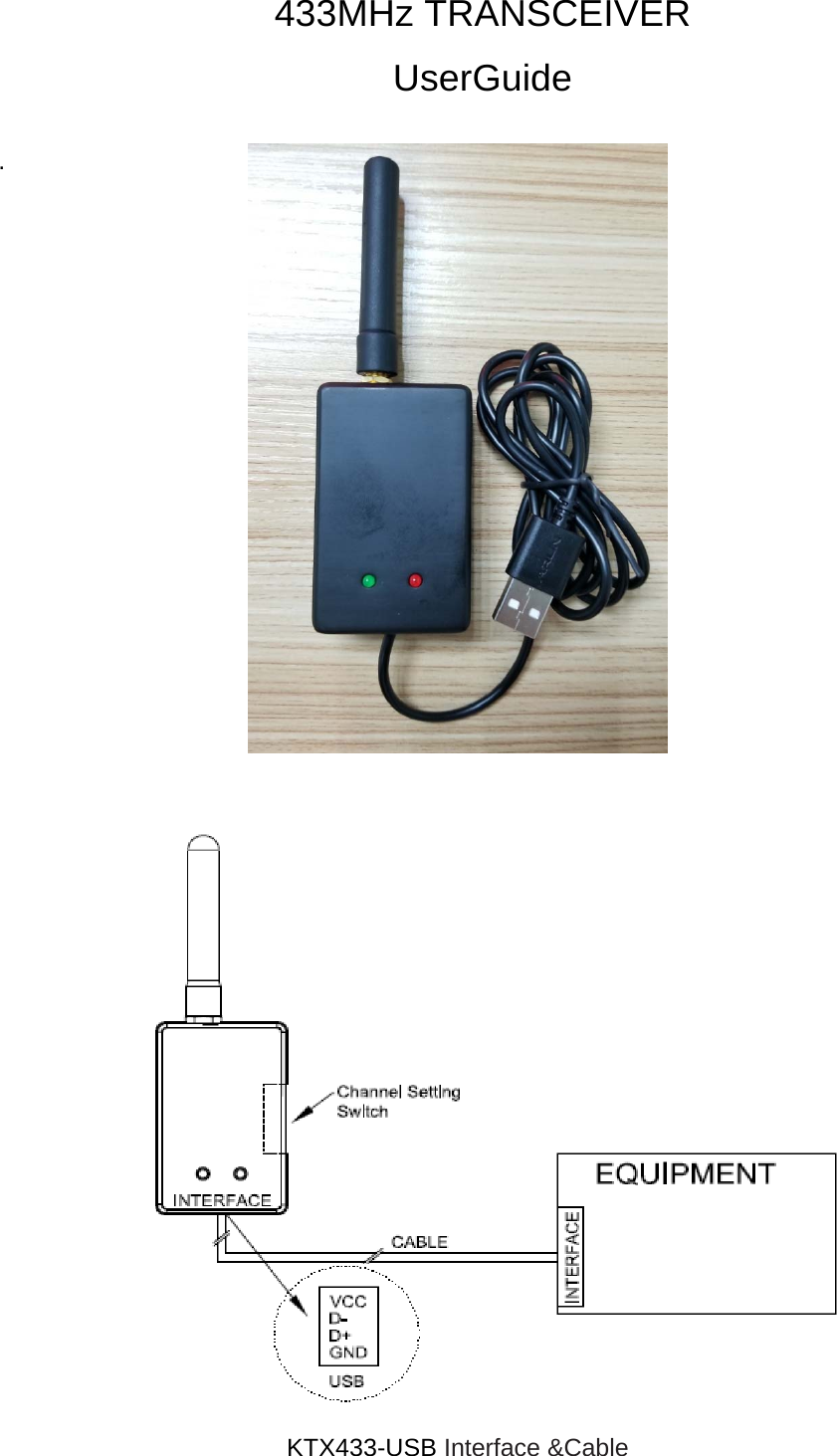

433MHz TRANSCEIVER UserGuide . KTX433-USB Interface &Cable

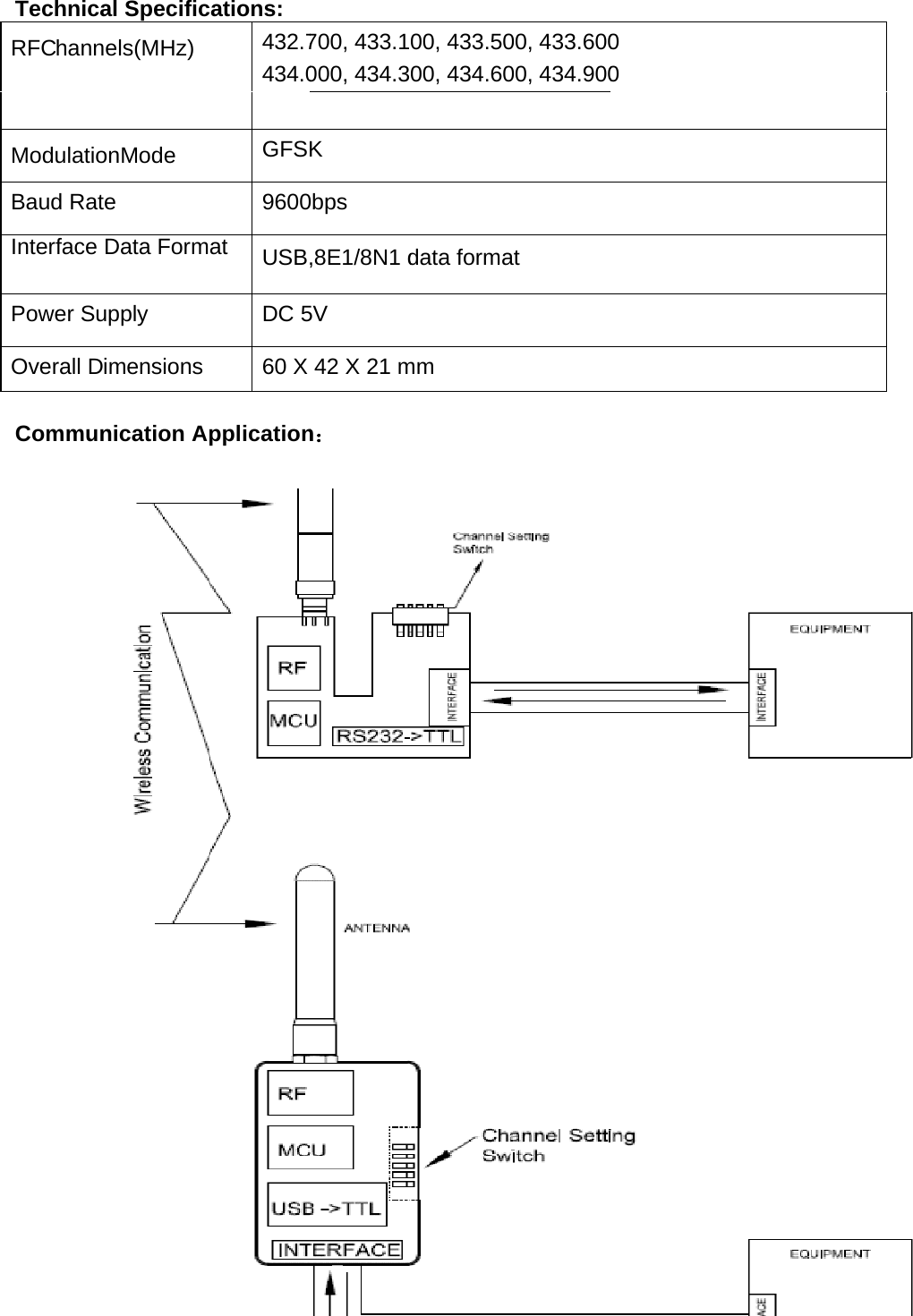

TechnicaRFChanneModulatioBaud RateInterface DPower SupOverall DiCommunal Specificels(MHz) nMode e Data Formpply mensions nication Apcations: 432.7434.0GFSK9600at USBDC 560 X pplication700, 433.1000, 434.3K 0bps ,8E1/8N1 d5V 42 X 21 mn： 00, 433.5000, 434.60data formamm 00, 433.60000, 434.900at 0 0

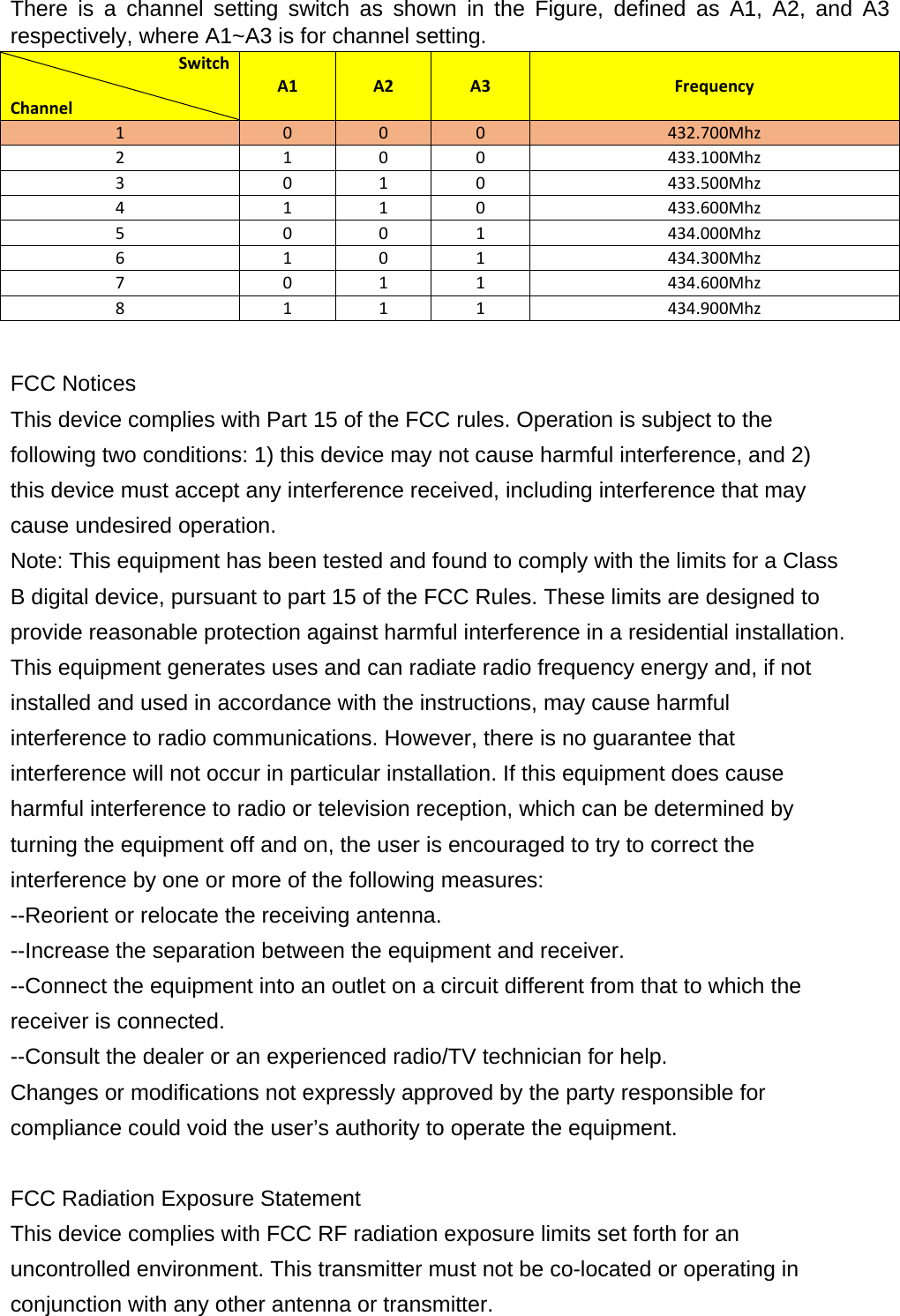

There is a channel setting switch as shown in the Figure, defined as A1, A2, and A3 respectively, where A1~A3 is for channel setting. SwitchChannelA1A2A3Frequency1000432.700Mhz2100433.100Mhz3010433.500Mhz4110433.600Mhz5001434.000Mhz6101434.300Mhz7011434.600Mhz8111434.900Mhz FCC Notices This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
