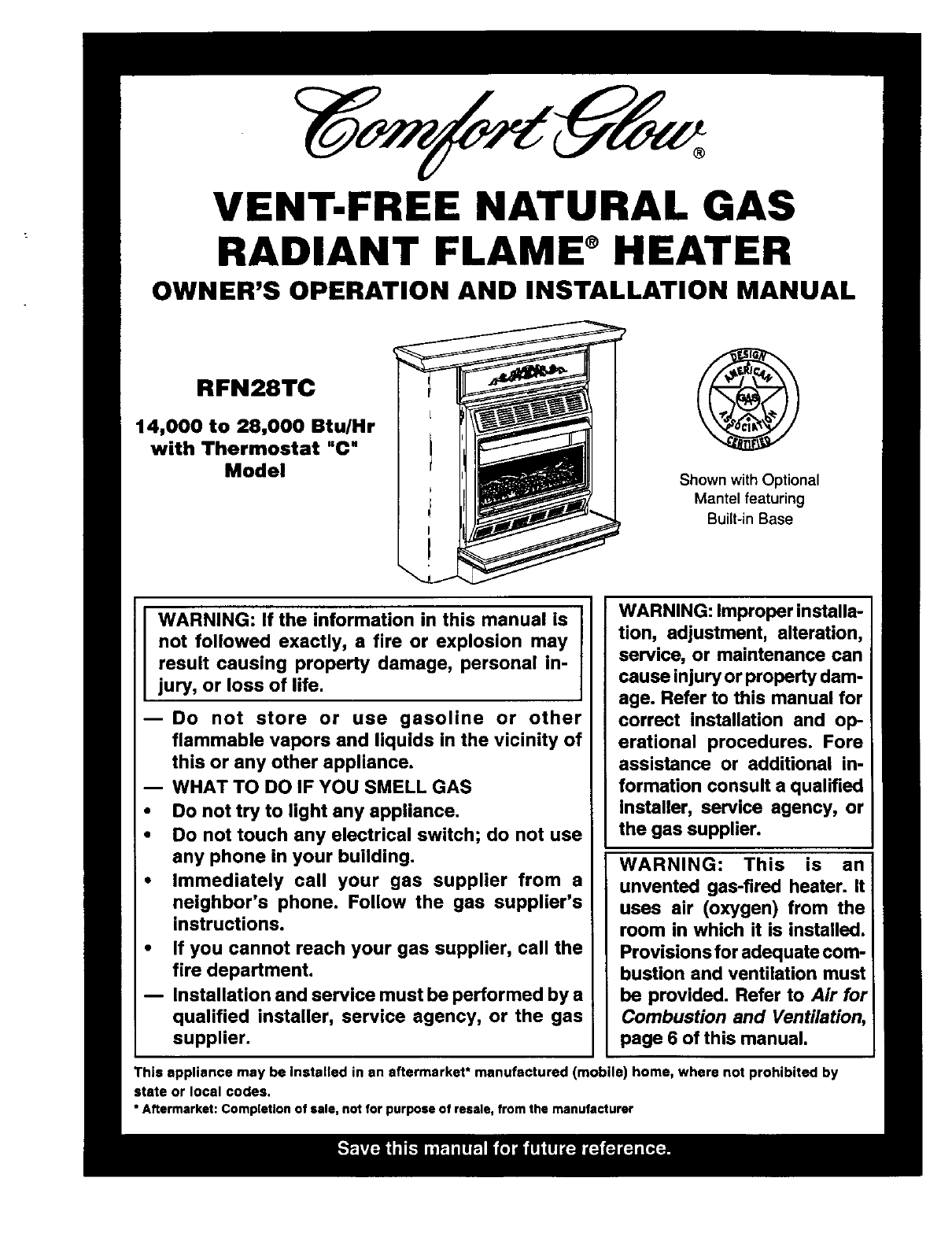

VENT-FREE NATURAL GAS

RADIANT FLAM HEATER

OWNER'S OPERATION AND INSTALLATION MANUAL

RFN28TC

14,000 to 28,000 Btu/Hr

with Thermostat "C"

Model Shown with Optional

Mantel featuring

Built-in Base

I WARNING: If the information in this manual is

not followed exactly, a fire or explosion may

result causing property damage, personal in-

jury, or loss of life.

--Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of

this or any other appliance.

-- WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use

any phone in your building.

•Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

•If you cannot reach your gas supplier, call the

fire department.

mInstallation and service must be performed by a

qualified installer, service agency, or the gas

supplier.

WARNING: Improper installa-

tion, adjustment, alteration,

service, or maintenance can

cause injury or property dam-

age. Refer to this manual for

correct installation and op-

erational procedures. Fore

assistance or additional in-

formation consult a qualified

installer, service agency, or

the gas supplier.

WARNING: This is an

unvented gas-fired heater. It

uses air (oxygen) from the

room in which it is installed.

Provisions for adequate com-

bustion and ventilation must

be provided. Refer to Air for

Combustion and Ventilation,

page 6 of this manual.

This appliance may be Installed in an aftermarket* manufactured (mobile) home, where not prohibited by

state or local codes.

•Aftermarket: Completion of sale, not for purposeof resale, from the manufacturer

VENT-FREE NATURAL GAS RADIANT FLAME HEATER

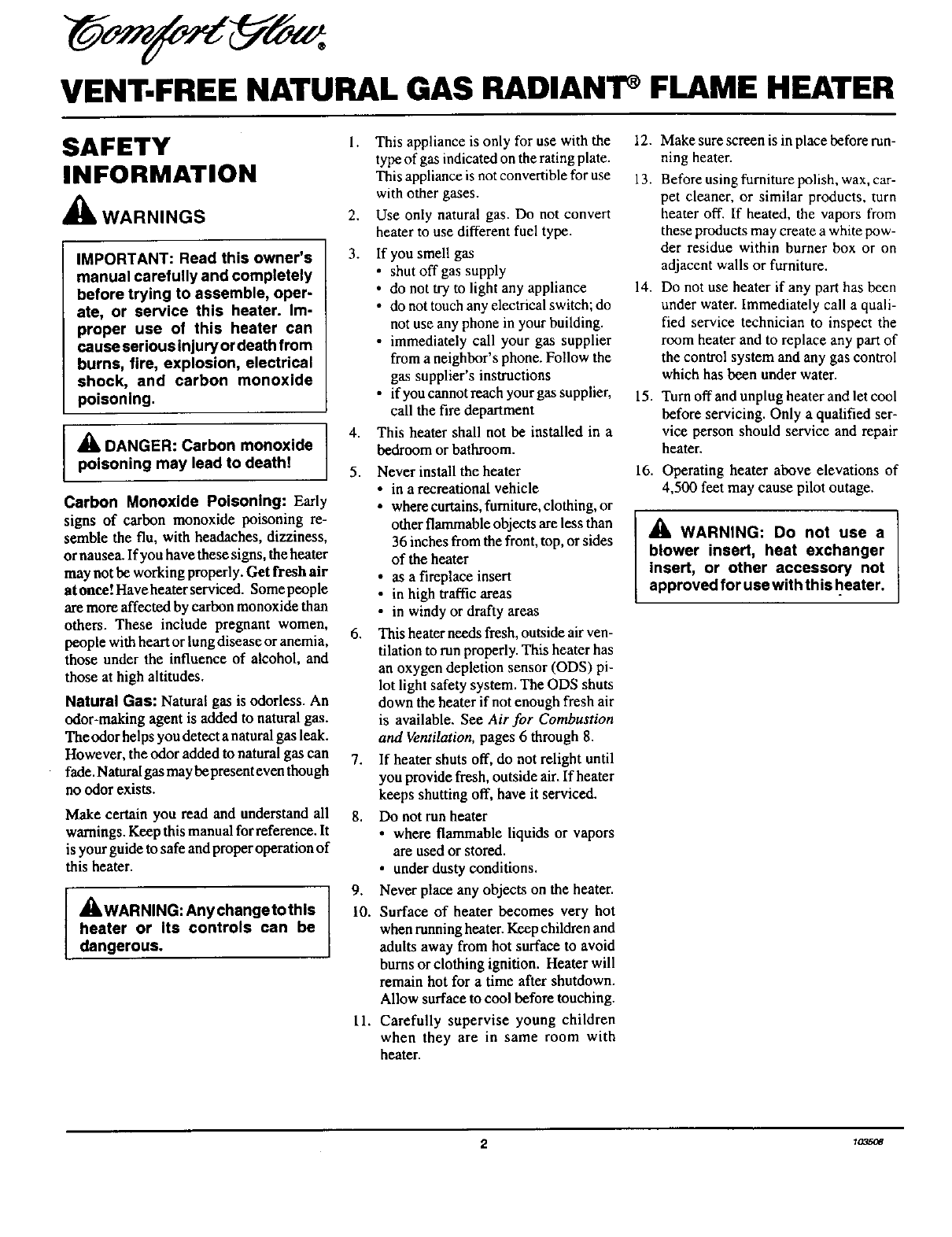

SAFETY

INFORMATION

A, WARNINGS

IMPORTANT: Read this owner's

manual carefully and completely

before trying to assemble, oper-

ate, or service this heater. Im-

proper use of this heater can

cause serious injury ordeath from

burns, fire, explosion, electrical

shock, and carbon monoxide

poisoning.

_k DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early

signs of carbonmonoxide poisoningre-

semble the flu, with headaches, dizziness,

or nausea. Ifyou have these signs, the heater

may not be working properly. Get fresh air

at onee! Have heater serviced. Some people

are more affected by carbon monoxide than

others. These include pregnant women,

people with heart or lung disease or anemia,

those under the influence of alcohol, and

those at high altitudes.

Natural Gas: Natural gas is odorless. An

odor-making agent is added to natural gas.

The odor helps you detect a natural gas leak.

However, the odor added to natural gas can

fade. Natural gas may be present even though

no odor exists.

Make certain you read and understand all

warnings. Keep this manual for reference. It

is your guide to safe and proper operation of

this heater.

_kWARNING: Any changeto this

heater or Its controls can be

dangerous.

This appliance is only for use with the

type of gas indicated on the rating plate.

This appliance is not convertible for use

with other gases.

Use only natural gas. Do not convert

heater to use different fuel type.

If you smell gas

• shut off gas supply

•do not try to light any appliance

•do not touch any electrical switch; do

not use any phone in your building.

• immediately call your gas supplier

from a neighbor's phone. Follow the

gas supplier's instructions

• if you cannot reach your gas supplier,

call the fire department

This heater shall not be installed in a

bedroom or bathroom.

Never install the heater

• in a recreational vehicle

• where curtains, furniture, clothing, or

other flammable objects are less than

36 inches from the front, top, or sides

of the heater

• asafireplace insert

• in high traffic areas

• in windy or drafty areas

6. This heater needs fresh, outside air ven-

tilation to run properly. This heater has

an oxygen depletion sensor (ODS) pi-

lot light safety system. The ODS shuts

down the heater if not enough fresh air

is available. See Air for Combustion

and Ventilation, pages 6 through 8.

7. If heater shuts off, do not relight until

you provide fresh, outside air. If heater

keeps shutting off, have it serviced.

8. Do not run heater

• where flammable liquids or vapors

are used or stored.

• under dusty conditions.

9. Never place any objects on the heater.

10. Surface of heater becomes very hot

when running heater. Keep children and

adults away from hot surface to avoid

burns or clothing ignition. Heater will

remain hot for a time after shutdown.

Allow surface to cool before touching.

ll. Carefully supervise young children

when they are in same room with

heater.

12. Make sure screen is in place before run-

ning heater.

13. Before using furniture polish, wax, car-

pet cleaner, or similar products, turn

heater off. If heated, the vapors from

these products may create a white pow-

der residue within burner box or on

adjacent walls or furniture.

14. Do not use heater if any part has been

under water. Immediately call a quali-

fied service technician to inspect the

room heater and to replace any part of

the control system and any gas control

which has been under water.

15.

16.

Turn off and unplug heater and let cool

before servicing. Only a qualified ser-

vice person should service and repair

heater.

Operating heater above elevations of

4,500 feet may cause pilot outage.

_. WARNING: Do not use a I

blower insert, heat exchanger

insert, or other accessory not

approved for use with this heater.

2I035(_

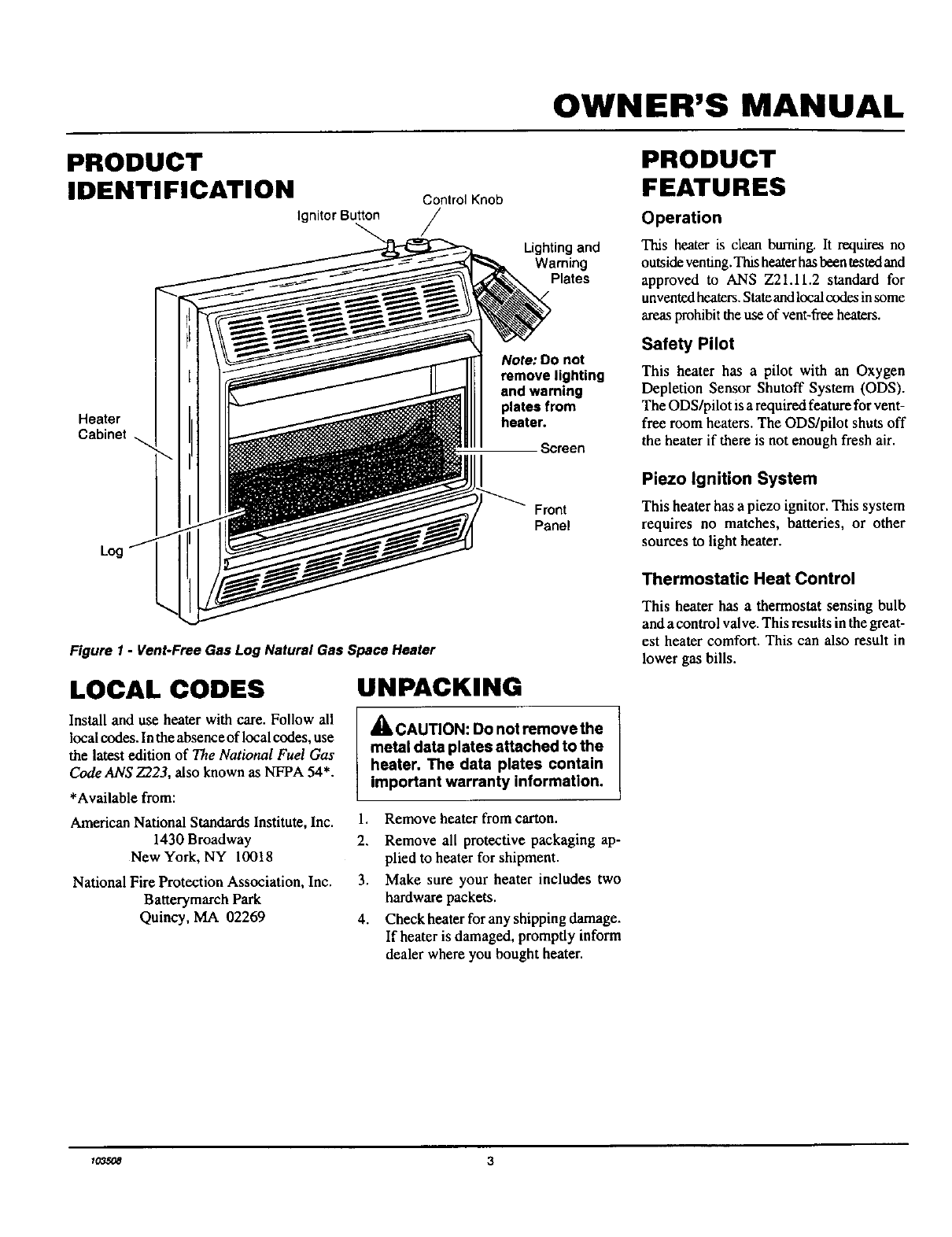

OWNER'S MANUAL

PRODUCT

IDENTIFICATION

Ignitor Button

Heater

Cabinet

Log

Figure 1 - Vent*Free Gas Log Natural Gas Space Heater

LOCAL CODES

Install and use heater with care. Follow all

local codes. In the absence of local codes, use

the latest edition of The National Fuel Gas

Code ANS Z223, also known as NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batlerymarch Park

Quincy, MA 02269

Control Knob

Lighting and

Warning

Plates

Note: Do not

remove lighting

and warning

plates from

heater.

Screen

Front

Panel

UNPACKING

CAUTION: Do not remove the

metal data plates attached to the

heater. The data plates contain

important warranty information.

1. Remove heater from carton.

2. Remove all protective packaging ap-

plied to heater for shipment.

3. Make sure your heater includes two

hardware packets.

4. Check heater for any shipping damage.

If heater is damaged, promptly inform

dealer where you bought heater.

PRODUCT

FEATURES

Operation

This heater is clean burning. It requires no

outside venting. This heater has been tested and

approved to ANS Z21.11.2 standard for

unvented heaters. State and local codes in some

areas prohibit the use of vent-free heaters.

Safety Pilot

This heater has a pilot with an Oxygen

Depletion Sensor Shutoff System (ODS).

The ODS/pilot is arequired feature for vent-

free room heaters. The ODS/pilot shuts off

the heater if there is not enough fresh air.

Piezo Ignition System

This heater has a piezo ignitor. This system

requires no matches, batteries, or other

sources to light heater.

Thermostatic Heat Control

This heater has a thermostat sensing bulb

and a control valve. This results in the great-

est heater comfort. This can also result in

lower gas bills.

_oo.._oe 3

VENT-FREE NATURAL GAS RADIANT FLAME HEATER

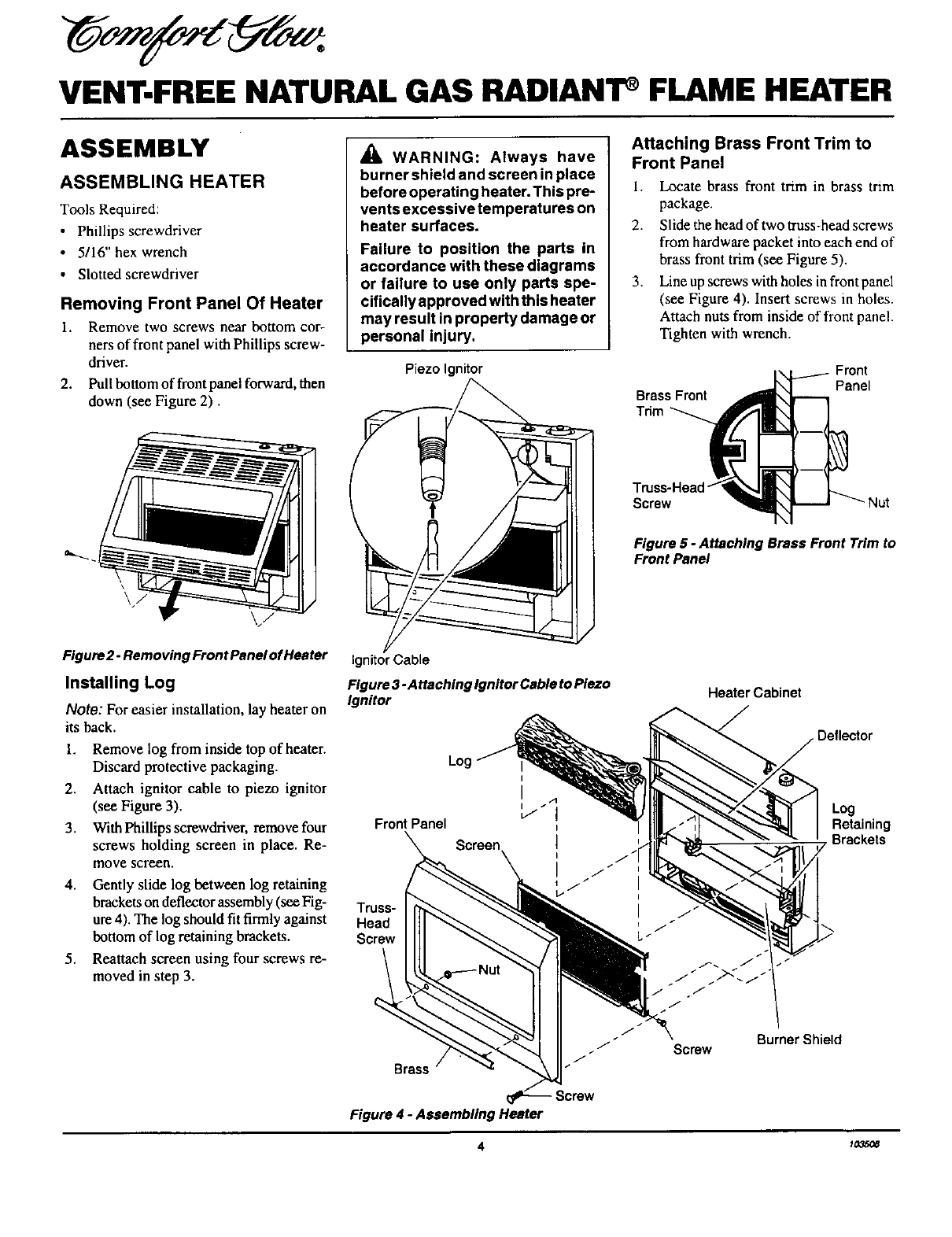

ASSEMBLY

ASSEMBLING HEATER

Tools Required:

•Phillips screwdriver

•5116" hex wrench

•Slotted screwdriver

Removing Front Panel Of Heater

1. Remove two screws near bottom cor-

ners of front panel with Phillips screw-

driver.

2. Pull bottom of front panel forward, then

down (see Figure 2).

Figure 2 . Removing Front Panel of Heater

Installing Log

Note: For easier installation, lay heater on

its back.

1. Remove log from inside top of heater.

Discard protective packaging.

2. Attach ignitor cable to piezo ignitor

(see Figure 3).

3. With Phillips screwdriver, remove four

screws holding screen in place. Re-

move screen.

4. Gently slide log between log retaining

brackets on deflector assembly (see Fig-

ure 4). The log should fit firmly against

bottom of log retaining brackets.

5. Reattach screen using four screws re-

moved in step 3.

_, WARNING: Always have

burner shield and screen in place

before operating heater. This pre-

vents excessive temperatures on

heater surfaces.

Failure to position the parts in

accordance with these diagrams

or failure to use only parts spe-

cifically approved with this heater

may result in property damage or

personal injury.

Piezo Ignitor

IgnitorCable

Figure 3 -Attaching Ignitor Cable to Plezo

Ignitor

Log

Front Panel

Truss-

Head

Screw

Brass

Attaching Brass Front Trim to

Front Panel

1. Locate brass front trim in brass trim

package.

2. Slide the head of two truss-head screws

from hardware packet into each end of

brass front trim (see Figure 5).

3. Line up screws with holes in front panel

(see Figure 4). Insert screws in holes.

Attach nuts from inside of front panel.

Tighten with wrench.

Brass Front

Front

Panel

Screw Nut

Figure 5 - Attaching Brass Front Trim to

Front Panel

Heater Cabinet

Log

Retaining

.Brackets

BurnerShield

Screw

Figure 4 -Assembling Heater

41o35_

OWNER'S MANUAL

ASSEMBLY

Continued

Assembling and Attaching

Brass Trim

1. Remove packaging from remaining

three pieces of brass trim.

2. Locate four brass screws, two adjust-

ing plates with set screws, and two

shims in the hardware packet.

3. Align shim under adjusting plate as

shown in Figure 6.

4. Slide one end of adjusting plate/shim

in slot on mitered edge of top brass trim

(see Figure 6).

5. Slide other end of adjusting plate/shim

in slot on mitered edge of side brass

trim (see Figure 6).

6. While firmly holding edges of brass

trim together, tighten both set screws

on the adjusting plate with slotted

screwdriver.

7. Repeat steps I through 6 for other side.

8. Place the assembled trim on front of

heater cabinet. Attach on top and sides

with four brass screws included in hard-

ware package (see Figure 7).

9. Reattach front panel to heater if you are

going to mount the heater to the base.

Do not re,attach front panel at this time

if you are going to mount heater to wall.

Side Brass Trim Set Screws

Adjusting

Plate

Shi;

Mitered Edge

Slot

Figure 6 -Assembling Brass Trim

Slot

Screws

Assembled

Brass Trim

Top Brass Trim

Figure 7 - Attaching Brass Trim to Heater

10350S 5

VENT-FREE NATURAL GAS RADIAN'I FLAME HEATER

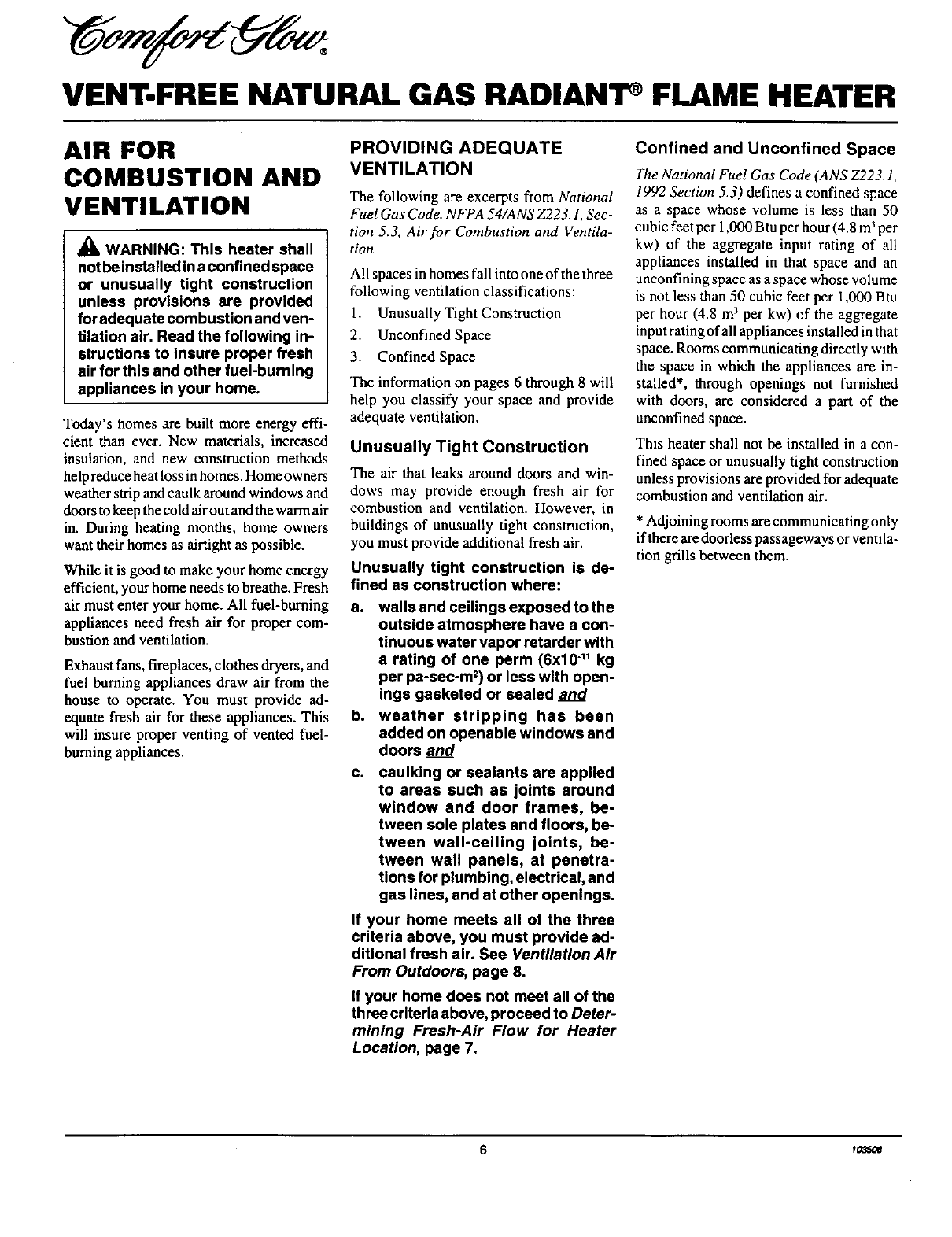

AIR FOR

COMBUSTION AND

VENTILATION

WARNING: This heater shall

not be installed Inaconfined space

or unusually tight construction

unless provisions are provided

for adequate combustion and ven-

tilation air. Read the following in-

structions to insure proper fresh

air for this and other fuel-burning

appliances in your home.

Today's homes are built more energy effi-

cient than ever. New materials, increased

insulation, and new construction methods

help reduce heat loss inhomes. Home owners

weather strip and caulk around windows and

doors to keep the cold air out and the warm air

in. During heating months, home owners

want their homes as airtight as possible.

While it is good to make your home energy

efficient, your home needs to breathe. Fresh

air must enter your home. All fuel-burning

appliances need fresh air for proper com-

bustion and ventilation.

PROVIDING ADEQUATE

VENTILATION

The following are excerpts from National

Fuel Gas Code. NFPA 54/ANS Z223.1, Sec-

tion 5.3, Air for Combustion and Ventila-

tion.

All spaces in homes fall into one of the three

following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space

The information on pages 6 through 8 will

help you classify your space and provide

adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and win-

dows may provide enough fresh air for

combustion and ventilation. However, in

buildings of unusually tight construction,

you must provide additional fresh air.

Unusually tight construction is de-

fined as construction where:

a°

Exhaust fans, fireplaces, clothes dryers, and

fuel burning appliances draw air from the

house to operate. You must provide ad-

equate fresh air for these appliances. This b.

will insure proper venting of vented fuel-

burning appliances.

walls and ceilings exposed to the

outside atmosphere have a con-

tinuous water vapor retarder with

a rating of one perm (6x10 "11kg

per pa-sec-m =)or less with open-

ings gasketed or sealed and

weather stripping has been

added on openable windows and

doors and

caulking or sealants are applied

to areas such as joints around

window and door frames, be-

tween sole plates and floors, be-

tween wall-ceiling joints, be-

tween wall panels, at penetra-

tions for plumbing, electrical, and

gas lines, and at other openings.

If your home meets all of the three

criteria above, you must provide ad-

ditional fresh air° See Ventilation Air

From Outdoors, page 8.

If your home does not meet all of the

three criteria above, proceed to Deter-

mining Fresh-Air Flow for Heater

Location, page 7.

Confined and Unconfined Space

The National Fuel Gas Code (ANS Z223. l,

1992 Section 5.3) defines a confined space

as a space whose volume is less than 50

cubic feet per 1,000 Btu per hour (4.8 m3per

kw) of the aggregate input rating of all

appliances installed in that space and an

unconfining space as a space whose volume

is not less than 50 cubic feet per 1,000 Btu

per hour (4.8 m3per kw) of the aggregate

input rating of all appliances installed in that

space. Rooms communicating directly with

the space in which the appliances are in-

stalled*, through openings not furnished

with doors, are considered a part of the

unconfined space.

This heater shall not be installed in a con-

fined space or unusually tight construction

unless provisions are provided for adequate

combustion and ventilation air.

* Adjoining rooms are communicating only

if there are doorless passageways or ventila-

tion grills between them.

6 f_

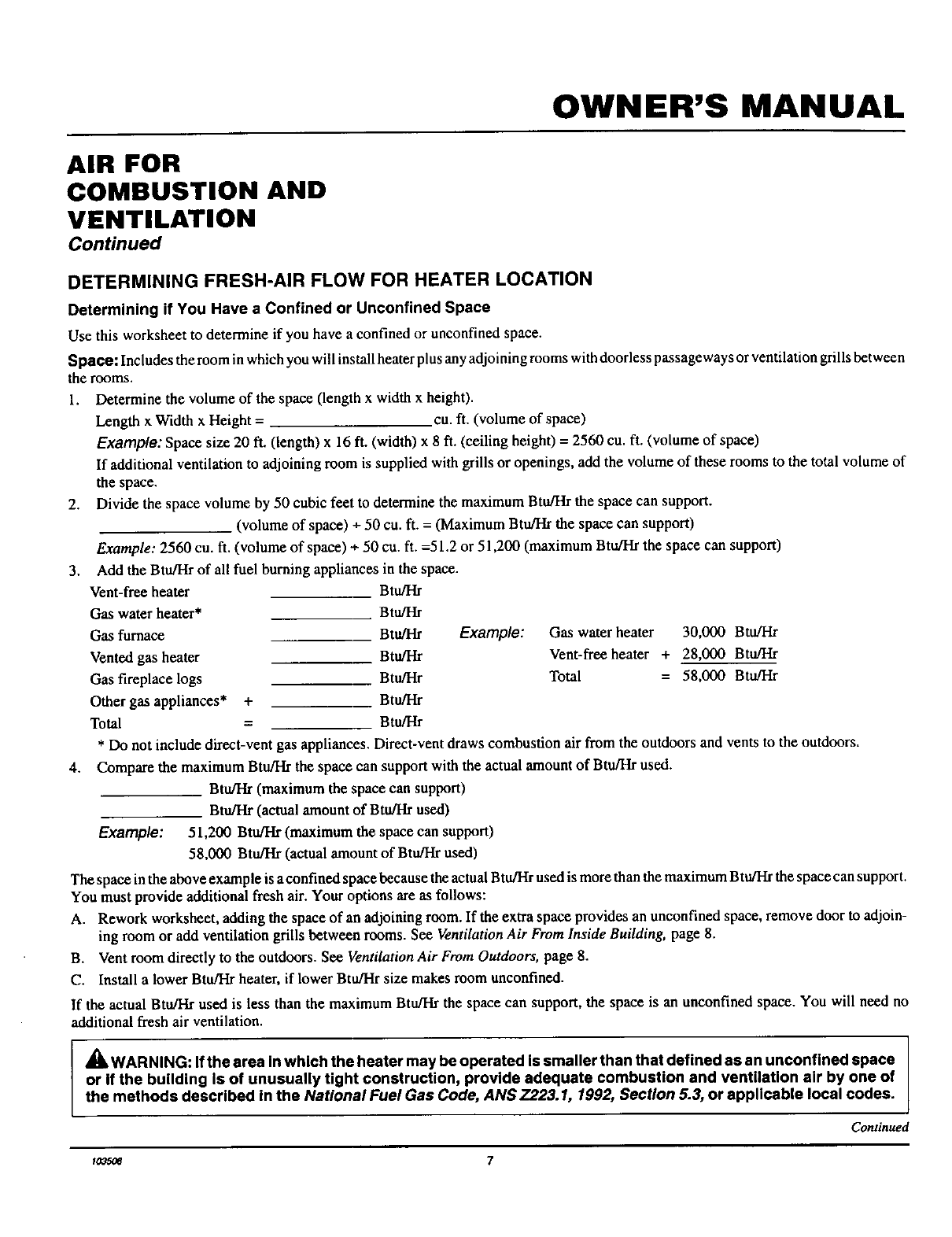

OWNER'S MANUAL

AIR FOR

COMBUSTION AND

VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this worksheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between

the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height = cu. ft. (volume of space)

Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of

the space.

2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

(volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)

Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. =51.2 or 51,200 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free heater Btu/Hr

Gas water heater* Btu/Hr

Gas furnace Btu/FIr Example: Gas water heater 30,000 Btu/Hr

Vented gas heater Btu/Hr Vent-free heater + 28,000 Btu/Hr

Gas fireplace logs Btu/Hr Total = 58,000 Btu/Hr

Other gas appliances* + Btu/Hr

Total =Btu/Hr

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

Btu/Hr (maximum the space can support)

Btu/Hr (actual amount of Btu/l-lr used)

Example: 51,200 Btu/Hr (maximum the space can support)

58,000 Btu/Hr (actual amount of Btu/Hr used)

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support.

You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-

ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 8.

B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 8.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/I-lr the space can support, the space is an unconfined space. You will need no

additional fresh air ventilation.

WARNING: If the area In which the heater may beoperated Is smaller than that defined as an unconfined space

or If the building is of unusually tight construction, provide adequate combustion and ventilation air by one of

the methods described in the National Fuel Gas Code, ANS Z223.1, 1992, Section 5.3, or applicable local codes.

Continued

103508 7

VENT-FREE NATURAL GAS RADIANT FLAME HEATER

AIR FOR

COMBUSTION AND

VENTILATION

Continued

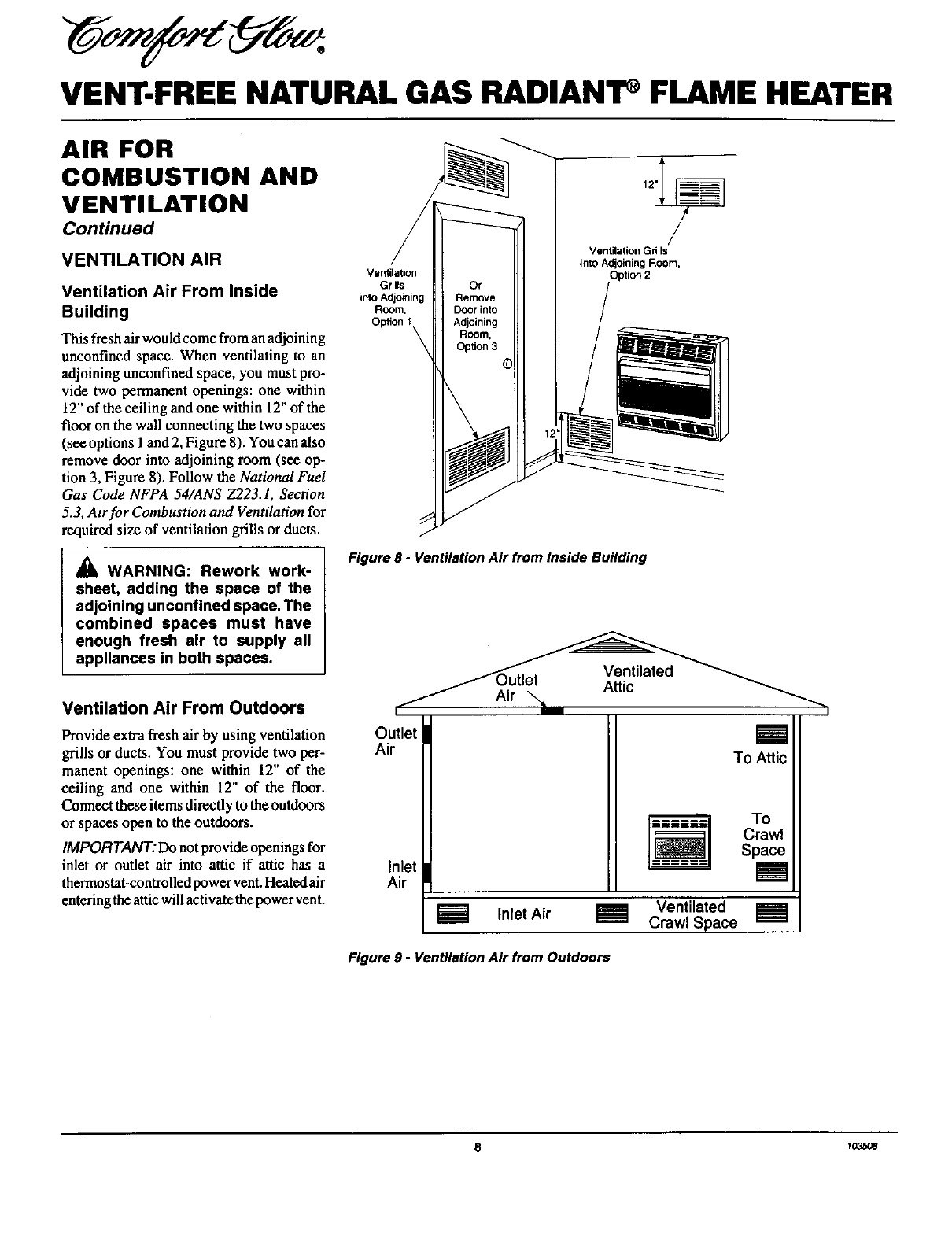

VENTILATION AIR

Ventilation Air From Inside

Building

This fresh air would come from an adjoining

unconfined space. When ventilating to an

adjoining unconfined space, you must pro-

vide two permanent openings: one within

12" of the ceiling and one within 12" of the

floor on the wall connecting the two spaces

(see options 1 and 2, Figure 8). You can also

remove door into adjoining room (see op-

tion 3, Figure 8). Follow the National Fuel

Gas Code NFPA 54/ANS Z223.1, Section

5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

WARNING: Rework work-

sheet, adding the space of the

adjoining unconfined space, The

combined spaces must have

enough fresh air to supply all

appliances in both spaces.

Ventilation

Grills

into Adjoining

Room,

Option 1

Ventilation Grills

Into Adjoining Room,

Option 2

Figure 8 -Ventilation Air from Inside Building

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation

grills or ducts. You must provide two per-

manent openings: one within 12" of the

ceiling and one within 12" of the floor.

Connect these items directly to the outdoors

or spaces open to the outdoors.

IMPORTANT: Do not provide openings for

inlet or outlet air into attic if attic has a

thermostat-controlled power vent. Heated air

entering the attic will activate the power vent.

Outlet

Air

Inlet

Air

Inlet Air Ventilated

Crawl Space

Figure 9 -Ventilation Air from Outdoors

To Attic

Crawl

Space

81035t_

OWNER'S MANUAL

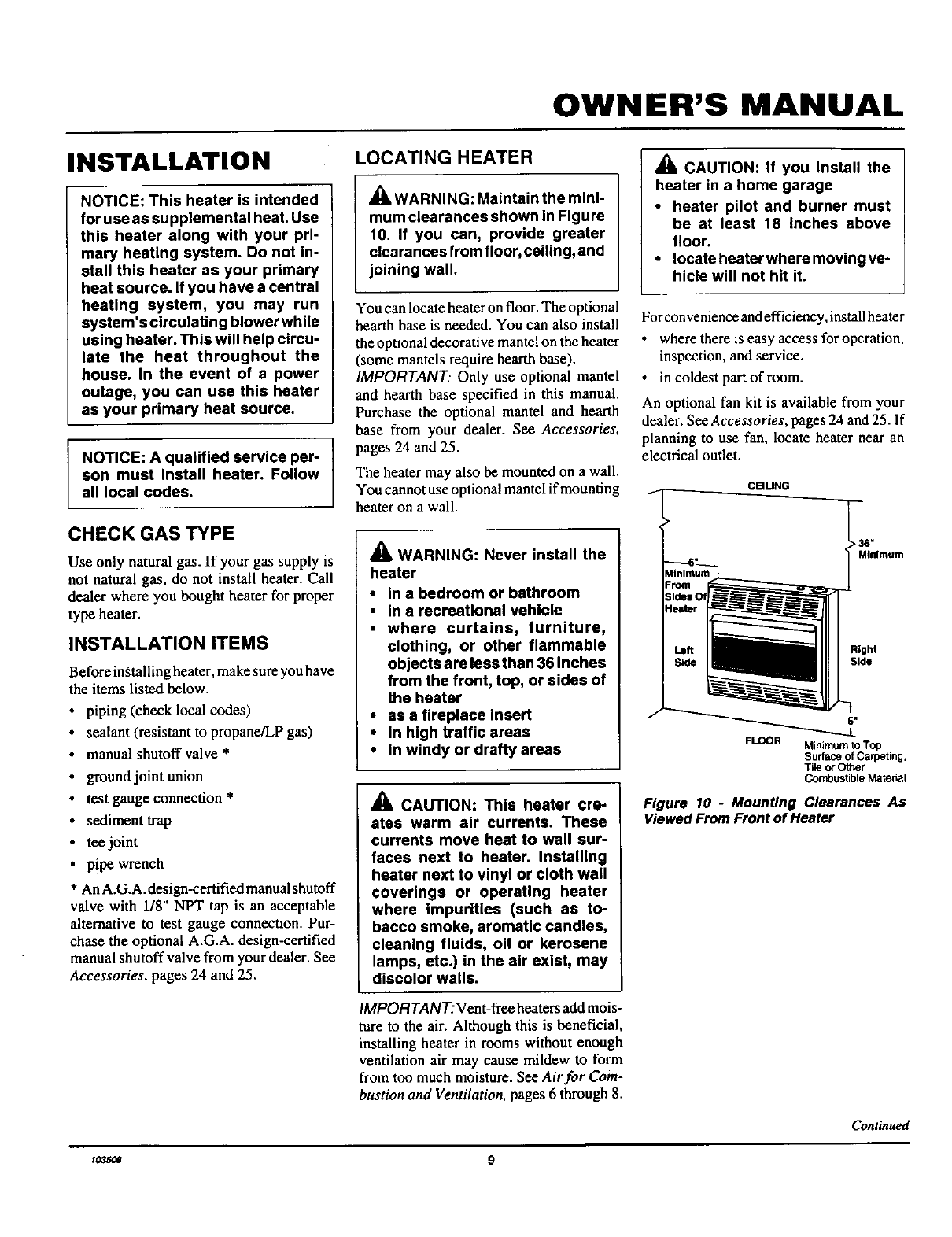

INSTALLATION

NOTICE: This heater is intended

for use as supplemental heat. Use

this heater along with your pri-

mary heating system. Do not In-

stall this heater as your primary

heat source. If you have a central

heating system, you may run

system's circulating blower while

using heater. This will help circu-

late the heat throughout the

house. In the event of a power

outage, you can use this heater

as your primary heat source.

NOTICE: A qualified service per-

son must install heater. Follow

all local codes.

CHECK GAS TYPE

Use only natural gas. If your gas supply is

not natural gas, do not install heater. Call

dealer where you bought heater for proper

type heater.

INSTALLATION ITEMS

Before in,tailing heater, make sure you have

the items listed below.

piping (check local codes)

sealant (resistant to propane/LP gas)

manual shutoff valve *

ground joint union

test gauge connection *

sediment trap

tee joint

pipe wrench

• An A.G.A. design-certified manual shutoff

valve with 1/8" NPT tap is an acceptable

alternative to test gauge connection. Pur-

chase the optional A.G.A. design-certified

manual shutoff valve from your dealer. See

Accessories, pages 24 and 25.

LOCATING HEATER

WARNING: Maintain the mini-

mum clearances shown in Figure

10. If you can, provide greater

clearances from floor, ceiling, and

joining wall.

You can locate heater on floor. The optional

hearth base is needed. You can also install

the optional decorative mantel on the heater

(some mantels require hearth base).

IMPORTANT" Only use optional mantel

and hearth base specified in this manual.

Purchase the optional mantel and hearth

base from your dealer. See Accessories,

pages 24 and 25.

The heater may also be mounted on a wall.

You cannot use optional mantel if mounting

heater on a wall.

WARNING: Never install the

heater

• in a bedroom or bathroom

•in a recreational vehicle

•where curtains, furniture,

clothing, or other flammable

objects are less than 36 inches

from the front, top, or sides of

the heater

•as a fireplace Insert

•in high traffic areas

•in windy or drafty areas

_1= CAUTION: This heater cre-

ates warm air currents. These

currents move heat to wall sur-

faces next to heater. Installing

heater next to vinyl or cloth wall

coverings or operating heater

where impurities (such as to-

bacco smoke, aromatic candles,

cleaning fluids, oil or kerosene

lamps, etc.) in the air exist, may

discolor walls.

IMPORTANT: Vent-free heaters add mois-

ture to the air. Although this is beneficial,

installing heater in rooms without enough

ventilation air may cause mildew to form

from too much moisture. See Air for Com-

bustion and Ventilation, pages 6 through 8.

_, CAUTION: If you install the

heater in a home garage

•heater pilot and burner must

be at least 18 inches above

floor.

•locate heater where moving ve-

hicle will not hit it.

Forconvenience andefficiency, install heater

•where there is easy access for operation,

inspection, and service.

•in coldest part of room.

An optional fan kit is available from your

dealer. See Accessories, pages 24 and 25. If

planning to use fan, locate heater near an

electrical outlet.

CEIUNG

,36"

Minimum

Right

Side

---L

FLOOR Minimum to Top

Sudace of Carpeting,

Tile orOther

Combustible Material

Figure 10 -Mounting Clearances As

Viewed From Front of Heater

Continued

_a35o0 9

VENT-FREE NATURAL GAS RADIANT FLAME HEATER

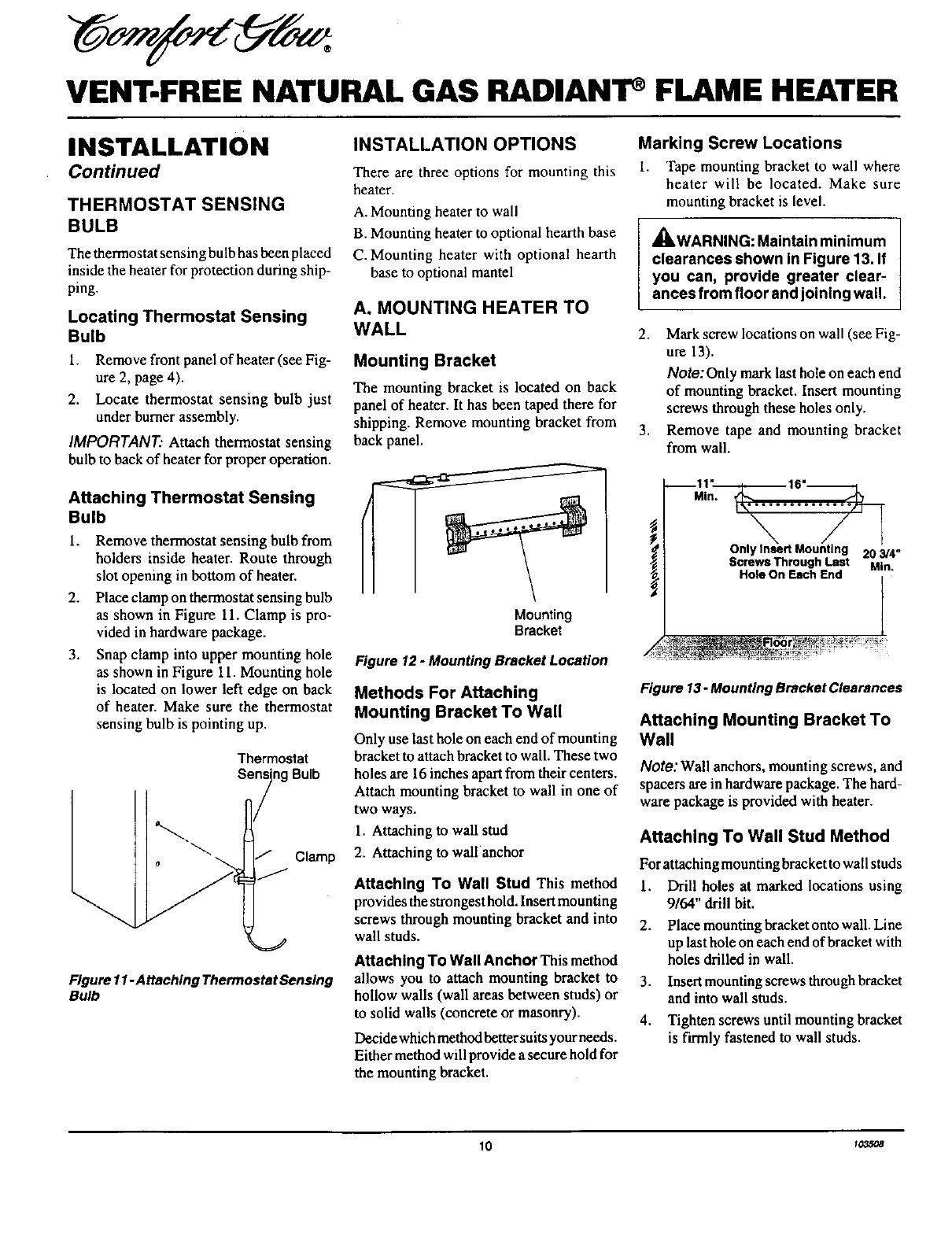

iNSTALLATiON

Continued

THERMOSTAT SENSING

BULB

The thermostat sensing bulb has been placed

inside the heater for protection during ship-

ping.

Locating Thermostat Sensing

Bulb

1. Remove front panel of heater (see Fig-

ure 2, page 4).

2. Locate thermostat sensing bulb just

under burner assembly.

IMPORTANT." Attach thermostat sensing

bulb to back of heater for proper operation.

Attaching Thermostat Sensing

Bulb

1. Remove thermostat sensing bulb from

holders inside heater. Route through

slot opening in bottom of heater.

2. Place clamp on thermostat sensing bulb

as shown in Figure 11. Clamp is pro-

vided in hardware package.

3. Snap clamp into upper mounting hole

as shown in Figure I 1. Mounting hole

is located on lower left edge on back

of heater. Make sure the thermostat

sensing bulb is pointing up.

Thermostat

Bulb

Clamp

Figure 11 - Attachlng Thermostat Sensing

Bulb

INSTALLATION OPTIONS

There are three options for mounting this

heater.

A. Mounting heater to wall

B. Mounting heater to optional hearth base

C. Mounting heater with optional hearth

base to optional mantel

A. MOUNTING HEATER TO

WALL

Mounting Bracket

The mounting bracket is located on back

panel of heater. It has been taped there for

shipping. Remove mounting bracket from

back panel.

Mounting

Bracket

Figure 12 -Mounting Bracket Location

Methods For Attaching

Mounting Bracket To Wall

Only use last hole on each end of mounting

bracket to attach bracket to wall. These two

holes are 16inches apart from their centers.

Attach mounting bracket to wall in one of

two ways.

1. Attaching to wall stud

2. Attaching to wallancbor

Attaching To Wall Stud This method

provides the strongest hold. Insertmounting

screws through mounting bracket and into

wall studs.

Attaching To Wall Anchor This method

allows you to attach mounting bracket to

hollowwails(wall areasbetweenstuds)or

to solidwalls(concreteor masonry).

Decide which method better suits your needs.

Either method will provide a secure hold for

the mounting bracket.

Marking Screw Locations

1. Tape mounting bracket to wall where

heater will be located. Make sure

mounting bracket is level.

_WARNING: Maintain minimum

clearances shown In Figure 13. If

you can, provide greater clear-

ances from floor and joining wall.

2. Mark screw locations on wall (see Fig-

ure 13).

Note: Only mark last hole on each end

of mounting bracket. Insert mounting

screws through these holes only.

3. Remove tape and mounting bracket

from wall.

\/I

Only Insert Mounting 20 3/4"

Screws Through Last Min.

Hole On Each End

Figure 13. Mounting Bracket Clearances

Attaching Mounting Bracket To

Wall

Note: Wall anchors, mounting screws, and

spacers are in hardware package. The hard-

ware package is provided with heater.

Attaching To Wall Stud Method

For attaching mounting bracket to wall studs

1. Drill holes at marked locations using

9/64" drill bit.

2. Place mounting bracket onto wall. Line

up last hole on each end of bracket with

holes drilled in wall.

3. Insert mounting screws through bracket

and into wall studs.

4. Tighten screws until mounting bracket

is firmly fastened to wall studs.

10 t03.,_a

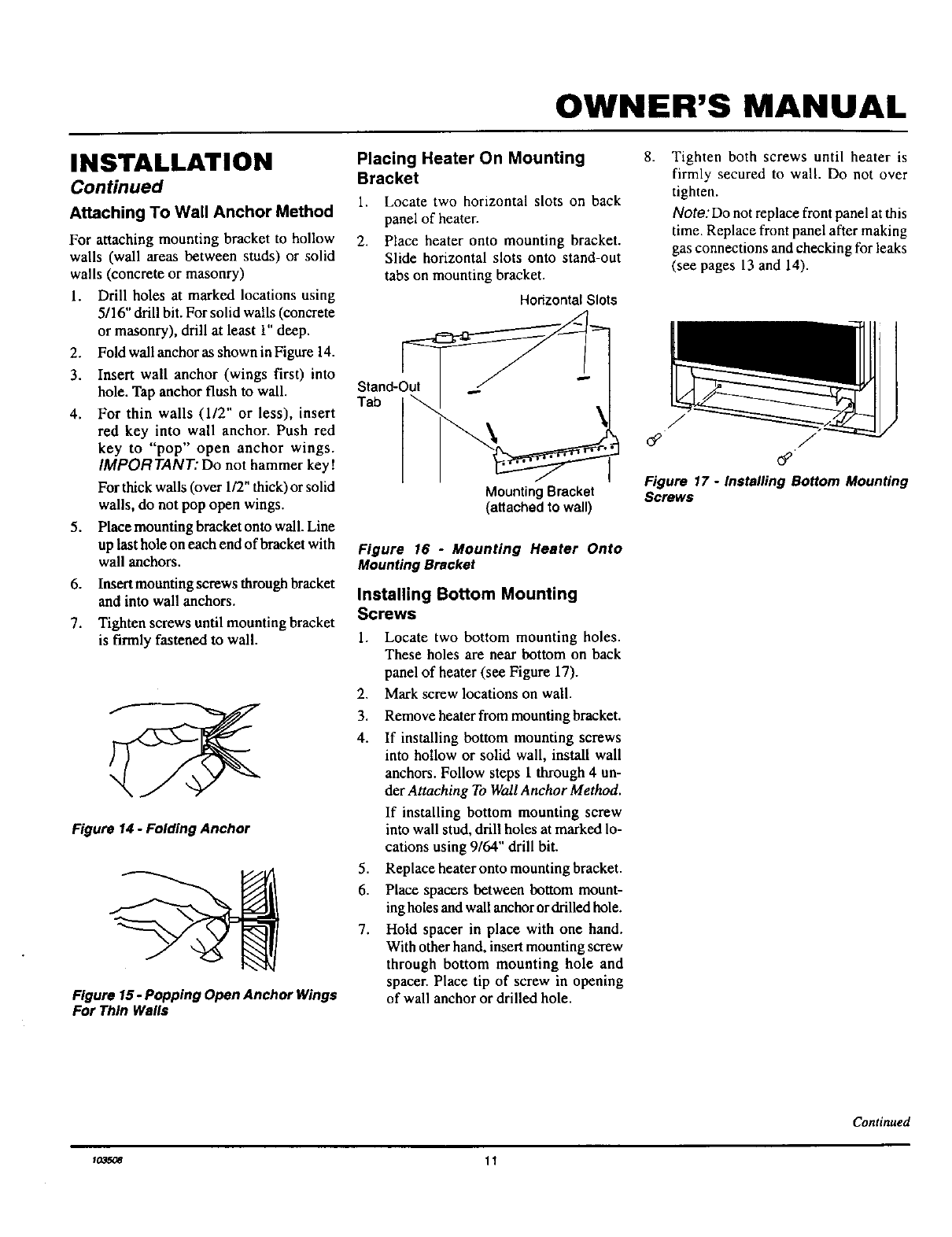

OWNER'S MANUAL

INSTALLATION

Continued

Attaching To Wall Anchor Method

For attaching mounting bracket to hollow

wails (wall areas between studs) or solid

walls (concrete or masonry)

1. Drill holes at marked locations using

5/16" drill bit. For solid wails (concrete

or masonry), drill at least 1" deep.

2. Fold wall anchor as shown in Figure 14.

3. Insert wall anchor (wings first) into

hole. Tap anchor flush to wall.

4. For thin walls (1/2" or less), insert

red key into wall anchor. Push red

key to "pop" open anchor wings.

IMPORTANT: Do not hammer key!

For thick walls (over 1/2" thick) or solid

walls, do not pop open wings.

5. Place mounting bracket onto wall. Line

up last hole on each end of bracket with

wall anchors.

6. Insertmounting screws throughbracket

and into wall anchors.

7. Tighten screws until mounting bracket

is firmly fastened to wall.

Figure 14 - Folding Anchor

Figure 15- Popping Open Anchor Wings

For Thin Walls

Placing Heater On Mounting

Bracket

1. Locate two horizontal slots on back

panel of heater.

2. Place heater onto mounting bracket.

Slide horizontal slots onto stand-out

tabs on mounting bracket.

Stand-Out

Tab

Horizontal Slots

Mounting Bracket

(attached to wall)

Figure 16 -Mounting Heater Onto

Mounting Bracket

Installing Bottom Mounting

Screws

1. Locate two bottom mounting holes.

These holes are near bottom on back

panel of heater (see Figure 17).

Mark screw locations on wall.

Remove heater from mounting bracket.

If installing bottom mounting screws

into hollow or solid wall, install wall

anchors. Follow steps 1 through 4 un-

der Attaching To Wall Anchor Method.

If installing bottom mounting screw

into wall stud, drill holes at marked lo-

cations using 9/64" drill bit.

Replace heater onto mounting bracket.

Place spacers between bottom mount-

ing holes and wall anchor or drilled hole.

Hold spacer in place with one hand.

With other hand, insert mounting screw

through bottom mounting hole and

spacer. Place tip of screw in opening

of wall anchor or drilled hole.

8. Tighten both screws until heater is

firmly secured to wall. Do not over

tighten.

Note: Do not replace front panel at this

time. Replace front panel after making

gas connections and checking for leaks

(see pages 13 and 14).

Figure 17 - Installing Bottom Mounting

Screws

Continued

w3_a 11

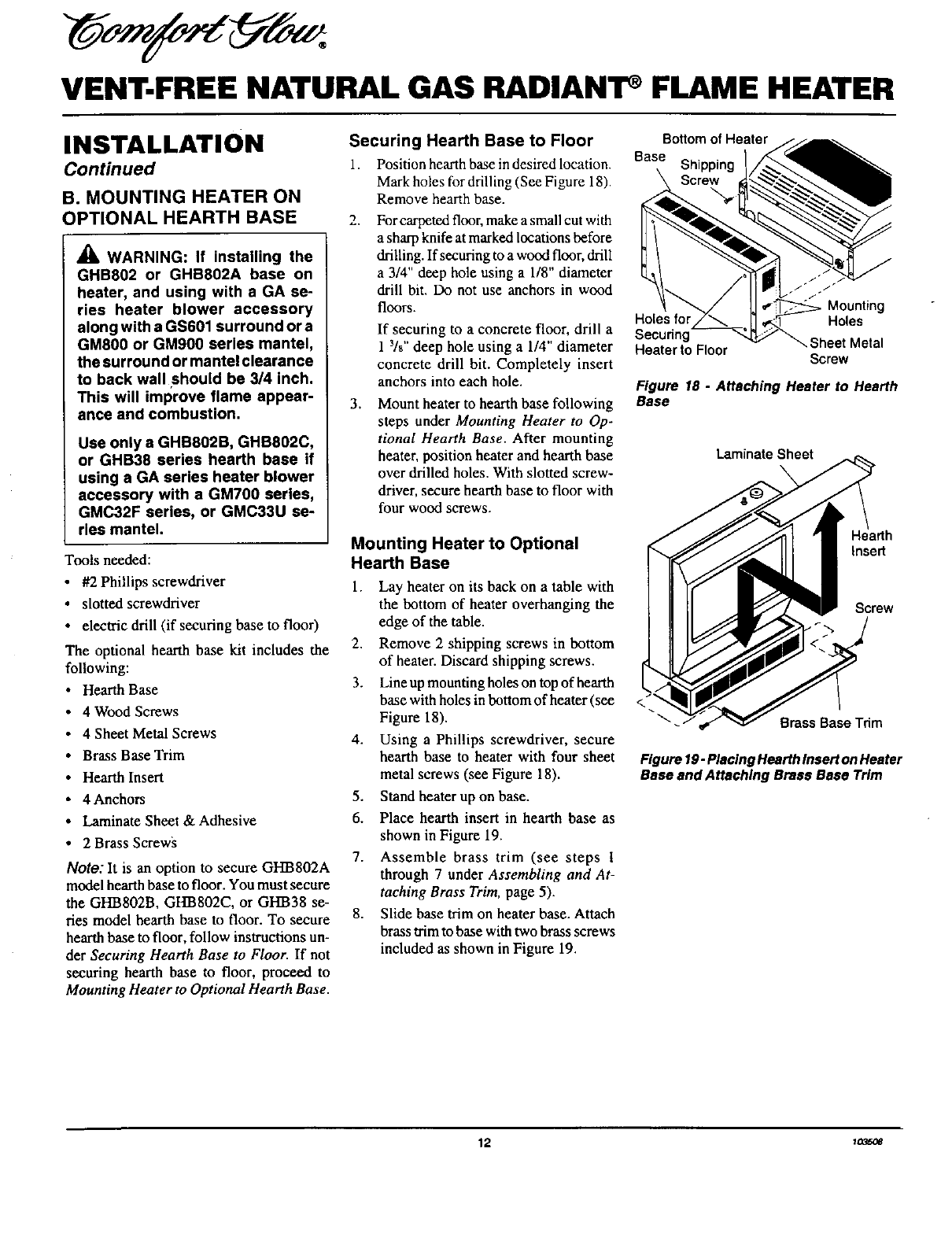

VENT-FREE NATURAL GAS RADIANT a)FLAME HEATER

INSTALLATION

Continued

B. MOUNTING HEATER ON

OPTIONAL HEARTH BASE

WARNING: If installing the

GHB802 or GHB802A base on

heater, and using with a GA se-

ries heater blower accessory

along with a GS601 surround or a

GM800 or GM900 series mantel,

the surround or mantel clearance

to back wall should be 3/4 inch.

This will improve flame appear-

ance and combustion.

Use only s GHB802B, GHB802C,

or GHB38 series hearth base if

using a GA series heater blower

accessory with a GM700 series,

GMC32F series, or GMC33U se-

ries mantel.

Tools needed:

•#2 Phillips screwdriver

•slotted screwdriver

• electric drill (if securing base to floor)

The optional hearth base kit includes the

following:

Hearth Base

4 Wood Screws

4 Sheet Metal Screws

Brass Base Trim

Hearth Insert

4 Anchors

Laminate Sheet & Adhesive

2 Brass Screw_;

Note: It is an option to secure GI-IB802A

model hearth base to floor. You must secure

the GHB802B, GItB802C, or GI-IB38 se-

ries model hearth base to floor. To secure

hearth base to floor, follow instructions un-

der Securing Hearth Base to Floor If not

securing hearth base to floor, proceed to

Mounting Heater to Optional Hearth Base.

Securing Hearth Base to Floor

1. Position hearth base in desired location.

Mark holes for drilling (See Figure 18).

Remove hearth base.

2. For carpeted floor, make a small cut with

a sharp knife at marked locations before

drilling. If securing to a wood floor, drill

a 3/4" deep hole using a 1/8" diameter

drill bit. Do not use anchors in wood

floors.

Bottom of Heater

Base Shipping

Screw

Holes for

If securing to a concrete floor, drill a Securing

1 Vs" deep hole using a 1/4" diameter Heater to Floor

concrete drill bit. Completely insert

anchors into each hole.

Mount heater to hearth base following

steps under Mounting Heater to Op-

tional Hearth Base. After mounting

heater, position heater and hearth base

over drilled holes. With slotted screw-

driver, secure hearth base to floor with

four wood screws.

Mounting Heater to Optional

Hearth Base

h Lay heater on its back on a table with

the bottom of heater overhanging the

edge of the table.

2. Remove 2 shipping screws in bottom

of heater. Discard shipping screws.

3. Line up mounting holes on top of hearth

base with holes in bottom of heater (see

Figure 18).

4. Using a Phillips screwdriver, secure

hearth base to heater with four sheet

metal screws (see Figure 18).

5. Stand heater up on base.

6. Place hearth insert in hearth base as

shown in Figure 19.

7. Assemble brass trim (see steps 1

through 7 under Assembling and At-

taching Brass Trim, page 5).

8. Slide base trim on heater base. Attach

brass trim to base with two brass screws

included as shown in Figure 19.

Mounting

Holes

\ Sheet Metal

Screw

Figure 18 -Attaching Heater to Hearth

Base

LaminateSheet

Hearth

Insert

Screw

_Brass Base Trim

Figure 19-Placing Hearth Insert on Heater

Base and Attaching Brass Base Trim

12 lo_oe

OWNER'S MANUAL

INSTALLATION

Continued

C. MOUNTING HEATER WITH

OPTIONAL HEARTH BASE

TO OPTIONAL MANTEL See

instructions included with

mantel kit.

Assembling Mantel

IMPORTANT: Only use the optional man-

tels specified in this manual. See Accesso-

ries, pages 24 and 25 for proper mantel kits.

This heater is only approved for use with

models GMF800(A,B )/GMU801 (A,B),

GMg00F(A,B)/GM901U(A,B), GM700F/

GM701U, GMC22F/GMC23U/GMC24U,

GMC32F(B)/GMC33U(B), and GMC26F/

GMC27U/GMC28F mantel kits. Using any

other mantel will void the A.G.A. approval

for this heater. Do not use models

GMF800(A,B)/GMU80 1(A,B),

GM900F(A,B)/GM901U(A,B), and

GM70OF/GM701U, GMC22F/GMC23U/

GMC24U, GMC32F(B)/GMC33U(B), and

GMC26F/GMC27U/GMC28F mantels with

any other product. Before installing mantel

to heater, the heater must be mounted on the

optional hearth base.

Installing Mantel to Heater

_k WARNING: If installing the

GHB802 or GHB802A base on

heater, and using with a GA se-

ries heater blower accessory

along with a GS601 surround or a

GM800 or GM900 series mantel,

the surround or mantel clearance

to back wall should be 3/4 inch.

This will improve flame appear-

ance and combustion.

Use only a GHB802B, GHB802C,

OR GHB38 series hearth base if

using a GA series heater blower

accessory with a GM70O series,

GMC32F series, or GMC33U se-

ries mantel.

CONNECTING TO GAS

SUPPLY

NOTICE: A qualified service per-

son must connect heater to gas

supply. Follow all local codes.

WARNING: Never connect

heater to private (non-utility) gas

wells. This gas is commonly

known as wellhead gas.

IMPORTANT: Check gas line pressure be-

fore connecting heater to gas line. Gas line

pressure must be no greater than 14 inches

of water. If gas line pressure is higher,

heater regulator damage could occur.

CAUTION : Use only new,

black iron or steel pipe. Inter-

nally-tinned copper tubing may

be used in certain areas. Check

your local codes. Use pipe of 1/2"

or greater diameter to allow

proper gas volume to heater. If

pipe is too small, undue loss of

pressure will occur.

Installation must include a manual shutoff

valve, union, and plugged 1/8" NPT tap.

Locate NPT tap within reach for test gauge

hook up. NPT tap must be upstream from

heater (see Figure 20).

Apply pipe joint sealant lightly to male

threads. This will prevent excess sealant

from going into pipe. Excess sealant in pipe

could result in clogged heater valves.

_k CAUTION: Use pipe ioint seal-

ant that is resistant to liquid pe-

troleum (LP) gas.

Install sediment trap in supply line as shown

in Figure 20. Locate sediment trap where it

is within reach for cleaning. Locate sedi-

ment trap where trapped matter is not likely

to freeze. Asediment trap traps moisture

and contaminants. This keeps them from

going into heater controls. If sediment trap

is not installed or is installed wrong, heater

may not run properly.

_k CAUTION: Avoid damage to

control. Hold gas fitting with

wrench when connecting it to gas

piping and/or fittings.

Pressure Note: Burner

Regulator _ bracket not

shown for clarity

3/8" NPT

Pipe

Test

Gauge

Connection *

Joint Cabinet

nual Shutoff Valve *

(4" W.C. to 10.5° W.C.

Pressure)

Sediment _;Minimum

Trap

-Cap

Figure 20 - Gas Connection

* An A.G.A. design-certified manual shutoff valve with !/8" NPT tap is an acceptable

alternative to test gauge connection. Purchase the optional A.G.A. design-certified manual

shutoff valve from your dealer. See Accessories, pages 24 and 25. Continued

to35_e 13

VENT-FREE NATURAL GAS RADIANT FLAME HEATER

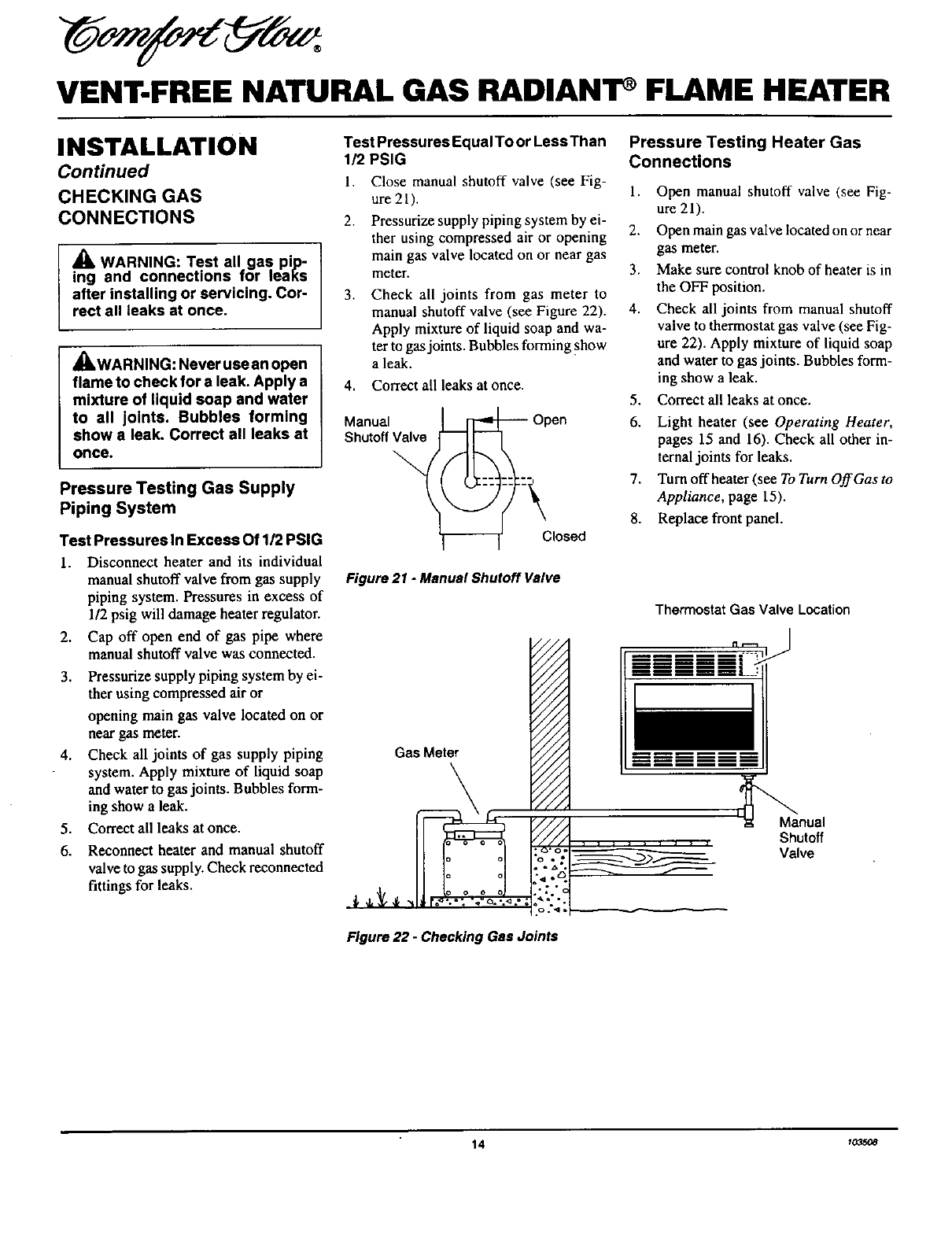

INSTALLATION

Continued

CHECKING GAS

CONNECTIONS

in_gWARNING: Test all gas pip-

" and connections for leaks

after installing or servicing. Cor-

rect all leaks at once.

_I_WARNING: Never use an open

flame to check for a leak. Apply a

mixture of liquid soap and water

to all joints. Bubbles forming

show a leak. Correct all leaks at

once.

Pressure Testing Gas Supply

Piping System

Test Pressures In Excess Of 1/2 PSIG

Disconnect heater and its individual

manual shutoff valve from gas supply

piping system. Pressures in excess of

1/2 psig will damage heater regulator.

Cap off open end of gas pipe where

manual shutoff valve was connected.

Pressurize supply piping system by ei-

ther using compressed air or

opening main gas valve located on or

near gas meter.

Check all joints of gas supply piping

system. Apply mixture of liquid soap

and water to gas joints. Bubbles form-

ing show a leak.

Correct all leaks at once.

Reconnect heater and manual shutoff

valve to gas supply. Check reconnected

fittings for leaks.

Test Pressures Equal To or Less Than

1/2 PSIG

Pressure Testing Heater Gas

Connections

Close manual shutoff valve (see Fig-

ure 2l). 1.

Pressurize supply piping system by ei-

ther using compressed air or opening 2.

main gas valve located on or near gas

meter. 3.

Check all joints from gas meter to

manual shutoff valve (see Figure 22).

Apply mixture of liquid soap and wa-

ter to gas joints. Bubbles forming show

a leak.

4. Correct all leaks at once.

Manual _ Open

Shutoff ________

Closed

Figure 21 - Manual Shutoff Valve

Open manual shutoff valve (see Fig-

ure 21).

Open main gas valve located on or near

gas meter.

Make sure control knob of heater is in

the OFF position.

Check all joints from manual shutoff

valve to thermostat gas valve (see Fig-

ure 22). Apply mixture of liquid soap

and water to gas joints. Bubbles form-

ing show a leak.

Correct all leaks at once.

Light heater (see Operating Heater,

pages 15 and 16). Check all other in-

ternal joints for leaks.

Turn off heater (see To Turn Off Gas to

Appliance, page 15).

Replace front panel.

Thermostat Gas Valve Location

Gas Meter

Figure 22. Checking Gas Joints

Manual

Shutoff

Valve

14 _0_5_

OWNER'S MANUAL

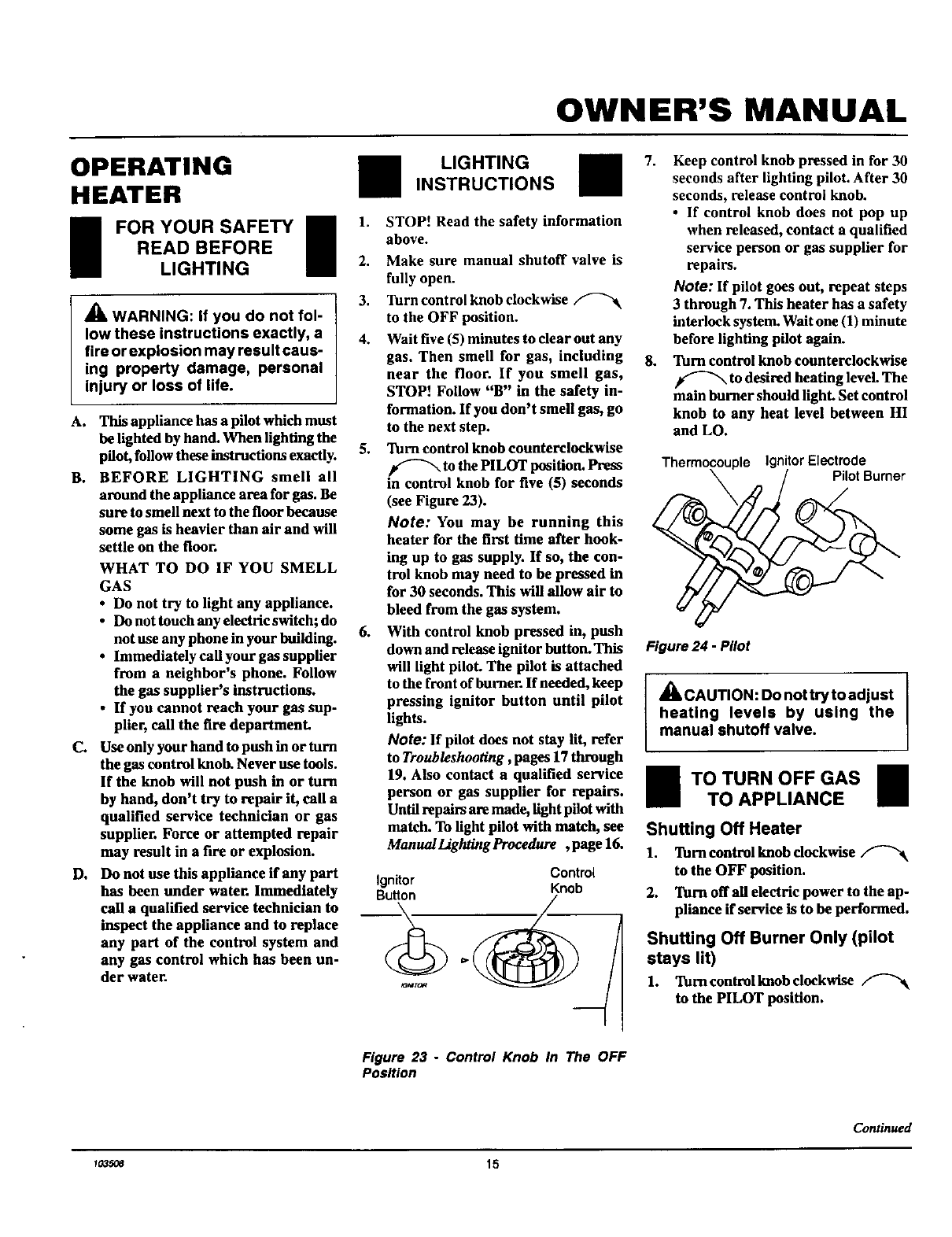

OPERATING

HEATER l LIGHTINGINSTRUCTIONS

I FOR YOUR SAFETY l 1.

READ BEFORE

LIGHTING 2.

WARNING: If you do not fol-

low these instructions exactly, a

fire or explosion may result caus-

ing property damage, personal

injury or loss of life.

A. This appliance has a pilot which mnst

be lighted by hand. When lighting the

pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all

around the appliance area for gas. Be

sure to smell next to the floor because

some gas is heavier than air and will

settle on the floor.

WHAT TO DO IF YOU SMELL

GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

•Immediately call your gas supplier

from a neighbor's phone. Follow

the gas supplier's instructions.

•If you cannot reach your gas sup-

plier, call the fire departmenL

C. Use only your hand to pash in or turn

the gas control knob. Never use tools.

If the knob will not push in or turn

by hand, don't try to repair it, call a

qualified service technician or gas

supplier. Force or attempted repair

may result in a fire or explosion.

D. Do not nse this appliance if any part

has been under water. Immediately

call a qualified service technician to

inspect the appliance and to replace

any part of the control system and

any gas control which has been un-

der water.

STOP! Read the safety information

above.

Make sure manual shutoff valve is

fully open.

3. Turn control knob clockwise F-_

to the OFF position.

4. Wait five (5) minutes to clear out any

gas. Then smell for gas, including

near the floor. If you smell gas,

STOP! Follow "B" in the safety in-

formation. If you don't smell gas, go

to the next step.

5. Turn control knob counterclockwise

f'_"'_ to the PILOT position. Press

in control knob for five (5) seconds

(see Figure 23).

Note: You may be running this

heater for the first time after hook-

ing up to gas supply. If so, the con-

trol knob may need to be pressed in

for 30 seconds. This will allow air to

bleed from the gas system.

6. With control knob pressed in, push

down and release ignitor button. This

will light pilot. The pilot is attached

to the front of burner. If needed, keep

pressing ignitor button until pilot

lights.

Note: If pilot does not stay lit, refer

to Troubleshooting, pages 17 through

19. Also contact a qualified service

person or gas supplier for repairs.

Until repairs are made, light pilot with

match. To light pilot with match, see

ManualLighting Procedure , page 16.

Ignitor Controi

Button Knob

7. Keep control knob pressed in for 30

seconds after lighting pilot. After 30

seconds, release control knob.

•If control knob does not pop up

when released, contact a qualified

service person or gas supplier for

repairs.

Note: If pilot goes out, repeat steps

3 through 7. This heater has a safety

interlock system. Wait one (1) minute

before lighting pilot again.

8. Turn control knob counterclockwise

to desired heating level. The

main burner should light. Set control

knob to any heat level between HI

and LO.

Thermocouple Ignitor Electrode

Pilot Burner

Figure 24 -Pilot

_,CAUTION: Donottrytoadjust I

heating levels by using the

manual shutoff valve.

TO TURN OFF GAS 1

TO APPLIANCE

Shutting Off Heater

1. Turn control knob clockwise

to the OFF position.

2. Turn off all electric power to the ap-

pliance if service is to be performed.

Shutting Off Burner Only (pilot

stays lit)

1. Turn controlknob clockwise

to the PILOT position.

Figure 23 -Control Knob In The OFF

Position

Continued

_035_ 15

VENT-FREE NATURAL GAS RADIAN'IP FLAME HEATER

OPERATING

HEATER

Continued

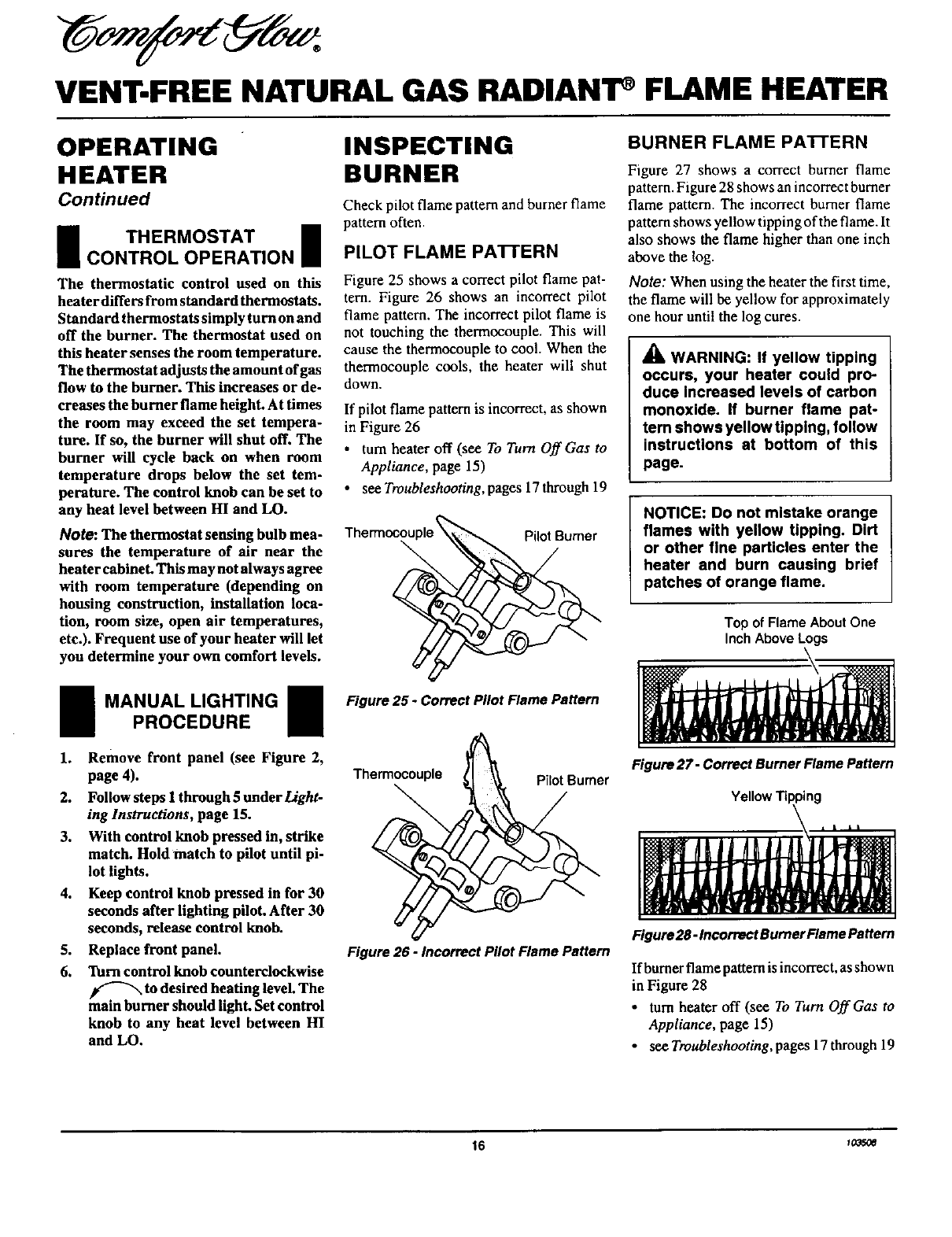

ITHERMOSTAT I

CONTROL OPERATION

The thermostatic control used on this

heater differs from standard thermostats.

Standard thermostats simply turn on and

off the burner. The thermostat used on

this heater senses the room temperature.

The thermostat adjusts the amount of gas

flow to the burner. This increases or de-

creases the burner flame height. At times

the room may exceed the set tempera-

ture. If so, the burner will shut off. The

burner will cycle back on when room

temperature drops below the set tem-

perature. The control knob can be set to

any heat level between HI and LO.

Note:. The thermostat sensing bulb mea-

sures the temperature of air near the

heater cabinet. This may not always agree

with room temperature (depending on

housing construction, installation loca-

tion, room size, open air temperatures,

etc.). Frequent use of your heater will let

you determine your own comfort levels.

MANUAL LIGHTING 1

PROCEDURE

1. Remove front panel (see Figure 2,

page 4).

2. Follow steps 1 through 5 under Light-

ing Instructions, page 15.

3. With control knob pressed in, strike

match. Hold match to pilot until pi-

lot lights.

4. Keep control knob pressed in for 30

seconds after lighting pilot. After 30

seconds, release control knob.

5. Replace front panel.

6. Turn control knob counterclockwise

to desired heating level. The

main burner should light. Set control

knob to any heat level between HI

and LO.

INSPECTING

BURNER

Check pilot flame pattern and burner flame

pattern often.

PILOT FLAME PATTERN

Figure 25 shows acorrect pilot flame pat-

tern. Figure 26 shows an incorrect pilot

flame pattern. The incorrect pilot flame is

not touching the thermocouple. This will

cause the thermocouple to cool. When the

thermocouple cools, the heater will shut

down.

If pilot flame pattern is incorrect, as shown

in Figure 26

• turn heater off (see To Turn OffGas to

Appliance, page 15)

• seeTmubleshooting, pagesl7throughl9

Thermoc_

Figure 25 -Correct Pilot Flame Pattern

Thermocouple Pilot Burner

Figure 26 -Incorrect Pilot Flame Pattern

BURNER FLAME PATTERN

Figure 27 shows a correct burner flame

pattern. Figure 28 shows an incorrect burner

flame pattern. The incorrect burner flame

pattern shows yellow tipping of the flame. It

also shows the flame higher than one inch

above the tog.

Note: When using the heater the first time,

the flame will be yellow for approximately

one hour until the log cures.

_i, WARNING: If yellow tipping

occurs, your heater could pro-

duce Increased levels of carbon

monoxide. If burner flame pat-

tern shows yellow tipping, follow

instructions at bottom of this

page.

NOTICE: Do not mistake orange

flames with yellow tipping. Dirt

or other fine particles enter the

heater and burn causing brief

patches of orange flame.

Top of Flame About One

Inch Above Logs

Figure 27 -Correct Burner Flame Pattern

Figure28- Incorrect Burner Flame Pattern

If burner flame pattern is incorrect, as shown

in Figure 28

•turn heater off (see To Turn Off Gas to

Appliance, page 15)

•seeTmubleshooting, pagesl7throughl9

16 _o3s_

OWNER'S MANUAL

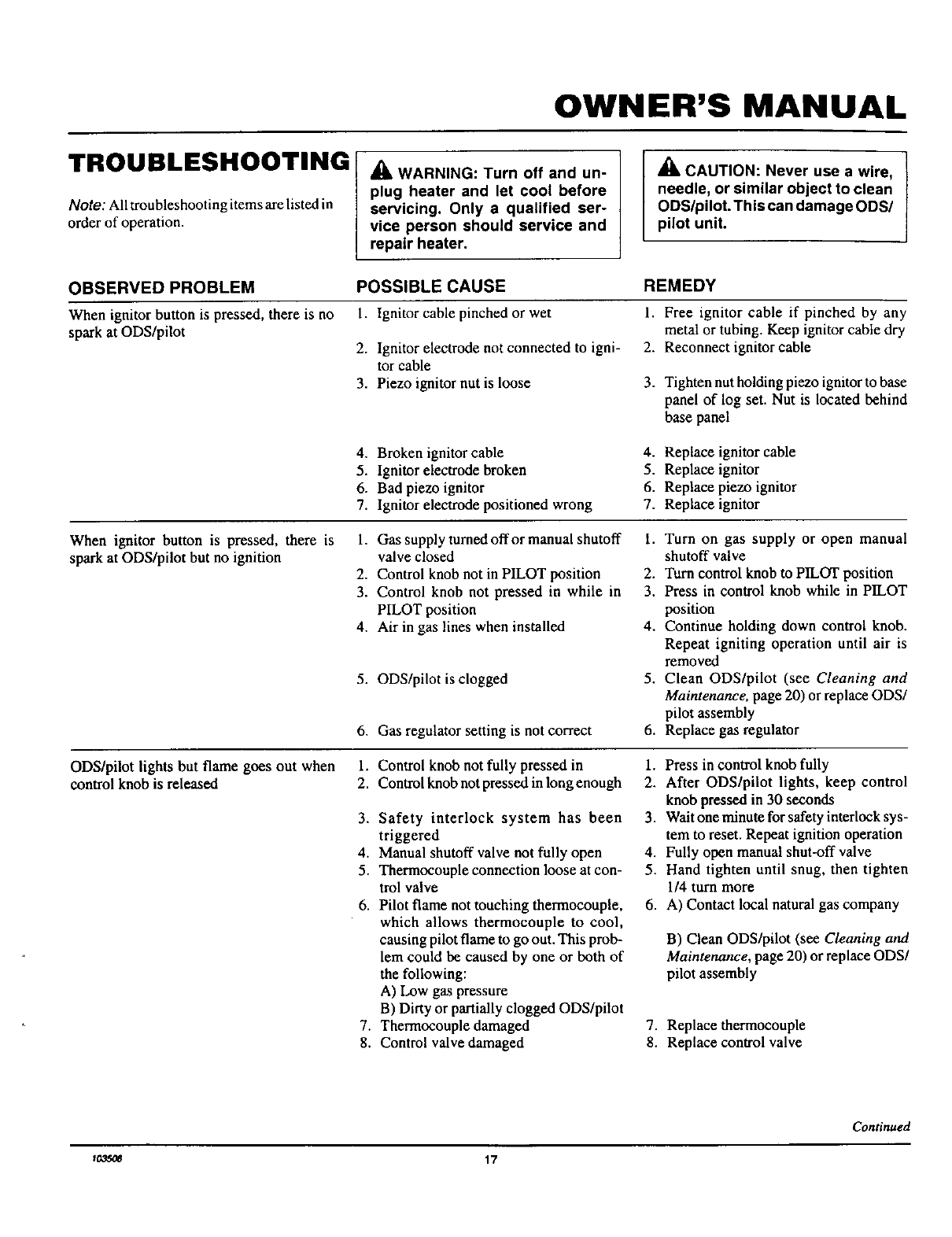

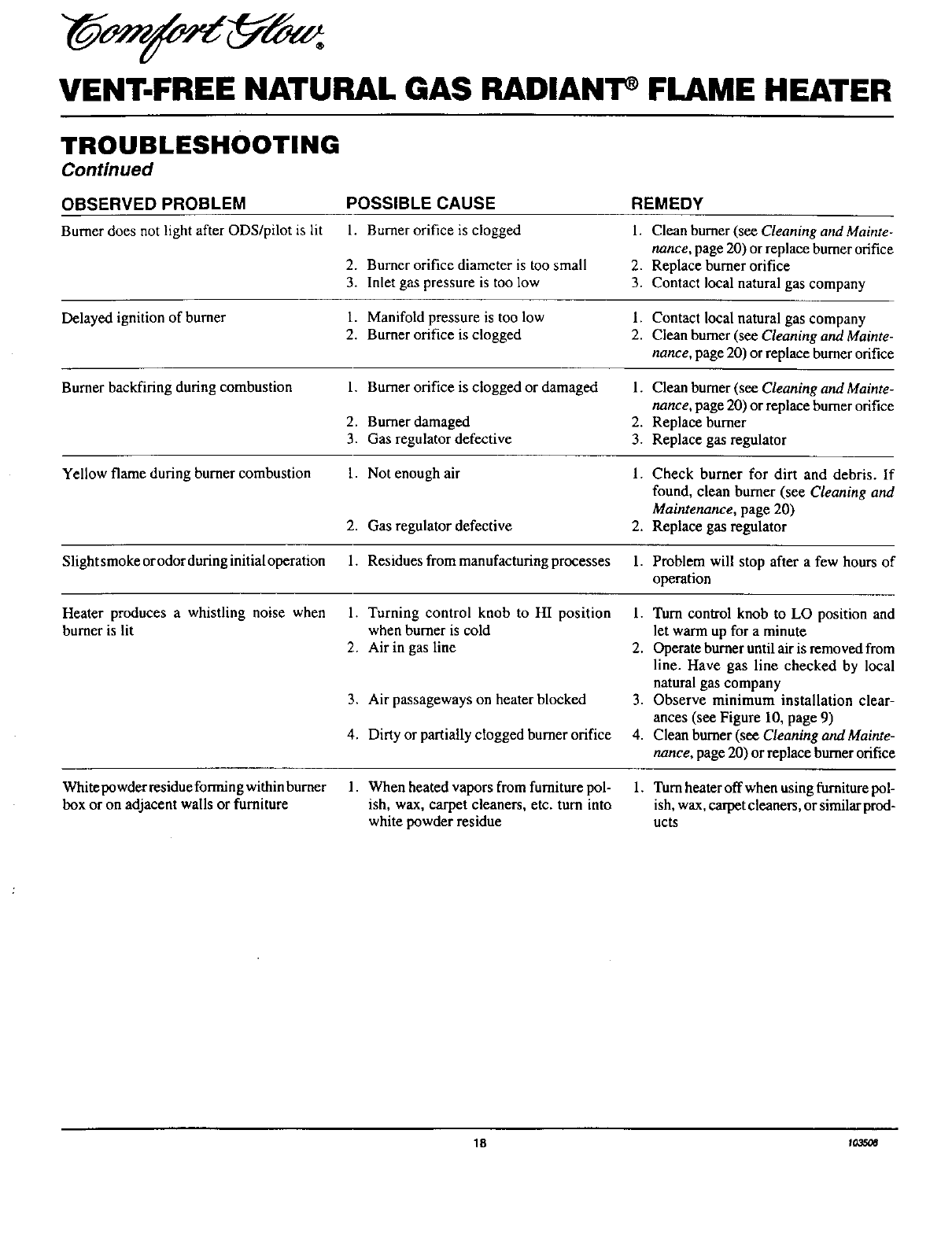

TROUBLESHOOTING

Note: All troubleshooting items are listed in

order of operation. l _ WARNING: Turn off and un-

plug heater and let cool before

servicing. Only a qualified ser-

vice person should service and

repair heater.

_IL CAUTION: Never use a wire,

needle, or similar object to clean

ODS/pilot. Th is can damage ODS/

pilot unit.

OBSERVED PROBLEM POSSIBLE CAUSE REMEDY

When ignitor button is pressed, there is no

spark at ODS/pilot

1. Ignitor cable pinched or wet

2. Ignitor electrode not connected to igni-

tor cable

3. Piezo ignitor nut is loose

1. Free ignitor cable if pinched by any

metal or tubing. Keep ignitor cable dry

2. Reconnect ignitor cable

3. Tighten nut holding piezo ignitor to base

panel of log set. Nut is located behind

base panel

4. Broken ignitor cable

5. Ignitor electrode broken

6. Bad piezo ignitor

7. Ignitor electrode positioned wrong

4. Replace ignitor cable

5. Replace ignitor

6. Replace piezo ignitor

7. Replace ignitor

When ignitor button is pressed, there is

spark at ODS/pilot but no ignition

1. Gas supply turned off or manual shutoff

valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in

PILOT position

4. Air in gas lines when installed

5. ODS/pilot is clogged

6. Gas regulator setting is not correct

1. Turn on gas supply or open manual

shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT

position

4. Continue holding down control knob.

Repeat igniting operation until air is

removed

5. Clean ODS/pilot (see Cleaning and

Maintenance, page 20) or replace ODS/

pilot assembly

6. Replace gas regulator

ODS/pilot lights but flame goes out when

control knob is released

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been

triggered

4. Manual shutoff valve not fully open

5. Thermocouple connection loose at con-

trol valve

6. Pilot flame not touching thermocouple,

which allows thermocouple to cool,

causing pilot flame to go out. This prob-

lem could be caused by one or both of

the following:

A) Low gas pressure

B) Dirty or partially clogged ODS/pilot

7. Thermocouple damaged

8. Control valve damaged

1. Press in control knob fully

2. After ODS/pilot lights, keep control

knob pressed in 30 seconds

3. Wait one minute for safety interlock sys-

tem to reset. Repeat ignition operation

4. Fully open manual shut-off valve

5. Hand tighten until snug, then tighten

1/4 turn more

6. A) Contact local natural gas company

B) Clean ODS/pilot (see Cleaning and

Maintenance, page 20) or replace ODS/

pilot assembly

7. Replace thermocouple

8. Replace control valve

Continued

1O35OB 17

VENT-FREE NATURAL GAS RADIAN'I FLAME HEATER

TROUBLESHOOTING

Continued

OBSERVED PROBLEM POSSIBLE CAUSE REMEDY

Burner does not light after ODS/pilot is lit 1. Burnerorifice is clogged 1. Clean burner (see Cleaning and Mainte-

nance, page 20) or replace burner orifice

2. Burner orifice diameter is too small 2. Replace burner orifice

3. Inlet gas pressure is too low 3. Contact local natural gas company

Delayed ignition of burner 1. Manifold pressure is too low 1. Contact local natural gas company

2. Burner orifice is clogged 2. Clean burner (see Cleaning and Mainte-

nance, page 20) or replace burner orifice

Burner backfiring during combustion 1. Burner orifice is clogged or damaged 1. Clean burner (see Cleaning and Mainte-

nance, page 20) or replace burner orifice

2. Burnerdamaged 2. Replace burner

3. Gas regulator defective 3. Replace gas regulator

Yellow flame during burner combustion 1. Not enough air 1. Check burner for dirt and debris. If

found, clean burner (see Cleaning and

Maintenance, page 20)

2. Gas regulator defective 2. Replace gas regulator

Slightsmokeorodorduringinitialoperation 1. Residues from manufacturing processes 1. Problem will stop after a few hours of

operation

Heater produces a whistling noise when 1. Turning control knob to HI position 1. Turn control knob to LO position and

burner is lit when burner is cold let warm up for a minute

2. Air in gas line 2. Operate burner until air is removed from

line. Have gas line checked by local

natural gas company

3. Observe minimum installation clear-

ances (see Figure 10, page 9)

4. Cleanburner(seeCleaningandMainte-

nance, page 20) or replace burner orifice

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice

White powder residue forming within burner I. When heated vapors from furniture pol- 1. Turn heater off when using furniture pol-

box or on adjacent walls or furniture ish, wax, carpet cleaners, etc. turn into ish, wax, carpet cleaners, or similar prod-

white powder residue ucts

18 ro3s_

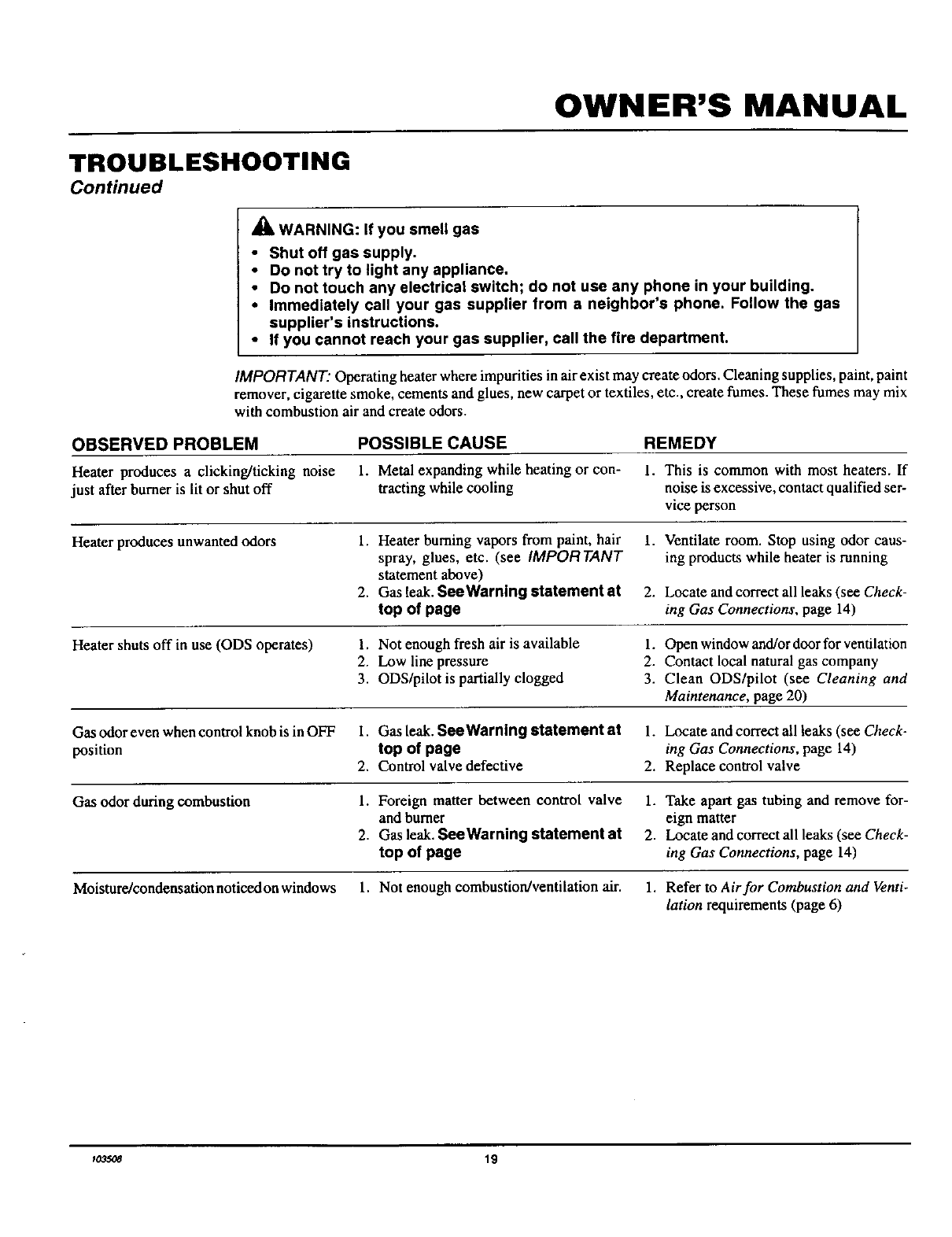

OWNER'S MANUAL

TROUBLESHOOTING

Continued

,_ WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

•If you cannot reach your gas supplier, call the fire department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint

remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix

with combustion air and create odors.

OBSERVED PROBLEM POSSIBLE CAUSE REMEDY

Heater produces a clicking/ticking noise 1. Metal expanding while heating or con- 1. This is common with most heaters. If

just after burner is lit or shut off tracting while cooling noise is excessive, contact qualified ser-

vice person

Heater produces unwanted odors 1. Heater burning vapors from paint, hair 1. Ventilate room. Stop using odor caus-

spray, glues, etc. (see IMPORTANT ing products while heater is running

statement above)

2. Gasleak. SeeWarningstatementat 2. Locate and correct all leaks (see Check-

top of page ing Gas Connections, page 14)

Heater shuts off in use (ODS operates) 1. Not enough fresh air is available 1. Open window and/or door for ventilation

2. Low line pressure 2. Contact local natural gas company

3. ODS/pilot is partially clogged 3. Clean ODS/pilot (see Cleaning and

Maintenance, page 20)

Gas odor even when control knob is in OFF 1. Gas leak. See Warning statement at 1. Locate and correct all leaks (see Check-

position top of page ing Gas Connections, page 14)

2. Control valve defective 2. Replace control valve

Gas odor during combustion 1. Foreign matter between control valve 1. Take apart gas tubing and remove for-

and burner eign matter

2. Gasleak. SeeWarning statement at 2. Locate and correct all leaks (see Check-

top of page ing Gas Connections, page 14)

Moisture/condensation noticodonwindows 1. Not enough combustion/ventilation air. 1. Refer to Air for Combustion and Venti-

lation requirements (page 6)

_0osoa 19

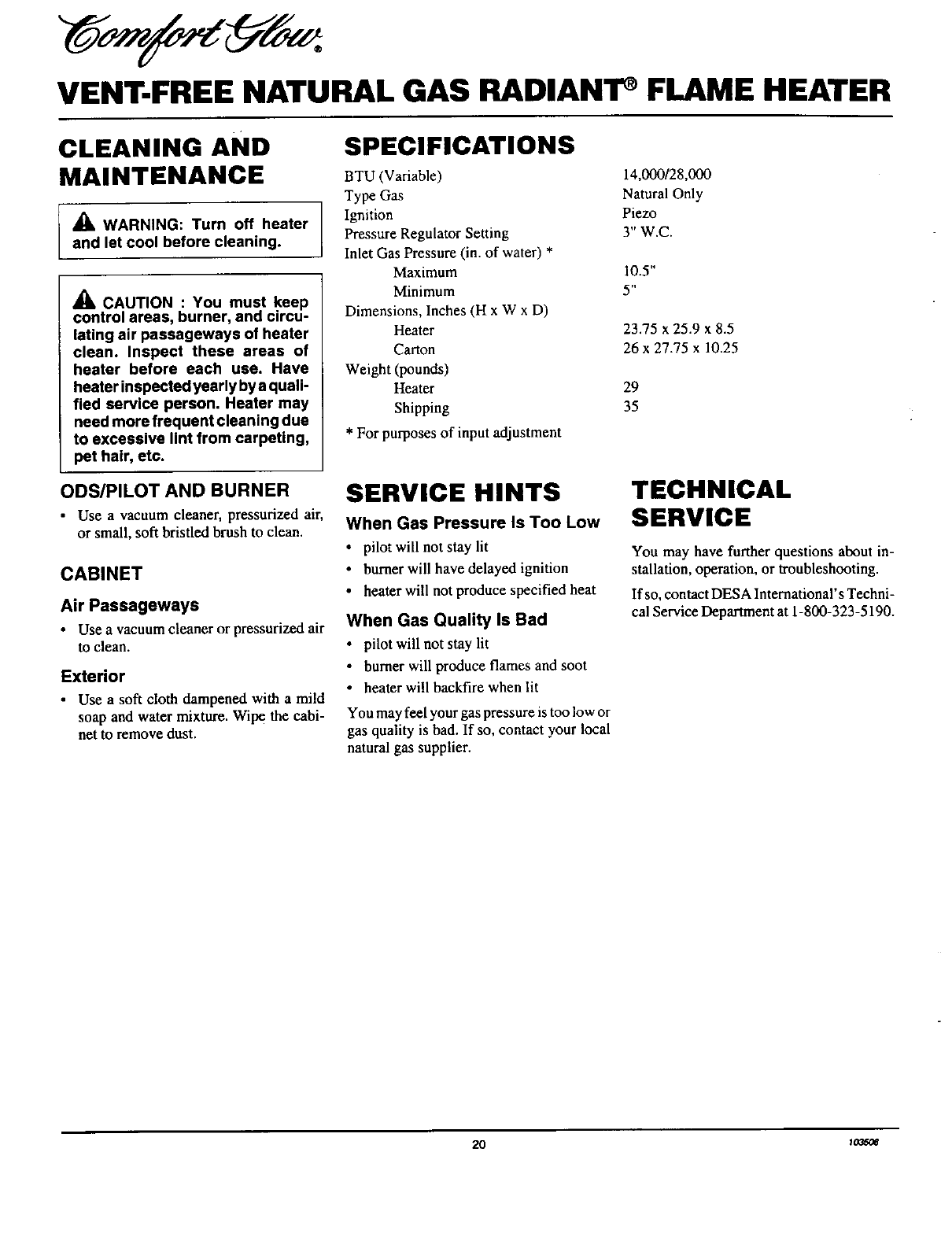

VENT-FREE NATURAL GAS RADIAN'IP FLAME HEATER

CLEANING AND

MAINTENANCE

WARNING: Turn off heater

and let cool before cleaning.

,_ CAUTION : You must keep

control areas, burner, and circu-

lating air passageways of heater

clean. Inspect these areas of

heater before each use. Have

heater inspected yearly by a quali-

fied service person. Heater may

need more frequent cleaning due

to excessive lint from carpeting,

pet hair, etc.

ODS/PILOT AND BURNER

•Use a vacuum cleaner, pressurized air,

or small, soft bristled brush to clean.

CABINET

Air Passageways

•Use a vacuum cleaner or pressurized air

to clean.

Exterior

•Use a soft cloth dampened with amild

soap and water mixture. Wipe the cabi-

net to remove dust.

SPECIFICATIONS

BTU (Variable) 14,000/28,000

Type Gas Natural Only

Ignition Piezo

Pressure Regulator Setting 3" W.C.

Inlet Gas Pressure (in. of water) *

Maximum 10.5"

Minimum 5"

Dimensions, Inches (H x W x D)

Heater 23.75 x 25.9 x 8.5

Carton 26 x 27.75 x 10.25

Weight (pounds)

Heater 29

Shipping 35

• For purposes of input adjustment

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burner will have delayed ignition

• heater will not produce specified heat

When Gas Quality Is Bad

• pilot will not stay lit

• burner will produce flames and soot

• heater will backfire when lit

You may feel your gas pressure is too low or

gas quality is bad. If so, contact your local

natural gas supplier.

TECHNICAL

SERVICE

You may have further questions about in-

stallation, operation, or troubleshooting.

If so, contact DESA International's Techni-

cal Service Department at 1-800-323-5190.

20 Io_soe

OWNER'S MANUAL

REPLACEMENT

PARTS

Note: Use only original replacement parts.

This will protect your warranty coverage for

parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product.

If they can't supply original replacement

part(s), either contact your nearest Parts

Central or call DESA International's Tech-

nical Service Department at 1-800-323-

5190.

When calling DESA International, have

ready

•your name

• your address

• model number of your heater

• how heater was malfunctioning

• type of gas used

(propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the defec-

tive part to the factory.

PARTS NOT UNDER

WARRANTY

Contact authorized dealers of this product.

If they can't supply original replacement

part(s), either contact your nearest Parts

Central or call DESA International's Parts

Department at 1-800-972-7879 for referral

information.

When calling DESA International, have

ready

•model number of your heater

• the replacement part number

PARTS CENTRALS

These Parts Centrals are privately-owned businesses. They have agreed to support our

customer's needs by providing original replacement parts and accessories.

Baltimore Electric

1348 Dixwell Avenue

Hamden, CT 06514

1-800-397-7553

203-248-7553

Parts Department

Portable Heater Parts

342 N. County Rd. 400 East

Valparaiso, IN 46383

All States

219-462-7441

1-800-362-6951

Tarantin Tank Co.

P.O. Box 6129

Freehold, NJ 07728

908-780-9340

1-890-922-0724

Dayton Hardware

P.O. Box 275

North Dayton Station

Dayton, OH 45404

All States

513-258-3721

OH 1-800-762-3426

FBD

1349 Adams St.

BowlingGreen, KY 42103

502-846-1199

1-800-654-8534

Halco Enterprises

208 Carter Drive, Unit 21

West Chester, PA 19382

610-430-7717

1-800-368-0803

Four Flags Power Products

1115 Stateline Road

Niles, MI 49120

616-684-2697

1-800-268-4983

Parts Only

Master Parts Distributors

1251 Mound Ave. NW

Grand Rapids, MI 49504

616-791-0505

1-800-446-1446

LA Porte's Parts & Service

2444 North 5th Street

Hartsville SC 29550

803-332-0191

Parts Department

Cans Unlimited, Inc.

P.O. Box 645

Taylor, SC 29687

All States

803-879-3009

1-800-845-5301

Washer Equipment Co.

1715 Main Street

Kansas City, MO 64108

KS, MO, AR

816-842-3911

Heater & Fireplace Store

1922 N Route 5

Cape May Court, NJ 08210-1110

609-624-0678

East Coast Energy Products

707 Broadway

W. Long Branch, NJ 07764

908-870-8809

1-800-755-8809

_03._ 21

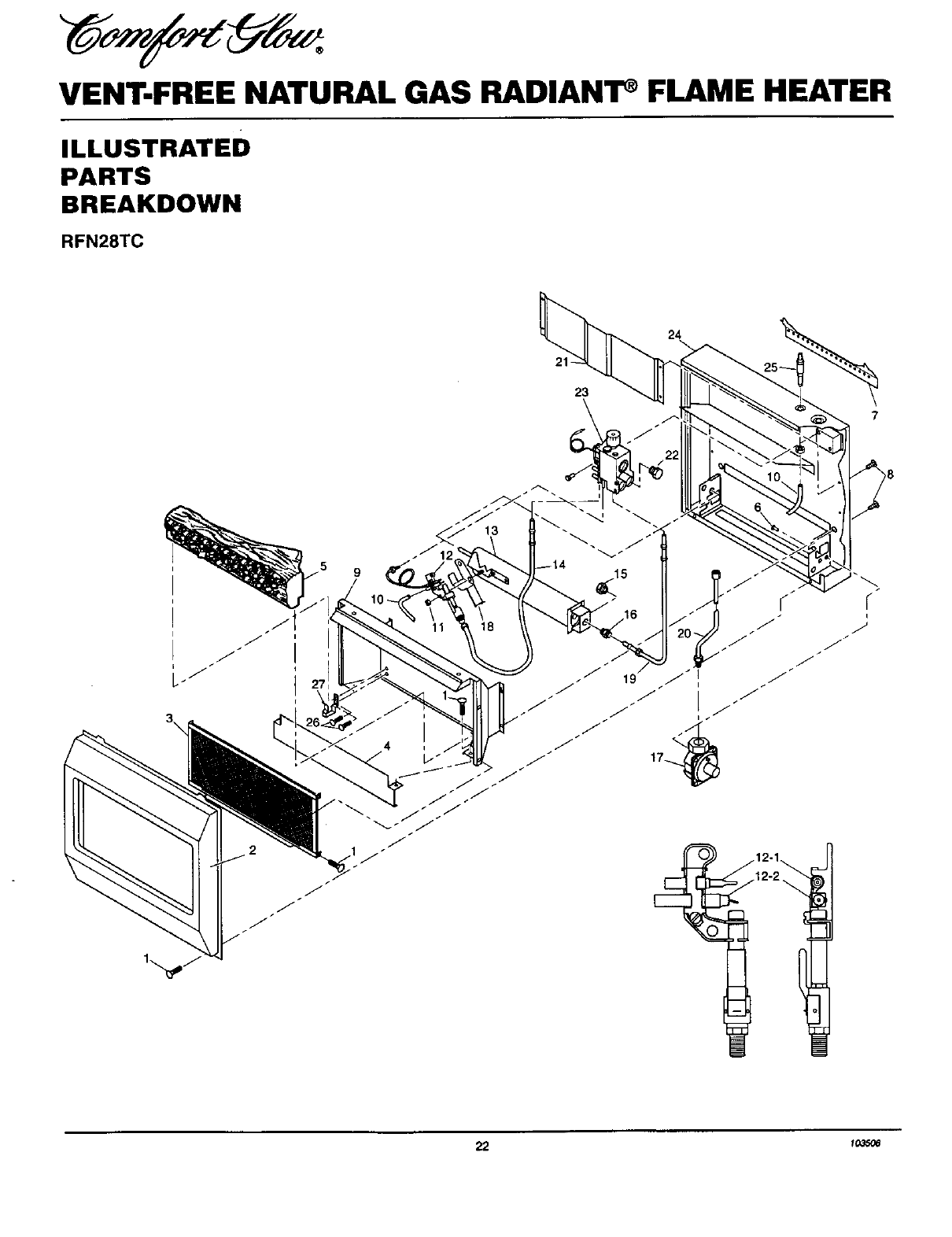

VENT-FREE NATURAL GAS RADIANT _FLAME HEATER

ILLUSTRATED

PARTS

BREAKDOWN

RFN28TC

22 _o35_

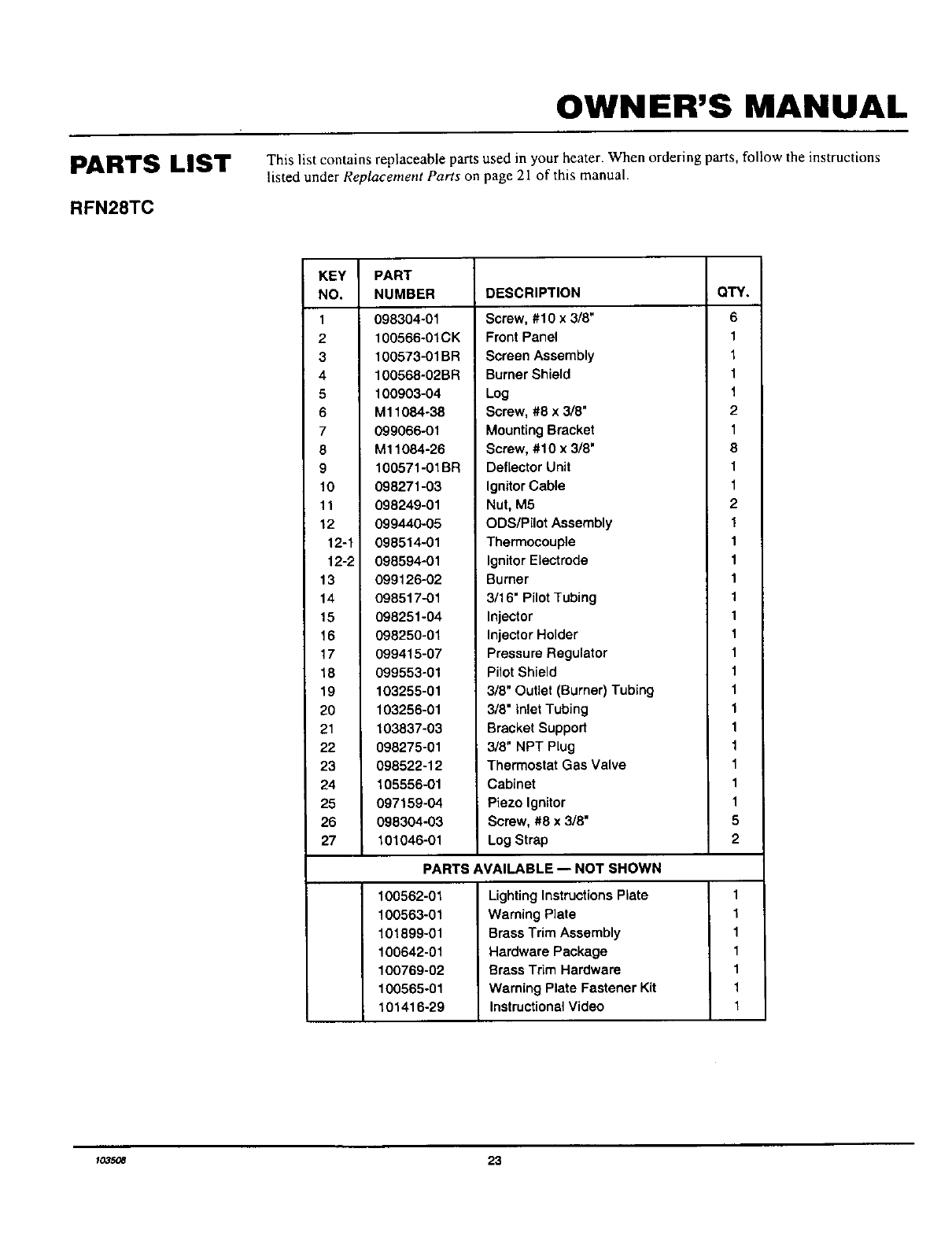

OWNER'S MANUAL

PARTS LIST

RFN28TC

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions

listed under Replacement Parts on page 21 of this manual.

KEY

NO.

1098304-01

2 100566-01CK

3 100573-01BR

4100568-02BR

5 100903-04

6Ml1084-38

7 099066-01

8 Ml1084-26

9 100571-01BR

10 098271-03

11 098249-01

12 099440-05

12-1 098514-01

12-2 098594-01

13 099126-02

14 098517-01

15 098251-04

16 098250-01

17 099415-07

18 099553-01

19 103255-01

20 103256-01

21 103837-03

22 098275-01

23 098522-12

24 105556-01

25 097159-04

26 098304-03

27 101046-01

PART

NUMBER DESCRIPTION QTY.

Screw, #10 x 3/8" 6

Front Panel 1

Screen Assembly 1

Burner Shield 1

Log 1

Screw, #8 x 3/8" 2

Mounting Bracket 1

Screw, #10 x 3/8" 8

Deflector Unit 1

Ignitor Cable 1

Nut, M5 2

ODS/Pilot Assembly 1

Thermocouple 1

Ignitor Electrode 1

Burner 1

3/16" Pilot Tubing 1

Injector 1

Injector Holder 1

Pressure Regulator 1

Pilot Shield 1

3/8" Outlet (Burner) Tubing 1

3/8" inlet Tubing 1

Bracket Support 1

3/8" NPT Plug 1

Thermostat Gas Valve 1

Cabinet 1

Piezo Ignitor 1

Screw, #8 x 3/8" 5

Log Strap 2

PARTS AVAILABLE -- NOT SHOWN

100562-01

100563-01

101899-01

100642-01

100769-02

100565-01

101416-29

Lighting Instructions PLate

Warning Plate

Brass Trim Assembly

Hardware Package

Brass Trim Hardware

Warning Plate Fastener Kit

Instructional Video

103S_ 23

VENT-FREE NATURAL GAS RADIANT FLAME HEATER

ACCESSORIES

Purchase these heater accessories from your

local dealer. If they can not supply these

accessories, either contact your nearest Parts

Central (see page 21) or call DESA

International's Sales Department at 1-800- _ _H ._ _1111

458-2472 for information. You can also

write to the address listed on the back page

of this manual.

HEARTH BASE - GHB38 Series

MANUAL SHUTOFF VALVE -

GA5010

Manual shutoff valve with 1/8" NPT tap.

For locating heater on the floor. Includes

brass trim. Complete installation instruc-

tions included.

FAN KIT

GA3100A - Manually Controlled

GA3200TA -Thermostatically

Controlled

Provides better heat distribution. Makes

heatermore efficient. Complete installation

and operating instructions included.

PRESTIGE MANTEL

with Built-in Base

Unfinished -GMC27U Series

Finished -GMC26F Series

Finished Oak -GMC28F

For use with heater. Features built-in base,

sturdy hardwood construction with classic

styling and attractive molding. Available in

light oak finish, walnut finish, or an unfin-

ished hardwood, ready to stain or paint.

Complete assembly and installation instruc-

tions included.

24 l_soe

OWNER'S MANUAL

ACCESSORIES

Continued

PRESTIGE MANTEL

Unfinished - GMC23U Series

Finished -GMC22F Series

For use with heater and hearth base. Sturdy

hardwood construction embellished with

fluted sides and bullet medallions. Avail-

able in a walnut finish or an unfinished

hardwood, ready to stain or paint. Complete

assembly and installation instructions in-

cluded.

CORNER MANTEL

Unfinished -GMC33U Series

Finished -GMC32F Series

For use with heater and hearth base. Space-

saving comer design featuring clean, classic

lines. Available in a walnut finish or an

unfinished hardwood, ready to stain or paint.

Complete assembly and installation instruc-

tions included.

1o3,_e 25

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specifications at any ti me without notice. The only warranty applicable is our standard written warranty. We make

no other warranty, expressed or implied.

LIMITED WARRANTY

COMFORT GLOW VENT-FREE NATURAL GAS COMPACT FIREPLACE

DESA International warrants tiffs product to be free from defects in materials and components for two (2) years from the date of first purchase,

provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim

under this warranty the Bill of Sale or cancelled check must be presented.

Thi_ warra.qty is extended only to the original retail porchaser. This warranty covers only the cost of part(s) required to restore this heater to proper

operating condition. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA lntematic*nal who will provide

original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a

qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged

as aresult of misuse, accidents, lack of proper maintenance or defects caused by impropor installation. Travel, diagnostic cost, labor,

transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS

EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY

AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE TO TWO (2) YEARS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL'S LIABILITY IS HEREBY

LIMITEDTOTHE PURCHASE pRICEOFTHE PRODUCT AND DESA INTERNATIONAL SHALLNOTBE LIABLE FOR ANY OTHER

DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow alimitation on how long an implied warranty lasts or an exclusthn or limitation of incidental or consequential damages,

so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

Forinformation about this warranty write: DESA

INTERNATIONAL

2701 Industrial Drive

P.O. Box 90004

Bowling Green, KY 42102-9004

ilIlll lllilllilllli

103508 01

NOT A UPC

103508-01

REV. B

12/98

COMFORT GLOW Furnace/Heater, Gas Manual L0407574

Navigation menu

Versions of this User Manual:

Views

Navigation
