USER MANUAL IOT MODULE V9
FCC ID: 2AQHSPTV090002
www.comodule.com
Introduction
The COMODULE IoT device is designed to be connected wirelessly into existing network infrastructure
to gather and transmit data and to be controlled remotely. It thus creates opportunities for the
physical world to be digitalized, which results in improved efficiency, accuracy and economic benefits.
This manual is intended for electric kick scooter service providers for COMODULE IoT module
integration.
www.comodule.com
Installation
For the installation, the following equipment is needed:
• COMODULE IoT module v9
• Bolts for installation (come with COMODULE device)
• Compatible electric kick scooter ( Ninebot kick scooter used in the example)

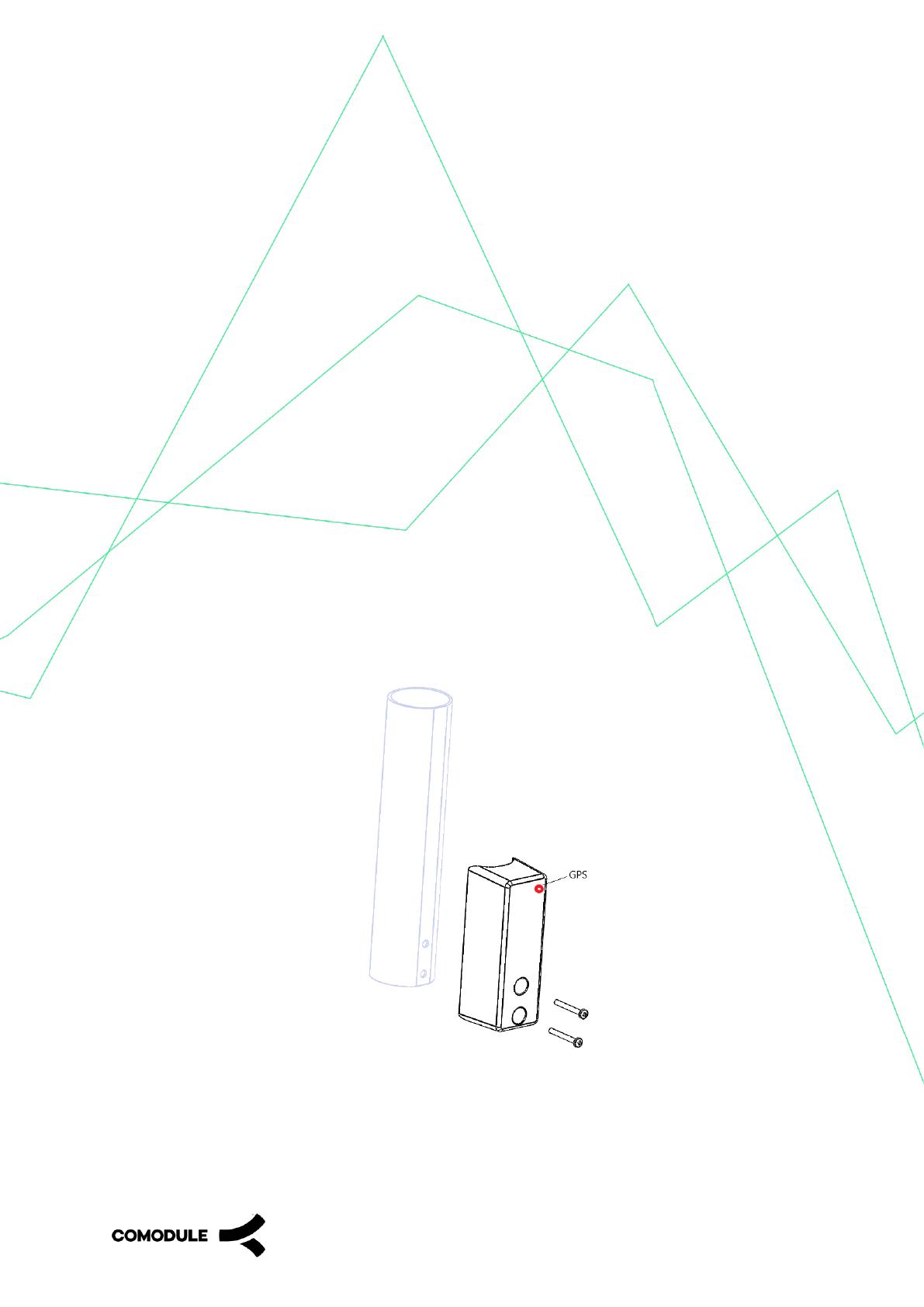

Installation steps:
1. Remove the screws from the front of the tube of the kick scooter.
2. Connect the COMODULE IoT module to the kick scooter with the 5pin connector, which is fastened
inside the module.
3. Fasten the module to the kick scooter tube by two M4 bolts given with the module.
www.comodule.com
Interference
INSTRUCTION TO THE USER:
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this
equipment. Operation with non-approved equipment or unshielded cables is likely to result in
interference to radio and TV reception. The user is cautioned that changes and modifications
made to the equipment without the approval of manufacturer could void the user's authority to
operate this equipment.
