COWON SYSTEMS AW1 BLACKBOX (WLAN EMBEDDED) User Manual USERS MANUAL

COWON SYSTEMS, Inc. BLACKBOX (WLAN EMBEDDED) USERS MANUAL

USERS MANUAL

User’s Guide
ver. 0.11EN
2
COWON AW1
+ Auto Capsule and COWON are the trademarks of COWON SYSTEMS Inc.
+ All content in this manual are protected under copyright law.
+ All the other product(s) and service(s) listed in this manual are registered trademark and
service of the corresponding copyright owner(s).
+ All rights to this program are reserved by COWON SYSTEMS Inc. and protected under
copyright law.
+ This manual is based on the specications of the product available at the point of publishing it.
Note that the sample sentences, charts, pictures given as an example, detailed functions of a
product, specications of H/W and S/W recorded in this manual are subject to change without
notice.
1. Recording may fail depending on the given situation. The videos recorded with this product
can only be used as a reference to examining the driving image.
2. This manual is based on the product available at the point of publishing it. It thus may contain
errors or omissions in its technical editing.
Copyright and Trademark
Precautions
3
COWON AW1
Be for you Start!
+ Registration and Notes
To register, go to COWON's homepage at www.COWONGLOBAL.com and choose [SIGN IN].
PC viewer software is available for download only for registered users.
(Go to www.COWONGLOBAL.com to download.)
Be sure to bring the product warranty when requesting for customer service. (Product warranty
is issued when purchasing the product and cannot be re-issued. Please make sure to keep it in
a safe place.)
+ Before using the product, read the authorization code on the product warranty or on the side
of the product and register it in the homepage rst.
+ Only the registered users are eligible for legitimate customer support and service .
(Users who haven't registered the product must bring the product warranty with the date of
purchase on.)
This product is a device for recording the driving image of a car.
Recording may fail depending on the given situation. The videos recorded with this product can
only be used as a reference to examining the driving image.
+ Always back-up any important video les.
+ Company shall not be held accountable for any data loss, poor recording or recording error.
4
COWON AW1
Be for you Start!
+ Product Overview
HD-quality video recording
+
2 mega-pixel CMOS image sensor is used to record a video in 720p HD (1280x720 pixels)/
30 fps/ 16:9 wide.
Wider recording angle
+ Diagonal angles of up to 150° is available for wider viewability.
Built-in microphone for high-quality audio
+ Audio is recorded alongside the video.
Multiple recording menus
+ Real time recording, impact event recording, manual recording, motion sensitive recording
(parking mode recording), and more recording modes are available.
Built-in 3-axis acceleration sensor
+ It detects the external impact via the 3-axis acceleration sensor for auto recording.
Built-in backup battery
+ Your last recording le is safely saved thanks to a built-in battery even for unexpected power
outage.
5
COWON AW1
Be for you Start!
+ Product Overview
Built-in RTC
+Recording les are created by precise date and time through the built-in RTC.
Video-out
+ A video-out terminal for checking the video being recorded is included.
Multiple indicators for smooth operation
+ Convenient and accurate operation is up for grabs through LED indicators, sound effects, and
voice message.
Options for diverse settings via PC viewer software
+ Set your preferences such as voice recording and outputs, dimensions for the angle of view,
memory usage ratio, and time settings through PC viewer software.
6
COWON AW1
Be for you Start!
+ Safety Precautions
This section regards precautions to prevent users from compromising safety or experiencing property
damage. Please read the followings carefully before use. (Company has nothing whatever to do with
any accident caused by a user who failed to conform to warning and precautions.)
+ Changing the installation location of the product may result in a change in the camera angle.
Adjust the camera angle after installing the product and test the recorded images.
- Normal recording cannot be guaranteed if the product is wrongly installed.
+ This product is a device that uses a camera to record video as you drive, therefore, the
quality of the recorded videos may deteriorate when taken at the point of entering a tunnel,
on a broad day when the shadow contrast and counterlight to the subject are severe, and in
the middle of night with no light.
+ Avoid excessive car window tinting. It deteriorates the recording quality.
- The white balance of the video may vary depending on the degree of tinting.
+ In the event a product is damaged or disconnected from power due to a critical and impactful
accident, the product may not work and fail to record the accident.
+ Do not disassemble or alter the product at your discretion.
- It may cause electric shock, product damage or loss of recorded data.
- For mechanical inspection, maintenance, and repair needs, contact the store you bought the product or the
ofcial customer center.
+ Always keep the front window clean and free from dust before recording to guarantee the
most optimal recording quality.
7
COWON AW1
Be for you Start!
+ Safety Precautions
+ Foreign matters (e.g. ngerprints) on the lens of the black box may adversely affect the
recorded videos. Always keep the lens clean and free from dusts.
+ Avoid inserting or letting in metals or inammables into the MicroSD card slot.
- It may cause a re or electric shock.
+ If water is spilled or foreign matters are seeped into the product, disconnect the power
immediately and contact the customer center.
+ Refrain from operating the product while driving.
- It may cause a car accident.
+ Do not use voltage other than the rated voltage specied by the product.
- It may cause an explosion, re or mechanical failure.
+ Do not use the product in a place where there is inammable or explosive gas.
- Otherwise, ignition or explosion may ensue.
+ Keep the product away from the reach of babies, children, or pets.
- They may swallow small parts in the product.
- Your pet may drool over the product, which may cause short circuit in the battery unit, resulting in an explosion.
+ Avoid high temperatures such as inside the closed car under hot weather or a place with direct
sunlight.
- It may adversely affect the exterior or internal parts of the product, causing a re.
8
COWON AW1
Be for you Start!
+ Safety Precautions
+ Use caution not to apply too much strength to the lens and the exterior of the black box, or a
mechanical failure may ensue.
+ Install the product in an area that doesn’t disrupt a driver’s visibility.
- Otherwise, it may cause an accident.
+ If you use the product for a long time, it heats up inside. So use caution not to get burned by accidentally
touching it.
- Avoid touching the metal area when removing the MicroSD card after using the product for long hours.
+ Do not cover the black box with a cloth or other types of covers.
- It may contain the heat inside the product, resulting in an exterior deformation or a re.
+ Do not spray water or wax directly to the product when cleaning the inside of a car.
- It may cause mechanical failure or electric shock.
+ Always use the genuine products and parts from COWON SYSTEMS Inc.
- COWON SYSTEMS Inc. shall not be held accountable whatsoever for failures or accidents caused by using the
product and parts from other sources.
+ Do not wipe the product with chemical substances or detergent.
- Wipe the product gently with a soft cloth.
9
COWON AW1
Be for you Start!
+ Safety Precautions
+ If you don’t intend to use the product for a long while, unplug the power cable of the product.
- Otherwise, it may cause electric discharge of a car battery or a re.
- A user shall be held accountable for the product damage or car breakdown.
+ Do not use wet hands when plugging/unplugging the cigar jack cable.
- It may cause an electric shock.
+ Do not remove the MicroSD card when the product is in use.
- It may cause mechanical malfunction.
+ Plug in the power cord completely with no looseness.
- Otherwise, it may cause a re.
+ Do not use the damaged cigar jack cable.
- It may cause a re or an electric shock.
+
To reset the product, shut down the power supply and reconnect it after a certain while, or
remove the MicroSD card after turning off the product and insert it back again.
10
COWON AW1
Be for you Start!

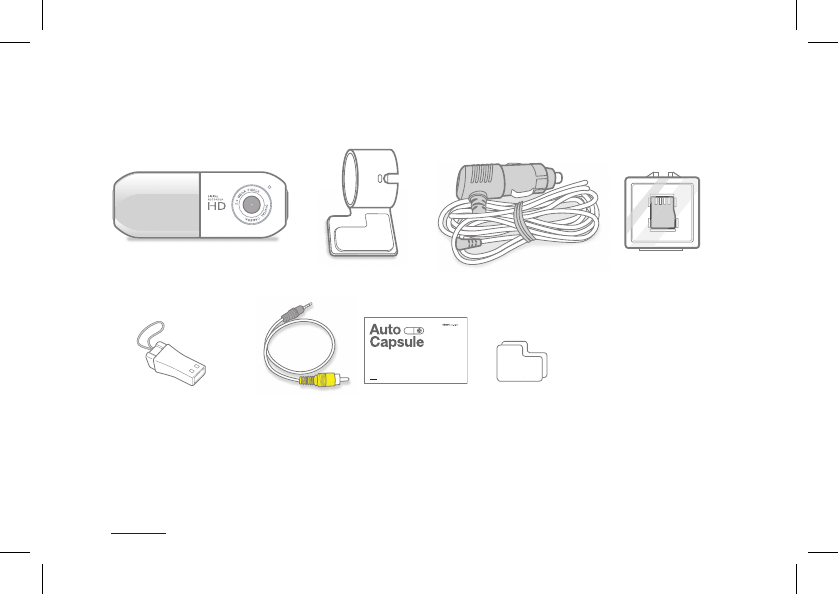

+ Package Components
Auto Capsule AW1 Product holder Cigar jack MicroSD card
MicroSD card
reader
Video-out
cable Quick guide 2 pieces of double-
coated tape
- Note that the included items may vary according to the product specications and may look different from the images
provided in the manual.
- To view the recorded image through the GPS screen in real-time, connect the “video-out cable” with the video-in port of
the GPS.
11
COWON AW1
Be for you Start!

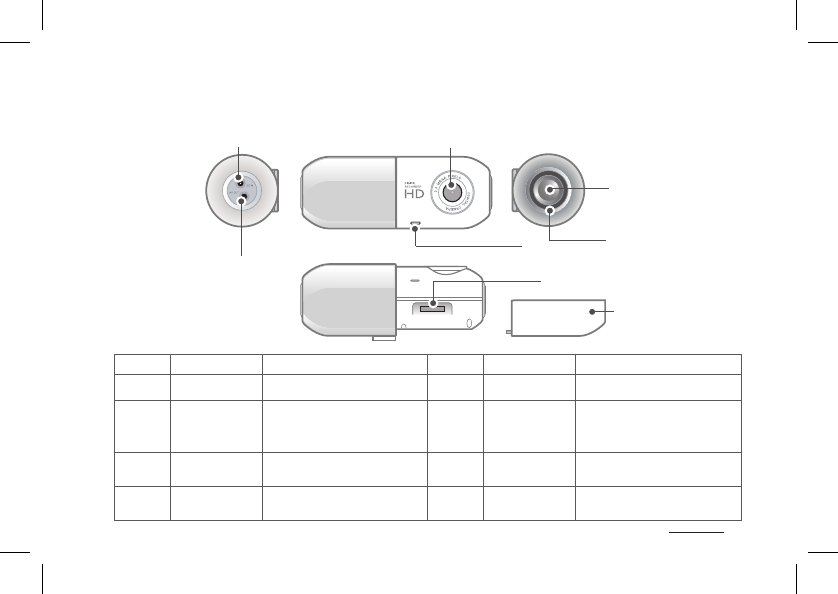

+ Name of Part and Functions
1
2
3
4
5
7
6
8
No. Name Description No. Name Description
1
Cigar jack It supplies the power to the
main device.
5
Microphone It is a microphone for
recording voice.
2
AV OUT
It is a port for transmitting
the video being recorded
to an external device
connected.
6
MicroSD card
slot
It is a slot for inserting the
MicroSD card.
3
Recording lens It records the front direction
of a vehicle.
7
MicroSD card
Protective lid
Use it to insert or remove
the MicroSD.
4
Buttons It is a button for manual
recording.
8
Indicator lamp It displays the operation
status of the product.
12
COWON AW1
+ Product Specication
Additional
Category Specification Remark
Image Sensor 2-mega pixels Full HD 1/2.7" Large Image sensor
Resolution Max 1920x1080P, 30fps
Recording Angle D=140° / H=102°/ V=72°
Video Encoding H.264 (MPEG-4 AVC) NTSC, PAL
Video output CVBS (Composite)
Recording Modes Driving Recording, Parked Recording
1)
Recording Method Normal, Event(Shock, Manual), Motion
1)
File Format NOR(Normal), EVT(Event), MOT(Motion)
1)
Software Smart Manager (Android & iOS supported) Playing file, Live View, Settings
after downloading recorded files
PC Manager (Windows PC supported) Playing files, , Screen Capture,
Settings, Map Marking
2)
Operating Temperature -20℃ ~ 50℃
Rated Voltage DC 12V ~ 24V
Etc. Wi-Fi, G-Sensor, Microphone, Speaker, LED
1)
Parked Recording and Motion Detect are available when connected by the uninterruptible power equipment.
2)
Available recorded files by external GPS.
FCC Compliance Information
This device complies with Part 15 of FCC Rules. Operation is subject to the following twoconditions:
(1) the device may not cause interference, and
(2) the device must accept any interference, including interference that may cause undesired operation of this device.
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
