CPAC Systems BTGW Bluetooth Interface User Manual

CPAC Systems AB Bluetooth Interface

User manual

CPAC SYSTEMS AB
Box 217, SE-401 23
Göteborg, Sweden
Visitors: Bergskroken 3,
Mölndal
Phone: +46 (0)31 352 16 00
www.cpacsystems.se
VAT#: SE556566281001
CPAC-BTGW: General Guidelines
- Installation and Operation
Description
General installation and operational guidelines for the CPAC-BTGW unit
Issued by
Peter Raimer
Classification
Open within project
Approved by
Date
2017-07-09
Project
Easy Connect
Revision
PA1
Reg. No.
Page
1 (11)
File
BTGW_Installation-operational guidelines.docx
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
2(13)
Innehåll
1. Document Information __________________________________________________________ 3
1.1 Purpose ........................................................................................................................................ 3
1.2 Revision History .......................................................................................................................... 3
1.3 Confidentiality ............................................................................................................................. 3
1.4 References ................................................................................................................................... 3
1.5 Terminology ................................................................................................................................ 3
2. Overview _____________________________________________________________________ 4
3. Installation ____________________________________________________________________ 5
3.1 CPAC-BTGW unit ...................................................................................................................... 5
3.2 Mounting requirements - unit ...................................................................................................... 5
3.3 Mounting requirements - cables .................................................................................................. 5
3.4 Connecting requirements – cables for EVC system .................................................................... 6
3.5 Connecting requirements – cables for non EVC system ............................................................. 6
3.6 Connecting – Mobile device app ................................................................................................. 7
3.7 Troubleshoot installation ............................................................................................................. 7
4. Modes of Operation _____________________________________________________________ 8
4.1 Modes of BTGW unit .................................................................................................................. 8
4.2 Modes of app ............................................................................................................................... 8
5. Additional technical data ________________________________________________________ 9
5.1 Overview of Connectors .............................................................................................................. 9
5.2 RF/Physical Layer ....................................................................................................................... 9
5.3 Power ........................................................................................................................................... 9
5.4 Environment ................................................................................................................................ 9
5.5 Bluetooth antenna ........................................................................................................................ 9
5.6 Physical Specification ............................................................................................................... 10
6. Additional Type approval information – Legal statement and Safety precautions/
Warnings! ________________________________________________________________________ 11
6.1 USA ........................................................................................................................................... 11
6.2 Canada ....................................................................................................................................... 11
6.3 Japan .......................................................................................................................................... 12
6.4 Brazil ......................................................................................................................................... 13
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
3(13)
1. Document Information
1.1 Purpose
The purpose of this document is solely to give general guidelines for the installation of Easy Connect
gateway (CPAC-BTGW) in boats, supplied by Volvo Penta.
It does not replace the specific instructions included in the gateway kit box but gateway is very easy to
install. There are only two harness to connect and then use tie wraps to fasten the gateway.
1.2 Revision History
Rev
Date
Name
Description
PA1
2017-07-09
Peter Raimer
Created
PA2
2017-12-04
Nethaji Karuppasami
Updated regulatory and user safety information
PA3
2018-01-23
Nethaji Karuppasami
Updated EMC exposure info for FCC and IC
1.3 Confidentiality
This document is solely to be used by CPAC and Volvo Penta, or companies specifically appointed by
Volvo Penta for integrating the CPAC-BTGW unit into VP supplied systems.
The document is neither intended for the end users of the boats, nor for the general public.
1.4 References
Ref
Title
Registration number
1.5 Terminology
Term
Explanation
BTGW
Bluetooth gateway. Product name designation used by CPAC Systems AB
EVC
Electronic Vessel Control
TBD
To Be Defined
VP
Volvo Penta
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
4(13)

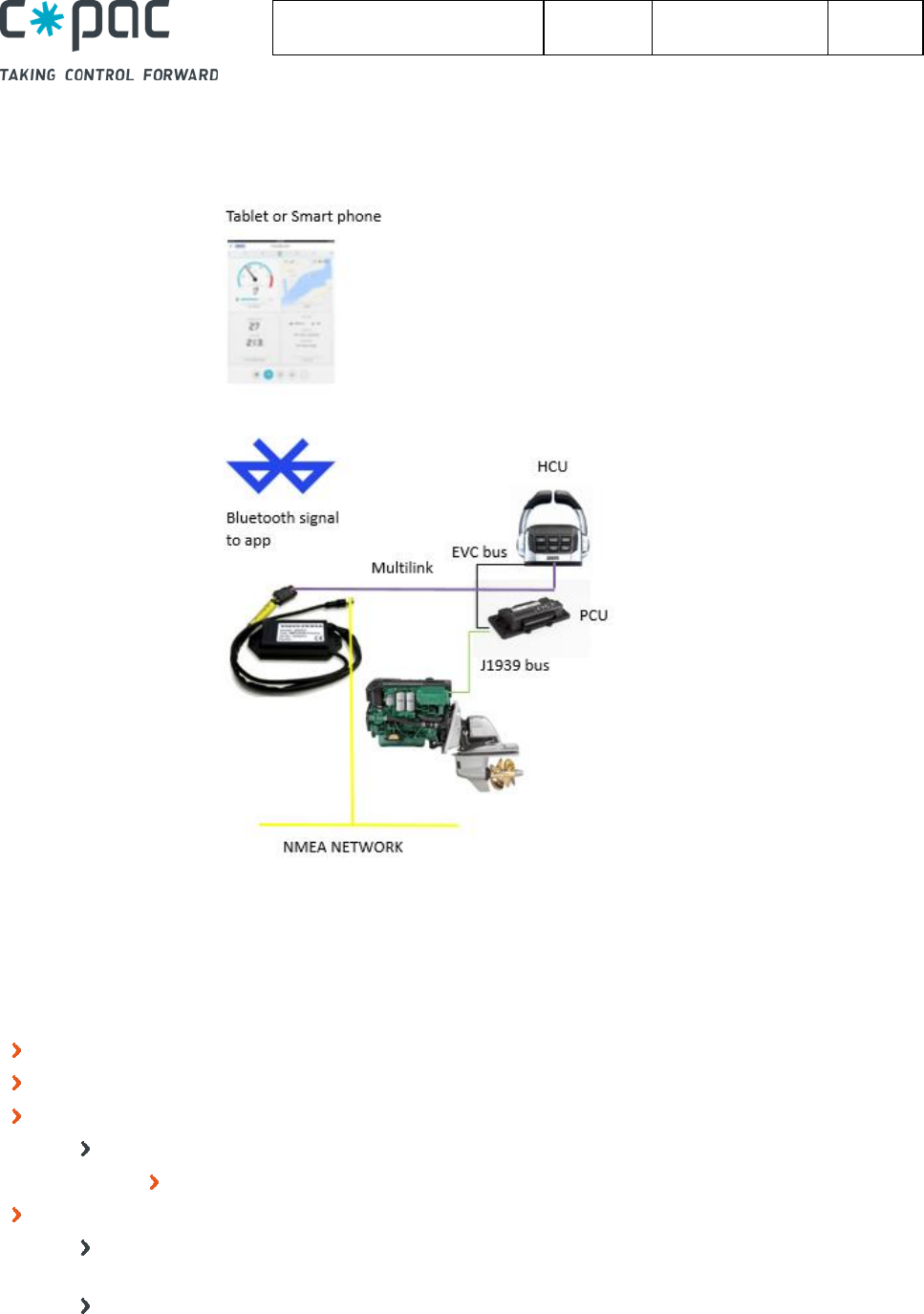

2. Overview
CPAC-BTGW has two connectors and capability is to act both as NMEA2000 Gateway and Bluetooth
interface. General purpose for the BTGW is to transfer engine and boat data via Bluetooth protocol to a
mobile device application.
Access data from Engine CAN (J1939) or multilink bus and transfer to mobile device, (app).
Access data from NMEA2000 sources and transfer to mobile device, (app).
Support software upgrade:
Over-The-Air (OTA) software upgrade of BLE interface from App.
Possible to update BLE chip with new software release by using the app.
Set-up / Pairing:
Unique code on BLE gateway to be entered in
app to secure privacy.
Bluetooth concept is low Energy BLE.
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
5(13)
3. Installation
3.1 CPAC-BTGW unit

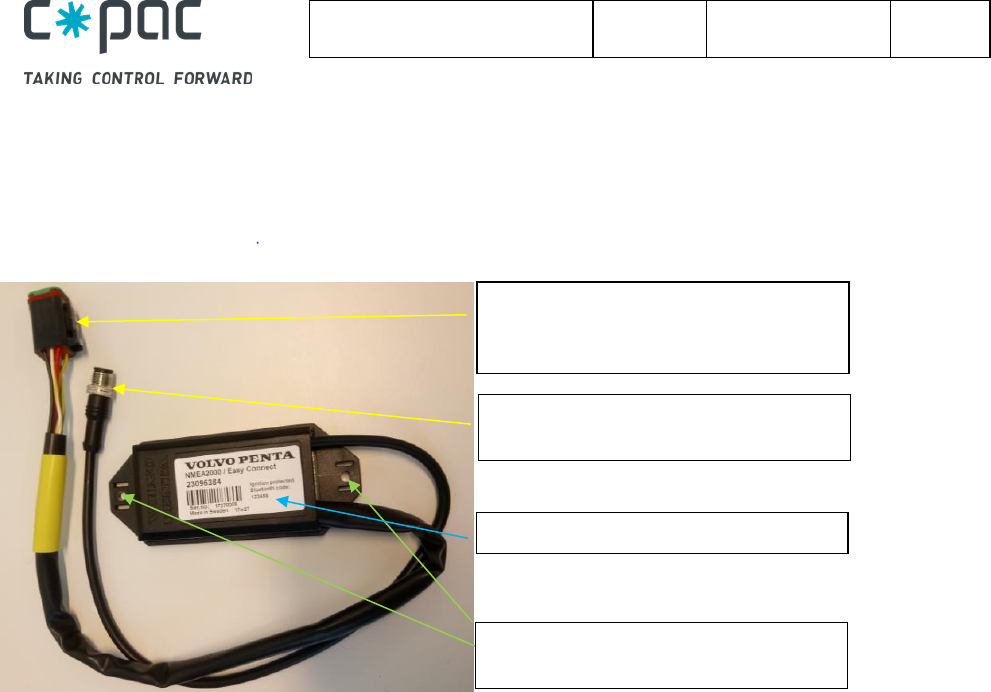

Picture #1 CPAC-BTGW – exterior view
3.2 Mounting requirements - unit
The CPAC-BTGW unit shall normally be mounted under the dash board at the boat helm station, or in
the engine compartment by using tie wraps included in kit. Boat builder or VP dealer to decide where to
mount the BTGW.
The unit can be mounted horizontally or vertically.
No hot surfaces shall be close to or come in contact with the unit and cables.
No moving parts shall be allowed touch the cables or the unit
3.3 Mounting requirements - cables
The cables shall be strapped to avoid tension (push/pull/torque) on the connectors.
Cable and connector mounting and clamping shall follow “VP guidelines”
The cables shall normally be routed away from electrical disturbance sources like radio
transmitters, electrical motors, power inverters etc.
All electrical equipment within 2 m from the cables shall comply with the Volvo EMC directives
6-pin Deutsch connector: Connect to
multilink or J1939 bus depending on
installation.
5-pin Device Net Micro-C connector:
Connect to NMEA network.
Fasten BTGW with tie wraps by using
holes in box
Bluetooth code for connection to app.
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
6(13)
3.4 Connecting requirements – cables for EVC system
BTGW unit shall be connected to an EVC system according to this:

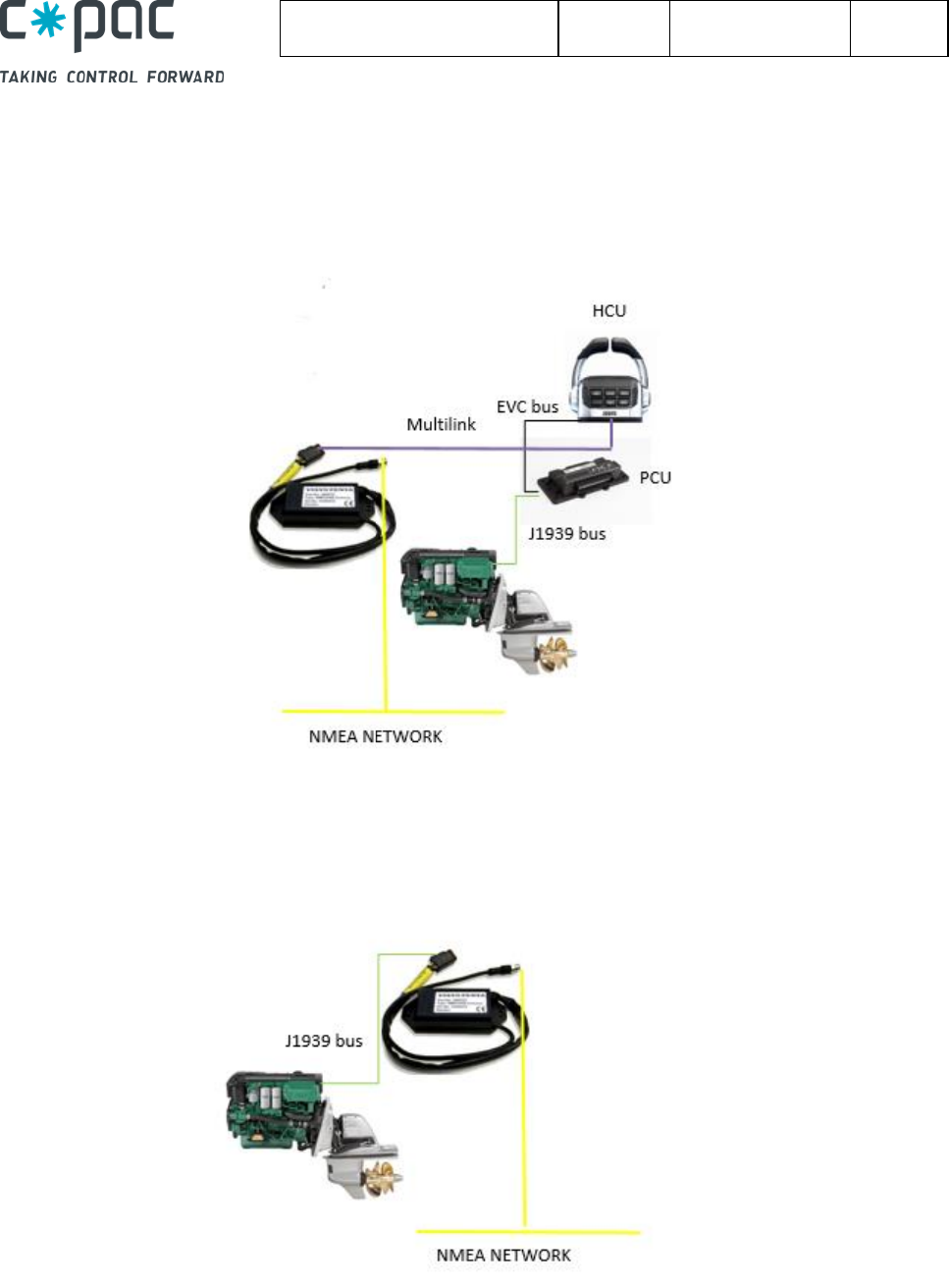

Picture #2 CPAC-BTGW – connecting requirements for EVC systems
3.5 Connecting requirements – cables for non EVC system
BTGW unit shall be connected to a non EVC system according to this:
Picture #3 CPAC-BTGW – connecting requirements for non EVC systems
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
7(13)
3.6 Connecting – Mobile device app
Search for Volvo Penta Easy Connect app at app store or play store.
Download Easy connect app to mobile device.
Gateway shall be connected in boat and have and boat power state shall be ignition on.
Start app and select BTGW.
Enter Bluetooth code written on BTGW unit label.
Mobile device is now connected to BTGW, engine and boat information is now available in app.
3.7 Troubleshoot installation
If app cannot be connected to BTGW or data not visible in app, following diagnostics indication are
visible on BTGE LED’s:
Green LED indication:
o Constant Lit: The unit is powered up but receives no communication on any bus.
o 2 strobes then off for 500 ms repeatedly: The unit is powered up and has Multilink
network communication but no NMEA2000 communication.
o 3 strobes then off for 500 ms repeatedly. The unit is powered up and has NMEA2000
communication but no Multilink network communication.
o 500 ms on, 500 ms Off repeatedly: The unit is powered up and has both Multilink
network and NMEA2000 communication.
Blue LED indication:
o Constant Lit: Not paired. Advertising.
o 2 strobes then off for 500 ms repeatedly: Error in BLE communication.
o 3 strobes** then off for 500 ms repeatedly: Paired but application not running.
o 500 ms on, 500 ms off repeatedly: The unit is powered up and has both Multilink
network and NMEA2000 communication.
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
8(13)
4. Modes of Operation
4.1 Modes of BTGW unit
The CPAC-BTGW unit has two modes, On or Off:
The power state of the boat is ignition off. BTGW is not powered up and not functional.
The power state of the boat is ignition on. BTGW is powered up and functional.
4.2 Modes of app
The CPAC-BTGW app have two basic operation modes, Home view and Captains view:
Home view:
o Off-board mode. To use when mobile device is not in Bluetooth signal range. No instant
data is transferred to the app.
Captains view:
o On-board mode. To use when mobile device is in Bluetooth signal range. Instant data is
transferred to the app.
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
9(13)
5. Additional technical data

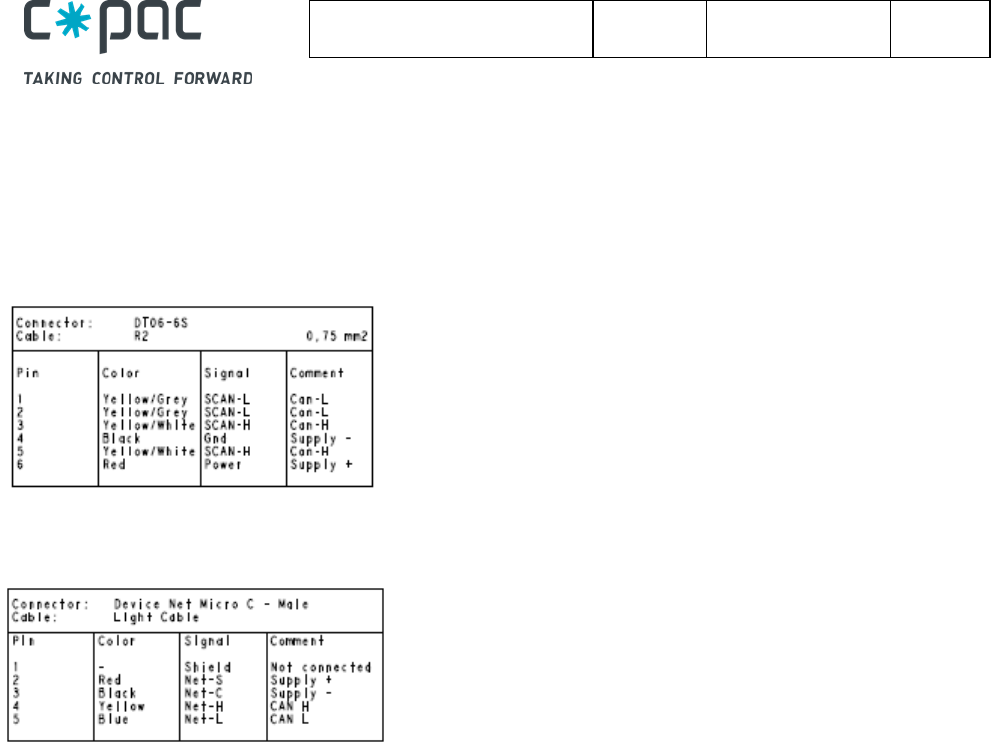

5.1 Overview of Connectors
Multilink/J1939: Deutsch DT06-6S
NMEA: Device Net Micro-C
Deutsch DT06-6S, miscellaneous signals to and from multilink or J1939 bus.
Device Net Micro-C, miscellaneous signals to and from NMEA bus.
5.2 RF/Physical Layer
Bluetooth Low Energy (GFSK)
5.3 Power
External Power: nom 12 V (8 – 32 V)
Max protection fuse on supply pin; 5A
5.4 Environment
IP class: IP66, ISO 20653
Temperature (operational): -20 - +85 ºC
Temperature (storage): -20 - +85 ºC
5.5 Bluetooth antenna
Internal antenna built in unit.
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
10(13)

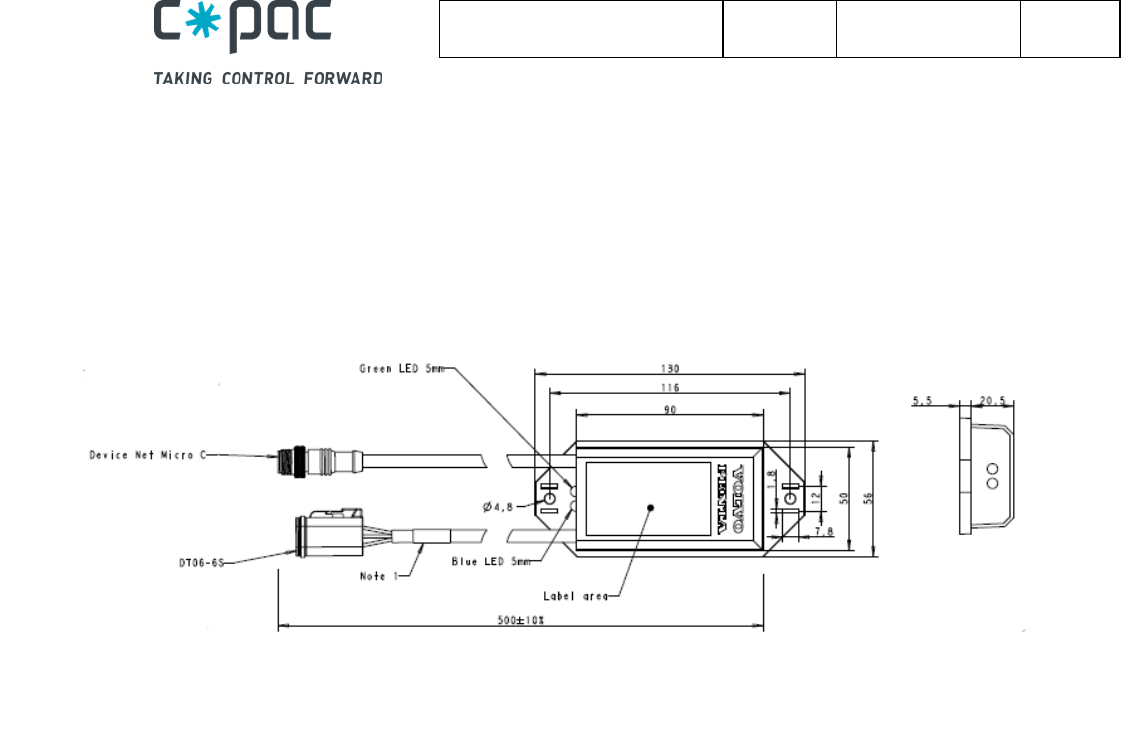

5.6 Physical Specification
Size: 130 mm (500 mm including cables) x 56 mm x 26 mm
Weight: 270 g
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
11(13)
6. Additional Type approval information – Legal statement
and Safety precautions/ Warnings!
6.1 USA
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
· Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
Changes or modifications made to this equipment not expressly approved by CPAC Systems AB may
void the FCC authorization to operate this equipment.
Radio frequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance of 20 cm between the radiator
and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
6.2 Canada
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
12(13)
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
· Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modifications made to this equipment not expressly approved by CPAC Systems AB
may void the FCC/IC authorization to operate this equipment.
Radio frequency radiation exposure Information:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20 cm de distance entre la source de rayonnement et votre corps.
Ce transmetteur ne doit pas être place au même endroit ou utilise simultanément avec un autre
transmetteur ou antenne.
6.3 Japan
R 202-LSF059
This device is granted pursuant to the Japanese Radio Law (電波法)
=本製品は、電波法に基づく特定無線設備の技術基準適合証明などを受けております。
This device should not be modified (otherwise the granted designation number will become invalid)
本製品の改造は禁止されています。（適合証明番号などが無効となります。）
Title:
Revision:
Classification:
Page:
CPAC-BTGW: General Guidelines
- Installation and Operation
PA1
Open within project
13(13)

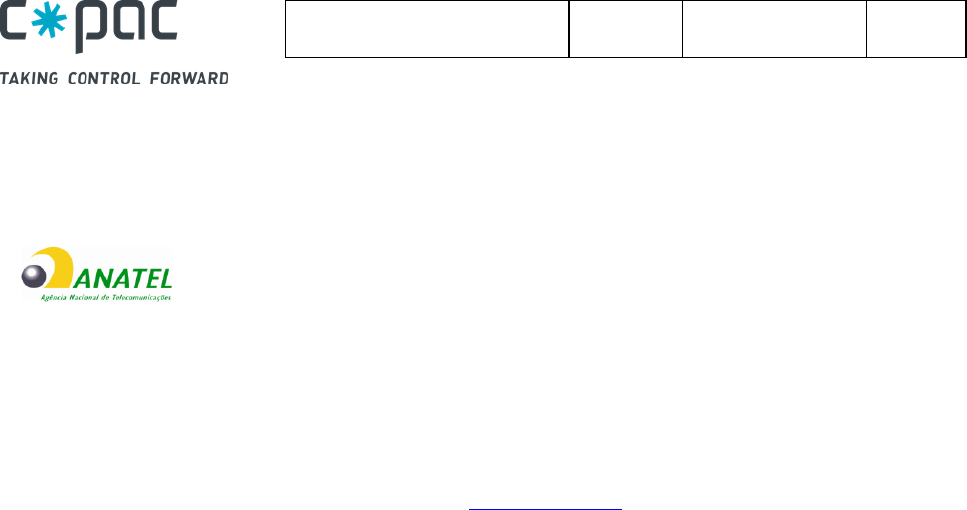

6.4 Brazil
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário."
Para maiores informações, consulte o site da ANATEL: www.anatel.gov.br
04935-17-04565
Modelo BTGW

Navigation menu
