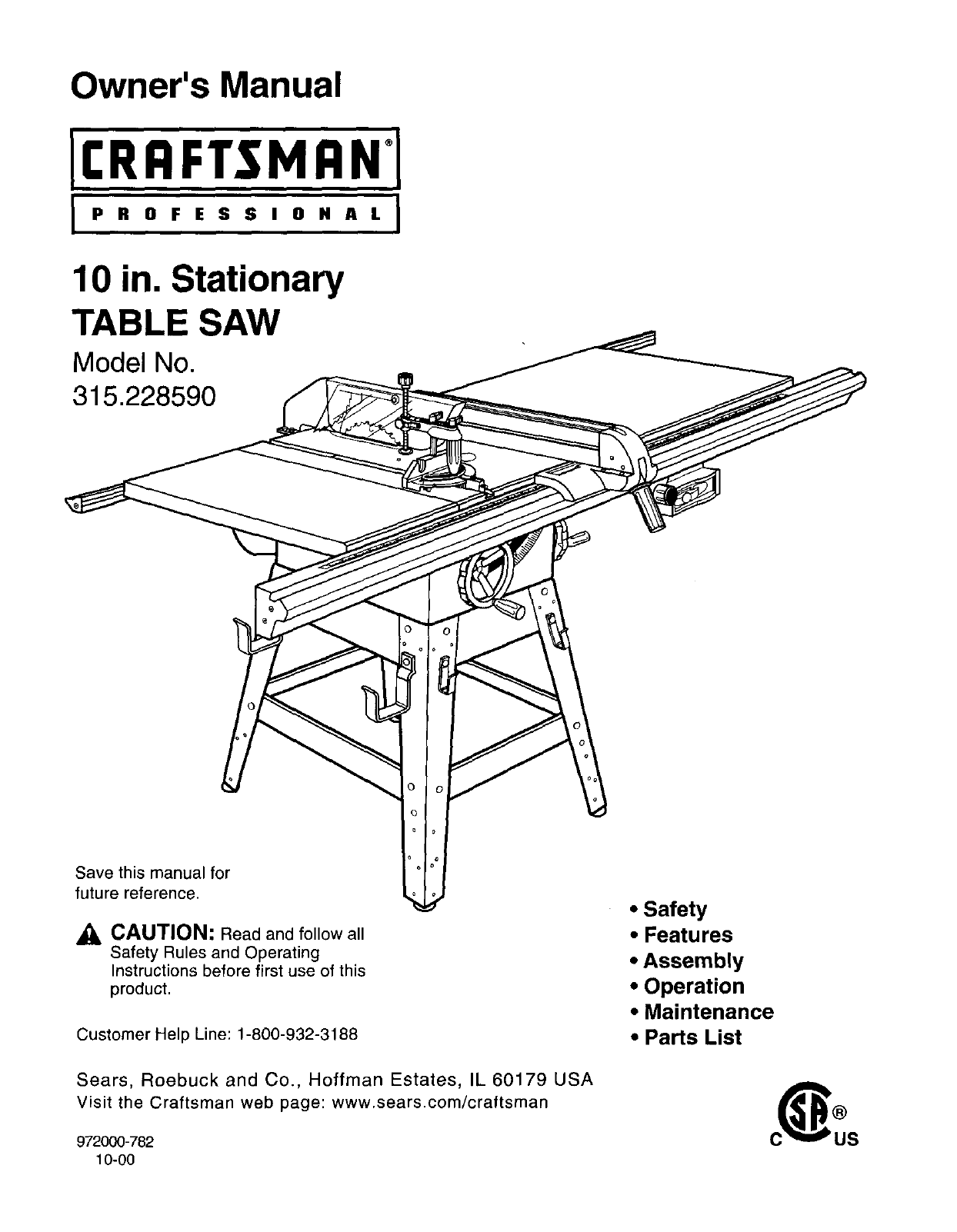

Owner's Manual

ICRAFTSMAN°I

10 in. Stationary

TABLE SAW

Model No.

315.228590

Save this manual for

future reference.

CAUTION: Read and follow all

Safety Rules and Operating

Instructions before first use of this

product.

Customer Help Line: 1-800-932-3188

•Safety

•Features

•Assembly

•Operation

•Maintenance

•Parts List

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/craftsman

972000-782

10-00

C_@ us

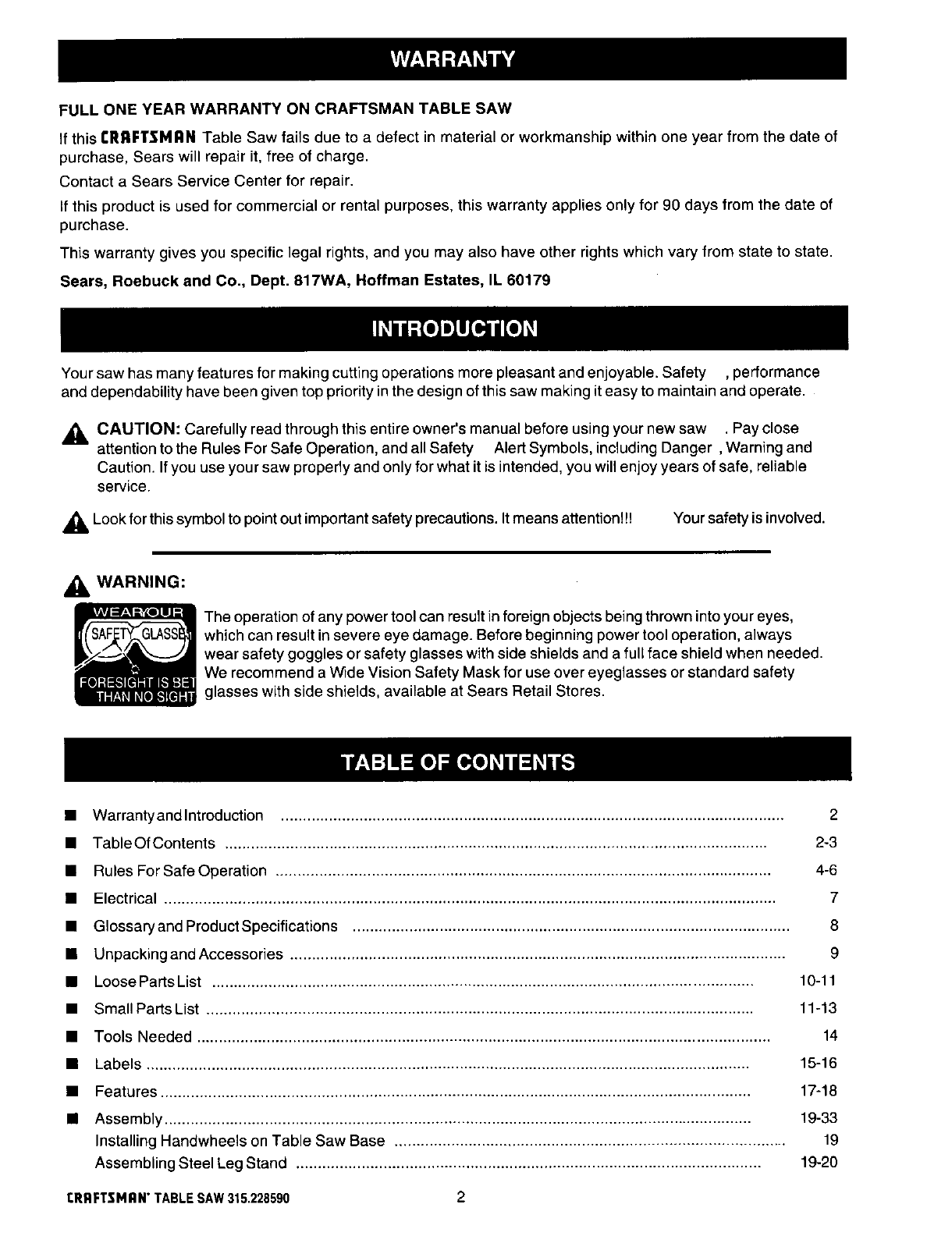

FULL ONE YEAR WARRANTY ON CRAFTSMAN TABLE SAW

If this rRRFTSMRN Table Saw fails due to adefect in material or workmanship within one year from the date of

purchase, Sears will repair it, free of charge.

Contact a Sears Service Center for repair.

if this product is used for commercial or rental purposes, this warranty applies only for 90 days from the date of

purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Your saw has many features for making cutting operations more pleasant and enjoyable. Safety , performance

and dependability have been given top priority in the design of this saw making it easy to maintain and operate.

,_ CAUTION: Carefully read through this entire owner's manual before using your new saw . Pay close

attention to the Rules For Safe Operation, and all Safety Alert Symbols, including Danger, Warning and

Caution. If you use your saw properly and only for what it is intended, you will enjoy years of safe, reliable

service.

_, Look for this symbol to point out important safety precautions. It means attention!!! Your safety is involved.

_k WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before beginning power tool operation, always

wear safety goggles or safety glasses with side shields and a full face shield when needed.

We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety

glasses with side shields, available at Sears Retail Stores.

rRRFTSMRN" TABLESAW315.228590

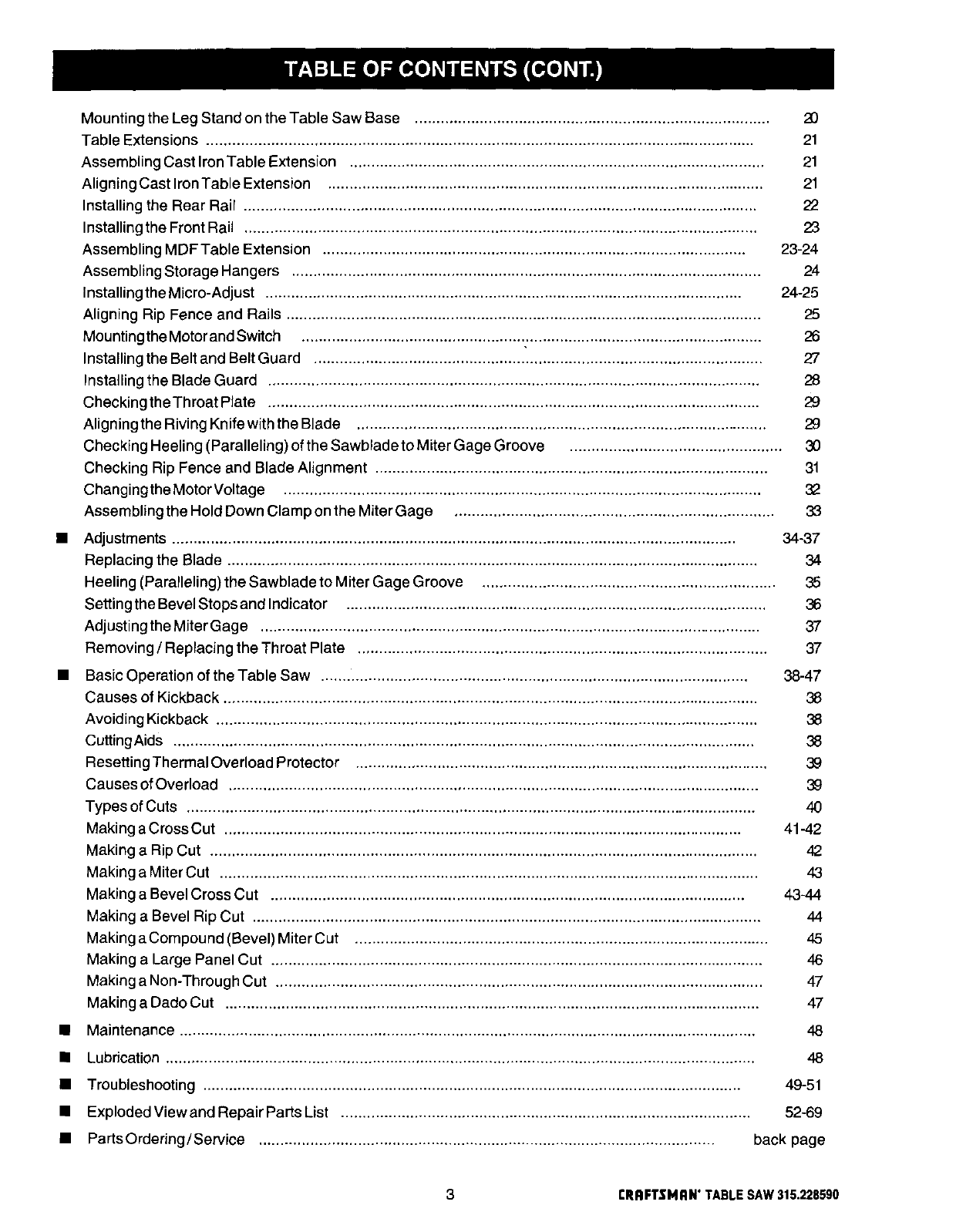

• Warranty and Introduction .................................................................................................................... 2

• TableOf Contents ............................................................................................................................. 2-3

• Rules For Safe Operation .................................................................................................................. 4-6

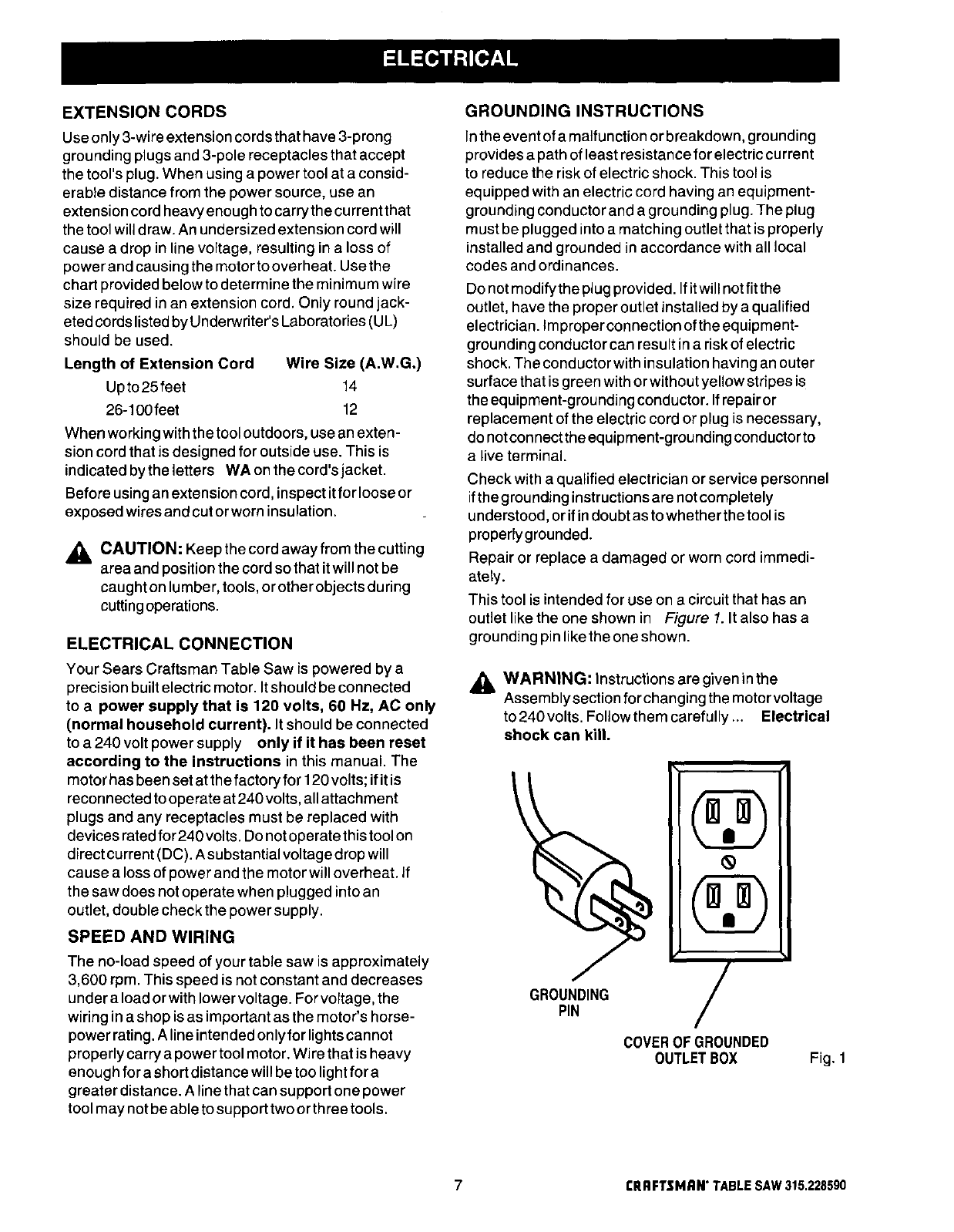

• Electrical ............................................................................................................................................. 7

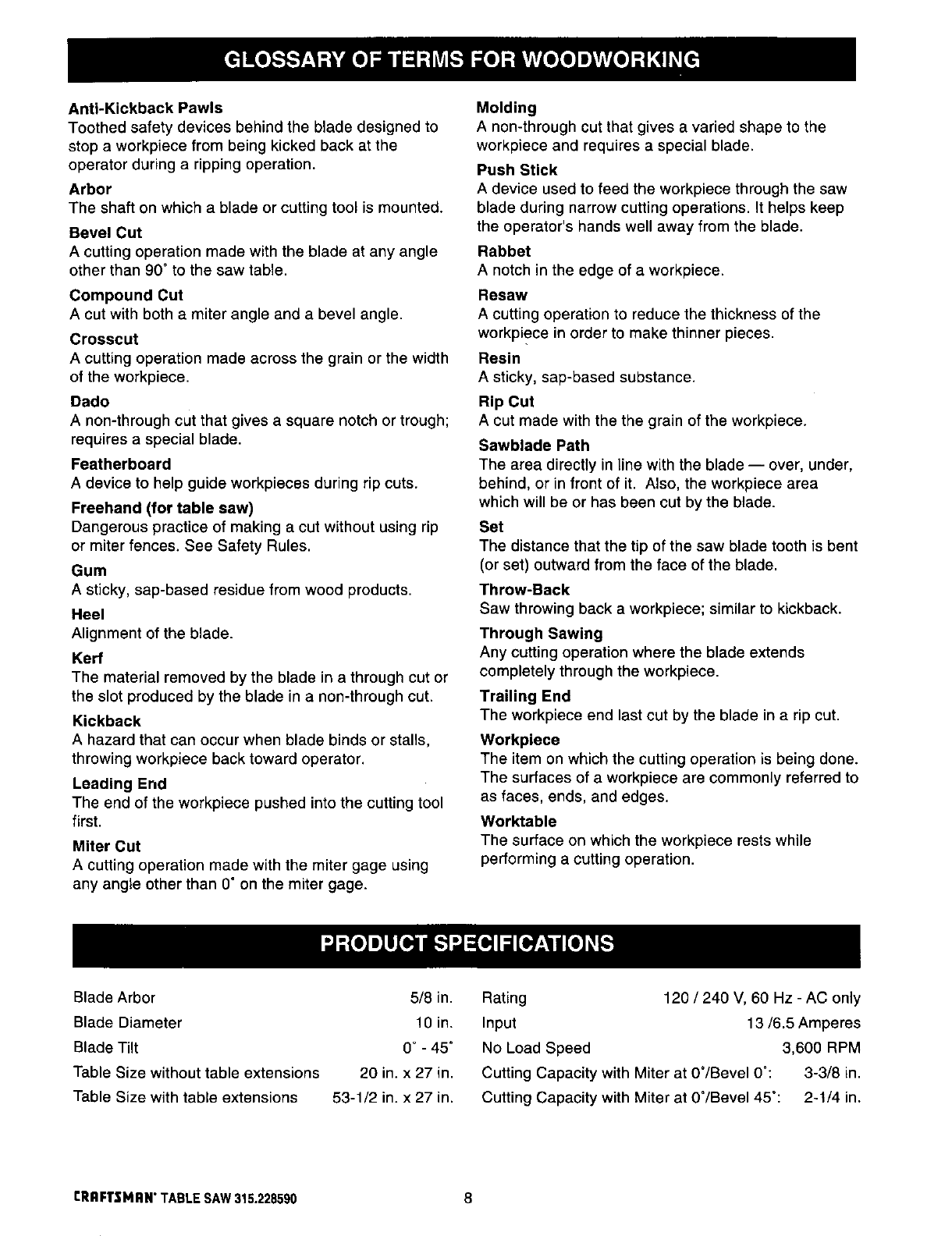

• GIossaryand ProductSpecifications ..................................................................................................... 8

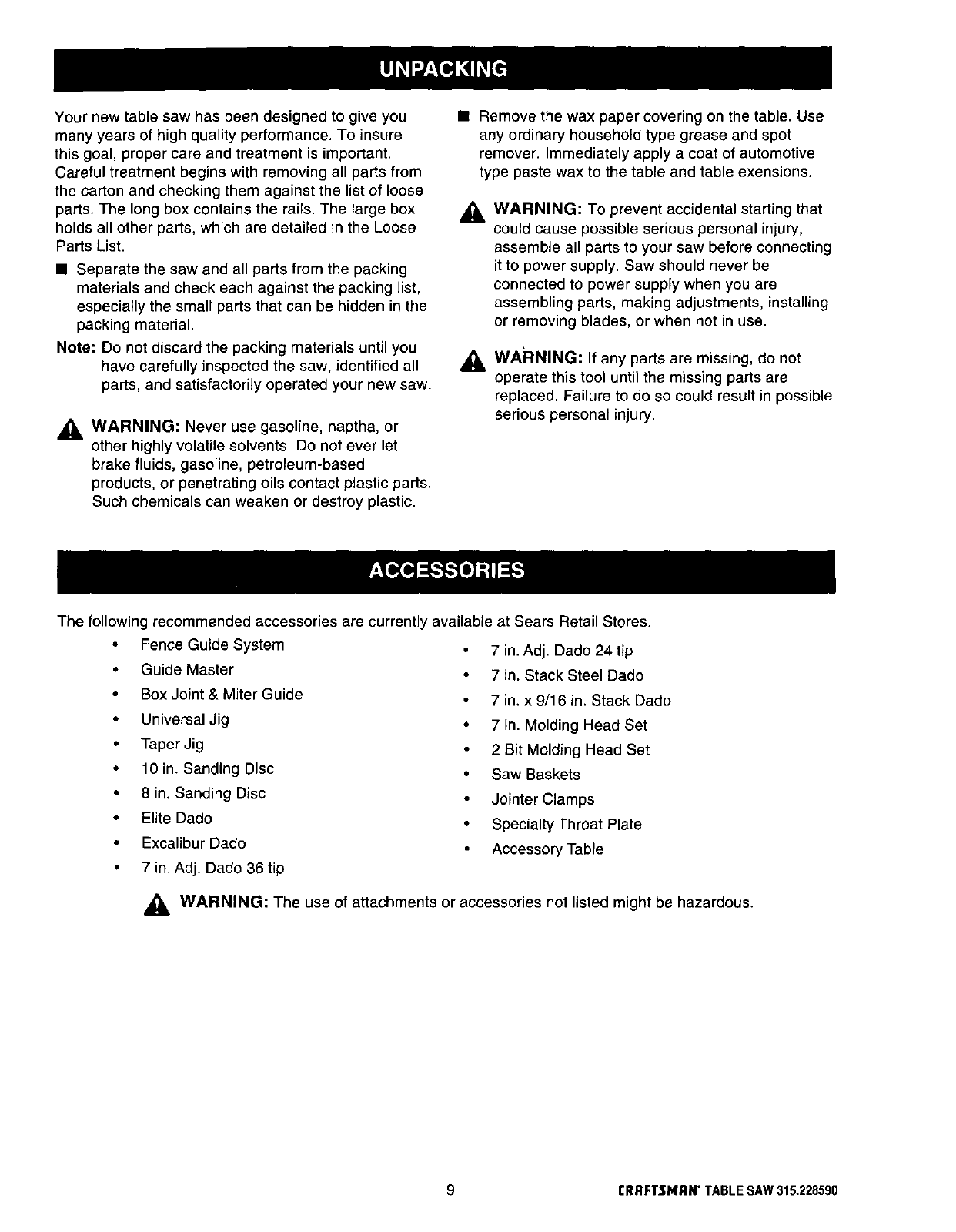

• UnpackingandAccessories .................................................................................................................. 9

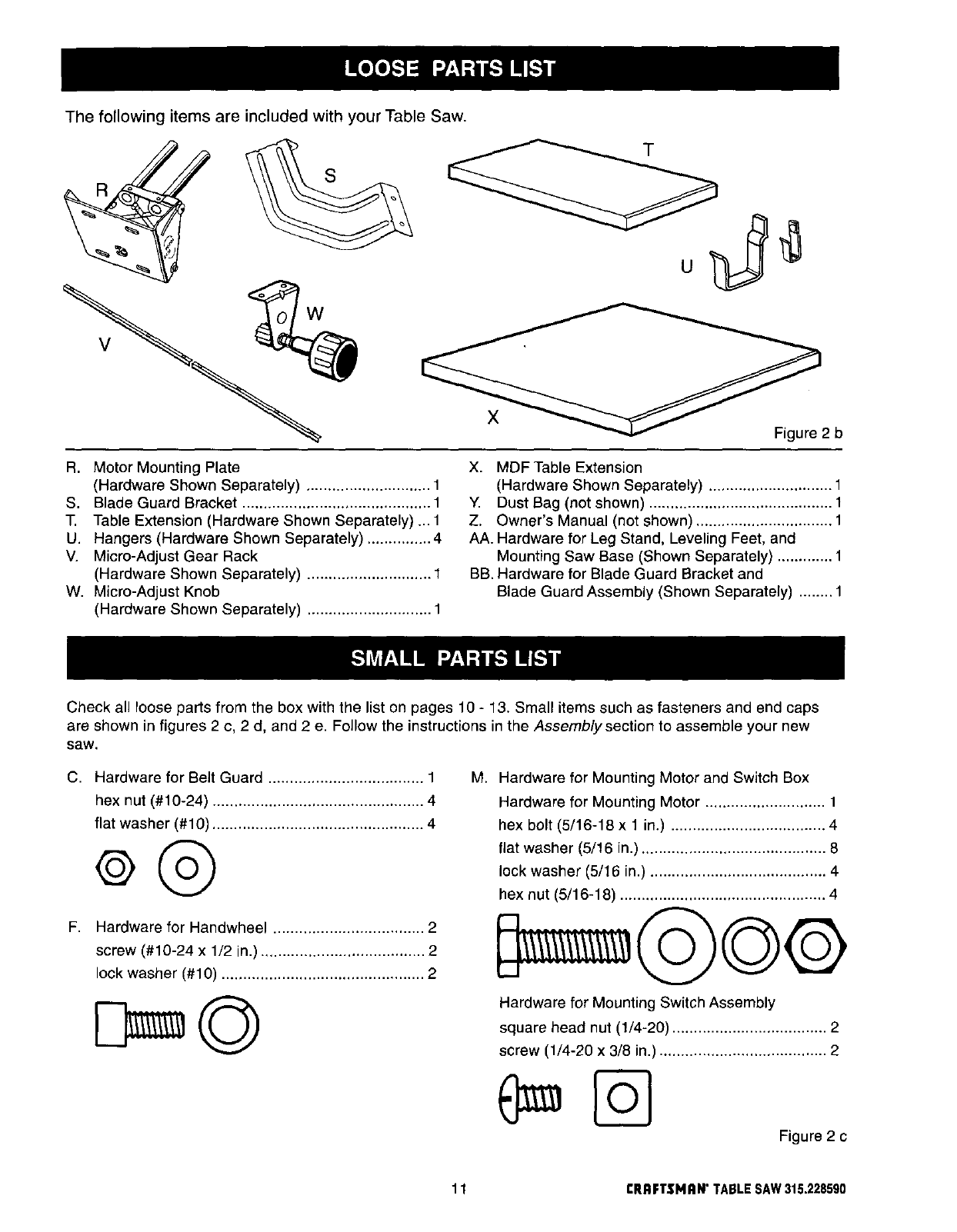

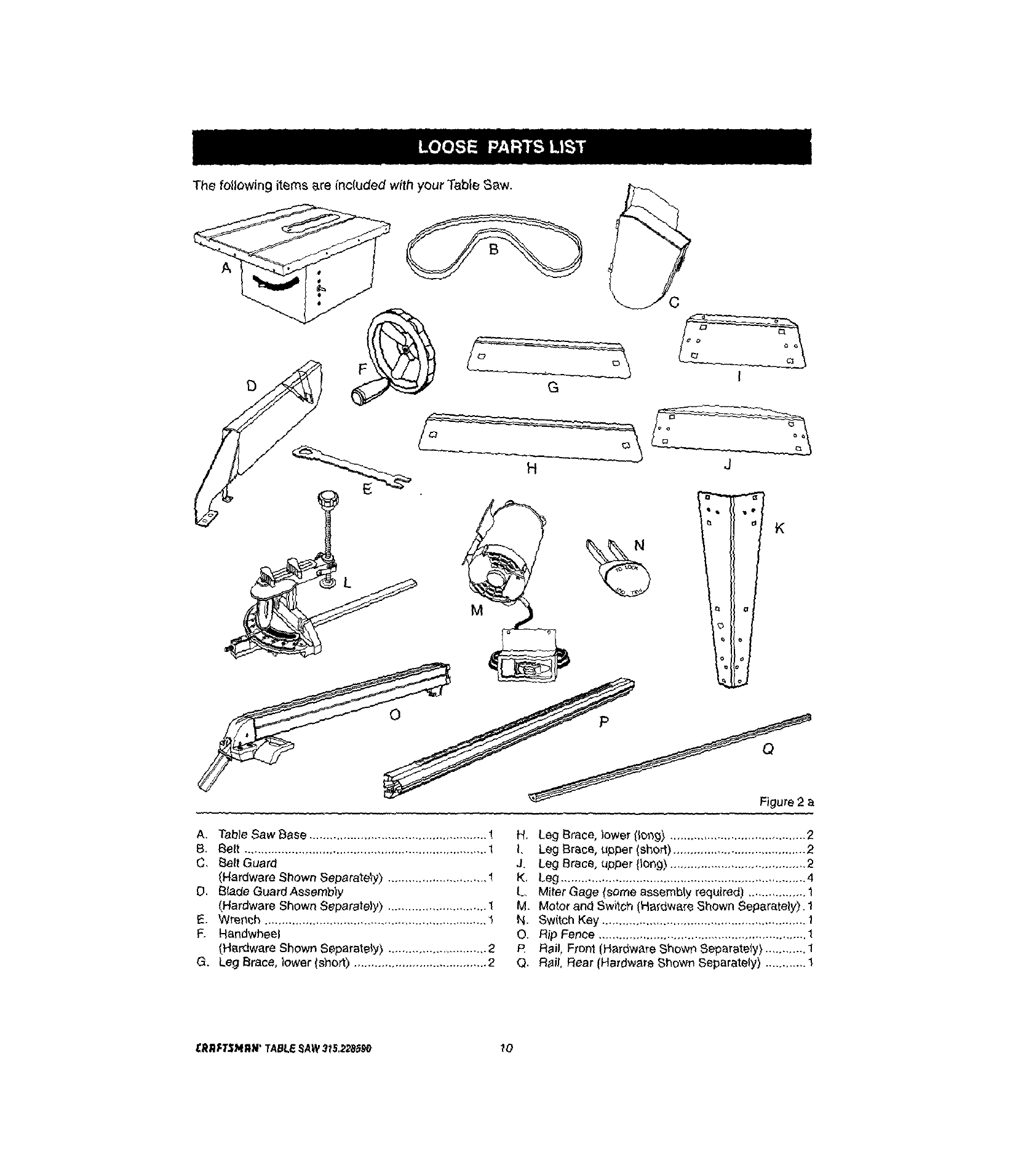

• Loose Parts List ............................................................................................................................. 10-11

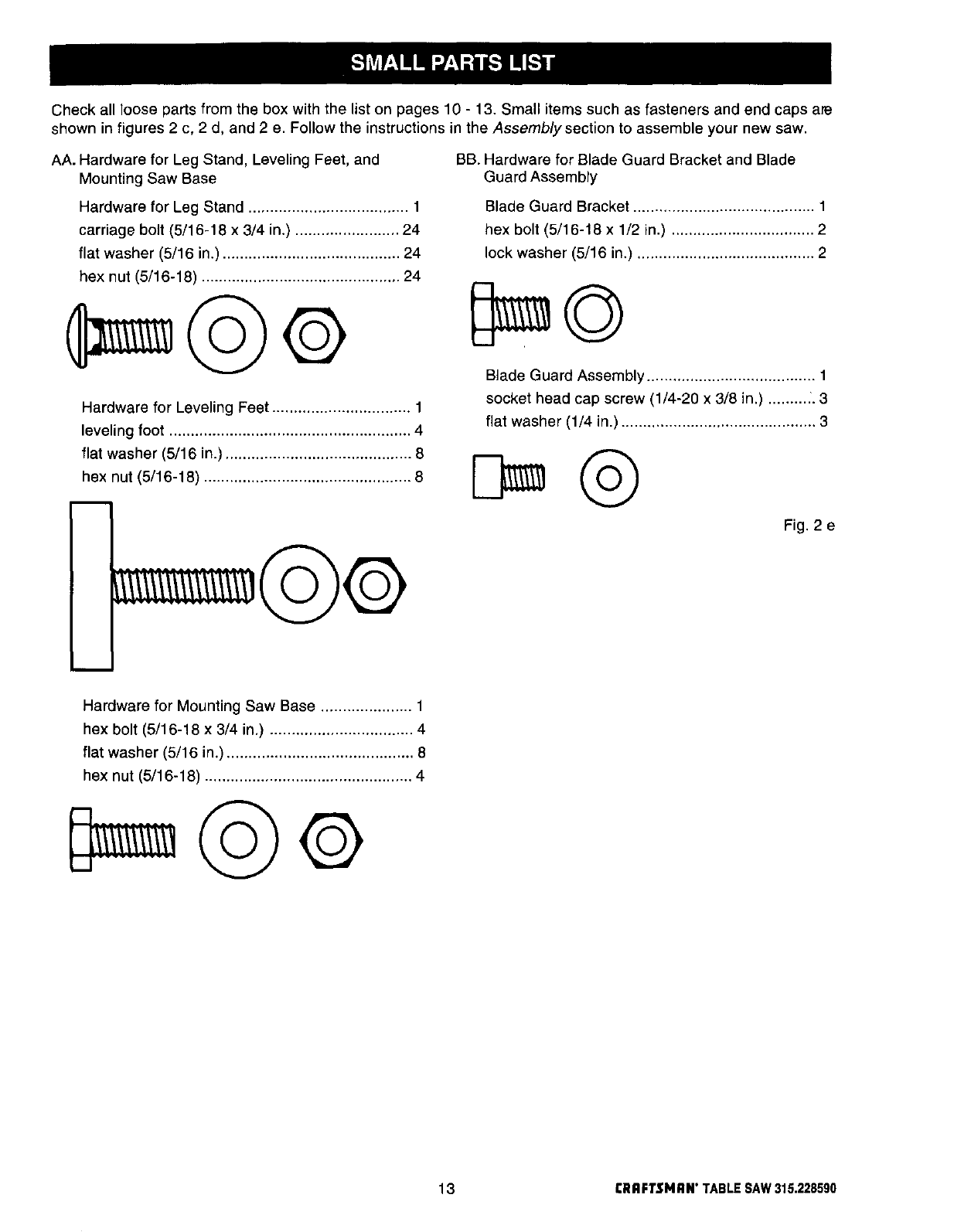

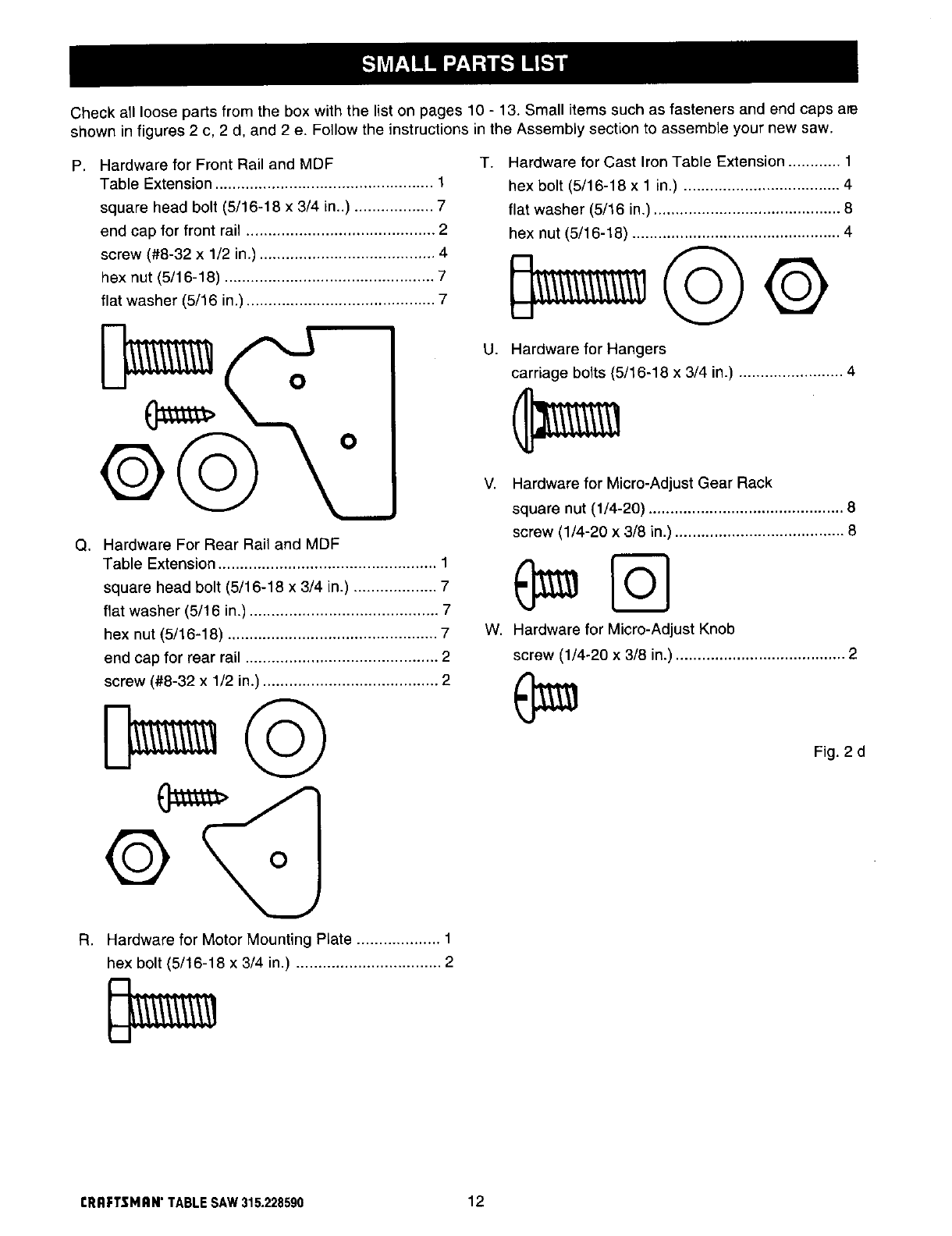

• Small Parts List .............................................................................................................................. 11-13

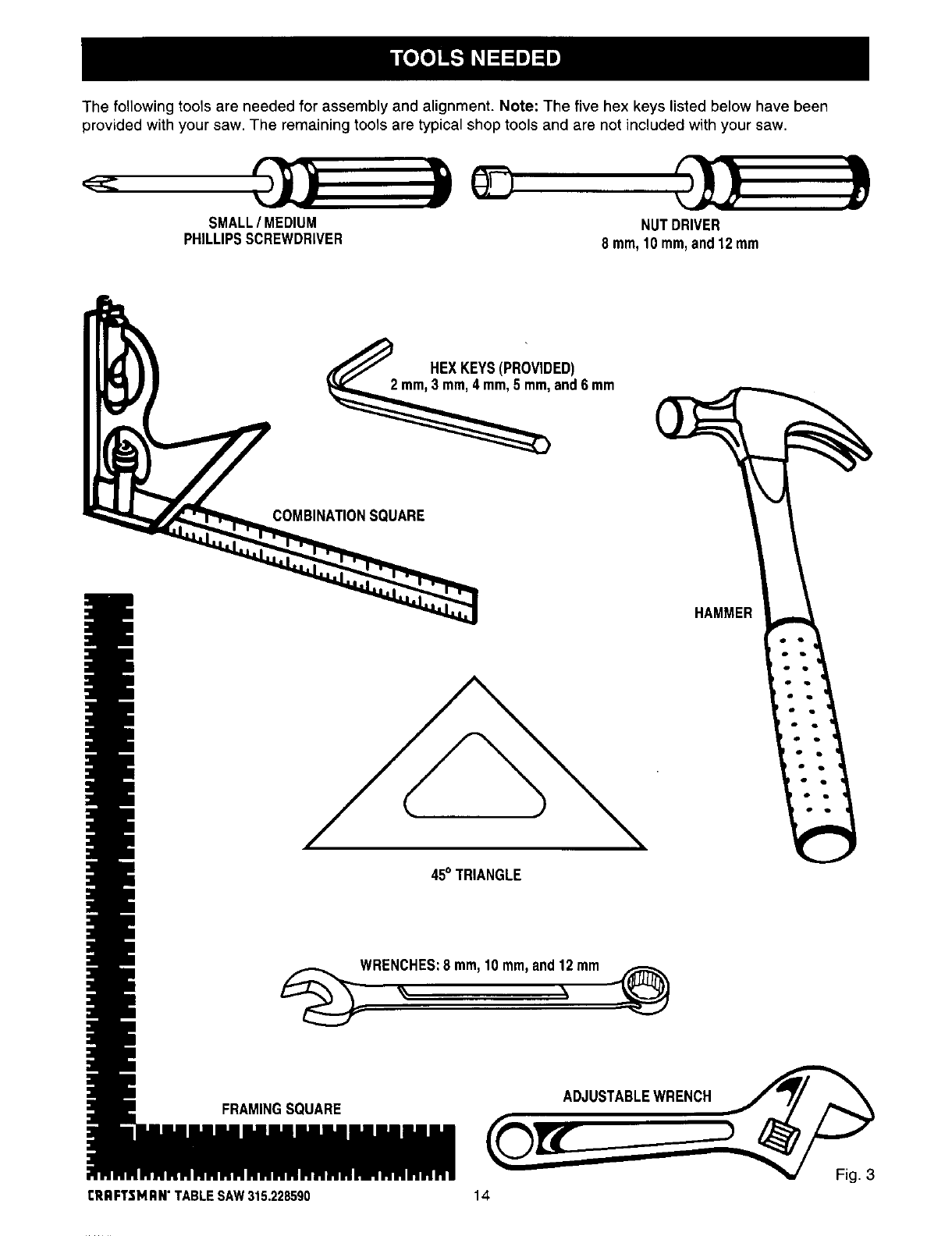

• Tools Needed .................................................................................................................................... 14

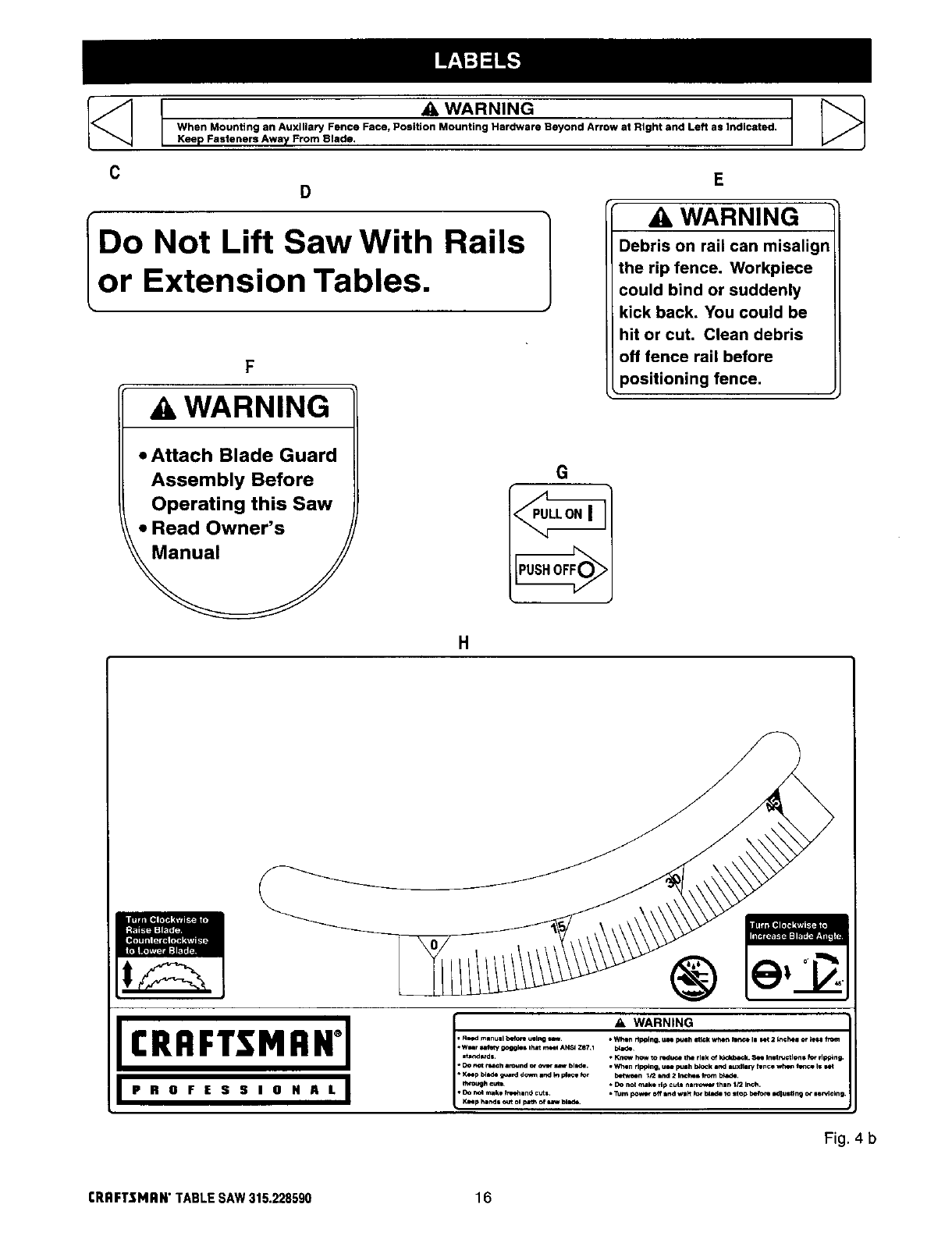

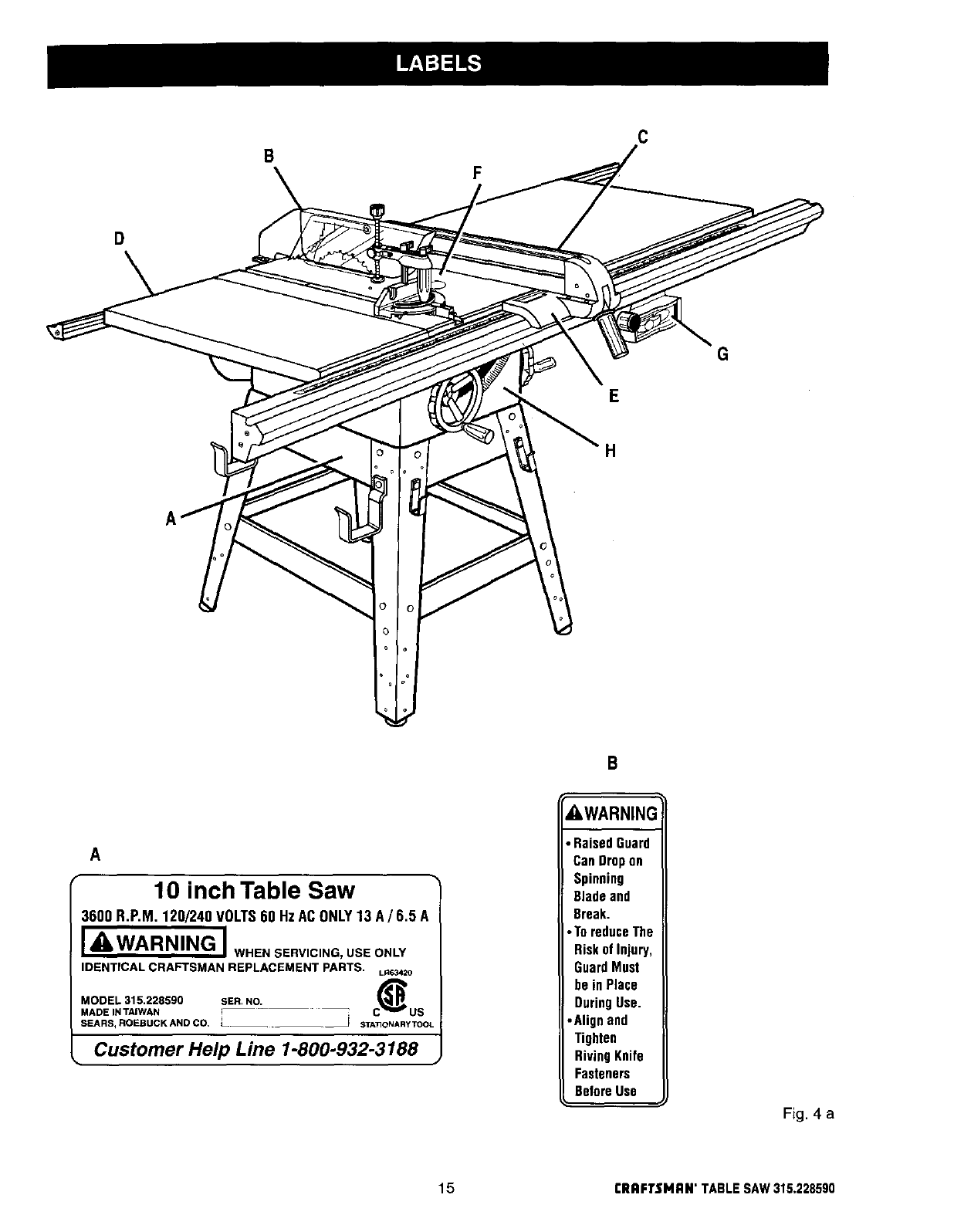

• Labels ........................................................................................................................................... 15-16

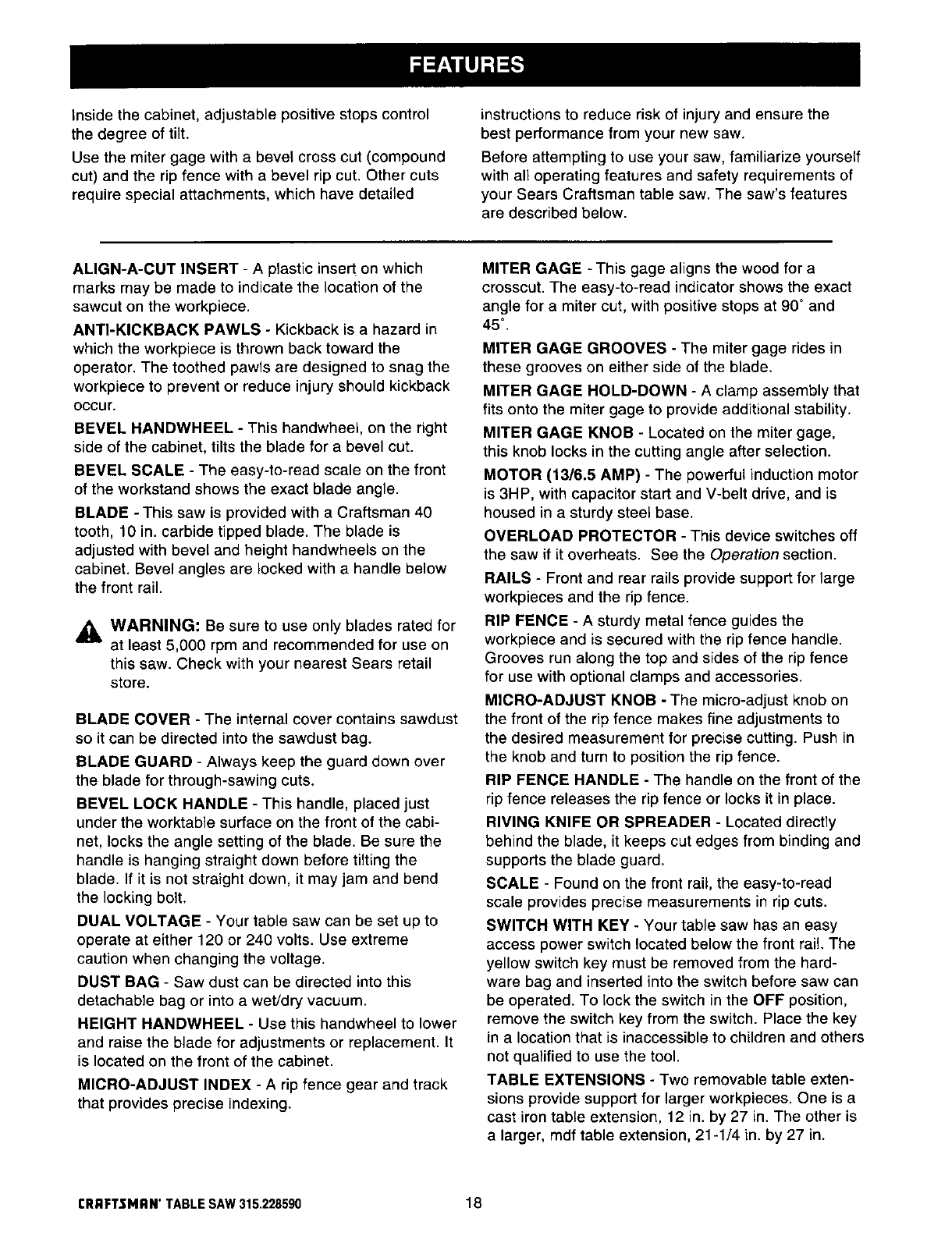

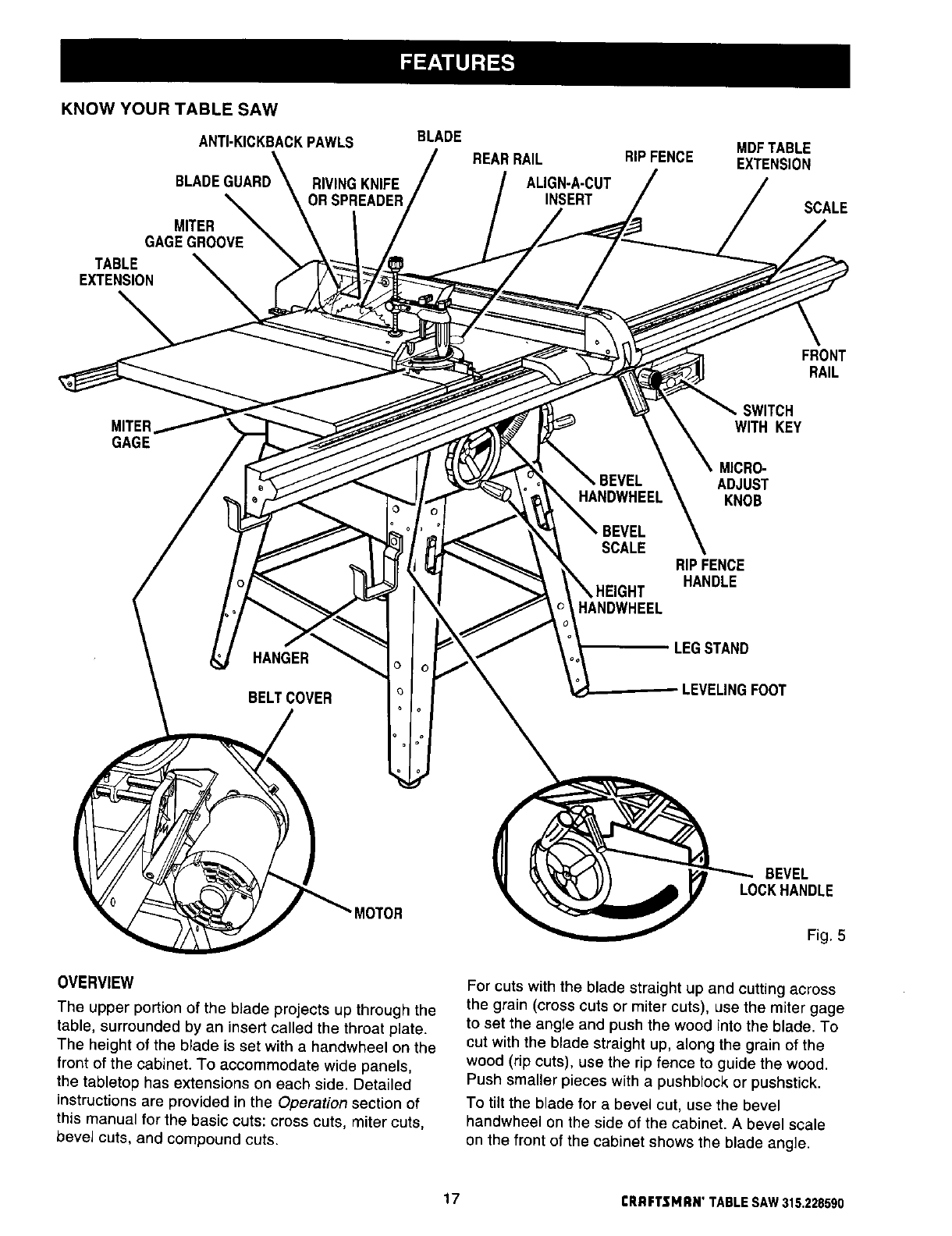

• Features ........................................................................................................................................ 17-18

• Assembly ....................................................................................................................................... 19-33

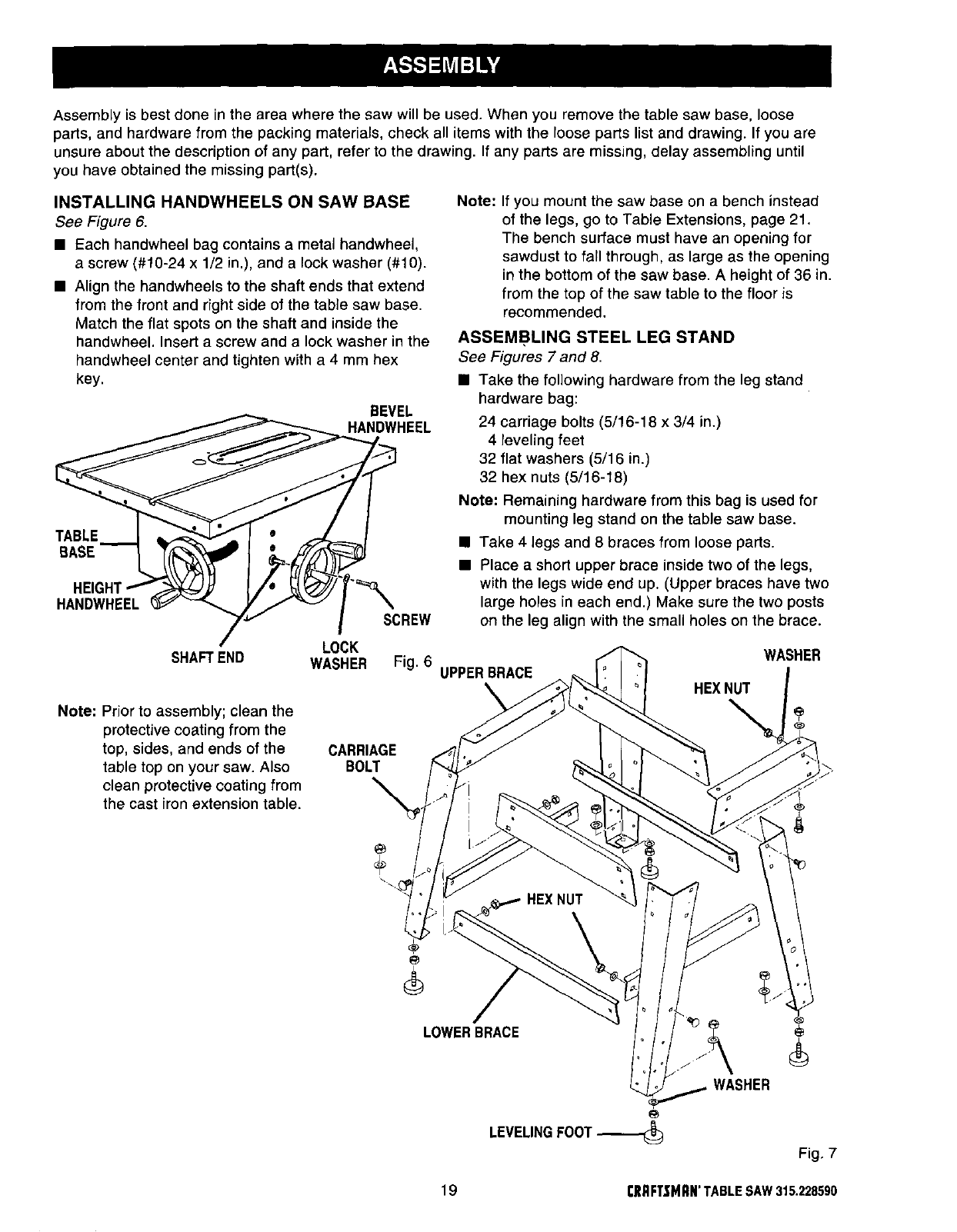

Installing Handwheels on Table Saw Base .......................................................................................... 19

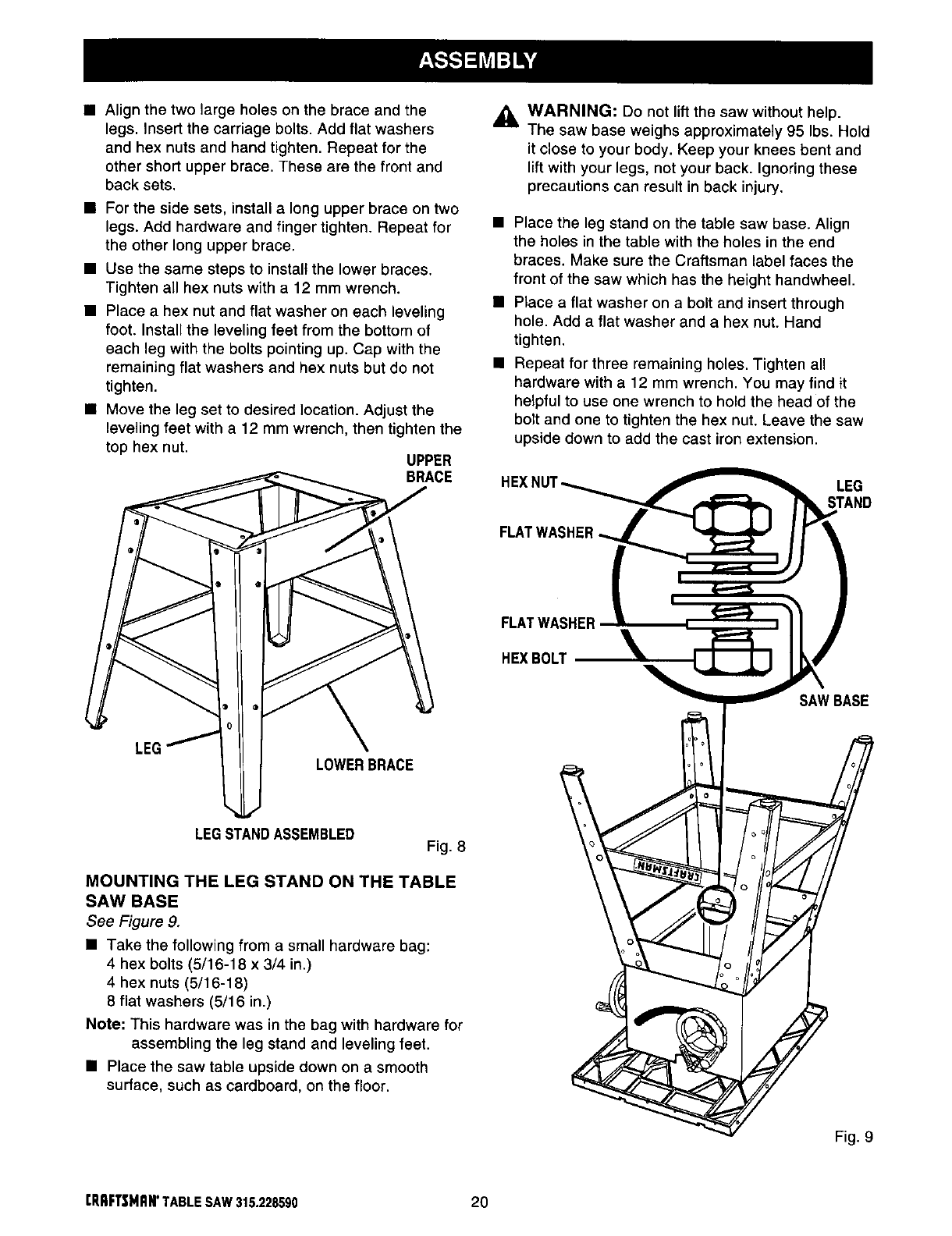

Assembling Steel Leg Stand ........................................................................................................... 19-20

2

MountingtheLegStandontheTableSawBase ..................................................................................20

TableExtensions...............................................................................................................................21

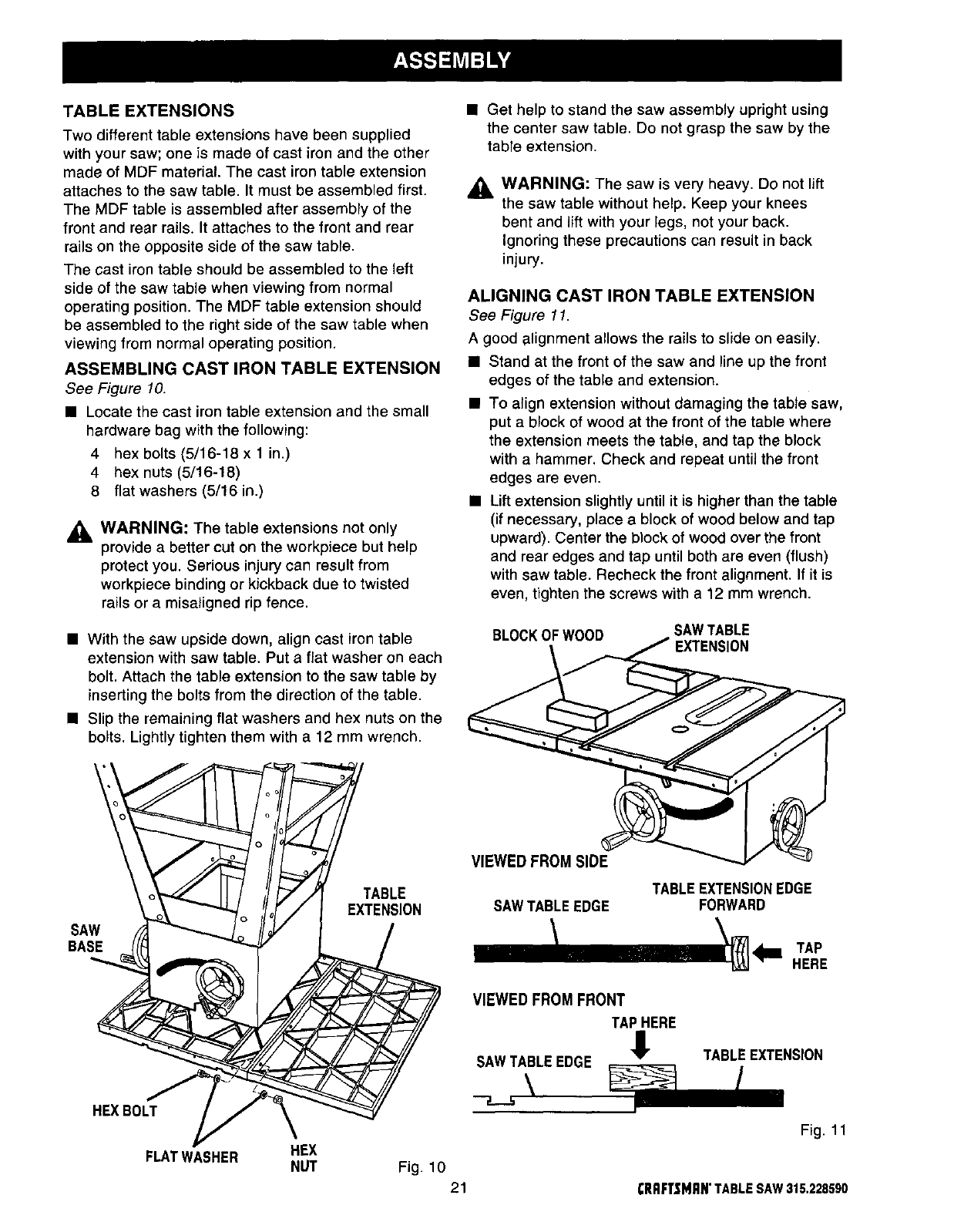

AssemblingCastIronTableExtension................................................................................................21

AligningCastIronTableExtension .....................................................................................................21

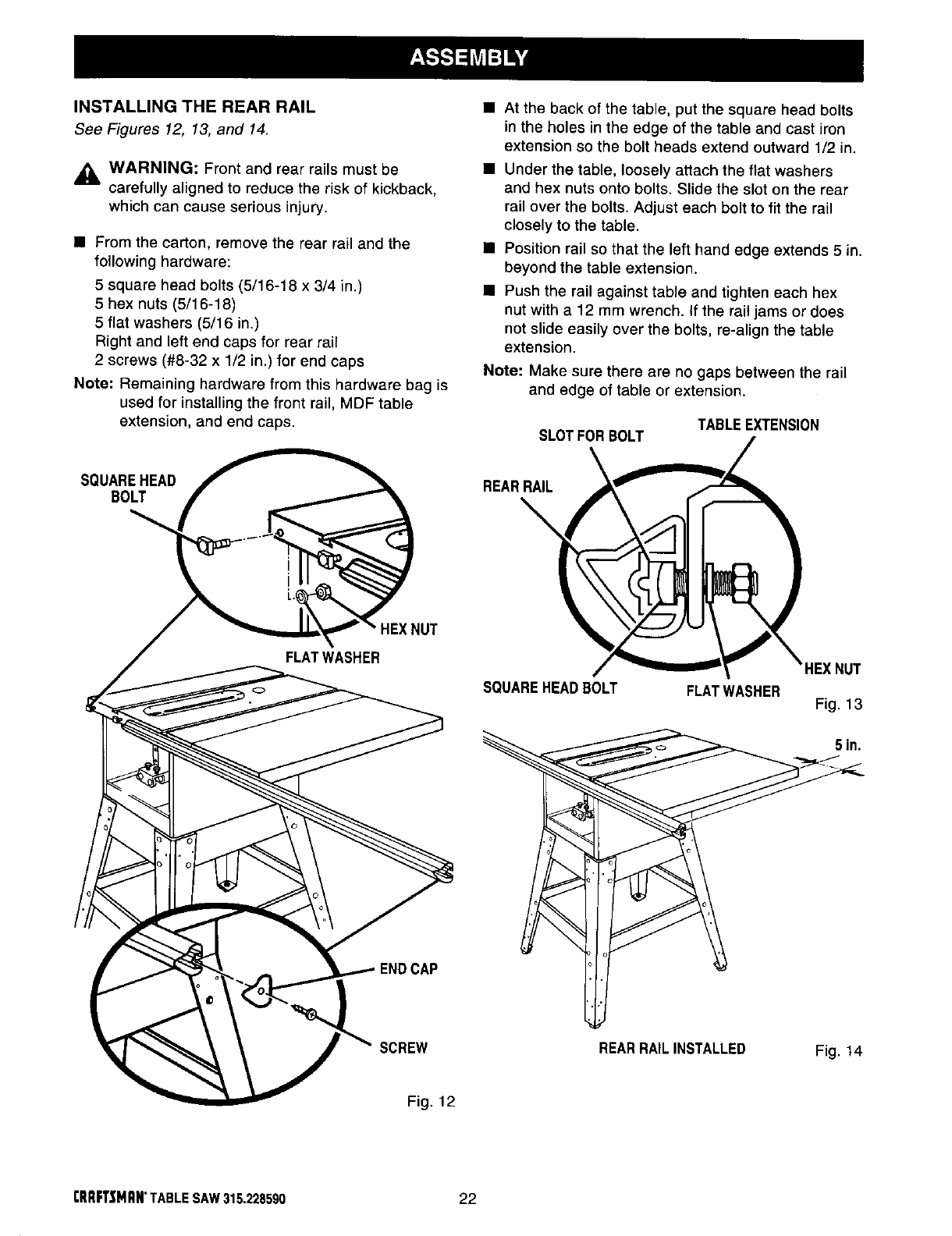

InstallingtheRearRail.......................................................................................................................22

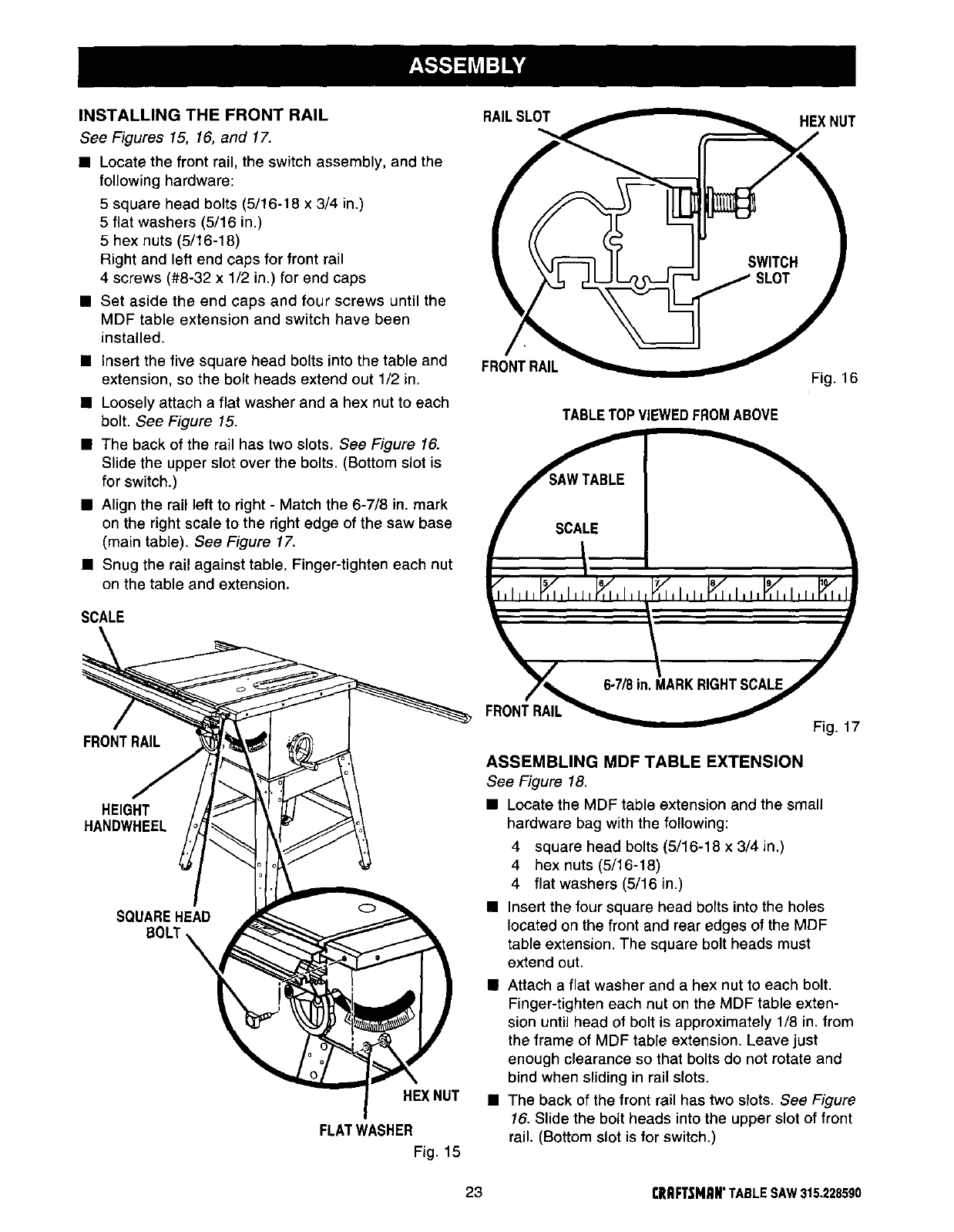

InstallingtheFrontRail .......................................................................................................................23

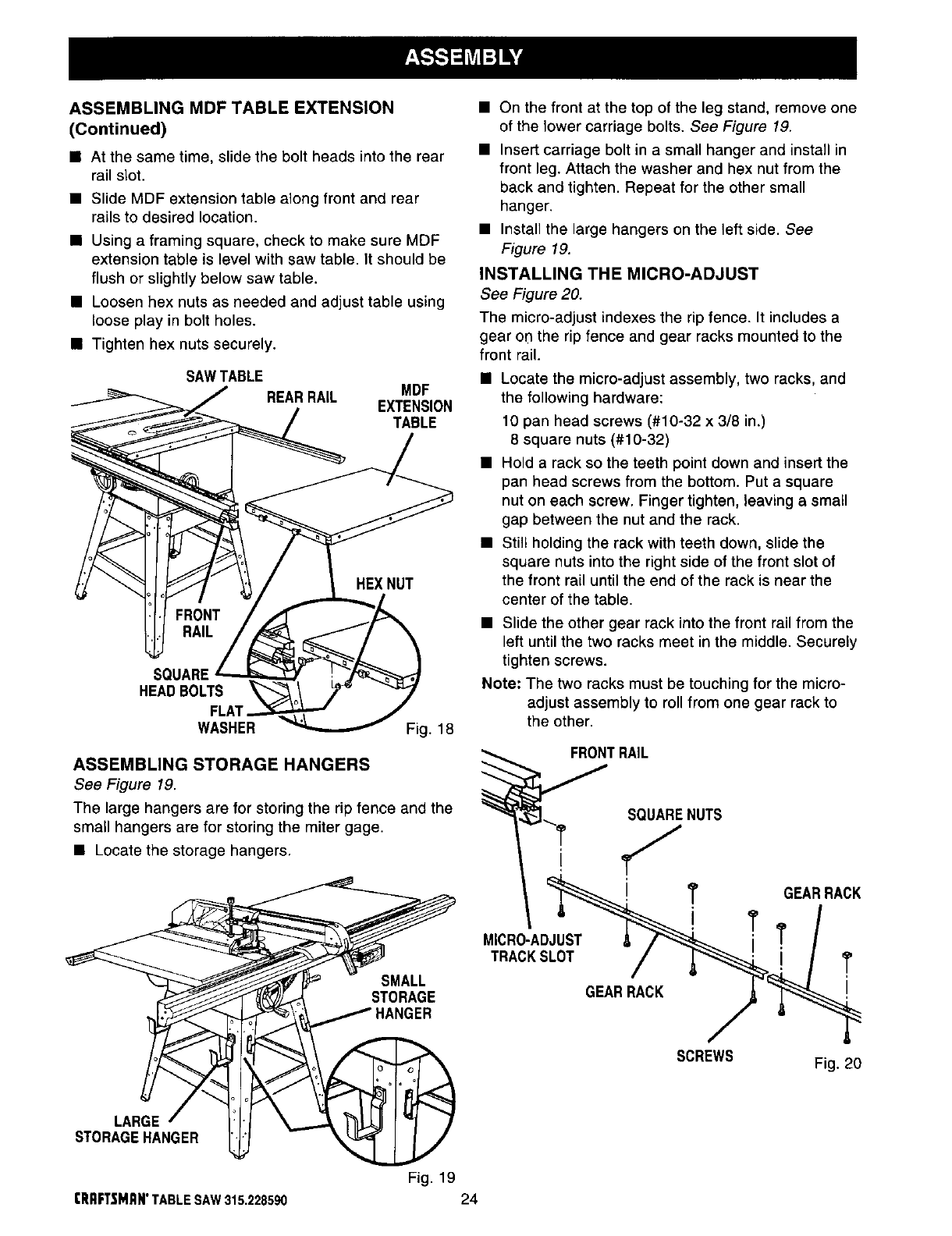

AssemblingMDFTableExtension..................................................................................................23-24

AssemblingStorageHangers.............................................................................................................24

InstallingtheMicro-Adjust...............................................................................................................24-25

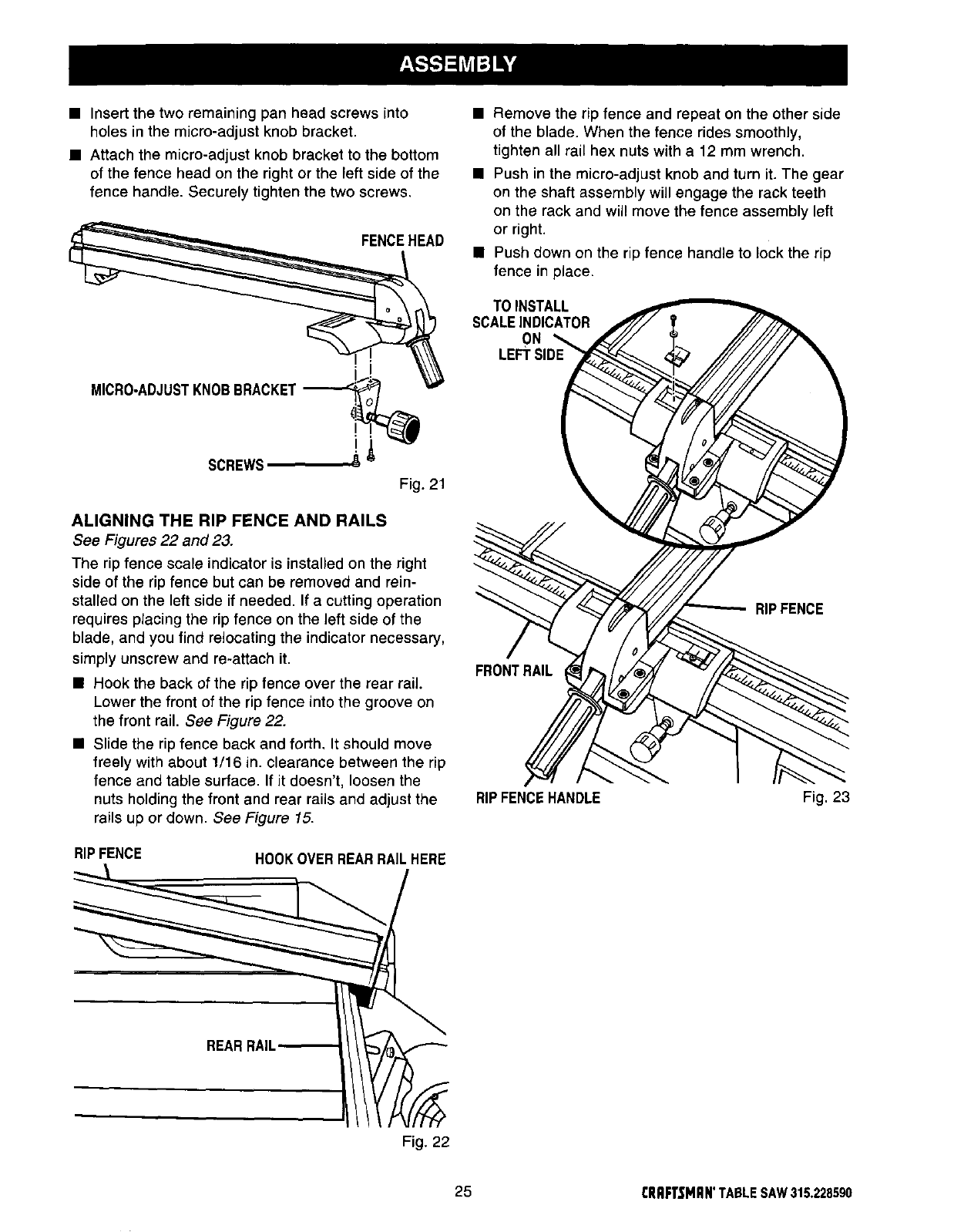

AligningRipFenceandRails..............................................................................................................25

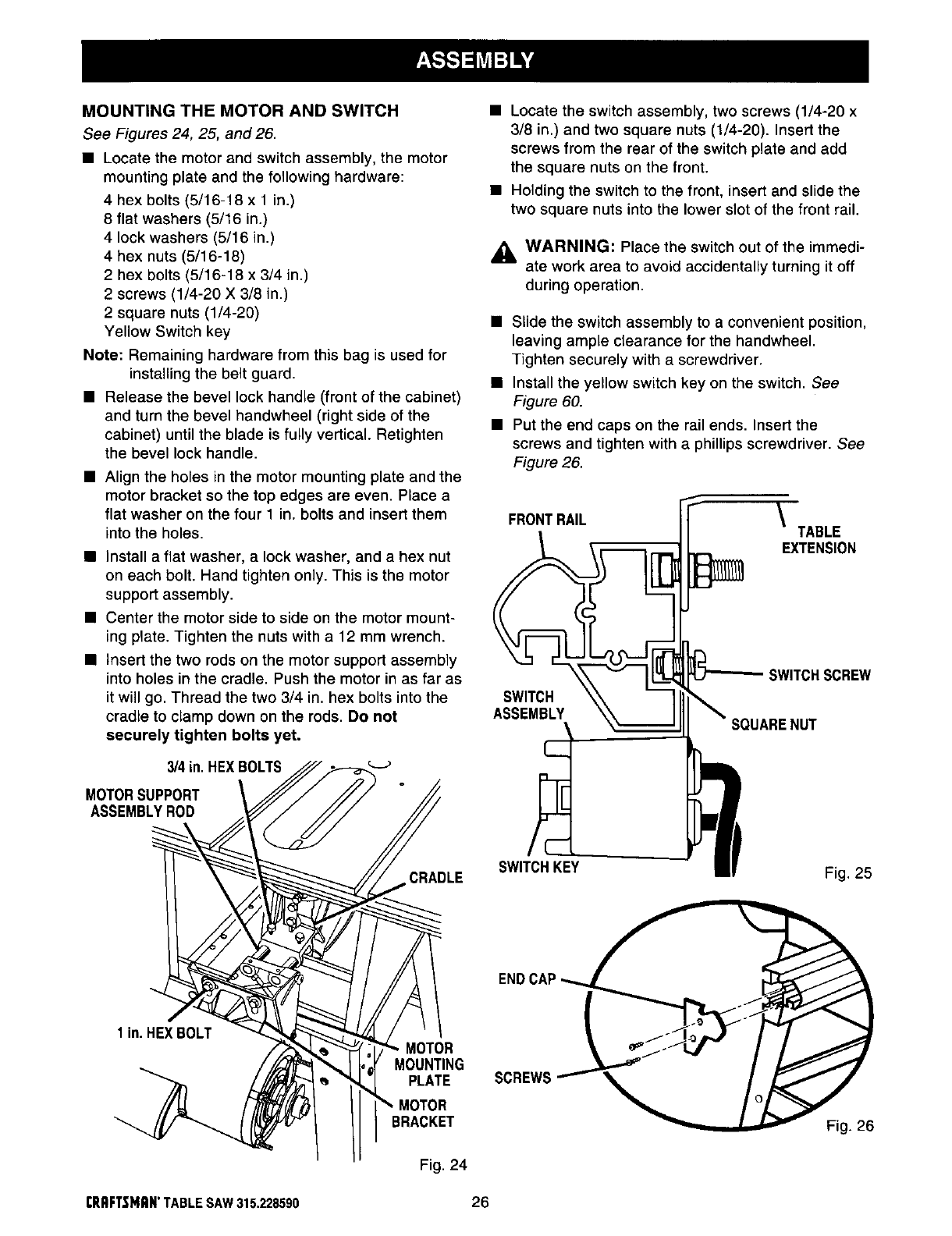

MountingtheMotorandSwitch ...........................................................................................................26

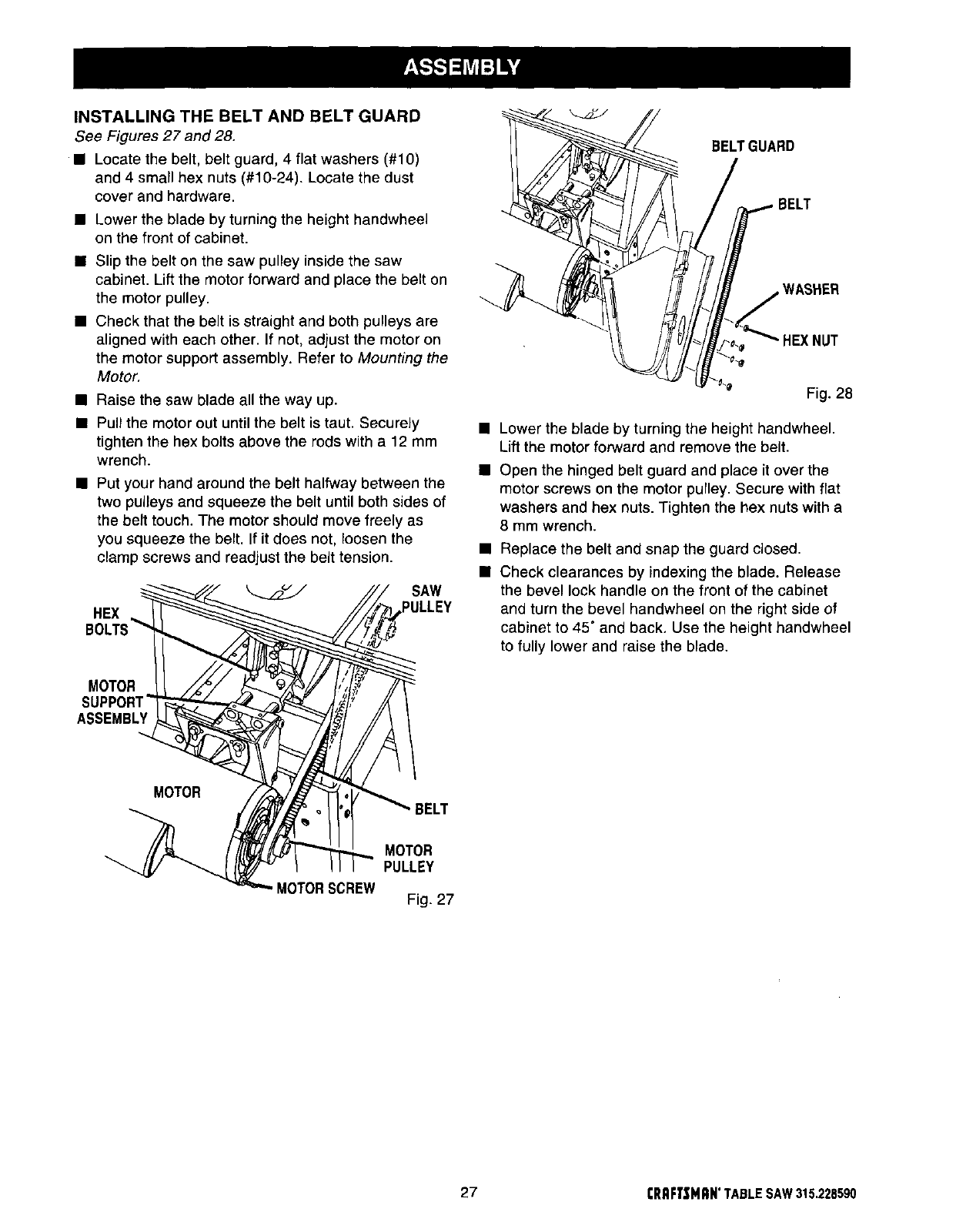

InstallingtheBeltandBeltGuard ........................................................................................................27

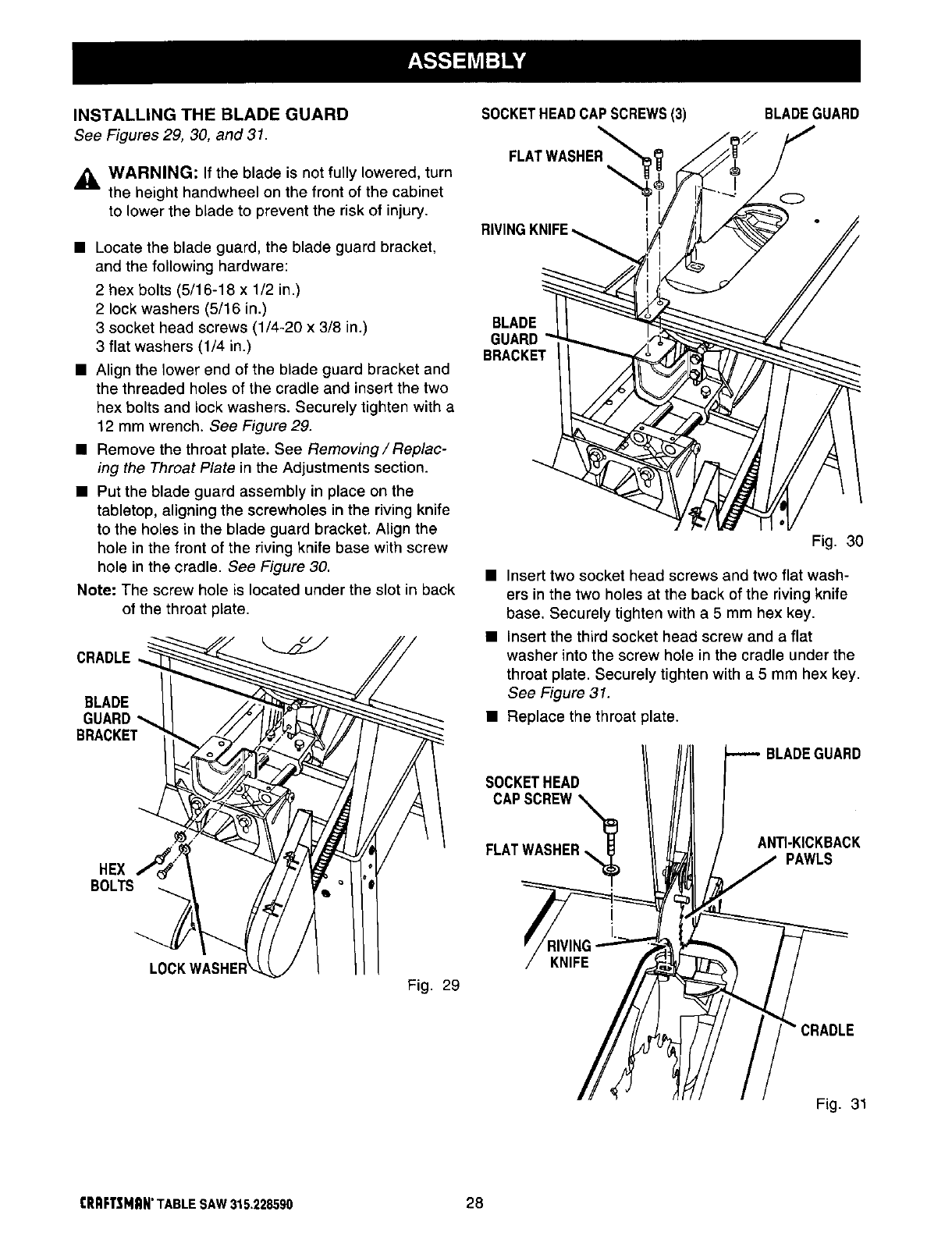

InstallingtheBladeGuard ..................................................................................................................28

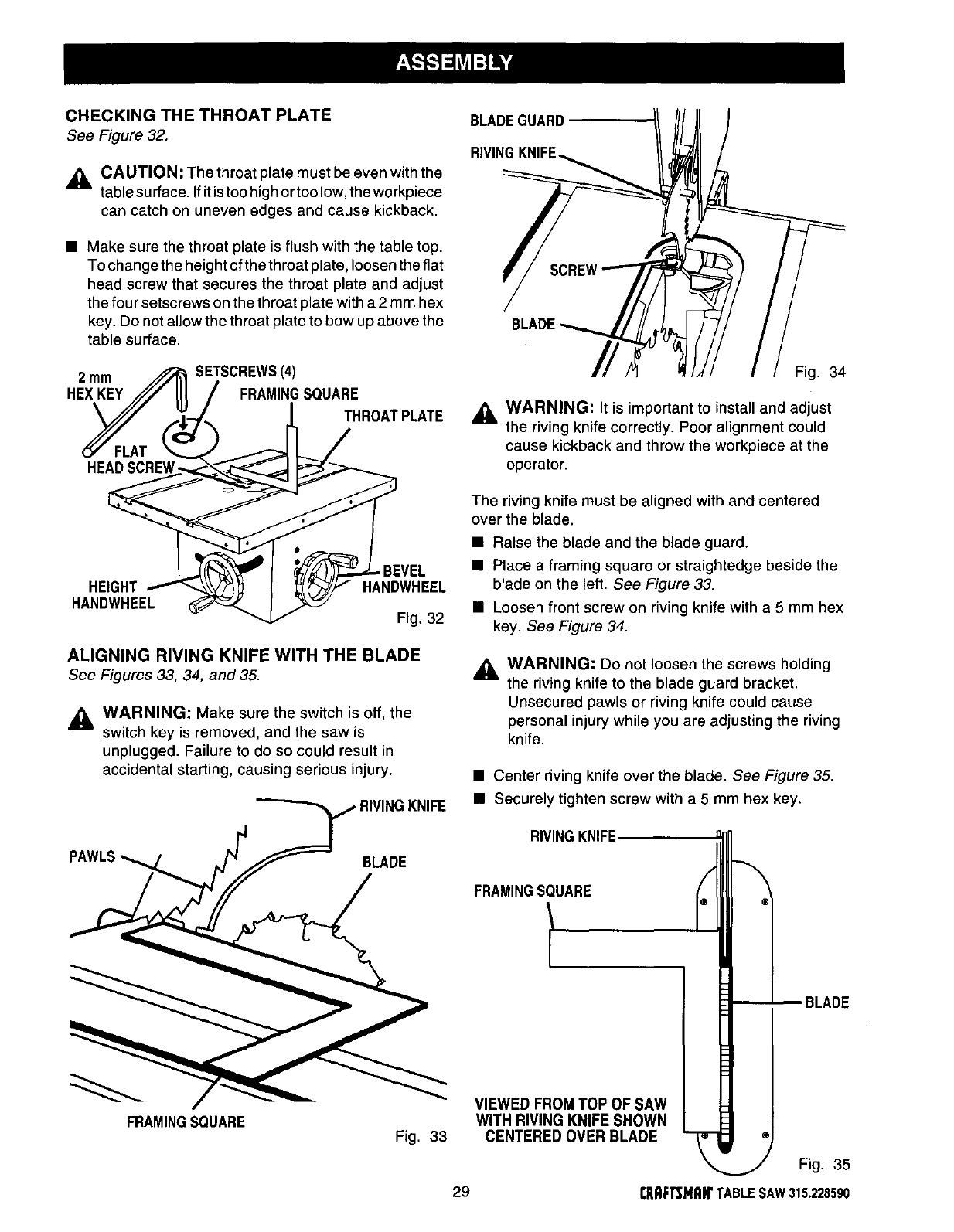

CheckingtheThroatPlate ..................................................................................................................29

AligningtheRivingKnifewiththeBlade ...............................................................................................29

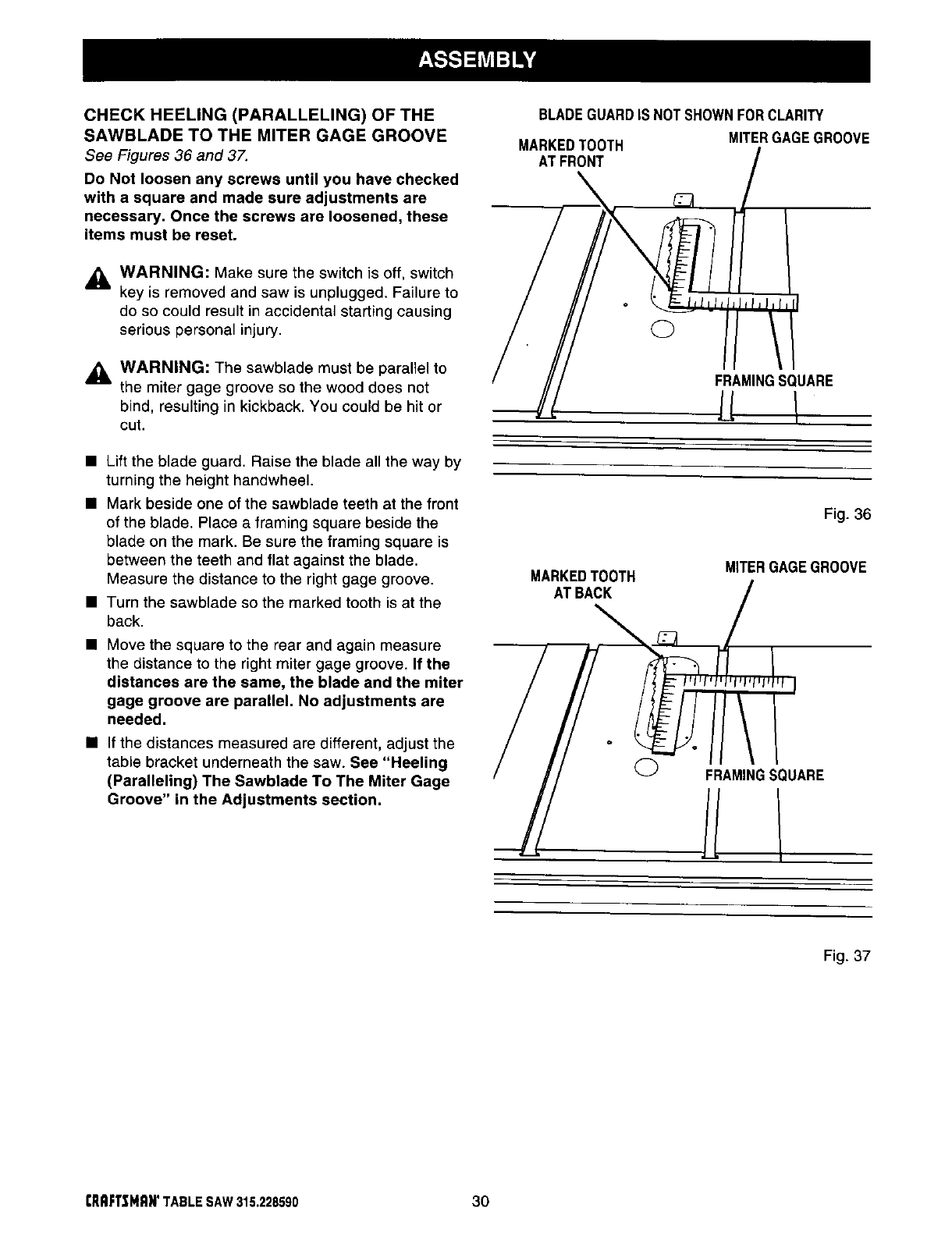

CheckingHeeling(Paralleling)oftheSawbladetoMiterGageGroove .................................................30

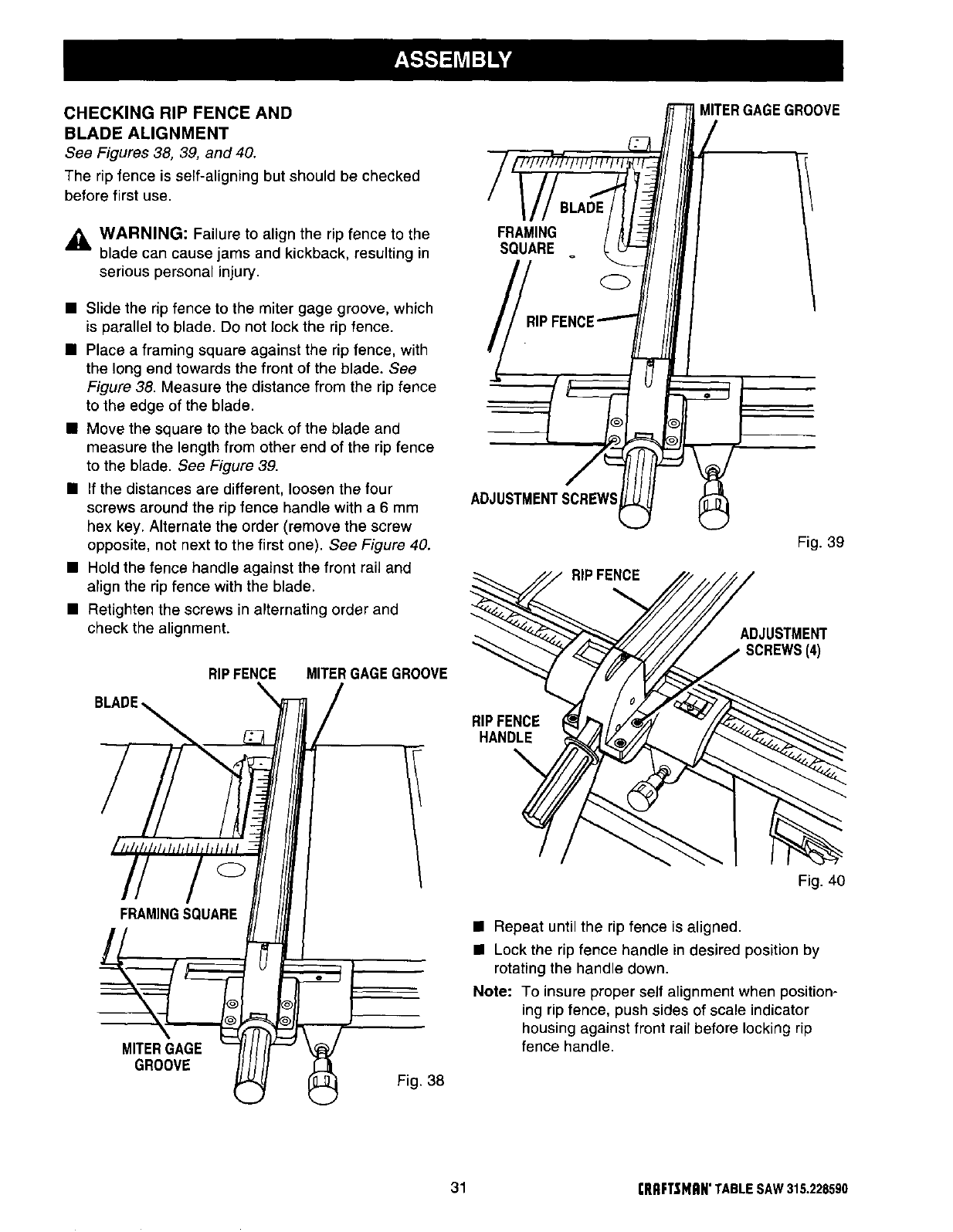

Checking Rip Fence and Blade Alignment ........................................................................................... 31

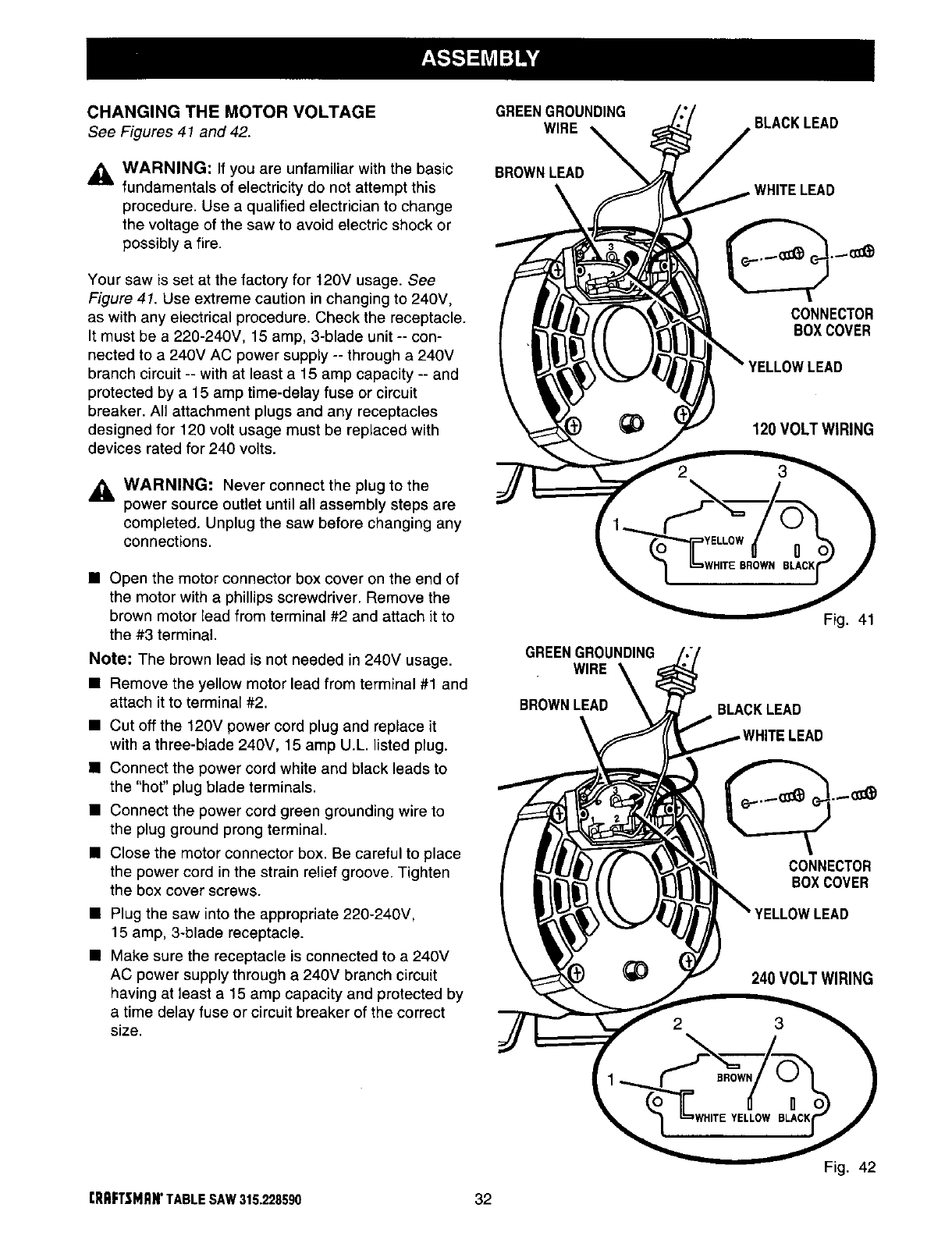

Changingthe Motor Voltage ............................................................................................................... 32

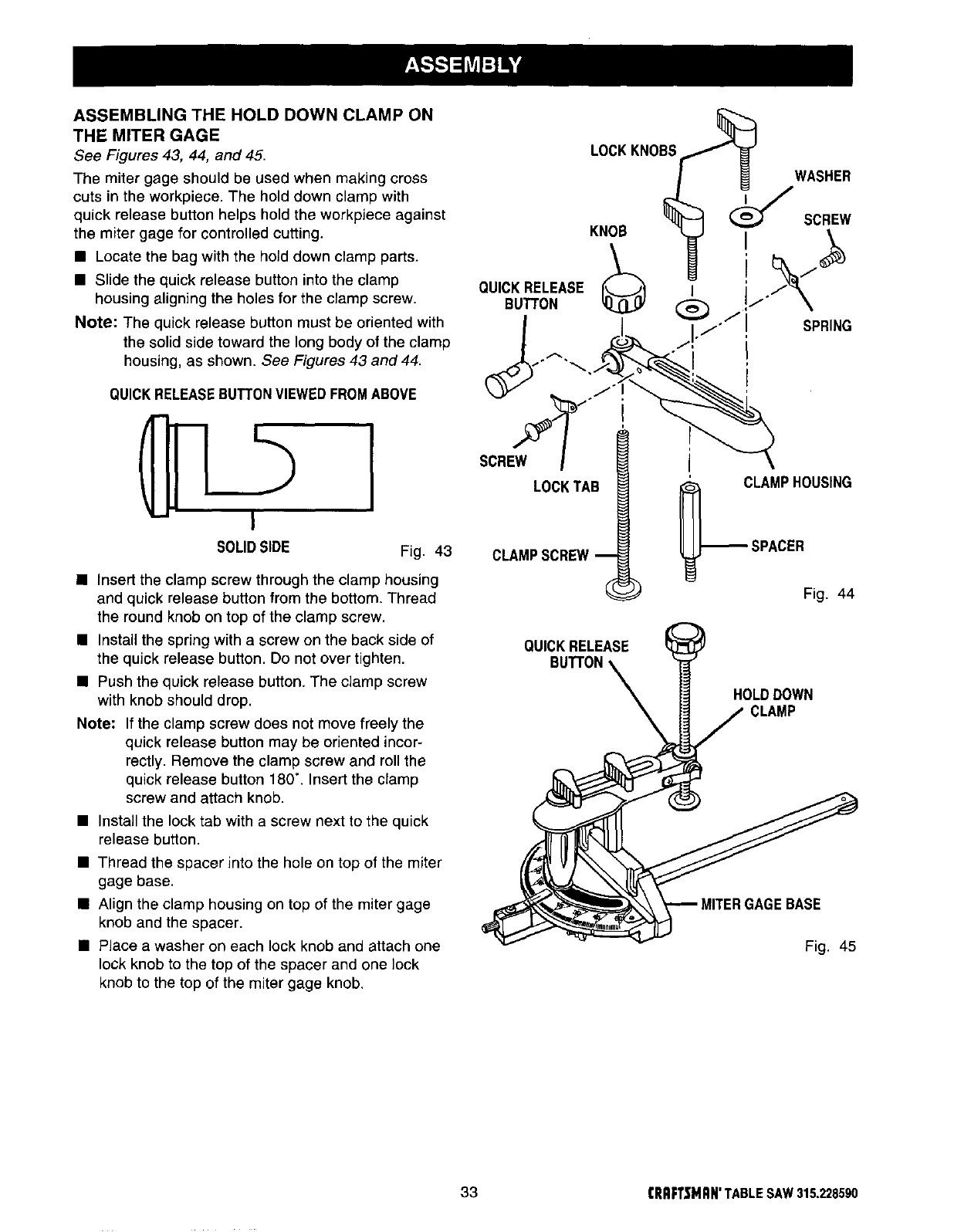

Assembling the Hold Down Clamp on the Miter Gage .......................................................................... 33

• Adjustments ................................................................................................................................... 34-37

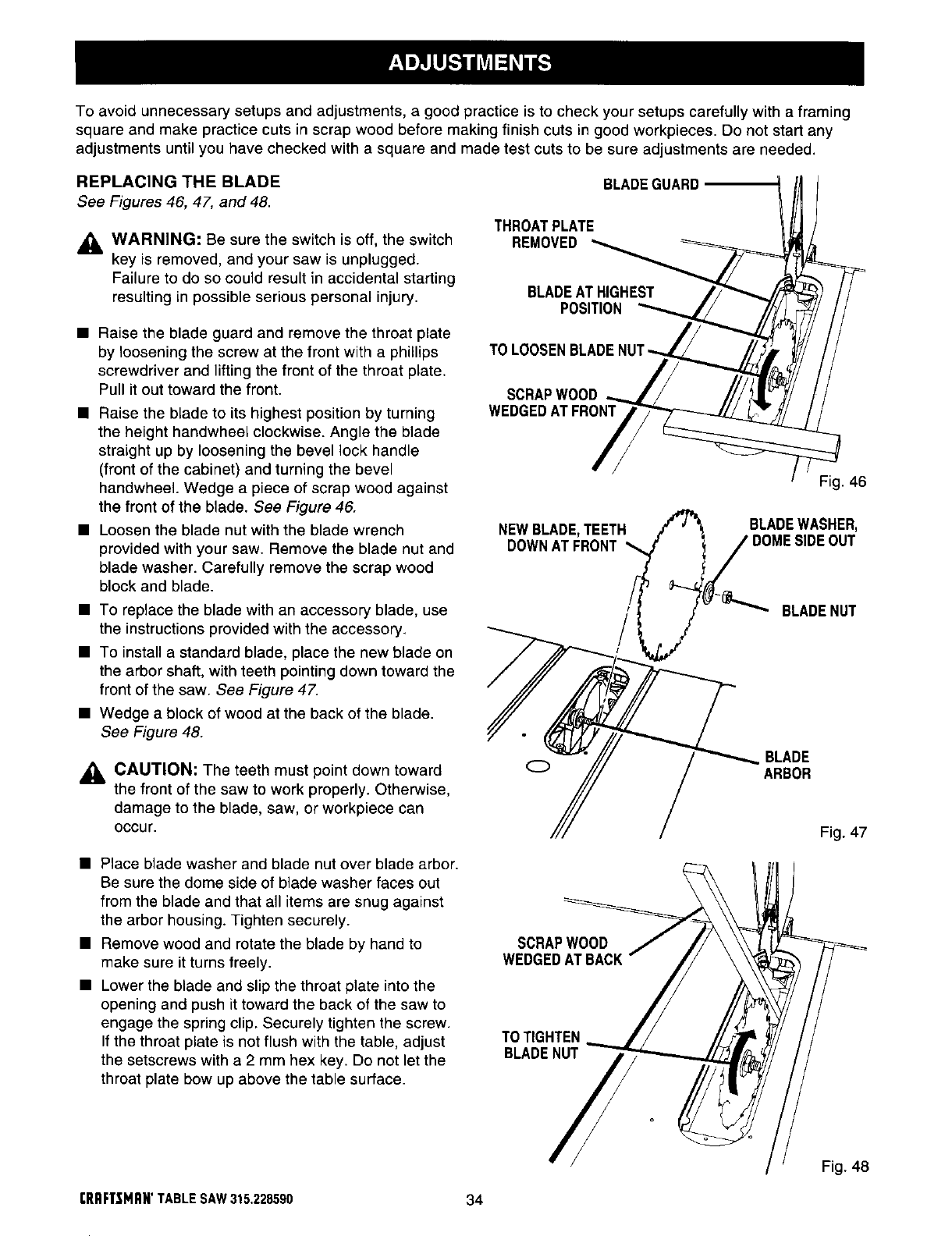

Replacing the Blade ........................................................................................................................... 34

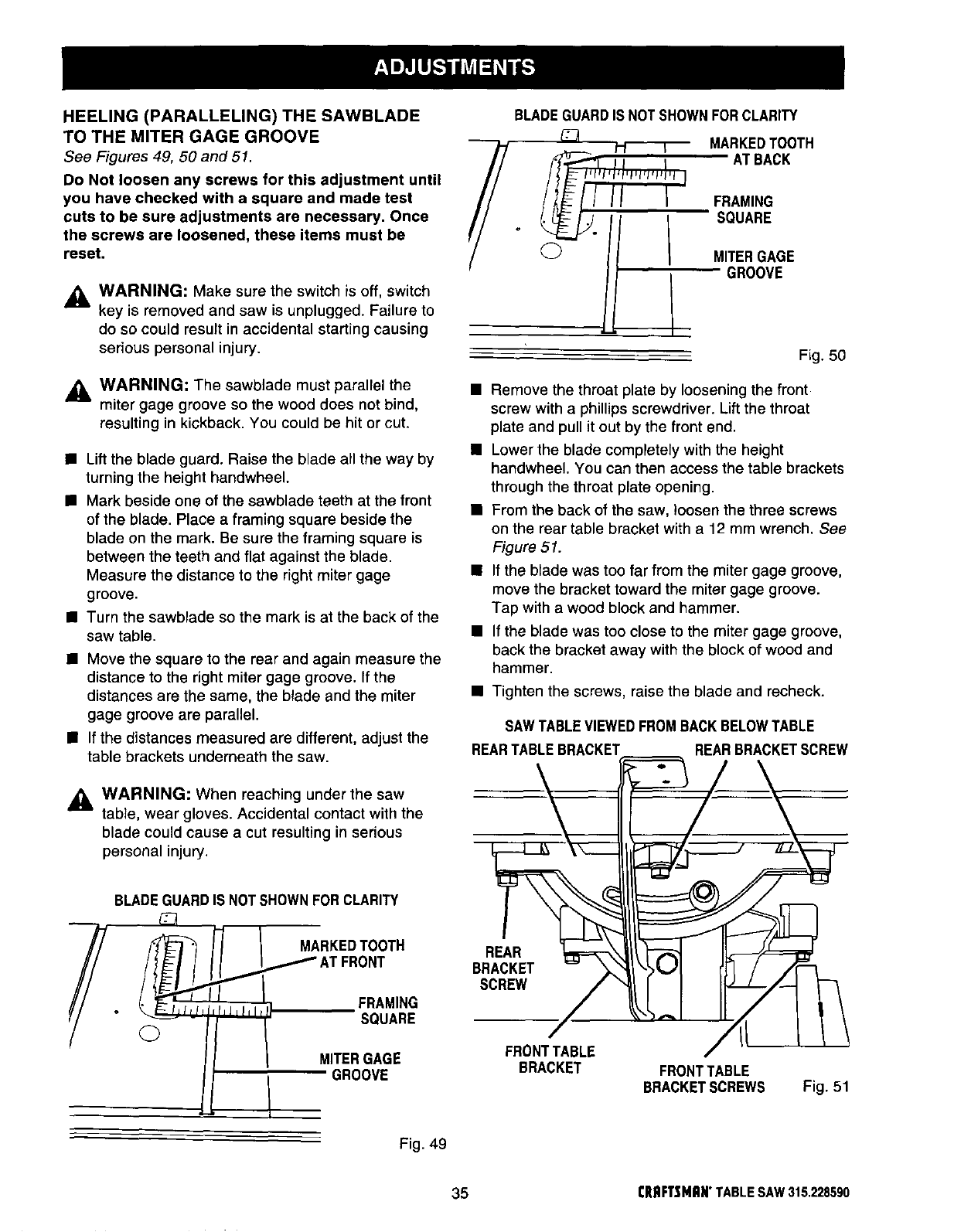

Heeling (Paralleling) the Sawblade to Miter Gage Groove .................................................................... 35

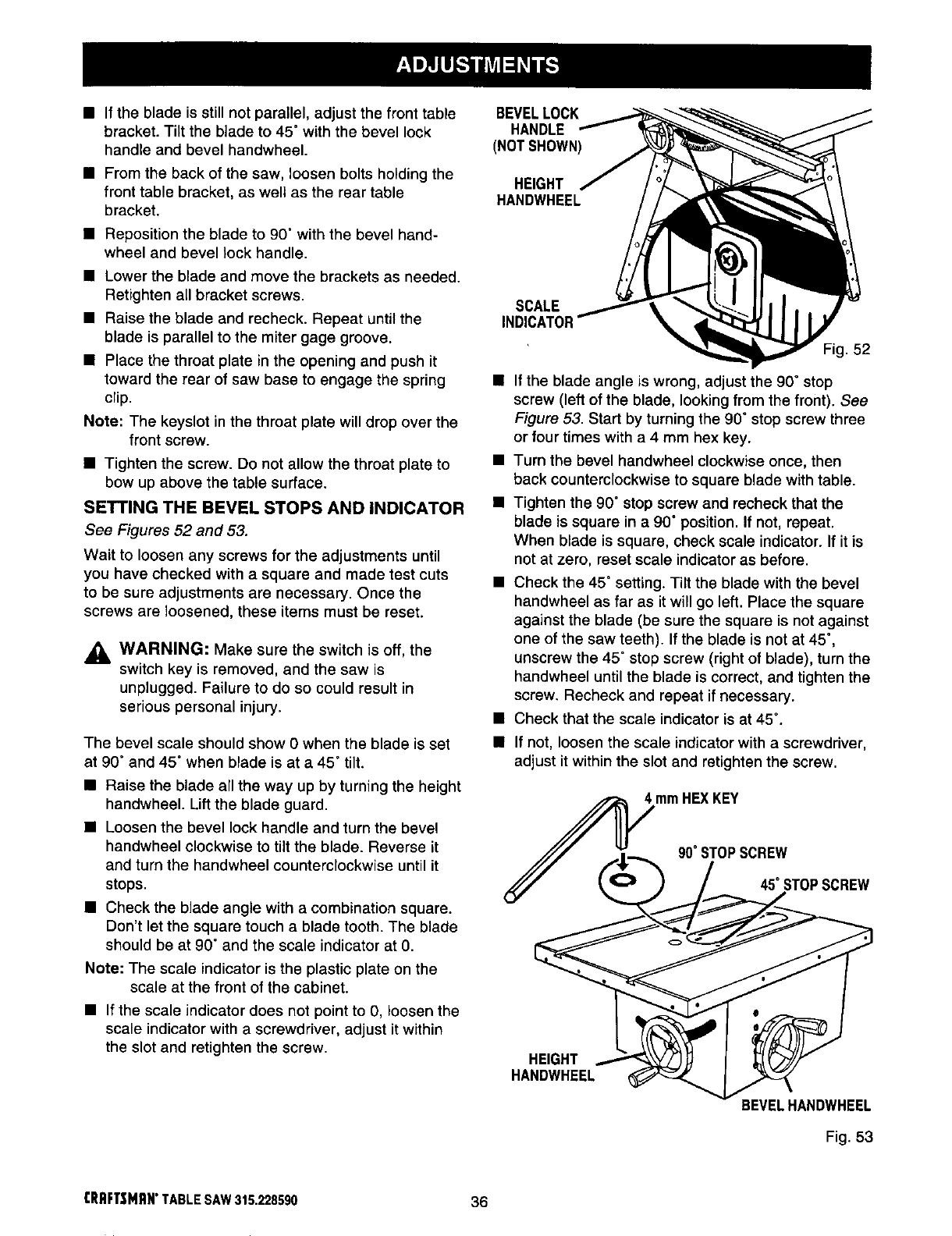

Setting the Bevel Stops and Indicator .................................................................................................. 36

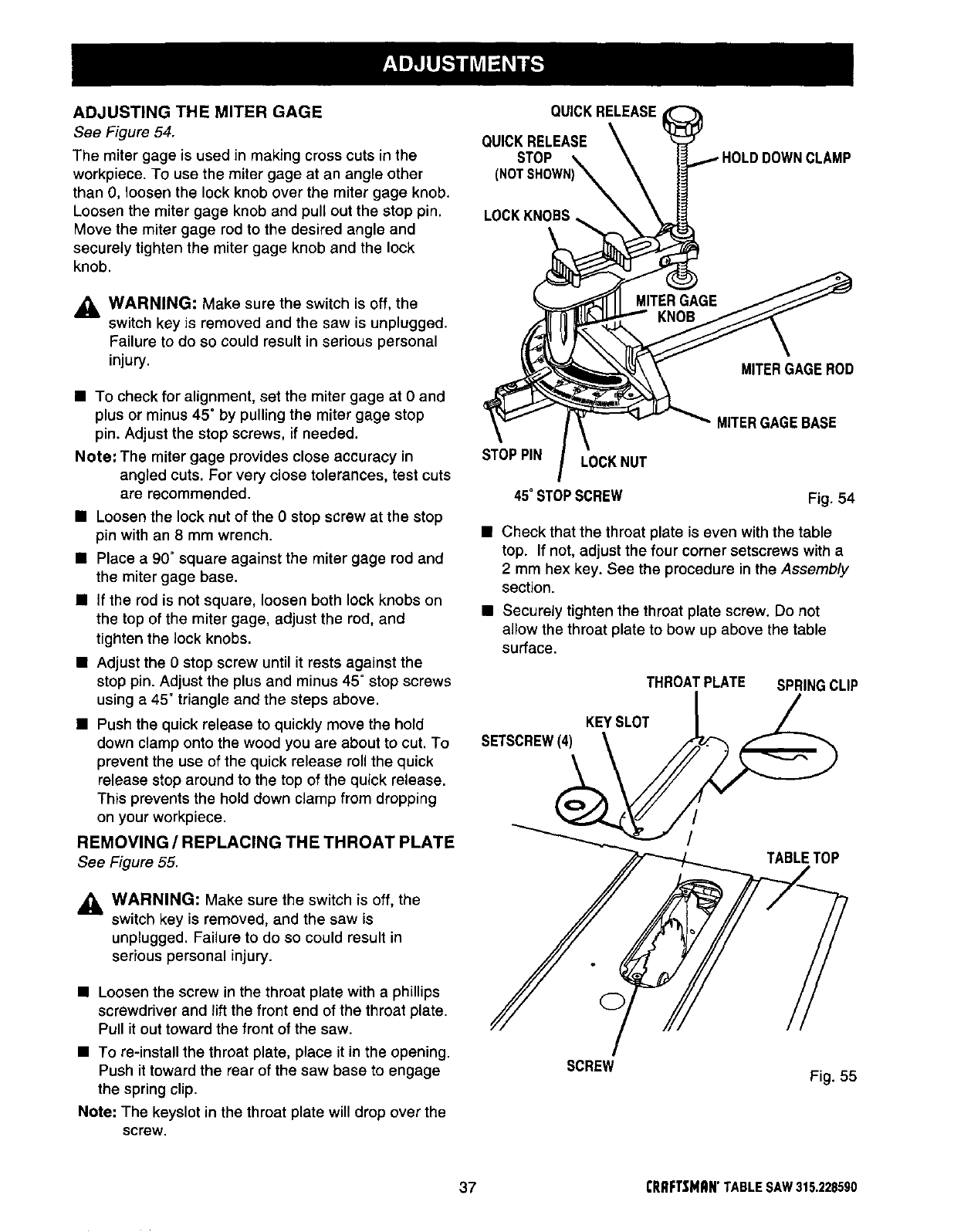

Adjusting the Miter Gage .................................................................................................................... 37

Removing /Replacing the Throat Plate ............................................................................................... 37

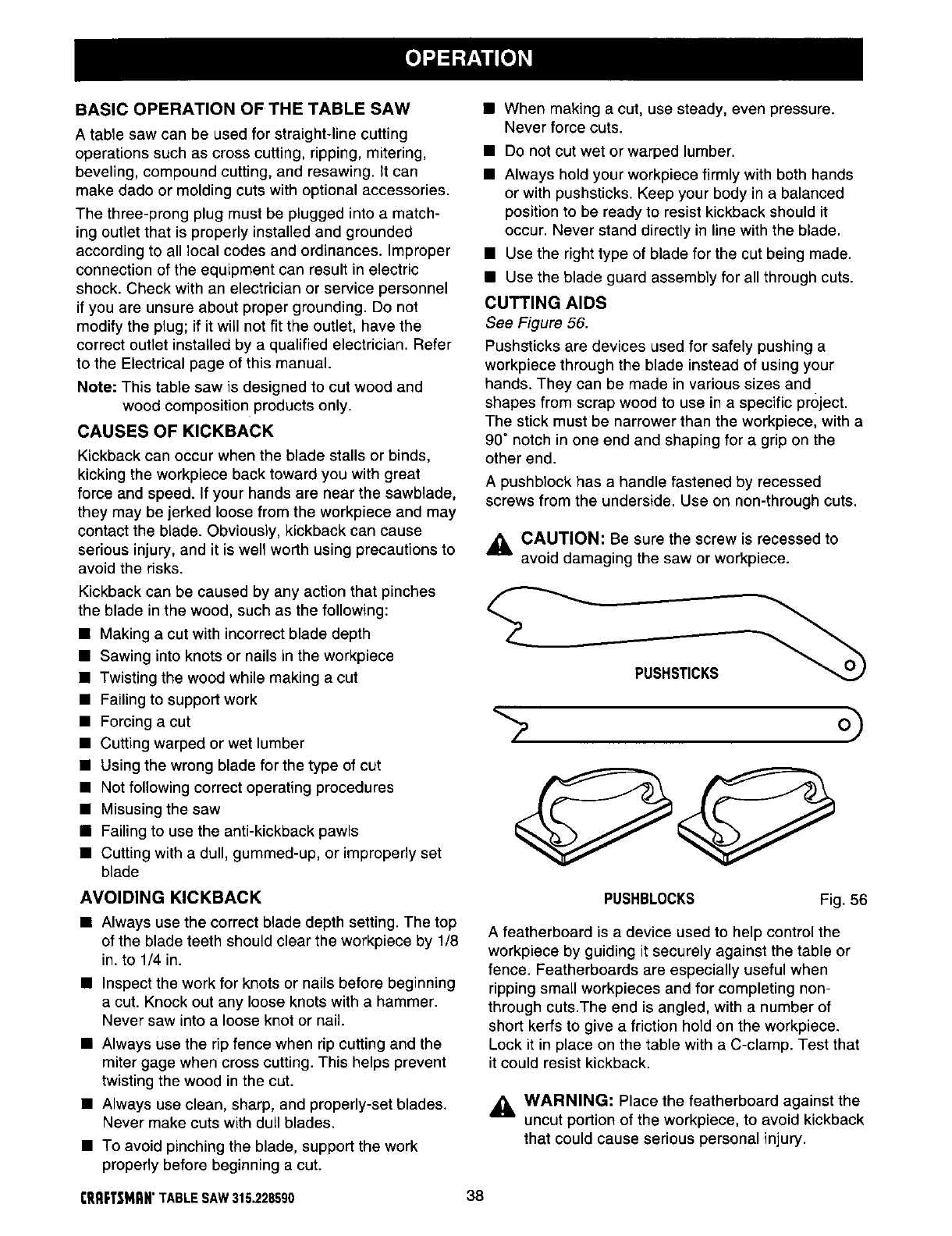

• Basic Operation of the Table Saw ................................................................................................... 38-47

Causes of Kickback ............................................................................................................................ 38

Avoiding Kickback .............................................................................................................................. 38

CuttingAids ....................................................................................................................................... 38

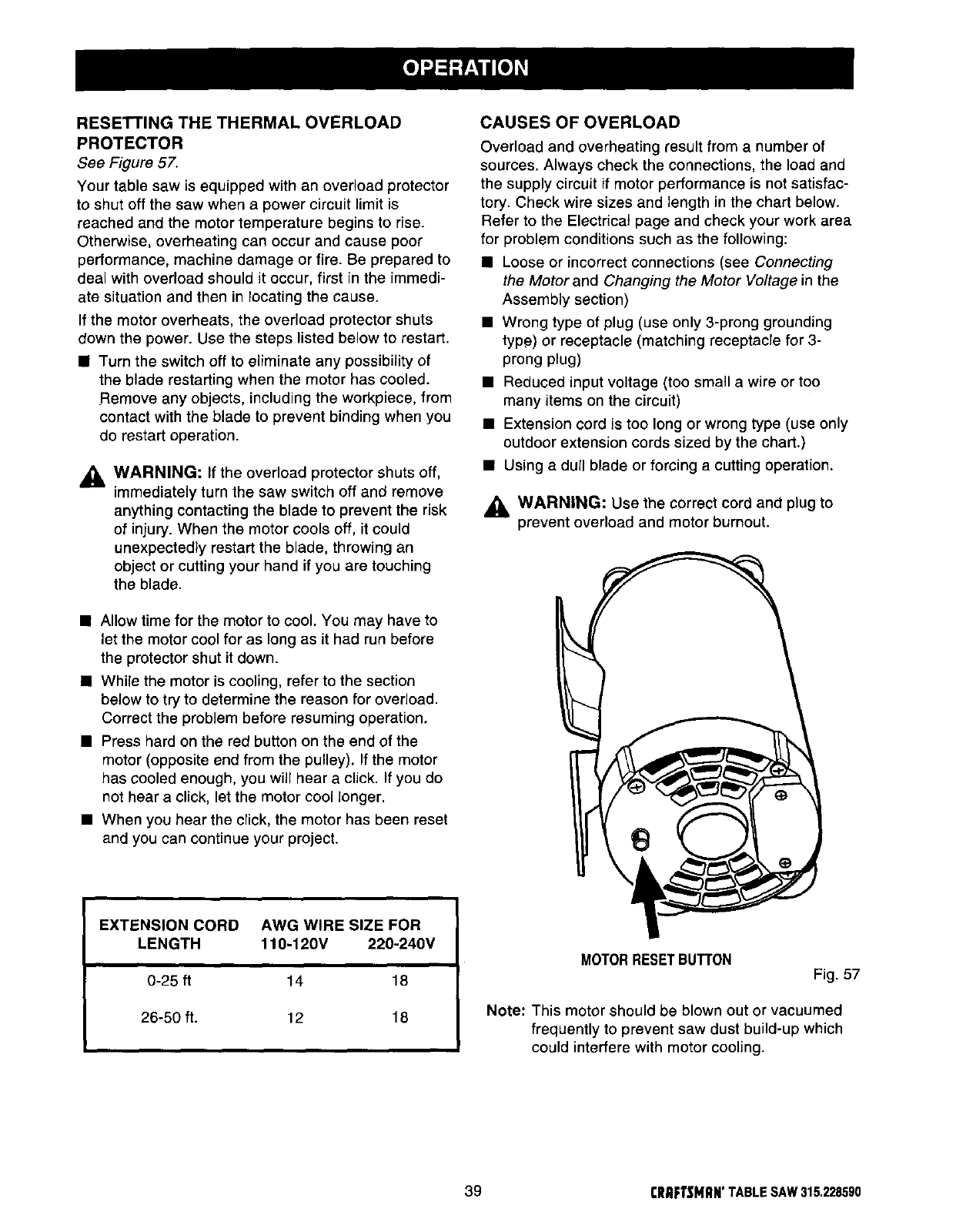

Resetting Thermal Overload Protector ................................................................................................ 39

Causes of Overload ........................................................................................................................... 39

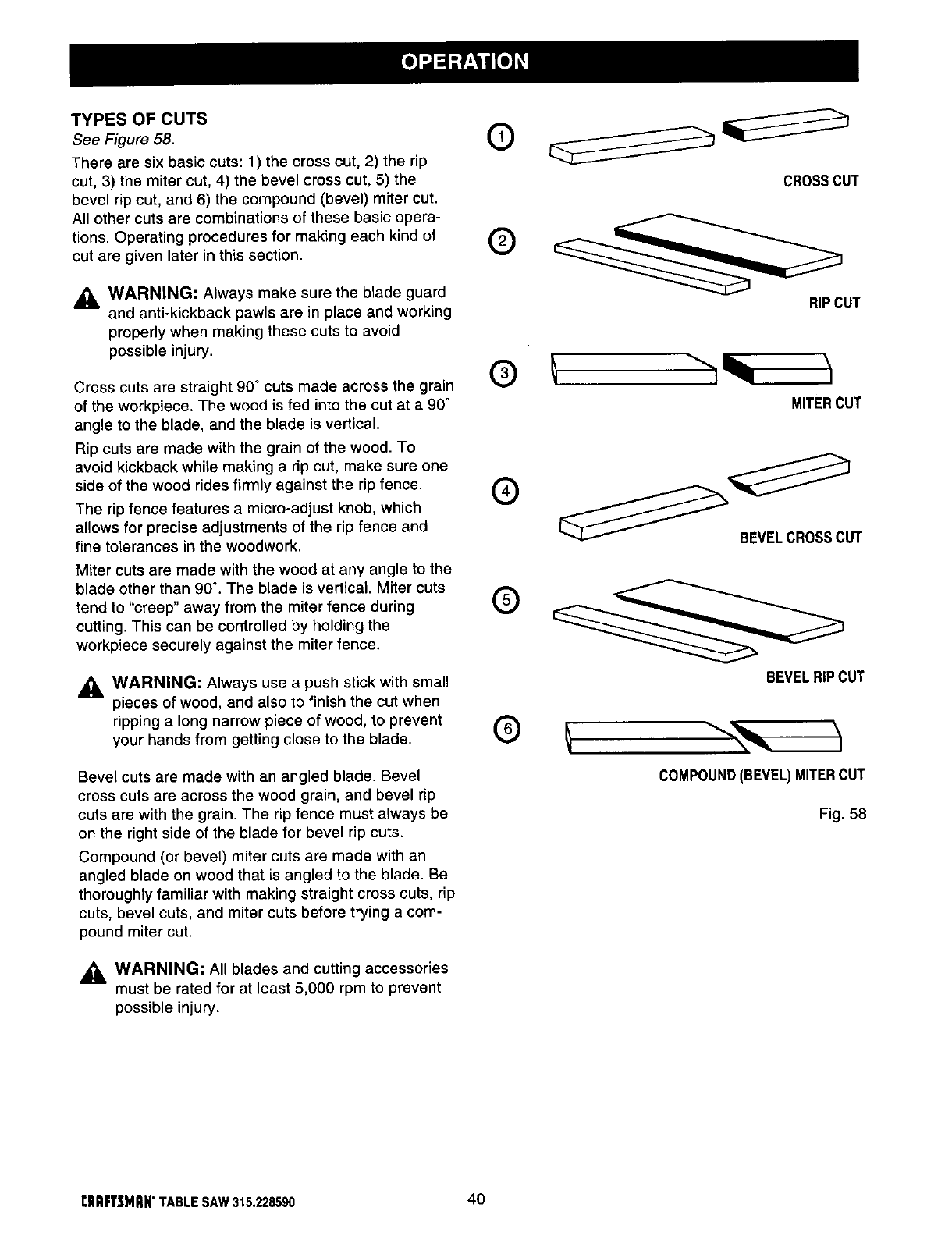

Types of Cuts .................................................................................................................................... 40

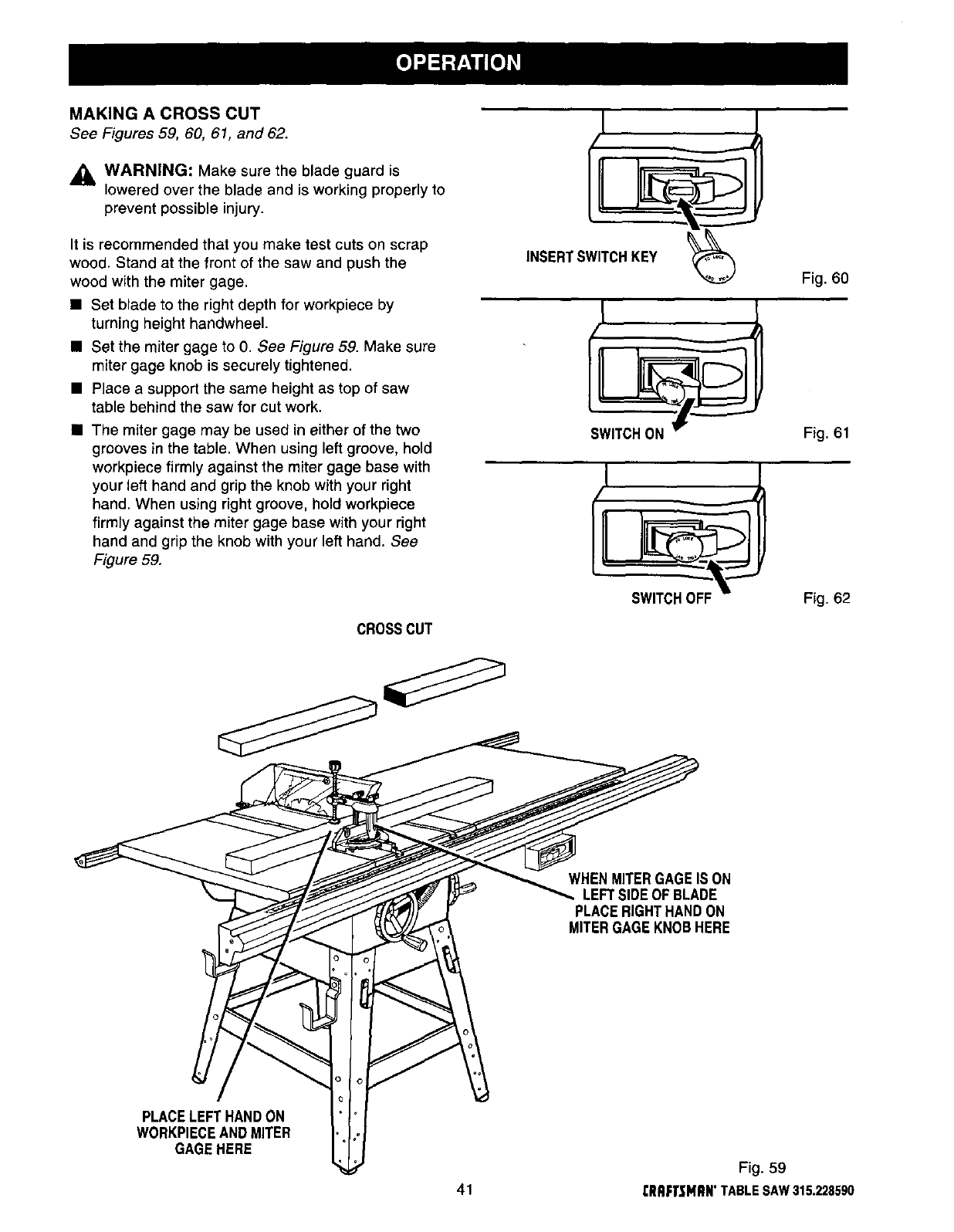

Making a Cross Cut ........................................................................................................................ 41-42

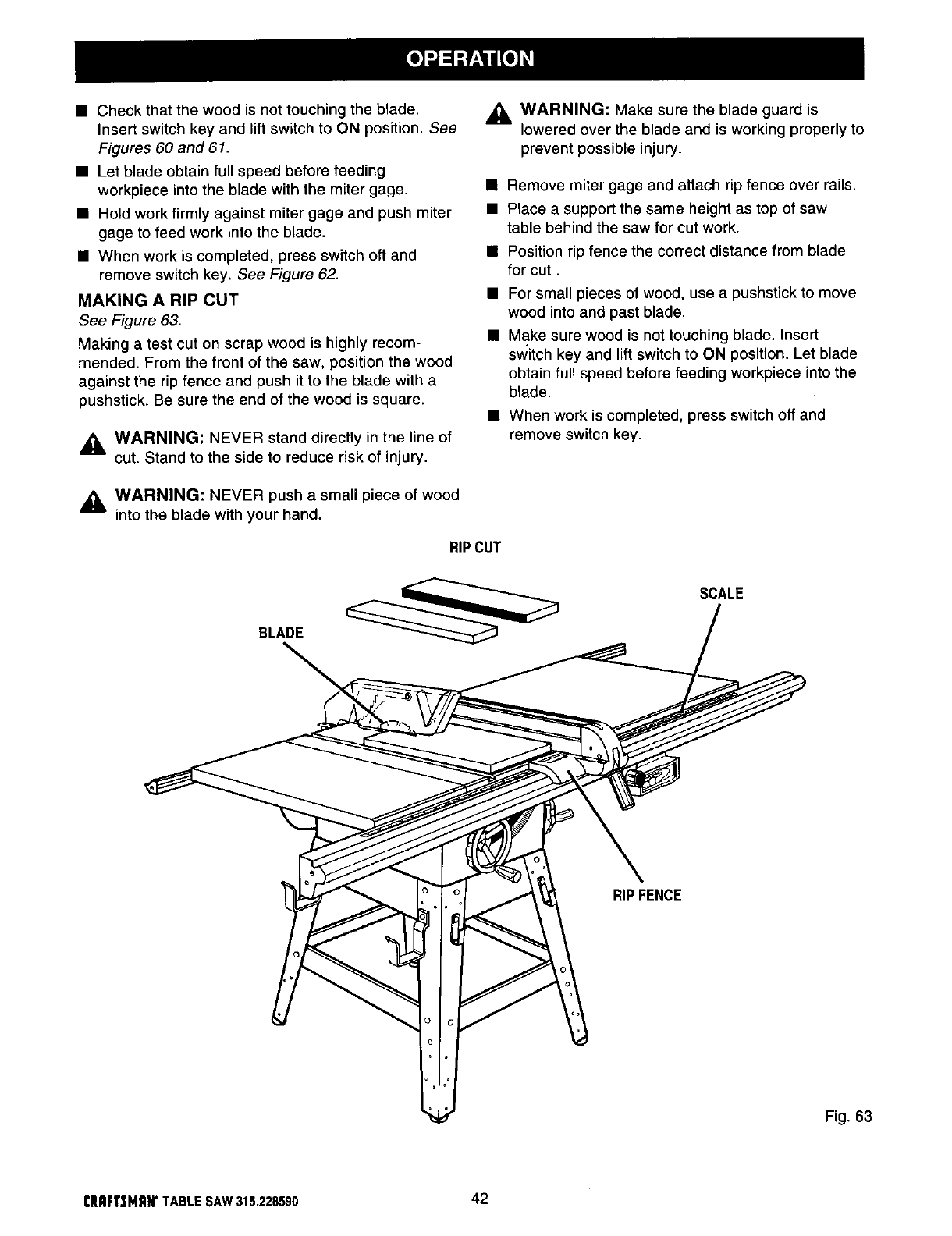

Making a Rip Cut ............................................................................................................................... 42

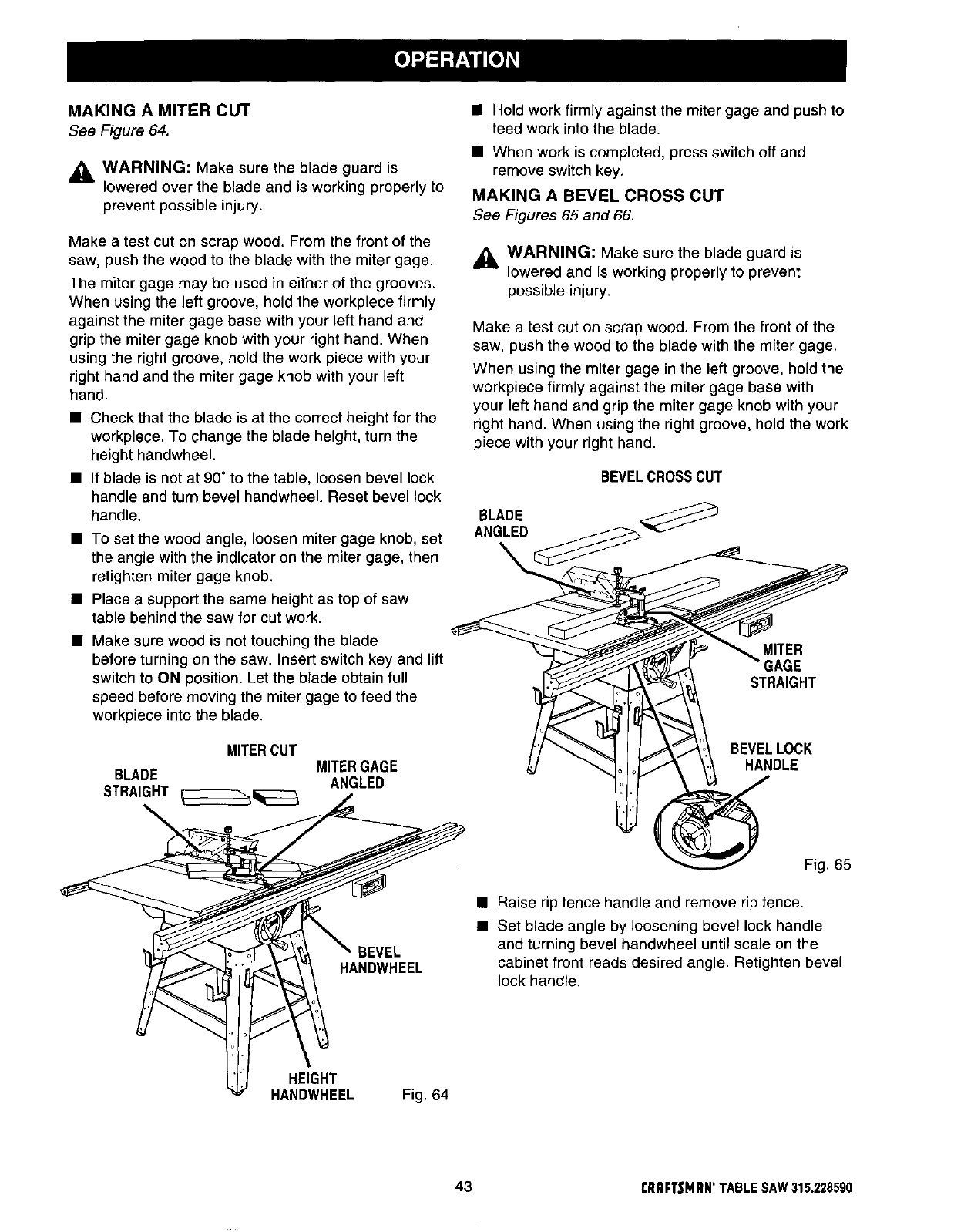

Making a Miter Cut ............................................................................................................................. 43

Making a Bevel Cross Cut .............................................................................................................. 43-44

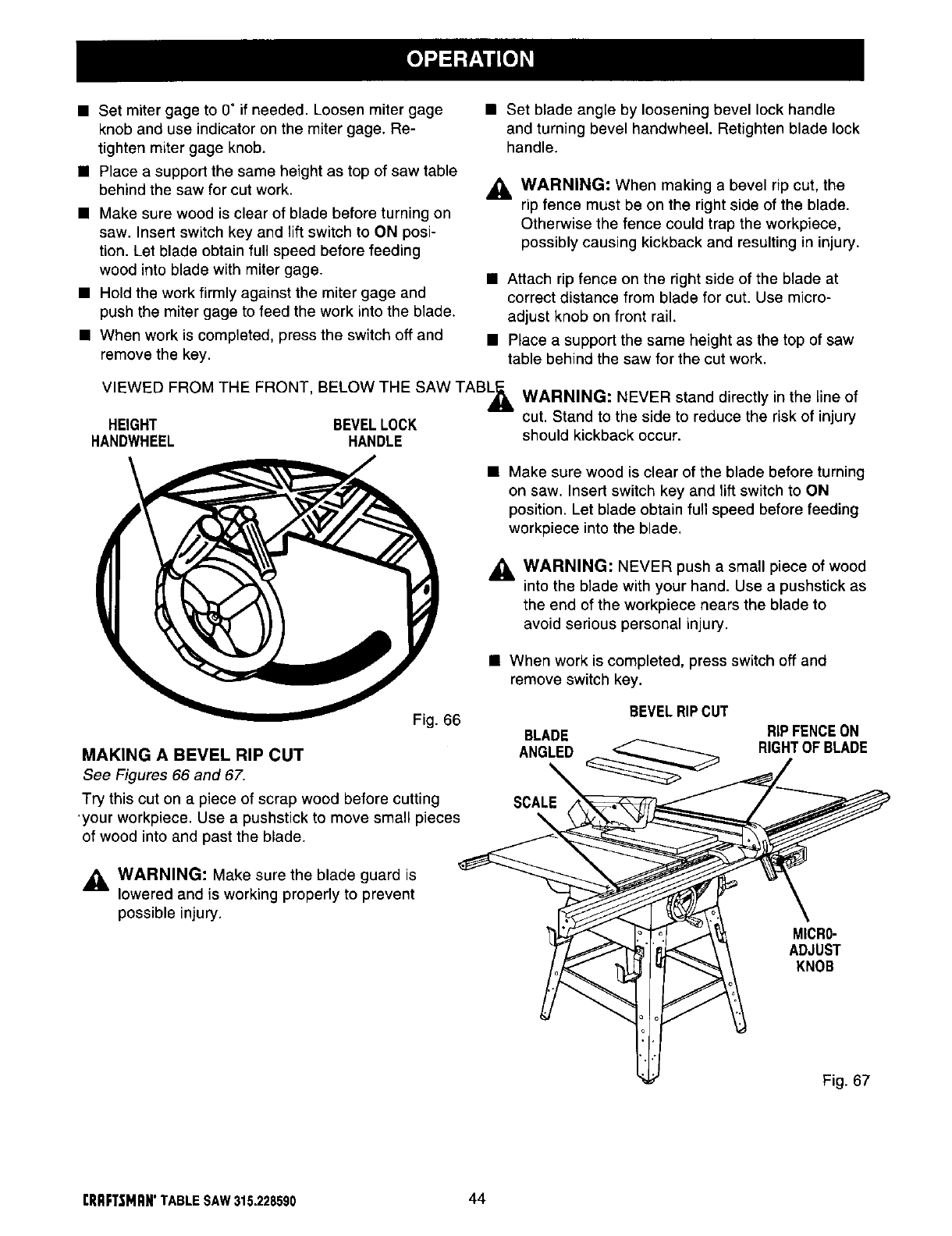

Making a Bevel Rip Cut ...................................................................................................................... 44

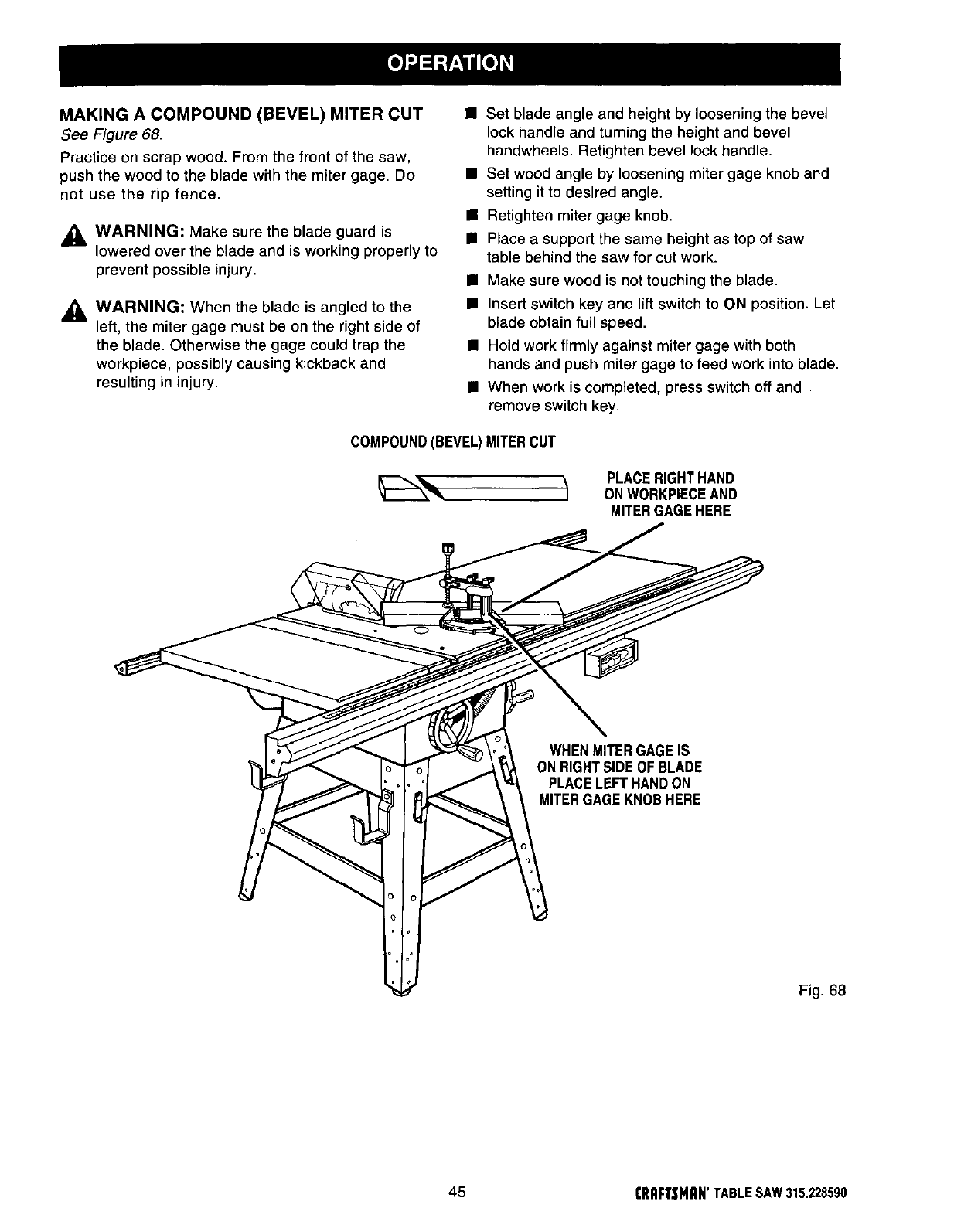

Making a Compound (Bevel) Miter Cut ................................................................................................ 45

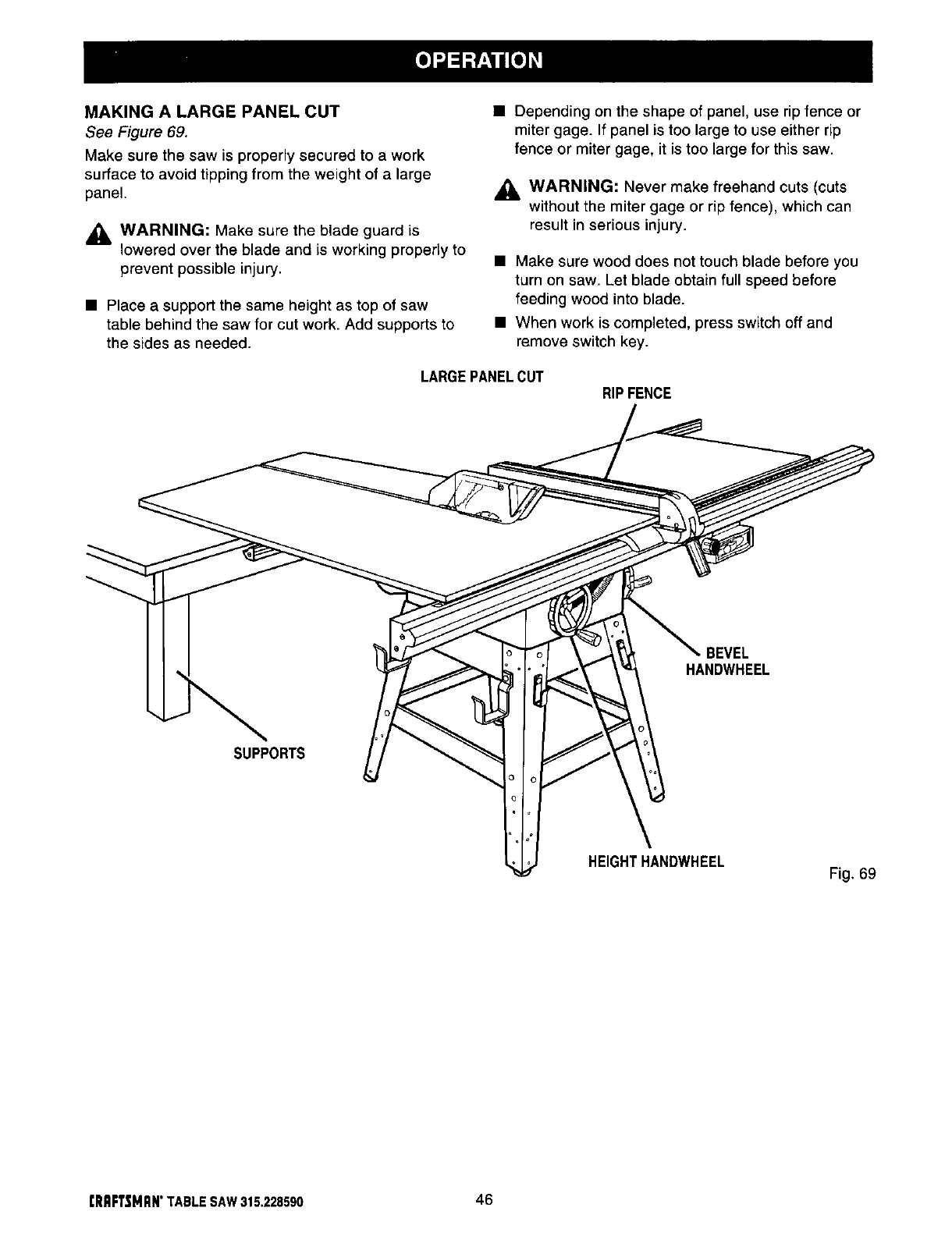

Making a Large Panel Cut .................................................................................................................. 46

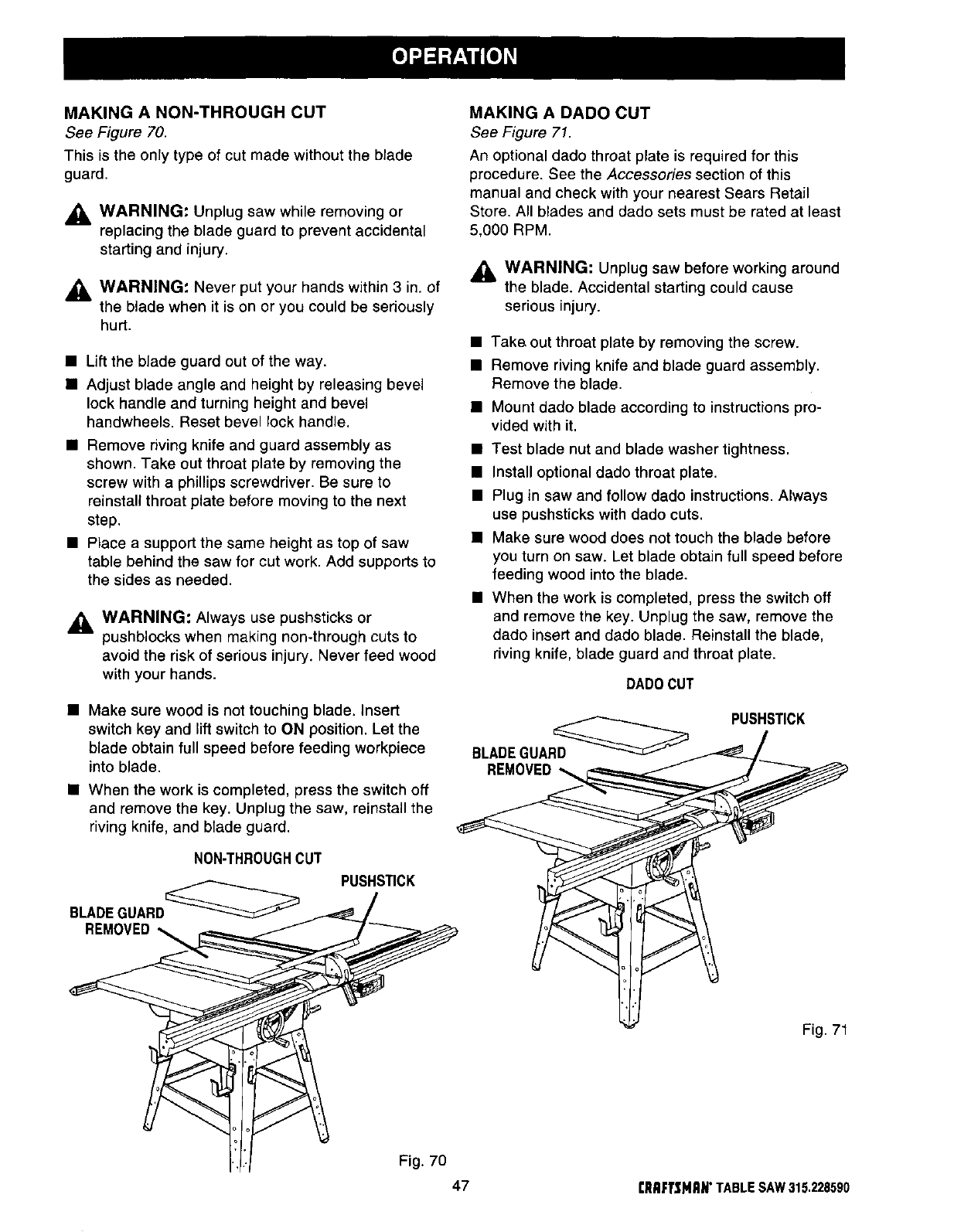

Making a Non-Through Cut ................................................................................................................. 47

Making a Dado Cut ............................................................................................................................ 47

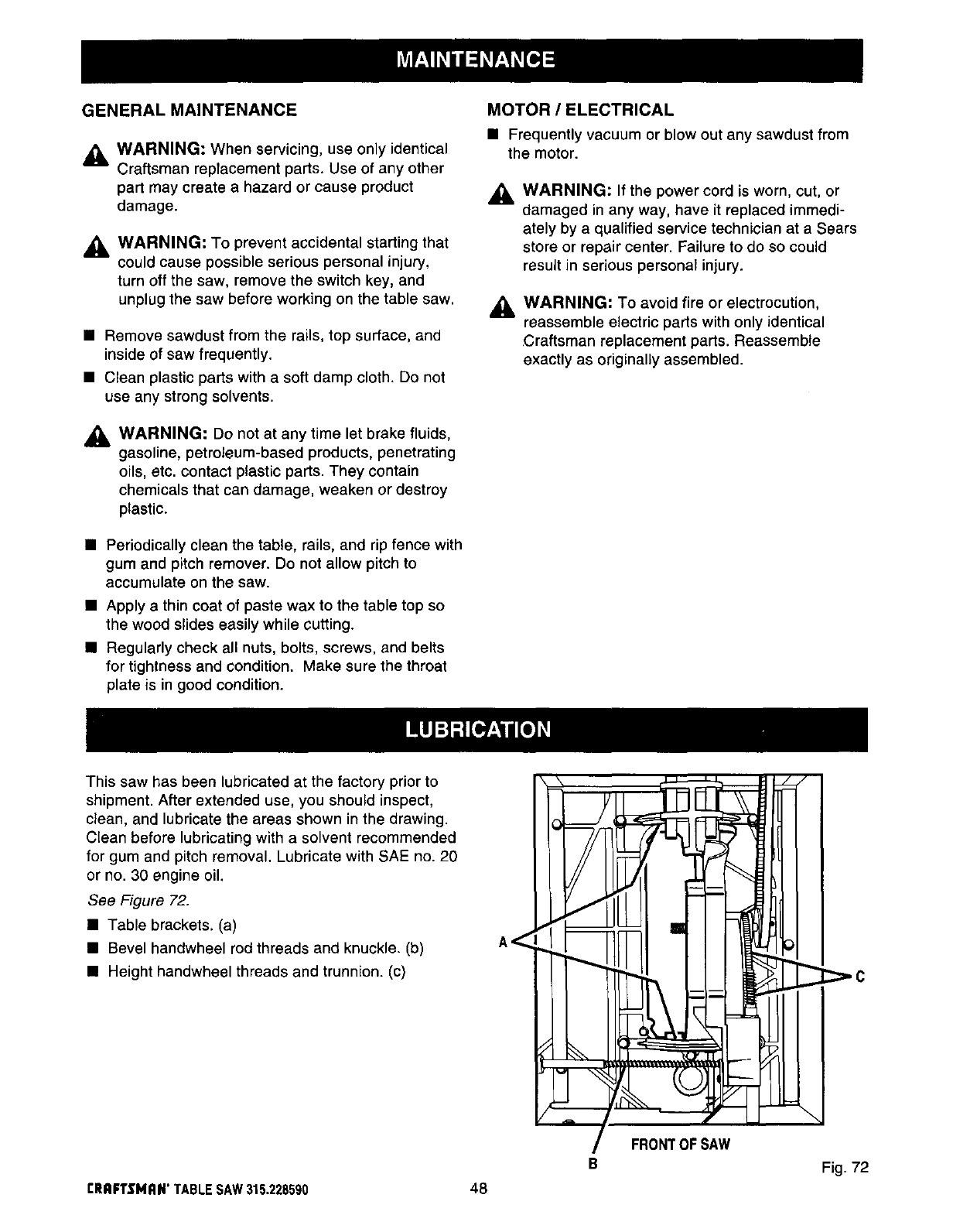

• Maintenance ...................................................................................................................................... 48

• Lubrication ......................................................................................................................................... 48

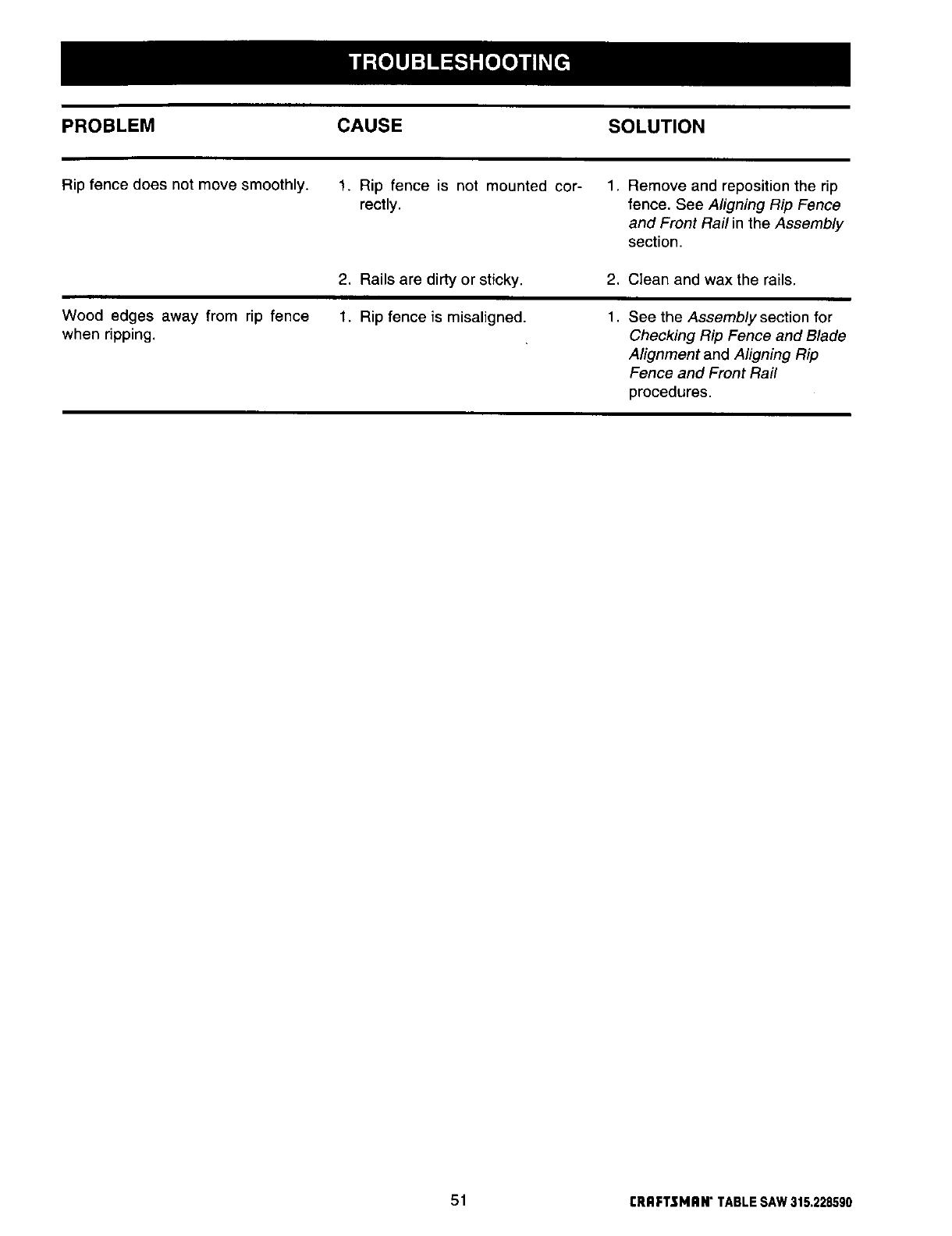

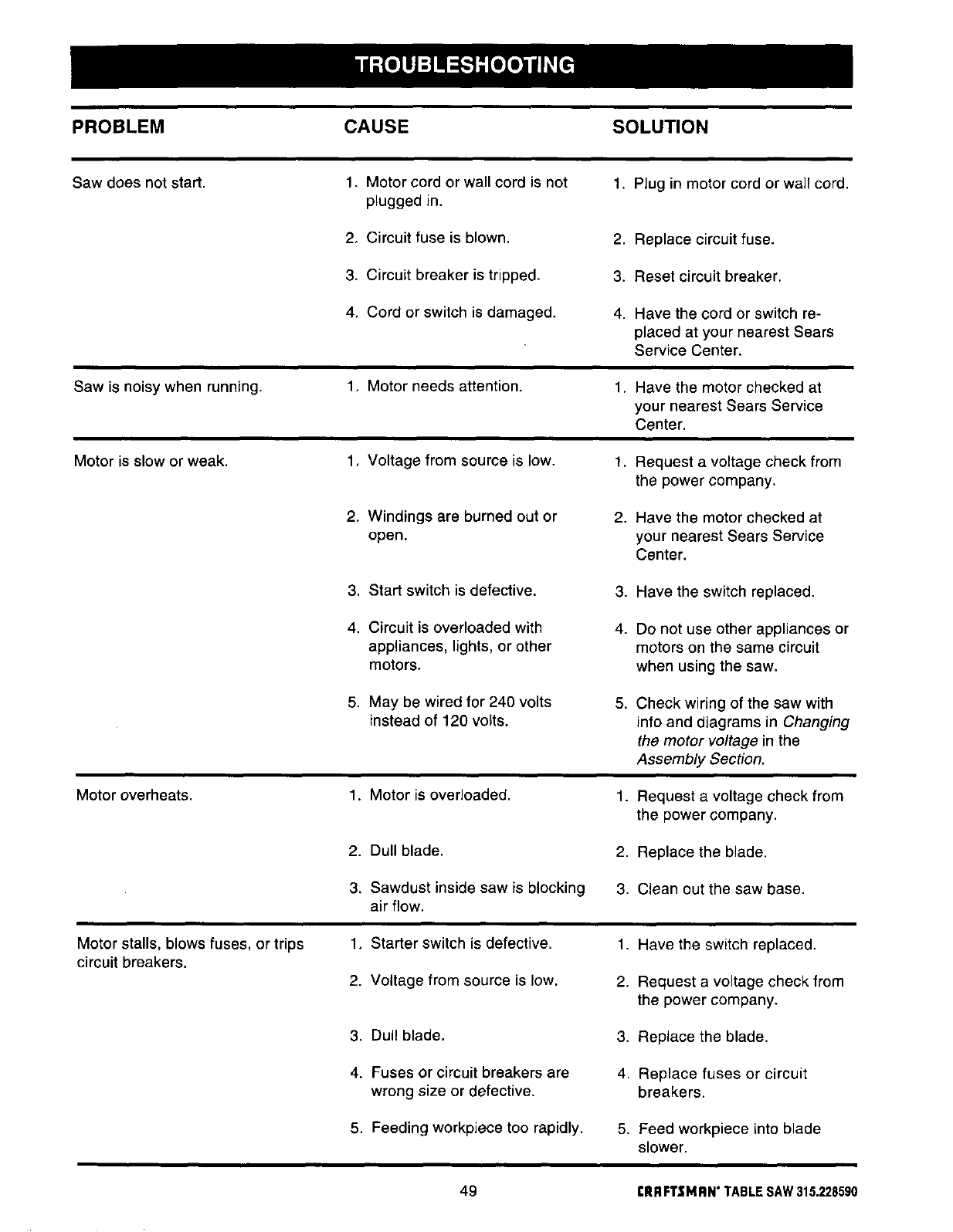

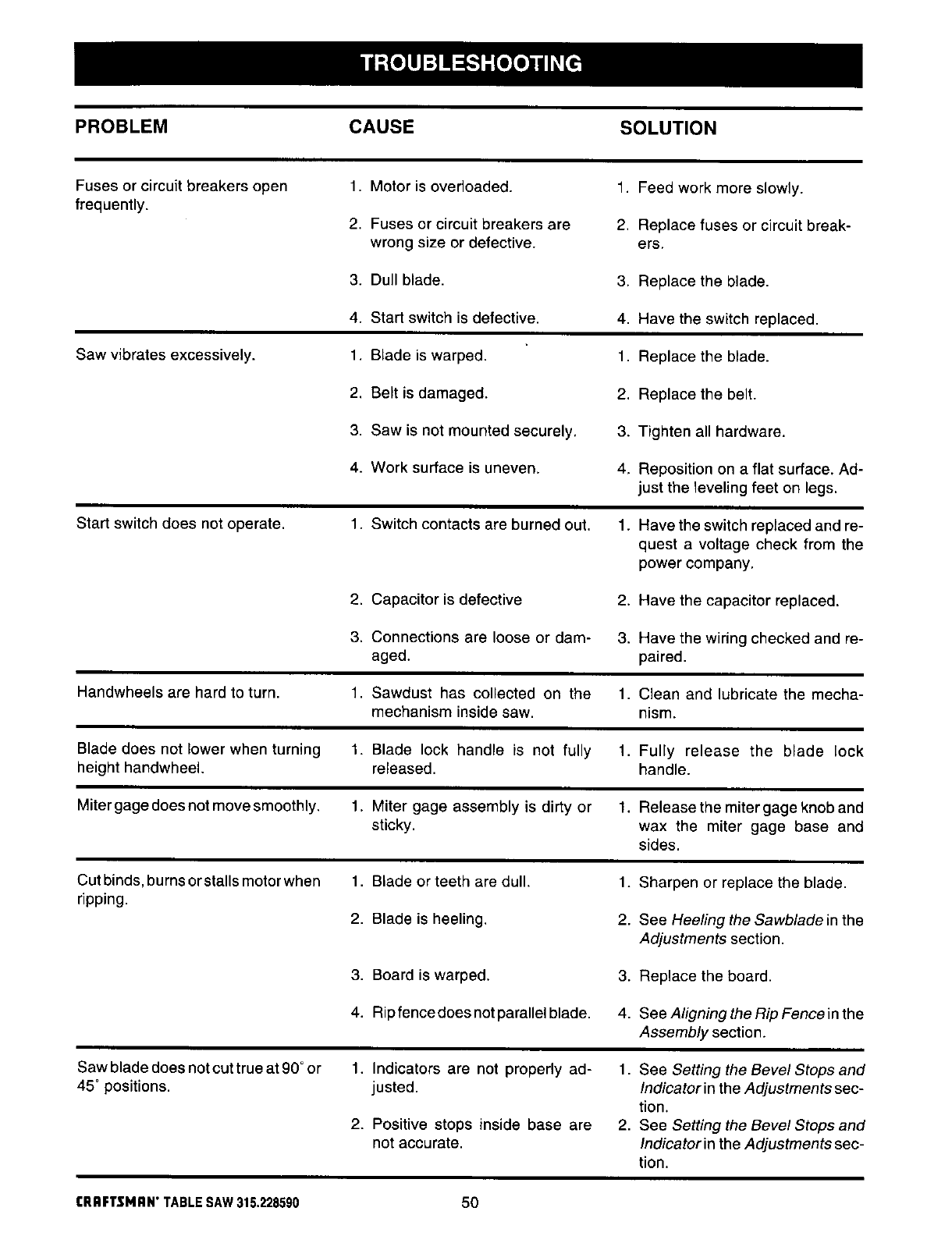

• Troubleshooting ............................................................................................................................. 49-51

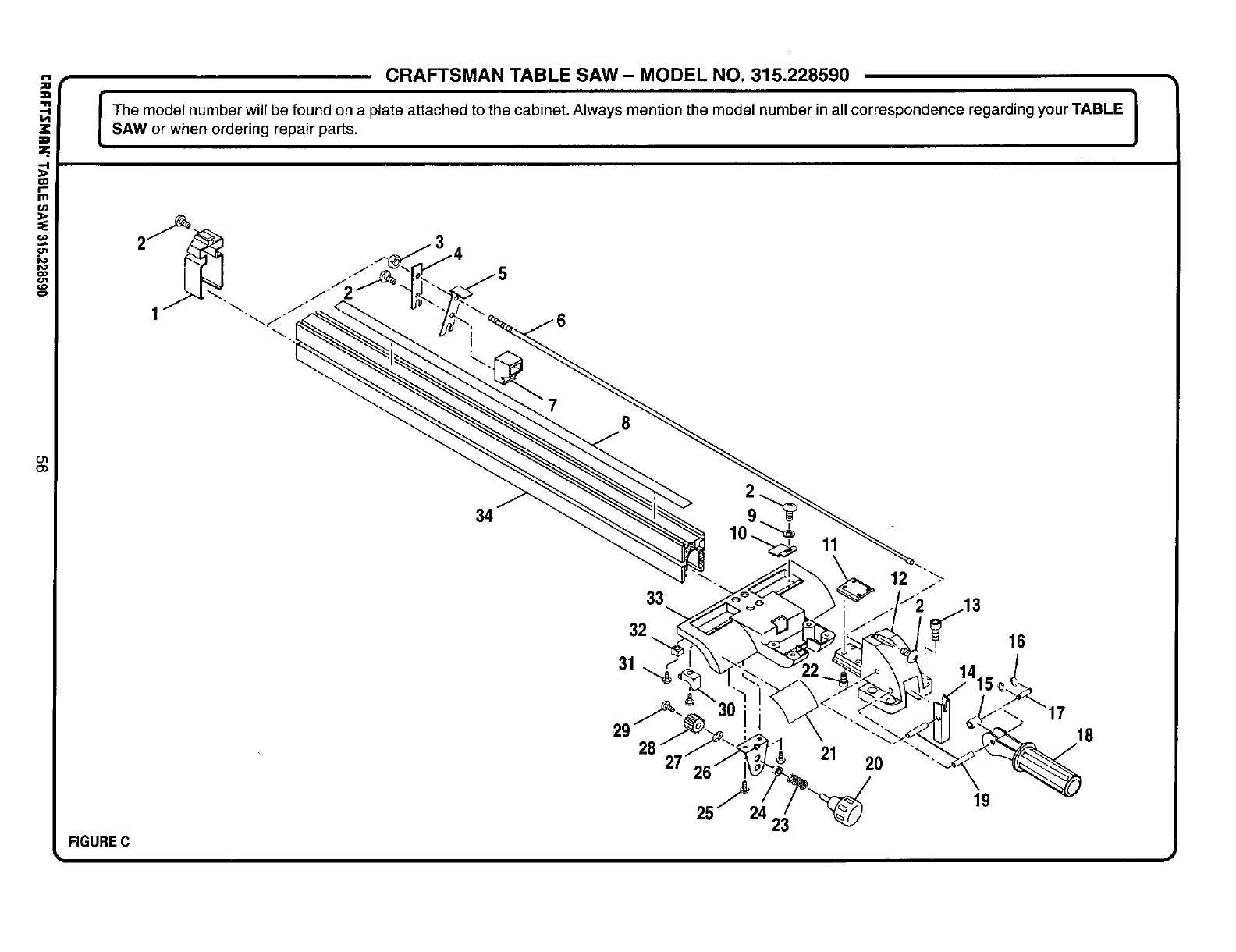

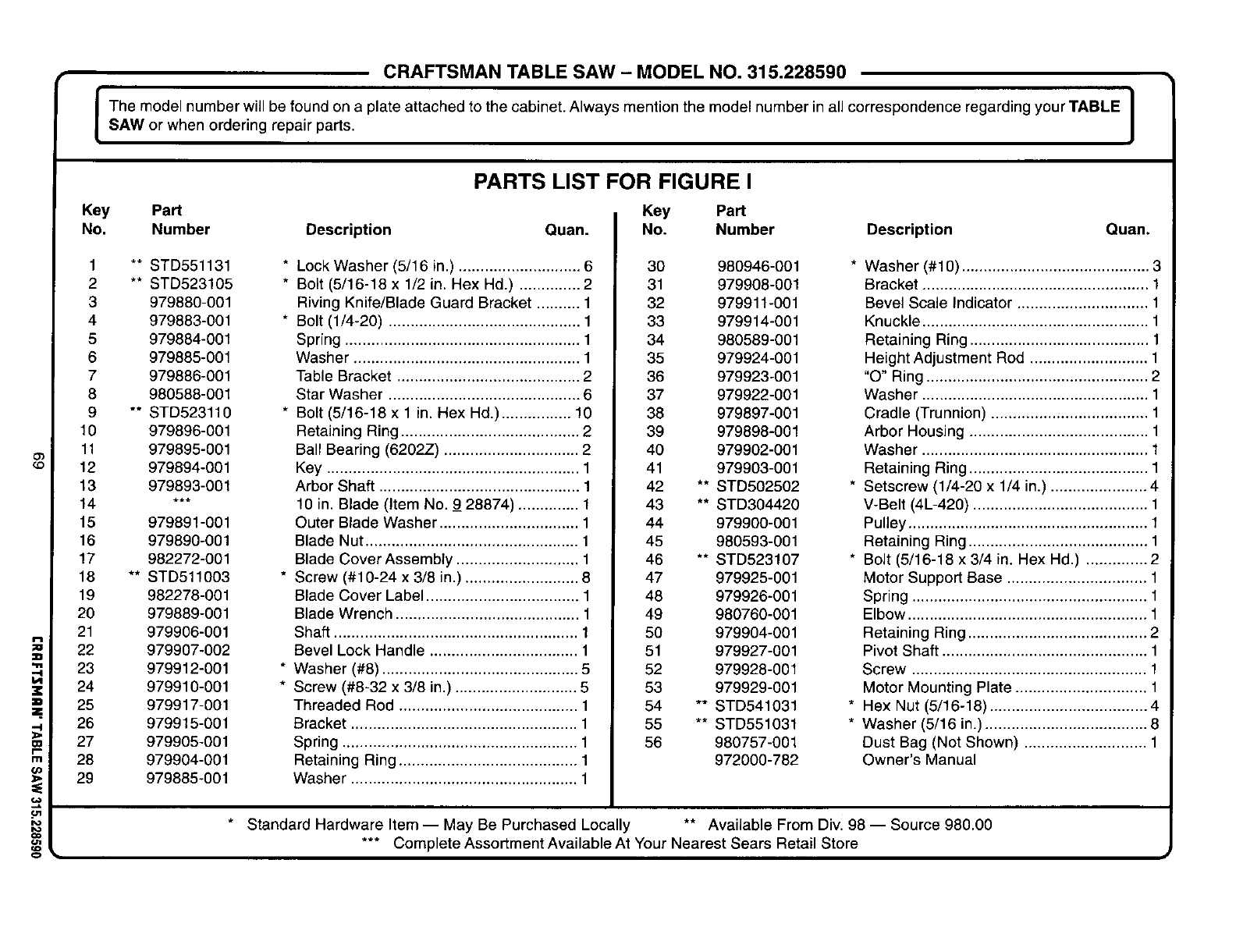

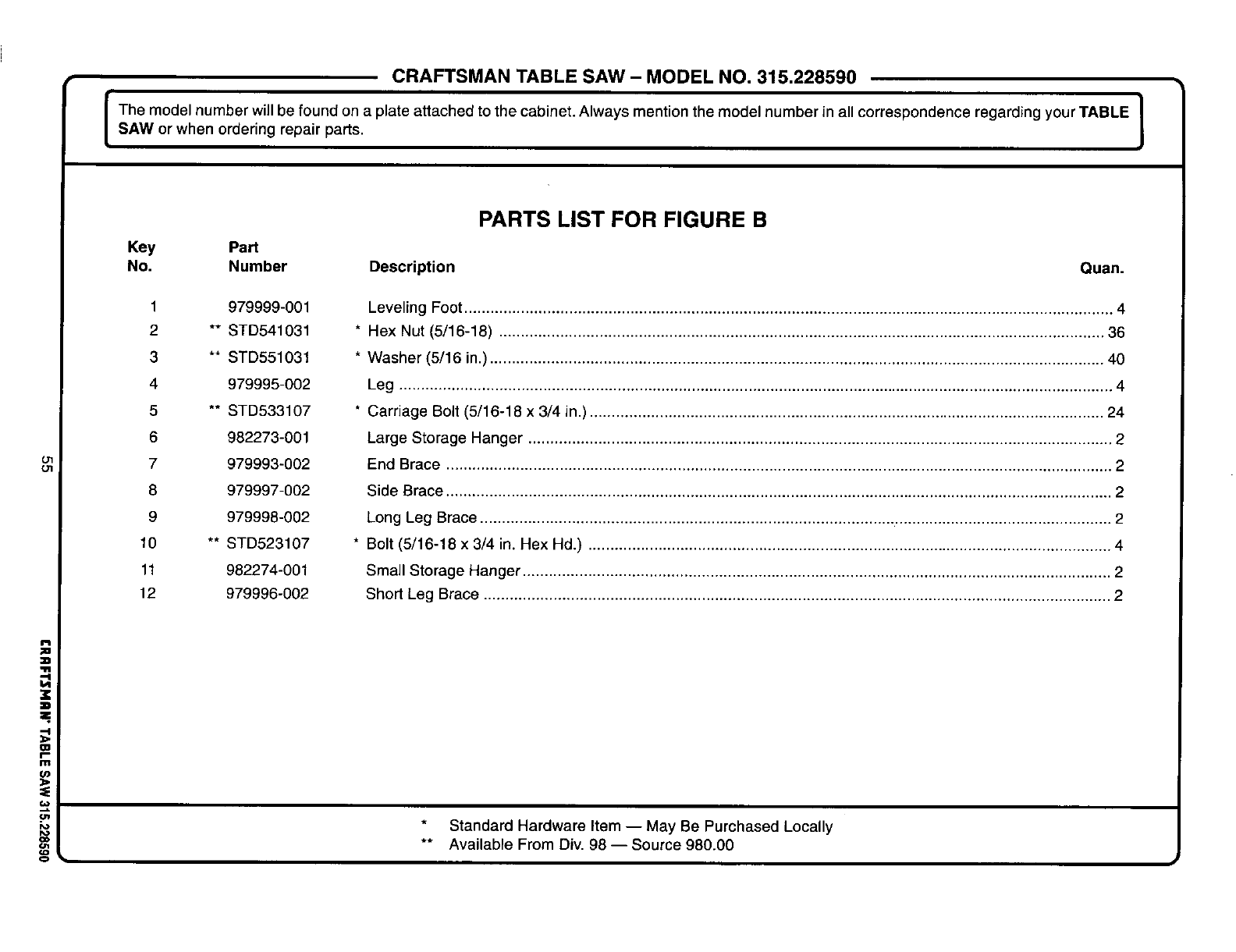

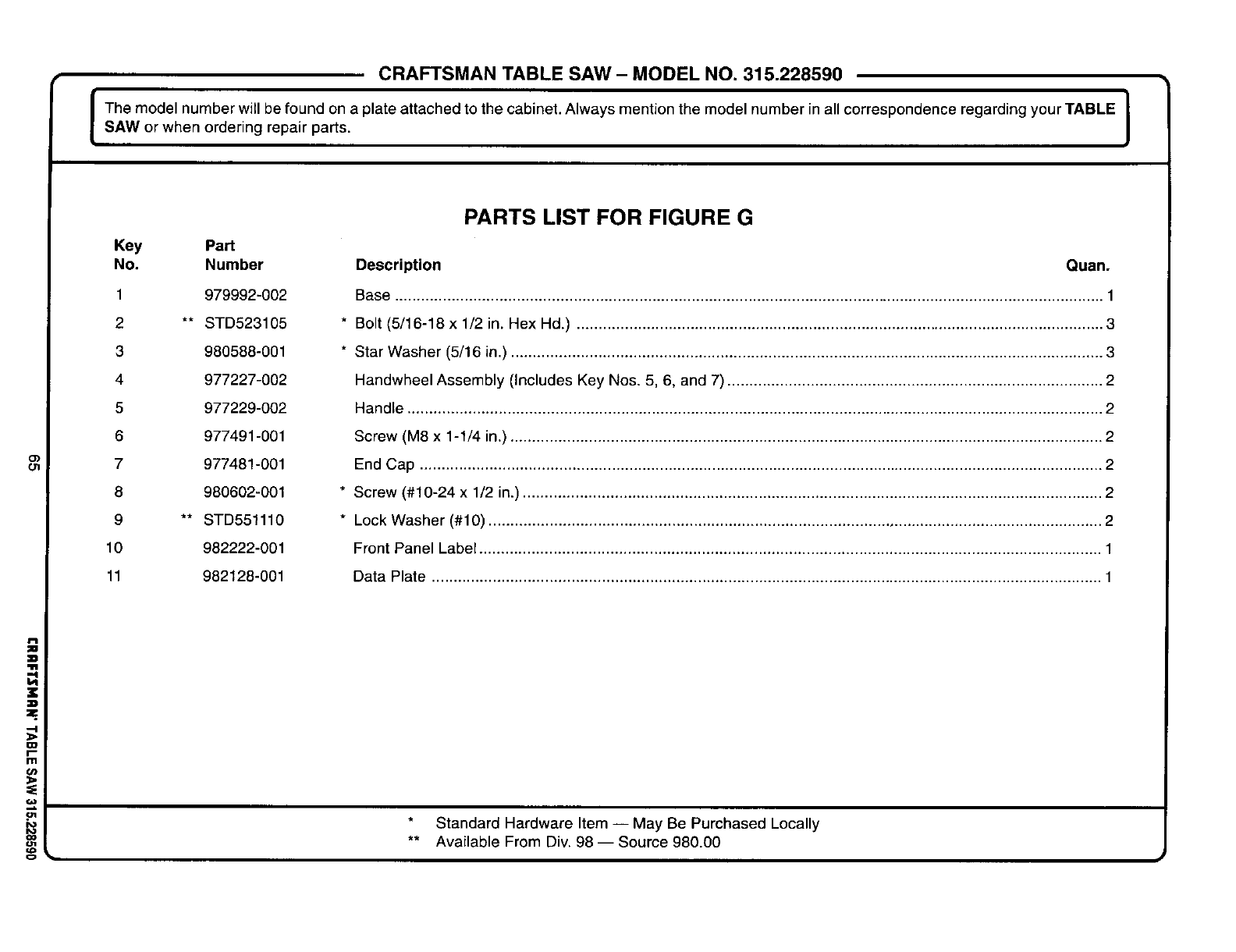

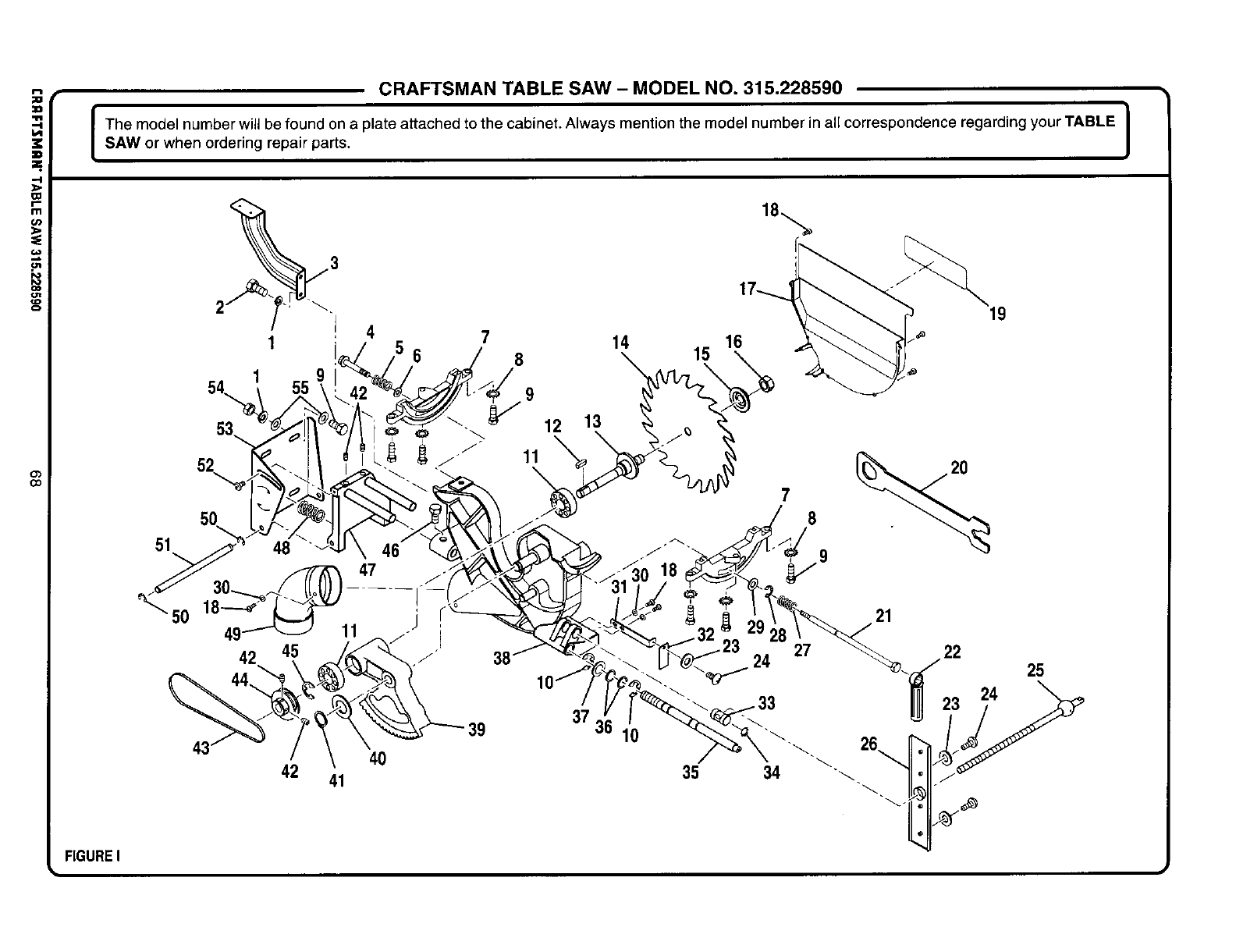

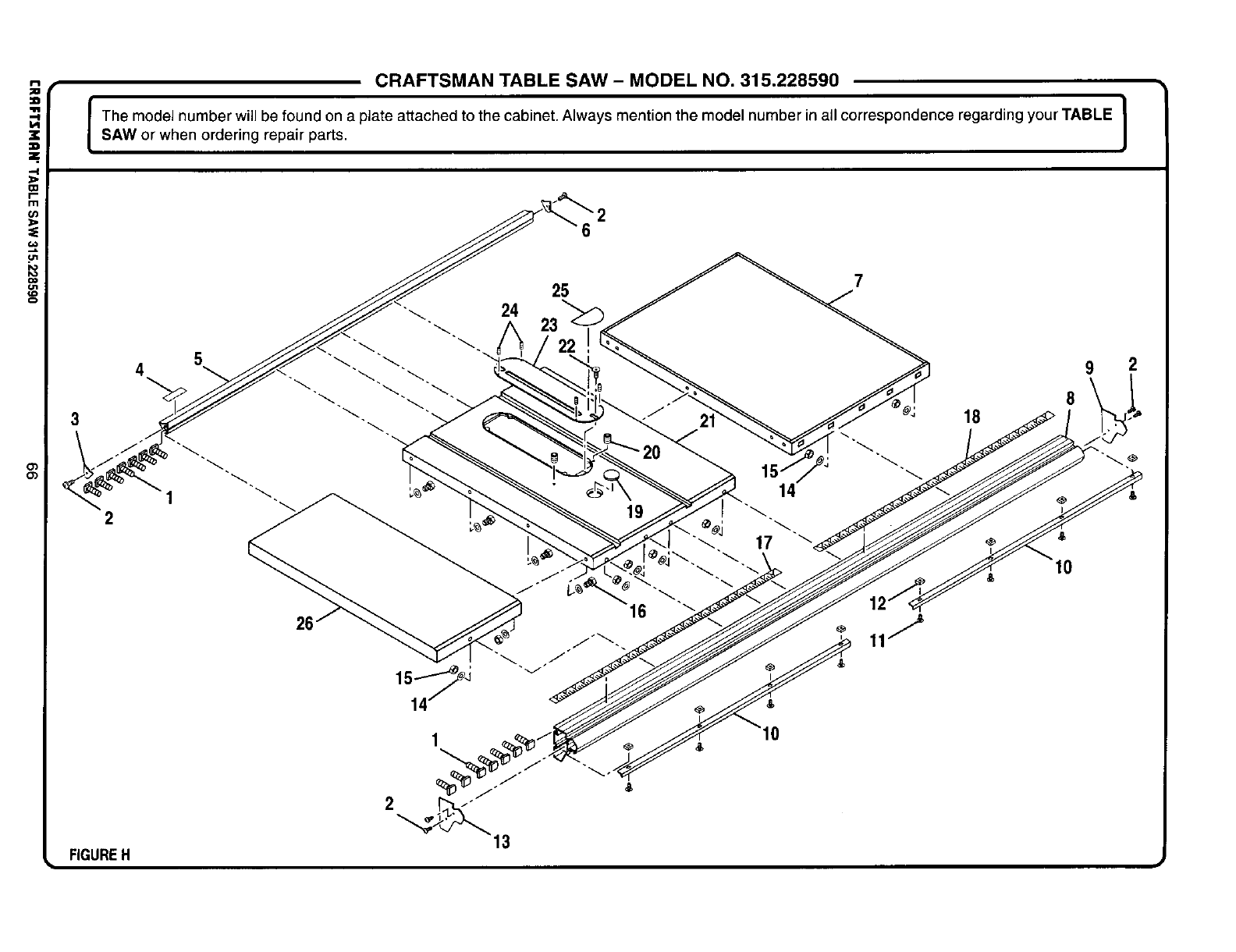

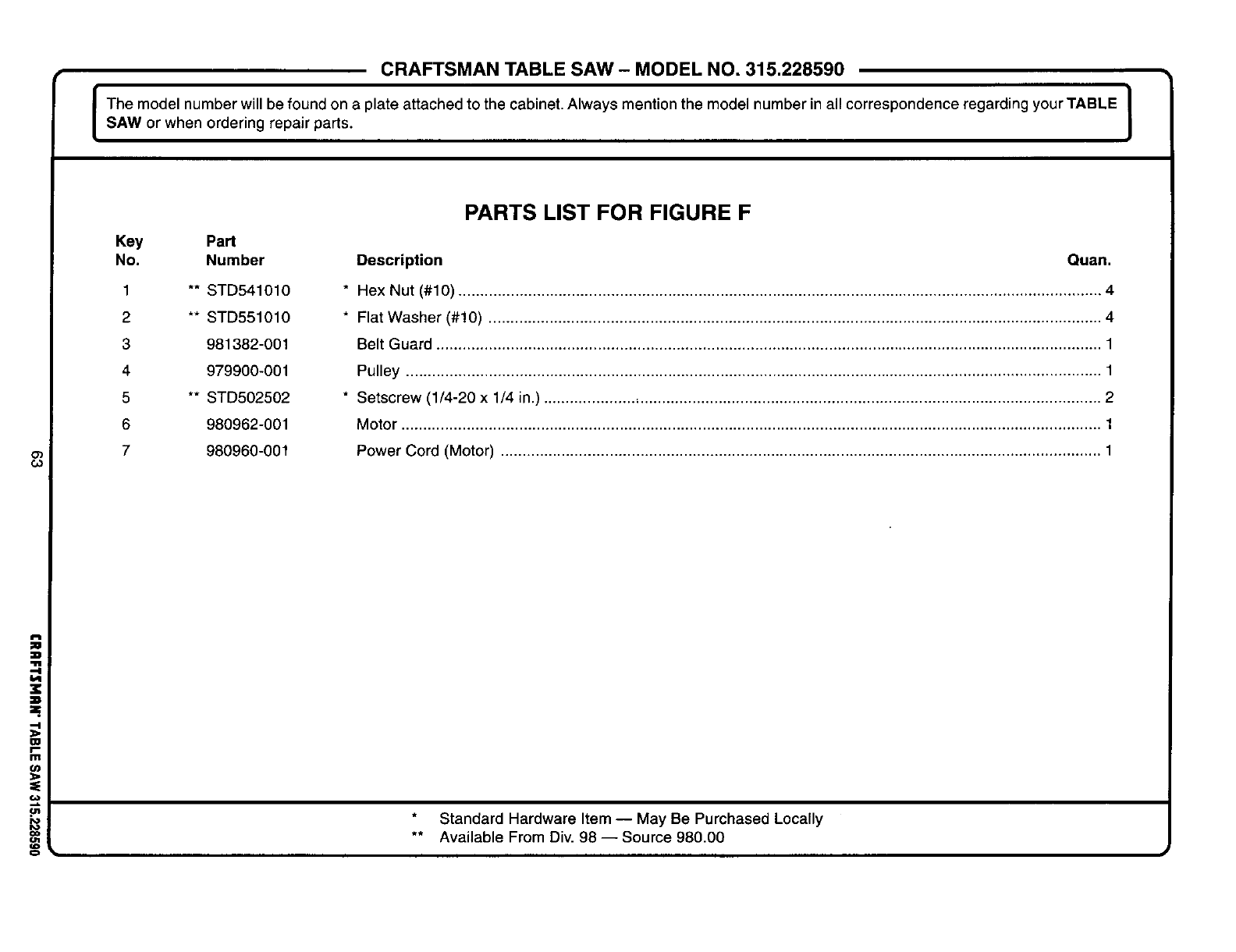

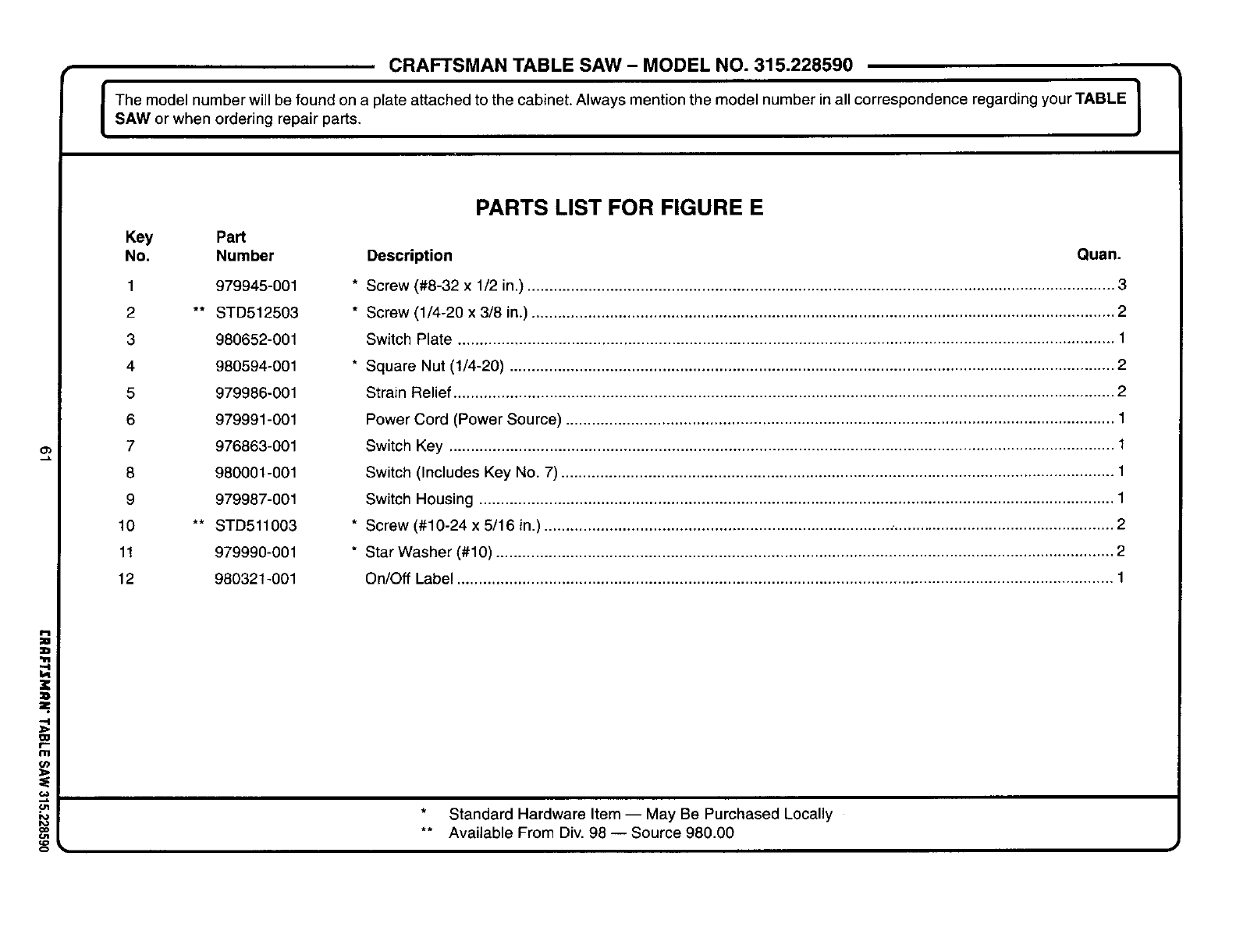

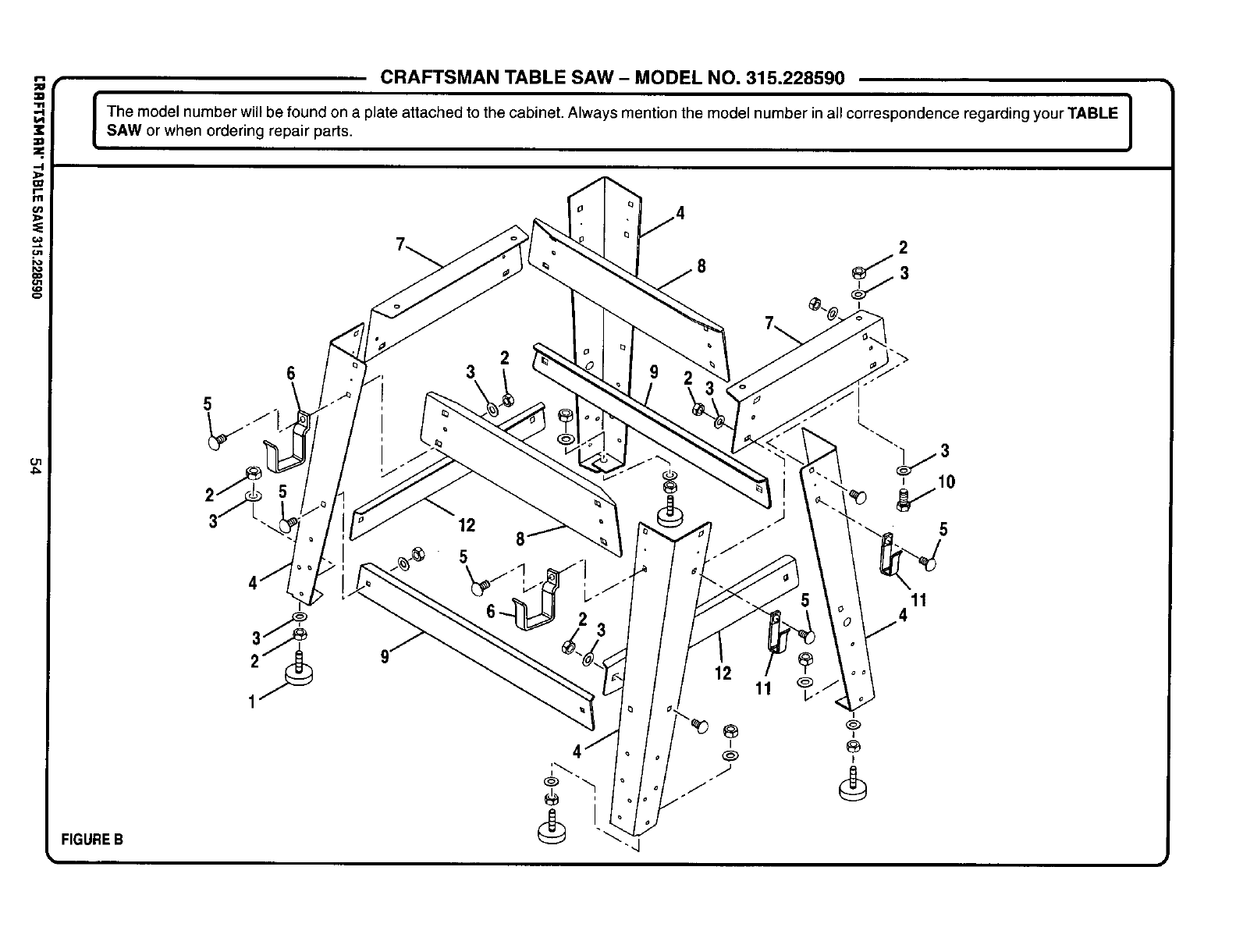

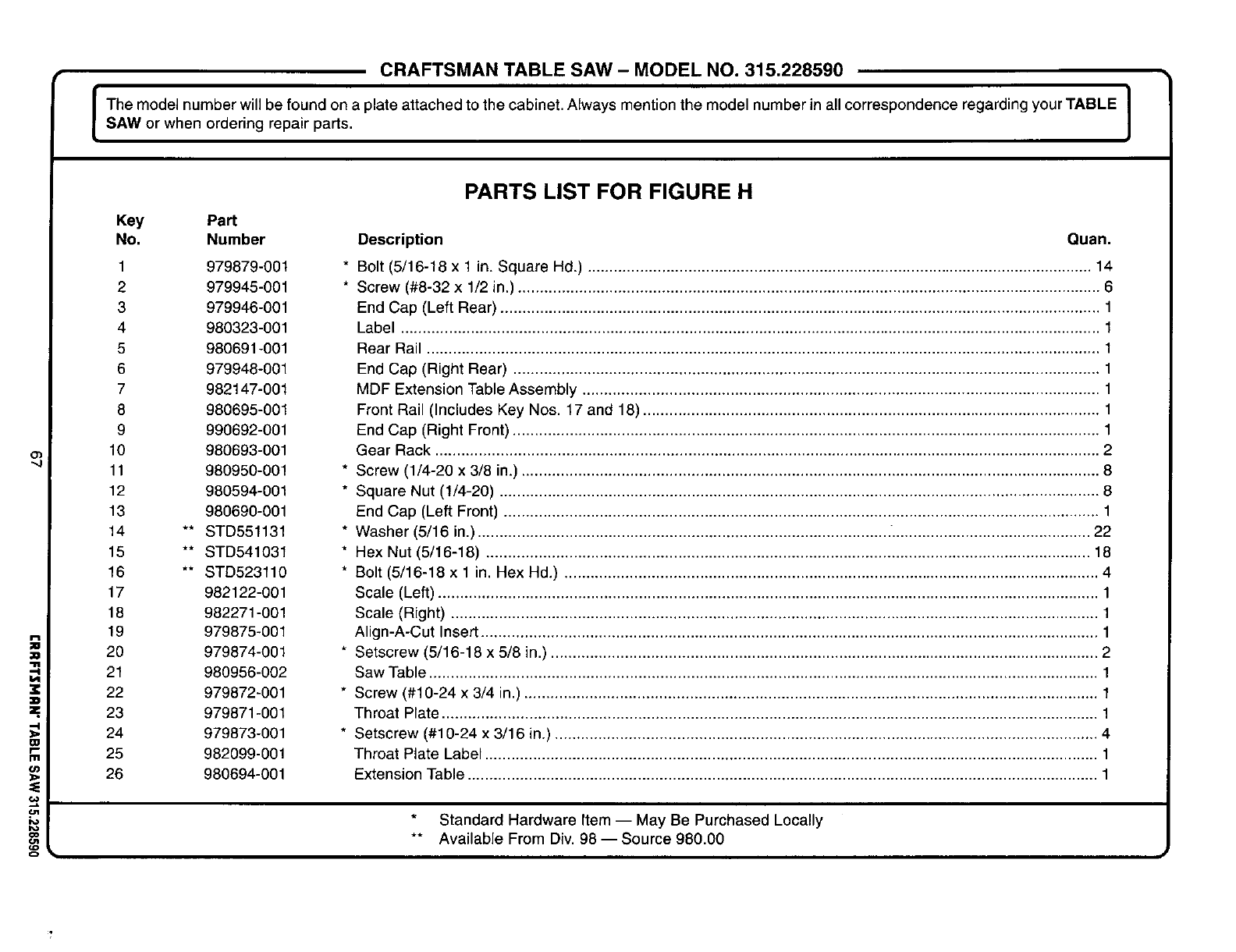

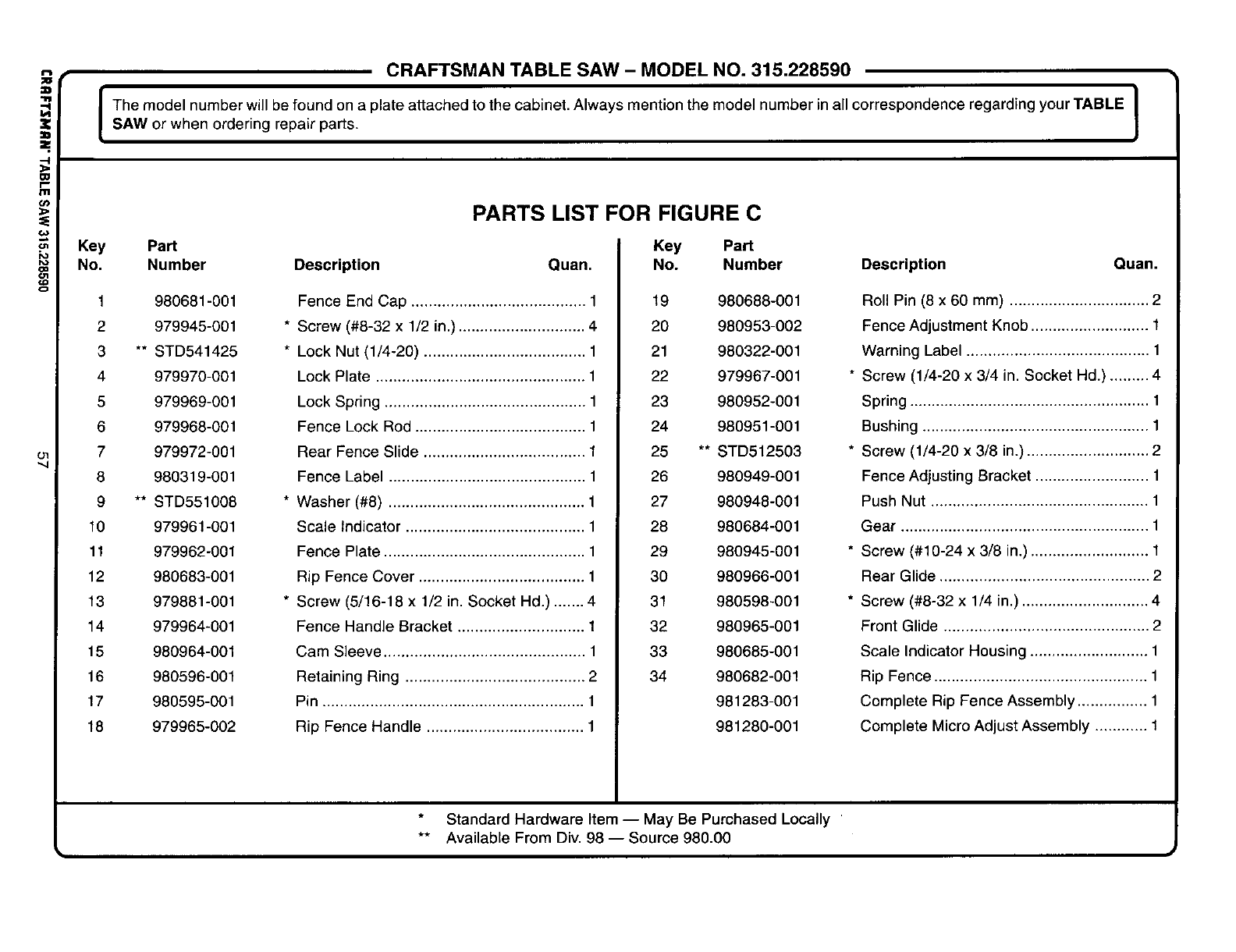

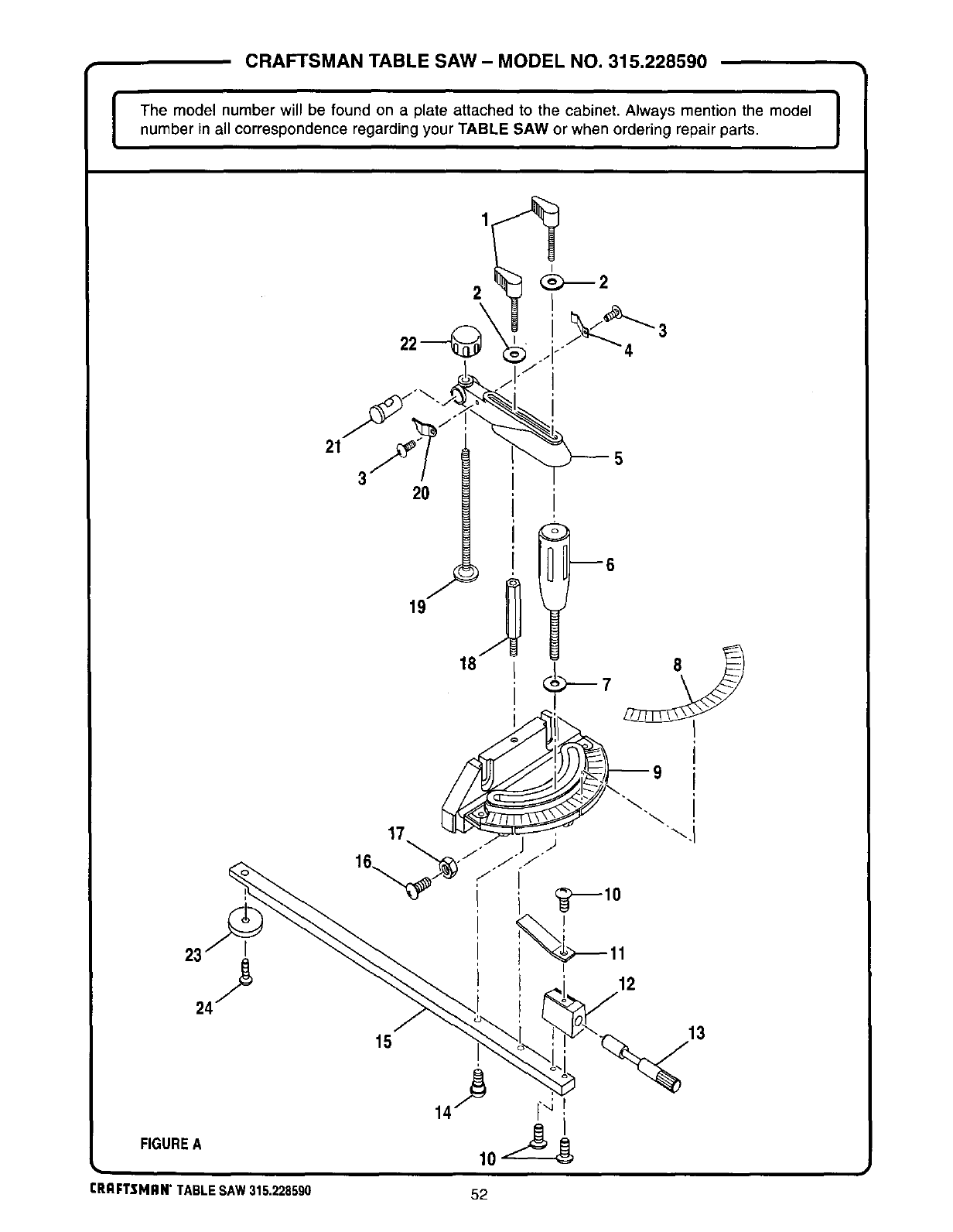

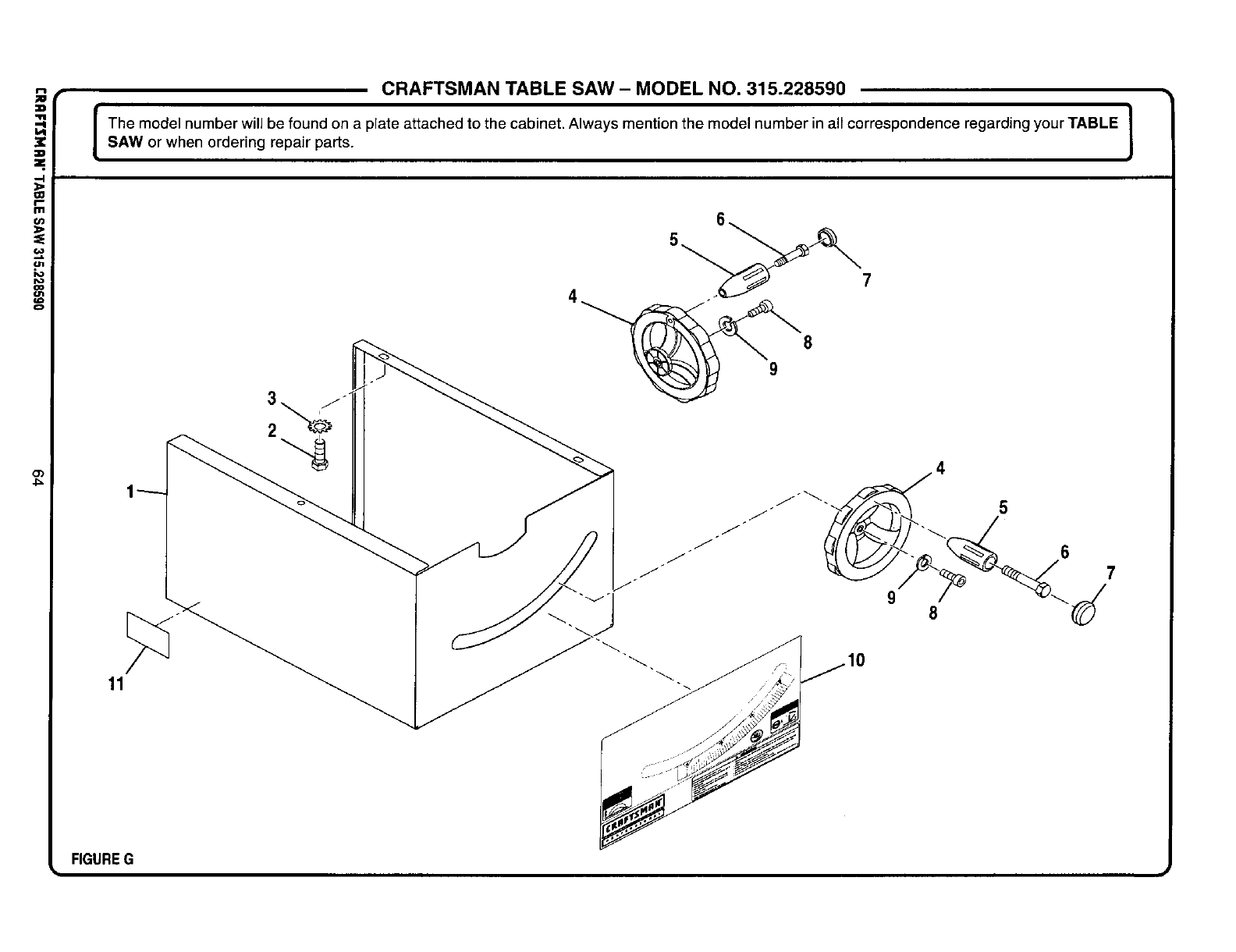

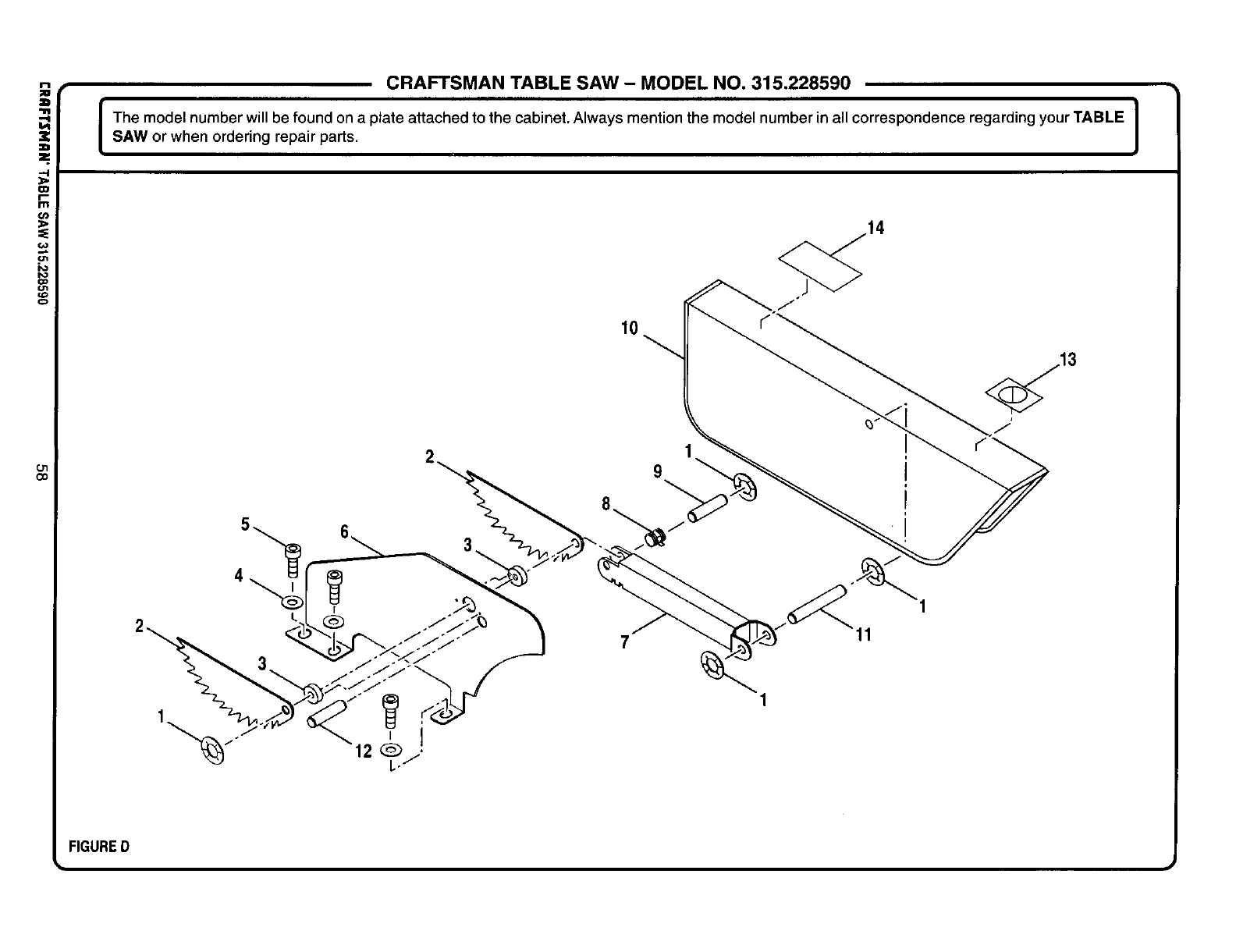

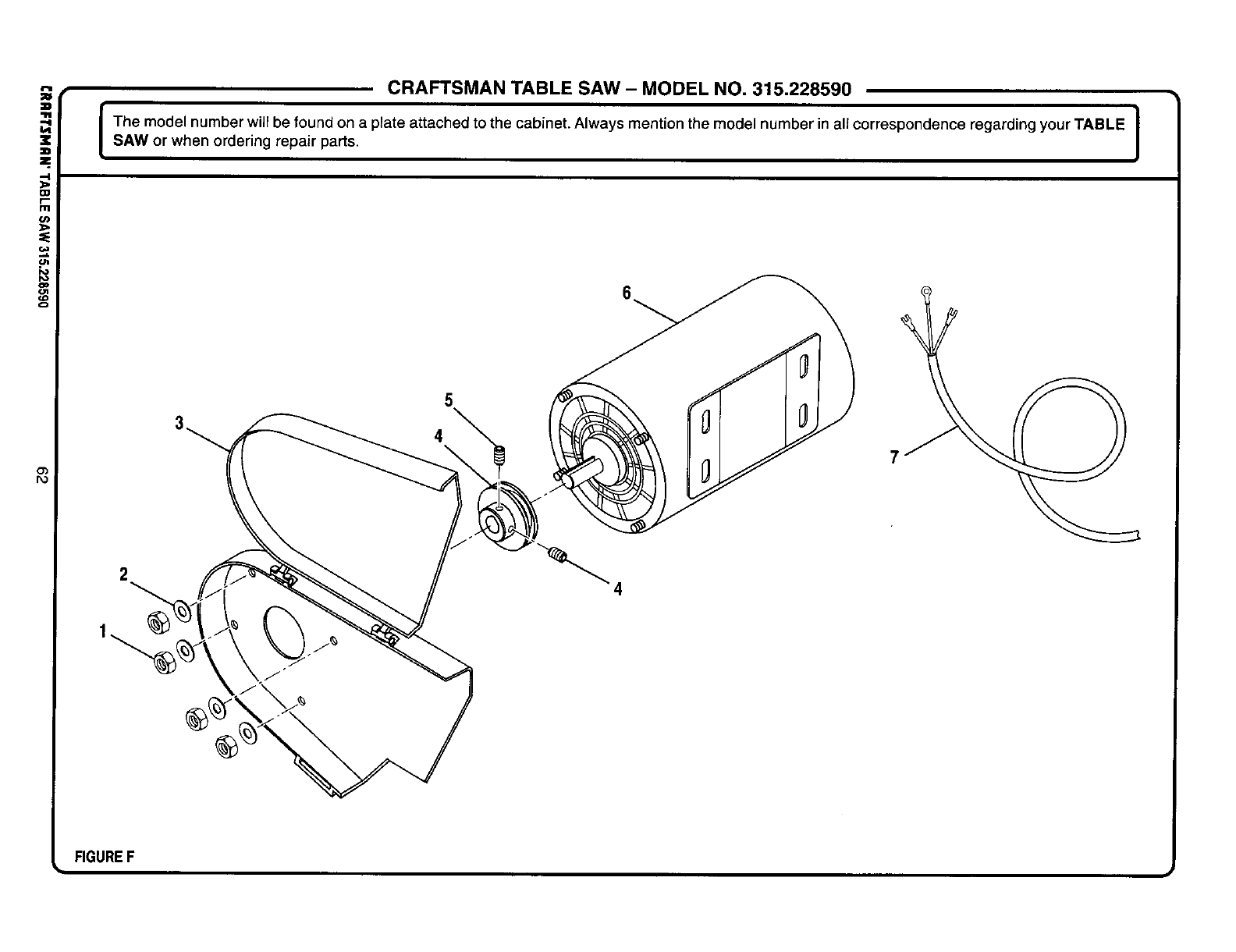

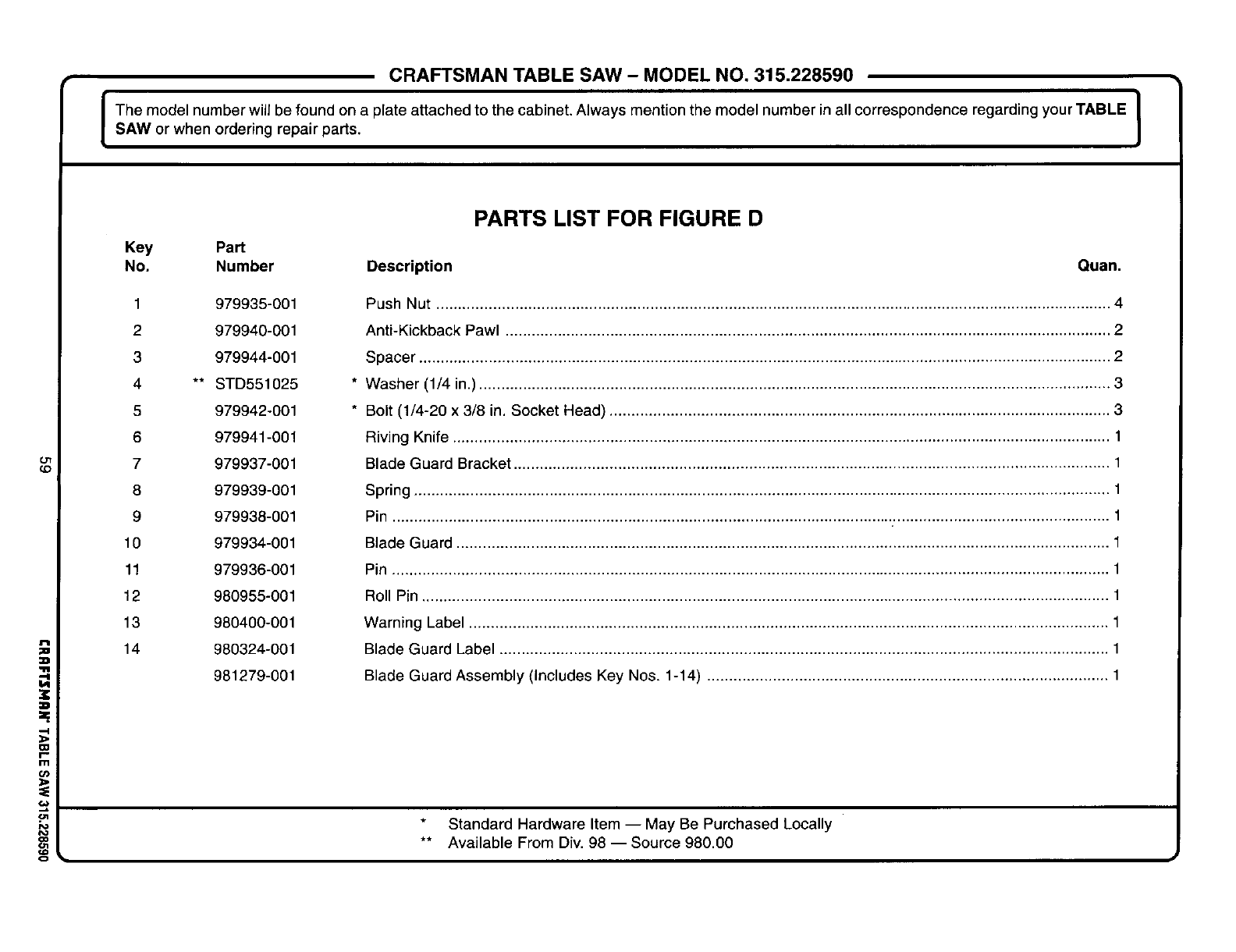

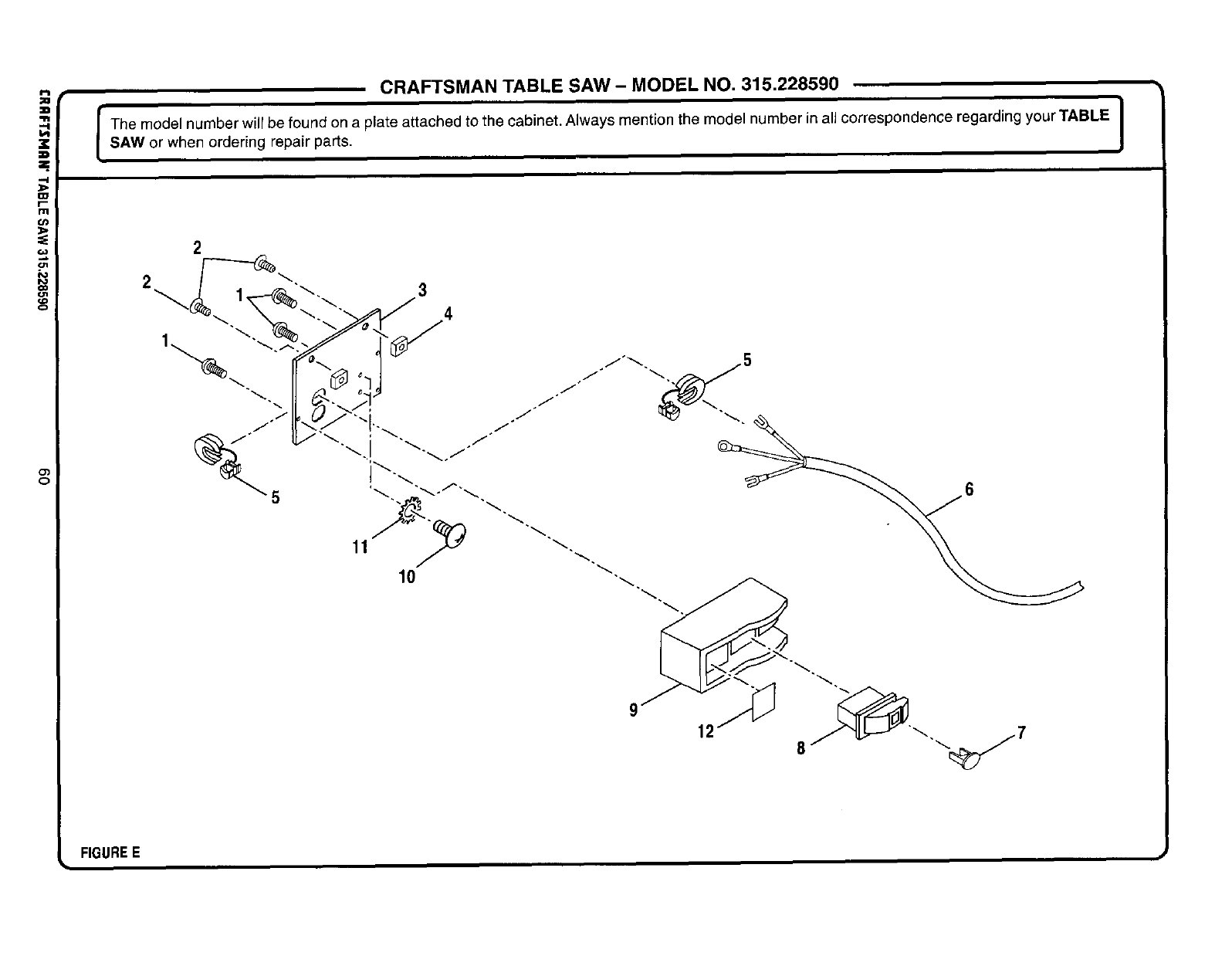

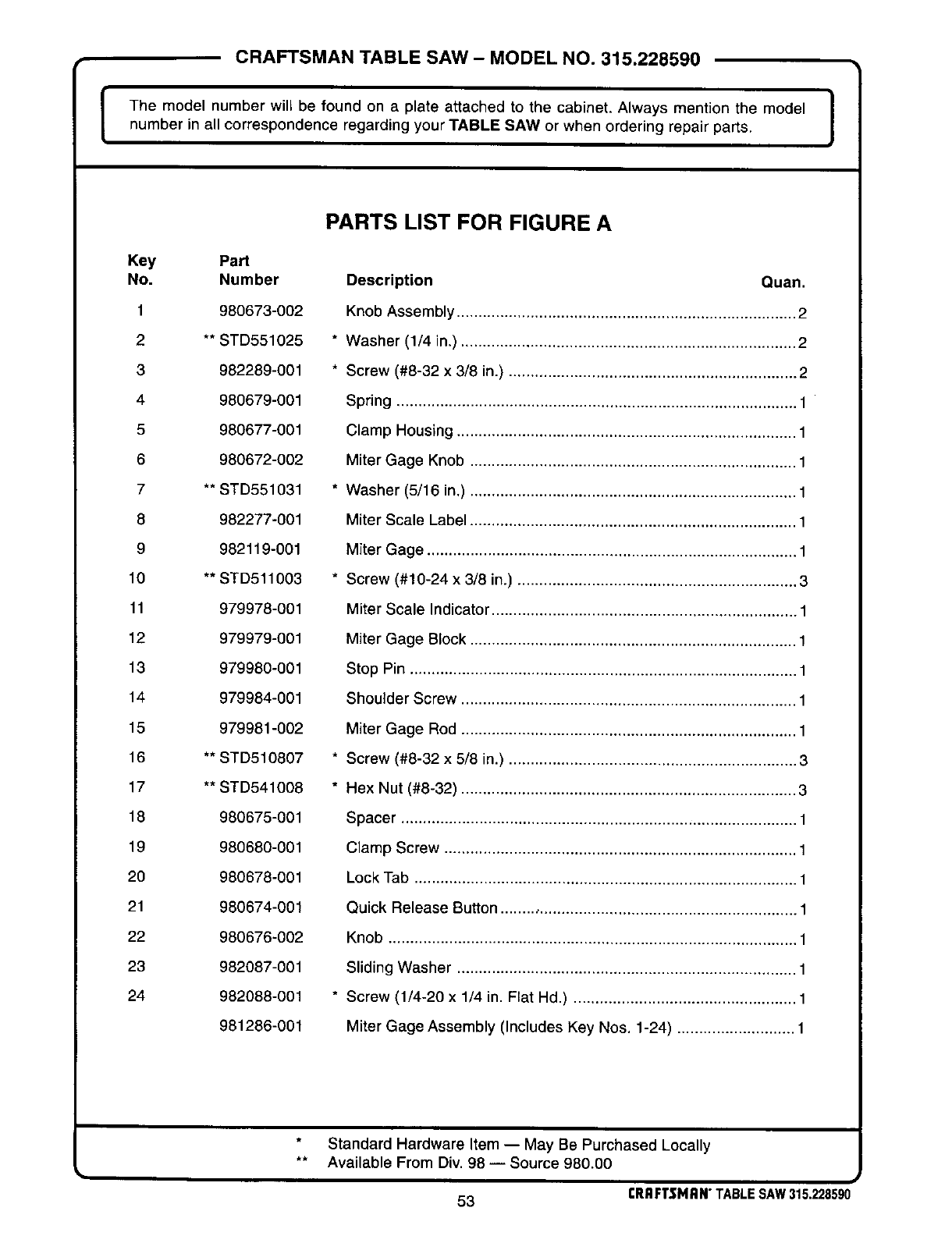

• Exploded View and Repair Pauls List ............................................................................................... 52-69

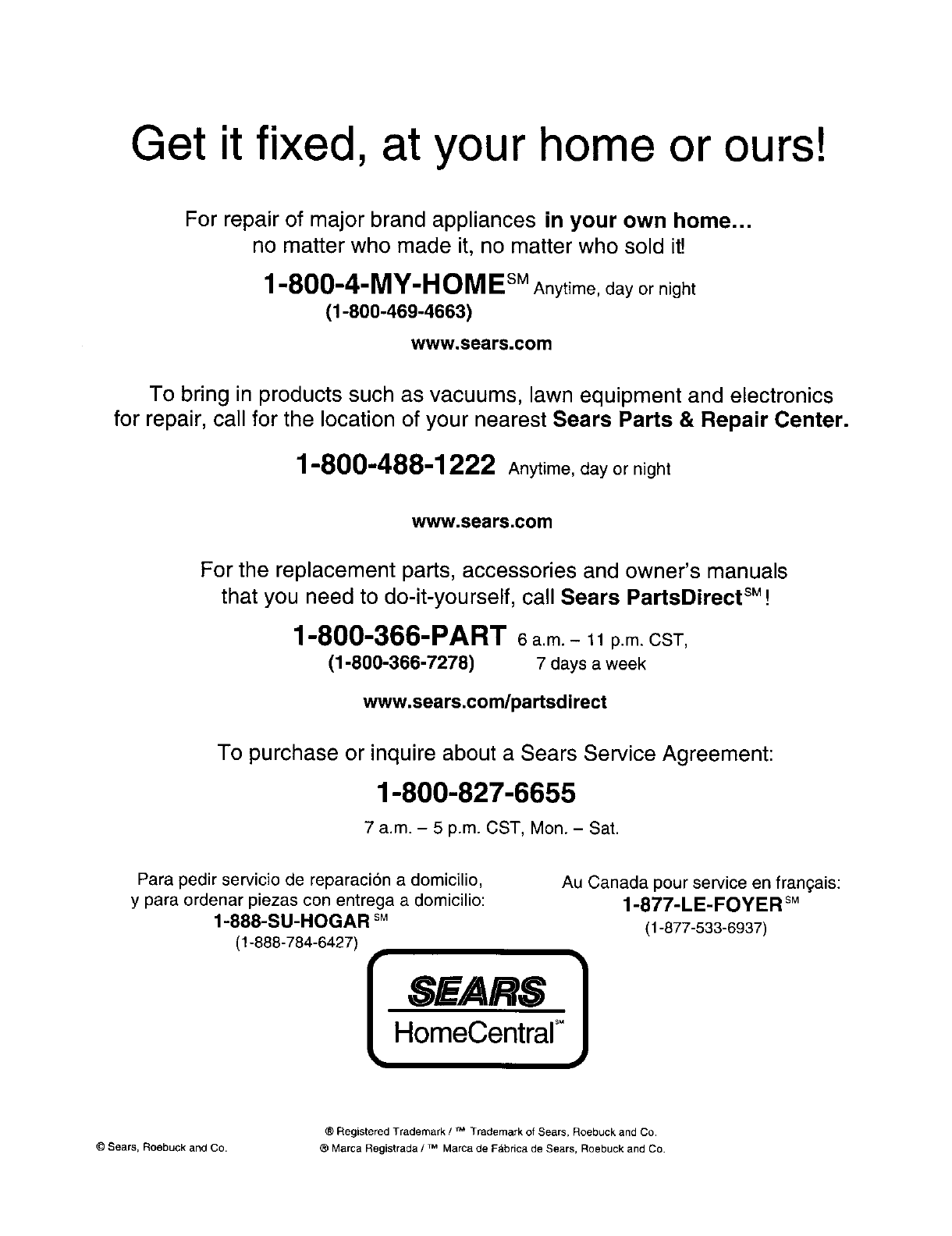

• PartsOrdering/Service .......................................................................................................... back page

3CRRFTSMRN" TABLESAW 315.228590

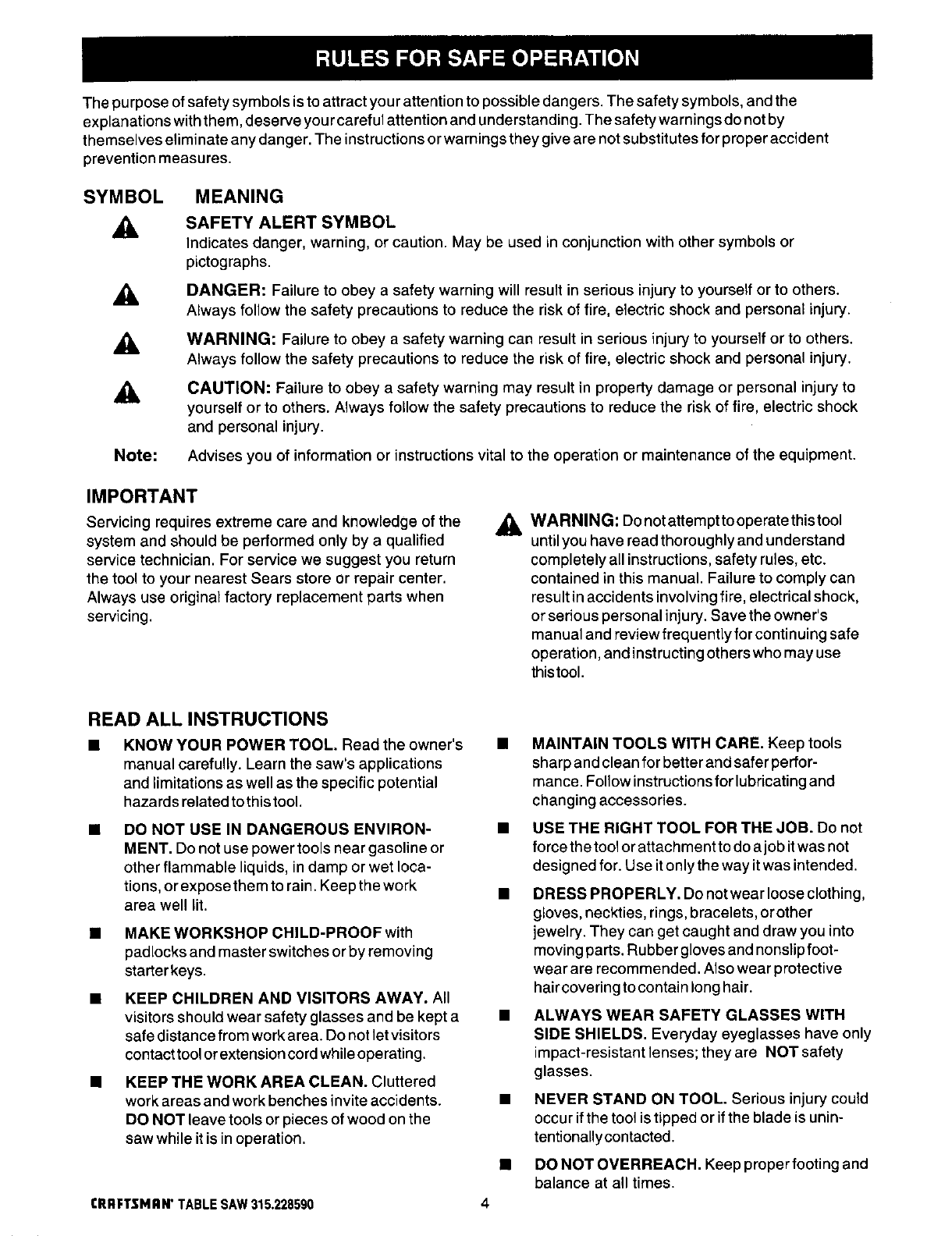

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the

explanations with them, deserve your careful attention and understanding. The safety warnings do not by

themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident

prevention measures.

SYMBOL

A

A

A

A

MEANING

SAFETY ALERT SYMBOL

Indicates danger, warning, or caution. May be used in conjunction with other symbols or

pictographs.

DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION: Failure to obey a safety warning may result in property damage or personal injury to

yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock

and personal injury.

Note: Advises you of information or instructions vital to the operation or maintenance of the equipment.

IMPORTANT

Servicing requires extreme care and knowledge of the

system and should be performed only by a qualified

service technician. For service we suggest you return

the tool to your nearest Sears store or repair center.

Always use original factory replacement parts when

servicing.

AWARNING: Do not attempt tooperate thistool

until you have read thoroughly and understand

completely all instructions, safety rules, etc.

contained in this manual. Failure to comply can

result in accidents involving fire, electrical shock,

or serious personal injury. Save the owner's

manual and review frequently for continuing safe

operation, and instructing others who may use

thistool.

READ ALL INSTRUCTIONS

• KNOW YOUR POWER TOOL. Read the owner's

manual carefully. Learn the saw's applications

and limitations as well as the specific potential

hazards related tothistool.

DO NOT USE IN DANGEROUS ENVIRON-

MENT. Do not use power tools near gasoline or

other flammable liquids, in damp or wet loca-

tions, orexpose them to rain. Keep the work

area well lit.

•MAKE WORKSHOP CHILD-PROOF with

padlocks and master switches or by removing

starter keys.

•KEEP CHILDREN AND VISITORS AWAY. All

visitors should wear safety glasses and be kept a

safe distance from work area. Do notlet visitors

contacttoolorextension cordwhile operating.

KEEP THE WORK AREA CLEAN. Cluttered

work areas and work benches invite accidents.

DO NOT leave tools or pieces of wood on the

saw while it is in operation.

CRRFTSMRN" TABLESAW315.228590 4

•MAINTAIN TOOLS WITH CARE. Keep tools

sharp and clean for better and safer perfor-

mance. Follow instructionsfor lubricatingand

changing accessories.

•USE THE RIGHT TOOL FOR THE JOB. Do not

force the tool orattachment to doa job itwas not

designed for. Use itonly the way itwas intended.

•DRESS PROPERLY. Do not wear loose clothing,

gloves, neckties, rings, bracelets, orother

jewelry. They can get caught and draw you into

moving parts. Rubber gloves and nonslipfoot-

wear are recommended. Also wear protective

hair coveringto contain longhair.

• ALWAYS WEAR SAFETY GLASSES WITH

SIDE SHIELDS. Everyday eyeglasses have only

impact-resistant lenses; they are NOT safety

glasses.

•NEVER STAND ON TOOL. Serious injury could

occur ifthe tool is tipped or ifthe blade is unin-

tentionallycontacted.

DO NOT OVERREACH. Keep proper footing and

balance at all times.

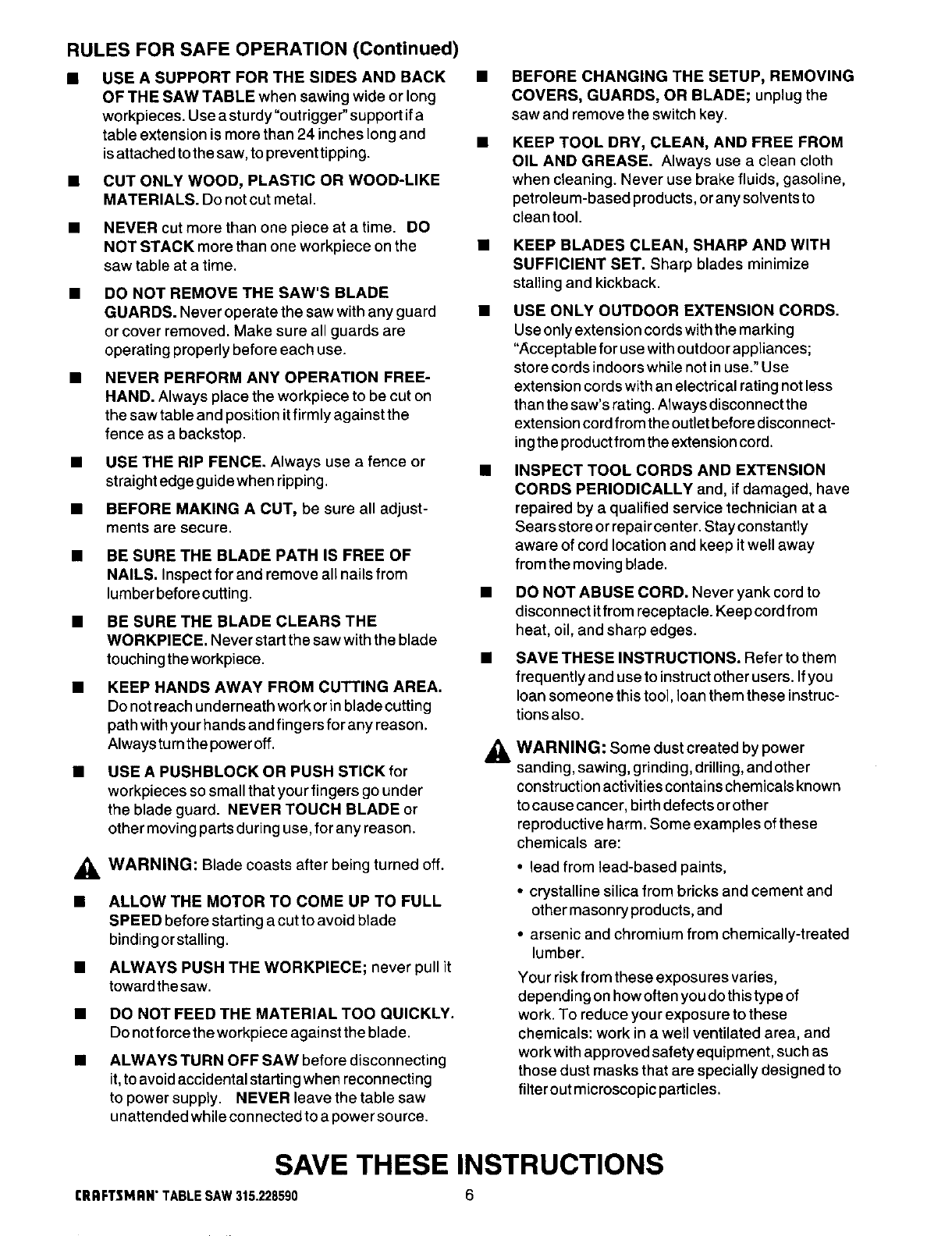

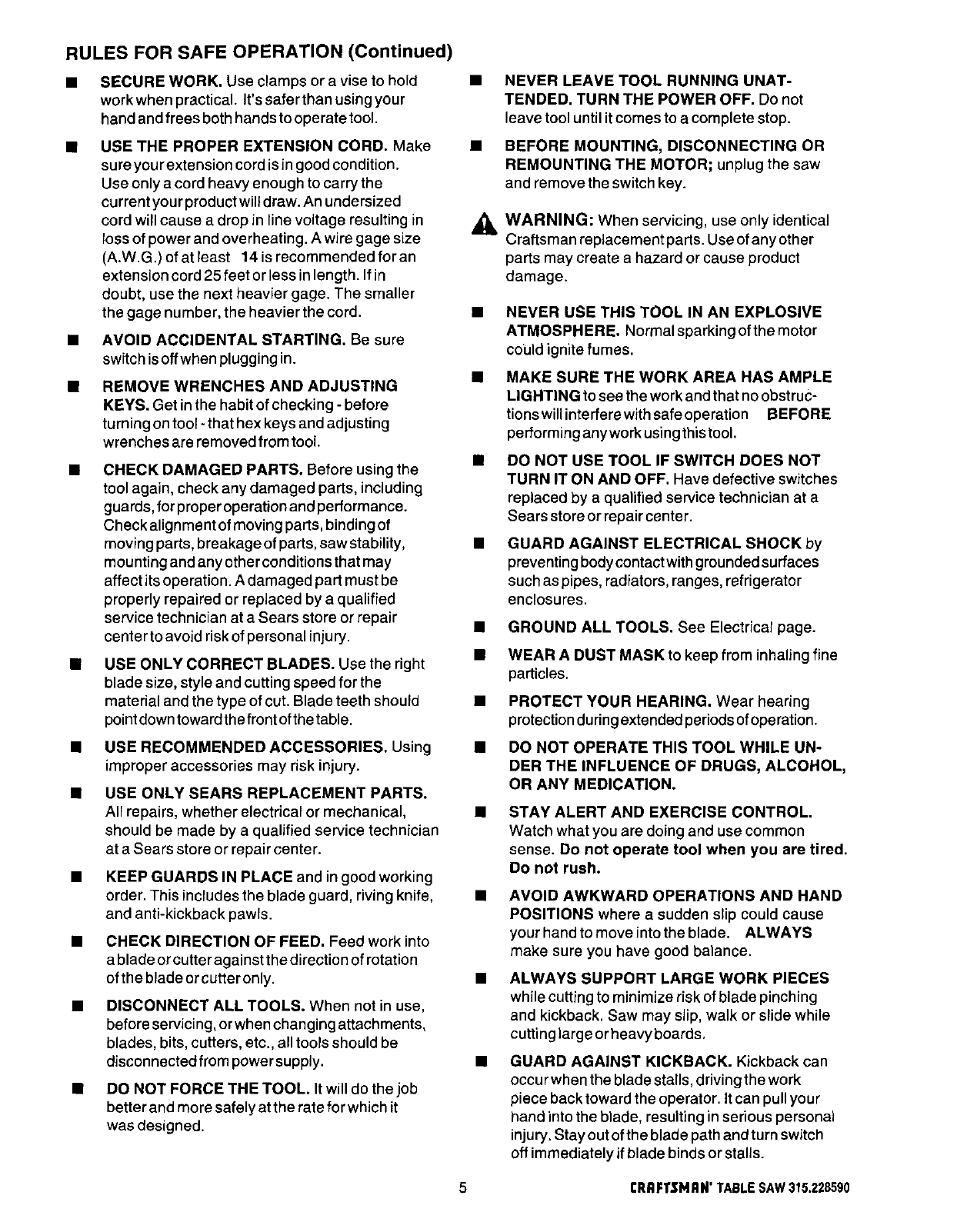

RULES FOR SAFE OPERATION (Continued)

•SECURE WORK. Use clamps or a vise to hold

work when practical. It's safer than using your

hand and frees both hands to operate tool.

USE THE PROPER EXTENSION CORD. Make

sure yourextension cord isin good condition.

Use only a cord heavy enough to carry the

current you r product will draw. An undersized

cord will cause a drop in line voltage resulting in

loss of power and overheating. Awire gage size

(A.W.G.) of at least 14 is recommended foran

extension cord 25 feet orless inlength. If in

doubt, use the next heavier gage. The smaller

the gage number, the heavier the cord.

AVOID ACCIDENTAL STARTING. Be sure

switch isoffwhen plugging in.

REMOVE WRENCHES AND ADJUSTING

KEYS. Get inthe habit of checking - before

turning ontool -that hex keys and adjusting

wrenches are removed from tool.

CHECK DAMAGED PARTS. Before using the

tool again, check any damaged parts, including

guards, for proper operationand performance.

Check alignment of moving parts, binding of

moving parts, breakage of parts, saw stability,

mounting and any other conditions that may

affect its operation. A damaged part must be

properly repaired or replaced by a qualified

service technician at a Sears store or repair

centerto avoid riskof personal injury.

USE ONLY CORRECT BLADES. Use the right

blade size, style and cutting speed for the

material and the type of cut. Blade teeth should

point downtoward the front ofthe table.

USE RECOMMENDED ACCESSORIES. Using

improper accessories may risk injury.

USE ONLY SEARS REPLACEMENT PARTS.

All repairs, whether electrical or mechanical,

should be made by a qualified service technician

at a Sears store or repair center.

•KEEP GUARDS IN PLACE and ingood working

order. This includes the blade guard, riving knife,

and anti-kickback pawls.

•CHECK DIRECTION OF FEED. Feed work into

a blade or cutter against the direction of rotation

ofthe blade orcutteronly.

•DISCONNECT ALL TOOLS. When not in use,

before servicing, orwhen changing attachments,

blades, bits, cutters, etc., all tools should be

disconnected from powersupply.

•DO NOT FORCE THE TOOL. It will do the job

better and more safely at the rate for which it

was designed.

A

NEVER LEAVE TOOL RUNNING UNAT-

TENDED. TURN THE POWER OFF. Do not

leave tool until itcomes to a complete stop.

BEFORE MOUNTING, DISCONNECTING OR

REMOUNTING THE MOTOR; unplug the saw

and remove the switch key.

WARNING: When servicing, use only identical

Craftsman replacement parts. Use of any other

parts may create a hazard or cause product

damage.

NEVER USE THIS TOOL IN AN EXPLOSIVE

ATMOSPHERE. Normal sparking of the motor

could ignite fumes.

•MAKE SURE THE WORK AREA HAS AMPLE

LIGHTING to see the work and that noobstruc-

tionswill interfere withsafe operation BEFORE

performing any work usingthistool.

•DO NOT USE TOOL IF SWITCH DOES NOT

TURN IT ON AND OFF. Have defective switches

replaced by a qualified service technician at a

Sears store or repair center.

GUARD AGAINST ELECTRICAL SHOCK by

preventing bodycontact withgrounded surfaces

such as pipes, radiators, ranges, refrigerator

enclosures.

GROUND ALL TOOLS. See Electrical page.

WEAR A DUST MASK to keep from inhaling fine

particles.

PROTECT YOUR HEARING. Wear hearing

protection during extended periods of operation.

DO NOT OPERATE THIS TOOL WHILE UN-

DER THE INFLUENCE OF DRUGS, ALCOHOL,

OR ANY MEDICATION.

STAY ALERT AND EXERCISE CONTROL.

Watch what you are doing and use common

sense. Do not operate tool when you are tired.

Do not rush.

AVOID AWKWARD OPERATIONS AND HAND

POSITIONS where a sudden slip could cause

your hand to move into the blade. ALWAYS

make sure you have good balance.

ALWAYS SUPPORT LARGE WORK PIECES

while cutting to minimize risk of blade pinching

and kickback. Saw may slip, walk or slide while

cuttinglarge orheavyboards,

GUARD AGAINST KICKBACK. Kickback can

occur when the blade stalls, driving the work

piece back toward the operator. It can pull your

hand into the blade, resulting in serious personal

injury. Stay out ofthe blade path and turn switch

off immediately if blade binds orstalls.

5 CRAFTSMAN' TABLESAW 315.228590

RULES FOR SAFE OPERATION (Continued)

•USE A SUPPORT FOR THE SIDES AND BACK

OF THE SAW TABLE when sawing wide or long

workpieces. Use asturdy"outrigger" support if a

table extensLonis more than 24 inches longand

isattached to the saw, to prevent tipping.

CUT ONLY WOOD, PLASTIC OR WOOD-LIKE

MATERIALS. Do notcut metal.

NEVER cut more than one piece at a time. DO

NOT STACK more than one workpiece on the

saw table at a time.

DO NOT REMOVE THE SAW'S BLADE

GUARDS. Never operate the saw withany guard

or cover removed. Make sure all guards are

operating properly before each use.

NEVER PERFORM ANY OPERATION FREE-

HAND. Always place the workpiece to be cut on

the saw table and position itfirmly against the

fence as a backstop.

USE THE RIP FENCE. Always use a fence or

straight edge guide when ripping.

BEFORE MAKING A CUT, be sure all adjust-

ments are secure.

BE SURE THE BLADE PATH IS FREE OF

NAILS. Inspect for and remove all nails from

lumber before cutting.

•BE SURE THE BLADE CLEARS THE

WORKPIECE. Never start the saw with the blade

touchingthe workpiece.

•KEEP HANDS AWAY FROM CUTTING AREA.

Do not reach underneath work or in blade cutting

path withyour hands and fingers for any reason.

Always turnthe power off.

•USE A PUSHBLOCK OR PUSH STICK for

workpieces so small that your fingers go under

the blade guard. NEVER TOUCH BLADE or

other moving parts during use, for any reason.

_, WARNING: Blade coasts after being turned off.

ALLOW THE MOTOR TO COME UP TO FULL

SPEED before starting acut to avoid blade

binding orstalling.

ALWAYS PUSH THE WORKPIECE; never pull it

toward the saw.

DO NOT FEED THE MATERIAL TOO QUICKLY.

Do notforce the workpiece against the blade.

ALWAYS TURN OFF SAW before disconnecting

it, to avoid accidental starting when reconnecting

to power supply. NEVER leave the table saw

unattended while connectedto a power source.

BEFORE CHANGING THE SETUP, REMOVING

COVERS, GUARDS, OR BLADE; unplug the

saw and remove the switch key.

KEEP TOOL DRY, CLEAN, AND FREE FROM

OIL AND GREASE. Always use a clean cloth

when cleaning. Never use brake fluids, gasoline,

petroleum-based products, orany solvents to

cleantool.

•KEEP BLADES CLEAN, SHARP AND WITH

SUFFICIENT SET. Sharp blades minimize

stalling and kickback.

•USE ONLY OUTDOOR EXTENSION CORDS.

Use only extension cords withthe marking

"Acceptable for use with outdoorappliances;

store cords indoors while not inuse." Use

extension cords with an electrical ratingnot less

than the saw's rating. Always disconnect the

extension cordfrom the outlet before disconnect-

ingthe productfrom the extensioncord.

•INSPECT TOOL CORDS AND EXTENSION

CORDS PERIODICALLY and, if damaged, have

repaired by a qualified service technician at a

Sears store or repair center. Stay constantly

aware of cord location and keep it well away

from the moving blade.

DO NOT ABUSE CORD. Never yank cord to

disconnect it from receptacle. Keep cord from

heat, oil, and sharp edges.

SAVE THESE INSTRUCTIONS. Refer to them

frequently and use to instructother users. Ifyou

loan someone this tool, loan them these instruc-

tionsalso.

,_ WARNING: Some dust created by power

sanding, sawing, grinding, drilling, and other

construction activities contains chemicals known

to cause cancer, birth defects or other

reproductive harm. Some examples of these

chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and

other masonry products, and

• arsenic and chromium from chemically-treated

lumber.

Your risk from these exposures varies,

depending on how often you do this type of

work. To reduce your exposure to these

chemicals: work in a well ventilated area, and

work with approved safety equipment, such as

those dust masks that are specially designed to

filter out microscopic particles.

SAVE THESE INSTRUCTIONS

CRRFTSMRN" TABLESAW 315.228590 6

EXTENSION CORDS

Use only 3-wire extension cords that have 3-prong

grounding plugs and 3-pole receptacles that accept

the tool's plug. When using a power tool at a consid-

erable distance from the power source, use an

extension cord heavy enough to carrythe current that

the tool will draw. An undersized extension cord will

cause a drop in line voltage, resulting in a loss of

power and causing the motor to overheat. Use the

chart provided below to determine the minimum wire

size required in an extension cord, Only round jack-

eted cords listed by Underwriter's Laboratories (UL)

should be used.

Length of Extension Cord

Up to 25 feet

Wire Size (A.W.G.)

14

26-100feet 12

When working with the tool outdoors, use an exten-

sion cord that is designed for outside use. This is

indicated by the letters WA on the cord'sjacket.

Before using an extension cord, inspect it for loose or

exposed wires and cut orworn insulation.

,_ CAUTION: Keepthecordawayfromthecutting

area and position the cord so that itwill not be

caught on lumber, tools,orotherobjecteduring

cuttingoperations.

ELECTRICAL CONNECTION

Your Sears Craftsman Table Saw is powered by a

precision built electric motor. Itshould be connected

to a power supply that is 120 volts, 60 Hz, AC only

(normal household current). It should be connected

to a240 volt power supply only if it has been reset

according to the instructions in this manual. The

motor has been set at the factory for 120 volts; if it is

reconnected to operate at 240 volts, all attachment

plugs and any receptacles must be replaced with

devices rated for 240 volts. Do not operate this tool on

direct current (DC). A substantial voltage drop will

cause a loss of power and the motor will overheat, If

the saw does not operate when plugged into an

outlet, double check the power supply.

SPEED AND WIRING

The no-load speed of your table saw is approximately

3,600 rpm. This speed is not constant and decreases

under a load or with lower voltage. For voltage, the

wiring in a shop is as important as the motor's horse-

power rating. A line intended only for lights cannot

properly carry a power tool motor. Wire that is heavy

enough for a short distance will be too light for a

greater distance. A line that can support one power

tool may not be able to support two or three tools.

GROUNDING INSTRUCTIONS

In the event of a malfunction or breakdown, grounding

provides a path of least resistance for electriccurrent

to reduce the risk of electric shock. This tool is

equipped with an electric cord having an equipment-

grounding conductor and a grounding plug. The plug

must be plugged into a matching outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

Do not modifythe plug provided. Ifit will notfitthe

outlet, have the proper outlet installed by a qualified

electrician. Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. The conductor with insulation having an outer

surface that is green with or without yellow stripes is

the equipment-grounding conductor. Ifrepairor

replacement of the electric cord or plug is necessary,

do not connect the equipment-grounding conductor to

a live terminal.

Check with a qualified electrician or service personnel

ifthe grounding instructions are not completely

understood, or if indoubt as to whether the tool is

properly grounded.

Repair or replace a damaged or worn cord immedi-

ately.

This tool is intended for use on a circuit that has an

outlet like the one shown in Figure 1. It also has a

grounding pin like the one shown.

WARNING: Instructions are given in the

Assemblysection forchanging the motorvoltage

to 240 volts. Follow them carefully ... Electrical

shock can kill.

COVEROF GROUNDED

OUTLETBOX Fig. 1

7 rRRFTSMRN" TABLESAW 315.228590

Anti-Kickback Pawls

Toothed safety devices behind the blade designed to

stop a workpiece from being kicked back at the

operator during a ripping operation.

Arbor

The shaft on which a blade or cutting tool is mounted.

Bevel Cut

A cutting operation made with the blade at any angle

other than 90°to the saw table.

Compound Cut

A cut with both a miter angle and a bevel angle.

Crosscut

A cutting operation made across the grain or the width

of the workpiece.

Dado

A non-through cut that gives a square notch or trough;

requires a special blade.

Featherboard

A device to help guide workpieces during rip cuts.

Freehand (for table saw)

Dangerous practice of making a cut without using rip

or miter fences. See Safety Rules.

Gum

A sticky, sap-based residue from wood products.

Heel

Alignment of the blade.

Kerf

The material removed by the blade in a through cut or

the slot produced by the blade in a non-through cut.

Kickback

A hazard that can occur when blade binds or stalls,

throwing workpiece back toward operator.

Leading End

The end of the workpiece pushed into the cutting tool

first.

Miter Cut

A cutting operation made with the miter gage using

any angle other than 0° on the miter gage.

Molding

A non-through cut that gives a varied shape to the

workpiece and requires a special blade.

Push Stick

A device used to feed the workpiece through the saw

blade during narrow cutting operations. It helps keep

the operator's hands well away from the blade.

Rabbet

A notch in the edge of a workpiece.

Resaw

A cutting operation to reduce the thickness of the

workpiece in order to make thinner pieces.

Resin

A sticky, sap-based substance.

Rip Cut

A cut made with the the grain of the workpiece.

Sawblade Path

The area directly in line with the blade -- over, under,

behind, or in front of it. Also, the workpiece area

which will be or has been cut by the blade.

Set

The distance that the tip of the saw blade tooth is bent

(or set) outward from the face of the blade.

Throw-Back

Saw throwing back a workpiece; similar to kickback.

Through Sawing

Any cutting operation where the blade extends

completely through the workpiece.

Trailing End

The workpiece end last cut by the blade in a rip cut.

Workpiece

The item on which the cutting operation is being done.

The surfaces of a workpiece are commonly referred to

as faces, ends, and edges.

Worktable

The surface on which the workpiece rests while

performing a cutting operation.

Blade Arbor 5/8 in.

Blade Diameter 10 in.

Blade Tilt 0° - 45 °

Table Size without table extensions 20 in. x 27 in.

Table Size with table extensions 53-1/2 in. x 27 in.

Rating 120 /240 V, 60 Hz - AC only

Input 13/6.5 Amperes

No Load Speed 3,600 RPM

Cutting Capacity with Miter at 0"/Bevel 0": 3-3/8 in.

Cutting Capacity with Miter at 0"/Bevel 45=: 2-!/4 in.

CRRFTSMRH"TABLE SAW 315.228590 8

Your new table saw has been designed to give you

many years of high quality performance. To insure

this goal, proper care and treatment is important.

Careful treatment begins with removing all parts from

the carton and checking them against the list of loose

parts. The long box contains the rails. The large box

holds all other parts, which are detailed in the Loose

Parts List.

• Separate the saw and all parts from the packing

materials and check each against the packing list,

especially the small parts that can be hidden in the

packing material.

Note: Do not discard the packing materials until you

have carefully inspected the saw, identified all

parts, and satisfactorily operated your new saw.

_1, WARNING: Never use gasoline, naptha, or

other highly volatile solvents. Do not ever let

brake fluids, gasoline, petroleum-based

products, or penetrating oils contact plastic parts.

Such chemicals can weaken or destroy plastic.

• Remove the wax paper covering on the table. Use

any ordinary household type grease and spot

remover. Immediately apply a coat of automotive

type paste wax to the table and table exensions.

AWARNING: To prevent accidental starting that

could cause possible serious personal injury,

assemble all parts to your saw before connecting

it to power supply. Saw should never be

connected to power supply when you are

assembling parts, making adjustments, installing

or removing blades, or when not in use.

WARNING: If any parts are missing, do not

operate this tool until the missing parts are

replaced. Failure to do so could result in possible

serious personal injury.

The following recommended accessories are currently available

• Fence Guide System

• Guide Master

• Box Joint & Miter Guide

• Universal Jig

•Taper Jig

• 10 in. Sanding Disc

• 8 in. Sanding Disc

• Elite Dado

• Excalibur Dado

• 7 in. Adj. Dado 36 tip

at Sears Retail Stores.

• 7 in. Adj. Dado 24 tip

• 7 in. Stack Steel Dado

• 7 in. x 9/16 in. Stack Dado

• 7 in. Molding Head Set

2 Bit Molding Head Set

• Saw Baskets

• Jointer Clamps

• Specialty Threat Plate

Accessory Table

_1 WARNING: The use of attachments or accessories not listed might be hazardous.

9 £RRFTSHRN" TABLESAW 315.228590

The following items are included with your Table Saw.

DGI

H J

M

' i

b0

K

PQ

A. Table Saw Base ....................................................

B, Belt ....................................................................... 1

C, Belt Guard

(Hardware Shown Separately) ............................. !

D, Blade Guard Assemb)y

(`Hardware Shown Separately) ............................. 1

E. Wrench ................................................................. 1

F, Handwheel

(.Hardware Shown Separately) ............................. 2

G. Leg Brace, lower {short) ....................................... 2

H, Leg Brace, lower I_o_g) ........................................ 2

I. Leg Brace, upper (short) ....................................... 2

J. Leg Brace, upper (long) ........................................ 2

K, Leg ........................................................................ 4

L, Miter Gage (some assembty required) ................. 1

M. Motor and Switch (Hardware Shown Se._)arately). 1

N. Switch Key ............................................................ 1

O. Rip Fence .............................................................

Rail, Front (Hardware Showr_ Separately) ............ 1

Q. R,_il, Rear (Hardware Shown Separately) ............ 1

_RgFT._NgN'TAgL,E._AW3t_.228_ _0

The following items are included with your Table Saw.

S

U

_2 b

R. Motor Mounting Plate

(Hardware Shown Separately) ............................. 1

S. Blade Guard Bracket ............................................ 1

T. Table Extension (Hardware Shown Separately) ... 1

U. Hangers (Hardware Shown Separately) ............... 4

V. Micro-Adjust Gear Rack

(Hardware Shown Separately) ............................. 1

W. Micro-Adjust Knob

(Hardware Shown Separately) ............................. 1

X. MDFTable Extension

(Hardware Shown Separately) ............................. 1

'4 Dust Bag (not shown) ........................................... 1

Z. Owner's Manual (not shown) ................................ 1

AA. Hardware for Leg Stand, Leveling Feet, and

Mounting Saw Base (Shown Separately) ............. 1

BB. Hardware for Blade Guard Bracket and

Blade Guard Assembly (Shown Separately) ........ 1

Check all loose parts from the box with the list on pages 10 - 13. Small items such as fasteners and end caps

are shown in figures 2 c, 2 d, and 2 e. Follow the instructions in the Assembly section to assemble your new

saw,

C. Hardware for Belt Guard .................................... 1

hex nut (#10-24) ................................................. 4

flat washer (#10) ................................................. 4

F. Hardware for Handwheel ................................... 2

screw (#10-24 x 1/2 in.) ...................................... 2

lock washer (#10) ............................................... 2

M. Hardware for Mounting Motor and Switch Box

Hardware for Mounting Motor ............................ 1

hex bolt (5/16-18 x 1 in.) .................................... 4

flat washer (5/16 in.) ........................................... 8

lock washer (5/16 in.) ......................................... 4

hex nut (5/16-18) ................................................ 4

Hardware for Mounting Switch Assembly

square head nut (1/4-20) .................................... 2

screw (1/4-20 x 3/8 in.) ....................................... 2

Figure 2 c

11 CRRFTJ;MRN"TABLESAW315.228590

Check all loose parts from the box with the list on pages 10 - 13. Small items such as fasteners and end caps are

shown in figures 2 c, 2 d, and 2 e. Follow the instructions in the Assembly section to assemble your new saw.

P,

Q,

Hardware for Front Rail and MDF

Table Extension .................................................. 1

square head bolt (5/16-18 x 3/4 in..) .................. 7

end cap for front rail ........................................... 2

screw (#8-32 x 1/2 in.) ........................................ 4

hex nut (5/16-18) ................................................ 7

flat washer (5/16 in.) ........................................... 7

O

O

Hardware For Rear Rail and MDF

Table Extension .................................................. 1

square head bolt (5/16-18 x 3/4 in.) ................... 7

flat washer (5/16 in.) ........................................... 7

hex nut (5/16-18) ................................................ 7

end cap for rear rail ............................................ 2

screw (#8-32 x 1/2 in.) ........................................ 2

O

T*

U,

Hardware for Cast Iron Table Extension ............ 1

hex bolt (5/16-18 x 1 in.) .................................... 4

flat washer (5/16 in.) ........................................... 8

hex nut (5/16-18) ................................................ 4

Hardware for Hangers

carriage bolts (5/16-18 x 3/4 in.) ........................ 4

V. Hardware for Micro-Adjust Gear Rack

square nut (1/4-20) ............................................. 8

screw (1/4-20 x 3/8 in.) ....................................... 8

W. Hardware for Micro-Adjust Knob

screw (1/4-20 x 3/8 in.) ....................................... 2

Fig. 2 d

R. Hardware for Motor Mounting Plate ................... 1

hex bolt (5/16-18 x 3/4 in.) ................................. 2

rRRFTSMRH" TABLE SAW315.228590 12

Check all loose parts from the box with the list on pages 10 - 13. Small items such as fasteners and end caps are

shown in figures 2 c, 2 d, and 2 e. Follow the instructions in the Assembly section to assemble your new saw.

AA. Hardware for Leg Stand, Leveling Feet, and

Mounting Saw Base

BB. Hardware for Blade Guard Bracket and Blade

Guard Assembly

Hardware for Leg Stand ..................................... 1

carriage bolt (5/16-18 x 3/4 in.) ........................ 24

flat washer (5/16 in.) ......................................... 24

hex nut (5/16-18) .............................................. 24

Hardware for Leveling Feet ................................ 1

leveling foot ........................................................ 4

flat washer (5/16 in.) ........................................... 8

hex nut (5/16-18) ................................................ 8

Blade Guard Bracket .......................................... 1

hex bolt (5/16-18 x 1/2 in.) ................................. 2

lock washer (5/16 in.) ......................................... 2

Blade Guard Assembly ....................................... 1

socket head cap screw {1/4-20 × 3/8 in.) ......... :. 3

flat washer (1/4 in.) ............................................. 3

Fig. 2e

Hardware for Mounting Saw Base ..................... 1

hex bolt (5/16-18 x 3/4 in.) ................................. 4

flat washer (5/16 in.) ........................................... 8

hex nut (5/16-18) ................................................ 4

13 I;RRFTSHRN" TABLE SAW315.228590

The following tools are needed for assembly and alignment. Note: The five hex keys listed below have been

provided with your saw. The remaining tools are typical shop tools and are not included with your saw.

SMALL /MEDIUM

PHILLIPSSCREWDRIVER

=9

NUTDRIVER

8 mm, 10 ram,and12mm

HEX KEYS(PROVIDED)

and6 mm

COMBINATIONSQUARE

HAMMER

45oTRIANGLE

_WREN_HES: 8 mm,10 mm,and_2mnl

FRAMINGSQUARE

CRAFTSMAN"TABLE SAW315.228590

ADJUSTABLEWRENCH

14

BF

C

D

G

E

H

B

A

10 inch Table Saw

3600 R.P.M. 120/240 VOLTS60 HzACONLY13 A/6.5 A

I&WARNINGIW.E.SERV.C.NOOSEONL*

IDENTICALCRAFTSMAN REPLACEMENT PARTS. L._

MODEL 315.228590 EER. NO. (_

MADE IN TAPNAN ;Cv US

SEARS, ROEBUCKAND CO, i _ STA13ONARyTOOL

Customer Help Line 1-800-932-3188 J

&WARNINI

• RaisedGuard

CanDropon

Spinning

Bladeand

Break.

•ToreduceThe

RiskofInjury,

GuardMust

beinPlace

DuringUse.

•Alignand

Tighten

RivingKnife

Fasteners

BeforeUse

Fig. 4 a

15 ERRFTSNRN" TABLESAW 315,228590

I<_ [_WARNING

When Mounting an Auxiliary Fence Face, Position Mounting Hardware Beyond Arrow at Right and Left as indicated.

Keep Fasteners Away From Blade,

CD

Do Not Lift Saw With Rails 1

or Extension Tables.

F

AWARNING

•Attach Blade Guard

Assembly Before

Operating this Saw

•Read Owner's

G

E

WARNING

Debris on rail can misalign

the rip fence• Workpiece

could bind or suddenly

kick back• You could be

hit or cut. Clean debris

off fence rail before

positioning fence•

H

CRAFTSMAN*

I P R 0 F E S S I 0 N A L

AWARNING

i • Rud m=nUal b_ usln9 m •W_ dp_no, u4e p_sh stick when fer.c_ is I4R 2 _-,¢h4g _ k._ f_ml I

,wMr _g_lg_s ahat rmml ANS; Zrt 1 bLide

=_ds. • KnOO hO_ to rtd_ t_ risk of Iddd_DCk. _Instr=_tl_ll _rl_ng.

I Do ,1or _lch around m"O.lW m bll,dll. * Ipr_Bnriling, uaMmpulh b4O_k ip;d luxllmW hpnce 11,_4mfqm_ll I_ _

_ _p blDde _p*mrddOOma_<l bl p_lr,¢oPot behv_n 1/2 lad 2 InChel from bt_e.

_h =_m • DO not _kl dp ¢U_ _l_ th=_ 1/2 Ir_h.

K_p h=nds _C_ _W_ C_m _=de.

Fig. 4b

CRAFTSMAN" TABLE SAW315.228590 16

KNOW YOUR TABLE SAW

ANTI-KICKBACKPAWLS

BLADEGUARD

TABLE

EXTENSION

RIVINGKNIFE

BLADE

REARRAIL

ALIGN-A-CUT

INSERT

RIPFENCE MDFTABLE

EXTENSION

SCALE

FRONT

RAIL

MITER

GAGE

HANDWHEEL

SWITCH

WITH KEY

MICRO-

ADJUST

KNOB

SCALE RIPFENCE

HANDLE

HEIGHT

HANDWHEEL

HANGER

BELTCOVER

LEGSTAND

LEVELINGFOOT

MOTOR

BEVEL

LOCKHANDLE

Fig. 5

OVERVIEW

The upper portion of the blade projects up through the

table, surrounded by an insert called the threat plate.

The height of the blade is set with a handwheel on the

front of the cabinet. To accommodate wide panels,

the tabletop has extensions on each side. Detailed

instructions are provided in the Operation section of

this manual for the basic cuts: cross cuts, miter cuts,

bevel cuts, and compound cuts.

For cuts with the blade straight up and cutting across

the grain (cross cuts or miter cuts), use the miter gage

to set the angle and push the wood into the blade. To

cut with the b_ade straight up, along the grain of the

wood (rip cuts), use the rip fence to guide the wood.

Push smaller pieces with a pushbtock or pushstick.

To tilt the blade for a bevel cut, use the bevel

handwheel on the side of the cabinet. Abevel scale

on the front of the cabinet shows the blade angle.

17 tRRFTSMRW TABLE SAW 315,228590

Inside the cabinet, adjustable positive stops control

the degree of tilt.

Use the miter gage with a bevel cross cut (compound

cut) and the rip fence with a bevel rip cut. Other cuts

require special attachments, which have detailed

instructions to reduce risk of injury and ensure the

best performance from your new saw.

Before attempting to use your saw, familiarize yourself

with all operating features and safety requirements of

your Sears Craftsman table saw. The saw's features

are described below.

ALIGN-A-CUT INSERT - A plastic insert on which

marks may be made to indicate the location of the

sawcut on the workpiece.

ANTI-KICKBACK PAWLS - Kickback is a hazard in

which the workpiece is thrown back toward the

operator. The toothed pawls are designed to snag the

workpiece to prevent or reduce injury should kickback

occur.

BEVEL HANDWHEEL - This handwheel, on the right

side of the cabinet, tilts the blade for a bevel cut.

BEVEL SCALE - The easy-to-read scale on the front

of the workstand shows the exact blade angle.

BLADE -This saw is provided with a Craftsman 40

tooth, 10 in. carbide tipped blade. The blade is

adjusted with bevel and height handwheels on the

cabinet. Bevel angles are locked with a handle below

the front rail.

&WARNING: Be sure to use only blades rated for

at least 5,000 rpm and recommended for use on

this saw. Check with your nearest Sears retail

store.

BLADE COVER - The internal cover contains sawdust

so it can be directed into the sawdust bag.

BLADE GUARD - Always keep the guard down over

the blade for through-sawing cuts.

BEVEL LOCK HANDLE - This handle, placed just

under the worktable surface on the front of the cabi-

net, locks the angle setting of the blade. Be sure the

handle is hanging straight down before tilting the

blade. If it is not straight down, it may jam and bend

the locking bolt.

DUAL VOLTAGE - Your table saw can be set up to

operate at either 120 or 240 volts. Use extreme

caution when changing the voltage.

DUST BAG - Saw dust can be directed into this

detachable bag or into a wet/dry vacuum.

HEIGHT HANDWHEEL - Use this handwheel to lower

and raise the blade for adjustments or replacement. It

is located on the front of the cabinet.

MICRO-ADJUST INDEX - A rip fence gear and track

that provides precise indexing.

MITER GAGE - This gage aligns the wood for a

crosscut. The easy-to-read indicator shows the exact

angle for a miter cut, with positive stops at 90 ° and

45°.

MITER GAGE GROOVES - The miter gage rides in

these grooves on either side of the blade.

MITER GAGE HOLD-DOWN - A clamp assembly that

fits onto the miter gage to provide additional stability.

MITER GAGE KNOB - Located on the miter gage,

this knob locks in the cutting angle after selection.

MOTOR (13/6.5 AMP) - The powerful induction motor

is 3HP, with capacitor start and V-belt drive, and is

housed in a sturdy steel base.

OVERLOAD PROTECTOR - This device switches off

the saw if it overheats. See the Operation section.

RAILS - Front and rear rails provide support for large

workpieces and the rip fence.

RIP FENCE - A sturdy metal fence guides the

workpiece and is secured with the rip fence handle.

Grooves run along the top and sides of the rip fence

for use with optional clamps and accessories.

MICRO-ADJUST KNOB - The micro-adjust knob on

the front of the rip fence makes fine adjustments to

the desired measurement for precise cutting. Push in

the knob and turn to position the rip fence.

RIP FENCE HANDLE - The handle on the front of the

rip fence releases the rip fence or locks it in place.

RIVING KNIFE OR SPREADER - Located directly

behind the blade, it keeps cut edges from binding and

supports the blade guard.

SCALE - Found on the front rail, the easy-to-read

scale provides precise measurements in rip cuts.

SWITCH WITH KEY - Your table saw has an easy

access power switch located below the front rail. The

yellow switch key must be removed from the hard-

ware bag and inserted into the switch before saw can

be operated. To lock the switch in the OFF position,

remove the switch key from the switch. Place the key

in a location that is inaccessible to children and others

not qualified to use the tool.

TABLE EXTENSIONS - Two removable table exten-

sions provide support for larger workpieces. One is a

cast iron table extension, 12 in. by 27 in. The other is

a larger, mdf table extension, 21-1/4 in. by 27 in.

CRAFTSMAN" TABLESAW 315.228590 18

Assembly is best done in the area where the saw will be used. When you remove the table saw base, loose

parts, and hardware from the packing materials, check all items with the loose parts list and drawing. If you are

unsure about the description of any part, refer to the drawing. If any parts are missing, delay assembling until

you have obtained the missing part(s).

INSTALLING HANDWHEELS ON SAW BASE

See Figure 6.

• Each handwheel bag contains a metal handwheel,

a screw (#10-24 x 1/2 in.), and a lock washer (#10).

• Align the handwheels to the shaft ends that extend

from the front and right side of the table saw base.

Match the flat spots on the shaft and inside the

handwheel. Insert a screw and alock washer in the

handwheel center and tighten with a 4 mm hex

key.

BEVEL

HANDWHEEL

TABLE

HANDWHEEL

SHAFTEND LOCK

WASHER

SCREW

Fig. 6

Note: Prior to assembly; clean the

protective coating from the

top, sides, and ends of the

table top on your saw. Also

clean protective coating from

the cast iron extension table.

CARRIAGE

BOLT

I

Note: If you mount the saw base on a bench instead

of the legs, go to Table Extensions, page 21.

The bench surface must have an opening for

sawdust to fall through, as large as the opening

in the bottom of the saw base. A height of 36 in.

from the top of the saw table to the floor is

recommended.

ASSEMBLING STEEL LEG STAND

See Figures 7 and 8.

• Take the following hardware from the leg stand

hardware bag:

24 carriage bolts (5/16-18 x 3/4 in.)

4leveling feet

32 flat washers (5/16 in.)

32 hex nuts (5/16-18)

Note: Remaining hardware from this bag is used for

mounting leg stand on the table saw base.

• Take 4 legs and 8 braces from loose parts.

• Place a short upper brace inside two of the legs,

with the legs wide end up. (Upper braces have two

large holes in each end.) Make sure the two posts

on the leg align with the small holes on the brace.

UPPERBRACE WASHER

HEXNUT

\

LOWERBRACE

LEVELINGFOOT

WASHER

Fig. 7

19 rlIIIFI"IMAN'TABLESAW315.228590

•Align the two large holes on the brace and the

legs. Insert the carriage bolts. Add flat washers

and hex nuts and hand tighten. Repeat for the

other short upper brace. These are the front and

back sets.

• For the side sets, install a long upper brace on two

legs. Add hardware and finger tighten. Repeat for

the other long upper brace.

•Use the same steps to install the lower braces.

Tighten all hex nuts with a 12 mm wrench.

• Place a hex nut and flat washer on each leveling

foot. Install the leveling feet from the bottom of

each leg with the bolts pointing up. Cap with the

remaining flat washers and hex nuts but do not

tighten.

• Move the leg set to desired location. Adjust the

leveling feet with a 12 mm wrench, then tighten the

top hex nut. UPPER

BRACE

,_ WARNING: Do not lift the saw without help.

The saw base weighs approximately 95 Ibs. Hold

it close to your body. Keep your knees bent and

lift with your legs, not your back. Ignoring these

precautions can result in back injury.

•Place the leg stand on the table saw base. Align

the holes in the table with the holes in the end

braces. Make sure the Craftsman label faces the

front of the saw which has the height handwheel.

• Place a flat washer on a bolt and insert through

hole. Add a flat washer and a hex nut. Hand

tighten.

Repeat for three remaining holes. Tighten all

hardware with a 12 mm wrench. You may find it

helpful to use one wrench to hold the head of the

bolt and one to tighten the hex nut. Leave the saw

upside down to add the cast iron extension.

LEG

FLATWASHER

LEG LOWERBRACE

LEGSTANDASSEMBLED Fig. 8

MOUNTING THE LEG STAND ON THE TABLE

SAW BASE

See Figure 9.

• Take the following from a small hardware bag:

4 hex bolts (5/16-18 x 3/4 in.)

4 hex nuts (5/16-18)

8 flat washers (5/16 in.)

Note: This hardware was in the bag with hardware for

assembling the leg stand and leveling feet.

• Place the saw table upside clown on a smooth

surface, such as cardboard, on the floor.

FLATWASHER

HEXBOLT

Fig. 9

[RAFTSMRH'TABLESAW 315.228590 20

TABLE EXTENSIONS

Two different table extensions have been supplied

with your saw; one is made of cast iron and the other

made of MDF material. The cast iron table extension

attaches to the saw table. It must be assembled first.

The MDF table is assembled after assembly of the

front and rear rails. It attaches to the front and rear

rails on the opposite side of the saw table.

The cast iron table should be assembled to the left

side of the saw table when viewing from normal

operating position. The MDF table extension should

be assembled to the right side ofthe saw table when

viewing from normal operating position.

ASSEMBLING CAST IRON TABLE EXTENSION

See Figure 10.

• Locate the cast iron table extension and the small

hardware bag with the following:

4 hexbolts(5/16-18x 1 in.)

4 hex nuts (5/16-18)

8 flat washers (5/16 in.)

,_ WARNING: The table extensions not only

provide a better cut on the workpiece but help

protect you. Serious injury can result from

workpiece binding or kickback due to twisted

rails or a misaligned rip fence.

• With the saw upside down, align cast iron table

extension with saw table. Put a flat washer on each

bolt. Attach the table extension to the saw table by

inserting the bolts from the direction of the table.

• Slip the remaining flat washers and hex nuts on the

bolts. Lightly tighten them with a 12 mm wrench.

• Get help to stand the saw assembly upright using

the center saw table. Do not grasp the saw by the

table extension.

,_ WARNING: The saw is very heavy. Do not lift

the saw table without help. Keep your knees

bent and lift with your legs, not your back.

Ignoring these precautions can result in back

injury.

ALIGNING CAST IRON TABLE EXTENSION

See Figure 11.

A good alignment allows the rails to slide on easily.

•Stand at the front of the saw and line up the front

edges of the table and extension.

•To align extension without damaging the table saw,

put a block of wood at the front of the table where

the extension meets the table, and tap the block

with a hammer. Check and repeat untilthe front

edges are even.

•Lift extension slightly until it is higher than the table

(if necessary, place ablock of wood below and tap

upward). Center the block of wood over the front

and rear edges and tap until both are even (flush)

with saw table. Recheck the front alignment. If it is

even, tighten the screws with a 12 mm wrench.

BLOCKOF WOOD SAWTABLE

EXTENSION

SAW

BASE

TABLE

EXTENSION

VIEWED FROM SIDE

SAWTABLEEDGE

TABLEEXTENSIONEDGE

FORWARD

VIEWED FROM FRONT

TAP HERE

II

SAWTABLEEDGE _"

_lm TAP

HERE

TABLEEXTENSION

HEXBOLT

FLATWASHER HEX

NUT Fig. 10

21

Fig. 11

(;RAFt'._MAN"TABLESAW315.228590

INSTALLING THE REAR RAIL

See Figures 12, 13, and 14.

,_ WARNING: Front and rear rails must be

carefully aligned to reduce the risk of kickback,

which can cause serious injury.

• From the carton, remove the rear rail and the

following hardware:

5 square head bolts (5/16-18 x 3/4 in.)

5 hex nuts (5/16-18)

5 flat washers (5/16 in.)

Right and left end caps for rear rail

2 screws (#8-32 x 1/2 in.) for end caps

Note: Remaining hardware from this hardware bag is

used for installing the front rail, MDF table

extension, and end caps.

SQUAREHEAD

BOLT

'HEXNUT

FLATWASHER

• At the back of the table, put the square head bolts

in the holes in the edge of the table and cast iron

extension so the bolt heads extend outward 1/2 in.

• Under the table, loosely attach the flat washers

and hex nuts onto bolts. Slide the slot on the rear

rail over the bolts. Adjust each bolt to fit the rail

closely to the table.

• Position rail so that the left hand edge extends 5 in.

beyond the table extension.

Push the rail against table and tighten each hex

nut with a 12 mm wrench. If the rail jams or does

not slide easily over the bolts, re-align the table

extension.

Note: Make sure there are no gaps between the rail

and edge of table or extension.

TABLEEXTENSION

SLOTFORBOLT

REARRAIL

HEX NUT

SQUAREHEADBOLT FLATWASHER Fig. 13

5 in.

SCREW REARRAILINSTALLED Fig. 14

Fig. 12

CRRFTSNRH"TABLESAW315.228590 22

INSTALLING THE FRONT RAIL

See Figures 15, 16, and 17.

• Locate the front rail, the switch assembly, and the

following hardware:

5 square head bolts (5/16-18 x 3/4 in.)

5 flat washers (5/16 in.)

5 hex nuts (5/16-18)

Right and left end caps for front rail

4 screws (#8-32 x 1/2 in.) for end caps

•Set aside the end caps and four screws until the

MDF table extension and switch have been

installed.

• Insert the five square head bolts into the table and

extension, so the bolt heads extend out 1/2 in.

• Loosely attach a flat washer and a hex nut to each

bolt. See Figure 15.

• The back of the rail has two slots, See Figure 16.

Slide the upper slot over the bolts. (Bottom slot is

for switch.)

• Align the rail left to right - Match the 6-7/8 in. mark

on the right scale to the right edge of the saw base

(main table). See Figure 17.

• Snug the rail against table. Finger-tighten each nut

on the table and extension.

SCALE

RAIL SLOT HEXNUT

FRONTRAIL Fig. 16

TABLETOP VIEWEDFROMABOVE

SCALE

J

FRONTRAIL

HEIGHT

HANDWHEEL

SQUAREHEAD

BOLT

HEXNUT

FLATWASHER

Fig. 15

Fig. 17

ASSEMBLING MDF TABLE EXTENSION

See Figure 18.

• Locate the MDF table extension and the small

hardware bag with the following:

4square head bolts (5/16-18 x 3/4 in.)

4hex nuts (5/16-18)

4flat washers (5/16 in.)

•Insert the four square head borts into the holes

located on the front and rear edges of the MDF

table extension. The square bolt heads must

extend out.

• Attach aflat washer and a hex nut to each bolt.

Finger-tighten each nut on the MDF table exten-

sion until head of bolt is approximately 1/8 in. from

the frame of MDF table extension. Leave just

enough clearance so that bolts do not rotate and

bind when sliding in rail slots.

•The back of the front rail has two slots. See Figure

16. Slide the bolt heads into the upper slot of front

rail. (Bottom slot is for switch.)

23 CRRFTSMRWTABLESAW315.228590

ASSEMBLINGMDFTABLE EXTENSION

(Continued)

•At the same time, slide the belt heads into the rear

rail slot.

•Slide MDF extension table along front and rear

rails to desired location.

•Using a framing square, check to make sure MDF

extension table is level with saw table. It should be

flush or slightly below saw table.

•Loosen hex nuts as needed and adjust table using

loose play in bolt holes.

• Tighten hex nuts securely.

SAWTABLE

REARRAIL MDF

EXTENSION

TABLE

HEX NUT

SQUARE

HEADBOLTS

WASHER Fig. 18

• On the front at the top of the leg stand, remove one

of the lower carriage bolts. See Figure 19.

• Insert carriage bolt in a small hanger and install in

front leg. Attach the washer and hex nut from the

back and tighten. Repeat for the other small

hanger.

• Install the large hangers on the left side. See

Figure 19.

INSTALLING THE MICRO-ADJUST

See Figure 20.

The micro-adjust indexes the rip fence. It includes a

gear o[i the rip fence and gear racks mounted to the

front rail.

• Locate the micro-adjust assembly, two racks, and

the following hardware:

10 pan head screws (#10-32 x 3/8 in.)

8 square nuts (#10-32)

• Hold a rack so the teeth point down and insert the

pan head screws from the bottom. Put a square

nut on each screw. Finger tighten, leaving a small

gap between the nut and the rack.

• Still holding the rack with teeth down, slide the

square nuts into the right side of the front slot of

the front rail until the end of the rack is near the

center of the table.

• Slide the other gear rack into the front rail from the

left until the two racks meet in the middle. Securely

tighten screws.

Note: The two racks must be touching for the micro-

adjust assembly to roll from one gear rack to

the other.

ASSEMBLING STORAGE HANGERS _

See Figure 19.

The large hangers are for storing the rip fence and the

small hangers are for storing the miter gage.

• Locate the storage hangers.

SMALL

STORAGE

FRONTRAIL

_SQUARENUTS

,i T

MICRO-ADJUST

TRACKSLOT

GEARRACK

GEARRACK

T

T

I

SCREWS Fig. 20

LARGE

STORAGEHANGER

Fig. 19

tRRFTSMRN°TABLESAW315.228590 24

•Insert the two remaining pan head screws into

holes in the micro-adjust knob bracket.

• Attach the micro-adjust knob bracket to the bottom

of the fence head on the right or the left side of the

fence handle. Securely tighten the two screws.

MICRO-ADJUSTKNOBBRACKET_

SCREWS ge

Fig. 21

ALIGNING THE RIP FENCE AND RAILS

See Figures 22 and 23.

The rip fence scale indicator is installed on the right

side of the rip fence but can be removed and rein-

stalred on the left side if needed. If a cutting operation

requires placing the rip fence on the left side of the

blade, and you find relocating the indicator necessary,

simply unscrew and re-attach it.

• Hook the back of the rip fence over the rear rail.

Lower the front of the rip fence into the groove on

the front rail. See Figure 22.

• Slide the rip fence back and forth. It should move

freely with about 1/16 in. clearance between the rip

fence and table surface. If it doesn't, loosen the

nuts holding the front and rear rails and adjust the

rails up or down. See Figure 15.

RIPFENCE HOOKOVER REARRAILHERE

• Remove the rip fence and repeat on the other side

of the blade. When the fence rides smoothly,

tighten all rail hex nuts with a 12 mm wrench.

• Push in the micro-adjust knob and turn it. The gear

on the shaft assembly will engage the rack teeth

on the rack and will move the fence assembly left

or right.

• Push down on the rip fence handle to lock the rip

fence in place.

TO INSTALL

SCALE ON

RIPFENCE

FRONTRAIL

RIPFENCEHANDLE Fig. 23

REARRAIL

Fig. 22

25 CRIIFTSHaN'TABLESAW 315.228590

MOUNTING THE MOTOR AND SWITCH

See Figures 24, 25, and 26.

• Locate the motor and switch assembly, the motor

mounting plate and the following hardware:

4 hex bolts (5/16-18 x 1in.)

8flat washers (5/16 in.)

4 lock washers (5/16 in.)

4hex nuts (5/16-18)

2hex bolts (5/16-18 x 3/4 in.)

2 screws (1/4-20 X 3/8 in.)

2 square nuts (1/4-20)

Yellow Switch key

Note: Remaining hardware from this bag is used for

installing the belt guard.

•Release the bevel lock handle (front of the cabinet)

and turn the bevel handwheel (right side of the

cabinet) until the blade is fully vertical. Retighten

the bevel lock handle.

• Align the holes in the motor mounting plate and the

motor bracket so the top edges are even. Place a

flat washer on the four 1 in. bolts and insert them

into the holes.

•Install a flat washer, a lock washer, and a hex nut

on each bolt. Hand tighten only. This is the motor

support assembly.

•Center the motor side to side on the motor mount-

ing plate. Tighten the nuts with a 12 mm wrench.

•Insert the two rods on the motor support assembly

into holes in the cradle. Push the motor in as far as

it will go. Thread the two 3/4 in. hex bolts into the

cradle to clamp down on the rods. Do not

securely tighten bolts yet.

3/4 in. HEX BOLTS

MOTORSUPPORT

ASSEMBLYROD

CRADLE

•Locate the switch assembly, two screws (1/4-20 x

3/8 in.) and two square nuts (1/4-20). Insert the

screws from the rear of the switch plate and add

the square nuts on the front.

• Holding the switch to the front, insert and slide the

two square nuts into the lower slot of the front rail.

_1= WARNING: Place the switch out of the immedi-

ate work area to avoid accidentally turning it off

during operation.

• Slide the switch assembly to a convenient position,

leaving ample clearance for the handwheel.

Tighten securely with a screwdriver.

• Install the yellow switch key on the switch. See

Figure 60.

• Put the end caps on the rail ends. Insert the

screws and tighten with a phillips screwdriver. See

Figure 26.

FRONTRAIL \TABLE

EXTENSION

SWITCHSCREW

SWITCH

ASSEMBLY UARENUT

SWITCHKEY Fig. 25

lin. HEXBOLT MOTOR

MOUNTING

PLATE SCREW_

BRACKET

Fig. 24

Fig. 26

rlIRFT$1411N'TABLE SAW315.228590 26

INSTALLING THE BELT AND BELT GUARD

See Figures 27 and 28.

• Locate the belt, belt guard, 4 flat washers (#10)

and 4 small hex nuts (#10-24). Locate the dust

cover and hardware.

• Lower the blade by turning the height handwheel

on the front of cabinet.

• Slip the belt on the saw pulley inside the saw

cabinet. Lift the motor forward and place the belt on

the motor pulley.

• Check that the belt is straight and both pulleys are

aligned with each other. If not, adjust the motor on

the motor support assembly. Refer to Mounting the

Motor.

• Raise the saw blade all the way up.

• Pull the motor out until the belt is taut. Securely

tighten the hex bolts above the rods with a 12 mm

wrench.

• Put your hand around the belt halfway between the

two pulleys and squeeze the belt until both sides of

the belt touch. The motor should move freely as

you squeeze the belt. If it does not, loosen the

clamp screws and readjust the belt tension.

HEX

SAW

PULLEY

MOTOR

SUPPORT"

ASSEMBLY

BELTGUARD

_ELT

WASHER

Fig. 28

• Lower the blade by turning the height handwheel.

Lift the motor forward and remove the belt.

Open the hinged belt guard and place it over the

motor screws on the motor pulley. Secure with flat

washers and hex nuts. Tighten the hex nuts with a

8 mm wrench.

• Replace the belt and snap the guard closed.

• Check clearances by indexing the blade. Release

the bevel lock handle on the front of the cabinet

and turn the bevel handwheel on the right side of

cabinet to 45 °and back. Use the height handwheel

to fully lower and raise the blade.

MOTOR IELT

MOTOR

PULLEY

MOTORSCREW Fig. 27

27 CRRFTSMRN'TABLESAW315.228590

INSTALLING THE BLADE GUARD

See Figures 29, 30, and 31.

_h, WARNING: If the blade is not fully lowered, turn

the height handwheel on the front of the cabinet

to lower the blade to prevent the risk of injury.

•Locate the blade guard, the blade guard bracket,

and the following hardware:

2 hex bolts (5/16-18 x 1/2 in.)

2 lock washers (5/16 in.)

3 socket head screws (1/4-20 x 3/8 in.)

3 flat washers (1/4 in.)

• Align the lower end of the blade guard bracket and

the threaded holes of the cradle and insert the two

hex bolts and lock washers. Securely tighten with a

12 mm wrench. See Figure 29.

• Remove the throat plate. See Removing/Replac-

ing the Throat Plate in the Adjustments section.

• Put the blade guard assembly in place on the

tabletop, aligning the screwholes in the riving knife

to the holes in the blade guard bracket. Align the

hole in the front of the riving knife base with screw

hole in the cradle. See Figure 30.

Note: The screw hole is located under the slot in back

of the throat plate.

CRADLE

BLADE

GUARD

HEX

BOLTS

SOCKETHEADCAPSCREWS(3) BLADEGUARD

FLATWASHER

Io

BLADE

GUARD

BRACKET

Fig. 30

• Insert two socket head screws and two flat wash-

ers in the two holes at the back of the riving knife

base. Securely tighten with a 5 mm hex key.

• Insert the third socket head screw and a flat

washer into the screw hole in the cradle under the

throat plate. Securely tighten with a 5 mm hex key.

See Figure 31.

• Replace the throat plate.

SOCKETHEAD

CAPSCREW'x_

FLATWASHER,_

BLADEGUARD

ANTI-KICKBACK

PAWLS

LOCKWASHEF

Fig. 29

Fig. 31

[RRFT$14RN'TABLESAW 315.228590 28

CHECKING THE THROAT PLATE

See Figure 32. BLADEGUARD

CAUTION: The throat plate must be even with the

table surface. Ifit is too high or too low, the workpiece

can catch on uneven edges and cause kickback.

• Make sure the throat plate is flush with the table top.

To change the height of the throat plate, loosen the flat

head screw that secures the throat plate and adjust

the four setscrews on the throat plate with a 2 mm hex

key. Do not allow the throat plate to bow up above the

table surface.

2 mm SETSCREWS

(4)

HE_// gFRAMING SQUARE

THROATPLATE

C_/ FLAT

HEAD

Fig. 34

_I, WARNING: It is important to install and adjust

the riving knife correctly. Poor alignment could

cause kickback and throw the workpiece at the

operator.

HEIGHT

HANDWHEEL

,BEVEL

HANDWHEEL

Fig. 32

The riving knife must be aligned with and centered

over the blade.

• Raise the blade and the blade guard.

• Place a framing square or straightedge beside the

blade on the left. See Figure 33.

• Loosen front screw on riving knife with a 5 mm hex

key. See Figure 34.

ALIGNING RIVING KNIFE WITH THE BLADE

See Figures 33, 34, and 35.

•1= WARNING: Make sure the switch is off, the

switch key is removed, and the saw is

unplugged. Failure to do so could result in

accidental starting, causing serious injury.

,_ WARNING: Do not loosen the screws holding

the riving knife to the blade guard bracket.

Unsecured pawls or riving knife could cause

personal injury while you are adjusting the riving

knife.

• Center riving knife over the blade. See Figure 35.

• Securely tighten screw with a 5 mm hex key.

PAWLS

FRAMINGSQUARE

BLADE

Fig. 33

RIVINGKNIFE,

FRAMINGSQUARE

VIEWED FROM TOP OF SAW

WITH RIVING KNIFE SHOWN

CENTERED OVER BLADE

BLADE

Fig. 35

29 [RAFTSMAN'TABLESAW 315.228590

CHECK HEELING (PARALLELING) OF THE

SAWBLADE TO THE MITER GAGE GROOVE

See Figures 36 and 37.

Do Not loosen any screws until you have checked

with a square and made sure adjustments are

necessary. Once the screws are loosened, these

items must be reset.

_k WARNING: Make sure the switch is off, switch

key is removed and saw is unplugged. Failure to

do so could result in accidental starting causing

serious personal injury.

,_ WARNING: The sawblade must be parallel to

the miter gage groove so the wood does net

bind, resulting in kickback. You could be hit or

cut.

• Lift the blade guard. Raise the blade all the way by

turning the height handwheel.

• Mark beside one of the sawblade teeth at the front

of the blade. Place a framing square beside the

blade on the mark. Be sure the framing square is

between the teeth and flat against the blade.

Measure the distance to the right gage groove.

• Turn the sawblade so the marked tooth is at the

back.

• Move the square to the rear and again measure

the distance to the right miter gage groove. If the

distances are the same, the blade and the miter

gage groove are parallel. No adjustments are

needed.

• If the distances measured are different, adjust the

table bracket underneath the saw. See "Heeling

(Paralleling) The Sawblade To The Miter Gage

Groove" in the Adjustments section,

BLADEGUARDIS NOTSHOWNFORCLARITY

MARKEDTOOTH MITERGAGEGROOVE

ATFRONT

FRAMINGSQUARE

11 I

Fig. 36

MARKEDTOOTH

AT BACK

MITERGAGEGROOVE

(_ FRAMINGSQUARE

1/

Fig. 37

tRRFTSMRN'TABLESAW315.228590 30

CHECKING RIP FENCE AND

BLADE ALIGNMENT

See Figures 38, 39, and 40.

The rip fence is self-aligning but should be checked

before first use.

WARNING: Failure to align the rip fence to the

blade can cause jams and kickback, resulting in

serious personal injury.

• Slide the rip fence to the miter gage groove, which

is parallel to blade. Do not lock the rip fence.

• Place a framing square against the rip fence, with

the long end towards the front of the blade. See

Figure 38. Measure the distance from the rip fence

to the edge of the blade.

• Move the square to the back of the blade and

measure the length from other end of the rip fence

to the blade. See Figure 39.

• If the distances are different, loosen the four

screws around the rip fence handle with a 6 mm

hex key. Alternate the order (remove the screw

opposite, not next to the first one). See Figure 40.

• Hold the fence handle against the front rail and

arign the rip fence with the blade.

• Retighten the screws in alternating order and

check the alignment.

RIPFENCE

BLADE,

FRAMINGSQUARE

MITERGAGE

GROOVE

MITERGAGEGROOVE

Fig. 38

MITERGAGEGROOVE

FRAMING

SQUARE

IP FEN_

ADJUSTMENTSCREWS

RIPFENCE

Fig. 39

ADJUSTMENT

(4)

RIPFENCE

HANDLE

Fig. 40

• Repeat until the rip fence is aligned.

• Lock the rip fence handle in desired position by

rotating the handle down.

Note: To insure proper self alignment when position-

ing rip fence, push sides of scale indicator

housing against front rail before locking rip

fence handle.

31 tRRFTSMAN'TABLESAW 315.228590

CHANGING THE MOTOR VOLTAGE

See Figures 41 and42.

_b, WARNING: If you are unfamiliar with the basic

fundamentals of electricity do not attempt this

procedure. Use a qualified electrician to change

the voltage of the saw to avoid electric shock or

possibly a fire.

Your saw is set at the factory for 120V usage. See

Figure 41. Use extreme caution in changing to 240V,

as with any electrical procedure. Check the receptacle.

It must be a 220-240V, 15 amp, 3-blade unit -- con-

nected to a 240V AC power supply -- through a 240V

branch circuit -- with at least a 15 amp capacity -- and

protected by a 15 amp time-delay fuse or circuit

breaker. All attachment plugs and any receptacles

designed for 120 volt usage must be replaced with

devices rated for 240 volts.

WARNING: Never connect the plug to the

power source outlet until all assembly steps are

completed. Unplug the saw before changing any

connections.

• Open the motor connector box cover on the end of

the motor with a phillips screwdriver. Remove the

brown motor lead from terminal #2 and attach it to

the #3 terminal.

Note: The brown lead is not needed in 240V usage.

• Remove the yellow motor lead from terminal #1 and

attach it to terminal #2.

• Cut off the 120V power cord plug and replace it

with a three-blade 240V, 15 amp U.L. listed ptug.

• Connect the power cord white and black leads to

the "hot" plug blade terminals.

• Connect the power cord green grounding wire to

the plug ground prong terminal.

• Close the motor connector box. Be careful to place

the power cord in the strain relief groove. Tighten

the box cover screws.

• Plug the saw into the appropriate 220-240V,

15 amp, 3-blade receptacle.

• Make sure the receptacle is connected to a 240V

AC power supply through a 240V branch circuit

having at least a 15 amp capacity and protected by

a time delay fuse or circuit breaker of the correct

size.

GREENGROUNDING

WIRE

BROWNLEAD

GREENGROUNDING

WIRE

BROWNLEAD

BLACKLEAD

WHITELEAD

CONNECTOR

BOXCOVER

120 VOLT WIRING

Fig. 41

BLACKLEAD

CONNECTOR

BOXCOVER

240 VOLT WIRING

Fig. 42

rRRFTSMRN"TABLESAW 315.228590 32

ASSEMBLING THE HOLD DOWN CLAMP ON

THE MITER GAGE

See Figures 43, 44, and 45.

The miter gage should be used when making cross

cuts in the workpiece. The hold down clamp with

quick release button helps hold the workpiece against

the miter gage for controlled cutting.

• Locate the bag with the hold down clamp parts.

• Slide the quick release button into the clamp

housing aligning the holes for the clamp screw.

Note: The quick release button must be oriented with

the solid side toward the long body of the clamp

housing, as shown. See Figures 43 and 44.

QUICKRELEASEBUTTONVIEWEDFROMABOVE

SOLIDSIDE Fig. 43

• Insert the clamp screw through the clamp housing

and quick release button from the bottom. Thread

the round knob on top of the clamp screw.

•Install the spring with a screw on the back side of

the quick release button. Do not over tighten.

• Push the quick release button. The clamp screw

with knob should drop.

Note: If the clamp screw does not move freely the

quick release button may be oriented incor-

rectly. Remove the clamp screw and roll the

quick release button 180". Insert the clamp

screw and attach knob.

•Install the lock tab with a screw next to the quick

release button.

• Thread the spacer into the hole on top of the miter

gage base,

• Align the clamp housing on top of the miter gage

knob and the spacer.

• Place a washer on each lock knob and attach one

lock knob to the top of the spacer and one lock

knob to the top of the miter gage knob.

LOCKKNOBS

KNOB

QUICKBUTTONRELEASE

j_

SCREW_'_ j

LOCKTAB

CLAMPSCREW_

)

QUICKRELEASE

BUTTON

WASHER

SCREW

J j SPRING

i

CsLAMP HOUSING

PACER

Fig. 44

HOLDDOWN

CLAMP

BASE

Fig. 45

33 I:RIII:TINIIN' TABLESAW 315.228590

To avoid unnecessary setups and adjustments, a good practice is to check your setups carefully with a framing

square and make practice cuts in scrap wood before making finish cuts in good workpieces. Do not start any

adjustments until you have checked with a square and made test cuts to be sure adjustments are needed.

REPLACING THE BLADE

See Figures 46, 47, and48.

_1, WARNING: Be sure the switch is off, the switch

key is removed, and your saw is unplugged.

Failure to do so could result in accidental starting

resulting Lnpossible serious personal injury.

• Raise the blade guard and remove the throat plate

by loosening the screw at the front with a phillips

screwdriver and lifting the front of the throat plate.

Pull it out toward the front.

• Raise the blade to its highest position by turning

the height handwheel clockwise. Angle the blade

straLght up by loosening the bevel lock handle

(front of the cabinet) and turning the bevel

handwheel. Wedge a piece of scrap wood against

the front of the blade. See Figure 46.

• Loosen the blade nut with the blade wrench

provided with your saw. Remove the blade nut and

blade washer. Carefully remove the scrap wood

block and blade.

• To replace the blade with an accessory blade, use

the instructions provided with the accessory.

• To install a standard blade, place the new blade on

the arbor shaft, with teeth pointing down toward the

front of the saw. See Figure 47.

• Wedge a block of wood at the back of the blade.

See Figure 48.

CAUTION: The teeth must point down toward

Hthe front of the saw to work properly. Otherwise,

damage to the blade, saw, or workpiece can

occur.

• Place blade washer and blade nut over blade arbor.

Be sure the dome side of blade washer faces out

from the blade and that all items are snug against

the arbor housing. Tighten securely.

• Remove wood and rotate the blade by hand to

make sure it turns freely.

• Lower the blade and slip the throat plate into the

opening and push it toward the back of the saw to

engage the spring clip. Securely tighten the screw.

If the throat plate is not flush with the table, adjust

the setscrews with a 2 mm hex key. Do not let the

throat plate bow up above the table surface.

BLADEGUARD

THROATPLATE

REMOVED

BLADEATHIGHEST

POSITION

TO LOOSENBLADENI

SCRAPWOOD

WEDGEDAT FRONT

NEWBLADE,TEETH

DOWNAT FRONT

SCRAPWOOD

WEDGEDAT BACK

TO TIGHTEN

BLADENUT

Fig. 46

BLADEWASHER,

BLADENUT

BLADE

ARBOR

Fig. 47

Fig. 48

[RRFTSMItN'TABLE SAW315.228590 34

HEELING (PARALLELING) THE SAWBLADE

TO THE MITER GAGE GROOVE

See Figures 49, 50 and 51.

Do Not loosen any screws for this adjustment until

you have checked with a square and made test

cuts to be sure adjustments are necessary. Once

the screws are loosened, these items must be

reset.

WARNING: Make sure the switch is off, switch

key is removed and saw is unplugged. Failure to

do so could result in accidental starting causing

serious personal injury.

,_, WARNING: The sawbiade must parallel the

miter gage groove so the wood does not bind,

resulting in kickback. You could be hit or cut.

• Lift the blade guard. Raise the blade all the way by

turning the height handwheel.

• Mark beside one of the sawblade teeth at the front

of the blade. Place a framing square beside the

blade on the mark. Be sure the framing square is

between the teeth and flat against the blade.

Measure the distance to the right miter gage

groove.

• Turn the sawblade so the mark is at the back of the

saw table.

• Move the square to the rear and again measure the

distance to the right miter gage groove. If the

distances are the same, the blade and the miter

gage groove are parallel.

• If the distances measured are different, adjust the

table brackets underneath the saw.

_1, WARNING: When reaching under the saw

table, wear gloves. Accidental contact with the

blade could cause a cut resulting in serious

personal injury.

BLADEGUARDIS NOTSHOWNFORCLARITY

0oo

II t FRAMING

.. SQUARE

(_ MITERGAGE

GROOVE

Fig. 50

• Remove the throat plate by loosening the front

screw with a phillips screwdriver. Lift the throat

plate and pull it out by the front end.

• Lower the blade completely with the height

handwheel. You can then access the table brackets

through the throat plate opening.

• From the back of the saw, )oosen the three screws

on the rear table bracket with a 12 mm wrench. See

Figure 51.

• If the blade was too far from the miter gage groove,

move the bracket toward the miter gage groove.

Tap with a wood block and hammer.

• If the blade was too close to the miter gage groove,

back the bracket away with the block of wood and

hammer.

• Tighten the screws, raise the blade and recheck.

SAWTABLEVIEWEDFROMBACKBELOWTABLE

REARTABLEBRACKET REARBRACKETSCREW

BLADEGUARDIS NOTSHOWNFORCLARITY

I MARKEDTOOTH

/tE/

Fig. 49

REAR

BRACKET

SCREW

FRONTTABLE

BRACKET FRONTTABLE

BRACKETSCREWS Fig. 51

35 CRAFTSMAN'TABLESAW 315.228590

• If the blade is still not parallel, adjust the front table

bracket. Tilt the blade to 45" with the bevel lock

handle and bevel handwheel.

• From the back of the saw, loosen bolts holding the

front table bracket, as welt as the rear table

bracket.

• Reposition the blade to 90" with the bevel hand-

wheel and bevel lock handle.

• Lower the blade and move the brackets as needed.

Retighten all bracket screws.

• Raise the blade and recheck. Repeat until the

blade is parallel to the miter gage groove.

• Place the throat plate in the opening and push it

toward the rear of saw base to engage the spring

clip.

Note: The keyslot in the throat plate will drop over the

front screw.

• Tighten the screw. Do not allow the throat plate to

bow up above the table surface.

SETTING THE BEVEL STOPS AND INDICATOR

See Figures 52 and 53.

Wait to loosen any screws for the adjustments until

you have checked with a square and made test cuts

to be sure adjustments are necessary. Once the

screws are loosened, these items must be reset.

WARNING: Make sure the switch is off, the

switch key is removed, and the saw is

unplugged. Failure to do so could result in

serious personal injury.

The bevel scale should show 0 when the blade is set

at 90" and 45" when blade is at a 45" tilt.

• Raise the blade all the way up by turning the height

handwheel. Lift the blade guard.

• Loosen the bevel lock handle and turn the bevel

handwheel clockwise to tilt the blade. Reverse it

and turn the handwheel counterclockwise until it

stops.

• Check the blade angle with a combination square.

Don't let the square touch a blade tooth. The blade

should be at 90" and the scale indicator at 0.

Note: The scale indicator is the plastic plate on the

scale at the front of the cabinet.

•If the scale indicator does not point to 0, loosen the

scale indicator with a screwdriver, adjust it within

the slot and retighten the screw.

BEVELLOCK

HANDLE

(NOTSHOWN)

HEIGHT

HANDWHEEL

SCALE

INDICATOR

Fig. 52

• If the blade angle is wrong, adjust the 90" stop

screw (left of the blade, looking from the front). See

Figure 53. Start by turning the 90" stop screw three

or four times with a 4 mm hex key.

• Turn the bevel handwheel clockwise once, then

back counterclockwise to square blade with table.

• Tighten the 90" stop screw and recheck that the

blade is square in a 90" position. If not, repeat.

When blade is square, check scale indicator. If it is

not at zero, reset scale indicator as before.

• Check the 45" setting. Tilt the blade with the bevel

handwheel as far as it will go left. Place the square

against the blade (be sure the square is not against

one of the saw teeth). If the blade is not at 45°,

unscrew the 45" stop screw (right of blade), turn the

handwheel until the blade is correct, and tighten the

screw. Recheck and repeat if necessary.

• Check that the scale indicator is at 45 °.

• If not, loosen the scale indicator with ascrewdriver,

adjust it within the slot and retighten the screw.

4mm HEXKEY

90°STOPSCREW

45°STOPSCREW

HEIGHT

HANDWHEEL

BEVELHANDWHEEL

Fig. 53

CRRFTSMgN°TABLE SAW315.228590 36

ADJUSTING THE MITER GAGE

See Figure 54.

The miter gage is used in making cross cuts in the

workpiece. To use the miter gage at an angle other

than 0, loosen the lock knob over the miter gage knob.

Loosen the miter gage knob and pull out the stop pin.

Move the miter gage rod to the desired angle and

securely tighten the miter gage knob and the lock

knob.

_1= WARNING: Make sure the switch is off, the

switch key is removed and the saw is unplugged.

Failure to do so could result in serious personal

injury.

• To check for alignment, set the miter gage at 0 and

plus or minus 45" by pulling the miter gage stop

pin. Adjust the stop screws, if needed.

Note: The miter gage provides close accuracy in

angled cuts. For very close tolerances, test cuts

are recommended.

•Loosen the lock nut of the 0 stop screw at the stop

pin with an 8 mm wrench.

• Place a 90" square against the miter gage rod and

the miter gage base.

• if the rod is not square, loosen both lock knobs on

the top of the miter gage, adjust the rod, and

tighten the lock knobs.

• Adjust the 0 stop screw until it rests against the

stop pin. Adjust the plus and minus 45" stop screws

using a 45 ° triangle and the steps above.

• Push the quick release to quickly move the hold

down clamp onto the wood you are about to cut. To

prevent the use of the quick release roll the quick

release stop around to the top of the quick release.

This prevents the hold down clamp from dropping

on your workpiece.

REMOVING /REPLACING THE THROAT PLATE

See Figure 55.

WARNING: Make sure the switch is off, the

switch key is removed, and the saw is

unplugged. Failure to do so could result in

serious personal injury.

• Loosen the screw in the throat plate with a phillips

screwdriver and lift the front end of the throat plate.

Pull it out toward the front of the saw.

• To re-install the throat plate, place it in the opening.

Push it toward the rear of the saw base to engage

the spring clip.

Note: The keyslot in the throat plate will drop over the

screw.

QUICKRELEASE

QUICKRELEASE

STOP

(

LOCKKNOBS

MITERGAGEROD

MITERGAGEBASE

STOPPIN LOCKNUT

45°STOPSCREW Fig. 54

• Check that the throat plate is even with the table

top. If not, adjust the four corner setscrews with a

2 mm hex key. See the procedure in the Assembly

section.

• Securely tighten the throat plate screw. Do not

allow the throat plate to bow up above the table

surface.

THROATPLATE SPRINGCLIP

KEYSLOT

SETSCREW(4)

/

/

TABLETOP

SCREW Fig. 55

37 CRRFTSNIIN'TABLE SAW315.228590

BASIC OPERATION OFTHE TABLE SAW

Atable saw can be used for straight-line cutting

operations such as cross cutting, ripping, mitering,

beveling, compound cutting, and resawing. It can

make dado or molding cuts with optional accessories.

The three-prong plug must be plugged into a match-

ing outlet that is properly installed and grounded

according to all local codes and ordinances. Improper

connection of the equipment can result in electric

shock. Check with an electrician or service personnel

if you are unsure about proper grounding. Do not

modify the plug; if it will not fit the outlet, have the

correct outlet installed by a qualified electrician. Refer

to the Electrical page of this manual.

Note: This table saw is designed to cut wood and

wood composition products only.

CAUSES OF KICKBACK

Kickback can occur when the blade stalls or binds,

kicking the workpiece back toward you with great

force and speed. If your hands are near the sawblade,

they may be jerked loose from the workpiece and may

contact the blade. Obviously, kickback can cause

serious injury, and it is well worth using precautions to

avoid the risks.

Kickback can be caused by any action that pinches

the blade in the wood, such as the following:

• Making a cut with incorrect blade depth

•Sawing into knots or nails in the workpiece

•Twisting the wood while making a cut

• Failing to support work

•Forcing acut

• Cutting warped or wet lumber

•Using the wrong blade for the type of cut

•Not following correct operating procedures

•Misusing the saw

•Failing to use the anti-kickback pawls

•Cutting with a dull, gummed-up, or improperly set

blade

AVOIDING KICKBACK

• Always use the correct blade depth setting. The top

of the blade teeth should clear the workpiece by 1/8

in. to 1/4 in.

• Inspect the work for knots or nails before beginning

a cut. Knock out any loose knots with a hammer.

Never saw into a loose knot or nail.

• Always use the rip fence when rip cutting and the

miter gage when cross cutting. This helps prevent

twisting the wood in the cut.

• Always use clean, sharp, and properly-set blades.

Never make cuts with dull blades.

• To avoid pinching the blade, support the work

propedy before beginning a cut.

• When making a cut, use steady, even pressure.

Never force cuts.

• Do not cut wet or warped lumber.

• Always hold your workpiece firmly with both hands

or with pushsticks. Keep your body in a balanced

position to be ready to resist kickback should it

occur. Never stand directly in line with the blade.

• Use the right type of blade for the cut being made.

• Use the blade guard assembly for all through cuts.

CUTTING AIDS

See Figure 56.

Pushsticks are devices used for safely pushing a

workpiece through the blade instead of using your

hands. They can be made in various sizes and

shapes from scrap wood to use in a specific project.

The stick must be narrower than the workpiece, with a

90" notch in one end and shaping for a grip on the

other end.

A pushblock has a handle fastened by recessed

screws from the underside. Use on non-through cuts.

CAUTION: Be sure the screw is recessed to

avoid damaging the saw or workpiece.

PUSHSTICKS

PUSHBLOCKS Fig. 56

A featherboard is a device used to help control the

workpiece by guiding it securely against the table or

fence. Featherboards are especially useful when

ripping small workpieces and for completing non-

through cuts.The end is angled, with a number of

short kerfs to give a friction hold on the workpiece.

Lock it in place on the table with a C-clamp. Test that

it could resist kickback.

_I, WARNING: Place the featherboard against the

uncut portion of the workpiece, to avoid kickback

that could cause serious personal injury.

CP,AI:TSNI_N"TABLE SAW315.228590 38

RESETTING THE THERMAL OVERLOAD

PROTECTOR

See Figure 57.

Your table saw is equipped with an overload protector

to shut off the saw when a power circuit limit is

reached and the motor temperature begins to rise.

Otherwise, overheating can occur and cause poor

performance, machine damage or fire. Be prepared to

deal with overload should it occur, first in the immedi-

ate situation and then in locating the cause.

If the motor overheats, the overload protector shuts

down the power. Use the steps listed below to restarf.

•Turn the switch off to eliminate any possibility of

the blade restarting when the motor has cooled.

Remove any objects, including the workpiece, from

contact with the blade to prevent binding when you

do restart operation.

_i, WARNING: If the overload protector shuts off,

immediately turn the saw switch off and remove

anything contacting the blade to prevent the risk

of injury. When the motor cools off, it could

unexpectedly restart the blade, throwing an

object or cutting your hand if you are touching

the blade.

• Allow time for the motor to cool. You may have to

let the motor cool for as long as it had run before

the protector shut it down.

• While the motor is cooling, refer to the section

below to try to determine the reason for overload.

Correct the problem before resuming operation,

• Press hard on the red button on the end of the

motor (opposite end from the pulley). If the motor

has cooled enough, you will hear a click. If you do

not hear a click, let the motor cool longer.

• When you hear the click, the motor has been reset

and you can continue your project.

CAUSES OF OVERLOAD

Overload and overheating result from a number of

sources. Always check the connections, the load and

the supply circuit if motor performance is not satisfac-

tory. Check wire sizes and length in the chart below.

Refer to the Electrical page and check your work area

for problem conditions such as the following:

• Loose or incorrect connections (see Connecting

the Motor and Changing the Motor Voltage in the

Assembly section)

• Wrong type of plug (use only 3-prong grounding

type) or receptacle (matching receptacle for 3-

prong plug)

• Reduced input voltage (too small a wire or too

many items on the circuit)

• Extension cord is too long or wrong type (use only

outdoor extension cords sized by the chart.)

• Using a dull blade or forcing a cutting operation.

WARNING: Use the correct cord and plug to

prevent overload and motor burnout.

EXTENSION CORD AWG WIRE SIZE FOR

LENGTH 110-120V 220-240V

0-25 ft 14 18

26-50 ft. 12 18

MOTORRESETBUTTON Fig. 57

Note: This motor should be blown out or vacuumed

frequently to prevent saw dust build-up which

could interfere with motor cooling.

39 [RAFTSMRN' TABLE SAW315.228590

TYPES OF CUTS

See Figure 58.

There are six basic cuts: 1) the cross cut, 2) the rip

cut, 3) the miter cut, 4) the bevel cross cut, 5) the

bevel rip cut, and 6) the compound (bevel) miter cut.

All other cuts are combinations of these basic opera-

tions. Operating procedures for making each kind of

cut are given later in this section.

,_ WARNING: Always make sure the blade guard

and anti-kickback pawls are in place and working

properly when making these cuts to avoid

possible injury.

Cross cuts are straight 90 ° cuts made across the grain

of the workpiece. The wood is fed into the cut at a 90"

angle to the blade, and the blade is vertical.

Rip cuts are made with the grain of the wood. To

avoLd kickback while making a rip cut, make sure one

side of the wood rides firmly against the rip fence.

The rip fence features a micro-adjust knob, which

allows for precise adjustments of the rip fence and

fine tolerances in the woodwork.

Miter cuts are made with the wood at any angle to the

blade other than 90 °. The blade is vertical. Miter cuts

tend to "creep" away from the miter fence during

cutting. This can be controlled by holding the

workpiece securely against the miter fence.

_, WARNING: Always use a push stick with small

pieces of wood, and also to finish the cut when

ripping a long narrow piece of wood, to prevent

your hands from getting close to the blade.

Bevel cuts are made with an angled blade. Bevel

cross cuts are across the wood grain, and bevel rip

cuts are with the grain. The rip fence must always be

on the right side of the blade for bevel rip cuts.

Compound (or bevel) miter cuts are made with an

angled blade on wood that is angled to the blade. Be

thoroughly familiar with making straight cross cuts, rip

cuts, bevel cuts, and miter cuts before trying a com-

pound miter cut.

,_ WARNING: All blades and cutting accessories

must be rated for at least 5,000 rpm to prevent

possible injury.

©

®

®

®

®

®

CROSSCUT

RIPCUT

MITERCUT

BEVELCROSSCUT

BEVELRIPCUT

COMPOUND(BEVEL)MITERCUT

Fig. 58

[RAFT3MRN*TABLE SAW 315.228590 40

MAKING A CROSS CUT

See Figures 59, 60, 61, and 62.

_, WARNING: Make sure the blade guard is

lowered over the blade and is working properly to

prevent possible injury.

It is recommended that you make test cuts on scrap

wood. Stand at the front of the saw and push the

wood with the miter gage.

• Set blade to the right depth for workpiece by

turning height handwheel.

• Set the miter gage to 0. See Figure 59. Make sure

miter gage knob is securely tightened.

• Place a support the same height as top of saw

table behind the saw for cut work.

• The miter gage may be used in either of the two

grooves in the table. When using left groove, hold

workpiece firmly against the miter gage base with

your left hand and grip the knob with your right

hand. When using right groove, hold workpiece

firmly against the miter gage base with your right

hand and grip the knob with your left hand. See

Figure 59.

CROSSCUT

INSERTSWITCHKEY

Fig. 60

Fig. 61

Fig. 62

WHENMITERGAGEIS ON

LEFTSIDEOF BLADE

PLACERIGHTHANDON

MITERGAGEKNOBHERE

PLACELEFT HANDON

WORKPIECEANDMITER

GAGEHERE

41

Fig. 59

I:RRFTSNRN'TABLESAW315.228590

• Check that the wood is not touching the blade.

Insert switch key and lift switch to ON position. See

Figures 60 and 61.

• Let blade obtain full speed before feeding

workpiece into the blade with the miter gage.

• Hold work firmly against miter gage and push miter

gage to feed work into the blade.

• When work is completed, press switch off and

remove switch key. See Figure 62.

MAKING A RIP CUT

See Figure 63.

Making a test cut on scrap wood is highly recom-

mended. From the front of the saw, position the wood

against the rip fence and push it to the blade with a

pushstick. Be sure the end of the wood is square.

,_ WARNING: NEVER stand directly in the line of

cut. Stand to the sLde to reduce risk of injury.

_k WARNING: Make sure the blade guard is

lowered over the blade and is working properly to

prevent possible injury.

• Remove miter gage and attach rip fence over rails.

• Place a support the same height as top of saw

table behind the saw for cut work.

• Position rip fence the correct distance from blade

for cut.

• For small pieces of wood, use a pushstick to move

wood into and past blade.

• Make sure wood is not touching blade. Insert

sw'itch key and lift switch to ON position. Let blade

obtain full speed before feeding workpiece into the

blade.

• When work is completed, press switch off and

remove switch key.

,_ WARNING: NEVER push a small piece of wood

into the blade with your hand.

RIPCUT

BLADE

SCALE

RIPFENCE

Fig. 63

(RAFTSMAN' TABLESAW 315.228590 42

MAKING A MITER CUT

See Figure 64.

_, WARNING: Make sure the blade guard is

lowered over the blade and is working properly to

prevent possible injury.

Make a test cut on scrap wood. From the front of the

saw, push the wood to the blade with the miter gage.

The miter gage may be used in either of the grooves.

When using the left groove, hold the workpiece firmly

against the miter gage base with your left hand and

grip the miter gage knob with your right hand. When

using the right groove, hold the work piece with your

right hand and the miter gage knob with your left

hand.

•Check that the blade is at the correct height for the

workpiece. To change the blade height, turn the

height handwheel.

• If blade is not at 90" to the table, loosen bevel lock

handle and turn bevel handwheel. Reset bevel lock

handle.

• To set the wood angle, loosen miter gage knob, set

the angle with the indicator on the miter gage, then

retighten miter gage knob.

• Place a support the same height as top of saw

table behind the saw for cut work.

• Make sure wood is not touching the blade

before turning on the saw. Insert switch key and lift

switch to ON position. Let the blade obtain full

speed before moving the miter gage to feed the

workpiece into the blade.

MITERCUT

BLADE MITERGAGE

ANGLED

STRAIGHT __

• Hold work firmly against the miter gage and push to

feed work into the blade.

• When work is completed, press switch off and

remove switch key.

MAKING A BEVEL CROSS CUT

See Figures 65 and 66.

_lb WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury.

Make a test cut on scrap wood. From the front of the

saw, push the wood to the blade with the miter gage.

When using the miter gage in the left groove, hold the

workpiece firmly against the miter gage base with

your left hand and grip the miter gage knob with your

right hand. When using the right groove, hold the work

piece with your right hand.

BEVELCROSSCUT

BLADE

ANGLED

MITER

STRAIGHT

BEVELLOCK

HANDLE

HANDWHEEL

Fig. 65

• Raise rip fence handle and remove rip fence.

• Set blade angle by loosening bevel lock handle

and turning bevel handwheel until scale on the

cabinet front reads desired angle. Retighten bevel

lock handle.

HEIGHT

HANDWHEEL Fig. 64

43 CRnFTSMRN'TABLESAW 315.228590

•Set miter gage to 0° if needed. Loosen miter gage

knob and use indicator on the miter gage. Re-

tighten miter gage knob.

• Place a support the same height as top of saw table

behind the saw for cut work.

• Make sure wood is clear of blade before turning on

saw. Insert switch key and lift switch to ON posi-

tion. Let blade obtain full speed before feeding

wood into blade with miter gage.

• Hold the work firmly against the miter gage and

push the miter gage to feed the work into the blade.

• When work is completed, press the switch off and

remove the key.

• Set blade angle by loosening bevel lock handle

and turning bevel handwheel. Retighten blade lock

handle.

AWARNING: When making a bevel rip cut, the

rip fence must be on the right side of the blade.

Otherwise the fence could trap the workpiece,

possibly causing kickback and resulting in injury.

• Attach rip fence on the right side of the blade at

correct distance from blade for cut. Use micro-

adjust knob on front rail.

• Place a support the same height as the top of saw

table behind the saw for the cut work.

VIEWED FROM THE FRONT, BELOW THE SAW TAB_I_

u

HEIGHT BEVELLOCK

HANDWHEEL HANDLE

Fig. 66

MAKING A BEVEL RIP CUT

See Figures 66 and 67.

Try this cut on a piece of scrap wood before cutting

'your workpiece. Use a pushstick to move small pieces

of wood into and past the blade.

,_ WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury.

WARNING: NEVER stand directly in the line of

cut. Stand to the side to reduce the risk of injury

should kickback occur.

• Make sure wood is clear of the blade before turning

on saw. Insert switch key and lift switch to ON

position. Let blade obtain fun speed before feeding

workpiece into the blade.

_1, WARNING: NEVER push a small piece of wood

into the blade with your hand. Use a pushstick as

the end of the workpiece nears the blade to

avoid serious personal injury.

• When work is completed, press switch off and

remove switch key.

BEVELRIPCUT

BLADE

ANGLED

SCALE

\

RIPFENCEON

RIGHTOF BLADE

MICRO-

ADJUST

KNOB

Fig. 67

£RRFTSNRH"TABLE SAW 315.228590 44

MAKING A COMPOUND (BEVEL) MITER CUT

See Figure 68.

Practice on scrap wood. From the front of the saw,

push the wood to the blade with the miter gage. Do

not use the rip fence.

_1, WARNING: Make sure the blade guard is

lowered over the blade and is working properly to

prevent possible injury.

,_, WARNING: When the blade is angled to the

left, the miter gage must be on the right side of

the blade. Otherwise the gage could trap the

workpiece, possibly causing kickback and

resulting in injury.

• Set blade angle and height by loosening the bevel

lock handle and turning the height and bevel

handwheels. Retighten bevel lock handle.

• Set wood angle by loosening miter gage knob and

setting it to desired angle.

• Retighten miter gage knob.

• Place a support the same height as top of saw

table behind the saw for cut work.

• Make sure wood is not touching the blade.

• Insert switch key and lift switch to ON position. Let

blade obtain full speed.

• Hold work firmly against miter gage with both

hands and push miter gage to feed work into blade.

• When work is completed, press switch off and

remove switch key.

COMPOUND(BEVEL)MITERCUT

PLACERIGHTHAND

\

|ON WORKPIECEAND

MITERGAGEHERE

WHENMITERGAGEIS

ON RIGHTSIDEOF BLADE

PLACELEFTHANDON

MITERGAGEKNOBHERE

Fig. 68

45 CRRFTSMRN"TABLE SAW315.228590

MAKING A LARGE PANEL CUT

See Figure 69.

Make sure the saw is properly secured to a work

surface to avoid tipping from the weight of a large

panel.

_I, WARNING: Make sure the blade guard is

lowered over the blade and is working properly to

prevent possible injury.

• Place a support the same height as top of saw

table behind the saw for cut work. Add supports to

the sides as needed.

• Depending on the shape of panel, use rip fence or

miter gage. If panel is too large to use either rip

fence or miter gage, it is too large for this saw.

,_ WARNING: Never make freehand cuts (cuts

without the miter gage or rip fence), which can

result in serious injury.

• Make sure wood does not touch blade before you

turn on saw. Let blade obtain full speed before

feeding wood into blade.

• When work is completed, press switch off and

remove switch key.

LARGEPANELCUT RIPFENCE

SUPPORTS

BEVEL

HANDWHEEL

HEIGHTHANDWHEEL Fig. 69

rRRFTSNRN"TABLE SAW 315.228590 46

MAKING A NON-THROUGH CUT

See Figure 70.

This is the only type of cut made without the blade

guard.

,_, WARNING: Unplug saw while removing or

replacing the blade guard to prevent accidental

starting and injury.

_1= WARNING: Never put your hands within 3 in. of

the blade when it is on or you could be seriously

hurt.

•Lift the blade guard out of the way.

• Adjust blade angle and height by releasing bevel

lock handle and turning height and bevel

handwheels. Reset bevel lock handle.

• Remove riving knife and guard assembly as

shown. Take out throat plate by removing the

screw with a phillips screwdriver. Be sure to

reinstall throat plate before moving to the next

step.

• Place a support the same height as top of saw

table behind the saw for cut work. Add supports to

the sides as needed.

WARNING: Always use pushsticks or

pushblocks when making non-through cuts to

avoid the risk of serious injury. Never feed wood

with your hands.

MAKING A DADO CUT

See Figure 71.

An optional dado throat plate is required for this

procedure. See the Accessories section of this

manual and check with your nearest Sears Retail

Store. All blades and dado sets must be rated at least

5,000 RPM.

_1, WARNING: Unplug saw before working around

the blade. Accidental starting could cause

serious injury.

• Take out throat plate by removing the screw.

• Remove riving knife and blade guard assembly.

Remove the blade.

• Mount dado blade according to instructions pro-

vided with it.

• Test blade nut and blade washer tightness.

• Install optional dado throat plate.

• Plug in saw and follow dado instructions. Always

use pushsticks with dado cuts.

• Make sure wood does not touch the blade before

you turn on saw. Let blade obtain full speed before

feeding wood into the blade.

• When the work is completed, press the switch off

and remove the key. Unplug the saw, remove the

dado insert and dado blade. Reinstall the blade,

riving knife, blade guard and throat plate.

DADOCUT

• Make sure wood is not touching blade. Insert _PUSHSTICK

switch key and lift switch to ON position. Let the R_D _ _/

blade obtain full speed before feeding workpiece BLADEGUA

into blade.

•When the work is completed, press the switch off

and remove the key. Unplug the saw, reinstall the

riving knife, and blade guard.

NON-THROUGHCUT

BLADEGUARD_ PUSHSTICK

REMOVED

Fig. 71

Fig. 70

47 tRAF'rSNAM"TABLESAW315.228590

GENERAL MAINTENANCE

_i, WARNING: When servicing, use only identical

Craftsman replacement pads. Use of any other

part may create a hazard or cause product

damage.

_i, WARNING: To prevent accidental starting that

could cause possible serious personal injury,

turn oft the saw, remove the switch key, and

unplug the saw before working on the table saw.

• Remove sawdust from the rails, top surface, and

inside of saw frequently.

• Clean plastic parts with a soft damp cloth. Do not

use any strong solvents.

_I, WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc. contact plastic pads. They contain

chemicals that can damage, weaken or destroy

plastic.

• Periodically clean the table, rails, and rip fence with

gum and pitch remover. Do not allow pitch to

accumulate on the saw.

• Apply a thin coat of paste wax to the table top so

the wood slides easily while cutting.

• Regularly check all nuts, bolts, screws, and belts

for tightness and condition. Make sure the throat

plate (s in good condition.

MOTOR /ELECTRICAL

• Frequently vacuum or blow out any sawdust from

the motor.

_k, WARNING: If the power cord is worn, cut, or

damaged in any way, have it replaced immedi-

ately by a qualified service technician at a Sears

store or repair center. Failure to do so could

result in serious personal injury.

,_, WARNING: To avoid fire or electrocution,

reassemble electric parts with only identical

.Craftsman replacement parts. Reassemble

exactly as originally assembled.

This saw has been lubricated at the factory prior to

shipment. After extended use, you should inspect,

clean, and lubricate the areas shown in the drawing.

Clean before lubricating with a solvent recommended

for gum and pitch removal. Lubricate with SAE no. 20

or no. 30 engine oil.

See Figure 72.

• Table brackets. (a)

• Bevel handwheel rod threads and knuckle. (b)

• Height handwheel threads and trunnion. (c)

ERnFTSMllN" TABLESAW 315.228590 48

\/

"_ FRONTOF SAW

B

_.C

Fig. 72

PROBLEM CAUSE SOLUTION

Saw does not start. 1. Motor cord or wall cord is not 1. PJugin motor cord or wail cord.

plugged in.

2, Circuit fuse is blown.

3, Circuit breaker is tripped.

2. Replace circuit fuse.

3+ Reset circuit breaker.

4, Cord or switch is damaged. 4. Have the cord or switch re-

placed at your nearest Sears

Service Center.

Saw is noisy when running. 1, Motor needs attention. 1. Have the motor checked at

your nearest Sears Service

Center.

Motor is slow or weak. 1, Voltage from source is low.

2, Windings are burned out or

open.

!. Request a voltage check from

the power company.

2. Have the motor checked at

your nearest Sears Service

Center.

Motoroverheats.

3. Start switch is defective.

4. Circuit is overloaded with

appliances, lights, or other

motors,

5. May be wired for 240 volts

instead of 120 volts.

1. Motor is overloaded.

2. Dull blade.

3. Sawdust inside saw is blocking

air flow.

3. Have the switch replaced.

4. Do not use other appliances or

motors on the same circuit

when using the saw.

5. Check wiring of the saw with

info and diagrams in Changing

the motor voltage in the

Assembly Section.

1. Request a voltage check from

the power company.

2. Replace the blade.

3. Clean out the saw base.

Motor stalls, blows fuses, or trips

circuit breakers.

1. Starter switch is defective.

2. Voltage from source is low.

3. Dull blade.

1. Have the switch replaced.

2. Request a voltage check from

the power company.

3. Replace the blade.

4. Fuses or circuit breakers are

wrong size or defective.

4. Replace fuses or circuit

breakers.

5. Feeding workpiece too rapidly. 5+ Feed workpiece into blade

slower.

49 £RRFTSMRN' TABLESAW315.228590

PROBLEM CAUSE SOLUTION

Fuses or circuit breakers open

frequently.

Saw vibrates excessively.

Start switch does not operate.

Handwheels are hard to turn.

Blade does not lower when turning

height handwheel.

Miter gage does not move smoothly.

Cut binds, burns or stalls motor when

1. Motor is overloaded.

2. Fuses or circuit breakers are

wrong size or defective.

3. Dull blade.

4. Start switch is defective.

1. Blade is warped.

2. Belt is damaged.

3. Saw is not mounted securely.

4. Work surface is uneven.

1. Switch contacts are burned out.

2. Capacitor is defective

3. Connections are loose or dam-

aged.

1. Sawdust has collected on the

mechanism inside saw.

1. Blade lock handle is not fully

released.

1. Miter gage assembly is dirty or

sticky.

1. Blade or teeth are dull.

1. Feed work more slowly.

2. Replace fuses or circuit break-

ers.

3. Replace the blade.

4. Have the switch replaced.

1. Replace the blade.

2. Replace the belt.

3. Tighten all hardware.

4. Reposition on a flat surface. Ad-

just the leveling feet on legs.

1. Have the switch replaced and re-

quest a voltage check from the

power company.

2. Have the capacitor replaced.

3. Have the wiring checked and re-

paired.

1. Clean and lubricate the mecha-

nism.

1. Fully release the blade lock

handle.

1. Releasethe miter gage knob and

wax the miter gage base and

sides.

1. Sharpen or replace the blade.

ripping.

2. Blade is heeling. 2. See Heeling the Sawblade in the

Adjustments section.

3. Board is warped. 3. Replace the board.

4. Ripfencedoesnotparallelblade. 4. SeeAligningtheRipFenceinthe

Assembly section.

Saw blade does not cut true at 90 °or

45" positions. 1. Indicators are not properly ad-

justed.

2. Positive stops inside base are

not accurate.

1. See Setting the Bevel Stops and

Indicator inthe Adjustments sec-

tion.

2. See Setting the Bevel Stops and

Indicator in the Adjustments sec-

tion.

CRBFTSMBN" TABLE SAW315.228590 50

PROBLEM CAUSE SOLUTION

Rip fence does not move smoothly. 1. Rip fence is not mounted cor- 1.

ractly. Remove and reposition the rip

fence. See Aligning Rip Fence

and Front Rail in the Assembly

section.

2. Rails are dirty or sticky. 2, Clean and wax the rails.

Wood edges away from rip fence

when ripping. 1. Rip fence is misaligned. 1, See the Assembly section for

Checking Rip Fence and Blade

Alignment and Aligning Rip

Fence and Front Raft

procedures.

51 [RRI:TSMRN" TABLE SAW315.228590

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model Inumber in all correspondence regarding your TABLE SAW or when ordering repair parts, I

21

320

19

I

17 J

23

12

FIGURE A

rRRFTSMRN" TABLESAW 315.228590

15

52

(_13

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

IThe model number will be found on aplate attached to the cabinet. Always mention the model Inumber in all correspondence regarding your TABLE SAW or when ordering repair parts. I

PARTS LIST FOR FIGURE A

Key Pad

No. Number

1 980673-002

2 **STD551025 *

3 982289-001 *

4 989679-001

5980677-001

6 980672-OO2

7 ** STD551031 *

8 982277-001

9 982119-001

10 ** STD511003 *

11 979978-001

12 979979-001

13 979980-001

14 979984-001

15 979981-002

16 **STD510807 *

17 **STD541008 *

18 980675-001

19 980680-001

20 980678-001

21 980674-001

22 980676-002

23 982087-001

24 982088-001 *

981286-001

Description Quan.

Knob Assembly .............................................................................. 2

Washer (1/4 in.) ............................................................................. 2

Screw (#8-32 x 3/8 in.) .................................................................. 2

Spring ............................................................................................ 1

Clamp Housing .............................................................................. 1

Miter Gage Knob ........................................................................... 1

Washer (5/16 in.) ........................................................................... 1

Miter Scale Label ........................................................................... 1

Miter Gage ..................................................................................... 1

Screw (#10-24 x 3/8 in.) ................................................................ 3

Miter Scale Indicator ...................................................................... 1

Miter Gage Block ........................................................................... 1

Stop Pin ......................................................................................... 1

Shoulder Screw ............................................................................. 1

Miter Gage Rod ............................................................................. 1

Screw (#8-32 x 5/8 in.) .................................................................. 3

Hex Nut (#8-32) ............................................................................. 3

Spacer ........................................................................................... 1

Clamp Screw ................................................................................. 1

Lock Tab ........................................................................................ 1

Quick Release Button .................................................................... 1

Knob .............................................................................................. 1

Sliding Washer .............................................................................. 1

Screw (1/4-20 x 1/4 in. Flat Hd.) ................................................... 1

Miter Gage Assembly (Includes Key Nos, 1-24) ........................... 1

Standard Hardware Item -- May Be Purchased Locally

Available From Div. 98 -- Source 980.00

53 rRBFTSMAN"TABLESAW315.228590

x

z.

--4

:1>

IDO

r"

Jli

t#3

:1>

#J1

o

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE I

I

SAW or when ordering repair parts. I

2

FIGUREB

6

5

2

3

12 8

&

12 11

11

CRAFTSMAN TABLE SAW- MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE |

i

SAW or when ordering repair parts. J

w

t-

rtl

=E

k_

DID

ul

PARTS LIST FOR FIGURE B

Key Part

No. Number Description Quan.

Leveling Foot ..................................................................................................................................................... 4

* Hex Nut (5/16-18) ........................................................................................................................................... 36

* Washer (5/16 in.) ............................................................................................................................................. 40

Leg .................................................................................................................................................................... 4

* Carriage Bolt (5/16-18 x 3/4 in.) ...................................................................................................................... 24

Large Storage Hanger ...................................................................................................................................... 2

End Brace ......................................................................................................................................................... 2

Side Brace ......................................................................................................................................................... 2

Long Leg Brace ............................................................................................... .................................................. 2

* Belt (5/16-18 x 3/4 in. Hex Hd.) ........................................................................................................................ 4

Small Storage Hanger ....................................................................................................................................... 2

Short Leg Brace ................................................................................................................................................ 2

1 979999-001

2 ** STD541031

3 ** STD551031

4 979995-002

5 ** STD533107

6 982273-001

7 979993-002

8 979997-002

9 979998-002

10 ** STD523107

11 982274-001

12 979996-002

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98-- Source 980.00

!

Z

s

z

.-4

_o

r'-

m

o_

c.n

FIGUREC

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

_Them_deJnumberwiiIbef_und_napiateattachedt_theCabinet_A__aysmenti_nthem_de_numberina__c_rresp_ndenceregardingy_urTABLE_SAwor when ordering repair parts.

34

33

32

31

I

16

27

19

17 18

"IR

X

=.

.-I

ff-

rtl

3r_

=E

.D

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLESAW or when ordering repair parts.

Key Part

No. Number

1 980681-001

2 979945-001

3 ** STD541425

4 979970-001

5 979969-001

6 979968-001

7 979972-001

8 980319-001

9 ** STD551008

10 979961-001

11 979962-001

12 980683-001

13 979881-001

14 979964-001

15 980964-001

16 980596-001

17 980595-001

18 979965-002

PARTS LIST FOR FIGURE C

Description Quan.

Fence End Cap ........................................ 1

* Screw (#8-32 x 1/2 in.) ............................. 4

* Lock Nut (1/4-20) ..................................... 1

Lock Plate ................................................ 1

Lock Spring .............................................. 1

Fence Lock Rod ....................................... 1

Rear Fence Slide ..................................... 1

Fence Label ............................................. 1

* Washer (#8) ............................................. 1

Scale Indicator ......................................... 1

Fence Plate .............................................. 1

Rip Fence Cover ...................................... 1

*Screw (5/16-18 x 1/2 in. Socket Hd.) ....... 4

Fence Handle Bracket ............................. 1

Cam Sleeve .............................................. 1

Retaining Ring ......................................... 2

Pin ............................................................ 1

Rip Fence Handle .................................... 1

Key Part

No. Number Description

19 980688-001

20 980953-002

21 980322-001

22 979967-001

23 980952-001

24 980951-001

25 ** STD512503

26 980949-001

27 980948-001

28 980684-001

29 980945-001

30 980966-001

31 980598-001

32 980965-001

33 980685-001

34 980682-001

981283-001

981280-001

Quan.

Roll Pin (8 x 60 mm) ................................ 2

Fence Adjustment Knob ........................... 1

Warning Label .......................................... 1

* Screw (1/4-20 x 3/4 in. Socket Hd.) ......... 4

Spring ....................................................... 1

Bushing .................................................... 1

* Screw (1/4-20 x 3/8 in.) ............................ 2

Fence Adjusting Bracket .......................... 1

Push Nut .................................................. 1

Gear ......................................................... 1

* Screw (#10-24 x 3/8 in.) ........................... 1

Rear Glide ................................................ 2

* Screw (#8-32 x 1/4 in.) ............................. 4

Front Glide ............................................... 2

Scale Indicator Housing ........................... 1

Rip Fence ................................................. 1

Complete Rip Fence Assembly ................ 1

Complete Micro Adjust Assembly ............ 1

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00 #

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

I The model number will be found on a ptate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE |

!

SAW or when ordering repair parts. J

10

11

FIGURED

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE |

I

SAW or when ordering repair parts. J

PARTS LIST FOR FIGURE D

Key Part

No. Number Description Quan.

1 979935-001

2 979940-001

3 979944-001

4 ** STD551025

5 979942-001

6 979941-001

7 979937-001

8 979939-001

9 979938-001

10 979934-001

11 979936-001

12 980955-001

13 980400-001

14 980324-001

981279-001

Push Nut ........................................................................................................................................................... 4

Anti-Kickback Pawl ........................................................................................................................................... 2

Spacer ............................................................................................................................................................... 2

Washer (1/4 in.) ................................................................................................................................................. 3

Bolt (1/4-20 x 3/8 in. Socket Head) ................................................................................................................... 3

Hiving Knife ....................................................................................................................................................... 1

Blade Guard Bracket ......................................................................................................................................... 1

Spring ................................................................................................................................................................ 1

Pin ..................................................................................................................................................................... 1

Blade Guard ...................................................................................................................................................... 1

Pin ..................................................................................................................................................................... 1

Roll Pin .............................................................................................................................................................. 1

Warning Label ................................................................................................................................................... 1

Blade Guard Label ............................................................................................................................................ 1

Blade Guard Assembly (Includes Key Nos. 1-14) ............................................................................................ 1

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

m ,g

r

==

z

3=

11

=.

=d

30

=E

u.

=o

J_

,D

CRAFTSMAN TABLE SAW- MODEL NO. 315.228590

Ihe model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE ISAW or when ordering repair parts. I

FIGUREE

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE |

I

SAW or when ordering repair parts. J

Key Pad

No. Number

1 979945-001

2 ** STD512503

3 980652-001

4 980594-001

5 979986-001

6 979991-001

7 976863-001

8 980001-001

9 979987-001

10 ** STD511003

11 979990-001

12 980321-001

PARTS LIST FOR FIGURE E

Description Quan.

*Screw (#8-32 x 1/2 in.) ....................................................................................................................................... 3

*Screw (1/4-20 x 3/8 in.) ...................................................................................................................................... 2

Switch Plate ....................................................................................................................................................... 1

*Square Nut (1/4-20) ........................................................................................................................................... 2

Strain Relief ........................................................................................................................................................ 2

Power Cord (Power Source) .............................................................................................................................. 1

Switch Key ......................................................................................................................................................... 1

Switch (Includes Key No. 7) ............................................................................................................................... 1

Switch Housing .................................................................................................................................................. 1

*Screw (#10-24 x 5/16 in.) .................................................................................................................................... 2

* Star Washer (#10) .............................................................................................................................................. 2

On/Off Label ....................................................................................................................................................... 1

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

I

-11

Z

I

z.

,-I

r-

rn

[/)

I>

;31

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE |

I

SAW or when ordering repair parts. !

5

24

@

FIGUREF

I

CRAFTSMAN TABLE SAW- MODEL NO. 315.228590

I The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE i

I

SAW or when ordering repair parts. J

O:

=l=

==

"11

"4

3C

s

=.

,-I

w

II"1

=E

o_

o

Key PaN

No. Number

1 ** STD541010

2 ** STD551010

3981382-001

4 979900-001

5 ** STD502502

6 980962-001

7 980960-00t

PARTS LIST FOR FIGURE F

Description Quan.

* Hex Nut (#10) .................................................................................................................................................... 4

* Flat Washer (#10) ............................................................................................................................................. 4

Belt Guard ......................................................................................................................................................... 1

Pulley ................................................................................................................................................................ 1

* Setscrew (1/4-20 x 1/4 in.) ................................................................................................................................ 2

Motor ................................................................................................................................................................. 1

Power Cord (Motor) .......................................................................................................................................... 1

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE I

I

SAW or when ordering repair parts. J

11

8

9

j4

5

FIGUREG

CRAFTSMAN TABLE SAW- MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number inall correspondence regarding your TABLE ISAW or when ordering repair parts. I

O3

O1

z

s

=.

,-I

I:o

I'-

Ill

_q

io

M1

u_

Key Pad

No. Number

1 979992-002

2 ** STD523105

3 980588-001

4 977227-002

5 977229-002

6 977491-001

7977481-001

8 980602-001

9 ** STD55!110

10 982222-001

11 982128-001

PARTS LIST FOR FIGURE G

Description Quan.

Base ................................................................................................................................................................... 1

* Bolt (5/16-18 x 1/2 in. Hex Hd.) ......................................................................................................................... 3

* Star Washer (5/16 in.) ........................................................................................................................................ 3

Handwheel Assembly (Includes Key Nos. 5, 6, and 7) ...................................................................................... 2

Handle ................................................................................................................................................................ 2

Screw (M8 x 1-t/4 in.) ........................................................................................................................................ 2

End Cap ............................................................................................................................................................. 2

* Screw (#10-24 x 1/2 in.) ..................................................................................................................................... 2

* Lock Washer (#10) ............................................................................................................................................. 2

Front Panel Label ............................................................................................................................................... 1

Data Plate .......................................................................................................................................................... 1

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

-t

33

z.

*-I

GO

r-

Ill

u)

:E

tJI

(.n

o

CRAFTSMAN TABLE SAW- MODEL NO. 315.228590

I he model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLESAW or when ordering repair parts. J

6

3

FIGUREH

10

18

9 2

8

I0

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

Ihe model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLESAW or when ordering repair parts. J

X

ZI

=.

--4

I'ti

o_

k_

GO

t.3t

Key PaN

No. Number

1 979879-00t

2 979945-001

3 979946-001

4 980323-901

5 980691-001

6 979948-001

7982147-001

8 980695-901

9 990692-001

10 980693-001

11 980950-001

12 980594-001

13 980690-001

14 ** STD551131

15 ** STD541031

16 ** STD523110

17 982122-001

18 982271-001

19 979875-001

20 979874-001

21 980956-002

22 979872-001

23 979871-001

24 979873-001

25 982099-001

26 980694-001

PARTS LIST FOR FIGURE H

Description Quan.

* Bolt (5/16-18 x 1 in. Square Hd.) .................................................................................................................... 14

* Screw (#8-32 x 1/2 in.) ...................................................................................................................................... 6

End Cap (Left Rear) .......................................................................................................................................... 1

Label ................................................................................................................................................................. 1

Rear Rail ........................................................................................................................................................... 1

End Cap (Right Rear) ....................................................................................................................................... 1

MDF Extension Table Assembly ....................................................................................................................... 1

Front Rail (Includes Key Nos. 17 and 18) ......................................................................................................... 1

End Cap (Right Front) ....................................................................................................................................... 1

Gear Rack ......................................................................................................................................................... 2

*Screw (1/4-20 x 3/8 in.) ..................................................................................................................................... 8

*Square Nut (1/4-20) .......................................................................................................................................... 8

End Cap (Left Front) ......................................................................................................................................... 1

* Washer (5/18 in.) ............................................................................................... ".............................................. 22

* Hex Nut (5/16-18) ........................................................................................................................................... 18

* Bolt (5/16-18 x 1 in. Hex Hd.) ........................................................................................................................... 4

Scale (Left) ........................................................................................................................................................ 1

Scale (Right) ..................................................................................................................................................... 1

Align-A-Cut Insert .............................................................................................................................................. 1

*Setscrew (5/16-18 x 5/8 in.) .............................................................................................................................. 2

Saw Table .......................................................................................................................................................... 1

* Screw (#10-24 x 3/4 in.) .................................................................................................................................... 1

Throat Plate ....................................................................................................................................................... 1

*Setscrew (#10-24 x 3/16 in.) ............................................................................................................................. 4

Throat Plate Label ............................................................................................................................................. 1

Extension Table ................................................................................................................................................. 1

Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

The model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE |

I

SAW or when ordering repair parts. I

52

155

47 14 16

6 8 \15

\

38

37

18,,_

8

21

27 22

24

19

25

FIGUREI

j

CRAFTSMAN TABLE SAW - MODEL NO. 315.228590

Ihe model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE ISAW or when ordering repair parts. I

PARTS LIST FOR FIGURE I

Key Part Key Part

No. Number Description Quan. No. Number

* Lock Washer (5/16 in.) ............................ 6

* Bolt (5/16-18 x 1/2 in. Hex Hd.) .............. 2

Riving Knife/Blade Guard Bracket .......... 1

* Bolt (1/4-20) ............................................ 1

Spring ...................................................... 1

Washer .................................................... 1

Table Bracket .......................................... 2

Star Washer ............................................ 6

* Bolt (5/16-18 x 1 in. Hex Hd.) ................ 10

Retaining Ring ......................................... 2

Ball Bearing (6202Z) ............................... 2

Key .......................................................... 1

Arbor Shaft .............................................. 1

10 in. Blade (item No. 928874) .............. 1

Outer Blade Washer ................................ 1

Blade Nut ................................................. 1

Blade Cover Assembly ............................ 1

* Screw (#10-24 x 3/8 in.) .......................... 8

Blade Cover Label ................................... 1

Blade Wrench .......................................... 1

Shaft ........................................................ 1

Bevel Lock Handle .................................. 1

* Washer (#8) ............................................. 5

* Screw (#8-32 x 3/8 in.) ............................ 5

Threaded Rod ......................................... 1

Bracket .................................................... 1

Spring ...................................................... 1

Retaining Ring ......................................... 1

Washer .................................................... 1

1 ** STD551131

2 ** STD523105

3 979880-001

4 979883-001

5 979884-001

6 979885-001

7 979886-001

8 980588-001

9** STD523110

10 979896-001

11 979895-001

12 979894-001

13 979893-001

14 ***

15 979891-001

16 979890-001

17 982272-001

18 ** STD511003

19 982278-001

20 979889-001

21 979906-001

22 979907-002

23 979912-001

24 979910-001

25 979917-001

26 979915-001

27 979905-001

28 979904-001

29 979885-001

30 980946-001

31 979908-001

32 979911-001

33 979914-001

34 980589-001

35 979924-001

36 979923-001

37 979922-001

38 979897-001

39 979898-001

40 979902-001

41 979903-001

42 ** STD502502

43 ** STD304420

44 979900-001

45 980593-001

46 ** STD523107

47 979925-001

48 979926-001

49 980760-001

50 979904-001

51 979927-001

52 979928-001

53 979929-001

54 ** STD541031

55 ** STD551031

56 980757-001

972000-782

Description Quan.

* Washer (#10) ........................................... 3

Bracket .................................................... 1

Bevel Scale indicator .............................. 1

Knuckle .................................................... 1

Retaining Ring ......................................... 1

Height Adjustment Rod ........................... 1

"O" Ring ................................................... 2

Washer .................................................... 1

Cradle (Trunnion) .................................... 1

Arbor Housing ......................................... 1

Washer .................................................... 1

Retaining Ring ......................................... 1

* Setscrew (1/4-20 x 1/4 in.) ...................... 4

V-Belt (4L-420) ........................................ 1

Pulley ....................................................... 1

Retaining Ring ......................................... 1

* Bolt (5/16-18 x 3/4 in. Hex Hd.) .............. 2

Motor Support Base ................................ 1

Spring ...................................................... 1

Elbow ....................................................... 1

Retaining Ring ......................................... 2

Pivot Shaft ............................................... 1

Screw ...................................................... 1

Motor Mounting Plate .............................. 1

* Hex Nut (5/16-18) .................................... 4

* Washer (5/16 in.) ..................................... 8

Dust Bag (Not Shown) ............................ 1

Owner's Manual

Standard Hardware Item -- May Be Purchased Locally ** Available From Div. 98 -- Source 980.00

*** Corn ]ble At

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sMAnytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect sM!

1-800-366-PART 6a.m.- 11 p.m. CST,

(1-800-366-7278) 7 days a week

www.sears.corn/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. - 5 p.m. CST, Men. - Sat.

Para pedir servicio de reparacion a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran_ais:

1-877-LE-FOYER sM

(1-877-533-6937)

i.M

®Registered Trademark /Trademark of Sears, Roebuck and Co.

© Sears, Roebuck and CO. ® Marca Registrada /TM Marca de F_brica de Sears, Roebuck and Co.
