CTECH SCIENCE and TECHNOLOGY X706 Bluetooth Keyboard User Manual Bluetooth Keyboard
SHENZHEN CTECH SCIENCE & TECHNOLOGY CO. LTD Bluetooth Keyboard Bluetooth Keyboard
user manual
Bluetooth Keyboard
Model Name: X706
FCC ID: PD8X706
Ultrathin Bluetooth Keyboard
User’s Guide
CAUTION:
To use this product properly, please read the user's guide before installation
Welcome
Congratulations on selecting Ultrathin Bluetooth Keyboard as your
input device. The super thin (only 7.6mm thick) keyboard is
lightweight and crafted with precision typing design. It is the ideal
product for your tablet and other Bluetooth enabled device.

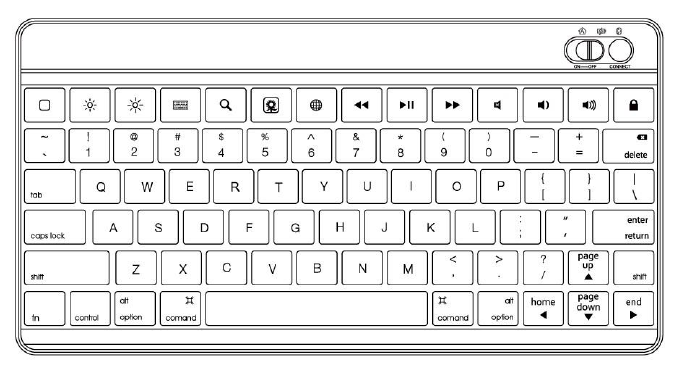

Overview
- Blue LED Blinking: Pairing
- Red LED on: Charging
- Green LED on: Full Charged
- Yellow LED on: Low in Battery
- White LED: Capslock Status
Installation Guide
Step 1. Charging the battery
When to charge
1 First-Time Use: Please charge at least 2 hours for the first time usage and
charge at least 1 hours when battery runs low
2 When the yellow LED starts blinking, it means the battery is nearly empty
How to charge
Plug the USB cable into your keyboard and computer by USB port
respectively and it starts charging.
Step 2. Pairing your Bluetooth Keyboard with your tablet
Turn on the keyboard and press the PAIR button on the keyboard, the LED
light will blink blue.
“Settings”---“General”---“Bluetooth”

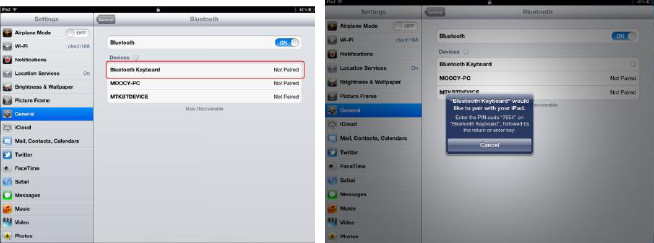

Slide the Bluetooth to “On” and your tablet will start to search for Bluetooth
devices
When it finds the “Bluetooth keyboard”, tap it and begin pairing.
Enter the password showed on the blue window and press the “Enter” key on
the keyboard
This step is only needed for the initial setup. After your first successful
connection, the keyboard will connect automatically to your tablet when you
turn the power on. You may need to tap on the keys to wake it up from
hibernate mode.
Product Specifications
Bluetooth Specification: Version 3.0
Operating Voltage: 3.7V
Operation Current: < 1.5mA
Standby Current: < 0.5 mA
Input : DC5.0 V
Transmit Range: up to 10 meters
Important Regulatory Information
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
