CUB ELECPARTS VS63W011 Bluetooth Low Energy TPMS Retrofit Kit User Manual MeeBoss M100
CUB ELECPARTS INC Bluetooth Low Energy TPMS Retrofit Kit MeeBoss M100
Users Manual
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
1/13
1
Bluetooth Low Energy
TPMS Retrofit Kit
User Manual
Version 1.3
Prepared By:
Approved By:
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
2/13
2
Table of Contents
1. PRODUCT INTRODUCTION .................................................................... 3
2. NOTICE .................................................................................................... 3
3. BLE TPMS SPECIFICATION ................................................................... 4
4. BLE TPMS PACKAGE ............................................................................. 5
5. BLE TPMS SENSOR INSTALLATION ..................................................... 5
6. APP DOWNLOAD AND INSTALLATION ................................................. 6
7. LEARNING SETTING .............................................................................. 7
8. SYSTEM SETTING .................................................................................. 9
9. EXCHANGE SETTING ............................................................................10
10. ALARMS AND WARNING ......................................................................11
11. ABOUT COMPANY INFORMATION .......................................................12
12. WARRANTY POLICY ..............................................................................13
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
3/13
3

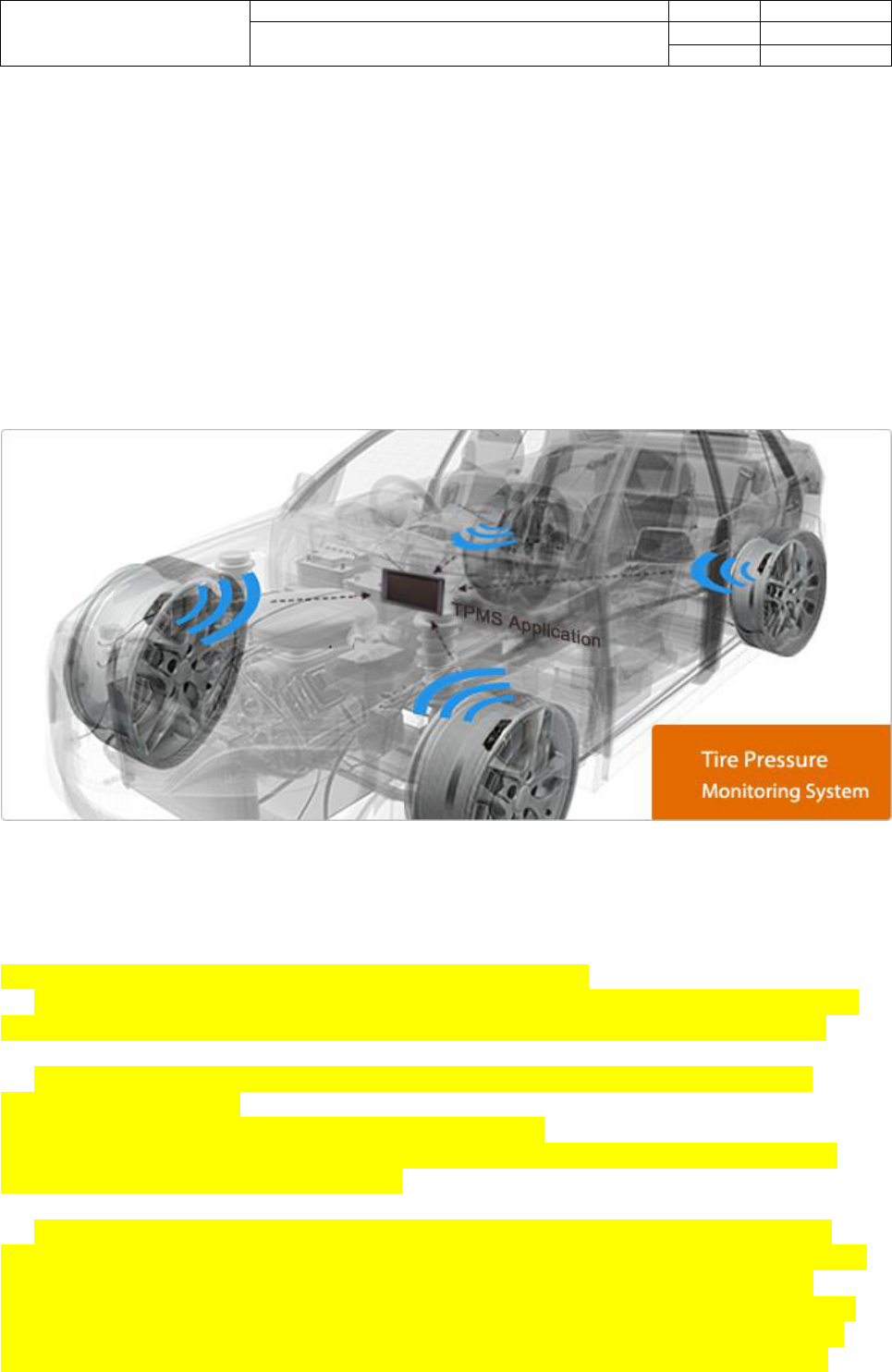

1. Product Introduction
Bluetooth Low Energy Tire Pressure Monitoring System Retrofit Kit (hereinafter
referred to as BLE TPMS), driver could get the real-time tire pressure and temperature
through smart phone in driving by using this kit. When the system detects the abnormal
status, it will alarm to driver actively, and show the abnormal data and its tire location on
BLE TPMS APP (hereinafter referred to as APP).
BLE TPMS includes four sensors, it could be connected wirelessly with your smart
phone by Bluetooth technology. The BLE TPMS sensor could detect the tire data and
transmit it to the connected smart phone, it shows the tire data of corresponding tire on
BLE TPMS APP and driver could access the data in real time.
2. Notice
2.1 Federal Communications Commission (FCC) Statement
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may
cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
4/13
4
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
2.2 Product Warning
2.2.1 Do not operate APP while driving, the company is exempt from all
consequences because of driver’s careless and improper operation.
2.2.2 The system adopts the wireless transmission of signals. In some special
environment, frequency interference or wrong operation or wrong installation may
cause signal weaker or no signal. If the insulation adhesive sticker of the windshield
contains metal material, it will affect signal reception. When it alarms sound and
shows abnormal data, please drive the vehicle away from the current location
(there may be signal interference in the neighborhood) or drive the vehicle to a tire
shop to check.
2.2.3 The battery status of the TPMS sensor is low (abnormal condition exists, the battery
may make the TPMS sensors continuously emit signals to warn the driver, so that
battery life is shorter than expected life), please go as soon as possible to the
specified service station to confirm whether the TPMS sensor need to be replaced.
2.2.4 Please change the battery while battery power is low, and change the sensor while
low sensor battery warning is alarmed, it may cause the TPMS not working
normally. You will take all risks and responsibilities for this!
2.2.5 Temporary resealing or re-inflation product injected through valve hole may
adversely affect the operation of the sensor. The company is exempt from all
consequences
2.2.6 Do not place the TPMS sensor in contact with chemicals, it would cause sensor
damaged and cannot function properly.
2.2.7 Please close the other APPs or web pages which are not in use when using BLE
APP, data receiving condition on APP will probably be affected by the system
loading of the smart phone.
3. BLE TPMS Specification
BLE Sensor Specification
Operating Voltage
3V
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
5/13
5
Operating Humidity
95 % MAX
Operating Current
＜15 mA at DC 3V
Storage Temperature
-40℃ to 85 ℃
Operating Temperature
-20℃ to 85 ℃
Pressure Monitoring
Range
0 to 92 psi (0 to 640 kPa)
Temperature Range
-20 ℃ to 85 ℃
Operating Frequency
2.4GHz
Power
4 dBm MAX
Battery life
Estimated 3 years (under normal operating condition)
Battery Capacity
540 mAH
Weight
45 ± 3 g (including valve)
4. BLE TPMS Package
5. BLE TPMS Sensor Installation
5.1 BLE TPMS Sensor accessories
1.Screw 2. TPMS sensor 3. Valve and rubber washer 4.Washer 5. Nut 6 Valve Cap
(Note: New nut is a one part combined nut and washer together.)
Part Name
Quantity
BLE TPMS Sensor
4 pcs
Valve
4 pcs
Screw
4 pcs
User Manual
1 pcs
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
6/13
6

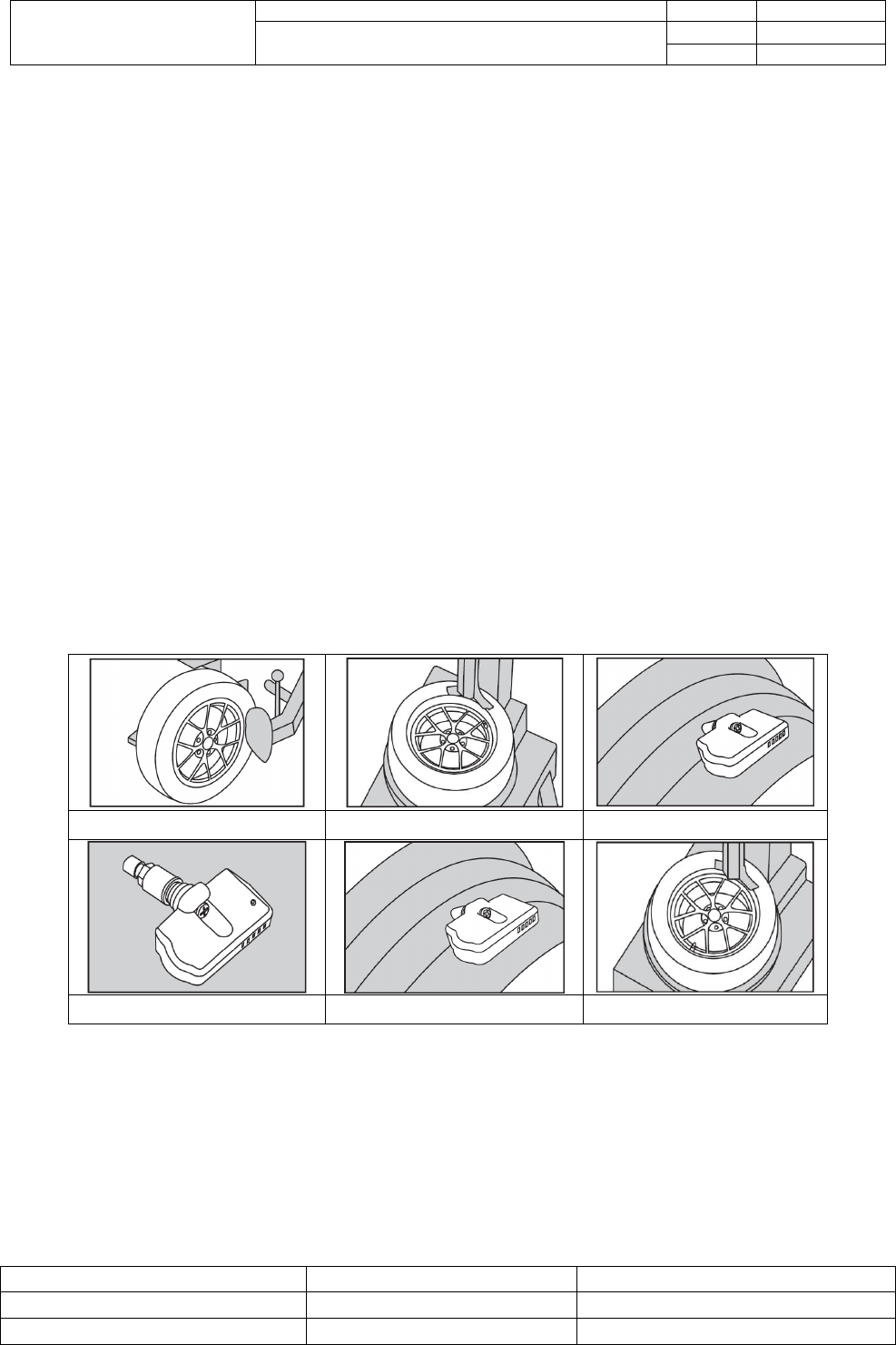

5.2 Installation Step
(Fig 1) Loosen the tire. Fix both sides of the tire and press, and make it bulge.
(Fig 2) Remove the tire. The valve faces the mounting arm in the one o’clock direction,
remove the tire.
(Fig 3) Remove the sensor. Loosen the fixing screw, allow the sensor separate from the
valve, and release the nut to take it apart from the valve.
(Fig 4) Install the sensor and valve. Insert the valve through the rim hole, fix the screw to
secure the valve and sensor by 2 Nm in torque, attach the sensor body to the inner
surface of the rim by adjusting the angle of the sensor body.
(Fig 5) Install valve to the rim hole. Guide the washer into the valve, and fix the nut by 4
Nm in torque, then tighten the cap.
(Fig 6) Mount the tire. Grip the rim edge, and the valve is opposite to the mounting arm,
avoid hitting the sensor during arm operation.
After installation, please download APP to your smart phone, and proceed all settings.
(Please check the 7.1 Initial Setting)
Note 1：After installation, recalibrate the rim set on balance machine to avoid shaking
during driving.
Note 2：It does not include the “sensor valve” and “screw” in product warranty,
when replacing sensor, it is suggested to use new sensor valve and screw.
(Fig. 1)
(Fig. 2)
(Fig. 3)
(Fig. 4)
(Fig. 5)
(Fig. 6)
6. APP Download and Installation
6.1 Operation System Required
TPMS system supports both smartphone and pad, for Android & iOS system.
APP Download
Operation System
Compatible Smartphone
APPLE APP Store
iOS 7.1.1 and +
iPhone 5, 5S and +
Android Google Play Store
Android 4.3, 4.4 and +
Android Smart Phone
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
7/13
7
6.2 How to download
You could surf on the Google Play Store or APPLE APP Store by the keyword “Tire
Insight” or “BLE” or ”TPMS” or “CUB”, find the free APP (BLE TPMS V1.1).

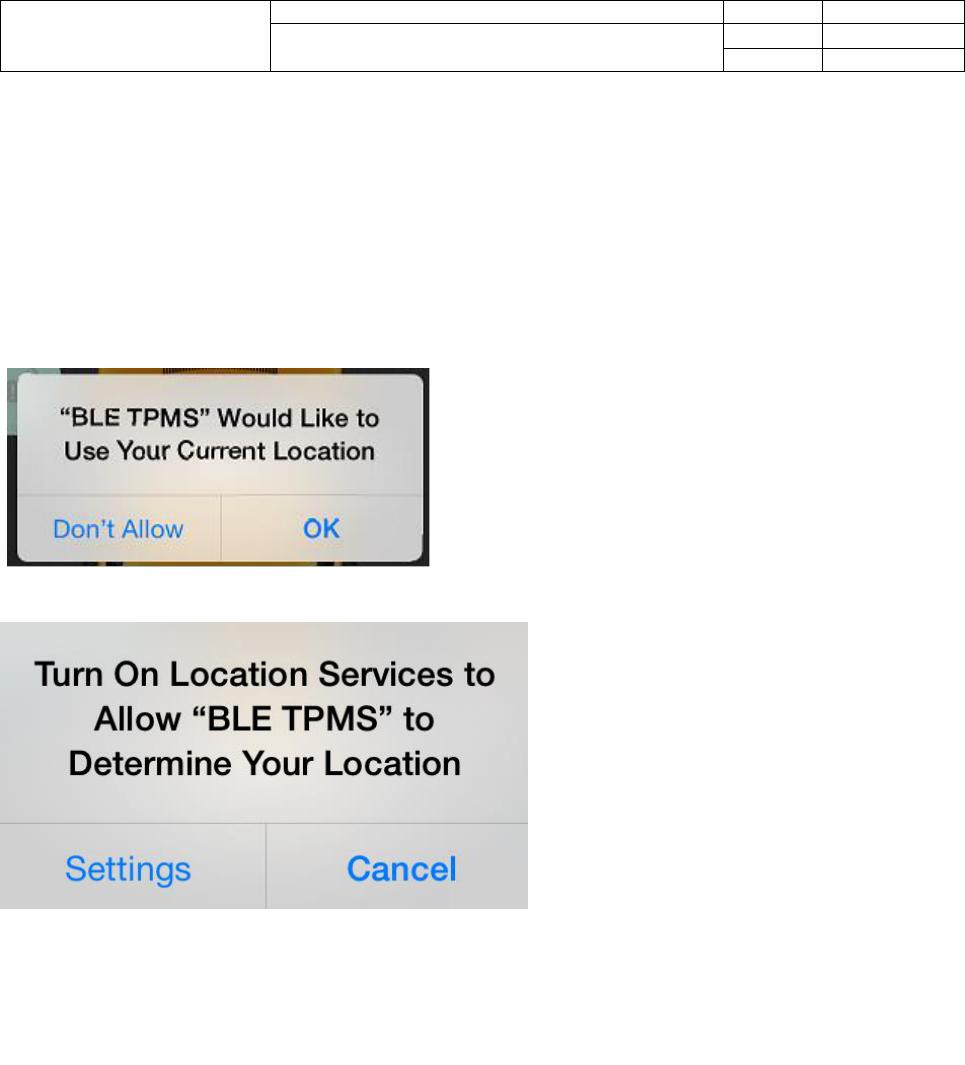

Open APP after installation completed, it will pop out a statement from the operation
system, “ BLE TPMS would like to use your current location”, please choose “ok” to make
“Location Services” valid.
Or “Location Services” is not invalid, please make it valid in “Settings” mode.
7. Learning Setting
Please make sure the “Bluetooth” function is enabled when you start to use APP.
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
8/13
8

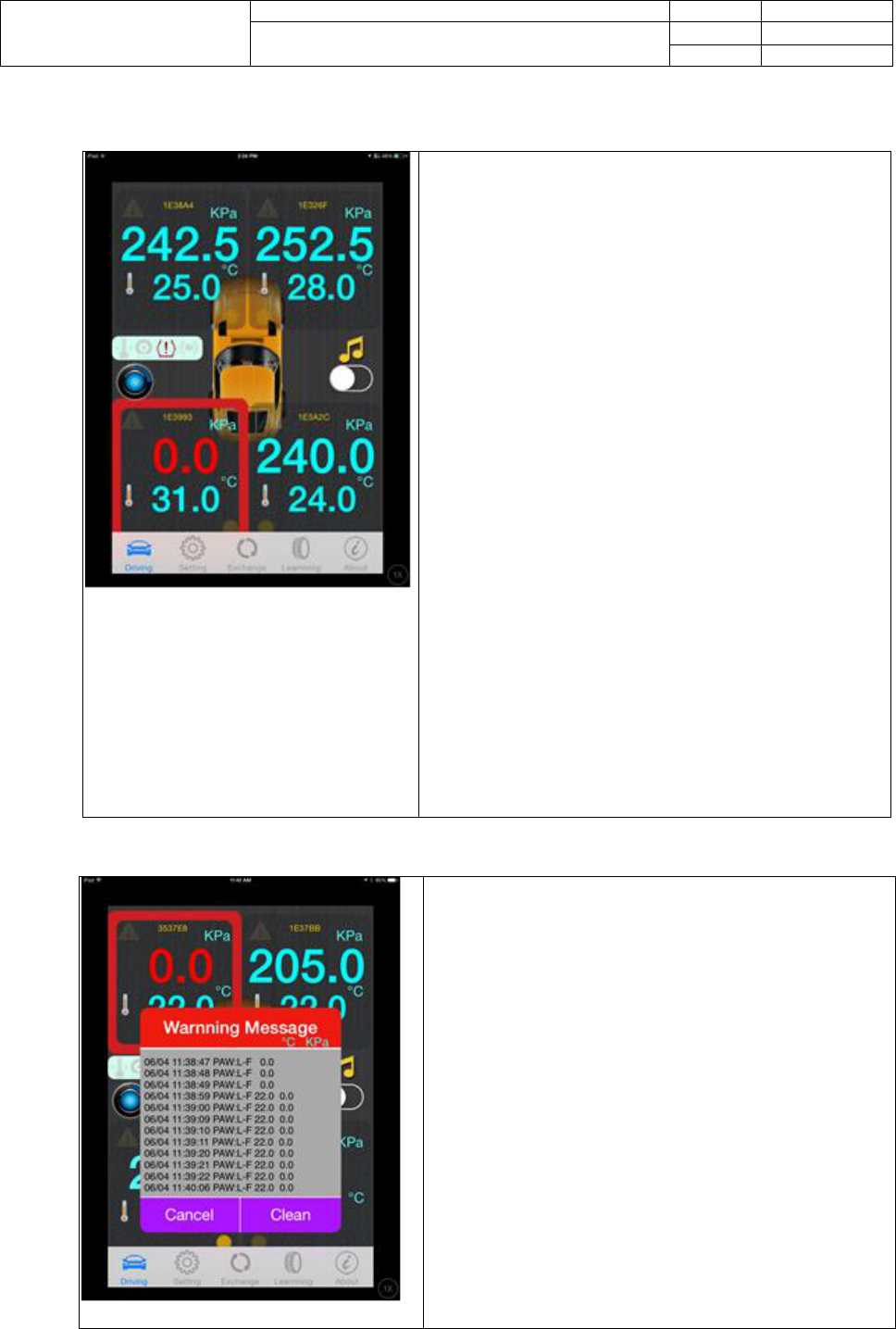

Driving Mode:
1. Driving: display 4 tire Pressure,
Temperature & ID.
2. System: system setting.
3. Exchange: tire exchange setting.
4. Learning: auto learning & manual learning.
5. About: company information.
Note 1: if the sensor is disconnected with
device over 10 mins, it will show the warning
symbol of abnormal TPMS system with alarm
sound. It will clear ID, pressure & temperature
value on the display if the sensor is
disconnected with device over 15 mins.
Note 2: It supports background mode,
Auto Learning：
1. Choose new tire 1 (LF), deflate the tire
pressure, it will search the deflation signal
by APP, shows “Learning” on the dialogue
display of tire. After learning is completed, it
will show a new ID number on the dialogue
display and sound a “Beep”. You could
press “OK” for finishing this step or press
“Cancel”. It has 120 seconds of time period
to operate this step.
By this method, set up the ID learning 依for
tire 2(RF), tire 3(RB) and tire 4(LB) in
sequence.
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
9/13
9

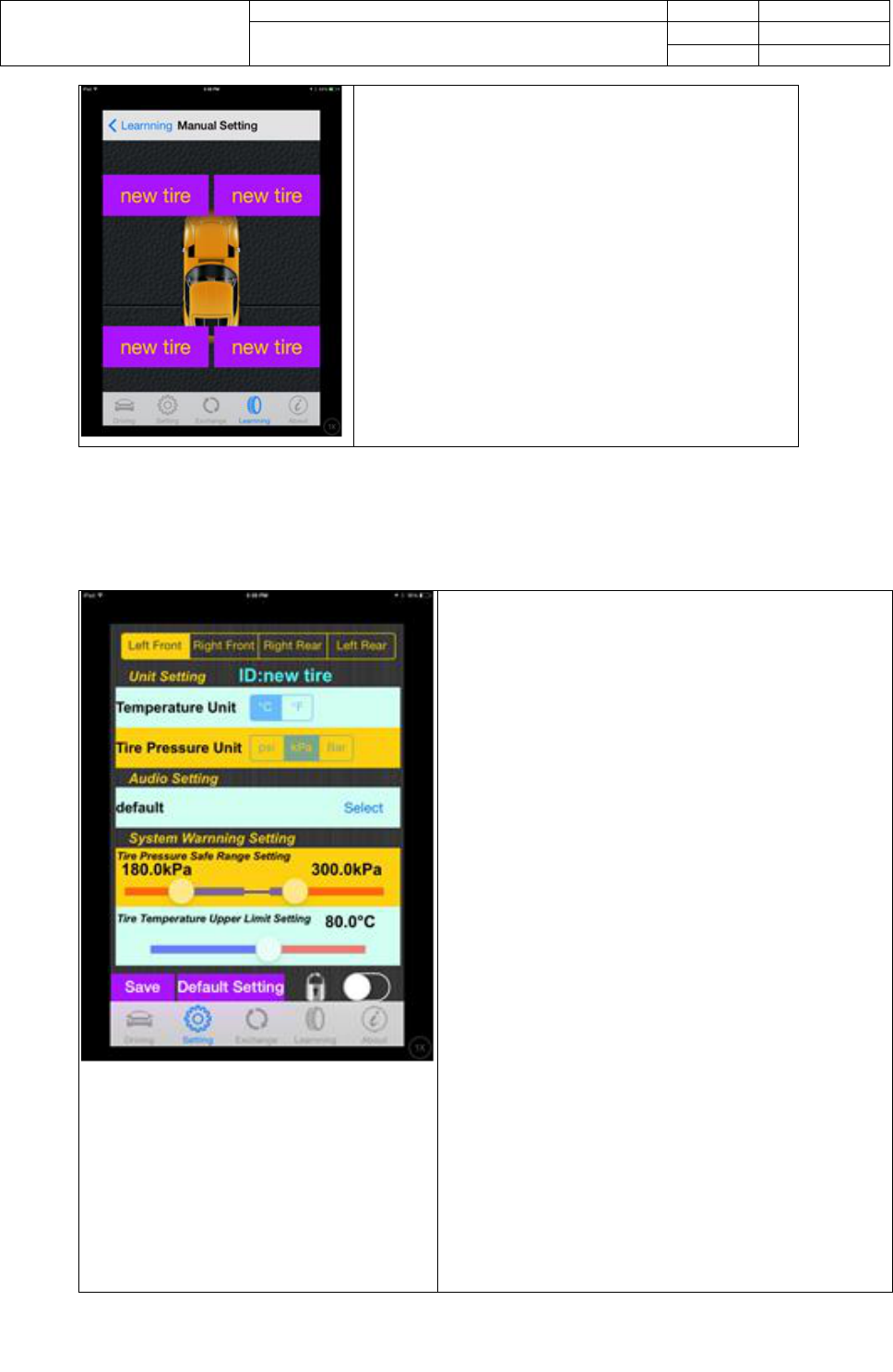

Manual Learning：
1. Choose the tire, it pops out the blank
space. Please key in sensor ID, it is
included “0-9”, “A-F”,”a-f” for 6
characters.
PS: It will record the ID value in the first
registration.
8. System Setting
Unit Setting：
1. Pressure unit：Bar、kPa、psi, 3 different
pressure unit.
2. Temperature unit：℃、℉, 2 different
temperature unit.
3. Warning Audio Setting:
Default, All of you, bird, fantasy, impromptu.
Setting Alarm Value Setting：
1. High tire pressure
psi: 40-60
kPa: 280-420 (default =300)
Bar: 2.8-4.2
2. Low tire pressure
psi: 18-35
kPa: 120-250 (default =180)
Bar: 1.2-2.5
3. Temperature upper limit value
C: 60-80 (default =80)
F: 140-176
PS: For the standard tire pressure value,
please refer to the placard which be attached
to the side of the driver seat.
Unit Description：
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
10/13
10
kPa
Pressure reading in Kilo Pascal
psi
Pressure reading in pound per square inch
Bar
Pressure reading in bar
℃
Temperature reading in degrees Celsius
℉
Temperature reading in degrees Fahrenheit

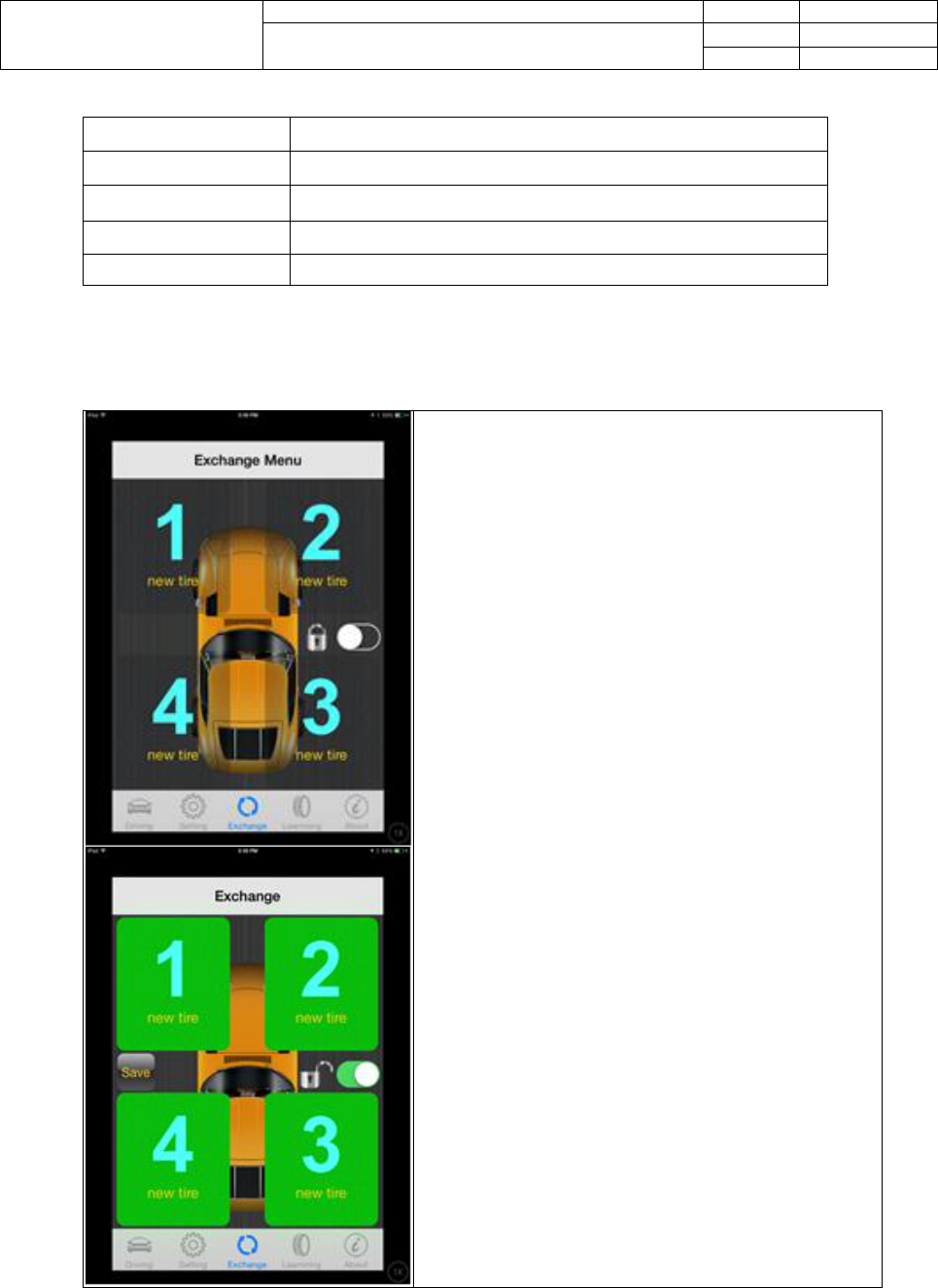

9. Exchange Setting
Tire Exchange Setting:
1. Unlock the system by sliding the switch
icon on right side of the main display
center.
2. Drag the dialogue display of the tire to the
desired location for all desired
exchanged tires, then press the “Save”
icon.
3. It will display the new tire position in
sequence (1,2,3,4).
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
11/13
11
10. Alarms and Warnings
System Warning:
When the abnormal tire system status is
occurred, the dialogue display frame of tire
turns red, and alarms by a sound. The
warning symbol would be displayed on the left
side of middle area on the display panel, from
the left to the right, it is temperature, pressure,
deflation and TPMS system. You could choose
sound or mute by switch on the right side of
main display center.
1. Warning of high tire pressure or low tire
pressure
Tire pressure is higher than high tire
pressure value or low tire pressure value.
2. Warning of high tire temperature
Tire temperature is high than temperature
upper limit value.
3. Warning of rapid deflation of tire pressure
Any of tire pressure is deflating rapidly.
4. Warning of abnormal TPMS system
Smartphone/Pad could not receive the
sensor signal.
5. Low battery power warning of TPMS sensor
Battery power of TPMS sensor is in low status.
It will pop out the warning message window on
the middle of display when system warning
occurs. Then, the warning value will keep
updated on the dialogue display of the tire and
it shows the warning symbol on the left side of
main display center
For warning message window, you could press
“Cancel” to close the window or “Clear” to clear
the message only.
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
12/13
12

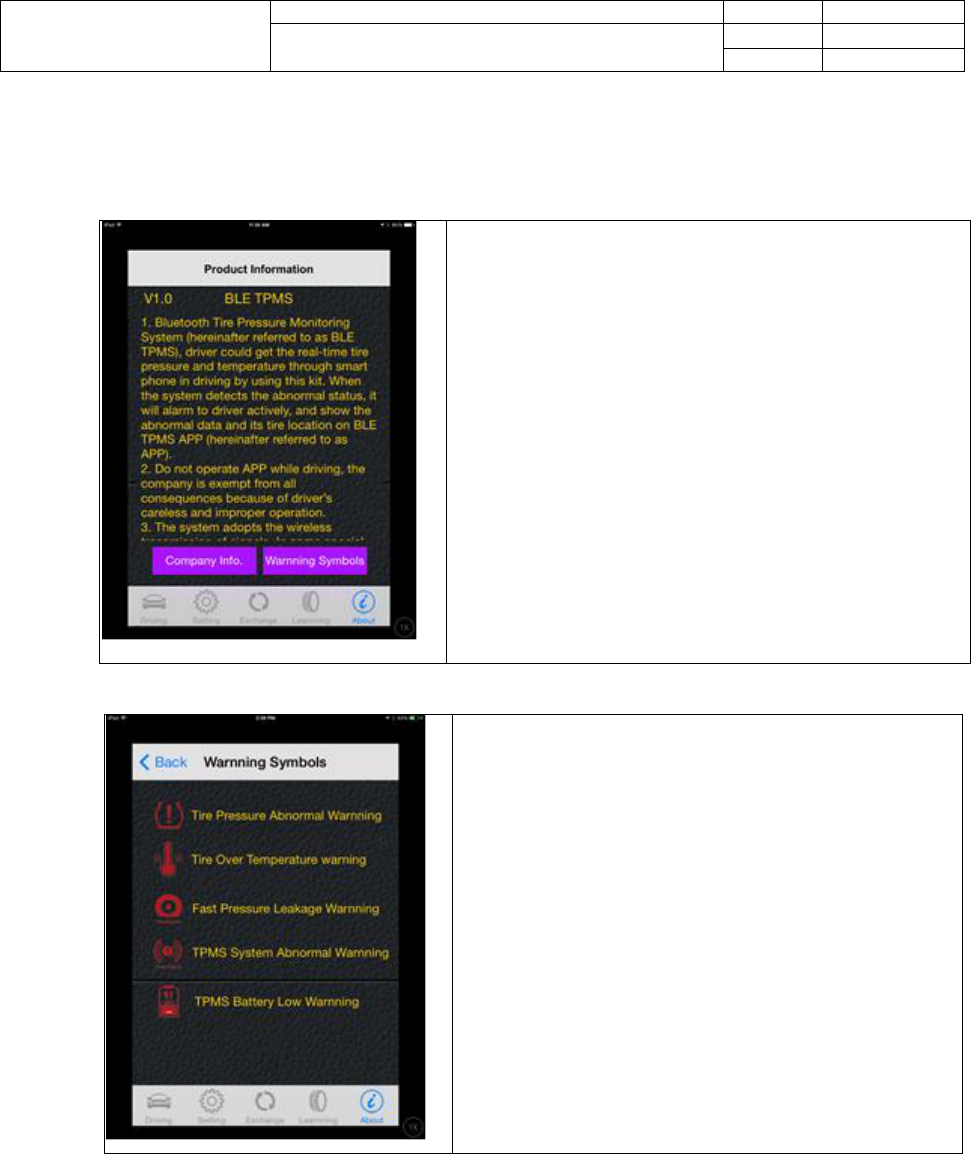

11. About Company Information
Press “About” icon, it shows “Product
Information”, there are two icons underneath,
“Company Website Information” and “Warning
Symbol Illustration”, press these icons for more
detail information.
Press “Home” button to back to main display in
IOS, and press “Back” button in Android.
Warning Symbols
6. Warning of high tire pressure or low tire
pressure
7. Warning of high tire temperature
8. Warning of rapid deflation of tire pressure
9. Warning of abnormal TPMS system
10. Low battery power warning of TPMS sensor
Documents Title
Rev
V1.3
BLE Tire Pressure Monitoring System
User Manual
Date
Jul 9, 2014
Page
13/13
13
12. Warranty Policy
Thank you for buying this product and giving us support. From the date of purchase on
we provide 1 year free warranty for the product, protecting the client’s interests and
Tire Insight product quality assurance. During the warranty period, under normal
operation, in the event of a poor product, the company is willing to provide the bad
product with repair service or have it replaced, enabling you to get the guarantee and
demonstrating the company's responsible attitude toward products. But the product
warranty parts must meet the following conditions:
1. Defective products need to be provided to local dealer to confirm purchase date
and cause.
2. Products must be normally operated as indicated in the user manual.
3. Product has not been disassembled by yourself.
4. The main cause of product failure is due to manufacture issue.
Disclaimer:
This product is only to be used as precautionary warning and provides user as a
convenient secondary safety equipment. Please follow the standard installation
procedure or ask a qualified tire shop to install the product. If the tire has been
damaged or traffic accident occurs resulting from improper driving behavior, the
company will not assume civil or criminal liability.
In the event of any questions and inquiries about warranty, you may contact your local
dealer or CUB directly.
Other relevant latest information of Tire Insight TPMS is available at our website
(http://www.cubautoparts.com) for latest information.
