BLE TPMS Sensor VS-80G001
Installation Instructions
After you have programmed the Uni-Sensor, follow installation procedures below.
Important:
Each time the TPMS sensor is changed or disassembled, it is MANDATORY to replace
the TPMS sensor washer, nut, screw, and valve core accessories (use only CUB service
component kits designed for TPMS sensor) to ensure proper sealing.
For Clamp-In Metal Valve Sensors:
1. Insert valve stem grommet onto
stem with largest diameter again
valve stem body.
2. Place valve stem into sensor. Loosely
screw into place so sensor drop angle
can be adjusted.
3. Insert assembled sensor & valve
stem into wheel. Hold in place by
hand.
4. From outside wheel, put on white
seal, then metal washer, then valve
stem nut (or metal nut combination
with washer). While holding sensor
down against wheel bottom, hand
tighten nut. With torque wrench,
tighten Valve Stem Nut to 4.0Nm.
5. Holding sensor down against wheel
bottom, with torque wrench, tighten
valve stem screw to 2.0Nm.
6. Double check all work.
For Rubber Snap-In Valve Sensors:
Avoid wet and extreme temperatures.
Never install a used screw or used Snap-
in Valve.
1. Apply tire soap or lube solution to
rubber valve stem.
2. Line sensor up with rim hole and
attach a standard TTV pull tool to the
end of the valve.
3. Pull the valve stem straight through
the valve hole. Refer to your TTV tool
manual for proper installation. Force
to seat shall not exceed 40kg(90lb).
4. Refer to your tire changing
equipment manuals for proper
instructions for mounting tire to rim
when snap-in TPMS sensors are used.
5. Prohibited use for racing and beyond
180 km/h (110mph).
6. Tighten the screw by 12 lbf-in if
necessary to reinstall the valve.
Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
It is recommended to seek the service of a qualified technician. Pay special attention
and follow all instructions to all cautions and warnings included in the shop manual.
Failure to do so could result in failure of the vehicle’s Tire Pressure Monitor System
(TPMS) Sensors to function properly, or result in damage to the TPMS Sensor.
The PUR-sensor(Uni-Sensor) is blank software inside, be sure to program the sensor
by CUB’s sensor-AID or compatible tool for your specific motor vehicle make, model
and year before installation. Only install programmed TPMS sensors to the application
listed in the tool. Improper TPMS installation or the use of unauthorized TPMS Sensors
will cause the failure of TPM system. Upon completion of installation, test the TPMS
System following the original manufacturer’s service guide to confirm proper
installation. Check all installation procedures to ensure proper installation and retest.
If the System continues to fail consult with CUB support or an authorized motor vehicle
dealership.
These TPMS sensor assemblies are designed and manufactured to be operated in
Original Equipment wheels and tires only. While using non-OE wheels/tires, the vehicle
owner has responsibility to ensure that the TPMS is working correctly. Failure to ensure
that the TPMS is working correctly can result in severe injury or death.
Warranty:
CUB warrants that the TPMS sensor shall be free from defects in workmanship and
material during warranty period. CUB does not assume any liability in case of faulty,
incorrect installation of the product, or by using other products causing TPMS sensor
malfunction on the part of customer or user.
Always check our website for detail installation procedures, safety information and
warranty policy.
http://www.cubautoparts.com/download_data.php?url=download/tpms_download
4/&date=20140523132641_en.pdf

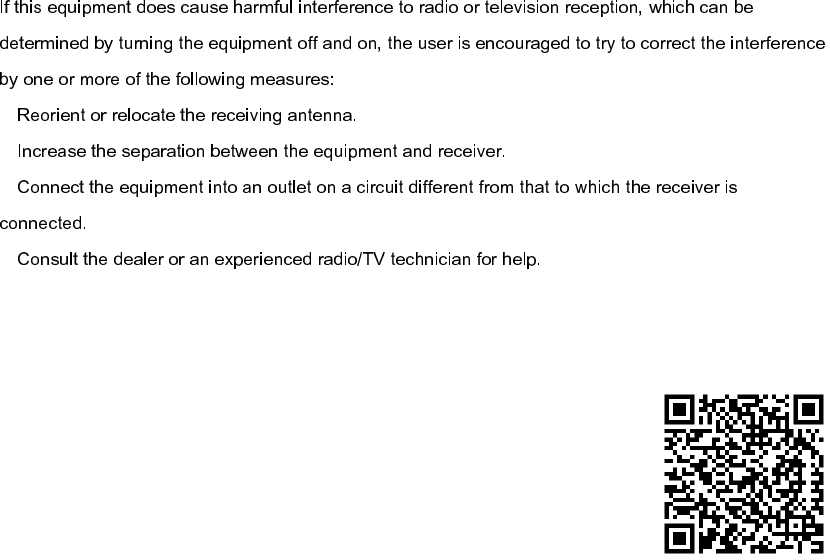

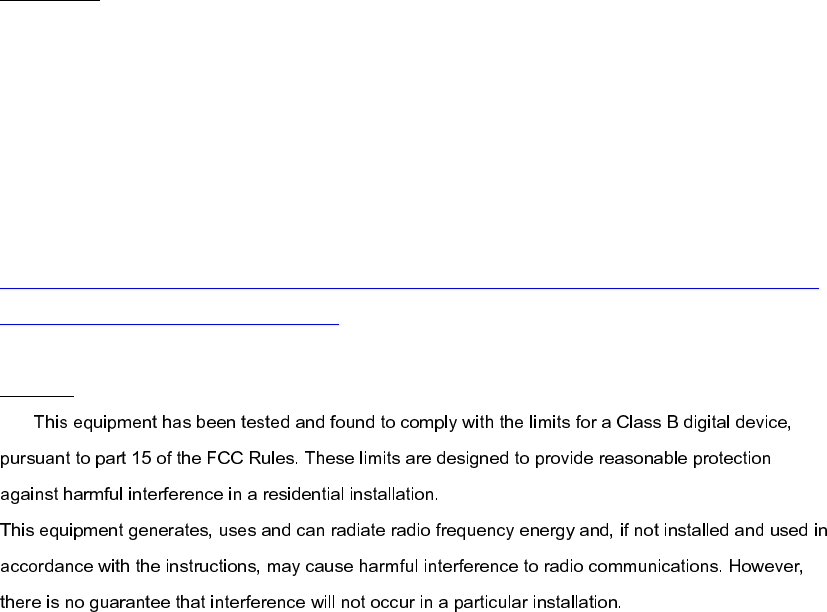

NOTE:
—
—
—
—
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment
.
