Operator's Manual

2-Cycle Trimmer

Model CC 2025

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

P/N 769-00885 (10/03)

PRINTED IN USA

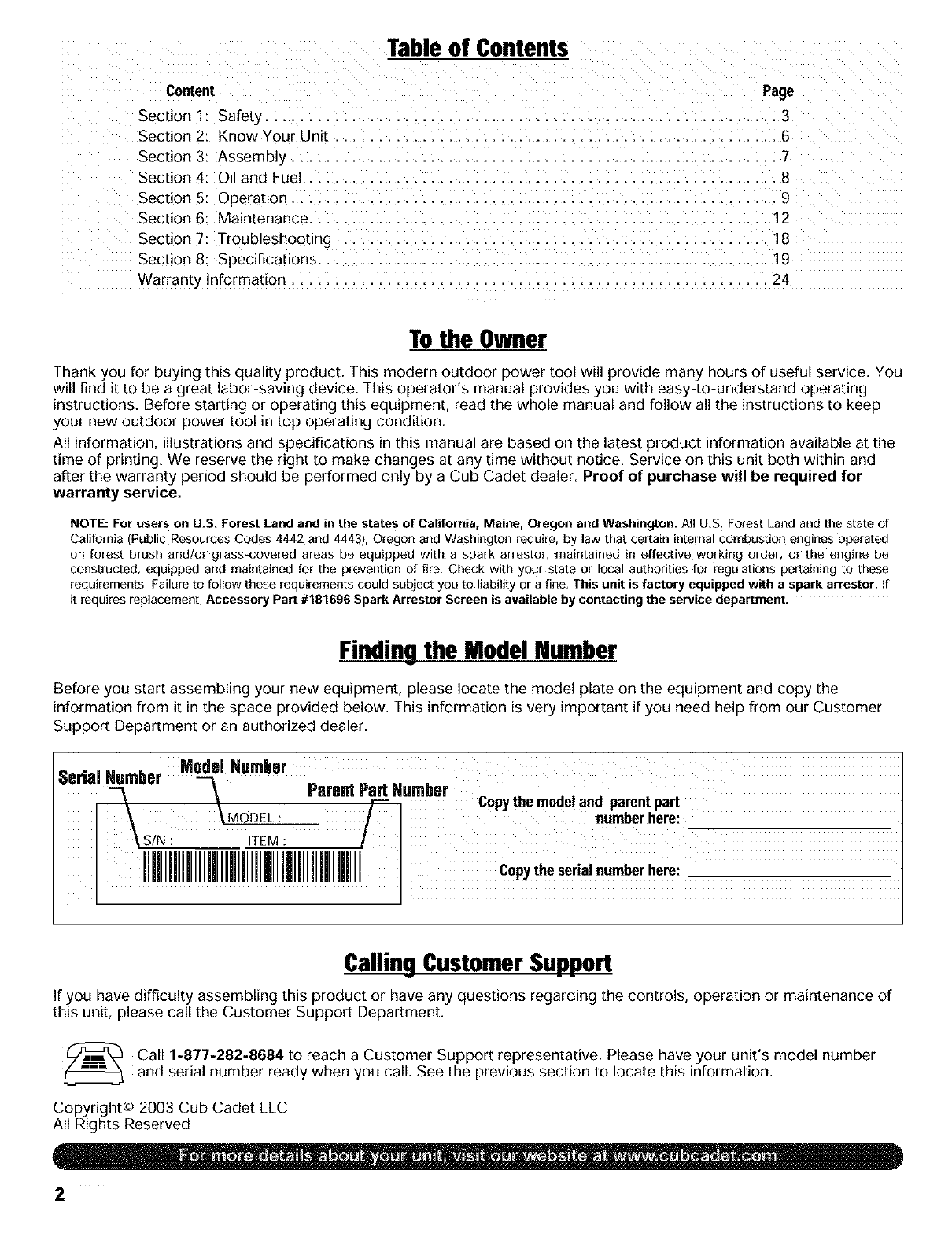

Table of Contents

Content Page

Section 1: Safety ........................................................... 3

Section 2: Know Your Unit ................................................... 6

Section 3: Assembly ........................................................ 7

Section 4: Oil and Fuel ...................................................... 8

Section 5: Operation .................................................. 9

Section 6: Maintenance ..................................................... 12

Section 7: Troubleshooting ................................................. 18

Section 8: Specifications ............................................... 19

Warranty Information .........................................................

To the Owner

Thank you for buying this quality product. This modern outdoor power tool will provide many hours of useful service. You

will find it to be a great labor-saving device. This operator's manual provides you with easy-to-understand operating

instructions. Before starting or operating this equipment, read the whole manual and follow all the instructions to keep

your new outdoor power tool in top operating condition.

All information, illustrations and specifications in this manual are based on the latest product information available at the

time of printing. We reserve the right to make changes at any time without notice. Service on this unit both within and

after the warranty period should be performed only by a Cub Cadet dealer. Proof of purchase will be required for

warranty service.

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U,S: Forest Land and the state of

California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated

on forest brush andlor grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be

constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these

requirements. Failure to follow these requirements could subject you to liability or a fine, This unit is factory equipped with a spark arrestor. If

it requires replacement, Accessory Part #181696 Spark Arrestor Screen is available by contacting the service department.

Finding the Model Number

Before you start assembling your new equipment, please locate the model plate on the equipment and copy the

information from it in the space provided below. This information is very important if you need help from our Customer

Support Department or an authorized dealer.

Model Humber

Parent Pert Humber Copythe mode!and parentpart

numberhere:

SiN : ITEM :

IIIIIIIIIllllllllllHIIInllHIlllllthe seria!numberhere:

Calling Customer Sunnort

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of

this unit, please call the Customer Support Department.

@ Call 1-877-282-8684 to reach a Customer Support representative. Please have your unit's model number

and serial number ready when you call. See the previous section to locate this information.

Section1

Safety

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the r ]

explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate |

any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures. /

SYMBOL MEANING ]

_1_ I SAFETY ALERT SYMBOL: Indicates danger,

,AI, I warning or caution. Attention is required in I

order to avoid serious personal injury. May

be used in conjunction with other symbols

or pictographs. I

NOTE: Advises you of information or instructions

vital to the operation or maintenance of the

equipment.

California Proposition65 Warning

THE ENGINE EXHAUST FROM THIS PRODUCT

CONTAINS CHEMICALS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS

OR OTHER REPRODUCTIVE HARM.

Failure to obey a safety warning will result in

serious injury to yourself or to others. Always

follow the safety precautions to reduce the risk of

fi_d ersonal iniur .

Failure to obey a safety warning can result in

injury to yourself and others. Always follow the

safety precautions to reduce the risk of fire,

electric shock, and personal injury.

Failure to obey a safety warning may result in property

damage or personal injury to yourself or to others.

Always follow the safety precautions to reduce the

risk of fire, electric shock, and personal injury.

Important Safety Information

READALLINSTRUCTIONS

Before Operating

•Read the instructions carefully. Be familiar with the

controls and proper use of the unit.

• Do not operate this unit when tired, ill or under the

influence of alcohol, drugs or medication.

• Children and teens under the age of 15 must not use

the unit, except for teens guided by an adult.

•Inspect the unit before use. Replace damaged parts.

Check for fuel leaks. Make sure all fasteners are in

place and secure. Replace cutting attachment parts

that are cracked, chipped or damaged in any way.

Make sure the cutting attachment is properly installed

and securely fastened. Be sure the cutting attachment

shield is properly attached, and positioned as

recommended. Failure to do so can result in personal

injury to the operator and bystanders, as well as

damage to the unit.

•Use only 0.095 inch (2.41 mm) diameter original

equipment manufacturer replacement line. Never use

metal-reinforced line, wire or rope. These can break

off and become dangerous projectiles.

• Be aware of the risk of injury to the head, hands and

feet.

• Clear the area to be cut before each use. Remove all

objects such as rocks, broken glass, nails, wire or

string. They can be thrown or become entangled in the

cutting attachment. Clear the area of children,

bystanders, and pets. At a minimum, keep all children,

bystanders and pets outside a 50-foot (15m.) radius;

there still may be a risk to bystanders from thrown

objects. Bystanders should be encouraged to wear

eye protection. If you are approached, stop the engine

and cutting attachment immediately.

• Squeeze the throttle control and check that it returns

automatically to the idle position. Make all adjustments

or repairs before using unit.

• This unit was not designed to be used as a

brushcutter. Do not attach or operate this unit with any

type of brushcutting blade or brushcutting attachment.

Safety (continued)

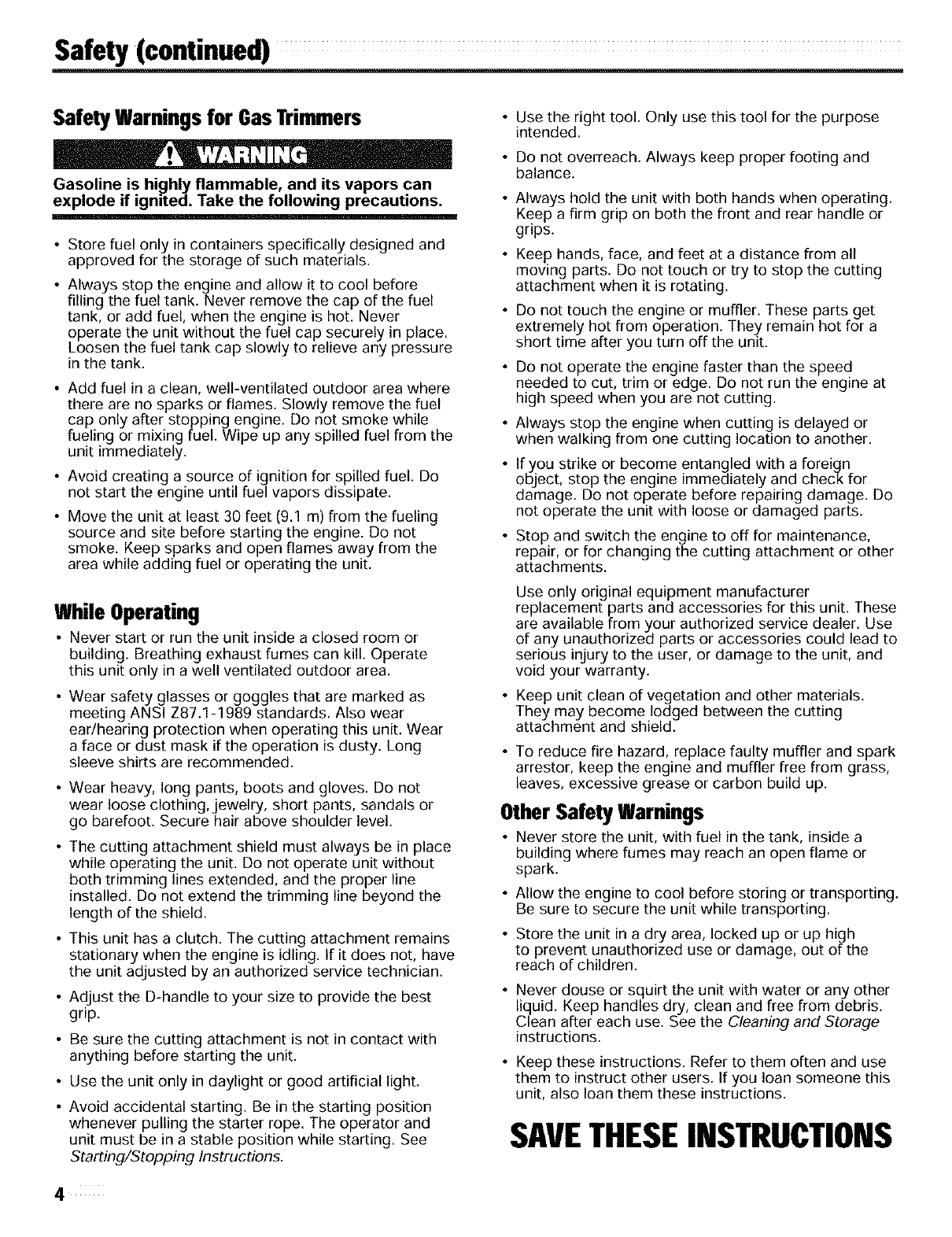

Safety Warnings for GasTrimmers

!,"

Gasoline is highly flammable, and its vapors can

explode if ignited. Take the following precautions.

• Store fuel only in containers specifically designed and

approved for the storage of such materials.

• Always stop the engine and allow it to cool before

filling the fuel tank. Never remove the cap of the fuel

tank, or add fuel, when the engine is hot. Never

operate the unit without the fuel cap securely in place.

Loosen the fuel tank cap slowly to relieve any pressure

in the tank.

• Add fuel in a clean, well-ventilated outdoor area where

there are no sparks or flames. Slowly remove the fuel

cap only after stopping engine. Do not smoke while

fueling or mixing fuel. Wipe up any spilled fuel from the

unit immediately.

• Avoid creating a source of ignition for spilled fuel. Do

not start the engine until fuel vapors dissipate.

• Move the unit at least 30 feet (9.1 m) from the fueling

source and site before starting the engine. Do not

smoke. Keep sparks and open flames away from the

area while adding fuel or operating the unit.

While Operating

• Never start or run the unit inside a closed room or

building. Breathing exhaust fumes can kill. Operate

this unit only in a well ventilated outdoor area.

• Wear safety glasses or goggles that are marked as

meeting ANSI Z87.1-1989 standards. Also wear

ear/hearin 9 protection when operating this unit. Wear

a face or dust mask if the operation is dusty. Long

sleeve shirts are recommended.

• Wear heavy, long pants, boots and gloves. Do not

wear loose clothing, jewelry, short pants, sandals or

go barefoot. Secure hair above shoulder level.

•The cutting attachment shield must always be in place

while operating the unit. Do not operate unit without

both trimming lines extended, and the proper line

installed. Do not extend the trimming line beyond the

length of the shield.

• This unit has a clutch. The cutting attachment remains

stationary when the engine is idling. If it does not, have

the unit adjusted by an authorized service technician.

•Adjust the D-handle to your size to provide the best

grip.

•Be sure the cutting attachment is not in contact with

anything before starting the unit.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position

whenever pulling the starter rope. The operator and

unit must be in a stable position while starting. See

Starting/Stopping Instructions.

• Use the right tool. Only use this tool for the purpose

intended.

• Do not overreach. Always keep proper footing and

balance.

• Always hold the unit with both hands when operating.

Keep a firm grip on both the front and rear handle or

grips.

• Keep hands, face, and feet at a distance from all

moving parts. Do not touch or try to stop the cutting

attachment when it is rotating.

• Do not touch the engine or muffler. These parts get

extremely hot from operation. They remain hot for a

short time after you turn off the unit.

•Do not operate the engine faster than the speed

needed to cut, trim or edge. Do not run the engine at

high speed when you are not cutting.

•Always stop the engine when cutting is delayed or

when walking from one cutting location to another.

•If you strike or become entangled with a foreign

object, stop the engine immediately and check for

damage. Do not operate before repairing damage. Do

not operate the unit with loose or damaged parts.

•Stop and switch the engine to off for maintenance,

repair, or for changing the cutting attachment or other

attachments.

Use only original equipment manufacturer

replacement parts and accessories for this unit. These

are available from your authorized service dealer. Use

of any unauthorized parts or accessories could lead to

serious injury to the user, or damage to the unit, and

void your warranty.

• Keep unit clean of vegetation and other materials.

They may become lodged between the cutting

attachment and shield.

• To reduce fire hazard, replace faulty muffler and spark

arrestor, keep the engine and muffler free from grass,

leaves, excessive grease or carbon build up.

Other Safety Warnings

•Never store the unit, with fuel in the tank, inside a

building where fumes may reach an open flame or

spark.

• Allow the engine to cool before storing or transporting.

Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up or up high

to prevent unauthorized use or damage, out of the

reach of children.

• Never douse or squirt the unit with water or any other

liquid. Keep handles dry, clean and free from debris.

Clean after each use. See the Cleaning and Storage

instructions.

• Keep these instructions. Refer to them often and use

them to instruct other users. If you loan someone this

unit, also loan them these instructions.

SAVETHESEINSTRUCTIONS

Safety (continued)

Safety and International Symbols

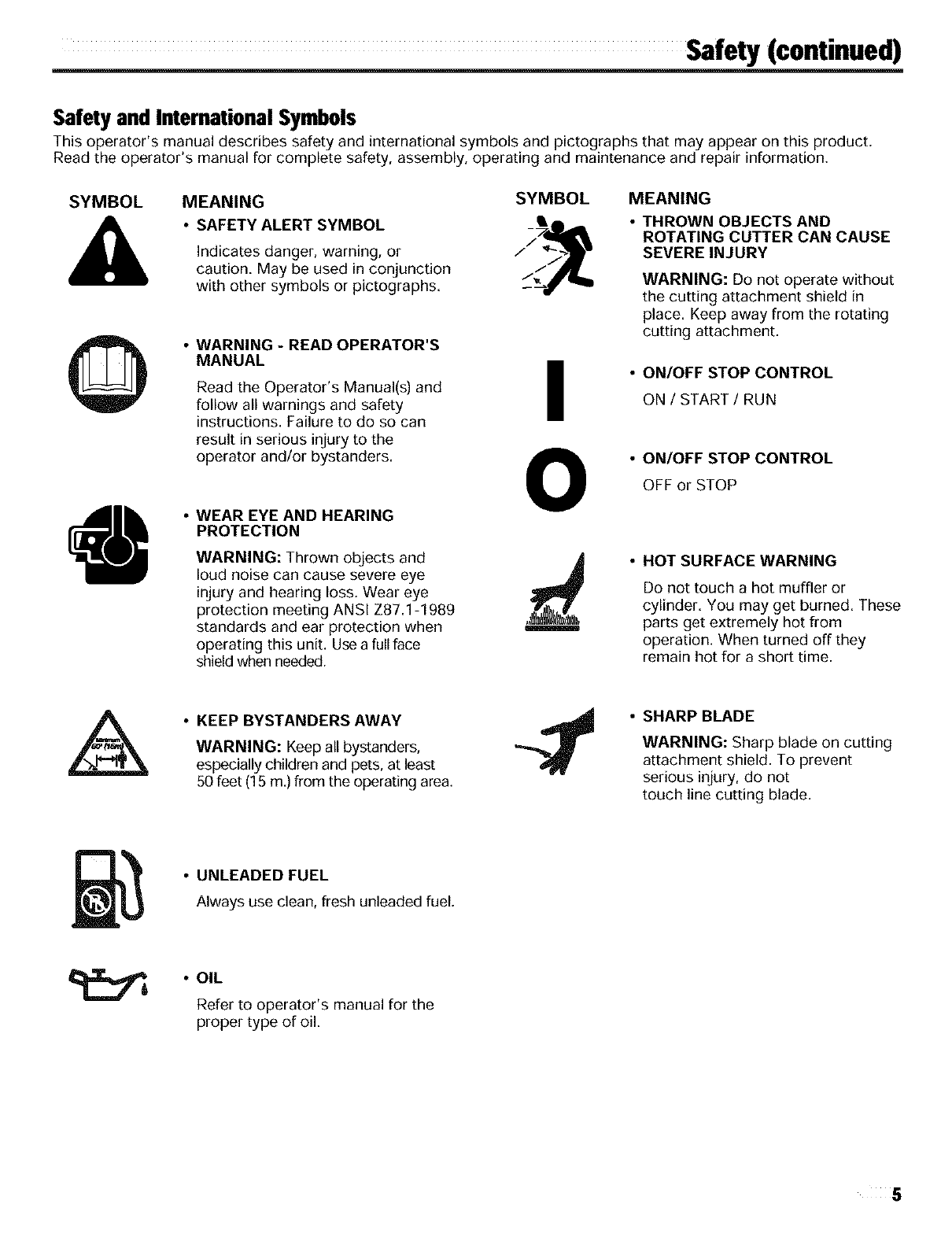

This operator's manual describes safety and international symbols and pictographs that may appear on this product.

Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL

_• SAFETY ALERT SYMBOL -_

Indicates danger, warning, or //._.,_

caution. May be used in conjunction

with other symbols or pictographs. -/

©WARNING -READ OPERATOR'S

MANUAL

Read the Operator's Manual(s) and

follow all warnings and safety

instructions. Failure to do so can

result in serious injury to the

operator and/or bystanders.

WEAR EYE AND HEARING

PROTECTION

WARNING: Thrown objects and

loud noise can cause severe eye

injury and hearing loss. Wear eye

protection meeting ANSI Z87.1-1989

standards and ear protection when

operating this unit. Usea full face

shield when needed.

MEANING

• THROWN OBJECTS AND

ROTATING CUTTER CAN CAUSE

SEVERE INJURY

WARNING: Do not operate without

the cutting attachment shield in

place. Keep away from the rotating

cutting attachment.

•ON/OFF STOP CONTROL

ON /START /RUN

•ON/OFF STOP CONTROL

OFF or STOP

HOT SURFACE WARNING

Do not touch a hot muffler or

cylinder. You may get burned. These

parts get extremely hot from

operation. When turned off they

remain hot for a short time.

KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders,

especially children and pets, at least

50 feet (15 m.) from the operating area.

SHARP BLADE

WARNING: Sharp blade on cutting

attachment shield. To prevent

serious injury, do not

touch line cutting blade.

•UNLEADED FUEL

Always use clean, fresh unleaded fuel.

•OIL

Refer to operator's manual for the

proper type of oil.

Section 2

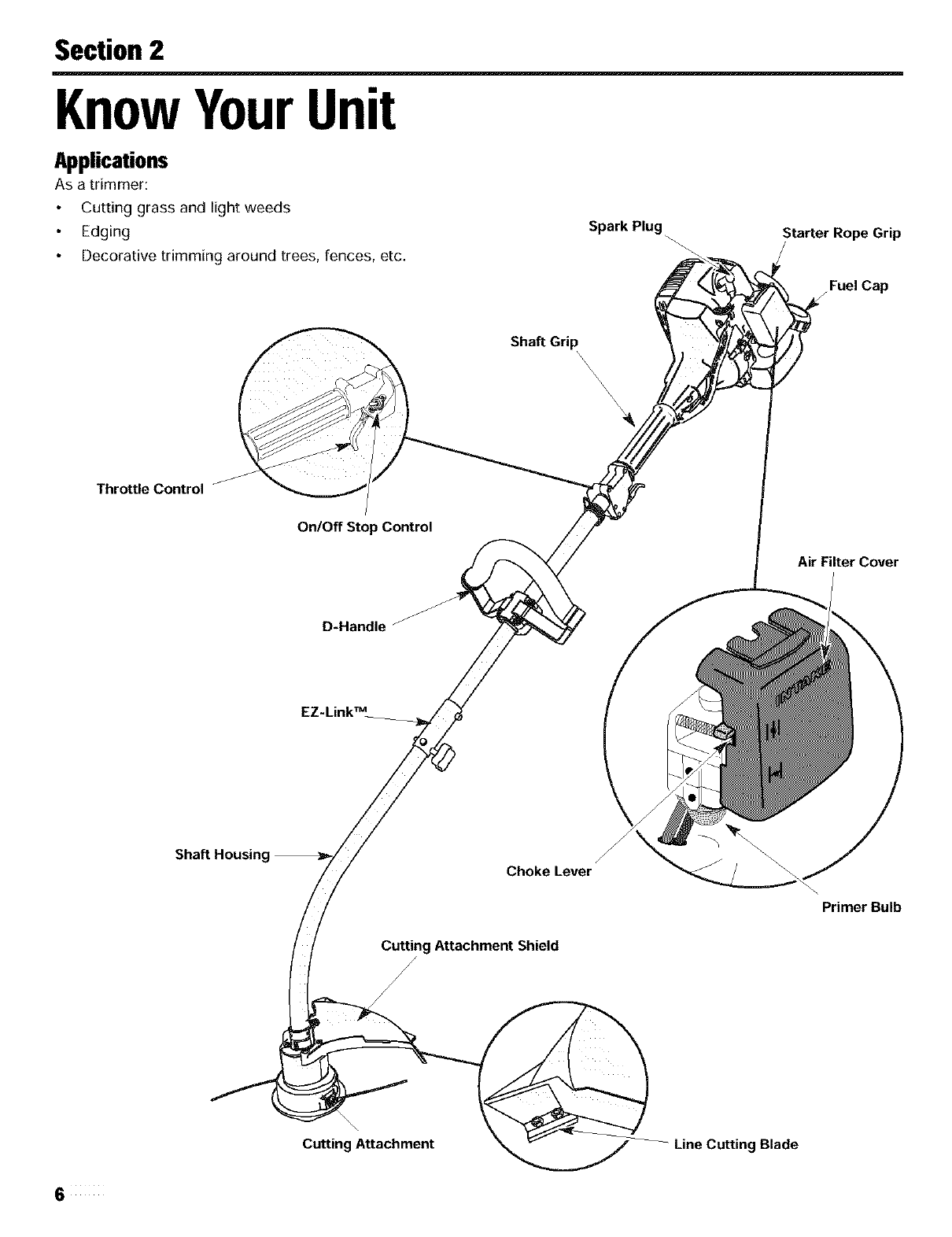

KnowYourUnit

Applications

As a trimmer:

Cutting grass and light weeds

Edging

Decorative trimming around trees, fences, etc.

Spark Plug,.. Starter Rope Grip

Fuel Cap

Shaft Grip \\\\\\\\\

Throttle Control

On/Off Stop Control

Air Filter Cover

D-Handle /

EZ.Link TM

Choke Lever

Primer Bulb

Cutting Attachment Shield

Cutting Attachment Line Cutting Blade

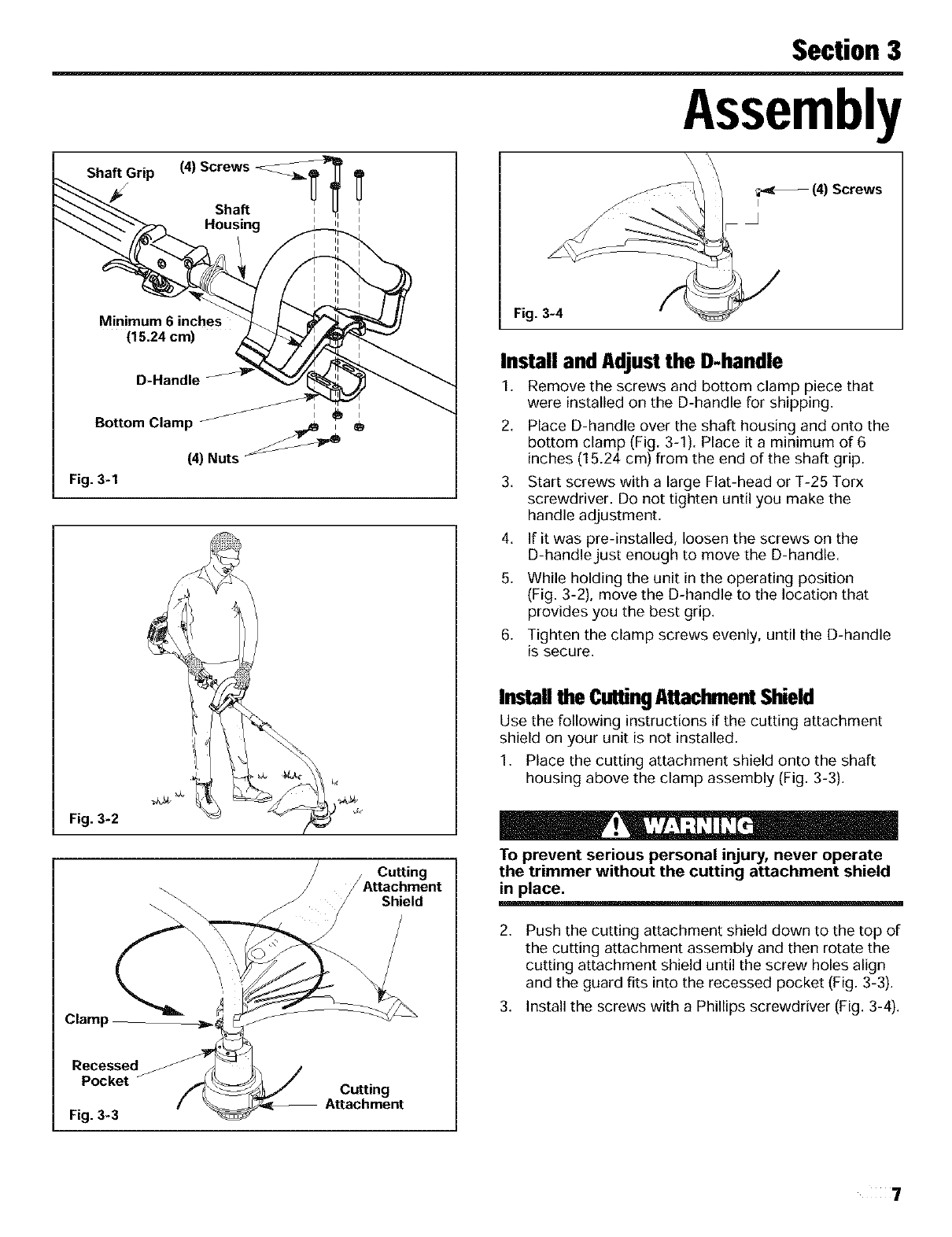

Section 3

Shaft Grip (4) Screws _

Shaft

Housing

Minimum 6 inches

(15.24 cm)

D-Handle

Bottom Clamp _p_=._ •

(4) Nuts

Fig.3-1

Fig. 3-2

Cutting

Attachment

Shield

Clamp

Recessed

Pocket

Fig. 3-3

Cutting

-- Attachment

Assembly

Fig. 3-4

Install and Adjust the D-handle

1. Remove the screws and bottom clamp piece that

were installed on the D-handle for shipping.

2. Place D-handle over the shaft housing and onto the

bottom clamp (Fig. 3-1). Place it a minimum of 6

inches (15.24 cm) from the end of the shaft grip.

3. Start screws with a large Flat-head or T-25 Torx

screwdriver. Do not tighten until you make the

handle adjustment.

4. If it was pre-installed, loosen the screws on the

D-handle just enough to move the D-handle.

5. While holding the unit in the operating position

(Fig. 3-2), move the D-handle to the location that

provides you the best grip.

6. Tighten the clamp screws evenly, until the D-handle

is secure.

Installthe CuttingAttachmentShield

Use the following instructions if the cutting attachment

shield on your unit is not installed.

1. Place the cutting attachment shield onto the shaft

housing above the clamp assembly (Fig. 3-3).

To prevent serious personal injury, never operate

the trimmer without the cutting attachment shield

in place.

2. Push the cutting attachment shield down to the top of

the cutting attachment assembly and then rotate the

cutting attachment shield until the screw holes align

and the guard fits into the recessed pocket (Fig. 3-3).

3. Install the screws with a Phillips screwdriver (Fig. 3-4).

Section 4

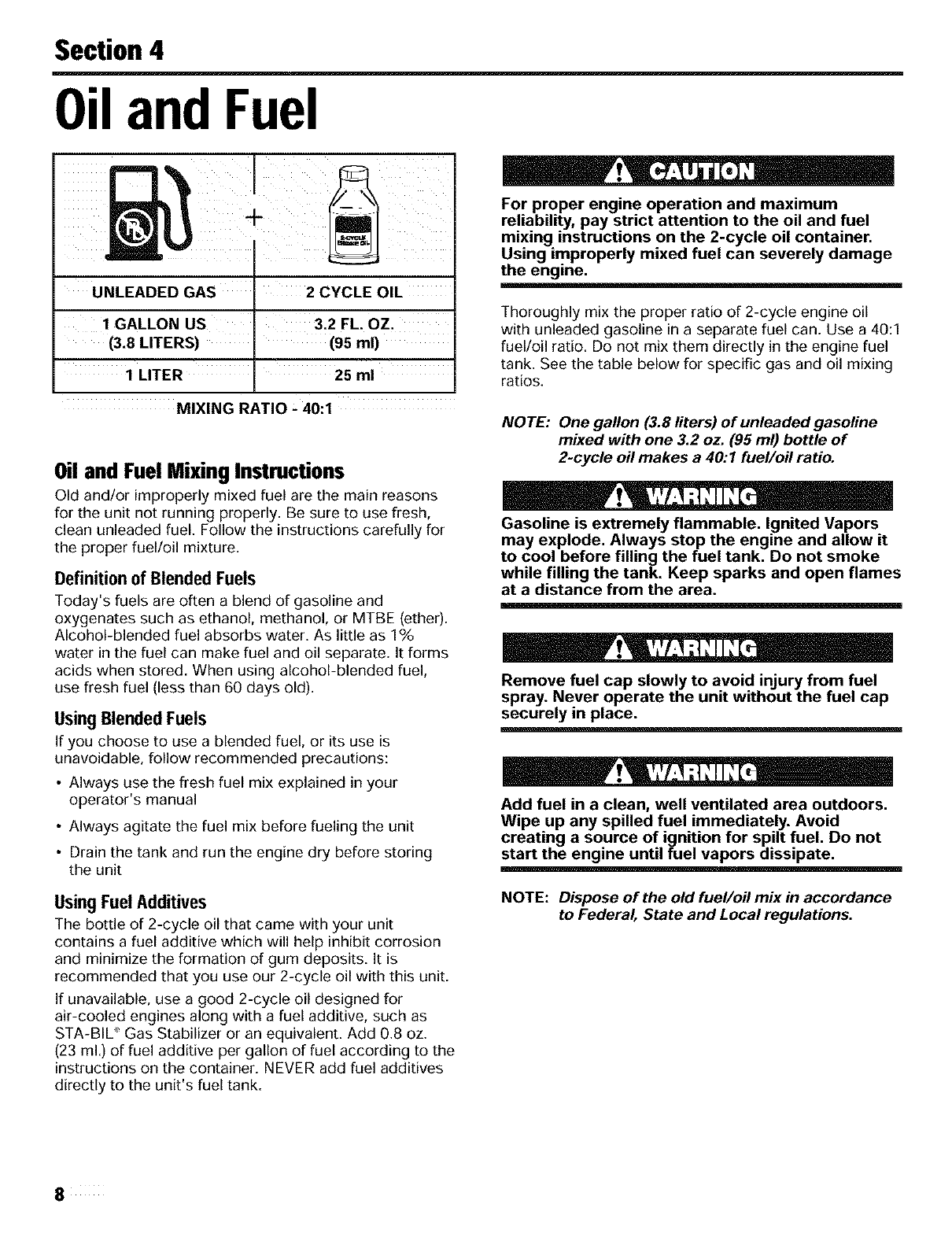

0il andFuel

UNLEADED GAS 2 CYCLE OIL

1 GALLON US 3.2 FL OZ.

(3.8 LITERS) (95 ml)

1 LITER 25 ml

MIXING RATIO -40:1

Oil and Fuel Mixing Instructions

Old and/or improperly mixed fuel are the main reasons

for the unit not running properly. Be sure to use fresh,

clean unleaded fuel. Follow the instructions carefully for

the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and

oxygenates such as ethanol, methanol, or MTBE (ether).

Alcohol-blended fuel absorbs water. As little as 1%

water in the fuel can make fuel and oil separate. It forms

acids when stored. When using alcohol-blended fuel,

use fresh fuel (less than 60 days old).

Using BlendedFuels

If you choose to use a blended fuel, or its use is

unavoidable, follow recommended precautions:

•Always use the fresh fuel mix explained in your

operator's manual

• Always agitate the fuel mix before fueling the unit

• Drain the tank and run the engine dry before storing

the unit

Using FuelAdditives

The bottle of 2-cycle oil that came with your unit

contains a fuel additive which will help inhibit corrosion

and minimize the formation of gum deposits. It is

recommended that you use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for

air-cooled engines along with a fuel additive, such as

STA-BIL _'Gas Stabilizer or an equivalent. Add 0.8 oz.

(23 ml.) of fuel additive per gallon of fuel according to the

instructions on the container. NEVER add fuel additives

directly to the unit's fuel tank.

For proper engine operation and maximum

reliability, pay strict attention to the oil and fuel

mixing instructions on the 2-cycle oil container.

Using improperly mixed fuel can severely damage

the engine.

Thoroughly mix the proper ratio of 2-cycle engine oil

with unleaded gasoline in a separate fuel can. Use a 40:1

fuel/oil ratio. Do not mix them directly in the engine fuel

tank. See the table below for specific gas and oil mixing

ratios.

NOTE: One gallon (3.8 fiters) of unleaded gasoline

mixed with one 3.2 oz. (95 ml) bottle of

2-cycle off makes a 40:1 fuel/off ratio.

Gasoline is extremely flammable. Ignited Vapors

may explode. Always stop the engine and allow it

to cool before filling the fuel tank. Do not smoke

while filling the tank. Keep sparks and open flames

at a distance from the area.

Remove fuel cap slowly to avoid injury from fuel

spray. Never operate the unit without the fuel cap

securely in place.

Add fuel in a clean, well ventilated area outdoors.

Wipe up any spilled fuel immediately. Avoid

creating a source of ignition for spilt fuel. Do not

start the engine until fuel vapors dissipate.

NOTE: Dispose of the old fuel/off mix in accordance

to Federal, State and Local regulations.

Section 5

Operation

Operate this unit only in a well-ventilated outdoor area.

Carbon monoxide exhaust fumes can be lethal in a

confined area.

Avoid accidental starting. Make sure you are in the

starting position when pulling the starter rope (Fig. 5-3),

To avoid serious injury the operator and unit must be

in a stable position while starting.

Make sure that any add-on item is installed correctly and

secure before starting the unit

Fig. 5-1

On/Off StoF

Starting Instructions

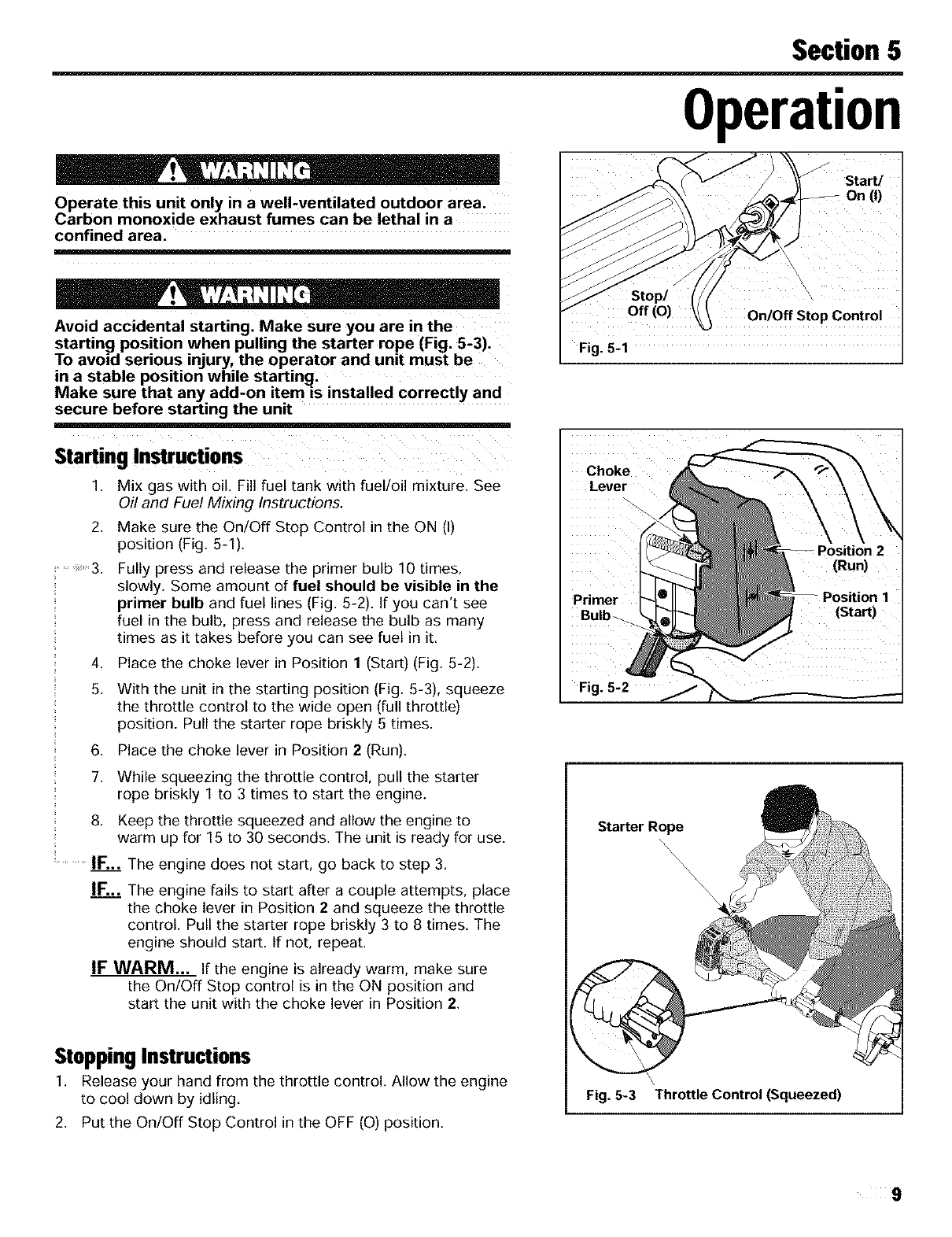

1. Mix gas with oil. Fill fuel tank with fuel/oil mixture. See

Oil and Fuel Mixing Instructions.

2. Make sure the On/Off Stop Control in the ON (I)

position (Fig. 5-1).

3, Fully press and release the primer bulb 10 times,

slowly. Some amount of fuel should be visible in the

primer bulb and fuel lines (Fig. 5-2). If you can't see

fuel in the bulb, press and release the bulb as many

times as it takes before you can see fuel in it.

4. Place the choke lever in Position 1(Start) (Fig. 5-2).

5. With the unit in the starting position (Fig. 5-3), squeeze

the throttle control to the wide open (full throttle)

position. Pull the starter rope briskly 5 times.

6. Place the choke lever in Position 2(Run).

7. While squeezing the throttle control, pull the starter

rope briskly 1 to 3 times to start the engine.

8. Keep the throttle squeezed and allow the engine to

warm up for 15 to 30 seconds. The unit is ready for use.

........ IF... The engine does not start, go back to step 3.

IF.,, The engine fails to start after a couple attempts, place

the choke lever in Position 2 and squeeze the throttle

control. Pull the starter rope briskly 3 to 8 times. The

engine should start. If not, repeat.

IF WARM... If the engine is already warm, make sure

the On/Off Stop control is in the ON position and

start the unit with the choke lever in Position 2.

StoppingInstructions

1. Release your hand from the throttle control. Allow the engine

to cool down by idling.

2. Put the On/Off Stop Control in the OFF (O) position.

Choke

Lever

Primer

Bulb_

Starter Rope

Fig. 5-3 Throttle Control (Squeezed)

Operation(continued)

EZ-LinkT Mcoupler Release Button

Fig. 5-4 Guide Recess

Ez.LinkTMc0uPier Release Button

, /

Upper Shaft Housing ........

Lower _na_ Housm!

Fig. 5-5

90_Edging Hole

(Trimmer Only)

Fig. 5-6 L

180°Edging Hole

(Trimmer Only)

Knob

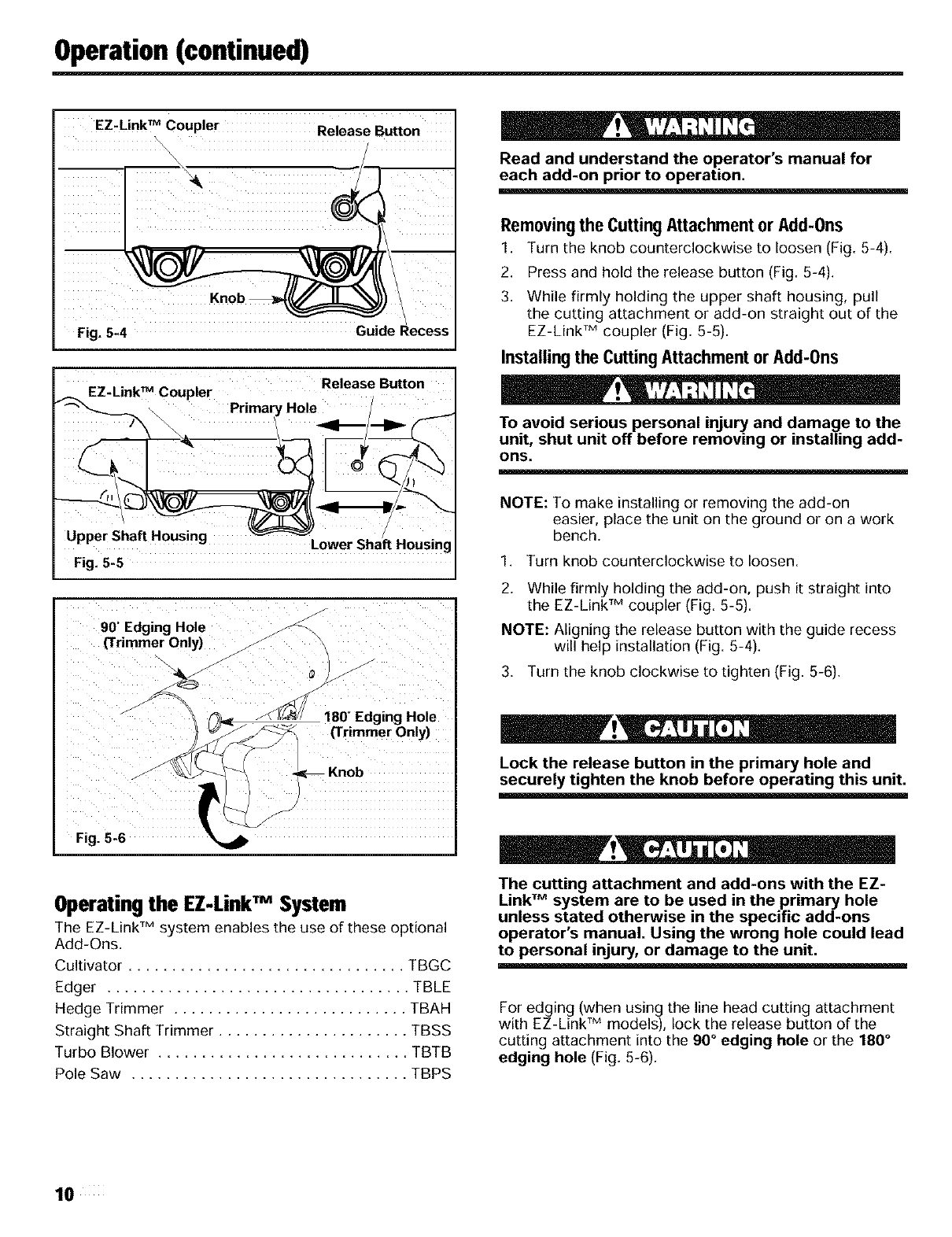

Operating the EZ-LinkTM System

The EZ-Link TM system enables the use of these optional

Add-Ons.

Cultivator ................................ TBGC

Edger ................................... TBLE

Hedge Trimmer ........................... TBAH

Straight Shaft Trimmer ...................... TBSS

Turbo Blower ............................. TBTB

Pole Saw ................................ TBPS

! ''L

Read and understand the operator's manual for

each add-on prior to operation.

Removingthe Cutting Attachment or Add-0ns

1. Turn the knob counterclockwise to loosen (Fig. 5-4).

2. Press and hold the release button (Fig. 5-4).

3. While firmly holding the upper shaft housing, pull

the cutting attachment or add-on straight out of the

EZ-Link TM coupler (Fig. 5-5).

Installing the Cutting Attachment or Add-0ns

To avoid serious personal injury and damage to the

unit, shut unit off before removing or installing add-

ons.

NOTE: To make installing or removing the add-on

easier, place the unit on the ground or on a work

bench.

1. Turn knob counterclockwise to loosen.

2. While firmly holding the add-on, push it straight into

the EZ-Link TM coupler (Fig. 5-5).

NOTE: Aligning the release button with the guide recess

will help installation (Fig. 5-4).

3. Turn the knob clockwise to tighten (Fig. 5-6).

_l!llr! ,o

Lock the release button in the primary hole and

securely tighten the knob before operating this unit.

!• ,

The cutting attachment and add-ons with the EZ-

Link TM system are to be used in the primary hole

unless stated otherwise in the specific add-ons

operator's manual. Using the wrong hole could lead

to personal injury, or damage to the unit.

For edging (when using the line head cutting attachment

with EZ-Link TM models), lock the release button of the

cutting attachment into the 90°edging hole or the 180 °

edging hole (Fig. 5-6).

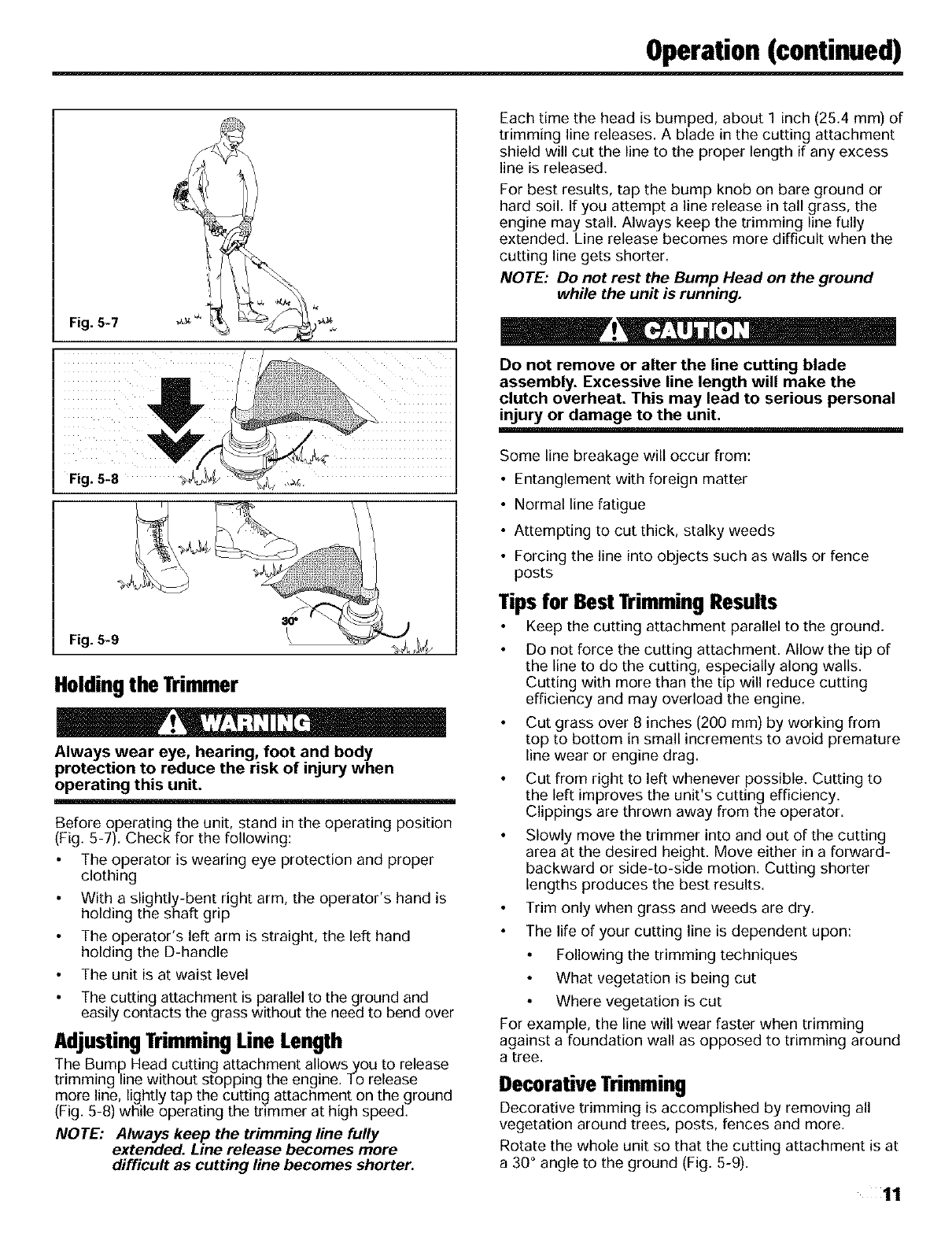

Operation(continued)

Fig. 5-7

Fig. 5-9

Holding the Trimmer

Always wear eye, hearing, foot and body

protection to reduce the risk of injury when

operating this unit.

Before operating the unit, stand in the operating position

(Fig 57) Check for the following:

The operator is wearing eye protection and proper

clothing

With a slightlybent right arm, the operator's hand is

holding the shaft grip

The operator's left arm is straight, the left hand

holding the Dhandle

The unit is at waist level

The cutting attachment is parallel to the ground and

easily contacts the grass without the need to bend over

Adjusting Trimming Line Length

The Bump Head cutting attachment allows you to release

trimming line without stopping the engine To release

more line lightly tap the cutting attachment on the ground

(Fig 58) while operating the trimmer at high speed

NOTE: Always keep the trimming line fully

extended. Line release becomes more

difficult as cutting line becomes shorter.

Each time the head is bumped, about 1 inch (25.4 mm) of

trimming line releases. A blade in the cutting attachment

shield will cut the line to the proper length if any excess

line is released.

For best results, tap the bump knob on bare ground or

hard soil If you attempt a line release in tall grass, the

engine may stall Always keep the trimming line fully

extended Line release becomes more difficult when the

cutting line gets shorter

NOTE: Do not rest the Bump Head on the ground

while the unit is running.

_f. , o

Do not remove or alter the line cutting blade

assembly. Excessive line length will make the

clutch overheat. This may lead to serious personal

injury or damage to the unit.

Some line breakage will occur from:

•Entanglement with foreign matter

• Normal line fatigue

•Attempting to cut thick, stalky weeds

• Forcing the line into objects such as walls or fence

posts

Tips for Best Trimming Results

Keep the cutting attachment parallel to the ground.

Do not force the cutting attachment. Allow the tip of

the line to do the cutting, especially along walls.

Cutting with more than the tip will reduce cutting

efficiency and may overload the engine.

Cut grass over 8 inches (200 mm) by working from

top to bottom in small increments to avoid premature

line wear or engine drag.

Cut from right to left whenever possible. Cutting to

the left improves the unit's cutting efficiency.

Clippings are thrown away from the operator.

Slowly move the trimmer into and out of the cutting

area at the desired height. Move either in a forward-

backward or side-to-side motion. Cutting shorter

lengths produces the best results.

Trim only when grass and weeds are dry.

The life of your cutting line is dependent upon:

Following the trimming techniques

What vegetation is being cut

Where vegetation is cut

For example, the line will wear faster when trimming

against a foundation wall as opposed to trimming around

a tree.

Decorative Trimming

Decorative trimming is accomplished by removing all

vegetation around trees, posts, fences and more.

Rotate the whole unit so that the cutting attachment is at

a 30° angle to the ground (Fig. 5-9).

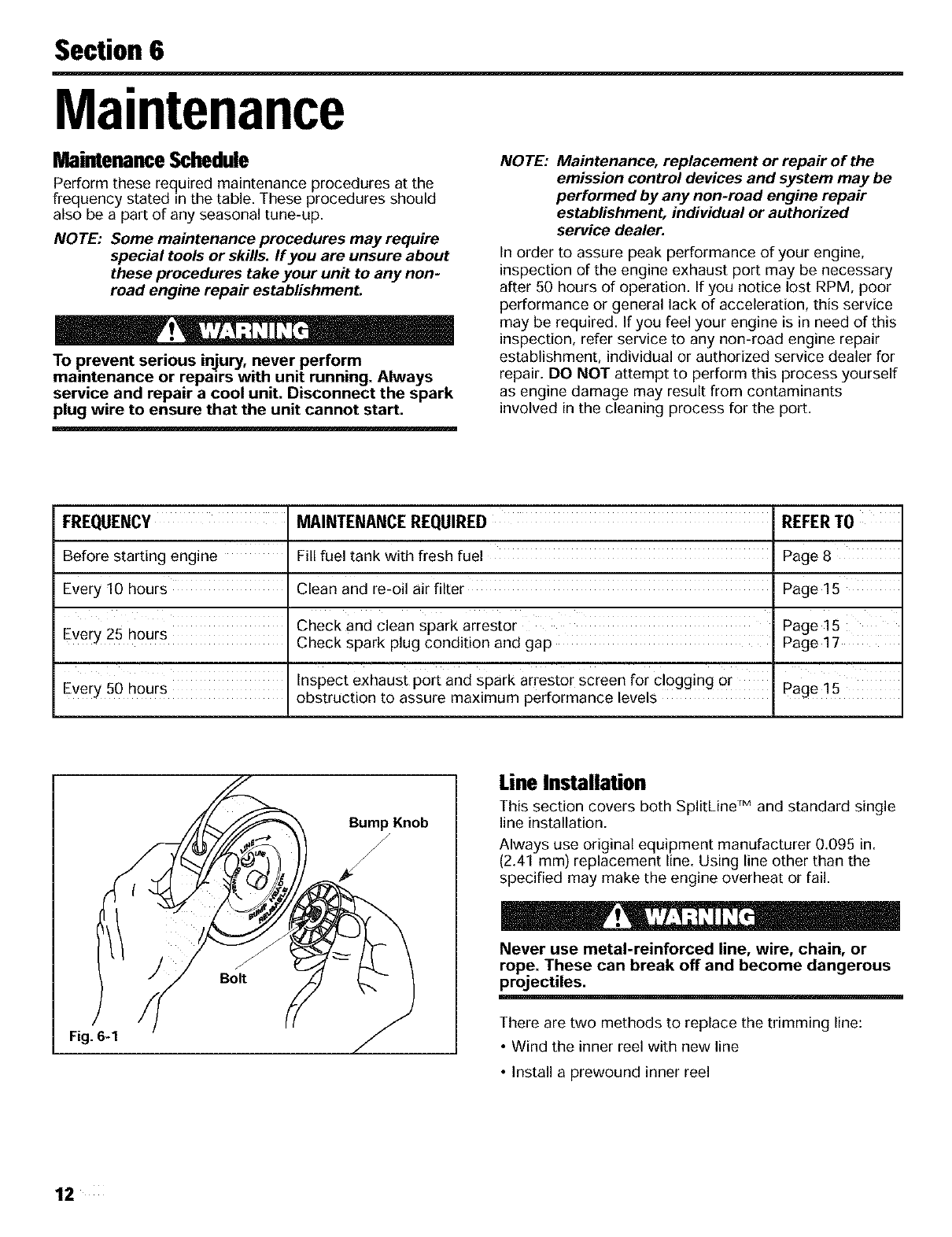

Section 6

Maintenance

Maintenance Schedule

Perform these required maintenance procedures at the

frequency stated _nthe table. These procedures should

also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require

special tools or skills. If you are unsure about

these procedures take your unit to any non-

road engine repair establishmenL

To prevent serious injury, never perform

maintenance or repairs with unit running. Always

service and repair a cool unit. Disconnect the spark

plug wire to ensure that the unit cannot start.

NOTE: Maintenance, replacement or repair of the

emission control devices and system may be

performed by any non-road engine repair

establishment, individual or authorized

service dealer.

In order to assure peak performance of your engine,

inspection of the engine exhaust port may be necessary

after 50 hours of operation. If you notice lost RPM, poor

performance or general lack of acceleration, this service

may be required. If you feel your engine is in need of this

inspection, refer service to any non-road engine repair

establishment, individual or authorized service dealer for

repair. DO NOT attempt to perform this process yourself

as engine damage may result from contaminants

involved in the cleaning process for the port.

FREQUENCY MAINTENANCEREQUIRED REFERTO

Before starting engine Fill fuel tank with fresh fuel Page 8

Every 10 hours Clean and re-oil air filter Page 15

Check and clean spark arrestor Page 15

Every 25 hours Check spark plug condition and gap Page 17

Inspect exhaust port and Spark arrestor Screen for clogging or Page 15

Every 50 hours obstruction to assure maximum performance levels

Fig. 6-1

Bump Knob

Line Installation

This section covers both SplitLine TM and standard single

line installation.

Always use original equipment manufacturer 0.095 in.

(2.41 mm) replacement line. Using line other than the

specified may make the engine overheat or fail.

Never use metal-reinforced line, wire, chain, or

rope. These can break off and become dangerous

projectiles.

There are two methods to replace the trimming line:

• Wind the inner reel with new line

• Install a prewound inner reel

Maintenance (continued)

Outer Spool _Shaft

Inner Reel__/_i (_/_P/__

__ Spring

Fig. 6_

Indexing Teeth

Fig. 6-3

Slotted Holes

For Use with For Use with

Single Line ONLY Membrane or

Single Line

Fig. 6-4

Fig.6-5 Loop

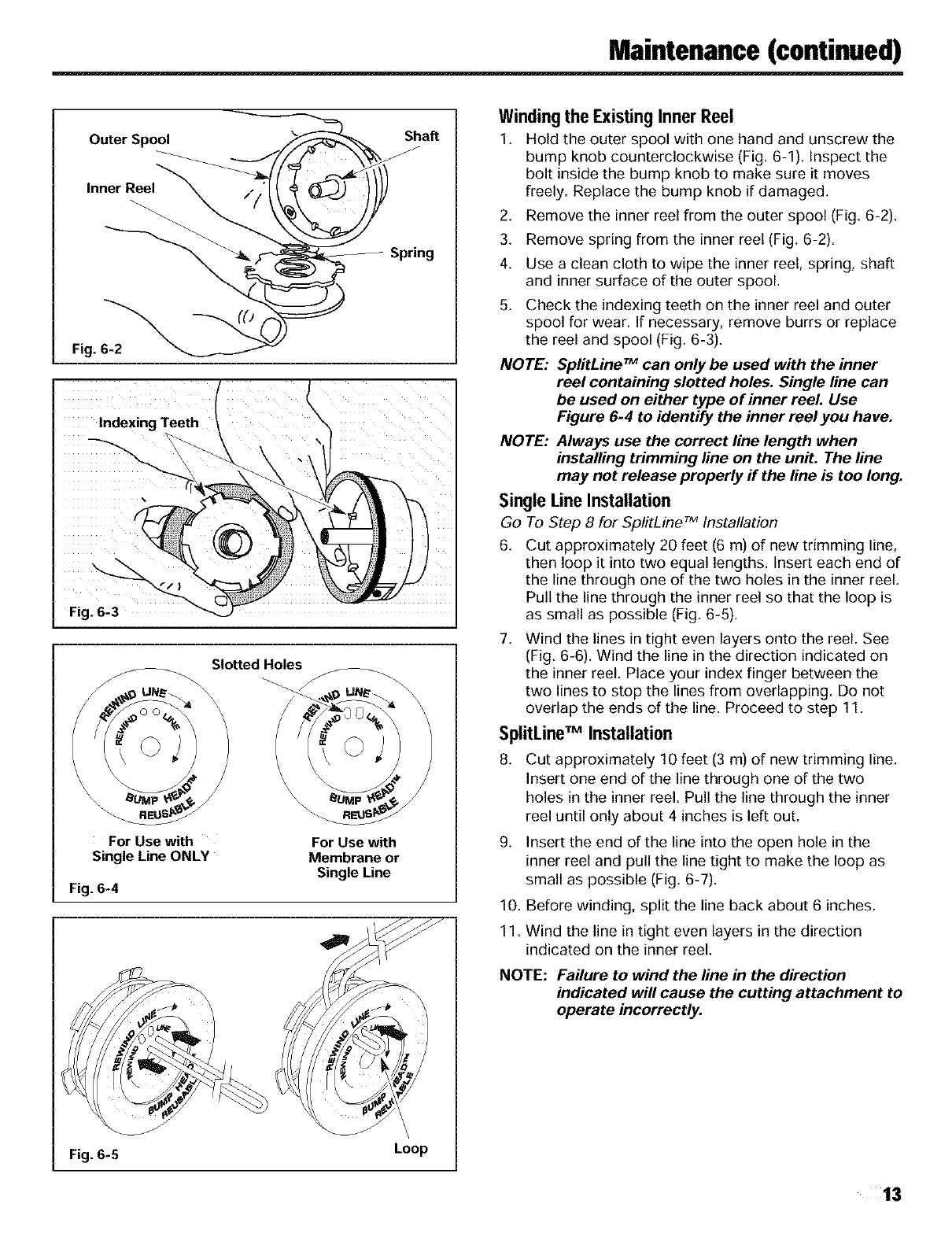

Winding the Existing Inner Reel

1. Hold the outer spool with one hand and unscrew the

bump knob counterclockwise (Fig. 6-1). Inspect the

bolt inside the bump knob to make sure it moves

freely. Replace the bump knob if damaged.

Remove the inner reel from the outer spool (Fig. 6-2).

Remove spring from the inner reel (Fig. 6-2).

Use a clean cloth to wipe the inner reel, spring, shaft

and inner surface of the outer spool.

Check the indexing teeth on the inner reel and outer

spool for wear. If necessary, remove burrs or replace

the reel and spool (Fig. 6-3).

NOTE: SplitLine TM can only be used with the inner

reel containing slotted holes. Single line can

be used on either type of inner reel. Use

Figure 6-4 to identify the inner reel you have.

NOTE: Always use the correct line length when

installing trimming line on the unit. The line

may not release properly if the line is too long.

Single Line Installation

Go To Step 8 for SplitLine TM Installation

6. Cut approximately 20 feet (6 m) of new trimming line,

then loop it into two equal lengths. Insert each end of

the line through one of the two holes in the inner reel.

Pull the line through the inner reel so that the loop is

as small as possible (Fig. 6-5).

7. Wind the lines in tight even layers onto the reel. See

(Fig. 6-6). Wind the line in the direction indicated on

the inner reel. Place your index finger between the

two lines to stop the lines from overlapping. Do not

overlap the ends of the line. Proceed to step 11.

SplitLineTM Installation

8. Cut approximately 10 feet (3 m) of new trimming line.

Insert one end of the line through one of the two

holes in the inner reel. Pull the line through the inner

reel until only about 4 inches is left out.

9. Insert the end of the line into the open hole in the

inner reel and pull the line tight to make the loop as

small as possible (Fig. 6-7).

10. Before winding, split the line back about 6 inches.

11. Wind the line in tight even layers in the direction

indicated on the inner reel.

NOTE: Failure to wind the line in the direction

indicated will cause the cutting attachment to

operate incorrectly.

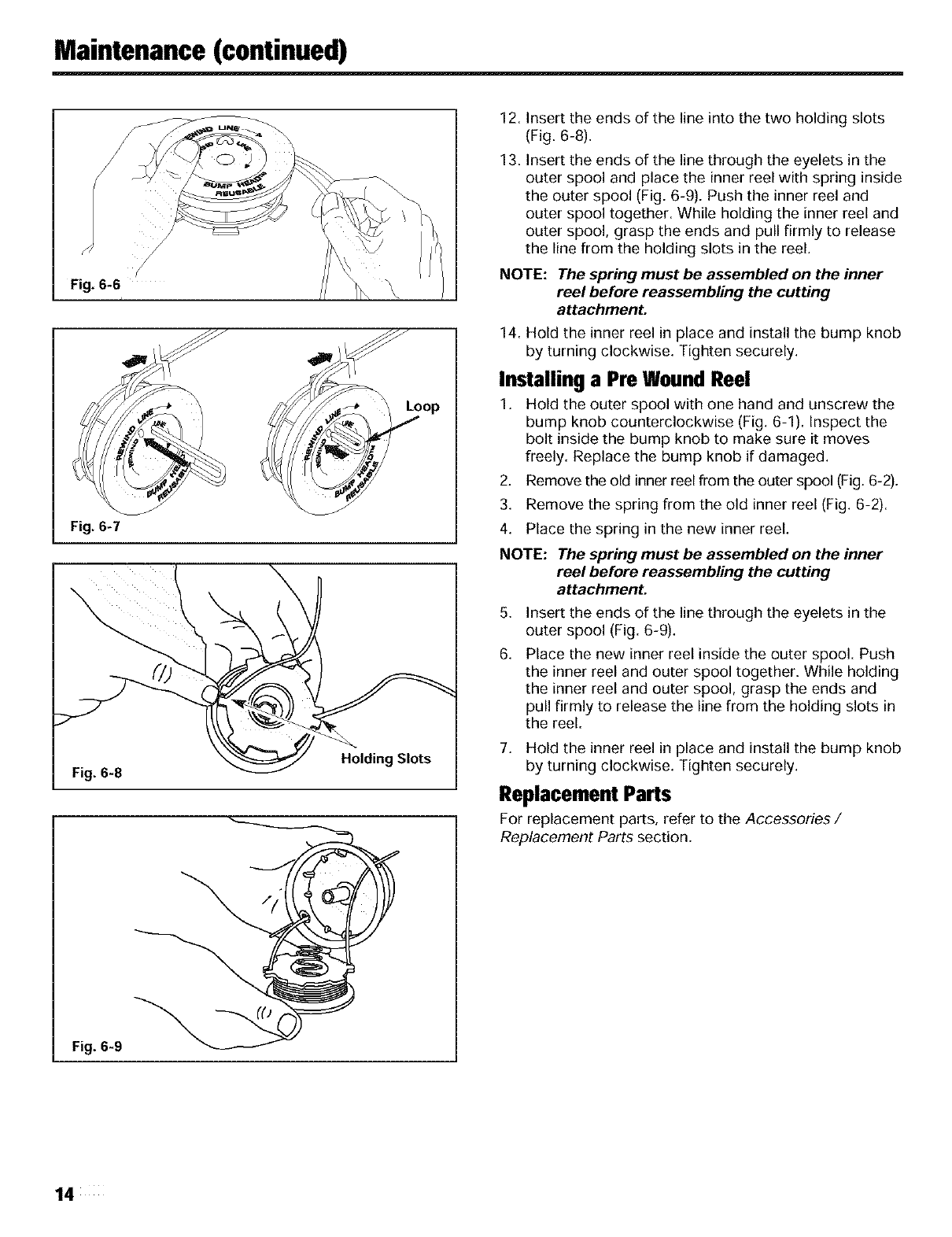

Maintenance (continued)

Fig. 6-7

Fig. 6-8

Loop

Fig. 6-9

Holding Slots

12. Insert the ends of the line into the two holding slots

(Fig. 6-8).

13. Insert the ends of the line through the eyelets in the

outer spool and place the inner reel with spring inside

the outer spool (Fig. 6-9). Push the inner reel and

outer spool together. While holding the inner reel and

outer spool, grasp the ends and pull firmly to release

the line from the holding slots in the reel.

NOTE: The spring must be assembled on the inner

reel before reassembling the cutting

attachmenL

14. Hold the inner reel in place and install the bump knob

by turning clockwise. Tighten securely.

Installing a Pre Wound Reel

1. Hold the outer spool with one hand and unscrew the

bump knob counterclockwise (Fig. 6-1). Inspect the

bolt inside the bump knob to make sure it moves

freely. Replace the bump knob if damaged.

Remove the old inner reel from the outer spool (Fig. 6-2).

Remove the spring from the old inner reel (Fig. 6-2).

Place the spring in the new inner reel.

NOTE: The spring must be assembled on the inner

reel before reassembling the cutting

attachmenL

5. Insert the ends of the line through the eyelets in the

outer spool (Fig. 6-9).

.Place the new inner reel inside the outer spool. Push

the inner reel and outer spool together. While holding

the inner reel and outer spool, grasp the ends and

pull firmly to release the line from the holding slots in

the reel.

7. Hold the inner reel in place and install the bump knob

by turning clockwise. Tighten securely.

Replacement Parts

For replacement parts, refer to the Accessories/

Replacement Parts section.

Maintenance (continued)

Carburetor/Air

Filter Cover

Tab

Fig. 6-10

Air Fill

Fig. 6-11

Fig. 6-12

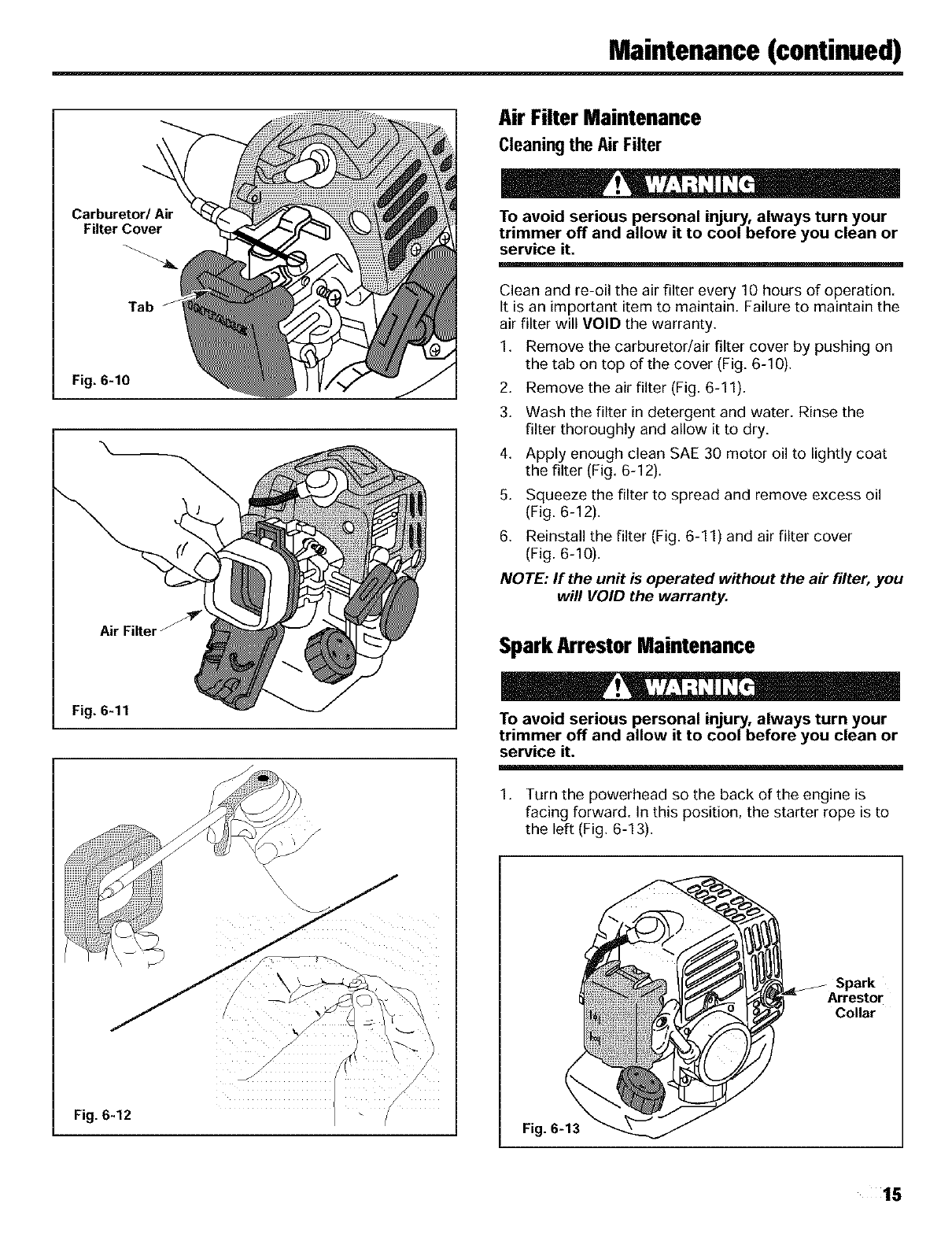

Air Filter Maintenance

CleaningtheAirFilter

To avoid serious personal injury, always turn your

trimmer off and allow it to cool before you clean or

service it.

Clean and re-oil the air filter every 10 hours of operation.

It is an important item to maintain. Failure to maintain the

air filter will VOID the warranty.

1. Remove the carburetor/air filter cover by pushing on

the tab on top of the cover (Fig. 6-10).

2. Remove the air filter (Fig. 6-11).

3. Wash the filter in detergent and water. Rinse the

filter thoroughly and allow it to dry.

4. Apply enough clean SAE 30 motor oil to lightly coat

the filter (Fig. 6-12).

5. Squeeze the filter to spread and remove excess oil

(Fig. 6-12).

6. Reinstall the filter (Fig. 6-11) and air filter cover

(Fig. 6-10).

NOTE: If the unit is operated without the air filter, you

will VOID the warranty.

Spark Arrestor Maintenance

.W ,"

To avoid serious personal injury, always turn your

trimmer off and allow it to cool before you clean or

service it.

1. Turn the powerhead so the back of the engine is

facing forward. In this position, the starter rope is to

the left (Fig. 6-13).

Spark

Arrestor

Collar

Fig. 6-13

Maintenance (continued)

Fig. 6-14

Idle Speed Screw

Fig. 6-15

2. Use a needle-nose pliers to grasp the collar of the

spark arrestor and pull it out of the muffler (Fig. 6-1 41.

NOTE: Use only a needle-nose pliers. Other pliers or

tools may damage the spark arrestor.

3. Clean the spark arrestor with a wire brush. Replace it if

it is damaged or if you are unable to clean it thoroughly.

4. Reinstall spark arrestor. Use the needle-nose pliers

[o gently push the spark arrestor back into the

muffler until it snaps mto place.

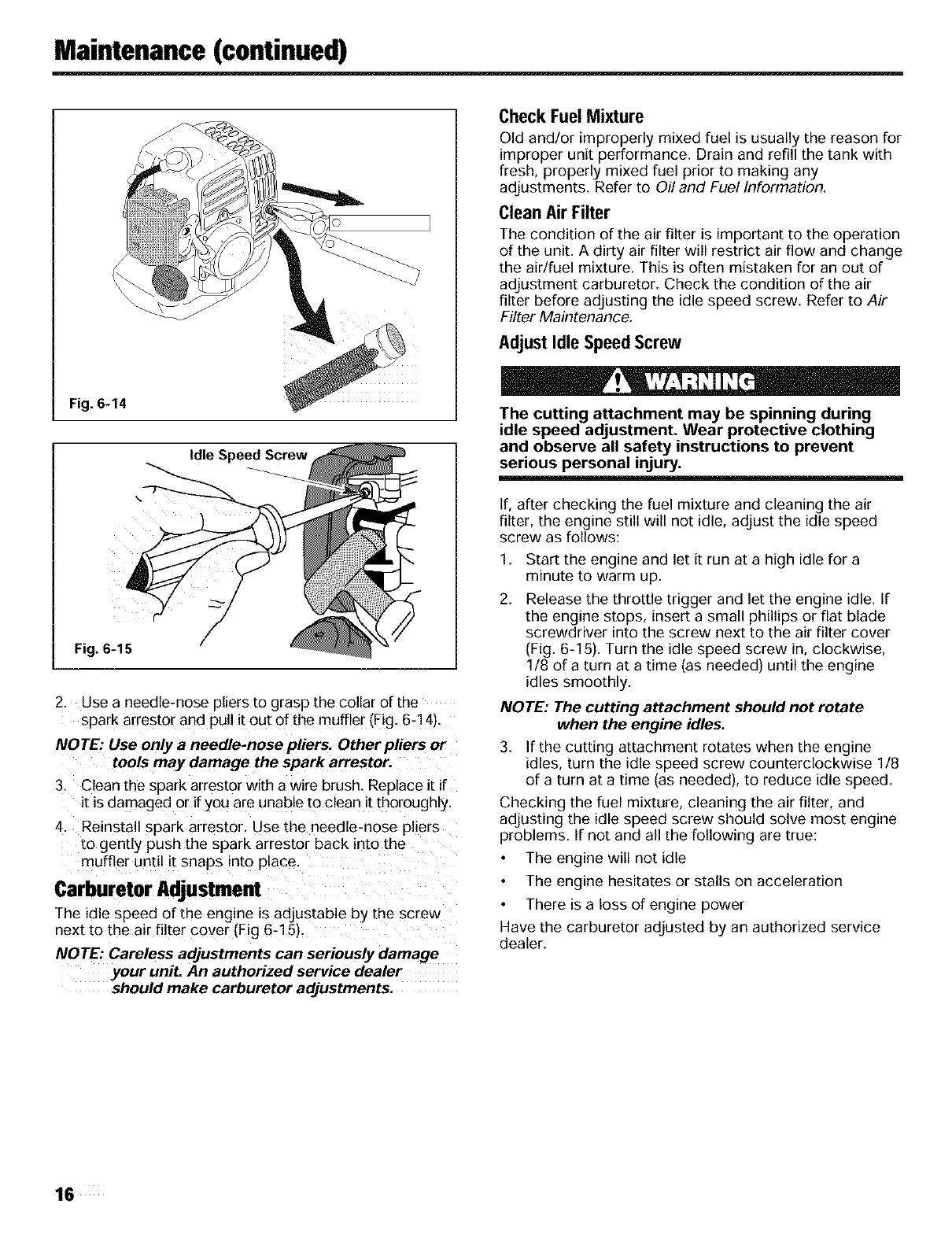

Carburetor Adjustment

The idle speed of the engine is adJustable by the screw

next to the air filter cover (Fig 6-1 5).

NOTE: Careless adjustments can seriously damage

your uniL An authorized service dealer

should make carburetor adjustments.

Check Fuel Mixture

Old and/or improperly mixed fuel is usually the reason for

improper unit performance. Drain and refill the tank with

fresh, properly mixed fuel prior to making any

adjustments. Refer to Oil and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the operation

of the unit. A dirty air filter will restrict air flow and change

the air/fuel mixture. This is often mistaken for an out of

adjustment carburetor. Check the condition of the air

filter before adjusting the idle speed screw. Refer to Air

Filter Maintenance.

Adjust Idle Speed Screw

The cutting attachment may be spinning during

idle speed adjustment. Wear protective clothing

and observe all safety instructions to prevent

serious personal injury.

If, after checking the fuel mixture and cleaning the air

filter, the engine still will not idle, adjust the idle speed

screw as follows:

Start the engine and let it run at a high idle for a

minute to warm up.

Release the throttle trigger and let the engine idle. If

the engine stops, insert a small phillips or flat blade

screwdriver into the screw next to the air filter cover

(Fig. 6-15). Turn the idle speed screw in, clockwise,

1/8 of a turn at a time (as needed) until the engine

idles smoothly.

NOTE: The cutting attachment should not rotate

when the engine idles.

3. If the cutting attachment rotates when the engine

idles, turn the idle speed screw counterclockwise 1/8

of a turn at a time (as needed), to reduce idle speed.

Checking the fuel mixture, cleaning the air filter, and

adjusting the idle speed screw should solve most engine

problems. If not and all the following are true:

The engine will not idle

The engine hesitates or stalls on acceleration

There is a loss of engine power

Have the carburetor adjusted by an authorized service

dealer.

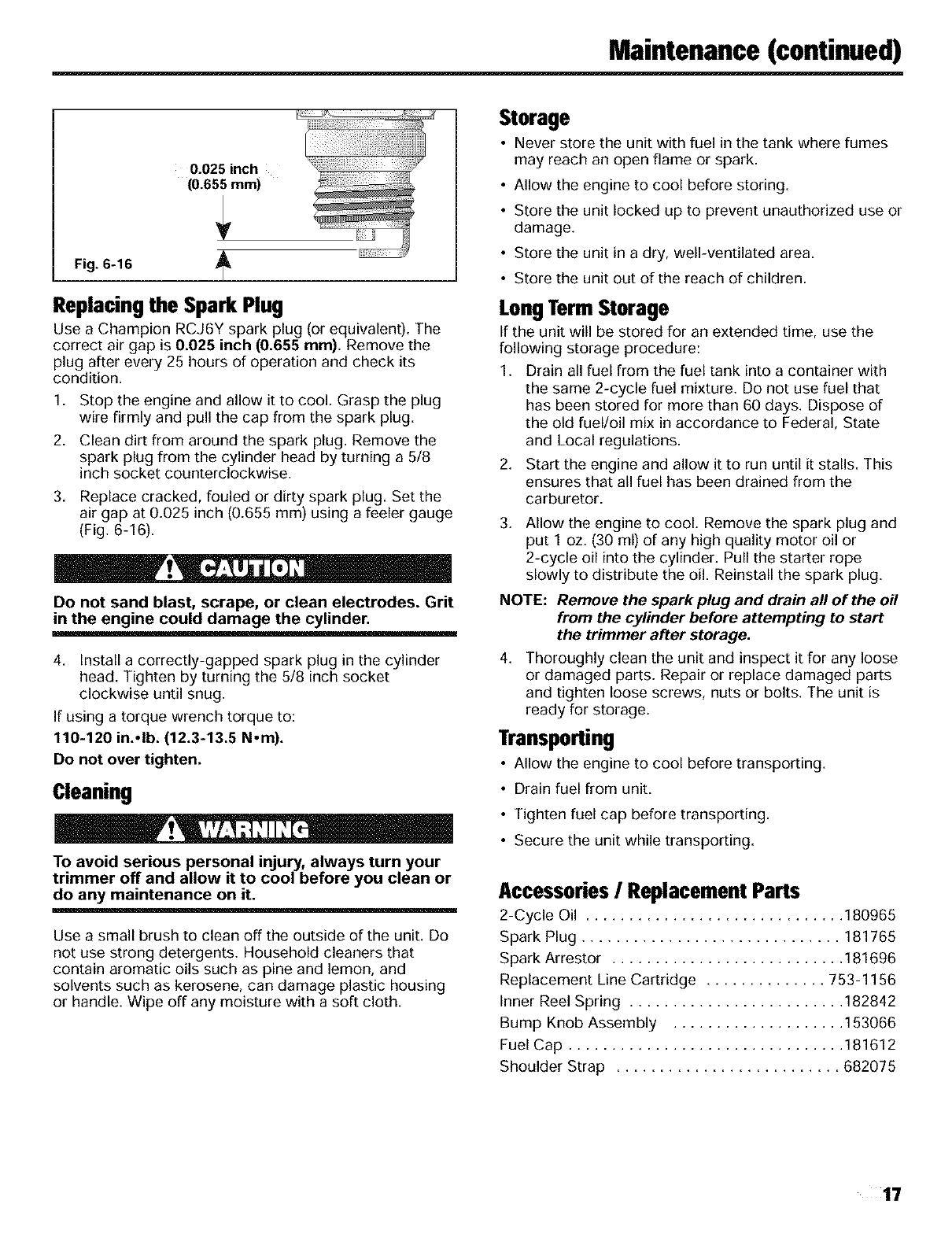

Maintenance (continued)

0.025 inch

(0.655 mm)

Fig. 6-16

Replacing the Spark Plug

Use a Champion RCJ6Y spark plug (or equivalent). The

correct air gap is 0.025 inch (0.655 ram). Remove the

plug after every 25 hours of operation and check its

condition.

1. Stop the engine and allow it to cool. Grasp the plug

wire firmly and pull the cap from the spark plug.

2. Clean dirt from around the spark plug. Remove the

spark plug from the cylinder head by turning a 5/8

inch socket counterclockwise.

3. Replace cracked, fouled or dirty spark plug. Set the

air gap at 0.025 inch (0.655 mm) using a feeler gauge

(Fig. 6-16).

Do not sand blast, scrape, or clean electrodes. Grit

in the engine could damage the cylinder.

4. Install a correctly-gapped spark plug in the cylinder

head. Tighten by turning the 5/8 inch socket

clockwise until snug.

If using a torque wrench torque to:

110-120 in..Ib. (12.3-13.5 N.m).

Do not over tighten.

Cleaning

To avoid serious personal injury, always turn your

trimmer off and allow it to cool before you clean or

do any maintenance on it.

Use a small brush to clean off the outside of the unit. Do

not use strong detergents. Household cleaners that

contain aromatic oils such as pine and lemon, and

solvents such as kerosene, can damage plastic housing

or handle. Wipe off any moisture with a soft cloth.

Storage

•Never store the unit with fuel in the tank where fumes

may reach an open flame or spark.

• Allow the engine to cool before storing.

• Store the unit locked up to prevent unauthorized use or

damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

LongTerm Storage

If the unit will be stored for an extended time, use the

following storage procedure:

1. Drain all fuel from the fuel tank into a container with

the same 2-cycle fuel mixture. Do not use fuel that

has been stored for more than 60 days. Dispose of

the old fuel/oil mix in accordance to Federal, State

and Local regulations.

Start the engine and allow it to run until it stalls. This

ensures that all fuel has been drained from the

carburetor.

Allow the engine to cool. Remove the spark plug and

put 1 oz. (30 ml) of any high quality motor oil or

2-cycle oil into the cylinder. Pull the starter rope

slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil

from the cylinder before attempting to start

the trimmer after storage.

4. Thoroughly clean the unit and inspect it for any loose

or damaged parts. Repair or replace damaged parts

and tighten loose screws, nuts or bolts. The unit is

ready for storage.

Transporting

•Allow the engine to cool before transporting.

•Drain fuel from unit.

•Tighten fuel cap before transporting.

•Secure the unit while transporting.

Accessories /Replacement Parts

2-Cycle Oil .............................. 180965

Spark Plug .............................. 181765

Spark Arrestor ........................... 181696

Replacement Line Cartridge .............. 753-1156

Inner Reel Spring ......................... 182842

Bump Knob Assembly .................... 153066

Fuel Cap ................................ 181612

Shoulder Strap .......................... 682075

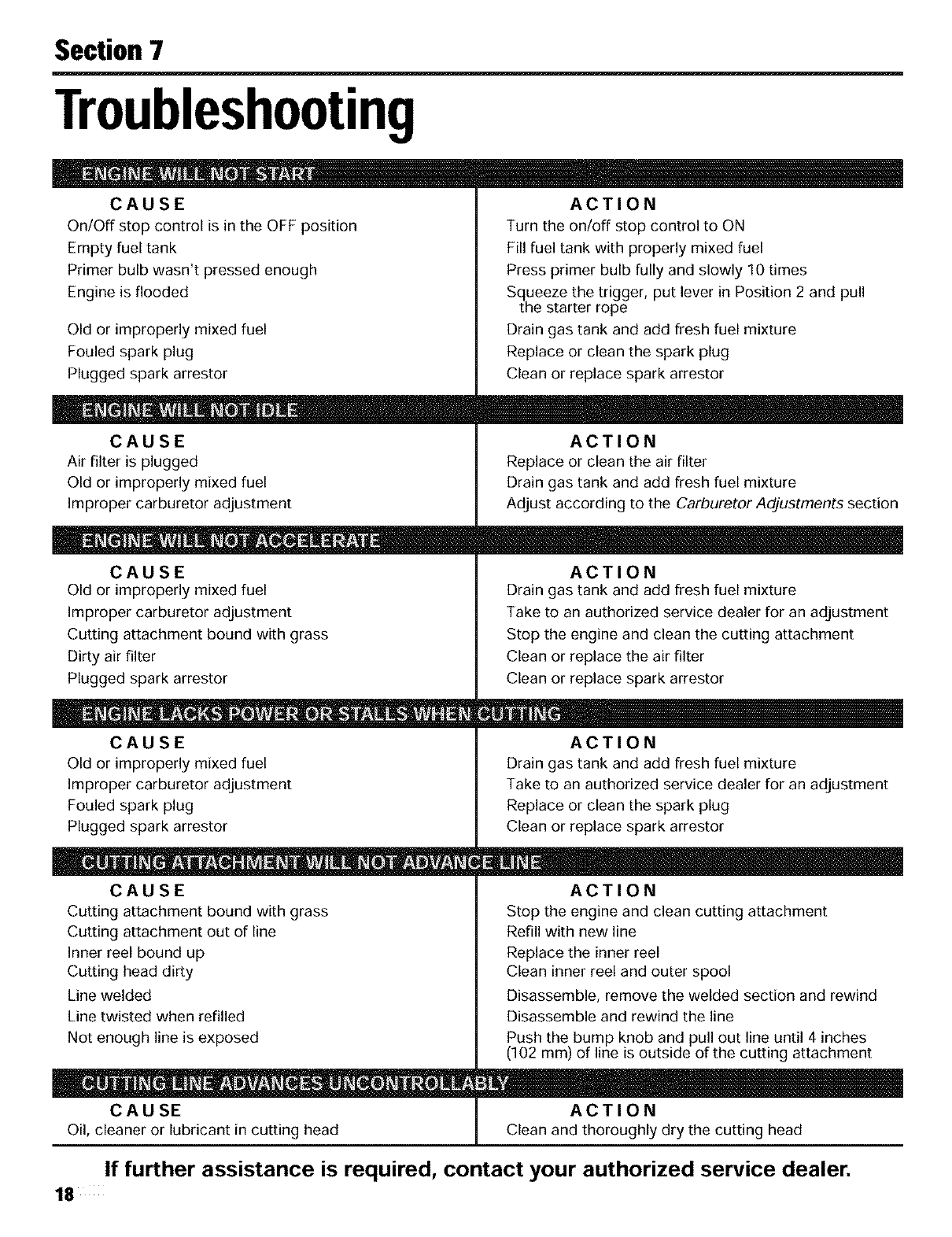

Section 7

Troubleshooting

CAUSE

On/Off stop control is in the OFF position

Empty fuel tank

Primer bulb wasn't pressed enough

Engine is flooded

Old or improperly mixed fuel

Fouled spark plug

Plugged spark arrestor

i, t _11 I/ _

ACTION

Turn the on/off stop control to ON

Fill fuel tank with properly mixed fuel

Press primer bulb fully and slowly 10 times

Squeeze the trigger, put lever in Position 2 and pull

the starter rope

Drain gas tank and add flesh fuel mixture

Replace or clean the spark plug

Clean or replace spark arrestor

CAUSE

Air filter is plugged

Old or improperly mixed fuel

Improper carburetor adjustment

CAUSE

Old or improperly mixed fuel

Improper carburetor adjustment

Cutting attachment bound with grass

Dirty air filter

Plugged spark arrestor

CAUSE

Old or improperly mixed fuel

Improper carburetor adjustment

Fouled spark plug

Plugged spark arrestor

ACTION

Replace or clean the air filter

Drain gas tank and add flesh fuel mixture

Adjust according to the Carburetor Adjustments section

ACTION

Drain gas tank and add flesh fuel mixture

Take to an authorized service dealer for an adjustment

Stop the engine and clean the cutting attachment

Clean or replace the air filter

Clean or replace spark arrestor

ACTION

Drain gas tank and add flesh fuel mixture

Take to an authorized service dealer for an adjustment

Replace or clean the spark plug

Clean or replace spark arrestor

CAUSE

Cutting attachment bound with grass

Cutting attachment out of line

Inner reel bound up

Cutting head dirty

Line welded

Line twisted when refilled

Not enough line is exposed

CAUSE

Oil, cleaner or lubricant in cutting head

ACTION

Stop the engine and clean cutting attachment

Refill with new line

Replace the inner reel

Clean inner reel and outer spool

Disassemble, remove the welded section and rewind

Disassemble and rewind the line

Push the bump knob and pull out line until 4 inches

(102 mm) of line is outside of the cutting attachment

ACTION

Clean and thoroughly dry the cutting head

If further assistance is required, contact your authorized service dealer.

Section8

Specifications

Engine Type .......................................................................................................................................... Air-Cooled, 2-Cycle

Stroke .................................................................................................................................................... 1.25 in. (31.75 mm)

Displacement ............................................................................................................................................. 1.4 cu in. (25 cc)

Clutch Type ......................................................................................................................................................... Centrifugal

Idle Speed RPM ...................................................................................................................................... 2,400 - 3,600 rpm

Operating RPM .................................................................................................................................................. 6,500+ rpm

Ignition Type .......................................................................................................................................................... Electronic

Ignition Switch ................................................................................................................................................ Toggle Switch

Spark Plug Gap ................................................................................................................................... 0.025 in. (0.655 mm)

Lubrication ................................................................................................................................................... Fuel/Oil Mixture

Fuel/Oil Ratio .................................................................................................................................................................. 40:1

Carburetor ....................................................................................................................................... Diaphragm, All-Position

Starter ............................................................................................................................................................... Auto Rewind

Muffler ..................................................................................................................................................... Baffled with Guard

Throttle ............................................................................................................................................... Manual Spring Return

Fuel Tank Capacity ........................................................................................................................................ 20 oz. (591 ml)

Drive Shaft Housing ..................................................................................................................... (EZ-Link) Aluminum Tube

Throttle Control ........................................................................................................................................ Finger-Tip Trigger

Approximate Unit Weight (No fuel, with cutting attachment, shield and D-handle) .................................. 9.5 Ibs. (4.25 kg)

Cutting Mechanism ....................................................................................................................... Dual String Cutting Head

Line Spool ............................................................................................................................................. Bump Line Releaser

Line Spool Diameter ............................................................................................................................ 4 inches (101.6 ram)

Trimming Line Diameter ................................................................................................................. 0.095 inches (2.41 ram)

Cutting Path Diameter ........................................................................................................................ 18 inches (45.72 cm)

*All specifications are based on the latest product info[mation available at the time of printing. We reserve the right to

make changes at any time without notice.

Notes

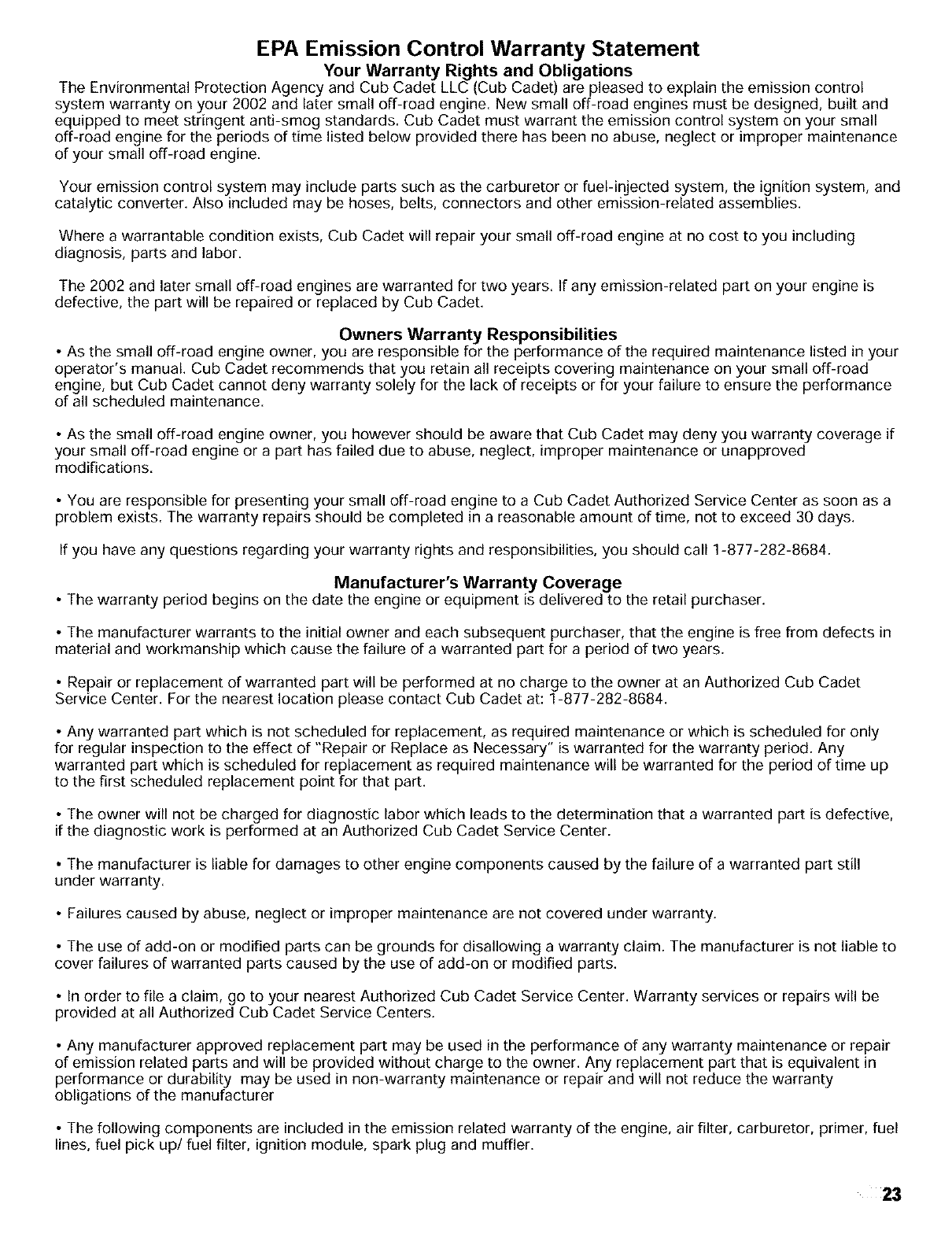

EPA Emission Control Warranty Statement

Your Warranty Rights and Obligations

The Environmental Protection Agency and Cub Cadet LLC (Cub Cadet) are pleased to explain the emission control

system warranty on your 2002 and later small off-road engine. New small off-road engines must be designed, built and

equipped to meet stringent anti-smog standards. Cub Cadet must warrant the emission control system on your small

off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance

of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and

catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Cub Cadet will repair your small off-road engine at no cost to you including

diagnosis, parts and labor.

The 2002 and later small off-road engines are warranted for two years. If any emission-related part on your engine is

defective, the part will be repaired or replaced by Cub Cadet.

Owners Warranty Responsibilities

•As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your

operator's manual. Cub Cadet recommends that you retain all receipts covering maintenance on your small off-road

engine, but Cub Cadet cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance

of all scheduled maintenance.

• As the small off-road engine owner, you however should be aware that Cub Cadet may deny you warranty coverage if

your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved

modifications.

• You are responsible for presenting your small off-road engine to a Cub Cadet Authorized Service Center as soon as a

problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should call 1-877-282-8684.

Manufacturer's Warranty Coverage

• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.

• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in

material and workmanship which cause the failure of a warranted part for a period of two years.

• Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Cub Cadet

Service Center. For the nearest location please contact Cub Cadet at: 1-877-282-8684.

• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only

for regular inspection to the effect of "Repair or Replace as Necessary" is warranted for the warranty period. Any

warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up

to the first scheduled replacement point for that part.

• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective,

if the diagnostic work is performed at an Authorized Cub Cadet Service Center.

• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still

under warranty.

• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.

• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to

cover failures of warranted parts caused by the use of add-on or modified parts.

• In order to file a claim, go to your nearest Authorized Cub Cadet Service Center. Warranty services or repairs will be

provided at all Authorized Cub Cadet Service Centers.

• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair

of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in

performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty

obligations of the manufacturer

• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel

lines, fuel pick up/fuel filter, ignition module, spark plug and muffler.

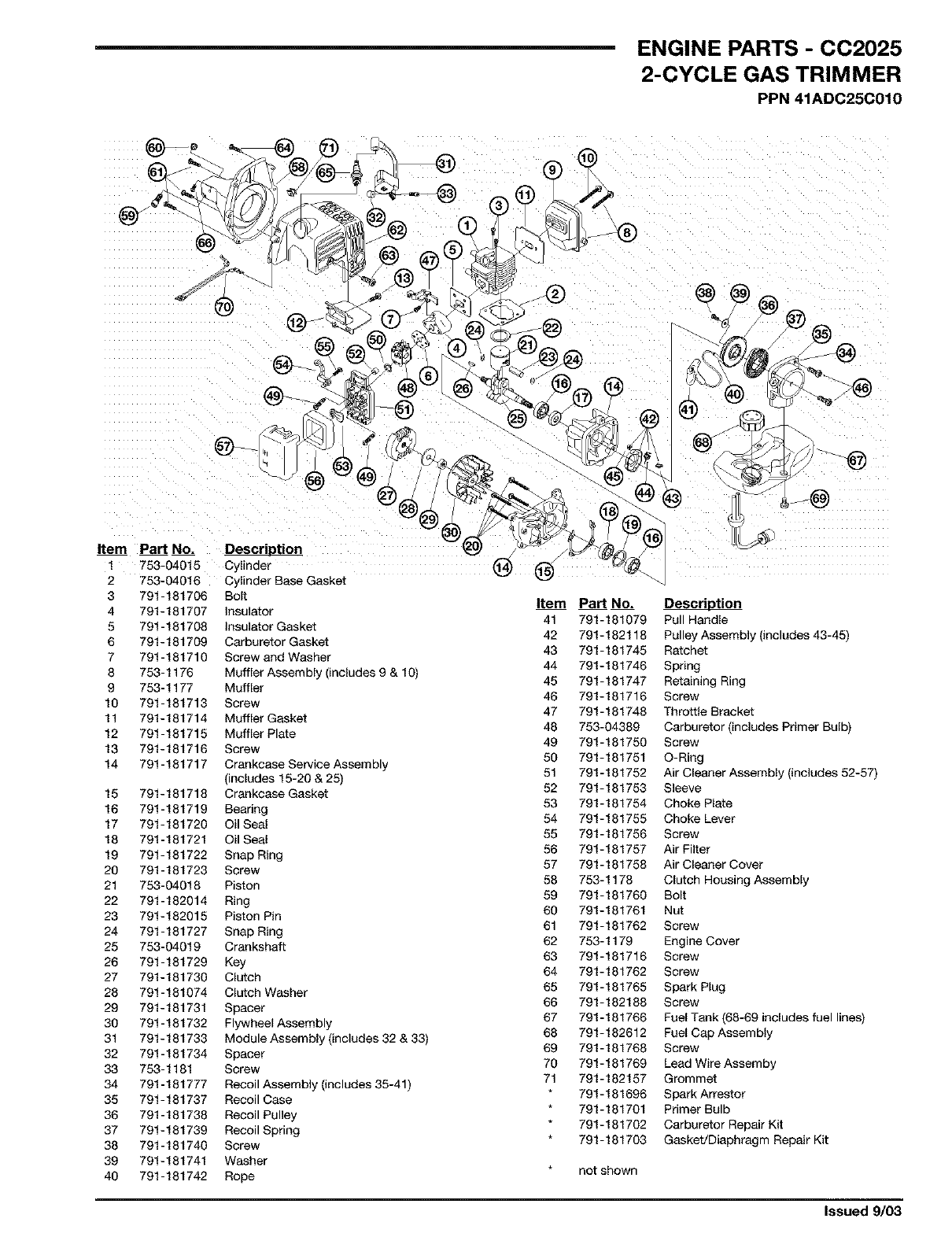

ENGINE PARTS -CC2025

2-CYCLE GAS TRIMMER

PPN 41ADC25C010

Item

Part No. Description

753-04015 Cylinder

753-04016

791-181706

791-181707

791-181708

791-181709

791-181710

753-1176

753-1177

791-181713

791-181714

791-181715

791-181716

791-181717

791-181718

791-181719

791-181720

791-181721

791-181722

791-181723

753-04018

791-182014

791-182015

791-181727

753-04019

791-181729

791-181730

791-181074

791-181731

791-181732

791-181733

791-181734

753-1181

791-181777

791-181737

791-181738

791-181739

791-181740

791-181741

791-181742

Cylinder Base Gaskel

Bolt

Insulator

Insulator Gasket

Carburetor Gasket

Screw and Washer

Muffler Assembly (includes 9 & 10)

Muffler

Screw

Muffler Gasket

Muffler Plate

Screw

Crankcase Service Assembly

(includes 15-20 & 25)

Crankcase Gasket

Bearing

Oil Seal

Snap Ring

Screw

Piston

Ring

Piston Pin

Snap Ring

Crankshaft

Key

Clutch

Clutch Washer

Spacer

Flywheel Assembly

Module Assembly (includes 32 & 33)

Spacer

Screw

Recoil Assembly (includes 35-41)

Recoil Case

Recoil Pulley

Recoil Spring

Screw

Washer

Rope

Item

Pa_ No.

791-181079

791-182118

791-181745

791-181746

791-181747

791-181716

791-181748

753-04389

791-181750

791-181751

791-181752

791-181753

791-181754

791-181755

791-181756

791-181757

791-181758

753-1178

791-181760

791-181761

791-181762

753-1179

791-181716

791-181762

791-181765

791-182188

791-181766

791-182612

791-181768

791-181769

791-182157

791-181696

791-181701

791-181702

791-181703

not shown

Description

Pull Handle

Pulley Assembly (includes 43-45)

Ratchet

Spring

Retaining Ring

Screw

Throttle Bracket

Carburetor (includes Primer Bulb)

Screw

O-Ring

Air Cleaner Assembly (includes 52-57)

Sleeve

Choke Plate

Choke Lever

Screw

Air Filter

Air Cleaner Cover

Clutch Housing Assembly

Bolt

Nut

Screw

Engine Cover

Screw

Spark Plug

Screw

Fuel Tank (68-69 includes fuel lines)

Fuel Cap Assembly

Screw

Lead Wire Assemby

Grommet

Spark Arrestor

Primer Bulb

Carburetor Repair Kit

Gasket/Diaphragm Repair Kit

Issued 9/03

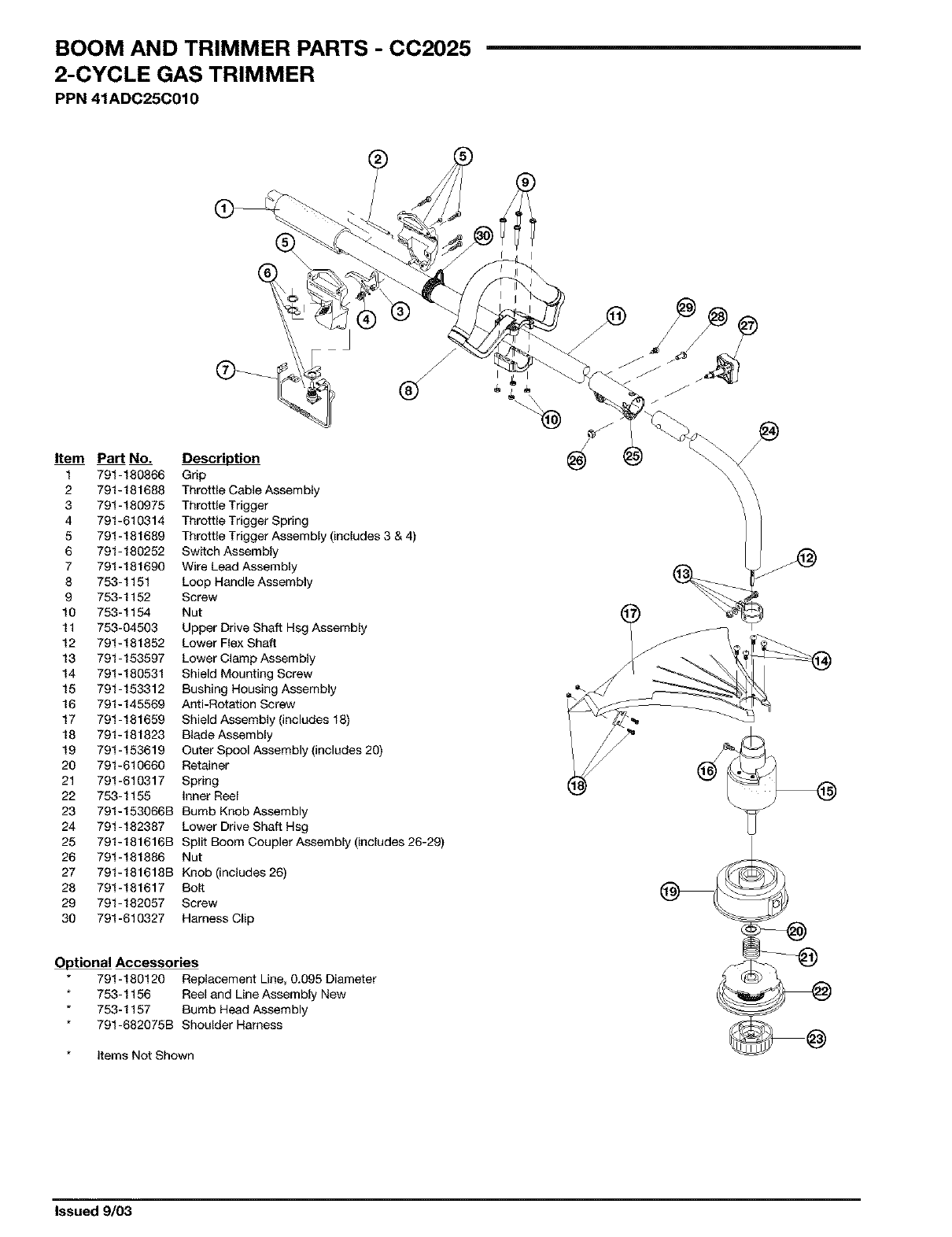

BOOM AND TRIMMER PARTS -CC2025 '

2-CYCLE GAS TRIMMER

PPN 41ADC25C010

Item Part No. Description

1 791-180866 Grip

2 791-181688 Throttle Cable Assembly

3 791-180975 Throttle Trigger

4 791-610314 Throttle Trigger Spring

5 791-181689 Throttle Trigger Assembly (includes 3 & 4)

6 791-180252 Switch Assembly

7 791-181690 Wire Lead Assembly

8 753-1151 Loop Handle Assembly

9 753-1152 Screw

10 753-1154 Nut

11 753-04503 Upper Drive Shaft Hsg Assembly

12 791-181852 Lower Flex Shaft

13 791-153597 Lower Clamp Assembly

14 791-180531 Shield Mounting Screw

15 791-153312 Bushing Housing Assembly

16 791-145569 Anti-Rotation Screw

17 791-181659 Shield Assembly (includes 18)

18 791-181823 Blade Assembly

19 791-153619 Outer Spool Assembly (includes 26)

26 791-610660 Retainer

21 791-610317 Spring

22 753-1155 Inner Reel

23 791-153066B Bumb Knob Assembly

24 791-182387 Lower Drive Shaft Hsg

25 791-181616B Split Boom Coupler Assembly (includes 26-29)

26 791-181886 Nut

27 791-181618B Knob (includes 26)

28 791-181617 Bolt

29 791-182657 Screw

36 791-610327 Harness Clip

Optional Accessories

791-180120 Replacement Line, 0.695 Diameter

753-1156 Reel and Line Assembly New

753-1157 Bumb Head Assembly

791-682675B Shoulder Harness

Items Not Shown

Issued 9/03

MANUFACTURER'S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by Cub Cadet

LLC with respect to new merchandise purchased and used

in the United States, its possessions and territories.

Cub Cadet LLC warrants this product against defects in

material and workmanship for a period of two (2) years

commencing on the date of original purchase and will, at its

option, repair or replace, free of charge, any part found to

be defective in material or workmanship. This limited

warranty shall only apply if this product has been operated

and maintained in accordance with the Operator's Manual

furnished with the product, and has not been subject to

misuse, abuse, commercial use, neglect, accident,

improper maintenance, alteration, vandalism, theft, fire,

water or damage because of other peril or natural disaster.

Damage resulting from the installation or use of any

accessory or attachment not approved by Cub Cadet LLC

for use with the product(s) covered by this manual will void

your warranty as to any resulting damage. This warranty is

limited to ninety (90) days from the date of original retail

purchase for any Cub Cadet product that is used for rental

or commercial purposes, or any other income-producing

purpose.

HOW TO OBTAIN SERVICE: Warranty service is

available, WITH PROOF OF PURCHASE THROUGH

YOUR LOCAL AUTHORIZED SERVICE DEALER. To

locate the dealer in your area, visit our website at

www.cubcadet.com, check for a listing in the Yellow

Pages, call 1-877-282-8684 or write to P.O. Box 361131,

Cleveland, OH 44136-0019.

This limited warranty does not provide coverage in

the following cases:

A. Tune-ups - Spark Plugs, Carburetor Adjustments,

Filters

B. Wear items - Bump Knobs, Outer Spools, Cutting

Line, Inner Reels, Starter Pulley, Starter Ropes, Drive

Belts

C. Cub Cadet LLC does not extend any warranty for

products sold or exported outside of the United

States of America, its possessions and territories,

except those sold through Cub Cadet's authorized

channels of export distribution.

Cub Cadet LLC reserves the right to change or improve the

design of any Cub Cadet Product without assuming any

obligation to modify any product previously manufactured.

No implied warranty, including any implied warranty of

merchantability or fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty or guaranty, whether written or oral,

except as mentioned above, given by any person or

entity, including a dealer or retailer, with respect to any

product shall bind Cub Cadet LLC During the period of

the Warranty, the exclusive remedy is repair or

replacement of the product as set forth above. (Some

states do not allow limitations on how long an implied

warranty lasts, so the above limitation may not apply to

you.)

The provisions as set forth in this Warranty provide the

sole and exclusive remedy arising from the sales. Cub

Cadet LLC shall not be liable for incidental or

consequential loss or damages including, without

limitation, expenses incurred for substitute or

replacement lawn care services, for transportation or

for related expenses, or for rental expenses to

temporarily replace a warranted product. (Some states

do not allow limitations on how long an implied warranty

lasts, so the above limitation may not apply to you.)

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold.

Alteration of the safety features of the product shall void

this Warranty. You assume the risk and liability for loss,

damage, or injury to you and your property and/or to

others and their property arising out of the use or misuse

or inability to use the product.

This limited warranty shall not extend to anyone other than

the original purchaser, original lessee or the person for

whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty

gives you specific legal rights, and you may also have

other rights which vary from state to state.

To locate your nearest service dealer dial 1-877-282-8684.

Cub Cadet LLC

P.O. Box 361131

Cleveland, OH 44136-0019

CUB CADET Line Trimmers/Weedwackers, Gas Manual L0404048

Navigation menu

Versions of this User Manual:

Views

Navigation
