1Instruction Manualwww.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312
!Safety Instructions 1. Read these instructions completely prior to use or hook-up. 2. Keep these instructions for future reference. Record Model Number_______________ and Serial Number _____________________3. Understand and heed all Warnings.4. Follow all instructions.5. Do not use soundbar or subwoofer near water, rain or high moisture.6. Clean only with a dry cloth. Never use solvents. A microfiber cloth is recommended.7. Do not block any of the ventilation openings. See Instructions.8. Do not install near heat sources such as stoves, radiators and amplifiers.9. Use only with supplied power sources, with polarized power cord.10. Protect power cord from being walked on or pinched. Do not have cord stretched taut.11. Use only connections and auxiliary equipment suggested by manufacturer.12. Use only with an approved cart, stand, tripod, bracket or table specified by the manufacturer.13. Unplug this system during lightning storms or when left unattended for extended periods.14. Use an ILS-120 to protect from surges, over/under voltages and lightning strikes.15. Refer service to qualified service personnel.16. Allow at least 2” (5 cm) space around units for ventilation.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation or maintenance instructions.The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of dangerous voltages within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock to people.WARNINGTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.CAUTIONTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.2www.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312
Thank you for purchasing the Current Audio Home Theater SoundBar.Please read this manual thoroughly before making any connections or applying AC power. This manual applies to the SB80 and SB65 SoundBar Systems. Follow the instructions in this manual. It will allow you to obtain the maximum performance and listening pleasure from your new amplifier.Please retain this manual to use as a future reference.Supplied Accessories The boxes include the following equipment and accessories:• (1) Multiple speaker SoundBar• (1) 120VAC to 12VDC power supply• (1) FM Antenna• (1) RCA stereo audio cable• (1) 3.5mm stereo audio cable• (1) Hand held remote control unit• (1) 2.4GHz wireless MegaBass unit with power cord• (1) Wall support mounting bar with screws• (1) Table Top Mounting feet• (1) Instruction Manual3SpecificationsSoundBar Power SB80/65Subwoofer SB80/65 60 Watts RMS Ported /40 Watts RMS Ported. Defined midrange.80 Watts RMS Powered / 60 Watts Powered Sound Mode SB80 Selectable 2.0/2.1 with Enhanced DSP Surround ModesSound Mode SB65 2.1 for Enhanced DSP listeningSpeakers SB80 8 Speakers. 6 2.5” Midrange Drivers and 2 1.25” TweetersSpeakers SB65 6 Speakers. 4 2.5” Midrange Drivers and 2 1.25” TweetersSubwoofer SB80/65 2.4GHz 8” Long Throw Ported Woofer. 6.5” Long Throw.Bluetooth SB80 Only Connectivity for iPhone,Android,MP3 and PCAudio Inputs SB80/65 Digital Optical, Digital Coaxial, RCA,3.5mmUSB and SD Memory Slot MP3,USB, HDFrequency Response SB80: 37Hz-20 kHz SB65: 40-Hz-20kHzFM Tuner Built-in Selectable FM Tuner with PresetsDimensions WxHxD SoundBar: SB80: 39 ¾” (1010mm) x 3 ½”” (89mm) x 3 5/16” (84mm) SB65: 39 ½” (1003mm) x 3 ½”” (89mm) x 3 5/16” (84mm)Dim MegaBass SB65 WxHxD 16 3/8”(416mm) x 7 7/8”(200mm) x 13”(330mm)Dim MegaBass SB80 WxHxD 17 1/8”(435mm) x 8 11/16”(221mm) x 14 1/4”(362mm)Weight SoundBarsSubwoofer 9 lbs (4.08kg)SB80 21 lbs (9.5kg) SB65 17 lbs (7.7kg)www.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181AMP2150RPA06052012
Soundbar SB80 and SB65 by Current AudioThe SB80 and SB65 SoundBar describes the latest digital technology in amplified speaker sound bars with a powerful wireless amplified MegaBass subwoofer by Current Audio. The powerful subwoofer can be located anywhere in the room. This is the perfect Home Theater System with a wide sound stage.The system comes with a handheld remote to control power, switch inputs and adjust sound fields. You may also use the touch screen buttons on the SoundBar.The slim depth and sleek design blends with all flat LED/LCD TV models. 4Features and Connections for SoundBar (see photo on next page)Rear Panel SoundBar1. Power Switch-Rear panel switch to cut power for service or hook-up.2. Input Power Jack-Connect the 12VDC power supply here.3. Line Inputs–Three input methods are provided on the back panel. Digital Optical or Coaxial or standard analog RCA input from TV. 4. AUX IN-A standard 3.5mm audio jack for MP3, computers or mobile devices.5. FM Antenna-Connect the supplied FM antenna to play FM radio.Front and Side Panel SoundBar 6. Remote Control Receive Window-Aim the Remote to this area to control or change the functions of the system.7. LCD Display-The Digital read out gives status of the system functions and will automatically dim after 60 seconds. Press any button on the remote to turn the display on.8. Sound Source Touch Button-Switches between FM radio, Aux, USB, SD card, TV, Optical or Coaxial modes.9. Volume Up/Down Touch Buttons-Manually control volume.10. Power Touch Button-Place system in Standby OFF mode or ON mode.11. USB-Port-2.0 Input for MP3 or WMA format music files.12. SD Memory Card Port-Input for MP3 and WMA format music files.13. Mounts-packed with each amp is an accessory pack that include brackets allowing the SoundBar to be table top or wall mounted.Subwoofer14. Input power Jack-Connect 110VAC 2 conductor power cord here.15. Power Mode-Power ON or OFF16. Match Button and Status LED-Used to sync the SoundBar with the MegaBass for control of the subwoofer.www.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312
5SB80 Rear Input ViewSB80 Home Theater SoundBar Elements43215www.currentaudio.com©2011CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA0903127Subwoofer Picture w InputsRemote6891011 12161514

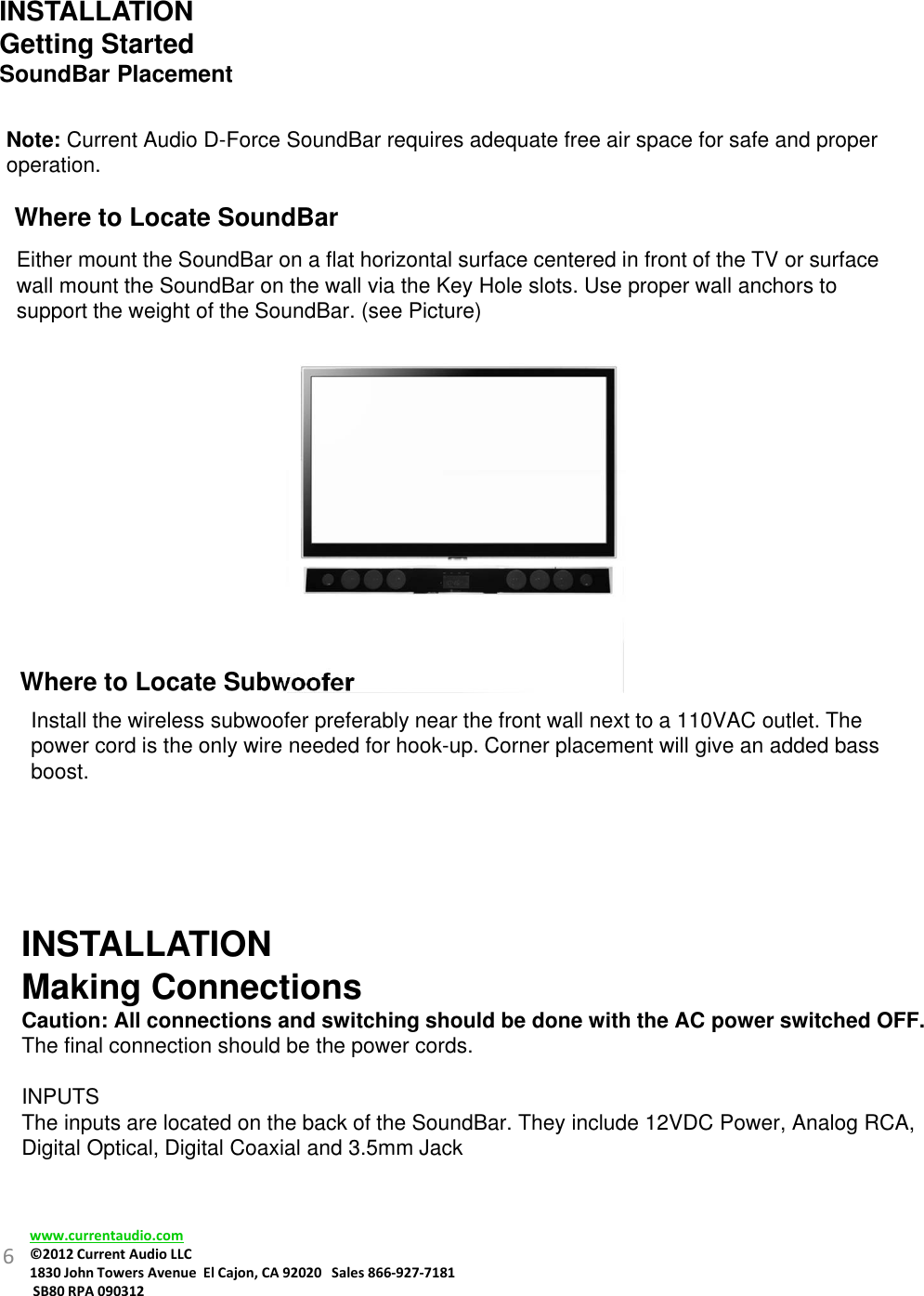

INSTALLATIONGetting StartedSoundBar Placement6www.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312Note: Current Audio D-Force SoundBar requires adequate free air space for safe and proper operation. INSTALLATIONMaking ConnectionsCaution: All connections and switching should be done with the AC power switched OFF. The final connection should be the power cords. INPUTSThe inputs are located on the back of the SoundBar. They include 12VDC Power, Analog RCA, Digital Optical, Digital Coaxial and 3.5mm Jack Where to Locate SoundBarEither mount the SoundBar on a flat horizontal surface centered in front of the TV or surface wall mount the SoundBar on the wall via the Key Hole slots. Use proper wall anchors to support the weight of the SoundBar. (see Picture) Where to Locate SubwooferInstall the wireless subwoofer preferably near the front wall next to a 110VAC outlet. The power cord is the only wire needed for hook-up. Corner placement will give an added bass boost.
7INSTALLATIONMaking ConnectionsSee picture for Hook-UpUse quality connection cables for best performancewww.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312SoundBar Rear Panel InputsConnect Blue FM RCA Plug Optical Digital CableConnect Red and Black Stereo RCA Plug from TVOptical & RCA Coax Digital3.5mm Stereo Plug from Mobile Device

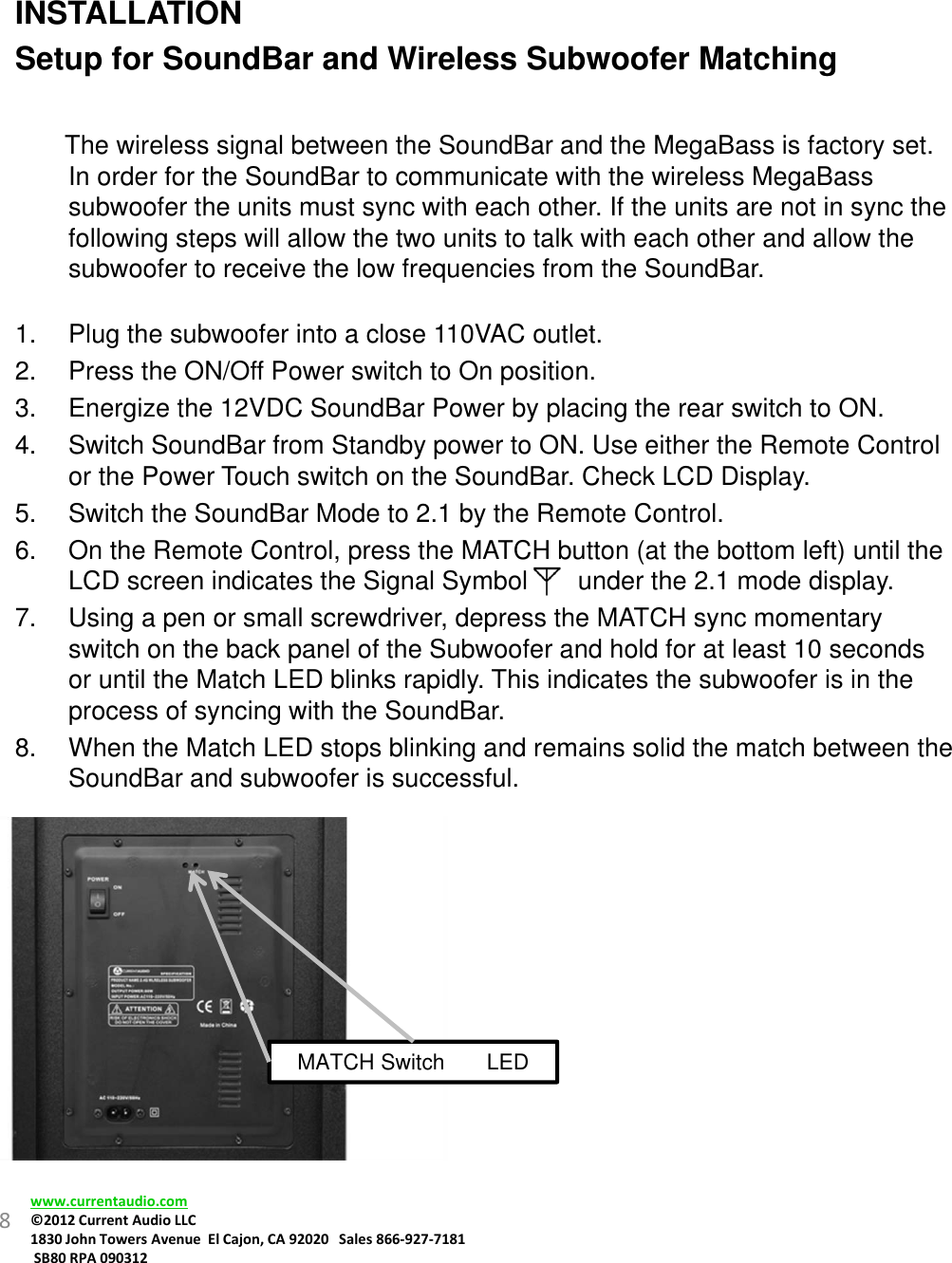

INSTALLATIONSetup for SoundBar and Wireless Subwoofer MatchingThe wireless signal between the SoundBar and the MegaBass is factory set. In order for the SoundBar to communicate with the wireless MegaBass subwoofer the units must sync with each other. If the units are not in sync the following steps will allow the two units to talk with each other and allow the subwoofer to receive the low frequencies from the SoundBar.1. Plug the subwoofer into a close 110VAC outlet.2. Press the ON/Off Power switch to On position.3. Energize the 12VDC SoundBar Power by placing the rear switch to ON.4. Switch SoundBar from Standby power to ON. Use either the Remote Control or the Power Touch switch on the SoundBar. Check LCD Display.5. Switch the SoundBar Mode to 2.1 by the Remote Control.6. On the Remote Control, press the MATCH button (at the bottom left) until the LCD screen indicates the Signal Symbol under the 2.1 mode display.7. Using a pen or small screwdriver, depress the MATCH sync momentary switch on the back panel of the Subwoofer and hold for at least 10 seconds or until the Match LED blinks rapidly. This indicates the subwoofer is in the process of syncing with the SoundBar.8. When the Match LED stops blinking and remains solid the match between the SoundBar and subwoofer is successful.8www.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312MATCH Switch LED

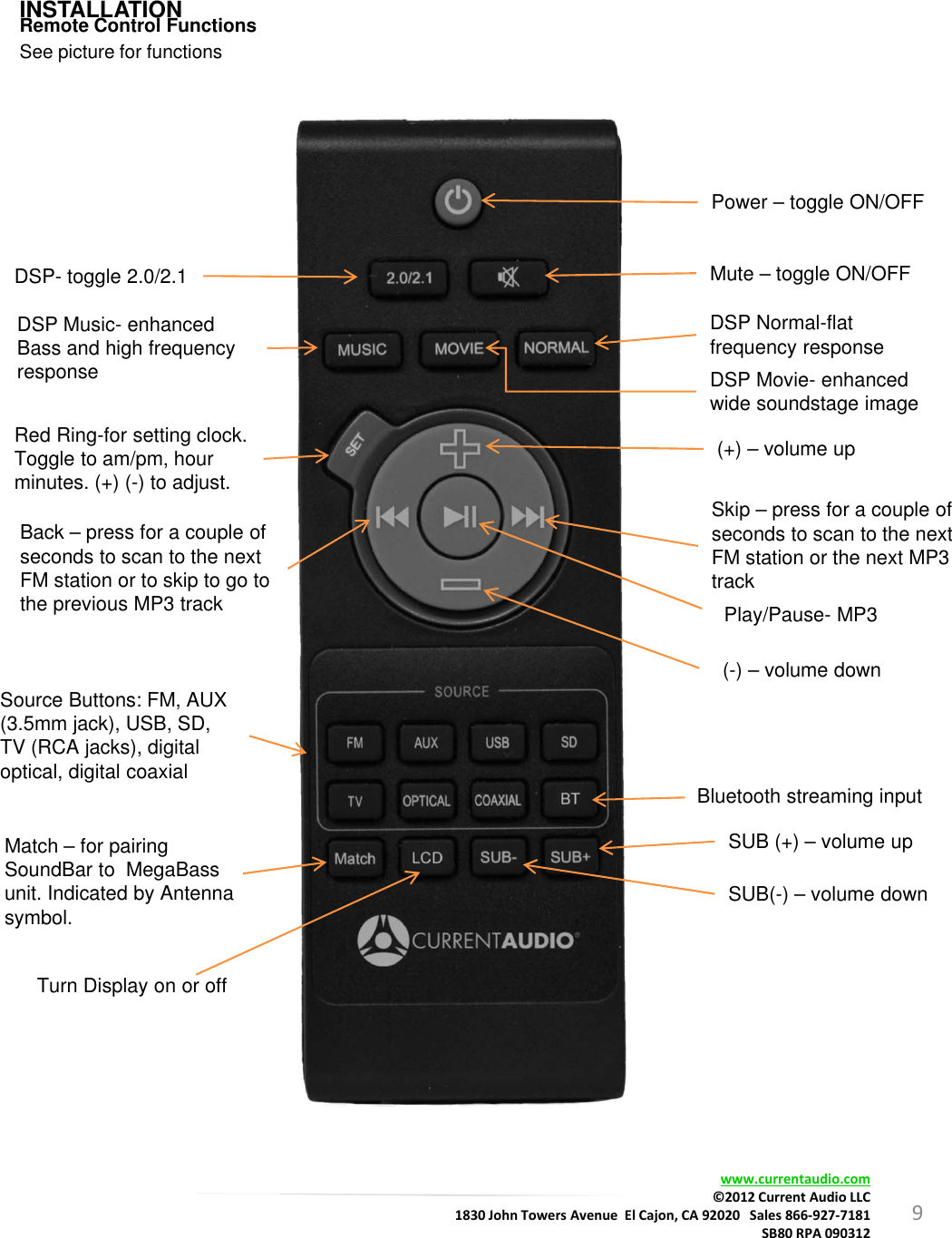

9INSTALLATIONRemote Control FunctionsSee picture for functionsPower – toggle ON/OFFDSP- toggle 2.0/2.1 Mute – toggle ON/OFFDSP Movie- enhanced wide soundstage imageDSP Normal-flat frequency responseDSP Music- enhanced Bass and high frequency responseRed Ring-for setting clock. Toggle to am/pm, hour minutes. (+) (-) to adjust.Skip – press for a couple of seconds to scan to the nextFM station or the next MP3 track(+) – volume up(-) – volume downPlay/Pause- MP3Back – press for a couple of seconds to scan to the nextFM station or to skip to go tothe previous MP3 trackSource Buttons: FM, AUX (3.5mm jack), USB, SD, TV (RCA jacks), digital optical, digital coaxialSUB (+) – volume upTurn Display on or offMatch – for pairing SoundBar to MegaBass unit. Indicated by Antenna symbol. SUB(-) – volume downBluetooth streaming inputwww.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312
10Bluetooth connection guide for model SB801. Turn the power on the SoundBar SB80 with the remote control2. Press the “BT” button on the remote control, BT will be displayed in the upper left hand portion of the LCD screen3. Turn on your Bluetooth compatible device and allow it to search for the SoundBar. The default name of the SoundBar is OVC3860. The connect it by using 0000 as the security code.4. Please see your device’s Bluetooth connection directions for further details.www.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312
11Limited1YearWarrantyCurrentAudio,LLCSoundBars arewarrantedtobefreefromdefectsinmaterialsandorworkmanshiptotheoriginalretailpurchaserforaperiodof1year,providedtheequipmentwaspurchasedandinstalledfromaCurrentAudio,LLCAuthorizedDealerorDistributor.Intheeventofdefectivematerialsandorworkmanship,CurrentAudio,LLCwillrepairorreplace,atitsoption,thedefectiveproductatnochargetothepurchaser.InordertomakeclaimunderthisWarrantyandtoobtainperformanceofanyobligationunderwarranty,pleasecontactCurrentAudiooryourAuthorizedDistributor.InstructionswillbegivenonhowtoreturnthedefectiveproducttoCurrentAudio.Returnedproductsmustbeshippedprepaid.Proofofpurchasemustbeprovidedwiththeproduct.TheWarrantydoesnotapplytodamagenotresultingfromdefectivematerialsandorworkmanshipwhileinthepossessionoftheoriginalconsumerorduetounreasonableusebytheoriginalowner,whichincludesbutnotlimitedtoimproperinstallation,negligence,unauthorizedrepairormodification,oraestheticdeteriorationfromtheenvironment.Productspurchasedbyinternetorunauthorizedsourceswillvoidthewarrantyandnotbehonored.CurrentAudio,LLCisnotliableforanyincidentalorconsequentialdamages,sotheabovelimitationsorinclusionmaynotapplytoyou.Thiswarrantygivesyouspecificlegalrights,andyoumayhaveotherrights,whichvaryfromstatetostatewithintheUnitedStates.WarrantyTrouble Possible Cause Possible SolutionNo SoundUnit not plugged into AC power Check power, plug in to a live unswitched outlet.Audio cables Not properly connected Check cable connections. Replace cable.Check if connected to proper inputs. Master Power Switch on rear Place Master Power switch to ON.Front Power Switch Switch from Standby to ONChange to proper Input Change from any input back to desired input.Optical input has 2 channel signal Insure TV/DVD is set to 2 channel audio out.No Audio from SubwooferSoundBar and subwoofer not Matched Redo MATCH sequenceNot in 2.1 Mode Switch from 2.0 to 2.1 Mode Volume turned Down Turn up Sub VolumeNo Audio from USB /SD No files stored on unit Download MP3 or WMA files to USB or SDRemote Control Not Responding Correctly Remote not directed to Receive Window Aim Remote to Receive Window On SoundBar.Remote too far from SoundBar Move to within 8 meters of SoundBarRemote Batteries weak or dead Change BatteriesINSTALLATIONTroubleshootingwww.currentaudio.com©2012CurrentAudioLLC1830JohnTowersAvenueElCajon,CA92020Sales866‐927‐7181SB80RPA090312
FCCStatementThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐Reorientorrelocatethereceivingantenna.‐Increasetheseparationbetweentheequipmentandreceiver.‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.12

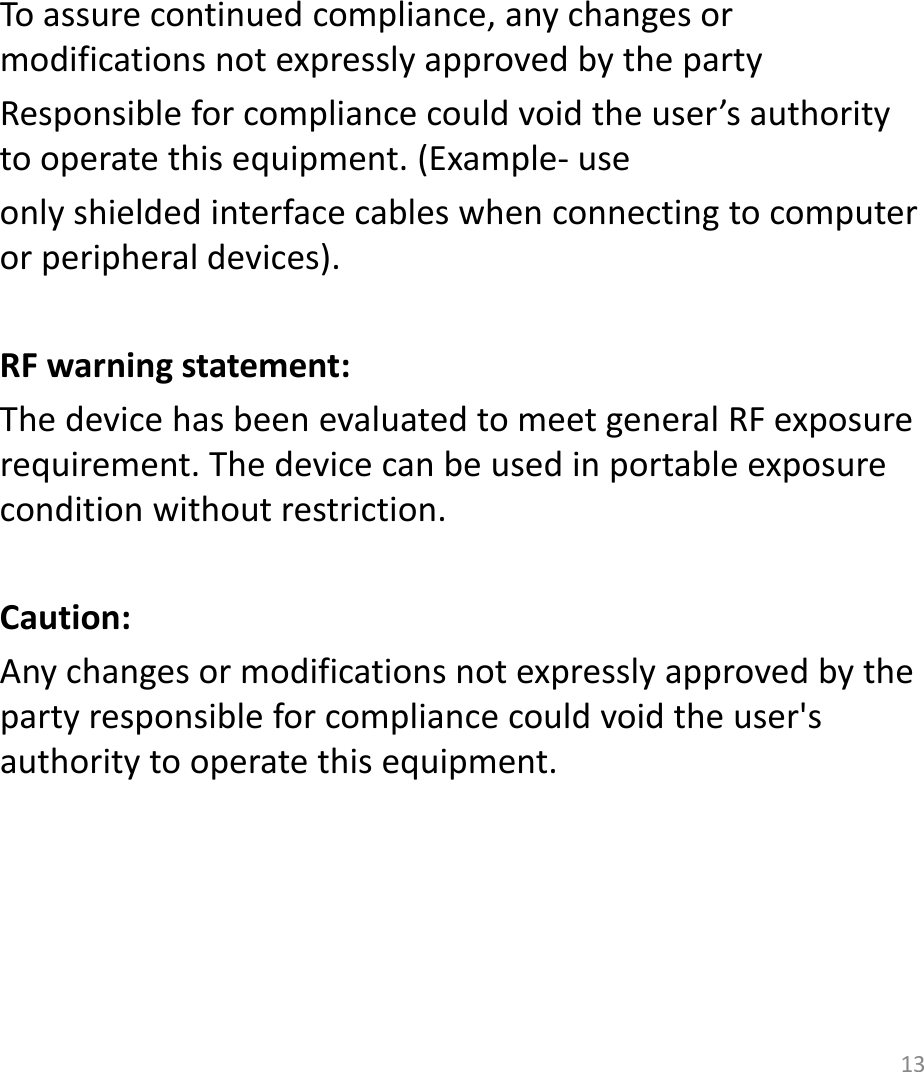

Toassurecontinuedcompliance,anychangesormodificationsnotexpresslyapprovedbythepartyResponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.(Example‐useonlyshieldedinterfacecableswhenconnectingtocomputerorperipheraldevices).RFwarningstatement:ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedinportableexposureconditionwithoutrestriction.Caution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatethisequipment.13
