Cylan Technology DOORBELLCD68 Clever Dog Smart Doorbell User Manual revised

Shenzhen CYLAN Technology Co.,Ltd Clever Dog Smart Doorbell revised

User manual-revised

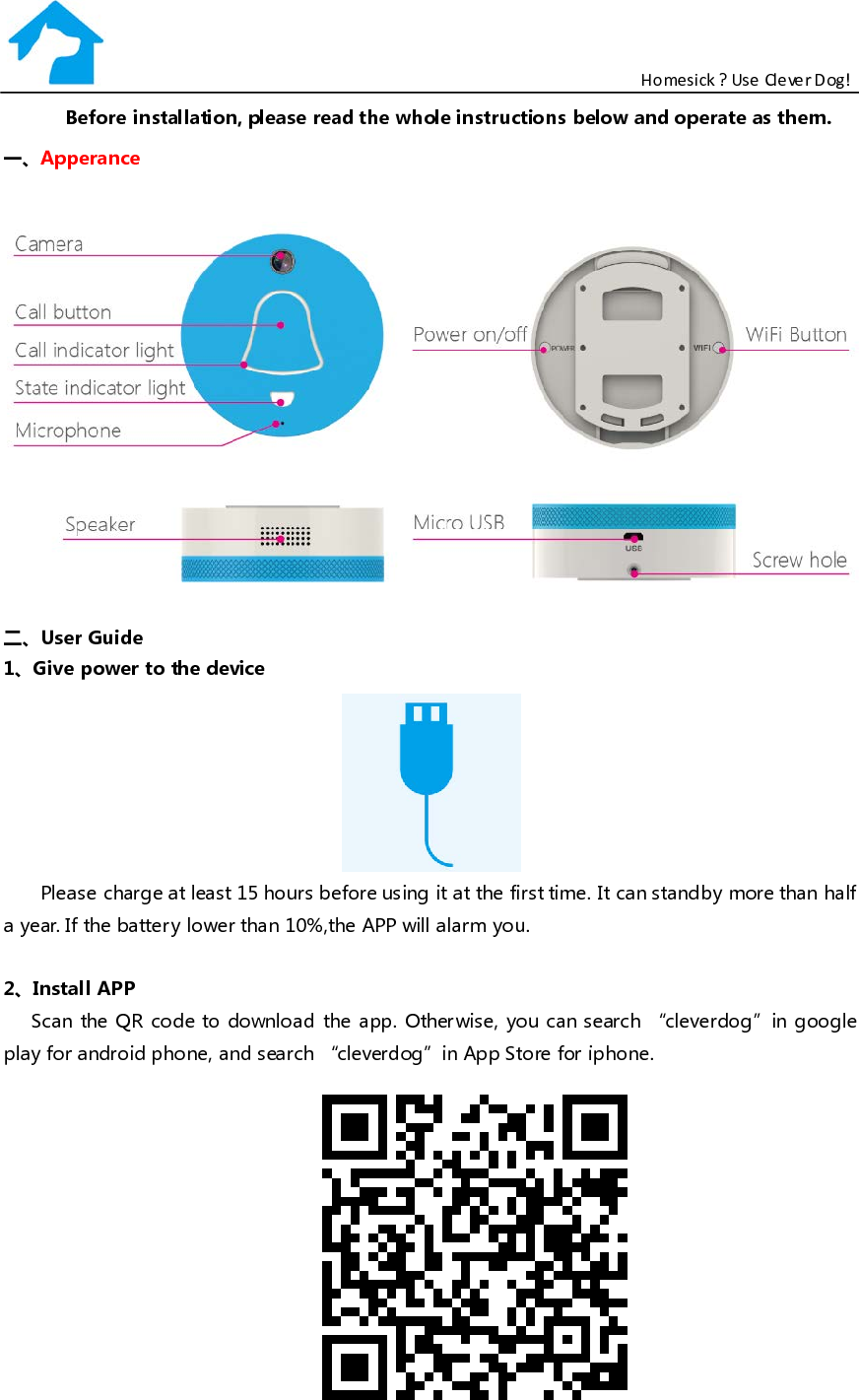

Homesick ? Use Clever Dog! Before installation, please read the whole instructions below and operate as them. 一、Apperance 二、User Guide 1、Give power to the device Please charge at least 15 hours before using it at the first time. It can standby more than half a year. If the batter y lower than 10%,the APP will alarm you. 2、Install APP Scan the QR code to download the app. Otherwise, you can search “cleverdog”in google play for android phone, and search “cleverdog”in App Store for iphone.

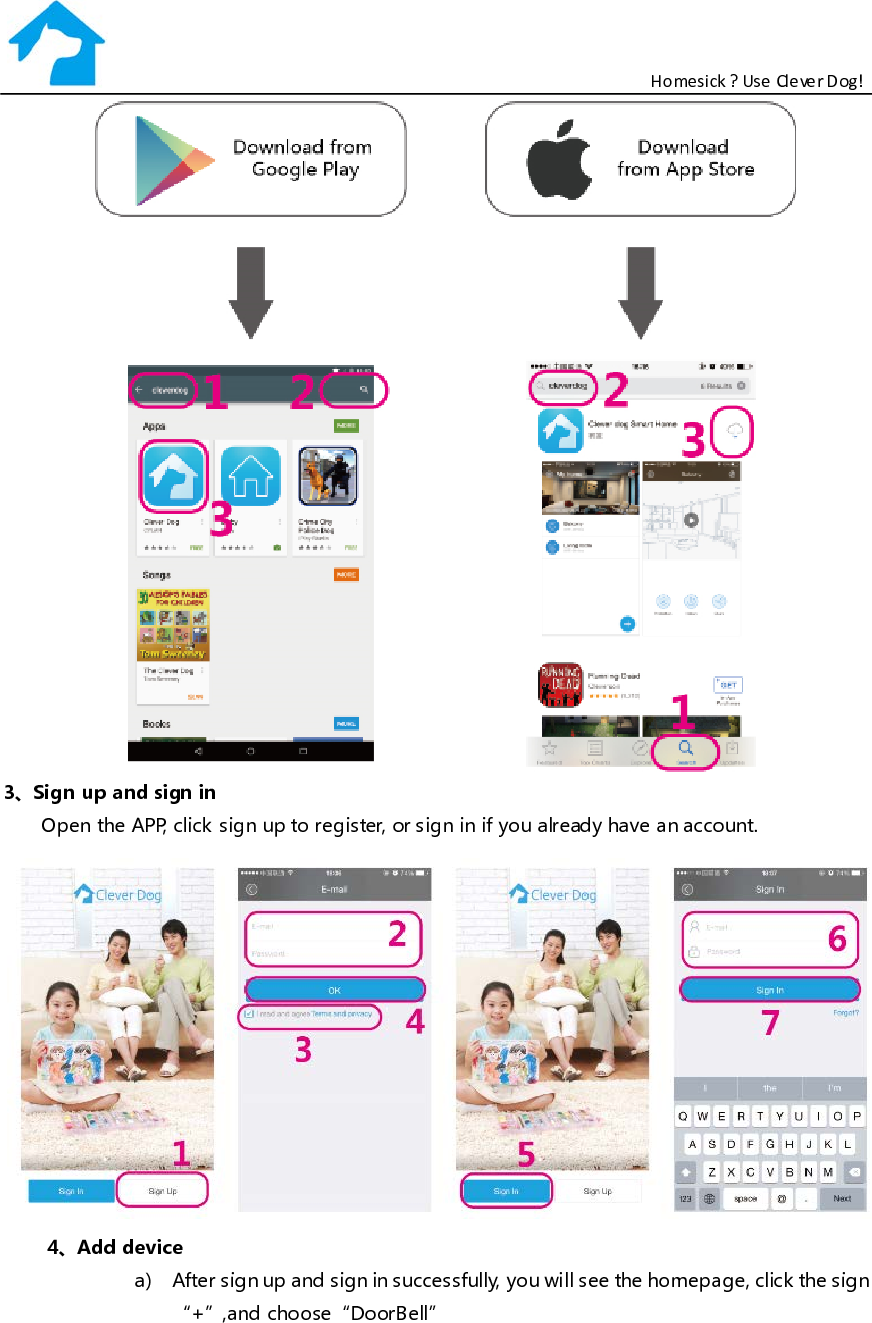

Homesick ? Use Clever Dog! 3、Sign up and sign in Open the APP, click sign up to register, or sign in if you already have an account. 4、Add device a) After sign up and sign in successfully, you will see the homepage, click the sign “+”,and choose“DoorBell”

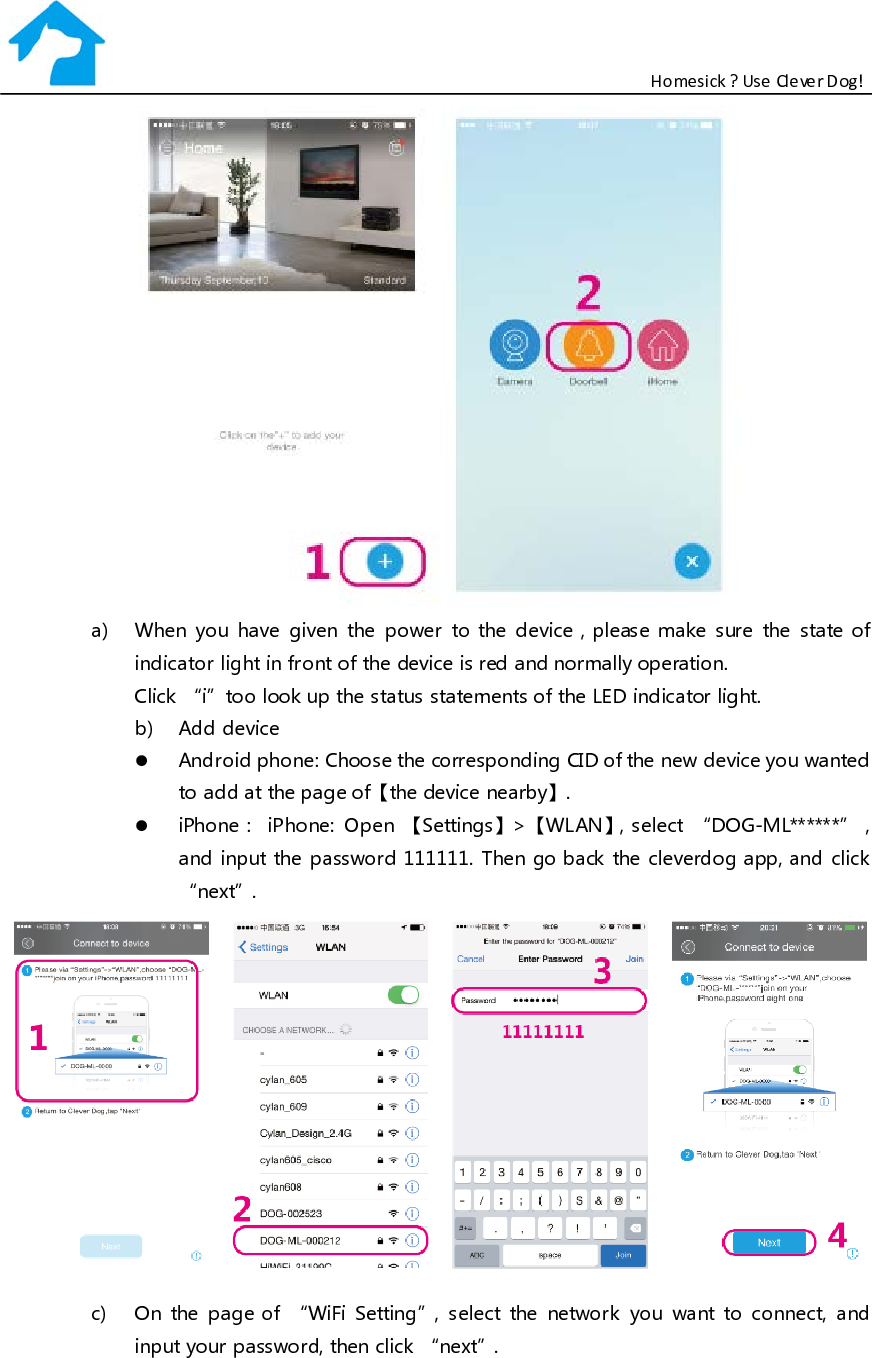

Homesick ? Use Clever Dog! a) When you have given the power to the device，please make sure the state o f indicator light in front of the device is red and normally operation. Click “i”too look up the status statements of the LED indicator light. b) Add device  Android phone: Choose the corresponding CID of the new device you wanted to add at the page of【the device nearby】.  iPhone： iPhone: Open 【Settings】>【WLAN】， select “DOG-ML******”，and input the password 111111. Then go back the cleverdog app, and click “next”. c) On the page of “WiFi Setting”, select the network you want to connect, and input your password, then click “next”.

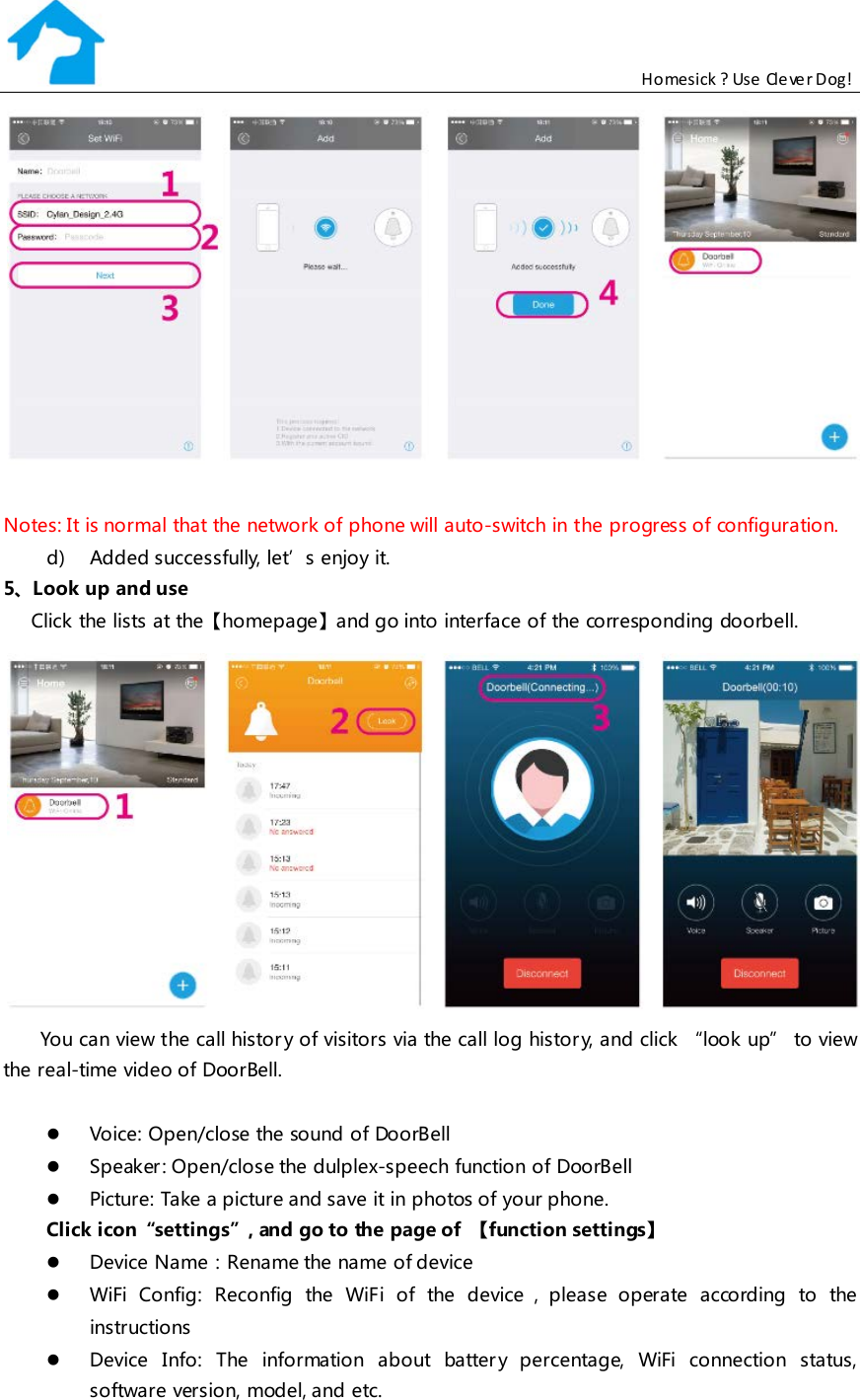

Homesick ? Use Clever Dog! Notes: It is normal that the network of phone will auto-switch in the progress of configuration. d) Added successfully, let’s enjoy it. 5、Look up and use Click the lists at the【homepage】and go into interface of the corresponding doorbell. You can view the call histor y of visitors via the call log histor y, and click “look up” to view the real-time video of DoorBell.  Voice: Open/close the sound of DoorBell  Speaker : Open/close the dulplex-speech function of DoorBell  Picture: Take a picture and save it in photos of your phone. Click icon“settings”, and go to the page of 【function settings】  Device Name：Rename the name of de vice  WiFi Config: Reconfig the WiFi of the device ，please operate according to the instructions  Device Info: The information about battery percentage, WiFi connection status, software version, model, and etc.

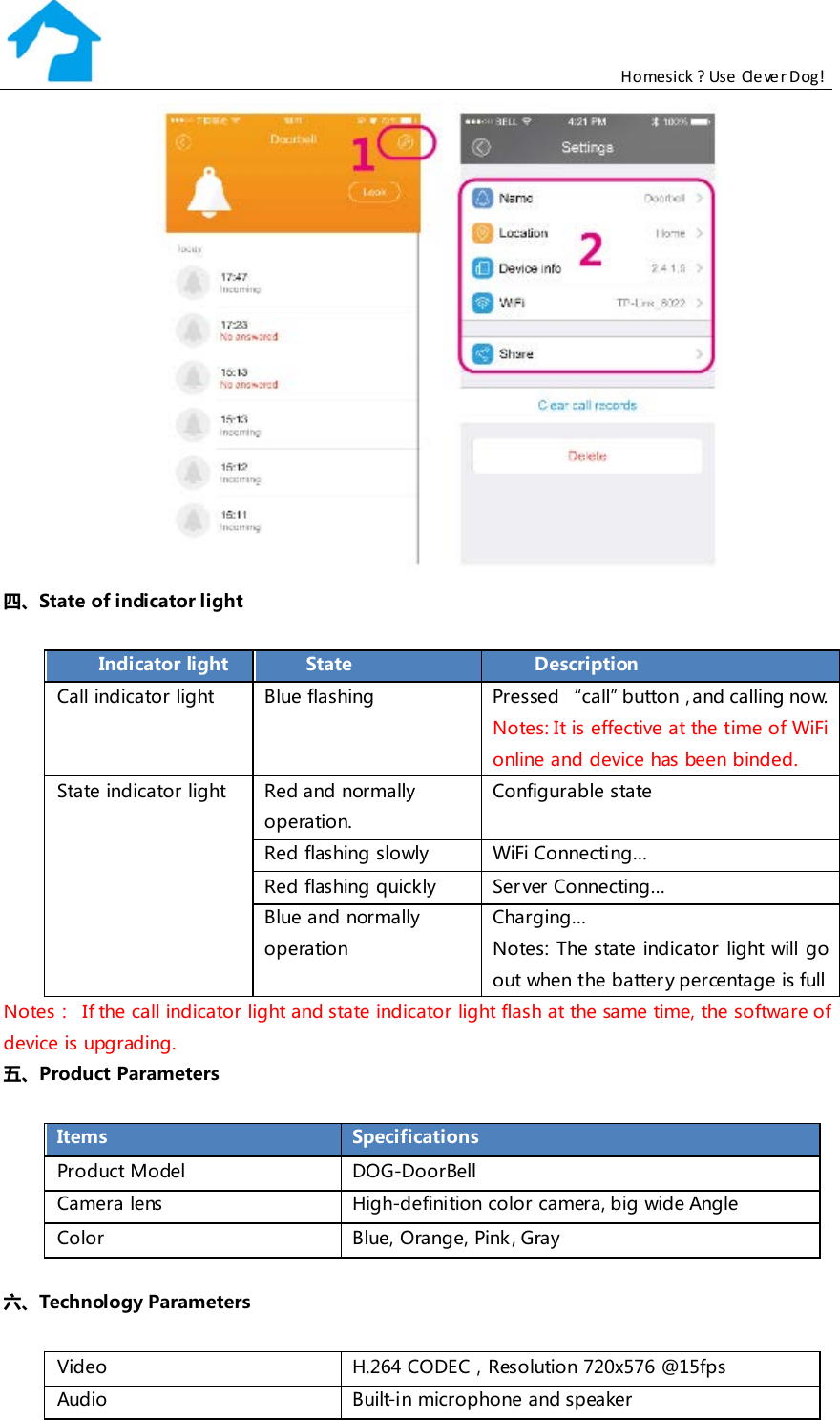

Homesick ? Use Clever Dog! 四、State of indicator light Indicator light State Description Call indicator light Blue flashing Pressed “call”button，and calling now. Notes: It is effective at the time of WiFi online and device has been binded. State indicator light Red and normally operation. Configurable state Red flashing slowly WiFi Connecting… Red flashing quickly Ser ver Connecting… Blue and normally operation Charging… Notes: The state indicator light will go out when the battery percentage is full Notes： If the call indicator light and state indicator light flash at the same time, the software of device is upgrading. 五、Product Parameters Items Specifications Product Model DOG-DoorBell Camera lens High-definition color camera, big wide Angle Color Blue, Orange, Pink , Gray 六、Technology Parameters Video H.264 CODEC，Resolution 720x576 @15fps Audio Built-in microphone and speaker

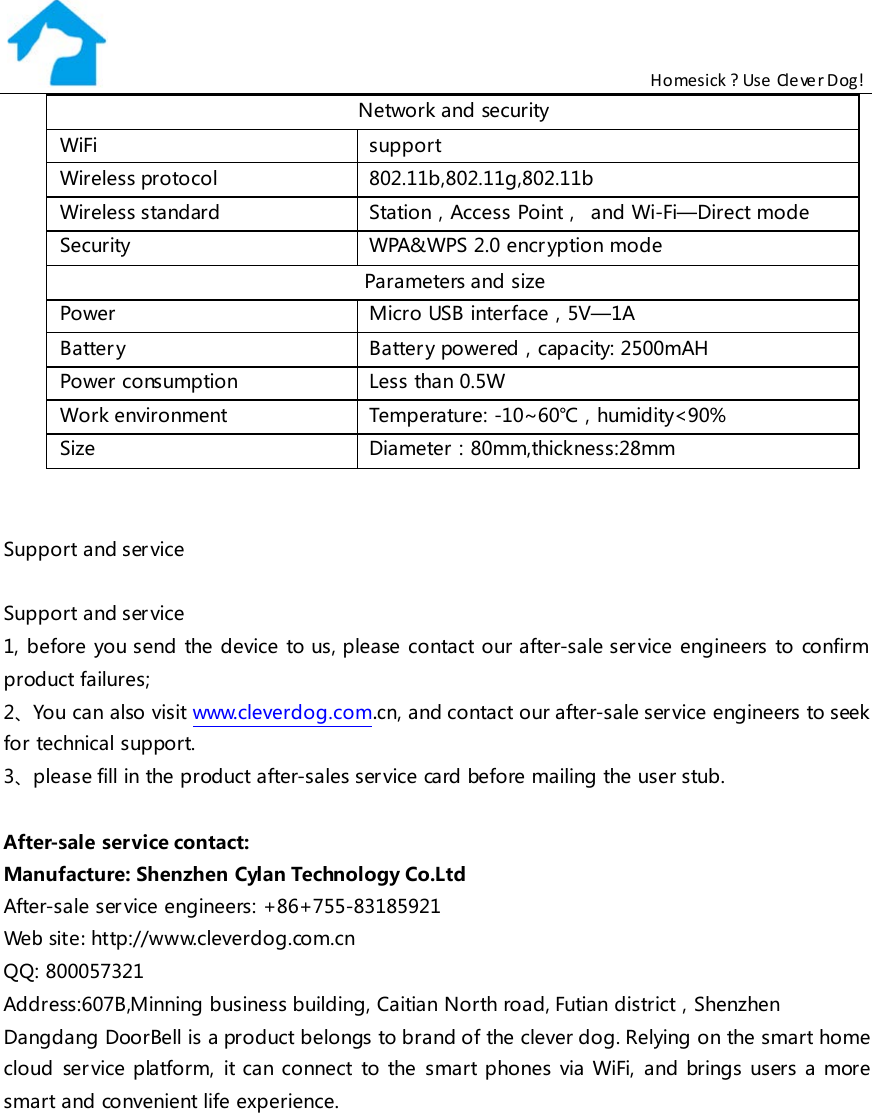

Homesick ? Use Clever Dog! Network and security WiFi support Wireless protocol 802.11b,802.11g,802.11b Wireless standard Station，Access Point， and Wi-Fi—Direct mode Security WPA&WPS 2.0 encr yption mode Parameters and size Power Micro USB interface，5V—1A Batter y Batter y powered，capacity: 2500mAH Power consumption Less than 0.5W Work environment Temperature: -10~60℃，humidity<90% Size Diameter：80mm,thickness:28mm Support and ser vice Support and ser vice 1, before you send the device to us, please contact our after-sale service engineers to confirm product failures; 2、You can also visit www.cleverdog.com.cn, and contact our after-sale service engineers to seek for technical support. 3、please fill in the product after-sales service card before mailing the user stub. After-sale service contact: Manufacture: Shenzhen Cylan Technology Co.Ltd After-sale service engineers: +86+755-83185921 Web site: http://www.cleverdog.com.cn QQ: 800057321 Address:607B,Minning business building, Caitian North road, Futian district，Shenzhen Dangdang DoorBell is a product belongs to brand of the clever dog. Relying on the smart home cloud service platform, it can connect to the smart phones via WiFi, and brings users a more smart and convenient life experience.

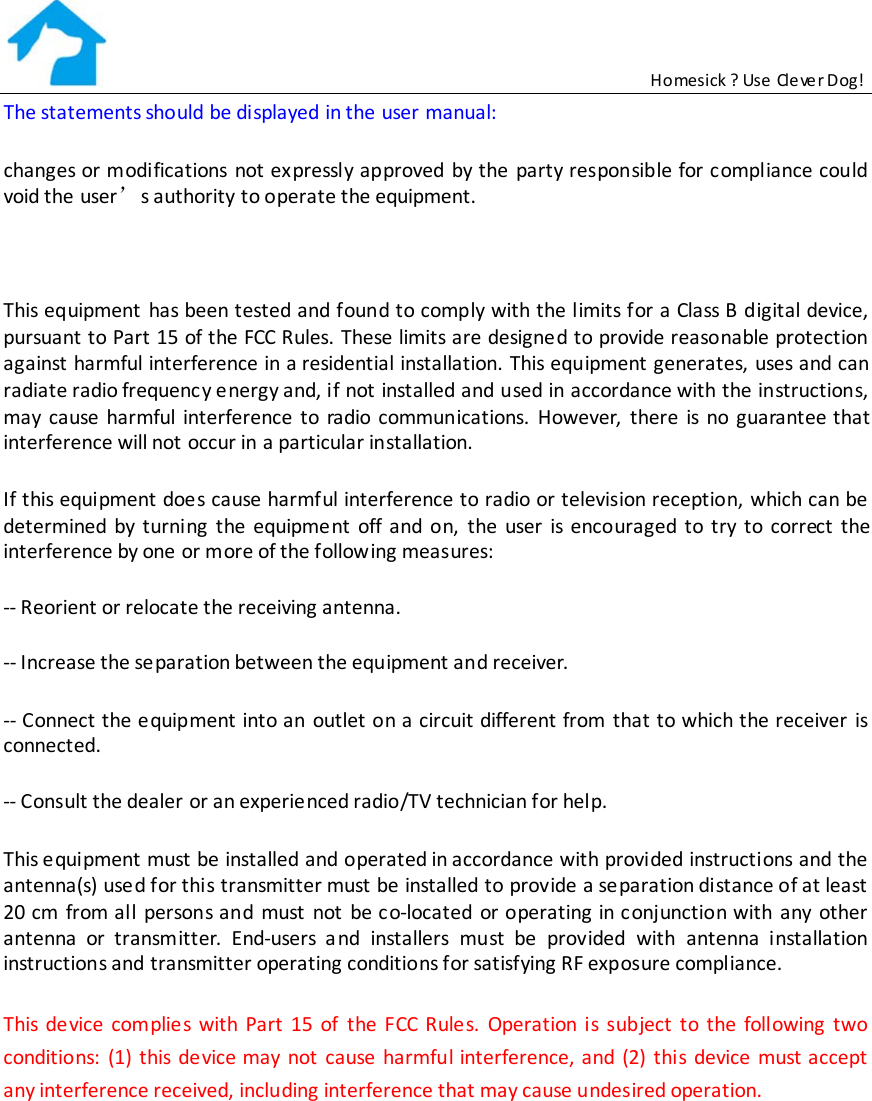

Homesick ? Use Clever Dog! The statements should be displayed in the user manual: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequenc y energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipme nt off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the e quipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This e quipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be c o-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This de vice complies with Part 15 of the FCC Rule s. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
