Cylan Technology DOORBELLCD68 Clever Dog Smart Doorbell User Manual revised
Shenzhen CYLAN Technology Co.,Ltd Clever Dog Smart Doorbell revised
User manual-revised
Homesick ? Use Clever Dog!
Before installation, please read the whole instructions below and operate as them.
一、Apperance
二、User Guide
1、Give power to the device
Please charge at least 15 hours before using it at the first time. It can standby more than half
a year. If the batter y lower than 10%,the APP will alarm you.

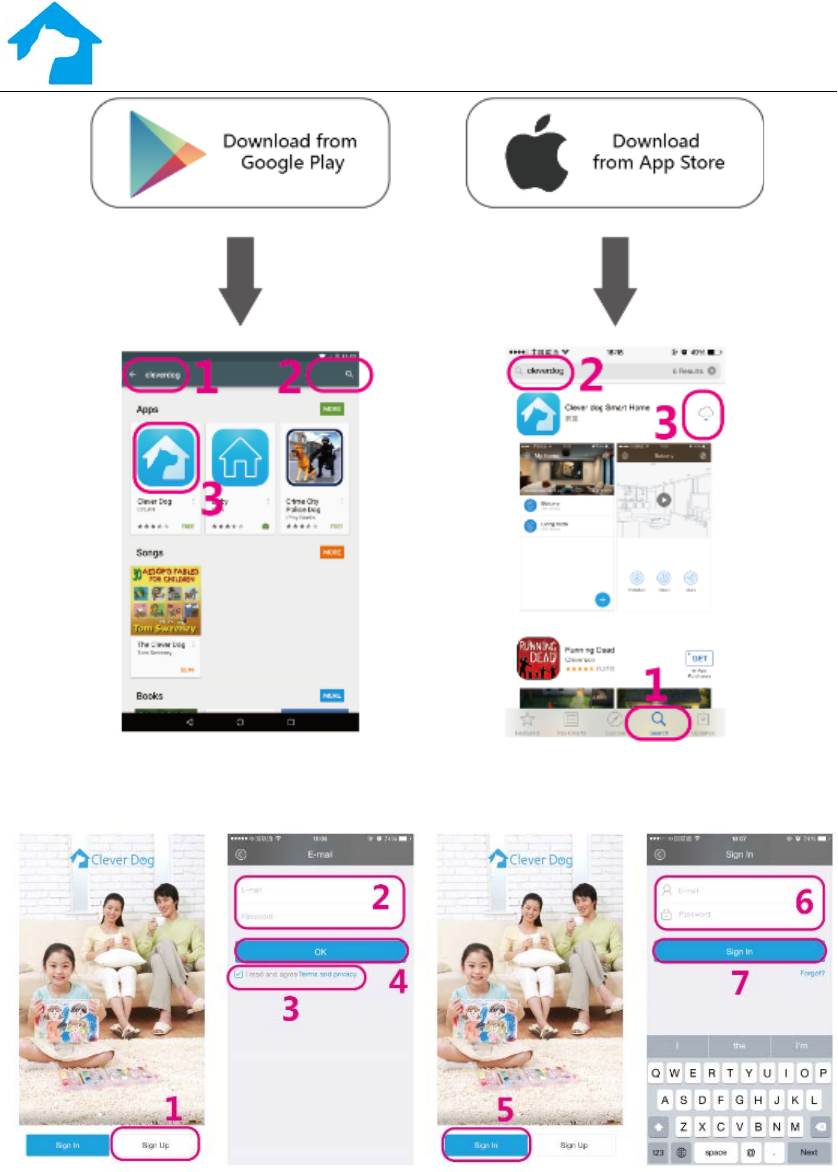

2、Install APP
Scan the QR code to download the app. Otherwise, you can search “cleverdog”in google
play for android phone, and search “cleverdog”in App Store for iphone.
Homesick ? Use Clever Dog!
3、Sign up and sign in
Open the APP, click sign up to register, or sign in if you already have an account.
4、Add device
a) After sign up and sign in successfully, you will see the homepage, click the sign
“+”,and choose“DoorBell”
Homesick ? Use Clever Dog!
a) When you have given the power to the device，please make sure the state o f
indicator light in front of the device is red and normally operation.
Click “i”too look up the status statements of the LED indicator light.
b) Add device
Android phone: Choose the corresponding CID of the new device you wanted
to add at the page of【the device nearby】.
iPhone： iPhone: Open 【Settings】>【WLAN】， select “DOG-ML******”，
and input the password 111111. Then go back the cleverdog app, and click
“next”.

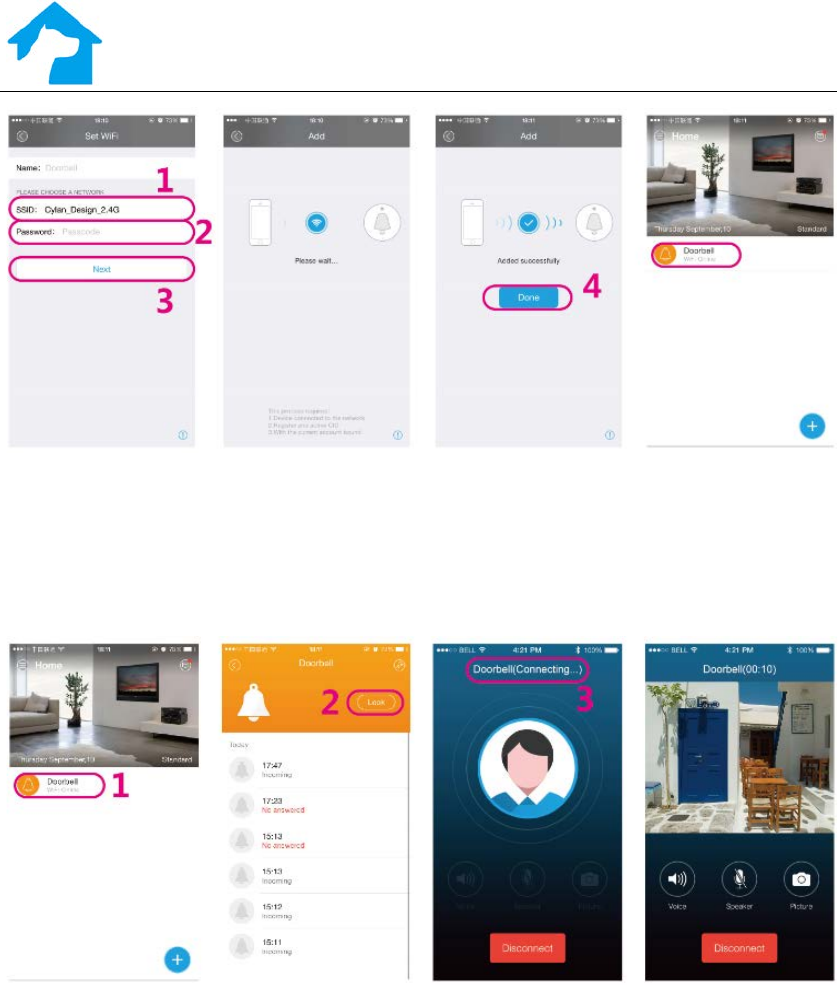

c) On the page of “WiFi Setting”, select the network you want to connect, and
input your password, then click “next”.
Homesick ? Use Clever Dog!
Notes: It is normal that the network of phone will auto-switch in the progress of configuration.
d) Added successfully, let’s enjoy it.
5、Look up and use
Click the lists at the【homepage】and go into interface of the corresponding doorbell.
You can view the call histor y of visitors via the call log histor y, and click “look up” to view
the real-time video of DoorBell.
Voice: Open/close the sound of DoorBell
Speaker : Open/close the dulplex-speech function of DoorBell
Picture: Take a picture and save it in photos of your phone.
Click icon“settings”, and go to the page of 【function settings】
Device Name：Rename the name of de vice
WiFi Config: Reconfig the WiFi of the device ，please operate according to the
instructions
Device Info: The information about battery percentage, WiFi connection status,
software version, model, and etc.
Homesick ? Use Clever Dog!
四、State of indicator light
Indicator light State Description
Call indicator light Blue flashing Pressed “call”button，and calling now.
Notes:
It is effective at the time of WiFi
online and device has been binded.
State indicator light Red and normally
operation.
Configurable state
Red flashing slowly WiFi Connecting…
Red flashing quickly Ser ver Connecting…
Blue and normally
operation
Charging…
Notes: The state indicator light will go
out when the battery percentage is full
Notes： If the call indicator light and state indicator light flash at the same time, the software of
device is upgrading.
五、Product Parameters
Items Specifications
Product Model DOG-DoorBell
Camera lens High-definition color camera, big wide Angle
Color Blue, Orange, Pink , Gray
六、Technology Parameters
Video H.264 CODEC，Resolution 720x576 @15fps
Audio Built-in microphone and speaker
Homesick ? Use Clever Dog!
Network and security
WiFi support
Wireless protocol 802.11b,802.11g,802.11b
Wireless standard Station，Access Point， and Wi-Fi—Direct mode
Security WPA&WPS 2.0 encr yption mode
Parameters and size
Power Micro USB interface，5V—1A
Batter y Batter y powered，capacity: 2500mAH
Power consumption Less than 0.5W
Work environment Temperature: -10~60℃，humidity<90%
Size Diameter：80mm,thickness:28mm
Support and ser vice
Support and ser vice
1, before you send the device to us, please contact our after-sale service engineers to confirm
product failures;
2、You can also visit www.cleverdog.com.cn, and contact our after-sale service engineers to seek
for technical support.
3、please fill in the product after-sales service card before mailing the user stub.
After-sale service contact:
Manufacture: Shenzhen Cylan Technology Co.Ltd
After-sale service engineers: +86+755-83185921
Web site: http://www.cleverdog.com.cn
QQ: 800057321
Address:607B,Minning business building, Caitian North road, Futian district，Shenzhen
Dangdang DoorBell is a product belongs to brand of the clever dog. Relying on the smart home
cloud service platform, it can connect to the smart phones via WiFi, and brings users a more
smart and convenient life experience.
Homesick ? Use Clever Dog!
The statements should be displayed in the user manual:
changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequenc y energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipme nt off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the e quipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This e quipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be c o-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance.
This de vice complies with Part 15 of the FCC Rule s. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
