Model No. WLTL42570

_;eria[ No.

Serial

Number

Decal

QUESTIONS?

As amanufacturer, we are com-

rn_ed to providing complete

customer satisfaction. If you

have questions, or if there are

mLssJng or damaged parts, we

will guarantee complete s_tis-

faction through direct assistance

from our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

ta_ce_ free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.-FrL, 6 a.m.-6 p.rn, MST

USER'S MANUAL

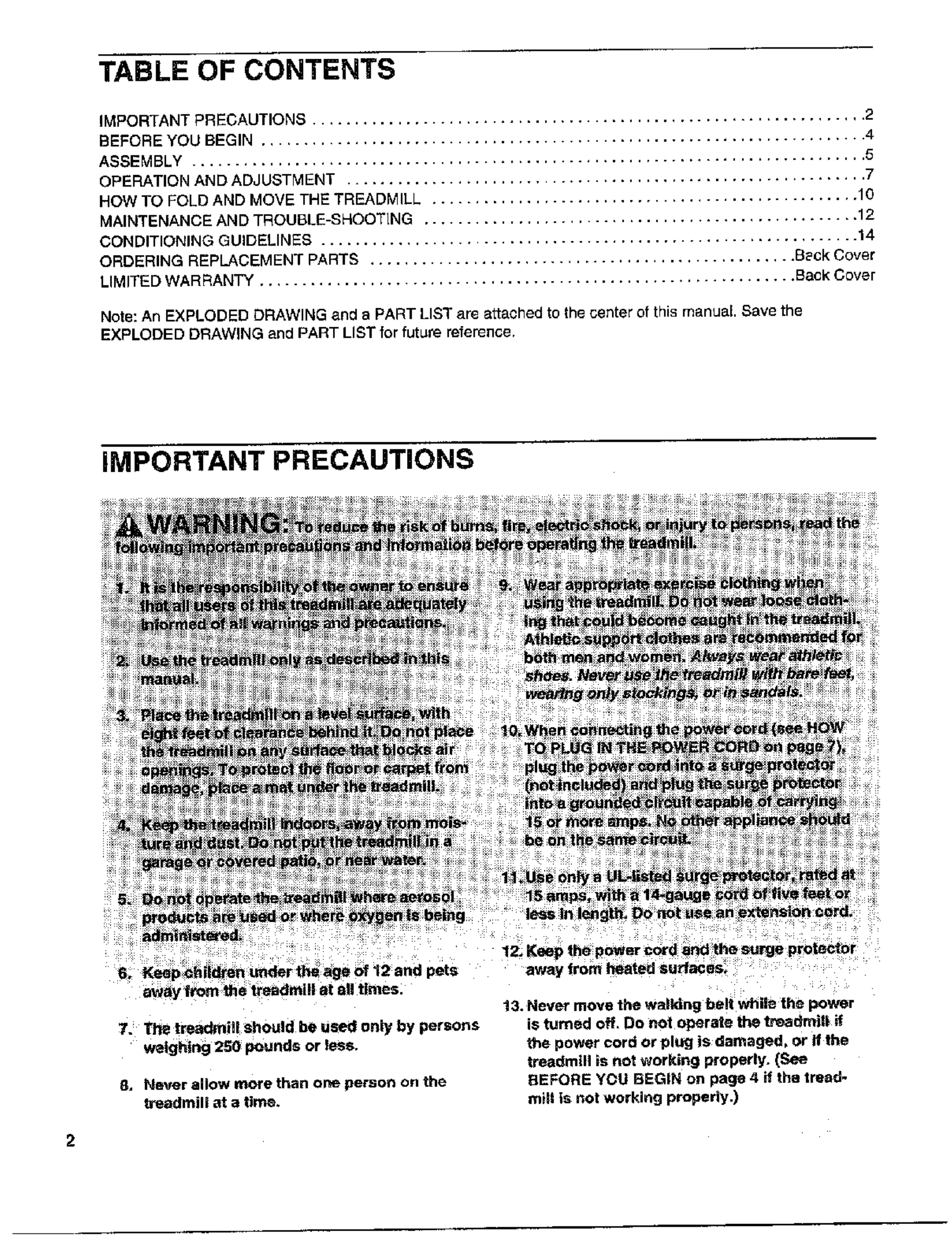

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 2

BEFORE YOU BEGIN ....................................................................... 4

ASSEMBLY ............................................................................... 5

OPERATION AND ADJUSTMENT ............................................................. 7

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10

MAINTENANCE AND TROUBLE-SHOOTiNG ................................................... 12

CONDITIONING GUIDELINES ............................................................... 14

ORDERING REPLACEMENT PARTS .................................................. gsck Cover

LIMITED WARRANTY ............................................................... Back Cover

Note: An EXPLODED DRAWING and aPART LIST are attached to the center of this manual Save the

EXPLODED DRAWING and PART LIST for future reference,

iMPORTANT PRECAUTIONS

extension _e_d.

12, Keep the power _ord arid _he surge protector

6. Ke_p_hfldren ur_derthe _ge of 12 and pets away from heate_lsurfaces_

avl_y f_t the treadmill at 811times.

13. Neve? move the walldng belt whil_ the power

7. Tt_ treadmill _hould be used only by persons

weighing 250 pounds or less.

8, Neveralfowntorethanonepersononthe

treadmill at a tlm_.

is turned off, Do not operate the treadmil_ if

the. power cord or plt_J is damaged= or If the

treadmill is not working properly. (See

REFORE YOU BEGtN on pagr8 4if the tread-

mill is not working properly.)

The deca! shown below has been placed on your treadmill. If the decal IS miss'rig, or If d "s no! legible

please call our Customer s_rvice Department, toll-free, to order a|ree repla_em_t_t decat (.see ORDERING

REPLACEMENT pARTS on the back cover of this manual). Apply the decal in t_e Iccatlon shown.

BEFORE YOU BEGIN

Thank you for select[ng the WESLO CADENC_ LX25

lreedmill, Tile CADENCE LX25 treadmill combines ad-

vanced technology witr_ innovative design to let you

enjoy an excellent form of cardiovascular exercise in

the convenience and privacy of your home. And when

you're not exercising, the unique CADENCE LX25 can

be folded up, requiring less than halt the floor spaca of

other treadmills.

For your benefit, read this manual carefully before

using the treadmill, Lfyou have additional questions,

please calf our Customer S_ice Department toLl-tree

at 1-800-999-3758, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number betor_ calling. The model

number of the treadmill is WLTL42570. The sedal

number can be found on a decal attached to the tread-

mill (see the front cover of this manual for the location).

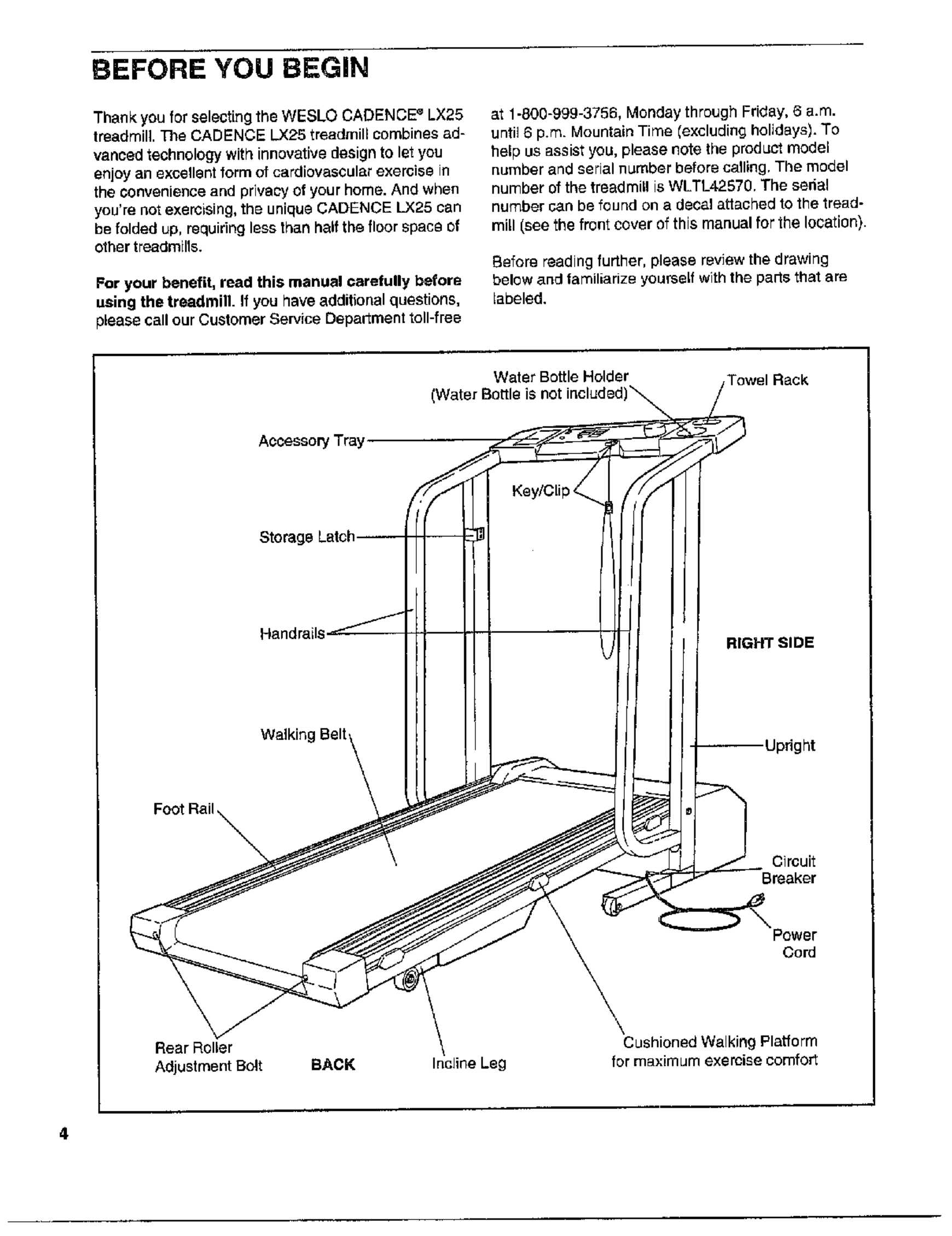

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Water Bottle Holder

IWater Bcttfe is not Towel Rack

Accesso WTray

Storage L

Mandmils

Waikin

RtGHT SIDE

Circuit

Breaker

Power

CoG

BACK Incline Leg

Cushioned Walkit'_j Platform

for maximum ex_l'cise comfort

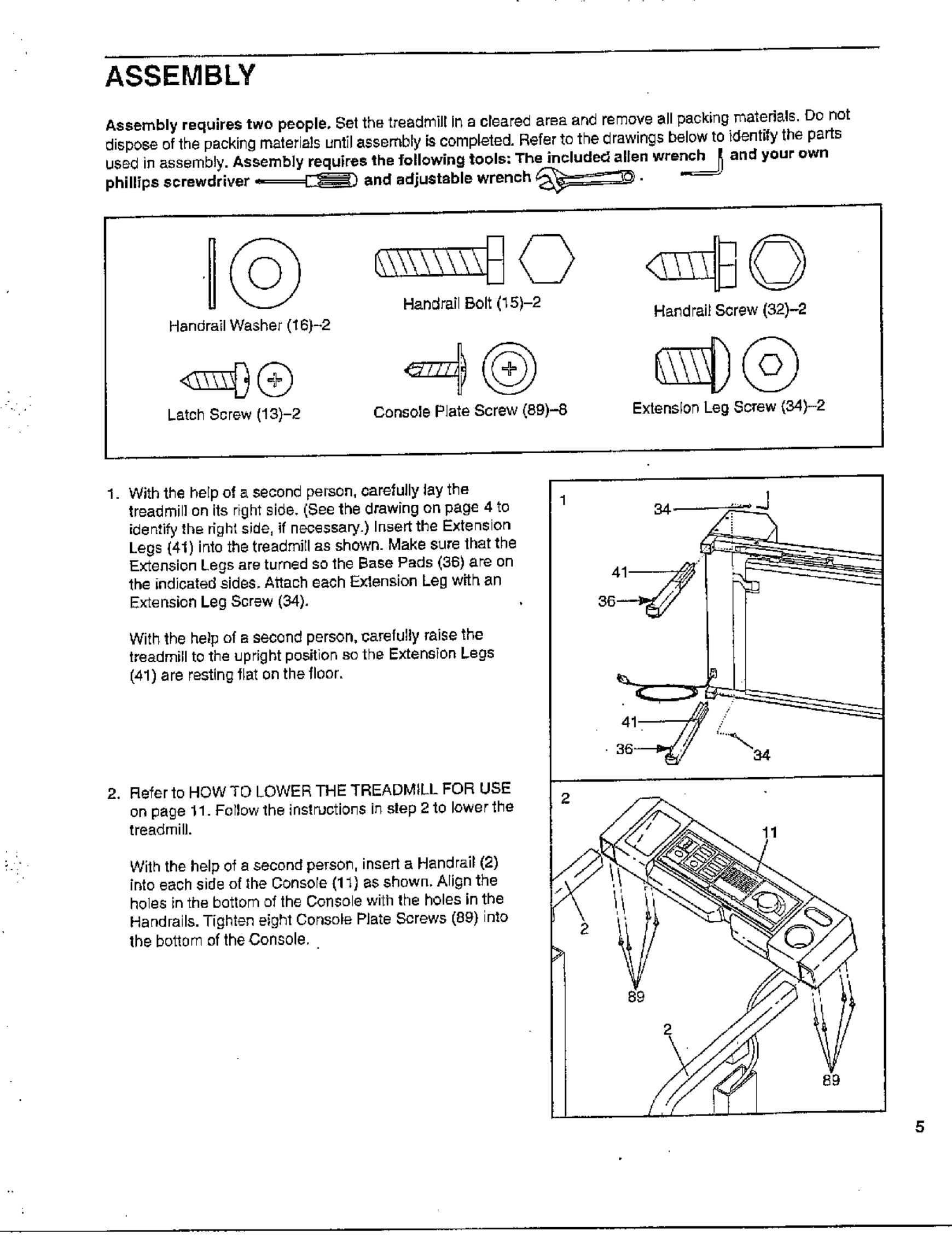

ASSEMBLY

.... is Done

Assembly requires two people Set the treadmlg In acteared arsa and remove all packing maten_ .

dispose of the packing materials until assembly is completed. Refer to the drawings below to }denfify the parts

Used.in assembly: Assembly requires the fo!lowing tools: The include_ alien wtenchnch_and your own

phghp" ._=rewdr,ver _ and adjustable wrench _ .

U©

Handrail Washer (16)-2

L_.tch Screw (13)-2 Console pJate Screw (89)-8

Handrai_ Screw (32)-2

Extension Leg Screw (34)-2

i •

1. W_th the help of asecond person, carefulfy Jay the

treadmill on its right side. (See the drawing _n page 4to

identify the dghl side, if necessary.) Insert the Extension

Legs (41) into the treadmill as shown. Make sure that the

Extension Legs are turned so the Base Pads (36) are on

the indicated sides. Attach each Exlension Leg with an

Extension Leg Screw (34).

With the help of B second person, carefully raise the

treadmill to the upright position se the ExtensTon Legs

(41) are resting flat on the floor.

2, Refer to HOW TO LOWER THE TREADMILL FOR USE

on page 11. Foflow the irlstr_ctions in step 2 to lower the

treadmill.

Wgh the help of a second person, insert aHenchalt (2)

into each side of the Oonsore (11) as shown. Align the

holes in the bottom of the Console with the holes in the

Handrails. Tighten eight Console Plate Screws (89) into

the bottom of the Console,

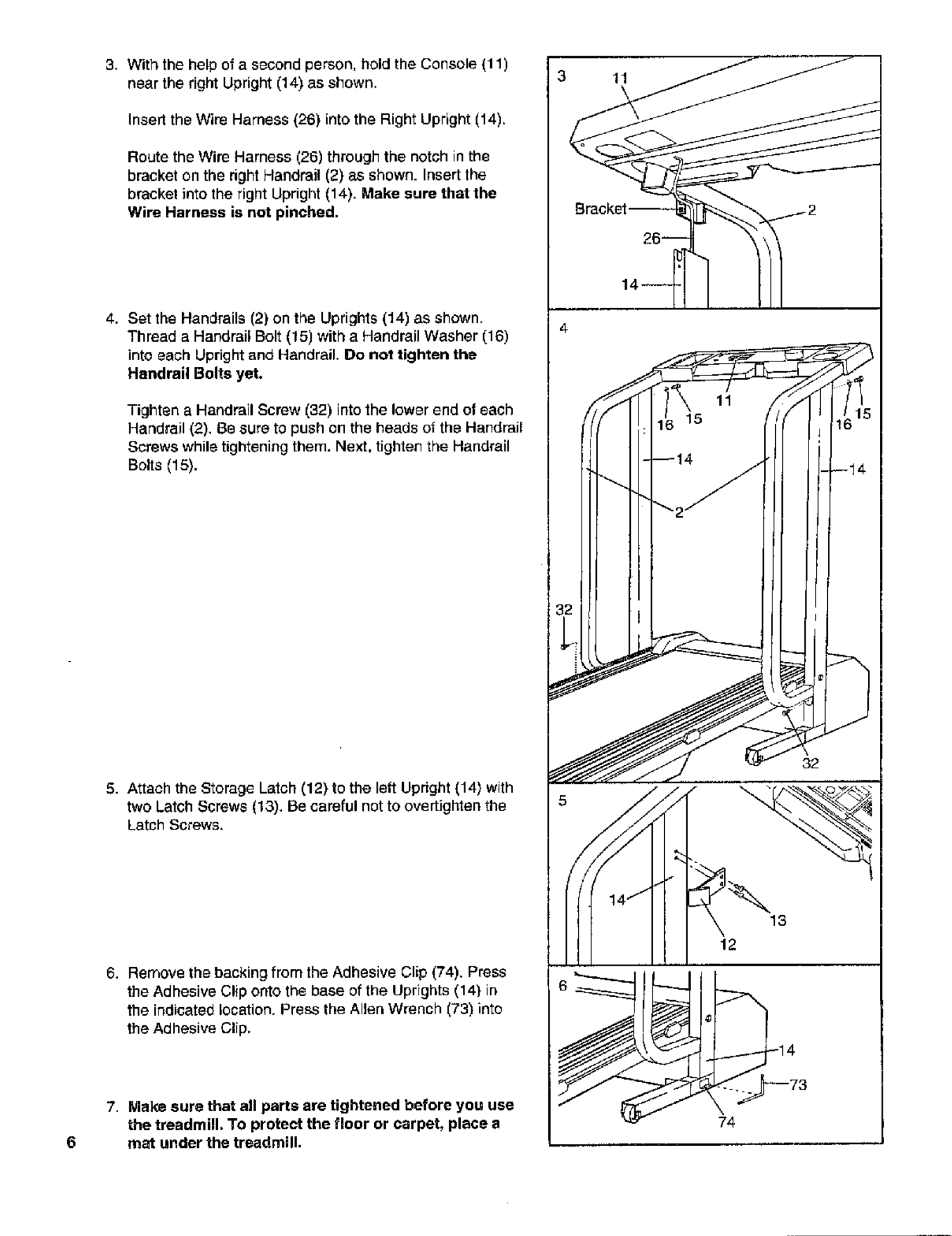

3. With the help of asecond person, hold the Console (11 )

near the right Upright (14) as shown.

Insert the Wire Harness (26) into the Right Upright (14).

Route the Wire Harness (26) through the notch in the

bracket on the dght Handrail (2) as shown. Insert the

bracket into the right Upright (14). Make sure that the

Wire Harness is not pinched.

4. Set the Handrails (2) on the Uprights (14) as shown.

Thread a Handrail Bolt (15) with a Handrail Washer (16)

into each Upright and Handrail. Do not tighter= the

Hsndrail Bolts yet.

Tighten a Handrail Screw (32) into the lower end ol each

Handrail (2), Be sure to push on the heads of the Handrail

Screws while tightening them. Next. tighte_ the Handrail

Bolts (15).

5. Attach the Storage Latch (12) 1o the left Upright (14) with

two Latch Screws (13). Be careful not to overtighten the

Latch Screws.

6. Remove the backing from the Adhesive Clip (74). Press

the Adhesive Clip onto the base of the Uprights (14} in

the indicated location. Press the AIMn Wrench (73) into

the Adhesive Clip.

Bracket. _ 12

7. Make sure that all parts are tightened before you use

the treadmill, TO protect the floor or carpet, place a

B mat under the treadmgl.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features awalking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

Important: Never apply silicone spray or other sub*

stances to the walking belt or the walking platform.

They wgl deteriorate the walking belt and cause ex-

cessive wear.

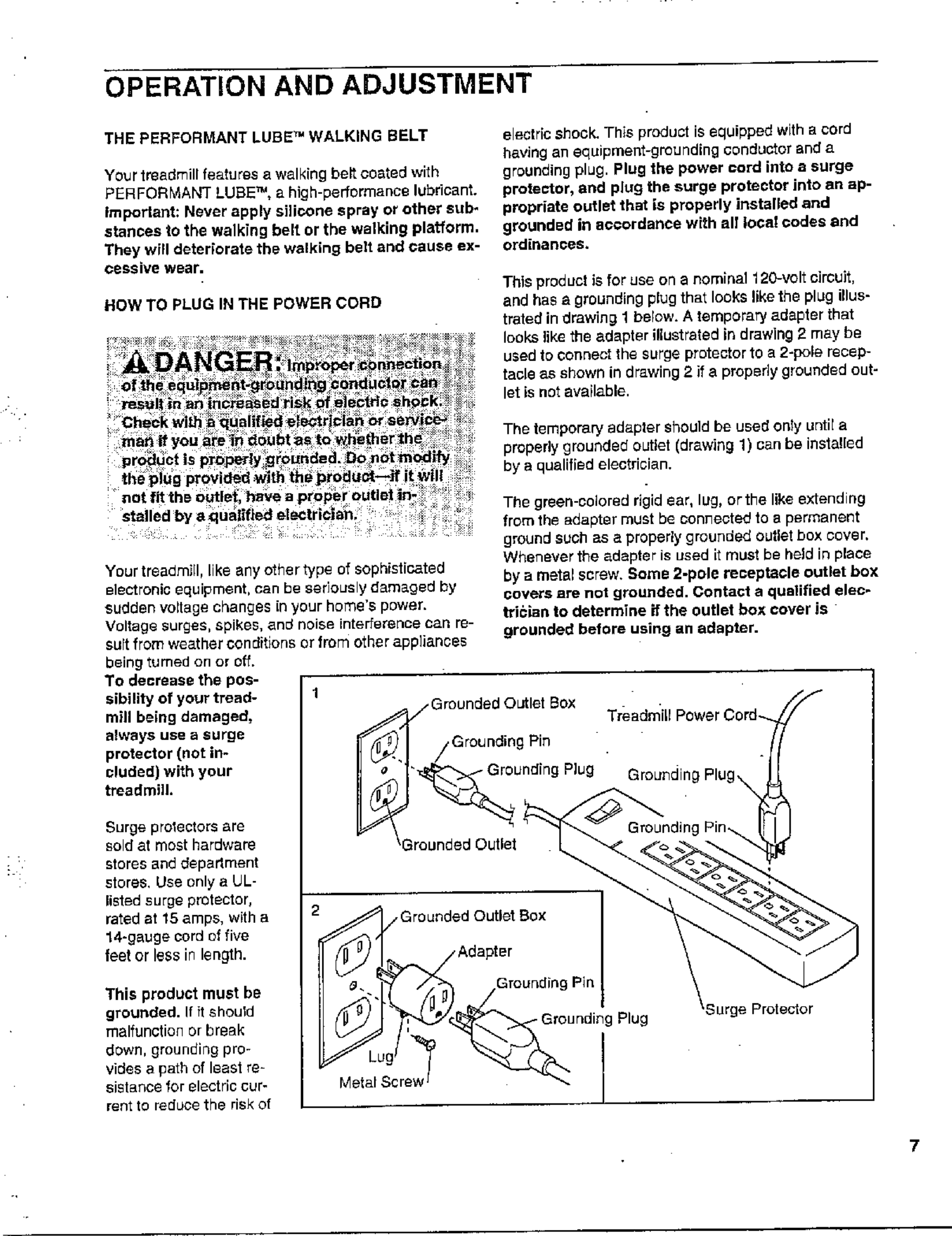

HOW TO PLUG IN THE POWER CORD

not fit the O_ et t'm_,ea proper Outlet _1

stailed by aqua_lf,_d _lect ricJ_an_ .....

Your treadmill, like any ether type of sophisticated

electronic equipment, can be seriously damaged fay

sudden voltage changes in your home's power,

Voltage surges, spikes, and noise interference can re-

sult from weather conditions or from other appli_.nces

being turned on or off.

To decrease the pos-

sibigty of your tread-

mill being damaged,

atways use a surge

protector (not in-

cluded) with your

treadmgl.

Surge prolectors are

sold at most hardware

stores and department

stores, Use onty aUL-

listed surge p_ctector,

rated at 15 amps, with a

14-gauge cord Qf five

feet or tess in length.

This product must be

grounded. If ft should

malfunction or break

down, grounding pro-

vides a path of least re-

sistance for electric cur-

rent to reduce the risk of

MetJ

electric shock, This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into asurge

protector, and plug the surge protector into an ap-

propriate outlet that is properly installed and

grounded in accordance with all Ioca! codes and

ordinances.

This product is for use on a nominal 120-volt cimuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 berow. A temporary adapter that

looks like the adapter glustrated in drawing 2may he

used to connect the surge protector to a 2-pole recep-

tacle as shown in drawing 2 if a properly grounded out-

let is not available.

The temporary adapter should be used only until a

propedy grounded outlet (drawing 1) can be insta!led

by aqualified electrician.

The green-colored rigid ear, lug, orthe like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover,

Whenever the adapter is used it must be held in place

by a metal screw, Some 2-pole receptacle outlet box

covers 8r_ Rot grounded. Contact a qualified elec-

tribian to determine if the outlet box cover is

grounded before using an adapter.

/Grounded Outlet Box

/Grounding Pi.n

_undlng Plug

_munded Outlet

Treadmill Power Cord_

Groundin

Grounding Pin,_

Grounded Outlet Box

'Surge Protector

DIAGRAM OF THE CONSOLE

Inct_eSu(ton Monitor Disp(ays Speed Cont_l

Key Note: If there is athin sheet _f

clear plastic on the face of the

_nsole, remove it.

BA'R'ERY INSTALLATION

The co_oJe requires either two Dr three "AA"

batteries (not included); alkaline batte es a e

recommended.

To install batteries, first press the tab on the batte_

cover atld o_etl the balte_j cover. Press the batteries

intothebatterycompartment,withthenegativeendsof

the batteries (m_rked "-") touching the springs. Press

the tab on the battery coverand cio_e the battery

cover.

REMOVE THIS EXPLODED DRAWING AND

PART LIST FROM THE MANUAL. Save this

EXPLODED DRAWING and PART LIST for

future reference.

Note: Specifications are subject to change without notice. For information about

ordering replacement parts, sea the back cover of the User's Manual.

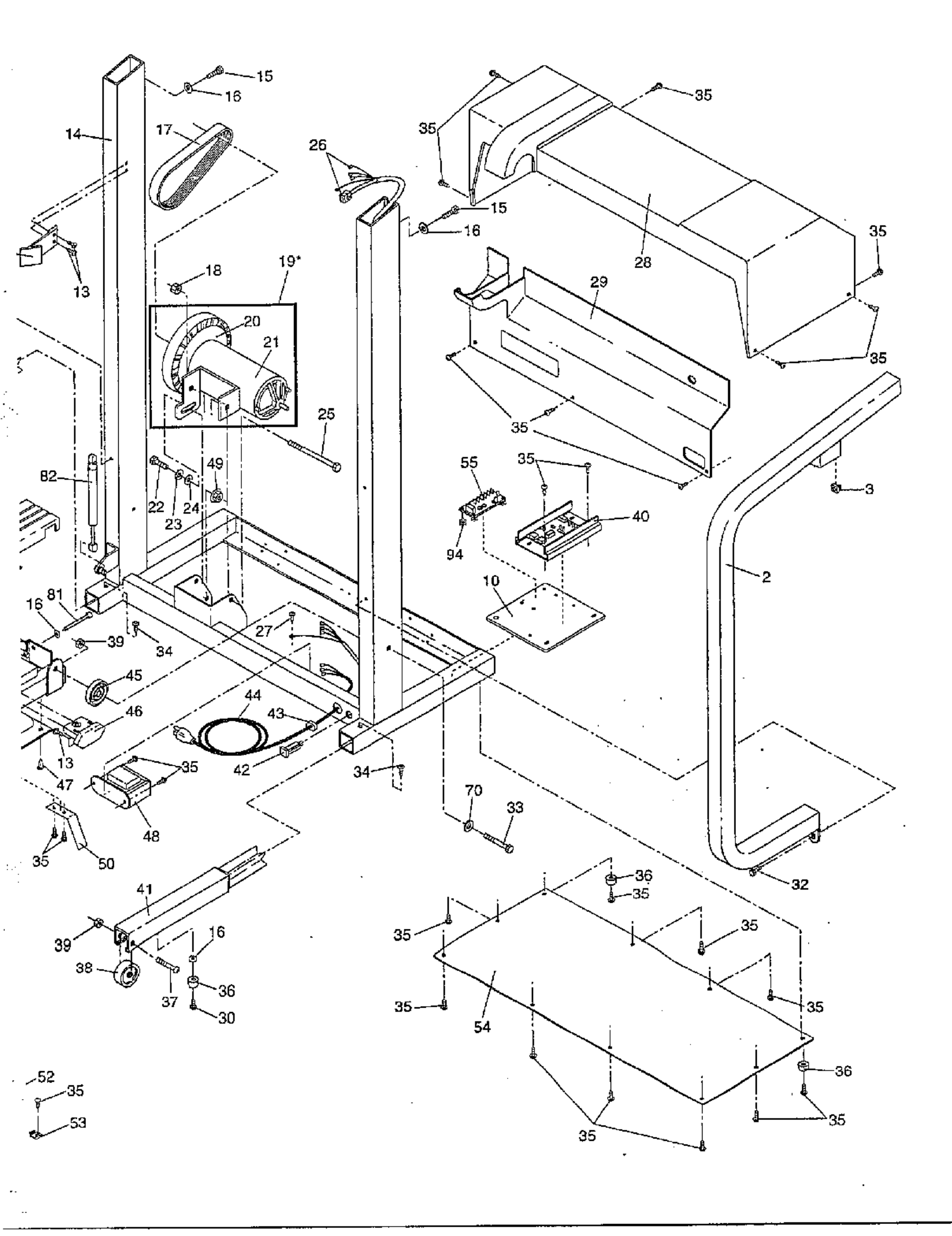

EXPLODED DRAWiNG--Model No. WLTL42570 RO997B

22 67

87 86 39 63

74 75

72 i.

• 47

39"

/52

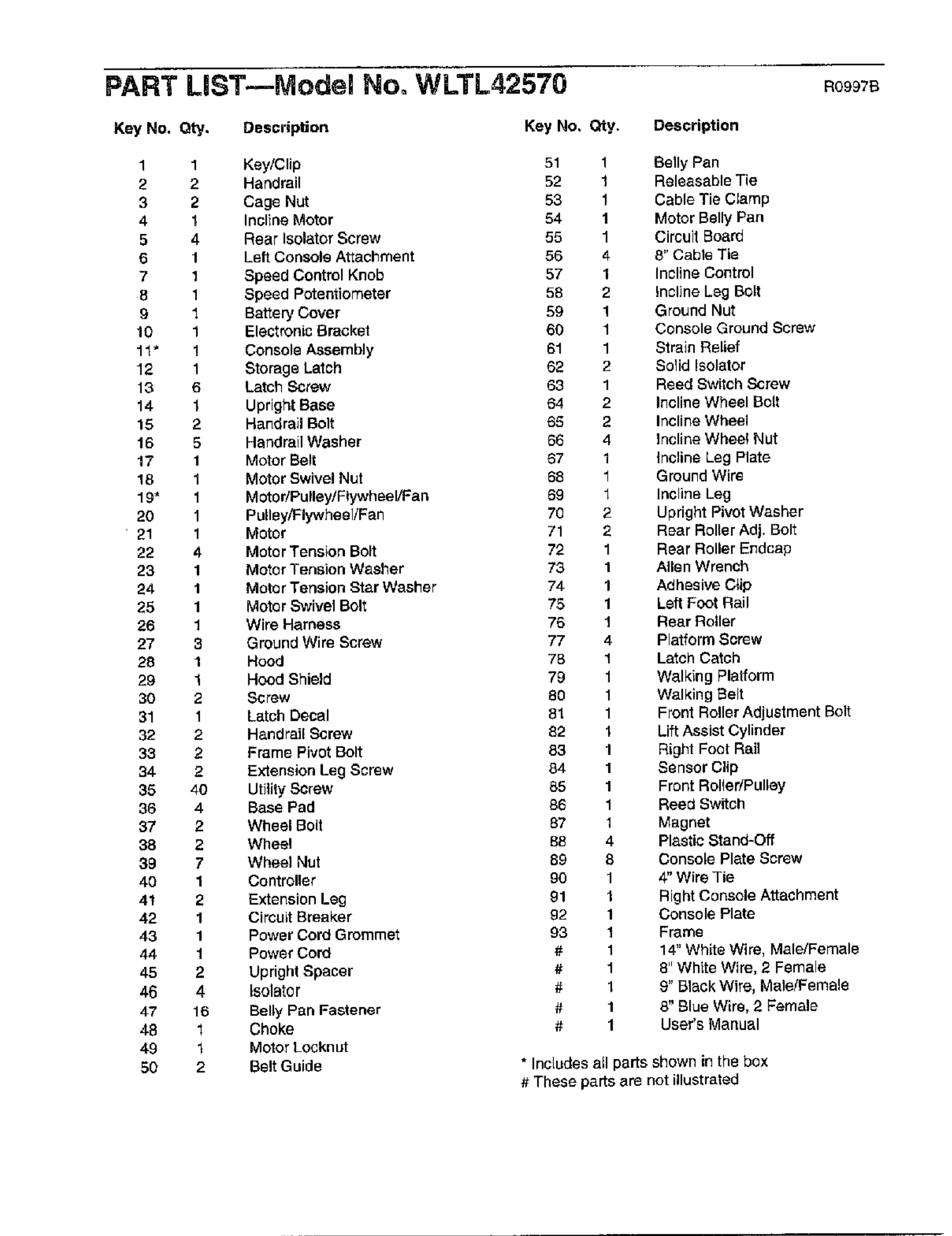

PART LIST--Model No, WLTL42570 B09gTB

Key No. Qty. DescripUon Key No, Qty. Description

2 2

4 t

5 4

6 t

7 1

8 1

9 1

10 1

11" !

12 1

13 6

14 1

15 2

16 5

17 1

18 1

1g* 1

20 1

21 1

22 4

23 1

24 1

25 1

26 1

27 3

28 1

29 1

30 2

31 1

32 2

33 2

34 2

35 40

36 4

37 2

38 2

39 7

4O 1

41 2

42 1

43 1

44 1

45 2

46 4

47 16

48 f

49 1

50 2

Key/Clip

Handrail

Cage Nut

Incline Motor

Rear Isolator Screw

Left Console Attachment

Speed Control Knob

Speed Potengometer

Battery Cover

Electronic Bracket

Console Assembly

Storage Latch

Latch Screw

Upright Base

Handrail Bolt

Handrail Washer

Motor Belt

Motor Swivel Nut

MotodPulley/F_ywheeliFan

Pulley/Flywheel/Fan

Motor

Motor Tension Bolt

Motor Tension Washer

Motor Tension Star Washer

Meter Swivel Bolt

Wire Harness

Ground Wire Screw

Hood

Hood Shield

Screw

Latch Decal

H&ndrail Screw

Frame Pivot Bolt

Extension Leg Screw

Utility Screw

Base Pad

Wheel Bolt

Wheel

Wheel Nut

Controller

Extension Leg

Circuit Breaker

Power Cord Grommet

Power Cord

Upright Spacer

isolator

Belly Pan Fastener

Choke

Motor Locknut

Belt Guide

1 Belly Pan

1Releasable Tie

1 Cable Tie Clamp

1Motor Belly Pan

1 Circuit Beard

48" Cable Tie

1 Incline Control

2 Incline Leg Bolt

1Ground Nut

1 Console Ground Screw

1 Strain Relief

2 Sclid Isolator

1 Reed Switch Screw

2 Incline Wheel Bolt

2 Incline Wheel

4 Incline Whee! Nut

1Incline Leg Plate

f Ground Wire

Incline Leg

2 Upright Pivot Washer

2 Rear Roller Adj. Bolt

1 Rear Roller Endcap

1 Allen Wrench

1 Adhesive C_ip

1Left Foot Rail

1Rear Roller

4Platform Screw

1Latch Catch

1 Walking Platform

1 Walking Belt

1 Front Roller Adjustment Bolt

1Lift Assist Cylinder

1Right Foot Rail

1 Sensor Clip

1 Front Roller/Pulley

1 Reed Switch

1 Magnet

4Plastic Stand-Off

8 Console Plate Screw

1 4" Wire Tie

1 Right Console Attachment

t Console Plate

1 Frame

1 14" White Wire, Male/Female

1 8" White Wire, 2 Female

19" Black Wire, Male/Female

1 8" Blue W_re, 2 Female

1 User's Manual

* Includes all parts shown in the box

# These parts are not illustrated

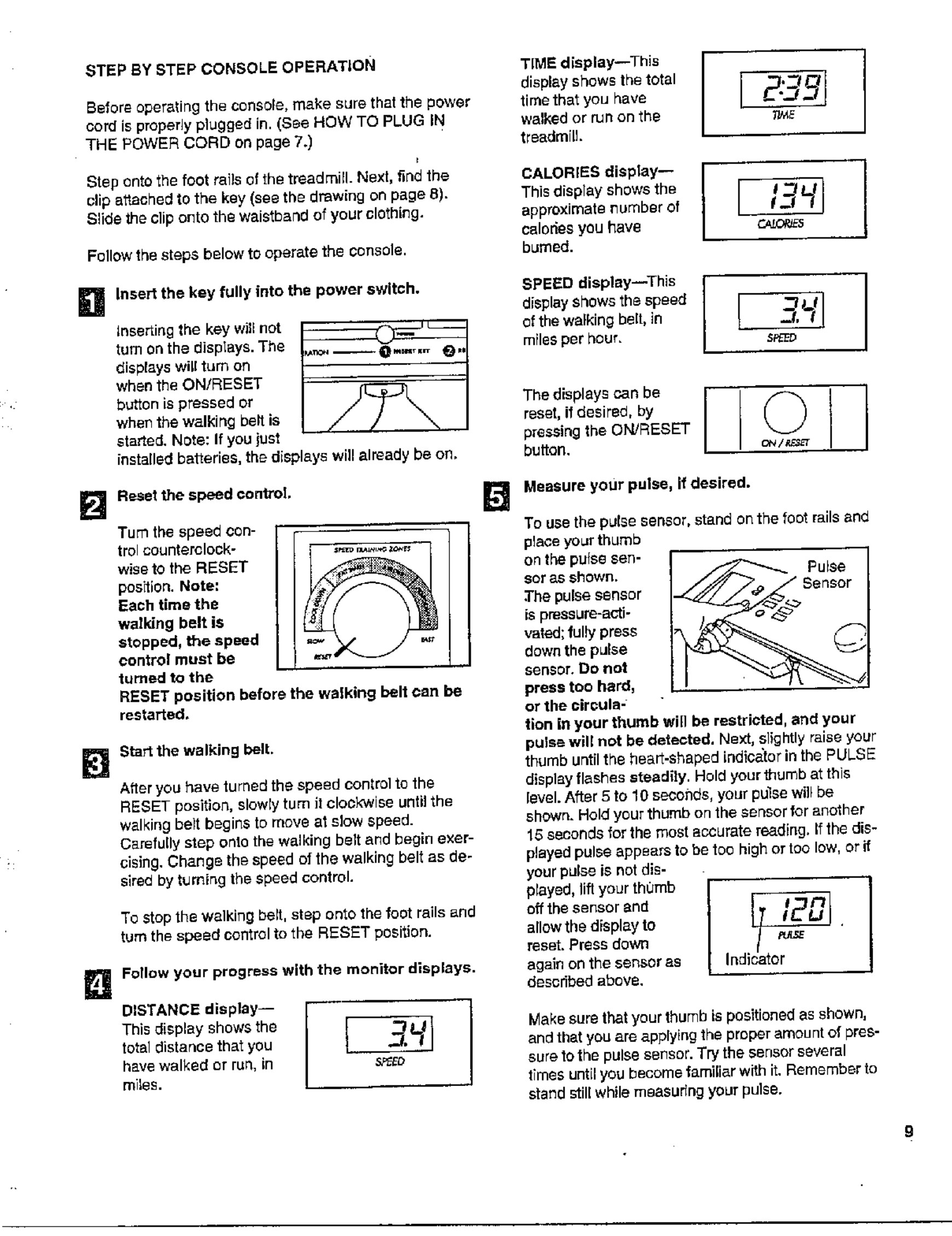

STEP BY STEP CONSOLE OPERATION

Belor_ opeta_ing the c_nso_e, rr_ke sure that the power

cord is properly plugged in. (S_e HOW TO PLUG IN

THE POWER CORD on page 7.)

TIME disptay--This

display shows the total

time that you have

walked or run on the

treadmW.

7_4_

Step onto the foot rails of the treadmill. Next, find the

cllp aftached to the key (see the drawing on page SI.

Slide the clip onto the waistband of your clothing.

Follow the steps below to operate the console.

CALORIES display--

This display shows the

approximate number of

calodes you have

burned.

[]

inserting the key will not

turn or the displays. The

_ispt_ys wilt f_m on

when the ON/RESET

button is pressed or

when the walking bell is

started. Note: If you just

Insert the key tully into the power switch,

installed batteries, the displays will already be on.

SPEED display--This

display shows the speed

of the walking beft, in

miles per hour.

The displays can be

reset, if desired, by

pressing the ON/RESET

button,

[] Reset the speed ¢ont_i,

Turn the speed ccrJ-

trol counterclock-

wise to the RESET

pos_tior=. Note:

I_ach time the

wafting belt is

=topped, the speed

control must be

turned to the

RESET position before the walking belt can be

restarted,

[] Sterl the walking belt.

After you have |urged the speed control to the

RESET position, slowly turn it clockwise until the

walking belt begins to move at slow speed.

Carefully step onto the walking bell and begin exer-

cising. Change the speed of the walking belt as de-

sired by tumi_g the speed control.

To stop the walking belt, step onto the foot rails _nd

turn the speed control to the RESET position.

[] DISTANCE display--

This display shows the

total distance that you

have walked or run, in

relies.

Follow your progress with the monitor dlsplays.

[] Measure your pulse, if desired.

To use the pulse sensor, stand on the foot rails and

place your thumb

on the pulse 8er_-

sol 88 shown.

.The pUIS_ sensor

_spressure-ac_t-

vatad; fully pres_

down the pu_se

sensor. Do not

press too hard,

or the circula-

tion in your thumb will be restricted, at3d your

pulme wilt not be detected. Next, slightly raise your

thumb until the heatt-shaped indicator in the PULSE

display flashes steadliy. Hold your thumb at this

level. After 5 to 10 seconds, your pulse will be

shown. Hold your thumb on the sensor for another

15 seconds for the most accurate reading. If the dis-

played pulse appears to be too high or toe low, or if

your pulse is not dis-

played, lift your th0mb

off the sensor and

allow the display to

reset. Press down

ag&in on the sensor as

descdbed above.

Make sure that your thumb is positioned as shown,

and that you are _pp/y_ng the proper amount of _es-

sure to the pulse sensor. Try the sensor several

times until you become fami[ier with it. Remember to

stand still while measuhng your pulse.

[] Change the incline of the treadmill, if desired.

To increase or decrease

the incline, hold down the

top or bottom of the incline

burton, Important: DO not

change the incline of the

treadmill by placing ob-

jects under the treadmill,

Change the incline only

as described above.

]When you are finished exercising, stop the

walldng belt and remove the key,

Step onto the foot rails,

stop the walking belt,

and remove the key

from the console. Store

the key in a secure

place. After the key is

removed, the displays

will remain on for

about five minutes.

Note: Any time that the walking belt is stopped

and no console buttons are pressed for five min-

utes, the displays will automatically turn off,

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding he readmill, unplug the power cord. Caut on

YOU must be able to safely lift 45 pounds (20 kg) in order

to raise, lower, or move the treadmill.

1. Hold thB treedmi]l with your hands in the locations shown

at the right. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise

the treadmill, make sure to lift with your legs rather

than your back. Raise the treadmill about halfway to the

vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Raise the treadmill until the storage latch

closes over the catch. Make sure that the storage latch

is fully engaged over the catch.

To Frotect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85 ° Fahrenheit.

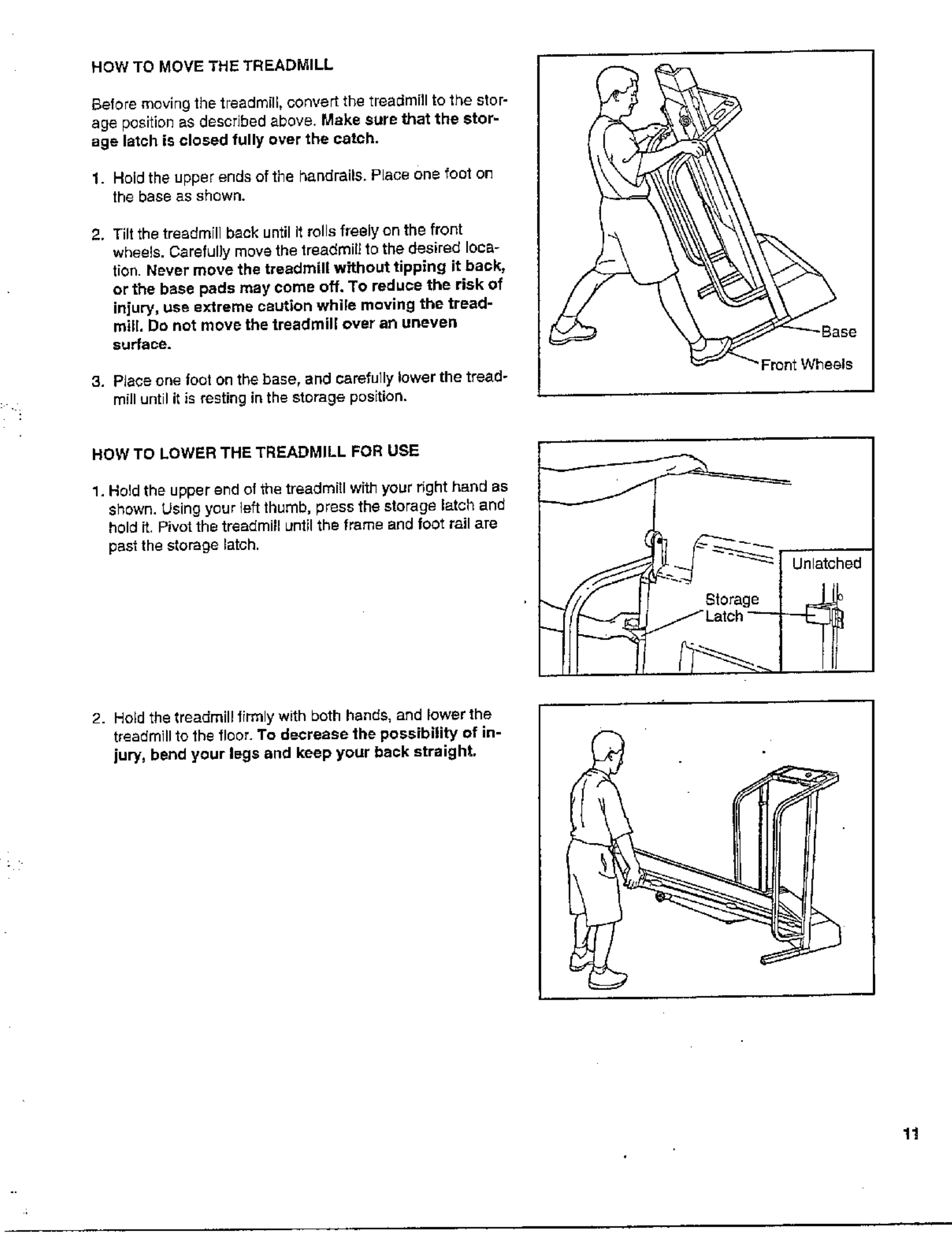

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as descTibed above. Make sLIre that the stor-

age latch is closed fully over the catch.

1. Hold the upper ends of the handrails, Place one foot on

the base as shown.

2. Tilt the treadm[l] back until If rolls freely on the front

wheels, Carefully move the treadmill to the desired loca-

tion• Never move the treadmill without tipping it back,

or the b_se pads may come off. TO reduce the risk of

injury, us_ extreme caution while moving the tread-

mill. Do not move the treadmill over an uneven

surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is testMg Jnthe _tcrage pDs_gon.

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmiU with your r_ght hand as

shown. Using your ]eft thumb, press the storage latch and

hold it. Pivot the treadmill Lmtilthe frame and foot rail are

past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. To decrease the possibility of in-

jury, bend your IDgs and keep your back straight.

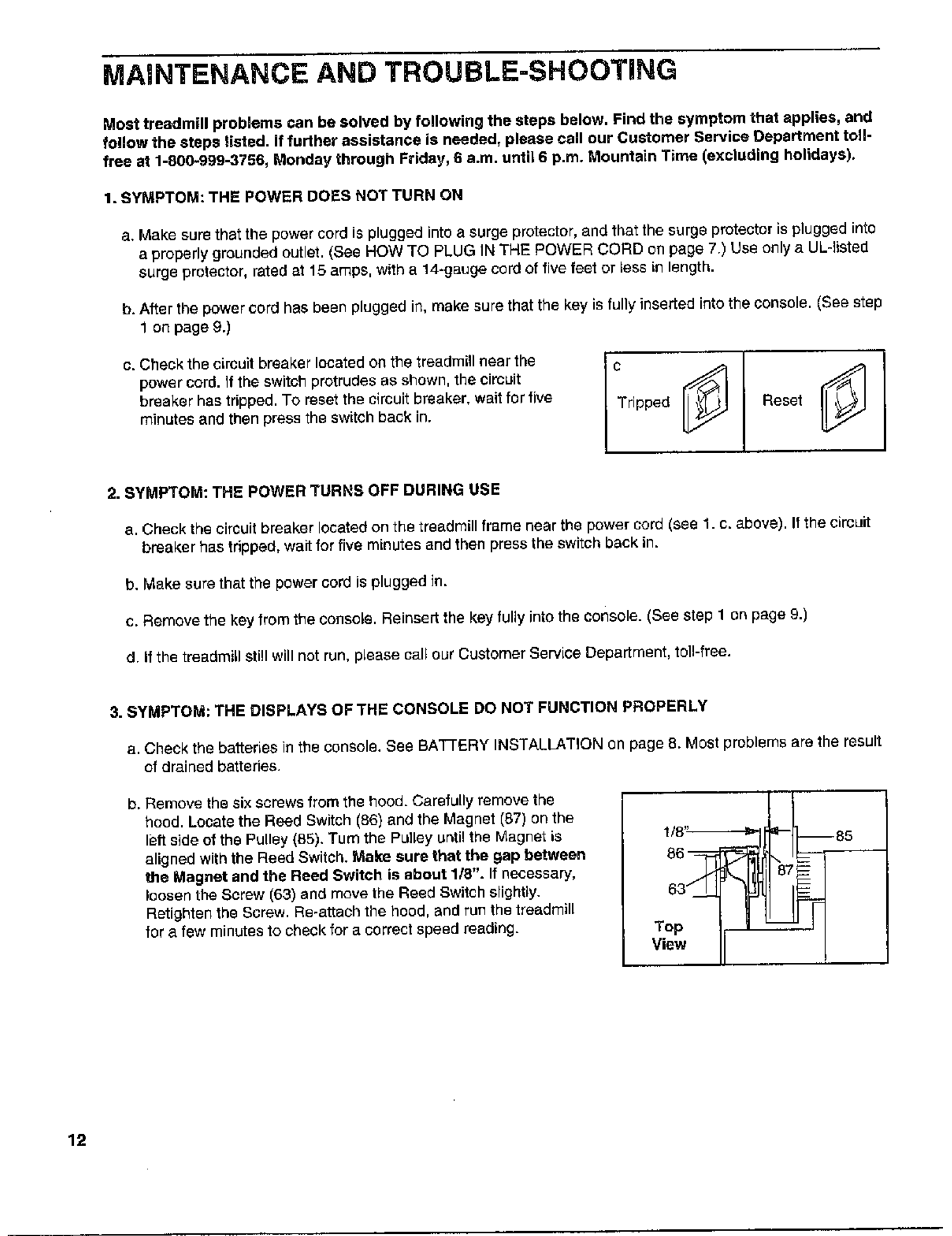

MAINTENANCE AND TROUBLE-SHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed, if furlher assistance is needed, please call our Customer Service Department tog-

free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

1. SYMPTOM: THE POWER DOES NOT TURN ON

a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is plugged into

a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page 7) Use only a ULdisfed

surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. (See step

1 on page g.)

c. Check the circuit breaker located on the treadmill near the

power cord. If the switch protrudes as shown, the circuit

breaker has tripped. TO reset the clrcuit breaker, wait for five

minutes and then press the switch back in.

2. SYMPTOM: THE POWER TURNS OFF DURING USE

a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit

breaker has tdppod, wait for five minutes and then press the switch back in.

b, Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console. (See step 1on page 9.)

d If the treadmill still will not run, please call our Customer Service Department, toll-free.

3. SYMPTOM; THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY

a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are the result

of drained batteries

h. Remove the six screws from the hood. Carefully remove the

hood. Locate the Reed Switch (86) and the Magnet (67) on the

left side of the Pulley (85). Turn the Pulley until the Magnet is

aligned with the Reed Switch. Make sure that the gap between

the Magnet and the Reed Switch is about 1/8". If necessary,

loosen the Screw (63) and move the Reed Switch slightly.

Retighten the Screw. Re-attach the hood, and run the treadmill

for a few minutes to check for a correct speed reading.

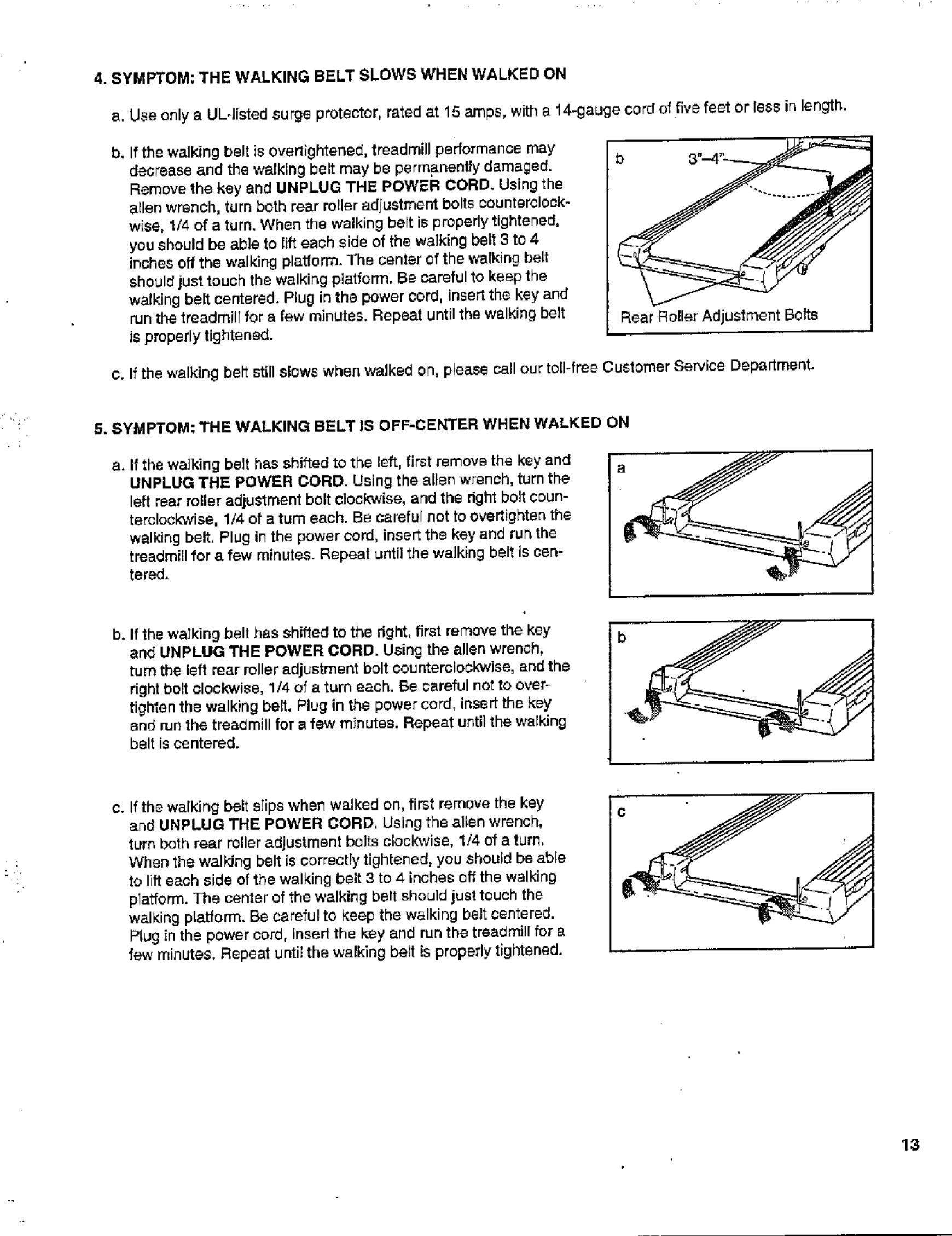

4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON

a. Use only a ULdisted surge protector, rated at 15 arnp8, with a 14-gauge cord of five feet or less in length.

b. If the walking belt is o_,edlghtened, treadmill performance may

decrease and the walking belt may be perrnanenlty d_roaged.

Remove the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn both rear roller adjustment bolts counterclock-

wise, 1/4 of a turn. When the walking belt is properly tightened,

you should be able to lift each side of the walking belt 3to 4

inches off the walking platform. The center Of the walking belt

should just touch the walking platform. Be careful to keep the

walking belt centered. Plug in the power cord, insert the key and

run the treadmilr for a few minute@. Repeat until the walking belt

is properly tightened.

¢. If the walking belt still alows when walked on, please call our toll-free Customer Service Depadment.

5. SYMPTOM: THE WALKING BELT IS OFF-CENTER WHEN WALKED ON

a. If the walking belt has shifted to the left, first remove the key and

UNPLUG THE POWER CORD. Using the allen wrench, turn the

left rear roller adjustment bolt c]ockwise, and the dgth bolt coun-

terclockwise, 1/4 of a turn each. Be carefur not to overtlghten the

walking belt. Plug in the power cord, insert the key and run the

treagroiil for a few roinutes. Repeat until the walking bait is cen-

tered.

b. If the walking belt has shifted to the dght, first remove the key

and UNPLUG THE POWER CORD. Using the allen wrench,

turn the left rear miler adjustroect bolt counterclockwise, and the

right bolt clockwise, 1/4 of a turn each. Be careful not to over-

tighten the walking belt, Plug in the power cord, insert the key

and run the treadmill for a few minutes. Repeat until the walkthg

belt is centered.

¢. If the walking belt allpo when walked on, first remove the key

and UNPLUG THE POWER CORD, Using the allenwrench,

turnbeth rearrolleradjustmect beltsclocl_'_ise,I/4of aturn,

When the walking beltIscorrecllytightened,you should be able

to lifteach sideofthe walkingbelt3 to4 inches of_the waI_ng

platform.Tn_ centerofthe walking bertshould justtouch the

welkingpi_orm. Be carefulto Keep thewalking beltcentered.

Plug inthe power oord,Insertthe key and ru_ the treadmillfora

few minutes.Repeat _nlttthe wa_ing belt_ pmpo_y tightened.

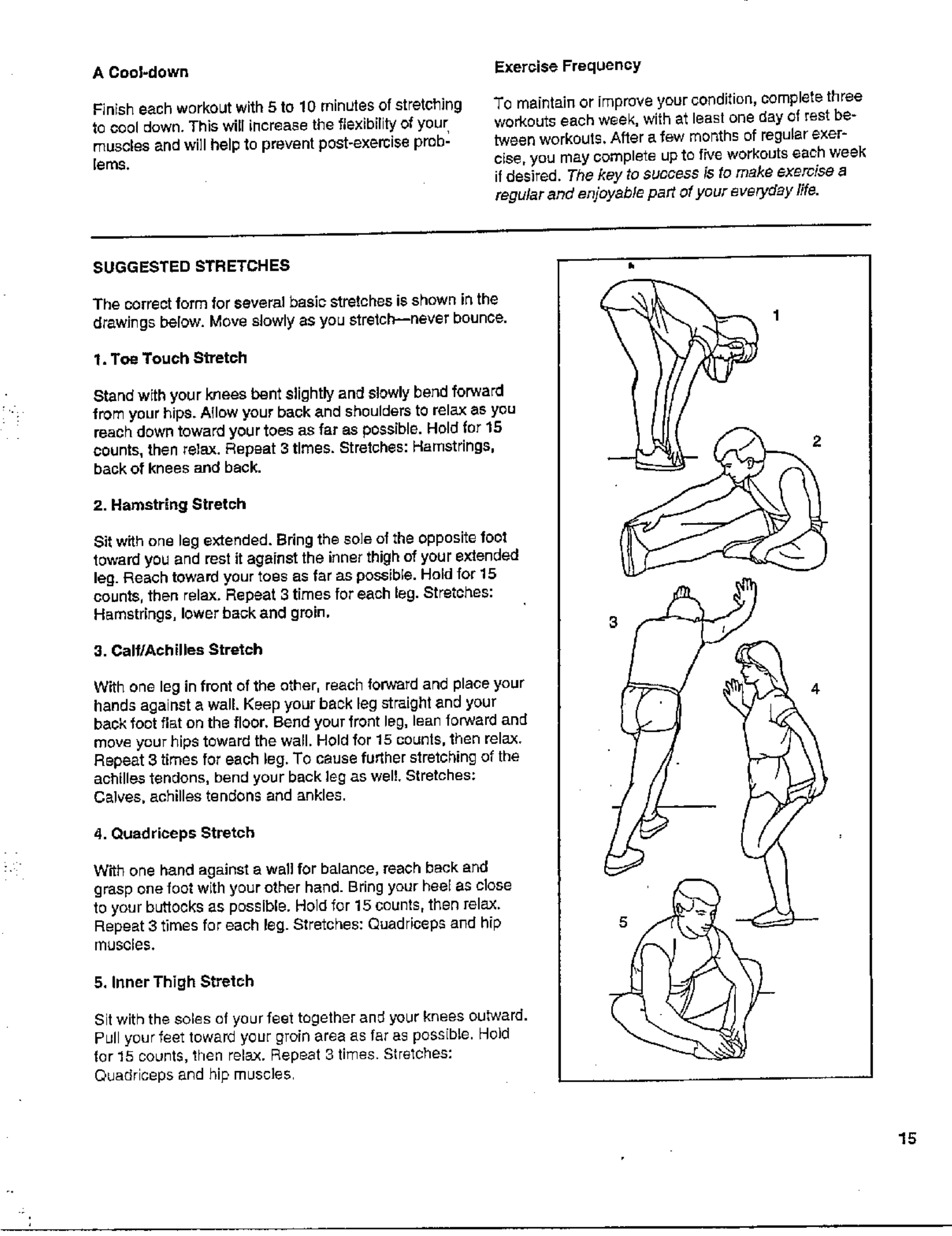

CONDiTiONiNG GUIDELINES

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time. During

the first few minutes of exercise, your body uses easily

accessible carbehydrate calories for energy. Orgy after

the first few minutes does your body begin to use

stored fat calories for energy. If your goal is to burn fat,

adjust the speed and incline of the treadmill until your

heart rate is near one of the lower two numbers in your

training zone. It may also be helpful to set the speed

control on the console to FAT BURN to help you main-

tain the proper intensity level. (See page 9.)

The following guidelines will help you to plan your ex-

ercise program. Remember--these &re genera] guide-

lines only. For more detailed exemlse information, ob-

tain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascu]ar system, the key ta achieving the desired

results _sto exercise with the proper intensity. The

proper intensity level can be found by using your heart

rate as a guide. The chart below shows recommended

hear[ rates for fat burning and aerobic exercise.

ECCC} ECCCC]

ECCC]EC3 ii ECCCC3

CC C]CC]

I II II I1--11 I e_

A3e 20 30 A0 50 4*0 70 80

Aerobic Exercise

[f your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic," Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood, For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the higher number in your training

zone. It may also be helpful to set the speed control on

the console to AEROBIC to help you maintain the

proper int ensi'_ylevel. (See page 9.)

High Parfonnance Athletfo Conditioning

If your goal is high performance athletic conditioning,

set the speed control on the conso]e to PERFOR-

MANCE to help you maintain the proper intensity level.

(See page 9.) Note: During the first few weeks of your

exercise p_ogram, keep your heart rate near the low

end of your training zone,

WORKOUT GUIDELINES

Each workout should include the following three pads:

A Warm-up

TO find the proper head rate for you, first find your age

at the bottom of the chart (ages are rounded off to the

nearest ten years). Next, find the three numbers above

your age. The three numbers are your '1raining zone. _

The lower two numbers are recommended heart rates

for fat burning; the higher number is the recommended

heart rate for aerobic exercise•

To measure your hear[ rate during exercise, use the

pulse sensor on the eonsole_ (See page 9.) P your

heart rate is too high or too low, adiuat the speed or in-

cline of the treadmill as needed,

Start each workout with 5 to 10 mlnutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for strenuous exercise.

Training Zone Exercise

After warming up, increase the intensity of your exer-

cise until your heart rate is in your training zone for 20

to 60 minutes. (During the first few weeks of your exer

cise program, do not keep your heart rate in your train-

ing zone for longer then 20 minutes.) Breathe regularly

and deeply as you exercisemnever hold your breath.

A Cool-down Exercise Frequency

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of your

muscJes and wJ]lheJp to prevent post-exercise prob-

lems.

TO maintain or improve your condition, complete three

workouts each week, with at least one day of rest be*

tween workouts. After _.few mor3ths of regular exer-

cise, you may complete up to f_veworkouts each week

if desired. The key to success is to make exercise a

regular and enjoyable part of your _verydey life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown in the

drawings below. Move slowly as you stretch--no€or bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward

from your hips. AIIow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Hamstrings,

back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bdng the sole of the opposite foot

toward you and rest it agafnst the inner thigh of your extended

leg. Reach toward your toes as far as bossible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back and groin.

3, Calf/Achilles Stretch

With one leg in front of the other, reach fo_,,'ard and place your

hands against a wall. Keep your beck leg straight and your

back rapt fl_t on the floor. Bend your front leg, lean forward and

move your hips toward the wall. Hold for 15 counts, then relax.

Repeat 3times fat each leg. To cause further stretching of the

achilles tendons, bend your back leg as well. Stretches:

Calves, aohilles tendons and ankle_.

4. Quadrieeps Stretch

With one hand against a wall for balance, reach back and

grasp one toot with your other hand. Bring y_ur heel a_ close

to your buttocks as pos_lble. Hold for 15 counts, ther_ relax.

Repeat 3 times for each leg. Stretches: Quadriceps and hip

m{Jsoies.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold

{or 15 counts, then rela_x. F::lepest3 times. Strelches:

QuaG'rlcep$ and hip muscles

t 4

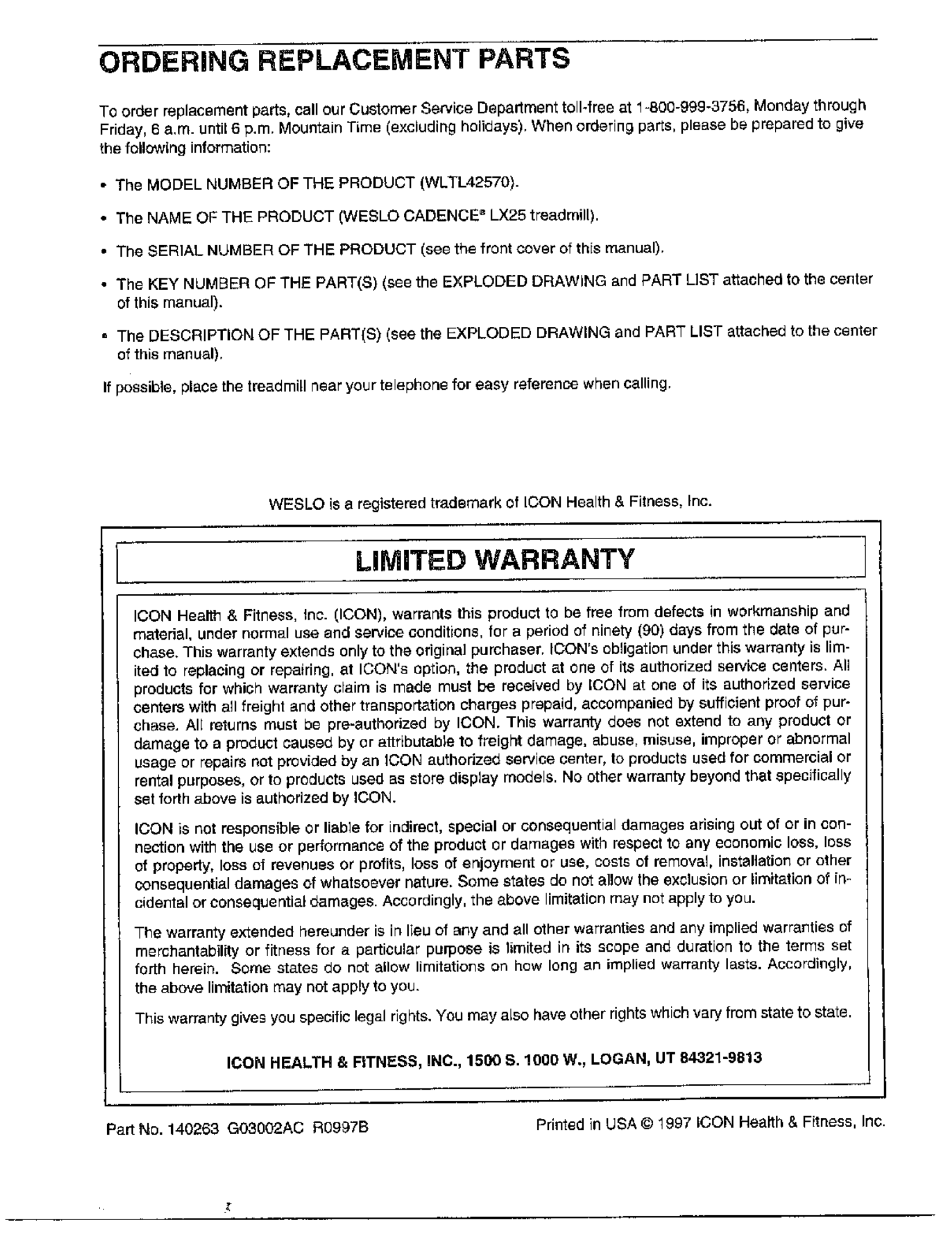

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-tree at 1=80g-999-3756, Monday through

Friday, 6 a,m. until 6 p.m. Mountain Time (e×ciuding hondays). When ordering parts, please be prepared to gwe

the following information:

• The MODEL NUMBER OF THE PRODUCT (WLTL42570).

•The NAME OF THE PRODUCT (WESLO CADENCE _ LX25 treadmill).

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).

• The KEY NUMBER OF THE PART(S) (see the EXPLODED DRAWING and PART L]ST attached to the center

of this manual).

= The DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST attached to the center

of this manual).

If possible, place the treadmill near your telephone for easy reference when calling,

WESLO is a registered trademark of ICON Health & Fitness, Inc.

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from detects in workmanship and

matedel, under normal use and service conditions, for a period of ninety (90) days from the date of put-

:base. This warranty extends only to the odgina] purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product at one of its authorized sewice centers. All

iroduuts for which warranty claim is made must be received by [CON at one of its authorized service

centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-

chase, All returns must be pre-authodzed by ICON. This warranty does not extend to any product or

damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal

usage or repairs not provided by an lOON authodzed service center, to products used for commercial or

rental purposes, or to products used as stere display models. No other warranty beyond that 8pecitically

set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss. loss

of property, less of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular puq3ose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to you.

This warranty gives you specific legal rights. YOU may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321"9813

Cadence Wltl42570 Users Manual

WESLO Treadmill Manual WA001843 WESLO Treadmill Owner's Manual, WESLO Treadmill installation guides

WLTL42570 WA001843

WLTL42570 to the manual 6ca64a8d-b499-40f1-806f-282d65504a45

Navigation menu

Versions of this User Manual:

Views

Navigation
