Cadi Scientific STG-821W SmartTAG User Manual

Cadi Scientific Pte. Ltd. SmartTAG

User Manual

CADI SmartSense
SmartTAG
STG-821W User Manual
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
2
Contents
1. Introduction............................................................................................................................. 8
2. Specifications ......................................................................................................................... 9
3. Battery charging instruction .................................................................................................. 10
4. Tag Cleaning Instructions ..................................................................................................... 11
5. Battery Status Indicator ........................................................................................................ 11
6. Buttons ................................................................................................................................. 10
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
3
Regulatory Information
For customers in U.S.A and Canada
Federal Communications Commission (FCC) Statement 15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1)
This device may not cause interference and
2)
This device must accept any interference, including interference that may cause undesired operation of the
device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
4
For customers in Europe
This equipment has been tested and found to comply with the limits set out in the RED Directive.
Where you see this symbol on any of our electrical products or packaging in Europe, it means that at end of life the
product or battery must be disposed of in accordance with any applicable laws or requirements for the separate
disposal of electrical equipment or batteries.
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
5
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
6
RED Declaration of Conformity
We,
Company : CADI SCIENTIFIC PTE. LTD.
Address : 31 Ubi Road 1, #07-01A Aztech Building, Singapore 408694
Phone Number : +65 62762676
Fax Number : +65 62766216
Declare under our sole responsibility that the product:
Product : SmartTAG
Brand Name : Cadi
Type or Model : STG-821W
Hardware Version : v1.2
Software Version : v1.0
Others : The product has a 3.35dBi internal chip antenna for 2.4GHz WiFi and reader coil for
125kHz inductive coupling. The hardware and software of this product is not end-user
changeable or modifiable.
is in conformity with the following standards and/or technical specifications (References to standards/specifications
must be listed with their identification number and version and, where applicable, date of issue)
Health & Safety (Article 3.1(a)) : EN 60950-1:2006/A2:2013
EN 62479:2010
EMC (Article 3.1(b)) : ETSI EN 301 489-1 V2.1.1:2017
ETSI EN 301 489-3 V2.1.1:2017
ETSI EN 301 489-17 V3.1.1:2017
Radio Spectrum (Article 3.2) : ETSI EN 300 328 V2.1.1:2016
ETSI EN 300 330 V2.1.1:2017
Other (Article 3.3) : NA
We hereby declare that the above-named product is in conformity to all the essential requirements of Directive 2014/53/EU.
The technical documentation relevant to the above equipment will be held at:
Company: CADI SCIENTIFIC PTE. LTD.
Address: 31 Ubi Road 1, #07-01A Aztech Building, Singapore 408694
Date: 06/06/2018
Place of issue: Singapore
(e.g. City/town, and Country)
Note (not forming part of this declaration): The information required to identify all applicable Union acts should be available in a single EU declaration of conformity.
In order to reduce the administrative burden on economic operators, that single EU declaration of conformity may be a dossier made up of relevant individual
declarations of conformity. Please see Recital 42 and Article 18 of the RED.
PRECAUTIONS
•
Keep batteries away from children.
•
Do not swallow batteries.
•
Do not throw batteries into water.
•
Do not throw batteries into fire.
•
Do not short-circuit batteries. Battery must be fit into tag in correct orientation.
•
Do not replace battery with incorrect type. Incorrect type of battery replacement may cause risk of
exposure.
•
Battery should be disposed according to the instructions
Product Information
•
Product model : STG-821W
•
Product name : SmartTAG
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
7
•
Manufacturing site : 31 Ubi Road 1, #07-01A Aztech Building, Singapore 408694
Version Information
•
This version is subject to change or upgrade without notice
•
Version : A01
•
Issue date : 25 May 2017
Declaration
Cadi Scientific Pte Ltd reserves the right to change the product described in this Operator’s Manual. All
information contained in this Operator’s Manual is subject to change without notice.
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
8

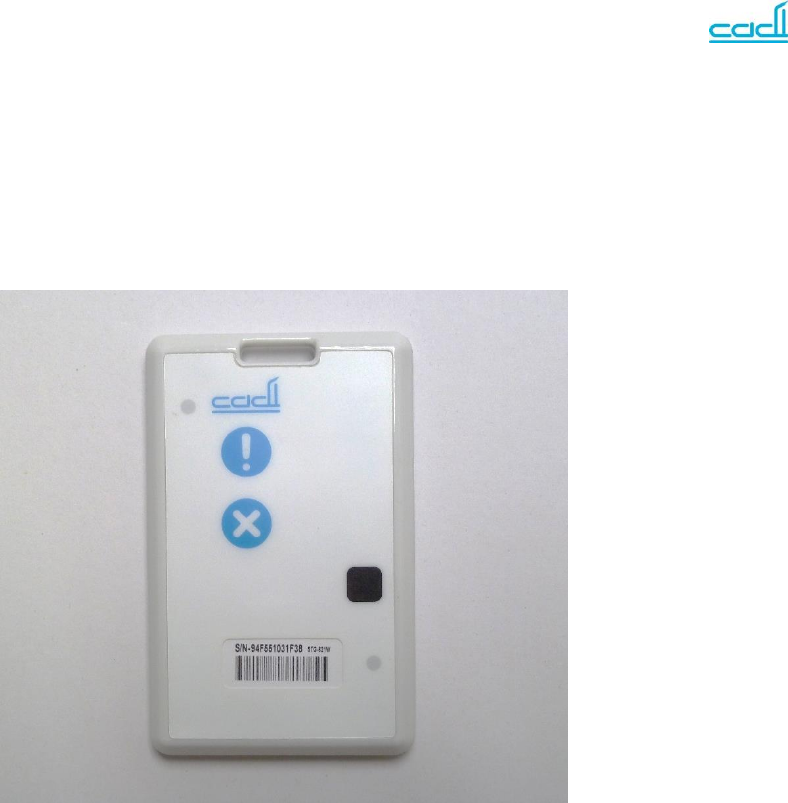

1. Introduction
The STG-821W is a battery rechargeable personnel tag. The STG-821W transmits LF signal periodically to establish
close range communication between tags. Leveraging on this unique tag-to-tag communication technology, the
STG-821W can also be configured for contact tracing applications to help organizations accurately track, trace
and monitor personnel, including staff, visitors and patients, coming into proximity contact with each other.
When the tags pass by a location LF exciter, it will receive the location ID transmitted from the exciter. When
there is a change of status or location, the tag will transmit RF signal to RF receiver to update status and location.
The 2 buttons on the tag allow for several configuration possibilities ie. staff assistance, panic / duress alert, alert
acknowledgment etc.
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
9
2. Specifications
S/N
Feature
Description
1
Power
Rechargeable Lithium Ion Polymer Battery 3.7V 400mA
2
Dimension
86mm x 55mm x 8.8mm
Weight
39g
3
Operating temperature
0°C - 55°C (during normal operation)
0oC – 39oC (during charging)
4
Storage & Transport
temperature range
-10°C - 55°C
5
RF (Transmit) frequency
2.4 GHz
Transmission Rate
Every 30 minutes or Immediate upon change in location
6
LF (Transmit and Receive)
125 kHz
Transmission Rate
Every 2 minutes
7
Interface
2 x buttons
2 x Bi-Colour LEDs (Red and Green)
1 x Buzzer.
8
Compliance
TBD
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
10
3. Battery charging instruction
1.
The tag is powered by a rechargeable Li-ion polymer battery. Use only locally approved chargers to
charge the tag.
2.
A fully discharged battery recharges fully in approximately 2 hours.
3.
Attach the magnetic connector of the charging cable to the magnetic charging pads on the reverse side of
the tag .
4.
Connect the USB end of the charging cable to any locally approved 5V USB charger.
5.
When charging is in progress, the charging LED will show RED.
6.
When charging is completed, the charging LED will show GREEN.
7.
When charging is completed, disconnect the charging cable from the charging pads. And remove the
charging cable from the 5V USB charger.

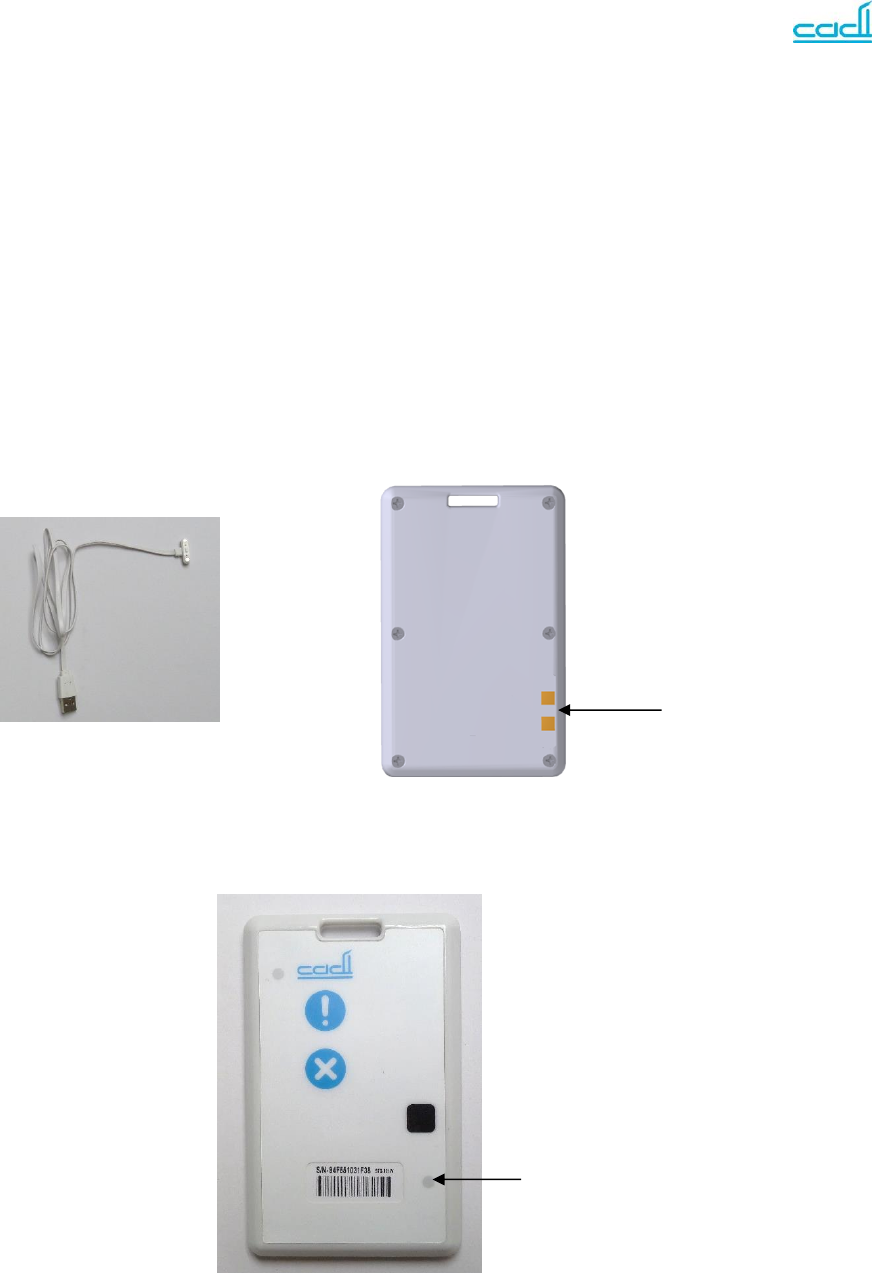

Magnetic charging
pads on reverse side
of tag
Charging cable with magnetic connector
Battery charging status indicator
▪ GREEN means fully charged.
▪ RED means charging
Safety Precaution
The internal battery is not user serviceable or replaceable. Do not open the casing to access the
internal battery.
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821W User Manual T-
STG-821W-I02-A01
11
4. Tag Cleaning Instructions
1. Disinfect the tags by wiping with an alcohol sanitizer.
2. Dry the tag with a clean cloth.
Caution: The tag cannot withstand autoclave sterilization

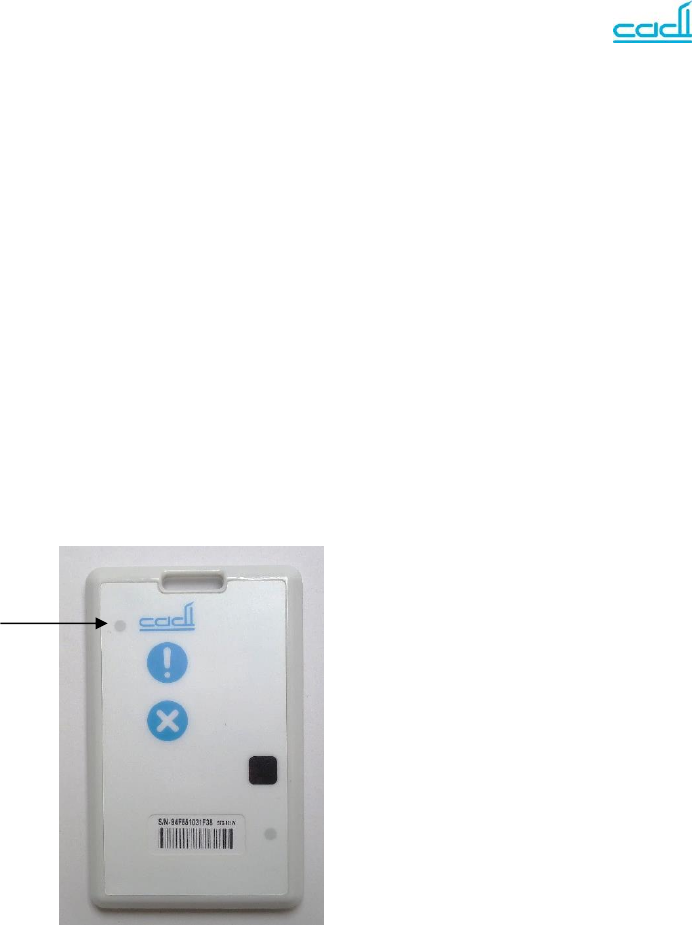

5. Battery Status Indicator
Blink RED LED at every 10
seconds interval when
battery strength is low
When battery level is low
1. The tag will continuously blink RED LED at every 10 seconds interval if its battery level is low.
2. Once the magnetic charger-USB connector is removed from the tag, the tag will blink RED LED with
few beeping sound if battery strength detected is weak else it will blink GREEN LED with single beep
only if it is normal.
3. If the battery level is too low, the tag might keep restarting and output beeping sound.
CONFIDENTIAL
CADI SmartSense – SmartTag STG-821 User Manual
T-STG-821-I02-A02
10

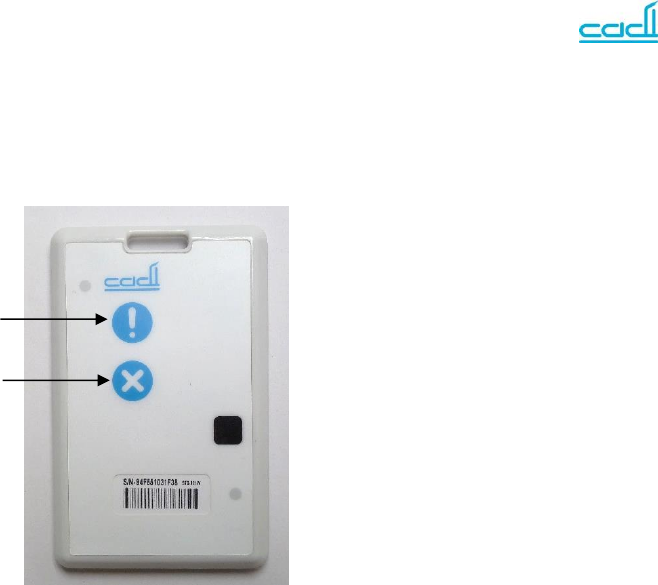

6. Buttons
Duress call button
Unauthorized-Exit alert
neutralization button
1.
When duress call button is pressed and held down for 3 seconds, a duress signal will be transmitted.
2.
When the unauthorized-exit alert neutralization button is pressed-and-released, an unauthorized-exit
neutralization signal will be transmitted.
