Cadi Scientific STG-832 INFANT TAG User Manual
Cadi Scientific Pte. Ltd. INFANT TAG
Users Manual
STG-832 SmartTAG
User Manual
WARNINGS
For customer in the U.S.A and Canada
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
For customer in Europe
• This equipment has been tested and found to comply with the limits set out
in the R&TTE Directive.
• Where you see this symbol on any of our electrical products/packaging in
Europe, it means that at end of life the product/battery must be disposed of
in accordance with any applicable laws or requirements for the separate
disposal of electrical equipment/batteries.
• The manufacturer of this product is CADI Scientific Pte Ltd, 31 Ubi Road 1,
#03-00 Aztech Building, Singapore 408694.
Cadi Scientific Pte Ltd
31, UBI ROAD 1
#03-00
AZTECH BUILDING
Singapore 408694
http://www.cadi.com.sg
PRECAUTIONS
• Keep batteries away from children.
• Do not swallow batteries.
• Do not throw batteries into water.
• Do not throw batteries into fire.
• Do not short-circuit batteries.
• Do not recharge batteries.

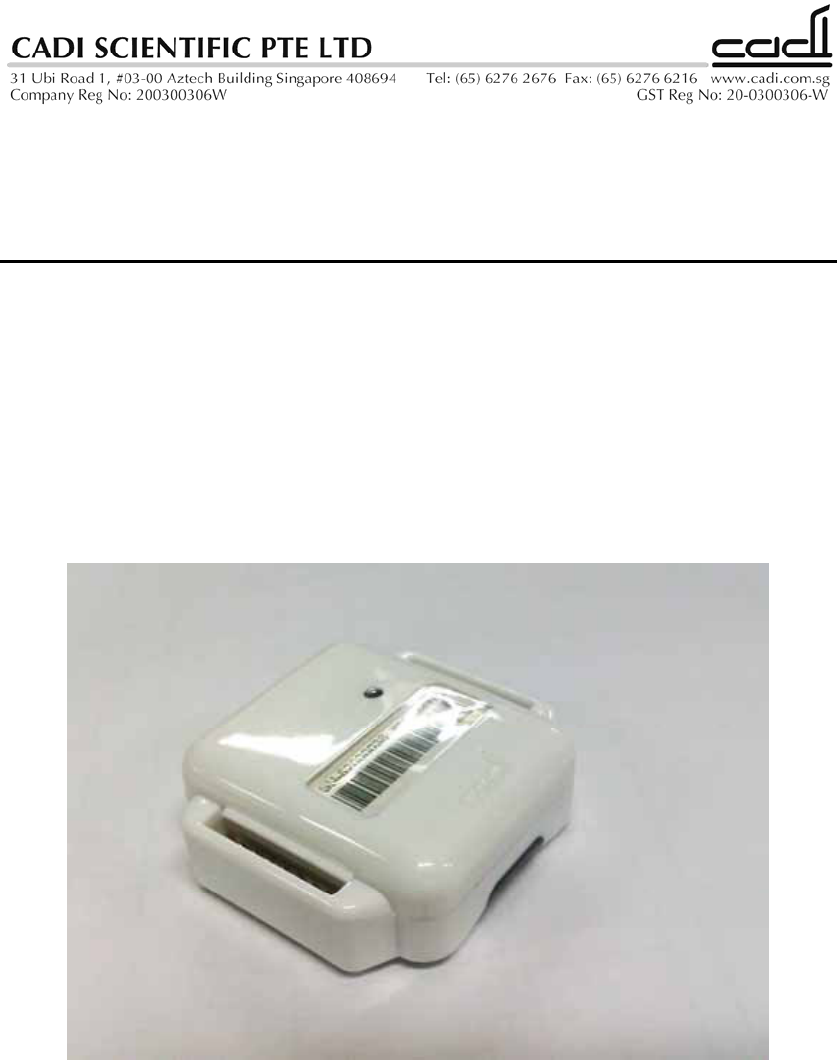

Description
The STG-832 SmartTAG is a battery replacement tag that can be worn on an
infant to track its location. When used in conjunction with the STG-852
Patient/Mother-Tag, the SmartTAG can be matched to a Mother-Tag. When
matched to a SmartTAG, the Mother-Tag can provide indication of an
incorrect match when a wrong Infant is brought near the mother.
The STG-832 will periodically transmit RF signal or LF signal (optional). The
RF and LF data packets consist of its unique tag ID and status. It is designed
to work with other devices in the SmartSense system.
Accessories
• Proprietary Infant Tag Wrist Strap.
• CR 2050 coin cell battery.
Product Specification
The STG-832 SmartTag has the following requirements:
PRODUCT SPECIFICATION
Product Model STG-832
Operating Ambient Temperature 20.0 degC to 50.0 degC
Storage Ambient Temperature 20.0 degC to 50.0 degC
Power Source 1 x CR-2050 3V coin cell
Battery Life 3 Months
Operating Frequency (RF)
UHF US: 919.8MHz, 925.0MHz
Europe: 868.4MHz
Transmission Range (UHF) Up to 25m (Unblocked)/Typical Operating Range about
10m
Receiving Range w.r.t SMN-890 10m to 15m (line-of-sight)
Transmission Rate Upon change in location/status or Every 2 min
Operating Frequency (LF)
LF 125kHz (Receiving)
Transmission Range 2 - 5m (w.r.t. SMN-826)
Dimension
Without Bracket (39.5) x (36.5) x (15.0) mm
Mother-Infant Pairing (w.r.t. STG-852)
LF 125kHz
Pairing Range approximately 10cm
Mother-Infant Matching(w.r.t. STG-852)
LF 125kHz
Transmission Range 15 - 30cm
Features
Tamper-Resistance Yes (only with WBN-STG-832/STG-833)
Loose Strap Alert Yes (only with WBN-STG-832/STG-833)
Accessories
Safety Wristband WBN-STG-832
Battery Release Tool REL-STG-832
Compliance
C.E.
• EN 300 220
• EN 300 330
• EN 301-489
• EN 55022:2006
• EN 61000-4-2
• EN 61000-4-3
• IEC 60950
• ISO 14971:2000/A1:2007
FCC Part 15b/c
Battery Replacement

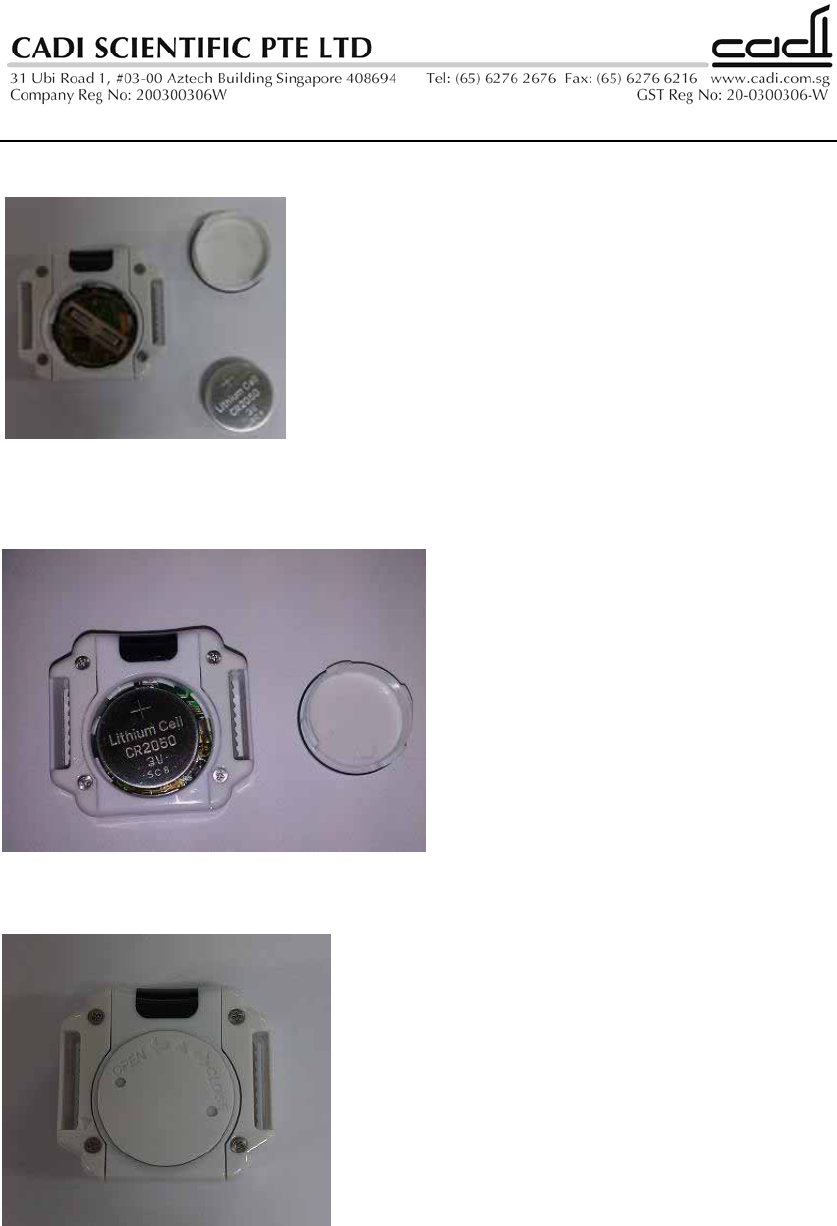

1)
Prepare a CR2050 coin cell battery and a battery cover as shown above
2)
Place the coin-cell battery with positive terminal (+) face outwards.
3)
Adjust the battery cover as shown above (triangle pointing at about 1’o clock)
so that >90% of the thickness of the cover is inserted into the casing (body).
4)
Press a little bit and turning clockwise for tightening. (Approximately 10
degree, there is a stopper so won’t overturn).
5)
After tighten up the cover, it should be flush with the casing (body).
