Seats and Restraint Systems ........................... 1-2
Front Seats ............................................... 1-2
Rear Seats ............................................... 1-6
Safety Belts .............................................. 1-8
Child Restraints ....................................... 1-28
Airbag System ......................................... 1-48
Restraint System Check ............................ 1-63
Features and Controls ..................................... 2-1
Keys ........................................................ 2-3
Doors and Locks ....................................... 2-8

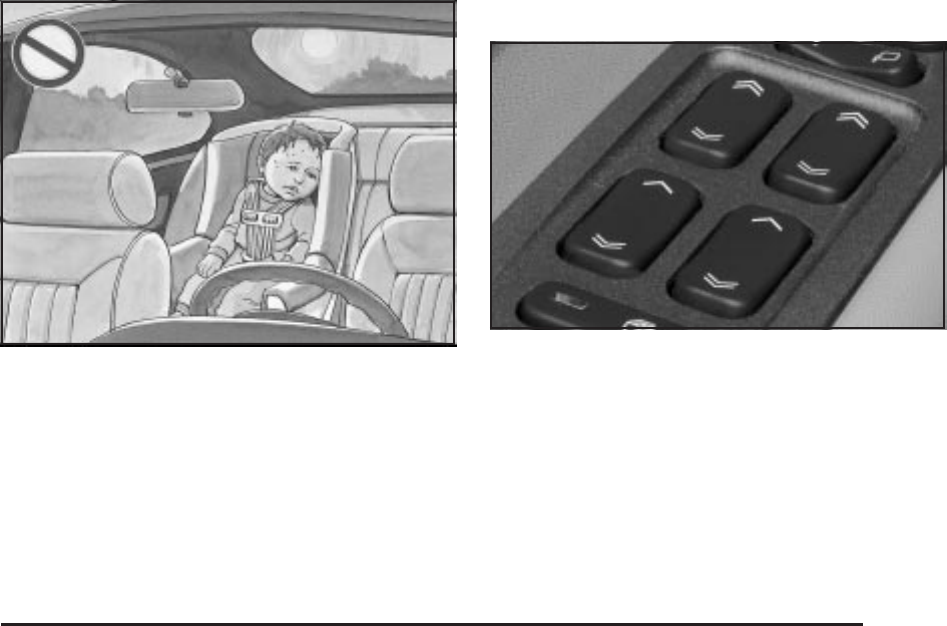

Windows ................................................. 2-14
Theft-Deterrent Systems ............................ 2-18
Starting and Operating Your Vehicle ........... 2-22
Mirrors .................................................... 2-41
OnStar
®
System ...................................... 2-45
HomeLink
®
Transmitter ............................. 2-47
Storage Areas ......................................... 2-51
Sunroof .................................................. 2-53
Vehicle Personalization ............................. 2-54
Instrument Panel ............................................. 3-1
Instrument Panel Overview .......................... 3-4
Climate Controls ...................................... 3-27
Warning Lights, Gages, and Indicators ........ 3-34
Message Center ....................................... 3-52
Driver Information Center (DIC) .................. 3-58
Audio System(s) ....................................... 3-88
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle ..... 4-2
Towing ................................................... 4-38
Service and Appearance Care .......................... 5-1
Service ..................................................... 5-3
Fuel ......................................................... 5-5
Checking Things Under the Hood ............... 5-10
Rear Axle ............................................... 5-48
Bulb Replacement .................................... 5-49
Windshield Wiper Blade Replacement ......... 5-53
Tires ...................................................... 5-54
Appearance Care ..................................... 5-87
Vehicle Identification ................................. 5-96
Electrical System ...................................... 5-96
Capacities and Specifications ................... 5-108
Maintenance Schedule ..................................... 6-1
Maintenance Schedule ................................ 6-2
Customer Assistance and Information .............. 7-1
Customer Assistance and Information ........... 7-2
Reporting Safety Defects ........................... 7-11
Index ................................................................ 1
2005 Cadillac CTS/CTS-V Owner Manual M
GENERAL MOTORS, GM, the GM Emblem, CADILLAC,
the CADILLAC Crest & Wreath, and the name CTS
are registered trademarks of General Motors
Corporation.
This manual includes the latest information at the time
it was printed. We reserve the right to make changes
after that time without notice. For vehicles first sold
in Canada, substitute the name “General Motors
of Canada Limited” for Cadillac Motor Car Division
whenever it appears in this manual.
Keep this manual in the vehicle, so it will be there if
it is needed while you are on the road. If the vehicle
is sold, leave this manual in the vehicle.
Litho in U.S.A.
Part No. 05CTS A First Edition
©Copyright General Motors Corporation 05/14/04
All Rights Reserved
Litho in U.S.A.
Part No. 05CTS A First Edition
©Copyright General Motors Corporation 05/14/04
All Rights Reserved
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning
to end when they first receive their new vehicle.
If this is done, it can help you learn about the features
and controls for the vehicle. Pictures and words
work together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
ii
Safety Warnings and Symbols
There are a number of safety cautions in this book. We
use a box and the word CAUTION to tell about things
that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.
You will also find a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or
“Do Not let this happen.”
iii
Vehicle Damage Warnings
Also, in this manual you will find these notices:
Notice:
These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors or
in different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specific component, control, message,
gage, or indicator.
If you need help figuring out a specific name of a
component, gage, or indicator, reference the following
topics:
•Seats and Restraint Systems in Section 1
•Features and Controls in Section 2
•Instrument Panel Overview in Section 3
•Climate Controls in Section 3
•Warning Lights, Gages, and Indicators in Section 3
•Audio System(s) in Section 3
•Engine Compartment Overview in Section 5
iv

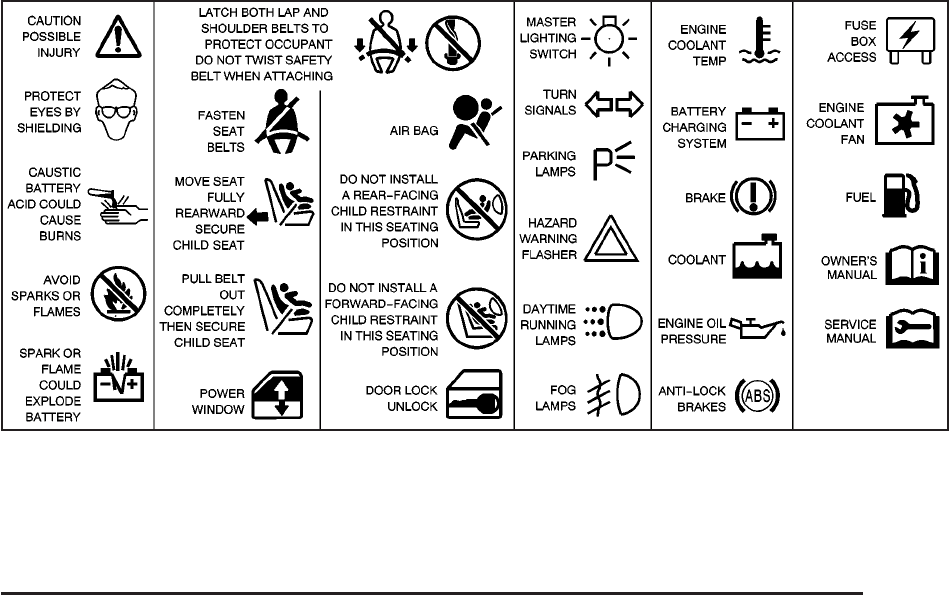

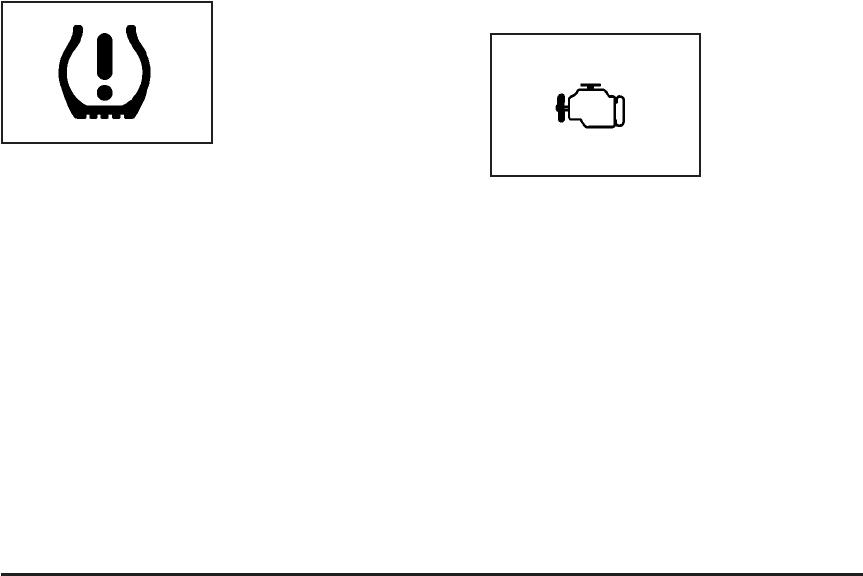

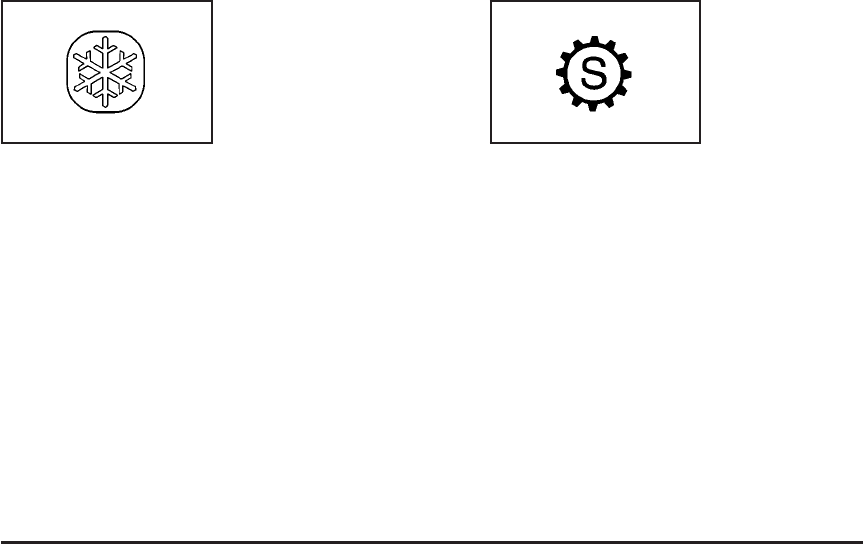

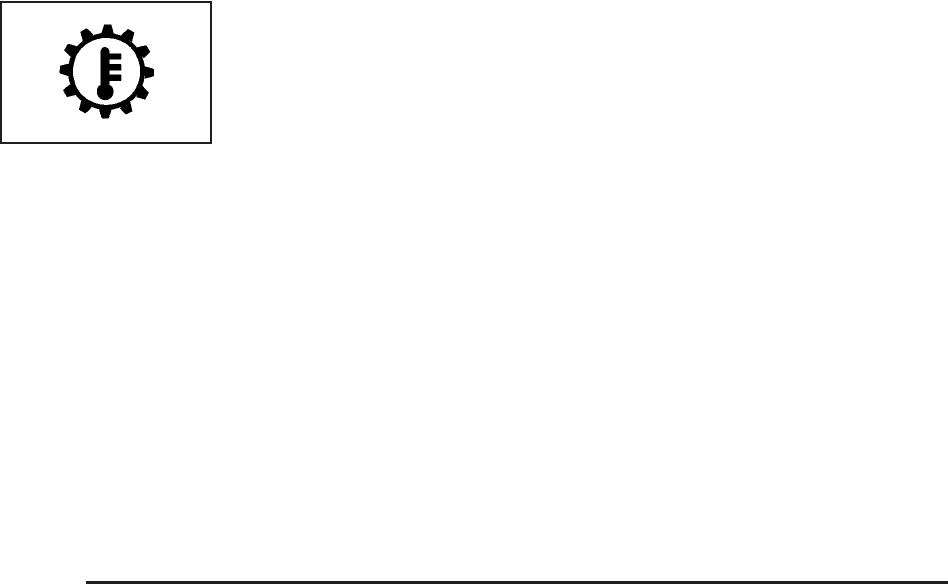

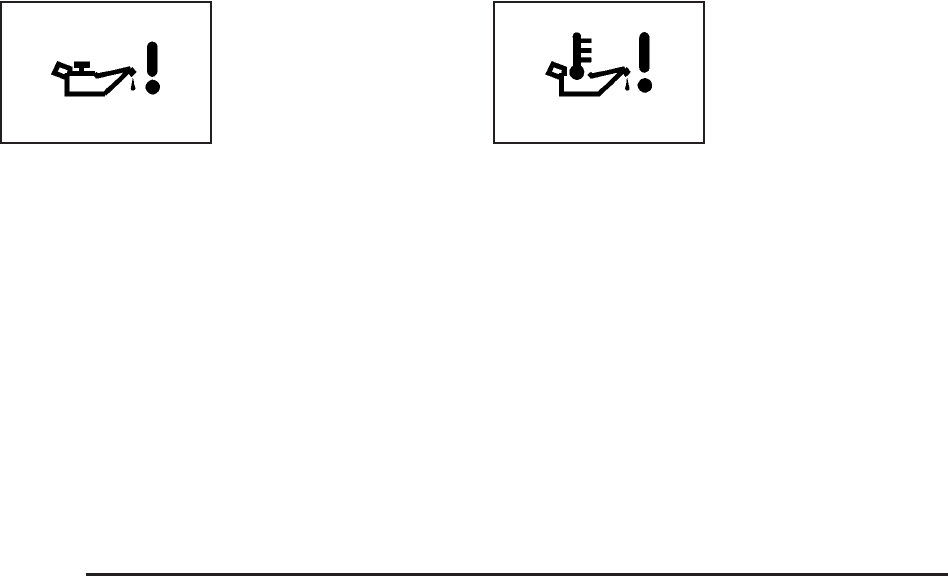

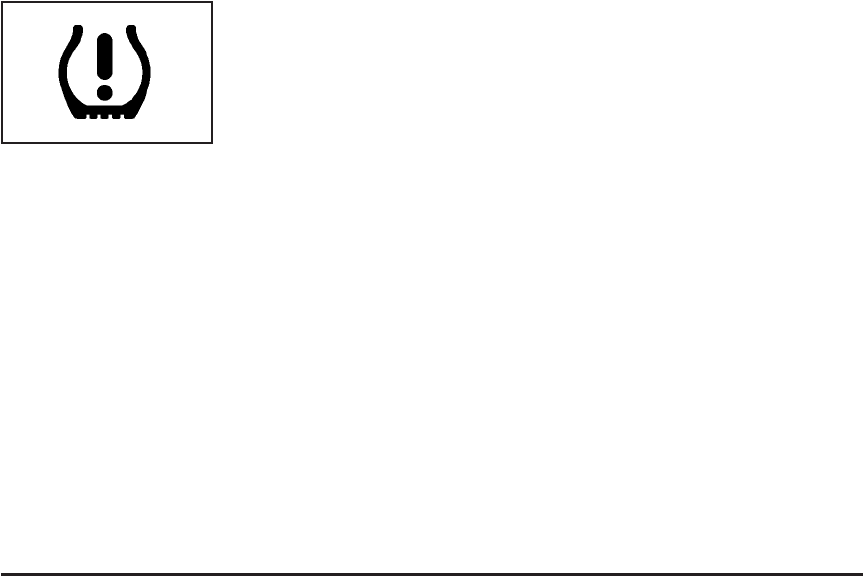

These are some examples of symbols that may be found on the vehicle:
v
✍NOTES
vi
Front Seats ......................................................1-2
Manual Passenger Seat ..................................1-2
Power Seats ..................................................1-2
Power Lumbar ...............................................1-3
Heated Seats .................................................1-3
Reclining Seatbacks ........................................1-4
Head Restraints .............................................1-6
Rear Seats .......................................................1-6
Split Folding Rear Seat ...................................1-6
Safety Belts .....................................................1-8
Safety Belts: They Are for Everyone .................1-8
Questions and Answers About Safety Belts ......1-13

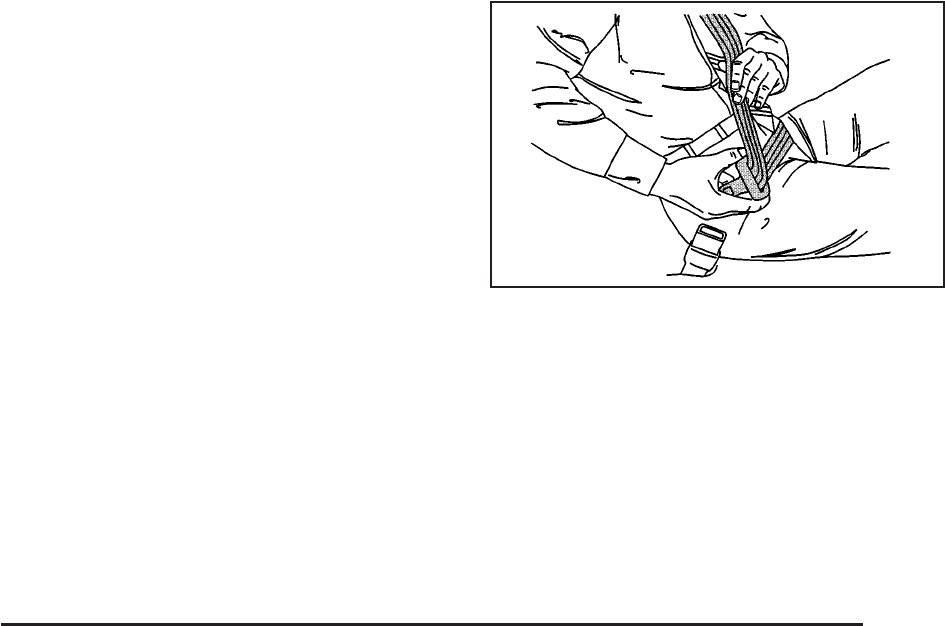

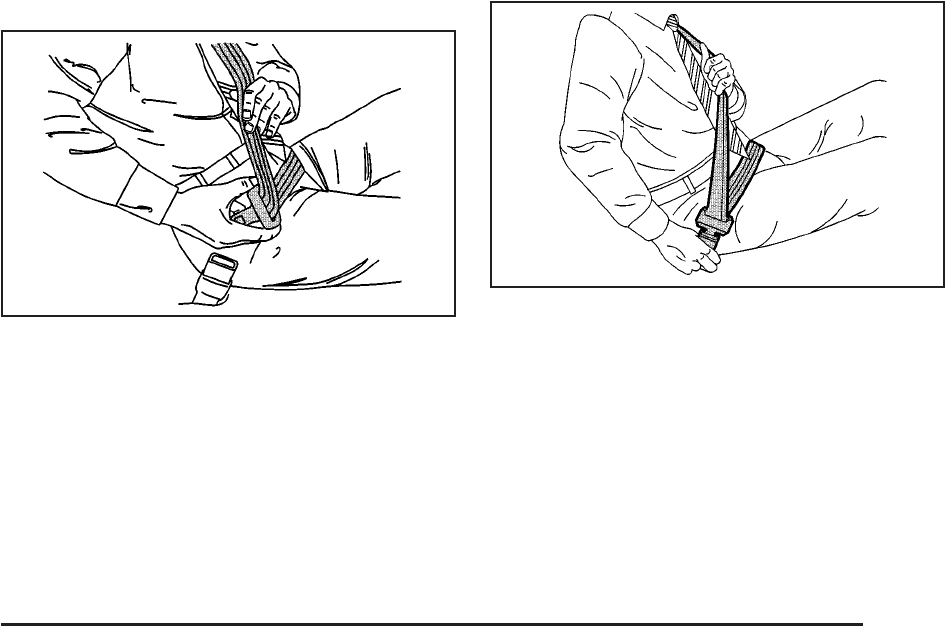

How to Wear Safety Belts Properly .................1-14
Driver Position ..............................................1-14

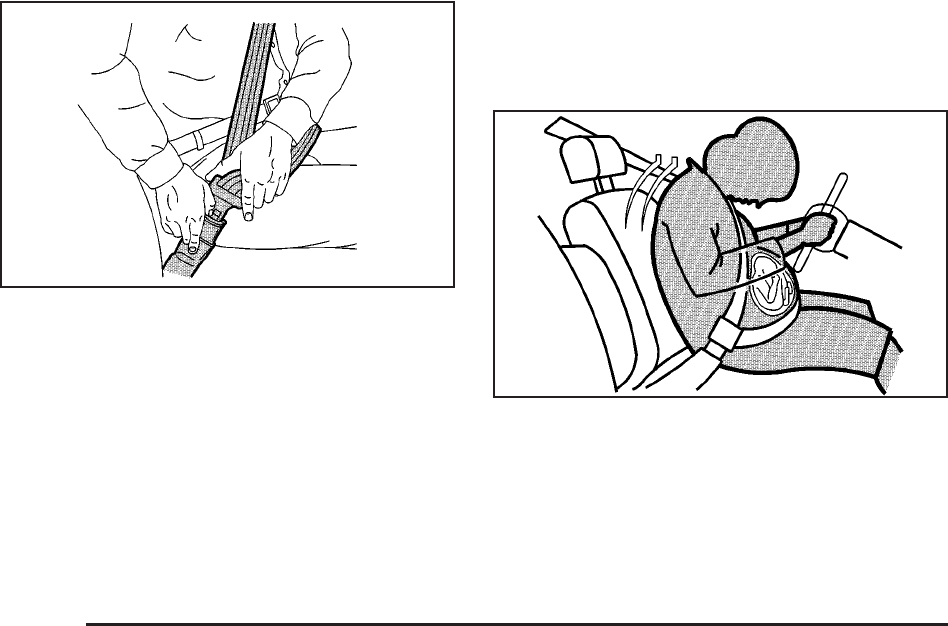

Safety Belt Use During Pregnancy ..................1-20
Right Front Passenger Position .......................1-21
Rear Seat Passengers ..................................1-22
Rear Safety Belt Comfort Guides
for Children and Small Adults ......................1-25
Safety Belt Pretensioners ...............................1-27
Safety Belt Extender .....................................1-27
Child Restraints .............................................1-28
Older Children ..............................................1-28
Infants and Young Children ............................1-31

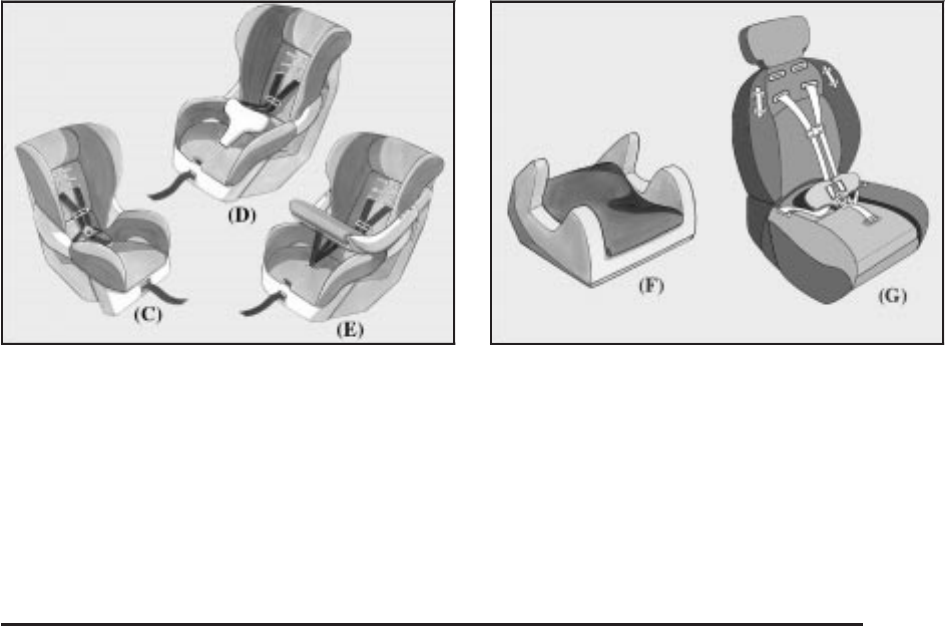

Child Restraint Systems .................................1-34
Where to Put the Restraint .............................1-36
Top Strap ....................................................1-37

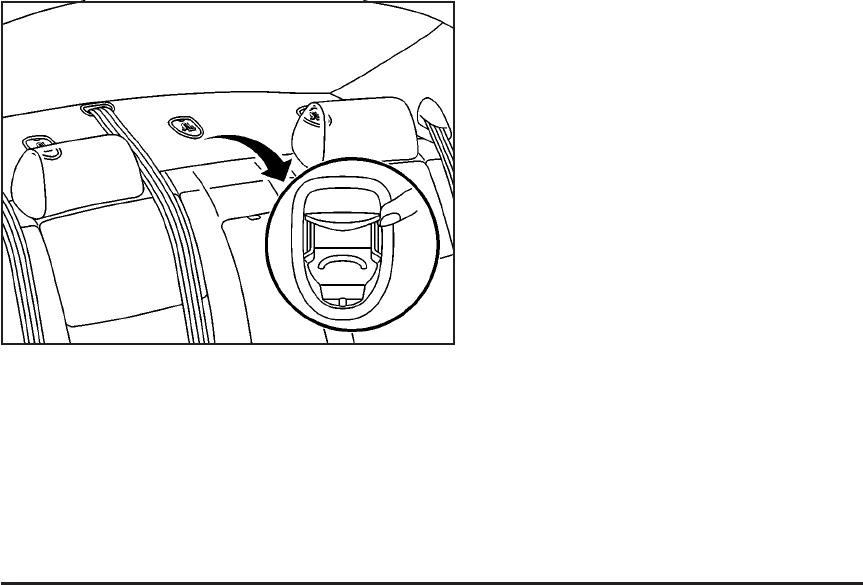

Top Strap Anchor Location .............................1-39
Lower Anchorages and Top Tethers for
Children (LATCH System) ...........................1-39
Securing a Child Restraint Designed for
the LATCH System ....................................1-41
Securing a Child Restraint in a
Rear Seat Position ....................................1-42
Securing a Child Restraint in the Right
Front Seat Position ....................................1-44

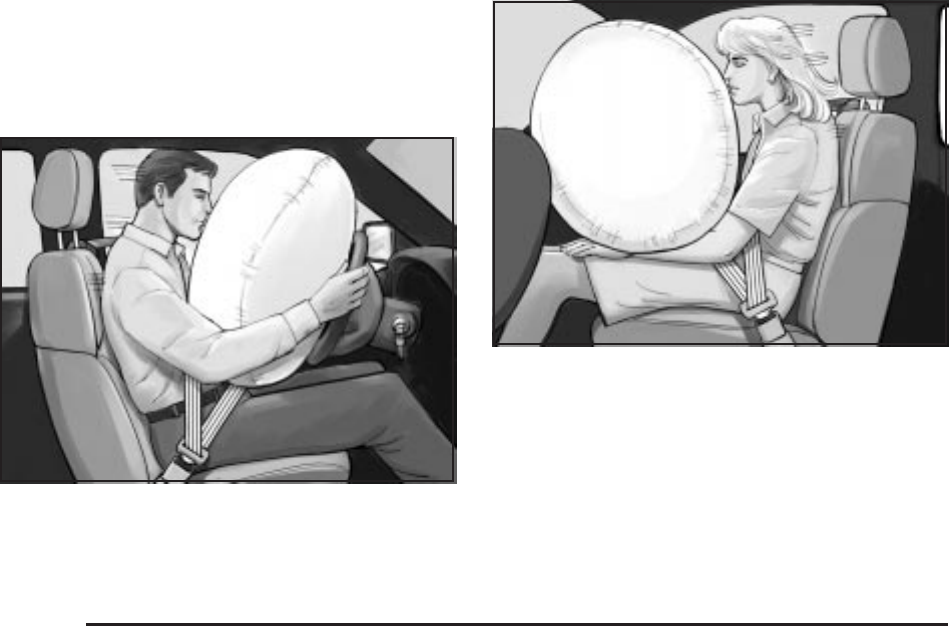

Airbag System ...............................................1-48
Where Are the Airbags? ................................1-50
When Should an Airbag Inflate? .....................1-54
What Makes an Airbag Inflate? .......................1-55
How Does an Airbag Restrain? .......................1-55
What Will You See After an Airbag Inflates? .....1-56
Passenger Sensing System ............................1-58
Servicing Your Airbag-Equipped Vehicle ...........1-62
Adding Equipment to Your Airbag-Equipped
Vehicle ....................................................1-62
Restraint System Check ..................................1-63
Checking Your Restraint Systems ...................1-63
Replacing Restraint System Parts
After a Crash ............................................1-63
Section 1 Seats and Restraint Systems
1-1
Front Seats

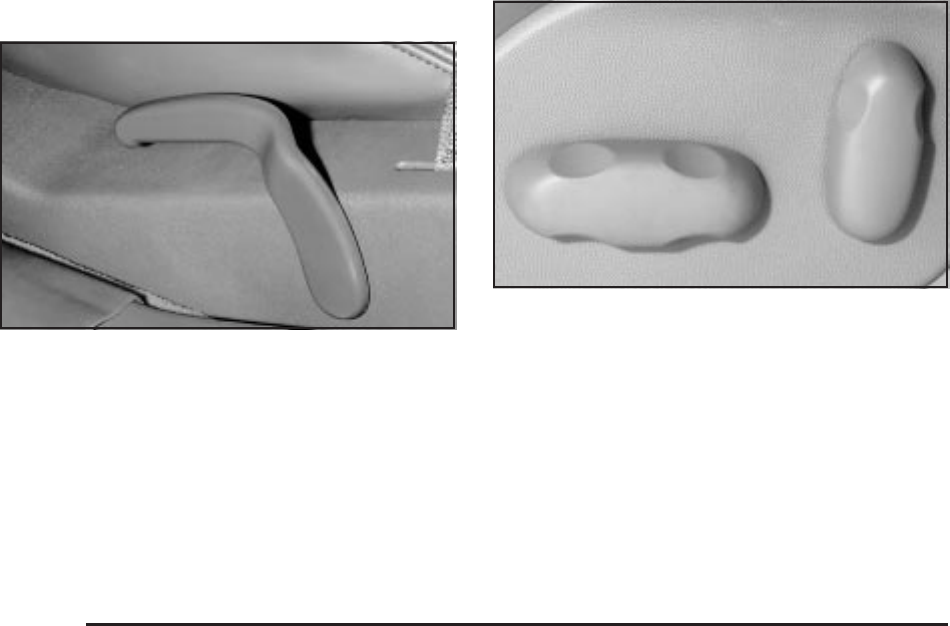

Manual Passenger Seat
Your vehicle may have a manual passenger seat. To
adjust the seat, lift the bar under the front of the seat
to unlock it. Slide the seat to where you want it and
release the bar. Try to move the seat back and forth with
your body to be sure the seat is locked in place.
Power Seats
If your vehicle is equipped with power front seats, the
controls are located on the outboard sides of the
front seat cushions.
•Move the front of the horizontal control up or down
to raise or lower the front portion of the cushion.
•Move the rear of the horizontal control up or down
to raise or lower the rear portion of the cushion.
•Lift up or push down on the center of the horizontal
control to move the entire seat up or down.
•To move the seat forward or rearward, slide the
horizontal control forward or rearward.
1-2
Power Lumbar
Your vehicle may have this feature. The driver’s and
passenger’s seatback lumbar support can be adjusted
by moving a control located on the outboard side of
the seat cushions.
To increase or decrease support, hold the control
forward or rearward. Keep in mind that as your
seating position changes, as it may during long trips,
so should the position of your lumbar support. Adjust
the seat as needed.
Heated Seats
If your vehicle is equipped
with heated front seats, the
buttons are located on
the climate control panel.
There is one button for the driver and one for the front
passenger. Each button has three settings, LO, HI
and off. The active setting appears on the climate control
panel display. The LO setting warms the seatback
and cushion until the seat approximates normal body
temperature. The HI setting has a slightly higher
temperature.
To turn on the heated seats, press the button once.
The seat will heat to the HI setting. Press the button
again to switch to the LO setting. Pressing the button a
third time turns the system off.
The heated seats can only be used when the ignition is
turned on. When the vehicle is turned off, the heated
seats automatically turn off. If you wish to have the
heated seats on once the vehicle is restarted, press
the button again.
1-3
Reclining Seatbacks
If your vehicle has manual reclining front seatbacks,
the levers are located on the outboard sides of the
front seats.
Lift the lever to release the seatback, then move the
seatback to where you want it. Release the lever to lock
the seatback in place. To return the seatback to the
upright position, pull up on the lever without pushing on
the seatback.
If your vehicle has power reclining front seatbacks,
the control is located on the outboard side of the
front seats.
Press the top of the vertical control forward or rearward
to adjust the seatback angle.
Manual Recliner
Power Recliner
1-4
But don’t have a seatback reclined if your vehicle
is moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job. In a
crash, you could go into it, receiving neck or
other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The front seat head restraints move up and down.
Press the button located at the bottom of the head
restraint to raise or lower the head restraint. The head
restraints tilt forward and rearward, also.
The rear seat head restraints work the same as the front
head restraints. You can remove the rear head restraints,
also. Press the button located on top of the seatback and
pull up on the head restraint to remove it.
Rear Seats
Split Folding Rear Seat
Your vehicle may have a split folding rear seat. A split
folding rear seat allows you to carry long cargo by
folding down part or all of the rear seat. Before you can
fold the rear seatback, you need to unlatch the center
seatbelt buckle.
1-6
Use the following steps to lower one or both of the rear
seatbacks:
1. Insert a tool with a
small tip into the slot
as shown to unlatch
the seatbelt buckle.
Then move the belt to
the side so it is not
in your way.

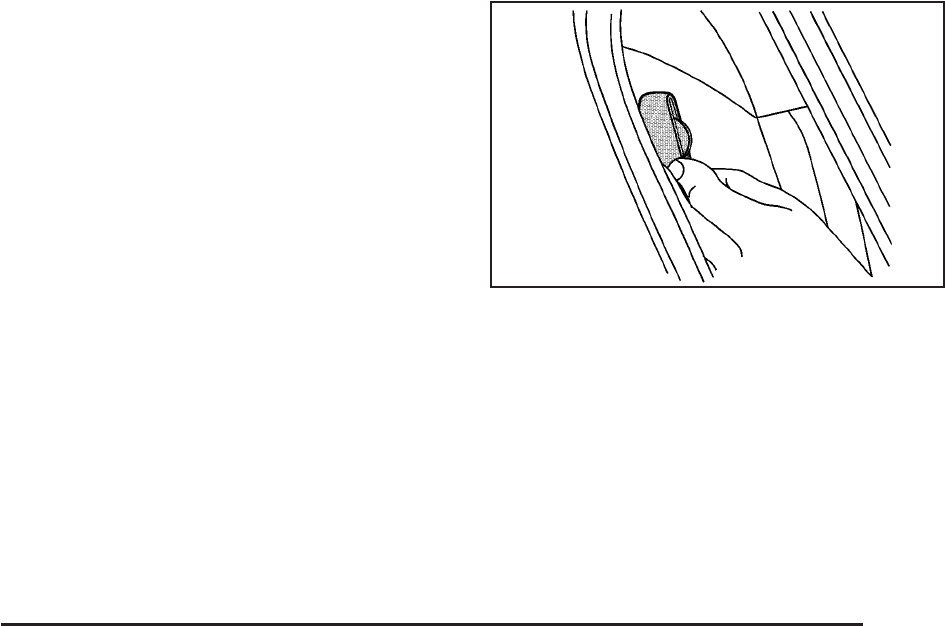

2. There is a tab located
on the outboard sides
of the seatback.
Pull forward on the
tab to unlock the
seatback.
3. Fold the seatback down. This will allow you direct
access to the trunk.
4. Repeat Steps 2 and 3 to fold down the other
seatback.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1-7
To return the seatback to the upright position, do the
following:
1. Lift the seatback up and push it back into place.
2. Reconnect the center
safety belt latch plate
to the buckle as
shown.
3. Make sure the seatback is locked into place by
pushing and pulling on it.
4. Repeat Steps 1 and 3 for the other seatback.
When the seatback is not in use, it should be kept in
the upright, locked position.
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
1-8
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
See
Safety Belt Reminder
Light on page 3-38
.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:
They work
.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter...a lot!
1-9
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.

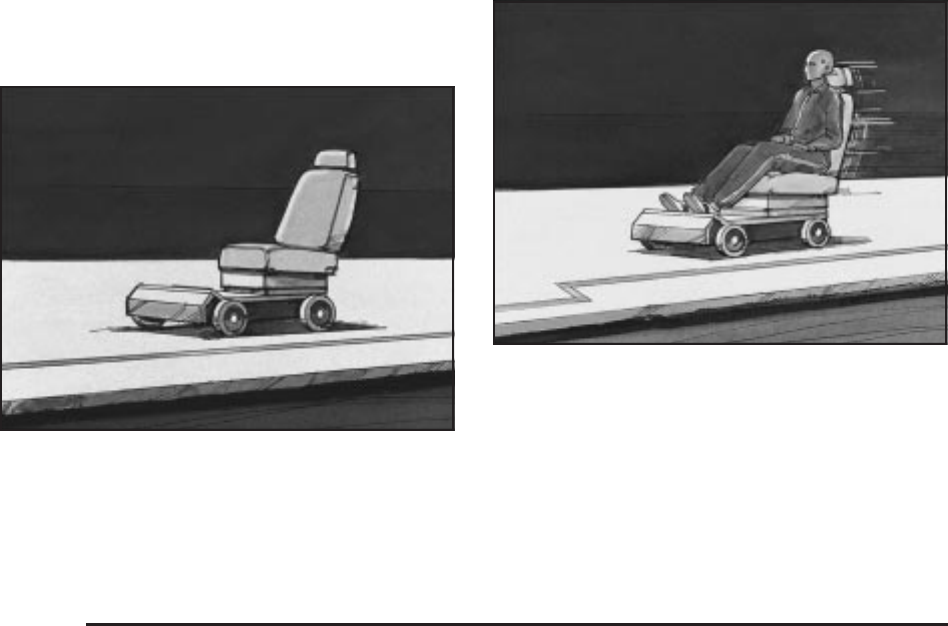

Take the simplest vehicle. Suppose it is just a seat
on wheels.
Put someone on it.
1-10
Get it up to speed. Then stop the vehicle. The rider
does not stop. The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-11
or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-12
Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicle after an accident
if I am wearing a safety belt?
A: You
could
be — whether you are wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you are upside down. And your chance of
being conscious during and after an accident,
so you
can
unbuckle and get out, is
much
greater
if you are belted.
Q: If my vehicle has airbags, why should I have to
wear safety belts?
A: Airbags are in many vehicles today and will be
in most of them in the future. But they are
supplemental systems only; so they work
with
safety belts — not instead of them. Every airbag
system ever offered for sale has required the use of
safety belts. Even if you are in a vehicle that has
airbags, you still have to buckle up to get the most
protection. That is true not only in frontal collisions,
but especially in side and other collisions.
Q: If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you are in an
accident — even one that is not your fault — you
and your passengers can be hurt. Being a good
driver does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.
1-13
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and babies. If a child will be
riding in your vehicle, see
Older Children on page 1-28
or
Infants and Young Children on page 1-31
. Follow
those rules for everyone’s protection.
First, you will want to know which restraint systems your
vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To see
how, see “Seats” in the Index.
3. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, see
Safety Belt
Extender on page 1-27
.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-14

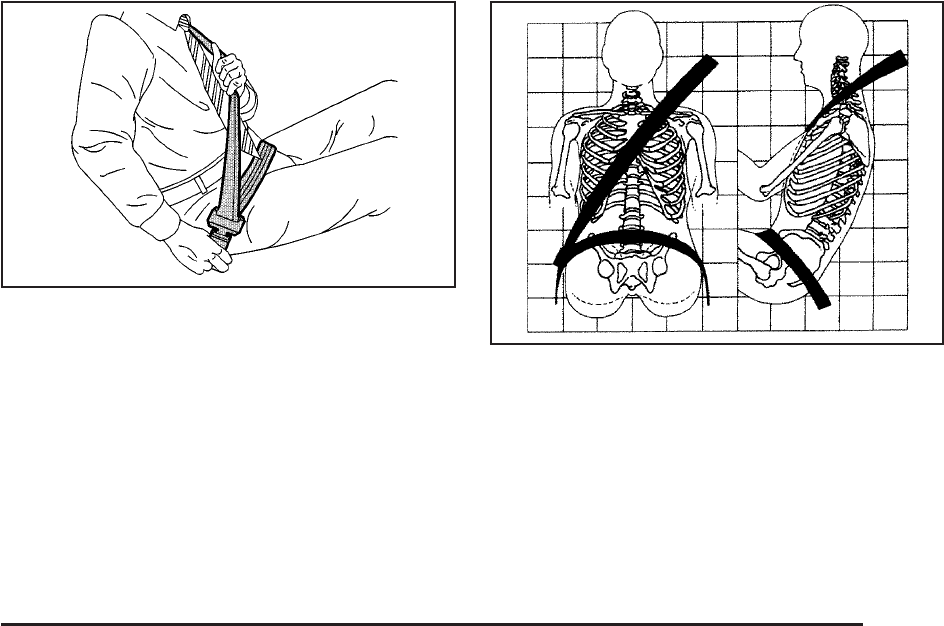

5. To make the lap part tight, pull down on the buckle
end of the belt as you pull up on the shoulder belt.
The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you would be less
likely to slide under the lap belt. If you slid under it, the
belt would apply force at your abdomen. This could cause
serious or even fatal injuries. The shoulder belt should go
over the shoulder and across the chest. These parts of
the body are best able to take belt restraining forces.
The safety belt locks if there is a sudden stop or crash,
or if you pull the belt very quickly out of the retractor.
1-15
Q: What is wrong with this?
A: The shoulder belt is too loose. It will not give nearly
as much protection this way.
{CAUTION:
You can be seriously hurt if your shoulder
belt is too loose. In a crash, you would move
forward too much, which could increase injury.
The shoulder belt should fit against your body.
1-16
Q: What is wrong with this?
A: The belt is buckled in the wrong place.
{CAUTION:
You can be seriously injured if your belt is
buckled in the wrong place like this. In a crash,
the belt would go up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This could cause serious internal
injuries. Always buckle your belt into the
buckle nearest you.
1-17
Q: What is wrong with this?
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
{CAUTION:
You can be seriously injured if you wear the
shoulder belt under your arm. In a crash, your
body would move too far forward, which would
increase the chance of head and neck injury.
Also, the belt would apply too much force to
the ribs, which are not as strong as shoulder
bones. You could also severely injure internal
organs like your liver or spleen.
1-18
Q: What is wrong with this?
A: The belt is twisted across the body.
{CAUTION:
You can be seriously injured by a twisted belt.
In a crash, you would not have the full width
of the belt to spread impact forces. If a belt is
twisted, make it straight so it can work
properly, or ask your dealer to fix it.
1-19
To unlatch the belt, just push the button on the buckle.
The belt should go back out of the way.
Before you close the door, be sure the belt is out of
the way. If you slam the door on it, you can damage
both the belt and your vehicle.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they do not wear safety belts.
A pregnant woman should wear a lap-shoulder belt,
and the lap portion should be worn as low as possible,
below the rounding, throughout the pregnancy.
1-20
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it is more
likely that the fetus will not be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s safety
belt properly, see
Driver Position on page 1-14
.
The right front passenger’s safety belt works the same
way as the driver’s safety belt — except for the
following.
If you ever pull the shoulder portion of the belt out all
the way, you will engage the child restraint locking
feature. If this happens, just let the belt go back all the
way and start again.
If the belt stops before it reaches the buckle, tilt the
latch plate and keep pulling until you can buckle
the belt.
1-21
Rear Seat Passengers
It is very important for rear seat passengers to buckle
up! Accident statistics show that unbelted people in
the rear seat are hurt more often in crashes than those
who are wearing safety belts.
Rear passengers who are not safety belted can be
thrown out of the vehicle in a crash. And they can strike
others in the vehicle who are wearing safety belts.
Lap-Shoulder Belt
All rear seating positions have lap-shoulder belts.
Here is how to wear one properly.
1. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
1-22
2. Push the latch plate into the buckle until it clicks.
If the belt stops before it reaches the buckle, tilt the
latch plate and keep pulling until you can buckle it.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, see
Safety Belt
Extender on page 1-27
.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
3. To make the lap belt part tight, pull down on
the buckle end of the belt as you pull up on
the shoulder part.
1-23
The lap part of the belt should be worn low and snug
on the hips, just touching the thighs. In a crash,
this applies force to the strong pelvic bones. And you
would be less likely to slide under the lap belt. If you slid
under it, the belt would apply force at your abdomen.
This could cause serious or even fatal injuries. The
shoulder belt should go over the shoulder and across
the chest. These parts of the body are best able to
take belt restraining forces.
The safety belt locks if there is a sudden stop or a crash,
or if you pull the belt very quickly out of the retractor.
{CAUTION:
You can be seriously hurt if your shoulder
belt is too loose. In a crash, you would move
forward too much, which could increase injury.
The shoulder belt should fit against your body.
To unlatch the belt, just push the button on the buckle.
1-24
Rear Safety Belt Comfort Guides
for Children and Small Adults
Rear shoulder belt comfort guides will provide added
safety belt comfort for older children who have outgrown
booster seats and for small adults. When installed on
a shoulder belt, the comfort guide better positions
the belt away from the neck and head.
There is one guide for each outboard passenger
position in the rear seat. To provide added safety belt
comfort for children who have outgrown child restraints
and booster seats and for smaller adults, the comfort
guides may be installed on the shoulder belts. Here is
how to install a comfort guide and use the safety belt:
1. Pull the elastic cord out from between the edge of
the seatback and the interior body to remove the
guide from its storage clip.
1-25

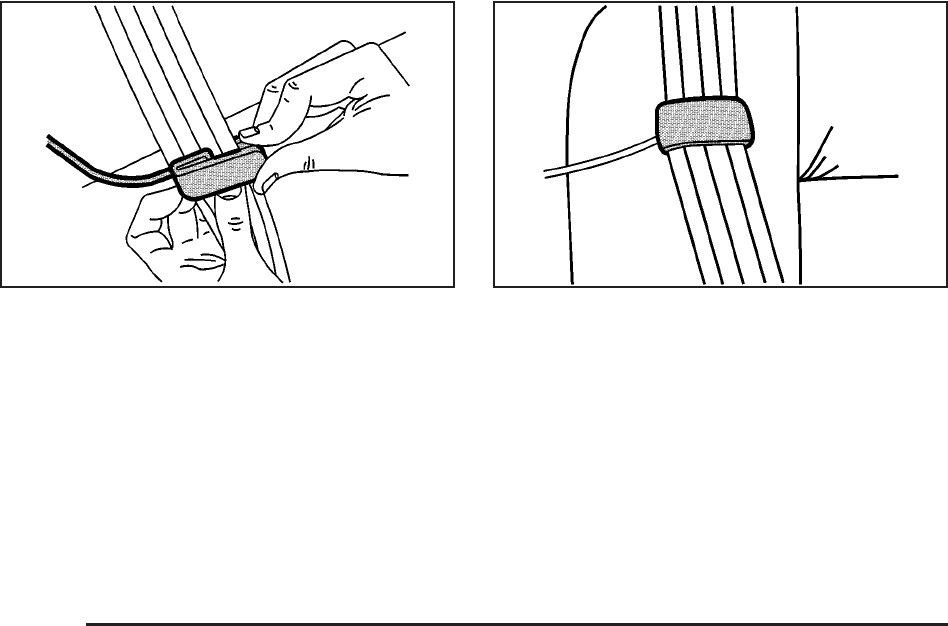

2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over the belt, and insert the two edges of the
belt into the slots of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt with the
guide on top.
1-26
4. Buckle, position and release the safety belt as
described in
Rear Seat Passengers on page 1-22
.
Make sure that the shoulder belt crosses the
shoulder.
To remove and store the comfort guides, squeeze the
belt edges together so that you can take them out of
the guides. Pull the guide upward to expose its storage
clip, and then slide the guide onto the clip. Turn the
guide and the clip inward and insert it in between the
seatback and the interior body, leaving only the
loop of elastic cord exposed.
Safety Belt Pretensioners
Your vehicle has safety belt pretensioners. You will
find them on the buckle end of the safety belts for the
driver and right front passenger. They help the
safety belts reduce a person’s forward movement in a
moderate to severe frontal and near frontal crash.
Pretensioners work only once. If they activate in a crash,
you will need to get new ones, and probably other
new parts for your safety belt system. See
Replacing
Restraint System Parts After a Crash on page 1-63
.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it.
But if a safety belt is not long enough, your dealer will
order you an extender. It is free. When you go in to
order it, take the heaviest coat you will wear, so
the extender will be long enough for you. To help avoid
personal injury, do not let someone else use it, and
use it only for the seat it is made to fit. The extender
has been designed for adults. Never use it for securing
child seats. To wear it, just attach it to the regular
safety belt. For more information, see the instruction
sheet that comes with the extender.
1-27
Child Restraints
Older Children
Older children who have outgrown booster seats should
wear the vehicle’s safety belts.
Q: What is the proper way to wear safety belts?
A: If possible, an older child should wear a
lap-shoulder belt and get the additional restraint
a shoulder belt can provide. The shoulder belt
should not cross the face or neck. The lap
belt should fit snugly below the hips, just touching
the top of the thighs. It should never be worn
over the abdomen, which could cause severe or
even fatal internal injuries in a crash.
Accident statistics show that children are safer if they
are restrained in the rear seat.
In a crash, children who are not buckled up can strike
other people who are buckled up, or can be thrown
out of the vehicle. Older children need to use safety
belts properly.
1-28
{CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can not properly spread the impact
forces. In a crash, the two children can be
crushed together and seriously injured. A belt
must be used by only one person at a time.
Q: What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt
is very close to the child’s face or neck?
A: If the child is sitting in a seat next to a window,
move the child toward the center of the vehicle.
If the child is sitting in the center rear seat
passenger position, move the child toward the
safety belt buckle. In either case, be sure that the
shoulder belt still is on the child’s shoulder, so
that in a crash the child’s upper body would have
the restraint that belts provide. If the child is
sitting in a rear seat outside position, see
Rear
Safety Belt Comfort Guides for Children and
Small Adults on page 1-25
.
1-29
{CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is
behind the child. If the child wears the belt in
this way, in a crash the child might slide under
the belt. The belt’s force would then be applied
right on the child’s abdomen. That could cause
serious or fatal injuries.

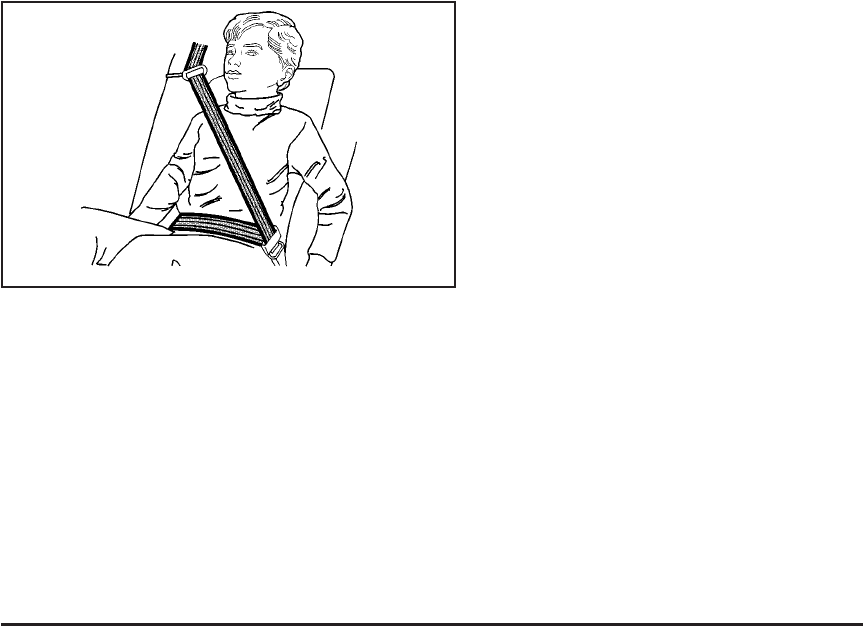

The lap portion of the belt should be worn low and
snug on the hips, just touching the child’s thighs. This
applies belt force to the child’s pelvic bones in a crash.
1-30
Infants and Young Children
Everyone in a vehicle needs protection! This includes
infants and all other children. Neither the distance
traveled nor the age and size of the traveler changes
the need, for everyone, to use safety restraints. In fact,
the law in every state in the United States and in
every Canadian province says children up to some
age must be restrained while in a vehicle.
Every time infants and young children ride in vehicles,
they should have the protection provided by appropriate
restraints. Young children should not use the vehicle’s
adult safety belts alone, unless there is no other choice.
Instead, they need to use a child restraint.
{CAUTION:
People should never hold a baby in their
arms while riding in a vehicle. A baby does
not weigh much — until a crash. During a
crash a baby will become so heavy it is not
possible to hold it. For example, in a crash at
only 25 mph (40 km/h), a 12-lb (5.5 kg) baby
will suddenly become a 240-lb (110 kg) force
on a person’s arms. A baby should be secured
in an appropriate restraint.
1-31
{CAUTION:
Children who are up against, or very close to,
any airbag when it inflates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer protection for adults and older
children, but not for young children and
infants. Neither the vehicle’s safety belt system
nor its airbag system is designed for them.
Young children and infants need the protection
that a child restraint system can provide.
Q: What are the different types of add-on child
restraints?
A: Add-on child restraints, which are purchased by the
vehicle’s owner, are available in four basic types.
Selection of a particular restraint should take
into consideration not only the child’s weight, height,
and age but also whether or not the restraint will
be compatible with the motor vehicle in which it
will be used.
1-32
For most basic types of child restraints, there are
many different models available. When purchasing
a child restraint, be sure it is designed to be
used in a motor vehicle. If it is, the restraint will
have a label saying that it meets federal motor
vehicle safety standards.
The restraint manufacturer’s instructions that come
with the restraint state the weight and height
limitations for a particular child restraint. In addition,
there are many kinds of restraints available for
children with special needs.
{CAUTION:
Newborn infants need complete support,
including support for the head and neck.
This is necessary because a newborn infant’s
neck is weak and its head weighs so much
compared with the rest of its body. In a
crash, an infant in a rear-facing seat settles
into the restraint, so the crash forces can be
distributed across the strongest part of an
infant’s body, the back and shoulders. Infants
always should be secured in appropriate
infant restraints.
{CAUTION:
The body structure of a young child is quite
unlike that of an adult or older child, for whom
the safety belts are designed. A young child’s
hip bones are still so small that the vehicle’s
regular safety belt may not remain low on the
hip bones, as it should. Instead, it may settle
up around the child’s abdomen. In a crash,
the belt would apply force on a body area that
is unprotected by any bony structure. This
alone could cause serious or fatal injuries.
Young children always should be secured in
appropriate child restraints.
1-33
Child Restraint Systems
An infant car bed (A), a special bed made for use in a
motor vehicle, is an infant restraint system designed
to restrain or position a child on a continuous flat
surface. Make sure that the infant’s head rests toward
the center of the vehicle.
A rear-facing infant seat (B) provides restraint with the
seating surface against the back of the infant. The
harness system holds the infant in place and, in a crash,
acts to keep the infant positioned in the restraint.
1-34
A forward-facing child seat (C-E) provides restraint for
the child’s body with the harness and also sometimes
with surfaces such as T-shaped or shelf-like shields.
A booster seat (F-G) is a child restraint designed to
improve the fit of the vehicle’s safety belt system.
Some booster seats have a shoulder belt positioner,
and some high-back booster seats have a five-point
harness. A booster seat can also help a child to see
out the window.
1-35
Q: How do child restraints work?
A: A child restraint system is any device designed for
use in a motor vehicle to restrain, seat, or position
children. A built-in child restraint system is a
permanent part of the motor vehicle. An add-on
child restraint system is a portable one, which
is purchased by the vehicle’s owner.
For many years, add-on child restraints have used
the adult belt system in the vehicle. To help
reduce the chance of injury, the child also has to be
secured within the restraint. The vehicle’s belt
system secures the add-on child restraint in the
vehicle, and the add-on child restraint’s harness
system holds the child in place within the restraint.
One system, the three-point harness, has straps
that come down over each of the infant’s shoulders
and buckle together at the crotch. The five-point
harness system has two shoulder straps, two
hip straps and a crotch strap. A shield may take the
place of hip straps. A T-shaped shield has
shoulder straps that are attached to a flat pad
which rests low against the child’s body. A shelf- or
armrest-type shield has straps that are attached
to a wide, shelf-like shield that swings up or to
the side.
When choosing a child restraint, be sure the child
restraint is designed to be used in a vehicle. If it is,
it will have a label saying that it meets federal motor
vehicle safety standards.
Then follow the instructions for the restraint. You may
find these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system or
the LATCH system in your vehicle, but the child also
has to be secured within the restraint to help reduce the
chance of personal injury. When securing an add-on
child restraint, refer to the instructions that come with the
restraint which may be on the restraint itself or in a
booklet, or both, and to this manual. The child restraint
instructions are important, so if they are not available,
obtain a replacement copy from the manufacturer.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat, including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun visor
says, “Never put a rear-facing child seat in the
front.” This is because the risk to the rear-facing child
is so great, if the air bag deploys.
1-36
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because the
back of the rear-facing child restraint would be
very close to the inflating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag if the system detects a rear-facing child
restraint, no system is fail-safe, and no one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off. General Motors recommends that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
If you need to secure a forward-facing child
restraint in the right front seat, always move
the front passenger seat as far back as it will
go. It is better to secure the child restraint in
a rear seat
Wherever you install it, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and injure
people in the vehicle. Be sure to properly secure
any child restraint in your vehicle — even when no
child is in it.
Top Strap
Some child restraints have a top strap, or “top tether.”
It can help restrain the child restraint during a collision.
For it to work, a top strap must be properly anchored
to the vehicle. Some top strap-equipped child restraints
are designed for use with or without the top strap
being anchored. Others require the top strap always
to be anchored. Be sure to read and follow the
instructions for your child restraint. If yours requires
that the top strap be anchored, do not use the restraint
unless it is anchored properly.
If the child restraint does not have a top strap, one
can be obtained, in kit form, for many child restraints.
Ask the child restraint manufacturer whether or not a
kit is available.
1-37
In Canada, the law requires that forward-facing child
restraints have a top strap, and that the strap be
anchored. In the United States, some child restraints
also have a top strap. If your child restraint has a
top strap, it should be anchored.
Anchor the top strap to one of the following anchor
points. Be sure to use an anchor point located on the
same side of the vehicle as the seating position
where the child restraint will be placed.
If you have an adjustable head restraint, route the
top strap under it.
{CAUTION:
Each top tether bracket is designed to anchor
only one child restraint. Attaching more than
one child restraint to a single bracket could
cause the anchor to come loose or even break
during a crash. A child or others could be
injured if this happens. To help prevent injury
to people and damage to your vehicle, attach
only one child restraint per bracket.
Once you have the top strap anchored, you will be
ready to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say.
1-38
Top Strap Anchor Location
The top strap anchors are located on the filler panel
behind the rear seat head restraints. In order to access
the anchors, you will have to open the covers.
Do not secure a child restraint with a top strap in the
right front passenger’s position if a national or local law
requires that the top strap be anchored, or if the
instructions that come with the child restraint say that
the top strap must be anchored. There is no place
to anchor the top strap in this position.
Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You will find
anchors for the rear seat outboard passenger positions.
This system, designed to make installation of child
restraints easier, does not use the vehicle’s safety belts.
Instead, it uses vehicle anchors and child restraint
attachments to secure the restraints. Some restraints
also use another vehicle anchor to secure a top
tether strap.
1-39

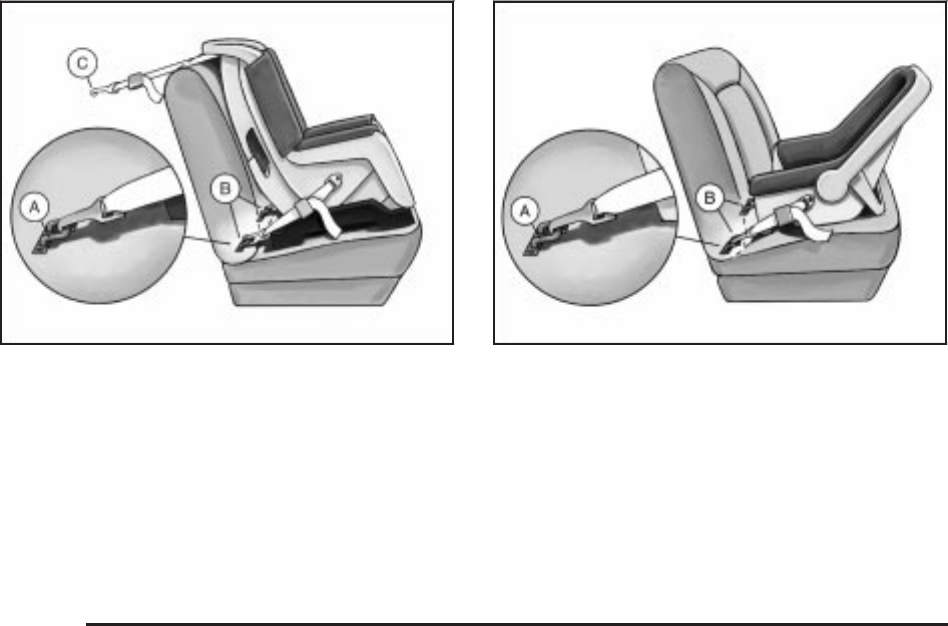

A. Lower Anchorage
B. Lower Anchorage
C. Top Tether
A. Lower Anchorage
B. Lower Anchorage
In order to use the LATCH system in your vehicle,
you need a child restraint designed for that system.
1-40
To assist you in locating
the lower anchors for
this child restraint system,
each seating position
with the LATCH system
has a label on the
seatback at each lower
anchor position.
The labels are located near the base of rear outboard
seating positions.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint,
and also the instructions in this manual.
Securing a Child Restraint Designed
for the LATCH System
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of
the seatback meets the back of the seat cushion.
See
Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-39
.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also see
Top Strap on page 1-37
.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
1-41
Securing a Child Restraint in a
Rear Seat Position
If your child restraint is equipped with the LATCH
system, see
Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-39
. See
Top Strap
on page 1-37
if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
Tilt the latch plate to adjust the belt if needed.
1-42
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
4. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may find it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-43
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger airbag. A rear
seat is a safer place to secure a forward-facing child
restraint. See
Where to Put the Restraint on page 1-36
.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is designed to
turn off the right front passenger’s frontal airbag
when an infant in a rear-facing infant seat or a small
child in a forward-facing child restraint or booster seat is
detected. See
Passenger Sensing System on page 1-58
and
Passenger Airbag Status Indicator on page 3-40
for more information on this including important
safety information.
A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because the
back of the rear-facing child restraint would be
very close to the inflating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag if the system detects a rear-facing child
restraint, no system is fail-safe, and no one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off. General Motors recommends that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
If you need to secure a forward-facing child restraint in
the right front seat position, move the seat as far
back as it will go before securing the forward-facing
child restraint. See
Manual Passenger Seat on page 1-2
or
Power Seats on page 1-2
.
1-44
If your child restraint is equipped with the LATCH
system, see
Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-39
.
There is no top strap anchor in the right front passenger’s
position. Do not secure a child seat in this position if a
national or local law requires that the top strap be
anchored, or if the instructions that come with the child
restraint say that the top strap must be anchored. See
Top Strap on page 1-37
if your child restraint has one.
You will be using the lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the instructions
that came with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1. Your vehicle has a right front passenger’s frontal
airbag. See
Passenger Sensing System on
page 1-58
. General Motors recommends that
rear-facing child restraints be secured in a rear seat,
even if the airbag is off. If your child restraint is
forward-facing, move the seat as far back as it will
go before securing the child restraint in this
seat. See
Manual Passenger Seat on page 1-2
or
Power Seats on page 1-2
.
When the passenger sensing system has turned off
the right front passenger’s frontal airbag, the off
indicator in the passenger airbag status indicator
should light and stay lit when you turn the ignition to
ON or START. See
Passenger Airbag Status
Indicator on page 3-40
.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
Tilt the latch plate to adjust the belt if needed.
1-45
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-46
6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may find it
helpful to use your knee to push down on the
child restraint as you tighten the belt. You should
not be able to pull more of the belt from the
retractor once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag is off, the off indicator in the rearview
mirror will be lit and stay lit when the key is turned
to ON or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
A thick layer of additional material such as a blanket,
or aftermarket equipment such as seat covers heaters or
massagers, located between the seat cushion and the
child restraint or small occupant, can affect how the
passenger sensing system operates. Remove any
additional material from the seat cushion before
reinstalling/securing the child restraint or small occupant.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle and
check with your dealer.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-47
Airbag System
Your vehicle has six airbags:
•A frontal airbag for the driver and another frontal
airbag for the right front passenger,
•a seat-mounted side impact airbag for the driver
and another for the right front passenger,
•a roof-mounted side impact airbag for the driver
and passenger directly behind the driver, and
•a roof-mounted side impact airbag for the right front
passenger and the person seated directly behind
that passenger.
Frontal airbags are designed to help reduce the risk of
injury from the force of an inflating airbag. But these
airbags must inflate very quickly to do their job
and comply with federal regulations.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even if
you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being ejected
from it. Airbags are “supplemental restraints”
to the safety belts. All airbags are designed to
work with safety belts but do not replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to inflate in
rollover, rear or low-speed frontal crashes, or in
many side crashes. And, for some unrestrained
occupants, frontal airbags may provide less
protection in frontal crashes than more
forceful airbags have provided in the past.
The seat-mounted side impact airbags and
roof-mounted side impact airbags are designed
to inflate only in moderate to severe crashes
where something hits the side of your vehicle.
CAUTION: (Continued)
1-48
CAUTION: (Continued)
They are not designed to inflate in frontal,
in rollover or in rear crashes. Everyone in
your vehicle should wear a safety belt
properly — whether or not there is an airbag
for that person.
{CAUTION:
Both frontal and side impact airbags inflate
with great force, faster than the blink of an
eye. If you are too close to an inflating airbag,
as you would be if you were leaning forward,
it could seriously injure you. Safety belts help
keep you in position for airbag inflation before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inflates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
see
Older Children on page 1-28
or
Infants and
Young Children on page 1-31
.
There is an airbag
readiness light on the
instrument panel, which
shows the airbag symbol.
1-49
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. See
Airbag Readiness Light on page 3-39
for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
The front passenger’s frontal airbag is in the instrument
panel on the passenger’s side.
1-50
The driver’s side impact airbag is in the side of the
driver’s seatback closest to the door. The right front passenger’s side impact airbag is in the
side of the passenger’s seatback closest to the door.
1-51
The roof-mounted side impact airbag for the driver
and the passenger directly behind the driver is in the
ceiling above the side windows.
The roof-mounted side impact airbag for the front
passenger and the passenger directly behind the front
passenger is in the ceiling above the side windows.
1-52
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inflate properly
or it might force the object into that person
causing severe injury or even death. The path
of an inflating airbag must be kept clear. Do
not put anything between an occupant and an
airbag, and do not attach or put anything on
the steering wheel hub or on or near any other
airbag covering. Do not let seat covers block
the inflation path of a side impact airbag.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not inflate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inflating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, because your vehicle
has side impact airbags, never secure anything
to the roof of your vehicle by routing the rope
or tiedown through any door or window
opening. If you do, the path of an inflating side
impact airbag will be blocked. The path of an
inflating airbag must be kept clear.
1-53
When Should an Airbag Inflate?
The driver’s and right front passenger’s frontal airbags
are designed to inflate in moderate to severe frontal
or near-frontal crashes. But they are designed to inflate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to inflate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with an electronic frontal
sensor, which helps the sensing system distinguish
between a moderate frontal impact and a more severe
frontal impact. For moderate frontal impacts, these
airbags inflate at a level less than full deployment.
For more severe frontal impacts, full deployment occurs.
If the front of your vehicle goes straight into a wall
that does not move or deform, the threshold level
for the reduced deployment is about 12 to 16 mph
(19 to 26 km/h), and the threshold level for a full
deployment is about 18 to 24 mph (29 to 38.5 km/h).
(The threshold level can vary, however, with specific
vehicle design, so that it can be somewhat above
or below this range.)
Airbags may inflate at different crash speeds.
For example:
•If the vehicle hits a stationary object, the airbag
could inflate at a different crash speed than if
the object were moving.
•If the object deforms, the airbag could inflate at a
different crash speed than if the object does not
deform.
•If the vehicle hits a narrow object (like a pole) the
airbag could inflate at a different crash speed than if
the vehicle hits a wide object (like a wall).
•If the vehicle goes into an object at an angle the
airbag could inflate at a different crash speed than if
the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger)
are not intended to inflate during vehicle rollovers, rear
impacts, or in many side impacts because inflation
would not likely help the occupants.
1-54
The side impact airbags are designed to inflate in
moderate to severe side crashes. A side impact airbag
will inflate if the crash severity is above the system’s
designed “threshold level.” The threshold level can vary
with specific vehicle design. Side impact airbags are
not designed to inflate in frontal or near-frontal impacts,
rollovers or rear impacts, because inflation would not
likely help the occupant. A side impact airbag will
only deploy on the side of the vehicle that is struck.
In any particular crash, no one can say whether
an airbag should have inflated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, inflation is determined by
the angle of the impact and how quickly the vehicle
slows down in frontal and near-frontal impacts. For side
impact airbags, inflation is determined by the location
and severity of the impact.
What Makes an Airbag Inflate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. For both
frontal and side impact airbags, the sensing system
triggers a release of gas from the inflator, which inflates
the airbag. The inflator, airbag and related hardware are
all part of the airbag modules inside the steering wheel,
instrument panel, the side of the front seatbacks closest
to the door and the ceiling of the vehicle, near the
side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Side impact airbags would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags. Airbags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe
side collisions for the side impact airbags.
1-55
What Will You See After an
Airbag Inflates?
After the airbag inflates, it quickly deflates, so quickly that
some people may not even realize the airbag inflated.
Some components of the airbag module — the steering
wheel hub for the driver’s airbag, the instrument panel for
the right front passenger’s bag, the side of the seatback
closest to the door for the seat-mounted side impact
airbags and the area along the ceiling of your vehicle
near the side windows — will be hot for a short time.
The parts of the bag that come into contact with you may
be warm, but not too hot to touch. There will be some
smoke and dust coming from the vents in the deflated
airbags. Airbag inflation does not prevent the driver from
seeing or being able to steer the vehicle, nor does it stop
people from leaving the vehicle.
{CAUTION:
When an airbag inflates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
can not get out of the vehicle after an airbag
inflates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
Your vehicle has a feature that will automatically
unlock the doors and turn the interior lamps on when
the airbags inflate (if battery power is available). You can
lock the doors again and turn the interior lamps off by
using the door lock and interior lamp controls. The
hazard warning flashers will also come on when
the airbags deploy. If you want to turn them off, press
the hazard warning flasher button twice.
1-56
In many crashes severe enough to inflate the airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
•Airbags are designed to inflate only once. After
an airbag inflates, you will need some new parts
for your airbag system. If you do not get them,
the airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need
to replace other parts.
•Your vehicle is equipped with a crash sensing and
diagnostic module which records information after
a crash. See
Vehicle Data Collection and Event
Data Recorders on page 7-10
.
•Let only qualified technicians work on your airbag
system. Improper service can mean that an
airbag system will not work properly. See your
dealer for service.
Notice:
If you damage the covering for the driver’s
or the right front passenger’s airbag, or the airbag
covering on the driver’s and right front passenger’s
seatback, or the side impact airbag covering on
the ceiling near the side windows, the bag may
not work properly. You may have to replace
the airbag module in the steering wheel, both the
airbag module and the instrument panel for the right
front passenger’s airbag, the airbag module and
seatback for the driver’s and right front passenger’s
seat-mounted side impact airbags, or side impact
airbag module and ceiling covering for the
roof-mounted side impact airbag. Do not open or
break the airbag coverings.
1-57
Passenger Sensing System
Your vehicle has a passenger sensing system for the
right front passenger position. The passenger airbag
status indicator will be visible when you turn your ignition
key to ON or START. The words ON and OFF or the
symbol for on and off, will be visible on the rearview
mirror during the system check. When the system check
is complete, either the word ON or the word OFF, or
the symbol for on or the symbol for off will be visible.
See
Passenger Airbag Status Indicator on page 3-40
.
The passenger sensing system will turn off the right
front passenger’s frontal airbag under certain conditions.
The driver’s airbag and the side airbags are not part
of the passenger sensing system.
The passenger sensing system works with sensors
that are part of the right front passenger’s seat.
The sensors are designed to detect the presence of
a properly-seated occupant and determine if the
passenger’s frontal airbag should be enabled (may
inflate) or not.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat, including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun visor
says, “Never put a rear-facing child seat in the
front.” This is because the risk to the rear-facing child
is so great, if the airbag deploys.
Passenger Airbag Status Indicator – United States
Passenger Airbag Status Indicator – Canada
1-58
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag if the system detects a rear-facing
child restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. General Motors
recommends that rear-facing child restraints
be secured in the rear seat, even if the
airbag is off.
The passenger sensing system is designed to turn off
the right front passenger’s frontal airbag if:
•the right front passenger seat is unoccupied
•the system determines that an infant is present in
a rear-facing infant seat
•the system determines that a small child is present
in a forward-facing child restraint
•the system determines that a small child is present
in a booster seat
•a right front passenger takes his/her weight off of
the seat for a period of time
•the right front passenger seat is occupied by a
smaller person, such as a child who has outgrown
child restraints
•or if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned off
the passenger’s frontal airbag, the off indicator in
the rearview mirror will light and stay lit to remind you
that the airbag is off. See
Passenger Airbag Status
Indicator on page 3-40
.
1-59
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint
following the child restraint manufacturer’s directions
and refer to
Securing a Child Restraint in the Right
Front Seat Position on page 1-44
.
If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the
child restraint into the seat cushion. If this happens,
slightly recline the vehicle’s seatback and adjust the
seat cushion if possible. Also make sure the child
restraint is not trapped under the vehicle head restraint.
If this happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle and
check with your dealer.
The passenger sensing system is designed to
enable (may inflate) the right front passenger’s frontal
airbag anytime the system senses that a person of
adult size is sitting properly in the right front passenger’s
seat. When the passenger sensing system has
allowed the airbag to be enabled, the on indicator will
light and stay lit to remind you that the airbag is active.
For some children who have outgrown child restraints
and for very small adults, the passenger sensing system
may or may not turn off the right front passenger’s
frontal airbag, depending upon the person’s seating
posture and body build. Everyone in your vehicle who
has outgrown child restraints should wear a safety
belt properly — whether or not there is an airbag for
that person.
If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it could be
because that person is not sitting properly in the seat.
If this happens, turn the vehicle off and ask the person to
place the seatback in the fully upright position, then
sit upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for about two minutes. This will allow the system
to detect that person and then enable the passenger’s
airbag.
1-60
{CAUTION:
If the airbag readiness light in the instrument
panel cluster ever comes on and stays on,
it means that something may be wrong with
the airbag system. If this ever happens, have
the vehicle serviced promptly, because an
adult-size person sitting in the right front
passenger’s seat may not have the protection
of the frontal airbag. See
Airbag Readiness
Light on page 3-39
for more on this, including
important safety information.
A thick layer of additional material such as a blanket,
or aftermarket equipment such as seat covers, seat
heaters and seat massagers can affect how well the
passenger sensing system operates. Remove any
additional material from the seat cushion before
reinstalling or securing the child restraint or small
occupant. You may want to consider not using seat
covers or other aftermarket equipment if your vehicle has
the passenger sensing system. See
Adding Equipment to
Your Airbag-Equipped Vehicle on page 1-62
for more
information about modifications that can affect how the
system operates.
1-61
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
airbag system. To purchase a service manual, see
Service Publications Ordering Information on page 7-12
.
{CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an
airbag can still inflate during improper service.
You can be injured if you are too close to an
airbag when it inflates. Avoid wires wrapped
with yellow tape, yellow coverings or yellow
connectors. They are probably part of the
airbag systems. Be sure to follow proper
service procedures, and make sure the person
performing work for you is qualified to do so.
The airbag system does not need regular maintenance.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q: Because I have a disability, I have to get my
vehicle modified. How can I find out whether
this will affect my advanced airbag system?
A: Changing or moving any parts of the front seats,
safety belts, the airbag sensing and diagnostic
module (located under the driver’s seat), or
the inside rearview mirror can affect the operation
of the advanced airbag system. If you have
questions, call Customer Assistance. The phone
numbers and addresses for Customer Assistance
are in Step Two of the Customer Satisfaction
Procedure in this manual. See
Customer
Satisfaction Procedure on page 7-2
.
1-62
Restraint System Check
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any
other loose or damaged safety belt system parts. If you
see anything that might keep a safety belt system
from doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. (The airbag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if
worn during a more severe crash, then you need
new parts.
1-63
If the LATCH system was being used during a more
severe crash, you may need new LATCH system parts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have LATCH
system, safety belt or seat parts repaired or replaced.
New parts and repairs may be necessary even if the belt
or LATCH system was not being used at the time of
the collision.
If an airbag inflates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
If the frontal airbags inflate, you will also need to replace
the driver’s and right front passenger’s safety belt buckle
assembly. Be sure to do so. Then the new buckle
assembly will be there to help protect you in a collision.
After a crash you may need to replace the driver and
front passenger’s safety belt buckle assemblies, even if
the frontal airbags have not deployed. The driver
and front passenger’s safety belt buckle assemblies
contain the safety belt pretensioners. Have your safety
belt pretensioners checked if your vehicle has been
in a collision, or if your airbag readiness light stays on
after you start your vehicle or while you are driving.
See
Airbag Readiness Light on page 3-39
.
1-64
Keys ...............................................................2-3
Remote Keyless Entry System .........................2-4
Remote Keyless Entry System Operation ...........2-5
Doors and Locks .............................................2-8
Central Door Unlocking System ........................2-9
Power Door Locks ..........................................2-9
Delayed Locking .............................................2-9
Programmable Automatic Door Locks ..............2-10
Rear Door Security Locks ..............................2-10
Lockout Protection ........................................2-11
Trunk ..........................................................2-12
Windows ........................................................2-14
Power Windows ............................................2-15
Sun Visors ...................................................2-17
Theft-Deterrent Systems ..................................2-18
Theft-Deterrent System ..................................2-18
Immobilizer ..................................................2-19
Immobilizer Operation ....................................2-20
Starting and Operating Your Vehicle ................2-22
New Vehicle Break-In ....................................2-22
Ignition Positions ..........................................2-22
Retained Accessory Power (RAP) ...................2-24
Starting Your Engine .....................................2-25
Engine Coolant Heater ..................................2-25
Automatic Transmission Operation ...................2-26
Manual Transmission Operation ......................2-31
Parking Brake ..............................................2-34
Shifting Into Park (P)
(Automatic Transmission) ............................2-35
Shifting Out of Park (P) .................................2-37
Parking Your Vehicle
(Manual Transmission) ...............................2-38
Parking Over Things That Burn .......................2-39
Engine Exhaust ............................................2-39
Running Your Engine While
You Are Parked ........................................2-40
Section 2 Features and Controls
2-1
Mirrors ...........................................................2-41
Automatic Dimming Rearview Mirror with
OnStar
®
...................................................2-41
Automatic Dimming Rearview Mirror with
OnStar
®
and Compass ...............................2-41
Outside Power Mirrors ...................................2-43
Outside Curb View Assist Mirror .....................2-44
Outside Convex Mirror ...................................2-45
Outside Heated Mirrors ..................................2-45
OnStar
®
System .............................................2-45
HomeLink
®
Transmitter ...................................2-47
Programming the HomeLink
®
Transmitter .........2-48
Storage Areas ................................................2-51
Glove Box ...................................................2-51
Cupholder(s) ................................................2-51
Center Console Storage Area .........................2-51
Map Pocket .................................................2-52
Roof Rack Provisions ....................................2-52
Convenience Net ..........................................2-52
Sunroof .........................................................2-53
Vehicle Personalization ...................................2-54
Memory Seat and Mirrors ..............................2-54
Section 2 Features and Controls
2-2
Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They
could operate the power windows or other
controls or even make the vehicle move. The
children or others could be badly injured or
even killed. Do not leave the keys in a vehicle
with children.
2-3
One key works all
of the lock cylinders
on the vehicle.
Your vehicle has an Immobilizer Vehicle Theft-deterrent
System. The key has a transponder in the key head
that matches a decoder in the vehicle’s steering column.
If a replacement key or any additional key is needed,
you must purchase it from your dealer. The key will have
PK3+ stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your dealer
if you need a new key made. For more information
on Immobilizer see
Immobilizer Operation on page 2-20
.
Notice:
If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
In an emergency, contact Cadillac Roadside Assistance.
See
Roadside Service on page 7-6
.
If your vehicle is equipped with the OnStar system with
an active subscription and you lock your keys inside
the vehicle, OnStar may be able to send a command to
unlock your vehicle. See
OnStar
®
System on page 2-45
for more information.
Remote Keyless Entry System
Your keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
2-4
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
•Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
•Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
•Check to determine if battery replacement is
necessary. See “Battery Replacement” under
Remote Keyless Entry System Operation on
page 2-5
.
•If you are still having trouble, see your dealer or
a qualified technician for service.
Remote Keyless Entry System
Operation
With this feature, you can lock and unlock the doors
or the trunk and turn on your vehicle’s interior lamps
from about 10 feet (3 m) away using the remote keyless
entry transmitter supplied with your vehicle.
Q(Lock): Press this
symbol on the remote
keyless entry transmitter
to lock the doors. This also
arms the theft-deterrent
system.
You can program your vehicle so that the exterior
lamps will flash and/or the horn will sound when you
lock the doors with the remote keyless entry transmitter.
See
DIC Vehicle Personalization on page 3-74
for
more information on programming this feature.
2-5
If your vehicle is programmed for remote confirmation,
the doors must be closed for this feature to work. If
a door is open, remote confirmation will be canceled.
W(Unlock): Press this symbol on the remote
keyless entry transmitter to unlock the driver’s door.
This also disarms the theft-deterrent system. Press
the button again to unlock the rest of the doors.
You can program your vehicle so that the exterior
lamps will flash when you unlock the doors with the
remote keyless entry transmitter. See
DIC Vehicle
Personalization on page 3-74
for more information on
programming this feature.
If your vehicle is programmed for remote confirmation,
the doors must be closed for this feature to work. If
a door is open, remote confirmation will be canceled.
L(Panic Alarm): The remote keyless entry transmitter
comes equipped with an instant panic alarm. Press
the horn symbol when the ignition is turned off. The horn
will sound and the exterior lamps will flash for up to
30 seconds. To stop the instant panic alarm, press the
symbol again or turn the ignition to ON.
V(Trunk): Press this button to open the trunk.
The remote keyless entry transmitter can be used to
recall the memory settings for up to two drivers. For
more information, see
DIC Vehicle Personalization on
page 3-74
and
Memory Seat and Mirrors on page 2-54
.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
2-6
Notice:
When replacing the battery, use care not
to touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
1. Use a flat thin object to pry open the transmitter.
2. Once the transmitter is separated, use a pencil
or similar object to remove the old battery.
Do not use a metal object.
3. Insert the new battery as the instructions under
the cover indicate.
4. Snap the transmitter back together tightly to be
sure no moisture can enter.
5. Press any button on the remote keyless entry
transmitter to resynchronize the transmitter.
6. Check the operation of the transmitter.
2-7
Doors and Locks
{CAUTION:
Unlocked doors can be dangerous.
•Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle will not open it. You increase
the chance of being thrown out of the
vehicle in a crash if the doors are not
locked. So, wear safety belts properly
and lock the doors whenever you drive.
•Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
•Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors
can help prevent this from happening.
There are several ways to lock and unlock your vehicle.
Because your vehicle has the theft-deterrent system,
you must unlock the doors from the outside with the key
or remote keyless entry transmitter to avoid setting off
the alarm. If the windows are down and the doors
are locked, don’t reach in to manually unlock the vehicle
because you will set off the alarm.
From the inside, use the
manual lock levers located
on the door panels near
the windows.
Push down on the manual lock lever to lock the door.
To unlock the door, pull up on the lever.
2-8
Central Door Unlocking System
Your vehicle has a central door unlocking feature.
When unlocking the driver’s door, you can unlock the
other doors by holding the key in the turned position for
a few seconds or by quickly turning the key twice in
the lock cylinder.
Power Door Locks
The power door lock
switches are located
on the front doors.
Press the bottom part of the power door lock switch
to lock or the top of the switch to unlock all the doors
at once.
The rear doors do not have power door lock switches.
You must use the manual levers to lock and unlock
the rear doors when riding in the rear seat.
Delayed Locking
With this feature, you can delay the actual locking of
the doors.
When the power door lock switch or the lock button on
the remote keyless entry transmitter is pressed when
the key is not in the ignition and the driver’s door
is opened, a chime will sound three times indicating that
delayed locking is active.
When all the doors are closed, the doors will lock
automatically after five seconds. If a door is reopened
before five seconds have elapsed, the five second timer
will reset itself once all the doors are closed again.
You can press the door lock switch or the lock button
on the remote keyless entry transmitter again to override
this feature and lock the doors immediately.
You can turn this feature off using the Driver Information
Center (DIC). When delayed locking is off, the doors
will lock immediately when you press the power
door lock switch or the lock button on the remote keyless
entry transmitter. See
DIC Vehicle Personalization on
page 3-74
for more information.
2-9
Programmable Automatic
Door Locks
If your vehicle has an automatic transmission, your
vehicle is programmed so that when the doors
are closed, the ignition is on and the shift lever is
moved out of PARK (P), all the doors will lock. The
doors will unlock every time you stop the vehicle and
move the shift lever back into PARK (P).
If your vehicle has a manual transmission, the vehicle is
programmed so that the doors will lock automatically
after the vehicle speed reaches 5 mph (8 km). The doors
will not automatically unlock until the ignition is turned
off and the key is removed from the ignition switch.
If someone needs to exit the vehicle once the doors are
locked, have that person use the manual lever or
power door lock switch. When the door is closed again,
it will not lock automatically. Use the manual lever or
the power door lock switch to lock the door.
The power door locks can be programmed through
prompts displayed on the Driver Information
Center (DIC). These prompts allow you to choose
various lock and unlock settings. For more information
on programming, see
DIC Vehicle Personalization
on page 3-74
.
Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that prevent passengers from opening the rear doors
on your vehicle from the inside.
The rear door security
locks are located on the
inside edge of each
rear door. You must
open the rear doors to
access them.
To use these locks, do the following:
1. Insert your key into the slot next to the rear door
security lock label and turn it to engage the lock.
2. Close the door.
3. Repeat the steps for the other rear door.
2-10
The rear doors on your vehicle cannot be opened from
the inside when this feature is in use.
When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the remote keyless entry
transmitter, the front door power lock switch or
by lifting the rear door manual lock.
2. Then open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert your key into the slot next to the rear
door security lock label and turn it to disengage
the lock.
3. Repeat the steps for the other lock.
The rear door locks will now work normally.
Lockout Protection
If you press the power door lock switch when the key is
in the ignition and any door is open, all the doors
will lock and only the driver’s door will unlock. If you
close the doors, you can lock them using the remote
keyless entry transmitter. Be sure to remove the
key from the ignition when locking your vehicle.
This feature can be overridden by pressing the lock
button on the remote keyless entry transmitter or
by pressing the power lock switch a second time.
2-11
Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
•Make sure all other windows are shut.
•Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System in the Index.
•If you have air outlets on or under the
instrument panel, open them all the way.
See
Engine Exhaust on page 2-39
.
Trunk Lock Release
The remote trunk release
button is located on the
lower portion of the
driver’s door.
To use this feature, an automatic transmission must be
in PARK (P) or NEUTRAL (N) and your manual
transmission must be in NEUTRAL with the parking
brake set.
Press the button to open the trunk. You can also press
the button with the trunk symbol on the remote
keyless entry transmitter to open the trunk.
If your vehicle is ever without power, you can still
access the trunk area. Use one of the following
procedures to open the trunk manually.
2-12
If your vehicle is equipped with the rear seat
pass-through door, do the following:
1. Fold the rear armrest down and open the
pass-through door. See “Rear-Seat Pass Through”
following for more information.
2. Reach upward through the opening to locate the
emergency trunk release handle. See “Emergency
Trunk Release Handle” following.
3. Pull forward on the trunk release handle to open
the trunk lid.
If your vehicle is equipped with the split folding rear
seat, do the following:
1. Fold down the rear seatback. See
Split Folding
Rear Seat on page 1-6
for more information.
2. Reach upward through the opening to locate the
trunk release handle.
3. Pull forward on the trunk release handle to open
the trunk lid.
Rear-Seat Pass Through
If your vehicle is equipped with the rear seat-pass
through door, you can access the trunk without opening
the trunk lid. This is especially useful when transporting
long items.
To open the door, pull down the rear seat armrest.
Then pull the lever all the way down to release the door.
To close the panel, push the door up and back into
place. Then try to open the door without pulling up on
the lever to make sure it is locked into place.
2-13
Emergency Trunk Release Handle
Notice:
Using the emergency trunk release handle
as a tie-down or anchor point when securing items in
the trunk may damage it. Use the emergency trunk
release handle only to help you open the trunk lid.
There is a glow-in-the-dark emergency trunk release
handle located on the back wall of the trunk. This handle
will glow following exposure to light. Pull the release
handle toward the front of the vehicle to open the trunk
from the inside.
Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-14
Power Windows
The power window switches are located on the armrest
near each window. Press the up or down arrows on
the switches to raise or lower the windows.
Your vehicle has Retained Accessory Power (RAP)
that allows you to use the power windows once
the ignition has been turned off for up to 10 minutes.
For more information, see
Retained Accessory
Power (RAP) on page 2-24
.
2-15
Express-Down Window
This feature is on all the power windows. Press the down
arrow on the switch to the second position to activate the
express-down feature. If you want to stop the window as
it is lowering, press the down arrow on the switch again.
Express-Up Window
This feature is on both front power windows. Press the up
arrow on the switch to the second position to activate the
express-up feature. If you want to stop the window as it is
raising, press the up arrow on the switch again.
Programming the Power Windows
If the battery on your vehicle has been recharged,
disconnected or is not working, you will need to
reprogram each front power window for the express-up
feature to work. Before reprogramming, you will need
to replace or recharge your vehicle’s battery.
To program each window, follow these steps:
1. With the ignition in ACCESSORY, ON or when
Retained Accessory Power (RAP) is active,
press and hold the down arrow on the power
window switch until the window has fully opened.
2. Press the up arrow on the power window switch
until the window is fully closed.
3. Continue holding up arrow on the switch for
approximately two seconds after the window
is completely closed.
The window is now reprogrammed. Repeat the process
for the other front window.
Anti-Pinch Feature
If any object is in the path of the window when the
express-up feature is active, the window will stop at
the obstruction and auto-reverse to a preset factory
position. Weather conditions such as severe icing may
also cause the window to auto-reverse. The window
will return to normal operation once the obstruction or
condition is removed.
{CAUTION:
If express override is activated, the window
will not reverse automatically. You or others
could be injured and the window could be
damaged. Before you use express override,
make sure that all people and obstructions
are clear of the window path.
2-16
Express Window Override
A condition may exist that causes auto-reversal of the
window due to weather or an obstruction. In an
emergency, the anti-pinch feature can be overridden in
a supervised mode. Hold the window switch all the
way down in the express position. The window will rise
for as long as the switch is held. Once the switch is
released, the express mode is re-activated.
In this mode, the window can still close on an object in
its path. Use care when using the override mode.
Window Lockout
This feature allows you to disable the passenger
window switches.
The passenger window
lockout button is located
below the power window
switches on the driver’s
door armrest.
Press the button to disable the passenger window
controls. The light on the button will illuminate, indicating
that the feature is in use. The passenger windows still
can be raised or lowered using the driver’s window
switches when the lockout feature is active.
To restore power to the passenger windows, press the
button again. The light on the button will go out.
You can program this feature to disable all passenger
windows or only the rear passenger windows. See
DIC Vehicle Personalization on page 3-74
for more
information.
Sun Visors
Swing down the primary visor to block out glare. It can
also be detached from the center mount and moved
to the side to block glare from that direction.
The driver’s sunshade may also have buttons for a
built-in garage door opener. See
HomeLink
®
Transmitter
on page 2-47
for more information.
Lighted Visor Vanity Mirror
Pull the visor down and lift the cover. The light will
automatically come on. The light will go out when you
close the cover.
2-17
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Theft-Deterrent System
If your vehicle has this
feature, the security light is
located on the instrument
panel cluster.
If the ignition is off and a door is open, the security
light will flash, reminding you to arm the theft-deterrent
system.
To arm the system, do the following:
1. Lock the door using the remote keyless entry
transmitter or the power door lock switch.
2. Close all the doors. The security light will illuminate.
It should go off within approximately 30 seconds.
Your security system is now armed.
If a door or a trunk is opened without a key or a remote
keyless entry transmitter, the horn will sound and the
lamps will flash for up to 30 seconds.
The theft-deterrent system won’t arm if you lock the
doors with a key or use the manual door lock. It
activates only if you use the remote keyless entry
transmitter or the power lock on the door.
To avoid activating the alarm by accident do the
following:
•The vehicle should be locked with the door key or
the manual door lock after the doors are closed if
you don’t want to arm the theft-deterrent system.
•Always unlock a door with a key or use the remote
keyless entry transmitter. Pressing the unlock
button on the remote keyless entry transmitter
disables the theft-deterrent system. Unlocking a
door any other way will activate the alarm when a
door or the trunk is opened.
If you activate the alarm by accident, unlock the
driver’s door with your key. You can also turn off the
alarm by using the unlock button on the remote keyless
entry transmitter, or by starting the vehicle with a
valid key.
2-18
Testing the Alarm
1. From inside the vehicle, roll down the window, then
get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open,
lock the vehicle using the power door lock switch
or the remote keyless entry transmitter and
close the door. Wait approximately 30 seconds
until the security light goes off.
3. Reach in and unlock the door using the manual
lock and open the door. The horn will sound and
the exterior lamps will flash.
You can turn off the alarm by unlocking the driver’s door
with your key, using the unlock button on the remote
keyless entry transmitter or by starting the car with
a valid key.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, see
Fuses and Circuit Breakers on
page 5-97
. If the fuse does not need to be replaced,
you may need to have your vehicle serviced.
To reduce the possibility of theft, always arm the
theft-deterrent system when leaving your vehicle.
Immobilizer
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
2-19
Immobilizer Operation
Your vehicle
is equipped
with a passive
theft-deterrent
system.
The system works when you turn the key to ON. The
key uses a transponder that matches an immobilizer
control unit in your vehicle. The correct key will start the
vehicle. If the key is ever damaged, you may not be
able to start your vehicle.
When trying to start the vehicle, if the engine does
not start and the security light comes on, the key may
have a damaged transponder. Turn the ignition off
and try again.
If the engine still does not start, and the key appears
to be undamaged, try another ignition key. At this time,
you may also want to check the fuse. See
Fuses
and Circuit Breakers on page 5-97
. If the engine still
does not start with the other key, your vehicle needs
service. If your vehicle does start, the first key may be
faulty. See your dealer who can service the
theft-deterrent system to have a new key made.
It is possible for the theft-deterrent system decoder to
learn the transponder value of a new or replacement
key. Up to 10 additional keys may be programmed for
the vehicle. This procedure is for learning additional
keys only.
2-20
Canadian Owners: If you lose or damage your keys,
only a GM dealer can service the theft-deterrent system
to have new keys made. To program additional keys
you will require two current driver’s keys. You must add
a step to the following procedure. After Step 2, repeat
Steps 1 and 2 with the second current driver’s key.
Then continue with Step 3.
To program a new key do the following:
1. Verify that the new key has PK3+ stamped on it.
2. Insert the current driver’s key in the ignition
and start the engine. If the engine will not start see
your dealer for service.
3. After the engine has started, turn the key to OFF,
and remove the key.
4. Insert the key to be programmed and turn it to ON
within ten seconds of removing the previous key.
5. The security light will turn off once the key has
been programmed. It may not be apparent that
the security light went on due to how quickly the
key is programmed.
6. Repeat the Steps 1 through 4 if additional keys
are to be programmed.
If you are ever driving and the security light comes on
and stays on, you will be able to restart your engine
if you turn it off. The theft-deterrent system, however,
is not working properly and must be serviced by
your dealer. Your vehicle is not protected by the
theft-deterrent system at this time.
In an emergency, contact Cadillac Roadside Assistance.
See
Roadside Service on page 7-6
.
2-21
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:
Your vehicle does not need an elaborate
break-in. But it will perform better in the long
run if you follow these guidelines for the first
500 miles (805 km):
•Do not drive at any one speed — fast or slow.
•Do not exceed 70 mph (113 km/h).
•Do not make full-throttle starts; also refrain
from using the full throttle while driving.
If these procedures are not followed, your engine,
axle, or other parts could be damaged.
Avoid making hard stops for the first 200 miles
(322 km) or so. During this time your new brake
linings are not yet broken in. Hard stops with new
linings can mean premature wear and earlier
replacement. Follow this break-in guideline every
time you get new linings.
Do not tow a trailer during break-in. See
Towing
a Trailer on page 4-40
for more information.
Ignition Positions
With the key in the ignition switch, you can turn the key
to four different positions.
Notice:
Using a tool to force the key from the
ignition switch could cause damage or break the
key. Use the correct key and turn the key only
with your hand. Make sure the key is all the way in.
If it is, turn the steering wheel left and right while
you turn the key hard. If none of this works,
then your vehicle needs service.
2-22
A (OFF): This is the only position in which you can
insert or remove the key. This position locks the ignition,
steering wheel and transmission. It is a theft-deterrent
feature.
B (ACCESSORY): This position allows you to use
things like the radio and the windshield wipers when
the engine is off. This position will allow you to turn off
the engine, but still turn the steering wheel.
C (ON): This position is for driving. If your vehicle
has an automatic transmission and you turn off
the engine, the transmission will lock. If you need to
shift the transmission out of PARK (P), the ignition
key has to be in ON.
D (START): This position starts the engine.
Key Release Button
(Manual Transmission)
The key cannot be
removed from the
ignition of manual
transmission vehicle
unless the key release
button is used.
To remove the key, do the following:
1. Turn the key to ACCESSORY.
2. Press and release the button and then turn
the key to OFF.
Do not hold the button in while turning the
key to OFF.
3. Pull the key straight out of the ignition switch.
2-23
Steering Column Ignition Lock Release
(Automatic Transmission)
If your vehicle has a dead battery or a battery with
low voltage, you can still release the ignition lock and
remove the key. Use the following procedure to release
the steering column:
1. Locate the plastic screw head on the underside
of the plastic cover for the steering column.
2. Insert a flat, thin object into the slot and turn it
until the plastic piece detaches from the steering
column cover.
3. Insert a narrow, pointed object into the hole in the
steering column cover and press the spring.
4. Then, turn the ignition switch to OFF and remove
the key.
Retained Accessory Power (RAP)
The following accessories on your vehicle may be used
for up to 10 minutes after the ignition key is turned
from ON to OFF:
•Radio
•Power Windows
•Audio Steering Wheel Controls
(if programmed)
•Sunroof
Power to these accessories stops after 10 minutes or
if a door is opened. If you want power for another
10 minutes, close all the doors and turn the ignition
key to ON and then back to OFF.
2-24
Starting Your Engine
Automatic Transmission
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine will not start in any other position — that is
a safety feature. To restart when you are already
moving, use NEUTRAL (N) only.
Notice:
Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could damage the
transmission. Shift to PARK (P) only when your
vehicle is stopped.
Manual Transmission
The shift lever should be in NEUTRAL and the
parking brake engaged. Hold the clutch pedal to the
floor and start the engine. Your vehicle will not start
if the clutch pedal is not all the way down — that is
a safety feature.
1. With your foot off the accelerator pedal, turn your
ignition key to START. Then, let go of the key; the
engine will start automatically. The idle speed
will go down as your engine gets warm.
2. If your engine will not start, or starts but then stops,
it could be flooded with too much gasoline. Try
pushing your accelerator pedal all the way to the
floor and holding it there as you turn the key
to START. If the vehicle starts briefly but then stops
again, do the same thing.
Notice:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way the
engine operates. Before adding electrical equipment,
check with your dealer. If you do not, your engine
might not perform properly.
Engine Coolant Heater
Your vehicle may be equipped with an engine coolant
heater.
In very cold weather, 0°F (−18°C) or colder, the engine
coolant heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your vehicle.
At temperatures above 32°F (0°C), use of the coolant
heater is not required.
2-25
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The cord is located in the engine compartment
on the passenger’s side of the vehicle.
You must remove the plastic cap to access the plug.
3. Plug it into a normal, grounded 110 - volt AC outlet.
{CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the
wrong kind of extension cord could overheat
and cause a fire. You could be seriously
injured. Plug the cord into a properly grounded
three-prong 110-volt AC outlet. If the cord will
not reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps.
4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you do not, it could
be damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead
of trying to list everything here, we ask that you contact
your dealer in the area where you will be parking
your vehicle. The dealer can give you the best advice
for that particular area.
Automatic Transmission Operation
If your vehicle has an automatic transmission, the
shift lever is located on the center console between
the front seats.
There are several
different positions
for the shift lever.
2-26
PARK (P): This position locks the rear wheels.
It is the best position to use when you start the engine
because your vehicle cannot move easily.
{CAUTION:
It is dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Do not leave your vehicle when the engine
is running unless you have to. If you have
left the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move, even
when you are on fairly level ground, always
set your parking brake and move the shift
lever to PARK (P). See
Shifting Into Park (P)
(Automatic Transmission) on page 2-35
.
If you are pulling a trailer, see
Towing a Trailer
on page 4-40
.
Ensure the shift lever is fully in PARK (P) before starting
the engine. Your vehicle has an automatic transmission
shift lock control system. You must fully apply your
regular brakes before you can shift from PARK (P) when
the ignition key is in ON. If you cannot shift out of
PARK (P), ease pressure on the shift lever. Push the
shift lever all the way into PARK (P) while pressing the
button on the shift lever as you maintain brake
application. Then move the shift lever into the gear you
wish. See
Shifting Out of Park (P) on page 2-37
.
Notice:
Shifting to REVERSE (R) while your vehicle
is moving forward could damage the transmission.
The repairs would not be covered by your warranty.
Shift to REVERSE (R) only after your vehicle is
stopped.
REVERSE (R): Use this gear to back up.
At low vehicle speeds, you can also use REVERSE (R)
to rock your vehicle back and forth to get out of
snow, ice or sand without damaging your transmission.
See
If You Are Stuck: In Sand, Mud, Ice or Snow on
page 4-32
for additional information.
2-27
NEUTRAL (N): In this position, the engine does not
connect with the wheels. To restart when you are
already moving, use NEUTRAL (N) only. You can also
use NEUTRAL (N) when your vehicle is being towed.
{CAUTION:
Shifting into a drive gear while your engine is
running at high speed is dangerous. Unless
your foot is firmly on the brake pedal, your
vehicle could move very rapidly. You could
lose control and hit people or objects. Do not
shift into a drive gear while your engine is
running at high speed.
Notice:
Shifting out of PARK (P) or NEUTRAL (N)
with the engine running at high speed may
damage the transmission. The repairs would not
be covered by your warranty. Be sure the engine
is not running at high speed when shifting your
vehicle.
AUTOMATIC OVERDRIVE (D): This position is for
normal driving. If you need more power for passing,
and you are:
•Going less than 35 mph (55 km/h), push the
accelerator pedal about halfway down.
•Going about 35 mph (55 km/h) or more, push
the accelerator all the way down.
The transmission will shift down to a lower gear and
have more power.
Notice:
Driving your vehicle if you notice that
it is moving slowly or not shifting gears as you
increase speed may damage the transmission.
Have your vehicle serviced right away. You can
drive in SECOND (2) when you are driving less than
35 mph (55 km/h) and AUTOMATIC OVERDRIVE (D)
for higher speeds until then.
FOURTH (4): This position is also used for normal
driving. However, it offers more power and lower fuel
economy than AUTOMATIC OVERDRIVE (D).
Here are examples for using FOURTH (4) instead of
AUTOMATIC OVERDRIVE (D).
•When driving on hilly, winding roads.
•When going down a steep hill.
2-28
THIRD (3): This position gives you more power. You
can use THIRD (3) on hills. It can help control your
speed as you go down steep mountain roads, but then
you would also want to use your brakes off and on.
If the shift lever is put into THIRD (3), the transmission
will not shift into THIRD (3) until the vehicle is moving
slowly enough.
SECOND (2): This position gives you even more
power than THIRD (3). You can use it on very steep
hills, or in deep snow or mud. (If the shift lever is
put in SECOND (2), the transmission will not shift into
SECOND (2) until the vehicle is going slowly enough).
FIRST (1): The transmission will automatically select
this gear when conditions indicate that more power
is needed. You cannot select this gear manually.
Notice:
Spinning the tires or holding the vehicle
in one place on a hill using only the accelerator
pedal may damage the transmission. If you
are stuck, do not spin the tires. When stopping on
a hill, use the brakes to hold the vehicle in place.
Sport Mode Button
(Automatic Transmission)
This button allows you to change the driving mode of
the vehicle from the normal driving mode to a sportier
driving mode. In sport mode the vehicle will have firmer
shifting and increased performance.
The sport mode button
is located on the center
console near the
transmission shift lever.
Press the button once to turn on the sport mode. Press
the button again to return to normal driving mode.
2-29
This light located on the
instrument panel cluster
will come on while
the sport mode is active.
When driving in sport mode, the transmission may
remain in a gear longer than it would in normal driving
mode. Also, if the transmission is in AUTOMATIC
OVERDRIVE (D) when the sport mode button is
pressed, the transmission will immediately downshift
into FOURTH (4) gear to provide more power. Both of
these situations are normal and do not indicate a
transmission problem.
When you turn off the ignition while driving in sport
mode, the vehicle will remain in sport mode. If
your vehicle is equipped with the memory feature, the
transmission mode (sport or normal) will be saved
with the memory seat position. Press the sport mode
button again to turn off the feature and return to normal
driving mode.
Winter Driving Mode Button
(Automatic Transmission)
This feature provides more traction during slippery
conditions by using THIRD (3) gear when you begin
to accelerate from a stopped position.
The winter driving
mode button is located
on the center console
near the transmission
shift lever.
Press this button once to turn on the winter driving
mode feature. Press it again to turn the feature off.
The winter driving mode feature works when the vehicle
is in any gear except SECOND (2).
2-30
This light on the instrument
panel cluster will come on
when the winter driving
mode is active.
When you turn off the ignition while using this feature,
winter mode is automatically turned off. The vehicle
will return to normal driving mode. You must select the
winter driving mode feature each time you restart
the vehicle if you wish to use the feature.
The transmission will be in THIRD (3) gear when the
vehicle begins to move. Once the vehicle is moving, the
vehicle will upshift normally.
The transmission will downshift when the accelerator
pedal is pressed and held for more than two seconds,
and the vehicle will accelerate more slowly than
normal while using the winter driving mode.
This feature is not intended for continuous use or for
use when the vehicle is stuck in sand, mud, ice, snow
or gravel. If your vehicle becomes stuck, see
Rocking
Your Vehicle to Get It Out on page 4-33
for more
information on how to free it.
Manual Transmission Operation
If your vehicle has a manual transmission, the shift
lever is located on the center console between the
front seats. The following explains how to operate the
manual transmission.
This is the shift pattern for the six-speed manual
transmission.
Here is how to operate your transmission:
FIRST (1): Press the clutch pedal and shift into
FIRST (1). Then slowly let up on the clutch pedal as
you press the accelerator pedal.
CTS CTS-V
2-31
You can shift into FIRST (1) when you are going less
than 40 mph (64 km/h). If you come to a complete stop
and it is hard to shift into FIRST (1), put the shift
lever in NEUTRAL and let up on the clutch. Press the
clutch pedal back down. Then shift into FIRST (1).
SECOND (2): Press the clutch pedal as you let up on
the accelerator pedal and shift into SECOND (2).
Then, slowly let up on the clutch pedal as you press
the accelerator pedal.
THIRD (3), FOURTH (4), FIFTH (5) and
SIXTH (6): Shift into THIRD (3), FOURTH (4), FIFTH (5)
and SIXTH (6) the same way you do for SECOND (2).
Slowly let up on the clutch pedal as you press the
accelerator pedal.
To stop, let up on the accelerator pedal and press the
brake pedal. Just before the vehicle stops, press
the clutch pedal and the brake pedal, and shift to
NEUTRAL.
NEUTRAL: Use this position when you start or idle
your engine. Your shift lever is in NEUTRAL when it is
centered in the shift pattern, not in any gear.
REVERSE (R): To back up, press down the clutch
pedal and shift into REVERSE (R). Let up on the clutch
pedal slowly while pressing the accelerator pedal.
Your six-speed manual transmission has a feature that
allows you to safely shift into REVERSE (R) while
the vehicle is rolling at less than 3 mph (5 km/h). You
will be locked out if you try to shift into REVERSE (R)
while your vehicle is moving faster than 3 mph (5 km/h).
If you have turned your ignition off and wish to park
your vehicle in REVERSE (R), you will have to
overcome the lockout mechanism by moving the shift
lever quickly to the right, and immediately forward
into gear using more force than a normal shift.
2-32
Shift Speeds (Manual Transmission)
{CAUTION:
If you skip a gear when you downshift, you
could lose control of your vehicle. You could
injure yourself or others. Don’t shift down
more than one gear at a time when you
downshift.
Notice:
If you skip more than one gear when you
downshift, or if you race the engine when you
release the clutch pedal while downshifting, you
could damage the engine, clutch, driveshaft or the
transmission. Do not skip gears or race the
engine when downshifting.
If the vehicle speed drops below 20 mph (32 km/h),
or if the engine is not running smoothly, you should
downshift to the next lower gear. You may have
to downshift two or more gears to keep the engine
running smoothly or for good performance.
Skip Shift (CTS-V)
1r4: This may appear in the message center in the
speedometer during light throttle, low speed maneuvers
(15 to 19 mph (24 to 31 km/h)). When this message
appears, you can only shift from FIRST (1) to
FOURTH (4) instead of FIRST (1) to SECOND (2).
During the shift from FIRST (1) to FOURTH (4), pull the
shift lever straight back using light force on the shift
lever. You must complete the shift into FOURTH (4) to
turn off this feature. This helps you get the best
possible fuel economy.
Notice:
Forcing the shift lever into any gear except
FOURTH (4) when the skip shift light comes on
may damage the transmission. Shift only from
FIRST (1) to FOURTH (4) when the light comes on.
This light comes on when:
•The engine coolant temperature is higher
than 169°F (76°C),
•you are going 15 to 19 mph (24 to 31 km/h) and
•you are 21 percent throttle or less.
2-33
Parking Brake
The parking brake pedal
is located on the lower
portion of the instrument
panel to the left of the
steering wheel.
To set the parking brake, hold the regular brake pedal
down with your right foot and push the parking brake
pedal down with your left foot.
If the ignition is on, the brake system warning light
on the instrument panel cluster should come on. If it
does not, you need to have your vehicle serviced.
See
Brake System Warning Light on page 3-42
for
more information.
To release the parking brake, pull the release lever
located to the left of the steering wheel on the
instrument panel.
Notice:
Driving with the parking brake on can
overheat the brake system and cause premature
wear or damage to brake system parts. Verify that
the parking brake is fully released and the brake
warning light is off before driving.
A warning chime will sound if the parking brake is set,
the ignition is on and the vehicle begins to move.
To stop the chime, fully release the parking brake.
If you are towing a trailer and parking on a hill,
see
Towing a Trailer on page 4-40
for more information.
2-34
Shifting Into Park (P)
(Automatic Transmission)
{CAUTION:
It can be dangerous to get out of your vehicle
if the shift lever is not fully in PARK (P) with
the parking brake firmly set. Your vehicle can
roll. If you have left the engine running, the
vehicle can move suddenly. You or others
could be injured. To be sure your vehicle will
not move, even when you are on fairly level
ground, use the steps that follow. If you are
pulling a trailer, see
Towing a Trailer on
page 4-40
.
To shift into PARK (P), use the following steps:
1. Hold the brake pedal down with your right foot.
2. Move the shift lever into PARK (P) by pressing the
button on the front of the shift lever while pushing
the lever all the way toward the front of the vehicle.
Release the button.
3. With your right foot still holding the brake pedal
down, set the parking brake with your left foot.
See
Parking Brake on page 2-34
for more
information.
4. Turn the key to OFF.
5. Remove the key from the ignition switch and take it
with you. If you can leave your vehicle with the key
in your hand, the vehicle is in PARK (P).
2-35
Leaving Your Vehicle With
the Engine Running
(Automatic Transmission)
{CAUTION:
It can be dangerous to leave your vehicle with
the engine running. Your vehicle could move
suddenly if the shift lever is not fully in
PARK (P) with the parking brake firmly set.
And, if you leave the vehicle with the engine
running, it could overheat and even catch fire.
You or others could be injured. Do not leave
your vehicle with the engine running.
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P) and your
parking brake is firmly set before you leave it. After you
have moved the shift lever into PARK (P), hold the
regular brake pedal down. Then, see if you can move
the shift lever away from PARK (P) without first pushing
the button on the shift lever. If you can, it means that
the shift lever was not fully locked into PARK (P).
Torque Lock
(Automatic Transmission)
If you are parking on a hill and you do not shift your
transmission into PARK (P) properly, the weight of the
vehicle may put too much force on the parking pawl
in the transmission. You may find it difficult to pull the
shift lever out of PARK (P). This is called “torque
lock.” To prevent torque lock, set the parking brake and
then shift into PARK (P) properly before you leave
the driver’s seat. To find out how, see “Shifting
Into PARK (P)” listed previously.
If torque lock does occur, you may need to have
another vehicle push yours a little uphill to take some of
the pressure from the parking pawl in the transmission,
so you can pull the shift lever out of PARK (P).
2-36
Shifting Out of Park (P)
Your vehicle has an automatic transmission shift lock
control system. You have to fully apply your regular
brakes before you can shift from PARK (P) when the
ignition is in ON. See
Automatic Transmission Operation
on page 2-26
for more information.
If you cannot shift out of PARK (P), ease the pressure
on the shift lever. Push the shift lever all the way
into PARK (P) while pushing the button on the shift lever
as you maintain brake application. Then move the
shift lever into the gear you want.
Shift Lock Release
(Automatic Transmission)
If your vehicle has a dead battery or a battery with
low voltage, you can still shift the vehicle into PARK (P)
and remove the ignition key. Use the following
procedure to release the shift lever:
1. Pull up on the rear part of the leather boot that
surrounds the shift lever.
2. Fold the boot upward to expose the mechanism
beneath the shift lever.
2-37
3. Locate and remove the small oval cap near the
forward, right side of the shifter mechanism.
4. Using a narrow, pointed tool, press down on the
mechanism under the cap so that you can move
the shift lever.
Parking Your Vehicle
(Manual Transmission)
Before you get out of your vehicle, place the shift lever
in REVERSE (R) and firmly apply the parking brake.
Turn the ignition key to OFF, press the release button
and remove the key. See “Key Release Button”
under
Ignition Positions on page 2-22
for more
information.
If you are towing a trailer, see
Towing a Trailer
on page 4-40
.
2-38
Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot exhaust
parts under your vehicle and ignite. Do not
park over papers, leaves, dry grass or other
things that can burn.
Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you cannot see or
smell. It can cause unconsciousness and death.
You might have exhaust coming in if:
•Your exhaust system sounds strange or
different.
•Your vehicle gets rusty underneath.
•Your vehicle was damaged in a collision.
•Your vehicle was damaged when driving
over high points on the road or over road
debris.
•Repairs were not done correctly.
•Your vehicle or exhaust system had been
modified improperly.
If you ever suspect exhaust is coming into your
vehicle:
•Drive it only with all the windows down to
blow out any CO; and
•Have your vehicle fixed immediately.
2-39
Running Your Engine While
You Are Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier caution under
Engine Exhaust on page 2-39
.
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even
if the climate control fan is at the highest
setting. One place this can happen is a garage.
Exhaust — with CO — can come in easily.
NEVER park in a garage with the engine
running.
Another closed-in place can be a blizzard.
See
Winter Driving on page 4-28
.
{CAUTION:
It can be dangerous to get out of your vehicle
if the shift lever is not fully in PARK (P) with
the parking brake firmly set. Your vehicle can
roll. Do not leave your vehicle when the engine
is running unless you have to. If you have
left the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move, even
when you are on fairly level ground, always
set your parking brake after you move the shift
lever to PARK (P).
Follow the proper steps to be sure your vehicle will
not move. See
Shifting Into Park (P) (Automatic
Transmission) on page 2-35
.
If you are parking on a hill and if you are pulling a
trailer, also see
Towing a Trailer on page 4-40
.
2-40
Mirrors
Automatic Dimming Rearview
Mirror with OnStar
®
The vehicle may have an automatic dimming inside
rearview mirror with OnStar
®
controls. For more
information about OnStar
®
, see
OnStar
®
System
on page 2-45
.
O(On/Off): The on/off button, located on the lower
left side of the mirror, is used for the automatic dimming
functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time
the vehicle is started. Automatic dimming reduces
the glare of lights from behind the vehicle.
To turn the automatic dimming feature on or off, press
and release the on/off button. The indicator light will
illuminate when this feature is on.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Automatic Dimming Rearview Mirror
with OnStar
®
and Compass
The vehicle may have an automatic dimming inside
rearview mirror with a compass and OnStar
®
controls.
For more information about OnStar
®
, see
OnStar
®
System on page 2-45
.
The mirror has an eight-point compass display in the
upper right corner of the mirror. When on, the compass
automatically calibrates, or sets the driving direction,
as the vehicle is driven. If the vehicle has the navigation
option, the direction the vehicle is facing will be
displayed on the navigation screen.
O(On/Off): The on/off button is located on the lower
left side of the mirror and is used for the automatic
dimming and compass functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time the
vehicle is started.
To turn the automatic dimming feature on or off, press
the on/off button. The indicator light will illuminate
when this feature is on.
2-41
Compass Operation
Press the on/off button once to turn the compass
on or off.
When the ignition and the compass feature are on,
the compass will show two character boxes for
approximately two seconds. After two seconds, the
mirror will display the current compass direction.
Compass Calibration
If after two seconds the display does not show a
compass direction, (N for North for example), there
may be a strong magnetic field interfering with the
compass. Such interference may be caused by a
magnetic antenna mount, note pad holder, or similar
object. If the letter C appears in the compass window,
the compass may need to be reset or calibrated.
The mirror can be calibrated by driving the vehicle in
circles at 5 mph (8 km/h) or less until the display reads
a direction.
The compass can be calibrated by pressing and holding
the on/off button until a C is shown in the compass
display.
Compass Variance
Compass variance is the difference between earth’s
magnetic north and true geographic north. If the mirror
is not adjusted for compass variance, the compass
could give false readings.
The mirror is set in zone eight upon leaving the
factory. It will be necessary to adjust the compass to
compensate for compass variance if the vehicle is driven
outside zone eight. Under certain circumstances, such
as a long distance, cross-country trip, it will be
necessary to adjust the compass variance.
To adjust for compass variance, do the following:
1. Find your current location and variance zone
number on the zone map that follows.
2-42
2. Press and hold the on/off button until a zone
number appears on the display.
3. Once the zone number appears on the display,
press the on/off button quickly until you reach
the correct zone number. If C appears in the
compass window, the compass may need
calibration. See “Compass Calibration” listed
previously.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Outside Power Mirrors
The control on the driver’s door armrest operates both
outside rearview mirrors.
2-43
Press the left or right mirror symbol on the selector
switch to choose the driver’s side or passenger’s side
mirror. The center position turns the control off so
that the mirrors will not move if the control pad is
touched.
Once a mirror is selected, use the arrows on the control
pad to move the mirror to the correct direction. Adjust
each mirror so you can see the side of your vehicle and
the area behind your vehicle.
The mirrors can be manually folded inward to prevent
damage when going through an automatic car wash.
To fold, push the mirror toward the vehicle. To return the
mirror to its original position, push outward. Be sure
to return both mirrors to their original unfolded position
before driving.
If the vehicle has the memory package, the mirrors can
be programmed for personalization and curb view
assist. For more information, see
Memory Seat and
Mirrors on page 2-54
and
DIC Vehicle Personalization
on page 3-74
.
Outside Curb View Assist Mirror
If the vehicle has the memory seat and mirrors, it will be
capable of adjusting the passenger’s mirror to tilt to a
preselected position when the vehicle is shifted into
REVERSE (R). Use this outside curb view assist feature
to view the curb when parallel parking.
When the vehicle is shifted out of REVERSE (R) and
after a five-second delay, the passenger’s mirror
will return to its original position.
If further adjustment is needed after the mirror is tilted,
the mirror controls can be used. See
Outside Power
Mirrors on page 2-43
for more information.
The outside curb view assist can be turned or off
through the Driver Information Center (DIC). See
DIC
Vehicle Personalization on page 3-74
for more
information.
2-44
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so that more can be seen
from the driver’s seat. The mirror does not have
a dimming feature.
Outside Heated Mirrors
When the rear window defogger is turned on, it also
warms both outside rearview mirrors to help clear them
of fog or ice. See “Rear Window Defogger” under
Dual Climate Control System on page 3-27
for more
information.
OnStar
®
System
OnStar
®
uses global positioning system (GPS) satellite
technology, wireless communications, and call centers
to provide you with a wide range of safety, security,
information, and convenience services.
A complete OnStar
®
user’s guide and the terms and
conditions of the OnStar
®
Subscription Service
Agreement are included in the vehicle’s glove box
literature. For more information, visit www.onstar.com
or www.onstarcanada.com. Contact OnStar
®
at
1-888-4-ONSTAR (1-888-466-7827), or press the
OnStar
®
button to speak to an OnStar
®
advisor
24 hours a day, 7 days a week.
Terms and conditions of the Subscription Service
Agreement can be found at www.onstar.com or
www.onstarcanada.com.
OnStar
®
Services
The OnStar
®
Safe and Sound Plan is included for the
first year from the date of purchase. You can extend
this plan beyond the first year, or upgrade to the
Connections and Directions Plan to meet your needs.
For more information, press the OnStar
®
button to speak
to an advisor.
2-45
Safe and Sound Plan
•Automatic Notification of Airbag Deployment
•Emergency Services
•Roadside Assistance
•Stolen Vehicle Tracking
•AccidentAssist
•Remote Door Unlock/Vehicle Alert
•Remote Diagnostics
•Online Concierge
Directions and Connections Plan
•All Safe and Sound Plan Services
•Driving Directions
•RideAssist
•Information and Convenience Services
OnStar
®
Personal Calling
As an OnStar
®
subscriber, the Personal Calling
capability is a hands-free wireless phone that is
integrated into the vehicle. Calls can be placed
nationwide using simple voice commands with no
additional contracts and no additional roaming charges.
To find out more about OnStar
®
Personal Calling,
refer to the OnStar
®
user’s guide in the vehicle’s glove
box, visit www.onstar.com or www.onstarcanada.com;
or speak to an OnStar
®
advisor by pressing the OnStar
®
button or calling 1-888-4-ONSTAR (1-888-466-7827).
OnStar
®
Virtual Advisor
Virtual Advisor is a feature of OnStar
®
Personal Calling
that uses minutes to access up-to-date weather and
traffic reports for your area, news and sports updates,
stock quotes, entertainment, and more. You are
also able to listen and reply to E-mail through the
vehicle’s audio system. Customize your information
profile at www.myonstar.com. See the OnStar
®
user’s
guide for more information.
2-46
OnStar
®
Steering Wheel Controls
A steering wheel control on the CTS can be used to
interact with the OnStar
®
personal calling feature.
Press the control with
this symbol on the CTS
steering wheel to make
a phone call.
When calling into voice mail systems, or to dial directory
numbers, press the control, say the number(s), then
say “dial”.
See the OnStar
®
user’s guide for more information.
HomeLink
®
Transmitter
If your vehicle has this
feature, the control
buttons are located on
the driver’s sun visor.
HomeLink
®
a combined universal transmitter and
receiver, provides a way to replace up to three
hand-held transmitters used to activate devices such
as gate operators, garage door openers, entry door
locks, security systems and home lighting. Additional
HomeLink
®
information can be found on the internet
at www.homelink.com or by calling 1-800-355-3515.
If your vehicle is equipped with the HomeLink
®
Transmitter, it complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
Changes and modifications to this system by other than
an authorized service facility could void authorization
to use this equipment.
2-47
Programming the HomeLink
®
Transmitter
Do not use the HomeLink
®
Transmitter with any garage
door opener that does not have the “stop and reverse”
feature. This includes any garage door opener model
manufactured before April 1, 1982. If you have a newer
garage door opener with rolling codes, please be
sure to follow steps 6 through 8 to complete the
programming of your HomeLink
®
Transmitter.
Read the instructions completely before attempting to
program the HomeLink
®
Transmitter. Because of
the steps involved, it may be helpful to have another
person available to assist you in programming the
transmitter.
Keep the original transmitter for use in other vehicles
as well as for future HomeLink
®
programming. It is
also recommended that upon the sale of the vehicle,
the programmed HomeLink
®
buttons should be erased
for security purposes. Refer to “Erasing HomeLink
®
Buttons” or, for assistance, contact HomeLink
®
on the internet at: www.homelink.com or by
calling 1-800-355-3515.
Be sure that people and objects are clear of the
garage door or gate operator you are programming.
When programming a garage door, it is advised to
park outside of the garage.
It is recommended that a new battery be installed
in your hand-held transmitter for quicker and more
accurate transmission of the radio frequency.
Programming HomeLink
®
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. Press and hold down the two outside buttons,
releasing only when the indicator light begins to
flash, after 20 seconds. Do not hold down the
buttons for longer than 30 seconds and do not
repeat this step to program a second and/or third
transmitter to the remaining two HomeLink
®
buttons.
2. Position the end of your hand-held transmitter about
1 to 3 inches (3 to 8 cm) away from the HomeLink
®
buttons while keeping the indicator light in view.
3. Simultaneously press and hold both the desired
button on HomeLink
®
and the hand-held transmitter
button. Do not release the buttons until Step 4
has been completed.
2-48
Some entry gates and garage door openers may
require you to substitute Step 3 with the procedure
noted in “Gate Operator and Canadian
Programming” later in this section.
4. The indicator light will flash slowly at first and then
rapidly after HomeLink
®
successfully receives the
frequency signal from the hand-held transmitter.
Release both buttons.
5. Press and hold the newly-trained HomeLink
®
button
and observe the indicator light.
If the indicator light stays on constantly,
programming is complete and your device should
activate when the HomeLink
®
button is pressed
and released.
To program the remaining two HomeLink
®
buttons,
begin with Step 2 under “Programming HomeLink
®
.”
Do not repeat Step 1 as this will erase all of the
programmed channels.
If the indicator light blinks rapidly for two seconds
and then turns to a constant light, continue with
Steps 6 through 8 following to complete the
programming of a rolling-code equipped device
(most commonly, a garage door opener).
6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be found where
the hanging antenna wire is attached to the
motor-head unit.
7. Firmly press and release the “Learn” or “Smart”
button. The name and color of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold the
programmed HomeLink
®
button for two seconds,
then release. Repeat the press/hold/release
sequence a second time, and depending on the
brand of the garage door opener (or other rolling
code device), repeat this sequence a third time
to complete the programming.
HomeLink
®
should now activate your rolling-code
equipped device.
To program the remaining two HomeLink
®
buttons,
begin with Step 2 of “Programming HomeLink
®
.”
You do not want to repeat step 1, as this will erase
all previous programming.
2-49
Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds of
transmission. This may not be long enough for
HomeLink
®
to pick up the signal during programming.
Similarly, some U.S. gate operators are manufactured
to “time out” in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator by using the
“Programming HomeLink
®
” procedures (regardless of
where you live), replace Step 3 under “Programming
HomeLink
®
” with the following:
Continue to press and hold the HomeLink
®
button while
you press and release every two seconds (cycle)
your hand-held transmitter until the frequency signal
has been successfully accepted by HomeLink
®
.
The indicator light will flash slowly at first and then
rapidly. Proceed with Step 4 under “Programming
HomeLink
®
” to complete.
Using HomeLink
®
Press and hold the appropriate HomeLink
®
button for
at least half of a second. The indicator light will come
on while the signal is being transmitted.
Erasing HomeLink
®
Buttons
To erase programming from the three buttons do the
following:
1. Press and hold down the two outside buttons until
the indicator light begins to flash, after 20 seconds.
Do not hold the two outside buttons for longer
than 30 seconds.
2. Release both buttons.
HomeLink
®
is now in the train (learning) mode and
can be programmed at any time beginning with Step 2
under “Programming HomeLink
®
” shown earlier in
this section.
Individual buttons cannot be erased, but they can
be reprogrammed. See “Reprogramming a Single
HomeLink
®
Button” following this section.
2-50
Reprogramming a Single HomeLink
®
Button
To program a device to HomeLink
®
using a HomeLink
®
button previously trained, follow these steps:
1. Press and hold the desired HomeLink
®
button.
Do not release the button.
2. The indicator light will begin to flash after
20 seconds. While still holding the HomeLink
®
button, proceed with Step 2 under “Programming
HomeLink
®
” shown earlier in this section.
Resetting Defaults
To reset HomeLink
®
to default settings do the following:
1. Hold down the two outside buttons for about
20 seconds until the indicator light begins to flash.
2. Continue to hold both buttons until the HomeLink
®
indicator light turns off.
3. Release both buttons.
For questions or comments, contact HomeLink
®
at 1-800-355-3515, or on the internet at
www.homelink.com.
Storage Areas
Glove Box
To open the glove box, lift up on the lever. Use your
door key to lock or unlock it.
Cupholder(s)
There are two cupholders for the front seat passengers.
They are located in the center console.
There are two cupholders located in the rear seat
center armrest. Pull the armrest down to access the
cupholders.
Center Console Storage Area
The center console has a storage tray, a storage
compartment for CDs or cassette tapes, a dual
cupholder with a removable rubber liner and an
armrest. To access the storage area, pull up on the
latch located at the front of the armrest.
2-51
Map Pocket
The map/storage pockets are located on each door as
well as on the back of the front seatbacks.
Roof Rack Provisions
{CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier — like paneling, plywood, a mattress
and so forth — the wind can catch it as you
drive along. This can cause you to lose control.
What you are carrying could be violently torn
off, and this could cause you or other drivers to
have a collision, and of course damage your
vehicle. You may be able to carry something like
this inside. But, never carry something longer
or wider than the luggage carrier on top of your
vehicle.
Your vehicle has mounting locations for the installation
of a roof rack or luggage carrier. The mounting
locations are located on the roof rail. You must open
the doors to access them. The threaded nuts are
covered with a plastic cap that must be removed
before use.
For more information on purchasing the rack/carrier as
well as installation information, contact your dealer.
Convenience Net
The convenience net attaches to the floor and back
wall of the trunk using four anchor points allowing for
two positions. The net can be attached like a hammock
or anchored to lay flat across the floor of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net is not for larger, heavier loads. Store them in
the trunk as far forward as you can. When not using
the net, hook the net to the tabs securing it to the
sill plate.
2-52
Sunroof
Your vehicle may have a power sunroof.
The sunroof controls
are located on the
overhead console.
@(Half Open): Turn the control clockwise to this
position to open the glass panel half way. The sunshade
will open with the glass panel, or it can be opened
manually.
P(Comfort Stop): Turn the control clockwise to
this position to open the glass panel about three quarters
of the way open. The sunshade will open with the glass
panel, or it can be opened manually.
This is called the comfort stop position. It provides less
wind noise than the full-open position.
A(Full Open): Turn the control clockwise to this
position to open the glass panel all the way. The
sunshade will open with the glass panel, or it can be
opened manually.
I(Vent): Turn the control counterclockwise to
this position to use the vent feature. The glass panel
will tilt upward from the vehicle. The sunshade must be
opened manually.
?(Close): Turn the control to this position to close
the sunroof. The sunshade must be closed manually.
Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the object
and stop the sunroof from closing at the point of
the obstruction. The sunroof will then return to the
full-open or vent position. To close the sunroof once it
has re-opened, turn the control to the closed position.
2-53
Vehicle Personalization
Memory Seat and Mirrors
If your vehicle has the memory feature, you can
program and recall memory settings for the driver’s
seating and outside rearview mirror driving positions
for up to two drivers.
The buttons for this
feature are located on the
driver’s door armrest.
Use the following steps to program the buttons:
1. Adjust the driver’s seat including the seatback
recliner and both outside mirrors.
2. Press and hold button 1 for at least three seconds.
Two beeps will sound to confirm that the seat and
mirror positions have been saved.
3. Repeat the procedure for a second driver using
button 2.
If your vehicle has an automatic transmission, the
vehicle must be in PARK (P) to recall the stored driving
positions. If your vehicle has a manual transmission
and the engine is running, the parking brake must be set
to recall the memory seat driving positions. The stored
driving positions can be recalled without setting the
parking brake if the vehicle is off.
Press one of the numbered memory buttons to recall
the stored setting. Each time a memory button is
pressed, a single beep will sound.
Three chimes will sound and the setting will not be
recalled if you press button 1 or 2 when the vehicle is
not in PARK (P) on an automatic transmission or
the parking brake is not set on a manual transmission.
2-54
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the remote
keyless entry transmitter or when you place the
key in the ignition, see
DIC Vehicle Personalization
on page 3-74
.
To stop recall movement of the memory feature at any
time, press one of the power seat or mirror controls.
Two personalized exit positions can also be programmed.
Use the following steps to program exit positions:
1. Press memory seat button 1 or the button with
the unlock symbol on the remote keyless entry
transmitter with the number 1 on the back to
recall the driving position.
2. Adjust the driver’s seat to the desired exit position.
3. Press and hold the exit button located above
buttons 1 and 2 on the driver’s door armrest
for at least three seconds.
Two beeps will sound to confirm that the exit
position has been saved.
4. Repeat the procedure for a second driver using
memory seat button 2 or the remote keyless
entry transmitter with the number 2 on the back.
To recall the stored exit positions, press and release
the exit button. One beep will sound, and the seat
will move to the previously stored exit position for the
currently identified driver. If an exit position has not been
stored for this driver, the seat will move all the way
back. The position of the outside mirrors is not stored or
recalled for the exit position.
If your vehicle has an automatic transmission, the
vehicle must be in PARK (P) to recall the exit positions.
For a manual transmission, the parking brake must
be set to recall the stored exit positions.
Three chimes will sound and the exit setting will not be
recalled if you press the exit button when the vehicle
is not in PARK (P) on an automatic transmission or the
parking brake is not set on a manual transmission.
If you would like your stored exit position to be recalled
when unlocking the vehicle with the remote keyless
entry transmitter or when the ignition is turned off and
the driver’s door is opened, see
DIC Vehicle
Personalization on page 3-74
.
2-55
✍NOTES
2-56
Instrument Panel Overview ...............................3-4
Hazard Warning Flashers ................................3-6
Other Warning Devices ...................................3-6
Horn .............................................................3-6
Tilt Wheel .....................................................3-6
Reconfigurable Steering Wheel
Controls (SWC) (CTS) .................................3-7
Turn Signal/Multifunction Lever .........................3-8
Turn and Lane-Change Signals ........................3-9
Headlamp High/Low-Beam Changer .................3-10
Flash-to-Pass ...............................................3-10
Windshield Wipers ........................................3-11
Windshield Washer .......................................3-12
Headlamp Washer ........................................3-12
Cruise Control (CTS) .....................................3-13
Cruise Control (CTS-V) ..................................3-17
Headlamps ..................................................3-20
Wiper Activated Headlamps ............................3-21
Headlamps on Reminder ................................3-21
Daytime Running Lamps ................................3-22
Fog Lamps ..................................................3-23
Exterior Lighting Battery Saver ........................3-24
Instrument Panel Brightness ...........................3-24
Entry Lighting ...............................................3-25
Parade Dimming ...........................................3-25
Reading Lamps ............................................3-25
Accessory Power Outlets ...............................3-25
Ashtrays and Cigarette Lighter ........................3-26
Climate Controls ............................................3-27
Dual Climate Control System ..........................3-27
Outlet Adjustment .........................................3-32
Passenger Compartment Air Filter ...................3-33
Steering Wheel Climate Controls (CTS) ............3-34
Warning Lights, Gages, and Indicators ............3-34
Instrument Panel Cluster ................................3-35
Speedometer and Odometer ...........................3-37
Trip Odometers ............................................3-37
Tachometer .................................................3-38
Engine Speed Limiter ....................................3-38
Safety Belt Reminder Light .............................3-38
Airbag Readiness Light ..................................3-39
Passenger Airbag Status Indicator ...................3-40
Charging System Light ..................................3-41
Brake System Warning Light ..........................3-42
Anti-Lock Brake System Warning Light .............3-43
Traction Control System (TCS)
Warning Light ...........................................3-43
Engine Coolant Temperature Warning
Light (CTS) ..............................................3-44
Engine Coolant Temperature Gage ..................3-44
Tire Pressure Light .......................................3-45
Section 3 Instrument Panel
3-1
Malfunction Indicator Lamp .............................3-45
Oil Pressure Light .........................................3-48
Winter Driving Mode Light
(Automatic Transmission) ............................3-49
Sport Mode Light
(Automatic Transmission) ............................3-49
Security Light ...............................................3-50
Fog Lamp Light ............................................3-50
Lights On Reminder ......................................3-50
Cruise Control Light ......................................3-50
Highbeam On Light .......................................3-51
Fuel Gage ...................................................3-51
Message Center .............................................3-52
Message Center (CTS-V) ...............................3-52
Transmission Fluid Hot Message .....................3-55
Hot Coolant Temperature Warning Message .....3-55
Check Engine Oil Pressure Message ...............3-56
Oil Temperature Warning Message ..................3-56
Tire Pressure Warning Message .....................3-57
Driver Information Center (DIC) .......................3-58
System Controls ...........................................3-58
Status of Vehicle Systems .............................3-59
DIC Main Menu ............................................3-62
DIC Warnings and Messages .........................3-65
DIC Vehicle Personalization ............................3-74
Audio System(s) .............................................3-88
Setting the Time ...........................................3-88
Radio with CD ..............................................3-89
Navigation/Radio System ..............................3-104
Theft-Deterrent Feature ................................3-105
Audio Steering Wheel Controls (CTS) ............3-105
Radio Reception .........................................3-106
Care of Your CDs .......................................3-106
Care of Your CD Player ...............................3-107
Diversity Antenna System .............................3-107
XM™ Satellite Radio Antenna System ............3-107
Section 3 Instrument Panel
3-2
✍NOTES
3-3
Instrument Panel Overview
CTS shown, CTS-V similar
3-4
The main components of the instrument panel are the following:
A. Air Outlets. See
Outlet Adjustment on page 3-32
.
B. Turn Signal/Multifunction Lever. See
Turn
Signal/Multifunction Lever on page 3-8
.
C. Reconfigurable Steering Wheel Controls (CTS).
See
Reconfigurable Steering Wheel Controls (SWC)
(CTS) on page 3-7
or Message Center Controls
(CTS-V) see
Message Center (CTS-V) on page 3-52
.
D. Instrument Panel Cluster. See
Instrument Panel
Cluster on page 3-35
.
E. Windshield Wiper Lever. See
Windshield Wipers
on page 3-11
.
F. Hazard Warning Flasher Button. See
Hazard
Warning Flashers on page 3-6
.
G. Audio/Navigation System. See
Navigation/Radio
System on page 3-104
.
H. OnStar
®
Button (Base Radio) or Voice Recognition
Button (Navigation System) (CTS). See
Audio
Steering Wheel Controls (CTS) on page 3-105
or
Cruise Controls (CTS-V) see
Cruise Control
(CTS) on page 3-13
or
Cruise Control (CTS-V) on
page 3-17
.
I. Audio Volume Knob and Source Button. See
Audio
Steering Wheel Controls (CTS) on page 3-105
or Cruise Controls (CTS-V) see
Cruise Control (CTS)
on page 3-13
or
Cruise Control (CTS-V) on
page 3-17
.
J. Storage Compartment or Ashtray. See
Ashtrays
and Cigarette Lighter on page 3-26
.
K. Transmission Shift Lever. See
Automatic
Transmission Operation on page 2-26
or
Manual
Transmission Operation on page 2-31
.
L. Accessory Power Outlet or Cigarette Lighter.
See
Accessory Power Outlets on page 3-25
or
Ashtrays and Cigarette Lighter on page 3-26
.
M. Climate Control System. See
Dual Climate
Control System on page 3-27
.
N. Glove Box. See
Glove Box on page 2-51
.
3-5
Hazard Warning Flashers
Your hazard warning flashers let you warn others.
They also let police know you have a problem. Your
front and rear turn signal lamps will flash on and off.
The hazard warning
flasher button is located
near the center of the
instrument panel.
Your hazard warning flashers work no matter what
position your key is in, and even if the key is not in.
Press the button to make the front and rear turn signal
lamps flash on and off. Press the button again to
turn the flashers off.
When the hazard warning flashers are on, your turn
signals will not work.
Other Warning Devices
If you carry reflective triangles, you can set them up
at the side of the road about 300 feet (100 m) behind
your vehicle.
Horn
Press near or on the horn symbols on your steering
wheel pad to sound the horn.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel before
you drive. You can raise it to the highest level to give your
legs more room when you exit and enter the vehicle.
The lever that allows you to tilt the steering wheel is
located on the left side of the steering column.
3-6
To tilt the wheel, hold the steering wheel and pull the
lever. Then move the steering wheel to a comfortable
position and release the lever to lock the wheel in place.
Reconfigurable Steering Wheel
Controls (SWC) (CTS)
If your vehicle has this feature, it allows you to customize
the four steering wheel controls to work with the OnStar
®
,
the climate control, audio and traction control systems.
The controls for this
feature are located on
the left spoke of the
steering wheel.
If your vehicle is equipped with the base audio system,
do the following:
1. Access the main menu of the audio system by
pressing the TUNE/SEL knob located at the
lower right of the audio system.
2. Scroll through the menu by turning the knob.
3. When SETUP appears on the display, press
the knob once to select it.
4. Scroll through the SETUP menu by turning
the knob.
5. When CONFIGURE SWC KEYS appears on the
display, press the knob once to select it.
6. Scroll through the buttons (1, 2, 3 or 4). Press the
knob to select the desired number.
7. Choose a new function for the control by scrolling
through the list of available functions.
8. Once you’ve highlighted your choice, press the
knob once to select it.
The control you selected is now programmed with
the function you selected.
9. Press the BACK button to exit each menu. If you
desire to program another control, repeat the
procedure.
3-7
If your vehicle is equipped with the Navigation system,
do the following:
1. Press the MAIN button located to the lower left of
the display.
2. Press the multi-function button next to the Setup
prompt at the right of the display.
3. Press the multi-function button next to Prog SWC
located at the right of the screen.
4. Turn the TUNE/SEL knob to scroll through the
available functions.
5. Once the function desired is highlighted, press and
hold the multi-function button next to the control you
wish to program (1, 2, 3 or 4). The buttons are
located at the right of the display.
When a control is successfully programmed, the
function you selected will appear next to the number
of the control at the right of the display.
6. Press the multi-function button next to the Back
prompt to exit each menu. If you desire to program
another control, repeat the procedure.
Each function can only be used once. When you program
a control with a function, that function is removed from
the list of functions available. It will return to the list if
you remove it from the SWC it is programmed to by
programming another function to that control.
Turn Signal/Multifunction Lever
CTS
CTS-V
3-8
The lever on the left side of the steering column
includes the following:
•GTurn and Lane-Change Signals. See
Turn
and Lane-Change Signals on page 3-9
.
•OHeadlamps. See
Headlamps on page 3-20
.
•3Headlamp High/Low Beam-Changer. See
Headlamp High/Low-Beam Changer on page 3-10
.
•Flash-To-Pass Feature. See
Flash-to-Pass
on page 3-10
.
•-Fog Lamps. See
Fog Lamps on page 3-23
.
•ICruise Control. See
Cruise Control (CTS)
on page 3-13
or
Cruise Control (CTS-V)
on page 3-17
.
Turn and Lane-Change Signals
To signal a turn, move the lever all the way up or
down. The lever returns automatically when the turn
is complete.
An arrow on the
instrument panel cluster
will flash in the direction
of the turn or lane change.
Raise or lower the lever until the arrow starts to flash
to signal a lane change. Hold it there until the lane
change is complete. The lever returns to its original
position when it’s released.
Arrows that flash rapidly when signaling for a turn or
lane change may be caused by a burned-out signal bulb.
Other driver’s won’t see the signal.
3-9
Replace burned-out bulbs to help avoid possible
accidents. Check the fuse and for burned-out bulbs if
the arrow fails to work when signaling a turn. See
Fuses
and Circuit Breakers on page 5-97
for more information.
Turn Signal On Chime
If the turn signal is left on for about 1 mile (1.6 km), a
warning chime will sound and the Turn Signal On
message will appear on the Driver Information Center
(DIC) display. See “Turn Signal On” under
DIC Warnings
and Messages on page 3-65
for more information.
Headlamp High/Low-Beam Changer
Push forward on the turn signal/multifunction lever
to change the headlamps from low to high beam.
Pull the lever back and then release it to change
from high to low beam.
This light on the
instrument panel cluster
will be on, indicating
high-beam usage.
Flash-to-Pass
This feature allows you to use the high-beam headlamps
to signal the driver in front of you that you want to pass.
Pull and hold the turn signal/multifunction lever toward
you to use this feature. When you do, the following
will occur:
•If the headlamps are off, in low-beam or in Daytime
Running Lamps (DRL) mode, the high-beam
headlamps will turn on. They’ll stay on as long as
you hold the lever there. Release the lever to
turn them off.
•If the headlamps are in high-beam mode, they will
switch to low beam. To return to high-beam, push
the lever away from you.
3-10
Windshield Wipers
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist): Pull the lever down and release it for a
single wiping cycle. The lever will return to its original
position. For more cycles, hold the lever down before
releasing it.
9(Off): Put the lever in this position to turn off
the wipers.
&(Delay): Put the lever in this position to set a
delay between wipes. Turn the delay adjustment
band to set the length of the delay.
x(Delay Adjustment): Use this band to set the
length of the delay between wipes when using the delay
feature. The closer you move the band toward mist,
the longer the delay. The windshield wiper lever must be
in delay for this feature to work.
6(Low Speed): Put the lever in this position for
slow, steady wiping cycles.
1(High Speed): Put the lever in this position for
rapid wiping cycles.
If the windshield wipers are in use for about six seconds
while you are driving, the exterior lamps will come on
automatically if the exterior lamp control is in AUTO.
See
Wiper Activated Headlamps on page 3-21
for more
information.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
gently loosen or thaw them. If the blades do become
damaged, install new blades or blade inserts. For more
information, see
Windshield Wiper Blade Replacement
on page 5-53
.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools down.
Clear away snow or ice to prevent an overload.
3-11
Windshield Washer
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer fluid can form ice on the windshield,
blocking your vision.
The windshield washer button is located at the end of
the windshield wiper lever.
K(Washer Fluid): Press the button with this symbol
located at the end of the windshield washer lever to
wash the windshield. Washer fluid will spray onto
the windshield and the wipers will run for a few cycles
to clear the windshield. For more wash cycles, press and
hold the button.
If your vehicle is low on washer fluid, the Check Washer
Fluid message will appear on the Driver Information
Center (DIC) display. See
DIC Warnings and Messages
on page 3-65
.
If the headlamps are on when you wash the windshield,
the headlamp washers (if equipped) will turn on. Both
the windshield and the headlamps will be washed.
See “Headlamp Washer” following for more information.
Headlamp Washer
If your vehicle has the high-intensity discharge (HID)
headlamps, your vehicle will also have headlamp
washers. The headlamp washers clear the headlamp
lenses so that you can get the maximum visibility
and brightness from your headlamps.
3-12
The headlamp washers
are located on the inboard
side of the headlamp
lenses.
The headlamps must be on in order to be washed.
If the headlamps are off, only the windshield will
be washed when the washer button is pressed.
To wash the headlamps, press the washer button
located at the end of the windshield wiper lever. Both
the headlamps and the windshield will be washed.
See
Windshield Washer on page 3-12
for more
information.
Cruise Control (CTS)
If you have a CTS-V, see the next cruise control section.
These controls are
located on the end of
the multifunction lever.
9(Off): This position turns the system off.
R(On): This position turns the system on.
+ (Resume/Accelerate): Push the lever to this symbol
to make the vehicle resume to a previously set speed
or to accelerate when cruise is already active.
3-13
T(Set/Decrease): Press this button to set the
speed or to decrease the speed when cruise is
already active.
With cruise control, you can maintain a speed of
about 25 mph (40 km/h) or more without keeping your
foot on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
If you apply your brakes, the cruise control will shut off.
{CAUTION:
Cruise control can be dangerous where you
cannot drive safely at a steady speed. So, do
not use your cruise control on winding roads
or in heavy traffic.
Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause needless wheel spinning,
and you could lose control. Do not use cruise
control on slippery roads.
If your vehicle is in cruise control when the traction control
system begins to limit wheel spin, the cruise control will
automatically disengage. See
Traction Control System
(TCS) (CTS) on page 4-8
or
Traction Control System
(TCS) (CTS-V) on page 4-10
and
Stabilitrak
®
System on
page 4-11
. When road conditions allow you to safely use
it again, you may turn the cruise control back on.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when you
are not using cruise, you might hit a button
and go into cruise when you do not want to.
You could be startled and even lose control.
Keep the cruise control switch off until you
want to use cruise control.
1. Move the cruise control switch to on.
2. Get up to the speed you want.
3. Press in the set button at the end of the lever
and release it.
4. Take your foot off the accelerator pedal.
3-14
This light on the
instrument panel cluster
will come on while
cruise control is on.
Resuming a Set Speed
Suppose you set your cruise control at a desired
speed and then you apply the brake. This, of course,
disengages the cruise control. But you don’t need
to reset it.
Once you’re going about 25 mph (40 km/h) or more,
you can move the cruise control switch briefly from
on to resume/accelerate.
You’ll go right back up to your chosen speed and
stay there.
If you hold the switch at resume/accelerate the vehicle
will keep going faster until you release the switch or
apply the brake. So unless you want to go faster,
don’t hold the switch at resume/accelerate.
Increasing Speed While Using
Cruise Control
There are two ways to go to a higher speed:
•Use the accelerator pedal to get to the higher
speed. Press the set button at the end of the lever,
then release the button and the accelerator
pedal. You’ll now cruise at the higher speed.
•Move the cruise switch from on to
resume/accelerate. Hold it there until you get up to
the speed you want, and then release the switch.
To increase your speed in very small amounts,
move the switch briefly to resume/accelerate.
Each time you do this, your vehicle will go about
1 mph (1.6 km/h) faster.
Reducing Speed While Using
Cruise Control
There are two ways to reduce your speed while using
cruise control:
•Press in the button at the end of the lever until you
reach the lower speed you want, then release it.
•To slow down in very small amounts, briefly press
the set button. Each time you do this, you’ll go
about 1 mph (1.6 km/h) slower.
3-15
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your vehicle
will slow down to the cruise control speed you set
earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load and the steepness
of the hills. When going up steep hills, you may have
to step on the accelerator pedal to maintain your
speed. When going downhill, you may have to brake
or shift to a lower gear to keep your speed down.
Applying the brake or shifting into a lower gear will
take you out of cruise control. If you need to apply
the brake or shift to a lower gear due to the grade
of the downhill slope, you may not want to attempt
to use your cruise control feature.
Ending Cruise Control
To end a cruise control session, step lightly on the
brake pedal. If your vehicle has a manual transmission,
lightly tapping the clutch will end a cruise control
session also.
Stepping on the brake or clutch pedal will end the
current cruise control session only. Move the cruise
control switch to off to turn off the system completely.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
3-16
Cruise Control (CTS-V)
If you have a CTS-V, you will have these cruise controls.
R/9:On/Off
I:Set
+: Resume/Accelerate
−:Coast/Decelerate
The buttons used to operate cruise control are
located on the right spoke of the steering wheel.
With cruise control, you can maintain a speed of
approximately 25 mph (40 km/h) or more without
keeping your foot on the accelerator. This is helpful
on long trips. Cruise control does not work at speeds
below about 25 mph (40 km/h).
When you apply your brakes, the cruise control
shuts off.
{CAUTION:
Cruise control can be dangerous where you
cannot drive safely at a steady speed. So, do
not use your cruise control on winding roads
or in heavy traffic.
Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause needless wheel spinning,
and you could lose control. Do not use cruise
control on slippery roads.
If your vehicle is in cruise control when the traction
control system begins to limit wheel spin, the cruise
control will automatically disengage. See
Traction
Control System (TCS) (CTS) on page 4-8
or
Traction
Control System (TCS) (CTS-V) on page 4-10
and
Stabilitrak
®
System on page 4-11
. When road conditions
allow you to safely use it again, you may turn the
cruise control back on.
3-17
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when you
are not using cruise, you might hit a button
and go into cruise when you do not want to.
You could be startled and even lose control.
Keep the cruise control switch off until you
want to use cruise control.
1. Press the cruise control on/off button to turn cruise
control on. An indicator light on the button will
come on to show that the cruise control is on.
2. Accelerate to the speed you want.
3. Press the set button and release it. This will set
the cruise control.
4. Remove your foot from the accelerator pedal.
This light on the instrument
panel cluster will come on
when cruise control is
on. It will go out when
cruise control is turned off.
Resuming a Set Speed
Suppose you set your cruise control at a desired
speed and then you apply the brake. This shuts off
the cruise control. But you don’t need to reset it.
Once the vehicle is traveling approximately
25 mph (40 km/h) or more, you can press the plus
(resume/accelerate) button to return to your desired
preset speed. The cruise control light will be
displayed again.
The vehicle will return to and stay at your preset speed.
If you press and hold the plus (resume/accelerate)
button, the vehicle speed will increase until you
release the button or apply the brake. Unless you
want to go faster, do not press and hold the plus
(resume/accelerate) button.
3-18
Increasing Speed While Using
Cruise Control
There are two ways to go to a higher speed:
•Use the accelerator pedal to get to the higher
speed. Press the set button, then release the button
and the accelerator pedal. You will now cruise at
the higher speed.
•Press the plus (resume/accelerate) button. Hold it
until you get up to the speed that you want, and
then release the button. To increase your speed in
very small amounts, briefly press the plus
(resume/accelerate) button and then release it.
Each time you do this, your vehicle will speed up
approximately 1 mph (1.6 km/h).
The accelerate feature will only work after you have set
the cruise control speed by pressing the set button.
Reducing Speed While Using
Cruise Control
There are two ways to reduce your speed while using
cruise control:
•Press the minus (coast/decelerate) button until you
reach the lower speed you want, then release it.
•To slow down in very small amounts, push the
minus (coast/decelerate) button briefly. Each
time you do this, the vehicle will slow down
approximately 1 mph (1.6 km/h).
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your vehicle
will slow down to the cruise control speed you
set earlier.
3-19
Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load and the steepness
of the hills. When going up steep hills, you may have
to step on the accelerator pedal to maintain your speed.
When going downhill, you may have to brake or shift
to a lower gear to keep your speed down. Applying
the brake or shifting into a lower gear will take you
out of cruise control. If you need to apply the brake or
shift to a lower gear due to the grade of the downhill
slope, you may not want to attempt to use your cruise
control feature.
Ending Cruise Control
To end a cruise control session, step lightly on the
brake pedal, or press the cruise control on/off button
on the steering wheel.
Stepping on the brake or clutch pedal will end the
current cruise control session only. You must press
the cruise control on/off button on the steering wheel
to turn off the system completely.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
Headlamps
The exterior lamp control is located in the middle
of the turn signal/multifunction lever. See
Turn
Signal/Multifunction Lever on page 3-8
.
O(Exterior Lamp Control): Turn the control with
this symbol on it to operate the exterior lamps.
CTS
The exterior lamp control for the CTS has the following
four positions:
O(On/Off): Turn the control to this position to turn off
all lamps except the Daytime Running Lamps (DRL).
AUTO (Automatic): Turn the control to this position to
put the headlamps in automatic mode. AUTO mode
will turn the exterior lamps on and off depending upon
how much light is available outside of the vehicle.
;(Parking Lamps): Turn the control to this position
to turn on the parking lamps together with the following:
•Sidemarker Lamps
•Taillamps
•License Plate Lamps
•Instrument Panel Lights
3-20
5(Headlamps): Turn the control to this position to
turn on the headlamps, together with the previously
listed lamps and lights.
CTS-V
The exterior lamp control for the CTS-V has the
following four positions:
9(Off): Turning the control to this position turns off
all lamps except the Daytime Running Lamps (DRL).
;(Parking Lamps): Turning the control to this
position turns on the parking lamps together with
the following:
•Sidemarker Lamps
•Taillamps
•License Plate Lamps
•Instrument Panel Lights
5(Headlamps): Turning the control to this position
turns on the headlamps, together with the previously
listed lamps and lights.
AUTO (Automatic): Turning the control to this position
puts the headlamps in automatic mode. AUTO mode
will turn the exterior lamps on and off depending
upon how much light is available outside of the vehicle.
Wiper Activated Headlamps
This feature activates the headlamps and parking
lamps after the windshield wipers have been in use
for about six seconds. For this feature to work,
the exterior lamp control must be in AUTO.
When the exterior lamp control is off or in the parking
lamp position and the windshield wiper control is in
any position except off, the Headlamps Suggested
message will appear on the DIC display. See
“Headlamps Suggested Message” under
DIC Warnings
and Messages on page 3-65
for more information.
When the ignition is turned to OFF, the wiper-activated
headlamps will immediately turn off. They will also
turn off if the windshield wiper control is turned off.
Headlamps on Reminder
A warning chime will sound if the exterior lamp control
is left on in either the headlamp or parking lamp position
and the driver’s door is opened with the ignition off.
See
Lights On Reminder on page 3-50
for additional
information.
3-21
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the short
periods after dawn and before sunset. Fully functional
daytime running lamps are required on all vehicles
first sold in Canada.
The DRL system will make the turn signal lamps come
on when the following conditions are met:
•It is still daylight and the ignition is in ON or START,
•the exterior lamp control is in off or AUTO with the
headlamps off, and
•an automatic transmission is not in PARK (P) or the
parking brake is not set on a manual transmission.
When DRL are on, only your front turn signal lamps
will be on. No other exterior lamps will be on when the
DRL are being used. Your instrument panel won’t
be lit up either.
When the exterior lamp control is in AUTO and it’s dark
enough outside, the DRL will turn off and the low-beam
headlamps will turn on. When it’s bright enough outside,
the low-beam headlamps will go off, and the DRL will turn
back on. If you start your vehicle in a dark garage, the
automatic headlamp system will come on immediately.
Once you leave the garage, it will take about one minute
for the automatic headlamp system to change to DRL if it
is light outside. During that delay, your instrument panel
cluster may not be as bright as usual. Make sure your
instrument panel brightness lever is in the full bright
position. See
Instrument Panel Brightness on page 3-24
.
If it’s dark enough outside and the exterior lamp control
is off, a Headlamps Suggested message will appear
on the Driver’s Information Center (DIC) display.
This message informs the driver that turning on the
exterior lamps is recommended even though the DRL
are still illuminated. Turning the exterior lamp control to
AUTO or to the low-beam headlamp position will
turn off the DRL and cancel the Headlamps Suggested
message. If the parking lamps or the fog lamps were
turned on instead, the DRL will still turn off and the
Headlamps Suggested message will be displayed. You
can turn it off by pressing the OK button if you have
the Navigation audio system or the CLR button if
you have the Base audio system.
To operate your vehicle with the DRL off, turn the
exterior lamp control off. Then turn on the fog lamps
or parking lamps, and the DRL will turn off. The
Headlamps Suggested message will appear on the
DIC display. This will work regardless of gear position
and whether or not the parking brake is set.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
3-22
Light Sensor
The light sensor for the DRL and AUTO headlamp
feature is located on top of the instrument panel. If you
cover the sensor, it will read dark, and the exterior
lamps or the Headlamps Suggested message will
appear on the DIC whenever the ignition is on.
Fog Lamps
Use the fog lamps for better vision in foggy or misty
conditions.
The fog lamp control is located on the turn
signal/multifunction lever.
-:The band with/or next to this symbol is used
to turn the fog lamps on and off.
The parking lamps must be on for the fog lamps
to work.
To operate the fog lamps on the CTS:
•To turn the fog lamps on, turn the fog lamp band on
the lever up to the dot and release it. The band will
return to its original position.
•To turn the fog lamps off, turn the for lamp band up
to the dot and release it. The band will return to its
original position, and the fog lamps will turn off.
If you turn on the high-beam headlamps, the
fog lamps will also turn off. They’ll turn back on
again when you switch back to low-beam
headlamps.
3-23
To operate the fog lamps on the CTS-V:
•To turn the fog lamps on, turn the band on the lever
up to the fog lamp symbol and release it. The band
will return to its original position.
•To turn the fog lamps off, turn the band up to the
fog lamp symbol and release it. The band will
return to its original position, and the fog lamps will
turn off. If you turn on the high-beam headlamps,
the fog lamps will also turn off. They’ll turn back on
again when you switch back to low-beam
headlamps.
Exterior Lighting Battery Saver
If the parking lamps or headlamps have been left on,
the exterior lamps will turn off about 10 minutes after the
ignition is turned to OFF. This protects against draining
the battery in case you have accidentally left the
headlamps or parking lamps on. The battery saver
does not work if the headlamps are turned on after the
ignition is turned to OFF.
If you need to leave the lamps on for more than
10 minutes, use the exterior lamp control to turn the
lamps back on.
Instrument Panel Brightness
The lever for this feature
is located on the overhead
console.
Slide the lever toward the symbol to brighten the lights
or away from it to dim them.
If you slide the lever all the way toward the symbol
past the resistance point, the interior lamps will come
on. To turn them off, slide the lever back toward
the minimum brightness setting.
3-24
Entry Lighting
The entry lighting system turns on the reading and
dome lamps and the backlighting to the exterior lamp
control when a door is opened or if you press the remote
keyless entry transmitter unlock button. If activated by
the transmitter, the lighting will remain active for
about 25 seconds. The entry lighting system uses the
light sensor; it must be dark outside in order for the
lamps to turn on. The lamps turn off about 25 seconds
after the last door is closed. They will dim to off if
the ignition key is placed in ON, or immediately
deactivate if the power locks are activated.
Parade Dimming
This feature prohibits dimming of the instrument panel
displays and backlighting during daylight hours when the
key is in the ignition and the headlamps are on. This
feature operates with the light sensor and is fully
automatic. When the light sensor reads darkness outside
and the parking lamps are active, the instrument
panel displays can be adjusted by sliding the instrument
panel brightness lever toward the symbol to brighten
or away from the symbol to dim the lighting.
Reading Lamps
The reading lamps are located on the overhead console.
These lamps come on automatically when any door is
opened.
For manual operation, press the button next to each
lamp to turn it on. Press it again to turn the lamp off.
If the reading lamps are left on, they automatically shut
off 10 minutes after the ignition has been turned off.
Accessory Power Outlets
With accessory power outlets, you can plug in auxiliary
electrical equipment such as a cellular telephone or
CB radio.
The front accessory power outlet is located in the
ashtray on the instrument panel below the climate
control system. The outlet will have a cigarette lighter
if your vehicle has this option. Remove the cigarette
lighter to access the outlet.
The rear accessory power outlet is located on the back
of the center console.
3-25
The power outlets can be set to be powered all of
the time or to turn off 10 minutes after your vehicle is
shut off. If you desire a change from this setting,
see your dealer for a fuse adjustment.
Your vehicle may have a small cap that must be
removed to access the accessory power outlet. If it
does, when not using the outlet be sure to cover it
with the protective cap.
Notice:
Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do
not plug in equipment that exceeds the maximum
amperage rating.
Certain electrical accessories may not be compatible
with the accessory power outlet and could result
in blown vehicle or adapter fuses. If you experience a
problem see your dealer for additional information
on accessory power outlets.
Notice:
Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would
not be covered by your warranty. Check with your
dealer before adding electrical equipment.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the electrical equipment you install.
Notice:
Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are
designed for accessory power plugs only.
Ashtrays and Cigarette Lighter
Your vehicle may have an ashtray and cigarette lighter.
Notice:
If you put papers or other flammable
items in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage
your vehicle. Never put flammable items in the
ashtray.
Ashtray
The ashtray is located under the climate control panel
on the center console. Press on the door to release
the ashtray.
To empty the ashtray, remove it from the center
console by gripping the edges and pulling straight out.
To reinstall, push the tray back into place.
3-26
Cigarette Lighter
Notice:
Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating. Do not
use anything other than the cigarette lighter in
the heating element.
The cigarette lighter is located next to the ashtray.
The vehicle does not have any cigarette lighters for
the rear seat passengers.
Press the lighter all the way in and release it. It will
pop back out by itself once the element has heated
for use.
Cigarette lighters can be used to provide power
to accessories. See
Accessory Power Outlets on
page 3-25
for more information.
Climate Controls
Dual Climate Control System
With this system you can control the heating, cooling
and ventilation for your vehicle.
Automatic Operation
AUTO (Automatic): When this button is pressed and
the temperature is set, the system will automatically
control the inside temperature, the air delivery mode, the
air conditioning compressor and the fan speed. AUTO
will appear on the display.
1. Press the AUTO button.
2. Adjust the temperature to a comfortable setting
between 70°F (21°C) and 80°F (27°C).
3-27
Choosing the coldest or warmest temperature
setting will not cause the system to heat or cool any
faster. If you set the system at the warmest
temperature setting, the system will remain in
manual mode at that temperature and it will not go
into automatic mode.
In cold weather, the system will start at reduced fan
speeds to avoid blowing cold air into your vehicle
until warmer air is available. The system will
start out blowing air at the floor but may change
modes automatically as the vehicle warms up
to maintain the chosen temperature setting. The
length of time needed for warm up will depend on
the outside temperature and the length of time
that has elapsed since your vehicle was last driven.
3. Wait for the system to regulate. This may take from
10 to 30 minutes. Then adjust the temperature, if
necessary.
You can switch from English to metric units through the
Driver Information Center (DIC). If you have the Base
audio system, see
DIC Main Menu on page 3-62
.Ifyou
have the Navigation system, see “Setup Menu” in the
Index of the CTS Navigation System Owner Manual.
The air-conditioning system removes moisture from the
air, so you may sometimes notice a small amount of
water dripping underneath your vehicle while idling
or after turning off the engine. This is normal.
Do not cover the solar sensor located in the center of
the instrument panel, near the windshield. For more
information on the solar sensor, see “Sensors” later in
this section.
Manual Operation
yNz(Mode): Pressing the mode switch and
changing the mode cancels automatic operation and
places the system in manual mode. Press AUTO
to return to automatic operation.
The outboard air outlets will always receive airflow
regardless of the mode selected. See
Outlet Adjustment
on page 3-32
to change this airflow from the outboard
outlets.
To change the current mode, select one of the following:
Y(Vent): This mode directs air to the instrument
panel outlets.
\(Bi-Level): This mode directs approximately half of
the air to the instrument panel outlets, and then
directs most of the remaining air to the floor outlets.
Some air may be directed toward the windshield.
In automatic operation, cooler air is directed to the upper
outlets and warmer air to the floor outlets.
3-28
[(Floor): This mode directs most of the air to the
floor outlets with some air directed to the outboard
outlets (for the side windows), and a little air directed
to the windshield.
The mode switch can also be used to select the defog
mode. Information on defogging and defrosting can
be found later in this section.
yAz (Fan): Press this switch to increase or
decrease the fan speed. Pressing this switch cancels
automatic operation and places the system in manual
mode. Press AUTO to return to automatic operation.
If the airflow seems low when the fan speed is at
the highest setting, the passenger compartment air filter
may need to be replaced. For more information, see
Passenger Compartment Air Filter on page 3-33
and
Scheduled Maintenance on page 6-4
.
h(Recirculation): This mode keeps outside air
from coming in the vehicle. It can be used to prevent
outside air and odors from entering your vehicle or
to help heat or cool the air inside your vehicle more
quickly. Press this button to turn the recirculation
mode on or off. The air-conditioning compressor also
comes on.
Recirculation is not available in the defrost mode and
will automatically turn off after 10 minutes when defog
is selected.
Using recirculation for long periods of time may cause
the air inside your vehicle to become too dry or stuffy.
To prevent this from happening, after the air in your
vehicle has cooled, turn the recirculation mode off.
QPWRR(Power/Driver’s Temperature): Press
the PWR button located on the driver’s side of the
climate control panel to turn the entire climate control
system on or off. Press the up or down arrow on
the switch to increase or decrease the temperature
inside your vehicle.
QPWRR(Power/Passenger’s Temperature): Press
the PWR button located on the passenger’s side of
the climate control panel to allow the passenger’s
climate control setting to be different than the driver’s.
Press the up or down arrow on the switch to increase
or decrease the temperature for the front passenger.
A/C OFF (Air Conditioning): Press this button to
manually turn off the air conditioning compressor.
Press AUTO to return to automatic operation or press
the A/C OFF button again.
3-29
Sensors
There is a solar sensor located on the instrument panel,
near the windshield.
There is also an interior
temperature sensor
located to the right of the
steering wheel on the
instrument panel.
These sensors monitor the solar radiation and the
air inside your vehicle, then use the information to
maintain the selected temperature by initiating needed
adjustments to the temperature, the fan speed and
the air delivery system. The system may also supply
cooler air to the side of the vehicle facing the sun. The
recirculation mode will also be activated, as necessary.
Do not cover the sensors or the automatic climate
control system will not work properly.
3-30
Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass. This
can be minimized if the climate control system is
used properly. There are two modes to clear fog from
your windshield. Use the defog mode to clear the
windows of fog or moisture and warm the passengers.
Use the defrost mode to remove fog or frost from
the windshield more quickly.
yNz(Mode): Press this button until defog appears
on the display.
-(Defog): This mode directs the air between the
windshield, floor outlets and side windows. When you
select this mode, the system turns off recirculation
and runs the air-conditioning compressor unless
the outside temperature is at or below freezing. The
recirculation mode is cancelled when you enter defog
mode. If you select recirculation while in defog mode,
it will be cancelled after 10 minutes.
If you have fogging on the side windows, turn the
thumbwheel on the outboard outlets to the side window
defog position. See
Outlet Adjustment on page 3-32
for more information.
0(Defrost): Pressing defrost directs most of the
air to the windshield, with some air directed to the side
windows. In this mode, the system will automatically
turn off recirculation and run the air-conditioning
compressor, unless the outside temperature is at or
below freezing. Recirculation cannot be selected while
in the defrost mode.
This mode may also cause the fan speed and air
temperature to increase.
If you have fogging on the side windows, turn the
thumbwheel on the outboard outlets to the side window
defog position. See
Outlet Adjustment on page 3-32
for more information. Do not drive the vehicle until all the
windows are clear.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger will only work when the
ignition is in ON.
=(Rear Window Defogger): Press this button to
turn the rear window defogger on or off. Be sure to
clear as much snow from the rear window as possible.
3-31
The rear window defogger will turn off about 10 minutes
after the button is pressed. Or, if the vehicle’s speed
is above 30 mph (48 km/h), the rear defogger will stay
on continuously. If turned on again, the defogger
will only run for about five minutes before turning off.
The defogger can also be turned off by pressing
the button again or by turning off the engine.
The heated outside rearview mirrors will heat to help
clear fog or frost from the surface of the mirror when
the rear window defogger button is on.
Notice:
Using a razor blade or sharp object to
clear the inside rear window may damage the rear
window defogger. Repairs would not be covered
by your warranty. Do not clear the inside of the rear
window with sharp objects.
Outlet Adjustment
Use the knobs located in the center of each outlet to
change the direction of the airflow. Use the thumbwheels
to open or close the outlets.
j(Side Window Defog): Turn the thumbwheel to
this symbol to use the side window defog setting. The air
coming through the outlets will be directed toward the
side windows to clear fog.
k(Open): Turn the thumbwheel to this symbol to
open the outlets completely and allow the maximum
amount of air to enter your vehicle. A small amount of
air will still be directed to the side windows.
l(Closed): Turn the thumbwheel to this symbol to
close the outlets and minimize the amount of air entering
the vehicle.
Operation Tips
•Clear away any ice, snow or leaves from the air
inlets at the base of the windshield that may
block the flow of air into your vehicle.
•Use of non-GM approved hood deflectors may
adversely affect the performance of the system.
•Keep the path under the front seats clear of objects
to help circulate the air inside of your vehicle more
effectively.
•If the airflow seems low when the fan speed is at
the highest setting, the passenger compartment
air filter may need to be replaced. For more
information, see
Passenger Compartment Air Filter
on page 3-33
.
3-32
Passenger Compartment Air Filter
The passenger compartment air filter traps most of the
pollen from the air entering your vehicle. Like your
vehicle’s engine air cleaner/filter, it needs to be changed
periodically. For how often to change the passenger
compartment air filter, see
Scheduled Maintenance
on page 6-4
.
Using your climate control system without the passenger
air filter installed may allow water or other debris to
enter the system. This could cause a water leak
or noises. Make sure to install a new air filter after
removing the old one.
The passenger compartment air filter is located
underneath the hood below the windshield wiper arm
on the passenger’s side of the vehicle. See
Engine
Compartment Overview on page 5-12
for more
information on location.
Use the procedure listed below to replace the passenger
compartment air filter:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them off
again when the wipers are straight up and down
on the windshield.
This will allow you access to the leaf screen
under which is located the passenger compartment
air filter.
3. Open the hood to access the engine compartment.
See
Hood Release on page 5-11
for more
information.
4. Remove the four screws that hold the leaf screen in
place and lift off the screen by lifting and sliding
toward the center of the vehicle.
5. Pull out on the two tabs located on each end of the
filter cover.
6. Lift the filter cover off by pulling it straight upward.
7. Remove the old filter and insert a new one.
Make sure the arrow on the filter is pointing toward
the passenger compartment.
See
Normal Maintenance Replacement Parts on
page 6-15
for the correct part number for the filter.
8. Reverse Steps 1 through 6 to reinstall the cover.
3-33
Steering Wheel Climate
Controls (CTS)
Your vehicle may have four controls that can be
programmed for use with the climate control system.
The controls are
located on the left
side of the steering
wheel.
See
Reconfigurable Steering Wheel Controls (SWC)
(CTS) on page 3-7
for more information on programming
these controls.
Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages that may
be on your vehicle. The pictures will help you locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention to
your warning lights and gages could also save you
or others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions. As you will
see in the details on the next few pages, some warning
lights come on briefly when you start the engine just to let
you know they’re working. If you are familiar with this
section, you should not be alarmed when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages
and warning lights work together to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
when you are driving, or when one of the gages
shows there may be a problem, check the section that
tells you what to do about it. Follow this manual’s
advice. Waiting to do repairs can be costly — and even
dangerous. So please get to know your warning
lights and gages. They’re a big help.
Your vehicle also has a Driver Information Center (DIC)
that works along with the warning lights and gages.
See
Driver Information Center (DIC) on page 3-58
for
more information.
3-34
Instrument Panel Cluster
The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know
how fast you’re going, how much fuel you’re using and many of the other things you’ll need to know to drive
safely and economically.
CTS (United States version shown, Canada similar)
3-35
CTS-V (United States version shown, Canada similar)
3-36
Speedometer and Odometer
The speedometer lets you see your speed in either
miles per hour (mph) or kilometers per hour (km/h).
The odometer shows how far your vehicle has been
driven, in either miles (used in the United States)
or kilometers (used in Canada).
You may wonder what happens if a vehicle has to
have a new odometer installed. The new one may
read the correct mileage. This is because your vehicle’s
computer has stored the mileage in memory.
Trip Odometers
The trip odometer can record the number of miles or
kilometers traveled for up to two trips.
The trip odometer is part of the Driver Information
Center (DIC). To access the trip odometer, use one
of the following procedures:
How to Access the Trip Odometer
Using the Base Audio System
Using the Base audio system, do the following:
1. Press the INFO (Information) button located to
the right of the screen to access the DIC menu.
2. Scroll through the menu using the up or down
arrows on the INFO button until you reach
Trip Odometer A or Trip Odometer B.
The selected trip odometer (A or B) will be
displayed at the top of the screen with the
accumulated mileage.
3. Repeat the steps to view the other trip odometer.
You can reset the selected trip odometer by pressing
CLR (Clear) button located in the center of the
INFO button to the right of the screen. The mileage
for that trip odometer will return to zero. Each trip
odometer must be reset individually.
3-37
Tachometer
This gage indicates the engine speed in revolutions
per minute (rpm).
Notice:
If you operate the engine with the
tachometer in the shaded warning area, your
vehicle could be damaged, and the damages would
not be covered by your warranty. Do not operate
the engine with the tachometer in the shaded
warning area.
Engine Speed Limiter
This feature prevents the engine from operating at
too many revolutions per minute (rpm). When the
engine’s rpms are too high, the throttle is closed to
reduce speed. If this is not sufficient, then the fuel
supply to the engine will be limited. When the rpms
return to normal, the fuel supply will return to normal.
This helps prevent damage to the engine.
Safety Belt Reminder Light
When the key is turned to ON or START, a chime will
come on for several seconds to remind people to fasten
their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay
on for several seconds,
then it will flash for
several more.
If the driver’s belt is already buckled, neither the chime
nor the light will come on.
3-38
Airbag Readiness Light
There is an airbag readiness light on the instrument
panel, which shows the airbag symbol. The system
checks the airbag’s electrical system for malfunctions.
The light tells you if there is an electrical problem.
The system check includes the airbag sensors, the
airbag modules, the wiring and the diagnostic module.
For more information on the airbag system, see
Airbag System on page 1-48
.
This light will come on
when you start your
vehicle, and it will flash
for a few seconds.
Then the light should go
out. This means the
system is ready.
If the airbag readiness light stays on after you start
the vehicle or comes on when you are driving,
your airbag system may not work properly. Have
your vehicle serviced right away.
{CAUTION:
If the airbag readiness light stays on after you
start your vehicle, it means the airbag system
may not be working properly. The airbags in
your vehicle may not inflate in a crash, or they
could even inflate without a crash. To help
avoid injury to yourself or others, have your
vehicle serviced right away if the airbag
readiness light stays on after you start your
vehicle.
The airbag readiness light should flash for a few
seconds when you turn the ignition key to ON. If the
light doesn’t come on then, have it fixed so it will
be ready to warn you if there is a problem.
If there is a problem with the airbag system in your
vehicle, the Service airbag message will appear on the
DIC display. See
DIC Warnings and Messages on
page 3-65
for more information.
3-39
Passenger Airbag Status Indicator
Your rearview mirror has a passenger airbag status
indicator.
When the ignition key is turned to ON or START, the
passenger airbag status indicator will light ON and OFF,
or the symbol for on and off, for several seconds as a
system check. Then, after several more seconds,
the status indicator will light either ON or OFF, or either
the on or off symbol to let you know the status of the
right front passenger’s frontal airbag.
If the word ON or the on symbol is lit on the passenger
airbag status indicator, it means that the right front
passenger’s frontal airbag is enabled (may inflate).
{CAUTION:
If the on indicator comes on when you have a
rear-facing child restraint installed in the right
front passenger’s seat, it means that the
passenger sensing system has not turned off
the passenger’s frontal airbag. A child in a
rear-facing child restraint can be seriously
injured or killed if the right front passenger’s
airbag inflates. This is because the back of the
rear-facing child restraint would be very close
to the inflating airbag. Do not use a rear-facing
child restraint in the right front passenger’s
seat unless the airbag has been turned off.
Passenger Airbag Status Indicator – United States
Passenger Airbag Status Indicator – Canada
3-40
If the word OFF or the off symbol is lit on the airbag
status indicator, it means that the passenger sensing
system has turned off the right front passenger’s frontal
airbag. See
Passenger Sensing System on page 1-58
for more on this, including important safety information.
If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there may be a
problem with the lights or the passenger sensing
system. See your dealer for service.
{CAUTION:
If the off indicator and the airbag readiness
light ever come on together, it means that
something may be wrong with the airbag
system. If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front passenger seat
may not have the protection of the frontal
airbag. See
Airbag Readiness Light on
page 3-39
.
Charging System Light
When you turn the key to
ON or START, this light
will come on briefly
to show that the generator
and battery charging
systems are working
properly.
If this light stays on, your vehicle needs service. You
should take your vehicle to the dealer at once. To save
your battery until you get there, turn off all accessories.
For more information see
DIC Warnings and Messages
on page 3-65
.
3-41
Brake System Warning Light
Your vehicle’s hydraulic brake system is divided into
two parts. If one part isn’t working, the other part can
still work and stop you. For good braking, though,
you need both parts working well.
If the warning light comes on, there is a brake problem.
Have your brake system inspected right away.
This light should come on briefly when you turn the
ignition key to ON. If it doesn’t come on then, have it
fixed so it will be ready to warn you if there’s a problem.
When the ignition is on, the brake system warning light
will also come on when you set your parking brake.
The light will stay on if your parking brake doesn’t
release fully. If it stays on after your parking brake is
fully released, it means you have a brake problem.
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal
is harder to push, or the pedal may go closer to the
floor. It may take longer to stop. If the light is still
on, have the vehicle towed for service. See
Towing
Your Vehicle on page 4-38
.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light is
on. Driving with the brake system warning
light on can lead to an accident. If the light
is still on after you have pulled off the road
and stopped carefully, have the vehicle towed
for service.
United States Canada
3-42
Anti-Lock Brake System
Warning Light
With the anti-lock brake
system, the light will come
on when your engine is
started and may stay on
for several seconds.
That’s normal.
If the ABS warning light comes on and stays on, there
may be a problem with the antilock portion of the
brake system. If the red BRAKE light is not on, you
still have brakes, but you don’t have antilock brakes.
See
Brake System Warning Light on page 3-42
.
If the light stays on, turn the ignition to OFF. If the
light comes on when you’re driving, stop as soon as
possible and turn the ignition off. Then start the engine
again to reset the system. If the light still stays on,
or comes on again while you’re driving, your vehicle
needs service. If the regular brake system warning
light isn’t on, you still have brakes, but you don’t
have anti-lock brakes. If the regular brake system
warning light is also on, you don’t have anti-lock brakes
and there’s a problem with your regular brakes.
See
Brake System Warning Light on page 3-42
.
Traction Control System (TCS)
Warning Light
If the TC (traction control)
warning light comes on
and stays on, there may
be a problem with the
traction control system.
The TC (traction control) warning light will come on
briefly when you turn the ignition to ON. If it doesn’t
come on then, have it fixed so it will be ready to warn
you if there is a problem.
The light will also come on if you turn the traction
control system off using the TC (traction control) on/off
button located in the glove box for the CTS and on
the steering wheel for the CTS-V.
If the TC (traction control) warning light stays on or
comes on while you are driving, pull off the road as
soon as possible and stop carefully. Try resetting
the system by turning the ignition off then back on.
3-43
If the light still stays on or comes back on again while
you are driving, your vehicle needs service. Have
the traction control system inspected as soon as
possible. See
Traction Control System (TCS) (CTS) on
page 4-8
or
Traction Control System (TCS) (CTS-V)
on page 4-10
for more information.
Engine Coolant Temperature
Warning Light (CTS)
This light tells you that
your engine is very hot.
This light will come on when you first start the vehicle
as a check to let you know that the light is working.
It will go out after a few seconds. If the light does not
come on, the bulb may be burned out. See your dealer
for assistance in changing the bulb.
If the light does not go out or if the light comes on
and stays on while you are driving, your vehicle
may have a problem with the cooling system.
You should stop the vehicle and turn off the engine
as soon as possible to avoid damage to the engine.
A warning chime will sound when this light is on, also.
See
Engine Overheating on page 5-29
and
Message
Center (CTS-V) on page 3-52
for more information.
Engine Coolant Temperature Gage
This gage shows
the engine coolant
temperature. If the
gage pointer moves
into the shaded area,
the engine is too hot.
That reading means the same thing as the warning
light — the engine coolant is very hot. See
Engine
Overheating on page 5-29
.
3-44
Tire Pressure Light
This light will come on
if the system detects
low tire pressure.
This light will also come on for a bulb check when
the vehicle is started.
See
Tire Pressure Monitor System (CTS-V) on
page 5-65
for more information.
For more information on the proper tire pressure,
see
Loading Your Vehicle on page 4-33
. For more
information on your tires, see
Tires on page 5-54
.
Malfunction Indicator Lamp
Check Engine Light
Your vehicle is equipped
with a computer which
monitors operation of the
fuel, ignition, and emission
control systems.
This system is called OBD II (On-Board
Diagnostics-Second Generation) and is intended to
assure that emissions are at acceptable levels for the
life of the vehicle, helping to produce a cleaner
environment. The check engine light comes on to
indicate that there is a problem and service is required.
Malfunctions often will be indicated by the system
before any problem is apparent. This may prevent more
serious damage to your vehicle. This system is also
designed to assist your service technician in correctly
diagnosing any malfunction.
Notice:
If you keep driving your vehicle with this
light on, after awhile, your emission controls may not
work as well, your fuel economy may not be as good,
and your engine may not run as smoothly. This could
lead to costly repairs that may not be covered by
your warranty.
3-45
Notice:
Modifications made to the engine,
transmission, exhaust, intake, or fuel system of
your vehicle or the replacement of the original tires
with other than those of the same Tire Performance
Criteria (TPC) can affect your vehicle’s emission
controls and may cause this light to come on.
Modifications to these systems could lead to costly
repairs not covered by your warranty. This may
also result in a failure to pass a required Emission
Inspection/Maintenance test.
This light should come on, as a check to show you
it is working, when the ignition is on and the engine
is not running. If the light does not come on, have
it repaired. This light will also come on during a
malfunction in one of two ways:
•Light Flashing — A misfire condition has been
detected. A misfire increases vehicle emissions
and may damage the emission control system
on your vehicle. Diagnosis and service may
be required.
•Light On Steady — An emission control system
malfunction has been detected on your vehicle.
Diagnosis and service may be required.
If the Light is Flashing
The following may prevent more serious damage to
your vehicle:
•Reducing vehicle speed
•Avoiding hard accelerations
•Avoiding steep uphill grades
•If you are towing a trailer, reduce the amount of
cargo being hauled as soon as it is possible
If the light stops flashing and remains on steady,
see “If the Light Is On Steady” following.
If the light continues to flash, when it is safe to do so,
stop the vehicle. Find a safe place to park your
vehicle. Turn the key off, wait at least 10 seconds and
restart the engine. If the light remains on steady, see
“If the Light Is On Steady” following. If the light is
still flashing, follow the previous steps, and see your
dealer for service as soon as possible.
3-46
If the Light Is On Steady
You may be able to correct the emission system
malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully install
the cap. See
Filling Your Tank on page 5-8
. The
diagnostic system can determine if the fuel cap has
been left off or improperly installed. A loose or missing
fuel cap will allow fuel to evaporate into the atmosphere.
A few driving trips with the cap properly installed
should turn the light off.
Did you just drive through a deep puddle of water?
If so, your electrical system may be wet. The condition
will usually be corrected when the electrical system
dries out. A few driving trips should turn the light off.
Have you recently changed brands of fuel?
If so, be sure to fuel your vehicle with quality fuel. See
Gasoline Octane on page 5-5
. Poor fuel quality will
cause your engine not to run as efficiently as designed.
You may notice this as stalling after start-up, stalling
when you put the vehicle into gear, misfiring, hesitation
on acceleration, or stumbling on acceleration. (These
conditions may go away once the engine is warmed up.)
This will be detected by the system and cause the
light to turn on.
If you experience one or more of these conditions,
change the fuel brand you use. It will require at least
one full tank of the proper fuel to turn the light off.
If none of the above steps have made the light turn off,
your dealer can check the vehicle. Your dealer has
the proper test equipment and diagnostic tools to fix any
mechanical or electrical problems that may have
developed.
Emissions Inspection and Maintenance
Programs
Some state/provincial and local governments have or
may begin programs to inspect the emission control
equipment on your vehicle. Failure to pass this
inspection could prevent you from getting a vehicle
registration.
Here are some things you need to know to help your
vehicle pass an inspection:
Your vehicle will not pass this inspection if the check
engine light is on or not working properly.
Your vehicle will not pass this inspection if the
OBD (on-board diagnostic) system determines that
critical emission control systems have not been
completely diagnosed by the system. The vehicle
would be considered not ready for inspection.
3-47
This can happen if you have recently replaced your
battery or if your battery has run down. The diagnostic
system is designed to evaluate critical emission
control systems during normal driving. This may take
several days of routine driving. If you have done this and
your vehicle still does not pass the inspection for lack
of OBD system readiness, your GM dealer can prepare
the vehicle for inspection.
Oil Pressure Light
{CAUTION:
Do not keep driving if the oil pressure is low.
If you do, your engine can become so hot that
it catches fire. You or others could be burned.
Check your oil as soon as possible and have
your vehicle serviced.
Notice:
Lack of proper engine oil maintenance
may damage the engine. The repairs would not be
covered by your warranty. Always follow the
maintenance schedule in this manual for changing
engine oil.
This light tells you if there
could be a problem with
your engine oil pressure.
The light goes on when you turn your key to ON or
START. It goes off once you start your engine. That’s a
check to be sure the light works. If it doesn’t come
on, be sure to have it fixed so it will be there to warn
you if something goes wrong.
When the light comes on and stays on, it means that oil
isn’t flowing through your engine properly. You could
be low on oil and you might have some other system
problem. See
Engine Oil on page 5-16
for more
information.
3-48
Winter Driving Mode Light
(Automatic Transmission)
This light will come on
when the winter driving
mode feature is in use.
When you turn off the winter driving mode feature, the
light will go out. If it stays on, your vehicle may need
service. See your dealer. See “Winter Driving Mode”
under
Automatic Transmission Operation on page 2-26
for more information.
Sport Mode Light
(Automatic Transmission)
This light will come
on while the sport
mode is in use.
When you turn off the sport mode, the light will go
out. If it stays on, your vehicle may need service.
See your dealer. See “Sport Mode” under
Automatic
Transmission Operation on page 2-26
for more
information.
3-49
Security Light
For information
regarding this light,
see
Theft-Deterrent
System on page 2-18
.
Fog Lamp Light
This light will come
on when the fog
lamps are in use.
The light will go out when the fog lamps are turned off.
See
Fog Lamps on page 3-23
for more information.
Lights On Reminder
This light comes on
whenever the parking
lamps are on.
See
Headlamps on Reminder on page 3-21
for more
information.
Cruise Control Light
This light comes on
whenever you set
your cruise control.
The light will go out when the cruise control is
turned off. See
Cruise Control (CTS) on page 3-13
or
Cruise Control (CTS-V) on page 3-17
for more
information.
3-50
Highbeam On Light
This light comes on
whenever the high-beam
headlamps are on.
See
Headlamp High/Low-Beam Changer on page 3-10
for more information.
Fuel Gage
The fuel gage shows
approximately how much
fuel is in the tank. It
works only when the
ignition is in ON.
If the fuel supply gets low, the Fuel Level Low message
will appear on the DIC and a single chime will sound.
See
DIC Warnings and Messages on page 3-65
for more information.
Here are a few concerns some owners have had about
the fuel gage. All of these situations are normal and
do not indicate that anything is wrong with the fuel gage:
•At the gas station the gas pump shuts off before
the gage reads full.
•The gage may change when you turn, stop quickly
or accelerate quickly.
•It takes a little more or less fuel to fill the tank than
the gage indicated. For example, the gage may
have indicated that the tank was half full, but
it actually took a little more or less than half the
tank’s capacity to fill the tank.
3-51
Message Center
Message Center (CTS-V)
Your vehicle may have a message center that can
display information relating to powertrain fluids,
tire pressures, vehicle dynamics, speedometer and
odometer information, and transmission status. It also
displays warning messages. There are two different
areas where message center information will be
displayed. One display is inside of the tachometer and
the other is inside of the speedometer.
These are the controls
for the message center.
They are located on
the left spoke of the
steering wheel.
The outboard switch (A and B) controls the display
of information inside of the tachometer. The upper
button (C) on the inboard switch controls the display
of information inside of the speedometer.
The lower button (D) on the inboard switch turns the
traction control on or off. See
Traction Control System
(TCS) (CTS) on page 4-8
or
Traction Control System
(TCS) (CTS-V) on page 4-10
for more information.
Speedometer Display
This display will show information relating to vehicle
speed, odometer, and transmission status. The
information displayed can be changed by pressing (C).
Pressing this button cycles the displayed information
as follows: digital speedometer only, odometer
only, speedometer and odometer, or blank display.
When the transmission is shifted into REVERSE (R),
an R will appear in the upper right corner.
During slow speed maneuvers, the engine’s computer
may command the transmission to engage the Skip Shift
feature. For more information see
Manual Transmission
Operation on page 2-31
.
Tachometer Display
Press (B) to cycle through the following displays:
coolant temperature, oil pressure, oil temperature,
transmission temperature, tire pressure, and lateral
acceleration. Press (A) to cycle through the displays in
reverse order. If you press (A) for about one second
the display will become blank.
3-52
Coolant Temperature
When the coolant
temperature is displayed
you will see the coolant
temperature symbol.
The temperature will be displayed in degrees Fahrenheit
or Celsius and there will be a graph at the bottom of
the display. If the graph shows the temperature in
the shaded area all the way on the right, then the
coolant temperature is hot. See
Engine Overheating
on page 5-29
for more information.
Oil Pressure
When the oil pressure is
displayed you will see the
oil pressure symbol.
The oil pressure will be displayed in psi or kPa and
there will be a graph at the bottom of the display. If the
graph shows the pressure in the shaded area all the
way to the left, then the oil pressure is low. See
Engine
Oil on page 5-16
and
DIC Warnings and Messages
on page 3-65
for more information.
Oil Temperature
When the oil temperature
is displayed you will see
the oil temperature symbol.
The temperature will be displayed in degrees Fahrenheit
or Celsius and there will be a graph at the bottom of
the display. If the graph shows the temperature in
the shaded area all the way on the right, then the oil
temperature is hot. See
Engine Oil on page 5-16
for more information.
3-53
Transmission Temperature
When the transmission
temperature is displayed
you will see the
transmission temperature
symbol.
The temperature will be displayed in degrees Fahrenheit
or Celsius and there will be a graph at the bottom of
the display. If the graph shows the temperature in
the shaded area all the way on the right, then the
transmission temperature is hot. See
DIC Warnings and
Messages on page 3-65
and
Manual Transmission
Fluid on page 5-24
for more information.
Tire Pressure
When the tire pressure is displayed you will see a
vehicle in the display. The numbers in each corner
represent the tire pressure for the corresponding tire.
The tire pressure will be displayed in psi or kPa.
If any of the tires are blinking on the vehicle in the
display, this means that the tire pressure in that tire is
either high or low. See
Tire Pressure Monitor System
(CTS-V) on page 5-65
for more information.
Lateral Acceleration
Lateral acceleration is a measure of how hard you are
taking a corner. For example, when you are turning
right you will feel your body push to the left. This
force is measured in a “g”. This gage will display from
0.00 g to 1.2 g. The lowest reading means there is
no lateral acceleration. The highest reading means the
force the driver is feeling is 1.2 times the acceleration
due to gravity.
When (B) is pressed and held while the Lateral
Acceleration display is being shown, the peak hold
values — both tick marks and numbers — will be
reset to zero.
Warning Messages
The warning messages that are described in the
following text are also shown in the tachometer display.
While any warning messages are shown, pressing
(A) or (B) will acknowledge the warning and then display
the gage relating to the error message. For instance,
if a tire is below the minimum recommended pressure,
the tire pressure warning message will blink on and
off (5 times for a low tire warning, continuously for a flat
tire warning). The driver can go to the tire pressure
display immediately by pressing either button on
the outboard switch.
3-54
Transmission Fluid Hot Message
When you see this flashing
symbol, the transmission
fluid temperature is
high (290°F (143°C)).
To acknowledge this warning, press either button on
the outboard switch on the left spoke of the steering
wheel. After you press this button, the warning will
redisplay every 10 minutes until the temperature returns
to the normal operating range. If this message
appears, you may continue to drive at a slower speed
while monitoring the transmission fluid temperature.
Ideally, the transmission oil temperature should not rise
above 265°F (129°C). If you regularly experience
temperatures above this limit due to high performance
operation, it is recommended to use an auxiliary
fluid cooler for the transmission and differential. See
your GM dealer for details. If this warning is displayed
during normal vehicle operation on flat roads, your
vehicle may need service. See your dealer for an
inspection. See
DIC Warnings and Messages on
page 3-65
and
Manual Transmission Fluid on page 5-24
for more information.
Hot Coolant Temperature
Warning Message
When you see this flashing
symbol, the engine coolant
temperature is high
(257°F (125°C)).
To acknowledge this warning, press either button on
the outboard switch on the left spoke of the steering
wheel. After you press a button, this warning will
redisplay every 10 minutes until the temperature returns
to the normal operating range. Driving aggressively
or driving on long hills can cause the engine coolant
temperature to be higher than normal. Display of
this warning should correspond with the Engine Coolant
Temperature Warning Light. See
Engine Coolant
Temperature Warning Light (CTS) on page 3-44
for
more information. If this warning is displayed during
normal vehicle operation on flat roads, your vehicle may
need service. See your dealer for an inspection.
3-55
Check Engine Oil Pressure Message
When you see this
flashing symbol, the
engine oil pressure
is low.
To acknowledge this warning, press either button on
the outboard switch on the left spoke of the steering
wheel. After you press this button, the warning will
redisplay every 10 minutes until the pressure returns to
the normal operating range. Oil pressure should be
20 to 80 psi (140 to 550 kPa). In certain situations such
as long, extended idles on hot days, it could read as
low as 6 psi (40 kPa) and still be considered normal.
It may vary with engine speed, outside temperature and
oil viscosity. This warning should correspond with the
Oil Pressure Light. See
Oil Pressure Light on page 3-48
for more information.
Oil Temperature Warning Message
When you see this
flashing symbol, the
engine oil temperature
is high.
To acknowledge this warning press either button on
the outboard switch on the left spoke of the steering
wheel. After you press a button, the warning will
redisplay every 10 minutes until the temperature returns
to the normal operating range. Driving aggressively
or driving on long hills can cause the engine oil
temperature to be higher than normal. If this warning is
displayed during normal vehicle operation on flat
roads, your vehicle may need service. See your GM
dealer for an inspection. See
Engine Oil on page 5-16
for more information.
3-56
Tire Pressure Warning Message
When you see this
flashing symbol, one
or more of the vehicle’s
tires is either under
or over-inflated.
To acknowledge this warning, press either button on
the outboard switch on the left spoke of the steering
wheel. There are three levels of warning for this display:
1. High Tire Pressure (above 42 psi (290 kPa))
2. Low Tire Pressure (below 25 psi (170 kPa))
3. Flat Tire (below 5 psi (35 kPa))
For conditions 1 and 2, this warning will flash five times
and the display will then show the tire pressure gage.
For condition 3, this warning will flash continuously until
the driver acknowledges it. In any of the three cases,
the warning will redisplay every 10 minutes until
the situation is corrected. Conditions 2 and 3 will also
display a warning light elsewhere on the cluster that will
stay illuminated after this warning is acknowledged.
See
Tire Pressure Light on page 3-45
for more
information. Also see
Tire Pressure Monitor System
(CTS-V) on page 5-65
for more information on tire
pressure specifications.
3-57
Driver Information Center (DIC)
The DIC gives you the status of many of your vehicle’s
systems. It is also used to display driver personalization
features and warning/status messages. All messages
will appear on the audio system display which is also the
display for the Navigation system.
If your vehicle has the Base audio system, use the
information contained in this manual for instructions on
operating the DIC for your vehicle.
If your vehicle has the Navigation system, see the
CTS/CTS-V Navigation system manual for instructions
on operating the DIC for your vehicle.
System Controls
Use the following controls located on the audio system
to operate the DIC:
INFO (Information): Use the up or down arrows on this
switch to scroll through the system status information.
CLR (Clear): Press this button to clear DIC messages
and to reset some DIC displays to zero. This button
is also used to exit out of a menu. See
DIC Warnings
and Messages on page 3-65
and
Status of Vehicle
Systems on page 3-59
for more information.
3-58
TUNE/SEL (Select) Knob: To scroll through the menu
items displayed, turn the knob, located in the lower
right corner. Press the knob to select the menu item.
Status of Vehicle Systems
You can view the status of several vehicle systems
using the DIC.
Vehicle Information Menu
To access this menu, press the up or down arrow on
the INFO switch located to the right of the display.
The following items are available:
•BLANK LINE
•OUTSIDE TEMP
•MI TRIP A*
•MI TRIP B*
•MILES RANGE
•MPG AVG*
•MPG INST
•GAL FUEL USED*
•AVG MPH*
•TIMER*
•BATTERY VOLTS
•ENGINE OIL LIFE*
•TRANS FLUID LIFE*
(Automatic Transmission Only)
* These items can be reset. Each one must be reset
individually. For a detailed description of the menu items
and how to reset them, see “Vehicle Information
Menu Item Descriptions” following.
You can view any of these items at any time, but only
one item can be displayed at a time.
Vehicle Information Menu Item
Descriptions
The following paragraphs contain a more detailed
description of each menu item:
BLANK LINE: If you select this item, nothing is
displayed at the top of the screen.
OUTSIDE TEMP: If you select this item, the current
outside temperature is displayed at the top of the
screen. It will be in either degrees Fahrenheit or degrees
Celsius depending upon whether the system is set for
English or metric units. If you wish to change the
units, see
DIC Main Menu on page 3-62
.
3-59
MI TRIP A and B: For information on the trip
odometers, see
Trip Odometers on page 3-37
.
MPG AVG: If you select this item, the approximate
average miles per gallon (mpg) or liters per
100 kilometers (L/100 km) is displayed. This number is
calculated based on the number of mpg (L/100 km)
recorded since the last time this menu item was reset.
To reset the MPG AVG, press the CLR button located to
the right of the screen. The display will return to zero.
MPG INST: If you select this item, the current fuel
economy is displayed. This number reflects only the
fuel economy that the vehicle has right now and
will change frequently as driving conditions change.
Unlike average fuel economy, this menu item cannot
be reset.
GAL FUEL USED: If you select this item, the number
of gallons or liters of fuel used since the last reset of this
menu item is displayed.
To reset GAL FUEL USED, press the CLR button
located to the right of the screen. The display will
return to zero.
MILES RANGE: If you select this item, the
approximate number of remaining miles or kilometers
you can drive without refueling is displayed. This
estimate is based on the current driving conditions
and will change if the driving conditions change.
For example, if you are driving in traffic making frequent
stops, the display may read one number, but if you
enter the freeway, the number may change even though
you still have the same amount of gas in the gas
tank. This is because different driving conditions produce
different fuel economies. Generally, freeway driving
produces better fuel economy than city driving.
If your vehicle is low on fuel, the Fuel Level Low
message will be displayed. See “Fuel Level Low” under
DIC Warnings and Messages on page 3-65
for more
information.
AVG MPH: If you select this item, the average speed
of the vehicle is displayed in miles per hour (mph)
or kilometers per hour (km/h). This average is calculated
based on the various vehicle speeds recorded since
the last reset of this menu item.
To reset AVG MPH, press the CLR button located to
the right of the screen. The display will return to zero.
TIMER: If you select this item, a timing feature is
displayed. The timer functions like a stopwatch in that
you can record the time it takes to travel from one point
to another.
To use the timer, you must first turn it on. To turn
on the timer, press the CLR button located to the
right of the screen once. The display will read
00:00:00 TIMER ON and begin counting.
3-60
Press the button again to turn the timer off. When
the timer is off, the display will show the timer value
and TIMER OFF. The timing feature will stop.
To reset the timer, turn off the timer and then press and
hold the CLR button. The display will return to zero.
BATTERY VOLTS: If you select this item, the current
battery voltage is displayed. If the voltage is in the
normal range, the display will have OK after it.
For example, the display may read 13.2 Battery
Volts OK.
If there is a problem with the battery charging system,
there are four possible DIC messages that may be
displayed. See
DIC Warnings and Messages on
page 3-65
for more information.
ENGINE OIL LIFE: If you select this item, the
percentage of remaining oil life is displayed. If you
see 99% Oil Life on the display, that means that 99% of
the current oil life remains.
When the oil life is depleted, the Change Engine Oil
message will appear on the display. In addition to
the engine oil life system monitoring the oil life,
additional maintenance is recommended in the
Maintenance Schedule in this manual. See
Engine Oil
on page 5-16
and
Scheduled Maintenance on page 6-4
for more information.
When you reset the Change Engine Oil message by
clearing it from the display, you still must reset the
engine oil life system separately. For more information
on resetting the engine oil life system, see “How to
Reset the Engine Oil Life System and the Oil Life
Indicator” under
Engine Oil Life System on page 5-20
.
TRANS FLUID LIFE (Automatic Transmission):
If you select this item, the percentage of remaining
transmission fluid life is displayed. If you see 99% Trans
Fluid Life on the display, that means that 99% of the
current transmission fluid life remains.
When the transmission fluid life is depleted, the
Change Transmission Fluid message will appear on the
display. You should change the transmission fluid as
soon as possible within 200 miles (322 km). Be sure to
keep a written record of the mileage and date of the
fluid change so you will have it for future reference.
When you reset the Change Transmission Fluid
message by clearing it from the display, you still must
reset the transmission fluid life monitor separately.
For more information on resetting the transmission fluid
life monitor, see
Automatic Transmission Fluid on
page 5-23
.
3-61
DIC Main Menu
Accessing the DIC Main Menu
To access the main menu of the DIC, do the following:
1. Press the TUNE/SEL knob once.
2. Turn the knob clockwise or counterclockwise to
scroll through the menu items.
The DIC main menu consists of the following
menu items:
•eBASS - MID - TREBLE
•eEQ
•DSP (Bose
®
Radio)
•AVC (Bose
®
Radio)
•H/A
•AUTOSTORE
•CAT
•TA
•RDS MSG
•AF
•SEEK LOCAL/DISTANT
•9(English/Metric Units)
•TCS
•8(Clock)
•8/4(Clock/Information Display)
•SETUP
DIC Main Menu Item Descriptions
eBASS - MID (Midrange) - TREBLE: This menu
item allows you to adjust the levels for the bass,
midrange, treble, balance, and fade features of the
audio system. For more information, see “Setting the
Tone (Bass/Treble)” and “Adjusting the Speakers
(Balance/Fade)” under
Radio with CD on page 3-89
.
eEQ (Equalizer): This menu item allows you
to choose among five preset equalizations for the audio
system. See “Audio Equalizer” under
Radio with CD
on page 3-89
for more information.
DSP (Digital Signal Processing): If your vehicle has a
Bose
®
radio, this menu item allows you to select the
DSP type that you want on the audio system. You may
choose Normal, Talk, Spacious, Rear Seat or Driver
Seat. Press the TUNE/SEL knob to scroll through these
choices. Once the desired choice is displayed, turn
the knob to set your DSP choice and continue scrolling
through the main menu.
See “Using DSP” under
Radio with CD on page 3-89
for
more information.
3-62
AVC (Automatic Volume Compensation): If your
vehicle has a Bose
®
radio, this menu item allows you to
turn the AVC feature on and off. Press the TUNE/SEL
knob once to turn AVC on and off. When AVC is on, an
X will be in the box next to AVC on the menu. The X
disappears when AVC is off.
See “AVC (Automatic Volume Compensation)” under
Radio with CD on page 3-89
for more information.
H/A (Home/Away Preset Stations): This menu item
allows you to switch back and forth between your home
and away preset radio stations. Press the TUNE/SEL
knob to switch between home and away.
See “Setting Preset Stations” under
Radio with CD on
page 3-89
for more information.
AUTOSTORE: This menu item allows you to
automatically store radio stations with the strongest
signals as presets. See “Setting Preset Stations” under
Radio with CD on page 3-89
for more information.
CAT (Category): This menu item allows you to select
radio stations based on preset categories. To turn
the CAT feature on, press the TUNE/SEL knob once.
When CAT is on, an X will be in the box next to CAT
on the menu. The X disappears when CAT is off.
See
Radio with CD on page 3-89
for more information.
TA (Traffic Announcement): This menu item allows
you to turn the TA feature on and off. To turn the
TA feature on, press the TUNE/SEL knob once. When
TA is on, an X will be in the box next to TA on the
menu. The X disappears when TA is off.
See “RDS Messages” under
Radio with CD on
page 3-89
for more information.
RDS (Radio Data System) MSG (Message): This
menu item allows you to view an RDS radio station
message broadcast by a radio station. To view
the message, press the TUNE/SEL knob once. The
message will appear on the screen.
See “RDS Messages” under
Radio with CD on
page 3-89
for more information.
AF (Alternate Frequency): This menu item allows
you to turn the AF feature on and off. To turn on AF,
press the TUNE/SEL knob once. When AF is on,
an X will be in the box next to AF on the menu.
The X disappears when AF is off.
See “Activating Program Type (PTY) Stations (RDS
and XM™)” under
Radio with CD on page 3-89
for
more information.
3-63
SEEK LOCAL/DISTANT: This feature instructs the
audio system to seek only local radio stations with the
strongest signal or to seek all radio stations with a strong
signal in a large area. Use LOCAL when you are in
urban areas where there are several strong radio station
signals and you want to limit the number of stations to
those with the strongest signals only. Use DISTANT
when you are in rural areas where there are fewer radio
station signals available.
To switch between LOCAL and DISTANT, press the
TUNE/SEL knob. Your choice will be set when you press
BACK and return to the main menu.
9(English/Metric Units): Use this menu item to
adjust the measurement units.
You can choose between ENGLISH UNITS and
METRIC UNITS. To switch between the two, press
the TUNE/SEL knob. Once your choice is displayed, turn
the knob to set your choice and continue scrolling
through the main menu.
The measurement units that you choose will be
reflected on all the vehicle system displays, not just
the DIC information. For example, the climate control
panel will display degrees Celsius if you choose
METRIC UNITS.
TCS (Traction Control System): You can enable or
disable the traction control system using this menu item.
Press the TUNE/SEL knob to switch between on and off.
You can also turn the traction control system off using
the traction control button located in the glove box,
or by programming one of the steering wheel
controls (1, 2, 3 or 4) or audio system softkeys to
enable/disable the TCS. See
Reconfigurable Steering
Wheel Controls (SWC) (CTS) on page 3-7
and
“Configurable Radio Display Keys” under
Radio with
CD on page 3-89
for more information.
When you disable the traction control system, the
Traction Suspended message will appear on the DIC and
the traction control system warning light on the instrument
panel cluster will come on. See
DIC Warnings and
Messages on page 3-65
and
Traction Control System
(TCS) Warning Light on page 3-43
for more information.
8(Clock): Use this menu item to set the time on
the clock.
See
Setting the Time on page 3-88
for more information.
8/4(Clock/Information Display): Use this menu
item to toggle between the clock display and the XM™
Information (Song, Artist, Album), if available.
See
Setting the Time on page 3-88
and “XM™ Satellite
Radio Service” under
Radio with CD on page 3-89
for more information.
3-64
SETUP: When you select this menu item, the following
submenu is available:
•PERSONALIZATION
•LANGUAGE
•CONFIGURE DISPLAY KEYS
•CONFIGURE SWC (Steering Wheel Control) KEYS
To change the language displayed on the radio,
select LANGUAGE by pressing the TUNE/SEL knob.
Turn the TUNE/SEL knob to scroll through the available
languages and press the knob to make your selection.
If you accidentally select a language that you did
not want, ENGLISH is always at the top of the
language list.
For more information on the other items in the SETUP
menu, see
DIC Vehicle Personalization on page 3-74
and
Reconfigurable Steering Wheel Controls (SWC)
(CTS) on page 3-7
.
DIC Warnings and Messages
These messages will appear if there is a problem
sensed in one of your vehicle’s systems.
You must acknowledge a message to clear it from the
screen for further use. To clear a message, press
the CLR button.
Be sure to take any message that appears on the
screen seriously and remember that clearing the
message will only make the message disappear,
not the problem.
Battery Not Charging
When this message appears on the display, there
is a problem with the generator and battery charging
systems. Have the electrical system checked by
your GM dealer as soon as possible.
Battery Saver Active
This message appears when the system detects that
the battery voltage is dropping beyond a reasonable
level. The battery saver system will start reducing certain
features of the vehicle that you may not be able to
notice. At the point that the features are disabled, this
message is displayed. It means that the vehicle is trying
to save the charge in the battery.
3-65
Turn off all unnecessary accessories to allow the battery
to recharge.
The normal battery voltage range is 11.5 to 15.5 volts.
You can monitor battery voltage on the DIC by pressing
the INFO button until you find BATTERY VOLTS.
Battery Voltage High
This message indicates that the electrical charging
system is overcharging the battery. When the system
detects that the battery voltage is above approximately
16 volts, this message will be displayed.
To reduce the charging overload, use the vehicle’s
accessories. Turn on the exterior lamps and radio, set
the climate control on AUTO and the fan speed on
the highest setting, and turn the rear window
defogger on.
The normal battery voltage range is 11.5 to 15.5 volts
when the engine is running. You can monitor battery
voltage on the DIC by pressing the INFO button until you
find BATTERY VOLTS.
Battery Voltage Low
This message will appear when the electrical system is
charging less than 10 volts or if the battery has been
drained.
If this message appears immediately after starting the
engine, it is possible that the generator can still recharge
the battery. The battery should recharge while driving
but may take a few hours to do so. Consider using
an auxiliary charger (be sure to follow the
manufacturer’s instructions) to boost the battery after
returning home or to a final destination.
If this message appears while driving or after starting
your vehicle and stays on, have it checked by your
GM dealer immediately to determine the cause of this
problem.
To help the generator recharge the battery quickly, you
can reduce the load on the electrical system by
turning off the accessories.
The normal battery voltage range is 11.5 to 15.5 volts.
You can monitor battery voltage on the DIC by pressing
the INFO button until you find BATTERY VOLTS.
3-66
Buckle Passenger
This message reminds you to buckle the passenger’s
seat belt.
This message will display and a chime will sound when
the ignition is on, the driver’s seat belt is buckled, the
passenger’s seat belt is unbuckled with the passenger
airbag enabled and the vehicle is in motion. You should
have the passenger buckle their seat belt.
The reminder will be repeated if the ignition is on, the
vehicle is in motion, the driver is unbuckled and the
passenger is still unbuckled and the passenger airbag
is enabled. If the passenger’s seat belt is already
buckled, this message and chime will not come on.
Buckle Seat Belt
This message reminds you to buckle the driver’s
seat belt.
This message will display and a chime will sound when
the ignition is on, the driver’s seat belt is unbuckled
and the vehicle is in motion. You should buckle
your seat belt.
If the driver remains unbuckled when the ignition is
on and the vehicle is in motion, the reminder will
be repeated. If the driver’s seat belt is already buckled,
this message and chime will not come on.
This message is an additional reminder to the Safety
Belt Reminder Light in the instrument panel cluster.
See
Safety Belt Reminder Light on page 3-38
for more
information.
Change Engine Oil
This message indicates that the life of the engine
oil has expired and it should be changed and that your
vehicle is due for service. See
Engine Oil on page 5-16
and
Scheduled Maintenance on page 6-4
for more information.
When you reset the Change Engine Oil message by
clearing it from the display, you still must reset the
engine oil life system separately. For more information
on resetting the engine oil life system, see
Engine
Oil Life System on page 5-20
.
3-67
Change Trans (Transmission) Fluid
(Automatic Transmission)
This message indicates that the life of the transmission
fluid has expired and it should be changed within
200 miles (320 km). See
Scheduled Maintenance on
page 6-4
and
Recommended Fluids and Lubricants on
page 6-13
for the proper fluid and change intervals.
When you reset the Change Trans Fluid message
by clearing it from the display, you still must reset the
transmission fluid life monitor separately. For more
information on resetting the transmission fluid life
monitor, see
Automatic Transmission Fluid on
page 5-23
.
Check Brake Fluid
This message will display if the ignition is in ON to
inform the driver that the brake fluid level is low. Have
the brake system serviced by your GM dealer as
soon as possible. See
Brake System Warning Light
on page 3-42
for more information.
Check Coolant Level
This message will appear when there is a low level of
engine coolant. Have the cooling system serviced
by your GM dealer as soon as possible. See
Engine
Coolant on page 5-26
for more information.
Check Gas Cap
When this message appears on the display, the gas cap
has not been fully tightened. You should recheck the
gas cap to ensure that it is on and tightened properly.
See “If the Light Is On Steady” under
Malfunction
Indicator Lamp on page 3-45
for more information.
Check Washer Fluid
When this message appears on the display, it means
that your vehicle is low on windshield washer fluid.
You should refill the tank as soon as possible.
See
Windshield Washer Fluid on page 5-38
for more
information.
Competitive Driving (CTS-V)
When competitive driving mode is turned on with the
traction control button, this message will be displayed on
the DIC. The TC light will be on when the competitive
driving mode is on. The traction control system will
not operate while in competitive driving mode.
You should adjust your driving accordingly. See the
CTS-V portion of
Traction Control System (TCS) (CTS)
on page 4-8
or
Traction Control System (TCS)
(CTS-V) on page 4-10
for more information.
3-68
Driver Door Ajar
When this message appears on the display, it means
that the driver’s door was not closed completely.
You should make sure that the driver’s door is closed
completely.
Engine Coolant Hot – Idle Engine
This message will appear when the engine coolant
temperature is too hot. Stop and allow the vehicle to
idle until it cools down.
Notice:
If you drive your vehicle while the engine
is overheating, severe engine damage may occur.
If an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon as
possible. Do not increase the engine speed above
normal idling speed. See
Engine Overheating
on page 5-29
for more information.
Engine Coolant Hot – AC
(Air Conditioning) Off
This message displays when the engine coolant
becomes hotter than the normal operating temperature.
To avoid added strain on a hot engine, the air
conditioning compressor is automatically turned off.
When the coolant temperature returns to normal, the air
conditioning compressor will turn back on. You can
continue to drive your vehicle.
If this message continues to appear, have the system
repaired by your GM dealer as soon as possible to avoid
damage to the engine or transmission.
Engine Overheated – Stop Engine
This message will appear when the engine has
overheated. Stop the vehicle and turn the engine off
immediately to avoid severe engine damage. See
Engine Overheating on page 5-29
. A chime will also
sound when this message is displayed.
Notice:
If you drive your vehicle while the engine
is overheating, severe engine damage may occur.
If an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon as
possible. Do not increase the engine speed above
normal idling speed. See
Engine Overheating
on page 5-29
for more information.
Engine Power Reduced
This message informs you that the vehicle is reducing
engine power to try to protect the engine or transmission
from damage due to extreme operating conditions.
This also can affect the vehicle’s ability to accelerate.
3-69
Fuel Level Low
When this message appears on the display, it means
that your vehicle is low on fuel. You should refill the tank
as soon as possible. A single chime will sound when
this message is displayed.
Headlamps Suggested
This message will appear when the amount of available
light outside the vehicle is low and the exterior lamp
control is off. This message informs the driver that
turning on the exterior lamps is recommended even
though the daytime running lamps (DRL) are still
illuminated and it has become dark enough outside to
require the headlamps and/or other exterior lamps.
This message will also appear when the windshield
wipers have been on for more than six seconds and
the exterior lamp control is off or in the parking
lamp position.
Ice Possible
This message appears when the outside temperature
is cold enough to create icy road conditions.
Left Rear Door Ajar
When this message appears on the display, it means
that the driver’s side rear door was not closed
completely. You should make sure that the door is
closed completely.
Oil Pressure Low – Stop Engine
Notice:
If you drive your vehicle while the engine
oil pressure is low, severe engine damage may
occur. If a low oil pressure warning appears on
the instrument panel cluster and/or DIC, stop the
vehicle as soon as possible. Do not drive the vehicle
until the cause of the low oil pressure is corrected.
See
Engine Oil on page 5-16
for more information.
Passenger Door Ajar
When this message appears on the display, it means
that the passenger’s side front door was not closed
completely. You should make sure that the door
is closed completely.
Right Rear Door Ajar
When this message appears on the display, the right
rear door it means that the passenger’s side rear
door was not closed completely. You should check to
make sure that the door is closed completely.
3-70
Service AC (Air Conditioning) System
This message appears when the electronic sensors
that control the air conditioning and heating systems are
no longer working. Have the climate control system
serviced by your GM dealer if you notice a drop
in heating and air conditioning efficiency.
Service Air Bag
There is a problem with the airbag system when this
message appears. Have your vehicle serviced by your
GM dealer immediately. See
Airbag Readiness Light
on page 3-39
for more information.
Service Charging System
This message will display when a problem with the
charging system has been detected. Have your vehicle
serviced by your GM dealer.
Service Electrical System
This message will display if an electrical problem has
occurred within the Powertrain Control Module (PCM)
or the ignition switch. Have your vehicle serviced by your
GM dealer.
Service Fuel System
The Powertrain Control Module (PCM) has detected a
problem within the fuel system when this message
appears. Have your vehicle serviced by your GM dealer.
Service Idle Control
A problem with the idle control has occurred when this
message displays. Have your vehicle serviced by
your GM dealer.
Service Stability System Message
Your vehicle may be equipped with a vehicle stability
enhancement system called Stabilitrak
®
.
See
Stabilitrak
®
System on page 4-11
. The Service
Stability System message will be displayed if there has
been a problem detected with Stabilitrak
®
.
If the Service Stability System message comes on while
you are driving, pull off the road as soon as possible
and stop carefully. Try resetting the system by turning
the ignition off then back on. If the Service Stability
System message still stays on or comes back on again
while you are driving, your vehicle needs service.
Have the Stabilitrak
®
System inspected by your
GM dealer as soon as possible.
3-71
Stability System Engaged Message
The Stability System Engaged message will be
displayed any time Stabilitrak
®
(if equipped) is actively
assisting you with directional control of the vehicle.
Slippery road conditions may exist when this message
is displayed, so adjust your driving accordingly.
This message may stay on for a few seconds after
Stabilitrak
®
stops assisting you with directional control
of the vehicle.
Stability System Off Message
The Stability System Off message will be displayed any
time you turn off Stabilitrak
®
(if equipped) using the
TC (traction control) on/off button. See
Traction Control
System (TCS) (CTS) on page 4-8
or
Traction Control
System (TCS) (CTS-V) on page 4-10
for more
information. When this message has been displayed,
Stabilitrak
®
is no longer available to assist you with
directional control of the vehicle. Adjust your driving
accordingly.
Stability System Ready Message
The Stability System Ready message will be displayed
any time you turn back on Stabilitrak
®
(if equipped)
using the TC (traction control) on/off button. See
Traction Control System (TCS) (CTS) on page 4-8
or
Traction Control System (TCS) (CTS-V) on page 4-10
for more information. When this message has been
displayed, Stabilitrak
®
is ready to assist you with
directional control of the vehicle if needed.
Service Steering System
Your vehicle may be equipped with a speed variable
assist steering system. See
Steering on page 4-12
.
The Service Steering System message will be displayed
if a problem is detected with the speed variable assist
steering system. When this message is displayed,
you may notice that the effort required to steer
the vehicle increases or feels “heavier,” but you will
still be able to steer the vehicle.
Service Theft System
This message means there is a problem with the
immobilizer. See
Immobilizer on page 2-19
for more
information. A fault has been detected in the system
which means that the system is disabled and is
not protecting the vehicle. The vehicle usually restarts,
however, you may want to take your vehicle to your
dealer before turning off the engine.
Service Transmission
There is a problem with the transmission of your
vehicle. Have your vehicle serviced by your
GM dealer.
3-72
Service Vehicle Soon
This message is displayed when a non-emissions
related powertrain malfunction occurs. Have your vehicle
serviced by your GM dealer as soon as possible.
Starting Disabled – Remove Key
This message will appear when the vehicle
theft-deterrent system detects that an improper ignition
key is being used to try to start the vehicle. Check
the ignition key for damage. If it is damaged, it may need
to be replaced. If it is not damaged, remove the key
and try to start the vehicle again. If it still does not start,
try another ignition key or have your vehicle serviced
by your GM dealer.
Starting Disabled – Throttle Problem
This message appears when your vehicle’s throttle
system is not functioning properly. Have your vehicle
serviced by your GM dealer.
Theft Attempted
This message is displayed if the content theft-deterrent
system has detected a break-in attempt while you
were away from your vehicle.
Top Speed – Fuel Cut Off
This message will appear when the Engine Control
Module (ECM) detects that the maximum speed for your
vehicle has been reached. Your vehicle’s top speed is
based on the top speed rating of the tires. This ensures
that your vehicle stays in a safe operating range for
the tires.
Traction Engaged
This message will appear when the traction control
system is actively limiting wheel spin. Slippery
road conditions may exist if this message is displayed,
so adjust your driving accordingly. The message will
stay on for a few seconds after the traction control
system stops limiting wheel spin. See
Traction Control
System (TCS) (CTS) on page 4-8
or
Traction Control
System (TCS) (CTS-V) on page 4-10
for more
information.
Trans (Transmission) Hot – Idle Engine
This message indicates that the transmission fluid in
your vehicle is too hot. Stop the vehicle and allow it to
idle until the transmission cools down or until this
message is removed. See also
Transmission Fluid Hot
Message on page 3-55
for more information.
3-73
Trunk Open
When this message appears on the display, it means
that the trunk lid of your vehicle was not closed
completely. You should make sure that the trunk lid is
closed completely.
Turn Signal On
If you drive your vehicle for more than about 1 mile
(1.6 km) with a turn signal on, this message will appear
as a reminder to turn off the turn signal. A multiple
chime will sound when this message is displayed.
DIC Vehicle Personalization
Your vehicle is equipped with personalization that allows
you to program certain features to a preferred setting
for up to two people. The number of programmable
features varies depending upon which model of
the vehicle is purchased.
On all vehicles, features such as climate control
settings, radio preset settings, exterior lighting at unlock,
remote lock and unlock confirmation, and automatic
door locks have already been programmed for
your convenience.
Some vehicles are equipped with additional features
that can be programmed including the seat and outside
rearview mirror position.
If your vehicle is equipped with the ability to program
additional personalization features, the driver’s
preferences are recalled by pressing the unlock button
on the remote keyless entry transmitter, 1 or 2, or
by pressing the appropriate memory button, 1 or 2,
located on the driver’s door. Certain features can
be programmed not to recall until the key is placed in
the ignition. To change feature preferences, see
“Entering the Personalization Menu” following.
Entering the Personalization Menu
To enter the feature programming mode, use the
following procedure:
1. Turn the ignition to ON, but do not start the
engine. Make sure an automatic transmission is
in PARK (P) or a manual transmission has the
parking brake set.
2. If your vehicle has memory settings, press the
appropriate memory button, 1 or 2, located on
the driver’s door armrest. The DIC display will
show either Driver 1 or 2 depending on which
button was selected.
3. Press the TUNE/SEL knob once to access the
main menu of the DIC.
4. Turn the TUNE/SEL knob until SETUP is
highlighted.
3-74
5. Press the TUNE/SEL knob once to access the
SETUP menu.
6. Scroll to the feature you want to change, and press
the TUNE/SEL knob to turn the feature on or off.
If the feature is turned on, a check mark will appear
next to the feature name.
If none of the personalization items are turned
on, turn on the personalization menu by pressing
the TUNE/SEL knob. The list of features will
then appear, and you can repeat Step 6.
Personalization Features
The following choices are available for programming:
Personalization Name
This feature allows you to type in a name that will
appear on the DIC display whenever the corresponding
remote keyless entry transmitter is used or one of
the buttons on the driver’s door armrest (1 or 2) is
pressed.
If a customized name is not programmed, the system
will show Driver 1 or Driver 2 to correspond with
the numbers on the back of the remote keyless
entry transmitters.
To program a name, use the following procedure:
1. Enter the Personalization menu following the
instructions listed previously.
2. Select the PERSONALIZATION NAME menu item
by pressing the TUNE/SEL knob once.
You will see a cursor on the screen.
3. Turn the TUNE/SEL knob until you reach the
first letter you want; the letter will be highlighted.
There is a complete alphabet with both upper and
lower case letters and the numbers zero through
nine. Also included are spaces and other non-letter
characters such as the ampersand (&).
4. Press the TUNE/SEL knob once to select the letter.
The letter will then appear on the display.
If you make a mistake, press the Back key. This
will exit the menu. You can then go back into
the menu and edit the name. You can also press
the TUNE/SEL knob repeatedly to cycle through all
the characters until you reach the character you
wish to change.
5. Repeat Steps 3 and 4 until the name you want is
complete. You can program up to 16 characters.
6. Press the BACK button located to the lower right of
the display to exit and set your choice or let the
screen time out and return to the main screen.
3-75
The name you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Configure Display Keys
This feature allows you to customize the functions of
the four soft keys located to the left and right of
the audio display. See “Configurable Radio Display
Keys” under
Radio with CD on page 3-89
for
programming information.
Remote Recall Memory
If your vehicle has the optional memory package,
you will have this feature. When this feature is turned
on, you can recall any previously programmed seat and
mirror controls when the unlock button on the remote
keyless entry transmitter is pressed.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to REMOTE RECALL MEMORY to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
This feature cannot be selected if Remote Exit Recall or
Key In Recall Memory is selected. If either of these
was previously selected, you must first de-select
it in order to be able to select Remote Recall Memory.
The mode you selected is now set. You can either
exit the programming mode by following the instructions
later in this section or program the next feature
available on your vehicle.
Remote Exit Recall
If your vehicle has the optional memory package,
you will have this feature. When this feature is turned
on, you can recall any previously programmed exit
position for the driver’s seat when the unlock button on
the remote keyless entry transmitter is pressed.
3-76
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to REMOTE EXIT RECALL to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
This feature cannot be selected if Remote Recall
Memory is selected. If it was previously selected, you
must first de-select it in order to be able to select
Remote Exit Recall.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Key in Recall Memory
If your vehicle has the optional memory package, you
will have this feature. When this feature is turned on, you
can recall any previously programmed seat and mirror
positions when the key is inserted into the ignition.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to KEY IN RECALL MEMORY to highlight it.
3. Press the TUNE/SEL knob to switch back and
forth between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
This feature cannot be selected if Remote Recall Memory
is selected. If it was previously selected, you must first
de-select it in order to be able to select Key In Recall
Memory.
3-77
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Auto Exit Seat
If your vehicle has the optional memory package,
you will have this feature. When this feature is turned
on, you can recall any previously programmed exit
position for the driver’s seat when the key is removed
from the ignition and the driver’s door is opened.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to AUTO EXIT SEAT using the TUNE/SEL
knob to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear in the box next to the feature name.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Twilight Delay
This feature allows you to set the amount of time you
want the exterior lamps to remain on after you exit
the vehicle.
Programmable Modes
Mode 1: 0:00 seconds
Mode 2: 0:15 seconds
Mode 3: 0:30 seconds
Mode 4: 1:00 minute
Mode 5: 1:30 minutes
Mode 6: 2:00 minutes
Mode 7: 2:30 minutes
Mode 8: 3:00 minutes
3-78
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to which the
vehicle was programmed may have been changed
since the vehicle left the factory.
To determine the mode to which the vehicle is
programmed or to program the vehicle to a different
mode, use the following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to TWILIGHT DELAY using the TUNE/SEL
knob to highlight it.
3. Press the TUNE/SEL knob to scroll through the
available delay settings. When the delay time
you want is highlighted, press the TUNE/SEL knob
once to select it.
When the mode is turned on, an X will appear in
the box to the left.
If you choose Mode 1, the exterior lamps will not
illuminate when you exit the vehicle. Only one mode
can be selected at a time.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Lights Flash at Unlock
This feature flashes the exterior lamps when the remote
keyless entry transmitter is used to unlock the vehicle.
The lamps will flash for approximately 20 seconds
unless a door is opened, the ignition is turned to
ACCESSORY, ON or START or the remote keyless
entry transmitter is used to lock the vehicle.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to LIGHTS FLASH AT UNLOCK to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
3-79
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Lights Flash at Lock
This feature allows the exterior lamps to flash once
when the remote keyless entry transmitter is used to
lock the vehicle. All doors must be closed for this feature
to work, and the lamps will not flash if the parking
lamps or headlamps are on.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to LIGHTS FLASH AT LOCK to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
You can select this feature by itself, or you can combine
it with Horn Sounds At Lock so that both the lights
flash and the horn chirps when you lock your vehicle.
The mode you selected is now set. You can either
exit the programming mode by following the instructions
later in this section or program the next feature
available on your vehicle.
Horn Sounds at Lock
This feature sounds the horn once when the remote
keyless entry transmitter is used to lock the vehicle.
All doors must be closed for this feature to work.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
3-80
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to HORN SOUNDS AT LOCK to highlight it.
3. Press the TUNE/SEL knob to switch back and
forth between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
If you select this feature to be on, Lights Flash At Lock
will also be on. You can choose Lights Flash At Lock
by itself, but Horn Sounds At Lock will always have
Lights Flash At Lock enabled when it is selected.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Exterior Lights at Unlock
This feature turns on the exterior lamps when the
remote keyless entry transmitter is used to unlock the
vehicle. The lamps will remain on for about 20 seconds
unless a door is opened, the ignition is turned to
ACCESSORY, ON or START or the remote keyless
entry transmitter is used to lock the vehicle.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to EXT. LIGHT AT UNLOCK to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-81
Driver Unlock in Park
(Automatic Transmission)
The feature allows the driver’s door to automatically
unlock when the transmission is shifted into PARK (P).
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to DRIVER UNLOCK IN PARK to highlight it.
3. Press the TUNE/SEL knob to switch back and
forth between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
This feature cannot be selected if Driver Unlock Key
Out/Off, Doors Unlock Key Out/Off or Doors Unlock in
Park is selected. If any of these was previously
selected, you must first de-select it in order to be able
to select Driver Unlock in Park.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Driver Unlock Key Out/Off
This feature allows the driver’s door to automatically
unlock when the key is removed from the ignition
on automatic transmission vehicles or when the ignition
is turned to OFF for manual transmission vehicles.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
3-82
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to DRIVER UNLOCK KEY OUT/OFF.
3. Press the TUNE/SEL knob to switch between on
and off.
When the mode is turned on, a check mark will
appear next to the feature name.
If you select Mode 1, Doors Lock in Gear (automatic
transmission) or Automatic Door Lock (manual
transmission) will be turned on automatically.
This feature cannot be selected if Driver Unlock in Park
(automatic transmission), Doors Unlock in Park
(automatic transmission) or Doors Unlock Key Out/Off is
selected. If any of these was previously selected, you
must first de-select it in order to be able to select Driver
Unlock Key Out/Off.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Doors Unlock in Park
(Automatic Transmission)
The feature allows the doors to automatically unlock
when the transmission is shifted into PARK (P).
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to DOORS UNLOCK IN PARK to highlight it.
3. Press the TUNE/SEL knob to switch back and
forth between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
3-83
This feature cannot be selected if Doors Unlock Key
Out/Off, Driver Unlock Key Out/Off or Driver Unlock in
Park (automatic transmission) is selected. If any of
these was previously selected, you must first de-select it
in order to be able to select Doors Unlock in Park.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Doors Unlock Key Out/Off
This feature allows the doors to automatically unlock
when the key is removed from the ignition on automatic
transmission vehicles or when the ignition is turned
to OFF on manual transmission vehicles.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to DOORS UNLOCK KEY OUT/OFF.
3. Press the TUNE/SEL knob to switch between on
and off.
When the mode is turned on, a check mark will
appear next to the feature name.
If you select Mode 1, Doors Lock in Gear (automatic
transmission) or Automatic Door Lock (manual
transmission) will be turned on automatically.
This feature cannot be selected if Doors Unlock in
Park (automatic transmission), Driver Unlock in Park
(automatic transmission) or Driver Unlock Key Out/Off is
selected. If any of these was previously selected, you
must first de-select it in order to be able to select Doors
Unlock Key Out/Off.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-84
Delayed Locking
This feature delays the locking of the vehicle’s doors for
up to five seconds after a power door lock switch or
the lock button on the remote keyless entry transmitter
is pressed. The five second delay occurs after the
last door is closed.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to DELAYED LOCKING using the TUNE/SEL
knob to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Lock Passenger Window
This feature allows you to disable either all the
passenger window switches or the rear passenger
window switches only. If this feature is turned on, all
passenger window switches will be disabled when
the window lockout button is pressed. If the feature is
off, only the rear passenger window switches will
be disabled. See
Power Windows on page 2-15
for
more information.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
3-85
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to LOCK PASS WINDOW using the
TUNE/SEL knob to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Mirror to Curb in Reverse
If your vehicle has the optional memory package,
you will have this feature. When this feature is turned
on, the passenger’s outside rearview mirror will
move downward so you can view the curb when the
shift lever is shifted into REVERSE (R). The mirror
will return to the last known driving position when the
shift lever is moved out of REVERSE (R). See
Outside
Curb View Assist Mirror on page 2-44
for more
information.
Programmable Modes
Mode 1: ON
Mode 2: OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to MIRROR TO CURB IN REV using the
TUNE/SEL knob to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-86
Enhanced Chime Volume
This feature allows you to adjust the volume level of the
vehicle’s warning chimes. The chime volume cannot
be turned off, only adjusted.
Programmable Modes
Mode 1: NORMAL
Mode 2: LOUD
Before your vehicle was shipped from the factory,
it was programmed to Mode 1. The mode to which the
vehicle was programmed may have been changed
since it left the factory.
To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to ENHANCED CHIME VOLUME using the
TUNE/SEL knob to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between the normal and loud settings.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Exiting the Personalization Menu
To exit the personalization portion of the SETUP menu,
press the BACK key once you have finished making
your selections. You will return to the main audio
screen.
3-87
Audio System(s)
Notice:
Before adding any sound equipment to
your vehicle, like a tape player, CB radio, mobile
telephone, or two-way radio, make sure that it can
be added by checking with your dealer. Also,
check federal rules covering mobile radio and
telephone units. If sound equipment can be added,
it is very important to do it properly. Added
sound equipment may interfere with the operation
of your vehicle’s engine, radio, or other systems,
and even damage them. Your vehicle’s systems may
interfere with the operation of sound equipment
that has been added improperly.
Figure out which audio system is in your vehicle, find
out what your audio system can do, and how to operate
all of its controls.
Your vehicle has a feature called Retained Accessory
Power (RAP). With RAP, the audio system can be
played even after the ignition is turned off. See
Retained
Accessory Power (RAP) on page 2-24
for more
information.
Setting the Time
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until SET CLOCK
appears on the display.
3. Press the TUNE/SEL knob to select SET CLOCK.
4. Turn the TUNE/SEL knob to adjust the time.
5. Press the TUNE/SEL knob to update the time.
VEHICLE TIME UPDATED will appear on the
display.
If the CLOCK/RADIO DISP is configured into one of the
configurable keys, pressing the key will switch the
display between the radio station frequency and the
time. See “Configurable Radio Display Keys” under
Radio with CD on page 3-89
for more information on
configuring the keys.
3-88
Radio with CD
Radio Data System (RDS)
The audio system has a Radio Data System (RDS).
RDS features are available for use only on FM stations
that broadcast RDS information.
With RDS, the radio can do the following:
•Seek to stations broadcasting the selected type
of programming
•Receive announcements concerning local and
national emergencies
•Display messages from radio stations
•Seek to stations with traffic announcements
This system relies upon receiving specific information
from these stations and will only work when the
information is available. In rare cases, a radio station
may broadcast incorrect information that will cause
the radio features to work improperly. If this happens,
contact the radio station.
While the radio is tuned to an RDS station, the station
name or call letters will appear on the display instead
of the frequency. RDS stations may also provide
the time of day, a program type (PTY) for current
programming, and the name of the program being
broadcast.
Radio with CD shown, Radio with
Six-Disc CD similar
3-89
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in the
48 contiguous United States. XM™ offers 100 coast to
coast channels including music, news, sports, talk,
and children’s programming. XM™ provides digital
quality audio and text information, including song title
and artist name. A service fee is required in order
to receive the XM™ service. For more information,
contact XM™ at www.xmradio.com or call
1-800-852-XMXM (9696).
CLOCK/INFO DISP (Clock/Information Display):
Press the CLOCK/INFO DISP button to switch between
the clock display, the XM screen, and the XM
information display.
Press this button while in XM mode to retrieve three
different categories of information related to the current
song or channel: Artist, Song Title, and Category.
To view this information, perform the following:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until CLOCK/INFO
DISP appears on the display.
3. Press the TUNE/SEL knob to select CLOCK/INFO
DISP. The display will change to show the additional
XM information.
4. To return to the original display, press the CLR
button or wait for the display to time out.
If the CLOCK/INFO DISP is configured into one of the
configurable keys, pressing the key will switch the
display between the radio station frequency and the
time. See “Configurable Radio Display Keys” later in this
section for more information.
Playing the Radio
PWR (Power): Press this knob to turn the system
on and off.
VOL (Volume): Turn this knob to increase or to
decrease the volume.
AVC (Automatic Volume Compensation): Available
only with the premium Bose
®
audio system, AVC
monitors the noise in the vehicle and will adjust the
volume level so that it always sounds the same to you.
3-90
AVC works best when listening at low volume levels.
At loud listening levels there will be little or no effect.
To turn AVC on and off, perform the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until AUTO VOLUME
COMP. appears on the display.
3. Press the TUNE/SEL knob to turn AVC on or off.
An X will appear in the box when AVC is
selected on.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
SOURCE: Press this button to select a source, either
radio or CD. The CD must be loaded to select the
source and to play. CD will appear on the display if a
CD is loaded. If a CD is not loaded the display will
not change from the radio source.
Finding a Station
BAND: Press this button to select FM1, FM2, AM,
or XM1 or XM2 (if equipped).
QSEEK R:Press the up or the down arrow to go
to the next or to the previous station and stay there.
SEEK will appear on the display. The sound will mute
while seeking.
The radio will only seek stations with a strong signal
that are in the selected band.
QSCAN R:Press the SCAN button to enter scan
mode. SCAN will appear on the display. Press the
up arrow to scan to the next station. The radio will go
to a station, play for 5 seconds, then go on to the
next station. Press this button again to stop scanning.
To scan preset stations, press and hold SCAN for more
than two seconds until you hear a beep and PSCAN
appears on the display. The radio will go to the
first preset station stored on your pushbuttons, play for
5 seconds, then go on to the next preset station.
Press SCAN again to stop scanning presets.
The radio will only scan stations with a strong signal
that are in the selected band.
3-91
LOCAL/DISTANT Selection: With this feature you
can set the radio to search for local stations or stations
that are further away for a larger selection. To set
this feature to LOCAL or DISTANT, perform the
following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until SEEK LOCAL or
SEEK DISTANT appears on the display.
3. Press the TUNE/SEL knob to select either LOCAL
or DISTANT.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
To search for stations, press the SEEK up or down
arrows. If the system is set to LOCAL, SEEK will appear
in the display and seek to stations with strong signals
only. If the system is set to DISTANT, D-SEEK will
appear in the display and seek to stations with weak
and strong signals.
Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be programmed
on the six numbered pushbuttons, by performing the
following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, or AM, or XM1
or XM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons for two seconds until you hear a beep.
The set preset station number will appear on the
display above the pushbutton that it is set to.
Whenever that numbered pushbutton is pressed for
less than two seconds, the station that was set
will return.
5. Repeat the steps for each pushbutton.
To set the preset stations with an equalization
setting, DSP setting, or a PTY setting, see each
of these features later in this section. When a preset
station is selected, once one of these additional
settings is selected, the preset station will remember
each setting and it will remain active, until the
setting is selected off for that preset station.
3-92
AUTOSTORE PRESETS: To set the preset stations
automatically, perform the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, or AM.
3. Press the TUNE/SEL knob to enter the main menu.
4. Turn the TUNE/SEL knob until AUTOSTORE
PRESETS appears on the display.
5. Press the TUNE/SEL knob to select. AUTOSTORE
will appear on the display. The radio will
automatically search the band and select and store
the six radio stations with the strongest signal.
The stations will be stored by signal strength, not
sequential order. The set preset station number will
appear on the display above the pushbutton that
it is set to. Whenever that numbered pushbutton is
pressed for less than two seconds, the station
that was set will return.
6. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
When battery power is removed and later applied, you
will not have to reset your radio presets.
PRESETS HOME/AWAY: This feature gives you the
ability to store two different kinds of station presets.
HOME can be used for stations available where you live
and AWAY can be for stations available outside of
your local broadcasting area. To set preset stations for
home and away perform the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until PRESETS
HOME/AWAY appears on the display.
3. Press the TUNE/SEL knob to select. HOME or
AWAY will appear on the display.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
Follow the manual or automatic steps previously listed
for setting the preset pushbuttons for both home
and away.
3-93
Setting the Tone (Bass/Treble)
To adjust the bass, midrange, and treble, perform the
following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until BASS-MID-TREBLE
appears on the display.
3. Press the TUNE/SEL knob to enter the tone
settings.
4. Press the TUNE/SEL knob to scroll through the
settings.
5. Turn the TUNE/SEL knob to increase or to decrease
the bass, midrange, or treble. If a station is weak or
noisy, decrease the treble.
6. Press the TUNE/SEL knob to set the adjustment.
7. Press the CLR button to exit the display. To
return to the original display repeatedly press
the CLR button or wait for the display to time out.
AUDIO EQUALIZER: This feature allows you to select
customized equalization settings. To choose an
equalization setting (EQ0 through EQ5), perform the
following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until EQUALIZER
appears on the display.
3. Press the TUNE/SEL knob to set the equalization
setting. The equalization setting will appear on the
display.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
The equalization settings are preset to EQ0 (Normal),
EQ1 (Pop), EQ2 (Rock), EQ3 (Jazz), EQ4 (Talk),
and EQ5 (Country).
Adjusting the Speakers (Balance/Fade)
To adjust the balance or fade, perform the following
steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until BASS-MID-TREBLE
appears on the display.
3-94
3. Press the TUNE/SEL knob to enter the tone
settings.
4. Press the TUNE/SEL knob to scroll to BALANCE
or FADER.
5. Turn the TUNE/SEL knob to adjust the BALANCE
to the right or the left speakers and the FADER to
the front or the rear speakers.
6. Press the TUNE/SEL knob to set the adjustment.
7. Press the CLR button to exit the display. To
return to the original display, repeatedly press
the CLR button or wait for the display to time out.
EQ0 will not appear on the display when in this mode.
Using DSP
Available only with the premium Bose
®
audio system,
this feature is used to provide a choice of five different
listening experiences: DSP normal, talk, spacious, rear
seat, and driver seat. DSP can be used while listening to
the radio or the CD player. The radio keeps separate
DSP settings for each band, preset, and source. To
select a DSP choice, perform the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until one of the five
settings appears on the display.
3. Press the TUNE/SEL knob to select a DSP setting.
4. Press the CLR button to exit the display. To
return to the original display, repeatedly press
the CLR button or wait for the display to time out.
DSP NORMAL: This setting provides the best overall
audio performance for all passengers. DSP NORMAL
will not appear on the display when in this mode.
TALK: This setting should be used when listening to
non-musical material such as news, talk shows,
sports broadcasts, and books on tape. Talk makes
spoken words sound very clear.
SPACIOUS: This setting is used to make the listening
space seem larger.
REAR SEAT: This setting adjusts the audio to give the
rear seat passenger(s) the best possible sound
quality. Sound quality for the front seat passengers may
be different when this setting is used.
DRIVER SEAT: This setting adjusts the audio to give
the driver the best possible sound quality. Sound quality
for the front and rear seat passenger(s) may be
different when this setting is used.
3-95
RDS Messages
ALERT: Alert warns of local and national emergencies.
When, an alert announcement comes on the current
radio station or a related network station, ALERT
will appear on the display. You will hear the
announcement, even if the volume is low or a CD is
playing. If a CD is playing, play will stop during
the announcement. Alert announcements cannot be
turned off. If the radio tunes to a related network station
for the announcement, it will return to the original
station when the announcement is finished.
ALERT will not be affected by tests of the emergency
broadcast system. This feature is not supported by
all RDS stations.
MSG (Message): If the current RDS station has a
message, MSG will appear on the display. The message
may display the artist, song title, call in phone numbers,
etc. If the entire message does not appear on the
display, parts of the message will appear every three
seconds until the message is completed. Once the
completed message has been displayed, MSG
will disappear from the display until another new
message is received.
To display the last message, perform the following
steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until RECALL RDS
MESSAGE appears on the display.
3. Press the TUNE/SEL knob. The message will
appear on the display.
Once the message has been displayed, MSG will
disappear from the display until another new message
is received.
TP (Traffic Program): TP will appear on the display
when the radio detects a signal from an RDS station that
has traffic announcement broadcast capability.
TA (Traffic Announcement): If TA appears on the
display, the tuned radio station broadcasts traffic
announcements and when a traffic announcement
comes on the tuned station you will hear it.
If the station does not broadcast traffic announcements,
when TA is turned on it will seek to a station that
does. When a station that broadcasts traffic
announcements is found, the radio will stop seeking and
TA will appear on the display. If no station is found
that broadcasts traffic announcements, No Traffic will
appear on the display.
3-96
The radio will play traffic announcements if the volume
is low. The radio will interrupt the play of a CD if the
last tuned station broadcasts traffic announcements.
To turn TA on or off, perform the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until TRAFFIC
ANNOUNCE appears on the display.
3. Press the TUNE/SEL knob to select ON or OFF.
An X will appear in the box when TA is selected on.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
Activating Program Type (PTY)
Stations (RDS and XM™)
PTY allows you to search for stations with specific
types of music. The selectable PTYs are POP, EASY,
TALK, CNTRY (Country), CLASS (Classical), and JAZZ.
To activate program types, perform the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until PROGRAM TYPE
MODE appears on the display.
3. Press the TUNE/SEL knob to select ON or OFF.
An X will appear in the box when PTY is selected on.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
Once program type is activated the PTYs will appear
on the display above the pushbuttons, in place of
the preset stations (if programmed). Press the
pushbutton for the PTY that you would like to listen to.
Not all stations support PTYs. The radio may not go
to all of the stations with that music type when pressing
the pushbutton.
AF (Alternate Frequency): Alternate frequency allows
the radio to switch to a stronger station with the
same program type.
To turn AF on or off, perform the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until ALTERNATE
FREQ. appears on the display.
3. Press the TUNE/SEL knob to select AF OFF,
AF ON, or AF REG. An X will appear in the box
when AF is selected on.
4. Press the CLR button to exit the display. To return
to the original display, repeatedly press the CLR
button or wait for the display to time out.
3-97
Radio Message
THEFTLOCK: This message is displayed when the THEFTLOCK
®
system has been activated. Take the vehicle
to the dealer for service. XM™ Radio Messages
Radio Display
Message Condition Action Required
XL (Explicit Language
Channels) XL on the radio display,
after the channel name,
indicates content with
explicit language.
These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
XM Updating Updating
encryption code The encryption code in the receiver is being updated, and
no action is required. This process should take no longer
than 30 seconds.
No XM Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM signal. When the vehicle is
moved into an open area, the signal should return.
Loading XM Acquiring channel audio
(after 4 second delay) The audio system is acquiring and processing audio and
text data. No action is needed. This message should
disappear shortly.
Channel Off Air Channel not in service This channel is not currently in service. Tune in to another
channel.
Channel Unavail Channel no longer
available This previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the
presets, choose another station for that preset button.
No Artist Info Artist Name/Feature
not available No artist information is available at this time on this channel.
The system is working properly.
3-98
XM™ Radio Messages (cont’d)
Radio Display
Message Condition Action Required
No Title Info Song/Program Title
not available No song title information is available at this time on this
channel. The system is working properly.
No CAT Info Category Name
not available No category information is available at this time on this
channel. The system is working properly.
Not Found No channel available for
the chosen category There are no channels available for the selected category.
The system is working properly.
No Information No Text/Informational
message available No text or informational messages are available at this time
on this channel. The system is working properly.
XM Lock Theft lock active The XM receiver in your vehicle may have previously been
in another vehicle. For security purposes, XM receivers
cannot be swapped between vehicles. If this message is
received after having your vehicle serviced, check with
your GM dealer.
XM Radio ID Radio ID label
(channel 0) If tuned to channel 0, this message will alternate with the
XM Radio 8 digit radio ID label. This label is needed to
activate the service.
Unknown Radio ID not known
(should only be if
hardware failure)
If this message is received when tuned to channel 0, there
may be a receiver fault. Consult with your GM dealer.
Check XM Receiver Hardware failure If this message does not clear within a short period of time,
the receiver may have a fault. Consult with your GM dealer.
3-99
Using the Single CD Player
Insert a CD partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on the
CD will begin playing. A CD may be loaded with the radio
off but it will not start playing until the radio is on.
If the ignition or radio is turned off with a CD in the
player, it will stay in the player. When the ignition
or radio is turned on, the CD will start to play where it
stopped, if it was the last selected audio source.
When the CD is inserted, CD will appear on the display.
As each new track starts to play, the track number
will appear on the display.
The CD player can play the smaller 3 inch (8 cm) single
CDs with an adapter ring. Full-size CDs and the
smaller CDs are loaded in the same manner.
If playing a CD-R the sound quality may be reduced
due to CD-R quality, the method of recording, the quality
of the music that has been recorded, and the way the
CD-R has been handled. There may be an increase
in skipping, difficulty in finding tracks, and/or difficulty in
loading and ejecting. If these problems occur try a
known good CD.
Do not add paper labels to CDs, they could get caught
in the CD player.
If an error appears on the display, see “CD Messages”
later in this section.
When a CD is inserted the CD functions will appear on
the display above the pushbuttons, in place of the
preset stations (if programmed).
F1 PREV (Previous): Press this pushbutton to go to
the previous track. Press and hold this pushbutton
to reverse quickly within a track. Release the pushbutton
to play the passage. The elapsed time of the track will
appear on the display.
F2 NEXT: Press this pushbutton to go to the next track.
Press and hold this pushbutton to advance quickly
within a track. Release the pushbutton to play the
passage. The elapsed time of the track will appear on
the display.
F3 RDM (Random): Press this pushbutton to listen to
the tracks in random, rather than sequential, order.
RANDOM will appear on the display. Press RDM again
to turn off random play. RANDOM will disappear
from the display.
F4 RPT (Repeat): Press this pushbutton to hear a track
over again. REPEAT will appear on the display. Press
RPT again to turn off repeat play. REPEAT will
disappear from the display.
3-100
F6 DISP (Display): Press this pushbutton to display
the time of the track. Press this pushbutton again
to remove the time of the track from the display.
QSEEK R:Press the up or the down arrow to go
to the next or to the previous track on the CD.
QSCAN R:Press this button to listen to each track
for 10 seconds. The CD will go to a track, play for
10 seconds, then go on to the next track. Press this
button again to stop scanning.
X(Eject): Press this button to stop a CD when it is
playing or to eject a CD when it is not playing. Eject
may be activated with the ignition and the radio off.
Using the Six-Disc CD Changer
The CD player can play the smaller 3 inch (8 cm) single
CDs with an adapter ring. Full-size CDs and the
smaller CDs are loaded in the same manner.
If playing a CD-R the sound quality may be reduced
due to CD-R quality, the method of recording, the quality
of the music that has been recorded, and the way the
CD-R has been handled. There may be an increase
in skipping, difficulty in finding tracks, and/or difficulty in
loading and ejecting. If these problems occur try a
known good CD.
Do not add paper labels to CDs, they could get caught
in the CD player.
If an error appears on the display, see “CD Messages”
later in this section.
When a CD is inserted the CD functions will appear on
the display above the pushbuttons, in place of the
preset stations (if programmed).
LOAD: Press the LOAD button to load CDs into the CD
player. This CD player will hold up to six CDs.
To insert one CD, do the following:
1. The ignition and the radio can be on or off.
2. Press and release the LOAD button. Please Wait
will appear on the display.
3. Load the CD, when INSERT appears on the
display, insert a CD partway into the slot, label side
up. The player will pull the CD in.
When a CD is inserted, CD will appear on the display,
the number of the CD and the track number will
appear on the display if the radio is on.
If the radio is on, the CD will begin to play automatically.
3-101
To insert multiple CDs, do the following:
1. The ignition and the radio can be on or off.
2. Press and hold the LOAD button for two seconds.
Please Wait will appear on the display and you will
hear a beep.
3. Load the CD, when INSERT appears on the
display, insert a CD partway into the slot, label
side up. The player will pull the CD in.
Do not load a CD until INSERT appears on the
display. The CD player will take up to six CDs.
Do not try to load more than six. If you want to
load less than six CDs, load the desired amount.
The CD player will time out when it does not receive
any more CDs and the last CD loaded will begin
to play.
If the radio is on, the last CD loaded will begin to play
automatically.
F1 CDn(Down): Press this pushbutton to go to the
previous CD.
F2 CDm(Up): Press this pushbutton to go to the
next CD.
CD REV {(Reverse): Press this pushbutton to go to
the previous track. Press and hold this pushbutton to
reverse quickly within the track. Release the pushbutton
to play the passage. The elapsed time of the track
will appear on the display.
CD FWD |(Forward): Press this pushbutton to go
to the next track. Press and hold this pushbutton to
advance quickly within the track. Release the pushbutton
to play the passage. The elapsed time of the track will
appear on the display.
F5 MODE: Press this pushbutton to select from
NORMAL, RPT TRCK (Repeat Track), RPT CD
(Repeat CD), RDM TRK (Random Track), and RDM
ALL (Random All CDs).
•NORMAL: Sets the system for normal play of the
CD(s). NORMAL will not appear on the display
when in this mode.
•RPT TRCK (Repeat Track): Repeats the track over
again. RPT TRCK will appear on the display. Press
the MODE pushbutton again to turn off repeat
play. RPT TRCK will disappear from the display.
•RPT CD (Repeat CD): Repeats the CD over again.
RPT DISC will appear on the display. Press the
MODE pushbutton again to turn off repeat play. RPT
DISC will disappear from the display.
3-102
•RDM TRK (Random Track): Plays the tracks on the
current CD in random, rather than sequential, order.
RDM TRK will appear on the display. Press the
MODE pushbutton again to turn off random play.
RDM TRK will disappear from the display.
•RDM ALL (Random All CDs): Plays all of the CDs
loaded in random, rather than sequential, order.
RDM ALL will appear on the display. Press the
MODE pushbutton again to turn off random play.
RDM ALL will disappear from the display.
F6 DISP (Display): Press this pushbutton to display
the time of the track. Press this pushbutton again
to display CD PLAY and press this pushbutton once
more to clear the display.
QSEEK R:Press the up or the down arrow to go
to the next or to the previous track on the CD.
QSCAN: Press this button to listen to each track
for 10 seconds. The CD will go to a track, play for
10 seconds, then go on to the next track. Press this
button again to stop scanning.
X(Eject): Press this button to eject the CD that is
currently playing, or press and hold this button to eject
all of the CDs loaded. You will hear a beep. Eject
may be activated with the ignition or radio off.
CD Messages
If the CD comes out, it could be for one of the following
reasons:
•If it is very hot. When the temperature returns to
normal, the CD should play.
•If you are driving on a very rough road. When the
road becomes smoother, the CD should play.
•The CD is dirty, scratched, wet, or upside down.
•The air is very humid. If so, wait about an hour
and try again.
•There may have been a problem while burning
the CD.
•The label may be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your GM dealer. If the radio displays
an error message, write it down and provide it to
your GM dealer when reporting the problem.
3-103
Configurable Radio Display Keys
This feature allows you to customize the four keys that
are located on each side of the radio display to
make it easier to adjust the radio features and other
non-radio related features are also available for
customization.
To program the configurable radio display keys, perform
the following steps:
1. Press the TUNE/SEL knob to enter the main menu.
2. Turn the TUNE/SEL knob until SETUP appears
on the display.
3. Press the TUNE/SEL knob to enter into SETUP.
4. Turn the TUNE/SEL knob until CONFIGURE
DISPLAY KEYS appears on the display.
5. Press the TUNE/SEL knob to enter into
CONFIGURE DISPLAY KEYS.
6. Turn the TUNE/SEL knob to select which of the
four configurable keys you would like to change.
The currently assigned feature will be shown.
7. Press the TUNE/SEL knob to select the configurable
key to change.
8. Turn the TUNE/SEL knob to find the feature that
you would like to store to the key.
9. Press the TUNE/SEL knob when you have found
the feature to be stored. The display will update,
by showing the symbol of the feature that you
selected next to the configurable key.
10. Repeat the previous steps for each configurable key.
Once a feature is programmed to a key, the feature
will not appear on the display when programming
the remaining configurable keys. The configurable keys
can be changed at any time.
Navigation/Radio System
Your vehicle may have a navigation radio system that
includes Radio Data System (RDS) with Program
Type (PTY) selections that will seek out the kind of
music you want to listen to and XM™ Satellite Radio
Service capabilities (if equipped). The radio can
also communicate with the navigation system to
broadcast announcements on traffic, weather, and
emergency alert communications. For information on
how to use this system, see the “Navigation System”
manual.
3-104
Theft-Deterrent Feature
THEFTLOCK
®
is designed to discourage theft of your
vehicle’s radio. The feature works automatically by
learning a portion of the Vehicle Identification Number
(VIN). If the radio is moved to a different vehicle, it
will not operate. If the radio is removed from your
vehicle, the original VIN in the radio can be used to
trace the radio back to your vehicle.
With THEFTLOCK
®
activated, the radio will not operate
if stolen.
Audio Steering Wheel
Controls (CTS)
Some audio functions
can be adjusted at the
steering wheel. They
include the following:
Volume: Turn this knob to increase or to decrease
the volume.
e(Band/Source): Press this button to switch between
FM1, FM2, AM, or XM1 or XM2 (if equipped), radio,
or CD.
For vehicles with the six-disc CD changer radio: If none
of the audio sources are loaded, and this button is
pressed, NO SOURCE LOADED will appear on
the display.
g(OnStar/Voice Recognition): Press this button to
interact with the OnStar
®
system. See the OnStar
®
manual provided with your vehicle for more information.
If your vehicle does not have the OnStar
®
System,
pressing this button will silence the system. Press
this button again or turn the VOL knob to turn the
sound on.
3-105
If your vehicle has the navigation system, press this
button to initiate voice recognition. See “Voice
Recognition” in the Navigation System manual for more
information. You may be able to interact with the
OnStar
®
system using this button. See the OnStar
®
manual provided with your vehicle for more information.
See
Reconfigurable
Steering Wheel Controls
(SWC) (CTS) on page 3-7
for more information on
this feature.
Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause station
frequencies to interfere with each other. Static can occur
on AM stations caused by things like storms and power
lines. Try reducing the treble to reduce this noise.
FM Stereo
FM stereo will give the best sound, but FM signals will
reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound to fade in and out.
XM™ Satellite Radio Service
XM™ Satellite Radio Service gives digital radio
reception from coast to coast. Just as with FM, tall
buildings or hills can interfere with satellite radio signals,
causing the sound to fade in and out. The radio may
display NO XM SIGNAL to indicate interference.
Cellular Phone Usage
Cellular phone usage may cause interference with your
vehicle’s radio. This interference may occur when
making or receiving phone calls, charging the phone’s
battery, or simply having the phone on. This interference
is an increased level of static while listening to the
radio. If static is received while listening to the radio,
unplug the cellular phone and turn it off.
Care of Your CDs
Handle CDs carefully. Store them in their original cases
or other protective cases and away from direct
sunlight and dust. If the surface of a CD is soiled,
dampen a clean, soft cloth in a mild, neutral detergent
solution and clean it, wiping from the center to the edge.
3-106
Be sure never to touch the side without writing when
handling CDs. Pick up CDs by grasping the outer edges
or the edge of the hole and the outer edge.
Care of Your CD Player
The use of CD lens cleaners for CD players is not
advised, due to the risk of contaminating the lens of the
CD optics with lubricants internal to the CD mechanism.
Diversity Antenna System
The AM-FM antenna is integrated with the rear window
defogger, located in the rear window. Make sure that
the inside surface of the rear window is not scratched
and that the grid lines on the glass are not damaged.
If the inside surface is damaged, it could interfere
with radio reception.
Notice:
Do not apply aftermarket glass tinting
with metallic film. The metallic film in some tinting
materials will interfere with or distort the incoming
radio reception. Any damage caused to your
backglass antenna due to metallic tinting materials
will not be covered by your warranty.
Notice:
Do not try to clear frost or other material
from the inside of the front windshield and rear
window with a razor blade or anything else that is
sharp. This may damage the rear window defogger
grid and affect your radio’s ability to pick up
stations clearly. The repairs wouldn’t be covered by
your warranty.
If static is heard on the radio, when the rear window
defogger is turned on, it could mean that a defogger grid
line has been damaged. If this is true, the grid line
must be repaired.
If adding an aftermarket cellular telephone to your
vehicle, and the antenna needs to be attached to the
glass, make sure that the grid lines for the AM-FM
antennas are not damaged. Make sure the cellular
telephone antenna does not touch a grid line.
XM™ Satellite Radio Antenna
System
The XM™ Satellite Radio antenna is located on the
roof of your vehicle. Keep this antenna clear of snow
and ice build up for clear radio reception.
3-107
✍NOTES
3-108
Your Driving, the Road, and Your Vehicle ..........4-2
Defensive Driving ...........................................4-2
Drunken Driving .............................................4-2
Control of a Vehicle ........................................4-5
Braking .........................................................4-5
Anti-Lock Brake System (ABS) .........................4-6
Braking in Emergencies ...................................4-8
Traction Control System (TCS) (CTS) ..................4-8
Traction Control System (TCS) (CTS-V) ...........4-10
Competitive Driving Mode ..............................4-11
Limited-Slip Rear Axle ...................................4-11
Stabilitrak
®
System .......................................4-11
Panic Brake Assist ........................................4-12
Steering ......................................................4-12
Off-Road Recovery .......................................4-15
Passing .......................................................4-15
Loss of Control .............................................4-17
Driving at Night ............................................4-18
Driving in Rain and on Wet Roads ..................4-19
City Driving ..................................................4-22
Freeway Driving ...........................................4-23
Before Leaving on a Long Trip .......................4-24
Highway Hypnosis ........................................4-25
Hill and Mountain Roads ................................4-26
Winter Driving ..............................................4-28
If You Are Stuck: In Sand, Mud, Ice or Snow ........4-32
Rocking Your Vehicle to Get It Out .................4-33
Loading Your Vehicle ....................................4-33
Towing ..........................................................4-38
Towing Your Vehicle .....................................4-38
Recreational Vehicle Towing ...........................4-38
Towing a Trailer ...........................................4-40
Section 4 Driving Your Vehicle
4-1
Your Driving, the Road, and
Your Vehicle
Defensive Driving
The best advice anyone can give about driving is: Drive
defensively.
Please start with a very important safety device in your
vehicle: Buckle up. See
Safety Belts: They Are for
Everyone on page 1-8
.
Defensive driving really means “be ready for anything.”
On city streets, rural roads, or freeways, it means
“always expect the unexpected.”
Assume that pedestrians or other drivers are going to
be careless and make mistakes. Anticipate what
they might do. Be ready for their mistakes.
Rear-end collisions are about the most preventable of
accidents. Yet they are common. Allow enough following
distance. It is the best defensive driving maneuver, in
both city and rural driving. You never know when the
vehicle in front of you is going to brake or turn suddenly.
Defensive driving requires that a driver concentrate on
the driving task. Anything that distracts from the
driving task — such as concentrating on a cellular
telephone call, reading, or reaching for something on
the floor — makes proper defensive driving more
difficult and can even cause a collision, with resulting
injury. Ask a passenger to help do things like this, or
pull off the road in a safe place to do them yourself.
These simple defensive driving techniques could save
your life.
Drunken Driving
Death and injury associated with drinking and driving is
a national tragedy. It is the number one contributor
to the highway death toll, claiming thousands of victims
every year.
Alcohol affects four things that anyone needs to drive
a vehicle:
•Judgment
•Muscular Coordination
•Vision
•Attentiveness
Police records show that almost half of all motor
vehicle-related deaths involve alcohol. In most cases,
these deaths are the result of someone who was
drinking and driving. In recent years, more than
16,000 annual motor vehicle-related deaths have been
associated with the use of alcohol, with more than
300,000 people injured.
4-2
Many adults — by some estimates, nearly half the
adult population — choose never to drink alcohol, so
they never drive after drinking. For persons under 21,
it is against the law in every U.S. state to drink alcohol.
There are good medical, psychological and
developmental reasons for these laws.
The obvious way to eliminate the leading highway safety
problem is for people never to drink alcohol and then
drive. But what if people do? How much is “too much”
if someone plans to drive? It is a lot less than many might
think. Although it depends on each person and situation,
here is some general information on the problem.
The Blood Alcohol Concentration (BAC) of someone
who is drinking depends upon four things:
•The amount of alcohol consumed
•The drinker’s body weight
•The amount of food that is consumed before and
during drinking
•The length of time it has taken the drinker to
consume the alcohol
According to the American Medical Association, a
180 lb (82 kg) person who drinks three 12 ounce (355 ml)
bottles of beer in an hour will end up with a BAC of about
0.06 percent. The person would reach the same BAC
by drinking three 4 ounce (120 ml) glasses of wine or
three mixed drinks if each had 1-1/2 ounces (45 ml) of
liquors like whiskey, gin, or vodka.
It is the amount of alcohol that counts. For example,
if the same person drank three double martinis
(3 ounces or 90 ml of liquor each) within an hour,
the person’s BAC would be close to 0.12 percent.
A person who consumes food just before or during
drinking will have a somewhat lower BAC level.
4-3
There is a gender difference, too. Women generally
have a lower relative percentage of body water
than men. Since alcohol is carried in body water, this
means that a woman generally will reach a higher BAC
level than a man of her same body weight will when
each has the same number of drinks.
The law in most U.S. states, and throughout Canada,
sets the legal limit at 0.08 percent. In some other
countries, the limit is even lower. For example, it is
0.05 percent in both France and Germany. The
BAC limit for all commercial drivers in the United States
is 0.04 percent.
The BAC will be over 0.10 percent after three to
six drinks (in one hour). Of course, as we have seen,
it depends on how much alcohol is in the drinks,
and how quickly the person drinks them.
But the ability to drive is affected well below a BAC of
0.10 percent. Research shows that the driving skills
of many people are impaired at a BAC approaching
0.05 percent, and that the effects are worse at night. All
drivers are impaired at BAC levels above 0.05 percent.
Statistics show that the chance of being in a collision
increases sharply for drivers who have a BAC of
0.05 percent or above. A driver with a BAC level of
0.06 percent has doubled his or her chance of having a
collision. At a BAC level of 0.10 percent, the chance
of this driver having a collision is 12 times greater; at a
level of 0.15 percent, the chance is 25 times greater!
The body takes about an hour to rid itself of the alcohol in
one drink. No amount of coffee or number of cold
showers will speed that up. “I will be careful” is not the
right answer. What if there is an emergency, a need to
take sudden action, as when a child darts into the street?
A person with even a moderate BAC might not be able to
react quickly enough to avoid the collision.
There is something else about drinking and driving that
many people do not know. Medical research shows that
alcohol in a person’s system can make crash injuries
worse, especially injuries to the brain, spinal cord, or
heart. This means that when anyone who has been
drinking — driver or passenger — is in a crash, that
person’s chance of being killed or permanently disabled
is higher than if the person had not been drinking.
4-4
{CAUTION:
Drinking and then driving is very dangerous.
Your reflexes, perceptions, attentiveness, and
judgment can be affected by even a small
amount of alcohol. You can have a serious — or
even fatal — collision if you drive after drinking.
Please do not drink and drive or ride with a
driver who has been drinking. Ride home in a
cab; or if you are with a group, designate a
driver who will not drink.
Control of a Vehicle
You have three systems that make your vehicle go where
you want it to go. They are the brakes, the steering, and
the accelerator. All three systems have to do their work
at the places where the tires meet the road.
Sometimes, as when you are driving on snow or ice,
it is easy to ask more of those control systems than the
tires and road can provide. That means you can lose
control of your vehicle. See
Traction Control System
(TCS) (CTS) on page 4-8
or
Traction Control System
(TCS) (CTS-V) on page 4-10
.
Braking
Braking action involves perception time and
reaction time.
First, you have to decide to push on the brake pedal.
That is perception time. Then you have to bring up your
foot and do it. That is reaction time.
Average reaction time is about three-fourths of a
second. But that is only an average. It might be less
with one driver and as long as two or three seconds or
more with another. Age, physical condition, alertness,
coordination and eyesight all play a part. So do alcohol,
drugs and frustration. But even in three-fourths of a
second, a vehicle moving at 60 mph (100 km/h) travels
66 feet (20 m). That could be a lot of distance in an
emergency, so keeping enough space between
your vehicle and others is important.
And, of course, actual stopping distances vary greatly
with the surface of the road (whether it is pavement
or gravel); the condition of the road (wet, dry, icy); tire
tread; the condition of your brakes; the weight of
the vehicle and the amount of brake force applied.
4-5
Avoid needless heavy braking. Some people drive in
spurts — heavy acceleration followed by heavy
braking — rather than keeping pace with traffic. This
is a mistake. Your brakes may not have time to cool
between hard stops. Your brakes will wear out much
faster if you do a lot of heavy braking. If you keep pace
with the traffic and allow realistic following distances,
you will eliminate a lot of unnecessary braking. That
means better braking and longer brake life.
If your engine ever stops while you are driving, brake
normally but do not pump your brakes. If you do,
the pedal may get harder to push down. If your engine
stops, you will still have some power brake assist.
But you will use it when you brake. Once the power
assist is used up, it may take longer to stop and
the brake pedal will be harder to push.
Anti-Lock Brake System (ABS)
Your vehicle has anti-lock brakes. ABS is an advanced
electronic braking system that will help prevent a
braking skid.
When you start your engine and begin to drive away,
your anti-lock brake system will check itself. You
may hear a momentary motor or clicking noise while
this test is going on, and you may even notice that your
brake pedal moves a little. This is normal.
If there is a problem with
the anti-lock brake system,
this warning light will
stay on. See
Anti-Lock
Brake System Warning
Light on page 3-43
.
4-6
3
Let us say the road is wet and you are driving safely.
Suddenly, an animal jumps out in front of you. You slam
on the brakes and continue braking. Here is what
happens with ABS:
A computer senses that wheels are slowing down. If
one of the wheels is about to stop rolling, the computer
will separately work the brakes at each wheel.
The anti-lock system can change the brake pressure
faster than any driver could. The computer is
programmed to make the most of available tire and
road conditions. This can help you steer around the
obstacle while braking hard.
As you brake, your computer keeps receiving updates on
wheel speed and controls braking pressure accordingly.
4-7
Remember: Anti-lock does not change the time you
need to get your foot up to the brake pedal or always
decrease stopping distance. If you get too close to
the vehicle in front of you, you will not have time to apply
your brakes if that vehicle suddenly slows or stops.
Always leave enough room up ahead to stop, even
though you have anti-lock brakes.
Using Anti-Lock
Do not pump the brakes. Just hold the brake pedal
down firmly and let anti-lock work for you. You may
hear the anti-lock pump or motor operate, and feel the
brake pedal pulsate, but this is normal.
Braking in Emergencies
With anti-lock, you can steer and brake at the same
time. In many emergencies, steering can help you
more than even the very best braking.
Traction Control System (TCS) (CTS)
Your vehicle has a traction control system that limits
wheel spin. This is especially useful in slippery
road conditions. The system operates only if it senses
that one or both of the rear wheels are spinning or
beginning to lose traction. When this happens,
the system brakes the spinning wheel(s) and/or reduces
engine power to limit wheel spin.
You may feel or hear the system working, but this is
normal.
This warning light will
come on to let you know
if there’s a problem
with your traction control
system.
See
Traction Control System (TCS) Warning Light on
page 3-43
. When this warning light is on, the system will
not limit wheel spin. Adjust your driving accordingly.
4-8
The traction control system automatically comes on
whenever you start your vehicle. To limit wheel
spin, especially in slippery road conditions, you should
always leave the system on. But you can turn the
traction control system off if you ever need to. You
should turn the system off if your vehicle ever gets stuck
in sand, mud or snow and rocking the vehicle is
required. Additionally, turning the traction control system
off on some surfaces, such as deep snow and loose
gravel, will assist vehicle motion at lower speeds. See
Rocking Your Vehicle to Get It Out on page 4-33
for
more information. See also
Winter Driving on page 4-28
for information on using TCS when driving in snowy
or icy conditions.
You can turn the system
off by pressing the TC
(traction control) button
located in the glove box.
If you press the TC button once, the traction control
system will turn off and the traction control system
warning light will come on. Press the TC button again to
turn the system back on. If you press and hold the
TC button for five seconds, the Stabilitrak
®
system will
turn off. Press the TC button again to turn Stabilitrak
®
back on. For more information, see
Stabilitrak
®
System
on page 4-11
.
You can program your steering wheel controls (CTS
only) and/or the buttons on the Base audio system
to turn the TCS on or off. See
Reconfigurable Steering
Wheel Controls (SWC) (CTS) on page 3-7
and/or
“Configurable Radio Display Keys” under
Radio with
CD on page 3-89
for programming instructions.
4-9
Traction Control System (TCS)
(CTS-V)
Your vehicle has a traction control system that limits
wheel spin. This is especially useful in slippery
road conditions. The system operates only if it senses
that one or both of the rear wheels are spinning or
beginning to lose traction. When this happens,
the system brakes the spinning wheel(s) and/or reduces
engine power to limit wheel spin.
You may feel or hear the system working, but this
is normal.
This warning light
will come on to let
you know if there’s
a problem with your
traction control
system.
See
Traction Control System (TCS) Warning Light on
page 3-43
. When this warning light is on, the system will
not limit wheel spin. Adjust your driving accordingly.
The traction control system automatically comes
on whenever you start your vehicle. To limit wheel
spin, especially in slippery road conditions, you should
always leave the system on. But you can turn the
traction control system off if you ever need to.
You should turn the system off if your vehicle ever gets
stuck in sand, mud or snow and rocking the vehicle
is required. Additionally, turning the traction control
system off on some surfaces, such as deep snow and
loose gravel, will assist vehicle motion at lower speeds.
See
Rocking Your Vehicle to Get It Out on page 4-33
and
If You Are Stuck: In Sand, Mud, Ice or Snow
on page 4-32
for more information. See also
Winter
Driving on page 4-28
for information on using TCS when
driving in snowy or icy conditions.
You can turn the
system off by pressing
the TC (traction control)
button located on the
steering wheel.
If you press the TC button once, the traction control
system will turn off and the traction control system
warning light will come on. If you press the TC button
again within five seconds, the traction control system will
remain off, the warning light will stay on, and the
stability system will enter Competitive Driving Mode.
Competitive Driving will be displayed on the Driver
Information Center (DIC). See
DIC Warnings and
Messages on page 3-65
for more information. Press
the TC button again to turn the system back on.
4-10
If you press and hold the TC button for five seconds,
the Stabilitrak
®
and Traction Control systems will
turn off. Press the TC button again to turn Stabilitrak
®
and Traction Control back on. For more information,
see
Stabilitrak
®
System on page 4-11
.
Competitive Driving Mode
The driver can select this optional handling mode by
pressing the Traction Control button on the steering
wheel twice within five seconds. COMPETITIVE
DRIVING will be displayed in the DIC. Competitive
driving mode allows the driver to have control of
the power applied to the rear wheels, while the
Stabilitrak
®
system helps steer the vehicle by selective
brake application. In competitive mode, the levels at
which Stabilitrak
®
is engaged have been modified
to better suit a performance driving environment.
When the instrument cluster light is on, the Traction
Control System will not be operating. Adjust your
driving accordingly.
When you press the Traction Control button again, or
turn the ignition to ACC, the Traction Control System will
be on. The traction engaged symbol will be displayed
temporarily in the DIC and a chime will be heard.
Limited-Slip Rear Axle
Your limited-slip rear axle can give you additional
traction on snow, mud, ice, sand or gravel. It works like a
standard axle most of the time, but when one of the rear
wheels has no traction and the other does, this feature
will allow the wheel with traction to move the vehicle.
Stabilitrak
®
System
Your vehicle may be equipped with a vehicle stability
enhancement system called Stabilitrak
®
.Itisan
advanced computer controlled system that assists
you with directional control of the vehicle in difficult
driving conditions.
Stabilitrak
®
activates when the computer senses a
discrepancy between your intended path and the
direction the vehicle is actually traveling. Stabilitrak
®
selectively applies braking pressure at any one of
the vehicle’s brakes to help steer the vehicle in the
direction which you are steering.
When the system activates, a Stability System Engaged
message will be displayed on the Driver Information
Center. See
DIC Warnings and Messages on page 3-65
.
You may also hear a noise or feel vibration in the
brake pedal. This is normal. Continue to steer the
vehicle in the direction you want it to go.
4-11
If there is a problem detected with Stabilitrak
®
,a
Service Stability System message will be displayed
on the Driver Information Center. See
DIC Warnings
and Messages on page 3-65
. When this message
is displayed, the system is not operational. Driving
should be adjusted accordingly.
Stabilitrak
®
comes on automatically whenever you
start your vehicle. To help assist you with directional
control of the vehicle, you should always leave the
system on. You can turn Stabilitrak
®
off if you ever
need to through the TC (traction control) on/off
button. See
Traction Control System (TCS) (CTS)
on page 4-8
or
Traction Control System (TCS) (CTS-V)
on page 4-10
.
If your vehicle is in cruise control when the Stabilitrak
®
activates, the cruise control will automatically
disengage. When road conditions allow you to safely
use it again, you may reengage the cruise control. See
Cruise Control (CTS) on page 3-13
or
Cruise Control
(CTS-V) on page 3-17
for more information.
Panic Brake Assist
Your vehicle has a panic brake assist system that
monitors the intention of the driver while braking. If the
system senses that the driver has applied hard/fast
pressure to the brake pedal, the system will generate
additional pressure, making it easier for the driver to
maintain brake application. When this happens the brake
pedal will feel easier to push. Just hold the brake pedal
down firmly and let the system work for you. You may feel
the brakes vibrate, or you may notice some noise but this
is normal. The brakes will return to normal operation after
the brake pedal has been released.
Steering
Power Steering
If you lose power steering assist because the engine
stops or the system is not functioning, you can steer but
it will take much more effort.
Speed Variable Assist Steering
If your vehicle has this system, it varies the amount of
effort required to steer the vehicle in relation to the
speed of the vehicle.
4-12
The amount of steering effort required is less at
slower speeds to make the vehicle more maneuverable
and easier to park. At faster speeds, the steering
effort increases to provide a sport-like feel to the
steering. This provides maximum control and stability.
If your vehicle seems harder to steer than normal
when parking or driving slowly, there may be a problem
with the system. You will still have power steering,
but steering will be stiffer than normal at slow speeds.
See your dealer for service.
Steering Tips
Driving on Curves
It is important to take curves at a reasonable speed.
A lot of the “driver lost control” accidents mentioned
on the news happen on curves. Here is why:
Experienced driver or beginner, each of us is subject
to the same laws of physics when driving on curves.
The traction of the tires against the road surface
makes it possible for the vehicle to change its path
when you turn the front wheels. If there is no traction,
inertia will keep the vehicle going in the same direction.
If you have ever tried to steer a vehicle on wet ice,
you will understand this.
The traction you can get in a curve depends on the
condition of your tires and the road surface, the angle
at which the curve is banked, and your speed. While you
are in a curve, speed is the one factor you can control.
Suppose you are steering through a sharp curve.
Then you suddenly accelerate. Both control
systems — steering and acceleration — have to do
their work where the tires meet the road. Adding
the sudden acceleration can demand too much of those
places. You can lose control. See
Traction Control
System (TCS) (CTS) on page 4-8
or
Traction Control
System (TCS) (CTS-V) on page 4-10
.
What should you do if this ever happens? Ease up on
the accelerator pedal, steer the vehicle the way you
want it to go, and slow down.
Speed limit signs near curves warn that you should
adjust your speed. Of course, the posted speeds
are based on good weather and road conditions. Under
less favorable conditions you will want to go slower.
If you need to reduce your speed as you approach
a curve, do it before you enter the curve, while your front
wheels are straight ahead.
Try to adjust your speed so you can “drive” through the
curve. Maintain a reasonable, steady speed. Wait to
accelerate until you are out of the curve, and then
accelerate gently into the straightaway.
4-13
Steering in Emergencies
There are times when steering can be more effective
than braking. For example, you come over a hill and find
a truck stopped in your lane, or a car suddenly pulls
out from nowhere, or a child darts out from between
parked cars and stops right in front of you. You
can avoid these problems by braking — if you can stop
in time. But sometimes you cannot; there is not room.
That is the time for evasive action — steering around
the problem.
Your vehicle can perform very well in emergencies like
these. First apply your brakes.
See
Braking on page 4-5
. It is better to remove as
much speed as you can from a possible collision. Then
steer around the problem, to the left or right depending
on the space available.
An emergency like this requires close attention and a
quick decision. If you are holding the steering wheel at
the recommended 9 and 3 o’clock positions, you
can turn it a full 180 degrees very quickly without
removing either hand. But you have to act fast, steer
quickly, and just as quickly straighten the wheel
once you have avoided the object.
The fact that such emergency situations are always
possible is a good reason to practice defensive driving
at all times and wear safety belts properly.
4-14
Off-Road Recovery
You may find that your right wheels have dropped off the
edge of a road onto the shoulder while you’re driving.
If the level of the shoulder is only slightly below the
pavement, recovery should be fairly easy. Ease off the
accelerator and then, if there is nothing in the way,
steer so that your vehicle straddles the edge of
the pavement. You can turn the steering wheel up to
one-quarter turn until the right front tire contacts
the pavement edge. Then turn your steering wheel to
go straight down the roadway.
Passing
The driver of a vehicle about to pass another on a
two-lane highway waits for just the right moment,
accelerates, moves around the vehicle ahead, then
goes back into the right lane again. A simple maneuver?
Not necessarily! Passing another vehicle on a two-lane
highway is a potentially dangerous move, since the
passing vehicle occupies the same lane as oncoming
traffic for several seconds. A miscalculation, an error in
judgment, or a brief surrender to frustration or anger
can suddenly put the passing driver face to face with the
worst of all traffic accidents — the head-on collision.
So here are some tips for passing:
•Drive ahead. Look down the road, to the sides
and to crossroads for situations that might affect
your passing patterns. If you have any doubt
whatsoever about making a successful pass, wait
for a better time.
•Watch for traffic signs, pavement markings and
lines. If you can see a sign up ahead that might
indicate a turn or an intersection, delay your pass.
A broken center line usually indicates it is all
right to pass, providing the road ahead is clear.
Never cross a solid line on your side of the lane or
a double solid line, even if the road seems empty
of approaching traffic.
4-15
•Do not get too close to the vehicle you want to
pass while you are awaiting an opportunity. For one
thing, following too closely reduces your area of
vision, especially if you are following a larger
vehicle. Also, you will not have adequate space if
the vehicle ahead suddenly slows or stops.
Keep back a reasonable distance.
•When it looks like a chance to pass is coming up,
start to accelerate but stay in the right lane and
do not get too close. Time your move so you will
be increasing speed as the time comes to move into
the other lane. If the way is clear to pass, you will
have a running start that more than makes up
for the distance you would lose by dropping back.
And if something happens to cause you to
cancel your pass, you need only slow down and
drop back again and wait for another opportunity.
•If other vehicles are lined up to pass a slow vehicle,
wait your turn. But take care that someone is not
trying to pass you as you pull out to pass the slow
vehicle. Remember to glance over your shoulder
and check the blind spot.
•Check your mirrors, glance over your shoulder,
and start your left lane change signal before moving
out of the right lane to pass. When you are far
enough ahead of the passed vehicle to see its
front in your inside mirror, activate your right lane
change signal and move back into the right
lane. Remember that your right outside mirror is
convex. The vehicle you just passed may seem
to be farther away from you than it really is.
•Try not to pass more than one vehicle at a time on
two-lane roads. Reconsider before passing the
next vehicle.
•Do not overtake a slowly moving vehicle too rapidly.
Even though the brake lamps are not flashing, it
may be slowing down or starting to turn.
•If you are being passed, make it easy for the
following driver to get ahead of you. Perhaps
you can ease a little to the right.
4-16
Loss of Control
Let us review what driving experts say about what
happens when the three control systems — brakes,
steering, and acceleration — do not have enough friction
where the tires meet the road to do what the driver
has asked.
In any emergency, do not give up. Keep trying to
steer and constantly seek an escape route or area
of less danger.
Skidding
In a skid, a driver can lose control of the vehicle.
Defensive drivers avoid most skids by taking reasonable
care suited to existing conditions, and by not overdriving
those conditions. But skids are always possible.
The three types of skids correspond to your vehicle’s
three control systems. In the braking skid, your wheels
are not rolling. In the steering or cornering skid, too
much speed or steering in a curve causes tires to
slip and lose cornering force. And in the acceleration
skid, too much throttle causes the driving wheels to spin.
A cornering skid is best handled by easing your foot
off the accelerator pedal.
Remember: Any traction control system helps avoid only
the acceleration skid. If your traction control system is
off, then an acceleration skid is also best handled
by easing your foot off the accelerator pedal.
If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want
the vehicle to go. If you start steering quickly enough,
your vehicle may straighten out. Always be ready
for a second skid if it occurs.
Of course, traction is reduced when water, snow, ice,
gravel, or other material is on the road. For safety,
you will want to slow down and adjust your driving to
these conditions. It is important to slow down on slippery
surfaces because stopping distance will be longer and
vehicle control more limited.
While driving on a surface with reduced traction, try
your best to avoid sudden steering, acceleration,
or braking, including engine braking by shifting to a
lower gear. Any sudden changes could cause the tires
to slide. You may not realize the surface is slippery
until your vehicle is skidding. Learn to recognize warning
clues — such as enough water, ice, or packed snow
on the road to make a mirrored surface — and
slow down when you have any doubt.
Remember: Any anti-lock brake system (ABS) helps
avoid only the braking skid.
4-17
Driving at Night
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to be
impaired — by alcohol or drugs, with night vision
problems, or by fatigue.
Here are some tips on night driving.
•Drive defensively.
•Do not drink and drive.
•Since you cannot see as well, you may need to
slow down and keep more space between you
and other vehicles.
•Slow down, especially on higher speed roads.
Your headlamps can light up only so much
road ahead.
•In remote areas, watch for animals.
•If you are tired, pull off the road in a safe place
and rest.
No one can see as well at night as in the daytime.
But as we get older these differences increase.
A 50-year-old driver may require at least twice as much
light to see the same thing at night as a 20-year-old.
What you do in the daytime can also affect your
night vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your
eyes will have less trouble adjusting to night. But if you
are driving, do not wear sunglasses at night. They
may cut down on glare from headlamps, but they also
make a lot of things invisible.
4-18
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even several
seconds, for your eyes to re-adjust to the dark. When
you are faced with severe glare, as from a driver
who does not lower the high beams, or a vehicle with
misaimed headlamps, slow down a little. Avoid
staring directly into the approaching headlamps.
Keep your windshield and all the glass on your vehicle
clean — inside and out. Glare at night is made much
worse by dirt on the glass. Even the inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less
of a roadway when you are in a turn or curve. Keep
your eyes moving; that way, it is easier to pick out
dimly lighted objects. Just as your headlamps should
be checked regularly for proper aim, so should your
eyes be examined regularly. Some drivers suffer
from night blindness — the inability to see in dim
light — and are not even aware of it.
Driving in Rain and on Wet Roads
Rain and wet roads can mean driving trouble. On a
wet road, you cannot stop, accelerate, or turn as well
because your tire-to-road traction is not as good as
on dry roads. And, if your tires do not have much tread
left, you will get even less traction. It is always wise
to go slower and be cautious if rain starts to fall while
you are driving. The surface may get wet suddenly when
your reflexes are tuned for driving on dry pavement.
4-19
The heavier the rain, the harder it is to see. Even if
your windshield wiper blades are in good shape, a heavy
rain can make it harder to see road signs and traffic
signals, pavement markings, the edge of the road, and
even people walking.
It is wise to keep your windshield wiping equipment in
good shape and keep your windshield washer tank
filled with washer fluid. Replace your windshield wiper
inserts when they show signs of streaking or missing
areas on the windshield, or when strips of rubber start
to separate from the inserts.
Driving too fast through large water puddles or even
going through some car washes can cause problems,
too. The water may affect your brakes. Try to avoid
puddles. But if you cannot, try to slow down before
you hit them.
{CAUTION:
Wet brakes can cause accidents. They will not
work as well in a quick stop and may cause
pulling to one side. You could lose control of
the vehicle.
After driving through a large puddle of water
or a car wash, apply your brake pedal lightly
until your brakes work normally.
Hydroplaning
Hydroplaning is dangerous. So much water can build up
under your tires that they can actually ride on the
water. This can happen if the road is wet enough and
you are going fast enough. When your vehicle is
hydroplaning, it has little or no contact with the road.
4-20
Hydroplaning does not happen often. But it can if your
tires do not have much tread or if the pressure in one or
more is low. It can happen if a lot of water is standing
on the road. If you can see reflections from trees,
telephone poles, or other vehicles, and raindrops dimple
the water’s surface, there could be hydroplaning.
Hydroplaning usually happens at higher speeds. There
just is not a hard and fast rule about hydroplaning.
The best advice is to slow down when it is raining.
Driving Through Deep Standing Water
Notice:
If you drive too quickly through deep
puddles or standing water, water can come in
through your engine’s air intake and badly damage
your engine. Never drive through water that is
slightly lower than the underbody of your vehicle.
If you cannot avoid deep puddles or standing water,
drive through them very slowly.
Driving Through Flowing Water
{CAUTION:
Flowing or rushing water creates strong
forces. If you try to drive through flowing
water, as you might at a low water crossing,
your vehicle can be carried away. As little as
six inches of flowing water can carry away
a smaller vehicle. If this happens, you and
other vehicle occupants could drown. Do not
ignore police warning signs, and otherwise be
very cautious about trying to drive through
flowing water.
Some Other Rainy Weather Tips
•Besides slowing down, allow some extra following
distance. And be especially careful when you
pass another vehicle. Allow yourself more clear
room ahead, and be prepared to have your
view restricted by road spray.
•Have good tires with proper tread depth.
See
Tires on page 5-54
.
4-21
City Driving
One of the biggest problems with city streets is the
amount of traffic on them. You will want to watch out for
what the other drivers are doing and pay attention to
traffic signals.
Here are ways to increase your safety in city driving:
•Know the best way to get to where you are
going. Get a city map and plan your trip into
an unknown part of the city just as you would for
a cross-country trip.
•Try to use the freeways that rim and crisscross
most large cities. You will save time and energy.
See
Freeway Driving on page 4-23
.
•Treat a green light as a warning signal. A traffic
light is there because the corner is busy enough
to need it. When a light turns green, and just before
you start to move, check both ways for vehicles
that have not cleared the intersection or may
be running the red light.
4-22
Freeway Driving
Mile for mile, freeways — also called thruways, parkways,
expressways, turnpikes, or superhighways — are the
safest of all roads. But they have their own special rules.
The most important advice on freeway driving is: Keep up
with traffic and keep to the right. Drive at the same speed
most of the other drivers are driving. Too-fast or too-slow
driving breaks a smooth traffic flow. Treat the left lane on
a freeway as a passing lane.
At the entrance, there is usually a ramp that leads to
the freeway. If you have a clear view of the freeway as
you drive along the entrance ramp, you should begin
to check traffic. Try to determine where you expect
to blend with the flow. Try to merge into the gap at
close to the prevailing speed. Switch on your turn signal,
check your mirrors, and glance over your shoulder as
often as necessary. Try to blend smoothly with the
traffic flow.
Once you are on the freeway, adjust your speed to
the posted limit or to the prevailing rate if it is slower.
Stay in the right lane unless you want to pass.
Before changing lanes, check your mirrors. Then use
your turn signal.
Just before you leave the lane, glance quickly over your
shoulder to make sure there is not another vehicle in
your blind spot.
4-23
Once you are moving on the freeway, make certain
you allow a reasonable following distance.
Expect to move slightly slower at night.
When you want to leave the freeway, move to the
proper lane well in advance. If you miss your exit,
do not, under any circumstances, stop and back up.
Drive on to the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted. Reduce your speed
according to your speedometer, not to your sense
of motion. After driving for any distance at higher
speeds, you may tend to think you are going slower
than you actually are.
Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If you
must start when you are not fresh — such as after
a day’s work — do not plan to make too many miles
that first part of the journey. Wear comfortable clothing
and shoes you can easily drive in.
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it needs
service, have it done before starting out. Of course, you
will find experienced and able service experts in GM
dealerships all across North America. They will be
ready and willing to help if you need it.
Here are some things you can check before a trip:
•
Windshield Washer Fluid:
Is the reservoir full?
Are all windows clean inside and outside?
•
Wiper Blades:
Are they in good shape?
•
Fuel, Engine Oil, Other Fluids:
Have you checked
all levels?
•
Lamps:
Are they all working? Are the lenses clean?
•
Tires:
They are vitally important to a safe,
trouble-free trip. Is the tread good enough for
long-distance driving? Are the tires all inflated
to the recommended pressure?
•
Weather Forecasts:
What is the weather outlook
along your route? Should you delay your trip a
short time to avoid a major storm system?
•
Maps:
Do you have up-to-date maps?
4-24
Highway Hypnosis
Is there actually such a condition as highway hypnosis?
Or is it just plain falling asleep at the wheel? Call it
highway hypnosis, lack of awareness, or whatever.
There is something about an easy stretch of road with
the same scenery, along with the hum of the tires on
the road, the drone of the engine, and the rush of
the wind against the vehicle that can make you sleepy.
Do not let it happen to you! If it does, your vehicle
can leave the road in less than a second, and you could
crash and be injured.
What can you do about highway hypnosis? First, be
aware that it can happen.
Then here are some tips:
•Make sure your vehicle is well ventilated, with a
comfortably cool interior.
•Keep your eyes moving. Scan the road ahead and
to the sides. Check your rearview mirrors and your
instruments frequently.
•If you get sleepy, pull off the road into a rest,
service, or parking area and take a nap, get some
exercise, or both. For safety, treat drowsiness
on the highway as an emergency.
4-25
Hill and Mountain Roads
Driving on steep hills or mountains is different from
driving in flat or rolling terrain.
If you drive regularly in steep country, or if you are
planning to visit there, here are some tips that can make
your trips safer and more enjoyable.
•Keep your vehicle in good shape. Check all fluid
levels and also the brakes, tires, cooling system,
and transmission. These parts can work hard
on mountain roads.
•Know how to go down hills. The most important
thing to know is this: let your engine do some of
the slowing down. Shift to a lower gear when you
go down a steep or long hill.
{CAUTION:
If you do not shift down, your brakes could get
so hot that they would not work well. You
would then have poor braking or even none
going down a hill. You could crash. Shift down
to let your engine assist your brakes on a
steep downhill slope.
4-26
{CAUTION:
Coasting downhill in NEUTRAL (N) or with the
ignition off is dangerous. Your brakes will have
to do all the work of slowing down. They could
get so hot that they would not work well. You
would then have poor braking or even none
going down a hill. You could crash. Always
have your engine running and your vehicle in
gear when you go downhill.
•Know how to go uphill. You may want to shift down
to a lower gear. The lower gears help cool your
engine and transmission, and you can climb the
hill better.
•Stay in your own lane when driving on two-lane
roads in hills or mountains. Do not swing wide
or cut across the center of the road. Drive at speeds
that let you stay in your own lane.
•As you go over the top of a hill, be alert. There
could be something in your lane, like a stalled car
or an accident.
•You may see highway signs on mountains that
warn of special problems. Examples are long
grades, passing or no-passing zones, a falling rocks
area, or winding roads. Be alert to these and take
appropriate action.
4-27
Winter Driving
Here are some tips for winter driving:
•Have your vehicle in good shape for winter.
•You may want to put winter emergency supplies
in your trunk.
Also see
Tires on page 5-54
.
Include an ice scraper, a small brush or broom, a supply
of windshield washer fluid, a rag, some winter outer
clothing, a small shovel, a flashlight, a red cloth, and a
couple of reflective warning triangles. And, if you will be
driving under severe conditions, include a small bag of
sand, a piece of old carpet, or a couple of burlap bags to
help provide traction. Be sure you properly secure these
items in your vehicle.
4-28
Driving on Snow or Ice
Most of the time, those places where your tires meet
the road probably have good traction.
However, if there is snow or ice between your tires and
the road, you can have a very slippery situation. You
will have a lot less traction, or grip, and will need to be
very careful.
What is the worst time for this? Wet ice. Very cold
snow or ice can be slick and hard to drive on. But wet
ice can be even more trouble because it may offer
the least traction of all. You can get wet ice when it is
about freezing (32°F; 0°C) and freezing rain begins
to fall. Try to avoid driving on wet ice until salt and
sand crews can get there.
Whatever the condition — smooth ice, packed, blowing,
or loose snow — drive with caution.
Traction control improves your ability to accelerate when
driving on a slippery road. Even though your vehicle
has a traction control system, you will want to slow down
and adjust your driving to the road conditions. Under
certain conditions, you may want to turn the traction
control system off, such as when driving through deep
snow and loose gravel, to help maintain vehicle
motion at lower speeds. See
Traction Control System
(TCS) (CTS) on page 4-8
or
Traction Control System
(TCS) (CTS-V) on page 4-10
. Also see
Stabilitrak
®
System on page 4-11
,
If You Are Stuck: In Sand, Mud,
Ice or Snow on page 4-32
, “Winter Tires” under
Tires
on page 5-54
, and “Winter Driving Mode Button” under
Automatic Transmission Operation on page 2-26
.
4-29
Your anti-lock brakes improve your vehicle’s stability
when you make a hard stop on a slippery road.
Even though you have the anti-lock braking system, you
will want to begin stopping sooner than you would on
dry pavement. See
Anti-Lock Brake System (ABS)
on page 4-6
.
•Allow greater following distance on any
slippery road.
•Watch for slippery spots. The road might be fine
until you hit a spot that is covered with ice.
On an otherwise clear road, ice patches may
appear in shaded areas where the sun cannot
reach: around clumps of trees, behind buildings,
or under bridges. Sometimes the surface of a
curve or an overpass may remain icy when the
surrounding roads are clear. If you see a patch
of ice ahead of you, brake before you are on it.
Try not to brake while you are actually on the ice,
and avoid sudden steering maneuvers.
If You Are Caught in a Blizzard
If you are stopped by heavy snow, you could be in a
serious situation. You should probably stay with your
vehicle unless you know for sure that you are near help
and you can hike through the snow. Here are some things
to do to summon help and keep yourself and your
passengers safe:
•Turn on your hazard flashers.
•Tie a red cloth to your vehicle to alert police that you
have been stopped by the snow.
4-30
•Put on extra clothing or wrap a blanket around you.
If you have no blankets or extra clothing, make body
insulators from newspapers, burlap bags, rags, floor
mats — anything you can wrap around yourself or
tuck under your clothing to keep warm.
You can run the engine to keep warm, but be careful.
{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You cannot see it
or smell it, so you might not know it is in your
vehicle. Clear away snow from around the
base of your vehicle, especially any that is
blocking your exhaust pipe. And check around
again from time to time to be sure snow does
not collect there.
Open a window just a little on the side of the
vehicle that is away from the wind. This will
help keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.
4-31
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
If You Are Stuck: In Sand, Mud,
Ice or Snow
In order to free your vehicle when it is stuck, you will
need to spin the wheels, but you do not want to spin your
wheels too fast. The method known as rocking can help
you get out when you are stuck, but you must use
caution.
{CAUTION:
If you let your tires spin at high speed, they
can explode, and you or others could be
injured. And, the transmission or other parts of
the vehicle can overheat. That could cause an
engine compartment fire or other damage.
When you are stuck, spin the wheels as little
as possible. Do not spin the wheels above
35 mph (55 km/h) as shown on the
speedometer.
Notice:
Spinning your wheels can destroy parts of
your vehicle as well as the tires. If you spin the
wheels too fast while shifting your transmission
back and forth, you can destroy your transmission.
For more information about using tire chains on your
vehicle, see
Tire Chains on page 5-74
.
4-32
Rocking Your Vehicle to Get It Out
First, turn your steering wheel left and right. That
will clear the area around your front wheels. You should
turn your traction control system off. See
Traction
Control System (TCS) (CTS) on page 4-8
or
Traction
Control System (TCS) (CTS-V) on page 4-10
. Then shift
back and forth between REVERSE (R) and a forward
gear, or with a manual transmission, between FIRST (1)
or SECOND (2) and REVERSE (R), spinning the
wheels as little as possible. Release the accelerator
pedal while you shift, and press lightly on the accelerator
pedal when the transmission is in gear. By slowly
spinning your wheels in the forward and reverse
directions, you will cause a rocking motion that may free
your vehicle. If that does not get you out after a few
tries, you may need to be towed out. If you do need to
be towed out, see
Towing Your Vehicle on page 4-38
.
Loading Your Vehicle
It is very important to know how much weight your
vehicle can carry. This weight is called the vehicle
capacity weight and includes the weight of all occupants,
cargo and all nonfactory-installed options. Two labels
on your vehicle show how much weight it may properly
carry, the Tire and Loading Information label and the
Certification label.
{CAUTION:
Do not load your vehicle any heavier than
the Gross Vehicle Weight Rating (GVWR), or
either the maximum front or rear Gross Axle
Weight Rating (GAWR). If you do, parts on
your vehicle can break, and it can change
the way your vehicle handles. These could
cause you to lose control and crash. Also,
overloading can shorten the life of your
vehicle.
4-33
Tire and Loading Information Label
A vehicle specific Tire and Loading Information label
is attached to the vehicle’s center pillar (B-pillar). With
the driver’s door open, you will find the label attached
below the door lock post (striker). The tire and loading
information label shows the number of occupant seating
positions (A), and the maximum vehicle capacity
weight (B) in kilograms and pounds.
The Tire and Loading Information label also shows
the tire size of the original equipment tires (C) and the
recommended cold tire inflation pressures (D). For more
information on tires and inflation see
Tires on page 5-54
and
Inflation - Tire Pressure on page 5-62
.
There is also important loading information on the
Certification label. It tells you the Gross Vehicle Weight
Rating (GVWR) and the Gross Axle Weight Rating
(GAWR) for the front and rear axle; see “Certification
Label” later in this section.
Steps for Determining Correct Load Limit
1. Locate the statement “The combined weight of
occupants and cargo should never exceed
XXX kg or XXX pounds” on your vehicle’s placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and
passengers from XXX kilograms or XXX pounds.
Label Example
4-34
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if
the “XXX” amount equals 1400 lbs and there will be
five 150 lb passengers in your vehicle, the amount
of available cargo and luggage load capacity is
650 lbs (1400 −750 (5 x 150) = 650 lbs).
5. Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight
may not safely exceed the available cargo
and luggage load capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, the load
from your trailer will be transferred to your
vehicle. Consult this manual to determine how
this reduces the available cargo and luggage load
capacity of your vehicle.
If your vehicle can tow a trailer, see
Towing a Trailer
on page 4-40
for important information on towing a
trailer, towing safety rules, and trailering tips.
Item Description Total
AVehicle Capacity
Weight for Example 1 = 1,000 lbs (453 kg)
BSubtract
Occupant Weight
150 lbs (68 kg) ×2=300 lbs (136 kg)
CAvailable Occupant
and Cargo Weight = 700 lbs (317 kg)
Example 1
4-35
Item Description Total
AVehicle Capacity
Weight for Example 2 =1,000 lbs (453 kg)
BSubtract
Occupant Weight
150 lbs (68 kg) ×5=750 lbs (340 kg)
CAvailable Cargo
Weight =250 lbs (113 kg)
Item Description Total
AVehicle Capacity
Weight for Example 3 =1,000 lbs (453 kg)
BSubtract
Occupant Weight
200 lbs (91 kg) ×5=1,000 lbs (453 kg)
CAvailable Cargo
Weight = 0 lbs (0 kg)
Refer to your vehicle’s Tire and Loading Information
label for specific information about your vehicle’s
capacity weight and seating positions. The combined
weight of the driver, passengers, and cargo should
never exceed your vehicle’s capacity weight.
Example 2 Example 3
4-36
Certification Label
The Certification label, found on the rear edge of the
driver’s side rear passenger door, tells you the gross
weight capacity of your vehicle, called the Gross Vehicle
Weight Rating (GVWR). The GVWR includes the weight
of the vehicle, all occupants, fuel and cargo. Never
exceed the GVWR for your vehicle, or the Gross Axle
Weight Rating (GAWR) for either the front or rear axle.
If you do have a heavy load, you should spread it out.
Do not carry more than 132 lbs (60 kg) in the trunk.
{CAUTION:
Do not load your vehicle any heavier than the
Gross Vehicle Weight Rating (GVWR), or either
the maximum front or rear Gross Axle Weight
Rating (GAWR). If you do, parts on your
vehicle can break, and it can change the way
your vehicle handles. These could cause you
to lose control and crash. Also, overloading
can shorten the life of your vehicle.
Notice:
Overloading your vehicle may cause
damage. Repairs would not be covered by your
warranty. Do not overload your vehicle.
United States version shown, Canada similar
4-37
If you put things inside your vehicle, like suitcases,
tools, packages, or anything else, they will go as fast
as the vehicle goes. If you have to stop or turn quickly,
or if there is a crash, they will keep going.
{CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn,
or in a crash.
•Put things in the trunk of your vehicle.
In a trunk, put them as far forward as you
can. Try to spread the weight evenly.
•Never stack heavier things, like suitcases,
inside the vehicle so that some of them
are above the tops of the seats.
•Do not leave an unsecured child restraint
in your vehicle.
•When you carry something inside the
vehicle, secure it whenever you can.
•Do not leave a seat folded down unless
you need to.
Towing
Towing Your Vehicle
Consult your dealer or a professional towing service if
you need to have your disabled vehicle towed. See
Roadside Service on page 7-6
.
If you want to tow your vehicle behind another vehicle
for recreational purposes (such as behind a motorhome),
see Recreational Vehicle Towing following.
Recreational Vehicle Towing
Recreational vehicle towing means towing your vehicle
behind another vehicle – such as behind a motorhome.
The two most common types of recreational vehicle
towing are known as “dinghy towing” (towing your vehicle
with all four wheels on the ground) and “dolly towing”
(towing your vehicle with two wheels on the ground and
two wheels up on a device known as a “dolly”).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See “Dinghy
Towing” and “Dolly Towing,” following.
4-38
Here are some important things to consider before you
do recreational vehicle towing:
•What’s the towing capacity of the towing vehicle?
Be sure you read the tow vehicle manufacturer’s
recommendations.
•How far will you tow? Some vehicles have
restrictions on how far and how long they can tow.
•Do you have the proper towing equipment?
See your dealer or trailering professional for
additional advice and equipment recommendations.
•Is your vehicle ready to be towed? Just as you
would prepare your vehicle for a long trip, you’ll
want to make sure your vehicle is prepared to be
towed. See
Before Leaving on a Long Trip on
page 4-24
.
Dinghy Towing
Notice:
If you tow your vehicle with all four wheels
on the ground, the drivetrain components could
be damaged. The repairs would not be covered by
your warranty. Do not tow your vehicle with all
four wheels on the ground.
Your vehicle was not designed to be towed with all four
wheels on the ground. If your vehicle must be towed,
you should use a dolly. See “Dolly Towing” following for
more information.
Dolly Towing
Your vehicle can be towed using a dolly. To tow your
vehicle using a dolly, follow these steps:
1. Put the rear wheels on the dolly.
2. Put the vehicle in PARK (P) for an automatic
transmission or in NEUTRAL for a manual
transmission.
3. Set the parking brake and then remove the key.
4. Clamp the steering wheel in a straight-ahead
position with a clamping device designed for towing.
5. Release the parking brake.
4-39
Towing a Trailer
{CAUTION:
If you do not use the correct equipment and
drive properly, you can lose control when you
pull a trailer. For example, if the trailer is too
heavy, the brakes may not work well — or even
at all. You and your passengers could be
seriously injured. You may also damage your
vehicle; the resulting repairs would not be
covered by your warranty. Pull a trailer only if
you have followed all the steps in this section.
Ask your dealer for advice and information
about towing a trailer with your vehicle.
Your vehicle can tow a trailer if it is equipped with the
proper trailer towing equipment. To identify what
the vehicle trailering capacity is for your vehicle, you
should read the information in “Weight of the Trailer”
that appears later in this section. But trailering is
different than just driving your vehicle by itself. Trailering
means changes in handling, acceleration, braking,
durability and fuel economy. Successful, safe trailering
takes correct equipment, and it has to be
used properly.
That’s the reason for this part. In it are many time-tested,
important trailering tips and safety rules. Many of
these are important for your safety and that of your
passengers. So please read this section carefully before
you pull a trailer.
Load-pulling components such as the engine,
transmission, rear axle, wheel assemblies and tires are
forced to work harder against the drag of the added
weight. The engine is required to operate at relatively
higher speeds and under greater loads, generating extra
heat. What’s more, the trailer adds considerably to
wind resistance, increasing the pulling requirements.
4-40
If You Do Decide to Pull a Trailer
If you do, here are some important points:
•There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live
but also where you’ll be driving. A good source for
this information can be state or provincial police.
•Consider using a sway control. You can ask a hitch
dealer about sway controls.
•Don’t tow a trailer at all during the first 500 miles
(805 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.
•Then, during the first 500 miles (805 km) that you
tow a trailer, don’t drive over 50 mph (80 km/h)
and don’t make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at
the heavier loads.
•Obey speed limit restrictions when towing a trailer.
Don’t drive faster than the maximum posted speed
for trailers, or no more than 55 mph (90 km/h),
to save wear on your vehicle’s parts.
Three important considerations have to do with weight:
•the weight of the trailer,
•the weight of the trailer tongue
•and the total weight on your vehicle’s tires.
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than 1,000 lbs (454 kg).
But even that can be too heavy.
The CTS-V is not rated or designed to tow any trailer.
It depends on how you plan to use your rig. For
example, speed, altitude, road grades, outside
temperature and how much your vehicle is used to
pull a trailer are all important. And, it can also depend
on any special equipment that you have on your
vehicle.
You can ask your dealer for our trailering information
or advice, or you can write us at:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
4-41
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total or gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes the curb weight of the vehicle, any cargo you
may carry in it, and the people who will be riding in
the vehicle. If you have a lot of options, equipment,
passengers, or cargo in your vehicle, it will reduce the
tongue weight your vehicle can carry, which will also
reduce the trailer weight your vehicle can tow. And if
you tow a trailer, you must add the tongue load to
the GVW because your vehicle will be carrying that
weight, too. See
Loading Your Vehicle on page 4-33
for more information about your vehicle’s maximum
load capacity.
If you’re using a weight-carrying hitch or a
weight-distributing hitch, the trailer tongue (A) should
weigh 10 to 15 percent of the total loaded trailer
weight (B).
After you’ve loaded your trailer, weigh the trailer and then
the tongue, separately, to see if the weights are proper.
If they aren’t, you may be able to get them right simply by
moving some items around in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the upper
limit for cold tires. You’ll find these numbers on
the Tire-Loading Information label. See
Loading Your
Vehicle on page 4-33
. Then be sure you don’t go
over the GVW limit for your vehicle, including the weight
of the trailer tongue.
4-42
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads
are a few reasons why you’ll need the right hitch.
Here are some rules to follow:
•The rear bumper on your vehicle is not intended
for hitches. Do not attach rental hitches or
other bumper-type hitches to it. Use only a
frame-mounted hitch that does not attach to
the bumper.
•Will you have to make any holes in the body of
your vehicle when you install a trailer hitch? If
you do, then be sure to seal the holes later when
you remove the hitch. If you don’t seal them,
deadly carbon monoxide (CO) from your exhaust
can get into your vehicle. See
Engine Exhaust
on page 2-39
. Dirt and water can, too.
Safety Chains
You should always attach chains between your vehicle
and your trailer. Cross the safety chains under the
tongue of the trailer so that the tongue will not drop
to the road if it becomes separated from the hitch.
Instructions about safety chains may be provided by
the hitch manufacturer or by the trailer manufacturer.
Follow the manufacturer’s recommendation for attaching
safety chains and do not attach them to the bumper.
Always leave just enough slack so you can turn
with your rig. And, never allow safety chains to drag
on the ground.
Trailer Brakes
Because your vehicle has anti-lock brakes, don’t try to
tap into your vehicle’s hydraulic brake system. If you do,
both brake systems won’t work well, or at all.
Be sure to read and follow the instructions for the trailer
brakes so you’ll be able to install, adjust and maintain
them properly.
4-43
Driving with a Trailer
Towing a trailer requires a certain amount of experience.
Before setting out for the open road, you’ll want to get
to know your rig. Acquaint yourself with the feel of
handling and braking with the added weight of the trailer.
And always keep in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check all trailer hitch parts and
attachments, safety chains, electrical connector, lamps,
tires and mirror adjustment. If the trailer has electric
brakes, start your vehicle and trailer moving and then
apply the trailer brake controller by hand to be sure
the brakes are working. This lets you check your
electrical connection at the same time.
During your trip, check occasionally to be sure that
the load is secure, and that the lamps and any trailer
brakes are still working.
Following Distance
Stay at least twice as far behind the vehicle ahead as
you would when driving your vehicle without a trailer.
This can help you avoid situations that require
heavy braking and sudden turns.
Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a good
deal longer, you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if possible,
have someone guide you.
Making Turns
Notice:
Making very sharp turns while trailering
could cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns
than normal. Do this so your trailer won’t strike
soft shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well in
advance.
4-44
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring. Check
with your dealer. The arrows on your instrument
panel will flash whenever you signal a turn or lane
change. Properly hooked up, the trailer lamps will
also flash, telling other drivers you’re about to turn,
change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving on Grades
Reduce speed and shift to a lower gear before you
start down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes so much
that they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed to around 45 mph (70 km/h) to reduce the
possibility of the engine and the transmission
overheating.
Parking on Hills
{CAUTION:
You really should not park your vehicle, with
a trailer attached, on a hill. If something goes
wrong, your rig could start to move. People
can be injured, and both your vehicle and the
trailer can be damaged.
But if you ever have to park your rig on a hill, here’s
how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) for an automatic transmission or into
gear for a manual transmission.
When parking uphill, turn your wheels away from
the curb. When parking downhill, turn your wheels
into the curb.
2. Have someone place chocks behind the trailer
wheels.
3. When the chocks are in place, release the regular
brakes until the chocks absorb the load.
4-45
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P) for an
automatic transmission or REVERSE (R) for
a manual transmission.
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal down
while you:
•start your engine,
•shift into a gear, and
•release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See
Scheduled Maintenance on
page 6-4
for more information. Things that are especially
important in trailer operation are automatic transmission
fluid (don’t overfill), engine oil, axle lubricant, drive
belt, cooling system and brake system. Each of these is
covered in this manual, and the Index will help you
find them quickly. If you’re trailering, it’s a good idea to
review this information before you start your trip.
Check periodically to see that all hitch nuts and bolts
are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat during
severe operating conditions. See
Engine Overheating
on page 5-29
.
4-46
Service ............................................................5-3
Doing Your Own Service Work .........................5-4
Adding Equipment to the Outside of
Your Vehicle ..............................................5-5
Fuel ................................................................5-5
Gasoline Octane ............................................5-5
Gasoline Specifications ....................................5-5
California Fuel ...............................................5-6
Additives .......................................................5-6
Fuels in Foreign Countries ...............................5-7
Filling Your Tank ............................................5-8
Filling a Portable Fuel Container .....................5-10
Checking Things Under the Hood ....................5-10
Hood Release ..............................................5-11
Engine Compartment Overview .......................5-12
Engine Oil ...................................................5-16
Engine Oil Life System ..................................5-20
Engine Air Cleaner/Filter ................................5-22
Automatic Transmission Fluid .........................5-23
Manual Transmission Fluid .............................5-24
Hydraulic Clutch ...........................................5-25
Engine Coolant .............................................5-26
Coolant Surge Tank Pressure Cap ..................5-29
Engine Overheating .......................................5-29
Overheated Engine Protection
Operating Mode ........................................5-31
Cooling System ............................................5-32
Power Steering Fluid .....................................5-37
Windshield Washer Fluid ................................5-38
Brakes ........................................................5-39
Battery ........................................................5-42
Jump Starting ...............................................5-42
Rear Axle .......................................................5-48
Bulb Replacement ..........................................5-49
High Intensity Discharge (HID) Lighting ............5-49
Halogen Bulbs ..............................................5-49
Front Turn Signal and Fog Lamps ...................5-50
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps .....................................5-51
Back-Up and License Plate Lamps ..................5-52
Replacement Bulbs .......................................5-52
Windshield Wiper Blade Replacement ..............5-53
Tires ..............................................................5-54
Tire Sidewall Labelling ...................................5-56
Tire Terminology and Definitions .....................5-58
Run-Flat Tires (CTS-V) ..................................5-61
Inflation - Tire Pressure .................................5-62
Section 5 Service and Appearance Care
5-1
Tire Pressure Monitor System (CTS-V) ............5-65
Tire Inspection and Rotation ...........................5-68
When It Is Time for New Tires .......................5-69
Buying New Tires .........................................5-70
Uniform Tire Quality Grading ..........................5-71
Wheel Alignment and Tire Balance ..................5-72
Wheel Replacement ......................................5-73
Tire Chains ..................................................5-74
If a Tire Goes Flat ........................................5-75
Changing a Flat Tire .....................................5-76
Removing the Spare Tire and Tools ................5-78
Removing the Flat Tire and Installing
the Spare Tire ..........................................5-80
Storing a Flat or Spare Tire and Tools ............5-86
Compact Spare Tire ......................................5-87
Appearance Care ............................................5-87
Fabric/Carpet ...............................................5-88
Vinyl ...........................................................5-89
Leather .......................................................5-90
Instrument Panel ..........................................5-90
Interior Plastic Components ............................5-90
Wood Panels ...............................................5-90
Speaker Covers ............................................5-90
Glass Surfaces .............................................5-90
Care of Safety Belts ......................................5-91
Weatherstrips ...............................................5-91
Washing Your Vehicle ...................................5-91
Cleaning Exterior Lamps/Lenses .....................5-91
Finish Care ..................................................5-92
Windshield and Wiper Blades .........................5-92
Aluminum or Chrome-Plated Wheels ................5-93
Tires ...........................................................5-93
Sheet Metal Damage .....................................5-94
Finish Damage .............................................5-94
Underbody Maintenance ................................5-94
Chemical Paint Spotting .................................5-94
Vehicle Care/Appearance Materials ..................5-95
Vehicle Identification ......................................5-96
Vehicle Identification Number (VIN) .................5-96
Service Parts Identification Label .....................5-96
Electrical System ............................................5-96
Add-On Electrical Equipment ..........................5-96
Windshield Wiper Fuses ................................5-97
Power Windows and Other Power Options .......5-97
Fuses and Circuit Breakers ............................5-97
Underhood Fuse Block ..................................5-98
Rear Underseat Fuse Block ..........................5-101
Capacities and Specifications ........................5-108
Section 5 Service and Appearance Care
5-2
Service
Your dealer knows your vehicle best and wants you to
be happy with it. We hope you will go to your dealer
for all your service needs. You will get genuine GM parts
and GM-trained and supported service people.
We hope you will want to keep your GM vehicle all GM.
Genuine GM parts have one of these marks:
California Proposition 65 Warning
Most motor vehicles, including this one, contain and/or
emit chemicals known to the State of California to
cause cancer and birth defects or other reproductive
harm. Engine exhaust, many parts and systems
(including some inside the vehicle), many fluids, and
some component wear by-products contain and/or emit
these chemicals.
5-3
Doing Your Own Service Work
If you want to do some of your own service work, you
will want to use the proper service manual. It tells
you much more about how to service your vehicle than
this manual can. To order the proper service manual,
see
Service Publications Ordering Information on
page 7-12
.
Your vehicle has an airbag system. Before attempting
to do your own service work, see
Servicing Your
Airbag-Equipped Vehicle on page 1-62
.
You should keep a record with all parts receipts and
list the mileage and the date of any service work
you perform. See
Maintenance Record on page 6-16
.
{CAUTION:
You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.
•Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before you attempt any vehicle
maintenance task.
•Be sure to use the proper nuts, bolts and
other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
5-4
Adding Equipment to the Outside
of Your Vehicle
Things you might add to the outside of your vehicle
can affect the airflow around it. This may cause
wind noise and affect windshield washer performance.
Check with your dealer before adding equipment to
the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part of
the proper maintenance of your vehicle.
Gasoline Octane
If your vehicle has the 2.8L V6 engine or the 3.6L V6
engine, use regular unleaded gasoline with a posted
octane of 87 or higher. However, for best performance
and for trailer towing, you may wish to use middle
grade or premium unleaded gasoline. If the octane is
less than 87, you may get a heavy knocking noise
when you drive. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible. Otherwise,
you might damage your engine.
If your vehicle has the 5.7L V8 engine, use premium
unleaded gasoline with a posted octane of 91 or
higher for best performance. You may also use middle
grade or regular unleaded gasoline rated at 87 octane
or higher, but your vehicle’s acceleration may be slightly
reduced. If the octane is less than 87, you may get a
heavy knocking noise when you drive. If this occurs,
use a gasoline rated at 87 octane or higher as soon as
possible. Otherwise, you might damage your engine.
Gasoline Specifications
It is recommended that gasoline meet specifications
which were developed by automobile manufacturers
around the world and contained in the World-Wide Fuel
Charter which is available from the Alliance of Automobile
Manufacturers at www.autoalliance.org/fuel_charter.htm.
Gasoline meeting these specifications could provide
improved driveability and emission control system
performance compared to other gasoline.
5-5
California Fuel
If your vehicle is certified to meet California Emission
Standards (see the underhood emission control label),
it is designed to operate on fuels that meet California
specifications. If this fuel is not available in states
adopting California emissions standards, your vehicle
will operate satisfactorily on fuels meeting federal
specifications, but emission control system performance
may be affected. The malfunction indicator lamp may
turn on and your vehicle may fail a smog-check test.
See
Malfunction Indicator Lamp on page 3-45
.If
this occurs, return to your authorized GM dealer for
diagnosis. If it is determined that the condition is caused
by the type of fuel used, repairs may not be covered
by your warranty.
Additives
To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent engine and fuel system deposits from
forming, allowing your emission control system to
work properly. You should not have to add anything
to your fuel. However, some gasolines contain only
the minimum amount of additive required to meet
U.S. Environmental Protection Agency regulations.
General Motors recommends that you buy gasolines
that are advertised to help keep fuel injectors and
intake valves clean. If your vehicle experiences
problems due to dirty injectors or valves, try a
different brand of gasoline.
Gasolines containing oxygenates, such as ethers and
ethanol, and reformulated gasolines may be available
in your area to contribute to clean air. General
Motors recommends that you use these gasolines,
particularly if they comply with the specifications
described earlier.
5-6
Notice:
Your vehicle was not designed for fuel
that contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in your fuel
system and also damage the plastic and rubber
parts. That damage would not be covered under
your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. General Motors does
not recommend the use of such gasolines. Fuels
containing MMT can reduce the life of spark plugs and
the performance of the emission control system may
be affected. The malfunction indicator lamp may turn
on. If this occurs, return to your authorized GM dealer
for service.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to find. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
5-7
Filling Your Tank
{CAUTION:
Fuel vapor burns violently and a fuel fire
can cause bad injuries. To help avoid injuries
to you and others, read and follow all the
instructions on the pump island. Turn off
your engine when you are refueling. Do not
smoke if you are near fuel or refueling your
vehicle. Keep sparks, flames and smoking
materials away from fuel. Do not leave the
fuel pump unattended when refueling your
vehicle — this is against the law in some
places. Keep children away from the fuel
pump; never let children pump fuel.
The tethered fuel cap
is located behind a
hinged fuel door on the
passenger’s side of
the vehicle. To open the
fuel door, push inward
on the forward edge of
the fuel door until the
rear edge can be pulled
outward.
To remove the fuel cap, turn it slowly to the left
(counterclockwise). The fuel cap has a spring in it; if the
cap is released too soon, it will spring back to the right.
While refueling, hang the tethered fuel cap from the
hook on the fuel door.
5-8
{CAUTION:
If you spill fuel and then something ignites it,
you could be badly burned. Fuel can spray out
on you if you open the fuel cap too quickly.
This spray can happen if your tank is nearly
full, and is more likely in hot weather. Open
the fuel cap slowly and wait for any hiss noise
to stop. Then unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overfill the
tank and wait a few seconds after you have finished
pumping before removing the nozzle. Clean fuel
from painted surfaces as soon as possible. See
Washing Your Vehicle on page 5-91
.
When replacing the fuel cap, turn it to the right
(clockwise) until it clicks. Make sure the cap is fully
installed. The diagnostic system can determine if the
fuel cap has been left off or improperly installed.
This would allow fuel to evaporate into the atmosphere.
See
Malfunction Indicator Lamp on page 3-45
.
The Check Gas Cap message in the Driver Information
Center (DIC) will be displayed if the fuel cap is not
properly installed. See
DIC Warnings and Messages
on page 3-65
for more information.
{CAUTION:
If a fire starts while you are refueling, do not
remove the nozzle. Shut off the flow of fuel
by shutting off the pump or by notifying the
station attendant. Leave the area immediately.
Notice:
If you need a new fuel cap, be sure to get
the right type. Your dealer can get one for you.
If you get the wrong type, it may not fit properly.
This may cause your malfunction indicator lamp to
light and may damage your fuel tank and emissions
system. See
Malfunction Indicator Lamp on
page 3-45
.
5-9
Filling a Portable Fuel Container
{CAUTION:
Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from
the container can ignite the gasoline vapor.
You can be badly burned and your vehicle
damaged if this occurs. To help avoid injury
to you and others:
•Dispense gasoline only into approved
containers.
•Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed
or on any surface other than the ground.
•Bring the fill nozzle in contact with the
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling is complete.
•Do not smoke while pumping gasoline.
Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing and tools away
from any underhood electric fan.
{CAUTION:
Things that burn can get on hot engine parts
and start a fire. These include liquids like fuel,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or
others could be burned. Be careful not to drop
or spill things that will burn onto a hot engine.
5-10
Hood Release
To open the hood, do the following:
1. Pull the hood release lever inside the vehicle.
It is located on the lower left side of the
instrument panel.
2. Then go to the front of the vehicle and find the
secondary hood release lever. The lever is
located under the front edge of the grille near the
center. Move the release lever to the side and
raise the hood.
Before closing the hood, be sure all the filler caps are
on properly. Then pull the hood down and close it firmly.
CTS shown, CTS-V similar
5-11
Engine Compartment Overview
When you open the hood on the 3.6L V6 engine (2.8L V6 engine similar), you will see the following:
5-12
A. Underhood Fuse Block. See
Underhood Fuse Block
on page 5-98
.
B. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” under
Windshield Washer Fluid
on page 5-38
.
C. Battery. See
Battery on page 5-42
.
D. Passenger Compartment Air Filter. See
Passenger
Compartment Air Filter on page 3-33
.
E. Power Steering Fluid Reservoir (Under Engine
Cover). See
Power Steering Fluid on page 5-37
.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
under
Engine Oil on page 5-16
.
G. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” under
Engine Oil on page 5-16
.
H. Brake Master Cylinder Reservoir. See “Brake Fluid”
under
Brakes on page 5-39
.
I. Hydraulic Clutch Reservoir (If Equipped)
(Not Shown). See “When to Check and What to
Use” under
Hydraulic Clutch on page 5-25
.
J. Engine Coolant Surge Tank and Pressure Cap.
See
Coolant Surge Tank Pressure Cap on
page 5-29
and
Cooling System on page 5-32
.
K. Engine Air Cleaner/Filter. See
Engine Air
Cleaner/Filter on page 5-22
.
5-13
When you open the hood on the 5.7L V8 CTS-V, you will see the following:
5-14
A. Underhood Fuse Block. See
Underhood Fuse
Block on page 5-98
.
B. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” under
Windshield Washer Fluid
on page 5-38
.
C. Battery. See
Battery on page 5-42
.
D. Engine Oil Dipstick. See “Checking Engine Oil”
under
Engine Oil on page 5-16
.
E. Engine Oil Fill Cap. See “When to Add Engine Oil”
under
Engine Oil on page 5-16
.
F. Power Steering Fluid Reservoir. See
Power Steering
Fluid on page 5-37
.
G. Brake Master Cylinder Reservoir. See “Brake Fluid”
under
Brakes on page 5-39
.
H. Hydraulic Clutch Reservoir. See “When to Check
and What to Use” under
Hydraulic Clutch on
page 5-25
.
I. Engine Coolant Surge Tank and Pressure Cap.
See
Coolant Surge Tank Pressure Cap on page 5-29
and
Cooling System on page 5-32
.
J. Engine Air Cleaner/Filter. See
Engine Air
Cleaner/Filter on page 5-22
.
5-15
Engine Oil
If the oil pressure light
and/or the Oil Pressure
Low - Stop Engine
message on the DIC
appears on the instrument
cluster, it means you
need to check your engine
oil level right away.
For more information, see “Oil Pressure Low - Stop
Engine” under
DIC Warnings and Messages on
page 3-65
and
Oil Pressure Light on page 3-48
.
You should check your engine oil level regularly; this is
an added reminder.
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-12
for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
2.8L V6 and 3.6L V6 Engines
5-16
When to Add Engine Oil
If the oil is at or below the cross-hatched area at the
tip of the dipstick, then you will need to add at least
one quart of oil. But you must use the right kind. This
section explains what kind of oil to use. For engine
oil crankcase capacity, see
Capacities and
Specifications on page 5-108
.
Notice:
Do not add too much oil. If your engine
has so much oil that the oil level gets above
the cross-hatched area that shows the proper
operating range, your engine could be damaged.
See
Engine Compartment Overview on page 5-12
for
the location of the engine oil fill cap.
Be sure to add enough oil to put the level somewhere
in the proper operating range. Push the dipstick all
the way back in when you are through.
5.7L V8 Engine 2.8L V6 and 5.7L V8
Engines 3.6L V6 Engine
5-17
What Kind of Engine Oil to Use
Look for two things:
•GM4718M
Your vehicle’s engine requires a special oil meeting
GM Standard GM4718M. Oils meeting this
standard may be identified as synthetic. However,
not all
synthetic
oils will meet this GM standard.
You should look for and use only an oil that meets
GM Standard GM4718M.
Notice:
If you use oils that do not have the
GM4718M Standard designation, you can cause
engine damage not covered by your warranty.
5-18
•SAE 5W-30
As shown in the viscosity chart, SAE 5W-30 is
best for your vehicle.
These numbers on an oil container show its
viscosity, or thickness. Do not use other viscosity
oils such as SAE 20W-50.
Oils meeting these
requirements should also
have the starburst
symbol on the container.
This symbol indicates
that the oil has been
certified by the American
Petroleum Institute (API).
You should look for this on the oil container, and use
only
those oils that are identified as meeting GM
Standard GM4718M and have the starburst symbol
on the front of the oil container.
Your vehicle’s engine is filled at the factory with a
Mobil 1
®
synthetic oil, which meets all requirements for
your vehicle.
Substitute Engine Oil: When adding oil to maintain
engine oil level, oil meeting GM Standard GM4718M
may not be available. You can add substitute oil
designated SAE 5W-30 with the starburst symbol at all
temperatures. If temperatures are above 0°F (–18°C),
you may substitute SAE 10W-30 with the starburst
symbol. Substitute oil not meeting GM Standard
GM4718M should not be used for an oil change.
Engine Oil Additives
Do not add anything to your oil. The recommended
oils with the starburst symbol that meet GM Standard
GM4718M are all you will need for good performance
and engine protection.
5-19
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and filter. This is
based on engine revolutions and engine temperature,
and not on mileage. Based on driving conditions,
the mileage at which an oil change will be indicated
can vary considerably. For the oil life system to
work properly, you must reset the system every time
the oil is changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. A change engine oil message in the DIC will
come on. Change your oil as soon as possible within
the next 600 miles (1 000 km). It is possible that, if you
are driving under the best conditions, the oil life
system may not indicate that an oil change is necessary
for over a year. However, your engine oil and filter
must be changed at least once a year and at this time
the system must be reset. Your dealer has GM-trained
service people who will perform this work using
genuine GM parts and reset the system. It is also
important to check your oil regularly and keep it at the
proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km) since your
last oil change. Remember to reset the oil life system
whenever the oil is changed.
How to Reset the Engine Oil Life
System and the Oil Life Indicator
The Engine Oil Life System calculates when to change
your engine oil and filter based on vehicle use.
Anytime your oil is changed, reset the system so it can
calculate when the next oil change is required. If a
situation occurs where you change your oil prior to a
change engine oil message in the DIC being turned on,
reset the system.
After the oil has been changed, the change engine oil
message and the oil life indicator must be reset. To reset
the message and indicator, use one of the following
procedures:
Base Audio System
Press the CLR button located to the right of the DIC
display to acknowledge the change engine oil message.
This will clear the message from the display and
reset it.
5-20
To reset the oil life indicator, use the following steps:
1. Press the up or down arrow on the INFO button
located to the right of the DIC display to access
the DIC menu.
2. Once XXX% ENGINE OIL LIFE menu item is
highlighted, press and hold the CLR button.
The percentage will return to 100, and the oil life
indicator will be reset. Repeat the steps if the
percentage does not return to 100.
3. Turn the key to OFF.
If the change engine oil message comes back on when
you start your vehicle, the engine oil life system has
not reset. Repeat the procedure.
Navigation System
If you have the navigation system, see “Vehicle
Customization” in the CTS Navigation System Owner
Supplement for how to reset the oil life indicator.
What to Do with Used Oil
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good
hand cleaner. Wash or properly dispose of clothing or
rags containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
filter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or
into streams or bodies of water. Instead, recycle it
by taking it to a place that collects used oil. If you have
a problem properly disposing of your used oil, ask
your dealer, a service station or a local recycling center
for help.
5-21
Engine Air Cleaner/Filter
The engine air cleaner/filter is in the engine
compartment on the driver’s side of the vehicle, near
the front. See
Engine Compartment Overview on
page 5-12
for more information on location.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/filter at every oil change
and replace it at the first oil change after
25,000 miles (41 500 km).
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/filter, remove the filter from
the vehicle and lightly shake the filter to release
loose dust and dirt. If the filter remains caked with dirt,
a new filter is required.
To inspect or replace the engine air cleaner/filter,
do the following:
1. Remove the two screws located on the sides
of the cover.
2. Lift the cover off.
3. Inspect or replace the engine air cleaner/filter.
See
Normal Maintenance Replacement Parts
on page 6-15
for the correct part number for
the filter.
4. Reinstall the cover by reversing Steps 1 and 2.
CTS shown, CTS-V similar
5-22
{CAUTION:
Operating the engine with the air cleaner/filter
off can cause you or others to be burned.
The air cleaner not only cleans the air; it helps
to stop flame if the engine backfires. If it is
not there and the engine backfires, you could
be burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/filter off.
Notice:
If the air cleaner/filter is off, a backfire
can cause a damaging engine fire. And, dirt can
easily get into your engine, which will damage it.
Always have the air cleaner/filter in place when
you are driving.
Automatic Transmission Fluid
It is not necessary to check the transmission fluid level.
A transmission fluid leak is the only reason for fluid
loss. If a leak occurs, take your vehicle to the dealership
service department and have it repaired as soon as
possible. You may also have your fluid level checked by
your dealer or service center when you have your oil
changed.
Change both the fluid and filter every 50,000 miles
(83 000 km) if the vehicle is mainly driven under one
or more of these conditions:
•In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
•In hilly or mountainous terrain.
•When doing frequent trailer towing.
•Uses such as found in taxi, police or delivery
service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
Notice:
Use of automatic transmission fluid
labeled other than DEXRON
®
-III, Approved for the
H-Specification, may damage your vehicle, and
the damages may not be covered by your warranty.
Always use automatic transmission fluid labeled
DEXRON
®
-III, Approved for the H-Specification.
5-23
How to Reset the Change
Transmission Fluid Message and
the Transmission Fluid Indicator
(Automatic Transmission)
After the transmission fluid has been changed, the
Change Trans Fluid message and the transmission
fluid life indicator must be reset. To reset the message
and indicator, use one of the following procedures:
Base Audio System
Press the CLR button located to the right of the DIC
display to acknowledge the CHANGE TRANS FLUID
message. This will clear the message from the display
and reset it.
To reset the transmission fluid life indicator, use the
following steps:
1. Press the up or down arrow on the INFO button
located to the right of the DIC display to access
the DIC menu.
2. Once the XXX% TRANS FLUID LIFE menu item
is highlighted, press and hold the CLR button.
The percentage will return to 100, and the
transmission fluid life indicator will be reset.
3. Repeat the steps if the percentage does not
return to 100.
Navigation System
If your vehicle has a navigation system, see your
navigation system supplement for instructions on how
to acknowledge the Change Trans Fluid message
and reset the transmission fluid life indicator.
Manual Transmission Fluid
When to Check
It is not necessary to check the manual transmission
fluid level. A transmission fluid leak is the only reason
for fluid loss. If a leak occurs, take the vehicle to
your Cadillac dealership service department and have it
repaired as soon as possible. The fluid level may be
checked when the engine oil is changed, though it is not
necessary to regularly check the fluid level.
How to Check
Because this operation can be difficult, you may choose
to have this done at your Cadillac dealership service
department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading.
5-24
Notice:
Too much or too little fluid can damage
your transmission. Too much can mean that some
of the fluid could come out and fall on hot engine
part or exhaust system parts, starting a fire.
Too little fluid could cause the transmission to
overheat. Be sure to get an accurate reading if
you check your transmission fluid.
Check the fluid level only when your engine is off, the
vehicle is parked on a level place and the transmission
is cool enough for you to rest your fingers on the
transmission case.
To check the fluid level, do the following:
1. Remove the filler plug.
2. Check that the lubricant level is up to the bottom of
the filler plug hole.
3. If the fluid level is good and your vehicle is a CTS,
replace the gasket and reinstall the filler plug. If the
fluid level is good and your vehicle is a CTS-V,
apply LOCTITE
®
#516 or equivalent sealant to the
threads and then reinstall the filler plug.
With either vehicle, be sure the plug is fully seated.
If the fluid level is low, add more fluid as described
in the next steps.
How to Add Fluid
Here is how to add fluid. See
Recommended Fluids
and Lubricants on page 6-13
to determine which type of
fluid to use.
1. Remove the filler plug.
2. Add fluid at the filler plug hole. Add only enough
fluid to bring the fluid level up to the bottom of the
filler plug hole.
3. If your vehicle is a CTS, replace the gasket and
reinstall the filler plug. If your vehicle is a CTS-V,
apply LOCTITE
®
#516 or equivalent sealant to the
threads and then reinstall the filler plug.
Again, with either vehicle, be sure the plug is fully
seated.
Hydraulic Clutch
It is not necessary to regularly check clutch fluid unless
you suspect there is a leak in the system. Adding
fluid will not correct a leak.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
5-25
When to Check and What to Use
The hydraulic clutch fluid
reservoir cap has this
symbol on it. See
Engine
Compartment Overview
on page 5-12
for reservoir
location.
Refer to the Maintenance Schedule to determine how
often you should check the fluid level in your clutch
master cylinder reservoir and for the proper fluid to use.
See
Owner Checks and Services on page 6-9
and
Recommended Fluids and Lubricants on page 6-13
.
How to Check and Add Fluid
Make sure the fluid level is at the MIN line on the side
of the reservoir. If it is not, remove the cap and add
the proper fluid until the level reaches the MIN line.
Engine Coolant
The cooling system in your vehicle is filled with
DEX-COOL
®
engine coolant. This coolant is designed
to remain in your vehicle for 5 years or 150,000 miles
(240 000 km), whichever occurs first, if you add
only DEX-COOL
®
extended life coolant.
The following explains your cooling system and how
to add coolant when it is low. If you have a problem
with engine overheating, see
Engine Overheating
on page 5-29
.
A 50/50 mixture of clean, drinkable water and
DEX-COOL
®
coolant will:
•Give freezing protection down to −34°F (−37°C).
•Give boiling protection up to 265°F (129°C).
•Protect against rust and corrosion.
•Help keep the proper engine temperature.
•Let the warning lights and gages work as they
should.
Notice:
Using coolant other than DEX-COOL
®
may
cause premature engine, heater core or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs first. Any repairs
would not be covered by your warranty. Always use
DEX-COOL
®
(silicate-free) coolant in your vehicle.
5-26
What to Use
Use a mixture of one-half
clean, drinkable water
and
one-half DEX-COOL
®
coolant which will not damage
aluminum parts. If you use this coolant mixture, you
do not need to add anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch fire and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant.
Notice:
If you use an improper coolant mixture,
your engine could overheat and be badly damaged.
The repair cost would not be covered by your
warranty. Too much water in the mixture can freeze
and crack the engine, radiator, heater core and
other parts.
If you have to add coolant more than once or twice a
year, have your dealer check your cooling system.
Notice:
If you use the proper coolant, you do not
have to add extra inhibitors or additives which claim
to improve the system. These can be harmful.
5-27
Checking Coolant
The coolant surge tank and pressure cap are located on
the driver’s side of the vehicle, toward the rear of the
engine compartment. See
Engine Compartment
Overview on page 5-12
for more information on location.
{CAUTION:
Turning the surge tank pressure cap when the
engine and radiator are hot can allow steam
and scalding liquids to blow out and burn you
badly. Never turn the surge tank pressure
cap — even a little — when the engine and
radiator are hot.
The vehicle must be on a level surface. When your
engine is cold, the coolant level should be at the
FULL COLD/FROID line on the side of the surge tank.
Follow the arrow from the top of the tank down the
side to the horizontal mark.
If the Check Coolant Level message in the Driver
Information Center (DIC) comes on and stays on,
it means you are low on engine coolant. See
DIC
Warnings and Messages on page 3-65
for more
information.
5-28
Adding Coolant
If you need more coolant, add the proper DEX-COOL
®
coolant mixture at the surge tank, but only when the
engine is cool.
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
When replacing the pressure cap, make sure it is
hand-tight.
Coolant Surge Tank Pressure Cap
Notice:
If the surge tank pressure cap is not tightly
installed, coolant loss and possible engine damage
may occur. Be sure the cap is properly and
tightly secured.
See
Engine Compartment Overview on page 5-12
for
more information on location.
Engine Overheating
There are three engine hot messages that may be
displayed in the Driver Information Center (DIC).
See
DIC Warnings and Messages on page 3-65
for
more information.
5-29
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can burn
you badly, even if you just open the hood.
Stay away from the engine if you see or hear
steam coming from it. Just turn it off and get
everyone away from the vehicle until it cools
down. Wait until there is no sign of steam or
coolant before you open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch fire.
You or others could be badly burned. Stop
your engine if it overheats, and get out of
the vehicle until the engine is cool.
See
Overheated Engine Protection Operating
Mode on page 5-31
for information on driving
to a safe place in an emergency.
Notice:
If your engine catches fire because you
keep driving with no coolant, your vehicle can
be badly damaged. The costly repairs would not be
covered by your warranty. See
Overheated Engine
Protection Operating Mode on page 5-31
for
information on driving to a safe place in an
emergency.
If No Steam Is Coming From Your
Engine
An overheat warning, along with a Check Coolant Level
message, can indicate a serious problem.
If you get an engine overheat warning with no Check
Coolant Level message, but see or hear no steam, the
problem may not be too serious. Sometimes the
engine can get a little too hot when you:
•Climb a long hill on a hot day.
•Stop after high-speed driving.
•Idle for long periods in traffic.
•Tow a trailer.
5-30
If you get the overheat warning with no sign of steam,
try this for a minute or so:
1. In heavy traffic, let the engine idle in NEUTRAL (N)
while stopped. If it is safe to do so, pull off the road,
shift to PARK (P) or NEUTRAL (N) and let the
engine idle.
2. Set the climate controls to the highest heat setting
and fan speed and open the windows, as
necessary.
If you no longer have the overheat warning, you can
drive. Just to be safe, drive slower for about 10 minutes.
If the warning does not come back on, you can drive
normally.
If the warning continues and you have not stopped,
pull over, stop, and park your vehicle right away.
If there is still no sign of steam, you can idle the engine
for three minutes while you are parked. If you still
have the warning,
turn off the engine and get everyone
out of the vehicle
until it cools down.
You may decide not to lift the hood but to get service
help right away.
Overheated Engine Protection
Operating Mode
This operating mode allows your vehicle to be driven to
a safe place in an emergency. Should an overheated
engine condition exist, an overheat protection mode
which alternates firing groups of cylinders helps prevent
engine damage. In this mode, you will notice a loss
in power and engine performance. A low coolant and/or
engine overheat warning will indicate that an overheat
condition exists. Driving extended miles (km) and/or
towing a trailer in the overheat protection mode should
be avoided.
Notice:
After driving in the overheated engine
protection operating mode, to avoid engine damage,
allow the engine to cool before attempting any
repair. The engine oil will be severely degraded.
Repair the cause of coolant loss and change the oil.
See
Engine Oil on page 5-16
.
5-31
Cooling System
When you decide it is safe to lift the hood, here is what
you will see:
A. Coolant Surge Tank and Pressure Cap
B. Electric Engine Cooling Fans
{CAUTION:
An electric engine cooling fan under the hood
can start up even when the engine is not
running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
If the coolant inside the coolant surge tank is boiling,
do not do anything else until it cools down. The vehicle
should be parked on a level surface.
If the engine is warm or hot, the coolant level should be
at or above the FULL COLD/FROID line on the side
of the coolant surge tank. If the engine is cold, the
coolant level should be near the FULL COLD/FROID
line on the side of the coolant surge tank. If it is not, you
may have a leak at the pressure cap or in the radiator
hoses, heater hoses, radiator, water pump or
somewhere else in the cooling system.
3.6L V6 engine shown, 2.8L V6 and
5.7L V8 engines similar
5-32
{CAUTION:
Heater and radiator hoses, and other engine
parts, can be very hot. Do not touch them.
If you do, you can be burned.
Do not run the engine if there is a leak. If you
run the engine, it could lose all coolant. That
could cause an engine fire, and you could be
burned. Get any leak fixed before you drive
the vehicle.
If there seems to be no leak, with the engine on, check
to see if the electric engine cooling fans are running.
If the engine is overheating, both fans should be
running. If they are not, your vehicle needs service.
Notice:
Engine damage from running your engine
without coolant is not covered by your warranty.
See
Overheated Engine Protection Operating Mode
on page 5-31
for information on driving to a safe
place in an emergency.
Notice:
Using coolant other than DEX-COOL
®
may
cause premature engine, heater core or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs first. Any repairs
would not be covered by your warranty. Always use
DEX-COOL
®
(silicate-free) coolant in your vehicle.
5-33
How to Add Coolant to the Coolant
Surge Tank
If you have not found a problem yet, check to see if
coolant is visible in the surge tank. If coolant is visible
but the coolant level is not at the FULL COLD/FROID
line on the side of the coolant surge tank, add a
50/50 mixture of
clean, drinkable water
and DEX-COOL
®
coolant at the coolant surge tank, but be sure the
cooling system, including the coolant surge tank
pressure cap, is cool before you do it. See
Engine
Coolant on page 5-26
for more information.
{CAUTION:
Steam and scalding liquids from a hot cooling
system can blow out and burn you badly. They
are under pressure, and if you turn the coolant
surge tank pressure cap — even a little — they
can come out at high speed. Never turn the
cap when the cooling system, including the
coolant surge tank pressure cap, is hot. Wait
for the cooling system and coolant surge tank
pressure cap to cool if you ever have to turn
the pressure cap.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch fire and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant.
Notice:
In cold weather, water can freeze and crack
the engine, radiator, heater core and other parts.
Use the recommended coolant and the proper
coolant mixture.
5-34
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
If no coolant is visible in the surge tank, add coolant
as follows:
1. You can remove the coolant surge tank pressure
cap when the cooling system, including the coolant
surge tank pressure cap and upper radiator hose,
is no longer hot. Turn the pressure cap slowly
counterclockwise (left) about one-quarter turn and
then stop.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
2. Then keep turning the pressure cap slowly, and
remove it.
5-35
3. Fill the coolant surge tank with the proper mixture,
to slightly above the FULL COLD/FROID line on
the side of the coolant surge tank.
4. With the coolant surge tank pressure cap off, start
the engine and let it run until you can feel the upper
radiator hose getting hot. The upper radiator
hose is the top hose coming out of the radiator, on
the passenger’s side of the vehicle. Watch out
for the engine cooling fans.
By this time, the coolant level inside the coolant
surge tank may be lower. If the level is lower, add
more of the proper mixture to the coolant surge tank
until the level reaches the FULL COLD/FROID
line on the side of the coolant surge tank.
5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
Start the engine and allow it to warm up. If the Check
Coolant Level message does not appear on the
Driver Information Center (DIC), the coolant is at the
proper fill level. If a Check Coolant Level message does
appear, repeat Steps 1 to 3 then reinstall the pressure
cap, or see your dealer.
5-36
Power Steering Fluid
See
Engine Compartment
Overview on page 5-12
for
the location of the power
steering fluid reservoir.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering fluid
unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How to Check Power Steering Fluid
To check the power steering fluid, do the following:
1. Turn the key off and let the engine compartment
cool down.
2. Wipe the cap and the top of the reservoir clean.
3. Unscrew the cap and wipe the dipstick with a
clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the fluid level
on the dipstick.
The level should be at the FULL COLD mark.
If necessary, add only enough fluid to bring the level
up to the mark.
What to Use
To determine what kind of fluid to use, see
Recommended Fluids and Lubricants on page 6-13
.
Always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
5-37
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use. If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use a fluid that has
sufficient protection against freezing.
Adding Washer Fluid
The Check Washer Fluid message will appear on the
Driver Information Center (DIC) when the fluid level
is low. See
DIC Warnings and Messages on page 3-65
for more information.
Open the cap with the
washer symbol on it.
Add washer fluid until the
tank is full. See
Engine
Compartment Overview
on page 5-12
for reservoir
location.
Notice:
•When using concentrated washer fluid, follow
the manufacturer’s instructions for adding
water.
•Do not mix water with ready-to-use washer fluid.
Water can cause the solution to freeze and
damage your washer fluid tank and other parts
of the washer system. Also, water does not
clean as well as washer fluid.
•Fill your washer fluid tank only three-quarters
full when it is very cold. This allows for
expansion if freezing occurs, which could
damage the tank if it is completely full.
•Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
5-38
Brakes
Brake Fluid
Your brake master cylinder
reservoir is filled with
DOT-3 brake fluid. See
Engine Compartment
Overview on page 5-12
for the location of the
reservoir.
There are only two reasons why the brake fluid level
in the reservoir might go down. The first is that the brake
fluid goes down to an acceptable level during normal
brake lining wear. When new linings are put in, the fluid
level goes back up. The other reason is that fluid is
leaking out of the brake system. If it is, you should
have your brake system fixed, since a leak means that
sooner or later your brakes will not work well, or will
not work at all.
So, it is not a good idea to top off your brake fluid.
Adding brake fluid will not correct a leak. If you add fluid
when your linings are worn, then you will have too
much fluid when you get new brake linings. You should
add or remove brake fluid, as necessary, only when
work is done on the brake hydraulic system.
{CAUTION:
If you have too much brake fluid, it can spill on
the engine. The fluid will burn if the engine is
hot enough. You or others could be burned,
and your vehicle could be damaged. Add brake
fluid only when work is done on the brake
hydraulic system.
If the ignition is in ON and the brake fluid is low, the
“Check Brake Fluid” message will be displayed in
the DIC. See “Check Brake Fluid Message” under
DIC Warnings and Messages on page 3-65
.
When your brake fluid falls to a low level, your brake
warning light will come on. See
Brake System Warning
Light on page 3-42
.
5-39
What to Add
When you do need brake fluid, use only DOT-3 brake
fluid. Use new brake fluid from a sealed container
only. See
Recommended Fluids and Lubricants on
page 6-13
.
Always clean the brake fluid reservoir cap and the
area around the cap before removing it. This will help
keep dirt from entering the reservoir.
{CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or
they may not even work at all. This could
cause a crash. Always use the proper brake
fluid.
Notice:
•Using the wrong fluid can badly damage brake
system parts. For example, just a few drops of
mineral-based oil, such as engine oil, in your
brake system can damage brake system
parts so badly that they will have to be replaced.
Do not let someone put in the wrong kind of
fluid.
•If you spill brake fluid on your vehicle’s painted
surfaces, the paint finish can be damaged. Be
careful not to spill brake fluid on your vehicle.
If you do, wash it off immediately. See
Appearance Care on page 5-87
.
Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads
are worn and new pads are needed. The sound
may come and go or be heard all the time your vehicle
is moving, except when you are pushing on the
brake pedal firmly.
5-40
{CAUTION:
The brake wear warning sound means that
soon your brakes will not work well. That
could lead to an accident. When you hear the
brake wear warning sound, have your vehicle
serviced.
Notice:
Continuing to drive with worn-out brake
pads could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to GM torque specifications.
Brake linings should always be replaced as complete
axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your
vehicle was designed and tested with top-quality GM
brake parts. When you replace parts of your braking
system — for example, when your brake linings
wear down and you need new ones put in — be sure
you get new approved GM replacement parts. If you do
not, your brakes may no longer work properly. For
example, if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change — for the worse. The braking
performance you have come to expect can change
in many other ways if someone puts in the wrong
replacement brake parts.
5-41
Battery
Your vehicle has a maintenance free battery. When
it is time for a new battery, get one that has the
replacement number shown on the original battery’s
label. We recommend an ACDelco
®
replacement
battery. See
Engine Compartment Overview on
page 5-12
for battery location.
Warning:
Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.
{CAUTION:
Batteries have acid that can burn you and
gas that can explode. You can be badly hurt
if you are not careful. See
Jump Starting on
page 5-42
for tips on working around a battery
without getting hurt.
After a power loss, such as disconnecting the battery
or removing the maxi fuses in the power distribution fuse
block, the following steps must be performed to
calibrate the electronic throttle control. If this is not
done, the engine will not run properly.
1. Turn the ignition key to ON. Do not start the engine.
2. Leave the ignition in ON for at least three minutes
so that the electronic throttle control will cycle and
re-learn its home position.
3. Turn the ignition to OFF.
4. Start and run the engine for at least 30 seconds.
Also, for your audio system, see
Theft-Deterrent Feature
on page 3-105
.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Be sure to use the following steps to do it safely.
5-42
{CAUTION:
Batteries can hurt you. They can be dangerous
because:
•They contain acid that can burn you.
•They contain gas that can explode or
ignite.
•They contain enough electricity to
burn you.
If you do not follow these steps exactly,
some or all of these things can hurt you.
Notice:
Ignoring these steps could result in costly
damage to your vehicle that would not be covered
by your warranty.
Trying to start your vehicle by pushing or pulling it
will not work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice:
If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be damaged. Only use vehicles with 12-volt systems
with negative grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles are not touching
each other. If they are, it could cause a ground
connection you do not want. You would not be able
to start your vehicle and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved in
the jump start procedure. Put an automatic
transmission in PARK (P) or a manual transmission
in NEUTRAL before setting the parking brake.
Notice:
If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlets. Turn off
the radio and all lamps that are not needed. This
will avoid sparks and help save both batteries.
And it could save the radio!
5-43
4. Open the hoods and locate the positive (+) and
negative (−) terminal locations of the other vehicle,
as well as the positive (+) terminal location on
your vehicle’s battery. See
Engine Compartment
Overview on page 5-12
for more information on the
location of the battery.
Your vehicle has a remote negative (−) ground
location, as shown in the illustration. It is located
between the battery and the underhood fuse block.
You should always use this remote ground
location, instead of the terminal on the battery.
5-44
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from
any underhood electric fan.
{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
flashlight if you need more light.
Be sure the battery has enough water. You do
not need to add water to the battery installed
in your new vehicle. But if a battery has filler
caps, be sure the right amount of fluid is there.
If it is low, add water to take care of that first.
If you do not, explosive gas could be present.
CAUTION: (Continued)
CAUTION: (Continued)
Battery fluid contains acid that can burn you.
Do not get it on you. If you accidentally get it
in your eyes or on your skin, flush the place
with water and get medical help immediately.
{CAUTION:
Fans or other moving engine parts can injure
you badly. Keep your hands away from moving
parts once the engine is running.
5. Check that the jumper cables do not have loose
or missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative (−) will go to a heavy,
unpainted metal engine part or to a remote
negative (−) terminal if the vehicle has one.
5-45
Do not connect positive (+) to negative (−)oryou
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative (−) cable to the negative (−) terminal on
the dead battery because this can cause sparks.
6. Connect the red positive (+) cable to the positive (+)
terminal of the dead battery. Use a remote
positive (+) terminal if the vehicle has one.
7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.
8. Now connect the black negative (−) cable to the
negative terminal of the good battery. Use a
remote negative (−) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−) cable
does not
go to the dead battery. It goes to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
Use a remote negative (−) terminal if the vehicle has
one. Your vehicle’s remote negative (−) ground
location is for this purpose.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably needs
service.
5-46
Notice:
If the jumper cables are removed in the
wrong order, electrical shorting may occur and
damage the vehicle. The repairs would not be
covered by your warranty. Remove the jumper
cables in the correct order, making sure that the
cables do not touch each other or other metal.
A. Heavy, Unpainted Metal Engine Part or Remote
Negative (−) Terminal
B. Good Battery or Remote Positive (+) Terminal
C. Dead Battery or Remote Positive (+) Terminal
To disconnect the jumper cables from both vehicles,
do the following:
1. Disconnect the black negative (−) cable from the
vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the
other vehicle.
Jumper Cable Removal
5-47
Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle fluid
unless you suspect there is a leak or you hear an
unusual noise. A fluid loss could indicate a problem.
Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the filler plug hole,
located on the rear axle, you’ll need to add some
lubricant. Add enough lubricant to raise the level to the
bottom of the filler plug hole.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See
Recommended Fluids
and Lubricants on page 6-13
.
5-48
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-52
.
For any bulb changing procedure not listed in this
section, contact your dealer.
High Intensity Discharge (HID)
Lighting
{CAUTION:
The low beam high intensity discharge lighting
system operates at a very high voltage. If you
try to service any of the system components,
you could be seriously injured. Have your
dealer or a qualified technician service them.
Your vehicle may have HID headlamps. After your
vehicle’s HID headlamp bulb has been replaced, you
may notice that the beam is a slightly different
shade than it was originally. This is normal.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
5-49
Front Turn Signal and Fog Lamps
A. Turn Signal Lamp
B. Fog Lamp
To replace a fog or turn signal lamp bulb, do the
following:
1. Remove the protection shield located on the
underside of the front of the vehicle by pulling
out the push-pins located on the underside of
the protection shield.
2. Reach up behind the front bumper area from under
the vehicle to access the lamp housing.
3. Remove the bulb socket from the housing by
turning the bulb socket one-quarter turn
counterclockwise.
4. Remove the electrical connector from the bulb by
lifting the two plastic clips.
5. Pull the old bulb from the bulb socket keeping the
bulb straight as you pull it out.
6. Install a new bulb.
7. Reverse the steps to reinstall the lamp assembly.
5-50
Taillamps, Turn Signal, Stoplamps
and Sidemarker Lamps
A. Taillamps and
Stoplamps
B. Turn Signal Lamp
C. Sidemarker Lamp
1. Open the trunk. See
Trunk on page 2-12
for more
information.
2. Remove the compact spare tire cover by turning the
wing nut counterclockwise.
3. Remove the four convenience net wing nuts.
4. Pull the carpet back away from the body of the
vehicle on the side with the burned out bulb.
5. Remove the two mounting screws from the lamp
assembly.
6. Pull out the lamp assembly to expose the bulb
sockets.
7. Turn the bulb socket one-quarter turn
counterclockwise and pull the bulb socket out of
the lamp reflector.
8. Pull the old bulb from the bulb socket keeping the
bulb straight as you pull it out.
9. Install a new bulb.
10. Reverse the steps to reinstall the lamp assembly.
5-51
Back-Up and License Plate Lamps
A. Back-Up Lamps
B. License Plate Lamps
To replace a back-up or license plate bulb, do the
following:
1. Open the trunk. See
Trunk on page 2-12
for more
information.
2. Remove the cloth cover on the trunk lid by pulling
out the three push-pins located on the underside of
the trunk lid.
3. Remove the eight mounting nuts from the underside
of the trunk lid by turning the nuts counterclockwise.
4. Pull the lamp assembly away from the vehicle to
expose the bulb sockets.
5. Turn the bulb socket one-quarter turn
counterclockwise and pull the bulb and socket out
of the lamp reflector.
6. Pull the old bulb from the bulb socket keeping the
bulb straight as you pull it out.
7. Install a new bulb.
8. Reverse the steps to reinstall the lamp assembly.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamp 3157K
Fog Lamp 9145
Front and Rear Turn Signal Lamp 3157K
License Plate Lamp W5WLL
Rear Sidemarker Lamp 3157K
Stoplamp 3157K
Taillamp 3157K
For replacement bulbs not listed here, please consult
your dealer.
5-52
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See
Owner Checks
and Services on page 6-9
.
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, see
Normal
Maintenance Replacement Parts on page 6-15
.
To replace the wiper blade assembly, do the following:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them off
again when the wipers are in the out-wipe position.
The driver’s side blade will be straight up and
down on the windshield.
3. Pull the windshield wiper assembly away from the
windshield.
4. Lift the wiper blade assembly up so it is in a
T-shaped position. You should be able to see a tab.
Notice:
Allowing the wiper blade arm to touch the
windshield when no wiper blade is installed could
damage the windshield. Any damage that occurs
would not be covered by your warranty. Do not allow
the wiper blade arm to touch the windshield.
5. Squeeze the tab together and pull the wiper blade
assembly down far enough to release it from the
J-hooked end of the wiper arm. Slide the assembly
away from the arm.
6. Replace the blade with a new one.
5-53
7. Reinstall the wiper blade assembly by sliding it over
the wiper arm to engage the J-hooked end. Pull up
on the assembly to lock it into place.
8. Repeat the steps for the other wiper.
Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your GM Warranty booklet for details. For additional
information refer to the tire manufacturer’s booklet
included with your vehicle’s Owner’s Manual.
{CAUTION:
•Poorly maintained and improperly used
tires are dangerous.
•Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. See
Loading Your
Vehicle on page 4-33
.
•Underinflated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
CAUTION: (Continued)
5-54
CAUTION: (Continued)
•Overinflated tires are more likely to be
cut, punctured or broken by a sudden
impact — such as when you hit a pothole.
Keep tires at the recommended pressure.
•Worn, old tires can cause accidents.
If your tread is badly worn, or if your tires
have been damaged, replace them.
See
Inflation - Tire Pressure on page 5-62
,
for inflation pressure adjustment for high
speed driving.
Notice:
If your vehicle has P245/45R18 size
tires, they are classified as low-profile tires.
Low- profile tires are more susceptible to damage
from road hazards or curb impact than standard
profile tires. Tire and or wheel assembly damage
can occur when coming into contact with road
hazards like, potholes or sharp edged objects or
when sliding into a curb. Your GM warranty does
not cover this type of damage. Keep tires set to
the correct inflation pressure and when possible
avoid contact with curbs, potholes and other
road hazards.
Winter Tires
If you expect to drive on snow or ice covered roads
often, you may want to get winter tires for your vehicle.
All season tires provide good overall performance on
most surfaces but they may not offer the traction
you would like or the same level of performance as
winter tires on snow or ice covered roads.
See your dealer for details regarding winter tire
availability and proper tire selection. Also, see
Buying
New Tires on page 5-70
.
If you choose to use snow tires:
•Use tires of the same brand and tread type
on all four wheel positions.
•Use only radial ply tires of the same size,
load range, and speed rating as the original
equipment tires.
Winter tires with the same speed rating as your original
equipment tires may not be available for H, V, W and ZR
speed rated tires. If you choose snow tires with a lower
speed rating, never exceed the tire’s maximum speed
capability.
5-55
Tire Sidewall Labelling
Useful information about a tire is molded into its
sidewall. The examples below show a typical passenger
vehicle tire and a compact spare tire sidewall.
(A) Tire Size: The tire size is a combination of letters
and numbers used to define a particular tire’s width,
height, aspect ratio, construction type and service
description. See the “Tire Size” illustration later in this
section for more detail.
(B) TPC Spec (Tire Performance Criteria
Specification): Original equipment tires designed to
GM’s specific tire performance criteria have a TPC
specification code molded onto the sidewall. GM’s TPC
specifications meet or exceed all federal safety
guidelines.
(C) DOT (Department of Transportation): The
Department of Transportation (DOT) code indicates that
the tire is in compliance with the U.S. Department of
Transportation Motor Vehicle Safety Standards.
(D) Tire Identification Number (TIN): The letters and
numbers following DOT (Department of Transportation)
code is the Tire Identification Number (TIN). The
TIN shows the manufacturer and plant code, tire size,
and date the tire was manufactured. The TIN is molded
onto both sides of the tire, although only one side
may have the date of manufacture.
(E) Tire Ply Material: The type of cord and number of
plies in the sidewall and under the tread.
(F) Uniform Tire Quality Grading (UTQG): Tire
manufacturers are required to grade tires based on
three performance factors: treadwear, traction and
temperature resistance. For more information see
Uniform Tire Quality Grading on page 5-71
.
(G) Maximum Cold Inflation Load Limit: Maximum
load that can be carried and the maximum pressure
needed to support that load.
Passenger (P-Metric) Tire Example
5-56
(A) Temporary Use Only: The compact spare tire or
temporary use tire has a tread life of approximately
3,000 miles (5 000 km) and should not be driven
at speeds over 65 mph (105 km/h). The compact spare
tire is for emergency use when a regular road tire
has lost air and gone flat. If your vehicle has a compact
spare tire, see
Compact Spare Tire on page 5-87
and
If a Tire Goes Flat on page 5-75
.
(B) Tire Ply Material: The type of cord and number of
plies in the sidewall and under the tread.
(C) Tire Identification Number (TIN): The letters and
numbers following the DOT (Department of
Transportation) code is the Tire Identification Number
(TIN). The TIN shows the manufacturer and plant code,
tire size, and date the tire was manufactured. The
TIN is molded onto both sides of the tire, although only
one side may have the date of manufacture.
(D) Maximum Cold Inflation Load Limit: Maximum
load that can be carried and the maximum pressure
needed to support that load.
(E) Tire Inflation: The temporary use tire or compact
spare tire should be inflated to 60 psi (420 kPa).
For more information on tire pressure and inflation see
Inflation - Tire Pressure on page 5-62
.
(F) Tire Size: A combination of letters and numbers
define a tire’s width, height, aspect ratio, construction
type and service description. The letter T as the
first character in the tire size means the tire is for
temporary use only.
(G) TPC Spec (Tire Performance Criteria
Specification): Original equipment tires designed to
GM’s specific tire performance criteria have a TPC
specification code molded onto the sidewall. GM’s TPC
specifications meet or exceed all federal safety
guidelines.
Compact Spare Tire Example
5-57
Tire Size
The following illustration shows an example of a typical
passenger vehicle tire size.
(A) Passenger (P-Metric) Tire: The United States
version of a metric tire sizing system. The letter P as the
first character in the tire size means a passenger
vehicle tire engineered to standards set by the U.S. Tire
and Rim Association.
(B) Tire Width: The three-digit number indicates the
tire section width in millimeters from sidewall to sidewall.
(C) Aspect Ratio: A two-digit number that indicates
the tire height-to-width measurements. For example,
if the tire size aspect ratio is 60, as shown in item C of
the illustration, it would mean that the tire’s sidewall
is 60 percent as high as it is wide.
(D) Construction Code: A letter code is used to
indicate the type of ply construction in the tire. The letter
R means radial ply construction; the letter D means
diagonal or bias ply construction; and the letter B means
belted-bias ply construction.
(E) Rim Diameter: Diameter of the wheel in inches.
(F) Service Description: These characters represent
the load range and speed rating of the tire. The load
index represents the load carry capacity a tire is certified
to carry. The load index can range from 1 to 279. The
speed rating is the maximum speed a tire is certified
to carry a load. Speed ratings range from A to Z.
Tire Terminology and Definitions
Air Pressure: The amount of air inside the tire pressing
outward on each square inch of the tire. Air pressure
is expressed in pounds per square inch (psi) or
kilopascal (kPa).
Accessory Weight: This means the combined weight
of optional accessories. Some examples of optional
accessories are, automatic transmission, power steering,
power brakes, power windows, power seats, and air
conditioning.
Aspect Ratio: The relationship of a tire’s height to
its width.
5-58
Belt: A rubber coated layer of cords that is located
between the plies and the tread. Cords may be made
from steel or other reinforcing materials.
Bead: The tire bead contains steel wires wrapped by
steel cords that hold the tire onto the rim.
Bias Ply Tire: A pneumatic tire in which the plies are
laid at alternate angles less than 90 degrees to the
centerline of the tread.
Cold Inflation Pressure: The amount of air pressure
in a tire, measured in pounds per square inch (psi)
or kilopascals (kPa) before a tire has built up heat from
driving. See
Inflation - Tire Pressure on page 5-62
.
Curb Weight: This means the weight of a motor vehicle
with standard and optional equipment including the
maximum capacity of fuel, oil and coolant, but without
passengers and cargo.
DOT Markings: A code molded into the sidewall of a
tire signifying that the tire is in compliance with the
U.S. Department of Transportation (DOT) motor vehicle
safety standards. The DOT code includes the Tire
Identification Number (TIN), an alphanumeric designator
which can also identify the tire manufacturer, production
plant, brand and date of production.
GVWR: Gross Vehicle Weight Rating, see
Loading
Your Vehicle on page 4-33
.
GAWR FRT: Gross Axle Weight Rating for the front
axle, see
Loading Your Vehicle on page 4-33
.
GAWR RR: Gross Axle Weight Rating for the rear axle,
see
Loading Your Vehicle on page 4-33
.
Intended Outboard Sidewall: The side of an
asymmetrical tire, that must always face outward when
mounted on a vehicle.
KiloPascal (kPa): The metric unit for air pressure.
Light Truck (LT-Metric) Tire: A tire used on light duty
trucks and some multipurpose passenger vehicles.
Load Index: An assigned number ranging from 1 to 279
that corresponds to the load carrying capacity of a tire.
Maximum Inflation Pressure: The maximum air
pressure to which a cold tire may be inflated. The
maximum air pressure is molded onto the sidewall.
Maximum Load Rating: The load rating for a tire at the
maximum permissible inflation pressure for that tire.
Maximum Loaded Vehicle Weight: The sum of curb
weight; accessory weight; vehicle capacity weight;
and production options weight.
Normal Occupant Weight: The number of occupants a
vehicle is designed to seat multiplied by 150 lbs (68 kg).
See
Loading Your Vehicle on page 4-33
.
5-59
Occupant Distribution: Designated seating positions.
Outward Facing Sidewall: The side of an
asymmetrical tire that has a particular side that faces
outward when mounted on a vehicle. The side of the
tire that contains a whitewall, bears white lettering
or bears manufacturer, brand, and/or model name
molding that is higher or deeper than the same moldings
on the other sidewall of the tire.
Passenger (P-Metric) Tire: A tire used on passenger
cars and some light duty trucks and multipurpose
vehicles.
Recommended Inflation Pressure: Vehicle
manufacturer’s recommended tire inflation pressure and
shown on the tire placard. See
Inflation - Tire Pressure
on page 5-62
and
Loading Your Vehicle on page 4-33
.
Radial Ply Tire: A pneumatic tire in which the ply cords
that extend to the beads are laid at 90 degrees to the
centerline of the tread.
Rim: A metal support for a tire and upon which the tire
beads are seated.
Sidewall: The portion of a tire between the tread and
the bead.
Speed Rating: An alphanumeric code assigned to
a tire indicating the maximum speed at which a tire can
operate.
Traction: The friction between the tire and the road
surface. The amount of grip provided.
Tread: The portion of a tire that comes into contact
with the road.
Treadwear Indicators: Narrow bands, sometimes
called “wear bars,” that show across the tread of a tire
when only 1/16 inch (1.6 mm) of tread remains. See
When It Is Time for New Tires on page 5-69
.
UTQGS (Uniform Tire Quality Grading Standards):
A tire information system that provides consumers
with ratings for a tire’s traction, temperature, and
treadwear. Ratings are determined by tire manufacturers
using government testing procedures. The ratings are
molded into the sidewall of the tire. See
Uniform
Tire Quality Grading on page 5-71
.
Vehicle Capacity Weight: The number of designated
seating positions multiplied by 150 lbs (68 kg) plus
the rated cargo load. See
Loading Your Vehicle
on page 4-33
.
Vehicle Maximum Load on the Tire: Load on an
individual tire due to curb weight, accessory weight,
occupant weight, and cargo weight.
Vehicle Placard: A label permanently attached to
a vehicle showing the original equipment tire size
and recommended inflation pressure. See
Loading
Your Vehicle on page 4-33
.
5-60
Run-Flat Tires (CTS-V)
If your vehicle has run-flat tires, there is no spare tire
and no tire changing equipment. Your vehicle also has
a Tire Pressure Monitor (TPM) which will alert you if
there is a loss of tire pressure in any of the tires. See
Tire Pressure Monitor System (CTS-V) on page 5-65
.
{CAUTION:
When the low tire warning light is displayed on
the instrument panel cluster, your vehicle’s
handling capabilities will be reduced during
severe maneuvers. If you drive too fast, you
could lose control of your vehicle. You or
others could be injured. Don’t drive over
55 mph (90 km/h) when the low tire warning
light is displayed. Drive cautiously and check
your tire pressures as soon as you can.
If a tire goes flat, you won’t need to stop on the side
of the road to change the tire. You can just keep
on driving. The tire can operate effectively with no air
pressure for up to 65 miles (105 km) at speeds up
to 55 mph (90 km/h). The shorter the distance you drive
and the slower the speed, the greater the chance
that the tire will not have to be replaced. When a tire is
filled with air, it provides a cushion between the road
and the wheel. Because you won’t have this cushion
when driving on a deflated run-flat tire, try to avoid
potholes that could damage your wheel and require
replacement of it.
Some road hazards can damage a tire beyond
repair. This damage could occur even before you’ve
driven on the tire in a deflated condition. When a tire
has been damaged, or if you’ve driven any distance on
a run-flat tire, check with an authorized run-flat tire
service center to determine whether the tire can
be repaired or should be replaced. To maintain your
vehicle’s run-flat feature, all replacement tires must
be self-supporting tires. As soon as possible,
contact the nearest authorized GM or run-flat servicing
facility for inspection and repair or replacement.
5-61
To locate the nearest GM or run-flat servicing facility,
call Roadside Service. See
Roadside Service on
page 7-6
for details.
{CAUTION:
Run-flat tires are constructed differently than
other tires and could explode during improper
service. You or others could be injured or killed
if you attempt to repair, replace, dismount, or
mount a run-flat tire. Let only an authorized
run-flat service center repair, replace, dismount
and mount run-flat tires.
The valve stems on your run-flat tires have sensors that
are part of the Tire Pressure Monitor System (TPMS).
These sensors contain batteries which are designed
to last for 10 years under normal driving conditions.
See your dealer if you ever need to have a wheel
replaced, or if the sensors ever need replacement.
Notice:
Using liquid sealants can damage the tire
valves and tire pressure monitor sensors in your
run-flat tires. This damage would not be covered
by warranty. Don’t use liquid sealants in your
run-flat tires.
Inflation - Tire Pressure
Tires need the correct amount of air pressure to operate
effectively.
Notice:
Do not let anyone tell you that
under-inflation or over-inflation is all right.
It is not. If your tires do not have enough air
(under-inflation), you can get the following:
•Too much flexing
•Too much heat
•Tire overloading
•Premature or irregular wear
•Poor handling
•Reduced fuel economy
If your tires have too much air (over-inflation),
you can get the following:
•Unusual wear
•Poor handling
•Rough ride
•Needless damage from road hazards
5-62
A Tire and Loading Information label is attached to the
vehicle’s center pillar, below the driver’s door latch.
This label lists your vehicle’s original equipment
tires and shows the correct inflation pressures for your
tires when they are cold. The recommended cold
tire inflation pressure, shown on the label, is the
minimum amount of air pressure needed to support
your vehicle’s maximum load carrying capacity.
For additional information regarding how much weight
your vehicle can carry, and an example of the tire
and loading information label, see
Loading Your Vehicle
on page 4-33
. How you load your vehicle affects
vehicle handling and ride comfort, never load your
vehicle with more weight than it was designed to carry.
When to Check
Check your tires once a month or more. Do not forget to
check the compact spare tire, if your vehicle has one.
The compact spare should be at 60 psi (420 kPa).
For additional information regarding the compact spare
tire, see
Compact Spare Tire on page 5-87
.
How to Check
Use a good quality pocket-type gage to check tire
pressure. You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated. Check
the tire’s inflation pressure when the tires are cold.
Cold means your vehicle has been sitting for at least
three hours or driven no more than 1 mile (1.6 km).
Remove the valve cap from the tire valve stem. Press
the tire gage firmly onto the valve to get a pressure
measurement. If the cold tire inflation pressure matches
the recommended pressure on the Tire and Loading
Information label, no further adjustment is necessary.
If the inflation pressure is low, add air until you reach the
recommended amount.
If you overfill the tire, release air by pushing on the
metal stem in the center of the tire valve. Re-check the
tire pressure with the tire gage.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks by keeping out dirt and
moisture.
5-63
High Speed Operation (CTS-V)
{CAUTION:
Driving at high speeds, 100 mph (160 km/h)
or higher, puts an additional strain on tires.
Sustained high-speed driving, causes
excessive heat build up and can cause sudden
tire failure. You could have a crash and you or
others could be killed. Some high-speed rated
tires require inflation pressure adjustment
for high speed operation. When speed limits
and road conditions are such, that a vehicle
can be driven at high speeds, make sure the
tires are rated for high speed operation, in
excellent condition and set to the correct cold
tire inflation pressure for the vehicle load.
The CTS-V performance series has 245/45R18 96W
size tires. These high-performance tires require inflation
pressure adjustment when driving your vehicle at speeds
of 130 mph (209 km/h) or higher with occupants and
cargo weighing 600 lbs. (272 kg) up to 882 lbs. (400 kg).
Use the following chart to determine the cold tire
inflation pressure when operating your vehicle under
these conditions.
Tire Size: 245/45R18 96W Recommended Cold
Tire Inflation Pressure for High Speed Operation
at 130 mph (209 km/h) or more:
Occupant and
Cargo Weight:
Less than
600 lbs (272 kg)
Occupant and
Cargo Weight:
600 lbs (272 kg)
Up to 882 lbs (400 kg)
(Vehicle Capacity
Weight)
Front
Tires Rear
Tires Front
Tires Rear
Tires
30 psi
(210 kPa) 30 psi
(210 kPa) 32 psi
(220 kPa) 34 psi
(235 kPa)
When you end high-speed driving, return the tires to
the cold inflation pressures shown on the tire and
loading information label. See
Loading Your Vehicle
on page 4-33
.
5-64
Tire Pressure Monitor System
(CTS-V)
The Tire Pressure Monitor (TPM) System uses radio
and sensor technology to check tire pressure levels.
If your vehicle has this feature, sensors are mounted
on each run-flat tire and wheel assembly. The TPM
sensors transmit tire pressure readings to a receiver
located in the vehicle once every 60 seconds while the
vehicle is being driven, and once every 60 minutes
if the vehicle is stationary for more than 15 minutes.
Using the Message Center, tire pressure levels can be
viewed by the driver. For additional information about
the message center operation and displays, see
Message Center (CTS-V) on page 3-52
.
When a low tire pressure condition is detected, a low
tire warning light, on the instrument panel cluster,
comes on to warn the driver.
When the tire pressure
monitoring system warning
light is lit, one or more
of your tires is significantly
under-inflated.
You should stop and check your tires as soon as
possible, and inflate them to the proper pressure as
indicated on the vehicle’s tire information placard.
Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability. Each
tire, should be checked monthly when cold and set to the
recommended inflation pressure as specified in the
vehicle placard and owner’s manual.
The Tire and Loading Information label (tire information
placard) is attached, to either, the center pillar near
the driver’s door latch post or on the rear edge of the
driver’s side rear passenger door. The label shows
the size of your vehicle’s original tires and the correct
inflation pressure for your vehicle’s tires when they
are cold. See
Inflation - Tire Pressure on page 5-62
and
Loading Your Vehicle on page 4-33
for additional
information.
5-65
Your vehicle’s TPM system can alert you about a low
tire pressure condition but it does not replace normal tire
maintenance. See
Tire Inspection and Rotation on
page 5-68
and
Tires on page 5-54
.
Notice:
Do not use a tire sealant if your vehicle is
equipped with Tire Pressure Monitors. The liquid
sealant can damage the tire pressure monitor
sensors.
TPM Sensor Identification Codes
Each TPM sensor has a unique identification code.
Any time you replace one or more of the TPM sensors,
the identification codes will need to be matched to
the new tire/wheel position. Each tire/wheel position is
matched, to a sensor, by increasing or decreasing
the tire’s air pressure. The sensors are matched, to the
tire/wheel positions, in the following order: left front
(LF), right front (RF), right rear (RR), and left rear (LR).
You will have one minute to match the first tire/wheel
position, and five minutes overall, to match all four
tire/wheel positions. If it takes longer than one minute,
to match the first tire and wheel, or more than five
minutes to match all four tire and wheel positions the
matching process stops and you will need to start over.
The TPM matching process is outlined below:
1. Set the Parking brake.
2. Turn the ignition switch to ON with the engine off.
3. Using the Remote Keyless Entry (RKE) transmitter,
lock and unlock the vehicle’s doors.
4. Press the lock and unlock buttons, at the same
time, on the RKE transmitter. A single horn chirp
will sound, indicating that the TPM system is ready,
and the sensor matching process can begin.
5. Start with the left (driver’s side) front tire.
6. Remove the valve cap from the valve stem.
Activate the TPM sensor by increasing or
decreasing the tire’s air pressure for five seconds,
or until a horn chirp sounds. The horn chirp,
which may take up to 30 seconds, confirms that the
sensor identification code has been matched to
this tire position. To decrease the tire’s air-pressure
use the pointy end of the valve cap, a pencil-style
air pressure gage or a key.
7. Proceed to the right (passenger’s side) front tire,
and repeat the procedure in Step 6.
8. Proceed to the right (passenger’s side) rear tire,
and repeat the procedure in Step 6.
5-66
9. Proceed to the left (driver’s side) rear tire, and
repeat the procedure in Step 6.
10. After hearing the confirming double horn chirp, for
the left rear tire, exit the matching process by
turning the ignition switch to OFF.
11. Set all four tires to the recommended air pressure
level as indicated on the tire and loading information
label.
12. Put the valve caps back on the valve stems.
The TPM system will not function properly if one or
more of the TPM sensors are missing or inoperable.
If the system detects a missing or inoperable sensor an
error message of several dashes–––will be shown
on the message center display. If you have replaced a
tire/wheel assembly without transferring the TPM
sensors, the error message will be displayed. Once you
re-install the TPM sensors, the error message should
go off. See your GM dealer for service if all TPM sensors
are installed and the error message comes on and
stays on.
The TPM system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry and Science Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
5-67
Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
Any time you notice unusual wear, rotate your tires as
soon as possible and check wheel alignment. Also
check for damaged tires or wheels. See
When It Is Time
for New Tires on page 5-69
and
Wheel Replacement
on page 5-73
for more information.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first rotation
is the most important. See
Scheduled Maintenance
on page 6-4
.
When rotating your tires, always use the correct rotation
pattern shown here.
If your vehicle has a compact spare tire, do not include
it in the tire rotation.
After the tires have been rotated, adjust the front and
rear inflation pressures as shown on the Tire and
Loading Information label. See
Loading Your Vehicle on
page 4-33
, for an example of the tire and loading
information label and its location on your vehicle.
If your vehicle has run-flat tires, the Tire Pressure
Monitor (TPM) system will need to have the sensors
reset after a tire rotation is performed. A special tool is
needed to reset the sensor identification codes. See
your dealer for service.
Make certain that all wheel nuts are properly tightened.
See “Wheel Nut Torque” under
Capacities and
Specifications on page 5-108
.
5-68
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
places where the wheel attaches to the vehicle.
In an emergency, you can use a cloth or a
paper towel to do this; but be sure to use a
scraper or wire brush later, if you need to,
to get all the rust or dirt off. See
Changing a
Flat Tire on page 5-76
.
When It Is Time for New Tires
One way to tell when it’s
time for new tires is to
check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of tread
remaining.
You need a new tire if any of the following statements
are true:
•You can see the indicators at three or more places
around the tire.
•You can see cord or fabric showing through the
tire’s rubber.
•The tread or sidewall is cracked, cut or snagged
deep enough to show cord or fabric.
•The tire has a bump, bulge or split.
•The tire has a puncture, cut or other damage that
can’t be repaired well because of the size or
location of the damage.
5-69
Buying New Tires
To find out what kind and size of tires your vehicle
needs, look at the tire and loading information label.
For more information about this label and its location on
your vehicle, see
Loading Your Vehicle on page 4-33
.
The tires installed on your vehicle when it was new
had a Tire Performance Criteria Specification (TPC
Spec) number on each tire’s sidewall. When you get
new tires, GM recommends that you get tires with
that same TPC Spec number. That way your vehicle
will continue to have tires that are designed to give
proper endurance, handling, speed rating, load
range, traction, ride, tire pressure monitoring system
performance and other things during normal service
on your vehicle. If your tires have an all-season tread
design, the TPC number will be followed by an “MS”
(for mud and snow).
Whenever you replace your tires with those not having
a TPC Spec number, make sure they are the same
size, load range, speed rating and construction
type (bias, bias-belted or radial) as your original tires.
Winter tires with the same speed rating as your original
equipment tires may not be available for H, V, W,
and ZR speed rated tires. If you choose snow tires with
a lower speed rating, never exceed the tire’s maximum
speed capability.
If you replace your vehicle’s tires with those not having
a TPC Spec number, the tire pressure monitoring
system may give an inaccurate low pressure warning.
Non-TPC Spec tires may give a low pressure warning
that is higher or lower than the proper warning level you
would get with TPC Spec numbered tires.
{CAUTION:
Mixing tires could cause you to lose control
while driving. If you mix tires of different sizes
or types (radial and bias-belted tires), the
vehicle may not handle properly, and you
could have a crash. Using tires of different
sizes may also cause damage to your vehicle.
Be sure to use the same size and type tires on
all wheels. It’s all right to drive with your
compact spare temporarily, it was developed
for use on your vehicle. See
Compact Spare
Tire on page 5-87
.
5-70
{CAUTION:
If you use bias-ply tires on your vehicle, the
wheel rim flanges could develop cracks after
many miles of driving. A tire and/or wheel
could fail suddenly, causing a crash. Use only
radial-ply tires with the wheels on your vehicle.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the
tire sidewall between tread shoulder and maximum
section width. For example:
Treadwear 200 Traction AA Temperature A
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration, which grades tires by
treadwear, traction and temperature performance.
(This applies only to vehicles sold in the United States.)
The grades are molded on the sidewalls of most
passenger car tires. The Uniform Tire Quality Grading
system does not apply to deep tread, winter-type
snow tires, space-saver or temporary use spare tires,
tires with nominal rim diameters of 10 to 12 inches
(25 to 30 cm), or to some limited-production tires.
While the tires available on General Motors passenger
cars and light trucks may vary with respect to these
grades, they must also conform to federal safety
requirements and additional General Motors Tire
Performance Criteria (TPC) standards.
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course.
For example, a tire graded 150 would wear one and
a half (1.5) times as well on the government course as
a tire graded 100. The relative performance of tires
depends upon the actual conditions of their use,
however, and may depart significantly from the norm
due to variations in driving habits, service practices and
differences in road characteristics and climate.
5-71
Traction – AA, A, B, C
The traction grades, from highest to lowest, are AA, A,
B, and C. Those grades represent the tire’s ability
to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor
traction performance. Warning: The traction grade
assigned to this tire is based on straight-ahead braking
traction tests, and does not include acceleration,
cornering, hydroplaning, or peak traction characteristics.
Temperature – A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation
of heat and its ability to dissipate heat when tested
under controlled conditions on a specified indoor
laboratory test wheel. Sustained high temperature can
cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to a
level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for this tire is
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
If you notice unusual tire wear or your vehicle pulling
one way or the other, the alignment may need to
be reset. If you notice your vehicle vibrating when driving
on a smooth road, your wheels may need to be
rebalanced.
5-72
Wheel Replacement
Replace any wheel that is bent, cracked or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any of your wheels, wheel
bolts or wheel nuts, replace them only with new GM
original equipment parts. This way, you will be sure
to have the right wheel, wheel bolts and wheel nuts for
your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
Notice:
The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire or tire chain
clearance to the body and chassis.
See
Changing a Flat Tire on page 5-76
for more
information.
5-73
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can’t know how it’s been
used or how far it’s been driven. It could fail
suddenly and cause a crash. If you have to
replace a wheel, use a new GM original
equipment wheel.
Tire Chains
{CAUTION:
Do not use tire chains. There is not enough
clearance. Tire chains used on a vehicle
without the proper amount of clearance can
cause damage to the brakes, suspension or
other vehicle parts. The area damaged by the
tire chains could cause you to lose control of
your vehicle and you or others may be injured
in a crash. Use another type of traction device
only if its manufacturer recommends it for use
on your vehicle and tire size combination and
road conditions. Follow that manufacturer’s
instructions. To help avoid damage to your
vehicle, drive slowly, readjust or remove the
device if it is contacting your vehicle, and
don’t spin your wheels. If you do find traction
devices that will fit, install them on the
rear tires.
5-74
If a Tire Goes Flat
It is unusual for a tire to “blowout” while you’re driving,
especially if you maintain your tires properly. See
Tires on page 5-54
. If air goes out of a tire, it’s much
more likely to leak out slowly. But if you should
ever have a “blowout”, here are a few tips about what
to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake
to a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you’d use
in a skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop — well off the road if possible.
If a tire goes flat, and your vehicle has a spare tire,
see
Changing a Flat Tire on page 5-76
. This information
shows you how to use your vehicle’s tire changing
equipment and how to change a flat tire safely.
{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without
the appropriate safety equipment and training.
The jack provided with your vehicle is
designed only for changing a flat tire. If it is
used for anything else, you or others could be
badly injured or killed if the vehicle slips off
the jack. Use the jack provided with your
vehicle only for changing a flat tire.
5-75
Run-Flat Tires (CTS-V)
If your vehicle has run-flat tires, there is no spare tire and
no tire changing equipment. Run-flat tires can operate
effectively with no air pressure for a limited distance and
speed. Your vehicle also has a Tire Pressure Monitor
(TPM) which will alert you if there is a loss of tire pressure
in any of the tires. These tires perform so well without any
air pressure that a Tire Pressure Monitor (TPM) is used to
alert you when there is a low tire condition.
{CAUTION:
When the low tire warning light is displayed on
the instrument panel cluster, your vehicle’s
handling capabilities will be reduced during
severe maneuvers. If you drive too fast, you
could lose control of your vehicle. You or
others could be injured. Don’t drive over
55 mph (90 km/h) when the low tire warning
light is displayed. Drive cautiously and check
your tire pressures as soon as you can.
See
Run-Flat Tires (CTS-V) on page 5-61
and
Tire
Pressure Monitor System (CTS-V) on page 5-65
,
for additional information.
{CAUTION:
Special tools and procedures are required to
service a run-flat tire. If these special tools
and procedures aren’t used you or others
could be injured and your vehicle could be
damaged. Always be sure the proper tools
and procedures, as described in the service
manual, are used.
To order a service manual see
Service Publications
Ordering Information on page 7-12
.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your
hazard warning flashers.
5-76
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake firmly.
2. Put an automatic transmission shift lever
in PARK (P), or shift a manual transmission
to FIRST (1) or REVERSE (R).
3. Turn off the engine and do not restart while
the vehicle is raised.
4. Do not allow passengers to remain in the
vehicle.
Put the wheel blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side, at the
opposite end of the vehicle.
When you have a flat tire, use the following example as a
guide to assist you in the placement of wheel blocks.
The following information will tell you next how to use
the jack and change a tire.
5-77
Removing the Spare Tire and Tools
The equipment you’ll need is in the trunk.
To gain access to the spare tire and jacking equipment,
do the following:
1. Turn the center nut on
the compact spare tire
cover counterclockwise
to remove it. Then
remove the cover.
2. Turn the nut holding the jack counterclockwise and
remove it. Then remove the jack and wheel wrench.
5-78
3. Remove the compact spare tire. See
Compact
Spare Tire on page 5-87
for more information
about the compact spare tire.
4. The tools you’ll be using next include the jack (A)
and the wheel wrench (B).
5-79
Removing the Flat Tire and
Installing the Spare Tire
If your vehicle has wheel covers, use the flat end of the
wheel wrench to remove the covers. Turn the wheel
wrench clockwise to gently pry off the wheel cover.
Be careful not to scratch the aluminum wheel edge and
don’t try to remove the wheel cover with your hands.
If your vehicle has wheel nut caps, turn the wheel
wrench counterclockwise to remove the caps.
Once the wheel cover and wheel nut caps have been
removed, use the following steps to remove the flat tire
and install the spare tire.
5-80
1. Place the wheel wrench (A) securely over the wheel
nut (B). Turn the wheel wrench counterclockwise to
loosen all the wheel nuts. Don’t remove them yet.
2. Find the jacking location using the diagram above
and corresponding hoisting notches located in the
plastic molding. The notches in the plastic molding
are marked with a triangle shape to help you
find them.
The front location (A) is about 14 inches (35.6 cm)
from the rear edge of the front wheel well, and
the rear location (B) is about 7 inches (17.8 cm)
from the front edge of the rear wheel well.
5-81
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to fit the
jack lift head into the proper location before
raising the vehicle.
3. Attach the wheel wrench to the jack.
4. Turn the wheel wrench counterclockwise to lower
the jack lift head until the jack fits under the
vehicle.
5. Raise the jack by turning the wheel wrench
clockwise until the slots in the jack head fit into
the metal flange located behind the triangle on
the plastic molding as shown.
6. Put the compact spare tire near you.
7. Raise the vehicle by turning the wheel wrench
clockwise. Raise the vehicle far enough off the
ground for the compact spare tire to fit under
the vehicle.
8. Remove all the wheel nuts and take off the flat tire.
5-82
{CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches to the
vehicle. In an emergency, you can use a cloth
or a paper towel to do this; but be sure to use
a scraper or wire brush later, if you need to,
to get all the rust or dirt off.
9. Remove any rust or
dirt from the wheel
bolts, mounting
surfaces and spare
wheel.
10. Place the compact
spare tire on the
wheel-mounting
surface.
{CAUTION:
Never use oil or grease on studs or nuts.
If you do, the nuts might come loose. Your
wheel could fall off, causing a serious
accident.
5-83
11. Put the wheel nuts
back on with the
rounded end of the
nuts toward the
wheel. Tighten each
wheel nut by turning
it clockwise with
your hand until the
wheel is held against
the hub.
12. Lower the vehicle by turning the wheel wrench
counterclockwise. Lower the jack completely.
5-84
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specification. See
Capacities
and Specifications on page 5-108
for wheel
nut torque specification.
Notice:
Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification. See
Capacities and
Specifications on page 5-108
for the wheel nut
torque specification.
13. Tighten the wheel nuts
firmly in a crisscross
sequence as shown.
Notice:
Wheel covers will not fit on your compact
spare. If you try to put a wheel cover on the compact
spare, you could damage the cover or the spare.
Do not try to put a wheel cover on your compact spare
tire. It will note fit. Store the wheel cover in the trunk
until you have the flat tire repaired or replaced.
5-85
Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.
After you’ve put the compact spare tire on your vehicle,
you’ll need to store the flat tire in your trunk.
Remove the foam support so that the flat tire will fit in
the storage area. Place the flat tire with the
appearance-side face down and store the jack container
in the center of the tire. See the diagram for more
information.
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as soon
as you can.
Use the following diagram as a guide for storing the
compact spare tire in the trunk:
A. Compact Spare Tire
Cover Wing Nut
B. Compact Spare Tire
Cover
C. Plastic Wing Nut
D. Retainer
E. Jack Container with
Wheel Wrench and Jack
F. Flat Road Tire
G. Compact
Spare Tire
H. Foam Insert
I. Bolt
J. Wheel Wrench
K. Jack
L. Jack Container
5-86
Compact Spare Tire
Although the compact spare tire was fully inflated when
the vehicle was new, it can lose air after a time.
Check the inflation pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on the vehicle, stop
as soon as possible and make sure the spare tire
is correctly inflated. The compact spare is made to
perform well at speeds up to 65 mph (105 km/h)
for distances up to 3,000 miles (5 000 km), so you can
finish your trip and have the full-size tire repaired or
replaced at your convenience. Of course, it is best
to replace the spare with a full-size tire as soon as
possible. The spare tire will last longer and be in good
shape in case it is needed again.
Notice:
When the compact spare is installed, do
not take your vehicle through an automatic car
wash with guide rails. The compact spare can get
caught on the rails. That can damage the tire
and wheel, and maybe other parts of your vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or wheel with
other wheels or tires. They will not fit. Keep the
spare tire and its wheel together.
Notice:
Tire chains will not fit your compact spare.
Using them can damage your vehicle and can
damage the chains too. Do not use tire chains on
your compact spare.
Appearance Care
Cleaning products can be hazardous. Some are toxic.
Other cleaning products can burst into flames if a match
is struck near them or if they get on a hot part of the
vehicle. Some are dangerous if their fumes are inhaled in
a closed space. When anything from a container is used
to clean the vehicle, be sure to follow the manufacturer’s
warnings and instructions. Always open the doors or
windows of the vehicle when cleaning the inside.
Never use these to clean the vehicle:
•Gasoline
•Benzene
•Naphtha
•Carbon Tetrachloride
•Acetone
•Paint Thinner
•Turpentine
•Lacquer Thinner
•Nail Polish Remover
They can all be hazardous — some more than
others — and they can all damage the vehicle, too.
5-87
Do not use any of these products unless this manual
says you can. In many uses, these will damage
the vehicle:
•Alcohol
•Laundry Soap
•Bleach
•Reducing Agents
Fabric/Carpet
Cleaning Fabric/Carpet
Use a vacuum cleaner often to get rid of dust and loose
dirt. Wipe vinyl, leather, plastic, and painted surfaces
with a clean, damp cloth.
Your GM dealer has cleaners for the cleaning of fabric
and carpet. They will clean normal spots and stains
very well.
If the vehicle has the Ultra Lux
®
suede fabric, follow the
listed procedures except do not use any solvents or
dry cleaning products.
Here are some cleaning tips:
•Always read the instructions on the cleaner label.
•Clean up stains as soon as you can — before
they set.
•Carefully scrape off any excess stain.
•Use a clean cloth or sponge, and change to a clean
area often. A soft brush may be used if stains are
stubborn.
•To avoid forming a ring on fabric after spot cleaning,
clean the entire area immediately or it will set.
Most stains can be removed with club soda water.
To clean, use the following instructions:
1. For liquids: blot with a clean, soft white cloth.
For solids: remove as much as possible and
then vacuum or brush.
2. Apply club soda water to a clean, soft white cloth.
Do not over-saturate; the cloth should not drip
water.
3. Clean the entire area. Avoid getting the fabric
too wet.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the cloth
each time it becomes soiled.
6. When the stain is removed, blot the cleaned area
with another dry clean, soft white cloth.
5-88
Using Cleaner on Fabric
1. First, try the cleaner in an inconspicuous area to
make sure the cleaner does not affect the color of
the fabric.
2. For liquids: blot the stain with a clean, soft white
cloth.
For solids: remove as much as possible and then
vacuum or brush.
3. Spray a small amount of the cleaner onto a clean,
soft white cloth. Do not apply spray directly to the
fabric.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the cloth
each time it becomes soiled.
6. When the stain is removed, blot the cleaned area
with another dry clean, soft white cloth.
7. If the cleaner leaves a ring effect, follow up with the
club soda water instructions given earlier in this
section.
Special Fabric Cleaning Problems
Stains caused by such things as catsup, coffee, tea,
milk, fruit, fruit juice, jelly, cheese, chocolate, vomit,
urine, and blood can be removed using the club
soda water instructions given earlier in this section.
If an odor lingers after cleaning vomit or urine, treat
the area with a water and baking soda solution:
1 teaspoon (5 ml) of baking soda to 1 cup (250 ml)
of lukewarm water. Let dry.
Stains caused by oil and grease can be cleaned with an
approved GM cleaner and a clean, white cloth.
1. Carefully scrape off excess stain.
2. Clean with cool water and allow to dry completely.
3. If a stain remains, follow the cleaner instructions
described earlier.
Vinyl
Use warm water and a clean cloth.
•Rub with a clean, damp cloth to remove dirt. This
may have to be done more than once.
•Things like tar, asphalt, and shoe polish will stain if
they are not removed quickly. Use a clean cloth
and vinyl cleaner. See your dealer for this product.
5-89
Leather
Use a soft cloth with lukewarm water and a mild soap or
saddle soap and wipe dry with a soft cloth. Then, let
the leather dry naturally. Do not use heat to dry.
•For stubborn stains, use a leather cleaner.
•Never use oils, varnishes, solvent-based or abrasive
cleaners, furniture polish, or shoe polish on leather.
•Soiled or stained leather should be cleaned
immediately. If dirt is allowed to work into the finish,
it can harm the leather.
Instrument Panel
Use only mild soap and water to clean the top surfaces
of the instrument panel. Sprays containing silicones
or waxes may cause annoying reflections in the
windshield and even make it difficult to see through
the windshield under certain conditions.
Interior Plastic Components
Use only a mild soap and water solution on a soft cloth
or sponge. Commercial cleaners may affect the
surface finish.
Wood Panels
Use a clean cloth moistened in warm, soapy water
(use mild dish washing soap). Dry the wood immediately
with a clean cloth.
Speaker Covers
Vacuum around a speaker cover gently, so that the
speaker will not be damaged. Clean spots with
just water and mild soap.
Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner or a
liquid household glass cleaner will remove normal
tobacco smoke and dust films on interior glass. See
Vehicle Care/Appearance Materials on page 5-95
.
Notice:
If you use abrasive cleaners when cleaning
glass surfaces on your vehicle, you could scratch
the glass and/or cause damage to the rear window
defogger and the integrated radio antenna. When
cleaning the glass on your vehicle, use only a soft
cloth and glass cleaner.
5-90
Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you do,
it may severely weaken them. In a crash,
they might not be able to provide adequate
protection. Clean safety belts only with mild
soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather frequent application may be required.
See
Recommended Fluids and Lubricants on page 6-13
.
Washing Your Vehicle
The paint finish on the vehicle provides beauty, depth of
color, gloss retention, and durability.
The best way to preserve the vehicle’s finish is to keep it
clean by washing it often with lukewarm or cold water.
Do not wash the vehicle in the direct rays of the sun.
Use a car washing soap. Do not use strong soaps
or chemical detergents. Be sure to rinse the vehicle well,
removing all soap residue completely. GM-approved
cleaning products can be obtained from your dealer.
See
Vehicle Care/Appearance Materials on page 5-95
.
Do not use cleaning agents that are petroleum
based, or that contain acid or abrasives. All cleaning
agents should be flushed promptly and not allowed
to dry on the surface, or they could stain. Dry the finish
with a soft, clean chamois or an all-cotton towel to
avoid surface scratches and water spotting.
High pressure car washes may cause water to enter
the vehicle.
Cleaning Exterior Lamps/Lenses
Use only lukewarm or cold water, a soft cloth and a car
washing soap to clean exterior lamps and lenses. Follow
instructions under
Washing Your Vehicle on page 5-91
.
5-91
Finish Care
Occasional waxing or mild polishing of the vehicle
by hand may be necessary to remove residue from the
paint finish. GM-approved cleaning products can be
obtained from your dealer. See
Vehicle
Care/Appearance Materials on page 5-95
.
The vehicle has a “basecoat/clearcoat” paint finish.
The clearcoat gives more depth and gloss to the colored
basecoat. Always use waxes and polishes that are
non-abrasive and made for a basecoat/clearcoat
paint finish.
Notice:
Machine compounding or aggressive
polishing on a basecoat/clearcoat paint finish may
damage it. Use only non-abrasive waxes and
polishes that are made for a basecoat/clearcoat
paint finish on your vehicle.
Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc.,
can damage the vehicle’s finish if they remain on painted
surfaces. Wash the vehicle as soon as possible. If
necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter.
Exterior painted surfaces are subject to aging, weather,
and chemical fallout that can take their toll over a
period of years. To help keep the paint finish looking
new, keep the vehicle in a garage or covered whenever
possible.
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running,
wax, sap, or other material may be on the blade
or windshield.
Clean the outside of the windshield with a glass cleaning
liquid or powder and water solution. The windshield is
clean if beads do not form when it is rinsed with water.
Grime from the windshield will stick to the wiper blades
and affect their performance. Clean the blade by
wiping vigorously with a cloth soaked in full-strength
windshield washer solvent. Then rinse the blade
with water.
Check the wiper blades and clean them as necessary;
replace blades that look worn.
5-92
Aluminum or Chrome-Plated Wheels
The vehicle may be equipped with either aluminum or
chrome-plated wheels.
Keep the wheels clean using a soft clean cloth with mild
soap and water. Rinse with clean water. After rinsing
thoroughly, dry with a soft clean towel. A wax may then
be applied.
Notice:
If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or cleaners
that contain acid on aluminum or chrome-plated
wheels, you could damage the surface of the
wheel(s). The repairs would not be covered by your
warranty. Use only GM-approved cleaners on
aluminum or chrome-plated wheels.
The surface of these wheels is similar to the painted
surface of your vehicle. Do not use strong soaps,
chemicals, abrasive polishes, abrasive cleaners,
cleaners with acid, or abrasive cleaning brushes on
them because you could damage the surface. Do not
use chrome polish on aluminum wheels.
Notice:
Using chrome polish on aluminum wheels
could damage the wheels. The repairs would not
be covered by your warranty. Use chrome polish
on chrome wheels only.
Use chrome polish only on chrome-plated wheels, but
avoid any painted surface of the wheel, and buff off
immediately after application.
Notice:
If you drive your vehicle through an
automatic car wash that has silicone carbide tire
cleaning brushes, you could damage the aluminum
or chrome-plated wheels. The repairs would not
be covered by your warranty. Never drive a vehicle
equipped with aluminum or chrome-plated wheels
through an automatic car wash that uses silicone
carbide tire cleaning brushes.
Do not take your vehicle through an automatic car wash
that has silicone carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Tires
To clean the tires, use a stiff brush with tire cleaner.
Notice:
Using petroleum-based tire dressing
products on your vehicle may damage the paint
finish and/or tires. When applying a tire dressing,
always wipe off any overspray from all painted
surfaces on your vehicle.
5-93
Sheet Metal Damage
If the vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to parts repaired or
replaced to restore corrosion protection.
Original manufacturer replacement parts will provide the
corrosion protection while maintaining the warranty.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your GM dealer. Larger areas
of finish damage can be corrected in your GM
dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on the underbody. If these are not
removed, corrosion and rust can develop on the
underbody parts such as fuel lines, frame, floor pan,
and exhaust system even though they have corrosion
protection.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and debris can collect. Dirt packed in close areas of
the frame should be loosened before being flushed.
Your GM dealer or an underbody car washing system
can do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on the vehicle. This damage can
take two forms: blotchy, ring-shaped discolorations,
and small, irregular dark spots etched into the
paint surface.
Although no defect in the paint job causes this, GM will
repair, at no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
5-94
Vehicle Care/Appearance Materials
See your GM dealer for more information on purchasing
the following products.
Description Usage
Polishing Cloth
Wax-Treated Interior and exterior
polishing cloth.
Tar and Road Oil
Remover Removes tar, road oil,
and asphalt.
Chrome Cleaner and
Polish Use on chrome or
stainless steel.
White Sidewall Tire
Cleaner Removes soil and black
marks from whitewalls.
Vinyl Cleaner Cleans vinyl tops,
upholstery, and
convertible tops.
Glass Cleaner Removes dirt, grime,
smoke and fingerprints.
Chrome and Wire Wheel
Cleaner
Removes dirt and grime
from chrome wheels and
wire wheel covers.
Finish Enhancer
Removes dust,
fingerprints, and surface
contaminants. Spray on
and wipe off.
Description Usage
Swirl Remover Polish Removes swirl marks, fine
scratches, and other light
surface contamination.
Cleaner Wax Removes light scratches
and protects finish.
Foaming Tire Shine
Low Gloss
Cleans, shines, and
protects in one step.
No wiping necessary.
Wash Wax Concentrate
Medium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.
Spot Lifter
Quickly removes spots
and stains from carpets,
vinyl, and cloth
upholstery.
Odor Eliminator Odorless spray odor
eliminator used on fabrics,
vinyl, leather and carpet.
See your General Motors parts department for these
products. See
Recommended Fluids and Lubricants
on page 6-13
.
5-95
Vehicle Identification
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You will find this label in the trunk. It is very helpful if you
ever need to order parts. On this label, you will find
the following:
•VIN
•Model designation
•Paint information
•Production options and special equipment
Be sure that this label is not removed from the vehicle.
Electrical System
Add-On Electrical Equipment
Notice:
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
5-96
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, see
Servicing
Your Airbag-Equipped Vehicle on page 1-62
.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker. If the wiper motor overheats due to
heavy snow, the wipers will stop until the motor cools
and will then restart.
Power Windows and Other Power
Options
Circuit breakers protect the power windows and power
seats. When the current load is too heavy, the circuit
breaker opens and closes, protecting the circuit until the
problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating. If a fuse blows, see your dealer
for service immediately.
If you ever have a problem on the road and don’t
have a spare fuse, you can “borrow” one that has the
same amperage. Pick some feature of your vehicle that
you can get along without — like the radio or cigarette
lighter — and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
The fuses are located in three fuse blocks, one located
in the engine compartment on the passenger’s side
and the other two under the rear seat.
5-97
Underhood Fuse Block
The underhood fuse block is located in the engine
compartment on the passenger’s side of the vehicle.
See
Engine Compartment Overview on page 5-12
for more information on location.
To access the fuses, push in the two tabs located on
each side of the fuse block cover. Then lift the cover off.
Relays Usage
LO SPEED
FAN RELAY
MINI Low Speed Fan Motor
HI SPEED FAN
RELAY MINI High Speed Fan Motor
ACCESSORY
RELAY MINI Accessory Power Outlets
S/P FAN
RELAY MINI Series/Parallel Fan
5-98
Relays Usage
PARK LAMP
RELAY MICRO Parking Lamps
HORN RELAY
MICRO Horn
HI BEAM
RELAY MICRO High-Beam Headlamps
DRL RELAY
MICRO-OPT Daytime Running Lamps
LO BEAM
RELAY/HID
MINI-OPT Low-Beam HID Headlamps
HDLP WASH
RELAY
MINI-OPT Headlamp Washer Motor
SPARE Not Used
BLOWER
RELAY MINI Front Blower
FOG LAMP
RELAY MICRO Fog Lamps
MAIN RELAY
MICRO Powertrain/ECM
STARTER
RELAY MINI Starter Solenoid
CMP CLU
RELAY MICRO Compressor Clutch
IGN-1 RELAY
MICRO Ignition Switch (ON)
Wiring
Harnesses Usage
BODY W/H Wiring Harness Connection
I/P W/H Wiring Harness Connection
ENG W/H Engine Wiring Harness Connection
FORWARD
LAMP Forward Lamp Wiring Harness
Connection
J Cases Usage
R REAR RRPDB (Passenger’s Side Rear
Power Distribution Box)
R REAR RRPDB (Passenger’s Side Rear
Power Distribution Box)
L REAR LRPDB (Driver’s Side Rear Power
Distribution Box)
L REAR LRPDB (Driver’s Side Rear Power
Distribution Box)
HI FAN High Cooling Fan Motor
LO FAN Low Cooling Fan Motor
BLOWER PWM Fan Motor Assembly
STARTER Starter Solenoid
ABS Anti-Lock Brake System
5-99
Fuses Usage
RT PARK Passenger’s Side Taillamp
Assembly, Front Sidemarker and
Front Parking Lamp Assembly
HORN Dual Horn Assembly
LT HI BEAM Driver’s Side High-Beam Headlamp
LT LOW BEAM Driver’s Side Low-Beam Headlamp
RT LOW BEAM Passenger’s Side Low-Beam
Headlamp
RT HI BEAM Passenger’s Side High-Beam
Headlamp
TOS Manual Transmission Output Speed
Sensor
SPARE Not Used
THEFT ECM (Electronic Control Module),
TCM (Transmission Control Module),
PASS-Key
®
III+ Module
LT PARK Driver’s Side Taillamp Assembly,
Front Sidemarker and Front Parking
Lamp Assembly
DIMMING Rear License Plate Assembly,
Dash Integrated Module (DIM)
DIM/ALDL DIM, ALDL (Assembly Line
Data Link)
FLASHER Turn Signal/Hazard Flasher Module
Fuses Usage
ECM Electronic Control Module
STRG CTLS Steering Wheel Control Pad,
Headlamp Switch
HTR VLV/
CLTCH
Heater Valve, Clutch Switch (Normal
Closed), Clutch Switch (Normal
Open), Jumper to Start Relay Coil
for Automatic Transmission
WASH NOZ Driver’s and Passenger’s Side
Heated Washer Nozzles
PRE O2/CAM Driver’s & Passenger’s Side
Oxygen Sensors, CAM Phaser,
Canister Purge
TCM/IPC TCM, ECM and IPC (Instrument
Panel Cluster)
SPARE Not Used
IGN MOD/MAF Front Bank Ignition Modules
ELEC PRNDL Electronic PRNDL
SPARE Not Used
SPARE Not Used
IGN SW Ignition Switch (Power to IGN-3
and CRANK)
VOLT CHECK DIM (Dash Integration Module)
5-100
Fuses Usage
ECM/TCM
TCM (Transmission Control Module),
ECM (Electronic Control Module),
IPC (Instrument Panel Cluster),
PASS-Key
®
III+ Module
WPR MOD Windshield Wiper Module Assembly
ODD
INJ/COILS Odd Ignition Coils, Fuel Injectors,
Odd Injection Coils
COMP CLUTCH Compressor Clutch
WPR SW Windshield Wiper/Washer Switch
FOG LAMP Fog Lamps
OUTLET Center Console Accessory
Power Outlet
POST 02 Driver’s and Passenger’s Side
Oxygen Sensors, LRPDB (Pusher
Cooling Fan Relay)
I/P OUTLET Instrument Panel Accessory
Power Outlet
CCP Climate Control
EVEN
INJ/COILS Even Injection Coils
SPARE Not Used
SPARE Not Used
SPARE Not Used
Circuit
Breakers Usage
HDLP WASH
C/B-OPT Headlamp Washer Motor
Rear Underseat Fuse Block
To access the rear underseat fuse blocks, you will have
to first remove the rear seat cushion.
Removing the Rear Seat Cushion
Notice:
If, when removing or reinstalling the rear
seat, you do not do it carefully, you could damage
the fuse center. Avoid contact between the rear seat
and the fuse center whenever you remove or
reinstall the rear seat.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of the
vehicle.
3. Slide the cushion out one of the rear doors and set
it aside.
5-101
Rear Pass-Through Seat Split-Folding Rear Seat
5-102
{CAUTION:
A safety belt that is not properly routed
through the seat cushion or is twisted will not
provide the protection needed in a crash. If the
safety belt has not been routed through the
seat cushion at all, it will not be there to work
for the next passenger. The person sitting in
that position could be badly injured. After
reinstalling the seat cushion, always check to
be sure that the safety belts are properly
routed and are not twisted.
To reinstall the rear seat cushion, do the following:
1. Position the seat cushion so that you can route the
safety belts through the proper slots in the seat
cushion.
2. Slide the rear of the cushion up and under the
seatback so the rear-locating guides hook into
the wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the seat
cushion snaps into place.
4. Push and pull on the seat cushion to make sure it
is locked into place.
5. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat cushion.
5-103
Rear Underseat Fuse Block
(Driver’s Side)
The driver’s side rear fuse block is located under the
rear seat on the driver’s side of the vehicle. The
rear seat cushion must be removed to access the rear
fuse block. See “Removing the Rear Seat Cushion”
listed previously.
To access the fuse block, push in the two tabs located
at each end of the fuse block cover. Then lift the
cover off.
Fuses Usage
SPARE Not Used
SPARE Not Used
AUDIO Radio, OnStar Module
SPARE Not Used
REAR DR MOD Rear Door Modules
SPARE Not Used
DRIVER
DR MOD Driver’s Door Module
BAS Taillamps, Center High-Mounted
Stoplamp, Flasher Module, ABS
Module, Trailer Lamps
HDLP
LEVELING Headlamp Leveling System Chassis
Sensors (Export Only)
SPARE Not Used
CCP CCP (Climate Control Panel)
IGN 3 Heated Seat Modules, Air Inlet
Motor, Shifter Assembly
SPARE Not Used
5-104
Fuses Usage
SPARE Not Used
FUSE PULLER Fuse Puller
L FRT HTD
SEAT MOD Driver’s Heated Seat Module
MEM/ADAPT
SEAT Driver’s Power Seat Switch,
Memory Seat Module
TRUNK
DR RELEASE Trunk Release Motor
REVERSE
LAMP ISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
SPARE Not Used
POSITION
LAMP Taillamp Assemblies, Front Position
Lamp Assemblies
J Cases Usage
AMP Audio Amplifier
PUSHER FAN Pusher Fan (Export Only)
Relays Usage
BAS RELAY
MINI Brake Apply Sensor
PUSHER FAN Pusher Fan (Export Only)
Relays Usage
L POSITION
RELAY MICRO Driver’s Side Position Lamp
TRK DR REL
SOL RELAY
MICRO Trunk Release Motor
REV LAMP
RELAY MICRO ISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
R POSITION
RELAY MICRO Passenger’s Side Position Lamp
IGN 3 RELAY
MICRO Heated Seat Modules, Air Inlet
Motor, Shifter Assembly
STANDING
LAMP
RLY MICRO Control for Position Lamp Relays
Circuit
Breakers Usage
SEAT C/B Power Seat Switches, Memory
Seat Module
Misc. Usage
JOINT
CONNECTOR Joint Connector
5-105
Rear Underseat Fuse Block
(Passenger’s Side)
The passenger’s side rear fuse block is located under
the rear seat on the passenger’s side of the vehicle.
The rear seat cushion must be removed to access the
rear fuse block. See “Removing the Rear Seat
Cushion” listed previously.
To access the fuse block, push in the two tabs located
at each end of the fuse block cover. Then lift the
cover off.
Fuses Usage
TRUNK DIODE Trunk Lamp
POWER
SOUNDER Power Sounder, Inclination Sensor
SPARE Not Used
CANISTER
VENT Canister Vent Solenoid
FUEL
PUMP MTR Fuel Pump Motor
SPARE Not Used
R FRT HTD
SEAT MOD Passenger’s Side Heated
Seat Module
SPARE Not Used
AIR BAG SDM (Sensing Diagnostic Module)
RIM ISRVM (Inside Rearview Mirror),
Power Sounder, RIM
ABS Anti-Lock Brake System
SPARE Not Used
SPARE Not Used
5-106
Fuses Usage
SPARE Not Used
FUSE PULLER Fuse Puller
INTERIOR
LAMP Hush Panel Lamps, Puddle Lamps,
Overhead Courtesy Lamp Assembly
PSGR DR MOD Right Front Passenger Door Module
RIM/IGN SW RIM (Rear Integration Module),
Ignition Switch, Key Lock Cylinder
REAR FOG
LAMP Rear Fog Lamps (Export Only)
SPARE Not Used
TV/VICS TV Tuner Assembly (Export Only),
VICS (Vehicle Information
Communication System) Module
J Cases Usage
REAR DEFOG Rear Window Defogger Element
SUNROOF MOD Power Sunroof Module
Relays Usage
SPARE Not Used
REAR DEFOG
RELAY MINI Rear Window Defogger
Relays Usage
SPARE Not Used
REAR FOG
LAMP
RLY MICRO Rear Fog Lamps (Export Only)
FUEL PUMP
MOTOR
RLY MICRO Fuel Pump Motor
INT LAMP
RELAY MICRO Hush Panel Lamps, Puddle Lamps,
Overhead Courtesy Lamp Assembly
IGN 1 RELAY
MICRO Ignition Switch
Circuit
Breakers Usage
DR MOD
PWR C/B Door Modules
Misc. Usage
JOINT
CONNECTOR Joint Connector
5-107
Capacities and Specifications
The following approximate capacities are given in English and metric conversions. See
Recommended Fluids and
Lubricants on page 6-13
for more information.
Application Capacities
English Metric
Air Conditioning Refrigerant R134a 1.3 lbs 0.59 kg
Cooling System
2.8L HFV6
3.6L HFV6
5.7L V8
10.6 quarts
12.0 quarts
13.4 quarts
10.0 L
11.3 L
12.7 L
Engine Oil with Filter 6.0 quarts 5.7 L
Fuel Tank 17.5 gallons 66.2 L
Transmission
Automatic
6-Speed Manual – CTS
6-Speed Manual – CTS-V
9.0 quarts
1.9 quarts
3.7 quarts
8.5 L
1.8 L
3.5 L
Wheel Nut Torque 100 ft lb (140 Y)
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
5-108
Engine Specifications
Engine VIN Code Transmission Spark Plug Gap
2.8L HFV6 T Automatic
6-Speed Manual 0.043 inches (1.1 mm)
3.6L HFV6 7 Automatic
6-Speed Manual 0.043 inches (1.1 mm)
5.7L V8 S 6-Speed Manual 0.040 inches (1.01 mm)
CTS-V Engine Data
Engine Horsepower Torque Displacement Compression Ratio
5.7L V8 (LS6) 400 hp @ 6000 rpm 395 ft lb @ 4800 rpm 5.7 L 10.5:1
5-109
✍NOTES
5-110
Maintenance Schedule ......................................6-2
Introduction ...................................................6-2
Maintenance Requirements ..............................6-2
Your Vehicle and the Environment ....................6-2
Using Your Maintenance Schedule ....................6-3
Scheduled Maintenance ...................................6-4
Additional Required Services ............................6-6
Maintenance Footnotes ...................................6-8
Owner Checks and Services ............................6-9
At Each Fuel Fill ..........................................6-10
At Least Once a Month .................................6-10
At Least Once a Year ...................................6-10
Recommended Fluids and Lubricants ...............6-13
Normal Maintenance Replacement Parts ..........6-15
Maintenance Record .....................................6-16
Section 6 Maintenance Schedule
6-1
Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan?
The Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:
Maintenance intervals, checks, inspections,
replacement parts and recommended fluids and
lubricants as prescribed in this manual are
necessary to keep your vehicle in good working
condition. Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance is
important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good condition,
be sure to maintain your vehicle properly.
6-2
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we do not know
exactly how you will drive it. You may drive very
short distances only a few times a week. Or you may
drive long distances all the time in very hot, dusty
weather. You may use your vehicle in making deliveries.
Or you may drive it to work, to do errands or in many
other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep your vehicle in good condition,
see your GM Goodwrench dealer.
This schedule is for vehicles that:
•carry passengers and cargo within recommended
limits. You will find these limits on the tire and
loading information label. See
Loading Your Vehicle
on page 4-33
.
•are driven on reasonable road surfaces within legal
driving limits.
•use the recommended fuel. See
Gasoline Octane
on page 5-5
.
The services in
Scheduled Maintenance on page 6-4
should be performed when indicated. See
Additional
Required Services on page 6-6
and
Maintenance
Footnotes on page 6-8
for further information.
{CAUTION:
Performing maintenance work on a vehicle
can be dangerous. In trying to do some jobs,
you can be seriously injured. Do your own
maintenance work only if you have the
required know-how and the proper tools and
equipment for the job. If you have any doubt,
see your GM Goodwrench dealer to have a
qualified technician do the work.
Some maintenance services can be complex. So,
unless you are technically qualified and have the
necessary equipment, you should have your GM
Goodwrench dealer do these jobs.
When you go to your GM Goodwrench dealer for your
service needs, you will know that GM-trained and
supported service technicians will perform the work
using genuine GM parts.
6-3
If you want to get service information, see
Service
Publications Ordering Information on page 7-12
.
Owner Checks and Services on page 6-9
tells you what
should be checked, when to check it and what you can
easily do to help keep your vehicle in good condition.
The proper replacement parts, fluids and lubricants to
use are listed in
Recommended Fluids and Lubricants
on page 6-13
and
Normal Maintenance Replacement
Parts on page 6-15
. When your vehicle is serviced,
make sure these are used. All parts should be replaced
and all necessary repairs done before you or anyone
else drives the vehicle. We recommend the use of
genuine GM parts.
Scheduled Maintenance
When the Change Engine Oil message in the Driver
Information Center (DIC) comes on, it means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible within the next 600 miles (1 000 km).
It is possible that, if you are driving under the best
conditions, the engine oil life system may not indicate that
vehicle service is necessary for over a year. However,
your engine oil and filter must be changed at least once a
year and at this time the system must be reset. Your GM
Goodwrench dealer has GM-trained service technicians
who will perform this work using genuine GM parts and
reset the system.
If the engine oil life system is ever reset accidentally,
you must service your vehicle within 3,000 miles
(5 000 km) since your last service. Remember to reset
the oil life system whenever the oil is changed. See
Engine Oil Life System on page 5-20
for information on
the Engine Oil Life System and resetting the system.
When the Change Engine Oil message appears,
certain services, checks and inspections are required.
Required services are described in the following for
“Maintenance I” and “Maintenance II.” Generally,
it is recommended that your first service be
Maintenance I, your second service be Maintenance II
and that you alternate Maintenance Iand Maintenance II
thereafter. However, in some cases, Maintenance II
may be required more often.
Maintenance I— Use Maintenance Iif the change
engine oil message comes on within 10 months since
vehicle was purchased or Maintenance II was
performed.
Maintenance II — Use Maintenance II if the previous
service performed was Maintenance I. Always use
Maintenance II whenever the message comes on
10 months or more since the last service or if the
message has not come on at all for one year.
6-4
Scheduled Maintenance
Service Maintenance IMaintenance II
Change engine oil and filter. See
Engine Oil on page 5-16
. Reset oil life
system. See
Engine Oil Life System on page 5-20
.
An Emission Control
Service.
••
Visually check for any leaks or damage.
See footnote (k).
••
Inspect engine air cleaner filter. If necessary, replace filter. See
Engine Air
Cleaner/Filter on page 5-22
.
An Emission Control Service. See footnote †.
••
Rotate tires and check inflation pressures and wear. See
Tires on page 5-54
.••
Inspect brake system.
See footnote (a).
••
Check engine coolant and windshield washer fluid levels and add fluid as
needed. ••
Perform any needed additional services. See “Additional Required Services”
in this section. ••
Inspect suspension and steering components.
See footnote (b).
•
Inspect engine cooling system.
See footnote (c).
•
Inspect wiper blades.
See footnote (d).
•
Inspect restraint system components.
See footnote (e).
•
Lubricate body components.
See footnote (f).
•
Replace passenger compartment air filter.
See footnote (g).
•
6-5
Additional Required Services
The following services should be performed at the first maintenance service (Ior II) after the indicated miles
(kilometers) shown for each item. Additional Required Services
Service and Miles (Kilometers) 25,000
(41 500) 50,000
(83 000) 75,000
(125 000) 100,000
(166 000) 125,000
(207 500) 150,000
(240 000)
Inspect fuel system for damage
or leaks. ••••••
Inspect exhaust system for loose
or damaged components. ••••••
Replace engine air cleaner filter.
See
Engine Air Cleaner/Filter on
page 5-22
.
An Emission Control
Service.
••••••
Change automatic transmission
fluid and filter (severe service only).
See footnote (h).
•••
Replace spark plugs.
An Emission
Control Service.
•
Engine cooling system service
(or every 5 years, whichever occurs
first).
An Emission Control Service.
See footnote (i).
•
6-6
Additional Required Services (cont’d)
Service and Miles (Kilometers) 25,000
(41 500) 50,000
(83 000) 75,000
(125 000) 100,000
(166 000) 125,000
(207 500) 150,000
(240 000)
Inspect engine accessory drive belt.
An Emission Control Service.
•
Replace fuel filter.
An Emission
Control Service.
•
CTS-V Only: Change brake
fluid (severe service only).
See footnote (l).
••••••
CTS-V Only: Change hydraulic
clutch fluid (severe service only).
See footnote (l).
••••••
CTS-V Only: Change 6-speed
manual transmission fluid (severe
service only).
See footnotes (l)
and (m).
•••
CTS-V Only: Change rear axle
fluid (severe service only).
See footnotes (l) and (m).
•••
6-7
Maintenance Footnotes
†
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
(a)
Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect other brake parts, including calipers,
parking brake, etc.
(b)
Visually inspect front and rear suspension and
steering system for damaged, loose or missing parts
or signs of wear. Inspect power steering lines and hoses
for proper hook-up, binding, leaks, cracks, chafing, etc.
(c)
Visually inspect hoses and have them replaced if
they are cracked, swollen or deteriorated. Inspect
all pipes, fittings and clamps; replace with genuine
GM parts as needed. To help ensure proper operation,
a pressure test of the cooling system and pressure
cap and cleaning the outside of the radiator and
air conditioning condenser is recommended at least
once a year.
(d)
Visually inspect wiper blades for wear or cracking.
Replace blade inserts that appear worn or damaged
or that streak or miss areas of the windshield.
(e)
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced.
(The airbag system does not need regular maintenance.)
(f)
Lubricate all key lock cylinders. Lubricate all body
door hinges. Lubricate all hinges and latches, including
those for the hood, rear compartment, console door
and any folding seat hardware. More frequent lubrication
may be required when exposed to a corrosive
environment. Applying silicone grease on weatherstrips
with a clean cloth will make them last longer, seal
better and not stick or squeak.
(g)
If you drive regularly under dusty conditions, the
filter may require replacement more often.
6-8
(h)
Change automatic transmission fluid and filter if the
vehicle is mainly driven under one or more of these
conditions:
−
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
−
In hilly or mountainous terrain.
−
When doing frequent trailer towing.
−
Uses such as high performance operation.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
(i)
Drain, flush and refill cooling system. See Engine
Coolant on page 5-26
for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and filler neck.
Pressure test the cooling system and pressure cap.
(k)
A fluid loss in any vehicle system could indicate
a problem. Have the system inspected and repaired and
the fluid level checked. Add fluid if needed.
(l)
Change fluid if the vehicle is used for high
performance operation.
(m)
Change fluid whenever the vehicle has been driven
for 3,000 miles (5 000 km) with the transmission
temperature at 290°F (143°C) or higher without using
an auxiliary fluid cooler. See Message Center (CTS-V)
on page 3-52
and
Transmission Fluid Hot Message
on page 3-55
.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specified to help ensure the safety,
dependability and emission control performance of your
vehicle. Your GM Goodwrench dealer can assist you
with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Recommended Fluids and Lubricants on page 6-13
.
6-9
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See
Engine Oil on page 5-16
for further
details.
Notice:
It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL
®
coolant mixture if necessary.
See
Engine Coolant on page 5-26
for further
details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the windshield
washer tank and add the proper fluid if necessary.
At Least Once a Month
Tire Inflation Check
Visually inspect your tires and make sure tires are
inflated to the correct pressures. Do not forget to check
your spare tire. See
Tires on page 5-54
for further
details. Check to make sure the spare tire is stored
securely. Push, pull and then try to turn the spare tire.
If it moves, tighten it. See
Changing a Flat Tire on
page 5-76
.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
6-10
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See
Parking Brake on page 2-34
if
necessary.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine in each gear. The starter should work only
in PARK (P) or NEUTRAL (N). If the starter works in
any other position, contact your GM Goodwrench
dealer for service.
On manual transmission vehicles, put the shift lever
in NEUTRAL (N), push the clutch pedal down
halfway and try to start the engine. The starter
should work only when the clutch pedal is pushed
down all the way to the floor. If the starter works
when the clutch is not pushed all the way down,
contact your GM Goodwrench dealer for service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See
Parking Brake
on page 2-34
if necessary.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON, but do
not start the engine. Without applying the regular
brake, try to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out
of PARK (P), contact your GM Goodwrench dealer
for service.
6-11
Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to OFF in each shift lever position.
•With an automatic transmission, the ignition should
turn to OFF only when the shift lever is in PARK (P).
The key should come out only in OFF.
•With a manual transmission, the ignition should turn
to OFF only when the key release button is pressed.
The key should come out only in OFF.
Contact your GM Goodwrench dealer if service is
required.
Parking Brake and Automatic Transmission
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could
be injured and property could be damaged.
Make sure there is room in front of your
vehicle in case it begins to roll. Be ready to
apply the regular brake at once should the
vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing downhill.
Keeping your foot on the regular brake, set the parking
brake.
•To check the parking brake’s holding ability: With the
engine running and transaxle in NEUTRAL (N),
slowly remove foot pressure from the regular brake
pedal. Do this until the vehicle is held by the parking
brake only.
•To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Contact your GM Goodwrench dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other
debris can collect.
6-12
Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine Oil
The engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard may be identified as
synthetic, and should also be
identified with the American
Petroleum Institute Certified for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. You should
look for and use only an oil that
meets GM Standard GM4718M.
GM Goodwrench oil meets all the
requirements for your vehicle.
For the proper viscosity, see
Engine Oil on page 5-16
.
Usage Fluid/Lubricant
Engine Coolant
50/50 mixture of clean,
drinkable water and use only
DEX-COOL
®
Coolant.
See
Engine Coolant on page 5-26
.
Hydraulic Brake
System Delco Supreme 11
®
Brake Fluid or
equivalent DOT-3 brake fluid.
Windshield
Washer Solvent GM Optikleen
®
Washer Solvent.
Hydraulic
Clutch System
Hydraulic Clutch Fluid
(GM Part No. U.S. 12345347, in
Canada 10953517) or equivalent
DOT-3 brake fluid.
Parking Brake
Cable Guides
Chassis Lubricant (GM Part No.
U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
System
GM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
6-13
Usage Fluid/Lubricant
Manual
Transmission
DEXRON
®
-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specification”
on the label.
Automatic
Transmission
DEXRON
®
-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specification”
on the label.
Key Lock
Cylinders
Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Floor Shift
Linkage
Lubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Rear Axle
SAE 75W-90 Synthetic Axle
Lubricant (GM Part No. U.S.
12378261, in Canada 10953455)
meeting GM Specification 9986115.
Usage Fluid/Lubricant
Rear Axle
(Limited-Slip
Differential)
SAE 75W-90 Synthetic Axle
Lubricant (GM Part No. U.S.
12378261, in Canada 10953455)
meeting GM Specification 9986115.
With a complete drain and refill add
4 ounces (118 ml) of Limited-Slip
Axle Lubricant Additive (GM Part
No. U.S. 1052358, in Canada
992694) where required.
See
Rear Axle on page 5-48
Hood Latch
Assembly,
Secondary
Latch,
Pivots, Spring
Anchor and
Release Pawl
Lubriplate Lubricant Aerosol
GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door
Hinges
Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
Conditioning
Dielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
6-14
Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number or specification can be obtained from your dealer.
Part GM Part Numbers ACDelco
®
Part
Numbers
Engine Air Cleaner/Filter 25728874 A2029C
Engine Oil Filter
2.8L HFV6
3.6L HFV6
5.7L V8
25177917
25177917
25010633
PF2129
PF2129
PF44
Passenger Compartment Air Filter Element 25740404 —
Spark Plugs
2.8 L HFV6
3.6 L HFV6
5.7 L V8
12565996
12565996
12571164
41-988
41-988
41-985
Wiper Blades (Hook Type)
Driver’s Side – 22 inches (56.5 cm)
Passenger’s Side – 21 inches (53.3 cm)
12367281
88892785 8-2221
8-2211
6-15
Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service and the
type of services performed in the boxes provided. See
Maintenance Requirements on page 6-2
in this section.
Any additional information from
Owner Checks and Services on page 6-9
can be added on the following record pages.
Also, you should retain all maintenance receipts.
Maintenance Record
Date Odometer
Reading Serviced By Maintenance Ior
Maintenance II Services Performed
6-16
Maintenance Record (cont’d)
Date Odometer
Reading Serviced By Maintenance Ior
Maintenance II Services Performed
6-17
Maintenance Record (cont’d)
Date Odometer
Reading Serviced By Maintenance Ior
Maintenance II Services Performed
6-18
Customer Assistance and Information ...............7-2
Customer Satisfaction Procedure ......................7-2
Online Owner Center ......................................7-4
Customer Assistance for Text Telephone
(TTY) Users ...............................................7-4
Customer Assistance Offices ............................7-4
GM Mobility Program for Persons with
Disabilities ..................................................7-6
Roadside Service ...........................................7-6
Courtesy Transportation ...................................7-8
Vehicle Data Collection and Event Data
Recorders ................................................7-10
Reporting Safety Defects ................................7-11
Reporting Safety Defects to the
United States Government ..........................7-11
Reporting Safety Defects to the
Canadian Government ................................7-11
Reporting Safety Defects to
General Motors .........................................7-12
Service Publications Ordering
Information ...............................................7-12
Section 7 Customer Assistance and Information
7-1
Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important to
your dealer and to Cadillac. Normally, any concerns
with the sales transaction or the operation of your
vehicle will be resolved by your dealer’s sales or service
departments. Sometimes, however, despite the best
intentions of all concerned, misunderstandings can
occur. If your concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE: Discuss your concern with a member of
dealership management. Normally, concerns can
be quickly resolved at that level. If the matter has
already been reviewed with the sales, service or parts
manager, contact the owner of the dealership or
the general manager.
STEP TWO: If after contacting a member of dealership
management, it appears your concern cannot be
resolved by the dealership without further help, contact
the Cadillac Customer Assistance Center, 24 hours
a day, by calling 1-800-458-8006. In Canada, contact
GM of Canada, Canadian Cadillac Customer
Communication Centre by calling 1-888-446-2000.
We encourage you to call the toll-free number in order
to give your inquiry prompt attention. Please have
the following information available to give the Customer
Assistance Representative:
•Vehicle Identification Number (VIN). This is
available from the vehicle registration or title, or the
plate at the top left of the instrument panel and
visible through the windshield.
•Dealership name and location.
•Vehicle delivery date and present mileage.
When contacting Cadillac, please remember that your
concern will likely be resolved at a dealer’s facility.
That is why we suggest you follow Step One first if you
have a concern.
7-2
STEP THREE: Both General Motors and your dealer
are committed to making sure you are completely
satisfied with your new vehicle. However, if you continue
to remain unsatisfied after following the procedure
outlined in Steps One and Two, you should file with the
BBB Auto Line Program to enforce any additional
rights you may have. Canadian owners refer to your
Warranty and Owner Assistance Information booklet for
information on the Canadian Motor Vehicle Arbitration
Plan (CAMVAP).
The BBB Auto Line Program is an out of court program
administered by the Council of Better Business
Bureaus to settle automotive disputes regarding vehicle
repairs or the interpretation of the New Vehicle
Limited Warranty. Although you may be required to
resort to this informal dispute resolution program prior to
filing a court action, use of the program is free of
charge and your case will generally be heard within
40 days. If you do not agree with the decision given in
your case, you may reject it and proceed with any other
venue for relief available to you.
You may contact the BBB Auto Line Program using
the toll-free telephone number or write them at the
following address:
BBB Auto Line Program
Council of Better Business Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
This program is available in all 50 states and the
District of Columbia. Eligibility is limited by vehicle age,
mileage and other factors. General Motors reserves
the right to change eligibility limitations and/or
discontinue its participation in this program.
7-3
Online Owner Center
The Owner Center is a resource for your GM ownership
needs. Specific vehicle information can be found in
one place.
The Online Owner Center allows you to:
•Get e-mail service reminders.
•Access information about your specific vehicle,
including tips and videos and an electronic
version of this owner’s manual (United States only).
•Keep track of your vehicle’s service history and
maintenance schedule.
•Find GM dealers for service nationwide.
•Receive special promotions and privileges only
available to members (United States only).
Refer to the web for updated information.
To register your vehicle, visit www.MyGMLink.com.
(United States) or My GM Canada within
www.gmcanada.com (Canada).
Customer Assistance for Text
Telephone (TTY) Users
To assist customers who are deaf, hard of hearing, or
speech-impaired and who use Text Telephones (TTYs),
Cadillac has TTY equipment available at its Customer
Assistance Center. Any TTY user can communicate
with Cadillac by dialing: 1-800-833-CMCC (2622).
(TTY users in Canada can dial 1-800-263-3830.)
Customer Assistance Offices
Cadillac encourages customers to call the toll-free
number for assistance. If a U.S. customer wishes to
write to Cadillac, the letter should be addressed
to Cadillac’s Customer Assistance Center.
United States — Customer Assistance
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
1-800-458-8006
1-800-833-2622 (For Text Telephone devices (TTYs))
Roadside Assistance: 1-800-882-1112
Fax Number: 313-381-0022
7-4
From Puerto Rico:
1-800-496-9992 (English)
1-800-496-9993 (Spanish)
Fax Number: 313-381-0022
From U.S. Virgin Islands:
1-800-496-9994
Fax Number: 313-381-0022
Canada — Customer Assistance
General Motors of Canada Limited
Canadian Cadillac Customer Communication
Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
1-888-446-2000
1-800-263-3830 (For Text Telephone devices (TTYs))
Roadside Assistance: 1-800-882-1112
Overseas — Customer Assistance
Please contact the local General Motors Business Unit.
Mexico, Central America and
Caribbean Islands/Countries
(Except Puerto Rico and U.S. Virgin
Islands) — Customer Assistance
General Motors de Mexico, S. de R.L. de C.V.
Customer Assistance Center
Paseo de la Reforma # 2740
Col. Lomas de Bezares
C.P. 11910, Mexico, D.F.
01-800-508-0000
Long Distance: 011-52-53 29 0 800
7-5
GM Mobility Program for Persons
with Disabilities
This program, available to
qualified applicants, can
reimburse you up to
$1,000 toward eligible
aftermarket driver or
passenger adaptive
equipment that may be
required for your vehicle,
such as hand controls,
wheelchair/scooter
lifts, etc.
This program can also provide you with free resource
information, such as area driver assessment centers
and mobility equipment installers. The offer is available
for a limited period of time from the date of vehicle
purchase/lease. For more details, or to determine your
vehicle’s eligibility, see your GM dealer or call the
GM Mobility Assistance Center at 1-800-323-9935.
Text telephone (TTY) users, call 1-800-833-9935.
GM of Canada also has a Mobility Program.
Call 1-800-GM-DRIVE (463-7483) for details.
All TTY users call 1-800-263-3830.
Roadside Service
Cadillac’s exceptional Roadside Service is more than an
auto club or towing service. It provides every Cadillac
owner with the advantage of contacting a Cadillac
advisor and, where available, a Cadillac trained dealer
technician who can provide on-site service.
Each technician travels with a specially equipped
service vehicle complete with the necessary Cadillac
parts and tools required to handle most roadside repairs.
Cadillac Roadside Service
®
can be reached by dialing
1-800-882-1112, 24 hours a day, 365 days a year.
This service is provided at no charge for any
warranty-covered situation and for a nominal charge
if the Cadillac is no longer under warranty. Roadside
Service is available only in the United States and
Canada.
Cadillac Owner Privileges™
Roadside Service provides several Cadillac Owner
Privileges™ at “no charge,” throughout your
Cadillac
Warranty Period — 48 months/50,000 miles (80 000 km).
7-6
Emergency Road Service is performed on site for the
following situations:
•Towing Service
•Battery Jump Starting
•Lock Out Assistance
•Fuel Delivery
•Flat Tire Change (Covers change only)
•Trip Interruption — If your trip is interrupted due
to a warranty failure, incidental expenses may
be reimbursed during the 48 months/50,000 miles
(80 000 km) warranty period. Items covered
are hotel, meals, and rental car.
Roadside Service Availability
Wherever you drive in the United States or Canada,
an advisor is available to assist you over the phone.
A dealer technician, if available, can travel to your
location within a 30 mile (50 km) radius of a participating
Cadillac dealership. If beyond this radius, we will
arrange to have your car towed to the nearest
Cadillac dealership.
Reaching Roadside Service
Dial the toll-free Roadside Service number:
1-800-882-1112. A Roadside Service Advisor will
assist you and request the following information:
•A description of the problem
•Name, home address, home telephone number
•Location of your Cadillac and number you are
calling from
•The model year, Vehicle Identification
Number (VIN), mileage, and date of delivery
Roadside Service for the Hearing
or Speech Impaired
Roadside Service is prepared to assist owners who
have hearing difficulties or are speech impaired.
Cadillac has installed special telecommunication
devices called Text Telephone (TTY) in the Roadside
Service Center.
Any customer who has access to a (TTY) or a
conventional teletypewriter can communicate with
Cadillac by dialing from the United States or Canada
1-888-889-2438 — daily, 24 hours.
7-7
Courtesy Transportation
Cadillac has always exemplified quality and value in its
offering of motor vehicles. To enhance your ownership
experience, we and our participating dealers are
proud to offer Courtesy Transportation, a customer
support program for new vehicles.
The Courtesy Transportation program is offered to
retail purchase/lease customers in conjunction with
the Bumper-to-Bumper coverage provided by the
New Vehicle Limited Warranty. Several transportation
options are available when warranty repairs are
required. This will reduce your inconvenience during
warranty repairs.
Scheduling Service Appointments
When your vehicle requires warranty service, you
should contact your dealer and request an appointment.
By scheduling a service appointment and advising
your service consultant of your transportation needs,
your dealer can help minimize your inconvenience.
If your vehicle cannot be scheduled into the service
department immediately, keep driving it until it can be
scheduled for service, unless, of course, the problem is
safety-related. If it is, please call your dealership, let
them know this, and ask for instructions.
If the dealer requests that you simply drop the vehicle
off for service, you are urged to do so as early in
the work day as possible to allow for same day repair.
Transportation Options
Warranty service can generally be completed while
you wait. However, if you are unable to wait Cadillac
helps minimize your inconvenience by providing several
transportation options. Depending on the circumstances,
your dealer can offer you one of the following:
Shuttle Service
Participating dealers can provide you with shuttle
service to get you to your destination with minimal
interruption of your daily schedule. This includes a
one way or round trip shuttle service to a destination
up to 10 miles from the dealership.
7-8
Public Transportation or Fuel
Reimbursement
If your vehicle requires overnight warranty repairs,
reimbursement (five days maximum) may be available
for the use of public transportation such as taxi or
bus. In addition, should you arrange transportation
through a friend or relative, reimbursement for
reasonable fuel expenses (five day maximum) may
be available. Claim amounts should reflect actual
costs and be supported by original receipts.
Courtesy Rental Vehicle
Your dealer may arrange to provide you with a courtesy
rental vehicle or reimburse you for a rental vehicle
you obtained if your vehicle is kept for a warranty repair.
Reimbursement will be limited to a maximum of $40 a
day and must be supported by receipts. This requires
that you sign and complete a rental agreement and meet
state, local and rental vehicle provider requirements.
Requirements vary and may include minimum age
requirements, insurance coverage, credit card, etc.
You are responsible for fuel usage charges and may
also be responsible for taxes, levies, usage fees,
excessive mileage, or rental usage beyond the
completion of the repair.
Generally it is not possible to provide a like-vehicle as
a courtesy rental.
Additional Program Information
Courtesy Transportation is available during the
Bumper-to-Bumper warranty coverage period, but it
is not
part of the New Vehicle Limited Warranty.
A separate booklet entitled
Warranty and Owner
Assistance Information
furnished with each new vehicle
provides detailed warranty coverage information.
Courtesy Transportation is available only at participating
dealers and all program options, such as shuttle
service, may not be available at every dealer. Please
contact your dealer for specific information about
availability. All Courtesy Transportation arrangements
will be administered by appropriate dealer personnel.
Canadian Vehicles: For warranty repairs during
the Complete Vehicle Coverage period of the General
Motors of Canada New Vehicle Limited Warranty,
alternative transportation may be available under the
Courtesy Transportation Program. Please consult
your dealer for details.
General Motors reserves the right to unilaterally modify,
change or discontinue Courtesy Transportation at
any time and to resolve all questions of claim eligibility
pursuant to the terms and conditions described
herein at its sole discretion.
7-9
Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle’s
performance. Your vehicle uses on-board vehicle
computers to monitor emission control components to
optimize fuel economy, to monitor conditions for air bag
deployment and, if so equipped, to provide anti-lock
braking and to help the driver control the vehicle
in difficult driving situations. Some information may be
stored during regular operations to facilitate repair
of detected malfunctions; other information is stored only
in a crash event by computer systems, such as those
commonly called event data recorders (EDR).
In a crash event, computer systems, such as the
Air Bag Sensing and Diagnostic Module (SDM) in your
vehicle may record information about the condition of
the vehicle and how it was operated, such as data related
to engine speed, brake application, throttle position,
vehicle speed, safety belt usage, air bag readiness,
air bag performance, and the severity of a collision. This
information has been used to improve vehicle crash
performance and may be used to improve crash
performance of future vehicles and driving safety.
Unlike the data recorders on many airplanes, these
on-board systems do not record sounds, such as
conversation of vehicle occupants.
To read this information, special equipment is needed
and access to the vehicle or the device that stores
the data is required. GM will not access information
about a crash event or share it with others other than:
•with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the lessee,
•in response to an official request of police or similar
government office,
•as part of GM’s defense of litigation through the
discovery process, or
•as required by law.
In addition, once GM collects or receives data, GM may:
•use the data for GM research needs,
•make it available for research where appropriate
confidentiality is to be maintained and need is
shown, or
•share summary data which is not tied to a specific
vehicle with non-GM organizations for research
purposes.
7-10
Others, such as law enforcement, may have access
to the special equipment that can read the information if
they have access to the vehicle or the device that
stores the data.
If your vehicle is equipped with OnStar
®
, please
check the OnStar
®
subscription service agreement or
manual for information on its operations and data
collection.
Reporting Safety Defects
Reporting Safety Defects to the
United States Government
If you believe that your vehicle has a defect which
could cause a crash or could cause injury or death,
you should immediately inform the National Highway
Traffic Safety Administration (NHTSA), in addition
to notifying General Motors.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or
General Motors.
To contact NHTSA, you may either call the
Auto Safety Hotline toll-free at 1-800-424-9393
(or 366-0123 in the Washington, D.C. area)
or write to:
NHTSA, U.S. Department of Transportation
Washington, D.C. 20590
You can also obtain other information about motor
vehicle safety from the hotline.
Reporting Safety Defects to the
Canadian Government
If you live in Canada, and you believe that your
vehicle has a safety defect, you should immediately
notify Transport Canada, in addition to notifying
General Motors of Canada Limited. You may write to:
Transport Canada
330 Sparks Street
Tower C
Ottawa, Ontario K1A 0N5
7-11
Reporting Safety Defects to
General Motors
In addition to notifying NHTSA (or Transport Canada)
in a situation like this, we certainly hope you will
notify us. Please call us at 1-800-458-8006, or write:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
In Canada, please call us at 1-888-446-2000. Or, write:
Canadian Cadillac Customer Communication Centre,
163-005
General Motors of Canada Limited
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle, suspension,
brakes, electrical, steering, body, etc.
RETAIL SELL PRICE: $120.00
Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments, and specifications for GM
transmissions, transaxles, and transfer cases.
RETAIL SELL PRICE: $50.00
Service Bulletins
Service Bulletins give technical service information
needed to knowledgeably service General Motors cars
and trucks. Each bulletin contains instructions to
assist in the diagnosis and service of your vehicle.
In Canada, information pertaining to Product
Service Bulletins can be obtained by contacting your
General Motors dealer or by calling 1-800-GM-DRIVE
(1-800-463-7483).
7-12
Owner’s Information
Owner publications are written specifically for owners
and intended to provide basic operational information
about the vehicle. The owner’s manual will include
the Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner’s Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00
Without Portfolio: Owner’s Manual only.
RETAIL SELL PRICE: $25.00
Current and Past Model Order Forms
Service Publications are available for current and
past model GM vehicles. To request an order form,
please specify year and model name of the vehicle.
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P. O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are to make
checks payable in U.S. funds.
7-13
✍NOTES
7-14
A
Accessory Power Outlets ................................. 3-25
Adding Equipment to Your Airbag-Equipped
Vehicle ....................................................... 1-62
Additives, Fuel ................................................. 5-6
Add-On Electrical Equipment ............................ 5-96
Air Cleaner/Filter, Engine ................................. 5-22
Air Conditioning .............................................. 3-27
Airbag
Passenger Status Indicator ........................... 3-40
Readiness Light .......................................... 3-39
Airbag Sensing and Diagnostic Module (SDM) .... 7-10
Airbag System ................................................ 1-48
Adding Equipment to Your Airbag-Equipped
Vehicle ................................................... 1-62
How Does an Airbag Restrain? ...................... 1-55
Passenger Sensing System ........................... 1-58
Servicing Your Airbag-Equipped Vehicle .......... 1-62
What Makes an Airbag Inflate? ...................... 1-55
What Will You See After an Airbag Inflates? .... 1-56
When Should an Airbag Inflate? .................... 1-54
Where Are the Airbags? ............................... 1-50
Antenna, Diversity Antenna System .................. 3-107
Antenna, XM™ Satellite Radio Antenna
System ..................................................... 3-107
Anti-Lock Brake System (ABS) ........................... 4-6
Anti-Lock Brake, System Warning Light .............. 3-43
Appearance Care ............................................ 5-87
Aluminum or Chrome-Plated Wheels .............. 5-93
Care of Safety Belts .................................... 5-91
Chemical Paint Spotting ............................... 5-94
Cleaning Exterior Lamps/Lenses .................... 5-91
Fabric/Carpet .............................................. 5-88
Finish Care ................................................. 5-92
Finish Damage ............................................ 5-94
Glass Surfaces ............................................ 5-90
Instrument Panel ......................................... 5-90
Interior Plastic Components ........................... 5-90
Leather ...................................................... 5-90
Sheet Metal Damage ................................... 5-94
Speaker Covers .......................................... 5-90
Tires .......................................................... 5-93
Underbody Maintenance ............................... 5-94
Vehicle Care/Appearance Materials ................ 5-95
Vinyl .......................................................... 5-89
Washing Your Vehicle ................................... 5-91
Weatherstrips .............................................. 5-91
Windshield and Wiper Blades ........................ 5-92
Wood Panels .............................................. 5-90
Ashtrays ........................................................ 3-26
Audio System(s) ............................................. 3-88
Audio Steering Wheel Controls .................... 3-105
Care of Your CD Player .............................. 3-107
Care of Your CDs ...................................... 3-106
Diversity Antenna System ............................ 3-107
1
Audio System(s) (cont.)
Navigation/Radio System ............................. 3-104
Radio with CD ............................................ 3-89
Setting the Time .......................................... 3-88
Theft-Deterrent Feature ............................... 3-105
Understanding Radio Reception ................... 3-106
XM™ Satellite Radio Antenna System ........... 3-107
Automatic Transmission
Fluid .......................................................... 5-23
Operation ................................................... 2-26
B
Battery .......................................................... 5-42
Exterior Lighting Battery Saver ...................... 3-24
Before Leaving on a Long Trip ......................... 4-24
Brake
Anti-Lock Brake System (ABS) ........................ 4-6
Emergencies ................................................ 4-8
Panic Assist ................................................ 4-12
Parking ...................................................... 2-34
System Warning Light .................................. 3-42
Brakes .......................................................... 5-39
Braking ........................................................... 4-5
Braking in Emergencies ..................................... 4-8
Break-In, New Vehicle ..................................... 2-22
Bulb Replacement ........................................... 5-49
Back-Up and License Plate Lamps ................. 5-52
Front Turn Signal and Fog Lamps .................. 5-50
Bulb Replacement (cont.)
Halogen Bulbs ............................................ 5-49
High Intensity Discharge (HID) Lighting ........... 5-49
Replacement Bulbs ...................................... 5-52
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps ................................... 5-51
Buying New Tires ........................................... 5-70
C
California Fuel .................................................. 5-6
Canadian Owners ................................................ ii
Capacities and Specifications .......................... 5-108
Carbon Monoxide ................... 2-12, 2-39, 4-28, 4-40
Care of
Safety Belts ................................................ 5-91
Your CD Player ......................................... 3-107
Your CDs ................................................. 3-106
Center Console Storage Area ........................... 2-51
Chains, Tire ................................................... 5-74
Charging System Light .................................... 3-41
Check
Engine Light ............................................... 3-45
Engine Oil Pressure Message ....................... 3-56
Checking Things Under the Hood ...................... 5-10
Chemical Paint Spotting ................................... 5-94
Child Restraints
Child Restraint Systems ............................... 1-34
Infants and Young Children ........................... 1-31
2
Child Restraints (cont.)
Lower Anchorages and Top Tethers
for Children (LATCH System) ..................... 1-39
Older Children ............................................. 1-28
Securing a Child Restraint Designed for
the LATCH System ................................... 1-41
Securing a Child Restraint in a Rear
Seat Position ........................................... 1-42
Securing a Child Restraint in the Right
Front Seat Position ................................... 1-44
Top Strap ................................................... 1-37
Top Strap Anchor Location ............................ 1-39
Where to Put the Restraint ........................... 1-36
Cigarette Lighter ............................................. 3-26
Cleaning
Aluminum or Chrome-Plated Wheels .............. 5-93
Exterior Lamps/Lenses ................................. 5-91
Fabric/Carpet .............................................. 5-88
Finish Care ................................................. 5-92
Glass Surfaces ............................................ 5-90
Instrument Panel ......................................... 5-90
Interior Plastic Components ........................... 5-90
Leather ...................................................... 5-90
Speaker Covers .......................................... 5-90
Tires .......................................................... 5-93
Underbody Maintenance ............................... 5-94
Vinyl .......................................................... 5-89
Washing Your Vehicle ................................... 5-91
Weatherstrips .............................................. 5-91
Cleaning (cont.)
Windshield and Wiper Blades ........................ 5-92
Wood Panels .............................................. 5-90
Climate Control System
Air Filter, Passenger Compartment ................. 3-33
Dual .......................................................... 3-27
Outlet Adjustment ........................................ 3-32
Steering Wheel Controls ............................... 3-34
Clutch, Hydraulic ............................................. 5-25
Comfort Guides, Rear Safety Belt ..................... 1-25
Compact Spare Tire ........................................ 5-87
Competitive Driving Mode ................................ 4-11
Control of a Vehicle .......................................... 4-5
Convenience Net ............................................ 2-52
Coolant
Engine Temperature Gage ............................ 3-44
Engine Temperature Warning Light ................. 3-44
Heater, Engine ............................................ 2-25
Hot Temperature Warning Message ................ 3-55
Surge Tank Pressure Cap ............................. 5-29
Cooling System .............................................. 5-32
Cruise Control Lever ............................... 3-13, 3-17
Cruise Control Light ........................................ 3-50
Cupholder(s) .................................................. 2-51
Customer Assistance Information
Courtesy Transportation .................................. 7-8
Customer Assistance for Text Telephone (TTY)
Users ....................................................... 7-4
Customer Assistance Offices ........................... 7-4
3
Customer Assistance Information (cont.)
Customer Satisfaction Procedure ..................... 7-2
GM Mobility Program for Persons with
Disabilities ................................................ 7-6
Reporting Safety Defects to General Motors .... 7-12
Reporting Safety Defects to the
Canadian Government .............................. 7-11
Reporting Safety Defects to the
United States Government ......................... 7-11
Roadside Service .......................................... 7-6
Service Publications Ordering Information ........ 7-12
D
Daytime Running Lamps .................................. 3-22
Defensive Driving ............................................. 4-2
Delayed Locking ............................................... 2-9
Diversity Antenna System ............................... 3-107
Doing Your Own Service Work ........................... 5-4
Door
Central Door Unlocking System ....................... 2-9
Delayed Locking ........................................... 2-9
Locks .......................................................... 2-8
Power Door Locks ......................................... 2-9
Programmable Automatic Door Locks ............. 2-10
Rear Door Security Locks ............................. 2-10
Driver
Position, Safety Belt ..................................... 1-14
Driver Information Center (DIC) ......................... 3-58
DIC Main Menu ........................................... 3-62
DIC Vehicle Personalization .......................... 3-74
DIC Warnings and Messages ........................ 3-65
Status of Vehicle Systems ............................ 3-59
System Controls .......................................... 3-58
Driving
At Night ..................................................... 4-18
City ........................................................... 4-22
Defensive ..................................................... 4-2
Drunken ....................................................... 4-2
Freeway ..................................................... 4-23
Hill and Mountain Roads .............................. 4-26
In Rain and on Wet Roads ........................... 4-19
Rocking Your Vehicle to Get it Out ................. 4-33
Winter ........................................................ 4-28
Winter Mode Light ....................................... 3-49
Dual Climate Control System ............................ 3-27
E
Electrical System
Add-On Equipment ...................................... 5-96
Fuses and Circuit Breakers ........................... 5-97
Power Windows and Other Power Options ...... 5-97
Rear Underseat Fuse Block ......................... 5-101
Underhood Fuse Block ................................. 5-98
Windshield Wiper Fuses ............................... 5-97
4
Engine
Air Cleaner/Filter ......................................... 5-22
Battery ....................................................... 5-42
Check and Service Engine Soon Light ............ 3-45
Check Oil Pressure Message ........................ 3-56
Coolant ...................................................... 5-26
Coolant Heater ............................................ 2-25
Coolant Temperature Gage ........................... 3-44
Coolant Temperature Warning Light ................ 3-44
Engine Compartment Overview ...................... 5-12
Exhaust ..................................................... 2-39
Oil ............................................................. 5-16
Overheated Protection Operating Mode ........... 5-31
Overheating ................................................ 5-29
Speed Limiter ............................................. 3-38
Starting ...................................................... 2-25
Entry Lighting ................................................. 3-25
Event Data Recorders (EDR) ............................ 7-10
Extender, Safety Belt ....................................... 1-27
Exterior Lighting Battery Saver .......................... 3-24
F
Filter
Engine Air Cleaner ...................................... 5-22
Finish Damage ............................................... 5-94
Flash-to-Pass ................................................. 3-10
Flat Tire ........................................................ 5-75
Flat Tire, Changing ......................................... 5-76
Flat Tire, Storing ............................................. 5-86
Fluid
Automatic Transmission ................................ 5-23
Manual Transmission .................................... 5-24
Power Steering ........................................... 5-37
Windshield Washer ...................................... 5-38
Fog Lamp Light .............................................. 3-50
Fog Lamps .................................................... 3-23
Folding Rear Seat ............................................ 1-6
Fuel ............................................................... 5-5
Additives ...................................................... 5-6
California Fuel .............................................. 5-6
Filling a Portable Fuel Container .................... 5-10
Filling Your Tank ........................................... 5-8
Fuels in Foreign Countries .............................. 5-7
Gage ......................................................... 3-51
Gasoline Octane ........................................... 5-5
Gasoline Specifications .................................. 5-5
Fuses
Fuses and Circuit Breakers ........................... 5-97
Rear Underseat Fuse Block ......................... 5-101
Underhood Fuse Block ................................. 5-98
Windshield Wiper ......................................... 5-97
5
G
Gage
Engine Coolant Temperature ......................... 3-44
Fuel .......................................................... 3-51
Speedometer .............................................. 3-37
Tachometer ................................................. 3-38
Garage Door Opener ....................................... 2-47
Gasoline
Octane ........................................................ 5-5
Specifications ............................................... 5-5
Glove Box ..................................................... 2-51
GM Mobility Program for Persons with Disabilities .... 7-6
H
Hazard Warning Flashers ................................... 3-6
Head Restraints ............................................... 1-6
Headlamps .................................................... 3-20
Bulb Replacement ....................................... 5-49
Daytime Running Lamps ............................... 3-22
Flash-to-Pass .............................................. 3-10
Front Turn Signal and Fog Lamps .................. 5-50
Halogen Bulbs ............................................ 5-49
High Intensity Discharge (HID) Lighting ........... 5-49
High/Low Beam Changer .............................. 3-10
On Reminder .............................................. 3-21
Washer ...................................................... 3-12
Wiper Activated ........................................... 3-21
Heated Seats ................................................... 1-3
Heater ........................................................... 3-27
Highbeam On Light ......................................... 3-51
Highway Hypnosis ........................................... 4-25
Hill and Mountain Roads .................................. 4-26
HomeLink
®
Transmitter .................................... 2-47
HomeLink
®
Transmitter, Programming ................ 2-48
Hood
Checking Things Under ................................ 5-10
Release ..................................................... 5-11
Horn ............................................................... 3-6
Hot Coolant Temperature Warning Message ........ 3-55
How to Use This Manual ...................................... ii
How to Wear Safety Belts Properly ................... 1-14
Hydraulic Clutch ............................................. 5-25
I
Ignition Positions ............................................. 2-22
Immobilizer .................................................... 2-19
Immobilizer Operation ...................................... 2-20
Infants and Young Children, Restraints ............... 1-31
Inflation -- Tire Pressure .................................. 5-62
Instrument Panel
Brightness .................................................. 3-24
Cluster ....................................................... 3-35
Overview ..................................................... 3-4
6
J
Jump Starting ................................................. 5-42
K
Keyless Entry System ....................................... 2-4
Keys ............................................................... 2-3
L
Labelling, Tire Sidewall .................................... 5-56
Lamps
Exterior Lighting Battery Saver ...................... 3-24
Fog ........................................................... 3-23
Reading ..................................................... 3-25
LATCH System
Child Restraints ........................................... 1-39
Securing a Child Restraint Designed for
the LATCH System ................................... 1-41
Light
Airbag Readiness ........................................ 3-39
Anti-Lock Brake System Warning ................... 3-43
Brake System Warning ................................. 3-42
Charging System ......................................... 3-41
Cruise Control ............................................. 3-50
Engine Coolant Temperature Warning ............. 3-44
Fog Lamp .................................................. 3-50
Light (cont.)
Highbeam On ............................................. 3-51
Lights On Reminder ..................................... 3-50
Malfunction Indicator .................................... 3-45
Oil Pressure ............................................... 3-48
Passenger Airbag Status Indicator .................. 3-40
Safety Belt Reminder ................................... 3-38
Security ..................................................... 3-50
Sport Mode ................................................ 3-49
TCS Warning Light ...................................... 3-43
Tire Pressure .............................................. 3-45
Traction Control System (TCS) Warning .......... 3-43
Winter Driving Mode .................................... 3-49
Lighting
Entry ......................................................... 3-25
Parade Dimming .......................................... 3-25
Limited-Slip Rear Axle ..................................... 4-11
Lockout Protection .......................................... 2-11
Locks
Central Door Unlocking System ....................... 2-9
Delayed Locking ........................................... 2-9
Door ........................................................... 2-8
Lockout Protection ....................................... 2-11
Power Door .................................................. 2-9
Programmable Automatic Door Locks ............. 2-10
Rear Door Security Locks ............................. 2-10
Loss of Control ............................................... 4-17
Lumbar
Power Controls ............................................. 1-3
7
M
Maintenance Schedule
Additional Required Services ........................... 6-6
At Each Fuel Fill ......................................... 6-10
At Least Once a Month ................................ 6-10
At Least Once a Year .................................. 6-10
Introduction .................................................. 6-2
Maintenance Footnotes .................................. 6-8
Maintenance Record .................................... 6-16
Maintenance Requirements ............................. 6-2
Normal Maintenance Replacement Parts ......... 6-15
Owner Checks and Services ........................... 6-9
Recommended Fluids and Lubricants ............. 6-13
Scheduled Maintenance ................................. 6-4
Using Your ................................................... 6-3
Your Vehicle and the Environment ................... 6-2
Malfunction Indicator Light ................................ 3-45
Manual Passenger Seat .................................... 1-2
Manual Transmission
Fluid .......................................................... 5-24
Operation ................................................... 2-31
Map Pocket ................................................... 2-52
Memory Mirrors .............................................. 2-54
Memory Seat ................................................. 2-54
Message
Center ....................................................... 3-52
Check Engine Oil Pressure ........................... 3-56
DIC Warnings and Messages ........................ 3-65
Message (cont.)
Hot Coolant Temperature Warning .................. 3-55
Transmission Fluid Hot ................................. 3-55
Mirrors
Automatic Dimming Rearview with OnStar
®
..... 2-41
Automatic Dimming Rearview with OnStar
®
and Compass .......................................... 2-41
Memory ..................................................... 2-54
Outside Convex Mirror ................................. 2-45
Outside Curb View Assist Mirror .................... 2-44
Outside Heated Mirrors ................................ 2-45
Outside Power Mirrors .................................. 2-43
MyGMLink.com ................................................ 7-4
N
Navigation/Radio System ................................ 3-104
New Vehicle Break-In ...................................... 2-22
Normal Maintenance Replacement Parts ............ 6-15
O
Odometer ...................................................... 3-37
Odometers, Trip .............................................. 3-37
Off-Road Recovery .......................................... 4-15
OilEngine ....................................................... 5-16
Pressure Light ............................................. 3-48
8
Older Children, Restraints ................................ 1-28
Online Owner Center ........................................ 7-4
OnStar
®
System ............................................. 2-45
Other Warning Devices ...................................... 3-6
Outlet Adjustment ............................................ 3-32
Outside
Convex Mirror ............................................. 2-45
Curb View Assist Mirror ................................ 2-44
Heated Mirrors ............................................ 2-45
Power Mirrors ............................................. 2-43
Overheated Engine Protection Operating Mode ..... 5-31
Owner Checks and Services .............................. 6-9
Owners, Canadian ............................................... ii
P
Panic Brake Assist .......................................... 4-12
Parade Dimming ............................................. 3-25
Park (P)
Shifting Into ................................................ 2-35
Shifting Out of ............................................ 2-37
Parking
Brake ........................................................ 2-34
Over Things That Burn ................................. 2-39
Parking Your Vehicle ....................................... 2-38
Passenger Airbag Status Indicator ..................... 3-40
Passenger Compartment Air Filter ..................... 3-33
Passenger Sensing System .............................. 1-58
Passing ......................................................... 4-15
Power
Accessory Outlets ........................................ 3-25
Door Locks .................................................. 2-9
Electrical System ......................................... 5-97
Lumbar Controls ........................................... 1-3
Retained Accessory (RAP) ............................ 2-24
Seat ............................................................ 1-2
Steering Fluid ............................................. 5-37
Windows .................................................... 2-15
Pretensioners, Safety Belt ................................ 1-27
Programmable Automatic Door Locks ................. 2-10
Programming the HomeLink
®
Transmitter ........... 2-48
Q
Questions and Answers About Safety Belts ......... 1-13
R
Radios .......................................................... 3-88
Care of Your CD Player .............................. 3-107
Care of Your CDs ...................................... 3-106
Navigation/Radio System ............................. 3-104
Radio with CD ............................................ 3-89
Setting the Time .......................................... 3-88
Theft-Deterrent .......................................... 3-105
Understanding Reception ............................ 3-106
Reading Lamps .............................................. 3-25
9
Rear Axle ...................................................... 5-48
Limited-Slip ................................................. 4-11
Rear Door Security Locks ................................ 2-10
Rear Safety Belt Comfort Guides ...................... 1-25
Rear Seat Passengers, Safety Belts .................. 1-22
Rearview Mirror, Automatic Dimming
with OnStar
®
.............................................. 2-41
Rearview Mirror, Automatic Dimming
with OnStar
®
and Compass .......................... 2-41
Reclining Seatbacks .......................................... 1-4
Recommended Fluids and Lubricants ................. 6-13
Reconfigurable Steering Wheel Controls ............... 3-7
Recreational Vehicle Towing ............................. 4-38
Remote Keyless Entry System ............................ 2-4
Remote Keyless Entry System, Operation ............ 2-5
Removing the Flat Tire and Installing
the Spare Tire ............................................. 5-80
Removing the Spare Tire and Tools ................... 5-78
Replacement Bulbs ......................................... 5-52
Reporting Safety Defects
Canadian Government .................................. 7-11
General Motors ........................................... 7-12
United States Government ............................ 7-11
Restraint System Check
Checking Your Restraint Systems ................... 1-63
Replacing Restraint System Parts
After a Crash .......................................... 1-63
Restraint Systems
Checking .................................................... 1-63
Replacing Parts ........................................... 1-63
Retained Accessory Power (RAP) ...................... 2-24
Right Front Passenger Position, Safety Belts ...... 1-21
Roadside
Service ........................................................ 7-6
Rocking Your Vehicle to Get it Out .................... 4-33
Roof Rack Provisions ...................................... 2-52
Run-Flat Tires ................................................ 5-61
Running Your Engine While You Are Parked ....... 2-40
S
Safety Belt
Pretensioners .............................................. 1-27
Reminder Light ............................................ 3-38
Safety Belts
Care of ...................................................... 5-91
Driver Position ............................................ 1-14
How to Wear Safety Belts Properly ................ 1-14
Questions and Answers About Safety Belts ..... 1-13
Rear Safety Belt Comfort Guides for
Children and Small Adults ......................... 1-25
Rear Seat Passengers ................................. 1-22
Right Front Passenger Position ...................... 1-21
Safety Belt Extender .................................... 1-27
10
Safety Belts (cont.)
Safety Belt Use During Pregnancy ................. 1-20
Safety Belts Are for Everyone ......................... 1-8
Safety Warnings and Symbols .............................. iii
Scheduled Maintenance ..................................... 6-4
Seats
Head Restraints ............................................ 1-6
Heated Seats ............................................... 1-3
Manual Passenger ......................................... 1-2
Memory ..................................................... 2-54
Power Lumbar .............................................. 1-3
Power Seats ................................................. 1-2
Reclining Seatbacks ...................................... 1-4
Split Folding Rear Seat .................................. 1-6
Securing a Child Restraint
Designed for the LATCH System ................... 1-41
Rear Seat Position ...................................... 1-42
Right Front Seat Position .............................. 1-44
Security Light ................................................. 3-50
Service ........................................................... 5-3
Adding Equipment to the Outside of
Your Vehicle .............................................. 5-5
Doing Your Own Work ................................... 5-4
Engine Soon Light ....................................... 3-45
Publications Ordering Information ................... 7-12
Servicing Your Airbag-Equipped Vehicle .............. 1-62
Setting the Time ............................................. 3-88
Sheet Metal Damage ....................................... 5-94
Shifting Into Park (P) ....................................... 2-35
Shifting Out of Park (P) ................................... 2-37
Signals, Turn and Lane-Change .......................... 3-9
Spare Tire
Installing .................................................... 5-80
Removing ................................................... 5-78
Storing ....................................................... 5-86
Specifications, Capacities ............................... 5-108
Speedometer .................................................. 3-37
Split Folding Rear Seat ..................................... 1-6
Sport Mode Light ............................................ 3-49
Stabilitrak
®
System ......................................... 4-11
Starting Your Engine ....................................... 2-25
Status of Vehicle Systems, DIC ........................ 3-59
Steering ........................................................ 4-12
Steering Wheel Comfort Controls ...................... 3-34
Steering Wheel Controls, Audio ....................... 3-105
Steering Wheel, Reconfigurable Steering
Wheel Controls ............................................. 3-7
Steering Wheel, Tilt Wheel ................................. 3-6
Storage Areas
Center Console Storage Area ........................ 2-51
Convenience Net ......................................... 2-52
Cupholder(s) ............................................... 2-51
Glove Box .................................................. 2-51
Map Pocket ................................................ 2-52
Roof Rack Provisions ................................... 2-52
Stuck in Sand, Mud, Ice or Snow ...................... 4-32
11
Sun Visors ..................................................... 2-17
Sunroof ......................................................... 2-53
System Controls, DIC ...................................... 3-58
T
Tachometer .................................................... 3-38
Taillamps
Turn Signal, Stoplamps and Sidemarker
Lamps .................................................... 5-51
TCS Warning Light .......................................... 3-43
Theft-Deterrent, Radio .................................... 3-105
Theft-Deterrent System .................................... 2-18
Theft-Deterrent Systems ................................... 2-18
Immobilizer ................................................. 2-19
Immobilizer Operation ................................... 2-20
Tilt Wheel ........................................................ 3-6
Tire
Pressure Light ............................................. 3-45
Tires ............................................................. 5-54
Aluminum or Chrome-Plated Wheels,
Cleaning ................................................. 5-93
Buying New Tires ........................................ 5-70
Chains ....................................................... 5-74
Changing a Flat Tire .................................... 5-76
Cleaning .................................................... 5-93
Compact Spare Tire ..................................... 5-87
Tires (cont.)
If a Tire Goes Flat ....................................... 5-75
Inflation -- Tire Pressure ............................... 5-62
Inspection and Rotation ................................ 5-68
Installing the Spare Tire ................................ 5-80
Pressure Monitor System .............................. 5-65
Removing the Flat Tire ................................. 5-80
Removing the Spare Tire and Tools ............... 5-78
Run-Flat ..................................................... 5-61
Storing a Flat or Spare Tire and Tools ............ 5-86
Tire Sidewall Labelling .................................. 5-56
Tire Terminology and Definitions .................... 5-58
Uniform Tire Quality Grading ......................... 5-71
Wheel Alignment and Tire Balance ................. 5-72
Wheel Replacement ..................................... 5-73
When It Is Time for New Tires ...................... 5-69
Top Strap ...................................................... 1-37
Top Strap Anchor Location ............................... 1-39
Towing
Recreational Vehicle ..................................... 4-38
Towing a Trailer .......................................... 4-40
Your Vehicle ............................................... 4-38
Traction
Control System (TCS) ............................ 4-8, 4-10
Control System Warning Light ....................... 3-43
Limited-Slip Rear Axle .................................. 4-11
Stabilitrak
®
System ...................................... 4-11
12
Transmission
Fluid, Automatic ........................................... 5-23
Fluid Hot Message ...................................... 3-55
Fluid, Manual .............................................. 5-24
Transmission Operation, Automatic .................... 2-26
Transmission Operation, Manual ........................ 2-31
Trip Odometers .............................................. 3-37
Trunk ............................................................ 2-12
Turn and Lane-Change Signals .......................... 3-9
Turn Signal/Multifunction Lever ........................... 3-8
U
Understanding Radio Reception ....................... 3-106
Uniform Tire Quality Grading ............................ 5-71
V
Vehicle
Control ........................................................ 4-5
Damage Warnings ........................................... iv
Parking Your ............................................... 2-38
Symbols ......................................................... iv
Vehicle Data Collection and Event Data
Recorders .................................................. 7-10
Vehicle Identification
Number (VIN) ............................................. 5-96
Service Parts Identification Label ................... 5-96
Vehicle Personalization
DIC ........................................................... 3-74
Memory Seat and Mirrors ............................. 2-54
Ventilation Adjustment ...................................... 3-32
Visors ........................................................... 2-17
W
Warning Lights, Gages and Indicators ................ 3-34
Warnings
DIC Warnings and Messages ........................ 3-65
Hazard Warning Flashers ............................... 3-6
Other Warning Devices .................................. 3-6
Safety and Symbols ......................................... iii
Vehicle Damage .............................................. iv
Wheels
Alignment and Tire Balance .......................... 5-72
Replacement ............................................... 5-73
Where to Put the Restraint ............................... 1-36
13
Windows ....................................................... 2-14
Power ........................................................ 2-15
Windshield
Wiper Blades, Cleaning ................................ 5-92
Windshield Washer ......................................... 3-12
Fluid .......................................................... 5-38
Windshield Wiper
Blade Replacement ...................................... 5-53
Fuses ........................................................ 5-97
Windshield Wipers ....................................... 3-11
Winter Driving ................................................ 4-28
Winter Driving Mode Light ................................ 3-49
Wiper Activated Headlamps .............................. 3-21
X
XM™ Satellite Radio Antenna System .............. 3-107
Y
Your Vehicle and the Environment ....................... 6-2
14
